Strattec Security 01060512 Keyless Entry User Manual
Strattec Security Corporation Keyless Entry
User Manual
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 1 of 7
User Manual Information and Product Description
of the
Flap Key – Family BOSCH
with Chevy, GMC and GM Logo
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 2 of 7

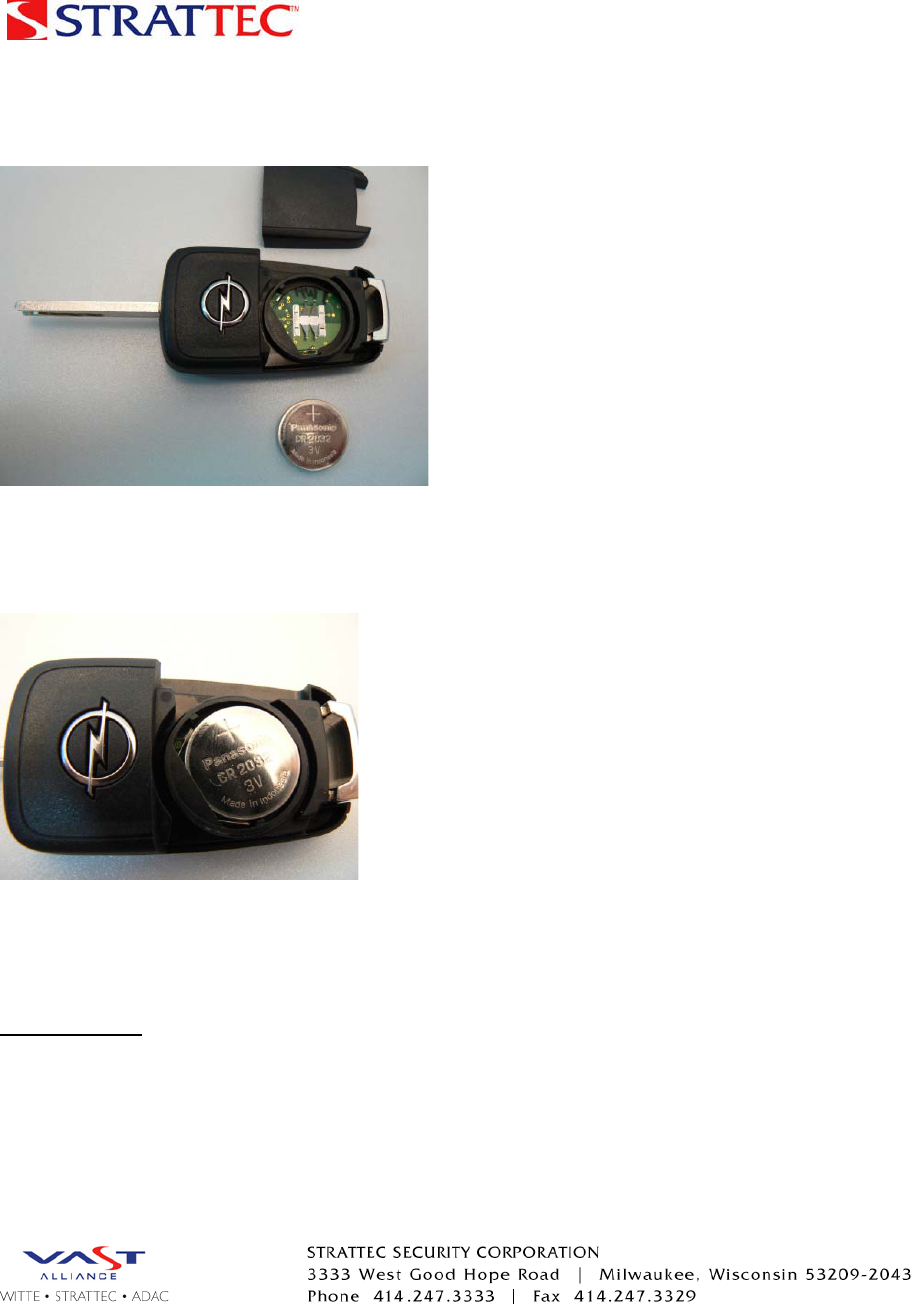

General Description of the RF transmitter:
The RF remote control system consists of a RF transmitter.
The Operation Frequency for the RKE function is 315 MHz and will be used as a
portable device.
The RF transmitter is mechanically integrated into the Key Fob Housing.
This transmitter is used to transmit information for locking or unlocking the vehicle by a
unidirectional RF transmission line for normal remote operation by pressing a button.
Intended environment conditions: - 10 degree Celsius to + 55 degree Celsius
In general the following functions are provided:
- Lock the car
- Unlock the car
- Unlock the trunk of the car
- Panic Alarm
- Remote Start

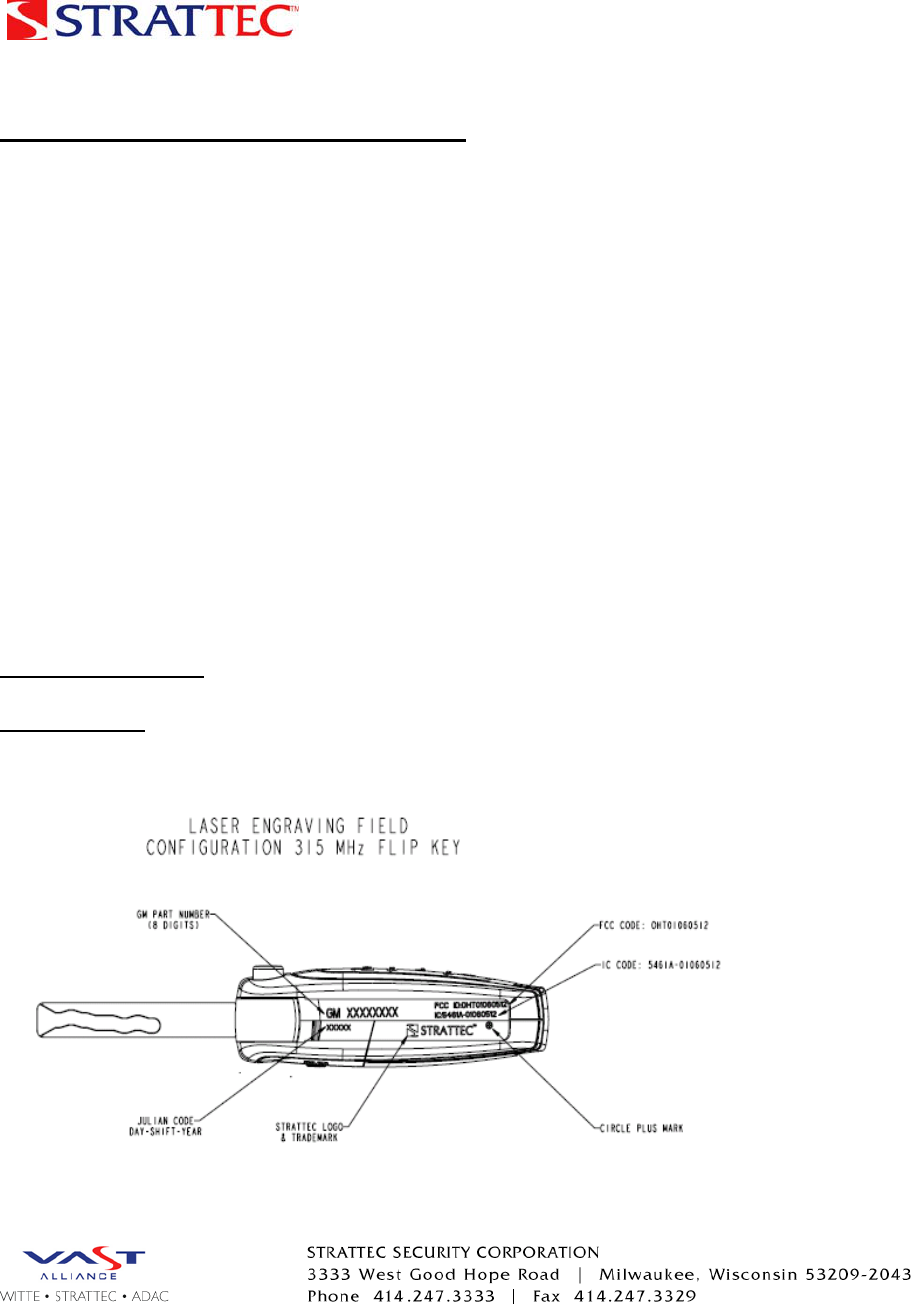

Label Information:
Model Name: Flap Key Family Bosch
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 3 of 7
Variants:
Flap Key Family BOSCH 314.80 MHz (3-5 Buttons):
13504200 5912543 4 Button Chevy
13500222 5911515 4 Button Chevy
13504199 5912545 5 Button Chevy
13500221 5911516 5 Button Chevy
20873621 5913598 3 Button Chevy
20835406 5913281 3 Button Chevy
20873620 5913597 4 Button + RS Chevy
20835404 5913279 4 Button + RS Chevy
13504258 5912547 4 Button GMC
13501513 5910212 4 Button GMC
13504259 5912548 5 Button GMC
13501514 5910213 5 Button GMC
20873623 5913596 3 Button GMC
20835402 5913286 3 Button GMC
20873622 5913595 4 Button GMC
20835400 5913283 4 Button GMC
N/A 5913396 4 Button GM
N/A 5913397 5 Button GM
Remote Keyless Entry:
The hand-held radio Transmitter allows to lock/ unlock the car doors, remotely start the car,
open the trunk and activate the panic alarm within a range of around 100m of the vehicle.
1.) To unlock doors
Press and release the UNLOCK Button on the RF Transmitter once to unlock.
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 4 of 7

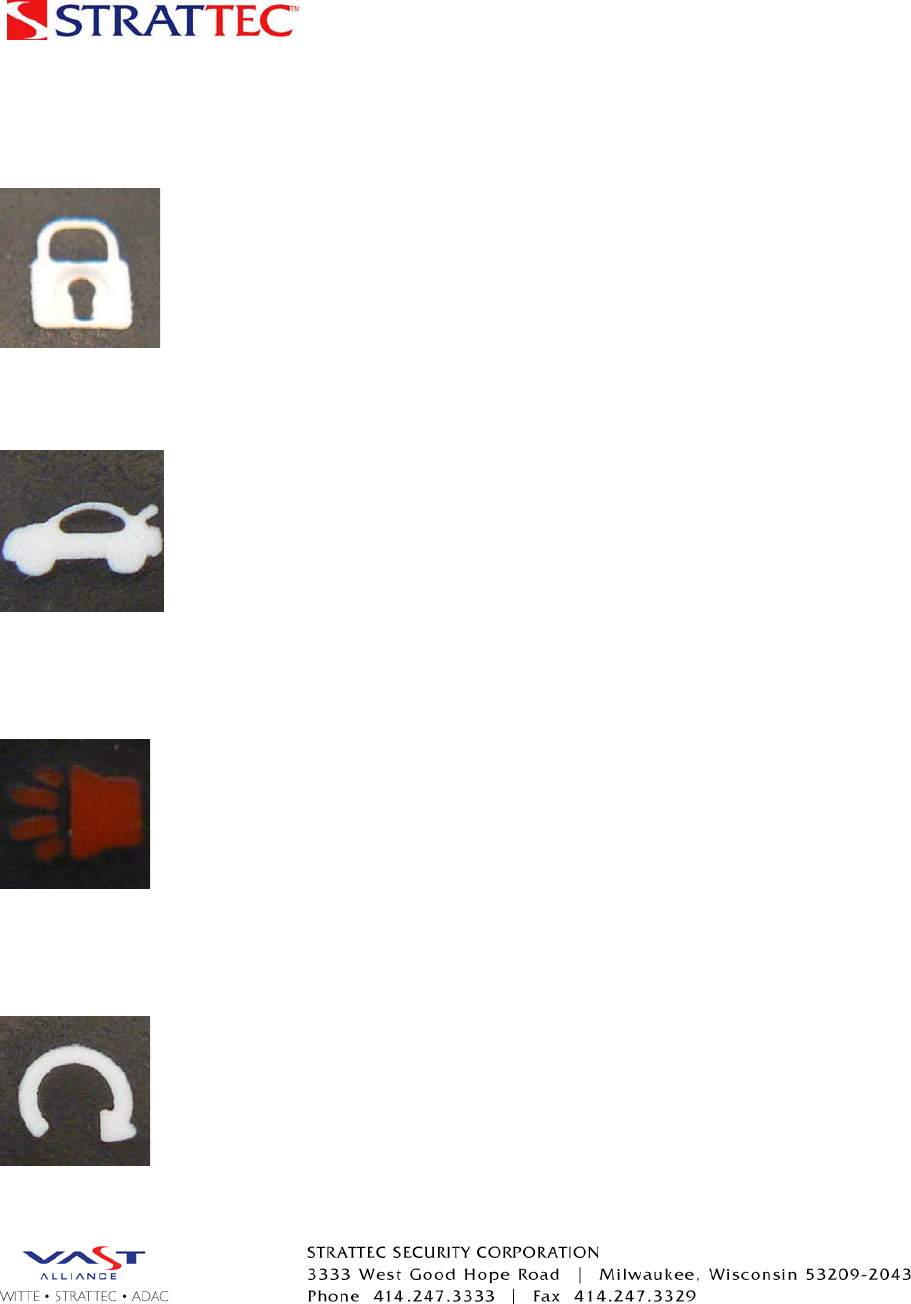

2.) To lock doors
Press and release the LOCK Button on teh RF Transmitter once to lock.
3.) Trunk
Press and release the TRUNK Button on the RF Transmitter once to open the
Trunk.
4.) Panic Alarm
Press and release the PANIC Button on the RF Transmitter once to turn the
Panic Alarm ON and OFF.
5.) Remote Start
This button allows the user to remotely start the engine of the vehicle.
Notes: If any of the buttons are pressed and not released within 60 second duration the RF
transmitter will stop transmitting and shut down to prevent the battery drainage.
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 5 of 7
Power Supply:
The RF transmitter is battery powered with 1 Lithium battery CR 2032, supplying +3V
power, which is installed into the PCB battery holder facing + side down.
The display in the instrument cluster of the vehicle will inform the user when the battery
of the RF transmitter is getting low (weak). The battery indicator light in the instrument
cluster flashes when the battery voltage level is decreasing to a lower than 2.3 V, the
battery should be replaces.
The minimum operating voltage is approximately 2.1 V. If the voltage drops below 2.1 V
the RF transmitter will not operate and battery needs to be replaced.

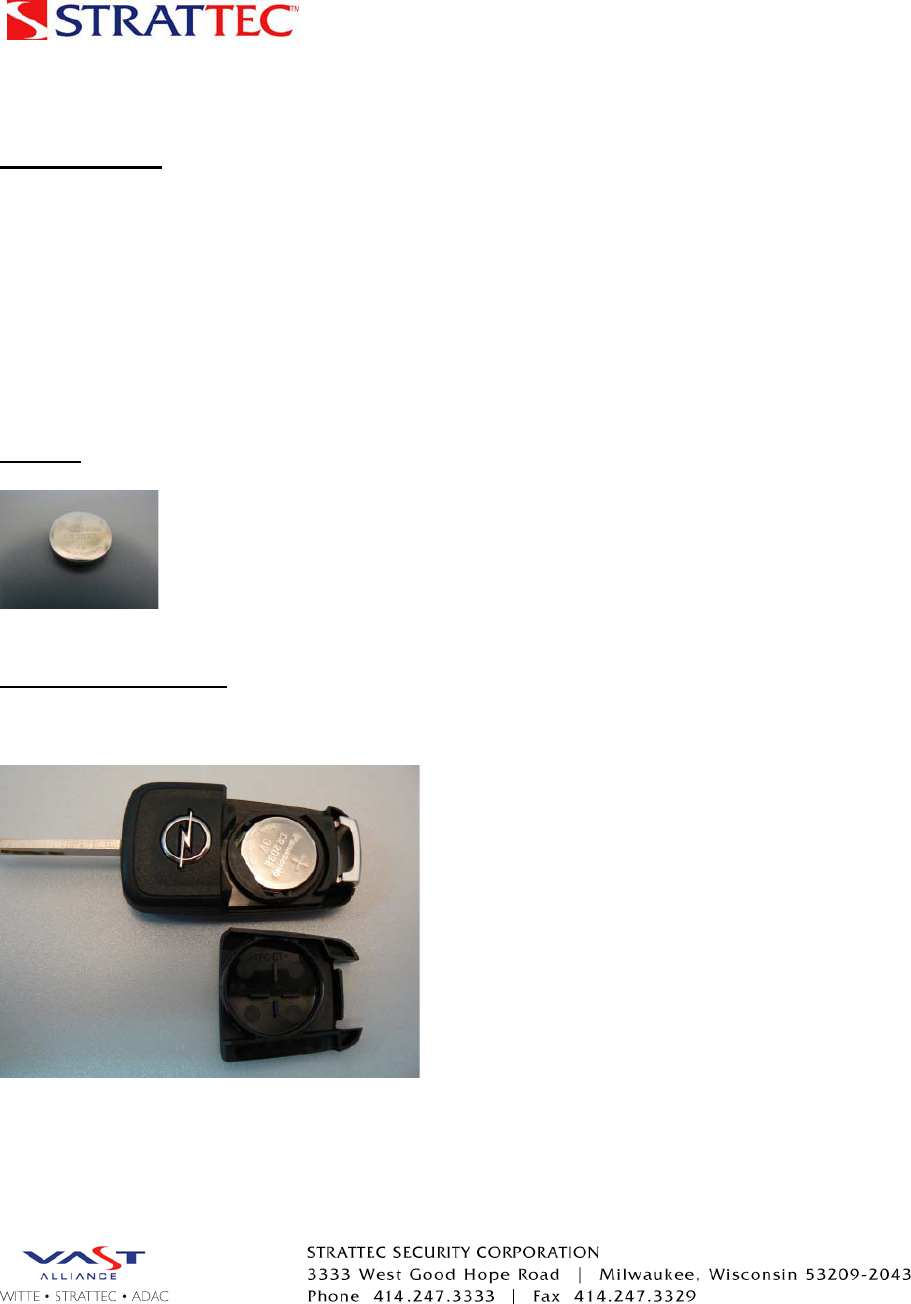

Battery:
Replacing the battery:
Open the battery cover having transmitter buttons facing down.
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 6 of 7
Remove the old battery carefully from the battery compartment.
Replace the new battery +-side facing up. Avoid touching the new batteries with fingers, skin
oils may cause battery deterioration. Do not touch the PCB or the battery clip.

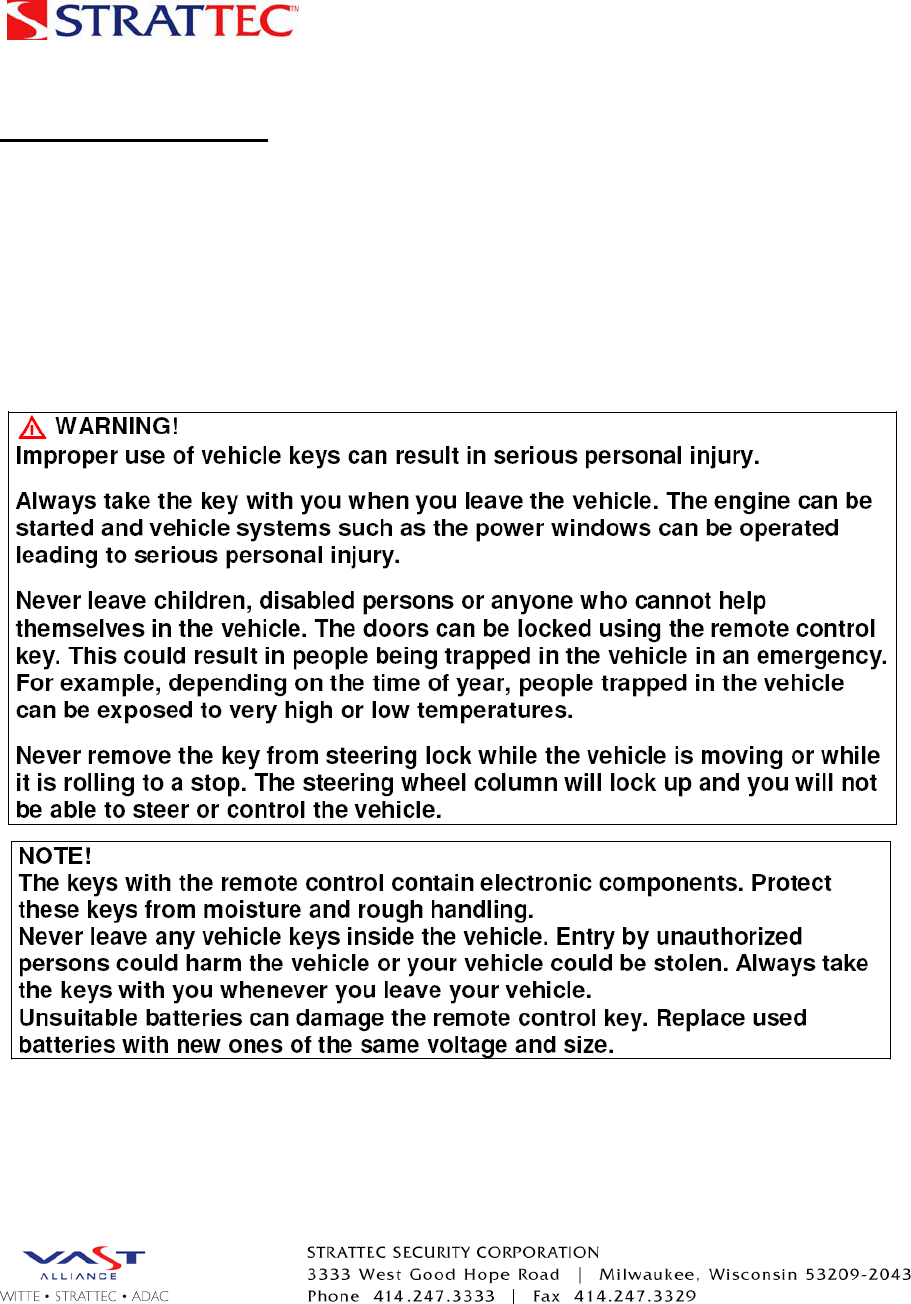

WARNING:
This device complies with the Part 15 of the FCC Rules and with the RDSS-210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
STRATTEC Security Corporation
FCC ID OHT01060512
IC 5461A-01060512
Page 7 of 7
WARNING for End User:
Changes or modifications made to this equipment not expressly approved by STRATTEC
Security Corporation may void the FCC authorization to operate the equipment.
This hand-held radio transmitter is primarily used for vehicle remote locking/ unlocking
(Key less entry) applications. It must be kept away from the reach of children. In the
event of RF Failure the key blade can be used to open the vehicle door or trunk.
