1. Product characteristics
1.1. Overview

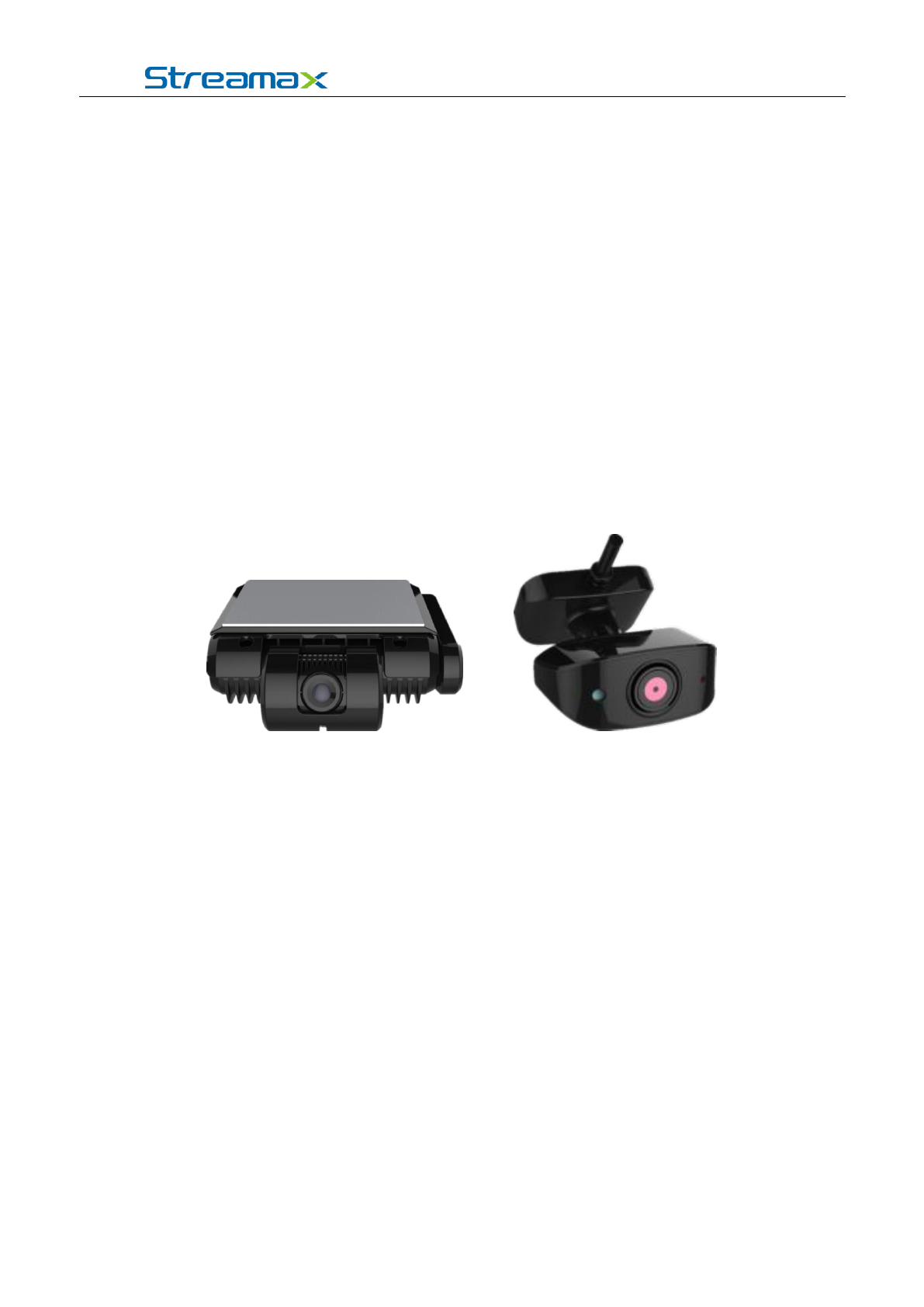

Streamax C6D (3.0) is a kind of cost-effective device designed for mobile video surveillance. Its
characteristics are as follows:
Supports 3G / 4G, Bluetooth, WIFI, 6 axis and other functions, which is easy to install;
It can record the vehicle track for further analysis;
SD card video storage, maximum support 256GB, and it has anti-theft function;
Patented file system to protect passengers’ privacy;
Industrial design requirements, aluminum alloy shell, a large area of heat teeth, good heat
dissipation.
Compact size, light weight. It can be pasted to the glass on the rear side of rearview mirror, which
will not effect the driver driving.
The internal 720P camera is with infrared, recording function, which can clearly capture the driver to
protect the driver’s safety;
The external 1080P camera can clearly record the scene outside. When accidents happen, it could
bu used as evidence for police.
1.2. Specifications
Network
WIFI
Support,option
Bluetooth
Support,option
3G/4G
Support,option
Location
GPS
Support
Sensor
6-axis Sensor
Support
Miles/Time Calculation
Vehicle pulse acquisition
Support
LED
It shows the device working status
The indicator light shows the four states of the device:
Power: the device is powered, the red light is always bright;
Normal operation: green light is always bright;
Fault alarm: indicator red light flashes once a second;
Sleep: green light flashes 1 second and off 10 seconds.
Storage
SD Card
SDXC64G/128G/256G optional
Main stream resolution and
frame rate
Inside: 720P @ 30fps
Outside: 1080P @ 30fps
Max.
Main stream stream 1080P @ 30 frames +
720P @ 30 frames,
Image setting
Brightness, Chroma, Contrast, saturation
and sharpness
Video coding
H.265/H.264
Video compression bit rate
500Kbps～6Mbps
Audio compression standard
ADPCM
User manual for C6D
For more information, please visit our website www.en.streamax.com
3 - 7
General function
Heartbeat mechanism, multi-level user
management
Intelligent alarm
Not support
CBR / VBR
Support
Audio input
Support
Built-in speaker
Built-in speakers for broadcasts, prompting
drivers or passengers
Camera parameters
Sensor(inside vehicle)
1/3" 1.23M pixel CMOS Sensor
Sensor(outside vehicle)
1/2.9" 2M pixel CMOS Sensor
Electronic Shutter
1/30Second-1/100000 Second
Lens
Inside:2.3mm
Outside:4mm
Lens port
M12
Day/Night IR-Cut
Inside: support
Outside: not support
Wide Dynamic Range
Digital Wide Dynamic Range
Black-light Compensation
Support
S/N
≥48db
IR distance
Inside: 3m
Outside: not support
Ports
USB
Mini-B USB2.0
IPC
1 channel
SD card slot
1
SIM card slot
1
RS232
2 channel
Alarm
2 channel
SPEED
1 channel
Sensor IN
2 channel
Power output
5VDC@500mA，12VDC@500mA
Power supply
DC 9~36V
Normal power consumption
6W
Others
Temperature
-30℃~+70℃
Storage temperature
-40℃~+85℃
Humidity
95%

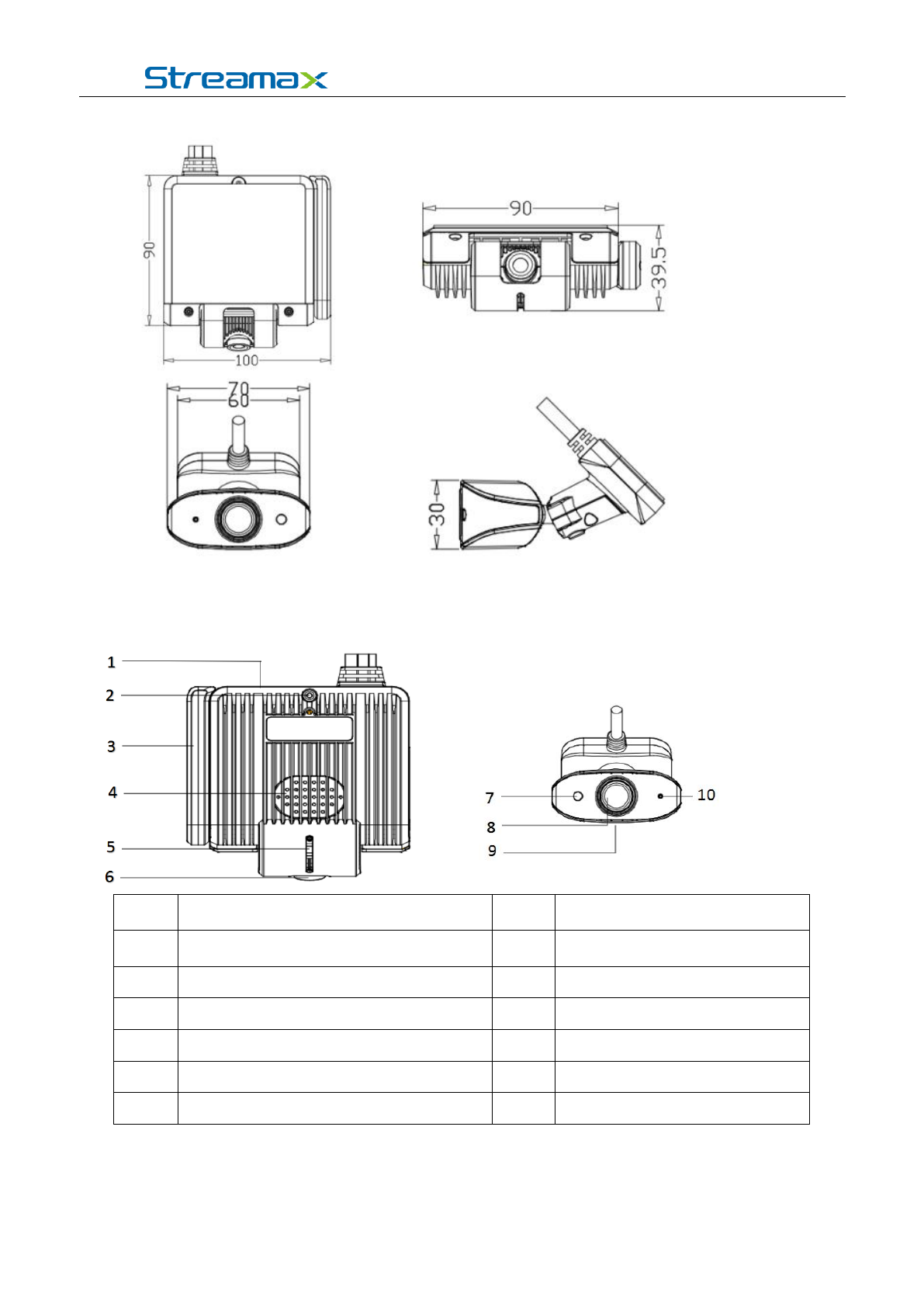

1.3. Dimension (Unit: mm)
User manual for C6D
For more information, please visit our website www.en.streamax.com
4 - 7
1.4. Definition
Items
Definition
Items
1
MIC
7
2
Fixing screw of cover
8
3
Bluetooth & WIFI
9
4
Speaker
10
5
Fixing screw of C6D
6
C6D lens（towards outside）
User manual for C6D
For more information, please visit our website www.en.streamax.com
5 - 7
2. Product installation

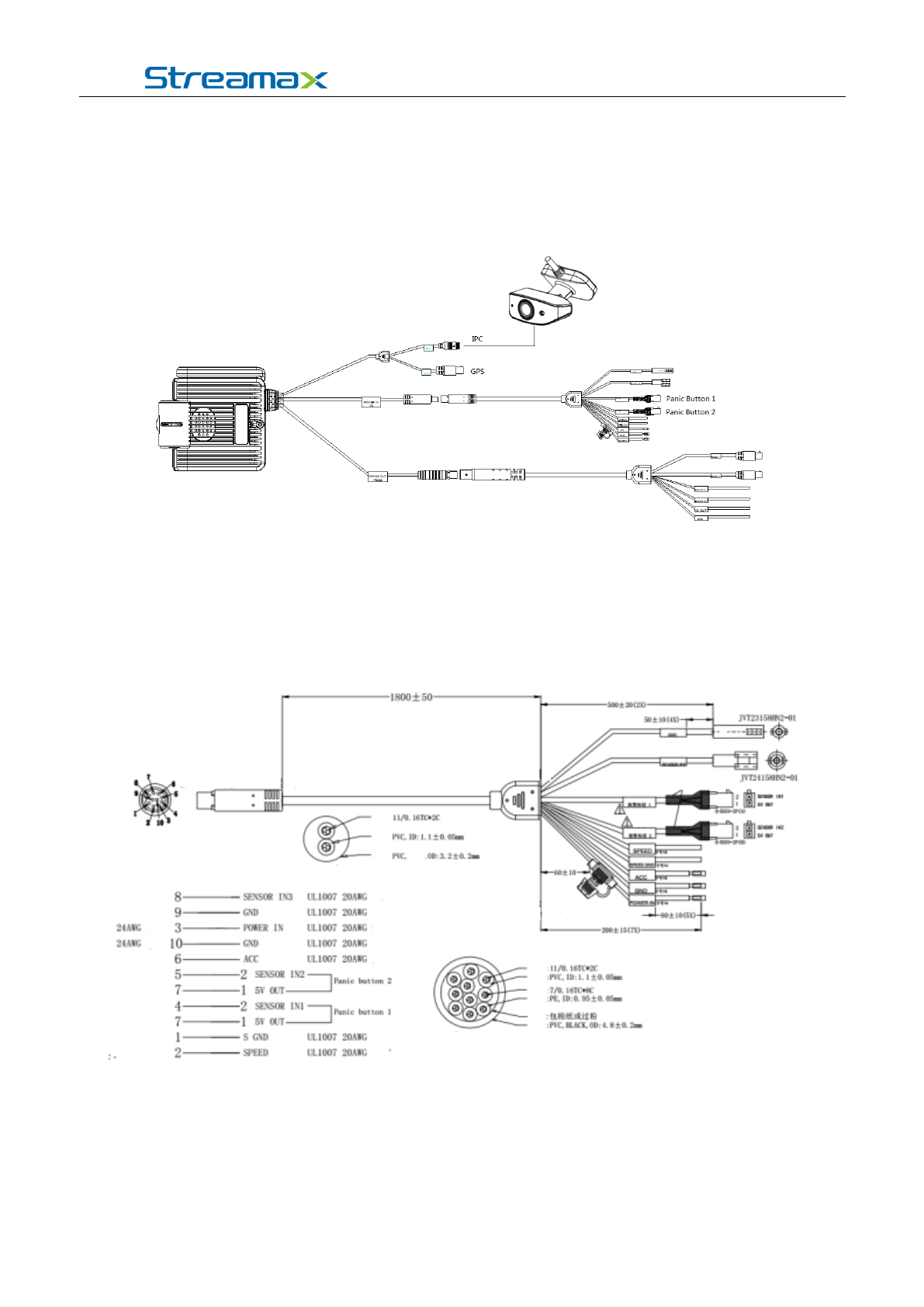

2.1. Diagram
2.2. External cable interface definition
10P signal input line definition:

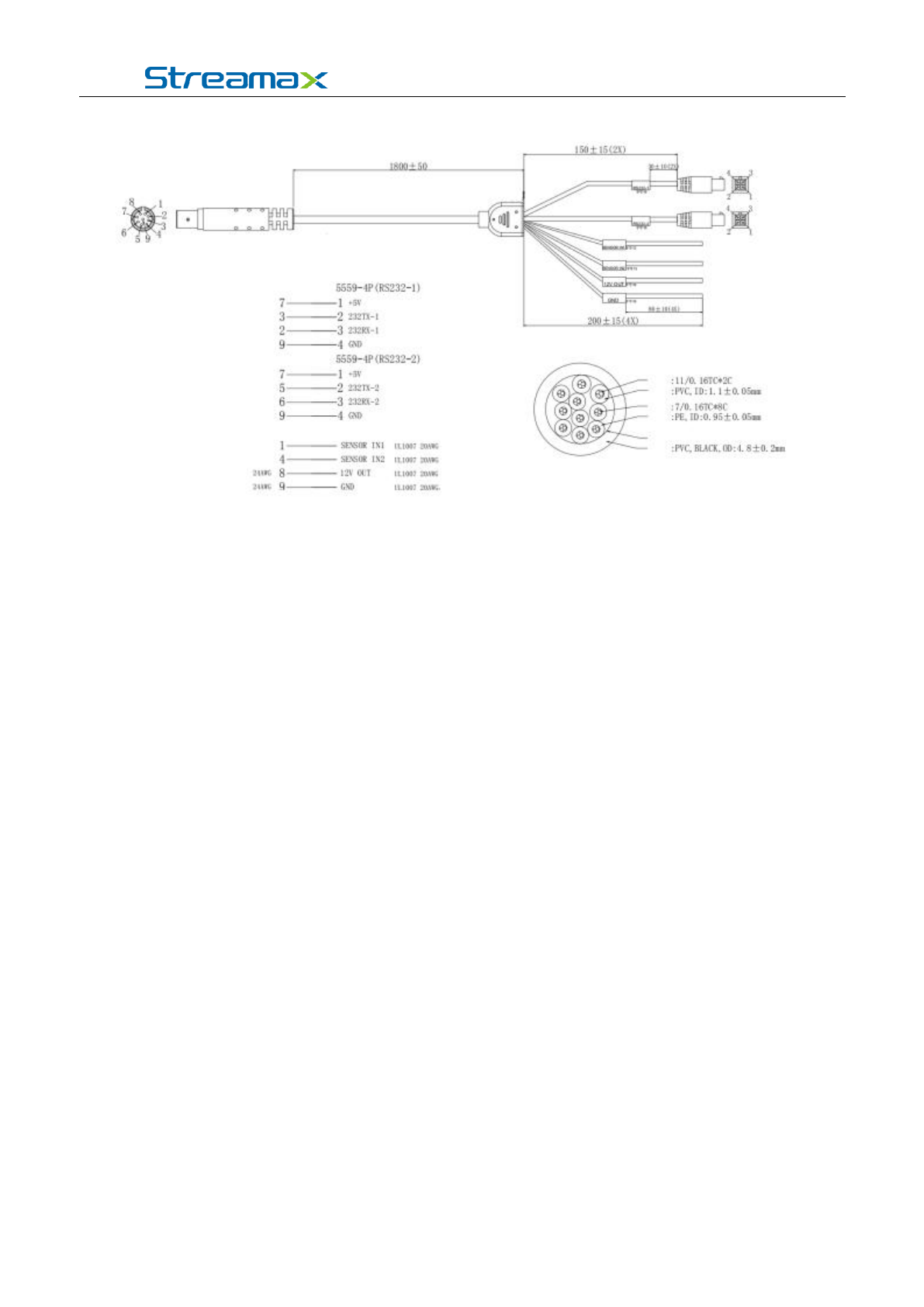

9PIN signal input line definition:(option)
User manual for C6D
For more information, please visit our website www.en.streamax.com
6 - 7
3. FAQ
1) The system can’t start?
a. Check the input power, whether the power wire is connected correctly, whether the ground
wire is connected back to the battery, and whether the fuse on the power wire is in good
condition.
b. Check whether the ACC signal wire input to the power is with voltage higher than 7 V.
2) The device restarts uninterruptedly?
a. Check whether the voltage of MDVR is insufficient. If the voltage is less than the start-up
voltage of the device, the device would always restart.
b. The problem in hard disk/SD card may cause the failure to start. Take off the storage part
and check whether it is broken down.
3) The device can’t record?
a. Check whether the storage disk is installed, whether it is in good contact, and whether the
disk can be read normally in computer.
b. Check whether the storage disk is formatted. The storage disk should be formatted before
normally storing record files.
c. Check whether there is video signal input into the device from camera, and whether there is
video/image on the screen.
4) There is no voice in record file?
a. Check whether there is an external pickup, or whether the camera features with the
User manual for C6D
For more information, please visit our website www.en.streamax.com
7 - 7
function of audio collection.
b. Access to Video Channel Settings, check if Audio is set on.
c. There must be video input into the channel for recording and it must record normally.
5) The GPS works abnormally?
a. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS
antenna holder behind the host device.
b. Check whether the antenna receiver is sheltered. It should not be covered by any stuff,
which may cause it not to receive signals.
c. Environmental influence such as tree shades, being inside tunnel, driving near tall building
or elevated roads, thunderstorms or other weather influence, etc. can also cause signal
loss or receiving wrong signals.
6) The device can’t shut down in ignition switch mode?
a. Check if the ACC line connection mode is correct; and check whether there is voltage on
ACC yellow line when the key is turned off.
b. If the device has been set with schedule recording, it can’t shut down if it is still during
recording time of the task table.
4. WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following tw
o conditions:
(1) This device may not cause harmful interference
(2) this device must accept
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF exposure warning statements
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment shall be installed and operated with
minimum distance 20cm between the radiator & body.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
