Welcome to LifeSpan,
Congratulations on choosing the LifeSpan Pro Series for your tness or exercise area. Performance and durability are at
the heart of each Pro Series model, which include commercial warranties that cover institutional use up to nine hours per
day.
We start with a heavy gauge robotically welded steel frame, then add top-of-the-line components like a heavy-duty motor
and heavy duty deck. e results are treadmills that deliver a smooth and consistent workout for every user that will last
for years to come.
To make the Pro Series easy to use, we include our Intelli-KeyTM system that simply and easily steps the user through the
program set-up process. For motivation, we include a variety of pre-set programs, including heart rate control programs.
is gives your customers the programming variety they appreciate.
Please read this manual thoroughly before assembly and operation of your LifeSpan Pro Series treadmill. It includes
assembly and maintenance information, as well as a detailed operation guide.
To keep your treadmill in optimal condition, please pay attention to the maintenance and cleaning section of this manual.
Remember that some kinds of service should only be performed by a qualied service technician. If service is required,
please contact your authorized LifeSpan dealer. If a question or problem arises that cannot be answered by your dealer,
please complete a customer support form at www.lifespantness.com/customer-service:
North America:
P.O. Box 981316
Park City, Utah 84098-1316
Phone: 801.973.9993
Fax: 801.973.9923
www.lifespantness.com/
customer-service
International:
Contact your local distributor
or visit: www.lifespantness.com/
customer-service
Neither LifeSpan nor its representatives can accept responsibility for any damages or injury incurred as a
result of information presented in this manual except under the terms of the product warranty.
om in2.indd 1 7/29/14 9:04 AM
2
om in2.indd 2 7/29/14 9:04 AM
TR7000i/TR8000i
Treadmill
3
Welcome
Specications
Warranty Information
Important Safety Precautions
FCC Certication
Grounding and Power Requirements
Assembly Instructions
Display Console Overview
Reading Your Heart Rate
Operating Your Treadmill
Innovative Features
Cleaning and Maintenance
Moving Your Treadmill
Belt Tension and Alignment
Troubleshooting
Engineering Mode
Test Mode
Table of Contents
1
4
6
7
10
11
12
22
24
25
28
29
30
31
32
33
34
om in2.indd 3 7/29/14 9:04 AM
4
Large 6.5” back-lit LCD screen with scrolling alphanumeric messaging,
program prole, showing workout progress, and simultaneous display
of all readouts. Three additional LED displays with readouts for time,
speed, and incline
Program name, date and time, speed, incline, distance, calories, steps,
heart rate, and pace
Two heart rate control programs, and 17 programs grouped by
exercise motivation type for weight loss, healthy living, and sports
training
Yes
2 USB ports to automatically save your exercise data and charge your
wireless mobile device simultaneously
Wirelessly connect to your supported iPad or Android device for
additional console readouts and functionality.
Grip pulse and heart rate receiver
Book, magazine, and tablet computer holder
Button lighting system prompts users through program set-up and
operations
Magnetic safety clip, when detached, immediately turns o power,
bringing the treadmill to a gentle stop
Standard and metric settings
English
22” W x 62” L (56cm W x 157.5cm L)
3.5 HP Continuous Duty AC
Multi-ply polyester belt with PVC non-slip surface
1000 lbs. (453.6 kg) thrust
3.0” (7.5cm) crown rollers keep belt centered
0.5 - 12 MPH (0.8 - 20 KPH)
0 - 15%
Independent shock absorbers
1” (2.54cm) melamine laminated reversible deck medium-density
ber board
80.5” L x 36.5” W x 61” H (204.5cm L x 93.2cm W x 154.9cm H)
8” (20cm)
400 lbs. (181.4 kg)
368 lbs. (167 kg)
422 lbs. (191.8 kg)
Specications (TR7000i)
Display:
Readouts:
Programs:
Quickstart:
USB Ports:
Bluetooth:
Heart Rate:
Media Holder:
Intelli-Key™:
Emergency Stop:
Units of Measure:
Language Support:
Belt Size:
Drive Motor:
Belt Type :
Incline Motor:
Rollers:
Speed:
Incline:
Deck Suspension:
Deck:
Dimensions:
Step-Up Height:
Max. User Weight:
Net Weight:
Gross Weight:
Certications: CE/ETL US and CA /FCC Class SB EN 20957-1, EN 957-6
om in2.indd 4 7/29/14 9:04 AM
TR7000i/TR8000i
Treadmill
5
Large 6.5” back-lit LCD screen with scrolling alphanumeric messaging,
program prole, showing workout progress, and simultaneous display
of all readouts. Three additional LED displays with readouts for time,
speed, and incline
Program name, date and time, speed, incline, distance, calories, avg.
heart rate, heart rate, and pace
Two heart rate control programs, reverse walking, and 17 programs
grouped by exercise motivation type for weight loss, healthy living,
and sports training
Yes
2 USB ports to automatically save your exercise data and charge your
wireless mobile device simultaneously
Wirelessly connect to your supported iPad or Android device for
additional console readouts and functionality.
Grip pulse and heart rate receiver
Book, magazine, and tablet computer holder
Button lighting system prompts users through program set-up and
operations
Magnetic safety clip, when detached, immediately turns o power,
bringing the treadmill to a gentle stop
Standard and metric settings
English
22”W x 60”L (56cm W x 152.4cm L)
5 HP Permanent Magnet AC
Multi-ply polyester belt with PVC non-slip surface
1000 lbs. (453.6 kg) thrust
3.0” (7.5cm) crown rollers keep belt centered
Forwards: 0.1 to 12 MPH / 0.2 to 20 KPH
Backwards: -0.1 to -3 MPH / -0.2 to -5KPH
3 decline - 12 incline
Independent shock absorbers
1” (2.54cm) melamine laminated reversible deck medium-density
ber board
Hospital grade cord (US/CA only)
80.5” L x 39” W x 62” H (204.5cm L x 99cm W x 157.5cm H)
9.5” (24cm)
500 lbs. (225 kg)
408 lbs. (185 kg)
454 lbs. (206 kg)
Specications (TR8000i)
Display:
Readouts:
Programs:
Quickstart:
USB Ports:
Bluetooth:
Heart Rate:
Media Holder:
Intelli-Key™:
Emergency Stop:
Units of Measure:
Language Support:
Belt Size:
Drive Motor:
Belt Type :
Incline Motor:
Rollers:
Speed:
Incline:
Deck Suspension:
Deck:
Power Cord:
Dimensions:
Step-Up Height:
Max. User Weight:
Net Weight:
Gross Weight:
Certications: CE/ETL US and CA /FCC ID: 2AB9OTR8000I/ Class SA EN 20957-1, EN 957-6
om in2.indd 5 7/29/14 9:04 AM
6
Warranty Information
The LifeSpan TR7000i/TR8000i Treadmill comes with the following limited warranty.
*Warranties outside of North America may vary.
Residential Commercial
Treadmill Usage: - 6 hrs/day
Treadmill Frame: Lifetime 10 Years
Motor: Lifetime 5 Years
Parts: 5 Years 5 Years
Labor: 2 Years 1 Year
LifeSpan warrants that the equipment it manufactures is free from defects in materials and workmanship under
normal use and services. The periods above are based on the date of purchase. During these periods, LifeSpan
will repair or replace any defective part. Free labor is included on all parts that are not normally assembled or
replaced by the customer, within the labor period.
If within the time frames specied above, any part fails to operate properly, login to our website at
www.lifespantness.com, click on Customer Support and complete the form to request assistance. Or call
877.654.3839 x4 for a Customer Support Agent.
LifeSpan reserves the right to make changes and improvements to our product without incurring any obligations
to similarly alter any product purchased. In order to insure our product warranty and to ensure the safe and
ecient operation of your LifeSpan product, only authorized parts can be used. The warranty is void if any parts
other than those provided by LifeSpan are used.
Exclusions and Limitations:
• This warranty does not apply to any defects caused by negligence, misuse, improper assembly, or
maintenance, accident, or “act of god.”
• This warranty does not apply to discoloration of paints or plastics.
• LifeSpan shall not be responsible for incidental or consequential damages.
• This warranty is nontransferable form the original owner.
Registration
You must register your LifeSpan product before a warranty claim can be processed. To complete your registration
online go to www.lifespantness.com/reg_lifespan. Registration must be completed within 30 days of purchase
to activate the Product Warranty. Product Warranties are not valid unless the registration is properly completed
within 30 days.
om in2.indd 6 7/29/14 9:04 AM
TR7000i/TR8000i
Treadmill
7
Important Safety Precautions
When using exercise equipment, basic precautions should always be followed, including:
• Never drop or insert any object into any opening. If an object falls into an opening, turn the
power o and unplug the power cord from the outlet. Remove the object or call customer
service.
• Never operate this treadmill if it has been damaged or even partially submersed in water.
• To reduce the risk of electric shock, unplug the treadmill from the wall outlet when not in use,
before performing any maintenance, or before moving the treadmill.
• Do not use outdoors or in areas of high humidity or extreme temperature changes.
• Do not lean against or climb on the treadmill.
• Wear shoes with high traction rubber soles. Do not wear shoes with heals, leather soles, cleats or
spikes.
• Do not operate where aerosol spray products are being used or where oxygen is being
administered.
• Never place the power cord under carpeting or place any object on top of the cord, this may
pinch or damage the cord causing re damage or personal injury.
• Use this exercise product for its intended use as described in this Owner’s Manual. Do not use
attachments that are not recommended by LifeSpan.
• Do not leave your treadmill running while not in use.

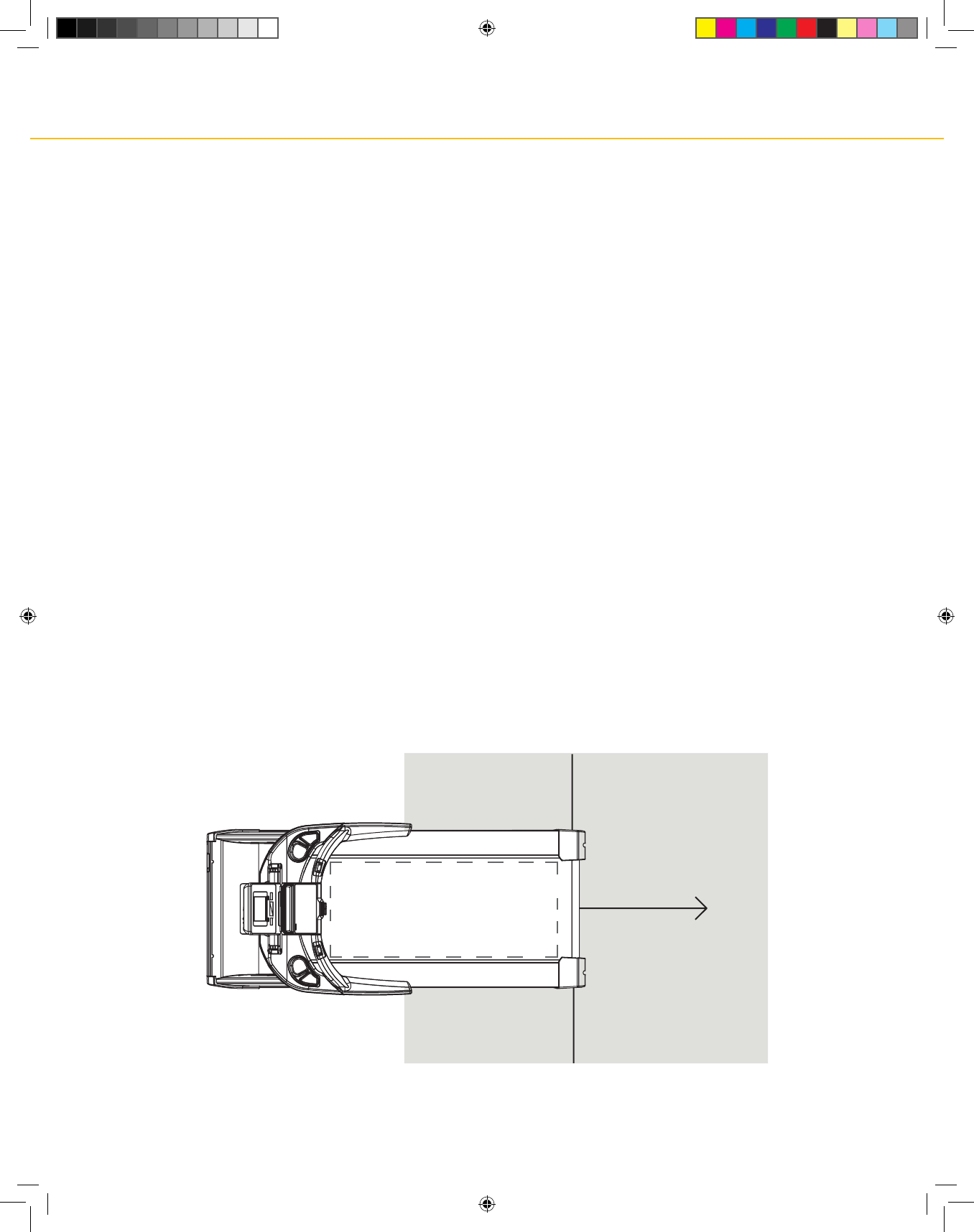

• Keep the treadmill on a solid surface, with the side rails and front a minimum of two feet (0.61m)
from any walls or furniture. Make sure that the area behind the treadmill remains completely clear
during use. A minimum of 7 feet (2.1m) of clearance is required for safety reasons.
2 feet
0.61m
eet
0.61m
Running
Surface
55” x 21”
138cm x 53cm
2 f
7 feet
2.10m
om in2.indd 7 7/29/14 9:04 AM
8
Children and Pets
• Keep children from playing on your treadmill at all times.
• When in use children and pets should be kept at least 10 feet (3m) away.
• This appliance can be used by children ages 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Other Safety Tips
• Always consult a physician before beginning this or any exercise program.
• If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• Do not wear clothing or jewelry that might catch on any part of the treadmill.
• This treadmill is equipped with a safety key. Always clip the cord that is attached to the safety key
to a part of your clothing so the key will be pulled, stopping the treadmill, in case of emergency.
Warning! Heart rate monitoring systems may be inaccurate. Over exercising may result in serious
injury or death. If you feel faint stop exercising immediately.
Note: Read all instructions and save for future use.
om in2.indd 8 7/29/14 9:04 AM
9
TR7000i/TR8000i
Treadmill

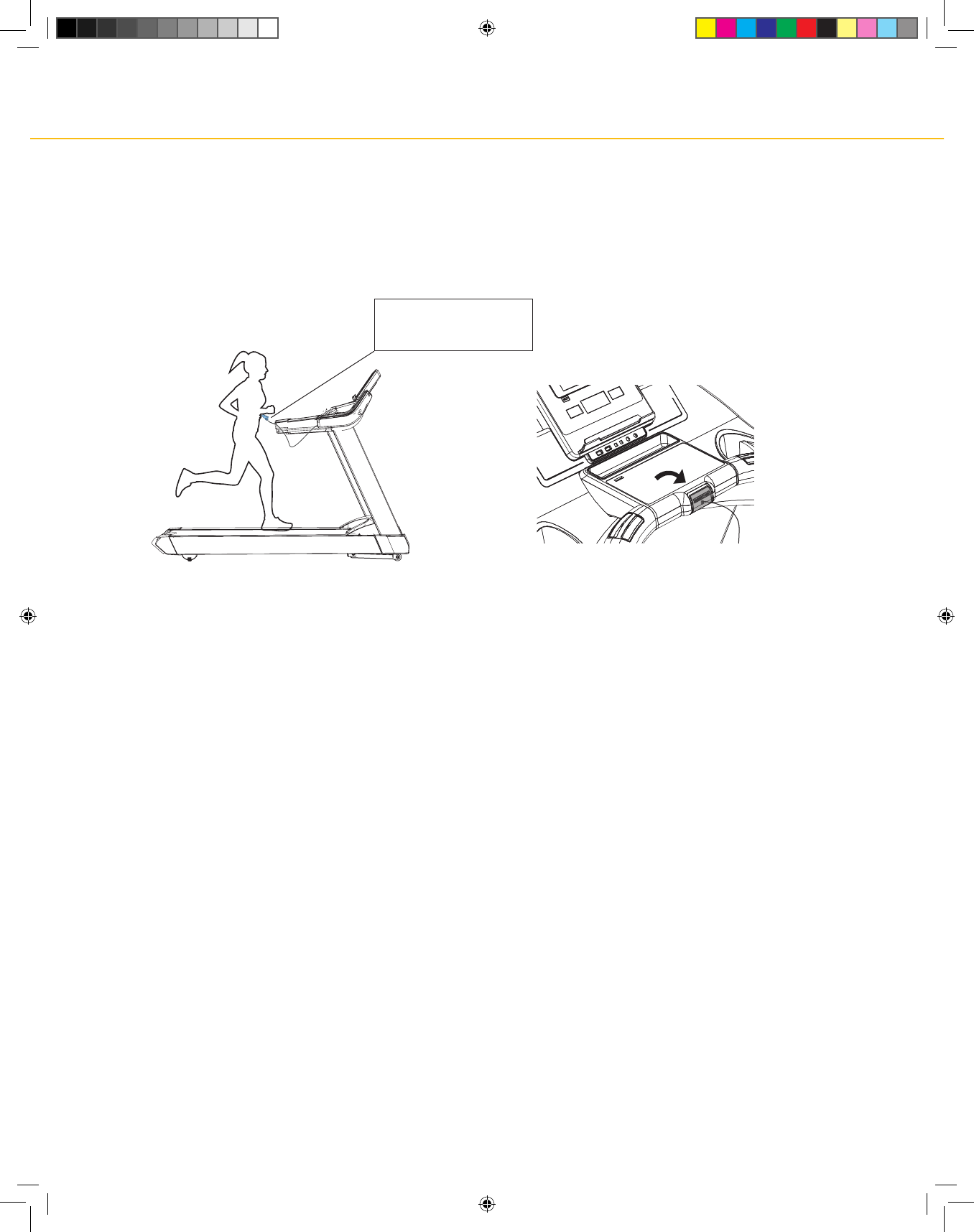

Securely attach Safety
Key clip in case of a fall.
Safety Stop Key
• With the safety key engaged (pushed in) the treadmill is operational.
• Disengaging (pulling) the safety key turns power o to the motor making the treadmill
inoperable.
Caution:
• For your safety always attach Safety Key clip to an article of clothing prior to use. The Safety Key
clip needs to be securely attached to clothing parallel to or above the height of the safety key.
• While walking or running always use the correct ergonomic position.
• In case of emergency, grab on to the side hand rails and place your feet on the side rails located
on each side of the running belt.
• Do not walk or run backwards on the treadmill, always face forward while using the reverse
program.
• Allow the running belt to fully stop prior to getting o the treadmill.
om in2.indd 9 7/29/14 9:04 AM
10
FCC Certication
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one of more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
WARNING: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
(1) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm
must be maintained between the antenna of this device and all persons. (2) This transmitter must not
be co-located or operating in conjuction with any other antenna or transmitter.
om in2.indd 10 7/29/14 9:04 AM
11
TR7000i/TR8000i
Treadmill
Grounding and Power Requirements
LifeSpan equipment must be grounded. Improper connection of the equipment’s grounding conductor
can result in the risk of electric shock. Check with a qualied electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the
product or use a ground plug adapter to adapt to a non-grounded outlet. If the plug will not t in the
outlet, have the proper outlet installed by a qualied electrician.
An extension cord should not be used between the equipment and the wall outlet.
The unit should not be plugged into a GFI plug or on a GFI circuit. The unit may not work as it may trip
the GFI circuit.

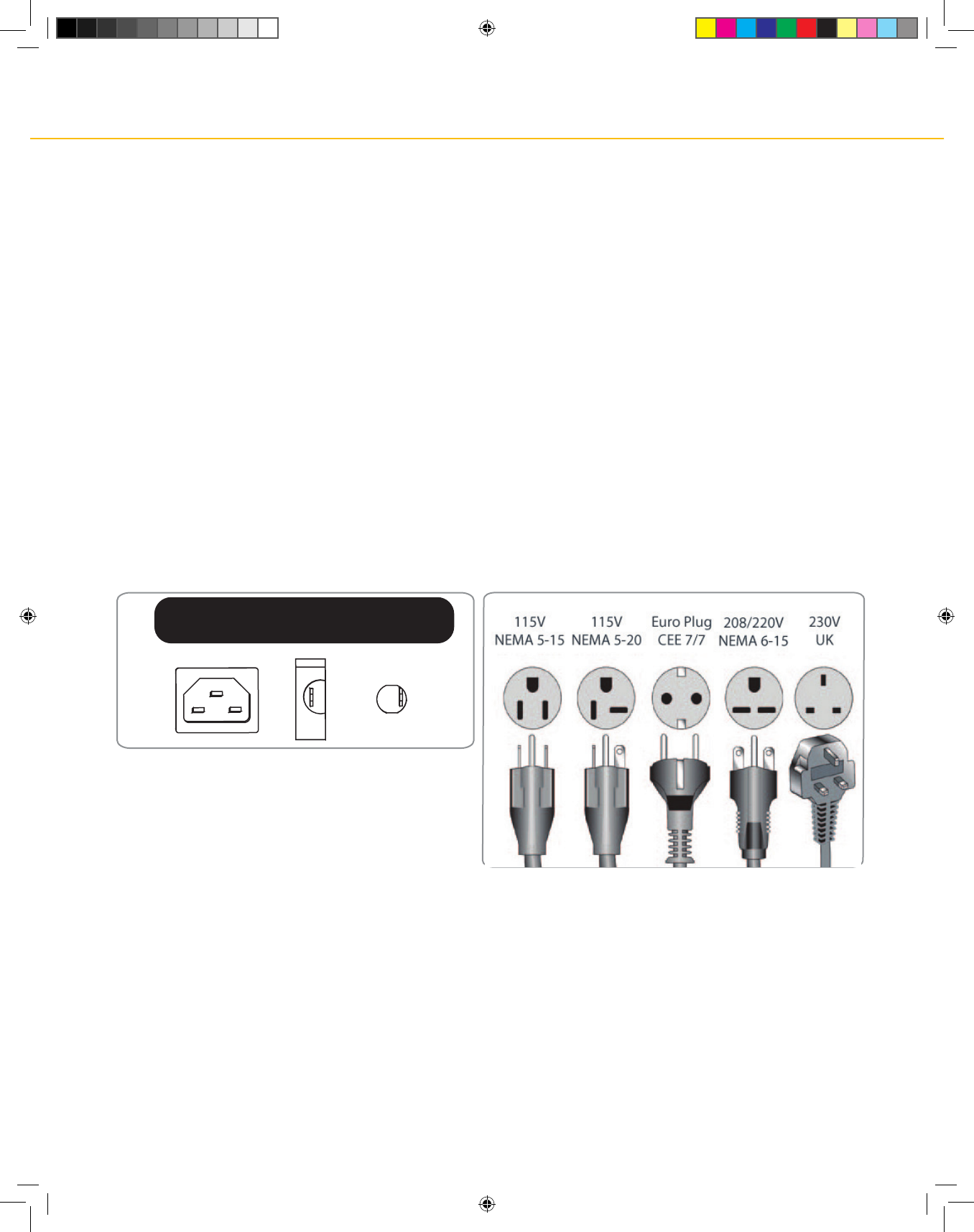

This product should only be run on the proper power designed for this unit. To locate the proper power
outlet for your area please refer to FIG. 2 (example for the U.S. and Canada, these units require a 115 V
NEMA 5 - 15 non GFI circuit.)
CORD SOCKET
SWITCH-
AC POWER
OVERLOAD
SWITCH
FIG. 1
FIG. 2
om in2.indd 11 7/29/14 9:04 AM
12

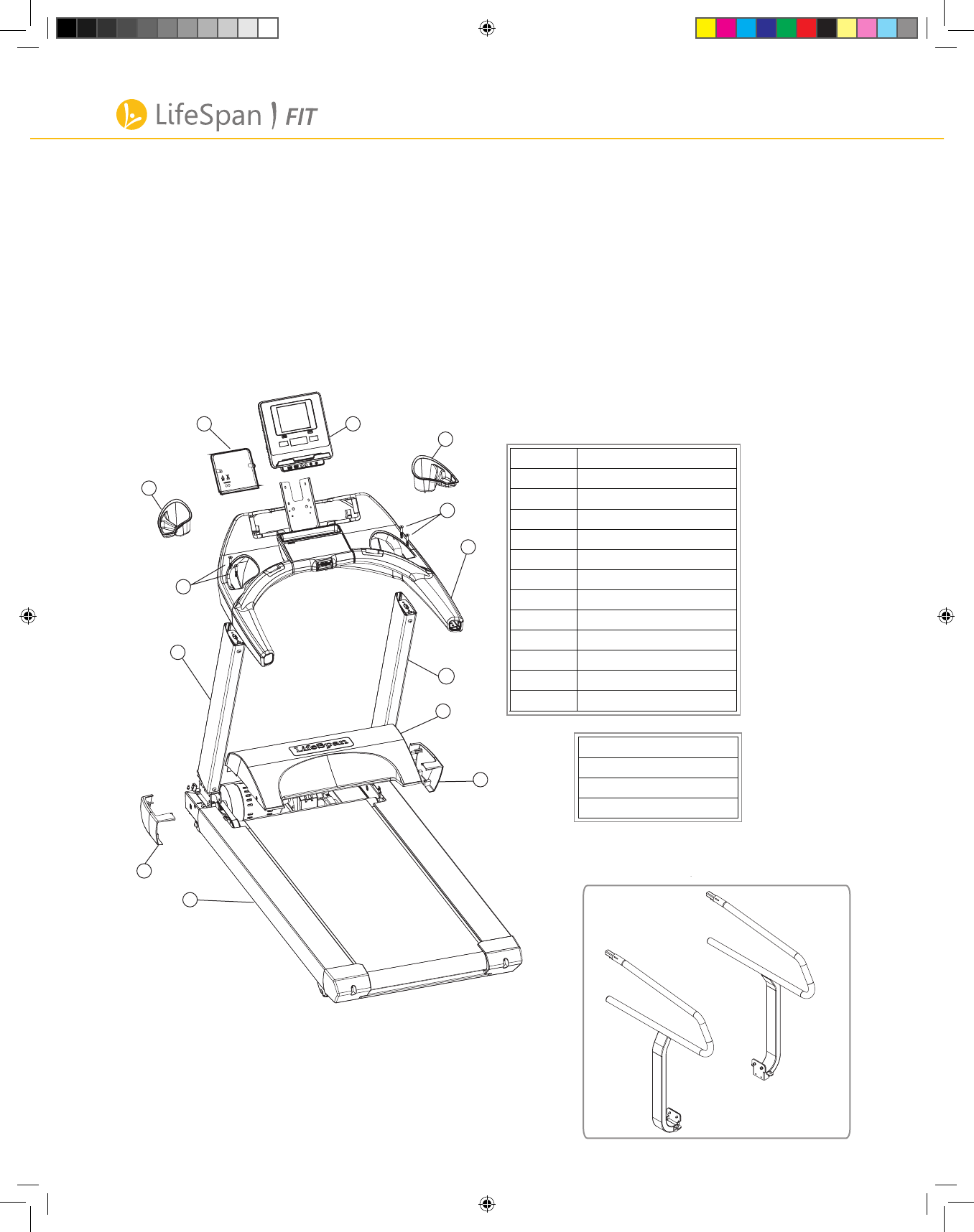

Item# Description
1 Main Frame
2 Left Accessory Tray
3 Right
4 Left Support Post
5 Right Support Post
6 Motor Cover
7 Handlebar Assembly
8 Left Support Post Cover
9 Console Access Panel
10 Console
11 Bolts M8 x 55
12 Right Support Post Cover
Accessory Tray
3
2
5
10
9
4
11
1
8
12
6
7
11
Tools Required
Phillips Screwdriver
5 mm Allen Wrench
6 mm Allen Wrench
Medical Handlebars
(Optional TR7000i)
(Standard TR8000i)
Assembly
At LifeSpan we strive to make our equipment easy to assemble and start using. Parts that can be pre-assembled
are always assembled and tested on the production line.
Prior to starting the assembly process take all of the parts out of the box, remove plastic bags and lay them out
on the oor to become familiar with the components.
Since your treadmill is a heavy piece of equipment it is recommended that you use two people during assembly
and follow these assembly instructions to reduce any problems that could occur.
om in2.indd 12 7/29/14 9:04 AM
13
TR7000i/TR8000i
Treadmill
Step 1: Unpacking Treadmill
A. Cut packaging straps and remove.
B. Remove the box top.
C. Remove small parts and packaging material and unwrap parts.
D. Cut corners of the bottom box and remove all packaging material to begin assembly. The treadmill can be
assembled in the box. No need to pick the treadmill up to remove it from box.
Note: All hardware, except for the handlebar attaching bolts (11), are pre-installed in the treadmill
components. Bolt (11) will be found in the hardware bag.

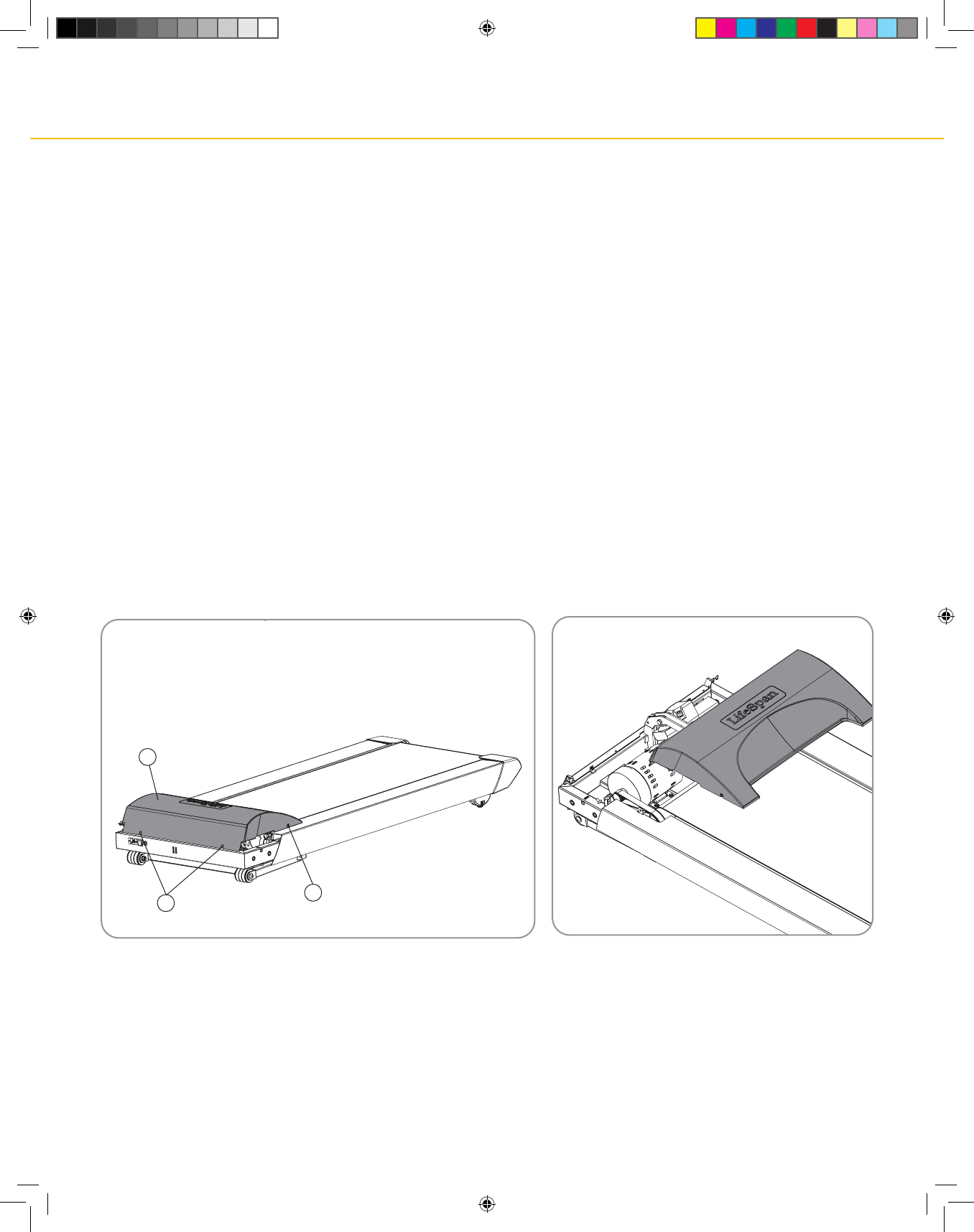

Step 2: Remove Motor Cover
A. Loosen (do not remove) the four screws (13) along the bottom edge of the motor cover (6).
B. Lift the motor cover straight up to remove.
6
13 13
om in2.indd 13 7/29/14 9:04 AM
14

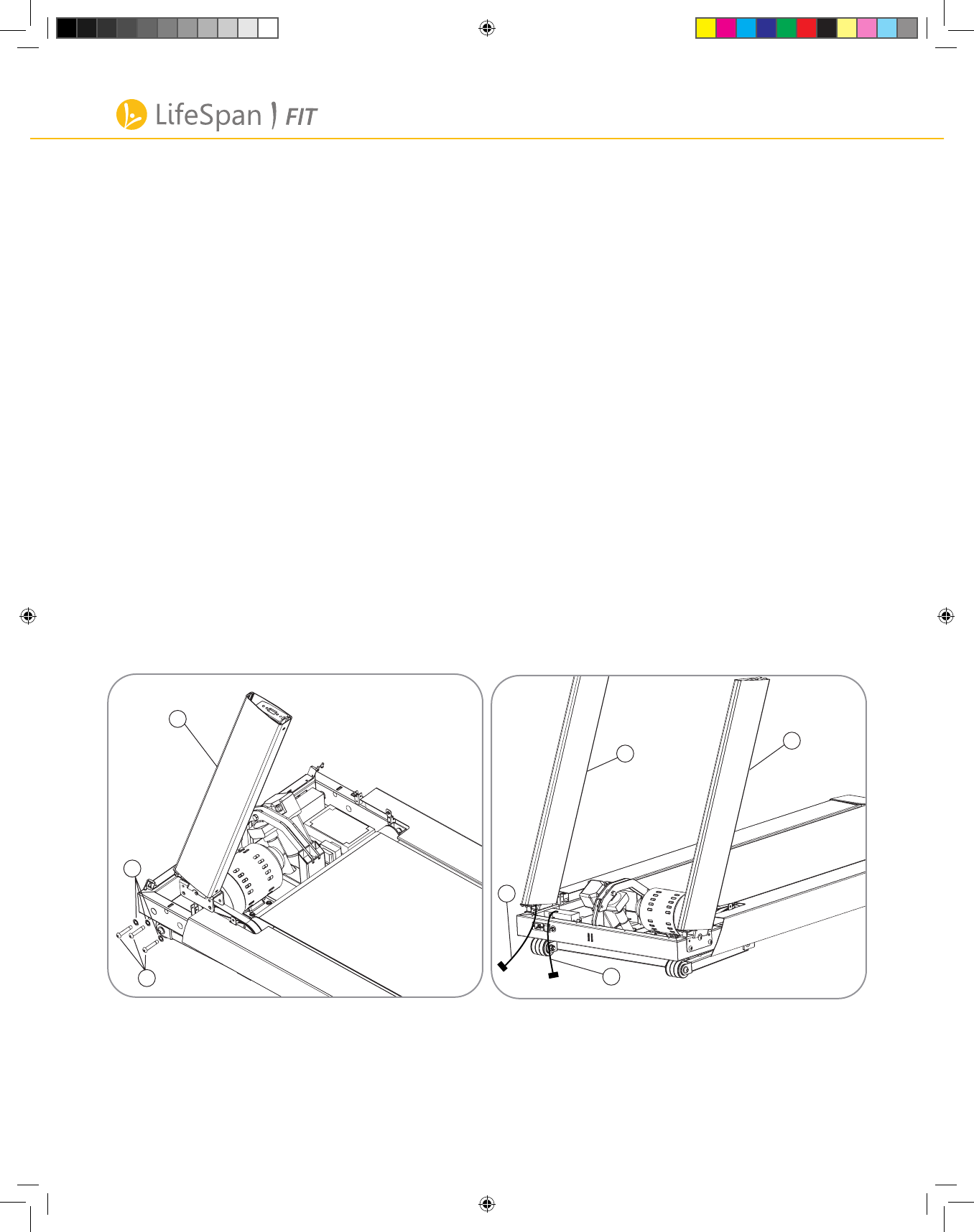

Step 3: Support Post Assembly
A. Remove the three bolts (14) and washers (15) from the bottom of the left upright (4).
B. Place the U shaped bracket on the bottom of the support post onto the main frame of the unit. Align the
three holes in the bracket with the holes in the frame. Install the three bolts (14) and washers (15) removed
in step 3-A. Do not tighten at this time.
C. Remove the three bolts (14) and washers (15) from the bottom of the right upright (5). Make sure the cable
(16) is not in the U-shaped bracket.
D. Place the U-shaped bracket on the bottom of the right support post (5) onto the main frame. Align the
three holes in the bracket with the holes in the frame. Install the three bolts (14) and washers (15) removed
in step 3-C. Do not tighten at this time.
Note: Move cables 16 and 17 so they do not get pinched or damaged when installing upright.
E. Connect cable (16) coming from the bottom of the right support post to cable (17) coming from the motor
control board.
5
4
4
14
15
16
17
om in2.indd 14 7/29/14 9:04 AM
15
TR7000i/TR8000i
Treadmill
Step 4: Handlebar Set
A. Hold the handlebar set (7) above the upright posts (4 and 5). Feed the cable (16) from the right support
post (5) through the square hole on the right side of the handlebar set.
B. Place the handlebar set (7) onto the support post (4 and 5). Be careful not to pinch the cable (16) on the
right side.
C. Align the bolt holes in the handlebar set (7) to the holes in the upper end of the support posts (4 and 5).
D. Install the four bolts (11) from the hardware bag. Do not tighten the bolts until all four bolts have been
installed.
E. Tighten the three bolts (14) on the bottom of each support post installed in steps 3-B and 3-D.
F. Connect the cable (16) from the support post to the cable (18) inside of the handlebar set.
7
5
4
16
16
18
11
11
om in2.indd 15 7/29/14 9:04 AM
16

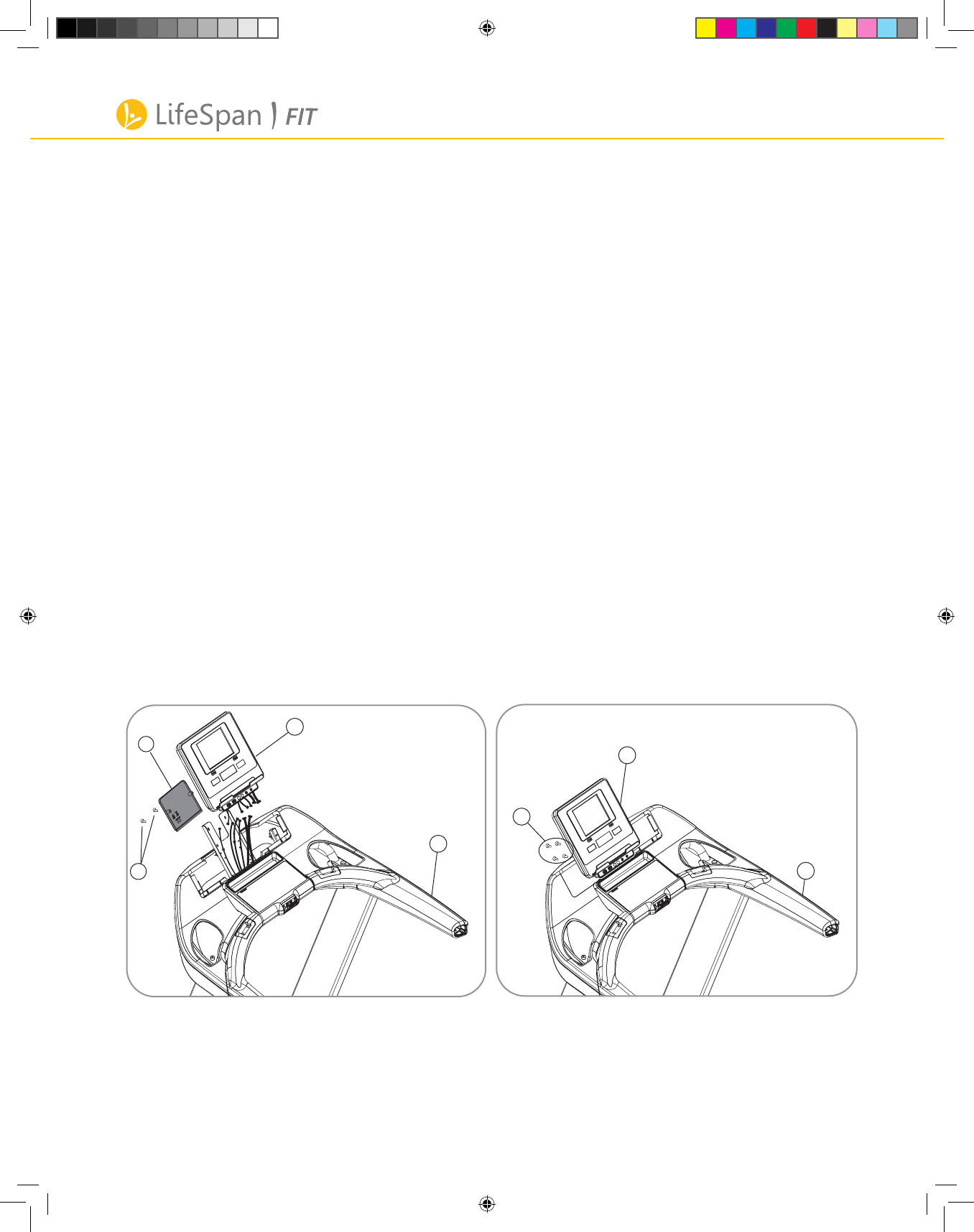

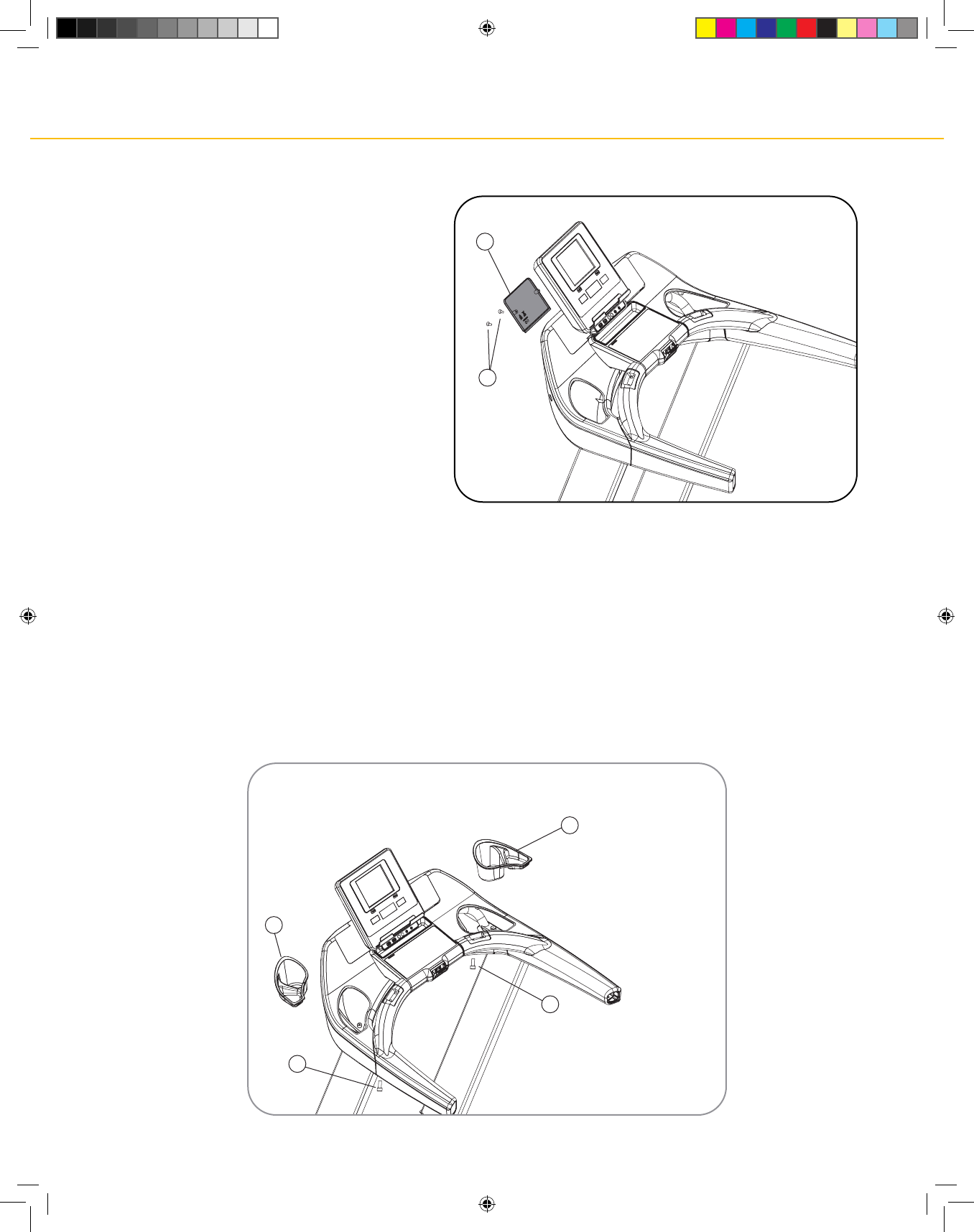

Step 5: Attach Console Set
A. Remove the two screws (23) from the access panel (9) and four screws (22) from the back of the console
(10).
B. Place the console (10) face down on the handlebar set so the bottom of the console is just in front of the
wires coming from the console mount area.
C. Connect the 6-pin and 9-pin ribbon cables.
Note: Plug the ribbon cables together so that the gold lines in the ribbon are matching.
D. Connect the 7-pin connectors and the three remaining 2-pin connectors from the console to the
connectors coming from the console mount area.
Note: One of the 2-pin connector sets is dierent so match this set. For the other 2-pin connectors it does not
matter which 2 get plugged together.
E. Lift the console up and carefully push the excess wire into the handlebar assembly.
F. Place the console set onto the mounting bracket. Make sure none of the wires will be pinched when the
console is attached.
G. Align the screw holes on the back of the console with the holes on the mounting bracket and install the
four screws (22) removed in step 5-A.
10
7
10
7
22
9
23
om in2.indd 16 7/29/14 9:04 AM
17
TR7000i/TR8000i
Treadmill
Step 5: (Continued)
H. Attach the access panel (9) using the two
screws (23) removed in step 5-A.
Step 6: Attach Accessory Trays
A. Remove the screw (25) from the bottom of each accessory tray (2 and 3).
B. Before installing the right tray (3) make sure the cable inside of the handlebar set is pushed to the front of
the assembly so it will not be pinched when installing the tray.
C. Place the accessory trays (2 and 3) into place and install the screws (25) removed in step 6-A into the
bottom of the bottle holder.
3
25
25
2
9
23
om in2.indd 17 7/29/14 9:04 AM
18

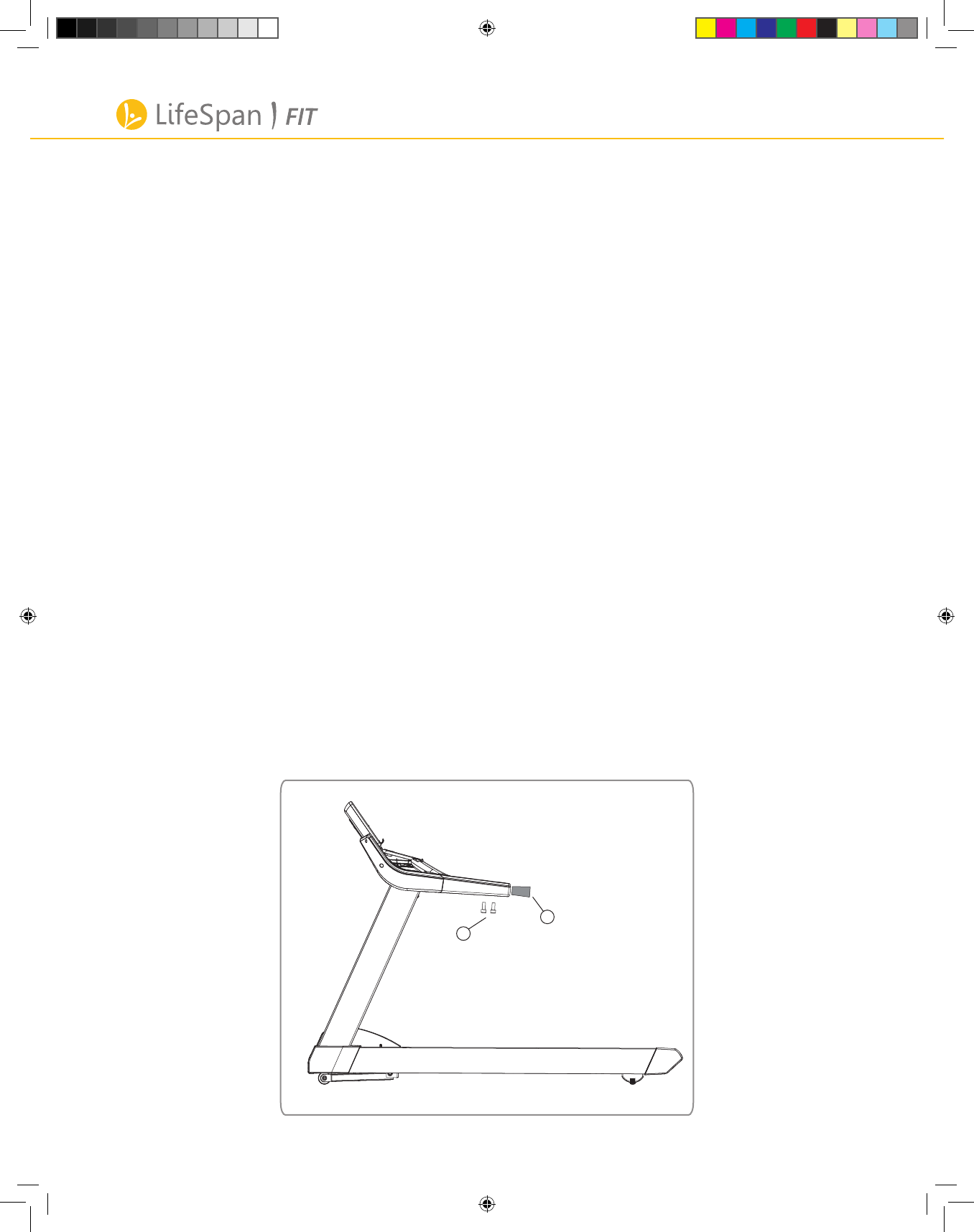

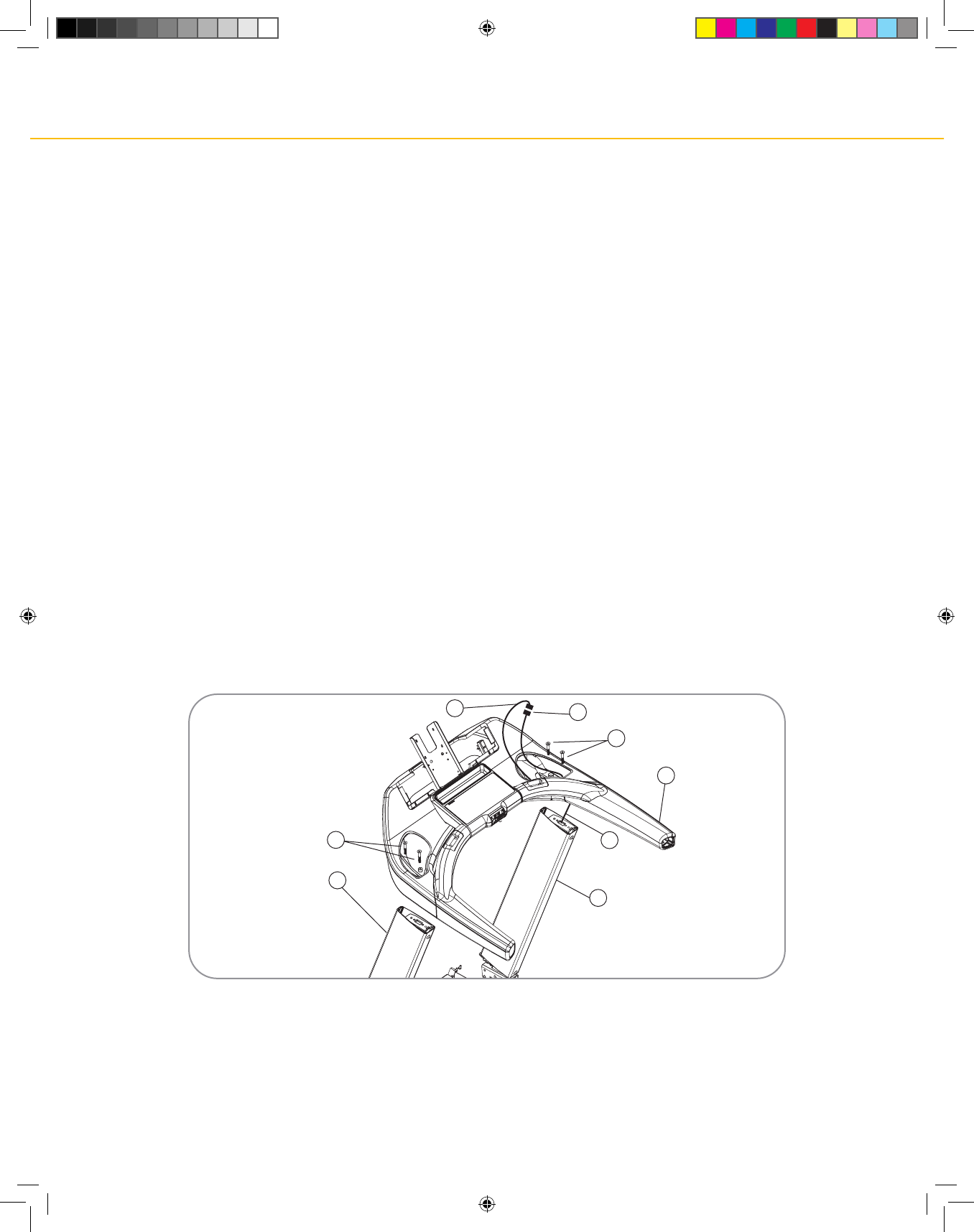

Step 7: Medical Handlebar (optional)
(If not attaching the medical handlebars skip to step 8)
1. Un-package the Handlebars
A. Open carton, remove and un-package all components.
B. Check to be sure all components are present. The carton contains 1 left handlebar, 1 right handlebar
and a hardware kit.
The hardware kit includes:
1- Left Handlebar End Cap
1- Right Handlebar End Cap
4 - M6*15 Allen Bolts
8 - M8*20 Allen Bolts
8 - M8 Lock Washers
8 - M8 Flat Washers
2. Remove the Original Handlebar end caps (2) from the Pro Series Treadmill
A. Remove the two screws (1), located under the handlebar, holding the end cap on.
B. Use a small screw driver to remove the end caps (2).

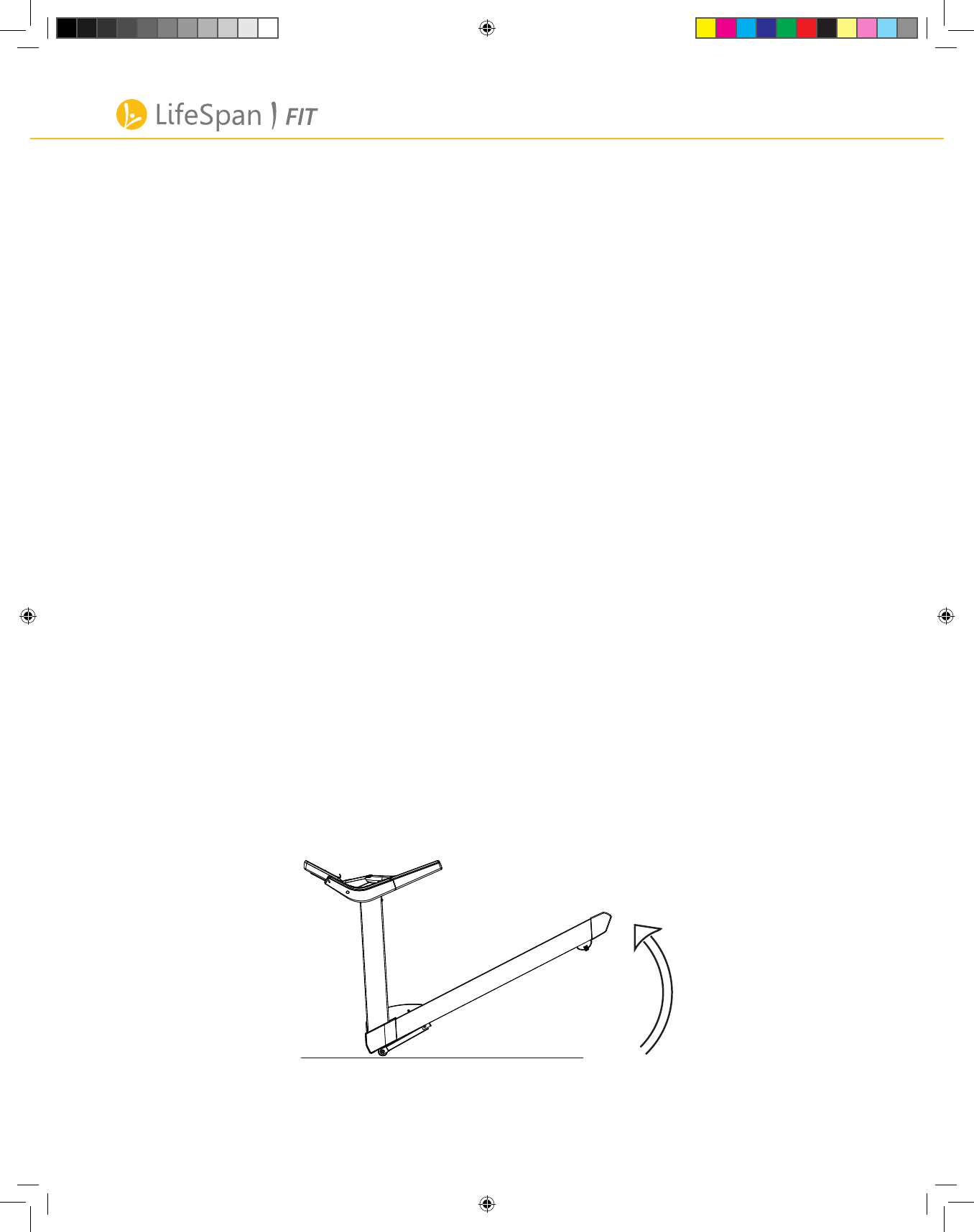

C. The treadmill will need to be raised in the back or laid on its side in order to attach the medical
handlebars. If raising the back end up, it is good to have the back end at least one foot o the ground
Note: The assembly instructions are written as if the treadmill is raised in the back.
1
2
om in2.indd 18 7/29/14 9:04 AM
19
TR7000i/TR8000i
Treadmill

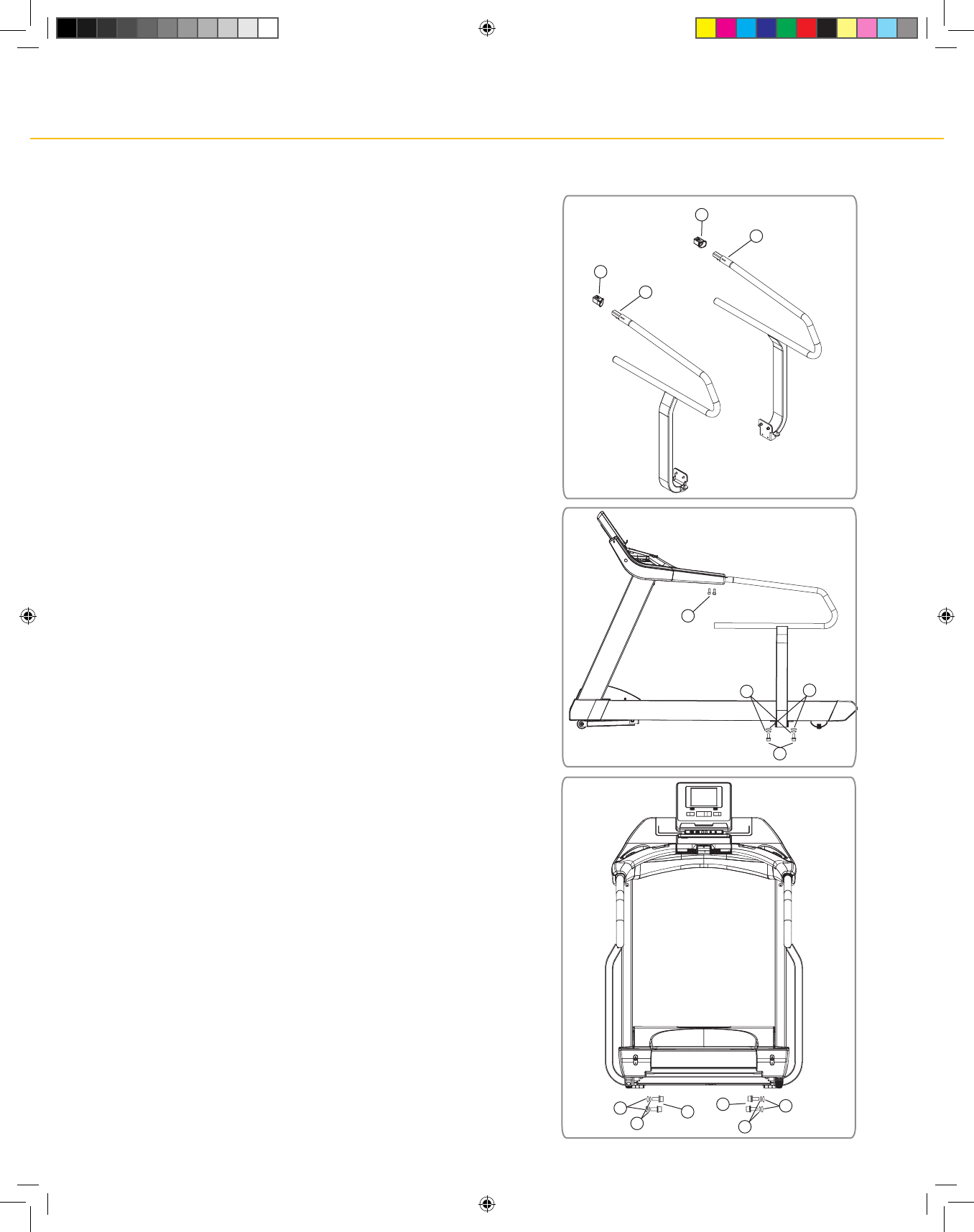

3. Install the Left and Right Handlebars
A. Slide the new left handlebar end cap (3) onto the left
handlebar (4) and the right end cap (5) onto the right
handlebar (6). (FIG. 1)
Note: The new left and right handlebar end caps are
included in the hardware pack. The screw threads in the
end cap when installed on the handlebars should be facing
down. If not, the wrong end cap is on the wrong handlebar.
B. Slide the bottom of the left handlebar (4) up under the
treadmill lower frame and slide the top of the medical
handlebar into the treadmill handlebar frame. (FIG. 2)
C. Line the holes up in the treadmill handlebar frame with
the threads in the new end caps and loosely install the
two new M6*15 Allen head screws (7). (FIG 2)
D. Align the holes in the medical handlebar frame with
the threaded holes in the treadmill base frame and
loosely install the two M8*20 bolts (8), two M8 lock
washers (9) and two M8 washers (10). (FIG. 2)
E. Install the two inside frame M8*20 bolts (8),two M8
locks washers (9) and two M8 washers (10). (FIG. 3)
F. Repeat steps B-E for the right handlebar (6).
G. Tighten all hardware.
6
5
4
3
8
7
910
88
9
10
10
9
Figure 1
Figure 2
Figure 3
om in2.indd 19 7/29/14 9:04 AM
20
Step 8: Attach Lower Covers

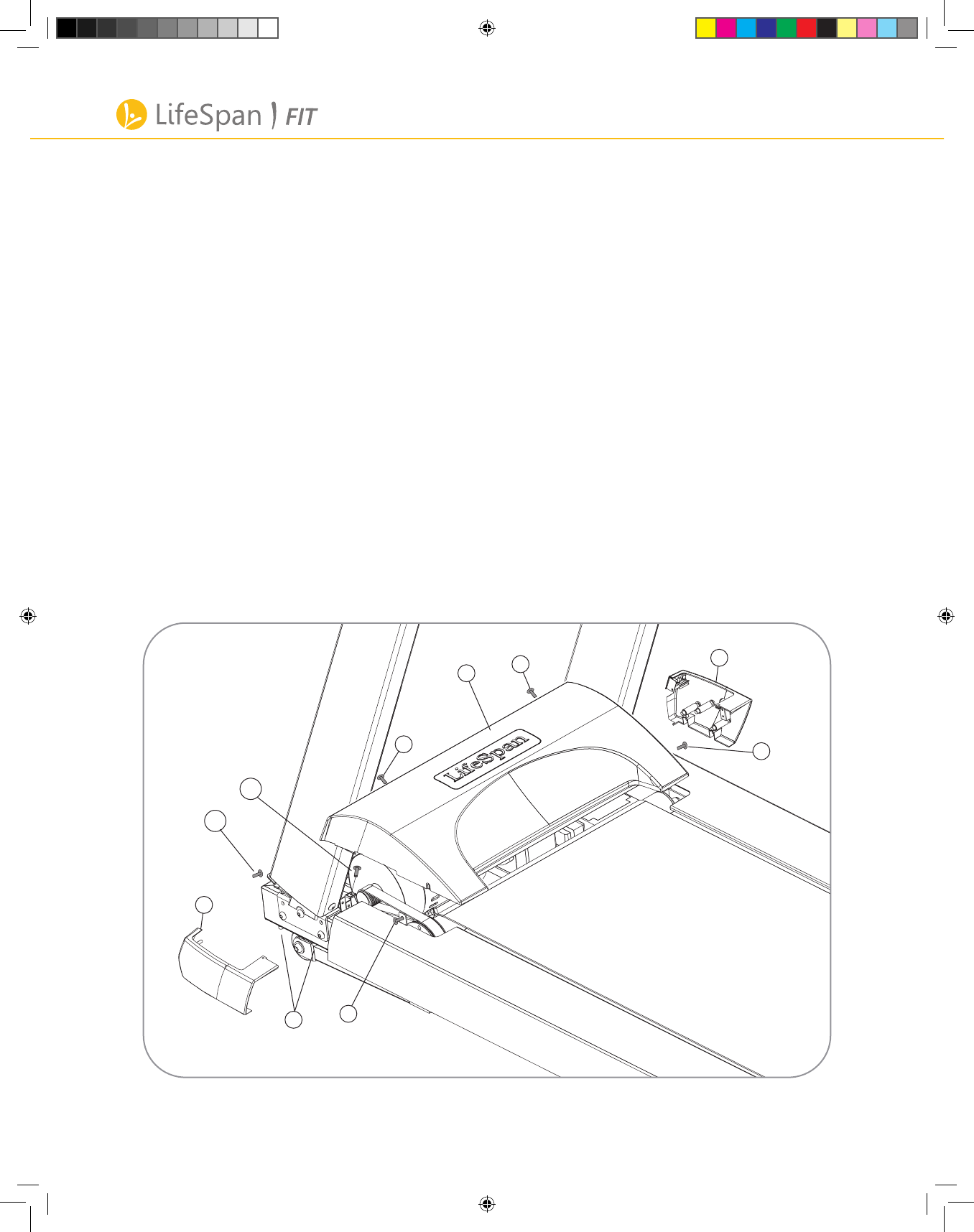

A. Remove the screw (24a) from each of the right (12) and left (8) support post covers.
B. Remove screw (24b) from the inside of the motor compartment on both sides.
C. Loosen the four screws (26) on the bottom of the frame. Two on each side.
D. Slide the right upright cover (12) into place. Install the screw (24b) on the inside of the motor
compartment that was removed in step 8-B. Install screw (24a) that was removed in step 8-A.
E. Tighten the two screws (26) on the bottom of the frame from step 8-C.
F. Repeat steps 8-D and 8-E for left upright cover (8).
G. Once the two upright covers are installed, reinstall the motor cover that was removed in step 2 by placing
the motor cover (6) so the four screws (27) slide into the cutouts in the cover. Then tighten the screws.
Note: To tighten the four screws (26) on the bottom of the frame, it may be easier to start the treadmill
and raise the incline. This will give more space to get to the screws.
26
24a
24b
8
12
627
27
27
27
om in2.indd 20 7/29/14 9:04 AM
21
TR7000i/TR8000i
Treadmill
Step 9: Roll the treadmill out of the box
Carefully lift the treadmill up from the back and roll it out of the box.

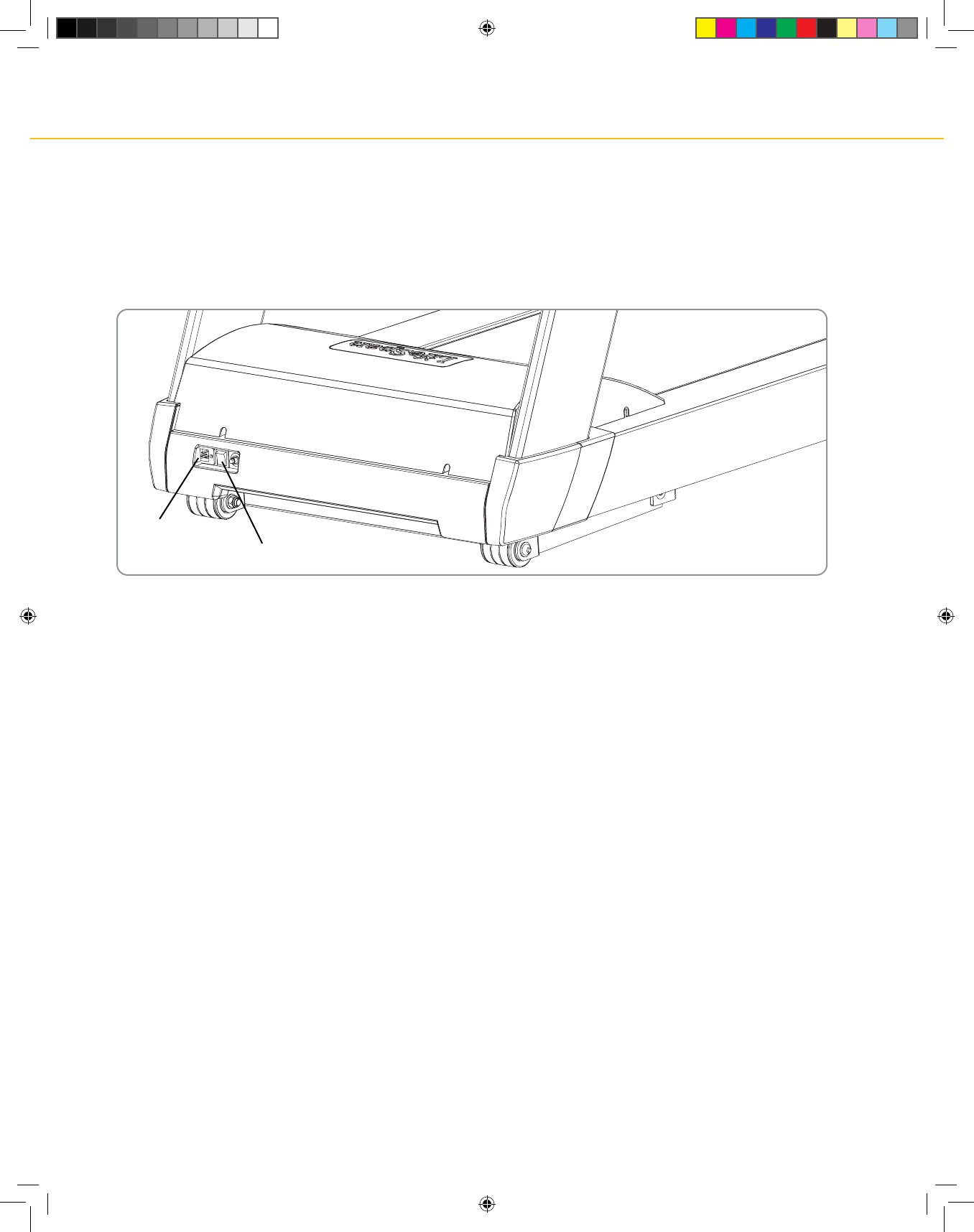

Step 10: Plug the power cord in and turn the treadmill on
Step 11: Set date and time
To set the date and time of day on your console follow these steps:
1. Disengage and re-engage red Emergency stop safety key.
2. Press the STOP buttons for 3 seconds to initiate the date and time set up mode, press ENTER.
3. Press the UP / DOWN buttons to set the correct YEAR, press ENTER.
4. Press the UP / DOWN buttons to select the correct MONTH, press ENTER.
5. Press the UP / DOWN buttons to select the correct DAY, press ENTER.
6. Press the UP / DOWN buttons to set the HOUR, press ENTER.
7. Press the UP / DOWN buttons to set the MINUTES, press ENTER.
Power
Socket Power Switch
om in2.indd 21 7/29/14 9:04 AM
22
Display Console Overview
Console Buttons
The TR7000i/TR8000i includes our innovative Intelli-Key feature that will prompt you through console
operations by using intelligent lights on the buttons that automatically ash when they need to be pressed to
continue operations.
Quickstart: Press the START button to begin a Manual workout without having to set any individual
information. When the program begins your workout time will start counting up from 00:00 and you can
manually adjust the incline or speed as you exercise.
Pause: If you need to temporarily stop your workout, press the STOP button to PAUSE.
To RESTART the workout, press the START button. After 90 seconds of no activity the console will reset.
Reset: To reset the console, press the STOP button for 3 seconds. This will clear any workout data.

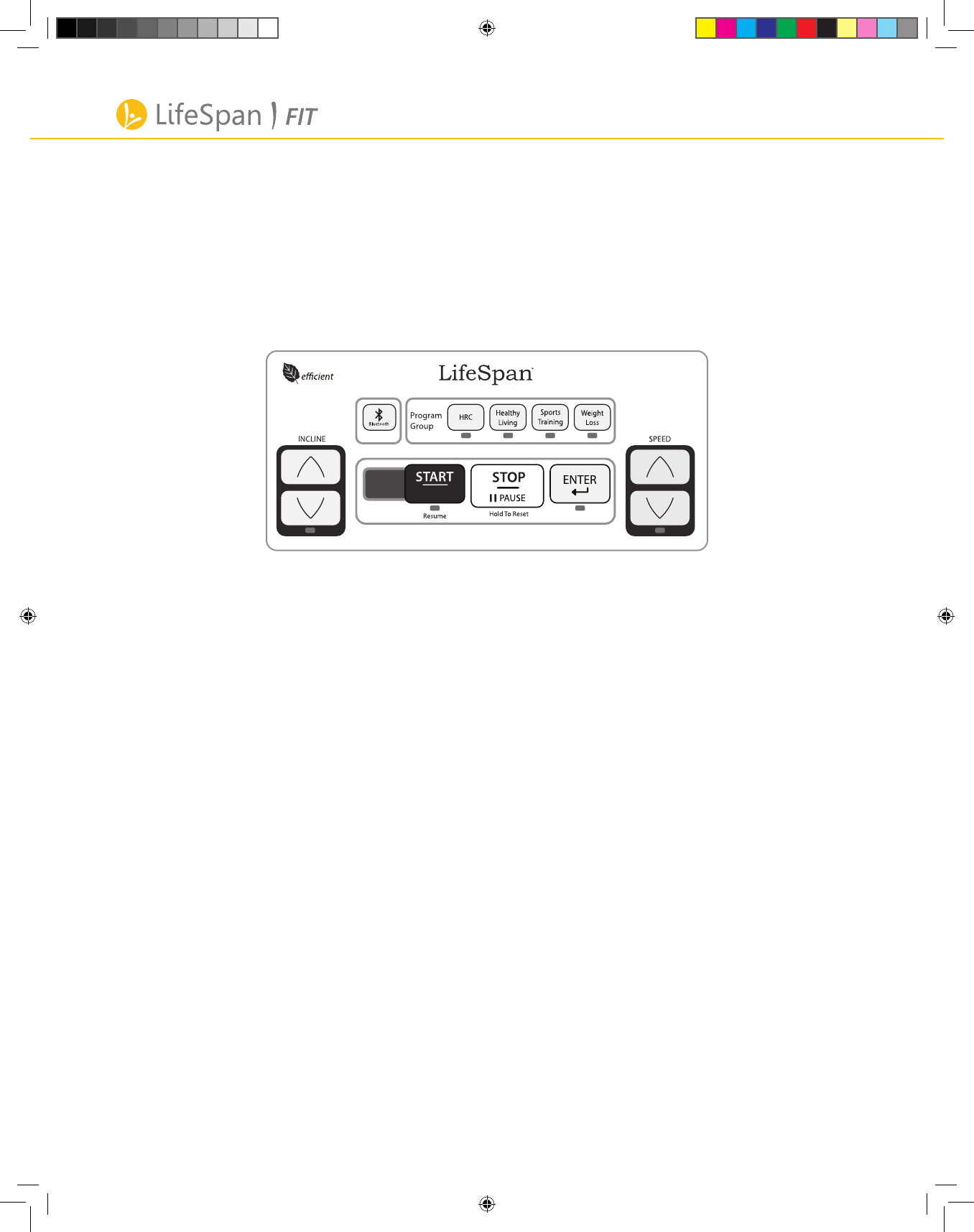

Enter: The ENTER button is used to select each piece of information needed during program setup
including Program, Workout Level, Workout Time, and Your Weight (which is used to more accurately
calculate calories burned).
Arrow Buttons: The up and down buttons for speed and incline are used to modify the value of each
selection during the program set up process and to adjust the speed or incline during use. If you are using a
preset program you can use these buttons to adjust the prole of the program, making the program easier
or more dicult to complete. For instance, in an incline program, you can raise the incline level across the
entire program by pressing the incline up button.
Program Buttons: The TR7000i/TR8000i also have Program Group buttons. These buttons are designed
to help you easily add variety to your exercise program while staying consistent with your exercise goals.
To quickly select a specic program that matches your workout objective use one of the program buttons.
These 4 buttons group the programs into Heart Rate Training, Healthy Living, Sports Training, and Weight
Loss. Depending on which button you select, there are multiple programs in each. To look at the next
program within each group just press the Program Group button again to scroll to the next option.
ON
Press &
hold to
turn ON
energy
om in2.indd 22 7/29/14 9:04 AM
23
TR7000i/TR8000i
Treadmill
Display Console Overview (Continued)
Alpha Numeric Window: The TR7000i/TR8000i comes with a 16-character window that is used to show
the program name and other pertinent information during setup mode.
Workout Feedback: The display window will simultaneously display the following information:
Time: The workout time elapsed or the workout time remaining.
Incline: The level of belt incline ranging from 0 to 15 (TR7000i) or -3 to 12. (TR8000i)
Speed: The speed you are traveling in miles per hour (this reading can be changed to kilometers by using
the Engineering Mode).
Calories: Estimated calories burned since the beginning of the workout.
Distance: Total distance traveled in miles or kilometers since the beginning of the workout.
Step Count(TR7000i only): If you participate in a daily or weekly step program you can use the Step
Count window to follow the number of steps that you have taken in your workout. Remember that 10,000
steps per day is recommended by the Centers for Disease Control (CDC).
Heart Rate: Your measured heart rate using the hand pulse sensors located on the front handlebar.
Pace: The time it will take to go 1 mile at the current speed.
Average Heart Rate (TR8000i only): Your average heart rate during the length of the workout.
Misc. Display Information:
Date: The date is presented as the year / month / day below the program matrix.
Time: The time of day is shown below the program matrix.
om in2.indd 23 7/29/14 9:04 AM
24
Heart Rate
Sensors
Reading Your Heart Rate

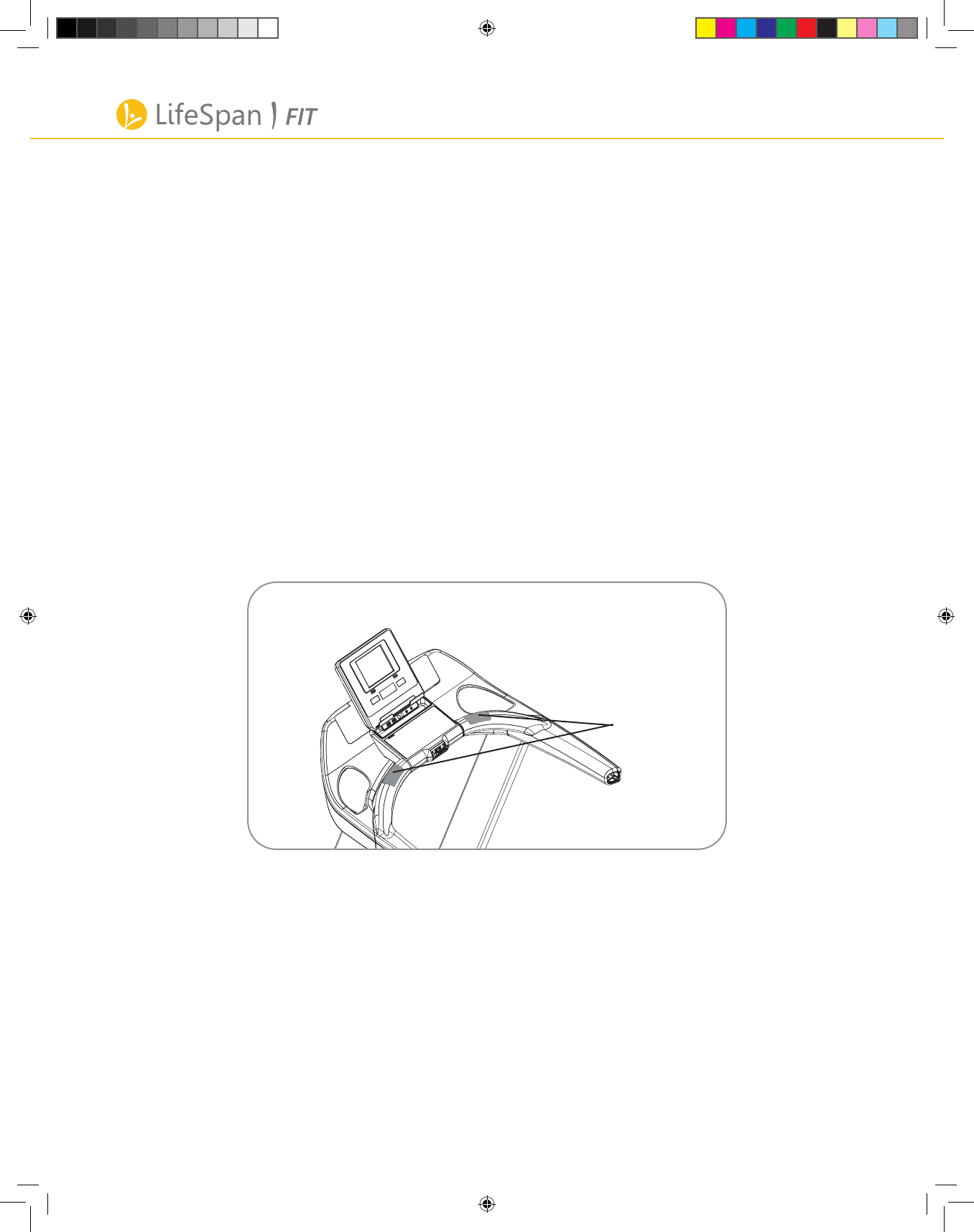

Contact Heart Rate Sensors are built into the front handlebar of the TR7000i/TR8000i treadmill to monitor your
heart rate during exercise. To use, grasp the sensors with a comfortable grip, with the palms of your hands placed
over the sensors. If the sensors are having diculty picking up your heart rate you may consider using aloe or a
moisturizer on your hands or you can warm up as you exercise to increase the moisture in your hands.
Dry hands do not transfer your pulse as eectively as moist hands.
Do not squeeze tightly as this can cause your blood pressure to rise. It will take a few seconds for the console to
calculate your heart rate accurately.
In addition to the contact heart rate sensors, this treadmill has a built-in receiver for the use of a wireless chest
strap. Our receiver is compatible with the non-coded Polar type transmitter.
Warning! Heart rate monitoring may be inaccurate. Over exercising may result in serious injury or death. If you
feel faint stop exercising immediately.
Remember that to use the My Zone Heart Rate Control
Programs you will need to use a chest strap or keep
your hands on the sensors throughout your workout.
om in2.indd 24 7/29/14 9:04 AM
25
TR7000i/TR8000i
Treadmill
Operating Your Treadmill
Setting the Date and Time:
To set the date and time of day in your console follow these steps:
1. Press the STOP button for 3 seconds to initiate the date and time set up mode. Press ENTER.
2. Press the UP/Down buttons to set the correct YEAR. Press ENTER.
3. Press the UP/Down buttons to select the correct MONTH. Press ENTER.
4. Press the UP/Down buttons to select the correct DAY. Press ENTER.
5. Press the UP/Down buttons to set the HOUR. Press Enter.
6. Press the UP/Down buttons to set the MINUTE. Press ENTER.
Manual Mode
The quickest way to get started is to press the START button. Pressing the START button will select the
Manual program and the TIME will start counting up from 00:00. You can also press ENTER to select the
Manual program. Using the ENTER button will allow you to set a specic workout TIME, and set your
WEIGHT for more accurate calorie calculation.
To use this program:
1. Press ENTER to select manual mode.
2. Select the amount of time (in minutes) you want to use the manual program by pressing the speed
or incline up or down buttons. Press ENTER.
3. Use the speed or incline up or down buttons to set your weight. Your weight is used to more
accurately calculate calories burned. Press ENTER.
4. Press Start and the treadmill will start and the time will count down from the preset time.
5. To increase speed press the speed up button and the speed will increase up to 12.0 mph (20 kph)
Manual Reverse program (TR8000i only)
The TR8000i treadmill’s reverse walking program can provide multiple health benets to users. Reverse
ambulation, or walking backwards, has been found to increase exibility of the hamstrings, reduce certain
compressive loads on the knees (specically the kind that negatively aect those recovering from meniscus
or osteoarthritis), improve traditional walking speed, and improve body composition through increased
calorie burn.
To use this program:
1. Select the program by pressing the Speed or Incline Down button two times, Press Enter
2. Select the amount of time (in minutes) you want to use the manual reverse program by pressing the
speed or incline up or down buttons. Press ENTER
3. Use the speed or incline up or down buttons to set you weight. Your weight is used to more
accurately calculate calories burned. Press ENTER
4. Press Start and the treadmill will start going in reverse at -0.1 mph (-.2 kph)
5. To increase speed in reverse, press the speed up button and the speed will increase up to -3.0 mph
(-5 kph)
om in2.indd 25 7/29/14 9:04 AM
26
Operating Your Treadmill (continued)
Preset Programs
There are 17 programs grouped by exercise motivation type for weight loss, healthy living, and sports
training. These 17 programs allow you to choose between speed or incline control. For example if incline
mode is selected the treadmill automatically changes incline based on the program prole and the user
controls speed as necessary.
To use these programs:
1. Select Program – Use the program buttons to select your desired Exercise Program. Each program
button has multiple programs that you can scroll through. Each time you press the program button
you will move to the next program option. Once you nd the desired program press enter.
2. Select Program Mode – with each program selection you can choose to run the program in the
Incline Mode or the Speed Mode. Use the UP / DOWN arrows to make the selection then press
ENTER.
3. Set Program Level – There are 3 levels of intensity with each preset program (1 being the easiest and
3 being the most dicult).
4. Set Time – Set the program TIME of your workout using the UP / DOWN arrow keys. Press ENTER.
5. Set Weight – Set your WEIGHT in the console for more accurate calorie calculation using the UP /
DOWN arrow keys. Press ENTER.
6. Press the START button to begin your workout.
Custom User Set-up Programs
There are two user programs that provide you with the ability to establish customized program proles
specic to your workout requirements. For each user set-up program, rst set the workout time then set
weight, speed, and incline for each segment in the program prole by pressing either the up and down
arrows for speed and incline. After obtaining your desired selections press enter to move to the next
column in the program prole. This program will now be saved for you each time you select it and press the
start button. User programs need to be set-up before they can be used.
To set up a user program:
1. Select USER1 or USER2 Programs – Use the UP / DOWN arrow keys to select the USER1 or USER2
programs. Press ENTER.
2. Set Time – Set the program TIME of your workout using the UP / DOWN arrow keys. Press ENTER.
3. Set Weight – Set your WEIGHT in the console for more accurate calorie calculation using the UP/
DOWN arrow keys. Press ENTER.
4. Set Level – Select the level for each segment in the exercise program. Both speed and incline can be
used for each segment. Press ENTER and repeat until all 20 segments are complete.
5. START – Press the START button.
Once the program has been set up, simply scroll to the USER1 or USER2 program and press START.
Using Heart Rate Control Programs
The TR7000i/TR8000i treadmill comes with two types of heart rate control programs – Constant and Interval
and within each of these you can select either a Speed control option or an Incline control option. The
constant Heart Rate Control (HRC) program requires that you set a heart rate that the display console will
maintain throughout the workout and the interval requires that you set a LOW and a HIGH heart rate. While
using the HRC programs you will be required to hold the pulse grips or wear a chest strap for the duration of
the workout. There is a 3 minute warm up for this program prior to the treadmill taking control of the speed
or incline.
om in2.indd 26 7/29/14 9:04 AM
27
TR7000i/TR8000i
Treadmill
Operating Your Treadmill (continued)
Note: To use the Heart Rate Control programs the treadmill needs to receive your heart rate throughout the
entire workout either through using the grip pulse pads or a chest strap heart rate transmitter.
HRC – Constant:
The Constant program lets you select a single heart rate that you want to maintain throughout your
workout and the treadmill will maintain this heart rate for you by either adjusting the speed or incline.
After selecting the Constant Heart Rate program the next selection option will be Incline Mode or Speed
Mode. Select which mode you prefer and the treadmill will adjust the speed or incline every 10 seconds
to keep you at your selected heart rate level. For instance, if you select the incline mode there will be a
3 minute warm up and then the incline will start to adjust each 10 seconds to obtain and maintain your
target heart rate. You choose the speed that you want the belt to run and the treadmill will control the
incline. Typically for Weight Loss set the target heart rate at 65% of your predicted maximum heart rate
and for Cardio Training set the target at 80% of your predicted maximum.
To use this program:
1. Select HRC Constant – Use the UP / DOWN arrow keys to select the HRC Constant program. Press
the ENTER button to select.
2. Select Program Mode – Select either the Incline Control Mode or the Speed Control Mode using
the UP/DOWN arrow keys. Press ENTER.
3. Set Time – Set the program TIME using the UP / DOWN arrow keys. Press ENTER. Remember that
the program will include 3 minutes of warm-up.
4. Set Weight – Enter your WEIGHT using the UP / DOWN arrow keys. Press ENTER.
5. Set Age – Enter your age using the UP / DOWN arrow keys. Press ENTER.
6. Set Target Heart Rate – Set your target heart rate using the UP / DOWN arrow keys. Press ENTER.
7. Press the START button to begin your workout.
HRC – Interval:
The Interval program is designed to help you increase your aerobic endurance and improve hear rate
recover. This program lets you select a LOW or recover target heart rate and a HIGH target. After a 3
minutes warm-up the console will adjust the speed or incline, which ever you select, every 10 seconds
to maintain your LOW target to 2 minutes. Then the console will adjust the speed or incline to raise your
heart rate to the HIGH target that you selected and once again keep it at this level for 2 minutes and then
repeat the process until the end of the workout. It is recommended that you set the workout time to 20
minutes or higher to use this program eectively.
To use this program:
1. Select HRC Interval – Use the UP / DOWN arrow keys to select the HRC Interval program. Press
the ENTER button to select.
2. Select Program Mode – Select either the Incline Control Mode or the Speed Control Mode using
the UP / DOWN arrow keys. Press ENTER.
3. Set Time – Set the program TIME using the UP / DOWN arrow keys. Press ENTER. Remember that
the program will include 3 minutes of warm-up.
4. Set Weight – Enter your WEIGHT using the UP / DOWN arrow keys. Press ENTER.
5. Set Age – Enter your age using the UP / DOWN arrow keys. Press ENTER.
6. Set HIGH Target Heart Rate – Set your HIGH interval training rate using the UP / DOWN arrow
keys. Press ENTER.
om in2.indd 27 7/29/14 9:04 AM
28
Operating Your Treadmill (continued)
HRC – Interval (continued)
7. Set LOW Target Heart Rate – Set your LOW interval training rate using the UP / DOWN arrow keys.
Press ENTER.
8. Press the START button to begin your workout.
Fitness Test:
This test is to evaluate the overall cardiovascular tness of an adult. The formula which takes the user to a
nal evaluation number when the test is done, uses Sex, Age, Weight, Heart Rate, and Time in an equation
to determine the cardiovascular tness for adults.
To use this program:
1. Press the UP / DOWN buttons till top window says FITNESS TEST. Press ENTER
2. Enter your weight using the UP / DOWN buttons. Press ENTER
3. Enter your age using the UP / DOWN buttons. Press ENTER
4. Enter your Sex using the UP / DOWN buttons. 1 = M; 0 = F. Press ENTER
5. Press START. Walk as briskly as possible for 1 mile (1609 meters). Do not jog or run.
6. When you get to within 0.1 miles of the end of the test (160 meters), place your hands on the
contact heart rate pads so that the treadmill can measure your heart rate. (If you are wearing a heart
rate chest strap, you do not need to do this.)
7. When the test is nished, the treadmill will display your tness test score and tness category.
Note: it is a good idea to warm up for a few minutes prior to performing this test.
Warning: Do not over-exert yourself during this test. If you feel faint or dizzy at any time during this test,
stop walking immediately.
Innovative Features
Intelli-GuardTM (TR7000i only): This treadmill is equipped with the Intelli-Guard safety feature. This
feature senses when you stop walking on the treadmill and for safety purposes it automatically pauses the
treadmill to avoid accidental falls and resulting injury. The Intelli-Guard feature is triggered when the treadmill
senses that you are no longer walking or running on the treadmill.
Caution: The Intelli-Guard feature will automatically be disengaged when the treadmill is operated at
speeds under 1.0 mph (1.6 kph). If the speed is within this parameter the step icon will ash. When the
icon ashes, the treadmill will not auto pause. If the speed is above 1.0 mph (1.6 kph) Intelli-Guard will not
activate until 20 steps are taken and counted.
Caution: At 20 seconds the console will beep once per second for 5 seconds and then automatically
pause the treadmill. These beeps are a notice that the treadmill belt is about to stop. If for some reason you
are still on the treadmill when this occurs move your feet to the side rails and prepare for the belt to stop.
The Intelli-Guard feature does not replace the use of your safety key or using proper precaution in stopping
the treadmill when it is not in use.
Intelli-StepTM (TR7000i only): The treadmill comes with the Intelli-Step counting feature. This feature
senses the resistance on the running belt each time your foot strikes. There are several factors that will eect
the accuracy of this feature including your walking style, your weight, and your usage characteristics.
om in2.indd 28 7/29/14 9:04 AM
29
TR7000i/TR8000i
Treadmill
Innovative Features (continued)
For example, the Intelli-Step feature will have a more dicult time picking up the steps of a light user and
especially a light user walking at an incline. The higher the incline the more dicult it is for the feature to
recognize steps. This may also be the base at lower speeds. In summary, the Intelli-Step is a great feature
for users interested in maintaining a step count walking or running program, but it is dependent on many
variables for accuracy and the accuracy of the count will depend on your individual characteristics as well as
variables related to the treadmills usage.
2 USB Ports: The TR7000i/TR8000i includes a USB port that works with the LifeSpan Fitness Club online
health management system. Before using the treadmill, simply insert your USB ash drive into the left USB
port, after loading your prole from the IHP system onto the ash drive. The USB will read your personal
information and then save your workout data every 20 seconds onto the ash drive. Information saved
includes your heart rate, workout start and nish time, distance traveled, calories burned, and steps taken. This
information can be uploaded into your account, summarized over time and used to compare your results with
the goals you set in your personal LFC account. Prior to using your USB, make sure you refer to the “Getting
Started Guide” found in your membership kit, located in your owner’s manual packet. Both ports can be used
to charge portable devices such as iPad and cell phones.
Don’t remove the USB ash drive while the LED light is ashing red – you may lose your
workout information.
Bluetooth: The TR7000i/TR8000i series products include a free iPad app that lets you connect wirelessly to
view graphically your heart rate, pace on a quarter-mile track and easily sync results with your LifeSpan Fitness
Club account. Currently LifeSpan does not have an iPhone app. However, other app developers are working
on iPhone apps which could be available in the near future. Visit lifespantness.com to see available iOS and
Android apps.
Energy Saving Mode: The energy saving mode cuts all power to the treadmill with the exception of one
dimly lit LED below the START button. This will cut power consumption to well under 0.1 watts.
Cleaning and Maintenance
Daily: It is recommended to wipe the treadmill down after each use to keep the treadmill clean and dry.
A mild detergent may be used at times to help remove all dirt and salt from the belt, painted parts and the
display.
Monthly: This cleaning would include removing the motor cover and cleaning around the motor and
electronics. It is recommended to clean the motor compartment if the treadmill is in an area where there
might be plush carpet bers that could get pulled up into the motor compartment. It is a good idea at this
time to check and tighten all assembly hardware, power cord for damage, or anything else that would indicate
the need for service.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment. “This
device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: FCC ID: 2AB9OTR8000I (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.”
om in2.indd 29 7/29/14 9:04 AM
30
Cleaning and Maintenance (continued):
Safety and Integrity: The safety and integrity designed into the machine can only be maintained
when the treadmill is regularly examined for damage and repaired. Worn or damaged components shall
be replaced immediately or the treadmill be removed form service until the repair is made. Pay special
attention to components most susceptible to wear.
Warning: Keep treadmill stable on at ground.
Over-exercising or inadequate training may result in physical injury.
Warning: Unplug the power cord before removing the motor cover.
Important: If service is required, turn the power o and remove the power cord to ensure the unit
cannot be used. Let all other users know the unit needs service.
Caution: Acidic cleaning detergents may damage painted or powder coated surfaces and should not be
used. Such cleaners may void the LifeSpan warranty.
Suggestion: It is always a good idea in a commercial setting to have someone on sta or a local service
provider to perform periodic maintenance on the treadmill. For help nding a local service provider that
will perform periodic maintenance, please contact customer service at 877.654.3839 x 4 (US and Canada
only).
Moving the Treadmill
1. Make sure that the ON / OFF switch is turned OFF and the power cord is removed from the wall.
2. Make sure that nothing is on or near your treadmill which might spill, be knocked over or prevent the
treadmill from moving.
3. Place both hands under the support bar that is located directly under the back of the running belt on
your treadmill to make sure that you have a solid lifting point.
4. Lift the back of the treadmill and roll to the desired location.
Caution: When lifting, use proper safety precautions and lifting techniques. Bend your knees and elbows,
keep your back straight and pull up evenly with both arms.
om in2.indd 30 7/29/14 9:04 AM
31
TR7000i/TR8000i
Treadmill
Belt Tensioning
If the belt begins to slip during use, it will need to be tensioned. Your treadmill is equipped with tension bolts
that are accessible from the back of the treadmill. Before tensioning the belt, start the treadmill and set the speed
to 3 MPH (5 KPH). Using a 6 mm Allen Wrench, included in your hardware bag, turn the right and left tension
bolts 1/2 turn clockwise. After you adjust each side 1/2 turn, test to see if the slipping is eliminated. If the belt
slips repeat this step and test again.
If you turn one side more than the other, the belt will start to drift to the side of the treadmill and will need to be
aligned. DO NOT tighten more than 2 full turns on each side. If slippage still occurs, contact LifeSpan Customer
Service.
Note: Over tensioning the belt can cause unnecessary friction and wear and tear on the belt, motor and
electronics.
Aligning the Running Belt
Ensure the running belt is centered on your treadmill at all times. Running style and a non-level surface are
two instances that may cause the belt to drift o center. Minor adjustments to the two bolts at the rear of the
treadmill are necessary when the belt has drifted o the center.

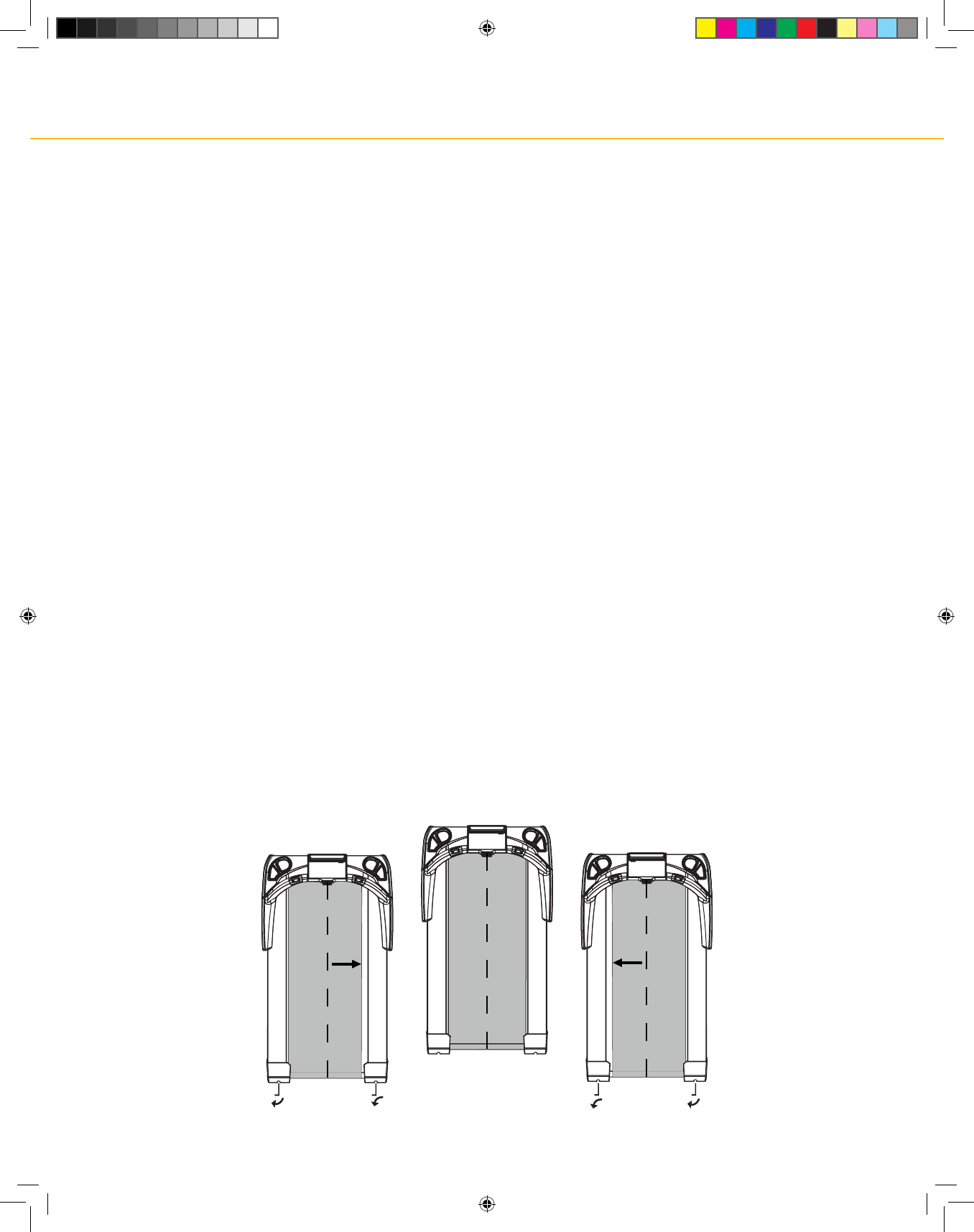

1. Press START, then increase the treadmill speed to 3 MPH (5 KPH).
2. Stand at the rear of the treadmill to determine which direction the belt is drifting.
3. If the belt drifts to the left, turn the left adjustment bolt one-quarter turn clockwise and the right
adjustment bolt one-quarter turn counter-clockwise. (See FIG. 1)
4. If the belt drifts to the right, turn the left adjustment bolt one-quarter turn counter-clockwise and the
right adjustment bolt one-quarter turn clockwise. (See FIG. 2)
5. Observe the tracking of the belt for about two minutes. Repeat steps 3, 4 and 5 as needed.
FIG. 2
FIG. 1
Incorrect - Adjust belt to the right Incorrect - Adjust belt to the left
Correct
om in2.indd 31 7/29/14 9:04 AM
32
Troubleshooting
The treadmill is designed and manufactured to be reliable and easy to use. However, if you have a problem, these
troubleshooting steps may help you nd the cause.
Problem: The console is erratic or not lighting up
Solution: Check to make sure that the treadmill is properly plugged in, turn the power switch o and back
on again and make sure the safety key is in place.
Check all wire harness connections to be sure they are all properly connected. If the problem
persists contact LifeSpan Customer Service.
Problem: The belt does not stay in the center of the treadmill when in use.
Solution: First check to make sure that the treadmill is level, then refer to the instructions in this manual on
how to tension and adjust the belt (PG. 31).
Problem: The treadmill belt slips during use.
Solution: The belt may need to be tensioned after a period of use. Refer to the Belt Tensioning and
Adjustment Section of this manual (PG. 31).
Problem: Heart Rate is erratic or not picking up.
Solution: Make sure your hands are moist (Aloe Vera helps). Make sure all connectors at the back of the
console are properly connected and no wires are damaged.
If wearing a chest strap make sure the batteries are good and that the electrodes are moist and
positioned properly on your chest.
Problem: Treadmill automatically pauses during workout. (TR7000i only)
Solution: Treadmill is not picking up Step Count. Go into Engineering Mode to turn Intelli-Guard o.
Warning: This will disengage the Intelli-Guard feature but may be necessary based on dierent variables
Problem: E6 or E7 Error Code.
Solution: Turn the power o and wait 10 seconds and turn the power back on again. Go into the Console
Test Mode (see page 34) and press enter until you get to the I/O testing step. The goal is to try to
calibrate the incline motor so that it functions again. Sometimes this works and other times
service is required to repair the unit. If the unit is in a high incline position, press the incline
down button and when it is at about the half-way point in the incline range, press the
incline down button again to stop the incline motor from turning. If the unit is in a low
incline position, press the incline up button and when it is at about the half-way point in
the incline range, press the incline up button again to stop the incline motor from turning. At this
point pulling and resetting the safety key should make the treadmill go back to a 0 incline level.
If this does not work and all wire harnesses look good, contact LifeSpan customer support for
service.
om in2.indd 32 7/29/14 9:04 AM
33
TR7000i/TR8000i
Treadmill
Engineering Mode
Press STOP and then speed up to enter the Engineering Mode. You can press Enter / Mode to switch
setup screens. The table below shows the sequence setup screens.
Engineering Function Information viewed on screen
Press and hold STOP and then Speed for 3 seconds to enter
Engineering Mode. The rst screen show the software versions.
Software Ver.
H = 0010 F = 0109
014 5.06 2.00
Press Enter to set up the units of measurement in metric (SI) or in
English (EN).
Press Speed / Incline UP / DOWN to change.
Select the units EN or SI
Press Enter for pause time
This allows you to set the amount of time the treadmill will be
paused prior to automatically resetting. The choices are 90,180, or
300 seconds as shown in the time window.
Select the pause time
90, 180, or 300 seconds
Press Enter for Distance
This is the total distance the treadmill has been run in Miles or
Kilometers depending on what mode the treadmills is in.
Total Distance
0 000
Press Enter for Workout Time
This is the total number of hours the treadmill has been used.
Total Hours
0 000
Press Enter again to return to standby mode
TR8000i
Engineering Function Information viewed on screen
Press and hold STOP and then Speed for 3 seconds to enter
Engineering Mode. The rst screen show the software versions.
Engineering Mode
H = 0028 F = 0109
12 12.07 1.00
Press Enter
This for turning the Intelli-Guard on and o. Intelli-Guard
automatically pauses the unit if it detects the treadmill is not being
walked on. Press Speed / Incline UP / DOWN buttons to change
between on and o
Intelli-Guard
On or O
Press Enter to set up the units of measurement in metric (SI) or in
English (EN).
Press Speed / Incline UP / DOWN to change.
Select the units
EN or SI
Press Enter for pause time
This allows you to set the amount of time the treadmill will be
paused prior to automatically resetting. The choices are 90,180, or
300 seconds as shown in the time window.
Select the pause time
90, 180, or 300 seconds
Press Enter for Distance
This is the total distance the treadmill has been run in Miles or
Kilometers depending on what mode the treadmills is in.
Total Distance
0 000
Press Enter for Workout Time
This is the total number of hours the treadmill has been used.
Total Hours
0 000
Press Enter again to return to standby mode
TR7000i
om in2.indd 33 7/29/14 9:04 AM
34
Test Mode
Test Function Information viewed on screen
Press Stop and then Start and hold
for 3 seconds
Hardware Testing
Press Enter
Tests all LED’s and segments
All lights ashing and LED ashing
Press Enter
Tests alphanumeric and LED’s
Display list characters - LED cycling
Press Enter
Keypad LED test
LED test - LED’s on keypad cycling
Press Enter
Key test
Key test - press key to show value in time eld
Press Enter
This allows a quick test for incline
and speed
I/O testing
0 or 1
1
0 Hp HP
1060 0.0
Press Enter Back to hardware testing
Press Stop and then Start and hold for 3 seconds to
reset the console
TR7000i
TR8000i
Test Function Information viewed on screen
Press Stop and then Start and hold
for 3 seconds
Hardware Testing
H = 010 F = 0109
014 5.06 2.00
Press Enter
Tests all LED’s and segments
All lights ashing
Press Enter
Tests alphanumeric and LED’s
Display list characters
Press Enter
Keypad LED test
LED test - LED’s on keypad cycling
Press Enter
Key test
Key test - press key to show value in time eld
Press Enter
This allows a quick test for incline
and speed
I/O testing
0 or 1
1
0 Hp HP
1060 0.0
Press Enter Back to hardware testing
Press Stop and then Start and hold for 3 seconds to
reset the console
om in2.indd 34 7/29/14 9:04 AM
