User Manual
![](/img.php?id=278728&img=bg1.png)
08-09-01-001-0
Tire Pressure
Monitoring System
OWNER’S MANUAL
An advance tire pressure monitoring system
that gives you the maximum control
TABLE OF CONTENTS
1. Notices ……………………………………………………………………………..…….…
FCC Notice
System Scope of Use and Warnings
System Installation and Usage
Reacting To Alerts
Use of Chemicals
Page 2
1. Technical Specifications …………………………………………………………………
Sensor/Transmitter Module
Display/Receiver Module
Page 3
2. Components Part Code List ……………………………………………………………… Page 4
3. Getting Started ……………………………………………………………………………..
How it works
Handling Alerts
Page 5
4. Sensor/Transmitter Module …………………………...………………………….………
Installation
Tools Required
Installing Sensor/Transmitter on a wheel
Page 6
5. Display/Receiver Module ………………………………...……………………………….
Installation
Wiring Diagram
Function Keys/Buttons Explanation
Programming Manual Threshold Setting ………………………………………
Display Mode ……………………………………………………………………..
Rotation Mode
Normal Mode
Sensor ID Exchange Mode ……………..………………………………………
Sensor ID Learning Mode (Replacing Display Module or Sensor) …………
Page 7
Page 8
Page 9
Page 10
Page 11
6. Troubleshooting …………………………………………………………………………… Page 12
7. Appendix
Glossary ……………………………………………………………………..
Page 12
8. Annex …………………………………………………………………………………. Page 13
The manufacturer reserves the right to change the contents of this manual at any time without prior notice. The information
contained in this manual is proprietary and must not be reproduced without prior consent from the manufacturer.
Page 1
![](/img.php?id=278728&img=bg3.png)
NOTICE
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Caution : Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
System Scope of Use and Warnings
Tire Pressure Monitoring System (TPMS)
This system is a sensing device designed to measure and display tire operation and/or activate an alert to the
driver when pressure and temperature irregularities are detected. It is the responsibility of the driver to react
promptly and with discretion to alerts. Abnormal tire inflation pressure should be corrected at the earliest
opportunity.
System Installation and Usage
Use of the TPMS requires that it has been properly installed by qualified personnel according to the
instructions here.
This system is suitable for use in passenger car, SUV and 4X4 tires up to maximum cold inflation pressure of
500 kPa (or 73 psi).
Reacting to Alerts
When an alert or warning is received, reduce vehicle speed and proceed to a safe stop location where the tire
can be inspected and/or serviced.
The low-pressure alert indicates that the air pressure has dropped to a selected minimum and a high-
temperature alert indicates that the temperature of the tire content has surpassed the threshold value set.
Use of Chemical
Temporary resealing or re-inflation products containing internal sealants or propellants in any tire assembly
may adversely affect the operation of the Sensor/Transmitter.
Page 2
![](/img.php?id=278728&img=bg4.png)
1. TECHNICAL SPECIFICATION
Sensor / Transmitter Module
Operating Temperature Range -40°C to +125°C
Operating Humidity 100%
Weight 48 gram
Size 101 mm x 26 mm x 44 mm
Battery Life (Projected) 5 years in normal use
Transmitting Frequency 433.92 MHz
Transmitter Activation Pressure change
Table 1
Display/Receiver Module
Power Supply 9 ~ 15 V DC
Current Consumption 30mA nominal, 80mA during alert @ 12V DC.
Operating Temperature Range -40°C to +85°C
Weight 146 gram
Receiving Frequency 433.92 MHz
Monitored Temperature Range -40 ~ 125°C (-104 ~ 257°F)
Monitored Pressure Range 0 ~ 500 kPa (Accuracy: ± 10 kPa)
0 ~ 73 psi (Accuracy: ± 1.5 psi)
Table 2
Page 3
![](/img.php?id=278728&img=bg5.png)

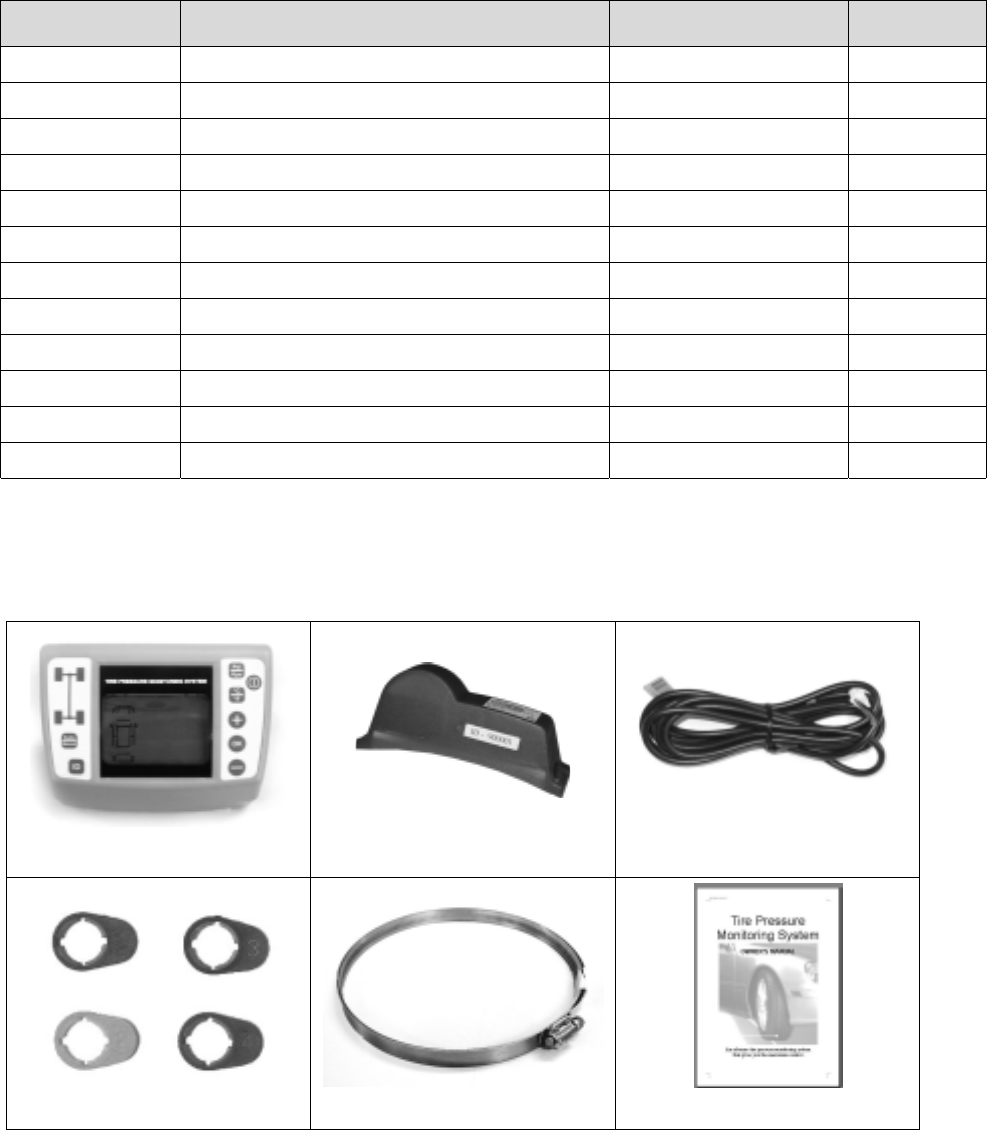

2. Component Part Code List
After unpacking, ensure that all the parts listed below are available. Should any part(s) is/are found missing,
please return to your dealer and get a complete replacement set.
Item Description Part Code Quantity
1 TPMS DISPLAY MODULE ASSY 70-08-01-001-0 1
2 TPMS SENSOR MODULE ASSY#1 70-08-01-002-0 1
3 TPMS SENSOR MODULE ASSY#2 70-08-01-003-0 1
4 TPMS SENSOR MODULE ASSY#3 70-08-01-004-0 1
5 TPMS SENSOR MODULE ASSY#4 70-08-01-005-0 1
6 TPMS 9FT POWER CABLE ASSY 70-08-02-001-0 1
7 SENSOR TAG - RED (#1) 02-09-00-001-0 1
8 SENSOR TAG - YELLOW (#2) 02-09-00-002-0 1
9 SENSOR TAG - BLUE (#3) 02-09-00-003-0 1
10 SENSOR TAG - GREEN (#4) 02-09-00-004-0 1
11 SENSOR CLAMP 72" 06-06-00-009-0 4
12 TPMS OWNER'S MANUAL 08-09-01-001-0 1
Table 3
For replacement parts, quote the description, part code and quantity required when ordering.
Item 1
Item 2, 3, 4 & 5
Item 6
Item 7, 8, 9 & 10
Item 11
Item 12
Page 4
![](/img.php?id=278728&img=bg6.png)
3. GETTING STARTED
How it works
Pressure and temperature information are sent to the Receiver and displayed on the LCD display. When an
under-inflated or over-heated tire is detected, the Receiver will emit an audible warning and activate the
backlight to warn the driver. The alerts depend on threshold value set for pressure and temperature. Either the
factory or manual preset value can be selected.
Handling Alerts
When any of the tire is not within the threshold limits (e.g. under inflated or over heated, the following will
occur:
• An audible warning will be activated for a period of 10 seconds at an interval of 7 minutes.
• The backlight of the LCD display would be activated for 25 seconds at the first occurrence.
• The pressure value and/or temperature value on the display will blink at twice the normal rate. Likewise
for the affected tire icon.
The above will continue until the threshold returns to their corresponding preset value.
All TPMS unit comes with a factory-preset value of 160 kPa (23 psi) for the Low Pressure Alert and factory
preset value of 80ºC (176ºF) for theHigh Temperature Alert.
Left Front Tire Select.
Decrement Value
Confirm Value
Increment Value
Temperature Unit Select
Power Supply
ON/OFF Switch.
Pressure Unit Select
ID Exchange/Learning
Select
Auto/Manual Display
Select
Right Front Tire Select
Left Rear Tire Select.
Ri
g
ht Rear Tire Select

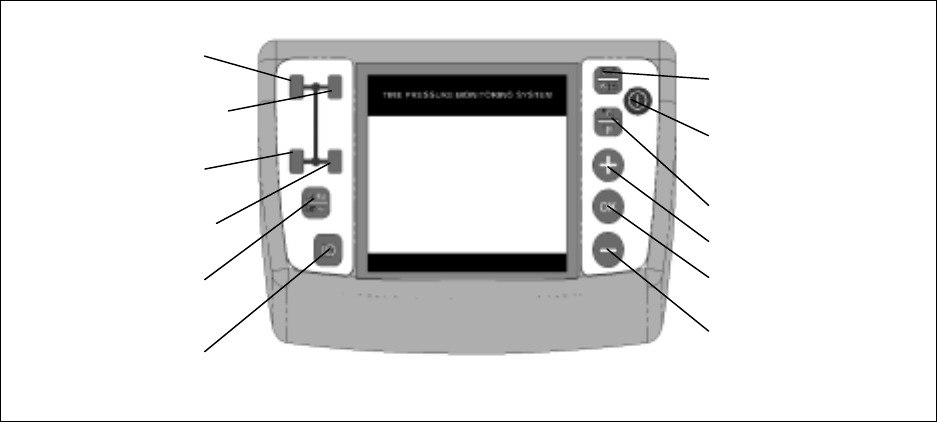

Figure 1 Display/Receiver Module
Page 5
![](/img.php?id=278728&img=bg7.png)
4. SENSOR/TRANSMITTER MODULE
Installation
Caution: Qualified personnel must perform the following
installation procedures to ensure that the Sensor/Transmitter
Module are properly installed and undamaged. It does not
include any standard procedures normally required in the
process of replacing a tire but due care should be taken to
ensure that the sensors are not damaged.
Tools Required
• Tire changing equipment
• Tire balancing equipment
• Hexagon socket and driver (5/16” or 7 mm)
• Cutter

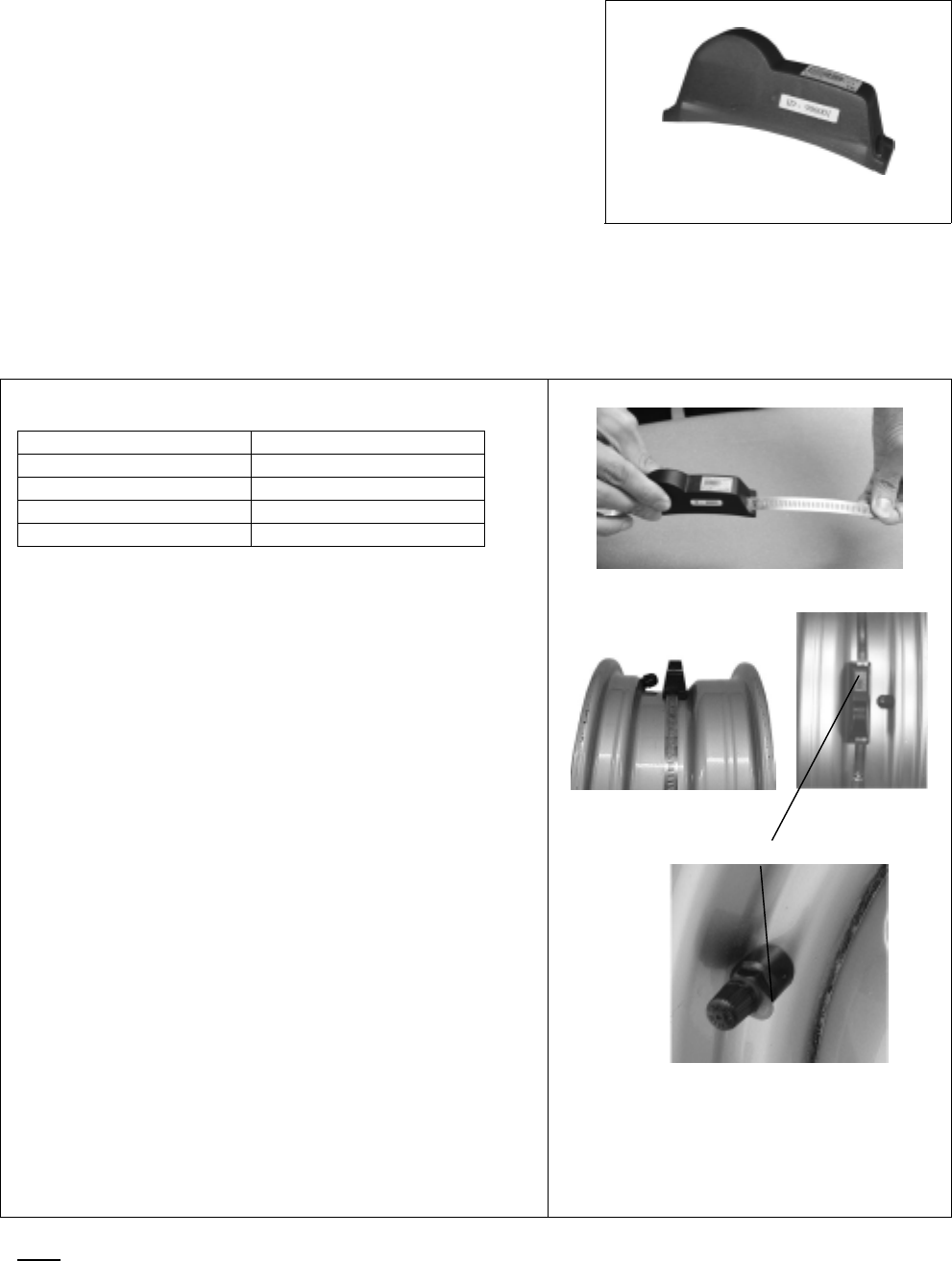

Figure 2 Sensor Module
Installing Sensor/Transmitter Module
Suggested installation sequence:
Transmitter Wheel Position
Red (1) Left Front
Yellow (2) Right Front
Green (3) Left Rear
Blue (4) Right Rear
Table 5
The base of the drop center well of the wheel must be flat
and wide enough to allow the Sensor/Transmitter to
contact the rim over its complete width.
• Pass strap through Sensor/Transmitter. See Figure 3.
• Use the tire valve as a reference position (for
servicing). Position the Sensor/Transmitter in the
lowest area of the drop center well in front of the
valve. (See Figure 4 and Figure 5) The tire valve will
be the reference position of the sensor in order not to
damage the sensor when removing tire from the
wheel.
Caution: Ensure that the sensor is not in
contact with the valve.
• Attach the strap end to the clamp by advancing the
worm gear with a socket driver or screwdriver.
Tighten until secured.
• Cut-off any excess of the sensor clamp to
approximately one inch from worm gear with a cutter.
• Attach the corresponding color tag to the valve stem
by carefully twisting the tag onto the valve stem and
securing it with the valve cap. See Figure 6.
• Proceed to mount the tire onto the wheel.
• Ensure that the tires are properly re-balanced.
Figure 3
Figure 4 Figure 5
Figure 6
* = The sensor tag (Figure 6) has the same
color and number as the same as the
sensor label (Figure 5).
Note
Keep the colored sensor tag on the valve stem for installation and tire rotation.
Page 6
![](/img.php?id=278728&img=bg8.png)
Display/Receiver Module
캜
캟
Psi
Kpa
ACT-P
MANUAL
Temperature in
Fahrenheit.
Temperature in Celsius.
Pressure in kPa.
Pressure in psi.
Front Right Tire
Front Left Tire
Measured Pressure
Readout
Measured Temperature
Readout Auto mode icon.
Rear Left Tire
Rear Right Tire
Sensor Battery Status.
Manual Mode Icon

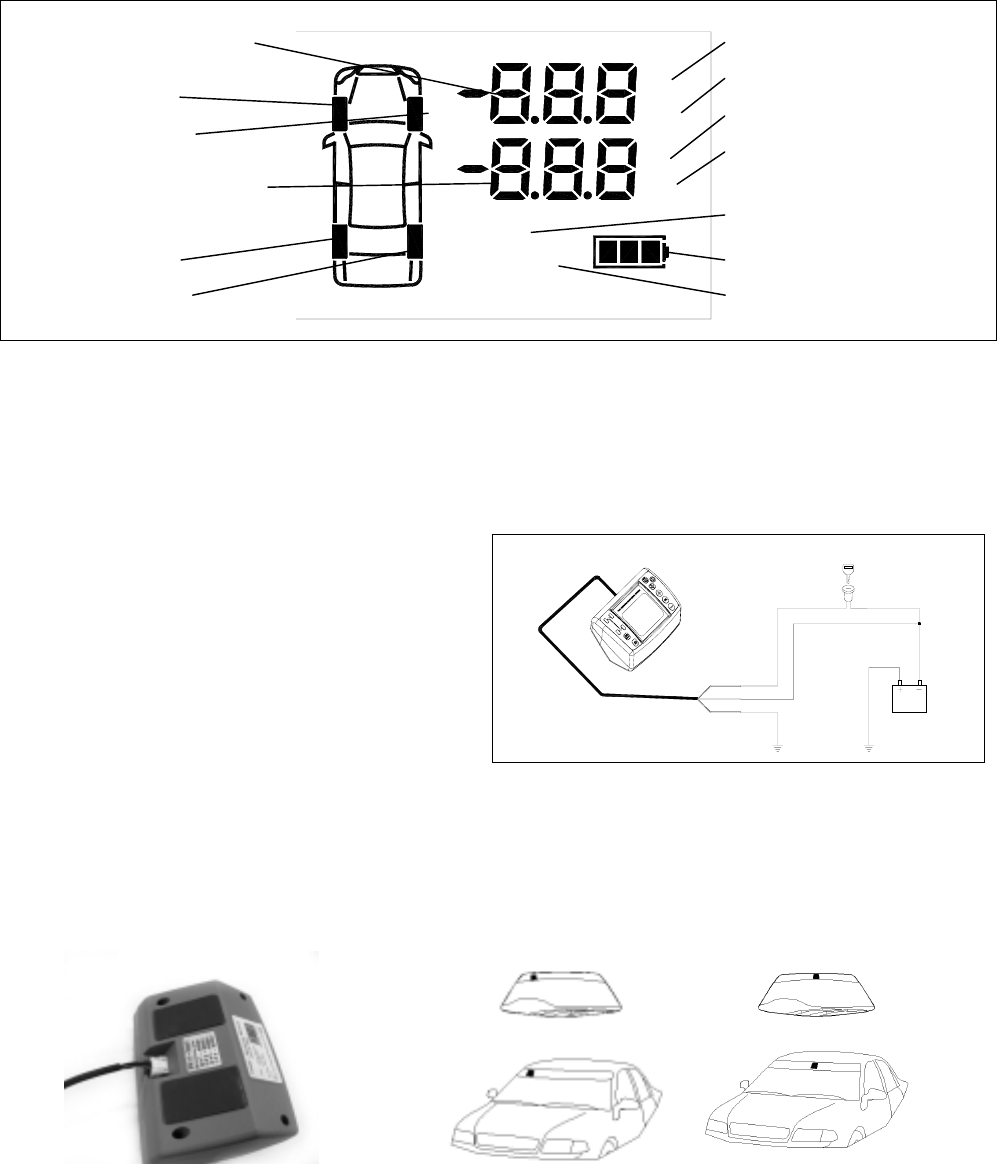

Figure 7 LCD Display
Installation
1. Insert the Power Supply Cable connector into Receiver socket, which is located at the top rear. Refer
Figure 8.
2. Connect the other end of the Power Supply Cable to the vehicle +12VDC, Ground and ACC.
RED color wire to vehicle +12V DC,
BLACK color wire vehicle Ground,
ORANGE color Wire to vehicle ACC,
Orange
Red
Black
Module
TPMS
Battery
Ignition
Figure 8 Wiring Diagram
3. Peel off the film covering the 2 pieces of adhesive double-sided-tape film on the back of the
display/receiver module.
4. Determine the desired location for Display/Receiver Module. Refer Figure. 10 for possible locations.
5. Apply pressure around the Display/Receiver Module panel for maximum mounting of the module to
the car windscreen.
Figure 9 Connection of Power Cable
Figure 10 Possible mounting positions
Page 7
![](/img.php?id=278728&img=bg9.png)

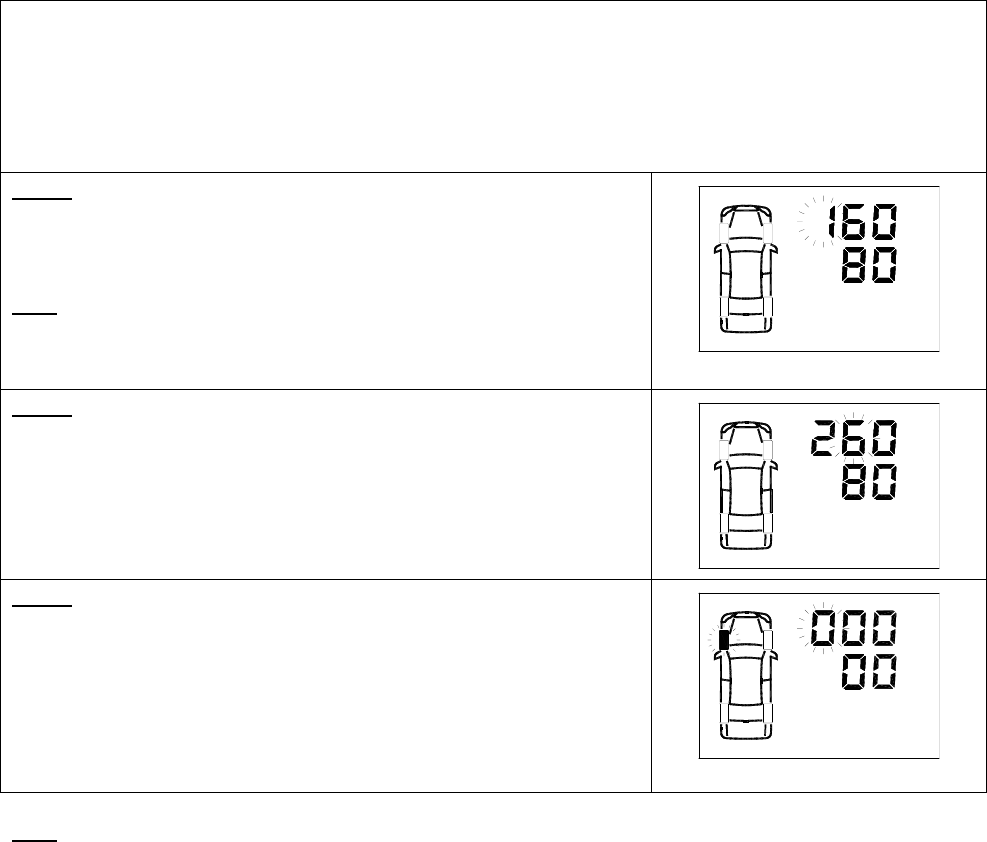

Programming Manual Threshold Setting
To set to other alert threshold value for pressure and temperature, press and hold [Auto/Manual] button for 1
second twice.
For low pressure alert, the maximum limit is 399kPa (58 psi) while for temperature, the maximum limit is
99ºC (210ºF).
Step 1
Upon entering this mode, the first digit of the tire pressure readout will
blink, indicating that it is ready to accept new input. The value is
changed by pressing the [ + ] button or [ - ] button to change the value.
Note
This mode will terminate automatically if there are no key-button
activities after 10 seconds and will revert back to the original factory
preset value.
캜
Kpa
Step 2
To confirm the selected value, press the [OK] button to save it. The
second digit will blink to indicate that it is ready to accept new input.
캜
Kpa
Step 3
Repeat steps 1 and 2 to adjust the value of other digits on the LCD
display for both pressure and temperature.
캜
Kpa
Note
1. Value shown is for reference only.
2. The setting of Manual Threshold Setting can only be done in kPa (Pressure) and ºC (Temperature).
Refer to Annex 1 for conversion between the units.
3. To return to factory-preset value mode, press [Auto/Manual] button once.
4. To enter manual-preset value mode, press [Auto/Manual] button three times.
ACT-P: Factory Preset
MANUAL: Manual Preset
Page 8
![](/img.php?id=278728&img=bga.png)

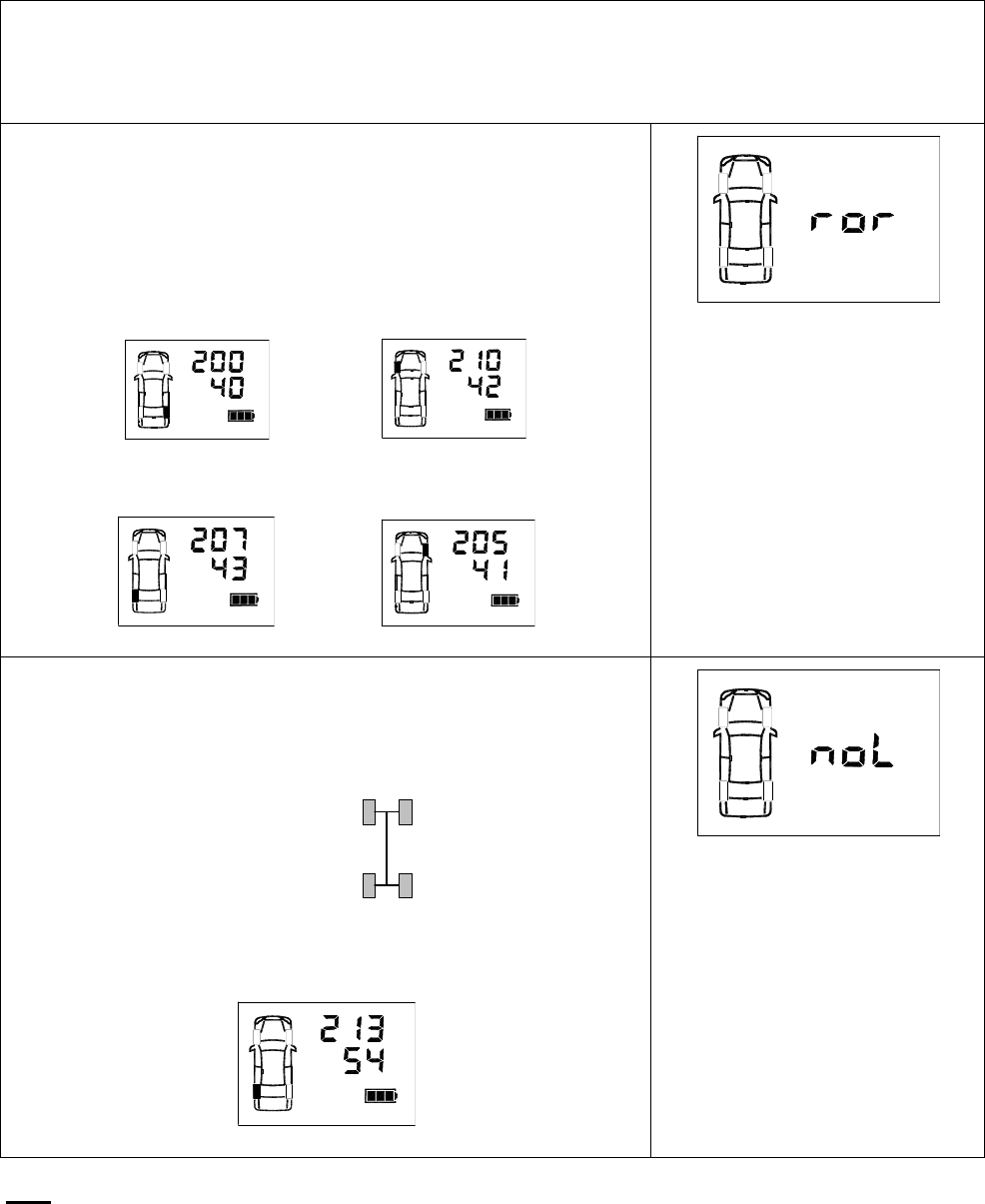

Display Mode
Press and hold [Auto/Manual] and [OK] button for 1 sec to alternate between Rotation Mode and Normal
Mode. Press again to revert to the previous mode.
Rotation Mode
Each of the tires will be ‘scanned’ for the reading. The rotation will
begin from Front Left tire, followed by Front Right Tire, Rear Left Tire,
Rear Right Tire and the cycle will begin again with the Front Left Tire.
This is indicated by a blinking tire icon.
ACT-P
캜
Kpa
J
ACT-P
캜
Kpa
K L
ACT-P
캜
Kpa
I
ACT-P
캜
Kpa
Rotation Mode Activated
Normal Mode
In the normal mode, the display will always show the tire with the
lowest pressure value.
To view information of other tires, use buttons to select the tire
required.
캜
MANUAL
Kpa
Normal Mode Activated
Note
Value shown is for reference only.
Page 9
![](/img.php?id=278728&img=bgb.png)

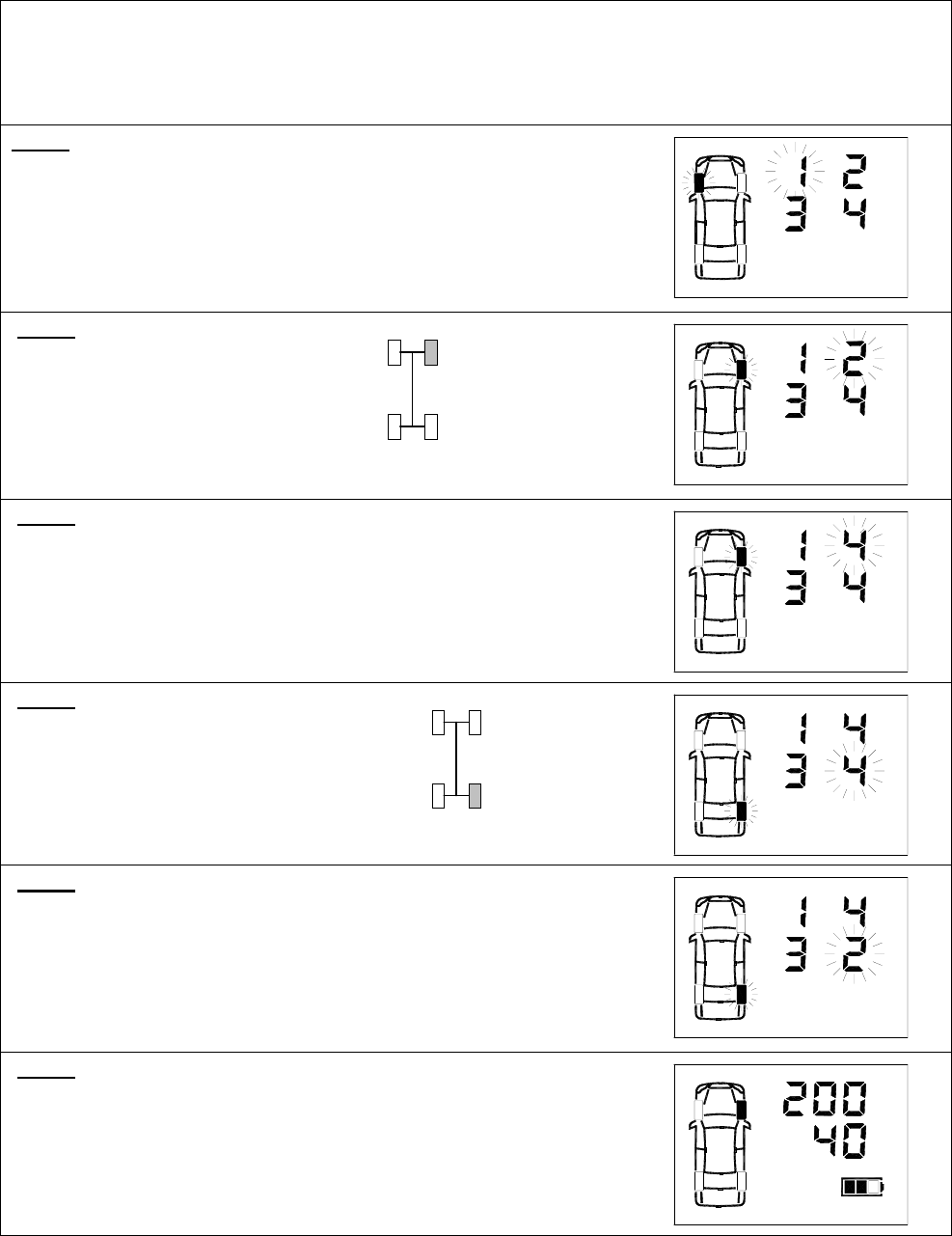

Sensor ID Exchange
Mode
For rotation of tires, the Sensor ID data in the receiver must be changed accordingly to ensure that it
indicates the correct tire when there are any irregularities.
Step 1
Press [ID] button for 1 second or more to enter the Sensor ID
Exchange Mode.
The blinking tire icon and corresponding Sensor ID digit indicates that
it is ready to accept inputs from user.
For this example, assume that we are exchanging the Front Right Tire
with the Rear Right Tire.
Step 2
Press the front right tire button to select it.
This will cause the front right tire icon and its corresponding ID digit to
blink.
Step 3
Use [+] key and [-] key to change the selected Sensor ID digit.
In this case, press [+] twice and follow by the [OK] button to save the
new Sensor ID value.
Step 4
Next, press the rear right tire button to select it.
The Rear Right Tire icon and its corresponding ID digit will blink.
Step 5
Use [ + ] key and [ - ] key to change the selected Sensor ID digit.
In this example, press [ - ] twice and follow by the [OK] button to save
the new Sensor ID value.
To exit this mode without saving, press [ID] button for 1 second and it
will exit Sensor ID Exchange Mode.
Step 6
The receiver will revert back to normal display and that complete the
process of exchanging Sensor ID data in the receiver.
ACT-P
캜
Kpa
Page 10
![](/img.php?id=278728&img=bgc.png)

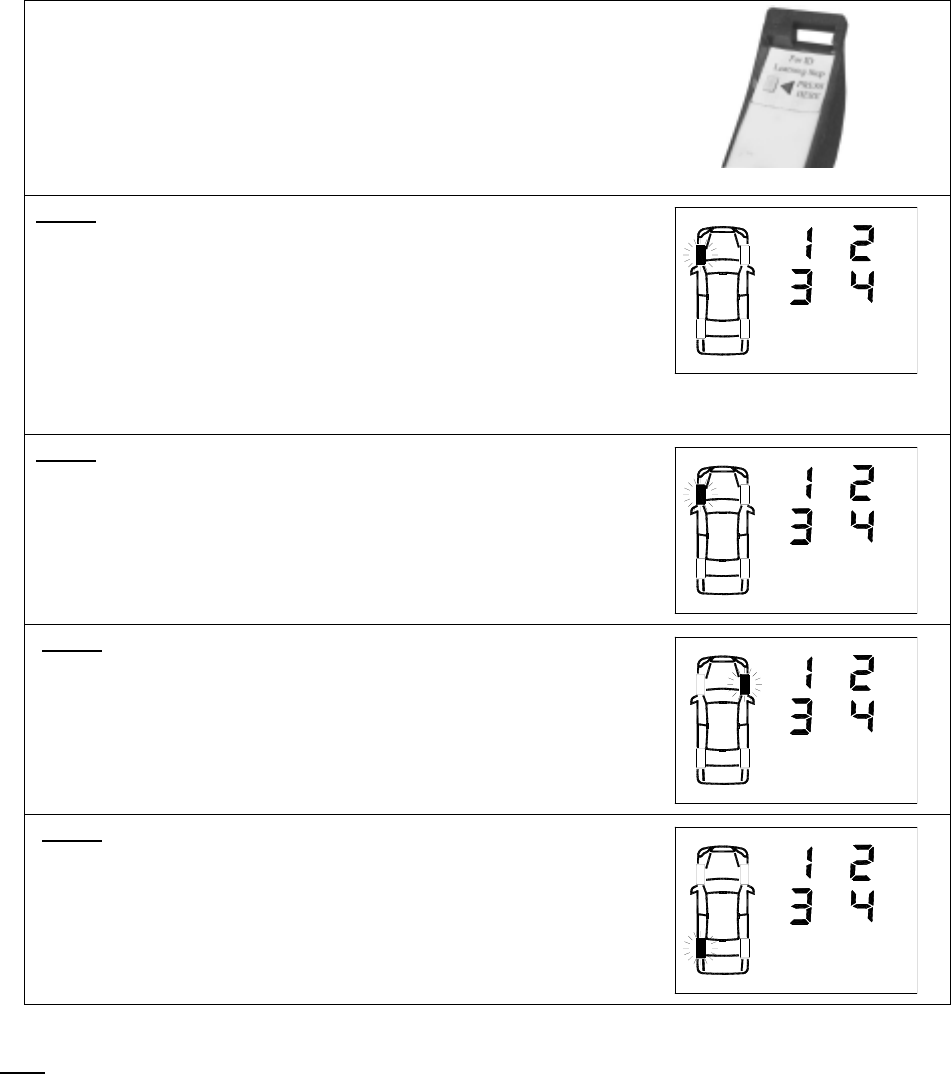

Sensor ID Learning
Mode (Replacing Display Module or Sensor)
For programming of a new receiver unit or replacement of defective
sensors, refer to the following steps.
Figure 11
Step 1
Turn on the display module. Press [ID] button and [OK] button
simultaneously for 1 second to enter Sensor ID Learning Mode.
The blinking (once per second) of the tire icon, indicates that it is
ready to accept new Sensor ID input.
Select the tire that requires replacement of sensor by pressing the
selected tire icon on the LCD display.
Step 2
Press the micro switch on the new sensor (refer Figure 11) for 1
second. Upon receiving the new Sensor ID, the tire icon will blink
at a faster rate (twice per second).
Step 3
Press [OK] button to save the new Sensor ID.
Step 4
If all 4 sensors are replaced, upon pressing the [OK] button for the
tire, the receiver will revert back to the normal display. This
indicates that the Sensor ID Learning Process is complete.
Note
1. Pressing [ID] button at any time during the learning process will abandon any changes and revert back to
the factory preset.
2. When replacing new display unit, all 4 sensor ID must be re-programmed and saved.
3. The receiver will not save any identical Sensor ID.
Page 11
![](/img.php?id=278728&img=bgd.png)
7. Troubleshooting Guide
Symptoms Possible cause(s) Solution
No display on LCD panel. No power. Check connections of Power cable
at both ends. Ensure that the
connection is on the correct polarity
and properly grounded.
No display on LCD panel. Faulty Unit. Contact your dealer for a
replacement.
The unit does not activate
when the POWER key button
is pressed.
The car ignition has not
been turned ON. Turn the ignition key to ACC
position.
The receiver is not learning the
ID during ID LEARNING
Mode.
Localize RF interference. Move to another location and re-
initiate the ID LEARNING process.
No instant alert Reverse power cable
installation. Ensure that the red wire is
connected to permanent power
supply (battery) and orange wire is
connected to ACC position of the
ignition.
8. Appendix
Glossary
Cold Pressure Recommended inflation pressure of a tire at ambient temperature
of 22°C by vehicle manufacturers.
Low Pressure Alert Visual and audible warning that is activated when the tire’s
pressure goes below the preset level.
Display/Receiver Module The electronic module mounted inside the vehicle that alerts the
driver of any tire irregularities.
Sensor/Transmitter Module The electronic module mounted on the wheels that measure the
air pressure and temperature of the tire.
Page 12
![](/img.php?id=278728&img=bge.png)
9. Annexes Annex I
psi To kPa To psi Conversion Table
kPa to psi Conversion Table
kPa psi kPa psi kPa psi
10 1 210 31 410 60
20 3 220 32 420 61
30 4 230 34 430 63
40 6 240 35 440 64
50 7 250 37 450 66
60 9 260 38 460 67
70 10 270 39 470 69
80 12 280 41 480 70
90 13 290 42 490 72
100 15 300 44 500 73
110 16 310 45
120 18 320 47
130 19 330 48
140 20 340 50
150 22 350 51
160 23 360 53
170 25 370 54
180 26 380 55
190 28 390 57
200 29 400 58
Page 13
