PARTS
MAN U AL
Model
PUB-EP
Rev. 10/10
ENGINES
EA190V
EA190V - 2 - 10-10
© Copyright 2010 Robin America, Inc.
Robin America, Inc.
905 Telser Road • Lake Zurich, IL 60047 • Phone: 847-540-7300 • Fax: 847-438-5012
e-mail: sales@robinamerica.com • www.subarupower.com
EA190V - 3 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.
GROUP INDEX
Group Name Page
CRANKCASE GROUP .............................................................................. 4
CRANKSHAFT GROUP ............................................................................. 8
INTAKE and EXHAUST GROUP .............................................................. 10
GOVERNOR GROUP .............................................................................. 14
COOLING and STARTING GROUP ......................................................... 16
FUEL, LUBRICATION GROUP ................................................................ 18
ELECTRIC ................................................................................................ 22
EA190V - 4 - 10-10

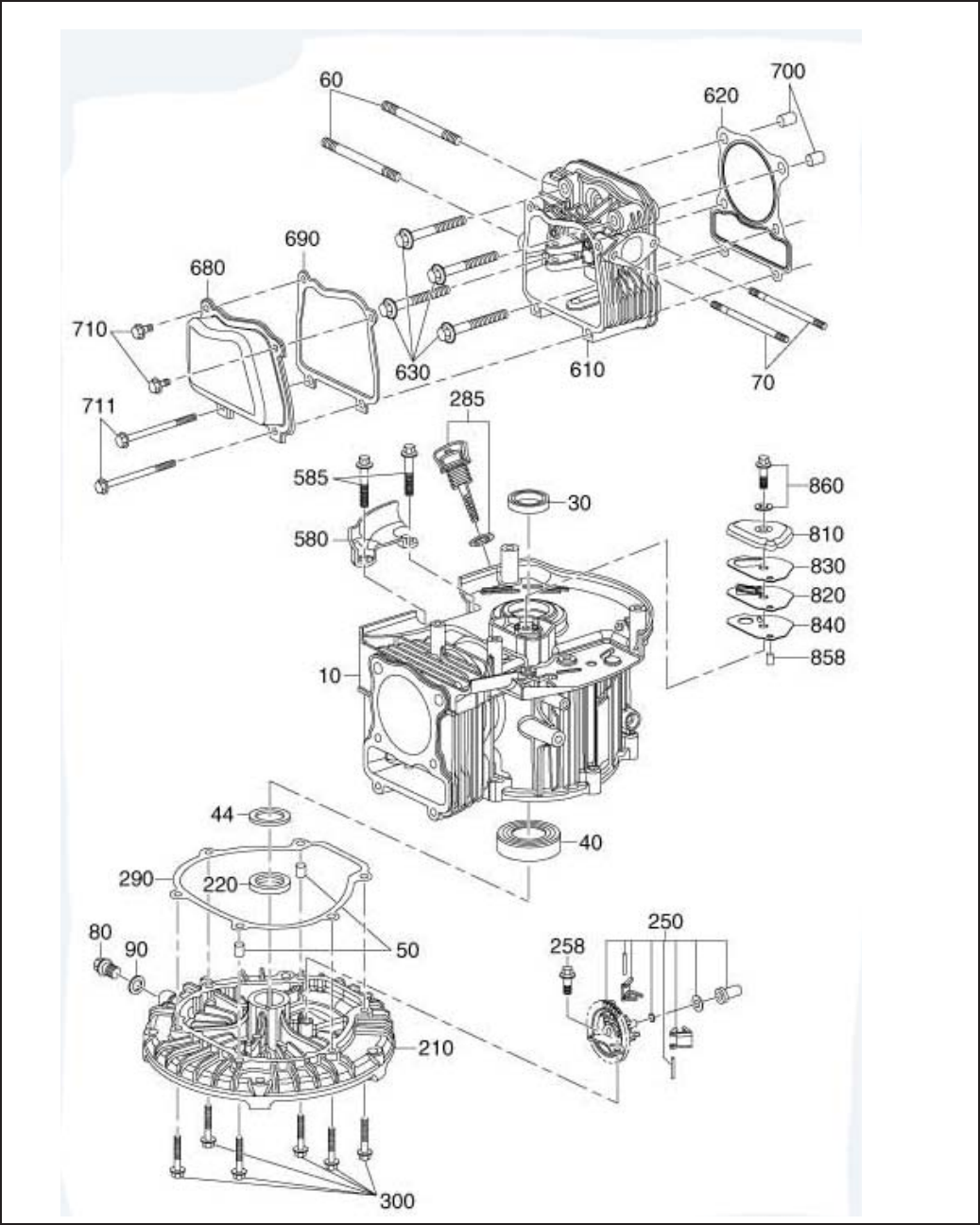

FIG. 1 CRANKCASE GROUP
EA190V - 5 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.
FIG. 1 CRANKCASE GROUP
10 11310Z02015000 Crankcase Ay 1 100
30 90682Z02021000 Oil Seal 1 100
40 90541020500 Ball Bearing 1 100
44 90408Z02011000 Washer 1 100
50 90502081000 Dowel Pin 2 100
60 90204Z02022000 Stud 2 100
70 90204Z02031000 Stud 2 100
80 11007Z01011000 Oil Drain Plug 1 100
90 90408Z01011000 Washer 1 100
210 11411Z02012000 Crankcase Cover 1 100
220 90682Z02011000 Oil Seal 1 100
250 16400Z02031000 Governor Gear Ay 1 100
258 900070616A1 Bolt 1 100
285 15010Z020110QG Dipstick Ay 1 100
290 11001Z02013000 Sump Gasket 1 100
300 900070630A1 Bolt 6 100
580 19340Z02012000 Air Guide 1 100
585 900070616A1 Bolt 2 100
610 12140Z02013000 Cylinder Head Ay 1 100
620 12131Z02021000 Cylinder Head Gasket 1 100
630 12003Z02011000 Bolt 4 100
680 12411Z02014000 Valve Cover 1 100
690 12004Z02021000 Valve Cover Gasket 1 100
700 90502101400 Dowel Pin 2 100
710 900070612A1 Bolt 2 100
711 900070680A1 Bolt 2 100
810 11333Z02022000 Breather Cover 1 100
820 11320Z02012000 Breather 1 100
830 11332Z02032000 Breather Cover Gasket 1 100
840 11332Z02022000 Breather Cover Gasket 1 100
858 90509Z02011000 Dowel Pin 1 100
860 902590620A1 Bolt 1 100
EA190V - 6 - 10-10

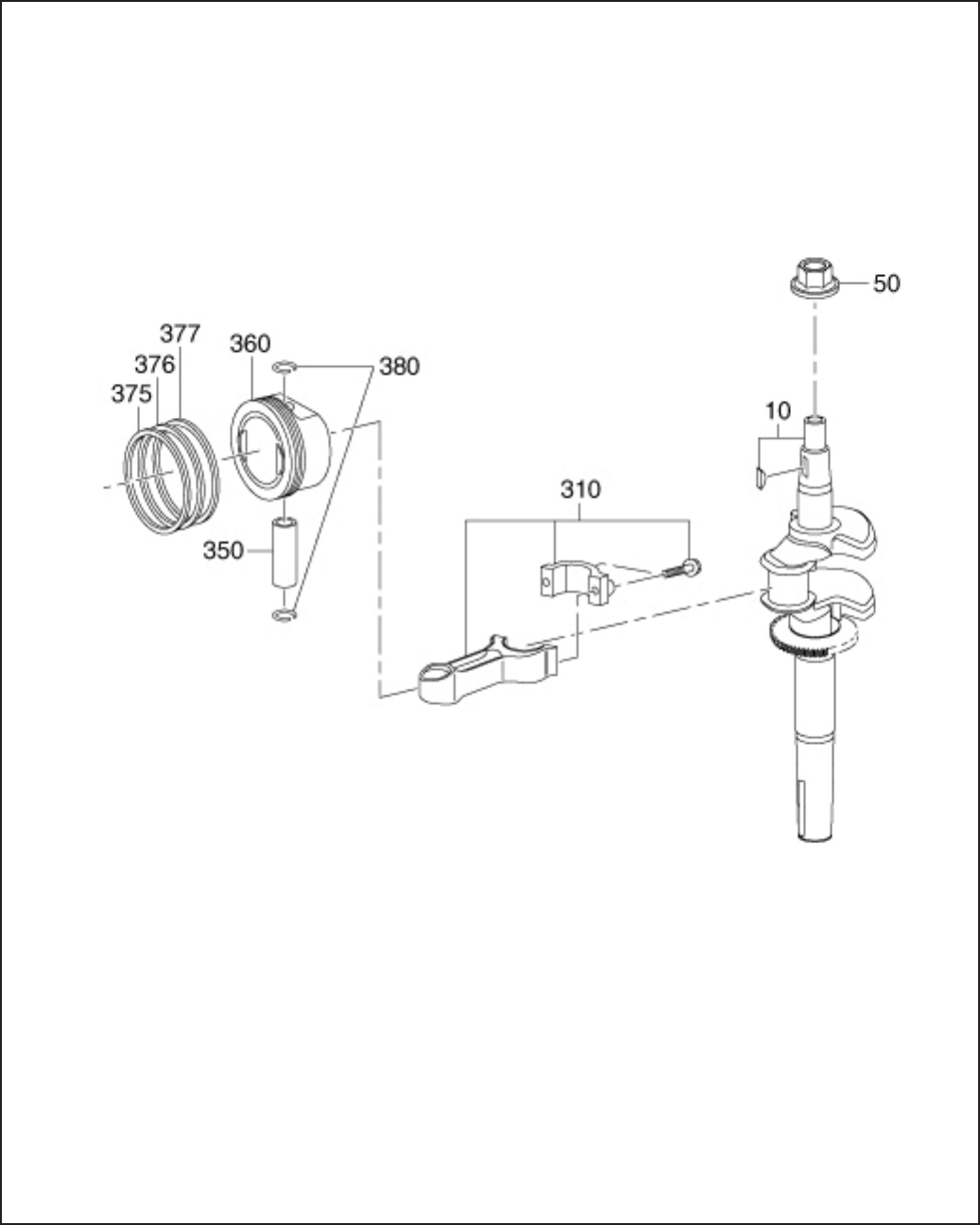

FIG. 2 CRANKSHAFT GROUP
EA190V - 7 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.
FIG. 2 CRANKSHAFT GROUP
10 13300Z02081000 Crankshaft Ay 1 200
50 13501Z01011000 Flywheel Nut 1 200
310 13010Z02011000 Connecting Rod Ay 1 200
350 13121Z02011000 Piston Pin 1 200
360 13111Z02011000 Piston 1 200
375 13201Z02011000 First Piston Ring 1 200
376 13202Z02011000 Second Piston Ring 1 200
377 13210Z02011000 Oil Ring Ay 1 200
380 13122Z02011000 Piston Pin Snap Ring 2 200
EA190V - 8 - 10-10
FIG. 3 INTAKE and EXHAUST GROUP
EA190V - 9 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

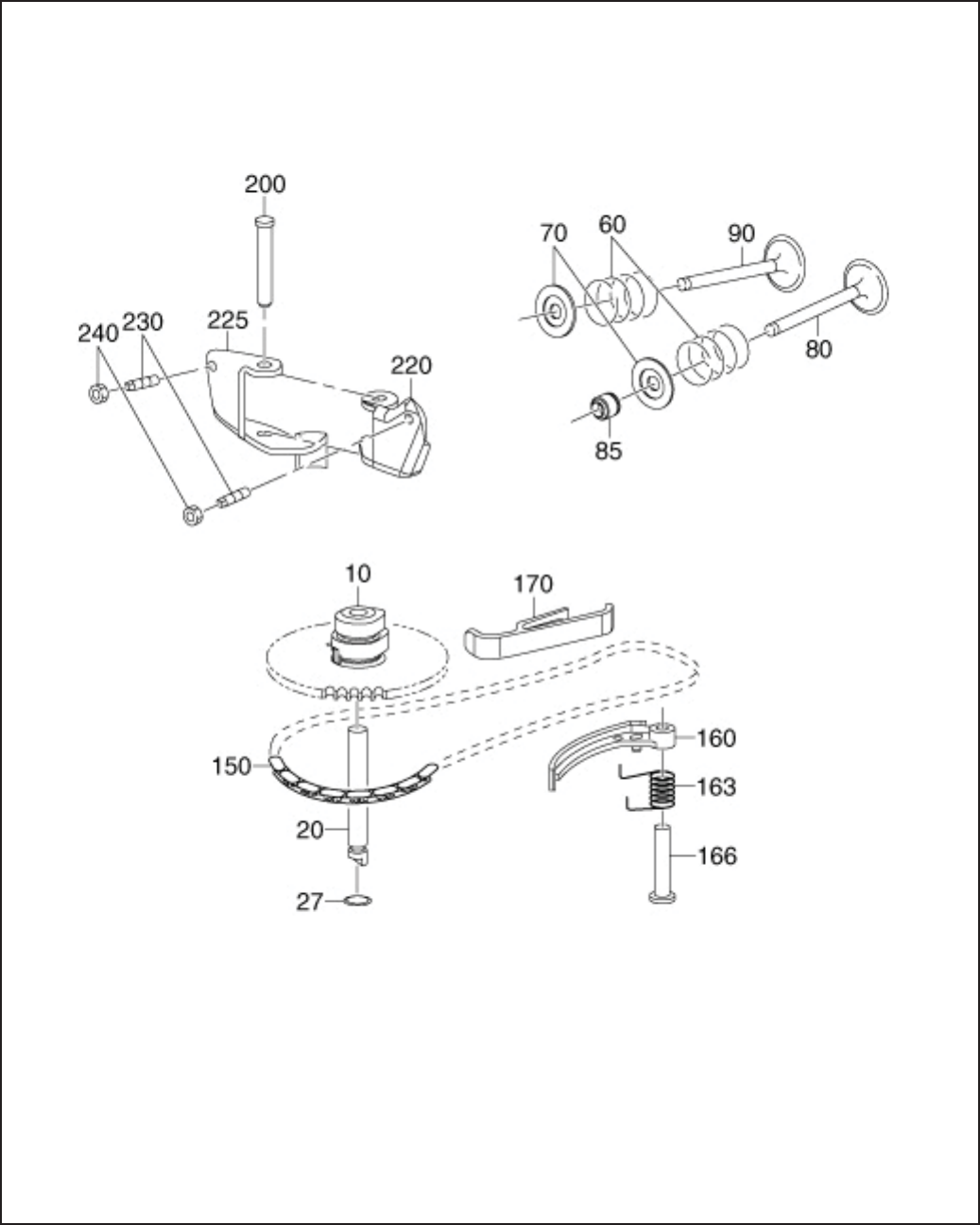

FIG. 3 INTAKE and EXHAUST GROUP
10 14200Z02012000 Camgear Ay 1 300
20 14216Z02011000 Camshaft 1 300
27 90681Z02011000 O ring 1 300
60 12103Z01011000 Valve Spring 2 300
70 12112Z02011000 Spring Retainer 2 300
80 12111Z02011000 Inlet Valve 1 300
85 12101Z02011000 Valve Seal 1 300
90 12121Z02011000 Exhaust Valve 1 300
150 90710Z02011000 Chain 1 300
160 14440Z02011000 Tensioner 1 300
163 14402Z02014000 Tentioner Spring 1 300
166 14403Z02012000 Tension Shaft 1 300
170 14009Z02011000 Chain Guide 1 300
200 14330Z02012000 Rocker Arm Pivot 1 300
220 14311Z02022000 Inlet Rocker Arm 1 300
225 14321Z02022000 Exhaust Rocker Arm 1 300
230 14314Z02011000 Valve Adjustment, stud 2 300
240 14312Z02011000 Valve Adjustment, nut 2 300
EA190V - 10 - 10-10
FIG. 3 INTAKE and EXHAUST GROUP
EA190V - 11 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

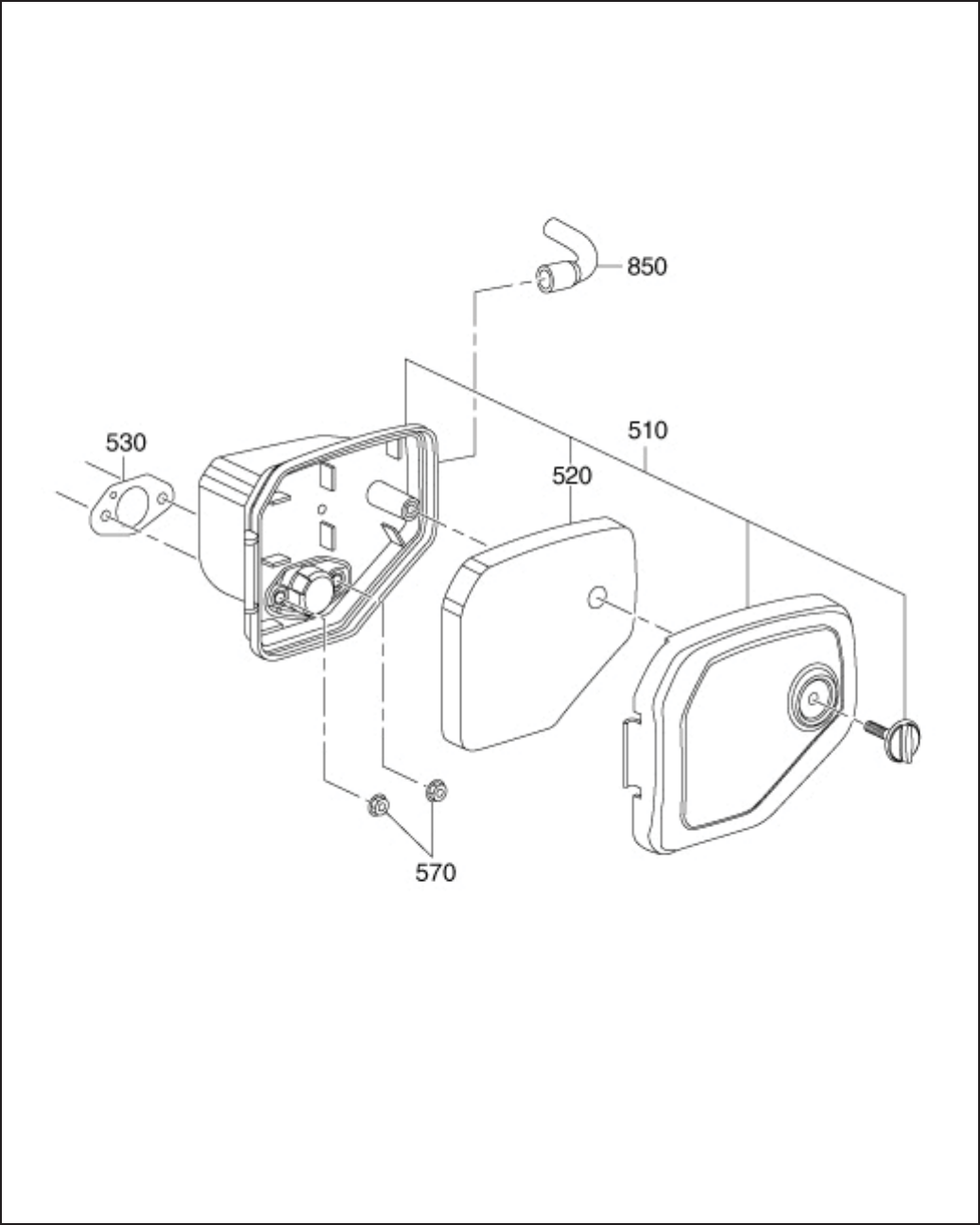

FIG. 3 INTAKE and EXHAUST GROUP
510 17100Z02051000 Air Cleaner Ay 1 315
520 17151Z02011000 Air Cleaner Element 1 315
530 17001Z02012000 Air Cleaner Gasket 1 315
570 90305060031 Nut 2 315
850 16804Z02021000 Breather Hose 1 315
EA190V - 12 - 10-10

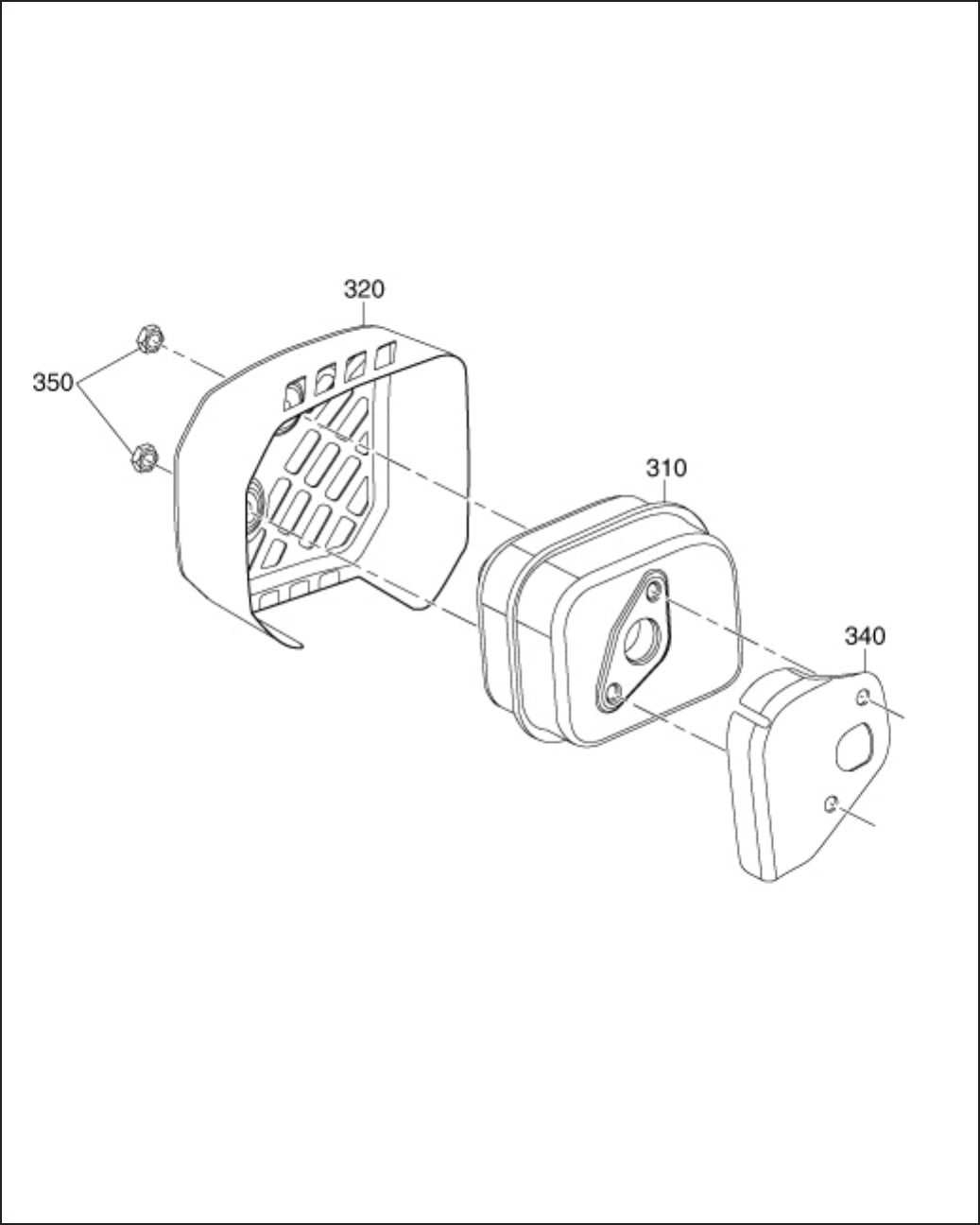

FIG. 3 INTAKE and EXHAUST GROUP
EA190V - 13 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.
FIG. 3 INTAKE and EXHAUST GROUP
310 18100Z02013000 Muffl er 1 330
320 18130Z02024000 Muffl er Cover 1 330
340 18020Z02011000 Muffl er Gasket 1 330
350 90305080031 Nut 2 330
EA190V - 14 - 10-10
FIG. 5 GOVERNOR GROUP
EA190V - 15 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.
FIG. 5 GOVERNOR GROUP
10 16071Z02031000 Governor Lever 1 400
20 16061Z02021000 Governor Arm 1 400
25 90408Z01021000 Washer 1 400
27 90682Z03021000 Oil Seal 1 400
30 16062Z02033000 Throttle Control Lever 1 400
40 16012Z02022000 Throttle Returning Spring 1 400
50 90501Z01011000 Cotter Pin 1 400
60 16072Z01011000 Bolt 1 400
70 90305060031 Nut 1 400
80 16063Z02031000 Governor Spring 1 400
130 16123Z020220QG Choke Lever 1 400
135 16907Z02012000 Choke Lever Holder 1 400
650 16520Z02041000 Throttle Control Bracket 1 400
667 900070612A1 Bolt 2 400
720 16757Z02012000 Fuel Valve Base 1 400
725 900070514A1 Bolt 1 400
726 90303050031 Nut 1 400
730 35540Z030420QG Ignition Switch 1 400
740 35555Z01012000 Ignition Switch Ground Wire 1 400
EA190V - 16 - 10-10
FIG. 5 COOLING and STARTING GROUP
EA190V - 17 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

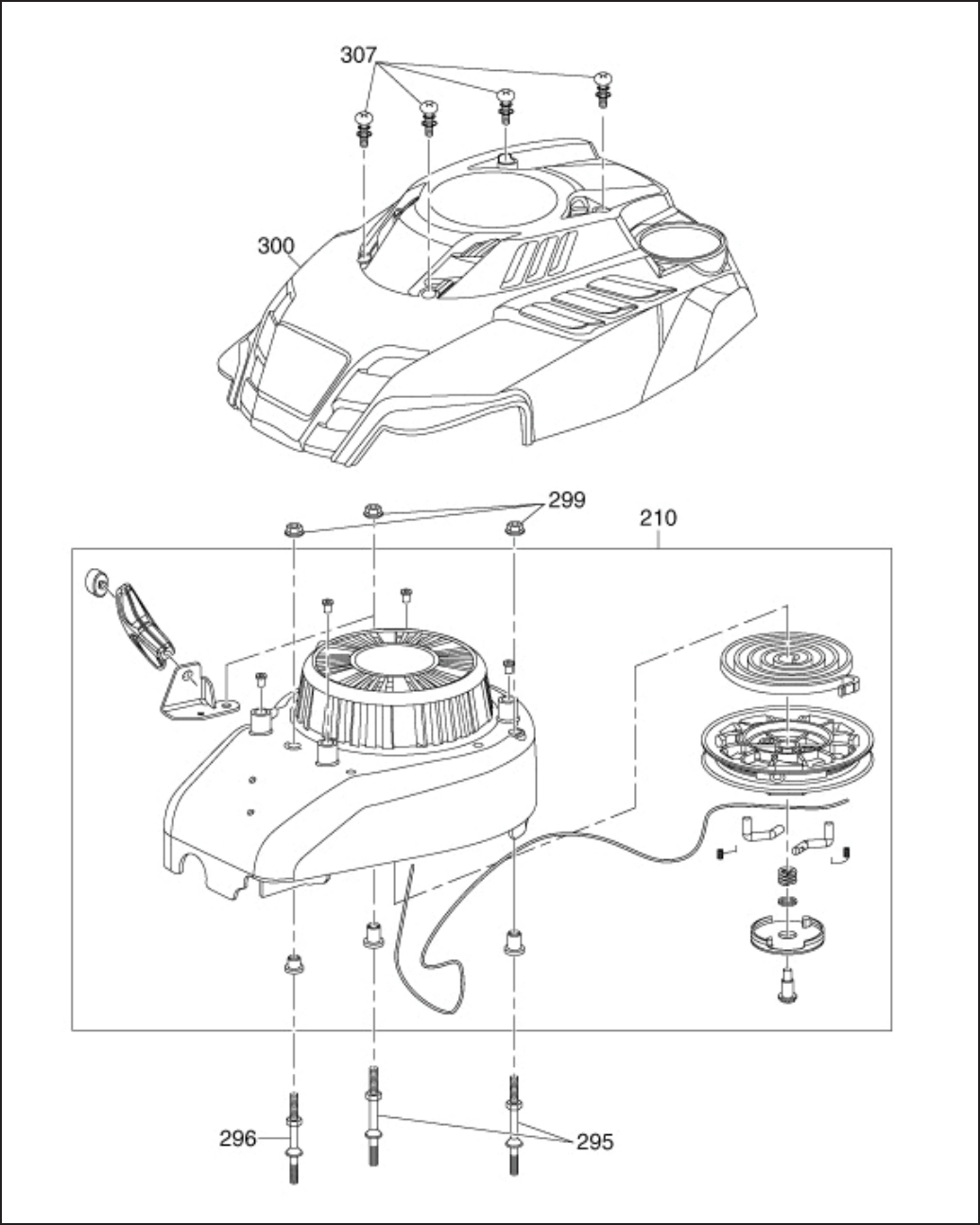

FIG. 5 COOLING and STARTING GROUP
210 28200Z02031000 Recoil Starter 1 500
295 28001Z02011000 Stud 2 500
296 28001Z02021000 Stud 1 500
299 90305060031 Nut 3 500
300 80001Z020220Q2 Engine Shroud 1 500
307 90254052051 Screw Ay 4 500
EA190V - 18 - 10-10
FIG. 6 FUEL LUBRICANT GROUP
EA190V - 19 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

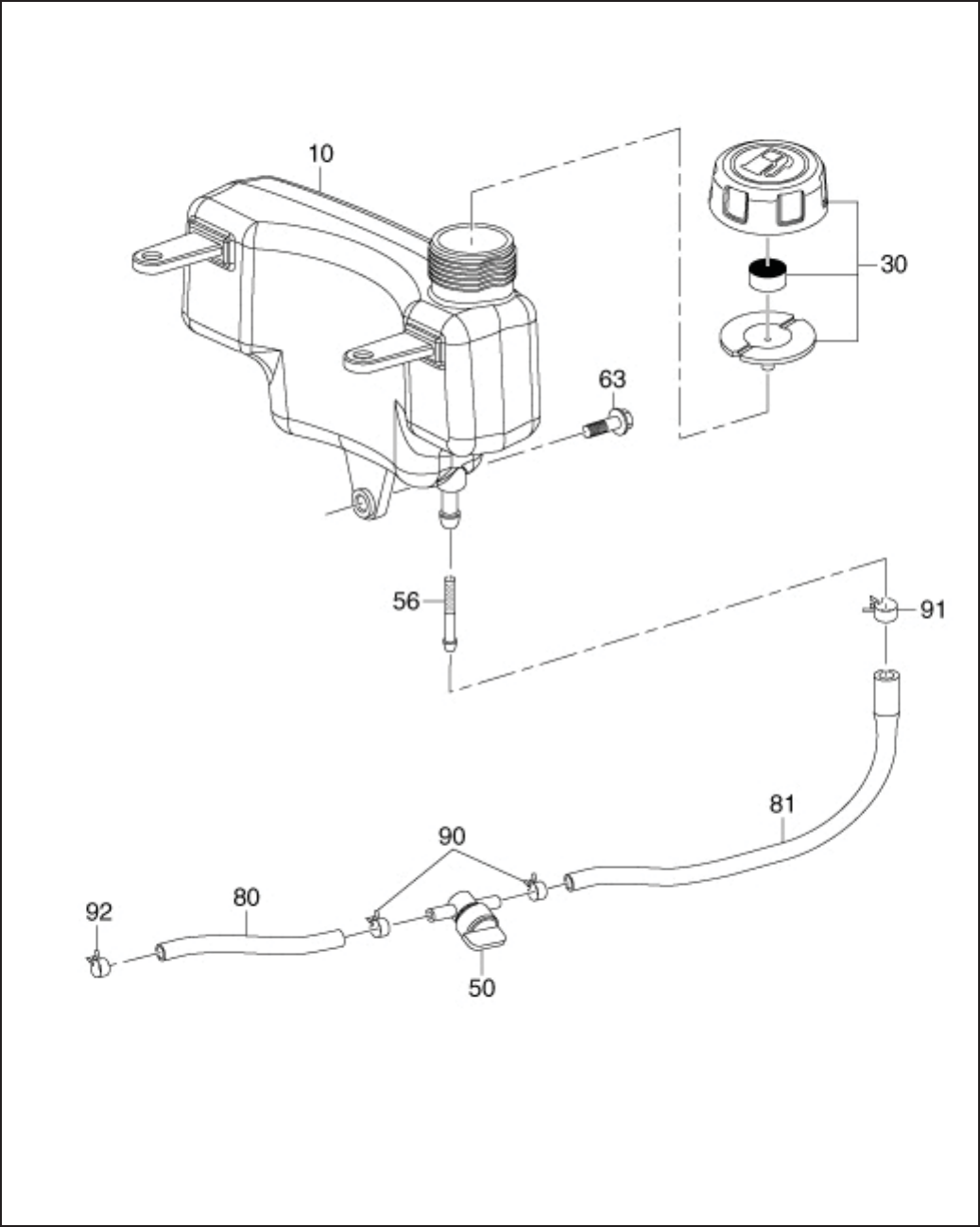

FIG. 6 FUEL LUBRICANT GROUP
10 16620Z020160Q2 Fuel Tank 1 600
30 16730Z030110G4 Tank Cap Ay 1 600
50 16752Z02011000 Fuel Valve 1 600
56 16652Z03011000 Fuel Filter 1 600
63 900070625A1 Bolt 1 600
80 90686Z02021000 Fuel Hose 1 600
81 90686Z02031000 Fuel Hose 1 600
90 90685Z02011000 Hose Clamp 2 600
91 90685Z03041000 Hose Clamp 1 600
92 90685Z03022000 Hose Clamp 1 600
EA190V - 20 - 10-10
FIG. 6 FUEL LUBRICANT GROUP
EA190V - 21 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

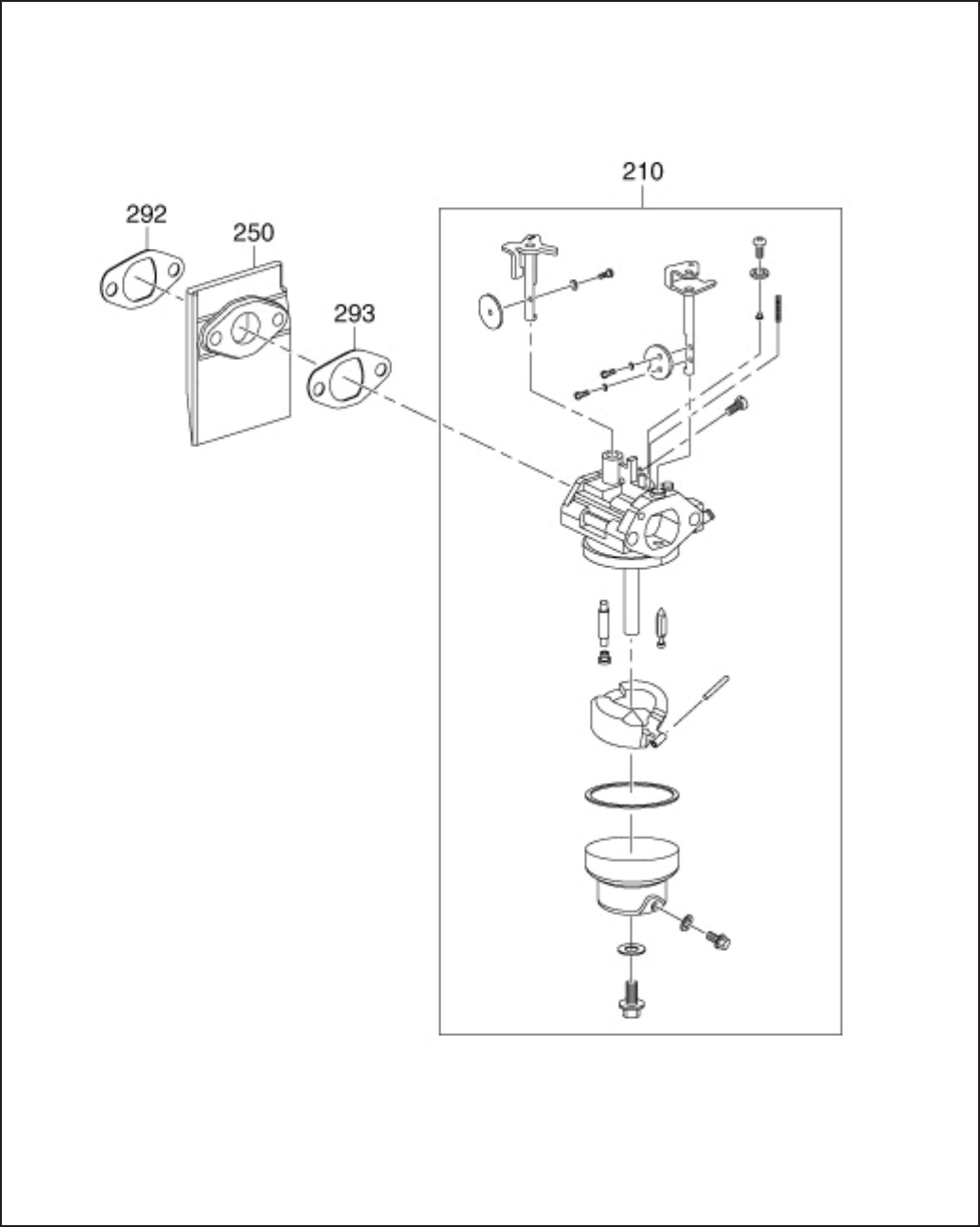

FIG. 6 FUEL LUBRICANT GROUP
210 16100Z02032000 Carburetor AY 1 640
250 16003Z02012000 Insulator 1 640
292 16002Z02011000 Insualtor Gasket 1 640
293 16001Z02012000 Carburetor Gasket 1 640
EA190V - 22 - 10-10
FIG. 7 ELECTRIC GROUP
EA190V - 23 - 10-10
Ref. Part Number Description Qty Remarks To-From Fig.

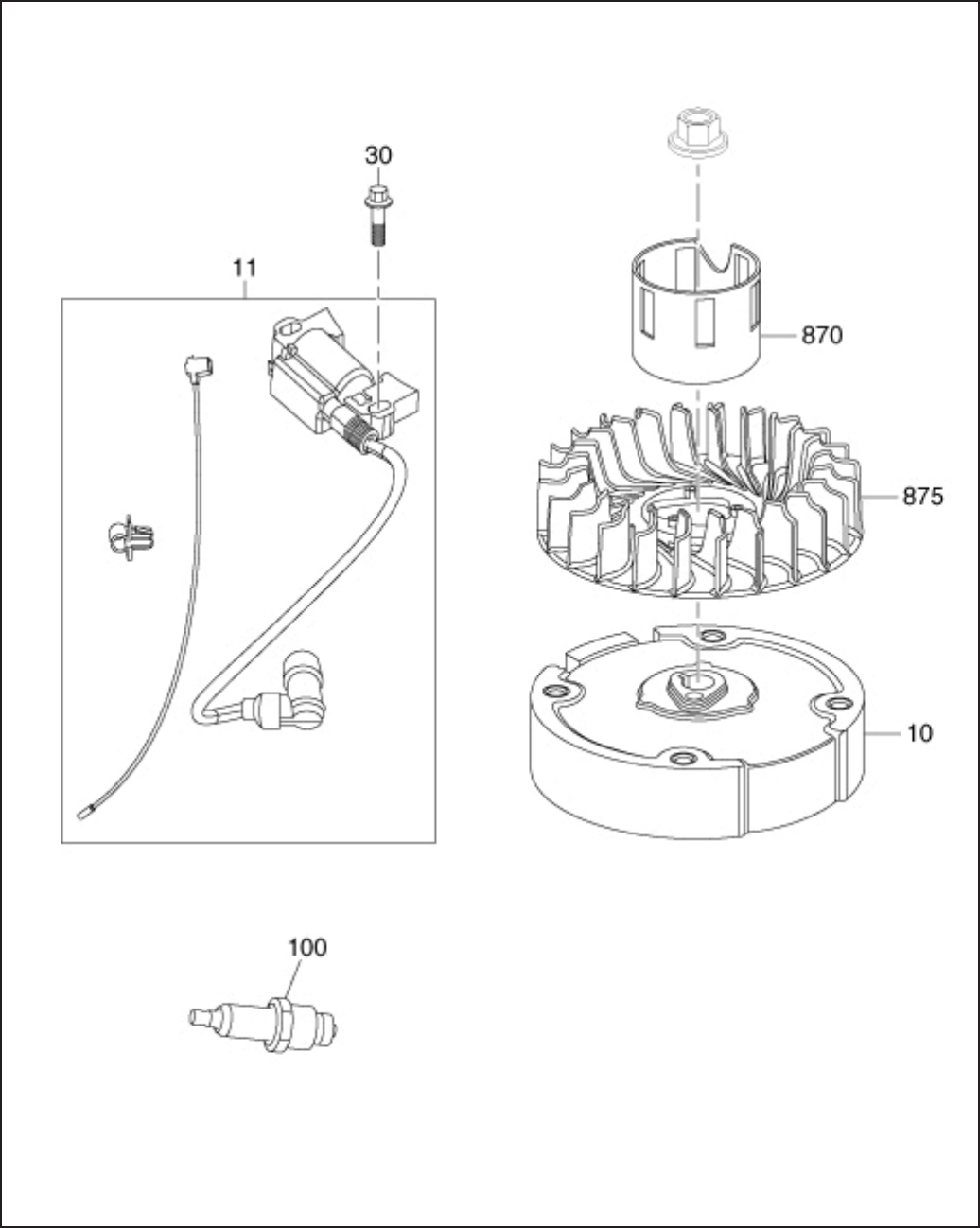

FIG. 7 ELECTRIC GROUP
10 13510Z02021000 Flywheel 1 700
11 30400Z02051000 Ignition Coil 1 700
30 900070625A1 Bolt 1 700
100 30010Z02012000 Spark Plug 1 700
870 28002Z02012000 Start Cup 1 700
875 19352Z01011000 Cooling Fan 1 700
