Summer Infant 989R Baby Monitor (Monitor Part) User Manual 29890 manual
Summer Infant, Inc. Baby Monitor (Monitor Part) 29890 manual
User Manual
Flip out the kick-stand
and place the monitor on
a stable, level surface.
v
Deleting a Camera:
Press the POWER/MENU button to
enter menu screen. Using the
DOWN button, highlight DELETE
CAM. Use the UP/DOWN buttons
to highlight the camera you
would like to delete. Press the
POWER/MENU button to delete
that cam.
Scanning Camera
When using multiple cameras, to enter scan mode, press the POWER/MENU
button to enter menu screen. Using the DOWN button, select SCAN, and
press the POWER/MENU button. Scanning cameras will begin. It will cycle
through each active camera every 8 seconds. To stop scanning, press the
POWER/MENU button.
Selecting Camera to View
Tap the POWER/MENU button to
enter menu screen. Using the
DOWN button, highlight VIEW
CAM and press the
POWER/MENU button. Use the
UP/DOWN buttons to select an
available camera (blue color
indicates synched cameras).
Press POWER/MENU button to
confirm selection.
The video will appear on the
handheld screen. An icon
showing camera number will
appear on the screen for 3
seconds. Camera number on
indicator bar will change to
selected camera.
Nightlight
Press the NIGHTLIGHT button on
the handheld to activate the
soft glow nightlite on the
camera. The light will glow.
Nightlights are comforting to
little ones, especially toddlers
who become scared in a pitch
black room. Press the
NIGHTLIGHT button again to
turn off.
Volume
Use the UP/DOWN arrow bottons to
increase and decrease the volume.
The nightlight can also be
turned on or off from the
camera by pressing the
POWER/NIGHTLIGHT button.
Thank you for purchasing the Glimpse™ Digital Color Video Monitor
by Summer Infant. Please read the following instructions and
warnings carefully. Keep this instruction manual for future reference.
Zoom
Press the ZOOM button to
magnify the screen. Press the
button again to zoom out.
Charge the Handheld
Charge for 7 hours before
first use.
Install the Camera
For best picture focus,
place camera 6 to 8 ft.
from crib. Plug in camera.
Place camera on a flat
surface, such as a tabletop,
or shelf or mount the
camera on a wall using the
screw and wall anchor
provided.
tabletop wall mount
MONITOR USER GUIDE
SET-UP
1
or
Sound Activated Lights
The LED light bar on the top of
the handheld will light up as it
picks up noises, even in power
save mode. When battery is low,
the first LED flashes red and
handheld beeps.
USING THE HANDHELD (continued)
3
USING THE HANDHELD
3
USING THE HANDHELD (continued)
3
Secure the Camera Cord
NEVER place the camera or
cords within 3-feet of the crib.
Secure the cord to your wall
using the 6 security clips included
to keep the cord away from
baby’s reach. 3ft.
Congratulations! You are now ready to use your
Glimpse™ Digital Color Video Monitor!
3 sec.
Power on the Camera and
Handheld
Push the power/nightlight button on
the camera and hold for 3 seconds. A
green light will appear near the lens.
Push and hold the power button on
the handheld unit for 3 seconds. The
handheld will automatically sync with
the camera. (The handheld unit and the
camera are paired at the factory for privacy
reasons. If the handheld and camera are not
synced with each other for any reason, see
Adding a Camera in the user guide.)
Screen Icons
Function Buttons
Vox Indicator
Nightlight
Zoom
Camera Selection
Reception
Battery Life/ Plugged In
Video
Power/Menu
Volume Up
Volume Down
Nightlight
Zoom
SCREEN ICONS & FUNCTION BUTTONS
2
7hr.
Video On/Off Power Save
To conserve battery power, turn off
the handheld’s video by pressing
the VIDEO button. The screen will go
dark. This feature allows you to
preserve battery life when not
plugged into A/C adapter. The
audio feature will remain activated
allowing you to monitor sounds.
Press the VIDEO button again to
resume video monitoring. When
handheld is not plugged in, screen
will automatically turn off after 30
seconds. Press the video button to
turn screen back on. If Vox feature is
on, video will turn on automatically
when sound is detected.
Summer Infant, Inc. | 1275 Park East Drive | Woonsocket, RI 02895 | 401-671-6551 9/17
Brightness
Adjust the handheld screen
brightness by pressing the
POWER/MENU button. Select
BRIGHTNESS from the menu. Use
the UP and DOWN arrow buttons
to adjust the brightness.

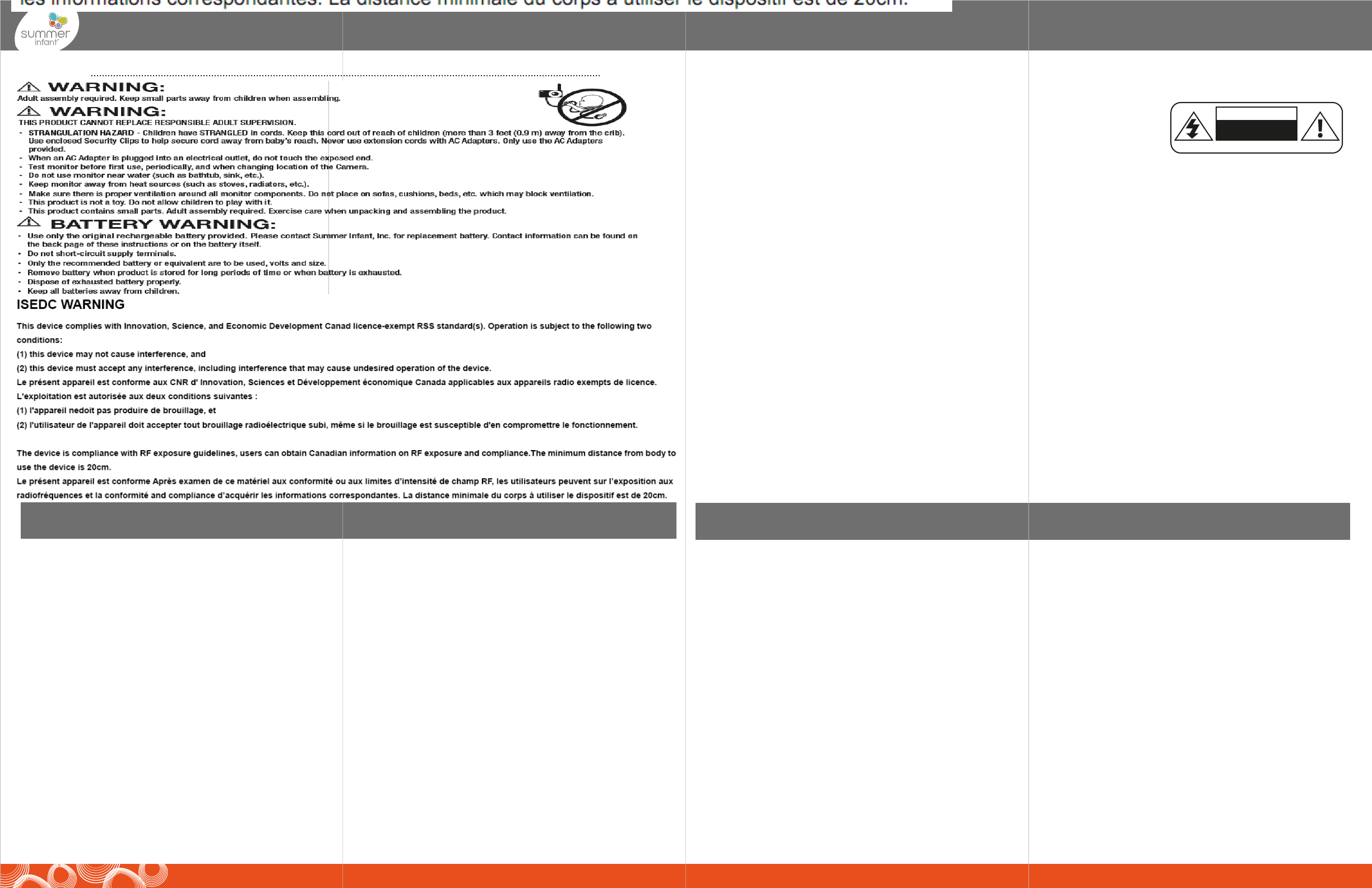

STRANGULATION HAZARD:
Children have strangled
in cords. Keep this cord
out of the reach of
children (more than 3 ft.
(0.9m) away).
WARNING
Read all warnings prior to using this product.
Vox (Voice Activated
Video) On/Off
The Vox feature, when on, will
turn on your screen when it is in
power save mode and the
camera picks up a sound. To
turn Vox mode off, press the
POWER/MENU button to enter
menu screen. Using the DOWN
button, highlight vox ON/OFF.
Vox icon is displayed on
indicator bar when active.
Adding a Camera
Make sure the power is on for the
camera you would like to add.
Press the POWER/MENU button to
enter menu screen. Using the
DOWN button, scroll to ADD CAM
and press the POWER/MENU
button to select. Using the UP or
DOWN buttons, scroll to the
camera number you would like to
add and press POWER/MENU
button to select. Press the SYNCH
button on the back of the
camera. Three bars will appear
next to the camera icon to
indicate that it is synching.
(Note: This product accepts up to 4 cameras and operates on audio and video auto-scan
to view each camera on an 8-second rotation. To order an additional camera (item
#29980), please contact our Consumer Relations Team by phone at: 401-671-6551 or via
email at: www.summerinfant.com/contact for details.)
v
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
SELECT
EXIT MENU
SELECT
EXIT MENU
SELECT
EXIT MENU
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
SELECT
SELECT
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
OFF
ON
VOX
EXIT MENU
BRIGHTNESS
VIEW CAM
SCAN
ADD CAM
DELETE CAM
VOX ON/OFF
EXIT MENU
SELECT
MONITOR USER GUIDE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by Summer Infant may void the users authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiver
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the
antenna of this device and all persons. 2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Summer Infant, Inc. Monitor Warranty Policy
Summer Infant, Inc. will repair or replace (at our option) your unit free of charge for 12 months from the date of purchase if the unit is defective in
workmanship or materials. To claim your repair/replacement, the product must be returned to Summer Infant along with a copy of the original purchase
receipt. In the absence of the purchase receipt, the warranty will be 12 months from the date of manufacture. This warranty does not apply to normal wear
or damage from misuse, abuse, improper storage and handling, installation, accident, unauthorized repair or alteration. Please contact our Customer
Service Department by phone at 401-671-6551 or via e-mail at summerinfant.com/contact for details. For sale and use in the USA. The warranty is null and
void if used outside its intended territory.
IMPORTANT SAFETY INSTRUCTIONS
1) Read Instructions - All the safety and operating instructions should be read before the product is operated.
2) Retain Instructions - The safety and operating instructions should be retained for future reference.
3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4) Follow Instructions - All operating and use instructions should be followed.
5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory
recommended by the manufacturer.
9) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilationis
provided or the manufacturer's instructions have been adhered to.
10) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local
power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
11) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
12) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
14) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind on the product.
15) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjusting only those controls that are covered by the operating instructions as an improper adjustment of other controls may result
in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicated a need for service.
17) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
18) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
19) Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
20) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
DO NOT EXPOSE TO RAIN OR MOISTURE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Tools required for wall mount: Screwdriver and drill (not included). For adult use only.
FCC INFORMATION PROBLEM SOLVING
No picture or sound
• Make sure the camera and handheld monitor unit are turned on
• Make sure the camera and handheld monitor unit are synced
• Make sure the AC adapters are plugged in
• Make sure the outlets are working
Sound but no picture
• Press the Video On-Off Button once to turn on video mode
• Check to make sure nothing is blocking the camera
• Test reception by moving the handheld unit and/or camera to
different locations
• Make sure the camera and handheld monitor unit are paired.
Picture but no sound
• Power the handheld completely off, then turn handheld back on.
• Turn up the volume using Volume Control.
Picture not clear
• Position the handheld unit closer to the camera.
• Move the handheld unit away from other electronic devices, cordless
phones, etc.
• Adjust the brightness using the Brightness Control
• Test reception by moving the handheld unit and/or camera to different
locations
• Place camera 6 to 8 ft. from crib for optimized focus. Make sure to
follow instructions and warnings for camera placement.
Squealing sound coming from speaker on Handheld Unit
• Move the handheld unit and camera further away from each other
• Turn the volume down using Volume Control
• Power the handheld completely off, remove and re-insert the battery
then turn handheld back on.
Video keeps coming on when screen should be off
• Follow instructions to turn off Vox (Voice Activated Video) feature
Handheld is beeping
• If no video, turn on camera.
• If battery is low, charge battery.
Temperature listed as LL or HH
• Room temperature is outside of the thermometer limits. The
thermometer is effective in between 32°F – 100°F (0°C – 38°C). If you
receive a false error message, please contact our consumer relations.
Camera isn’t syncing with handheld
• Delete camera and add it back.
If you experience a problem that is not noted in this manual, please do
not return the product to the store. Our Customer Service Department
may have a simple solution to your problem. Please contact us at
401-671-6551 or email us at summerinfant.com.
732-2989000-0700
