Scope
This document describes key hardware aspects of the Summit MSD30AG 802.11a/b/g SDIO (Secure
Digital Input/Output) Radio Module. This document is intended to assist device manufacturers and related
parties with the integration of this radio into their host devices. Data in this document are drawn from a
number of sources and includes information found in the Atheros AR6002 data sheet issued in April of
2008.
The SDC-MSDAG is currently in pre-production and as such, this document is preliminary in nature. The
information in this document is subject to change. Please contact Summit or visit the Summit website at
www.summitdatacom.com to obtain the most recent version of this document.
The device is labeled with all applicable regulatory information in a manner that’s compliant with all
regulatory standards. Regulatory operational requirements are included with this document and are to be
incorporated into the operating manual of any device into which the SDC-MSD30AG installed. The SDC-
MSD30AG is designed for installation into mobile devices such as vehicle mount data terminals which
typically operate at distances greater than 20 cm from the human body and portable devices such as
handheld data terminals which typically operate at distances less than 20 cm from the human body. See
“Documentation Requirements” for more information.
Specifications
Feature Description
System Interface 4-bit Secure Digital I/O Molex 54722-0607 60-pin connector
(mates to Molex 55560-0607 60-pin connector)
Antenna Interface 2 Hirose U.FL connectors for dual-band antenna diversity on Wi-Fi
Chip Set Atheros AR6002
Input Power Requirements 3.3 VDC +/- 10%
Current Consumption
(At maximum transmit power
setting)
802.11a
Transmit: 381 mA (1257 mW)
Receive: 116 mA (383 mW)
Standby: 3 mA (10 mW)
802.11b/g
Transmit: 324 mA (1069 mW)
Receive: 93 mA (307 mW)
Standby: 2 mA (7 mW)
Operating Temperature -25° to 75°C (-13° to 167°F)
Operating Humidity 10 to 90% (non-condensing)
Storage Temperature -30° to 85°C (-22° to 185°F)
Storage Humidity 10 to 90% (non-condensing)
Length 32 mm (1.26 in.)
Width 22 mm (0.87 in.)
Hardware Integration Guide – SDC-MSD30AG
4 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Feature Description
Thickness 4.5 mm (0.18 in.)
Note: With the mating connector, the thickness is 5.1 mm above
the board it plugs into.
Weight 10 g (0.35 oz.)
Mounting 60-pin connector
3 mounting holes (2.36 mm, 0.093 in.)
Wi-Fi Wireless Media Direct Sequence-Spread Spectrum (DSSS)
Orthogonal Frequency Divisional Multiplexing (OFDM)
Wi-Fi Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)
Network Architecture Types Infrastructure and ad hoc
Network Standards IEEE 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h,
802.11i
Wi-Fi Data Rates Supported 802.11a (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b (DSSS) 1, 2, 5.5, 11 Mbps
802.11g (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wi-Fi Modulation BPSK @ 1, 6, and 9 Mbps
QPSK @ 2, 12, and 18 Mbps
CCK @ 5.5 and 11 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Regulatory Domain Support FCC (Americas, Parts of Asia, and Middle East)
ETSI (Europe, Middle East, Africa, and Parts of Asia)
TELEC (Japan)
KCC (Korea)
2.4 GHz Frequency Bands ETSI
2.4 GHz to 2.483 GHz
FCC
2.4 GHz to 2.473 GHz
TELEC
2.4 GHz to 2.495 GHz
KCC
2.4 GHz to 2.483 GHz
5 GHz Frequency Bands ETSI
5.15 GHz to 5.35 GHz
5.47 GHz to 5.725 GHz
FCC
5.15 GHz to 5.35 GHz
5.47 GHz to 5.725 GHz
5.725 GHz to 5.82 GHz
TELEC
5.15 GHz to 5.35 GHz
KCC
5.15 GHz to 5.25 GHz
5.725 GHz to 5.82 GHz
Hardware Integration Guide – SDC-MSD30AG
5 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Feature Description
2.4 GHz Operating Channels ETSI: 13 (3 non-overlapping)
FCC: 11 (3 non-overlapping)
TELEC 14 (4 non-overlapping)
KCC: 13 (3 non-overlapping)
5 GHz Operating Channels ETSI: 19 non-overlapping
FCC: 23 non-overlapping
TELEC: 8 non-overlapping
KCC: 8 non-overlapping
Wi-Fi Transmit Power Settings
Note: Maximum transmit power
varies according to
individual country
regulations. All values
nominal, +/-2 dBm
802.11a
15 dBm (30 mW)
13 dBm (20 mW)
10 dBm (10 mW)
802.11b
18 dBm (63 mW)
17 dBm (50 mW)
15 dBm (30 mW)
13 dBm (20 mW)
10 dBm (10 mW)
7 dBm (5 mW)
0 dBm (1 mW)
802.11g
18 dBm (63 mW)
17 dBm (50 mW)
15 dBm (30 mW)
13 dBm (20 mW)
10 dBm (10 mW)
7 dBm (5 mW)
0 dBm (1 mW)
Typical Receiver Sensitivity
Note: All values nominal,
+/-3 dBm.
802.11a:
6 Mbps -85 dBm
12 Mbps -83 dBm
18 Mbps -81 dBm
24 Mbps -75 dBm
36 Mbps -73 dBm
48 Mbps -68 dBm
54 Mbps -67 dBm (PER <= 10%)
802.11b:
1 Mbps -95 dBm
2 Mbps -94 dBm
5.5 Mbps -93 dBm
11 Mbps -89 dBm (PER <= 10%)
802.11g:
6 Mbps -93 dBm
12 Mbps -88 dBm
18 Mbps -85 dBm
24 Mbps -83 dBm
36 Mbps -77 dBm
48 Mbps -74 dBm
54 Mbps -72 dBm (PER <= 10%)
Hardware Integration Guide – SDC-MSD30AG
6 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Feature Description
Wi-Fi Delay Spread 600 ns @ 1 Mbps
500 ns @ 2 Mbps
400 ns @ 5.5 Mbps
400 ns @ 6 Mbps
400 ns @ 9 Mbps
200 ns @ 11 Mbps
350 ns @ 12 Mbps
350 ns @ 18 Mbps
250 ns @ 24 Mbps
250 ns @ 36 Mbps
150 ns @ 48 Mbps
150 ns @ 54 Mbps
Operating Systems Supported Windows Mobile 6.5
Windows Mobile 6.1
Windows Mobile 6.0
Windows Mobile 5.0
Pocket PC 2003
Windows Embedded CE 6.0 R2
Windows Embedded CE 6.0
Windows Embedded CE 5.0
Windows Embedded CE 4.2
Security Standards
Wireless Equivalent Privacy (WEP)
Wi-Fi Protected Access (WPA)
IEEE 802.11i (WPA2)
Encryption
Wireless Equivalent Privacy (WEP, RC4 Algorithm)
Temporal Key Integrity Protocol (TKIP, RC4 Algorithm)
Advanced Encryption Standard (AES, Rijndael Algorithm)
Encryption Key Provisioning
Static (40-bit and 128-bit lengths)
Pre-Shared (PSK)
Dynamic
802.1X Extensible Authentication Protocol Types
EAP-FAST
EAP-TLS
EAP-TTLS
PEAP-GTC
PEAP-MSCHAPv2
PEAP-TLS
LEAP
Hardware Integration Guide – SDC-MSD30AG
7 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Feature Description
Compliance ETSI Regulatory Domain
EN 300 328
EN 301 489-1
EN 301 489-17
EN 301 893
EN 60950-1
EU 2002/95/EC (RoHS)
FCC Regulatory Domain
Part 15.247 Subpart C
Initial Grant
Test Report
Part 15.407 Subpart E
Initial Grant
Test Report
DTS Test Report
Industry Canada
RSS-210
Initial Grant
Test Report
RSS-Gen Issue 2
Initial Grant
Test Report
DTS Test Report
TELEC Regulatory Domain
Article 2 Item 19, Category WW (2.4GHz Channels 1-13)
Article 2 Item 19-2, Category GZ (2.4GHz Channel 14)
Certifications Wi-Fi Alliance
802.11a, 802.11b, 802.11g
WPA Enterprise
WPA2 Enterprise
Cisco Compatible Extensions (Version 4)
Warranty Limited Lifetime
All specifications are subject to change without notice
Hardware Integration Guide – SDC-MSD30AG
8 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Pin Definitions and Interface Notes
Pin Definitions
Note: In regards to GND (Ground) pins, only one must be tied down. The remaining pins identified as
GND can either be tied down or floated, depending on individual radio board design needs.
Pin
Number
Pin
Name Type Description Note
1 GND Ground
2 No Connect Not Used. Leave Open (Float)
3 BT_PRIORITY Bluetooth Priority See Bluetooth
Coexistence
4 BT_FREQ Bluetooth Frequency
5 No Connect Not Used. Leave Open (Float)
6 No Connect Not Used. Leave Open (Float)
7 No Connect Not Used. Leave Open (Float)
8 Wake on Wireless Wake on Wireless LAN See Pin 8
9 No Connect Not Used. Leave Open (Float)
10 CLK_32K 32k Ext Sleep Clock
11 No Connect Not Used. Leave Open (Float)
12 No Connect Not Used. Leave Open (Float)
13 VCC3_3 3.3V Module Power
14 No Connect Not Used. Leave Open (Float)
15 No Connect Not Used. Leave Open (Float)
16 No Connect Not Used. Leave Open (Float)
17 No Connect Not Used. Leave Open (Float)
18 No Connect Not Used. Leave Open (Float)
19 No Connect Not Used. Leave Open (Float)
20 No Connect Not Used. Leave Open (Float)
21 VDD_IO 3.3/1.8V I/O Power
22 No Connect Not Used. Leave Open (Float)
23 No Connect Not Used. Leave Open (Float)
24 No Connect Not Used. Leave Open (Float)
Hardware Integration Guide – SDC-MSD30AG
9 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Pin
Number
Pin
Name Type Description Note
25 No Connect Not Used. Leave Open (Float)
26 SYS_RST_L Reset
27 SDIO_DATA_2 SDIO Data 2
28 WLAN_ACTIVE Bluetooth coexistence
wireless LAN active signal.
See Bluetooth
Coexistence
29 VCC3_3 3.3V Module Power See Pin 29
30 GND Ground
31 GND Ground
32 No Connect Not Used. Leave Open (Float)
33 No Connect Not Used. Leave Open (Float)
34 No Connect Not Used. Leave Open (Float)
35 No Connect Not Used. Leave Open (Float)
36 BT_ACTIVE Bluetooth coexistence
Bluetooth active signal.
See Bluetooth
Coexistence
37 No Connect Not Used. Leave Open (Float)
38 No Connect Not Used. Leave Open (Float)
39 No Connect Not Used. Leave Open (Float)
40 No Connect Not Used. Leave Open (Float)
41 No Connect Not Used. Leave Open (Float)
42 Slot0_nLED WLAN LED activity indicator
43 No Connect Not Used. Leave Open (Float)
44 No Connect Not Used. Leave Open (Float)
45 No Connect Not Used. Leave Open (Float)
46 No Connect Not Used. Leave Open (Float)
47 No Connect Not Used. Leave Open (Float)
48 CHIP_PWD_L Power Down
49 No Connect Not Used. Leave Open (Float)
50 No Connect Not Used. Leave Open (Float)
51 No Connect Not Used. Leave Open (Float)
52 No Connect Not Used. Leave Open (Float)
Hardware Integration Guide – SDC-MSD30AG
10 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Pin
Number
Pin
Name Type Description Note
53 No Connect Not Used. Leave Open (Float)
54 No Connect Not Used. Leave Open (Float)
55 SDIO_CMD SDIO Command
56 SDIO_CLK SDIO Clock
57 SDIO_DATA_0 SDIO Data 0
58 SDIO_DATA_3 SDIO Data 3
59 SDIO_DATA_1 SDIO Data 1
60 GND Ground
Interface Notes
Bluetooth coexistence – BT coexistence can be turned on or off in the SROM using the Summit
Manufacturing Utility, or SMU. BT coexistence is through a three-wire interface with one additional
reserved wire:
- Pin 22: WLAN_ACTIVE – Driven by the Summit radio and is asserted when the transmitter of the
Summit radio is active.
- Pin 36: BT_ACTIVE – An input to the Summit radio. The Summit radio does not transmit if
BT_ACTIVE is asserted. The Summit radio expects the Bluetooth radio to assert (raise high)
BT_ACTIVE when it is transmitting and to refrain from transmitting when WLAN_ACTIVE is
asserted.
- Pin 3: BT_Priority – When high, Bluetooth is transmitting or receiving high priority packets.
- Pin 4: BT_Frequency – Asserted (logic high) when the Bluetooth transceiver hops into the
restricted channels defined by the coexistence mechanism.
A Summit customer must provide any “glue” logic between the Summit radio and the Bluetooth
radio to make sure that the interface is utilized properly.
Pin 8: Although the pin is present, Wake on Wireless is not currently supported in the software.
Pin 29: The VCC_Slot0 pin will appear with the ES5 samples and production versions.
Hardware Integration Guide – SDC-MSD30AG
11 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.

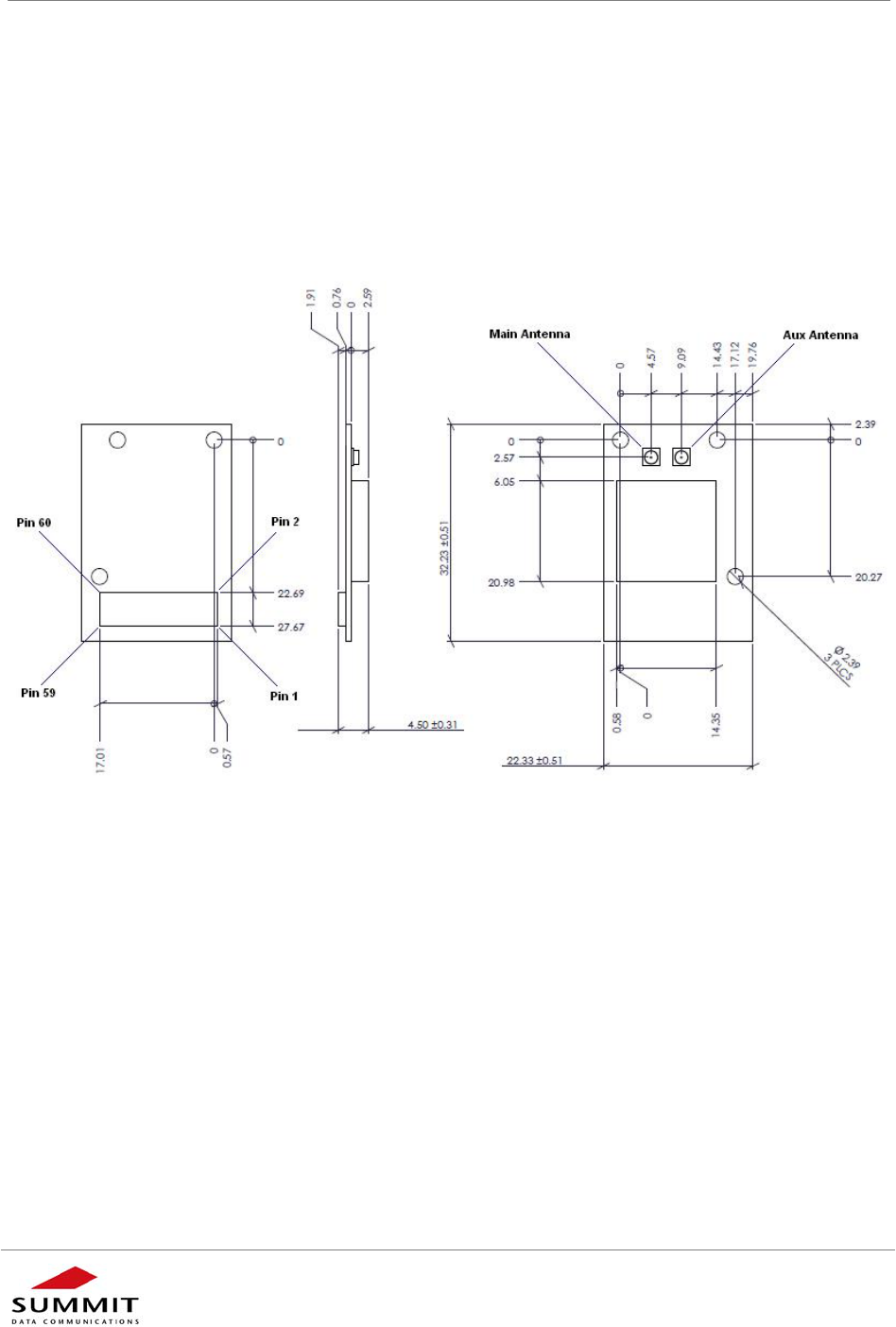

Mechanical Specifications
Connector Overview
MSD30AG connector: Molex 54722-0607 60-pin connector
Mating connector (on board): Molex 55560-0607 60-pin connector
Mounting
Three through-hole mounting with a 60-pin connector. Summit recommends non-metallic screws and a
0.05 mm non-metallic bushing.
Hardware Integration Guide – SDC-MSD30AG
12 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Regulatory
Certified Antennas
The SDC-MSD30AG provides two Hirose U.FL type antenna connectors to support transmit and receive
diversity. For single antenna, non-diversity applications, OEMs are advised to use the Main (not Aux)
antenna connector and should disable transmit and receive diversity from the Global tab of the Summit
Client Utility (SCU) software utility.
The SDC-MSD30AG has been tested to the regulatory standards defined in the “Certifications” section of
the Specifications table above. These tests were conducted with the following antennas:
AIR-ANT 4941 (click for datasheet)
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 2.2 dBi
Radiall Larson Dipole (click for datasheet)
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 1.6 dBi (not used during testing)
Maximum 5 GHz Gain: 5 dBi
HUBER+SUHNER (click for datasheet)
Form Factor: Whip
Type: Monopole
Maximum 2.4 GHz Gain: 3 dBi
Maximum 5 GHz Gain: 6.5 dBi
Antennas of differing types and higher gains may be integrated as well. If necessary, with the Summit
Manufacturing Utility software utility, OEMs may reduce the transmit power of the SDC-MSD30AG to
account for higher antenna gain. In some cases, OEMs may be able to reduce certification efforts by
using antennas that are of like type and equal or lesser gain to the above listed antennas.
Documentation Requirements
In order to maintain regulatory compliance, when integrating the SDC-MSD30AG into a host device and
leveraging Summit’s grants and certifications, it is necessary to meet the documentation requirements set
forth by the applicable regulatory agencies. The following sections (FCC, Industry Canada, and European
Union) outline the information that must be included in the user’s guide and external labels for the host
devices into which the SDC-MSD30AG is integrated.
Hardware Integration Guide – SDC-MSD30AG
13 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
FCC
User’s Guide Requirements
As outlined in the Operational Description, the SDC-MSD30AG complies with FCC Part 15 Rules for
a Limited Modular Approval. To leverage Summit’s grant, the two conditions below must be met for
the host device into which the SDC-MSD30AG is integrated:
1. The antenna is installed with 20 cm maintained between the antenna and users.
2. The transmitter module is not co-located with any other transmitter or antenna that is capable of
simultaneous operation.
As long as the two conditions above are met, further transmitter testing is typically not required.
However, the OEM integrator is still responsible for testing its end-product for any additional
compliance requirements required with this module installed, such as (but not limited to) digital device
emissions and PC peripheral requirements.
IMPORTANT!
In the event that the two conditions above cannot be met (for example certain
device configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
When using Summit’s FCC grant for the SDC-MSD30AG, the integrator must include specific information
in the user’s guide for the device into which the SDC-MSD30AG is integrated. The integrator must not
provide information to the end user regarding how to install or remove this RF module in the user’s
manual of the device into which the SDC-MSD30AG is integrated. The following FCC statements must be
added in their entirety and without modification into a prominent place in the user’s guide for the device
into which the SDC-MSD30AG is integrated:
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.”
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
Hardware Integration Guide – SDC-MSD30AG
14 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
Labeling Requirements
The final end product must be labeled in a visible area with the following notice:
Contains FCC ID: TWG-SDCMSD30AG
Industry Canada
User’s Guide Requirements
As outlined in the Operational Description, the SDC-MSD30AG complies with Industry Canada (IC)
rules for a Limited Modular Approval. To leverage Summit’s grant, the two conditions below must be
met for the host device into which the SDC-MSD30AG is integrated:
1. The antenna is installed with 20 cm maintained between the antenna and users.
2. The transmitter module is not co-located with any other transmitter or antenna that is capable of
simultaneous operation.
As long as the two conditions above are met, further transmitter testing is typically not required.
However, the OEM integrator is still responsible for testing its end-product for any additional
Hardware Integration Guide – SDC-MSD30AG
15 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
compliance requirements required with this module installed, such as (but not limited to) digital device
emissions and PC peripheral requirements.
IMPORTANT!
In the event that the two conditions above cannot be met (for example certain
device configurations or co-location with another transmitter), then the IC
authorization is no longer considered valid and the IC ID cannot be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a separate IC
authorization.
When using Summit’s IC grant for the SDC-MSD30AG, the integrator must include specific information in
the user’s guide for the device into which the SDC-MSD30AG is integrated. The integrator must not
provide information to the end user regarding how to install or remove this RF module in the user’s
manual of the device into which the SDC-MSD30AG is integrated. In addition to the required FCC
statements outlined above, the following IC statements must be added in their entirety and without
modification into a prominent place in the user’s guide for the device into which the SDC-MSD30AG is
integrated:
To prevent radio interference to the licensed service, this device is intended to be operated indoors
and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is
installed outdoors is subject to licensing.
The integrator must list out information for each antenna used with the host device into which the SDC-
MSD30AG is integrated. The following examples are based on antennas with which the SDC-MSD30AG
was certified and represent an acceptable format:
AIR-ANT 4941
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 2.2 dBi
Radiall Larson Dipole
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 1.6 dBi (not used during testing)
Maximum 5 GHz Gain: 5 dBi
HUBER+SUHNER
Form Factor: Whip
Type: Monopole
Maximum 2.4 GHz Gain: 3 dBi
Maximum 5 GHz Gain: 6.5 dBi
Hardware Integration Guide – SDC-MSD30AG
16 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Labeling Requirements
The final end product must be labeled in a visible area with the following notice:
Contains IC ID: 6616A-SDCMSD30AG
European Union
User’s Guide Requirements
The integrator must include specific information in the user’s guide for the device into which the SDC-
MSD30AG is integrated. In addition to the required FCC and IC statements outlined above, the following
R&TTE statements must be added in their entirety and without modification into a prominent place in the
user’s guide for the device into which the SDC-MSD30AG is integrated:
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1:2001 A11:2004
Safety of Information Technology Equipment
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V1.2.1 (2002-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz
wideband transmission systems and 5 GHz high performance RLAN equipment
EN 301 893
Electromagnetic compatibility and Radio spectrum Matters (ERM); Broadband Radio Access
Networks (BRAN); Specific conditions for 5 GHz high performance RLAN equipment
EU 2002/95/EC (RoHS)
Declaration of Compliance – EU Directive 2003/95/EC; Reduction of Hazardous Substances
(RoHS)
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
Hardware Integration Guide – SDC-MSD30AG
17 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF
output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr
[udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme
tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de
equipo] cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of
equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est
conforme aux exigences essentielles et aux autres dispositions pertinentes de
la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di
apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of
equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Hardware Integration Guide – SDC-MSD30AG
18 SDC-MSD30AG_HIG1.04
© 2006 – 2010 Summit Data Communications, Inc. All rights reserved.
Nederland
s [Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott]
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Portuguê
s
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensk
o
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensk
y [Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten
ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Labeling Requirements
The final end product must be labeled in a visible area with the following notice:
