Summit Data Communications SDCWB40NBT 802.11abgn (1X1) + Bluetooth (2.1) module User Manual SSD40NBT Hardware Integration Guide v 02

Summit Data Communications, Inc. 802.11abgn (1X1) + Bluetooth (2.1) module SSD40NBT Hardware Integration Guide v 02

User Manual

Summit Data Communications, Inc., 526 South Main Street Suite 805 Akron, OH 44311
Tel: 866-434-4300 www.summitdata.com
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
SDC-WB40NBT
User’s Guide
(version 1.0)
SDC-WB40NBT User’s Guide
2
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Revision History
Version
Revision Date
0.01
04/11/2011
0.02
04/25/2011
0.03
04/28/2011
0.04
05/20/2011
0.05
01/18/2012
0.06
01/20/2012
1.0
SDC-WB40NBT User’s Guide
3
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Contents
Scope ................................................................................................................................................................................. 4
Product Description ........................................................................................................................................................... 4
Block Diagram .................................................................................................................................................................... 5
Specifications ..................................................................................................................................................................... 5
Electrical Characteristics .......................................................................................................................................... 10
Pin Definitions ................................................................................................................................................................. 13

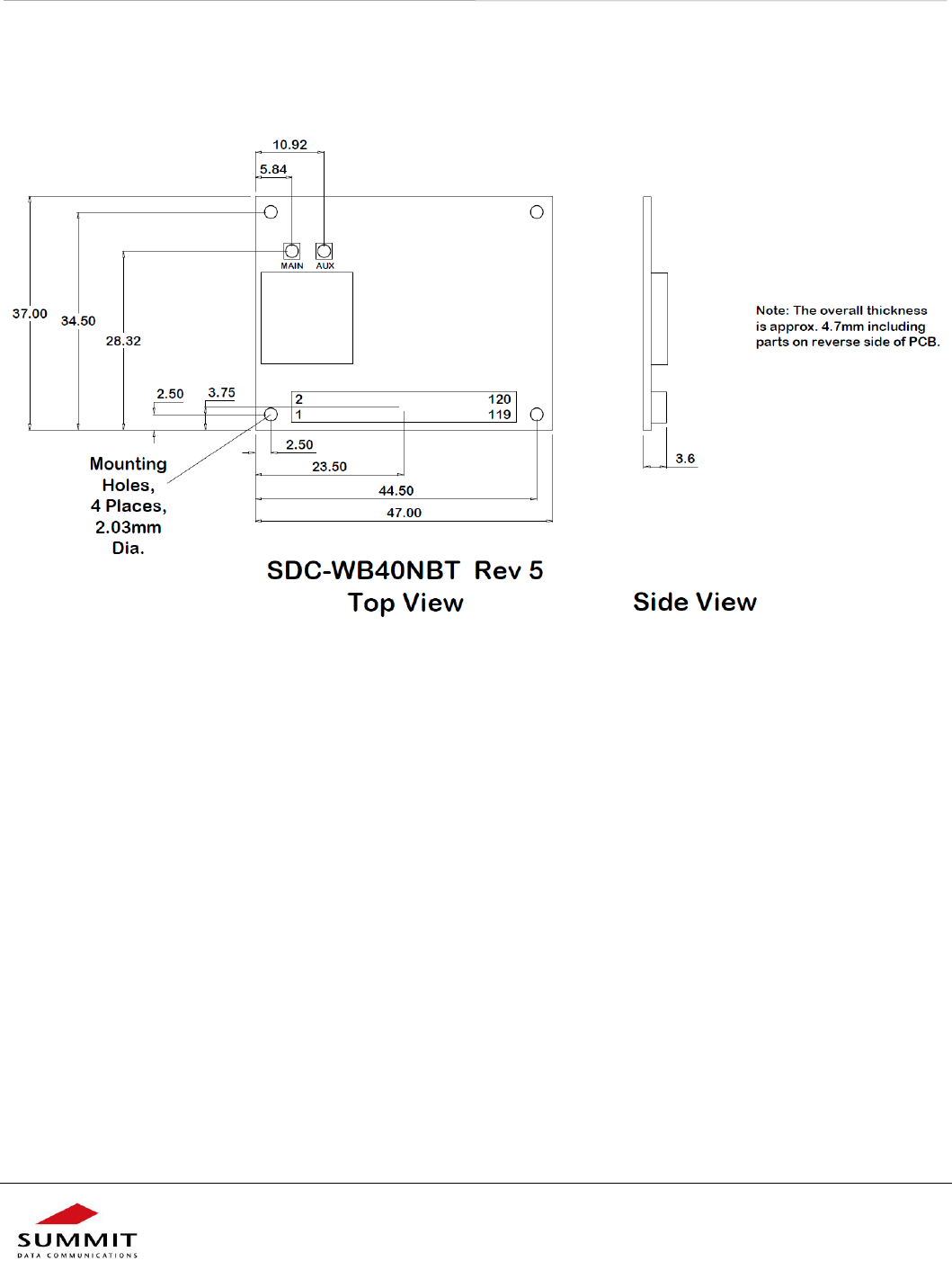

Mechanical Specifications ............................................................................................................................................... 18
Mounting ..................................................................................................................................................................... 18
Integration Guidelines ..................................................................................................................................................... 19
Regulatory ....................................................................................................................................................................... 19
Certified Antennas ....................................................................................................................................................... 19
Documentation Requirements .................................................................................................................................... 20
FCC ........................................................................................................................................................................... 20
Industry Canada ....................................................................................................................................................... 21
European Union ....................................................................................................................................................... 23
SDC-WB40NBT User’s Guide
4
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Scope
This document describes key hardware aspects of the Summit WB40N wireless bridge module. This document is
intended to assist device manufacturers and related parties with the integration of this module into their host devices.
Data in this document are drawn from a number of sources including data sheets for the Broadcom BCM4329 and
Atmel AT91SAM9G20.
Because the SDC-WB40NBT is currently in pre-production, this document is preliminary and the information in this
document is subject to change. Please contact Summit or visit the Summit website at www.summitdata.com to obtain
the most recent version of this document.
Product Description

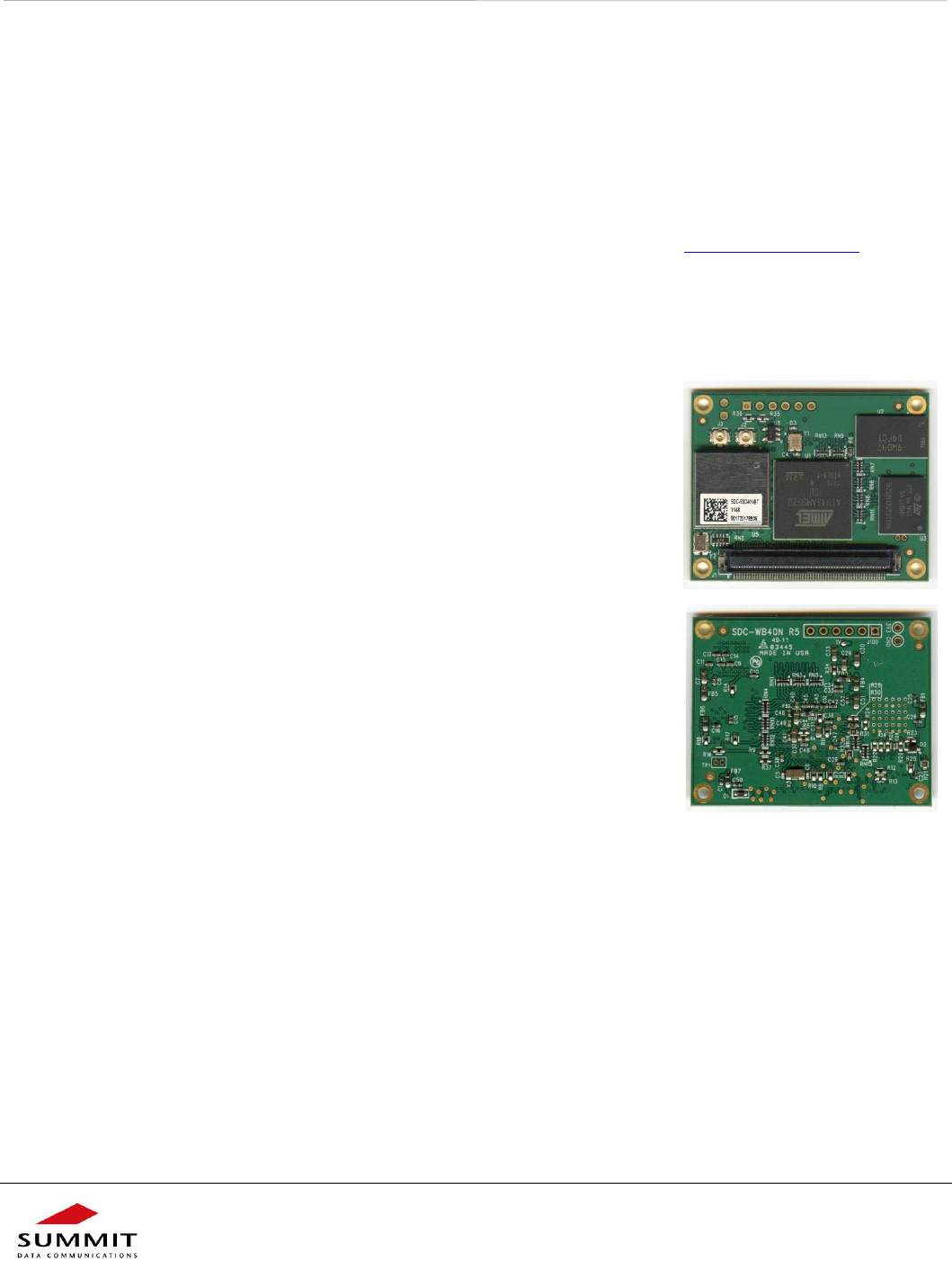

This device is an SDC-WB40NBT Wireless Bridge Module, a wireless
communications subsystem that may be integrated into a variety of host devices via
a number of available electronic and logical interfaces. The SDC-WB40NBT
provides complete enterprise-class Wi-Fi connectivity with an integrated TCP/IP
stack, full support for IEEE 802.11a/b/g/n air standards and a fully integrated
security supplicant providing 802.11i/WPA2 Enterprise authentication and data
encryption.
The SDC-WB40NBT has a wide variety of interfaces including Fast Ethernet, serial
UART, USB, SPI and I2C. The wireless bridge may be configured, monitored and
managed via a Command Line Interface over an available dedicated console port,
via a web interface over a wireless or Ethernet interface, or via a remote SDK
interface over wireless or Ethernet.
The SDC-WB40NBT incorporates the Summit SDC-SSD40NBT radio module and
provides all the Wi-Fi capabilities of that device. The product features an ARM9
processor running at 396 MHz, 32 MB of SDRAM memory, and 64 MB of NAND
flash storage. Several GPIO lines are available for data acquisition and similar
applications. The platform runs an embedded Linux operating system based on the
2.6 kernel. A Software Developer’s Kit with Application Programming Interfaces and
software tools are available for the development of custom software applications on the device.
The SDC-WB40NBT measures 47mm long by 37 mm wide by 3 mm tall. The width can be reduced to 30 mm by
removing a breakout section that is provided for configuration and test purposes. The wireless bridge physically
interfaces to the host device via a 120 pin board to board connector that has a variety of mating options. The SDC-
WB40NBT may be secured to the host device via available grounded mounting holes. The SDC-WB40NBT operates
at temperatures between -TBD and + TDB degrees Celsius.
Contingent on Compliance results… SDC-WB40NBT is a fully integrated module: It has its own RF shielding and
does not require shielding provided by the host device into which it is installed in order to maintain compliance with
applicable regulatory standards. As such, the device may be tested in a standalone configuration via an extender card.
The SDC-WB40NBTprovides two unique U.FL type antenna connectors to support dual band transmit and receive
diversity. Supported host device antenna types include dipole and monopole antennas.
Regulatory operational requirements are included with this document and may be incorporated into the operating
manual of any device into which the SDC-WB40NBT is installed. The SDC-WB40NBT is designed for installation into
SDC-WB40NBT User’s Guide
5
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
mobile devices which typically operate at distances greater than 20 cm from the human body and portable devices
which typically operate at distances less than 20 cm from the human body. See “Documentation Requirements” for
more information.
Specifications
Feature
Description
Physical Interface
Kyocera Elco Series 5046 120 Pin Connector P/N 24 5046 120 000 829+
(see Mounting Instructions for mating connector options)
Ethernet Interface
10/100 Mbps RMII (Reduced Media Independent Interface)
Asynchronous Serial Port
Interfaces
(3.3 V TTL interface)
Nine-wire UART DCE with full modem signaling, ring indication, and
carrier detect
Four-wire UART with hardware handshaking
Two-wire UART ( console)
Synchronous Serial Port
Interface
Six-wire
Secure Digital I/O Interface
Six Wire
Note: Cannot be used simultaneously with SPI interface
SPI Interface
Five Wire, Master and Slave modes supported
Note: Cannot be used simultaneously with SDIO interface
USB Interfaces
Two 12 Mbps USB Host Port
One 12 Mbps USB Device Port
Two Wire Interface
Two-wire I2C (Inter-IC) or CANbus (Controller-area Network)
Debug Interface
JTAG
Antenna Interface
2 Hirose U.FL connectors for dual-band antenna diversity, 50 ohm
Wi-Fi Interface
Summit Data Communications SDC-SSD40NBT
Processor Chip Set
Atmel 400 MHz ARM 9, P/N AT91SAM9G20-CU
Operating System
Embedded Linux, 2.6. x kernel
Memory
32 MB SDRAM
Storage
64 MB NAND flash
Input Voltage Requirements
3.3 VDC ±5% (core)
Current Consumption
Note: These current consumption
measurements were taken
using Linux kernel version
2.6.38.
Note: Standby refers to the radio
Mode
Avg. Current
Max. Current
802.11a
Transmit
369 mA (1218 mW)
437 mA (1442 mW)
Receive
TBD mA (TBD mW)
TBD mA (TBD mW)
Standby
TBD mA (TBD mW)
TBD mA (TBD mW))
802.11b
Transmit
392 mA (1294 mW)
417 mA (1376 mW)
Receive
TBD mA (TBD mW)
TBD mA (TBD mW)
SDC-WB40NBT User’s Guide
6
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Feature
Description
operating in PM1
powersave mode.
Standby
TBD mA (TBD mW)
TBD mA (TBD mW))
802.11g
Transmit
355 mA (1294 mW)
377 mA (1244 mW)
Receive
TBD mA (TBD mW)
TBD mA (TBD mW)
Standby
TBD mA (TBD mW)
TBD mA (TBD mW))
802.11n (2.4 GHz)
Transmit
324 mA (1069 mW)
346 mA (1142 mW)
Receive
TBD mA (TBD mW)
TBD mA (TBD mW)
Standby
TBD mA (TBD mW)
TBD mA (TBD mW))
802.11n (5 GHz)
Transmit
359 mA (1185 mW)
411 mA (1356 mW)
Receive
TBD mA (TBD mW)
TBD mA (TBD mW)
Standby
TBD mA (TBD mW)
TBD mA (TBD mW))
Sleep
N/A
TBD
N/A
Operating Temperature
-30° to 80°C (-22° to 176°F)
Operating Humidity
10 to 90% (non-condensing)
Storage Temperature
-30° to 85°C (-22° to 185°F)
Storage Humidity
10 to 90% (non-condensing)
Maximum Electrostatic
Discharge
Maximum Contact Discharge (CD): 4 kV
Maximum Air Discharge (AD): 8 kV
Length
Note: Length, width, and thickness
measurements include the metal
shielding.
47 mm (1.85”)
Width
With breakout section: 37 mm (1.46”)
Without breakout section: 30 mm (1.18”)
Thickness
3.0 mm (0.12”)
Weight
With breakout section: 7.8 g (0.275oz)
Without breakout section: TBD g (TBD oz.)
Mounting
Connector and Through Holes, See “Mounting” section for more information.
Wi-Fi Media
Direct Sequence-Spread Spectrum (DSSS)
Complementary Code Keying (CCK)
Orthogonal Frequency Divisional Multiplexing (OFDM)
Wi-Fi Media Access Protocol
Carrier sense multiple access with collision avoidance (CSMA/CA)
Network Architecture
Infrastructure and ad hoc
Wi-Fi Standards
IEEE 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,
802.11n
Wi-Fi Data Rates Supported
802.11a (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b (DSSS, CCK) 1, 2, 5.5, 11 Mbps
802.11g (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (OFDM, MCS 0-7) 6.5, 7.2, 13.0, 14.4, 19.5, 21.7, 26.0, 28.9, 39.0,
SDC-WB40NBT User’s Guide
7
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Feature
Description
43.3, 52.0, 57.8, 58.5, 65.0, 72.2 Mbps
Modulation
BPSK @ 1, 6, 6.5, 7.2 and 9 Mbps
QPSK @ 2, 12, 13, 14.4,18, 19.5 and 21.7 Mbps
CCK @ 5.5 and 11 Mbps
16-QAM @ 24, 26, 28.9, 36, 39 and 43.3 Mbps
64-QAM @ 48, 52, 54, 57.8, 58.5, 65, and 72.2 Mbps
802.11n Spatial Streams
1 (Single Input, Single Output)
Regulatory Domain Support
FCC (Americas, Parts of Asia, and Middle East)
ETSI (Europe, Middle East, Africa, and Parts of Asia)
MIC (Japan) (formerly TELEC)
KC (Korea) (formerly KCC)
2.4 GHz Frequency Bands
ETSI
2.4 GHz to 2.483 GHz
FCC
2.4 GHz to 2.483 GHz
MIC (Japan)
2.4 GHz to 2.495 GHz
KC
2.4 GHz to 2.483
2.4 GHz Operating Channels
ETSI: 13 (3 non-overlapping)
FCC: 11 (3 non-overlapping)
MIC (Japan): 14 (4 non-overlapping)
KC: 13 (3 non-overlapping)
5 GHz Frequency Bands
ETSI
5.15 GHz to 5.35 GHz
5.47 GHz to 5.725 GHz
FCC
5.15 GHz to 5.35 GHz
5.725 GHz to 5.825 GHz
MIC (Japan)
5.15 GHz to 5.35 GHz
KC
5.15 GHz to 5.25 GHz
5.725 GHz to 5.825 GHz
5 GHz Operating Channels
ETSI: 19 non-overlapping
FCC: 23 non-overlapping
MIC (Japan): 4 non-overlapping
KC: 8 non-overlapping
Maximum Transmit Power
Note: Maximum transmit power
varies according to individual
country regulations. All values
802.11a
6 Mbps
18 dBm (63 mW)
54 Mbps
14 dBm (25 mW)
802.11b
SDC-WB40NBT User’s Guide
8
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Feature
Description
nominal, +/-2 dBm.
Note: Summit 40 series radios
support a single spatial stream and
20 MHz channels only.
1 Mbps
17 dBm (50 mW)
11 Mbps
17 dBm (50 mW)
802.11g
6 Mbps
15 dBm (32 mW)
54 Mbps
13 dBm (20 mW)
802.11n (2.4 GHz)
6.5 Mbps (MCS0)
12 dBm (16 mW)
65 Mbps (MCS7)
11 dBm (16 mW)
802.11n (5 GHz)
6.5 Mbps (MCS0)
16 dBm (40 mW)
65 Mbps (MCS7)
9 dBm (8 mW)
Bluetooth
4 dBm (2.5 mW) (Class 2)
Typical Receiver Sensitivity
Note: All values nominal, +/-3
dBm.
802.11a:
6 Mbps
-88 dBm
54 Mbps
-72 dBm (PER <= 10%)
802.11b:
1 Mbps
-95 dBm
11 Mbps
-89 dBm (PER <= 8%)
802.11g:
6 Mbps
-90 dBm
54 Mbps
-74 dBm (PER <= 10%)
802.11n (2.4 GHz)
MCS0 Mbps
-90 dBm
MCS7 Mbps
-73 dBm
802.11n (5 GHz)
MCS0 Mbps
MCS7 Mbps
-88 dBm
-71 dBm
Bluetooth:
1 Mbps
-89 dBm
2 Mbps
-91 dBm
3 Mbps
-85 dBm
SDC-WB40NBT User’s Guide
9
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Feature
Description
Security
Standards
Wireless Equivalent Privacy (WEP)
Wi-Fi Protected Access (WPA)
IEEE 802.11i (WPA2)
Encryption
Wireless Equivalent Privacy (WEP, RC4 Algorithm)
Temporal Key Integrity Protocol (TKIP, RC4 Algorithm)
Advanced Encryption Standard (AES, Rijndael Algorithm)
Encryption Key Provisioning
Static (40-bit and 128-bit lengths)
Pre-Shared (PSK)
Dynamic
802.1X Extensible Authentication Protocol Types
EAP-FAST
EAP-TLS
EAP-TTLS
PEAP-GTC
PEAP-MSCHAPv2
PEAP-TLS
LEAP
Compliance
Note: These regulatory domain
certifications are pending.
ETSI Regulatory Domain
EN 300 328
EN 300 328 v1.7.1 (BT 2.1)
EN 301 489-1
EN 301 489-17
EN 301 893
EN 60950-1
EN55022:2006 Class B
EN55024:1998 +A1:2001, A2:2003
EN61000-3-2:2006
EN61000-3-3:1995 +A1:2001, A2:2005
EU 2002/95/EC (RoHS)
FCC Regulatory Domain
FCC 15.247 DTS – 802.11b/g (Wi-Fi) – 2.4 GHz & 5.8 GHz
FCC 15.407 UNII – 802.11a (Wi-Fi) – 2.4 GHz & 5.4 GHz
FCC 15.247 DSS – BT 2.1
FCC Part 15 Class B
UL 60950
Industry Canada
RSS-210 – 802.11a/b/g/n (Wi-Fi) – 2.4 GHz, 5.8 GHz, 5.2 GHz, and 5.4 GHz
ICES-003, Class B
CSA C22.2, No. 60950
RSS-210 – BT 2.1
MIC (Japan) Regulatory Domain (formerly TELEC)
Article 2 Item 19, Category WW (2.4GHz Channels 1-13)
Article 2 Item 19-2, Category GZ (2.4GHz Channel 14)
Article 2 Item 19-3 Category XW (5150-5250 W52 & 5250-5350 W53)VCCI
SDC-WB40NBT User’s Guide
10
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Feature
Description
Class B
Article 2-1 Item 19-2 (BT 2.1)
Certifications
Note: These certifications are
pending.
Wi-Fi Alliance
802.11a, 802.11b, 802.11g , 802.11n
WPA Enterprise
WPA2 Enterprise
Cisco Compatible Extensions (Version 4)
Warranty
Limited Lifetime
All specifications are subject to change without notice
Electrical Characteristics
Absolute Maximum Ratings
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Input Voltage
VCC pin
With respect to ground
-0.3
-
3.6
V
Any IO pin
-0.3
-
3.6
DC Output Current
Any IO pin
-
-
8
mA
Power Supply
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Supply Voltage
VCC
3.0
3.3
3.45
V
Voltage Ripple
-
-
100
mV
Voltage Rise Time
At power on
-
-
5
ms
Operating Current
WLAN
sub-system
Continuous receive
-
200
260
mA
IEEE PSM
10
-
-
Continuous transmit
-
360
450
CPU
sub-system
Varies with system load
-
35
150
mA
Reset Characteristics
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Under voltage
Threshold Level
VCC to GND
VCC falling
2.59
-
2.67
V
Under voltage
Threshold
Hysteresis
-
55.2
*
mV
SDC-WB40NBT User’s Guide
11
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Reset Delay
Power on or
under voltage
0.9
1.1
1.4
s
External Reset
Pulse Width
RSTN driven
low by external
circuitry
92
-
-
µs
Output Current
High Level RSTN
Internal reset
controller
drives external
circuitry
UH = 2.0 V
-
-
650
µA
Input Current Low
Level RSTN
Manual reset
from external
circuitry
Internal reset controller drives
high level
2.2
-
-
mA
I/O Pin Characteristics (including UART interfaces)
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Input Low Level
Voltage
-
-
0.8
V
Input High Level
Voltage
2.0
-
-
V
Output Low Level
Voltage
IOL = 8 mA
-
-
0.4
V
IOL = 0 mA
-
-
0.2
Output High Level
Voltage
IOL = 8 mA
VCC –
0.4
-
-
V
IOL = 0 mA
VCC –
0.2
-
-
V
Output High Level
Voltage LED0
IOL = 6 mA
VCC –
0.4
-
-
V
Input Leakage
Current
Pull-up-disabled
-
-
1
µA
Input Pull-Up
Current
Vin = 0 V
VCC = 3.0 V
8
-
-
µA
VCC = 3.45 V
-
-
30
Internal Pull-Up
Value
-
200
-
kOhm
USB Transceiver Characteristics
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Input Low Level
Voltage
-
-
0.8
V
Input High Level
Voltage
2.0
-
-
V
SDC-WB40NBT User’s Guide
12
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Parameter
Comments
Conditions
Min.
Typ.
Max.
Unit
Differential Input
Sensitivity
0.2
-
-
V
Differential Input
Common Mode
Range
0.8
-
2.5
V
Transceiver
Capacitance
To ground, each line
-
-
20
pF
High-Z State Data
Line Leakage
0V < Vin < 3.3V
-5
5
µA
Recommended
External Series
Resistor
In each data line, 5% tolerance
-
27
-
Ohm
Low Level Output
RL = 1.425 kOhm
Tied to 3.6V
-
-
0.3
V
High Level Output
RL = 1.425 kOhm
Tied to GND
2.8
-
-
V
Output Signal
Crossover Voltage
1.3
-
2.0
V
Transition Rise
Time
Slow Speed
CL = 400 pF
75
-
300
ns
Transition Fall
Time
Slow Speed
CL = 400 pF
75
-
300
ns
Rise/Fall Time
Matching
Slow Speed
CL = 400 pF
80
-
120
%
Transition Rise
Time
Full Speed
CL = 50 pF
4
-
20
ns
Transition Fall
Time
Full Speed
CL = 50 pF
4
-
20
ns
Rise/Fall Time
Matching
Full Speed
CL = 50 pF
90
-
111.111
%
SDC-WB40NBT User’s Guide
13
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Pin Definitions
Note: Unused pins should be left open. All GND pin shall be connected to system ground.
Note: The maximum output current is 8 mA except for the following pins (which have a maximum output current
of 2 mA): 3, 4, 6, 8, 14, 16, 41, 47, 72, 87, and 89.
Note: The SDC-WB40NBT schematic is available from the Summit website.
Section
Pin
No.
Pin Name
I/O
Reference
Description
Section
Pin
No.
Pin Name
I/O
Reference
Description
SPI
1
GND
Signal
Ground
GPIO
2
GPIO_1/
ADC0
I/O
VCC3_3
General Purpose I/O
3
SPI1_NPCS_1
O
VCC3_3
SPI 1
Peripheral
Chip Select
1
4
GPIO_2/
ADC1
I/O
VCC3_3
General Purpose I/O
5
SPI1_NPCS_0
O
VCC3_3
SPI 1
Peripheral
Chip Select
0
6
PC22
I
VCC3_3
Reserved for input to BT
device. Indicates that
Bluetooth is transmitting
or receiving high priority
packets (i.e., SCO and
LMP). Not currently
supported in the
firmware. Tie to GND
when not in use.
7
GND
Signal
Ground
8
PC23
O
VCC3_3
Output to BT device.
Indicates that the WLAN
is transmitting or
receiving high priority
packets. Not currently
supported in the
firmware. Tie to GND
when not in use.
9
SPI1_MOSI
O
VCC3_3
SPI 1 Master
Out/Slave In
UART2
(Console)
10
DRXD
I
VCC3_3
Console/Debug Serial
Input
12
DTXD
O
VCC3_3
Console/Debug Serial
Output
11
SPI1_MISO
I
VCC3_3
SPI 1 Master
In/Slave Out
Boot
Control
13
GND
Signal
Ground
14
PC24/
BOOT1
I
VCC3_3
Emergency update
initiation; Active low
SDC-WB40NBT User’s Guide
14
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Section
Pin
No.
Pin Name
I/O
Reference
Description
Section
Pin
No.
Pin Name
I/O
Reference
Description
15
SPI1_CLK
O
VCC3_3
SPI
Programmin
g
Clock
16
PC25/
BOOT2
I
VCC3_3
Bootloader console
redirection to UART1;
Active low
Ethernet
RMII
17
GND
Signal
Ground
LED
18
LED0
O
VCC3_3
WLAN activity indicator
IOH = 2mA max (VDDIO
= 1.8V)
IOH = 4mA max (VDDIO
= 3.3V)
19
EREFCK
I
VCC3_3
Ethernet
Reference
Clock (50
MHz max)
20
LED1
O
VCC3_3
General purpose LED1
out; Active low
21
GND
VCC3_3
Signal
Ground
22
LED2
O
VCC3_3
General purpose LED2
out; Active low
23
ETX0
O
VCC3_3
Ethernet
data
output 0
Status
24
STAT0
O
VCC3_3
Status
High while system in
reset, bootloader or OS
boot, low when OS is up
25
ETX1
O
VCC3_3
Ethernet
data
output 1
26
STAT1
O
VCC3_3
Status
High while system
running, low while
system in suspend state
27
GND
Signal
Ground
Control
28
/PWDN
I
VCC3_3
Powers down the
module, active low; 4.7K
pull-up resistor to VDDIO
is recommended
29
ERX0
I
VCC3_3
Ethernet
data
input 1
30
/RESET
I/O
VCC3_3
When the AT91 CPU is
powered on, there's a
routine in the bootloader
that asserts a reset on
the SYS_RST_L line for
100us. This resets
peripheral circuitry that
may also be attached to
the SYS_RST_L line.
31
ERX1
I
VCC3_3
Ethernet
data
input 1
Two Wire
Interface
32
GND
Signal Ground
33
GND
Signal
Ground
34
TWD
I/O
VCC3_3
Two-wire Serial Data
35
ETXEN
O
VCC3_3
Ethernet
Transmit
Enable
36
TWCK
I/O
VCC3_3
Two-wire Serial Clock
37
ECRSDV
I
VCC3_3
Ethernet
Carrier
Sense
and Data
Valid
UART1
(DCE)
38
GND
Signal Ground
SDC-WB40NBT User’s Guide
15
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Section
Pin
No.
Pin Name
I/O
Reference
Description
Section
Pin
No.
Pin Name
I/O
Reference
Description
39
ERXER
I
VCC3_3
Ethernet
Receive
Error
40
TXD1
O
VCC3_3
Serial UART1 Transmit
Data 1
41
ERST/
ADC2
O
VCC3_3
Ethernet
Reset
42
RXD1
I
VCC3_3
Serial UART1 Receive
Data 1
43
EMDC
O
VCC3_3
Ethernet
Management
Data Clock
44
CTS1
I
VCC3_3
UART1 Interface, clear-
to-send, active low.
45
EMDIO
I/O
VCC3_3
Ethernet
Management
Data
Input/Output
46
RTS1
O
VCC3_3
UART1 Interface,
request-to-send, active
low
47
EMIRO/
ADC3
I
VCC3_3
Ethernet
Interrupt
Request
UART0
(DCE)
48
GND
Signal Ground
Multi-
media
Card/
SD Card
49
GND
Signal
Ground
50
CTS0
I
VCC3_3
UART0 Interface, clear-
to-send, active low
51
MCDA3
I/O
VCC3_3
SDIO
Multimedia
Card
Slot A Data 3
52
RTS0
O
VCC3_3
UART0 Interface,
request-to-send, active
low
53
MCDA2
I/O
VCC3_3
SDIO
Multimedia
Card
Slot A Data 2
54
DSR0
I
VCC3_3
UART0 Interface, Data
Set Ready
55
GND
Signal
Ground
56
DTR0
O
VCC3_3
UART0 Interface, Data
Terminal Ready
57
MCDA1
I/O
VCC3_3
SDIO
Multimedia
Card
Slot A Data 1
58
RI0
I
VCC3_3
UART0 Ring Indicator 1
59
MCDA0
I/O
VCC3_3
SDIO
Multimedia
Card
Slot A Data 0
60
DCD0
I
VCC3_3
USART0 Data Carrier
Detect
61
GND
Signal
Ground
62
GND
Signal Ground
63
MCCK
O
VCC3_3
SDIO
Interface
Multimedia
Card Clock
64
SCK0
I/O
VCC3_3
UART0 Serial Clock
65
GND
Signal
Ground
66
TXD0
O
VCC3_3
UART0 Serial Output
67
MCCDA
I/O
VCC3_3
SDIO
Multimedia
Card
Slot A
Command
68
RXD0
I
VCC3_3
UART0 Serial Input
SDC-WB40NBT User’s Guide
16
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Section
Pin
No.
Pin Name
I/O
Reference
Description
Section
Pin
No.
Pin Name
I/O
Reference
Description
69
GND
Signal
Ground
External
Bus
Interface
70
GND
Signal Ground
Sync.
Serial
Interface
71
TK
I/O
VCC3_3
Transmit
Clock
72
NC
-
Leave open; don’t ground
73
TD
O
VCC3_3
Serial Output
74
NC
-
Leave open; don’t ground
75
TF
I/O
VCC3_3
Transmit
Frame
Sync
76
GND
Signal Ground
77
GND
Signal
Ground
78
NC
-
Leave open; don’t ground
79
RK
I/O
VCC3_3
Receive
Clock
80
NC
-
Leave open; don’t ground
81
RD
I
VCC3_3
Serial Input
82
GND
Signal Ground
83
RF
I/O
VCC3_3
Receive
Frame
Sync
84
NC
-
Leave open; don’t ground
USB
Device
85
GND
Signal
Ground
86
NC
-
Leave open; don’t ground
87
DPUCNTRL
O
VCC3_3
USB device
pull-up
resistor
enable,
active high
88
NC
-
Leave open; don’t ground
89
DBUSSENSE
I
VCC3_3
USB device
bus
sense signal
from
peripheral to
host,
active low
90
NC
-
Leave open; don’t ground
91
GND
Signal
Ground
92
NC
-
Leave open; don’t ground
93
DDM
I/O
VCC3_3
USB device
data
negative
94
NC
-
Leave open; don’t ground
95
DDP
I/O
VCC3_3
USB device
data positive
96
NC
-
Leave open; don’t ground
USB
Host A
97
GND
Signal
Ground
98
NC
-
Leave open; don’t ground
99
HDMA
I/O
VCC3_3
USB host A
data
negative
100
GND
Ground
101
HDPA
I/O
VCC3_3
USB host A
data positive
102
NC
-
Leave open; don’t ground
SDC-WB40NBT User’s Guide
17
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Section
Pin
No.
Pin Name
I/O
Reference
Description
Section
Pin
No.
Pin Name
I/O
Reference
Description
USB
Host B
103
GND
Signal
Ground
104
NC
-
Leave open; don’t ground
105
HDMB
I/O
VCC3_3
USB host B
data
negative
106
NC
-
Leave open; don’t ground
107
HDPB
I/O
VCC3_3
USB host B
data positive
108
NC
-
Leave open; don’t ground
Power
Supply
109
GND
Supply
Ground
110
NC
-
Leave open; don’t ground
111
GND
Supply
Ground
112
NC
-
Leave open; don’t ground
113
GND
Supply
Ground
Power
Supply
114
GND
Supply Ground
115
VCC3_3
3.3V Module
Power
116
GND
Supply Ground
117
VCC3_3
3.3V Module
Power
118
VCC3_3
3.3V Module Power
119
VCC3_3
3.3V Module
Power
120
VCC3_3
3.3V Module Power
SDC-WB40NBT User’s Guide
18
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Mechanical Specifications
Mounting
The WB40NBT board provides the following: 245046120600829+ CONN RECEPT 120 POS SMD 0.5MM
There are four Kyocera Elco options for mating connectors, each option providing for four different stack heights.
Depending on the board to board space required the main board part number is:
Part Number Contacts B2B (mm) Newark PN
145046120630829+ 120 Plug 3.0 96M9299
145046120635829+ 120 Plug 3.5 96M9300
145046120640829+ 120 Plug 4.0 96M9301
145046120645829+ 120 Plug 4.5 03M4923
The WB40N provides four grounded mounting holes located on the corners of the module. One or more of these
mounting holes may be used to secure the module to the host device with conductive screws with bushings that
correspond to the selected stack height.
SDC-WB40NBT User’s Guide
19
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Integration Guidelines
The following is a list of RF layout design guidelines and recommendation when installing a Summit module into your
device.
Do not run antenna cables directly above or directly below the module.
If there are other radios or transmitters in the device (such as a Bluetooth radio), place the devices as far apart
from each other as possible.
Ensure that there is the maximum allowable spacing separating the antenna connectors on the Summit radio from
the antenna. In addition, do not place antennas directly above or directly below the radio.
Summit recommends the use of a double shielded cable for the connection between the radio and the antenna
elements.
Regulatory
Certified Antennas
The SDC-WB40NBT will be tested to the regulatory standards defined in the “Certifications” section of the
Specifications table above. Summit plans to conduct these tests with the following antennas:
Cisco AIR-ANT 4941 (click for datasheet)
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 2.2 dBi
Tested and Certified 2.4 GHz Transmit Power: TBD
Radiall Larson Dipole (click for datasheet)
Form Factor: Whip
Type: Dipole
Maximum 2.4 GHz Gain: 1.6 dBi (not used during testing)
Maximum 5 GHz Gain: 5 dBi
Tested and Certified 5 GHz Transmit Power: TBD
HUBER+SUHNER (click for datasheet)
Form Factor: Whip
Type: Monopole
Maximum 2.4 GHz Gain:3dBi
Maximum 5 GHz Gain:6.5dBi
Tested and Certified 2.4 GHz Transmit Power: TBD
Tested and Certified 5 GHz Transmit Power: TBD
SDC-WB40NBT User’s Guide
20
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Note: If the formal test reports for the SDC-WB40NBT show that transmit power was decreased to less than 100%
on 2.4 GHz edge channels. Summit will make these transmit power reductions in firmware for the edge
channels. Integrators do not need to reduce transmit power on a channel-by-channel basis to comply with
band edge regulations.
Antennas of differing types and higher gains may be integrated as well. If necessary, with the Summit Manufacturing
Utility software utility, OEMs may reduce the transmit power of the SDC-WB40NBT to account for higher antenna gain.
In some cases, OEMs may be able to reduce certification efforts by using antennas that are of like type and equal or
lesser gain to the above listed antennas.
Documentation Requirements
In order to ensure regulatory compliance, when integrating the SDC-WB40NBT into a host device, it is necessary to
meet the documentation requirements set forth by the applicable regulatory agencies. The following sections (FCC,
Industry Canada, and European Union) outline the information that may be included in the user’s guide and external
labels for the host devices into which the SDC-WB40NBT is integrated.
FCC
Note: You must place “Contains FCC ID: TWG-SDCWB40NBT” on the host product in such a location that it can be
seen by an operator at the time of purchase.
User’s Guide Requirements
As outlined in the Operational Description, the SDC-WB40NBT complies with FCC Part 15 Rules for a Modular
Approval. To leverage Summit’s grant, the two conditions below must be met for the host device into which the
SDC-WB40NBT is integrated:
1. The antenna is installed with 20 cm maintained between the antenna and users.
2. The transmitter module is not co-located with any other transmitter or antenna that is capable of
simultaneous operation.
As long as the two conditions above are met, further transmitter testing is typically not required. However, the OEM
integrator is still responsible for testing its end-product for any additional compliance requirements required with
this module installed, such as (but not limited to) digital device emissions and PC peripheral requirements.
IMPORTANT!
In the event that the two conditions above cannot be met (for example certain
device configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
When using Summit’s FCC grant for the SDC-WB40NBT, the integrator must include specific information in the user’s
guide for the device into which the SDC-WB40NBT is integrated. The integrator must not provide information to the
end user regarding how to install or remove this RF module in the user’s manual of the device into which the SDC-
SDC-WB40NBT User’s Guide
21
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
WB40NBT is integrated. The following FCC statements must be added in their entirety and without modification into a
prominent place in the user’s guide for the device into which the SDC-WB40NBT is integrated:
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.”
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Industry Canada
Note: You must place “Contains IC ID: 6616A-SDCWB40NBT” on the host product in such a location that it can be
seen by an operator at the time of purchase.
SDC-WB40NBT User’s Guide
22
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
User’s Guide Requirements (for Model # SDC-WB40NBT)
RF Radiation Hazard Warning
To ensure compliance with FCC and Industry Canada RF exposure requirements, this device must be installed in a
location where the antennas of the device will have a minimum distance of at least 20 cm from all persons. Using
higher gain antennas and types of antennas not certified for use with this product is not allowed. The device shall not
be co-located with another transmitter.
Installez l'appareil en veillant à conserver une distance d'au moins 20 cm entre les éléments rayonnants et les
personnes. Cet avertissement de sécurité est conforme aux limites d'exposition définies par la norme CNR-102 at
relative aux fréquences radio.
Maximum Antenna Gain – If the integrator configures the device such that the antenna is detectable from the
host product.
This radio transmitter (IC ID: 6616A-SDCSSD40L) has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type,
are strictly prohibited for use with this device.
Le présent émetteur radio (IC ID: 6616A-SDCSSD40L) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type
d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement
d'une communication satisfaisante.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
SDC-WB40NBT User’s Guide
23
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
NCC
User’s Guide Requirements
The modular transmitter must be labeled with its own NCC ID number. If the NCC ID is not visible when the module is
installed inside another device, then the outside of the device into which the module is installed must also display a
label referring to the enclosed module. The exterior label can use wording such as the following:
“Contains Transmitter Module NCC ID: CCAB08LPxxxxTx”
or
“Contains NCC ID: CCAB08LPxxxxTx”
European Union
User’s Guide Requirements
The integrator must include specific information in the user’s guide for the device into which the SDC-WB40NBT is
integrated. In addition to the required FCC and IC statements outlined above, the following R&TTE statements must be
added in their entirety and without modification into a prominent place in the user’s guide for the device into which the
SDC-WB40NBT is integrated:
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of the
R&TTE Directive 1999/5/EC:
EN60950-1:2001 A11:2004
Safety of Information Technology Equipment
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V1.2.1 (2002-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
EN 301 893 V1.5.1 (2008-12)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Broadband Radio Access Networks
(BRAN); Specific conditions for 5 GHz high performance RLAN equipment
EU 2002/95/EC (RoHS)
Declaration of Compliance – EU Directive 2003/95/EC; Reduction of Hazardous Substances (RoHS)
SDC-WB40NBT User’s Guide
24
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states
and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization
to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-
user should contact the national spectrum authority in France.
Česky [Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type
of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Aršo[name of manufacturer / izgatavotājanosaukums] deklarē, ka[type of equipment /
iekārtas tips]atbilstDirektīvas 1999/5/EK būtiskajāmprasībām un citiemar to
saistītajiemnoteikumiem.
SDC-WB40NBT User’s Guide
25
SDC-WB40NBT_UsersGuide
© 2011 – 2012 Summit Data Communications, Inc. All rights reserved.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-
ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus]megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Menovýrobcu] týmtovyhlasuje, že [typzariadenia] spĺňazákladnépožiadavky a
všetkypríslušnéustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.

Navigation menu
