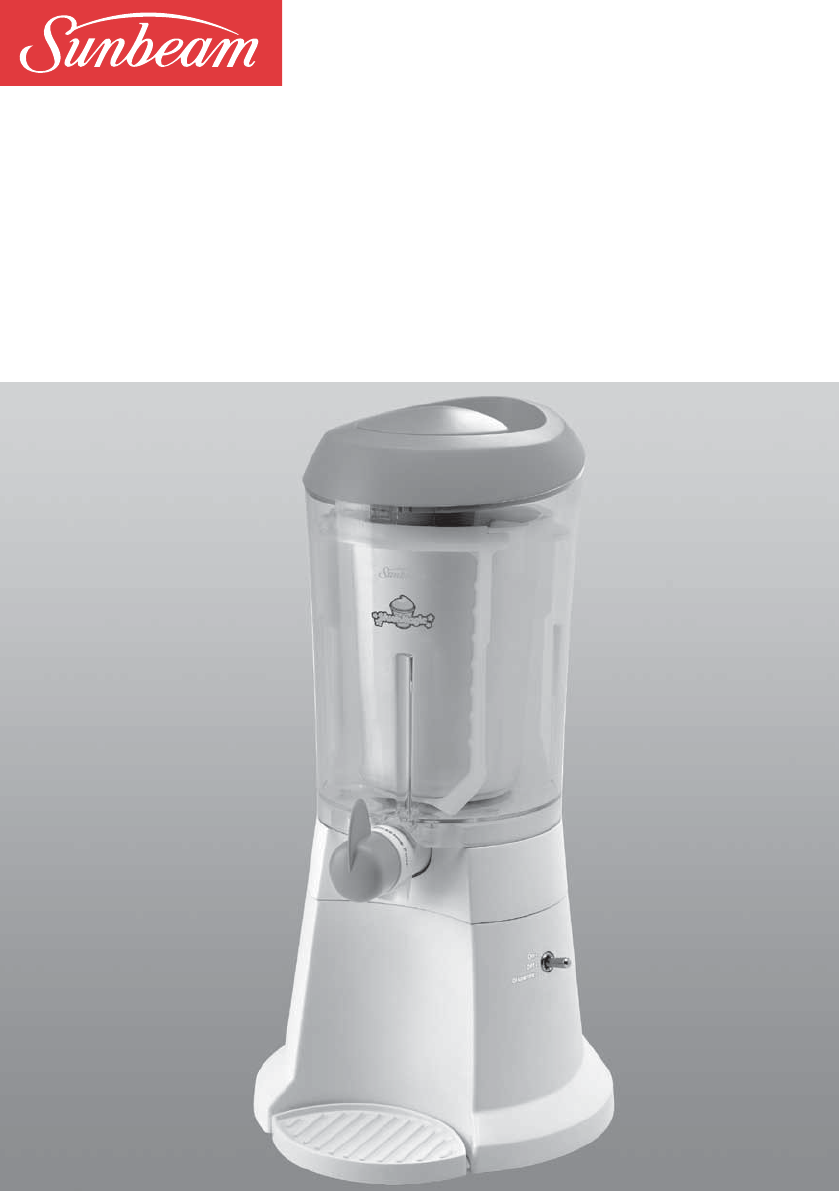

SlushMagic™

Slushie Drink Maker

Instruction Booklet

SL5200

Please read these

instructions carefully

and retain for future

reference.

Important instructions – retain for

future use.

Contents

Sunbeam’s Safety Precautions 1

Features of your SlushMagic

slushie drink maker 2

Assembly Instructions 4

Using your SlushMagic 5

Dispensing your slushie drink 6

Slushie drink suggestions and tips 7

Care and Cleaning 8

1

Sunbeam is very safety conscious when

designing and manufacturing consumer products,

but it is essential that the product user also

exercise care when using an electrical appliance.

Listed below are precautions which are essential

for the safe use of an electrical appliance:

• Readcarefullyandsavealltheinstructions

providedwithanappliance.

• Alwaysturnthepoweroffatthepoweroutlet

beforeyouinsertorremoveaplug.Remove

bygraspingtheplug-donotpullonthecord.

• Turnthepoweroffandremovetheplug

whentheapplianceisnotinuseand

beforecleaning.

• Donotuseyourappliancewithanextension

cordunlessthiscordhasbeenchecked

andtestedbyaqualifiedtechnicianor

serviceperson.

• Alwaysuseyourappliancefromapower

outletofthevoltage(A.C.only)marked

ontheappliance.

• Closesupervisionisnecessarywhenyour

applianceisbeingusedbychildrenorinfirm

persons.

• Youngchildrenshouldbesupervisedtoensure

thattheydonotplaywiththeappliance.

• Neverleaveanapplianceunattendedwhile

inuse.

• Donotuseanapplianceforanypurpose

otherthanitsintendeduse.

• Donotplaceanapplianceonornearahotgas

flame,electricelementoronaheatedoven.

Donotplaceontopofanyotherappliance.

• Donotletthepowercordofanappliancehang

overtheedgeofatableorbenchtoportouch

anyhotsurface.

• Donotoperateanyelectricalappliancewith

adamagedcordoraftertheappliancehas

beendamagedinanymanner.Ifdamageis

suspected,returntheappliancetothenearest

SunbeamAppointedServiceCentre

forexamination,repairoradjustment.

• Foradditionalprotection,Sunbeam

recommendtheuseofaresidualcurrent

device(RCD)withatrippingcurrentnot

exceeding30mAintheelectricalcircuit

supplyingpowertoyourappliances.

• Donotimmersetheapplianceinwater

oranyotherliquidunlessrecommended.

•Appliancesarenotintendedtobeoperated

bymeansofanexternaltimerorseparate

remotecontrolsystem.

 Ifyouhaveanyconcernsregardingtheperformanceanduseofyourappliance,

pleasevisitwww.sunbeam.com.auorcontacttheSunbeamConsumerServiceLine.

Ensure the above safety precautions are understood.

Sunbeam’s Safety Precautions

 SAFETYPRECAUTIONSFORSLUSHMAGIC

THESLUSHIEDRINKMAKER.

• Thisapplianceisnotatoy.

• Operatetheslushiedrinkmakeronaflat

surface.

• Donotleaveyourslushiedrinkmaker

unattended.

• Donotplaceanypartofthisapplianceina

dishwasher.

• Donotaddmorethantherecommended

amountofsalt.

• Donotplaceicecanisterinfreezer.

Features of your SlushMagic

slushie drink maker

Salt dispensing cap

Usedformeasuringsaltandaddingsalt.

Jug

Dispensing tap

Turnthedispensingtapwhenyourslushie

drinkisreadytoserve.

Removable drip tray

Catchesanydripsandisremovedforeasy

cleaning.

2

Lid

Ice canister

Iceandsaltgointotheicecanistertomake

SlushMagicsupercold,superfast!

Slushie paddles

Power switch

On/Off/Dispense.

3

4

1.BeforeusingyourSlushMagicforthefirst

timeensurethatallpackingmaterialis

removed.

2.Washallpartsinwarmsoapywater,rinse

wellanddry.

3.Placethebaseonalevelbenchtop.Place

theSlushMagicjugontopofthemotor

baseandensurethatitsitsfirmlyinplace

withthedispensingtapoverthedrinktray.

Figure1.

4.Inserttheicecanistertofitinsidethe

outerslushiepaddles.Theninserttheinner

icepaddlestofitinsidetheicecanister.

Figure2.

5.Clipinthelockinglatchesontheinnerice

paddlesintotheouterslushiepaddles.

Figure3.

6.Placethecanisterwithassembledinner

andouterpaddlesintothejug.Ensurethat

thecanistersitsflushonthebaseofthe

jug.

Assembly Instructions

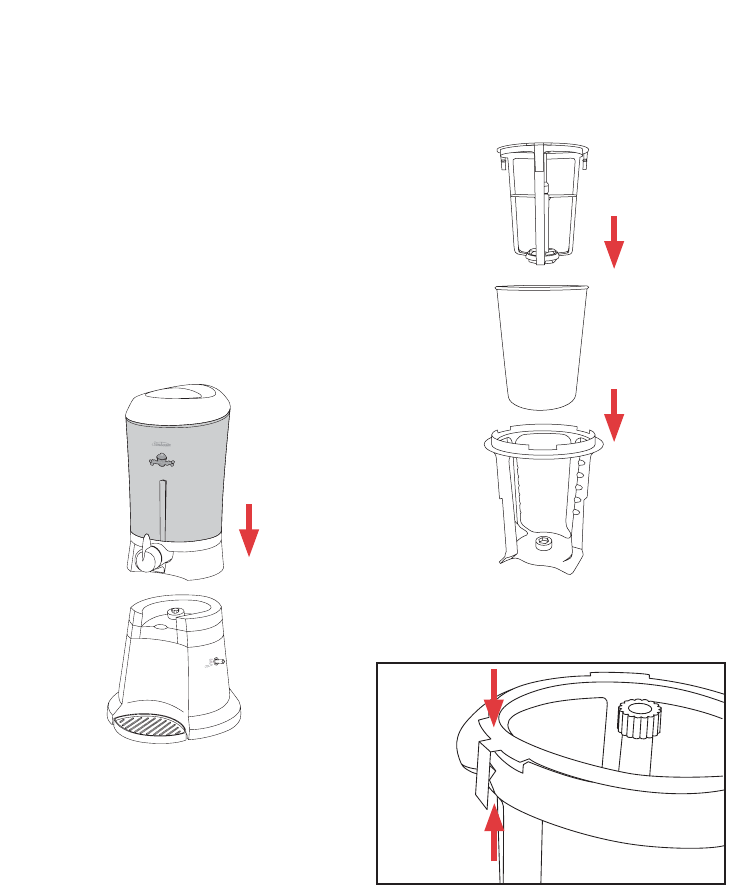

Figure 1

Figure 2

Figure 3

5

Using your SlushMagic

1.TurnSlushMagictothe‘off’settingonthe

sideswitch.

2.Plugtheunitintoa230-240voltAC

poweroutletandswitchthepoweron.

3.SecurethelidontotheSlushiejug.

Placethefrontendonfirst,thensecure

thelockinglatchontotherearclipofthe

canister.SeeFigure4.

4.Turnthesideswitchto‘on’.Theinnerand

outerpaddleswillstarttorotate.

5.Slowlypourthechilleddrinkmixtureinto

therearsectionofthelid.Youwillsee

thedrinkmixturethroughthejugbeing

churnedbythepaddles.

Important:Dietorreducedsugarsoftdrinks

willnotworkinSlushMagic.

Important:Donotplacemorethan1litre(to

theMAXline)ofdrinkmixtureinSlushMagic.

6.Tofilltheinsideofthecanister,removethe

capfromthelidandaddicecubesthrough

thelidopeningtohalffillthecanister(this

willtakeabout8-10standardsizeice

cubes).Whenthecanisterishalffullof

ice,turnthecapupsidedownandfillwith

rocksalt.Addtherocksalttotheice.

Note:Regularsquareicecubesworkbestin

SlushMagic.

7.Addanother8-10standardsizeicecubes

throughthelidopeninguntiltheice

reachesthemaximumfillindictordiskon

theinsideofthecanister,thenaddanother

capfulofrocksalt.

Important: Donotoverfillabovethe

maximumfillindictordiskwithiceandrock

salt.SeeFigure5.

8.Pour¼cup(60ml)ofwateroverthetopof

therocksaltandice.

9.Placethecapbackonthelid.

10.Leavetheunitrunningfor10to15

minutes,dependingonthedesired

‘slushie’consistency.

Note:Awarmerroomtemperaturemay

increasethistime.

11.After5-7minuteschecktheiceandrock

saltmixturethroughthelidopening.Ifthe

icehasmelted,addafewmoreicecubes

and½capfulofrocksaltatatime.

Important:Donotfilltothetopofthe

canisterwithiceandrocksalt.

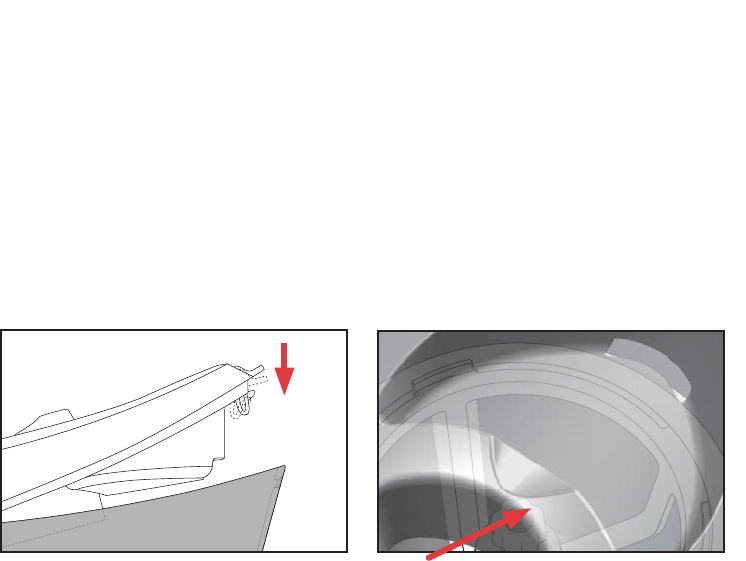

Figure 4 Figure 5Maximumfillindicatordisk

Dispensing your Slushie drink

1.Whenpeaksformintheslushiemixture,

adjacenttothepaddlesthemixturehas

reachedagoodconsistency.

2.Turnthesideswitchsettingtothe

‘Dispense’settingtoservetheslushie

drink.Thiswillreversethepaddle

direction.

3.Placeaglassunderneaththedispensing

tapandturntothe‘pour’position.

4.Theslushiemixturewilldispensefromthe

tapintoyourglass.

5.Toturnthedispenseroffandtostopthe

flow,turnthetapcounterclockwise.

6.Setthesideswitchto‘on’tocontinue

mixing.Orswitchtothe‘off’positionwhen

youhavefinishedusingSlushMagic.

Important:Dietorreducedsugarsoftdrinks

willnotworkinSlushMagic.

6

• Alldrinksshouldbechilledbeforeadding

toSlushMagic.

• SoftdrinksworkbestinSlushMagic.

• UseyoufavouritecordialinSlushMagic.

Werecommendusingmorethanthe

suggestedconcentrateamountwhen

mixingwithwateraswhencordialfreezes,

theflavourisnotasconcentrated.

• Fruitjuicedrinkdrinkscanbeusedin

SlushMagic.100%fruitjuiceisnot

suitableasitwillfreezethepaddlestothe

canister.Werecommendusingfruitjuice

drinkswhichare35%realfruitjuiceonly.

• Dietorreducedsugarsoftdrinkswillnot

workinSlushMagic.

• Frozencocktailscanbemadeusing

SlushMagicbutdonotaddalcohol

untilapproximately1-2minutesbefore

dispensing.

Slushie drink suggestions

7

1.Setthesideswitchtothe‘off’positionand

removetheplugfromthepowerpoint.

2.RemovelidfromtheSlushMagicjug.

3.Removetheicecanisterfromthejugand

discardanyremainingiceandsalt.

4.Carefullyliftthelockinglatchesfromthe

icepaddlesanddisassembletheinnerand

outpaddlesfromthecanister.

5.Placetheicecanister,paddles,lidand

capinwarmsoapywaterandrinseincold

water.

Note: Theicecanisterandpaddlesmust

beseperatedbeforewashingtoremoveany

excesssalt.Ensurethatnosaltisleftin

contactwiththecannister

6.TocleantheSlushMagicjugrinseunder

warmwater.Turnthedispensinghandle

clockwisetoallowwatertorinsethrough

thetap.

NeverimmersetheSlushMagicbaseinwater.

7.WipethebaseofSlushMagicwithawarm

clothtoclean.

Important:DONOTPLACEANYPARTIN

THEDISHWASHER.

8

Care and Cleaning

In the unlikely event that this appliance develops any malfunction

within 12 months of purchase (3 months commercial use) due to

faulty materials or manufacture, we will replace it for you

free of charge.

12 Month Replacement Guarantee

Shouldyouexperienceanydifficulties

withyourappliance,pleasephoneour

customerservicelineforadviceon

1300881861inAustralia,

or0800786232inNewZealand.

YourSunbeam12MonthReplacement

Guaranteenaturallydoesnotcovermisuse

ornegligenthandling,andexcludes

breakablessuchasglassorceramicitems

andnormalwearandtear.

Similarly,your12MonthReplacement

Guaranteedoesnotcoverdamageto

householdsurfacesasaresultofwater

orothersubstancesleakingfromyour

appliance,nordoesitcoverfreightcosts.

InAustralia,thisguaranteeisadditional

totheconditionsandguaranteeswhich

aremandatoryasimpliedunderthe

TradePracticesAct1974andState

andTerritorylegislation.

Shouldyourappliancerequirerepairor

serviceaftertheguaranteeperiod,contact

yournearestSunbeamservicecentre.

ForacompletelistofSunbeam’s

authorisedservicecentresvisitourwebsite

orcall:

Australia

www.sunbeam.com.au

1300881861

New Zealand

www.sunbeam.co.nz

0800786232

is a registered trademark.

Need help with your appliance?

Contactourcustomerserviceteamorvisit

ourwebsiteforinformationandtipson

gettingthemostfromyourappliance.

In Australia

Visit www.sunbeam.com.au

Or call 1300 881 861

In New Zealand

Visit www.sunbeam.co.nz

Or call 0800 786 232

‘SlushMagic’ is a trademark of Sunbeam Corporation.

Made in China.

Due to minor changes in design or otherwise,

the product may differ from the one shown in this leaflet.

© Copyright. Sunbeam Corporation Limited 2006.

ABN 45 000 006 771

Sunbeam Corporation is a division of GUD Holdings Ltd.

06/09
