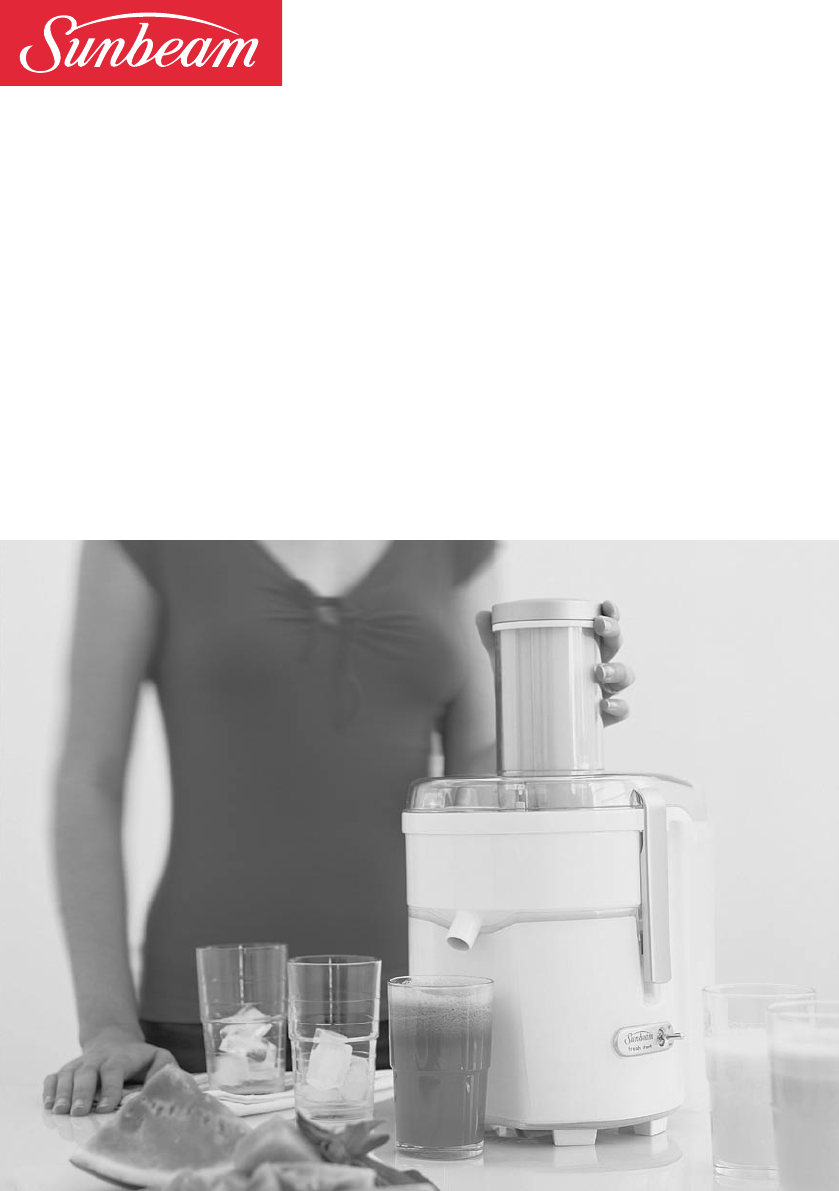

Fresh Start™
Juice extractor with whole fruit chute
Instruction Booklet
This book covers the use and care of the following juicers:
JE6400 – White
JE6400G – Lime Crush
JE6400R – Watermelon Ice
JE6400Y – Lemon Tang
JE6400M – Mango Tango
JE6400S – Satin
Please read these instructions carefully
and retain for future reference.
![](asset-2.png)
Contents
Safety Precautions for your Juicer 1
Features of your Fresh Start™ Juicer 2
Helpful hints for juicing 4
A guide to the benefits of juicing 5
Assembling your Fresh Start™ Juicer 7
Operating your Fresh Start™ Juicer 9
Juicing speed guide 10
Disassembling your Fresh Start™ Juicer 11
Care and Cleaning 12
Trouble shooting guide 13
Recipes
Day starters 14
Juice remedies 15
Juice jolts 16
A good start for kids 17
Important instructions – retain for
future use.
![](asset-3.png)
1
If you have any concerns regarding the performance and use of your appliance, please visit
www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above
safety precautions are understood.
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM JUICER.
• Do not put fingers or other objects into the feed
chute whilst the juicer is in operation.
• Do not push fruit or vegetables into the feed chute
with your fingers, always use the food pusher
provided.
• If any fruit or vegetables become lodged in the
feed chute, use the food pusher or turn off the
juicer, remove the plug from the power outlet
and disassemble to remove the lodged fruit or
vegetables.
• Never operate without pulp container.
• Ensure the juicer is correctly and completely
assembled before turning the appliance ‘On’.
• Ensure the juicer cover is clamped securely and
pulp container is in place before juicer is turned
on. Do not unfasten the twin-locking handles while
the juicer is in operation.
• Juicing blades are very sharp, handle juicing filter
basket with care when removing, replacing and
cleaning.
• Always operate the juicer on a flat, level surface.
• Do not operate for more than 30 seconds at a time
when juicing heavy loads. None of the recipes in
this manual are considered a heavy load.
Sunbeam are very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug – do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and
before cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• This appliance is not intended for use by young
children or infirm persons unless they have
been adequately supervised by a responsible
adult to ensure that they can use the appliance
safely.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Never leave an appliance unattended while
in use.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage is
suspected, return the appliance to the nearest
Sunbeam Appointed Service Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
![](asset-4.png)
2
Features of your Sunbeam
Fresh Start™ Juicer
Food pusher
Whole fruit & vegetable feed chute
The extra large 75mm diameter feed chute
takes whole fruit and vegetables reducing the
amount of preparation needed.
Patent pending feed chute lever
Ensures a controlled and safe juicing action.
The lever suspends the fruit above the
blade until you are ready to apply downward
pressure with the food pusher and commence
juicing.
Juicer cover
Juice collector / bowl
Twin-locking handles with safety braking system
4-second braking system provides essential
safety. The blades will come to a complete
stop, either when the juicing switch is turned
‘Off’ or the twin-locking levers are released.
Control switch with two speeds and off
Two speed control to optimise juicing results.
Low speed for soft fruit, particularly those
with a high water content including oranges
and watermelon. High speed is ideal for hard
and fibrous fruit and vegetables such as
apples, ginger, celery and carrots.
![](asset-5.png)
3
Juicing jug
1 litre juicing jug
with froth separating
lid ensuing on easy
pour and a smooth
tasting juice.
Stainless steel blade and filtering basket
The commercial quality stainless steel blade
and filtering basket, designed to maximise
extraction of juice from fruit and vegetables.
Extra large pulp container
Large 3 litre capacity pulp container is ideal
for extracting large volumes of juice without
stopping. Once full the pulp container can be
easily removed without having to dismantle
the juicer.
Powerful 850 watt motor
Powerfully built 850 watt motor with 5 year
guarantee, extracts juice at slower speeds
reducing oxygen and heat damage to juice
– ensuring maximised juice extraction and
less froth.
Cord wrap
Cord wraps away to keep bench top clean.
Non-slip feet
Heavy-duty non-slip feet ensure the juicer
remains stable and prevents slipping on the
bench top during use.
![](asset-6.png)
4
Helpful hints for juicing
Preparing fruit and vegetables
Wash all fruit and vegetables well before
juicing. There is no need to peel vegetables
that have a thin skin but a light scrub with
a clean sponge will help rid of any dirt that
may be stuck on or any waxy coatings.
Peel fruit and vegetables that have a thick
skin such as melons, pineapple and citrus
fruit.
Juice only the freshest of fruit and vegetables
to get the most out them and the best
flavours.
Cut large pieces of fruit, such as melons into
large wedges.
Some seeds from citrus fruits can be bitter
so you may want to remove some of the seeds
if desired.
Remove seeds and stones from fruit such as
mangoes, papaya and stone fruit. This will
prevent the blade from getting damaged.
Juicing techniques
When juicing different fruit and vegetables it
may help to juice in different combinations.
For example, when juicing apples and
oranges, juice the soft fruit (oranges) first,
then follow with the hard fruit (apples)
second. This will help you to achieve the
maximum juice extraction from the fruit and
vegetables.
When juicing fresh herbs such as mint or
parsley, add the herbs in between the fruit
and vegetables to get the most out of the
herb or if only using a small quantity, add the
herb at the same time as a piece of fruit and
vegetable.
Bananas can be hard to juice but the taste
goes a long way. When juicing a blend of
fruit with bananas, add the banana as either
the first or second piece of fruit. The nectar
of the banana will sit inside the filtering
basket and as the remaining fruits are added
into the juice extractor they will release the
banana nectar throughout the rest of the
juice resulting in frothy flavoursome juice.
When juicing small fruit such as grapes or
strawberries, add the fruit in handfuls rather
than one at a time, this will maximise the
amount of juice extracted.
Be aware that beetroot stains all other fruit
and vegetables. If juicing several different
juice combinations, juice the drink with the
beetroot last, so as to not stain the other
drinks.
![](asset-7.png)
5
A guide to the benefits of juicing
Fruit / Vegetable Source of Benefits KJ per 100g
Apples Carotenes, pectin, potassium, May help in the treatment 150kj/100g
vitamin C and dietary fibre, of constipation.
energy giving carbohydrates.
Apricots Beta-carotene, iron, vitamin C, High in natural sugars for energy. 280kj/100g
dietary fibre.
Banana Potassium, carbohydrates, Provides sustained energy. 225kj/100g
dietary fibre, vitamin B6, vitamin C.
Beetroot Folate, potassium, leafy tops are rich The folate is excellent for 120kj/100g
in beta carotene, calcium and iron. healthy cells.
Blueberries Carotenoids, vitamin C. Antibacterial. 200kj/100g
Capsicum High in vitamin C, beta carotene. 1 red capsicum has enough vitamin C 135kj/100g
to meet the daily needs of 10 people.
Carrots Beta carotene, folate, dietary fibre. May help with night vision. 100kj/100g
Celery Only small amounts of vitamins Helps to clean mouth and teeth. 50kj/100g
and minerals.
Cherries Very high in vitamin C, dietary fibre. May help to stabilise the heartbeat 170kj/100g
and also keeps the skin healthy.
Cucumber Only small amounts of vitamins May help with flatulence. 30-50kj/100g
and minerals.
Fennel Beta carotene, folate. Fennel seeds are good for digestion. 50kj/100g
Ginger Aids in digestion and is good for
nausea and improves circulation.
Grapefruit Rich in vitamin C, fibre, bioflavenoids. Pink grapefruit contains Lycopene 110kj/100g
which is an anti-cancer agent and
may reduce the risk of prostate cancer.
Honeydew Melon Vitamin C, small amounts of May stimulate the kidneys to help 130kj/100g
carotenoids. function better.
Kiwi Fruit Beta carotene, vitamin C, Helps in digestion and cleansing
bioflavenoids, dietary fibre. of the skin. 180kj/100g
Lemon Bioflavenoids, limonene, pectin, The pectin may help reduce 95kj/100g
vitamin C. blood cholesterol.
Lime Bioflavenoids, limonene, pectin, The pectin may help reduce 90kj/100g
vitamin C. blood cholesterol.
Mandarins Vitamin C, beta carotene, folate, 165kj/100g
![](asset-8.png)
6
A guide to the benefits of juicing (continued)
Fruit / Vegetable Source of Benefits KJ per 100g
Mango Beta carotene, potassium, flavenoids Easy to digest. 235kj/100g
and other antioxidants.
Mint Antispasmodic volatile oils, Aids digestion.
flavenoids, menthol.
Oranges High in vitamin C, fibre, beta Excellent for healthy skin and helps 100kj/100g
carotene, flavenoids, thiamine, the body’s defences against bacterial
pectin, folate. infections.
Papaya Protective carotenoids, rich in Helps digest proteins. 160kj/100g
vitamin C, fibre, rich in papain.
Parsley Vitamin C, iron. Excellent for fresh breath.
Pawpaw Beta carotene, flavenoids, Helps digest proteins. 163kj/100g
magnesium, rich in papain.
Peaches Good source of vitamin C, dietary Easy to digest and works as a gentle 130kj/100g
fibre, beta carotene. laxative.
Pears Very good source of dietary fibre. Provide a quick source of energy. 190kj/100g
Pineapple Vitamin C, dietary fibre, beta carotene. Helps to digest protein. 160kj/100g
Plums Vitamin E, potassium, beta carotene, May help to retard the effects 110-155kj/100g
malic acid. of wrinkling.
Raspberries High in dietary fibre, excellent source Helps in treating constipation. 110kj/100g
of vitamin C, some folate.
Rockmelons Excellent source of vitamin C, beta May help in the prevention of cancer 90kj/100g
carotene, carotenoids. and heart disease.
Spinach Zeaxanthin, vitamin C, beta carotene, Helps in keeping eyes healthy 65kj/100g
folate, dietary fibre. in the elderly.
Strawberries Vitamin C, dietary fibre, some folate. Helps to absorb iron better after 80kj/100g
eating meat.
Tomatoes Rich in lycopene, vitamin C, and May help reduce the risk of prostate 55kj/100g
small amounts of vitamin E, folate, cancer in men.
dietary fibre.
Watercress Vitamin C & E, folate, beta carotene, Thought to have cancer fighting 72kj/100g
iron. properties.
Watermelon Carotenoids, beta carotene, vitamin C, May stimulate the kidneys to help 95kj/100g
dietary fibre. function better.
![](asset-9.png)
7

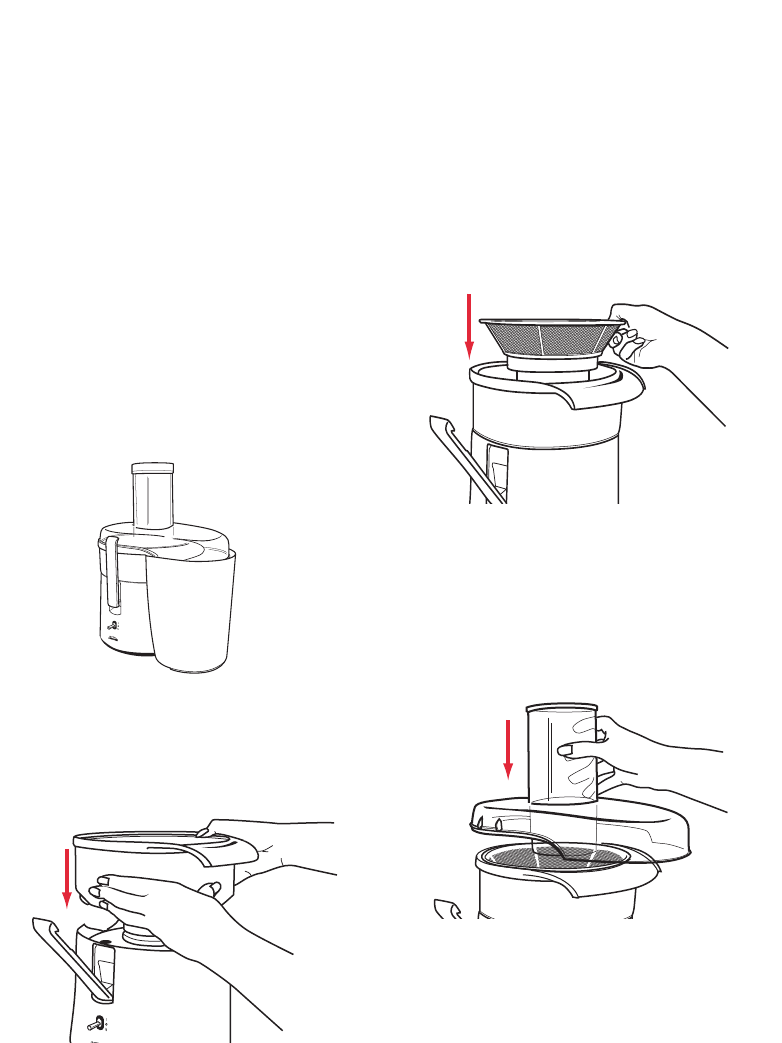

Assembling your Sunbeam
Fresh Start™ Juicer
Before Use
After unpacking your Sunbeam Fresh Start™
Juicer, we recommend that you dissemble
the unit before using for the first time. Wash
all parts except the motor base in hot soapy
water. Rinse and dry immediately.
Important: Always ensure your juicer is
unplugged from the power outlet when not
in use, during assembling or whilst removing
parts.
1. Set the motor base on a dry, level surface.
For convenience when juicing, have the
control switch facing you – figure 1.
2. Place the juice collector / bowl onto the
top of the motor base – figure 2.
3. Position the stainless steel blade and
filtering basket onto the motor drive shaft
and push down until firmly in
place, the arrows indicate the correct
alignment position of the basket – figure 3.
4. Place the juicer cover onto the juice
collector / bowl, with the feed chute
positioned over the stainless steel blade
and filtering basket and push into position
– figure 4.
Figure 3
Figure 4
Figure 1
Figure 2
![](asset-a.png)
8

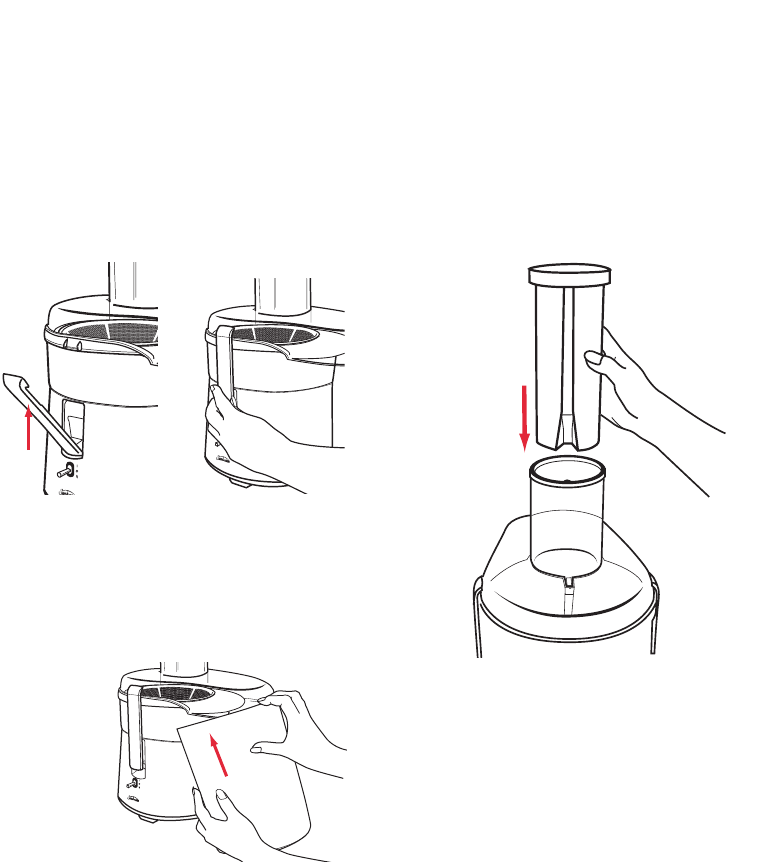

Assembling your Sunbeam Fresh Start™ Juicer (continued)
5. Secure the juicer cover by raising the twin-
locking handles and clip the tops to the
juicer cover – figure 5a. Press firmly on the
lower part of the twin-locking handles to
lock into place – figure 5b.
6. Slightly tilt the pulp container and
slide into place under the juicer
cover – figure 6.
Tip: To reduce cleaning we recommend that
you line the pulp container with a plastic bag
to collect the pulp.
7. Take the food pusher, align the groove
on the food pusher with the notch on
the inside of the feed chute and
slide the food pusher down into
the feed chute – figure 7.
Figure 7
Figure 5a Figure 5b
Figure 6
![](asset-b.png)
9
Note: The Fresh Start™ juicer should be
completely assembled before use, if this is
not the case see ‘Assembling your Sunbeam
Fresh Start™ Juicer on page 7.
1. Ensure the control switch on the juicer is
in the ‘Off’ position and insert the power
cord into a 230-240V AC power outlet and
turn the power ‘On’.
2. Clean fruit and vegetables thoroughly,
ready for juicing.
Note: The extra large feed chute allows
whole fruit and vegetables to be juiced,
however some fruit and vegetables may
require other preparation before juicing,
such as peeling and removing stones, see
‘Juicing speed guide’ on page 10 for our
recommendations.
3. Ensure that the juicer has been assembled
completely and correctly, making sure
that the stainless steel blade and filtering
basket revolves properly before placing fruit
and vegetables in the juicer.
Note: The stainless steel blade and filtering
basket should be cleaned thoroughly before
each use, see ‘Care and cleaning’ on page
12.
4. Place a jug or glass under the juice spout.
5. Select ‘Low’ or ‘High’ speed with the control
switch. To select ‘Low’ speed push the
control switch up ‘l’. To select ‘High’ speed
push the control switch down ‘ll’.
For optimum juicing results ‘Low’ speed is
used primarily for soft fruit and vegetables,
particularly those with a high water content
and ‘High’ speed is ideal for hard and
fibrous fruit and vegetables. A list of fruit
and vegetables commonly used for juicing
and their recommended juicing speed are
specified in the ‘Juicing speed guide’ on
page 10.
Important: Do not operate for more than
30 seconds at a time when juicing heavy
loads. None of the recipes in this manual
are considered a heavy load.
6. With the juicer in operation, place the
fruit and vegetables into the feed chute.
Using the food pusher, guide the fruit and
vegetables down the feed chute and onto
the stainless steel blade.
Tip: For maximum juice extraction, guide
the food pusher down the feed chute in a
slow downward motion.
Important: Do not push fruit or vegetables
into the feed chute with your fingers,
always use the food pusher provided.
7. The juice from the fruit and vegetables will
flow directly into the jug or glass and the
pulp will be separated and collected in the
pulp container.
Important: When juicing be aware of
the level of pulp in the pulp collection
container, because if the container is
overfilled this can cause damage to the
appliance and prevent the juicer from
operating correctly.
8. When juicing is complete ensure that the
juicer is switched ‘Off’ and unplugged from
the power outlet.
Operating your Sunbeam
Fresh Start™ Juicer
![](asset-c.png)
10
Juicing speed guide
FRUIT / VEGETABLE TYPE RECOMMENDED SPEED
Apples High
Apricots – remove stone Low
Banana – remove skin Low
Beetroot High
Blueberries Low
Capsicum - remove seeds Low
Carrots High
Celery High
Cherries – remove pips Low
Cucumber Low
Fennel High
Ginger High
Grapes - remove stems High
Grapefruit – remove skin Low
Honeydew melon – remove skin Low
Kiwi fruit – remove skin Low
Lemon – remove skin Low
Lime – remove skin Low
Mandarins – remove skin Low
Mangoes – remove skin & seed Low
Mint High
Oranges – remove skin Low
Papaya High / Low
Parsley High
Pawpaw High / Low
Peaches – remove stone Low
Pears High / Low
Pineapple – remove skin High
Plums – remove stone Low
Raspberries Low
Rockmelons – remove skin Low
Spinach High
Strawberries Low
Tomatoes Low
Watercress High
Watermelon – remove skin Low
![](asset-d.png)
11

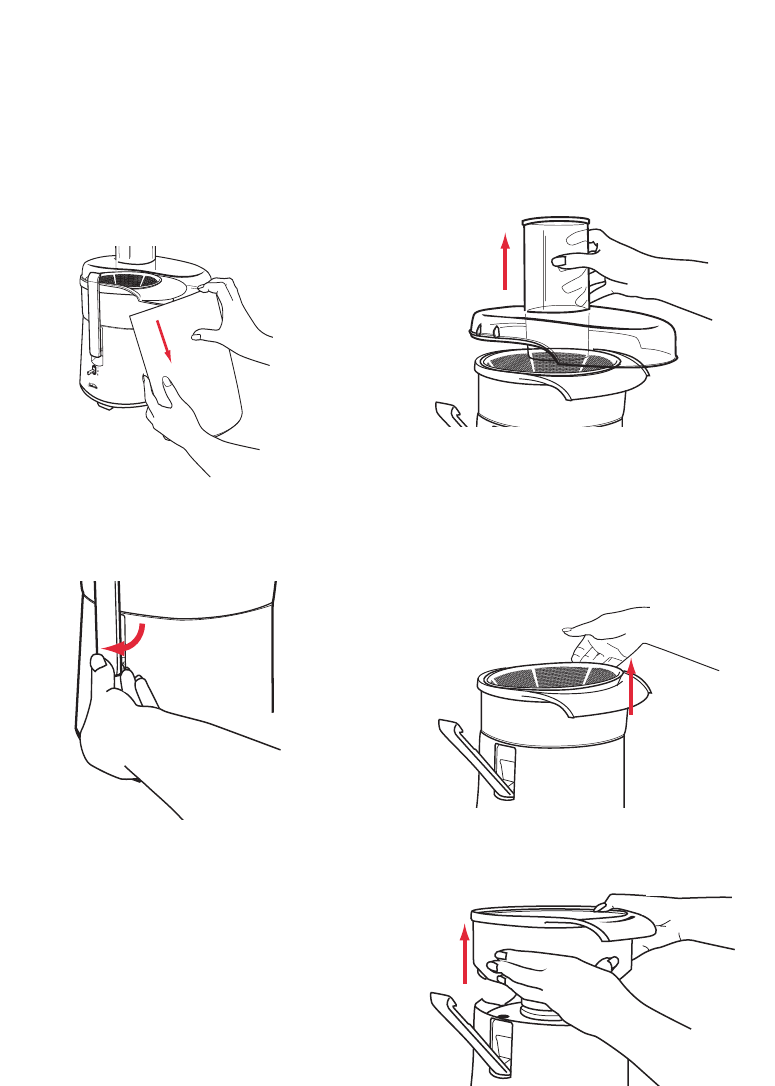

Disassembling your Sunbeam
Fresh Start™ Juicer
1. Turn the power ‘Off’ at the power outlet
and unplug the cord.
2. Slightly tilt the pulp container and slide
away from the juicer – figure 8.
3. Place fingers under the bottom of
the twin-locking handles and lift
to release – figure 9.
4. Lift the juicer cover from the juice
collector/bowl – figure 10.
5. Place fingers under the rim of the
stainless steel blade and filtering
basket and lift out – figure 11.
Important: Juicing blades are very sharp,
handle juicing filter basket with care
when removing, replacing and cleaning.
6. Lift the juice collector/bowl from the motor
base – figure 12.
Figure 9
Figure 10
Figure 11
Figure 12
Figure 8
![](asset-e.png)
12
Care and cleaning
Note: Ensure that the juicer is unplugged
from the power outlet prior to cleaning.
Dishwashing
All parts of the Sunbeam Fresh Start™ juicer,
excluding the motor base, can be placed in
the dishwasher for effortless cleaning after
juicing.
Note: If using the dishwasher, due to high
temperatures we recommend placing parts
only on the top rack of your dishwasher. This
will prevent any damage to the product due
to heat.
Quick clean
For easy cleaning, ensure that immediately
after use that the juicer is disassembled and
that each removable part is rinsed under
running water, removing any wet pulp and
then allow to air dry.
Thorough cleaning
Disassemble the juicer and place all
removable parts aside, see ‘Disassembling
your Fresh Start™ juicer on page 11.
Rinse the juice collector, juicer cover, pulp
container and food pusher under running
water and wash with warm, soapy water.
Rinse well.
Using the nylon cleaning brush supplied
with the juicer, hold the stainless steel blade
and filtering basket under running water and
brush the outside of the basket first. Then
with the basket still under running water,
brush the inside of the basket in an anti-
clockwise direction, removing the pulp. To
ensure the stainless steel blade and filtering
basket is free of all remaining pulp, hold it
up to light and ensure that the holes in the
filtering basket are not blocked.
Important: Juicing blades are very sharp,
handle juicing filter basket with care when
removing, replacing and cleaning.
Use a soft, damp cloth to wipe the motor
base clean.
To clean the motor base
Clean the motor base of the juicer using a
damp soft sponge with mild detergent and
wipe over the appliance.
Important: Never immerse the motor base in
water or any other liquid.
![](asset-f.png)
13
Problem Possible cause What to do
Juicer will not start when speed The juicer hasn’t been assembled See ‘Assembling your Fresh Start™
is selected. correctly. Juicer', on page 7.
The juicer motor appears to struggle Pulp container is full. Empty the pulp container.
during operation.
Pulp is caught in the Stop juicing, remove the juicer cover
juicer cover. and clean out pulp. See ‘Disassembling
your Fresh Start™ Juicer', and ‘Care
and Cleaning’ sections.
Try a slower juicing action – guide the
food pusher down the feed chute in a
slow downward motion.
Stainless steel blade and filtering After extended juicing of fibrous fruit
basket is blocked with excess pulp. and vegetables the mesh on the
filtering basket may need to be cleaned.
Stop juicing, disassemble the juice
extractor and clean the filtering basket.
See ‘Disassembling your Fresh Start™
Juicer', and ‘Care and Cleaning’ sections.
The selected juicing speed See ‘Juicing speed guide’ on page 10.
is incorrect.
You notice less juice coming Large amounts of highly fibrous fruit Stop juicing, disassemble the juice
out of the juice spout. and vegetables have caused excess extractor and clean the filtering
pulp to build up in the filtering basket. basket. See ‘Disassembling your Fresh
Start™
Juicer'
and ‘Care and Cleaning’
sections.
Troubleshooting Guide
![](asset-10.png)
14
Recipes
DAY STARTERS
For all recipes in this section, process all
ingredients listed in the recipe through the
juicer, stir and serve immediately.
All recipes make approximately 2 small
serves.
Zinger
Pineapple ¼ small, peeled
Green apples 2
Celery 1 stalk
Mint 1 sprig
Lemon ¼ small, peeled
Flying High
Carrot 3
Green apples 2
Beetroot 1 small
Distant Melons
Watermelon 1 wedge, 200g piece
Honeydew
¼, peeled
Rockmelon
¼, peeled
Orange Madness
Pawpaw
½ large, peeled, seeds
removed
Rockmelon ¼, peeled, seeds removed
Lime ¼, peeled
Grapes
½ cup
Morning Calmer
Mango 1, seed removed
Oranges 2, peeled
Blood plums 4, seeds removed
Pick Up The Pace
Carrot 4
Green apple 1
Parsley 1 handful
Kiwi fruit 1, peeled
![](asset-11.png)
15
JUICE REMEDIES
For all recipes in this section, process all
ingredients listed in the recipe through the
juicer, stir and serve immediately.
All recipes make approximately 2 small
serves.
Immune Booster
Green apples 3
Celery 3 stalks
Ginger 2cm piece
See the light
Green apples 2
Carrot 2
Ginger 2cm piece
Fuzzy Thoughts
Carrot 2
Celery 2 stalks
Green apples 1
Kiwi Fruit 1, peeled
Ginger 2cm piece
Jack’s Juice
Tomatoes 3
Celery 1 stalk
Carrot 1
Body Cleanser
Carrot 3
Celery 1
Pear 1
Beetroot 1 small
Power Purifier
Carrot 3
Beetroot 1 small
Red capsicum ½, seeds removed
Spinach 2 large leaves
Classic Karma
Carrot 3
Green apples 2
Celery 2 stalks
Parsley 1 handful
Recipes (continued)
![](asset-12.png)
16
JUICE JOLTS
For all recipes in this section, process all
ingredients listed in the recipe through the
juicer, stir and serve immediately.
All recipes make approximately 2 small
serves.
Tropical Memories
Pineapple ¼ small, peeled
Strawberries 2 large
Kiwi Fruit 1, peeled
Watermelon 1 wedge, 200g piece
Cafe Cruiser
Pineapple
¼ small, peeled
Watermelon 1 wedge, 200g piece
Orange 1 small, peeled
Pear
½
Magenta Goddess
Beetroot 1 small
Carrot 2
Green apples 2
Pineapple ¼ small, peeled
Watery Wonderland
Watermelon 1 wedge, 300g piece
Pineapple
¼ small, peeled
Mint 1 sprig
Juice Rush
Rockmelon ¼, peeled
Carrot 2
Watermelon 1 wedge, 300g piece
Lime half, peeled
Tropical Treasure
Mango
½
Rockmelon
½, peeled, seeds removed
Blueberries ½ cup
Passionfruit flesh scooped into glass
That girl
Watermelon 2 wedges, 500g, skin
removed
Lemon
¼, skin removed
Recipes (continued)
![](asset-13.png)
17
A GOOD START FOR KIDS
For all recipes in this section, process all
ingredients listed in the recipe through the
juicer, stir and serve immediately.
All recipes make approximately 2 small
serves.
Goody Gumdrops
Orange 1, peeled
Pineapple ¼ small, peeled
Strawberries 2 large
Kiwi Fruit 1, peeled
Frothy Fantasy
Strawberries 4
Green apple 1
Banana 1, peeled
Grapes 1 cup
Berry Cherry
Strawberries 250g
Cherries 1 cup, stoned
Juicy Juice
Raspberries 125g, frozen, thawed
Pear 1 small
Water ¹/³ cup
Drink Your Veges!
Carrot 2
Green apple 1
Celery 1 stalk
Kid Cold Crusher
Orange 2
Pineapple
¼ small, peeled
Ally In Wonderland
Orange 2
Strawberries 8
Passionfruit 1, pulp scooped into glass
Recipes (continued)
![](asset-14.png)
18
Notes
![](asset-15.png)
19
Notes
‘Sunbeam’, is a registered trademark of Sunbeam
Corporation. ‘Fresh Start™’ is a trademark of Sunbeam
Corporation.
Made in China. Due to minor changes in design or
otherwise, the product may differ from the one shown
in this leaflet. Backed by Sunbeam’s 12 Month
Replacement Guarantee and National Service Network.
© Copyright. SUNBEAM CORPORATION LIMITED 2006.
(INCORPORATED IN N.S.W.) A.C.N. 000 006 771
Sunbeam Corporation is a division of GUD Holdings Ltd.
For more information or advice on this or any other
Sunbeam appliance, visit www.sunbeam.com.au or
contact the Sunbeam Consumer Service Line.
Australia 1800 025 059
New Zealand 0800 786 232.
01/06
![](asset-18.png)
Consumer Hotline
Australia
1800 025 059
New Zealand
0800 786 232
www.sunbeam.com.au
is a registered Trademark of Sunbeam
Corporation Limited. ACN 000 006 771.
© Sunbeam Corporation Limited 2006.
