PORTABLE AIR CONDITIONER

CLIMATISEUR MOBILE

AIRE ACONDICIONADO PORTATIL

USER MANUAL GUIDE

GUIDE D’UTILISATION

MODO DE EMPLEO

9,000BTU

9,000BTU

Model #KY-25/Y:

9000 BTU PORTABLE

DIGITAL AIR CONDITIONER

WHITE METAL

METAL BLANC

METAL BLANCO

Model #KY-25/Y:

9000 BTU PORTABLE

DIGITAL AIR CONDITIONER

STAINLESS STEEL

ACIER INOXYDABLE

ACERO INOXIDABLE

TABLE OF CONTENTS

1

USE AND CARE GUIDE AND INSTALLATION INSTRUCTIONS ...................................................1

SECTION 1

IMPORTANT SAFETY INSTRUCTIONS

1.1 PORTABLE AIR CONDITIONER SAFETY... ...................................................................................................2

1.2 DANGER AND WARNING...........................................................................................................................2

1.3 SAVE INSTRUCTIONS FOR FUTURE REFERENCE............................................................................................2-3

1.4 SPECIAL RECOMMENDATIONS..................................................................................................................4

1.5 ELECTRICAL REQUIREMENTS.....................................................................................................................4

1.6 RECOMMENDED GROUNDING METHOD..................................................................................................5

1.7 LCDI PLUG (US ONLY) ................................................................................................................................5

1.8 UNPACKING YOUR PRODUCT PARTS........................................................................................................6

1.9 TECHNICAL SPECIFICATIONS......................................................................................................................6

SECTION 2

A NOTE TO YOU

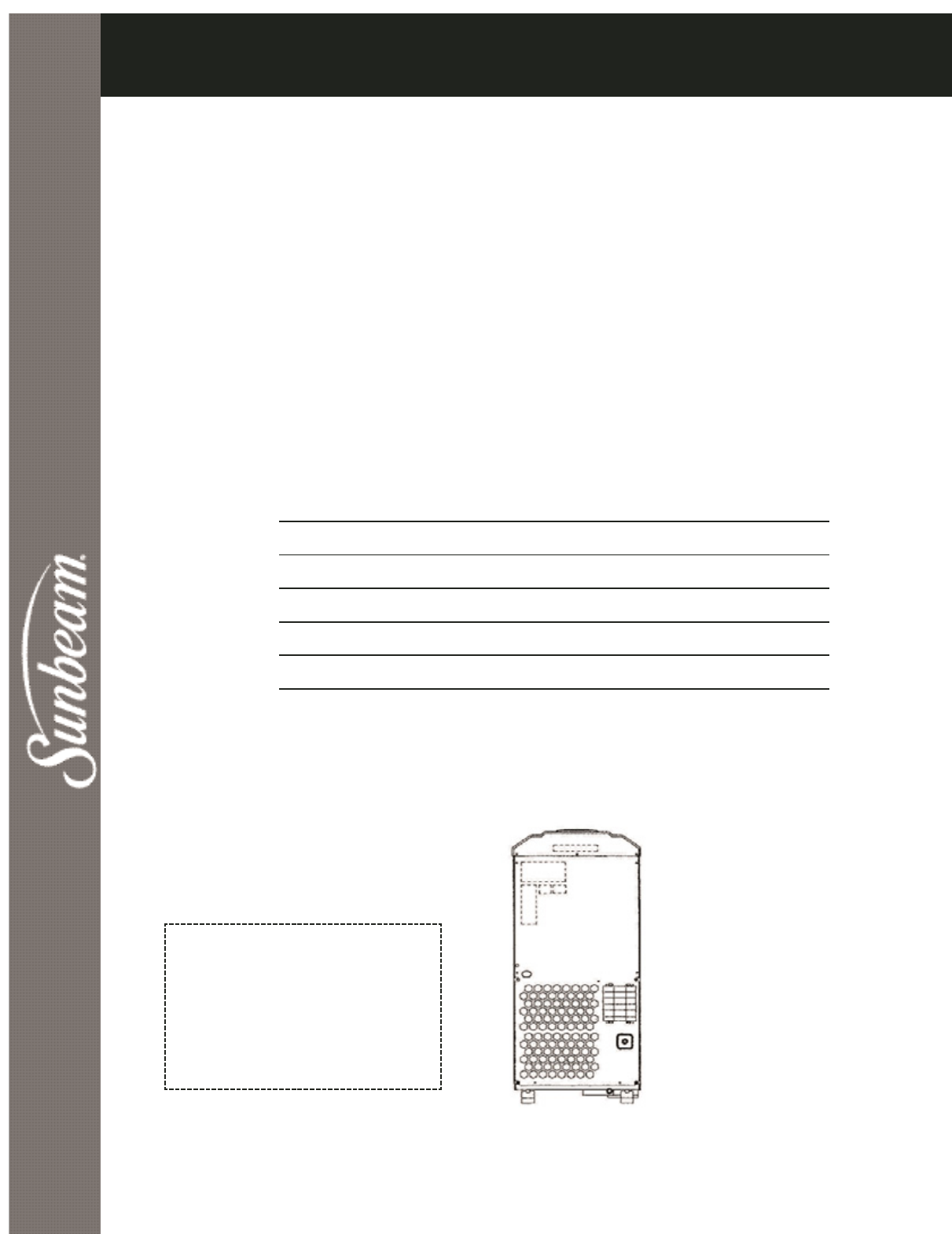

USER’S RECORD OF MODEL AND SERIAL NUMBER INFORMATION .................................................................7

SECTION 3

GETTING STARTED

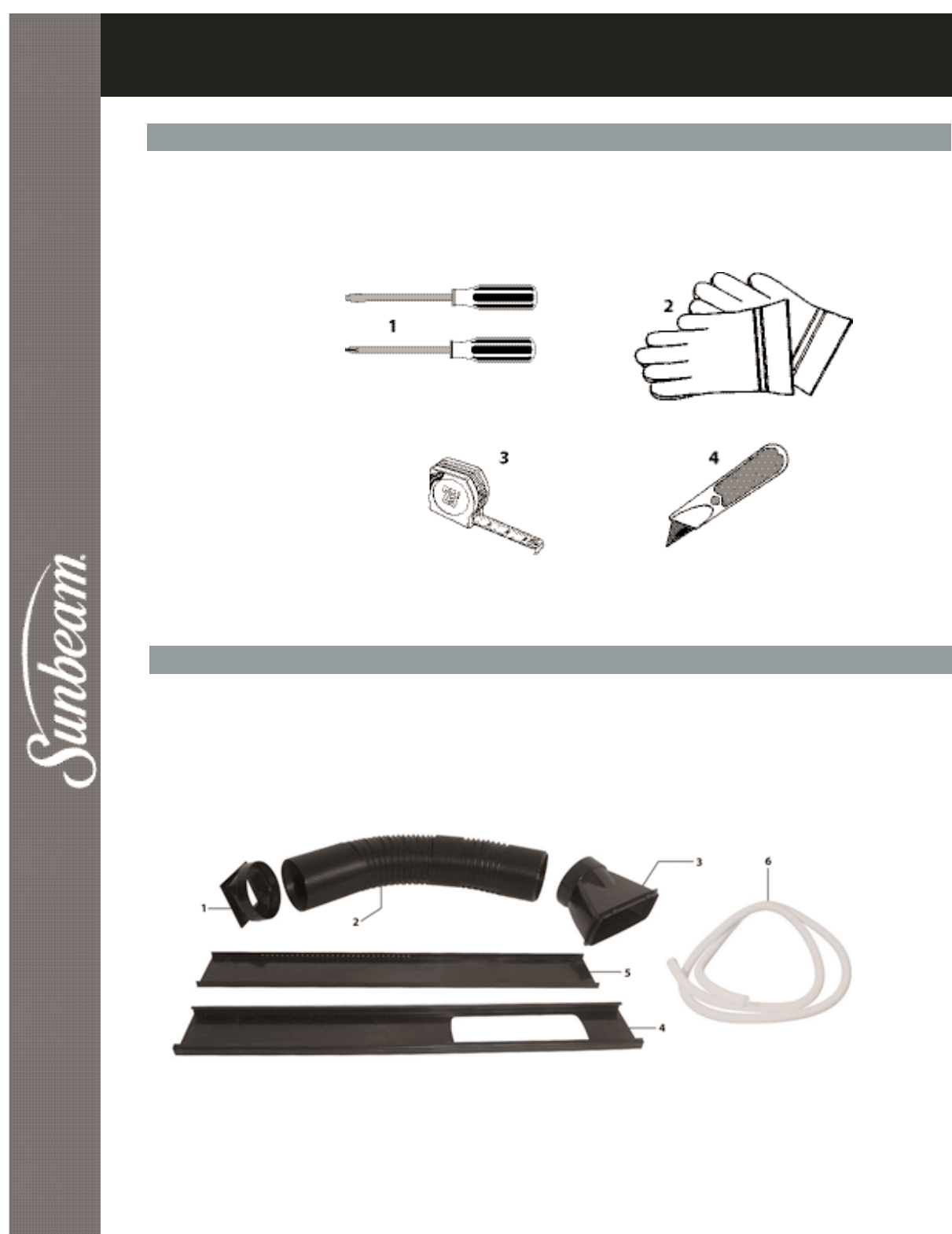

3.1 TOOLS NEEDED ..........................................................................................................................................8

3.2 ACCESSORIES..............................................................................................................................................8

3.3 POWER SUPPLY CORD AND RECEPTACLE.................................................................................................9

3.4 KNOWING YOUR PORTABLE AIR CONDITIONER......................................................................................9

SECTION 4

INSTALLATION INSTRUCTIONS

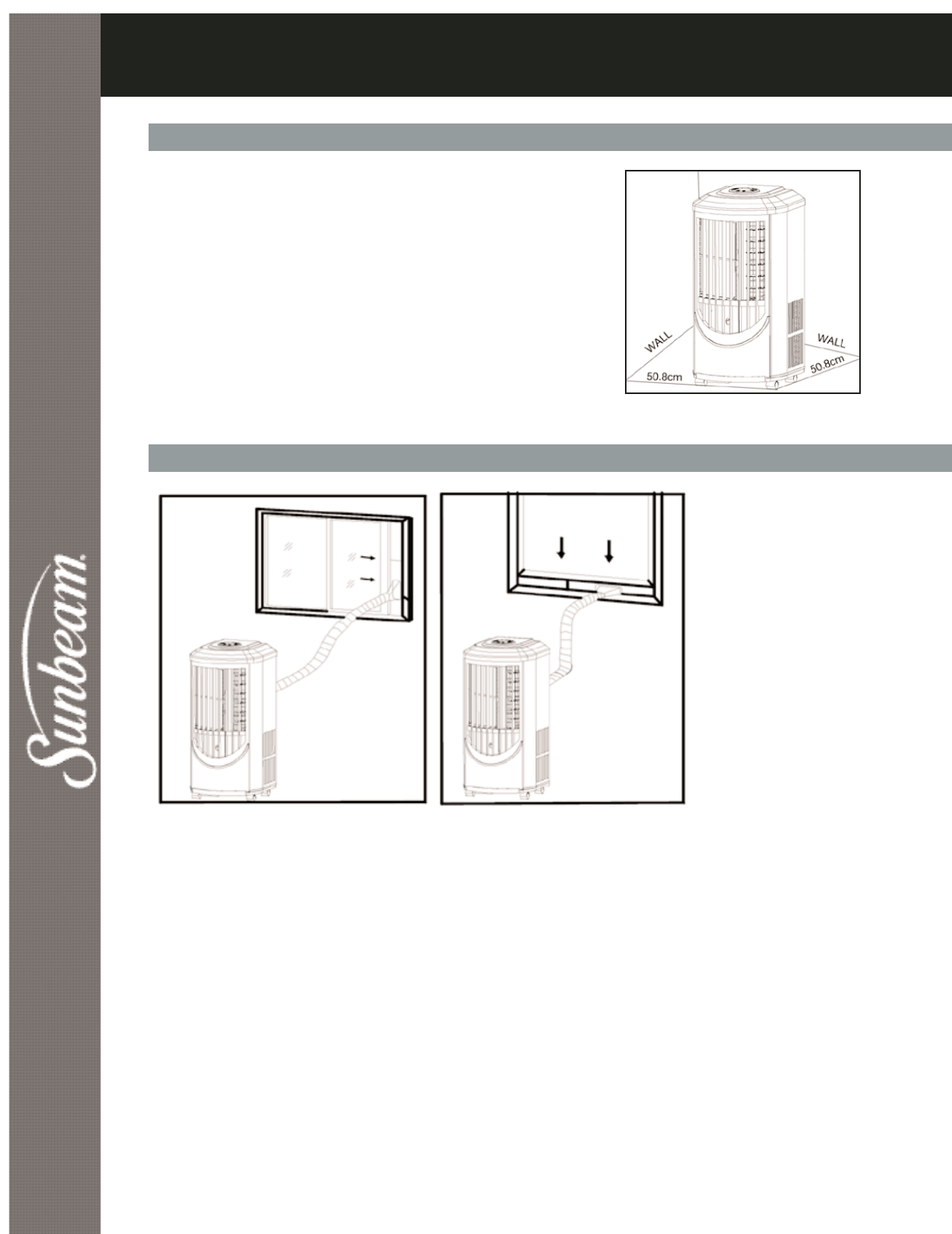

4.1 PORTABLE AIR CONDITIONER INSTALLATION ........................................................................................10

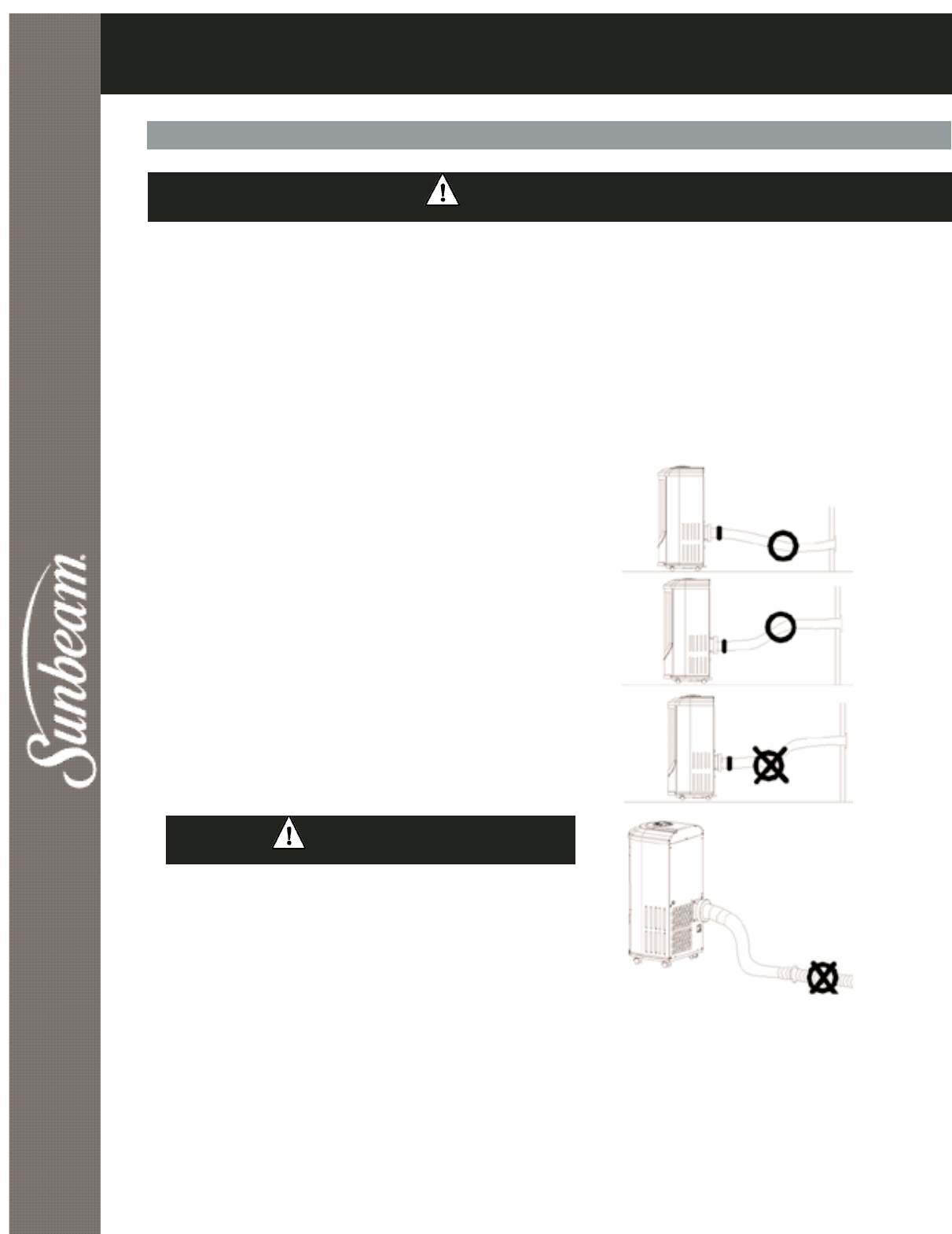

4.2 ASSEMBLING THE AIR-EXHAUST DUCT..................................................................................................10

4.3 INSTALLING THE DUCTS IN THE WALL ...................................................................................................11

SECTION 5

OPERATING YOUR PORTABLE AIR CONDITIONER

5.1 CONTROL PANEL AND OPERATING FUNCTIONS...............................................................................12-13

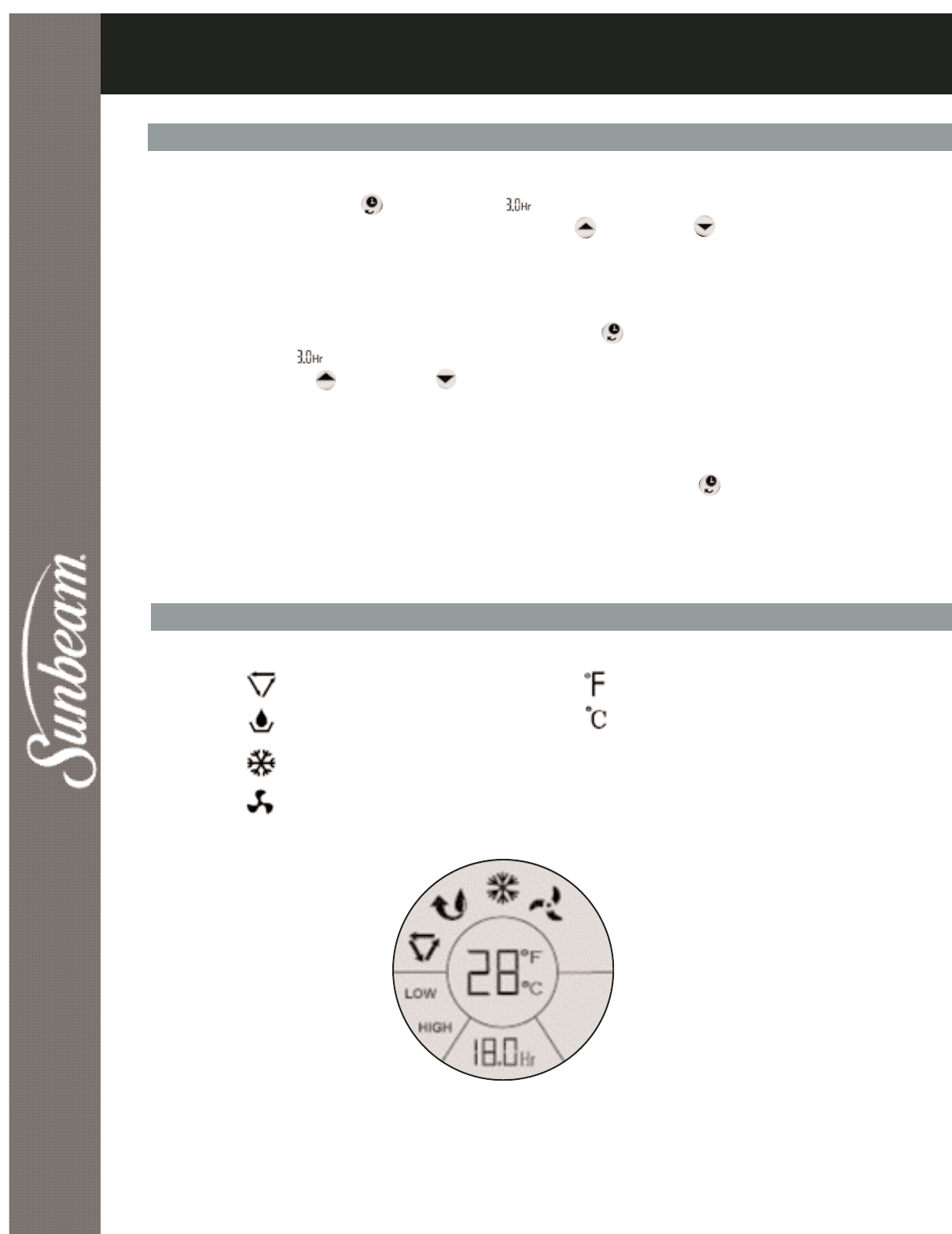

5.2 LCD DISPLAY PANEL.................................................................................................................................13

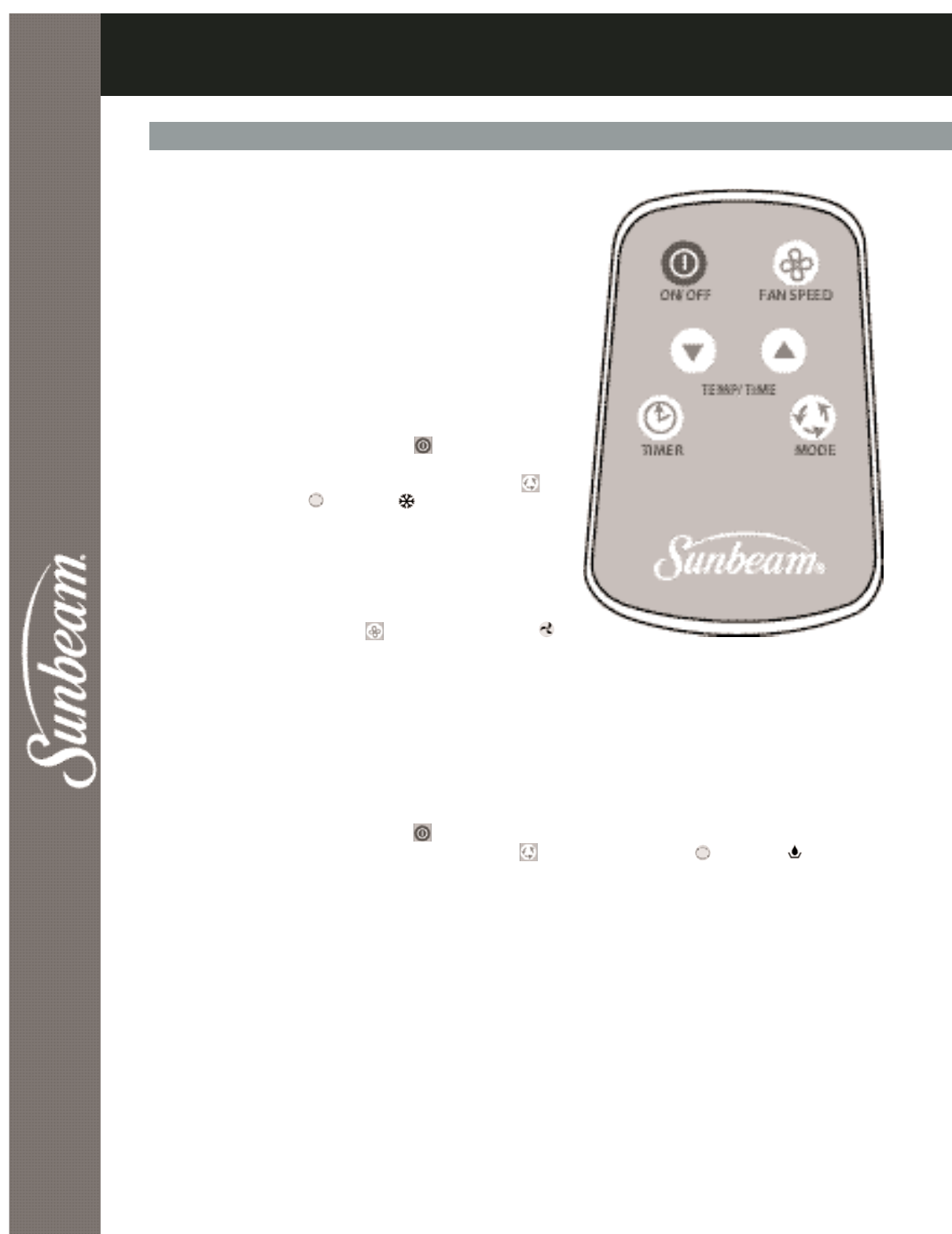

5.3 OPERATING REMOTE CONTROL (MODEL KY-25Y ONLY).................................................................14-16

5.4 WATER FULL INDICATION AND DRAINING........................................................................................16-17

SECTION 6

CARING FOR YOUR PORTABLE AIR CONDITIONER

6.1 MAINTENANCE.........................................................................................................................................18

6.2 CLEANING OR REPLACING THE AIR FILTER.............................................................................................18

6.3 EXTERNAL PLASTIC PARTS.......................................................................................................................18

6.4 STORAGE AT THE END OF THE COOLING SEASON................................................................................18

SECTION 7

TROUBLESHOOTING

7.1 PORTABLE AIR CONDITIONER DOES NOT WORK AT ALL......................................................................19

7.2 LOW COOLING EFFICIENCY................................................................................................................19-20

7.3 NOISE AND VIBRATION............................................................................................................................20

7.4 THE UNIT TURNS ON AND OFF FREQUENTLY ........................................................................................20

SECTION 8

ELECTRICAL DIAGRAM...............................................................................................................................21

SECTION 9

WARRANTY ..........................................................................................................................................22-23

NOTES ..........................................................................................................................................70-71

SECTION 1 IMPORTANT SAFETY INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING”.

These words mean:

You can be killed or seriously injured if you don’t immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance

of injury, and tell you what can happen if the instructions are not followed.

1.1 PORTABLE AIR CONDITIONER SAFETY

1.2 DANGER AND WARNING

DANGER

WARNING

2

WARNING – To reduce the risk of fire, electrical shock, injury, or sickness when using

your portable air conditioner, follow these basic precautions:

• Plug into an exclusive grounded 3-prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Use two or more people to move or install portable air conditioner.

• Do not drink the water collected inside the cabinet.

• Follow the instructions in this manual for cleaning the unit.

• Do not insert any objects into the unit.

• Always turn off the unit before unplugging it.

• Turn off and unplug the unit before cleaning or any other kind of servicing.

• Never repair the unit or change the cord by yourself. Any repair or manipulation to the unit

carried out by a non qualified individual will void the guarantee.

• Do not place objects inside the air outlet or inlet grids. Do not block air outlet and/or inlet grids.

• Do not use this unit inside closets, cabinets and/or cramped spaces between furniture.

• Do not use this unit in proximity of inflammable and/or explosive substances.

• Do not operate this unit without filters. Keep the filters clean.

• Always turn this unit on and off using the ON/OFF switch.

1.3 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

SECTION 1 IMPORTANT SAFETY INSTRUCTIONS

3

• Make sure that your electric power voltage corresponds with the voltage on the nameplate of

the unit.

• Keep children away from the unit.

• Check the electric cord periodically. Do not use a damaged electric cord.

• The cord length of this portable air conditioner is properly selected to reduce risk of danger.

Do not use an extension cord.

• The unit should be located in a dry area.

• The unit is for indoor use only. Do not use outdoors.

• Only use the accessories supplied by the supplier. Using accessories from any source other than the

supplier is dangerous and may damage the unit.

• Keep the unit away from any kind of heat source and direct sunlight - keep blinds/curtains closed during

sunniest part of the day.

• Do not immerse the unit into water or any kind of liquid.

• Keep the unit away from any areas that have a chance of splashing water.

• To avoid the risk of shock, the unit should never be used in bathrooms, shower rooms or in any other

steamy or wet areas.

• Do not use this unit at a slope - the unit is supported by four castors.

• In the event of fire, use Carbon Dioxide (CO2) extinguishers. Do not use water or powder extinguishers.

Please help us to help you:

This portable air conditioner has been designed to create ideal climate in your room. Use it only

for this specific purpose and according to the instructions in this manual.

This unit is intended for household consumer use only, and is not for commercial use.

Please use the unit in the recommended room size (refer to “Technical Specifications”).

Do not place the air conditioner where furniture or other objects can obstruct the cooling airflow.

Set the unit to maximum cooling and high fan initially, then adjust the unit to a

comfortable setting.

Note: It is recommended to turn on the air conditioner when the room temperature is

around 75°F/23.9°C. Do not wait until the room is excessively hot.

Note: This unit is equipped with a thermostat, and should automatically turn on when the pre-

set temperature is reached, but only if set in the Cooling Mode. If it is set in Soft-Dry or

Fan Only, the compressor will not turn on.

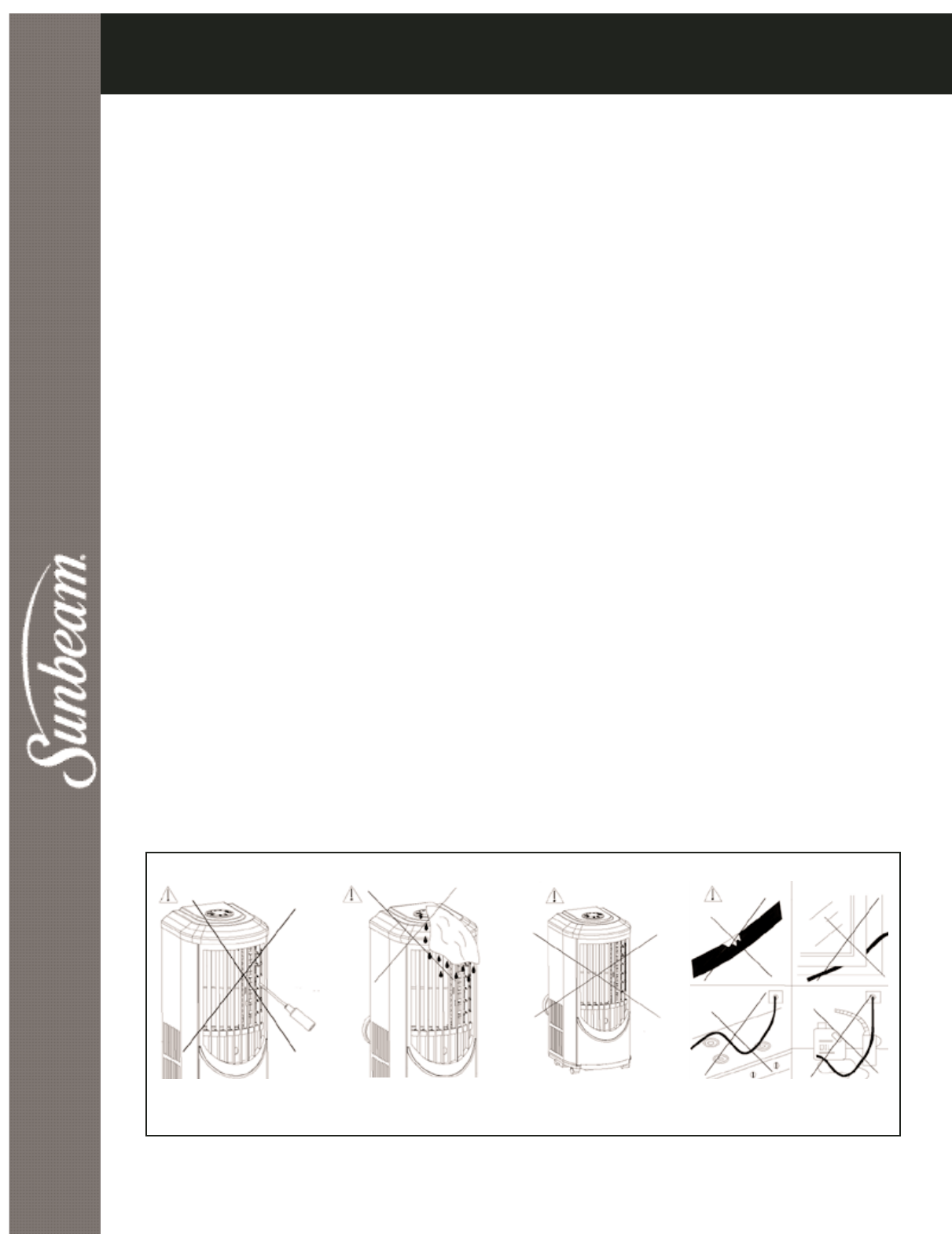

ABC D

Figure 1

Do not insert

any objects.

Keep children and

pets away.

Do not use wet cloth to

clean - only damp cloths. Be cautious of where

cord is placed.

SECTION 1 IMPORTANT SAFETY INSTRUCTIONS

4

1.4 SPECIAL RECOMMENDATIONS

• Place the portable air conditioner in a level spot. Leave at least 20" (50.8 cm) between the

unit and the wall.

• The plug should always be accessible after the unit is settled.

• In order to let the compressor work properly, always keep the portable air conditioner in

a vertical position.

• Do not place the portable air conditioner near gas or any flammable liquids.

• Keep the unit far away from TVs or radios in order to avoid electromagnetic interference.

• Do not use any chemical sprays such as insecticides, painting or any flammable products near the unit.

These chemical substances may interact with the plastic cabinet and warp it and cause

electric interference.

1.5 ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded (3-prong) outlet.

Do not remove ground prong.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

In the U.S. only: If codes permit and a separate ground wire is used, it is mandatory that the

ground path is adequate.

Check with a qualified electrician if you are not sure if the portable air conditioner is grounded.

A three-wire, single-phase, 60Hz AC only, electrical supply is required on a separate circuit. See model

and serial label for circuit amperage required for your specific model.

If the portable air conditioner has a serial plate rating 115 Volts and up to and including 7.5 Amps,

the unit may conflict with a fuse or circuit breaker with other devices.

HOWEVER, THE MAXIMUM AMPS OF ALL DEVICES ON THAT FUSE OR CIRCUIT BREAKER CAN NOT

EXCEED THE AMPS OF THE FUSE OR CIRCUIT BREAKER.

If the portable air conditioner has a serial plate rating of 115 Volts and greater than 7.5 Amps it

must have its own fuse or circuit breaker, and no other device or unit should be operated on that

fuse or circuit breaker.

NOTE: The label lists the BTU capacity, amperage, voltage and refrigerant charge requirements.

For your personal safety, this portable air conditioner must be grounded. The portable air conditioner is

equipped with a power supply cord with a 3-prong grounding plug. To minimize possible electrical shock

hazard, the cord must be plugged into a mating 3-prong grounding type outlet, grounded in accordance

with all local codes and ordinances. If a mating 3-prong type outlet is not available, it is the consumer's

responsibility to have a properly grounded, 3-prong outlet installed by a licensed installer.

It is the customer's responsibility:

• To contact a qualified electrical installer.

• To assure that the electrical installation is adequate and in conformance with National Electrical Code,

ANSI/NFPA 70 – latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association

Batterymatch Park

Quincy, Massachusetts 02269.

Or your state board of electricity.

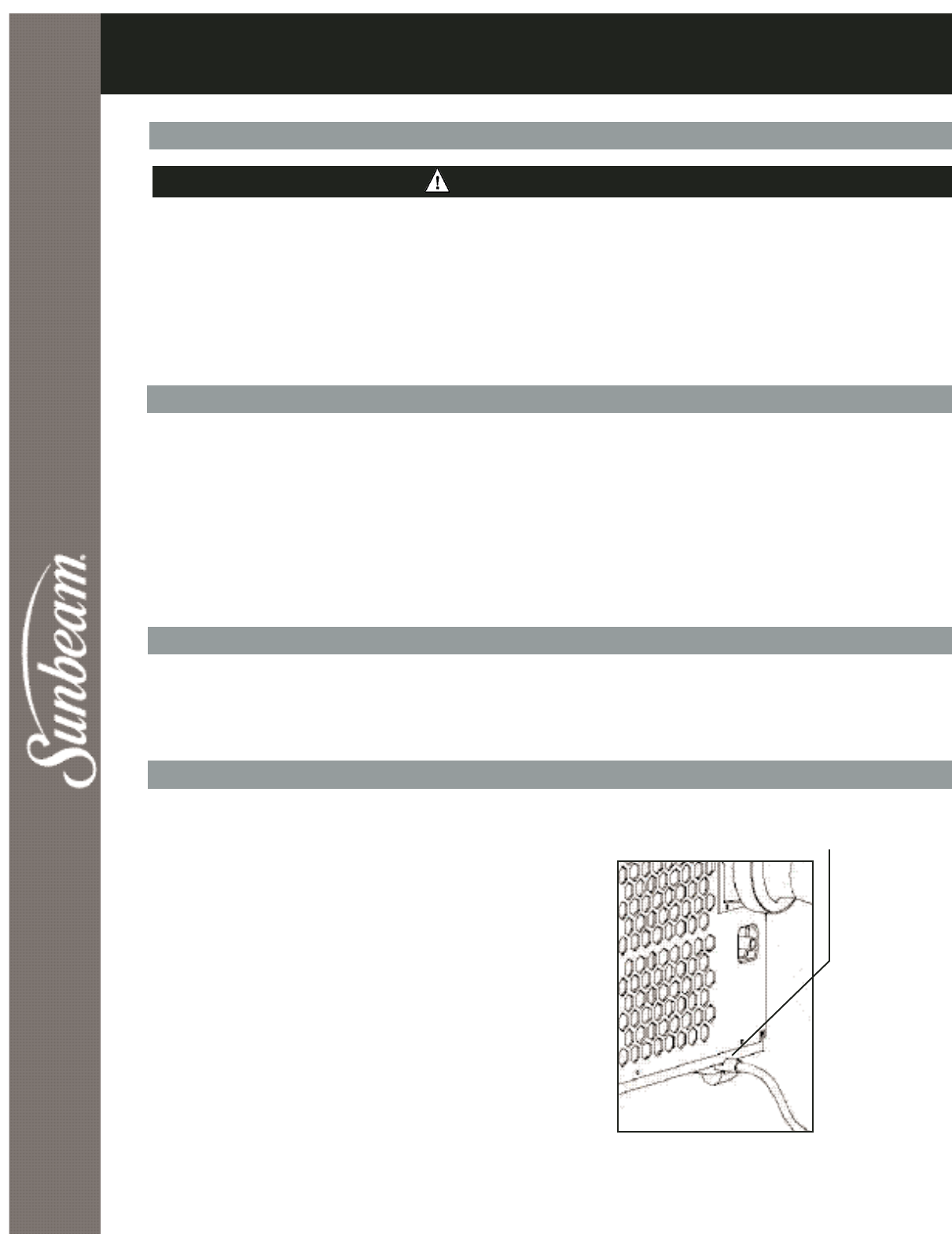

1.6 RECOMMENDED GROUNDING METHOD

SECTION 1 IMPORTANT SAFETY INSTRUCTIONS

5

A Leakage-Current Detect and Interrupt (LCDI) is a device that senses leakage current flowing between or

fom the power conductors in an appliance cord and interrupts the circuit as a predetermined level of leakage

current. Since an LCDI specifically can detect a current leakage flowing to ground, it provides ground fault

protection from arcing and other problems, which arise due to leakage between conductors.

LCDIs are covered under the UL 1699 standard for ARC Fault Current Interrupts, which was first published in

June of 2002. LCDI devices have been mandated by the National Electric Code and Underwritten Laboratories

for the cordsets on room air conditioners beginning in August 2004. Other classes of appliances will require

LCDI protection in the near future.

TESTING

1. Press test button, unit should trip.

2. Press reset button for use.

NOTE: DO NOT USE IF ABOVE TEST FAILS.

In the event this device trips, the cause of the malfunction is to be corrected before use of the device.

CAUTION

The conductors inside this cord are surrounded by shields, which monitor leakage current. THESE SHIELDS ARE

NOT GROUNDED. Periodically examine the cord for any damage. DO NOT USE this product in the event the

shields become exposed.

WARNING

This product contains chemicals, including lead, known to the State of California to cause cancer, and birth

defects or other reproductive harm.

Wash hands after handling.

1.7 LCDI PLUG TECHNOLOGY (US ONLY)

SECTION 1 IMPORTANT SAFETY INSTRUCTIONS

6

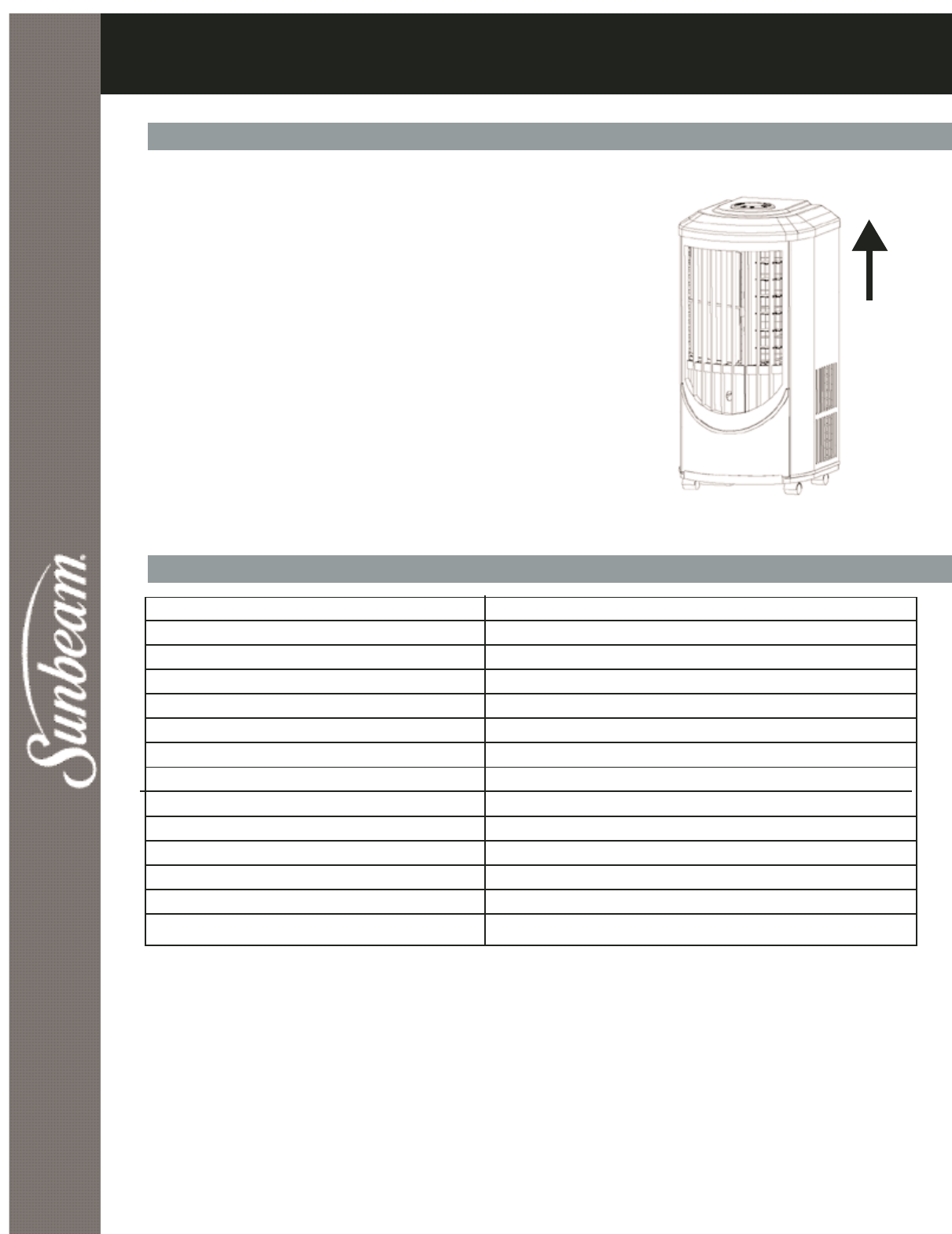

When you get this unit, please transport the product in an upright

position only, and place the product on an even surface. Remove the

cardboard box without turning it upside down, or laying it on its side.

Please note: If this unit is transported, it must be left in the

normal up right position for at least 8 hours before using, to

allow the coolant and compressor oil to settle.

a. Remove the adhesive tape on the top of the cardboard box.

b. Open the cardboard box.

c. Remove the Styrofoam packing and angle-protection board.

d. Lift and hold the unit from the Styrofoam packing base by using two

people, so as not to tilt the unit.

e. Remove the plastic bag.

f. Wipe it clean if necessary.

g. Then install hot air exhaust duct for condenser side according to the

installation instructions.

1.8 UNPACKING YOUR PRODUCT PARTS

Keep

upright

Figure 2

1.9 TECHNICAL SPECIFICATIONS

Model #

Color

Rate Cooling Capacity

Voltage, Frequency, Phase

Rated Current

Design Pressure

Refrigerant, Quantity

Plug Capacity

Plug Type

Cord Length

Dehumidifying Amount

Air Circulation Volume

Net Weight (Unit only)

Dimensions

KY-25/Y

Stainless Steel/White Metal

9000 BTU/hr

AC~115V/60Hz/1 PH

8.2A

Max/High 370 psi, Min/Low 150psi

R22/500g (17.6oz)

125V/15A

5-15P

6.43ft/1.96M

25.4oz/h / 0.75L/hour

5.67CMM/200CFM

24.75 kgs/54.56 lbs

13.8”L x 14”W x 31.42”H / 35.1cmL x 35.6cmW x 79.8cm H

NOTE:

The above data are obtained under the following conditions:

Cooling condition: Dry bulb/Wet bulb: 95°F/83°F (35°C/28.3°C) according to American standard 128-2001.

Operating Limits During Cooling

Maximum condition: Dry bulb/Wet bulb: 104°F/80°F (40°C/26.7°C)

Minimum condtion: Dry bulb/Wet bulb: 64.4°F/57.2°F (18°C/14°C)

Thank you for buying this high quality Sunbeam®portable air conditioner. To ensure you enjoy

years of trouble-free operation, we developed the Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please read

it carefully.

Please record your model's information.

Whenever you call to request service on your appliance, you need to know your complete model

number and serial number. You can find this information on the model and serial number label.

Please record the model and serial number information below. Also, record the purchase date of

your appliance.

Model Number

Serial Number

Purchase Date

Company Name

Address

Telephone

KEEP THIS BOOK AND

THE ORIGINAL PROOF OF PURCHASE TOGETHER IN A SAFE PLACE FOR FUTURE REFERENCE.

The label is placed

on right side of unit

Star Elite, a subsidiary of Elite Group

1175 Place du Frère-André, Montréal, Québec H3B 3X9

1-877-383-6399 (8:30am-5:30pm E.S.T.)

PLACE LABEL HERE

Figure 3

SECTION 2 A NOTE TO YOU

7

Back:

Technical data

Service call number and label

Back:

Warning label

SECTION 3 GETTING STARTED

3.1 TOOLS NEEDED

3.2 ACCESSORIES

1. Flat-blade and Phillips screwdrivers

2. Gloves

3. Tape measure

4. Utility knife

8

Figure 5

1. Indoor terminal end

2. Exhaust duct

3. Window assembly kit

4. Main piece

5. Window kit adapter

6. Drain hose (2)

Figure 4

SECTION 3 GETTING STARTED

3.3 POWER SUPPLY CORD AND RECEPTACLE

115 volt (103.5 min. - 126.5 max.) 0-12 amperes

15-amp time-delay fuse or circuit breaker

14 gauge copper wiring

Figure 6

3.4 KNOWING YOUR PORTABLE AIR CONDITIONER

• The plug should be well fixed and not damaged.

• Do not plug the unit with an adapter.

• Be sure the plug is fully inserted into the receptacle.

• The power cable must not come into contact with liquid of

any kind; do not handle with damp or wet hands.

• Do not squeeze the cable or let it come into contact with

a sharp surface.

• Do not use the power cables to drag the unit.

• Do not leave the cable in a tangled coil when it is working.

• Do not let the power cable come into contact with a hot surface.

• Do not leave the power cable in a high traffic area that will be more

likely to lead to a damaged cord.

9

Figure 7

1. Air inlet

2. Air filter

3. Castor

4. Operation panel

5. Air outlet

6. Control signal receptor

1

2

3

4

5

6

7

8

9

10

7. Air inlet for condensor side

8. Hot air discharging port

(Use to connect air hose)

9. Pump Drain

10. Lower drain port

Front Back

4.1 PORTABLE AIR CONDITIONER INSTALLATION

SECTION 4 INSTALLATION INSTRUCTIONS

Figure 8

• Find a proper place for the portable air conditioner.

Leave at least 20” (50.8cm) space around the unit (Fig. 8).

4.2 INSTALLING THE DUCTS IN A WINDOW/SLIDING DOOR

A) Pull out both ends of the hot air exhaust ducts for approximately 6”/15.24cm.

B) Screw the exhaust ducts clockwise with one end to the terminal end of the back of the unit and

the other end to the window kit adapter.

C) Mount the terminal end of the exhaust duct to the back of the unit.

D) Open window or sliding door for approximately 5”/12.7cm.

E) Adjust the length of the window kit to the same length of the window or the sliding door. Use

all of the panels if necessary. Cut the window piece as needed to fit the length of your window

or sliding door. Make sure that the hole on the main piece is not covered by other pieces.

F) Place the window kit in the window or sliding door. Close the window or door as far as it goes.

G) Adjust the length of exhaust duct and affix the window kit adapter onto the holes on the

window kit.

NOTE: When using the window kit on a window or sliding door it will cause the window or sliding

door to not be properly closed and/or locked. Additional security measurements should

be taken.

10

When you use the unit as an air conditioner or a

dehumidifier, the hot air must be exhausted out of

the room to complete the air exchange of the

condenser. When the unit is operating on fan, no

outdoor air exchange takes place. You do not need

to hookup the window kits and hot air exhaust

ducts when you use the unit as a fan.

Figure 9

SECTION 4 INSTALLATION INSTRUCTIONS

11

4.3 INSTALLING THE DUCTS IN THE WALL

Figure 11

A) You do not need to use window kit adapter. Mount one end of the exhaust duct into a hole

of 5.6”/14.22cm in diameter in the wall; attach the other end to the back of the unit (same

as above).

B) Use the exhaust outlet wall covers to cover the holes in the wall when the unit is not in use.

NOTE:

Mounting the exhaust pipe

• The supplied exhaust hose can extend from 5.75”

to 63” / 40cm to 160cm for mounting. It is

recommended that you use the shortest possible

length of hose.

• Take care to prevent any kind of bend in the

middle of the exhaust hose, as this will trap hot

exhaust air, which will radiate back into the

room and affect the cooling function of the unit

(Fig. 10).

The length of the exhaust pipe is specially designed

according to the specification of this product. Do not

replace or extend it with your own hose as this could

cause the unit to malfunction (Fig. 11).

C) After installing the ducts, plug in the unit and turn the unit on.

Figure 10

MANUFACTURER’S RECOMMENDATION.

BEFORE UNDERTAKING ANY INSTALLATION OF DUCTS INTO WALL, WE

RECOMMEND THAT YOU CONSULT A KNOWLEDGABLE PROFESSIONAL.

CAUTION

WARNING

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

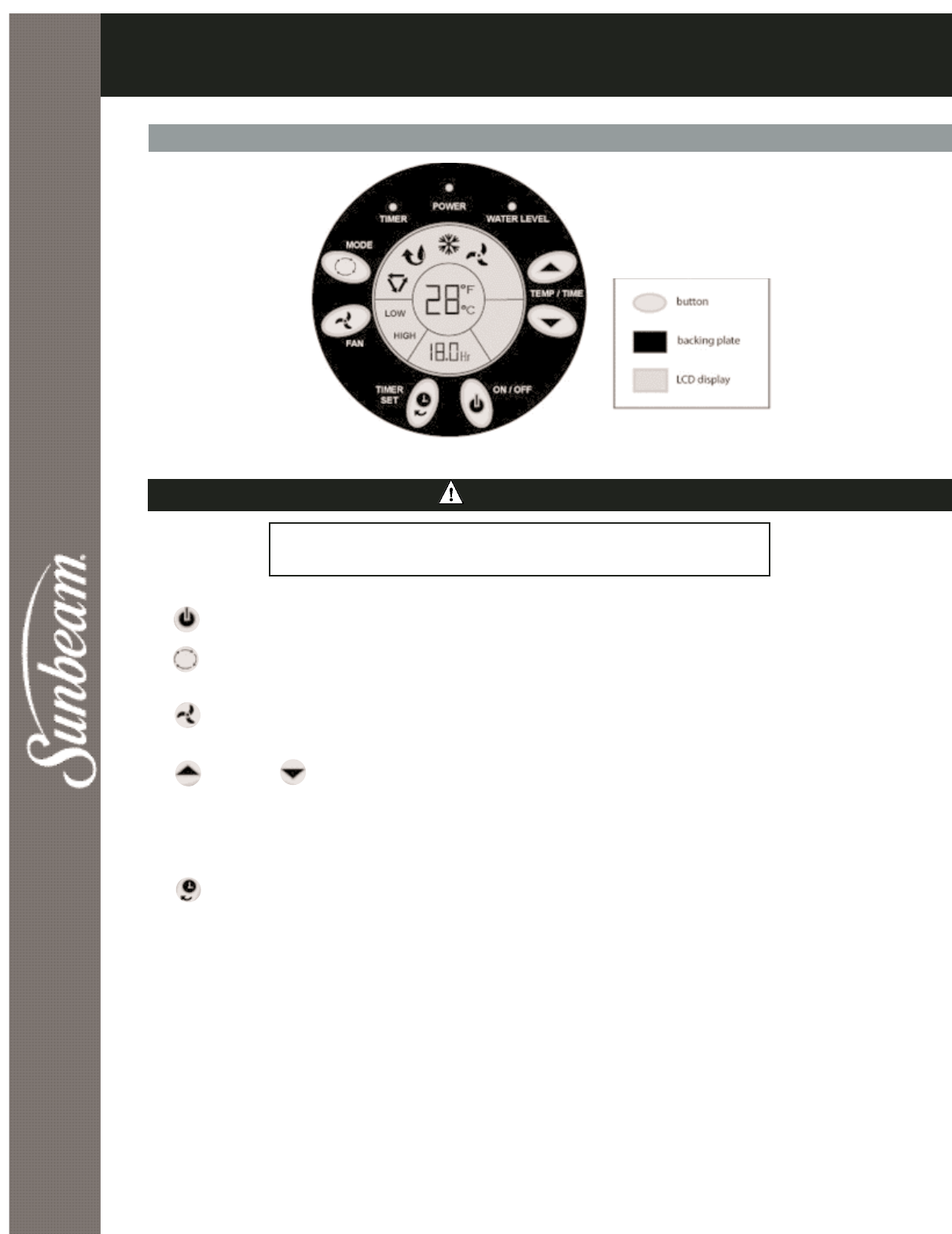

5.1 CONTROL PANEL AND OPERATING FUNCTIONS

If the unit is turned off during operation please wait at least

three minutes before starting it again.

Figure 12

1) On/Off Button: Use to Start or Stop the unit.

2) Operation Mode Selection Button: Use to select the operation mode:

Auto Mode, Fan-Only Mode, Soft-Dry Mode, and Cooling Mode.

3) Fan Speed Selection Button: Use to Select the fan speed:

High speed or Low speed.

4) “Up” or “Down”: Temperature or Time Changing Button: Use these two buttons to

set to your desired temperature. The temperature unit can be on Fahrenheit or Centigrade. Press the

ON/OFF Button for more than 20 seconds, then release. The temperature unit will be changed from

Fahrenheit to Centigrade or vice versa. During the timer set-up, these buttons are also used to

change the time.

5) Timer Setting or Cancel Button: Use to set or cancel TIMER-ON or TIMER-OFF timer. When

the unit is on, the unit can be set with Timer-OFF. When the unit is off, the unit can be set with

Timer-ON.

12

WARNING

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

13

5.1 CONTROL PANEL AND OPERATING FUNCTIONS CONT’D

HOW TO SET:

When the unit is ON, press the Timer button, “ “ will flash in Timer Set Display Window and the

Timer Indicator will be on in the control panel. Pressing the “Up” or the “Down” button will

change the time accordingly; the flashing digits will change accordingly, until your desired delay time appears.

Your desired time delay will flash for ten (10) seconds. After these ten (10) seconds the digits will change to

display your selected time delay. Time displayed will decrease in ten (6) minute increments.

When the unit is OFF, if it hasn’t been set on Time Delay, press the Timer button. The unit enters Timer

Program. Also, the “ “ will flash in Timer Set Display Window and the Timer Indicator will be on in the

control panel. Press the “Up” or the “Down” button to set to your desired time. When you are

setting the time, the other settings like Operation Mode, Fan Mode, or Set Temperature, will also display.

Ten (10) seconds later, these modes will disappear but be remembered by the Main Controller.

HOW TO CANCEL:

When the unit is set with the TIMER-OFF or the TIMER-ON procedures, press the Timer button to check

the Timer set time, then press within ten (10) seconds to cancel the timer setting.

5.2 LCD DISPLAY PANEL

Auto mode

Soft-dry mode

Cooling mode

Fan-only mode

Fahrenheit mode

Centigrade mode

Figure 13

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

5.3 OPERATING REMOTE CONTROL (MODEL KY-25Y ONLY)

14

The functionality of the six (6) buttons on the Remote

Control are identical to the functionality of the buttons

on the Control Panel. Icons for certain buttons may differ

slightly. The Remote Control uses the lithium batteries,

Model: CR2025 (Included). Install the batteries before

using the Remote Control.

You can operate the unit either on the Control Panel or

with the Remote Control.

COOLING OPERATION:

1) Plug the Power Cord into the power outlet.

2) Turn on the unit by pressing the ON/OFF Button

on the control panel or the remote control.

3) Press the Mode Button on the remote control or

the control panel until the symbol appears on

the display.

4) Set the room temperature to your desired room

temperature with the temperature ranges from 64°F-

90°F/18°C-32°C. Recommended temperatures are 80°F-

84°F/27°C-29°C.

5) Select the fan speed by pressing the Fan Button on

either the remote control or the control panel .

SOFT-DRY OPERATION:

1) Plug the Power Cord into the power outlet.

2) Turn on the unit by pressing the ON/OFF Button on the control panel or the remote control.

3) Press the Mode Button on the remote control or the control panel until the symbol

appears on the display.

4) Set the room temperature to an appropriate temperature.

5) Keep the windows and the doors closed to aid the effectiveness of the unit in removing the

moisture from the room.

NOTE: The unit will not perform its dehumidifying function when the room temperature is lower

than 64°F/18°C. Soft-Dry Mode is a very gentle cooling operation consisting primarily of

dehumidifying. It will not lower the room temperature very much. The indoor unit Fan

always runs at Low speed.

Figure 14

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

15

5.3 OPERATING REMOTE CONTROL (MODEL KY-25Y ONLY) CONT’D...

FAN-ONLY OPERATION:

1) Plug the Power Cord into the power outlet.

2) Turn on the unit by pressing the ON/OFF Button on the control panel or the remote control.

3) Press the Mode Button on the remote control or the control panel until the symbol

appears on the display.

4) Select the fan speed by pressing the Fan Button on either the remote control or the control

panel .

When in Fan-Only Mode, the exhaust duct is not needed, and the compressor and condenser side fan

motor will not work. Temperature setting has no meaning and no controlling action.

AUTO OPERATION:

1) Plug the Power Cord into the power outlet.

2) Turn on the unit by pressing the ON/OFF Button on the control panel or the remote control.

3) Press the Mode Button on the remote control or the control panel until the symbol

appears on the display.

4) Set the room temperature to your desired room temperature with “Down” or “Up”

Temperature Changing Buttons.

5) Select the fan speed by using the FAN Speed button on either the remote control or the

control panel .

When in the AUTO mode, the unit will be in Fan-Only Mode when the room temperature is below

81°F/27°C. It will operate in Cooling Mode when the room temperature is above 81°F/27°C.

TIMER-ON PROGRAM SETTING:

How to set:

When the unit is off, you can set the timer to let the unit automatically turn on.

1) Press the Timer Set Button on the control panel or on the remote control . The “ “ will

flash in Timer Set Display Window, and the Timer Indicator, on the control panel, will turn on. The

other mode settings like Operation Mode, Fan Mode, Set Temperature Mode, will also be

displayed, allowing you to change or set them as well.

2) Press the “Down” button or the “Up” button to change the Timer delay time to your

desired time.

3 After a ten (10) second delay (not pressing on any buttons), the digit will change to display, and

the other setting modes will disappear. Now the Timer Setting Process is complete. Once some

time has passed, the digits will decrease in 6 minute increments.

When the digits decrease to ZERO and disappear, the unit will start to run automatically

according to your setting.

How to cancel:

When the unit is set with TIMER-ON while it’s off, press the Timer Button on the control panel or

on the remote control to check the Timer setting and the Time digits will flash. Press the

TIMER button again; this will cancel the timed setting. The Timer Indicator on the control panel will

then turn off.

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

16

TIMER-OFF PROGRAM SETTING:

How to set:

When the unit is on, after being set with the TIMER-OFF, the unit will stop after your set delay time.

1) Press the Timer Button on the control panel or on the remote control . Now the TIMER

INDICATOR “ “ will flash in the Timer Set Display Window, and the Timer Indicator on the

control panel will be on.

2) Press the “Down” button or the “Up” button to change the delay time to your desired time.

3) After a 10 second delay (not pressing on any buttons), the digits will change to display. The Timer

Setting Process is complete. Once some time has passed, the digits will decrease in 10 minute

increments.

How to cancel:

When the unit is set with TIMER-OFF, while the unit is on, first press Timer Button on the control

panel or on the remote control to check the Timer setting and the Time digits will flash. Press

the TIMER button again and the Timer Setting will be cancelled. The Timer Indicator on the control

panel will then turn off.

WATER FULL INDICATION:

Under normal temperatures, water will evaporate without the need to drain it from the unit.

The WATER FULL indicator light will turn on during days of extreme humidity, when in Cooling Mode

or Soft-Dry Mode. When the WATER FULL indicator light turns on, it means that the water reservoir is

full. The compressor will stop working, but both of the two fan motors will continue working. The unit

will drain excess water once a Drain Hose or Garden Hose is connected to it. When the WATER FULL

indicator light disappears, the compressor will start to work again.

5.3 OPERATING REMOTE CONTROL (MODEL KY-25Y ONLY) CONT’D...

5.4 WATER FULL INDICATION AND DRAINING

DRAINING:

Only in extreme humidity

1) To add a Drain Hose or Garden Hose you must first stop the unit by turning it OFF. You must then

unscrew the Drain Cap on the Pump Drain before inserting the white Drain Hose (5’3”/1.61m)

provided with your unit. (Attention: there may be some water behind the Drain Cap. Have a bowl

or receptacle ready to catch any runoff).

After connecting the Drain Hose to the inner spout (Fig.15) of the Pump Drain, ensure that the

other end is placed in a bucket or receptacle for gathering the excess water. Check the water level

in the receptacle to avoid any possibilities of leaking.

Instead of the Drain Hose provided with your unit, you may also use a Garden Hose (in cases where

you require a distance longer than that provided by the Drain Hose). In this case screw the female

end of a Garden Hose to the outer threaded spout of the Pump Drain (Fig.16). After connecting the

Garden Hose, place the outer end outside of the house or in a convenient area where the excess

water can be safely expelled.

2) Now, turn the unit ON and back to its previous setting (either COOLING or SOFT-DRY mode). The

Pump Drain will begin to pump water out of the unit. (If using a water bucket, please check the

expelled water level to ensure that it does not over flow.) Once the WATER FULL light indicator

turns off … the DRAIN cycle is complete. At this point, turn OFF the unit, remove the Drain Hose or

Garden Hose and then turn the unit back ON and to its previous setting (COOLING or SOFT-DRY

mode).

SECTION 5 OPERATING YOUR PORTABLE AIR CONDITIONER

17

1

2

3

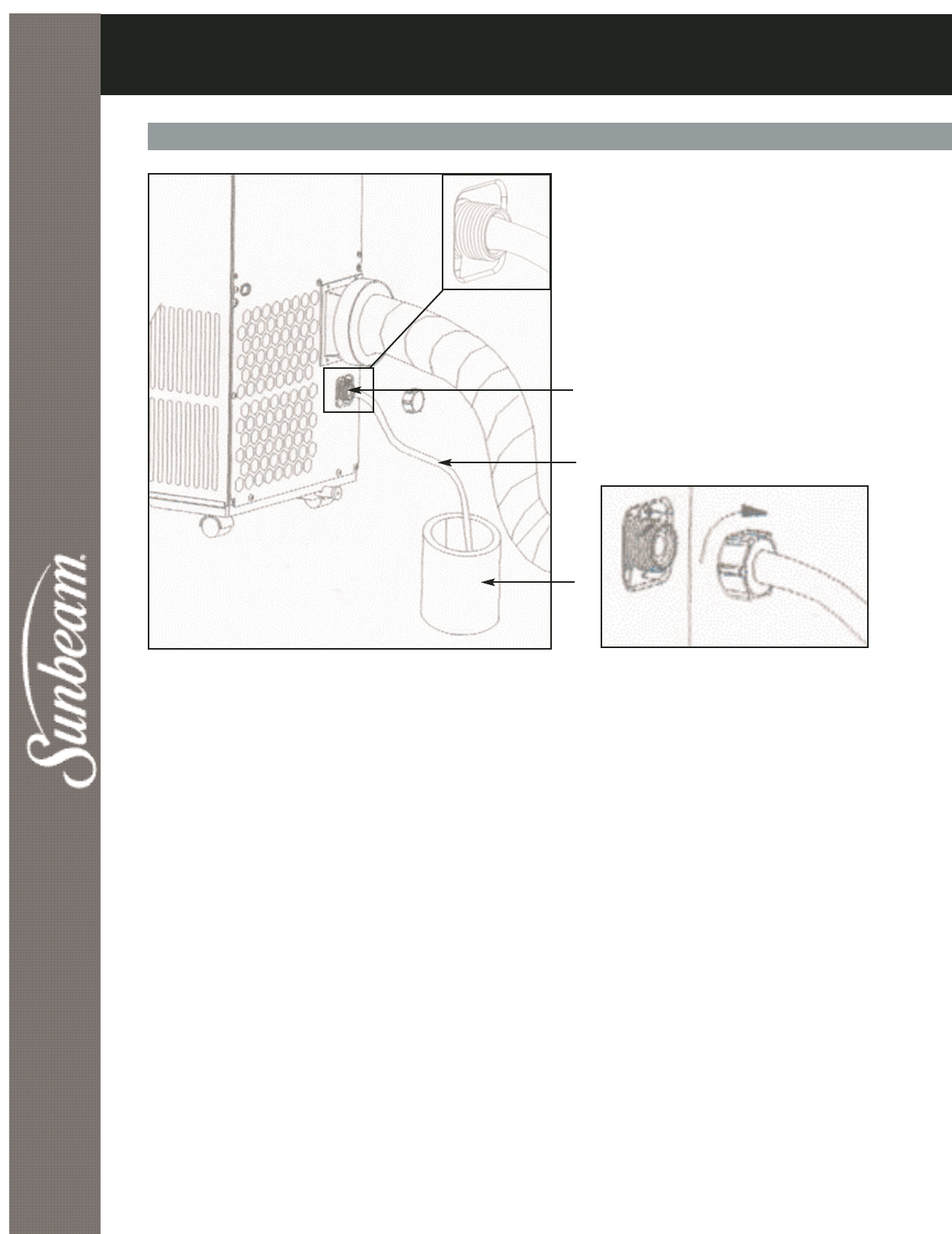

1. Pump Drain

2. Drain Hose

3. Water bucket

Figure 15 Figure 16

5.4 WATER FULL INDICATION AND DRAINING CONT’D...

NOTE: The cooling efficiency of your unit will be affected if the Drain Hose or the Garden Hose is

always attached to it. The Drain Hose or Garden Hose must be used only when the WATER

FULL indicator is on.

MAKE SURE THAT THE DRAIN CAP IS REINSTALLED PROPERLY TO PREVENT LEAKING.

6.2 CLEANING OR REPLACING THE AIR FILTER

If the air filter is blocked with a lot of dust, the volume of airflow will be reduced and the cooling

effect will be lower. It is recommended to clean the filter once every two weeks or as needed.

A) Pull out the filter from the filter compartment in front of the unit.

B) Wash the air filter by immersing it gently into warm (about 104°F/40°C) water with a gentle

detergent. Rinse the filter and dry it thoroughly in a shaded place.

C) Place the filter back into the filter compartment after it is thoroughly dried.

D) If the filter is torn or unusable, order a new filter by calling the Sunbeam Customer Service

department at 1-877-383-6399 (8:30am-5:30pm E.S.T.).

SECTION 6

CARING FOR YOUR PORTABLE AIR CONDITIONER

18

6.3 EXTERNAL PLASTIC PARTS

A) Keep the unit from being exposed directly to the sun.

B) Clean the surface with a damp cloth.

C) For the Stainless Steel finished models, a good quality stainless steel cleaner should be used.

6.4 STORAGE AT THE END OF THE COOLING SEASON

A) On a warm day, turn the unit on in the FAN-ONLY

Mode for a couple of hours so that the inside can dry

out completely.

B) Turn off the unit and unplug the unit.

C) Empty the residual condensated water by unplugging

the LOWER WATER DRAINAGE CAP at the back

towards the bottom of the unit. After connecting the

12’/3.65m white Drain Hose, ensure that the other end is

in a bucket or receptacle for gathering the water.

D) Discharge the Hot air duct and shorten it and pack it

in the box.

E) Clean the filter and dry it completely before fitting

back in place.

F) Cover the appliance to protect it from dust. It is

recommended that the unit be put back into its

original box and package.

G) The unit should be stored in a cool dry place. Do not

stack heavy objects on the top of the unit. Figure 17

Lower drain port

6.1 MAINTENANCE

WARNING

• Make sure the power supply is switched off and the plug is pulled out of the power outlet

before performing any maintenance activities.

• Do not immerse the unit in water or other liquids.

• Do not pour liquids into the unit.

• Take special precaution to avoid the sharp cutting edges of some parts.

• Do not use any kind of chemical solvents to clean the unit, as they may deform the

unit cabinet.

SECTION 7 TROUBLESHOOTING

19

You can solve many common portable air conditioner problems easily, saving you the cost of a

service call. Try the suggestions below to see if you can solve your problem without outside help.

Check if... Then...

Wait until local power is restored.

The local power

has failed.

The plug is loose. Firmly insert the plug into the wall socket.

Drain out the water (see page 16).

Set the proper time.

The power fuse

is burned.

Replace the fuse. Make sure the portable air conditioner is plugged

into an exclusive properly grounded outlet as described in the

Installation Instructions.

The water tank is full.

LCDI plug has tripped. Press the RESET button on the LCDI plug.

The time is set properly.

Check if... Then...

Open the air inlet and outlet.

The air inlet or

outlet is closed.

There is a heat source

in the room. Move the heat source away.

Set the cooling temperature at a proper level.

The air filter is dirty. Clean the air filter, referring to "Cleaning the Air Filter" section.

The cooling temperature

is set properly.

7.1 PORTABLE AIR CONDITIONER DOES NOT WORK AT ALL

7.2 LOW COOLING EFFICIENCY

The indoor fan is

set at a low speed. Set the indoor fan speed higher.

Water-Full Indicator

is displayed.

Empty the water inside the unit (see page 16). Wait 1 hour to let

the condenser side fan blow out the water.

SECTION 7 TROUBLESHOOTING

20

Check if... Then...

The unit is vibrating

while working. The unit is not on a flat place. Put the unit on a solid, flat place.

7.3 NOISE AND VIBRATION

There is noise from the

unit.

If the sound is not too high and comes from the compressor, the

evaporator or the condenser, it is normal.

Check if... Then...

Wait until the local power is normal.

The voltage of the local

power is normal.

The hot air discharging

port is properly installed.

Install the hot air discharging port properly as instructed in this

manual.

7.4 THE UNIT TURNS ON AND OFF FREQUENTLY

The outside temperature

is extremely hot. Set the fan on high speed to let air pass cooling coils faster.

Check if... Then...

7.2 LOW COOLING CONT’D

The outside temperature

is lower than 64oF (18oC).

Do not operate your portable air conditioner in cooling mode when

the outside temperature is lower than 64oF (18oC).

Windows and doors are

open. Close all doors and windows.

Unit is set at

dehumidifying mode. Set unit at cooling mode.

© 2006 Sunbeam Products, Inc., doing business as Jarden Consumer Solutions.

All rights reserved.

is a registered trademark of Sunbeam Products, Inc.,

Manufactured in China for Star Elite, a division of the Elite Group, Inc., Quebec, Canada, H3B 3X9.

© 2006 Sunbeam Products, Inc., exploitée sous la raison sociale Jarden Consumer Solutions.

Tout droits réservés.

est une marque déposée de Sunbeam Products, Inc., utilisée sous licence.

Fabriqué en Chine pour Star Elite, une division de Elite Group, Inc., Quebec, Canada, H3B 3X9.

©2006 Sunbeam Products, Inc., funcionando bajo el nombre de Jarden Consumer Solutions.

Todos los derechos reservados.

es una marca registrada de Sunbeam Products, Inc., usa bajo licencia.

Fabricado por Star Elite, una subsidiaria de Elite Group Inc., Montréal, Canada H3B 3X9.

Star Elite

1175 Place du Frère André

Montreal, Quebec,Canada

H3B 3X9

Toll Free Tel / Tél. sans frais / Tel sin cargo:

1-877-383-6399

(8:30am-5:30pm E.S.T)

(8h30-17h30 H.N.E)

(8:30am-5:30pm E.S.T.E.)
