1 Outlook Description

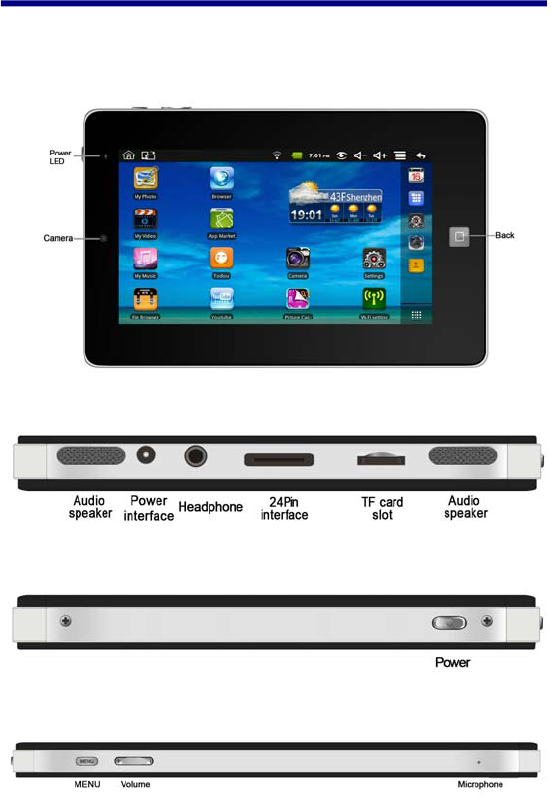

Front:
Right side:
Left side:
Top:
2
2 Power Button Usage
Turn O n : Press the power button and hold for 3 seconds.
Turn Off: Press the power button and hold for 3 seconds, →tap OK.
Sleep Mode On/Off: Press & release the power button quickly to turn sleep mode on and
off.
Force Off: If device does not respond, press and hold the power button for 8 seconds.
Note: If it is necessary, we don’t suggest use Force Of f. You should follow the steps to
perform the shutdown.
Reset Button: Press the reset button to reset the device. Reset will erase all data on the
device, please caution this feature. (Note: Current the reset function can not be restart, so
after reset you need to press the power button to re-boot.)
3 Touch-Screen Navigation
The touch-screen allows for quick, easy and convenient navigation for all
applications.
Throughout the User Guide, you are instructed to use the following tap or touch
navigation methods:
Tap: Quick tap & release on an item on the screen.
Finger slide: Touch & slide your finger across the screen and then release.
Touch & ho ld: Touch and hold in place approx 2 seconds, and then release to
display an options window.
☆ To avoid scratching or crushing, do not place objects on the touch screen
surface.
4 Transfer Box
You must use the transfer box if you want to use a USB storage device (U-disk) for
accessing/storing your photos, music or video files.
3
U-Disk
Insert your U-disk to the transfer box, → insert the transfer box into the
Tablet. When ready for use, it’s OK.
☆ Don’t insert and remove the U-disk repeatedly in a short time, as this may
cause damage to the U-disk.
The transfer box is also used for Ethernet network connections.
5 Using microSD Card
☆ The device supports a maximum 32GB microSD card.
Insert your card into the microSD slot until it clicks into place. it’s OK
Remove microSD Card
Use one of the following methods for moving the microSD card.
Close all applications or documents which have been opened on the card.
Tap → Se ttings → SD ca rd & d evice s torage → Un mount
SD card. Press the card lightly; it is partially ejected allowing you to pull
the card out.
☆ Don’t insert and remove the U-disk repeatedly in a short time, as this
may cause damage to the card.
☆ We recommend using major brands of memory cards to avoid
incompatibility.
6 Getting Started
Charge the device
☆ You cannot charge the battery using the USB cable.
4
☆You can use the device while the battery is charging, although the
charging time is longer when operating and charging at the same time.
Plug the power adapter into an electrical wall outlet, and then connect to the device
to fully charge the battery before use (approx. 4hour).
While charging, the battery indicator light is red. When fully charged, the battery
indicator light is green.
Turn the device on
Press the power button and hold for 2 seconds.
Wi-Fi Network Setup
Since many features require a Wi-Fi connection, we recommend you set up
your Wi-Fi network now.
1. Tap , → Se ttings, → Wireless & network.
2. Select Wi-Fi to turn on.
The device automatically scans and lists all local Wi-Fi Network found. A
indicates secure networks that require login name/password to connect.
3. Tap the desired network to which you want to connect, → enter the
Network Password if applicable, → tap Connect.
4. Tap to return to the Desktop screen.
☆ If your Wi-Fi network is set as hidden, it won’t be
found by the auto scan. Tap Add Wi-Fi network and
follow the prompts to add your network.
7 DESKTOP
5

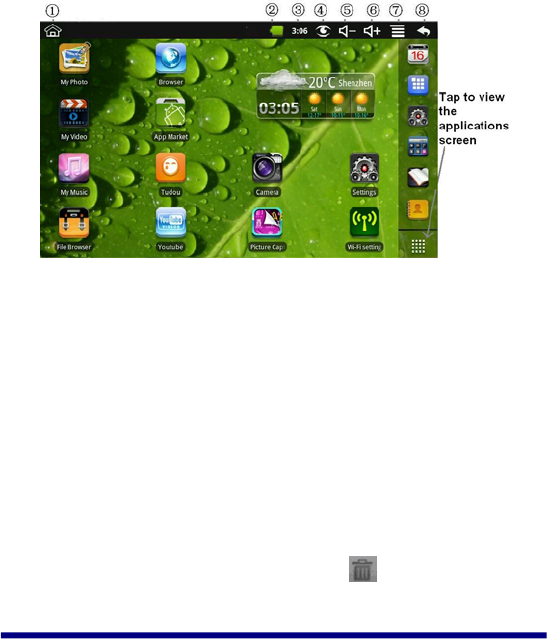

① Return to Desktop from other apps
② Battery charge status
③ Cu rrent Time
④ Picture capture icon
⑤ Volume reduction icon
⑥ Volume increase icon
⑦ Function Menu icon
⑧ Ba ck icon
☆ Tap on any application icon to launch it.
☆ Touch, hold and then slide icons to reposition then on
the screen.
☆ Touch, hold and slide icons onto to remove them from
the Desktop screen.
8 Screen Lock
Can be set to automatically lock screen or quickly press the power button to
manually lock screen. Lock screen displays the following:
6
Tap the icon to enter My Photo to do slide show. And slide the track like the
picture to unlock.
9 Pre-loaded Applications
Wmtweather Display the weather.
Clock Use as alarm clock with scheduled alarms.
App
Market Downloaded applications quickly & easily.
Browser Access the Internet and “surf the web” whenever
desired.
Calendar Calendar with ability to set events.
Camera Take photos and save to internal memory or your
memory device.
Calculator Do calculation.
7
Email Send/Receive email using your existing email
addresses.
File
Browser
File manager application for viewing and managing
files and apps. Use to install Android apps, and to
backup files to your SD card.
My
Music Play and manage audio files.
My
Video Play and manage video files.
My
Photo View and manage photo files.
Gallery View Photos and Videos.
Contacts Create a list of personal contacts, which can also be
linked with your email.
Capture Capture image of the screen.
PK
Manager Application manager for managing processes.
Yo u Tu b e Quick launch to YouTube.com videos.
Settings Multiple settings for personalizing and enhancing
your Device.
Wi-Fi Settings Set Wi-Fi network.
3G Settings Set 3G network.
ADSL
Settings Set ADSL network.
8
Ethernet Configure Ethernet.
☆ To move an icon to the Desktop screen, touch & hold on the icon,
and then release it when it appears on the Desktop screen.
☆ Touch, hold and then slide icons to reposition then on the
screen.
☆ Touch, hold and slide icons onto to remove them from the
Desktop screen.
10 Desktop Function Menu
On the Desktop screen, you can tap to display the Function Menu.
The viewable portion of the Desktop screen allows only 16
icons. In order to add more items, finger slide the screen
horizontally to expose available space, and then tap the Add
button again.
Add
Shortcuts
Add quick launch shortcuts on the Desktop to
applications, bookmarks or settings.
☆ If you select items that are
shortcuts already on the Desktop
screen, they will be duplicated,
resulting in multiple icons for the
same item.
9
Widgets
Analog clock: Add a round analog clock.
Calendar: Add a calendar widget to display
current date & events.
Music Player: Add a music widget to quickly
begin playing music without launching the
music application.
Folders
New Folder: Add a folder into which you can
add applications as desired. To move
applications on the Desktop screen into the
folder, touch, hold & drag the icons directly on
top of the folder icon.
To add applications from the All Application
screen, first tap on the folder to open it, open
the All Application screen, and then touch &
hold on an application icon. It is copied into the
folder.
Wallpaper
Select wallpaper from Picture and
Wallpapers.
Search
Perform a quick Google search.
Tap in the entry field, → enter the desired
search text, → tap .
Notifications
List any pending notifications (i.e., new email,
calendar events, etc).
Settings
See “Settings” on page 26.
10
11 Application Management
Install Android Applications
☆ There are many interesting and free Android applications that can be
found on the web. Just launch your web browser and do a search for
“Android applications”.
Purchased or free Android applications that you have downloaded to your
computer can be installed quickly & easily on your Tablet using the
File Browser application.
1. Copy the .apk files that you want to install onto a SD card or USB
device, → insert or connect to your Device.
2. Tap the File Browser application icon.
3. Tap or and locate the folder in which the .apk application
files were saved.
4. Tap on a .apk file → Inst all.
The application is installed and the application icon is added to the
Applications screen.
5. Tap Open to launch the application now, or tap Done to return to the
File Browser screen.
Download Android Applications direct from a Website
You can download Android applications directly from websites, and then
quickly and easily install them on your device.
1. Tap the Web application icon to launch the internet browser.
2. Enter the desired website URL, and tap the download link for the
application you want to install on your device.
3. After the download is complete, touch & hold on the download file (in
the Download history screen), → tap Open → Inst all.
11
Uninstalling Android Applications
You can also quickly and easily uninstall the Android applications that you
have installed.
1. Tap → Se ttings → Applications → Manage applications.
2. Tap the application you want to uninstall, → Un install.
3. Tap OK to confirm the Uninstall.
12 WmtWeather
Tap the WmtWeather application icon.
General setting
You can set Temperature Unit(℃), Update frequency and Auto Wallpaper.
My cities
You can add city and set it to be my city.
You can make the weather displayed on the Desktop through adding widget. The
way is: tap → A dd → Wi dgets → Wm tWeather。
13 CLOCK
Tap the Clock application icon. You can see the time and date.
Alarm
You can use your device as an alarm clock by setting multiple alarms.
☆ This clock icon displayed at the top of screens
indicates that one or more alarms have been set and
are active.
Add Alarm
12
1. Tap the Clock application icon.
2. Tap → A dd alarm.
3. Set up your alarm as desired.
☆ If you don’t select a repeat, the alarm is
automatically deleted after it is activated.
4. Tap Turn alarm on.
5. Tap Done.
Shut Off Alarm Alert
When a scheduled alarm is activated, a pop-up window with the alarm
title appears.
Tap Snooze if you want to be reminded again in 10 minutes.
Tap Dismiss to cancel the alert.
Turn Alarm on
On alarms that you have set to repeat, you may want to temporarily
turn on alarms rather than delete them.
1. In the Alarm screen, tap on the alarm(s) you want to turn
on.
2. Tap to turn on again.
Edit Alarm
1. Tap the Clock application icon.
2. Tap on the alarm you want to edit, → make desired edits.
Delete Alarm
1. Tap the Clock application icon.
2. Tap on the alarm you want to delete.
3. Tap → D elete alarm.
Gallery
Please refer to “24 GALLERY”.
Tap to return to the Desktop screen.
13
14 APP MARKET
The App Market has many applications that you can quickly and easily download to
your Tablet.
Download Applications
1. Tap the App Market application icon.
2. You can select applications from the default Featured group, by
Categories, Top (latest, hottest, random), or search by name.
3. Tap on an application, → Dow nload.
☆ The first time, you are prompted for your App Market login
information. If you have not yet registered an account, tap
Register an Account.
Otherwise, enter your login information and tap Yes.
4. After the app is downloaded, tap Install.
5. Tap Open to launch now, or Done to return to the App Market screen.
History
After downloading apps, tap on History to manage the installed
applications. You can add and/or view comments from other users,
launch apps, and uninstall them.
App Market Function Menu
Tap to display the App Market Function Menu.
Profile
Tap to access your profile information. You can change your
Password or Email address.
Login/Logout
Tap Login to quickly launch the login dialog box to login to your
account. While logged in, tap Logout to exit your account.
Settings
By default, applications that you download are saved in the internal
14
memory. You can set the applications to save to your SD card if
desired.
About
Displays App store version and support information.
15 BROWSER
Users can connect to the Internet through a browser.
Click the browser icon on the Desktop , and then you can open the Web
browser.
16 CALENDAR
Tap the Calendar application icon.
For the first time using the Calendar, you need to add an Exchange account. Enter
account email address and password. Click Next and follow the prompts to
complete the account configuration. Then you can use the Calendar.
Add Event
1. On the Calendar screen, tap on the date to which you want to add an
event.
2. Tap on the event time, → tap in each entry field to enter the desired
event information.
15
3. Tap Done.
4. Tap to select desired Calendar screen.
☆ Dates with green bars indicate scheduled events.
17 CAMERA
1. Tap the Camera application icon.
2. Aim the top of the device at your intended subject, → tap to take the
picture.
3. The picture will be saved.
Note: Please insert an SD card before using the camera.
Function Menu
Tap Menu button to display the camera function menu.
Switch to video
Switches to video mode, allowed you to immediately take a video
rather a picture.
Gallery
Display all pictures you have taken with the camera.
18 CALCULATOR
1. Tap the Calculator application icon.
2. Tap the numbers and sign of operation to do the calculation.
3. Tap CLEAR to clear the result.
19 EMAIL
☆ POP3 and SMTP accounts are supported.
16
Add Email accounts
You can enter one or more personal email addresses that you would like to
access through your Tablet.
1. Tap the Email application icon.
2. On the Your Accounts screen, tap Next.
3. Tap in the Email address entry field, → enter your email address.
4. Tap in the Password entry field, → enter your email password.
5. Tap Done.
6. Manual Se tup (optional): The server settings are automatically
populated based on your email account provider (i.e., gmail.com, etc).
However, if you need to change the server settings tap Manual Setup
and make necessary changes.
7. Tap Next.
8. Optional: Enter a name for the account.
9. Enter name for outgoing message, → tap Done.
☆ After setup, if you are unable to connect to a free email account, check
with your email provider to make sure their servers support free
accounts on Post Office Protocol (POP) or Simple Mail Transfer
Protocol (SMTP).
Email Inbox
1. Tap the Email application icon.
2. If you set up only one email account, it opens immediately. If you set
up multiple accounts, they are listed in the Accounts screen.
3. Tap on the desired email account, → tap Inbox.
Open Email Message
1. On the Inbox screen, tap on an email to open it.
2. For attachments, tap Open to launch appropriate application, or
tap Save to save attachment to a SD card.
3. To replay, tap Reply or Reply all.
a. Tap in the Compose Mail entry field to enter your reply
17
message.
b. Tap Send to send immediately, Save as draft to save without
send or Discard to discard without saving or sending.
4. To delete the email immediately, tap Delete.
Compose New Email Message
1. On the Inbox screen, tap → Compose.
2. Tap in the To entry field and then enter the recipient’s email
address.
3. Optionally, if you want to add Cc or Bcc recipients, tap
→ Add Cc/Bcc, and then enter the recipient’s email address.
4. Tap in the Subject entry field to enter your desired subject title.
5. Tap in the Compose Mail area to enter your personal message.
6. If desired, tap → A dd Attachment to attach a file.
7. When ready to send the email, tap → Se nd.
Edit Email Account
1. Tap the Email application icon.
2. On the Inbox screen, tap → Account settings.
3. Set your desired preferences to customize your email account.
4. Tap to return to the Inbox screen.
Delete Email Accounts
☆ If you have multiple accounts, and you delete the account designated as
the default account, the next email listed is automatically set as the
default.
1. Tap the Email application icon.
2. On the Inbox screen, tap → Accounts.
3. Touch & hold on the account you want to delete.
4. In the pop-up Account options window, tap Remove account.
5. Tap OK to confirm the deletion.
18
Set Default Email Account
You must always have one account designated as the default account, so if
you have multiple email accounts, you can select any one as the default.
1. Tap the Email application icon.
2. On the Inbox screen, tap → Account Settings.
3. Tap Default Account to select it.
If you delete the account that was designated as the default account, the next
email listed is automatically designated as the default.
20 FILE BROWSER
Tap the File B rowser application icon to view the files on all storage
devices (Internal memory, SD card, USB device), and to quickly & easily install
Android application on your Tablet.
Use the icons across the top of the screen as follows:
Local disk (Internal memory)
Your SD card
U-disk/USB flash drive (using the included transfer box)
Display precious folder
Create a new folder
19
Allows you to multi-select items
Copy Media between Computer and Tablet
You can use the File Browser to copy files between an external storage
devices and your computer. You must first copy the desired files onto a SD
card or USB device.
☆ The internal device storage is titled “LocalDisk”,
a memory card “sdcard”, and a USB storage device
is titled “udisk”.
☆ The instructions below are for copying from a SD
card or USB storage device into the device. You can
use the same method to copy from the device to a
SD card or USB storage device, and then connect the
storage device to your computer to transfer the
files into the desired folder on your computer.
1. Tap the or to display the contents of your storage device.
2. Tap and hold in the folder/file you want to copy, → tap Copy.
3. Tap on the Internal Memory, → tap on the folder into which
you want to copy the file, → tap Paste.
Delete files
Tap and hold on the folder/file you want to delete, → tap Delete → OK to
confirm the deletion.
21 MY MUSIC
☆ Audio file formats supported: MP2, MP3, WAV, AAC, WMA.
Play Music
1. Tap the My Music application icon.
20
2. Select an audio file from All/Albums/Artists/Directories/My
Favourites/User Defined Playlists to play it.
3. To stop the music, tap the Pause icon.
4. To leave the music playing and return to previous screens, tap or
tap to return to the Desktop screen.
Tap the photo on the left corner can enter the Music Player interface. It
shows like:
At this interface, you can do: view the lyrics, play / pause, switch to the
previous / next, added to favorites, loop and random operation etc.
The Operation with Music and Playlist
Add playlist
1. Tap on the left corner.
2. Input the playlist name.
3. Tap Add.
Rename or Delete playlist
Tap and hold in the playlist, → tap Rename or Delete.
Add music
1. Tap and hold in the music you want to add, → tap Add.
2. Click the following item to add music in it (if you don’t want
to add, tap Cancel).
Delete music
21
Tap and hold in the music you want to delete, → tap Delete.
22 MY VIDEO
☆ Video file formats supported: MPEG1/2/4
、
MJPG
、
H263
、
H264.
In addition to H264 which is supported by (720× 480)
resolution, the other video formats are supported
(1280×720) resolution.
Play Video
1. Tap the My Video application icon.
2. Select a video file from All/ Directories/My Favourites/User Defined
Playlists to play it.
3. Tap on the screen to display video controls (adjust volume, pause/play,
previous/next, adjust brightness).
4. Tap Back button or to return to the My Video screen.
The Operation with Video and Playlist
Add playlist
1. Tap on the left corner.
2. Input the playlist name.
3. Tap Add.
Rename or Delete playlist
Tap and hold in the playlist, → tap Rename or Delete.
Add video
1. Tap and hold in the video you want to add, → tap Add.
2. Click the following item to add video in it (if you don’t want to
add, tap Cancel).
Delete video
Tap and hold in the video you want to delete, → tap Delete.
22
23 MY PHOTO
☆ Photo file formats support: JPG, JPEG, BMP, and PNG.
1. Tap the My Photo application icon, → tap on a photo group.
2. To view individual photo, tap on the desired photo.
3. Tap Back button to return to the photo gallery screen.
4. Tap to make slideshow. There is Normal play, Reminiscently, Activity,
Romantic, Tranquil and Fresh.
5. Tap to make the picture sort by color.
6. Tap to make the picture sort by time.
7. Tap to make the picture sort by name.
Doodle
In My Photo you can do doodle.
Click the icon to enter doodle interface. You can select different
doodle operations, including: word balloons, titles, stickers and brush.
24 GALLERY
You can view all Photos and Videos though the Gallery.
Tap the Gallery application icon.
☆ Media files are sorted into groups by local disk (internal
memory), SD card and camera.
Photos
1. Tap the Gallery application icon, → tap on a photo group.
2. To view individual photo, tap on the desired photo. Tap Back button
to return to the photo group screen.
3. For slideshow of all photos in group, tap → Sli deshow. Tap
23
Back button to return to the photo group screen.
Photo settings
There are multiple photo-related settings you can set as desired.
1. In the Gallery screen, tap → Se ttings.
2. Tap on an option to set your preference.
3. Tap to return to the photo group screen.
Videos
1. Tap the Gallery application icon, → tap on a video group.
2. Tap on the desired video to view it.
3. Tap on the screen to display video controls (adjust volume, pause/play,
previous/next, adjust brightness).
4. Tap Back button to return to the Gallery screen.
Delete Photos or Videos
1. Tap the Gallery application icon, → tap on a photo or video
group.
2. Tap → Mul tiselect.
3. Tap on the desired photo(s) or video(s) that you want to delete.
4. Tap Delete → OK to confirm deletion.
5. Tap to return to the Gallery screen
25 CONTACTS
You can create an address book of your personal contacts, including personal notes
as desired.
Add New Contacts
24
1. Tap the Contacts application icon.
2. Tap → New Contact.
3. Tap in the name fields to enter the contact’s first & last name.
4. Tap at the right of options to reveal additional choices.
5. Tap on the option name to reveal choices.
6. Tap in the option entry fields to enter the contact’s information.
7. Tap Done.
Add Contact to Favorites
1. In the Contacts screen, tap on the desired contact name.
2. Tap in the upper right corner.
3. Tap to return to the Contacts screen.
4. Tap Favorites to view list of favorite contacts.
Edit Contacts
1. In the Contacts screen, tap on the desired contact name you want to
edit.
2. Tap → Ed it Contact.
3. Make desired changes, → tap Done.
Delete Contacts
1. In the Contacts screen, touch & hold on the contact, → tap Delete
contact.
OR
In the Contacts screen, tap on the contact you want to delete, tap
→ Delet e Contact.
2. Tap OK to confirm the deletion.
26 PICTURE CAPTURE
You can capture a screen image by tapping at any time.
25
Tap the Picture Capture application icon to set options for a screen
capture.
Select a delay timer to automatically capture the screen in desired number
of seconds.
Select the default storage device for saving your images.
After the images are saved, they can be viewed though My Photo
application.
27 PK MANAGER
Use PK Manager to manager applications and widgets.
Stopping Applications
Android does not automatically stop applications after they are loaded, so
you can manually stop the applications as desired.
1. Tap the PK Manager application icon. The list of applications
that are running is displayed.
2. Tap on an application you want to stop, → tap Force stop.
Uninstall Applications
1. Tap the PK Manager application icon. The list of
applications that are running is displayed.
2. Tap , → tap Third Party or All to list more applications.
3. Tap on an application you want to uninstall, → tap Uninstall.
4. Tap OK to confirm uninstall.
26
28 YouTube
1. Tap the YouTube application icon to view YuTube.com videos.
2. Tap on a video to launch it.
3. Tap on the screen to display video controls (adjust volume, pause/play,
previous/next, adjust brightness).
4. Tap Back button to return to the YouTube screen.
29 Wi-Fi Settings
Tap Wi-Fi Settings application icon.
1. Select the box behind to open Wi-Fi;
2. All the AP in the vicinity will be listed, click to select the name you want to
connect to AP;
3. If the AP is connected successful before, the AP information will be saved in
the pop-up window, select "Connect" starts to connect, choose "forget" to
remove AP information;
4. If the AP is not encrypted, in the pop-up window, select "Connect" Start
Connection;
5. If the AP is encrypted, enter the password in the pop-up window, and click
"Connect" Start Connection;
6. When internet connections are successful, the wireless connection icon in the
status bar appears.
30 3G Settings
First of all you need to buy 3G wireless network card according to China Telecom,
China Mobile or China Unicom. The currently supported on the 3G card type please
refer to Appendix.
We strongly recommend on buy the 3G Network Cards, in order to ensure normal
3G Internet access. Please come to the prepaid card into the purchase of 3G
27
Network Cards, and then insert the adapter cards 3G on the box. At this time it will
be bright lights on the 3G network card, which indicated that it could begin to
connect the 3G network.
Tap 3G Settings application icon.
Tap “Add 3G network”:
Name: In the popup dialog box, name field enter the name you want free you can.
Device: If you use this manual in the format described in China Unicom's 3G
network cards and device column to the default settings, you do not need to select
other items; When you use the manual as described in the 3G standard of China
Telecom on the card, the device should be chosen
CDMA2000(Bora9380/AWIT-U8); When you use the manual as described in the
3G standard of China Mobile on the card, the device should be chosen
TD-CDMA(TD368) Modem.
Device number and APN: Please fill in the information provided by carriers. (As in
China: If you use China Unicom and China Mobile's 3G network card, device
number field need to fill in "*99#", APN need to fill in the "cmnet"; if China
Telecom formats 3G on the card, phone number need to fill in the column "T#777",
APN do not need to fill in the name of column.)
User and P assword: If you use the standard of China Unicom and China Mobile's
3G network card, user and password fields are free to fill or not fill; if you use the
standard of China Telecom's 3G network card, user and password fields, please
request to China Telecom.
Fill then click the link, and you will see the screen above the status bar 3G symbol
appears, indicating the completion of 3G is connected, and then you can get
online.
31 ADSL Settings
Tap A DSL Settings application icon.
Input name and password then click connect to access the broadband network.
28
32 Ethernet
Make the transfer box connected to the USB switch interface of the device, and then
plug the network cable into the Ethernet port of the transfer box, in the upper right
corner of the screen appears "ETH".
Tap Ethernet application icon.
The device can automatically access network IP address connection. And you can
choose manual setup IP address to get a connection.
33 SETTINGS
Wi-Fi Turn on Wi-Fi.
Wi-Fi Settings Set up & manage wireless access points.
Airplane mode Disable all wireless connections.
Wireless &
networks
3G network
settings Set up 3G network.
Ethernet Configure Ethernet.
Pppoe settings
Do ADSL settings. Input user name and
password to connect.
Mass storage Configure USB to mass storage.
USB
ADB Configure USB to ADB.
Silent mode Silence all sounds except media & alarms.
volume
To adjust the Media volume, Alarm volume
and Notification volume. Tap & slide
and then tap OK.
Notification
ringtone Select desired ringtone sound.
Sound
Audible selection Select to enable a sound when making a
29
screen selection.
Screen lock
sounds
Play sounds when locking and unlocking the
screen.
Brightness
Tap & slide to adjust the
screen brightness as desired, and then tap
OK.
Auto-rotate
screen
When selected, the orientation of the screen
switches between Portrait and Landscape
automatically when you rotate the device.
Screen timeout Adjust the delay before the screen
automatically turns off.
Display
Suspend timeout
Adjust the delay before the device
automatically suspend after the screen turn
off.
Set up screen
lock Lock screen with a pattern, PIN, or password.
Visible
passwords Show password as you type.
Select device
administrators Add or remove device administrators.
Use secure
credential
Allow applications to access secure
certificates and other credentials.
Install from
SD card Install encrypted certificates from SD card.
Set password Set or change the credential storage password.
Security
Clear storage Clear credential storage of all contents and
rest its password.
Unknown sources
Allow installation of non-Market
applications.
Manage
applications Manage and remove installed applications.
Applications
Running services View and control currently running services.
30
Development Set options for application development.
Privacy
Factory data
reset
Tap to reset the device to its initial factory
state, erasing all data and downloaded
applications. Tap Reset Device to proceed
with reset, or tap to cancel and return to
previous screen.
WARNING! The following will be erased
during the factory reset:
~ Google account
~ System and application data and
settings
~ Downloaded applications
The factory reset will NOT erased:
~ Current system software and bundled
applications
~ SD card files, such as music or
photos
Total space,
Available space
It values appears when a SD card is inserted
in device.
Unmount SD
card
When the SD card is inserted, tap it to safety
remove the SD card.
SD card &
device storage
Format SD card N/A for this device.
Select language
Select the language and region according to
your location.
Android
keyboard Onscreen keyboard settings.
Language &
keyboard
User dictionary
You can add words to a personal dictionary,
words that may not be included in the default
dictionary.
Set date Set the date.
Date & time
Select time zone Select the time zone.
31
Set time Set the time.
Use 24-hour
format
You can choose to use 24-hour format or
12-hour format.
Select date
format You can select the date format.
About device
View Status (Battery, Wi-Fi, etc), Battery use,
Legal information, Model number, Android
version, Kernel version and Build number.
Touchpanel
calibration Calibrate the touch screen.
Frequently Asked Questions
Android
Q: What Android OS version is on my Device?
A: 2.2
Basic Device Functionary
Q: Do I have to charge the battery before use?
A: You should charge the battery for at least 4 hours, but you can use the
device while it’s charging. Use the include power adapter to charge; this
device does not charge via the USB cable.
Email
Q: Can I use any of my personal email addresses to send/receive email?
A: The device supports POP3 and SMTP accounts. Some free email accounts
are not supported on mobile devices. Check with your email provider to see
if you account is supported.
Media Cards
Q: Which media cards are compatible with my Device?
A: micro SD cards.
Music
Q: What type of music files can I play on my device?
A: MP2, MP3, WAV, AAC, WMA
Q: How do I add music files to my device?
32
A: Copy the music files from your computer onto a SD card or USB storage
device, and then use the File Browser application to copy the files into the
device.
Photos
Q: What type of photo files can I view on my device?
A: JPG, JPEG, BMP and PNG.
Q: How do I add photo files to my device?
A: Copy the photo files from your computer onto a SD card or USB storage
device, and then use the File Browser application to copy the files into the
device.
Video
Q: What type of video files can I play on my device?
A: MPEG1/2/4、MJPG、H263、H264. In addition to H264 which is supported
by (720 × 480) resolution, the other video formats are supported (1280 × 720)
resolution.
Q: Can I play YouTube videos on my device?
A: Yes. You can tap the YouTube application icon to quick access videos.
Q: How do I add video files to my device?
A: Copy the video files from your computer onto a SD card or USB storage
device, and then use the File Browser application to copy the files into the
device.
Wi-Fi
Q: Do I need a Wi-Fi adapter to connect to the Internet?
A: No. The Wi-Fi adapter is built-in to the device.
Battery Management
The battery is not fully charged out of the box, so it is recommended that you charge
the battery for at least 4 hours before you start to use the device.
The rechargeable battery is designed and manufactured to be used and recharged
frequently. As with all batteries, the capacity of the battery reduces each time it is
charged/depleted. However, you can still try to prolong the battery’s lifetime by
following the suggestions below:
Use your Tablet at least once a week.
33
Charge the battery regularly and fully.
Never leave the battery fully discharged for a long period of time.
Always keep the device and the battery away from heat.
Charge battery
Plug the power adapter into an electrical wall outlet, and then connect to the
device to fully charge the battery before use (approx. 4hour).
☆ You cannot charge the battery using the USB cable.
When fully charged, the battery icon displays as: .
A fully discharged battery takes approximately 5 hours to fully charge, but
you can use the device while plugged in when desired.
Important Safety Precautions
Always follow these basic safety precautions when using your Tablet. This reduces
the risk of fire, electric shock, and injury.
Do not expose this product to rain or moisture.
Keep the device out of direct sunlight and heat sources.
Protect the power cord. Route power cords so that they are not likely to
be walked on or pinched by items placed on or against them. Pay
particular attention to the point where the cord attaches to the device.
Only use the AC adapter included with the device. Using any other power
adapter voids your warranty.
Do not remove the cover. There are no user-serviceable parts inside.
Clean your Device
Treat the screen gently. To clean fingerprints or dust from the screen, we
recommend using a soft, non-abrasive cloth such as a camera lens cloth.
34
Appendix: The Optional parts and models
Parts name Parts type
TD-CDMA TD368
HUAWEI E220
HUAWEI E230
HUAWEI E160X
HUAWEI E169G
WCDMA
HUAWEI E1750
Bora 9380
3G Wireless
Network Card
CDMA2000 AWIT-U8
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
35
If this equipment does cause harmful interference to radio or television
reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without RF striction.
