Sunrex Technology 3140 Wireless Presenter User Manual
Sunrex Technology Corp Wireless Presenter Users Manual
Users Manual
JME-3140R (Presenter)
JME-3271R (Dongle) User Manual
HOW TO USE THE LASER PRESENTER
1. Insert the receiver into the USB port of PC.
2. Your PC operation system will start to install the device automatically .And
you can see the information as below display in your computer.
3. In Win98/Me operation system you need to follow the instructions on your
screen .During the install process, the O/S may ask you to put Win98 CD into
the CD-ROM.
4. After the installation process is done,the presenter will start working .
Better than other competition:
1. NO direction and NO level speed precise control.
2. RF (2.4GHZ), Any angle ,reachable distance up to 10 Meters.
3. 2^24 ID sets and RF-technique to Anti-interference .
4. No matter what PC Off or Battery Out ,The ID will not be loss.
5. Add Page-Up Page-Down Key .
POWER ON
LED Lamp
BATTERY COVER
Laser
Notice : For trouble shooting
If the presenter is not working :
1. Maybe the battery power is too low , please check your battery .
2. Maybe ID code was not matched ,please link ID.
(1)Make sure receiver connector plug into correct port. Receiver port
should plug into PC USB port. For the best efficiency, keep the receiver 30
cm distance with Laser Presenter
(2).Laser Presenter press "Page up and Page Down" key for more than 3 second
after led glittering ,LinK OK finishing ,LED CUT OFF
CAUTION
LASER RADIATION. DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS II
LASER PRODUCT.
NEVER POINT A LASER BEAM INTO A PERSON’S EYES OR VIEW A LASER BEAM DIRECTLY, AS PROLONGED
EXPOSURE CAN BE HAZARDOUS TO THE EYES. MOMENTARY EXPOSURE FROM A LASER POINTER, SUCH AS AN
INADVERTENT SWEEP OF THE LIGHT ACROSS A PERSON'S EYES, MAY CAUSE TEMPORARY FLASH BLINDNESS
SIMILAR TO THE EFFECT OF A CAMERA FLASH BULB. ALTHOUGH THIS CONDITION IS TEMPORARY, IT CAN BECOME
MORE DANGEROUS IF THE EXPOSED PERSON IS ENGAGED IN A VISION-CRITICAL ACTIVITY SUCH AS DRIVING.
Page Up Page Down
F5 / Esc
Trackball
Mouse Right Button Mouse Left Button
Laser Button
Specifications
Electrical/Presenter
Interface USB
Buttons Laser (1), Function (4)
Channel Number 71 CH
ID Number 2^24
Input power AAA batteries (1.5 Volt, DC)
Transmission Radio Frequency
Modulation frequency 2.405 – 2.475GHz
Effective distance Up to 33 feet (10 m )
Power consumption – 95mA (Max)
Standby Mode 0.4 mA
Compatibility Fully Compatible with PC/AT
Compatibility software Windows® 98/Me/2000/XP operating system
Laser wavelength at
peak emission 645-665 nm
Laser Spot size at
16.5 feet (5 m)
Laser Cw output power 1 mW (maximum)
Weight (without battery) (32 g)
Dimensions (L x W x H) (96.3(L) * 43.6(W) * 16.6(H)mm)
Receiver
Interface USB
Power DC 5V, 60mA Max
Weight (without battery) (8 g)

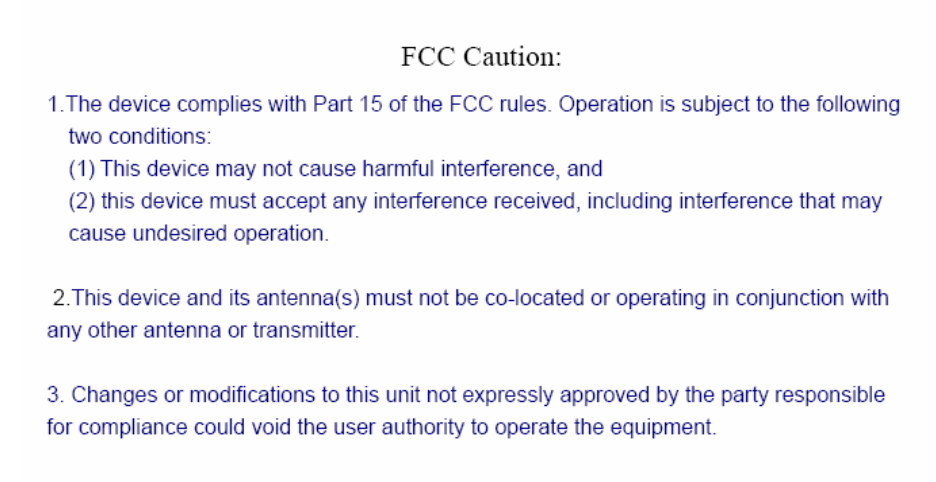

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
