User Manual
HP Wireless Premium Mouse
Model Name:HSA-S002M
User Manual
This is a USB interface mouse.
Important Information
For Windows® 8.1 operating system, you can use the Mouse immediately
after plugging the dongle (receiver) into the USB port.
Hardware Installation
Plug in the dongle into your available USB port.
Please turn on power switch.
Note:
-Make sure your PC is ON and running when doing the pairing procedure.
-You don’t have to pair ID again after changing batteries. If it can’t work, please
follow the steps above to pair ID.
Specification
Interface: Wireless 2.4 GHz
Frequency band: 2403MHz-2480MHz
Maximum radio-frequency power transmitted: ≤10 mW
Power: Li-ion Battery
Ports: Micro USB Type B charge port
Item Specification
Operating Temperature 0 ~ +40℃
Storage Temperature -20 ~ +60℃
Compatibility USB interface
Operating system Windows 7/8.1/10
RF Specification
Frequency 2.4GHz`
Deviation +/-320KHz
Modulation mode GFSK
Channel 78CH
ID number 2^32
Connect Press “Connect” Button 5 sec (distance from Dongle
6 cm)
Effective operating
distance 10Meters
Power Specification
Battery Li-ion Battery
Power consumption DC 3.7V , ±5%
Battery life 3 month

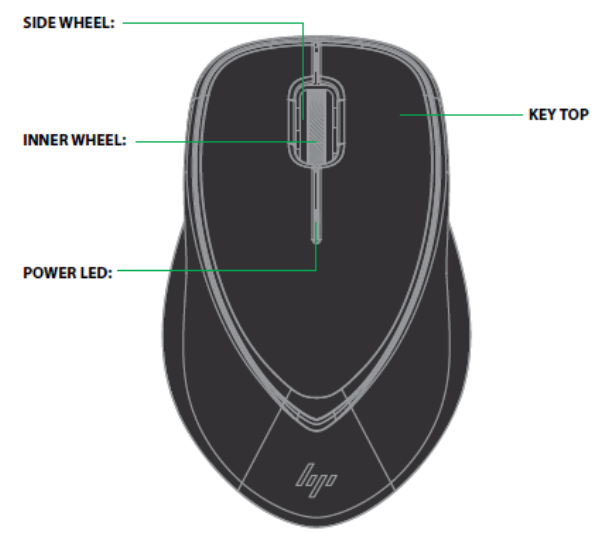

Appearance
RF 2.4GHz frequency table
The channel selection algorithm produces a subset containing 13 of the possible 78
channels. The channel selection algorithm is based on the network ID, with each
channel in the subset being six megahertz from the nearest neighboring channels in
the subset. This algorithm reduces the possibility of multiple bridges selecting the
same channels in the same order at the same time.
CH
Frequency CH
Frequency CH
Frequency CH
Frequency
1 2.403GHz 21
2.423GHz 41
2.443GHz 61
2.463GHz
2 2.404GHz 22
2.424GHz 42
2.444GHz 62
2.464GHz
3 2.405GHz 23
2.425GHz 43
2.445GHz 63
2.465GHz
4 2.406GHz 24
2.426GHz 44
2.446GHz 64
2.466GHz
5 2.407GHz 25
2.427GHz 45
2.447GHz 65
2.467GHz
6 2.408GHz 26
2.428GHz 46
2.448GHz 66
2.468GHz
7 2.409GHz 27
2.429GHz 47
2.449GHz 67
2.469GHz
8 2.410GHz 28
2.430GHz 48
2.450GHz 68
2.470GHz
9 2.411GHz 29
2.431GHz 49
2.451GHz 69
2.471GHz
10 2.412GHz 30
2.432GHz 50
2.452GHz 70
2.472GHz
11 2.413GHz 31
2.433GHz 51
2.453GHz 71
2.473GHz
12 2.414GHz 32
2.434GHz 52
2.454GHz 72
2.474GHz
13 2.415GHz 33
2.435GHz 53
2.455GHz 73
2.475GHz
14 2.416GHz 34
2.436GHz 54
2.456GHz 74
2.476GHz
15 2.417GHz 35
2.437GHz 55
2.457GHz 75
2.477GHz
16 2.418GHz 36
2.438GHz 56
2.458GHz 76
2.478GHz
17 2.419GHz 37
2.439GHz 57
2.459GHz 77
2.479GHz
18 2.420GHz 38
2.440GHz 58
2.460GHz 78
2.480GHz
19 2.421GHz 39
2.441GHz 59
2.461GHz
20 2.422GHz 40
2.442GHz 60
2.462GHz
Label Specification:
Manufacturer Name: HP Inc.
Corporate Address: 1501 Page Mill Road Palo Alto, CA 94304, USA
CAUTION
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate
equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice
This device complies with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique
subi, meme si le brouillage est susceptible d'en compromettre le
fonctionnement.
The laser mouse is classified as CLASS 1 LASER PRODUCT per IEC
standard IEC 60825-1 (ed.2 & ed.3).
