Sunricher Technology 2836 LED Controller User Manual 2836rgb US
Shenzhen Sunricher Technology Co.,Ltd LED Controller 2836rgb US
User Manual
RF RGB controller
SR-2836RGB(US)
Parameter
Installation
Remote
Part No. Operation Voltage Operation
Frequency
SR-2836RGB(US) 3VDC 868MHz
Remarks
RF Wireless
Wiring diagram
Part No. Iuput Voltage Remarks
Current
SR-1009FA 12-36VDC Constant voltage
4x(60-180)W
4x5A
Output
SR-1009EA 12-36VDC Constant voltage
4x(96-288)W4x8A
Receiver
SR-1009FA3 12-36VDC Constant current
4x(4.2-12.6)W
4x350mA
SR-1009FA7 12-36VDC Constant current
4x(8.4-25.2)W4x700mA

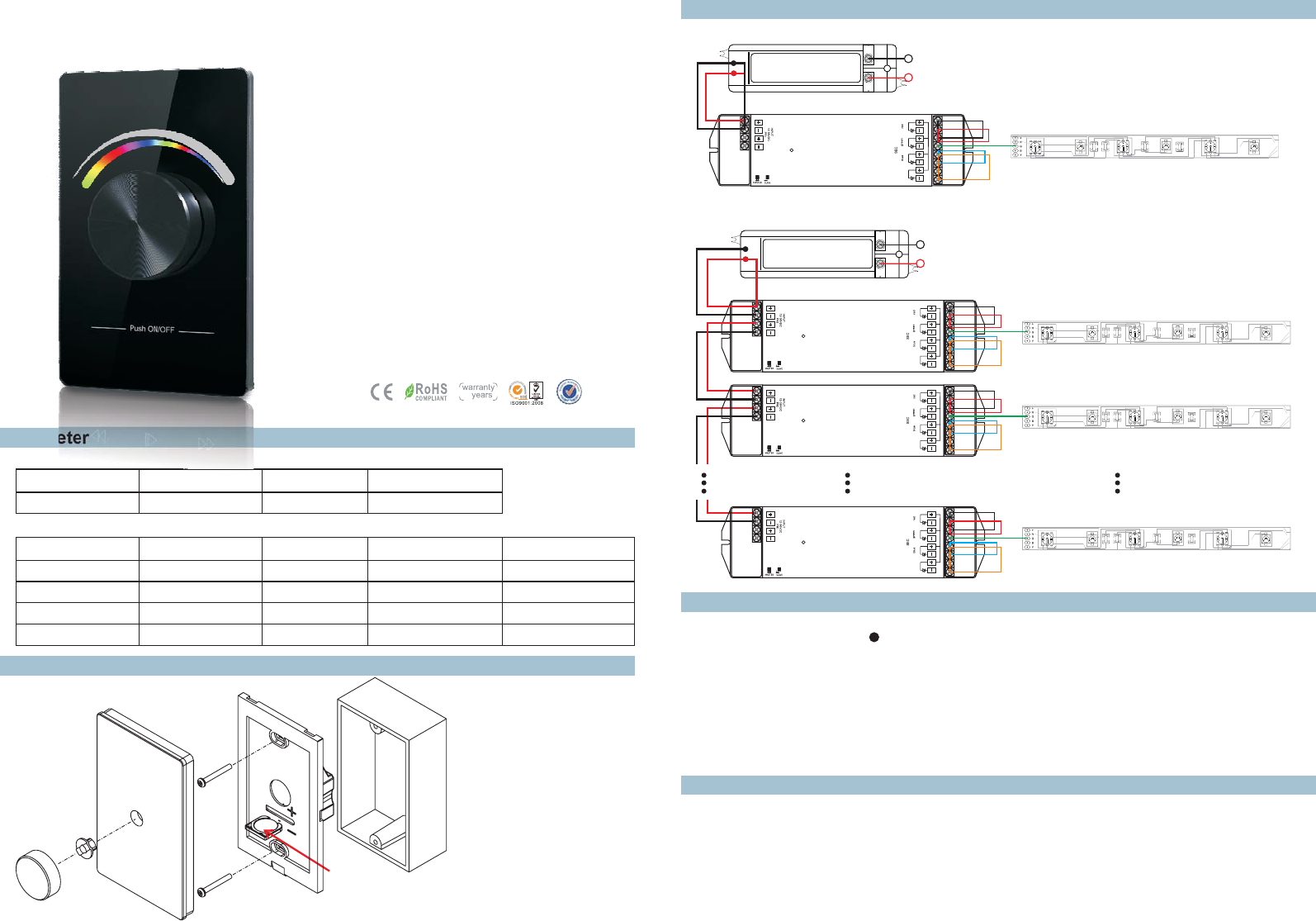

1)Receiver Connection Diagram for Single Unit
2) Connection Diagram for Multiple UnitsReceiver
Power Supply
12-36VDC
LN
110V-230VAC
white
SR-1009FA
LED CONTROLLER
1
2
3
4
Learning Key
white
SR-1009FA
LED CONTROLLER
1
2
3
4
Learning Key
white
SR-1009FA
LED CONTROLLER
1
2
3
4
Learning Key
Power Supply
12-36VDC
LN
110V-230VAC
white
SR-1009FA
LED CONTROLLER
1
2
3
4
Learning Key
Operation
a.Learning
Press shortly the learning Key on the receiver, then push the rotary button .Once successfully learn, the LED
lights will blink on the receiver. Do the same for the other receivers if you use them, you can add as many
optional receivers as you want
b.Operation
-Short push rotary button to switch ON/OFF
-Adjust dim brightness by the rotary button from left to right 1-100%
-Adjust dim brightness by the rotary button from right to left 100-1%
-Long press rotary button, the light will be 100% brightness
-Double click rotary button, it will change color of RGB light. Double click again, will enter into dimming
brightness mode
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product
5
Power supply
SR-2836RGB(US) is RF controllers for RGB color lighting.
Each white can achieve 256 levels brightness adjustment.
Key part can be uninstall every easily to change battery and
frames from other factory.
Receivers work with WIFI-RF convertor to be controlled by
smart phone.
Warranty Agreement
1) We provide lifelong technical assistance with this product:
5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
