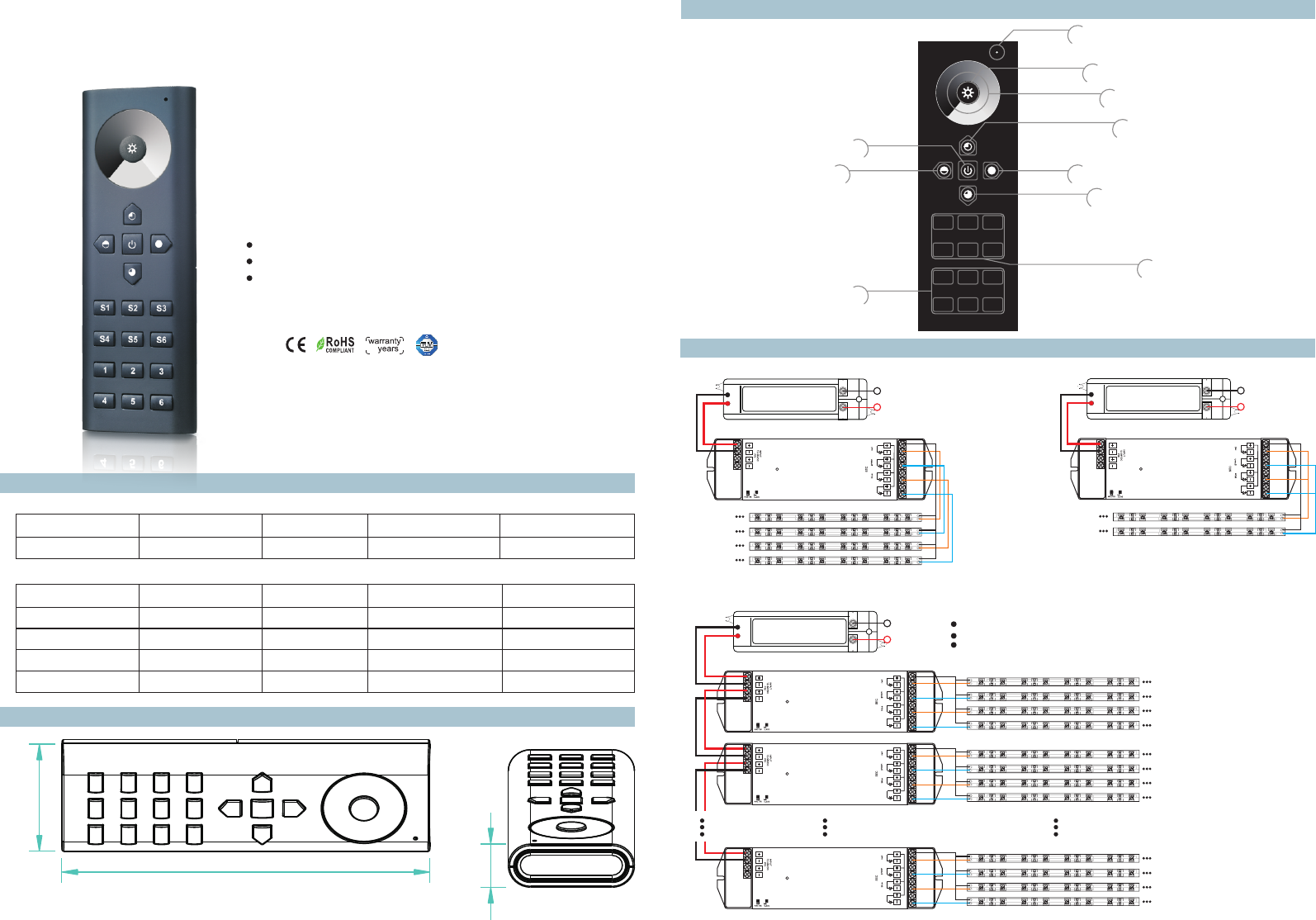

RF wireless LED remote controller

6 zones/areas

Press-button Dimmer

Model:SR-2819DIM with SR-1009Fxx

Parameter

Wiring diagram

Product Size

Brief introduction of buttons

Receivers work with WIFI-RF converter to be controlled by smart phone

Part No. Input Voltage Remarks

Output Current

SR-1009FA 12-36VDC Constant voltage

4x(60-180)W

4x5A

Output Power

SR-1009EA 12-36VDC Constant voltage

4x(96-288)W4x8A

Remote

Part No. Operation Voltage DIMENSIONS

ø/h (mm)

Operation

Frequency

SR-2819DIM 4.5VDC 48x140x17

916.665MHz

Receiver

SR-1009FA3 12-36VDC Constant current

4x(4.2-12.6)W

4x350mA

SR-1009FA7 12-36VDC Constant current

4x(8.4-25.2)W4x700mA

Remarks

load 3pcs 7 AAA (1.5V)

batteries

1)Receiver Connection Diagram for Single Unit

2) Connection Diagram for Multiple UnitsReceiver

Power Supply

12-36VDC

110V-230VAC

whit e

SR-1009FA

LED CO NTROLLE R

1234

Lear ning K ey

whit e

SR-1009FA

LED CO NTROLLE R

1234

Lear ning K ey

whit e

SR-1009FA

LED CO NTROLLE R

1234

Lear ning K ey

Power Supply

12-36VDC

110V-230VAC

whit e

SR-1009FA

LED CO NTROLLE R

1234

Lear ning K ey

Sing le c ol or

LED Stri p

4x5A

Power Supply

12-36VDC

110V-230VAC

whit e

SR-1009FA

LED CO NTROLLE R

1234

Lear ning K ey

2x10A

Note:

One receiver can work with 1-8pcs SR-2819DIM

One SR-2819DIM control multiple receivers

The power supply chosen must be 20% higher than the actual load

Sing le c ol or

LED Stri p

Sing le c ol or

LED Stri p

Sing le c ol or

LED Stri p

Sing le c ol or

LED Stri p

Sing le c ol or

LED Stri p

Sing le c ol or L ED Strip

140.0

48.0

17.0

Indicator: indicate the state of

remote control

Brightness button

Brightness wheel

ON/OFF of all zones

50% Brightness 100% Brightness

25% Brightness

75% Brightness

6 zones: each zone can save

3 color or modes

Save button

Safety & Warnings

Warranty Agreement

1) The product shall be installed and serviced by a qualified person.

2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof

enclosure.

3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.

4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the

product.

5) Never connect any cables while power is on and always assure correct connections to avoid short circuits

before switching on.

7) For update information please consult your supplier.

Please ensure that the cable is secured tightly in the connector

1) We provide lifelong technical assistance with this product:

5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The

warranty is for free repair or replacement and covers manufacturing faults only.

For faults beyond the 5-year warranty we reserve the right to charge for time and parts.

2) Limited Warrenty

Any defects caused by wrong operation.

Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and

replacement of chips.

Any damages due to transportation, vibration etc. after purchase.

Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.

Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near

harmful chemicals.

Product has been updated

3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.

Operation

Learning (matching)

a. Do wiring according to connection diagram

b. Wake up the remote control by touching ON/OFF button.

c. Press learning button on receiver.

d. Touch any zone button on remote control.

e. Then touch brightness wheel.

f. Connected LED light will blink to confirm zone designation.

g. Press at learning button on receiver over 5 seconds until LED light flash, then delete the learned ID.

Note 1: To choose a master from slaves by jumper for each zone.

Short circuit for master.

Open circuit for slave.

Each zone only can set one master controller. After a period of time, the master will do synchronization

operation to keep the same color or mode of all slaves in one zone.

Note 2: Each remote control 6 zones (areas) receivers, each area can be learned as many receivers as

we can.

Each receiver maximally can be controlled by 8 different remote controllers.

Choose zone number , for example, and , then touch , choose the brightness you want,

zone 1 and 3 will indicate corresponding brightness as we touched.

Brightness Up & Down Button

Long Press button to dim down/up brightness, the dimming direction will change every time after pressing

switch. For example, the first long press is brightness up, it will be dimmed down when long press again.

Brightness level button

Select zone from . Press , the corresponding zones will be 25% brightness. Press , the

corresponding zones will be 50% brightness. Press , the corresponding zones will be 75% brightness.

Press , the corresponding zones will be 100% brightness.

Dim wheel

Save and recall button

select zones from adjust the color temperature

and brightness

long press one save button

from for 2-3 second

LED lighting flash twice

indicate save successful

a. Save Color temperature:

then short press save button

Recall: select zone button which we want recall from ,

456

S4 S5 S6

S1 S2 S3

456

S4 S5 S6

S1 S2 S3
