Sunricher Technology RF281903 RF sender User Manual

Shenzhen Sunricher Technology Limited RF sender

User Manual

RF RGBW ControllerSR-2819T8 with SR-1009FA seriesParameterWiring diagramProduct SizePart No. Input Voltage RemarksOutput CurrentSR-1009FA 12-36VDC Constant voltage4x(60-180)W4x5AOutput PowerSR-1009EA 12-36VDC Constant voltage4x(96-288)W4x8ARemotePart No. Operation Voltage DIMENSIONSø/h (mm)Operation FrequencySR-2819T8 4.5VDC 43.8x131.6x24.5916.07MHzReceiverSR-1009FA3 12-36VDC Constant current4x(4.2-12.6)W4x350mASR-1009FA7 12-36VDC Constant current4x(8.4-25.2)W4x700mA43.8131.624.5Brief introduction of buttonsR G Short press: switch on/off each channel; Long press: dim up/down each channelB WWorking status indicator, the sender is in dormant status when the indicator is off. The sender is under working when the indicator is flashing rapidly. If the indicator continues flashing at the frequency of 1 second, it indicates that the sender batteries low and needs to replace new batteries.S- Speed down when color is changing S+ Speed up when color is changingB- Brightness down B+ Brightness upTurn ON/OFFTouch wheel for selecting R/G/B colorsR G B WS- S+W+B- B+P- P+56 7 8P- P+1 2 34Build-in 10 Dynamic modes,P- is previous mode,P+ is next mode.are zone numbers,long press switch on/off each zone.Short press is to choose a zone.To synchronize several zones,short press 2 or more buttons one after another.1)Receiver Connection Diagram for Single Unit2) Connection Diagram for Multiple UnitsReceiver Power Supply12-36VDCLN110V-230VACwhiteSR-1009FALED CONTROLLER1234Learning KeywhiteSR-1009FALED CONTROLLER1234Learning KeywhiteSR-1009FALED CONTROLLER1234Learning KeyPower Supply12-36VDCLN110V-230VACwhiteSR-1009FALED CONTROLLER1234Learning KeyPress-button RGBW controllerReceivers work with WIFI-RF convertor to be controlled by smart phone12 3 48 zones,long press can turn on/off each zone5 6 78Note: If you press R, then press G, then it is mix color of R and G. If you want to get G color directly, please press R to switch off of R first. Then press G.5

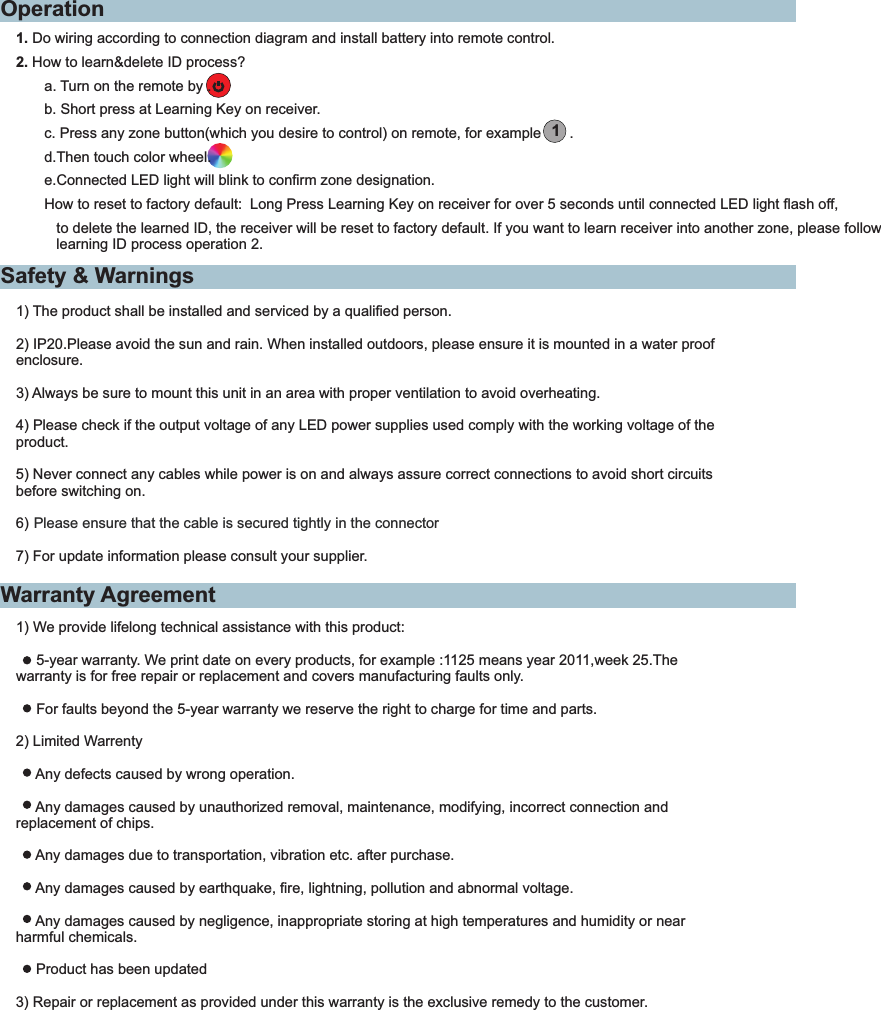

1Safety & WarningsWarranty Agreement1) The product shall be installed and serviced by a qualified person.2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.5) Never connect any cables while power is on and always assure correct connections to avoid short circuits before switching on.6) 7) For update information please consult your supplier.Please ensure that the cable is secured tightly in the connector1) We provide lifelong technical assistance with this product:     5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The warranty is for free repair or replacement and covers manufacturing faults only.     For faults beyond the 5-year warranty we reserve the right to charge for time and parts.2) Limited Warrenty     Any defects caused by wrong operation.     Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and replacement of chips.     Any damages due to transportation, vibration etc. after purchase.     Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.     Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near harmful chemicals.     Product has been updated3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.1. Do wiring according to connection diagram and install battery into remote control.2. How to learn&delete ID process?       a. Turn on the remote by .       b. Short press at Learning Key on receiver.       c. Press any zone button(which you desire to control) on remote,   for example       .        d.Then touch color wheel.        e.Connected LED light will blink to confirm zone designation.        How to reset to factory default:  Long Press Learning Key on receiver for over 5 seconds until connected LED light flash off,              to delete the learned ID, the receiver will be reset to factory default. If you want to learn receiver into another zone, please follow           learning ID process operation 2.Operation

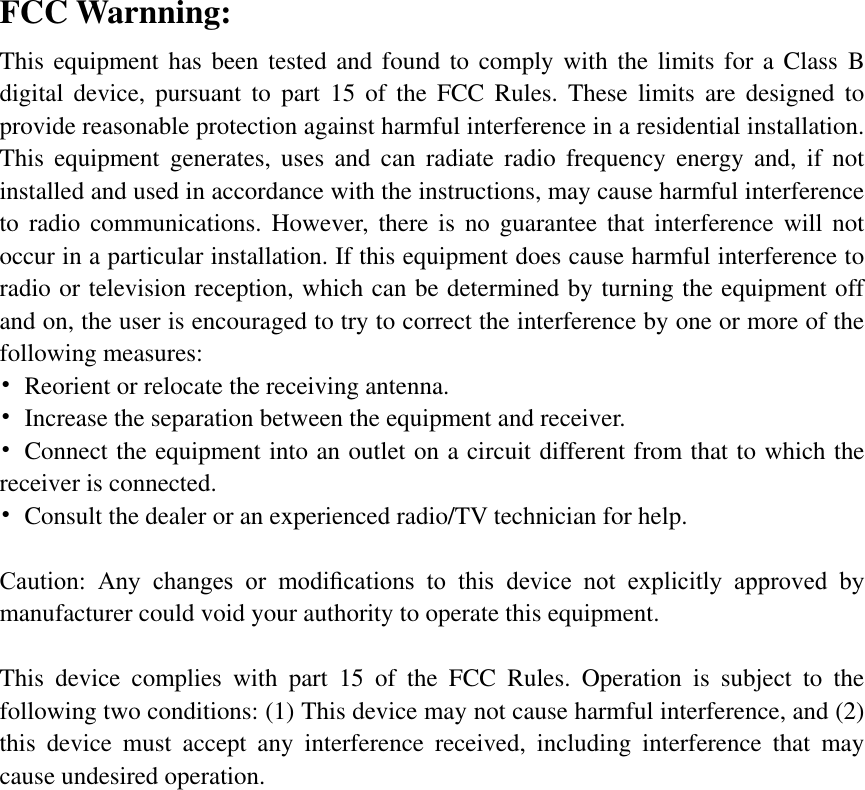

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class  B digital  device,  pursuant  to  part  15  of  the  FCC  Rules.  These  limits  are designed  to provide reasonable protection against harmful interference in a residential installation. This  equipment  generates,  uses  and  can  radiate  radio  frequency  energy and,  if  not installed and used in accordance with the instructions, may cause harmful interference to  radio  communications. However,  there  is  no  guarantee that  interference will  not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •  Reorient or relocate the receiving antenna. •  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •  Consult the dealer or an experienced radio/TV technician for help.  Caution:  Any  changes  or  modifications  to  this  device  not  explicitly  approved  by manufacturer could void your authority to operate this equipment.  This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the following two conditions: (1) This device may not cause harmful interference, and (2) this  device  must  accept  any  interference  received,  including  interference  that  may cause undesired operation.
