Sunricher Technology RF2839 RF sender User Manual

Shenzhen Sunricher Technology Limited RF sender

User Manual

RF wireless RGB remote controller
Feature
Parameter
Description of buttons
Remote
Part No. Operation Voltage Operation
Frequency
SR-2839W 4.5VDC 916.67MHz
Remarks
RF Wireless

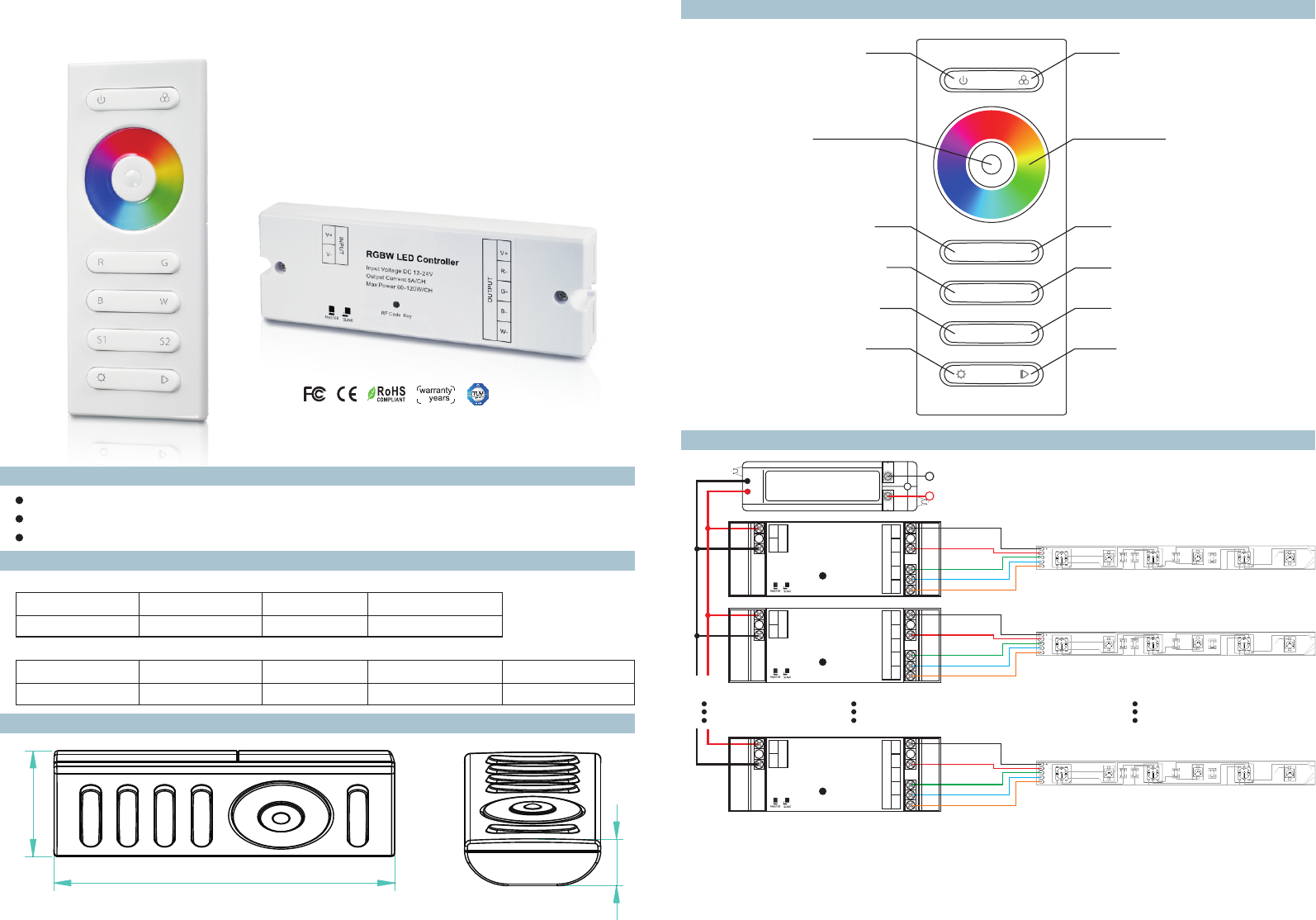

Wiring diagram
1 zone/area
Press-button RGBW controller
Built-in 10 modes
Product Size
Receiver
Part No. Input Voltage Remarks
Output Current
SR-1029RGBW 12-24VDC Constant voltage
4x(60-120)W
4x5A
Output Power
ON/OFF For Warm white, Natural white,
Cool white changing.(Through the
three RGB color mixing)
Indicator Color wheel
Brightness Play&pause button. There is 10 build-in
modes. Short press it will play, short
press again, it will pause. Long press
it will speed up/down..
Change red channel Change green channel
Change blue channel Change white channel
Save color/scene
Save color/scene
Power Supply
12-24VDC
LN
110V-230VAC
R-
G-
B-
17.6
120.0
47.9
SR-2839W
R
G
B
W
S2S1
RF Co de Key
RGBW LED Controller
V+
V-
INPUT
V+
R-
G-
B-
OUTPU T
Input Vo ltage D C 12-24 V
Outpu t Curre nt 5A/C H
Max Pow er 60-1 20W/C H
W-
W-
R-
G-
B-
RF Co de Key
RGBW LED Controller
V+
V-
INPUT
V+
R-
G-
B-
OUTPU T
Input Vo ltage D C 12-24 V
Outpu t Curre nt 5A/C H
Max Pow er 60-1 20W/C H
W-
W-
R-
G-
B-
RF Co de Key
RGBW LED Controller
V+
V-
INPUT
V+
R-
G-
B-
OUTPU T
Input Vo ltage D C 12-24 V
Outpu t Curre nt 5A/C H
Max Pow er 60-1 20W/C H
W-
W-
5
Safety & Warnings
Warranty Agreement
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
1) We provide lifelong technical assistance with this product:
1-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 1-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
Operation
1. Do wiring according to connection diagram
2. Learning (matching)
a. Do wiring according to connection diagram
b. Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiver.
d. Touch control wheel .
e. Connected LED light will blink to confirm matching successfully.
f. Press learning button on receiver over 5 seconds until LED light flash, then delete the learned ID.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
