Sunricher Technology RF28XX01 RF sender User Manual
Shenzhen Sunricher Technology Limited RF sender
User Manual
1 Zones Mini RF Single Color LED Dimmer
Feature
Reliable&stable switch and dimming control function.
Switch on/off lightings slowly,without any flash,meet the comfort of human eyes.
Dimming range:0.1-100%
SR-2833S with SR-1009xx
Use with power repeater to expand the output power unlimitedly.
One zone controlled, but can be set endless receivers, each receiver can be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on ISO and Android system.
Parameter
Remote
Item No Operation Voltage Operation Frequency Battery
SR-2833S 3VDC 916.66MHz CR2025
Correspond Receiver

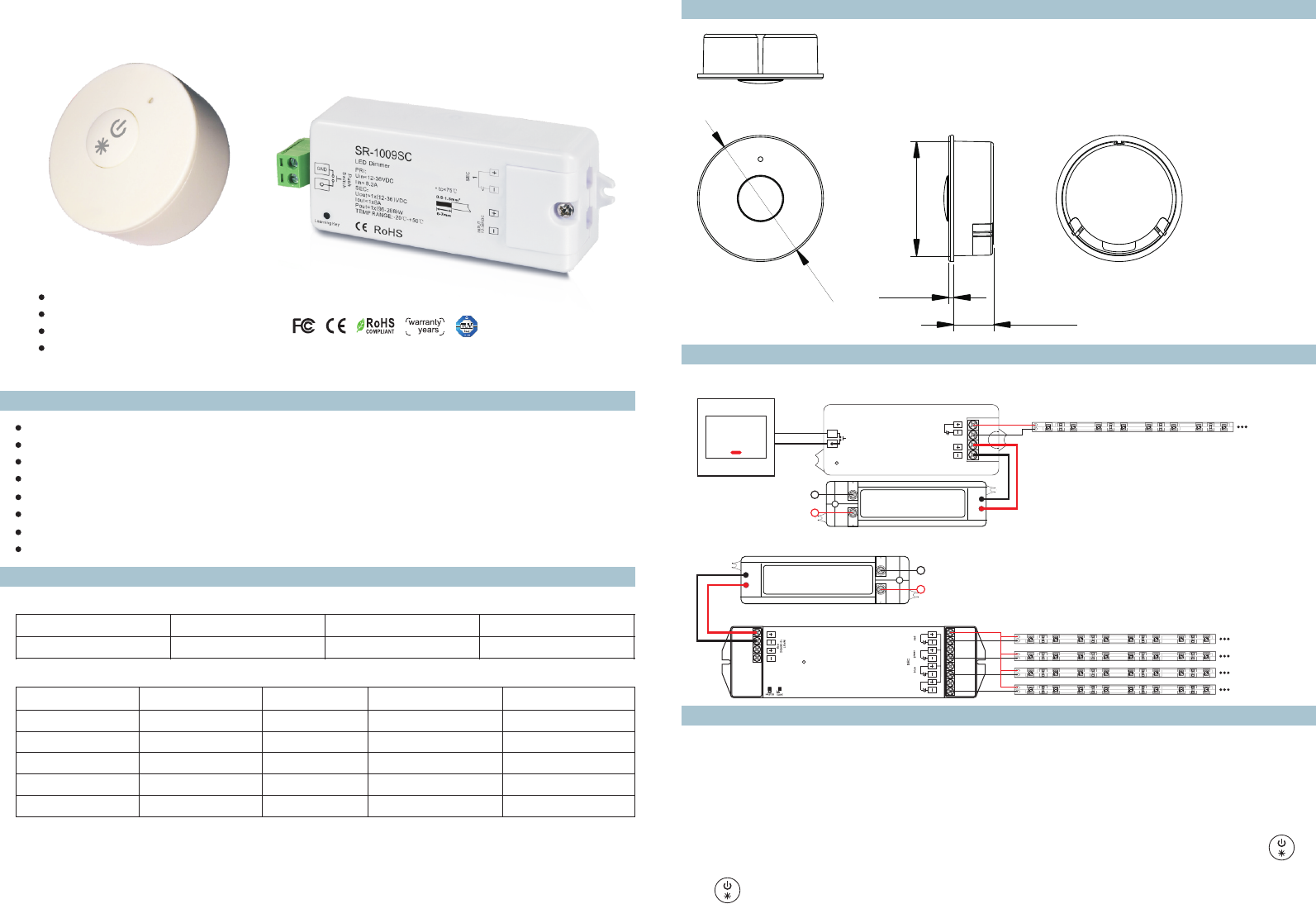

Wiring diagram
1)Receiver Connection Diagram for Single Unit
Mini RF wireless dimmer
Battery include with remote
On/Off function
Memory Function
2)Receiver Connection Diagram for Multiple Units
Product size
Long time span battery for 2 years
Single color LED Strip
LED
Inp ut
12- 36VD C
SR-1009SC
RF Easy Di mmer
Lea rnin g Key
Power Supply
12-36VDC
LN
110V-230VAC
GND
Pus h
Swi tch
PUSH
Ø35.0
∅38.5
12.2
1.5
Operation
After you have wired all the receivers according to Figure illustration you need to do the following:
1. You need pair the receiver and remote by pressing the Learning Key once on the receiver,then the power/dim
button on your remote,Your light will blink once,signify that your receiver and remote are paired
2. Now you are able to dim and power on and off your lights.To power on or off your lights,simply press
once.This will turn on and off your lights with a subtle fading effect.To dim your lights,hold and press down
on ,you will notice a gradual change to either a brighter or dimmer light.
Part No. Input Voltage Remarks
Output Current
SR-1009FA 12-36VDC Constant voltage
4x(60-180)W
4x5A
Output Power
SR-1009EA 12-36VDC Constant voltage
4x(96-288)W4x8A
SR-1009FA3 12-36VDC Constant current
4x(4.2-12.6)W
4x350mA
SR-1009FA7 12-36VDC Constant current
4x(8.4-25.2)W4x700mA
SR-1009SC 12-36VDC Constant voltage
4x(96-288)W
1x8A
Power Supply
12-36VDC
LN
110V-230VAC
whi te
SR-1009FA
LED CO NTROLLER
1234
Lea rnin g Key
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
5
Safety & Warnings
Warranty Agreement
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
1) We provide lifelong technical assistance with this product:
5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
