Sunricher Technology SR-281 Wall mounted DMX512 Master User Manual M
Shenzhen Sunricher Technology Co.,Ltd Wall mounted DMX512 Master M
Users Manual

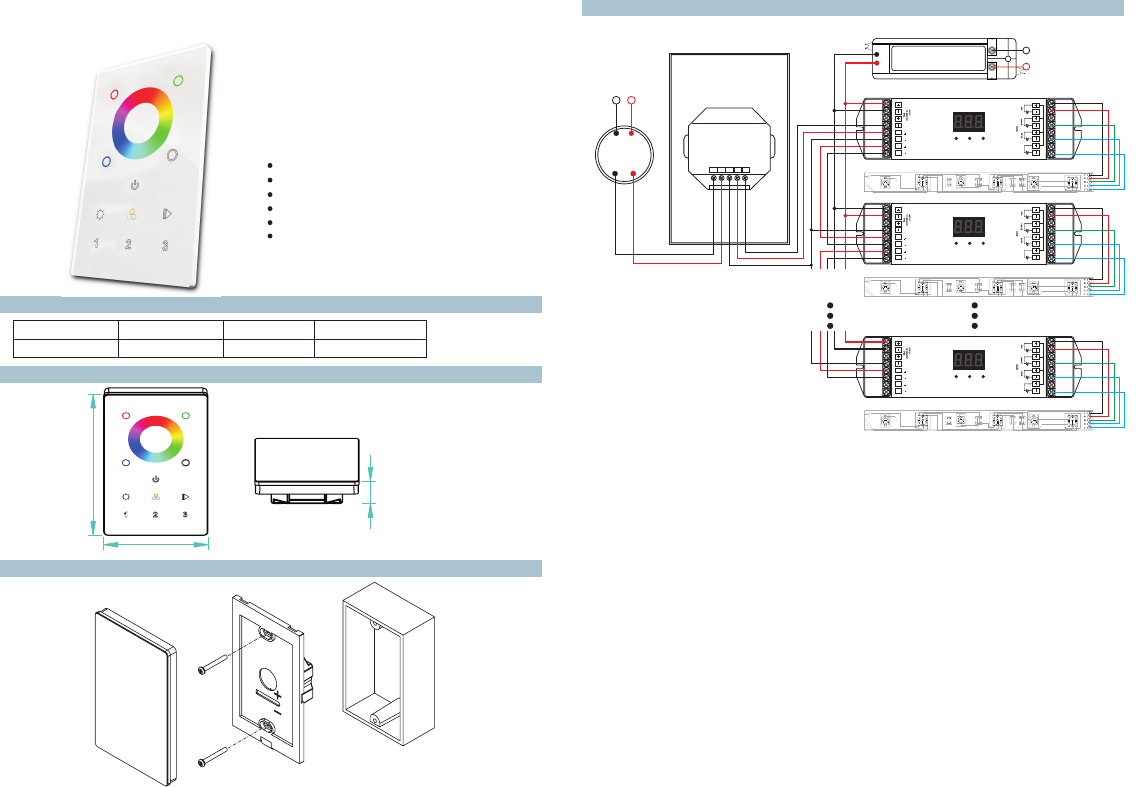

Wall mounted DMX512 Master
Parameter
Product Size
1 zone
Touch sensitive
Suitable for USA market
Feature
SR-2812Wi(US)
Glass interface(White & Black)
Save color and mode function
Part No. Operation Voltage DIMENSIONS
ø/h (mm)
OUTPUT
SR-2812Wi(US) 12VDC 120x75x29.1
WIFI
Installation
Wiring diagram
D- GND
LN
110V-230VAC
Power Supply
12 VDC
GND D+
SR-2812Wi(US)
120.0
75.0
29.1
Vin
Power Supply
12-36VDC
LN
110V-230VAC
D1 D1 D2 D2
SR-2102B
DMX512 Decoder
GND
white
D1 D1 D2 D2
SR-2102B
DMX512 Decoder
GND
white
D1 D1 D2 D2
SR-2102B
DMX512 Decoder
GND
white
Power Supply
12-36VDC
LN
100V-240VAC
white
SR-1009FA
LED CONTROLLER
1234
Learning Key
white
SR-1009FA
LED CONTROLLER
1234
Learning Key
white
SR-1009FA
LED CONTROLLER
1234
Learning Key
3)RF SR-2812(US) with SR-1009XX
1)DMX SR-2812(US) with DMX decoder
RF WIFI

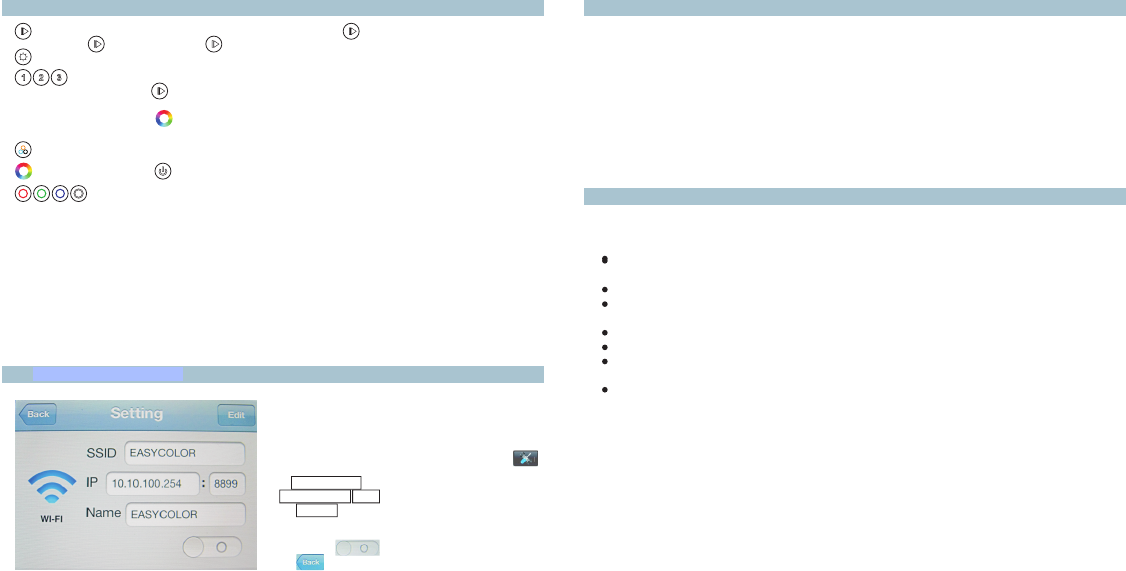

Operation
Play&pause button. There is only 1 build-in mode. When you touch button, it will run.
Long press speed up, long press again speed down.
Brightness
Button can save the three color from mode or save color when you touch color wheel.
When you press this button, 1 build-in mode will run, if now you see a favorite mode, then you
can press "S" button for 5 seconds until connected lighting flashes. Then it saved successfully.
When you touch color wheel, if you touch a favorite color on it, then you want to save it, then
you press "S" button for 5 seconds until the connected lighting flashes. Then it saved successfully.
For Warm white, Natural white, Cool white changing.(Through the three RGB color mixing)
Touching wheels Switch off and on, long press means default setting
Short press means switch on and off for each channel. 1st Long press means brightness+, 2nd
Long press means brightness—.
At the corner of the panel there is a signal light, Blue means on, Red means off
Please set the connected DMX Decoders’ address to be 001 only.
when SR-2812Wi(US) is used under wireless RF wall mounted dimmer
Learning process
a. Wake up the panel by touching ON/OFF button.
b. Press at learning button on receiver.
c.Then touch color wheel.
d.Connected LED l ight wi l l bl ink
e . Press at learning button on receiver over 5 seconds unti l LED l ight flash, then delete the
learned ID.
Safety & Warnings
Warranty Agreement
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
1) We provide lifelong technical assistance with this product:
3-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 3-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
IOS or android system connection to the SR-2812Wi(US)
a.Download app to phone. Open wifi connection setting
interface,connect your phone to EASYCOLOR or
Realcolor network.
b.Open EASYCOLOR installed on the phone , press
to the setting interface, and enter the following:
SSID:EASYCOLOR
IP: 10.10.100.254 8899
Name: (the name you want or don’t enter
anything.)
c.Press button to turn it on ,and press
button to back to the main operation interface.
Wifi to DMX function
the app is 8 zone control, so you may set more zones for the WiFi control as below:
DMX decoder’s address 001 is controlled by Zone 1
DMX decoder’s address 005 is controlled by Zone 2
DMX decoder’s address 009 is controlled by Zone 3
DMX decoder’s address 013 is controlled by Zone 4
DMX decoder’s address 017 is controlled by Zone 5
DMX decoder’s address 021 is controlled by Zone 6
DMX decoder’s address 025 is controlled by Zone 7
DMX decoder’s address 029 is controlled by Zone 8
38
FCC Certification Requirements
Caution: Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
