Sunwave Communications R211CD Remote Unit User Manual Preface

Sunwave Communications Co., Ltd Remote Unit Preface

User manual-rev4

SUNWAVE’S GLOBAL CHANNEL
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
2 Revision 1.0.1
©Copyright Zenic8 Ltd.
Zenic8 Ltd.
YHC Tower, No. 1 Sheung Yuet Road,
Kowloon, Hong Kong
Tel: +85 2 8120 6234
Email: Support@Zenic8.com
This publication is issued to provide outline information
and is not aimed to be part of any offer and contract.
The Company has a policy of continuous product
development and improvement and we therefore reserve
the right to vary information quoted without prior notice.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
3 Revision 1.0.1
Table of Contents
0. Preface ............................................................................................................................................................................. 10
0.1. Safety Instructions ........................................................................................................................................... 10
0.2. Warning Marks ................................................................................................................................................ 13
0.3. Electrostatic Protection ................................................................................................................................... 14
0.4. Standards ......................................................................................................................................................... 14
0.5. Abbreviations ................................................................................................................................................... 14
1. System Overview ............................................................................................................................................................. 16
1.1. Overview .......................................................................................................................................................... 16
1.2. Operating Fundamentals ................................................................................................................................. 16
1.3. Technical Specifications ................................................................................................................................... 16
1.4. System Framework .......................................................................................................................................... 16
1.5. Networking Layout........................................................................................................................................... 17
2. Operations and Maintenance Terminal ........................................................................................................................... 19
2.1. Introduction to the OMT ................................................................................................................................. 19
2.2. Accessing the OMT .......................................................................................................................................... 19
2.2.1. Wired Access to the OMT on the Master AU ........................................................................................... 19
2.2.2. Wired Access to the OMT on the Slave AU, EU and RU ........................................................................... 21
2.2.3. Wireless Access (for AU and EU) .............................................................................................................. 23
2.2.4. USB Access ............................................................................................................................................... 27
2.3. OMT Display ..................................................................................................................................................... 28
2.3.1. Login ........................................................................................................................................................ 28
2.3.2. Homepage and Basic Functions ............................................................................................................... 28
2.3.3. Users Management .................................................................................................................................. 32
2.3.4. Displaying the System Topology .............................................................................................................. 34
3. AU Instructions ................................................................................................................................................................ 36
3.1. AU Physical Appearance .................................................................................................................................. 36
3.2. AU Front Panel ................................................................................................................................................. 36
3.3. AU Back Panel .................................................................................................................................................. 37
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
4 Revision 1.0.1
3.4. AU Active Combiner ......................................................................................................................................... 38
3.5. Indicator Descriptions ...................................................................................................................................... 38
3.6. Master / Slave AU Selection............................................................................................................................. 39
3.7. OMT Parameters, Alarms and Commands for the AU ..................................................................................... 40
3.7.1. AU User and Network Parameters ........................................................................................................... 41
3.7.2. AU Alarms ................................................................................................................................................ 43
3.7.3. AU System Info ......................................................................................................................................... 43
3.7.4. AU Band Config ........................................................................................................................................ 44
3.7.5. AU Digital Info .......................................................................................................................................... 45
3.7.6. AU Combiner............................................................................................................................................ 45
3.7.7. AU Engineering Information .................................................................................................................... 45
3.7.8. AU Command ........................................................................................................................................... 46
4. EU Instructions ................................................................................................................................................................ 47
4.1. EU Physical Appearance ................................................................................................................................... 47
4.2. EU Front Panel ................................................................................................................................................. 47
4.3. EU Back Panel .................................................................................................................................................. 48
4.4. Indicator Description ....................................................................................................................................... 48
4.5. OMT Parameters, Alarms and Commands for the EU ..................................................................................... 49
4.5.1. EU User Parameters ................................................................................................................................. 49
4.5.2. EU Alarms ................................................................................................................................................ 49
4.5.3. EU System Info ......................................................................................................................................... 50
4.5.4. EU Engineering Information .................................................................................................................... 50
4.5.5. EU Digital Info .......................................................................................................................................... 51
4.5.6. EU Command ........................................................................................................................................... 51
5. RU Instructions ................................................................................................................................................................ 52
5.1. RU Physical Appearance .................................................................................................................................. 52
5.2. RU Front Panel ................................................................................................................................................. 52
5.3. Indicator Description ....................................................................................................................................... 53
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
5 Revision 1.0.1
5.4. OMT Parameters, Alarms and Commands for the RU ..................................................................................... 53
5.4.1. RU User Parameters ................................................................................................................................. 54
5.4.2. RU Alarms ................................................................................................................................................ 54
5.4.3. RU System Info ......................................................................................................................................... 55
5.4.4. RU Band Config ........................................................................................................................................ 55
5.4.5. RU Digital Info .......................................................................................................................................... 55
5.4.6. RU Actual Gain ......................................................................................................................................... 56
5.4.7. RU Engineering Information .................................................................................................................... 56
5.4.8. RU Command ........................................................................................................................................... 57
6. Installation and Connections ........................................................................................................................................... 58
6.1. Installation Preparation ................................................................................................................................... 58
6.1.1. Client Cooperation ................................................................................................................................... 58
6.1.2. Site Investigation ...................................................................................................................................... 58
6.1.3. Installation Tools ...................................................................................................................................... 58
6.2. Unpacking and Inspecting the Device .............................................................................................................. 58
6.2.1. Inspecting the Packing Container ............................................................................................................ 59
6.2.2. Unpacking the Device .............................................................................................................................. 59
6.2.3. Verifying the Contents ............................................................................................................................. 59
6.2.4. Inspecting the Device .............................................................................................................................. 59
6.3. Device Installation ........................................................................................................................................... 60
6.3.1. Rack Installation (Only for AU and EU) .................................................................................................... 60
6.3.2. Wall Mounting Installation (for AU and EU) ............................................................................................ 60
6.3.3. Wall Mounting Installation (for RU) ......................................................................................................... 61
6.3.4. Suspension Installation (For AU and EU, Optional) .................................................................................. 65

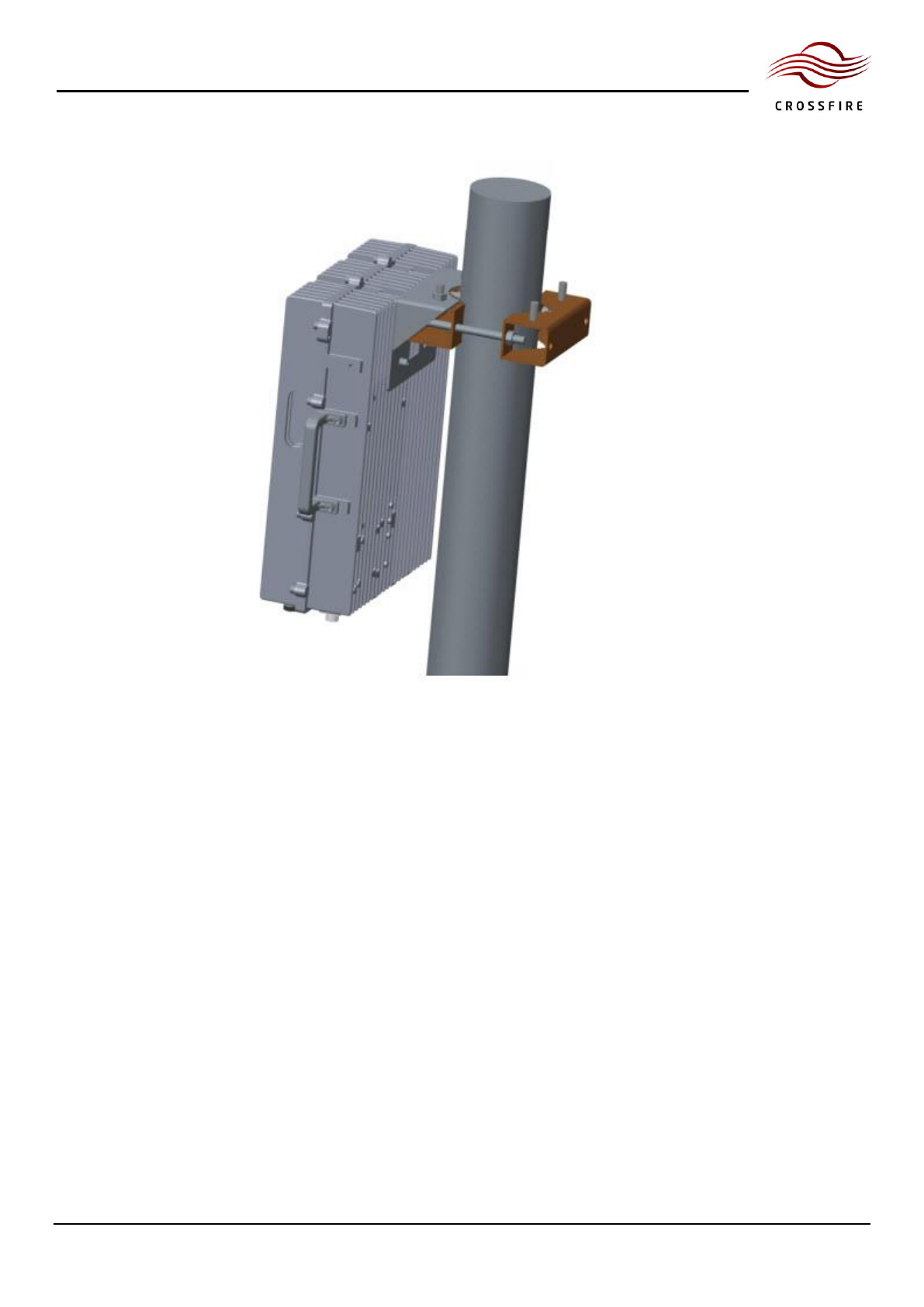

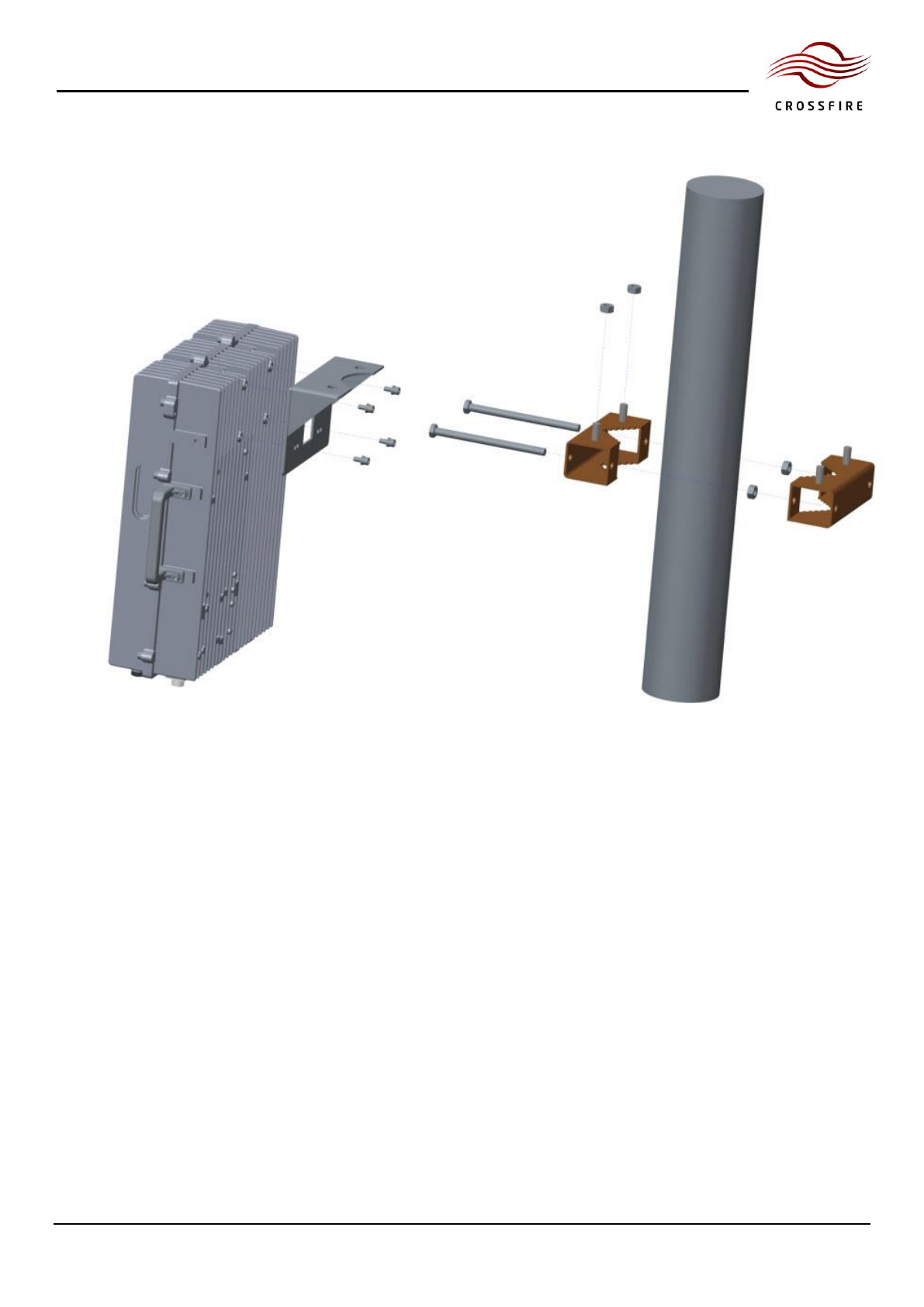

6.3.5. Pole Mounting (Only for RU, Optional) .................................................................................................... 67
6.3.6. Selecting the Installation Site .................................................................................................................. 69
6.4. Device Connections ......................................................................................................................................... 70
6.4.1. Optical Interface Connection ................................................................................................................... 71
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
6 Revision 1.0.1
6.4.2. AU connections ........................................................................................................................................ 73
6.4.3. EU connections ........................................................................................................................................ 74
6.4.4. RU connections ........................................................................................................................................ 74
6.4.5. Standby battery connection .................................................................................................................... 74
6.5. WLAN Access (Wi-Fi) ....................................................................................................................................... 74
7. System Debugging Setup ................................................................................................................................................. 76

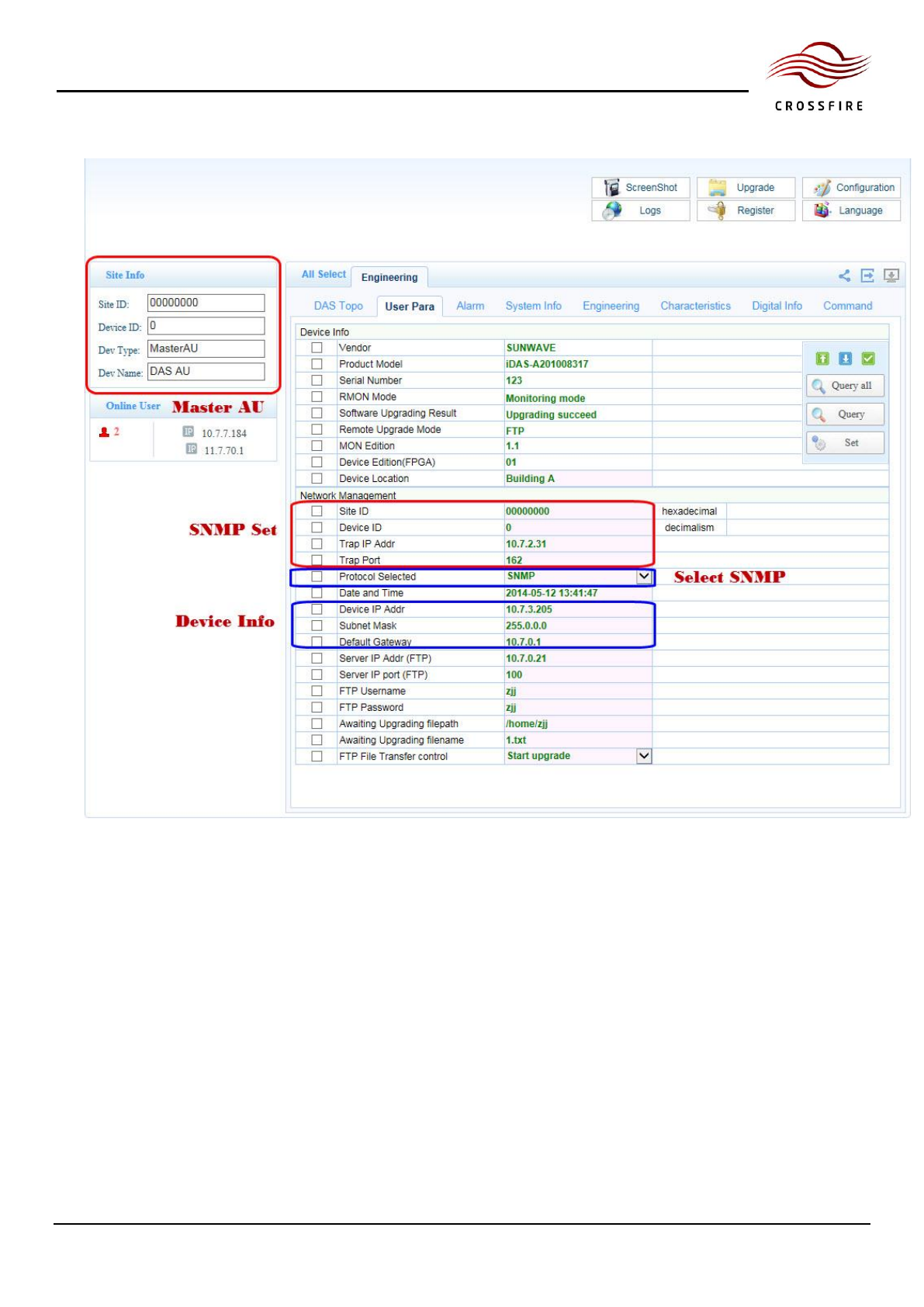

7.1. Network Management System Setup for SNMP .............................................................................................. 77
7.2. Channel Properties Configuration ................................................................................................................... 78
7.3. Channel Gain Adjustment ................................................................................................................................ 80
7.4. Alarm Parameters Setup .................................................................................................................................. 83
7.4.1. Alarm level ............................................................................................................................................... 85
7.4.2. External Alarms ........................................................................................................................................ 85
7.5. Configuring OMT User Parameters .................................................................................................................. 86
8. Software Upgrade ............................................................................................................................................................ 88
8.1. Local Upgrade .................................................................................................................................................. 88
8.2. Remote Upgrade .............................................................................................................................................. 90
9. Device Maintenance ........................................................................................................................................................ 92
9.1. Regular Maintenance ....................................................................................................................................... 92
9.2. Troubleshooting ............................................................................................................................................... 92
10. Application Scenarios .............................................................................................................................................. 93

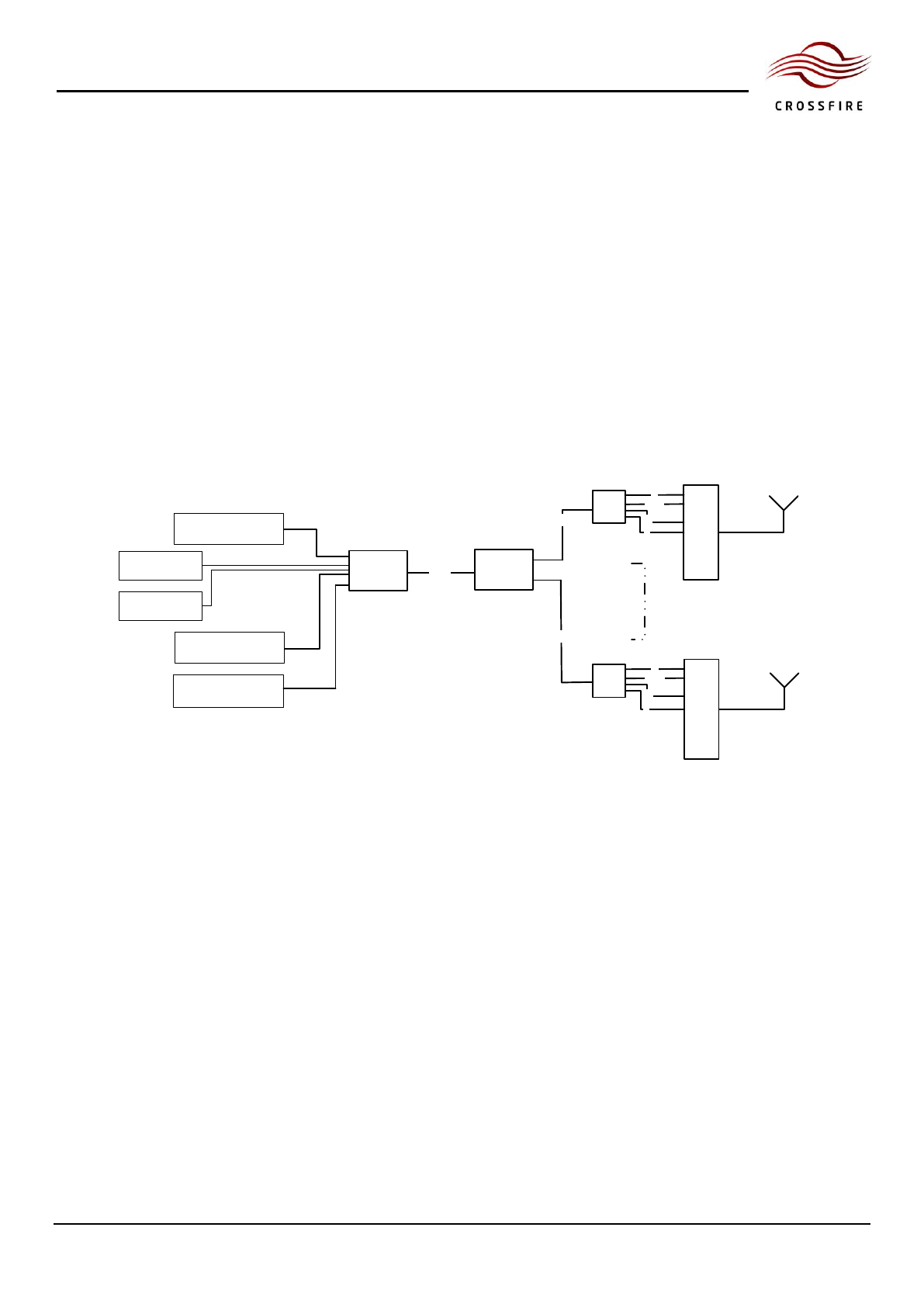

10.1. Operators Located at Same Site ....................................................................................................................... 93

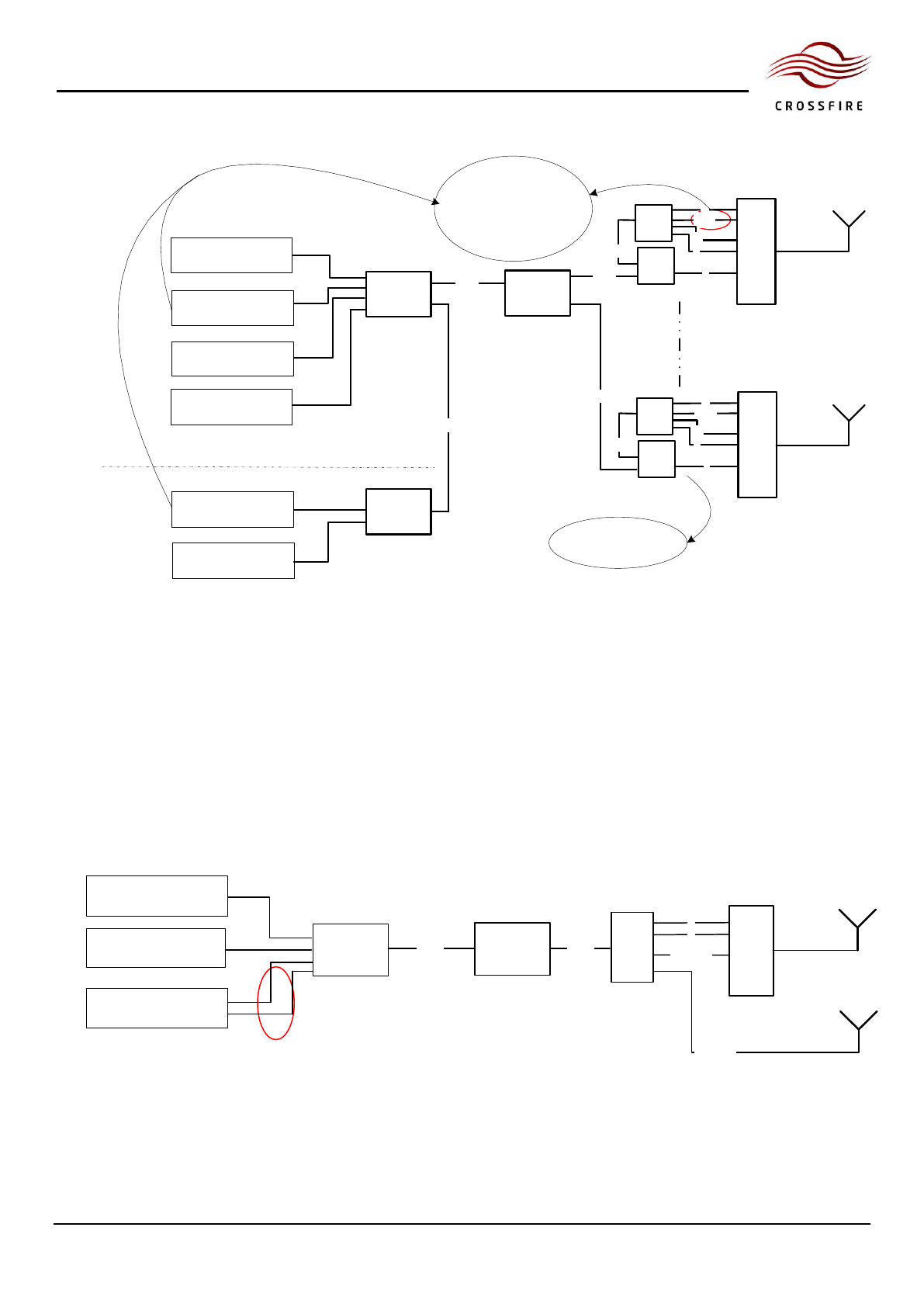

10.2. Operators Located at Separate Sites ................................................................................................................ 93
10.3. MIMO Application ........................................................................................................................................... 94
10.4. RU Cascade Application ................................................................................................................................... 95
10.5. WLAN Application ............................................................................................................................................ 95
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
7 Revision 1.0.1
Table of Figures
Figure 1-1 IDAS Operating Fundamentals ............................................................................................................................... 16

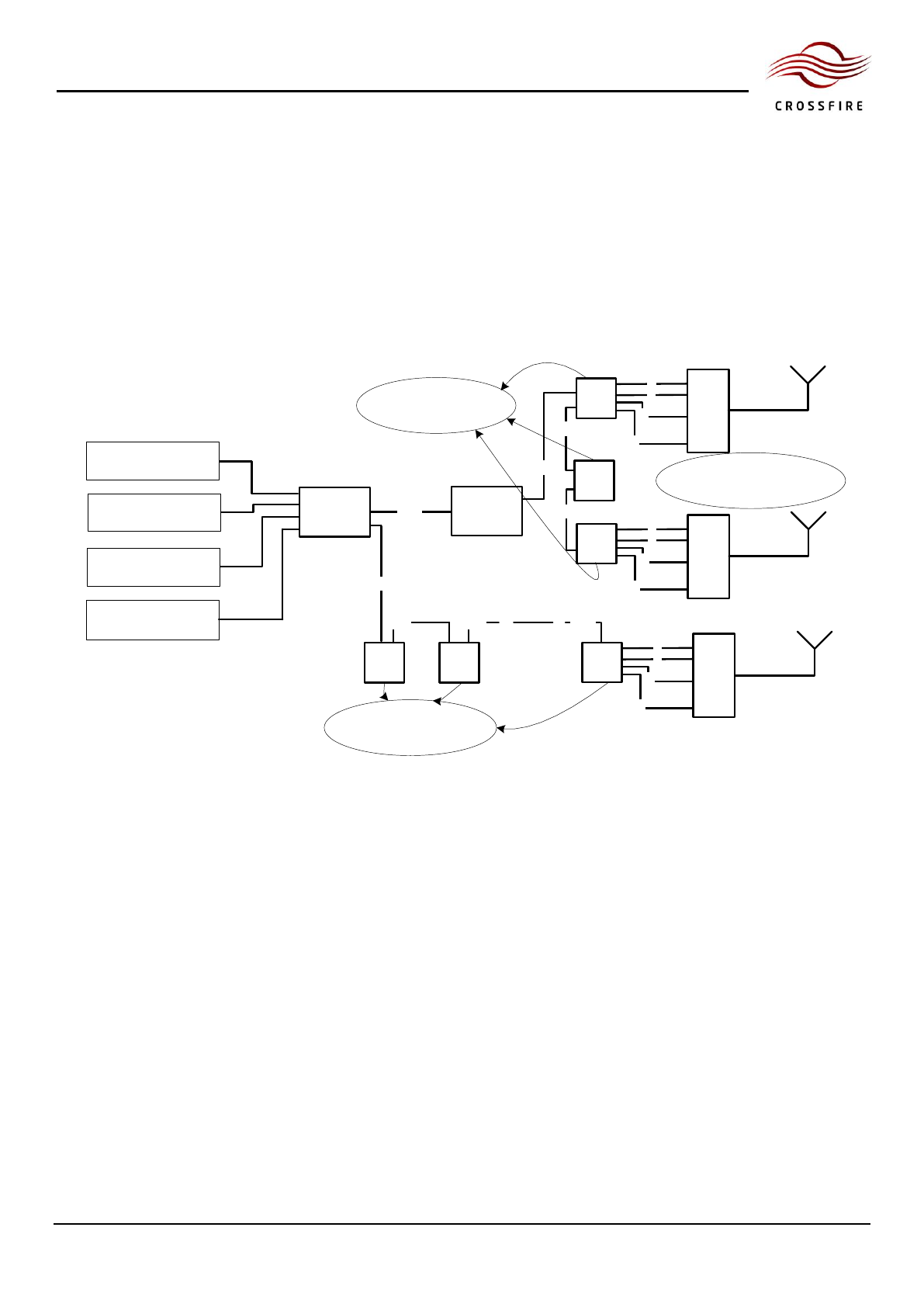

Figure 1-2 Typical System Framework for the IDAS ................................................................................................................. 17

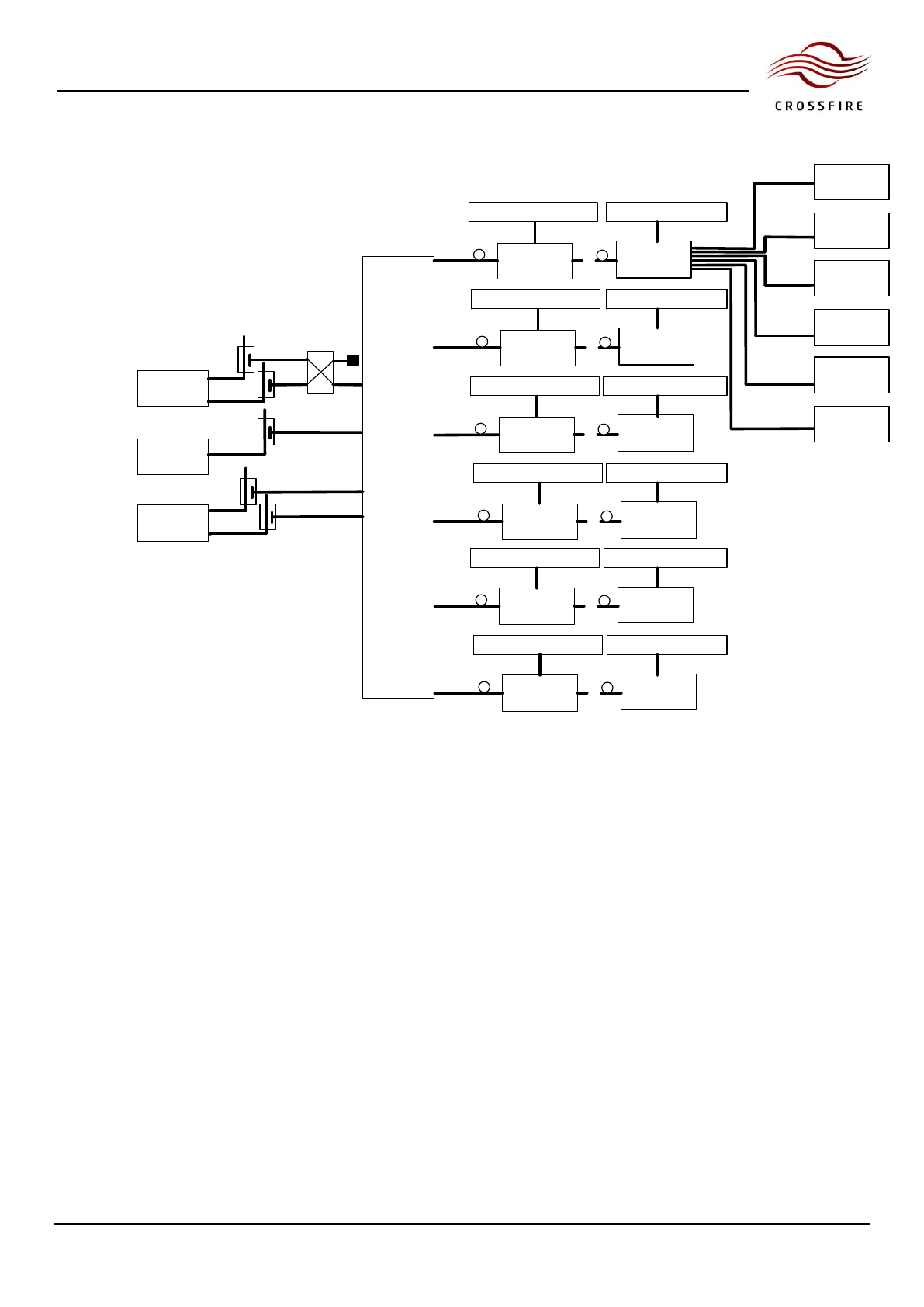

Figure 1-3 Networking Layout ................................................................................................................................................. 18

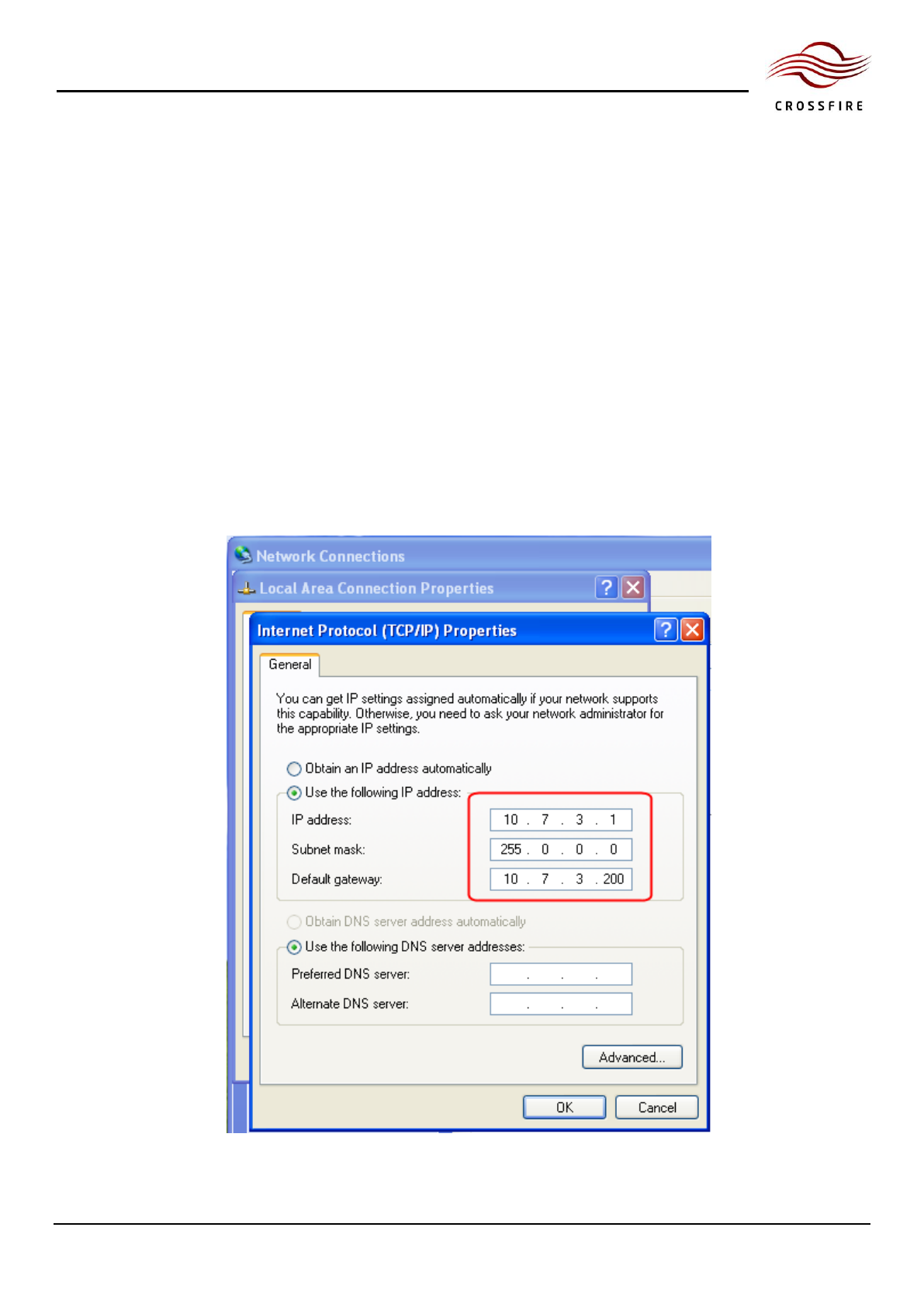

Figure 2-1 Setting up a Wired Connection to the OMT on the Master AU ............................................................................. 20

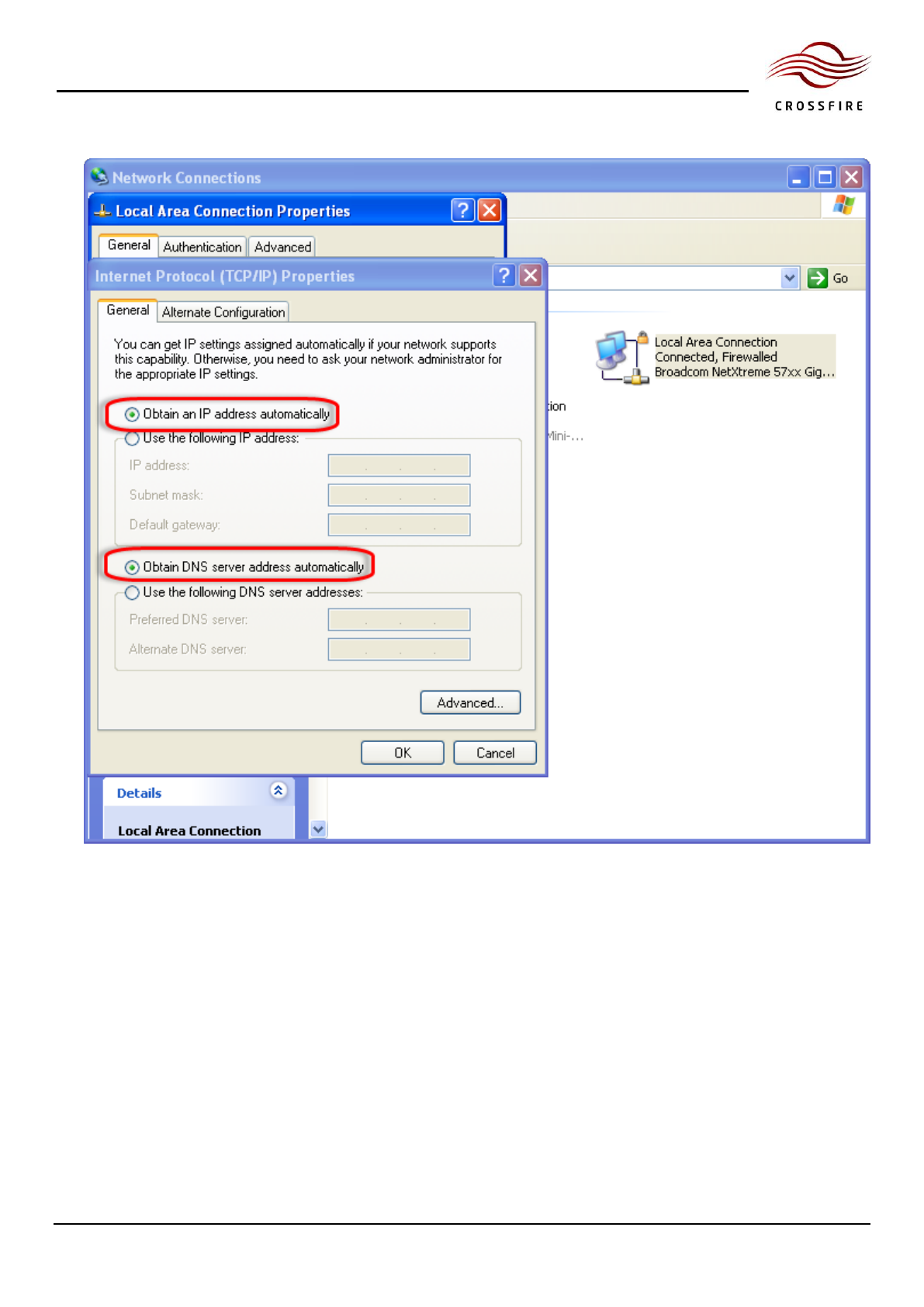

Figure 2-2 Web Browser OMT Connection for Wired Access .................................................................................................. 21
Figure 2-3 Wired access to WebOMT on Slave AU, EU and RU ............................................................................................... 22

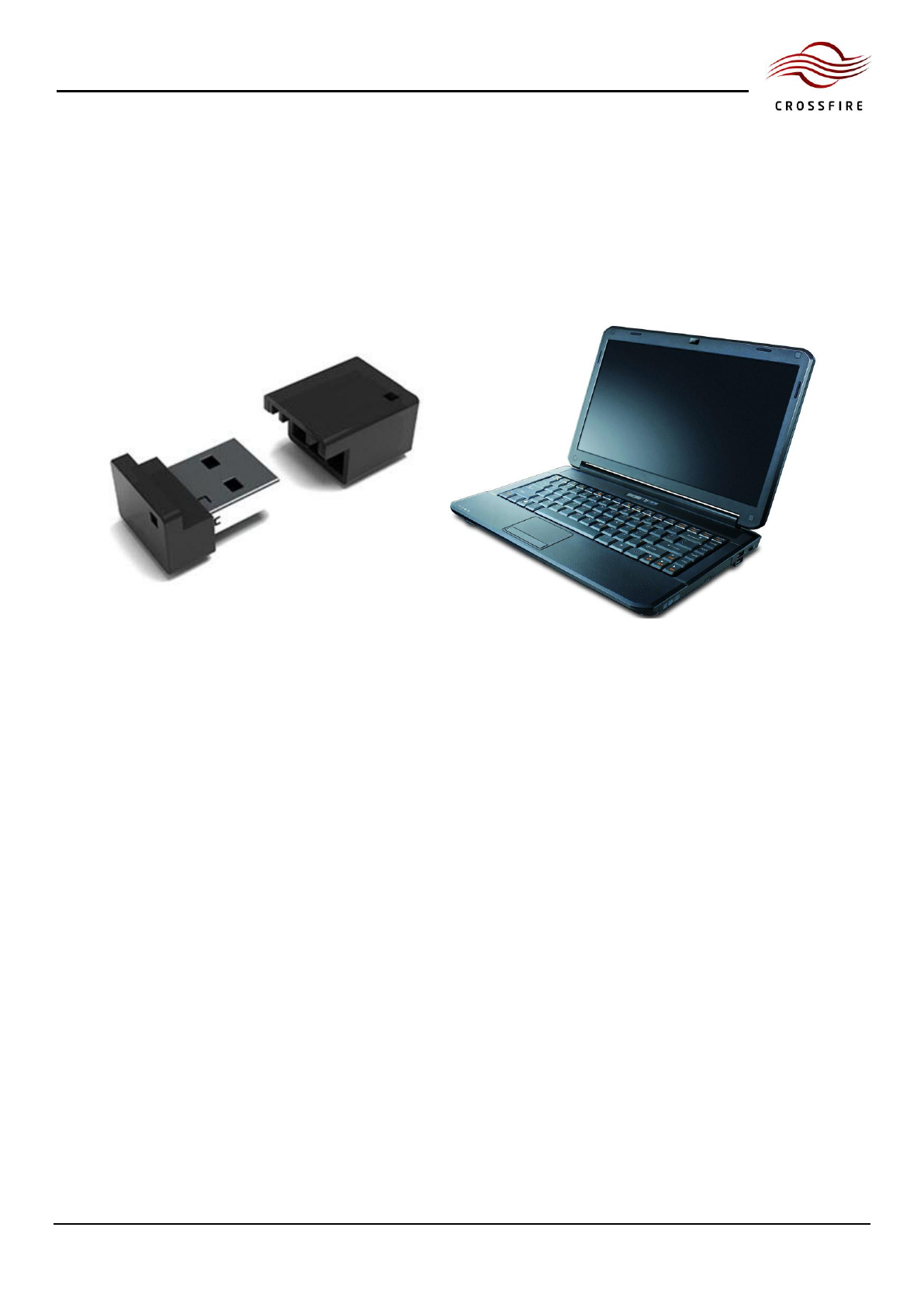

Figure 2-4 Equipment Required for Wireless Access to the OMT ........................................................................................... 23

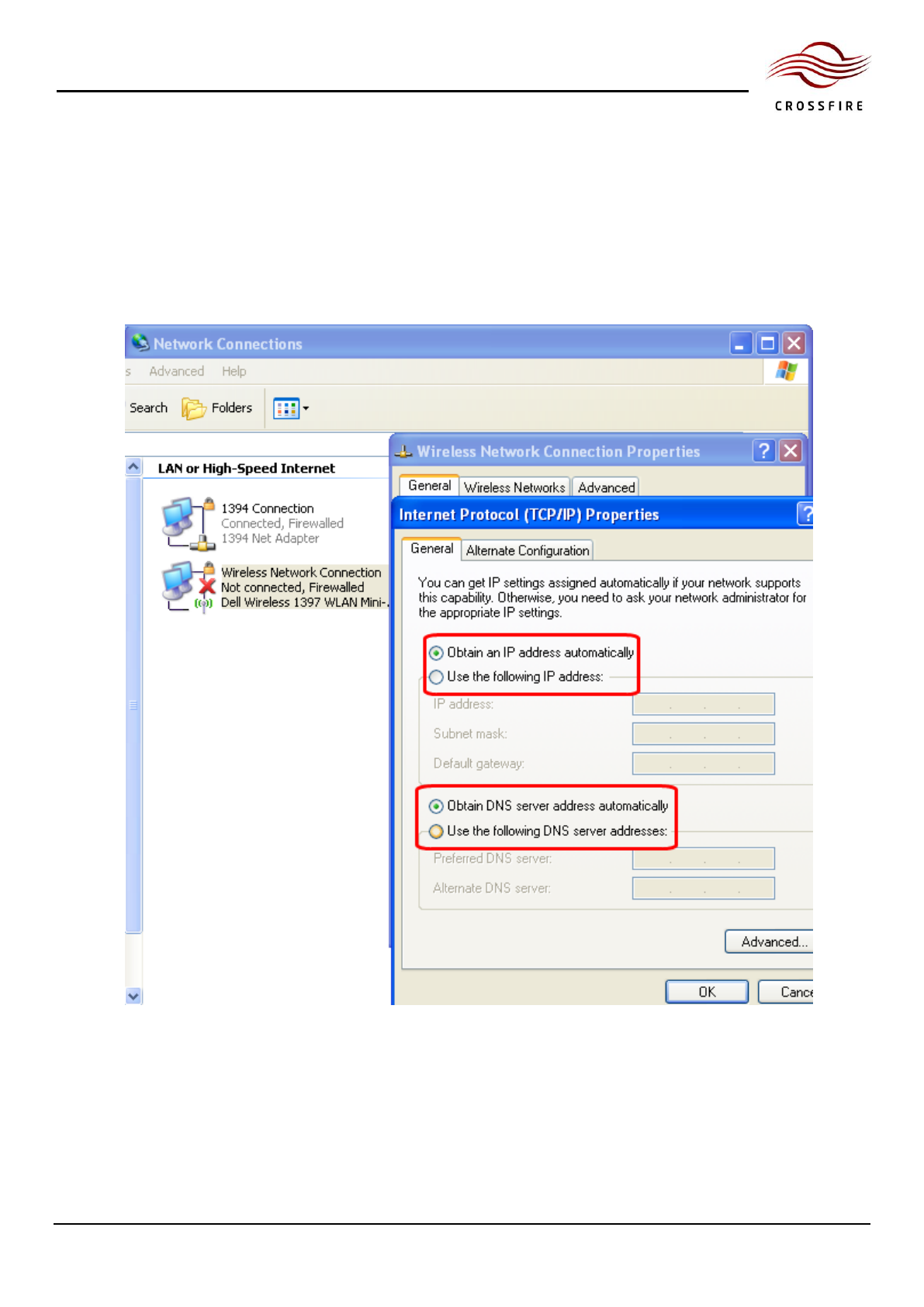

Figure 2-5 Wireless Network Connection Properties for OMT ................................................................................................ 24

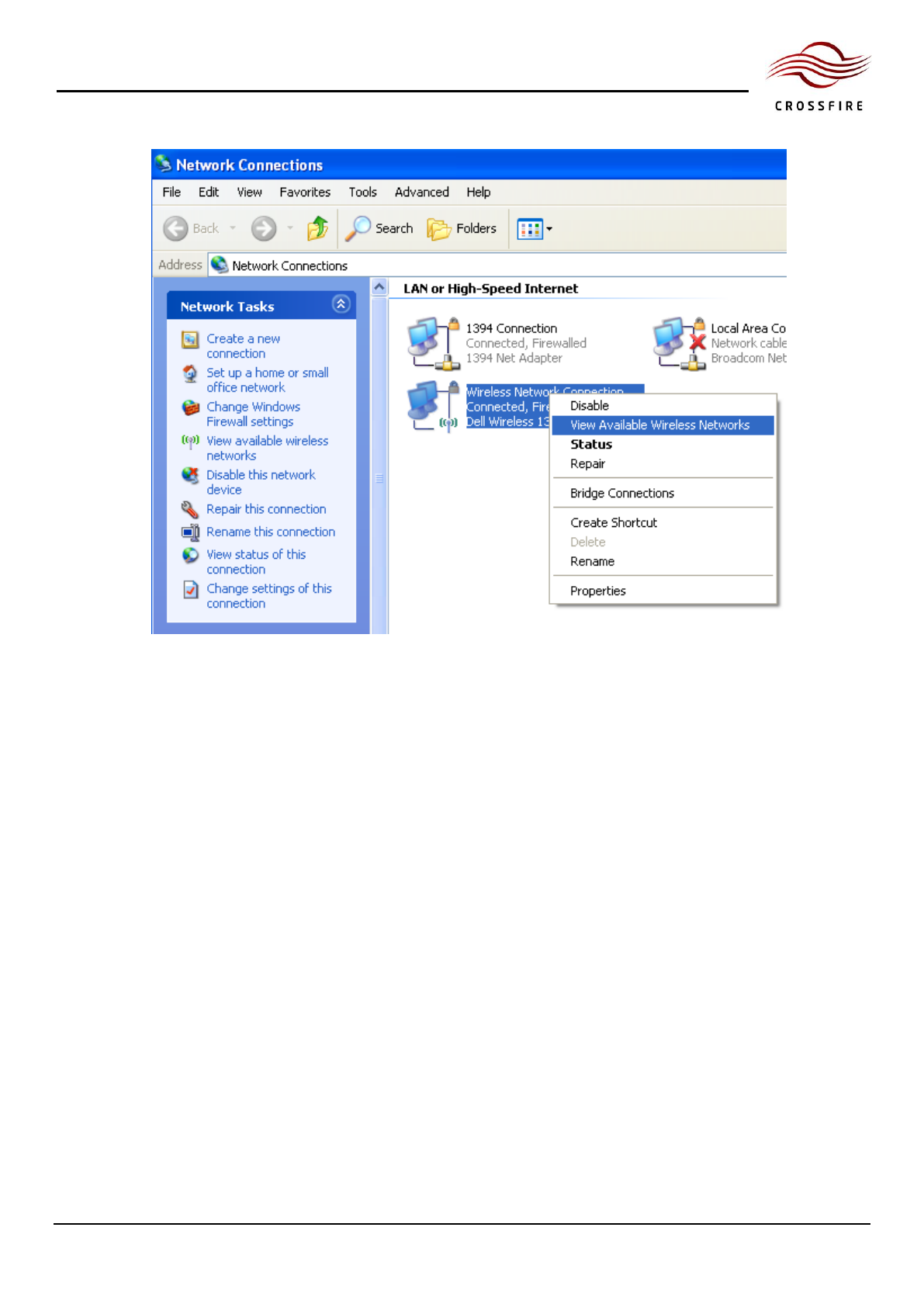

Figure 2-6 Viewing the Available Wireless Networks.............................................................................................................. 25
Figure 2-7 Choosing the Correct Wireless Network ................................................................................................................ 26

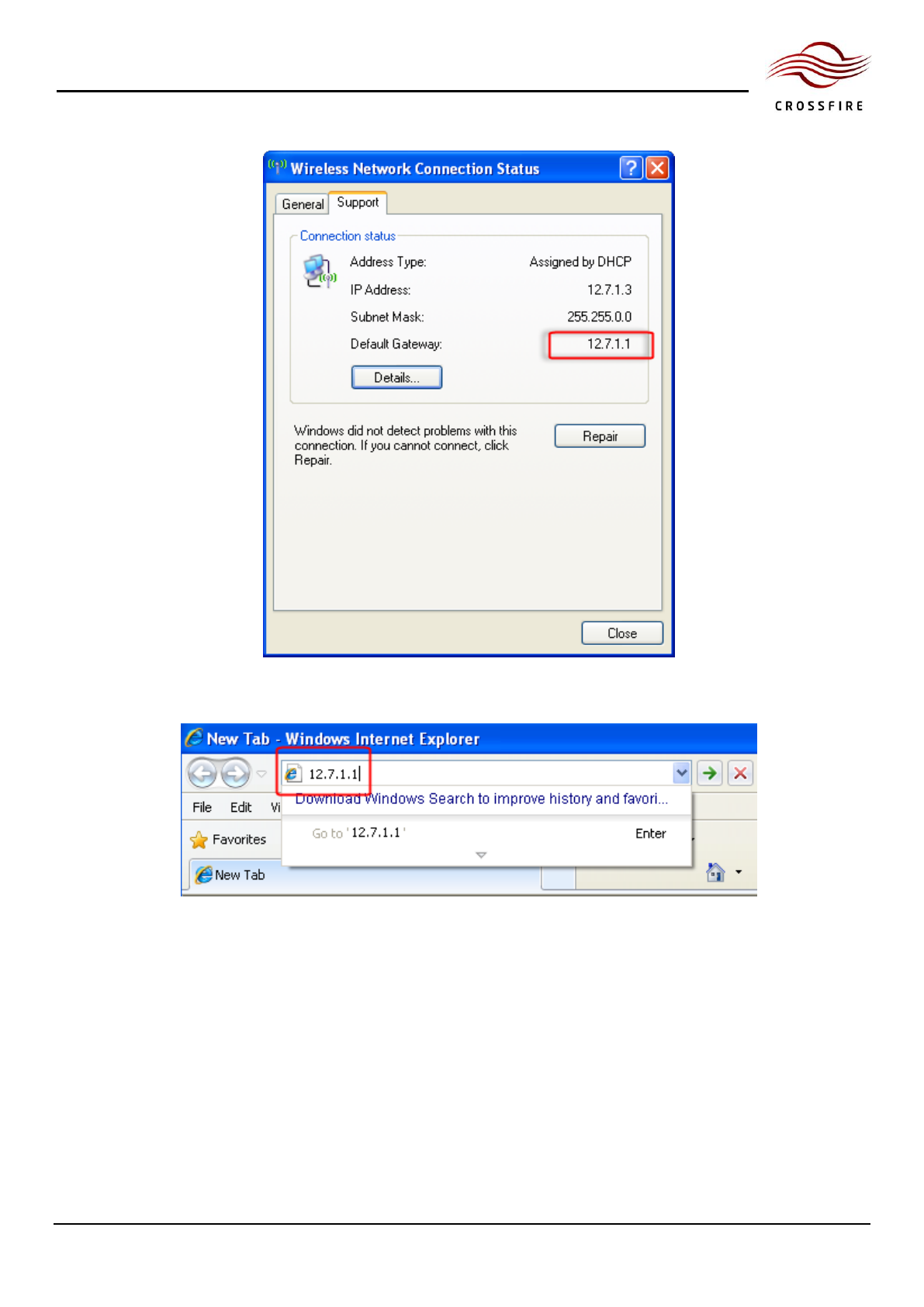

Figure 2-8 Checking the Wireless Network Status .................................................................................................................. 27
Figure 2-9 Connecting to WebOMT ......................................................................................................................................... 27
Figure 2-10 Login Page ............................................................................................................................................................ 28
Figure 2-11 WebOMT Homepage ............................................................................................................................................ 29
Figure 2-12 Screen Shot Capture Success Pop-up Window .................................................................................................... 30

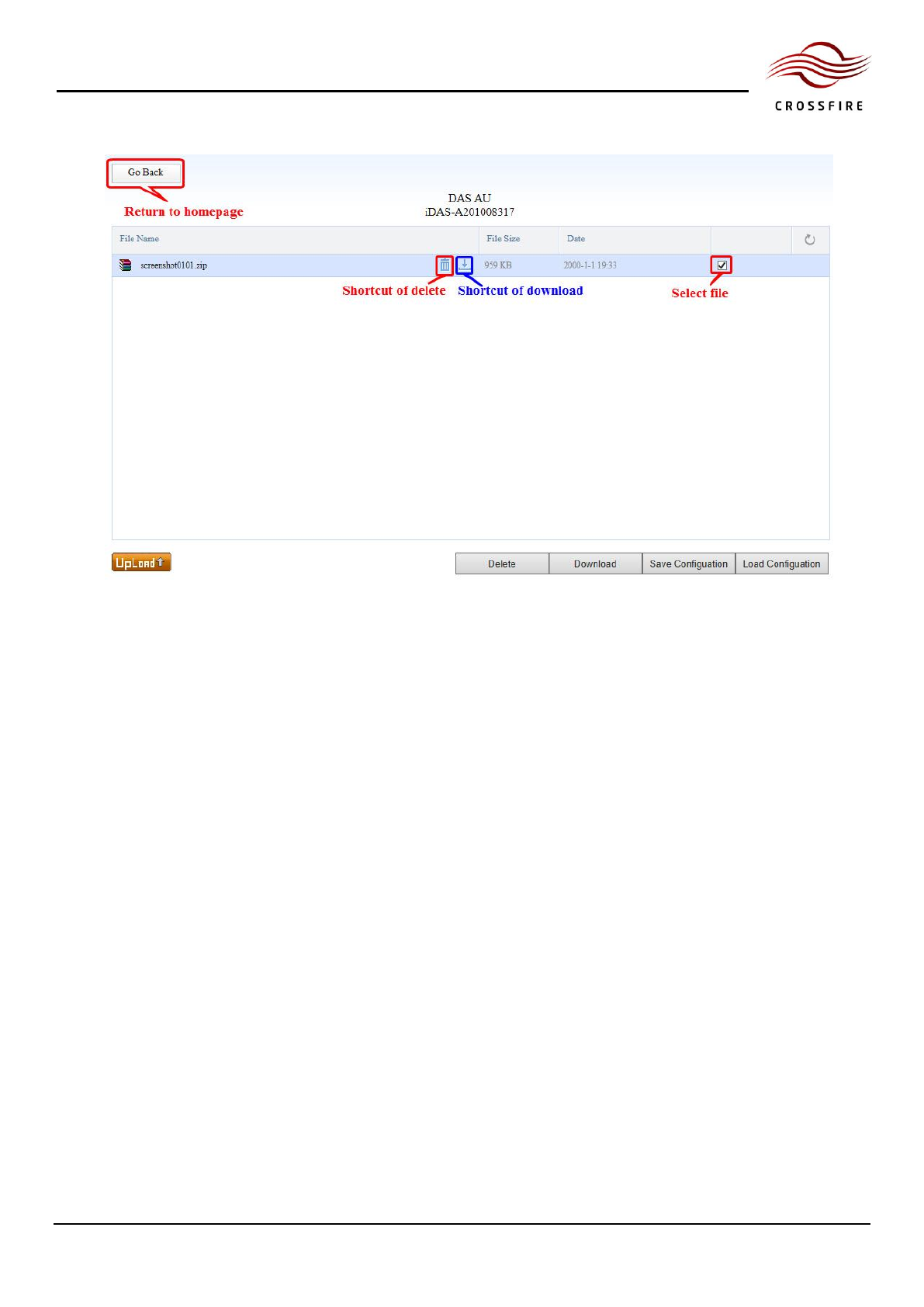

Figure 2-13 Screen Shot Download File .................................................................................................................................. 31
Figure 2-14 Users Management .............................................................................................................................................. 32
Figure 2-15 Add User ............................................................................................................................................................... 32
Figure 2-16 Delete User ........................................................................................................................................................... 33
Figure 2-17 Change Password ................................................................................................................................................. 34

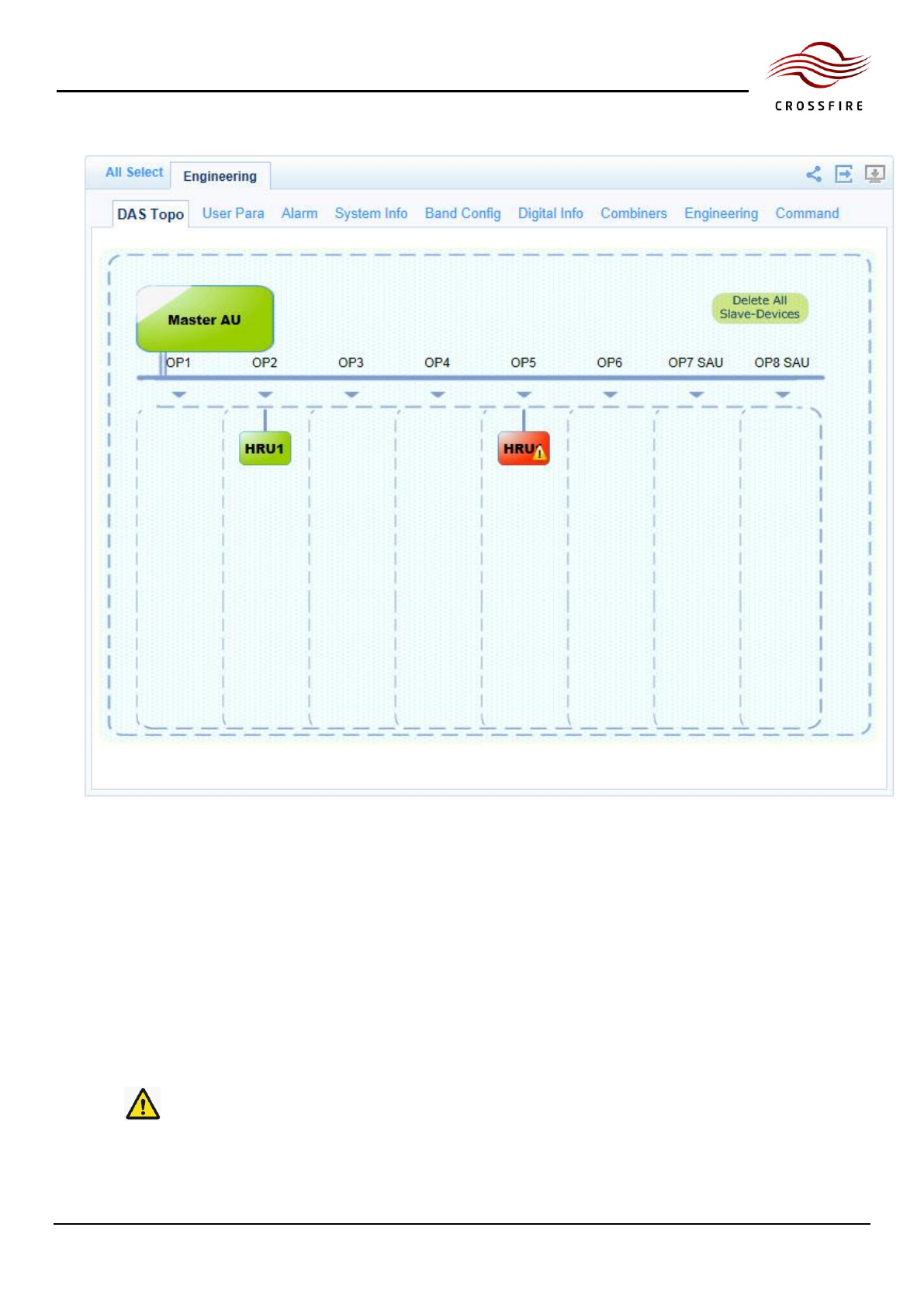

Figure 2-18 Displaying the System Topology ........................................................................................................................... 35

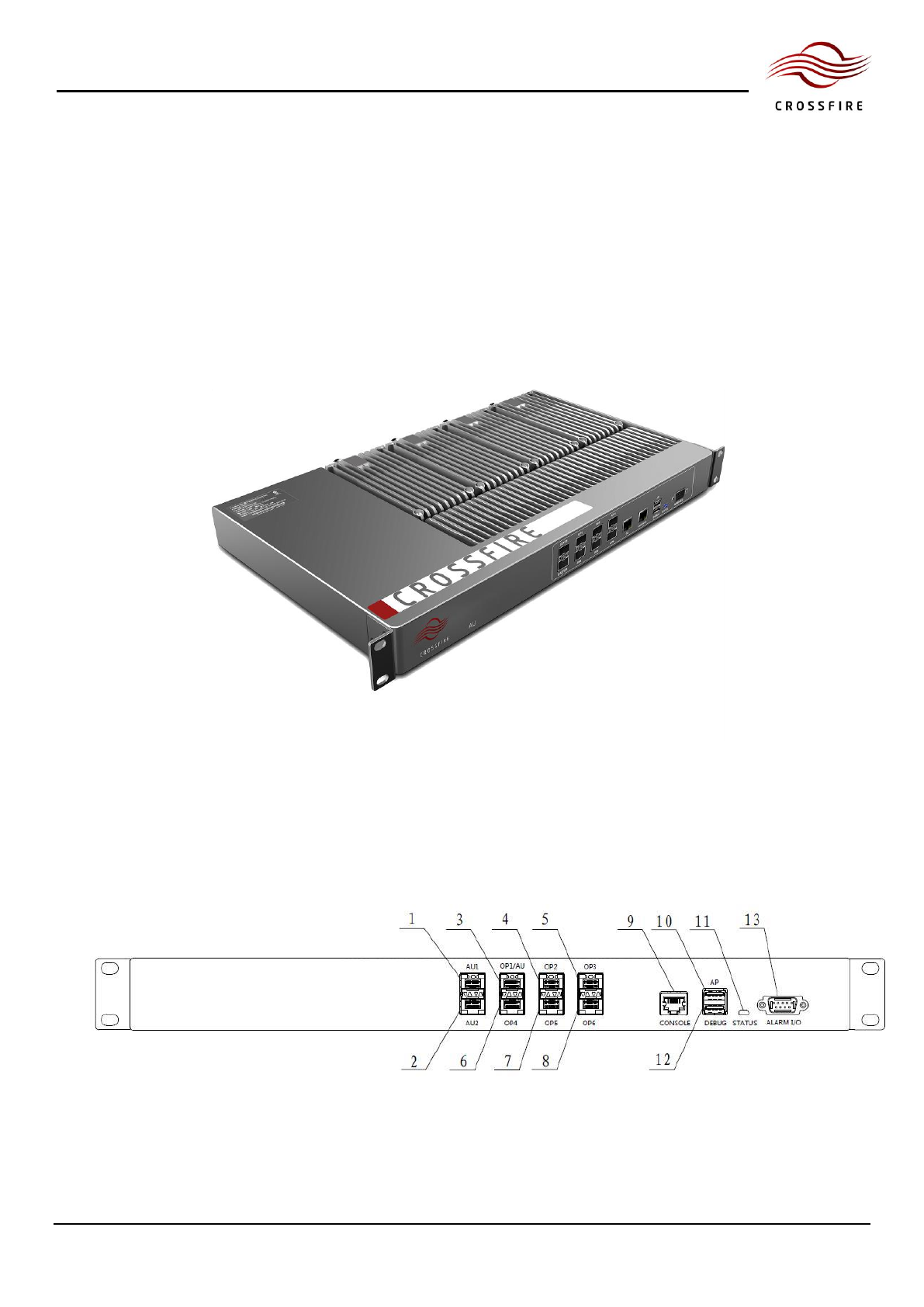

Figure 3-1 Physical Appearance of the AU............................................................................................................................... 36
Figure 3-2 Front Panel of the AU ............................................................................................................................................. 36
Figure 3-3 Back Panel of the AU .............................................................................................................................................. 37
Figure 3-4 AU Active Combiner ............................................................................................................................................... 38

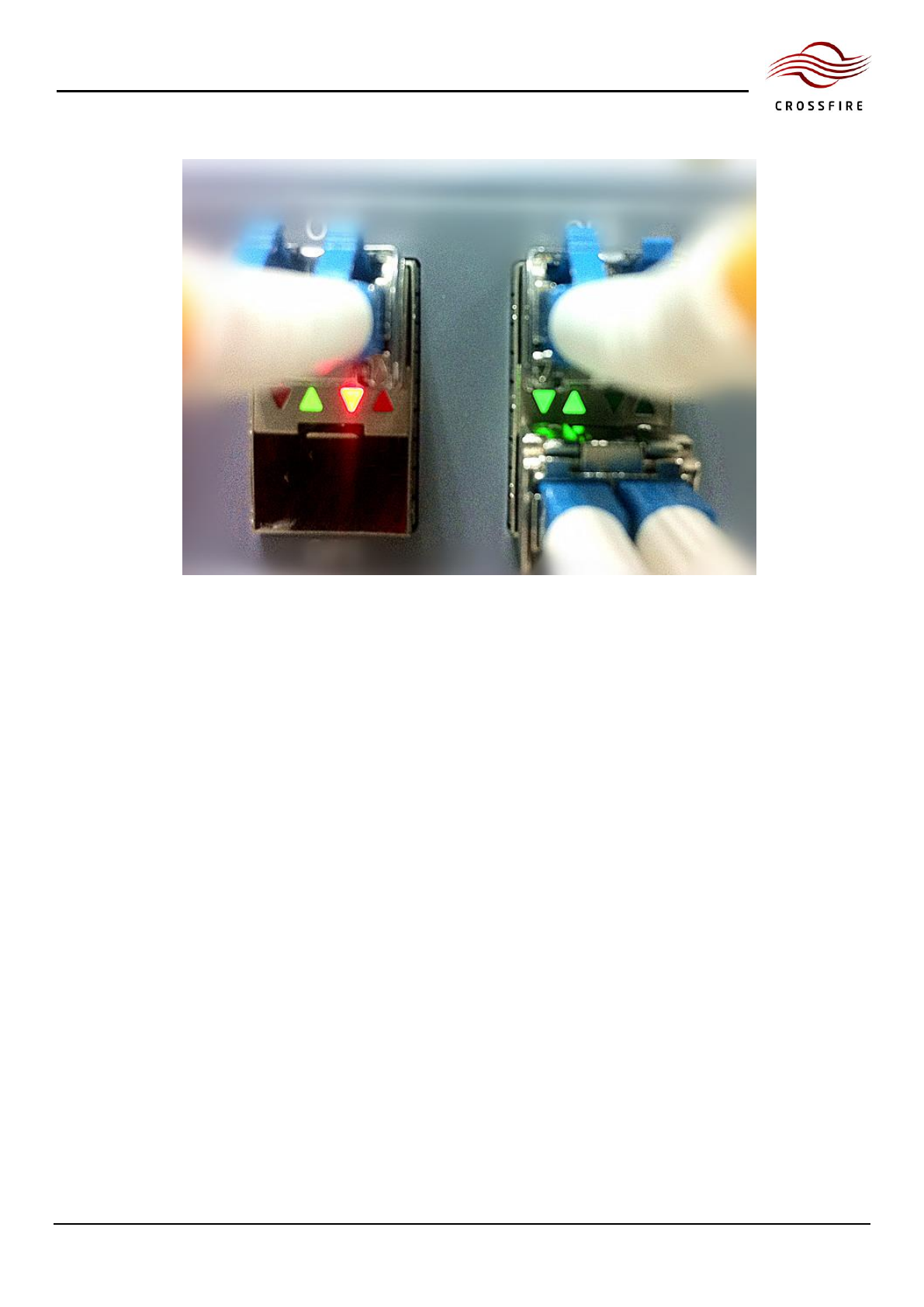

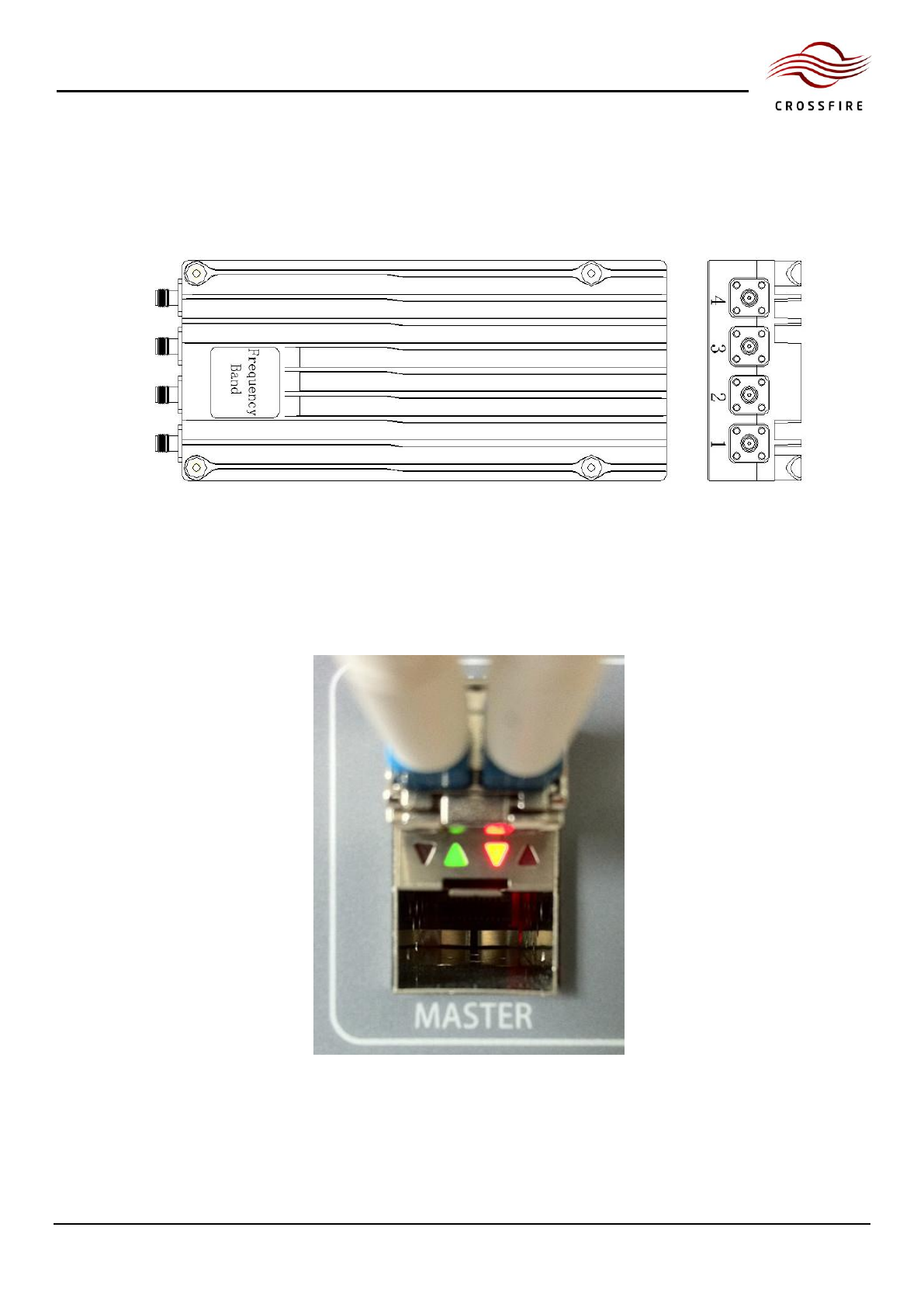

Figure 3-5 Optical Indicators.................................................................................................................................................... 38

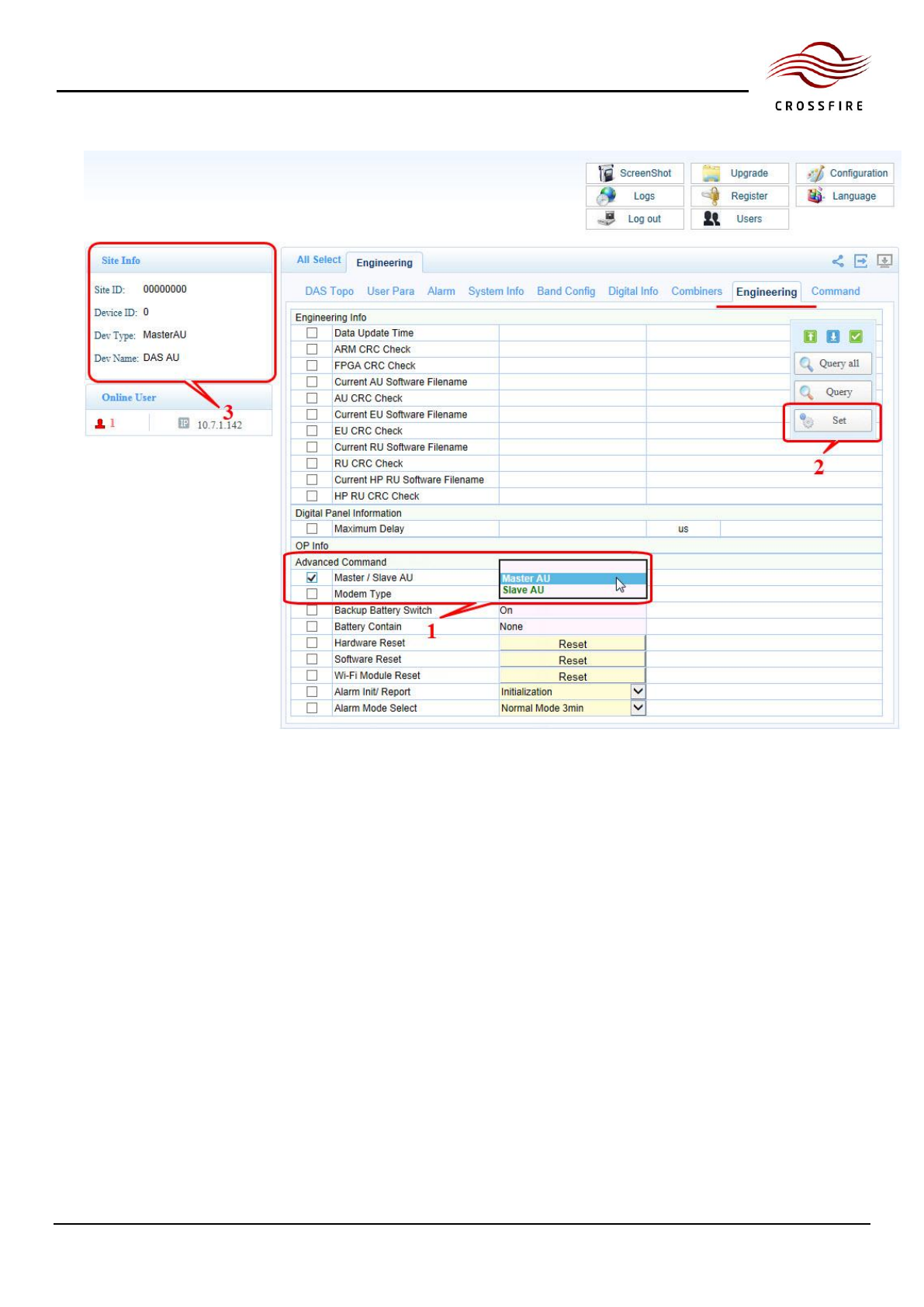

Figure 3-6 Master / Slave AU Selection ................................................................................................................................... 40
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
8 Revision 1.0.1
Figure 4-1 Physical Appearance of the EU ............................................................................................................................... 47
Figure 4-2 Front Panel of the EU ............................................................................................................................................. 47

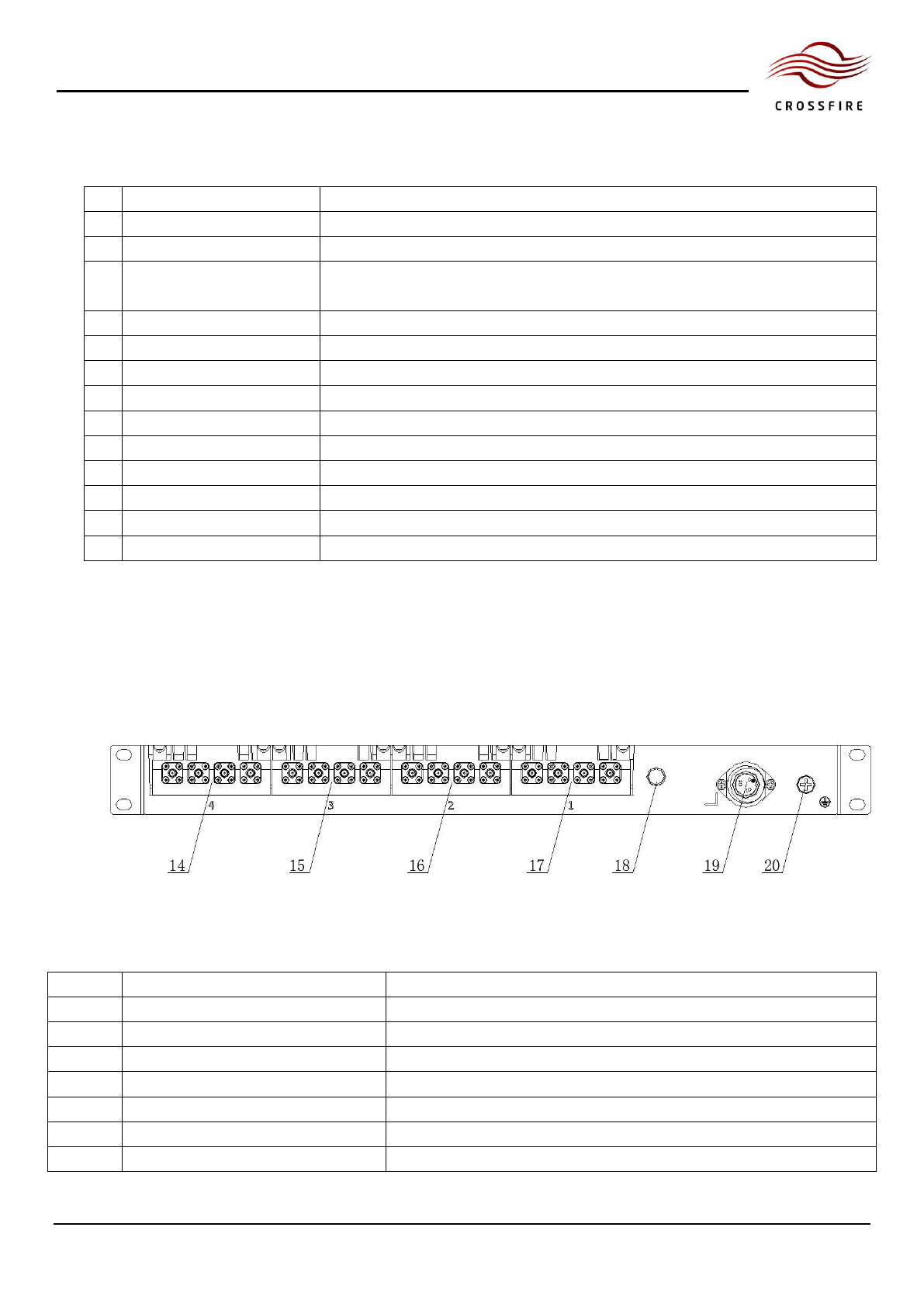

Figure 4-3 Back Panel of the EU .............................................................................................................................................. 48
Figure 5-1 Physical Appearance of the RU ............................................................................................................................... 52

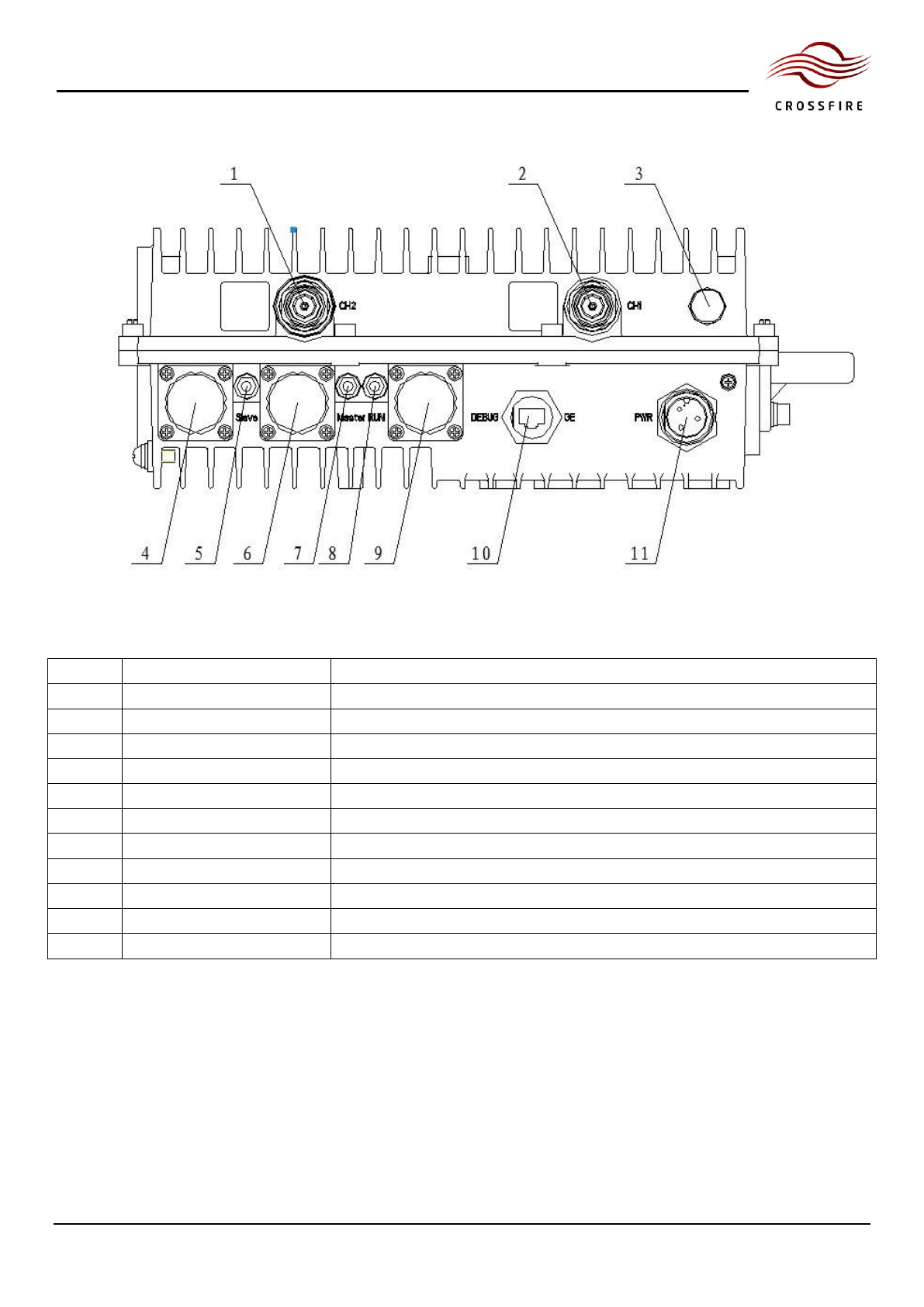

Figure 5-2 Front Panel of the RU ............................................................................................................................................. 53

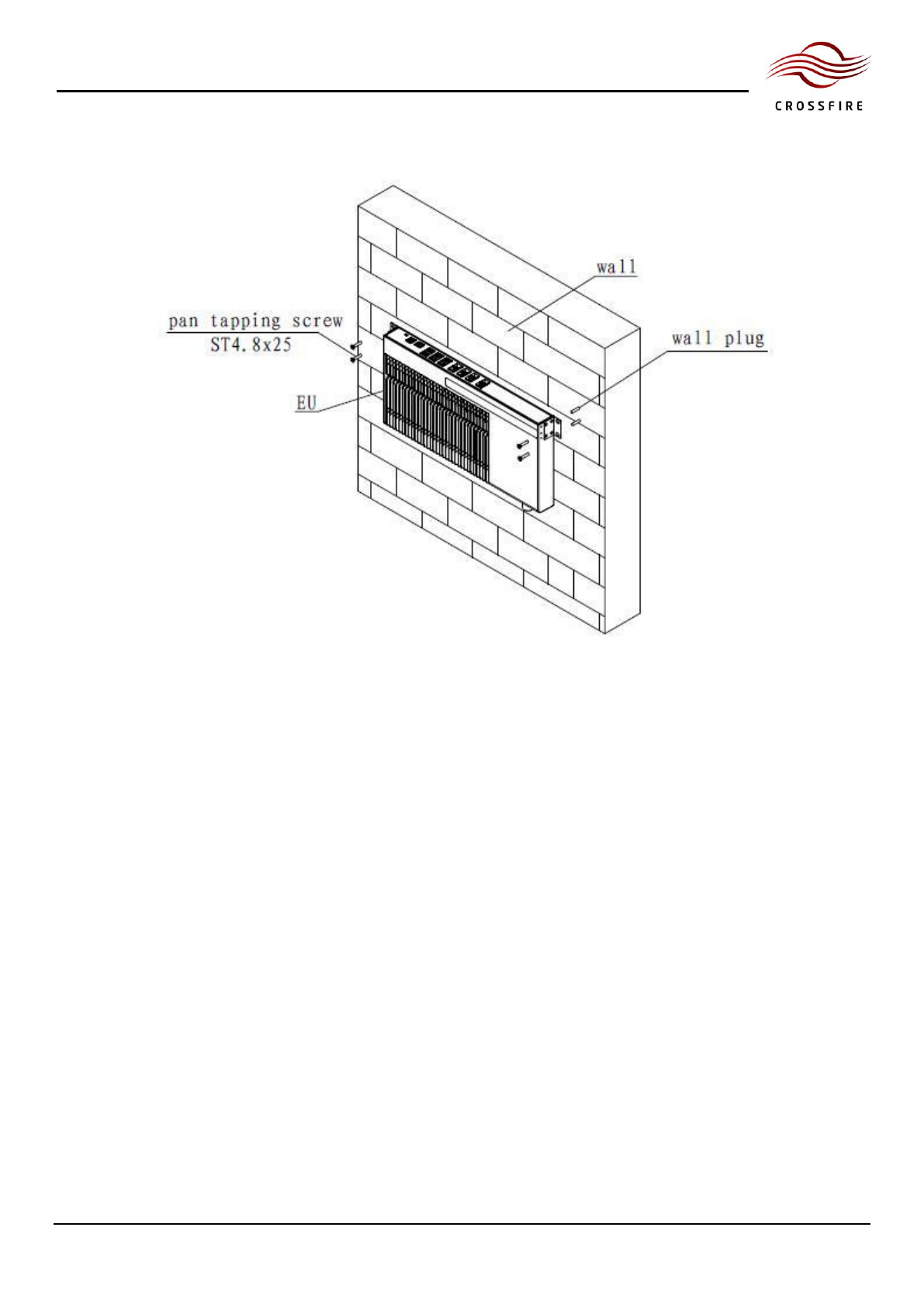

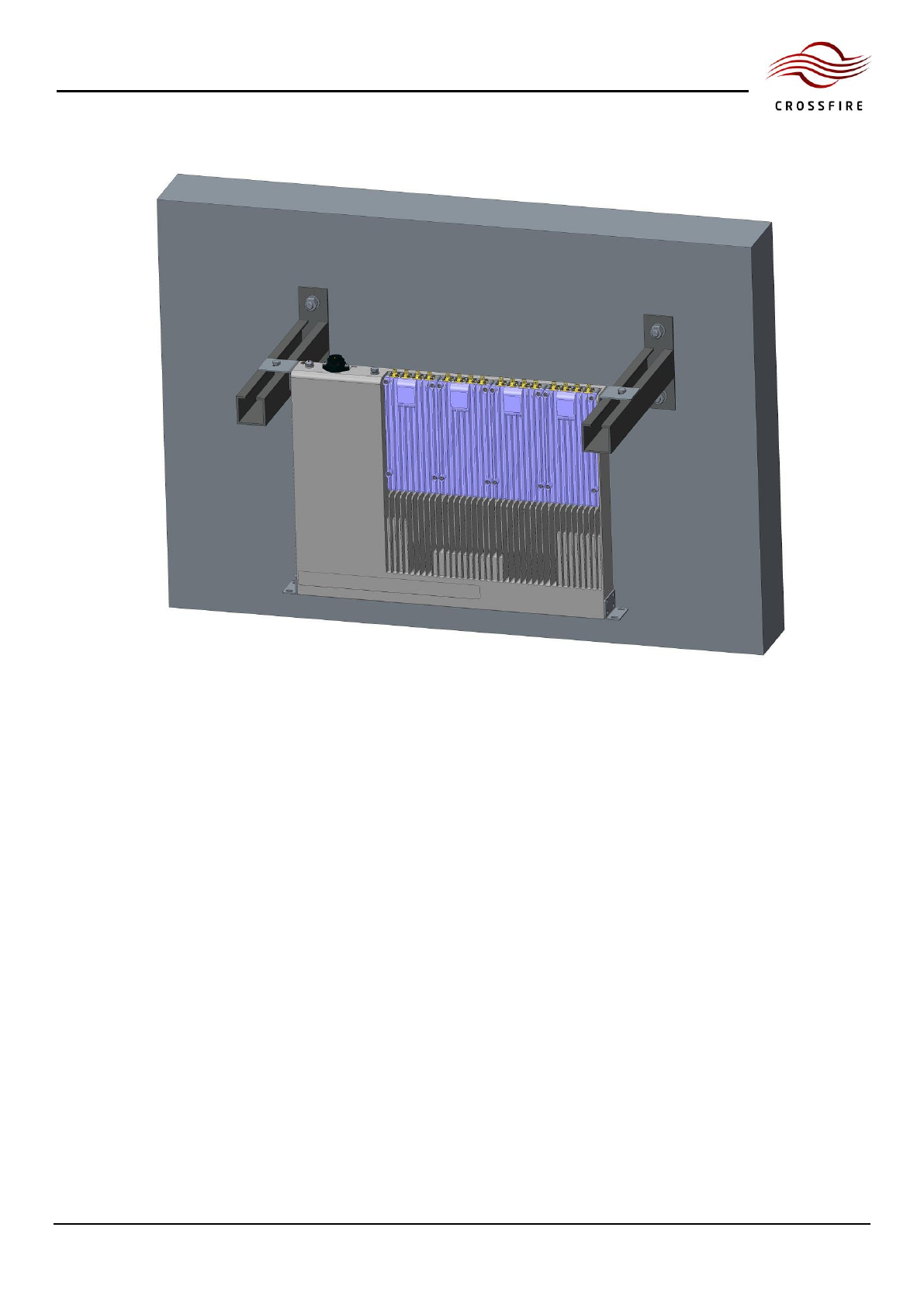

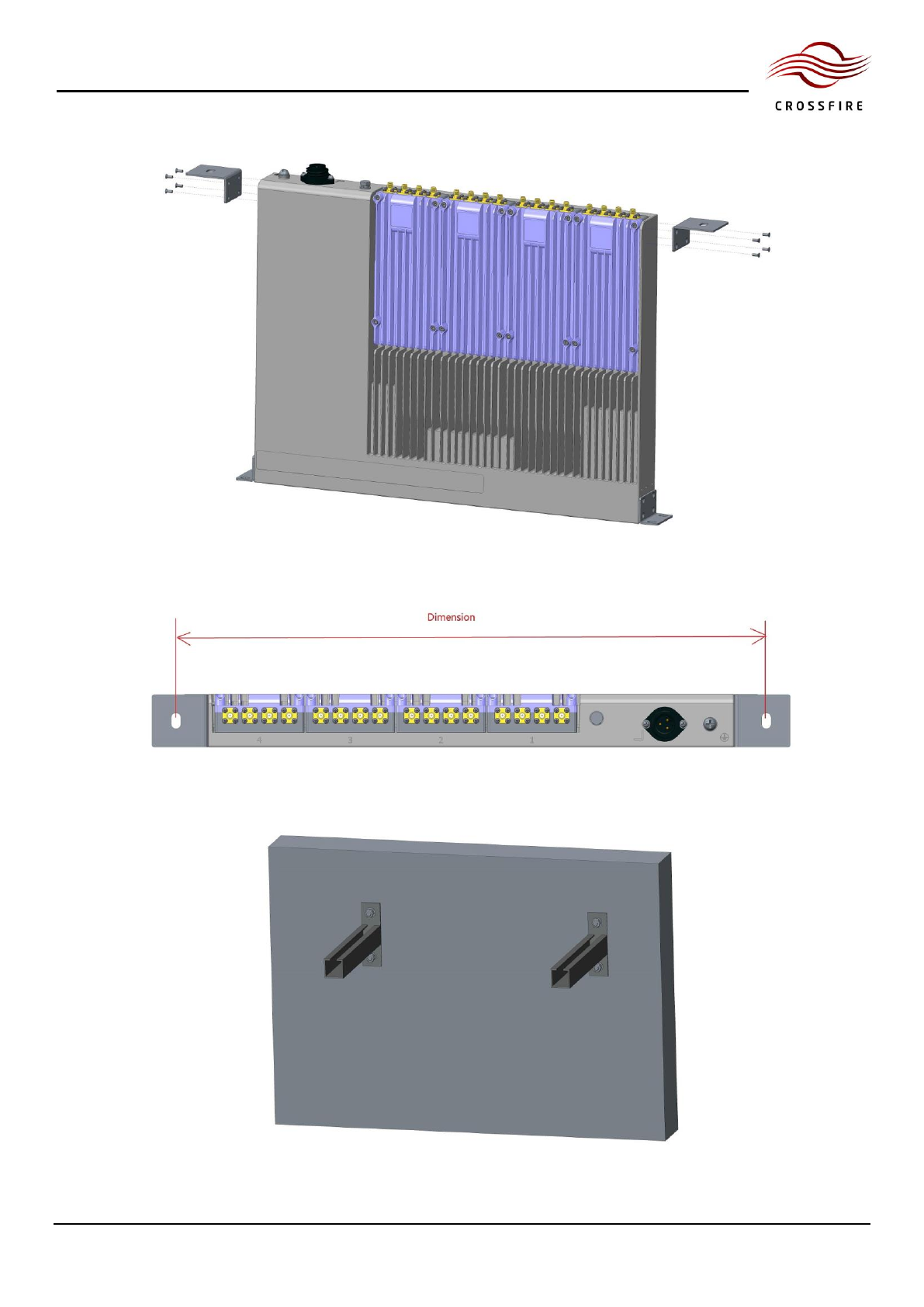

Figure 6-1 Wall Mounting Installation of an EU....................................................................................................................... 61

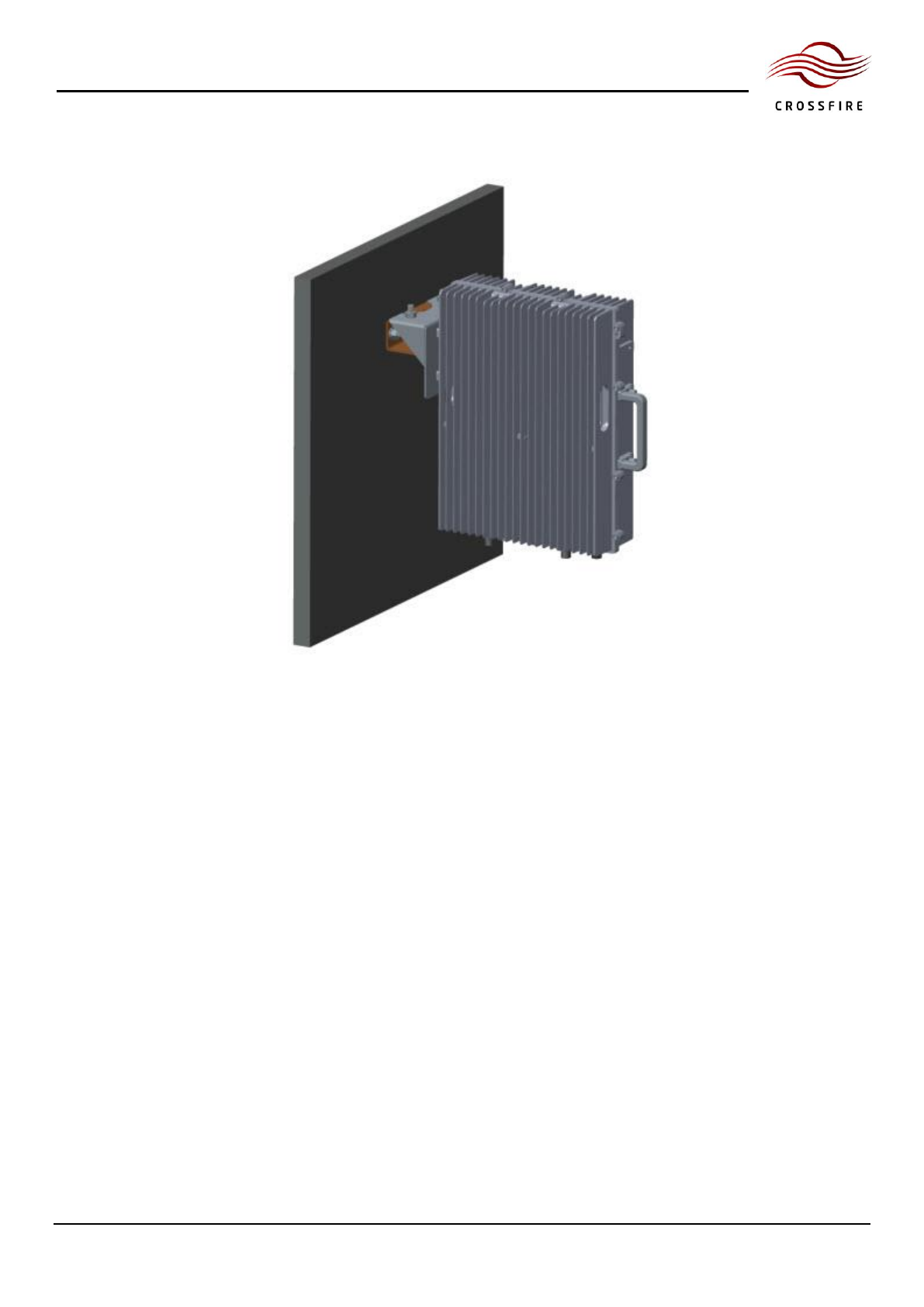

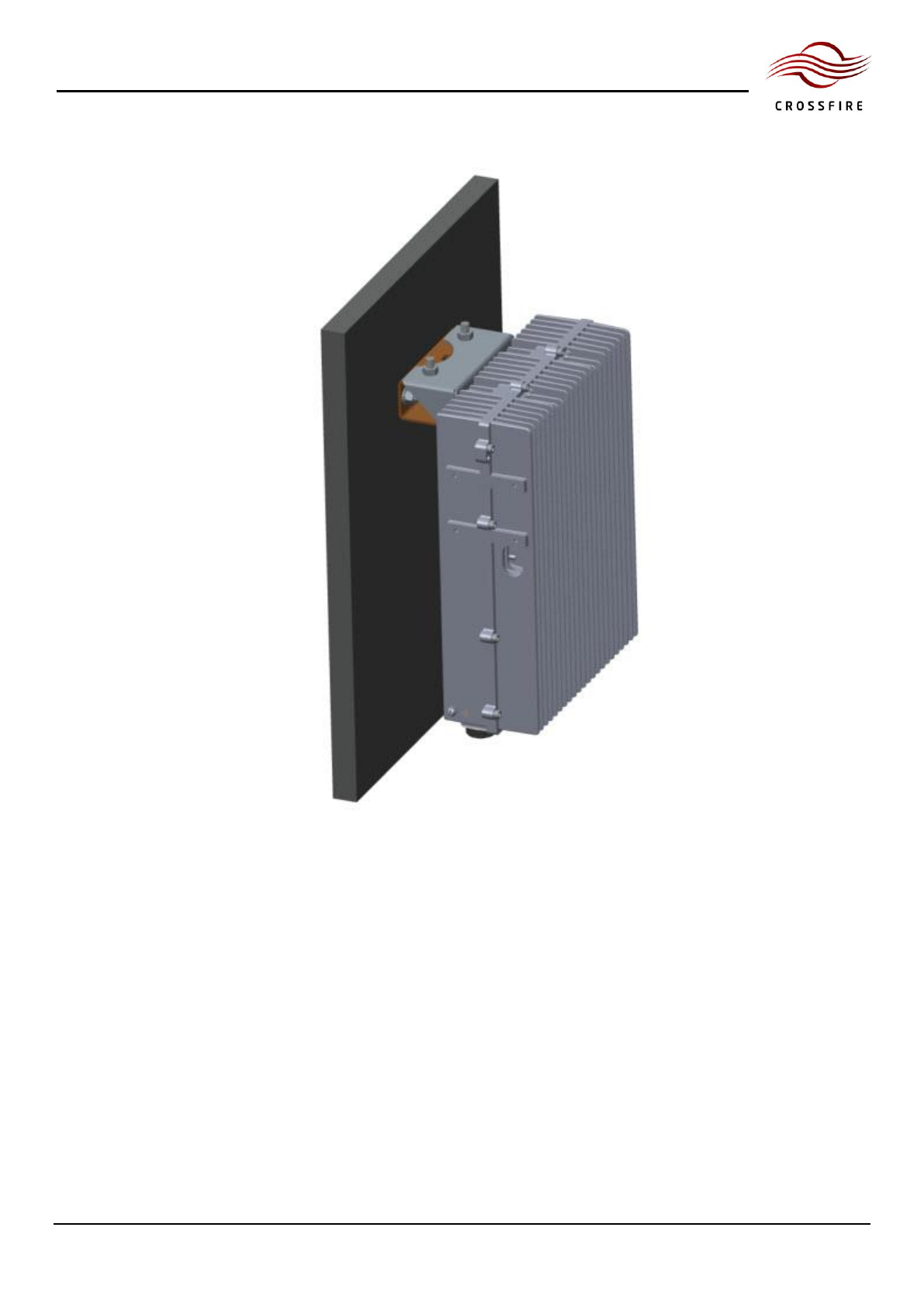

Figure 6-2 Schematic of RU Wall Front-mounting Installation ................................................................................................ 62
Figure 6-3 Exploded View of RU Front-mounting Installation ................................................................................................. 63
Figure 6-4 Schematic of RU Wall Side-mounting Installation .................................................................................................. 64
Figure 6-5 Exploded View of RU Side-mounting Installation................................................................................................... 65
Figure 6-6 Step 1 of Suspension Installation ........................................................................................................................... 66
Figure 6-7 Step 2 of Suspension Installation ........................................................................................................................... 66
Figure 6-8 Step 3 of Suspension Installation ........................................................................................................................... 66
Figure 6-9 Step 4 of Suspension Installation ........................................................................................................................... 67
Figure 6-10 Schematic of RU Pall Installation .......................................................................................................................... 68
Figure 6-11 Exploded View of RU Pall Installation .................................................................................................................. 69
Figure 6-12 System Connection Schematic ............................................................................................................................. 70
Figure 6-13 Single Optical Fibre Module ................................................................................................................................. 71
Figure 6-14 Optical Module Connection ................................................................................................................................. 72
Figure 6-15 Optical SYNC Status .............................................................................................................................................. 73
Figure 6-16 WLAN Access ........................................................................................................................................................ 75
Figure 7-1 AU (left) and RU (right) Debugging Procedures ...................................................................................................... 76
Figure 7-2 EU Debugging Procedures ...................................................................................................................................... 77
Figure 7-3 NMS Setup .............................................................................................................................................................. 78
Figure 7-4 Setting Channel Properties ..................................................................................................................................... 79
Figure 7-5 Gain Adjustment on AU Combiners ........................................................................................................................ 80

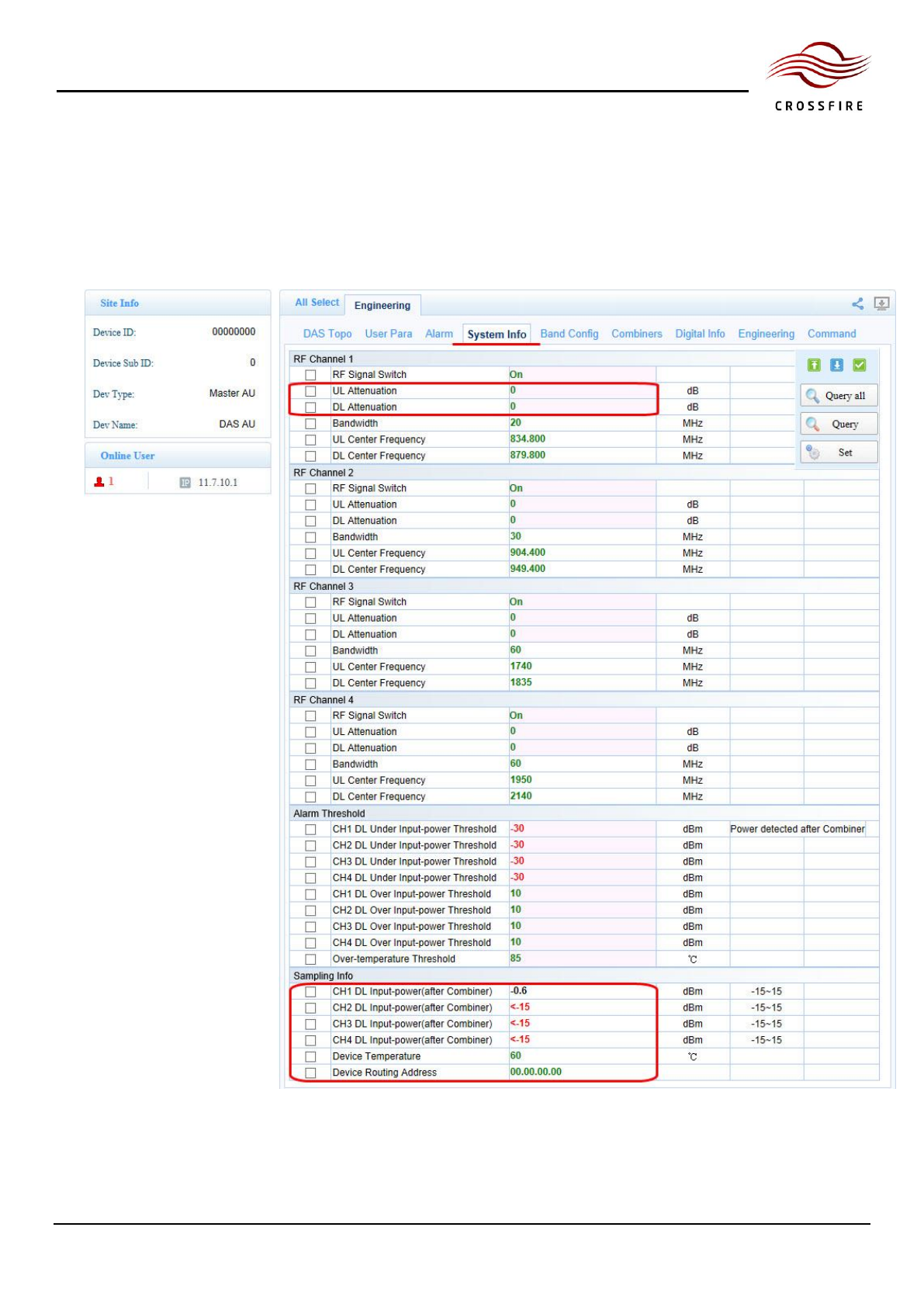

Figure 7-6 Downlink Input Power Adjustment after Combiner ............................................................................................... 81

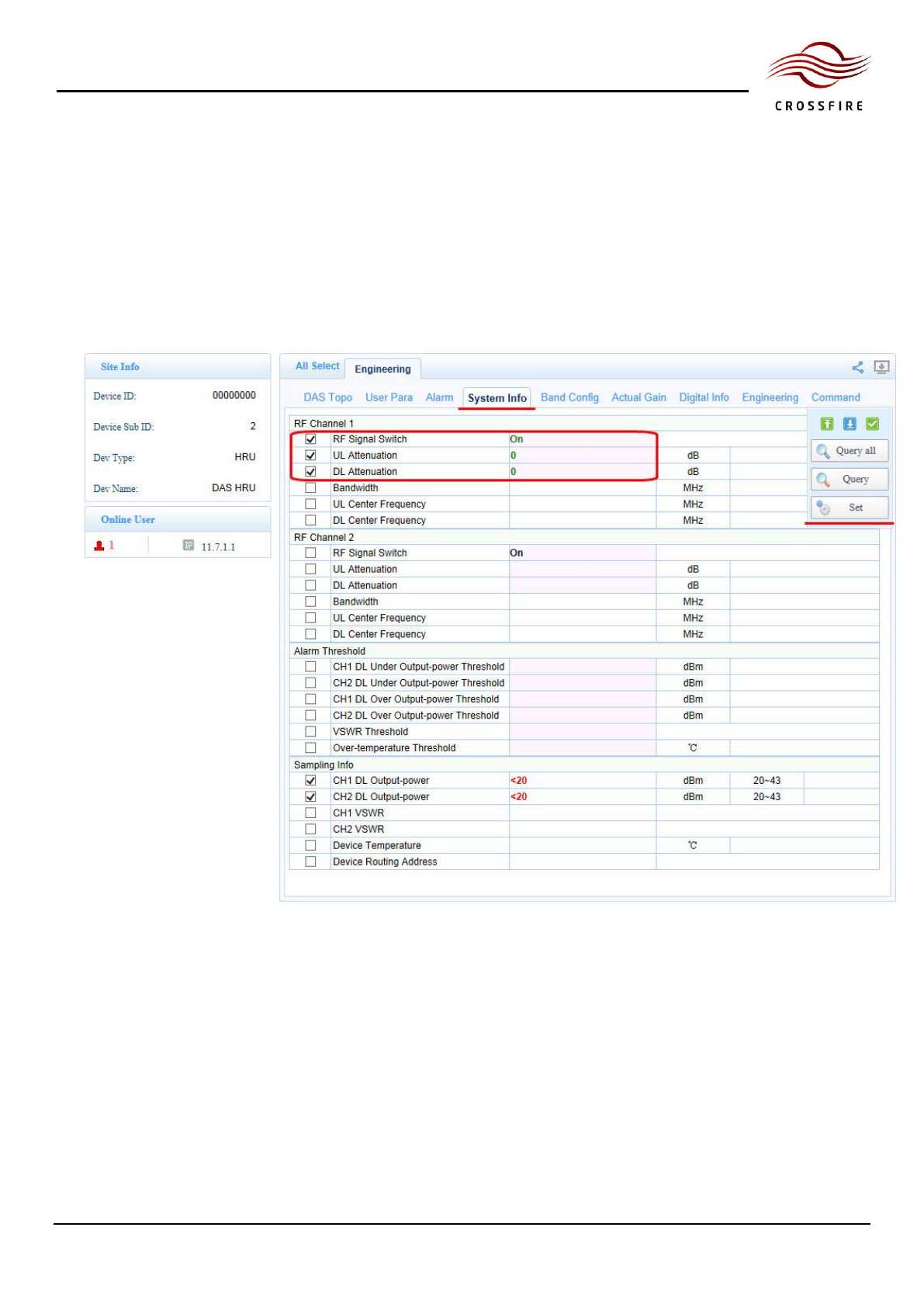

Figure 7-7 Gain Adjustment on RU WebOMT .......................................................................................................................... 82
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
9 Revision 1.0.1
Figure 7-8 Alarm Parameters Setup of AU ............................................................................................................................... 84
Figure 7-9 Alarm Level ............................................................................................................................................................. 85
Figure 7-10 External Level ....................................................................................................................................................... 85
Figure 7-11 Configuring User Parameters................................................................................................................................ 87

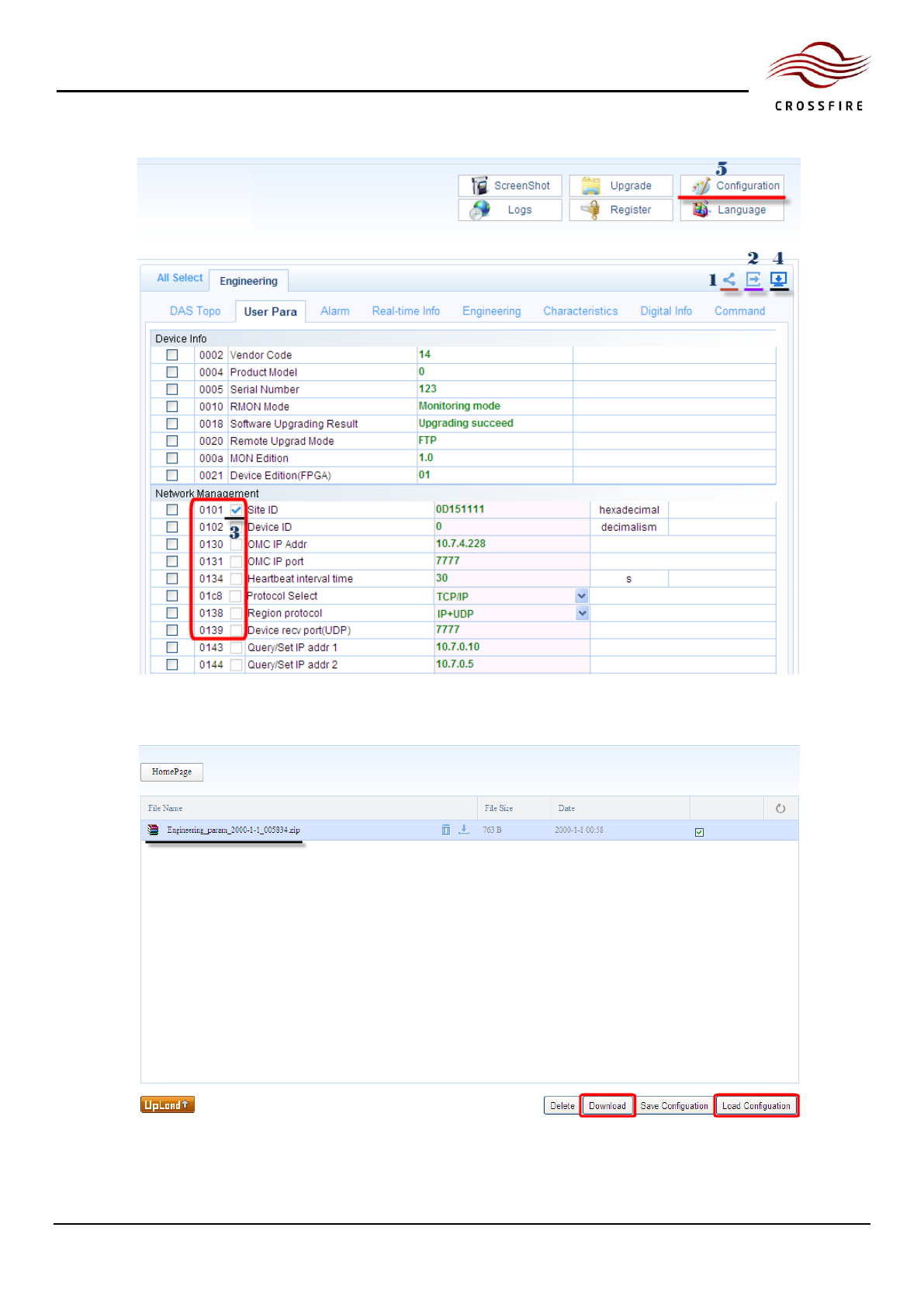

Figure 7-12 Download and Load Configuration ....................................................................................................................... 87
Figure 8-1 Checking Software Package Version ....................................................................................................................... 88
Figure 8-2 Software Upgrade Step 1 ........................................................................................................................................ 89
Figure 8-3 Software Upgrade Step 2 ........................................................................................................................................ 89
Figure 8-4 Software Upgrade Step 3 ........................................................................................................................................ 89

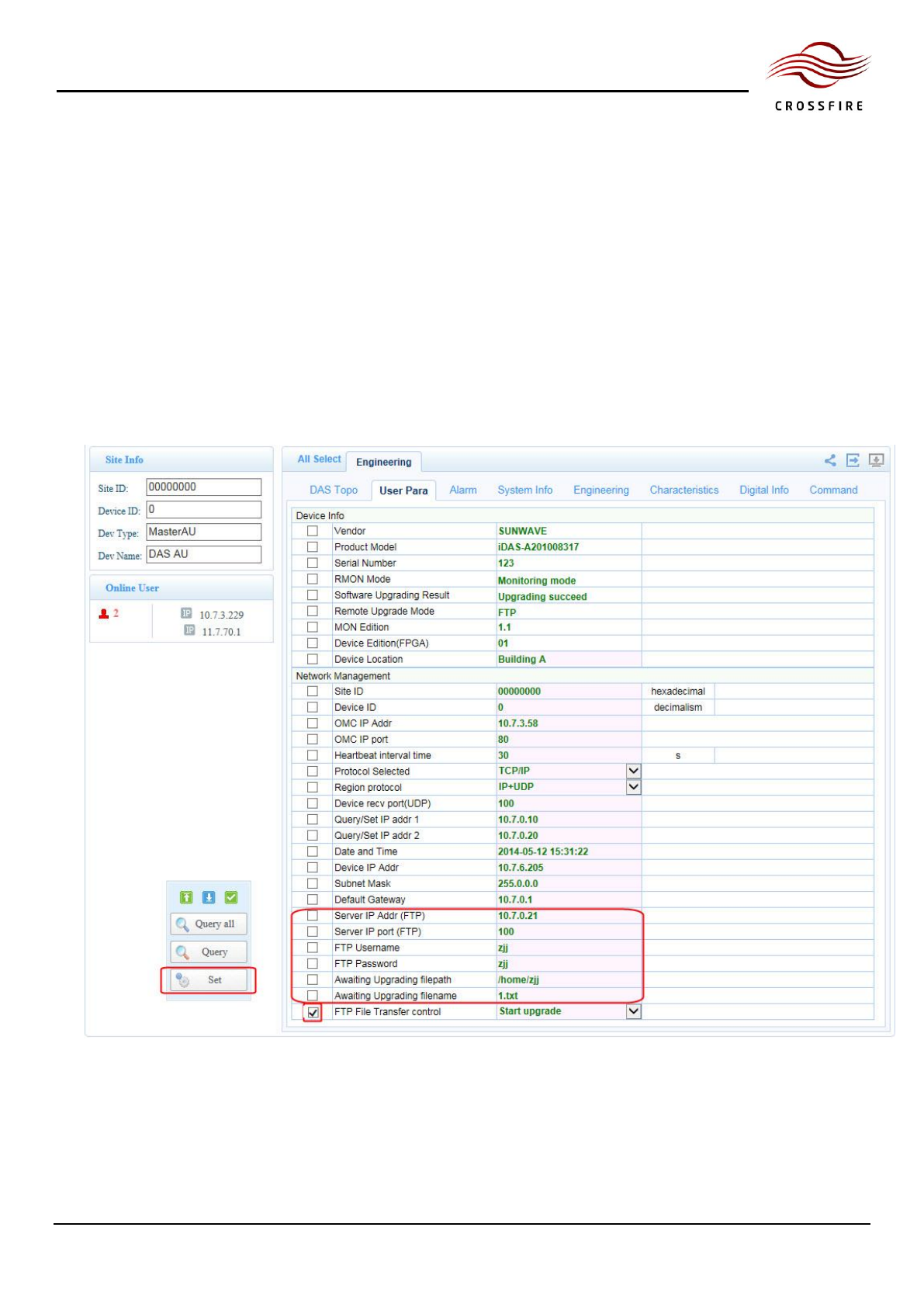

Figure 8-5 Setting up Remote Upgrade via FTP ....................................................................................................................... 90
Figure 8-6 Remote Upgrade using an NMS .............................................................................................................................. 91
Figure 10-1 Example for Operators Located at Same Site ....................................................................................................... 93
Figure 10-2 Example for Operators Located at Separate Sites ................................................................................................ 94
Figure 10-3 Example for MIMO Application ............................................................................................................................ 94
Figure 10-4 Example for Cascading RU Application ................................................................................................................. 95
Figure 10-5 Example for WLAN Application ............................................................................................................................ 96
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
10 Revision 1.0.1
High Power-iDAS User Guide
0. Preface
0.1. Safety Instructions
Before installing and operating the IDAS, read and comply with the following safety instructions:
1. Engineering design: The IDAS achieves signal amplification of the uplink and downlink through direct coupling
of the 2G, 3G and LTE signals from the base station. The expansion unit accesses WLAN signals and combines
the WLAN signal with the coupled signal for indoor coverage. Normal use of the system will not damage the
base station; however, with the increase of RU during network coverage for indoor distribution, the uplink
output noise level may affect the sensitivity of the base station, which should be considered during
engineering design.
2. Grounding: the shells of the access and expansion units of the device have protective ground terminals. During
installation, connect the ground terminals securely to the protective building ground with yellow and green
conductors or with braided ground wire. The aerial and feeder must be adequately grounded.
3. Power supply: The power source must be within the required range of the device. The rated voltage range for
the AC power supply system is AC100V～240V and the rated frequency range is 50Hz / 60Hz. The rated
power of the AU, EU and RU is 100W, 50W and 250W, respectively. The ground terminal of the three-core
power socket used at the device installation site must be securely connected to the protective building
ground.
4. Electric shock prevention: touching the internal power supply units is dangerous. To prevent electric shock, do
not perform live-line work.
5. The optical module can support a hot plug, but do not turn the optical fibre head towards any human body
part when plugging it in.
6. During device configuration, upgrading and plugging in units and parts, first disconnect the standby lithium
battery and device power source.
7. When accessing the radio-frequency signal, confirm that the downlink signal is no greater than 10dBm,
otherwise the device will not operate normally and damage may occur to the circuit.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
11 Revision 1.0.1
8. Natural cooling: Reserve at least 40mm of height above the radiation fins during the device installation,
otherwise the device temperature may rise and affect the service life of the device.
9. Replacing the Power Amplifier (PA) module and duplexer module onsite is permitted. Power off the device
before replacing.
Note: Charged operation is not allowed to prevent damage to the devices.
10. Please use Shielded Twisted Pair (STP) for WLAN application.
11. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED
INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC License to operate this device.
Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each
continuing violation.
WARNING: To comply with FCC RF exposure compliance requirements, each individual antenna used for this
transmitter must be installed to provide a separation distance greater than 172cm or more from all persons during
normal operation and must not be co-located with any other antenna for meeting RF exposure requirements.
Note: Only authorized person can enter the area where the antenna is installed. And the person is fully aware of the
potential for exposure and can exercise control over his or her exposure by leaving the area or by some other
appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be
provided through specific training as part of a RF safety program
Note: Antennas, feeders and couplers are not included in the packing list. Solution provider should consider these
accessories according to site conditions. The type of coaxial cable connected to the RU should be N-type, 4.3-10 type
or Din-type with impedance as 50Ohm. The impedance of antenna port is 50 Ohm, and antenna gain should be no
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
12 Revision 1.0.1
more than 12.5dBi. And the EIRP of antenna won’t exceed 56.5dBm (Output power 44dBm + antenna gain 12.5dBi)
when connecting coaxial cable, power splitter or coupler between RU and antenna.
WARNING: Antenna gain should not exceed 12.5 dBi.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
13 Revision 1.0.1

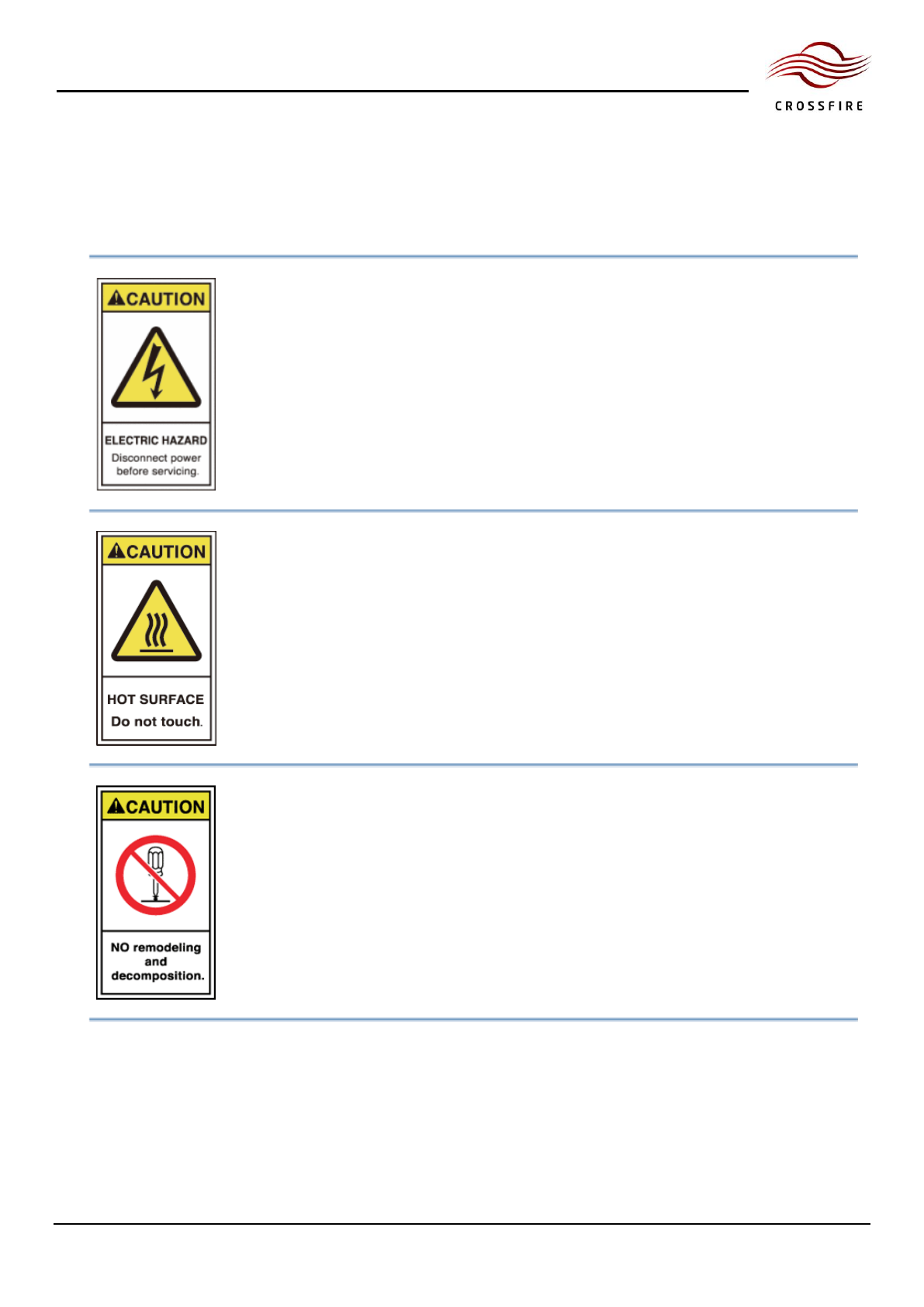

0.2. Warning Marks
The warning marks on the IDAS shell should be kept clean, readable and identifiable.
ALWAYS disconnect all lines and power connections before servicing or
disassembling this equipment.
NEVER touch the surface after the devices power on.
For performance and safety reasons, NEVER disassemble and remodel
the devices.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
14 Revision 1.0.1
0.3. Electrostatic Protection
Keep clothes and hands off the PCB, elements and conductor surface. If any maintenance is required on the PCB,
components, or conductors, take electrostatic prevention measures, such as wearing electrostatic prevention gloves and
using electrostatic prevention bags, since static electricity may damage the devices.
0.4. Standards
All iDAS devices meet the 3GPP standards.
0.5. Abbreviations
Abbreviations used in this manual are listed below:
Abbreviation
Description
ADC/ DAC
Analog to digital converter/ Digital to analog converter
AP
Access Point
ARM
Advanced RISC Machines
AU
Access Unit
BS
Base Station
CPRI
The Common Public Radio Interface
DPLL
Digital phase lock loop
EU
Expansion Unit
FPGA
Field Programmable Gate Array
iDAS
Integrated Distributed Antenna System
GSM
Global System for Mobile Communication
LTE
Long Term Evolution
NMS
Network Management System
OMC
Operations and Maintenance Center
OMT
Operations and Maintenance Terminal
OP
Optical Fiber
PA
Power Amplifier
POI
Point of interface
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
15 Revision 1.0.1
RF
Radio frequency
RU
Remote Unit
RX
Receiver
SFP
Small Form-factor Pluggable
SNMP
Simple network management protocol
STP
Shielded Twisted Pair
TX
Transmitter
USB
Universal Serial Bus
WCDMA
Wideband Code Division Multiple Access
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
16 Revision 1.0.1
1. System Overview
1.1. Overview
The IDAS system includes the Access Unit (AU), Expansion Unit (EU) and Remote Unit (RU).
Using digital processing and digital optical transmission technology, the AU frames radio-frequency signals from base
stations of different operators, and of different standards and frequency bands, and transmits the composite signal to
the EU via optical fiber. WLAN and small cell base station signals access the gigabit/megabit Ethernet port on the EU and
are reframed with optical signals from the AU and then transmitted to the RU via optical fiber. The RU conducts
digital-analog conversion and power amplification of the input signals and then achieves radio coverage through the
antenna-feeder system for signals of all standards and frequency bands via 50Ohm coaxial cable.
1.2. Operating Fundamentals

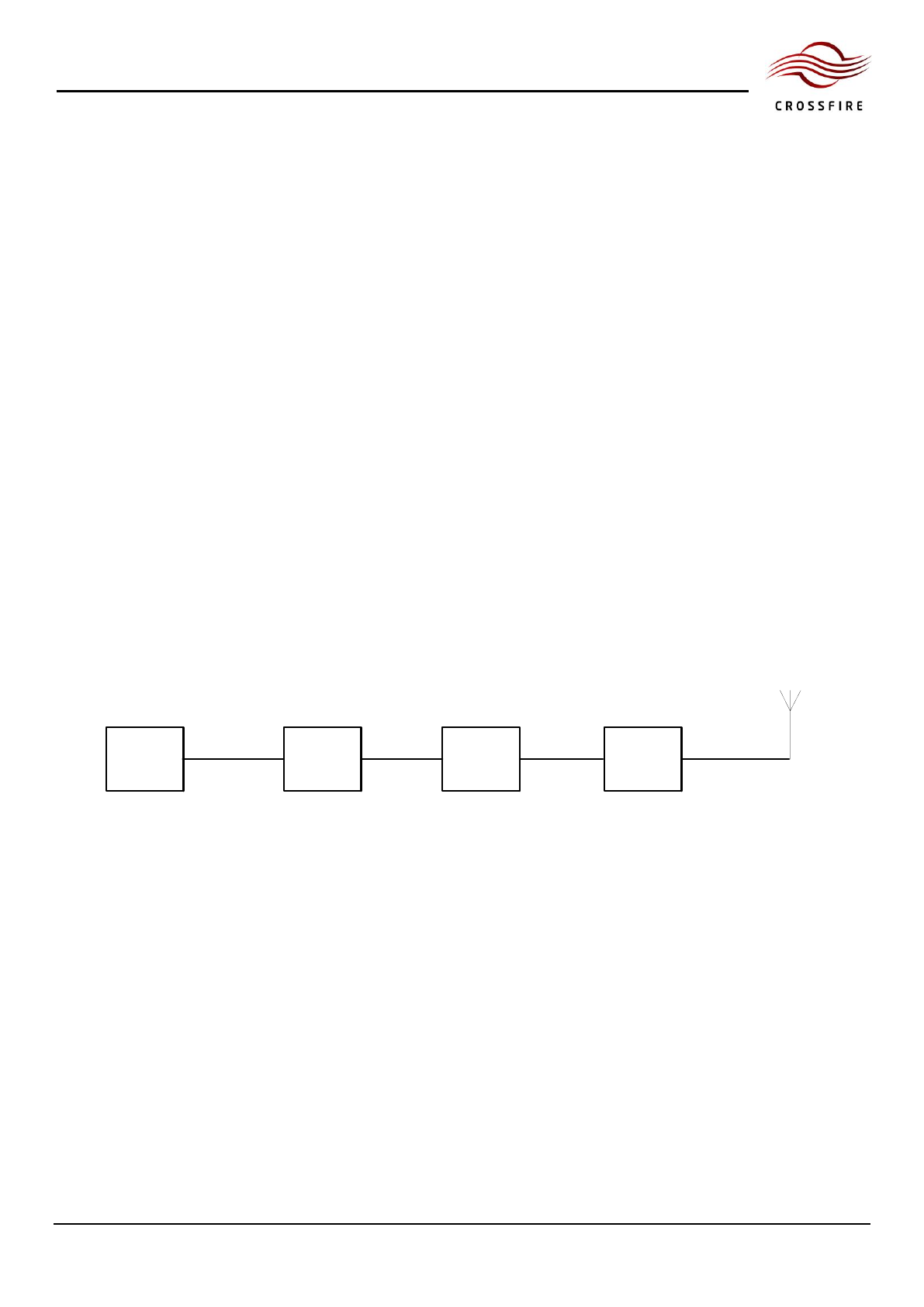

Figure 1-1 shows the fundamentals of how the IDAS operates.
BTS Fiber
AU EU RU
Fiber coaxial cable coaxial cable
ANT
Figure 1-1 IDAS Operating Fundamentals
WARNING: The design of the antenna installation needs to be implemented in such a way so as to ensure RF
radiation safety levels and non-environmental pollution during operation.
1.3. Technical Specifications
See the Technical Specifications Document for details.
1.4. System Framework
Figure 1-2 shows the typical IDAS system framework.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
17 Revision 1.0.1
Figure 1-2 Typical System Framework for the IDAS
1.5. Networking Layout

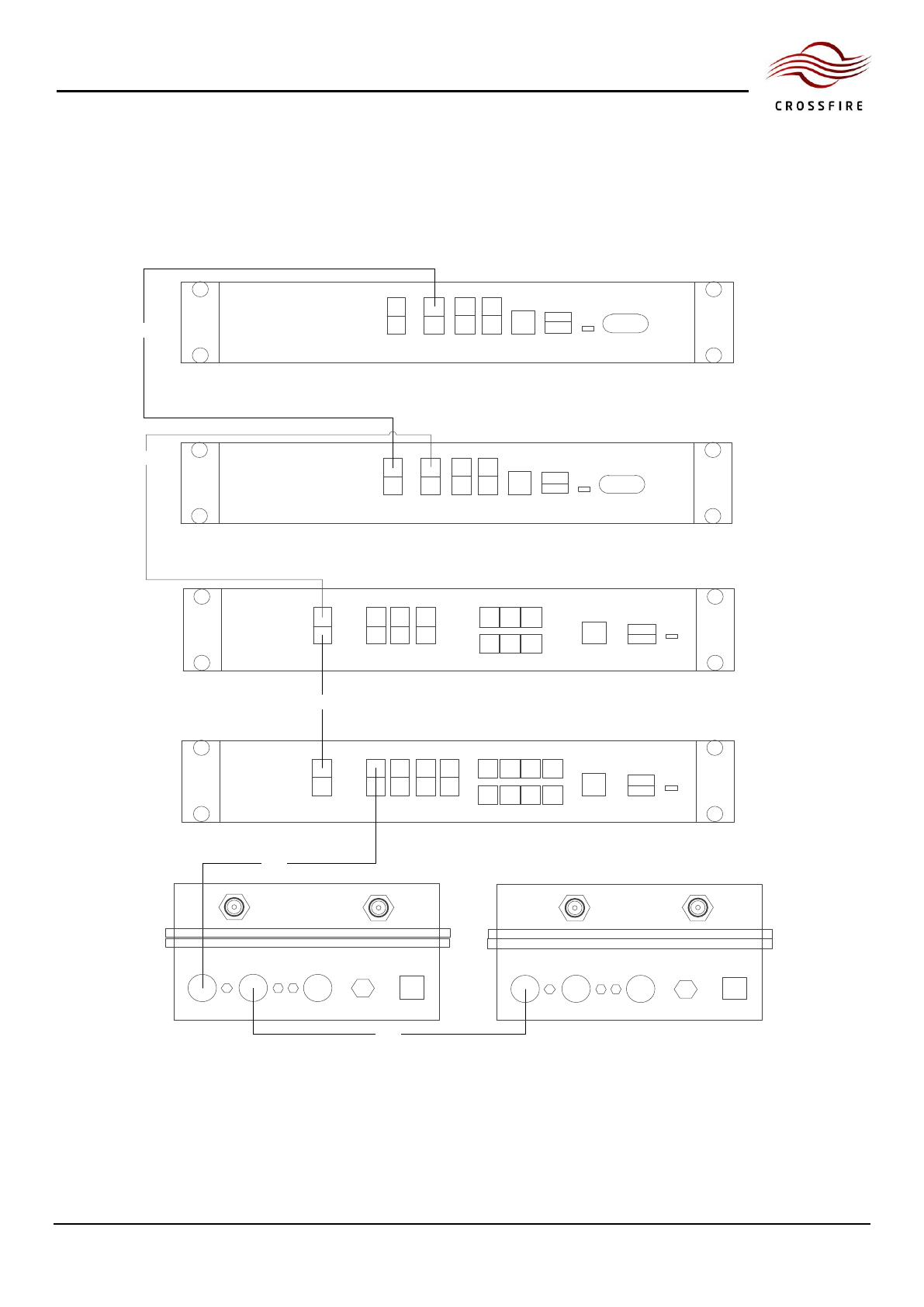

The IDAS has a number of different networking layouts shown as Figure 1-3:
The AU supports a star network. Note that the Master-AU can connect to a maximum of two Slave-AUs
simultaneously.
The EU supports a daisy-chained network (for EU—EU) and a star-type network (for EU—RU).
In smaller systems, the AU and RU can be directly connected without the EU, as shown in Figure 1-3.
For a direct AU—RU connection, an RU can cascade up to five RUs at different levels. For an AU—EU—RU
connection, an RU can cascade up to four RUs at different levels.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
18 Revision 1.0.1
Fiber
Fiber
Fiber
Fiber
Fiber
Fiber
Fiber
EU-1 EU-2 EU-3 EU-4
Band1
Maximum 5 daisy chained RU
under AU
Maximum 5 daisy chained
RU+EU under AU
Fiber
Band2
Band3
Band4
OP1/AU
OP2
OP3
OP4
OP5
OP6
AU1
AU2
Slave
AU2
Slave
AU1
OP1/AU
OP1/AU
Band5
Band6
Band7
Band8
Band9
Band10
Band11
Band12
slave
RF-1
RF-2
RU
　master
slave
RF-1
RF-2
RU
　master
slave
RF-1
RF-2
RU
　master
masterslave
OP1
OP2
OP3
OP4
OP5
OP6
masterslave
OP1
OP2
OP3
OP4
OP5
OP6
masterslave
OP1
OP2
OP3
OP4
OP5
OP6
masterslave
OP1
OP2
OP3
OP4
OP5
OP6
Figure 1-3 Networking Layout
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
19 Revision 1.0.1
2. Operations and Maintenance Terminal
2.1. Introduction to the OMT
The Operations and Maintenance Terminal (OMT) software runs on all of the devices in the iDAS system. The
interface to the OMT is WebOMT. WebOMT is based on a web browser and is compatible with most common browsers
such as IE and Google Chrome. WebOMT is customized for the IDAS and is used for query, debugging and configuration.
An NMS can only connect to the Master AU, therefore the Master AU is known as the host. However, to maintain the
IDAS system locally, a technician can access the whole system through any one of the devices in the IDAS system (Master
or Slave AU, EU or RU). For example, the technician may connect a laptop to the RU, log into the WebOMT and query the
DAS topology. The device name on the topology diagram is a URL link to the WebOMT on the selected device. Therefore,
by clicking on the device’s name, the technician can access any other device easily, regardless of which device’s WebOMT
they initially logged into.
2.2. Accessing the OMT
There are several methods for accessing the OMT:
Wired access
Wireless access
USB access
Unless indicated otherwise, the examples use the Windows XP operating system and Internet Explorer 8 web
browser.
2.2.1. Wired Access to the OMT on the Master AU
In the IDAS system, the Master AU is defined as the host, with the other AUs, EUs and RUs defined as slaves. See
Section 3.6 for Master/Slave AU selection.
The default IP address of the AU is 10.7.3.200, while the slaves have no fixed IP address. The IP addresses of the
slaves are assigned by the host automatically, based on the network topology.
To set up wired access to the OMT, use the following procedure:
1. Connect a PC to the CONSOLE port on the front panel of the Master AU with a network cable.
2. Change the TCP/IP properties (see Figure 2-1):
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
20 Revision 1.0.1
a) Click Network Connections
b) Click Local Area Connection Properties
a. Click TCP/IP Properties
b. Change the following parameters as indicated:
IP address: 10.7.3.1
Subnet mask: 255.0.0.0
Default Gateway: 10.7.3.200 (IP address of Master AU)
3. Check the status of the Local Area Connection and confirm the connection is connected.
4. Open a browser window and enter the default gateway in the navigation bar. This will access the WebOMT
page. Figure 2-2 shows an example using 10.7.3.200 as the default gateway.
Figure 2-1 Setting up a Wired Connection to the OMT on the Master AU
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
21 Revision 1.0.1
Figure 2-2 Web Browser OMT Connection for Wired Access
2.2.2. Wired Access to the OMT on the Slave AU, EU and RU
In the IDAS system, EUs and RUs, as well as the Slave AUs, are defined as slaves. They have no fixed IP address. The IP
addresses are assigned by the host automatically, based on the network topology.
To set up wired access to the OMT, use the following procedure:
1. Connect a PC to the “CONSOLE” port on the front panel of the Slave device with a network cable.
2. Change the TCP/IP properties (see Figure 2-3):
a) Click Network Connections
b) Click Local Area Connection Properties
c) Click TCP/IP Properties
d) Select the General tab
e) Change the following parameters as indicated:
a. Enable Obtain an IP address automatically by clicking the check box
b. Enable Obtain DNS server address automatically by clicking the check box
3. Check the status of the Local Area Connection and confirm the connection is connected.
4. Open a browser window and enter the default gateway in the navigation bar. This will access the WebOMT
page.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
22 Revision 1.0.1
Figure 2-3 Wired access to WebOMT on Slave AU, EU and RU
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
23 Revision 1.0.1
2.2.3. Wireless Access (for AU and EU)
Figure 2-4 shows the equipment required for wireless access to the OMT.
WLAN Network Adapter (ZENIC8-specified only) PC with wireless connection function
Figure 2-4 Equipment Required for Wireless Access to the OMT
To set up wireless access to the OMT, use the following procedure:
1. Plug the WLAN Network Adapter into the “AP” port of the device.
2. Confirm that the adapter is working by checking that the green indicator is flashing.
3. Change the TCP/IP properties (see Figure 2-5):
a) Click Network Connections
b) Click Wireless Network Connection
c) Click TCP/IP Properties
d) Select the General tab
e) Change the following parameters as indicated:
a. Enable Obtain an IP address automatically by clicking the check box
b. Enable Obtain DNS server address automatically by clicking the check box
4. Choose the correct wireless network and connect to it.
The naming rule for the network is IDAS-XX (device type)-XXX (Serial Number).
The default network key is 12345678.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
24 Revision 1.0.1
See Figure 2-6 and Figure 2-7 for details.
5. Check the wireless network status and obtain the default gateway. See Figure 2-8 for details.
6. Open a browser window and enter the assigned default gateway into the navigation bar. This will access the
WebOMT page. Figure 2-9 shows an example using 12.7.1.1 as the default gateway.
Figure 2-5 Wireless Network Connection Properties for OMT
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
25 Revision 1.0.1
Figure 2-6 Viewing the Available Wireless Networks
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
26 Revision 1.0.1
Figure 2-7 Choosing the Correct Wireless Network
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
27 Revision 1.0.1
Figure 2-8 Checking the Wireless Network Status
Figure 2-9 Connecting to WebOMT
2.2.4. USB Access
To set up USB access to the OMT, use the following procedure:
1. Connect a PC to the “Debug” port on the front panel of the device with a USB-to-USB cable.
Note: The USB-to-Ethernet drive should be installed in the connected PC. Contact ZENIC8 if you have any
problems with this.
2. Check the status of the Local Area Connection and confirm the connection was successful.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
28 Revision 1.0.1
3. Open a browser window and enter default gateway in the navigation bar. This will access the WebOMT page.
2.3. OMT Display
2.3.1. Login
Figure 2-10 shows the login page and default username & password.
See Section 2.3.3 for the details about user management.
Figure 2-10 Login Page
2.3.2. Homepage and Basic Functions
Figure 2-11 shows the OMT homepage. The buttons, tabs and fields are referenced by number and are described
below the figure.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
29 Revision 1.0.1
Figure 2-11 WebOMT Homepage
The OMT homepage includes the following buttons, tabs and fields (refer to corresponding numbers in Figure 2-11):
1. Site Info: Includes “Station ID”, “Device ID”, “Dev Type” and “Dev Name” information.
2. ScreenShot: Used for saving the current parameter information and device operating status. When ZENIC8
assistance is required to troubleshoot the system, send the “ScreenShot” file to the ZENIC8 technicians.
To use the ScreenShot function, follow the procedure below:
a) Select the page that you want to save.
b) Click the ScreenShot button. See 2 in Figure 2-11.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
30 Revision 1.0.1
c) Close the popup window after the screen shot has been successfully captured as shown in Figure 2-12.
d) Click the Configuration button. See 6 in Figure 2-11.
e) Click the Download shortcut icon to download the screen shot file. Check the filename and date to ensure
that the correct file has been selected. See Figure 2-13 for details.
Figure 2-12 Screen Shot Capture Success Pop-up Window
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
31 Revision 1.0.1
Figure 2-13 Screen Shot Download File
3. Logs: Records the operating status of the devices. The logs can be downloaded and deleted from this page. To
ensure that the correct log has been selected, check the filename and date before downloading the file.
4. Upgrading: Used to upgrade the software. See Section 8 for details.
5. Register: This function is not relevant for maintenance activities.
6. Configuration: See Section 7.5 for details.
7. Language: Switches language between English and Chinese. (Other languages are being developed.)
8. Operation interface: Queries status and sets parameters.
9. Online User: Shows the number of users that are currently connected to the OMT and the IP address of each
user’s device.
10. Parameters: Tabs that access pages that display and allow setting of device parameters.
11. Parameter configuration field：Buttons that show/hide the parameter ID number & checkbox and save
configuration parameters. See Section 7.5 for details.
12. Log out: Button that used for logging out.
13. Users: See Section 2.3.3 for details.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
32 Revision 1.0.1
2.3.3. Users Management
Figure 2-14 shows the page of user management by clicking Users button on the homepage.
Note: Users management should be operating on Master AU WebOMT only.
Note: Only admin account has the authority to do users management.
Figure 2-14 Users Management
1) Add user account
a) Enter the new username. See 1 in the Figure 2-15.
b) Enter the password and confirm. See 2 in the Figure 2-15.
c) Click Add user button.
Figure 2-15 Add User
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
33 Revision 1.0.1
2) Delete user
a) Choose the user need to delete. See 1 in the Figure 2-16.
b) Click Delete button. See 2 in the Figure 2-16.
c) Click OK button to confirm. See 3 in the Figure 2-16
Figure 2-16 Delete User
3) Change password
a) Choose the user need to change password. See 1 in the Figure 2-17.
b) Enter the new password and confirm. See 2 in the Figure 2-17.
c) Click Password button.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
34 Revision 1.0.1
Figure 2-17 Change Password
2.3.4. Displaying the System Topology
To display the system topology:
1. Log in to the WebOMT.
2. Select the main Engineering tab.
3. Select the DAS Topo tab.
4. Select Query all.
Figure 2-18 shows the system topology display. If networking is successful, arrows will be displayed for the six optical
ports behind the Master AU (for example, see the green “EU1” icon in Figure 2-18), which means that there are
connected devices corresponding to the optical port. Click the arrow to extend the topology for this port.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
35 Revision 1.0.1
Figure 2-18 Displaying the System Topology
Devices in the topology have two colors —green and red:
Green indicates a connected device.
Red indicates a device that was once connected but is currently disconnected. When a red device is
displayed, check whether this device exists or not. If the device does not exist, delete this device on the
topology page by right-clicking the frame indicating the device, and then clicking the Delete button.
Note: To use the Delete All Slave-Devices button, factory authorization is required. See Section 3.7.8 for details.
This symbol indicates the devices with alarms.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
36 Revision 1.0.1
3. AU Instructions
3.1. AU Physical Appearance
Figure 3-1 shows a photograph of the AU component of the IDAS.
Figure 3-1 Physical Appearance of the AU
3.2. AU Front Panel
Figure 3-2 shows a schematic of the front panel of the AU and Table 1 lists the interfaces and their functionality.
Figure 3-2 Front Panel of the AU
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
37 Revision 1.0.1
Table 1 AU Front Panel Interfaces
SN
Interface Name
Description
1
AU1
Connects Slave AU1 via optical fiber
2
AU2
Connects Slave AU2 via optical fiber
3
OP1/AU
For Master AU: connects EU/RU via optical fiber
For Slave AU: connects Master AU via optical fiber
4
OP2
Connects EU/RU via optical fiber
5
OP3
Connects EU/RU via optical fiber
6
OP4
Connects EU/RU via optical fiber
7
OP5
Connects EU/RU via optical fiber
8
OP6
Connects EU/RU via optical fiber
9
CONSOLE
Connects OMC or local PC through CAT-5 for local and remote monitoring
10
AP
Connects WLAN network adapters for monitoring device through Wi-Fi
11
STATUS
Indicates device operating status
12
DEBUG
Connects local debugging PC through USB connection
13
ALARM I/O
Connects external environment alarm interface for environment monitoring
3.3. AU Back Panel
Figure 3-3 shows a schematic of the back panel of the AU and Table 2 lists the interfaces and their functionality.
Figure 3-3 Back Panel of the AU
Table 2 AU-Back Panel Interfaces
SN
Interface Name
Description
14
Channel 4 Duplexer Interface
BTS signal input via 50Ohm coaxial cable (SMA Female)
15
Channel 3 Duplexer Interface
BTS signal input via 50Ohm coaxial cable (SMA Female)
16
Channel 2 Duplexer Interface
BTS signal input via 50Ohm coaxial cable (SMA Female)
17
Channel 1 Duplexer Interface
BTS signal input via 50Ohm coaxial cable (SMA Female)
18
Modem Interface /Reserved
Reserved if no modem
19
Electric Power Line Interface
/
20
Grounding
/
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
38 Revision 1.0.1
3.4. AU Active Combiner
Figure 3-4 shows a schematic of the AU Active Combiner.
Figure 3-4 AU Active Combiner
3.5. Indicator Descriptions
Each pair of optical interface indicators shows the operating status of an optical module. See Figure 3-5.
Figure 3-5 Optical Indicators
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
39 Revision 1.0.1
Table 3 Optical Interface Indicators
Optical Indicator Behavior
Description
Turns green and stays lit
Normal
Turns red and stays lit
Optical path is not synchronized or optical module has not been inserted
In Figure 3-2, “10” points to the STATUS indicator on the front panel of the AU. Table 4 lists the indicator’s behaviors
and their meaning.
Table 4 STATUS Indicator
STATUS
Description
Flashes green
Device runs Normally
Turns green and stays lit
Software has crashed, but it can reboot automatically in 3mins
Flashes red
Device alarms, need check
Turns red and stays lit
Software has crashed, but it can reboot automatically in 3mins
Flashes yellow
Program is upgrading
Turns yellow and stays lit
Device is starting
3.6. Master / Slave AU Selection
Each AU is factory-set to be the Master AU. See Figure 3-6 and the procedure below to set or change an AU to
Master or Slave.
To change an AU to Slave:
1. Power on the AU which will be set to be the Slave AU.
Note: The selected AU cannot be connected to the IDAS system prior to being set to Slave.
2. Log in to the AU WebOMT. See Section 0 for the procedures to access the OMT.
3. Select the Engineering tab.
4. In the Advanced Command area, click the drop-down menu for the Master-slave AU select command and
select Slave AU from the drop-down menu.
5. Click Set in the pop-up window.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
40 Revision 1.0.1
Figure 3-6 Master / Slave AU Selection
After setup is complete, check the device type of the AU.
To query the device type:
1. Log in to the Slave AU WebOMT. (See Section 0 for the procedures to access the OMT.)
2. View the Site Info field. See 3 in Figure 3-6.
3. The device type should be “Slave AU” if the setup was successful.
Note: Please update the day and time after a Slave AU changes to a Master AU.
3.7. OMT Parameters, Alarms and Commands for the AU
See Section 2.3, OMT Display, for information on how to use the WebOMT interface to view and change parameters
and run commands.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
41 Revision 1.0.1
3.7.1. AU User and Network Parameters
Table 5, Table 6 and Table 7 show the device information, TCP/IP and SNMP network management parameters,
respectively, that are displayed on the WebOMT under the User Parameters tab.
Table 5 AU Device Information
Parameter
Description
RD/RW
Vendor Name
Name to distinguish different manufacturers
RD
Product Model
/
RD
Serial Number
/
RD
RMON Mode
Current remote monitoring mode
RD
Software Upgrade Result
/
RD
Remote Upgrade Mode
/
RD
RMON Edition
Current edition of remote monitoring software
RD
Device Edition (FPGA)
Device edition defined by FPGA
RD
Device Location
/
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
42 Revision 1.0.1
Table 6 AU Network Management (TCP/IP protocol)
Parameter
Description
RD/RW
Site ID
The unique identification number of the site in the system
RW
Device ID
Number assigned by the system to distinguish subsets in the same
site
RW
OMC IP Addr
IP address of Monitoring Center
RW
OMC IP Port
Port Number of Monitoring Center
RW
Heartbeat Interval Time
Interval time of device sending packet to OMC, to confirm a free link
RW
Protocol Select
TCP/IP
RW
Region Protocol
Reserve
RW
Device Recv Port (UDP)
Device receive port number
RW
Query/Set IP Addr1
Only a device with this specified IP address can connect to the
system via UDP connection mode
RW
Query/Set IP Addr2
Only a device with this specified IP address can connect to the
system via UDP connection mode
RW
Date and Time
/
RW
Device IP Addr
Default IP Address — 10.7.3.200
RW
Subnet Mask
Default Subnet Mask— 255.0.0.0
RW
Default Gateway
Default Gateway— 10.7.0.1
RW
Server IP Addr (FTP)
IP Address of the connected FTP Server for software upgrade
RW
Server IP Port (FTP)
Port Number of the connected FTP Server for software upgrade
RW
FTP Username
Username for device to log into FTP Server
RW
FTP Password
Password for device to log into FTP Server
RW
Awaiting Upgrade Filepath
File path (directory) for device to acquire software upgrade file from
FTP Server
RW
Awaiting Upgrade Filename
Filename of the awaiting software upgrade file
RW
FTP File Transfer Control
Start /Cancel upgrade
RW
Table 7 AU Network Management (SNMP protocol)
Parameter
Description
RD/RW
Site ID
The unique identification number of the site in the system
RW
Device ID
Number assigned by the system to distinguish the subsets in the
same site
RW
Trap IP Addr
IP address of Monitoring Center
RW
Trap IP Port
Port Number of Monitoring Center
RW
Protocol Select
SNMP
RW
Date and Time
/
RW
Device IP Addr
Default IP Address — 10.7.3.200
RW
Subnet Mask
Default Subnet Mask— 255.0.0.0
RW
Default Gateway
Default Gateway— 10.7.0.1
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
43 Revision 1.0.1
Parameter
Description
RD/RW
Server IP Addr (FTP)
IP Address of the connected FTP Server for software upgrade
RW
Server IP port (FTP)
Port Number of the connected FTP Server for software upgrade
RW
FTP Username
Username for device to log into FTP Server
RW
FTP Password
Password for device to log into FTP Server
RW
Awaiting Upgrade Filepath
File path (directory) for device to acquire software upgrade file from
FTP Server
RW
Awaiting Upgrade filename
Filename of the awaiting software upgrade file
RW
FTP File Transfer Control
Start /Cancel upgrade
RW
3.7.2. AU Alarms
Table 8 lists the possible alarms on the IDAS system for the AU.
Table 8 IDAS Alarms for the AU
Parameter
Description
RD/RW
Power Interruption Alarm
Electrical supply failure
RD
Battery Failure Alarm
Standby battery failure
RD
MOV Alarm
Device has been moved from the original installation location
RD
Open Case Alarm
Alarm when device is open
RD
Over-temperature Alarm
Device temperature is over the rated temperature threshold
RD
DPLL Unlocked Alarm
Digital phase lock loop unlocked
RD
LO1~4 Unlocked Alarm
Local oscillation unlocked
RD
CH1~4 ALC Alarm
Alarm when ALC is working
RD
OP1~6 Transceiver Failure Alarm
OP-transceiver unplugged or failure (Port OP1~OP6)
RD
OP-AU1/2 Transceiver Failure Alarm
OP-transceiver unplugged or failure (Port S_AU1/2 )
RD
CH1~4 DL Under Input-power Alarm
Channel 1~4 input power under rated threshold
RD
CH1~4 DL Over Input-power Alarm
Channel 1~4 input power over rated threshold
RD
External Alarm 1~4
External device failure (such as UPS failure)
RD
3.7.3. AU System Info
Table 9 AU: RF Channels 1~4
Parameter
Description
RD/RW
RF Signal Switch
/
RW
UL Attenuation
Range: 0-15dB
RW
DL Attenuation
Range: 0-15dB
RW
DL Under Input-power Threshold
Default value: -30dBm/ Range: -35~ +15dBm
RW
DL Over Input-power Threshold
Default value: 10dBm/ Range: +10~ +30dBm
RW
DL Input-power
/
RD
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
44 Revision 1.0.1
Bandwidth
/
RD
UL Center Frequency
/
RD
DL Center Frequency
/
RD
Table 10 AU Sampling Info
Parameter
Description
RD/RW
Over-temperature Threshold
Default value:80℃/ Range: -55~ +125℃
RW
Device Temperature
/
RD
Device Routing Addr
Device routing address
RD
3.7.4. AU Band Config
Table 11 Channel 1~4
CH1 Info Check
Valid: Channel operating normally
Invalid: out of operation
RD
UL Freq_low
Lower limit of uplink frequency
RW
UL Freq_high
Higher limit of uplink frequency
RW
DL Freq_low
/
RW
DL Freq_high
/
RW
Signal1~3 Bandwidth
/
RW
Signal1~3 UL Center Frequency
/
RW
Signal1~3 DL Center Frequency
/
RW
Note: UL Freq_low/high and DL Freq_low/high should agree with the values for the corresponding duplexer.
The values for signal bandwidth and UL/DL center frequency should agree with the operators’ signal.
Table 12 AU Public Parameters
Parameter
Description
RD/RW
AU CH Info Update
Update after channel parameter configuration. Configuration
modification will be effective after update.
RW
Local Signal Bandwidth
Signal bandwidth of local AU
RD
Local Transmission Bandwidth
Transmission bandwidth of local AU
RD
System Signal Bandwidth
Signal bandwidth of all AUs if Slave AU exists
RD
System Transmission Bandwidth
Transmission bandwidth of all AUs if Slave AU exists
RD
Note: See Section 7.2 for details on configuring channel properties.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
45 Revision 1.0.1
3.7.5. AU Digital Info
Table 13 AU Downlink Power
Parameter
Description
RD/RW
CH1~4 DL Baseband Input-power
Power of DL detected in digital domain
RD
Table 14 AU Uplink Power
Parameter
Description
RD/RW
CH1~4 UL Baseband Output-power
Power of UL detected in digital domain
RD
Table 15 Optical Module Information
Parameter
Description
RD/RW
Optical Port 1 Optical Module
Optical Module Number
RD
DDM Function Availability
/
RD
Tx Power
/
RD
Rx Power
/
RD
Voltage
/
RD
Bias Current
/
RD
Temperature
/
RD
Optical Wavelength
/
RD
3.7.6. AU Combiner
Table 16 AU Channel 1~4
Parameter
Description
RD/RW
Port 1~4 Input Power Value
/
RD
Port 1~4 Attenuation Value
Range: 0-15dB
RW
3.7.7. AU Engineering Information
Table 17 AU Engineering Info
Parameter
Description
RD/RW
Update Time
Last update time
RD
ARM CRC Check
To check ARM software version of current device
RD
FPGA CRC Check
To check FPGA software version of current device
RD
Current AU Upgrade-file name
To check AU software version
RD
AU CRC Check
To check AU software version
RD
Current EU Upgrade-file name
To check EU software version
RD
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
46 Revision 1.0.1
Parameter
Description
RD/RW
EU CRC Check
To check EU software version
RD
Current RU Upgrade-file name
To check RU software version
RD
HP RU CRC Check
To check RU software version
RD
Table 18 AU Digital Panel Information
Maximum Delay
Maximum delay from AU to the last RU
RD
Table 19 AU: OP Info
OP1~6CPRI Sync Alarm
CPRI SYNC alarm for Port “ OP1~OP6”
RD
OP-AU1 CPRI Sync Alarm
CPRI SYNC alarm for Port “ AU1”
RD
OP-AU2 CPRI Sync Alarm
CPRI SYNC alarm for Port “ AU2”
RD
OP1~6LOS Alarm
Loss of optical signal alarm for Port “OP1~OP6”
RD
OP-AU1 LOS Alarm
Loss of optical signal alarm for Port “AU1”
RD
OP-AU2 LOS Alarm
Loss of optical signal alarm for Port “AU2”
RD
Table 20 AU Advanced Commands
Command
Description
RD/RW
Master / Slave AU Select
Master AU / Slave AU select
RW
Modem Type
Reserve
RD
Backup Battery Switch
/
RW
Hardware Reset
Noted
：
Signal interruption during hardware reset
RW
Software Reset
Noted
：
Signal is normal during software reset
RW
Wi-Fi Module Reset
/
RW
Initialization/Alarm Report
Initialization: Clear alarms and disable all alarms;
Report Site launch: Report to OMC when new site launches;
RW
Alarm Mode Selection
Normal mode: 3 minutes
Test mode: 1 minute
RW
3.7.8. AU Command
Table 21 AU Factory Parameters
Factory Pattern
To perform Delete all Slave-Devices or Device Initialization functions,
factory authorization is required.
RW
Factory Pattern Password
Reserve
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
47 Revision 1.0.1
4. EU Instructions
4.1. EU Physical Appearance
Figure 4-1 shows a photograph of the EU component of the IDAS.
Figure 4-1 Physical Appearance of the EU
4.2. EU Front Panel
Figure 4-2 shows a schematic of the front panel of the EU and Table 22 lists the interfaces and their functionality.
Figure 4-2 Front Panel of the EU
Table 22 EU Front Panel Interfaces
SN
Interface Name
Description
1
SLAVE
Connects Master AU/EU at the next higher level via optical fiber
2
MASTER
Connects for EU at the next lower level via optical fiber
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
48 Revision 1.0.1
SN
Interface Name
Description
3
OP1
Connects RU via optical fiber
4
OP2
Connects RU via optical fiber
5
OP3
Connects RU via optical fiber
6
OP4
Connects RU via optical fiber
7
OP5
Connects RU via optical fiber
8
OP6
Connects RU via optical fiber
9
GE1
LAN signals or S1 signals input via CAT-5(STP)
10
GE2
LAN signals or S1 signals input via CAT-5(STP)
11
GE3
LAN signals or S1 signals input via CAT-5(STP)
12
GE4
LAN signals or S1 signals input via CAT-5(STP)
13
GE5
LAN signals or S1 signals input via CAT-5(STP)
14
GE6
LAN signals or S1 signals input via CAT-5(STP)
15
CONSOLE
Connection for local PC through CAT-5 for local monitoring
16
AP
Connection for WLAN Network adapters for monitoring device through Wi-Fi
17
DEBUG
Connection for local debugging PC through USB wire
18
STATUS
Indicates device operating status
4.3. EU Back Panel
Figure 4-3 shows a schematic of the back panel of the EU and Table 23 lists the interfaces and their functionality.
Figure 4-3 Back Panel of the EU
Table 23 EU Back Panel Interfaces
SN
Interface Name
Description
19
Electrical Power Line Interface
/
20
Grounding
/
4.4. Indicator Description
See Section 3.5 for details.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
49 Revision 1.0.1
4.5. OMT Parameters, Alarms and Commands for the EU
See Section 2.3, OMT Display, for information on how to use the WebOMT interface to view and change parameters
and run commands.
4.5.1. EU User Parameters
Table 24 EU Device Information
Parameter
Description
RD/RW
Vendor
Name to distinguish from different manufacturers
RD
Product Model
/
RD
Serial Number
/
RD
RMON Mode
Current remote monitoring mode
RD
Software Upgrade Result
/
RD
Remote Upgrade Mode
/
RD
RMON Edition
Current edition of remote monitoring software
RD
Device Edition(FPGA)
Device edition defined by FPGA
RD
Device Location
/
RW
Table 25 EU Network Management
Parameter
Description
RD/RW
Site ID
The unique identification number of site in the system assigned by
Master AU
RW
Device ID
Number to distinguish the subsets in the same site assigned by
Master AU
RW
Date and Time
/
RW
4.5.2. EU Alarms
Table 26 IDAS Alarms for the EU
Parameter
Description
RD/RW
Power Interruption Alarm
Electric supply failure
RW
MOV Alarm
Alarm when device leave the original installation location
RW
Open Case Alarm
Alarm when device is open
RW
Over-temperature Alarm
Alarm when device temperature over rated temperature threshold
RW
DPLL Unlocked Alarm
Digital phase lock loop unlocked
RW
OP-transceiver1~6 Failure Alarm
OP-transceiver unplugged or failure (Port OP1~OP6)
RW
OP-slave transceiver Alarm
OP-transceiver unplugged or failure (Port SLAVE)
RW
OP-master transceiver Alarm
OP-transceiver unplugged or failure (Port MASTER)
RW
Link Alarm
Alarm when local EU cannot connect to the system
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
50 Revision 1.0.1
4.5.3. EU System Info
Table 27 EU Sampling Info
Parameter
Description
RD/RW
Over-temperature Threshold
Default value: 80℃/ Range: -55~ +125℃
RW
Device Temperature
/
RD
Device Routing Addr
Device Routing Address
RD
4.5.4. EU Engineering Information
Table 28 EU Engineering Info
Parameter
Description
RD/RW
Update Time
Last update time
RD
ARM CRC Check
To check ARM software CRC value of current device
RD
FPGA CRC Check
To check FPGA software CRC value of current device
RD
EU CRC Check
To check EU software CRC value of current device
RD
Table 29 EU: OP Info
OP1~6 CPRI Sync Alarm
CPRI SYNC Alarm of Port “ OP1~OP6”
RD
OP-slave CPRI Sync Alarm
CPRI SYNC Alarm of Port “ SLAVE”
RD
OP-master CPRI Sync Alarm
CPRI SYNC Alarm of Port “ MASTER”
RD
OP1~6LOS Alarm
Loss of optical signal Alarm of Port “OP1~OP6”
RD
OP-slave LOS Alarm
Loss of optical signal Alarm of Port “Slave”
RD
OP-master LOS Alarm
Loss of optical signal Alarm of Port “Master”
RD
Table 30 AU Advanced Commands
Command
Description
RD/RW
Hardware Reset
Noted：Signal interruption during hardware reset
RW
Software Reset
Noted：Signal is normal during software reset
RW
Wi-Fi Module Reset
/
RW
Initialization/Alarm Report
Initialization: Clear alarms and disable all alarms;
Report Site launch: Report to OMC when new site launches;
RW
Alarm Mode Selection
Normal mode: 3 minutes
Test mode: 1 minute
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
51 Revision 1.0.1
4.5.5. EU Digital Info
Table 31 Optical Module Information
Optical Port 1 Optical Module
/
RD
DDM Function Availability
/
RD
Tx Power
/
RD
Rx Power
/
RD
Voltage
/
RD
Bias Current
/
RD
Temperature
/
RD
Optical Wavelength
/
RD
4.5.6. EU Command
Table 32 EU Factory Parameters
Factory Pattern
To perform Device Initialization functions, factory authorization is required.
RW
Factory Pattern Password
Reserve
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
52 Revision 1.0.1
5. RU Instructions
5.1. RU Physical Appearance
Figure 5-1 shows a photograph of the RU component of the IDAS.
Figure 5-1 Physical Appearance of the RU
5.2. RU Front Panel
Figure 5-2 shows a schematic of the front panel of the RU and Table 33 lists the interfaces and their functionality.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
53 Revision 1.0.1
Figure 5-2 Front Panel of the RU
Table 33 RU Front Panel Interfaces
SN
Interface Name
Description
1
CH2
PA 2 Module Interface, connects service antenna via 4.3-10 female connector
2
CH1
PA 1 Module Interface, connects service antenna via 4.3-10 female Connector
3
Modem Interface /Reserved
Reserved if no modem
4
Slave OP
Connects EU or RU at the next higher level via optical fiber
5
Slave
Indicates Slave OP port operating status
6
MASTER OP
Connects RU at the next lower level via optical fiber
7
Master
Indicates Master OP port operating status
8
RUN
Indicates device operating status
9
DEBUG
Connection for local PC through CAT-5 for local monitoring
10
GE
LAN signals or S1 signals output via CAT-5(STP)
11
PWR
Electrical Power Line Interface
5.3. Indicator Description
Refer to Section 3.5 for details.
5.4. OMT Parameters, Alarms and Commands for the RU
See Section 2.3, OMT Display, for information on how to use the WebOMT interface to view and change parameters
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
54 Revision 1.0.1
and run commands.
5.4.1. RU User Parameters
Table 34 RU Device Information
Parameter
Description
RD/RW
Vendor
Name to distinguish from different manufacturers
RD
Product Model
/
RD
Serial Number
/
RD
RMON Mode
Current remote monitoring mode
RD
Software Upgrading Result
RD
Remote Upgrade Mode
/
RD
MON Edition
Current edition of remote monitoring software
RD
Device Edition(FPGA)
Device edition defined by FPGA
RD
Device Location
/
RW
Table 35 RU Network Management
Parameter
Description
RD/RW
Site ID
The unique identification number of the site in the system
RW
Device ID
Number to distinguish the subsets in the same site
RW
Date and Time
/
RW
5.4.2. RU Alarms
Table 36 IDAS Alarms for the RU
Parameter
Description
RD/RW
Power Interruption Alarm
Electric supply failure
RW
MOV Alarm
Alarm when device leave the original installation location
RW
Open Case Alarm
Alarm when device is open
RW
Over-temperature Alarm
Alarm when device temperature over rated temperature threshold
RW
DPLL unlocked Alarm
Digital phase lock loop unlocked
RW
LO1~2 unlocked Alarm
Local Oscillation unlocked
RW
CH1~2 ALC Alarm
Alarm when ALC is working
RW
OP-slave Transceiver Alarm
OP-transceiver unplugged or failure (Port “Slave”)
RW
OP-master Transceiver Alarm
OP-transceiver unplugged or failure (Port “Master”)
RW
CH1~2 DL Under Output-power Alarm
Channel 1~4 output-power under rated threshold
RW
CH1~2 DL Over Output-power Alarm
Channel 1~4 output-power over rated threshold
RW
Link Alarm
Alarm when local RU cannot connect to the system
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
55 Revision 1.0.1
5.4.3. RU System Info
Table 37 RU: RF Channel 1~2
RF signal switch
/
RW
UL Attenuation
Range:0-15dB
RW
DL Attenuation
Range:0-15dB
RW
DL under output-power threshold
Default value: -30dBm/ Range: -35~ +15dBm
RW
DL over output-power threshold
Default value: 10dBm/ Range: +10~ +30dBm
RW
DL output-power
/
RD
Bandwidth
/
RD
UL center frequency
/
RD
DL center frequency
/
RD
UL Gain
/
RD
DL Gain
/
RD
Table 38 RU Sampling Info
Parameter
Description
RD/RW
Over-temperature threshold
Default value: 80℃/ Range: -55~ +125℃
RW
Device Temperature
/
RD
CH1 DL Output-power
/
RD
CH2 DL Output-power
/
RD
CH1 VSWR
/
RD
CH2 VSWR
/
RD
Device Routing Addr
Device Routing Address
RD
5.4.4. RU Band Config
Table 39 RU Channel 1~2
Command
Description
RD/RW
UL Freq_low
Lower limit of uplink frequency
RW
UL Freq_high
Higher limit of uplink frequency
RW
DL Freq_low
/
RW
DL Freq_high
/
RW
5.4.5. RU Digital Info
Table 40 RU Downlink Power
CH1~2 UL Baseband input-power
Power of UL detected in digital domain
RD
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
56 Revision 1.0.1
Table 41 RU Uplink Power
CH1~2 DL Baseband Output-power
Power of DL detected in digital domain
RD
Table 42 Optical Module Information
Slave/Master Optical Port Optical Module
/
RD
DDM function availability
/
RD
Tx power
/
RD
Rx power
/
RD
Voltage
/
RD
Bias Current
/
RD
Temperature
/
RD
Optical wavelength
/
RD
5.4.6. RU Actual Gain
Table 43 RU Channel 1~2 Actual Gain
Parameter
Description
RD/RW
Port 1~4 UL
Channel 1~2 Port 1~4 UL gain
RD
Port 1~4 DL
Channel 1~2 Port 1~4 DL gain
RD
5.4.7. RU Engineering Information
Table 44 RU Engineering Info
Parameter
Description
RD/RW
Update Time
Last update time
RD
ARM CRC Check
To check ARM software CRC value of current device
RD
FPGA CRC Check
To check FPGA software CRC value of current device
RD
RU CRC Check
To check RU software CRC value of current device
RD
Table 45 RU DPD Switch
Parameter
Description
RD/RW
CH1 DPD Switch
Enable/Disable
RW
CH2 DPD Switch
Enable/Disable
RW
Table 46 RU Digital Panel Information
Maximum Delay to Master Device
Maximum delay from AU to the last RU
RD
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
57 Revision 1.0.1
Table 47 RU: OP Info
OP-slave CPRI Sync Alarm
CPRI SYNC Alarm of Port “ Slave”
RD
OP-master CPRI Sync Alarm
CPRI SYNC Alarm of Port “ Master”
RD
OP-slave LOS Alarm
Loss of optical signal Alarm of Port “Slave”
RD
OP-master LOS Alarm
Loss of optical signal Alarm of Port “Master”
RD
Table 48 RU Channel Map (RU-AU)
Channel Map 1
See below for details
RD
Channel Map 2
See below for details
RD
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
The value of channel map contains 16 binary numbers. “0” means the corresponding channel is not in use while “1”
means the corresponding channel is in use.
Numbers “0”~“3” correspond to RF channels “1~4” of Master AU(0)
Numbers “4”~“7” correspond to RF channels “1~4” of Slave AU(1)
Numbers “8”~“11” correspond to RF channels “1~4” of Slave AU(2)
Numbers “12”~“15” are not in use and should be all zero.
For example, the value “0000 0100 0010 0001” means that the first channel on the Master AU and the second
channel on the Slave AU1 and the third channel on the Slave AU2 are now in use, while all others are not in use.
Table 49 RU Advanced Commands
Command
Description
RD/RW
Hardware Reset
/
RW
Software Reset
/
RW
Wi-Fi module reset
/
RW
Initialization/Alarm report
Initialization: Clear and disable all alarms；
Report site launch: Report to OMC when new site launches；
RW
Alarm mode selection
Normal mode = 3 minutes / Test mode = 1 minute
RW
5.4.8. RU Command
Table 50 RU Factory Parameters
Factory pattern
To perform Device Initialization functions, factory authorization is required.
RW
Factory pattern password
Reserve
RW
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
58 Revision 1.0.1
6. Installation and Connections
6.1. Installation Preparation
6.1.1. Client Cooperation
To guarantee a secure installation and proper operation and maintenance of the device, please contact ZENIC8 for
technical support and actively cooperate with ZENIC8’s engineering technicians to understand the installation process,
structure, wiring, debugging steps and so on.
6.1.2. Site Investigation
Before installation, the installer should contact the project director to ensure that the site is suitable for installation.
Details required include information about the installation site such as whether there is an iron tower or high mast
nearby, the surrounding environmental conditions such as temperature and humidity, the power source and so on.
Installation staff should complete a site investigation with the project director before construction and conduct field
observation of the installation site and the coverage area of the device, to confirm factors such as signal intensity, signal
quality, the required coverage range, device location, antenna-feeder system and power supply system.
All devices must be installed indoors. The operating temperature range is -10oC～+45 oC. Indoor ventilation should
be robust and humidity should be 85%. (See the SPEC for the complete technical specifications.)
Note: Only the maintenance personnel or the users who understand the reason for access and are experienced with
restricted area access and understand the necessary preventive measures should access the installation site.
6.1.3. Installation Tools
Tools required for installation include:
electric percussion drill
screwdriver
wrench
6.2. Unpacking and Inspecting the Device
This section discusses the procedures for receiving the shipment, inspecting the packing container, unpacking and
inspecting the device.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
59 Revision 1.0.1
6.2.1. Inspecting the Packing Container
Handle the packing container carefully. Inspect the packing container immediately on arrival at the installation site
to verify that no obvious damage occurred during shipment. Ensure that the container is sound and that the waterproof
and vibration warning notices are still obvious.
If any damage is observed, notify ZENIC8 immediately. Do not open or unpack the container until ZENIC8 personnel
have inspected it.
A ZENIC8 engineering technician will attend the installation site to inspect and unpack the shipment with the
customer. The technician will complete a shipment arrival and inspection report.
6.2.2. Unpacking the Device
If the container appears to be in satisfactory condition, perform the following procedures to unpack the device:
1. Ensure both user and supplier representatives are in attendance during shipment inspection.
2. Confirm where the device is to be stored.
3. Ensure procedures are in place to handle the device and other equipment properly, after it has been unpacked
and inspected.
4. Ensure the following tools are available to unpack the shipment: hammer, paper cutter and crow bar.
5. Open the packing container carefully. The device is contained in a protective package inside the packing
container; however, caution is still necessary so as not to damage the internal package and device.
6. Remove the internal package from the packing container.
7. Unpack the device from the internal package carefully.
6.2.3. Verifying the Contents
To verify the contents of the package:
1. Verify that the contents and quantities agree with the Delivery Packing List.
2. Check the device model against the Delivery Packing List.
3. Notify ZENIC8 immediately if any discrepancies are discovered, to verify whether the complete and correct
shipment has been received.
6.2.4. Inspecting the Device
After unpacking the device, place the device on solid ground and check the following to ensure the device has not
been damaged:
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
60 Revision 1.0.1
1. Inspect the device’s appearance, overall dimensions and weight.
2. Check that the device has not been deformed or bent in any way.
3. Check that there are no warps, scratches, bubbles or dirt marks.
4. Check that there are no loose, missing or incorrectly fastened screws.
5. Check that the installation slots in the cabinet sub-rack are rectangular.
6. Ensure that the guide bar has not been damaged and the fittings and auxiliary parts are intact.
7. Check that the silk—screened images on the device are clearly visible and intact.
6.3. Device Installation
The AU, EU and RU have two possible installation modes: rack installation and wall mounted. The AU is usually
installed in a rack, while the EU and RU is usually wall mounted.
Note: Never placed an operating RU horizontally.
6.3.1. Rack Installation (Only for AU and EU)
To install the device into a 19” standard rack:
1. Choose an indoor location. The location should be larger than 1000×800×2500 mm and it is recommended
that the rack be at least 200 mm away from the wall.
2. Install the device into the 19″ standard rack and fasten with 4*M6 screws.
6.3.2. Wall Mounting Installation (for AU and EU)
To install the device using a wall mounting (see Figure 6-1):
1. Rotate the hanger 90o and install (the hanger can be installed in the middle of the rack).
2. Choose an appropriate indoor location. Mark 4*6.8 holes sites for the hanger to be attached to the wall.
3. Drill at the four sites using a percussion drill and embed 4*8 plastic expansion pipes.
4. Fasten the case with 4*ST4.5 self-tapping screws.
Note: Wall mounting installation of the AU is exactly the same as that of EU.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
61 Revision 1.0.1
Figure 6-1 Wall Mounting Installation of an EU
6.3.3. Wall Mounting Installation (for RU)
To install the device using a wall mounting:
Note: Wall mounting installation of the POI is exactly the same as that of RU.
1) Front-mounting Installation (see Figure 6-2, Figure 6-3):
a) Choose an appropriate location. Mark 2*13 holes sites for the mounting bracketⅠto be attached to the
wall.
b) Drill at the two sites using a percussion drill and embed 2*M10*90 expansion bolts.
c) Fasten the mounting bracketⅡ to the back of device with 2*M6*14 screws.
d) Hang the device on the mounting bracket and fasten the case with 2*M10 nut.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
62 Revision 1.0.1
Figure 6-2 Schematic of RU Wall Front-mounting Installation
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
63 Revision 1.0.1
Figure 6-3 Exploded View of RU Front-mounting Installation
2) Side-mounting Installation(see Figure 6-4 and Figure 6-5):
a) Choose an appropriate location. Mark 2*13 holes sites for the mounting bracketⅠto be attached to the
wall.
b) Drill at the two sites using a percussion drill and embed 2*M10*90 expansion bolts.
c) Fasten mounting bracketⅡto the side of device with 2*M6*14 screws.
d) Hang the device on the mounting bracket and fasten the case with 2*M10 nut.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
64 Revision 1.0.1
Figure 6-4 Schematic of RU Wall Side-mounting Installation
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
65 Revision 1.0.1
Figure 6-5 Exploded View of RU Side-mounting Installation
6.3.4. Suspension Installation (For AU and EU, Optional)
To install a device using a suspension installation:
1. Fasten two hangers to the sides of device with 8 M3*6 screws. See Figure 6-6 for details.
2. Measure the dimension between the centres of hangers. See Figure 6-7 for details.
3. Choose an appropriate indoor location. Mark 4 holes sites for the stand-off bracket to be attached to the wall.
See Figure 6-8 for details.
4. Hang the device on the stand-off bracket and fasten with the bolts. See Figure 6-9 for details.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
66 Revision 1.0.1
Figure 6-6 Step 1 of Suspension Installation
Figure 6-7 Step 2 of Suspension Installation
Figure 6-8 Step 3 of Suspension Installation
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
67 Revision 1.0.1
Figure 6-9 Step 4 of Suspension Installation
6.3.5. Pole Mounting (Only for RU, Optional)
To install the device using pall mounting (see Figure 6-10 and Figure 6-11).
Note: Pole mounting of the POI is exactly the same as that of RU.
1) Choose an appropriate location.
2) Fasten mounting bracketⅠto the side of device with 2*M6*14 screws.
3) Fasten the case to mounting bracketⅡand mounting bracket Ⅲwith 2*M10*200 bolts.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
68 Revision 1.0.1
Figure 6-10 Schematic of RU Pall Installation
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
69 Revision 1.0.1
Figure 6-11 Exploded View of RU Pall Installation
6.3.6. Selecting the Installation Site
1. Choose a location for installation that is convenient based on the power supply and feeder layout and where
an optical cable interface is available for the optical fibre connection.
2. The installation location should be away from heat sources and should not be located in a damp environment.
3. The ventilation should be adequate such that the indoor temperature is maintained between -10oC and 45 oC.
4. The back and sides of the case should be at least 80-100 cm away from the wall or other devices.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
70 Revision 1.0.1
6.4. Device Connections
AU
(Master)
OP1/AUAU1 OP2 OP3
AU
(Slave)
OP1/AUAU1 OP2 OP3
Fiber
AU2
AU2
CONSOLE
CONSOLE ALARM I/O
ALARM I/O
RU1
GE1OP1
EU
SLAVE
MASTER CONSOLE
GE1OP1
EU
SLAVE
MASTER CONSOLE
Fiber
Fiber
EU Cascade
RU Cascade
Slave AU Connection
Fiber
SLAVE
GE
MASTER
CONSOLE
Power
Fiber
RU2
SLAVE
GE
MASTER
CONSOLE
Power
Figure 6-12 System Connection Schematic
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
71 Revision 1.0.1
6.4.1. Optical Interface Connection
Single Optical Fibre-module
Figure 6-13 shows that when using a pair of single optical fibre-modules, the wavelength of the two modules
should be different, for example, 1271nm & 1331nm. See Table 51 for the optical fibre module corresponding to each
port. When the optical module is unplugged or not synchronized, the indicators are red as shown in the left pair of
indicators in Figure 6-15. Check whether both indicators turn green after connecting one pair of optical modules. If they
are red, the terminal has not synchronized. See Section 9 for how to resolve this issue.
Table 51 Optical Module Selection for Single Optical fibre-module
Device Unit
Port
Wavelength of Module
Master AU
All Ports
1271nm
Slave AU
OP1 (only this port is used)
1331nm
EU
Slave
1331nm
Master & OP1~OP6
1271nm
RU
Slave
1331nm
Master
1271nm
Figure 6-13 Single Optical Fibre Module
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
72 Revision 1.0.1
Double Optical Fibre-module
The optical connector unit includes an optical module and optical fibre. Figure 6-14 shows that when using a double
optical fibre-module, the optical transmitter and optical receiver should correspond to each other. In other words, the
optical transmitter of optical module A should correspond to the optical receiver of optical module B and the receiver of
A should correspond to the transmitter of B. The optical receiver and transmitter terminals of the optical module can be
determined by the triangular mark on the optical module. Figure 6-14 shows the triangular mark in the yellow box and
the red and green lines indicate the optical fibre connections.
Figure 6-14 Optical Module Connection
Each pair (2) of optical module cages has four LED indicator arrows. The two on the left are green and the two on the
right are red as shown in Figure 6-15. The indicator arrows represent the synchronization status of the upper and lower
optical modules. When optical module A has synchronized with module B (both uplink and downlink), the indicators turn
green as shown in the right pair of indicators in Figure 6-15. When the optical module is unplugged or not synchronized,
the indicators are red as shown in the left pair of indicators in Figure 6-15. Check whether both indicators turn green
after connecting one pair of optical modules. If they are red, the terminal has not synchronized.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
73 Revision 1.0.1
Figure 6-15 Optical SYNC Status
6.4.2. AU connections
Prior to attempting the AU connections, read Section 3 thoroughly.
The AU has eight optical ports, designated by eight silk-screened images: “AU1”, “AU2”, “OP1/AU”, “OP2”, “OP3”,
“OP4”, “OP5”, “OP6”. The ports “OP1~OP6” all have the same functionality, providing connections to lower level EUs or
RUs. Insert the optical module into any one of the OP1～OP6 ports, then insert the tail of the optical fibre into the
optical module and connect the other end to the lower EU or RU. After the AU and EU/RU are connected and powered
on, the optical interface indicator LED will turn green, which indicates that the devices are synchronized. If the optical
indicator LED does not turn green, check whether the connection direction of the optical fibre is correct and whether the
optical module is inserted tightly.
The “AU1” and “AU2” optical ports are for connecting to the slave AU.
When connecting to the slave AU, first access the slave AU independently (see Section 2.2 for instructions on how to
access the WebOMT for the Slave AU). Ensure the status of the AU is “Slave AU” and then connect the optical fibre.
Note: The connection between the Master AU and the Slave AU can only be from the OP1/AU port on the Slave AU
to the AU1 (or AU2) port on the Master AU; other optical ports are invalid for Master-Slave AU connections.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
74 Revision 1.0.1
6.4.3. EU connections
Prior to attempting the EU connections, read Section 4 thoroughly.
The EU has 8 optical ports and 6 electrical ports. The optical “SLAVE” port should be connected to the AU or upper
EU and the optical “MASTER” port should be connected in a cascading manner to a lower EU in a daisy chain. (Refer to
the networking definition of a daisy chain.) The OP1~OP6 ports have the same functionality and are all used for
connections to RUs. After the EU is connected to the upper device and powered on, the optical indicator LED turns green
which means that the devices are synchronized. If the LED does not turn green, see Section 9 to resolve the issue.
Each EU has six electrical ports, GE1~GE6, which support six LAN signals. Each electrical port corresponds to a
specific optical port, for example, port GE1 corresponds to port OP1 and port GE6 corresponds to port OP6.
6.4.4. RU connections
Prior to attempting the RU connections, read Section 5 thoroughly.
The RU has 2 optical ports, “SLAVE” and “Master. The “SLAVE” port should be connected to an upper AU, EU or RU,
and the “MASTER” port should only be connected to a lower RU. After the RU has been connected to the upper device
and powered on, the optical indicator LED turns green which means that the devices are synchronized. If the LED does
not turn green, see Section 9 to resolve the issue.
6.4.5. Standby battery connection
A plug is connected to a power source on the output wire of the device’s lithium battery. To prevent battery
discharge, this is unplugged before shipping. After the device is operational, plug it in to ensure normal reporting if the
power is cut.
6.5. WLAN Access (Wi-Fi)
Each EU has six electrical ports, GE1~GE6, which support up to 6 LAN signals. LAN signals are input on the GE1~GE6
ports and output from the corresponding OP1~OP6 ports. The signals are then transmitted to the RUs via optical signals
over optical fibre and output from the GE port on the RU. Each RU connects to an AP device through their respective GE
port. Thus, 6 independent Gigabit Ethernet transmission channels can be completed. See Figure 6-16 for WLAN connection
details.
Note: each electrical port (GE1~GE6) must correspond to an optical port (OP1~OP6), i.e. GE1 should correspond to
OP1, GE2 should correspond to OP2, etc. WLAN signal input on GE1 is then sent out on OP1.
If there are multiple access points (AP) that are connected to more than one cascading RU in a signal chain, the WLAN
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
75 Revision 1.0.1
signal will only be output from one of the RUs, with the priority being RU1>RU2>RU3 when selecting which RU the signal
will be output from. If there is only one AP device, then the WLAN signal is always output from the RU that is connected to
the AP.
CAT-5(STP)
SWITCH
AP
GE1OP1
EU
RU
AU
OP1/AU
Fiber
SLAVE
SLAVE
GE
MASTER
CONSOLE
Power
Fiber
CAT-5(STP)
Figure 6-16 WLAN Access
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
76 Revision 1.0.1
7. System Debugging Setup
After installation and connection, power the devices on. At this point, it is strongly recommended that a laptop be
connected to the Master AU to enable system debugging. Check each device’s working status. The optical interface
indicator LEDs should be green and stay lit and the STATUS indicator LEDs should be green and flashing slowly. Now, start
the online debugging according to Figure 7-1 and Figure 7-2.
Master AU
No
Yes
Connection & Query Status
Completion
Channel Gain Adjustment
Field Intensity Test &
Antenna Adjustment
Alarm Parameter Configuration
Connection & Query Status
NMS Setup
Alarm Parameter Configuration
Channel Property Steup
Channel Gain Adjustment
Field Intensity Test &
Antenna Adjustment
Completion
Figure 7-1 AU (left) and RU (right) Debugging Procedures
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
77 Revision 1.0.1
Connection & Query Status
Alarm Parameter Configuration
Completion
Figure 7-2 EU Debugging Procedures
7.1. Network Management System Setup for SNMP
The site number must be set using the WebOMT on the Master AU before connecting to the network management
system (NMS). The NMS should identify devices by their unique site number. Network parameters also need to be set up
for the specific network. If the NMS supports the SNMP protocol, set Protocol Select to “SNMP” and configure related
parameters such as the Trap IP Addr, Trap Port, Subnet Mask, Default Gateway, etc. as shown in Table 7. If the NMS
supports the ZENIC8 proprietary protocol, set Protocol Select to “TCP/IP” and configure the corresponding parameters
as shown in Table 6.
The remote FTP server parameters also need to be set up if remote software upgrades are supported. These
parameters are set in the Engineering tab ―> User Para sub-tab in the WebOMT. See Figure 7-3 for details.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
78 Revision 1.0.1
Figure 7-3 NMS Setup
7.2. Channel Properties Configuration
According to the different base station operating frequency bands for each operator, select the passive RF modules
for the AU and active RF modules for the RU with the corresponding frequency band and set the channel properties in
the WebOMT of the Master AU. The limits of the uplink and downlink operating frequency bands correspond to the
effective RF range of the selected RF modules.
To set the channel properties (see Figure 7-4):
1. In the WebOMT, select the Engineering tab.
2. Select the Characteristics sub-tab on the Engineering page.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
79 Revision 1.0.1
3. Set the uplink and downlink operating frequency band limits for channels 1, 2, 3 and 4.
(See step 1 in Figure 7-4.)
4. Set the uplink and downlink centre frequencies and the bandwidth for signals 1, 2, 3 and 4.
(See step 2 in Figure 7-4.)
5. Click Set to validate the parameter values. (See step 4 in Figure 7-4.) Ensure the value of CH1~4 info is valid.
6. In the Public Parameters section, set AU CH Info Update to “Update”. (See step 3 in Figure 7-4.)
Note: The maximum bandwidth per operating band should be less than 80MHz and the maximum bandwidth for all
operators should be less than 200 MHz.
Figure 7-4 Setting Channel Properties
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
80 Revision 1.0.1
7.3. Channel Gain Adjustment
After setting the channel properties, access the RF signals. In the IDAS, the nominal downlink input power of the AU
is 0dBm and the maximum allowable input power is 15dBm. Therefore, before accessing the RF signals, estimate the
signal power. Monitor the downlink input power with a spectrum analyser or read the downlink input power value from
the “Combiners” on the WebOMT in order to set the downlink input power within the appropriate range.
To adjust gain on AU WebOMT (see Figure 7-5):
1) In the AU WebOMT, select the Engineering tab.
2) Select the Combiners sub-tab on the Engineering page.
3) Check the input power value of the port which there is input signals. See Figure 3-4 for active combiner ports.
4) Set the attenuation value. For example, the input power value of port 1 channel 1 is 3.499 dBm, then enters
3.50 attenuation in port 1 Attenuation value and click set to confirm.
Figure 7-5 Gain Adjustment on AU Combiners
5) Select the System Info sub-tab on the Engineering page.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
81 Revision 1.0.1
6) Select the Sampling Info sub-tab and check the channel input power after combiner.
If the input power exceeds 0 dBm, set the appropriate DL attenuation to reduce the input power to 0dBm. See
Figure 7-6 for details.
Figure 7-6 Downlink Input Power Adjustment after Combiner
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
82 Revision 1.0.1
To adjust gain on RU WebOMT (see Figure 7-7 for details):
1) In the RU WebOMT, select the Engineering tab.
2) Select the System Info sub-tab on the Engineering page.
3) Select the Sampling Info sub-tab to check the output power
4) Set the Attenuation to achieve the desired output power.
Figure 7-7 Gain Adjustment on RU WebOMT
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
83 Revision 1.0.1
7.4. Alarm Parameters Setup
After completing the radio-frequency channel properties configuration, set up the alarm parameters using the
following procedure:
1. In the WebOMT, select the Engineering tab.
2. Set the statuses of the optical transceiver one by one.
3. If there is an optical path connection, enable the basic device alarms, such as Power Interruption Alarm,
Battery Failure Alarm, MOV Alarm, etc. For alarms related to channel properties, such as the DPLL unlocked
Alarm, LO unlocked Alarm, OP transceiver failure Alarm, etc., only enable those associated with the channels
which have an input signal, to avoid unnecessary alarms. See Figure 7-8 for details.
Wait 3~5 minutes after completing the setup, then query to see if there is a failure alarm for the device. If there is
an alarm, see Section 9 or troubleshooting manual to resolve the issue. Figure 7-8 shows an example of AU Alarm
Parameters Setup.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
84 Revision 1.0.1
Figure 7-8 Alarm Parameters Setup of AU
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
85 Revision 1.0.1
7.4.1. Alarm level
Figure 7-9 Alarm Level
The alarm level is distinguished to four levels— Warning, Minor, Major, Critical corresponding to the alarm level
on NMS. The level of specific alarm is independently chosen by user.
7.4.2. External Alarms
Figure 7-10 External Level
See Figure 7-10 for details of external level.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
86 Revision 1.0.1
7.5. Configuring OMT User Parameters
Table 52 shows the clickable icons in the WebOMT used for configuration.
Table 52 WebOMT Configuration Icons
Icon
Description
Show/hide parameter ID numbers. Every parameter can be distinguished by its unique ID number in the
WebOMT.
Show/hide configurable parameters.
Note: only some of the read-write parameters are configurable and can be modified.
Save configuration. Note: this button is only enabled after checking the selected parameter. Otherwise, it is
greyed-out and is an invalid choice.
To configure the parameters, use the following procedure and refer to Figure 7-11 and Figure 7-12:
1. In the WebOMT, select the appropriate tab (for example, the User Para tab).
2. Click the button to show the parameter ID numbers. See 1 in Figure 7-11.
3. Click the button to show the configurable parameter choice box. See 2 in Figure 7-11.
4. Check the parameter that you want to configure. See the blue check mark in 3 in Figure 7-11.
5. Click the button to save the configuration. See 4 in Figure 7-11. Note: you can also use the Save
Configuration button on the Configuration page shown in Figure 7-12. (See next step.)
6. Click the Configuration button. (See 5 in Figure 7-11.) This takes you to the Configuration page. In Figure 7-12,
the underlined file contains the configuration parameter data. Use the Download and Load Configuration
buttons to save the file to a local PC and load the file to the WebOMT, respectively. See the red frames in
Figure 7-12.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
87 Revision 1.0.1
Figure 7-11 Configuring User Parameters
Figure 7-12 Download and Load Configuration
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
88 Revision 1.0.1
8. Software Upgrade
The Master AU consolidates the management of software upgrades for the entire system and saves the last software
package for the AU, EU and RU. Slave devices compare the local software with that saved in the Master AU at run time. If
the software version is different, the slave device will start the software upgrade progress and reset automatically after
the upgrade is complete. The benefit of this approach is that if a slave device is replaced, a software upgrade is started
automatically without having to do additional operations. If the Master AU is replaced, before connecting the new
Master AU to the system, check the software version using the WebOMT as shown in Figure 8-1. If the software version
is not the latest version, upload the latest software packages to the new Master AU.
Figure 8-1 Checking Software Package Version
As mentioned above, the system software upgrade is divided into two steps. First, upload the package to the master
AU. Second, the slave device automatically downloads the new software package from the Master AU to complete the
upgrade process. This process can be performed in one of two ways: by performing a local upgrade using the OMT or by
performing a remote upgrade via FTP.
8.1. Local Upgrade
As an example, to do an RU or EU upgrade:
1. Log in to the WebOMT on the Master AU. Click the Upgrading button on the main page to navigate to the
software upgrade page. See Figure 8-2.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
89 Revision 1.0.1
Figure 8-2 Software Upgrade Step 1
2. On the software upgrade page, as shown in Figure 8-3, click the Upload button to upload the RU or EU
software package file.
Figure 8-3 Software Upgrade Step 2
3. When the software upload has completed successfully, select the file that was just uploaded and click the
Upgrade button to complete the software upgrade, as shown in Figure 8-4 for an RU upgrade.
Figure 8-4 Software Upgrade Step 3
4. When the upgrade has completed, confirm that the software has been updated correctly as shown in Figure
8-1.
There is one difference in the AU upgrade process. Follow the same steps as for the RU or EU; however, when the AU
package upgrade has completed successfully, the Master AU resets itself automatically to complete the software
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
90 Revision 1.0.1
upgrade.
8.2. Remote Upgrade
Use FTP to perform an upgrade remotely. As shown in Figure 8-5, set up the FTP server IP address, port number,
login name, login password, file storage path and filename to be upgraded. Then, set the FTP File Transfer Control item
to “Start upgrade”. To complete the upgrade, click the Set button to download the software from the FTP server. When
using this method, ensure that the FTP server is running correctly and the file to be upgraded has been saved in the
specified directory.
Figure 8-5 Setting up Remote Upgrade via FTP
If the IDAS is connected to an NMS, the operations above can be set through the NMS to implement a remote
software upgrade, as shown in Figure 8-6.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
91 Revision 1.0.1
Keep software packages
NMS
Internet
Set FTP server parameters and
send upgrade command
FTP Server
iDAS
Figure 8-6 Remote Upgrade using an NMS
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
92 Revision 1.0.1
9. Device Maintenance
9.1. Regular Maintenance
When the IDAS is running, regular inspection is recommended, as follows:
1. Check that RF and power cables are connected securely and that all screws are tight. If any connections pose a
safety hazard, deal with them as soon as possible.
2. Check the ground status of the device.
3. Measure the power supply voltage of the devices.
4. Check the operating status and main performance parameters of devices regularly through the NMS or OMT.
5. Check whether all warning marks are intact.
If a fault occurs and the device cannot operate normally, return the device to the factory for repair or send to
technicians for site repair.
9.2. Troubleshooting
This section lists problems that may arise in engineering applications and suggests relevant solutions.
1. The slave device cannot synchronize with the master device:
a) Query the software version using the OMT. Make sure that the device is running the correct software.
b) Check the SFP module to confirm whether the SFP module has been damaged.
c) Restart the device. If the problem persists, the device may have been damaged. The equipment needs to
be replaced.
2. RU downlink shows an output-power alarm:
a) The gain of the RU downlink is equal to (37- DL attenuation dB). Check the RU downlink baseband power,
and then add the downlink baseband power to the RU downlink gain. The result should be close to the
output power. If the deviation is more than 5 dB, the PA module may be damaged.
3. Over-temperature alarm:
a) The devices need space to dissipate heat. Ensure the device is not covered by anything. If the device is
covered, the temperature will rise.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
93 Revision 1.0.1
10. Application Scenarios
This section describes various configuration scenarios for the IDAS.
10.1. Operators Located at Same Site
In this example, operators A, B, C, D and E are located at the same site (see Figure 10-1). Operators B and C operate
in the same frequency band, which can be combined in one channel in “the RF domain”. The maximum bandwidth per
operating band should be less than 60MHz and the maximum bandwidth of all operators should be less than 200 MHz.
Operator E
Operator A
Fiber
AU EU
Fiber
POI
A
B+C
D
E
RU1
POI
A
B+C
D
E
RU8
Operator D
Operator B
Operator C
Fiber
Figure 10-1 Example for Operators Located at Same Site
10.2. Operators Located at Separate Sites
In this example, operators A, B, D and E are located at one site and operators C and F are located at a different site.
(See Figure 10-2) Operators C and F can access the Master AU through the Slave AU so that all operators can combine
within the same fibre from the Master AU to the EU. In contrast with the scenario in section 10.1, operators B and C can
be combined in the “baseband domain”. The maximum bandwidth per operating band should be less than 60MHz and
the maximum bandwidth of all operators should be less than 200 MHz.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
94 Revision 1.0.1
Operator E
Operator C
Operator A
Fiber
Master AU
Slave AU
EU
Fiber Fiber
Fiber POI
A
B+C
D
E
F
RU
RU
Fiber POI
A
B+C
D
E
F
RU
RU
Fiber
Operator D
Site 1
Site 2
Operator B
Operator F
Different operator
input be combined into
one RF channel
RU cascade to increase RF
channel
Figure 10-2 Example for Operators Located at Separate Sites
10.3. MIMO Application
Since the same frequency is used between MIMO1 and MIMO2, operator C, as shown in Figure 10-3, must employ
two special channels in the AU and RU. In order to guarantee coherence between MIMO1 and MIMO2, MIMO1 and
MIMO2 must be in the same AU and RU. The maximum bandwidth per operating band should be less than 60MHz and
the maximum bandwidth of all operators should be less than 200MHz.
Operator A
WCDMA
Operator B
WCDMA
Operator C
LTE MIMO
AU EU
Fiber Fiber POI
A
B
MIMO1
RU
MIMO
MIMO2
Figure 10-3 Example for MIMO Application
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
95 Revision 1.0.1
10.4. RU Cascade Application
In this scenario, RU1 can connect to the EU or directly to the AU. A maximum of four RUs can cascade when RU1 is
connected to the EU and a maximum of five RUs can cascade when RU1 is directly connected to the AU. (See Figure 10-4)
The maximum bandwidth per operating band should be less than 60MHz and the maximum bandwidth of all operators
should be less than 200 MHz.
RU cascade and every unit
output same RF signal
Operator D
Operator A
AU EU
Fiber
POI
A
B
C
D
RU1
Operator C
Fiber
Operator B
RU2
POI
A
B
C
D
RU3
Fiber
Fiber
POI
A
B
C
D
RU5
RU1 RU2
Fiber
Fiber Fiber
Max 5 RUs cascade connect
to AU directly
Max 4 RUs cascade connect
to EU
Fiber
Figure 10-4 Example for Cascading RU Application
10.5. WLAN Application
IDAS provides a transparent pipeline for 10M/100M/1000Mbps Ethernet transmission. Each EU has six electrical
ports (GE1~GE6) for six WLAN signals to access. Meanwhile, six optical ports (OP1~OP6) correspond to GE1~GE6 for the
output signal. (See Figure 10-5) The flow path of the signal is:
Input LAN signals— EU— RU— AP— POI— Antenna-feeder system.
Note:
The electrical port must correspond to an optical port, for example, GE1 corresponds to OP1.
If multiple cascading RUs connect, the WLAN signal can be output from a random RU.
If multiple cascading RUs connect and more than one AP device connects to the RUs, the WLAN signal can
be output from one RU, and the priority is RU1＞RU2＞RU3.
CrossFire – A revolution in RF Transport for In Building Wireless
User Manual
96 Revision 1.0.1
AU
EU1 EU4
Fiber
6 ports Ethernet Switch
EU5
Fiber
6 ports Ethernet Switch
RU4-1
RU4-2
RU4-3
Fiber
Fiber
Fiber
Fiber
Fiber
Fiber
6 ports Ethernet Switch
AP 4-1
POI
AP 4-4
POI
AP 4-6
POI
Cat5 Cat5
Cat5
AP 5-1
POI
Fiber
In RU cascade mode,
AP can be connected
to any one of the RU
in daisy chain
RU4-4
RU4-5
RU4-6
RU5-1-1
RU5-1-2
RU5-1-3
RU5-2
AP 5-2
POI
Fiber
Fiber
Figure 10-5 Example for WLAN Application
