Super Micro Computer Supermicro H8Dmt Users Manual IBX_1.0a

H8DMT to the manual 16db4e0e-1008-4dee-9161-fdbd05a10a21

2015-02-02

: Super-Micro-Computer Super-Micro-Computer-Supermicro-H8Dmt-Users-Manual-448812 super-micro-computer-supermicro-h8dmt-users-manual-448812 super-micro-computer pdf

Open the PDF directly: View PDF .
Page Count: 64

Preface
- About this Manual
- Manual Organization
Table of Contents
Chapter 1 Introduction
Chapter 2 Installation
Chapter 3 Troubleshooting
Chapter 4 BIOS
Appendix A BIOS Error Beep Codes
- Table A-1. AMIBIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes
Disclaimer

H8DMT/H8DMT-F

H8DMT-IBX/H8DMT-IBXF

Serverboards

User’s Manual

Revison 1.0a

H8DMT/H8DMT-IBX H8DMT-F/H8DMT-IBXF

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The

vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no

commitment to update or to keep current the information in this manual, or to notify any person or

organization of the updates. Please Note: For the most up-to-date version of this manual, please see

our web site at www.supermicro.com.

Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described

in this manual at any time and without notice. This product, including software, if any, and documentation

may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or

machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE

THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE,

SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF

REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE,

SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara

County in the State of California, USA. The State of California, County of Santa Clara shall be the

exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not

exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the manufacturer’s instruction manual, may cause harmful interference with radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference,

in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning

applies only to products containing CR (Manganese Dioxide) Lithium coin cells. Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate for further

details.

Manual Revison 1.0a

Release Date: March 6, 2009

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy

any part of this document.

Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

WARNING: HANDLING OF LEAD SOLDER MATERIALS USED IN THIS

PRODUCT MAY EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE

STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS AND OTHER

REPRODUCTIVE HARM.

iii

Preface

About this Manual

This manual is written for system integrators, PC technicians and knowledgeable PC

users. It provides information for the installation and use of the H8DMT/H8DMT-IBX/

H8DMT-F/H8DMT-IBXF serverboards. All these serverboards are based on the nVidia

MCP55 Pro chipset and support AMD Opteron™ processors with up to 64 GB of

DDR2-800/667/533/400 registered ECC SDRAM.

The differences between these serverboards is that some have full IPMI capability,

some have InfiniBand components and some have both or neither capability. Refer to

the chart below for details on which boards have which capabilities.

Please refer to the motherboard specifications pages on our web site for updates on

supported processors (http://www.supermicro.com/aplus/). This product is intended to

be professionally installed.

Manual Organization

Chapter 1 – This chapter includes a checklist of what should be included in your

Serverboard box. It also describes the features, specifications and performance of the

Serverboard along with detailed information about the chipset.

Chapter 2 – This chapter begins with instructions on handling static-sensitive devices.

Read this chapter when installing the processor(s) and memory modules and when

installing the motherboard in a chassis. Also refer to this chapter to connect the hard

disk drives, the various ports, power and reset buttons and system LEDs. Sections on

enabling SATA RAID and system drivers are also included.

Chapter 3 – If you encounter any problems, see this chapter, which describes

troubleshooting procedures for the video, memory and the setup configuration stored in

CMOS. For quick reference, a general FAQ (Frequently Asked Questions) section is

provided. Instructions are also included for contacting technical support.

Chapter 4 – This chapter includes an introduction to the motherboard’s BIOS and

provides detailed information on running the CMOS Setup utility.

Appendix A – This appendix provides BIOS Error Beep Code Messages.

Appendix B – This appendix lists BIOS POST Checkpoint Codes.

Serverboard Full IPMI

Capability InfiniBand

Components

H8DMT - -

H8DMT-F X -

H8DMT-IBX - X

H8DMT-IBXF X X

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

Notes

Table of Contents

Chapter 1 Introduction.......................................................................1-1

1-1 Overview.............................................................................................1-1

Checklist .................................................................................................1-1

1-2 Images and Layouts .........................................................................1-2

1-3 Quick Reference................................................................................1-5

1-4 Serverboard Features.......................................................................1-6

1-5 Chipset Overview ..............................................................................1-7

nVidia MCP55 Pro Chipset Media and Communications Processor.......1-8

HyperTransport Technology....................................................................1-8

1-6 PC Health Monitoring .......................................................................1-8

Onboard Voltage Monitors ......................................................................1-8

Fan Status Monitor with Firmware/Software Speed Control ...................1-8

CPU Overheat/Fan Fail LED and Control...............................................1-8

Auto-Switching Voltage Regulator for the CPU Core..............................1-8

1-7 Power Configuration Settings..........................................................1-9

Microsoft OnNow ....................................................................................1-9

Slow Blinking LED for Suspend-State Indicator ......................................1-9

BIOS Support for USB Keyboard............................................................1-9

Main Switch Override Mechanism ..........................................................1-9

Wake-On-LAN (WOL) .............................................................................1-9

1-8 Power Supply...................................................................................1-10

1-9 Super I/O ..........................................................................................1-10

1-10 Contacting Supermicro.................................................................1-11

1-11 Returning Merchandise for Service............................................1-12

Chapter 2 Installation .........................................................................2-1

2-1 Static-Sensitive Devices...................................................................2-1

Precautions.............................................................................................2-1

Unpacking ............................................................................................... 2-1

Installation Procedure .............................................................................2-1

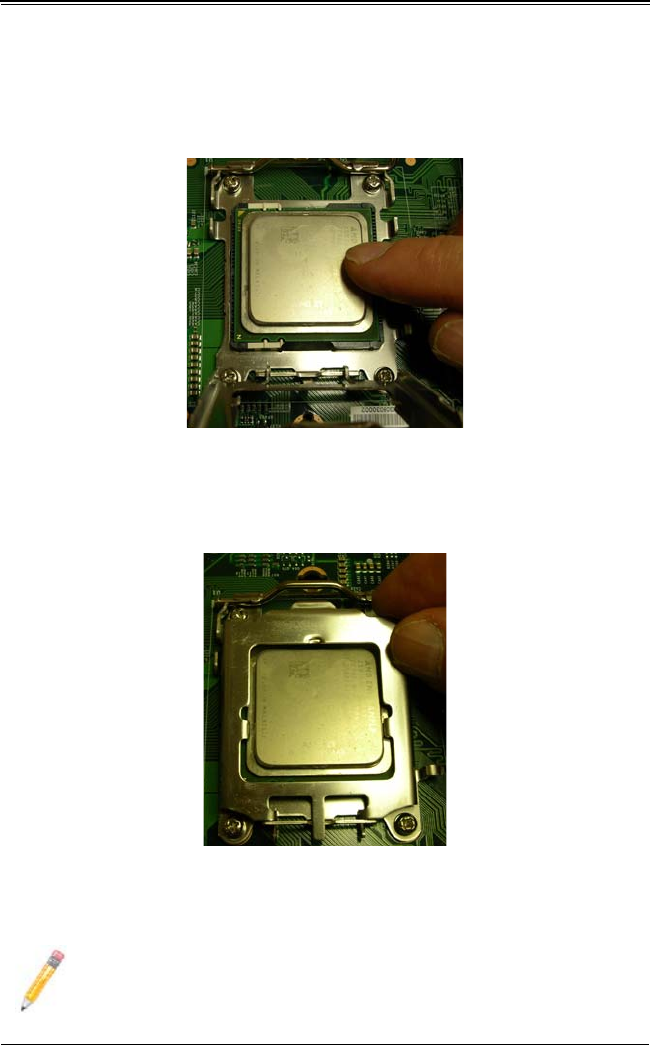

2-2 Processor and Heatsink Installation...............................................2-2

2-3 Mounting the Mainboard into a Chassis........................................2-4

2-4 Installing Memory..............................................................................2-5

Support ...................................................................................................2-6

Maximum Memory ..................................................................................2-6

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-5 I/O Port and Control Panel Connections.......................................2-6

Front Control Panel.................................................................................2-7

2-6 Connector Definitions .......................................................................2-7

Power Connector ....................................................................................2-7

Auxiliary Power Connector......................................................................2-8

PW_ON Connector .................................................................................2-8

Reset Connector.....................................................................................2-8

Overheat/Fan Fail LED (OH) ..................................................................2-8

NIC2 (LAN2) LED ...................................................................................2-9

NIC1 (LAN1) LED ...................................................................................2-9

HDD LED ................................................................................................2-9

Power On LED........................................................................................2-9

NMI Button............................................................................................2-10

Universal Serial Bus Ports ....................................................................2-10

USB Headers........................................................................................2-10

Serial Ports ...........................................................................................2-11

Fan Headers .........................................................................................2-11

LAN1/2 (Ethernet Ports)........................................................................2-11

Dedicated LAN (Ethernet Port) .............................................................2-11

Overheat LED .......................................................................................2-12

Chassis Intrusion ..................................................................................2-12

Wake-On-LAN.......................................................................................2-12

SMBus Header......................................................................................2-12

SGPIO...................................................................................................2-13

Power I2C .............................................................................................2-13

2-7 Jumper Settings...............................................................................2-13

Explanation of Jumpers ........................................................................2-13

CMOS Clear..........................................................................................2-14

LAN Controller Enable/Disable .............................................................2-14

BMC/Video Enable/Disable...................................................................2-15

I2C to PCI-Express Slot........................................................................2-15

Watch Dog Enable/Disable ...................................................................2-15

InfiniBand Port Enable/Disable .............................................................2-16

2-8 Onboard Indicators .........................................................................2-16

LAN1/LAN2 LEDs .................................................................................2-16

Power LED............................................................................................2-16

InfiniBand LED Indicators .....................................................................2-16

2-9 Drive Connections...........................................................................2-17

SATA Ports............................................................................................2-17

vii

2-10 Enabling SATA RAID....................................................................2-17

Installing the OS/SATA Driver ...............................................................2-18

Building a Driver Diskette...................................................................2-18

Enabling SATA RAID in the BIOS ......................................................2-18

Using the nVidia RAID Utility..............................................................2-19

Installing the OS and Drivers ................................................................2-19

2-11 Installing Drivers............................................................................2-19

Chapter 3 Troubleshooting.............................................................3-1

3-1 Troubleshooting Procedures ...........................................................3-1

Before Power On ....................................................................................3-1

No Power ................................................................................................3-1

No Video .................................................................................................3-1

Memory Errors ........................................................................................3-2

Losing the System’s Setup Configuration ...............................................3-2

3-2 Technical Support Procedures ........................................................3-2

3-3 Frequently Asked Questions ...........................................................3-3

3-4 Returning Merchandise for Service................................................3-4

Chapter 4 BIOS.......................................................................................4-1

4-1 Introduction.........................................................................................4-1

4-2 Starting the Setup Utility...................................................................4-1

4-3 Main Menu..........................................................................................4-1

System Time/System Date .....................................................................4-2

4-4 Advanced Settings Menu.................................................................4-2

4-5 Boot Menu ..........................................................................................4-9

4-6 Security Menu....................................................................................4-9

4-7 Exit Menu..........................................................................................4-10

Appendix A BIOS Error Beep Codes ........................................A-1

Appendix B BIOS POST Checkpoint Codes ........................B-1

B-1 Uncompressed Initialization Codes ...............................................B-1

B-2 Bootblock Recovery Codes.............................................................B-1

B-3 Uncompressed Initialization Codes ...............................................B-2

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

viii

Notes

1-1

Chapter 1

Introduction

1-1 Overview

Congratulations on purchasing your computer Serverboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Checklist

Please check that the following items have all been included with your motherboard. If

anything listed here is damaged or missing, contact your retailer.

Included with retail box only:

• One (1) H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF Serverboard

• Two (2) SATA cables (CBL-0288L)

• One (1) CD containing drivers and utilities

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-2

1-2 Images and Layouts

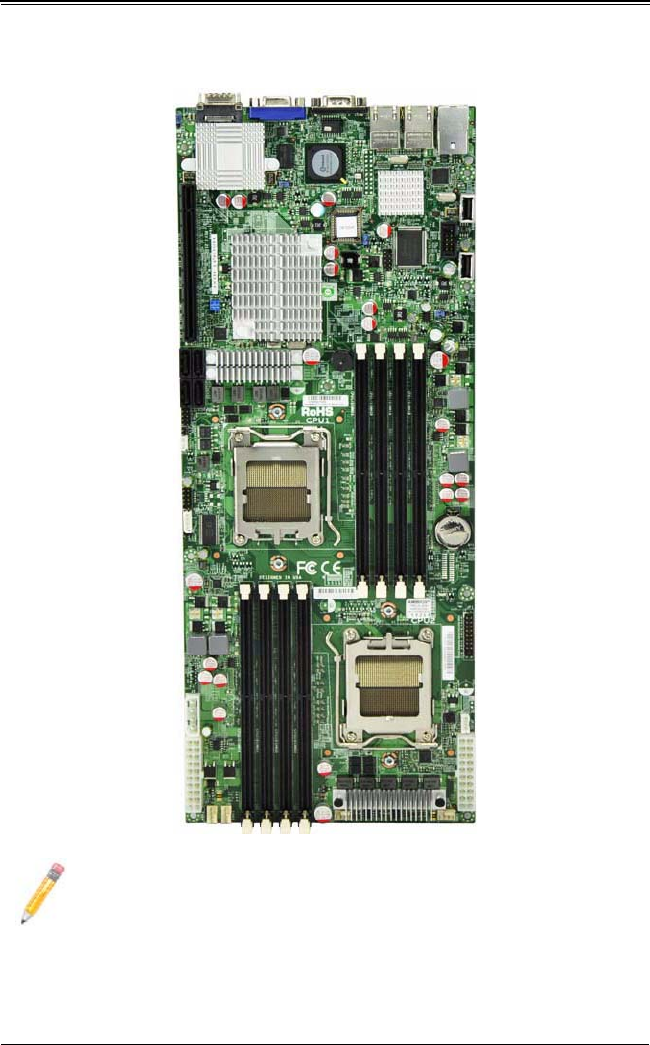

Figure 1-1. H8DMT/H8DMT-IBX Family Serverboard Image

1-3

Chapter 1: Introduction

Figure 1-2. H8DMT-F/H8DMT-IBXF Family Serverboard Image

NOTE: The H8DMT/H8DMT-F serverboards shares the same layout as the

H8DMT-IBX/H8DMT-IBXF serverboards, but do not include InfiniBand

components. The H8DMT-F/ H8DMT-IBXF serverboards have full IPMI

capability and a dedicated LAN port above the two USB ports, whereas the

H8DMT/H8DMT-IBX serverboards do not.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-4

Figure 1-3. H8DMT-IBX/H8DMT-IBXF Family Serverboard Layout

NOTE: Jumpers used for test or debug purposes only are not indicated.

JP2

LAN1

LAN2

FAN4

FAN3

FAN2

FAN1

BATTERY

JF1

JWR2

JWR1

JSMB1

JPL

JWD

JIB1

JL1

JOH1

JI2C1

JI2C2

T-SGPIO1

COM2

SATA0

SATA2

SATA1

SATA3

JPI2C

JWOL

InfiniBand

JBMC1

USB1/2

CPU1/DIMM1B

C P U 1 / D I M M 1 B

CPU1

C P U 1 /

DIMM1A

D I M M 1 A

CPU1/DIMM2B

C P U 1 / D I M M 2 B

CPU1/DIMM2A

C P U 1 / D I M M 2 A

CMOS

CLEAR

SLOT1 PCI-E X16

USB4

USB5

USB 2/3

CPU2/DIMM1B

C P U 2 / D I M M 1 B

CPU2/DIMM1A

C P U 2 / D I M M 1 A

CPU2/DIMM2B

C P U 2 / D I M M 2 B

CPU2/DIMM2A

C P U 2 / D I M M 2 A

CPU1

CPU2

VGA1

COM1

BIOS

InfiniBand

Controller

MCP55V

Pro

Windbond

WPCM450

BMC Video

SPEAKER

1-5

Chapter 1: Introduction

1-3 Quick Reference

Table 1-1. Jumpers

Jumper Description Default Setting

JBT1 CMOS Clear (see Section 2-7)

JBMC1 BMC and Video Enable Header Pins 1-2 (Enabled)

JI2C1/JI2C2 I2C to PCI-E Slot Both Closed (Enabled)

JIB1 InfiniBand Enable/Disable (H8DMT/H8DMT-IBX only) Pins 1-2 (Enabled)

JPL LAN Controller Pins 1-2 (Enabled)

JWD Watch Dog Pins 1-2 (Reset)

Table 1-2. Connectors

Connector Description

COM1/COM2 COM1 Serial Port/Header

FAN 1-4 Chassis/CPU Fan Headers

J2 Auxiliary Power Connector (for IDE drives)

JF1 Front Panel Connector

JL1 Chassis Intrusion Header

JOH1 Overheat Warning Header

JWOL Wake-On-LAN Header

JWR1 20-Pin Proprietary Power Connector

JWR2 20-Pin Proprietary Power Connector

LAN 1/2 Gigabit Ethernet (RJ45) Ports

Dedicated LAN Gigabit Ethernet (RJ45) Port (H8DMT-F/H8DMT-IBXFonly)

PWRI2CPower I

2C Header

SATA0 ~ SATA3 SATA Ports

SMBus System Management Bus Header (H8DMT-F/H8DMT-IBXF only)

T-SGPIO-1 Serial General Purpose Input/Output Header

USB0/1, USB2/3/4/5 Universal Serial Bus (USB) Ports, Headers

Table 1-3. LEDs

LED Description

DP4 Onboard Power LED

LE2 InfiniBand Physical Link LED (Red)

LE3 InfiniBand Logical Link LED (Yellow)

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-6

1-4 Serverboard Features

CPU Dual AMD Opteron 2000 series processors (Socket F type)

NOTE: Refer to our web site for details on supported processors.

Memory Eight dual channel DIMM slots supporting up to 64 GB of DDR2-800/667/533

registered ECC SDRAM

NOTE: Refer to Section 2-4 before installing memory.

NOTE: Please refer to the latest updated tested memory lists on the

motherboard web site.

Chipset nVidia MCP55 Pro Chipset

Expansion Slots One (1) PCI-Express x16 slot

BIOS 8 Mb AMI® LPC Flash ROM

BIOS features include: APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS

supported), BIOS rescue hot keys, Hardware BIOS virus protection,

SMBIOS 2.3, Plug and Play (PnP)

PC Health

Monitoring • Onboard voltage monitors

• Fan status monitor with firmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC po wer loss

• System resource alert (via included utility program)

• Auto-switching voltage regulator for the CPU core

• CPU thermal trip support

• I2C temperature sensing logic

ACPI Features • Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Wake-On-LAN (WOL)

• Internal/external modem ring-on

Onboard I/O • On-chip SATA controller supporting four (4) SATA ports (RAID 0, 1, 0+1, 5

and JBOD supported)

• One (1) Fast UART 16550 compatible serial port

• On-chip (MCP55 Pro) Ethernet controller supports two Gigabit LAN ports

• 2+2 Internal USB (Universal Serial Bus 2.0) ports/headers

• Two (2) rear USB ports

• Onboard Windbond WPCM450 BMC graphics controller

• Mellanox Connect-X MT25408 20Gb/s Infiniband

Other • Onboard +3.3V standby power LED

• Chassis intrusion detection

CD Utilities BIOS flash upgrade utility

Dimensions Proprietary form factor: 16.4" x 6.5" (417 x 165 mm)

1-7

Chapter 1: Introduction

1-5 Chipset Overview

The H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF Serverboard is based on the nVidia

MCP55 Pro Chipset, which functions as a Media and Communications Processor

(MCP). Controllers for the system memory are integrated directly into Opteron

processors.

Figure 1-4. nVidia MCP55 Pro Chipset System Block Diagram

NOTE: This is a general block diagram and may not exactly represent the

features on your motherboard. See the previous pages for the actual

specifications of your motherboard.

PCI x16

PCI x8

PCI x4

LPC

SATA

USB

RDIMM

PCI

RMII

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-8

nVidia MCP55 Pro Chipset Media and Communications

Processor

The nVidia MCP55 Pro Chipset is a single-chip, high-performance HyperTransport

peripheral controller. It includes a 28-lane PCI Express interface, an AMD Opteron

16-bit Hyper Transport interface link, a four-port Serial ATA interface, a dual-port Gb

Ethernet interface, a dual ATA133 bus master interface and a USB 2.0 interface. This

hub connects directly to the CPU.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was

designed to increase the communication speed by a factor of up to 48x between

integrated circuits. This is done partly by reducing the number of buses in the chipset to

reduce bottlenecks and by enabling a more efficient use of memory in multi-processor

systems. The end result is a significant increase in bandwidth within the chipset.

1-6 PC Health Monitoring

This section describes the PC health monitoring features of the H8DMT/H8DMT-IBX/

H8DMT-F/H8DMT-IBXF serverboard. The serverboard has an onboard System

Hardware Monitor chip that supports PC health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a

voltage becomes unstable, it will give a warning or send an error message to the screen.

Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

Real time readings of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard fans

are controlled by thermal management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning

function in the BIOS. This allows the user to define an overheat temperature. When this

temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail warning

LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 3-phase-switching voltage regulator for the CPU core can support up to 80A and

auto-sense voltage IDs ranging from 0.8 V to 1.55V. This will allow the regulator to run

cooler and thus make the system more stable.

1-9

Chapter 1: Introduction

1-7 Power Configuration Settings

This section describes the features of your motherboard that deal with power and power

settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system and

device power control. OnNow is a term for a PC that is always on but appears to be off

and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking to

indicate that the CPU is in suspend mode. When the user presses any key, the CPU will

wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal

keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system suspend

button. When the user depresses the power button, the system will enter a SoftOff state.

The monitor will be suspended and the hard drive will spin down. Depressing the power

button again will cause the whole system to wake-up. During the SoftOff state, the ATX

power supply provides power to keep the required circuitry in the system alive. In case

the system malfunctions and you want to turn off the power, just depress and hold the

power button for 4 seconds. The power will turn off and no power will be provided to the

motherboard.

Wake-On-LAN (WOL)

Wake-On-LAN is defined as the ability of a management application to remotely power

up a computer that is powered off. Remote PC setup, up-dates and access tracking can

occur after hours and on weekends so that daily LAN traffic is kept to a minimum and

users are not interrupted. The motherboard has a 3-pin header (WOL) to connect to the

3-pin header on a Network Interface Card (NIC) that has WOL capability. Wake-On-LAN

must be enabled in BIOS. Note that Wake-On-LAN can only be used with an ATX 2.01

(or above) compliant power supply.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-10

1-8 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU clock

rates.

The H8DMT accommodates 12V proprietary power supplies. Although most power

supplies generally meet the specifications required by the CPU, some are inadequate. A

2 amp current supply on a 5V Standby rail is strongly recommended.

It is strongly recommended that you use a high quality power supply that meets 12V

ATX power supply Specification 1.1 or above. Additionally, in areas where noisy power

transmission is present, you may choose to install a line filter to shield the computer

from noise. It is recommended that you also install a power surge protector to help avoid

problems caused by power surges.

1-9 Super I/O

The disk drive adapter functions of the Super I/O chip include a floppy disk drive

controller that is compatible with industry standard 82077/765, a data separator, write

pre-compensation circuitry, decode logic, data rate selection, a clock generator, drive

interface control logic and interrupt and DMA logic. The wide range of functions

integrated onto the Super I/O greatly reduces the number of components required for

interfacing with floppy disk drives.

The Super I/O provides two high-speed, 16550 compatible serial communication ports

(UARTs), one of which supports serial infrared communication. Each UART includes a

16-byte send/receive FIFO, a programmable baud rate generator, complete modem

control capability and a processor interrupt system. Both UARTs provide legacy speed

with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of

250K, 500K, or 1 Mb/s, which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer Port

(BPP), Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Configuration and

Power Interface), which includes support of legacy and ACPI power management

through a SMI or SCI function pin. It also features auto power management to reduce

power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be flexibly adjusted to

meet ISA PnP requirements, which support ACPI and APM (Advanced Power

Management).

WARNING: To prevent the possibility of explosion, do not use the wrong type of

onboard CMOS battery or install it upside down.

1-11

Chapter 1: Introduction

1-10 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

‘s-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Asia-Pacific

Address: Super Micro Computer Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: support@supermicro.com.tw

Tel: +886-2-8228-1366, ext. 132 or 139

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

1-12

1-11 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before

any warranty service will be rendered. You can obtain service by calling your vendor for

a Returned Merchandise Authorization (RMA) number. When returning to the

manufacturer, the RMA number should be prominently displayed on the outside of the

shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges

will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online at

http://www.supermicro.com/support/rma/

Whenever possible, repack the add-on card in the original Supermicro box, using the

original packaging materials. If these are no longer available, be sure to pack the add-on

card in an anti-static bag and inside the box. Make sure that there is enough packaging

material surrounding the add-on card so that it does not become damaged during

shipping.

This warranty only covers normal consumer use and does not cover damages incurred

in shipping or from failure due to the alteration, misuse, abuse or improper maintenance

of products.

During the warranty period, contact your distributor first for any product problems.

2-1

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage

to your system board, it is important to handle it very carefully. The following measures

are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and the

motherboard.

• Use only the correct type of CMOS onboard battery as specified by the

manufacturer. Do not install the CMOS onboard battery upside down, which may

result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

Installation Procedure

Follow the procedures as listed below to install the motherboard into a chassis.

1. Install the processor(s) and the heatsink(s).

2. Install the motherboard in the chassis.

3. Install the memory and add-on cards.

4. Finally, connect the cables and install the drivers.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-2

2-2 Processor and Heatsink Installation

Follow the procedures in this section for installing the processor and heatsink into the

H8DMT Serverboard.

Installing the Processors

1. Begin by removing the cover plate that protects the CPU. Lift the lever on the CPU

socket until it points straight up. With the lever raised, lift open the silver CPU

retention plate.

2. Use your thumb and your index finger to hold the CPU. Locate and align pin 1 of the

CPU socket with pin 1 of the CPU. Both are marked with a triangle. Align pin 1 of the

CPU with pin 1 of the socket.

WARNING: Exercise extreme caution when handling and installing the

processor. Always connect the power cord last and always remove it before

adding, removing or changing any hardware components.

Figure 2-1. Removing the CPU Cover Plate

Figure 2-2. Aligning the CPU with Socket

2-3

Chapter 2: Installation

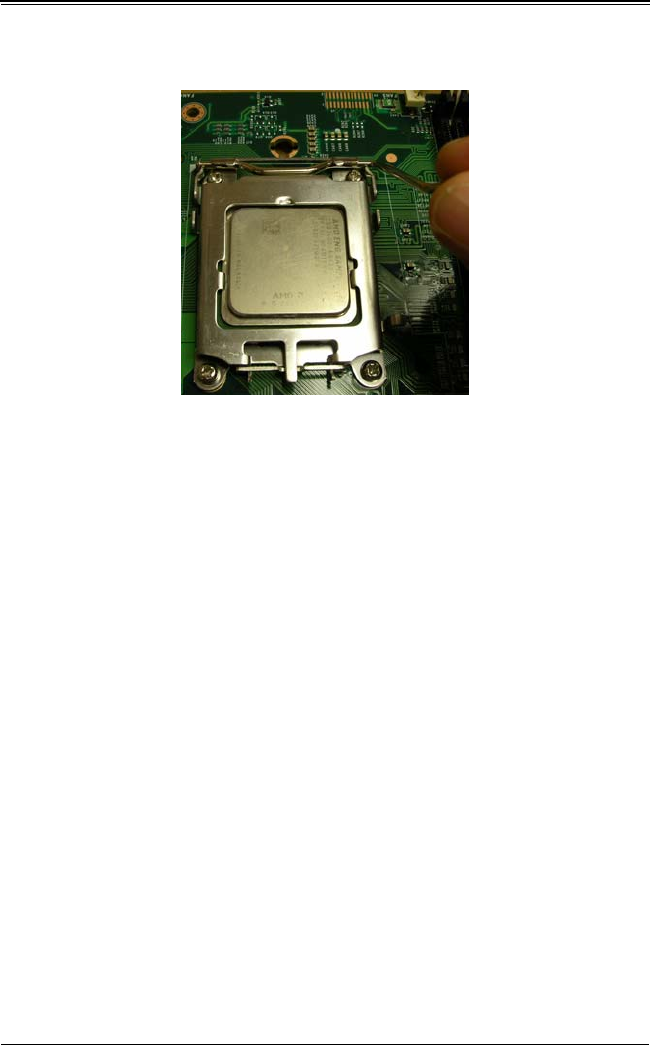

3. Once aligned, carefully place the CPU into the socket. Do not drop the CPU on the

socket, move the CPU horizontally or vertically or rub the CPU against the socket or

against any pins of the socket, which may damage the CPU and/or the socket.

4. With the CPU inserted into the socket, inspect the four corners of the CPU to make

sure that it is properly installed and flush with the socket. Then, gently lower the

silver CPU retention plate into place.

5. Carefully press the CPU socket lever down until it locks into its retention tab. For a

dual-CPU system, repeat these steps to install another CPU into the CPU#2 socket

(and into CPU#2, #3 and #4 sockets for a quad-CPU configuration).

Figure 2-3. Placing the CPU into the Socket

Figure 2-4. Inspecting the CPU Installation

NOTE: In single and dual-CPU configurations, memory must be installed in the

DIMM slots associated with the installed CPU(s). Memory is limited to a

maximum of 32 for single CPU and 64 GB for dual CPU configurations.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-4

Installing the Heatsinks

We recommend the use of active type heatsinks (except for 1U systems). Use any

onboard fan header for the CPU's heatsink fan. To install the heatsink, please follow the

installation instructions included with your heatsink package (not included).

2-3 Mounting the Mainboard into a Chassis

All Serverboards have standard mounting holes to fit different types of chassis. Make

sure that the locations of all the mounting holes for both the Serverboard and the

chassis match. Although a chassis may have both plastic and metal mounting fasteners,

metal ones are highly recommended because they ground the Serverboard to the

chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Checking the Compatibility of the Mainboard Ports and the I/O Shield

1. The H8DMT Serverboard requires a chassis that can support a board of 16.4" x 6.5"

in size. It was designed to be used in a Supermicro 1U Twin system.

2. Make sure that the I/O ports on the Serverboard align with their respective holes in

the I/O shield at the rear of the chassis.

Mounting the Mainboard onto the Tray in the Chassis

1. Carefully mount the Serverboard onto the motherboard tray by aligning the

motherboard mounting holes with the raised metal standoffs in the tray.

2. Insert screws into all the mounting holes in the Serverboard that line up with the

standoffs.

3. Then use a screwdriver to secure the Serverboard to the mainboard tray - tighten

until just snug (if too tight you might strip the threads). Metal screws provide an

electrical contact to the Serverboard ground to provide a continuous ground for the

system.

Figure 2-5. Secure the CPU with Socket Lever

2-5

Chapter 2: Installation

2-4 Installing Memory

Installing Memory

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see

Figure 2-6).

2. Install to slots CPU1/DIMM1B and CPU1/DIMM1A first, then to CPU1/DIMM2B and

CPU1/DIMM2A, etc. Always install in pairs and in the numerical order of the DIMM

slots. See "Support" information below.

3. Gently press down on the memory module until it snaps into place.

4. With two CPUs installed, repeat step 2 to populate the CPU2 DIMM slots.

WARNING: Exercise extreme caution when installing or removing memory

modules to prevent any possible damage.

Figure 2-6. Side and Top Views of DDR Installation

NOTE: For the latest memory information on the H8DMT serverboard, please

visit the http://www.supermicro.com web site.

Note: Notch

should align

with its

receptive point

on the slot

Notch Notch

Release

Tab

Release

Tab

To Install: Insert module

vertically and press down until it

snaps into place. The release

tabs should close – if they do not

you should close them yourself.

Pay attention to the bottom notch.

To Remove: Use your thumbs to

gently push each release tab

outward to free the DIMM from

the slot.

Note the notch in the slot and on the bottom of the

DIMM. These prevent the DIMM from being installed

incorrectly.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-6

Support

The H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF Serverboards support single or

dual-channel, DDR2-800/667/533 registered ECC SDRAM.

Only interleaved memory is supported, so you must populate two DIMM slots at a time.

Populating two adjacent slots at a time with memory modules of the same size and type

will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit)

memory.

Maximum Memory

For the latest information on the maximum memory for the H8DMT serverboard, please

visit the http://www.supermicro.com web site.

2-5 I/O Port and Control Panel Connections

The I/O ports are color coded in conformance with the PC99 specification to make

setting up your system easier. See Figure 2-7 below for the colors and locations of the

various I/O ports.

Figure 2-7. I/O Port Locations and Definitions

NOTE: The InfiniBand port is only available for the H8DMT-IBX/H8DMT-IBXF

serverboards.

NOTE: The dedicated LAN port above the USB ports is only present for

H8DMT-F/H8DMT-IBXFserverboards.

USB 0/1

Ports

LAN1 LAN2

COM1 Port

(Turquoise)

InfiniBand

Port

VGA Port

(Blue)

Dedicated

LAN Port

2-7

Chapter 2: Installation

Front Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 2-8 for

the pin definitions of the various connectors. Refer to Section 2-6 for details.

2-6 Connector Definitions

Power Connector

The proprietary power supply connector (JWR1 and JWR2) meets the SSI (Superset

ATX) 20-pin specification. Refer to the table below for the pin definitions of the ATX

20-pin power connector. This connection supplies power to the chipset, fans and

memory.

Figure 2-8. JF1 Header Pin Connectors

Pin# Definition Pin# Definition

1 GND 11 PS_ON_N

2GND 12 5V_STBY

3GND 13GND

4GND 14 GND

5GND 15GND

6NC 16 NC

7 12V 17 12V

812V 18 12V

9 12V 19 12V

10 12V 20 12V

2019

Power Button

Power LED

HDD LED

NIC 1

OH Fan Fail LED

Power Fail LED

Ground

NM 1

Vcc

Reset

X (Key)

NIC 2

X (Key)

Ground

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-8

Auxiliary Power Connector

A 4-pin 12V auxiliary power connector is included to provide power to hard drive disks.

See the table below for pin definitions.

PW_ON Connector

The PW_ON connector is on pins 1 and 2 of JF1. This header should be connected to

the chassis power button. See the table below for pin definitions.

Reset Connector

The reset connector is located on pins 3 and 4 of JF1 and attaches to the reset switch

on the computer chassis. See the table below for pin definitions.

Overheat/Fan Fail LED (OH)

Connect an LED to the OH connection on pins 7 and 8 of JF1 to provide advanced

warning of chassis overheating or fan failure. Refer to the tables below for pin definitions

and for LED status indicators.

Pin# Definition

1 +12V

2Ground

3 Ground

4+5V

Pin# Definition

1PW_ON

2Ground

Pin# Definition

3 Reset

4Ground

Pin# Definition

7Vcc

8Control

2-9

Chapter 2: Installation

NIC2 (LAN2) LED

The LED connections for LAN2 are on pins 9 and 10 of JF1. Attach LAN LED cables to

display network activity. See the table below for pin definitions.

NIC1 (LAN1) LED

The LED connections for LAN1 are on pins 11 and 12 of JF1. Attach LAN LED cables to

display network activity. See the table below for pin definitions.

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach the hard drive

LED cable here to display disk activity (for any hard drives on the system, including

SAS, Serial ATA and IDE). See the table below for pin definitions

Power On LED

The Power On LED connector is located on pins 15 and 16 of JF1. This connection is

used to provide LED indication of power being supplied to the system. See the table

below for pin definitions.

State Indication

Solid Overheat

Blinking Fan Fail

Pin# Definition

9Vcc

10 NIC2

Pin# Definition

11 Vcc

12 NIC1

Pin# Definition

13 Vcc

14 HD Active

Pin# Definition

15 5V Stby

16 Control

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-10

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to

the table below for pin definitions.

Universal Serial Bus Ports

Two Universal Serial Bus ports (USB 2.0) are located beside the LAN1/2 ports. Two

additional ports (USB4/5) are included on the motherboard near the SIMSO slot. See

the table below for pin definitions.

USB Headers

Two USB 2.0 headers (USB2/3) are also included on the motherboard. These may be

connected to provide front side access. A USB cable (not included) is needed for the

connection. See the table below for pin definitions.

Pin# Definition

19 Control

20 Ground

USB0 USB1

Pin# Definition Pin# Definition

1+5V 1+5V

2PO- 2PO-

3PO+ 3PO+

4Ground 4Ground

USB2 USB3/4

Pin# Definition Pin# Definition

1+5V 1+5V

2PO- 2PO-

3PO+ 3PO+

4Ground 4Ground

5 Key 5 No connection

2-11

Chapter 2: Installation

Serial Ports

The COM1 serial port is located beside the VGA port. Refer to the motherboard layout

for the location of the COM2 header. See the table below for pin definitions.

Fan Headers

The H8DMT has four 4-pin proprietary fan headers. Each fan header supports one 4-pin

fans with PWM mode. See the table below for pin definitions.

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (designated LAN1 and LAN2) are located beside the

COM 1port. These Ethernet ports accept RJ45 type cables.

Dedicated LAN (Ethernet Port)

One Gigabit Ethernet (RJ45) port is located above the USB ports on the H8DMT-F/

H8DMT-IBXF serverboards as a Dedicated LAN port for IPMI use. This port is not

present on the H8DMT/H8DMT-IBX serverboards.

Pin# Definition Pin# Definition

1 DCD 6 DSR

2RXD 7RTS

3TXD 8CTS

4DTR 9RI

5 Ground 10 NC1

1. Note: NC indicates no connection.

NOTE: The onboard fan speed is controlled by the CPU die temperature.

Pin# Definition Pin# Definition

1 Ground 3 Tachometer for

Fan

2PWR (DC Speed

CTRL) 4PWM (Pulse Width

Modulation)

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-12

Overheat LED

Connect an LED to the JOH1 header to provide warning of chassis overheating. See the

table below for pin definitions.

Chassis Intrusion

A Chassis Intrusion header is located at JL1. Attach the appropriate cable to inform you

of a chassis intrusion. See the table below for pin definitions.

Wake-On-LAN

The Wake-On-LAN header is designated JWOL. You must have a LAN card with a

Wake-On-LAN connector and cable to use the Wake-On-LAN feature. See the table

below for pin definitions.

SMBus Header

The header at SMBus is for the System Management Bus for the H8DMT-F/

H8DMT-IBXF Serverboards. Connect the appropriate cable here to utilize SMB on the

system. See the table below for pin definitions.

Pin# Definition

13.3V

2OH Active

Pin# Definition

1 Intrusion signal

2Battery voltage

Pin# Definition

1 +5V Standby

2Ground

3 Wake-up

Pin# Definition

1Data

2Ground

3 Clock

4No Connection

2-13

Chapter 2: Installation

SGPIO

The T-SGPIO1 (Serial General Purpose Input/Output) header provides a bus between

the SATA controller and the SATA drive backplane to provide SATA enclosure

management functions. Connect the appropriate cables from the backplane to the

T-SGPIO1 header to utilize SATA management functions on your system. See the table

below for pin definitions.

Power I2C

The JPI2C header is for power I2C, which may be used to monitor the status of the

power supply, fan and system temperature. See the table below for pin definitions.

2-7 Jumper Settings

Explanation of Jumpers

To modify the operation of the motherboard, jumpers can be used to choose between

optional settings. Jumpers create shorts between two pins to change the function of the

connector. Pin 1 is identified with a square solder pad on the printed circuit board. See

the diagram at right for an example of jumping pins 1 and 2. Refer to the motherboard

layout page for jumper locations.

Pin# Definition Pin# Definition

1NC 2NC

3DataIn 4DataOut

5 Load 6 Ground

7Clock 8NC1

1. Note: NC indicates no connection.

Pin# Definition

1 Clock

2Data

3 Power Fail

4Ground

NOTE: On two-pin jumpers, "Closed" means the jumper is on and "Open"

means the jumper is off the pins.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-14

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this

jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).

2. With the power disconnected, short the CMOS pads with a metal object such as a

small screwdriver.

3. Remove the screwdriver (or shorting device).

4. Reconnect the power cord(s) and power on the system.

LAN Controller Enable/Disable

The JPL jumper allows you to enable or diable the serverboard’s LAN controller. The

default position is on for both pins 1 and pin 2 to enable the LAN Controller. See the

table below for jumper settings.

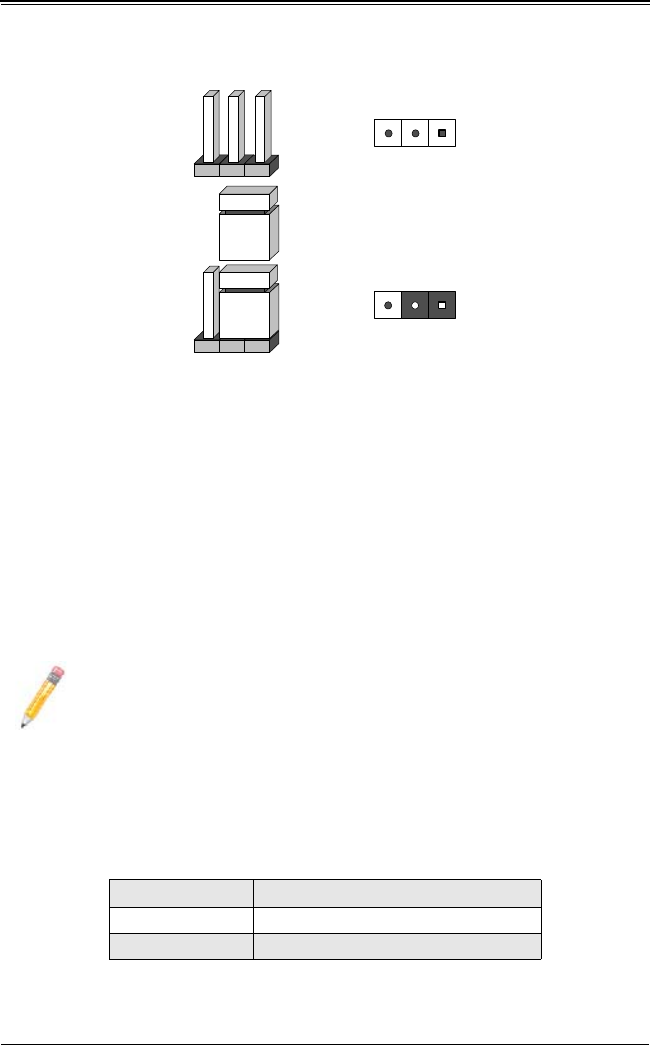

Figure 2-9. Jumper Connector Pins and Setting

NOTE: Do not use the PW_ON connector to clear CMOS.

Jumper Setting Definition

Pins 1-2 LAN Controller Enabled (Default)

Pins 2-3 LAN Controller Disabled

Connector

Pins

Jumper

Setting

3 2 1

2-15

Chapter 2: Installation

BMC/Video Enable/Disable

JBMC1 connector allows you to enable or disable the IPMI and Video. The default

position is on for both pin 1 and pin 2 to enable both IPMI and VGA. See the table below

for jumper settings.

I2C to PCI-Express Slot

JI2C1/JI2C2 allows you to enable the I2C bus to communicate with the PCI-Express

slot. For the jumpers to work properly, please set both jumpers to the same setting. If

enabled, both jumpers must be enabled. If disabled, both jumpers must be disabled.

See the table below for jumper settings.

Watch Dog Enable/Disable

JWD enables the Watch Dog function, a system monitor that takes action when a

software application freezes the system. Jumping pins 1-2 will have WD reboot the

system if a program freezes. Jumping pins 2-3 will generate a non-maskable interrupt

for the program that has frozen. Watch Dog must also be enabled in BIOS. See the

table below for jumper settings.

Jumper Setting Definition

Pins 1-2 BMC and Video Enabled

Pins 2-3 BMC and Video Disabled

Jumper Setting Definition

Closed Enabled

Open Disabled

NOTE: When Watch Dog is enabled, the user must write their own application

software to disable the Watch Dog Timer.

Jumper Setting Definition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-16

InfiniBand Port Enable/Disable

JIB1 enables or disables the InfiniBand port on the H8DMT/H8DMT-IBX Serverboards.

The default position is on pins 1 and 2 to enable the port. See the table below for jumper

settings.

2-8 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside the VGA port) have two LEDs. On each Gb LAN

port, one LED blinks to indicate activity while the other may be green, amber or off to

indicate the speed of the connection. See the table below for the functions associated

with the connection speed LED.

Power LED

DP4 is an Onboard Power LED. When this LED is lit, it means power is present on the

serverboard. Be sure to turn off the system and unplug the power cord(s) before

removing or installing components. See the table below for Power LED state status

information.

InfiniBand LED Indicators

Two InfiniBand LED indicators (LE2/LE3) are located near the InfiniBand port of the

H8DMT/H8DMT-IBX Serverboards. The green LED (LE2) is the InfiniBand link LED

while the yellow LED (LE3) indicates activity. Refer to the tables below for details.

Jumper Setting Definition

Pins 1-2 Enabled

Pins 2-3 Disabled

LED Color Definition

Off 10 MHz

Green 100 MHz

Amber 1 GHz

State State Status

On Standby power present on

motherboard

Off No power connected

2-17

Chapter 2: Installation

2-9 Drive Connections

There are no IDE or floppy drive connectors on the motherboard. Use the following

information to connect the SATA drive cables.

SATA Ports

There are no jumpers to configure the SATA ports, which are designated SATA0 through

SATA3. See the table below for pin definitions.

2-10 Enabling SATA RAID

Now that the hardware is set up, you must install the operating system and the SATA

RAID drivers, if you wish to use RAID with your SATA drives. The installation procedure

differs depending on whether you wish to have the operating system installed on a RAID

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that employs a single cable with a

minimum of four wires to create a point-to-point connection between devices. This

connection is a serial link that supports a SATA transfer rate from 150 MBps. The serial

cables used in SATA are thinner than the traditional cables used in Parallel ATA (PATA)

and can extend up to one meter in length, compared to only 40 cm for PATA cables.

Overall, SATA provides better functionality than PATA.

Color Status Definition

Green Solid InfiniBand Connected

Off Off No Connection

Color Status Definition

Yellow Solid InfiniBand Active

Yellow Dim InfiniBand Connected, Activity Idle

Off Off No Connection

Pin# Description

1 Ground

2TXP

3TXN

4Ground

5RXN

6RXP

7 Ground

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-18

Installing the OS/SATA Driver

Before installing the OS (operating system) and SATA RAID driver, you must decide if

you wish to have the operating system installed as part of a bootable RAID array or

installed to a separate non-RAID hard drive. If on a separate drive, you may install the

driver either during or after the OS installation. If you wish to have the OS on a SATA

RAID array, you must follow the procedure below and install the driver during the OS

installation.

Building a Driver Diskette

You must first build a driver diskette from the Supermicro CD-ROM that was included

with the system. (You will have to create this disk on a computer that is already running

and with the OS installed.)

1. Insert the CD into your CD-ROM drive and start the system. A display as shown in

Figure 2-10 will appear.

2. Click on the icon labeled BUILD DRIVER DISKETTES AND MANUALS and follow the

instructions to create a floppy disk with the driver on it.

3. Once it's been created, remove the floppy and insert the installation CD for the

Windows Operating System you wish to install into the CD-ROM drive of the new

system you are about to configure.

Enabling SATA RAID in the BIOS

Before installing the Windows Operating System, you must change some settings in the

BIOS. Boot up the system and hit the <DEL> key to enter the BIOS Setup Utility. After

the Setup Utility loads, do the following:

1. Use the arrow keys to move to the EXIT menu. Scroll down with the arrow keys to

the LOAD OPTIMAL DEFAULTS setting and press <ENTER>. Select OK to confirm, then

<ENTER> to load the default settings.

2. Use the arrow keys to move to the ADVANCED menu, then scroll down to NVIDIA

RAID SETUP and press the <ENTER> key.

3. Once in the submenu, scroll down to NVIDIA RAID FUNCTION and enable the setting,

which will cause the SATA0/1/2 PRIMARY/SECONDARY settings to appear. Enable the

SATA devices and channels you will be using.

4. Hit the <ESC> key twice and scroll to the EXIT menu. Select SAVE CHANGES AND

EXIT, then hit <ENTER>, then hit <ENTER> again to verify.

5. After exiting the BIOS Setup Utility, the system will reboot. When prompted during

the startup, press the <F10> key when prompted to run the nVidia RAID Utility

program.

2-19

Chapter 2: Installation

Using the nVidia RAID Utility

The nVidia RAID Utility program is where you can define the drives you want to include

in the RAID array and the mode and type of RAID. Two main windows are shown in the

utility.

1. The FREE DISKS window on the left will list all available drives. Use the arrow keys to

select and move drives to the window on the right, which lists all drives that are to

become part of the RAID array.

2. Once you have finished selecting the drives and type of RAID you wish to use for

your RAID array, press the <F7> key. You will be prompted to verify your choice; if

you want to continue with your choices, select YES.

3. You are then given the choice of making the RAID array bootable by pressing the

the <B> key. After you have finished, press the <CTRL> and <X> keys

simultaneously.

Installing the OS and Drivers

To install the OS and drivers, do the following:

1. With the Windows OS installation CD in the CD-ROM drive, restart the system.

2. When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a

blue screen will appear with a message that begins WINDOWS COULD NOT DETERMINE

THE TYPE OF ONE OR MORE STORAGE DEVICES. . .

3. When you see the screen, hit the <S> key to SPECIFY ADDITIONAL DEVICE, then insert

the driver diskette you just created into the floppy drive.

4. Highlight MANUFACTURER SUPPLIED HARDWARE SUPPORT DISK and hit the <ENTER>

key.

5. Highlight the first NVIDIA RAID driver shown and press the <ENTER> key to install it.

6. Soon a similar blue screen will appear again. Again hit the <S> key, then highlight

the second item, NFORCE STORAGE CONTROLLER and press the <ENTER> key, then

<ENTER> again to continue with the Windows setup.

2-11 Installing Drivers

The CD that came bundled with the Serverboard contains drivers, some of which must

be installed, such as the chipset driver.

1. After inserting this CD into your CD-ROM drive, the display shown in Figure 2-10

should appear. If this display does not appear, click on the MY COMPUTER icon and

WARNING: Selecting Yes clears all previous data from the drives you selected

to be a part of the array.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

2-20

then on the icon representing your CD-ROM drive. Finally, double click on the S

SETUP icon.

2. Click the icons showing a hand writing on paper to view the readme files for each

item.

3. Click the computer icons to the right of these items to install each item (from top to

the bottom) one at a time.

4. After installing each item, you should reboot the system before moving on to the

next item on the list. The bottom icon with a CD on it allows you to view the entire

contents of the CD.

Figure 2-10. Driver/Tool Installation Display Screen

3-1

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your Serverboard. If you have followed all

of the procedures below and still need assistance, refer to Section 3-2: "Technical

Support Procedures" on page 3-2 and/or Section 3-4: "Returning Merchandise for

Service" on page 3-4 in this chapter. Always disconnect the AC power cord before

adding, changing or installing any hardware components.

Before Power On

1. Check that the onboard power LED is lit (DP4 on the motherboard).

2. Make sure that the ATX power connector is connected to your power supply.

3. Make sure that no short circuits exist between the Serverboard and chassis.

4. Disconnect all cables from the Serverboard, including those for the keyboard and

mouse.

5. Remove all add-on cards.

6. Install a CPU and heatsink (making sure it is fully seated) and connect the internal

(chassis) speaker and the power LED to the Serverboard. Check all jumper settings

as well.

7. Use the correct type of onboard CMOS battery as recommended by the

manufacturer. To avoid possible explosion, do not install the CMOS battery upside

down.

No Power

1. Make sure that no short circuits exist between the Serverboard and the chassis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your Serverboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for

details on beep codes.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

3-2

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.

2. You should be using registered ECC DDR-2 memory (see next page). Also, it is

recommended that you use the same memory type and speed for all DIMMs in the

system. See Section 2-4: "Installing Memory" on page 2-5 for memory details.

3. Check for bad DIMM modules or slots by swapping modules between slots and

noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power

supply may cause the system to lose the CMOS setup information. Refer to

Section 1-8 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fix the setup configuration problem, contact your vendor for

repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as

a motherboard manufacturer, we do not sell directly to end-users, so it is best to first

check with your distributor or reseller for troubleshooting services. They should know of

any possible problem(s) with the specific system configuration that was sold to you.

1. Please review the Section 3-1: "Troubleshooting Procedures" on page 3-1 and

Section 3-3: "Frequently Asked Questions" on page 3-3 in this chapter or see the

FAQs on our web site before contacting Technical Support.

2. BIOS upgrades can be downloaded from our web site.

3. If you still cannot resolve the problem, include the following information when

contacting us for technical support:

• Serverboard model and PCB revision number

NOTE: If you are a system integrator, VAR or OEM, a POST diagnostics card is

recommended. For I/O port 80h codes, refer to Appendix B.

NOTE: Not all BIOS can be flashed depending on the modifications to the boot

block code.

3-3

Chapter 3: Troubleshooting

• BIOS release date/version (this can be seen on the initial display when your

system first boots up)

• System configuration

An example of a Technical Support form is posted on our web site.

Distributors: For immediate assistance, please have your account number ready when

contacting our technical support department by e-mail.

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The H8DMT supports up to 32 GB of DDR2-800/667/533 registered ECC

SDRAM (or 16 GB with a single CPU installed). Memory must be installed in an

interleaved configuration only. See Section 2-4 for details on installing memory. Refer to

the http://www.supermicro.com web site for more details.

Question: How do I update my BIOS?

Answer: It is recommended that you not upgrade your BIOS if you are not experiencing

problems with your system. Updated BIOS files are located on our web site. Please

check our BIOS warning message and the information on how to update your BIOS on

our web site. Also, check the current BIOS revision and make sure it is newer than your

current BIOS before downloading.

Select your motherboard model on the web page and download the corresponding

BIOS file to your computer. Unzip the BIOS update file, in which you will find the

readme.txt (flash instructions), the afudos.exe (BIOS flash utility) and the BIOS image

(xxx.rom) files. Copy these files to a bootable floppy disk, insert the disk into drive A and

reboot the system. At the DOS prompt after rebooting, enter the command "flash"

(without quotation marks) then type in the BIOS file that you want to update with

(xxxx.rom).

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install the

applications you need. Applications on the CD include chipset drivers for Windows and

security and audio drivers.

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power Button Mode

setting. When the On/Off feature is enabled, the motherboard will have instant off

capabilities as long as the BIOS has control of the system. When the Standby or

Suspend feature is enabled or when the BIOS is not in control such as during memory

count (the first screen that appears when the system is turned on), the momentary on/off

switch must be held for more than four seconds to shut down the system. This feature is

required to implement the ACPI features on the Serverboard.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

3-4

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before

any warranty service will be rendered. You can obtain service by calling your vendor for

a Returned Merchandise Authorization (RMA) number. When returning to the

manufacturer, the RMA number should be prominently displayed on the outside of the

shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will

be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online

(http://www.supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred

in shipping or from failure due to the alteration, misuse, abuse or improper maintenance

of products.

During the warranty period, contact your distributor first for any product problems.

4-1

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DMT/H8DMT-IBX/

H8DMT-F/H8DMT-IBXF Serverboards. The AMI ROM BIOS is stored in a flash chip and

can be easily upgraded using a floppy disk-based program.

4-2 Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up. (In

most cases, the <DELETE> key is used to invoke the BIOS setup screen. There are a few

cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS menu

option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that

can be configured. “Grayed-out” options cannot be configured. The right frame displays

the key legend. Above the key legend is an area reserved for a text message. When an

option is selected in the left frame, it is highlighted in white. Often a text message will

accompany it. (Note that BIOS has default text messages built in. We retain the option

to include, omit, or change any of these text messages.) Settings printed in Bold are the

default values.

A  indicates a submenu. Highlighting such an item and pressing the <ENTER> key will

open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of

these hot keys (<F1>, <F10>, <ENTER>, <ESC>, <ARROW> keys, etc.) can be used at

any time during the setup navigation process.

4-3 Main Menu

When you first enter AMI BIOS Setup Utility, you will see the MAIN MENU screen.You can

always return to the Main Menu by selecting the Main tab on the top of the screen with

the arrow keys.

The MAIN MENU screen provides you with a system overview, which includes the

version, built date and ID of the AMIBIOS, the type, speed and number of the

processors in the system and the amount of memory installed in the system.

NOTE: Due to periodic changes to the BIOS, some settings may have been

added or deleted and might not yet be recorded in this manual. Please refer to

the Manual Download area of our web site for any changes to BIOS that may

not be reflected in this manual.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

4-2

System Time/System Date

You can edit this field to change the system time and date. Highlight System Time or

System Date using the <ARROW> keys. Enter new values through the keyboard. Press

the <TAB> key or the <ARROW> keys to move between fields. The date must be entered

in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format. Please note

that time is in a 24-hour format. For example, 5:30 A.M. appears as 05:30:00 and 5:30

P.M. as 17:30:00.

4-4 Advanced Settings Menu

The submenus in the ADVANCED SETTINGS menu are listed in Table 4-1 through

Table 4-12 below.

Table 4-1. BIOS Features Submenu

Menu Item Description

Quick Boot If Enabled, this option will skip certain tests during POST to reduce the time

needed for the system to boot up. The options are Enabled and DISABLED.

Quiet Boot If Disabled, normal POST messages will be displayed on boot-up. If Enabled,

this display the OEM logo instead of POST messages.

OS Installation Change this setting if using a 64-bit Linux operating system. The available

options are Other and LINUX.

Interrupt 19 Capture Select Enabled to allow ROMs to trap Interrupt 19. The options are ENABLED and

Disabled.

Wait for F1 if Error

This setting controls the system response when an error is detected during the

boot sequence. When enabled, BIOS will stop the boot sequence when an error

is detected, at which point you will need to press the F1 button to re-enter the

BIOS setup menu. The options are Enabled and DISABLED.

ACPI Mode Use this setting to determine whether ACPI mode will be used. The options are

Yes and NO.

Advanced ACPI Configuration Submenu

MCP55 ACPI

HPET Table Determines whether to enable or disable the MCP55 ACPI HPET table. Options

are Enabled or DISABLED.

ACPI Version

Features Use this setting the determine which ACPI version to use. Options are ACPI

v1.0, ACPI V2.0 and ACPI V3.0.

ACPI APIC

Support Determines whether to include the ACPI APIC table pointer in the RSDT pointer

list. The available options are Enabled and DISABLED.

AMI OEMB Table Determines whether to include the AMI OEMB table pointer in the RSDT pointer

list. The available options are Enabled and DISABLED.

Headless Mode Use this setting to ENABLE or Disable headless operation mode through ACPI.

This setting is used to update the ACPI FACP table to indicate headless

operations without a monitor.

General WHEA Configuration Submenu

4-3

Chapter 4: BIOS

WHEA Support

Use this setting to Enable or DISABLE WHEA (Windows Hardware Error

Architecture) support. WHEA provides a common infrastructure for reporting

hardware errors on Windows platforms and was designed to improve recovery

following fatal hardware errors.

Power Button Mode Allows the user to change the function of the power button. Options are On/Off

and SUSPEND.

Watch Dog Timer

Select

This setting is used to ENABLE or Disable the Watch Dog Timer function. It must

be used in conjunction with the Watch Dog jumper (see Chapter 2 for details). To

enable, choose from 1, 2, 3, 4, 8, 15 or 30 MIN.

Restore on AC Power

Loss

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are POWER OFF, POWER ON and

Last State.

MPS Revision This setting allows the user to select the MPS (MultiProcessor Specification)

revision level. The options are 1.1 and 1.4.

Table 4-2. SATA Configuration Submenu

Menu Item Description

Serial ATA Devices This setting is used to determine if SATA drives will be used and how many.

Options are DISABLED, DEVICE 0 and Device 0/1.

nVidia RAID Function This setting is used to ENABLE or Disable the nVidia ROM. If enabled, the setting

below will appear.

SerialATA 0/1

Primary/Secondary

Channel

This setting is used to ENABLE or Disable the SATA0 Primary, SATA0 Secondary,

SATA1 Primary and SATA1 Secondary, channels (four settings total). If enabled,

the following settings will appear:

LBA/Large Mode LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are DISABLED and Auto.

Block

(Multi-Sector

Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

DISABLED to allow the data to be transferred from and to the device one sector at

a time. Select Auto to allows the data transfer from and to the device occur

multiple sectors at a time if the device supports it. The options are Auto and

DISABLED.

Table 4-1. BIOS Features Submenu (Continued)

Menu Item Description

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

4-4

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow BIOS to

auto detect the PIO mode.

Use this value if the IDE disk drive support cannot be determined.

• Select 0 to allow BIOS to use PIO mode 0, which has a data transfer rate of

3.3 MBs.

• Select 1 to allow BIOS to use PIO mode 1, which has a data transfer rate of

5.2 MBs.

• Select 2 to allow BIOS to use PIO mode 2, which has a data transfer rate of

8.3 MBs.

• Select 3 to allow BIOS to use PIO mode 3, which has a data transfer rate of

11.1 MBs.

• Select 4 to allow BIOS to use PIO mode 4, which has a data transfer rate of

16.6 MBs.

This setting generally works with all hard disk drives manufactured after 1999.

For other disk drives, such as IDE CD-ROM drives, check the specifications of

the drive.

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select Auto to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select ENABLED to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are DISABLED, ENABLED, and Auto.

32-Bit Data

Transfer Select Enabled to activate the 32-Bit Data Transfer function. Select DISABLED to

deactivate the function. The options are Enabled and DISABLED.

Table 4-3. PCI/PnP Configuration Submenu

Menu Item Description

Slot 1 OPROM Use this setting to enable or disable the OPROM (Option ROM firmware) for slot

1. The options are Yes and NO.

Load Onboard LAN

Option ROM Use this setting to ENABLE or Disable the onboard option ROM. This setting

must be enabled to view the BOOT MENU settings.

Clear NVRAM Select YES to clear NVRAM (Non-Volatile Random Access Memory) during

boot-up. The options are YES and No.

Plug & Play OS Select YES to allow the OS to configure Plug & Play devices. (This is not required

for system boot if your system has an OS that supports Plug & Play.) Select No

to allow AMIBIOS to configure all devices in the system.

PCI Latency Timer This option sets the latency of all PCI devices on the PCI bus. Select a value to

set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192,

224 and 248.

Table 4-2. SATA Configuration Submenu (Continued)

Menu Item Description

4-5

Chapter 4: BIOS

Table 4-4. Advanced Chipset Control Submenu

Menu Item Description

NorthBridge Configuration

submenu See Table 4-5 for further details and submenus.

SouthBridge Configuration

submenu See Table 4-6 for further details and submenus.

Table 4-5. NorthBridge Configuration Submenu

Menu Item Description

Memory Configuration

Bank Interleaving Select Auto to automatically enable a bank-interleaving memory scheme when

this function is supported by the processor. The options are Auto and DISABLED.

Channel

Interleaving

Selects the channel-interleaving memory scheme when this function is

supported by the processor. The options are DISABLED, ADDRESS BITS 6,

ADDRESS BITS 12, XOR of Address Bits [20:16, 6] and XOR OF ADDRESS BITS

[20:16, 9].

Enable Clock to

All Dimms Use this setting to enable unused clocks to all DIMMSs, even if some DIMM slots

are unpopulated. Options are ENABLED and Disabled.

Mem Clk Tristate

C3/ALTVID Use this setting to ENABLE or Disable memory clock tristate during C3 and ALT

VID.

Memory Hole

Remapping When Enabled, this feature enables hardware memory remapping around the

memory hole. Options are Enabled and DISABLED.

CS Sparing This setting will reserve a spare memory rank in each node when enabled.

Options are ENABLE and Disable.

DCT Unganged

Mode This setting enables unganged DRAM mode (64-bit). Options are AUTO (ganged

mode) and Always (unganged mode).

Power Down

Enable This setting enables or disables the DDR power down mode. Options are

Enabled and DISABLED.

Power Down

Mode This sets the power down mode. Options are Channel and CHIP SELECT.

ECC Configuration

ECC Mode This setting affects the DRAM scrub rate based on its setting. Options are

DISABLED, Basic, GOOD, SUPER, MAX and USER. Depending upon the setting

chosen, some or all of the following settings will become active:

DRAM ECC

Enable DRAM ECC allows hardware to report and correct memory errors automatically.

Options are Enabled and DISABLED.

DRAM SCRUB

REDIRECT Allows system to correct DRAM ECC errors immediately, even with background

scrubbing on. Options are Enabled and DISABLED.

4-Bit ECC

Mode Allows the user to enabled 4-bit ECC mode (also known as ECC Chipkill).

Options are ENABLED and Disabled.

DRAM BG

Scrub Corrects memory errors so later reads are correct. Options are Disabled and

various times in nanoseconds and microseconds.

Data Cache BG

Scrub Allows L1 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

4-6

L2 Cache BG

Scrub Allows L2 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

L3 Cache BG

Scrub Allows L3 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

 DRAM Timing Configuration

Memory Clock

Mode This setting specifies the memory clock mode. Options are Auto, LIMIT and

MANUAL.

DRAM Timing

Mode This setting specifies the DRAM timing mode. Options are Auto and DCT.

 IOMMU Option Menu

IOMMU Mode Used to disable or set the GART size in systems without AGP. Options are AGP

Present, DISABLED, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB and 1 GB.

Table 4-6. SouthBridge/MCP55 Configuration Submenu

Menu Item Description

CPU/LDT Spread

Spectrum Enables spread spectrum for the CPU/LDT. Options are Center Spread, DOWN

SPREAD or DISABLED.

PCIE Spread

Spectrum Allows you to Enable or DISABLE spread spectrum for PCI-Express.

SATA Spread

Spectrum Enables spread spectrum for the SATA. Options are Enabled and DISABLED.

USB 1.1 Controller Allows you to Enable or DISABLE the USB 1.1 controller.

USB 2.0 Controller Setting to either Enable or DISABLE the USB 2.0 controller.

Legacy USB Support

Select Enabled to enable support for USB Legacy devices.Use DISABLE to

disable Legacy support if there are no USB devices installed in the system. AUTO

disables Legacy support if no USB devices are connected. The options are

DISABLED, Enabled and AUTO.

Table 4-7. Processor & Clock Options Submenu

Menu Item Description

MTRR Mapping

This determines the method used for programming CPU MTRRs when 4 GB or

more memory is present. The options are Continuous, which makes the PCI

hole non-cacheable, and DISCRETE, which places the PCI hole below the 4 GB

boundary.

Thermal Throttling Used to ENABLE or Disable thermal to generate a power management event.

Power Now This setting is used to ENABLE or Disable the AMD Power Now feature.

Secure Virtual

Machine Mode This setting is used to Enable or DISABLE SVM (Secure Virtual Machine).

CPU Page

Translation Table This setting is used to Enable or DISABLE the CPU Page Translation Table.

Table 4-5. NorthBridge Configuration Submenu (Continued)

Menu Item Description

4-7

Chapter 4: BIOS

Table 4-8. I/O Device Configuration Submenu

Menu Item Description

Serial Port1 Address

This option specifies the base I/O port address and Interrupt Request address of

serial port 1. The options are DISABLED, 3F8/IRQ4, 3E8/IRQ4 and 2E8/IRQ3.

Select DISABLED to prevent the serial port from accessing any system resources.

When this option is set to DISABLED, the serial port physically becomes

unavailable.

Select 3F8/IRQ4 to allow the serial port to use 3F8 as its I/O port address and

IRQ 4 for the interrupt address.

Serial Port2 Address

This option specifies the base I/O port address and Interrupt Request address of

serial port 2. The options are DISABLED, 2F8/IRQ3, 3E8/IRQ4 and 2E8/IRQ3.

Select DISABLED to prevent the serial port from accessing any system resources.

When this option is set to DISABLED, the serial port physically becomes

unavailable.

Select 2F8/IRQ3 to allow the serial port to use 2F8 as its I/O port address and

IRQ 3 for the interrupt address.

Table 4-9. DMI Event Logging Submenu

Menu Item Description

View Event Log Highlight this item and press <ENTER> to view the contents of the event log.

Mark All Events as

Read Highlight this item and press <ENTER> to mark all events as read.

Clear Event Log Select Yes and press <ENTER> to clear all event logs. The options are YES and

NO to verify.

Table 4-10. Console Redirection Submenu

Menu Item Description

Remote Access Allows you to ENABLE or Disable remote access. If enabled, the settings below

will appear:

Serial Port Number Selects the serial port to use for console redirection. Options are COM1 and

COM2.

Serial Port Mode Selects the serial port settings to use. Options are (115200 8, n, 1), (57600 8, N,

1), (38400 8, N, 1), (19200 8, N, 1) and (09600 8, N, 1).

Flow Control Selects the flow control to be used for console redirection. Options are None,

HARDWARE and SOFTWARE.

Redirection After

BIOS POST

Options are DISABLE (no redirection after BIOS POST), BOOT LOADER

(redirection during POST and during boot loader) and Always (redirection

always active). Note that some OS's may not work with this set to ALWAYS.

Terminal Type Selects the type of the target terminal. Options are ANSI, VT100 and VT-UTF8.

VT-UTF8 Combo Key

Support Allows you to Enable or DISABLE VT-UTF8 combination key support for ANSI/

VT100 terminals.

Sredir Memory

Display Delay Use this setting to set the delay in seconds to display memory information.

Options are No Delay, 1 SEC, 2 SECS and 4 SECS.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

4-8

Table 4-11. Hardware Health Monitor Submenu

Menu Item Description

CPU Overheat

Alarm

Use the "+" and "-" keys to set the CPU temperature threshold to between 65o

and 90o C. When this threshold is exceeded, the overheat LED on the chassis

will light up and an alarm will sound. The LED and alarm will turn off once the

CPU temperature has dropped to 5 degrees below the threshold set. The default

setting is 72o C.

System Fan Monitor Submenu

Fan Speed

Control

This feature allows you to determine how the system will control the speed of the

onboard fans. Select WORKSTATION if your system is used as a Workstation.

Select SERVER if your system is used as a server. Select Disable to disable the

fan speed control function to allow the onboard fans to continuously run at full

speed (12V). The options are 1) Disable (Full Speed) 2) 3-PIN (SERVER) and 3)

3-PIN (WORKSTATION).

FAN1 Speed

through FAN4

Reading The speeds of the onboard fans (in rpm) are displayed here.

Other

Information

Other items in the submenu are systems monitor displays for the following

information:

CPU1 TEMPERATURE, CPU2 TEMPERATURE (for 2U systems), SYSTEM

TEMPERATURE, VCOREA, VCOREB (for 2U systems), HT VOLTAGE, CPU1 MEM

VTT, CPU2 MEM VTT, CPU1 MEM, CPU2 MEM, 12V, 3.3V, VDD, 5V VSB,

MCP55VCORE, 1.5V and VBAT.

Table 4-12. IPMI Configuration

Menu Item Description

 View BMC System

Event Log Use the "+" and "-" keys to navigate through the system event log. Pressing the

Enter key will open the following setting:

Clear BMC

System Event Log Selecting this and pressing the Enter key will clear the BMC system event log.

 Set LAN

Configuration Use the "+" and "-" keys to choose the desired channel number.

 IP Address Use the "+" and "-" keys to select the parameter. The IP address and current IP

address in the BMC are shown.

 MAC Address Use the "+" and "-" keys to select the parameter. The MAC address and current

MAC address in the BMC are shown.

 Subnet Mask Use the "+" and "-" keys to select the parameter. The subnet address and current

subnet address in the BMC are shown.

 Set PEF Configuration Submenu

PEF Support Use this setting to ENABLE or Disable PEF support. When enabled, the following

settings will appear:

BMC Watch Dog

Timer Action This setting is used to set the Watch Dog function. The options are Disabled,

RESET SYSTEM, POWER DOWN and POWER CYCLE.

4-9

Chapter 4: BIOS

4-5 Boot Menu

The BOOT menu is accessible only when the LOAD ONBOARD LAN OPTION ROM setting

(in the PCI/PNP CONFIGURATION menu) is enabled. Menu items in the BOOT menu are

shown below in Table 4-13.

4-6 Security Menu

AMI BIOS provides a Supervisor and a User password. If you use both passwords, the

Supervisor password must be set first in the SECURITY menu. Menu items for the

security menu are shown below in Table 4-14.

Table 4-13. Boot Menu

Menu Item Description

 Boot Device

Priority This feature allows the user to prioritize the boot sequence from the available

devices.

 Hard Disk Drives This feature allows the user to specify the boot sequence from available hard

disk drives.

Table 4-14. Security Menu

Menu Item Description

Change Supervisor

Password Select this option and press <ENTER> to access the sub menu, and then type in

the password.

Change User

Password Select this option and press <ENTER> to access the sub menu, and then type in

the password.

Boot Sector Virus

Protection

This option is near the bottom of the SECURITY SETUP screen. Select Disabled to

deactivate the Boot Sector Virus Protection. Select ENABLED to enable boot

sector protection.

When ENABLED, the AMI BIOS displays a warning when any program (or virus)

issues a DISK FORMAT command or attempts to write to the boot sector of the

hard disk drive. The options are ENABLED and Disabled.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

4-10

4-7 Exit Menu

Select the EXIT tab from AMI BIOS SETUP UTILITY screen to enter the EXIT BIOS SETUP

screen. Then Exit menu items are described in Table 4-15 below.

Table 4-15. Exit Menu

Menu Item Description

Save Changes and

Exit

When you have completed the system configuration changes, select this option

to leave BIOS Setup and reboot the computer, so the new system configuration

parameters can take effect. Select SAVE CHANGES AND EXIT from the EXIT menu

and press <ENTER>.

Discard Changes and

Exit

Select this option to quit BIOS Setup without making any permanent changes to

the system configuration and reboot the computer. Select DISCARD CHANGES AND

EXIT from the EXIT menu and press <ENTER>.

Discard Changes Select this option and press <ENTER> to discard all the changes and return to

AMI BIOS Utility Program.

Load Optimal

Defaults

To set this feature, select LOAD OPTIMAL DEFAULTS from the EXIT menu and press

<Enter>. Then select "OK" to allow BIOS to automatically load the OPTIMAL

DEFAULTS as the BIOS Settings. The OPTIMAL settings are designed for

maximum system performance, but may not work best for all computer

applications.

Load Fail-Safe

Defaults

To set this feature, select LOAD FAIL-SAFE DEFAULTS from the EXIT menu and

press <ENTER>. The FAIL-SAFE settings are designed for maximum system

stability, but not maximum performance.

A-1

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time the

system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the

boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure.

If a fatal error occurs, you should consult with your system manufacturer for possible

repairs.

These fatal errors are usually communicated through a series of audible beeps. The

numbers on the fatal error list (on the following page) correspond to the number of

beeps for the corresponding error. All errors listed, with the exception of Beep Code 8,

are fatal errors.

Table A-1. AMIBIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset (Ready to power up.)

5 short, 1 long Memory error No memory detected in system

1 long, 8 short Video error Video adapter disabled or missing

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

A-2

Notes

B-1

Appendix B

BIOS POST Checkpoint Codes

B-1 Uncompressed Initialization Codes

The uncompressed initialization checkpoint codes are listed in order of execution:

B-2 Bootblock Recovery Codes

The bootblock recovery checkpoint codes are listed in order of execution:

Checkpoint Code Description

D0h The NMI is disabled. Power on delay is starting. Next, the initialization code

checksum will be verified.

D1h Initializing the DMA controller, performing the keyboard controller BAT test,

starting memory refresh and entering 4 GB flat mode next.

D3h Starting memory sizing next.

D4h Returning to real mode. Executing any OEM patches and setting the Stack next.

D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The

initialization code is copied to segment 0 and control will be transferred to

segment 0.

Checkpoint Code Description

E0h The onboard floppy controller if available is initialized. Next, beginning the base

512 KB memory test.

E1h Initializing the interrupt vector table next.

E2h Initializing the DMA and Interrupt controllers next.

E6h Enabling the floppy drive controller and Timer IRQs. Enabling internal cache

memory.

Edh Initializing the floppy drive.

Efh A read error occurred while reading the floppy drive in drive A:.

F0h Next, searching for the AMIBOOT.ROM file in the root directory.

F1h The AMIBOOT.ROM file is not in the root directory.

F2h Next, reading and analyzing the floppy diskette FAT to find the clusters occupied

by the AMIBOOT.ROM file.

F3h Next, reading the AMIBOOT.ROM file, cluster by cluster.

F4h The AMIBOOT.ROM file is not the correct size.

F5h Next, disabling internal cache memory.

FBh Next, detecting the type of flash ROM.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

B-2

B-3 Uncompressed Initialization Codes

The following runtime checkpoint codes are listed in order of execution.

These codes are uncompressed in F0000h shadow RAM.

FCh Next, erasing the flash ROM.

FDh Next, programming the flash ROM.

FFh Flash ROM programming was successful. Next, restarting the system BIOS.

Checkpoint Code Description

03h The NMI is disabled. Next, checking for a soft reset or a power on condition.

05h The BIOS stack has been built. Next, disabling cache memory.

06h Uncompressing the POST code next.

07h Next, initializing the CPU and the CPU data area.

08h The CMOS checksum calculation is done next.

0Ah The CMOS checksum calculation is done. Initializing the CMOS status register

for date and time next.

0Bh The CMOS status register is initialized. Next, performing any required

initialization before the keyboard BAT command is issued.

0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to

the keyboard controller.

0Eh The keyboard controller BAT command result has been verified. Next,

performing any necessary initialization after the keyboard controller BAT

command test.

0Fh The initialization after the keyboard controller BAT command test is done. The

keyboard command byte is written next.

10h The keyboard controller command byte is written. Next, issuing the Pin 23 and

24 blocking and unblocking command.

11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing

CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option

was set in AMIBCP or the <End> key was pressed.

12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2.

13h The video display has been disabled. Port B has been initialized. Next, initializing

the chipset.

14h The 8254 timer test will begin next.

19h Next, programming the flash ROM.

1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.

2Bh Passing control to the video ROM to perform any required configuration before

the video ROM test.

2Ch All necessary processing before passing control to the video ROM is done.

Looking for the video ROM next and passing control to it.

Checkpoint Code Description

B-3

2Dh The video ROM has returned control to BIOS POST. Performing any required

processing after the video ROM had control

23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature

next. Making the BIOS code segment writable and performing any necessary

configuration before initializing the interrupt vectors.

24h The configuration required before interrupt vector initialization has completed.

Interrupt vector initialization is about to begin.

25h Interrupt vector initialization is done. Clearing the password if the POST DIAG

switch is on.

27h Any initialization before setting video mode will be done next.

28h Initialization before setting the video mode is complete. Configuring the

monochrome mode and color mode settings next.

2Ah Bus initialization system, static, output devices will be done next, if present. See

the last page for additional information.

2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not

found, performing the display memory read/write test next.

2Fh The EGA/VGA controller was not found. The display memory read/write test is

about to begin.

30h The display memory read/write test passed. Look for retrace checking next.

31h The display memory read/write test or retrace checking failed. Performing the

alternate display memory read/write test next.

32h The alternate display memory read/write test passed. Looking for alternate

display retrace checking next.

34h Video display checking is over. Setting the display mode next.

37h The display mode is set. Displaying the power on message next.

38h Initializing the bus input, IPL, general devices next, if present. See the last page

of this chapter for additional information.

39h Displaying bus initialization error messages. See the last page of this chapter for

additional information.

3Ah The new cursor position has been read and saved. Displaying the Hit <DEL>

message next.

3Bh The Hit <DEL> message is displayed. The protected mode memory test is about

to start.

40h Preparing the descriptor tables next.

42h The descriptor tables are prepared. Entering protected mode for the memory test

next.

43h Entered protected mode. Enabling interrupts for diagnostics mode next.

44h Interrupts enabled if the diagnostics switch is on. Initializing data to check

memory wraparound at 0:0 next.

45h Data initialized. Checking for memory wraparound at 0:0 and finding the total

system memory size next.

46h The memory wraparound test is done. Memory size calculation has been done.

Writing patterns to test memory next.

Checkpoint Code Description

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

B-4

47h The memory pattern has been written to extended memory. Writing patterns to

the base 640 KB memory next.

48h Patterns written in base memory. Determining the amount of memory below 1

MB next.

49h The amount of memory below 1 MB has been found and verified.

4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory

above 1 MB next.

4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory

size next. Going to checkpoint 52h next.

4Eh The memory test started, but not as the result of a soft reset. Displaying the first

64 KB memory size next.

4Fh The memory size display has started. The display is updated during the memory

test. Performing the sequential and random memory test next.

50h The memory below 1 MB has been tested and initialized. Adjusting the displayed

memory size for relocation and shadowing next.

51h The memory size display was adjusted for relocation and shadowing.

52h The memory above 1 MB has been tested and initialized. Saving the memory

size information next.

53h The memory size information and the CPU registers are saved. Entering real

mode next.

54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,

parity, and the NMI next.

57h The A20 address line, parity, and the NMI are disabled. Adjusting the memory

size depending on relocation and shadowing next.

58h The memory size was adjusted for relocation and shadowing. Clearing the Hit

<DEL> message next.

59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed.

Starting the DMA and interrupt controller test next.

60h The DMA page register test passed. Performing the DMA Controller 1 base

62h The DMA controller 1 base register test passed. Performing the DMA controller 2

base register test next.

65h The DMA controller 2 base register test passed. Programming DMA controllers 1

and 2 next.

66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt

controller next.

67h Completed 8259 interrupt controller initialization.

7Fh Extended NMI source enabling is in progress.

80h The keyboard test has started. Clearing the output buffer and checking for stuck

keys. Issuing the keyboard reset command next.

81h A keyboard reset error or stuck key was found. Issuing the keyboard controller

interface test command next.

Checkpoint Code Description

B-5

82h The keyboard controller interface test completed. Writing the command byte and

initializing the circular buffer next.

83h The command byte was written and global data initialization has completed.

Checking for a locked key next.

84h Locked key checking is over. Checking for a memory size mismatch with CMOS

RAM data next.

85h The memory size check is done. Displaying a soft error and checking for a

password or bypassing WINBIOS Setup next.

86h The password was checked. Performing any required programming before

WINBIOS Setup next.

87h The programming before WINBIOS Setup has completed. Uncompressing the

WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup

utility next.

88h Returned from WINBIOS Setup and cleared the screen. Performing any

necessary programming after WINBIOS Setup next.

89h The programming after WINBIOS Setup has completed. Displaying the power on

screen message next.

8Ch Programming the WINBIOS Setup options next.

8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller

next.

8Fh The hard disk controller has been reset. Configuring the floppy drive controller

next.

91h The floppy drive controller has been configured. Configuring the hard disk drive

controller next.

95h Initializing the bus option ROMs from C800 next. See the last page of this

chapter for additional information.

96h Initializing before passing control to the adaptor ROM at C800.

97h Initialization before the C800 adaptor ROM gains control has completed. The

adaptor ROM check is next.

98h The adaptor ROM had control and has now returned control to BIOS POST.

Performing any required processing after the option ROM returned control.

99h Any initialization required after the option ROM test has completed. Configuring

the timer data area and printer base address next.

9Ah Set the timer and printer base addresses. Setting the RS-232 base address next.

9Bh Returned after setting the RS-232 base address. Performing any required

initialization before the Coprocessor test next.

9Ch Required initialization before the Coprocessor test is over. Initializing the

Coprocessor next.

9Dh Coprocessor initialized. Performing any required initialization after the

Coprocessor test next.

9Eh Initialization after the Coprocessor test is complete. Checking the extended

keyboard, keyboard ID, and Num Lock key next. Issuing the keyboard ID

command next.

A2h Displaying any soft errors next.

Checkpoint Code Description

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual

B-6

A3h The soft error display has completed. Setting the keyboard typematic rate next.

A4h The keyboard typematic rate is set. Programming the memory wait states next.

A5h Memory wait state programming is over. Clearing the screen and enabling parity

and the NMI next.

A7h NMI and parity enabled. Performing any initialization required before passing

control to the adaptor ROM at E000 next.

A8h Initialization before passing control to the adaptor ROM at E000h completed.

Passing control to the adaptor ROM at E000h next.

A9h Returned from adaptor ROM at E000h control. Performing any initialization

required after the E000 option ROM had control next.

Aah Initialization after E000 option ROM control has completed. Displaying the

system configuration next.

Abh Uncompressing the DMI data and executing DMI POST initialization next.

B0h The system configuration is displayed.

B1h Copying any code to specific areas.

00h Code copying to specific areas is done. Passing control to INT 19h boot loader

next.

Checkpoint Code Description

Disclaimer

The products sold by Supermicro are not intended for and will not be used in life support

systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices,

aircraft/emergency communication devices or other critical systems whose failure to

perform be reasonably expected to result in significant injury or loss of life or

catastrophic property damage. Accordingly, Supermicro disclaims any and all liability,

and should buyer use or sell such products for use in such ultra-hazardous applications,

it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend

and hold Supermicro harmless for and against any and all claims, demands, actions,

litigation, and proceedings of any kind arising out of or related to such ultra-hazardous

use or sale.

H8DMT/H8DMT-IBX/H8DMT-F/H8DMT-IBXF User’s Manual
