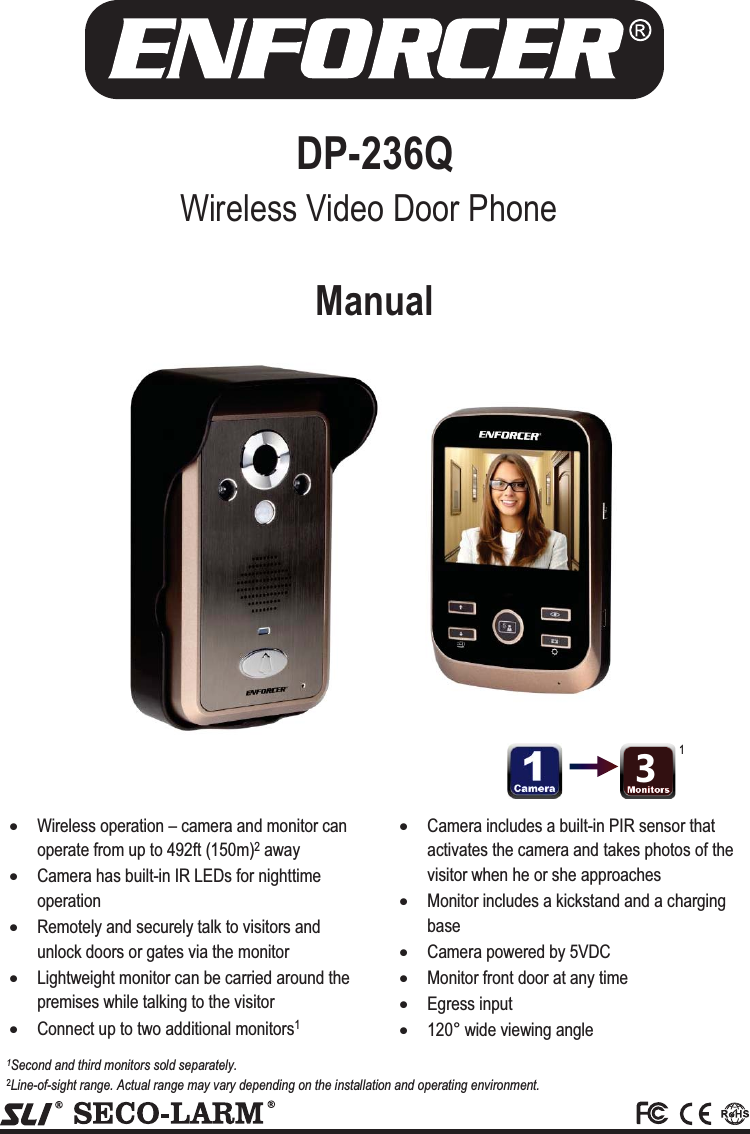

DP-236Q xWireless operation – camera and monitor can operate from up to 492ft (150m)2 away xCamera has built-in IR LEDs for nighttime operation xRemotely and securely talk to visitors and unlock doors or gates via the monitor xLightweight monitor can be carried around the premises while talking to the visitor xConnect up to two additional monitors1 xCamera includes a built-in PIR sensor that activates the camera and takes photos of the visitor when he or she approaches xMonitor includes a kickstand and a charging base xCamera powered by 5VDC xMonitor front door at any time xEgress input x120° wide viewing angle 1Second and third monitors sold separately. 2Line-of-sight range. Actual range may vary depending on the installation and operating environment. 1 Manual Wireless Video Door Phone 3

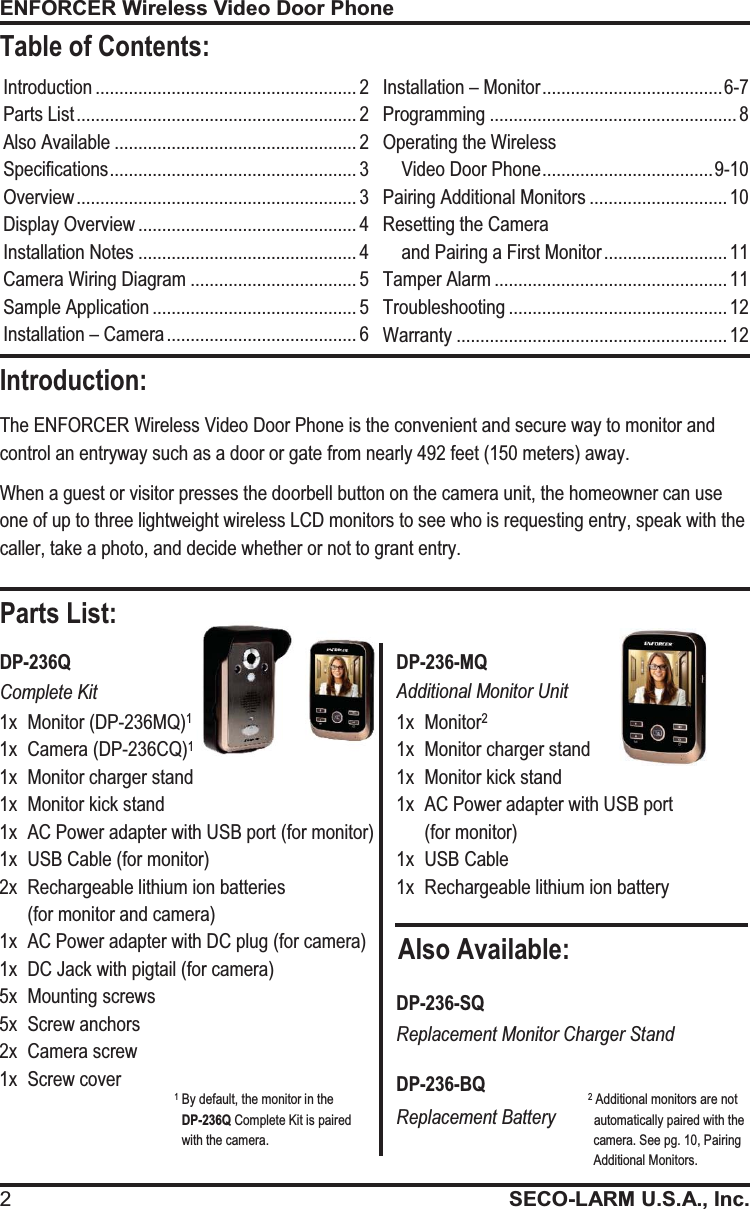

ENFORCER Wireless Video Door Phone 2SECO-LARM U.S.A., Inc. Also Available: Parts List: Introduction ....................................................... 2 Parts List ........................................................... 2 Also Available ................................................... 2 Specifications .................................................... 3 Overview ........................................................... 3 Display Overview .............................................. 4 Installation Notes .............................................. 4 Camera Wiring Diagram ................................... 5 Sample Application ........................................... 5 Installation – Camera ........................................ 6 Installation – Monitor ...................................... 6-7 Programming .................................................... 8 Operating the Wireless Video Door Phone .................................... 9-10 Pairing Additional Monitors ............................. 10 Resetting the Camera and Pairing a First Monitor .......................... 11 Tamper Alarm ................................................. 11 Troubleshooting .............................................. 12 Warranty ......................................................... 12 The ENFORCER Wireless Video Door Phone is the convenient and secure way to monitor and control an entryway such as a door or gate from nearly 492 feet (150 meters) away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight wireless LCD monitors to see who is requesting entry, speak with the caller, take a photo, and decide whether or not to grant entry. 1x Monitor (DP-236MQ)1 1x Camera (DP-236CQ)1 1x Monitor charger stand 1x Monitor kick stand 1x AC Power adapter with USB port (for monitor) 1x USB Cable (for monitor) 2x Rechargeable lithium ion batteries (for monitor and camera) 1x AC Power adapter with DC plug (for camera) 1x DC Jack with pigtail (for camera) 5x Mounting screws 5x Screw anchors 2x Camera screw 1x Screw cover 1x Monitor2 1x Monitor charger stand 1x Monitor kick stand 1x AC Power adapter with USB port (for monitor) 1x USB Cable 1x Rechargeable lithium ion battery DP-236Q DP-236-MQ Complete Kit Additional Monitor Unit DP-236-SQ Replacement Monitor Charger Stand DP-236-BQ Replacement Battery 1 By default, the monitor in the DP-236Q Complete Kit is paired with the camera. 2 Additional monitors are not automatically paired with the camera. See pg. 10, Pairing Additional Monitors. Introduction: Table of Contents:

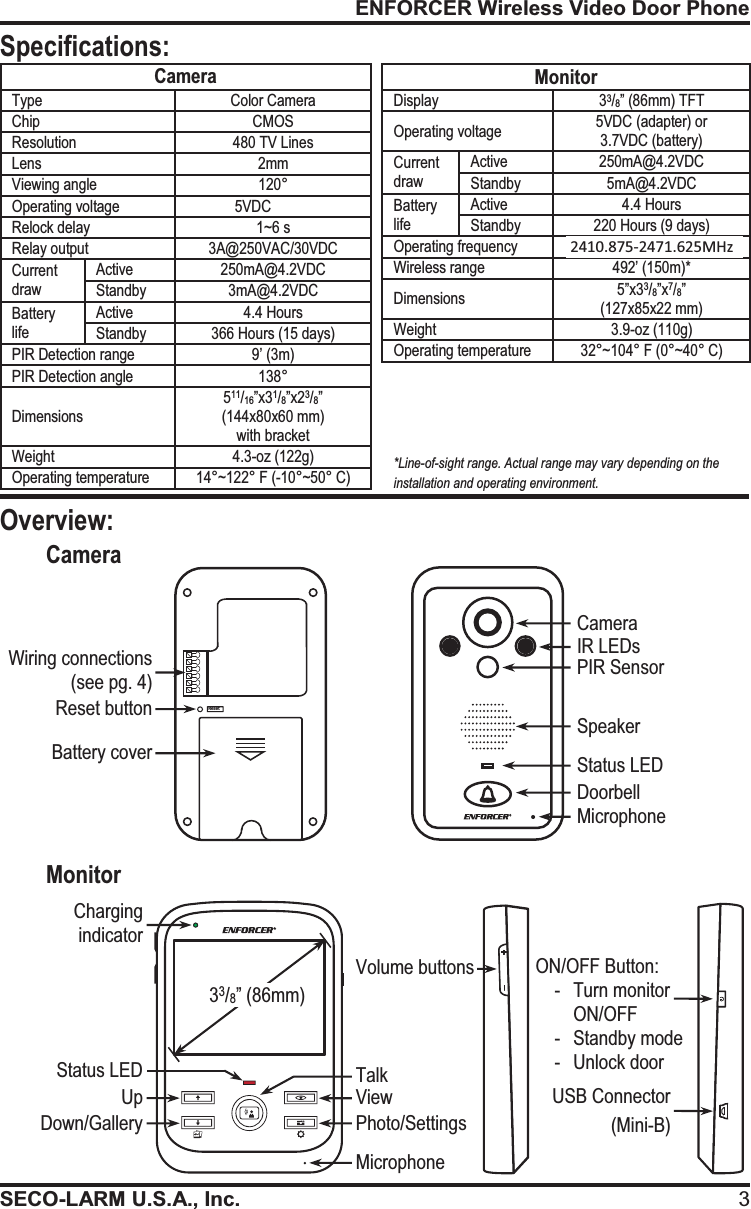

ENFORCER Wireless Video Door PhoneSECO-LARM U.S.A., Inc. 3 Reset Camera Camera Type Color Camera Chip CMOS Resolution 480 TV Lines Lens 2mm Viewing angle 120° Operating voltage 5VDC Relock delay 1~6 s Relay output 3A@250VAC/30VDC Current draw Active 250mA@4.2VDC Standby 3mA@4.2VDC Battery life Active 4.4 Hours Standby 366 Hours (15 days) PIR Detection range 9’ (3m) PIR Detection angle 138° Dimensions 511/16”x31/8”x23/8” (144x80x60 mm) with bracket Weight 4.3-oz (122g) Operating temperature 14°~122° F (-10°~50° C) Monitor Display 33/8” (86mm) TFT Operating voltage 5VDC (adapter) or 3.7VDC (battery) Current draw Active 250mA@4.2VDC Standby 5mA@4.2VDC Battery life Active 4.4 Hours Standby 220 Hours (9 days) Operating frequency 2.411-2.471GHz Wireless range 492’ (150m)* Dimensions 5”x33/8”x7/8” (127x85x22 mm) Weight 3.9-oz (110g) Operating temperature 32°~104° F (0°~40° C) Monitor 33/8” (86mm) *Line-of-sight range. Actual range may vary depending on the installation and operating environment. Overview: Specifications: Wiring connections (see pg. 4) Reset button Battery cover Camera IR LEDs PIR Sensor Speaker Status LED Doorbell Microphone Volume buttons ON/OFF Button: -Turn monitor ON/OFF -Standby mode - Unlock door USB Connector (Mini-B) View Photo/Settings Microphone Talk Up Down/Gallery Charging indicator Status LED 2410.875-2471.625MHz

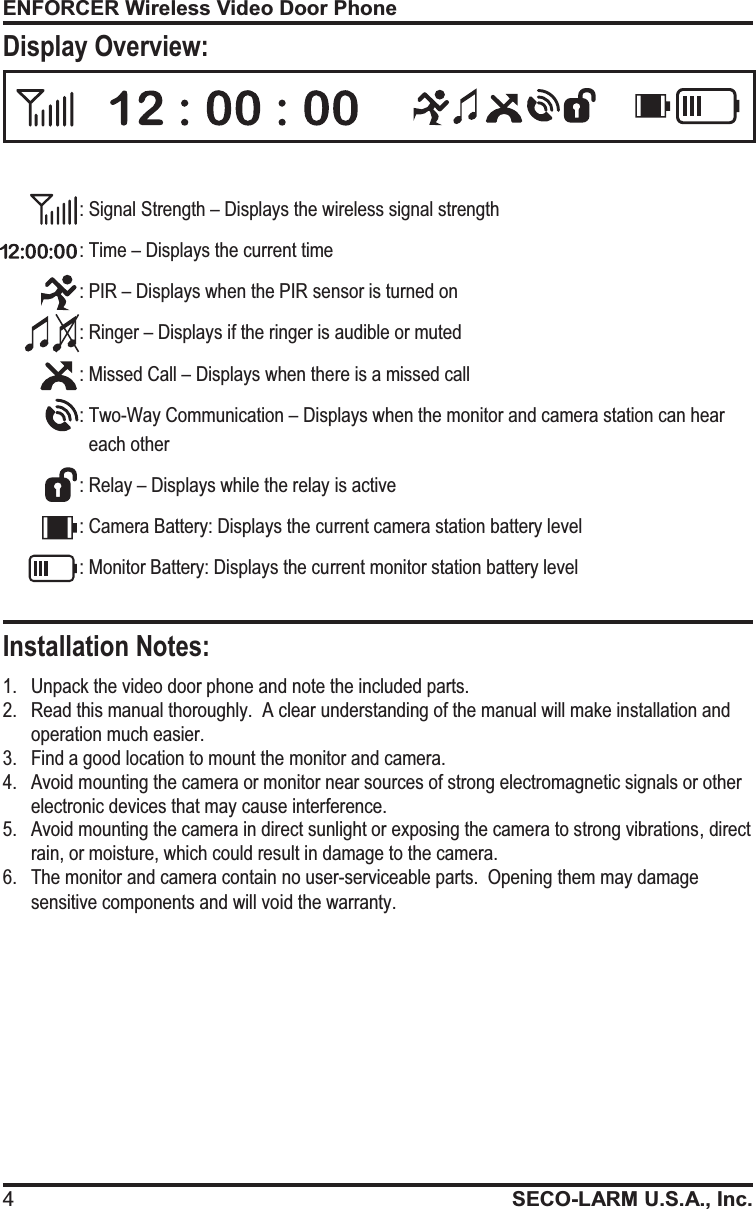

ENFORCER Wireless Video Door Phone 4SECO-LARM U.S.A., Inc. 1. Unpack the video door phone and note the included parts. 2.Read this manual thoroughly. A clear understanding of the manual will make installation and operation much easier. 3.Find a good location to mount the monitor and camera. 4. Avoid mounting the camera or monitor near sources of strong electromagnetic signals or other electronic devices that may cause interference. 5.Avoid mounting the camera in direct sunlight or exposing the camera to strong vibrations, direct rain, or moisture, which could result in damage to the camera. 6.The monitor and camera contain no user-serviceable parts. Opening them may damage sensitive components and will void the warranty. Installation Notes: Display Overview: : Signal Strength – Displays the wireless signal strength : Time – Displays the current time : PIR – Displays when the PIR sensor is turned on : Ringer – Displays if the ringer is audible or muted : Missed Call – Displays when there is a missed call : Two-Way Communication – Displays when the monitor and camera station can hear each other : Relay – Displays while the relay is active : Camera Battery: Displays the current camera station battery level : Monitor Battery: Displays the current monitor station battery level

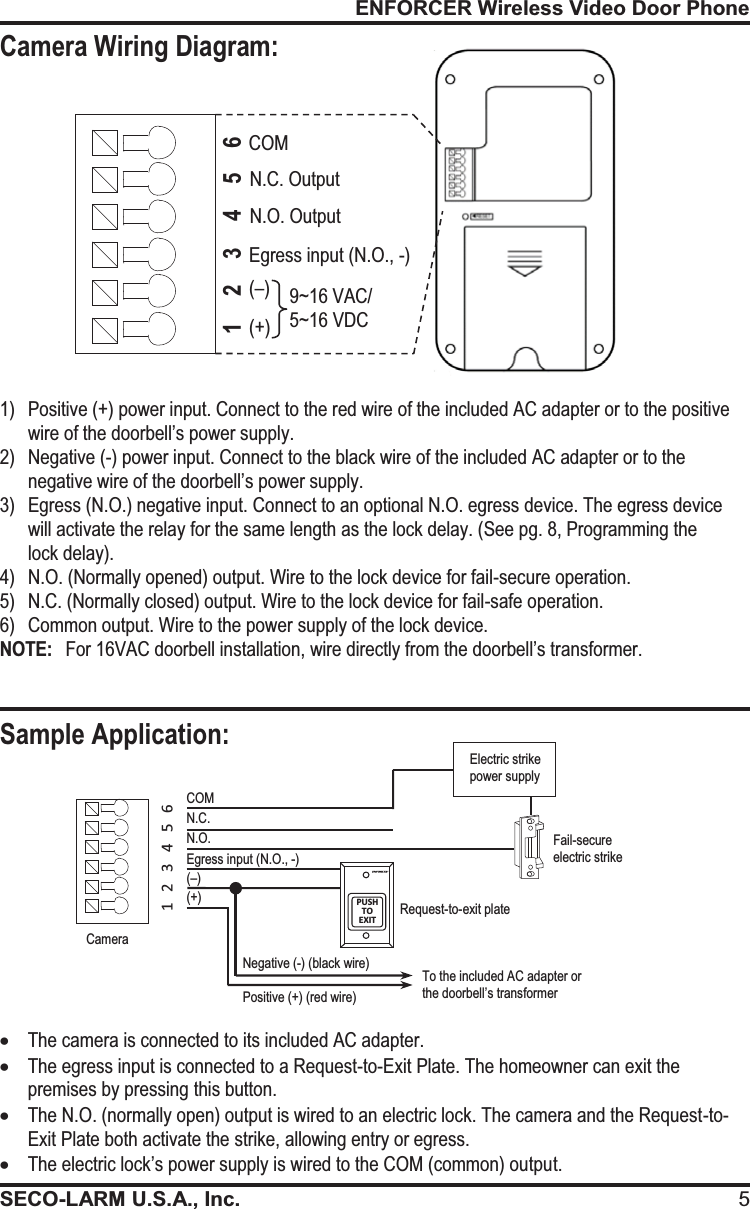

ENFORCER Wireless Video Door PhoneSECO-LARM U.S.A., Inc. 5Sample Application: Positive (+) (red wire) Negative (-) (black wire) 1) Positive (+) power input. Connect to the red wire of the included AC adapter or to the positive wire of the doorbell’s power supply. 2)Negative (-) power input. Connect to the black wire of the included AC adapter or to the negative wire of the doorbell’s power supply. 3)Egress (N.O.) negative input. Connect to an optional N.O. egress device. The egress device will activate the relay for the same length as the lock delay. (See pg. 8, Programming the lock delay). 4)N.O. (Normally opened) output. Wire to the lock device for fail-secure operation. 5)N.C. (Normally closed) output. Wire to the lock device for fail-safe operation. 6)Common output. Wire to the power supply of the lock device. NOTE: For 16VAC doorbell installation, wire directly from the doorbell’s transformer. COM PUSH TO EXIT 1 2 3 4 5 6 N.C. N.O. Request-to-exit plate Fail-secure electric strike Electric strike power supply xThe camera is connected to its included AC adapter. xThe egress input is connected to a Request-to-Exit Plate. The homeowner can exit the premises by pressing this button. xThe N.O. (normally open) output is wired to an electric lock. The camera and the Request-to-Exit Plate both activate the strike, allowing entry or egress. xThe electric lock’s power supply is wired to the COM (common) output. Egress input (N.O., -) N.O. Output N.C. Output COM Egress input (N.O., -) To the included AC adapter or the doorbell’s transformer (–) (+) 9~16 VAC/ 5~16 VDC Camera Camera Wiring Diagram: 6 5 4 3 2 1 (–) (+)

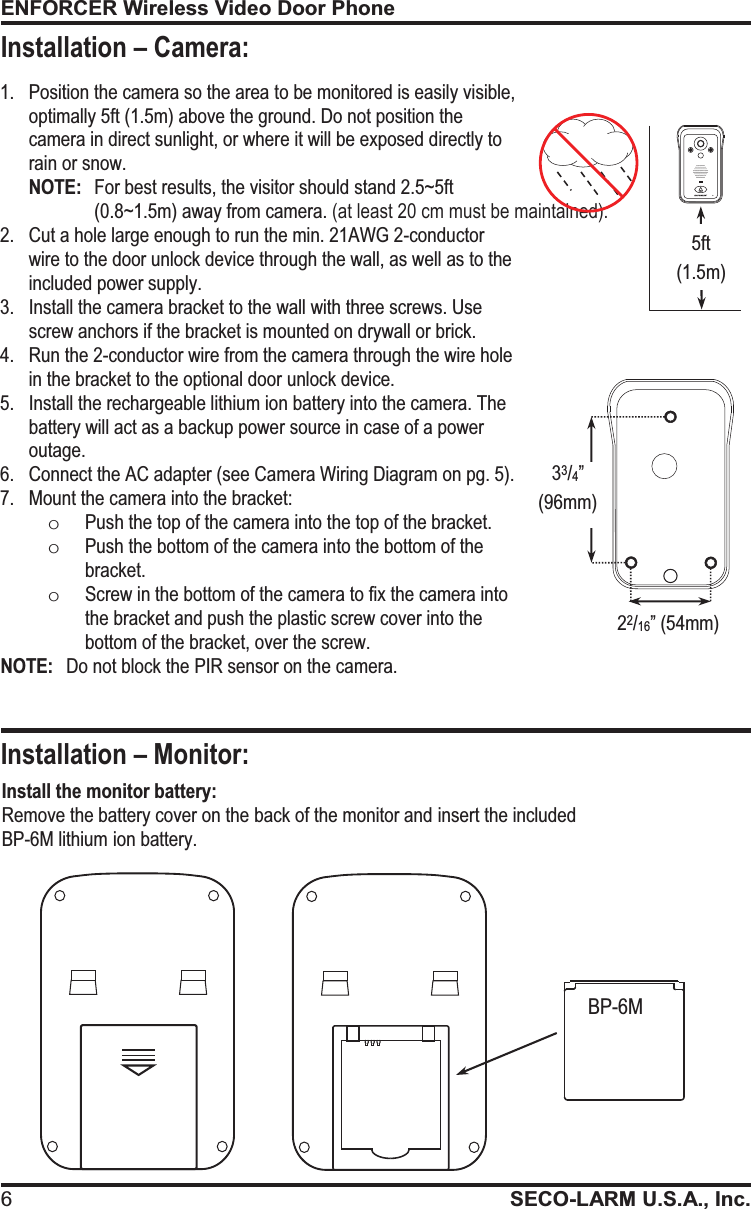

ENFORCER Wireless Video Door Phone 6SECO-LARM U.S.A., Inc. 1. Position the camera so the area to be monitored is easily visible, optimally 5ft (1.5m) above the ground. Do not position the camera in direct sunlight, or where it will be exposed directly to rain or snow. NOTE: For best results, the visitor should stand 2.5~5ft (0.8~1.5m) away from camera. (at least 20 cm must be maintained). 2. Cut a hole large enough to run the min. 21AWG 2-conductor wire to the door unlock device through the wall, as well as to the included power supply. 3. Install the camera bracket to the wall with three screws. Use screw anchors if the bracket is mounted on drywall or brick. 4. Run the 2-conductor wire from the camera through the wire hole in the bracket to the optional door unlock device. 5. Install the rechargeable lithium ion battery into the camera. The battery will act as a backup power source in case of a power outage. 6. Connect the AC adapter (see Camera Wiring Diagram on pg. 5). 7. Mount the camera into the bracket: oPush the top of the camera into the top of the bracket. oPush the bottom of the camera into the bottom of the bracket. oScrew in the bottom of the camera to fix the camera into the bracket and push the plastic screw cover into the bottom of the bracket, over the screw. NOTE: Do not block the PIR sensor on the camera. 5ft (1.5m) 33/4” (96mm) 22/16” (54mm) Install the monitor battery: Remove the battery cover on the back of the monitor and insert the included BP-6M lithium ion battery. BP-6M Installation – Monitor: Installation – Camera:

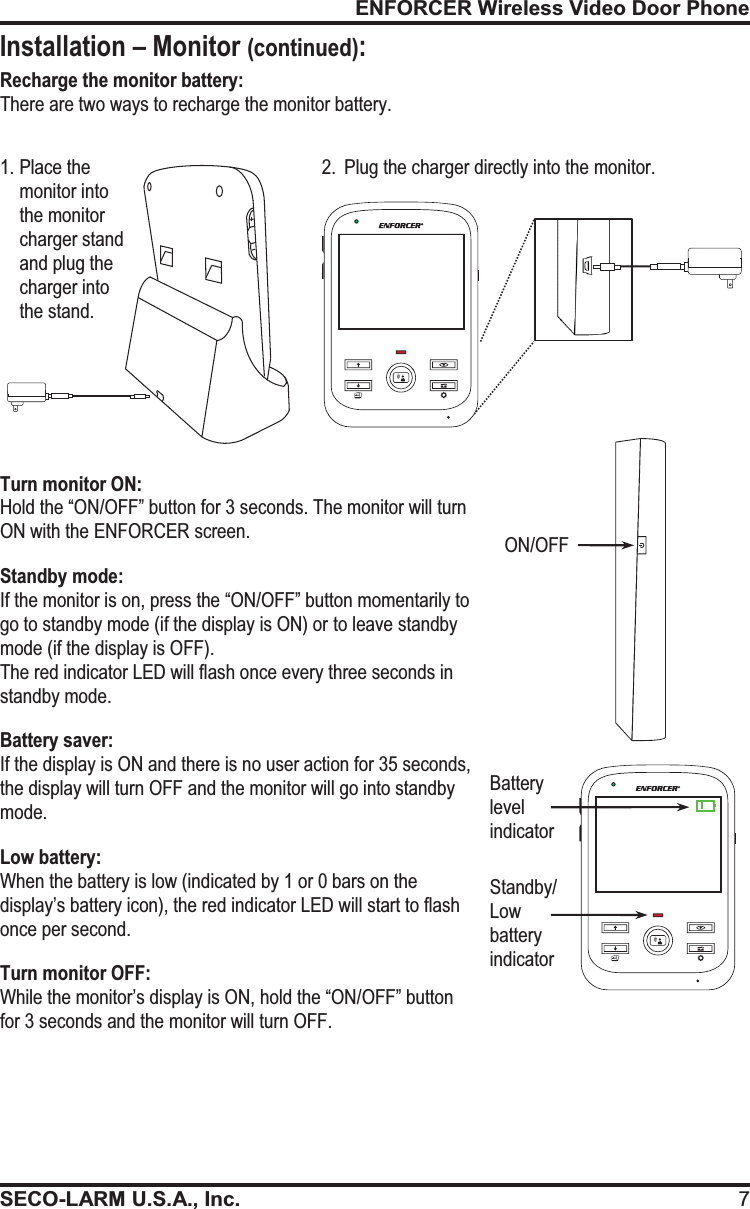

ENFORCER Wireless Video Door PhoneSECO-LARM U.S.A., Inc. 7Installation – Monitor (continued): ON/OFF Recharge the monitor battery: There are two ways to recharge the monitor battery. 1. Place the monitor into the monitor charger stand and plug the charger into the stand. 2. Plug the charger directly into the monitor. Turn monitor ON: Hold the “ON/OFF” button for 3 seconds. The monitor will turn ON with the ENFORCER screen. Standby mode: If the monitor is on, press the “ON/OFF” button momentarily to go to standby mode (if the display is ON) or to leave standby mode (if the display is OFF). The red indicator LED will flash once every three seconds in standby mode. Battery saver: If the display is ON and there is no user action for 35 seconds, the display will turn OFF and the monitor will go into standby mode. Low battery: When the battery is low (indicated by 1 or 0 bars on the display’s battery icon), the red indicator LED will start to flash once per second. Turn monitor OFF: While the monitor’s display is ON, hold the “ON/OFF” button for 3 seconds and the monitor will turn OFF. Standby/Low battery indicator Battery level indicator

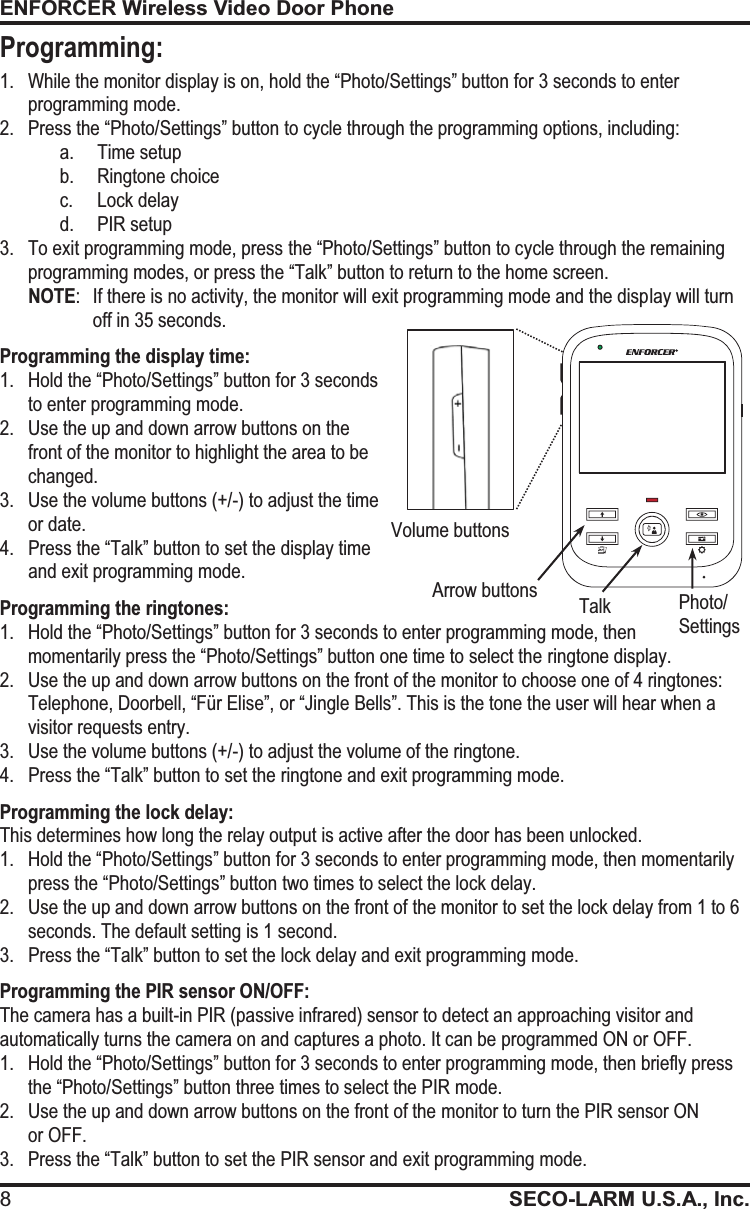

ENFORCER Wireless Video Door Phone 8SECO-LARM U.S.A., Inc. 1. While the monitor display is on, hold the “Photo/Settings” button for 3 seconds to enter programming mode. 2.Press the “Photo/Settings” button to cycle through the programming options, including: a. Time setup b. Ringtone choice c. Lock delay d. PIR setup 3.To exit programming mode, press the “Photo/Settings” button to cycle through the remaining programming modes, or press the “Talk” button to return to the home screen. NOTE: If there is no activity, the monitor will exit programming mode and the display will turn off in 35 seconds. Programming the display time: 1.Hold the “Photo/Settings” button for 3 seconds to enter programming mode. 2.Use the up and down arrow buttons on the front of the monitor to highlight the area to be changed. 3.Use the volume buttons (+/-) to adjust the time or date. 4.Press the “Talk” button to set the display time and exit programming mode. Programming the ringtones: 1.Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then momentarily press the “Photo/Settings” button one time to select the ringtone display. 2.Use the up and down arrow buttons on the front of the monitor to choose one of 4 ringtones: Telephone, Doorbell, “Für Elise”, or “Jingle Bells”. This is the tone the user will hear when a visitor requests entry. 3.Use the volume buttons (+/-) to adjust the volume of the ringtone. 4.Press the “Talk” button to set the ringtone and exit programming mode. Programming the lock delay: This determines how long the relay output is active after the door has been unlocked. 1.Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then momentarily press the “Photo/Settings” button two times to select the lock delay. 2. Use the up and down arrow buttons on the front of the monitor to set the lock delay from 1 to 6 seconds. The default setting is 1 second. 3.Press the “Talk” button to set the lock delay and exit programming mode. Programming the PIR sensor ON/OFF: The camera has a built-in PIR (passive infrared) sensor to detect an approaching visitor and automatically turns the camera on and captures a photo. It can be programmed ON or OFF. 1. Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then briefly press the “Photo/Settings” button three times to select the PIR mode. 2.Use the up and down arrow buttons on the front of the monitor to turn the PIR sensor ON or OFF. 3. Press the “Talk” button to set the PIR sensor and exit programming mode. Photo/ Settings Volume buttons Arrow buttons Talk Programming:

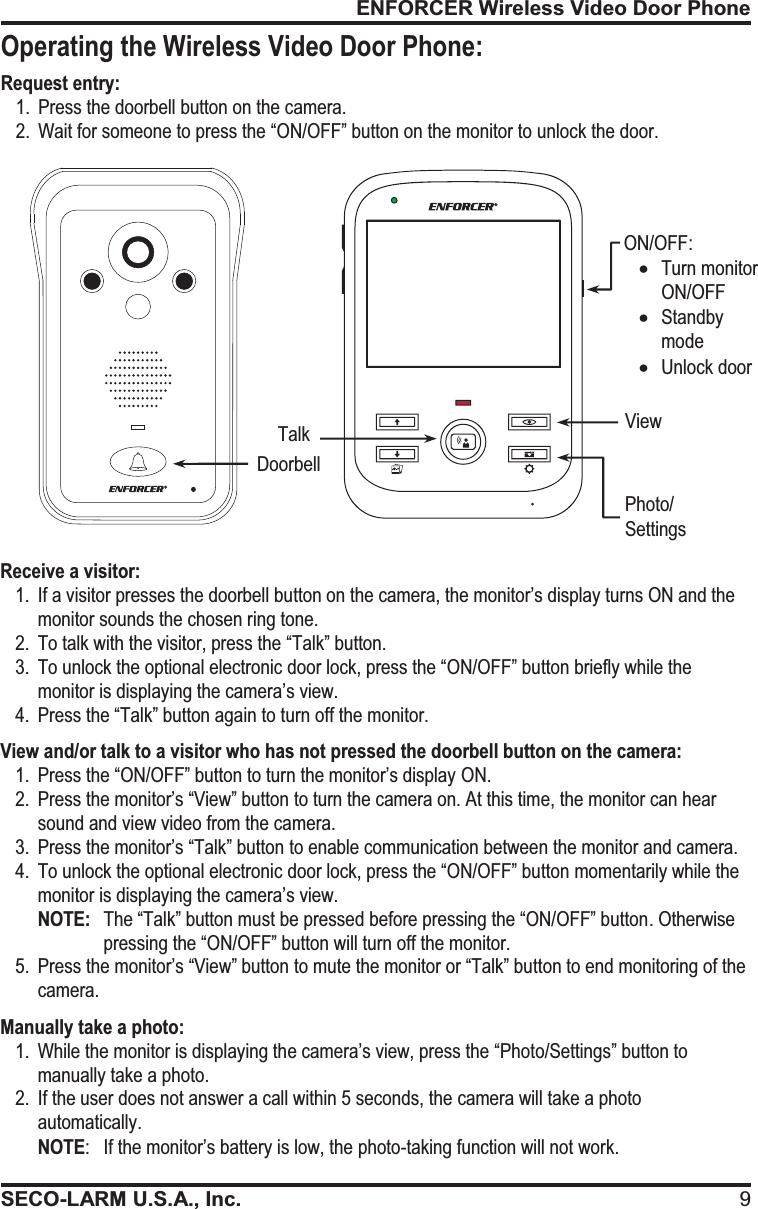

ENFORCER Wireless Video Door PhoneSECO-LARM U.S.A., Inc. 9Receive a visitor: 1. If a visitor presses the doorbell button on the camera, the monitor’s display turns ON and the monitor sounds the chosen ring tone. 2. To talk with the visitor, press the “Talk” button. 3. To unlock the optional electronic door lock, press the “ON/OFF” button briefly while the monitor is displaying the camera’s view. 4. Press the “Talk” button again to turn off the monitor. View and/or talk to a visitor who has not pressed the doorbell button on the camera: 1. Press the “ON/OFF” button to turn the monitor’s display ON. 2. Press the monitor’s “View” button to turn the camera on. At this time, the monitor can hear sound and view video from the camera. 3.Press the monitor’s “Talk” button to enable communication between the monitor and camera. 4. To unlock the optional electronic door lock, press the “ON/OFF” button momentarily while the monitor is displaying the camera’s view. NOTE: The “Talk” button must be pressed before pressing the “ON/OFF” button. Otherwise pressing the “ON/OFF” button will turn off the monitor. 5. Press the monitor’s “View” button to mute the monitor or “Talk” button to end monitoring of the camera. Manually take a photo: 1. While the monitor is displaying the camera’s view, press the “Photo/Settings” button to manually take a photo. 2. If the user does not answer a call within 5 seconds, the camera will take a photo automatically. NOTE: If the monitor’s battery is low, the photo-taking function will not work. Request entry: 1. Press the doorbell button on the camera. 2. Wait for someone to press the “ON/OFF” button on the monitor to unlock the door. Doorbell Talk View Photo/ Settings ON/OFF: xTurn monitor ON/OFF xStandby mode xUnlock door Operating the Wireless Video Door Phone:

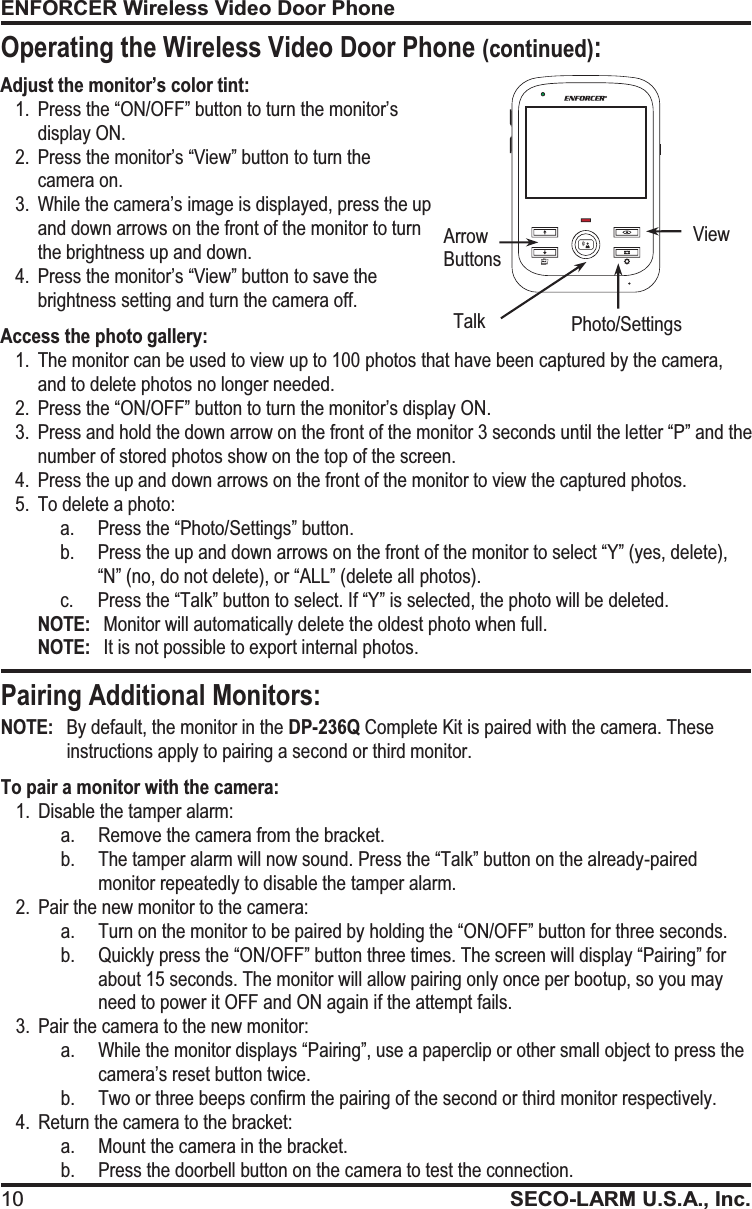

ENFORCER Wireless Video Door Phone 10 SECO-LARM U.S.A., Inc.Adjust the monitor’s color tint: 1. Press the “ON/OFF” button to turn the monitor’s display ON. 2. Press the monitor’s “View” button to turn the camera on. 3. While the camera’s image is displayed, press the up and down arrows on the front of the monitor to turn the brightness up and down. 4. Press the monitor’s “View” button to save the brightness setting and turn the camera off. Access the photo gallery: 1. The monitor can be used to view up to 100 photos that have been captured by the camera, and to delete photos no longer needed. 2. Press the “ON/OFF” button to turn the monitor’s display ON. 3.Press and hold the down arrow on the front of the monitor 3 seconds until the letter “P” and the number of stored photos show on the top of the screen. 4. Press the up and down arrows on the front of the monitor to view the captured photos. 5. To delete a photo: a. Press the “Photo/Settings” button. b. Press the up and down arrows on the front of the monitor to select “Y” (yes, delete), “N” (no, do not delete), or “ALL” (delete all photos). c. Press the “Talk” button to select. If “Y” is selected, the photo will be deleted. NOTE: Monitor will automatically delete the oldest photo when full. NOTE: It is not possible to export internal photos. NOTE: By default, the monitor in the DP-236Q Complete Kit is paired with the camera. These instructions apply to pairing a second or third monitor. To pair a monitor with the camera: 1. Disable the tamper alarm: a. Remove the camera from the bracket. b. The tamper alarm will now sound. Press the “Talk” button on the already-paired monitor repeatedly to disable the tamper alarm. 2. Pair the new monitor to the camera: a.Turn on the monitor to be paired by holding the “ON/OFF” button for three seconds. b. Quickly press the “ON/OFF” button three times. The screen will display “Pairing” for about 15 seconds. The monitor will allow pairing only once per bootup, so you may need to power it OFF and ON again if the attempt fails. 3. Pair the camera to the new monitor: a.While the monitor displays “Pairing”, use a paperclip or other small object to press the camera’s reset button twice. b. Two or three beeps confirm the pairing of the second or third monitor respectively. 4. Return the camera to the bracket: a. Mount the camera in the bracket. b. Press the doorbell button on the camera to test the connection. Talk View Photo/Settings Arrow Buttons Pairing Additional Monitors: Operating the Wireless Video Door Phone (continued):

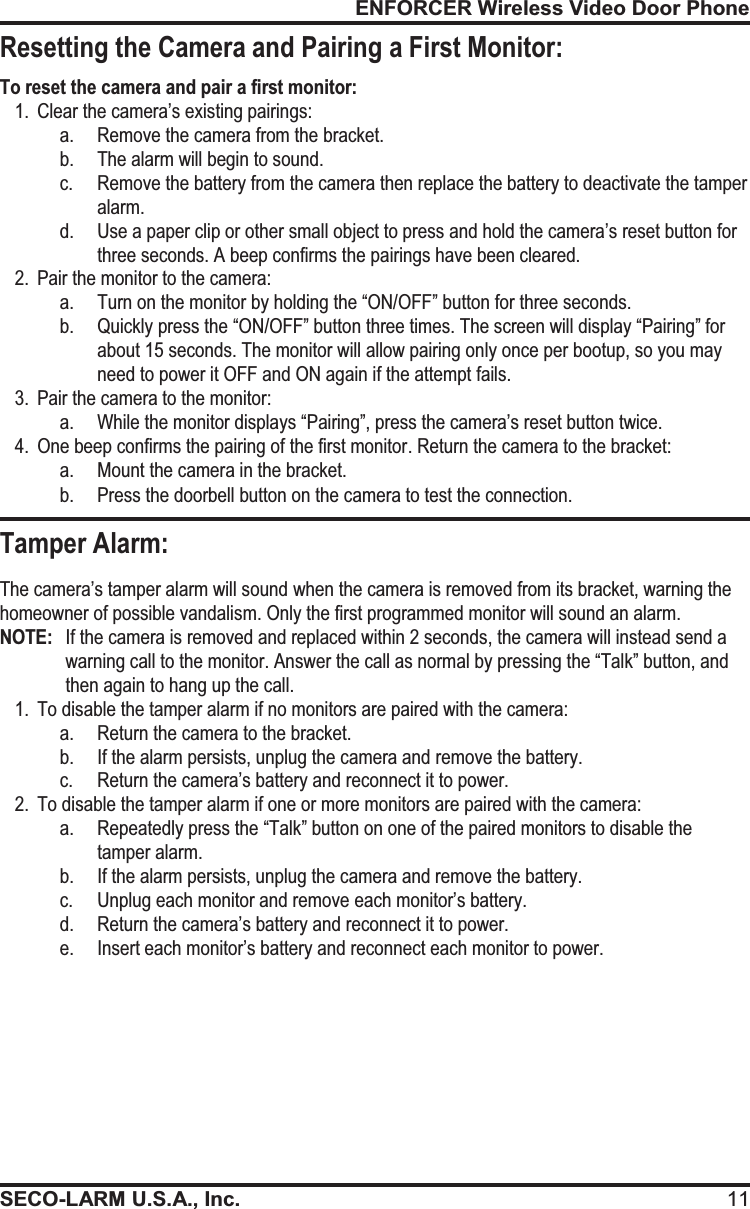

ENFORCER Wireless Video Door PhoneSECO-LARM U.S.A., Inc. 11To reset the camera and pair a first monitor: 1. Clear the camera’s existing pairings: a. Remove the camera from the bracket. b. The alarm will begin to sound. c.Remove the battery from the camera then replace the battery to deactivate the tamper alarm. d.Use a paper clip or other small object to press and hold the camera’s reset button for three seconds. A beep confirms the pairings have been cleared. 2. Pair the monitor to the camera: a. Turn on the monitor by holding the “ON/OFF” button for three seconds. b. Quickly press the “ON/OFF” button three times. The screen will display “Pairing” for about 15 seconds. The monitor will allow pairing only once per bootup, so you may need to power it OFF and ON again if the attempt fails. 3. Pair the camera to the monitor: a. While the monitor displays “Pairing”, press the camera’s reset button twice. 4. One beep confirms the pairing of the first monitor. Return the camera to the bracket: a. Mount the camera in the bracket. b. Press the doorbell button on the camera to test the connection. The camera’s tamper alarm will sound when the camera is removed from its bracket, warning the homeowner of possible vandalism. Only the first programmed monitor will sound an alarm. NOTE: If the camera is removed and replaced within 2 seconds, the camera will instead send a warning call to the monitor. Answer the call as normal by pressing the “Talk” button, and then again to hang up the call. 1. To disable the tamper alarm if no monitors are paired with the camera: a. Return the camera to the bracket. b. If the alarm persists, unplug the camera and remove the battery. c. Return the camera’s battery and reconnect it to power. 2. To disable the tamper alarm if one or more monitors are paired with the camera: a. Repeatedly press the “Talk” button on one of the paired monitors to disable the tamper alarm. b. If the alarm persists, unplug the camera and remove the battery. c. Unplug each monitor and remove each monitor’s battery. d. Return the camera’s battery and reconnect it to power. e. Insert each monitor’s battery and reconnect each monitor to power. Tamper Alarm: Resetting the Camera and Pairing a First Monitor:

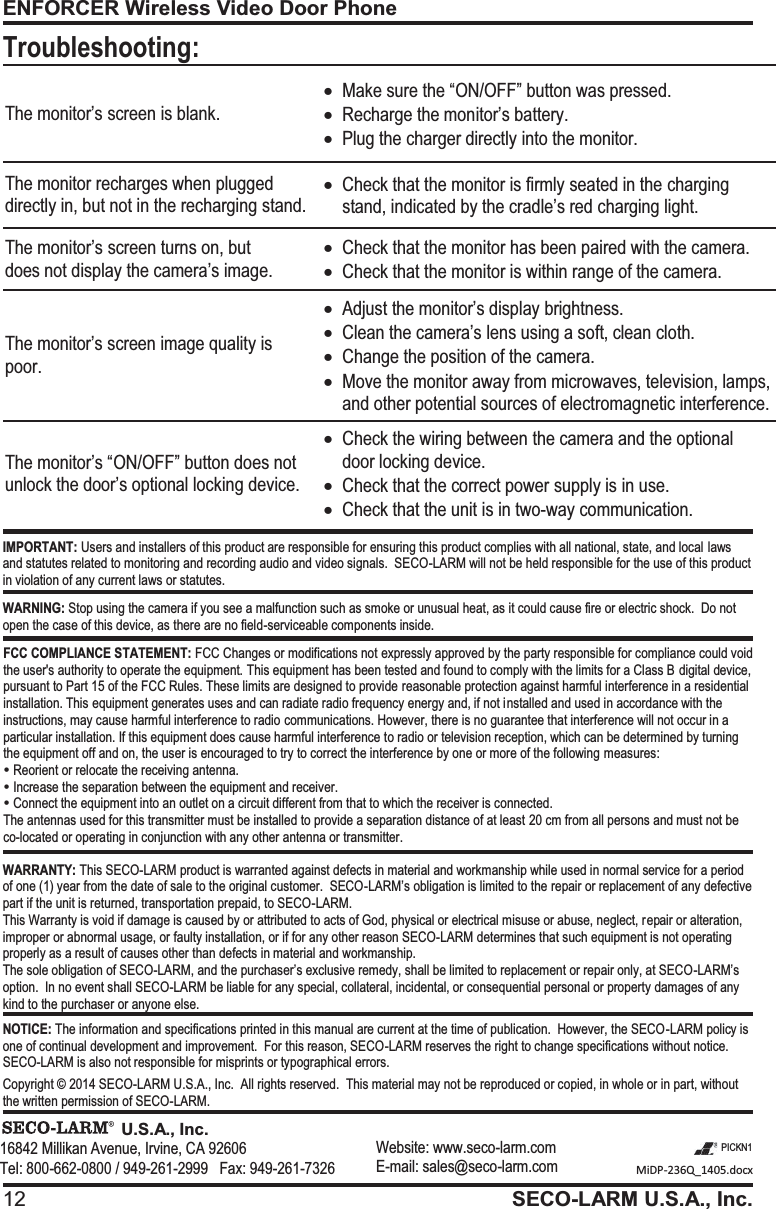

ENFORCER Wireless Video Door Phone 12 SECO-LARM U.S.A., Inc. MiDP-236Q_1405.docx PICKN1 U.S.A., Inc.16842 Millikan Avenue, Irvine, CA 92606 Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 Website: www.seco-larm.com E-mail: sales@seco-larm.com IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes. WARNING: Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric shock. Do not open the case of this device, as there are no field-serviceable components inside. FCC COMPLIANCE STATEMENT: FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else. NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors. Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of SECO-LARM. The monitor’s screen is blank. xMake sure the “ON/OFF” button was pressed. xRecharge the monitor’s battery. xPlug the charger directly into the monitor. The monitor recharges when plugged directly in, but not in the recharging stand. xCheck that the monitor is firmly seated in the charging stand, indicated by the cradle’s red charging light. The monitor’s screen turns on, but does not display the camera’s image. xCheck that the monitor has been paired with the camera. xCheck that the monitor is within range of the camera. The monitor’s screen image quality is poor. xAdjust the monitor’s display brightness. xClean the camera’s lens using a soft, clean cloth. xChange the position of the camera. xMove the monitor away from microwaves, television, lamps, and other potential sources of electromagnetic interference. The monitor’s “ON/OFF” button does not unlock the door’s optional locking device. xCheck the wiring between the camera and the optional door locking device. xCheck that the correct power supply is in use. xCheck that the unit is in two-way communication. Troubleshooting:
