Superior Electronics 919TP4F Transmitter User Manual MOE100CLB

Superior Electronics Corporation Transmitter MOE100CLB

User Manual

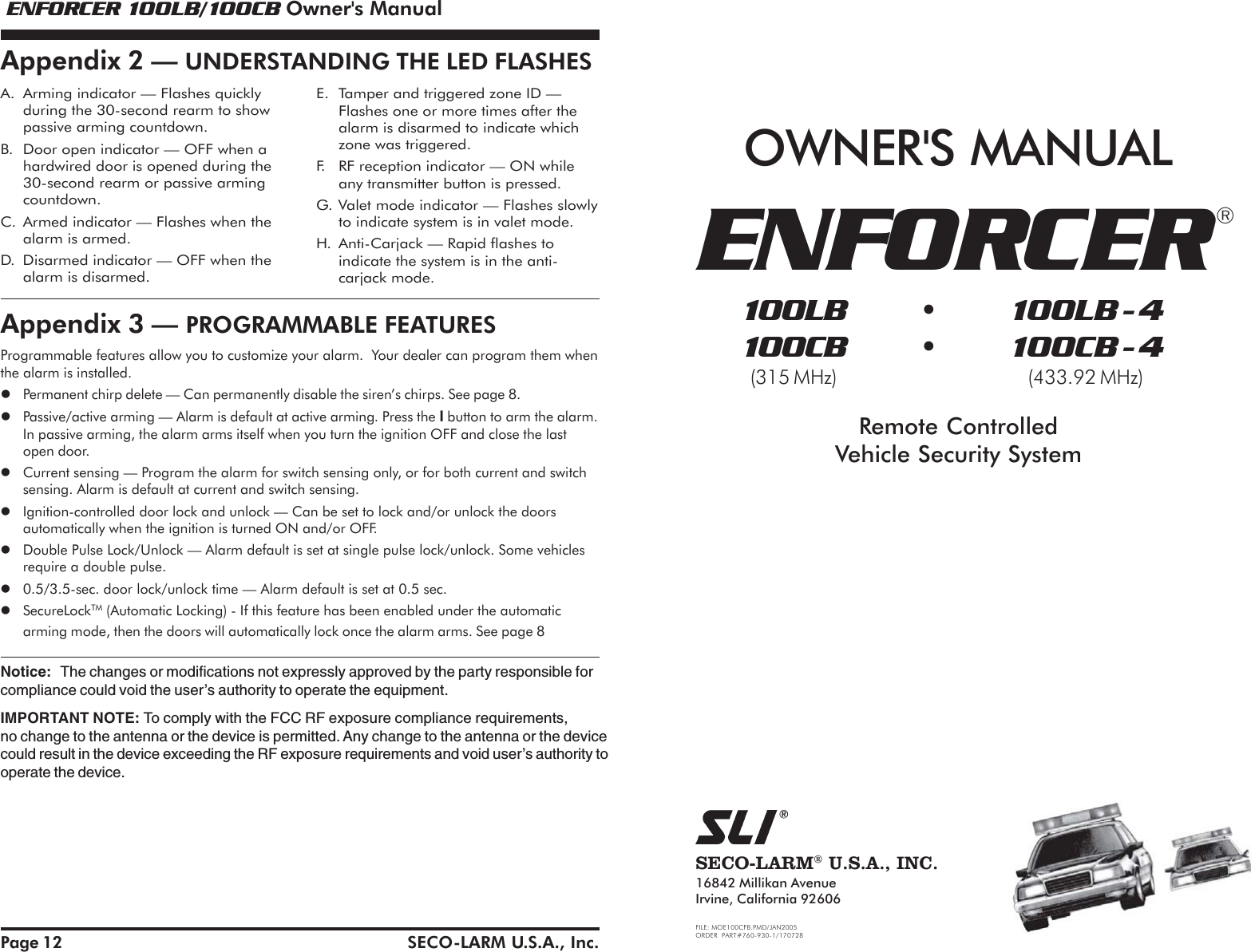

ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc.SECO-LARM® U.S.A., INC.16842 Millikan AvenueIrvine, California 92606FILE: MOE100CFB.PMD/JAN2005ORDER PART#760-930-1/170728OWNER'S MANUAL100LB • 100LB - 4100CB • 100CB - 4(315 MHz) (433.92 MHz)Remote ControlledVehicle Security SystemENFORCER®Page 12A. Arming indicator — Flashes quicklyduring the 30-second rearm to showpassive arming countdown.B. Door open indicator — OFF when ahardwired door is opened during the30-second rearm or passive armingcountdown.C. Armed indicator — Flashes when thealarm is armed.D. Disarmed indicator — OFF when thealarm is disarmed.E. Tamper and triggered zone ID —Flashes one or more times after thealarm is disarmed to indicate whichzone was triggered.F. RF reception indicator — ON whileany transmitter button is pressed.G. Valet mode indicator — Flashes slowlyto indicate system is in valet mode.H. Anti-Carjack — Rapid flashes toindicate the system is in the anti-carjack mode.Appendix 3 — PROGRAMMABLE FEATURESAppendix 2 — UNDERSTANDING THE LED FLASHESProgrammable features allow you to customize your alarm. Your dealer can program them whenthe alarm is installed.Permanent chirp delete — Can permanently disable the siren’s chirps. See page 8.Passive/active arming — Alarm is default at active arming. Press the I button to arm the alarm.In passive arming, the alarm arms itself when you turn the ignition OFF and close the lastopen door.Current sensing — Program the alarm for switch sensing only, or for both current and switchsensing. Alarm is default at current and switch sensing.Ignition-controlled door lock and unlock — Can be set to lock and/or unlock the doorsautomatically when the ignition is turned ON and/or OFF.Double Pulse Lock/Unlock — Alarm default is set at single pulse lock/unlock. Some vehiclesrequire a double pulse.0.5/3.5-sec. door lock/unlock time — Alarm default is set at 0.5 sec.SecureLockTM (Automatic Locking) - If this feature has been enabled under the automaticarming mode, then the doors will automatically lock once the alarm arms. See page 8Notice: The changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements,no change to the antenna or the device is permitted. Any change to the antenna or the devicecould result in the device exceeding the RF exposure requirements and void user’s authority tooperate the device.

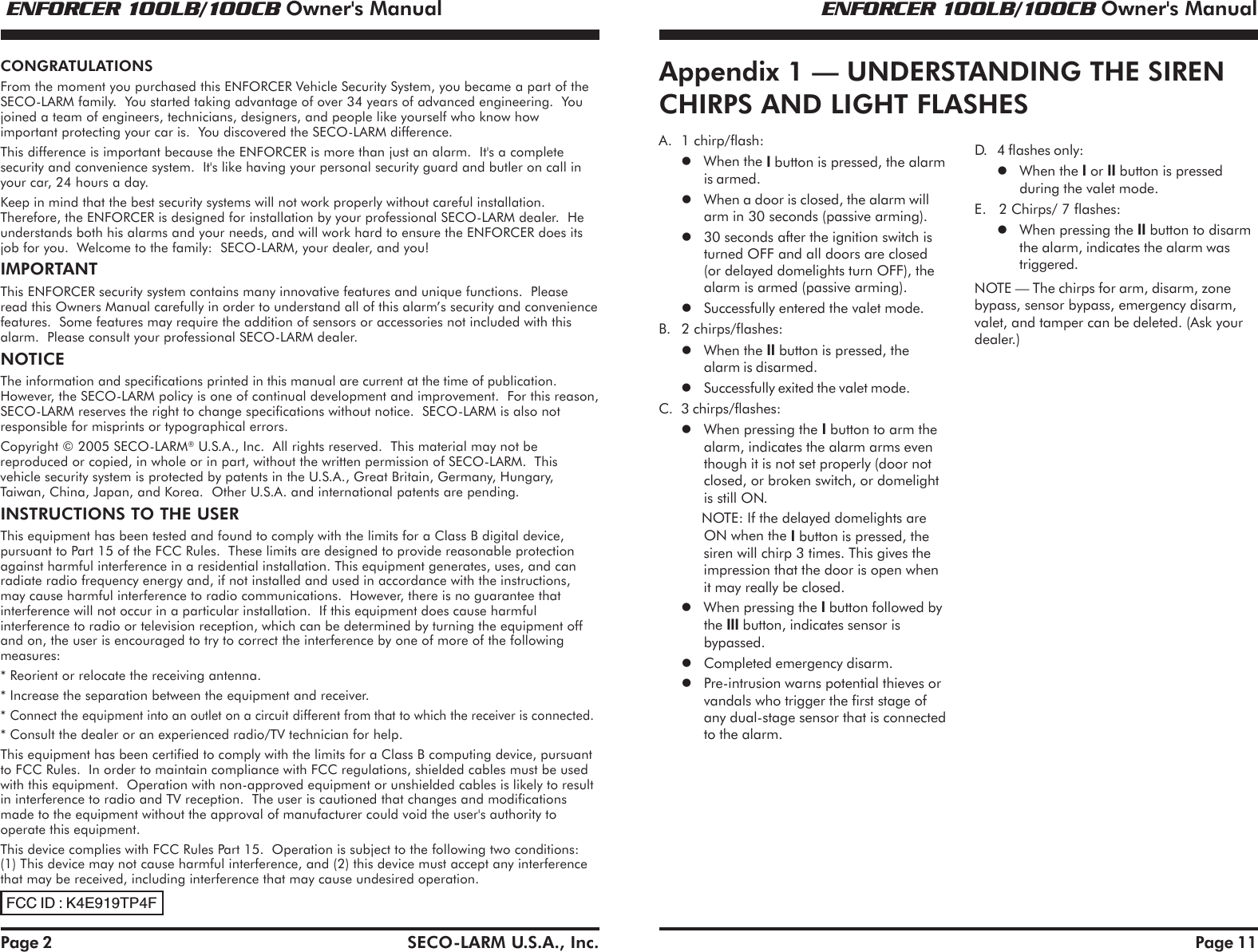

ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc.Page 2CONGRATULATIONSFrom the moment you purchased this ENFORCER Vehicle Security System, you became a part of theSECO-LARM family. You started taking advantage of over 34 years of advanced engineering. Youjoined a team of engineers, technicians, designers, and people like yourself who know howimportant protecting your car is. You discovered the SECO-LARM difference.This difference is important because the ENFORCER is more than just an alarm. It's a completesecurity and convenience system. It's like having your personal security guard and butler on call inyour car, 24 hours a day.Keep in mind that the best security systems will not work properly without careful installation.Therefore, the ENFORCER is designed for installation by your professional SECO-LARM dealer. Heunderstands both his alarms and your needs, and will work hard to ensure the ENFORCER does itsjob for you. Welcome to the family: SECO-LARM, your dealer, and you!IMPORTANTThis ENFORCER security system contains many innovative features and unique functions. Pleaseread this Owners Manual carefully in order to understand all of this alarm’s security and conveniencefeatures. Some features may require the addition of sensors or accessories not included with thisalarm. Please consult your professional SECO-LARM dealer.NOTICEThe information and specifications printed in this manual are current at the time of publication.However, the SECO-LARM policy is one of continual development and improvement. For this reason,SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also notresponsible for misprints or typographical errors.Copyright © 2005 SECO-LARM® U.S.A., Inc. All rights reserved. This material may not bereproduced or copied, in whole or in part, without the written permission of SECO-LARM. Thisvehicle security system is protected by patents in the U.S.A., Great Britain, Germany, Hungary,Taiwan, China, Japan, and Korea. Other U.S.A. and international patents are pending.INSTRUCTIONS TO THE USERThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses, and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one of more of the followingmeasures:* Reorient or relocate the receiving antenna.* Increase the separation between the equipment and receiver.* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help.This equipment has been certified to comply with the limits for a Class B computing device, pursuantto FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be usedwith this equipment. Operation with non-approved equipment or unshielded cables is likely to resultin interference to radio and TV reception. The user is cautioned that changes and modificationsmade to the equipment without the approval of manufacturer could void the user's authority tooperate this equipment.This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interferencethat may be received, including interference that may cause undesired operation.Page 11Appendix 1 — UNDERSTANDING THE SIRENCHIRPS AND LIGHT FLASHESD. 4 flashes only:When the I or II button is pressedduring the valet mode.E. 2 Chirps/ 7 flashes:When pressing the II button to disarmthe alarm, indicates the alarm wastriggered.NOTE — The chirps for arm, disarm, zonebypass, sensor bypass, emergency disarm,valet, and tamper can be deleted. (Ask yourdealer.)A. 1 chirp/flash:When the I button is pressed, the alarmis armed.When a door is closed, the alarm willarm in 30 seconds (passive arming).30 seconds after the ignition switch isturned OFF and all doors are closed(or delayed domelights turn OFF), thealarm is armed (passive arming).Successfully entered the valet mode.B. 2 chirps/flashes:When the II button is pressed, thealarm is disarmed.Successfully exited the valet mode.C. 3 chirps/flashes:When pressing the I button to arm thealarm, indicates the alarm arms eventhough it is not set properly (door notclosed, or broken switch, or domelightis still ON. NOTE: If the delayed domelights areON when the I button is pressed, thesiren will chirp 3 times. This gives theimpression that the door is open whenit may really be closed.When pressing the I button followed bythe III button, indicates sensor isbypassed.Completed emergency disarm.Pre-intrusion warns potential thieves orvandals who trigger the first stage ofany dual-stage sensor that is connectedto the alarm.FCC ID : K4E919TP4F

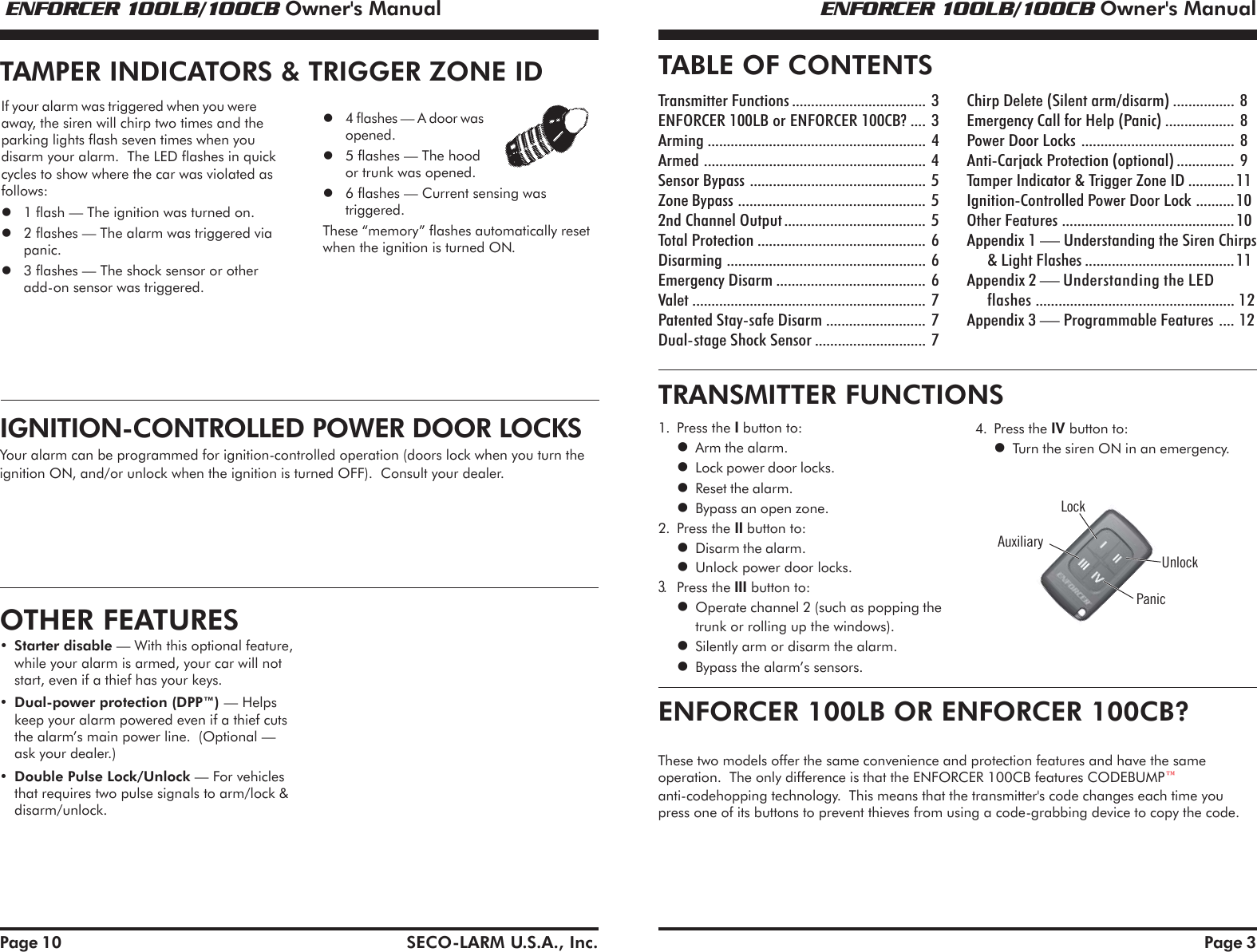

ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc. Page 3TABLE OF CONTENTSTransmitter Functions................................... 3ENFORCER 100LB or ENFORCER 100CB? .... 3Arming ......................................................... 4Armed .......................................................... 4Sensor Bypass .............................................. 5Zone Bypass ................................................. 52nd Channel Output..................................... 5Total Protection ............................................ 6Disarming .................................................... 6Emergency Disarm ....................................... 6Valet ............................................................. 7Patented Stay-safe Disarm .......................... 7Dual-stage Shock Sensor ............................. 7Chirp Delete (Silent arm/disarm) ................ 8Emergency Call for Help (Panic) .................. 8Power Door Locks ........................................ 8Anti-Carjack Protection (optional)............... 9Tamper Indicator & Trigger Zone ID ............11Ignition-Controlled Power Door Lock ..........10Other Features .............................................10Appendix 1 — Understanding the Siren Chirps& Light Flashes .......................................11Appendix 2 — Understanding the LEDflashes .................................................... 12Appendix 3 — Programmable Features .... 12LockUnlockAuxiliaryPanic1. Press the I button to:Arm the alarm.Lock power door locks.Reset the alarm.Bypass an open zone.2. Press the II button to:Disarm the alarm.Unlock power door locks.3.Press the III button to:Operate channel 2 (such as popping thetrunk or rolling up the windows).Silently arm or disarm the alarm.Bypass the alarm’s sensors.4. Press the IV button to:Turn the siren ON in an emergency.Page 10IGNITION-CONTROLLED POWER DOOR LOCKSYour alarm can be programmed for ignition-controlled operation (doors lock when you turn theignition ON, and/or unlock when the ignition is turned OFF). Consult your dealer.TAMPER INDICATORS & TRIGGER ZONE IDIf your alarm was triggered when you wereaway, the siren will chirp two times and theparking lights flash seven times when youdisarm your alarm. The LED flashes in quickcycles to show where the car was violated asfollows:1 flash — The ignition was turned on.2 flashes — The alarm was triggered viapanic.3 flashes — The shock sensor or otheradd-on sensor was triggered.4 flashes — A door wasopened.5 flashes — The hoodor trunk was opened.6 flashes — Current sensing wastriggered.These “memory” flashes automatically resetwhen the ignition is turned ON.OTHER FEATURES•Starter disable — With this optional feature,while your alarm is armed, your car will notstart, even if a thief has your keys.•Dual-power protection (DPP™) — Helpskeep your alarm powered even if a thief cutsthe alarm’s main power line. (Optional —ask your dealer.)•Double Pulse Lock/Unlock — For vehiclesthat requires two pulse signals to arm/lock &disarm/unlock.TRANSMITTER FUNCTIONSENFORCER 100LB OR ENFORCER 100CB?These two models offer the same convenience and protection features and have the sameoperation. The only difference is that the ENFORCER 100CB features CODEBUMPanti-codehopping technology. This means that the transmitter's code changes each time youpress one of its buttons to prevent thieves from using a code-grabbing device to copy the code.

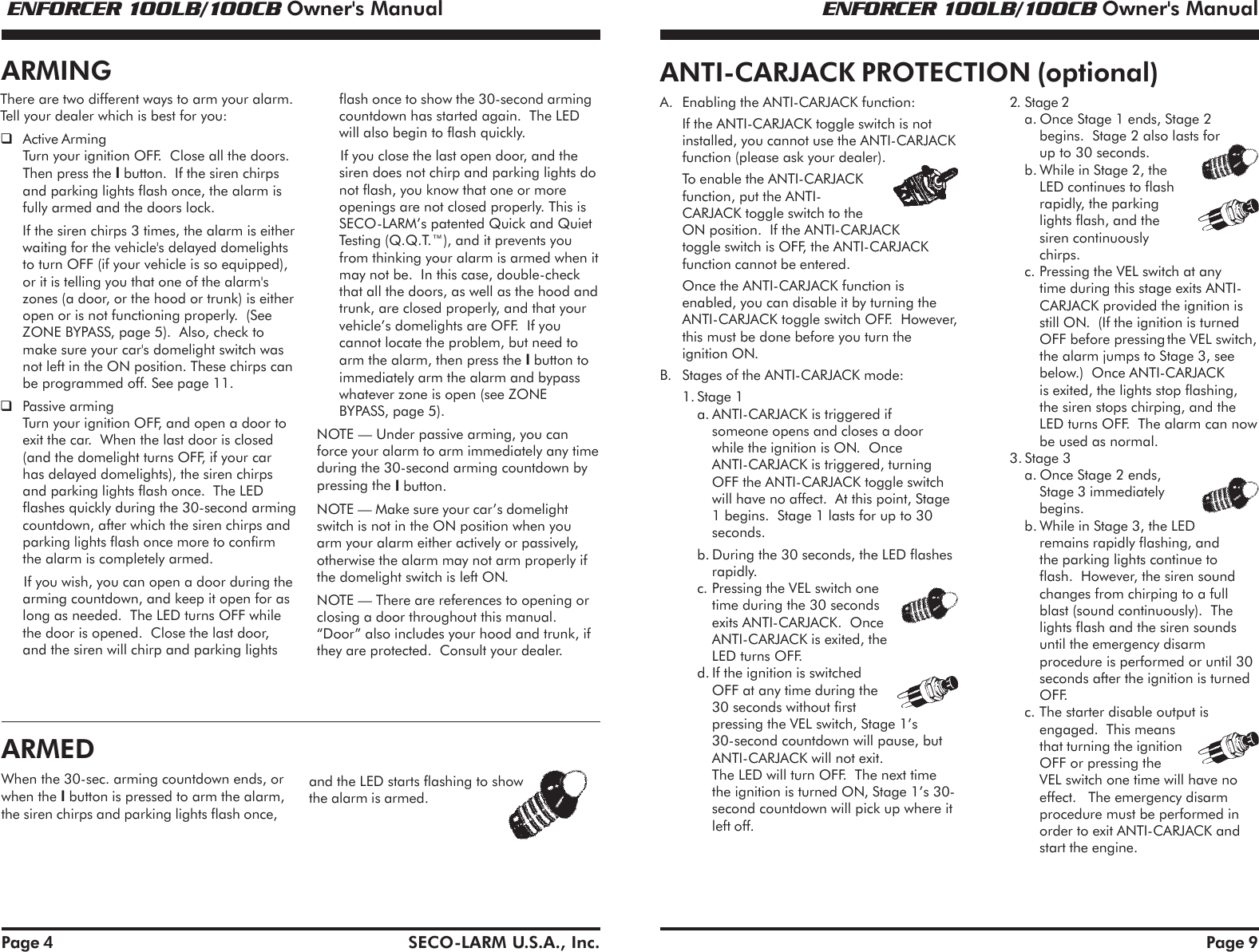

ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc.Page 4There are two different ways to arm your alarm.Tell your dealer which is best for you:Active ArmingTurn your ignition OFF. Close all the doors.Then press the I button. If the siren chirpsand parking lights flash once, the alarm isfully armed and the doors lock.If the siren chirps 3 times, the alarm is eitherwaiting for the vehicle's delayed domelightsto turn OFF (if your vehicle is so equipped),or it is telling you that one of the alarm'szones (a door, or the hood or trunk) is eitheropen or is not functioning properly. (SeeZONE BYPASS, page 5). Also, check tomake sure your car's domelight switch wasnot left in the ON position. These chirps canbe programmed off. See page 11.Passive armingTurn your ignition OFF, and open a door toexit the car. When the last door is closed(and the domelight turns OFF, if your carhas delayed domelights), the siren chirpsand parking lights flash once. The LEDflashes quickly during the 30-second armingcountdown, after which the siren chirps andparking lights flash once more to confirmthe alarm is completely armed.If you wish, you can open a door during thearming countdown, and keep it open for aslong as needed. The LED turns OFF whilethe door is opened. Close the last door,and the siren will chirp and parking lightsflash once to show the 30-second armingcountdown has started again. The LEDwill also begin to flash quickly.If you close the last open door, and thesiren does not chirp and parking lights donot flash, you know that one or moreopenings are not closed properly. This isSECO-LARM’s patented Quick and QuietTesting (Q.Q.T.™), and it prevents youfrom thinking your alarm is armed when itmay not be. In this case, double-checkthat all the doors, as well as the hood andtrunk, are closed properly, and that yourvehicle’s domelights are OFF. If youcannot locate the problem, but need toarm the alarm, then press the I button toimmediately arm the alarm and bypasswhatever zone is open (see ZONEBYPASS, page 5).NOTE — Under passive arming, you canforce your alarm to arm immediately any timeduring the 30-second arming countdown bypressing the I button.NOTE — Make sure your car’s domelightswitch is not in the ON position when youarm your alarm either actively or passively,otherwise the alarm may not arm properly ifthe domelight switch is left ON.NOTE — There are references to opening orclosing a door throughout this manual.“Door” also includes your hood and trunk, ifthey are protected. Consult your dealer.ARMINGARMEDWhen the 30-sec. arming countdown ends, orwhen the I button is pressed to arm the alarm,the siren chirps and parking lights flash once,and the LED starts flashing to showthe alarm is armed.Page 9ANTI-CARJACK PROTECTION (optional)A. Enabling the ANTI-CARJACK function:If the ANTI-CARJACK toggle switch is notinstalled, you cannot use the ANTI-CARJACKfunction (please ask your dealer).To enable the ANTI-CARJACKfunction, put the ANTI-CARJACK toggle switch to theON position. If the ANTI-CARJACKtoggle switch is OFF, the ANTI-CARJACKfunction cannot be entered.Once the ANTI-CARJACK function isenabled, you can disable it by turning theANTI-CARJACK toggle switch OFF. However,this must be done before you turn theignition ON.B. Stages of the ANTI-CARJACK mode:1. Stage 1a. ANTI-CARJACK is triggered ifsomeone opens and closes a doorwhile the ignition is ON. OnceANTI-CARJACK is triggered, turningOFF the ANTI-CARJACK toggle switchwill have no affect. At this point, Stage1 begins. Stage 1 lasts for up to 30seconds.b. During the 30 seconds, the LED flashesrapidly.c. Pressing the VEL switch onetime during the 30 secondsexits ANTI-CARJACK. OnceANTI-CARJACK is exited, theLED turns OFF.d. If the ignition is switchedOFF at any time during the30 seconds without firstpressing the VEL switch, Stage 1’s30-second countdown will pause, butANTI-CARJACK will not exit.The LED will turn OFF. The next timethe ignition is turned ON, Stage 1’s 30-second countdown will pick up where itleft off.2. Stage 2a. Once Stage 1 ends, Stage 2begins. Stage 2 also lasts forup to 30 seconds.b. While in Stage 2, theLED continues to flashrapidly, the parkinglights flash, and thesiren continuouslychirps.c. Pressing the VEL switch at anytime during this stage exits ANTI-CARJACK provided the ignition isstill ON. (If the ignition is turnedOFF before pressing the VEL switch,the alarm jumps to Stage 3, seebelow.) Once ANTI-CARJACKis exited, the lights stop flashing,the siren stops chirping, and theLED turns OFF. The alarm can nowbe used as normal.3. Stage 3a. Once Stage 2 ends,Stage 3 immediatelybegins.b. While in Stage 3, the LEDremains rapidly flashing, andthe parking lights continue toflash. However, the siren soundchanges from chirping to a fullblast (sound continuously). Thelights flash and the siren soundsuntil the emergency disarmprocedure is performed or until 30seconds after the ignition is turnedOFF.c. The starter disable output isengaged. This meansthat turning the ignitionOFF or pressing theVEL switch one time will have noeffect. The emergency disarmprocedure must be performed inorder to exit ANTI-CARJACK andstart the engine.
ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc. Page 5This is useful if you know, based onexperience, that your shock sensor (or otheradd-on sensors) will false trigger, such aswhen you park near a construction site.Should you wish to bypass your alarm'ssensors, first press the I button to arm thealarm (even if the alarm is set for passivearming). The siren chirps and the parkinglights flash once (three times if a zone isbypassed) to confirm armed. Within threeseconds, press the III button. The siren chirpsthree times and the parking lights flash threetimes to confirm sensors are bypassed. Thesensors are automatically restored the nexttime the II button is pressed.NOTE — The chirps to confirm sensor bypasswill not sound if chirp delete is engaged.However, the parking lights will still flash threetimes. See CHIRP DELETE, page 8.SENSOR BYPASSrestored.If your alarm indicates a bypassed zone, findthe cause as soon as possible to ensure yourvehicle is completely protected. For instance,if your driver’s door is not properly closedwhen you arm your alarm, a thief may beable to open any door without setting off thealarm.NOTE — The chirps to confirm zone bypasswill not sound if chirp delete is engaged.However, the parking lights will still flash threetimes. See CHIRP DELETE, page 8.When you press the I button to arm the alarm,and the alarm responds with three chirps andthree parking light flashes, there are twopossibilities:A. Delayed domelights — Delayed domelightsdo not immediately turn OFF when youclose your car door. This is normal. Thealarm should protect all doors once thedomelights turn OFF.B. A zone was bypassed — In other words, thealarm has armed, but a door may not beprotected (either because it is open, orbecause its pin switch is broken). If thebypassed door is later closed, it will beZONE BYPASS2nd CHANNEL OUTPUTYour transmitter has an extra channel tocontrol optional accessories.2nd channel is commonly used to "pop" thetrunk. To use, press the III button for twoseconds, either while the ignition is ON andany door is opened, or while the ignition isOFF. The alarm will disarm first toprevent the siren from sounding.(NOTE — If no doorsare connected directlyto your alarm, the 2ndchannel will not operatewith the ignition ON. Ask yourdealer for details.) → →Page 8To trigger the alarm in an emergency, pressthe IV button for 2 seconds. The siren soundsand the parking lights flash for about 30seconds. The alarm and door lock/unlockstatus do not change.Stop the siren and the parking lights any timeby pressing any of the four buttons.Note:1. The alarm will be in the armed mode andthe doors will lock if the I button is used toexit the panic mode.EMERGENCY CALL FOR HELP (Panic)2. The alarm will be in the disarmed modeand the doors will unlock if the II button isused to exit panic mode.3. The alarm will be in the disarmed mode,the doors will lock, and channel 2 outputwill be activated if the III button is used toexit panic mode4. The alarm and the door locks will returnto their original mode if the IV button isused to exit panic mode.There are times, especially at night, when you maynot want to hear the siren chirps. There are 2 waysto delete chirps:A. One-time delete — Just press the III button anytime before you need the chirps deleted. Forinstance, press the III button before you press theI button to arm the alarm, and the chirps will notsound, but the parking lights will still flash. Thechirps are restored the next time you press anytransmitter button.B. Permanent delete — Your dealer can programyour alarm to delete the chirps on a permanentbasis.NOTE — Either method deletes the arm, disarm, pre-intrusion, zone bypass, sensor bypass, emergencydisarm, valet, and tamper chirps. However, they donot affect the flashing parking lights.CHIRP DELETE (silent arm/disarm)With this optional feature, your alarm canautomatically lock the doors when the I buttonis pressed to arm the alarm and unlock thedoors when the II button is pressed to disarmthe alarm. For extra security, they lockautomatically if the alarm is triggered.(Exception — See EMERGENCY CALL FORHELP above)Your alarm can also be programmed forignition-controlled operation. The doors canbe set to automatically lock when you turn theignition ON, and unlock when you turn theignition OFF.NOTE — Under passive arming, and whenthe SecureLockTM function is enabled, thedoors automatically lock after the 30-secondexit delay is over and the alarm arms.POWER DOOR LOCKS → → → →Silent ArmSilent Disarm

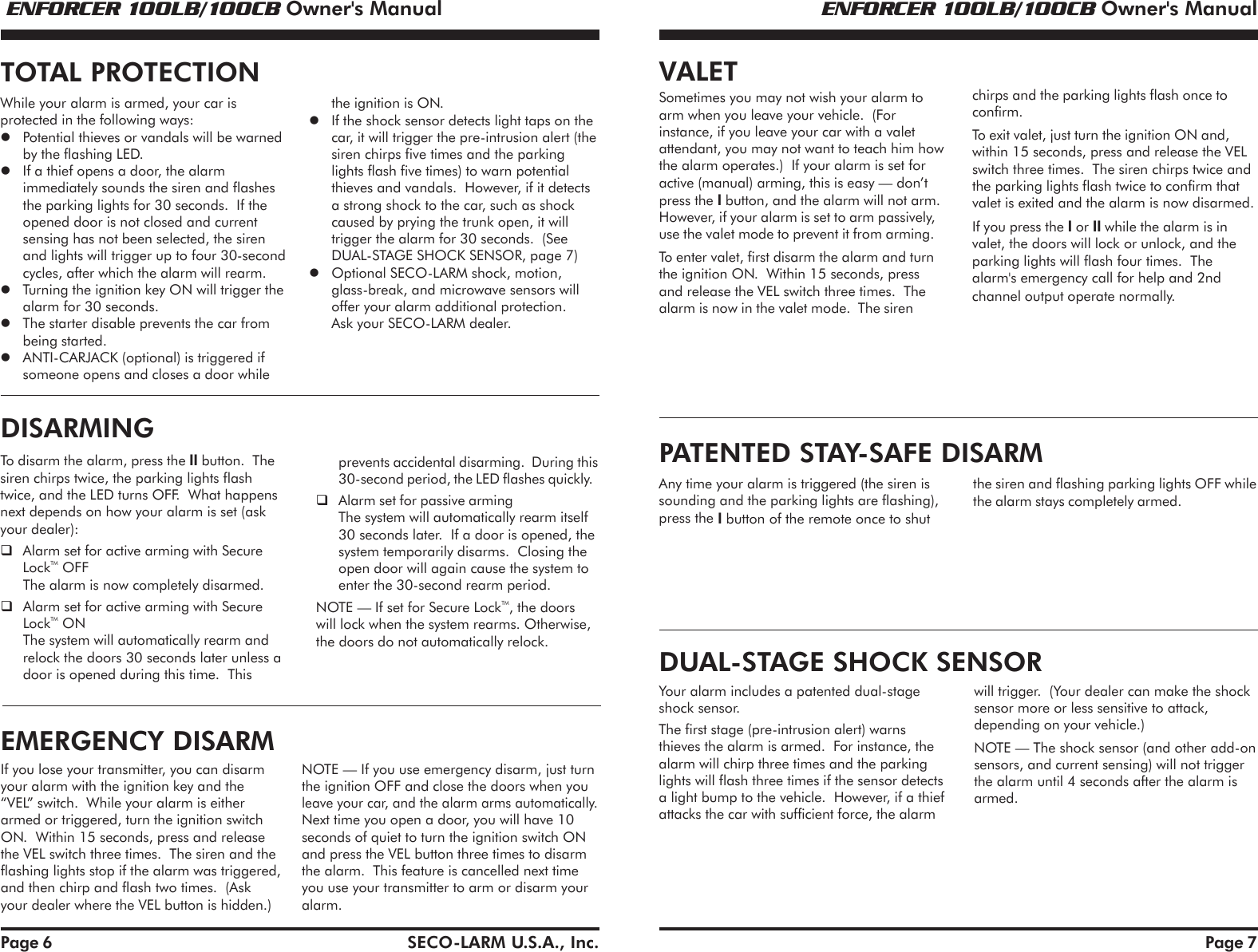

ENFORCER 100LB/100CB Owner's Manual ENFORCER 100LB/100CB Owner's ManualSECO-LARM U.S.A., Inc.Page 6the ignition is ON.If the shock sensor detects light taps on thecar, it will trigger the pre-intrusion alert (thesiren chirps five times and the parkinglights flash five times) to warn potentialthieves and vandals. However, if it detectsa strong shock to the car, such as shockcaused by prying the trunk open, it willtrigger the alarm for 30 seconds. (SeeDUAL-STAGE SHOCK SENSOR, page 7)Optional SECO-LARM shock, motion,glass-break, and microwave sensors willoffer your alarm additional protection.Ask your SECO-LARM dealer.While your alarm is armed, your car isprotected in the following ways:Potential thieves or vandals will be warnedby the flashing LED.If a thief opens a door, the alarmimmediately sounds the siren and flashesthe parking lights for 30 seconds. If theopened door is not closed and currentsensing has not been selected, the sirenand lights will trigger up to four 30-secondcycles, after which the alarm will rearm.Turning the ignition key ON will trigger thealarm for 30 seconds.The starter disable prevents the car frombeing started.ANTI-CARJACK (optional) is triggered ifsomeone opens and closes a door whileTOTAL PROTECTIONTo disarm the alarm, press the II button. Thesiren chirps twice, the parking lights flashtwice, and the LED turns OFF. What happensnext depends on how your alarm is set (askyour dealer):Alarm set for active arming with SecureLockTM OFFThe alarm is now completely disarmed.Alarm set for active arming with SecureLockTM ONThe system will automatically rearm andrelock the doors 30 seconds later unless adoor is opened during this time. Thisprevents accidental disarming. During this30-second period, the LED flashes quickly.Alarm set for passive armingThe system will automatically rearm itself30 seconds later. If a door is opened, thesystem temporarily disarms. Closing theopen door will again cause the system toenter the 30-second rearm period.NOTE — If set for Secure LockTM, the doorswill lock when the system rearms. Otherwise,the doors do not automatically relock.DISARMINGIf you lose your transmitter, you can disarmyour alarm with the ignition key and the“VEL” switch. While your alarm is eitherarmed or triggered, turn the ignition switchON. Within 15 seconds, press and releasethe VEL switch three times. The siren and theflashing lights stop if the alarm was triggered,and then chirp and flash two times. (Askyour dealer where the VEL button is hidden.)EMERGENCY DISARMNOTE — If you use emergency disarm, just turnthe ignition OFF and close the doors when youleave your car, and the alarm arms automatically.Next time you open a door, you will have 10seconds of quiet to turn the ignition switch ONand press the VEL button three times to disarmthe alarm. This feature is cancelled next timeyou use your transmitter to arm or disarm youralarm.Page 7VALETSometimes you may not wish your alarm toarm when you leave your vehicle. (Forinstance, if you leave your car with a valetattendant, you may not want to teach him howthe alarm operates.) If your alarm is set foractive (manual) arming, this is easy — don’tpress the I button, and the alarm will not arm.However, if your alarm is set to arm passively,use the valet mode to prevent it from arming.To enter valet, first disarm the alarm and turnthe ignition ON. Within 15 seconds, pressand release the VEL switch three times. Thealarm is now in the valet mode. The sirenchirps and the parking lights flash once toconfirm.To exit valet, just turn the ignition ON and,within 15 seconds, press and release the VELswitch three times. The siren chirps twice andthe parking lights flash twice to confirm thatvalet is exited and the alarm is now disarmed.If you press the I or II while the alarm is invalet, the doors will lock or unlock, and theparking lights will flash four times. Thealarm's emergency call for help and 2ndchannel output operate normally.Any time your alarm is triggered (the siren issounding and the parking lights are flashing),press the I button of the remote once to shutthe siren and flashing parking lights OFF whilethe alarm stays completely armed.PATENTED STAY-SAFE DISARMDUAL-STAGE SHOCK SENSORwill trigger. (Your dealer can make the shocksensor more or less sensitive to attack,depending on your vehicle.)NOTE — The shock sensor (and other add-onsensors, and current sensing) will not triggerthe alarm until 4 seconds after the alarm isarmed.Your alarm includes a patented dual-stageshock sensor.The first stage (pre-intrusion alert) warnsthieves the alarm is armed. For instance, thealarm will chirp three times and the parkinglights will flash three times if the sensor detectsa light bump to the vehicle. However, if a thiefattacks the car with sufficient force, the alarm
