User manual
2
ⒸCopyright 2010Suprema Inc.
Product Contents
nBasic Contents
Product Contents
Terminal Wall mounting metal bracket
Wallmounting
screwsand holders-4 ea
Screw for fixing main body
Cables
Software CD 12V DC Adaptor
Ferrite Core
3
ⒸCopyright 2010Suprema Inc.
Product Contents
nOptional accessories
USB fingerprint scanner f
or enrollmenton PC
Wireless LAN Access Point
4
ⒸCopyright 2010Suprema Inc.
Cable and Connector Pinout
Relay
RS485
PIN PIN DESCRIPTION
1NORMAL OPEN
2COMMON
3NORMAL CLOSE
PIN PIN DESCRIPTION
1TRX -
2 TRX +
3GND
4SHIELD GND
Before Start
5
ⒸCopyright 2010Suprema Inc.

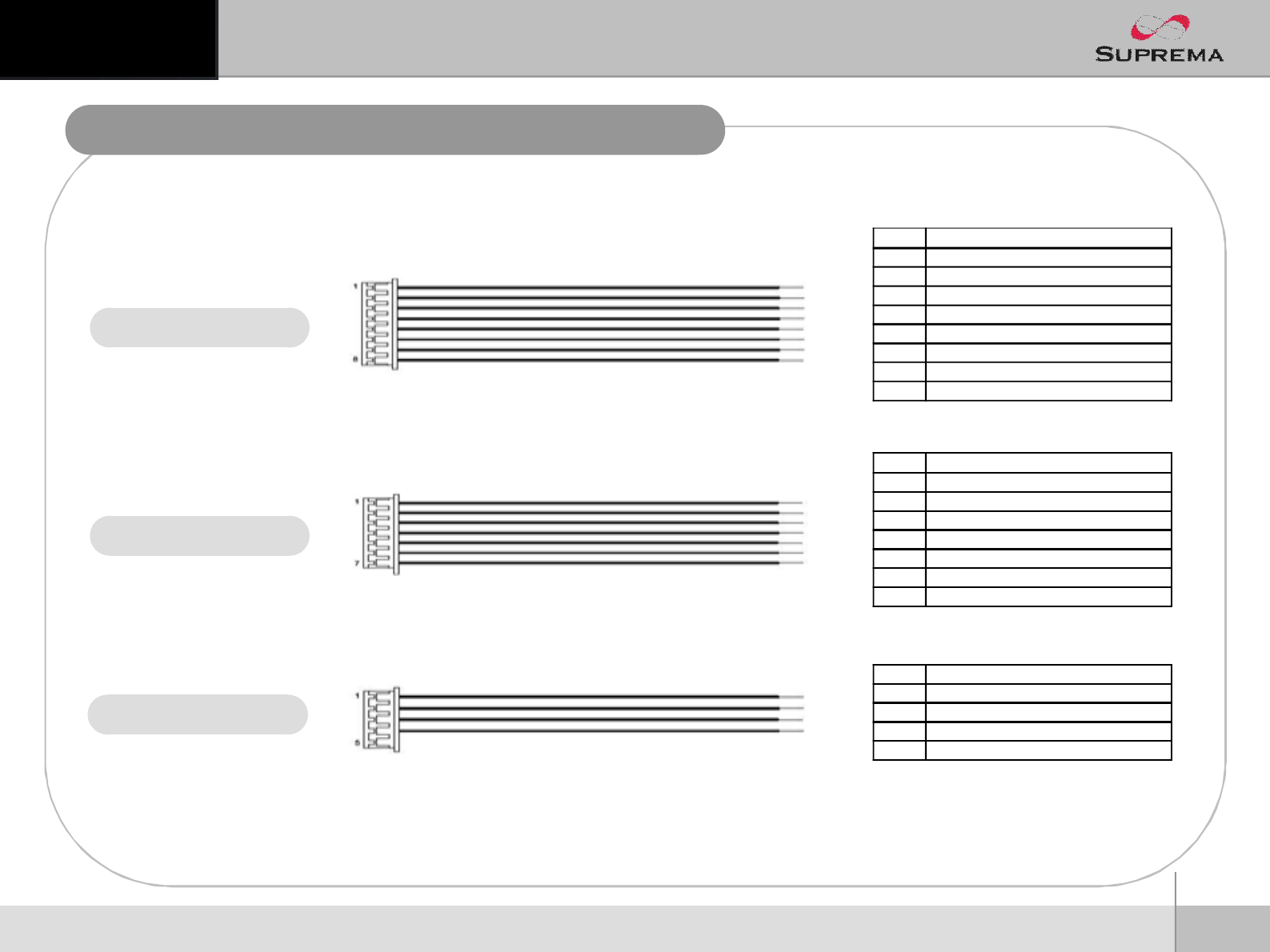

Cable and Connector Pinout
VDP
Wiegand
Before Start
Switch Input
PIN PIN DESCRIPTION
1WIEGAND_D0
2WIEGAND_D1
3GND
4SHIELD GND
PIN PIN DESCRIPTION
1SWIN_IN0
2SWIN_IN1
3GND
4SHIELD_GND
5SWIN_IN2
6SWIN_IN3
7GND
8SHIELD_GND
PIN PIN DESCRIPTION
1VDP_S
2GND
3VDP_VCC
4VDP_V
5VDP_OPEN
6GND
7SHIELD_GND
6
ⒸCopyright 2010Suprema Inc.

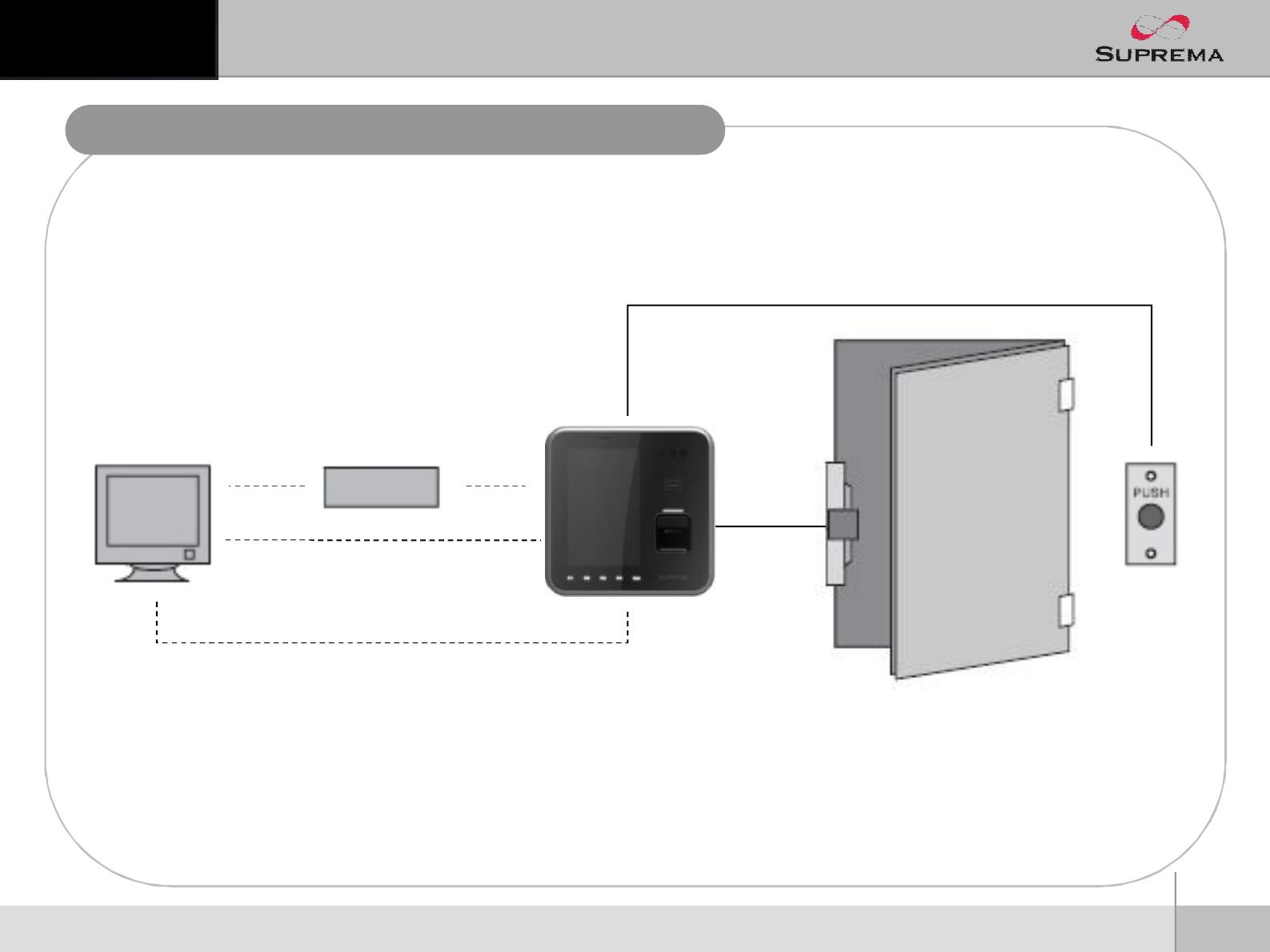

Installation Example
Exit Button
Door Lock
PC Network HUB
8P Cable
3P Cable
Ethernet
USBUSB Firmware
Upgrade Only
7
ⒸCopyright 2010Suprema Inc.
Product Dimension
(unit : mm)
전면
160
160
8
ⒸCopyright 2010Suprema Inc.

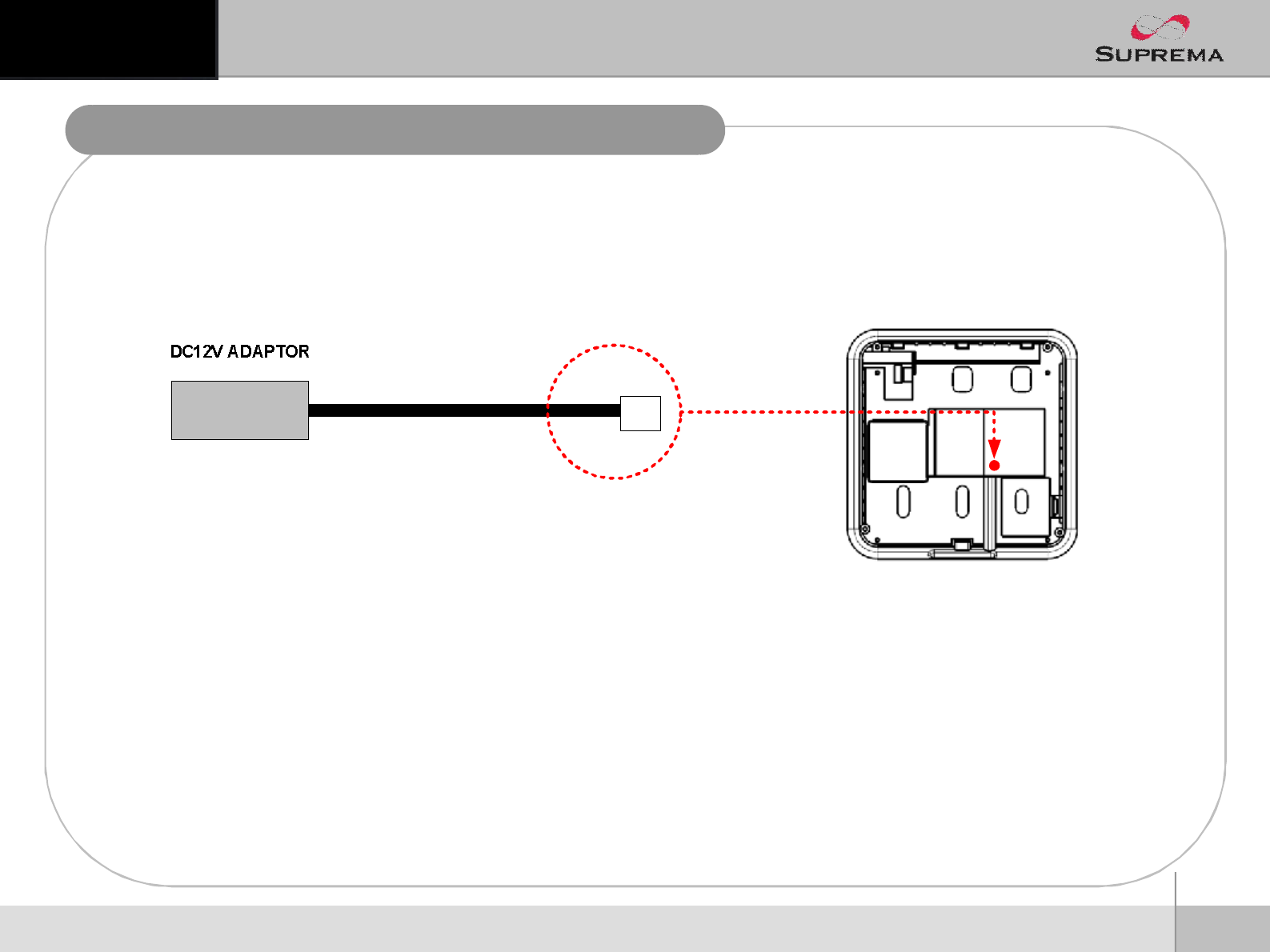

Power Connection
nPower connection
nRecommended
l12V ±10%, at least 1500mA for BioStationT2 alone installation.
lComply with standard IEC/EN 60950-1
9
ⒸCopyright 2010Suprema Inc.

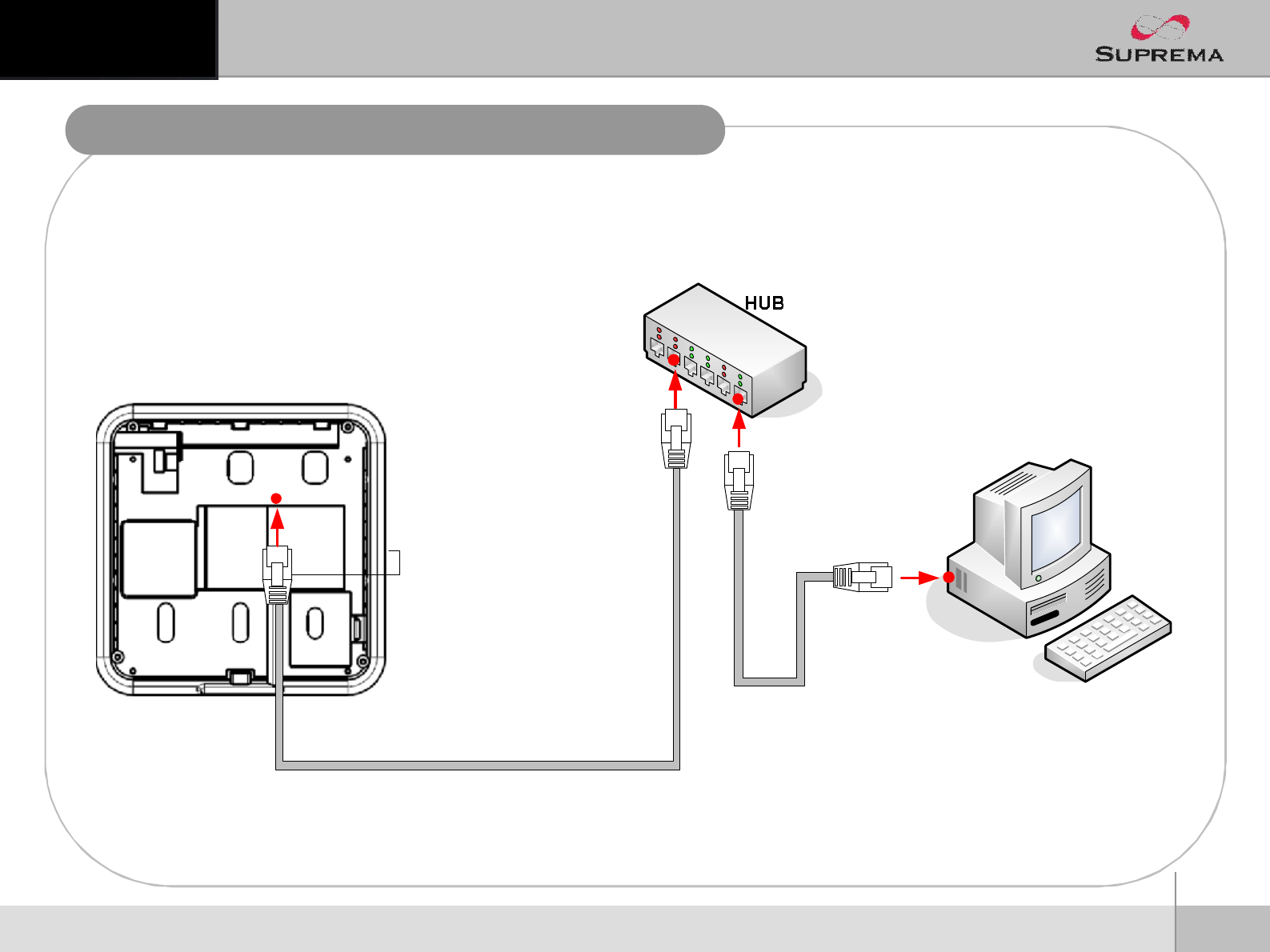

LAN Connection
10
ⒸCopyright 2010Suprema Inc.

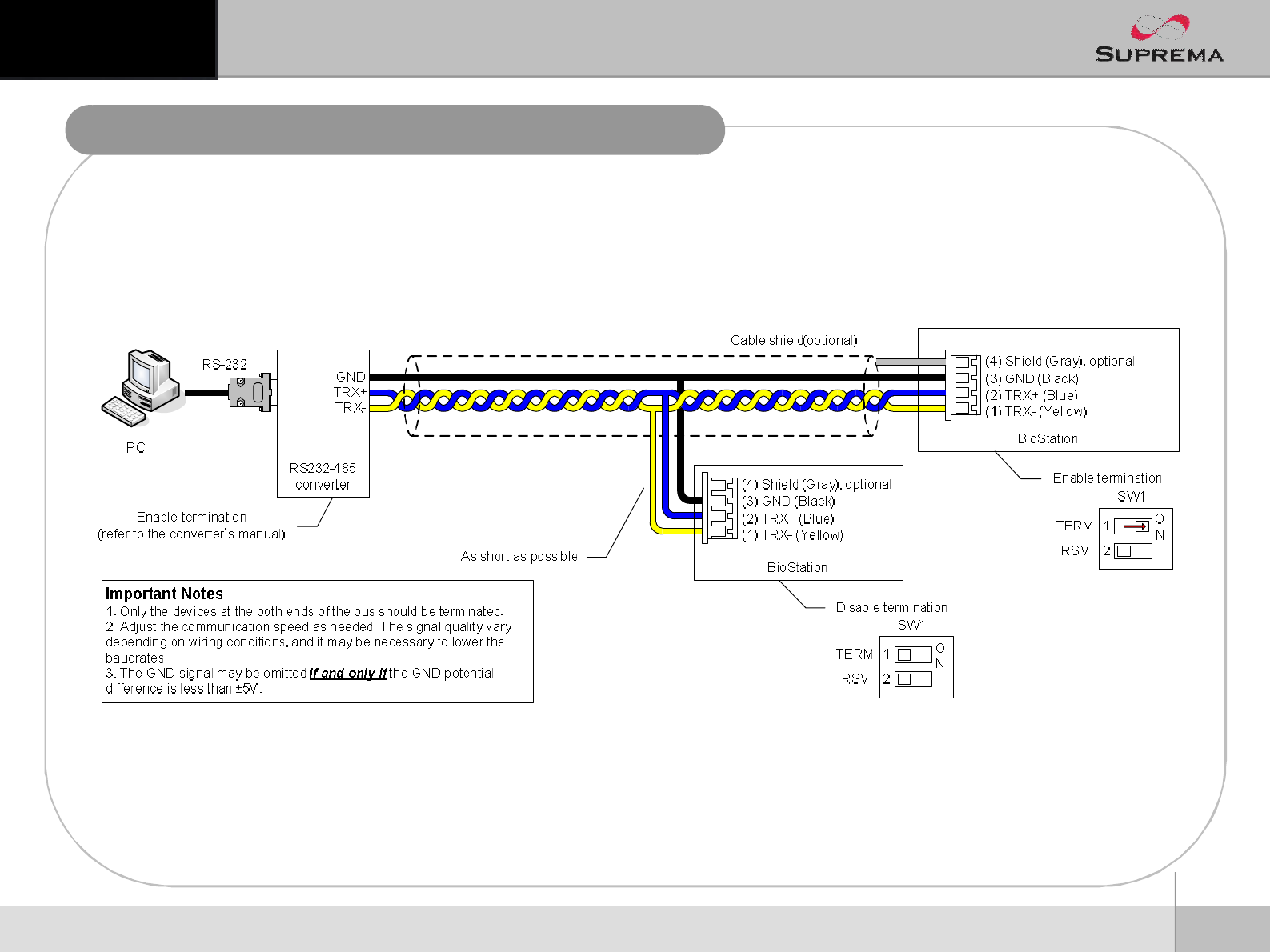

RS485 Network Connection
Before Start
11
ⒸCopyright 2010Suprema Inc.

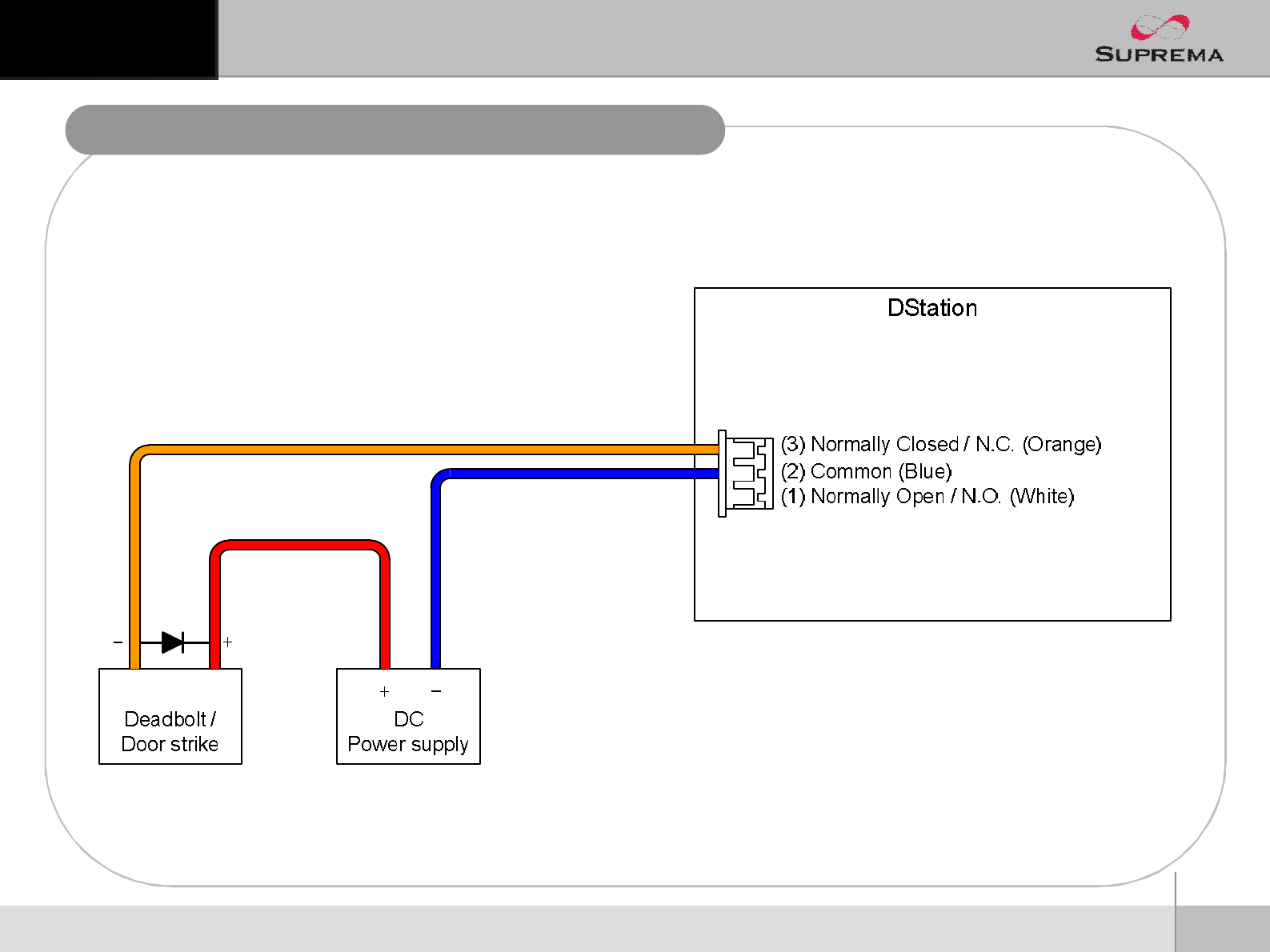

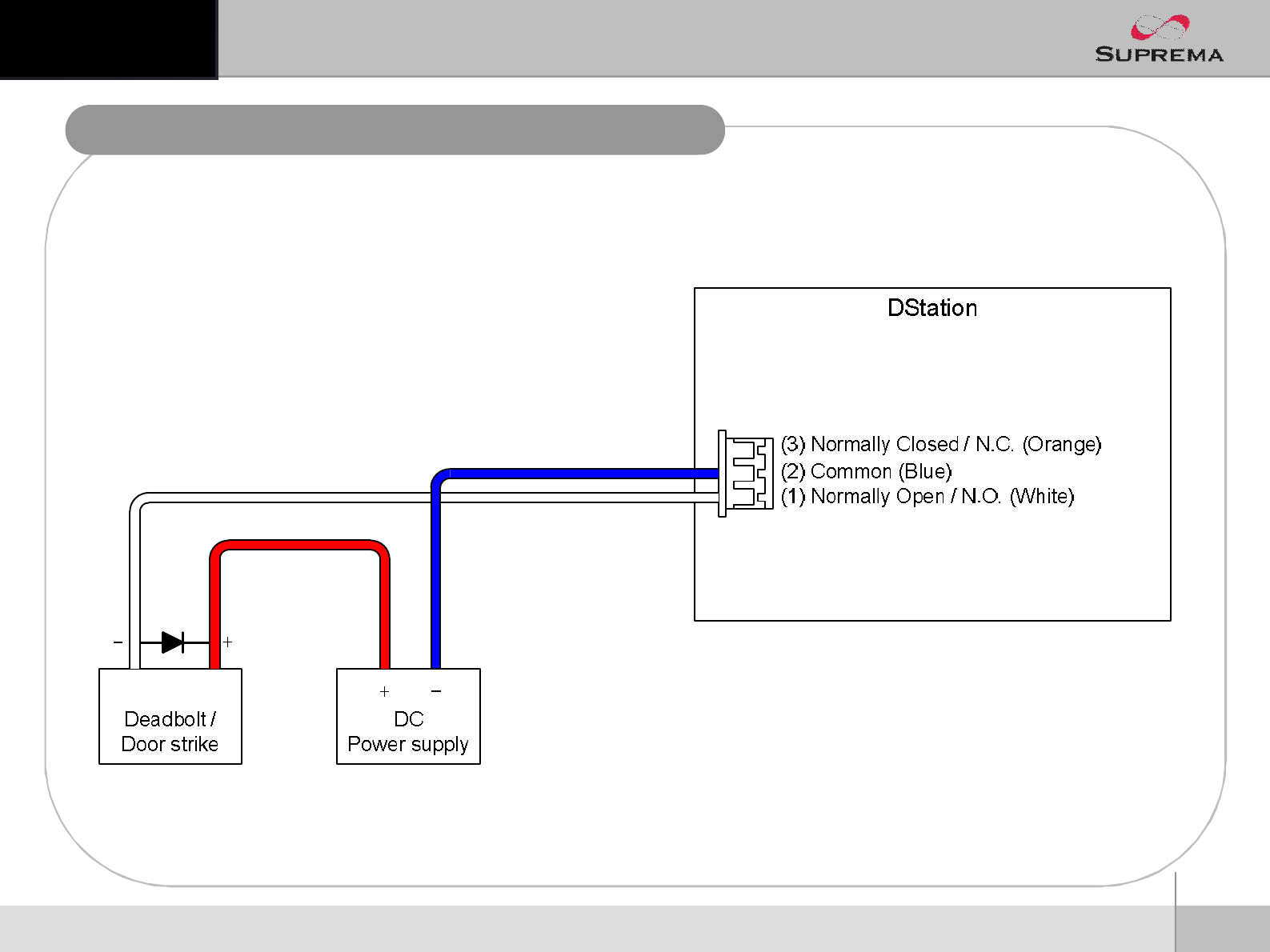

Relay Connection –Fail Safe Lock
12
ⒸCopyright 2010Suprema Inc.
Relay Connection –Fail Secure Lock
13
ⒸCopyright 2010Suprema Inc.
Relay Connection -Automatic Door
14
ⒸCopyright 2010Suprema Inc.

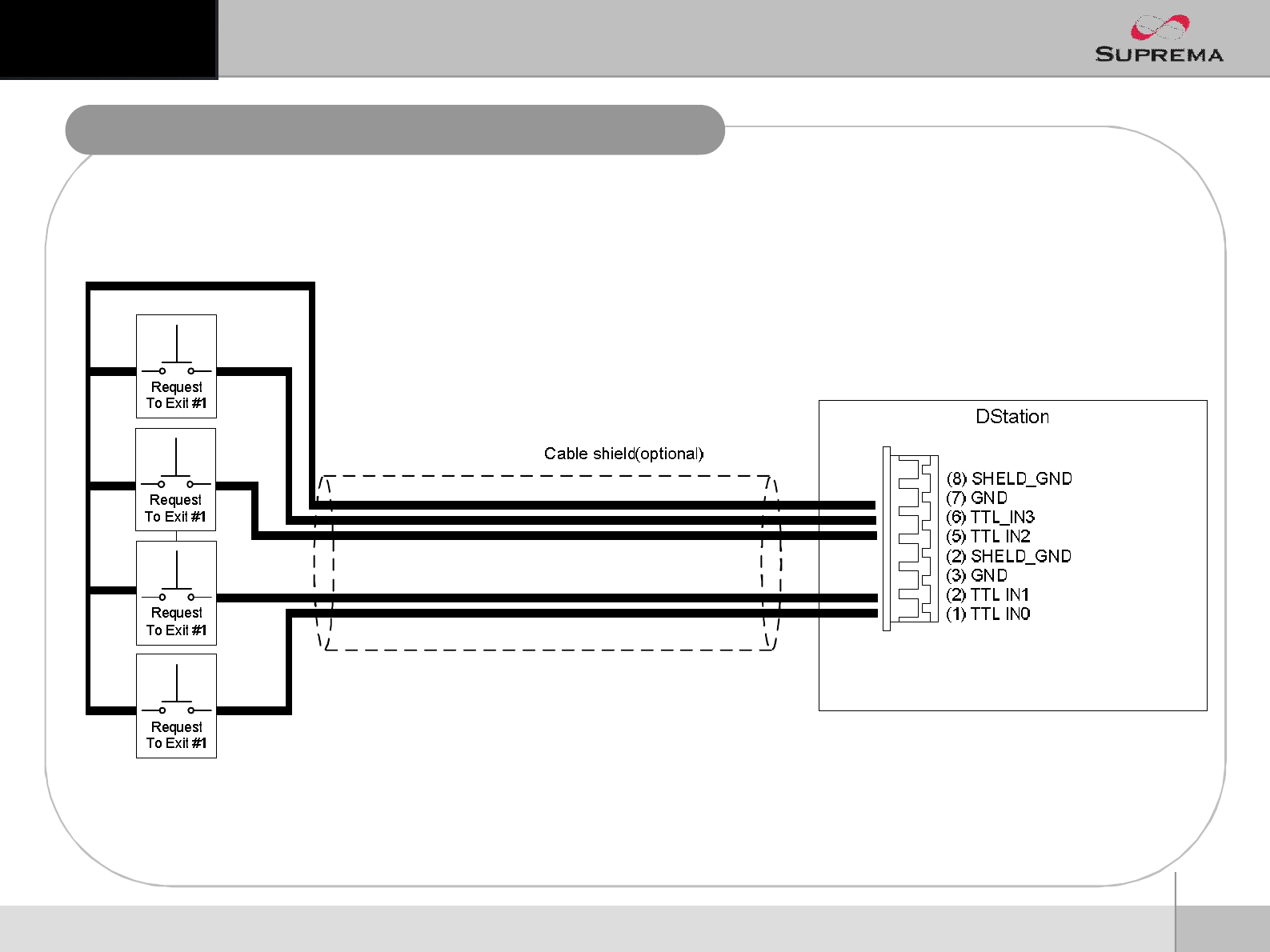

TTL Input Port Connection –RTE Switches
15
ⒸCopyright 2010Suprema Inc.
Wiegand Input Connection –External reader
16
ⒸCopyright 2010Suprema Inc.
System Specifications
기타
n●CPU :Main B/D CPU -ARM11 667MHz (Samsung S3C6410-667) X 1ea
nSensor B/D CPU -DSP 400MHz (ADI BP531-400) X 1ea
n
n●Memory : Main B/D -Flash : Nand MLC 1GByte + Nor 1MByte, SDRAM(mDDR) : 256MByte
nSensor B/D -Flash : SPI 512Kbyte, SDRAM : 32MByte
n
n●DISPLAY : 5inch WVGA TFT LCD (800 X 480) X 1ea
n●LED : 3-Color LED X 2ea
n●INPUT : 저항막방식 Touch Screen X 1ea + 5 Keypad (F1~F4, CALL)
n●CAMERA : 1.3M CMOS Camera X 1ea
n●I/O Port : Wiegand In/Out (S/W 설정을통해 Input 또는 Output으로사용가능) X 1ch
nSwitch Input X 4ch
nRS-485 X 2ch
nRS-232(Share with RS-485) X 1ch
nRelay(1A@30Vdc) X 2ch
nEthernet(10/100M) X 1ch
n●Sound Out: System Sound용Speaker X 2ea
n●RF CARD : Mifare / EM
n●Fingerprint Sensor : OC Sensor Model
n●Power Input : 12Vdc Adaptor or POE Input
17
ⒸCopyright 2010Suprema Inc.
FCC Rules
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
Caution
Warning This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interface, and
(2) this device must accept any interface received, including interference that
may cause undesired operation.
Information to User This equipment has been tested and found to comply with the limit of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, user and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more the
following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
18
ⒸCopyright 2010Suprema Inc.
Electrical Specification
Min. Typ. Max. Notes
Power
Voltage (V) 10.8 12 13.2
Current (mA) -600 1000
TTL/Wiegand Input
VIH (V) 2 - -
VIL (V) - - 0.8
Pull-up resistance (Ω)-10k -
TTL/Wiegand Output
VOH (V) 4 - - @ IOH = -5mA
VOL (V) - - 1 @ IOL = 5mA
Output resistance (Ω)-100 -
Relay
Switching capacity (A) - - 1
0.3
30V DC
125V AC
Switching power
(resistive) - - 30W
37.5VA
DC
AC
Switching voltage (V) - - 110
125
DC
AC
Suprema Inc.
16F Parkview Office Tower, Jeongja-dong, Bundang-gu,
Seongnam, Gyeonggi, 463-863 Korea
E-mail : support@supremainc.com
Website : www.supremainc.com
Functions and specifications of the product are subject to changes without notice due to quality
enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
