I. 3666OCU Introduction
The 3666OCU has the function to do the communication with other
Modular .
Besides, the 3666OCU can also be configured through Serial
protocol.
1.1 Read current tire pressure and temperature data.
1.2 Record and save updated tire pressure and temperature data.
3666OCU
II. YARD CHECK 3666OCU INSTALLATION
When the 3666OCU receive a signal through RX ANT , Then the MCU
contorl the TX part send the signal to other receivers through TX ANT.
The 3666OCU can match the different receivers automatically.

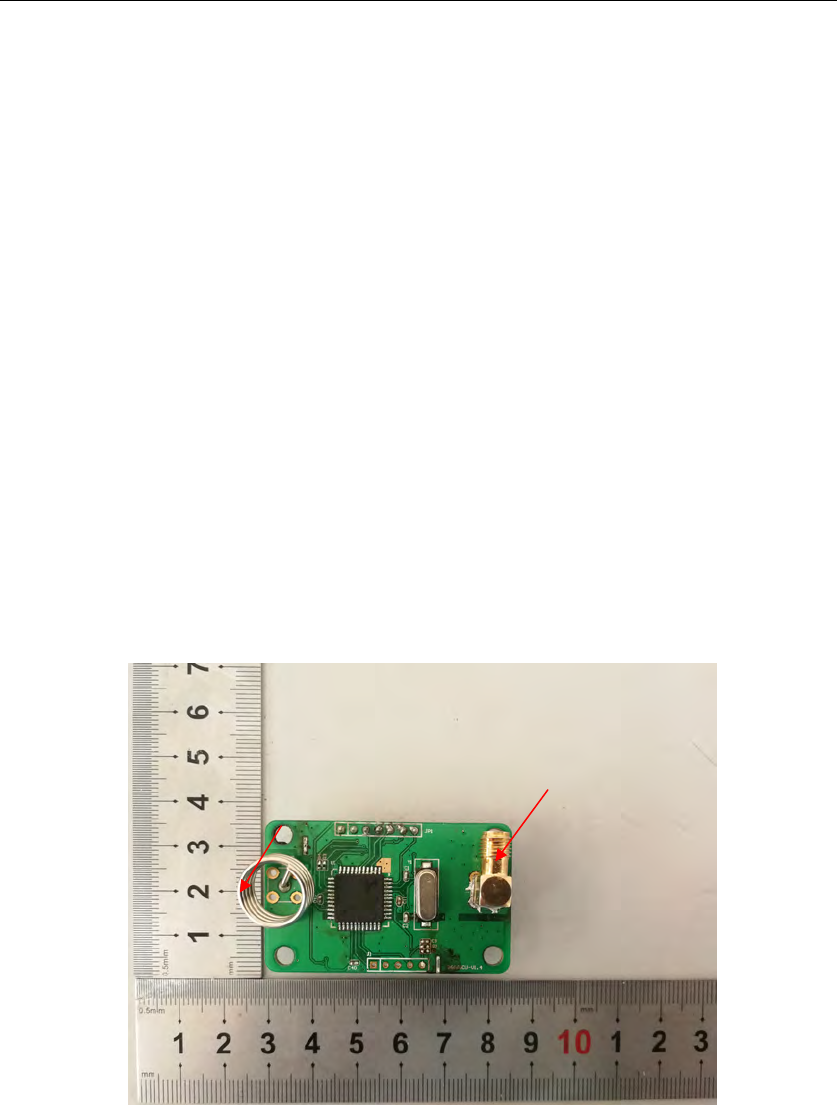

TX ANT
RX Antenna port
3666OCU
USER MANUAL
3

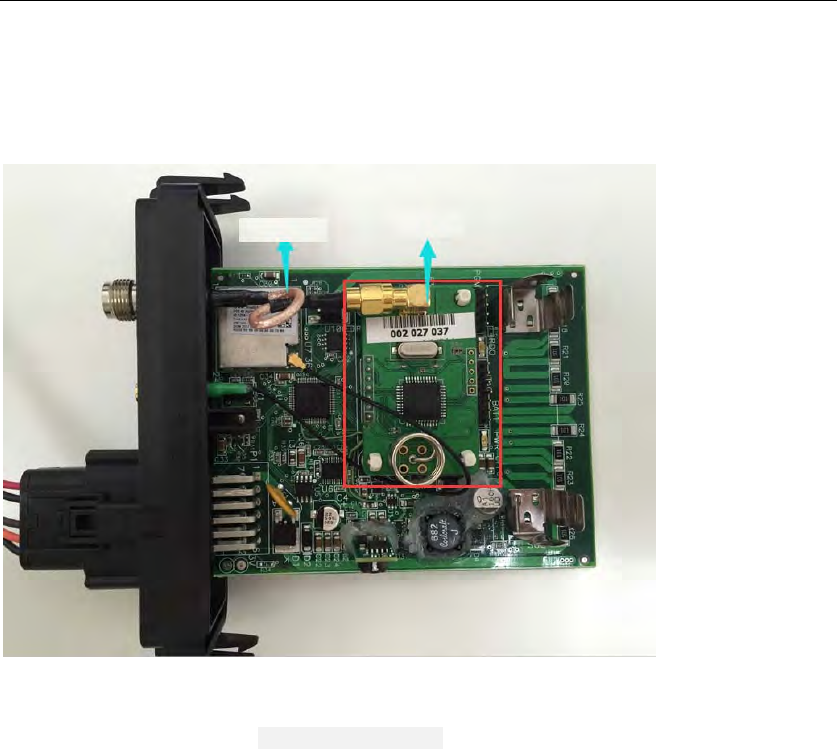

1.1 Fix the 3666OCU onto the other host to assemble one whole
product as the following pictures showing.
The assembled product
1.2 Antenna
The TX antenna uses a helical antenna and is fixed on the PCB for
sending RF signals. The receiving antenna for receiving signals.
III.Specifications
Mid-frequency:434.1MHz
Receiving Sensitivity:-105dBm
Transmitting Power:0dBm
Input Voltage:DC 3.3V
Operating Temperature:-40℃~+85℃
