Suzhou Sate Auto Electronic TP027A Smart Repeater User Manual Usermanual

Suzhou Sate Auto Electronic Co., Ltd Smart Repeater Usermanual

users manual

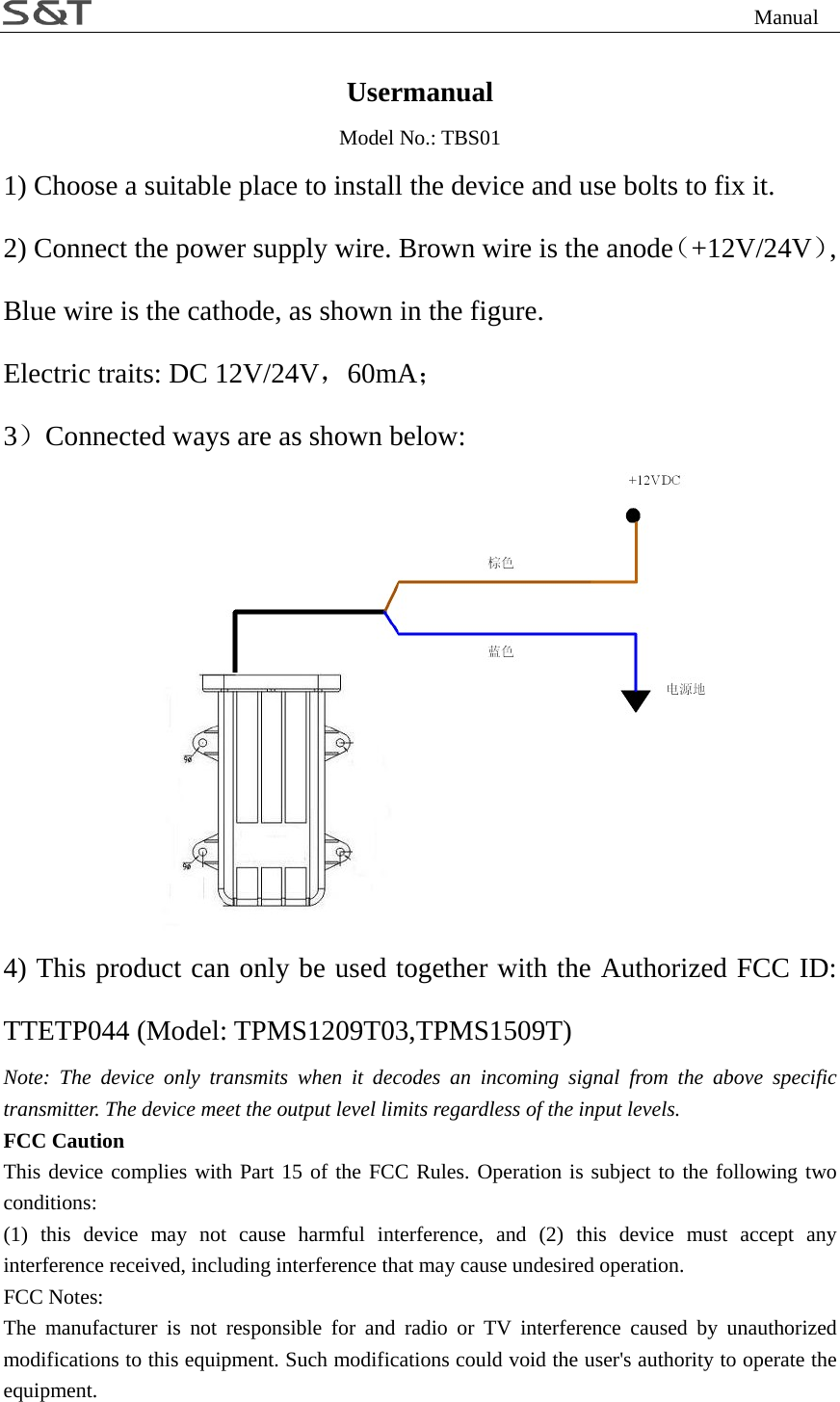

Manual Usermanual Model No.: TBS01 1) Choose a suitable place to install the device and use bolts to fix it. 2) Connect the power supply wire. Brown wire is the anode（+12V/24V）, Blue wire is the cathode, as shown in the figure. Electric traits: DC 12V/24V，60mA； 3）Connected ways are as shown below: 4) This product can only be used together with the Authorized FCC ID: TTETP044 (Model: TPMS1209T03,TPMS1509T) Note: The device only transmits when it decodes an incoming signal from the above specific transmitter. The device meet the output level limits regardless of the input levels. FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
