Suzhou Sate Auto Electronic TP079 TIRE PRESSURE MONITORING SYSTEM User Manual
Suzhou Sate Auto Electronic Co., Ltd TIRE PRESSURE MONITORING SYSTEM Users Manual
Users Manual
Installation Guide for Sensor TSB06
1
Installation Guide
for Sensor TSB06
Suzhou Sate Auto Electronic Co., Ltd
www.sate.com.cn
Installation Guide for Sensor TSB06
2
1. System Installation
1.1 Sensor Parts
1.1.1 Installation Instructions:

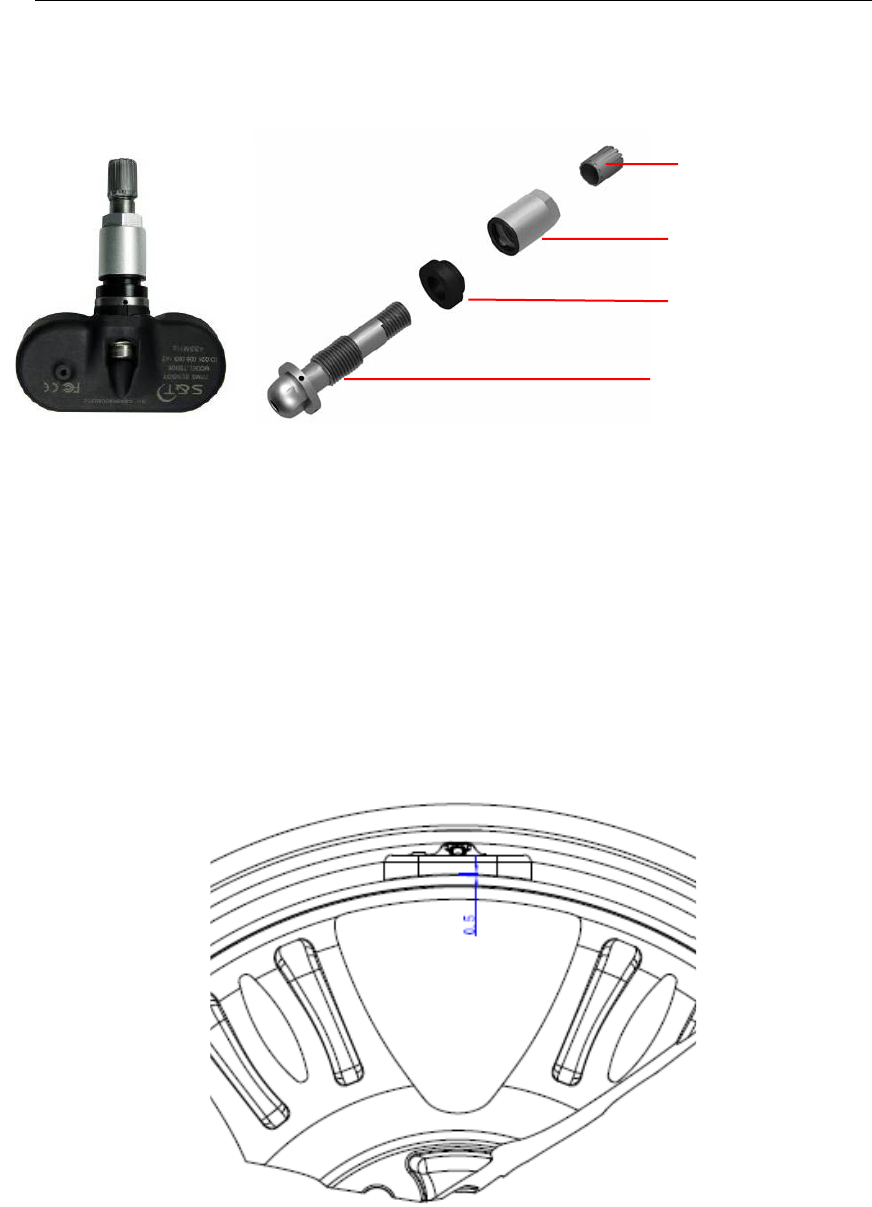

Install the sensor onto the hub by screwing the valve nut with the torque
of 4N.m（±0.5）to make sure reliable installation. There should be a gap
of 0-0.5mm between the curved face of the sensor and the hub. As shown
below:
1.1.2 Installation Steps：

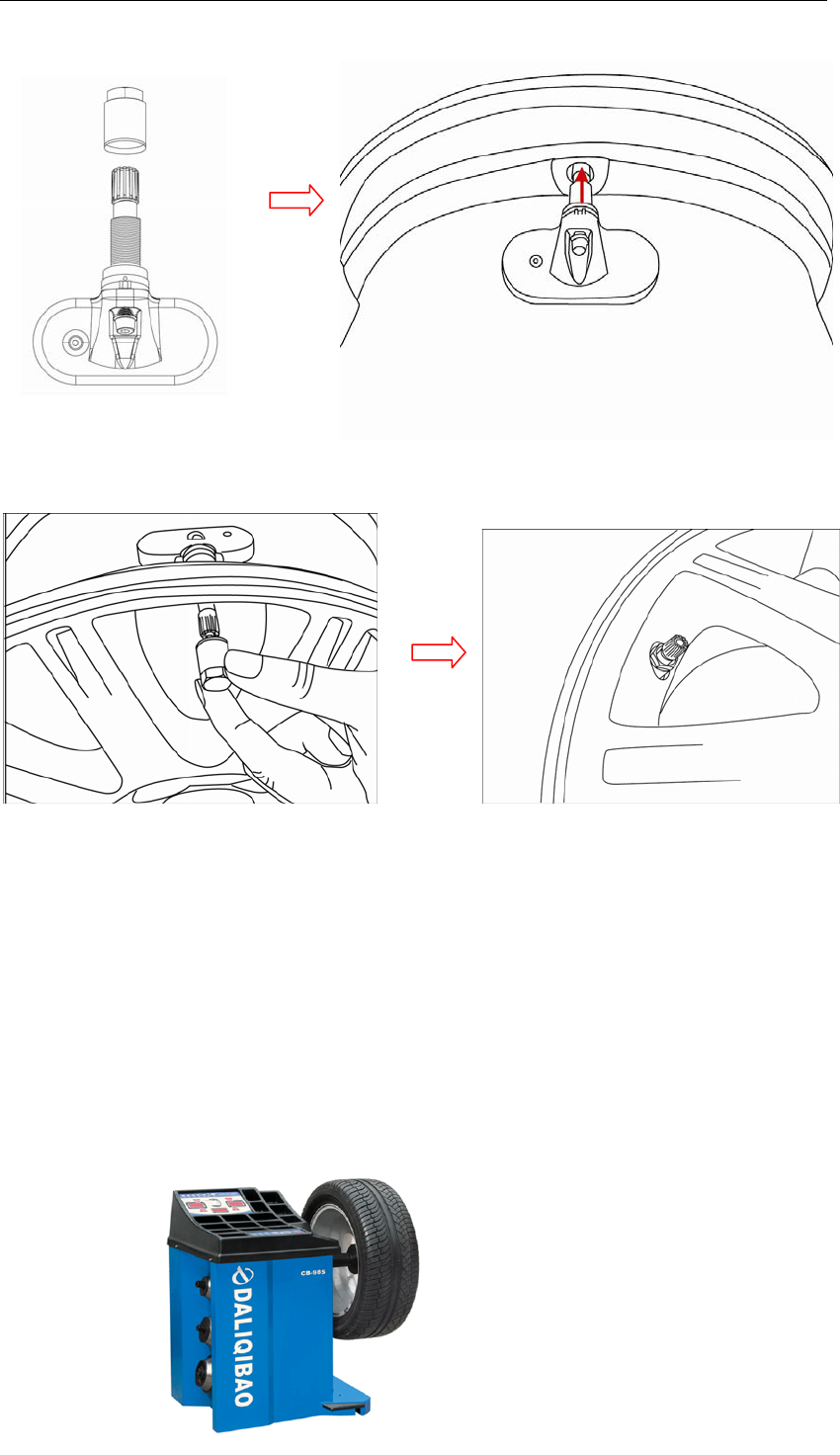

①Unscrew the valve nut of the sensor, get the valve end through the valve
socket of the hub;
Valve Parts
Valve Cap
Valve Nut
Rubber Washer
Valve Stem
Installation Guide for Sensor TSB06
3
②Screw the sensor nut on and
tighten it with 12mm sleeve. Torque is 4N.m(±0.5）;
③Mount the rubber tubes;
④Inflate the tire to standard pressure and check whether there is leakage in the
connection part of the valve core and locknut with the soap solution;
⑤Screw the valve cap to finish the installation;
⑥Balance the tire and install onto the vehicle;
⑦Activate the sensor.
Note ： After the
installation, the tire must
be balanced and adjusted.
Installation Guide for Sensor TSB06
4
2. Specifications
No Item Specifications
1 Size 63mm*29.5mm*17mm
2 Weight 43g(including the valve parts)
3 Operating Temperature Range -40℃～+125℃
4 Storage Temperature Range -30℃～+85℃（25℃ is the best）
5 Mid-frequency 433.92MHz
6 Transmitting Power -20 dBm（e.r.p. effective transmitting
Power）
7 Pressure Monitoring Range 0～800kpa
8 Pressure Monitoring Precision ±10kpa
9 Temperature Monitoring Range -40℃～+125℃
10 Temperature Monitoring Precision ±2℃
11 Battery Life 10 year
12 Battery Voltage 3V
13 LF Frequency 125KHz
3. Note
①Please read above Installation Instructions before installation;
②It should be the professionals who do the installation or user can do
it under guidance of the professionals;
③TPMS sensor is customized depending on vehicle model, different model
have different sensors, so it’s necessary to choose the right sensor
before the installation.
④If the sensor can’t be activated, please contact the service center
to get correspondent sensor information.
Installation Guide for Sensor TSB06
5
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
