TABLE OF CONTENTS

MAINTENANCE SERVICE RECORD

WARRANTY POLICY

3BEFORE DRIVING

4STEERING COLUMN CONTROLS

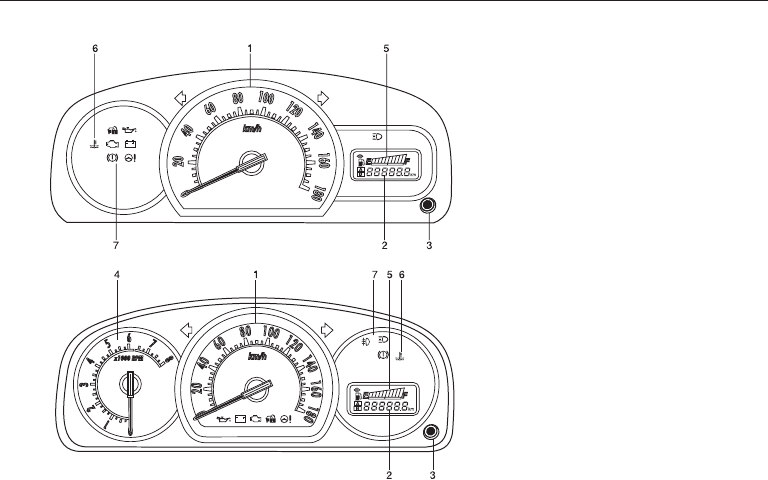

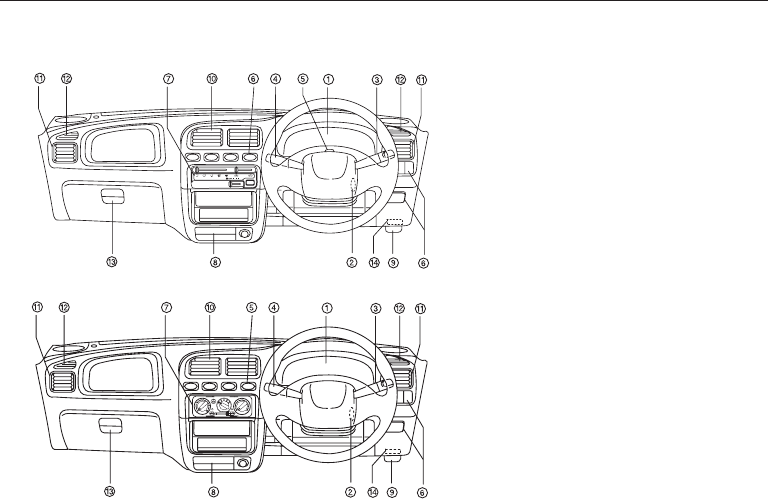

INSTRUMENT PANEL

OTHER CONTROLS AND EQUIPMENT

OPERATING YOUR VEHICLE

DRIVING TIPS AND SAFE DRIVING

INSPECTION AND MAINTENANCE

EMERGENCY SERVICE

BODY WORK CARE

GENERAL INFORMATION

SPECIFICATION

59K,76G,844-74E

FOREWORD

This manual is an essential part of your

vehicle and should be kept with the vehicle

at all times. Please read this manual

carefully and review it from time to time. It

contains important information on

maintenance. It is especially important that

this manual remain with the vehicle at the

time of resale. The next owner will need this

information also.

You are invited to avail the three free

inspection services as described in this

manual. Three free inspection coupons are

attached to this manual. Please show this

manual to your dealer when you take your

vehicle for any Service.

To prolong the life of your vehicle and

reduce maintenance costs, the periodic

maintenance must be carried out according

to the "PERIODIC MAINTENANCE

SCHEDULE" described in "INSPECTION

AND MAINTENANCE" section of this

manual. Periodic maintenance is essential

for preventing trouble and accidents to

ensure your satisfaction and safety.

Daily Inspection and Care as per "DAILY

INSPECTION CHECKLIST" described in the

"INSPECTION AND MAINTENANCE"

section of this Manual is essential for

prolonging the operating life of the vehicle

and for safe driving.

All information in this manual is

based on the latest product

information available at the time of

publication. Due to improvements or

other changes, there may be

discrepancies between information

in this manual and your vehicle.

MARUTI SUZUKI reserves the right

to make changes at any time

without notice.

This vehicle may not comply with

standards or regulations of other

countries. Before attempting to

country, check all applicable

regulations and make any

necessary modifications.

IMPORTANT

WARNING/CAUTION/NOTE

Please read this manual and follow its

instructions carefully. To emphasise special

information, the words WARNING,

CAUTION, and NOTE have special

meanings. Information following these signal

words should be carefully reviewed.

The personal safety of the driver,

passengers, or bystanders may be

involved. Disregarding this information

could result in their injury or death.

These instructions point out special

service procedures or precautions

that must be followed to avoid

damaging the vehicle.

CAUTION

MARUTI SUZUKI INDIA LIMITED believes

in conservation and protection of Earth's

natural resources.

To that end, we encourage every vehicle

owner to recycle, trade in, or properly

dispose of, as appropriate, used motor oil,

coolant, and other fluids; batteries; and

tyres.

MARUTI SUZUKI INDIA LIMITED

0-1

w WARNING

NOTE :

This provides special information to make

maintenance easier or important instructions

clearer.

59K,76G,844-74E

MODIFICATION WARNING

w WARNING

Do not modify this vehicle. Modifica-

tion could adversely affect safety,

handling, performance, or durability

and may contravene regulations. In

addition, damage or performance

problems resulting from modification

may not be covered under warranty.

Copying, quoting or reproduction of any

part of this manual is not permitted

without explicit approval by MARUTI

SUZUKI INDIA LIMITED.

0-2

w WARNING

Your vehicle has monocoque body

construction which provides for

certain crumple zones in the body

which absorbs larger part of impact

energy in the event of a front collision

and protects the occupants from

impact. Do not use any fitments

such as crash guards. These

fitments will increase the risk to the

occupants because of the shock

directly getting transmitted to the

occupants.

CAUTION

Improper instllation of mobile

communication equipment such as

cellular telephones or CB (Citizen's

Band) radios may cause electronic

interference with your vehicle's

ignition system, resulting in vehicle

performance problems. Consult your

MARUTI SUZUKI dealer or qualified

service technician for advice on

installing such mobile communi-

cation equipment.

76G-00-001

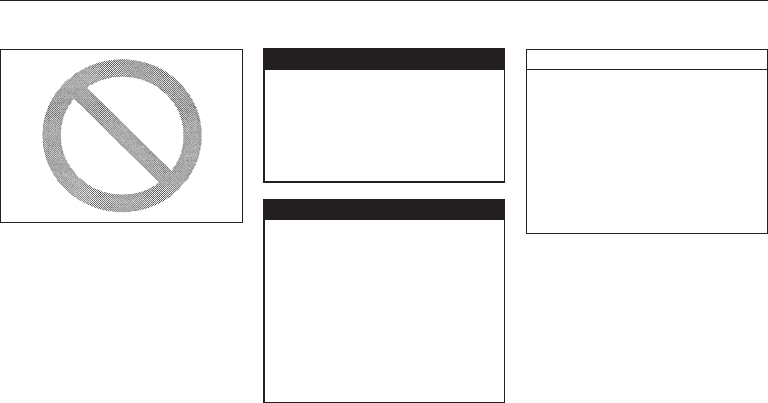

The circle with a slash in this manual

means “Don’t do this” or Don’t let this

happen”.

59K,76G,844-74E

MAINTENANCE SERVICE RECORD

IMPORTANT INFORMATION TO CUSTOMER

Dear Customer

For any assistance with regard to our product, please contact

General Manager/Works Manager at any of our Dealer or

Authorised Service Station. For additional enquiry you may

contact our Regional office or Service Department. The

Addresses and Phone nos. are given in Service Network

booklet provided along with vehicle.

MODEL CHASSIS NO. ENGINE NO. KEY NO. DATE OF MILEAGE BATTERY

DELIVERY (km) MAKE SR. NO./BATCH CODE

OWNER’S NAME & ADDRESS ____________________________________________________________________________

_____________________________________________________________________ TEL. NO. _________________________

ADDRESS/STAMP OF SELLING DEALER SELLING DEALER CODE

SHOWROOM

WORKSHOP

MAINTENANCE SERVICE RECORD

1-1

59K,76G,844-74E

F....free Service P....Paid Service W....Warranty. A....Accident

MAINTENANCE SERVICE RECORD

DATE OF KIND OF MILEAGE DESCRIPTION OF JOB NAME OF SERVICING JOB CARD MECHANIC’S

SERVICE SERVICE (km) DEALER/MASS NO. SIGNATURE

1-2

59K,76G,844-74E

WARRANTY POLICY

Maruti Suzuki India Limited (hereinafter called “Maruti Suzuki”),

warrants that each new Maruti Suzuki vehicle distributed in India

by Maruti Suzuki and sold by an authorised Maruti Suzuki dealer

will be free, under normal use and service, from any defects in

material and workmanship at the time of manufacture SUBJECT

TO THE FOLLOWING TERMS AND CONDITIONS:

(1) Qualification:

To qualify for this warranty:

(a) The Maruti Suzuki vehicle must be delivered by Maruti

Suzuki authorised dealer and set-up, serviced by Maruti

Suzuki authorised dealer/service station.

(b) The warranty registration card in respect of each vehicle

must be completed by the dealer at the time of delivery

of the vehicle and dealer should retain the same.

(2) Term:

The term of the warranty shall be twenty four (24) months

or 40,000 kilometers (whichever occurs first) from the date

of delivery to the first owner.

(3) Maruti Suzuki Warranty Obligation:

If any defect(s) should be found in a Maruti Suzuki vehicle

within the term stipulated above, Maruti Suzuki only obligation

is to repair or replace at its sole discretion any part shown

to be defective, with a new part or the equivalent at no cost

to the owner for parts or labour, when Maruti Suzuki

acknowledges that such a defect is attributable to faulty material

or workmanship at the time of manufacture. The owner is

responsible for any repair or replacements which are not

covered by this warranty.

(4) Limitation:

This warranty shall not apply to:

(a) normal maintenance service required other than the three

free services, including without limitation, oil and fluid

changes, headlight aiming, fastener retightening, wheel

balancing, wheel alignment and tyre rotation, cleaning of

injectors, adjustments of carburettor, ignition timing, clutch

and valve clearance.

(b) the replacement of normal wear parts including without

limitation, bulbs, battery, tyres and tubes, spark plugs, belts,

hoses, filters, wiper blades, brushes, contact points, fuses,

clutch disc, brake shoes, brake pads, cable and all rubber

parts (except oil seal and glass run).

(d) any repairs or replacement required as a result of accidents

or collision.

(e) any defects caused by misuse, negligence, abnormal use

or insufficient care.

(f) any vehicle which has been modified or altered, including

without limitation, the installation of performance

accessories.

(g) any vehicle on which parts or accessories not approved

by Maruti Suzuki have been used.

(h) any vehicle which has not been operated in accordance

with the operating instructions in the Maruti Suzuki Owner’s

Manual.

(i) any vehicle which has not received, during the warranty

term, the service inspections prescribed in the Maruti

Suzuki Owner’s Manual.

(j) any vehicle which has been assembled, disassembled,

WARRANTY POLICY

2-1

59K,76G,844-74E

adjusted or repaired by other than an Maruti Suzuki

authorised dealer/service station.

(k) any vehicle which has been used for purposes other than

what it was designed for.

(l) any damage or deterioration caused by industrial pollution

and bird droppings.

(m) insignificant defects which do not affect the function of the

vehicle including without limitation, sound, vibration and fluid

seep.

(n) any natural wear and tear including without limitation, aging

etc.

(o) Installation and usage of Domestic LPG Gas/LPG cylinder.

For Maruti Suzuki Air-Conditioned Vehicles

(p) V-belts, hoses and gas leaks.

(5) Extent of Warranty:

This warranty is the entire written warranty given by Maruti

Suzuki for Maruti Suzuki vehicles and no dealer or its or his

agent or employee is authorised to extend or enlarge this

warranty and no dealer or its or his agent or employee is

authorised to make any oral warranty on Maruti Suzuki behalf.

Maruti Suzuki reserves the right to add any improvements or

change the design of any model at any time with no obligation

to make the same changes on units previously sold.

(6) Warranty Service:

To obtain warranty service, the complete vehicle must be

presented at the owner’s expenses to any authorised Maruti

Suzuki dealer.

(7) Owner’s Warranty Responsibilities:

It is responsibility of each owner to:

(a) make certain that the warranty registration/PDI card was

completed at the time of delivery of the vehicle;

(b) have performed, at his own expenses, by an Maruti Suzuki

authorised dealer/service station all the service inspections

specified in the Maruti Suzuki “Owner’s Manual and Service

Booklet” and maintain adequate proof that such service

inspections have been performed.

servise station performing the service inspection has

certified the work on the “Maintenance Service Record”

page in the “Owner’s Manual and Service Booklet” and

(d) present the Maruti Suzuki “Owner’s Manual and Service

Booklet” to the authorised Maruti Suzuki dealer whenever

requesting service inspections or warranty service.

If the “Owner’s Manual and Service Booklet” should be lost or

destroyed the owner should consult the authorised Maruti Suzuki

dealer from whom the vehicle was purchased for instructions

concerning replacement of the “Owner’s Manual and Service

Booklet”.

(8) Disclaimer of Consequential Damage:

Maruti Suzuki assumes no responsibility for loss of vehicle, loss

of time, inconvenience or any other indirect incidental or

consequential damage resulting from the vehicle not being

available to the owner because of any defect covered by this

warranty.

(9) Change of Owner

Even if ownership of the vehicle changes, the remaining

warranty period is effective for the new owner.

WARRANTY POLICY

2-2

59K,76G,844-74E

Maruti Suzuki offers the Emission Warranty on all Maruti Suzuki vehicles (apart from the Regular warranty and will run parallel

to the regular product warranty) only in four metropolitan cities (New Delhi, Kolkata, Mumbai and Chennai) with effect from

July 1st, 2001.

Terms:

The Emission Warranty will be applicable for 80,000 kms or 3 years (Which ever comes earlier) from the date of delivery to

the first owner. The remaining warranty terms will be valid in case of any change in ownership provided the production of all

valid document.

Conditions:

1. Under Emission Warranty, Warranty claims will be admitted for a prima facie examination, in case vehicle fails to meet to the

Emission Standard as specified in sub rule (2) of rule no. 115 of Central Motor Vehicles Rules (CMVR), 1989.

2. The warranty claims will only be accepted after examination carried out by Maruti Suzuki or it's dealer which leads to firm conclusions

that the

a) Original settings have not been tempered in any case.

b) Part (as given in Annexure-A) has a manufacturing defect.

c) Vehicle is unable to meet the Emission Standards (as given in 1.), inspite of the vehicle having been maintained and used

in accordance with the instructions as specified in Owner's Manual and Service Booklet and the used fuel and different oils

(Engine oil, Transmission oil, Brake oil etc.) are also as per specification.

3. The method of examination for deciding the warranty of the parts will be at the sole discretion of Maruti Suzuki and it's dealer

and results of the examination will be final and binding. If after examination, the warrantable condition is not established, Maruti

Suzuki and it's dealer has the right to charge all, or part of the cost of such examination.

4. Under Emission Warranty, the parts (as given in Annexure-A) will be changed free of cost, but the consumables will be charged

as per actual.

5. If the part covered under Emission Warranty or the associated parts, are not independently replaceable, on account of these being

integral parts a complete assembly, Maruti Suzuki and it's dealer will have the sole discretion to replace entire assembly or by

using some of the parts of the system through suitable repair or modifications.

EMISSION WARRANTY

2-3

59K,76G,844-74E

6. Any consequential repairs or replacement of parts which may be found necessary to establish compliance of Emission Warranty,

will not be considered under warranty, unless the same is under product warranty. The consumable will be charged as per actual

under such repair or replacement.

7. Maruti Suzuki will not be responsible for the cost of transportation of the vehicle to the nearest Maruti Suzuki dealer workshop

or any loss due to non-availability of the vehicle during the period of lodging of a warranty claim and examination and/or repair

by Maruti Suzuki dealer.

8. Maruti Suzuki will not be responsible for any penalty that may be charged by statutory authorities on account of failure to comply

with the EMISSION STANDARDS.

9. Emission Warranty will not be affected on the change of owner, provided all the documents are available.

10. All maintenance actions (as specified in the Owner's Manual and Service Booklet) need to be followed and recorded in the manual

for emission warranty.

11. The customer needs to produce the PUC (Pollution Under Control) certificate valid for the period preceding the test during which

the failure is discovered. The receipts (for the maintenance of the vehicle as per specification in Owner's Manual and Service

Booklet from the date of original purchase of the vehicle) will also be required.

Condition Under which the Emission Warranty is not APPLICABLE

1. In the absence of valid PUC certificate.

2. Vehicle not serviced from Maruti Suzuki authorised workshop as per the schedule specified in the Owner's Manual.

3. Vehicle subjected to abnormal use (accident, motor race, rallies or for the purpose of establishing the records etc.)

4. Use of non MGP (Maruti Genuine Part).

5. Vehicle tempered in an unauthorised manner.

6. Tampering with odometer so that the actual kilometer reading can not be read.

7. Use of adulterated fuel and/or unspecified oils (Engine oil, Transmission oil and Brake oil etc.)

EMISSION WARRANTY

2-4

59K,76G,844-74E

Annexure-A

List of parts covered under Emission Warranty

1. Fuel injection Assembly, Pressure Regulator, Throttle Body Assembly.

2. Electronic Control Module (ECM).

3. Intake Manifold.

4. EGR valve.

5. Distributor and internal parts.

6. Ignitions coil.

7. Canister Assembly.

8. Vapour Liquid Separator.

9. Fuel Tank and Filler Cap.

10. PCV (Positive Crankcase Ventilation) Valve.

11. Oil Filler Cap.

12. Catalytic Convertor.

13. Exhaust manifold.

14. All fuel injection System related SENSORS.

15. Maniverter

EMISSION WARRANTY

2-5

76G-74E

BEFORE DRIVING

Fuel Recommendation ....................................................................................... 3-1

Immobilizer System ............................................................................................ 3-2

Door Locks .......................................................................................................... 3-4

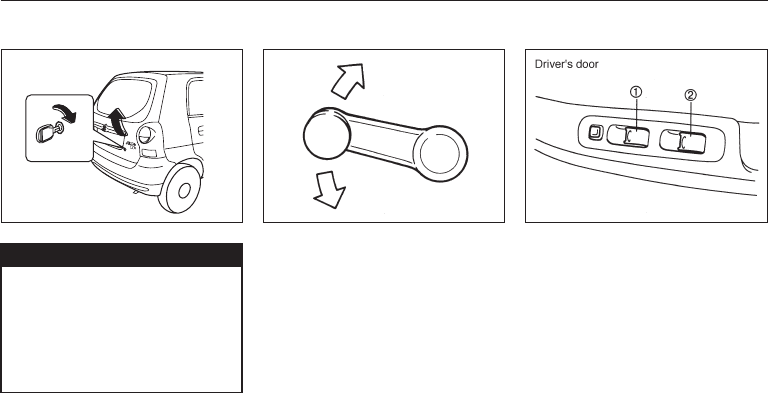

Windows ............................................................................................................... 3-6

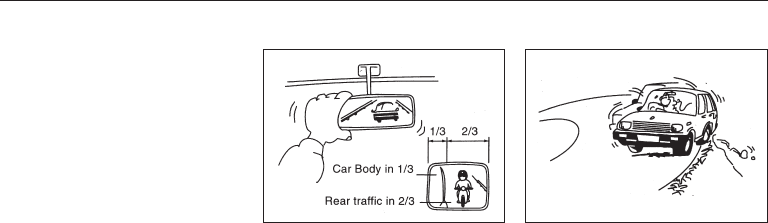

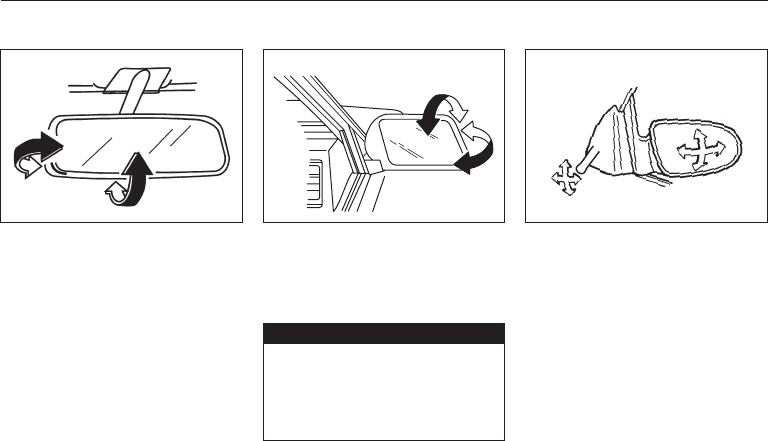

Mirrors................................................................................................................... 3-8

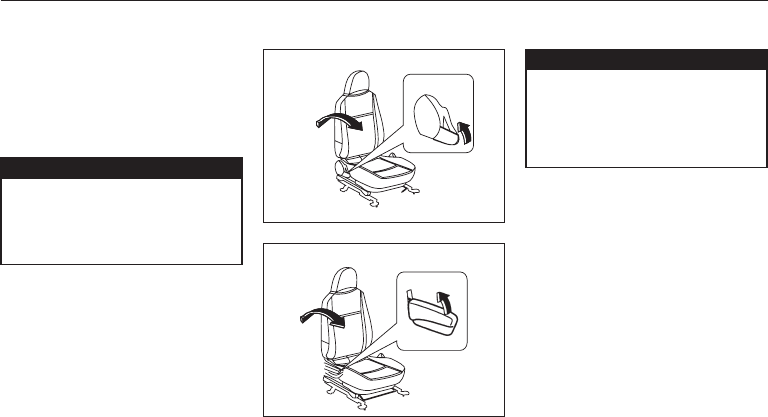

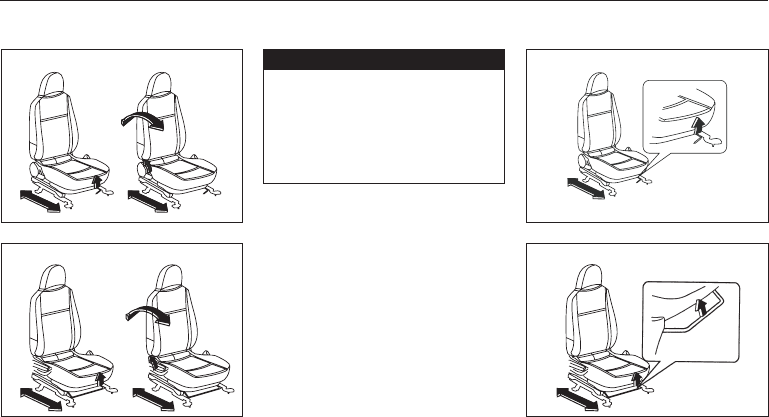

Front Seat Adjustment ...................................................................................... 3-9

Adjusting Seat Position .................................................................................... 3-9

Adjusting Seatbacks ........................................................................................ 3-10

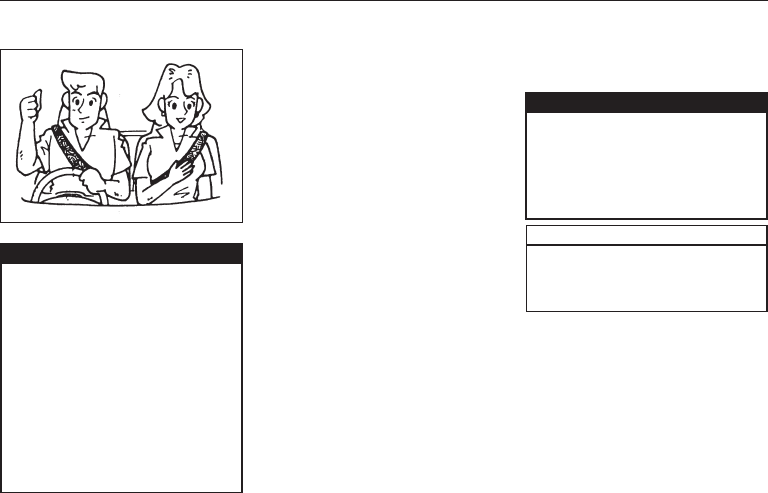

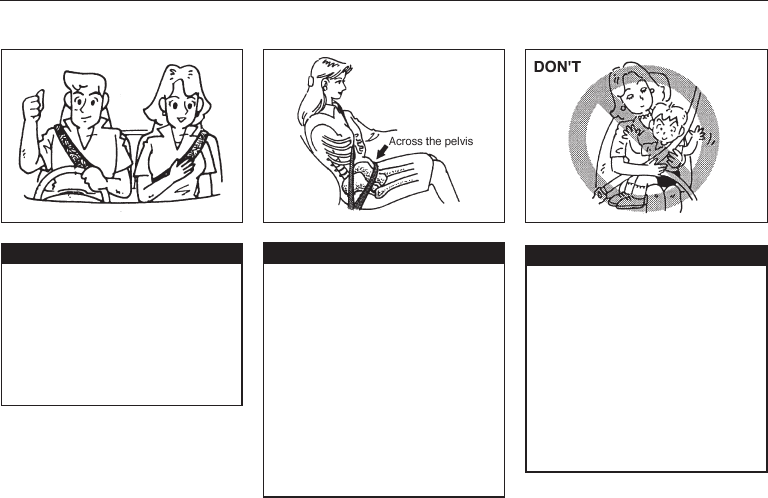

Seat Belts ..........................................................................................................3-11

Lap Belt (if equipped) ..................................................................................... 3-15

76G-74E

3-1

BEFORE DRIVING

FUEL RECOMMENDATION

You must use unleaded petrol with an

octane number (RON) of 91 or higher.

Use of leaded fuel in vehicle equipped

with catalytic converter is prohibited,

because lead deactivates the pollutant

reducing components of catalytic

converter and may result in permanent

damage to catalytic converter.

Be careful not to spill fuel containing

alcohol while refuelling. If fuel is

spilled on the vehicle body, wipe it up

immediately. Fuels containing alcohol

can cause paint damage, which is not

covered under New Vehicle Limited

Warranty.

The fuel tank has an air space to

allow for fuel expansion in hot

weather. If you continue to add fuel

after the filler nozzle has automatically

shut off or an initial blowback occurs,

the air chamber will become full.

Exposure to heat when fully fuelled in

this manner will result in leakage due

to fuel expansion. To prevent such

fuel leakage, stop filling after the filler

nozzle has automatically shut off, or

when using an alternative non

automatic system, initial vent

blowback occurs.

Petrol/Ethanol Blends

Blends of unleaded petrol and ethanol (grain

alcohol), also known as gasohol, are

commercially available in some areas.

Blends of this type may be used in your

vehicle if they are no more than 5% ethanol.

Make sure this petrol-ethanol blend has

octane ratings no lower than those

recommended for petrol.

Petrol/Methanol Blends

Blends of unleaded petrol and methanol

(wood alcohol) are also commercially

available in some areas. DO NOT USE

fuels containing more than 5% methanol

under any circumstances. Fuel system

damage or vehicle performance problems

resulting from the use of such fuels are not

the responsibility of MARUTI SUZUKI and

may not be covered under Warranty.

Fuels containing 5% or less methanol may

be suitable for use in your vehicle if they

contain cosolvents and corrosion inhibitors.

NOTE:

If you are not satisfied with the driveability

or fuel economy of your vehicle when you

are using a petrol/alcohol blend, you should

switch back to unleaded petrol containing no

alcohol.

CAUTION

76G-74E

Your vehicle comes with a pair of identical

keys. Keep the spare key in a safe place.

One key can open all of the locks on the

vehicle.

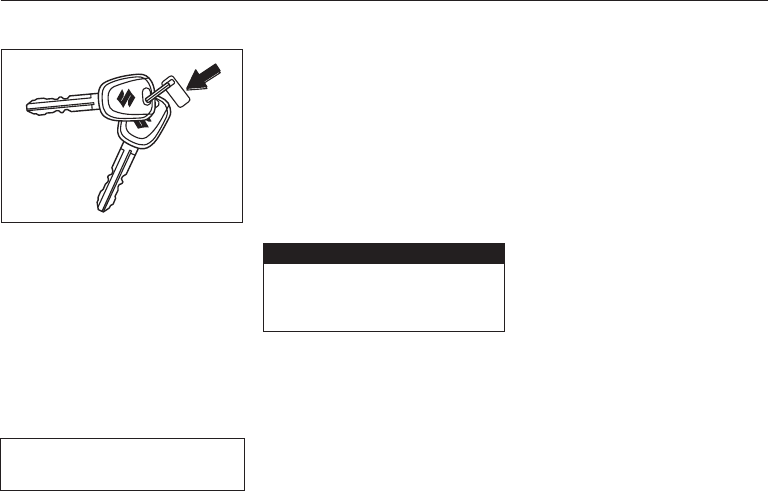

The key identification number is stamped on

a metal tag provided with the keys. Keep

the tag in a safe place. If you lose your

keys, you will need this number to have

new keys made. Write the number down

and keep it in a safe accessible place away

from the vehicle.

BEFORE DRIVING

3-2

w WARNING

• Do not use locally made key.

• Should you require a duplicate key,

place your order with a MARUTI

SUZUKI dealer only.

Note:

Keep the spare key very carefully. When it

is lost, consult your dealer by quoting key

number.

Immobilizer System

This system is designed to help prevent

vehicle theft by electronically disabling the

engine starting system.

The engine can be started only with your

vehicle’s original immobilizer ignition key

which has an electronic identification code

programmed into it. The key communicates

the identification code to the vehicle when

the key is turned to the “ON” position. If

you need to make spare keys, contact your

MARUTI SUZUKI dealer. The vehicle must

be programmed with the correct identifica-

tion code for the spare keys. A key made

by an ordinary locksmith will not work.

Key Number :

IMMOBILIZER KEYS

76G-03-002

76G-74E

3-3

CAUTION

In case of attaching any metal objects

to the immobilizer key, it may not

start the engine.

The immobilizer key is a sensitive

electronic instrument. To avoid

damaging the immobilizer key:

• Do not expose it to impacts,

moisture or high temperature such

as by leaving it on the dashboard

under direct sunlight.

• Keep the immobilizer key away from

magnetic objects.

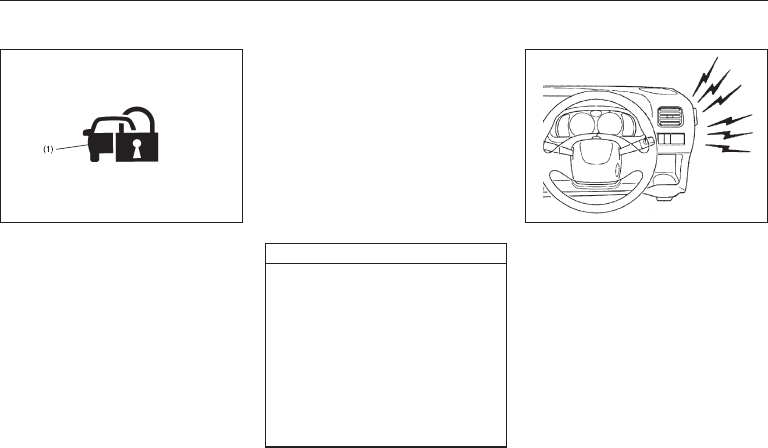

If the Immobilizer system light (1) blinks

when the ignition switch is in the “ON”

position, there may be something wrong

with your key or with the immobilizer sys-

tem. Contact your MARUTI SUZUKI dealer

to inspect the system.

Ignition Key Reminder (if equipped)

A buzzer sounds intermittently to remind

you to remove the ignition key if it is in the

ignition switch when the driver's doors is

opened.

BEFORE DRIVING

NOTE:

• If you lose your Immobilizer ignition key,

contact your MARUTI SUZUKI dealer as

soon as possible to have the lost one

deactivated, then have the new key

made by them.

• If you own other vehicles with

immobilizer keys, keep those keys away

from the ignition switch when using your

vehicle, or the engine may not be

started because they may interfere with

your vehicle’s immobilizer system.

76G-03-003 76G-03-004

76G-74E BEFORE DRIVING

3-4

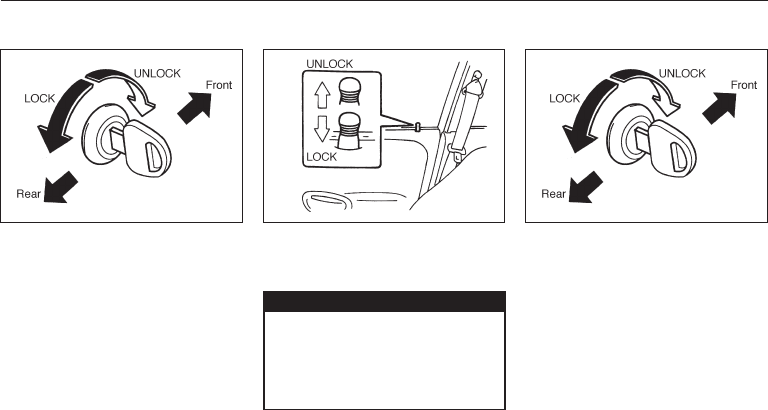

Central door locking system (if equipped)

You can lock and unlock all doors simultan-

eously by using the key in the driver’s door

lock.

To lock all doors simultaneously, insert the

key in the driver’s door lock and turn the

top of the key toward the rear of the

vehicle.

To unlock all doors simultaneously, insert

the key in a driver’s door lock and turn the

top of the key toward the front of the

vehicle.

You can also lock or unlock all the side

doors by pushing down or pulling up the

driver's door lock knob.

76G-03-007

Side Door Locks

To lock the driver's door from outside the vehicle:

a) Insert the key fully and turn the top of

the key toward the rear of the vehicle,

b) Push in the lock knob down and hold the

door handle up as you close the door.

To unlock the driver's door from outside the

vehicle, insert the key fully and turn the top

of the key toward the front of the vehicle.

To lock a front passenger’s door from

outside the vehicle, turn the lock knob

forward, then pull and hold the door handle

as you close the door.

To lock a rear door from outside the

vehicle, push in the lock knob down and

close the door.

To lock a door from inside the vehicle, push

the lock knob down. Pull the lock knob up

to unlock the door.

w WARNING

DOOR LOCKS

76G-03-005 76G-03-006

Always lock all doors when driving.

Locking the door prevents occupants

from being thrown from the vehicle

in the event of an accident. It also

helps prevent unintentional opening

of the doors.

76G-74E

NOTE:

• Moving the lock knob on passenger's

door locks or unlocks the passenger's

door only.

• Be sure to hold the door handle up

when you close a locked front door, or

the door will not remain locked.

w WARNING

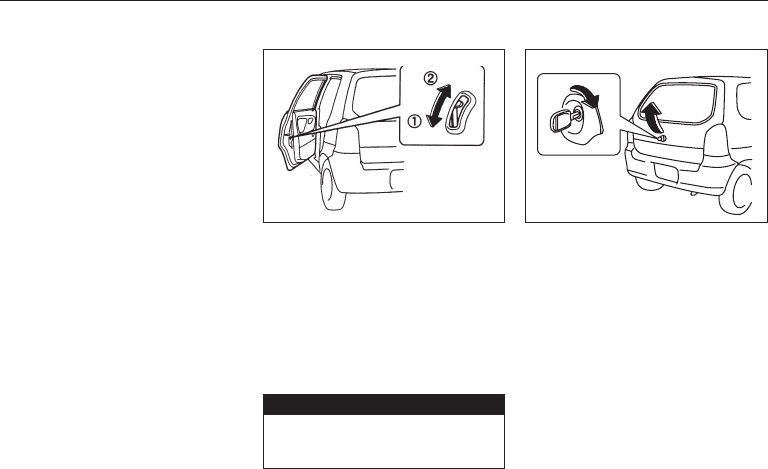

Child-Proof Locks (if equipped)

As illustrated, a child-proof lock is provided

for both rear doors. When the lock lever is

down, position 1, the child proof lock is

activated, and when up, in position 2 the

child-proof lock is deactivated, when the

child-proof lock is activated, the rear door

cannot be opened from the inside even if

the inside door lock is unlocked but can be

opened from the outside.

Be sure to place the child-proof lock

in the locked position whenever

children are seated in the rear.

Rearend Door Lock

To unlock the door, insert the key into the

lock knob and turn it clockwise.

76G-03-008 76G-03-009

TYPE-1 (ALTO)

EXAMPLE

3-5

BEFORE DRIVING

76G-74E BEFORE DRIVING

3-6

w WARNING

76G-03-009A

Always make sure that the rearend

door is closed and latched securely.

Closing the door completely helps to

prevent exhaust gases from entering

the vehicle. Completely closing the

rearend door also helps prevent

occupants from being thrown from the

vehicle in the event of an accident.

TYPE-2 (ALTO K10)

WINDOWS

Raise or lower the door windows by turning

the handle located on the door panel.

76G-03-011

Electric window controls (if equipped)

The driver’s door has switches 1 & 2 to

operate the driver’s window and front

passenger’s window respectively.

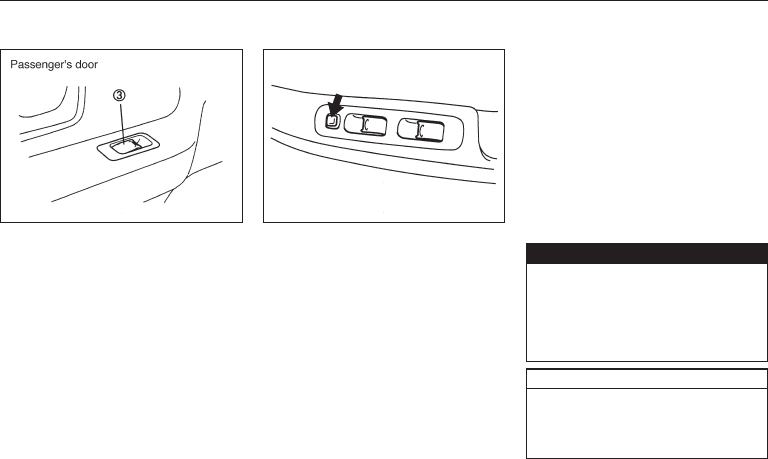

The passenger’s door only has a switch 3

to operate the passenger’s window. The

electric windows can only be operated when

the ignition switch is in the “ON” position.

To open a window with the driver's door

switches, push the top part of the switch

and to close the window lift up the top part

of the switch.

76G-03-012

76G-74E

The driver’s window has an “auto-down”

feature for added convenience (at toll

booths or drive-through restaurants, for

example). This means you can open the

window without holding the window switch

in the “Down” position. Press the driver’s

window switch completely down and release

it. To stop the window before it reaches the

bottom, lift up the switch briefly.

To open or to close a window with the

passenger's door switch, push the top part

of the switch or lift up the top part of the

switch respectively.

76G-03-013

3-7

BEFORE DRIVING

The driver’s door also has a lock switch for

the passenger’s window. When you push in

the lock switch, the passenger’s window

can not be raised or lowered by operating

either of the switches 2 or 3. To restore

normal operation, push the switch again.

76G-03-014

w WARNING

You should always push in the lock

switch when there are children in the

vehicle. Children can be seriously

injured if they get part of their body

caught by the window during

operation.

Since the electric windows consumes

a large amount of electricity, the same

should not be used excessively with

engine in “OFF” condition.

CAUTION

76G-74E BEFORE DRIVING

3-8

MIRRORS

Inside Rearview Mirror

To adjust the inside rearview mirror, move

the mirror up, down, or sideways to obtain

the best view.

76G-03-015

Outside Rearview Mirrors

Adjust the outside rearview mirrors (with the

help of control lever, if equipped), so that

you can just see the side of your vehicle

in the mirrors.

Be careful when judging the size or

distance of a vehicle or other object

seen in the side convex mirror (if

equipped). Be aware that objects look

smaller and appear farther away than

when seen in a flat mirror.

w WARNING

76G-03-017 76G-03-017A

TYPE-1 (ALTO) TYPE-2 (ALTO K10)

76G-74E

3-9

BEFORE DRIVING

FRONT SEAT ADJUSTMENT

76G-03-018

TYPE-1 (ALTO)

76G-03-018A

TYPE-2 (ALTO K10)

ADJUSTING SEAT POSITION

76G-03-019A

76G-03-019B

TYPE-1 (ALTO)

TYPE-2 (ALTO K10)

Never attempt to adjust the driver’s

seat or seatback while driving. The

seat or seatback could move

unexpectedly, causing loss of control.

Make sure that the driver’s seat and

seatback are properly adjusted before

you start driving.

w WARNING

76G-74E BEFORE DRIVING

3-10

The adjustment lever for each front seat is

located under the front of the seat. To

adjust the seat position, pull up on the

adjustment lever and slide the seat forward

or rearward. After adjustment, try to move

the seat forward and rearward to ensure

that it is securely latched.

w WARNING

To avoid excessive seat belt slack,

which reduces the effectiveness of the

seat belts as a safety device, make

sure that the seats are adjusted

before the seat belts are fastened.

Seatbacks should always be in an

upright position when driving, or seat

belt effectiveness may be reduced.

Seat belts are designed to offer

maximum protection when seatbacks

are in the fully upright position.

Front Seats

The seatbacks can be adjusted to different

angles. To adjust the seatback angle, pull

up the lever on the outboard side of the

seat, move the seatback to the desired

position, and release the lever to lock the

seatback in place.

w WARNING

76G-03-022

76G-03-023

TYPE-1 (ALTO)

TYPE-2 (ALTO K10)

ADJUSTING SEATBACKS

76G-74E

BEFORE DRIVING

3-11

Seat belts are good help to protect

occupants from injury or death in the

event of accidents. We urge you to

wear seat belts at all times if the belts

are equipped. If seat belts are not

equipped at the rear seating positions,

we recommend you to install optional

or after market high quality seat belts

to increase occupant's safety.

SEAT BELTS

w WARNING

76G-03-026

• Never allow persons to ride in the

cargo area of a vehicle. In the event

of an accident, there is a much

greater risk of injury for persons

who are not riding in a seat with

their seat belt securely fastened.

• Seat belts should always be

adjusted so the lap portion of the

belt is worn low across the pelvis,

not across the waist. Shoulder

straps should be worn on the

outside shoulder only, and never

under the arm. Seat belts should

never be worn with the straps

twisted and should be adjusted as

w WARNING

76G-03-027

tightly as is comfortable to provide

the protection for which they have

been designed. A slack belt will

provide less protection than one

which is snug.

• Make sure that each seat belt buckle

is inserted into the proper buckle

catch.

• Do not wear your seat belt over

hard or breakable objects in your

pockets or on your clothing. If an

accident occurs, objects such as

glasses, pens, etc. under the seat

belt can cause injury.

w WARNING

76G-03-028

76G-74E BEFORE DRIVING

3-12

• Never use the same seat belt on

more than one occupant and never

attach a seat belt over an infant or

child being held on an occupant’s

lap. Such seat belt use could cause

serious injury in the event of an

accident.

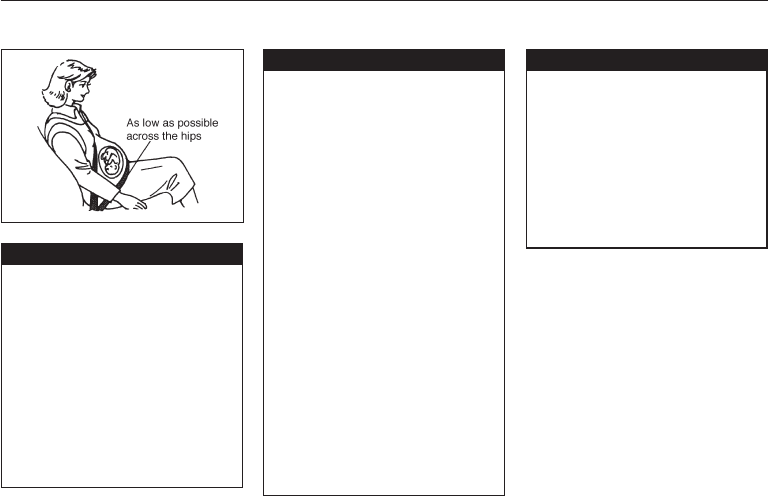

• Pregnant women should use seat

belts, although specific recommen-

dations about restraint use should

be made by the woman’s medical

advisor. Remember that the lap

portion of the belt should be worn

as low as possible across the hips,

as shown in the diagram.

w WARNING

76G-03-029

• Periodically inspect seat belt

assemblies for excessive wear and

damage. Seat belts should be

replaced if webbing becomes frayed,

contaminated, or damaged in any

way. It is essential to replace the

entire seat belt assembly after it has

been stressed in an impact, even if

damage to the assembly is not

obvious.

• Infants and small children should

never be transported unless they are

properly restrained. Restraint

systems for infants and small

children can be purchased locally

and should be used. Make sure that

the system you purchase meets

applicable safety standards. Read

and follow all the directions

provided by the manufacturer.

• Avoid contamination of seat belt

webbing by polishes, oils,

chemicals, and particularly battery

acid. Cleaning may safely be carried

out using mild soap and water.

• For children, if the shoulder belt

irritates the neck or face, move the

child closer to the center of the

vehicle.

w WARNING

Be sure to inspect all seat belt

assemblies after any collision. Any

seat belt assembly which was in use

during a collision (other than a very

minor one) should be replaced, even

if damage to the assembly is not

obvious. Any seat belt assembly

which was not in use during a

collision should be replaced if it does

not function properly or is damaged

in any way.

w WARNING

76G-74E

BEFORE DRIVING

3-13

76G-03-031

76G-03-032

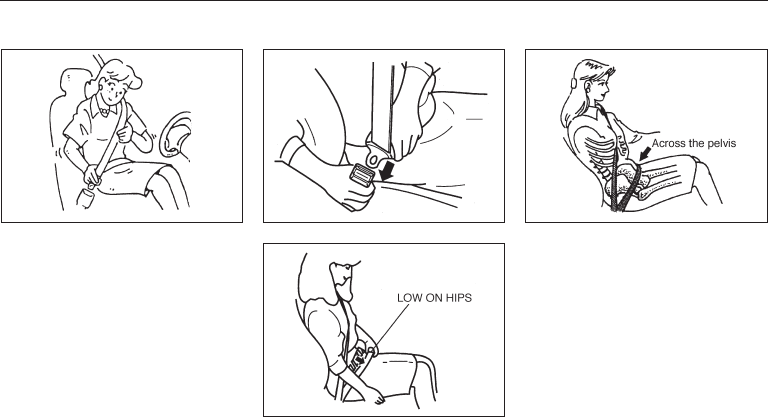

To reduce the risk of sliding under the belt

during a collision, position the lap portion

of the belt across your lap as low on your

hips as possible and adjust the belt to a

snug fit using the proper method for each

type of the belt as described below. Make

sure that the belt is not twisted.

76G-03-033

To fasten the seat belt, sit up straight and

well back in the seat, pull the buckle tongue

attached to the seat belt across your body

and slide it into the buckle catch on the

opposite side until you hear a “click”.

76G-03-030

76G-74E BEFORE DRIVING

3-14

w WARNING

To Adjust the Belt

• Pull the shoulder portion of the belt

upwards through the tongue plate.

The length of the diagonal shoulder strap

adjusts itself to allow freedom of movement.

The seat belt has an emergency locking

retractor (ELR), which is designed to lock

the seat belt only during a sudden stop or

impact.

No modifications or additions of any

sort should be made to the seat belt

or its operating mechanism.

76G-03-035

Seat Belt Inspection

Periodically inspect the seat belts to make

sure they work properly and are not

damaged. Check the webbing, buckles, latch

plates, retractors, anchorages and guide

loops. Replace any seat belts which do not

work properly or are damaged.

76G-03-036

To unfasten the belt, press the release

button on the buckle catch.

76G-03-034

76G-74E

BEFORE DRIVING

3-15

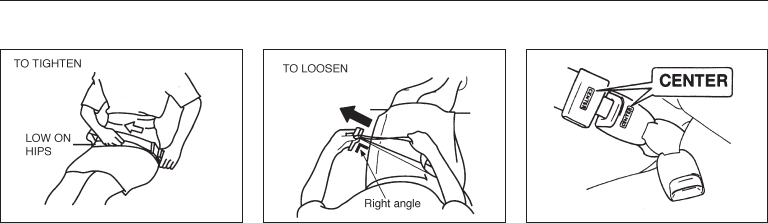

To lengthen, release the tounge from the

buckle unit, pull the tounge (adjuster) in

the direction of the arrow, at right angles

to the belt. The tounge should then be

refitted into the buckle unit and the belt

tightened as previously described.

76G-03-038

NOTE:

To identify the center seat belt buckle catch

and tongue in the rear seat, "CENTER" is

moulded on the buckle catch and tongue of

the center lap belt. The buckle catches are

designed so a buckle tongue can not be

inserted into the wrong buckle catch.

76G-03-039

On this belt the adjuster is incorporated in

the tounge unit.

To tighten the belt, pull the free end of

the belt across alongside the lap strap

until it is adjusted to a snug comfortable

position.

LAP BELT (if equipped)

76G-03-037

76G-74E

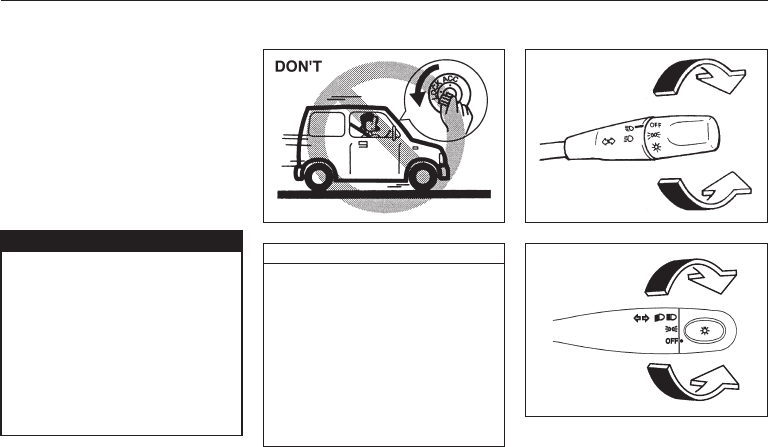

STEERING COLUMN CONTROLS

Ignition Switch .................................................................................................... 4-1

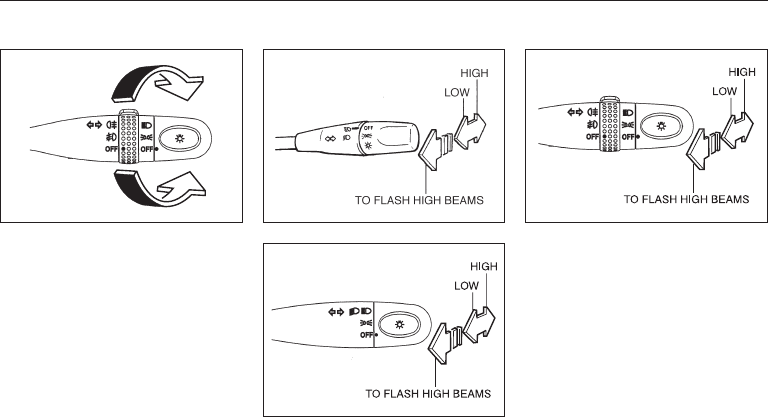

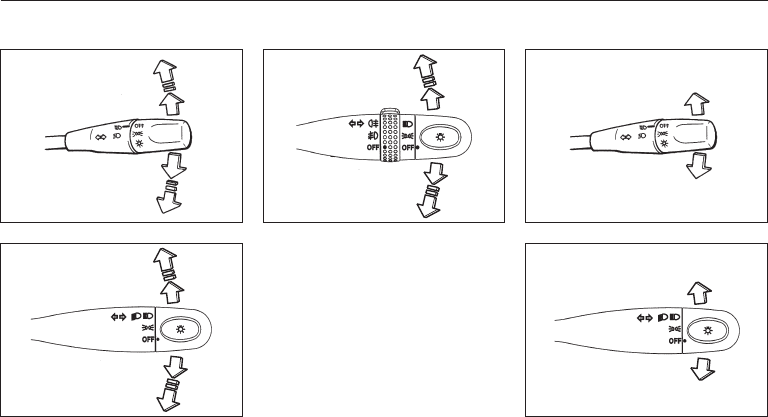

Lighting/Turn Signal Control Lever ................................................................ 4-2

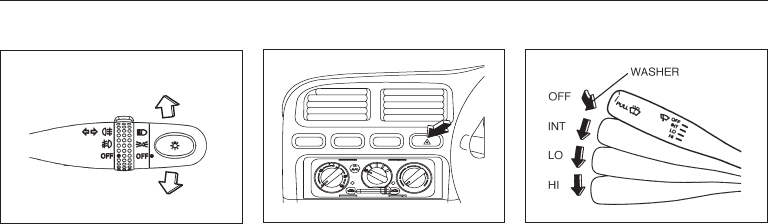

Hazard Warning Switch .................................................................................... 4-5

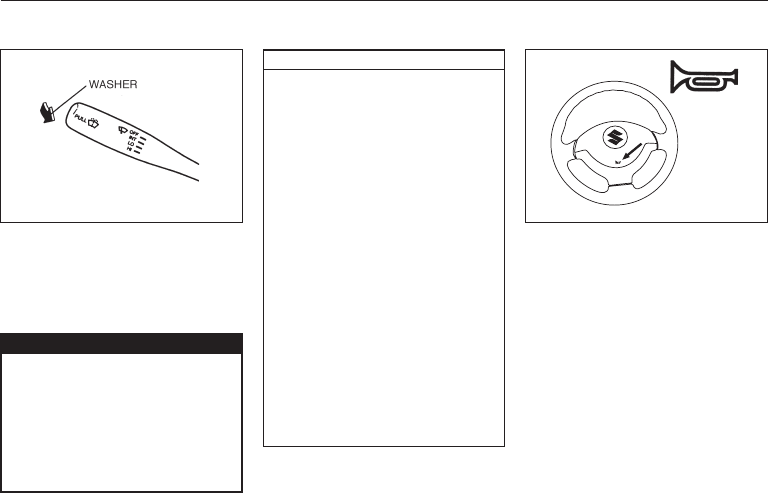

Windscreen Wiper and Washer Lever .......................................................... 4-5

Horn ....................................................................................................................... 4-6

Electrical Power Steering (if equipped) ........................................................ 4-7

76G-74E

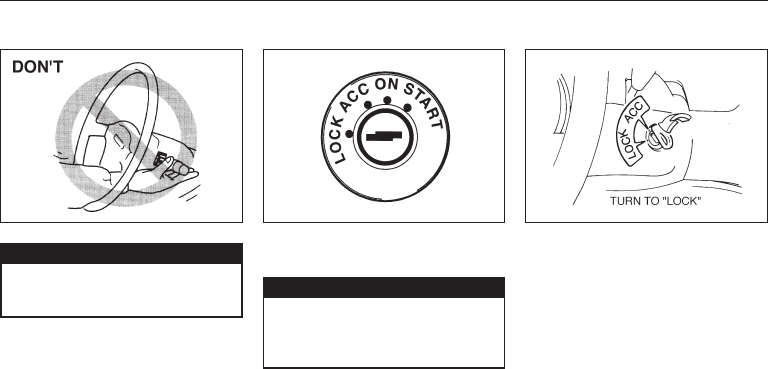

IGNITION SWITCH

The ignition switch has the following four

positions:

• Do not use any locally made key.

• Should you require duplicate key,

place your order with MARUTI

SUZUKI dealer only.

LOCK

This is the normal parking position. It is the

only position in which the key can be

removed.

The “LOCK” position locks the ignition, and

prevents normal use of the steering wheel

after the key is removed.

To release the steering lock, fully insert the

key and turn it clockwise to one of the other

positions. If you have trouble turning the

key to unlock the steering, try turning the

steering wheel slightly to the right or left

while turning the key.

To avoid possible injury, do not operate

controls by reaching through the steering

wheel.

STEERING COLUMN CONTROLS

w WARNING

4-1

76G-04-001 76G-04-00376G-04-002

76G-74E

• Do not use the starter motor for

more than 15 seconds at a time. If

the engine does not start; wait 15

seconds before trying again. If the

engine does not start after several

attempts, check the fuel and ignition

systems or consult your MARUTI

SUZUKI dealer.

• Do not leave the ignition switch in

the “ON” position if the engine is

not running as the battery will

discharge.

LIGHTING/TURN SIGNAL

CONTROL LEVER

STEERING COLUMN CONTROLS

ACC

Accessories such as the radio can operate,

but the engine is off.

This is the normal operating position. All

electrical systems are on.

START

This is the position for starting the engine

using the starter motor. The key should be

released from this position as soon as the

engine starts.

• Never remove the ignition key while

the vehicle is moving. The steering

wheel will lock and you will not be

able to steer the vehicle.

• Do not leave children alone in a

parked vehicle. Unattended children

could cause accidental movement of

the vehicle, which could result in

severe personal injury.

• Always remove the key when parked

to prevent unintentional operation of

the vehicle and to improve security.

w WARNING CAUTION

4-2

76G-04-00576G-04-004

ALTO

76G-04-005A

ALTO K10 TYPE-1

76G-74E

STEERING COLUMN CONTROLS

4-3

76G-04-005B

With the headlights on, push the lever

forward to switch to the high beams (main

beams) or pull the lever toward you to

switch to the low beams. When the high

beams (main beams) are on, a light on the

instrument panel will come on. To flash the

high beams (main beams) pull the lever

slightly towards you and release it.

76G-04-006

ALTO K10 TYPE-2

76G-04-006A

76G-04-006B

ALTO K10 TYPE-1

ALTO K10 TYPE-2

ALTO

This control lever is located on the outboard

side of the steering column. Operate the

lever as described below.

Lighting Operation

To turn the lights on or off, twist the knob

on the end of the lever. There are three

positions: in the “OFF” position all lights are

off; in the middle position the front parking

lights, tail-lights, registration plate light, and

instrument lights are on, but the headlights

are off; in the third position the headlights

come on in addition to the other lights.

76G-74E STEERING COLUMN CONTROLS

Turn Signal Operation

With the ignition switch in the “ON” position,

move the lever up or down to activate the

left or right turn signals.

Normal Turn Signal

Move the lever clockwise until it clicks to

signal a right turn or anticlockwise to signal

a left turn. When the turn is completed, the

signal will cancel and the lever will return

to its normal position.

4-4

76G-04-00876G-04-007

76G-04-007A

76G-04-007B

ALTO K10 TYPE-1

ALTO K10 TYPE-2

ALTO ALTO

76G-04-008A

ALTO K10 TYPE-1

76G-74E

STEERING COLUMN CONTROLS

WINDSCREEN WIPER AND

WASHER LEVER

Windscreen Wipers

To turn the windscreen wipers on, move the

lever down to one of the three operating

positions. In the “INT” position, (if equipped)

the wipers operate intermittently. The “INT”

position is very convenient for driving in mist

or light rain. In the “LO” position the wipers

operate at a steady low speed. In the “HI”

position, the wipers operate at a steady high

speed. To turn off the wipers, move the

lever back to the “OFF” position.

4-5

HAZARD WARNING SWITCH

Push in the marked part of the hazard

warning switch to activate the hazard

warning lights. All four turn signal lights and

both turn signal indicators will flash

simultaneously. To turn off the lights, push

the switch once again.

Use the hazard warning lights to warn other

traffic during emergency parking or when

your vehicle could otherwise become a

traffic hazard.

76G-04-009 76G-04-010

76G-04-008B

ALTO K10 TYPE-2

Lane Change Signal

Some times, such as when changing lanes,

the steering wheel is not turned far enough

to cancel the turn signal. For convenience,

you can flash the turn signal by moving the

lever part way and holding it there. The

lever will return to its normal position when

you release it.

76G-74E STEERING COLUMN CONTROLS

HORN

To prevent damage to the windscreen

wiper and washer system components,

you should take the following

precautions:

• Do not continue to hold in the lever

when there is no windscreen washer

fluid being sprayed or the washer

motor can be damaged.

• Do not attempt to remove dirt from

a dry windscreen with the wipers or

you can damage the windscreen and

the wiper blades. Always wet the

windscreen with washer fluid before

operating the wipers.

• Clear ice or packed snow from the

wiper blades before using the

wipers.

• Check the washer fluid level

regularly. Check it often when the

weather is bad.

• Only fill the washer fluid reservoir

3/4 full during cold weather to allow

room for expansion if the

temperature falls low enough to

freeze the solution.

Press the horn button of the steering wheel

to sound the horn. The horn will sound with

the ignition switch in any position.

CAUTION

4-6

76G-04-012

Windscreen Washer

To spray windscreen washer fluid, pull the

lever toward you. The windscreen wipers

will automatically turn on at low speed if

they are not already on and the "INT"

position is equipped.

• To prevent windscreen icing in cold

weather, turn on the defroster to heat

the windscreen before and during

windscreen washer use.

• Do not use radiator antifreeze in the

windscreen washer reservoir. It can

severely impair visibility when

sprayed on the windscreen, and can

also damage your vehicle’s paint.

w WARNING

76G-04-011

EXAMPLE

76G-74E

STEERING COLUMN CONTROLS

4-7

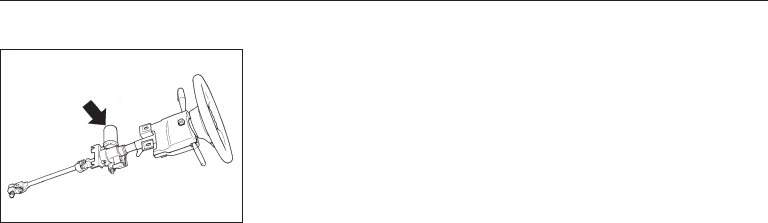

ELECTRIC POWER STEERING

(If equipped)

Depending on specifications, your vehicle is

equipped with electric power steering

system to reduce the steering effort while

driving.

76G-04-013

76G-74E

INSTRUMENT PANEL

Instrument Panel ................................................................................................ 5-1

Instrument Cluster ............................................................................................. 5-2

Warning and Indicator Lights ......................................................................... 5-4

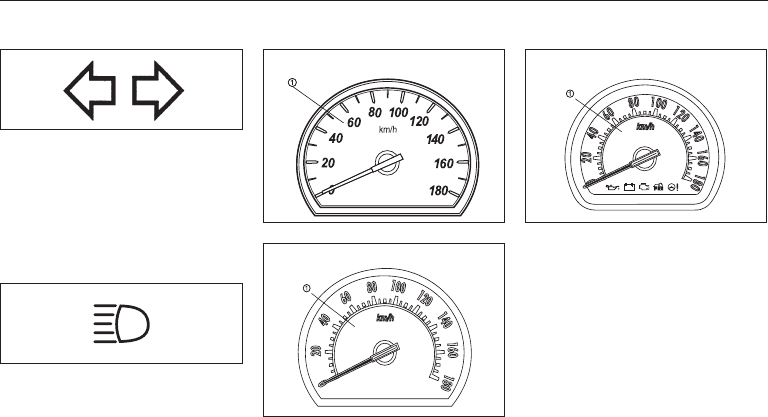

Speedometer ........................................................................................................ 5-7

Odometer/Tripmeter ............................................................................................ 5-8

Tachometer (if equipped) ................................................................................. 5-9

Fuel Gauge .......................................................................................................... 5-9

High Engine Coolant Temperature Warning Light (Red Color) .............. 5-9

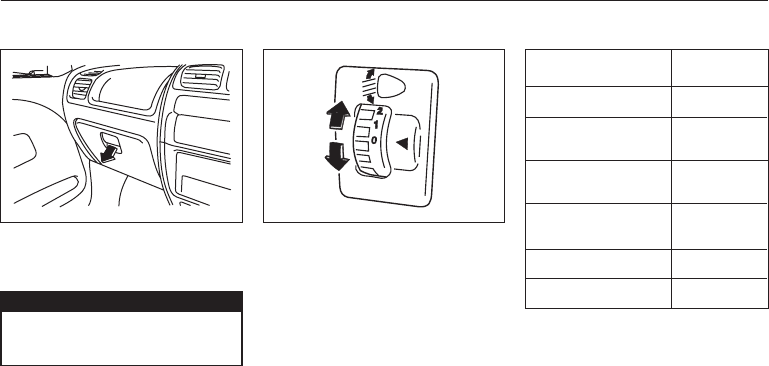

Glove Box .......................................................................................................... 5-10

Head Light Leveling Switch .......................................................................... 5-10

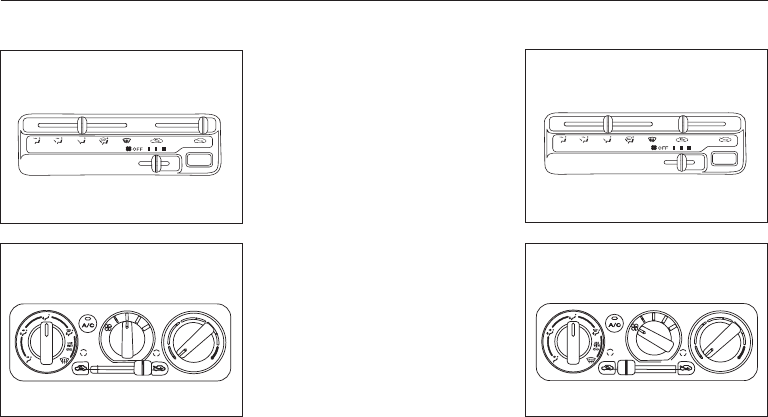

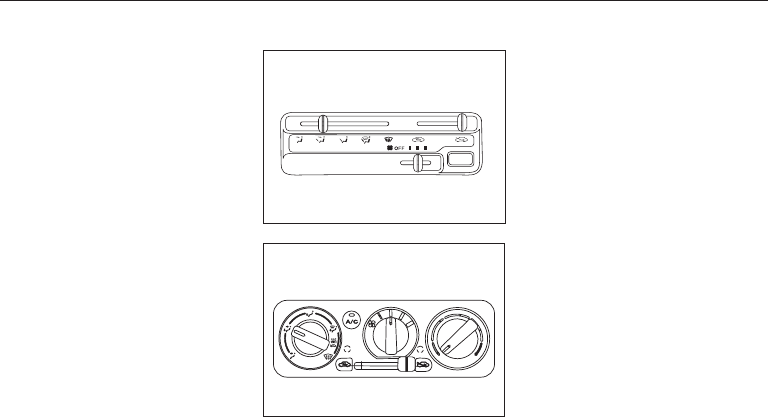

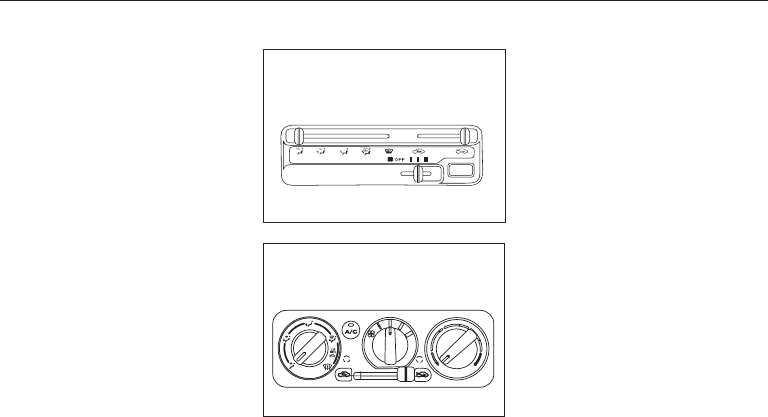

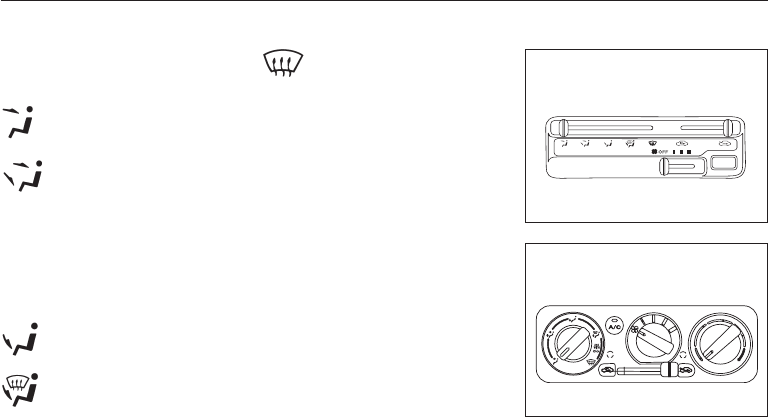

Heating System (if equipped)........................................................................ 5-11

System Operating Instructions ...................................................................... 5-12

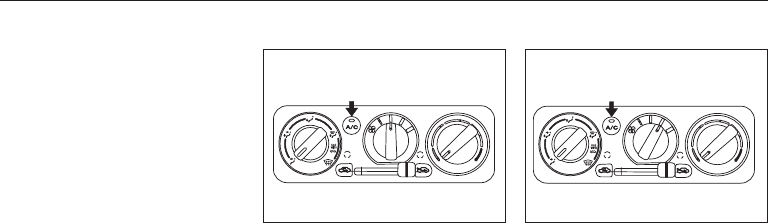

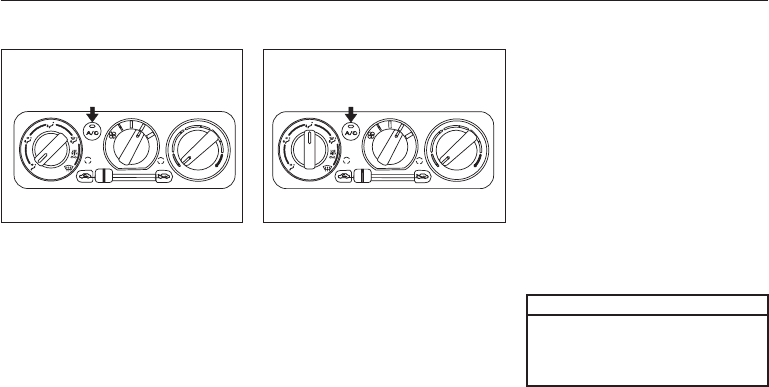

Air Conditioning System (if equipped) ....................................................... 5-17

System Operating Instructions ...................................................................... 5-17

76G-74E

INSTRUMENT PANEL

1. Instrument cluster

2. Ignition switch

3. Lighting switch/Turn signal and

dimmer switch

4. Windscreen wiper and washer switch

5. Hazard warning switch

6. Other switches (if equipped)

7. Heater control panel (if equipped)

8. Ashtray (if equipped)

9. Bonnet release (if equipped)

10. Center ventilator

11. Side ventilator

12. Side defroster

13. Glove box

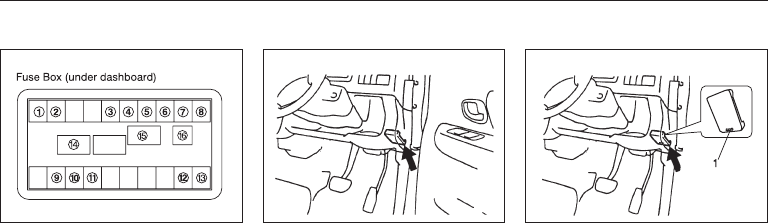

14. Fuse box

5-1

INSTRUMENT PANEL

76G-05-001

76G-05-002

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

76G-74E INSTRUMENT PANEL

1Speedometer

2Odometer/Trip meter

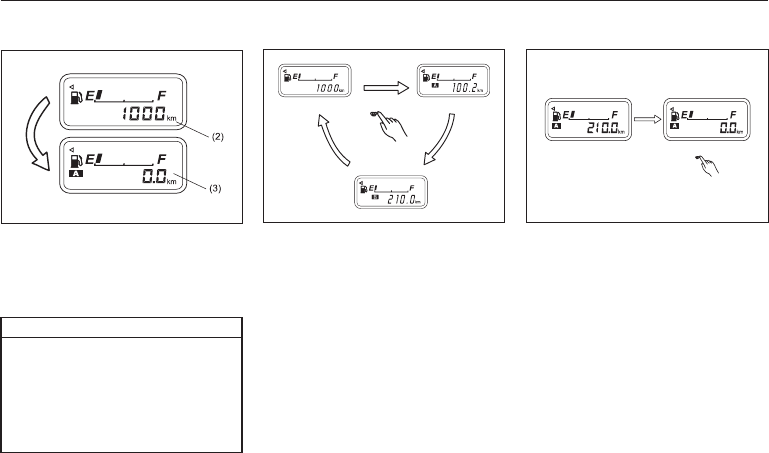

3Odometer/Trip meter selector knob

4Fuel gauge

5High Temperature Coolant warning lamp

6Warning and indicator lights

5-2

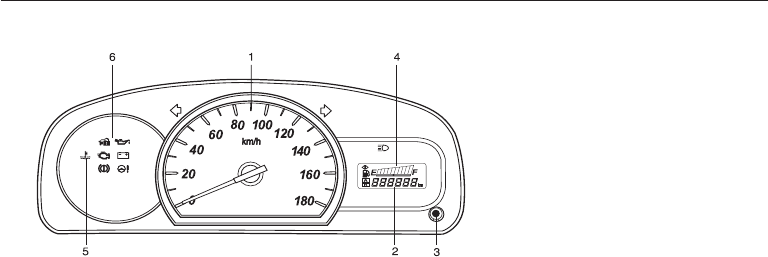

INSTRUMENT CLUSTER (ALTO)

76G-05-003

76G-74E

1Speedometer

2Odometer/Trip meter

3Odometer/Trip meter selector knob

4Tachometer (if equipped)

5Fuel gauge

6High Temperature Coolant warning lamp

7Warning and indicator lights

INSTRUMENT CLUSTER (ALTO K10)

76G-05-004

76G-05-004A

TYPE-2

TYPE-1

INSTRUMENT PANEL

5-3

76G-74E

WARNING AND INDICATOR LIGHTS

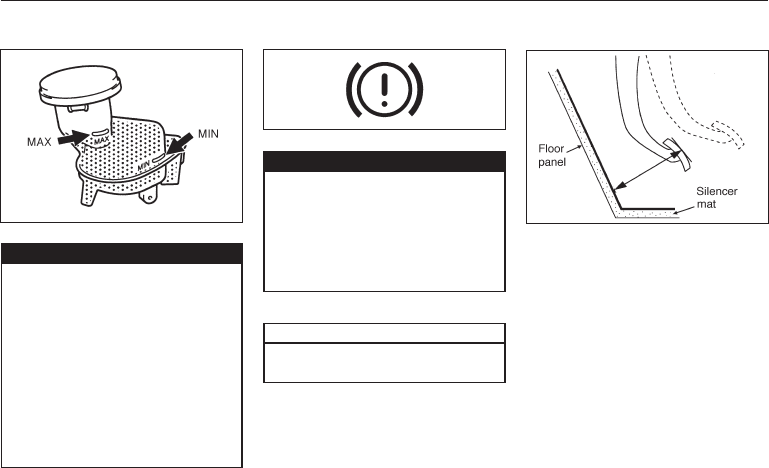

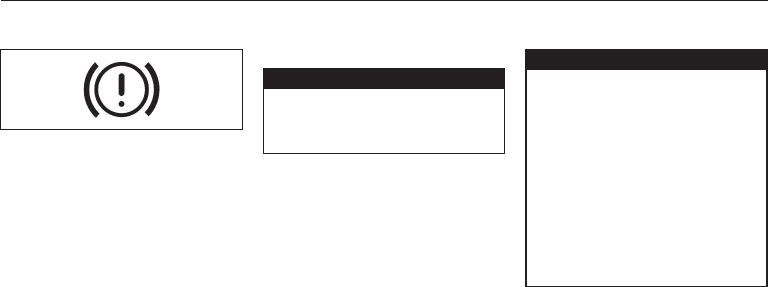

Brake fluid level warning/Parking Brake

Indicator light

This light operates under three different type

of operations :

1) The light comes on briefly when the

ignition switch is turned to the “ON” postion.

2) The light comes on when the parking

brake is engaged with the ignition switch in

the “ON” position.

3) The light comes on when the fluid in the

brake fluid reservoir falls below the

adequate level.

The light should go out after starting the

engine and fully releasing the parking brake,

if the fluid level in the brake fluid resevoir

is adequate.

If the light does not go off or comes on

whilst your driving, it may mean that there

is something wrong with the vehicle's

braking system. If this happens, you should:

1) Pull off the road and stop carefully.

Remember that stopping distance may

be longer, you may have to push harder

on the pedal, and the pedal may go

down farther than normal.

2) Test the brakes by carefully starting and

stopping at the side of the road.

3) If you determine that it is safe, drive

carefully at low speed to the nearest

dealer for repairs. or

4) Have the vehicle towed to the nearest

dealer for repairs.

INSTRUMENT PANEL

w WARNING

5-4

NOTE:

Because the disc brake system is self

adjusting, the fluid level will drop as the

brake pads become worn.

Replenishing the brake fluid reservoir is

considered normal periodic maintenance.

76G-05-005

If any of the following conditions occur,

you should immediately ask your

MARUTI SUZUKI dealer to inspect the

brake system.

• If the brake fluid level warning light

does not go out after the engine has

been started and the parking brake

has been fully released.

• If the brake fluid level warning light

does not come on when the ignition

switch is turned to the “ON” position

with the parking brake applied.

• If the brake fluid level warning light

comes on at any time during vehicle

operation.

76G-74E

INSTRUMENT PANEL

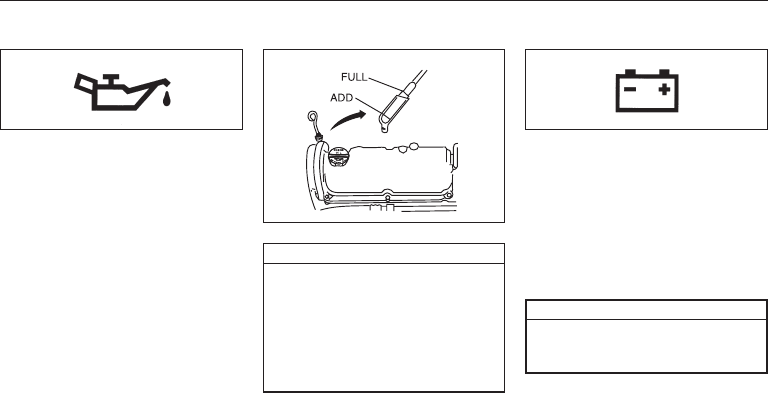

• If you operate the engine with this

light on, severe engine damage can

result.

• Do not rely on the Oil Pressure

Light to indicate the need to add oil.

Be sure to periodically check the

engine oil level (see section

"INSPECTION & MANINTENANCE").

5-5

CAUTION

Charging Light

This light comes on when the ignition switch

is turned on, and goes out when the engine

is started. The light will come on and

remain on if there is something wrong with

the battery charging system. If the light

comes on when the engine is running, the

charging system should be inspected

immediately by your MARUTI SUZUKI

dealer.

Do not continue driving long with the

charging light ON as this will drain the

battery 'dead'.

CAUTION

76G-05-007

76G-05-008

EXAMPLE

Oil Pressure Light

This light comes on when the ignition switch

is turned on, and goes out when the engine

is started. The light will come on and

remain on if there is insufficient oil pressure.

If the light comes on when driving, pull off

the road as soon as you can and stop the

engine. Check the oil level and add oil if

necessary (see section "INSPECTION &

MAINTENANCE"). If there is enough oil, the

lubrication system should be inspected by

your MARUTI SUZUKI dealer before you

drive the vehicle again.

76G-05-006

76G-74E INSTRUMENT PANEL

5-6

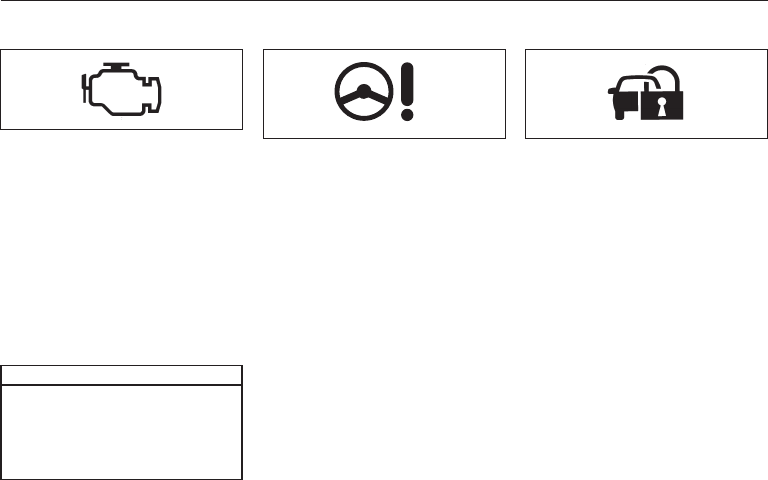

Immobilizer System Light

When the ignition switch is turned to the

“ON” position, this light comes on to let you

know the light is working. If this light blinks

with the ignition switch turned to “ON”, there

may be something wrong with the immobi-

lizer system. Contact your MARUTI SUZUKI

dealer to have the system inspected.

76G-05-010

Electric Power Steering Light

(if equipped)

This light comes on when the ignition switch

is turned to the “ON” position, and goes out

when the engine is started.

If this light comes on while driving, the

power steering system may not work prop-

erly. Have the system inspected by your

MARUTI SUZUKI Authorized workshop.

NOTE:

If the power steering system does not work

properly, you will feel heavier to steer but

you still will be able to steer.

76G-05-009A

“Malfunction Indicator” Light

Your vehicle has a computer-controlled

emission control system. A “Malfunction

Indicator” light is provided on the instrument

panel to indicate when it is necessary to

have the emission control system serviced.

The “Malfunction Indicator” light comes on

when the ignition switch is turned to “ON”

and goes out when the engine is started.

If the “Malfunction Indicator” light comes on

when the engine is running, there is a

problem with the emission control system.

Take the vehicle to your MARUTI SUZUKI

dealer to have the problem corrected.

Continuing to drive the vehicle when

the “Malfunction Indicator” light is on

can cause permanent damage to the

vehicle’s emission control system, and

can affect fuel economy and

driveability.

CAUTION

76G-05-009

76G-74E

INSTRUMENT PANEL

5-7

76G-05-013A

76G-05-013B

SPEEDOMETER

The speedometer (1) indicates vehicle

speed in km/h.

76G-05-013

ALTO K10 TYPE-1

ALTO K10 TYPE-2

ALTO

Turn Signal Indicators

When you turn on the left or right turn

signals, the corresponding green arrow on

the instrument panel will flash along with the

respective turn signal lights. When you turn

on the hazard warning switch, both arrows

will flash along with all of the turn signal

lights.

Main Beam (High Beam) Indicator Light

This indicator comes on when headlight

main beams (high beams) are turned on.

76G-05-011

76G-05-012

76G-74E INSTRUMENT PANEL

5-8

Push the selector knob for a little while

(about 2 seconds) to reset the trip meter

to zero.

76G-05-016

When the ignition switch is turned to "ON"

the display shows the odometer or trip

meter.

The display shows three types of indication;

odometer, trip meter A and/or trip meter B.

Push the selector knob quickly to switch the

indication among the three.

You can use the two trip meters (A and B)

independently.

76G-05-015

76G-05-014

ODOMETER/TRIPMETER

The odometer (2) records the total distance

the vehicle has been driven. The trip meter

(3) can be used to measure the distance

travelled on short trips or between fuel

stops.

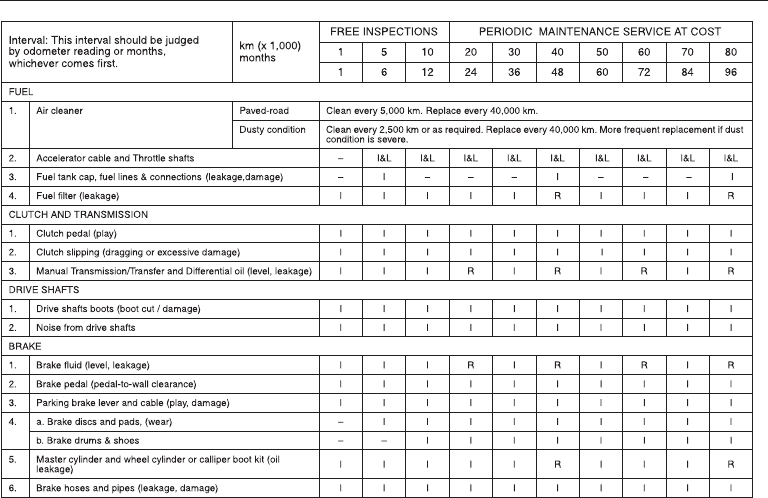

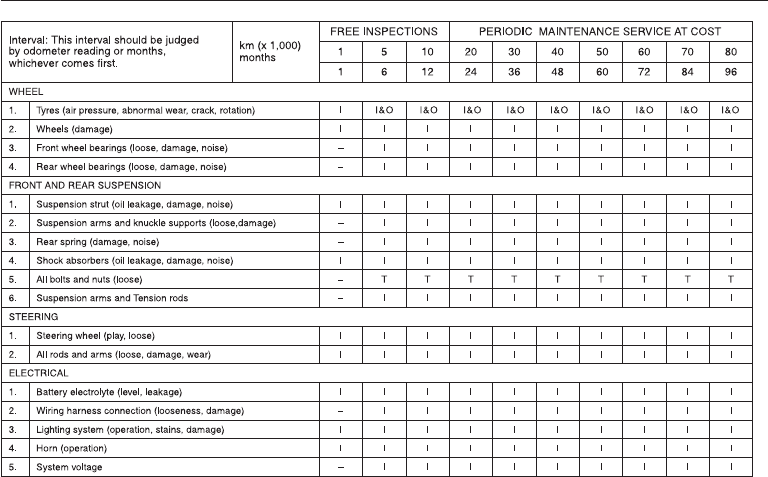

Keep track of your odometer reading

and check the maintenance schedule

regularly for required services.

Increased wear or damage to certain

parts can result from failure to

perform required services at the

proper mileage intervals.

CAUTION

76G-74E

INSTRUMENT PANEL

5-9

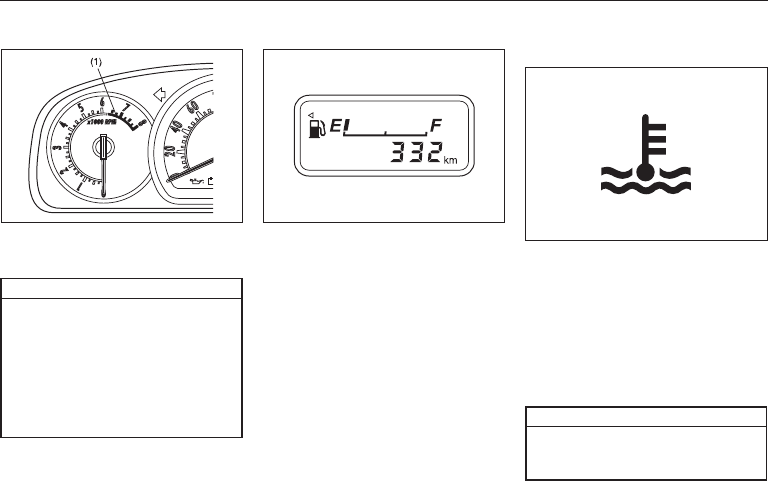

HIGH ENGINE COOLANT

TEMPERATURE WARNING

LIGHT (Red Color)

When the ignition switch is turned to the

“ON” position, this light comes on briefly so

you can check that the light is working. If

this light blinks while driving, it means the

engine is running hot. Avoid driving condi-

tions that may lead to actual overheating.

If the light stays on without blinking, then

the engine is overheating. Follow the in-

structions in the “If the Engine Over heats”

of “EMERGENCY SERVICE” section.

Continuing to drive the vehicle when

engine overheating is indicated can

result in severe engine damage.

CAUTION

76G-05-019

FUEL GAUGE

When the ignition switch is in the “ON”

position, this gauge gives an approximate

indication of the amount of fuel in the fuel

tank. “F” stands for full and “E” stands for

empty.

When the fuel meter indicator shows only

one segment to “E”, refill the tank as soon

as possible.

Note:

If the last segment blinks, it means that the

fuel tank is almost empty.

Note:

The fuel level indicator varies depending on

road conditions (for example, slope or

curve) and driving conditions because of

fuel moving in the tank.

76G-05-018

The tachometer indicates engine speed

in revolutions per minute.

76G-05-013C

Never drive with the engine speed in-

dicator in the red zone (1) or severe

engine damage can result.

When downshifting to a lower gear,

make sure not to operate with exces-

sive revolution speeds of the engine.

Refer to “Downshifting maximum allow-

able speeds” in the “OPERATING

YOUR VEHICLE” section.

CAUTION

TACHOMETER (if equipped)

76G-74E INSTRUMENT PANEL

5-10

Vehicle load Switch Position

Condition

Driver only 0

Driver + 1 passenger 0

(in front seat)

Driver + 3 passenger 1

No cargo

Driver + 3 passenger 2

Cargo added

Driver + full cargo 3

Dummy 4

Level the headlight beam according to the

load condition of your vehicle by turning this

switch. The chart shows the appropriate

switch position for different vehicle-load

conditions.

HEADLIGHT LEVELING SWITCH

76G-05-023

To open the glove box, pull the latch lever.

To close it, push the lid until it latches

securely.

Never drive with the glove box lid

open. It could cause injury if an

accident occurs.

w WARNING

76G-05-022

GLOVE BOX

76G-74E

INSTRUMENT PANEL

HEATING SYSTEM (if equipped)

5-11

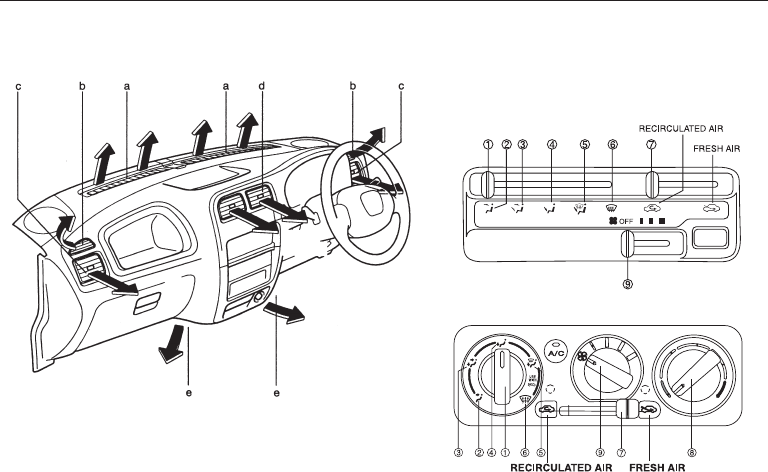

a. Windscreen defroster outlet

b. Side defroster outlet

c. Side outlet

d. Center outlet

e. Floor outlet

The heating system provides heating,

demisting, and ventilation.

76G-05-024

76G-05-025

76G-05-026

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

76G-74E INSTRUMENT PANEL

Description of Controls (if equipped)

Function Lever/Knob 1: This lever/knob is

used to select one of the functions

described below:

VENTILATION 2: Temperature-

controlled air comes out of the

center and side air outlets.

BI-LEVEL 3: Temperature-

controlled air comes out of the

floor outlets and cooler air comes

out of the center and side outlets.

When the temperature control

lever is in the fully “COOL”

position or fully “HOT” position,

however, the air from the floor

outlets and the air from the center

and side outlets will be the same

temperature.

HEAT 4: Temperature-controlled

air comes out of the floor outlets.

HEAT & DEFROST 5: Temp-

erature-controlled air comes out of

the floor outlets, the windscreen

defroster outlets, and the side

defroster outlets.

DEFROST 6: Temperature-

controlled air comes out of the

windscreen defroster outlets and

the side defroster outlets.

Air Intake Lever/Knob 7: This lever/knob

is used to select between circulating outside

air (FRESH AIR) or recirculating inside air

(RECIRCULATED AIR).

Temperature Control Lever/Knob 8:

(if equipped) This lever /knob is used to

control the temperature of the air that

comes out of the air outlets.

Fan switch 9: This switch is used to turn

on the fan and to select fan speed. Fan

switch has different speed options:-

For Type-1 (Alto)

Four positions-OFF, LOW, MEDIUM and

HIGH.

For Type-2 (Alto / Alto K10)

Five Positions-OFF, LOW, MEDIUM LOW,

MEDIUM HIGH and HIGH.

SYSTEM OPERATING INSTRUCTIONS

5-12

76G-05-032

76G-05-031

76G-05-027

76G-05-028

76G-05-029

76G-05-030

76G-05-033

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

76G-74E

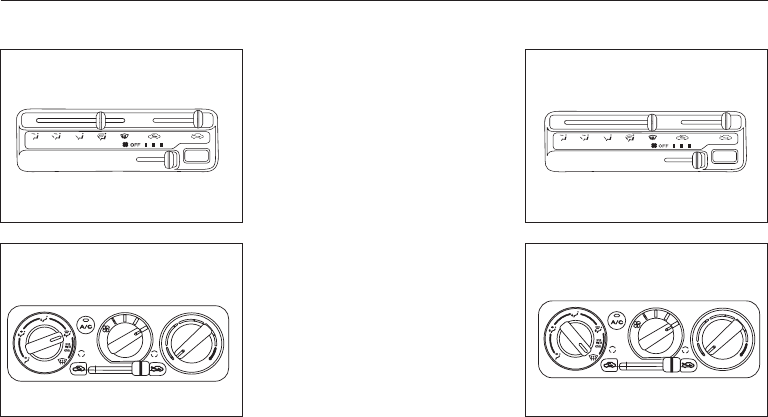

Natural Ventilation

Move the function lever/knob to

"VENTILATION" and the air intake lever to

“FRESH AIR”, the temperature control

lever/knob to the desired temperature

position, and the fan switch to “OFF”. Fresh

air will flow through the vehicle when it is

moving.

Forced Ventilation

The lever/knob settings are the same as for

natural ventilation except you move the fan

switch to a position other than “OFF”.

5-13

INSTRUMENT PANEL

76G-05-034

76G-05-035

TYPE-1 (ALTO)

TYPE-2 (ALTO/ALTO K10)

76G-74E INSTRUMENT PANEL

Normal Heating (Using outside air)

Move the function lever/knob to “HEAT” and

the air intake lever to “FRESH AIR”, the

temperature control lever/knob to the desired

temperature position, and the fan switch to

the desired fan speed position. Moving the

fan switch to a higher fan speed position

increases heating efficiency.

5-14

76G-05-036 76G-05-038

76G-05-037 76G-05-039

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

76G-74E

Quick Heating (Using recirculated air)

The lever/knob settings are the same as for

normal heating except you move the air

intake lever to “RECIRCULATED AIR”. If

you use this heating method for an

extended period of time, the air in the

vehicle can become contaminated and the

windows can become misty. Therefore, use

this method only for quick heating and

change to the normal heating method as

soon as possible.

Cool Face/Warm Feet

Move the function lever/knob to “BI-LEVEL”

and the air intake lever to “FRESH AIR”,

the temperature control lever/knob to the

desired temperature position, and the fan

switch to the desired fan speed position.

Unless the temperature control lever is in

the fully “COOL” position or fully “HOT”

position, the air that comes out of the center

and side outlets will be cooler than the air

that comes out of the floor outlets.

5-15

INSTRUMENT PANEL

76G-05-040

76G-05-041

TYPE-1 (ALTO)

TYPE-2 (ALTO/ALTO K10)

76G-74E INSTRUMENT PANEL

Defrosting/Warm Feet

Move the function lever/knob to “HEAT &

DEFROST” and the air intake lever to

“FRESH AIR”, the temperature control lever

/knob to the desired temperature position,

and the fan switch to “HIGH”. When the

windscreen has become clear, move the fan

switch to the desired fan speed position.

5-16

76G-05-042 76G-05-044

76G-05-043 76G-05-045

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

TYPE-1 (ALTO)

TYPE-2 (ALTO / ALTO K10)

76G-74E

Defrosting

Move the function lever/knob to “DEFROST”

and the air intake lever to “FRESH AIR”,

the temperature control lever/knob to the

desired temperature position, and the fan

switch to “HIGH” Moving the temperature

control lever/knob to a higher temperature

position increases defrosting efficiency.

When the windscreen has become clear,

move the fan switch to the desired fan

speed position.

AIR CONDITIONING SYSTEM

(if equipped)

If your vehicle is equipped with air

conditioner, it has an A/C button located on

the heater control panel. The air conditioning

system can be used to provide cooling and

dehumidifying, as described below. To turn

on the air conditioning system, push in the

A/C button and move the fan switch to a

position other than “OFF”. An indicator light

will come on when the air conditioning

system is on. To turn off the air conditioning

system, push the A/C button again.

During operation of the air conditioner, you

may notice slight changes in engine speed.

These changes are normal, the system is

designed so that the compressor turns on

or off to maintain the desired temperature.

Less operation of the compressor results in

better fuel economy.

5-17

INSTRUMENT PANEL

76G-05-047

(ALTO / ALTO K10)

SYSTEM OPERATING INSTRUCTIONS

Normal Cooling (using outside air)

Push in the A/C button, move the function

lever/knob to "VENTILATION", the air

intake lever to “FRESH AIR”, the

temperature control lever/knob to the

“COOL” position, and the fan switch to the

desired fan speed position. Moving the fan

switch to a higher fan speed position

increases cooling efficiency.

If the ambient temperature is high enough

to cause insufficient cooling, use the "Quick

Cooling" as following.

76G-05-049

(ALTO / ALTO K10)

76G-74E INSTRUMENT PANEL

5-18

76G-05-051

(ALTO / ALTO K10)

Quick Cooling (Using recirculated air)

The lever/knob settings are the same as for

normal cooling except you move the air

intake lever to “RECIRCULATED AIR”. If

you use this cooling method for a extended

period of time, the air in the vehicle can

become contaminated. Therefore, you

should occasionally move the air intake

lever to “FRESH AIR”.

NOTE:

If your vehicle has been left in the sun with

the windows closed, it will cool faster if you

open the windows briefly while you operate

the air conditioner with the air intake lever

at “FRESH AIR” and the fan at high speed.

Dehumidifying

Push in the A/C button, move the function

lever/knob to the desired function position,

the air intake lever to “FRESH AIR”, the

temperature control lever/knob to the desired

temperature position, and the fan switch to

the desired fan speed position.

NOTE:

Because the air conditioner dehumidifies the

air, turning it on will help keep the windows

clear, even when blowing heated air using

the DEMIST or HEATER & DEMIST

functions.

76G-05-053

(ALTO / ALTO K10) Maintenance

If you do not use the air conditioner for a

long period, such as during winter, it may

not give the best performance when you

start using it again. To help maintain op-

timum performance and durability of your air

conditioner, it needs to be run periodically.

Operate the air conditioner at least once a

month for one minute with the engine idling.

This circulates the refrigerant and oil and

helps protect the internal components.

Note:

Your vehicle uses the air conditioning re-

frigerant HFC-134a, commonly called “R-

134a”. Only R-134a should be used in your

vehicle.

CAUTION

Using the wrong refrigerant may dam-

age your air conditioning system. Use

R-134a only. Do not mix or replace the

R-134a with other refrigerants.

76G-74E

MEMO

76G-74E OTHER CONTROLS AND EQUIPMENT

OTHER CONTROLS AND EQUIPMENT

Parking Brake Lever .......................................................................................... 6-1

Pedals ................................................................................................................... 6-2

Gear Lever ........................................................................................................... 6-3

Fuel Filler Cap .................................................................................................... 6-3

Folding Rear Seats ............................................................................................ 6-5

Sun Visor ............................................................................................................. 6-5

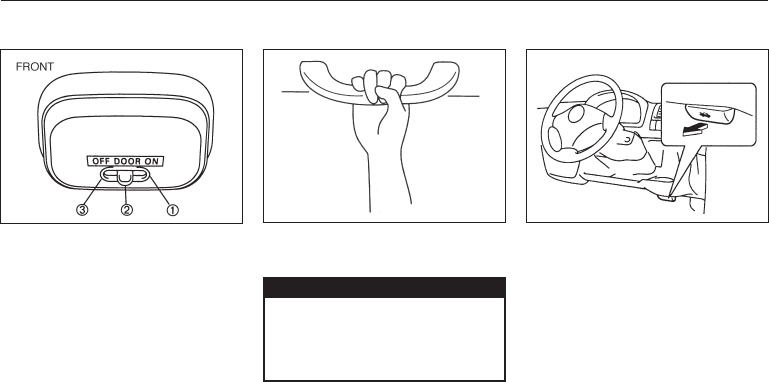

Interior Light Switch .......................................................................................... 6-6

Assist Grips ........................................................................................................ 6-6

Bonnet................................................................................................................... 6-6

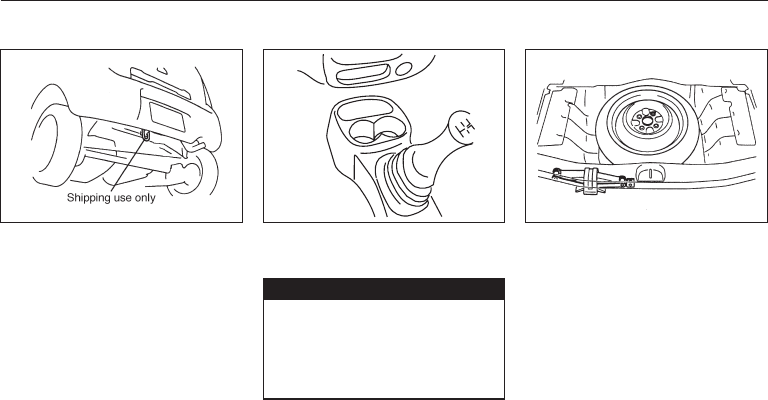

Frame Hooks (if equipped) .............................................................................. 6-7

Cup Holder (if equipped) ................................................................................. 6-8

Tyre Changing Tools ......................................................................................... 6-8

High Mount Stop Lamp .................................................................................... 6-9

76G-74E

PARKING BRAKE LEVER

• Never drive your vehicle with the

parking brake on: rear brake

effectiveness can be reduced from

over heating, brake life may be

shortened, or permanent brake

damage may result.

• If the parking brake does not hold

the vehicle securely or does not

fully release, have your vehicle

inspected immediately by an

authorized MARUTI SUZUKI dealer.

Always apply the parking brake fully

before leaving your vehicle or it may

move, causing injury or damage.

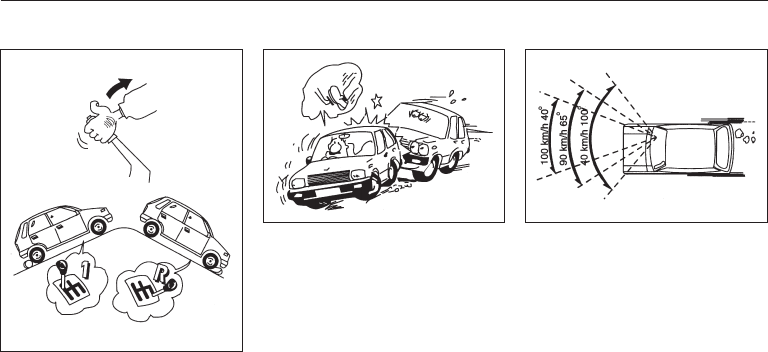

When parking, make sure the gear

shift lever for manual transmission is

left in first gear or reverse. Remember,

even though the transmission is in

gear, you must always apply the

parking brake fully.

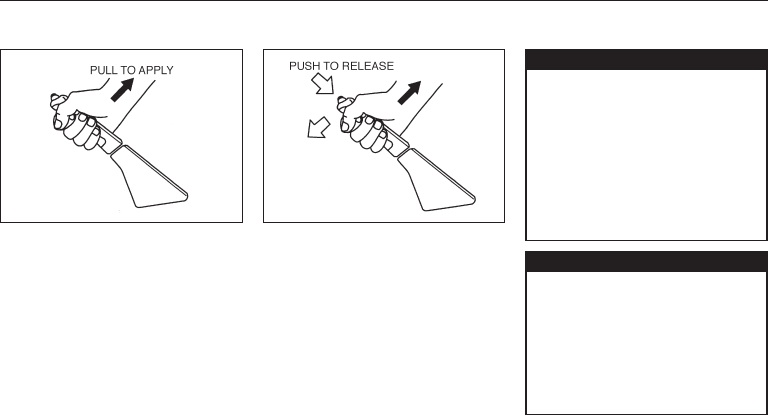

The parking brake lever is located between

the seats. To apply the parking brake, hold

the brake pedal down and pull the parking

brake lever all the way up.

To release the parking brake, hold the brake

pedal down, pull up slightly on the parking

brake lever, push the button on the end of

the lever with your thumb, and lower the

lever to its original position.

w WARNING

6-1

w WARNING

OTHER CONTROLS AND EQUIPMENT

76G-06-001 76G-06-002

76G-74E

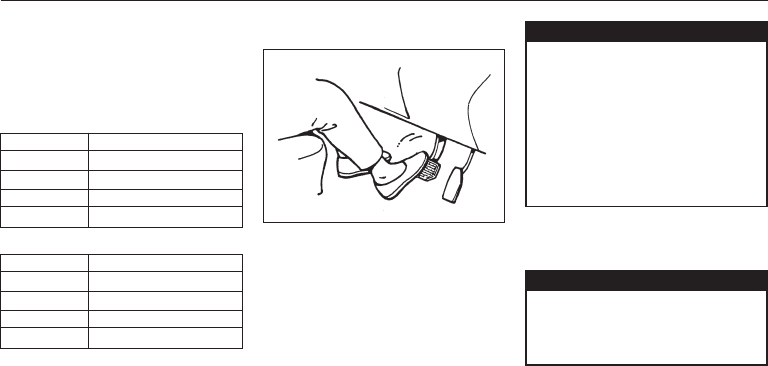

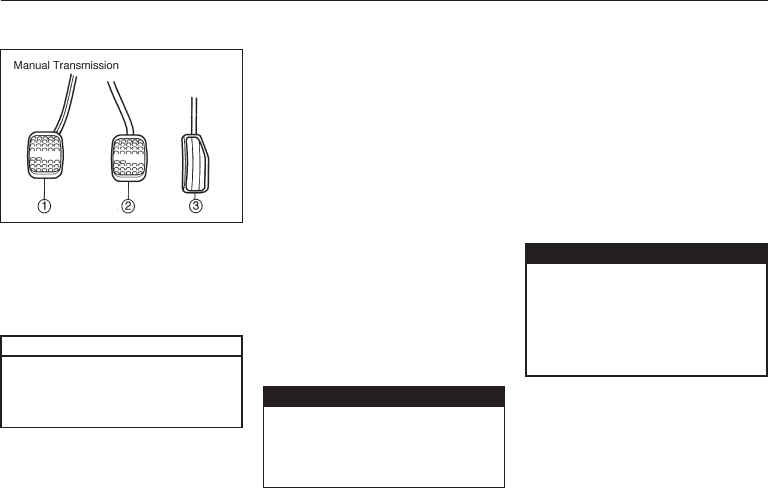

PEDALS

6-2

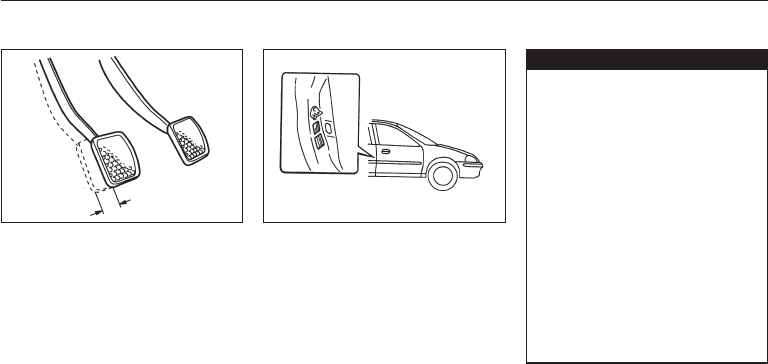

Clutch Pedal 11

The clutch pedal is used to disengage the

drive to the wheels when starting the

engine, stopping, or shifting the transmission

lever. Depressing the pedal disengages the

clutch.

Do not drive with your foot resting on

the clutch pedal. It could result in

excessive clutch wear, clutch damage,

or unexpected loss of engine braking.

Brake Pedal 22

Your MARUTI SUZUKI vehicle is equipped

with front disc brakes and rear drum brakes.

Depressing the brake pedal applies both

sets of brakes.

You may hear occasional brake squeal

when you apply the brakes. This is a

normal condition caused by environmental

factors such as cold, wet, snow, etc.

If brake squeal is excessive and

occurs each time the brakes are

applied, you should have the brakes

checked by your MARUTI SUZUKI

dealer.

w WARNING

CAUTION

w WARNING

OTHER CONTROLS AND EQUIPMENT

Do not “ride” the brakes by applying

them continuously or resting your foot

on the pedal. This will result in

overheating of the brakes which could

cause unpredictable braking action,

longer stopping distances, or

permanent brake damage.

Accelerator Pedal 33

This pedal controls the speed of the

engine. Depressing the accelerator pedal

increases power output and speed.

76G-06-003

76G-74E

FUEL FILLER CAP

6-3

The fuel filler cap is located on the left rear

side of the vehicle. The fuel filler lid can be

unlocked by pulling up the opener lever (if

equipped) located on the outboard side of

the driver’s seat and locked by simply

closing the lid.

w WARNING

OTHER CONTROLS AND EQUIPMENT

w WARNING

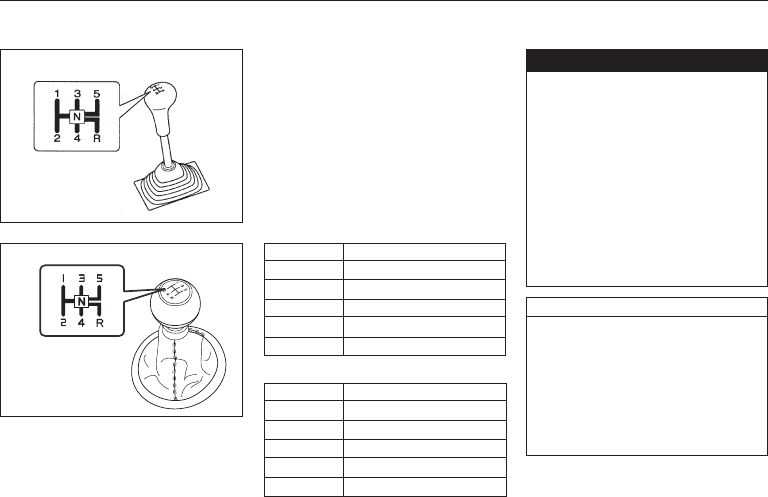

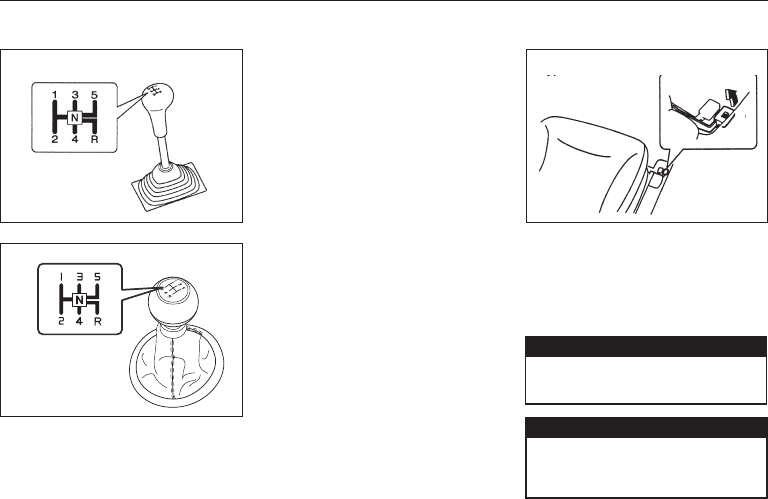

GEAR LEVER

Your vehicle is equipped with a manual

transmission. The gear change pattern for

manual transmission is shown in the

illustration. For details on how to use the

transmission, refer to USING THE

TRANSMISSION in the OPERATING YOUR

VEHICLE section.

76G-06-004 76G-06-005

MANUAL TRANSMISSION

ALTO

76G-06-004A

ALTO K10

TYPE-1 (ALTO / ALTO K10)

Remove the fuel filler cap slowly. The

fuel may be under pressure and may

spray out, causing injury.

Petrol is extremely flammable. Do not

smoke when refuelling, and make

sure there are no open flames or

sparks in the area.

76G-74E

6-4

OTHER CONTROLS AND EQUIPMENT

If you need to replace the fuel cap,

use only a cap specified for your

model. Using an improper fuel cap

can cause a serious malfunction of

the fuel system. You can get the

correct replacement cap from your

MARUTI SUZUKI dealer.

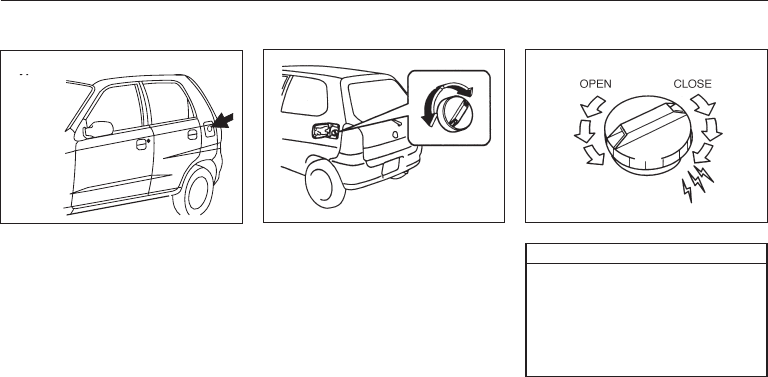

The fuel tank filler cap has a "screw-on

ratcheting type" feature.

• To remove - turn the cap counter clock-

wise. Turn the cap slowly to allow any

residual pressure to escape.

• To install - turn the cap clockwise and

tighten it securely until a "ratcheting"

(clicking) sound is heard. The

"ratcheting" sound indicates that the cap

is on properly.

CAUTION

76G-06-007 76G-06-008

The fuel filler cap is located on the left rear

side of the vehicle. To unlock the fuel filler

lid, turn the key clockwise. To lock turn the

key anticlockwise.

76G-06-006

TYPE-2 (ALTO) EXAMPLE EXAMPLE

76G-74E

6-5

OTHER CONTROLS AND EQUIPMENT

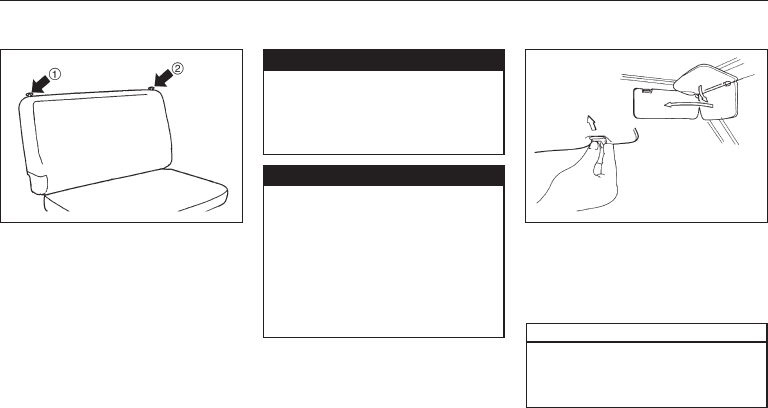

The rear seats of your vehicle can be folded

forward to provide additional luggage space.

To fold the rear seats forward, pull up the

two lock knobs (1 and 2) on top of the

seat simultaneously and fold the seatback

forward. To raise the seatback lift it up and

push it back until it locks into place.

When returning a rear seat to the

normal position, make sure that

movement of the seatback is

unobstructed and the seatback is

securely latched.

w WARNING

76G-06-011

EXAMPLE

Luggage or other cargo should be

stowed in the luggage compartment

with the rear seat in an upright

position, whenever possible. If you

need to carry cargo in the passenger

compartment with the rear seat back

folded forward, be sure to secure the

cargo or it may be thrown about,

causing injury. Never pile cargo higher

than the seatbacks.

w WARNING

SUN VISOR

The sun visor(s) can be pulled down to

block glare coming through the wind screen,

or they can be unhooked and turned to the

side to block glare coming through the side

window.

When unhooking and hooking a sun

visor, be sure to handle it by the hard

plastic parts or the sun visor can be

damaged.

CAUTION

76G-06-012

FOLDING REAR SEATS

76G-74E

6-6

OTHER CONTROLS AND EQUIPMENT

INTERIOR LIGHT SWITCH

This light switch has three positions which

function as described below:

1The light comes on and stays on

regardless of whether the door is open

or closed.

2The light comes on when the door is

opened.

3The light remains off even when the

door is opened.

NOTE:

Only front door(s) are involved in lighting

operation of the interior light(s).

76G-06-013

ASSIST GRIPS

Assist grips are provided for passenger

convenience.

Do not hang items on the assist grips.

They could obstruct the driver’s view,

resulting in an accident, or could be

thrown about in an accident or abrupt

manoeuvre, causing injury.

w WARNING

BONNET

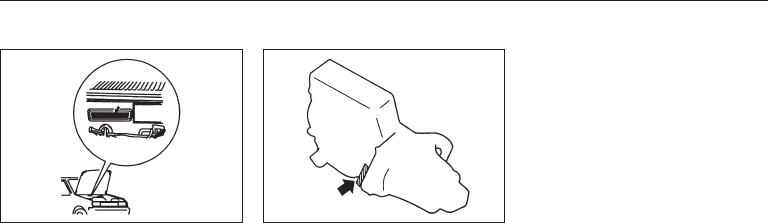

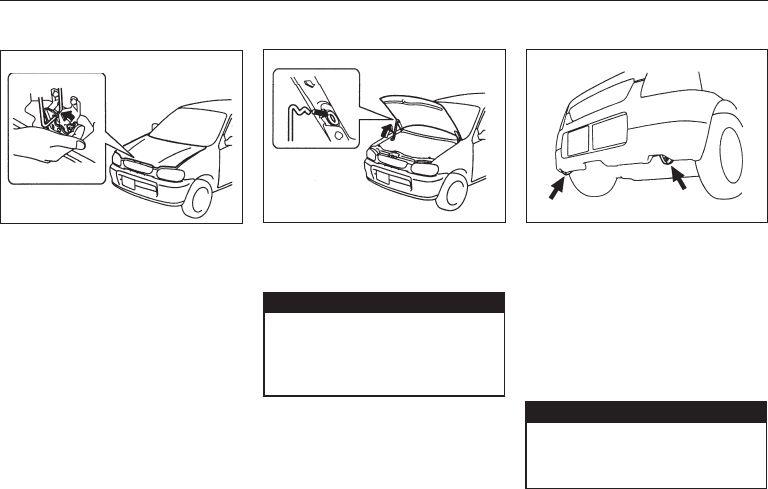

To open the bonnet:

1) Pull the bonnet release handle located

on the outboard side of the driver’s side

of the instrument panel. This will

disengage the bonnet lock halfway.

76G-06-014 76G-06-015

EXAMPLE

76G-74E

6-7

OTHER CONTROLS AND EQUIPMENT

2) Push the under-bonnet release lever

sideways with your finger, as shown in

the illustration. While pushing the lever,

lift up the bonnet.

76G-06-016

3) Continue to lift up the bonnet until it is

high enough to support with the prop

rod.

Make sure the bonnet is fully closed

and latched before driving. If it is not,

it can fly up unexpectedly during

driving, obstructing your view and

resulting in an accident.

w WARNING

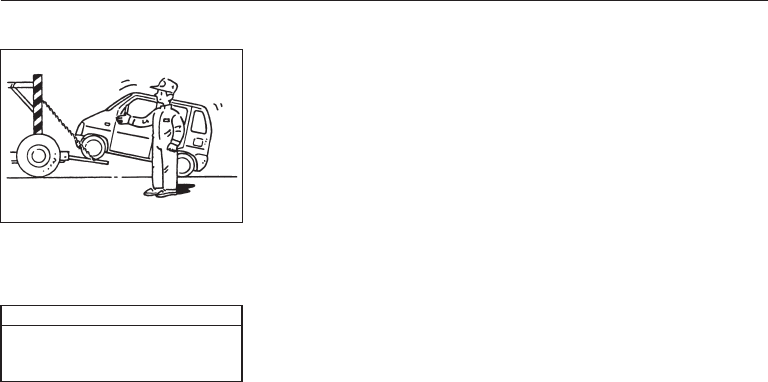

FRAME HOOKS (If equipped)

w WARNING

Hooks are provided in both the front and

rear of the vehicle for use in emergency

situations. To tow your vehicle on the road

or highway, follow the instruction of

"TOWING" in "EMERGENCY SERVICE"

section.

The shipping hook is provided on the rear

of the vehicle for shipping use. Do not use

the shipping hook for other than shipping

purpose.

76G-06-017 76G-06-018

EXAMPLE EXAMPLE EXAMPLE

Do not use these hooks to tow (or be

towed by) another vehicle on the road

or highway except in emergency

situations.

76G-74E

6-8

OTHER CONTROLS AND EQUIPMENT

76G-06-019

CUP HOLDER (if equipped)

w WARNING

The cup holder is provided in the center

console (if equipped).

Do not use the cup holder to hold

cups containing hot liquids, or objects

other than cups. Objects in the cup

holder may be thrown about during a

sudden stop or impact, and could

cause personal injury.

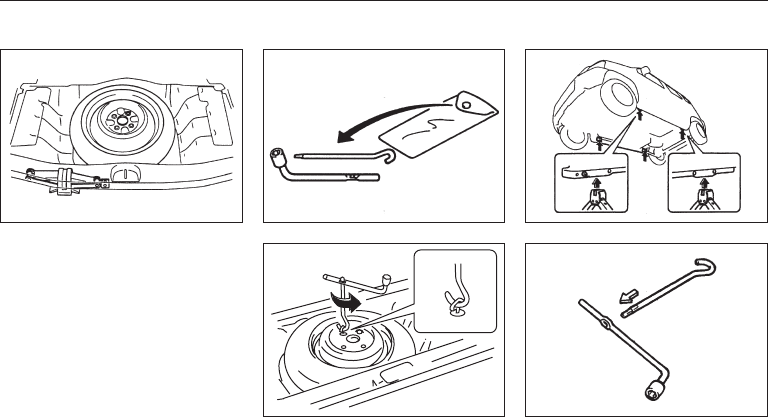

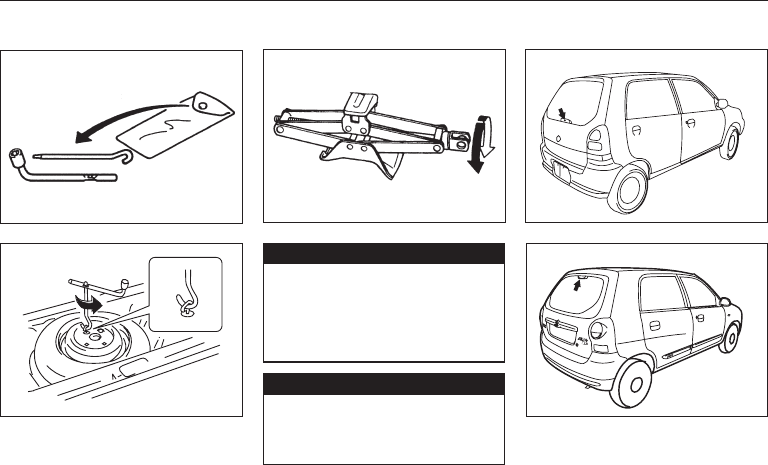

TYRE CHANGING TOOLS

The jack is stowed in the luggage

compartment behind the rear seat.

To remove the jack, turn its shaft

counterclockwise and pull the jack out of the

storage bracket. To stow the jack, place it

in the storage bracket and turn the shaft

clockwise until the jack is securely held in

place.

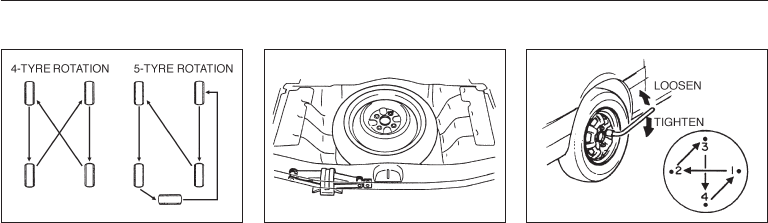

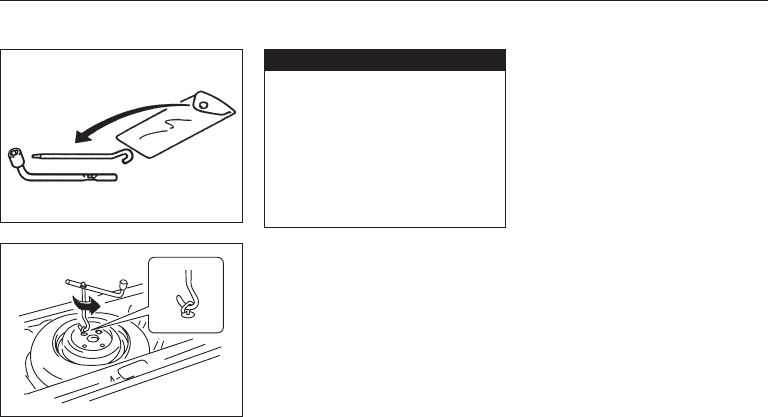

NOTE:

If it is hard to loosen the bolt that secures

the spare tyre, use the jack handle shaft as

illustrated.

76G-06-020 76G-06-021

Example

76G-74E

6-9

OTHER CONTROLS AND EQUIPMENT

76G-06-022

76G-06-023

The jack should be used only to

change wheels. It is important to read

the jacking instructions in the

EMERGENCY SERVICE section of this

manual before attempting to use the

jack.

After using the jack crank and wheel

wrench, be sure to stow them

securely or they can cause injury if an

accident occurs.

w WARNING

HIGH MOUNT STOP LAMP

76G-06-024 76G-06-025

ALTO

76G-06-025A

ALTO K10

76G-74E

6-10

OTHER CONTROLS AND EQUIPMENT

High mount stop lamp is provided with your

vehicle and is fitted on back door. The stop

lamp will glow as when the brake pedal will

be depressed.

To change the bulb of the stop lamp,

remove the clips at both sides of the cover,

by pressing the inner pin inside so that the

clip gets loose and remove the bulb on

turning it anticlockwise.

There is one bulb in high mount stop lamp.

76G-74E

MEMO

6-11

76G-74E OPERATING YOUR VEHICLE

OPERATING YOUR VEHICLE

Exhaust Gas Warning ....................................................................................... 7-1

Daily Inspection Checklist................................................................................ 7-1

Starting the Engine ........................................................................................... 7-2

Using the Transmission.................................................................................... 7-3

Braking ................................................................................................................. 7-4

Running-in ............................................................................................................ 7-5

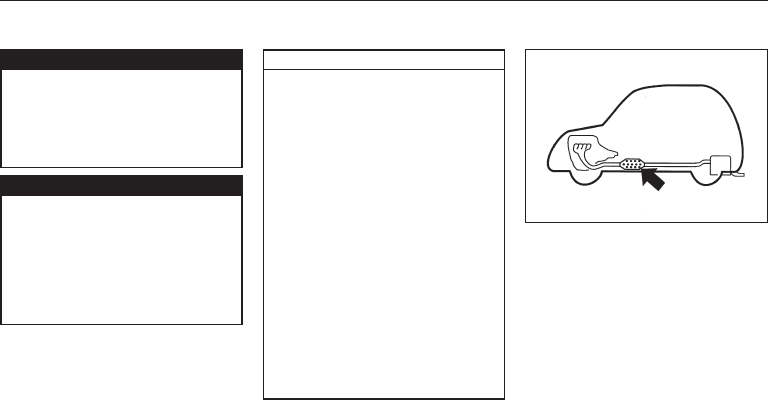

Catalytic Converter ............................................................................................ 7-5

Improving Fuel Economy ................................................................................. 7-6

Trailer Towing ..................................................................................................... 7-7

76G-74E

EXHAUST GAS WARNING

with the engine running, make sure

the air intake lever is set to “FRESH

AIR” and the fan is at high speed.

• Avoid operating the vehicle with the

rearend door open. If it is necessary

to operate the vehicle with the

rearend door open, make sure all

the windows are closed and the fan

is at high speed with the air intake

lever set to "FRESH AIR".

• To allow proper operation of your

vehicle’s ventilation system, keep

the air inlet grille in front of the

windscreen clear of snow, leaves, or

other obstructions at all times.

• Keep the exhaust tailpipe area clear

of snow and other material to help

reduce the buildup of exhaust gases

under the vehicle. This is

particularly important when parked

in blizzard conditions.

• Have the exhaust system inspected

periodically for damage and leaks.

Any damage or leaks should be

repaired immediately.

DAILY INSPECTION CHECKLIST

w WARNING

7-1

w WARNING

Before driving:

Make sure that windows, mirrors, lights,

and reflectors are clean and unobstructed.

2) Check the tyres.

3) Look for fluid and oil leaks.

NOTE:

It is normal for water to drip from the air

conditioning system after use.

4) Adjust the seat/head restraint.

5) Check the brake pedal and the parking

brake lever.

6) Adjust the mirrors.

7) Make sure that you and passengers

have properly fastened your seat belts.

8) Make sure that all warning lights come

on as the key is turned to the “ON” or

“START” position.

9) Check all gauges.

10) Make sure that the brake fluid level

warning light is off when the parking

brake is released with the engine

running.

OPERATING YOUR VEHICLE

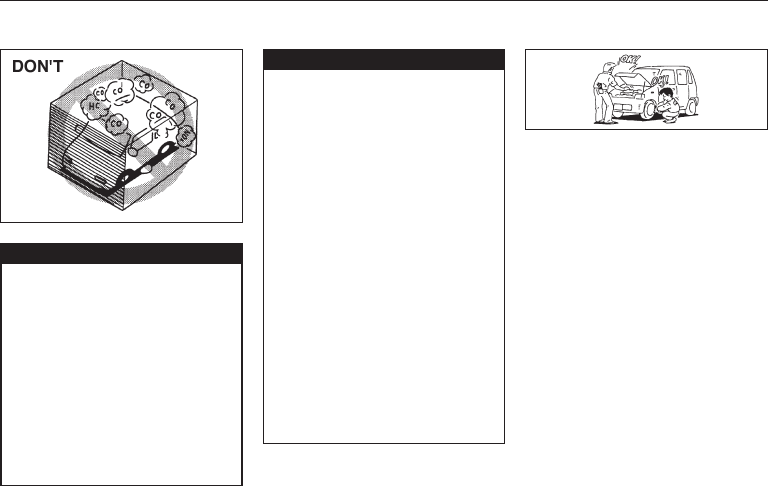

Avoid breathing exhaust gases.

Exhaust gases contain carbon

monoxide, a potentially lethal gas that

is colourless and odourless. Since

carbon monoxide is difficult to detect

by itself, be sure to take the following

precautions to help prevent carbon

monoxide from entering your vehicle.

• Do not leave the engine running in

garages or other confined areas.

• Do not park with the engine running

for a long period of time, even in an

open area. If it is necessary to sit

for a short time in a parked vehicle

76G-07-001

76G-07-002

76G-74E

Before starting the engine:

1) Make sure the parking brake is applied

fully.

2) Manual Transmission - Shift into “N”

(neutral) and depress the clutch pedal all

the way to the floor. Hold it while starting

the engine.

Make sure that the parking brake is

applied fully and the transmission is

in Neutral before attempting to start

the engine.

• Stop turning the starter immediately

after the engine has started or the

starter system can be damaged.

• Do not crank the engine for more

than 15 seconds at a time. If the

engine doesn’t start on the first try,

wait about 15 seconds before trying

again.

7-2

STARTING THE ENGINE

w WARNING

OPERATING YOUR VEHICLE

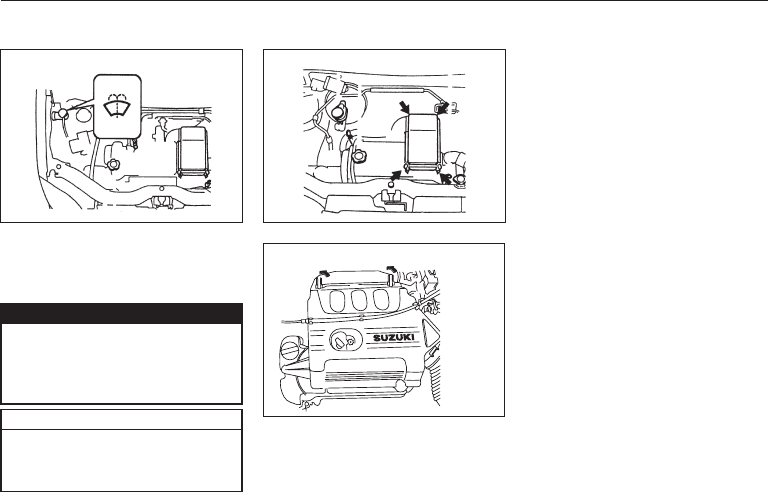

Once a week, or each time you fill your fuel

tank, perform the following under-bonnet

checks:

1) Engine oil level.

2) Coolant level.

3) Brake fluid level.

4) Windscreen washer fluid level.

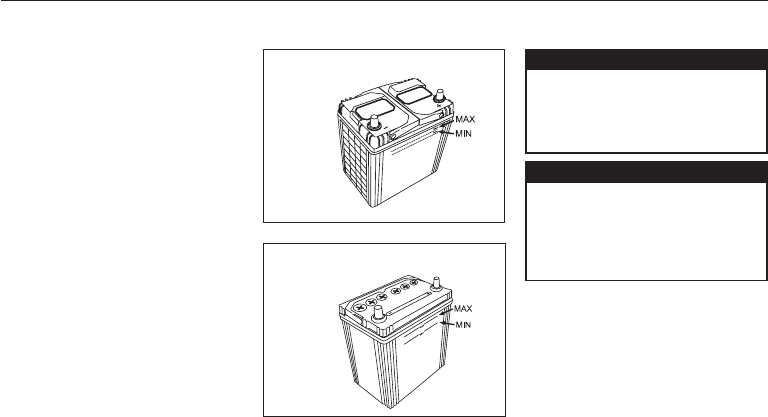

5) Battery solution level.

6) Bonnet latch operation.

Pull the bonnet release handle inside the

vehicle. Make sure that you can not

open the hood all the way without

releasing the secondary latch. Be sure

to close the hood securely after checking

for proper operation. See "All Latches,

Hinges & Locks" of "PERIODIC

MAINTENANCE SCHEDULE" in the

"INSPECTION AND MAINTENANCE"

section for lubrication schedule.

Make sure the bonnet is fully closed

and latched before driving. If it is not,

it can fly up unexpectedly during

driving, obstructing your view and

resulting in an accident.

w WARNING

Starting a Cold Engine

Engine which is started after 6 hours should

be treated as cold engine.

For Electronic fuel injection models

• With your foot off the accelerator pedal,

crank the engine by turning the ignition

key to “START”. Release the key when

the engine starts.

• If the engine does not start after 15

seconds of cranking, wait about 15

seconds, then press down the

accelerator pedal to 1/3 of its travel and

try cranking the engine again. Release

the key and accelerator pedal when the

engine starts.

• If the engine still does not start, try

holding the accelerator pedal all the way

to the floor while cranking. This should

clear the engine if it is flooded.

Starting a Warm Engine

For Electronic fuel injection models:

Use the same procedure as for “Starting a

Cold Engine”.

CAUTION

76G-74E

7-3

OPERATING YOUR VEHICLE

w WARNING

CAUTION

Starting off

To start off, depress and maintain pressure

upon the clutch pedal and change into 1st

gear. After releasing the parking brake,

GEAR MAXIMUM SPEED

First 37 km/h

Second 66 km/h

Third 98 km/h

Fourth Top Speed

Fifth Top Speed

USING THE TRANSMISSION

MANUAL TRANSMISSION

76G-07-003

76G-07-003A

• To help avoid clutch damage, do not

use the clutch pedal as a footrest while

driving or use the clutch to keep the

vehicle stationary on a hill. Depress the

clutch fully when changing gear.

• When changing gears or starting off,

do not race the engine. Racing the

engine can shorten engine life and

prevent smooth operation.

• Reduce your speed and change down to

a lower gear before going down a long

or steep hill. A lower gear will allow the

engine to provide braking. Avoid riding

the brakes or they may overheat, result-

ing in brake failure.

• When driving on slippery roads, be sure

to slow down before changing down.

Excessive and or sudden changes in

engine speed may cause loss of traction,

which could cause you to lose control.

• Make sure that the vehicle is completely

stationary before you change into re-

verse.

gradually release the clutch. When you hear

a change in the engine’s sound (speed),

gently apply pressure to the accelerator to

keep the engine sound (speed) constant whilst

continuing to gradually release the clutch.

Gear changing

All forward gears are synchronized, which

provides for quiet, easy changing. Always

depress the clutch pedal fully before changing

gears. The following table shows the

maximum allowable speed for each gear.

ALTO

ALTO K10

GEAR MAXIMUM SPEED

First 43 km/h

Second 80 km/h

Third 119 km/h

Fourth Top Speed

Fifth Top Speed

ALTO

ALTO K10

76G-74E

7-4

OPERATING YOUR VEHICLE

BRAKING ww

w WARNING

The distance needed to bring any vehicle

to a halt increases with the speed of the

vehicle. The braking distance needed, for

example, at 60 km/h will be approximately

4 times greater than the braking distance

needed at 30 km/h. Start to brake the

vehicle when there is plenty of distance

between your vehicle and the stopping

point, and slow down gradually.

If water gets into the brake drums, brake

performance may become poor and

unpredictable. After driving through water

or washing the underside of the vehicle,

test the brakes while driving at a slow

speed to see if they have maintained their

normal effectiveness. If the brakes are

less effective than normal, dry them by

repeatedly applying the brakes while

driving slowly until the brakes have

regained their normal effectiveness.

Servo assisted brakes

Your vehicle has servo assisted brakes

which works with the assistance of engine

vacuum.

Do not switch off the engine while vehicle

is in motion, for example, while driving

down a hill as this will cause loss of

vacuum assistance leading to reduction of

braking efficiency substantially.

If servo assistance is lost due to a stalled

engine or other failures, the system is still

fully operational on reserve power and you

can bring the vehicle to a complete stop by

pressing the brake pedal once and holding

it down. The reserve power is partly used

up each time you depress the brake pedal.

Apply smooth and constant pressure to the

pedal. Do not pump the pedal.

w WARNING

76G-07-004

To avoid shock loads on the driveline and

consequent driveline breakage, it is strongly

recommended not to exceed the following

speeds when downshifting:-

GEAR MAXIMUM SPEED

2nd to 1st 9 km/h

3rd to 2nd 33 km/h

4th to 3rd 49 km/h

5th to 4th Any Speed OK

ALTO

ALTO K10

GEAR MAXIMUM SPEED

2nd to 1st 10 km/h

3rd to 2nd 37 km/h

4th to 3rd 55 km/h

5th to 4th Any Speed OK

76G-74E

7-5

OPERATING YOUR VEHICLE

RUNNING-IN

The future performance and reliability

of the engine depends on the care

and restraint exercised during its early

life. It is especially important to

observe the following precautions

during the initial 1000 km of vehicle

operation.

• After starting, do not race the

engine. Warm it up gradually.

• Avoid prolonged vehicle operation at

a constant speed. Moving parts will

bed in better if you vary your speed.

• Do not exceed 100 km/h.

• Start off from a stop slowly. Avoid

full throttle starts.

• If possible, avoid hard braking,

especially during the first 300 km

of driving.

• Do not drive slowly with the

transmission in a high gear.

• Drive the vehicle at moderate engine

speeds.

CAUTION

Even without reserve power in the

brake system, you can still stop the

vehicle by pressing the brake pedal

harder than normally required.

However, the stopping distance may

be longer.

On loose surface where the wheels

can easily loose traction (such as

gravel, etc.), the stopping distance

required for your vehicle may be

greater than for a comparable vehicle

with a conventional brake system.

Allow for extra stopping distance

when driving on loose surfaces.

w WARNING

CATALYTIC CONVERTER

The purpose of the catalytic converter

installed on your vehicle is to convert

exhaust pollutants to harmless water vapour,

carbon dioxide, and nitrogen. Use of leaded

fuel in vehicles equipped with catalytic

converters is prohibited, because lead

deactivates the pollutant-reducing compo-

nents of the catalyst system.

It is very important to keep the engine

properly tuned. Engine misfiring, which can

result from an improperly tuned engine, may

cause overheating of the catalyst. This may

result in permanent heat damage to the

catalyst and other vehicle components.

76G-07-005

76G-74E

7-6

OPERATING YOUR VEHICLE

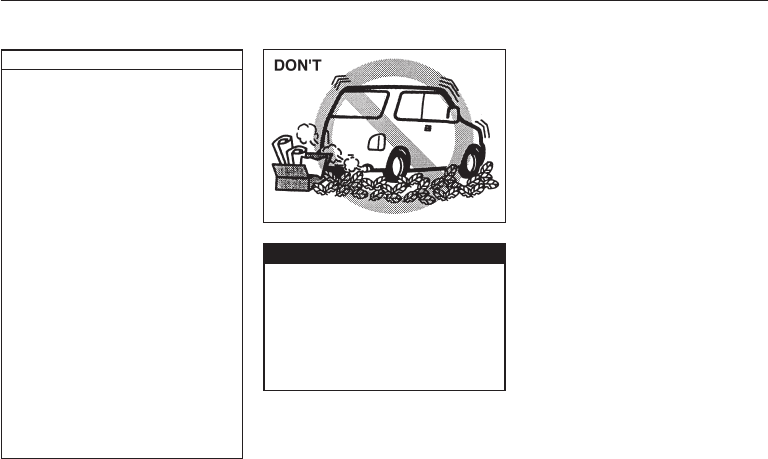

Be careful where you park and drive;

the catalytic converter and other

exhaust components can get very hot.

As with any vehicle, do not park or

operate this vehicle in areas where

combustible materials such as dry

grass or leaves can come in contact

with a hot exhaust system.

w WARNING

To minimize the possibility of catalyst

or other vehicle damage:

• Maintain the engine in the proper

operating condition.

• In the event of an engine

malfunction, particularly one

involving engine misfire or other

apparent loss of performance, have

the vehicle serviced promptly.

• Do not turn off the engine or

interrupt the ignition when the

transmission is in gear and the

vehicle is in motion.

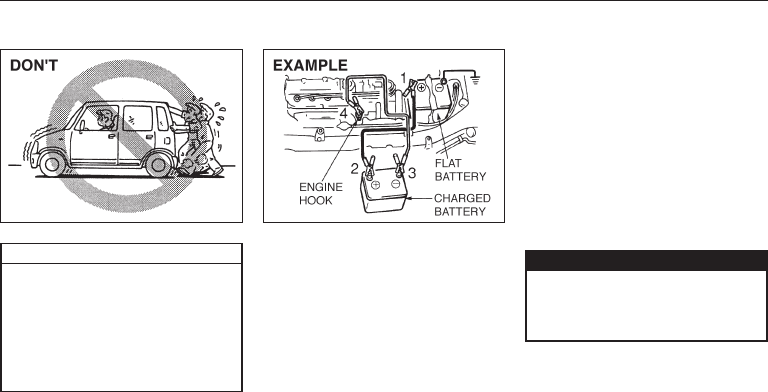

• Do not try to start the engine by

pushing or towing the vehicle, or

coasting down a hill.

• Do not idle the engine with any

spark plug wires disconnected or

removed, such as during diagnostic

testing.

• Do not idle the vehicle for

prolonged periods if idling seems

rough or there are other

malfunctions.

• Do not allow the fuel tank to get

near the empty level.

CAUTION

IMPROVING FUEL ECONOMY

The following instructions will help you

improve fuel economy.

Avoid excessive idling:

If you are to wait for more than a minute

while you are parked, stop the engine and

start it again later. When warming up a cold

engine, allow the engine to idle for some

time.

Avoid “fast” starts:

Fast starts away from lights or stop signs

will consume fuel unnecessarily and shorten

engine life. Start off slowly.

Avoid unnecessary stops:

Avoid unnecessary deceleration and

stopping. Try to maintain a slow, steady

speed whenever possible. Slowing down

and then accelerating again uses more fuel.

Keep a steady cruising speed:

Keep as constant a speed as road and

traffic conditions will permit.

76G-07-006

76G-74E

7-7

TRAILER TOWING

Your MARUTI SUZUKI is designed to carry

people and a normal amount of cargo, not

to tow a trailer. Maruti does not recommend

you use your vehicle to tow a trailer. Towing

a trailer can adversely affect handling,

durability, and fuel economy.

Keep the air cleaner clean:

A dirty air cleaner will cause the fuel system

to supply too much fuel to the engine for

the amount of air being supplied. The result

is waste of fuel due to incomplete

combustion.

Keep weight to a minimum:

The heavier the load, the more fuel the

vehicle consumes. Take out any luggage or

cargo when it is not necessary.

Keep tyre pressures correct:

Under-inflation of the tyres can waste fuel

due to increased running resistance of the

tyres. Keep your tyres inflated to the correct

pressure shown on the label on the driver’s

side door or door lock pillar.

OPERATING YOUR VEHICLE

76G-07-007

76G-74E DRIVING TIPS AND SAFE DRIVING

DRIVING TIPS AND SAFE DRIVING

High Speed Driving ........................................................................................... 8-1

Driving on Hills .................................................................................................. 8-1

Driving on Slippery Roads .............................................................................. 8-1

Driving on Wet Roads ...................................................................................... 8-2

Do’s and Don’ts for Safe Driving .................................................................. 8-3

76G-74E

• Wear Your Seat Belts at All Times.

The driver and passengers should

be properly restrained at all times,

using the seatbelts provided. Refer

to the “SEATBELTS” section for

instructions on proper use of the

seat belts.

• Never drive while under the

influence of alcohol or other drugs.

Alcohol and drugs can seriously

impair your ability to drive safely,

greatly increasing the risk of injury

to yourself and others. You should

also avoid driving when you are

tired, sick, irritated, or under stress.

HIGH-SPEED DRIVING

• When driving down a hill, the engine

should be used for braking by shifting to

next lower gear.

Try not to hold the brake pedal down

too long or too often while going

down a steep or long hill. This could

cause the brakes to overheat,

resulting in reduced braking efficiency.

Failure to take this precaution could

result in loss of vehicle control.

When descending a down hill, NEVER

turn the ignition key to the “OFF”

position. Emission control system

damage may result.

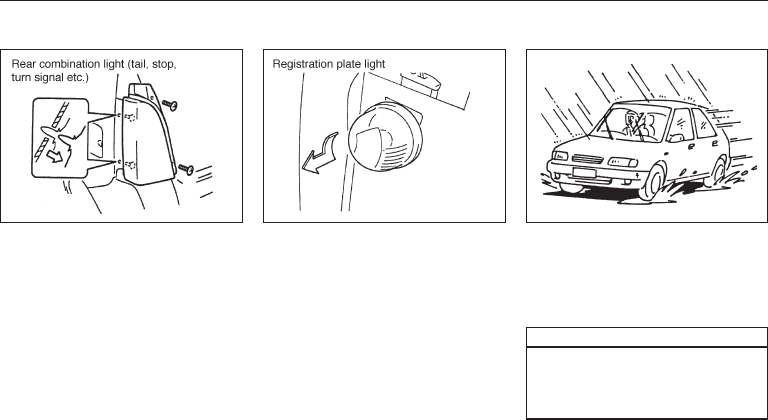

DRIVING ON SLIPPERY ROADS

Under wet road conditions you should drive

at a lower speed than on dry roads due to

possible slippage of tyres during braking.

When driving on icy, snowcovered, or

muddy roads, reduce your speed and avoid

sudden acceleration, abrupt braking, or

sharp steering movements.

When driving at a high-speed, pay attention

to the following:

• Stopping distance progressively increases

with vehicle speed. Apply the brakes far

enough ahead of the stopping point to

allow for the extra stopping distance.

• On rainy days, “Aquaplaning” can occur.

“Aquaplaning” is the loss of direct

contact between the road surface and

the vehicle’s tyres due to a water film

forming between them. Steering or

braking the vehicle while “Aquaplaning”

can be very difficult, and loss of control

can occur. Keep speed down when the

road surface is wet.

• At high speeds, the vehicle may be

affected by side winds. Therefore, reduce

speed and be prepared for unexpected

buffeting, which can occur at the exits

of tunnels, when passing by a cut of a

hill, or when being overtaken by large

vehicles, etc.

DRIVING ON HILLS

• When climbing steep hills, the vehicle

may begin to slow down and show a

lack of power. If this happens, you

should change to a lower gear so that

the engine will again be operating in its

normal power range. Change rapidly to

prevent the vehicle from losing

momentum.

w WARNING

CAUTION

8-1

DRIVING TIPS AND SAFE DRIVING

76G-08-001

76G-74E

Snow Chains

If you must use snow chains to increase tyre

traction, observe the following precautions:

• Use cable type chains.

• Choose a safe place away from traffic

to install the chains.

• When installing the chains carefully

follow the manufacturer’s instructions.

• Install the chains on the front tyres.

• With the chains on, drive only at slow

and moderate speeds.

• If the chain hits the vehicle body while

driving, stop at a safe place and

retighten it as soon as possible.

• If snow and/or ice on the road

disappear, remove the chains as soon

as possible.

• If Your Vehicle Gets Stuck

If your vehicle gets stuck in snow, mud,

or sand, follow the directions below:

1) Change back and forth between a

forward range (or first gear for manual

transmission) and reverse. This will

create a rocking motion which may give

you enough momentum to free the

vehicle. Press gently on the accelerator

to keep wheel spin to a minimum.

Remove your foot from the accelerator

while changing gear.

Do not race the engine. Excessive wheel

spin will cause the tyres to dig deeper,

making it more difficult to free the

vehicle.

2) If your vehicle remains stuck after a few

minutes of rocking, get another vehicle

to pull you out.

Do not allow anyone to stand near the

vehicle when you are rocking it, and

do not spin the wheels faster than an

indicated 40 km/h on the speedometer.

Personal injury and/or vehicle damage

may result from spinning the wheels

too fast.

Do not continue rocking the vehicle

for more than a few minutes.

Prolonged rocking can cause engine

overheating or transmission damage.

• Make sure your tyres are in good

condition and always maintain the

specified tyre pressure. Refer to

“TYRES” in the “INSPECTION AND

MAINTENANCE” section for details.

• Do not use tyres other than those

specified by MARUTI SUZUKI. Never

use different sizes or types of tyres

on the front and rear wheels. For

information regarding the specified

tyres, refer to the “SPECI-

FICATIONS” section.

• Never use oversized tyres or special

shock absorbers and springs to

raise (jack up) your vehicle. This will

change the handling characteristics.

• After driving through water, test the

brakes while driving at a slow speed

to see if they have maintained their

normal effectiveness. If the brakes

are less effective than normal, dry

them by repeatedly applying the

brakes while driving slowly until the

brakes have regained their normal

effectiveness.

w WARNING

CAUTION

8-2

w WARNING

DRIVING TIPS AND SAFE DRIVING

DRIVING ON WET ROADS

• When driving on wet roads, avoid

driving through large amount of

standing water on the road. Large

amount of water entering the engine

compartment may cause damage to

the engine and or electrical

components.

• If stuck in deep water, do not start

till water level drops.

• Water is incompressible substance,

water inside engine is harmful to the

engine.

CAUTION

76G-74E

DO’S AND DON’TS FOR SAFE

DRIVING

Exercise care in handling your vehicle. Be

conscious of not only your own safety but

also the safety of others on the road, and

thus enjoy the best and most comfortable

driving experience.

This section contains basic rules for safe

driving. Read it carefully for good

understanding of the content so that you

can enjoy safe and pleasant driving in your

Maruti Suzuki vehicle.

Starting

1. Adjust the driver’s seat for the proper

driving posture.

2. Adjust the rear view mirror so as to

obtain the best possible rear view.

3. Before moving off, look forward and back

to confirm safety.

4. Don’t start quickly, for it is dangerous

and wastes fuel.

General driving

1. Be sure to stop before the stop light and

stop sign. When moving into the

intersection without any traffic lights or

signs, drive slowly to confirm safety.

8-3

DRIVING TIPS AND SAFE DRIVING

2. Always follow other vehicles at a safe

distance in order to prevent a rear-end

collision, should the vehicle ahead make

a sudden stop.

3. Turn ON the turn signal at least 30

meters before making a turn or changing

the lane so as not to be hit from behind.

4. Before entering a corner, decelerate to

a safe speed. Don’t apply brakes during

cornering, or a cornering skid may occur.

5. When overtaking other vehicles, watch

out for the oncoming vehicle and

carefully confirm the safety.

6. Don’t attempt zigzag driving which will

hinder your control over the vehicle and

cause an accident.

76G-08-002 76G-08-003

76G-74E

especially dangerous when the tyres are

worn, for they allow a larger skid.

Use foot brake in three stages

(1) Warn the vehicle behind you

(2) Gradually apply the brake.

(3) Bring the vehicle to a halt.

3. When driving on a downhill, try not to

apply the brake but use the engine

brake effectively. Overuse of the

footbrake may result in total brake

failure.

4. Avoid reckless high speed driving and try

to drive at a safe speed suitable for the

road conditions while maintaining a

constant speed.

5. The higher the speed, the narrower the

driver’s visual range becomes. In such

a state, it is difficult to anticipate any

hazard and the driver feels much

fatigued.

6. Never do sharp handling during high

speed driving. You will lose your control

over your vehicle.

7. When overtaking or changing the lane

while driving at a high speed, keep an

ample vehicle-to-vehicle distance.

Long distance driving

1. Be sure to perform safety checks before

starting a trip.

2. Take rest at certain intervals to prevent

an accident which may occur when you

are sleepy or tired.

Braking

1. Use the parking brake when parking

your vehicle and shift the gear shift lever

into the first gear or reverse gear

position for the sake of safety.

2. Don’t use handbraking unless

unavoidable. It causes the vehicle to skid

and a rearend collision occur. It is

8-4

DRIVING TIPS AND SAFE DRIVING

76G-08-004

76G-08-005 76G-08-006

76G-74E

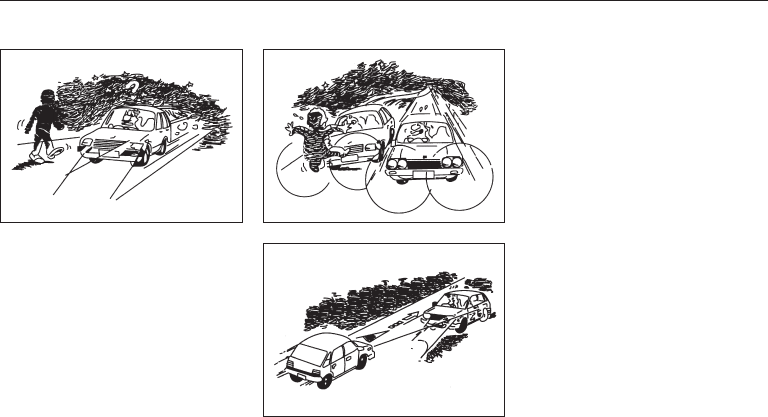

Night time driving

1. Drive more slowly at night than in the

daytime, for the visual range is restricted

at night.

2. Don’t overtake other vehicles at night.

Darkness bothers your sense of speed

and hinders your judgement on the

vehicle-to-vehicle distance.

3. Don’t use the high headlight beam

unless its use is inevitable. Its dazzle

may blitz the driver of the oncoming

vehicle, thus causing an accident.

4. Always keep the window glasses clean.

Don’t operate the windshield wiper when

the windshield glass is dry or the wiper

blade and glass may get damaged.

8-5

DRIVING TIPS AND SAFE DRIVING

MARGIN FOR SAFETY

It is important to allow yourself a margin for

safety during driving so that you can cope

with erroneous or unexpected driving of

other drivers. For that, observe the

following.

• Drive at a safe speed.

• Maintain a sufficient distance between

your vehicle and the vehicle ahead.

• Don’t force yourself to overtake other

vehicles.

• Don’t make quick start, hard steering or

sudden stops.

• Allow an ample time in the driving

schedule.

• Observe traffic rules and regulations.

CONCLUSION

A perfect driver does not exist. The

endeavour of every motorist should be to

strive for perfection. Safety consciousness

not only ensures your safety and the safety

of other road users, it also helps reduce the

wear and tear on your vehicle, prolongs its

life, gives more mileage and ensures a

comfortable driving experience.

Follow the do’s and don’ts listed, and

driving will never be the same again.

76G-08-007 76G-08-008

76G-08-009

76G-74E INSPECTION AND MAINTENANCE

INSPECTION AND MAINTENANCE

Periodic Maintenance Schedule ......................................................................... 9-1

Alto ............................................................................................................. 9-2

Alto K-10 .................................................................................................... 9-6

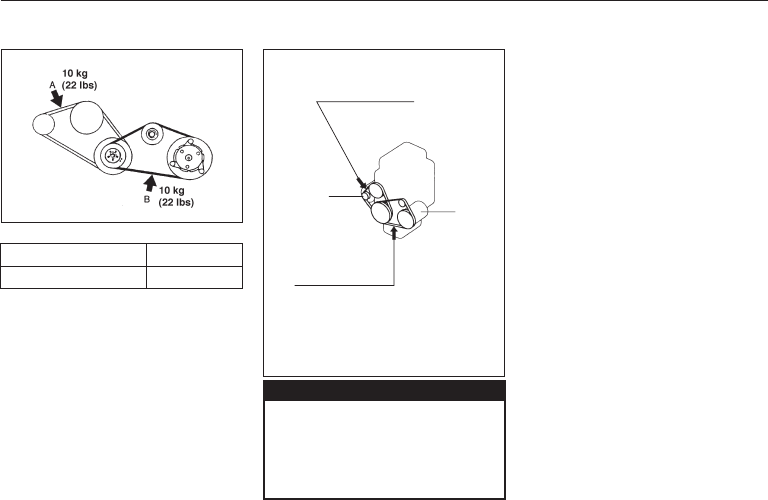

Drive Belt ............................................................................................................ 9-10

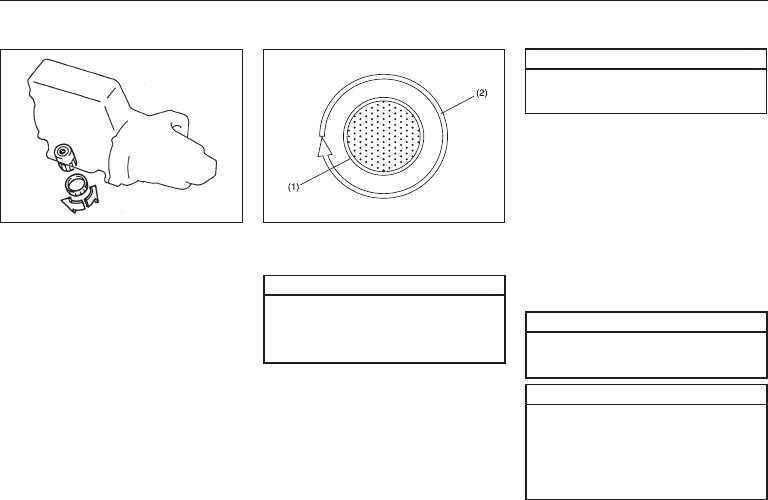

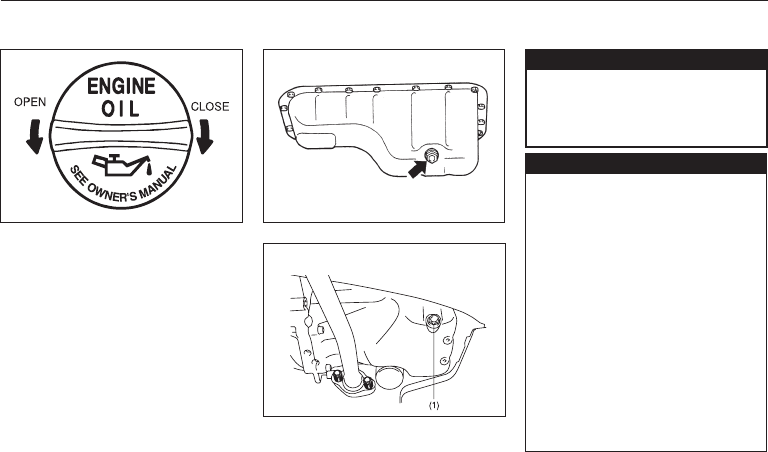

Engine Oil and Filter .......................................................................................... 9-11

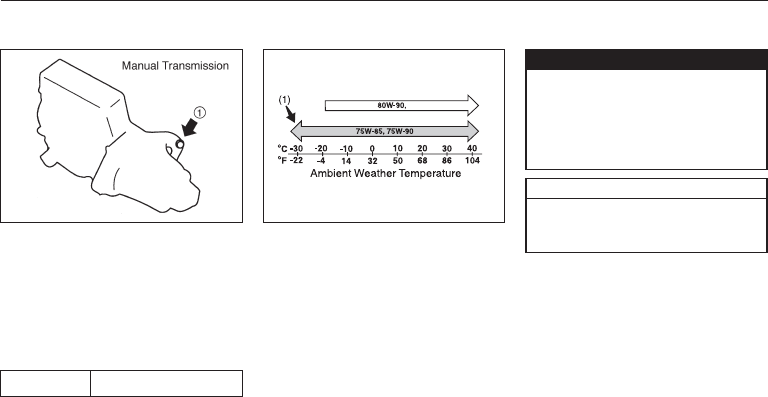

Gear Oil ............................................................................................................... 9-14

Engine Coolant ................................................................................................... 9-15

Windscreen Washer Fluid ................................................................................. 9-18

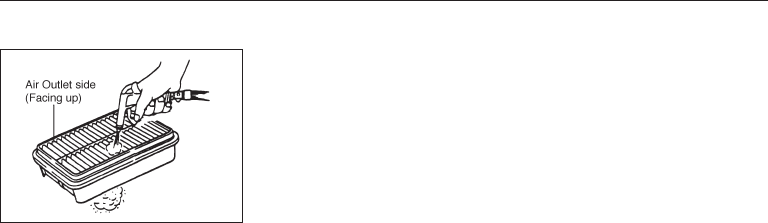

Air Cleaner .......................................................................................................... 9-18

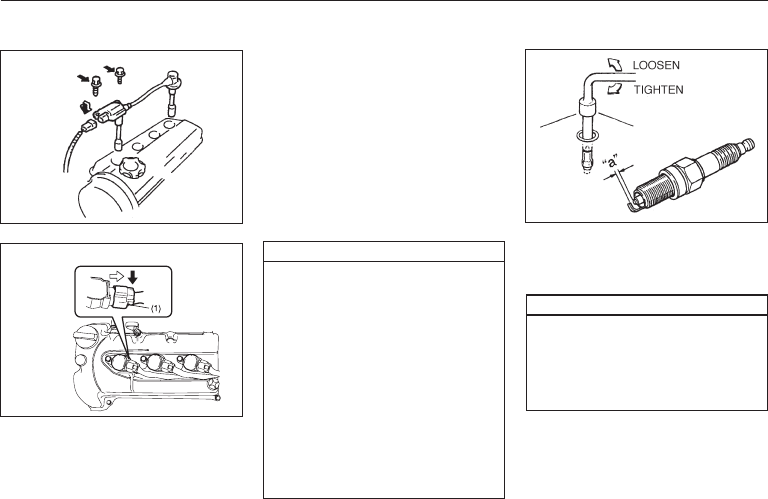

Spark Plugs ........................................................................................................ 9-19

Fuel Filter Replacement .................................................................................... 9-21

Brakes ................................................................................................................. 9-21

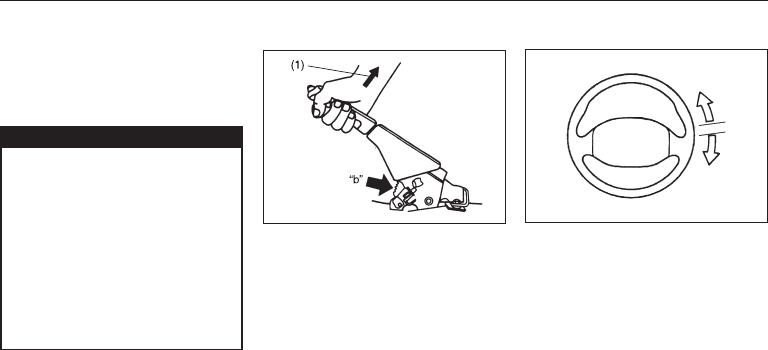

Parking Brake ..................................................................................................... 9-23

Steering ............................................................................................................... 9-23

Clutch Pedal ....................................................................................................... 9-24

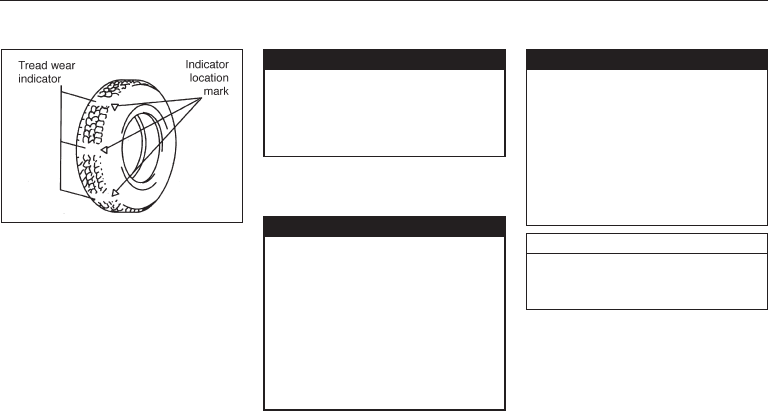

Tyres .................................................................................................................. 9-24

Tubeless Tyre (if equipped) .............................................................................. 9-27

Battery ................................................................................................................. 9-28

Fuses .................................................................................................................. 9-29

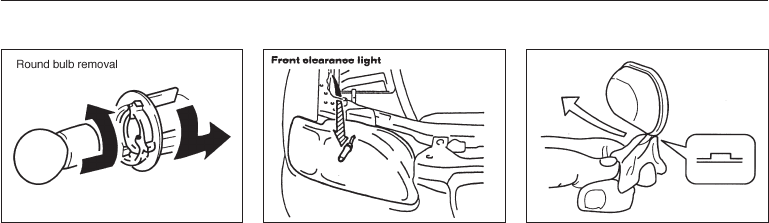

Bulb Replacement .............................................................................................. 9-32

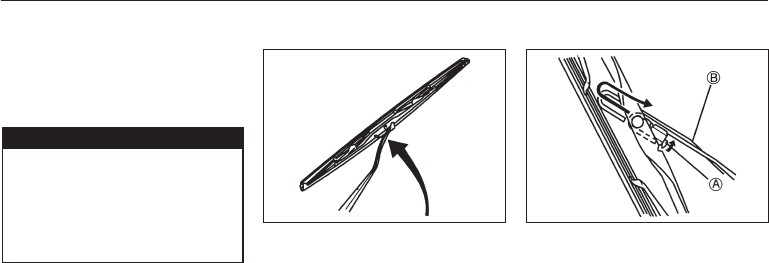

Wiper Blades ...................................................................................................... 9-35

76G-74E

You should take extreme care when

working on your vehicle to prevent

accidental injury. Here are a few

precautions that you should be

especially careful to observe:

• Do not leave the engine running in

garages or other confined areas.

• When the engine is running, keep

hands, clothing, tools, and other

objects away from the fan and water

pump belt. Even though the fan may

not be moving, it can automatically

turn on without warning.

• When it is necessary to do service

work with the engine running, make

sure that the parking brake is

applied fully and the transmission is

in Neutral.

• Do not touch ignition wires or other

ignition system parts when starting

the engine or when the engine is

running, or you could receive an

electric shock.

• Be careful not to touch a hot

engine, exhaust manifold and pipes,

muffler, radiator and water hoses.

• Do not allow smoking, sparks, or

flames around gasoline or the

battery. Flammable fumes are

present.

• Do not get under your vehicle if it

is supported only with the portable

jack provided in your vehicle.

• Be careful not to cause accidental

short circuits between the positive

and negative battery terminals.

• Keep used oil, coolant, and other

fluids away from children and pets.

Dispose of used fluids properly;

never pour them on the ground, into

sewers, etc.

INSPECTION AND MAINTENANCE

9-1

w WARNING

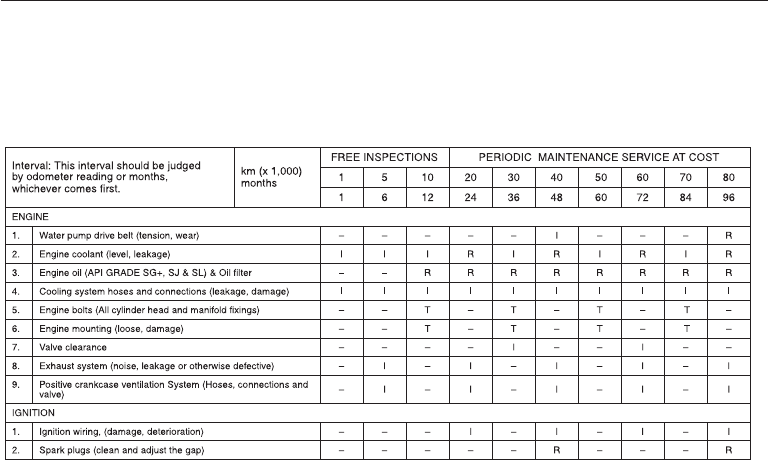

PERIODIC MAINTENANCE SCHEDULE

The following table shows when regular

maintenance on your vehicle is required.

This table shows in kilometres and months

when inspections, adjustments, lubrication

and other services should be performed.

MARUTI SUZUKI recommends that

maintenance on your MARUTI SUZUKI

vehicle be performed by MARUTI

SUZUKI Authorised Dealer/Service

Station.

Whenever it becomes necessary to

replace parts on your vehicle, it is

recommended that you use MARUTI

GENUINE PARTS (MGP).

w WARNING

CAUTION

76G-09-001

76G-74E INSPECTION AND MAINTENANCE

9-2

A....Adjust. I....Inspect and correct or replace if necessary.

T....Tighten to specified torque. C....Clean.

R....Replace or change. O....Rotate

L....Lubricate.

Note:

This table includes services as scheduled up to 80,000 km mileage. Beyond 80,000 km, carry out the same services at the same

intervals respectively.

Interval: This interval should be judged

FREE INSPECTIONS

PERIODIC MAINTENANCE SERVICE AT COST

by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80

whichever comes first. months 1 6 12 24 36 48 60 72 84 96

ENGINE

1. Water pump drive belt (tension, wear) A I I I I I I R A I

2. Engine coolant (level, leakage) I I I R I R I R I R

3. Engine oil (API GRADE SF, SG, SH) & Oil filter R I R R R R R R R R

4. Cooling system hoses and connections (leakage, damage) I I I I I I I I I I

5. Engine bolts (All cylinder head and manifold fixings) – – T – T – T – T –

6. Engine mounting (loose, damage) – – T – T – T – T –

7. Valve clearance – A – A – A – A – A

8. Camshaft timing belt (damage, wear) – – – I – I – I – I

Replace every 1,00,000 km

9. Exhaust system (noise, leakage or otherwise defective) – I – I – I – I – I

10. Positive crankcase ventilation System (Hoses, connections and valve) – I – I – I – I – I

IGNITION

1. Ignition wiring, (damage, deterioration) – – – I – I – I – I

2. Spark plugs (clean and adjust the gap) – – I R I R I R I R

3. Distributor cap and rotor (wear and deterioration)* – – – I – I – I – I

*For LX only

ALTO

76G-74E

INSPECTION AND MAINTENANCE

9-3

Interval: This interval should be judged

FREE INSPECTIONS

PERIODIC MAINTENANCE SERVICE AT COST

by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80

whichever comes first. months 1 6 12 24 36 48 60 72 84 96

FUEL

1. Air cleaner Paved-road Clean every 5,000 km. Replace every 40,000 km.

Dusty condition Clean every 2,500 km or as required. Replace every 40,000 km. More frequent

replacement if dust condition is severe.

2. Accelerator cable and Throttle shafts – I&L I&L I&L I&L I&L I&L I&L I&L I&L

3. Fuel tank cap, fuel lines & connections(leakage,damage) – I – – – I – – – I

4. Fuel filter (leakage) I I I I I R I I I R

CLUTCH AND TRANSMISSION

1. Clutch pedal (play) I I I I I I I I I I

2. Clutch slipping (dragging or excessive damage) I I I I I I I I I I

3. Manual Transmission/Transfer and Differential oil (level, leakage) I I I R I R I R I R

DRIVE SHAFTS

1. Drive shafts boots (bent of boots damage) – I I I I I I I I I

BRAKE

1. Brake fluid (level, leakage) I I I R I R I R I R

2. Brake pedal (pedal-to-wall clearance) I I I I I I I I I I

3. Parking brake lever and cable (play, damage) I I I I I I I I I I

4. a. Brake discs and pads, (wear) – I I I I I I I I I

b. Brake drums & shoes – – I I I I I I I I

5. Master cylinder and wheel cylinder or calliper (oil leakage, boot kit) I I I I I R I I I R

6. Brake hoses and pipes (leakage, damage) I I I I I I I I I I

76G-74E INSPECTION AND MAINTENANCE

9-4

Interval: This interval should be judged

FREE INSPECTIONS

PERIODIC MAINTENANCE SERVICE AT COST

by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80

whichever comes first. months 1 6 12 24 36 48 60 72 84 96

WHEEL

1. Tyres (air pressure, abnormal wear, crack, rotation) I I&O I&O I&O I&O I&O I&O I&O I&O I&O

2. Wheels (damage) I I I I I I I I I I

3. Front wheel bearings (loose, damage) – I I I I I I I I I

4. Rear wheel bearings (loose, damage) – I I I I I I I I I

FRONT AND REAR SUSPENSION

1. Suspension strut (oil leakage, damage) I I I I I I I I I I

2. Suspension arms and knuckle supports (loose,damage) – I I I I I I I I I

3. Rear spring (damage) – I I I I I I I I I

4. Shock absorbers (oil leakage, damage) I I I I I I I I I I

5. All bolts and nuts (loose) – T T T T T T T T T

6. Suspension arms and Tension rods – I I I I I I I I I

STEERING

1. Steering wheel (play, loose) I I I I I I I I I I

2. All rods and arms (loose, damage, wear) I I I I I I I I I I

ELECTRICAL

1. Battery electrolyte (level, leakage) I I I I I I I I I I

2. Wiring harness connection (looseness, damage) – I I I I I I I I I

3. Lighting system (operation, stains, damage) I I I I I I I I I I

4. Horn (operation) I I I I I I I I I I

5. System voltage – I I I I I I I I I

BODY

1. All chassis bolts and nuts (tighten) – I T T T T T T T T

2. All Latches, Hinges & Locks (function) I I&L I&L I&L I&L I&L I&L I&L I&L I&L

76G-74E

INSPECTION AND MAINTENANCE

9-5

Interval: This interval should be judged

FREE INSPECTIONS

PERIODIC MAINTENANCE SERVICE AT COST

by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80

whichever comes first. months 1 6 12 24 36 48 60 72 84 96

ROAD TEST

1. Operation of Brakes, Gear shifting & speedometer I I I I I I I I I I

2. Body and Chassis noise I I I I I I I I I I

AIR CONDITIONER (if equipped)

1. Check belt tension I I I I I I I I I I

2. Tighten compressor mounting bolts – T T T T T T T T T

3. Check all hose joints, tighten if necessary I I I I I I I I I I

4. Check functioning of Recirc flap I I I I I I I I I I

5. Clean condenser with low pressure water – C C C C C C C C C

6. Check belt for frayed edges, change if necessary – I I I I I I I I I

7. Check all mounting bolts – I I I I I I I I I

76G-74E

A....Adjust. I....Inspect and correct or replace if necessary.

T....Tighten to specified torque. C....Clean.

R....Replace or change. O....Rotate

L....Lubricate.

Note:

This table includes services as scheduled up to 80,000 km mileage. Beyond 80,000 km, carry out the same services at the same intervals respectively.

INSPECTION AND MAINTENANCE

9-6

ALTO K10

76G-74E

INSPECTION AND MAINTENANCE

9-7

76G-74E INSPECTION AND MAINTENANCE

9-8

76G-74E

w WARNING

The rear shock absorbers are filled with

high pressure gas. Never attempt to

disassemble it or throw it into a fire.

Avoid storing it near a heater or heating

device. When scrapping the absorber,

the gas must be released from the

absorber safely. Ask your dealer for

assistance.

• All maintenance should be carried out with

the ignition switch in the “OFF” position

and the car parked securely on the level

ground unless otherwise specified.

• If you are in any way unsure of your

ability to undertake a task, then do not

start it but contact your MARUTI SUZUKI

dealer to perform the work for you.

w WARNING

INSPECTION AND MAINTENANCE

9-9

76G-74E INSPECTION AND MAINTENANCE

9-10

DRIVE BELT

When the engine is running, keep

hands, hair, clothing, tools, etc. away

from the fan and drive belt. Even

though the fan may not be moving, it

can automatically turn on without

warning.

Water pump belt (A) 8 - 9 mm

Air conditioner belt (B) 8 - 9 mm

w WARNING

76G-09-002

Make sure the drive belt tension is correct.

If the belt is too loose, insufficient battery

charging, engine overheating, or excessive

belt wear can result. When you press the

belt with your thumb midway between the

pulleys, the belt deflection should be within

the specification below.

The belt should also be examined to ensure

that it is not damaged. If the belt needs to

be replaced or adjusted, have it done by

your MARUTI SUZUKI dealer.

DEF: 4.0 – 4.5 mm

(0.16 – 0.18 in.)

DEF: 7 – 8 mm

(0.28 – 0.31 in.)

: 100 N (10 kg, 22 lbs) press

GE: Generator

DEF: Deflection

AC: Air conditioner compressor

ALTO K10

ALTO

76G-74E

INSPECTION AND MAINTENANCE

9-11

ENGINE OIL AND FILTER

Specified oil

Be sure that the engine oil you use comes

under the API classification of SF, SG or

SH. The recommended engine oil is SF

20W40 (1). Select the appropriate oil

viscosity according to the above chart.

Oil Level Check

It is important to keep the engine oil at the

correct level for proper lubrication of your

vehicle’s engine. Check the oil level with the

vehicle on a level surface. The oil level

indication may be inaccurate if the vehicle

is on a slope. The oil level should be

checked either before starting the engine or

at least 5 minutes after stopping the engine.

Pull out the oil dipstick, wipe oil off with a

clean cloth, insert the dipstick all the way

into the engine, then remove it again. The

oil on the stick should be between the

upper and lower limits shown on the stick.

If the oil level indication is near the lower

limit, add enough oil to raise the level to

the upper limit.

76G-09-003 76G-09-004

(1) Preferred

Be sure that the engine oil you use comes

under the quality classification of SG+, SL

& SJ. Select the appropriate oil viscosity

according to the above chart.

SAE 5W30 (1) is the best choice for good

fuel economy, and good starting in cold

weather.

Failure to check the oil level regularly

could lead to serious engine trouble

due to insufficient oil.

ALTO K10

ALTO EXAMPLE

CAUTION

76G-74E INSPECTION AND MAINTENANCE

9-12

Refilling

Remove the oil filler cap and pour oil slowly

through the filler hole to bring the oil level

to the upper limit on the dipstick. Be careful

not to overfill. Too much oil is almost as

bad as too little oil. After refilling, start the

engine and allow it to idle for about a

minute. Stop the engine, wait for five

minutes and check the oil level again.

Changing Engine Oil and Filter

Drain the engine oil while the engine is still

warm.

1) Remove the oil filler cap.

2) Place a drain pan under the drain plug.

3) Using the correct spanner remove the

drain plug and drain out the engine oil.

The engine oil temperature may be high

enough to burn your fingers when the

drain plug is loosened. Wait until the

drain plug is cool enough to touch with

your bare hands.

w WARNING

New and used oil can be hazardous.

Children and pets may be harmed by

swallowing new or used oil. Keep new

and used oil and used oil filters away

from children and pets.

Continuous contact with used engine

oil may cause (skin) cancer.

Brief contact with used oil may irritate

skin.

To minimize your exposure to used

oil, wear a long-sleeve shirt and

moistureproof gloves (such as

dishwashing gloves) when changing

oil. If oil contacts your skin, wash

thoroughly with soap and water.

Launder any clothing or rags if wet

with oil.

Recycle or properly dispose of used

oil and filters.

4. Reinstall the drain plug and new gasket.

Tighten the plug with a wrench to the

specified torque.

w WARNING

76G-09-005 76G-09-006

Tightening torque for drain plug (1):

35 Nm (3.5 kg-m, 25.5 lb-ft)

ALTO

ALTO K10

Tightening Torque :

49± 5 N.m

76G-74E

INSPECTION AND MAINTENANCE

9-13

Replace the oil filter

1) Using an oil filter wrench, turn the oil

filter counterclockwise and remove it.

2) Using a clean rag, wipe off the mounting

surface on the engine where the new

filter will be seated.

3) Smear a little engine oil around the

rubber gasket of the new oil filter.

4) Screw on the new filter by hand until the

filter gasket contacts the mounting

surface.

To tighten the oil filter properly, it is

important to accurately identify the

position at which the filter gasket

first contacts the mounting surface.

5. Tighten the filter specified turn from the

point of contact with the mounting sur-

face (or to the specified torque) using an

oil filter wrench.

Tightening torque for oil filter

1 turn or

14 Nm (1.4 kg-m, 10.5 lb-ft)

CAUTION

Refill with oil and check for leaks.

1) Pour oil through the filler hole and install

the filler cap.

For the approximate capacity of the oil,

refer to the "CAPACITIES" item in the

"SPECIFICATIONS" section.

2) Start the engine and look carefully for

leaks at the oil filter and drain plug. Run

the engine at various speeds for at least

5 minutes.

3) Stop the engine and wait for 5 minutes.

Check the oil level again and add oil if

necessary. Check for leaks again.

When replacing the oil filter, it is

recommended that you use a genuine

MARUTI replacement filter.

Oil leaks from around the oil filter or

drain plug indicate incorrect installa-

tion or gasket damage. If you find any

leaks or are not sure that the filter

has been properly tightened, have the

vehicle inspected by your MARUTI

SUZUKI dealer.

CAUTION

76G-09-007 76G-09-008

To prevent oil leakage, make sure

that the oil filter is tight, but do not

overtighten it.

(1) Oil filter

(2) 1 Turn

76G-74E INSPECTION AND MAINTENANCE

9-14

GEAR OIL

Oil filler and level plug 1

Tightening torque: 21 Nm (2.1 kg-m, 15.5

lb-ft)

Specified Manual Transmission oil

When adding gear oil, use the appropriate

viscosity and grade as shown in the chart

below. We highly recommend you use API

GL-4 SAE 75W-90 (1) gear oil.

Type of oil Gear oil, API GL-4

Gear oil level check

To check the gear oil level, use the

following procedure:

1) Park the vehicle on a level surface with

the parking brake applied. Then, stop the

engine.

2) Clean casing around oil filler plug to

remove risk of any loose dirt or debris

entering oil filler plug hole. Remove the

oil filler plug 1.

3) Feel the inside of the hole with your

finger. If the oil level comes up to the

bottom of the plug hole, the oil level is

correct. If so, reinstall the plug.

4) If the oil level is low, add gear oil

through the filler plug hole 1 until the

oil level reaches the bottom of the filler

hole, then reinstall the plug.

After driving the vehicle, the

transmission oil temperature may be

high enough to burn you. Wait until

the oil filler plug is cool enough to

touch with your bare hands before

inspecting transmission oil.

When tightening the plug, apply

sealing compound to the plug threads

to prevent oil leakage.

Gear oil change

Since special procedures, materials and

tools are required, it is recommended that

you trust this job to your authorized

MARUTI SUZUKI dealer.

w WARNING

CAUTION

76G-09-009 76G-09-010

76G-74E

INSPECTION AND MAINTENANCE

9-15

ENGINE COOLANT

76G-09-011

ALTO

76G-09-012

EXAMPLE

EXAMPLE ALTO K10

EXAMPLE

ALTO ALTO K10

Selection of Coolant

To maintain optimum performance and

durability of your engine, use MARUTI

Genuine Coolant or equivalent.

This type of coolant is best for your cooling

system as it:

• Helps maintain proper engine temperature.

• Gives proper protection against freezing

and boiling.

• Gives proper protection against corrosion

and rust.

Failure to use the proper coolant can dam-

age your cooling system. Your MARUTI

SUZUKI authorized dealer can help you

select the proper coolant.

76G-74E INSPECTION AND MAINTENANCE

9-16

CAUTION

To avoid damaging your cooling sys-

tem:

• Always use a high quality ethylene

glycol base non-silicate type cool-

ant diluted with distilled water at

the correct mixture concentration.

• Make sure that the proper mix is 30/

70 coolant to distilled water.

Concentrations greater than 70/30

coolant to distilled water will cause

over heating conditions.

• Do not use straight coolant nor

plain water.

• Do not add extra inhibitors or addi-

tives. They may not be compatible

with your cooling system.

• Do not mix different types of base

coolants. Doing so may result in

accelerated seal wear and/or the

possibility of severe overheating

and extensive engine damage.

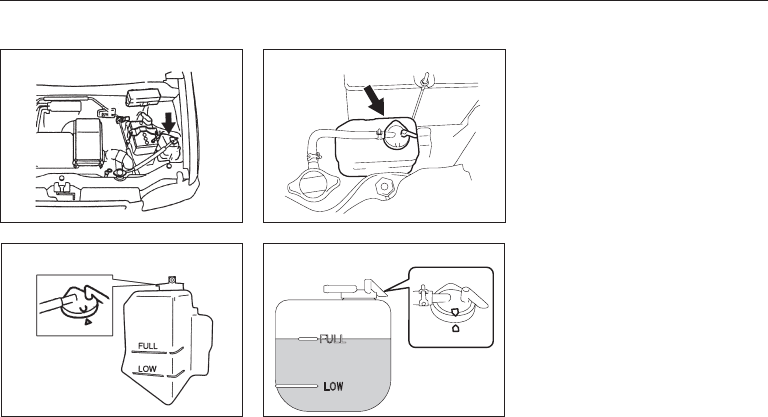

Coolant Level Check

Check the coolant level at the reservoir

tank, not at the radiator. With the engine

cool, the coolant level should be between

the “FULL” and “LOW” marks.

Adding Coolant

If the coolant level is below the “LOW”

mark, more coolant should be added.

Remove the reservoir tank cap and add

coolant until the reservoir tank level reaches

the “FULL” mark. Never fill the reservoir

tank above the “FULL” mark.

CAUTION

• The mixture you use should con-

tain 50% concentration of anti-

freeze.

• If the lowest ambient temperature

in your area is expected to be –

35°C (–31°F) or below, use higher

concentrations up to 60% following

the instructions on the antifreeze

container.

• When putting the cap on the reser-

voir tank, line up the arrow on the

cap and the arrow on the tank. Fail-

ure to follow this can result in cool-

ant leakage.

100

76G-74E

Coolant Replacement

Trust this job to your Maruti Suzuki

Authorised Workshop.

76G-09-013

w WARNING

76G-09-014

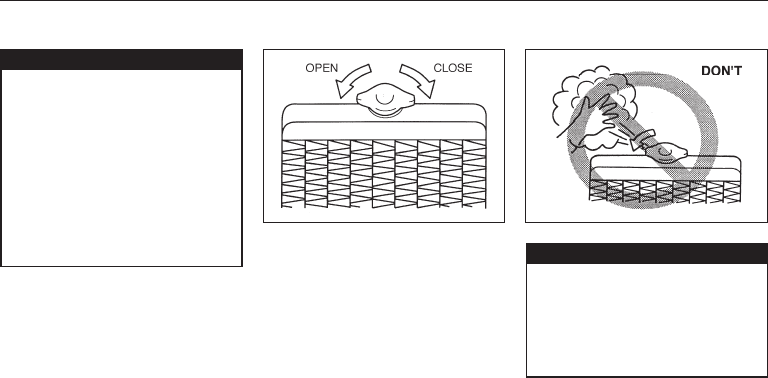

It is dangerous to remove the radia-

tor cap when the water temperature

is high, because scalding fluid and

steam may be blown out under pres-

sure. Wait until the coolant tempera-

ture has lowered before removing the

cap.

w WARNING

Engine coolant is harmful or fatal if

swallowed or inhaled. Do not drink

antifreeze or coolant solution. If swal-

lowed, do not induce vomiting. Imme-

diately contact a poison control center

or a physician. Avoid inhaling mist or

hot vapors. If inhaled, expose yourself

to fresh air. If coolant gets in eyes,

flush eyes with water and seek medi-

cal attention. Wash thoroughly after

handling. Solution can be poisonous to

animals. Keep out of the reach of

children and animals.

9-17

INSPECTION AND MAINTENANCE

101

76G-74E

WINDSCREEN WASHER FLUID

Check that there is washer fluid in the tank.

Refill it if necessary. Use a good quality

windscreen washer fluid, diluted with water

as necessary.

Do not use “antifreeze” solution in the

windscreen washer reservoir. This can

severely impair visibility when sprayed

on the windscreen, and can also

damage your vehicle’s paint.

Damage may result if the washer

motor is operated whilst the fluid or

fluid nozzles are frozen or with no

fluid in the washer tank.

w WARNING

CAUTION

76G-09-016

AIR CLEANER

If the air cleaner is clogged with dust, there

will be greater intake resistance, resulting

in decreased power output and increased

fuel consumption.

Take out the air cleaner element after

unhooking the clamps shown in the

illustration. Blow off dust on air cleaner

element by compressed air. If the air

cleaner element appears to be dirty, replace

it with a new one.

76G-09-017

ALTO K10

INSPECTION AND MAINTENANCE

9-18

EXAMPLE ALTO EXAMPLE

EXAMPLE

102

76G-74E

The air cleaner element should be

replaced every 40,000 km. More

frequent replacement is necessary

when you drive under dusty

conditions.

CAUTION

SPARK PLUGS

You should inspect spark plugs periodically

for carbon deposits. When carbon

accumulates on a spark plug, a strong

spark may not be produced. Remove

carbon deposits with a wire or pin and

adjust the spark plug gap.

76G-09-018 76G-09-019

ALTO K10

INSPECTION AND MAINTENANCE

9-19

ALTO

103

76G-74E

76G-09-020

ALTO K10

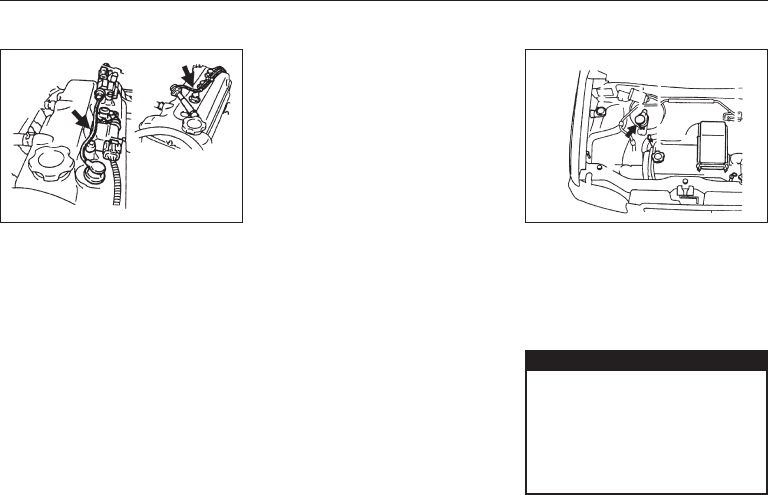

EXAMPLE To access the spark plugs,

For Alto

1. Disconnect the coupler while pushing the

release lever,

2. Remove the bolts, and

3. Pull the spark plug boots.

For Alto K10

1. Unclamp and remove the air cleaner case.

2. If necessary, disconnect the coupler (1)

while pushing the release lever.

3. Remove the ignitor bolts.

4. Pull the spark plug boots out.

CAUTION

76G-09-021

Spark Plug gap "a"

Alto - 0.85 ± 0.5 mm

Alto K10 - 1.0 ± 0.05 mm

INSPECTION AND MAINTENANCE

9-20

ALTO

EXAMPLE

• When disconnecting the spark plug

cables, pull on the boot, not on the

cable itself. Pulling on the cable can

damage it.

• When installing the spark plugs,

screw them in with your fingers to

avoid stripping the threads. Tighten

with a torque wrench to :

Alto - 13.0–22.0 N-m (1.3–2.2 kg-m,

9.4–15.9 lb-ft)

Alto K10 - 25 N-m (2.5 kg-m, 18.0

lb-ft).

Do not allow contaminants to enter

the engine through the spark plug

holes when the plugs are removed.

• Never use spark plugs with the

wrong thread size or length.

CAUTION

When replacing spark plugs, you

should use the brand and type

specified for your vehicle. For the

specified plugs, refer to the

“SPECIFICATIONS” section at the end

of this book.

NOTE:

When installation, make sure the wires,

couplers, sealing rubber of top cover and

washers, are correctly returned in place.

104

76G-74E

INSPECTION AND MAINTENANCE

9-21

NOTE:

If you experience some firing problem of

spark plugs, such as, hard engine-starting,

misfire etc., the cause may be located not

only on spark plugs but also on deteriorated

ignition wiring (generally, used for more than

80,000 km or five years). If spark plug

replacement does not solve the problem,

have the ignition wiring and other ignition

system inspected by your MARUTI SUZUKI

dealer.

76G-09-022

BRAKES

Brake Fluid

Check the brake fluid level by looking at the

reservoir in the engine compartment. Check

that the fluid level is between the “MAX”

and “MIN” lines. If the brake fluid level is

near the “MIN” line, fill it up to the “MAX”

line with MARUTI GENUINE brake fluid.

Failure to follow the guidelines below

can result in personal injury or

serious damage to the brake system.

• If the brake fluid in the reservoir

drops below a certain level, the

brake warning light on the

instrument panel will come on (the

w WARNING

76G-09-023

EXAMPLE EXAMPLE

FUEL FILTER REPLACEMEMT

Trust this replacement job to your MARUTI

SUZUKI authorised workshop.

105

76G-74E

parking brake must be fully

disengaged with ignition switch in

"ON" position). Should the light

come on, immediately ask your

MARUTI SUZUKI dealer to inspect

the brake system.

• A rapid fluid loss indicates a leak in

the brake system which should be

inspected by your MARUTI SUZUKI

dealer immediately.

• Brake fluid can harm your eyes and

damage painted surfaces. Use

caution when refilling the reservoir.

w WARNING

76G-09-024

INSPECTION AND MAINTENANCE

9-22

• Do not use any fluid other than

MARUTI GENUINE brake fluid. Do

not use reclaimed fluid or fluid that

has been stored in old or open

containers. It is essential that

foreign particles and other liquids

are kept out of the brake fluid

reservoir.

The brake fluid should be replaced

every two years or 20,000 km.

NOTE:

With disc brakes, the fluid level can be

expected to gradually fall as the brake pads

wear.

w WARNING

CAUTION

76G-09-025

Brake Pedal

Check if the brake pedal stops at the

regular height without "spongy" feeling when

you depress it. If not, have the brake

system inspected by your MARUTI SUZUKI

dealer. If you doubt the brake pedal for the

regular height, check it as follows:

With the engine running, measure the

distance between the brake pedal and floor

silencer mat when the pedal is depressed

with approximately 30 kg (66 lbs) of force.

The minimum distance required is 110 mm

(4.3 in). Since your vehicle’s brake system

is self-adjusting, there is no need for pedal

adjustment. If the pedal to floor wall distance

as measured above is less than the minimum

distance required, have your vehicle inspected

by your MARUTI SUZUKI dealer.

76G-09-026

106

76G-74E

INSPECTION AND MAINTENANCE

9-23

NOTE:

When measuring the distance between the

brake pedal and floor wall, be sure not to

include any floor covering other than

silencer mat in the measurement.

If you experience any of the following

problems with your vehicle’s brake

system, have the vehicle inspected

immediately by your MARUTI SUZUKI

dealer.

• Poor braking performance

• Uneven braking (Brakes not working

uniformly on all wheels.)

• Excessive pedal travel

• Brake dragging

• Excessive noise

• Pedal pulsation (Pedal pulsates

when depressed.)

w WARNING

Ratchet tooth specification "b"

4th- 9th

Lever pull force (1)

200 N (20kg. 44 lbs)

Check the parking brake for proper

adjustment by counting the number of clicks

made by the ratchet teeth as you slowly pull

up on the parking brake lever to the point

of full engagement. The parking brake lever

should stop between the specified ratchet

teeth and the rear wheels should be

securely locked. If the parking brake is not

properly adjusted or the brakes drag after

the lever has been fully released, have the

parking brake inspected and/or adjusted by

your MARUTI SUZUKI dealer.

76G-09-027

STEERING

Check the play of the steering wheel by

gently turning it from left to right and

measuring the distance that it moves before

you feel slight resistance. The play should

be between 0 – 30 mm (0.0 – 1.2 in).

Check that the steering wheel turns easily

and smoothly without rattling by turning it

all the way to the right and to the left while

driving very slowly in an open area. If the

amount of free play is outside the

specification or you find anything else to be

wrong, an inspection must be performed by

your MARUTI SUZUKI dealer.

76G-09-028

EXAMPLE

PARKING BRAKE

107

76G-74E

9-24

INSPECTION AND MAINTENANCE

CLUTCH PEDAL

Measure the clutch pedal play by moving

the clutch pedal with your hand and

measuring the distance it moves until you

feel slight resistance. The play in the clutch

pedal should be between 15 – 20 mm (0.6

– 0.8 in) If the play is more or less than

the above, or clutch dragging is felt with the

pedal fully depressed, have the clutch

inspected by your MARUTI SUZUKI dealer.

76G-09-029

TYRES

The front and rear tyre pressure

specifications for your vehicle are listed on

the Tyre Inflation Pressure Label and in the

“SPECIFICATIONS” section at the end of

this book. Both the front and rear tyres

should have the specified tyre pressure.

Tyre Inspection

Inspect your vehicle’s tyres periodically by

performing the following checks:

1) Measure the air pressure with a tyre

gauge. Adjust the pressure if necessary.

Remember to check the spare tyre too.

76G-09-030

• Air pressures should be checked

when the tyres are cold or you may

get inaccurate readings.

• Check the inflation pressure from

time to time while inflating the tyre

gradually, until the specified

pressure is obtained.

• Never underinflate or overinflate the

tyres.

Underinflation can cause unusual

handling characteristics or can

cause the rim to slip on the tyre

bead, resulting in an accident or

damage to the tyre or rim.

Overinflation can cause the tyre to

burst, resulting in personal injury.

Overinflation can also cause

unusual handling characteristics

which may result in an accident.

w WARNING

108

76G-74E

INSPECTION AND MAINTENANCE

9-25

2) Check that the depth of the tread groove

is more than 1.6 mm (0.06 in). To help

you check this, the tyres have moulded-

in tread wear indicators in the grooves.

When the indicators appear on the tread

surface, the remaining depth of the tread

is 1.6 mm (0.06 in) or less and the tyre

should be replaced.

3) Check for abnormal wear, cracks and

damage. Any tyres with cracks or other

damage should be replaced. If any tyres

show abnormal wear, have them

inspected by your MARUTI SUZUKI

dealer.

76G-09-031

Hitting curbs and running over rocks

can damage tyres and affect wheel

alignment. Be sure to have tyres and

wheel alignment checked periodically

by your MARUTI SUZUKI dealer.

4) Check for loose wheel nuts.

5) Check that there are no nails, stones,

or other objects sticking into the tyres.

Your MARUTI SUZUKI is equipped

with tyres which are all the same type

and size. This is important to ensure

proper steering and handling of the

vehicle. Never mix tyres of different

size or type on the four wheels of

your vehicle. The size and type of

tyres used should be only those

approved by MARUTI SUZUKI as

standard or optional equipment for

your vehicle.

w WARNING

Replacing the wheels and tyres

equipped on your vehicle with certain

combinations of aftermarket wheels

and tyres can significantly change the

steering and handling characteristics

of your vehicle. Therefore, use only

those wheel and tyre combinations

approved by MARUTI SUZUKI as

standard or optional equipment for

your vehicle.

Replacing the original tyres with tyres

of a different size may result in false

speedometer or odometer readings.

w WARNING

CAUTION

109

76G-74E INSPECTION AND MAINTENANCE

9-26

Tyre Rotation

To avoid uneven wear of your tyres and to

prolong their life, rotate the tyres as

illustrated. Tyres should be rotated as

recommended in the periodic maintenance

schedule. After rotation, adjust front and rear

tyre pressures to the specification listed on

your vehicle’s Tyre Inflation Pressure Label.

Wheel Balancing

If the vehicle vibrates abnormally on smooth

road, have the wheels balanced at Maruti

Suzuki authorized workshop.

Wheel Alignment

In case of abnormal tyre wear or pulling

towards one side, have the wheel aligned

at Maruti Suzuki authorized workshop.

76G-09-032

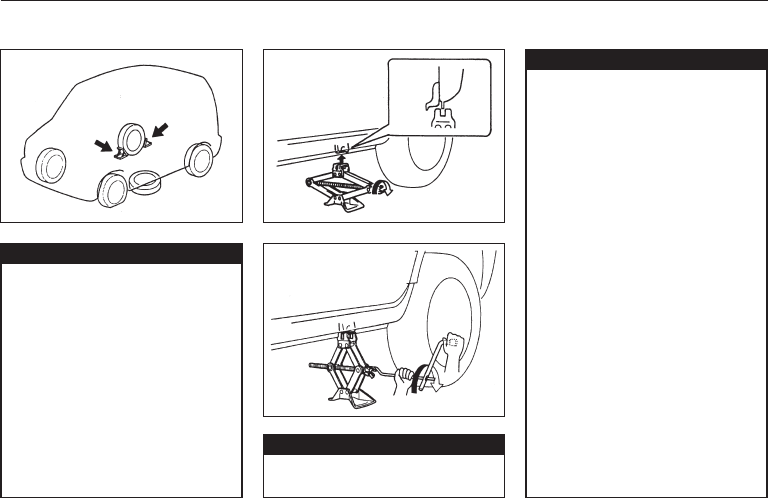

Changing Wheels

To change a wheel, use the following

procedure:

1) Remove the jack , tools and spare wheel

from the vehicle

NOTE:

If it is hard to loosen the bolt that secures

the spare tyre, use the jack crank as

illustrated.

2) Loosen, but do not remove the wheel

nuts.

3) Jack up the vehicle (follow the jacking

instructions in the EMERGENCY

SERVICE section in this manual)

76G-09-033

4) Remove the wheel nuts and wheel.

5) Before installing the new wheel, clean

any mud or dirt off from the surface of

the wheel and hub with a clean cloth.

Clean the hub carefully; it may be hot

from driving.

6) Install the new wheel and replace the

wheel nuts with their cone shaped end

facing the wheel. Tighten each nut

snugly by hand until the wheel is

securely seated on the hub.

7) Lower the jack and fully tighten the nuts

[to 8.5 kg-m (61.5 lb-ft)] in a crisscross

fashion with a wrench as shown in the

illustration.

76G-09-034

110

76G-74E

INSPECTION AND MAINTENANCE

9-27

76G-09-035

76G-09-036

Use MARUTI Genuine wheel nuts and

tighten them to the specified torque

as soon as possible after changing

wheels. Incorrect wheel nuts or

improperly tightened wheel nuts may

come loose or fall off, which can

result in an accident. If you do not

have a torque wrench, have the wheel

nut torque checked by a MARUTI

SUZUKI authorized dealer.

w WARNING Tubeless Tyres (If equipped)

The vehicle is equipped with Tubeless

Tyres. In tubeless tyre, a thin layer of butyl

rubber is used for lining the inside of the

tubeless tyre. This layer is to prevent air

loss and fulfilling the purpose of tube. The

air pressure is maintained by the sealing

between tyre bead and wheel rim. Tubeless

tyres are having advantage of slow air loss

and preventing sudden deflation while

driving.

Care and maintenance tips for tubeless

tyres

1. Always maintain recommended inflation

pressure. Driving continously at low

inflation pressure can lead to tyre dam-

age.

2. In case any leakage is found, check for

any nail penetration/valve core damage

or rim bent. Damaged wheel must not

be used.

3. In case tyre has run at low pressue, it

must be inspected for any defect.

4. Whenver new tyre is fitted, replace the

valve.

5. If continous high speed driving is

required, increase tyres pressure by 5

psi over recommended inflation pressure.

111

76G-74E INSPECTION AND MAINTENANCE

9-28

6. Never run the tyre beyond TWI (Tread

wear indicator). The tyre is recommen-

ded to be replaced when the remaining

tread has worn to this point. The indica-

tors are spaced across the tread around

the tyre marked by a triagular symbol

(TWI).

7. Always prefer tubeless tyre mounting

machine. In case of manual mounting-

tyre/wheel rim damage may occur.

8. In case of any problem, please get in

touch with MARUTI SUZUKI authorised

dealer. 76G-09-037

76G-09-038

Batteries produce flammable hydrogen

gas. Keep flames and sparks away

from the battery or an explosion may

occur. Never smoke when working in

the vicinity of the battery.

When checking or servicing the

battery, disconnect the negative cable.

Be careful not to cause a short circuit

by allowing metal objects to contact

the battery posts and the vehicle at

the same time.

w WARNING

EXAMPLE-1

EXAMPLE-2

BATTERY

112

76G-74E

INSPECTION AND MAINTENANCE

9-29

To avoid harm to yourself or damage

to your vehicle or battery, follow the

jump starting instructions in the

EMERGENCY SERVICE section of this

manual if it is necessary to jump start

your vehicle.

The level of the battery solution must be

kept between the “MAX” and the “MIN” level

lines at all times. If the level is found to be

below the “MIN” level line, add distilled

water to the “MAX” level line. You should

periodically check the battery, battery

terminals, and battery hold-down bracket for

corrosion. Remove corrosion using a stiff

brush and ammonia mixed with water, or

baking soda mixed with water. After

removing corrosion, rinse with clean water.

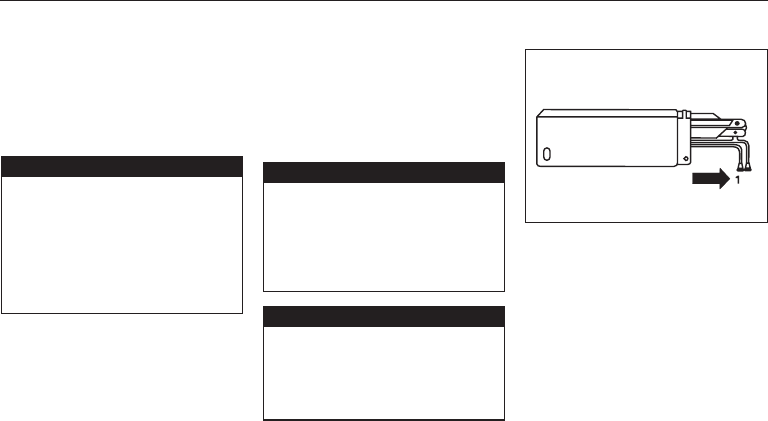

If your vehicle is not going to be driven for

a month or longer, disconnect the cable from

the negative terminal of the battery to help

prevent discharge.

w WARNING

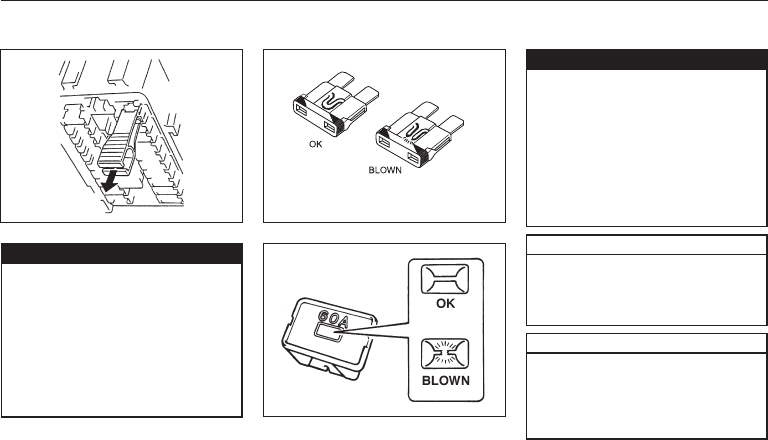

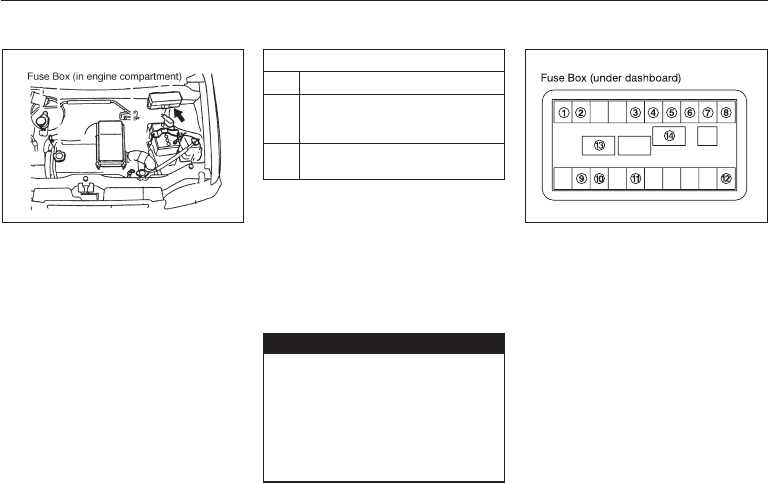

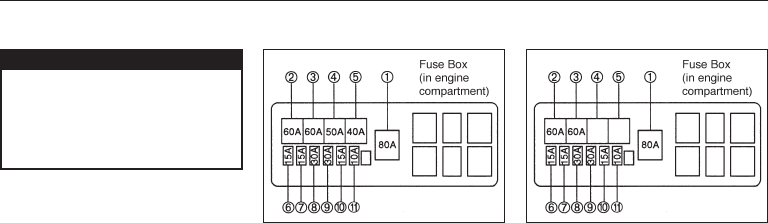

FUSES

1. Main fuse

2. Primary fuse (IG)

3. Primary fuse (Not under ignition switch)

4. Empty

5. Empty

6. Headlight (R)

7. Headlight (L)

8. Empty

9. Radiator fan motor fuse

0. Fuel injection system fuse

c. Air conditioner (If equipped)

76G-09-039

1. Main fuse

2. Primary fuse (IG)

3. Primary fuse (Not under ignition switch)

4. Empty

5. Empty

6. Headlight (R)

7. Headlight (L)

8. Blower

9. Radiator fan motor fuse

0. Fuel injection system fuse

c. Air conditioner (If equipped)

76G-09-039

ALTO ALTO K10

113

76G-74E INSPECTION AND MAINTENANCE

9-30

This vehicle has three types of fuses, as

described below :

Main Fuse - The main fuse takes current

directly from the battery.

Primary Fuses - These fuses are between

the main fuse and individual fuses, and are

for electrical load groups.

Individual Fuses - These fuses are in the

fuse box and for individual electrical circuits.

76G-09-040

EXAMPLE

1. HEATER 10A

2. WIPER/WASHER 15A

3. BLANK

4. STOP 10A

5. TAIL 10A

6. RADIO/DOME 15A

7. HORN HAZARD 15A

8. BLOWER 25A

9. IG 15A

0. TURN/BACK 10A

c. STEERING 30A

d. CIGAR 15A

e. STARTER FUSE 30A

f. FUSE PULLER

Main Fuse and Primary Fuses

The main fuse and primary fuses are

located in the engine compartment. If the

main fuse blows, no electrical component

will function. If a primary fuse blows, no

electrical component in the corresponding

load group will function. When replacing the

main fuse or a primary fuse, use a MARUTI

genuine replacement.

If the main fuse or a primary fuse

blows, be sure to have your vehicle

inspected by an authorized MARUTI

SUZUKI dealer. Always use a MARUTI

genuine replacement. Never use a

substitute such as a wire even for a

temporary repair, or extensive

electrical damage and a fire can result.

w WARNING

MAIN FUSE / PRIMARY FUSES

80A All Electric Load

60A CIGAR, TURN/BACK, I.G./METER,

(IG) HEATER, REAR DEFG, WIPER/

WASHER, POWER WINDOW

60A DOOR LOCK, TAIL, STOP, RADIO/

DOME, HORN/HAZARD

76G-09-041

ALTO

114

76G-74E

9-31

INSPECTION AND MAINTENANCE

1. HEATER 10A

2. WIPER/WASHER 15A

3. DOOR LOCK 20A

4. STOP 10A

5. TAIL 10A

6. RADIO/DOME 15A

7. HORN HAZARD 15A

8. POWER STEERING 30A

9. IG 15A

0. TURN/BACK 10A

c. METER 10A

d. ACC 15A

e. CIGAR 15A

f. STARTER FUSE 30A

g. FUSE PULLER

h. POWER WINDOW 30A

76G-09-041A

ALTO K10

Fuse Box

The fuse boxes are located in the engine

compartment and under the driver’s side of

the dashboard.

To remove the fuse box cover under the

dashboard pull off the cover.

NOTE:

Alto

To remove the fuse from the fuse box use

the fuse puller given in the fuse box (under

dashboard) as shown in the illustration.

76G-09-042

ALTO Fuse Box (under dashboard)

76G-09-042A

ALTO K10 Fuse Box (under dashboard)

NOTE:

Alto K10

Replace the fuse as described on the fuse

box cover. Use the fuse puller given in the

fuse box and keeping cover rib (1) in

downward direction as shown.

115

76G-74E INSPECTION AND MAINTENANCE

9-32

Always be sure to replace a blown

fuse with a fuse of the correct

amperage. Never use a substitute

such as aluminium foil or wire to

replace a blown fuse. If you replace

a fuse and the new one blows in a

short period of time, you may have a

major electrical problem. Have your

vehicle inspected immediately by your

MARUTI SUZUKI dealer.

NOTE:

Make sure that the fuse box always carries

spare fuses.

w WARNING

76G-09-043

BULB REPLACEMENT

• Light bulbs can be hot enough to

burn your finger right after being

turned off. This is true especially for

halogen headlight bulbs. Replace the

bulbs after they become cool

enough.

• The headlight bulbs are filled with

pressurized halogen gas. They can

burst and injure you if they are hit

or dropped. Handle them carefully.

The oils from your skin may cause a

halogen bulb to overheat and burst

when the lights are on. Grasp a new

bulb with a clean cloth.

Frequent replacement of a bulb

indicates the need for an inspection of

the electrical system. This should be

carried out by your MARUTI SUZUKI

dealer.

CAUTION

w WARNING

76G-09-044

76G-09-045

116

76G-74E

INSPECTION AND MAINTENANCE

9-33

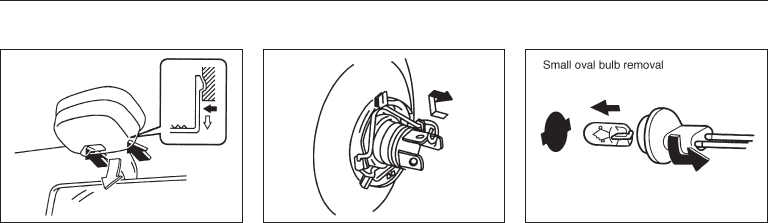

Front Interior Light

Press the front part of the lens toward you

and pull down the lens. To install it, simply

push it back in.

The bulb can be removed by simply pulling

it out. When replacing the bulb, make sure

that the contact springs are holding the bulb

securely.

76G-09-046

Front Clearance/Turn Signal Light, Side

Turn Signal Light, rear Combination

Light, Registration Plate Light.

To remove a bulb holder from a light

housing, turn the holder counterclockwise

and pull it out. To install the holder, push

the holder in and turn it clockwise.

Two types (small oval and round) of bulb

are used for these lights. To remove and

install a small oval bulb, simply pull out or

push in the bulb.

76G-09-048

Headlights

Open the bonnet. Disconnect the coupler.

Remove the sealing rubber.

Push the retaining spring forward and

unhook it. Then remove the bulb. Install a

new bulb in the reverse order of removal.

Note:

Your vehicle is provided with two spare

headlight bulbs for replacement in

emegency.

76G-09-047

117

76G-74E INSPECTION AND MAINTENANCE

9-34

To remove a round bulb from a bulb holder,

push in the bulb and turn it

counterclockwise. To install a new bulb,

push it in and turn it clockwise. You can

access the individual bulb holders as

described below:

76G-09-049

Side turn signal light

Remove the lens by using a plain screw

driver covered with a soft cloth.

76G-09-051

Front clearance light / Turn Light

Trust this replacement job to your MARUTI

SUZUKI authorised workshop.

76G-09-050

118

76G-74E

INSPECTION AND MAINTENANCE

9-35

Rear combination light (tail, stop, turn

signal, etc.)

Undo the screws that secure the housing

and remove the housing by sliding in the

direction of the white arrow in the

illustration.

76G-09-052

WIPER BLADES

If the wiper blades become brittle or

damaged, or make streaks when wiping,

replace the wiper blades.

To install new wiper blades, follow the

procedure below.

To avoid scratching or breaking the

window, do not let the wiper arm

strike the windshield while replacing

the wiper blade.

CAUTION

76G-09-054

Registration plate light

Turn the lens counterclockwise and pull it

off

76G-09-053

119

76G-74E INSPECTION AND MAINTENANCE

9-36

w WARNING

NOTE:

Some wiper blades may be different from the

ones described here depending on vehicle

specifications. If so consult your MARUTI

SUZUKI dealer for proper replacement method.

The left and the right wiper arm

assemblies are different from each

other. In case you have to remove the

wiper arm assemblies for any reason,

remember not to interchange the two

while fitting them back. Wrong fitment

may lead to windshield breakage. 2. Squeeze lock lever (A) towards wiper

arms (B) and remove the wiper frame

from the arm as shown.

76G-09-056

For windshield wipers:

1. Hold the wiper arm away from the

window.

76G-09-055

120

76G-74E

MEMO

121

76G-74E EMERGENCY SERVICE

EMERGENCY SERVICE

Jacking Instructions ........................................................................................ 10-1

Jump Starting Instructions ............................................................................ 10-2

Towing ................................................................................................................ 10-4

Towing Hook (if equipped) ............................................................................ 10-4

Emergency Remedies ...................................................................................... 10-4

Warning Triangle ..............................................................................................10-5

122

76G-74E

JACKING INSTRUCTIONS

1) Park the vehicle securely on hard level

ground.

2) Apply the parking brake firmly and

change into "R" (Reverse) gear. Choke

the front and rear wheel diagonally

opposite the wheel to be changed.

3) Switch on the hazard warning flasher if

your vehicle is in or near traffic.

4) Slacken but do not remove wheel nuts

on the wheel to be changed.

5) Position the jack vertically and raise the

jack by turning the jack handle clockwise

until the jack head recess fits the frame

boss.

EMERGENCY SERVICE

10-1

NOTE:

Use the wheel nut wrench in combination

with jack crank to raise or lower the jack

as shown in the illustration.

76G-10-001 76G-10-002 76G-10-004

76G-10-003 76G-10-005

6) Continue to raise the jack slowly and

smoothly until the tyre clears the ground.

Do not raise the vehicle more than

necessary.

123

76G-74E

never allow passengers to remain in

the vehicle.

JUMP STARTING INSTRUCTIONS

• Never attempt to jump start your

vehicle if the battery appears to be

frozen. Batteries in this condition

may explode or rupture if jump

starting is attempted.

• When making jump lead

connections, be certain that your

hands and the jump leads remain

clear from pulleys, belts, or fans.

• Batteries produce flammable

hydrogen gas. Keep flames and

sparks away from the battery or an

explosion may occur. Never smoke

when working in the vicinity of the

battery.

• If the booster battery you use for

jump starting is installed in another

vehicle, make sure the two vehicles

are not touching each other.

• If your battery discharges

repeatedly, for no apparent reason,

have your vehicle inspected by an

authorized MARUTI SUZUKI dealer.

• To avoid harm to yourself or

damage to your vehicle or battery,

follow the jump starting instructions

below precisely and in order. If you

are in doubt, call MARUTI SUZUKI

authorized workshop.

w WARNING

EMERGENCY SERVICE

10-2

• Use the jack only to change wheels.

• Never jack up the vehicle on an

inclined surface.

•

Never raise the vehicle with the jack in

a location other than under the frame

boss near the wheel to be changed.

•

Make sure that the jack is raised at least

2 inches (51 mm) before it contacts the

vehicle. Use of the jack when it is within

2 inches of being fully collapsed may

result in failure of the jack.

• Never get under the vehicle when it

is supported by the jack.

• Never run the engine when the

vehicle is supported by the jack and

w WARNING

76G-10-006 76G-10-007

76G-10-008

124

76G-74E

• Vehicle equipped with electronic fuel

injection system will not start by

pushing or towing as the fuel pump

will not work in this condition. This

starting method could also result in

permanent damage to the catalytic

converter. Use jump leads to start a

vehicle with a weak or flat battery.

When jump starting your vehicle, use the

following procedure:

1) Use only a 12 volt battery to jump start

your vehicle. Position the good 12V

battery close to your vehicle so that the

jump leads will reach both batteries.

When using a battery installed on

another vehicle, DO NOT LET THE

VEHICLES TOUCH. Apply the parking

brakes fully on both vehicles.

2) Turn off all vehicle accessories, except

those necessary for safety reasons (for

example, headlights or hazard lights).

3) Make jump lead connections as follows:

a) Connect one end of the first jump

lead to the positive (+) terminal of the

flat battery.

b) Connect the other end to the positive

(+) terminal of the booster battery.

c) Connect one end of the second jump

lead to the negative (-) terminal of

the booster battery.

d) Make the final connection to an

unpainted, heavy metal part of the

engine of the vehicle with the flat

battery.

Never connect the jump lead directly

to the negative (-) terminal of the

discharged battery, or an explosion

may occur.

4) If the booster battery you are using is

fitted to another vehicle, start the engine

of the vehicle with the booster battery.

Run the engine at moderate speed.

5) Start the engine of the vehicle with the

flat battery.

6) Remove the jump leads in the exact

reverse order in which you connected

them.

EMERGENCY SERVICE

10-3

w WARNING

CAUTION

76G-10-009 76G-10-010

125

76G-74E

TOWING

If you need to have your vehicle towed,

contact a professional service. Your dealer

can provide you with detailed towing

instructions

To help avoid damage to your vehicle

during towing, proper equipment and

towing procedures must be used.

EMERGENCY REMEDIES

EMERGENCY SERVICE

10-4

CAUTION

Manual Transmission

Whenever possible, your vehicle should be

towed from the front with the front wheels

lifted. If the steering and drivetrain are in

good condition, your vehicle may be towed

from the rear with the rear wheels lifted and

the front wheels on the ground. Before

towing, make sure the steering is unlocked

and the transmission is in neutral.

If the Starter Does Not Operate:

1) Try turning the ignition switch to the

“START” position with the headlights

turned on to determine the battery

condition. If the headlights go

excessively dim or go off, it usually

means that either the battery is flat or

the battery terminal contact is poor.

Recharge the battery or correct battery

terminal contact as necessary.

2) If the headlights remain bright, check the

fuses. If the reason for failure of the

starter is not obvious, there may be a

major electrical problem. Have the

vehicle inspected by your authorized

MARUTI SUZUKI dealer.

If the Engine is Flooded

If the engine is flooded with petrol, it may

be hard to start. If this happens, press the

accelerator pedal all the way to the floor

and hold it there while cranking the engine.

(Do not operate the starter motor for more

than 15 seconds). Release the accelerator

as soon as the engine has started.

If the Engine Overheats

The engine could overheat temporarily under

severe driving conditions. If the engine

coolant temperature warning light comes on,

it indicates overheating during driving:

TOWING HOOK (If equipped)

76G-10-011

126

76G-74E

engine until these problems have been

corrected.

3) If you do not find a leak, carefully add

coolant to the reservoir and then the

radiator, if necessary. (Refer to “ENGINE

COOLANT” in the “INSPECTION AND

MAINTENANCE” section.)

It is dangerous to remove the radiator

cap when the water temperature is

high, because scalding fluid and

steam may be blown out under

pressure. The cap should only be

taken off when the coolant

temperature has lowered.

To help prevent personal injury, keep

hands, tools and clothing away from

the engine cooling fan and air-

conditioner fan (if equipped). These

electric fans can automatically turn on

without warning.

EMERGENCY SERVICE

10-5

w WARNING

1) Turn off the air conditioner, if equipped.

2) Take the vehicle to a safe place and

park.

3) Let the engine run at normal idle speed

for a few minutes until engine coolant

temperature warning light goes off.

If you see or hear escaping steam,

stop the vehicle in a safe place and

immediately turn off the engine to let

it cool. Do not open the bonnet when

steam is present. When the steam can

no longer be seen or heard, open the

hood to see if the coolant is still

boiling. If it is, you must wait until it

stops boiling before you proceed.

If the engine coolant temperature warning

light does not goes off:

1) Turn off the engine and check that the

water pump belt and pulleys are not

damaged or slipping. If any abnormality

is found, correct it.

2) Check the coolant level in the reservoir.

If it is found to be lower than the “LOW”

line, look for leaks at the radiator, water

pump, and radiator and heater hoses. If

you locate any leaks that may have

caused the overheating, do not run the

w WARNING

WARNING TRIANGLE

In case of vehicle break-down or during

emergency stopping, where, your vehicle

could become a potential traffic hazard,

keep the warning triangle, provided with

your vehicle, on the road free from any

obstacles behind your vehicle so as to warn

the approaching traffic, at an approximate

distance of 50-100 m. The reflecting side

of the triangle should face the on coming

traffic. Please activate the hazard warning

lamps before alighting the vehicle to keep

the warning triangle.

76G-10-012

EXAMPLE

127

76G-74E

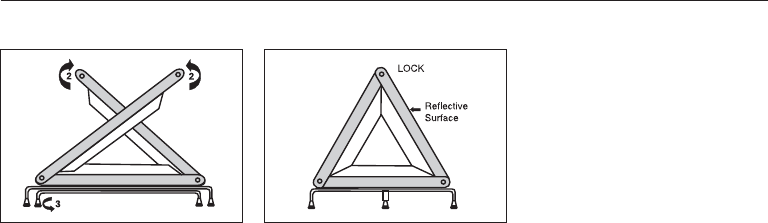

•Remove the warning triangle carefully

from the cover as shown by arrow 1.

•Open both the reflector arms as shown

by arrow and lock the arms with each

other with the clip provided in the right

arm. Open the bottom stand in counter

clock-wise direction as shown by arrow 3.

Position the warning triangle behind the

vehicle on a plain surface.

•Reverse the removal procedure for

keeping inside the cover.

EMERGENCY SERVICE

10-6

76G-10-013 76G-10-014

128

76G-74E

MEMO

129

76G-74E BODY WORK CARE

BODY WORK CARE

Corrosion Prevention ....................................................................................... 11-1

Vehicle Cleaning ............................................................................................... 11-2

130

76G-74E

CORROSION PREVENTION

the vehicle which are not well ventilated

to permit quick drying.

This information illustrates the necessity of

keeping your vehicle (particularly the

underbody) as clean and dry as possible.

It is equally important to repair any damage

to the paint or protective coatings as soon

as possible.

How to Help Prevent Corrosion

Wash your vehicle frequently

The best way to preserve the finish on your

vehicle and to help avoid corrosion is to

keep it clean with frequent washing.

Wash your vehicle regularly during the

winter and immediately after the winter.

Keep your vehicle, particularly the

underside, as clean and dry as possible.

If you frequently drive on salted roads, your

vehicle should be washed at least once a

month during the winter. If you live near the

ocean, your vehicle should be washed at

least once a month throughout the year.

For washing instructions, refer to the

“VEHICLE CLEANING” section.

Remove foreign material deposits

Foreign material such as salts, chemicals,

road oil or tar, tree sap, bird droppings and

industrial fall-out may damage the finish of

your vehicle if it is left on painted surfaces.

Remove these types of deposits as quickly

as possible. If these deposits are difficult to

wash off, an additional cleaner may be

required. Be sure that any cleaner you use

is not harmful to painted surfaces and is

specifically intended for your purposes.

Follow the manufacturer’s directions when

using these special cleaners.

Repair finish damage

Carefully examine your vehicle for damage

to the painted surfaces. Should you find any

chips or scratches in the paint, touch them

up immediately to prevent corrosion from

starting. If the chips or scratches have gone

through to the bare metal, have a qualified

body shop make the repair.

Keep Passenger and luggage

compartments clean.

Moisture, dirt or mud can accumulate under

the floor mats and may cause corrosion.

Occasionally, check under these mats to

ensure that this area is clean and dry. More

frequent checks are necessary if the vehicle

is used off road or in wet weather.

Certain cargos such as chemicals, fertilizers,

cleaners, salts, etc., are extremely corrosive

by nature. These products should be

transported in sealed containers. If a spill

or leak does occur, clean and dry the area

immediately.

It is important to take good care of your

vehicle to protect it from corrosion.

Listed below are instructions for how to

maintain your vehicle to prevent corrosion.

Please read and follow these instructions

carefully.

Important Information About Corrosion

Common causes of corrosion

1) Accumulation of road salt, dirt, moisture,

or chemicals in hard to reach areas of

the vehicle underbody or frame.

2) Chipping, scratches and any damage to

treated or painted metal surfaces

resulting from minor accidents or

abrasion by stones and gravel.

Environmental conditions which

accelerate corrosion

1) Road salt, dust control chemicals, sea

air or industrial pollution will all

accelerate the corrosion of metal.

2) High humidity will increase the rate of

corrosion particularly when the

temperature range is just above the

freezing point.

3) Moisture in certain areas of a vehicle for

an extended period of time may promote

corrosion even though other body

sections may be completely dry.

4) High temperatures will cause an

accelerated rate of corrosion to parts of

BODY WORK CARE

11-1

131

76G-74E

Store your vehicle in a dry, well-

ventilated area.

Do not park your vehicle in a damp, poorly

ventilated area. If you often wash your

vehicle in the garage or if you frequently

drive it in when wet, your garage may be

damp. The high humidity in the garage may

cause or accelerate corrosion. A wet vehicle

may corrode even in a heated garage if the

ventilation is poor.

Do not apply additional undercoating

or rust preventive coating on or

around exhaust system components

such as the exhaust pipes, etc. A fire

could be started if the undercoating

substance becomes overheated.

Cover your vehicle

If you cannot regularly park your vehicle in

a garage, we recommend you use a vehicle

cover.

VEHICLE CLEANING

cleaner for tougher stains. If you use a

fabric cleaner, carefully follow the

manufacturer’s instructions and precautions.

Seat Belts

Clean seat belts with a mild soap and

water. Do not use bleach or dye on the

belts. They may weaken the fabric in the

belts.

Vinyl floor mats

Ordinary dirt can be removed from vinyl with

water or mild soap. Use a brush to help

loosen dirt. After the dirt is loosened, rinse

the mat thoroughly with water and dry it in

the shade.

Carpets

Remove dirt and soil as much as possible

with a vacuum cleaner. Using a mild soap

solution, rub stained areas with a clean

damp cloth. To remove soap, rub the areas

again with a cloth dampened with water.

Repeat this until the stain is removed, or

use a commercial carpet cleaner for tougher

stains. If you use a carpet cleaner, carefully

follow the manufacturer’s instructions and

precautions.

w WARNING

When cleaning the interior or exterior

of the vehicle, NEVER USE flammable

solvents such as lacquer thinners,

petrol, benzene or cleaning materials

such as bleach or strong household

detergents. The materials could cause

personal injury or damage to the

vehicle.

Cleaning the Interior

Vinyl upholstery

Prepare a solution of soap or mild detergent

mixed with warm water. Apply the solution

to the vinyl with a sponge or soft cloth and

let it soak for a few minutes to loosen dirt.

Rub the surface with a clean, damp cloth

to remove dirt and the soap solution. If

some dirt still remains on the surface,

repeat this procedure.

Fabric upholstery

Remove loose dirt with a vacuum cleaner.

Using a mild soap solution, rub stained

areas with a clean damp cloth. To remove

soap, rub the areas again with a cloth

dampened with water. Repeat this until the

stain is removed, or use a commercial fabric

w WARNING

BODY WORK CARE

11-2

132

76G-74E

Cleaning the Exterior

It is important that your vehicle be

kept clean and free from dirt. Failure

to keep your vehicle clean may result

in fading of the paint or corrosion to

various parts of the vehicle body.

Washing

• Never attempt to wash and wax your

vehicle with the engine running.

• When cleaning the underside of the

body and fender, where there may

be sharp-edged parts, you should

wear gloves and a longsleeved shirt

to protect your hands and arms

from being cut.

• After washing your vehicle, carefully

test the brakes before driving to

make sure they have maintained

their normal effectiveness.

When washing the vehicle, follow the

instructions below:

1) Flush the underside of body and wheel

housings with pressurized water to

remove mud and debris. Use plenty of

water.

When washing the vehicle, avoid

directing steam or hot water of more

than 800C (1760F) on plastic parts.

2) Remove dirt and mud from the body

exterior with running water. You may use

a soft sponge or brush. Do not use hard

materials which can scratch the paint.

3) Wash the entire exterior with a mild

detergent or car wash soap using a

sponge or soft cloth. The sponge or

cloth should be frequently soaked in the

soap solution.

When using a commercial car wash

product, observe the cautions

specified by the manufacturer. Never

use strong household detergents or

soaps.

BODY WORK CARE

11-3

w WARNING

CAUTION

4) Once the dirt has been completely

removed, rinse off the detergent with

running water.

5) After rinsing, wipe off the vehicle body

with a wet chamois or cloth and allow

it to dry in the shade.

6) Check carefully for damage to painted

surfaces. If there is any damage,

“Touchup” the damage following the

procedure below:

a) Clean all damaged spots and allow

them to dry.

b) Stir the paint and “touchup” the

damaged spots lightly using a small

brush.

c) Allow the paint to dry completely.

Waxing

After washing the vehicle, waxing and

polishing are recommended to further

protect and beautify the paint.

• Only use waxes and polishes of good

quality.

• When using waxes and polishes,

observe the precautions specified by the

manufacturers.

CAUTION

133

76G-74E GENERAL INFORMATION

GENERAL INFORMATION

Vehicle Identification ....................................................................................... 12-1

134

76G-74E

GENERAL INFORMATION

12-1

76G-12-001 76G-12-002

Chassis Serial Number

The chassis and/or engine serial numbers

are used to register the vehicle. They are

also used to assist your dealer when

ordering or referring to special service

information. Whenever you have occasion to

consult your MARUTI SUZUKI dealer,

remember to identify your vehicle with this

number. Should you find the number difficult

to read, you will also find it on the

identification plate in the engine

compartment.

VEHICLE IDENTIFICATION

Engine Serial Number

The engine serial number is stamped on the

cylinder block as shown in the illustration

and also on the identification plate.

135

76G-74E SPECIFICATIONS

SPECIFICATIONS

NOTE:

Specifications are subject to change without notice.

ITEM: DIMENSIONS UNIT:mm

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Overall length 3495 3620

Overall width 1475 1495/1475 (without side moulding)

Overall height 1460 1460

Wheelbase 2360 2360

Tread front 1295 1295

rear 1290 1290

Ground clearance 160 160

ITEM: MASS (WEIGHT) UNIT:Kg

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Kerb mass (weight) 690-705 750-765

Gross vehicle mass (weight) rating 1140 1185

Seating Capacity 5 persons 5 persons

ITEM: ENGINE

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Type F8D K10B

Number of cylinders 3 3

Bore 68.5 73

Stroke 72.0 79.5

Piston displacement 796 cc 998 cc

Compression ratio 9.2 ± 0.2 : 1 10.0 ± 0.4 : 1

13-1

136

76G-74E

ITEM: ELECTRICAL

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Standard spark plug NGK-DCPR7E, BOSCH-YR7DC NGK KR6A-10

Battery 34B20L (27AH/5HR) 38B20L (28AH/5HR)

Fuses See “INSPECTION AND MAINTENANCE” section

Headlight 12V 55/60W

Turn signal light 12V 21W

Side turn signal light 12V 5W

Clearance light 12V 5W

Tail/brake light 12V 21/5W

Registration plate light 12V 5W

Reversing light 12V 21W

High Mount Stop Lamp 12V W16W

ITEM: WHEEL AND SUSPENSION

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Tyre size, front and rear 145/80R12 155/65R13

Tyre pressures front/rear 2.1 kg/cm22.2 kg/cm2

Suspension type front Mac Pherson Strut

rear 3-link-rigid axle suspension

ITEM: STEERING

Toe-in front 0 ± 1 mm

ITEM: CAPACITIES

ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)

Coolant (Including reservoir tank) 3.5 Ltrs 4.3 Ltrs

Fuel tank 35.0 Ltrs 35.0 Ltrs

Engine oil (with oil filter) 2.7 Ltrs 2.9 Ltrs

Transmission oil 2.2 Ltrs 2.2 Ltrs

SPECIFICATIONS

13-2

137

76G-74E

MEMO

138

76G-74E

MEMO

139

76G-74E

MEMO

140

76G-74E

MEMO
