© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Manual Version 1.4 June 2011
Models: PB12-Plus, PC12-Plus, SB13-Plus,
PB13-Ultra, PC13-Ultra, SB13-Ultra
Manual Version 1.5 Sep. 2012
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Safety Instructions 3
Welcome 5
About Your SVS Subwoofer 6
Connectivity & Panel Operations 7

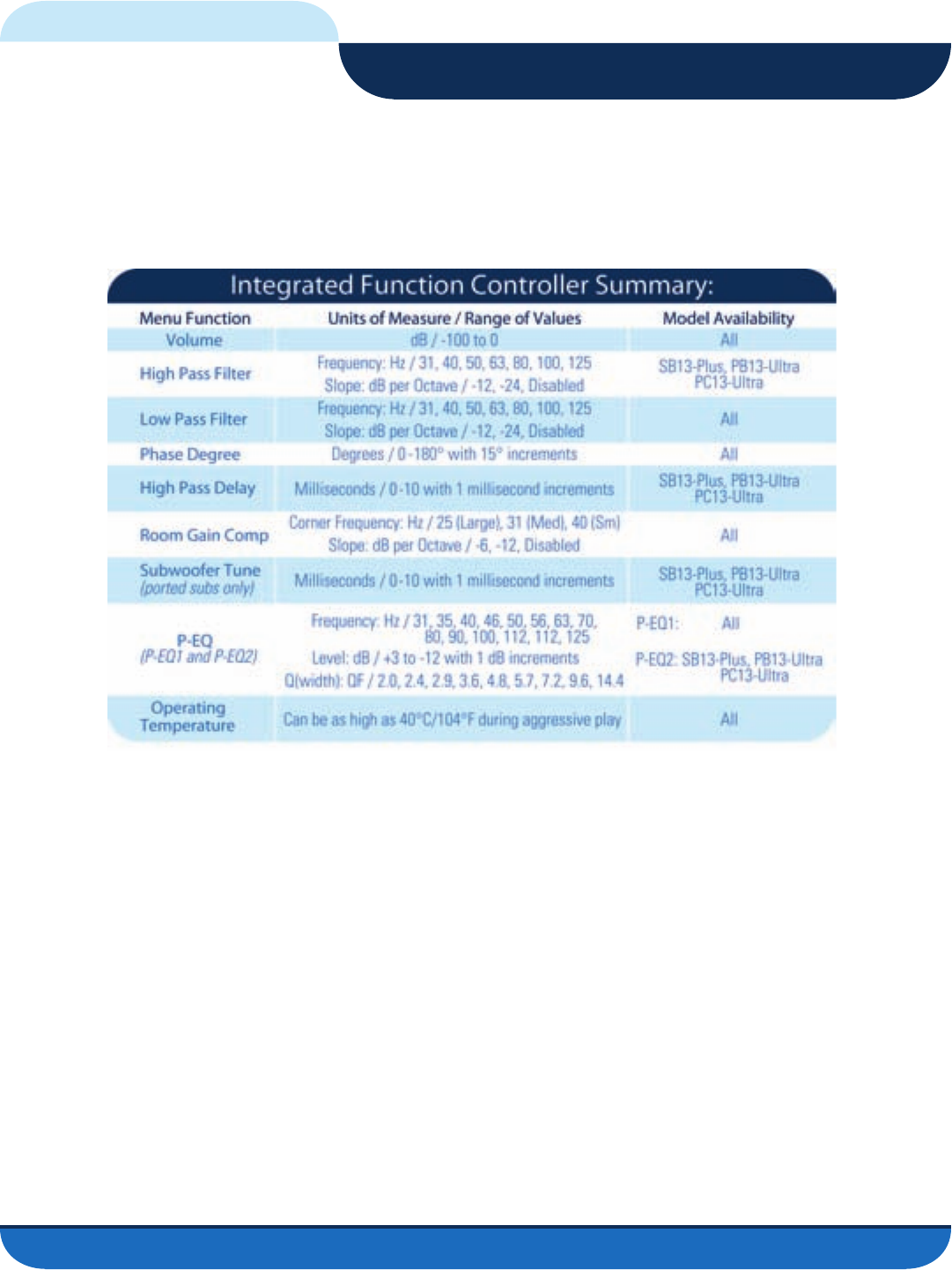

Integrated Function Controller 12
Setup, Calibration & Integration 20

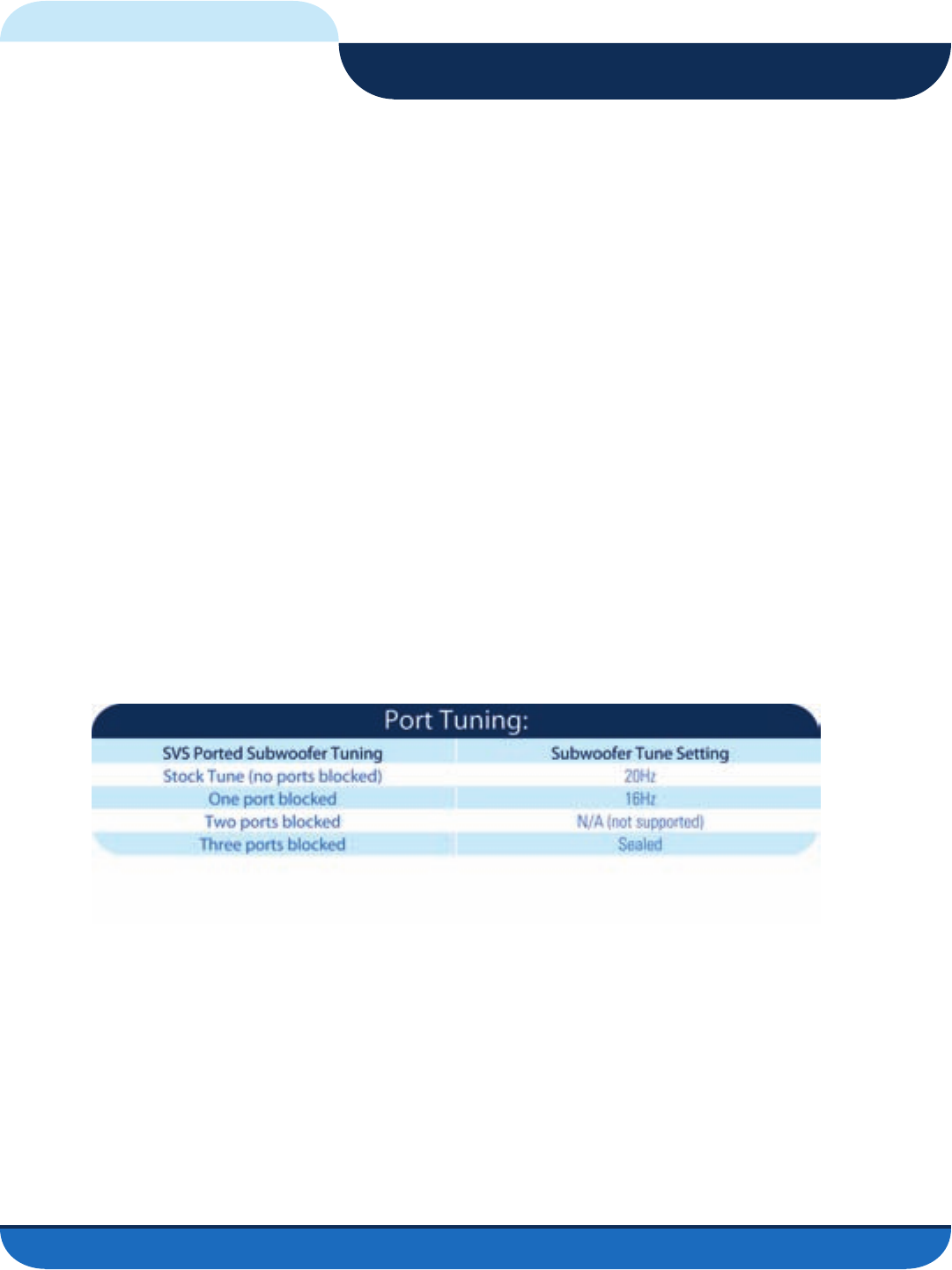

Port Tuning 25
Setup & Use of PEQ 26

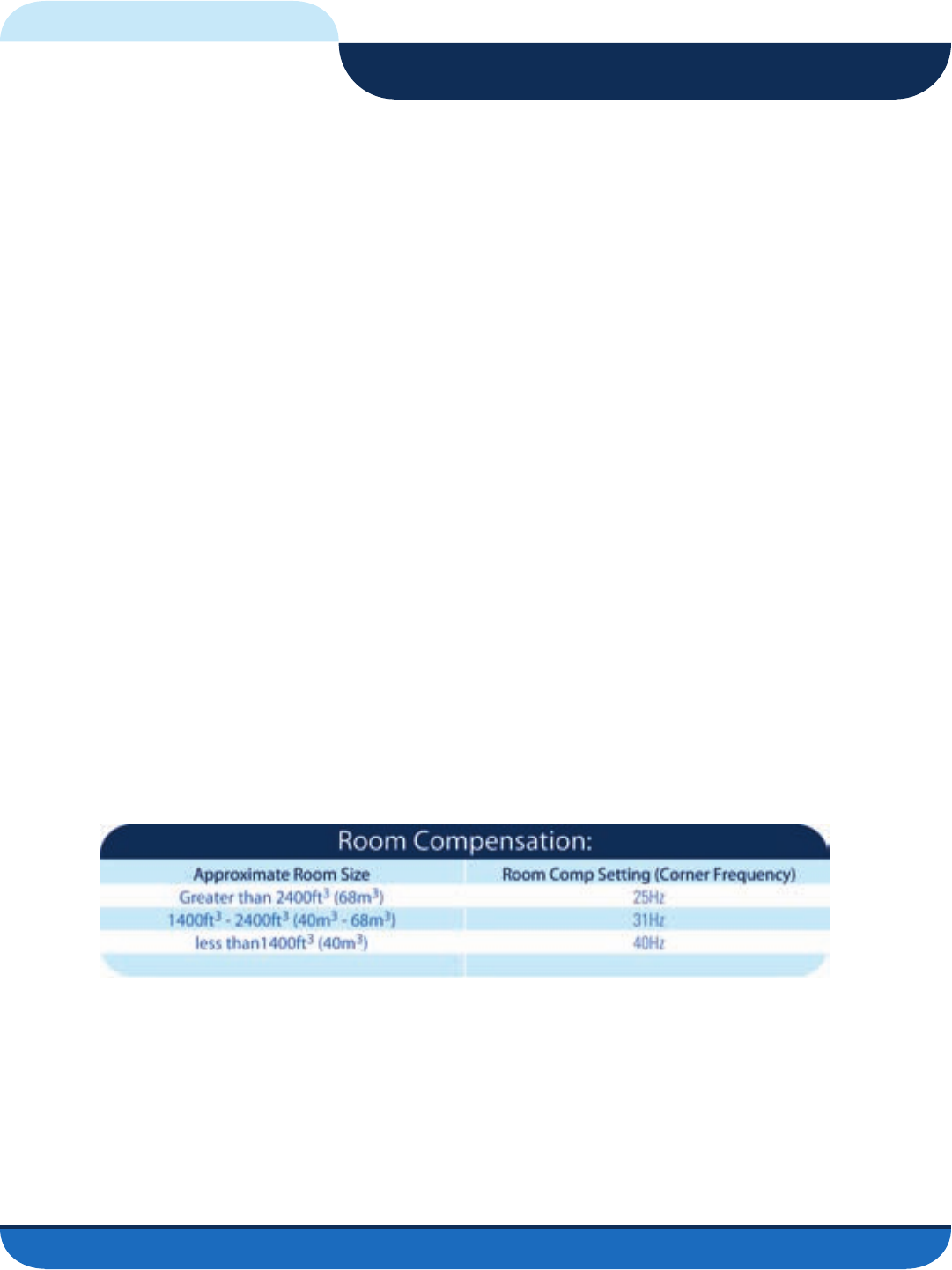

Room Compensation 32
Terms & Conditions 33
Table of Contents
2
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of any polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two prongs and a third grounding
point. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to void
injury from tip-over.
Important Safety Instructions
FIG. 1
3
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or
moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
16. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from
the receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
Important Safety Instructions
FIG. 2
4
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
WELCOME
5
At SVS, you can actually hear the tireless research and design efforts built into our subwoofers and speak-
ers. Years are spent developing any SVS product. These days our teams work typically span from our Ohio
headquarters to all corners of the USA and of course with the finest component suppliers in Asia and Europe
as well. Nearly nothing in our speakers is an “off the shelf” part. We spend more and tend to overbuild our
stuff, because that’s how our customers like it.
SVS is committed to making better sound systems with elegant looks, robust construction, world-class tech-
nology and materials. We believe you deserve nothing less. This manual and the printed Quick Start sheet
will help integrate your speakers and subwoofer quickly and with professional results. Armed with only a few
basic tools, such a sound pressure level (SPL) meter, and the test tones built in to most audio/video receivers
(AVR), you will achieve smooth, detailed and powerful reproduction of all your favorite music and movie audio.
Expect to hear things you never heard before… and expect not to hear some of the artifacts you might have
accepted in the past from inferior brands.
Have a question about your surround sound system? For more information about SVS products check
out our US website, or speak with the exclusive dealer for your region. Regardless, contact us via phone or
email should you have questions about our products. SVS was founded by audio enthusiasts — our dedication
to customer service is the only thing rivaling the products we create.
The SVS Team, Ohio, USA
June 2011
www.svsound.com
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
About your SVS Subwoofer
There maybe be other subwoofers that look like them, but virtually none work like them. SVS
subwoofers are decidedly different in how they are designed, produced, sold, and the exceptionally high quality com-
ponents we use. You could have spent much more on other brands and still not come close to the performance our
products provide. What makes a subwoofer an SVS?
Quality components, sane prices. You might be surprised at how inexpensive the components in
some not-so-inexpensive subwoofers are. At SVS, performance is king... not cutting a few dollars from our cost
to build. We range the world with our engineers and use the best stuff and best suppliers in the business.
Innovative designs, rich materials. We test all our materials and features in the real world and build
stuff our own in-house enthusiasts would buy with our own hard-earned money! “Over-built” SVS cabinet con-
struction ensures rigid cores for decades of solid performance. All our subwoofers offer computer controlled
panel cutting, steel fasteners recessed components, custom parts made just for us at every turn. Tap the side
of your sub, look at the solid construction, or remove your powder-coated grill. You’ll know what we mean.
Sealed, or vented; down-ring or front-ring cabinets. An SVS tradition. Offering a variety of
form factors which provide exceptional performance yet also a compact foot print which complements your room style.
Features and controls. Variable phase, defeat-able crossovers, even power saving auto-on mode. Flex-
ible hookup options mean your SVS subwoofer can adapt to your space. Spend time exploring this guide and
contact your dealer if you require assistance on any feature.
World class driver power. SVS woofers have arguably been the industry’s best for a decade. Now our
advanced amplifiers raise the bar to new levels with digital signal processing (DSP) tuned pre-amps. With all
new power stages, more sophisticated protection our subs achieve exceptional depth, tremendous power and
flat, natural sound that defies price points or sometimes even words. To hear everything your favorite movies and
music have to offer you need the most refined power available. SVS Sledge™ DSP amps push our exclusive woof-
ers like nothing else can.
6
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Connectivity & Panel Operations
7
Operation of the Power Mode Switch
NOTE: Depending on the version of the STA-800D/STA-1000D amplifier, the LCD display may or may not
light when power is first applied. Even if the LCD display does not light when power is applied, if the
amplifier is in the AUTO mode, it will play source material when a suitable signal is applied.
To manually come out of Standby when in AUTO mode, press and hold the IFC knob for several seconds
until the display lights. Note that menu operations are not possible when the amplifier is in Standby.
In AUTO mode If power is removed from the amplifier either through the main power rocker switch, or
by loss of power from the mains (wall outlet) and then restored, the amplifier will either turn back on or
come up in Standby. If it comes up in the on state, it will revert to Standby after a period of time if no
signal is presented at the inputs.
When the AUTO/ON Switch is in the ON position and power is applied to the amplifier via the main power
switch, the amplifier will NOT turn on. In order to turn the amplifier on, the IFC knob must be pressed and
held in for several seconds. When the amplifier turns on, the LCD display will illuminate at the WELCOME
screen for a few seconds. The amplifier will stay on until either the IFC knob is pressed and held until the
LCD display goes dark, when power is removed from the amplifier using the main power switch, or power
is removed from the mains (wall outlet).
If power is removed from the amplifier either through the main power switch or by loss of power from the
mains (wall outlet) and then restored, the amplifier will not turn back on until the IFC knob is pressed and
held as noted above.
It is important to note in case of a power outage, it will be necessary to manually turn the amplifier on
by pressing and holding the IFC knob as noted above. STA-800D and STA-1000D Connectivity and Panel
Operation.
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs

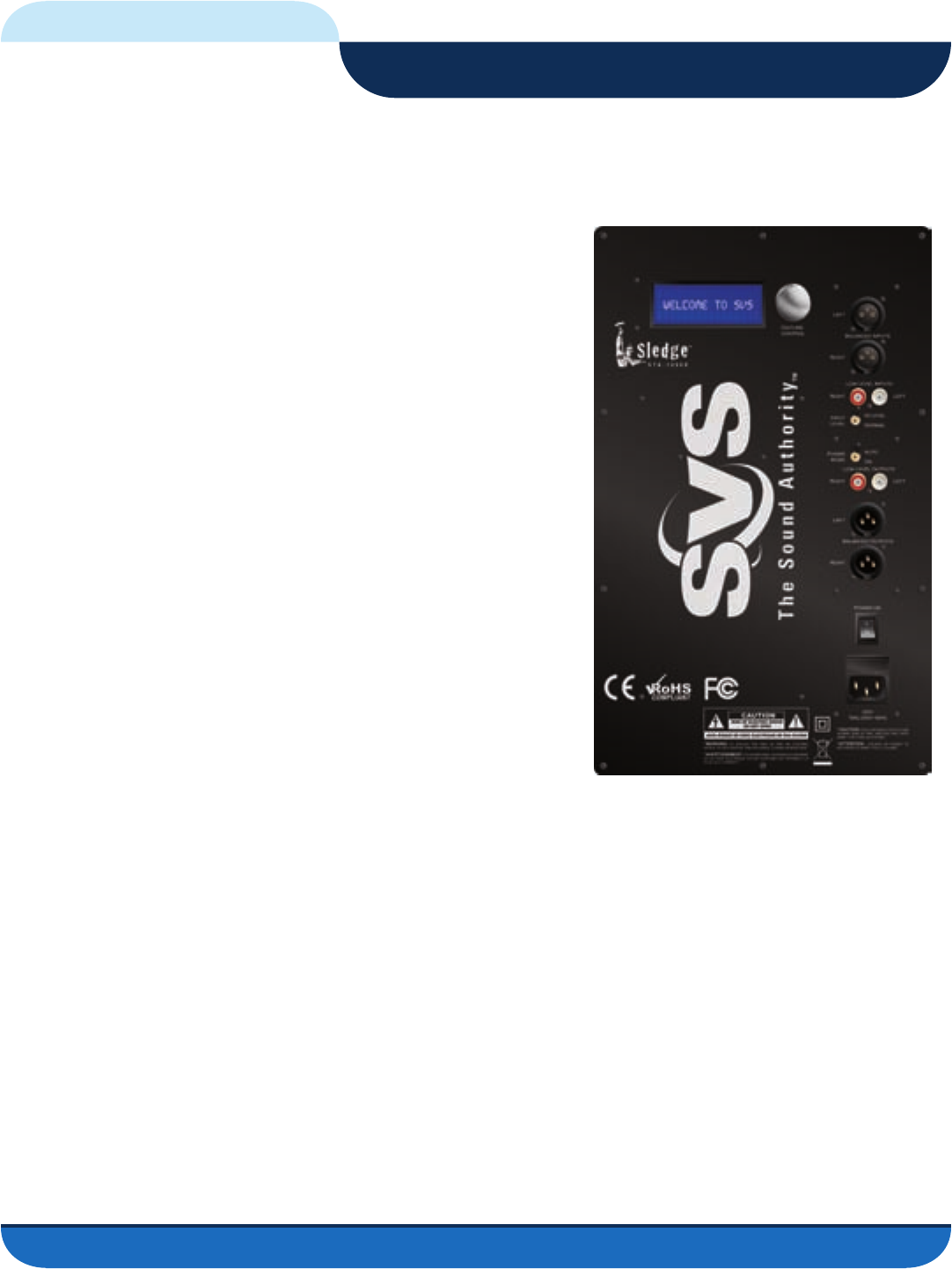

FIG. 3
STA-800D and STA-1000D Connectivity and Panel Operation
Inputs
There are two types of physical input connectors on the STA-800D/
STA1000D; Balanced XLR and single-ended (also referred to as low
level or line level). There are inputs for Left and Right main channels
for both types of connectors. There is also a switch below the input
connectors labeled “Input Level”. This switch can be used to select
either consumer audio (Normal)or pro audio (Hi-Level) voltage levels
depending on the source device.
The input signal(s) can have a High Pass filter applied which
affects the signal that appears on the STA-800D/STA-1000D’s
outputs. The input signal can also have a Delay applied independent
of the High Pass filter which can be used to add delay to the Left
and Right main speakers to accommodate preamps that have no
digital capability. See the next section that discusses the
Integrated Function Controller for a more detailed discussion
on using the High Pass filter and Delay functions.
Input Conguration

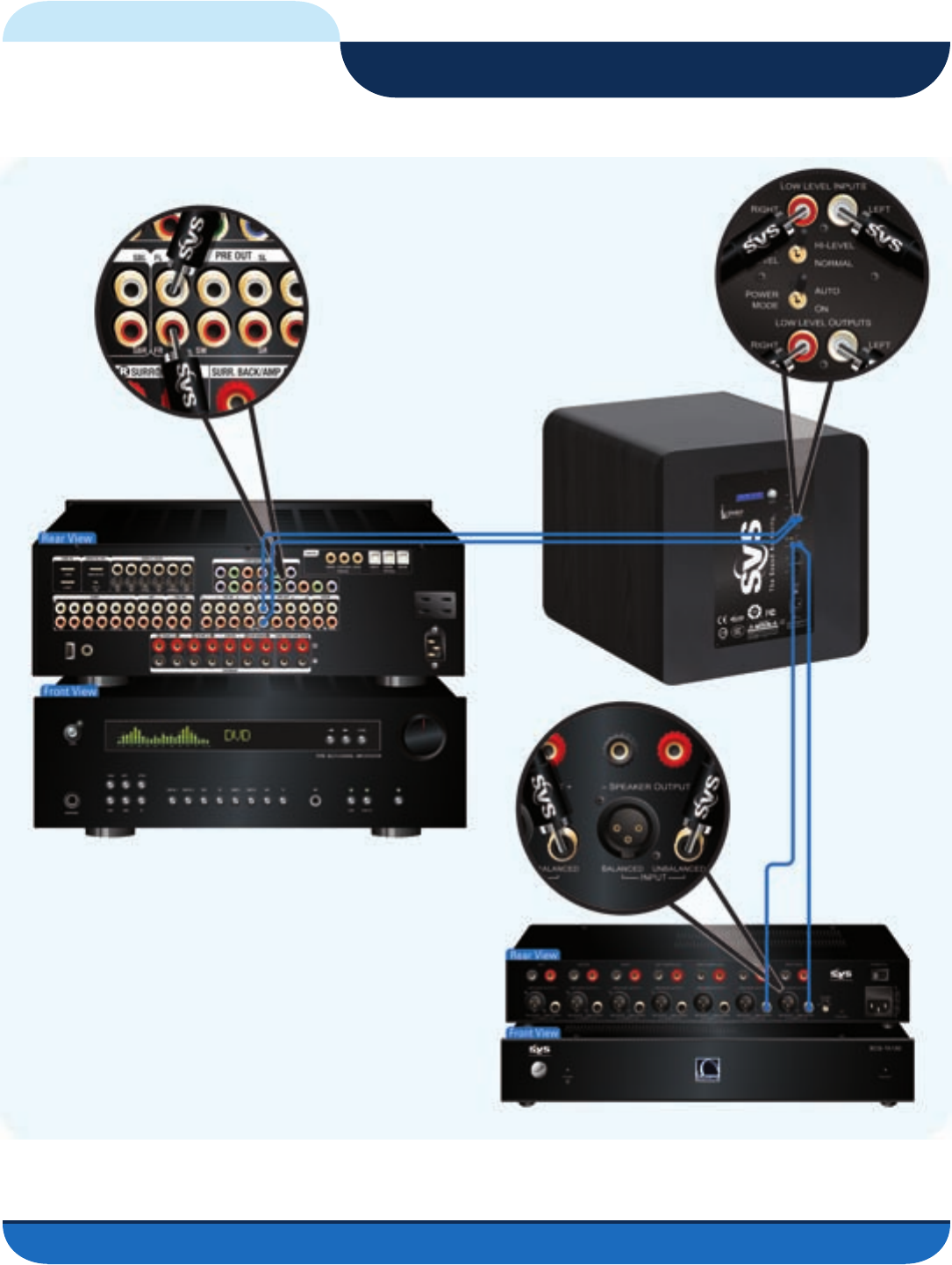

Typically for most AVRs and pre/pros that have bass management
capability, connectivity to the STA-800D/STA-1000D would be via
a single balanced or single-ended (RCA) connector from the Subwoofer Pre Out on the AVR or pre/pro to
either the Left or Right amp input (Fig. 4). This assumes the AVR or pre/pro does bass management for the
SAT speakers connected to it, handles the merging of any LFE (.1 channel in multi-chan-nel audio) content with
the bass from the SAT speakers, and manages the proper delay of all speakers and the subwoofer through a
distance or time delay function for each utilized audio channel.
Alternatively, for two-channel preamps that do not have (or do not use) any digital management, the typical
connectivity scenario would be to use both the main channel Left and Right inputs into the STA-800D/STA-
1000D (Fig. 5). In this case the subwoofer would sit between the main L/R outputs of the preamp and the L/R
inputs of the STA-800D/STA1000D, with the L/R outputs of the STA-800D/STA-1000D going to the inputs of the
power amplifier for the system’s L/R main speakers. To then integrate the main speakers and the subwoofer,
the High Pass Filter, Low Pass Filter, and optionally the Delay feature of the STA-800D/STA-1000D amp would
be used. See the following section on the use of the Integrated Function Controller for more information on
using and setting these functions.
Connectivity & Panel Operations
8
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Connectivity & Panel Operations
9
FIG. 4
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Connectivity & Panel Operations
10
FIG. 5
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs

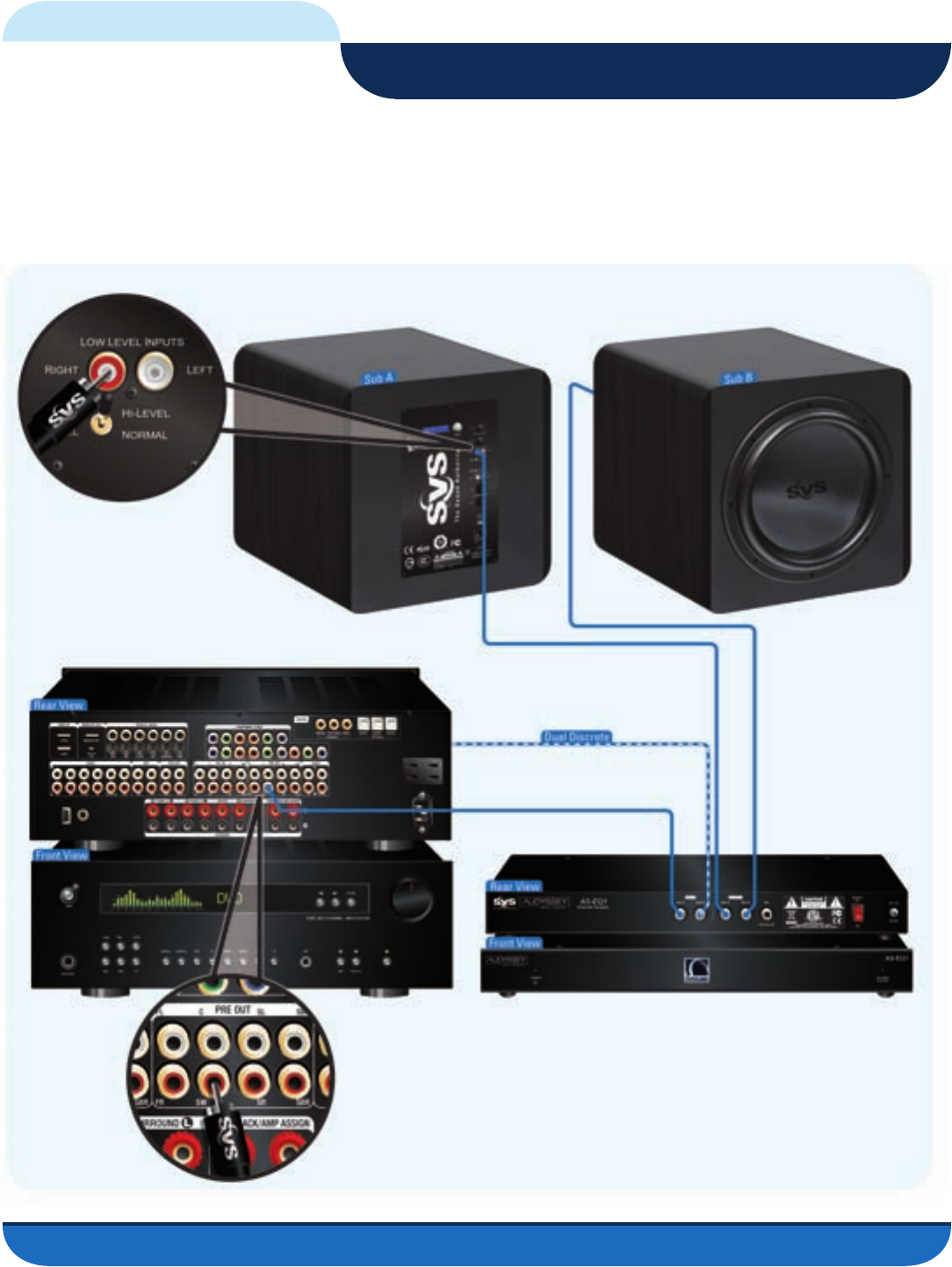

If you have one of SVS’s AS-EQ1 high-resolution, multi-subwoofer Equalizers, see Figure 6 for proper connec-
tivity with one or more subwoofers. Also refer to your AS-EQ1 Operator Manual for detailed information on
connectivity and setup of the AS-EQ1 into your listening environment.
11
FIG. 6
Connectivity & Panel Operations
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Connectivity & Panel Operations
Power Mode Switch
The Power Mode switch allows the STA-800D/STA-1000D to either stay on all the time, or go into Standby
if no signal is being received. When in Standby mode and a signal is detected on one of the inputs, the
STA- 800D/STA-1000D will turn on and begin playing the material on its active input(s).
Outputs
There are two types of physical output connectors on the STA-800D/STA1000D; Balanced XLR and single-
ended with RCA connectors (also referred to as low level or line level). There are outputs for Left and Right
main channels for both types of connectors.
The output connectors are typically used to either daisy-chain additional subwoofers with single or dual unfiltered
outputs, or as the input to a power amplifier for the Left and Right main channels after using the High Pass Filter
and (optionally) Delay functions with two channel analog preamps (see discussion above under “Inputs”).
Main Power Switch
Use this switch to apply power to the STA-800D/STA-1000D amplifier.
Power Cord
Plug the power cord into a wall outlet. Do not use extension cords to lengthen the cord. Do not plug into
accessory outlets on the back of an AVR or pre/pro.
12
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
This SVS Subwoofer is equipped with an advanced digital amplifier, the SVS STA- 800D/STA-1000D Sledge™
DSP Amplifier. The STA-800D/STA-1000D Sledge™ amp is not only digital for amplification, but also for all
amplifier control functions. Notice there is a single knob and a two line LCD display that allow you to set the
various Functions and their parameters of the SVS Subwoofer. This knob and the LCD screen are referred to
as the “Integrated Function Controller” or IFC for short.
The IFC replaces individual switches and knobs found on conventional subwoofer amplifiers. The straight-
forward menu structure and intuitive dialog makes setting up and maintaining the SVS sub much easier than
with past analog amps with a myriad of confusing and less accurate controls.
The IFC knob has three actions associated with it:
1. It can be turned both clockwise and counter-clockwise to either adjust a Function’s settings, or to
advance to a sub-menu within a Function.
2. It can be pushed in once (single-click) to select a (sub) function or to move forward and back- ward
within the IFC’s menu structure.
3. It can be pushed in twice in rapid succession (double-click) to quickly return to the top-level menu
structure.
The two line LCD display has two context modes:
1. Top-level menu screens.
2. Function/Sub-function screens.
The top-level menu screens allow the selection of major control Functions within the STA-800D/STA-1000D.
When power is first applied to the subwoofer, the STA-800D/STA-1000D will display a WELCOME menu
showing the Model name of the subwoofer. If nothing is done for 30 seconds while in the WELCOME screen,
the LCD backlight will automatically go off. While in the top-level menu context, if nothing is done for 10
seconds, the display will revert back to the WELCOME screen.
Integrated Function Controller
13
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
There are up to eight Functions within the top-level menu structure that allow configuration of the subwoofer.
These Functions include:
 •Volume(dB)
 •Highpasslteradjustment(disable/enable,frequency,andslope)
 •Lowpasslteradjustment(disable/enable,frequency,andslope)
 •Phasesetting(degrees)
 •Highpassdelay(milliseconds)
 •Roomcompensation(disable/enable,frequency,andslope)
 •Subwoofertune(sealed,16Hz,20Hz)
 •ParametricEQ(PEQ)1andPEQ2(frequency,levelandQforeach)
The following section describes each Function in detail, along with its use and available settings/values. Once
familiar with the operation of the IFC on the SVS subwoofer, there is a block-level diagram included at the end
of the section if needed for quick reference.
Volume
From the IFC WELCOME screen, single-click the IFC knob and the display should read “MENU/VOLUME”.
Single-click the IFC knob to select the Volume Function. Turn the IFC knob clockwise to increase the Volume of
thesubwoofer,orcounter-clockwisetodecreasethevolume.Single-clickORdouble-clicktoreturntothetop-
levelmenu.Therangeofadjustmentofthiscontrolis-100to0dBin1dBincrements.
High Pass Filter (HPF) Adjustment (STA-1000D)
Theoutput(bothsingle-endedRCAandBalanced)canhaveaHighPassFilterapplied.TheHPFFunctioncontrolsthe
HighPassfrequencyandtheassociatedslopeoftherollofffortheoutputconnectorsontheSTA-1000D.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob one click clockwise so the display
reads“MENU/HIGHPASS”.Single-clicktheIFCknobtogettotheHPFFunctionmenu.IftheHPFisdisabled,ames-
sage to that effect will be displayed.
IftheHPFisdisabled,turntheIFCknobclockwisewhichwilldisplaytheHighPassFrequencysubmenu.TosettheHPF
frequency to a value other than what is currently displayed, single-click the IFC knob and then rotate the knob clockwise
orcounter-clockwisetosetthedesiredfrequency.Frequencychoicesinclude31,40,50,63,80,100,and125Hz.
Single-clicktheIFCknobtoreturntotheHighPassFunctionmenu.TurntheIFCknobtomovetotheHighPassSlope
submenuandsingle-clicktochangetheslopevalue.TheHighPassSlopedenestheslopeoftheattenuation
curvebelowtheselectedfrequency.Twochoicesareavailable;12dBperoctaveand24dBperoctave.
Integrated Function Controller
14
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
TodisabletheHPF,rotatetheIFCknobuntilthemessage“HIGHPASSDISABLE?”isdisplayed.Single-clickthe
IFCknobtodisabletheHPF,andsingle-clickagaintogettothetop-levelmenu.IftheHPFdisablefeatureis
selected accidentally, double-click the IFC knob to return to the top-level menu.
Low Pass Filter (LPF) Adjustment
The LPF Function sets the frequency and slope for the low frequencies that will be played by the subwoofer.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob two clicks clockwise until
the display reads “MENU/LOW PASS”. Single-click the IFC knob to get to the LPF Function menu. If the LPF is
disabled, a message to that effect will be displayed.
If the LPF is disabled, turn the IFC knob clockwise which will display the Low Pass Frequency menu. To set the
LPF frequency to a value other than what is currently displayed, single-click the IFC knob and then rotate the
knob clockwise or counter-clockwise to set the desired frequency. Frequency choices include 31, 40, 50, 63,
80,100,and125Hz.
Single-click the IFC knob to return to the Low Pass Function menu. Turn the IFC knob to move to the Low Pass
Slope submenu and single-click to change the slope value. The Low Pass Slope defines the slope of the attenu-
ationcurveabovetheselectedfrequency.Twochoicesareavailable;12dBperoctaveand24dBperoctave.
TodisabletheLPF,rotatetheIFCknobuntilthemessage“LOWPASSDISABLE?”isdisplayed.Single-clickthe
IFC knob to disable the LPF, and single-click again to get to the top-level menu. If the LPF disable feature is
selected accidentally, double-click the IFC knob to return to the top-level menu.
Phase Degree
The Phase Degree Function allows the adjustment of timing for the arrival of bass information from the subwoofer
to the listening position. This allows for a finer degree of subwoofer integration with the main speakers.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob three clicks clockwise until the
displayreads“MENU/PHASEDEGREE”.Single-clicktheIFCknobtoselectthePhaseDegreeFunction.Rotatethe
IFC knob to select the appropriate value and single-click to select. If the Phase Degree Function is selected ac-
cidentally, double-click to return to the top-level menu.
The range of adjustment of this control is 0 degrees to 180 degrees in 15 degree increments.
Integrated Function Controller
15
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
High Pass Delay (STA-1000D)
TheHighPassdelayFunctionisauniquecapabilitythatallowsthesoundfromthemainspeakerstobede-
layed. This feature allows users who have no means of time aligning their speakers and subwoofer through
theirAVRorpre/pro(commonwithtwochannelanalogsystems)toaddadelay-inducingcomponenttotheir
subwooferpathsuchasadigitalequalizer.TheHighPassDelayaffectstheOutputwhetherornottheHigh
Pass Filter in the STA-1000D is enabled or disabled.
InorderfortheHighPassDelaytofunction,thesubwoofermustbeplacedbetweentheoutputofthepreamp/
processor and the input of the power amplifier for the selected channel (front left or right) using either the
single-ended(RCA)orBalancedinputsandoutputsontheSTA-1000D.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob four clicks clockwise until
thedisplayreads“MENU/HIGHPASSDELAY”.Single-clicktheIFCknobtoselecttheHighPassDelayFunction.
RotatetheIFCknobclockwiseorcounter-clockwisetoadjusttheHighPassDelayvalue.
The range of adjustment of this control is 0 to 10 milliseconds in 1 millisecond increments.
Room Gain Comp
TheRoomGainComp(Compensation)Functionallowsthesubwoofertobesettocompensatefortheincreaseinlow
frequencysoundbaseduponthesizeoftheroomifitisfeltthereistoomuchbass.Smallroomswillhaveagreater
increase in low frequency sound than larger rooms. There is no need to use this control unless it is felt there is too much
low frequency energy being generated in the listening environment.
Thisfunctionoperatesbysettingacornerfrequencyof40Hz(smallsizerooms),31Hz(mediumsizerooms),25Hz(large
sizerooms)orDisabled(nocompensation),andallowsatargetslopeofeither6dBperoctave(rstorder)or12dBper
octave (second order) roll off from the selected corner frequency. This has the effect of attenuating the lower frequencies
below the selected corner frequency at a rate commensurate with the selected slope.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob five clicks clockwise until the display
reads“MENU/ROOMGAINCOMP”.Single-clicktheIFCknobtogettotheRoomGainCompFunctionmenu.IftheRoom
GainCompfeatureisdisabled,amessagetothateffectwillbedisplayed.
IftheRoomGainCompfeatureisdisabled,turntheIFCknobwhichwilldisplaytheRoomGainCompsubmenu.Tosetthe
RoomGainCompfrequencytoavalueotherthanwhatiscurrentlydisplayed,single-clicktheIFCknobandthenrotatethe
knobclockwiseorcounter-clockwisetosetthedesiredfrequency.Frequencychoicesinclude25Hz,31Hz,and40Hz.
Integrated Function Controller
16
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Single-clicktoreturntotheRoomGainCompFunctionmenu.TurntheIFCknobtomovetotheRoomGainComp
Slopesubmenuandsingle-clicktochangetheslopevalue.TheRoomGainCompSlopedenestheslopeof
theattenuationcurvebelowtheselectedfrequency.Twochoicesareavailable;6dBperoctaveand12dBper
octave.TodisabletheRoomGainCompfeature,rotatetheIFCknobuntilthemessage“ROOMGAINCOMP
DISABLE?”isdisplayed.Single-clicktheIFCknobtodisabletheRoomGainCompfeatureandsingle-click
againtogettothetop-levelmenu.IfyougettotheRoomGainCompFunctionaccidentally,double-clickthe
IFC knob to return to the top-level menu.
Subwoofer Tune (Ported Subwoofers Only)
Note: This Function is active only in ported subwoofers and is inactive in sealed subwoofers.
The Subwoofer Tune Function allows the STA-800D/STA-1000D’s subsonic filter to be set based upon how the
ports have been blocked on a ported subwoofer.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob six clicks clockwise until the
displayreads“MENU/SUBWOOFERTUNE”.Single-clicktheIFCknobtoselecttheSubwooferTuneFunction.
RotatetheIFCknobclockwiseorcounter-clockwisetoadjusttheSubwooferTunesetting.Single-clicktoselect
the desired tuning frequency. Single-click again to return to the top-level menu. If this function is selected ac-
cidentally, double-click to skip the function and return to the top-level menu.
Therangeofadjustmentofthiscontrolis20Hz(allportsopen),16Hz(oneportblocked)orSealed(allportsblocked).
P-EQ (Parametric EQualizer)
Note:SettingtheLevelofPEQ1(STA-800D/STA-1000D)orPEQ2(STA-1000D)to0effectivelydisablesit.

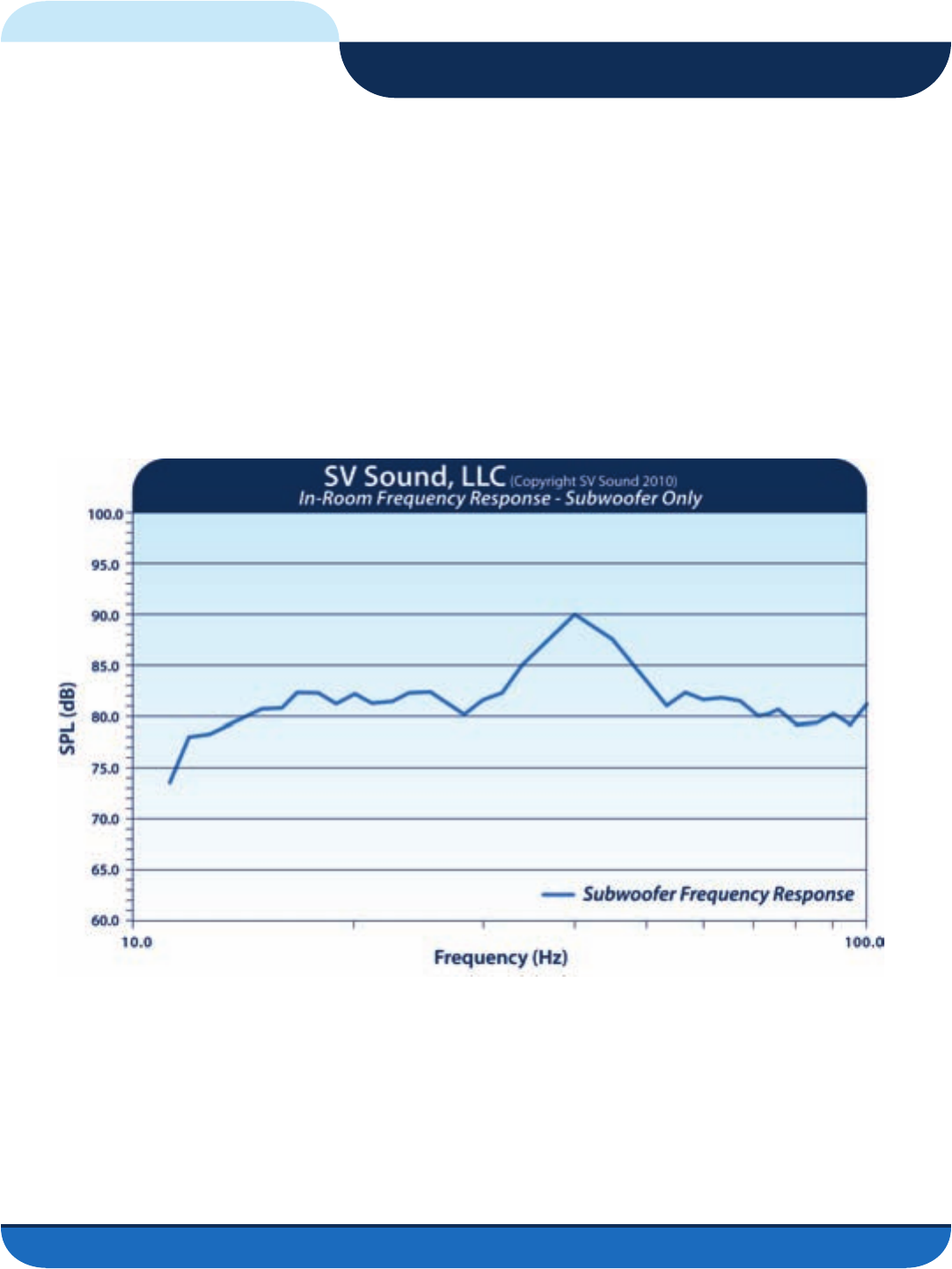

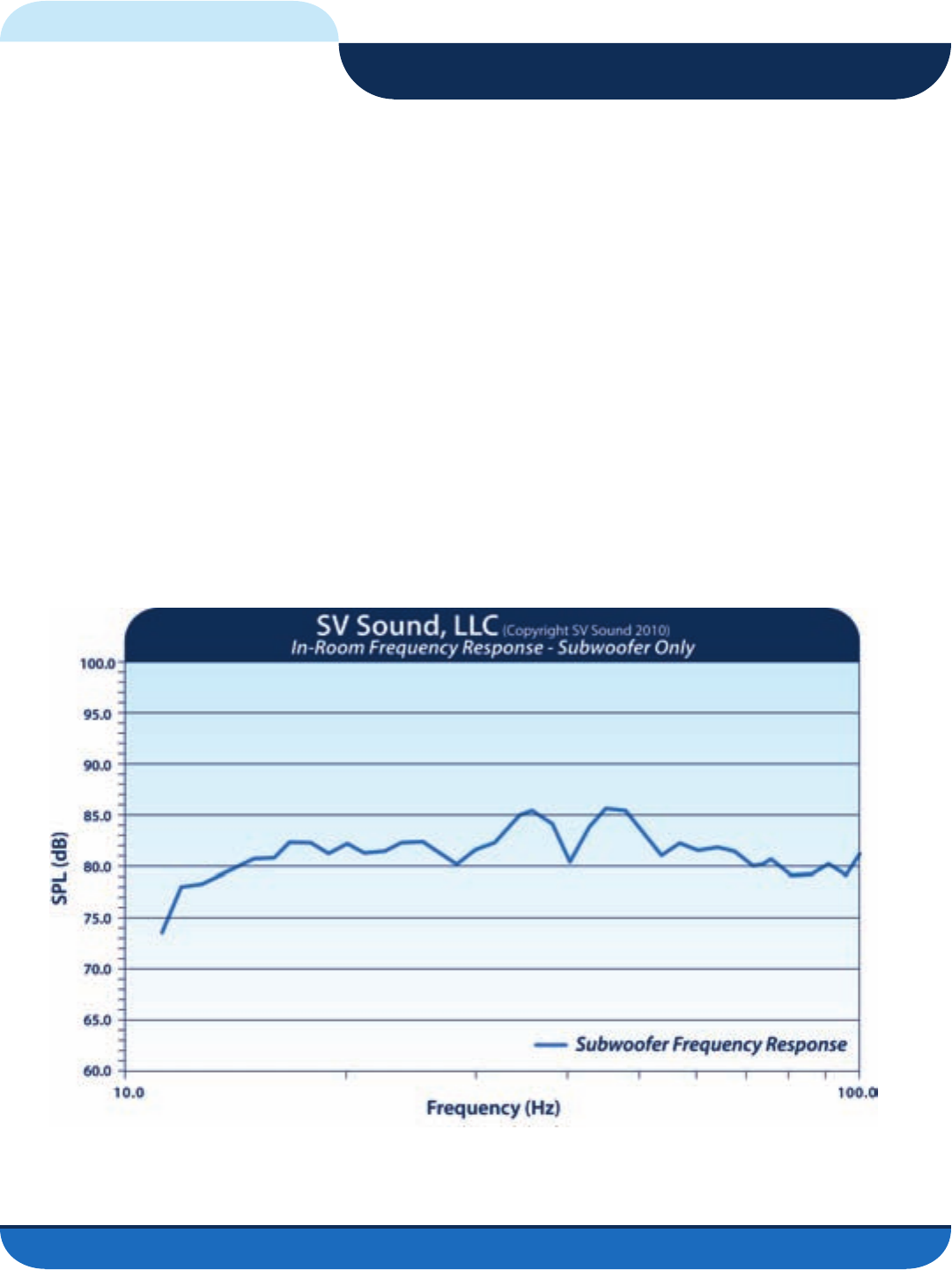

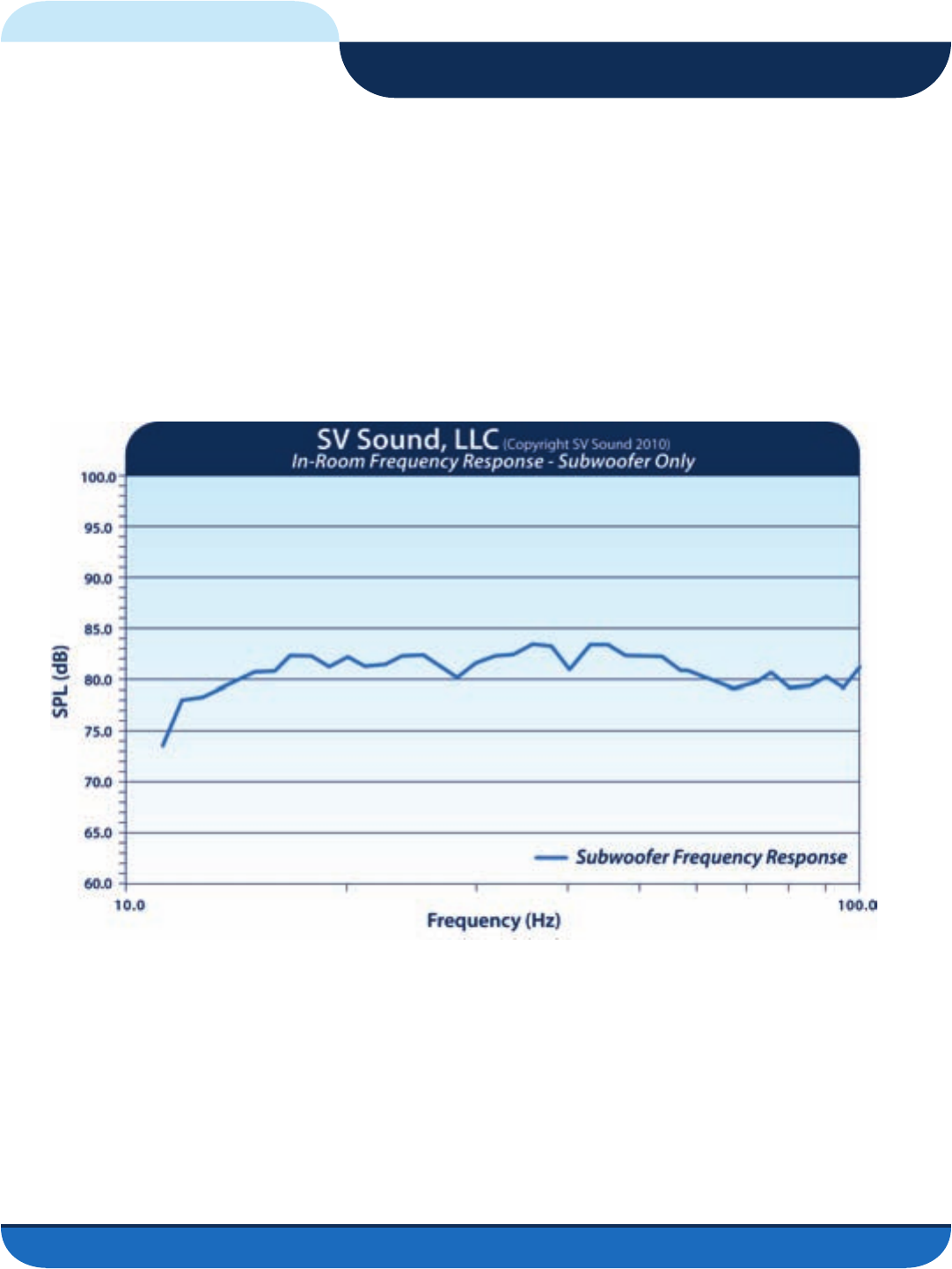

TheP-EQFunctionallowsroommodesthatexaggeratecertainbassfrequenciesinaroomtobereducedtoby
upto12dB.Dipsinfrequencyresponsecanbeboostedbyupto3dB.Theresultofareductiontamesboomi-
ness and “one note bass” phenomenon that occur when a narrow range of bass frequencies are significantly
louderthansurroundingfrequencies.Boostingadipcanbringforwardfrequenciesthataremaskedbynormal
levels around the dip.
TheSTA-800DhasasinglePEQlterandtheSTA-1000DhastwoPEQlters.PEQ1andPEQ2canbesetin-
dependently from each other, allowing for more flexibility in setting up the SVS subwoofer in any particular
listeningenvironment.BothPEQ1andPEQ2operateidentically.
Integrated Function Controller
17
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Refertothesectionlaterinthisguidetitled“AdvancedFeatures:ParametricEqualizer(PEQ)”formoredetails
onhowtoactuallyusethePEQfeaturesoftheSTA-800D/STA-1000D.
From the IFC WELCOME screen, single-click the IFC knob and rotate the IFC knob seven clicks clockwise until
thedisplayreads“MENU/P-EQ”.Single-clicktheIFCknobtoselectthePEQ1FunctionorrotatetheIFCknob
clockwiseorcounter-clockwiseandsingle-clicktoselectPEQ2Function.
FromthePEQ1/PEQ2Functionmenu,single-clicktoselectthedesiredPEQbandFrequencymenu(toskipto
theLevelMenuorQMenu,turntheIFCknobtheappropriatenumberofturns).Single-clicktochangethePEQ
band center frequency. When selected, the display will be blinking and the value will change as the IFC knob is
turned.Availablecenterfrequenciesinclude31,35,40,46,50,56,63,70,80,90,100,112,or125Hz.Tosave
thedisplayedfrequency,single-clicktheIFCknob.ToproceedtoeithertheLevelMenuorQMenurotatethe
IFC the required number of turns.
ToadjusttheLevel,single-clicktheIFCknobwhenthedisplayreadsPEQ1orPEQ2LEVEL.Thescreenwillbeginto
ashandyoucanchangetheLevelofthePEQlterbyturningtheIFCknobclockwiseorcounter-clockwise.(NOTE:
TodisablethePEQ1orPEQ2lter,setthelevelto0dB.)TheLevelcanbeadjustedfrom+3to-12dBin1dBincre-
ments.Tosavethedisplayedlevel,single-clicktheIFCknob.ToproceedtotheQMenu,rotatetheIFCknob.
Note: Some dips are actually nulls and boosting a null will not produce an increase in level when a positive
valueisapplied.Tolimitpotentialdamagetothesubwoofer,theamountofboosthasbeenlimitedto+3dB.

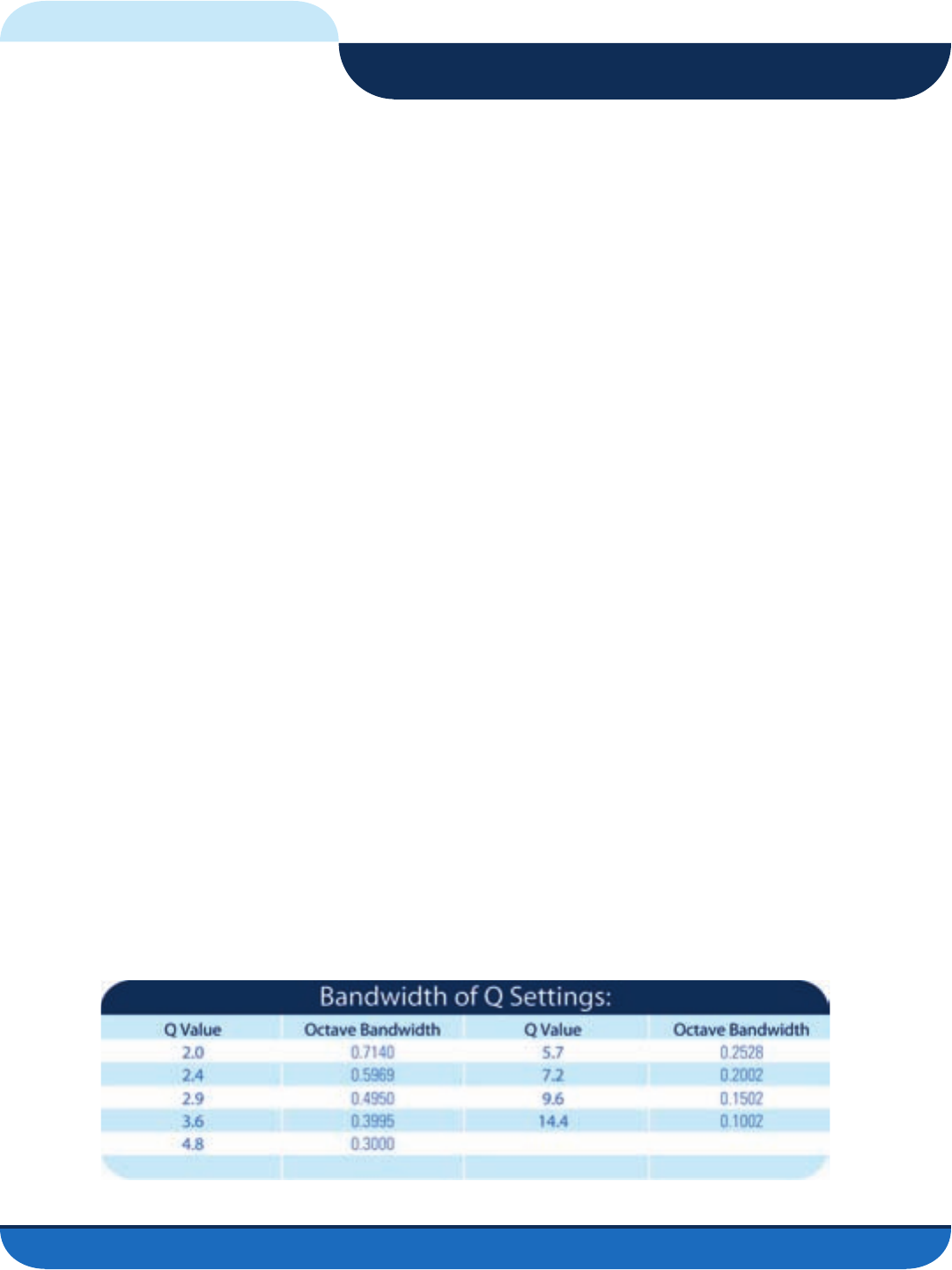

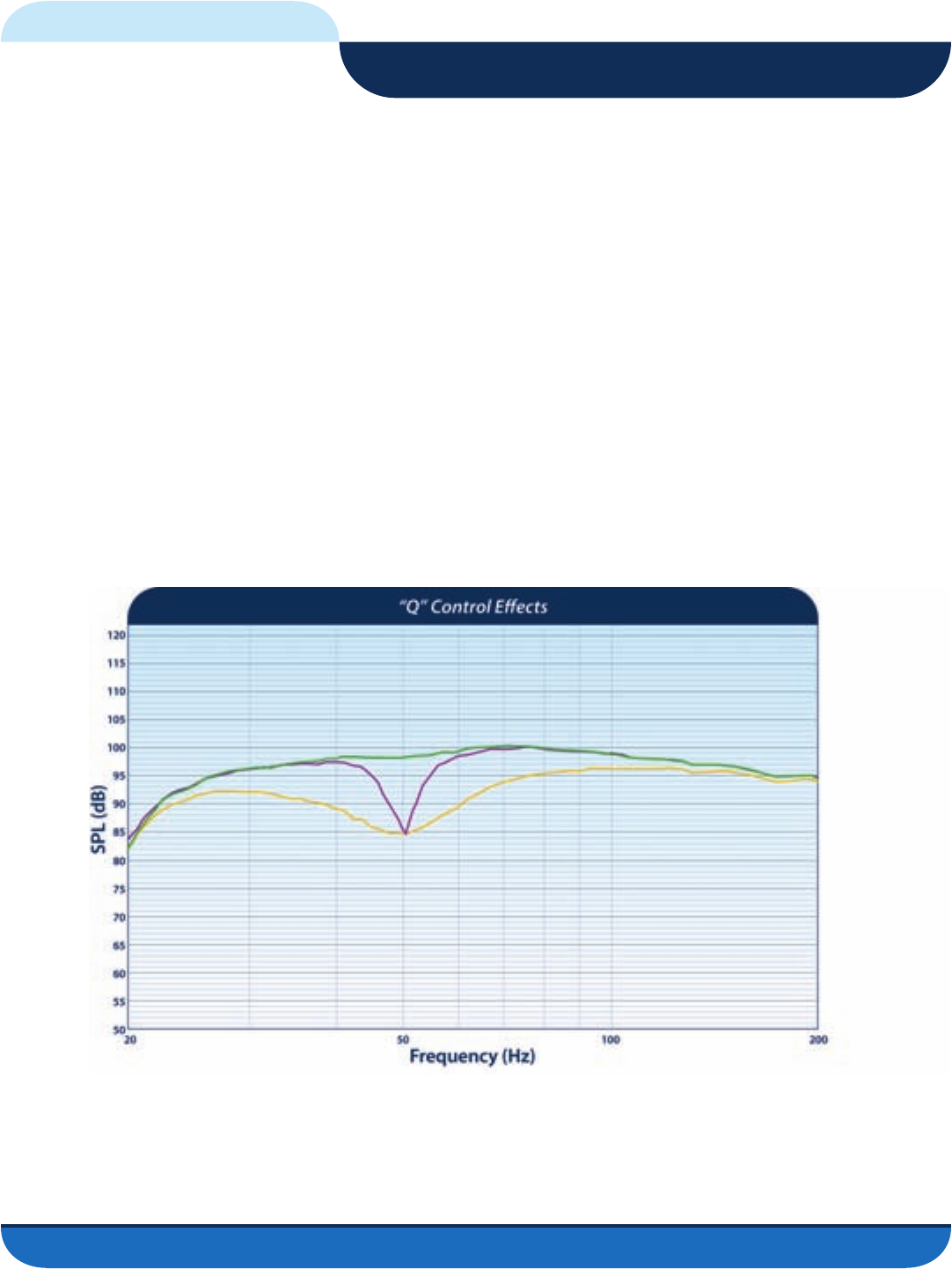

ToadjustQ(width)forthePEQ1orPEQ2lter,single-clicktheIFCknobwhenthedisplayreadsPEQ1orPEQ2
Q.ThescreenwillbegintoashandyoucanchangetheQofthePEQlterbyturningtheIFCknobclockwise
orcounter-clockwise.Qvaluescanbesetto2.0,2.4,2.9,3.6,4.8,5.7,7.2,9.6,or14.4.Tosavethedisplayed
Qvalue,single-clicktheIFCknob.
Atthispoint,asingle-clickwillreturntoeitherthePEQ1orPEQ2FunctionMenuunlesstheLevelissetto0dB.
Ifthatisthecase,asingle-clickwillreturntothePEQMenuwherethePEQ1orPEQ2functioncanbeselected.
To return to the top-level menu, double-click the IFC knob.
Integrated Function Controller
18
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Integrated Function Controller
19

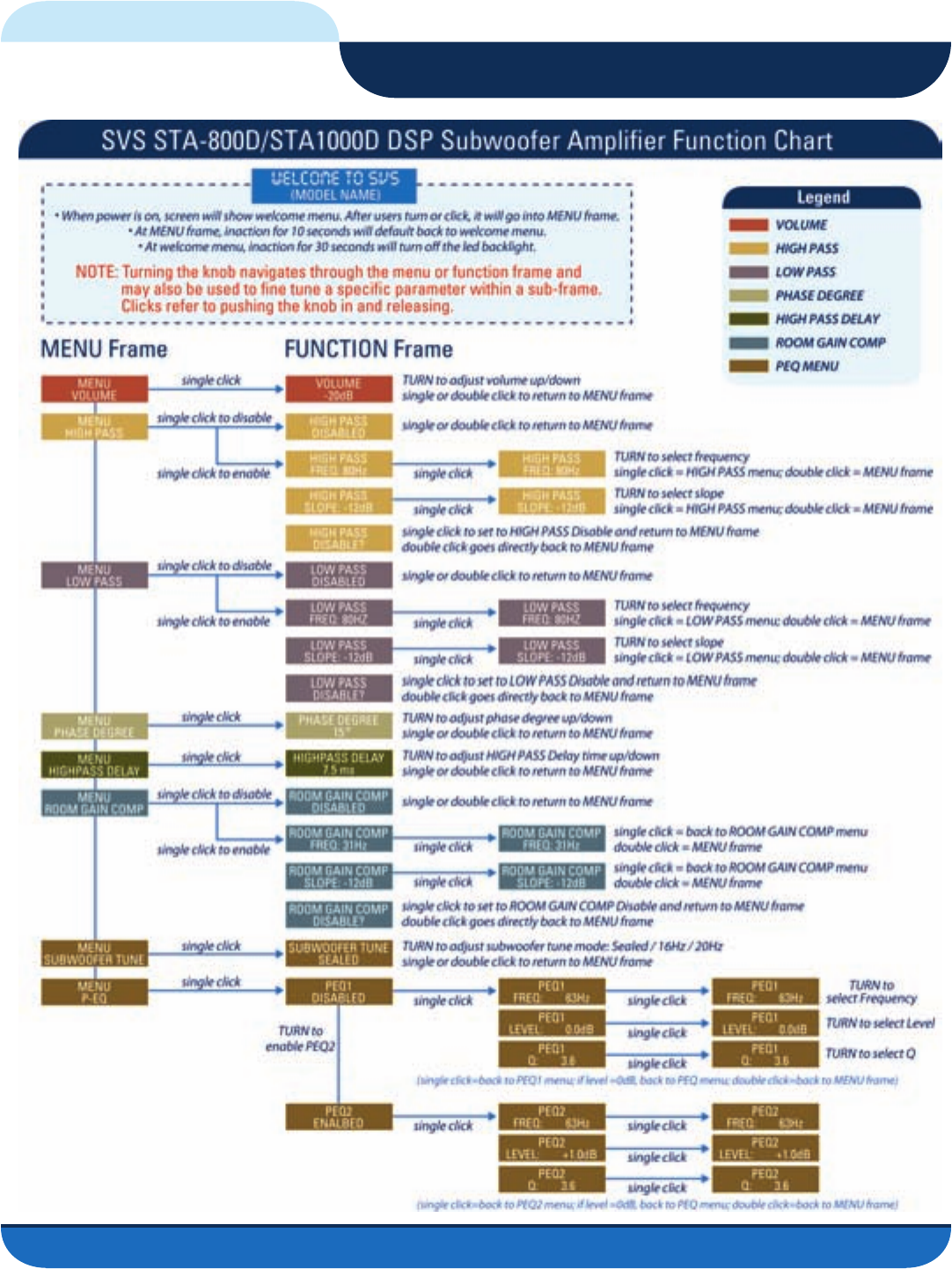

FIG. 7
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Integrated Function Controller
20
FIG.8
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Before using your new subwoofer, it is important to get it set up and integrated into the rest of your audio or home
theater system to ensure optimum results. Failure to properly set up and calibrate your new subwoofer may result
in too much, too little, or boomy bass -- none of which provides the best overall listening experience.
There are multiple ways to set up and calibrate your subwoofer depending upon what type of equipment you have
and how many subwoofers you will be using. Each common scenario will be covered below, however if you have
questions about your specific situation that are not covered here, contact SVS Technical Support at techsupport@
svsound.com.
Unpacking and Subwoofer Location
If you have not already done so, take a few minutes to carefully unpack your new subwoofer. Try to avoid
damaging the shipping materials and keep the box and internal cushioning for a short time just in case you
need to return the sub for any reason.
There continues to be much discussion about subwoofer placement. If you have done your research and de-
termined the best place for your sub(s) in your room, that’s great. If not, we recommend starting in a corner,
especially in large rooms, leaving at least five to six inches in back for cable hookups and to access controls.
Corners provide the most reinforcement for both sub level and extension, and in most rooms provide good
response in most listening positions. However all the things that make a corner good can also work against
you in some cases, causing locations in the room where bass may sound overly loud compared to other loca-
tions or inversely, bass may be lacking the punch you expect. If you find there is too much bass at certain fre-
quencies or bass response is uneven in the room, experiment with different placement options around the
room. There is surprisingly little difference between the front and the back of a room when the subwoofer
is properly calibrated so feel free to try any location that is convenient or meets aesthetic criteria for place-
ment in the room.
The STA-800D/STA-1000D amplifier also offers room correction features to help with location and place-
ment. These include two single-band PEQs (PEQ1 and PEQ2), as well as a Room Compensation filter that
can attenuate overly loud bass caused by room gain. Refer to the section of this manual that discussed
the Integrated Function Control (IFC) for more information on these features. SVS also offers an advanced
digitalsubwoofer equalizer based on Audyssey MultEQ technology, the AS-EQ1. See the SVS web site for
moreinformation on this product if interested.
Setup, Calibration & Integration
21
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Power and Signal Connection
Before making any power or signal connections, make sure all equipment in the chain is turned off. Plug
the subwoofer into a power outlet that is capable of a peak draw of 1100 watts. Using convenience outlets
located on some AVRs or pre/pros is NOT recommended for your subwoofer as these outlets are not meant
for high current devices.
For a discussion of the audio connections available on your subwoofer, see the section earlier in the manual
entitled “Connectivity and Panel Operation”.
From an audio signal connection perspective, there are two primary ways you can connect the subwoofer
based upon the capabilities of the AVR, pre/pro, or preamp you are using in your listening environment:
1) Bass Management and time alignment performed in the AVR or pre/pro. In this configura-
tion it is assumed that the subwoofer will be passed a signal intended strictly for the subwoofer – in other
words there is no additional higher-frequency information that needs to be accounted for.
Normally, you would use a single RCA (single-ended) or XLR (balanced) cable from your AVR or pre/pro’s
“Sub Pre Out” connector and attach it to either the Left or Right Input on the STA-800D/STA-1000D ampli-
fier. If you have multiple subwoofers you can split the signal at the AVR or pre/pro using a “Y” adapter, or
you can daisy-chain an additional subwoofer through an Output connector on the STA-800D/STA-1000D
amplifier with the HPF disabled if so equipped.

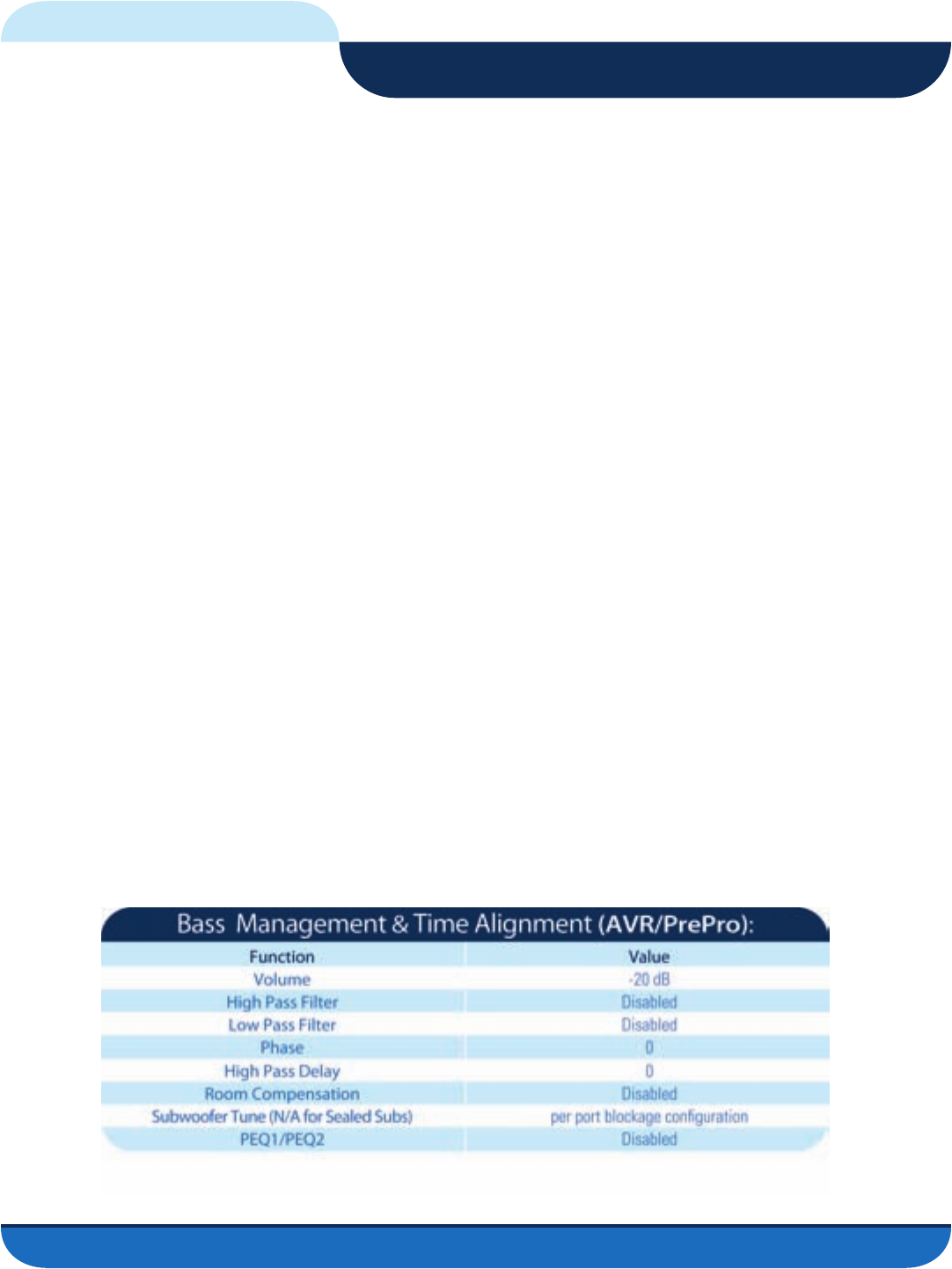

Using the Integrated Function Controller, set the following values as starting points for initial set up (facto-
rydefaults assuming no ports blocked if applicable):
Setup, Calibration & Integration
22
FIG.9
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Setup, Calibration & Integration
2) Bass Management and (optionally) time alignment performed in subwoofer. In this con-
figuration, it is assumed that due to the lack of bass management and time alignment capability in a preamp
(typical for 2 channel analog systems) these functions will be handled using the features of the STA-800D/
STA-1000D amplifier.
If you are using one subwoofer for the bass of both Left and Right Channels, connect the Left and Right Pre-
amp Outputs for these channels to the corresponding Inputs of the STA-800D/STA-1000D, and the Outputs
of the STA-800D/STA-1000D to the Inputs of the power amplifier for the main Left and Right speakers. If you
are using two subwoofers (one for each channel), connect the Left Output to one sub and the Right Output
to the second sub. Connect the sub Outputs to the respective inputs on the power amplifier.

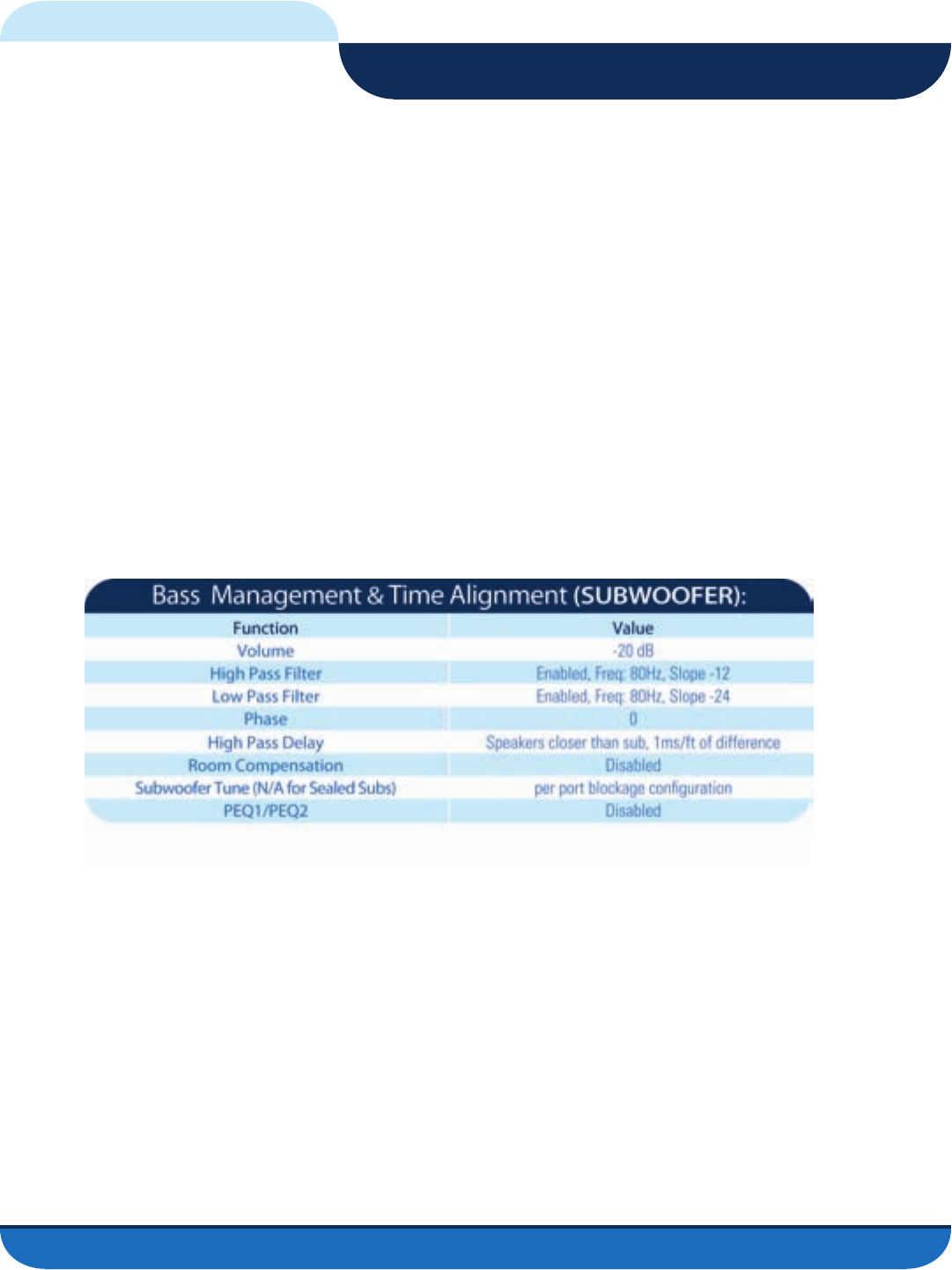

Using the Integrated Function Controller, set the following values as starting points for initial set up:
Calibrating the Subwoofer
In order to get the best experience from your new SVS subwoofer, it is important to calibrate it with the rest
of your speakers. To do this correctly you either need an AVR or pre/pro with “Auto Setup” capability, or you
will need a Sound Pressure Level (SPL) Meter (preferably with Analog display) like those sold by Radio Shack
as well as a source of test tones.
It is highly unlikely the subwoofer level can be set correctly using hearing alone due to the difference in
hearingcapability of individuals, as well as the decreased level of hearing sensitivity in the lower frequen-
cies. There-fore it is highly discouraged to use your ears as a substitute for the SPL meter.
23
FIG. 10
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
If you have two or more subwoofers in your system, it is important that they be level-matched (set at the
same level relative to one another) before starting the calibration process. If the subs are not level-matched,
there is a risk of unbalanced bass and potential subwoofer localization in your listening environment. This
level-matching process is best performed using auto setup or a SPL meter as discussed above.
1) AVR or pre/pro with auto setup capability. Many AVRs and pre/pros newer than 2004 to
2005 have some form of auto setup capability that does a good job of setting channel levels and speaker
distances, making calibrating your subwoofer very easy. Review the documentation that came with your
AVR or pre/pro on how to run the auto setup feature and after connecting your subwoofer and setting the
initial values as shown above, run the auto setup routine.
At the completion of running the auto setup routine, there are two things you should check in your AVR or
pre/pro’s Manual Speaker Setup Menu to make sure your subwoofer has been integrated properly:
a) Check to see your speakers are all set to Small with a suggested crossover of no lower than 80 Hz. If
already Small and the crossover is higher than 80 Hz the setting should be left as is.
b) Check to make sure your subwoofer Trim value does not exceed the positive or negative limits of Trim
(typically +12 dB to -12 dB but may be different based upon your equipment). A value at the negative limit
(example, -12 dB) indicates the Volume on the subwoofer was set too high. Lower the Volume on the
subwoofer and re-run the auto setup routine. If the subwoofer trim is at the positive limit, raise the
Volume on the subwoofer and re-run the auto setup routine.
2) AVR or pre/pro without auto setup capability. Older AVRs or pre/pros may not have auto
setup capability. In that case, you will need a Sound Pressure Level (SPL) meter and a source of test tones
used to set speaker levels. SPL meters can be purchased at Radio Shack, usually for less than $50. Even
older multi-channel receivers and pre/pros have built in test tones but if yours doesn’t, calibration disks are
available that have the tones needed to accurately set speaker and subwoofer levels. SVS typically recom-
mends the AVIA II Guide to Home Theater by Ovation Software as a good calibration disk.
Before starting, familiarize yourself with your AVR or pre/pro’s setup and configuration menu. Of particular
importance are the menus dealing with setting up your speakers (distance, level, size, crossover, etc.). Once
you have read and feel comfortable with setting up your speakers, you are ready to begin.
Start by making sure your AVR or pre/pro knows you have a subwoofer in your system. Sometimes the menu
item will be “Subwoofer = Yes, or “SUB ON”, etc. Ensure all speakers are set to Small and have
Setup, Calibration & Integration
24
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
crossovers set no lower than 80 Hz (a speaker set to Small – as opposed to Large or Full Range – will cause
bass frequencies below the selected crossover to be routed from the speaker to the subwoofer).
a) Make sure you have a known good battery in the SPL meter (use the Battery Function). Set the “Weigh-
ing” switch to “C”, and the “Response” switch to “Slow”.
b) Set the “Range” dial to “70” to start. Consequently, when the meter displays “0”, that will indicate 70
dB. When the meter reads “5”, that will indicate 75 dB. When the meter reads “-3” (left of “0”), that will
indicate 67 dB.
c) In the AVR or pre/pro speaker setup menu, set the value of the subwoofer trim to -3 db. Set the Master
Volume (main volume control) of the AVR or pre/pro to 0.0 dB. In most units, this will produce a reading of
close to 75 dB on the SPL meter when playing the test tones on your speakers.
d) Place the SPL meter in your main listening position, ideally on a tripod (the Radio Shack SPL meter will
mount to a standard camera tripod adapter) with the unit pointed straight up (microphone pointed at the
ceiling). Adjust the tripod so the microphone is roughly at ear height.
e) Using the Manual Speaker Setup menu of your receiver or pre/pro, play the speaker level-matching test
tone and adjust each speaker to read 75 dB (“5” on the meter with the range switch set to 70) using the
speaker Trim controls found in the menu for each channel. When playing the test tone for the subwoofer,
use the VOLUME control on the STA-800D/STA-1000D to raise or lower the level of the subwoofer to read
75 dB leaving the subwoofer Trim control in the AVR or pre/pro set to -3 dB. (Note the meter may fluctuate
by several dB when measuring the subwoofer. This is normal and what you are seeing are room modes in
play. Use the average of the swings to determine the volume of the subwoofer.)
If you have two subwoofers, you should first set each sub to 75 dB with the other off, then split the differ-
ence between the two when making level adjustments with them both on. For example, if you need to lower
the level of the combined two subs by 4 dB, lower each sub by 2 dB.
f) From this point forward to add to or decrease the level of your subwoofer(s), use the subwoofer Trim in
your receiver. In some cases the level of your subwoofer Trim may exceed +/- 5 dB after tweaking your sub
level to taste. If this occurs, use your SPL meter and a combination of the subwoofer Trim in your AVR or pre/
pro and the VOLUME control on the STA-800D/STA-1000D to get the subwoofer Trim back to -3 dB while
reading your desired subwoofer level on the SPL meter.
Setup, Calibration & Integration
25
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Port Tuning
26
FIG. 11
Advanced Features: Port Tuning (Ported Subwoofers Only)
Your new SVS ported subwoofer comes with custom foam port plugs and a variable subsonic filter which allows your sub
to be “tuned” to even lower frequencies than its stock configuration. For most people and most rooms, the sub is already
configured for the best blend of extension (how deep and how low your sub goes) and output (how loud it will play). How-
ever, bass is a very personal and subjective taste, and no two rooms will react exactly the same with any subwoofer.
There are some compromises when tuning a sub lower than its standard configuration. Installing one port plug takes
some capacity from the upper reaches of bass but will allow the subs to play at lower frequencies. Installing three port
plugs effectively configures your sub to a sealed configuration, including the lower frequency roll off going from 24 dB per
octave (ported) to 12 dB per Octave (sealed). Again the tradeoff is output versus extension. Let your ears be your guide.
To insert one or three port plugs, first remove the grill. The box sub grill is attached magnetically and will pull off easily.
The cylinder sub grill can be pried off using your fingers or a small flat blade screwdriver (gently!) around the edges of the
grill, slowly working it off around the entire perimeter. After the grill has been removed, take a port plug and squeeze the
foam on one end and press the plug into the port flare. The plug should be recessed ¾” to 1” into the mouth of the port.
To remove a port plug, insert your fingertips into the port flare, squeezing and pulling on the foam plug at
the same time.
To avoid potentially damaging your subwoofer, be sure to select the proper subsonic filter setting that coincides
with your new subwoofer’s tuning point. The subsonic filter is adjusted using the “Subwoofer Tune” function
accessible by using the Integrated Function Controller (IFC) on your STA-800D/STA-1000D Sledge™ amplifier.
See the section above on how to use the IFC to change the value of the Subwoofer Tune.
NOTE: It is strongly recommended you do NOT run a lower subsonic filter point than your port plug configura-
tion would dictate. Failure to properly align Subwoofer Tune and port plug configuration can potentially result
in serious damage to your subwoofer, especially if run at higher sound pressure levels.
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Setup & Use of PEQ
Advanced Features: Parametric Equalizer (PEQ)
Important Note: Until you are ready to use the PEQ feature set, it should be disabled and setting the Level
in both PEQ1 and PEQ2 to 0. See the discussion above on the Integrated Function Controller for instructions
on how to Disable and set the PEQ Level, as well as selecting the Frequency and Q values.
Background Information: Direct and reflected bass waves in the listening room will create “standing waves”
and associated peaks and nulls in the subwoofer frequency response (FR). The PEQ allows you to reduce
the severity of a peak in the subwoofer frequency response up to -12 dB, and to boost a dip in frequency
response up to + 3dB, thus obtaining a more accurate sound. The STA-800D/STA-1000D Sledge™ amplifier
in your subwoofer contains two PEQ filters labeled PEQ1 and PEQ2 so you can implement one (STA-800D) or
two (STA-1000D) different sets of cut or boost.
Control Explanation: The PEQ has three controls: Frequency, Bandwidth, and Level.
The Frequency control (labeled “FREQ:” ) selects the center frequency where the PEQ cut will take effect,
and has several discrete frequencies to choose from. These include: 31, 35, 40, 46, 50, 56, 63, 70, 80, 90,
100, 112 and 125 Hz.
The Bandwidth control (labeled “Q:”) affects the width of the PEQ cut or boost. The higher the Q value, the
narrower the bandwidth of the cut/boost and conversely, the lower the Q value the wider the bandwidth
of the cut or boost. In most cases, it is best to start with a high Q setting (narrow bandwidth) and widen out
(lower Q) as the results are observed. To better understand the relationship between Q values and octave
bandwidth, browse the following link:
http://www.sengpielaudio.com/calculator-bandwidth.htm
The following table summarizes bandwidth of the Q settings in the STA-800D/STA-1000D Sledge™ amplifier:
27
FIG. 12
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Setup & Use of PEQ
The Level control (labeled “Level:”) determines the amount of cut or boost applied to the frequency re-
sponse, centered on the FREQ: frequency and Q: wide. If Level is set to 0, the specific PEQ filter is disabled.
Cuts of up to -12 dB and boost of up to +3 dB are allowed.
Below is a frequency response graph of a subwoofer as measured under quasi-anechoic conditions. This set of curves
illustrates how the PEQ function works and what type of cut effect you can expect from various Q settings.
Green Line: Native frequency response of the subwoofer.
Purple Line: Frequency = 50 Hz, Q = 14.4, LEVEL = -12 dB
Yellow Line: Frequency = 50 Hz, Q = 2.0 LEVEL = -12 dB
“Q” Control Effects
28
FIG. 13
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Measuring In-Room Frequency Response:
In order to use the PEQ effectively, you must measure the in-room FR of the subwoofer at the listening
positions. This can be done manually using test tones and a spreadsheet, or it can be accomplished using
software such as “TrueRTA”, or “Room EQ Wizard (REW)”. SVS does not provide technical support on the
setup and use of any software, but it can make measuring the subwoofer FR easier and faster than manual
methods. An active user forum for REW exists on the Home Theater Shack web site, http://www.homethe-
atershack.com/forums/rew-forum/
To measure the subwoofer FR using a manual method, you will need a SPL meter, a basic working knowl-
edge of Microsoft Excel (or other spreadsheet program), and a means to generate sine wave test tones.
There are several sources of sine waves and/or tone generators on the internet. A popular tone generator is
the NCH Tone Generator ( http://www.nch.com.au/tonegen/index.html ) which is available for time-limited
trial use, and may also be purchased for a nominal fee. You can download working Excel spreadsheets
from the SVSound web site at:
http://www.svsound.com/techsupport/Subwoofer_Frequency_Response.xlsx
and
http://www.svsound.com/techsupport/Speaker_And_Subwoofer_Combined_Frequency_Response.xlsx
Place the SPL meter on a tripod and set the controls to C-weighted, Slow, and the 70 dB scale (you may need
to alter the dB scale during the measurement process). Place the meter at head level at the primary listening
position with the meter pointed toward the ceiling at a 90 degree angle.
To set the overall test level, play a 25 Hz frequency and adjust the subwoofer Volume (option 1 below) or the
processor master volume (option 2 below) until the SPL meter reads about 75 dB at the listening position.
Run each tone only long enough to get a stable reading from the meter (about 5-6 seconds), and then give
the subwoofer about 10 seconds to cool off between test frequencies.
Setup & Use of PEQ
29
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Setup & Use of PEQ
Option 1: Measure the FR of Subwoofer Only Using Excel Spreadsheet:
To measure the FR of the subwoofer only, connect your sound card output directly to a line level input on
the subwoofer. Use the Excel spreadsheet named Subwoofer_Frequency_Response (link provided above),
which will plot the frequency response of the subwoofer from 11.2 Hz to 100.8 Hz. Input your raw (direct
read) values from your SPL meter into the green band of frequencies in the Raw SPL Data worksheet, and
the Frequency Response worksheet will plot the FR of the subwoofer.
Below is an example of a subwoofer FR. Notice the large peak from 35 - 55 Hz.
To correct a peak such as that above, start by setting the Frequency to 40 Hz, the Q to 14.4, and the Level to
-10 dB. Re-measure and re-plot from 30-70 Hz to evaluate the effect.
30
FIG. 14
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Setup & Use of PEQ
Option 2: Measure the Combined FR of the Speakers and Subwoofer using Excel Spreadsheet:
To measure the combined FR of the front speakers and subwoofer (to include the digital crossover in your
processor), connect your sound card output to an analog input on your processor. Make sure the analog input
is configured to use the digital crossover between the speakers and the subwoofer. Use the Excel spread-
sheet named Speaker_And_Subwoofer_Combined_Frequency_Response (link provided above), which will
plot the frequency response from 11.2 Hz to 201.6 Hz. Input your raw (direct read) values from your SPL
meter into the green band of frequencies in the Raw SPL Data worksheet, and the Frequency Response
worksheet will plot the combined FR of the speakers and subwoofer.
Adjusting The PEQ: Identify the largest/widest peak in the response and target it for reduction with
the PEQ control. When making adjustments to the PEQ control, there is no need to re-plot the entire FR for
interim adjustments - simply re-plot the affected section of the curve to verify your PEQ adjustments are
having the desired effect. When you are done making adjustments, you can re-plot the entire frequency
response to obtain a final curve.
31
FIG. 15
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Set the Frequency control to the approximate center frequency of the largest peak. Set the Q control to 14.4
(narrowest bandwidth), and set the Level control to -6 dB. Play the test tones again and re-measure and re-
plot the affected portion of the FR curve and visually evaluate your results. Simple trial/error will then allow
you to adjust all three controls to shape the PEQ cut to achieve the desired effect.
The previous image shows the results of the first PEQ cut attempt. The Frequency and Cut effect look cor-
rect, but the Q is too narrow. Adjust the Q to 9.6 and try again.
The graph above illustrates the results of the wider Q setting. Notice how the cut effect is wider. This is now
a satisfactory result.
Setup & Use of PEQ
32
FIG. 16
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Room Compensation
Advanced Features: Room Compensation
In typical home theaters a phenomenon known as “room gain” can play a major role in how accurately
bass is produced.
When any subwoofer produces notable bass energy below 40Hz, the output you will perceive is different
than the sub’s normal output would be (if unaffected by your room’s walls).
The difference in actual bass, versus theoretical (quasi-anechoic/anechoic) bass response, can be thought
of as rising SPL levels in the room as frequency decreases. The smaller the room, the more room gain comes
into play – e.g. louder levels as frequency decreases as compared to larger spaces where the effect is less
noticeable. Room gain can create excessive deep bass which can sound exaggerated simply due to interac-
tion with your room.
If you find your bass is excessive and lowering the level of the subwoofer using the subwoofer trim in your
AVR or pre/pro does not have the desired effect, you should try using the Room Compensation control in
your STA-1000D amplifier. To enable and adjust your Room Compensation control, see the section earlier in
this manual on the Integrated Function Controller (IFC).
Use the table below as a guide to select the appropriate Room Compensation corner frequency for your
specific listening environment.
To rapidly roll off the lower frequencies below the selected corner frequency, select -12 dB per octave slope.
For a more gradual roll off, select -6 dB per octave slope. For example if the corner frequency selected is
40Hz, the subwoofer output level would be down 12 dB at 20Hz if -12 dB was selected, or down 6 dB at
20Hz if -6 dB was selected.
33
FIG. 17
© 2011 Specialty Technologies, LLC Call SVSound 877.626.5623 www.svsound.com
SVSound
STA-800D/1000D Equipped Subs
Terms and Conditions: Details are available on request, please contact your Dealer for more. Note that
these terms and conditions do not affect your statutory rights.
Shipping: When you receive your new subwoofer, please check to ensure there is no damage. If after unpacking
you discover any damage that may have been caused by transportation on your product, we request you contact
SVS or if outside the USA your Dealer immediately and if possible, provide a photo of damage in question to them
to ensure the fastest possible correction to the situation.
Warranty: The product has a 3 year warranty against defects in materials and workmanship. Upon return,
the products will be repaired, and redelivered. Naturally, this warranty does not cover any product subjected to
misuse or accidental damage.
The bottom line: We’re proud of our products and want you to be as happy owning one, as we are selling one (or
more) to you. E-mail your Dealer if you have any warranty question or contact SVS directly if in North America.
Terms & Conditions
34
SVSound
6420 Belmont Avenue, Girard, Ohio 44420
Fax: 703-997-2603
Phone: 877-626-5623
Email: custservice@svsound.com
Technical Support: techsupport@svsound.com

Navigation menu
