Swann Communications SWWHDOUTCAM IP Camera User Manual Swann Outdoor Security Camera

SWANN COMMUNICATIONS LIMITED IP Camera Swann Outdoor Security Camera

User Manual

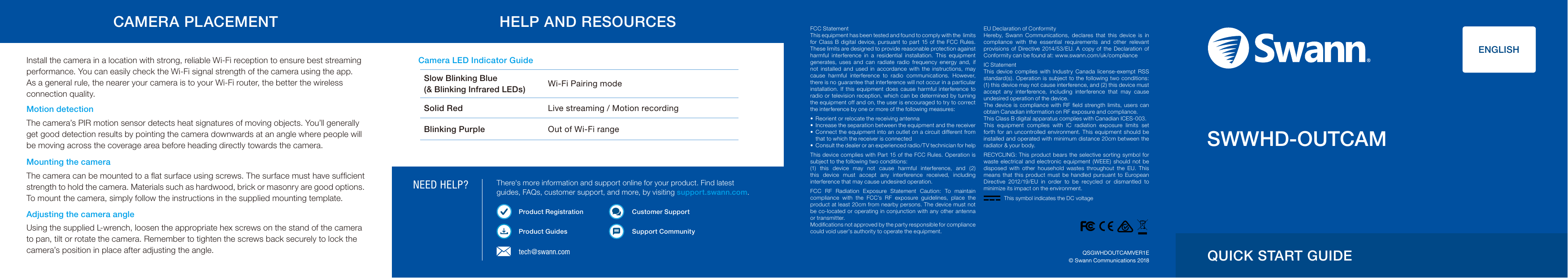

NEED HELP?FCC StatementThis equipment has been tested and found to comply with the  limits for  Class B digital device,  pursuant  to part  15 of the  FCC  Rules. These limits are designed to provide reasonable protection against harmful  interference  in  a  residential  installation.  This  equipment generates,  uses  and  can  radiate  radio  frequency  energy  and,  if not  installed  and  used  in  accordance  with  the  instructions,  may cause  harmful  interference  to  radio  communications.  However, there is no guarantee that interference will not occur in a particular installation.  If  this  equipment  does  cause  harmful  interference  to radio  or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •  Reorient or relocate the receiving antenna•  Increase the separation between the equipment and the receiver•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected•  Consult the dealer or an experienced radio/TV technician for helpThis device complies with Part 15 of the FCC Rules.  Operation  is subject to the following two conditions:(1)  this  device  may  not  cause  harmful  interference,  and  (2) this  device  must  accept  any  interference  received,  including interference that may cause undesired operation.FCC  RF  Radiation  Exposure  Statement  Caution:  To  maintain compliance  with  the  FCC’s  RF  exposure  guidelines,  place  the product at least 20cm from nearby persons. The device must not be co-located or operating in conjunction with  any  other antenna or transmitter.Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.EU Declaration of Conformity Hereby,  Swann  Communications,  declares  that  this  device  is  in compliance  with  the  essential  requirements  and  other  relevant provisions  of  Directive  2014/53/EU.  A  copy  of  the  Declaration  of Conformity can be found at: www.swann.com/uk/complianceIC StatementThis  device  complies  with  Industry  Canada  license-exempt  RSS standard(s).  Operation is subject  to the following two conditions: (1) this device may not cause interference, and (2) this device must accept  any  interference,  including  interference  that  may  cause undesired operation of the device. The device  is  compliance with  RF field strength limits, users  can obtain Canadian information on RF exposure and compliance.This Class B digital apparatus complies with Canadian ICES-003. This  equipment  complies  with  IC  radiation  exposure  limits  set forth  for  an  uncontrolled environment.  This  equipment  should  be installed and operated with minimum distance 20cm between the radiator & your body.RECYCLING:  This product  bears the selective  sorting  symbol  for waste  electrical  and  electronic  equipment  (WEEE)  should  not  be disposed  with  other  household  wastes  throughout  the  EU.  This means  that  this  product  must  be  handled  pursuant  to European Directive  2012/19/EU  in  order  to  be  recycled  or  dismantled  to minimize its impact on the environment.© Swann Communications 2018QSGWHDOUTCAMVER1Etech@swann.comInstall the camera in a location with strong, reliable Wi-Fi reception to ensure best streaming performance. You can easily check the Wi-Fi signal strength of the camera using the app.  As a general rule, the nearer your camera is to your Wi-Fi router, the better the wireless connection quality.Mounting the cameraThe camera can be mounted to a flat surface using screws. The surface must have sufficient strength to hold the camera. Materials such as hardwood, brick or masonry are good options. To mount the camera, simply follow the instructions in the supplied mounting template. Motion detectionThe camera’s PIR motion sensor detects heat signatures of moving objects. You’ll generally get good detection results by pointing the camera downwards at an angle where people will be moving across the coverage area before heading directly towards the camera.Adjusting the camera angleUsing the supplied L-wrench, loosen the appropriate hex screws on the stand of the camera to pan, tilt or rotate the camera. Remember to tighten the screws back securely to lock the camera’s position in place after adjusting the angle. QUICK START GUIDECamera LED Indicator GuideSlow Blinking Blue (& Blinking Infrared LEDs) Wi-Fi Pairing modeSolid Red Live streaming / Motion recordingBlinking Purple Out of Wi-Fi rangeThere's more information and support online for your product. Find latest guides, FAQs, customer support, and more, by visiting support.swann.com. Product RegistrationProduct GuidesCustomer SupportSupport Community               ENGLISHSWWHD-OUTCAMCAMERA PLACEMENT HELP AND RESOURCESThis symbol indicates the DC voltage
89101  Wi-Fi Antenna2  Camera Lens3  Infrared LEDs (for night vision)4 Microphone5  Night Detection Sensor6  Passive Infrared Motion Sensor7  LED Indicator8  Reset Button9  Power Connector10  Ethernet Connector (optional wired connection to your router; camera must be paired via Wi-Fi first)1  Bend the antenna 90° at the antenna joint, then using the ferruled nut, screw the antenna onto the gold antenna socket on the back of the camera until it is hand tight, as shown in Figure 1.2  Connect the camera to the power adapter using the power & Ethernet cable, then plug the power adapter to a power outlet, as shown in Figure 2. Make sure the camera is within range of the Wi-Fi network to which you want to connect.Download and install the latest version of the SAFE by Swann app from the Apple App Store® or Google Play™ Store on your iOS or Android device. Simply search for "SAFE by Swann".Launch the SAFE by Swann app. Create an account or log in if you already have an account. Once logged in, tap the "+" Pair Camera icon on the screen and follow the prompts to pair your new camera.327 5164Figure 1: Attaching the antenna Figure 2: Connecting to powerPower & Ethernet cableCamera Ethernet  connector (Optional)Router (Optional)Power AdapterCAMERA OVERVIEW ASSEMBLE ANTENNA & POWER UP GET THE APP FIRST TIME SETUP
