SEE THE UNSEEN

WWW.SWAROVSKIOPTIK.COM

HUNTING

SEE THE

UNSEEN

US

SWAROVSKI OPTIK NORTH AMERICA LTD.

2 Slater Road Cranston, RI 02920

Phone 800 426 3089, Fax 401 734 5888

info@swarovskioptik.us

US 01/2014 We reserve the right to make changes regarding

design and delivery. We accept no liability for printing errors.

All image rights owned by SWAROVSKI OPTIK.

For further information, please contact:

SERVICE

R E PA I R S

SWAROVSKI OPTIK has a repair service for customers who would

like to have their equipment serviced or parts replaced. This team

can also help when damage is sustained, for instance, due to a

small mishap, providing an extremely customer-friendly, quick, and

efficient service. Our service team can even restore older models to

working order again.

SWAROVSKI OPTIK THE COMPANY

SWAROVSKI OPTIK2SWAROVSKI OPTIK 79

SWAROVSKI OPTIK 3

PASSING ON

THE FIRE

My great-grandfather Wilhelm Swarovski, who founded

SWAROVSKI OPTIK, was an enthusiastic lover of nature. One

of his favorite spots was the imposing Habicht mountain in

the Stubai Alps, where he used to go to relax, recharge his

batteries, and work on new ideas, visions, and projects. He

also enjoyed observing the native wildlife, and was absolutely

fascinated by the majestic hawks, renowned for their extreme-

ly powerful vision. When looking for an animal as a company

crest for SWAROVSKI OPTIK exactly 30 years ago, the hawk

was the obvious choice, representing, on the one hand, the

company‘s deep roots in Tyrol and, on the other, the precision

that SWAROVSKI OPTIK has been wanting to achieve ever

since with its long-range optical products.

Decades have passed since then. Many things have changed,

but a lot remains the same: the hawk is still the company

crest - the clear acknowledgement of the location and also the

constant endeavor made by everyone to continually improve

our products.

In this respect, we view tradition at SWAROVSKI OPTIK not

in terms of worshipping the ashes, but of passing on the fire.

Our highly-skilled staff, who drive forward developments with

a pioneering spirit and a love for detail, carry this flame in

them. Revolutionary innovations, such as the Z6(i) rifle scope

with its 6x zoom, are testament to the fact that we don‘t only

want to do things better, but also differently.

Whenever you hold and look through one of our products, and

experience a very special moment with SWAROVSKI OPTIK,

I want you to sense the same joy and fire that we also feel

every day for our work. After all, the world belongs to those

who can see beauty.

CARINA SCHIESTL-SWAROVSKI

Chairwoman of the Executive Board

SWAROVSKI OPTIK4

SWAROVSKI OPTIK 5

Our product innovations are clear proof that SWAROVSKI OPTIK is consistently

breaking the mold. The rifle scope with its 6x zoom, SWAROVISION technology

or the modular ATX/STX spotting scope system are worth mentioning here as

outstanding examples of this.

This spirit of innovation pervades the entire company at SWAROVSKI OPTIK.

Deliberately conceiving and creating things in a new and exciting way, in keeping

with the times, was our main inspiration for this brochure. Our wish is to provide

you with a variety of interesting features to read that illuminate all aspects of

hunting worldwide.

Therefore, the sections are arranged according to areas of use, rather than

being strictly divided up based on product groups. We believe that this is a more

modern and attractive way to convey our message. The products presented in

each section are the top recommendations from our experts.

The articles were also produced with the assistance of our colleagues who

work for SWAROVSKI OPTIK across the globe, and who are keen to share their

priceless hunting expertise with you. We would like to thank them for their help!

EDITORIAL

SWAROVSKI OPTIK6

LEGAL NOTICE

Publisher: SWAROVSKI OPTIK KG, Daniel-Swarovski-Strasse 70, 6067 Absam, Austria · Concept & design: Gruppe am Park,

Schillerstrasse 1, 4020 Linz, Austria, in cooperation with SWAROVSKI OPTIK KG · Photos: All image rights owned by SWAROVSKI OPTIK.

SWAROVSKI OPTIK 7

08 THE SWAROVSKI OPTIK PRINCIPLE

14 WHITETAIL HUNTING – PASSIONATE ABOUT WHITETAIL

20 SAFARI – AFRICAN DREAM

24 MOUNTAIN HUNTING – NATURE IS THE BEST TEACHER

32 VERSATILITY OF HUNTING – DIFFERING REGIONS

38 SPECIAL FEATURE: DIGISCOPING – READY FOR A NEW KIND OF HUNTING?

40 LONG-RANGE SHOOTING – BROADENING YOUR HORIZONS

46 SPECIAL FEATURE: LONG-RANGE SHOOTING SOLUTIONS - BRINGING DISTANT TARGETS CLOSER

48 SPECIAL FEATURE: COMPETITIVE SHOOTING

50 SWAROVSKI OPTIK QUALITY STANDARDS

62 PRODUCT OVERVIEW

74 SWAROVSKI OPTIK THE COMPANY

CONTENTS

SWAROVSKI OPTIK8

SWAROVSKI OPTIK regards tradition, origin, quality awareness, entrepreneurial boldness, in-

novativeness, absolute devotion to service and product functionality as the core values guiding all

its actions. These principles have evolved from within the company at SWAROVSKI OPTIK and

they are put into practice every day by all our staff.

THE

SWAROVSKI

OPTIK

PRINCIPLE

Every company needs a

stable, secure foundation

that it can build on.

SWAROVSKI OPTIK 9

THE SWAROVSKI OPTIK PRINCIPLE

SWAROVSKI OPTIK10

SWAROVSKI OPTIK 11

COURAGE

At SWAROVSKI OPTIK the courage the team

shows in developing superior products matters.

Anyone who wishes to offer innovative products

must constantly go to the furthest possible

limits, allow time for developments, and

take new paths.

SERVICE

Customer service is an essential part of

the SWAROVSKI OPTIK brand identity and

awareness - at the highest level. Even when

things go wrong, we guarantee that a repair

is always carried out quickly and to the

customer’s satisfaction.

RESPONSIBILITY

Anyone who is, like SWAROVSKI OPTIK,

surrounded by such natural beauty is aware

that they have to bear some responsibility for

it. We comply with the most stringent require-

ments for caring for and preserving the

environment, and we voluntarily conform

to the highest standards.

FUNCTIONALITY

Many members of our staff use SWAROVSKI

OPTIK products almost every day, taking them

into the open countryside, on hunting or trips.

This simply creates a sense of how something

should work perfectly. Having this knowledge

benefits the development of new products.

TRADITION

We are a family-run business and, as such,

we must in all conscience pass it on to our

successors. SWAROVSKI OPTIK regards this as

a long-term matter, which is why we’re not just

thinking about the next five or ten years, but

about future generations.

TYROL, AUSTRIA

The clear commitment to the company and pro-

duction site in Tyrol instills confidence. We firmly

believe that customers who opt for a premium

quality product also take a very close look at where

and how a company manufactures its products.

QUALITY OF THE HIGHEST ORDER

The notion of quality is given meticulous con-

sideration at SWAROVSKI OPTIK and goes beyond

purely technical aspects. The whole package

matters to us: outstanding optics, functionality,

ergonomics, design, service – all of which

must be perfectly harmonized.

LASTING VALUE

The actual value of a product is revealed in its

daily use. If you like a product, use it often, and

have enjoyed it for many years, then it is of lasting

value. For most people, these are precisely the

reasons why they opt for SWAROVSKI OPTIK:

because they know that it is an investment for life.

1

2

3

4

5

6

7

8

THE SWAROVSKI OPTIK PRINCIPLE

SWAROVSKI OPTIK12

SWAROVSKI OPTIK 13

SWAROVSKI OPTIK14

SWAROVSKI OPTIK 15

PASSIONATE

ABOUT

WHITETAIL

WHITETAIL HUNTING

Everyone has moments in their life that they remember forever.

For some people, they may even be part of what defines them.

Often over in the blink of an eye, their quality is gauged in emotion

and adrenaline, not measured in minutes or seconds. In the great

outdoors, such instants unfold millions of times each day. But

only when the hunter steps in do they transform into moments

of pure passion.

The woods where the whitetails live are a special place, filled with

the glory of nature. The cold chill of a still November morning, the

sound of the woods waking up even before the deer move, or the

sight of a big buck that you have been watching all season as it

strides over the ridge at first light. Just as these great creatures use

all of their senses to bring hunters sleepless nights, so the hunter

must make the most of every valuable moment that the woods have

to offer. From seeing the buck in low light for the first time to finally

admiring their prize on the wall.

The sound of a deer moving in the early morning light begins to

take shape. The SLC 10x42 is the perfect hunting partner for

peering through the trees and the morning mist, as it takes in as

much light as possible so that you can see if this is a deer, a buck,

or THE buck. As you begin to see movement and bring him into

sharp focus, even the low light cannot stop you from seeing those

magnificent antlers on his head, the ones you have been thinking

about for months. You spotted him with these same binoculars

in late summer, feeding in a hay field, and dreamed of getting

close to him during the hunting season. The time has come

to put your binoculars down and fire a shot that you will never

forget. The Z3 4-12x50 sits perfectly on top of your favorite rifle

and was created for moments like this. You know that this scope

will enable you to take the perfect shot, time and time again.

As your finger moves closer to the trigger, you take in the mo-

ment, confident that this will be one of those times in life when

everything comes together…

WHITETAIL HUNTING

The Z3 4-12x50 and SLC 10x42 are a great combination for this type of

hunting. They offer the hunter everything they could need for hunting

whitetail in the woods. Compact, rugged, and reliable, the SLC 10x42

has stood the test of time. The new SLC binoculars with SWAROVSKI

OPTIK high-definition optics now offer even more color fidelity and a

significant improvement in resolution and contrast. Hunt after hunt,

these sturdy binoculars constantly prevail, especially in poor lighting

and weather conditions.

While our passion, instincts, and hunting traditions have remained

the same for thousands of years, today’s technology can only bring

you into the game even more. SWAROVSKI OPTIK is passionate about

hunting and provides products to make every moment in the field

extraordinary. The Z3 4-12x50 and SLC 10x42 are two of our most

versatile examples. With all the features needed for whitetail hunting

and excellent low-light performance, you will be one step closer to

finding that buck of a lifetime.

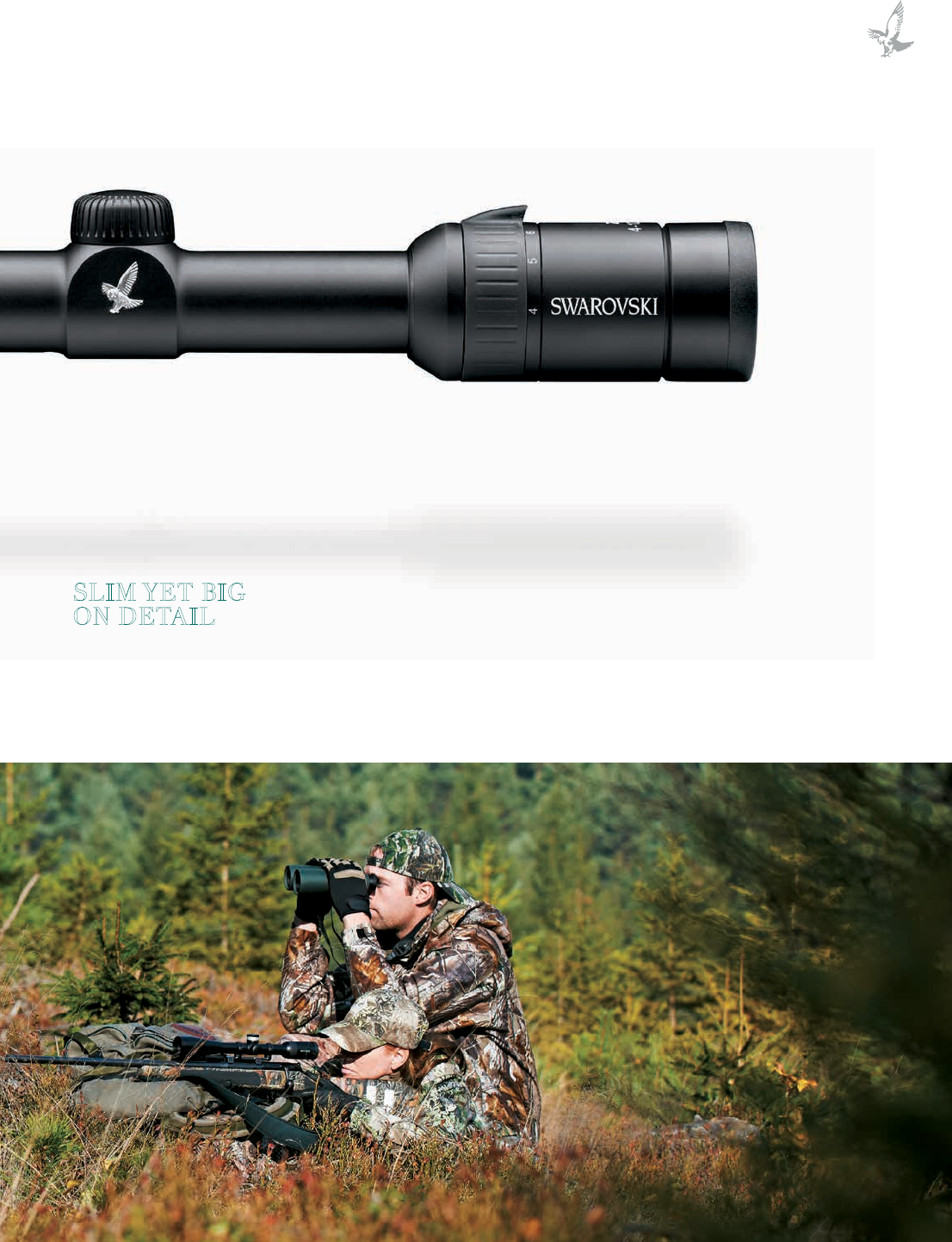

Z3 4-12x50

SLIM YET BIG

ON DETAIL

Even in the 1-inch class you don’t need to go without backup lighting

and higher magnification. The Z3 4-12x50 is designed to cope with

these values – even with an incredibly lightweight design.

GREAT AT DISTANCES

The BT version with Ballistic Turret allows you to stay on

target at different distances.

STRONG IN MAGNIFICATION

Proves its strength in poor light conditions and over

longer distances thanks to its 50 mm objective lens

diameter and 12x magnification.

WHITETAIL HUNTING

SWAROVSKI OPTIK18

Z3 3-10x42 Z6i 2.5-15x56 P BT EL RANGE 42 CL COMPANION 10x30 CL POCKET 10x25

OTHER

PRODUCTS

see page 64

NEW

SWAROVSKI OPTIK 19

NEW

SLC 10x42

THE SOLID,

MULTIPURPOSE

BINOCULARS

These binoculars can go everywhere with you. You can take the SLC 42

binoculars with you while hunting in the early twilight or while still hunting.

COMPACT AND SLIM DESIGN

The ergonomic product design guarantees that they are extremely comfortable

to carry while glassing for long periods.

IMPRESSIVE OPTICAL PERFORMANCE

The high-precision high-definition optics by SWAROVSKI OPTIK delivers true-

color, high-contrast images and an outstanding field of view.

WHITETAIL HUNTING

SWAROVSKI OPTIK 21

SAFARI

Many hunters are captivated by the Cradle of Humankind, with its endless

expanses, delightful landscapes, fascinating flora, untouched nature and

extremely wide variety of game.

People returning from Africa talk about being deeply touched by an almost

magical inner peace, far removed from the hustle and bustle. This is a unique,

overwhelming experience of nature.

SWAROVSKI OPTIK has two products for you to take on your hunting trip. The

first recommendation is the Z6i 1-6x24 EE rifle scope, which is the perfect

safari companion. It is particularly well-suited to a powerful caliber and offers

a broad overview in the dense bush, with sufficient magnification in reserve

for hunting antelope on the savannah. The 120 mm eye relief, which was

further enlarged specially for this model, guarantees additional safety, even

in the case of excessive recoil.

Anyone traveling to Africa can see more and therefore experience more

with the EL 32 binoculars. They are particularly light, so you can pack them

in your hand or hunting luggage, and they don’t become a burden, even

when you’re out exploring for hours on end. They are an absolute must for

anyone who wants not only small, lightweight binoculars, but also outstanding

SWAROVISION technology. They allow you to discover the unique beauty of

the wild and landscape even better.

AFRICAN

DREAM

SAFARI

SWAROVSKI OPTIK22

Avoid unnecessary baggage during your next safari trip, but still insist on

uncompromising performance. The EL 32 is light and couldn’t be easier to

use, allowing you to focus all the distances relevant for hunting in less than

half a turn. Thanks to the unique wrap-around grip, you can operate the

binoculars with only one hand. And you will enjoy images that are razor sharp

and contoured in every area, even at the edge. The EL 32 with SWAROVISION

technology are quite obviously brilliant binoculars that not only meet the very

exacting demands for safari hunting, but exceed them.

A GLIMPSE OF TRUE PERFECTION

SWAROVISION stands for optimum visual quality. Field flattener lenses gua-

rantee a sharp image from the middle to the edge, while colorful, high-contrast

HD optics and a field of view that shows even eyeglass wearers every detail

provide the perfect complement to this optical masterpiece.

You have a buffalo in your sight. That’s no small feat. The Z6i 1-6x24 EE

offers everything you need to take on even the biggest challenges of safari

hunting. The larger eye relief provides you with safety even in the event of

excessive recoil from a big game caliber rifle. Not to mention that it comes

with all the benefits that have made our rifle scopes stand out from the

very start: lightweight, elegant design, high-quality optics with a 6x zoom,

and exceptional reliability.

FROM A SAFE DISTANCE

120 mm eye relief for large calibers makes it perfect for safari hunting. But

the increased eye relief can also enable you to fire safely when taking a

quick shot during a hunt closer to home.

ALWAYS THE RIGHT CHOICE

The immediate activation of the illuminated reticle thanks to SWAROLIGHT

technology will be a distinct advantage during the hunt.

EL 32

ADVENTURES

UP CLOSE

Z6i 1-6x24 EE

DELIVERING WHEN

IT MATTERS

SWAROVSKI OPTIK 23

Z6 1.7-10x42

OTHER

PRODUCTS

see page 64

SAFARI

SWAROVSKI OPTIK24

SWAROVSKI OPTIK 25

MOUNTAIN HUNTING

SWAROVSKI OPTIK enjoys a decisive advan-

tage when it comes to innovations in hunting:

the company’s location. Many of our emplo-

yees are enthusiastic hunters themselves who

bring with them not only the unique experien-

ces they have enjoyed while out hunting virtu-

ally on their own doorstep, but also plenty of

ideas that are an influence on their daily work.

This is particularly beneficial to the develop-

ment of long-range optical devices, for instance

for hunting in the mountains. Florian Kreissl,

head of the hunting division at SWAROVSKI

OPTIK, explains why this is the case.

What makes hunting in the mountains so

fascinating?

Florian Kreissl: First of all, this is hunting in

its original, natural form. The stalking tracks

go through challenging terrain. Hunting in

the mountains is demanding, both physically

and mentally, as well as when shooting at an

angle over long distances. You need to climb

steep inclines, work hard and, if you shoot

something, you need to put it on your back-

pack and carry it down into the valley. It is

hard-going and energy-sapping, but amazin-

gly beautiful.

SWAROVSKI OPTIK has its head office right

in the middle of the most wonderful Tyrolean

mountain landscape. How does this help you

in developing a different, better understan-

ding of hunters’ needs?

FK: I think it helps very much. The best

example of this is actually the development

of the EL Range binoculars with SWAROAIM.

This tool allows you to measure the distance

exactly, which is absolutely essential for long-

range shots. The EL Range has an angle mea-

surement function in addition to this. When

shooting in the mountains where the terrain

rises and falls steeply, the ballistics take a dif-

ferent trajectory to when you’re on flat land.

When long distances with different angles are

involved, your impact point may end up shif-

ting, and the EL Range compensates for that,

making it ideal for hunting in the mountains.

However, when hunting on flat terrain the

function is easily deactivated with two pres-

ses of a button.

How would one imagine the “typical” moun-

tain hunter?

FK: These hunters are passionate and te-

nacious. Most of them have a very deep

attachment to their local region, the Tyrol in

our case. This probably reflects the fact that

people want to reap what nature has to offer

in their local area. However, hunting in the

mountains is and remains a special experi-

ence not just for many local hunters but for

visitors as well, as it is hunting in its original,

rather challenging form.

NATURE IS

THE BEST

TEACHER

MOUNTAIN HUNTING

SWAROVSKI OPTIK26

EL RANGE 42

SEE. MEASURE. HIT

UNCOMPROMISING OBSERVATION

The high image quality and uncompromising

transmission produce bright, high-contrast

images.

The EL Range sets new standards and produces results from what you

experience: razor-sharp observation is combined with precise distance

and angle measurement. Offering uncompromising optics and perfect

handling, the EL Range shows you precisely where the target is and

exactly how far away it is.

One-off measurementScan mode for moving objects

SHOOTING AT AN ANGLE 300 yds = distance, 273 = adjusted shooting distance in yds

SHOOTING AT AN ANGLE

When you shoot at an angle, the gravitational

pull does not have such a long impact on the

shot’s flight path as in the case of shooting

horizontally. This means that the endpoint

changes depending on whether it is going

uphill or downhill. It is quite common to need

to shoot at an angle, not only when hunting in

the mountains, but also in hunting grounds

with upland features.

SWAROAIM TECHNOLOGY

The integrated tilt indicator with a unique ang-

le shot program displays either the adjusted

shooting distance or the angle.

RANGEFINDER

The EL Range redefines hunting equipment.

This is a device that combines the potential

of state-of-the-art optics with a precise mea-

surement function.

HORIZONTAL SHOT 300 yds = distance, 300 = shooting distance in yds

SWAROVSKI OPTIK 27

“The EL Range stands out thanks to its crystal-

clear optics and a range and angle finder. These

are important functions, especially when hunting in

the mountains. If you don’t need to use SWAROAIM

on flat terrain, it is easy to deactivate it.”

FLORIAN KREISSL

EL Range

MOUNTAIN HUNTING

SWAROVSKI OPTIK28

Z5 3.5-18x44 P (BT)

AT HOME IN

THE MOUNTAINS

THE PEAK OF PERFECTION

The lightweight, slim 1-inch Z5 3.5-18x44 P with 5x zoom provi-

des a large field of view and on the same hand extremely detailed

image resolution. In combination with a crystal-clear optics and

the sturdy mechanical design this is all in all the ideal, rugged

package for mountain hunting.

BRIDGING DISTANCES

Lateral parallex correction guarantees a faultless image, no

matter how far away you are. This rifle scope demonstrates its

strengths in particular with accurate long-range shots in the

mountains or on rough terrain.

Successfully hunting in the mountains is definitely the best

proof of your skills as a hunter. Amidst the rugged splendor

of rock and stone, this primitive form of hunting invites you

to experience and get close to nature. When hunting in the

mountains on rough terrain or when long-range shooting on

plains, you can guarantee that the Z5 3.5-18x44 P (BT) will

be your trusty companion.

SWAROVSKI OPTIK 29

MOUNTAIN HUNTING

Z5 3.5-18x44 P BT with new PBC personalized ballistic cam (upon request)

SWAROVSKI OPTIK30

SWAROVSKI OPTIK 31

Z3 3-10x42

EL 32

OTHER

PRODUCTS

see page 64

EL 12x50

MORE LIGHT

AT ALL TIMES

The extreme detail recognition present in the EL 12x50 at

high magnification coupled with the high resolution makes

this a great hunting companion in the mountains. The com-

fortable wrap around grip and perfect ergonomics make this

a valuable tool while hunting in inclement weather, which is

usually the case while in mountainous terrain. The large exit

pupil translates to brighter images at dawn and dusk when it

matters most, while glassing for your game.

OPTICAL MASTERPIECE

Thanks to SWAROVISION technology, these popular

binoculars set the benchmark for hunting optics.

SEE MORE

The strengths of the EL 12x50 binoculars become

apparent when sighting over long distances, where

the smallest details are required.

MOUNTAIN HUNTING

ATS 65

Z6 2.5-15x44 P BT

SWAROVSKI OPTIK32

DIFFERING

REGIONS

VERSATILITY OF HUNTING

The experience is different every time and for every hunter… the terrain, the distance, and the

hunt itself. Whether in the open fields, in the woods, or on the most challenging mountains, a

serious hunter must be prepared for it all.

There are moments that every hunter dreams of and wishes for. But there are also many things

that can go wrong. This makes choosing the right equipment to take out any margin of error or

to give you an advantage essential to success in the field.

Combining extended magnification range with maximum low-light performance, the Z6 2-12x50

is the most versatile scope for the discerning hunter who wants it all. Together with the EL 42

with SWAROVISION technology, a wide field of view, and HD optics you got an excellent choice

that you can count on in both daylight and twilight.

There are so many different kinds of hunting. Even when you are focused on one species, so

many scenarios can crop up. Our Z6 2-12x50 and EL 10x42 models offer maximum perfor-

mance in any situation, enabling you to transform your hunting dreams into a reality.

SWAROVSKI OPTIK 33

VERSATILITY OF HUNTING

SWAROVSKI OPTIK34

“As I sit and think about the upcoming hunting season

and plan what equipment I’ll use, I think about the places

I will go. I’ll start off in the mountains of Alaska with

the Dall sheep. It’s a rugged place, a place where there can

be all types of shooting. Next I will head to the Rocky

Mountains in Colorado with their diverse terrain, from

deep woods to sweeping ravines. From there I will make my

way to the whitetail woods of the northeast, where shots

can range from 100 yards to much farther. I need one scope

that can handle all of these places. The Z6 2-12x50 is

perfect for terrain of any type and elevation.”

DEAN CAPUANO

SWAROVSKI OPTIK 35

For hunters who want to cover every eventuality when out hunting,

the Z6(i) 2-12x50 P (BT) is a reliable twilight scope that can handle

hunting a target in the forest as well as taking long-range shots in

the field or across plains. This is possible thanks to the interaction

between the field of view and high magnification.

Z6 2-12x50

SIMPLE SOLUTION

TO POOR LIGHT

UNIVERSAL FOR EVERY SITUATION

The Z6 2-12x50 L rifle scope has a beautiful design

and can also be used in poor light conditions. It is

versatile to use thanks to its 12x magnification and

large field of view.

VERSATILITY OF HUNTING

SWAROVSKI OPTIK36

EL 42

CAN DO EVERYTHING

EVEN BETTER

A pair of binoculars for every eventuality. It doesn’t matter whether

you’re in a blind at twilight or glassing in the early morning light. With

the EL 42 in your hands, you’re holding a versatile, top-class pair of

binoculars, enabling you to cope with almost every type of hunting.

These reliable multipurpose binoculars stand out thanks to their

SWAROVISION optics that guarantee the highest image quality.

THE MULTIPURPOSE BINOCULARS

From morning till night: with the EL 42 binoculars

you are well-equipped for any challenge.

OPTICAL MASTERPIECE

Thanks to SWAROVISION technology, these popular

binoculars set the benchmark for hunting optics.

HAVING THE BEST AT HAND

The EL 42 binoculars combine optimum size,

light weight and perfect handling thanks to the EL

wrap-around grip, with optimum optical quality.

SWAROVSKI OPTIK 37

STX 85

Z3 4-12x50

OTHER

PRODUCTS

see page 64

VERSATILITY OF HUNTING

SWAROVSKI OPTIK38

READY

FOR A NEW

KIND OF

HUNTING?

Everyone is familiar with those surprising and precious moments

that make hunting enthralling. One minute, there are chamois that

are recklessly defending their territory, then a fawn appears that is

still wobbly on its legs, or you spot a fox completely out of the blue.

Wouldn’t it be lovely to be able to capture these moments to share

them with your family, hunting companions and friends?

This is possible with digiscoping. Digiscoping is a special kind of

digital photography using a spotting scope that allows you to capture

unique experiences forever. It is also a slick option for documenting

the population of game in your hunting grounds or confirming the

presence of the buck that you’ve been trying to find for ages.

SWAROVSKI OPTIK provides you with particularly easy-to-use digi-

scoping equipment, allowing you to use your system or SLR camera

to take impressive pictures.

SWAROVSKI OPTIK 39

There is no such thing as a standard hunting scenario and this is also true for digisco-

ping. This is what makes the ATX/STX 25-60x85 the perfect spotting scope at all times.

For instance, it is ideal for taking photos during hunting in a blind. When the two mo-

dules are dismantled, they can be put in your backpack without taking up much room.

AMPLE COMFORT

The 25-60x ocular module provides you with a clear view

every time, bringing your subjects up to 60 times closer.

A PERFECT COMBINATION

It’s not only the size, weight and optical performance of the

modules that are a perfect match for each other, but also the

adapters for attaching your camera to the spotting scope.

ATX/STX 25-60x85

THE MULTI-

PURPOSE SCOPE

Find out more tips and tricks at:

DIGISCOPING-HUNTING.SWAROVSKIOPTIK.COM

HUNTING.DIGISCOPEROFTHEYEAR.COM

SPECIAL FEATURE: DIGISCOPING

SWAROVSKI OPTIK 41

BROADENING

YOUR

HORIZONS

LONG-RANGE SHOOTING

LONG-RANGE SHOOTING

The hunting season in the US is fairly short compared

to Europe, for instance. In most cases, hunters have

the opportunity to go hunting just six times a year or

even fewer. It would only be a slight exaggeration to

say that a box of 20 bullets would last between three

and five years. It is understandable that long-range

shooting is particularly popular here, as it allows you

to practice your hunting skills throughout the year.

This is also the reason why in the US the majority of

projectiles are not fired during hunting expeditions,

but in other situations, such as target practice.

The country’s wide expanse is very well suited to long-

range shooting. There are huge numbers of clubs,

especially in the west and south of the country where

there are many open, sparsely populated areas.

“Looking for new challenges” is what most people give

as their reason for finding long-range shooting exciting.

They would like to practice their shooting skills so

that they can shoot better during the short hunting

season. Another reason for people to get involved in

long-range shooting is for the pure pleasure and/or to

compete in organized competitions.

Another vital aspect of this is also to test new, exciting,

and innovative equipment. The ATX/STX 30-70x95

spotting scope in particular, launched last year by

SWAROVSKI OPTIK, is causing a stir among those in-

volved in long-range shooting. Never before has there

been a spotting scope with such crystal-clear detail

resolution and up to 70x magnification. Even with its

95 mm objective lens, this slim spotting scope weighs

just around 70.5 oz. Hits all the marks for anyone

wanting to control their shots over long distances.

Even 20 years ago, a distance of around 328 yards

would have been described as a long-range shot.

Thanks to the huge strides made in technology, it is

possible nowadays to take accurate shots at much

longer distances as the above mentioned 328 yds.

This is also a challenge to all long-range optical

devices such as rifle scopes or binoculars.

5

6

1

2

3

4

Six exciting facts about long-range

shooting in the United States.

SWAROVSKI OPTIK42

Long-range observation: you can use the SLC 15x56

binoculars to view an expansive area when you are in

search of prey while hunting, enabling you to glass it

accurately over long distances. The outstanding edge-

to-edge sharpness and ergonomic handling make them

the perfect total package for viewing and hunting over

long distances.

NEW

SLC 15x56

MAKES OUT DETAILS A

LONG DISTANCE AWAY

“No matter how far away the

prey is, you can see it really close

up with these binoculars.”

DEAN CAPUANO

SWAROVSKI OPTIK 43

ATX/STX 30-70x95

EVEN CLOSER

TO THE TARGET

During long-range shooting practice, you need to be able to accurately

identify your hits. This is precisely why you should use a spotting scope

that sets the new benchmark for precision and detail resolution. With

a magnification of up to 70x, the light, crystal-clear ATX/STX modular

spotting scope with 95 mm objective is the master of long-range shooting.

THE PRECISE VIEW

The large objective lens diameter and 70x

magnification allow you to check your hits

even over long distances.

COMPLETE RESOLUTION

The outstanding edge-to-edge sharpness and

high resolution guarantee exceptional views.

MAKE YOURSELF COMFORTABLE

The large exit pupil provides greater viewing

comfort, especially when dealing with small bullet

holes that are a long distance away.

LONG-RANGE SHOOTING

SWAROVSKI OPTIK44

Z6 3-18x50 P BT

THE LONG-RANGE

EXPERT

SO FAR AND YET SO NEAR

The Ballistic Turret provides the hunter with the ability

to customize down range yardage settings on the

turret, the firearm can then be sighted in, in a few

easy steps. A custom BT is also available, the ele-

vation turret shows multiple down range distances

in 50 yd increments, surely to be an advantage to

the long range hunter and shooter.

The perfect scope for locating very distant targets when

long range shooting and hunting. The 18x magnifica-

tion combined with the third turret parallax as well

as the HD optics in this 30 mm scope make this the

long range hunter‘s choice. The 3x magnification also

allows for a large field of view. The HD optics ensures

lifelike color reproduction which leads to significant

improvement in resolution and contrast.

SWAROVSKI OPTIK 45

Z5 5-25x52 P ATS 80

OTHER

PRODUCTS

see page 64

LONG-RANGE SHOOTING

Z6 3-18x50 P BT with new PBC personalized ballistic cam (upon request)

SWAROVSKI OPTIK46

BALLISTIC TURRET

You can assemble the Ballistic Turret in a few steps, adjust it exactly

to your firearm, and you can change the distances that have been

selected at any time. There are other distance settings available to you in

addition to the four marked distances. A specifically developed ballistic

program calculates the values that you need (number of clicks) for the

desired distances. In addition, there is a new personalized ballistic cam

available upon request.

MODELS WITH BALLISTIC TURRET

Z6i 1.7-10x42 BT,v Z6i 2.5-15x44 P BT,

Z6(i) 2.5-15x56 P BT, Z6(i) 3-18x50 P BT, Z6(i) 5-30x50 P BT

Z5 3.5-18x44 P BT, Z5 5-25x52 P BT, Z3 4-12x50 BT

PARALLAX TURRET

In general, rifle scopes are set to be parallax-free at 109 yds so that, at

this distance, the target being observed through the rifle scope and the

reticle are located in the same plane. At longer distances, the target is

not displayed in the same plane as the reticle. Aiming errors may occur

if the hunter fails to look exactly through the center of the eyepiece. The

parallax can sometimes affect the impact point, especially with high-

magnification rifle scopes that are often used for long-range shooting.

A notch at the 109 yds mark allows you to locate the normal parallax

correction at 109 yds and set it securely, especially at twilight.

MODELS WITH PARALLAX TURRET

(109 yds lock-in position) Z6(i) 2.5-15x44 P, Z6(i) 2.5-15x56 P,

Z6(i) 3-18x50 P, Z6(i) 5-30x50 P

(without lock-in position) Z5 3.5-18x44 P, Z5 5-25x52 P

BRINGING

DISTANT TARGETS

CLOSER

You can find more information at

Z6.SWAROVSKIOPTIK.COM/EN/FEATURES/BALLISTIC-TURRET

Cal - 300 Win Mag

Alt -

Mfg - Federal

180 gr Nosler AccuBond

Vel - 2960 fps

1.5 in hi @ 100 yds

Yardage Values are at Maximum Power

200

280

420

540

650

740

590

350

480

690

31

SWAROVSKI OPTIK 47

NON-ILLUMINATED RETICLES ILLUMINATED RETICLES

LONG-RANGE RETICLES

BALLISTIC PROGRAM

SWAROVSKI OPTIK offers software which is tailored to individual

hunting requirements. The ballistic program supports hunters in iden-

tifying the relevant endpoints for long-range reticles. You can also

identify the required correction values for the downrange distances

you want for the Ballistic Turret.

SPECIAL FEATURE: LONG-RANGE SHOOTING SOLUTIONS

ADHESIVE DECALS

You can use the adhesive decals supplied to mark your own perso-

nal distances, calculated using the ballistic program. They can be

affixed anywhere and will provide you with rapid assistance in the

appropriate situation.

BRX

BRH

4W ML

BRT

4W-I BRH-I

BRT-I

SWAROVSKI OPTIK48

COMPETITIVE

SHOOTING

Sometimes you need to move quickly, for instance

during a hunt. The Z6i 1-6x24 rifle scope stands

out thanks to its impressive 127.5 ft field of view,

which enables you to hit your target reliably, even

in narrow forest aisles. The 6x magnification also

makes this rifle scope the expert for shooting over

medium-range distances in open terrain.

Z6i 1-6x24 BRT-I

CLEAR SIGHT OF

MOVING TARGETS

SEEING WHAT’S IMPORTANT

The extra-large field of view with a 1x magnification

gives you a better feeling for what is going on around

you. The 6x magnification makes all the details visi-

ble so that you can sight your prey accurately and

shoot over medium-range distances.

FULL CONCENTRATION

Thanks to the integrated SWAROLIGHT function,

the illuminated reticle instantly works when you

pick up the firearm. This means you can comple-

tely focus on your target.

By definition, sport shooting is a competition using various types of firearm and

involving proficiency, accuracy, and speed. Although the activity can easily be

categorized by firearm, target, and distances at which targets are shot, to the

shooter it means much, much more...

It’s you against the clock. It’s you against the shooter next to you, who just shot

one half-inch group at 500 yards. But, most of all, it’s you against yourself.

Even the smallest advantage can yield huge results. Modular spotting scopes

such as the ATX/STX 95 and the Z6(i) 1-6x24 with BRT reticle are precisely

the kind of products that grant a shooter this edge. The Z6(i) 1-6x24 with its

1x magnification and large field of view makes target acquisition easier and

faster. The ATX/STX 30-70x95 will allow you to see bullet holes at distances

others simply cannot.

THROW LEVER FOR QUICK

POWER ADJUSTMENTS

BRT-I

6x

MAGNIFICATION

For the

finest detail

1x

MAGNIFICATION

Widest angle

SWAROVSKI OPTIK 49

Precision has a particular role to play in both

long-range shooting when hunting and in sports

shooting. In this case, the rifle scope needs to

have a high magnification because, as the saying

expresses it so elegantly: you can only hit what

you can actually see. The Z6(i) 5-30x50 P BT rifle

scope is a masterpiece of precision: It has a 30x

magnification, a lateral Parallax Turret, HD optics

and an optional illuminated reticle.

Z6(i) 5-30x50 P BT

PRECISION MAKES

THE EXPERT

THE RIFLE SCOPE YOU CAN TRUST

More than 100,000 hunters worldwide rely on one of the models from the Z6 range.

BETTER CONTRAST

Better contrast increases safety, thanks to the optional illuminated reticle.

ATTRACTIVE IN EVERY RESPECT

Innovative technology and crystal-clear HD optics complete the elegant rifle scope

for long distances.

SPECIAL FEATURE: COMPETITIVE SHOOTING

SWAROVSKI OPTIK50

SWAROVSKI OPTIK

QUALITY

STANDARDS

SWAROVSKI OPTIK 51

SWAROVSKI OPTIK QUALITY STANDARDS

SWAROVSKI OPTIK52

SWAROVSKI OPTIK 53

How can we make our products even better? This is precisely the question that staff in our many

departments rack their brains over. What do we need to change to make our products easier to use?

Which materials are sturdy and feel nice? How do we get as close as possible to achieving perfect optics?

The way these issues are tackled is what distinguishes SWAROVSKI OPTIK’s products from many others.

Ultimately, it’s not about improving individual aspects, but about always enhancing the whole product.

After all, anyone who opts for a quality product from SWAROVSKI OPTIK should simply expect the best.

WE GO THE

EXTRA MILE

SWAROVSKI OPTIK QUALITY STANDARDS

“You have to imagine product development at SWAROVSKI OPTIK

as being, figuratively speaking, like interlocking cogs. One leads on to

the other. At the end of the process you have a product whose optical

attributes, ergonomic design, and materials are in perfect harmony.

The process of creating our products involves merging future-oriented

technology and traditional manufacture to form a whole.“

GERD SCHREITER, Executive Board Member for Technical Operations

SWAROVSKI OPTIK QUALITY STANDARDS

S

W

A

R

O

V

I

S

I

O

N

SWAROVSKI OPTIK54

FIELD FLATTENER LENSES These produce a virtually flat image.

This means that even the finest structures and smallest details are

reproduced razor-sharp right up to the periphery.

WHAT ARE THE BENEFITS? Edge-to-edge sharpness supports

totally comfortable observation across the whole field of view. This

saves time refocusing, and details can be captured at lightning

speed, even at twilight.

HIGH DEFINITION Lots of products are labeled “HD”, but what does

this mean in terms of optical performance? In the case of EL and

SLC binoculars, the high-magnification Z6(i) rifle scopes and the

ATX/STX and ATS/STS spotting scopes, it means highly innovative

optical design, combined with fluoride-containing lenses that

minimize interference from color fringing. This enables maximum

color fidelity and leads to a significant improvement in resolution and

contrast. SWAROVSKI OPTIK can then achieve a new, pioneering

HD standard that is second to none.

WHAT ARE THE BENEFITS? The high-definition optical system

produces an extremely high-contrast image with natural colors and

razor-sharp outlines. This enables you to identify crucial details

even better when hunting at twilight.

PERFECTION REVEALED

IN OPTICAL PERFORMANCE

The centerpiece of every SWAROVSKI OPTIK product is its optics. Different use requirements

place high demands on our research and development team. SWAROVSKI OPTIK follows a strategy

aimed at making its mark with a perfectly harmonious total package. An excellent example of this in

terms of optical performance is SWAROVISION technology which makes EL binoculars and

ATX/STX spotting scopes the top products on the market.

1

SWAROVISION

Perfect image thanks

to SWAROVISION

STANDARD

Image using

comparable product

USING HD OPTICS

A unique optical system combined

with fluoride-containing lenses

STANDARD

Without HD optics, interference

from color fringing can occur

SWAROVSKI OPTIK 55

OPTIMIZED COATINGS The enhanced lens and prism coatings

(SWAROBRIGHT, SWAROTOP, SWARODUR) give noticeably better

color reproduction, combined with even greater transmission.

SWAROCLEAN, the coating on the outer surface of the lens,

provides a non-stick effect.

WHAT ARE THE BENEFITS? More impressive viewing experiences,

even at twilight, and cleaning the lenses becomes significantly easier.

100% FIELD OF VIEW EVEN FOR EYEGLASS WEARERS The biggest

challenge facing SWAROVSKI OPTIK is how to combine the biggest

possible field of view and an edge-to-edge sharp image. If it works,

we can view it as a perfect optical achievement that eyeglass

wearers can fully benefit from too.

WHAT ARE THE BENEFITS? A large field of view is the absolute key

to success for rapid target acquisition. The benefit, particularly in

poor light conditions, is that you can identify details much more

easily. The ability to individually adjust the twist-in eyecup that

SWAROVSKI OPTIK offers with its binoculars and spotting scopes

guarantees the best possible optical quality for everyone.

SWAROTOP, SWARODUR,

SWAROBRIGHT, SWAROCLEAN

Total color reproduction

STANDARD

Color casts occur without

optimized coatings

SWAROVSKI OPTIK QUALITY STANDARDS

SWAROVSKI OPTIK56

Diagram

SWAROVSKI OPTIK has been devoted to developing and creating long-range

optical devices of the highest precision for more than 60 years. We have consistently

remained true to the principle of offering the highest possible quality and maximum

possible safety. The Z6(i) rifle scope with its 6x zoom is the outstanding example of this.

6x ZOOM Since 2007 the Z6(i) rifle scope with its 6x zoom has been

revolutionizing the practical use of the rifle scope, demonstrated by

the sale of more than 100,000 units. A 6x zoom means, on the one

hand, a large field of view and, on the other, a high magnification

and greater safety. All this is combined with a fantastic imaging

performance that is uncompromising in optical terms.

WHAT ARE THE BENEFITS? SWAROVSKI OPTIK offers the revolu-

tionary 6x zoom in eight different models of rifle scopes. Whatever

your preferred type of hunting, a Z6(i) rifle scope always allows

you to focus on the crucial business.

2

PERFECTION CONVEYED

IN PRECISION

WHAT ARE THE ADVANTAGES OF A 6x ZOOM? The zoom descri-

bes the adjustable magnification range in optical instruments.

The greater the zoom factor, the greater this range. The lowest

magnification is characterized by a large field of view, while the

highest magnification enables identification of the target object in

sharp detail. With a 6x zoom you can enjoy the maximum zoom

for rifle scopes, a maximum field of view combined with maximum

pinpoint detail.

LOW MAGNIFICATION

Greater overview

HIGH MAGNIFICATION

More details

6x ZOOM

4x ZOOM

SWAROVSKI OPTIK 57

Z6i ILLUMINATION UNIT Big technology in a very small package.

The automatic shut-off differentiates between day and night

modes. The memory function, which has two memories, automa-

tically sets the brightness last selected when it is turned on again.

The extended brightness control (1) provides you with 64 different

brightness levels to choose from. The optimized day/night switch

(2) allows you to choose specifically between dark (levels 0-32)

and bright (levels 33-64).

WHAT ARE THE BENEFITS? The rifle scope takes over a lot of the

“brain work”, thus making it easier for you to get the exact setting

for your hunting scenario. In addition, state-of-the-art electronics

considerably reduces battery consumption.

SWAROLIGHT This automatic switch-on/off feature recognizes

whether the Z6i rifle scope is in a shooting position by using an

inclination sensor.

WHAT ARE THE BENEFITS? Forgetting to switch off the illumi-

nated reticle will be a thing of the past. Yet, it still turns on

instantly when you pick up your firearm. This saves time and

energy, which means you can focus entirely on taking the perfect

shot. SWAROLIGHT works on all firearms, but it is also possible

to shoot without the illumination on.

12

SWAROVSKI OPTIK QUALITY STANDARDS

SWAROVSKI OPTIK

ATX/STX SYSTEM CONCEPT A brand-new modular design offers

unimaginable possible uses, catering to personal preferences and

different situations. This is because the performance of ATX/STX

spotting scopes can be changed for the first time via the size of

the objective lens, marking the scope’s reinvention.

WHAT ARE THE BENEFITS? The modular system provides you with

different zoom ranges, depending on what you’re using it for. The

modular design allows you to put the objective lens and eyepiece

components separately into your hunting backpack. Not to

mention that the scope can be used extremely quickly as the

zoom and focusing rings are arranged next to each other.

SINGLE-HANDED OPERATION All the operating features such as

the magnification and the illumination unit’s brightness control are

ergonomically arranged on the eyepiece.

WHAT ARE THE BENEFITS? You can easily control all the illumi-

nation functions and magnification quickly and comfortably with

just one hand, and thus there is no need for you to stop shooting.

Only the combination of optical performance and perfect

ergonomic design can provide optimum functionality.

PERFECTION REFLECTED

IN ERGONOMIC DESIGN

3

SWAROVSKI OPTIK 59

EL WRAP-AROUND GRIP The EL family of binoculars are in a class of

their own. One reason for this is the the legendary and unique wrap-

around grip. All the primary parts are manufactured from high-quality

light alloys and give the products a low, balanced weight.

WHAT ARE THE BENEFITS? This particularly ergonomic design means

the binoculars fit perfectly into your hand. As a result, you have, in

the truest sense of the phrase, everything at hand – in just one hand.

WITH JUST ONE HAND The zoom ring’s new position, now imme-

diately behind the focusing ring, makes it even easier to handle.

WHAT ARE THE BENEFITS? You’re now equipped, thanks to ATX/STX

spotting scopes, for moments where every second counts.

SWAROVSKI OPTIK QUALITY STANDARDS

SWAROVSKI OPTIK60

STURDY MATERIALS SWAROVSKI OPTIK products are designed

and built so that they can always operate perfectly even in

extreme conditions, such as cold, heat or rain. The easy-to-handle,

full rubber armoring makes binoculars and spotting scopes even

more resistant to impact and heavy-duty use. The deliberate

choice of materials and incorporating them into a sturdy, dust-

proof, and watertight housing ensure that products are rugged

and light. The material used and high-quality workmanship are

a crucial safety aspect in the case of rifle scopes in particular,

given their high recoil loading.

WHAT ARE THE BENEFITS? Even with heavy-duty use, a

SWAROVSKI OPTIK product will, thanks to the comfortable feel and

lasting operation, bring you a lifetime of service and enjoyment.

4

PERFECTION REFLECTED IN THE

WORKMANSHIP OF THE MATERIALS

Anything that looks good must also feel good. This is why the best materials are used at

SWAROVSKI OPTIK, and they are handled to an exceptionally high quality. This is because

you’re banking on being able to rely on a SWAROVSKI OPTIK product for many, many years.

SWAROVSKI OPTIK 61

ORIGINAL ACCESSORIES SWAROVSKI OPTIK developers collabo-

rate with experts from the outset on concepts that might make

the product even more practical to use. This means that we

immediately develop accessories at the same time as the product,

which not only expand the possible uses, but also contribute

greatly to the devices’ protection.

WHAT ARE THE BENEFITS? Ready to use at the right moment. Original

accessories made with SWAROVSKI OPTIK quality are perfectly

tailored to the products and ensure their optimum functionality and

protection in the tough everyday hunting environment.

PERFECTION EMBODIED

IN WELL-DESIGNED ACCESSORIES

Design and functionality can only be described as advanced,

if the concept behind both the product and its accessories has

been thought of down to the smallest detail.

5SWAROVSKI OPTIK QUALITY STANDARDS

SWAROVSKI OPTIK62

SWAROVSKI OPTIK

PRODUCTS

SWAROVSKI OPTIK 63

PRODUCT OVERVIEW

SWAROVSKI OPTIK64

Z6(i) Z5

Z3

Z5 3.5-18x44 P (BT)

Z5 5-25x52 P (BT)

Z3 3-9x36

Z3 3-10x42

Z3 4-12x50 (BT)

Z6(i) 1-6x24

Z6(i) 1-6x24 EE

Z6(i) 1.7-10x42 (BT)

Z6(i) 2-12x50 (BT)

Z6(i) 2.5-15x44 P (BT)

Z6(i) 2.5-15x56 P (BT)

Z6(i) 3-18x50 P (BT)

Z6(i) 5-30x50 P (BT)

RIFLE SCOPES

ATS 65 / STS 65

ATS 80 / STS 80

ATS/STS

SPOTTING SCOPES

ATX/STX

25-60x65 objective module

25-60x85 objective module

30-70x95 objective module

ATX eyepiece module

STX eyepiece module

SWAROVSKI OPTIK 65

CL POCKET

CL Pocket 8x25 B

CL Pocket 10x25 B

EL Range 8x42 W B

EL Range 10x42 W B

EL RANGE

SLC 8x42 W B

SLC 10x42 W B

SLC 15x56 W B

SLC

BINOCULARS

BINOCULARS WITH RANGEFINDER

EL

EL 8x32 W B**

EL 10x32 W B**

EL 8.5x42 W B*

EL 10x42 W B*

EL 10x50 W B*

EL 12x50 W B*

*

**

CL Companion 8x30 B

CL Companion 10x30 B

CL COM PA N ION

NEW

NEW

PRODUCT OVERVIEW

SWAROVSKI OPTIK66

RIFLE SCOPE ACCESSORIES

SG SLP-O

Scope guard Scope lens protector for Z6(i),

Z5 and Z3 objective lenses

SPOTTING SCOPE ACCESSORIES

SOC

TLS APO TLS 800

SSR IIADAPTER RINGS

AT 101 aluminum tripod

CT 101 carbon fiber tripod

CT Travel carbon fiber tripod

TS TRIPODS

WINDOW MOUNT

Apochromat Telefoto Lens System Telefoto Lens System

for TLS APO and TLS 800 Spotting scope rail

Stay-on case ATX/STX for spotting scopes

Tree fixing screw

SLP-E

Scope lens protector for

Z6(i) eyepieces

DCB II

SOC

EYEPIECES

DH 101

Digital camera base

25-50x W wide angle

20-60x

Stay-on case ATS/STS

Tripod head

SWAROVSKI OPTIK 67

BINOCULAR ACCESSORIES

BG

LCS

UTA

WES

FSS

TA-SLC

BS

CCS

FB

Bino guard

Lift carrying strap

Universal tripod adapter

Winged eyecup set

Floating shoulder strap

Tripod adapter for SLC

Bino suspender

Comfort carrying strap

Field bags

GENERAL ACCESSORIES

CS

Cleaning set

PRODUCT OVERVIEW

SWAROVSKI OPTIK68

Z6/Z6i

1-6x24

Z6/Z6i

1-6x24 EE

Z6/Z6i

1.7-10x42

Z6/Z6i

2-12x50

Z6/Z6i

2.5 -15x4 4 P

Z6/Z6i

2.5 -15x56 P

Z6/Z6i

3-18x50 P

Z6/Z6i

5-30x50 P

Magnification 1-6x 1-6x 1.7-10x 2-12x 2.5-15x 2.5-15x 3-18x 5-30x

Field of view

(ft/100 yds / m/100 m)

1 27. 5 - 2 0 .4

42.5-6.8

10 0.5 -16.2

33.5-5.4

75.6-12.6

25.2-4.2

63-10.5

21-3.5

48-8.1

16-2.7

49.5-8.1

16.5-2.7

39.9-6.6

13.3-2.2

23.7-3.9

7. 9 -1. 3

Eye relief (mm) 95 120 95 95 95 95 95 95

Exit pupil diameter (mm) 9.6-4 10.8-4 9.6-4.2 9.6-4.2 9.5-2.9 9.5-3.8 9.5-2.8 9.5-1.7

Light transmission (%) 90 91 90 90 90 91 90 90

Max. elevation/windage adjustment

range (in/100 yds / m/100 m)

72

2

75.6

2.1

54

1.5

54

1.5

64.8/36

1.8/1

64.8/36

1.8/1

64.8/36

1.8/1

43.2/25.2

1.2/0.7

Impact point correction/click

(in/100 yds / mm/100 m) 0.54 / 15 0.54 / 15 0.36 / 10 0.36 / 10 0.36 / 10 0.36 / 10 0.181 / 510.181 / 51

Weight

(oz / g) L non-illuminated/

illuminated

14.8/15.5

420/440

-/15.2

-/430

16 . 6 / 17. 3

470/490

18.3/19

520/540

19.6/20.3

555/575

22.4/23.1

635/655

21/21.7

595/615

21.2/21.9

600/620

Central tube diameter (in / mm) 1.18 / 30 1.18 / 30 1.18 / 30 1.18 / 30 1.18 / 30 1.18 / 30 1.18 / 30 1.18 / 30

Reticles

non-illuminated 4, BRT 44, Plex,

7A, BRH

4, Plex,

7A, BRH

Plex,

7A, BRH

4A, Plex,

7A, BRH Plex, BRH Plex, BRH

illuminated 4-I, CD-I,

BRT-I 4-I, CD-I 4A-I, CD-I 4A-I, BRH-I 4A-I, BRH-I 4A-I, BRH-I 4A-I, BRH-I 4A-I, BRH-I

Reticles with Ballistic Turret – – 4A-I 4W, 4A-I,

4W-I

Plex, 4W,

4A-I

Plex, 4W,

4A-I, 4W-I

Plex, 4W,

4A-I, 4W-I

Plex, 4W,

4A-I, 4W-I

Z5

3.5-18x44 P

Z5

5-25x52 P

Z3

3-9x36

Z3

3-10x42

Z3

4-12x50

Magnification 3.5 -18x 5-25x 3-9x 3.3-10x 4-12x

Field of view

(ft/100 yds / m/100 m)

30-6

10-2

21.9-4.5

7. 3 -1. 5

39-13.5

13-4.5

33 -11.7

11-3.9

29.1-9.9

9.7-3.3

Eye relief (mm) 95 95 90 90 90

Exit pupil diameter (mm) 10-2.4 9.6-2.1 12-4 12.6-4.2 12.5-4.2

Light transmission (%) 90 90 90 90 90

Max. elevation/windage adjustment

range (in/100 yds / m/100 m)

58/36

1.6/1.0

43/25

1.2/0.7

58/58

1.6/1.6

50/50

1.4/1.4

43/43

1.2/1.2

Impact point correction/click

(in/100 yds / mm/100 m) 0.25 / 7 0.25 / 7 0.25 / 7 0.25 / 7 0.25 / 7

Weight

(oz / g) L non-illuminated 15.9 / 450 17.5 / 495 12 / 340 12.7 / 360 14.5 / 410

Central tube diameter (in / mm) 1 / 25.4 1 / 25.4 1 / 25.4 1 / 25.4 1 / 25.4

Reticles non-illuminated Plex, BRX, BRH Plex, BRX, BRH 4A, Plex 4A, Plex, ML,

BRX, BRH

4A, Plex,

BRX, BRH

Reticles with Ballistic Turret 4W, Plex 4W, Plex – – 4W, Plex

Functional temperature: -4 °F to +131 °F (-20 °C/+55 °C) · Storage temperature: -22 °F to + 158 °F (-30 °C/+70 °C)

Water tight submersible to 13 ft (4 m) (filled with nitrogen)

L = Light alloy for ring mounting · P = Parallax Turret · BT = Ballistic Turret · 1 for models with BT at an elevation of 0.36 in/100 yds / 10 mm/100 m

Further technical specifications at: WWW.SWAROVSKIOPTIK.COM

SWAROVSKI OPTIK 69

PRODUCT OVERVIEW

Quadratic adjustment range. When adjusting the reticle,

the full adjustment range is available in horizontal as well

as in vertical dimension.

Rectangular adjustment range. Even greater elevation

adjustment range, specifically for long-range shots.

The reticle range is always being updated.

For the most up-to-date information, visit:

WWW.SWAROVSKIOPTIK.COM

DAY RETICLES

4 7A ML

CD-I

4-I

4A

BRX

4A-I

PLEX BRH BRT

BRH-I BRT-I

4W-I

RIFLE SCOPES RETICLES

4W

ILLUMINATED RETICLES

SWAROVSKI OPTIK70

(1)

EL

8x32 W B

EL

10x32 W B

EL

8.5x42 W B

EL

10x42 W B

EL

10x50 W B

EL

12x50 W B

Magnification 8x 10x 8.5x 10x 10x 12x

Effective objective lens diameter (mm) 32 32 42 42 50 50

Field of view (ft/1000 yds / m/1000 m) 423 / 141 360 / 120 399 / 133 336 / 112 345 / 115 300 / 100

Field of view, apparent (degrees) 61 64 60 60 62 63

Eye relief (mm) 20 20 20 20 20 19

Light transmission (%) 90 90 90 90 90 90

Dimensions L* x W** x H** (in / mm) 5.3 x 4.3 x 2.2

138 x 110 x 57

5.3 x 4.3 x 2.2

138 x 110 x 57

6.3 x 4.8 x 2.4

160 x 122 x 61

6.3 x 4.8 x 2.4

160 x 122 x 61

6.8 x 5.2 x 2.6

174 x 134 x 67

6.8 x 5.2 x 2.6

174 x 134 x 67

Approx. weight (oz / gz) 20.5 / 580 20.5 / 580 29.5 / 835 29.6 / 840 35.2 / 998 35.2 / 998

(1)

SLC

8x42 W B

SLC

10x42 W B

SLC

15x56 W B

Magnification 8x 10x 15x

Effective objective lens diameter (mm) 42 42 56

Field of view (ft/1000 yds / m/1000 m) 408 / 136 330 / 110 234 / 78

Field of view, apparent (degrees) 61 61 62

Eye relief (mm) 18.5 16 16

Light transmission (%) 91 91 93

Dimensions L* x W** x H** (in / mm) 5.9 x 4.7 x 2.5

149 x 120 x 63

5.7 x 4.7 x 2.5

144 x 120 x 63

7.56 x 5.55 x 2.87

192 x 141 x 73

Approx. weight (oz / g) 28.5 / 810 28.0 / 790 42.3 / 1200

(1) (1)

CL Companion

8x30 B

CL Companion

10x30 B

CL Pocket

8x25 B

CL Pocket

10x25 B

Magnification 8x 10x 8x 10x

Effective objective lens diameter (mm) 30 30 25 25

Field of view (ft/1000 yds / m/1000 m) 372 / 124 300 / 100 357 / 119 294 / 98

Field of view, apparent (degrees) 55 55 52 53

Eye relief (mm) 15 14 17 17

Light transmission (%) 91 91 88 88

Dimensions L* x W** x H** (in / mm) 4.7 x 4.5 x 2.3

119 x 114 x 58

4.7 x 4.5 x 2.3

119 x 114 x 58

4.3 x 3.9 x 1.8

110 x 98 x 46

4.3 x 3.9 x 1.8

110 x 98 x 46

Approx. weight (oz / g) 17.6 / 500 18.2 / 515 12.2 / 345 12.3 / 350

Functional temperature: -13 °F to +131 °F (-25 °C/+55 °C) · Storage temperature: -22 °F to +158 °F (-30 °C/+70 °C)

Water tight submersible to 13 ft (4 m) (filled with nitrogen)

SWAROVSKI OPTIK 71

(1)

EL Range

8x42 W B

EL Range

10x42 W B

Magnification 8x 10x

Effective objective lens diameter (mm) 42 42

Field of view (ft/1000 yds / m/1000 m) 411 / 137 330 / 110

Field of view, apparent (degrees) 61 61

Eye relief (mm) 19.2 17. 3

Light transmission (%) 91 91

Dimensions L* x W** x H** (in / mm) 6.5 x 4.6 x 3.2

166 x 117 x 81

6.3 x 4.6 x 3.2

160 x 117 x 81

Approx. weight without battery (oz / g) 32.1 / 910 31.6 / 895

Measurement range (yds / m) 33 -150 0 / 30 -1375

Measurement precision (yds / m) ± 1 / 1

Add-on program SWAROAIM

Operating time 1,000 measurements

Laser Class 1 EN/FDA

Yard/meter conversion Yard / Meter

Functional temperature: +14 °F to +131 °F (-10 °C/+55 °C) · Storage temperature: -22 °F to +158 °F (-30 °C/+70 °C)

Water tight submersible to 13 ft (4 m) (filled with nitrogen)

PRODUCT OVERVIEW

W = Wide angle · B = Eyepiece for eyeglass wearers · GA = Rubber armoring · (1) individually adjustable twist-in eyecup · *Value with a lowered eyecup

**Dimensions at pupil distance of 2.5 in / 64 mm · Further technical specifications at: WWW.SWAROVSKIOPTIK.COM

ATX/STX

25-60x65

ATX/STX

25-60x85

ATX/STX

30-70x95

Magnification 25-60x 25-60x 30-70x

Effective objective lens diameter (mm) 65 85 95

Field of view (ft/1000 yds / m/1000 m) 124-68 / 41-23 124-68 / 41-23 104-57 / 35-19

Field of view, apparent (degrees) 57-71 57-71 57-71

Eye relief (mm) 20 20 20

Light transmission (%) total product 86 86 86

Length (in / mm) Angled view (ATX) 13.3 / 339 14.6 / 372 16.8 / 426

Straight view (STX) 14.4 / 367 15.7 / 400 17.9 / 454

Weight (oz / g) Angled view (ATX) 55.9 / 1585 67.4 / 1910 75.8 / 2150

Straight view (STX) 57.8 / 1640 69.3 / 1965 77.8 / 2205

Focal length with TLS APO (mm) 750 -18 0 0 750 -1800 900-2100

Functional temperature: -13 °F to +131 °F (-25 °C/+55 °C) · Storage temperature: -22 °F to +158 °F (-30 °C/+70 °C)

Water tight submersible to 13 ft (4 m) (filled with nitrogen)

max max

max

max

max

max

SWAROVSKI OPTIK72

with eyepiece

ATS/STS 65

25-50x 20-60x

ATS/STS 80

25-50x 20-60x

Magnification 25-50x 20-60x 25-50x 20-60x

Effective objective lens diameter (mm) 65 65 80 80

Field of view (ft/1000 yds / m/1000 m) 126-81 / 42-27 108-60 / 36-20 126-81 / 42-27 108-60 / 36-20

Field of view, apparent (degrees) 60 -70 40-65 60 -70 40-65

Eye relief (mm) 17 17 17 17

Light transmission (%) total product 85 86 85 86

Length (in / mm) Angled view (ATS) 14.6 / 370 14.6 / 370 15.8 / 400 15.8 / 400

Straight view (STS) 14.8 / 375 14.8 / 375 15.9 / 405 15.9 / 405

Weight (oz / g) Angled view (ATS) 49.6 / 1405 48.3 / 1370 59.1 / 1675 57.8 / 1640

Straight view (STS) 48.5 / 1375 47.3 / 1340 58 / 1645 56.8 / 1610

Functional temperature: -13 °F to +131 °F (-25 °C/+55 °C) · Storage temperature: -22 °F to +158 °F (-30 °C/+70 °C)

Water tight submersible to 13 ft (4 m) (filled with nitrogen)

Eyepiece

25-50x W

Eyepiece

20-60x

Magnification 25-50x 20-60x

Effective objective lens diameter (mm) – –

Field of view (ft/1000 yds / m/1000 m) 126-81 / 42-27 108-60 / 36-20

Field of view, apparent (degrees) 60 -70 40-65

Eye relief (mm) 17 17

Approx. length (in / mm) 3.4 / 86 3.4 / 86

Approx. weight (oz / g) 10.4 / 295 9.2 / 260

DCB II TLS APO SSR II

Dimensions L x W x H (in / mm) 8.7 x 3.6 x 7.1

220 x 92 x 180

4 x 3.7 x 3.2

102 x 93 x 82.5

7.3 x 2.4 x 2.4

185 x 60 x 60

Approx. weight (oz / g) 11.6 / 330 7 / 198 12.3 / 350

W = Wide angle · Further technical specifications at: WWW.SWAROVSKIOPTIK.COM

Tripod legs CT 101 CT Travel AT 101 CT 101 +

DH 101

CT Travel +

DH 101

AT 101 +

DH 101 Tripod head DH 101

(in / cm) 66.9/22.8

170/58

66.9/19.7

170/50

74 . 8 / 2 7. 2

190/69

71.7

182

71.7

182

79.5

202 (in / cm) 4.7

12

(oz / kg) 52.9/176.4

1.5/5

49.4/176.4

1.4/5

67/176.4

1.9/5

7. 2 / 17 6 .4

2.1/5

68.8/176.4

2/5

86.4/176.4

2.5/5 (oz / g) 19.4/176.4

550/5000

Connection thread 3/8” UNC with all tripods · Connection thread 1/4” UNC with tripod head

PRODUCT OVERVIEW

SWAROVSKI OPTIK 75

SWAROVSKI

OPTIK

THE COMPANY

The name SWAROVSKI OPTIK has been synonymous

for decades with innovations that excite people all over the

world. As part of this, the company has been committed

from the very beginning to the welfare of people and nature,

and applies this strict requirement through a number of

diverse measures.

SWAROVSKI OPTIK THE COMPANY

SWAROVSKI OPTIK76

You will find the entire SWAROVSKI OPTIK product range by visiting

our new website at WWW.SWAROVSKIOPTIK.COM. There you will find

detailed information about binoculars, spotting scopes, rifles scopes,

digiscoping equipment and accessories, as well as valuable tips and

tricks from the professionals.

You can also order from now on a range of our products directly from

the new online store at WWW.SWAROVSKIOPTIK.COM.

Enjoy the world of SWAROVSKI OPTIK even

more by joining our community:

WWW.FACEBOOK.COM/SWAROVSKIOPTIK.HUNTING

WWW.YOUTUBE.COM/USER/SWAROSONA

WWW.TWITTER.COM/SWAROVSKIOPTIK

WWW.PINTEREST.COM/SWAROVSKIOPTIK

WWW.SWAROVSKIOPTIK.COM

ONLINE

SWAROVSKI OPTIK 77

BALLISTIC

PROGR AM

SUBTENSION DIMENSION

PROGR A M

The SWAROVSKI OPTIK ballistic program is a helpful tool for calcu-

lating your own personal shot flight path. This free software clearly

generates and calculates the precise data for a long-range reticle

or for the Ballistic Turret. The ballistic program is also available for

smartphones and tablets.

The free subtension dimension program allows you to quickly

obtain all the precise subtension dimensions for your reticle for all

SWAROVSKI OPTIK rifle scopes. These dimensions can be calcu-

lated not only for all optional magnifications but also for different

distances. All the calculated subtension dimensions are given in

imperial or metric units, as well as in MOA and MIL units, and can

be printed out afterwards.

You will find more details and tips at

BALLISTICPROGRAMS.SWAROVSKIOPTIK.COM

A detailed description is available at

SUBTENSIONS.SWAROVSKIOPTIK.COM

NEW

SWAROVSKI OPTIK THE COMPANY

SWAROVSKI OPTIK78

GLOBAL

N ETWOR K

SWAROVSKI OPTIK operates on all continents and is represented

by its own sales companies, as well as by well-trained, independent

sales partners.

Find your nearest SWAROVSKI OPTIK contact partner or buy

online at WWW.SWAROVSKIOPTIK.COM

AUSTRIA

info-at@swarovskioptik.at

Tel. +43/5223/511-0

AUSTRALIA

optik.sia@swarovski.com

Tel. +61/2/8345-7228

BALTIC STATES

info-lt@swarovskioptik.com

Tel. +43/5223/511-0

BELGIUM / HOLLAND / LUXEMBOURG

info-be@swarovskioptik.com

Tel. +32/2/55601-60

GERMANY

info-de@swarovskioptik.com

Tel. +49/8031/40078-0

FRANCE

info-fr@swarovskioptik.com

Tel. +33/1/480192-80

GREATER CHINA

cynthia.chan@swarovski.com

Tel. +852/29696197

ITALY

info-it@swarovskioptik.com

Tel. +39/045/8349069

MIDDLE EAST

khaled.saba@swarovskioptik.at

Tel. +971/559560764

NORDIC

info-se@swarovskioptik.com

Tel. +46/8/544715-40

POLAND

info-pl@swarovskioptik.com

Tel. +43/5223/511-0

SWITZERLAND

info-ch@swarovskioptik.com

Tel. +41/62/39832-33

CZECH REPUBLIC / SLOVAKIA

info-cz@swarovskioptik.com

Tel. +43/5223/511-0

HUNGARY / ROMANIA

info-hu@swarovskioptik.com

Tel. +43/5223/511-0

UNITED KINGDOM

info-uk@swarovskioptik.com

Tel. +44/01737/856812

USA / CANADA

info@swarovskioptik.us

Tel. +1/800/426-3089

WEST BALKANS

info-wb@swarovskioptik.com

Tel. +43/5223/511-0

SALES PARTNERS

info@swarovskioptik.com

Tel. +43/5223/511-0

SERVICE

R E PA I R S

SWAROVSKI OPTIK has a repair service for customers who would

like to have their equipment serviced or parts replaced. This team

can also help when damage is sustained, for instance, due to a

small mishap, providing an extremely customer-friendly, quick, and

efficient service. Our service team can even restore older models to

working order again.

SWAROVSKI OPTIK THE COMPANY

SWAROVSKI OPTIK2SWAROVSKI OPTIK 79

SEE THE UNSEEN

WWW.SWAROVSKIOPTIK.COM

HUNTING

SEE THE

UNSEEN

US

SWAROVSKI OPTIK NORTH AMERICA LTD.

2 Slater Road Cranston, RI 02920

Phone 800 426 3089, Fax 401 734 5888

info@swarovskioptik.us

US 01/2014 We reserve the right to make changes regarding

design and delivery. We accept no liability for printing errors.

All image rights owned by SWAROVSKI OPTIK.

For further information, please contact:
