636 Parts Manual (910364 ) Green Machine Scotland Built Sn 0910364 And Up
2015-05-27
: Sweepscrub 636 Green Machine Scotland Built Parts Manual Sn 0910364 And Up 636_green_machine_Scotland_built__Parts_Manual_sn_0910364_and_up 1158 file product_file
Open the PDF directly: View PDF
.
Page Count: 280 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- 636 Parts Manual (910364- )
- GENERAL RECOMMENDED MAINTENANCE
- STANDARD PARTS

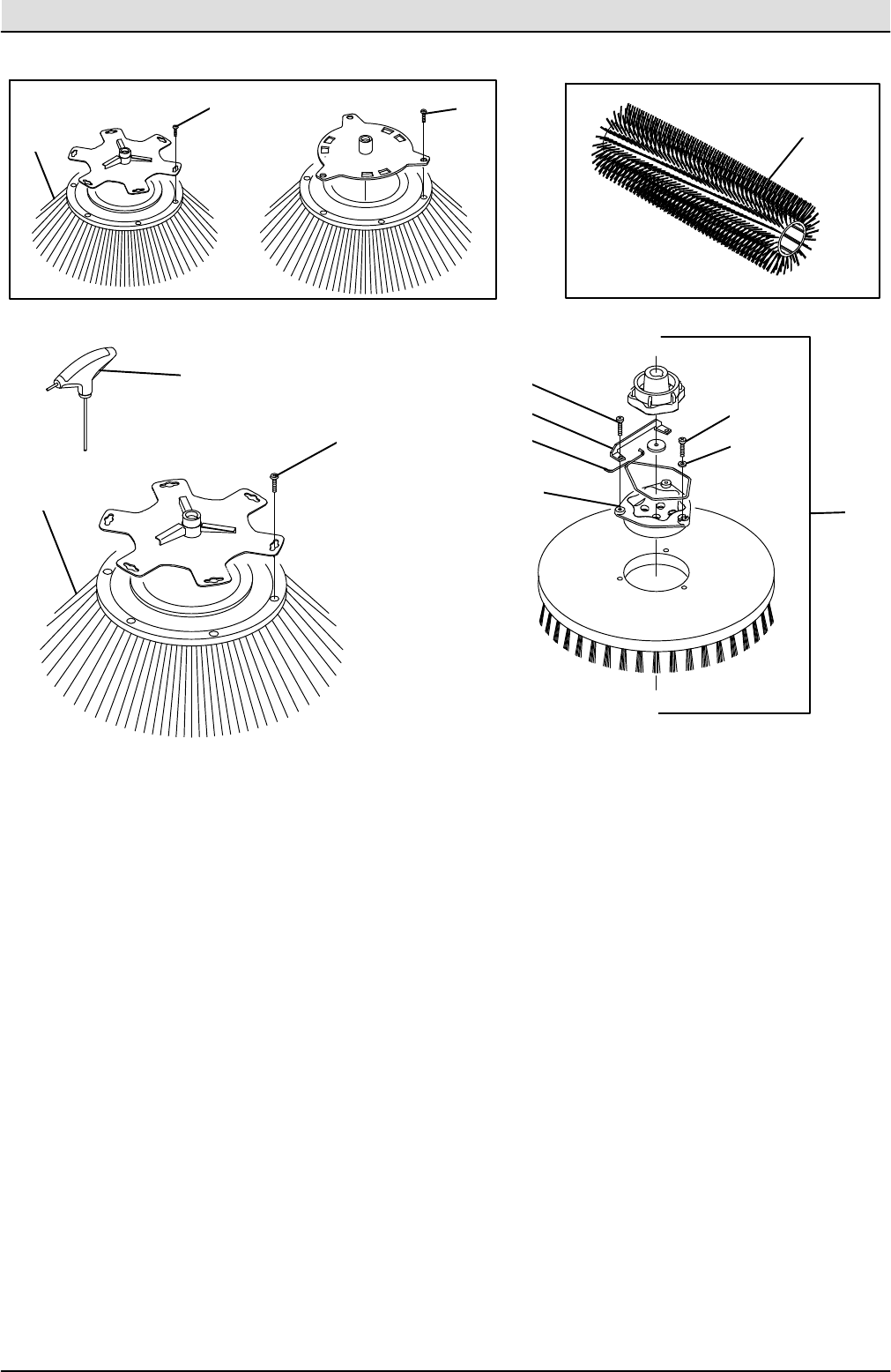

- Fig. 1 − Brushes, Replacement

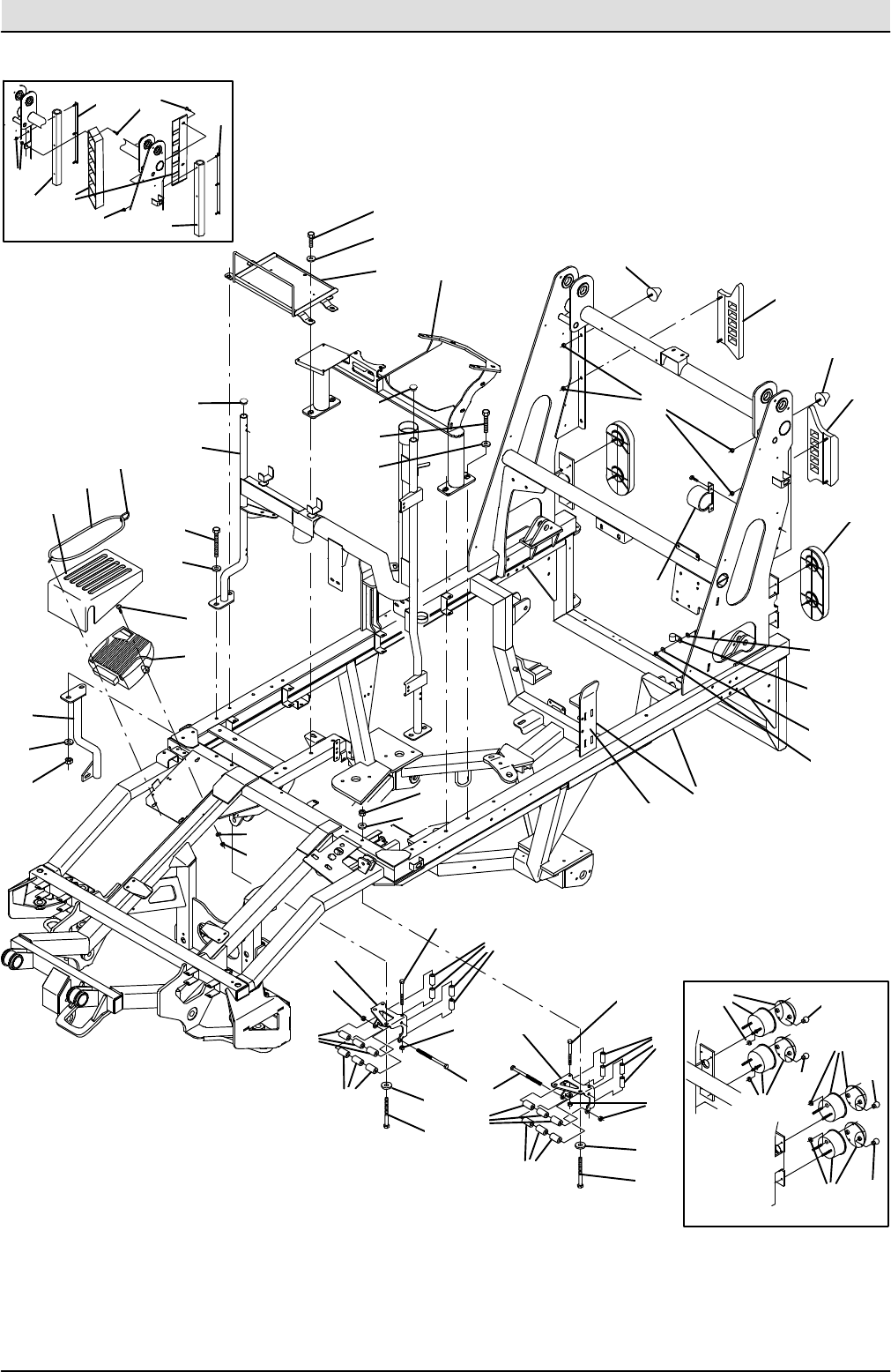

- Fig. 2 − Main Frame Group
- Fig. 3 − Front Axle Group

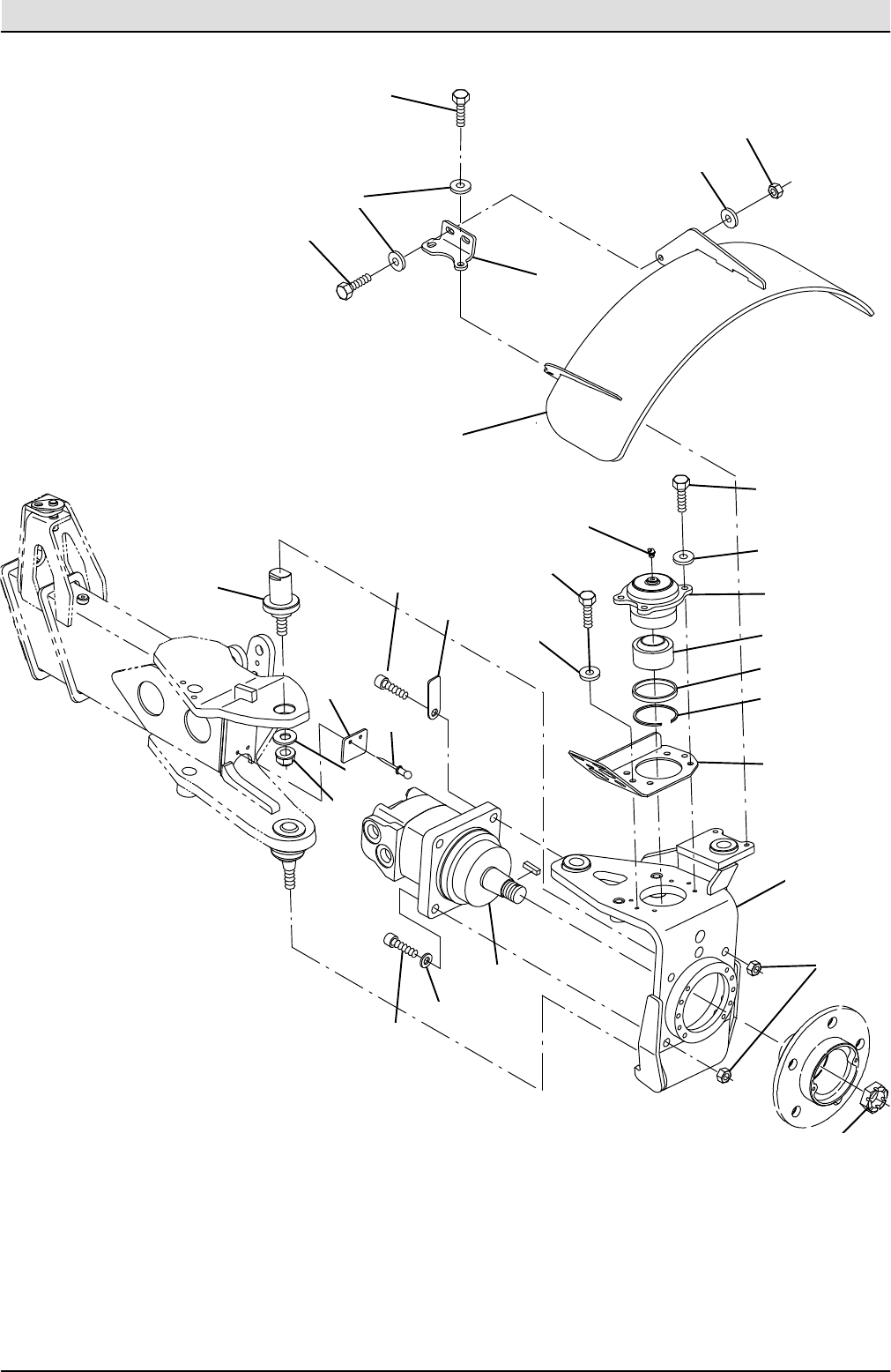

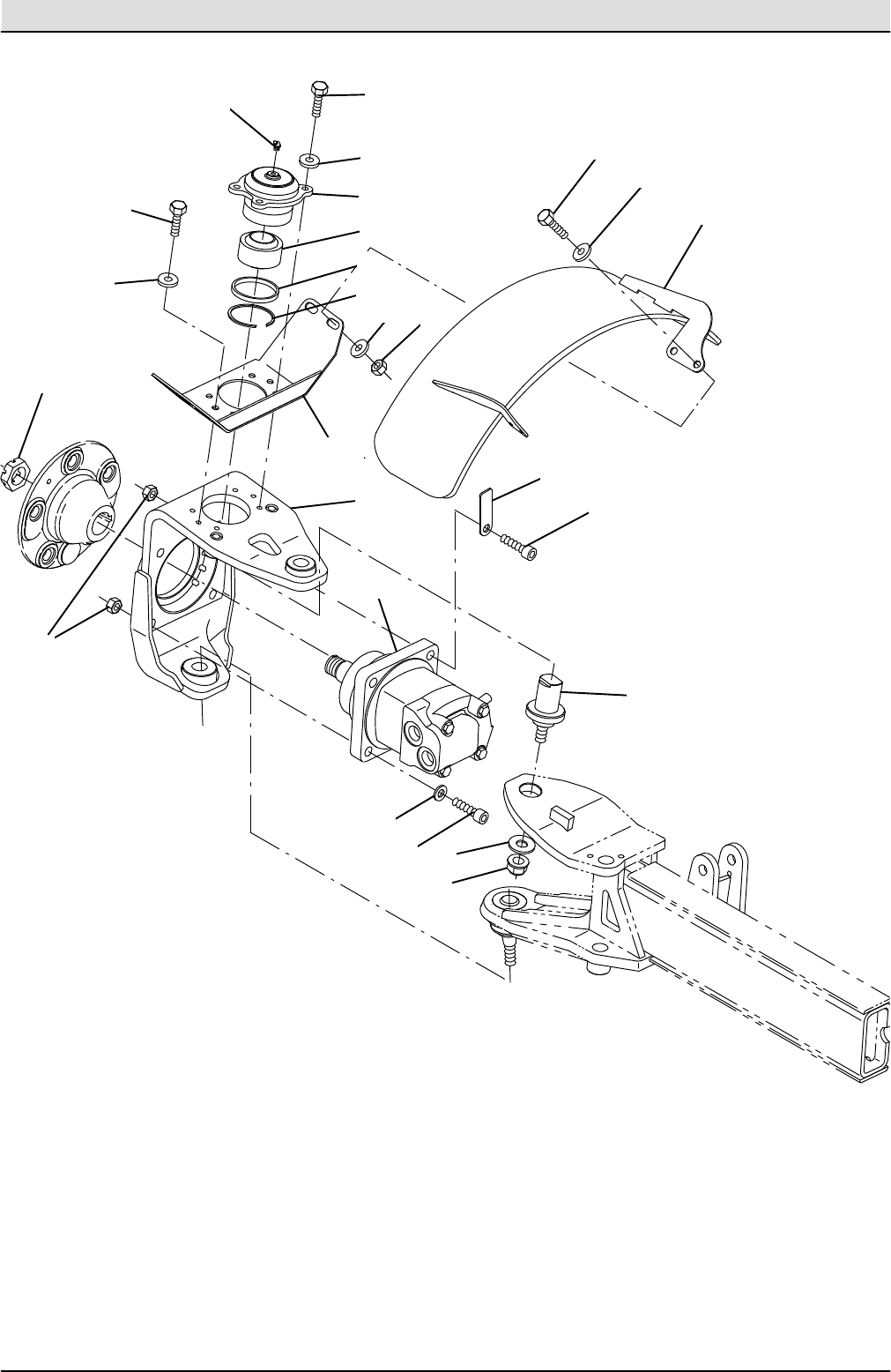

- Fig. 4 − Front Drive Wheel Motor Mount Group, Right Hand
- Fig. 5 − Front Drive Wheel Motor Mount Group, Left Hand

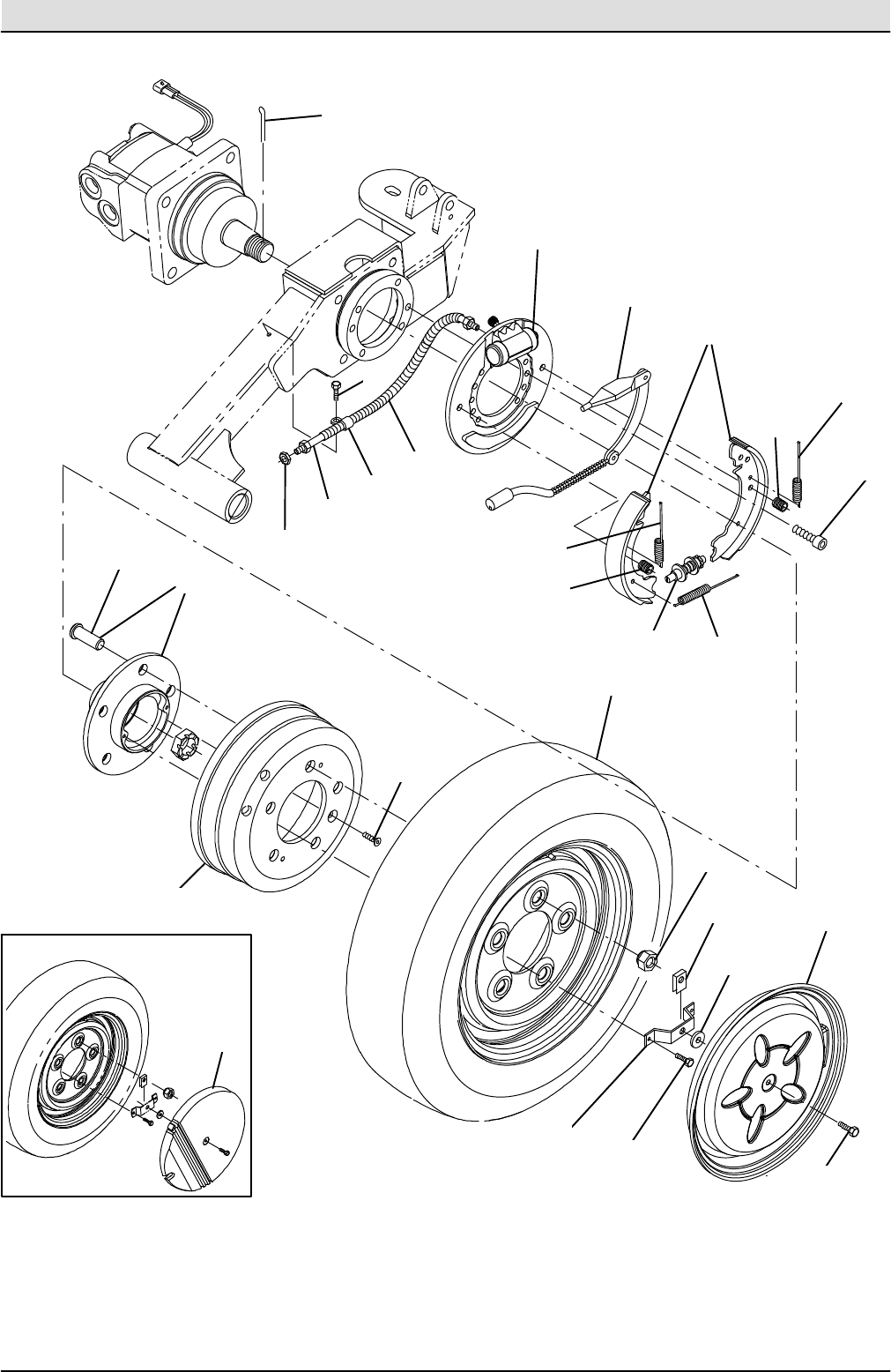

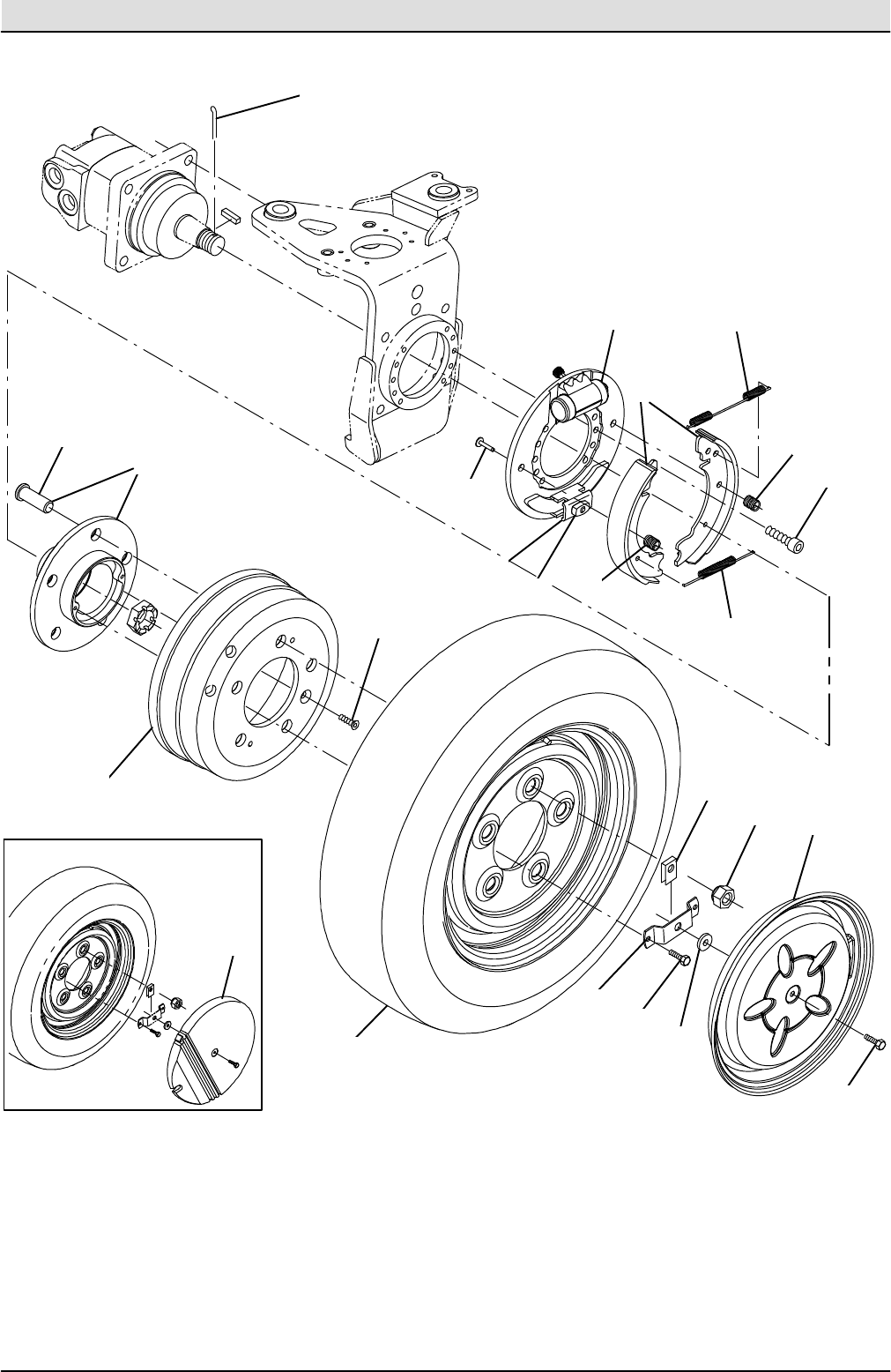

- Fig. 6 − Wheel and Brake Group, Front

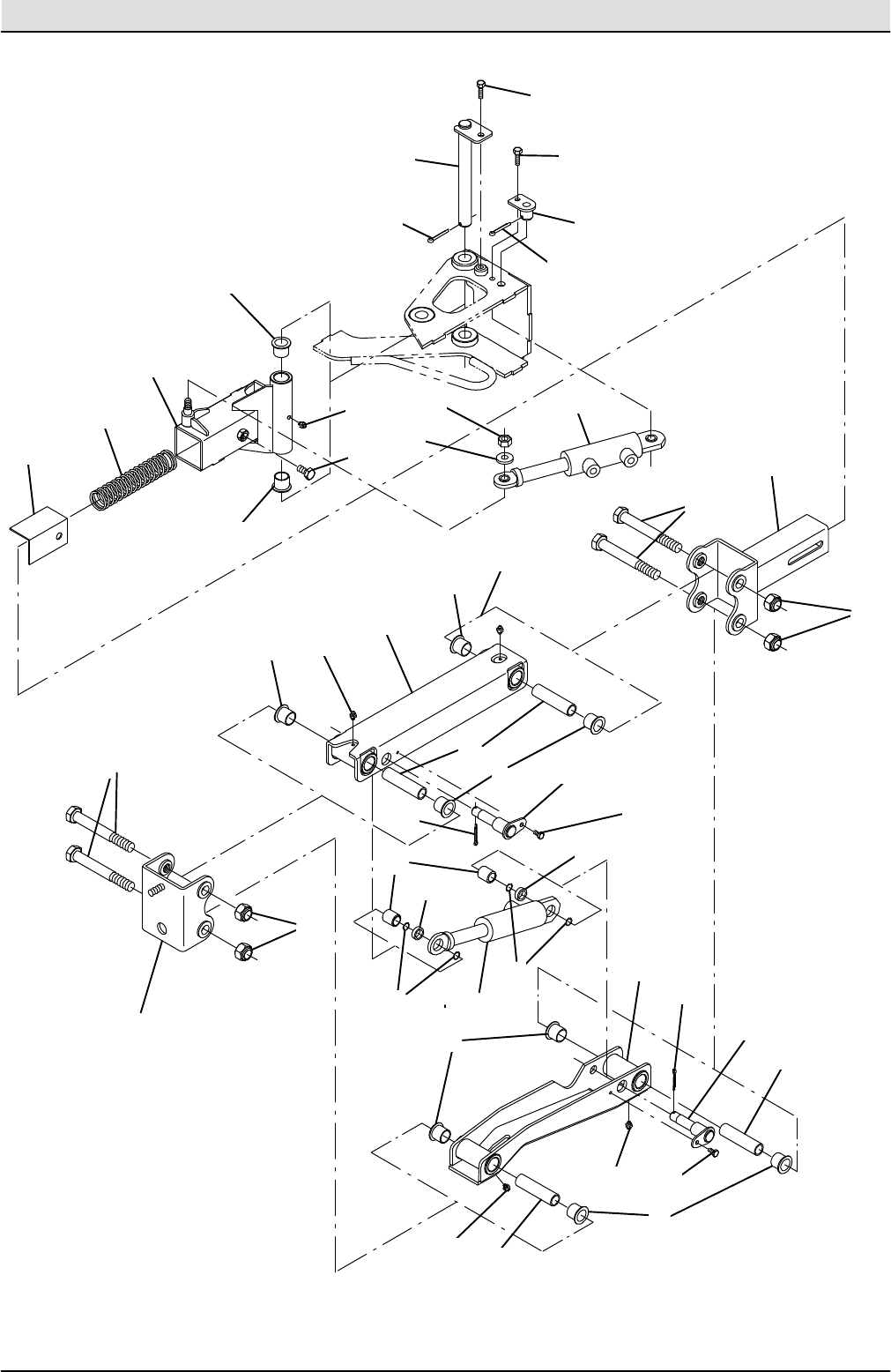

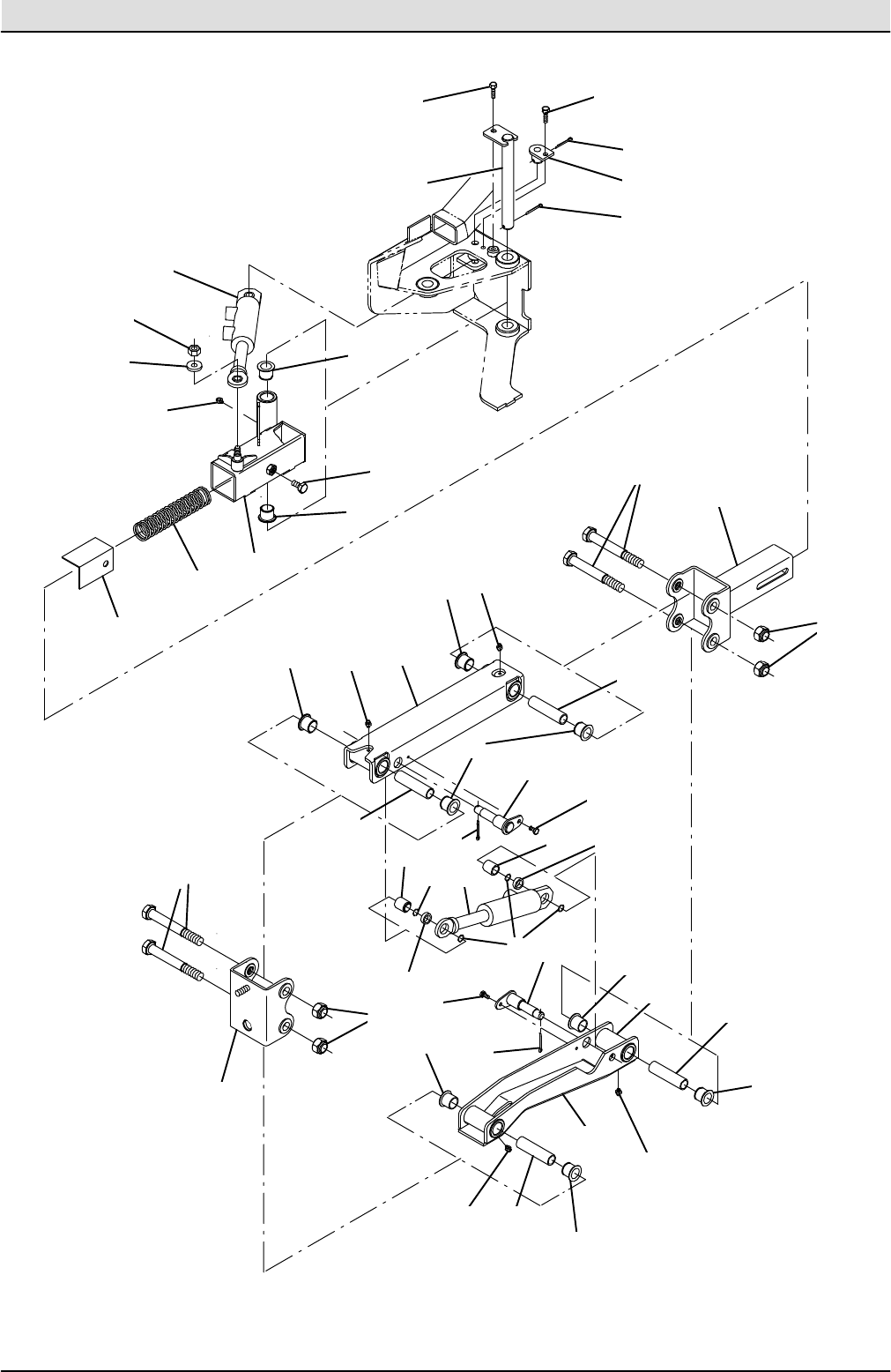

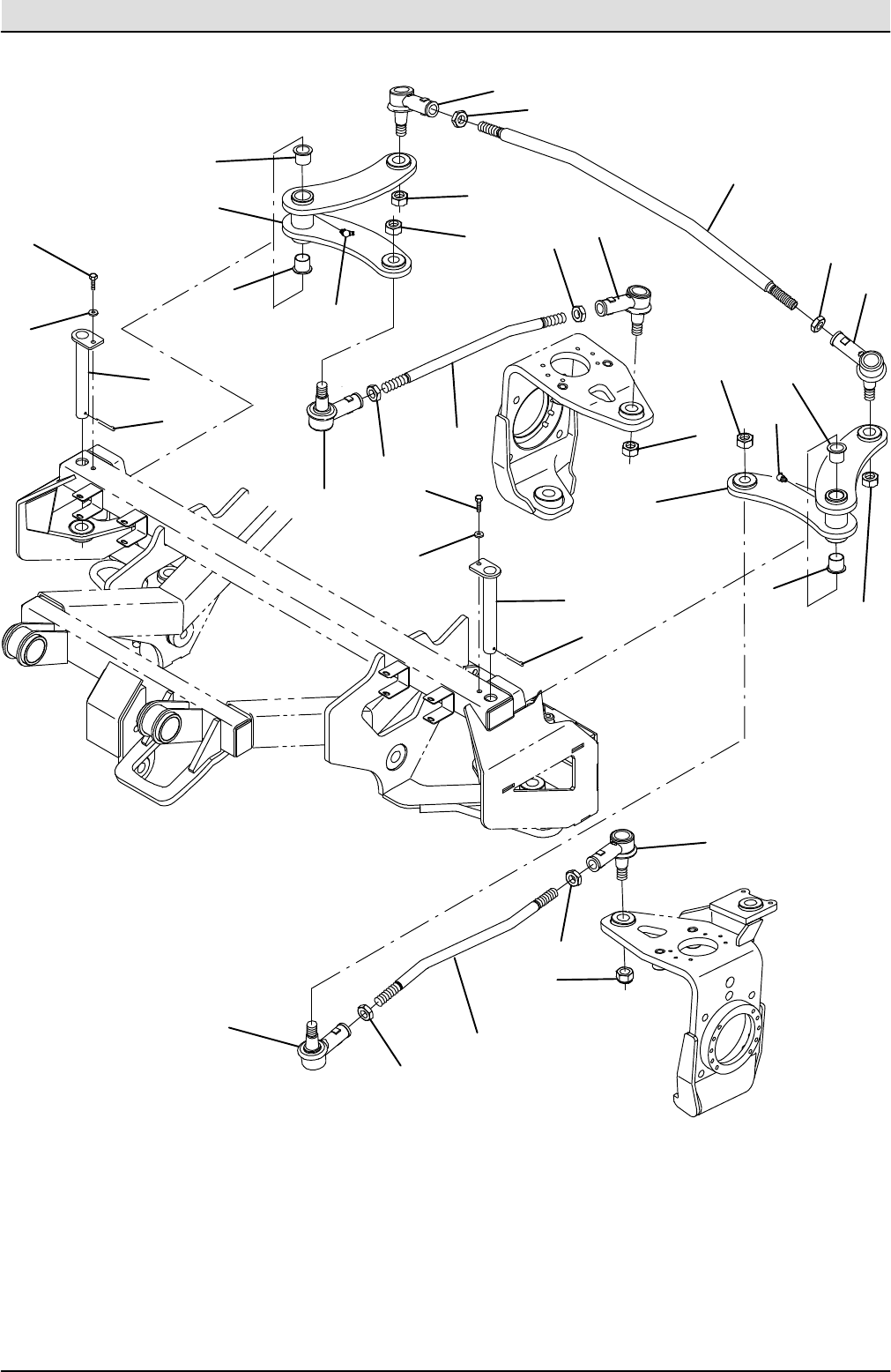

- Fig. 7 − Steering Linkage Group

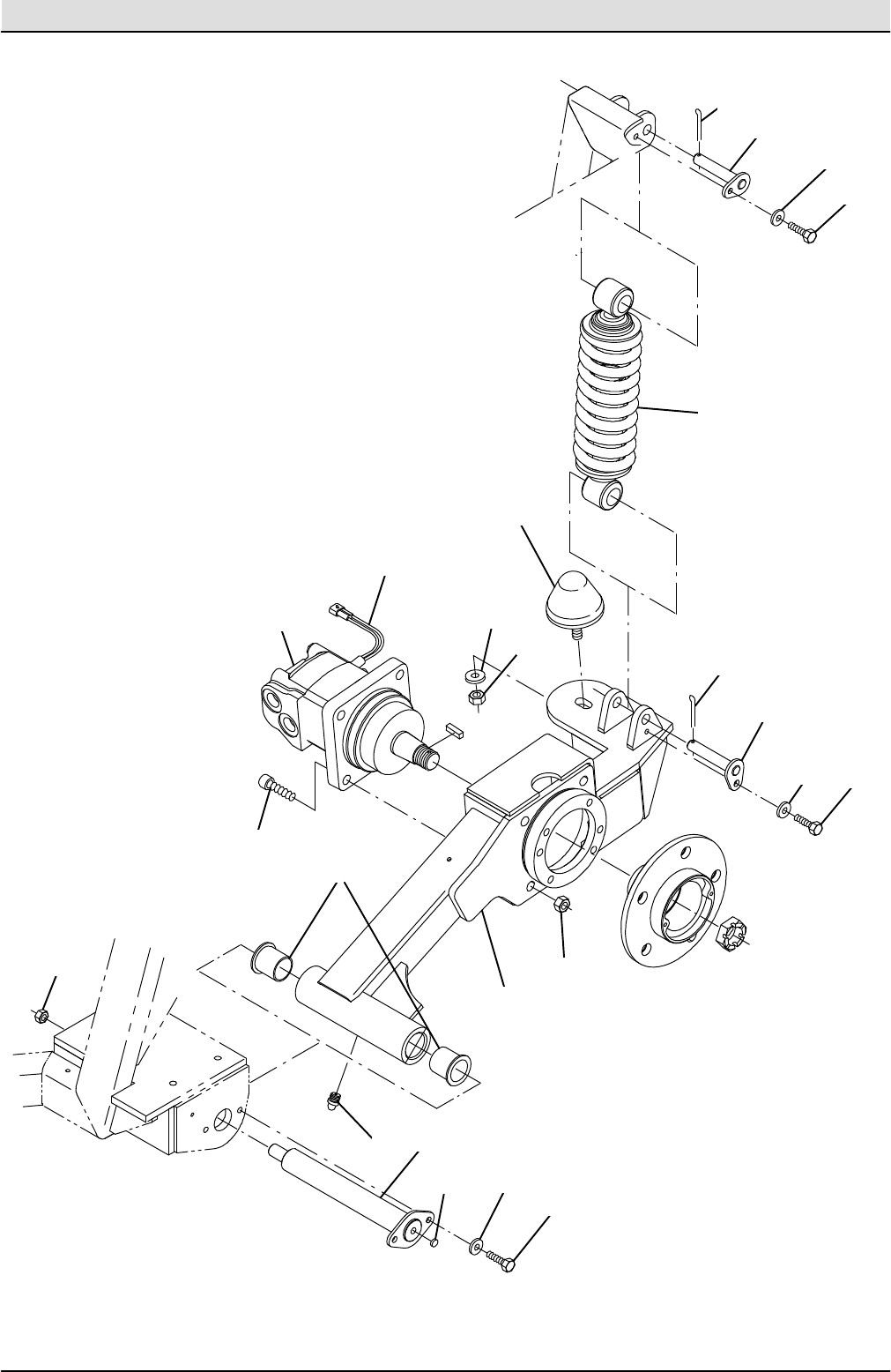

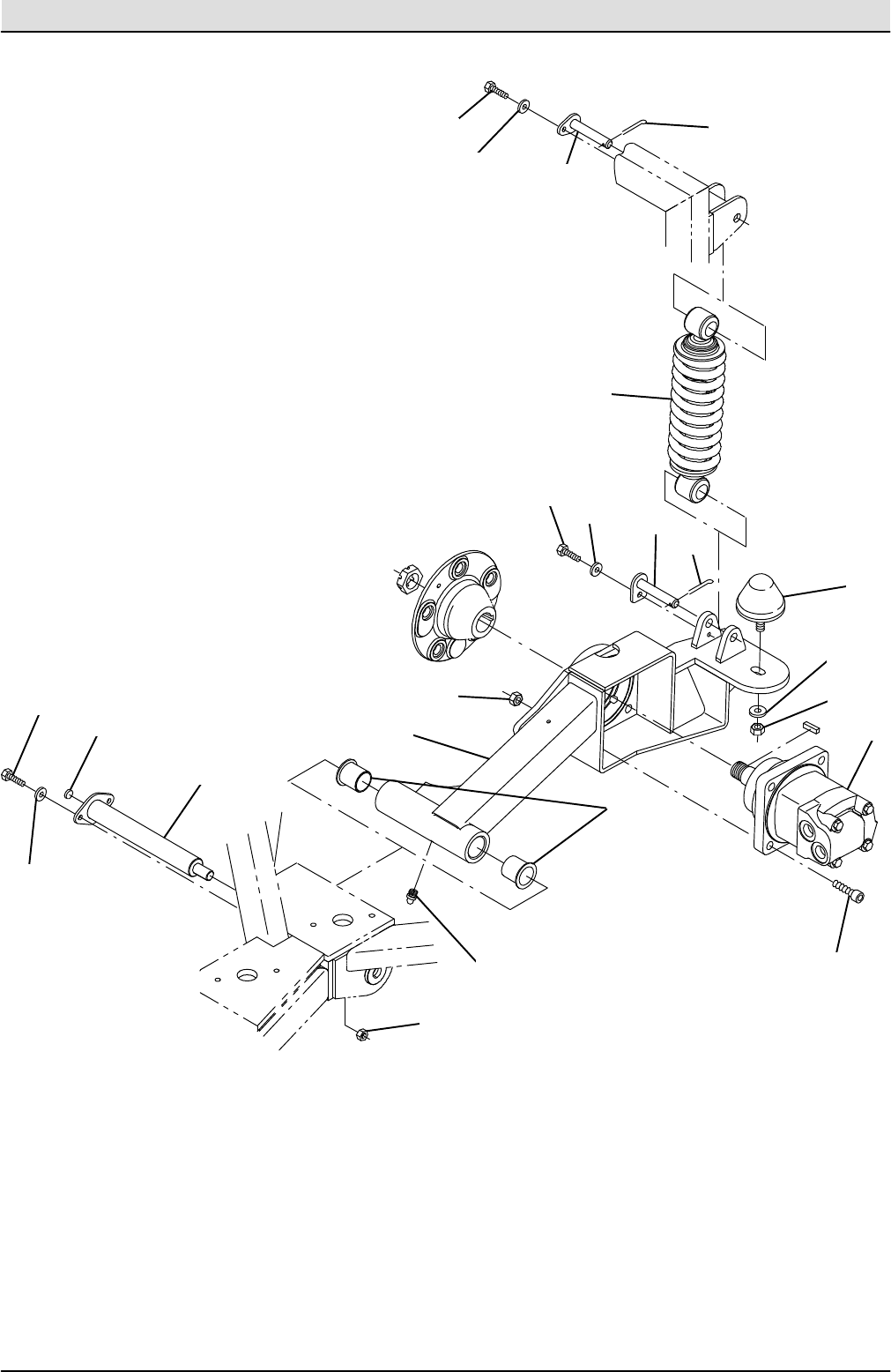

- Fig. 8 − Rear Trailing Arm Group, Right Hand
- Fig. 9 − Rear Trailing Arm Group, Left Hand
- Fig. 10 − Wheel and Brake Group, Rear

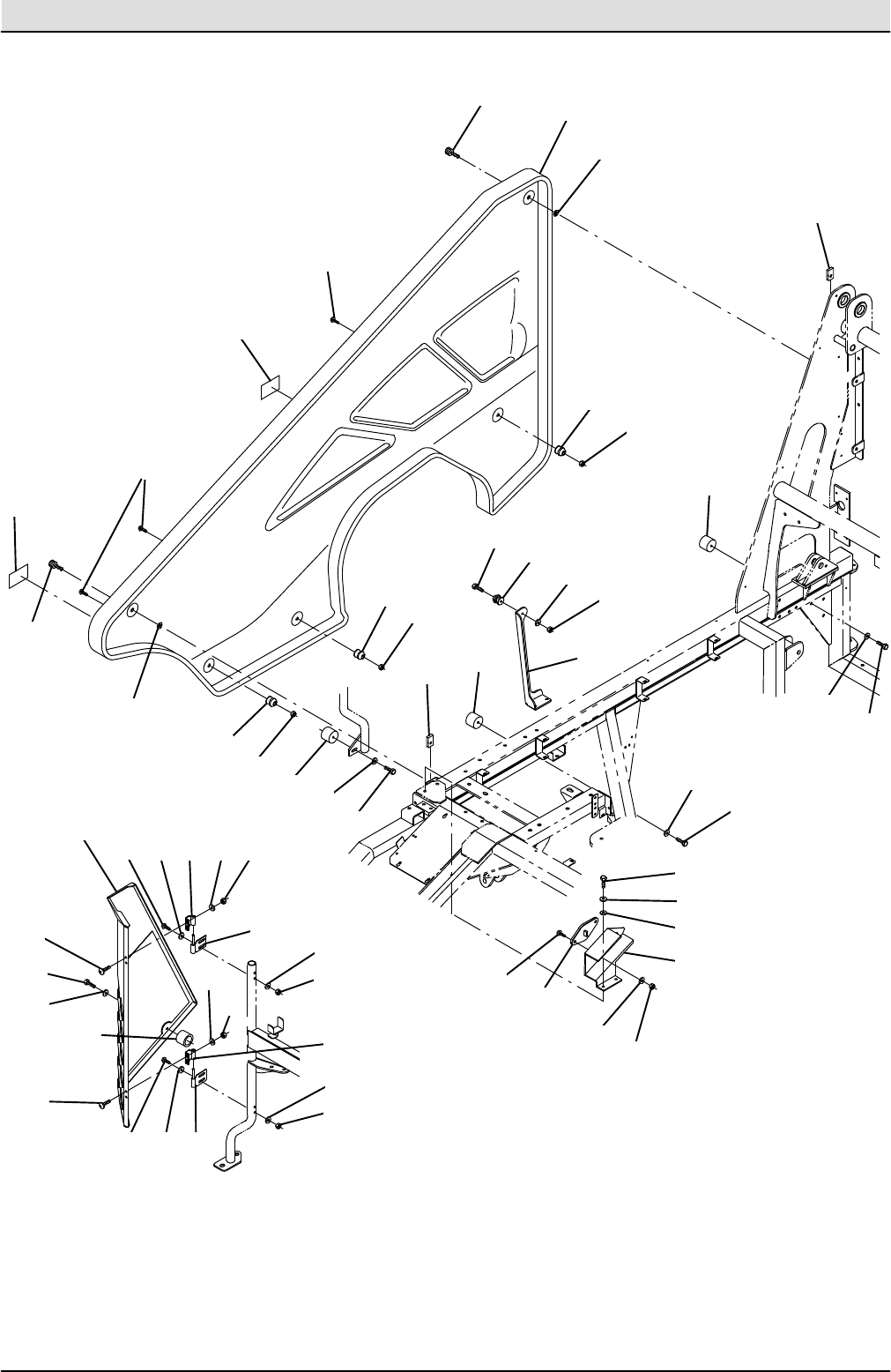

- Fig. 11 − Side Panels Group, Right Hand
- Fig. 12 − Side Panels Group, Left Hand

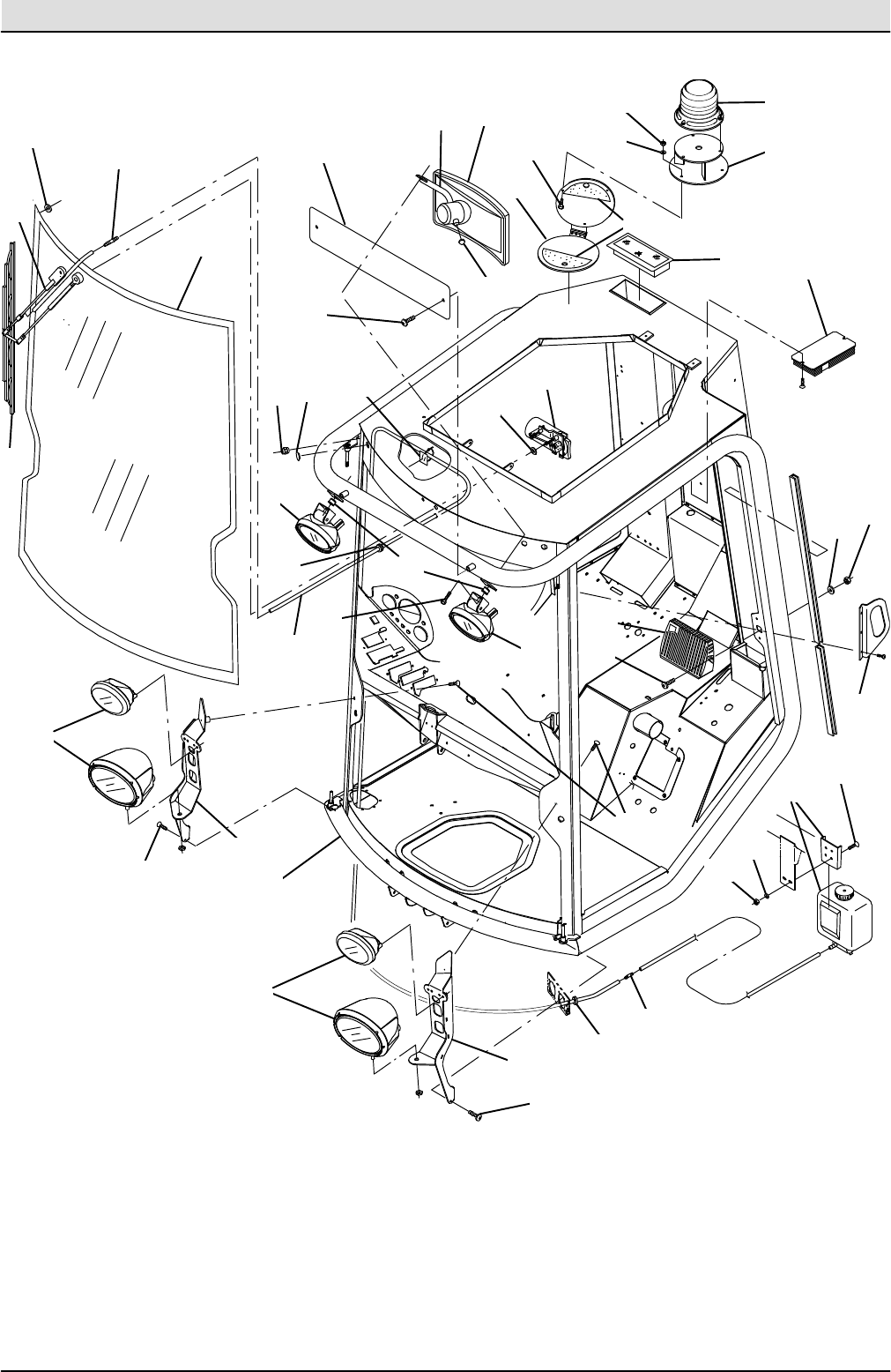

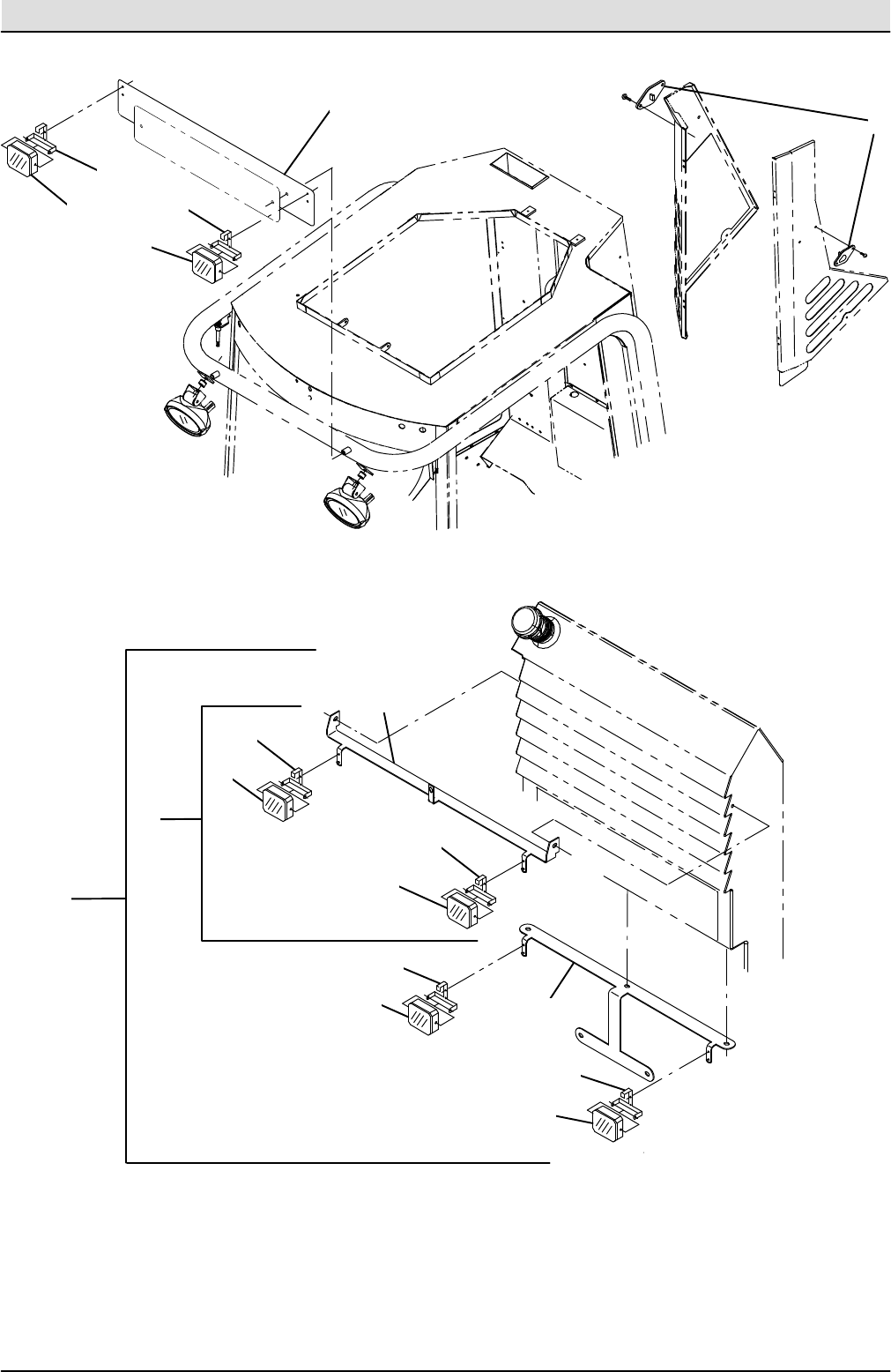

- Fig. 13 − Cab Windshield and Lights Group (910364−1301022)
- Fig. 14 − Cab Windshield and Lights Group (1301023− )

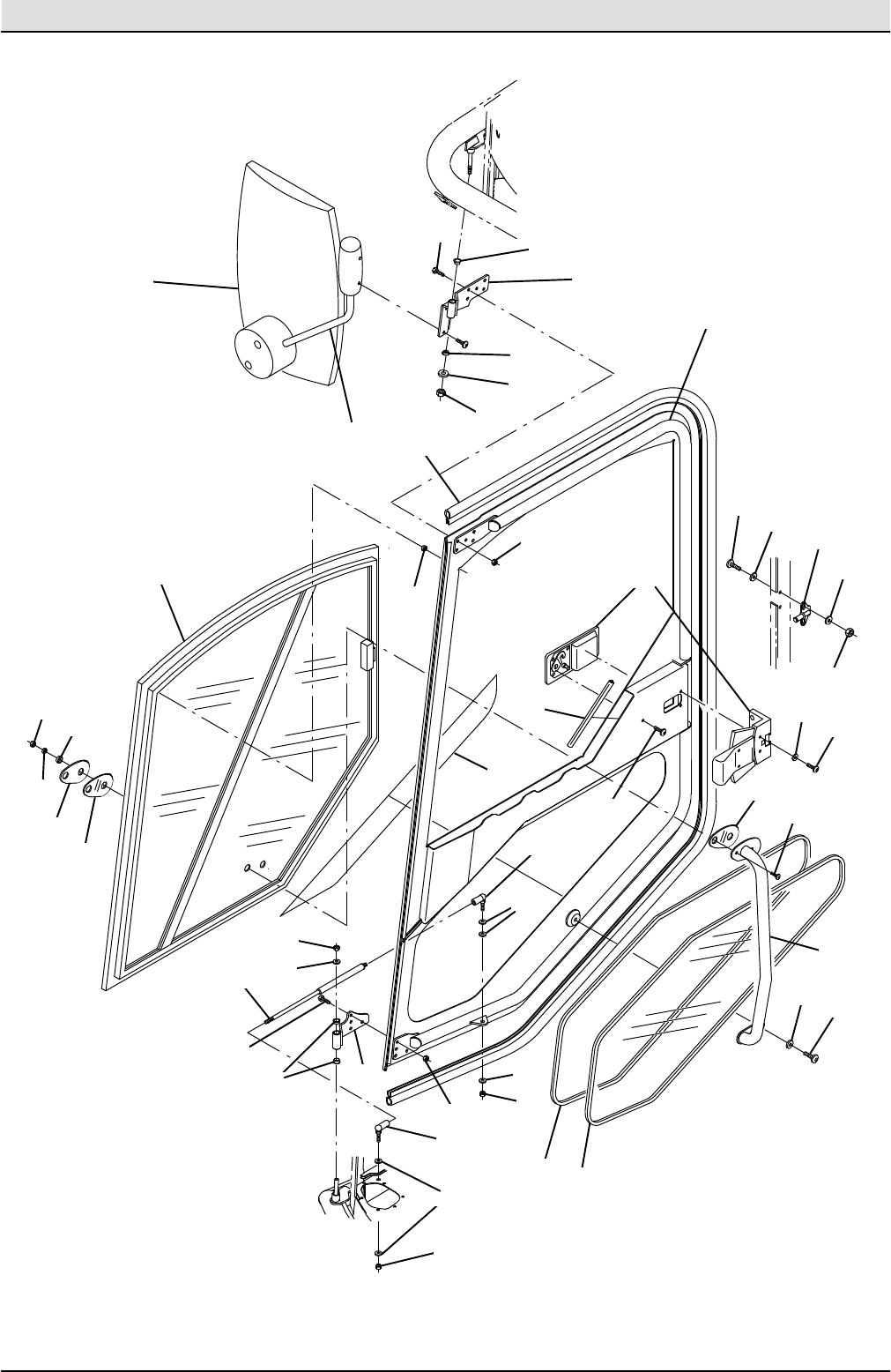

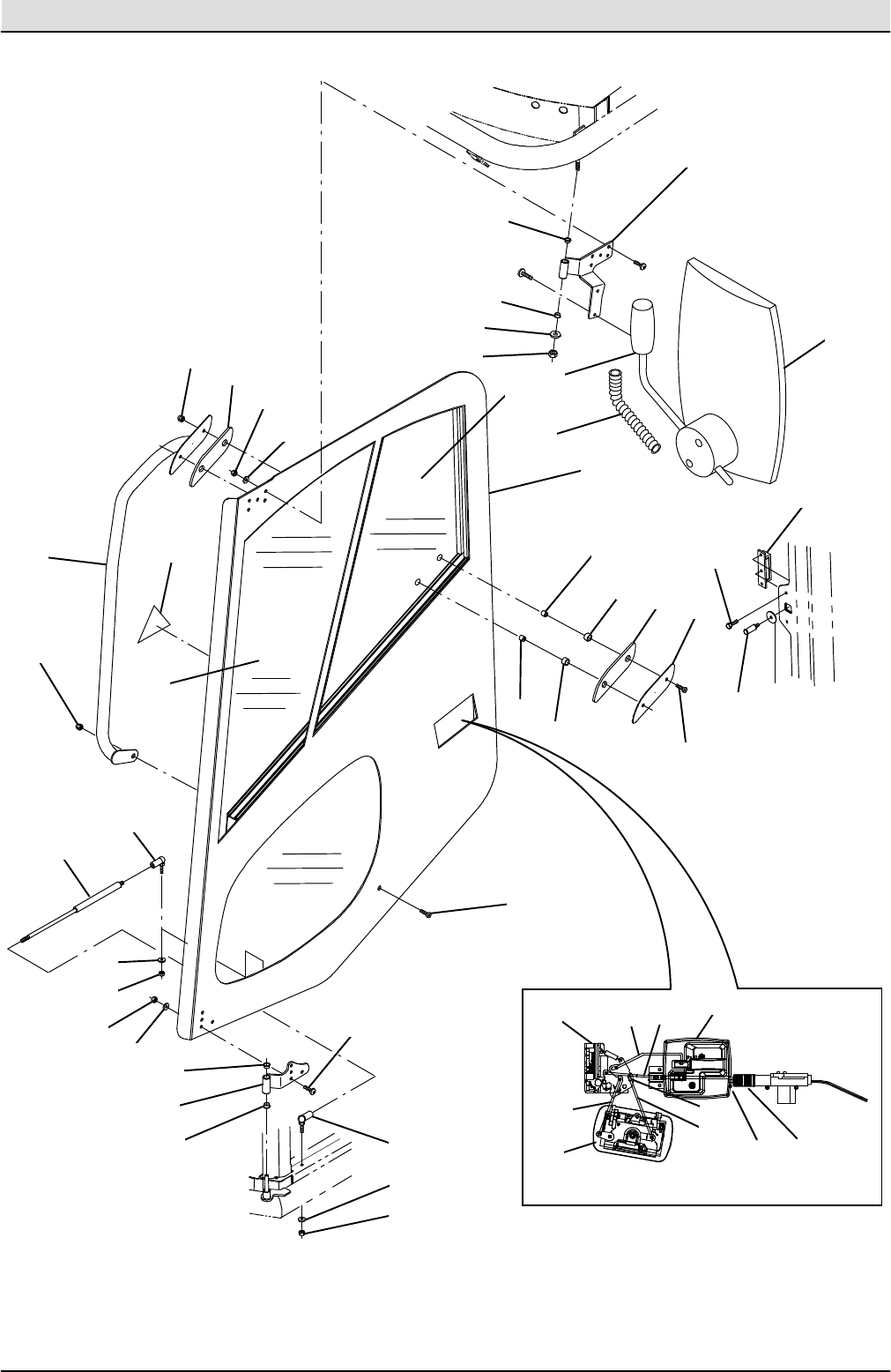

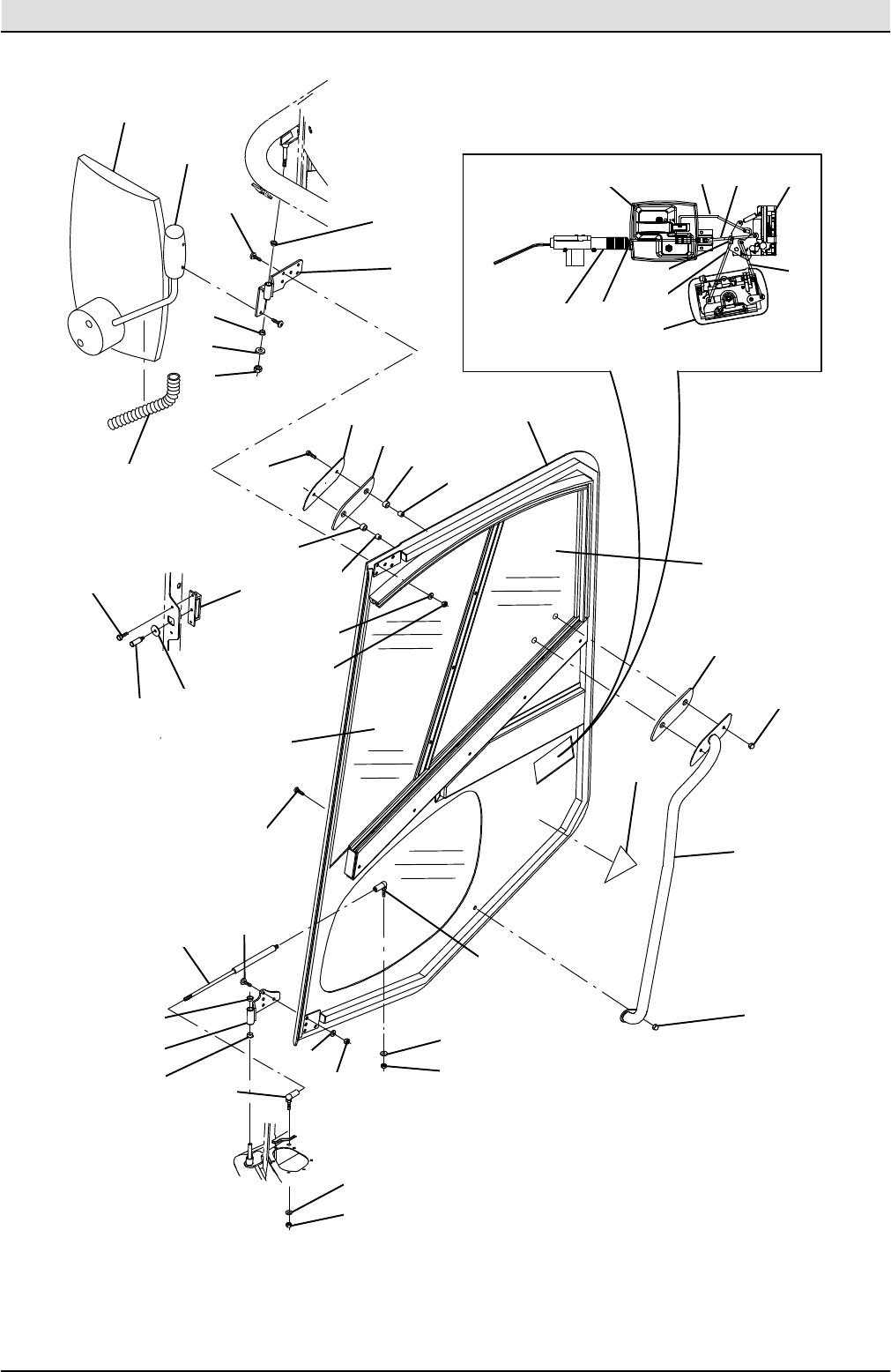

- Fig. 15 − Cab Door Group, Right Hand (910364−1301022)
- Fig. 16 − Cab Door Group, Right Hand (1301023− )
- Fig. 17 − Cab Door Group, Left Hand (910364−1301022)
- Fig. 18 − Cab Door Group, Left Hand (1301023 − )

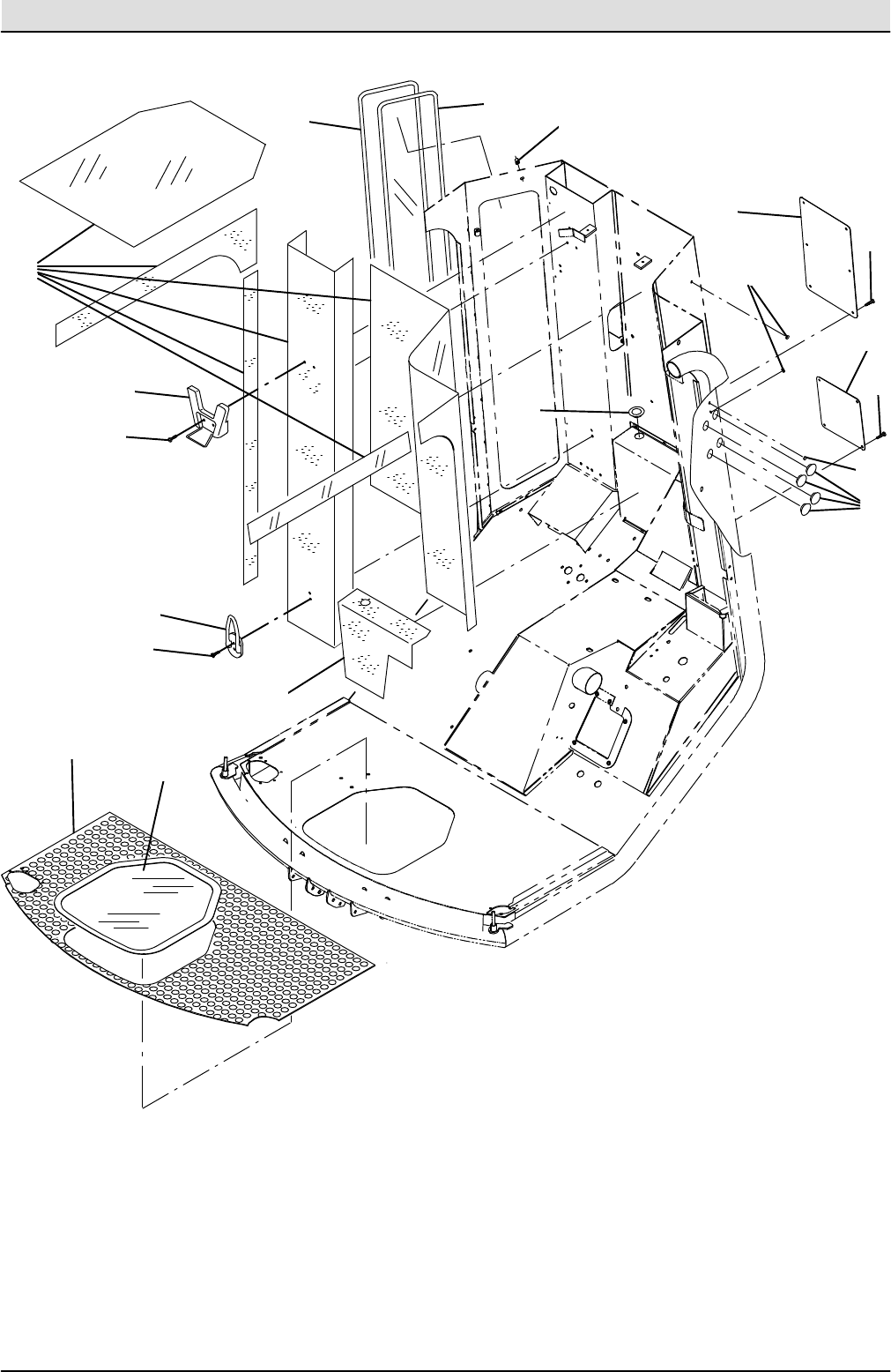

- Fig. 19 − Cab Carpet and Windows Group

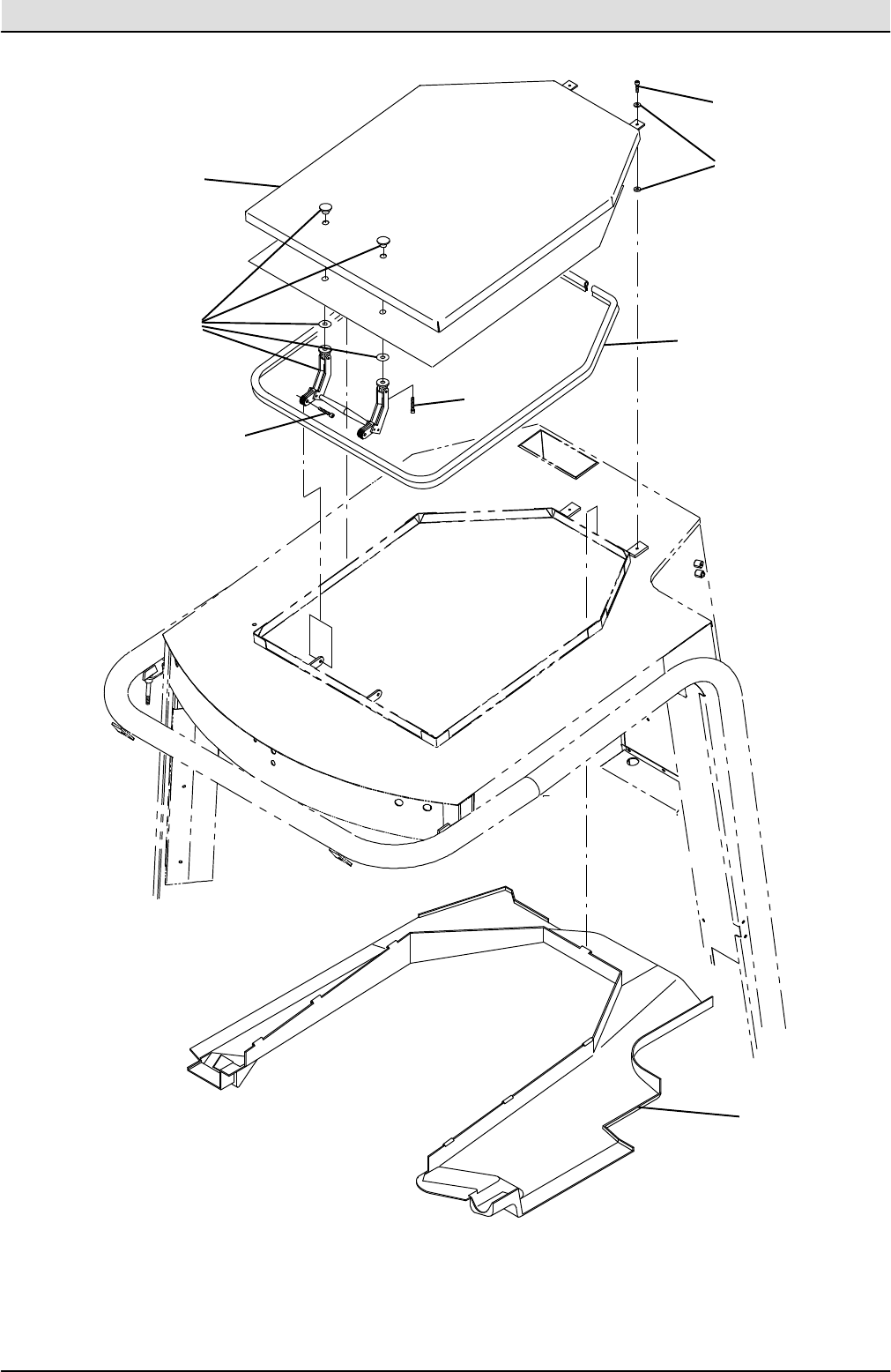

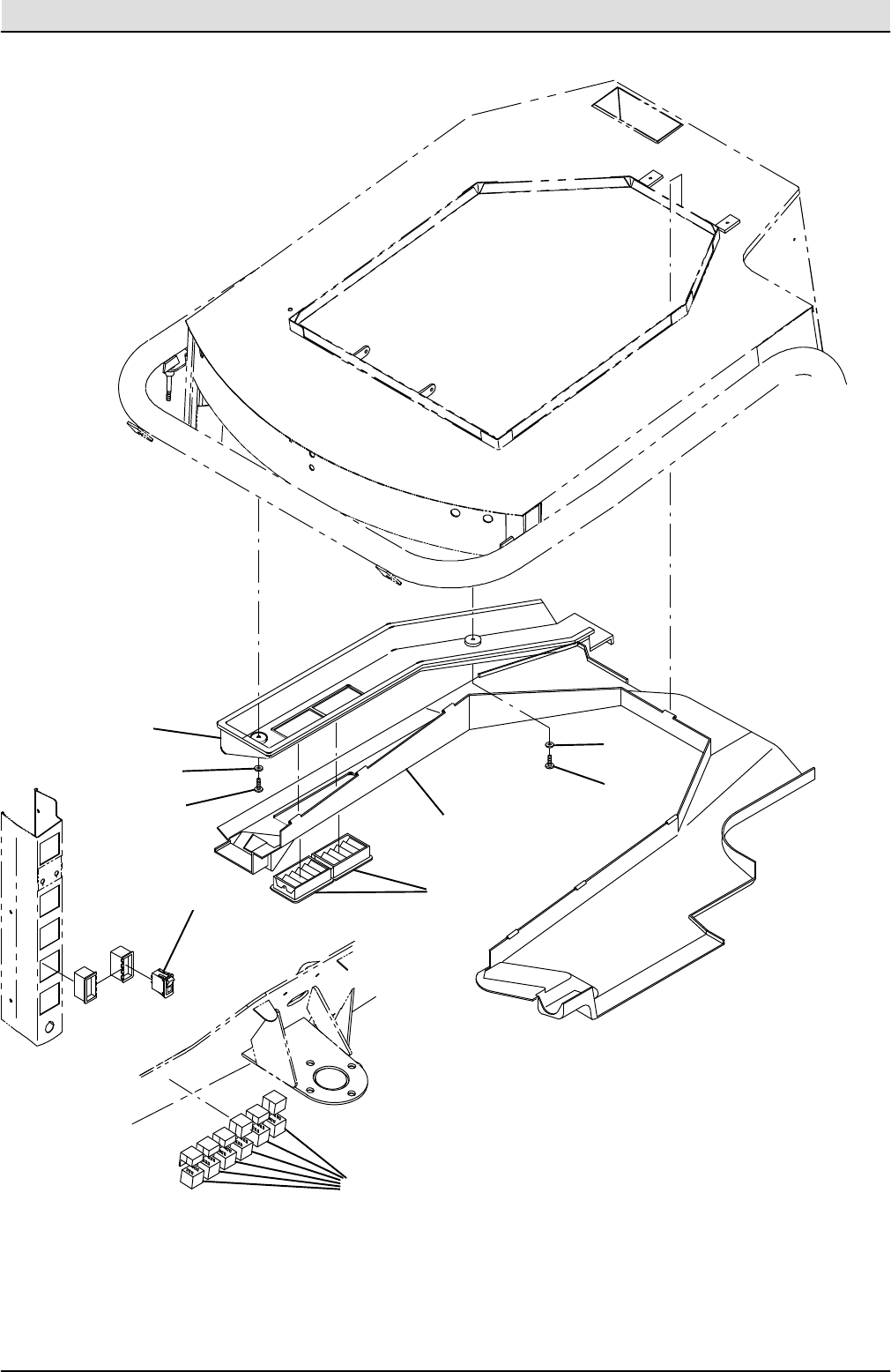

- Fig. 20 − Cab Roof Group

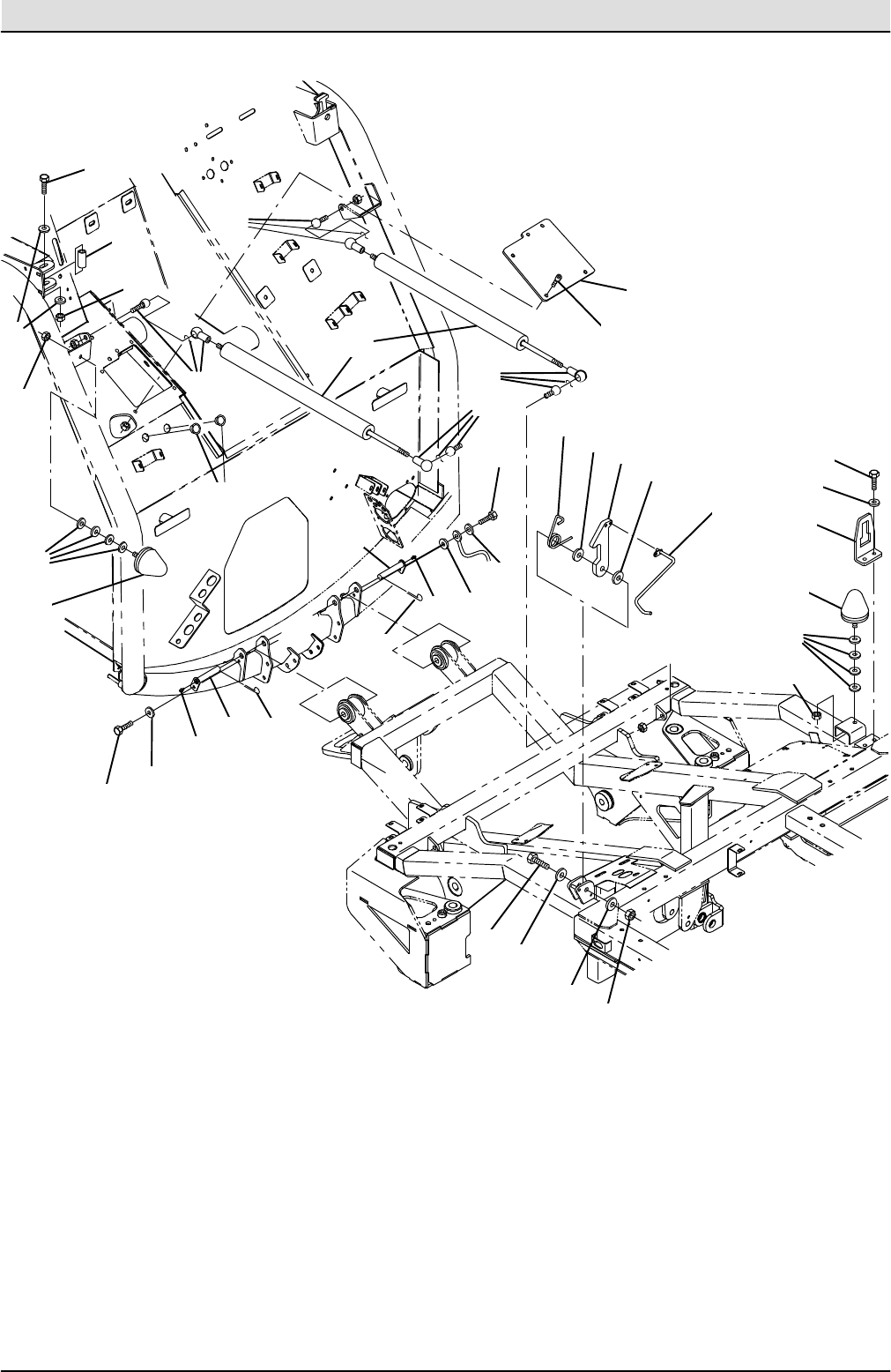

- Fig. 21 − Cab Tilt Group
- Fig. 22 − Cab Steering Wheel Group

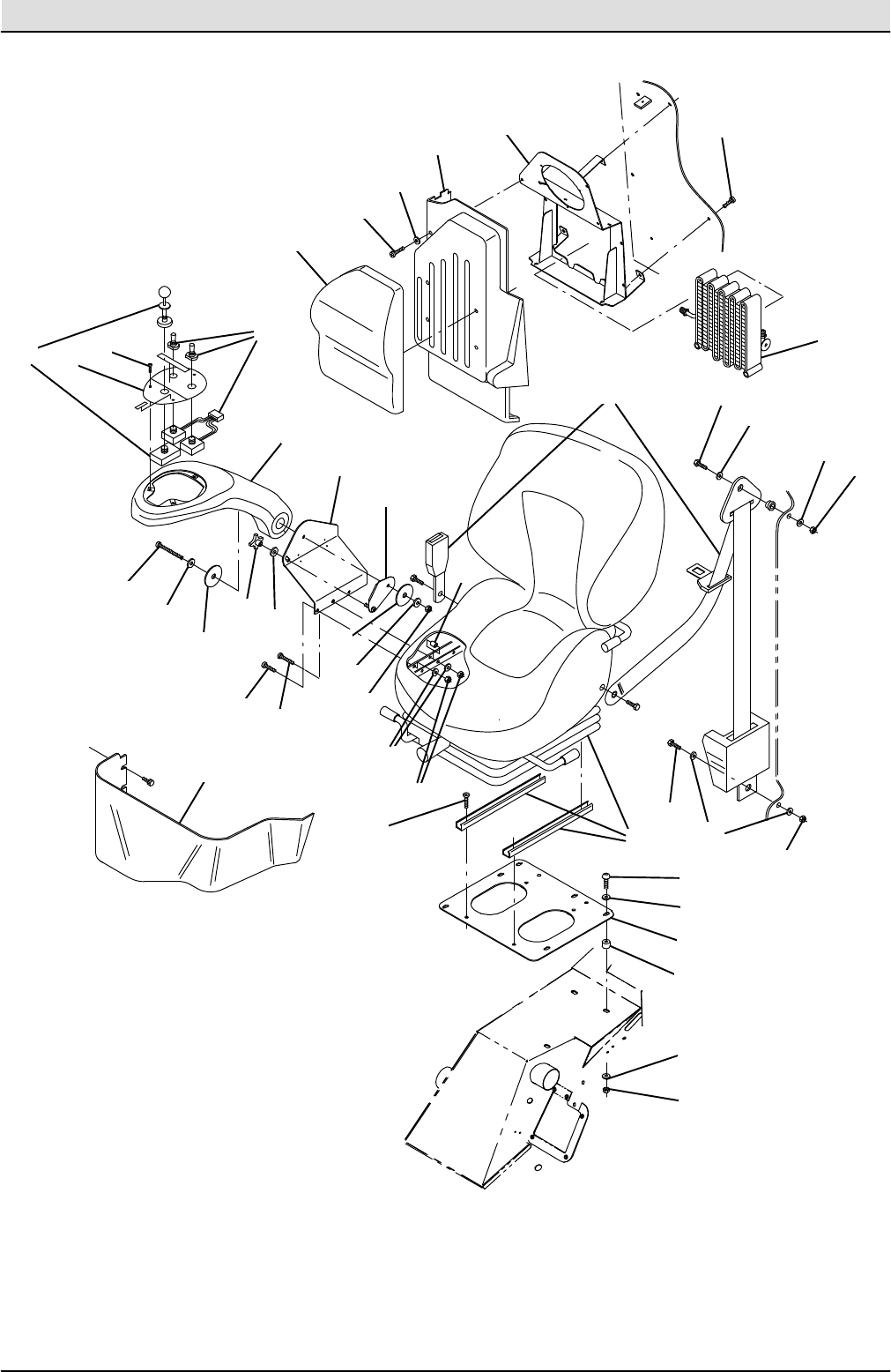

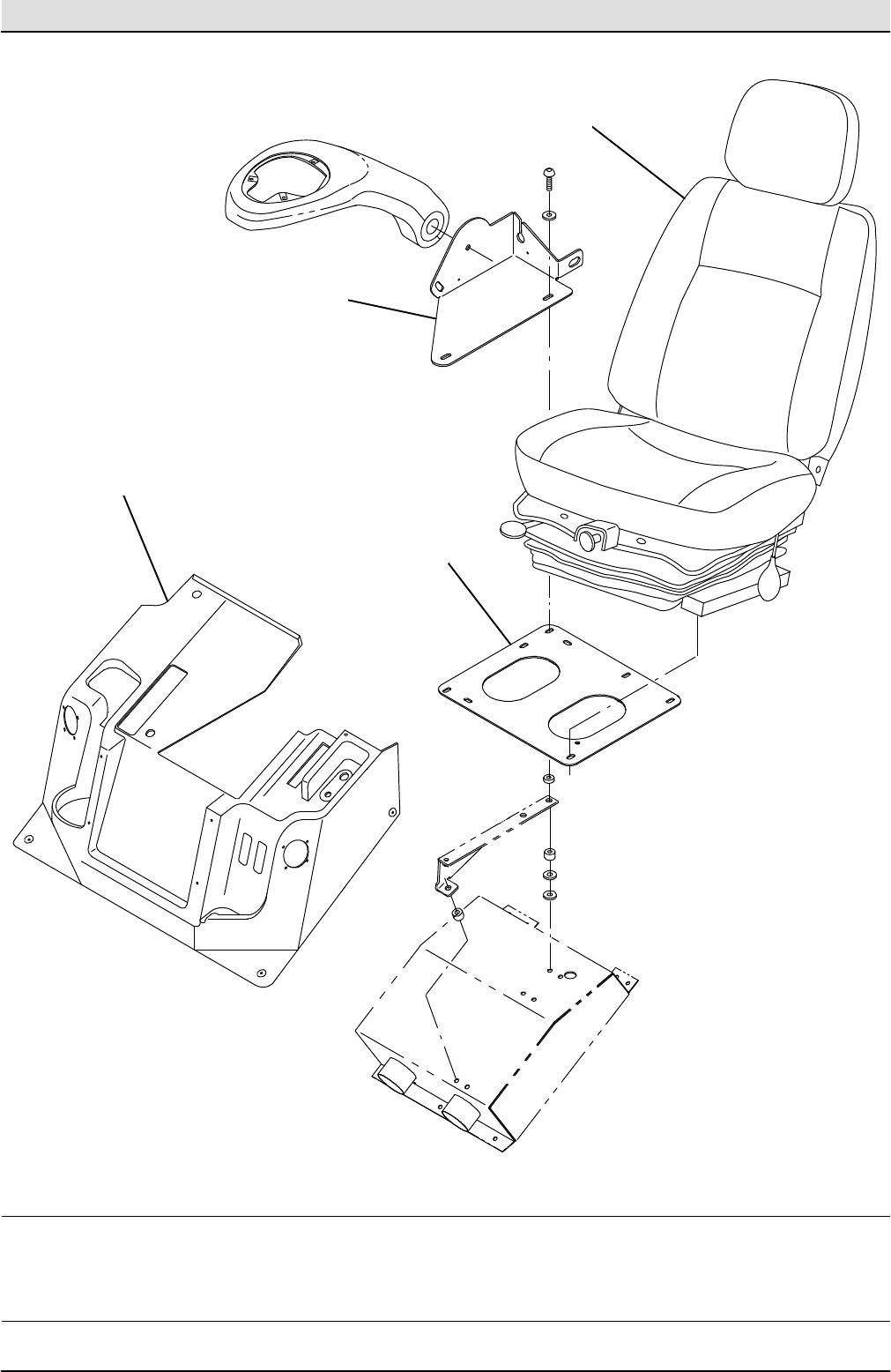

- Fig. 23 − Cab Seat Group

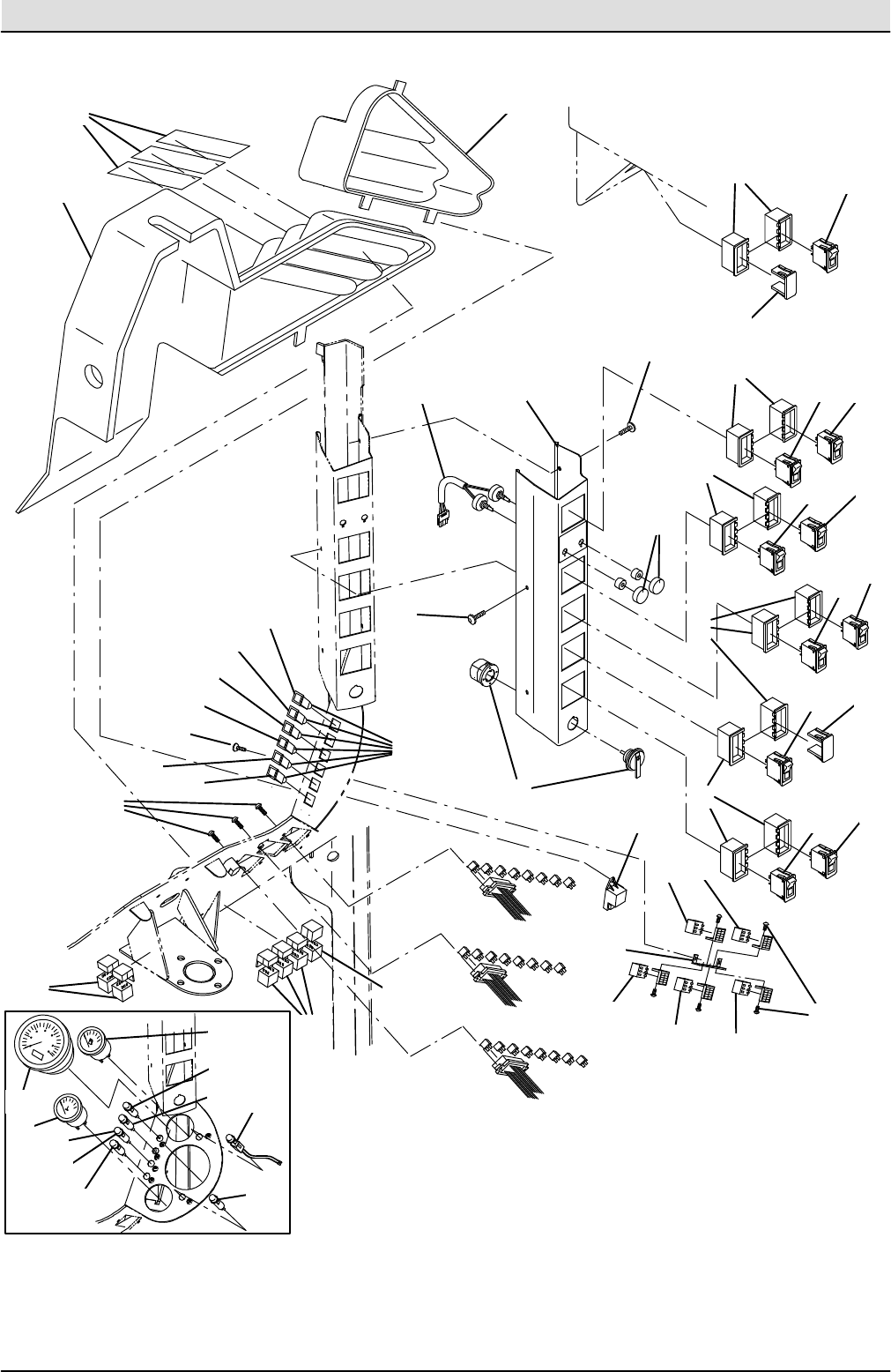

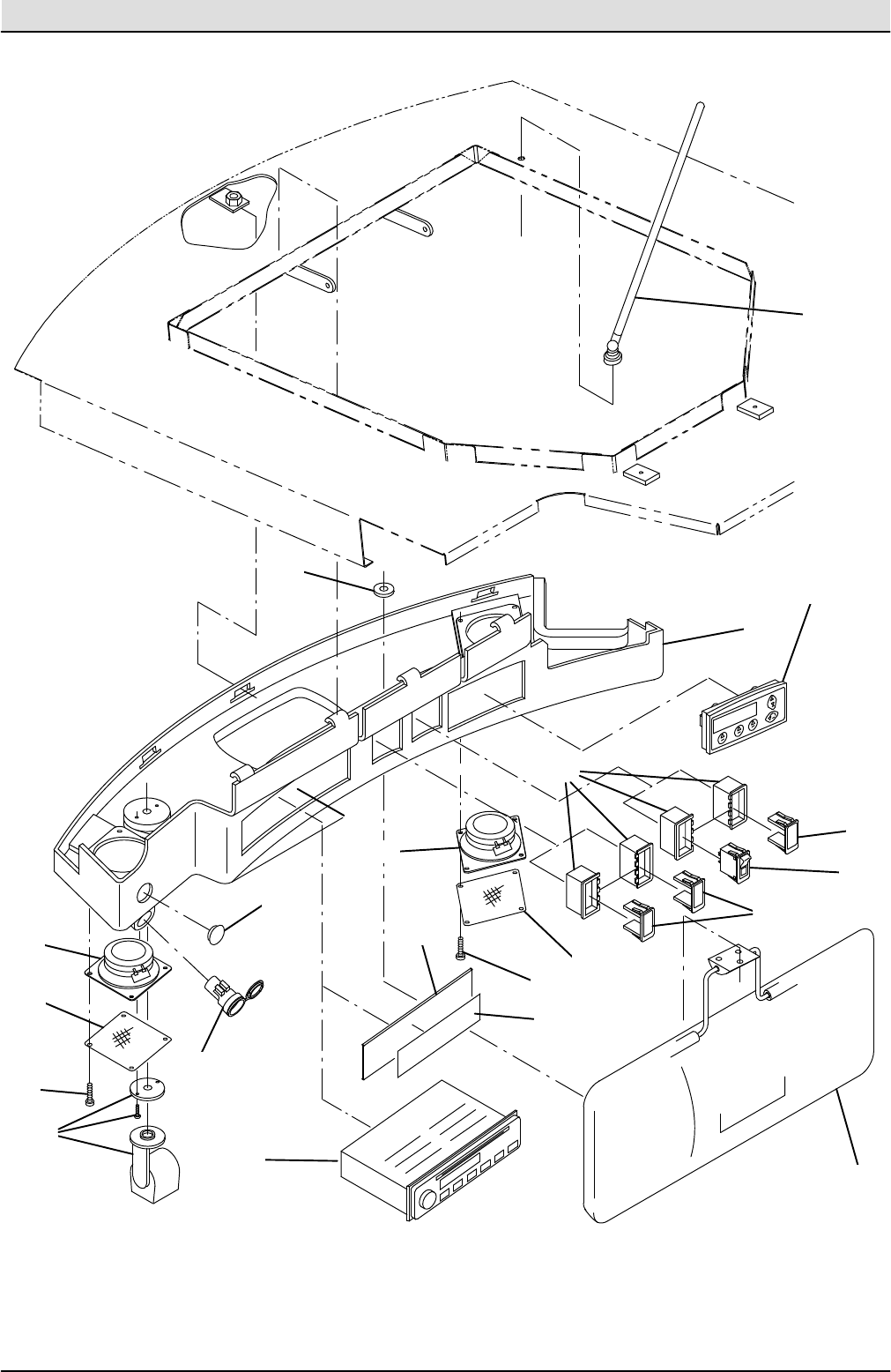

- Fig. 24 − Cab Instrument Panel Group
- Fig. 25 − Cab Instrument Panel Group, Upper

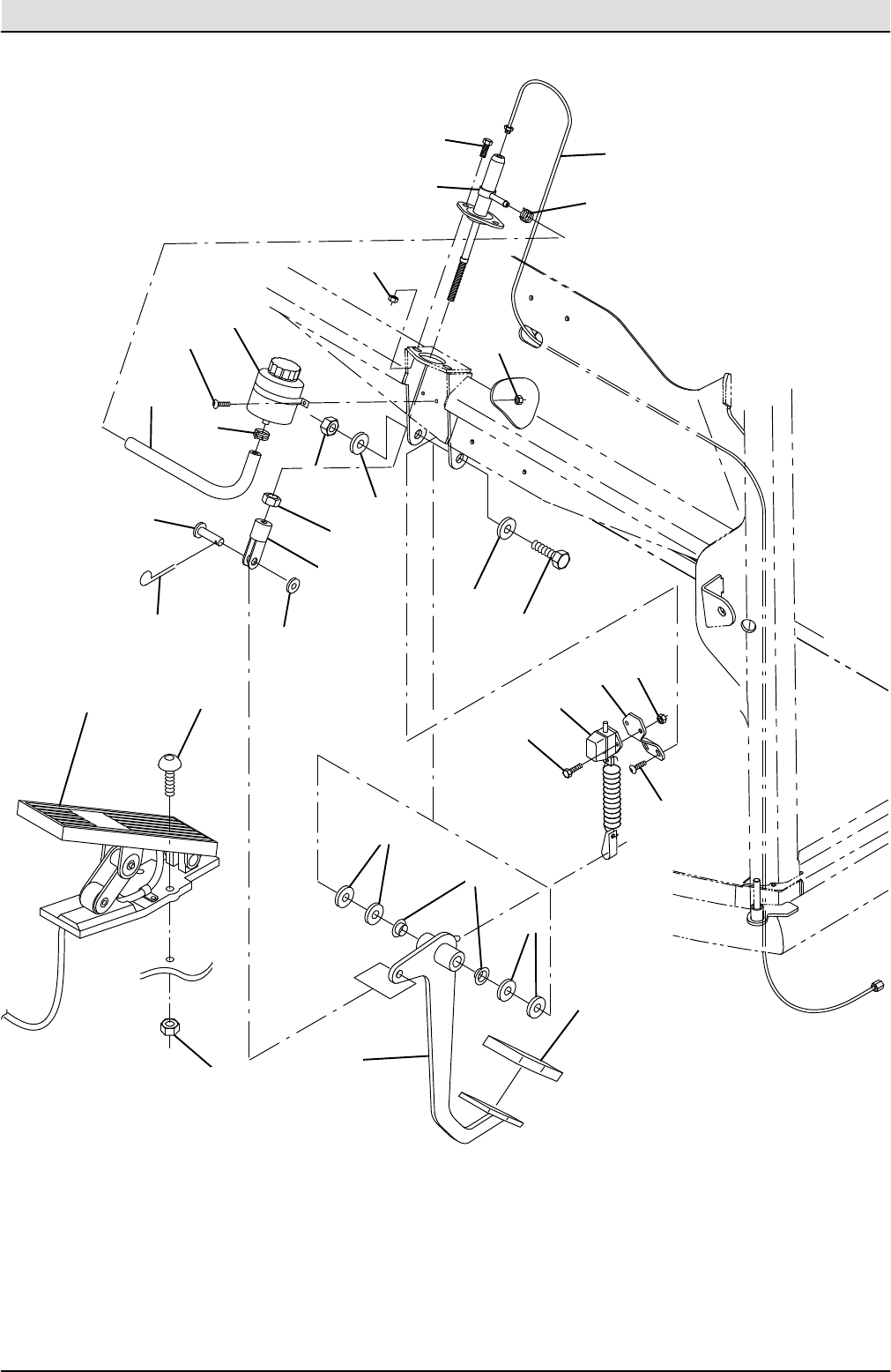

- Fig. 26 − Cab Foot Pedals Group

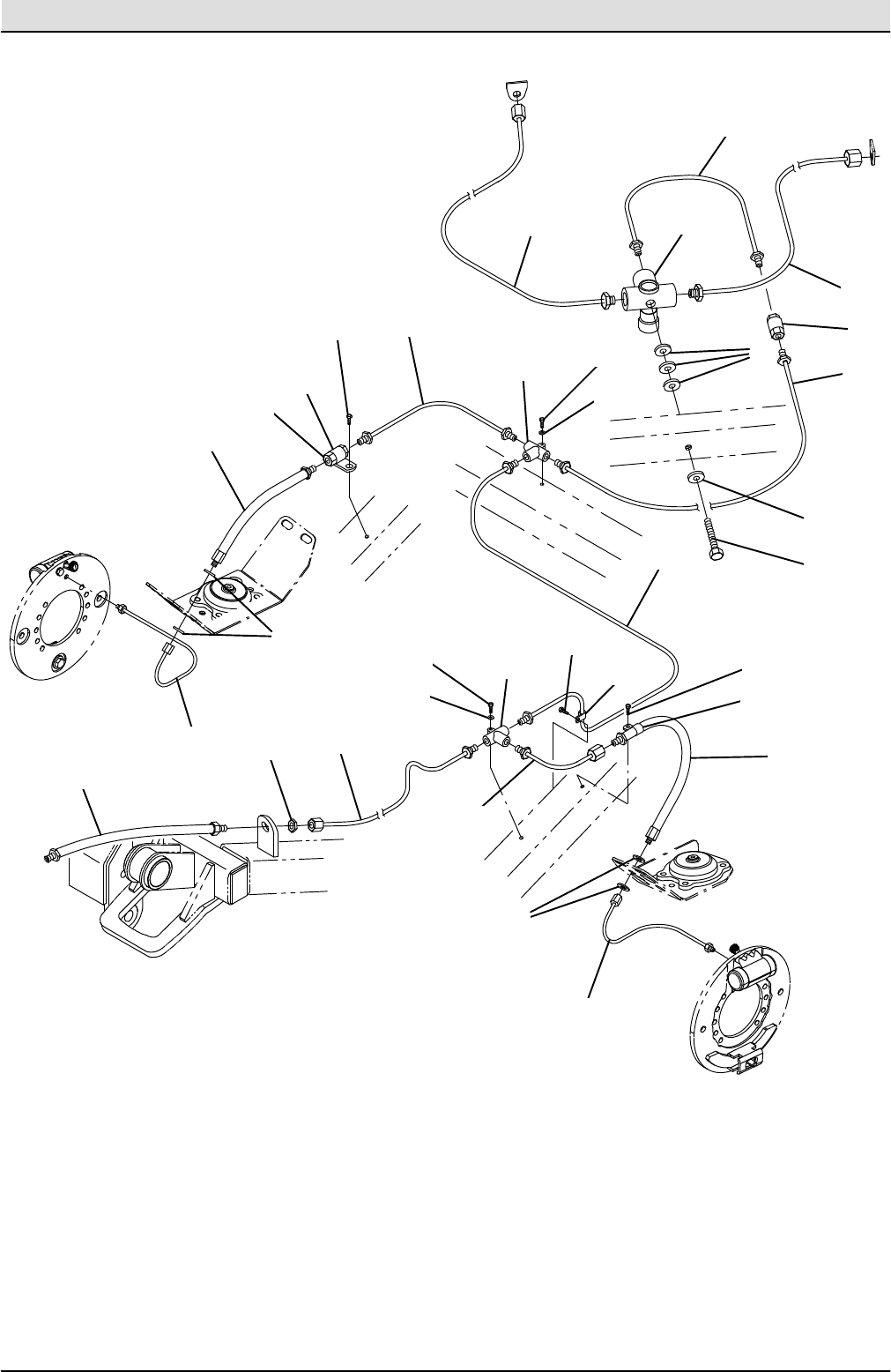

- Fig. 27 − Brake Lines Group

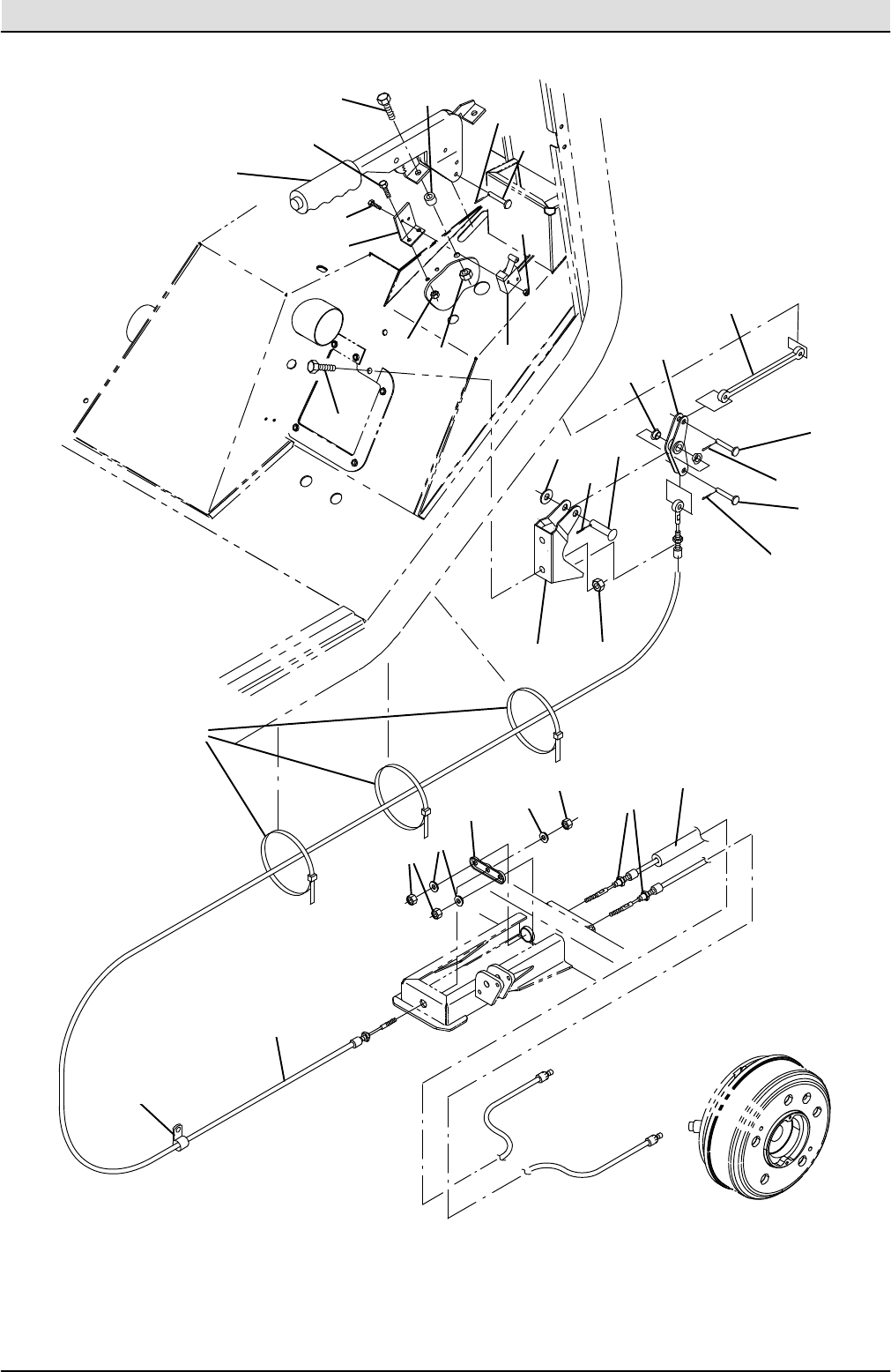

- Fig. 28 − Cab Parking Brake Group

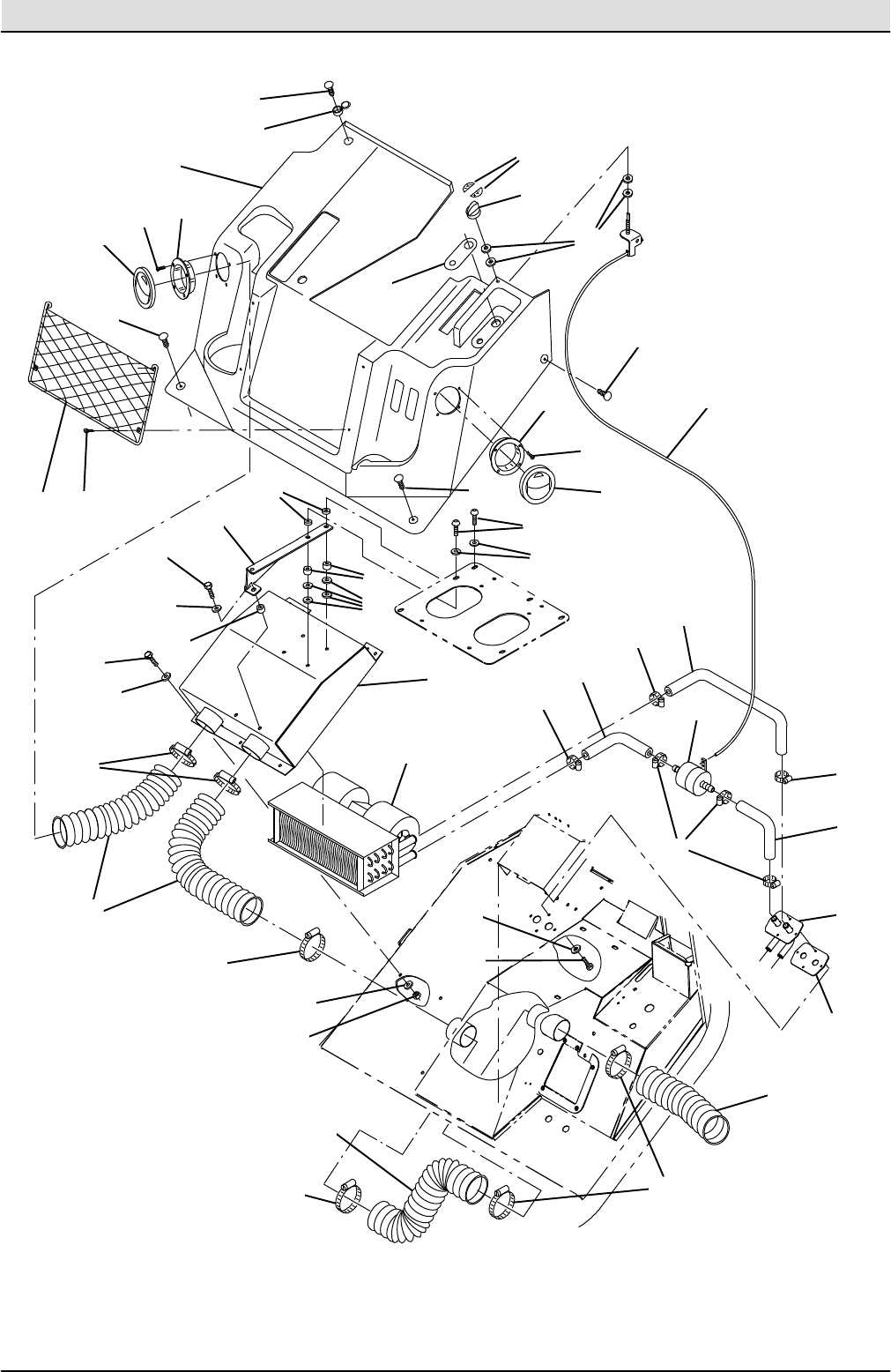

- Fig. 29 − Cab Heater Group

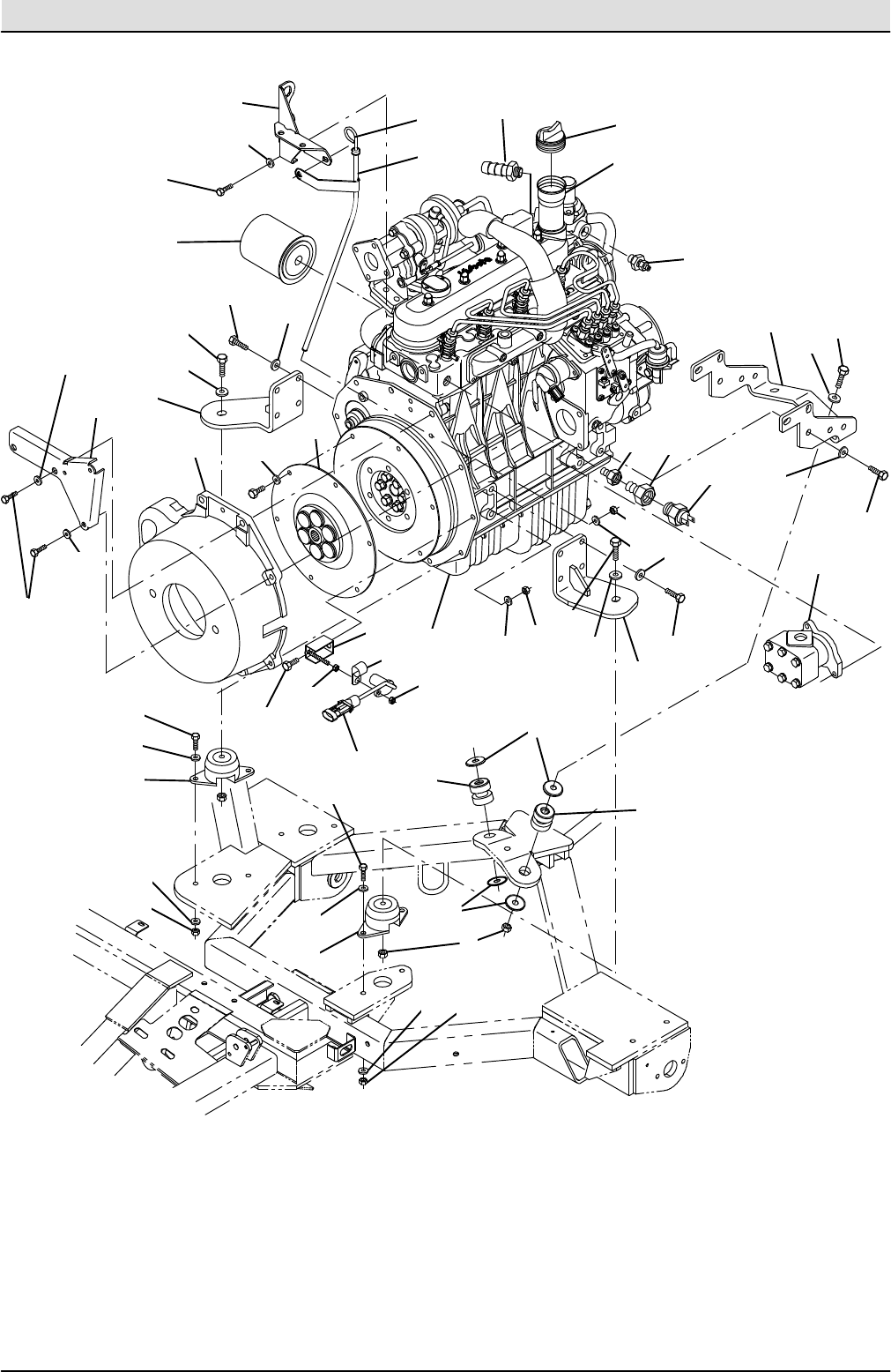

- Fig. 30 − Engine Mount Group

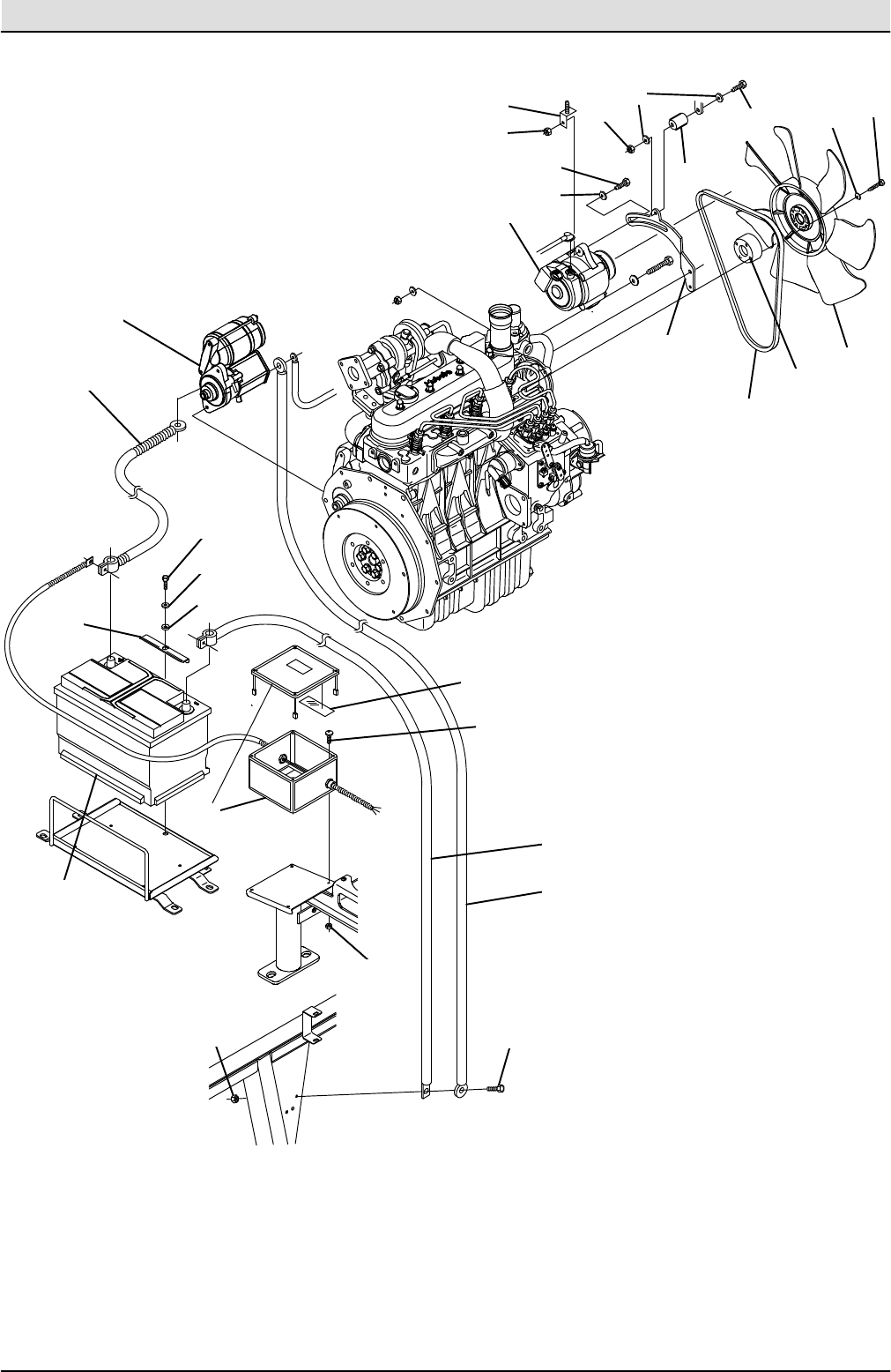

- Fig. 31 − Engine Battery and Alternator Group

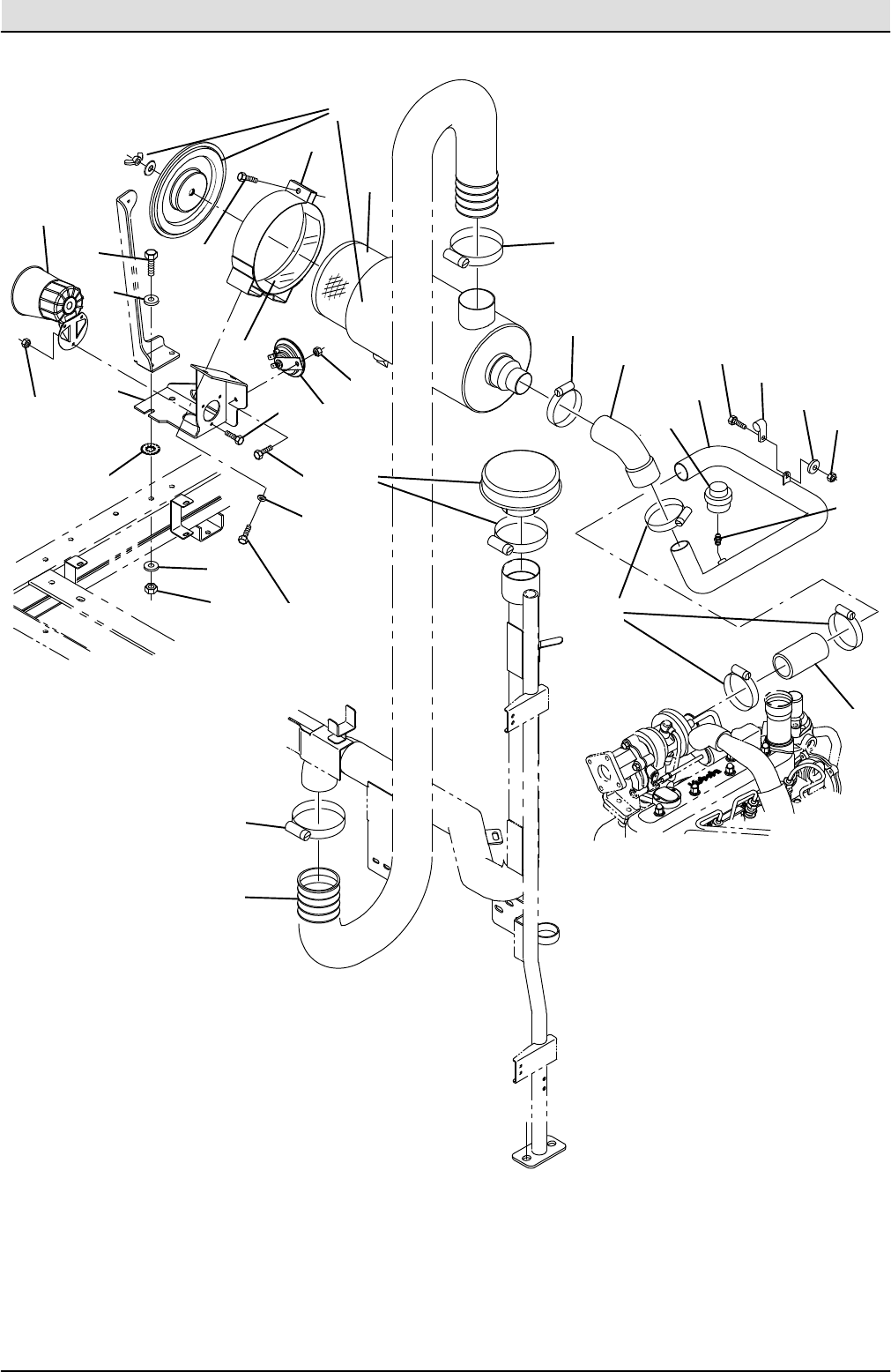

- Fig. 32 − Engine Air Filter Group
- Fig. 33 − Engine Muffler Group

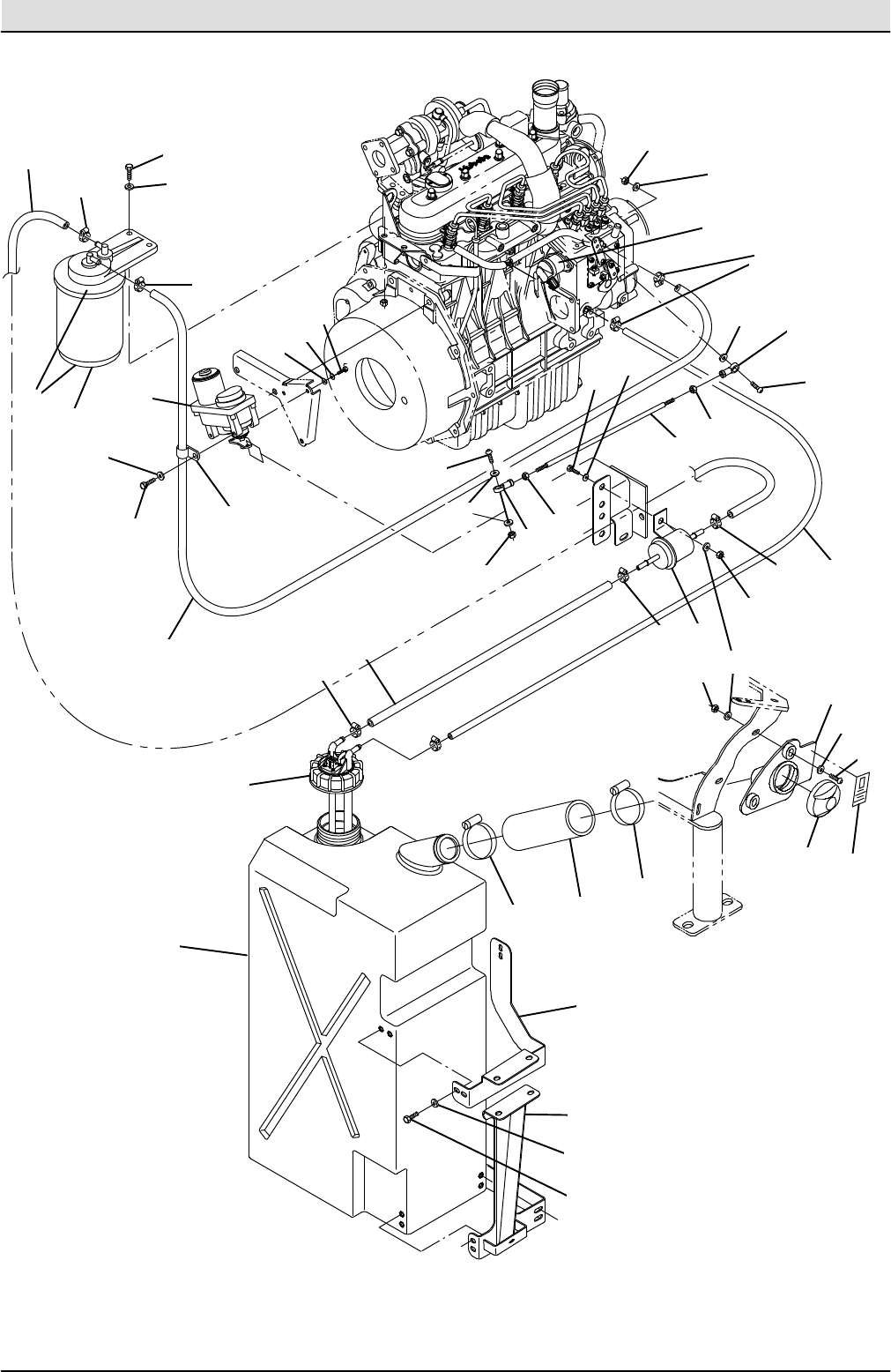

- Fig. 34 − Engine Fuel Supply Group

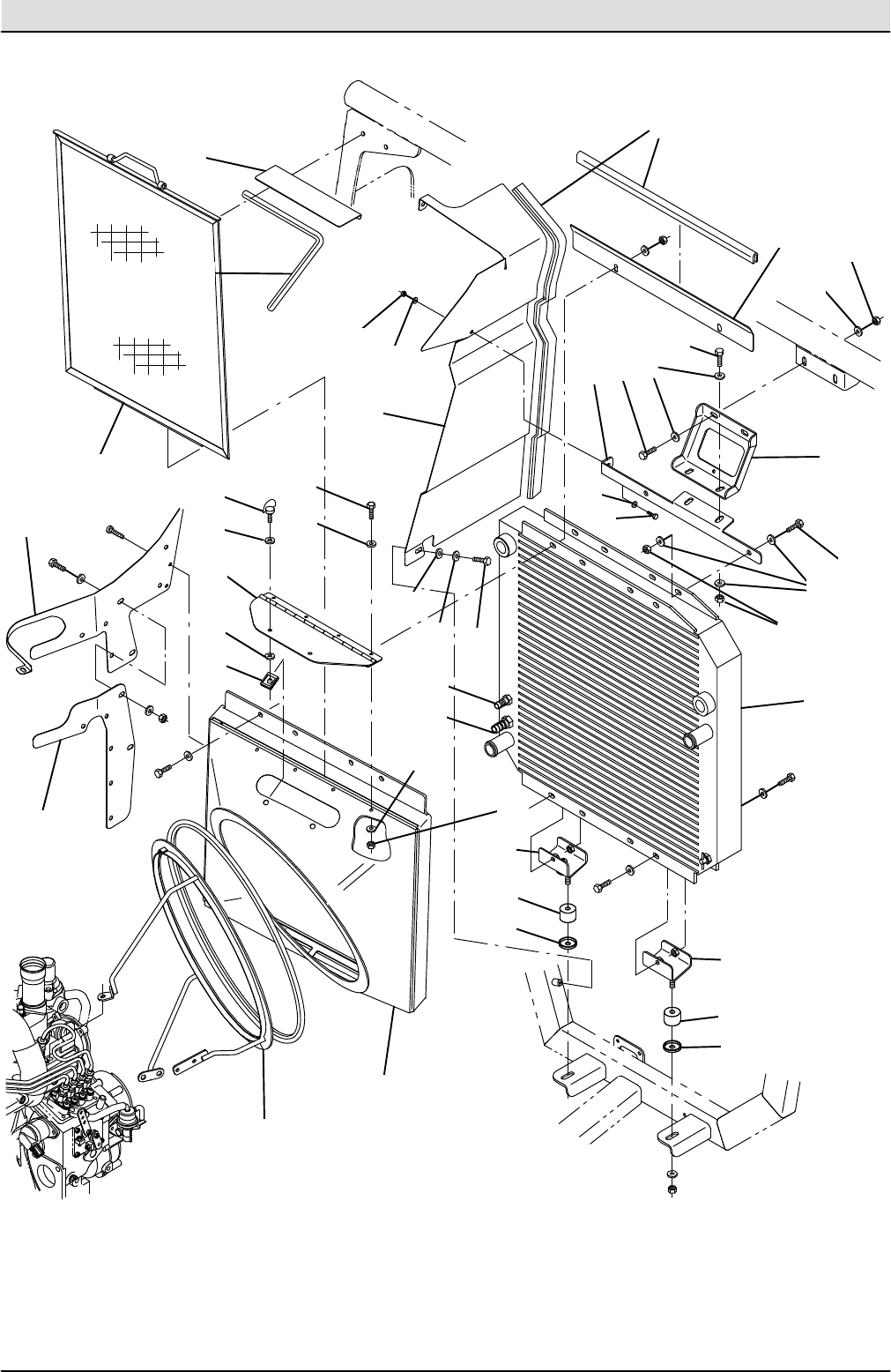

- Fig. 35 − Engine Radiator Mount Group

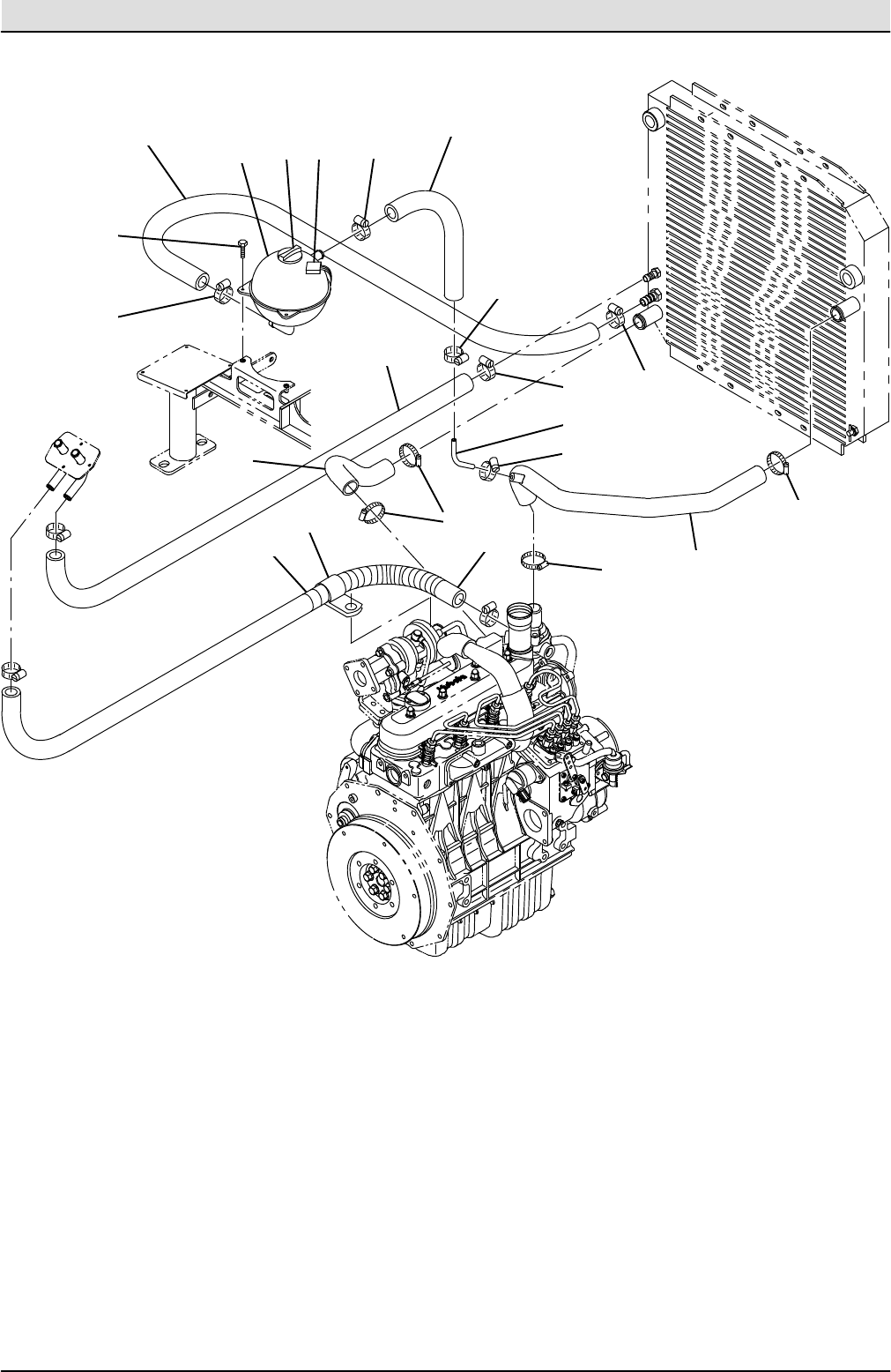

- Fig. 36 − Engine Radiator Hoses Group
- Fig. 37 − Brush Arm Lift Group, Right Hand
- Fig. 38 − Brush Arm Lift Group, Left Hand

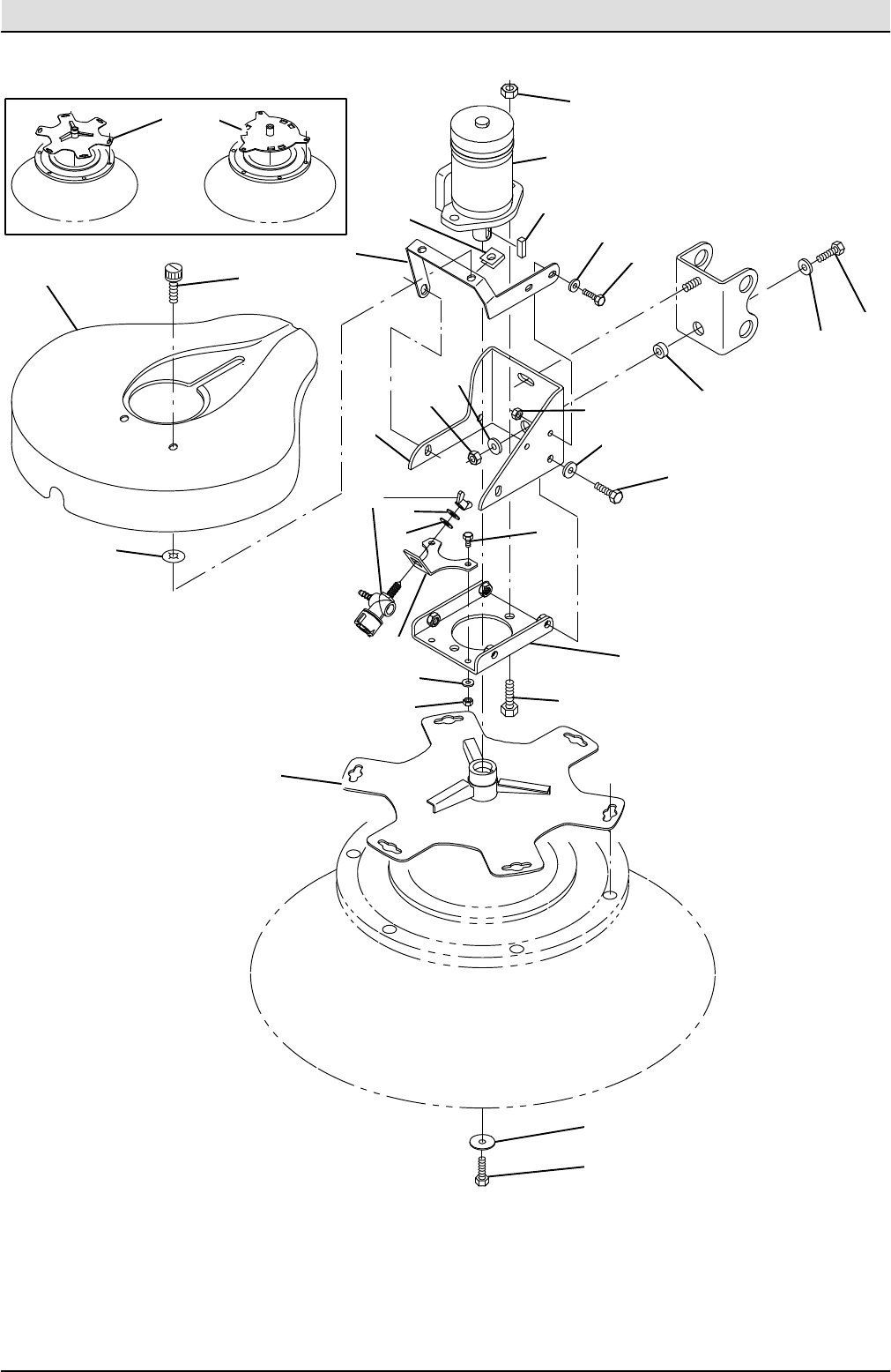

- Fig. 39 − Brush Arm Motor Group, Right Hand
- Fig. 40 − Brush Arm Motor Group, Left Hand

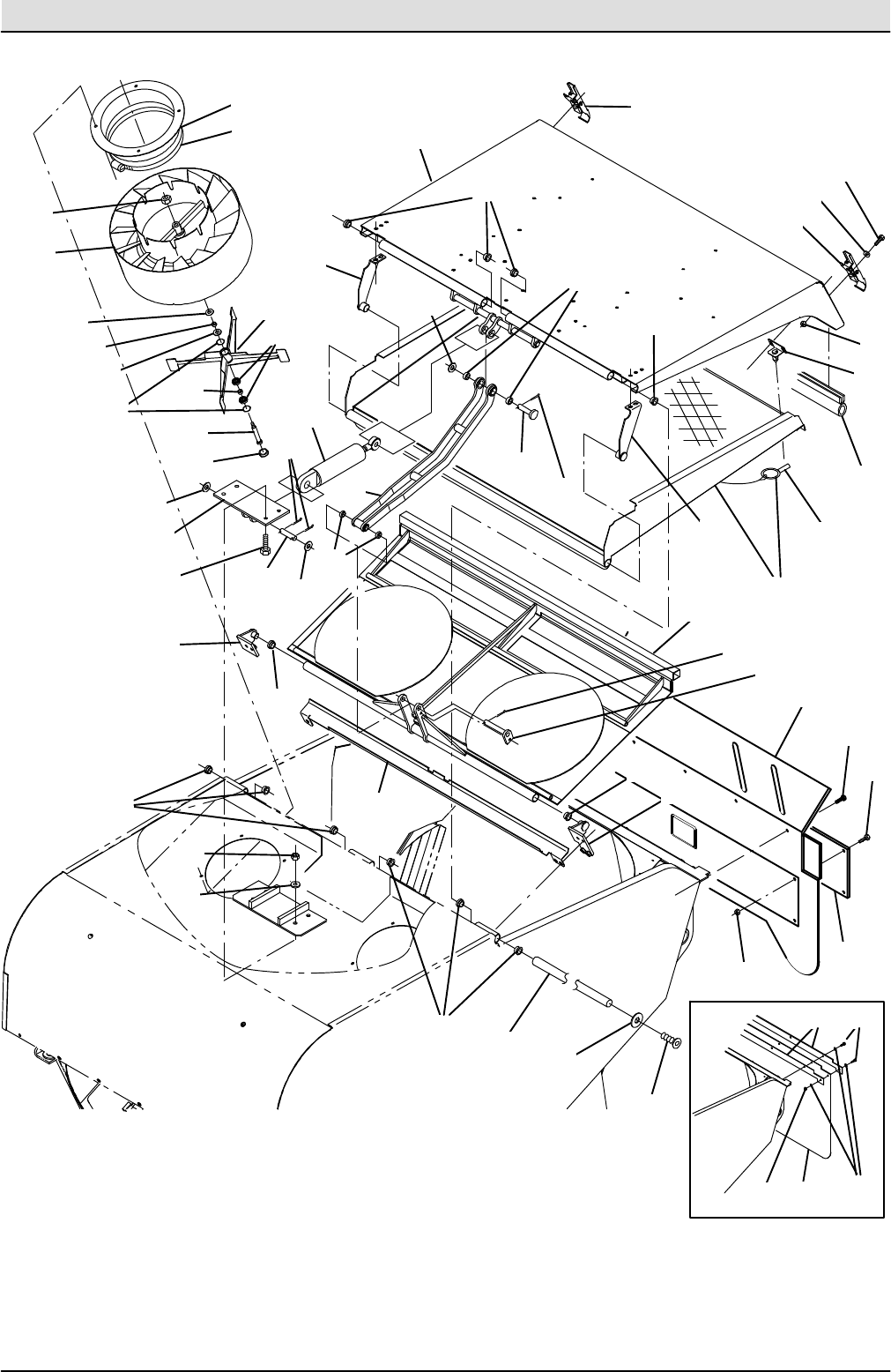

- Fig. 41 − Hopper Group
- Fig. 42 − Hopper Dump Door Group
- Fig. 43 − Hopper Lift Group

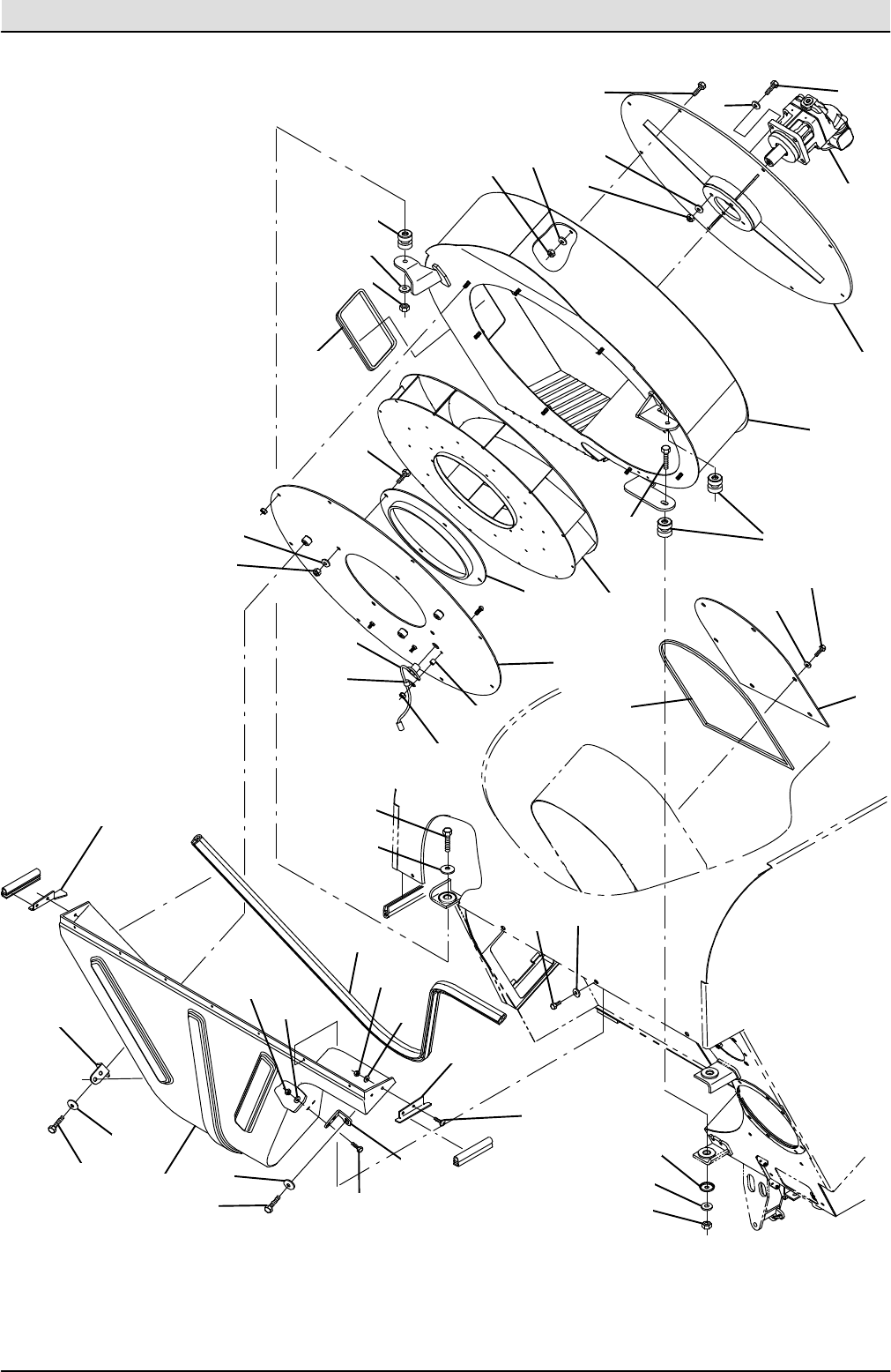

- Fig. 44 − Hopper Vacuum Fan Group

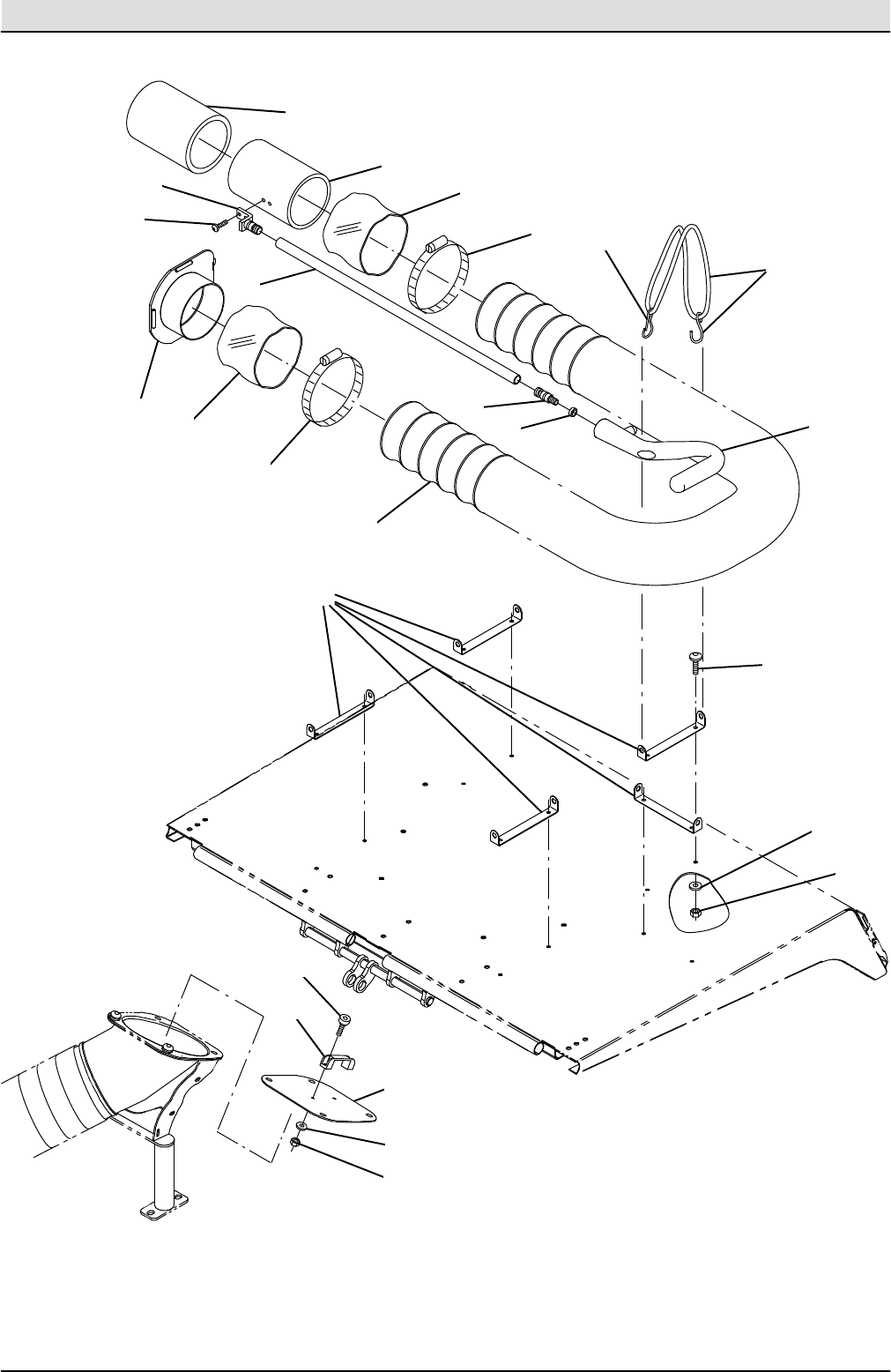

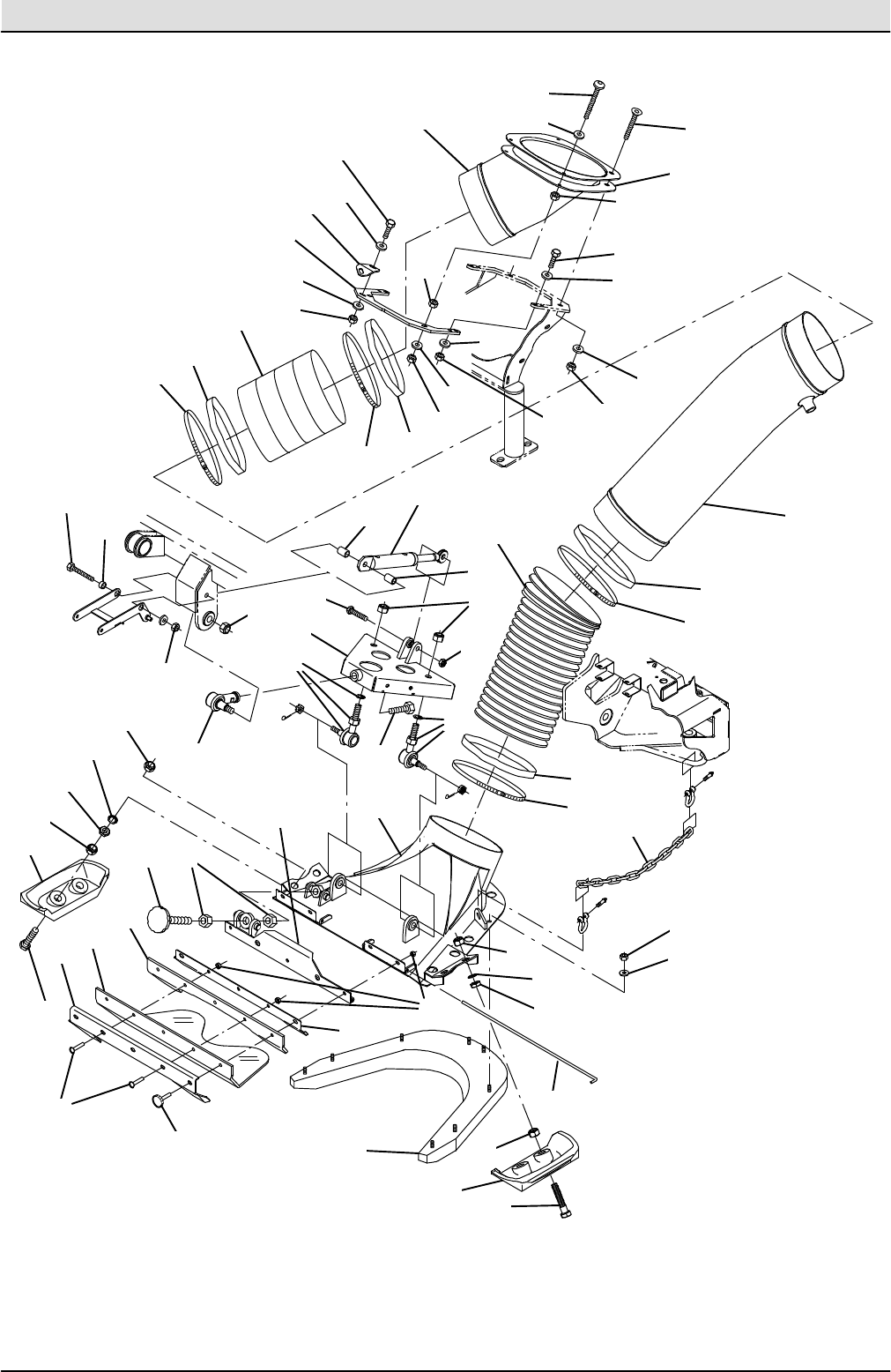

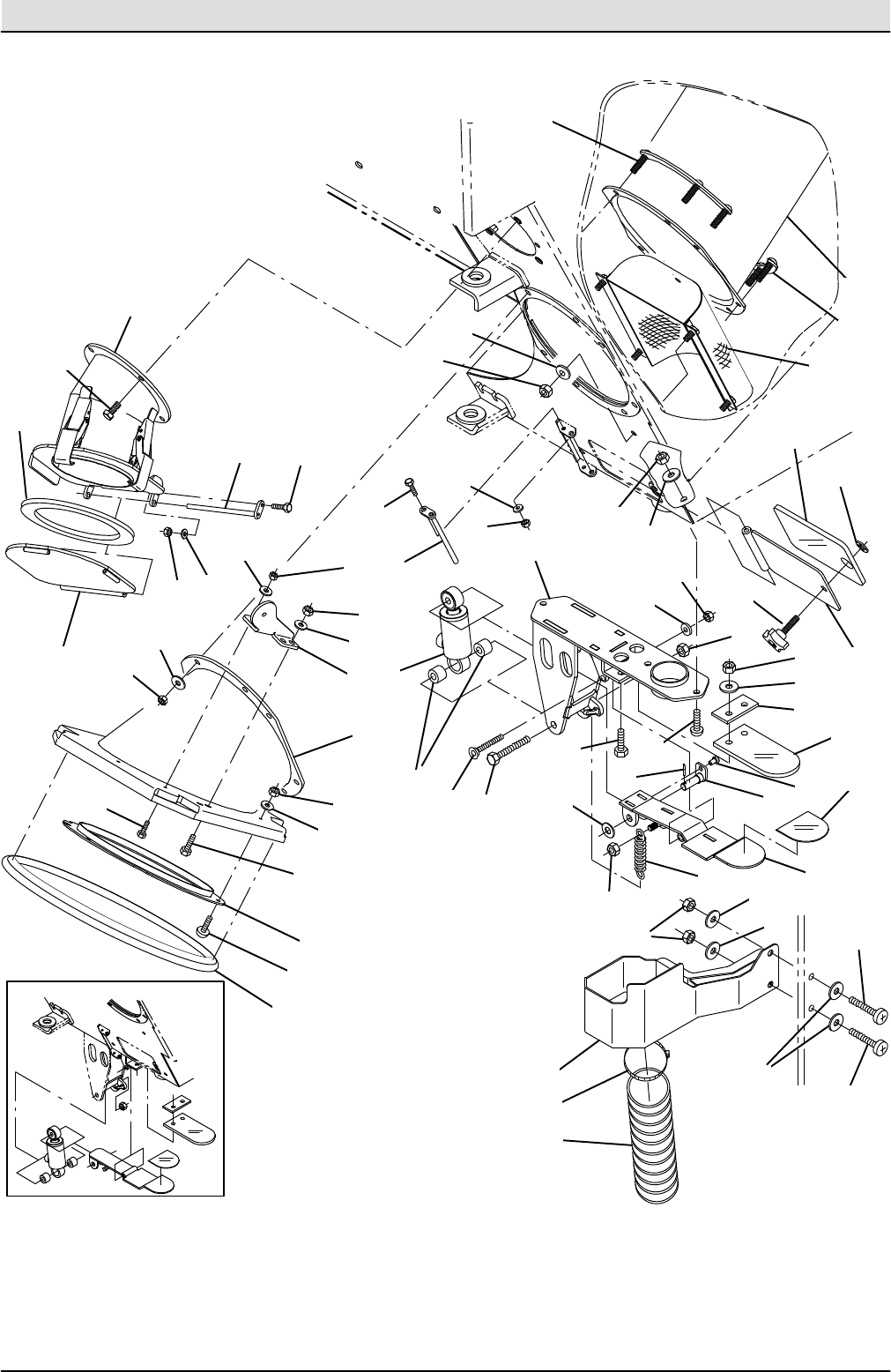

- Fig. 45 − Hopper Vacuum Nozzle Group (910364−15056053)
- Fig. 46 − Hopper Vacuum Nozzle Group (15056054− )
- Fig. 47 − Hopper Inlet and Drain Group
- Fig. 48 − Hopper Vacuum Fan Access Door Group
- Fig. 49 − Water Tank Rear Door and Bumper Group
- Fig. 50 − Water Pump Group
- Fig. 51 − Water Supply Group

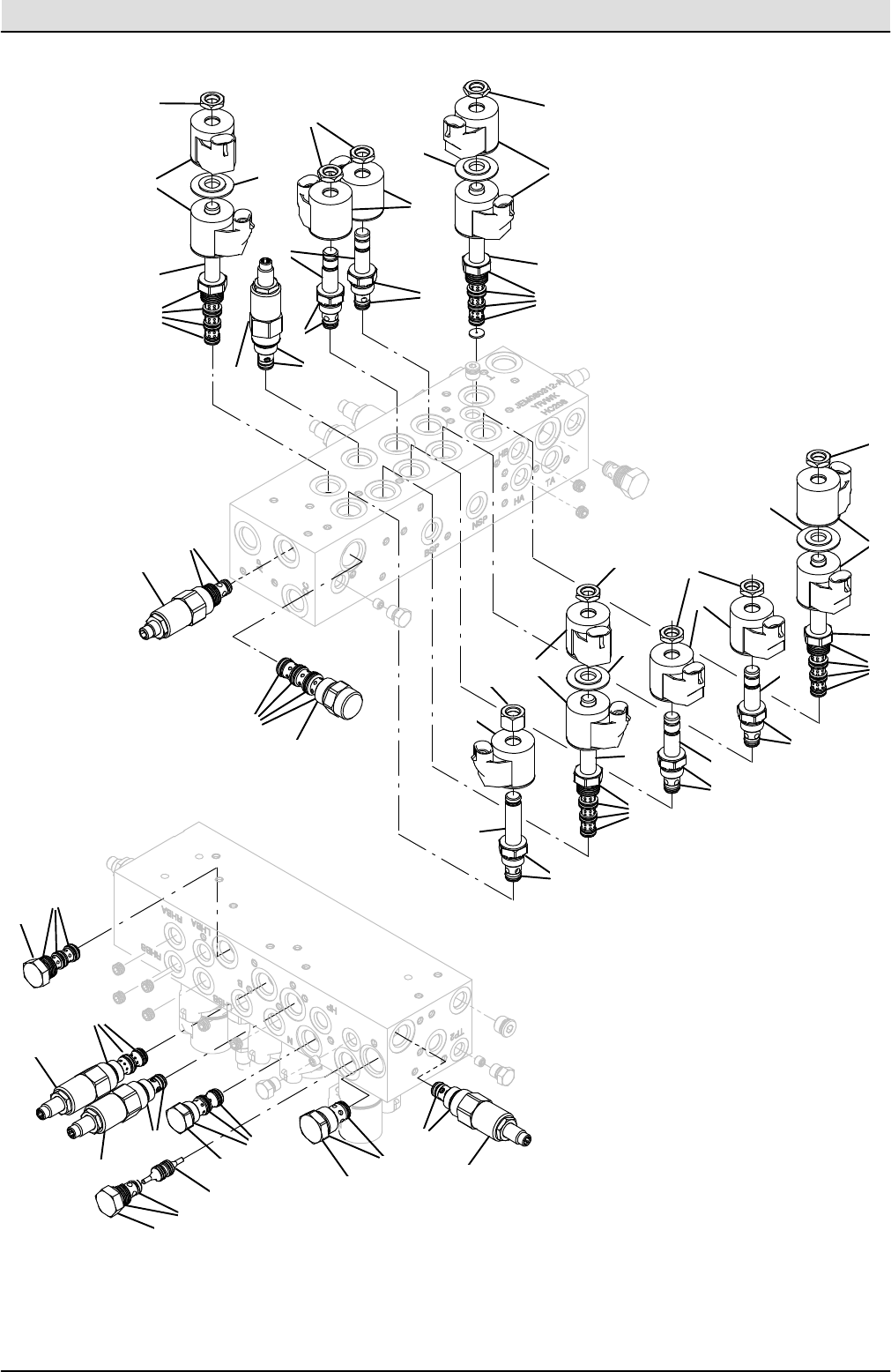

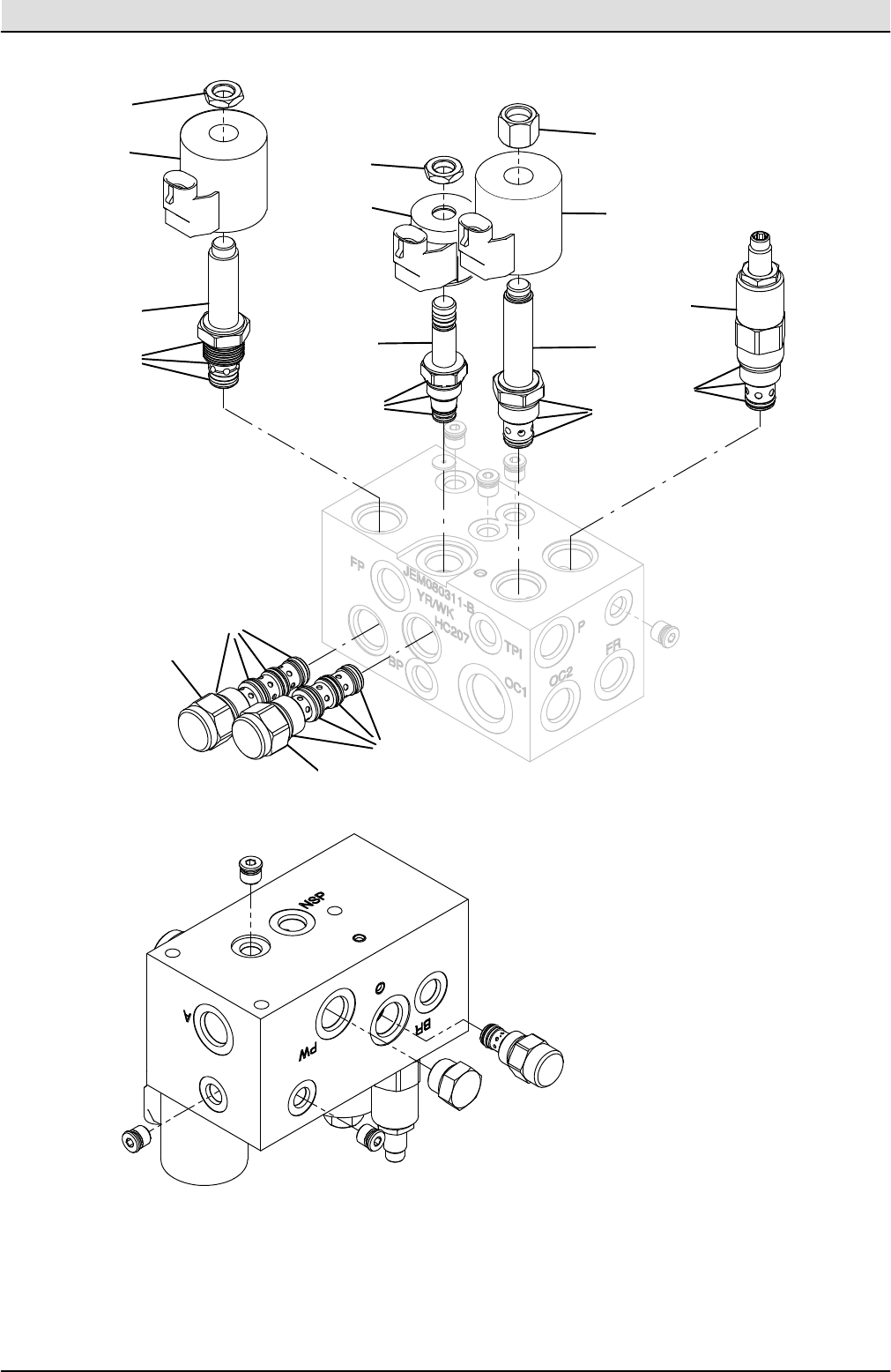

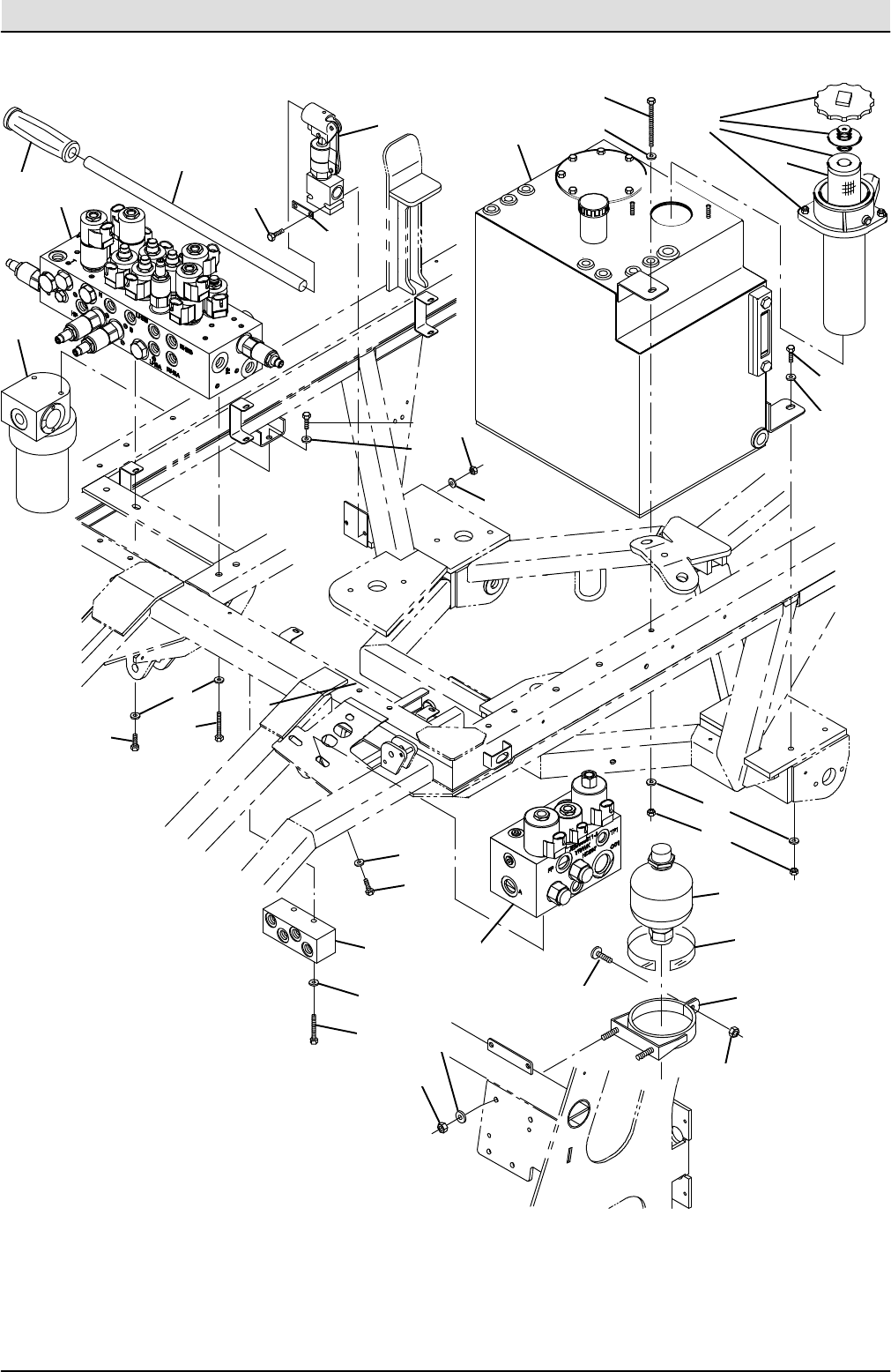

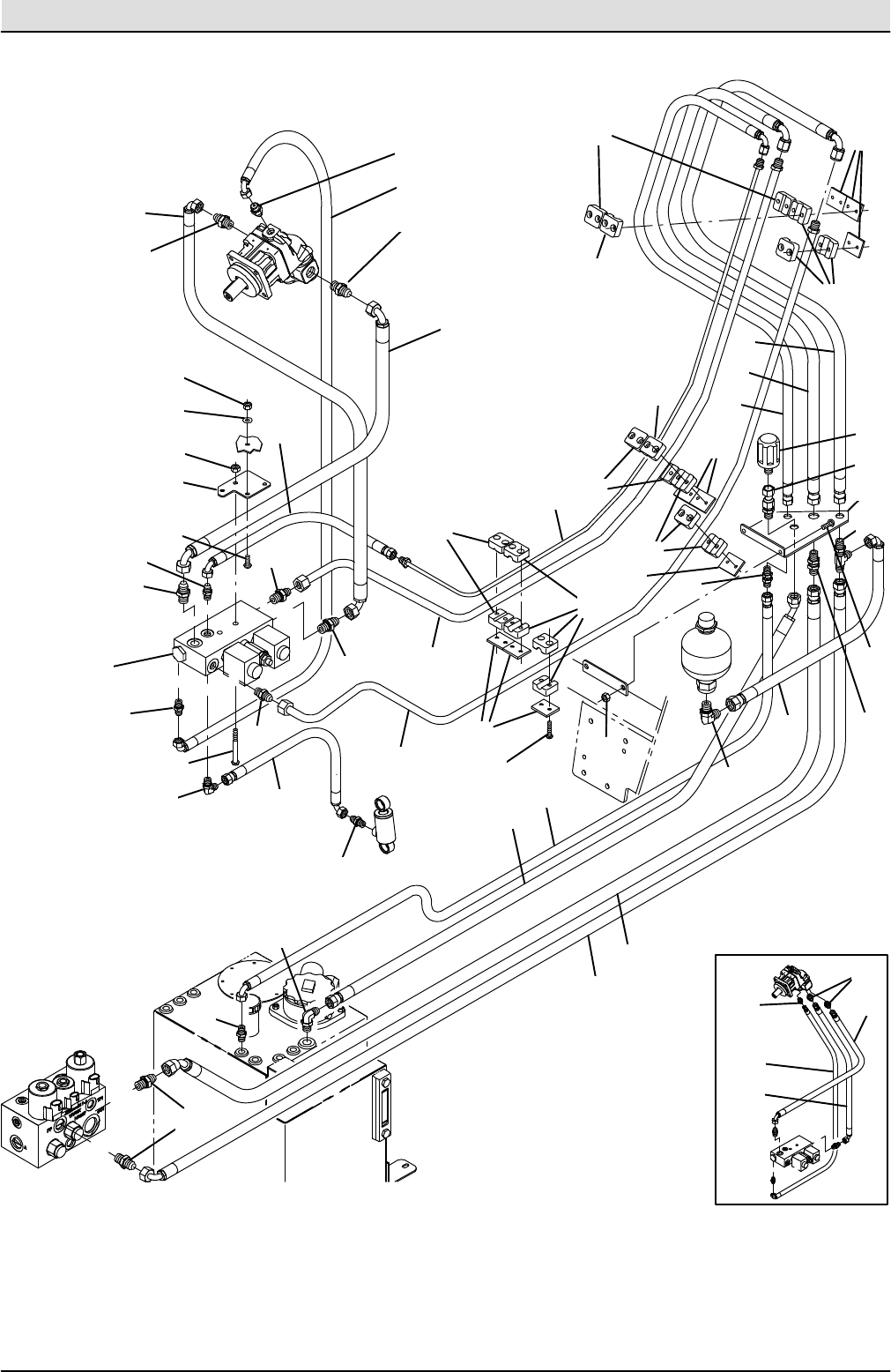

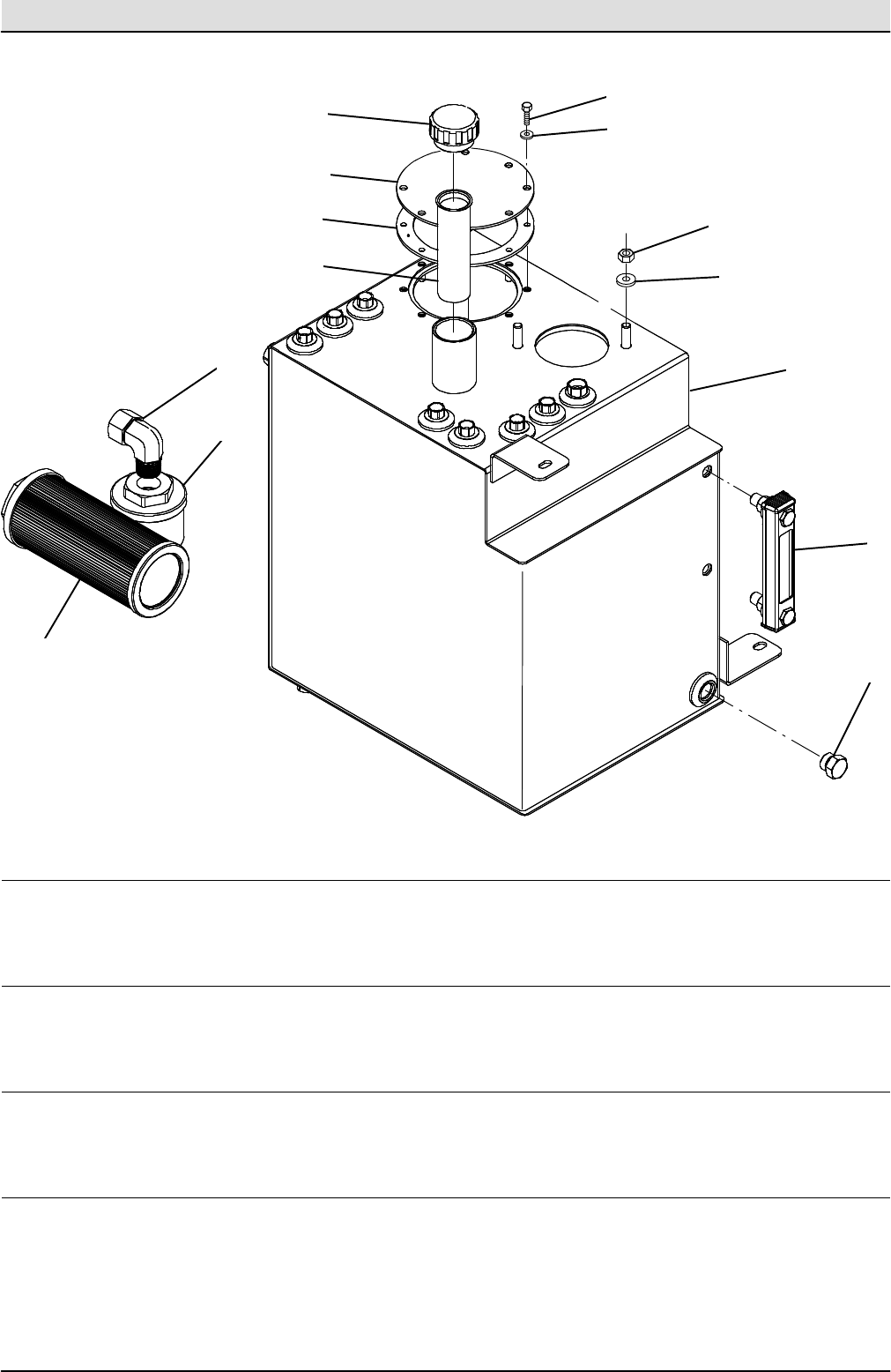

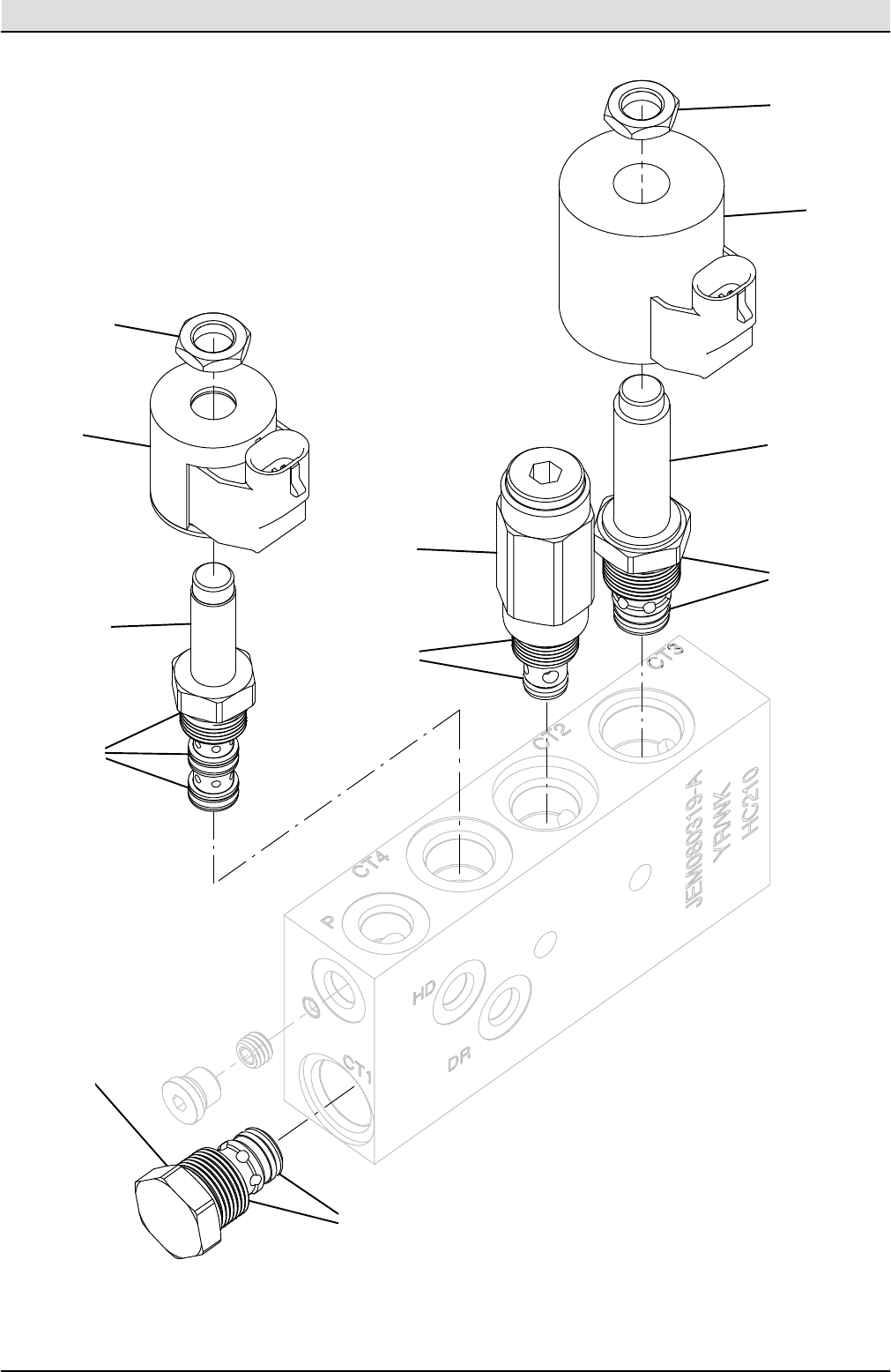

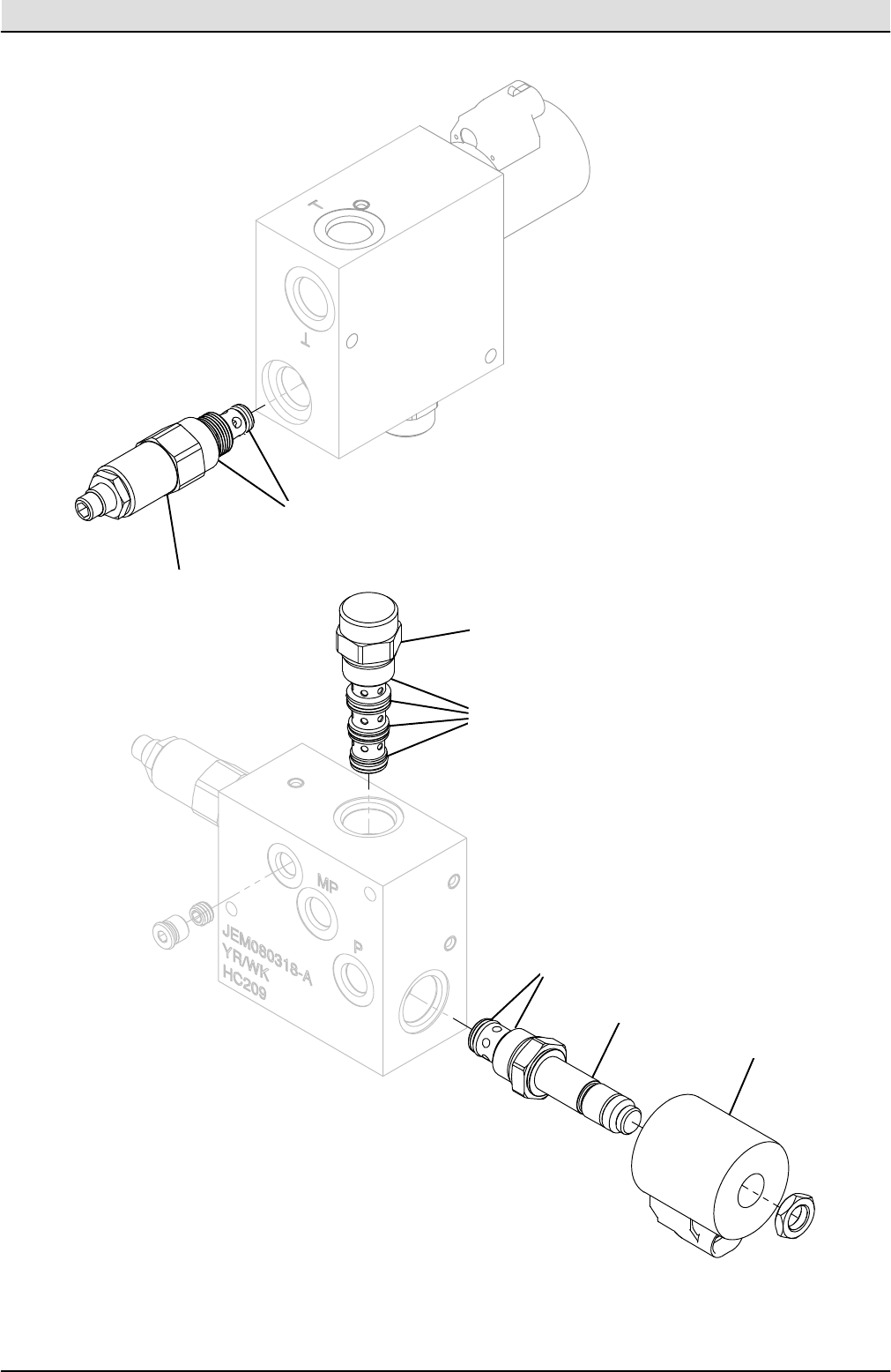

- Fig. 52 − Hydraulic Reservoir and Control Valves Group

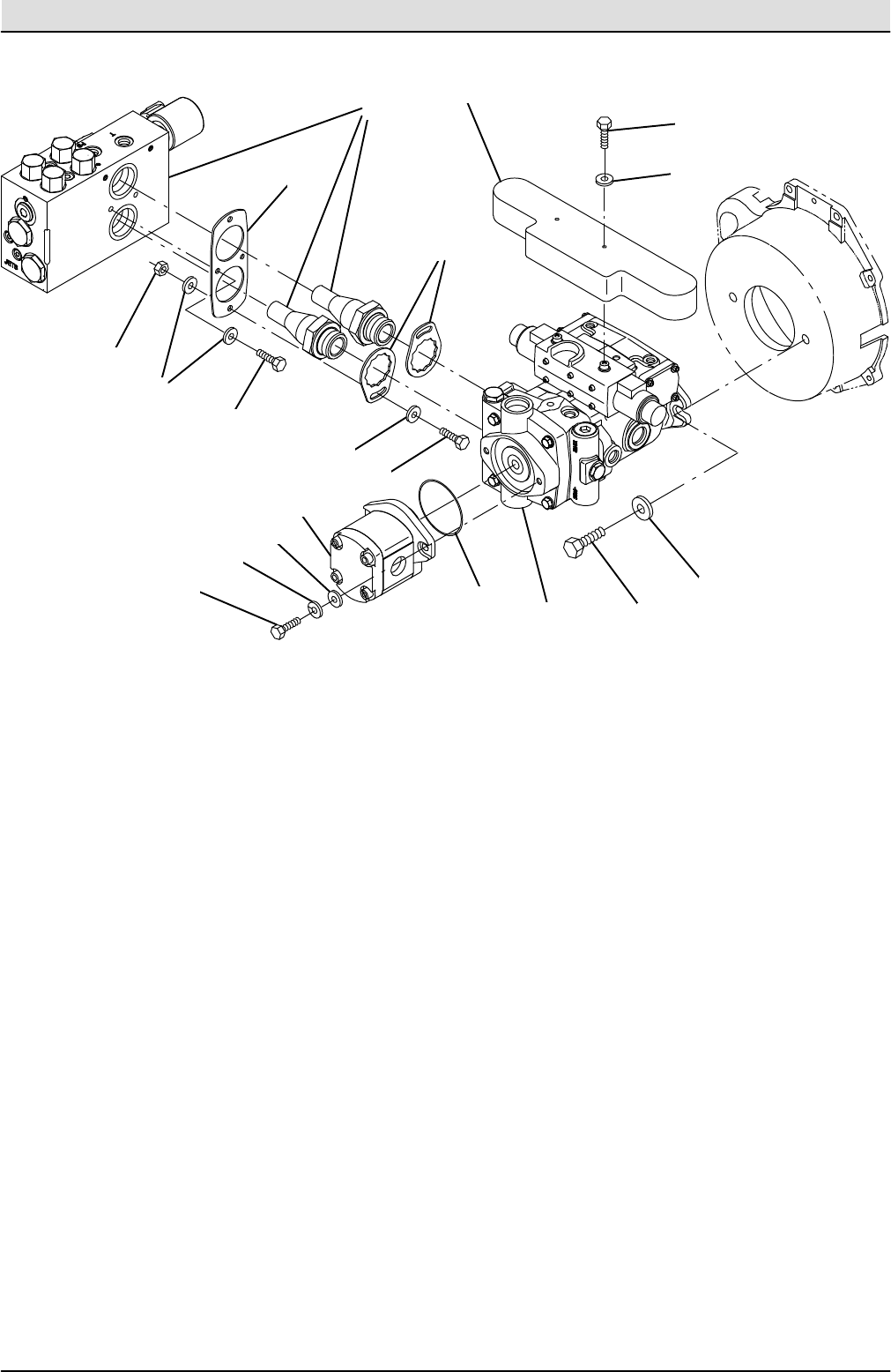

- Fig. 53 − Hydraulic Pumps Group

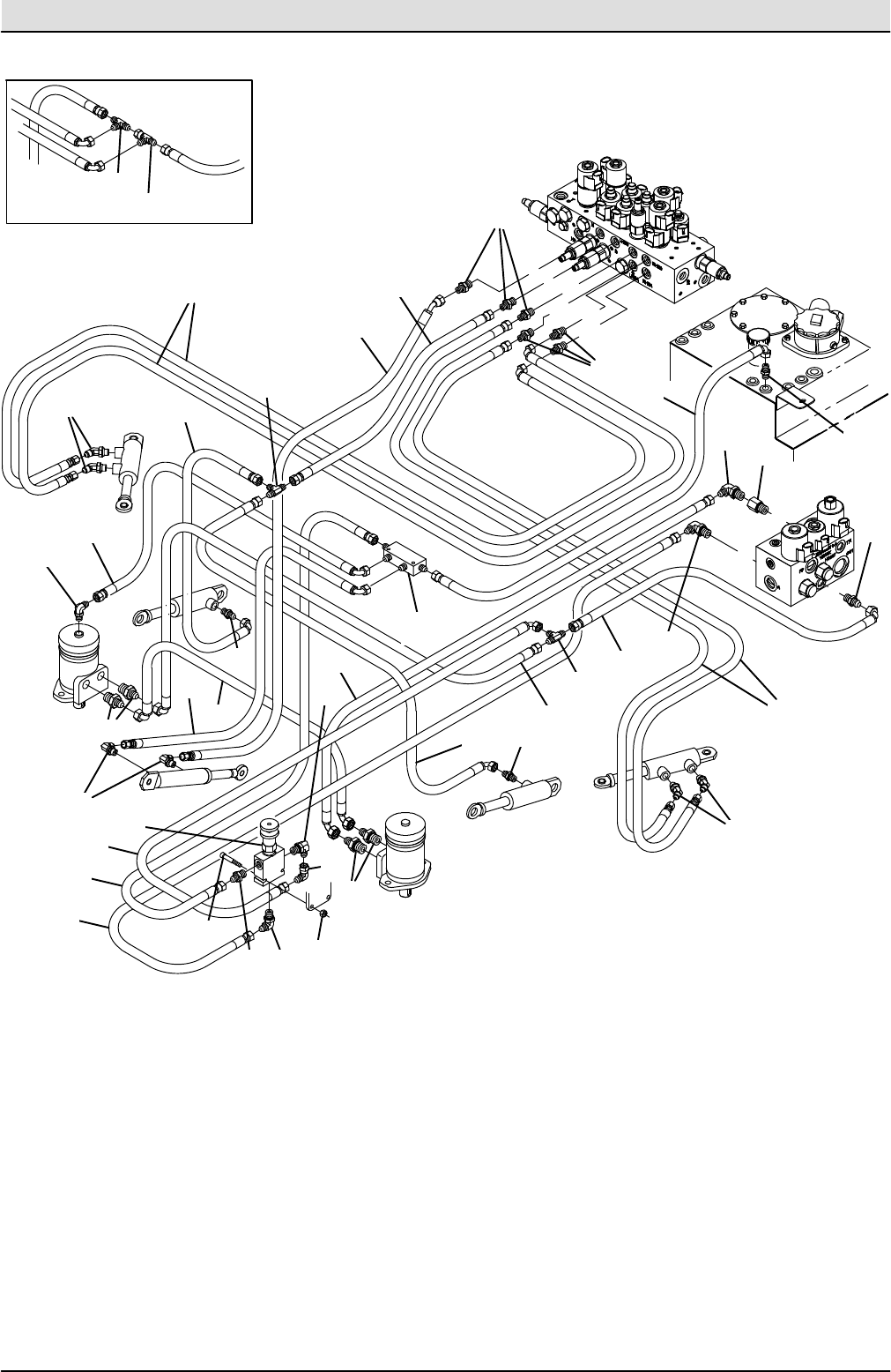

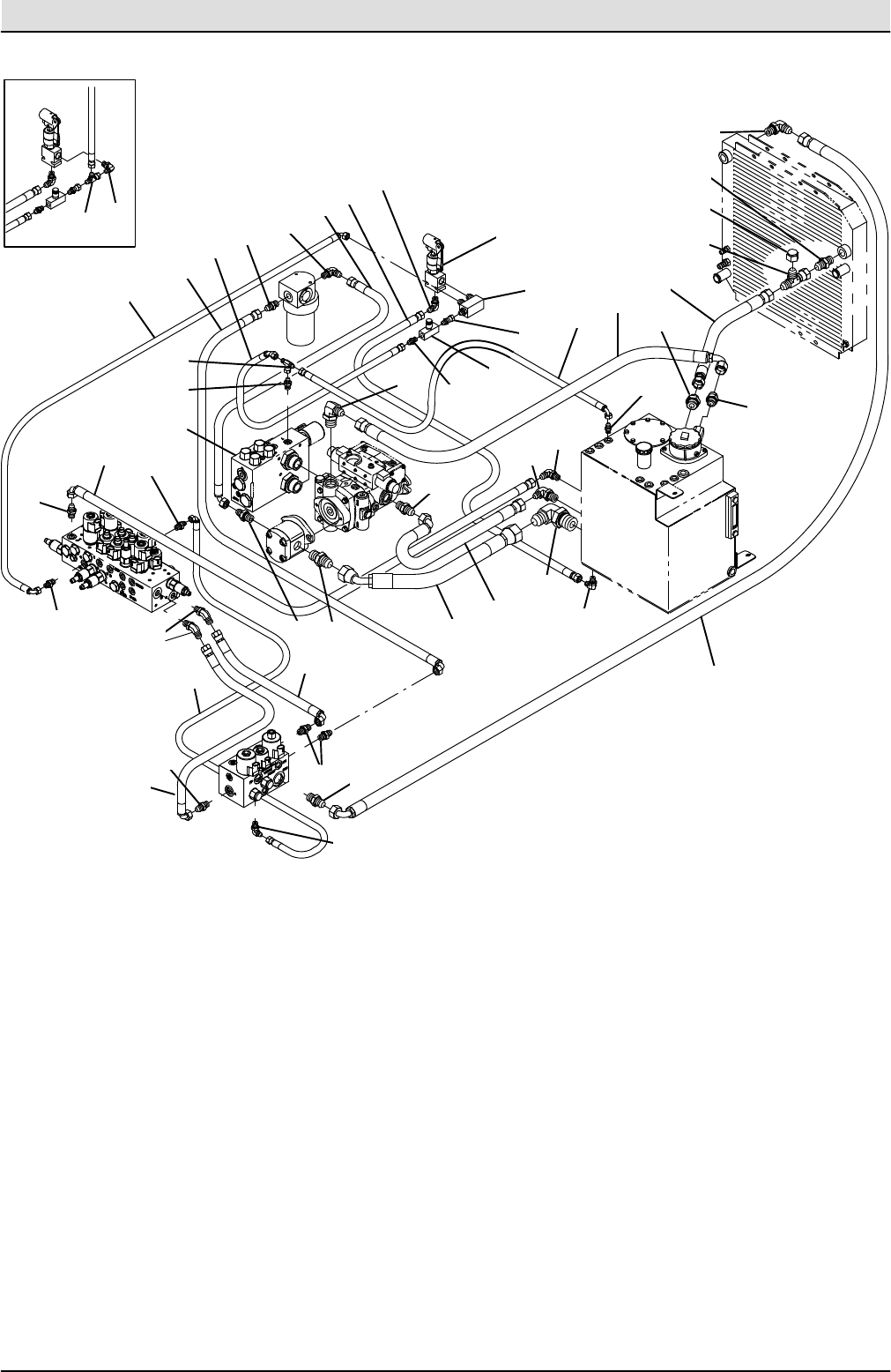

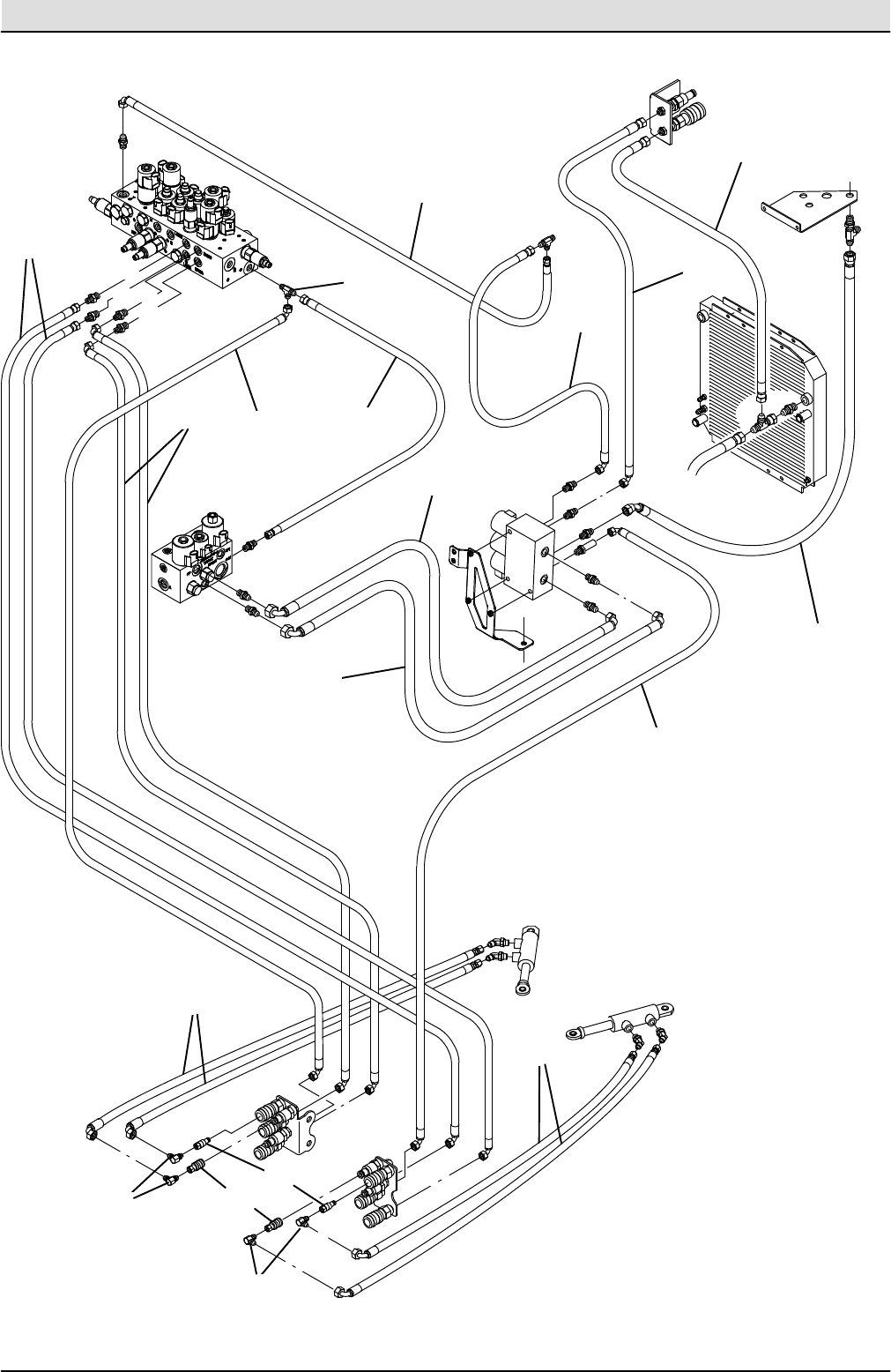

- Fig. 54 − Hydraulic Hose Pumps Group
- Fig. 55 − Hydraulic Hose Steering Group

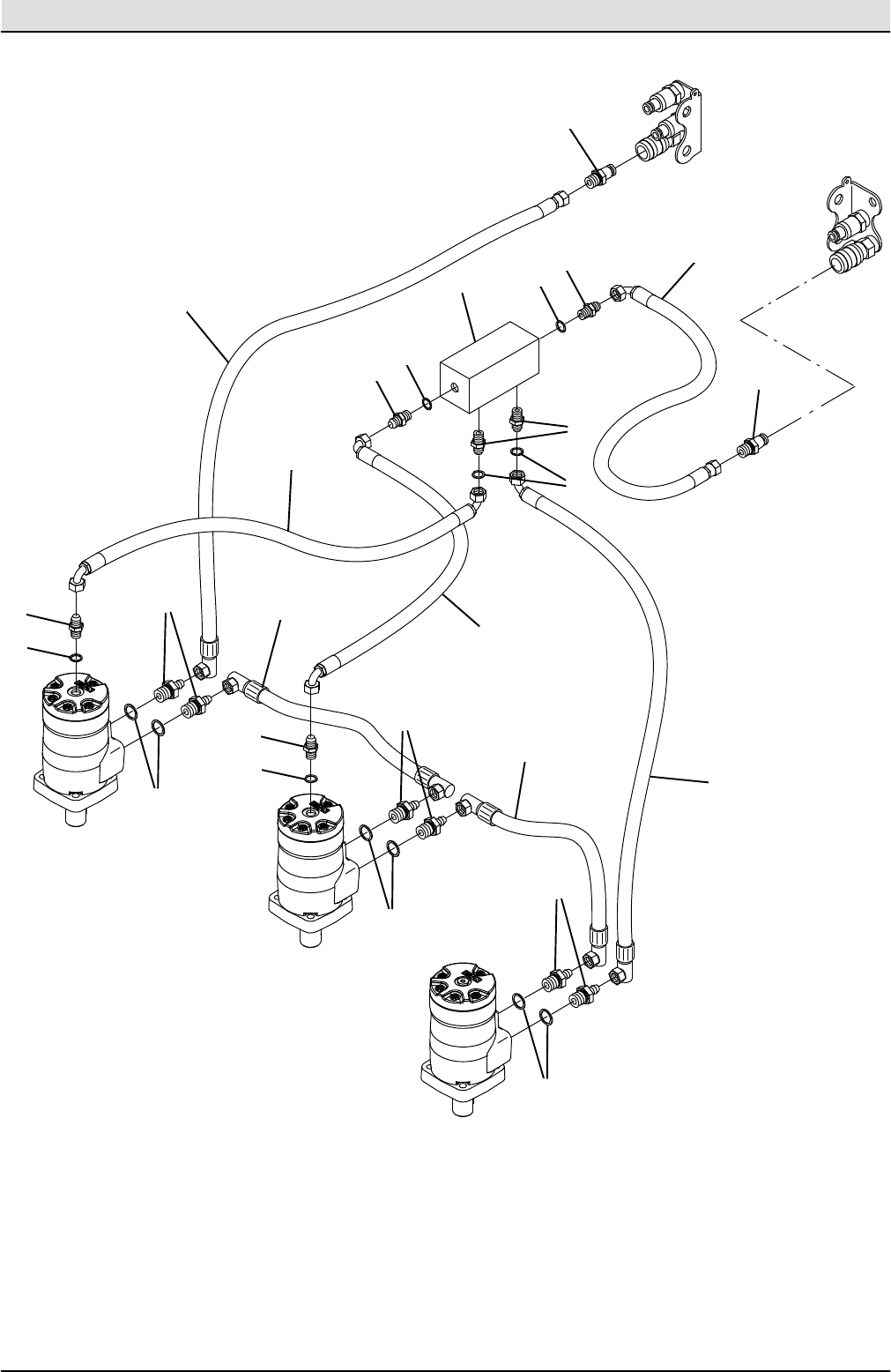

- Fig. 56 − Hydraulic Hose Brush Motors Group
- Fig. 57 − Hydraulic Hose Drive Motor Group
- Fig. 58 − Hydraulic Hose Vacuum Fan Group

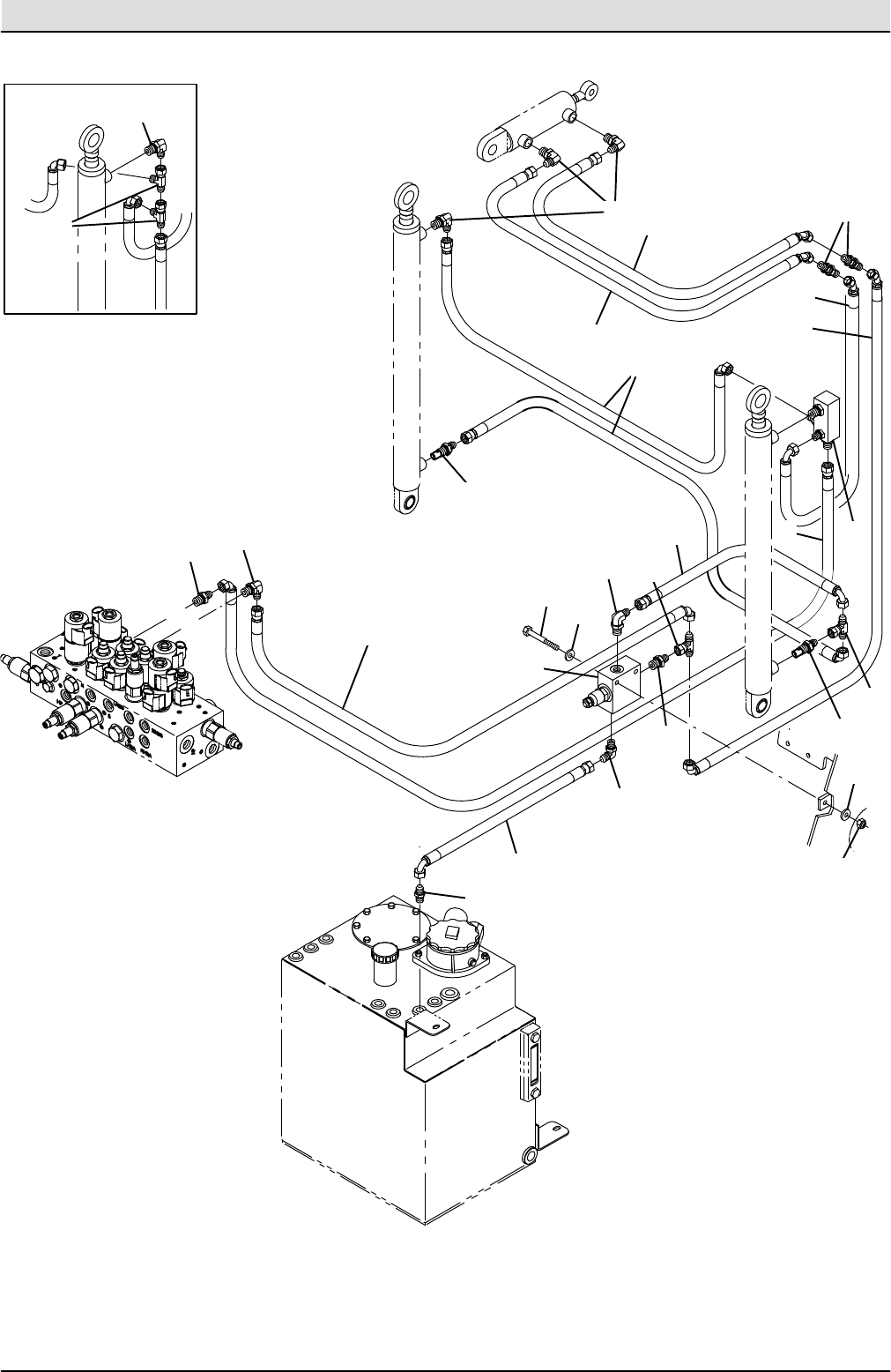

- Fig. 59 − Hydraulic Hose Hopper Lift and Dump Door Group

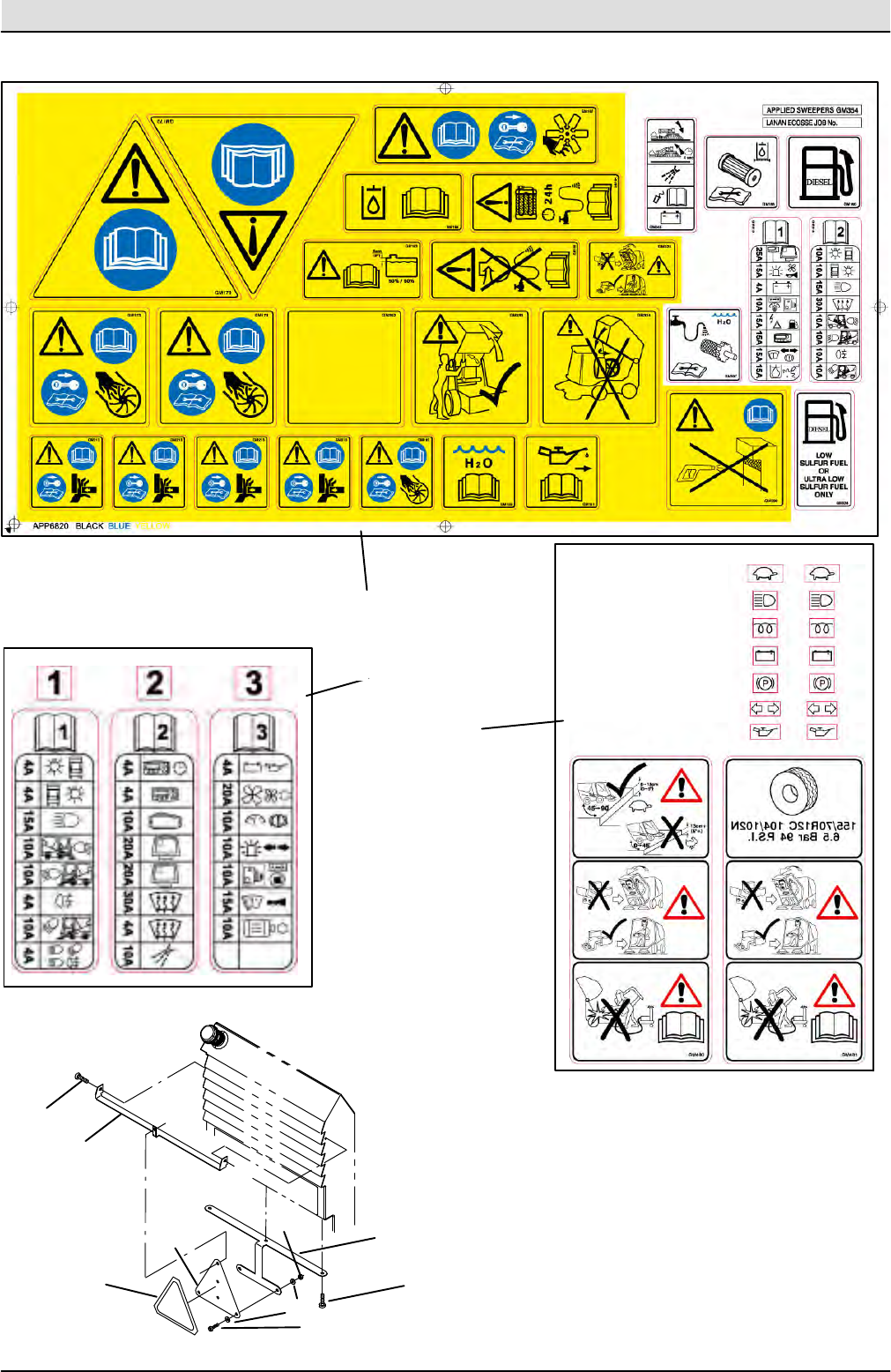

- Fig. 60 − Labels Group

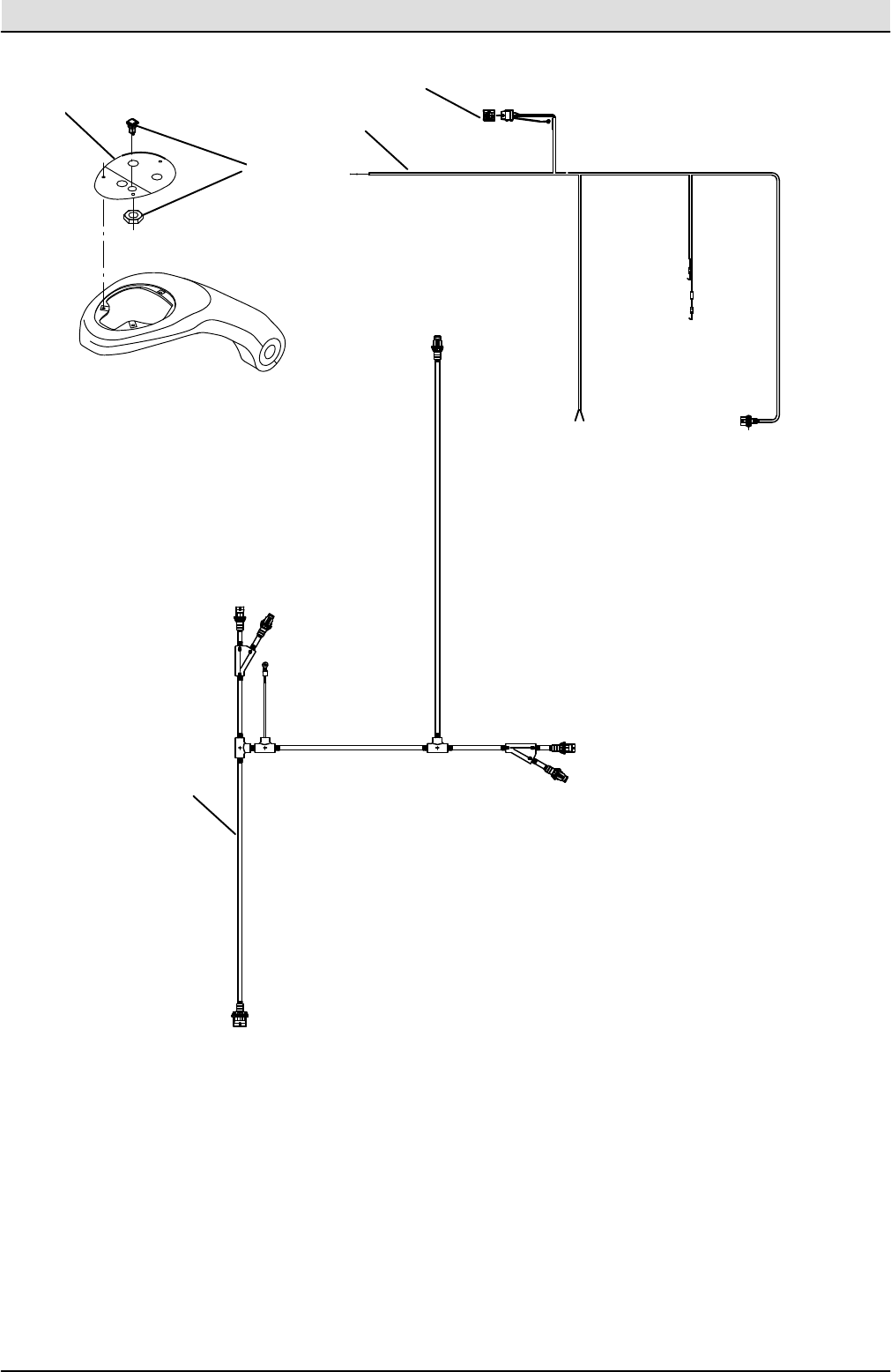

- Fig. 61 − Wire Harnesses Group
- OPTIONS

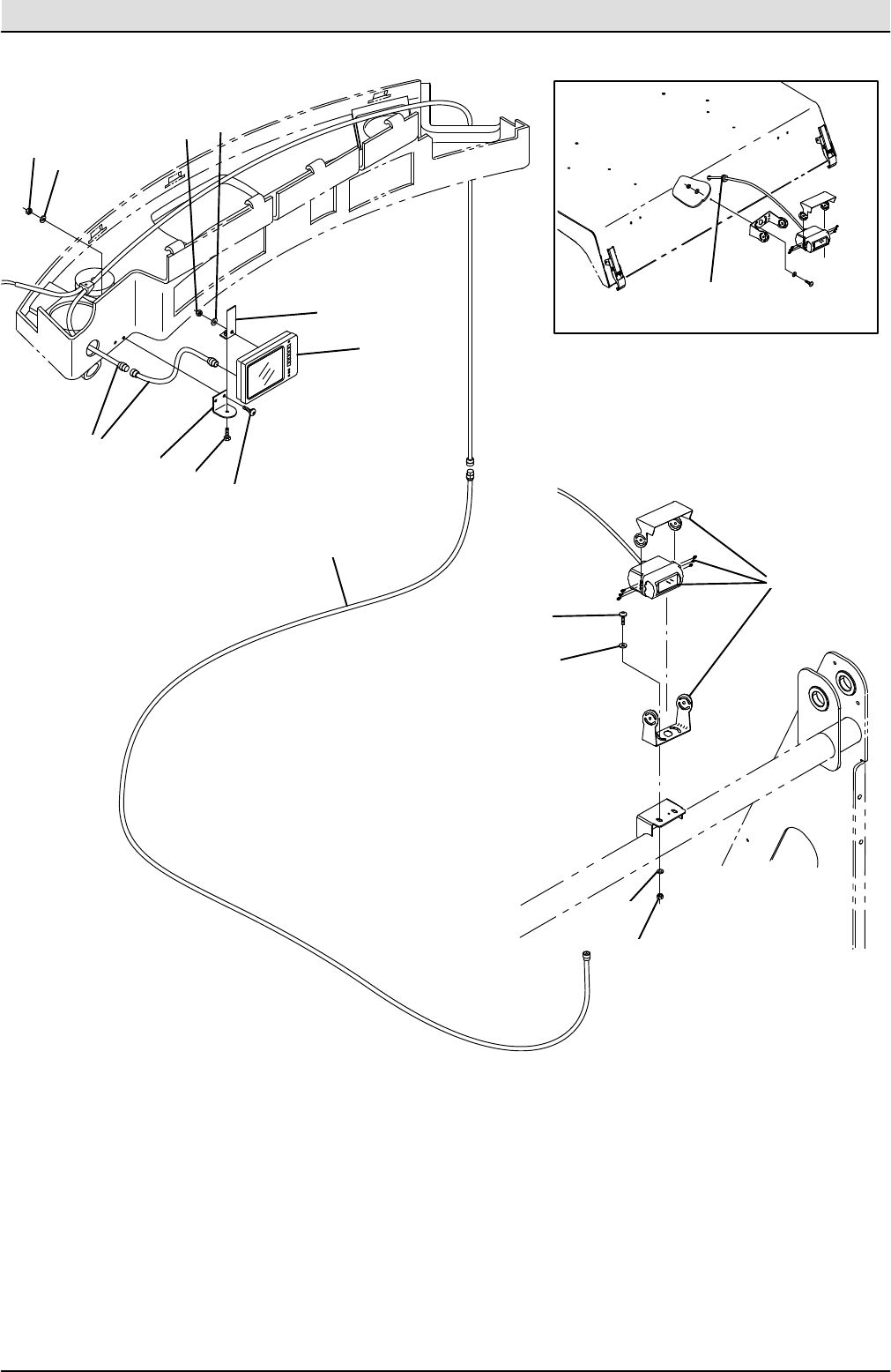

- Fig. 1 − Camera and Monitor Group
- Fig. 2 − Warning Light Kits, LED

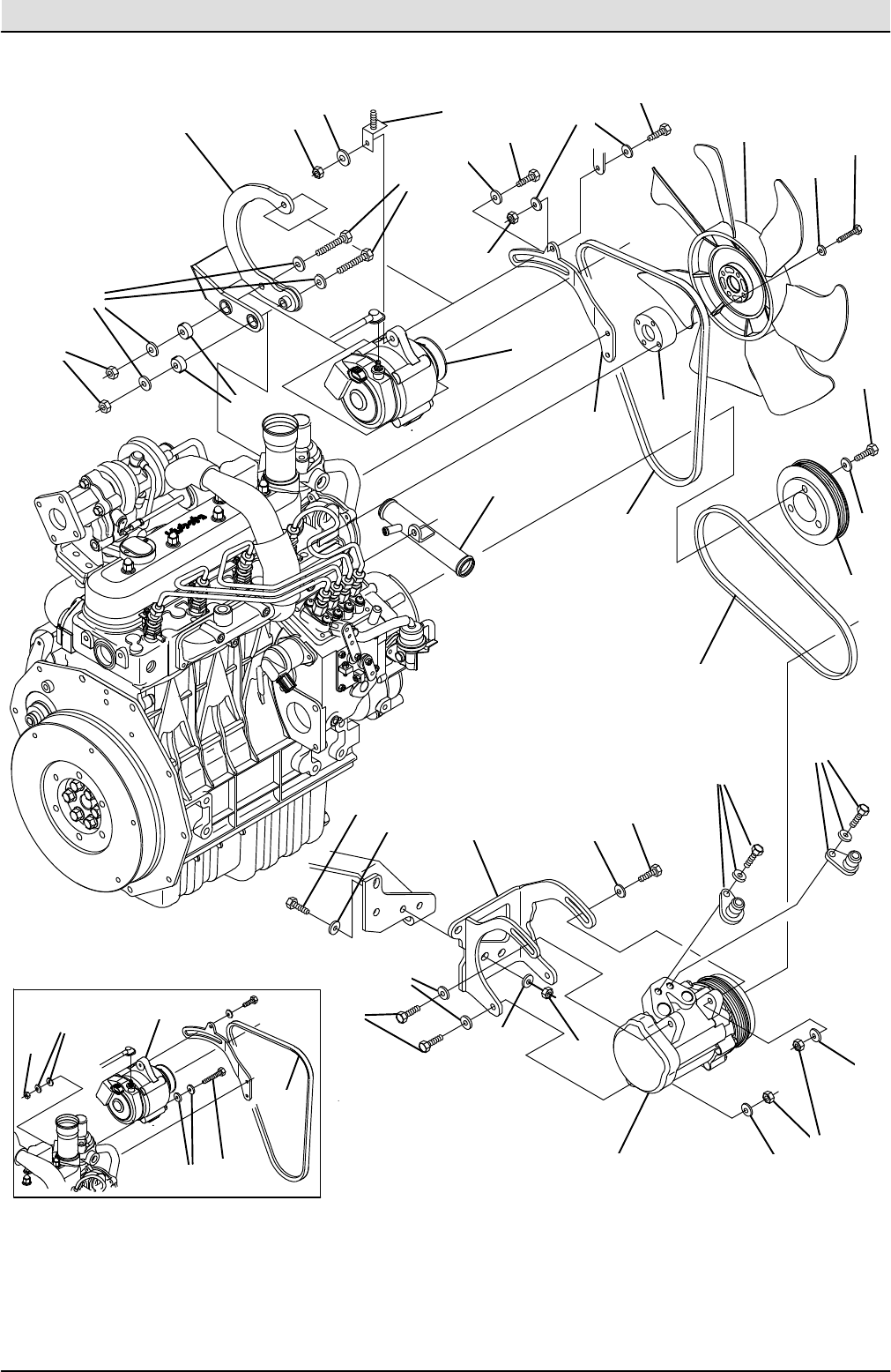

- Fig. 3 − Air Conditioning Alternator and Compressor Group
- Fig. 4 − Air Conditioning Rear Cab Group

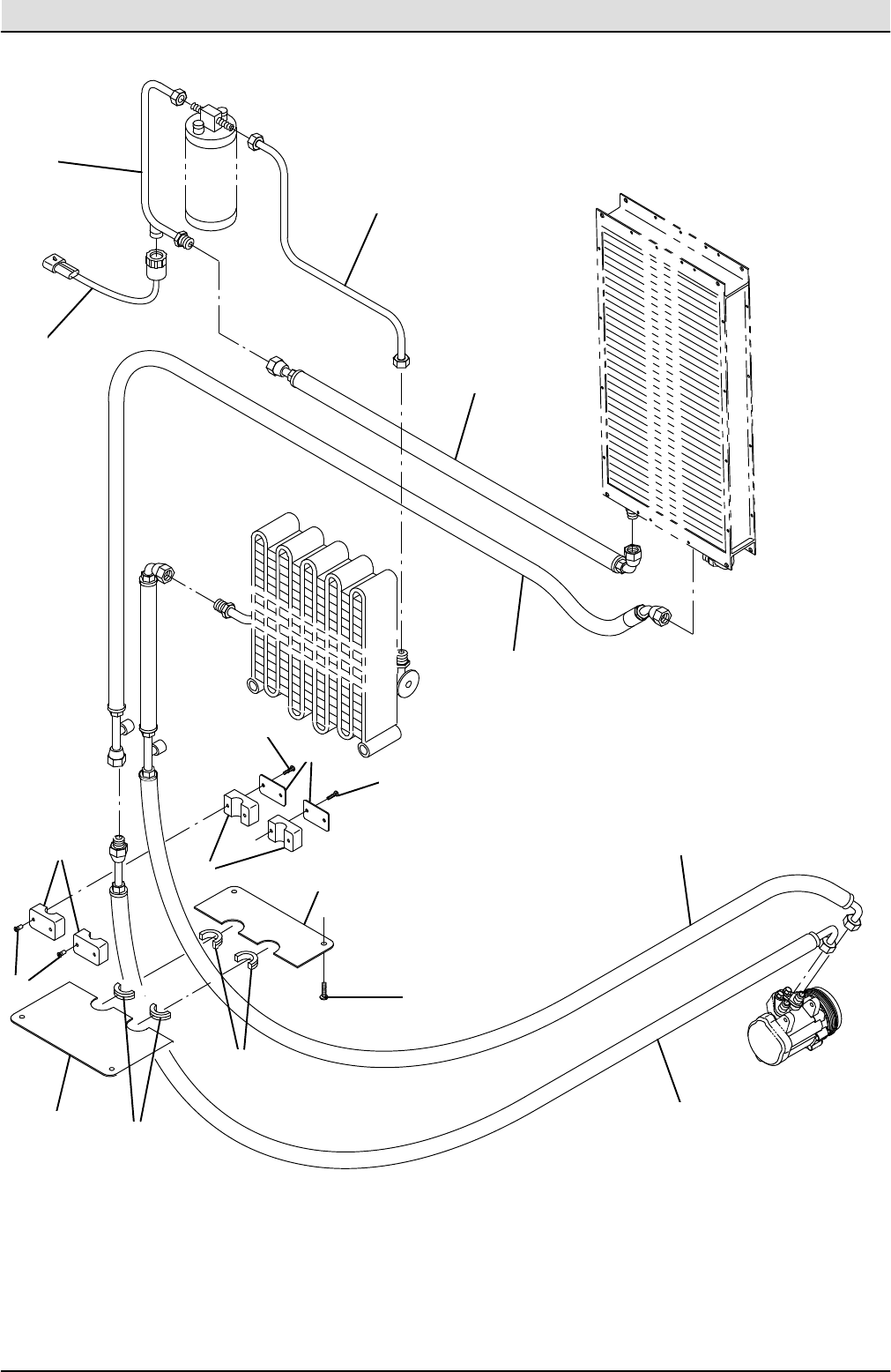

- Fig. 5 − Air Conditioning Hoses Group
- Fig. 6 − Air Conditioning Cab Top Group

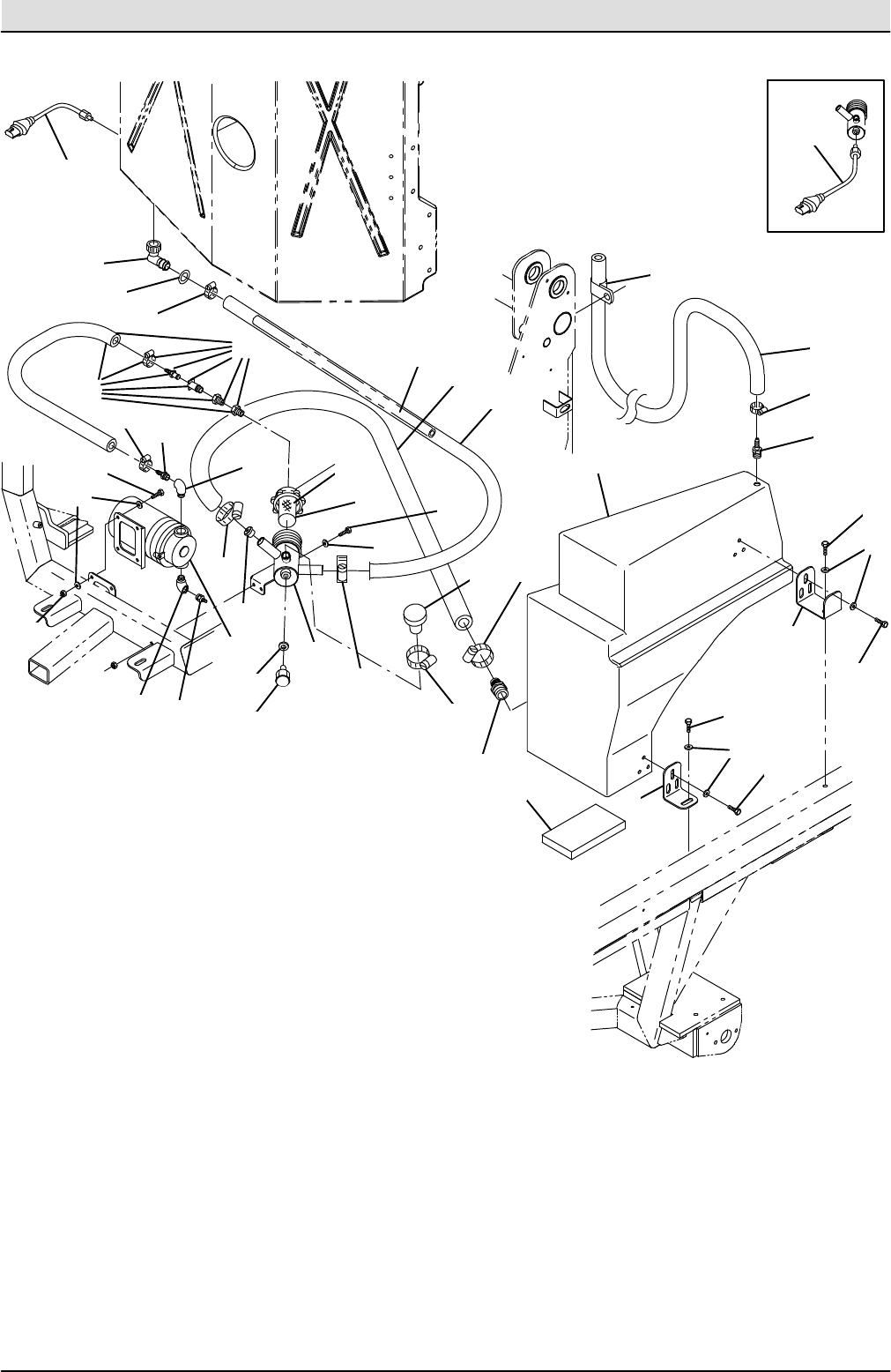

- Fig. 7 − Pressure Washer Water Pump Group

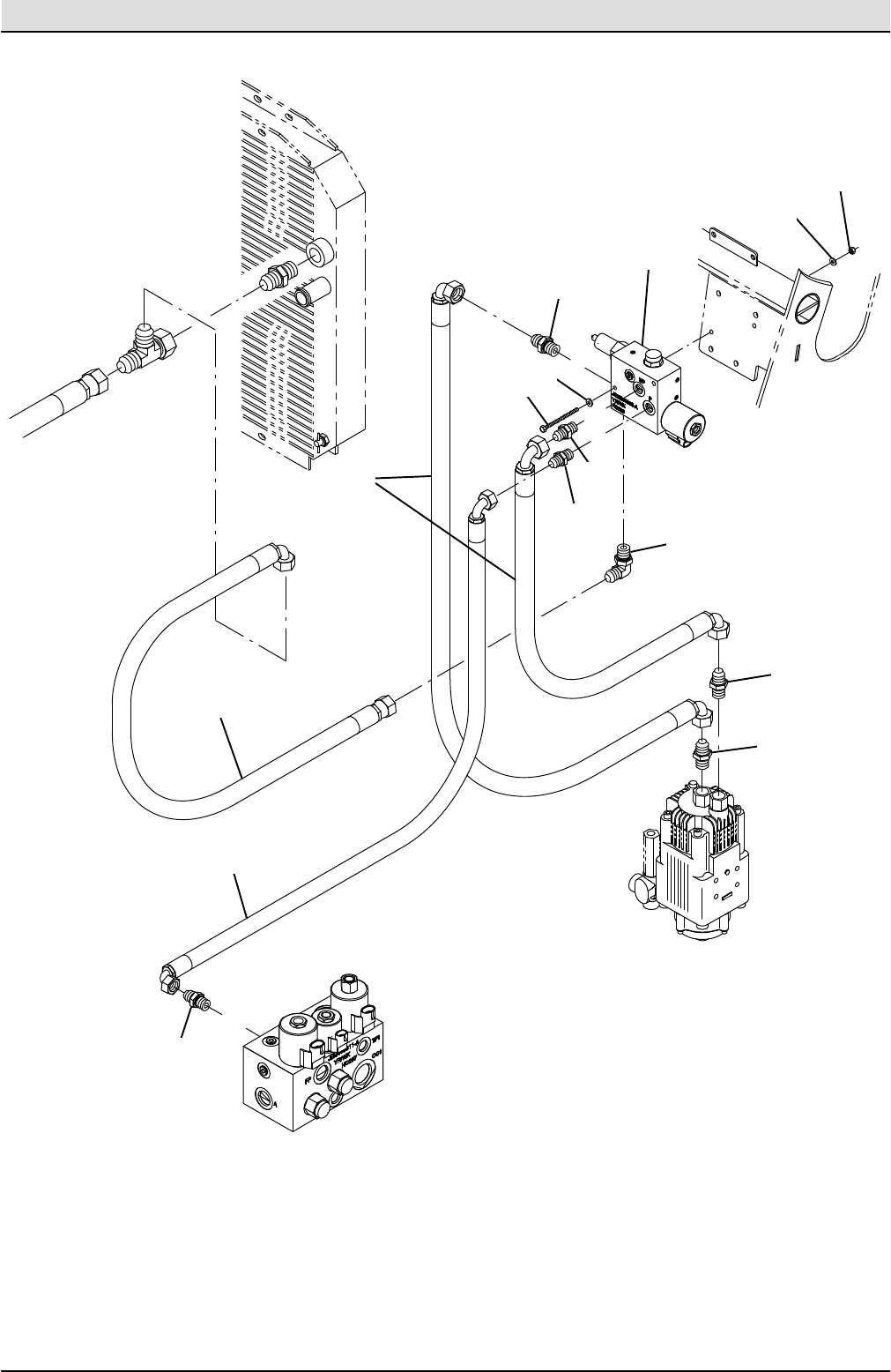

- Fig. 8 − Pressure Washer Hydraulic Valve Group

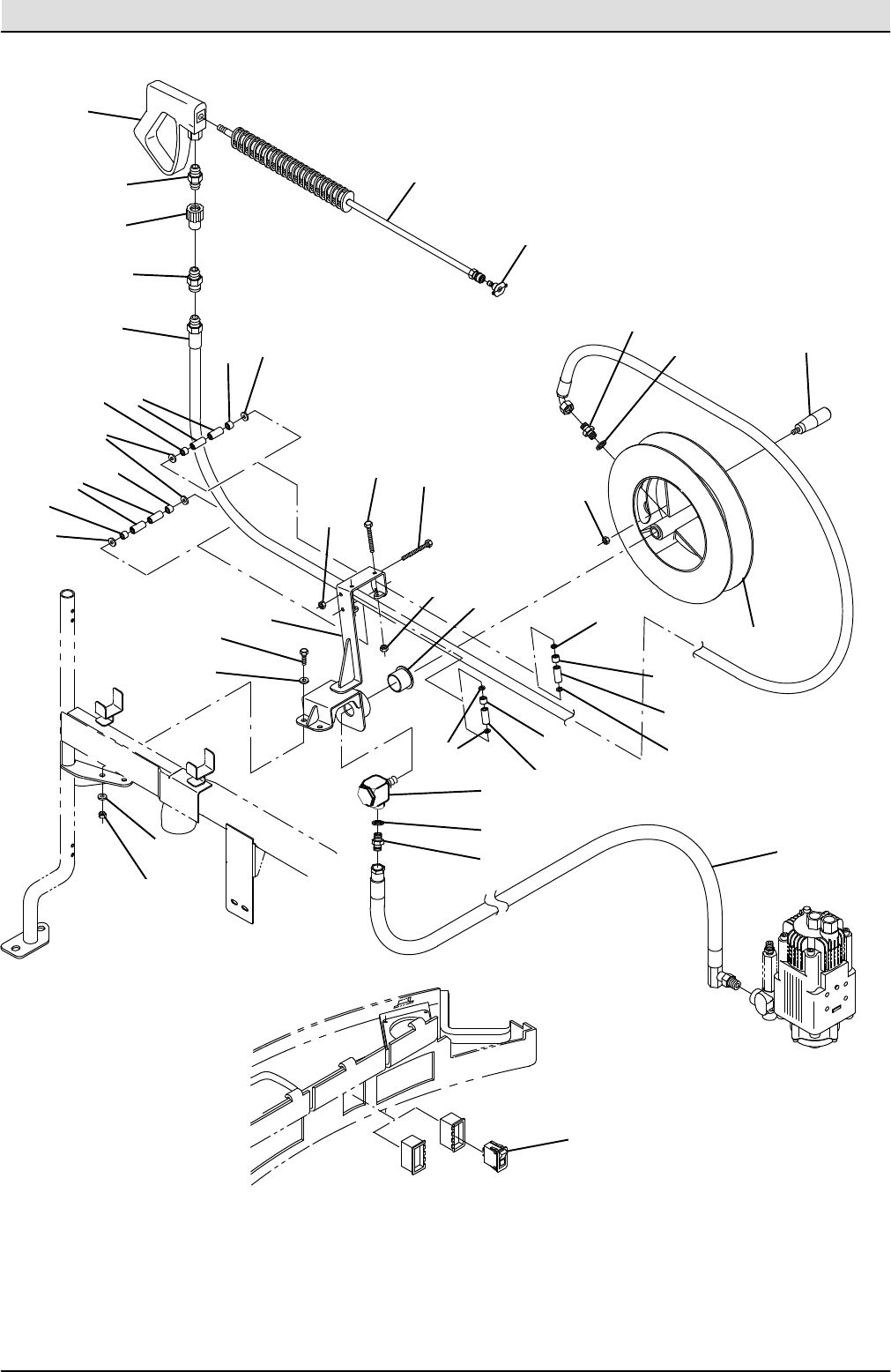

- Fig. 9 − Pressure Washer Reel and Hose Group
- Fig. 10− Hopper Regen Group
- Fig. 11 − City Scrub FrameGroup (0910364−1411343)
- Fig. 12 − City Scrub Drive Motor Group (0910364−1411343)
- Fig. 13 − City Scrub Spray Bar Assembly (0910364−1411343)
- Fig. 14 − City Cleaning Wire Harnesses Group

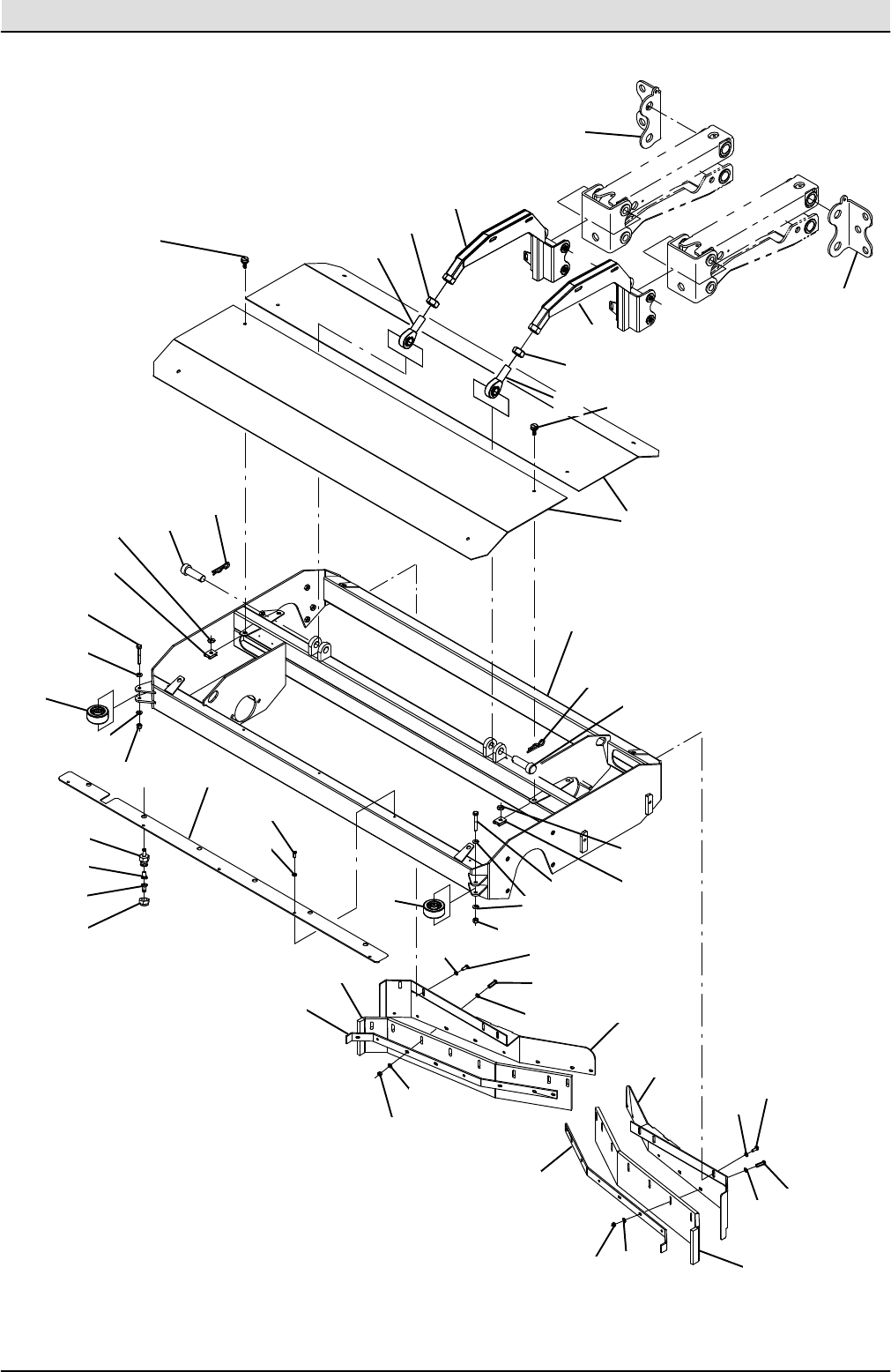

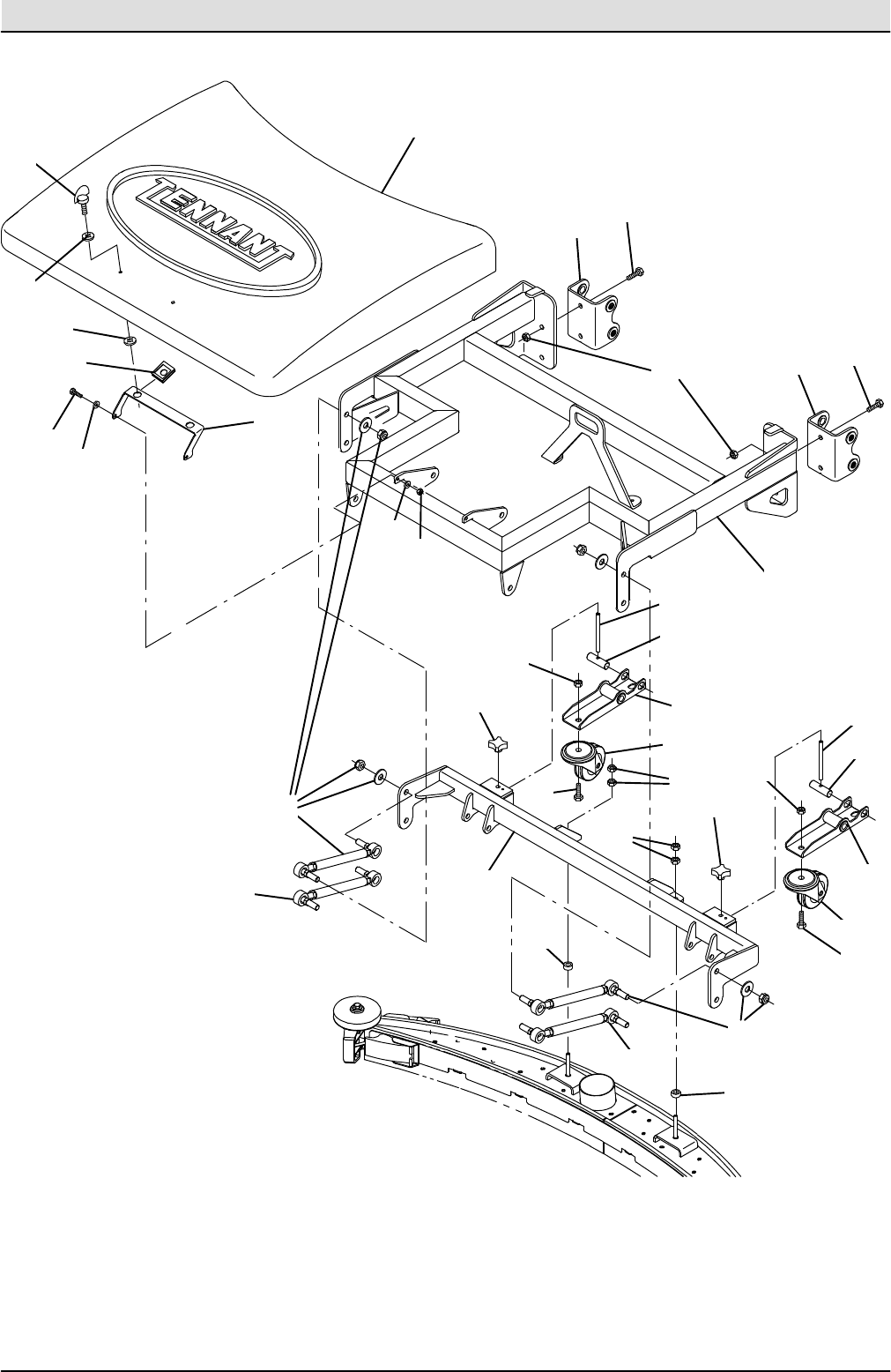

- Fig. 15 − City Scrub Frame Group (1411344− )

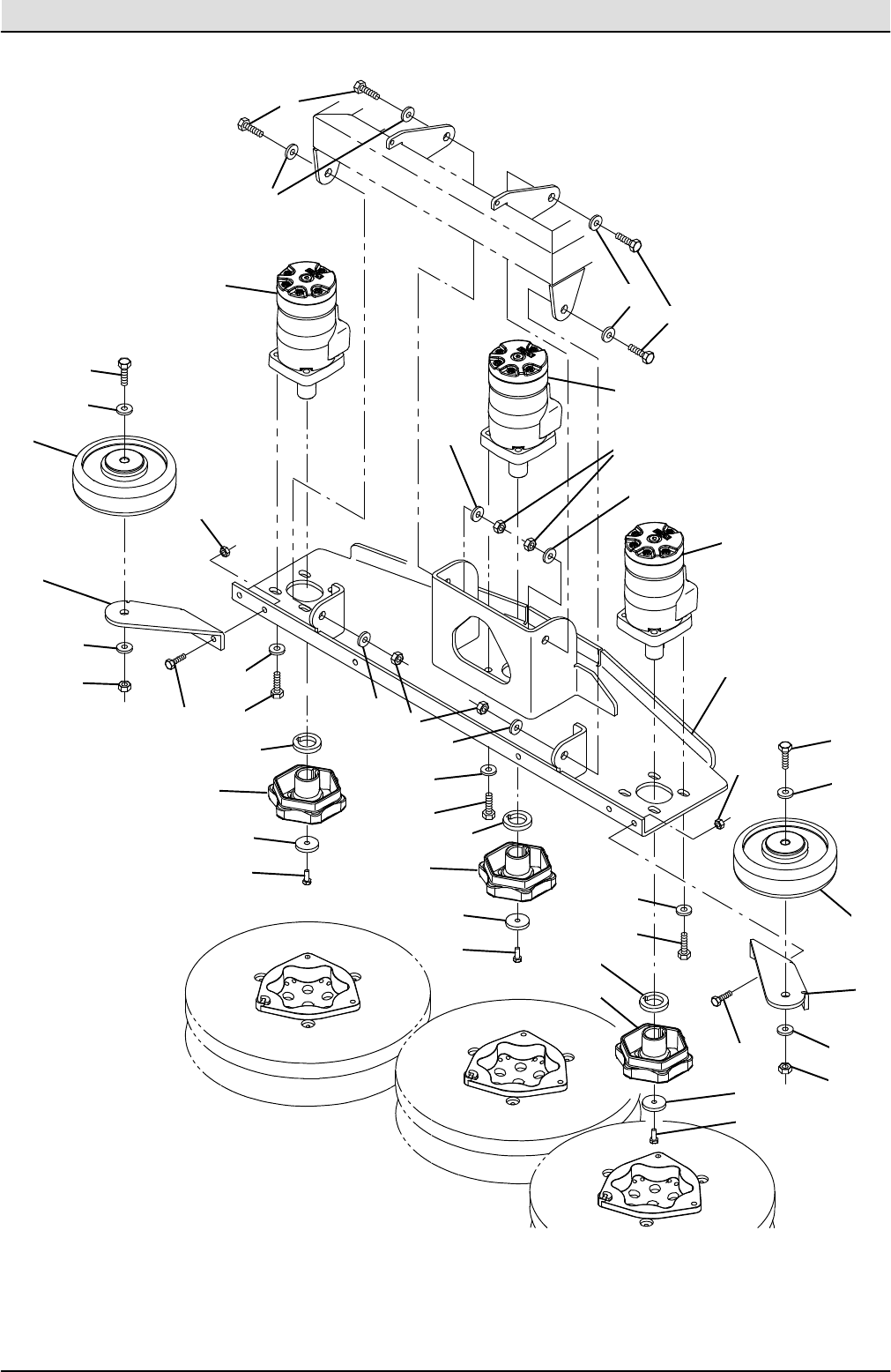

- Fig. 16 − City Scrub Drive Motors Group (1411344− )
- Fig. 17 − City Scrub Solution Supply Group (1411344− )

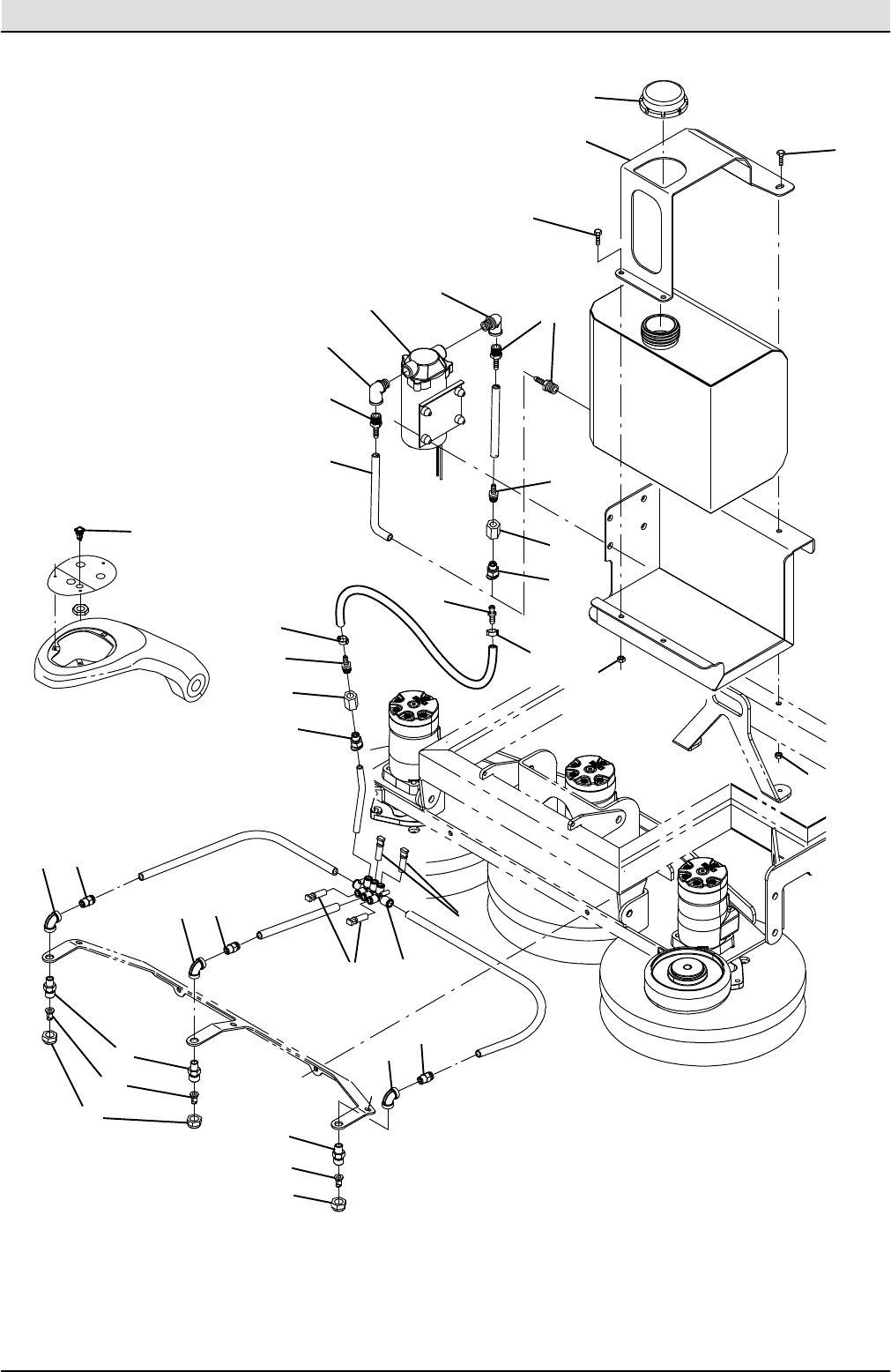

- Fig. 18 − City Scrub Detergent Supply Group (1411344− )
- Fig. 19 − City Scrub Squeegee Group (1411344− )
- Fig. 20 − City Scrub Vacuum Hose Group (1411344− )
- Fig. 21 − City Scrub Hydraulic Hose Group (1411344− )

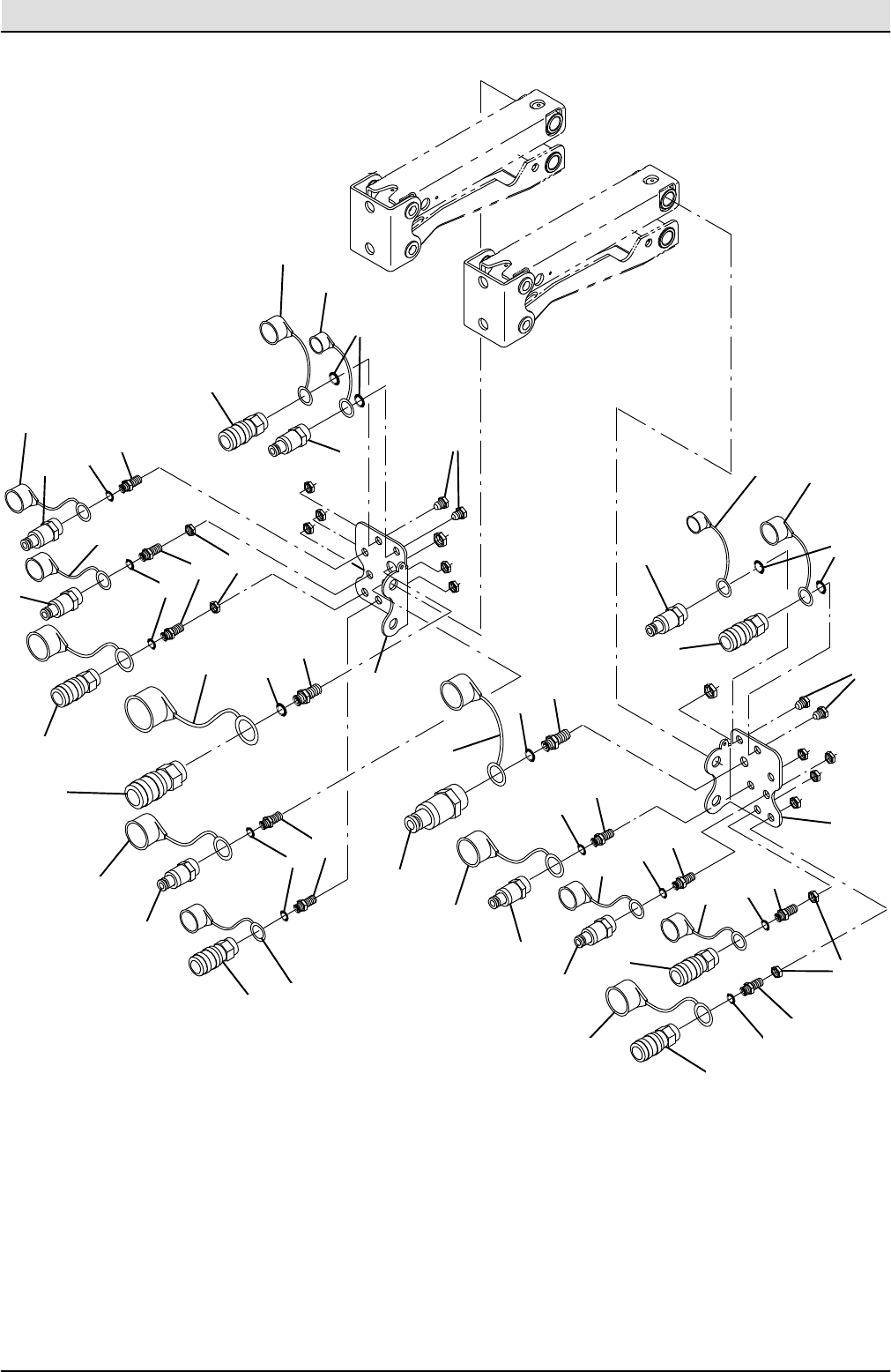

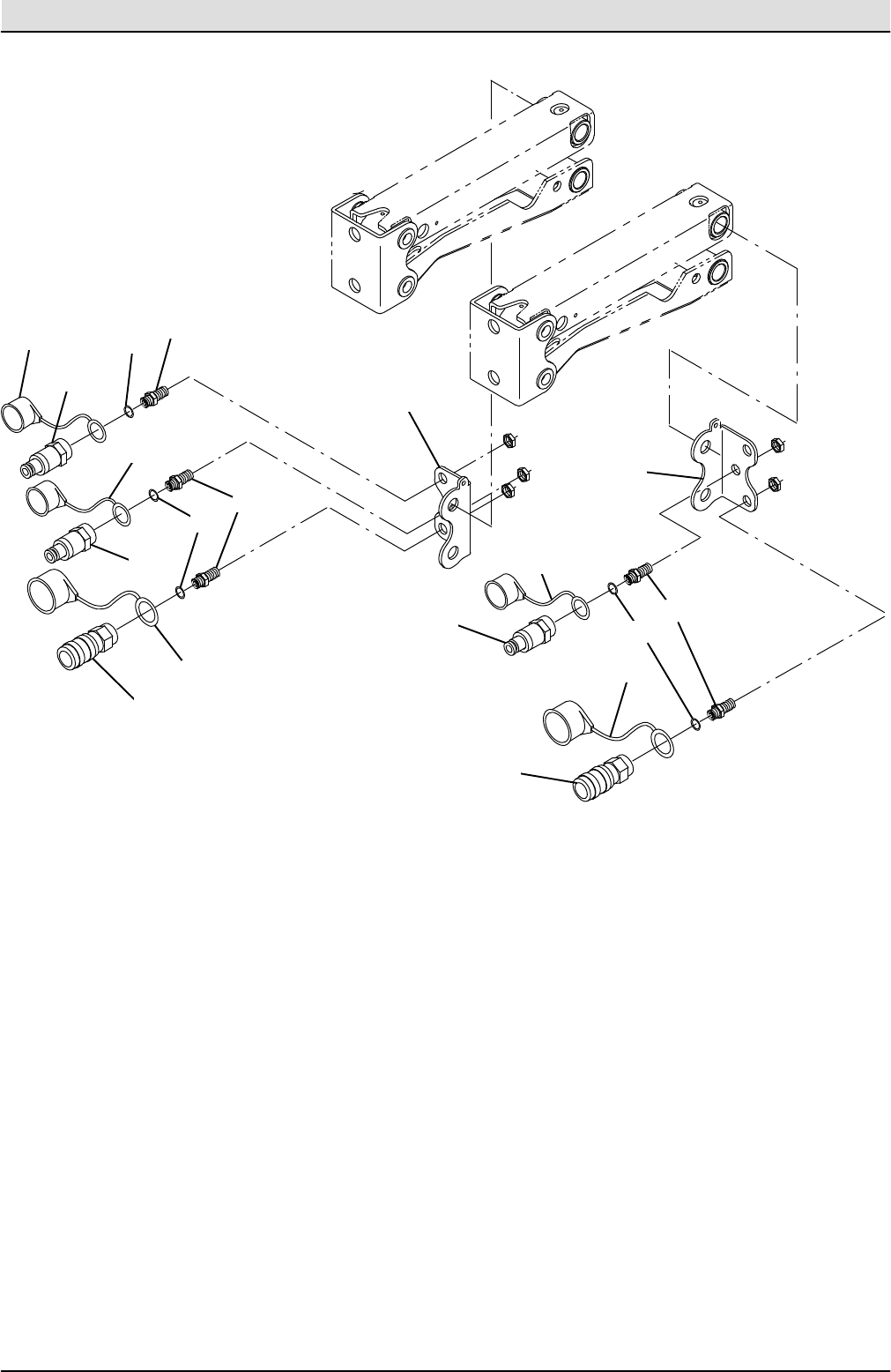

- Fig. 22 − City Scrub Hydraulic Connection Group
- Fig. 23 − City Scrub & Winter Option Hydraulic Connection Group
- Fig. 24 − Winter Option Connection Group
- Fig. 25 − Winter Option Connection Hydraulic Hose Group

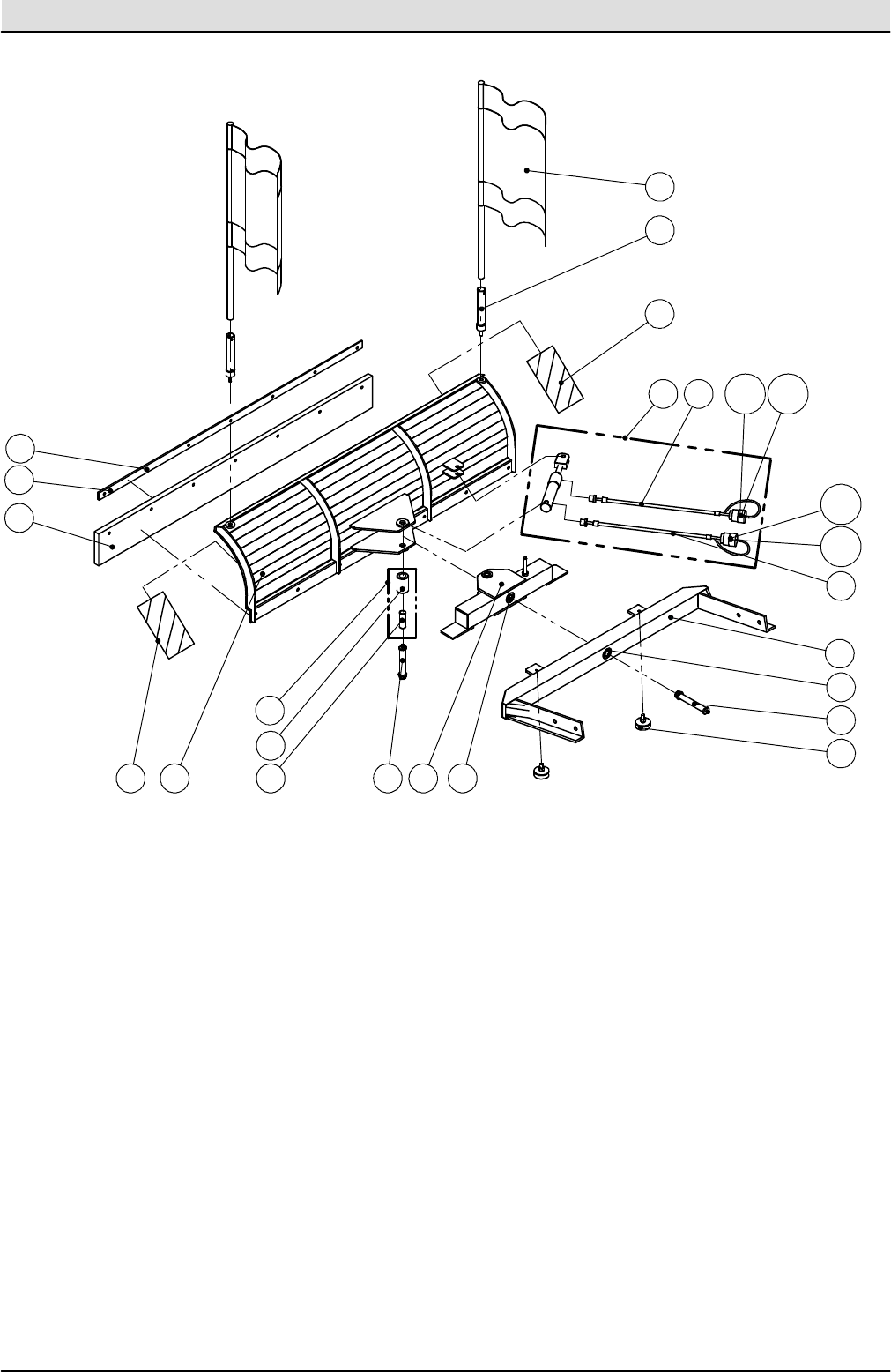

- Fig. 26 − Winter Option Front Snow Plow Group
- Fig. 27 − Winter Option Front Brush Group
- Fig. 28 − Winter Option, Rear Gritter Box Group
- Fig. 29 − Nozzle Lift Group
- Fig. 30 − Wander Hose Group (910364 − 1411357)
- Fig. 31 − Wander Hose Group (1411358− )
- Fig. 32 − Autolube Group
- Fig. 33 − Suspension Seat Group
- Fig. 34 − Fire Extinguisher Group
- Fig. 35 − Documentation Group
- BREAKDOWNS
- ENGINE BREAKDOWN
- Fig. 1 − Crankcase Group

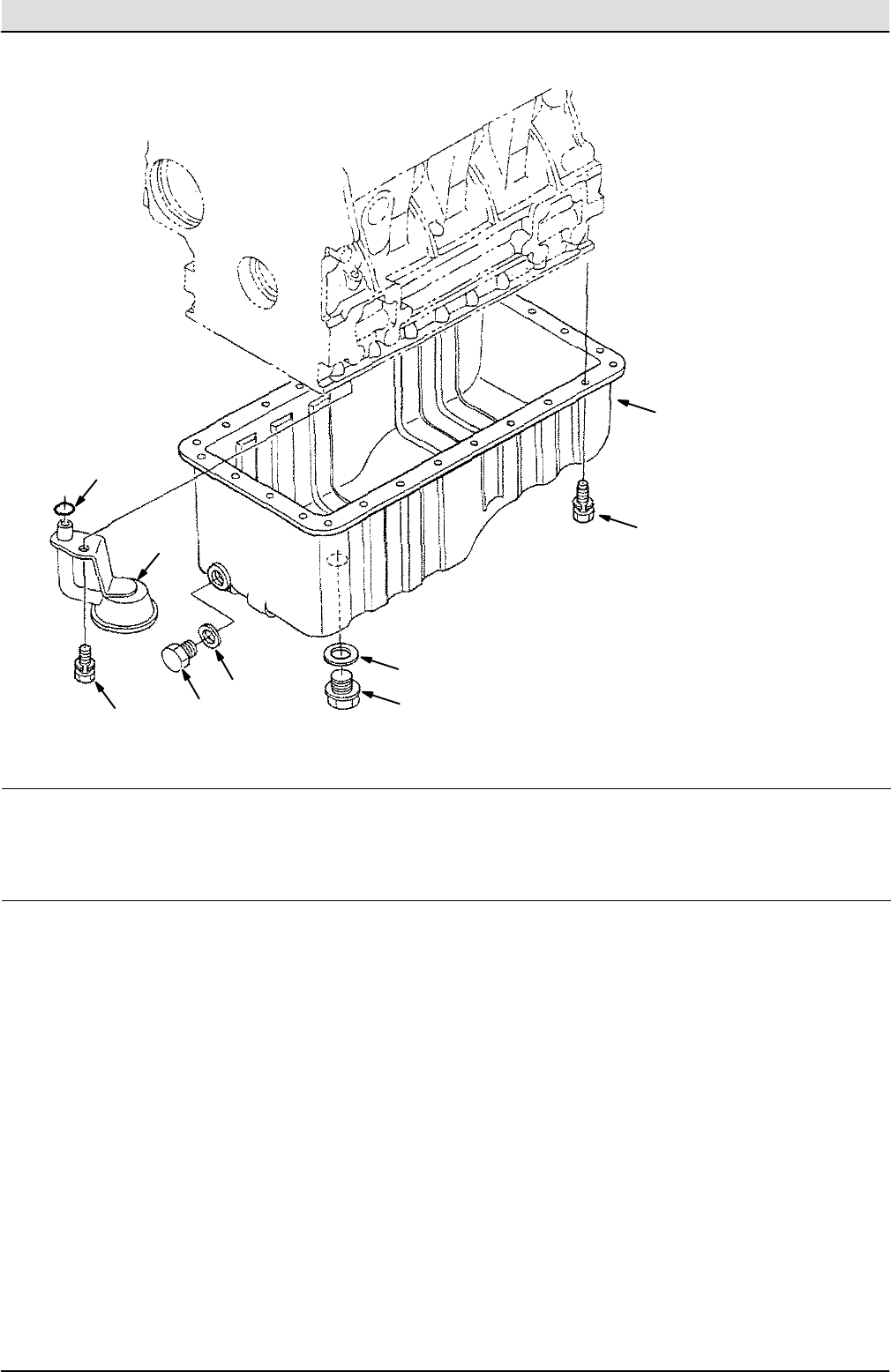

- Fig. 2 − Oil Pan Group

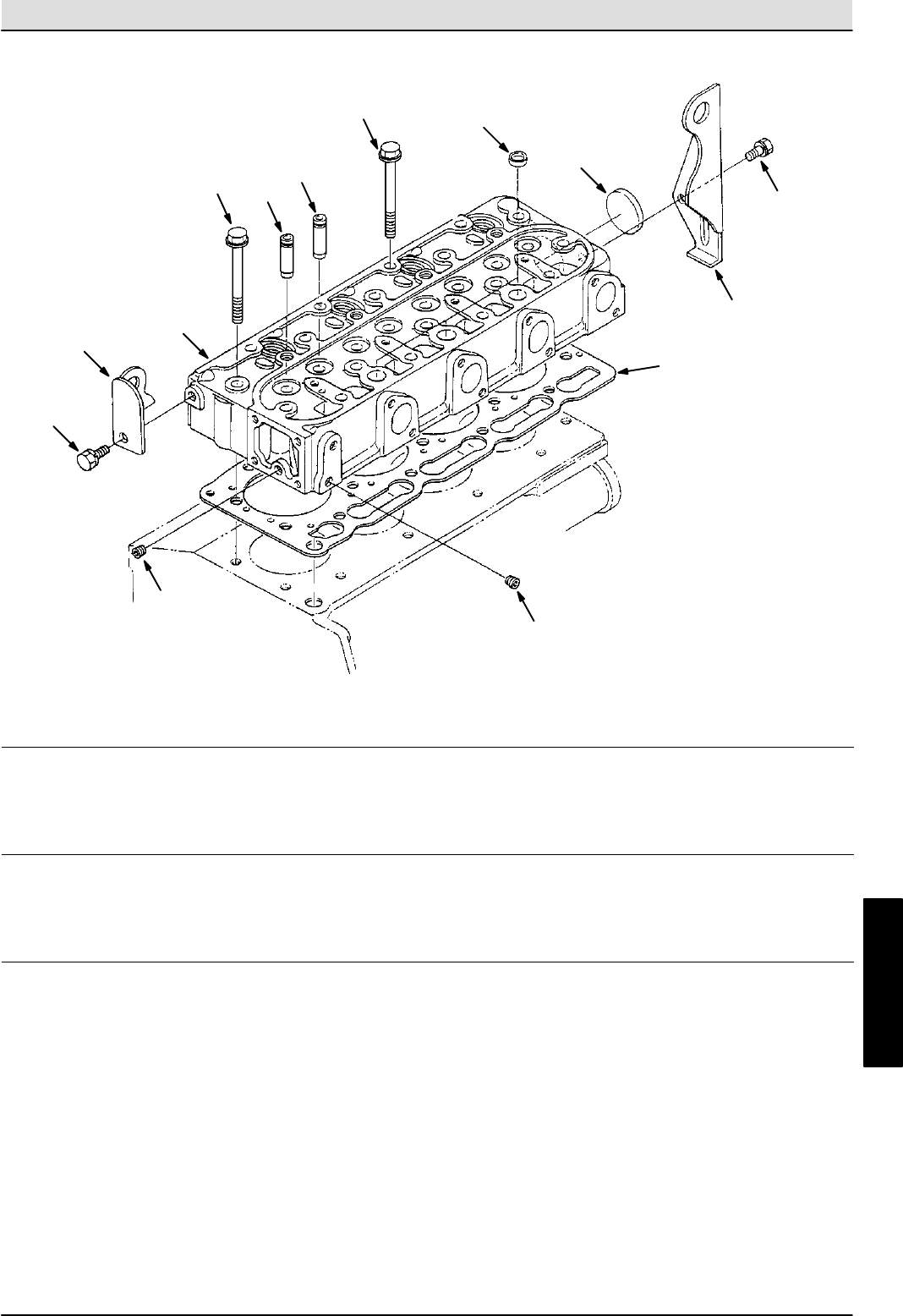

- Fig. 3 − Cylinder Head Group

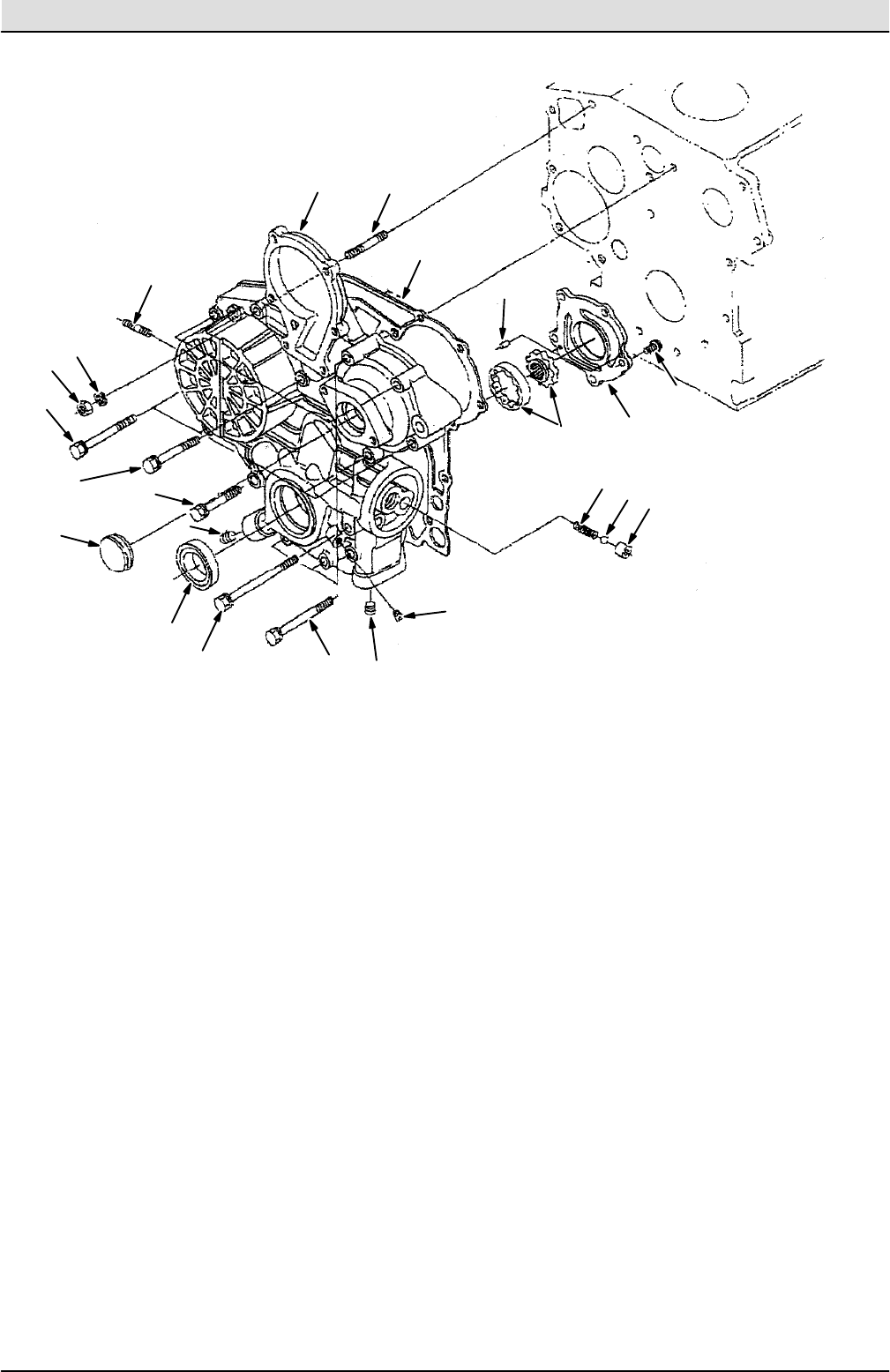

- Fig. 4 − Gear Case Group

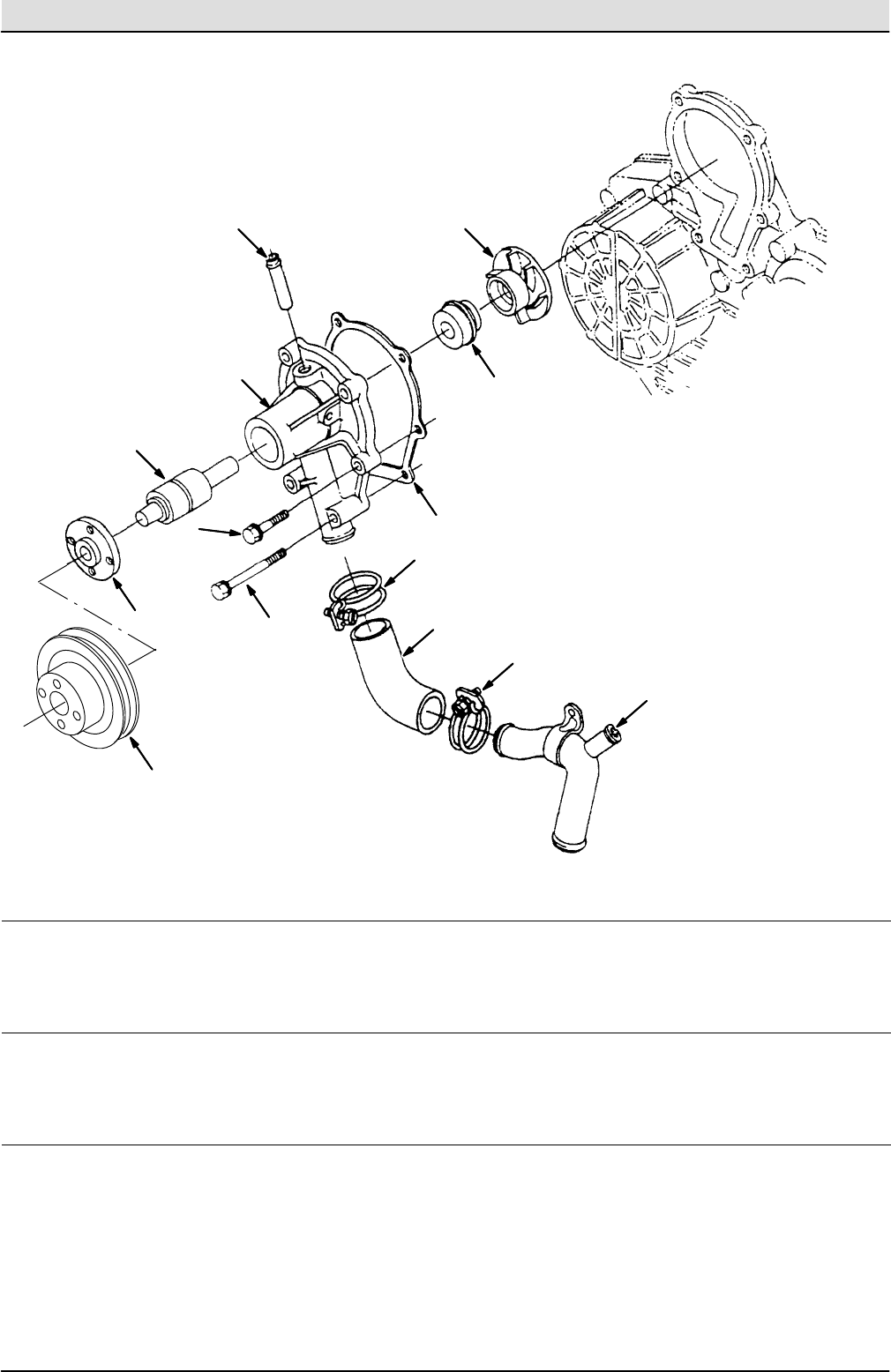

- Fig. 5 − Water Pump Group

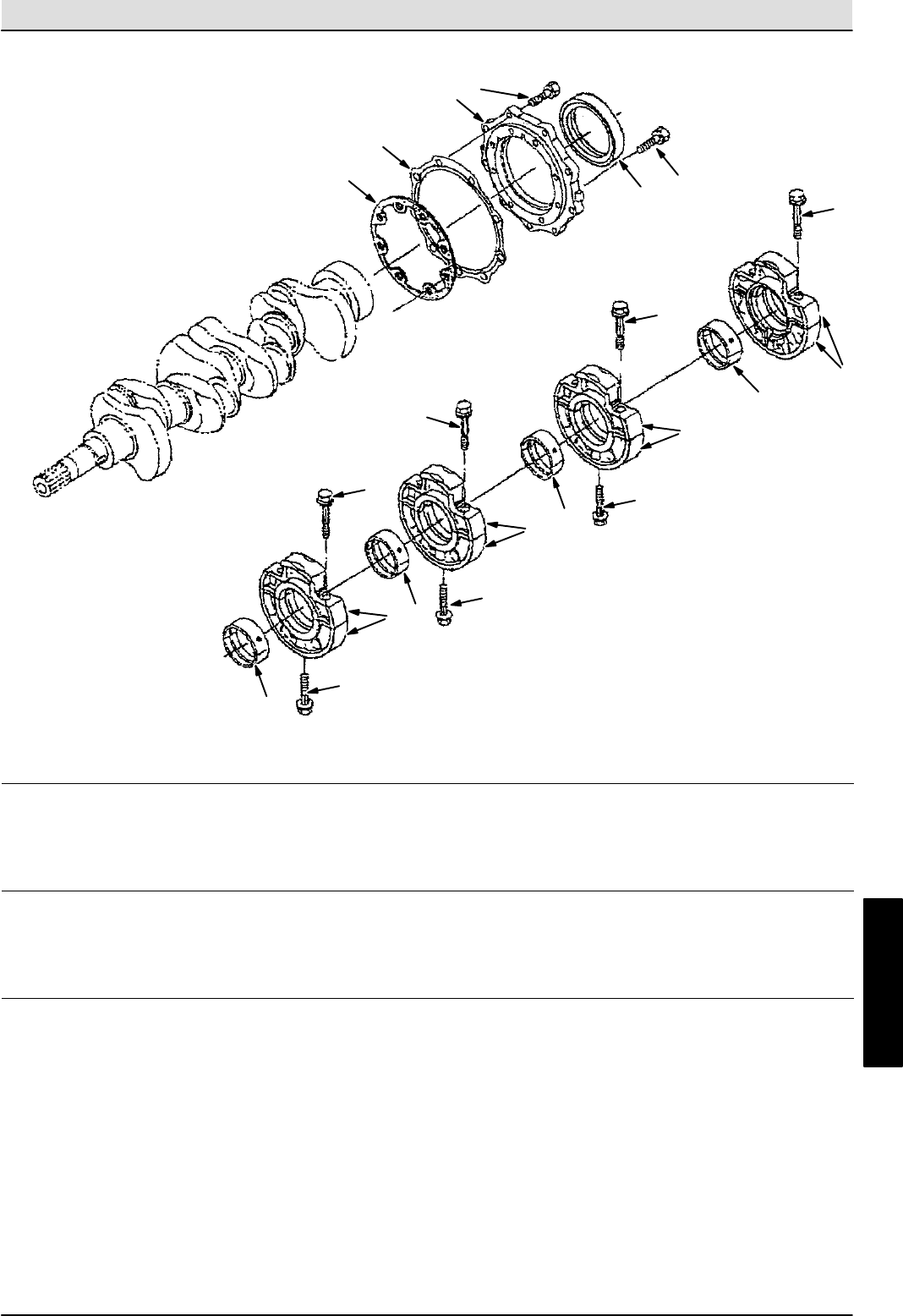

- Fig. 6 − Main Bearing Case Group

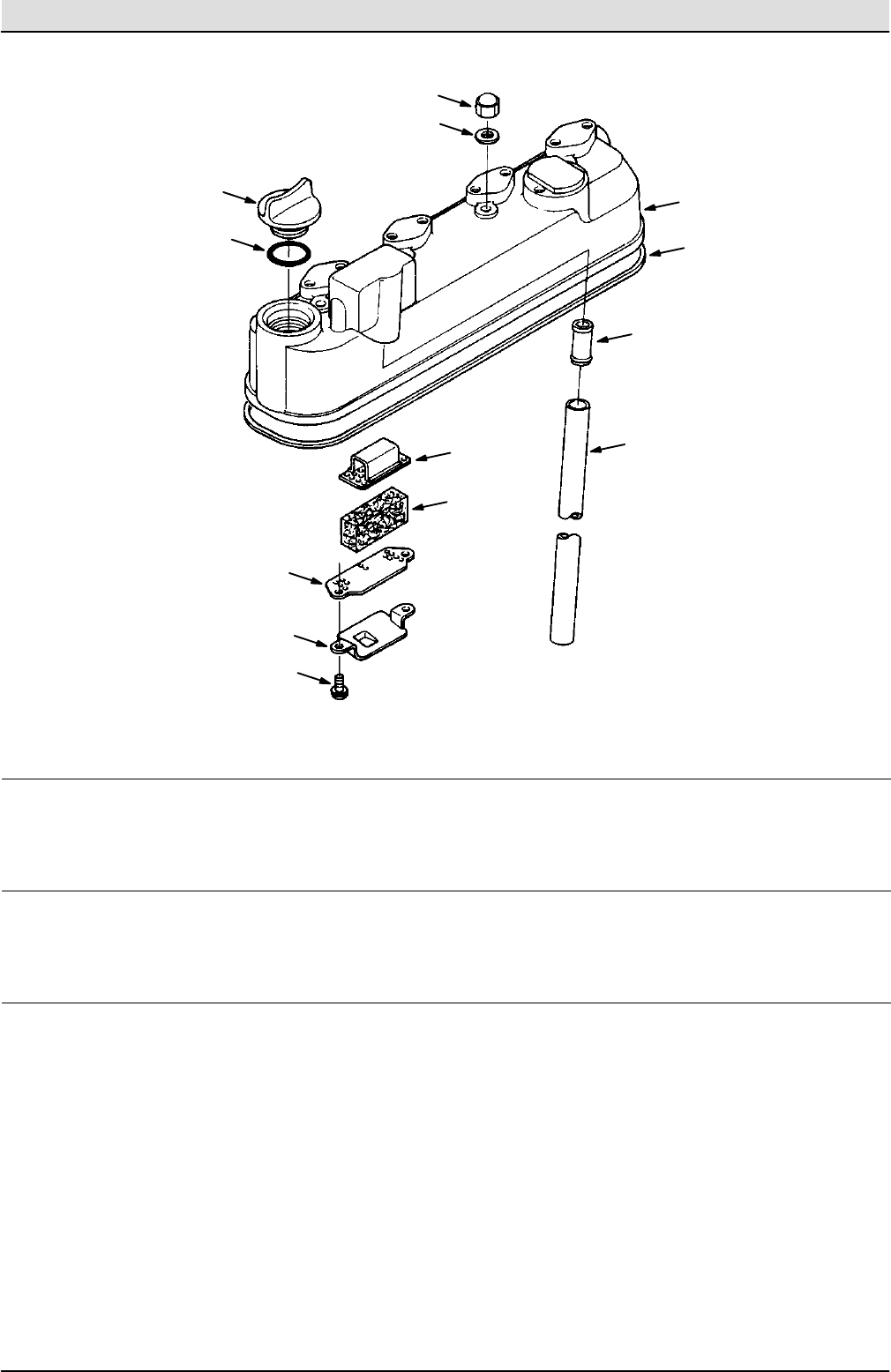

- Fig. 7 − Head Cover Group
- Fig. 8 − Exhaust Manifold Group
- Fig. 9 − Inlet Manifold Group

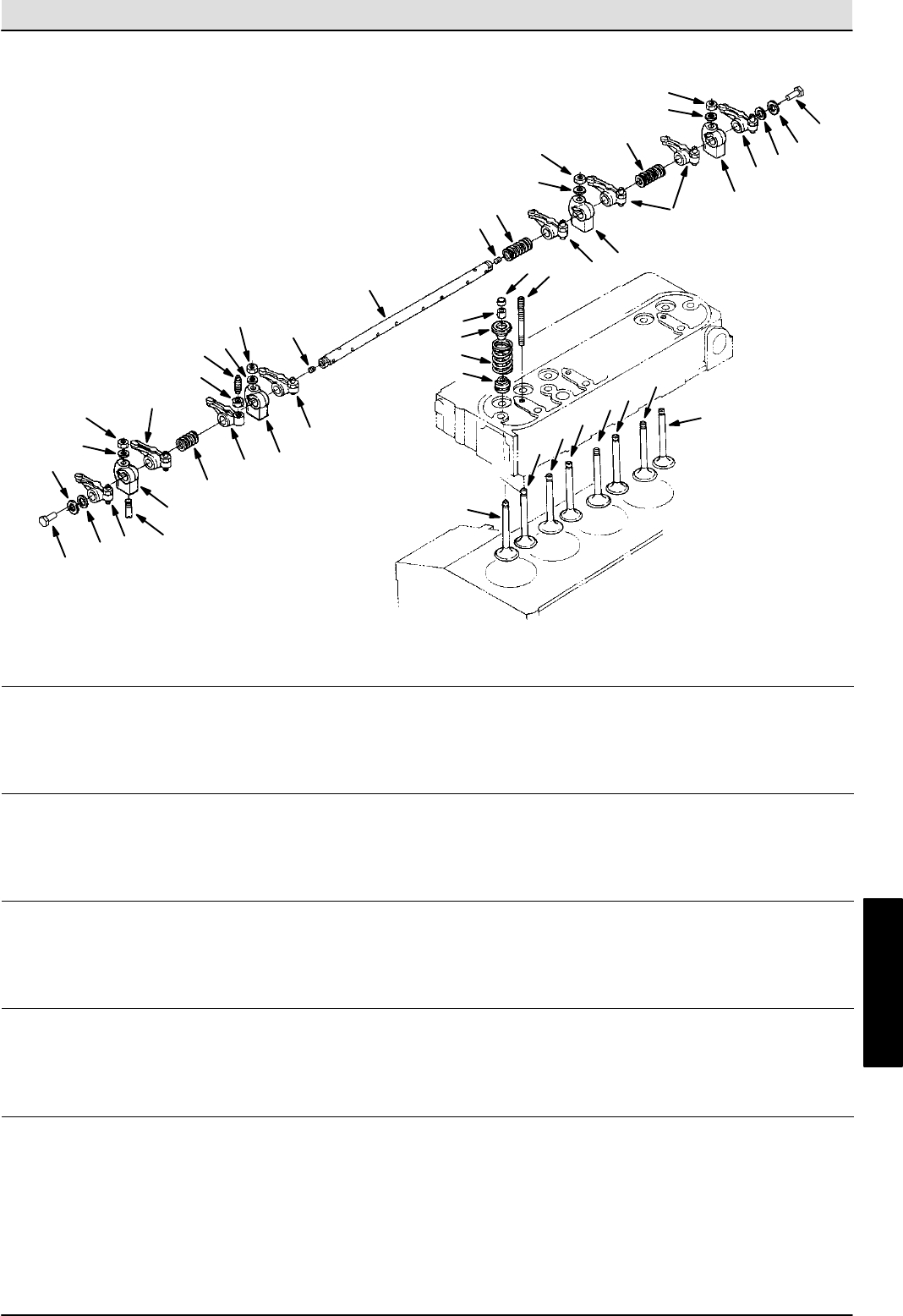

- Fig. 10 − Valve, Rocker Arm Group

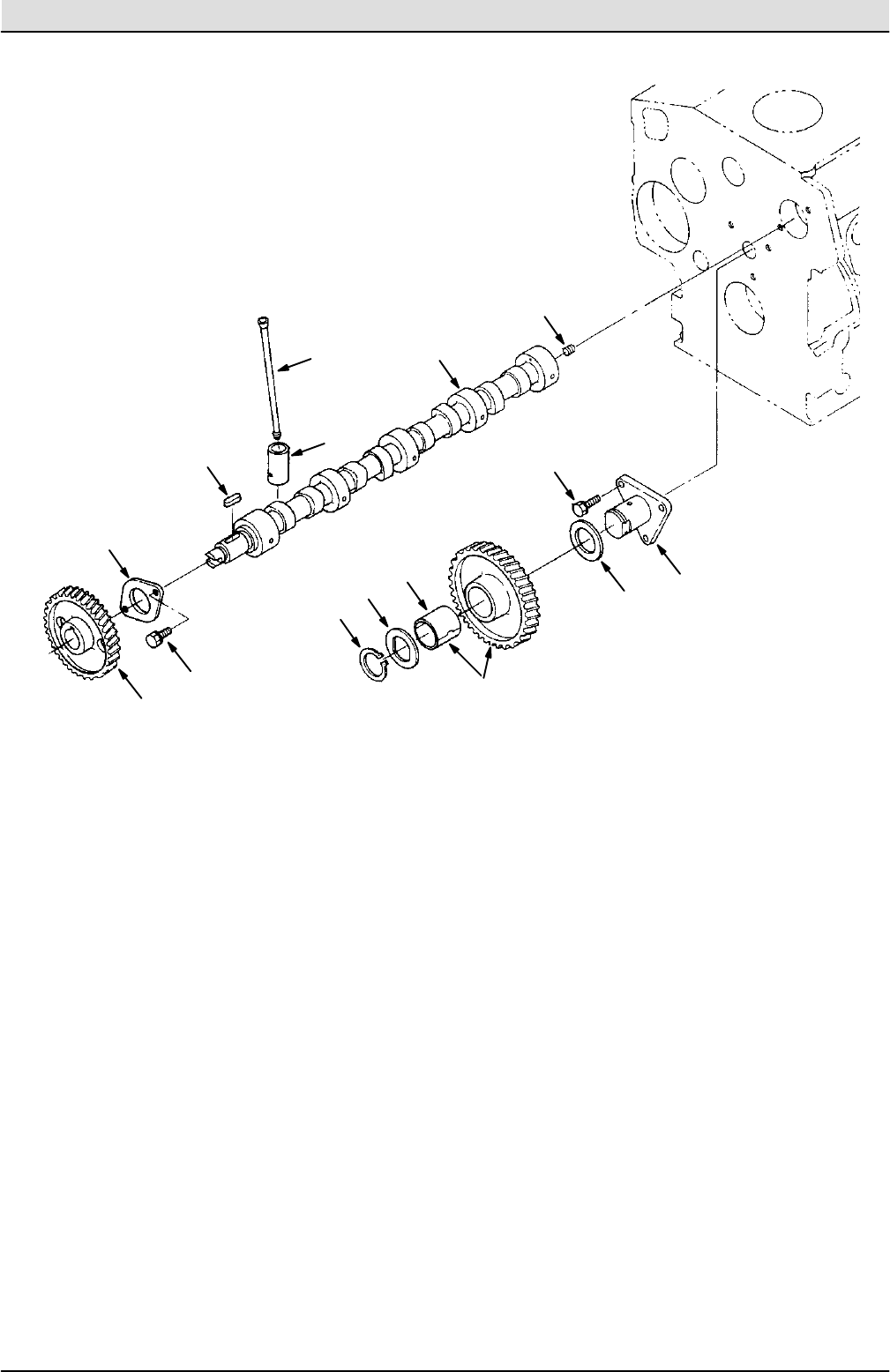

- Fig. 11 − Camshaft Group

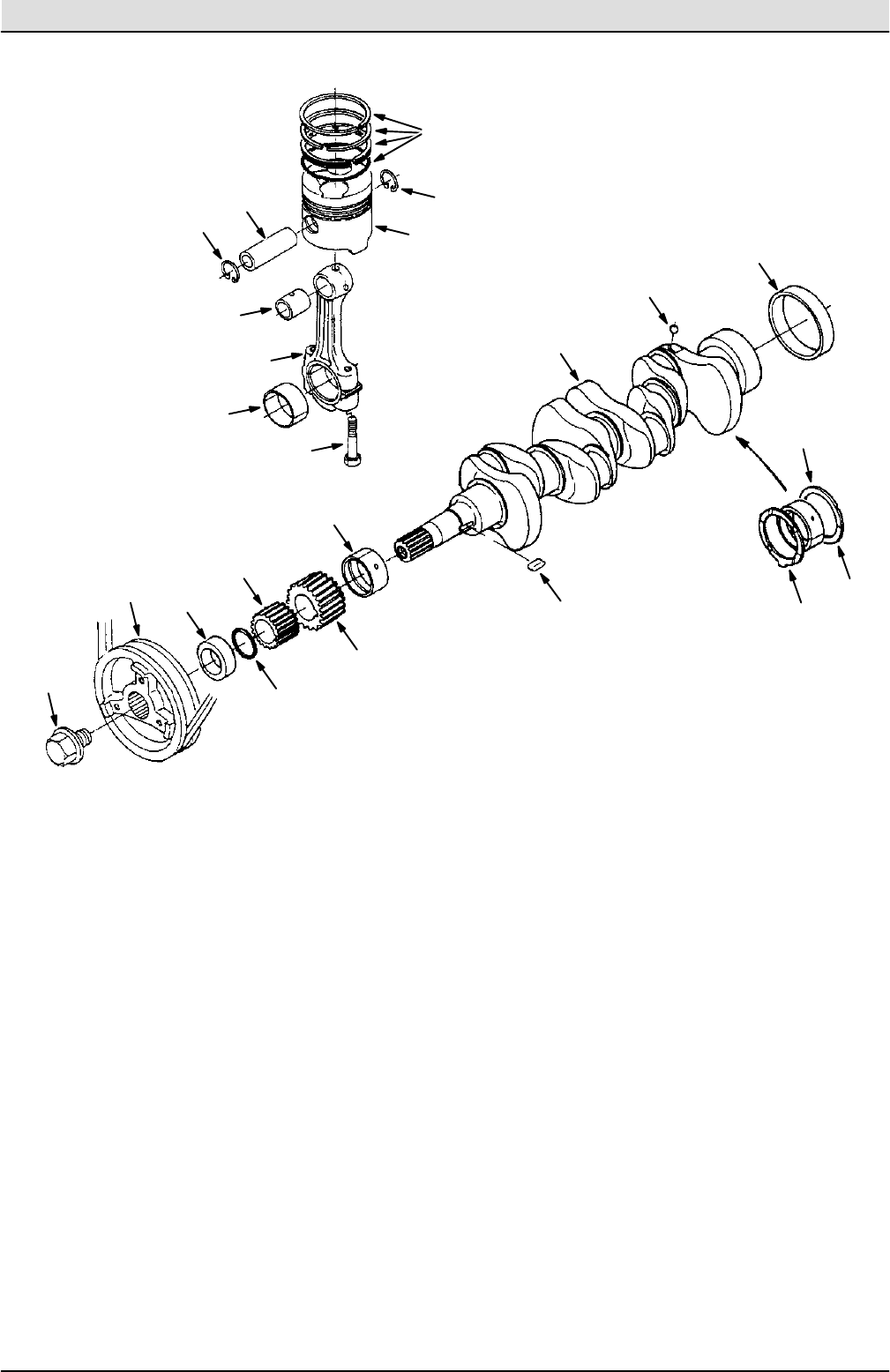

- Fig. 12 − Piston and Crankshaft Group

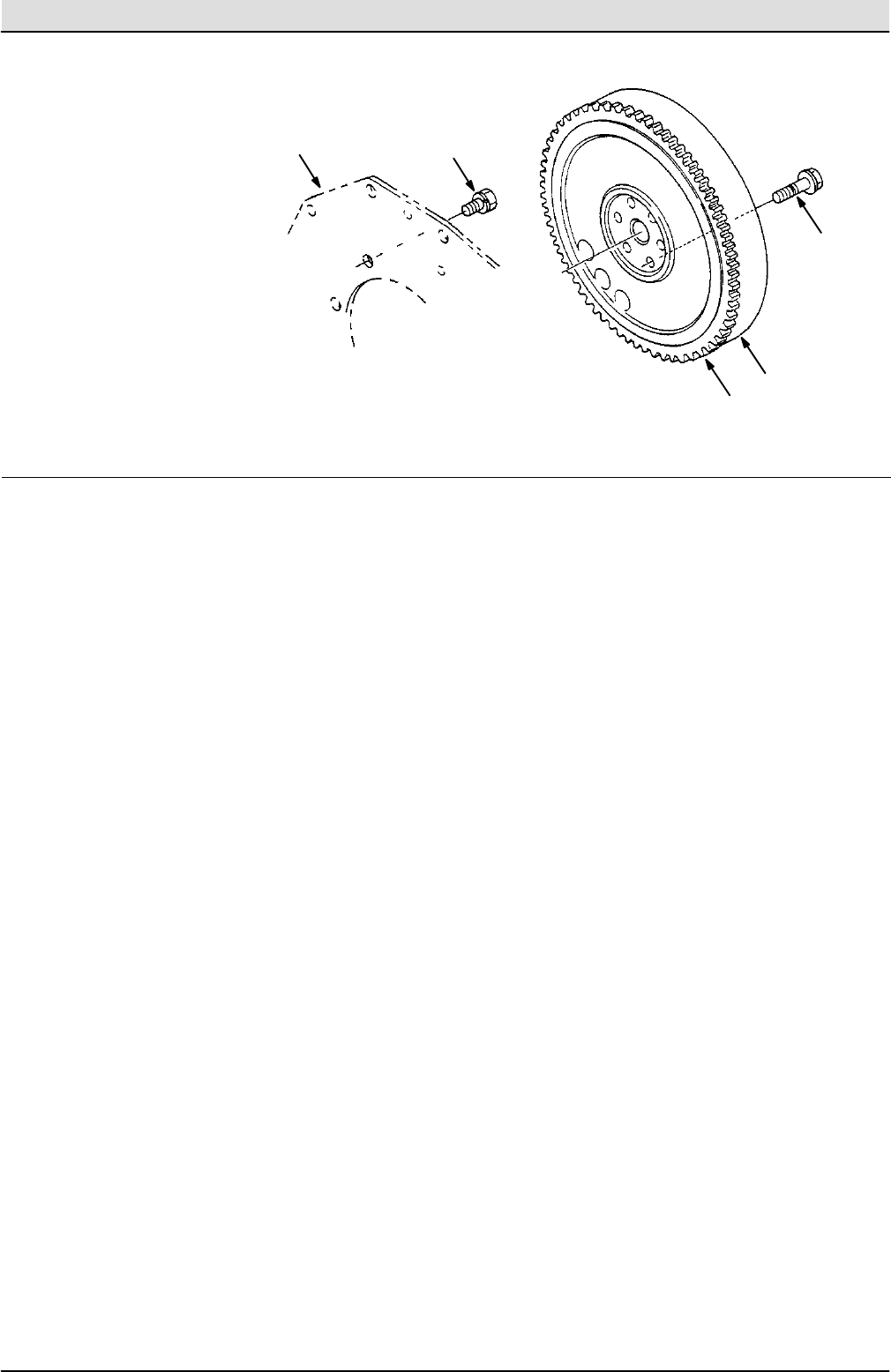

- Fig. 13 − Flywheel Group

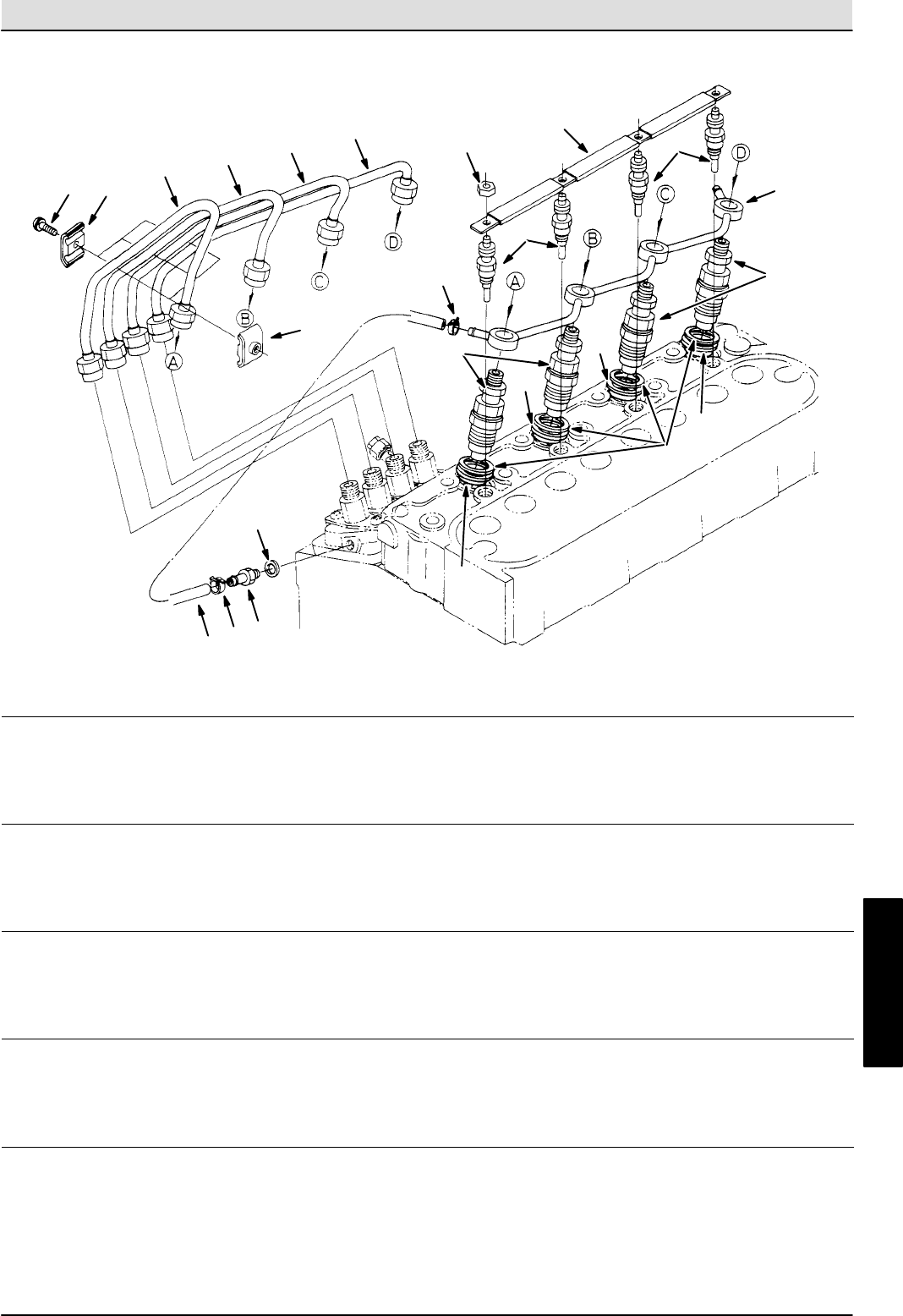

- Fig. 14 − Nozzle Holder and Glow Plug Group

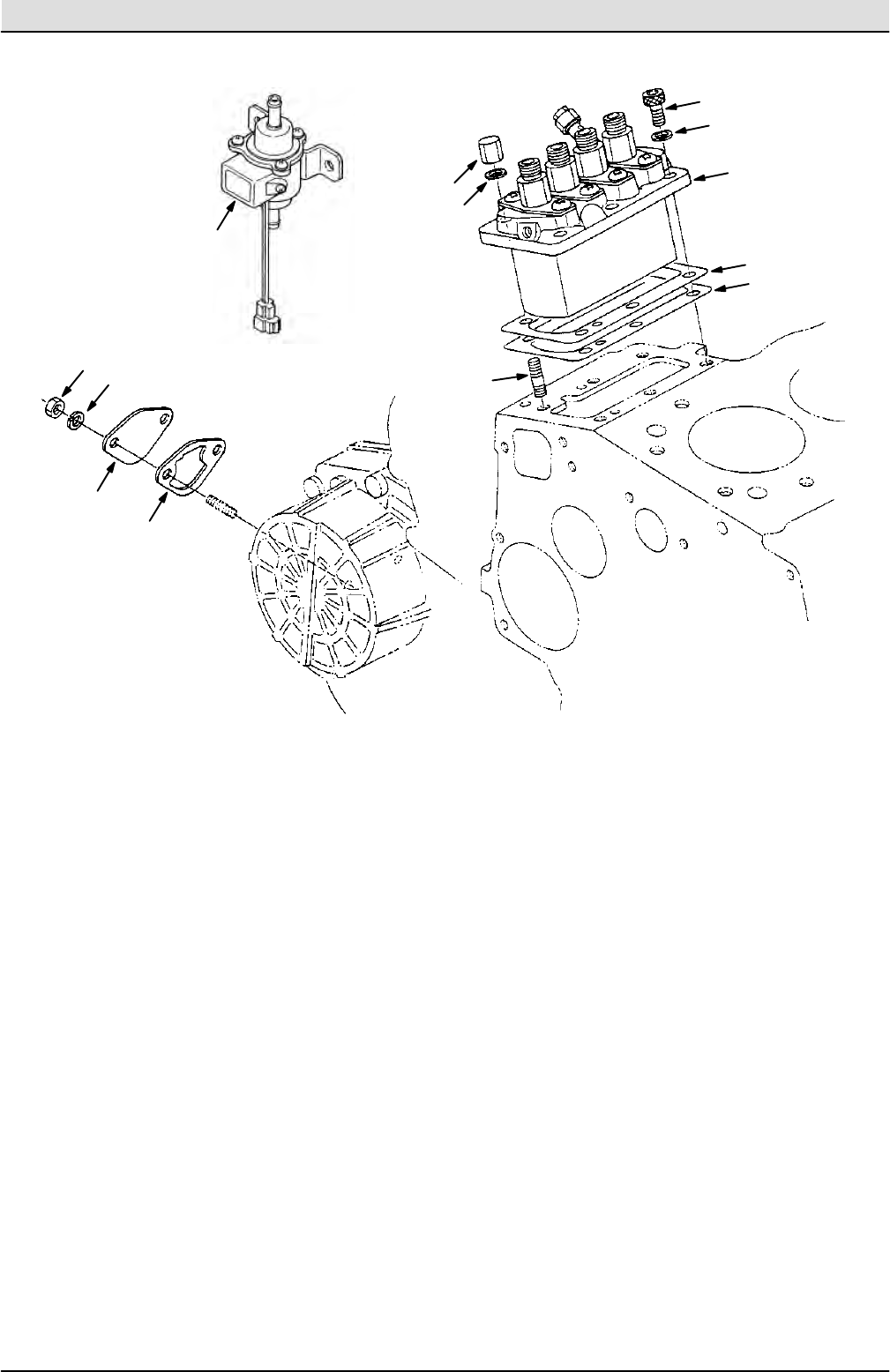

- Fig. 15 − Injection Pump Group

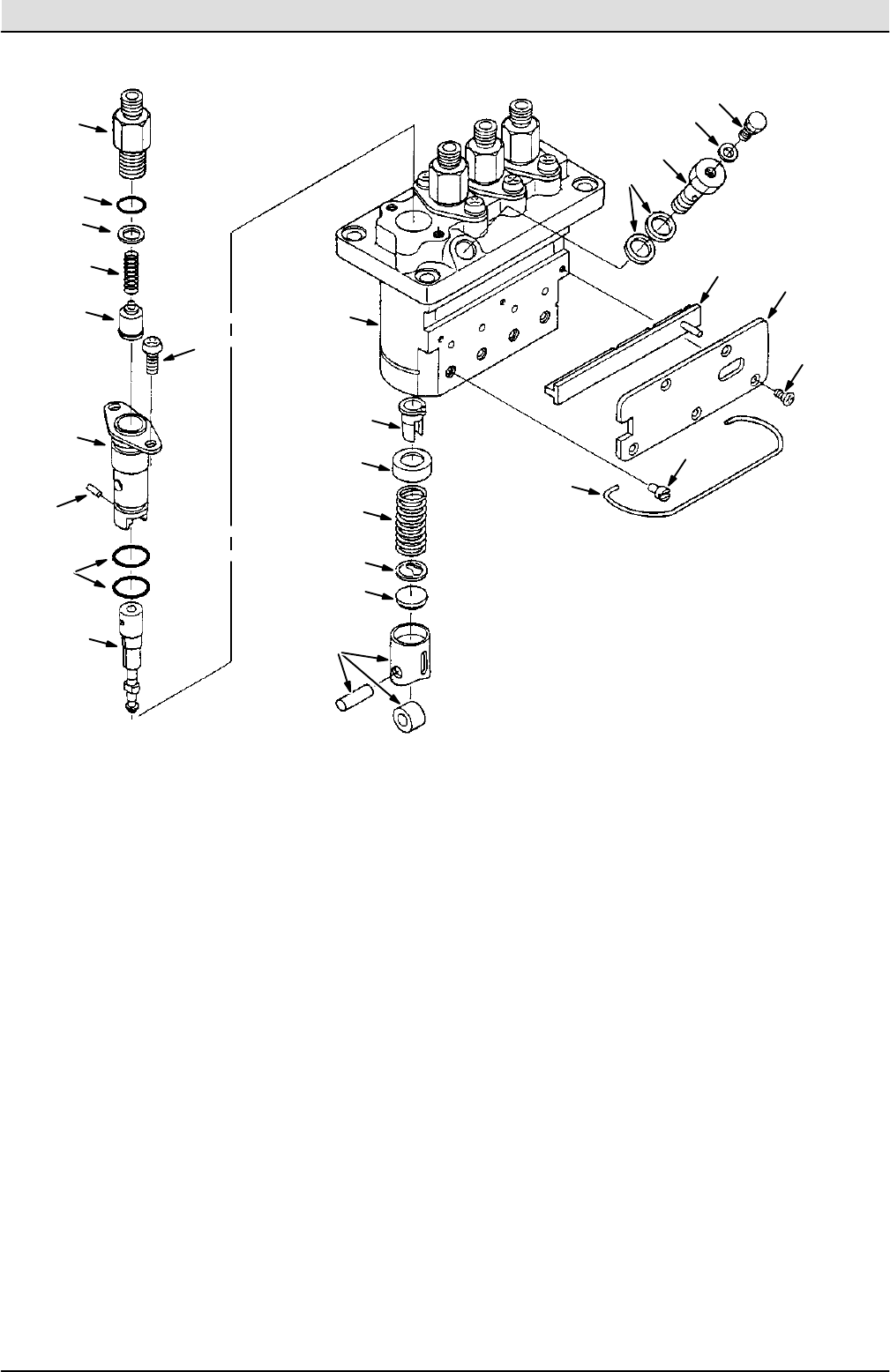

- Fig. 16 − Injection Pump Breakdown
- Fig. 17 − Fuel Camshaft Group

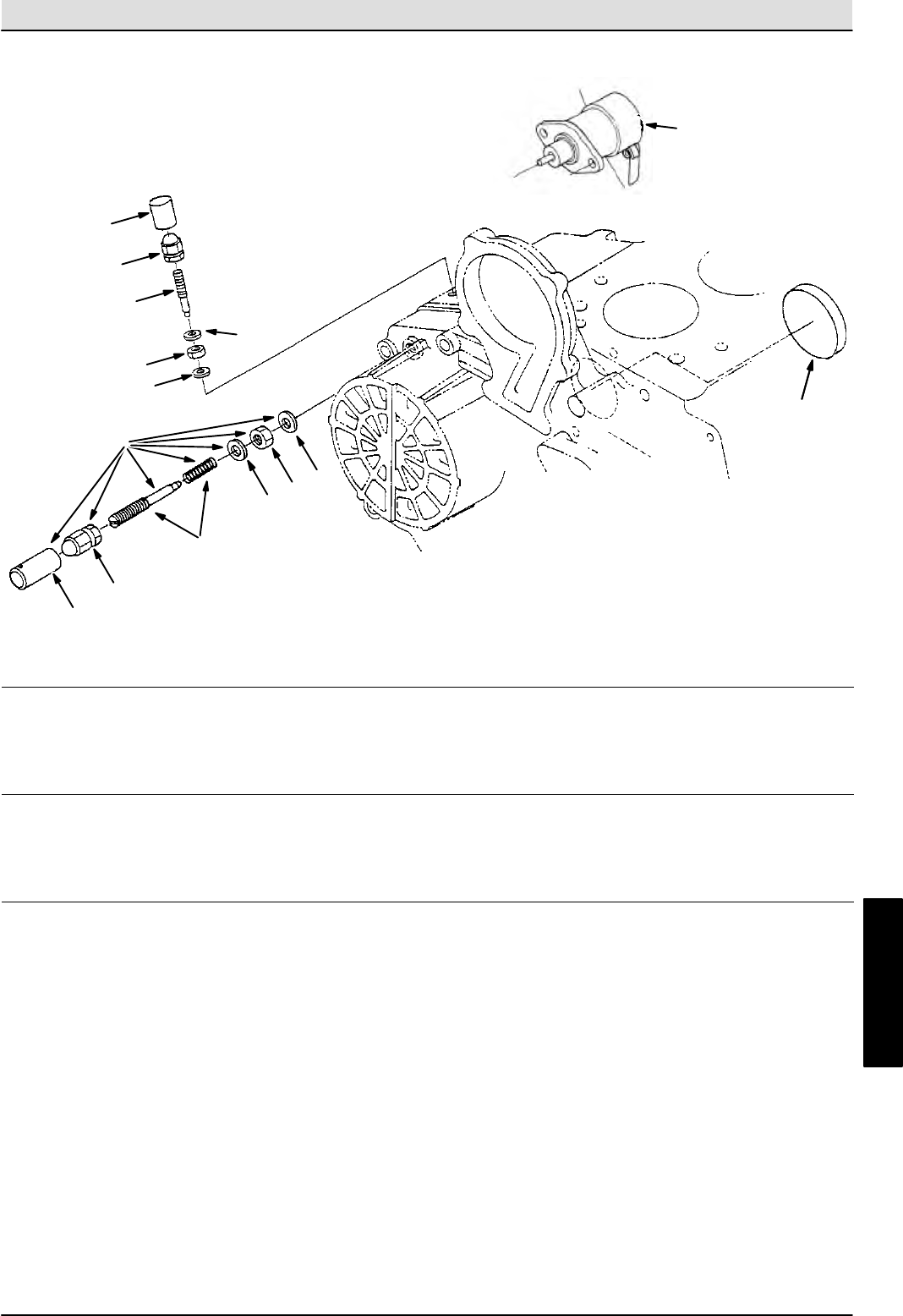

- Fig. 18 − Idling Group

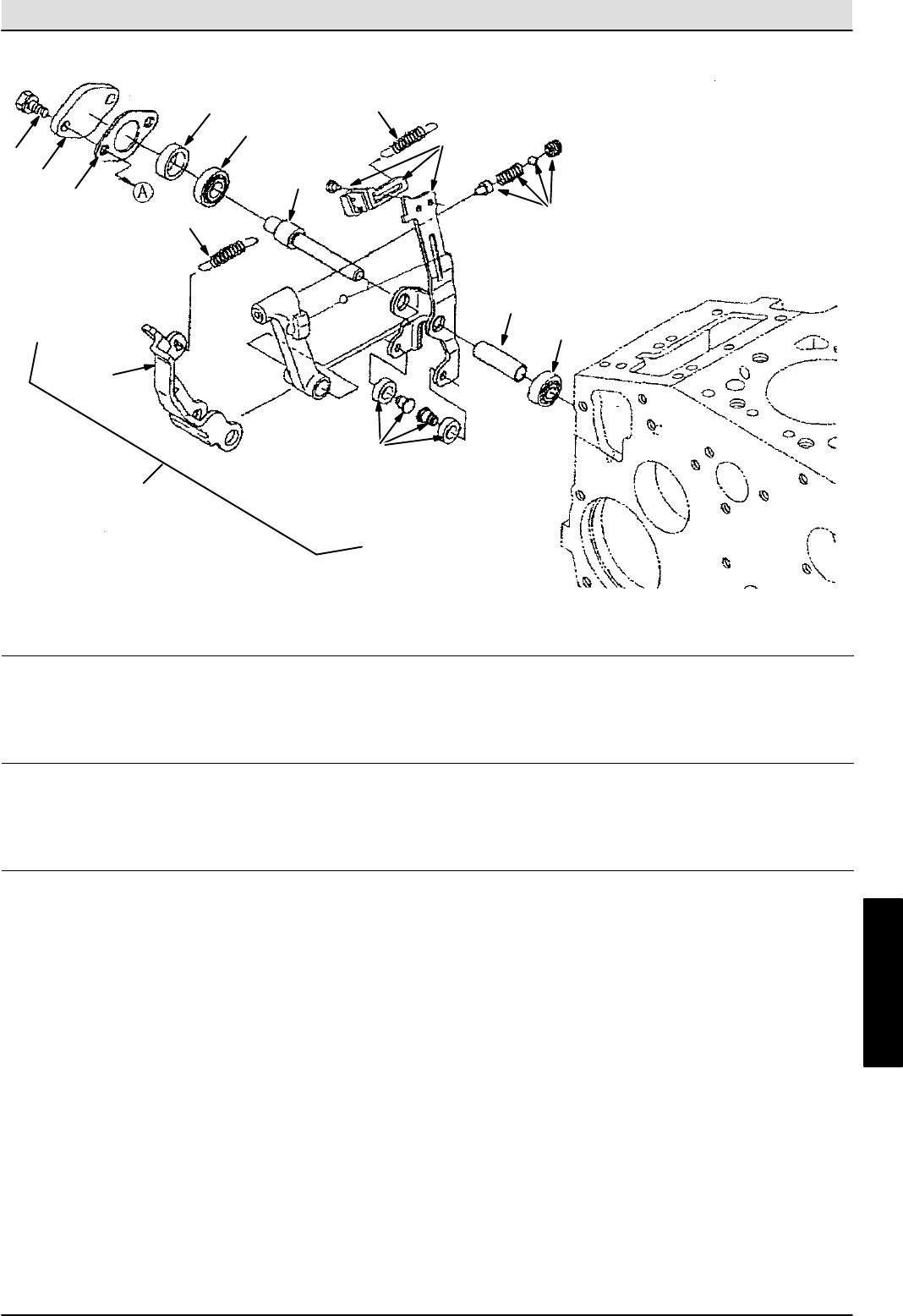

- Fig. 19 − Speed Control Plate Group
- Fig. 20 − Governor Group

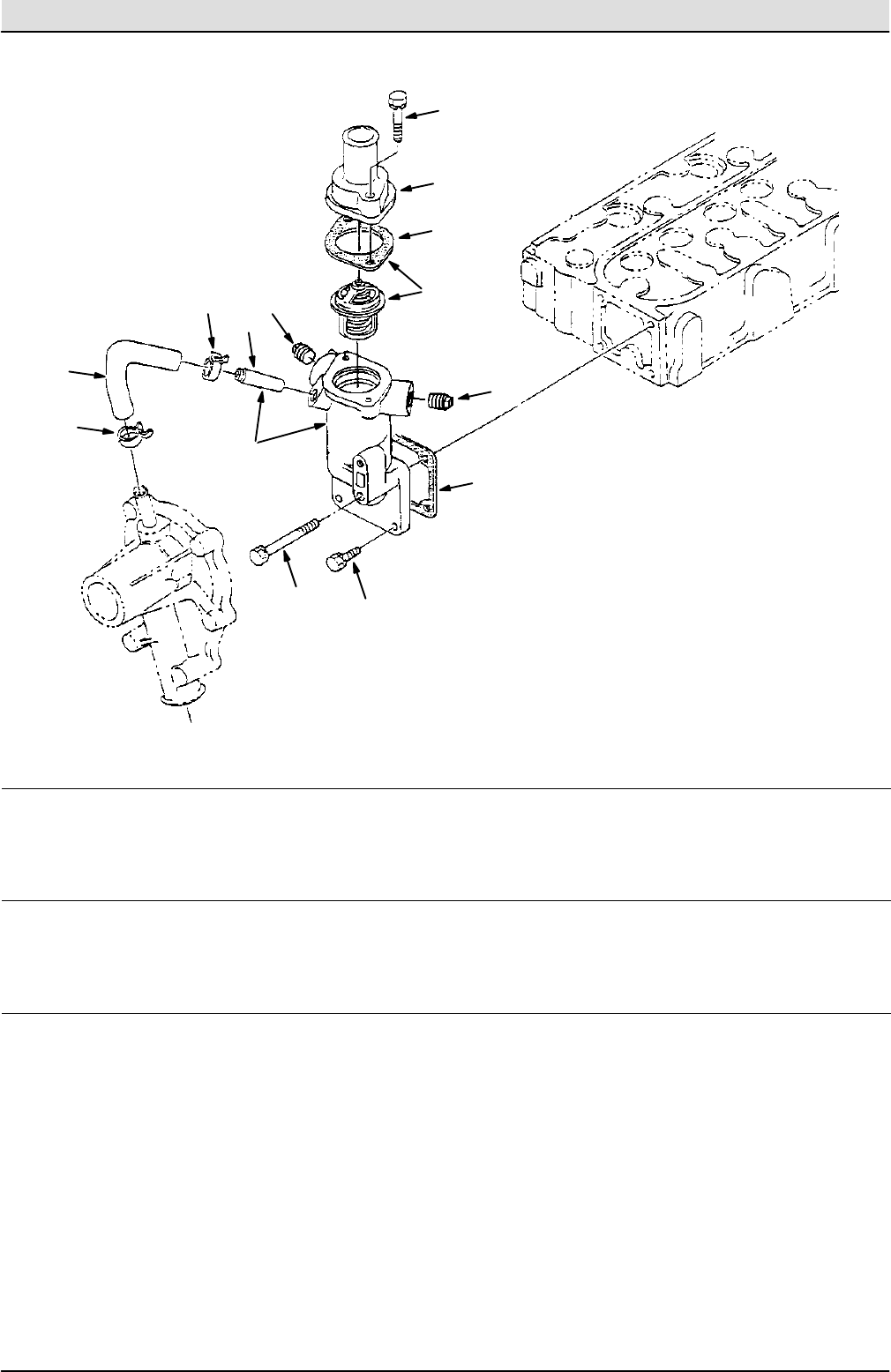

- Fig. 21 − Water Flange Group

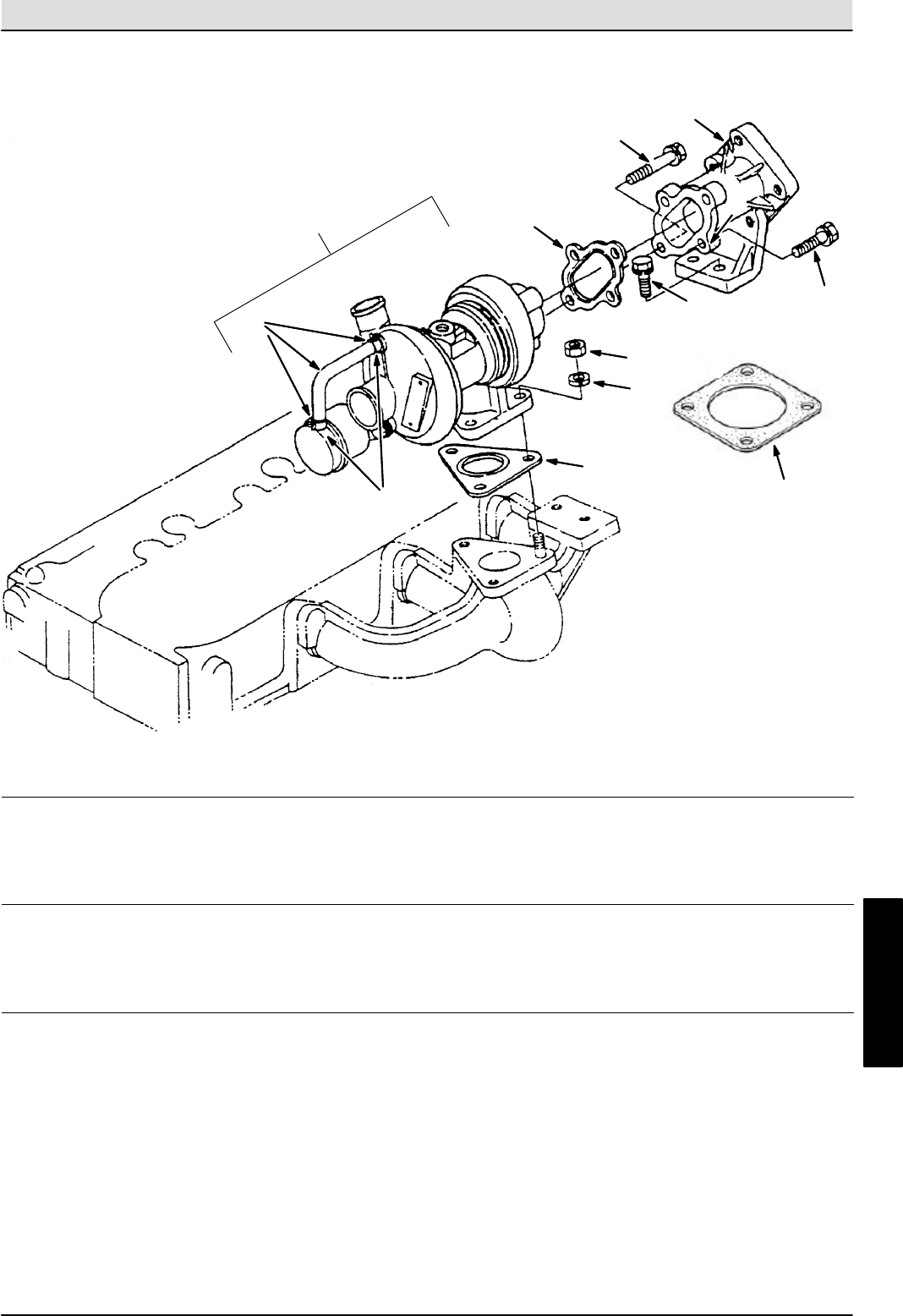

- Fig. 22 − Turbo Charger Group

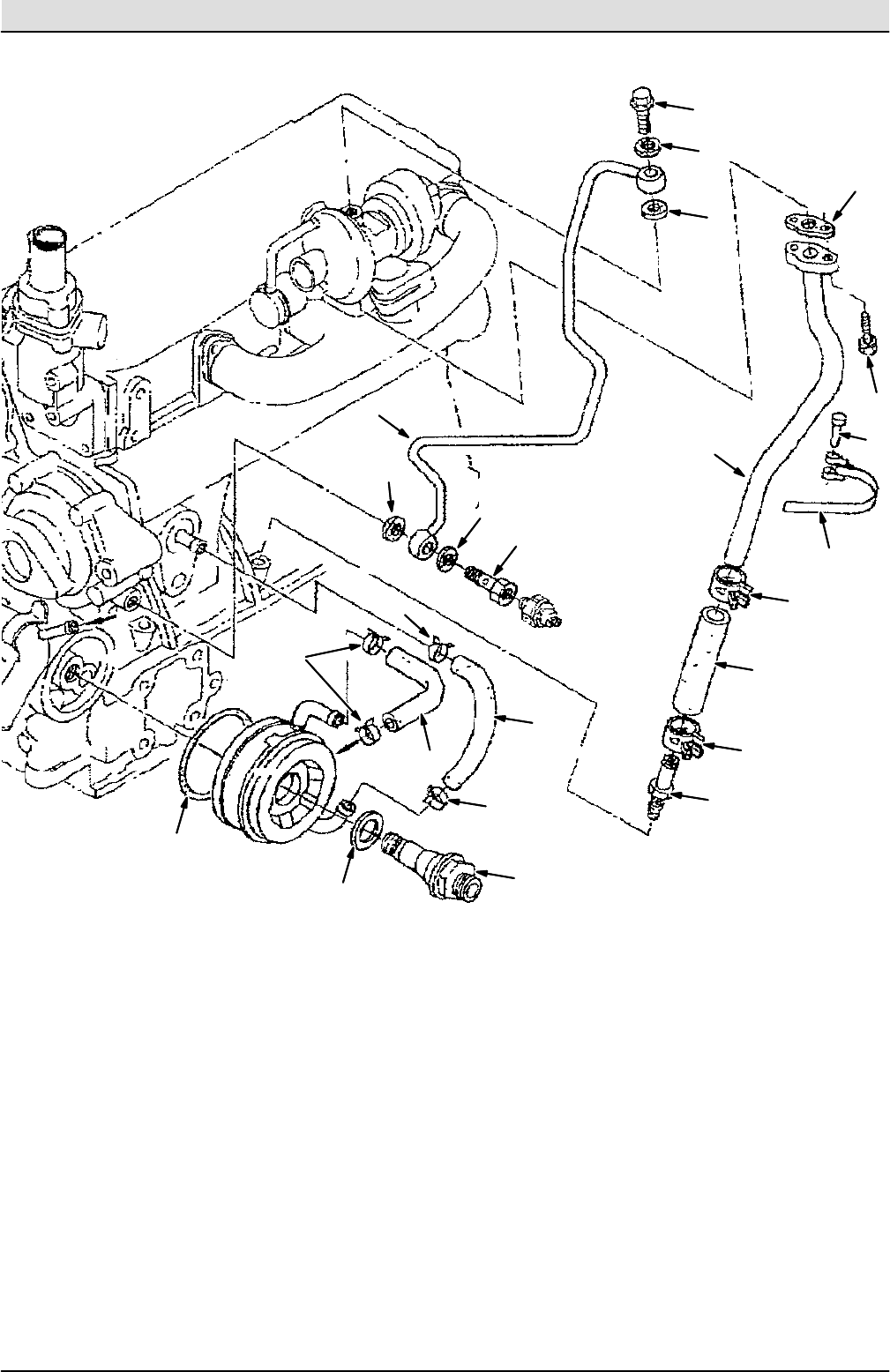

- Fig. 23 − Oil Cooler Group
- CROSS REFERENCE
636HS
*YM165*
YM165
Rev. 05 (5-2015)
CloudMaker Technology
Vari−trackt Technology
Serial Number
(910364 − )
Air Sweeper
Parts Manual
For latest parts manual or other
language operator manual, visit:
www.tennantco.com/manuals
www.greenmachines.com
Find...
Home
Go To..
Ref Part No. Serial Number Description Qty.

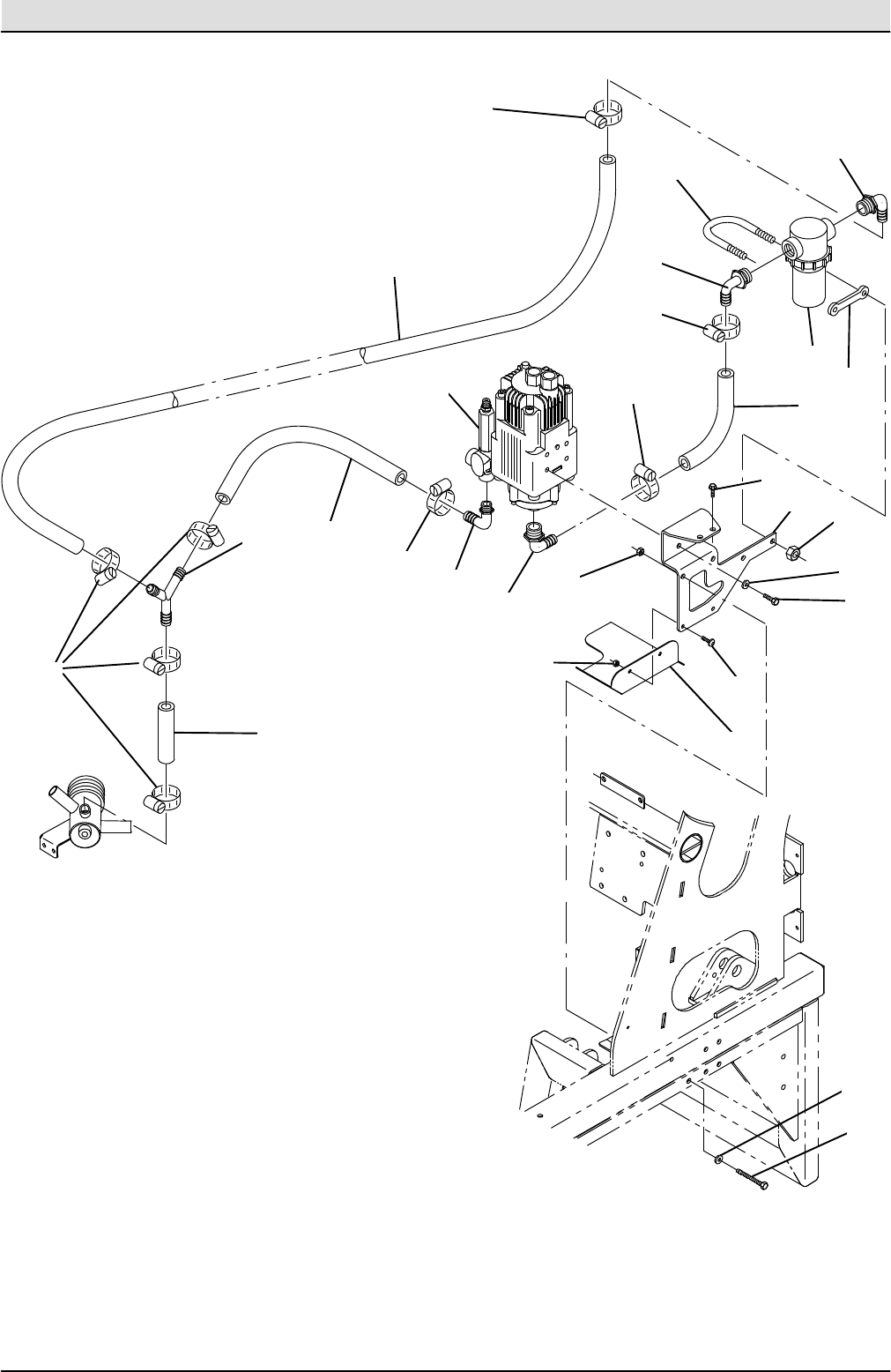

1 82681 (000000- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000- ) Tie, Cable 3
5 82556 (000000-001039 ) Bracket, Vaporizer 1
6 54930 (000000- ) Vaporizer, LPG 1
B
C
D
A

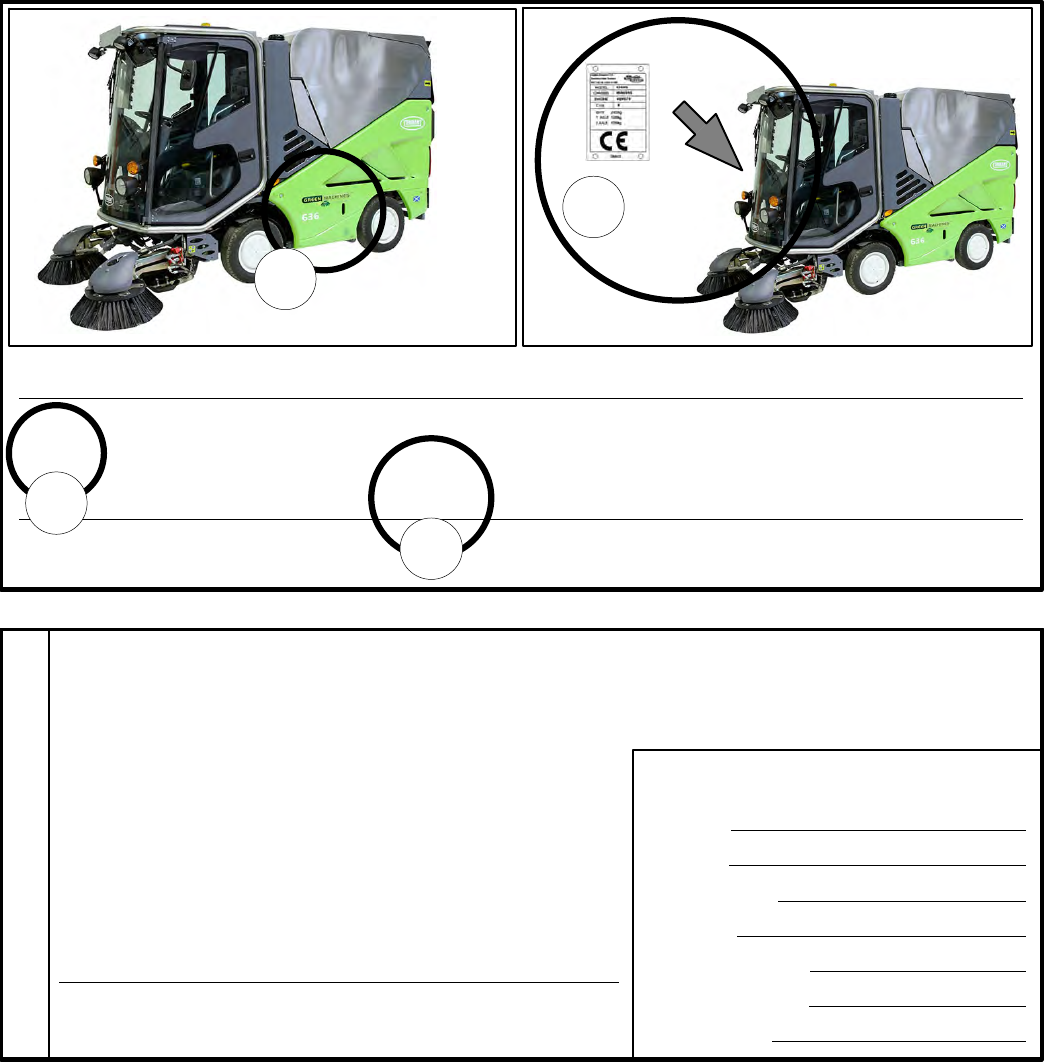

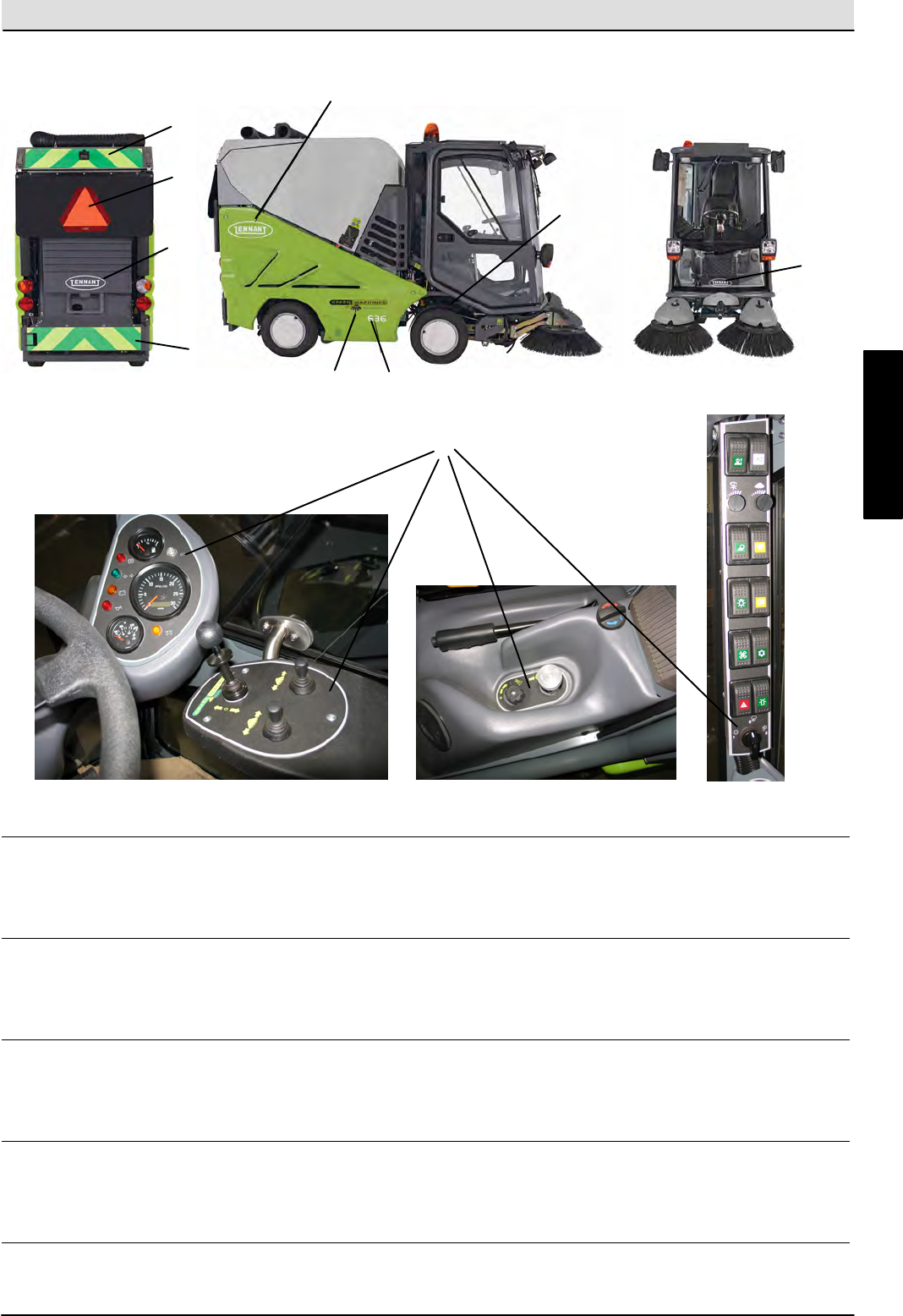

HOW TO ORDER PARTS − See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data plate.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) o− Identifies an assembly
Y− Identifies parts included in assembly
EN
Please fill out at time of installation for
future reference.
Model No. −
Serial No. −
Machine Options −
Sales Rep. −
Sales Rep. phone no. −
Customer ID Number −
Installation Date −
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: (800) 553−8033 or
(763) 513−2850
www.tennantco.com
Green machines
Bankside, Falkirk FK2 7XE
Scotland, United Kingdom
Phone: (+44) 1324−611666
www.greenmachines.com
Vari−−track Technology is a US registered and unregistered trademark of Green Machines Company.
Specifications and parts are subject to change without notice.
Copyright E 2011 − 2015 TENNANT Company, Printed in U.S.A.
Home
Find...
Go To..
! " " #
1. (A) $ %
2. (B) $ & % #
3. (C) ' &
4. $ (
)
5. $ &
"
6. $ # ")
(D) o− *
Y− + *
BG
!" # " " $ %!&' #()
, - −
! - −
.) % −
/ −
/ - −
0 - −
1 * −
CN
o
Y
.
!" #
$# $% &
&' !( "# )!)* +(
1. (A) ,' !
2. (B) ,' ! ! +!( &)
3. (C) !" ! *
4. -! *
" ! !$!(
5. -. # " # / "))# $)!
!# $ ")
6. -. ! ) ! "
(D) o−
Y− '
CZ
! "#$% &" '("'% ")'*
0 −
1! −
2) 3 −
4( " −
(( " −
0 / ")) −
−
BESTELLEN VON ERSATZTEILEN − Siehe oben stehendes Diagramm.
Verwenden Sie nur von TENNANT gelieferte oder gleichwertige Ersatzteile. Ersatz− und Verschleißteile können online, telefonisch, per Fax oder per E−Mail bestellt werden.
Befolgen Sie für eine umgehende Lieferung die folgenden Schritte.
1. (A) Geben Sie das Modell der Maschine an.
2. (B) Geben Sie die Seriennummer der Maschine an (auf dem Datenaufkleber).
3. (C) Achten Sie darauf, dass die richtigen Seriennummer aus der Ersatzteilliste verwendet wird.
4. Geben Sie die Ersatzteilnummer und die Menge an.
Bestellen Sie nicht nach Seitenzahl oder Referenznummern.
5. Geben Sie Ihren Namen, den Firmennamen, die Kundennummer,
die Rechnungs− und Lieferadresse, die Telefonnummer und die Einkaufsauftragsnummer an.
6. Erteilen Sie genaue Versandanweisungen.
(D) o− steht für eine Einheit
Y− steht für Einzelteile einer Einheit
DE
Bitte bei der Inbetriebnahme als Referenzangabe ausfüllen.
Modellnr. −
Seriennr. −
Maschinenoptionen −
Verkäufer −
Telefonnummer des Verkäufers −
Kundennummer −
Installationsdatum −
Home
Find...
Go To..
BESTILLING AF RESERVEDELE − Se ovenstående tabel.
Brug kun reservedele, der er fremstillet af TENNANT, eller dele af tilsvarende kvalitet. Reservedele og tilbehør kan bestilles online, pr. telefon, pr. fax eller pr. brev.
Følg nedenstående trin for at sikre hurtig levering.
1. (A) Identificér maskinmodellen.
2. (B) Identificér maskinens serienummer på datamærkaten.
3. (C) Kontrollér, at det rigtige serienummer bruges i reservedelslisten.
4. Identificér reservedelsnummeret og antallet. Bestil ikke efter side− eller referencenumre.
5. Angiv dit navn, firmanavn, kunde−id−nummer, faktureringsadresse
og leveringsadresse, telefonnummer og indkøbsordrenummer.
6. Angiv detaljerede instruktioner til forsendelse.
(D) o− identificerer en enhed
Y− identificerer reservedele i en enhed
DK
Udfyld venligst på installationstidspunktet til fremtidig brug.
Modelnr. −
Serienr. −
Maskinekstraudstyr −
Salgskonsulent. −
Salgskonsulentens tlf. −
Kunde−id−nr. −
Installationsdato −
KUIDAS VARUOSI TELLIDA – vaadake alltoodud joonist
Kasutage ainult TENNANT Company poolt tarnitud või samaväärseid varuosi. Varuosi ja tarvikuid saab tellida Interneti, telefoni, faksi või posti teel.
Kiire kohaletoimetamise tagamiseks järgige alltoodud juhiseid.
1. (A) Märkige masina mudel.
2. (B) Märkige andmesildil olev masina seerianumber.
3. (C) Veenduge, et olete valinud varuosade loendist õige seerianumbri.
4. Märkige varuosa number ja kogus.
Ärge tellige lehekülje- või viitenumbri alusel.
5. Märkige oma nimi, ettevõtte nimi, kliendinumber, arveldus- ja saatmisaadress,
telefoninumber ja ostutellimuse number.
6. Lisage täpsed saatmisjuhised.
(D) - tähistab komplekti
Y- tähistab komplektis olevaid osii
EE
Palun täitke paigaldamise ajal edaspidiseks viitamiseks.
Mudeli number −
Seerianumber −
Masina lisavarustus −
Müügiesindus -
Müügiesinduse telefoninumber -
Kliendinumber -
Paigaldamise kuupäev -
CÓMO SOLICITAR PIEZAS − Consulte el diagrama anterior.
Utilice sólo las piezas suministradas por TENNANT Company o piezas equivalentes. Puede solicitar las piezas a través de internet,
por teléfono, por fax o por correo.
Siga los siguientes pasos para que la entrega sea rápida.
1. (A) Indique el modelo de máquina.
2. (B) Indique el número de serie de la etiqueta de datos.
3. (C) Asegúrese de que indica el número de serie correcto de la lista de piezas.
4. Indique la cantidad y el número de la pieza.
No realice el pedidoindicando el número de página o el de referencia.
5. Incluya su nombre, el nombre de la empresa, el ID de cliente,
las direcciones de envío y facturación, el número de teléfono y el número del pedido de compra.
6. Facilite instrucciones de envío.
(D) o− identifica un conjunto
Y− identifica piezas de un conjunto
ES
Rellene estos datos cuando realice la instalación para utilizarlos
como referencia en el futuro.
Nº modelo −
Nº serie −
Opciones de la máquina −
Vendedor −
Nº teléfono vendedor −
Nº cliente −
Fecha de instalación −
KUINKA VARAOSIA TILATAAN − katso kuvaa yllä.
Käytä ainoastaan TENNANTIN toimittamia tai niitä vastaavia varaosia. Voit tilata varaosia ja tarvikkeita internetistä,
puhelimitse, faksilla tai sähköpostilla.
Noudata seuraavia ohjeita täsmällisen toimituksen varmistamiseksi.
1. (A) Katso koneen malli.
2. (B) IKatso koneen sarjanumero sen tunnustarrasta.
3. (C) Varmista, että osaluettelosta, että käytät oikeaa sarjanumeroa.
4. Katso osanumero ja kappalemäärä. Älä tilaa ilmoittamalla sivu− tai viitenumeroita.
5. Ilmoita nimesi, yrityksesi nimi, asiakasnumero, laskutus− ja
toimitusosoite, puhelinnumero ja ostotilauksen numero.
6. Ilmoita yksityiskohtaiset toimitusosoitteet.
(D) o− tarkoittaa kokoonpanoa
Y− tarkoittaa kokoonpanoon sisältyviä osia
FI
Ole hyvä ja täytä ottaessasi koneen käyttöön
myöhempiä tarpeita varten.
Mallinumero −
Sarjanumero −
Koneen lisävarusteet −
Myyntiedustaja −
Myyntiedustajan puhelinnumero −
Asiakasnumero −
Asennuspäivä −
Home
Find...
Go To..
COMMENT COMMANDER DES PIÈCES DÉTACHÉES − Voir le schéma ci−dessus.
Utilisez uniquement des pièces fournies par la société TENNANT ou équivalentes. Les pièces et fournitures peuvent être commandées en ligne, par téléphone, fax, ou par
courrier.
Suivez les étapes ci−dessous pour assurer une livraison rapide.
1. (A) Identifiez le modèle de la machine.
2. (B) Identifiez le numéro de série de la machine, à partir de l’étiquette signalétique.
3. (C) Assurez−vous que le numéro de série correct est utilisé à partir de la liste de pièces détachées.
4. Identifiez le numéro de pièce et la quantité. Ne commandez pas par page ou numéros de référence.
5. Fournissez votre nom, le nom de votre société, votre numéro d’identification de client, l’adresse
de facturation et d’expédition, le numéro de téléphone et le numéro du bon de commande.
6. Fournissez des instructions d’expédition détaillées.
(D) o− identifie un assemblage
Y− identifie les pièces composant l’assemblage
FR
A remplir au moment de l’installation à titre de référence.
Nº du modèle −
Nº de série −
Options de la machine −
Agent commercial −
Nº tél. de l’agent commercial −
Numéro d’identification client −
Date d’installation −
.
!" # $ ! %%&! '()*
+,* +- ."
/.& , 0 % -+1 2% .3"
1. (A) 41 2 3"
2. (B) 41 & 3 . 3 2 1,"
3. (C) 40,&1 1 ,3 &3 3
% $"
4. 41 , ! "
5 %%2 0 13 &$ +3"
5. 6$ 3* 13* 78 9,: * !&. %3
3* & +$. & 3 &3"
6. 6$ 13 +13 3"
(D) o− .$ .!
Y− .$ 2 . 0
.!
GR
! "#$%"&! & &$ % &$' !&"&"$'
!&( )
/" 52. −
/" 3 −
;%23 53 −
;" ,, −
#" $. ,, −
/&3 −
<1 %3 −
+,-. /01 .1.2/34512 #(6 7$ (8&.
5"!67 7 7!)8 !)!) (" )!) 7) 7 ( ! /! )!9# 7 $# $%
:
"" !) ); " )
1. (A) 7 7 "
2. (B) ) " 7 7 7"!" ""
3. (C) <7 !!# (7 7$= 7"!" " " ) )!"!6
4. 7 ! " 7 !( " 7
()" " ("
5. 7 # 7 # 97$6 ""#
""" "" # $"" ! "
6. ! "" ")
(D) o− 7!
Y− 7 "(6 )!)!
HU
. 9: 9&9 &(9$ 9&;<9=
"8 &""9 : <9"& > 9*
" −
>"!" " −
7 $!7 −
5!) )= −
5!) )= $" −
<7$ 6 " −
<( " −
NARUIVANJE DIJELOVA − Pogledajte dijagram iznad
Koristite isključivo dijelove tvrtke TENNANT ili jednakovrijedne dijelova. Dijelove i potrošni materijal možete naručiti preko interneta,
telefonom, faksom ili poštom.
Slijedite sljedeće korake kako biste osigurali brzu isporuku.
1. (A) Ustanovite model stroja.
2. (B) Ustanovite serijski broj stroja s pločice s podacima.
3. (C) Provjerite da koristite odgovarajući serijski broj sa spiska dijelova.
4. Odredite broj dijela i količinu.
Ne naručujte na osnovu brojeva stranice ili referentnih brojeva.
5. Navedite vaše ime, ime tvrtke, korisnički identifikacijski broj,
adresu za naplatu i dostavu, broj telefona i broj kupovine.
6. Navedite detaljne upute za dostavu.
(D) o− Odredite sklop
Y− Odredite dijelove uključene u sklop
HR
Molimo ispunite prilikom montaže za
buduće potrebe.
Broj modela −
Serijski broj −
Mogućnosti stroja −
Prodajni predstavnik −
Br. telefona prod. predst. −
Korisnčiki identifikacijski broj −
Datum montaže −
Home
Find...
Go To..
COME ORDINARE LE PARTI − Vedere schema precedente.
Utilizzare solo ricambi forniti da TENNANT o equivalenti. Ricambi e forniture possono essere ordinati online, per telefono, via fax o per posta elettronica.
Per ottenere una consegna rapida, seguire i passaggi indicati di seguito.
1. (A) Identificare il modello della macchina.
2. (B) Identificare il numero di serie della macchina dall’etichetta dei dati.
3. (C) Utilizzare il numero di serie corretto presente nell’elenco delle parti di ricambio.
4. Identificare numero di parte e quantità. Non ordinare per numero di pagina o di riferimento.
5. Fornire nome del contatto, nome della società, numero di ID cliente, indirizzo di fatturazione e
di spedizione, numero di telefono e numero di ordine di acquisto.
6. Fornire istruzioni dettagliate per la spedizione.
(D) o− identifica un gruppo
Y− identifica parti comprese in un gruppo
IT
Compilare il modulo al momento dell’installazione
per poterlo consultare in futuro in caso di necessità.
N. Modello −
N. Serie −
Opzioni della macchina −
Venditore −
Tel. venditore −
Numero ID cliente −
Data di installazione −
JP
o
Y
KAIP UŽSISAKYTI DALIS - žr. diagramà viršuje
Naudokite tik ”Tennant” kompanijos tiekiamas arba lygiavertes joms dalis. Dalis galite užsisakyti internetu, telefonu, faksu bei elektroniniu paštu.
Kad užsakymas būtų greitai įvykdytas, laikykitės išvardytų taisyklių.
1. (A) Nurodykite mašinos modelį.
2. (B) Norodykite mašinos serijos numerį, kurį rasite ant duomenų žymės.
3. (C) Įsitikinkite, kad nurodomas tikslus serijos numeris iš dalių sàrašo.
4. Nurodykite dalies numerį ir reikiamà kiekį.
Neužsakinėkite pagal puslapius ar nuorodos numerius.
5. Nurodykite savo vardà, kompanijos pavadinimà, kliento ID numerį,
sàskaitos išrašymo ir vežimo adresà, telefono numerį ir
pirkimo užsakymo numerį.
6. Nurodykite išsamias gabenimo instrukcijas.
(D) - žymi sistemà
Y- nurodo sistemos dalis
LT
Prašome užpildyti montavimo metu,
siekiant gauti informacijà ateityje.
Modelio nr. -
Serijos nr. -
Mašinos parinktys -
Prekybos atstovas -
Komivojažieriaus tel. nr. -
Pirkėjo ID numeris -
Sumontavimo data -
KĀ PASŪTĪT REZERVES DETAĻAS - Skat. diagrammu iepriekš
izmantojiet tikai TENNANT Company piegādātās vai tām līdzvērtīgas rezerves detaļas. Daļas un piegādi var pasūtīt internetā, pa tālruni, pa faksu vai pastu.
Lai nodrošinātu savlaicīgu piegādi, sekojiet zemāk aprakstītajiem soļiem.
1. (A) Nosakiet mašīnas modeli.
2. (B) Nosakiet mašīnas sērijas numuru uz tehnisko datu uzlīmes.
3. (C) Pārliecinieties, ka tiek uzrakstīts attiecīgais sērijas numurs no detaļu saraksta.
4. Nosakiet detaļas numuru un skaitu.
Veicot pasūtījumus neatsaucieties uz lappušu vai norādes numuriem.
5. Uzrakstiet savu vārdu, uzņēmuma nosaukumi, klienta identitātes numuru, adresi rēķina
piesūtīšanai un piegādei un pirkuma pasūtījuma numuru.
6. Sniedziet detalizētu informāciju par piegādi.
(D) - nosaka ierīci i
Y- nosaka detaļas, kas ir komplektā ar ierīci
LV
Veicot uzstādīšanu, lūdzam pierakstīst attiecīgo informāciju
izmantošanai turpmāk.
Modeļa Nr. -
Sērijas Nr. -
Iekārtas papildaprīkojums-
Pārdošanas pārst. -
Pārdošanas pārst. tālr. Nr. -
Klienta identitātes numuru-
Uzstādīšanas datums-
Home
Find...
Go To..
HOE ONDERDELEN TE BESTELLEN − Zie schema hierboven.
Gebruik alleen onderdelen die door TENNANT Company zijn geleverd of soortgelijke onderdelen. Onderdelen en voorraden kunnen online, per telefoon, fax of schriftelijk besteld
worden.
Volg de stappen hieronder om een juiste levering te garanderen.
1. (A) Bepaal het machinemodel.
2. (B) Lees het serienummer van de machine af van het gegevenslabel.
3. (C) Zorg dat het juiste serienummer wordt gebruikt uit de onderdelenlijst.
4. Bepaal het artikelnummer en het aantal. Bestel niet aan de hand van pagina’s of referentienummers.
5. Geef uw naam, bedrijfsnaam, klantnummer, factuur− en leveringsadres,
telefoonnummer en bestelnummer op.
6. Geef gedetailleerde leveringsinstructies op.
(D) o− geeft een eenheid aan
Y− geeft de onderdelen van de eenheid aan
NL
Vul tijdens installatie de onderstaande gegevens in voor eventueel
toekomstig gebruik.
Modelnr. −
Serienr. −
Machine−opties −
Verkoopvert. −
Telnr. verkoopvert. −
Klantnummer −
Installatiedatum −
HVORDAN BESTILLE DELER − Se diagram over.
Bruk kun deler levert av TENNANT Company eller ekvivalente deler. Deler og forsyninger kan bestilles online, per telefon, per faks
eller per post.
Følg trinnene under for å sikre rask levering.
1. (A) Angi maskinmodellen.
2. (B) Angi maskinens serienummer fra typeskiltet.
3. (C) Forsikre deg om at korrekt serienummer brukes fra delelisten.
4. Angi delenummer og antall. Bestill ikke ut fra side− eller referansenumre.
5. Angi ditt navn, firmanavn, kunde−ID−nummer, fakturerings− og
forsendelsesadresse, telefonnummer og innkjøpsordrenummer.
6. Angi detaljerte forsendelsesinstruksjoner.
(D) o− angir en delegruppe
Y− angir deler inkludert i en delegruppe
NO
Fyll ut ved installasjonstidspunkt for fremtidig bruk.
Modellnr. −
Serienr.. −
Maskinens tillegg −
Salgsrep. −
Salgsrep. telefonnr. −
Kunde−ID−nummer −
Installasjonsdato −
.1 5.?.@A.B C5DECA & "FG;*
? ?@A @BC DE !( ! $!D !6@@?( DE @ 7C A @ # ! $# $)
C
@A )C @D# ? !!7A DC( @)6@)
1. (A) 4)!EA
2. (B) 4)!EA ! ! C D @
3. (C) 4)A ! ! @ @) DE
4. 4)!EA ! DE EA @A @ ! ! !C)@
@)
5. A @ @)# @D $!# ! $) )# ! @
! !()# ! $ ! 6@ )
6. A )B !) C @
(D) o− 6B
Y− DEA @
PL
H&" FI (J $; (" KL$;8" F9"&$*
! −
! ! −
4 −
! !? −
! ! ! −
! ) −
−
COMO ENCOMENDAR PEÇAS − Consulte o diagrama acima.
Utilize apenas peças fornecidas pela TENNANT Company ou equivalentes. As peças e consumíveis podem ser encomendados online,
por telefone, fax ou correio.
Siga os passos abaixo para garantir uma entrega rápida.
1. (A) Identifique o modelo da máquina.
2. (B) Identifique o número de série da máquina que se encontra na etiqueta de dados.
3. (C) Certifique−se de que usa o número de série correcto da lista de peças.
4. Identifique o número de produto e a quantidade. Não encomende através de números de
página ou de referência.
5. Forneça o seu nome, o nome da empresa, o número de ID do cliente,
os endereços de facturação e entrega, o número de telefone e
o número da nota de encomenda.
6. Forneça instruções de entrega detalhadas.
(D) o− identifica uma unidade
Y− identifica peças incluídas numa unidade
PT
G
Preencha na altura da instalação para futura referência.
Modelo nº −
Nº de série −
Opções da máquina −
Vendedor −
Telefone do vendedor −
Número de ID do cliente −
Data de instalação −
Home
Find...
Go To..
**+ * ) , ".
2" 2 &3 43 3 3 * 2 *
5
1& " 3 * ")&
1. (A) '* 2 %3
2. (B) '* 3 %3 #3 # 3
3. (C) '22 * 3
4. '* "* ( 2" ) 3
5. '* & )3
"& 3 3
""
6. '* #3 &
(D) o− "
Y− # 2 "
RU
# ,"#( $" ,- . #&" &
/%0 01 # &1"-2)
,2 - −
!3 - −
.) %3 −
/3 2 −
/ & −
"& −
1 " −
BESTÄLLNING AV RESERVDELAR − Se ovanstående schema.
Använd endast delar från Tennant Company eller likvärdiga. Delar och material kan beställas online, telefoniskt, per fax eller post.
Följ nedanstående steg för en snabb leverans.
1. (A) Identifiera maskinens modell.
2. (B) Identifiera maskinens serienummer på typskylten.
3. (C) Kontrollera att rätt serienummer används från dellistan.
4. Identifiera artikelnumret och mängden. Beställ inte med hjälp av sido− eller referensnummer.
5. Uppge ditt namn, företagets namn, kundens ID−nummer, faktura− och leveransadress,
telefonnummer och ordernumret vid inköp.
6. Ge detaljerade transportanvisningar.
(D) o− identifierar en modul
Y− identifierar delar som ingår i en modul
SE
Fyll i vid installation och spar för framtida bruk.
Modellnr. −
Serienr. −
Tilvalsutrustning −
Försäljare −
Försäljarens tel.nr. −
Kundnummer −
Installationsdatum −
H42MH H/A . N.42 H"& '($ (8&.
F +(! G # ( ) ) G #
$)# $%# &
!( ! !. + )!)
1. (A) /$) !
2. (B) , ) H $) ! !
3. (C) - # !" !
4. /$) " !"# !$!+(
5. , F& # # / "))# $)!H
!!H !# $6 "
6. -. ! !! )
(D) o− $)
Y− $)
SK
&"% & $# & &%( "& '(O$"*
−
1! −
,"& !& ! −
4( H −
4( H −
/ ")) −
" &" −
./N. .?42A+ 8; 8"&$;" 9".
-! !7 )! !& ! () ! !) #
$# $) &
, 7 (!
1. (A) -7 !
2. (B) & ) & !) &) !
3. (C) )!# ( & ! !) &)
4. & &) ! ) ! !( ! !$! &)
5. # # / &) !)#
!# $) &) &) !
6. !
(D) o− )
Y− )
SL
H&""= ( " 8&($; "$ "(9= ( "("
&"($; $ ";"*
I −
1!) &) −
! ! −
! !) −
$) & !7 !) −
I) !) −
7! −
Home
Find...
Go To..
PARÇALARIN SÝPARÝÞ EDÝLMESÝ - Yukarýdaki þemaya bakýn.
Yalnýzca TENNANT Company'den saðlanan veya eþdeðerde parçalar kullanýn. Parça veya sarf malzemeleri çevrimiçi olarak,
telefonla, faksla veya postayla sipariþ edilebilir.
Zamanýnda teslimatý saðlamak için aþaðýdaki adýmlarý izleyin.
1. (A) Makine modelini belirtin.
2. (B) Veri etiketinden makine seri numarasýný belirtin.
3. (C) Parça listesinden uygun seri numarasýnýn kullanýldýðýndan emin olun.
4. Parça numarasýný ve miktarýný belirtin. Sayfa veya referans numaralarýný kullanarak sipariþ vermeyin.
5. Adýnýzý, þirketinizin adýný, müþteri kimlik numaranýzý, faturalama ve sevkýyat adreslerini,
telefon numarasýný ve satýn alma sipariþi numarasýný belirtin.
6. Ayrýntýlý sevkýyat talimatlarýný belirtin.
(D) o− bir tertibatý belirtir
Y− tertibattaki parçalarý belirtir
TR
Ýleri tarihlerde baþvurmak için lütfen kurulum sýrasýnda doldurun.
Model No. -
Seri No. -
Makine Seçenekleri -
Satýþ Temsilcisi -
Satýþ Temsilcisi telefon no. -
Müþteri Kimlik Numarasý -
Kurulum Tarihi -
Home
Find...
Go To..
Home
Find...
Go To..
GENERAL RECOMMENDED MAINTENANCE
1‐1
636 UK YM165 (6−2013)
General Recommended Maintenance
Ref. Part No. Serial Number Description Qty.
GG287 (910364−)Tri Key 1
ES276 (910364−) Bulb−12v 21/5w Tail/Stop Light 525 1
CD154 (910364−) Seal Flap, Drain 500e 1
NA138 (910364−) Pad, Wear, Horse Shoe −636 1
NN112 (910364−) Nozzle −Side Skid Shoe 1
PP082 (910364−)Fuel Filter Element−184 For Kubota D1105 1
PP083 (910364−) Oil Filter Element−1105t Hh16032093 1
PP084 (910364−) Air Cleaner Element For Kubota D1105−T−1
VH373 (910364−) Bearing Kit −Spinner −525 Cyclone 1
WA206 (910364−) Spray Head, Atomiser − Bobbin 1
WP020 (910364−) Filter − Water System [Ball Check] 32100 1
WP060 (910364−) Spray Jet − Brush −Green Dto.75 1
WP165 (910364−) Brush Spray Nozzle A 1
WP221 (910364−) Spray Nozzle [Red] 1
WA367 (910364−) Quick Couple Nozzle Tip 15 Degree 1
HC227 (910364−)Strainer, 1−1/2−11npt,100mesh,No By−Pass 1
HC228 (910364−) Strainer, Suction 1
HC058 (910364−) Filter Element − High D.P.−10qho G04666q 1
1057710 (910364−) Oil, Hyd [El, Iso 100, 01 Gal] 1
1057711 (910364−) Oil, Hyd [El, Iso 100, 05 Gal] 1
1057707 (910364−)Oil, Hyd [El, Iso 32, 01 Gal] 1
1057708 (910364−) Oil, Hyd [El, Iso 32, 05 Gal] 1
Home
Find...
Go To..
GENERAL RECOMMENDED MAINTENANCE
636 UK YM165 (2−11)
1‐2
Home
Find...
Go To..
STANDARD PARTS
2‐1
636 UK YM165 (5−2015)
SECTION 2
Contents Page
Fig. 1 − Brushes, Replacement 2-2................
Fig. 2 − Main Frame Group 2-4...................
Fig. 3 − Front Axle Group 2-6.....................
Fig. 4 − Front Drive Wheel Motor Mount Group,
Right Hand 2-8........................
Fig. 5 − Front Drive Wheel Motor Mount Group,
Left Hand 2-10........................
Fig. 6 − Wheel and Brake Group, Front 2-12........
Fig. 7 − Steering Linkage Group 2-14..............
Fig. 8 − Rear Trailing Arm Group, Right Hand 2-16..
Fig. 9 − Rear Trailing Arm Group, Left Hand 2-18...
Fig. 10 − Wheel and Brake Group, Rear 2-20.......
Fig. 11 − Side Panels Group, Right Hand 2-22......
Fig. 12 − Side Panels Group, Left Hand 2-24.......
Fig. 13 − Cab Windshield and Lights Group
(910364−1301022) 2-26................
Fig. 14 − Cab Windshield and Lights Group
(1301023− ) 2-28.................
Fig. 15 − Cab Door Group, Right Hand
(910364−1301022) 2-30................
Fig. 16 − Cab Door Group, Right Hand
(1301023− ) 2-32.................
Fig. 17 − Cab Door Group, Left Hand
(910364−1301022) 2-34................
Fig. 18 − Cab Door Group, Left Hand
(1301023 − ) 2-36.................
Fig. 19 − Cab Carpet and Windows Group 2-38.....
Fig. 20 − Cab Roof Group 2-40...................
Fig. 21 − Cab Tilt Group 2-42.....................
Fig. 22 − Cab Steering Wheel Group 2-44..........
Fig. 23 − Cab Seat Group 2-46...................
Fig. 24 − Cab Instrument Panel Group 2-48........
Fig. 25 − Cab Instrument Panel Group, Upper 2-50..
Fig. 26 − Cab Foot Pedals Group 2-52.............
Fig. 27 − Brake Lines Group 2-54.................
Fig. 28 − Cab Parking Brake Group 2-56...........
Fig. 29 − Cab Heater Group 2-58.................
Fig. 30 − Engine Mount Group 2-60...............
Fig. 31 − Engine Battery and
Alternator Group 2-62..................
Fig. 32 − Engine Air Filter Group 2-64.............
Fig. 33 − Engine Muffler Group 2-66...............
Fig. 34 − Engine Fuel Supply Group 2-68..........
Fig. 35 − Engine Radiator Mount Group 2-70.......
Fig. 36 − Engine Radiator Hoses Group 2-72.......
Fig. 37 − Brush Arm Lift Group, Right Hand 2-74....
Fig. 38 − Brush Arm Lift Group, Left Hand 2-76.....
Fig. 39 − Brush Arm Motor Group, Right Hand 2-78.
Fig. 40 − Brush Arm Motor Group, Left Hand 2-80...
Fig. 41 − Hopper Group 2-82.....................
Fig. 42 − Hopper Dump Door Group 2-84..........
Fig. 43 − Hopper Lift Group 2-88..................
Fig. 44 − Hopper Vacuum Fan Group 2-90.........
Fig. 45 − Hopper Vacuum Nozzle Group
(910364−15056053) 2-92...............
Fig. 46 − Hopper Vacuum Nozzle Group
(15056054− ) 2-94................
Fig. 47 − Hopper Inlet and Drain Group 2-96........
Contents Page
Fig. 48 − Hopper Vacuum Fan
Access Door Group 2-98................
Fig. 49 − Water Tank Rear Door and
Bumper Group 2-100...................
Fig. 50 − Water Pump Group 2-102................
Fig. 51 − Water Supply Group 2-104...............
Fig. 52 − Hydraulic Reservoir and Control
Valves Group 2-106....................
Fig. 53 − Hydraulic Pumps Group 2-108............
Fig. 54 − Hydraulic Hose Pumps Group 2-110......
Fig. 55 − Hydraulic Hose Steering Group 2-112.....
Fig. 56 − Hydraulic Hose Brush Motors Group 2-114.
Fig. 57 − Hydraulic Hose Drive Motor Group 2-116..
Fig. 58 − Hydraulic Hose Vacuum Fan Group 2-118.
Fig. 59 − Hydraulic Hose Hopper Lift and
Dump Door Group 2-120................
Fig. 60 − Labels Group 2-122.....................
Fig. 61 − Wire Harnesses Group 2-124............
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐2
Fig. 1 − Brushes, Replacement
1
6
247
13
8
9
10
11
12
13
3
5
Cylindrical Scrub Head City Cleaning Option
Disc Scrub Head City Cleaning Option
Home
Find...
Go To..
STANDARD PARTS
2‐3
636 UK YM165 (1−2015)
354855
Fig. 1 − Brushes, Replacement
Ref. Part No. Serial Number Description Qty.
1 NB064 (910364−1301022 )Brush, 750mm, 2row, Polypropylene 1
1 NB065 (910364−1301022 ) Brush, Disk, Swp, 750mm, Pyp 1
1 NB068 (910364−1301022 ) Brush, Pet − 3 Row 440mm/750mm −Blue 1
1 NB069 (910364−1301022 ) Brush − Polyprop/Wire Mix − 3 Row 440mm 1
2 GT347 (910364−1301022 ) Screw, Button Hd Hex Hd −M8 X 45 St.St. 6
3 NB072 (1301023−)Brush, Polyprop 750Mm 2 Row Orange 1
3 NB073 (1301023−) Brush, Polyprop 750Mm 3 Row Black 1
3 NB074 (1301023−) Brush, Polyprop/ Wire 750Mm 3 Row Black 1
3 NB075 (1301023−) Brush Assembly. Wired Weed Brush 1
4 GT265 (910364−1411359 ) Screw, Button Hd Skt − M8 x 45 − Zp Gd 8 3
5 GT265 (1411360−)Screw, Button Hd Skt − M8 x 45 − Zp Gd 8 6
6 KM274 (910364−) Tee Allen Key With Side Spur−5mm Plastic 1
7 386231 (910364−1411343 ) Brush, Scrubbing, 47L, 20 Sr, Pyp, Spl
(Cylindrical Scrub Head City Cleaning Option) 1
o 8 222320 (1411344−) Brush Assy, Disk, Scrub, 14.0 D, Polypropylene
(Disc Scrub Head City Cleaning Option) 3
Y 9 1017368 (1411344−) Hub, Drive, Brush, Disk, 3Hole 5.8Bc 1
Y10 14838 (1411344−)Spring, Wir, 0.16d, Brush Retaining 1
Y11 24299 (1411344−) Bracket, Retainer, Spring 1
Y12 01684 (1411344−) Washer,Flat 0.25, Ss 1
Y13 32746 (1411344−) Screw, Pan, M6 X 1.0 X 35, Ss 3
o 8 222321 (1411344−) Brush Assy, Disk, Scrub, 14.0 D, Soft Nylon
(Disc Scrub Head City Cleaning Option) 3
Y 9 1017368 (1411344−)Hub, Drive, Brush, Disk, 3Hole 5.8Bc 1
Y10 14838 (1411344−) Spring, Wir, 0.16d, Brush Retaining 1
Y11 24299 (1411344−) Bracket, Retainer, Spring 1
Y12 01684 (1411344−) Washer,Flat 0.25, Ss 1
Y13 32746 (1411344−) Screw, Pan, M6 X 1.0 X 35, Ss 3
o 8 222322 (1411344−)Brush Assy, Disk, Scrub, 14.0d, Super Abrasive
(Disc Scrub Head City Cleaning Option) 3
Y 9 1017368 (1411344−) Hub, Drive, Brush, Disk, 3Hole 5.8Bc 1
Y10 14838 (1411344−) Spring, Wir, 0.16d, Brush Retaining 1
Y11 24299 (1411344−) Bracket, Retainer, Spring 1
Y12 01684 (1411344−) Washer,Flat 0.25, Ss 1
Y13 32746 (1411344−)Screw, Pan, M6 X 1.0 X 35, Ss 3
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐4
Fig. 2 − Main Frame Group
1
42
3
4
5
6
7
8
9
10
11
12
13
14
4
15
16
17
17
18
19
20
21
22
23 24 25
26
28
31
21
22
32
33 33
27
30
34
35
36
36
13
13
37
37
41
41
39
39
40 39
41
38 41
38
4
13 2
26
29
27
30
4
7
43
44
44
45
46
46
Home
Find...
Go To..
STANDARD PARTS
2‐5
636 UK YM165 (8−2014)
354867
Fig. 2 − Main Frame Group
Ref. Part No. Serial Number Description Qty.
o1 CA364 (910364−1301022 )Chassis Wldt [636] 1
Y2 CA302 (910364−1301022 ) Bracket − Hopper Seat Chassis Frame Weld 1
o1 CA780 (1301023−) Chassis Wldt [636] 1
Y2 CA302 (1301023−) Bracket − Hopper Seat Chassis Frame Weld 1
3 GT330 (910364−) Screw,Button Hd Hex Skt−M8 X 16 St.St A4 6
4 GN069 (910364−) Nut,Nyloc −M8 St.St A2 21
5 GM294 (910364−1301022 ) Bumper,Rear − L.H.Vertical Left Hand 1
6 GM463 (910364−1301022 ) Bumper,Rear R.H. − Vertical Right Hand 1
7 CD055 (910364−1301022 ) Bracket Wldt, Mtg, Rubber Bumper 2
8 CD170 (910364−) Frame Wldt, Sppt 1
9 PP496 (002152−1310176 )Air intake Goalpost Wldmt − One Piece 1
9 PP495 (1310177−) Air intake Goalpost Wldmt − One Piece 1
10 CD090 (910364−) Tray Wldt, Battery 1
11 CD083 (910364−) Bracket,Weldment,Rh Side Panel,636 1
12 GT395 (910364−) BOLT,HEX HD SET M8 x 110 MM ZINC PLATED 5
13 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 9
14 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 5
15 GT396 (910364−) Bolt,Hex Head M10 X 120 Mm Zinc Plated 2
16 GT325 (910364−) Bolt,Hex Hd − M10 X 70 −St.St A4 2
17 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 4
18 ES744 (910364−)Beeper Assembly − 500/636 1
19 ES243 (910364−1403037 ) Iqan Xt2 Interface Input/Output Module X 1
19 ES458 (1403038−) Iqan Md3 Master Module 1
20 GT111 (910364−) Screw, Button Hd Hex Skt − M6 X 20 − Pt 2
21 GW110 (910364−) Washer 6mm Id X 18mm Od X 2mm Thick St/ 10
22 GN011 (910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 9
23 CP522 (910364−) Cover − Chassis Xt2 Unit 1
24 AW009 (910364−) Fastener − Rubber Woosh Boom Long 1
25 GM154 (910364−) Snap Clip − 46 Mm (S/Plow) 87172 1
26 ES254 (910364−1301022 ) Rear Lights / Stop / Reflector (Bulb Not Included) 2
27 ES276 (910364−1301022 )Bulb−12v 21/5w Tail/Stop Light 525 2
28 ES256 (910364−1301022 ) Direction Indicators / Reverse Light (Bulb Not Included) 1
29 ES255 (910364−1301022 ) Direction Indicator / Rear Fog Light (Bulb Not Included) 1
30 ES032 (910364−1301022 ) Bulb − 12v, 21w Llb382t 4
31 GW003 (910364−) Washer−Spring−1/4’ Perh100 Each 4
32 BB077 (910364−) P−Clip − Aba Rubber Lined − 10mm 31304 3 4
33 GM146 (910364−) Blanking Plug 199285 1’Dia. 2
34 CB855 (910364−) Bracket, Guide, Hose, Transmission, Rh 1
35 CB850 (910364−) Bracket, Guide, Hose, Transmission, Lh 1
36 GT377 (910364−) Bolt, Hex Hd −M8 X 75 St.St A4 2
37 GT312 (910364−)Bolt, Hex Hd − M6 X 70 Stainless Steel G 4
38 GB095 (910364−) Boss, 16 O/D X 8.5 I/D X 28 Long Nylon 6 6
39 GN046 (910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 8
40 GT313 (910364−) Bolt, Hex Hd − M6 X 100 Stainless Steel 4
41 GB090 (9CD29010364−) Boss, 12 O/D X 6 I/D X 28 Lg 14
42 CD290 (910364−1301022 )Louvre Weldment 2
43 ES740 (1301023−) Rear Light Cluster Led C/W Plug 2
44 GM660 (1301023−) Bumper, Rear − Vertical − Refresh 2
45 GN043 (1301023−) Nut, Nyloc Shallow −M8 − St.St.A2−314 6
46 GG233 (1301023−)Stop, Conical Progres (M8) 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐6
Fig. 3 − Front Axle Group
1
2
35
6
6
2
5
3
10
28
7
7
11
29
12
9
27
16 13
5
3
653
6
14
14
15 53
6
13
3
5
6
15
53
6
8
26
18
19
22
23
5
24
4
17
25
20
21
30
31
32
32
33
33
34
Home
Find...
Go To..
STANDARD PARTS
2‐7
636 UK YM165 (2−11)
354825
Fig. 3 − Front Axle Group
Ref. Part No. Serial Number Description Qty.
1 HC198 (910364−)Hydraulic Cylinder−Tracking−Mk3 16 Mm Po 1
2 FA127 (910364−) Pin Wldt, Pivot, Tracking Cyl Anchor 2
3 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 8
4 GN064 (910364−) Nut, Hex Lock (Thin) − M16 X 1.5p Grade 1
5 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 9
6 GG265 (910364−) Pin,Split − 4.0 X 25 −St.St 8
7 FA085 (910364−) Pivot Pin, Trailing Arm − Weldment 2
oFA072 (910364−) Trailing Arm Rh−Assembly 1
Y8 FA073 (910364−) Trailing Arm, Rh, Wldt 1
Y9 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y10 GG023 (910364−)Grease Nipple−45deg−6mm 1
Y11 GG227 (910364−) Ball Joint − Carryin 1
Y12 GN066 (910364−) Nut,Nyloc −M14 X 1.5p Fine Thread Zinc P 1
13 FA130 (910364−) Pivot Pin, Lower Shock Absorber 2
14 CT053 (910364−) Shock Absorber Assembly Yellow 2
15 CT025 (910364−)Pin Wldt, Shock Absorber 2
16 FA123 (910364−) Pivot Pin, Tracking Cylinder Rod − Weldm 2
17 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 1
18 HC137 (910364−) Hydraulic Cylinder −Steering 1
19 FA069 (910364−) Pin Wldt, Pivot, Steering Cyl 1
20 ES280 (910364−) Switch,Proximity−Normally Open C/W 3 Way (w Connector) 1
21 ES281 (910364−) Switch,Proximity−Normally Closed C/W 3 W (w Connector) 1
22 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 1
23 BB028 (910364−) Pin, R 1
24 GG229 (910364−) Ball Joint, Track Rod 1
oFA082 (910364−)Track Arm, Lh − Assembly 1
Y25 GN066 (910364−) Nut,Nyloc −M14 X 1.5p Fine Thread Zinc P 1
Y26 FA083 (910364−) Trailing Arm, Wldt 1
Y27 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y28 GG023 (910364−) Grease Nipple−45deg−6mm 1
Y29 GG227 (910364−)Ball Joint − Carryin 1
o30 FA151 (910364−) Axle Assy 1
Y31 GG039 (910364−) Grease Nipple, Straight − M6 2
Y32 GN066 (910364−) Nut,Nyloc −M14 X 1.5p Fine Thread Zinc P 2
Y33 GG227 (910364−) Ball Joint − Carryin 2
34 HC198 (910364−)Hydraulic Cylinder−Tracking−Mk3 16 Mm Po 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐8
Fig. 4 − Front Drive Wheel Motor Mount Group, Right Hand
8
4
5
6
7
1
9
10
11 12
13
14
15
16
17
18
20
21
20
16
3
19
22
23
2
23
Home
Find...
Go To..
STANDARD PARTS
2‐9
636 UK YM165 (2−11)
354822
Fig. 4 − Front Drive Wheel Motor Mount Group, Right Hand
Ref. Part No. Serial Number Description Qty.
1 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 1
2 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 4
3 HM032 (910364−) Nut 1
oFA176 (910364−) Top King Pin Bearing Housing Assy 1
Y4 GG244 (910364−) Bearing, Spherical, Igubal − 30 I/D X 55 1
Y5 FA064 (910364−)Bearing Housing, Top King Pin − Weldment 1
Y6 HC163 (910364−) Scraper − 50 I/D X 56 O/D X 7 O/A Freu 1
Y7 GM260 (910364−) Snap Ring, Internal − 55mm Bore 1
Y8 GG023 (910364−) Grease Nipple−45deg−6mm 1
9 FA093 (910364−) Pivot Pin − King Pin Top − Machined 1
10 FA134 (910364−)Washer, Top King Pin − Machining 1
11 FA156 (910364−) Hub Carrier Rh, 2nd W,Ment Front Brakes 1
12 FA116 (910364−) Plate, Support − Case Drain Hose − Devel 2
13 HM035 (910364−) Motor,Wheel −100 Cc/Rev Displacement M02 1
14 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 2
15 GN080 (910364−)Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 4
16 GT293 (910364−) Screw, Skt Hd Cap − M12 X 50 − Gd 12.9 4
17 FA204 (910364−) Plate Wldt, Bh, Hyd Hose, Rh 1
18 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
19 CB890 (910364−) Mudguard Wldt − Rh 1
20 GW047 (910364−)M8 Washer−Serrated Lock S8 − Zinc Plated 6
21 GT101 (910364−) M8 X 25 Set Screw 4
22 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 4
23 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 8
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐10
Fig. 5 − Front Drive Wheel Motor Mount Group, Left Hand
10
4
5
6
7
8
9
1
11
12
13
14
15
16
17
18
18
19
20
22
23
22
27
2
3
21
24
25
25
26
Home
Find...
Go To..
STANDARD PARTS
2‐11
636 UK YM165 (2−11)
354821
Fig. 5 − Front Drive Wheel Motor Mount Group, Left Hand
Ref. Part No. Serial Number Description Qty.
1 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 1
2 CB878 (910364−) Mudguard Wldt − Lh 1
3 CD007 (910364−) Plate, Fixing, L/H Mudguard −Formed 1
4 FA171 (910364−) End Cover,Rh Axle Beam 1
5 GG134 (910364−) Pop Rivets−3/16’Large Flange 245rpa0005 2
oFA176 (910364−)Top King Pin Bearing Housing Assy 1
Y6 GG244 (910364−) Bearing, Spherical, Igubal − 30 I/D X 55 1
Y7 FA064 (910364−) Bearing Housing, Top King Pin − Weldment 1
Y8 HC163 (910364−) Scraper − 50 I/D X 56 O/D X 7 O/A Freu 1
Y9 GM260 (910364−) Snap Ring, Internal − 55mm Bore 1
Y10 GG023 (910364−)Grease Nipple−45deg−6mm 1
11 FA093 (910364−) Pivot Pin − King Pin Top − Machined 1
12 FA134 (910364−) Washer, Top King Pin − Machining 1
13 FA155 (910364−) Hub Carrier Lh W,Ment Front Brakes 1
14 FA116 (910364−) Plate, Support − Case Drain Hose − Devel 2
15 HM035 (910364−) Motor,Wheel −100 Cc/Rev Displacement M02 1
16 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 2
17 GN080 (910364−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 4
18 GT293 (910364−) Screw, Skt Hd Cap − M12 X 50 − Gd 12.9 4
19 FA205 (910364−) Plate Wldt, Bh, Hyd Hose, Lh 1
20 GT028 (910364−)M8 X 20 H.T. Hex Set Plated 2
21 GT243 (910364−) Screw, Self Tapping − M8 X 16 2
22 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 6
23 GT101 (910364−) M8 X 25 Set Screw 4
24 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 4
25 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 10
26 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 4
27 HM032 (910364−) Nut 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐12
Fig. 6 − Wheel and Brake Group, Front
23
1
2
3
4
56
7
7
8
9
11
10
12
13
14
15
16
17
18
19
20
21
22
Home
Find...
Go To..
STANDARD PARTS
2‐13
636 UK YM165 (8−2014)
354820
Fig. 6 − Wheel and Brake Group, Front
Ref. Part No. Serial Number Description Qty.
1 FA174 (910364−)Drum,Front Brake,Machined 5 Stud (Hole) 2
o2 FA175 (910364−) Wheel Hub Assy −5 Stud 2
Y3 GT414 (910364−) Wheel Stud − M16 X 1.5 X 47 Lg 10
4 BB177 (910364−) Brake Shoe Replacement Kit.Front Brake 1
5 BB171 (910364−) Wheel Cylinder,Front Brake 1
6 BB179 (910364−)Tension Spring,Upper,Front Brake 1
7 BB173 (910364−) Shoe Steady Spring ,Front Brake 2
8 BB176 (910364−) Spring Buckle,Front Brake 2
9 BB178 (910364−) Tension Spring,Lower ,Front Brake 1
10 BB174 (910364−) Adjuster Wedge,Front Brake 1
11 BB175 (910364−)Adjuster Bolt,Front Brake 1
12 GN090 (910364−) Nut,Wheel −M16 X 1.5 P 10
13 TW055 (910364−) Wheel Assembly,155/7 2
14 CB946 (910364−) Bracket,Hub Cap −Formed 2
15 GG249 (910364−) Pin,Split 1 1/2 X 1/8”” St.St 2
16 GG074 (910364−) U−Type Receptacle 12304/3 2
17 GT234 (910364−) M6 X 10 Low Hd. Socket Cap Ptd 4
18 GT387 (910364−) Screw,Cap Skt Hd −M8 X 1.25 X 16 Zn A3b 20
19 GT302 (910364−) Screw, Csk Hd Slotted − M8 X 12 Brass Bo 2
20 TW056 (910364−1301022 ) Wheel Trim, 636/525 Machine−White 155r12 2
21 TW064 (1301023−)Wheel Trim − White − Refresh 2
22 GG256 (910364−) Slotted Fastener−525 Wheel Trim 2
23 GG073 (910364−) Dzus Retainer 12304/2 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐14
Fig. 7 − Steering Linkage Group
1
2
2
3
3
4
4
5
6
67
7
8
8
9
10
11
10
11
12
12
13
14
14
15
16
17
17
18
19
20
21
22
19
20
21
22
Home
Find...
Go To..
STANDARD PARTS
2‐15
636 UK YM165 (2−11)
354824
Fig. 7 − Steering Linkage Group
Ref. Part No. Serial Number Description Qty.
oFS007 (910364−)Drag Link−Lh Assembly 1
Y1 FS008 (910364−) Drag Link, Formed − Lh 1
Y2 GN064 (910364−) Nut, Hex Lock (Thin) − M16 X 1.5p Grade 2
Y3 GG229 (910364−) Ball Joint, Track Rod 2
Y4 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 2
oFS016 (910364−)Drag Link, Assembly − Rh 1
Y5 FS017 (910364−) Drag Link − Formed − Rh 1
Y6 GN064 (910364−) Nut, Hex Lock (Thin) − M16 X 1.5p Grade 2
Y7 GG229 (910364−) Ball Joint, Track Rod 2
Y8 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 2
oFS020 (910364−)Track Rod Assy, Close Bends 1
Y9 FS021 (910364−) Track Rod, Formed, Close Bends 1
Y10 GN064 (910364−) Nut, Hex Lock (Thin) − M16 X 1.5p Grade 2
Y11 GG229 (910364−) Ball Joint, Track Rod 2
Y12 GN091 (910364−) Nut−Philidus Mk V −M16 X 1.5(Fine) Zinc 2
oFS001 (910364−)Bell Crank Steering Lever, Rh − Assembly 1
Y13 FS002 (910364−) Bell Crank Steering Lever, Rh − Weldment 1
Y14 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y15 GG023 (910364−) Grease Nipple−45deg−6mm 1
oFS005 (910364−) Bell Crank Steering Lever, Lh − Assembly 1
Y16 FS006 (910364−)Bell Crank Steering Lever, Lh − Weldment 1
Y17 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y18 GG023 (910364−) Grease Nipple−45deg−6mm 1
19 FA089 (910364−) Pivot Pin, Bell Crank Steering Lever − W2
20 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 2
21 GW047 (910364−)M8 Washer−Serrated Lock S8 − Zinc Plated 2
22 GG265 (910364−) Pin,Split − 4.0 X 25 −St.St 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐16
Fig. 8 − Rear Trailing Arm Group, Right Hand
10
11
12
13
14
15
12 13
14
16
17
18
12
13
1
2
34
5
6
7
8
9
Home
Find...
Go To..
STANDARD PARTS
2‐17
636 UK YM165 (2−11)
354818
Fig. 8 − Rear Trailing Arm Group, Right Hand
Ref. Part No. Serial Number Description Qty.
1 GB089 (910364−)Bush, Igus − 30 I/D X 34 O/D X 37 Long ’ 2
2 GG039 (910364−) Grease Nipple, Straight − M6 2
3 CT002 (910364−) Rear Axle, Rh Wldt 1
4 HM057 (910364−) Motor Wheel − 130cc/Rev Displacement 1
4 HM052 (910364−) Wheel Motor,100 Cc −C/W Speed Sensor 1
5 GT376 (910364−) Screw −Cap Skt Hd − M12 X 45 −Zn Ptd Gra 4
6 GN080 (910364−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 4
7 GG234 (910364−) Stop,Conical Progressive −72mmodx58mm 1
8 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 1
9 GN080 (910364−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 1
10 CT025 (910364−)Pin Wldt, Shock Absorber 1
11 CT053 (910364−) Shock Absorber Assembly Yellow 1
12 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 3
13 GW006 (910364−) Washer−Plain−5/16’ Per 100 Per 100 3
14 GG265 (910364−) Pin,Split − 4.0 X 25 −St.St 1
15 FA130 (910364−)Pivot Pin, Lower Shock Absorber 1
16 CT021 (910364−) Pin Wldt, Pivot, Rear Axle 1
17 GN068 (910364−) Nut, Nyloc − M16 St/St A2 Course Threa 1
18 GG260 (910364−) Cover Plug,Plastic − M10 Hole 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐18
Fig. 9 − Rear Trailing Arm Group, Left Hand
1
2
3
4
19
6
7
89
10
11
12
13
14
15
14
12
13
16
17
12
1318
5
Home
Find...
Go To..
STANDARD PARTS
2‐19
636 UK YM165 (2−11)
354817
Fig. 9 − Rear Trailing Arm Group, Left Hand
Ref. Part No. Serial Number Description Qty.
1 GB089 (910364−)Bush, Igus − 30 I/D X 34 O/D X 37 Long ’ 2
2 GG039 (910364−) Grease Nipple, Straight − M6 1
3 CT019 (910364−) Rear Axle − Lh −Weldment 1
o4 HM052 (910364−) Motor,Wheel −100cc− C/W Speed Sensor 1
Y5 ES285 (910364−) Sensor, Speed − Wheel 1
o4 HM058 (910364−) Motor,Wheel−130cc− C/W Speed Sensor With 1
Y5 ES285 (910364−) Sensor, Speed − Wheel 1
6 GN080 (910364−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 4
7 GG234 (910364−) Stop,Conical Progressive −72mmodx58mm 1
8 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 1
9 GN080 (910364−)Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 1
10 CT025 (910364−) Pin Wldt, Shock Absorber 1
11 CT053 (910364−) Shock Absorber Assembly Yellow 1
12 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 3
13 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 3
14 GG265 (910364−) Pin,Split − 4.0 X 25 −St.St 2
15 FA130 (910364−) Pivot Pin, Lower Shock Absorber 1
16 CT021 (910364−) Pin Wldt, Pivot, Rear Axle 1
17 GN068 (910364−) Nut, Nyloc − M16 St/St A2 Course Threa 1
18 GG260 (910364−) Cover Plug,Plastic − M10 Hole 1
19 GT376 (910364−) Screw −Cap Skt Hd − M12 X 45 −Zn Ptd Gra 4
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐20
Fig. 10 − Wheel and Brake Group, Rear
24
26
17
1
2
3
4
5
6
7
8
9
9
10
10
11
12
27
14
15
16
18
19
20
21
23
13
22
25
Home
Find...
Go To..
STANDARD PARTS
2‐21
636 UK YM165 (8−2014)
354819
Fig. 10 − Wheel and Brake Group, Rear
Ref. Part No. Serial Number Description Qty.
1 GN090 (910364−) Nut,Wheel −M16 X 1.5 P 10
2 TW055 (910364−) Wheel Assembly,155/7 2
3 CB946 (910364−) Bracket,Hub Cap −Formed 2
4 GG249 (910364−) Pin,Split 1 1/2 X 1/8”” St.St 2
5 GG074 (910364−)U−Type Receptacle 12304/3 2
6 GT234 (910364−)M6 X 10 Low Hd. Socket Cap Ptd 4
oBB123 (910364−) Brake Assembly Complete−Left Hand Not St 1
Y7 BB126 (910364−) Brake Shoes−Replacement Kit See Notes 1
Y8 BB133 (910364−) Wheel Cylinder 1
Y9 BB135 (910364−) Upper Tension Spring 2 Per Brake 2
Y10 BB134 (910364−)Shoe Steady Spring 2 Per Brake 2
Y11 BB136 (910364−) Lower Tension Spring 1
Y12 BB127 (910364−) Manual Adjuster I Per Brake 1
Y13 BB125 (910364−) Brake Cable Adaptor 2
oBB124 (910364−) Brake Assembly Complete−Right Hand Not S 1
Y7 BB126 (910364−)Brake Shoes−Replacement Kit See Notes 1
Y8 BB133 (910364−) Wheel Cylinder 1
Y9 BB135 (910364−) Upper Tension Spring 2 Per Brake 2
Y10 BB134 (910364−) Shoe Steady Spring 2 Per Brake 2
Y11 BB136 (910364−) Lower Tension Spring 1
Y12 BB127 (910364−)Manual Adjuster I Per Brake 1
Y13 BB125 (910364−) Brake Cable Adaptor 2
14 GN073 (910364−) Nut,Hex Lock (Thin) M10 X 1.0p Zinc Pla 2
15 CT039 (910364−) Flexible Hose 2
16 BB079 (910364−)P−Clip − Aba Rubber Lined − 13mm 2
o17 CT057 (910364−)Wheel Hub Assy −Rear −5 Stud 2
Y18 GT414 (910364−) Wheel Stud − M16 X 1.5 X 47 Lg 10
19 GT302 (910364−) Screw, Csk Hd Slotted − M8 X 12 Brass Bo 2
20 74455 (910364−) Screw, Hex, M6 X 1.00 X 12, Fmg 2
21 GT291 (910364−) M12 X 20 Skt Cap 12.9 Zc 12
22 TW056 (910364−1301022 )Wheel Trim, 636/525 Machine−White 155r12 2
23 TW064 (1301023−) Wheel Trim − White − Refresh 2
24 CT056 (910364−) Drum,Rear Brake,Machined 5 Stud (Hole) 2
25 GG256 (910364−) Slotted Fastener−525 Wheel Trim 2
26 GG073 (910364−) Dzus Retainer 12304/2 2
27 CT039 (910364−)Flexible Hose 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐22
Fig. 11 − Side Panels Group, Right Hand
1
4
4
5
6
5
6
7
8
7
8
8
9
9
9
10
10
11
11
11
11
12
12
13
13
13 14
15
14
13
16
16
17
18
19
19
9
13
13 9
20
20
13
13
13
9
13
9
2
8
3
13 9
21
22
23
24
25
26
27
28
Home
Find...
Go To..
STANDARD PARTS
2‐23
636 UK YM165 (6−2013)
354870
Fig. 11 − Side Panels Group, Right Hand
Ref. Part No. Serial Number Description Qty.
1 CP233 (910364−1301022 )Side Panel −Rh Assembly −636 1
1 CP525 (1301023−) Side Panel − Rh Assembly − Refresh 1
2 CD099 (910364−) Bracket, Access Door 1
3 GT169 (910364−) Screw, Hex Hd Set − M6 X 30 − Zn Ptd 1
4 GM451 (910364−) Label, Tire Press 2
5 GG146 (910364−)Knurled Fastener 17−13−204−11 2
6 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 2
7 GT338 (910364−) Screw,Button Hd Hex Skt−M6 X 30 A4 3
8 GG033 (910364−) Door Stop Male 0666/002 4
9 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 12
10 GG147 (910364−)Clip−On Recepticle 17−10027−11 2
11 GG044 (910364−) Door Stop Female 0775/001 4
12 GT385 (910364−) Screw, Hex Hd Set M6 X 20 St.St A4 2
13 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 17
14 GT135 (910364−) M6 X 16 Hex Head Ptd 500e 2
15 CD477 (910364−)Side Door Panel Right Hand Assembly 1
16 CD100 (910364−) Top/Bottom, R/H Frame Hinge ,636 2
17 CD103 (910364−) Top R/H Door Hindge −636 1
18 CD106 (910364−) Bottom R/H Door Hinge −636 1
19 GT320 (910364−) Screw, Button Hd Hex Skt − M6 X 12 St.St 4
20 GT338 (910364−)Screw,Button Hd Hex Skt−M6 X 30 A4 4
21 ES736 (1301023−) Indicator Side Repeater 1
22 GT455 (1301023−) M3 X 20 Long Button Head Screw 2
23 GN124 (1301023−) Nut, M3 2
24 GW008 (1301023−) Washer, Form A − M5 − Zn Ptd Per 100 Per 2
25 CD757 (1301023−)Bracket Rh Repeater Mount − Formed 1
26 GT301 (1301023−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 2
27 GW015 (1301023−) Washer−Spring−8mm Rect 2
28 GW060 (1301023−) Washer − Form A − M8 −St St 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐24

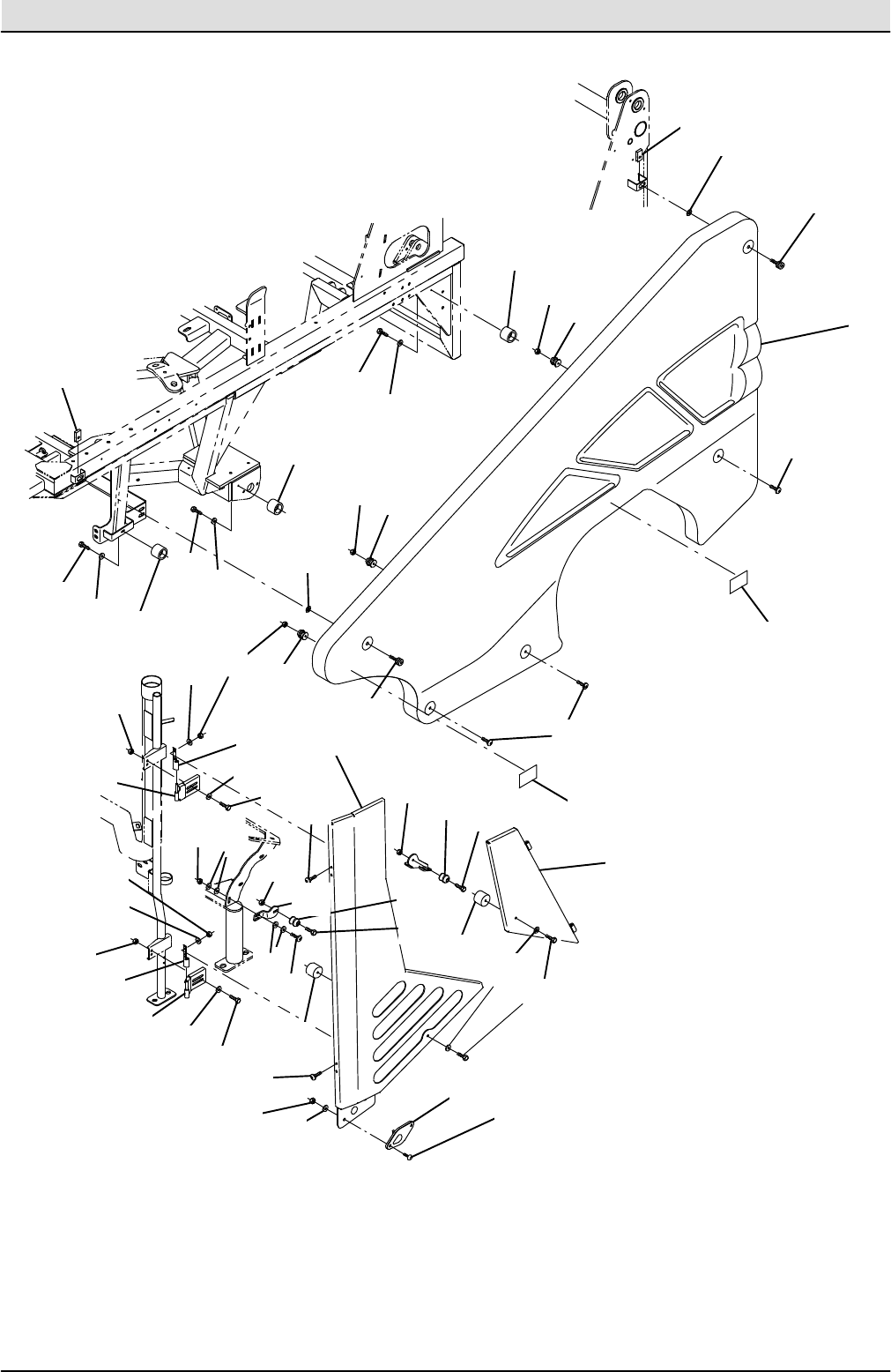

Fig. 12 − Side Panels Group, Left Hand
1
2
2
3
4
3
4
5
6
7
6
7
5
6
7
8
8
9
9
9
10 11
10 11
11
12
13
12
11
9
9
714 15
23
22
7
14
15
16
10
11
11
717
17
21
19
19
7
11
11
20
18
10
7
11
11 10
7
24 25
Home
Find...
Go To..
STANDARD PARTS
2‐25
636 UK YM165 (6−2013)
354869
Fig. 12 − Side Panels Group, Left Hand
Ref. Part No. Serial Number Description Qty.
1 CP232 (910364−1301022 )Side Panel −Lh Assembly −636 1
1 CP524 (1301023−) Side Panel ,Left Hand −636 Linden Green 1
2 GM451 (910364−) Label, Tire Press 2
3 GG146 (910364−) Knurled Fastener 17−13−204−11 2
4 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 2
5 GT338 (910364−)Screw,Button Hd Hex Skt−M6 X 30 A4 3
6 GG033 (910364−) Door Stop Male 0666/002 3
7 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 15
8 GG147 (910364−) Clip−On Recepticle 17−10027−11 2
9 GG044 (910364−) Door Stop Female 0775/001 5
10 GT385 (910364−)Screw, Hex Hd Set M6 X 20 St.St A4 8
11 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 17
12 GT135 (910364−) M6 X 16 Hex Head Ptd 500e 3
13 CD305 (910364−) Fixed Panel, Lh Wldt [636] 1
14 GG033 (910364−) Door Stop Male 0666/002 2
15 GT169 (910364−)Screw, Hex Hd Set − M6 X 30 − Zn Ptd 2
16 CD121 (910364−) Doorstop Mtg Bracket −636 1
17 GT320 (910364−) Screw, Button Hd Hex Skt − M6 X 12 St.St 4
18 CD465 (002153−) Lower Hinge Weld Assembly 1
19 CD458 (910364−) Lh Side Door Hinge Assembly 2
20 CD463 (002153−)Upper Hinge Weld Assembly 1
21 CD461 (910364−1301022 ) Side Door Panel Left Hand Assembly 1
o21 CD461 (1301023−) Side Door Panel Left Hand Assembly 1
Y22 ES736 (1301023−) Indicator Side Repeater 1
Y23 GT455 (1301023−) M3 X 20 Long Button Head Screw 2
Y24 GN124 (1301023−)Nut, M3 2
Y25 GW008 (1301023−) Washer, Form A − M5 − Zn Ptd Per 100 Per 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2014)
2‐26
Fig. 13 − Cab Windshield and Lights Group (910364−1301022)
7
33
34
1
3
4
5
6
8
8
9
9
10
7
12
13
715
32
32
21
22 23
25
26
27
28
29
30
31
24
14
2
16 17
18
20
35
36
11
19
37
38
40
41
Home
Find...
Go To..
STANDARD PARTS
2‐27
636 UK YM165 (8−2014)
354862
Fig. 13 − Cab Windshield and Lights Group (910364−1301022)
Ref. Part No. Serial Number Description Qty.
1 MC582 (910364−1301022 )Windscreen Assy −C/W Pack & Carr Uk Car 1
2 WA142 (910364−1301022 ) Connector Plastic −Screen Wash Hose 1
3 EC043 (910364−1301022 ) Motor, Wiper, Kit, Am [636] 1
4 GW049 (910364−1301022 ) M12 Washer − Serrated Lock S12 − Zinc Pl 1
o5 MC226 (910364−1301022 ) Wiper Arm − 450mm (18) With Water Wash 1
YMD106 (910364−1301022 )Wiper Washer Jets 1
6 MC227 (910364−1301022 ) Wiper Blade, Curved 1
7 GM347 (910364−1301022 ) Grommet,Open−8.0 I/D,1.6 Thk & 12.7 Hole 6
o8 ES347 (910364−1301022 ) Work Lamp −2
YES217 (910364−1301022 ) Bulb −Halogen H3 1
9 ET101 (910364−1301022 )Cable Gland −16 Mm X 1.5 Ip 68 Metric Th 2
10 GM387 (910364−1301022 ) Blind Grommet −16.5 Mm Hole Dia Pvc Pvc 1
11 GM522 (910364−1301022 ) Dommed Round Insert −Brush Mirror Arm 2
12 RH007 (910364−1301022 ) Hose, Windscreen Washer 3/16 Tubing 30 Mt 1
13 GM024 (910364−1301022 ) Clip−Pvc Adhesive Pack−25 250ml 4
14 GN011 (910364−1301022 )Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
15 WA139 (910364−1301022 ) In−Line Valve−Windscreen Washers 1
16 WA472 910364−1301022 ) Windscreen Water Bottle Am Kit 1
17 GT112 (910364−1301022 ) Screw, Btn, M5 X 0.8 X 15 2
18 GW098 (910364−1301022 ) Washer, M5 −Stainless Steel −A4 2
19 ES329 (910364−1301022 )Iqan − Xs − 5010003 2
20 GN009 (910364−1301022 ) Nut − M5 2
21 MC238 (910364−1301022 ) Heater Intake Spiggot Assembly 1
22 ES206 (910364−1301022 ) Beacon Pivot Wldt 1
23 GM406 (910364−1301022 ) Beacon Velcro Lock Down 1
24 GW031 (910364−1301022 )M6 Washer Plain Ptd. Each Each 2
25 ES712 (910364−1201001 ) Retrofit Kit − Britax Led Beacon 1
26 GT151 (910364−1201001 ) Screw, Hex Set − M6 X 35 − Brass 3
27 GN049 (910364−1201001 ) Nut, Stainless Steel A4 − M6 Mild Steel 3
28 MC932 (910364−1301022 ) Cab Wldt, W/ Label 1
29 (910364−1301022 ) 1
30 ES243 (910364−1301022 ) Iqan Xt2 Interface Input/Output Module X 1
31 GT111 (910364−1301022 ) Screw, Button Hd Hex Skt − M6 X 20 − Pt 2
o32 ES245 (910364−1301022 ) Headlamp/Indicator/Side Light (Lh Drive) 2
YES217 (910364−1301022 ) Bulb −Halogen H3 (Top High Beam) 1
YES032 (910364−1301022 )Bulb − 12v, 21w Llb382t (Turn Signal) 1
YES298 (910364−1301022 ) Bulb Halogen Hb7−525 Headlamp −12−55w (Bottom Low
Beam) 1
YES031 (910364−1301022 ) Bulb 12V 4W Single contact Llb−233 (Side Light Middle) 1
o32 ES244 (910364−1301022 ) Headlamp/Indicator/Side Light (Rh Drive) 2
YES217 (910364−1301022 ) Bulb −Halogen H3 (Top High Beam) 1
YES032 (910364−1301022 )Bulb − 12v, 21w Llb382t (Turn Signal) 1
YES298 (910364−1301022 ) Bulb Halogen Hb7−525 Headlamp −12−55w (Bottom Low
Beam) 1
YES031 (910364−1301022 ) Bulb 12V 4W Single contact Llb−233 (Side Light Middle) 1
33 MC274 (910364−1301022 ) Front Number Plate 1
34 GT320 (910364−1301022 ) Screw, Button Hd Hex Skt − M6 X 12 St.St 2
35 MC792 (910364−1301022 )Mirror Head,Wide Angle 1
36 MC677 (910364−1301022 ) Mirror Arm − Brush− Rh 1
37 ES708 (1201002−1301022 ) Beacon, Led 1
38 ES705 (1201002−1301022 ) Beacon Extension Pillar 1
39 GT300 (1201002−1301022 ) Screw, Hex Head Set − M6x12 St.St Grade 3
40 GW087 (1201002−1301022 )Washer, M6 Form C − St.St, A2 3
41 GN078 (1201002−1301022 ) Nut, Nyloc Thin − M6 − St/St A4−80 3
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐28
Fig. 14 − Cab Windshield and Lights Group (1301023− )
1
2
3
4
5
6
7
8
8
910
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27 28
29
30
31
32
32
33
34
35
36
37
38 39
40
40
41
42
43
7
7
44
Home
Find...
Go To..
STANDARD PARTS
2‐29
636 UK YM165 (5−2015)
354862
Fig. 14 − Cab Windshield and Lights Group (1301023− )
Ref. Part No. Serial Number Description Qty.
1 MC582 (1301023−)Windscreen Assy −C/W Pack & Carr Uk Car 1
2 WA142 (1301023−) Connector Plastic −Screen Wash Hose 1
3 EC043 (1301023−) Motor, Wiper, Kit, Am [636] 1
4 GW049 (1301023−) M12 Washer − Serrated Lock S12 − Zinc Pl 1
o5 MC226 (1301023−) Wiper Arm − 450mm (18) With Water Wash 1
YMD106 (1301023−)Wiper Washer Jets 1
6 MC227 (1301023−) Wiper Blade, Curved 1
7 GM347 (1301023−) Grommet,Open−8.0 I/D,1.6 Thk & 12.7 Hole 6
o8 ES347 (1301023−) Work Lamp 2
YES742 (1301023−) Work Lamp − Deutsch Plug − Refresh 1
9 ET101 (1301023−)Cable Gland −16 Mm X 1.5 Ip 68 Metric Th 2
10 GM387 (1301023−) Blind Grommet −16.5 Mm Hole Dia Pvc Pvc 1
11 GM522 (1301023−) Dommed Round Insert −Brush Mirror Arm 2
12 RH007 (1301023−) Hose, Windscreen Washer 3/16 Tubing 30 Mt 1
13 GM024 (1301023−) Clip−Pvc Adhesive Pack−25 250ml 4
14 GN011 (1301023−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
15 WA139 (1301023−)In−Line Valve−Windscreen Washers 1
16 WA472 (1301023−1306107 ) Windscreen Water Bottle Am Kit 1
16 WA471 (1306108−) Water Bottle − Windscreen Wash C/W 12v 1
17 GT112 (1301023−) Screw, Btn, M5 X 0.8 X 15 2
18 GW098 (1301023−)Washer, M5 −Stainless Steel −A4 2
19 ES329 (1301023−) Iqan − Xs − 5010003 2
20 GN009 (1301023−) Nut − M5 2
21 MC238 (1301023−) Heater Intake Spiggot Assembly 1
22 ES206 (1301023−) Beacon Pivot Wldt 1
23 GM406 (1301023−) Beacon Velcro Lock Down 1
24 GW031 (1301023−) M6 Washer Plain Ptd. Each Each 2
25 ES708 (1301023−) Beacon, Led 1
26 ES705 (1301023−) Beacon Extension Pillar 1
27 GT300 (1301023−) Screw, Hex Head Set − M6x12 St.St Grade 3
28 GW087 (1301023−)Washer, M6 Form C − St.St, A2 3
29 GN078 (1301023−) Nut, Nyloc Thin − M6 − St/St A4−80 3
30 ES243 (1301023−1403037 ) Iqan Xt2 Interface Input/Output Module X 1
30 ES458 (1403038−) Iqan Md3 Master Module 1
31 GT111 (1301023−) Screw, Button Hd Hex Skt − M6 X 20 − Pt 2
o32 ES738 (1301023−)Headlamp (RH Drive vehicles) 2
YES736 (1301023−) Indicator Side Repeater 1
YES737 (1301023−) Front Indicator Light 1
o32 ES739 (1301023−) Headlamp (LH Drive vehicles) 2
YES736 (1301023−) Indicator Side Repeater 1
YES737 (1301023−)Front Indicator Light 1
33 MC274 (1301023−) Front Number Plate 1
34 GT320 (1301023−) Screw, Button Hd Hex Skt − M6 X 12 St.St 2
35 MC792 (1301023−) Mirror Head,Wide Angle 1
36 MC677 (1301023−) Mirror Arm − Brush− Rh 1
37 MD128 (1301023−)Headlamp Bracket Lh Refresh 1
38 MD129 (1301023−) Headlamp Bracket Rh Refresh 1
39 GT330 (1301023−) Screw, Button hd Hex Skt−m8 x 16 St.St A4 2
40 GT112 (1301023−) Screw, Btn, M5x0.8x15 2
41 MD139 (1301023−) Grab Handle Formed 1
42 GB141 (1301023−)Spacer − Black nylon 20Odx10Idx20L 2
43 GT093 (1301023−) Screw, Hex hd Set M10x40 2
44 MD162 (1301023−) Cab Wldt, W/ Label 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐30

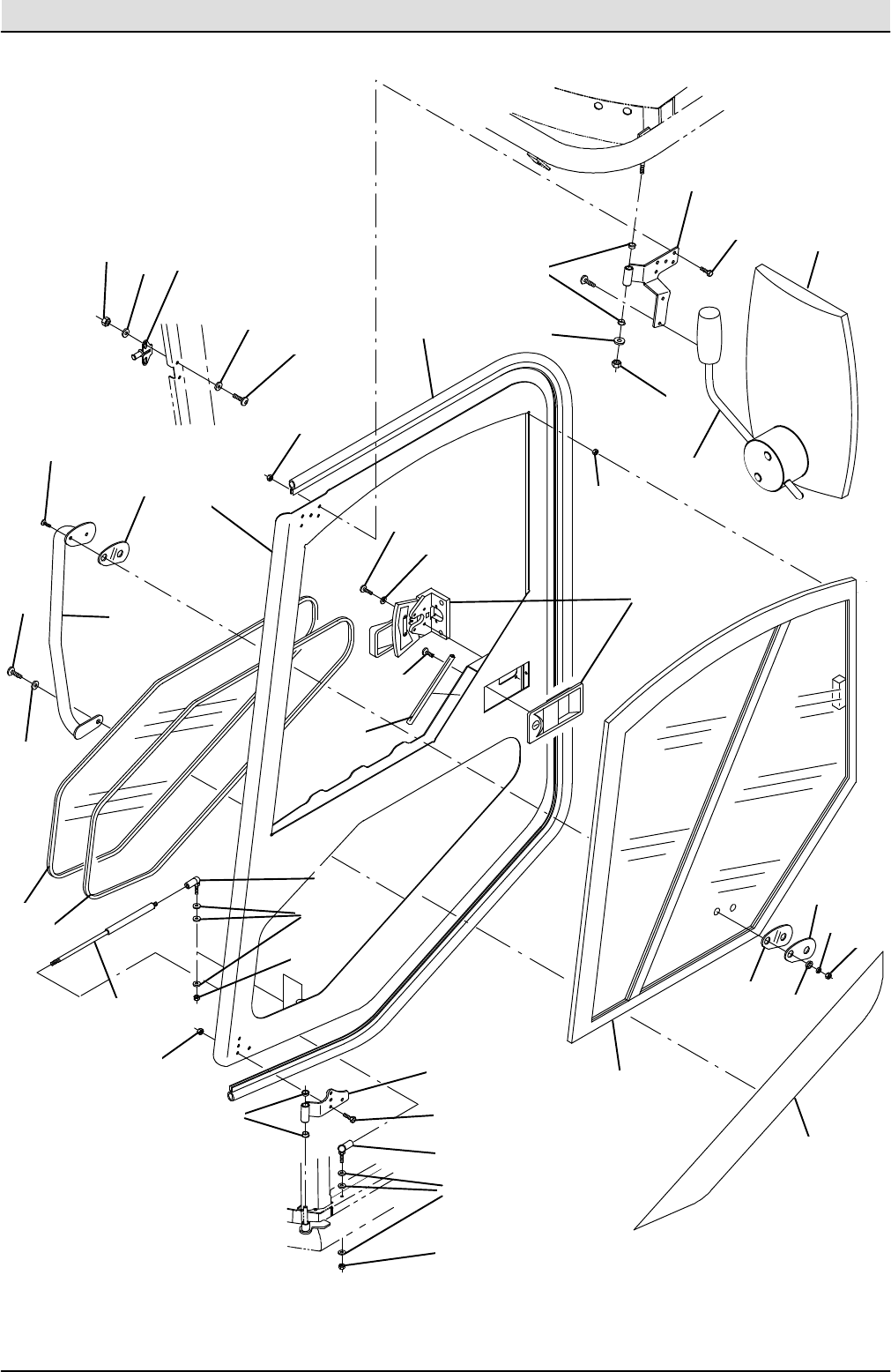

Fig. 15 − Cab Door Group, Right Hand (910364−1301022)
1
2
3
4
517
18
19
19
20
21 22
23
17
24
25
26
27
28
67
7
8
9
10
11
12
13
14
29
39
38
30
31
33
34 35
36 37
37
32
15
21
21
30
32
20
19
18
16
Home
Find...
Go To..
STANDARD PARTS
2‐31
636 UK YM165 (6−2013)
354853
Fig. 15 − Cab Door Group, Right Hand (910364−1301022)
Ref. Part No. Serial Number Description Qty.
o1 MC764 (910364−1301022 )Assembly, Aluminium Door, Cab Rh 1
Y2 MC118 (910364−1301022 ) Fixed Glass Lower Door 5mm Toughened Gla 1
Y3 MC842 (910364−1301022 ) Seal, Window, Lower Door 1
Y4 MC843 (910364−1301022 ) Molding, Door 1
Y5 MC122_B (910364−1301022 ) Window Cassette − Rh −Black 1
Y 6 MC405 (910364−1301022 )Fixing Plate Top, Window Pivot −1
Y 7 GG280 (910364−1301022 ) Gasket, Neoprene Window Pivot Cab 2
Y 8 MC790 (910364−1301022 ) Pivot Wldt, Window, Rh 1
Y 9 GT382 (910364−1301022 ) Screw,Button Hd Hx Skt −M10 X 16 St.St 1
Y10 GW079 (910364−1301022 ) Washer,Form A −M10 −S.S A2 St.St Grade A 2
Y11 GT328 (910364−1301022 )Screw,Button Hd Hex Skt−M6 X 20 2
Y12 GB109 (910364−1301022 ) Bushing, Isolator 2
Y13 GB110 (910364−1301022 ) Bush,Sleeve,Window Pivot Fixing 2
Y14 GN011 (910364−1301022 ) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
Y15 MC384 (910364−1301022 ) Door Seal Rear Seals Door To Cab Access 1
Y16 GM510_C (910364−1301022 )Decal, Door Bottom, Off Side Grey/White 1
17 GN011 (910364−1301022 ) Nut, Nyloc − M6 Zinc Plated Zinc Plated 20
18 MC271 (910364−1301022 ) Door Stay−Gas Strut End Fittings 2
19 GW060 (910364−1301022 ) Washer − Form A − M8 −St St 5
20 GN004 (910364−1301022 ) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
21 GB060 (910364−1301022 )Bush − Hinge 4
22 MC166 (910364−1301022 ) Hinge, Bottom Weldment − Rh, Door, Cab 1
23 GT385 (910364−1301022 ) Screw, Hex Hd Set M6 X 20 St.St A4 4
24 MC155 (910364−1301022 ) Hinge, Top Weldment − Rh, Door, Cab 1
25 MC663 (910364−1301022 ) Door Lock Kit Complete −Black 1
26 GT305 (910364−1301022 )Screw,Button Head Skt−M5 X 35 Zc Plated 2
27 GT112 (910364−1301022 ) Screw, Btn, M5 X 0.8 X 15 1
28 GW031 (910364−1301022 ) M6 Washer Plain Ptd. Each Each 2
29 MC270 (910364−1301022 ) Door Stay−Gas Strut 1
30 GW007 (910364−1301022 ) Washer−Plain−1/4’ /6mm Per 100 1
31 GN069 (910364−1301022 ) Nut,Nyloc −M8 St.St A2 1
32 GN078 (910364−1301022 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 2
33 GT135 (910364−1301022 ) M6 X 16 Hex Head Ptd 500e 5
34 GN078 (910364−1301022 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 5
35 MC145 (910364−1301022 ) Striker Pin Weldment −Rh Door, Cab 1
36 GT135 (910364−1301022 )M6 X 16 Hex Head Ptd 500e 2
37 GW007 (910364−1301022 ) Washer−Plain−1/4’ /6mm Per 100 4
38 MC364 (910364−1301022 ) Wing Mirror (Unbreakable) 210 X 150 Wide 1
39 MC258 (910364−1301022 ) Wing Mirror Arm 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐32
Fig. 16 − Cab Door Group, Right Hand (1301023− )
1
2
3
4
4
3
5
5
6
7
8
9
39
39
11
12
13
39
39
14
15 16
14
15
16
17
18
19
20
20
21
22
21
22
7
8
23 24
25
26
27
37
38
10
28
29 3031
32
33
34
35
36
40
Home
Find...
Go To..
STANDARD PARTS
2‐33
636 UK YM165 (8−2014)
356390
Fig. 16 − Cab Door Group, Right Hand (1301023− )
Ref. Part No. Serial Number Description Qty.
oMD115 (1301023−)Cab Door, R/H − Assembly 1
Y1 MC908 (1301023−) Cab Door − Right Hand 1
Y2 MC927 (1301023−) Pivot Arm, Right Hand Door − Weldment 1
Y3 GB110 (1301023−) Bush,Sleeve,Window Pivot Fixing 2
Y4 GB109 (1301023−) Bushing, Isolator 2
Y5 MD027 (1301023−)Gasket, Pivot Arm, Top Plate Neoprene, 5 2
Y 6 MD071 (1301023−) Plate, Pivot Arm, Painted, Cab Door 1
Y 7 GT328 (1301023−) Screw,Button Hd Hex Skt−M6 X 20 2
Y 8 GN095 (1301023−) Nut, 6mm Dome St.St 2
Y 9 MD108 (1301023−) Glass, Sliding, Rhs Door 1
Y10 MD168 (1301023−)Fixed Glass − Rh 1
11 GW087 (1301023−) Washer − M6 Form C −St.St,A2 2
12 GN043 (1301023−) Nut, Nyloc Shallow − M8 − St. St. A2−314 2
13 MC166 (1301023−) Hinge, Bottom Weldment − Rh, Door, Cab 1
14 GT328 (1301023−) Screw,Button Hd Hex Skt−M6 X 20 9
15 GW087 (1301023−) Washer − M6 Form C −St.St,A2 9
16 GN043 (1301023−) Nut, Nyloc Shallow − M8 − St. St. A2−314 9
17 MD141 (1301023−) Wing Mirror, Wide Angle 1
18 MD142 (1301023−) Wing Mirror Arm 1
19 MC270 (1301023−) Door Stay−Gas Strut 1
20 MC271 (1301023−)Door Stay−Gas Strut End Fittings 2
21 GW021 (1301023−) Washer − M8 X 25 Od − St St 500e Per 10 2
22 GN004 (1301023−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
23 MD065 (1301023−) Bolt / Washer, Door Lock 1
24 VH272 (1301023−) Spacer, Spinner, Clean Cyclone Hopper 1
25 MD064 (1301023−)Cage Nut, Door Lock 1
26 GT135 (1301023−) M6 X 16 Hex Head Ptd 500e 2
27 GM170 (1301023−) Label − Read Operators Manual 1
28 MD089 (1301023−) Outside Handle Assy, Rh 1
29 MD091 (1301023−) Interior Hadle Assy, Rh 1
30 MD093 (1301023−)Latch Mechanism, Rh 1
31 MD095 (1301023−) Locking Lever To Latch, Rh 1
32 MD097 (1301023−) Connecting Rod − Int. Handle to Latch, Rh 1
33 MD099 (1301023−) Connecting Rod − Ext. Handle to Latch, Rh 1
34 MD101 (1301023−) Connecting Rod − Key Barrell to Latch 1
35 MD102 (1301023−)Cam Connector clip 1
36 MD103 (1301023−) Washer Starlock, 4Mm 1
37 EW386 (1301023−) Conduit Nw17−Mirror sleeve−205Mm Length 1
38 MC155 (1301023−) Hinge, Top Weldment − Rh, Door, Cab 1
39 GB060 (1301023−) Bush − Hinge 4
40 MC972 (1301023−)Kit, Lock Cylinder, Cab Door 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐34
Fig. 17 − Cab Door Group, Left Hand (910364−1301022)
1
23
4
5
17
18
19
20
21
22
23
17
24
25
26
27
28
6
7
7
8
9
10
11
12
13 14
29
30
31
39
38
33
34
35
36
37
37
32
15
18
19
20
16
21
Home
Find...
Go To..
STANDARD PARTS
2‐35
636 UK YM165 (6−2013)
354854
Fig. 17 − Cab Door Group, Left Hand (910364−1301022)
Ref. Part No. Serial Number Description Qty.
o1 MC765 (910364−1301022 )Assembly, Aluminium Door, Cab Lh 1
Y2 MC118 (910364−1301022 ) Fixed Glass Lower Door 5mm Toughened Gla 1
Y3 MC842 (910364−1301022 ) Seal, Window, Lower Door 1
Y4 MC843 (910364−1301022 ) Molding, Door 1
Y5 MC121_B (910364−1301022 ) Window Cassette− Lh −Black 1
Y 6 MC405 (910364−1301022 )Fixing Plate Top, Window Pivot −1
Y 7 GG280 (910364−1301022 ) Gasket, Neoprene Window Pivot Cab 2
Y 8 MC791 (910364−1301022 ) D Window Pivot Weldment − Lh 1
Y 9 GT382 (910364−1301022 ) Screw,Button Hd Hx Skt −M10 X 16 St.St 1
Y10 GW079 (910364−1301022 ) Washer,Form A −M10 −S.S A2 St.St Grade A 2
Y11 GT328 (910364−1301022 )Screw,Button Hd Hex Skt−M6 X 20 2
Y12 GB109 (910364−1301022 ) Bushing, Isolator 2
Y13 GB110 (910364−1301022 ) Bush,Sleeve,Window Pivot Fixing 2
Y14 GN011 (910364−1301022 ) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
Y15 MC384 (910364−1301022 ) Door Seal Rear Seals Door To Cab Access 1
Y16 GM509_C (910364−1301022 )Decal, Door Bottom, Near Side Gray/White 1
17 GN011 (910364−1301022 ) Nut, Nyloc − M6 Zinc Plated Zinc Plated 20
18 GW060 (910364−1301022 ) Washer − Form A − M8 −St St 2
19 GW051 (910364−1301022 ) Washer, Form ’A’ − M12 − Zn Ptd Whee 3
20 GN004 (910364−1301022 ) Nut, Nyloc − M8 Zinc Plated Zinc Plated 1
21 GB060 (910364−1301022 )Bush − Hinge 4
22 MC163 (910364−1301022 ) Hinge, Bottom Weldment − Lh, Door, Cab 1
23 GT385 (910364−1301022 ) Screw, Hex Hd Set M6 X 20 St.St A4 4
24 MC150 (910364−1301022 ) Hinge, Top Weldment − Lh, Door, Cab 1
25 MC663 (910364−1301022 ) Door Lock Kit Complete −Black 1
26 GT305 (910364−1301022 )Screw,Button Head Skt−M5 X 35 Zc Plated 2
27 GT112 (910364−1301022 ) Screw, Btn, M5 X 0.8 X 15 1
28 GW031 (910364−1301022 ) M6 Washer Plain Ptd. Each Each 2
29 MC270 (910364−1301022 ) Door Stay−Gas Strut 1
30 GW007 (910364−1301022 ) Washer−Plain−1/4’ /6mm Per 100 1
31 GN069 (910364−1301022 ) Nut,Nyloc −M8 St.St A2 1
32 GN078 (910364−1301022 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 2
33 GT385 (910364−1301022 ) Screw, Hex Hd Set M6 X 20 St.St A4 5
34 GN078 (910364−1301022 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 5
35 MC145 (910364−1301022 ) Striker Pin Weldment −Rh Door, Cab 1
36 GT135 (910364−1301022 )M6 X 16 Hex Head Ptd 500e 2
37 GW007 (910364−1301022 ) Washer−Plain−1/4’ /6mm Per 100 4
38 MC364 (910364−1301022 ) Wing Mirror (Unbreakable) 210 X 150 Wide 1
39 MC258 (910364−1301022 ) Wing Mirror Arm 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐36
Fig. 18 − Cab Door Group, Left Hand (1301023 − )
1
2
3
4
4
3
5
56
7
8
9
39
11
12
13
39
39
14
15
16
15
16
17
18
19
20
20
21
22
21
22
7
8
23 24
25
26
39
27
28
29
30 31
32
33
34 35
36
37
38
10
40
Home
Find...
Go To..
STANDARD PARTS
2‐37
636 UK YM165 (8−2014)
356391
Fig. 18 − Cab Door Group, Left Hand (1301023 − )
Ref. Part No. Serial Number Description Qty.
oMD114 (1301023−)Cab Door, L/H − Assembly 1
Y1 MC907 (1301023−) Cab Door − Left Hand 1
Y2 MC925 (1301023−) Pivot Arm, Left Hand Door − Weldment 1
Y3 GB110 (1301023−) Bush,Sleeve,Window Pivot Fixing 2
Y4 GB109 (1301023−) Bushing, Isolator 2
Y5 MD027 (1301023−)Gasket, Pivot Arm, Top Plate Neoprene, 5 2
Y 6 MD071 (1301023−) Plate, Pivot Arm, Painted, Cab Door 1
Y 7 GT328 (1301023−) Screw,Button Hd Hex Skt−M6 X 20 2
Y 8 GN095 (1301023−) Nut, 6mm Dome St.St 2
Y 9 MD108 (1301023−) Glass, Sliding, Rhs Door 1
Y10 MD167 (1301023−)Fixed Glass − Lh 1
11 GW087 (1301023−) Washer − M6 Form C −St.St,A2 2
12 GN043 (1301023−) Nut, Nyloc Shallow − M8 − St. St. A2−314 2
13 MC163 (1301023−) Hinge, Bottom Weldment − Lh, Door, Cab 1
14 GT328 (1301023−) Screw,Button Hd Hex Skt−M6 X 20 9
15 GW087 (1301023−) Washer − M6 Form C −St.St,A2 9
16 GN043 (1301023−) Nut, Nyloc Shallow − M8 − St. St. A2−314 9
17 MD141 (1301023−) Wing Mirror , Wide Angle 1
18 MD142 (1301023−) Wing Mirror Arm 1
19 MC270 (1301023−) Door Stay−Gas Strut 1
20 MC271 (1301023−)Door Stay−Gas Strut End Fittings 2
21 GW021 (1301023−) Washer − M8 X 25 Od − St St 500e Per 10 2
22 GN004 (1301023−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
23 MD065 (1301023−) Bolt / Washer, Door Lock 1
24 VH272 (1301023−) Spacer, Spinner, Clean Cyclone Hopper 1
25 MD064 (1301023−)Cage Nut, Door Lock 1
26 GT135 (1301023−) M6 X 16 Hex Head Ptd 2
27 GM170 (1301023−) Label − Read Operators Manual 1
28 MD090 (1301023−) Outside Handle Assy, Lh 1
29 MD092 (1301023−) Interior Hadle Assy, Lh 1
30 MD094 (1301023−)Latch Mechanism, Lh 1
31 MD096 (1301023−) Connecting Rod−Locking lever to Latch, Lh 1
32 MD098 (1301023−) Connecting Rod − Int. Handle to Latch, Lh 1
33 MD100 (1301023−) Connecting Rod − Ext. Handle to Latch, Lh 1
34 MD101 (1301023−) Connecting Rod − Key Barrell to Latch 1
35 MD102 (1301023−)Cam Connector clip 1
36 MD103 (1301023−) Washer Starlock, 4Mm 1
37 EW386 (1301023−) Conduit Nw17−Mirror sleeve−205Mm Length 1
38 MC150 (1301023−) Hinge, Top Weldment − Lh, Door, Cab 1
39 GB060 (1301023−) Bush − Hinge 4
40 MC972 (1301023−)Kit, Lock Cylinder, Cab Door 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐38
Fig. 19 − Cab Carpet and Windows Group
1
1
6
9
10 11
12
13
14
16
16
8
2
7
7
3
4
15
5
Home
Find...
Go To..
STANDARD PARTS
2‐39
636 UK YM165 (5−2015)
354861
Fig. 19 − Cab Carpet and Windows Group
Ref. Part No. Serial Number Description Qty.
1 MC425 (910364−)Carpet Profile,Rh Top Cab 1
2 MC680 (910364−1501600 ) Plate, Cover − Development Cab Rear (Stainless Steel) 1
2 MD220 (1501601−) Plate, Cover − Development Cab Rear (Painted) 1
3 GG295 (910364−) Coat Hook,For T−Bar Allen Key 1
4 GG296 (910364−) Double Coat Hook 1
5 GT267 (910364−)M4 Tapped Screw − Button Head X 12 Long 2
6 GM389 (910364−) Blind Grommet −25 Mm Hole Dia Pvc To Su 1
7 GT378 (910364−) Screw,Button Hd Skt −M5 X 10 St.St A4 10
8 MC434 (910364−1501600 ) Plate, Cover, Cab Rear (Stainless Steel) 1
8 MD219 (1501601−) Plate, Cover, Cab Rear (Painted) 1
9 GM361 (910364−)Grommet−Sleeved 1
10 MC929 (910364−) Pane, Window, Cab, Rear, W/ Label 1
11 KM332 (910364−) Cab Rear Window Sponge Seal 1
12 MC120 (910364−) Floor Window 1
13 GM311 (910364−) Rubber Mat − Cab Floor 1
14 GM389 (910364−)Blind Grommet −25 Mm Hole Dia Pvc To Su 4
15 GT112 (910364−) Screw, Btn, M5 X 0.8 X 15 2
16 GM385 (910364−) Blind Grommet −6.4mm Hole Dia Pvc Pvc 4
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐40
Fig. 20 − Cab Roof Group
1
2
3
5
4
6
7
5
Home
Find...
Go To..
STANDARD PARTS
2‐41
636 UK YM165 (8−2014)
354864
Fig. 20 − Cab Roof Group
Ref. Part No. Serial Number Description Qty.
1 CP250 (910364−1403037 )Cab Roof Liner 600 Standard Grey 5mm Pol 1
1 CP532 (1403038−) Cab Roof Liner 1
2 GM530 (910364−) Sealing Strip − Roof Hatch 525 − 636 −1
oMC550 (1403038−) Extended Hatch (Incl Carpet Profile) Cab 1
Y3 MC272 (1403038−) Hatch Stay −Double Hinge 1
Y4 GT384 (1403038−)Screw,Hex Skt Knurled Set (Grub) 4
Y5 MC989 (1403038−) Panel, Roof Hatch 1
3 MC272 (910364−1403037 ) Hatch Stay −Double Hinge 1
4 GT384 (910364−1403037 ) Screw,Hex Skt Knurled Set (Grub) 4
5 MC989 (910364−1403037 ) Panel, Roof Hatch 1
6 GT235 (910364−)M6 X 12 Low Hd. Socket Cap Ptd 2
7 GW031 (910364−) M6 Washer Plain Ptd. Each Each 4
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐42

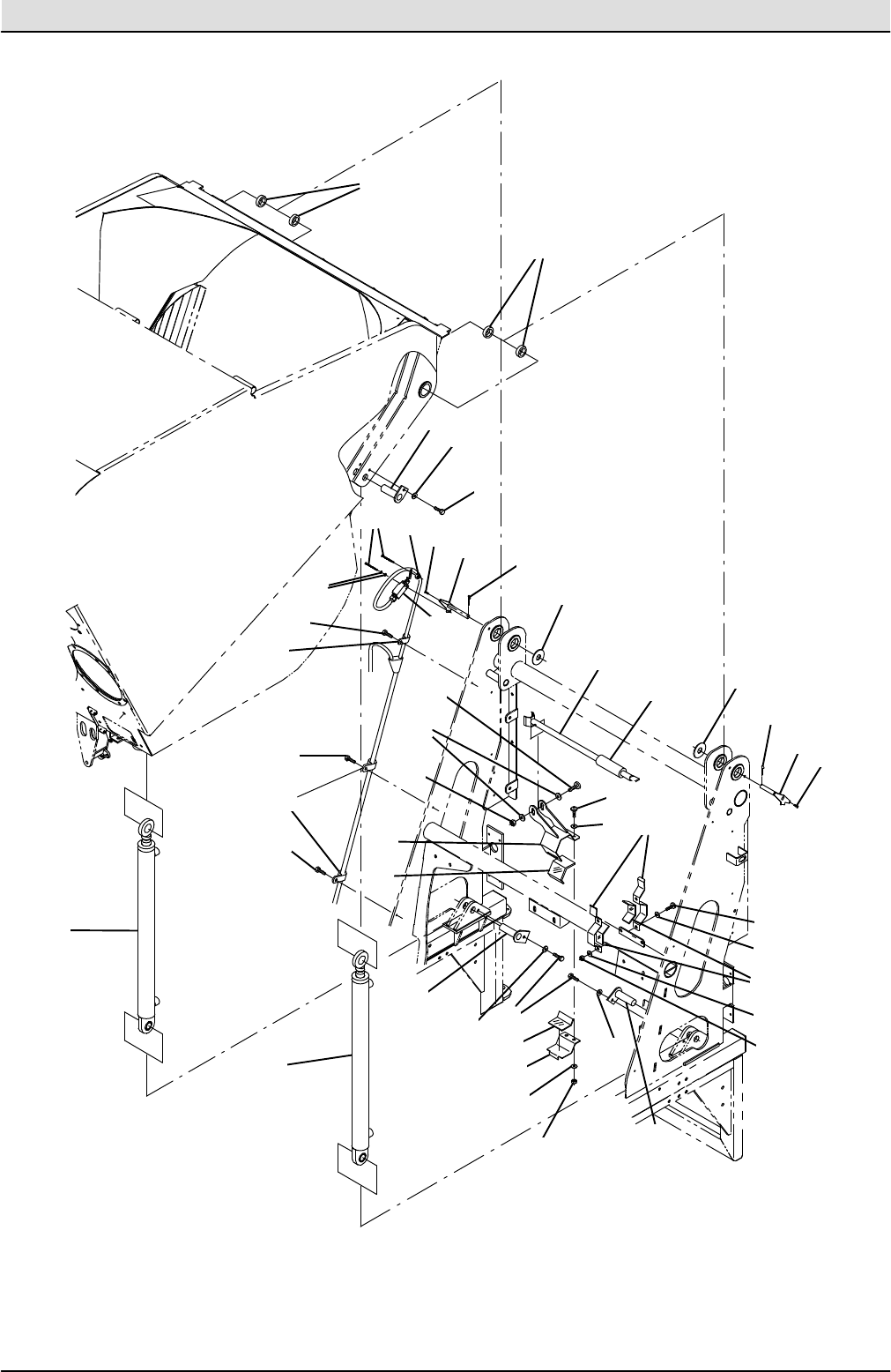

Fig. 21 − Cab Tilt Group
1
2
3
45
26
5
6
79
10
5
12
13
14
16
17
18
519
20
21
22 23
24
20
21
22
23
24
15
11
8
12
13
14
25
27
27
27
27
Home
Find...
Go To..
STANDARD PARTS
2‐43
636 UK YM165 (6−2013)
354858
Fig. 21 − Cab Tilt Group
Ref. Part No. Serial Number Description Qty.
1 MC724 (910364−)Latch, Cab Lockdown, Lh 1
2 MC732 (910364−) Spring Torsion Cab Lockdown 1
3 MC730 (910364−) Collar Latch Spring 1
4 GT258 (910364−) Bolt, Hex Hd − M10 X 45 − Zinc Pltd. 1
5 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 9
6 GN019 (910364−)Nut, Nyloc − M10 − Zn Ptd 500e 1
7 MC740 (910364−1301022 ) Latch Arm Assembly 1
7 MD155 (1301023−) Latch Arm Assembly 1
8 GT386 (910364−) Screw −Skt Head Cap M5 X 16 St.St A4 Zn 5
9 MC727 (910364−) Cab Lockdown Bracket Rh 1
10 GT342 (910364−)Screw, Hex Hd Set−M10 X 20 −Zinc Plated 2
11 MC603 (910364−) Plate,Infill Lower Tunnel 1
12 GG233 (910364−) Stop,Conical Progres 1
13 GW021 (910364−) Washer − M8 X 25 Od − St St 500e Per 10 3
14 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 1
15 GM387 (910364−)Blind Grommet −16.5 Mm Hole Dia Pvc Pvc 2
16 MC729 (910364−) Collar, Lockdown, Cab 1
17 GT325 (910364−) Bolt,Hex Hd − M10 X 70 −St.St A4 1
18 GN071 (910364−) Nut,Nyloc −M10 −St.St.A4 St.St Grade A4 1
19 GG282 (910364−) Gas Strut,Air Con−Cab Tilt 800 N 2
20 MC350 (910364−)Pivot Pin, Cab Tilt −Weldment 2
21 GG039 (910364−) Grease Nipple, Straight − M6 2
22 GT243 (910364−) Screw, Self Tapping − M8 X 16 2
23 GW003 (910364−) Washer−Spring−1/4’ Perh100 Each 2
24 GG249 (910364−) Pin,Split 1 1/2 X 1/8”” St.St 2
25 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 1
26 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 1
27 GG242 (910364−) Gas Strut − Cab Tilt Elbow/Elbow Rod End 4
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐44
Fig. 22 − Cab Steering Wheel Group
20
1
2
3
4
5
7
8
9
10
11
12
11
12 14
15
15
16 17
18
19
T
L
P
R
21
6
13
22
23
24
Home
Find...
Go To..
STANDARD PARTS
2‐45
636 UK YM165 (8−2014)
354857
Fig. 22 − Cab Steering Wheel Group
Ref. Part No. Serial Number Description Qty.
1 FS014 (910364−)Steering Column Assembly Adjustable 1
2 HV138 (910364−) Steering Control Unit 36.7 Cc/Rev 1
3 MC763 (910364−) Plate, Spacer, Cab Steering 1
4 GT317 (910364−) Bolt, Hex Hd − M10 X 35 Grade 8.8 Zi 4
5 GW048 (910364−) M10 Washer − Serrated Lock 4
6 ES012 (910364−)Screw Caps−Plastic 4
7 FS015 (910364−) Steering Wheel 1
8 GN061 (910364−) Nut, Nyloc M16 X 1.5 1
9 GM460 (910364−) Label,Steering Wheel 1
10 ES215 (910364−) Steering Column Multi Function Lever 1
11 HF109 (910364−) Adapter − 1/2 Bspp / Jic 6 Stud M/Ma 2
12 HF110 (910364−) Adapter − 1/2 Bspp / Jic 8 Stud M/Ma 2
13 GT112 (910364−) Screw, Btn, M5 X 0.8 X 15 4
14 HF244 (910364−) Fitting, Bh Orfs/Orfs W/Nut 3/8−3/8 2
15 HF255 (910364−) Fitting,Bh,Orfs/Orfs W/Nut 1/2−1/2 2
16 HJ229 (910364−)Pipe,Hyd −525 Steering−Pressure Zinc Pla 1
17 HJ231 (910364−) Pipe,Hyd−525 Steering −Left Hand Zinc Pl 1
18 HJ230 (910364−) Pipe,Hyd −525 Steering−Tank Return Zinc 1
19 HJ232 (910364−) Pipe,Hyd −525 Steering −Right Hand Zinc 1
20 CP194 (910364−1403037 ) Panel − Cab Cross−Brace −Cat Grey 1
20 CP533 (1403038−)Panel − Cab Cross−Brace −Cat Grey 1
o21 ES277 (910364−) Switch−Ignition Key Switch Kit No 420 1
Y22 ES296 (910364−) Key, Ignition Switch For Use With Ign Sw 1
23 NA (910364−)1
24 MC874 (910364−)Rubber Cover For Cab Steering Pipes 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐46
Fig. 23 − Cab Seat Group
33
1
2
3
4
5
6
7
8
9
10 11
12
12
12
14 14
15
16
17 18
20
21
22
23
24
25
26
24
25
26
26
30
29 28
31 32
4
6
7
27
6
13
19
Home
Find...
Go To..
STANDARD PARTS
2‐47
636 UK YM165 (5−2015)
354866
Fig. 23 − Cab Seat Group
Ref. Part No. Serial Number Description Qty.
o1 MC519 (910364−)Kab Seat Kab−211 (Standard Seat) 1
YMD105 (910364−) Kit, Seat Sensor Insert 636/500 1
2 MC490 (910364−) Bracket Wldt − Armrest Support (Standard Seat Only) 1
3 MC383 (910364−) Spacer, Armrest 1
4 GT152 (910364−) Screw, Button Hd Skt − M8 X 35 − Zp Zi 4
5 GT331 (910364−)Screw,Button Hd Hex Skt−M8 X 20 St.St A 3
6 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 14
7 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 6
8 CP205 (910364−) Armrest Moulding Black 1
9 MC672 (910364−) Bracket, Adjustable − Armrest 1
10 GT262 (910364−)Screw, Btn, M8 X 1.25 X 55, 10.9, Pl 1
11 GG021 (910364−) Knob, Black Panel − M8 8958v Black 1
12 GG297 (910364−) Grip Knob−Male Black Nylon 2
13 CP235 (910364−) Driver Storage Bin Petg In 4mm Thick 1
14 GW086 (910364−) Washer,Nylon Load Bearing M10 X 51 X 3.1 2
15 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
16 MC378 (910364−) Plate, Facia − Formed Armrest 1
17 ES355 (910364−) 3switch,Forward/Neutr 1
18 ES405 (910364−) Joystick − Brush Control −636 633 1
19 MC251 (910364−) Spacer, Seat, Front, Lh 1
20 GT119 (910364−) Screw − 8 X 3/4 S Tap (Philip) 3
21 MC488 (910364−) Plate − Seat Adaptor (Standard Seat Only) 1
22 GT050 (910364−) Screw, Button Hd Hex Skt − M8 X 16 − Ptd 6
o23 MC700 (910364−) Seat Belt Kit − 3 Point Bp0249 1
Y24 GT310 (910364−) Screw, Hex Hd Set − M16 X 80 Stainless S 2
Y25 GN019 (910364−)Nut, Nyloc − M10 − Zn Ptd 500e 2
Y26 GW013 (910364−) Washer, Form A − M10 Zinc Plated Per 100 4
27 GT050 (910364−) Screw, Button Hd Hex Skt − M8 X 16 − Ptd 4
28 GW007 (910364−) Washer − Plain − ¼’ /6mm pPer 100 7
29 GT112 (910364−) Screw, Btn, M5 X 0.8 X 15 7
oMD151 (910364−)Asymmetric Heasd Rest (Non A/C) 7
Y30 MC502 (910364−) Asymmetric Head Rest 1
Y31 CP201 (910364−) Panel − Air Con / Headrest 1
Y32 AC017 (910364−) Bracket− Evaporator Weldment 1
oMD152 (910364−) Asymmetric Heasd Rest W/ Ac Evaporator 7
Y30 MC502 (910364−)Asymmetric Head Rest 1
Y31 CP201 (910364−) Panel − Air Con / Headrest 1
Y32 AC017 (910364−) Bracket− Evaporator Weldment 1
Y33 AC020 (910364−) Evaporator 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐48
Fig. 24 − Cab Instrument Panel Group
37
38
39
40
41 42
43
14
44
15
1
4
4
4
4
4
5
6
7
8
9
10
11
12
8
46
24
25
28
27
29 29 29
30
31
32
33
34
2
3
26
13
22 23
16
22
17
36
19
20 21
29
29 35
45
18
Home
Find...
Go To..
STANDARD PARTS
2‐49
636 UK YM165 (8−2014)
354859
Fig. 24 − Cab Instrument Panel Group
Ref. Part No. Serial Number Description Qty.
1 MC629 (910364−)Panel, Switch, Cab 1
2 MC359 (910364−) Relay Holder Wldt 1
3 GT222 (910364−) Screw, Button Hd Hex Skt − M5 X 8 − Zp 5
4 ES252 (910364−) Surround,Switch 12
5 ES804 (910364−) Hopper Raise/Lower Switch Assembly 1
6 ES806 (910364−)Windscreen Defrost Switch Assembly 1
7 ES808 (910364−) Rear Fog Switch Light Assembly 1
8 ES271 (910364−) Switch.Blanking Plate 2
9 ES812 (910364−) Beacon Switch Sub Assembly 1
10 ES805 (910364−) Transit/Work Mode Switch Sub Assembly 1
11 ES807 (910364−)Work Light Switch Sub Assembly 1
12 ES809 (910364−) Main Light Switch Sub Assembly 1
13 ES811 (910364−) Heater Switch Sub Assembly 1
14 ES813 (910364−) Hazard Warning Switch Sub Assembly 1
15 ES814 (910364−) Hopper Dump Valve Switch Assembly 1
16 ES192 (910364−1403037 )Light, Warning − Green 1
17 ES130 (910364−1403037 ) Warning Lamp−Indicator [Dash.] 2aa001204 1
18 ES134 (910364−1403037 ) Bulb − Indicator Warning 12v 2w [3] Hb28 1
19 EH015 (910364−1403037 ) Temperature Gauge − Water 1
20 ES440 (910364−1403037 ) Tachometer − Us Spec C/W Hour Counter −1
21 ES209 (910364−1403037 )Warning Light −Blue Led Assembly C/W In 1
22 ES018 (910364−1403037 ) Light − Warning (Red 2
23 ES017 (910364−1403037 ) Light, Warning, Amber 1
24 ES352 (910364−) Knob, Solid,22 Mm Brushed Black Finish 2
25 ES426 (910364−) Switch,Rotary Vam Assembly− Blue Line 22 1
26 GT194 (910364−)Screw M5 X 12 Button Hd Skt. 6
27 GT194 (910364−) Screw M5 X 12 Button Hd Skt. 2
28 GT222 (910364−) Screw, Button Hd Hex Skt − M5 X 8 − Zp 3
29 ES180 (910364−) Relay, Automotive − 12v, 35/40a, Spco 8
30 ES741 (910364−) Flasher Unit Led/Filament 1
31 ES224 (910364−)Relay/Timer − Heated 1
32 CP196 (910364−) Cover−Relays Box 1
33 CP242 (910364−) Fuse/Brake Cylinder Cover 525/636 1
34 GM461 (910364−) Label Set, Fuse Box−636 Three Parts [ 1−1
35 ES370 (910364−) Relay Automotive High Current 70 Amp−G8j 1
36 EH018 (910364−)Fuel Gauge 1
37 ES776 (1403038−) Warning Lamp, Red, Hand Brake 1
38 ES777 (1403038−) Warning Lamp, Green, Direction Indicator 1
39 ES779 (1403038−) Warning Lamp, Amber, Glow Plug 1
40 ES775 (1403038−) Warning Lamp, Red, No Charge 1
41 ES778 (1403038−)Warning Lamp, Blue, Main Beam 1
42 ES774 (1403038−) Warning Lamp, Red, Oil Pressure 1
43 ES782 (1403038−) Led Bulb, For Square Warning Lamps 6
44 GT222 (910364−) Screw, Button Hd Hex Skt − M5 X 8 − Zp 2
45 PP429 (910364−) Timer − Glow Lamp − 636 1
46 EW221 (910364−1403037 )Potentiometer Assy,Brush & Fan Control 1
46 EW407 (1403038−) Potentiometer Assy,Brush & Fan Control 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐50
Fig. 25 − Cab Instrument Panel Group, Upper
1
2
3
4
5
4
512
9
10
11
8
6
6
7
13
14
3
15
16
17
Home
Find...
Go To..
STANDARD PARTS
2‐51
636 UK YM165 (5−2015)
354865
Fig. 25 − Cab Instrument Panel Group, Upper
Ref. Part No. Serial Number Description Qty.
1 CP214 (910364−1403037 )Cab Roof Console −Fr 1
1 CP534 (1403038−) Cab Roof Console −Fr 1
2 ES252 (910364−) Surround,Switch 4
3 ES271 (910364−) Switch.Blanking Plate 3
4 GM310 (910364−) Mesh, Speaker, Cab 2
5 GT106 (910364−)Screw, Self Tapper Posi. No 8 X 1/2’ 8
6 ES250 (910364−) Speakers (80) 2
7 EC014 (910364−) Aerial − Flexible Rubber − Black Cg600 1
8 ES497 (910364−) Radio/Cd 1
9 ES247 (910364−) Light, Interior Cab 525 1
10 MC479 (910364−)Sun − Visor Assembly 525 1
11 GW021 (910364−) Washer − M8 X 25 Od − St St 500e Per 10 3
12 ES272 (910364−) Socket,Power Socket With Cover 1
13 ES526 (910364−) Switch Assy, On/Off [Single Pole] 1
14 ES411 (910364−1403037 ) Iqan Mdm − 636 Prog V3.05* Km/H 1
14 ES420 (910364−1403037 )Iqan Mdm − 636 Prog V3.05* Mph 1
14 ES448 (910364−1403037 ) Iqan Mdm C/W Asl Program V3* Canada/Aust 1
14 ES796 (1403038−) Iqan Md3 − Programmed For 636 1
15 EC019 (910364−) Blanking Plate − Radio 1
16 GM478 (910364−) Decal, Radio − Blanking Plate − 636 1
17 GM357 (910364−)Dome Plug − .25 X 30.5 X 11.5 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐52
Fig. 26 − Cab Foot Pedals Group
1
2
3
4
4
4
4
5
6
78
9
10
11
12
13
14
15
17
18 4
19
20 21
22
22
23
24
16
25 26
27
Home
Find...
Go To..
STANDARD PARTS
2‐53
636 UK YM165 (6−2013)
354856
Fig. 26 − Cab Foot Pedals Group
Ref. Part No. Serial Number Description Qty.
1 MC050 (910364−)Brake Pedal Wldt 1
2 GB031 (910364−) Bush−Flanged Du 12i.D.17l Gly.Pbg.121417 2
3 GT059 (910364−) M12 X 100 H.T. Hex Set 1
4 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 7
5 GN080 (910364−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 1
6 BB121 (910364−)Rubber, Break Pedal 1
7 ES230 (910364−) Brake Light, Switch 1
8 MC373 (910364−) Plate, Mtg, Brake Light Switch [Form] 1
9 GT278 (910364−) Screw, Button Head − M4 X 20 Zinc Plated 2
10 GN024 (910364−) Nut, Nyloc − M4 2
11 GT194 (910364−)Screw M5 X 12 Button Hd Skt. 2
12 BB192 (910364−) Master Cylinder −Front Brakes 1
13 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
14 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
15 MC062 (910364−) Clevis − Master Cylinder 1
16 GN089 (910364−)Nut,M10 Thin.St.St −A2 Grade 5 Mm Thick 1
17 MA200 (910364−) Clevis Pin C/Pin 1
18 GG249 (910364−) Pin,Split 1 1/2 X 1/8”” St.St 1
19 BB120 (910364−) Footbrake Reservoir 1
20 GT159 (910364−) Screw, Button Hd Hex Skt − M6 X 16 − Zp 2
21 GN011 (910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
22 PD166 (910364−) Clamp − Fuel Pipe 2
23 BB154 (910364−) Hose Assy 1
24 BB196 (910364−) Brake Pipe − Cab Master Cylind.Under Cab 1
o25 ES423 (910364−) Pedal, Electronic − Dual Track 31 Degree 1
YES424 (910364−)Potentiometer/Loom Dual Track 1
26 GT054 (910364−) Screw, Button Hd Hex Skt − M8 X 20 − Zp 3
27 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 3
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐54
Fig. 27 − Brake Lines Group
1
11
2
3
4
5
6
7
7
8
8
910
11 12
13
12
13 14
11 11
14
15
16
17
18
19
20
21
23
22
9
19
Home
Find...
Go To..
STANDARD PARTS
2‐55
636 UK YM165 (6−2013)
354868
Fig. 27 − Brake Lines Group
Ref. Part No. Serial Number Description Qty.
1 CT039 (910364−)Flexible Hose 3
2 BB149 (910364−) Pressure Limiter −Front Brakes 1
3 GT318 (910364−) Bolt, Hex Hd − M8 X 55 Grade 8.8 Zin 1
4 GW015 (910364−) Washer−Spring−8mm Rect. Per 100 Each 1
5 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 3
6 GN073 (910364−)Nut,Hex Lock (Thin) M10 X 1.0p Zinc Pla 1
7 WP307 (910364−) Rubber Washer 12Mm Bore 4
8 BB140 (910364−) Brake Pipe 10mm T−Piece F/F/F 2
9 BB146 (910364−) Brake Pipe Connector−M10 Fem/Fem 2
10 BB079 (910364−)P−Clip − Aba Rubber Lined − 13mm 31306 3 1
11 GT203 (910364−)Screw, Self Tap, Flg Hex Hd − M6 X 12 3
12 GT151 (910364−) Screw, Hex Set − M6 X 35 − Brass 2
13 GW029 (910364−) Washer−M6 Brass Plain Each 2
14 BB045 (910364−) 5mm P−Clip (From Assy. M/L) 2
15 BB211 (910364−) Tube, Brake, Lh Tee To Cab Flex − 636 1
16 BB210 (910364−)Tube, Brake, Lh Tee To Front Flex, Lh 1
17 BB209 (910364−) Tube, Brake, Center Tee To Lh Tee − 636 1
18 BB212 (910364−) Tube, Break, Ctr Tee To Frnt Flex, Rh 636 1
19 BB205 (910364−) Tube, Brake Limiter to Ctr Tee, Rear 636 1
20 BB204 (910364−) Tube, Brake Limiter to Rear Lh − 636 1
21 BB203 (910364−)Tube, Brake Limiter to Rear Rh − 636 1
22 BB207 (910364−) Tube, Brake, Brake Assy T0 Flex, Lh − 636 1
23 BB208 (910364−) Tube, Brake, Brake Assy To Flex, Rh − 636 1
24 BB206 (910364−) Tube, Brake, Limiter To Ctr Tee, Frnt 636 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐56
Fig. 28 − Cab Parking Brake Group
1
2
345
4
5
6
7
8
7
8
9
10
11
12
13 14
15
16
17
18
19 87
20
21
22
23 24
25
26 11
27
28
Home
Find...
Go To..
STANDARD PARTS
2‐57
636 UK YM165 (6−2013)
354860
Fig. 28 − Cab Parking Brake Group
Ref. Part No. Serial Number Description Qty.
1 BB182 (910364−)Brake Cable,Rear −636 2
2 BB129 (910364−) Brake Cable, Front 1
3 BB132 (910364−) Balance Bar 1
4 GW081 (910364−) Cup Washer 3
5 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 3
6 GM021 (910364−)Tiestrap−Large E64.Black Pack−25 3
7 GG301 (910364−) Cotter Pin, 5/16 X 3/42 Zinc Plated 3
8 GG132 (910364−) Pin, Split − 3/32 X 3/4 − St.St. 3
9 MC298 (910364−) Pivot Bracket Weldment, H/Brake 1
10 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
11 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 4
12 GG301 (910364−) Cotter Pin, 5/16 X 3/42 Zinc Plated 1
13 GW013 (910364−) Washer, Form A − M10 Zinc Plated Per 100 1
14 GG249 (910364−) Pin,Split 1 1/2 X 1/8”” St.St 1
15 MC309 (910364−) Bellcrank Weldment,Hand Brake 1
16 GB034 (910364−)Bush−Oilite 11 O/D 8 I/D 8lg Am081108 2
17 MC312 (910364−) Tie Rod, Machined, H/Brake Bellcrank 1
18 BB118 (910364−) Hand Break Lever 1
19 MC251 (910364−) Spacer, Seat, Front, Lh 2
20 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 2
21 ES622 (910364−)Proximity Switch−With Plug 1
22 MD032 (910364−) Bracket−Handbrake Warn. Switch−Formed 1
23 GT279 (910364−) Screw, Hex Head − M3 X 15 Zinc Plated, G 2
24 GN058 (910364−) Nut, Nyloc − M3 Zinc Plated, Grade 8 Gra 2
25 GT196 (910364−) M5 X 10 Hex Hd 2
26 GN006 (910364−)Nut, Nyloc − M5 Zinc Plated Zinc Plated 2
27 BB079 (910364−)P−Clip − Aba Rubber Lined − 13mm 31306 3 1
28 GM428 (910364−) Foam, Tube −Armaflex 10.5Id X6Wallx525Mm 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐58

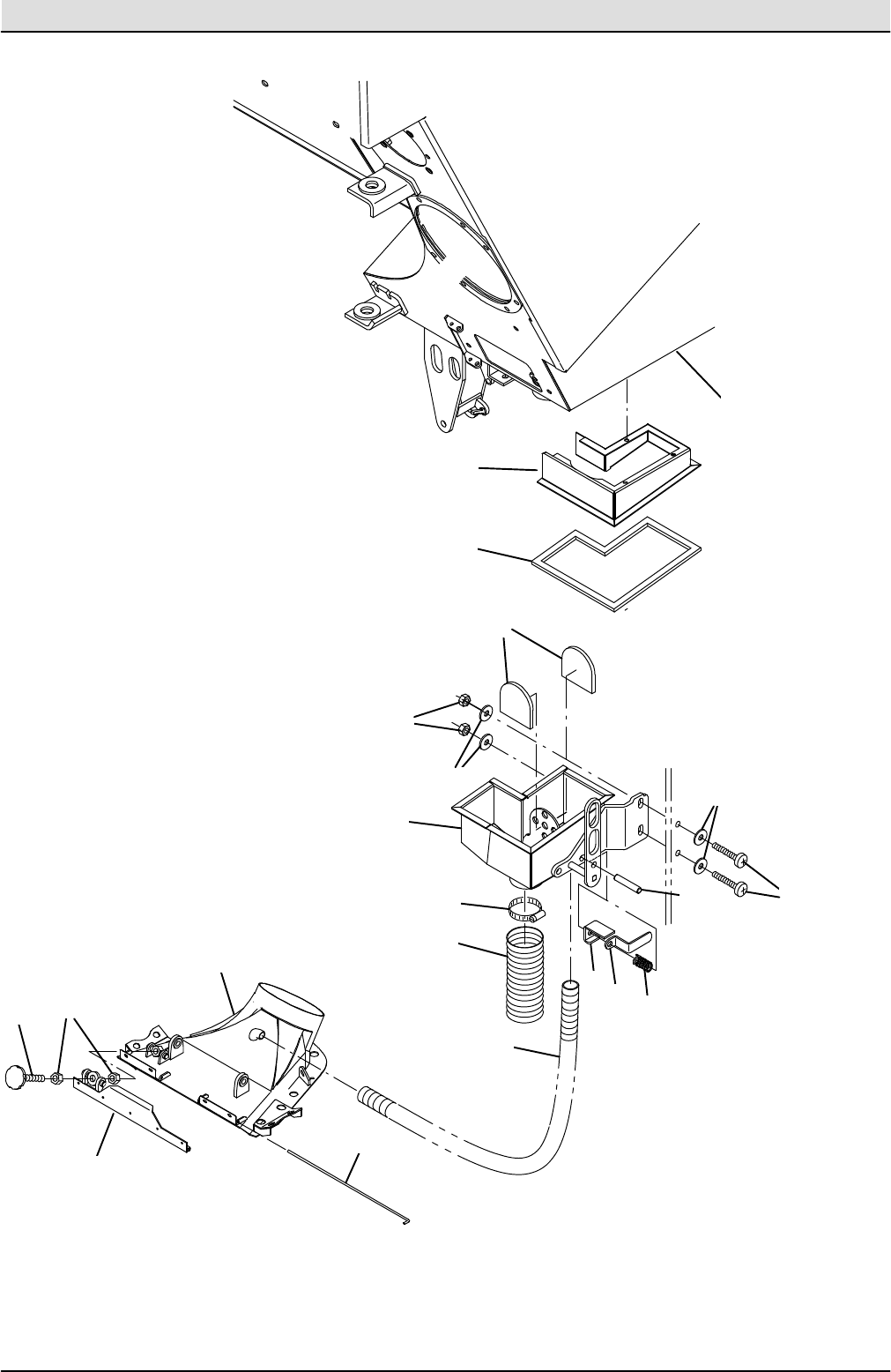

Fig. 29 − Cab Heater Group
1
2
36
5
44
5
4
7
8
9
8
10
89
8
11
12
13
14
15
16
17
17
18
19
20
21
22 22
22
22
23
24
25
17
26
27 28
29
30
31
29
31
30
32
33
32
32 32
17
34
Home
Find...
Go To..
STANDARD PARTS
2‐59
636 UK YM165 (6−2013)
354863
Fig. 29 − Cab Heater Group
Ref. Part No. Serial Number Description Qty.
oMD150 (910364−)Heater Box Assy − 636 1
Y1 MC093 (910364−) Heater Box Wldt 1
Y2 MC397 (910364−) Heater Unit C/W Connector 1
Y3 MC501 (910364−) Wedge, Seat−Weldment Cab 1
Y4 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 7
Y5 MC735 (910364−)Spacer, Seat Assembly 3
Y6 GT097 (910364−) Screw, Button M8x35 St/St 2
Y7 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 1
Y8 GG090 (910364−) Jubilee Clip 17 To 25mm Sp24 6
Y9 PC114 (910364−) Hose − Heater To Bul 2
Y10 PC115 (910364−)Hose − Heater Return 1
Y11 MC221 (910364−) Flow Control Valve 1
Y12 BB116 (910364−) Cable, Heater Temp Control 1
13 MC277 (910364−) Brkt Wldt, Bulkhd, Heater Hose 1
14 MC280 (910364−) Gasket, Bulkhead Bracket, Heater Hoses 1
15 GT135 (910364−)M6 X 16 Hex Head Ptd 500e 4
16 GT027 (910364−) Screw, Hex Hd Set − M6 X 20 − Zn Pld Gra 7
17 GW031 (910364−) M6 Washer Plain Ptd. Each Each 22
18 GN011 (910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 7
19 MC342 (910364−) Heater Vent Hose−Right Hand 65 Mm Dia 20 2
20 MC344 (910364−)Heater Air Hose −Left Hand 2nd Stage 65m 1
21 MC343 (910364−) Heater Air Hose−Left Side Stage 1 65mm D 1
22 GG066 (910364−) Jubilee Clip 35 To 50 50mm 6
23 GG259 (910364−) Knob − Heater Control 525 Spinner Knob F 1
24 GM356 (910364−) Label Sheet − 525 Black Vinyl 1
25 GM356 (910364−)Label Sheet − 525 Black Vinyl 1
26 CP197 (910364−) Seat Box Moulding Grey − (Standard Seat Only) 1
27 CD001 (910364−) Glove Net−525 Document Rack/Net 60200104−1
28 GT119 (910364−) Screw − 8 X 3/4 S Tap (Philip) 4
29 MC334 (910364−) Piggot Wldt, Heater Vent 2
30 MC222 (910364−)Outlet Vent−Heater Temp. Control Valve 2
31 GT410 (910364−) Screw,Self Tapper Pozzi/Csk St.St 6mm X 8
32 72970 (910364−) Rivet, Plstc, .250d X 0.90 4
33 ES012 (910364−) Screw Caps−Plastic 1
34 MC251 (910364−)Spacer, Seat, Front, Lh 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐60
Fig. 30 − Engine Mount Group
39
39
39
40
1
2
2
3
10
13 14
4
17
20
21
22
23 25
26
27
4
4
11
12
13
14
14
16
18
19
3
5
6
6
7
8
8
98
7
89
38
23
30
31
7
23
23
832
33
34
35
8
32
36
37 29
15
24
28
Home
Find...
Go To..
STANDARD PARTS
2‐61
636 UK YM165 (8−2014)
354828
Fig. 30 − Engine Mount Group
Ref. Part No. Serial Number Description Qty.
1 PP439 (910364−)Engine For Spares − Kubota V1505T 4 Cyli (See Engine
Breakdown) 1
2 GG231 (910364−) Anti−Vibration Mount,Two Piece Max Axial 2
3 GW027 (910364−) Collar − Dished With−Engine 15111−7220 4
4 GT298 (910364−) Bolt,Hex Hd − M10 X 55 Zinc Plated Passi 4
5 GN045 (910364−) Nut, Nyloc Thin − M10 − Zinc Plated 4
6 GG230 (910364−)Anti−Vibration Mount,Engine 2
7 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 7
8 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 8
9 GN069 (910364−) Nut,Nyloc −M8 St.St A2 4
10 PP034 (910364−) Bracket, Rh Mounting, Engine − Weldment 1
11 PP035 (910364−)Bracket, Lh Mounting, Engine − Weldment 1
12 GT256 (910364−) M10 X 1.25 X 20 Ptd.Fine Set/S St/St Gr 6
13 GT294 (910364−) Screw, Hex Hd Set − M10 X 1.25p X 25 Zin 8
14 GW048 (910364−) M10 Washer − Serrated Lock 14
15 PP083 (910364−) Oil Filter Element−1105t Hh16032093 1
16 PP367 (910364−)Bracket,Rear Twin Mounting Engine Formed 1
17 EH016 (910364−) Temperature Sender 1
18 ES257 (910364−) Transducer,Mmu Water Temperature Sea Ts/ 1
19 PP436 (910364−) Connector − 1/8bspm X 2/8bspf 90 Deg 1
20 WP288 (910364−) Fitting, Brs, Str, Bm10/.375bspt 1
21 CB799 (910364−) Bracket,Support −Weldment Fuel Filter 1
22 GT243 (910364−) Screw, Self Tapping − M8 X 16 2
23 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 11
24 HP021 (910364−) Hydro Pump Kit Part Of Engine Kit Pp002 1
25 PD039 (910364−) Cap−Oil Filler 15852−33140 1
26 PP091 (910364−) Oil Filler Flange−Extended For D1105−T−E 1
27 PP443 (910364−) Dipstick Guide, V1505 Tier 4 1
28 PP345 (910364−) Dipstick, Extended 1
29 GN029 (910364−) Nut,M6 (Plain) 500e 1
30 CB793 (910364−) Bracket Wldt, Sppt 1
31 PP276 (910364−)Engine/Pump Housing, 1
32 GN069 (910364−) Nut,Nyloc −M8 St.St A2 2
33 ES279 (910364−) Speed Sensor (From Assy. M/L) 1
34 CB810 (910364−) Bracket, Support − Weldment 1
35 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 1
36 GN011 (910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 1
37 BB045 (910364−) 5mm P−Clip (From Assy. M/L) 1
38 PP274 (910364−) Drive Coupling − Bob 1
39 GW026 (910364−) Washer−Plain m10X32X3 Form G Per 100 4
40 PP111 (910364−)Reducer 1/8 Bsptm X 1/4 Bspp Female 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐62
Fig. 31 − Engine Battery and Alternator Group
11
1
2
3
4
5
6
7
8
9
10
26
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Starter (Part of Engine)
27
28
29
30
Home
Find...
Go To..
STANDARD PARTS
2‐63
636 UK YM165 (2−11)
356224
Fig. 31 − Engine Battery and Alternator Group
Ref. Part No. Serial Number Description Qty.
1 PP347 (910364−) Fan−Pusher 380 Mm, 35 Deg Blade Angle 8 1
2 PP277 (910364−) Spacer Cooling Fan,Kubota 1
3 GT071 (910364−) M6 X 50 H.T. Hex Bolt Plated 4
4 GW003 (910364−) Washer−Spring−1/4’ Perh100 Each 4
5 PP133 (910364−) Alternator Assembly −1
6 CD386 (910364−)P Clip Bracket −Coolant Heater Hose 1
7 GT089 (910364−) Screw, Hex Hd Set − M8 X 35 − Zn Ptd. Gr 1
8 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 1
9 GN043 (910364−) Nut, Nyloc Shallow − M8 − St. St. A2−314 1
10 PP096 (910364−) Fan Belt 1
11 GN046 (910364−)Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 1
12 ET063 (910364−) Cable −Earthing Braided Tinned Copper Br 1
13 ET139 (910364−) Cable,Negative Battery −636 1
14 ET138 (910364−) Cable,Positive Battery −636 1
15 GT287 (910364−) Screw, Hex Hd Set − M8 X 20 St.St A4 314 1
16 GN043 (910364−)Nut, Nyloc Shallow − M8 − St. St. A2−314 1
17 EM011 (910364−) Battery 70 Amp Hr Din 570 144 064 1
18 PP073 (910364−) Plate, Clamp, Battery − Formed 1
19 GT303 (910364−) Screw, Hex Hd Set − M8 X 25 St.St Grade 1
20 GW015 (910364−) Washer−Spring−8mm Rect. Per 100 Each 1
21 GW060 (910364−) Washer − Form A − M8 −St St 1
o22 EW218 (910364−) Fusebox Assembly,4 X 40 A 636 Main Supp 1
YET143 (910364−) Fuse,Maxi Blade 40 Amp 3
YET144 (910364−) Fuse,Maxi Blade 60 Amp 1
23 GM455 (910364−) Label,Primary Fuse Box −60 Amp 1
24 GT278 (910364−)Screw, Button Head − M4 X 20 Zinc Plated 4
25 GN024 (910364−) Nut, Nyloc − M4 4
26 PP464 (910364−) Bracket, Adjmt, Alternator [Non Air Con] 1
27 PP467 (910364−) Spacer, Alternator Bracket 1
28 GT339 (910364−) Screw,Button Hd Hex Skt −M6 X 35 A4 St.S 1
29 GW087 (910364−) Washer − M6 Form C −St.St,A2 2
30 PP303 (910364−) Starter Motor, For V1505T Engine −636
(included in Engine PP439) 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐64
Fig. 32 − Engine Air Filter Group
1
2
4
21
6
7
8
9
10
10
11
12
13
14
14
28
16
16
18
20
3
22
24
25
27
23
26
5
19
32 31 30 29
15
Home
Find...
Go To..
STANDARD PARTS
2‐65
636 UK YM165 (5−2015)
356225
Fig. 32 − Engine Air Filter Group
Ref. Part No. Serial Number Description Qty.
o1 PP101 (910364−)Air Cleaner 1
Y2 PP084 (910364−) Air Cleaner Element For Kubota D1105−T−1
Y3 PP284 (910364−) Precleaner,Spinner Small 76 Mm Outlet 1
o4 PP102 (910364−) Band, Air Cleaner C/W Fasteners 1
Y5 GM013 (910364−) Rubber Band − 8 X 2 − Black 37 Per Kilo 1
6 ES451 (910364−)Horn − 636/525 1
7 GT327 (910364−) Screw,Button Hd Hex Skt−M6 X 16 1
8 GN011 (910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 1
9 GT395 (910364−) Bolt,Hex Hd Set M8 X 110 Mm Zinc Plated 2
10 GW006 (910364−) Washer−Plain−5/16’ Per 100 Per 100 4
11 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
12 GW032 (910364−) Washer, Form ’C’ − M8 − Zn Ptd Each E 1
13 PC113 (910364−) Hose,Engine Air Intake,Filter To Goalpos 1
14 GG123 (910364−) Jubilee Clip − 55 To 70 [Dea] 2
15 PC299 (910364−) Air Intake Pipe − Turbo 1
16 GG066 (910364−)Jubilee Clip 35 To 50 50mm 4
17 GG111 (910364−) Jubilee Clip 30 To 40 1
18 ES295 (910364−) Filter Minder,Electr 1
19 PP440 (910364−) Tube Weldment Turbo − Air Cleaner E3b En 1
20 ES099 (910364−) Nipple − Filter Minder 1
21 ES162 (910364−)Voice Box − English Assembly 1
21 ES745 (910364−) Voice Box − Italian Assembly 1
21 ES746 (910364−) Voice Box − Dutch Assembly 1
21 ES747 (910364−) Voice Box − Flemish/French Assembly 1
21 ES748 (910364−) Voice Box − Flemish Assembly 1
21 ES749 (910364−)Voice Box − German Assembly 1
21 ES750 (910364−) Voice Box − Spanish Assembly 1
21 ES754 (910364−) Voice Box − Romanian Assembly 1
21 ES319 (910364−) Voice Box − FrenchAssembly 1
22 GT378 (910364−) Screw,Button Hd Skt −M5 X 10 St.St A4 3
23 CD065 (910364−)Bracket Wldt, Air Filter [636] 1
24 GN042 (910364−) Nut − Nyloc Thin M5 3
25 GT331 (910364−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 2
26 GT333 (910364−) Screw,Button Hd Hex Skt−M8 X 30 St.St A4 1
27 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 2
28 PC300 (910364−)Pipe Engine 1
29 GN046 (910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 1
30 GW087 (910364−) Washer − M6 Form C −St.St,A2 1
31 76736 (910364−) Clamp, Cable, Stl, 0.38d X 0.62w, 1hole 1
32 GT327 (910364−)Screw,Button Hd Hex Skt−M6 X 16 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐66
Fig. 33 − Engine Muffler Group
1
2
35
4
5
2
2
6
7
8
9
10
10 11
11 5
5
5
5
4
4
13
12
14
15
15
5
4
16
17 18 19
20
22
21
Home
Find...
Go To..
STANDARD PARTS
2‐67
636 UK YM165 (6−2013)
354829
Fig. 33 − Engine Muffler Group
Ref. Part No. Serial Number Description Qty.
1 PP326 (910364−)Exhaust Manifold − 636 1
2 PP089 (910364−) Gasket−Muffler Muffler Gasket For D1105−3
3 GT089 (910364−) Screw, Hex Hd Set − M8 X 35 − Zn Ptd. Gr 4
4 GN052 (910364−) Nut − M8 − Philidas Mk5 Gd8 Wheel Reta 14
5 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 26
6 PP217 (910364−)Flange Weldment, Exhaust,Engine End 1
7 PP218 (910364−) Flange Weldment,Exhaust,Muffler End 1
8 PP353 (910364−) Flexi−Pipe, Exhaust,710mm Lng −636 Ends 1
9 PP095 (910364−) Muffler Kit Part Of Engine Kit Pp002 For 1
10 PP222 (910364−)U−Clamp,48 Mm Dia,Exhaust 2
11 GT042 (910364−)M8 X 30 H.T. Hex Set Plated 8
12 PP208 (910364−) Clamp, Fixed,Mounting Exhaust 1
13 PP206 (910364−) Plate Weldment,Mounting Exhaust 1
14 PP207 (910364−) Clamp, Loose, Mounting Exhaust 1
15 GG231 (910364−) Anti−Vibration Mount,Two Piece Max Axial 3
16 GT377 (910364−)Bolt, Hex Hd −M8 X 75 St.St A4 2
17 PC208 (910364−) Shield, Engine − Radiator 1
18 (910364−)1
19 GW021 (910364−) Washer − M8 X 25 Od − St St 500e Per 10 2
20 PP293 (910364−) Deflector Exhaust Weldmant 1
21 GT019 (910364−)Screw, Hex Hd Set − M6x 30 2
22 GN011 (910364−) Nut, Nyloc − M6 Zinc Plated 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐68
Fig. 34 − Engine Fuel Supply Group
1
2
19
5
6
78
9
9
10
11
12
13
12
13
13
11
7
7
6
8
14
16
16
16
16
28
28
29
17
18
20
21
22
23
24
25
26
27 27
15
15
15
15
35 4
11
30
31
3
16
34
32
33
Home
Find...
Go To..
STANDARD PARTS
2‐69
636 UK YM165 (5−2015)
356226
Fig. 34 − Engine Fuel Supply Group
Ref. Part No. Serial Number Description Qty.
1 ES282 (910364−)Actuator E−Gas C/W Connector C/W 5 Awy M 1
o2 PP085 (910364−) Filter−Fuel Kit D52−184 Fuel Filter For 1
Y3 PP082 (910364−) Fuel Filter Element−184 For Kubota D1105 1
4 GW110 (910364−) Washer 6mm Id X 18mm Od X 2mm Thick St/ 2
5 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 2
6 GT135 (910364−)M6 X 16 Hex Head Ptd 500e 3
7 GN029 (910364−) Nut,M6 (Plain) 500e 2
8 GW046 (910364−) Washer, Serrated Lock − S6 − Zn Plt 7
9 BB007 (910364−) Spherical Bush 2
10 CD070 (910364−) Rod, Actuator Cntrl 2
11 GN011 (910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 6
12 GT329 (910364−) Screw,Button Hd Hex Skt−M6 X 25 St.St A4 2
13 GW110 (910364−) Washer 6mm Id X 18mm Od X 2mm Thick St/ 4
14 BB063 (910364−) P Clip, Black − O16 3
15 PG030 (910364−) Hose − Fuel Tanks to Filter 2
16 GG098 (910364−)Jubilee Clip − 9.5mm To 12mm 177hclo215 8
17 PG092 (910364−) Remote Filler Weldment−636 Diesel Tank 1
18 PP298 (910364−) Fuel Pump,Electric (With Connector) 1
19 GT101 (910364−) M8 X 25 Set Screw 2
20 PG100 (910364−) Hose,Diesel Tank Locking Tank To Neck 12 1
21 GM534 (910364−)Label,Low Sulphur Fuel 40mm X 80 Mm 1
22 PG090 (910364−) Locking Diesel Tank Cap 1
23 GT108 (910364−) Screw, Button Hd Hex Skt − M8 X 30 − Zp 2
24 GW042 (910364−) Washer − Plain M8 Large O/D 2
25 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 5
26 GN069 (910364−) Nut,Nyloc −M8 St.St A2 2
27 GG066 (910364−) Jubilee Clip 35 To 50 50mm 2
oPG119 (910364−) Diesel Tank Assembly − ^36 1
Yo28 PG099 (910364−) Diesel Tank −Rotomold −636 1
YY 29 PG102 (910364−) Fuel Sender,Off−Take 1
Y30 CD076 (910364−)Bracket, Upper, Fuel Tank 1
Y31 CD078 (910364−) Bracket Wldt, Tank, Fuel 1
Y32 GT301 (910364−) Screw, Hex Hd Set − M8 x 16 −A4 Gd70 St. 10
Y33 GW015 (910364−) Washer−Spring−8Mm Rect 10
34 PP115 (910364−) Solenoid−Fuelstop [1105T] 1
35 GT383 (910364−)Screw Hex Head m6 x 16 Mm St. St−A480St. 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐70
Fig. 35 − Engine Radiator Mount Group
25
26
27
28
1
2
3
29
30
29
30
6
7
8
676
7
8
9
10
10
11
12
13
14
15
16
14
17
17
18
19
19
20
21
22
23
6
7
7
8
24
4
5
Home
Find...
Go To..
STANDARD PARTS
2‐71
636 UK YM165 (5−2015)
354835
Fig. 35 − Engine Radiator Mount Group
Ref. Part No. Serial Number Description Qty.
1 PC243 (910364−)Stay, Radiator 1
2 PC245 (910364−) Bracket Wldt, Mtg, Radiator 1
o3 PC173 (910364−) Radiator,Combined Oil & Water 0.255 M Sq 1
Y4 WP269 (910364−) Connector − ¼ Bsp Male To ½ hosetail 1
Y5 WP270 (910364−) Connector − 1/2 Bsp Male To1/5 hosetail 1
6 GT286 (910364−)Bolt,Hex Hd − M8 X 80 St.St A4 316 10
7 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 20
8 GN069 (910364−) Nut,Nyloc −M8 St.St A2 10
9 PC296 (910364−) Filter, Screen, Radiator 1
10 PC176 (910364−) Bracket, Lower Mounting, Radiator [636] 2
11 PC219 (910364−)Shield, Top, Radiator 1
12 PC222 (910364−) Shield, Chassis − Hopper 1
13 PC216 (910364−) Radiator Plate 1
14 GT135 (910364−) M6 X 16 Hex Head Ptd 500e 2
15 GW087 (910364−) Washer − M6 Form C −St.St,A2 1
16 GW040 (910364−) Washer − Din 9021 − M6, 18 O/D 1
17 GW103 (910364−) Washer, Spring − M6 − Stainless Steel A2 2
18 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
19 (910364−)1
20 PC279 (910364−) Cowl Body, Vacform − 636 1
21 PC282 (910364−)Guard Wldt, Fan 1
22 PC214 (910364−) Shield, Top, Radiator − Engine 1
23 PC228 (910364−) Shield, Radiator − Engine 1
24 PC295 (910364−) Cover Wldt, Access, Cowl 1
25 GG048 (910364−) Ring Head Stud − Black 14mm 316−414−191 2
26 GG055 (910364−)Retainer − Plastic [Bag In 100] 326−100−2
27 GG041 (910364−) Retainer, Steel 2
28 GG042 (910364−) Slip−On Receptacle 336−300−190 2
29 GG054 (910364−) Bush, Rubber − Rad & Water Tank Mtg 1511 2
30 GW027 (910364−)Collar − Dished With−Engine 15111−7220 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐72
Fig. 36 − Engine Radiator Hoses Group
1
2
3
3
3
45 6
79
8
8
10 11
12
13
14
14
12
15
16
14
Home
Find...
Go To..
STANDARD PARTS
2‐73
636 UK YM165 (2−11)
354836
Fig. 36 − Engine Radiator Hoses Group
Ref. Part No. Serial Number Description Qty.
1 PP092 (910364−)Radiator Hose−Bottom (Emegi & Acr) 1
2 PC178 (910364−) Hose,Radiator Top,636 1
3 GG111 (910364−) Jubilee Clip 30 To 40 4
4 PC086 (910364−) Expansion Tank 1
5 PC087 (910364−) Expansion Tank Cap 1
6 ES362 (910364−)Sensor,Coolant Expansion Tank Liquid Lev 1
7 WA288 (910364−) Hose, Rad. To Expansion Bottle 1
8 PC247 (910364−) Hose,Rad−Engine To Cab −12mm 5.5 Mt Long 2
9 WA285 (910364−) Hose, Breather, Top Rad. 8mm− 0.65mt Lon 1
10 (910364−)1
11 BB145 (910364−)P − Clip − Aba Rubber Lined −25 Mm 2
12 GG090 (910364−) Jubilee Clip 17 To 25mm Sp24 1
13 GG077 (910364−) Jubilee Clip − 14mm To 22mm 2
14 GG098 (910364−) Jubilee Clip − 9.5mm To 12mm 177hclo215 3
15 GT327 (910364−) Screw,Button Hd Hex Skt−M6 X 16 2
16 PC024 (910364−)Copper Elbow 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐74
Fig. 37 − Brush Arm Lift Group, Right Hand
19
20
18
12
12
1
16
16
16
16
17
17
28
12
12
5
5
6
6
7
3
9
10
28
10
11 11
4
4
19
19
13
32
15
13
14
23
8
9
31
21
25
22
26
29
27
28 28
30
30
24
Home
Find...
Go To..
STANDARD PARTS
2‐75
636 UK YM165 (8−2014)
354833
Fig. 37 − Brush Arm Lift Group, Right Hand
Ref. Part No. Serial Number Description Qty.
oNF191 (910364−)Arm, Upper Cylinder Pivot − Rh 1
Y1 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 4
Y2 GG039 (910364−) Grease Nipple, Straight − M6 2
Y3 NF151 (910364−) Arm, Upper Cylinder Pivot R/H − Weldment 1
Y4 NF209 (910364−) Tube, Pivot, Inner 4
5 GG248 (910364−)Retaining Clip, 26mm O/D 4
6 GT090 (910364−) Screw, Hex Hd Set − M6 X 12 − Zn Ptd Gra 2
7 HC160 (910364−) Hydraulic Cylinder−B1
8 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 1
9 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 1
10 NF164 (910364−)Pin, Cylinder Pivot − Weldment 2
11 NF198 (910364−) Spacer, Cylinder Pivot Pin − Machining 2
12 GG247 (910364−) Spherical Ball Joint−Iguball 15 Mm Id X 2
13 GN036 (910364−) Nut, Nyloc − M16 Zinc Plated 4
14 GT285 (910364−) Bolt, −M16 X 120 Long 2
15 NF168 (910364−)Bracket, Front Pivot Mounting − Weldment 1
oNF193 (910364−) Arm, Lower Cylinder Pivot − Rh 1
Y16 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 4
Y17 GG039 (910364−) Grease Nipple, Straight − M6 2
Y18 NF158 (910364−) Arm Wldt, Lower, Cylinder Pivot Rh 1
Y19 NF209 (910364−)Tube, Pivot, Inner 4
oNF128 (910364−) Brush Arm Outer Tube Assembly − Rh 1
Y20 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y21 NF129 (910364−) Brush Arm Outer Tube Weldment − Rh 1
Y22 NF199 (910364−) Strip, Wear − Formed 1
Y23 GG023 (910364−)Grease Nipple−45deg−6mm 1
Y24 GT342 (910364−) Screw, Hex Hd Set−M10 X 20 −Zinc Plated 1
25 NF147 (910364−) Spring −35 Od X 300 Ol X 4.4mm 22 Coils 2
26 NF282 (910364−) Brush Arm Extended Weldment 2
27 NF148 (910364−) Pin, Pivot, Brush Arm − Weldment 1
28 GT101 (910364−)M8 X 25 Set Screw 2
29 NF205 (910364−) Pin, Anchor, Brush In/Out − Weldment 1
30 GG105 (910364−) Pin, Split Cotter − 1/8 X 1 Lg 4
31 HC143 (910364−) Hydraulic Cylinder−B1
32 GT285 (910364−) Bolt, −M16 X 120 Long 2
32 GT461 (910364−) Bolt, −M16 X 130 Long (W/Winter Option) 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐76
Fig. 38 − Brush Arm Lift Group, Left Hand
20
20
10
16
16
17
17
28
12
5
12
5
6
7
3
18
10
11
19
19
6
28
41
12
2
1
13
13
32
14
15
23 8
9
31
21
25
22 26
29
27
28
28
30
30
24
Home
Find...
Go To..
STANDARD PARTS
2‐77
636 UK YM165 (8−2014)
354834
Fig. 38 − Brush Arm Lift Group, Left Hand
Ref. Part No. Serial Number Description Qty.
oNF192 (910364−)Arm, Upper Cylinder Pivot − Lh 4
Y1 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 4
Y2 GG039 (910364−) Grease Nipple, Straight − M6 2
Y3 NF156 (910364−) Arm Upper, Cylinder Pivot Lh − Weldment 1
Y4 NF209 (910364−) Tube, Pivot, Inner 2
5 GG248 (910364−)Retaining Clip, 26mm O/D 3
6 GT090 (910364−) Screw, Hex Hd Set − M6 X 12 − Zn Ptd Gra 2
7 HC160 (910364−) Hydraulic Cylinder−B1
8 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 1
9 GW051 (910364−) Washer, Form ’A’ − M12 − Zn Ptd Whee 1
10 NF164 (910364−)Pin, Cylinder Pivot − Weldment 2
11 NF198 (910364−) Spacer, Cylinder Pivot Pin − Machining 2
12 GG247 (910364−) Spherical Ball Joint−Iguball 15 Mm Id X 2
13 GN036 (910364−) Nut, Nyloc − M16 Zinc Plated 4
14 GT285 (910364−) Bolt, −M16 X 120 Long 2
15 NF168 (910364−)Bracket, Front Pivot Mounting − Weldment 1
oNF194 (910364−) Arm, Lower Cylinder Pivot − Lh 1
Y16 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 4
Y17 GG039 (910364−) Grease Nipple, Straight − M6 2
Y18 NF163 (910364−) Arm, Lower, Cylinder Pivot Lh − Weldment 1
Y19 NF209 (910364−)Tube, Pivot, Inner 2
oNF137 (910364−) Brush Arm Outer Tube Assembly − Lh 1
Y20 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y21 NF138 (910364−) Brush Arm Outer Tube Weldment − Lh 1
Y22 NF199 (910364−) Strip, Wear − Formed 1
Y23 GG023 (910364−)Grease Nipple−45deg−6mm 1
Y24 GT342 (910364−) Screw, Hex Hd Set−M10 X 20 −Zinc Plated 1
25 NF147 (910364−) Spring −35 Od X 300 Ol X 4.4mm 22 Coils 1
26 NF282 (910364−) Brush Arm Extended Weldment 1
27 NF148 (910364−) Pin, Pivot, Brush Arm − Weldment 1
28 GT101 (910364−)M8 X 25 Set Screw 2
29 NF205 (910364−) Pin, Anchor, Brush In/Out − Weldment 1
30 GG105 (910364−) Pin, Split Cotter − 1/8 X 1 Lg 4
31 HC143 (910364−) Hydraulic Cylinder−B1
32 GT285 (910364−) Bolt, −M16 X 120 Long 2
32 GT461 (910364−) Bolt, −M16 X 130 Long (W/Winter Option) 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐78

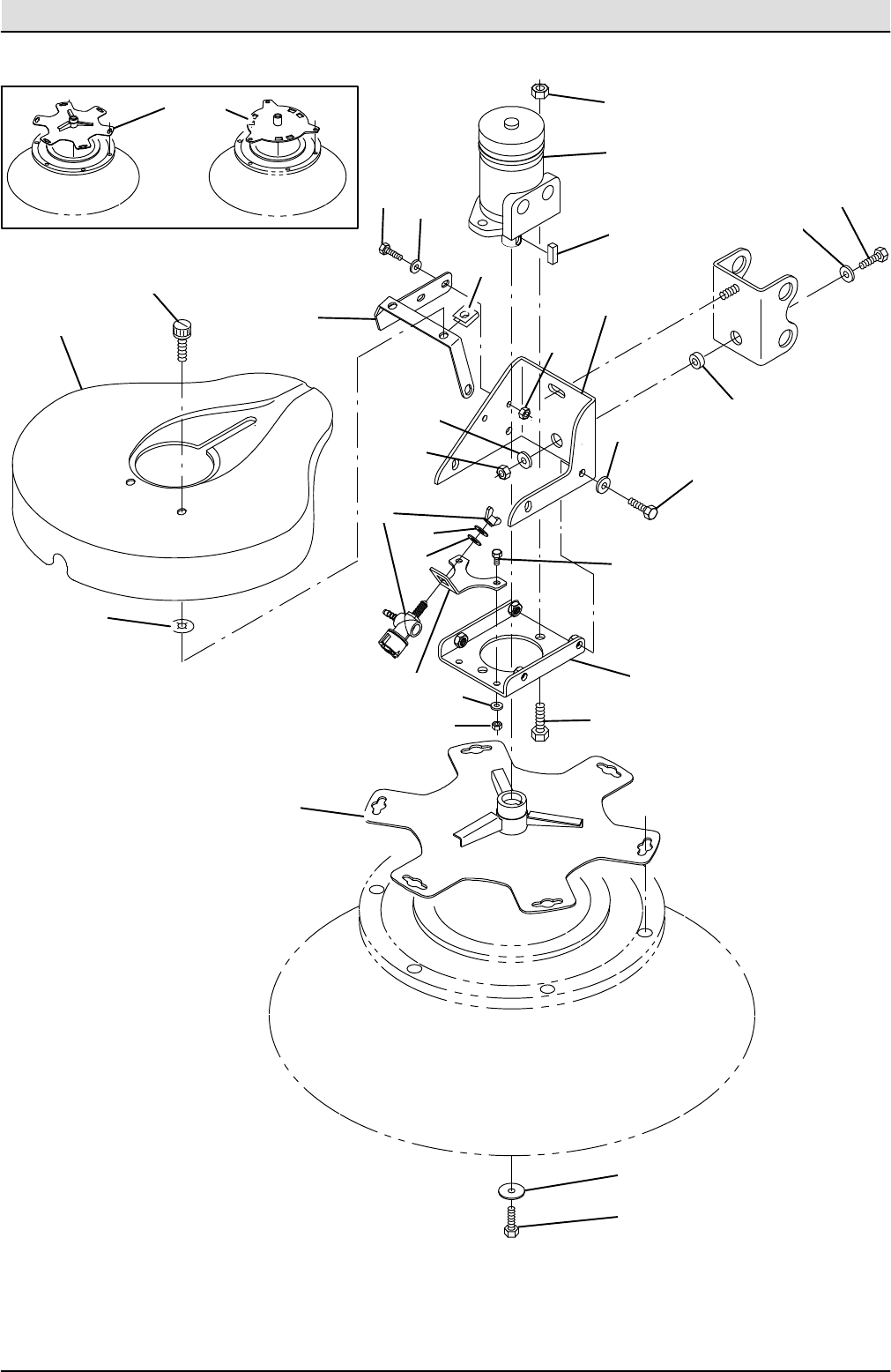

Fig. 39 − Brush Arm Motor Group, Right Hand
1
2
3
4
5
4
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21 4
23
24
25
28
29
22
26
27
30
31
Home
Find...
Go To..
STANDARD PARTS
2‐79
636 UK YM165 (1−2015)
354831
Fig. 39 − Brush Arm Motor Group, Right Hand
Ref. Part No. Serial Number Description Qty.
1 NF171 (910364−)Plate, Motor Swivel, R/H − Formed 1
2 GB036 (910364−) Spacer − Black Nylon 20od X 10id X 15l 1
3 GT130 (910364−) M10 X 30 Hex Ptd. 500e 1
4 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 3
5 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 2
6 NF173 (910364−)Plate Mounting,Brush Cover Rh 1
7 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
8 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 2
9 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
10 NF178 (910364−) Plate, Motor Mounting − Weldment 1
11 GT086 (910364−)M10 X 25 − Hex Set Ptd Grade 8.8 4
12 GW048 (910364−) M10 Washer − Serrated Lock 4
o13 HM029 (910364−) Drive Motor − Eaton T60 T060ajas 158−338 1
Y14 HM037 (910364−) Key−For Shaft For Hm036 8mm Straight Ke 1
15 GT341 (910364−) Screw,Hex Hd Set − M12 X 40 Grade Zinc Plated 2
16 GN080 (910364−)Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 2
17 NF210 (910364−) Plate, Mounting, Water Hose − Formed 1
18 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
19 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 2
20 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
21 WP165 (910364−)Brush Spray Nozzle A 1
22 GW037 (910364−) Washer−Rubber 1
23 NF184 (910364−1301022 ) Plate, Brush Drive − Weldment (Replc by NF299) 1
24 GT101 (910364−) M8 X 25 Set Screw 1
25 GW006 (910364−) Washer−Plain−5/16’ Per 100 Per 100 1
26 CP193_C (910364−)Brush Cover −525 Cat Grey 1
27 GG146 (910364−) Knurled Fastener 17−13−204−11 2
28 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 2
29 GG147 (910364−) Clip−On Recepticle 17−10027−11 2
30 NF299 (1301023−1411359 ) Drive Plate, Brushes − Cast − 636/Ze (Replc by NF303) 1
31 NF303 (1411360−)Plate, Brush Drive−Weldment−Heavy Duty 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐80
Fig. 40 − Brush Arm Motor Group, Left Hand
28
29
23 30
24
25
31
12
3
4
4
5
67
8
9
10
11
12
13
14
15
16
17
18
19
20
21 4
22
26 27
Home
Find...
Go To..
STANDARD PARTS
2‐81
636 UK YM165 (1−2015)
354832
Fig. 40 − Brush Arm Motor Group, Left Hand
Ref. Part No. Serial Number Description Qty.
1 NF175 (910364−)Plate, Motor Swivel, L/H − Formed 1
2 GB036 (910364−) Spacer − Black Nylon 20od X 10id X 15l 1
3 GT130 (910364−) M10 X 30 Hex Ptd. 500e 1
4 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 3
5 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 2
6 NF177 (910364−)Plate Mounting, Brush Cover, Lh 1
7 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
8 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 2
9 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
10 NF178 (910364−) Plate, Motor Mounting − Weldment 1
11 GT086 (910364−)M10 X 25 − Hex Set Ptd Grade 8.8 4
12 GW048 (910364−) M10 Washer − Serrated Lock 4
o13 HM029 (910364−) Drive Motor − Eaton T60 T060ajas 158−338 1
Y14 HM037 (910364−) Key−For Shaft For Hm036 8mm Straight Ke 1
15 GT341 (910364−) Screw,Hex Hd Set − M12 X 40 Grade Zinc Plated 2
16 GN080 (910364−)Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 2
17 NF210 (910364−) Plate, Mounting, Water Hose − Formed 1
18 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 2
19 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 2
20 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
21 WP165 (910364−)Brush Spray Nozzle A 1
22 GW037 (910364−) Washer−Rubber 1
23 NF184 (910364−1301022 ) Plate, Brush Drive − Weldment (Replc by NF299) 1
24 GT101 (910364−) M8 X 25 Set Screw 1
25 GW006 (910364−) Washer−Plain−5/16’ Per 100 Per 100 1
26 CP193_C (910364−)Brush Cover −525 Cat Grey 1
27 GG146 (910364−) Knurled Fastener 17−13−204−11 2
28 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 2
29 GG147 (910364−) Clip−On Recepticle 17−10027−11 2
30 NF299 (1301023−1411659 ) Drive Plate, Brushes − Cast − 636/Ze (Replc by NF303) 1
31 NF303 (1411360−)Plate, Brush Drive−Weldment−Heavy Duty 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐82

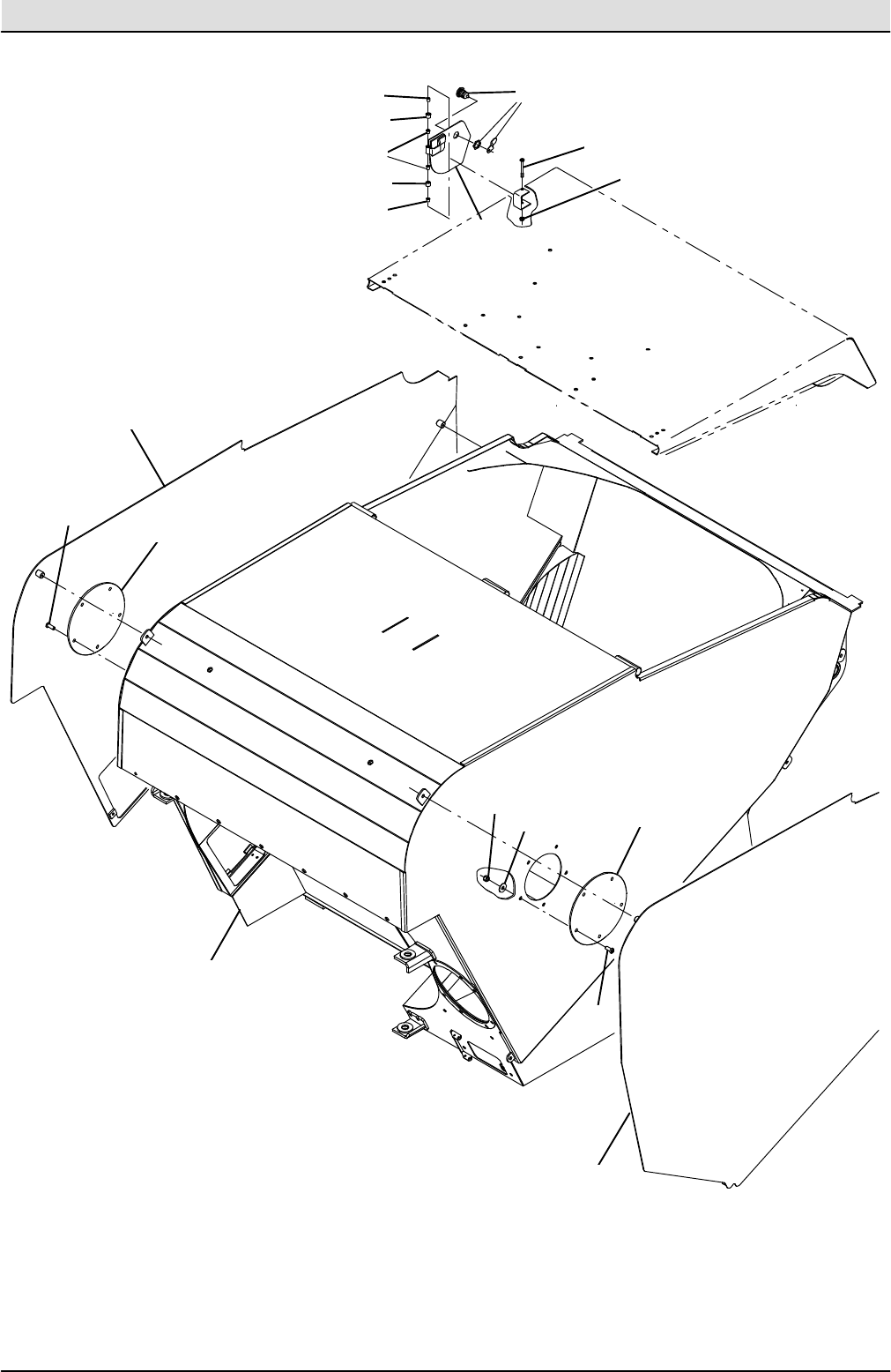

Fig. 41 − Hopper Group
1
2
3
4
4
5
6
7
5
8
9
10
10
9
9
11
12
13
Home
Find...
Go To..
STANDARD PARTS
2‐83
636 UK YM165 (5−2015)
356568
Fig. 41 − Hopper Group
Ref. Part No. Serial Number Description Qty.
1 VK108 (910364−1301022 )Hopper Wldt, Body, W/ Label 1
1 VK244 (1301023−1411357 ) Hopper Wldt, Body, W/ Label 1
1 VK294 (1411358−) Hopper Wldt, Body, W/ Label 1
2 VK297 (1411358−) Side Cover Weldment − 636 Hopper − Rhs 1
3 VK301 (1411358−) Side Cover Lh Weldment − 636 Hopper 1
4 VK354 (1411358−)Blanking Plate, Non Whoosh − 636 Hopper 2
5 GT331 (1411358−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 10
6 GW055 (1411358−) Washer − M8 Form C St/St 314 Stainless 3 10
7 GN069 (1411358−) Nut,Nyloc −M8 St.St A2 10
8 VK347 (1411358−) Hinge Cover Assembly − Whoosh Hopper 1
9 GB144 (1411358−)Du Bush 6mm I/D X 8mm O/D X 8mm Long 4
10 VK356 (1411358−) Boss − Whoosh Hinge 2
11 GG286 (1411358−) Black Tri Lock 1
12 VK353 (1411358−) Pin − Hinge, Whoosh Door − 636 Hopper 1
13 GN078 (1411358−)Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐84

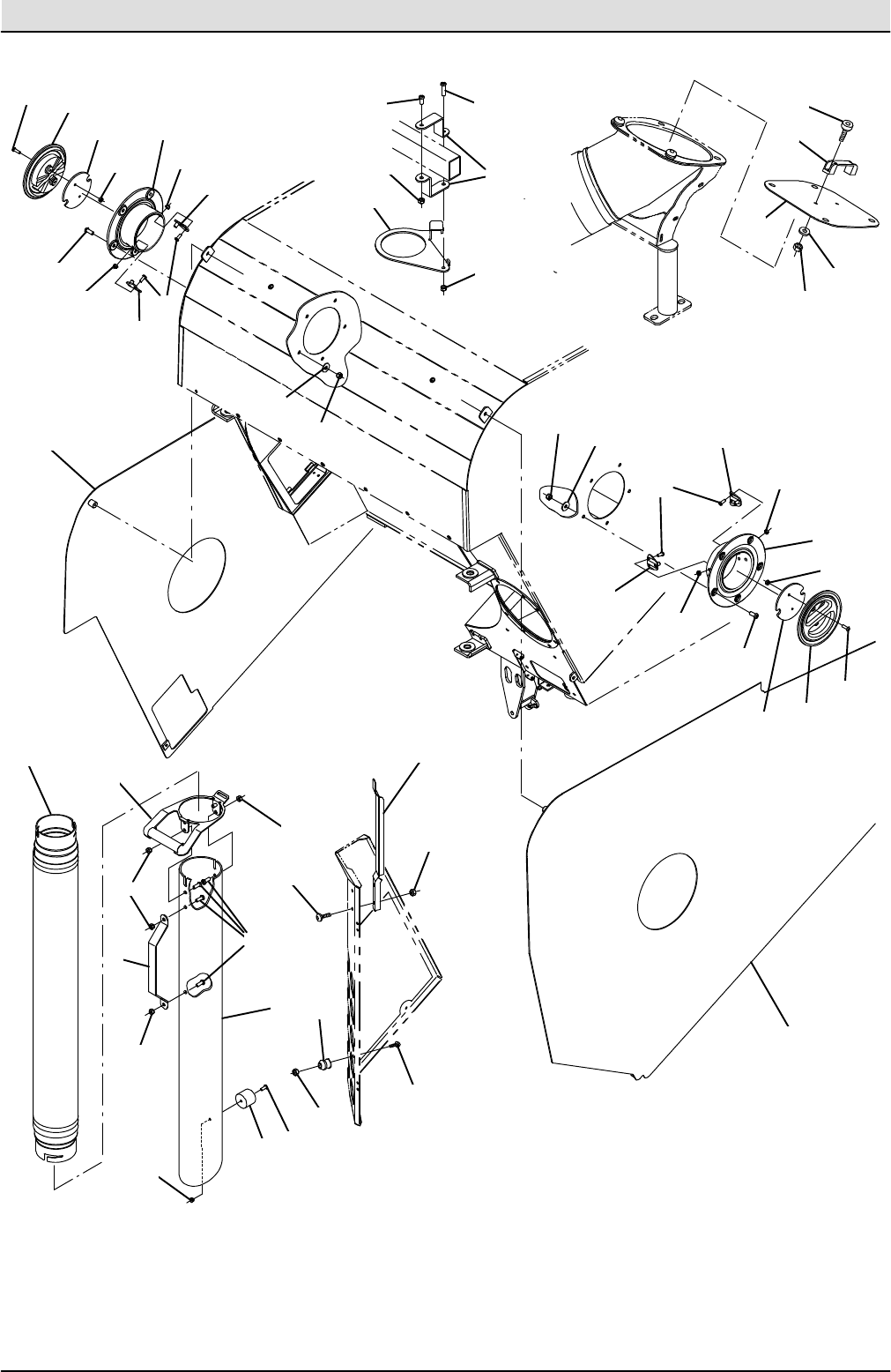

Fig. 42 − Hopper Dump Door Group
1
2
3
4
12
13
14
15 16
16
17
17
18
16
19
20
21
22
23
24
25
26
27
28
28
29
30
32
3133
34
35 33
36
37
38
39
6
687
9
10
11
5
40
41
42
43
45
46
47
28
28
28
28
48
49
50
44
51
52
53
54
55
Home
Find...
Go To..
STANDARD PARTS
2‐85
636 UK YM165 (1−2015)
354837
Fig. 42 − Hopper Dump Door Group
Ref. Part No. Serial Number Description Qty.
1 VH122 (910364−)Hinge Plate Rh Wldt− Door Rpcr 1
2 VH125 (910364−) Hinge Plate Lh Wldt − Door Rpcr 1
3 VH409 (910364−1301022 ) Hopper Door Wldt 1
3 VK238 (1301023−1411357 ) Hopper Door Wldt 1
3 VK317 (1411358−) Hopper Door Wldt 1
o4 VH540 (910364−1411357 ) Mesh Door Wldt, Rear 1
Y5 VH181 (910364−1411357 ) Lynch Pin − Assembly 2
o4 VK341 (1411358−) Mesh Door Wldt, Rear 1
Y5 VH181 (1411358−) Lynch Pin − Assembly 2
6 GG156 (910364−) Latch − Adjustable 70−653 M1 Mszn 2
7 GT386 (910364−) Screw −Skt Head Cap M5 X 16 St.St A4 Zn 6
8 GW098 (910364−) Washer, M5 −Stainless Steel −A4 6
9 GN009 (910364−) Nut − M5 6
10 VH216 (910364−) Plate, Mounting − Wldt Hopper 2
11 GM391 (910364−) Hopper Door Seal − Titenfast [Black] 1
12 VH536 (910364−)Sleeve, Cyclone To Hopper Body − Wldt 2
13 GG277 (910364−) Clamp, Heavy Duty − Gbs 200−213 −Gbs207/ 2
14 VH610 (910364−) Clevis Weldment, Hyd Cylinder 1
15 VH142 (910364−) Pin − Hyd Cyl − Machined 1
16 GW077 (910364−) Washer, Form A − M20 −St/St A2 St.St Gr 3
17 GG177 (910364−)Pin, Split − 1/8 Dia X 1 1/4 Long St 3
18 VH253 (910364−) Pin Weldment− Hyd Cyl Hopper 1
19 HC148 (910364−) Hydraulic Cylinder−Hopper Roof 500e 1
20 VH516 (910364−) Pivot Arm Weldment −636 Hopper 1
21 GB031 (910364−) Bush−Flanged Du 12i.D.17l Gly.Pbg.121417 2
22 GB099 (910364−) Bush,Flngd−Du−20 I/D X 23 Od X11.5 Long 2
23 VH410 (910364−) Mesh Door Internal,Hopper 636 1
24 VH259 (910364−) Clean Cyclone Body −Weldment 2
25 VH639 (910364−) Closing Plate, Cyclones 1
26 VH296 (910364−) Hinge Bracket − Weldment 1
27 VH453 (910364−)Mounting Bracket Hinge Weldment 1
28 GB093 (910364−) Bush,Igus Flanged Bush−J Type 16 X 22 X 12
29 VH251 (910364−) Pin Weldment − Hyd Cyl Hopper 1
30 GG177 (910364−) Pin, Split − 1/8 Dia X 1 1/4 Long St 1
oVH274 (910364−) Clean Cyclone − Assembly 2
YoVH373 (910364−)Bearing Kit −Spinner −525 Cyclone 1
YY 31 GW079 (910364−) Washer,Form A −M10 −S.S A2 St.St Grade A 1
YY 32 GN069 (910364−) Nut,Nyloc −M8 St.St A2 1
YY 33 VH272 (910364−) Spacer, Spinner, Clean Cyclone Hopper 2
YY 34 GM401 (910364−) Felt Washer, 22 O/D X 10.5 I/D 0.25 Dens 1
YY 35 GG276 (910364−) Circlip 2
YY 36 GB100 (910364−) Bearing Single Row,Deep Grv Ball 10 I/D 2
YY 37 VH271 (910364−) Shaft, Spinner, Clean Cyclone 525 / 636 1
YY 38 GM399 (910364−) Blanking Plug − 15 Mm Hole Dia 500e 1
Y39 VH273 (910364−) Spinner, Clean Cyclone − Weldment 1
40 GT330 (910364−)Screw,Button Hd Hex Skt−M8 X 16 St.St A4 2
41 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 2
42 VH163 (910364−1301022 ) Sandwich Plate 2
43 VH164 (910364−1301022 ) Rubber Skirting ,3mm Neoprene 1
44 GW041 (910364−)Washer, Form A − M8 Zinc Plated S12 − Zi 4
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (1−2015)
2‐86
354837
Fig. 42 − Hopper and Dump Door Group
Ref. Part No. Serial Number Description Qty.
45 GT385 (910364−1301022 )Screw, Hex Hd Set M6 X 20 St.St A4 7
46 GW110 (910364−1301022 ) Washer 6mm Id X 18mm Od X 2mm Thick St/ 9
47 GN078 (910364−1301022 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 2
48 VH204 (910364−) Pin, Hopper Door 1
49 GT403 (910364−) Screw,Hex Head Set−M10 X 25 Mm St.St −A4 4
50 GN019 (910364−)Nut, Nyloc − M10 − Zn Ptd 500e 4
51 CP527 (1301023−) Rear Flap − 636 Refresh 1
52 GG381 (1301023−) Panel Knob − M6x25Mm Thread 5
53 CD768 (1301023−) Blanking Plate − Chevron − W/O Rear Camera 1
53 CD767 (1301023−) Blanking Plate − Chevron − W/ Rear Camera 1
54 GT378 (1301023−)Screw, Button Hd Skt −M5x10 St.St A4 6
55 GN101 (1301023−) Nut, Nyloc M5 −st.st A4−Gd 80 6
Home
Find...
Go To..
STANDARD PARTS
2‐87
636 UK YM165 (6−2013)
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐88

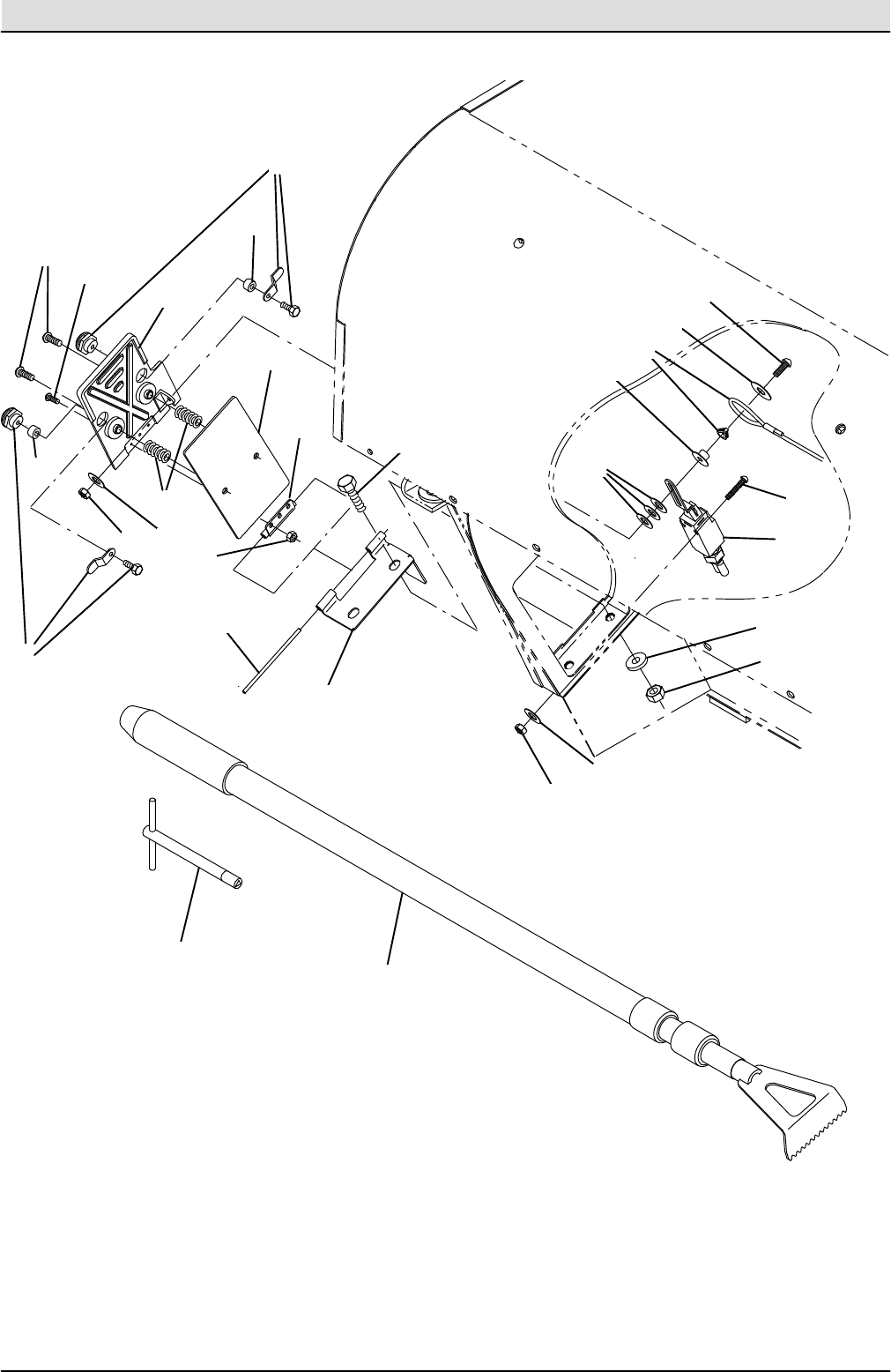

Fig. 43 − Hopper Lift Group
12
3
4
1
2
3
4
5
5
6
10 9
6
9
69
7
11
11
12
13
14
15
16
17
15
16
16
17
16
18
18
18
19
20
21
22
8
23
24
26
25
27
28
29
29
29
Home
Find...
Go To..
STANDARD PARTS
2‐89
636 UK YM165 (1−2012)
354838
Fig. 43 − Hopper Lift Group
Ref. Part No. Serial Number Description Qty.
1 VH145 (910364−)Pin Wldt, Hopper 2
2 GT404 (910364−) Screw−Csk Hd Sckt M8 X 16 Zinc Ptd. 4
3 GW078 (910364−) Washer,Form A −M30 −A2 St.St St.St− For 2
4 GG266 (910364−) Pin,Split −4.0 X 32 −St.St 2
5 HC141 (910364−) Hydraulic Cylinder − Hopper 2
6 VH143 (910364−)Pin Weldment − Hyd Cyl, External 4
7 GT243 (910364−) Screw, Self Tapping − M8 X 16 2
8 GT347 (910364−) Screw, Button Hd Hex Hd −M8 X 45 St.St. 1
9 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 4
10 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 2
11 GB092 (910364−)Bush,Igus Flanged Bush−G Type 30 X34 X26 4
12 CB902 (910364−) Clamp, Hopper Stay Parking 2
13 CB898 (910364−) Bracket − Mtg. Hopper Stay 525 1
14 CB964 (910364−) Bracket,Mounting − Hopper Stay Short For 1
15 GT327 (910364−) Screw,Button Hd Hex Skt−M6 X 16 4
16 GW110 (910364−)Washer 6mm Id X 18mm Od X 2mm Thick St/ 8
17 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 4
18 (910364−)4
19 CB894 (910364−) Hopper Stay Weldment 1
20 GM561 (910364−) Grip, Foam 1
21 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 2
22 GN069 (910364−) Nut,Nyloc −M8 St.St A2 1
23 ES430 (910364−) Safety Switch − Solid State 4 Wire 1
24 GT305 (910364−) Screw,Button Head Skt−M5 X 35 Zc Plated 3
25 GN006 (910364−) Nut, Nyloc − M5 Zinc Plated Zinc Plated 2
26 GW008 (910364−)Washer, Form A − M5 − Zn Ptd Per 100 Per 4
27 BB077 (910364−)P−Clip − Aba Rubber Lined − 10mm 31304 3 1
28 BB079 (910364−)P−Clip − Aba Rubber Lined − 13mm 31306 3 2
29 GT203 (910364−) Screw, Self Tap, Flg Hex Hd − M6 X 12 3
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐90
Fig. 44 − Hopper Vacuum Fan Group
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
13
15
16
14
15
16
17
20
21
22
23
24
25
26
26 27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
19
43
19
18
44
Home
Find...
Go To..
STANDARD PARTS
2‐91
636 UK YM165 (5−2015)
354839
Fig. 44 − Hopper Vacuum Fan Group
Ref. Part No. Serial Number Description Qty.
1 CC362 (910364−)Mtg Plate, Weldment − Fan Motor 1
2 HM075 (910364−1208241 ) Fan Motor Replacement Kit 1
2 HM071 (1208242−) Motor, Hyd, Piston, 12Cc [Brevini] 1
3 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 4
4 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 8
5 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 4
6 CC356 (910364−) Fan Casing, 636 1
7 CC370 (910364−) Fan Casing Front Mounting Plate −636 1
8 CC381 (910364−) Inlet Cone − Weldment 1
9 GT086 (910364−) M10 X 25 − Hex Set Ptd Grade 8.8 4
10 GW041 (910364−)Washer, Form A − M8 Zinc Plated S12 − Zi 4
11 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 4
12 GG231 (910364−) Anti−Vibration Mount,Two Piece Max Axial 3
13 GW027 (910364−) Collar − Dished With−Engine 15111−7220 3
14 GT298 (910364−) Bolt,Hex Hd − M10 X 55 Zinc Plated Passi 3
15 GW079 (910364−)Washer,Form A −M10 −S.S A2 St.St Grade A 3
16 GN019 (910364−) Nut, Nyloc − M10 − Zn Ptd 500e 3
17 VF103 (910364−) Impeller,Clean Fan C/W Mounting Plate,Hu 1
18 GW087 (910364−) Washer − M6 Form C −St.St,A2 7
19 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 4
20 GT286 (910364−)Bolt,Hex Hd − M8 X 80 St.St A4 316 8
21 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 8
22 GN069 (910364−) Nut,Nyloc −M8 St.St A2 8
23 GB110 (910364−) Bush,Sleeve,Window Pivot Fixing 1
23 GW087 (910364−) Washer − M6 Form C −St.St,A2 (as Reqired) 1
24 ES279 (910364−)Speed Sensor (From Assy. M/L) 1
25 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
26 KM206 (910364−) Sponge Extrusion − 10 Mm X 5 Mm 5 Litre 1
27 VH505 (910364−) Plate, Cover Fan Access 1
28 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 6
29 GW060 (910364−) Washer − Form A − M8 −St St 6
30 VH752 (910364−) Front Cover − Rotomould 1
31 GM687 (910364−) Trim − Fan Cover − 636/500ZE 1
32 VH778 (910364−) Side Bracket − Formed 1
33 VH786 (910364−) Bracket Rh − Front Cover Hopper 1
34 GT286 (910364−)Bolt,Hex Hd − M8 X 80 St.St A4 316 4
35 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 4
36 GN069 (910364−) Nut,Nyloc −M8 St.St A2 4
37 VH774 (910364−) Lh Seal Plate − Formed 500e 1
38 VH776 (910364−) Rh Seal Plate − Formed 500e 1
39 GT328 (910364−)Screw,Button Hd Hex Skt−M6 X 20 4
40 GW087 (910364−) Washer − M6 Form C −St.St,A2 4
41 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 4
42 GT135 (910364−) M6 X 16 Hex Head Ptd 500e 7
43 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 2
44 BB045 (910364−)5mm P−Clip (From Assy. M/L) 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐92

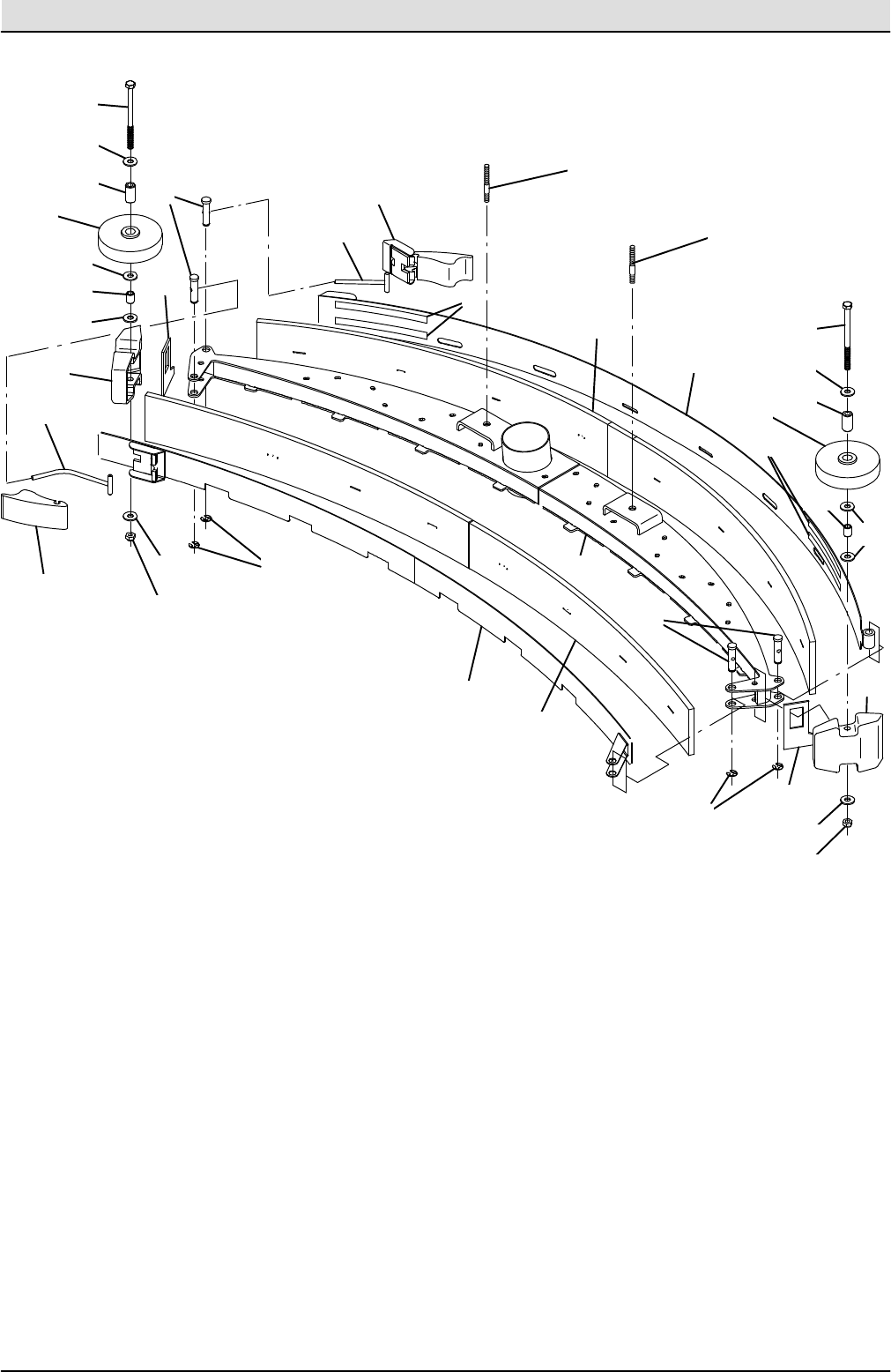

Fig. 45 − Hopper Vacuum Nozzle Group (910364−15056053)
1
23
4
56
7
89
10
10
11
11
12
12
12
12
13
13
14
15
16
17 18
18
19
20
21
22
23
24
23
26
27
28
25
31
32
33
34
32
33
29 32
25 32
35
36
3738
39
39
40
41
42
42
42
42
42
42
42
43
43
43 43
44
44
45
46
47
48
49
9
50
51
30
20
Home
Find...
Go To..
STANDARD PARTS
2‐93
636 UK YM165 (5−2015)
354845
Fig. 46 − Hopper Vacuum Nozzle Group (910364−15056053)
Ref. Part No. Serial Number Description Qty.
o1 NA118 (910364−15056053 )Nozzle Assembly,Adjustable (Replaced by NA222) 1
Y2 NF045 (910364−15056053 ) Adjuster Assy − Side Brush 1
Y3 GN025 (910364−15056053 ) Nut,3/4 Unc Unplated 1
Y4 NA134 (910364−15056053 ) Bar,Hinge −Adjustable Nozzle 1
Y5 NA120 (910364−15056053 ) Flap Wldt, Nozzle, Adj 1
6 GW060 (910364−15056053 ) Washer−Form A − m8 St St 8
7 GN069 (910364−15056053 ) Nut, Nyloc − M8 St.St A2 8
8 NA138 (910364−15056053 ) Pad, Wear, Horse Shoe −636 1
oNN112 (910364−15056053 ) Nozzle − Side Skid Shoe 2
Y9 NN113 (910364−15056053 ) Nozzle −Side Skid Shoe Sg Ci, Bsen1563 1
Y10 GW084 (910364−15056053 ) Washer−Schnorr Serrated Lock M16 (S16) Z 2
Y11 GT460 (910364−15056053 ) Screw,Hex Hd Set,M16 X 90 ZP 2
Y12 GN036 (910364−15056053 ) Nut, Nyloc − M16 Zinc Plated 4
Y13 GN075 (910364−15056053 ) Nut, Hex Locking (Thin) − M16 X 2.0p Sta 2
14 NA087 (910364−15056053 ) Backing Strip,Rubber 1
15 NA135 (910364−15056053 )Plate, Brush Guard/Clamp − Formed 1
16 NA117 (910364−15056053 ) Rubber Flap− 8mm −636 Nozzle 1
17 GT240 (910364−15056053 ) Bolt−Aneorobic M6x35 Ptd. 5
18 GW007 (910364−15056053 ) Washer −Plain − 1/4 /6Mm Per 100 10
oNA147 (910364−15056053 ) Nozzle − A−Frame Assembly 1
Y19 GN080 (910364−15056053 )Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 5
Y20 GG376 (910364−15056053 ) Track Rod Ball Joint Kit − Am Only 2
Y21 NA146 (910364−15056053 ) Nozzle − A−Frame Weldment 1
Y22 GG229 (910364−15056053 ) Ball Joint, Track Rod 1
Y23 GN061 (910364−15056053 ) Nut, Nyloc M16 X 1.5 3
Y24 GT314 (910364−15056053 ) Bolt − M16 X 1.5 Pitch X70 Mm O/L Grade 1
25 NA082 (910364−15056053 ) Chain, Nozzle Restraining 2
26 HC145 (910364−15056053 ) Hydraulic Cylinder − Nozzle 1
27 GT136 (910364−15056053 ) Screw, Button Hd Hex Skt − M5 X 20 − Ptd 1
28 GN079 (910364−15056053 ) Nut, Nyloc −M12 −St.St A4 St.St A4 Coars 1
29 GG015 (910364−15056053 )Jubilee Clip − 8 1/2 42002−15 184−2 2
30 VK107 (910364−15056053 ) Plate − Air Intake 636 Hopper 1
31 VT188 (910364−15056053 ) Hose−Front Nozzle 8i.D. 650mm Long 1
32 GM013 (910364−15056053 ) Rubber Band − 8 X 2 − Black 37 Per Kilo 4
33 GG015 (910364−15056053 ) Jubilee Clip − 8 1/2 42002−15 184−24
34 VH767 (910364−15056053 )Inlet Tube, Lower, Rotomold 1
35 VT202 (910364−15056053 ) Cuff, 8 Id X 120 Mm Longx 6 Mm Thick Neo 1
36 VH766 (910364−15056053 ) Inlet Tube Upper − Rotomould 1
37 CD183 (910364−15056053 ) Plate, Mtg, Support Frame 1
38 CD294 (910364−15056053 ) Bracket,Steady,Air Intake 1
39 GT303 (910364−15056053 )Screw, Hex Hd Set − M8 X 25 St.St Grade 6
40 GT262 (910364−15056053 ) Screw, Btn, M8 X 1.25 X 55, 10.9, Pl 2
41 GT411 (910364−15056053 ) Countersunk Skt Head − M8 X 50mm Plated 2
42 GW021 (910364−15056053 ) Washer − M8 X 25 Od − St St 500e Per 10 15
43 GN004 (910364−15056053 ) Nut, Nyloc − M8 Zinc Plated Zinc Plated 8
44 GN069 (910364−15056053 ) Nut,Nyloc −M8 St.St A2 10
45 CD418 (910364−15056053 ) Tube, Spacer, Cloudmaker, 40mm 1
46 CD419 (910364−15056053 ) Tube, Spacer, Cloudmaker, 05mm 1
47 NA068 (910364−15056053 ) Tube, Spacer, Cylinder, 24mm 1
48 GT315 (910364−15056053 ) Bolt, Hex Hd − M12 X 110 Stainless Steel 1
49 GN047 (910364−15056053 )Nut, Philidas Mk V − M12 1
50 NA197 (910364−15056053 ) Plate, Protection, Rh − Formed 1
51 NA196 (910364−15056053 ) Plate, Protection, Lh − Formed 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐94
Fig. 46 − Hopper Vacuum Nozzle Group (15056054− )
5
6
7
8
9
10
10
11
11
12
12
12
12
13
13
25
21
22
23
24
23
27
50
28
26
31
32
33
34
32
33
29 32
25 32
35
36
3738
39
39
40
41
42
42
42
42
42
42
42
43
43
43 43
44
44
45
46
47
48
49
9
30
25
1
2
34
14 15 16
17
18
19
20
Home
Find...
Go To..
STANDARD PARTS
2‐95
636 UK YM165 (5−2015)
354845
Fig. 46 − Hopper Vacuum Nozzle Group (15056054− )
Ref. Part No. Serial Number Description Qty.
oNA216 (15056054−)Nozzle Assembly − 636 1
YoNA222 (15056054−) Nozzle Assembly, Removable Flap − Cs 1
YY 1 NA119 (15056054−) Nozzle Body Weldment,636 −Adjustable 1
YY 2 NA230 (15056054−) Hinge Weldment, Flap, City Scrub 1
YY 3 NF045 (15056054−) Adjuster Assy − Side Brush 1
YY 4 GN025 (15056054−)Nut,3/4 Unc Unplated 2
Y5 NA134 (15056054−) Bar,Hinge −Adjustable Nozzle 1
Y6 GW060 (15056054−) Washer−Form A − m8 St St 8
Y7 GN069 (15056054−) Nut, Nyloc − M8 St.St A2 8
Y8 NA138 (15056054−) Pad, Wear, Horse Shoe −636 1
YoNN112 (15056054−)Nozzle − Side Skid Shoe 2
YY 9 NN113 (15056054−) Nozzle −Side Skid Shoe Sg Ci, Bsen1563 1
YY 10 GW084 (15056054−) Washer−Schnorr Serrated Lock M16 (S16) Z 2
YY 11 GT460 (15056054−) Screw,Hex Hd Set,M16 X 90 ZP 2
YY 12 GN036 (15056054−) Nut, Nyloc − M16 Zinc Plated 4
YY 13 GN075 (15056054−)Nut, Hex Locking (Thin) − M16 X 2.0p Sta 2
Y14 NA224 (15056054−) Plate − Rubber Protection − Formed 2
Y15 NA228 (15056054−) Rubber Flap, City Scrub 2
Y16 NA229 (15056054−) Backing Strip, Rubber, City Scrub 2
Y17 NA226 (15056054−) Plate − Rubber Protection − Formed 2
Y18 GT152 (15056054−)Screw, Button Hd Skt − M8 X 35 − Zp Zi 2
Y19 GN033 (15056054−) Nut, Shallow Nyloc − M8 Zinc Plated 2
Y20 GG021 (15056054−) Knob, Black Panel − M8 8958v Black 2
YoNA147 (15056054−) Nozzle − A−Frame Assembly 1
YY 21 NA146 (15056054−) Nozzle − A−Frame Weldment 1
YY 22 GG229 (15056054−)Ball Joint, Track Rod 1
YY 23 GN061 (15056054−) Nut, Nyloc M16 X 1.5 3
YY 24 GT314 (15056054−) Bolt − M16 X 1.5 Pitch X70 Mm O/L Grade 1
YY 25 GG376 (15056054−) Track Rod Ball Joint Kit − Am Only 2
Y26 NA082 (15056054−) Chain, Nozzle Restraining 2
Y27 HC145 (15056054−)Hydraulic Cylinder − Nozzle 1
28 GN079 (15056054−) Nut, Nyloc −M12 −St.St A4 St.St A4 Coars 1
29 GG015 (15056054−) Jubilee Clip − 8 1/2 42002−15 184−22
30 VK107 (15056054−) Plate − Air Intake 636 Hopper 1
31 VT188 (15056054−) Hose−Front Nozzle 8i.D. 650mm Long 1
32 GM013 (15056054−)Rubber Band − 8 X 2 − Black 37 Per Kilo 4
33 GG015 (15056054−) Jubilee Clip − 8 1/2 42002−15 184−24
34 VH767 (15056054−) Inlet Tube, Lower, Rotomold 1
35 VT202 (15056054−) Cuff, 8 Id X 120 Mm Longx 6 Mm Thick Neo 1
36 VH766 (15056054−) Inlet Tube Upper − Rotomould 1
37 CD183 (15056054−)Plate, Mtg, Support Frame 1
38 CD294 (15056054−) Bracket,Steady,Air Intake 1
39 GT303 (15056054−) Screw, Hex Hd Set − M8 X 25 St.St Grade 6
40 GT262 (15056054−) Screw, Btn, M8 X 1.25 X 55, 10.9, Pl 2
41 GT411 (15056054−) Countersunk Skt Head − M8 X 50mm Plated 2
42 GW021 (15056054−) Washer − M8 X 25 Od − St St 500e Per 10 15
43 GN004 (15056054−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 8
44 GN069 (15056054−) Nut,Nyloc −M8 St.St A2 10
45 CD418 (15056054−) Tube, Spacer, Cloudmaker, 40mm 1
46 CD419 (15056054−) Tube, Spacer, Cloudmaker, 05mm 1
47 NA068 (15056054−)Tube, Spacer, Cylinder, 24mm 1
48 GT315 (15056054−) Bolt, Hex Hd − M12 X 110 Stainless Steel 1
49 GN047 (15056054−) Nut, Philidas Mk V − M12 1
50 GT136 (15056054−) Screw, Button Hd Hex Skt − M5 X 20 − Ptd 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (5−2015)
2‐96
Fig. 47 − Hopper Inlet and Drain Group
58
59
60
1
2
3
4
5
6
7
8
9
5
10 11
12
13
14
15
16
17
18
19
20
21
22
23 24
25
26
27
28
29
30 31
30
31
32
31
33
34
35
36
37
15
39
40
41
42
43
45
46
47
48
49
50
51
51
52
53
54
51
17
51
55
38
55
44
56
57
(S/N: 0000000−15016010)
Home
Find...
Go To..
STANDARD PARTS
2‐97
636 UK YM165 (5−2015)
354841
Fig. 47 − Hopper Inlet and Drain Group
Ref. Part No. Serial Number Description Qty.
1 CD405 (910364−) Bracket − Door Stop Inlet Duct 1
2 VH753 (910364−) Inlet Duct 1
3 VH738 (910364−) Seal Ring Wldt 1
4 GT327 (910364−) Screw,Button Hd Hex Skt−M6 X 16 3
5 GN046 (910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 4
6 GT028 (910364−)M8 X 20 H.T. Hex Set Plated 2
7 GT327 (910364−) Screw,Button Hd Hex Skt−M6 X 16 1
8 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
9 VK142 (910364−) Seal Ring Assy − Hopper Inlet Duct 1
10 GN069 (910364−) Nut,Nyloc −M8 St.St A2 7
11 CD165 (910364−)Door Wldt, Drain Access 1
12 GG300 (910364−) Handwheel −40mm Dia−M8 X 20mm 1
13 CD168 (910364−) Seal − Drain Access Door 1
14 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 1
15 VH567 (910364−) Pin Wldt, Inlet, Woosh 2
16 GT386 (910364−) Screw −Skt Head Cap M5 X 16 St.St A4 Zn 1
17 GW098 (910364−) Washer, M5 −Stainless Steel −A4 2
18 GN009 (910364−) Nut − M5 1
19 CD146 (910364−) Drain Flap [636] 1
20 GG285 (910364−) Extension Spring 2.5 Dia X 13 Od 77.8 Lg 1
21 HC128 (910364−)Hydraulic Cylinder Assembly − Front Head 1
22 CD156 (910364−) Clevis Pin Assembly 1
23 GG105 (910364−) Pin, Split Cotter − 1/8 X 1 Lg 1
24 GT300 (910364−) Screw, Hex Hd Set − M6 X 12 St.St Grade 1
25 GN069 (910364−) Nut,Nyloc −M8 St.St A2 1
26 GT325 (910364−)Bolt,Hex Hd − M10 X 70 −St.St A4 1
27 PP154 (910364−) Boss, Alternator Mounting, 6mm Thick 2
28 GN071 (910364−) Nut,Nyloc −M10 −St.St.A4 St.St Grade A4 1
29 GT351 (910364−) Screw,Button Hd Hex Skt−M8 X 65 −A4 St.S 1
30 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 5
31 GN069 (910364−) Nut,Nyloc −M8 St.St A2 7
32 CD155 (910364−) Plate,Sandwich Drain Flap 1
33 CD154 (910364−) Seal Flap, Drain 500e 1
34 GT303 (910364−) Screw, Hex Hd Set − M8 X 25 St.St Grade 2
35 VH520 (910364−) Mesh Filter , Drain − Weldment 1
36 VH563 (910364−)Plate Wldt, Blanking, Woosh Inlet 1
37 VH570 (910364−) Foam Seal , 6 Mm Woosh Inlet Shootblast 1
38 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 2
39 VK178 (910364−) Inlet Wldt, Outer, Woosh 1
40 GT386 (910364−) Screw −Skt Head Cap M5 X 16 St.St A4 Zn 1
41 GN009 (910364−)Nut − M5 1
42 GT243 (910364−) Screw, Self Tapping − M8 X 16 4
43 PC229 (910364−) Flap,Engine Shield ,Neoprene−As Dwg. 1
44 VH765 (910364−) Inlet Tube Inner − Rotomould 1
45 AE074 (910364−) Hose Suction− 51mm X 300mm Long 1
46 CD424 (910364−)Sump,Hopper Drain −636 Vac Form 1
47 GG076 (910364−) Jubilee Clip 40 To 55 55mm 1
48 GT331 (910364−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 1
49 GT332 (910364−) Screw,Button Hd Hex Skt−M8 X 25 St.St A4 1
50 GW021 (910364−) Washer − M8 X 25 Od − St St 500e Per 10 1
51 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 12
52 GN043 (910364−) Nut, Nyloc Shallow − M8 − St. St. A2−314 2
53 VH789 (910364−) Backing Plate Top Weldment 1
54 VH790 (910364−) Backing Plate Bottom Weldment 1
55 GW087 (910364−) Washer − M6 Form C −St.St,A2 4
56 GW003 (910364−)Washer−Spring−1/4’ Per H100 Each 1
57 VK359 (15016011−) Dump Valve Weldment 1
58 GT332 (15016011−) Screw, Button Hd Hex Skt−M8 x 25 St.St A4 3
59 GW060 (15016011−) Washer − form A − M8 − St St 3
60 GN043 (15016011−)Nut, Nyloc Shallow − M8 − St. St. A2−314 3
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐98
Fig. 48 − Hopper Vacuum Fan Access Door Group
20
21
22
17
914
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
914
14
18
19
Home
Find...
Go To..
STANDARD PARTS
2‐99
636 UK YM165 (1−2012)
354840
Fig. 48 − Hopper Vacuum Fan Access Door Group
Ref. Part No. Serial Number Description Qty.
1 GG286 (910364−)Black Tri Lock 2
2 VH742 (910364−) Plate Wldt, Hinge 1
3 VH606 (910364−) Inner Plate Fan Access Door Wldt 1
4 VH741 (910364−) Outer Plate,Hopper Access Door 1
5 VH650 (910364−) Spacer,Door Lock Inspection Panel 2
6 GG213 (910364−) Spring − Compression 1.6 X 17.6 O.D X 5 2
7 GT194 (910364−) Screw M5 X 12 Button Hd Skt. 3
8 GT333 (910364−) Screw,Button Hd Hex Skt−M8 X 30 St.St A4 2
9 GN009 (910364−) Nut − M5 6
10 VH609 (910364−) Hinge Pin − Access Door 1
11 ES430 (910364−)Safety Switch − Solid State 4 Wire 1
12 GT188 (910364−) M5 X 25 Screw Button Head Skt. 1
13 GG078 (910364−) Washer − Top Hat 1
14 GW098 (910364−) Washer, M5 −Stainless Steel −A4 8
15 VH658 (910364−) Wire,Retaining −Fan Access Door 1
16 GT305 (910364−)Screw,Button Head Skt−M5 X 35 Zc Plated 2
17 GG287 (910364−) Tri Key 1
18 VH756 (910364−) Hinge Wldt, Door 1
19 GT301 (910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 2
20 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 2
21 GN069 (910364−) Nut,Nyloc −M8 St.St A2 2
22 CD296 (910364−) Hopper Scraper Assembly −636 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐100
Fig. 49 − Water Tank Rear Door and Bumper Group
38
38
1
2
3
4
5
6
9
8
10
11 28
29
30
31
32
33
34
37
32
35
36
36
39
40
41
40
39
40
42
43
44
40
41
12
13
13
14
22
23
24
45
46
8
48
740 47
19
16
17
18
20
20
20
21
19
19
15
26
25
27
49
50
Home
Find...
Go To..
STANDARD PARTS
2‐101
636 UK YM165 (1−2015)
354849
Fig. 49 − Water Tank Rear Door and Bumper Group
Ref. Part No. Serial Number Description Qty.
1 WA325 (910364−)Heat Shield With Lug −Formed 1
2 (910364−)1
3 WA330 (910364−) Plate Connector, Formed, Water Tank 1
4 WA317 (910364−) Support Frame Weldment−W/Tank 1
5 WA370 (910364−) Tank, Water, Rear, W/ Label 1
6 GT286 (910364−)Bolt,Hex Hd − M8 X 80 St.St A4 316 4
7 CA276 (910364−) Lock Plate Assembly 1
8 GW047 (910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 15
9 GT342 (910364−) Screw, Hex Hd Set−M10 X 20 −Zinc Plated 10
10 GW048 (910364−) M10 Washer − Serrated Lock 10
11 GW025 (910364−)M10 Washer Zinc Ptd 10
12 PC004 (910364−) Pipe−Overflow Radiator [100mt] Clear−8mm 1
13 CP090 (910364−) Elbow, 90deg. − 1/8 Male, 8 I/D T 150 2
14 WA138 (910364−) Cap−Blue Water Filter 1
15 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 5
16 CA032 (910364−)Restraining Cable Sk920205 1
17 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 1
18 GT144 (910364−) M8 X 90 Bolt 1
19 GN069 (910364−) Nut,Nyloc −M8 St.St A2 2
20 GW041 (910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 4
21 GN021 (910364−)Nut,Plain−M8 1
22 GM436 (910364−) Flap,Water Tank 1
23 WA228 (910364−) Plate, Fixing − Flap Water Tank 1
24 GT378 (910364−) Screw,Button Hd Skt −M5 X 10 St.St A4 2
25 ES062 (910364−) Light − Number Plate 2ka001 389−107 (Bulb Not Included) 2
ES053 (910364−) Bulb − Rear Light R.O. To Suit Eso5o 2
26 WA136 (910364−) Plate, Mounting, Number Plate Lights 1
27 GT305 (910364−) Screw,Button Head Skt−M5 X 35 Zc Plated 4
oCB822 (910364−) Bumper Assembly Main Water Tank 525 1
Y28 CB937 (910364−) Handle,Locking−Weldment Main Water Tank 1
Y29 CB823 (910364−) Bumper − Weldment Main Water Tank 525 1
Y30 CB904 (910364−) Pin − Locking Handle Weldment 1
Y31 GT203 (910364−) Screw, Self Tap, Flg Hex Hd − M6 X 12 1
Y32 GG177 (910364−) Pin, Split − 1/8 Dia X 1 1/4 Long St 2
Y33 CB939 (910364−) Pin, Handle Retaining 1
Y34 GG240 (910364−)Knob,Black Lever −M 8 Black Duroplast Kn 1
Y35 GG039 (910364−) Grease Nipple, Straight − M6 1
Y36 GB073 (910364−) Bush, Du Flanged − 20 Id X 23 Od 22 Long 2
Y37 GG155 (910364−) Spring − Hinged Back Trunking 1
Y38 GB031 (910364−) Bush−Flanged Du 12i.D.17l Gly.Pbg.121417 2
39 GT331 (910364−)Screw,Button Hd Hex Skt−M8 X 20 St.St A 6
40 GW055 (910364−) Washer − M8 Form C St/St 314 Stainless 3 13
41 GN069 (910364−) Nut,Nyloc −M8 St.St A2 5
42 (910364−)1
43 GG190 (910364−) Carbine Hook Stainless 60mm X 6 1
44 GT333 (910364−)Screw,Button Hd Hex Skt−M8 X 30 St.St A4 1
45 CB836 (910364−) Pin − Hinge Weldment 1
46 GT243 (910364−) Screw, Self Tapping − M8 X 16 1
47 GT351 (910364−) Screw,Button Hd Hex Skt−M8 X 65 −A4 St.S 3
48 GG250 (910364−) Pin,Split 1 3/4 X 5/32” St.St 304 1
49 CB978 (910364−)Support Bracket, Safety Chain, Rear Door 1
50 GT101 (910364−) M8 X 25 Set Screw 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐102

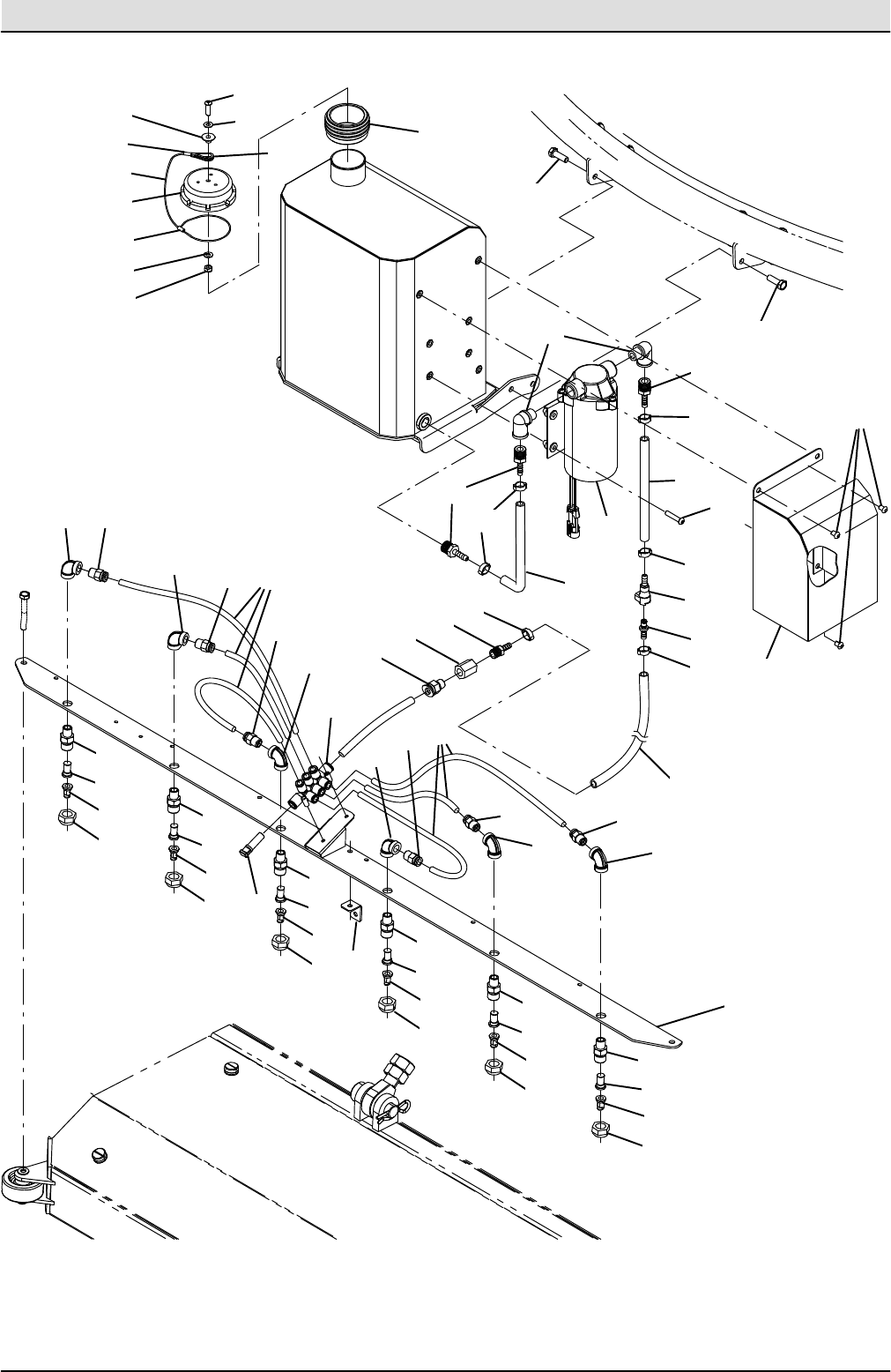

Fig. 50 − Water Pump Group
1
2
3
4
5
6
6
4
5
7
8
9
10
11
12
13
14
15
16
15
15
18
19
20
21
20 22
23
24
25
26 27
28
29
24
25
30
15
31
32
17
17
33
34
35
36
37
Home
Find...
Go To..
STANDARD PARTS
2‐103
636 UK YM165 (8−2014)
354851
Fig. 50 − Water Pump Group
Ref. Part No. Serial Number Description Qty.
1 WA305 (910364−)Side Water Tank(Rotomould) 636 1
2 WA306 (910364−) Bracket(Top) − Tank To Chassis 1
3 WA308 (910364−) Bracket(Bottom) − Tank To Chassis 1
4 GT042 (910364−) M8 X 30 H.T. Hex Set Plated 3
5 GT330 (910364−) Screw,Button Hd Hex Skt−M8 X 16 St.St A4 6
6 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 6
7 WP182 (910364−) Hose Barb, 3/4 M X 3/4 1
8 WP166 (910364−) Hosetail −3/8 Bspt X 1/4 Barb 1
9 GG302 (910364−) Rubber Mounting Pad − 100 X 40 X 12 100 1
10 WA369 (910364−) Hose, Water, Side Water Tank 1
11 PG008 (910364−)O’ Clip− 11 to 13 Mm O/D Hose 3
12 BB079 (910364−)P−Clip − Aba Rubber Lined − 13mm 31306 3 1
13 WA127 (910364−) Water Hose, Large Wa 1
14 WA128 (910364−) Water Hose, Small Wa 1
15 GG051 (910364−) Jubilee Clip 22mm To 30mm 22mmx30mm 4
16 WA202 (910364−)90 Deg. Swivel Connector 1
o17 WA130 (910364−) Strainer/Cap Assembly 1
Y18 WA041 (910364−) Strainer − Drain Cap − Water Tank 50/250 1
Y19 WA120 (910364−) Hose Assembly−Water 1
20 WP112 (910364−) Elbow − [3/8’Mx3/8’F] Ap03375mfe375n 2
21 WP164 (910364−)Hosetail − Nylon −3/8 Bsp X 3/8 Barb 1
22 WP163 (910364−) Hosetail − Nylon 3/8 Bsp X 1/4 Barb 1
23 WP169 (910364−) Water Pump C/W Connector 1
24 GT334 (910364−) Bolt,Hex Head −M6 X 55 −St.St A4 Coarse 6
25 GW110 (910364−) Washer 6mm Id X 18mm Od X 2mm Thick St/ 10
26 GN011 (910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 5
27 WA107 (910364−) Tank,Water Manifold Assembly 1
28 GM400 (910364−) End Cap −Water Manifold 1
29 GG090 (910364−) Jubilee Clip 17 To 25mm Sp24 1
30 ES289 (910364−1401019 ) Sensor Solid State Liquid Level C/W Conn 1
31 GG098 (910364−)Jubilee Clip − 9.5mm To 12mm 177hclo215 1
32 CD506 (910364−) Stiffening Tube Rear Water Tank Hose 1
33 WA312 (910364−) Orifice,Small Water Tank 1
34 WA312 (910364−) Rubber Epdm Washer − 25 Mm 13Mm x 3Mm 1
35 ES289 (1401020−) Sensor Solid State Liquid Level C/W Conn 1
36 WP306 (1401020−)Solid Plug, M12 X 1.0Mm Pitch 1
37 WP307 (1401020−) Rubber Washer 12Mm Bore 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐104

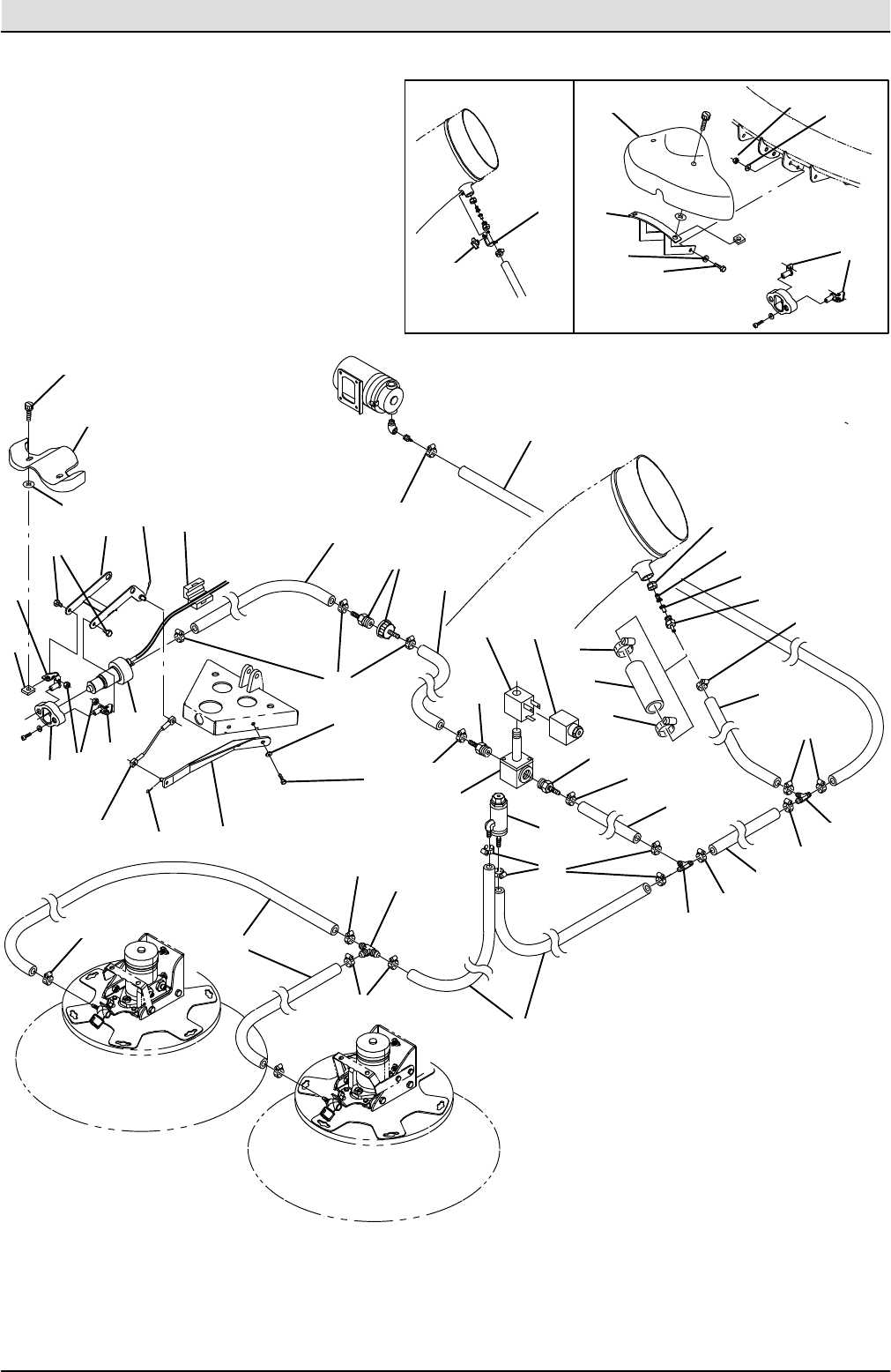

Fig. 51 − Water Supply Group
14
10
37
38
39
28
35
36
40
41
42
1
2
3
4
6
7
7
8
9
11
12
13
14
14 15
16 17
18
18 14
19
14
20 14
20
14
14
21
22
23
24
25
26
14
20
14
14
14
5
27
29
30
31
31
32
33
5
33
5
5
33
5
34
Home
Find...
Go To..
STANDARD PARTS
2‐105
636 UK YM165 (6−2013)
354852
Fig. 51 − Water Supply Group
Ref. Part No. Serial Number Description Qty.
1 CD408 (910364−)Bracket, Cloudmaker − Fabrication 1
2 CD413 (910364−) Arm, Cloudmaker − Fabrication 1
3 CA032 (910364−) Restraining Cable Sk920205 1
4 GT303 (910364−) Screw, Hex Hd Set − M8 X 25 St.St Grade 2
5 WA354 (910364−) Water Hose − From Wtr Pump To T−Piece 2m 1
6 GW007 (910364−)Washer−Plain−1/4’ /6mm Per 100 2
7 GG132 (910364−) Pin, Split − 3/32 X 3/4 − St.St. 2
o8 WA269 (910364−) Atomiser, C/W Plug 1
YWA274 (910364−) Spray Head Nut, Atomiser 1
YWA206 (910364−) Spray Head, Atomiser − Bobbin 1
9 WA254 (910364−)Rubber Isolator,Modified 1
10 WA250 (910364−1301022 ) Mount Wldt, Isolator 2
11 GT224 (910364−) M8x12 Hex Hd.Set Screw St/St 2
12 GN004 (910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
13 WA268 (910364−) Flow Restrictor Assy Cloudmaker 1
14 PG008 (910364−)O’ Clip − 11 to 13 mm O/D Hose 20
15 WP214 (910364−) Valve Body,2/2 Way Direct Operated Solen 1
16 WP215 (910364−) Coil,Solenoid−2/2 Way Direct Valve Type 1
17 WP216 (910364−) Plug,Solenoid−2/2 Way Direct Valve 1
18 WP217 (910364−) Hose Tail,1/8 Bsp Male To 7mm Nickel Pla 2
19 WA121 (910364−)Water Valve Assembly −525 Brush Sprays 1
20 WP005 (910364−) Water Hose−Tee 3.16x3.16x3.16 Ap0418tee 3
21 VF075 (910364−1301018 ) Bracket,Water Nozzle − Formed Fan Inlet 1
22 GG021 (910364−1301018 ) Knob, Black Panel − M8 8958v Black 1
23 WP020 (910364−) Filter − Water System [Ball Check] 32100 1
24 WP060 (910364−)Spray Jet − Brush −Green Dto.75 1
24 WP221 (910364−) Spray Nozzle [Red] 1
25 WA103 (910364−) Nozzle Holder/ Hosetail 1
26 WP016 (910364−) Cap Nut 241030−− 1
27 CP237_C (910364−1301022 ) Cloudmaker Cover −Grey 1
28 GG146 (910364−)Knurled Fastener 17−13−204−11 2
29 CD227 (910364−1301022 ) Bracket Wldt, Cloud Maker Guard [636] 1
30 GT287 (910364−1301022 ) Screw, Hex Hd Set − M8 X 20 St.St A4 314 2
31 GW007 (910364−1301022 ) Washer−Plain−1/4’ /6mm Per 100 4
32 GN004 (910364−1301022 ) Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
33 WA355 (910364−)Water Hose − Tpiece To Hopper Inlet Pipe 1
34 1040049 (910364−) Inductor, 32.0mml [Ferrite 0−300mhz] 3
35 GG148 (910364−) Retainer − Knurled Fastener 17−10054−42 2
36 GG147 (910364−) Clip−On Recepticle 17−10027−11 2
37 WA462 (1301023−) Cloudmaker Bracket Weldment Lh 1
38 WA463 (1301023−)Cloudmaker Bracket Weldment Rh 1
39 WA464 (1301023−) Cloudmaker Cover − Refresh − Grey 1
40 GM663 (1301019−) Hose Foam − 50Mm length 1
41 GG111 (1301019−) Jubilee Clip 30 to 40 1
42 GG383 (1301019−)Hi−Grip Worm Drive hose Clip − 25−35Mm 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐106
Fig. 52 − Hydraulic Reservoir and Control Valves Group
1
24
5
2
3
6
7
8
9
10
3
11
12
13
14
15
16
17
18
19
20
21
20
21
21
21
22
23
24
25
3
26
27 28
29
Home
Find...
Go To..
STANDARD PARTS
2‐107
636 UK YM165 (8−2014)
354890
Fig. 52 − Hydraulic Reservoir and Control Valves Group
Ref. Part No. Serial Number Description Qty.
1 HC158 (0910364−)Manifold Block Compl (See Breakdowns) 1
2 GT301 (0910364−) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 4
3 GW060 (0910364−) Washer − Form A − M8 −St St 8
4 GT244 (0910364−) Bolt, Hex Hd − M8 X 60 − Plain Finish 2
oHC248 (0910364−) Manifold Assy, Hydraulic W/ Adaptors 1
Y5 HC182 (0910364−)Manifold Assy,Hydraulic, 636 Motors (See Breakdowns) 1
6 HV207 (0910364−) Manifold Assy 1
7 GT318 (0910364−) Bolt, Hex Hd − M8 X 55 Grade 8.8 Zin 2
8 GW047 (0910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 2
o9 HC004 (0910364−) Filter−Pressure−Parker 100−A2−11
YHC058 (0910364−)Filter Element − High D.P.−10qho G04666q 1
YHC007 (0910364−) Seal Kit, Filter Pressure − Parker 1
10 GT028 (0910364−) M8 X 20 H.T. Hex Set Plated 2
11 HV131 (0910364−) Hand Pump Valve Assembly Hp10−21a−3b−N−B1
12 CD527 (0910364−) Bracket−Hand Pump−636 1
13 GT071 (0910364−)M6 X 50 H.T. Hex Bolt Plated 2
14 GW087 (0910364−) Washer − M6 Form C −St.St,A2 2
15 GN011 (0910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
16 HV090 (0910364−) Accumulator−Impeller Motor Elmo 32/210 D 1
17 GM261 (0910364−) Pad, Rbr, 3mm Th 1
18 CB840 (0910364−)Clamp Wldt, Accumulator 1
19 GT330 (0910364−) Screw,Button Hd Hex Skt−M8 X 16 St.St A4 1
20 GN004 (0910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 3
21 GW007 (0910364−) Washer−Plain−1/4’ /6mm Per 100 6
22 GT395 (0910364−) Bolt,Hex Hd Set M8 X 110 Mm Zinc Plated 1
23 GT042 (0910364−)M8 X 30 H.T. Hex Set Plated 1
24 GN043 (0910364−) Nut, Nyloc Shallow − M8 − St. St. A2−314 2
25 BB137 (0910364−) Hyd Pump Handle 1
26 GM286 (0910364−) Hand Pump Handle Grip 1
27 HT096 (0910364−1008228 ) Hydraulic Tank Assembly −636 (See Breakdowns) 1
27 HT111 (1008229−)Hydraulic Tank, Level Sensing, 636 (See Breakdowns) 1
o28 HC199 (0910364−) Filter,Suction & Return Line 10 Micron F 1
Y29 HC200 (0910364−) Element,Suction & Return 10 Micron 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐108
Fig. 53 − Hydraulic Pumps Group
1
2
3
4
5
54
6
789
10
11
12
13
14
15
16 17
Home
Find...
Go To..
STANDARD PARTS
2‐109
636 UK YM165 (6−2013)
354891
Fig. 53 − Hydraulic Pumps Group
Ref. Part No. Serial Number Description Qty.
o1 HC181 (910364−)Manifold Assy,Transm (See Breakdowns) 1
Y2 CD135 (910364−) Back Plate,Hyd Trans Block 1
Y3 CD136 (910364−) Locking Plate,Pump Adaptor Hyd Tans Bloc 2
4 GT028 (910364−) M8 X 20 H.T. Hex Set Plated 4
5 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 6
6 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 1
7 HP032 (910364−) Pump −636 Transmision −11 Tooth C/W Conn 1
8 GT393 (910364−) Screw,Hex Hd Set −M14 X 40 Grade 8.8 Zi 2
9 GW100 (910364−) Washer,36 Mm Od X 14.5 Mm Id Din7980 2
10 GM408 (910364−) Polyprop Cover For Solenoids Hp020 1
11 GT389 (910364−)Pozzi Pan Set Screws −3/16 Unc X 5/8”” 2
12 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 2
o13 HP046 (910364−) Replacement Auxilliary Motor Kit W/ Adaptors 1
YHP048 (910364−) Pump, 20Cc Auxilliary 1
14 GM296 (910364−)O−Ring − 82.5 Mm x 1.78 Mm Buna−N 70Durom 1
15 GT254 (910364−)Screw, Hex Hd − 3/8 Unc X 1 1/4 Long Pla 2
16 GW023 (910364−) Washer, M10 Spring Pltd 2
17 GW013 (910364−) Washer, Form A − M10 Zinc Plated 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐110
Fig. 54 − Hydraulic Hose Pumps Group
T
P
TNSP
HP
OC
AP
ANSP
FR
OC1
41
Hand Pump
25
28
12
3
4
5
678
9
10 11 12
13
14
15
16
17
18 19
20
21
26
24 23
27
42
43
29
44
29
22
30
31
14
32
33
30
21
30
34
35 36
37
38
39
40
22
Main Control
Valve
Control
Valve
Reservoir
Cooler
Hand Pump
Filter
Wheel Motors
Control Valve
Propel
Pump
Aux
Pump
Home
Find...
Go To..
STANDARD PARTS
2‐111
636 UK YM165 (8−2014)
354886
Fig. 54 − Hydraulic Hose Pumps Group
Ref. Part No. Serial Number Description Qty.
1 HJ337 (910364−)Hose Assy,Hopper Hand Pump Valve 1
2 HJ312 (910364−) Hose Assy,Pres Filter To Mtr Manifold 1
3 HJ302 (910364−) Hose Assy,Gear Pump To Pressure Filter S 1
4 HJ332 (910364−) Hose Assy,Hpr Emerg To Transmnf Tee 1
5 HJ348 (910364−) Hose Assy, Tank to Hand Pump 1
6 HJ320 (910364−)Hose Assy,Hyd Tank To Trans Manf Tee 1
7 HJ273 (910364−) Hose Aay,Filter To Charge Pump Suction 6 1
8 HJ328 (910364−) Hose Assy,Oil Cooler To Suc Ret Filter 1
8 HJ333 (910364−) Hose Assy,Oil Cooler To Suc/Ret Filter 6 1
9 HJ338 (910364−) Hose Assy,Mtr Manifold To Oil Cooler 1
10 HJ294 (910364−)Hose Assy,Tank To Gear Pump −636 See Dra 1
11 HJ295 (910364−) Hose Assy, Charge Pump Drain To Tank See 1
12 N/A (910364−)1
13 N/A (910364−)1
14 HF090 (910364−) Adapter 1−1/16unf O−Ring To 3/4 Bsp M/M 2
15 HF089 (910364−)Adapter 1 5/16 Un O−Ring To 3/4 Bsp M/M 1
16 HF209 (910364−) Adapter − 1/2bsp Male/Male One End 12mm 1
17 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
18 HF077 (910364−) Adapter − 1/2 To 1/2 Bsp − M/M Asl Produ 1
19 HF077 (910364−) Adapter − 1/2 To 1/2 Bsp − M/M Asl Produ 1
20 HF084 (910364−)Connector − Tee 1/4 Bsp M/M/F 1
21 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
22 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
oHV241 (910364−) Hand Pump Assembly − 636 1
Y23 HV136 (910364−) Valve−D/A In−Line Needle Valve 1/4 Bsp 1
Y24 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
Y25 HV131 (910364−) Hand Pump Valve Assembly Hp10−21a−3b−N−B1
Y26 HF006 (910364−) Adapter − 3/8 To 3/8 Bsp − M/M Asl Produ 1
Y27 HF042 (910364−) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 1
Y28 HV239 (1209252−) Junction Block − Hopper Hand Block 1
29 HF091 (910364−) Adapter − Suct. Line 1 X 3/4 Bsp M/M A 2
30 HF008 (910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 4
31 HF095 (910364−1112331 ) Adapter 1 Bsp Male/Male Asl Product Spe 1
31 HF095 (1112332−) Adapter 1 Bsp Male/Male Asl Product Spe 1
32 HF140 (910364−) Tee − Bsp 3/4 M/F Swivel 1/2 M Branch As 1
33 N/A (910364−) 1
34 HJ316 (910364−) Hose Assy,Cyl Manifold To Hyd Tank 1
35 HJ337 (910364−) Hose Assy,Hopper Hand Pump Valve 1
36 HJ194 (910364−) Hose Assy, Cyd Manifold To Mtr Manifold 1
37 HJ193 (910364−) Hose Assy, Mtr Manifold To Cyd Manifold 1
38 N/A (910364−) 1
39 HF209 (910364−) Adapter − 1/2bsp Male/Male One End 12mm 2
40 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
41 HF104 (910364−1209251 ) Tee Connector −1/4 Bsp F/F/Branch Male A
(Replaced by HV239) 1
42 HF042 (910364−1209251 ) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 1
43 HF039 (910364−) Adapter − 3/4 To 3/4 Bsp M/M Asl Product 1
44 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (2−11)
2‐112
Fig. 55 − Hydraulic Hose Steering Group
TB
TA
RBRTLT LB
TB
TA
123
4
5
6
7
8
9
10
11
12
14
10
10
15
16
17
13
18
19
Main Control Valve
Steering Valve
Steer Cylinder
Left Hand
Front Axle
Extension Cylinder
Right Hand
Front Axle
Extension Cylinder
Axle
Extension
Valve
Reservoir
Steering
Pump
Home
Find...
Go To..
STANDARD PARTS
2‐113
636 UK YM165 (2−11)
354887
Fig. 55 − Hydraulic Hose Steering Group
Ref. Part No. Serial Number Description Qty.
1 HJ271 (910364−)Hose Assy,Power Strg To Bulkhead 636 1
2 HJ184 (910364−) Hose Assy, Bulkead To Str Cyl − Rh 1
3 HJ183 (910364−) Hose Assy, Bulkead To Str Cyl − Lh 1
4 HJ269 (910364−) Hose Assy,Bulkhead To Tank 636 1
5 HJ339 (910364−) Hose Assy,Manifold To Tracking Out Cylin 2
6 HJ340 (910364−) Hose Assy,Manifold To Tracking In Cylind 2
7 HJ341 (910364−) Hose Assy,Mnfd To Tracking Cyl−Out 1
8 HJ342 (910364−) Hose Assy,Mnfd To Tracking Cyl−In 1
9 N/A (910364−)1
10 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 5
11 HF105 (910364−) Connector−3/8bsp 90deg. Adj. M/M 1
12 N/A (910364−)1
13 HJ387 (910364−) Hose Assy,Tank To Power Strg Pump 1
14 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
15 N/A (910364−)2
16 HF042 (910364−) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 2
17 N/A (910364−)2
18 N/A (910364−)1
19 N/A (910364−)1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐114
Fig. 56 − Hydraulic Hose Brush Motors Group
1
23
4
5
6
7
8
910
11
12
13
14
15
16
17
18
35
35
21
22 23
24
24
15
18
17
25
14
14
26
27 28
18
29
31
30
33
RHBA
RHBB
LHBA
LHBB
NB
BR
BP
PW
20
19
34
Main Control Valve
Reservoir
Control Valve
Left Hand Brush
Extension Cylinder
Righ Hand
Brush
Lift
Cylinder
Left Hand
Brush Motor
Left Hand
Brush
Lift Cylinder
Right Hand
Brush Motor
Right Hand Brush
Extension Cylinder
Vacuum Nozzle
Lift Cylinder
32
Home
Find...
Go To..
STANDARD PARTS
2‐115
636 UK YM165 (8−2014)
354885
Fig. 56 − Hydraulic Hose Brush Motors Group
Ref. Part No. Serial Number Description Qty.
1 HJ189 (910364−)Hose Assy, Lh Brush Motor Drain To Tee 1
2 HJ187 (910364−) Hose Assy, Rh Brush Mtr To Lh Brush Mtr 1
3 HJ186 (910364−) Hose Assy, Tee From Bp To Rh Brush Motor 1
4 HJ331 (910364−) Hose Assy,Mtr Mnf(Br) To Lh Brush Mtr 1
5 HJ202 (910364−) Hose Assy, Lh Brush Arm Cyl To Tee − Up 1
6 HJ321 (910364−)Hose Assy,Mtr Manifold(Bp) To Tee 1
7 HJ199 (910364−) Hose Assy, Lh Brush Arm − In 2
8 HJ323 (910364−) Hose Assy,Hyd Tank To Frnt Ret Manifold 1
9 HJ201 (910364−) Hose Assy, Rh Brush Arm − In 2
10 HJ206 (910364−) Hose Assy, Brush Arm Cylinder − Up 1
11 HJ207 (910364−)Hose Assy, Nozzle Cylinder − Rod End 1
12 HJ204 (910364−) Hose Assy, Rh Brush Arm Cyl To Tee − Up 1
13 HJ208 (910364−) Hose Assy, Nozzle Cylinder − Base End 1
14 HF042 (910364−) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 4
15 HF106 (910364−) Adapter−1/2 Bsp To 1/4 Bsp Male/Male Asl 4
16 N/A (910364−) 1
17 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 4
18 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 3
19 HF086 (910364−1209251 ) Tee Connector − 1/4 Bsp, Male/Male/Male
(Rplc by HV240) 1
20 HF050 (910364−1209251 ) Tee Conector,1/4bsp Male/Fem/Male (Rplc by HV240) 1
21 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
22 N/A (910364−)1
23 N/A (910364−)1
24 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 6
25 N/A (910364−)1
26 HV133 (910364−)Valve Assembly −Brush Pressure Pr08−32b−1
27 GT249 (910364−) M6 X 40 Zinc Plated Capscrew 2
28 GN078 (910364−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 2
29 HJ317 (910364−) Hose Assy,Mtr Mnfl(Pw) To Pw Mnfld P 1
30 HJ210 (910364−) Hose Assy, Cab Prrv Press To Brush Line 1
31 HJ211 (910364−)Hose Assy, Cab Prrv Return To Tank 1
32 HF006 (910364−) Adapter − 3/8 To 3/8 Bsp − M/M Asl Produ 1
33 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
34 HV240 (1209252−) Junction Block − Nozzle/Brush Arm Return 1
35 HF086 (910364−)Tee Connector − 1/4 Bsp, Male/Male/Male 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐116

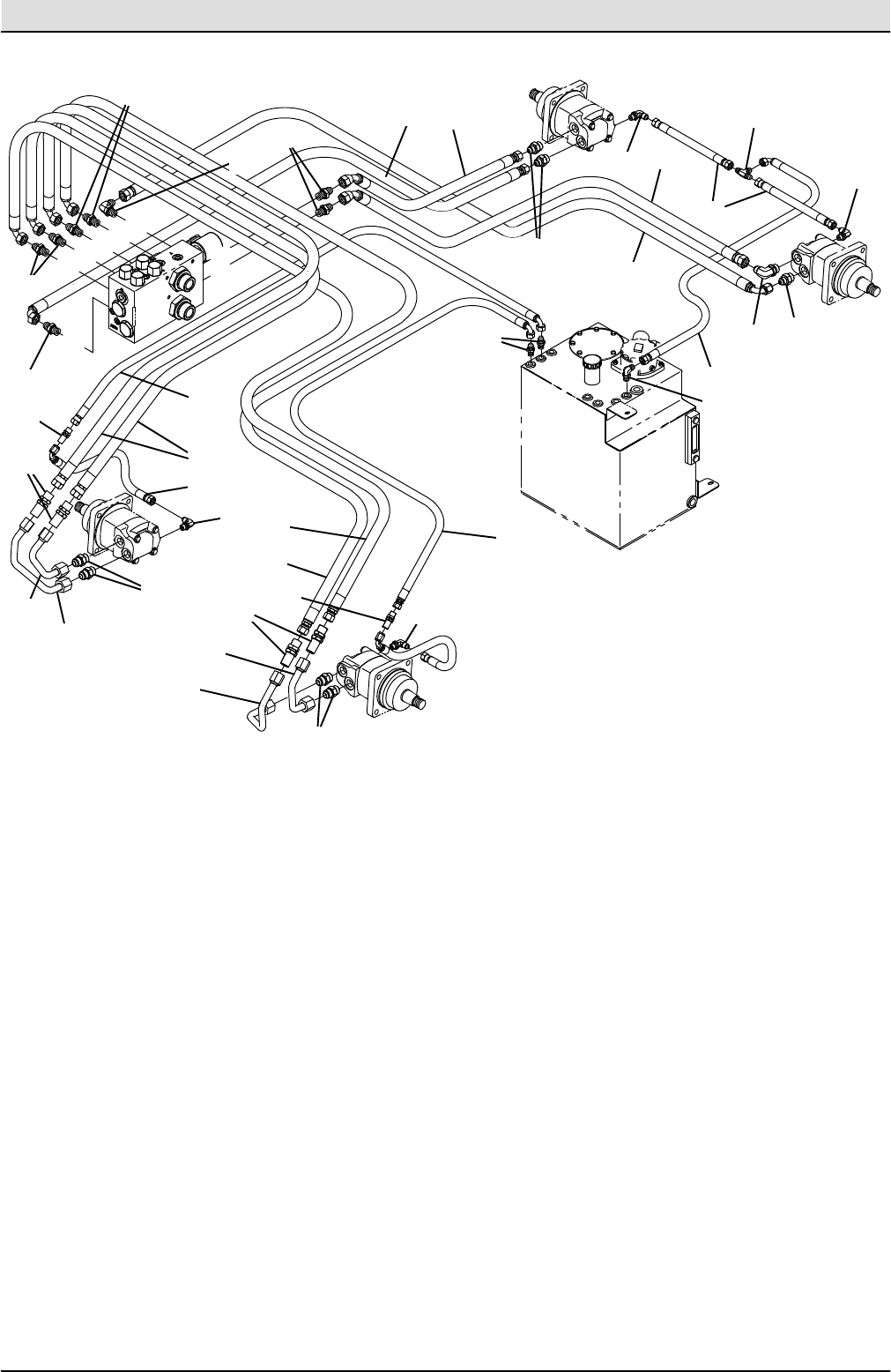

Fig. 57 − Hydraulic Hose Drive Motor Group
M4−2
M2−2
M3−2
M2−1
M1−1
M1−2
M4−1
M3−1
1
3
4
5
61
12 8
9
10
11
7
14
14
15
16 16
15
17
18
19
20
21
22
21
20
23
24
25
26
22
27
14
13
27
2
14
Right Hand
Front Wheel
Motor
Left Hand
Front Wheel
Motor
Right Hand
Rear Wheel
Motor
Left Hand
Rear Wheel
Motor
Reservoir
Wheel Motor
Control Valve
Home
Find...
Go To..
STANDARD PARTS
2‐117
636 UK YM165 (5−2015)
354888
Fig. 57 − Hydraulic Hose Drive Motor Group
Ref. Part No. Serial Number Description Qty.
1 HJ170 (910364−)Hose Assy, Lh Front Wheel − Drain 2
2 HF008 (910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 1
3 HJ171 (910364−) Hose Assy, Rh Front Wheel − Front Drive 2
4 HJ173 (910364−) Hose Assy, Rh Front Wheel − Drain 2
5 HJ274 (910364−) Hose Assy,Trans−M1−1/M2−2 To Lhfr & Lhff 1
6 HJ336 (910364−)Hose Assy, 636 Trans−M2−2 to Lhff 1
7 HJ275 (910364−) Hose Assy,Trans −M3−2 To Lhrf 1
8 HJ276 (910364−) Hose Assy,Trans−M4−1 To Rhrr 636 1
9 HJ166 (910364−) Hose Assy, Rear Wheel Mtr Drains To Tank 1
10 HJ165 (910364−) Hose Assy, Rh Rear Wheel − Drain 2
11 HJ278 (910364−)Hose Assy,Trans −M3−1 To Lhrr 636 1
12 HJ277 (910364−) Hose Assy,Trans−M1−2 To Rhrf 636 1
13 N/A (910364−)1
14 HF008 (910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 7
15 HF077 (910364−) Adapter − 1/2 To 1/2 Bsp − M/M Asl Produ 3
16 N/A (910364−) 2
17 HF209 (910364−) Adapter − 1/2bsp Male/Male One End 12mm 1
18 HF086 (910364−) Tee Connector − 1/4 Bsp, Male/Male/Male 1
19 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
20 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
21 HF108 (910364−) Adapter −Stud,1/2 Bsp/16mm O/D Ermeto As 4
22 HF107 (910364−) Adapter−Bulkhead Union−16 Tube, Jic7/8 As 4
23 HJ243 (910364−) Pipe, Hyd − Rh Front Wheel Motor,Reverse 1
24 HJ242 (910364−) Pipe, Hyd − Rh Front Wheel Motor,Forward 1
25 HJ240 (910364−) Pipe,Hyd − Lh Front Wheel Motor,Forward 1
26 HJ241 (910364−) Pipe,Hyd − Lh Front Wheel Motor,Reverse 1
27 HF092 (910364−) Bulkhead−1/4 Bsp M/M 2
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐118
Fig. 58 − Hydraulic Hose Vacuum Fan Group
HD
DR
DR
FP FR
T
P
OC2
FP
DR
FP FR
Vac Fan
Motor
Hopper Control
Valve
1
2
34
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
18
16
17
17
17
19
20
21
22
23
24
24
25
26
27
28
29
30
29
31
32
33
34
36
37
38
39
40
23
29
42
41
35
17
18
43
23
44
45
46
46
47
48
49
Vac Fan
Motor
Hopper Control
Valve
Accumulator
Reservoir
Control Valve
Hopper Drain
Flap Door
Home
Find...
Go To..
STANDARD PARTS
2‐119
636 UK YM165 (5−2015)
354882
Fig. 58 − Hydraulic Hose Vacuum Fan Group
Ref. Part No. Serial Number Description Qty.
1 HJ324 (910364−)Hose Assy,Mtr Mnf(Fp) To Ch Blkhdhopper 1
2 HJ327 (910364−) Hose Assy,Mtr Mnf(Fr) To Chblkhd Hopper 1
3 HJ329 (910364−) Hose Assy,Hyd Tank To Breather 1
4 HJ322 (910364−) Hose Assy,Hyd Tank To Ch Blk Hd Hopper 1
5 HJ284 (910364−) Hose Assy,From T−Piece To Dump V/ V Bloc 1
6 HJ308 (910364−)Hose Assy,Hopper To Chassis−Pressure 1
7 HJ309 (910364−) Hose Assy, Hopper To Chassis−Return 1
8 HJ310 (910364−) Hose Assy, Hopper To Chassis−Bleed 1
9 HJ194 (910364−1208241 ) Hose Assy, Cyd Manifold To Mtr Manifold 1
10 HJ194 (910364−1208241 ) Hose Assy, Cyd Manifold To Mtr Manifold 1
11 HJ162 (910364−)Hose Assy, Lh Rear Wheel − Drain 1
12 HJ307 (910364−) Hose Assy, Hopper Block to Dump Cylinder 1
13 HJ305 (910364−) Pipe,12 Mm −Fan Return 1
14 HJ304 (910364−) Pipe, 12mm − Fan Feed 1
15 HJ306 (910364−) Pipe, 6mm − Fan Drain 1
16 HF165 (910364−)Clamp Body ,For 6 Mm Pipe 636 6
17 HF166 (910364−) Clamp Body, For 12mm Pipe 636 12
18 CD245 (910364−) Plate,Pipe Clamp,Fan Hopper 9
19 HF154 (910364−1208241 ) Adapter,22 Mm X 1/2 Bsp Male/Male Asl Pr 2
20 HF155 (910364−1208241 ) Adapter,12mm X 1/4 Bsp Male/Male Asl Pro 1
21 HC189 (910364−)Manifold Assy, Hydraulic − Fan Motor (See Breakdowns) 1
22 GT330 (910364−) Screw,Button Hd Hex Skt−M8 X 16 St.St A4 2
23 GN069 (910364−) Nut,Nyloc −M8 St.St A2 6
24 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
25 GT351 (910364−) Screw,Button Hd Hex Skt−M8 X 65 −A4 St.S 2
26 HF162 (910364−)Coupling, 3/8 X 12mm Asl Product Spec 11 1
27 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
28 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
29 HF008 (910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 4
30 HF008 (910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 1
31 N/A (910364−) 1
32 N/A (910364−)1
33 HF049 (910364−) Tee Connector − 3/8’Bsp − M/F/M Asl Pro 1
34 HF017 (910364−) Adapter − 1/2 To 3/8 Bsp − M/M Asl Produ 1
35 HT106 (910364−) Bulkhead Plate Weldment − 636 Remote Bre 1
36 GT330 (910364−)Screw,Button Hd Hex Skt−M8 X 16 St.St A4 2
37 HF006 (910364−) Adapter − 3/8 To 3/8 Bsp − M/M Asl Produ 1
38 N/A (910364−)1
39 PP082 (910364−) Fuel Filter Element 1
40 N/A (910364−)1
41 GT338 (910364−)Screw,Button Hd Hex Skt−M6 X 30 A4 18
42 CD383 (910364−) Brake Valve Bracket Welment 1
43 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 2
44 HJ235 (910364−1208241 ) Hose Assy,Nozzle Prrv Pressure 1
45 HF155 (1208242−) Adapter, 12Mm x 1/4 Bsp Male/Male Asl Pro 1
46 HF154 (1208242−)Adapter, 22Mm x 1/2 Bsp Male/Male Asl Pro 2
47 HJ548 (1208242−) Hose Assy, Fr on Brake Block To Rp On Mtr 1
48 HJ217 (1208242−) Hose Assy, Manifold to Tracking Cyl −In 1
49 HJ293 (1208242−) Hose Assy, Rp On Brake Block To Pp On Mtr 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (6−2013)
2‐120
Fig. 59 − Hydraulic Hose Hopper Lift and Dump Door Group
HBHA
Left Hand
Hopper
Lift Cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
11
15
22
16
23
17
18
14
22
19 20
20
21
24
Main Control Valve
Hopper Dump
Door Cylinder
Right Hand
Hopper
Lift Cylinder
Left Hand
Hopper
Lift Cylinder
Reservoir
Home
Find...
Go To..
STANDARD PARTS
2‐121
636 UK YM165 (6−2013)
354883
Fig. 59 − Hydraulic Hose Hopper Lift and Dump Door Group
Ref. Part No. Serial Number Description Qty.
1 HJ280 (910364−)Hose Assy,Bulkhead To Hopper Door 1
2 HJ279 (910364−) Hose Assy,Bulkhead To Hopper Door 1
3 HJ220 (910364−) Hose Assy, Lh To Rh Hopper Cyd − Base 2
4 HJ223 (910364−) Hose Assy, Lh Hopper Cyd To Bulkhead 1
5 HJ222 (910364−) Hose Assy, Lh Hopper Cyd To Bulkhead 1
6 HJ326 (910364−)Hose Assy,Cyl Mnf(Hb) To Hpr Cyl Top 1
7 HJ313 (910364−) Hose Assy,Seq Valve Tee To Hpr Cyl Btm 1
8 HJ318 (910364−) Hose Assy,Cyl Man(Ha) To Seq Valve Tee 1
9 HJ315 (910364−) Hose Assy,Hyd Tank To Seq Valve 1
10 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
11 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 2
12 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
13 HF046 (910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
14 HF042 (910364−) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 4
15 HF084 (910364−) Connector − Tee 1/4 Bsp M/M/F 2
16 HF104 (910364−1209251 )Tee Connector −1/4 Bsp F/F/Branch Male A
(Replaced by HV238) 2
17 HF092 (910364−) Bulkhead−1/4 Bsp M/M 2
18 HV203 (910364−) Sequence Valve Prv Set To 60 Bar Direct 1
19 GT148 (910364−) Screw, Hex, M8 x 1.25 x 60, 8.8 2
20 GW007 (910364−) Washer−Plain−1/4’ /6mm Per 100 4
21 GN004 (910364−)Nut, Nyloc − M8 Zinc Plated Zinc Plated 2
22 HF298 (910364−) Velocity Fuse 1/4” Bsp 2
23 HF042 (910364−1209251 ) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 1
24 HV238 (1209252−) Junction Block −Lh Hopper Cyl. − Upper 1
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐122
Fig. 60 − Labels Group
1
3
2
13
14
15
16
17
17
18
20
19
Home
Find...
Go To..
STANDARD PARTS
2‐123
636 UK YM165 (8−2014)
9006292 − 356530
Fig. 60 − Labels Group
4
5
6
7
7
910
11
12
8
Ref. Part No. Serial Number Description Qty.
1 GM354 (910364−)Label Sheet −525 Matt Resistant Pvc 1
2 GM461 (910364−) Label Set, Fuse Box−636 Three Parts [ 1−1
3 GM482 (910364−) Label Sheet,Clear Vinyl −636 1
4 GM394 (910364−) Decal−Chevron−Green/Yellow Rear Bumper 1
5 GM395 (910364−) Decal−Chevron−Green/Yellow Rear Hopper 9 1
6 GM565 (910364−1301022 )Decal−Usa Slow Moving Vehicle [14.0”] 1
7 GM633 (910364−) Tennant Oval − Large (Decal) 3
8 GM568 (910364−) Label Set, Opertnl, Cab [636] 1
9 GM597 (910364−) Decal − Side Panel Green Machine − Green 2
10 GM517 (910364−) Decal, 636 Hs − White 2
11 GM634 (910364−)Tennant Oval − Small (Decal − White) 1
12 GM657 (910364−) Decal − Mudguard − Silver 2
oCD580 (1301023−) USA Slow Moving Vehicle Warning Assembly 1
Y13 CD528 (1301023−) Plate, Warning Triangle, US Slow 1
Y14 GM565 (1301023−) Decal − USA slow Moving Vehicle [14”] 1
Y15 WA474 (1301023−)Mounting Plate, Top, Formed, Slow Vehicle 1
Y16 WA476 (1301023−) Mounting Plate Bottom, Devl, Slow Veh 1
Y17 GT330 (1301023−) Screw, Button Hd Hex Skt − M8 X 16 St A4 5
Y18 GT194 (1301023−) Screw m5 X 12 Button Hd Skt 3
Y19 GN006 (1301023−) Nut, Nyloc − M5 Zinc Plated 3
Y20 GW008 (1301023−)Washer, Form A − M5 − Zn Ptd Per 100 Per 6
Home
Find...
Go To..
STANDARD PARTS
636 UK YM165 (8−2014)
2‐124
Fig. 61 − Wire Harnesses Group
Ref. Part No. Serial Number Description Qty.
EW212 (910364−)Wiring Loom, Chassis Iqan System [636] 1
EW213 (910364−) Wiring Loom,Cab Iqan System−636 1
EW214 (910364−) Wiring Loom,Fan Speed & Saftey Switch 63 1
EW372 (910364−) Loom, E−Gas 8 Way Schlemmer Interface 1
EW224 (910364−1403037 ) Wiring Loom,Cab,Instrument/ A−Post Auto 1
EW403 (1403038−)Wiring Loom,Cab,Instrument/ A−Post Auto 1
EW241 (910364−1301022 ) Wiring Loom,Cab, Chassis−Automotive −S/P 636 1
EW378 (1301023−1403037 ) Wiring Loom,Cab, Chassis−Automotive −Refresh 1
EW402 (1403038−) Wiring Loom,Cab, Chassis−Automotive −Refresh 1
EW382 (1301023−) Loom Headlight Extension Rh 1
EW381 (1301023−)Loom Headlight Extension Lh 1
EW279 (910364−1403037 ) Wiring Loom,636 Chasis Iqan 1
EW396 (1403038−) Loom − Chasis Iqan Chassis Md3 Platform 1
EW403 (910364−) Wiring Loom, Cab, instrument MD3 1
Home
Find...
Go To..
OPTIONS
3‐1
636 UK YM165 (5−2015)
SECTION 3
Contents Page
Fig. 1 − Camera and Monitor Group 3-2............
Fig. 2 − Warning Light Kits, LED 3-4...............
Fig. 3 − Air Conditioning Alternator and
Compressor Group 3-6.................
Fig. 4 − Air Conditioning Rear Cab Group 3-8.......
Fig. 5 − Air Conditioning Hoses Group 3-10.........
Fig. 6 − Air Conditioning Cab Top Group 3-12.......
Fig. 7 − Pressure Washer Water Pump Group 3-14..
Fig. 8 − Pressure Washer Hydraulic Valve Group 3-16
Fig. 9 − Pressure Washer Reel and Hose Group 3-18
Fig. 10− Hopper Regen Group 3-20...............
Fig. 11 − City Scrub FrameGroup
(0910364−1411343) 3-22...............
Fig. 12 − City Scrub Drive Motor Group
(0910364−1411343) 3-24...............
Fig. 13 − City Scrub Spray Bar Assembly
(0910364−1411343) 3-26...............
Fig. 14 − City Cleaning Wire Harnesses Group 3-28.
Fig. 15 − City Scrub Frame Group
(1411344− ) 3-30.................
Fig. 16 − City Scrub Drive Motors Group
(1411344− ) 3-32.................
Fig. 17 − City Scrub Solution Supply Group
(1411344− ) 3-34.................
Fig. 18 − City Scrub Detergent Supply Group
(1411344− ) 3-36.................
Fig. 19 − City Scrub Squeegee Group
(1411344− ) 3-38.................
Fig. 20 − City Scrub Vacuum Hose Group
(1411344− ) 3-40.................
Fig. 21 − City Scrub Hydraulic Hose Group
(1411344− ) 3-42.................
Fig. 22 − City Scrub Hydraulic
Connection Group 3-44.................
Fig. 23 − City Scrub & Winter Option Hydraulic
Connection Group 3-46.................
Fig. 24 − Winter Option Connection Group 3-48.....
Fig. 25 − Winter Option Connection Hydraulic
Hose Group 3-50......................
Fig. 26 − Winter Option Front
Snow Plow Group 3-52.................
Fig. 27 − Winter Option Front Brush Group 3-54....
Fig. 28 − Winter Option, Rear Gritter
Box Group 3-56........................
Fig. 29 − Nozzle Lift Group 3-60..................
Fig. 30 − Wander Hose Group
(910364 − 1411357) 3-62...............
Fig. 31 − Wander Hose Group
(1411358− ) 3-64.................
Fig. 32 − Autolube Group 3-66....................
Fig. 33 − Suspension Seat Group 3-68.............
Fig. 34 − Fire Extinguisher Group 3-69.............
Fig. 35 − Documentation Group 3-70..............
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐2
Fig. 1 − Camera and Monitor Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
15
(S/N 0910364−1301023)
Home
Find...
Go To..
OPTIONS
3‐3
636 UK YM165 (6−2013)
354874
Fig. 1 − Camera and Monitor Group
Ref. Part No. Serial Number Description Qty.
1 EC020 (0910364−)Monitor.5 Lcd Colour F3093 1
2 MC624 (0910364−) Bracket Weldment, 5” Monitor 1
3 GT413 (0910364−) Button Head Skt − M6 X8mm − St/St A2 Bag 1
4 GW031 (0910364−) M6 Washer Plain Ptd. Each Each 1
5 GN011 (0910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 1
6 MC626 (0910364−)Mounting Bracket, 5” Monitor 1
7 GT111 (0910364−) Screw, Button Hd Hex Skt − M6 X 20 − Pt 2
8 GW031 (0910364−) M6 Washer Plain Ptd. Each Each 2
9 GN046 (0910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 2
10 EC022 (0910364−) Power Cable,3 Meter−Bvl−530as 1
11 EC023 (0910364−)Cable,Camera 5 Meter 1
12 EC021 (0910364−) Camera,Low Light Colour 1
13 GM346 (0910364−1301023 ) Grommet,Open−4.8 I/D,1.6 Thk & 15.9 Hole 1
14 GT386 (0910364−) Screw −Skt Head Cap M5 X 16 St.St A4 Zn 2
15 GW087 (0910364−) Washer − M6 Form C −St.St,A2 4
16 GN009 (0910364−)Nut − M5 2
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐4
Fig. 2 − Warning Light Kits, LED
1
2
32
3
4
5
6
7
8
9
8
9
10
11
12
11
12
Home
Find...
Go To..
OPTIONS
3‐5
636 UK YM165 (8−2014)
356393
Fig. 2 − Warning Light Kits, LED
Ref. Part No. Serial Number Description Qty.
oYA212 (0910364−)Led Warning Light Kit, Front 1
Y1 MD138 (0910364−) Number Plate − X2 Led Flasher Units 1
Y2 WA455 (0910364−) Bracket, Mounting, Rear Lights−Formed 2
Y3 ES365 (0910364−) Light,Hazard Flasher Amber Vigiled Model 2
YET101 (0910364−) Cable Gland −16 Mm X 1.5 Ip 68 Metric Th 1
oYA215 (0910364−)Led Warning Light Kit, Sides 1
Y4 ES753 (0910364−) Led Warning Lighthead Reg 65 2
YEW389 (0910364−) Wiring Loom, side Access Door Led’s 1
o5 YA214 (0910364−) 4 Led Warning Light Kit, Rear 1
Yo6 YA213 (0910364−) 2 Led Warning Light Kit, Rear 1
YY 7 WA335 (0910364−)Bracket,Top Warning Light −Spec For Roto 1
YY 8 WA455 (0910364−) Bracket, Mounting, Rear Lights−Formed 2
YY 9 ES365 (0910364−) Light,Hazard Flasher Amber Vigiled Model 2
Y10 WA337 (0910364−) Bracket,Bottom Warning Light −Spec For R 1
Y11 WA455 (0910364−) Bracket, Mounting, Rear Lights−Formed 2
Y12 ES365 (0910364−)Light,Hazard Flasher Amber Vigiled Model 2
YEW394 (0910364−) Wiring Loom − Rear Number Plate Light 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2012)
3‐6
Fig. 3 − Air Conditioning Alternator and Compressor Group
1
2
3
4
45
6
7
7
89
910
11
17
13
14
15
16
21
4
5
722
23 24
25
26
27
28
29
30
31
32
20
19
19
18
12
33
34
35
36
37
38
39
Home
Find...
Go To..
OPTIONS
3‐7
636 UK YM165 (6−2013)
356223
Fig. 3 − Air Conditioning Alternator and Compressor Group
Ref. Part No. Serial Number Description Qty.
1 AC072 (0910364−) Bracket,Compressor,Fabricated 1
2 AC058 (0910364−) Compressor − Air Con. 7172 1
3 GT069 (0910364−) M8 X 45 H.T. Hex Bolt Plated 2
4 GW007 (0910364−) Washer−Plain−1/4’ /6mm Per 100 5
5 GN004 (0910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 5
6 GT101 (0910364−)M8 X 25 Set Screw 2
7 GW047 (0910364−) M8 Washer−Serrated Lock S8 − Zinc Plated 5
8 GT130 (0910364−) M10 X 30 Hex Ptd. 500e 2
9 GW041 (0910364−) Washer, Form A − M8 Zinc Plated S12 − Zi 8
10 GN019 (0910364−) Nut, Nyloc − M10 − Zn Ptd 500e 4
11 AC117 (0910364−)Adapter, Hi Press, Compressor 1
12 AC118 (0910364−) Adapter, Low Press, Compressor 1
13 TC021 (0910364−) Drive Pulley −Air Con Compressor 1
14 GT071 (0910364−) M6 X 50 H.T. Hex Bolt Plated 3
15 GW046 (0910364−) Washer, Serrated Lock − S6 − Zn Plt 3
16 AC086 (0910364−) Belt,Compressor −Mic 1
17 AC059 (0910364−) Lower Water Pipe Weldment Engine Coolan 1
18 GN019 (1003080−1109220 ) Nut, Nyloc − M10 − Zn Ptd 500e 1
19 GW041 (1003080−1109220 ) Washer, Form A − M8 Zinc Plated S12 − Zi 4
20 GT282 (1003080−1109220 ) Bolt,Hex Hd − M10 X 90 Grade 10.9 Zn Pla 1
21 CD386 (0910364−)P Clip Bracket −Coolant Heater Hose 1
22 GT092 (0910364−) Screw, Hex Hd Setm8 X 40 1
23 PP147 (0910364−) Plate,Alternator Bracket Adjust Air Con 1
24 PP277 (0910364−) Spacer Cooling Fan,Kubota 1
25 PP347 (0910364−) Fan−Pusher 380 Mm, 35 Deg Blade Angle 8 1
26 PP484 (1003080−1109220 ) Belt, Fan [Avx10.5/11 X 0975la] 1
27 GT071 (0910364−) M6 X 50 H.T. Hex Bolt Plated 4
28 GW003 (0910364−) Washer−Spring−1/4’ Perh100 Each 4
29 GT339 (0910364−) Screw,Button Hd Hex Skt −M6 X 35 A4 St.S 1
30 GW087 (0910364−) Washer − M6 Form C −St.St,A2 2
31 GN046 (0910364−)Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 1
32 EK011 (1003080−1109220 ) Alternator Kit, 90Amp Kubota 1
33 PP159 (0910355−1003079 ) Alternator, 90 Amp− Air Con Engines.Not 1
34 PP156 (0910355−1003079 ) Alternator Mounting Brkt. 1
35 GT209 (0910355−1003079 ) Bolt, Hex Hd − M10 X 100 − Zp Zinc Plate 2
36 GW013 (0910355−1003079 )Washer, Form A − M10 Zinc Plated Per 100 4
37 GN019 (0910355−1003079 ) Nut, Nyloc − M10 − Zn Ptd 500e 2
38 PP154 (0910355−1003079 ) Boss, Alternator Mounting, 6mm Thick 2
33 PP159 (1109221−) Alternator, 90 Amp− Air Con Engines.Not 1
34 PP156 (1109221−) Alternator Mounting Brkt. 1
35 GT209 (1109221−)Bolt, Hex Hd − M10 X 100 − Zp Zinc Plate 2
36 GW013 (1109221−) Washer, Form A − M10 Zinc Plated Per 100 4
37 GN019 (1109221−) Nut, Nyloc − M10 − Zn Ptd 500e 2
38 PP154 (1109221−) Boss, Alternator Mounting, 6mm Thick 2
39 PP299 (0910364−)Belt, Fan 2
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐8
Fig. 4 − Air Conditioning Rear Cab Group
15
16
17
18 19
19
20
21
22
20
23
24
25
26
27
28
19
19
29
30
31
32 33 34
34
35 28
19
19
30
38 36
37
1
2
3
4
3
4
8
97
5
6
10 11
7
12
13
14
13
Home
Find...
Go To..
OPTIONS
3‐9
636 UK YM165 (6−2013)
354877
Fig. 4 − Air Conditioning Rear Cab Group
Ref. Part No. Serial Number Description Qty.
oAC200 (0910364−)Condensor Assy − 636 1
Y1 AC129 (0910364−) Mounting, Condensor − Formed 1
Y2 AC019 (0910364−) Condenser Coil 1
Y3 GT327 (0910364−) Screw, Button Hd Hex Skt −M6x16 4
Y4 GN046 (0910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 4
Y5 AC021 (0910364−)Condenser Fan 2
Y6 GN043 (0910364−) Nut, Nyloc Shallow − M8 − St. St. A2−314 8
Y7 GT330 (0910364−) Screw, Button Hd Hex Skt − M8 x 16 St.St A4 8
8 MC707 (0910364−) Lock Pin − Low Level A/C 1
9 08712 (0910364−) Nut, Hex, Lock, M6 X 1.00, Nl, Ss 1
10 GB097 (0910364−)Boss, 16mm Dia X M6 2
11 GT413 (0910364−) Button Head Skt − M6 X8mm − St/St A2 Bag 2
12 MC680 (0910364−) Plate, Cover − Development Cab Rear 1
13 GT378 (0910364−) Screw,Button Hd Skt −M5 X 10 St.St A4 10
14 MC434 (0910364−) Plate, Cover, Cab Rear 1
15 AC032 (0910364−)Receiver − Drier 2.5 − Air Con 1
16 AC033 (0910364−) Bracket, Reciever − Drier − Air Con 1
17 AC087 (0910364−) Plate, Reciever/Dryer Support Bracket 1
18 GT300 (0910364−) Screw, Hex Hd Set − M6 X 12 St.St Grade 2
19 GW007 (0910364−) Washer−Plain−1/4’ /6mm Per 100 10
20 GN049 (0910364−)Nut, Stainless Steel A4 − M6 Mild Steel 4
21 GT329 (0910364−) Screw,Button Hd Hex Skt−M6 X 25 St.St A4 1
22 GT320 (0910364−) Screw, Button Hd Hex Skt − M6 X 12 St.St 2
23 AC076 (0910364−) Drip Tray,Weldment 1
24 GT194 (0910364−) Screw M5 X 12 Button Hd Skt. 2
25 (0910364−) 2
26 MC425 (0910364−) Carpet Profile,Rh Top Cab 1
27 WA349 (0910364−) Hose − Air Con Drain − 15mm Automotive ( 1
28 GT135 (0910364−) M6 X 16 Hex Head Ptd 500e 3
29 GW007 (0910364−) Washer−Plain−1/4’ /6mm Per 100 1
30 GN011 (0910364−)Nut, Nyloc − M6 Zinc Plated Zinc Plated 3
31 BB084 (0910364−)P−Clip − Aba Rubber Lined − 32mm 1
32 AC054 (0910364−) Plate − Formed 1
33 GT112 (0910364−) Screw, Btn, M5 X 0.8 X 15 2
34 GM383 (0910364−) Closed Cell Sponge−Self Adhesive 20mm X 2
35 AC052 (0910364−)Plate, Plasma − Formed 1
36 AC021 (0910364−) Condenser Fan 4
37 AC017 (0910364−) Bracket− Evaporator Weldment 2
38 AC020 (0910364−) Evaporator Coil 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (2−11)
3‐10
Fig. 5 − Air Conditioning Hoses Group
1
2
3
4
15
5
6
7
8
9
10
10
11 11
12 13
13
14
Home
Find...
Go To..
OPTIONS
3‐11
636 UK YM165 (5−2015)
354881
Fig. 5 − Air Conditioning Hoses Group
Ref. Part No. Serial Number Description Qty.
1 AC126 (0910364−)Pipe−Condensor To Drier 1
2 AC127 (0910364−) Trinary Switch Assembly 1
3 AC044 (0910364−) Pipe,Assy #6 −Receiver/Dryer To Evaporar 1
4 AC136 (0910364−)Hose−Low Pressure Condensor To Drier 660 1
5 AC137 (0910364−) Hose Low Press Evaporator To Compressor 1
6 AC134 (0910364−)Hose − High Pressure − Compressor To Cab 1
7 MC681 (0910364−15016000 ) Cover Plate Top − Cab Floor Aircon (Stainless) 1
7 MD221 (15016001−) Cover Plate Top − Cab Floor Aircon (Painted) 1
8 MC682 (0910364−15016000 ) Cover Plate Bottom − Cab Floor Aircon (Stainless) 1
8 MD222 (15016001−) Cover Plate Bottom − Cab Floor Aircon (Painted) 1
9 GT378 (0910364−)Screw,Button Hd Skt −M5 X 10 St.St A4 4
10 GM390 (0910364−) Open Grommet −Pvc To Suit 25.4 Dia X 1.6 4
11 HF192 (0910364−) Clamp Body M20 Pipe − Air Con 4
12 CD437 (0910364−) Plate, Pipe Clamp 2
13 GT305 (0910364−) Screw,Button Head Skt−M5 X 35 Zc Plated 4
14 GN009 (0910364−)Nut − M5 4
15 AC135 (0910364−) Hose−High Press−Cab To Condensor 1.3m 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (2−11)
3‐12
Fig. 6 − Air Conditioning Cab Top Group
1
2
3
44
5
6
7
8
Home
Find...
Go To..
OPTIONS
3‐13
636 UK YM165 (1−2015)
354876
Fig. 6 − Air Conditioning Cab Top Group
Ref. Part No. Serial Number Description Qty.
1 CP225 (0910364−)Moulding,A/C Duct −Cab Rear Headliner 63 1
2 GT228 (0910364−) Screw − Button Hd Skt M6 X 45 Self−Colo 1
3 GT027 (0910364−) Screw, Hex Hd Set − M6 X 20 − Zn Pld Gra 1
4 GW031 (0910364−) M6 Washer Plain Ptd. Each Each 2
5 CP251 (0910364−1403037 ) Cab Roof Liner 600 Air Con Grey 5mm Poly 1
5 CP531 (1403038−)Cab Roof Liner 600 Air Con Grey 5mm Poly 1
6 MC341 (0910364−) Vent−Rectangular 525 2
7 ES810 (0910364−) Air Conditioning Switch Sub Assembly 1
8 ES180 (0910364−) Relay, Automotive − 12v, 35/40a, Spco 6
Home
Find...
Go To..
OPTIONS
636 UK YM165 (8−2014)
3‐14
Fig. 7 − Pressure Washer Water Pump Group
13
14
15
16
17
17
1
23
3
3
4
56
7
8
9
10
11
12
17
17
17
18
19
20
21
22
23
Home
Find...
Go To..
OPTIONS
3‐15
636 UK YM165 (8−2014)
356220
Fig. 7 − Pressure Washer Water Pump Group
Ref. Part No. Serial Number Description Qty.
1 WP212 (0910364 ) Pump−Axial Piston C/W Integral Motor Wit 1
2 WP240 (0910364 ) Elbow,Nylon 90 Deg 3/8 Male Bsp X 5/8 B 1
3 WP184 (0910364−) Elbow, Male/Hose Barb − 3/4m X 3/4 3
oWP299 (0910364−) Filter Assy, Pressure Washer 1
Y4 PP171 (0910364 ) Exhaust Clamp − 60mm 1
Y5 WP180 (0910364 ) Filter, Medium Profile − 3/4f − 80 Mesh 1
Y6 CD457 (0910364 ) Spacer − Filter Assy 1
Y7 GN043 (0910364 ) Nut, Nyloc Shallow − M8 − St. A2−314 2
8 GT101 (0910364 ) M8 X 25 Set Screw 2
9 GT301 (0910364 ) Screw, Hex Hd Set − M8 X 16 −A4 Gd70 St. 2
10 GW047 (0910364 ) M8 Washer−Serrated Lock S8 − Zinc Plated 2
11 GT377 (0910364 ) Bolt, Hex Hd −M8 X 75 St.St A4 2
12 GW055 (0910364 ) Washer − M8 Form C St/St 314 Stainless 3 2
13 GN069 (0910364 ) Nut,Nyloc −M8 St.St A2 2
14 CD298 (0910364 ) Plate, Deflector, Pressure Washer 1
15 GT327 (0910364 ) Screw,Button Hd Hex Skt−M6 X 16 2
16 GN011 (0910364 ) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
17 GG051 (0910364 ) Jubilee Clip 22mm To 30mm 22mmx30mm 8
18 WP259 (0910364 ) Y − Piece Equal Hose Barb 16mm Plastic 1 1
19 WA407 (0910364 ) Hose−Press.Wash Y Piece To Filter 390mm 1
20 WA351 (0910364 ) Hose− Press.Wash − Y−Piece To Pump Bleed 1
21 WA408 (0910364 ) Hose−Press Wash Filter To Pump Suction 3 1
22 WA350 (0910364 ) Hose − Water Manifold To Y Piece (Rh004) 1
23 CD300 (0910364 ) Bracket, Mounting, Pressure Washer 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐16
Fig. 8 − Pressure Washer Hydraulic Valve Group
PW
P
T
MP
1
23
3
4
5
6
7
8
10
11
12
13
14
9
Home
Find...
Go To..
OPTIONS
3‐17
636 UK YM165 (1−2015)
356221
Fig. 8 − Pressure Washer Hydraulic Valve Group
Ref. Part No. Serial Number Description Qty.
1 HC190 (0910364−)Hydraulic Manifold A 1
2 GT125 (0910364−) Screw − Hex Hd. M10 X 35 2
3 GW031 (0910364−) M6 Washer Plain Ptd. Each Each 4
4 GN011 (0910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
5 HF008 (0910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 1
6 HJ311 (0910364−)Hose−Wash Man−PW Press 2
7 HF017 (0910364−) Stud Adaptor − 1/2” − 3/8” BSP, M/M 1
8 HF006 (0910364−) Adapter − 3/8 To 3/8 Bsp − M/M Asl Produ 1
9 HJ319 (0910364−) Hose Assy,Pw Mnfl (T) To Oil Cooler Tee 1
10 HF008 (0910364−) Stud Adaptor − 1/2”−1/2” BSP, M/M 1
11 HF006 (0910364−) Adapter − 3/8 To 3/8 Bsp − M/M Asl Produ 1
12 HJ317 (0910364−) Hose Assy,Mtr Mnfl(Pw) To Pw Mnfld P 1
13 HF006 (0910364−) Adapter − 3/8 To 3/8 Bsp (Part of Pressure Washer) 1
14 HF008 (0910364−) Adaptor − 1/2 To 1/2 Bsp M/M (See Hf077) 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐18
Fig. 9 − Pressure Washer Reel and Hose Group
1
2
3
4
5
6
7
8
9
10
11 12
13
15
16
17
27
18
24
23
26
25
19 20
21
18
17
14
18
17
18
18
21
27
28
22
22
22 18
17
22
22
22
Home
Find...
Go To..
OPTIONS
3‐19
636 UK YM165 (6−2013)
356222
Fig. 9 − Pressure Washer Reel and Hose Group
Ref. Part No. Serial Number Description Qty.
oWA465 (0910364−)Pressure Washer Reel Assembly − 636 1
Y1 WA161 (0910364−) Hobby Gun / Lance As 1
Y2 WA175 (0910364−) Sf3 Extension + Adjusting Nozzle 4708.01 1
Y3 WA160 (0910364−) Jet − 1/4 −15 Degree 06 St.St 1
Y4 WA179 (0910364−) Adapter − Pressure Washer Hose Pump End 1
Y5 WA180 (0910364−)Swivel Connector − P 1
Y6 WA193 (0910364−) Hose Assy,P/Washer,R 1
Y7 WA311 (0910364−) Hose Reel Wldt 1
Y8 GG281 (0910364−) Handle,Revolving − Hose Reel I281/65−X−1
Y9 GN043 (0910364−) Nut,Nyloc Shallow − M8 − St. St. A2−314 1
Y10 GB092 (0910364−)Bush,Igus Flanged Bush−G Type 30 X34 X26 1
Y11 HF046 (0910364−) Adapter − 1/4 To 1/4 Bsp − M/M 1
Y12 HF044 (0910364−) Seal, Dowty − 1/4 Bsp Self Centering Asl 1
Y13 WA182 (0910364−) Elbow,Swivel,90deg.St/St,525 Hose Reel 1
Y14 HF042 (0910364−) Adapter − 3/8 To 1/4 Bsp − M/M (Bag 100) 1
Y15 HF010 (0910364−)Seal, Dowty − 16mm (3/8’Bsp) Self Center 1
Y16 WA179 (0910364−) Adapter − Pressure Washer Hose Pump End 1
Y17 GB090 (0910364−) Boss, 12 O/D X 6 I/D X 28 Lg 6
Y18 GB113 (0910364−) Boss, 12 O/D x 6.6 I/D x 10 Long 6
Y19 GT334 (0910364−) Bolt,Hex Head −M6 X 55 −St.St A4 Coarse 1
Y20 GT150 (0910364−)M6 X 90 Hex Bolt Plated 1
Y21 GN122 (0910364−) Nut−Nyloc−M6−St.St A4−80 2
Y22 GW087 (0910364−) Washer − M6 Form C −St.St,A2 8
Y23 CD036 (0910364−) Bracket Wldt, Mtg 1
24 ES526 (0910364−) Switch Assy, On/Off [Single Pole] 1
25 HJ325 (0910364−)Hose Assy,Pw Water Pump To Lance 1
26 GT286 (0910364−) Bolt,Hex Hd − M8 X 80 St.St A4 316 2
27 GW055 (0910364−) Washer − M8 Form C St/St 314 Stainless 3 4
28 GN069 (0910364−) Nut,Nyloc −M8 St.St A2 2
Home
Find...
Go To..
OPTIONS
636 UK YM165 (8−2014)
3‐20
Fig. 10− Hopper Regen Group
1
2
3
4
5
6
78
9
10
11
12
13
14
15
14
16
17 18
19
20
Home
Find...
Go To..
OPTIONS
3‐21
636 UK YM165 (8−2014)
356552
Fig. 10 − Hopper Regen Group
Ref. Part No. Serial Number Description Qty.
1 VK275 (0910364−)Hopper Body Weldment [636] − Regen 1
2 VK256 (0910364−) Top Main Body Folded 1
3 VK245 (0910364−) Gasket − Hopper Regen Assembly 1
4 VK278 (0910364−) Hopper Regen Weldment 1
5 VK262 (0910364−) Internal Seal − Regen − 6mm Linitex 1
6 VK292 (0910364−)Locking Plunger − Regen 1
7 VK290 (0910364−) Regen Z Bracket Lever Folded 1
8 GG213 (0910364−) Spring − Compression 1.6 X 17.6 O.D X 5 1
9 VK288 (0910364−) Anti Roll Plate Folded 1
10 GG076 (0910364−) Jubilee Clip 40 To 55 55mm 1
11 AE074 (0910364−)Hose Suction− 51mm X 300mm Long 1
12 AE078 (0910364−) Hose Suction− 25mm X 2m Length 1
13 GT331 (0910364−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 2
14 GW055 (0910364−) Washer − M8 Form C St/St 314 Stainless 3 4
15 GN043 (0910364−) Nut, Nyloc Shallow − M8 − St. St. A2−314 2
oNA221 (0910364−)Nozzle Assembly − Regen Variant 1
Y16 NA217 (0910364−) Nozzle Body Weldment,636 −Regen 1
Y17 NF045 (0910364−) Adjuster Assy − Side Brush 1
Y18 GN025 (0910364−) Nut,3/4 Unc Unplated 2
Y19 NA134 (0910364−) Bar,Hinge −Adjustable Nozzle 1
Y20 NA120 (0910364−)Flap Wldt, Nozzle, Adj 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐22
Fig. 11 − City Scrub FrameGroup (0910364−1411343)
1
2
3
3
4
5
4
5
6
7
8
9
10
11
12
11
12
13
8
8
14
815
8
13
815
8
14
16 17
18
19
17
18
16
18
19
20
21 22
23
24
24
23
20
22 21
25
26
27
28
29
30
Home
Find...
Go To..
OPTIONS
3‐23
636 UK YM165 (1−2015)
356385
Fig. 11 − City Scrub FrameGroup (0910364−1411343)
Ref. Part No. Serial Number Description Qty.
1 NR002 (0910364−1411343 ) Chassis Weldment, Rotawash 1
2 NR013 (0910364−1411343 ) Cover, Formed, Rotawasher 2
3 GG146 (0910364−1411343 ) Knurled Fastener 17−13−204−11 8
4 GG148 (0910364−1411343 ) Retainer − Knurled Fastener 17−10054−42 8
5 GG147 (0910364−1411343 ) Clip−On Recepticle 17−10027−11 8
6 NR042 (0910364−1411343 ) Spray Bar 1
7 GT327 (0910364−1411343 ) Screw,Button Hd Hex Skt−M6 X 16 5
8 GW038 (0910364−1411343 ) Washer, Form ’A’ − M6 − Zn Ptd 500e Zinc 57
9 NR018 (0910364−1411343 ) Weldment, Squeegee, Rear, Right Hand 1
10 NR048 (0910364−1411343 ) Weldment, Squeegee, Rear, Left Hand 1
11 NR025 (0910364−1411343 ) Bar, Clamp, Squeegee, Formed 2
12 NR027 (0910364−1411343 ) Squeegee Rear 2
13 GT338 (0910364−1411343 ) Screw,Button Hd Hex Skt−M6 X 30 A4 22
14 GN078 (0910364−1411343 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 22
15 GT135 (0910364−1411343 ) M6 X 16 Hex Head Ptd 500e 8
16 NC049 (0910364−1411343 ) Castor, Bump, Rotawasher 2
17 GT318 (0910364−1411343 ) Bolt, Hex Hd − M8 X 55 Grade 8.8 Zin 2
18 GW060 (0910364−1411343 ) Washer − Form A − M8 −St St 4
19 GN069 (0910364−1411343 ) Nut,Nyloc −M8 St.St A2 2
20 BB199 (0910364−1411343 ) Steel Rod End (Male) Bearing 20 Dia X M2 2
21 NR035 (0910364−1411343 ) Pin, Mounting, Rotawasher 2
22 GG343 (0910364−1411343 ) R Pin− To Suit 14 To 20 Dia 2
23 GN114 (0910364−1411343 ) M20 X 1.5p Nut, Plated 2
24 NR028 (0910364−1411343 ) Weldment, Mounting Arm, Rotawasher 2
25 WP015 (0910364−1411343 ) Nozzle Holder 2410104m 6
26 WP016 (0910364−1411343 ) Cap Nut 241030−− 6
27 WP201 (0910364−1411343 ) Nozzle Filter,Cup Type 100 Mesh Cp 6
28 WP283 (0910364−1411343 ) Nozzle, Spray Jet 1
29 NR049 (0910364−1411343 ) Bracket, Qr Fittings, RH, Formed 1
30 NR050 (0910364−1411343 ) Bracket, Qr Fittings, LH, Formed 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐24

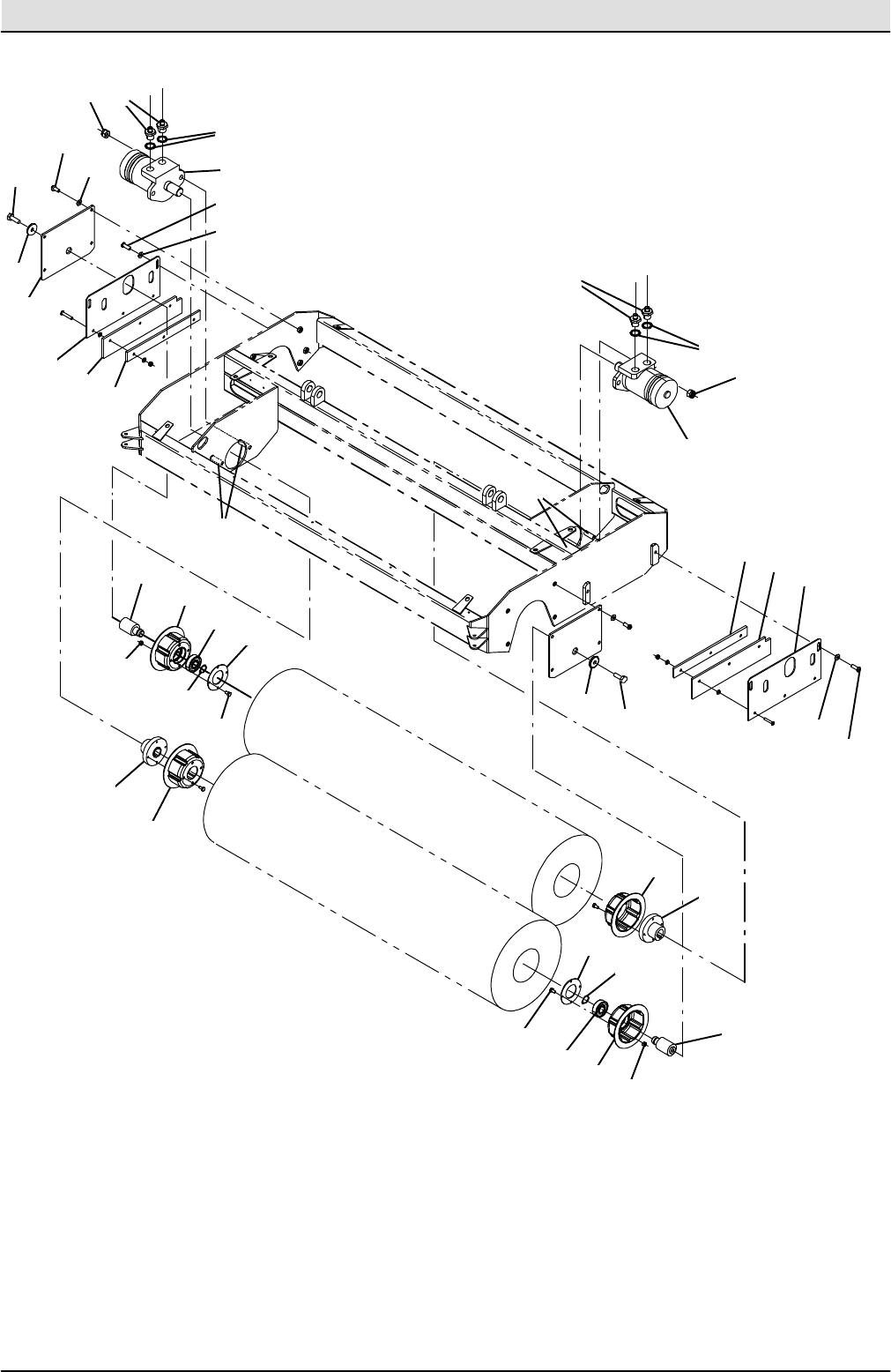

Fig. 12 − City Scrub Drive Motor Group (0910364−1411343)
1
2
3
4
5
123
4
5
6
5
7
8
8
9
10
10
11
12
12
11
9
13
14
15
16
16
17 18
19
19
20
21
22
22
13 14
15
17
18 20
21
23
23
Home
Find...
Go To..
OPTIONS
3‐25
636 UK YM165 (1−2015)
356386
Fig. 12 − City Scrub Drive Motor Group (0910364−1411343)
Ref. Part No. Serial Number Description Qty.
1 NR036 (0910364−1411343 ) Plate, Mount, Side Sqeegee, Rotawasher 2
2 NR037 (0910364−1411343 ) Squeegee, Side, Rotawasher 2
3 NR038 (0910364−1411343 ) Clamp, Side Squeegee, Rotawasher 2
4 GT070 (0910364−1411343 ) Screw, Button Hd Hex Skt − M8 X 25 − Zp 4
5 GW060 (0910364−1411343 ) Washer − Form A − M8 −St St 12
6 NR015 (0910364−1411343 ) Plate, Idler, Rotawasher 2
7 GT331 (0910364−1411343 ) Screw,Button Hd Hex Skt−M8 X 20 St.St A 8
8 NR016 (0910364−1411343 ) Hub, Drive, Motor Rotawasher 2
9 HM029 (0910364−1411343 ) Drive Motor − Eaton T60 T060ajas 158−338 2
10 NR062 (0910364−1411343 ) Motor, Mounting, Stud 4
11 HF106 (0910364−1411343 ) Adapter−1/2 Bsp To 1/4 Bsp Male/Male Asl 4
12 HF011 (0910364−1411343 ) Seal, Dowty − 20mm (1/2’Bsp) Self Center 4
oNR045 (0910364−1411343 ) Hub, Idler, Assembly, Rotawasher 2
Y13 81818 (0910364−1411343 ) Plug, Drive, Brush, Spl 1
Y14 43690 (0910364−1411343 ) Bar, Flat 1
Y15 NR054 (0910364−1411343 ) Cam, Rear, Rotawasher 1
Y16 NR055 (0910364−1411343 ) Screw, Hex M10x30 1
Y17 NR057 (0910364−1411343 ) Retainer, Bearing, Rotawasher 1
Y18 26426 (0910364−1411343 ) Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run 1
Y19 01686 (0910364−1411343 ) Washer, Flat, 0.44b 1.00d .08, Ss 1
Y20 GT300 (0910364−1411343 ) Screw, Hex Hd Set − M6 X 12 St.St Grade 4
Y21 GN078 (0910364−1411343 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 4
22 386067 (0910364−1411343 ) Plug, Drive, Brush, Spl 2
23 GN079 (0910364−1411343 ) Nut, Nyloc −M12 −St.St A4 St.St A4 Coars 4
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐26
Fig. 13 − City Scrub Spray Bar Assembly (0910364−1411343)
1
2
3
4
4
5
6
7
8
9
10
11
8
9
10
11
8
9
10
11
8
9
10
11
8
9
10
11
8
9
10
11
12 13
12 13
12
13
12
13
12
13
12
13
14 15 16
17
17
18
19
20
21
22
23
23 24
25 26
27
27
28
29
30
29 30
31
30
32
33
34
34
35
36
36
Home
Find...
Go To..
OPTIONS
3‐27
636 UK YM165 (1−2015)
356551
Fig. 13 − City Scrub Spray Bar Assembly (0910364−1411343)
Ref. Part No. Serial Number Description Qty.
oNR070 (1403038−1411343 ) Spray Bar Assembly − 636 Rotawash 1
Y1 NR069 (1403038−1411343 ) Spraybar Weldment − Rotawash 1
Y2 WA413 (1403038−1411343 ) 6mm Mercury Air Hose 1
Y3 WA012 (1403038−1411343 ) Hosetail− 4mm For Q.Release Body 1
Y4 PG008 (1403038−1411343 ) O’ Clip − 11 To 13mm O/D Hose 2
Y5 NR065 (1403038−1411343 ) Bracket, Mid Support,Formed,Spray Bar 1
Y6 WP276 (1403038−1411343 ) Manifold, 6 Way, 8mm Outlet 1
Y7 WP279 (1403038−1411343 ) Plug 10mm, Snap Fitting 1
Y8 WP016 (1403038−1411343 ) Cap Nut 241030−− 6
Y9 WP056 (1403038−1411343 ) Spray Jet − Orange An0.5 [All] An0.5 6
Y10 WP285 (1403038−1411343 ) Adapter 6
Y11 WP020 (1403038−1411343 ) Filter − Water System [Ball Check] 32100 6
Y12 WP275 (1403038−1411343 ) Elbow, 1/4” To 1/4” Bsp Fem 6
Y13 WP277 (1403038−1411343 ) Snap Fitting, 8mm To 1/4” Bsp 6
Y14 WP278 (1403038−1411343 ) Snap Fitting, 10mm To 1/4” Bsp 1
Y15 HF137 (1403038−1411343 ) Adapter,Fixed,F/F 1/4 Bsp Asl Product Sp 1
Y16 WP025 (1403038−1411343 ) Hosetail 1/4m − 7mm Barb 1
Y17 WA427 (1403038−1411343 ) Pipe, Plastic, 8mm 1
oWA495 (1403038−1411343 ) Doser Unit Assembly For Rotawash 1
Y18 WA488 (1403038−1411343 ) Pump Cover Weldment − Doser Unit 1
Y19 GT320 (1403038−1411343 ) Screw, Button Hd Hex Skt − M6 X 12 St.St 3
Y20 WA116 (1403038−1411343 ) Sleeve,Water Cap 1
Y21 WA138 (1403038−1411343 ) Cap−Blue Water Filter 1
Y22 RM016 (1403038−1411343 ) Wire Rope−1.5 Mm St.St 7/7 Wire Rope 1
Y23 GG253 (1403038−1411343 ) Ferrule − Copper 1.5mm For Use With Rm01 2
Y24 GG252 (1403038−1411343 ) Thimble −St.St For Rm016 2 Mm Thimbles(1 1
Y25 GG078 (1403038−1411343 ) Washer − Top Hat 1
Y26 GT328 (1403038−1411343 ) Screw,Button Hd Hex Skt−M6 X 20 1
Y27 GW087 (1403038−1411343 ) Washer − M6 Form C −St.St,A2 2
Y28 GN078 (1403038−1411343 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
Y29 WP166 (1403038−1411343 ) Hosetail −3/8 Bspt X 1/4 Barb 3
Y30 PG008 (1403038−1411343 ) O’ Clip − 11 To 13mm O/D Hose 4
Y31 WA019 (1403038−1411343 ) Tap−Quick Rel Body (Hose Fitt) 1
Y32 GT338 (1403038−1411343 ) Screw,Button Hd Hex Skt−M6 X 30 A4 4
Y33 WP112 (1403038−1411343 ) Elbow − [3/8 M X 3/8 F] Ap03375mfe375n 2
Y34 WA413 (1403038−1411343 ) 6mm Mercury Air Hose 1
Y35 WP044 (1403038−1411343 ) Pump − Water − Assy C/W Connector 1
Y36 GT303 (1403038−1411343 ) Screw, Hex Hd Set − M8 X 25 St.St Grade 4
Home
Find...
Go To..
OPTIONS
636 UK YM165 (NIL)
3‐28
Fig. 14 − City Cleaning Wire Harnesses Group
Ref. Part No. Serial Number Description Qty.
1 EW294 (0910364−)Wiring Loom 636 Chassis Iqan R/Washer 1
2 EW295 (0910364−) Wiring Loom 636 Cab Iqan R/Washer 1
Home
Find...
Go To..
OPTIONS
3‐29
636 UK YM165 (12−2014)
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐30
Fig. 15 − City Scrub Frame Group (1411344− )
1
2
34
45
6
7
8
9
10
11
11
11
11
12 13
14
15
16
17
18
19
20 18
19 21 18
14
15
13
19
22
22
23
23
17
18
16
Home
Find...
Go To..
OPTIONS
3‐31
636 UK YM165 (1−2015)
356562
Fig. 15 − City Scrub Frame Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 NR078 (1411344−)Chassis Weldment − Disc Scrubber 1
2 NR129 (1411344−) Mounting Channel − Formed, Top Cover, Cs 1
3 GT027 (1411344−) Screw, Hex Hd Set − M6 X 20 − Zn Pld Gra 2
4 GW031 (1411344−) M6 Washer Plain Ptd. Each Each 4
5 GN011 (1411344−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
6 NR123 (1411344−)Top Cover, City Scrub, Vac Formed 1
7 GG110 (1411344−) Ring Head Stud − Black 17mm 316−417−191 2
8 GG055 (1411344−) Retainer − Plastic [Bag In 100] 326−100−2
9 GG041 (1411344−) Retainer, Steel 2
10 GG042 (1411344−) Slip−On Receptacle 336−300−190 2
11 1026007 (1411344−)Link Assy, Rod−End, M12 4
12 NR094 (1411344−) Weldment − Squeegee Carrier 1
13 NR099 (1411344−) Castor Arm Weldment, Squeegee 2
14 NR104 (1411344−) Stud, Castor Adjuster 2
15 NR103 (1411344−) Turnbuckle, Squeegee, Castor 2
16 GG021 (1411344−)Knob, Black Panel − M8 8958v Black 2
17 NC052 (1411344−) Castor, Squeegee, City Scrub 2
18 GT130 (1411344−) M10 X 30 Hex Ptd. 500e 6
19 GN019 (1411344−) Nut, Nyloc − M10 − Zn Ptd 500e 6
20 NR135 (1411344−) Connection Bracket,Weldment,Rh C/S 1
21 NR132 (1411344−)Connection Bracket,Weldment,Lh C/S 1
22 NR127 (1411344−) Spacer, Squeegee − Cityscrub 2
23 GN031 (1411344−) Nut 4
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐32
Fig. 16 − City Scrub Drive Motors Group (1411344− )
1
2
3
43
3
2
3
5
6
7
8
7
8
9
10
11
11
12
9
10
11
11
12
3
4
3
13
13
13
14
15
14
15
14
15
16
17
18
19 16
17
18
19
16
17
18
19
Home
Find...
Go To..
OPTIONS
3‐33
636 UK YM165 (1−2015)
356563
Fig. 16 − City Scrub Drive Motors Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 NR077 (1411344−)Disc Scrubber Weldment 1
2 GT163 (1411344−) M12 X 30 Hex Hd St/St 4
3 GW051 (1411344−) Washer, Form A − M12 − Zn Ptd Whee 8
4 GN080 (1411344−) Nut, Nyloc − M12 − Zn Pld, Clear Zinc Pl 4
5 NR116 (1411344−) Bumper Bracket, Rh − Weldment 1
6 NR113 (1411344−)Bumper Bracket, Lh − Weldment 1
7 GT101 (1411344−) M8 X 25 Set Screw 4
8 GN069 (1411344−) Nut,Nyloc −M8 St.St A2 4
9 NC014 (1411344−) Castor−Front−Wheel Only Wrn6rbm20k134 2
10 GT337 (1411344−) Bolt,Hex Hd −M10 X 90 −St.St A4 St.St G 2
11 GW079 (1411344−)Washer,Form A −M10 −S.S A2 St.St Grade A 4
12 GN071 (1411344−) Nut,Nyloc −M10 −St.St.A4 St.St Grade A4 2
13 HM080 (1411344−) 59cc Drive Motor For 3 Rotary Brush−C/S 3
14 GT086 (1411344−) M10 X 25 − Hex Set Ptd Grade 8.8 12
15 GW025 (1411344−) M10 Washer Zinc Ptd 12
16 1042963 (1411344−)Hub, Drive, Brush, Disk, 1.00b [6t] 3
17 25611 (1411344−) Spacer, Hub, Keyed 3
18 19191 (1411344−) Spacer 3
19 25046 (1411344−) Screw, Hex, .25−20 X 1.00, G5 3
Home
Find...
Go To..
OPTIONS
636 UK YM165 (5−2015)
3‐34
Fig. 17 − City Scrub Solution Supply Group (1411344− )
1
2
3
3
2
4
4
4
5
5
5
5
6
6
6
6
6
6
6
7
8
8
910 6
910 6
11
11
11
Home
Find...
Go To..
OPTIONS
3‐35
636 UK YM165 (5−2015)
356564
Fig. 17 − City Scrub Solution Supply Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 NR111 (1411344−)Spray Bar, Formed − Cityscrub 1
2 GT101 (1411344−) M8 X 25 Set Screw 2
3 GN069 (1411344−) Nut,Nyloc −M8 St.St A2 2
4 WP165 (1411344−) Brush Spray Nozzle A 3
5 WA413 (1411344−) 6mm Mercury Air Hose 1
6 PG008 (1411344−)O’ Clip − 11 To 13mm O/D Hose 14
7 WA012 (1411344−) Hosetail− 4mm For Q.Release Body 1
8 WP005 (1411344−) Water Hose−Tee 3.16x3.16x3.16 Ap0418tee 2
9 BB079 (1411344−)P−Clip Aba Rubber Lined − 13Mm 313−6 3 2
10 WA019 (1411344−)Tap−Quick Rel Body (Hose Fitt) 2
11 GW013 (1411344−)Washer, Form A − M10 Zinc Plated Per 100 6
Home
Find...
Go To..
OPTIONS
636 UK YM165 (5−2015)
3‐36
Fig. 18 − City Scrub Detergent Supply Group (1411344− )
1
2
2
3
4
4
5
6
7
8
8
9
10
9
10
9
10
11
12
11
12
13
14
15 16
16
17
18
17
19
20
21
22
23
24
25
26
Home
Find...
Go To..
OPTIONS
3‐37
636 UK YM165 (5−2015)
356592
Fig. 17 − City Scrub Detergent Supply Group (1411344− )
Ref. Part No. Serial Number Description Qty.
oWA521 (1411344−)Doser Spray Bar, Assembly − 636 Machine 1
Y1 WP276 (1411344−) Manifold, 6 Way, 8mm Outlet 1
Y2 WP279 (1411344−) Plug 10mm, Snap Fitting 4
Y3 HF137 (1411344−) Adapter,Fixed,F/F 1/4 Bsp Asl Product Sp 1
Y4 PG008 (1411344−) O’ Clip − 11 To 13mm O/D Hose 2
Y5 WP278 (1411344−)Snap Fitting, 10mm To 1/4” Bsp 1
Y6 WP025 (1411344−) Hosetail 1/4m − 7mm Barb 1
Y7 WA012 (1411344−) Hosetail− 4mm For Q.Release Body 1
Y8 WP285 (1411344−) Adapter 3
Y9 WP277 (1411344−) Snap Fitting, 8mm To 1/4” Bsp 3
Y10 WP275 (1411344−)Elbow, 1/4” To 1/4” Bsp Fem 3
Y11 WP056 (1411344−) Spray Jet − Orange An0.5 [All] An0.5 3
Y12 WP016 (1411344−) Cap Nut 241030−− 3
13 WA138 (1411344−) Cap−Blue Water Filter 1
14 WA511 (1411344−) Tank Strap Bracket 1
15 WP169 (1411344−)Water Pump C/W Connector 1
16 WP112 (1411344−) Elbow − [3/8 M X 3/8 F] Ap03375mfe375n 2
17 WP166 (1411344−) Hosetail −3/8 Bspt X 1/4 Barb 3
18 WA413 (1411344−) 6mm Mercury Air Hose 1
19 HF137 (1411344−) Adapter,Fixed,F/F 1/4 Bsp Asl Product Sp 1
20 WP278 (1411344−)Snap Fitting, 10mm To 1/4” Bsp 1
21 WP025 (1411344−) Hosetail 1/4m − 7mm Barb 1
22 GT286 (1411344−) Bolt,Hex Hd − M8 X 80 St.St A4 316 1
23 GT385 (1411344−) Screw, Hex Hd Set M6 X 20 St.St A4 1
24 GN043 (1411344−) Nut, Nyloc Shallow − M8 − St. St. A2−314 1
25 GN078 (1411344−)Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
26 ES684 (1411344−) Button, Push, Momentary Square 1p67 1
ES180 (1411344−) Relay, Automotive − 12v, 35/40a, Spco 1
ES158 (1411344−) Controller − Electronic Water Pump Sc111 1
EW415 (1411344−)Wiring Loom, Doser Unit − Rotawash 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐38
Fig. 19 − City Scrub Squeegee Group (1411344− )
1
1
2
3
4
4
5
6
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
14 15
16
18
18
17
18
19
18
19
12
13
20
21
Home
Find...
Go To..
OPTIONS
3‐39
636 UK YM165 (1−2015)
356561
Fig. 19 − City Scrub Squeegee Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 387237 (1411344−)Stud, .31−18 2.75l M8 X 1.25, Ss 2
o 9004493 (1411344−) Squeegee Kit, Rear, Replmt [M20/T20] 1
Y 2 1022831 (1411344−) Squeegee Wldt, Rear 1
Y 3 1023239 (1411344−) Clamp Wldt, Front 1
Y 4 03495 (1411344−) Strip, Non−Slip, 0.50w 06.0l 4
Y 5 21603 (1411344−)Pin, Grvd, 0.43d 01.8l [303ss] 4
Y 6 24555 (1411344−) Ring, Retaining, Ext, 0.38d, [E−Ring] 4
Y 7 386298 (1411344−) Pin Wldt, Front 1
Y 8 21601 (1411344−) Cam 1
Y 9 1028374 (1411344−) Clamp Wldt, Rear 1
Y10 21606 (1411344−)Bar Wldt, Retainer, Sqge, Rear 1
Y11 21602 (1411344−) Cam, Rear 1
Y12 83874 (1411344−) Gasket, Sqge 2
Y13 386264 (1411344−) Bumper, Sqge 2
Y14 363162 (1411344−) Wheel, 4.0d 0.89w 0.64b 2
Y15 363301 (1411344−)Sleeve, P/M, 0.34b 0.63d 1.2l, Bnz 2
Y16 80395 (1411344−) Sleeve, P/M, 0.31b 0.50d 0.7l [430ss] 2
Y17 364441 (1411344−) Screw, Hex, M8 X 1.25 X 110, Ss 2
Y18 01685 (1411344−) Washer, Flat, 0.31, Ss 10
Y19 08713 (1411344−) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
20 1017868 (1411344−)Blade, Sqge, Front, 49.58l Linatex 1
21 1031331 (1411344−) Blade, Sqge, Rear, Linatex 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (5−2015)
3‐40
Fig. 20 − City Scrub Vacuum Hose Group (1411344− )
12
3
4
3
5
67
89
10 11 12 13
14
15
16
3
Home
Find...
Go To..
OPTIONS
3‐41
636 UK YM165 (5−2015)
356566
Fig. 20 − City Scrub Vacuum Hose Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 1028236 (1411344−)Hose Assy, W/2cuff, 3.0d 014l 3.0/3.0 1
2 NR125 (1411344−) Joining Spiggot Weldment 1
3 GG153 (1411344−) Jubilee Clip 70−90 4
4 NR122 (1411344−) Hose, Suction − 3” Dia X 3m − City Scrub 1
5 NR118 (1411344−) Adaptor Weldment − Suction Hose − C/S 1
oNA222 (1411344−)Nozzle Assembly, Removable Flap − Cs 1
Y6 NA119 (1411344−) Nozzle Body Weldment,636 −Adjustable 1
Y7 NA230 (1411344−) Hinge Weldment, Flap, City Scrub 1
8 NF045 (1411344−) Adjuster Assy − Side Brush 1
9 GN025 (1411344−) Nut,3/4 Unc Unplated 2
oNA223 (1411344−)Front Flap Assembly 1
Y10 NA224 (1411344−) Plate − Rubber Protection − Formed 1
Y11 NA228 (1411344−) Rubber Flap, City Scrub 1
Y12 NA229 (1411344−) Backing Strip, Rubber, City Scrub 1
Y13 NA226 (1411344−) Plate − Rubber Protection − Formed − Rh 1
Y14 GT152 (1411344−)Screw, Button Hd Skt − M8 X 35 − Zp Zi 2
Y15 GN033 (1411344−) Nut, Shallow Nyloc − M8 Zinc Plated 5
Y16 GG021 (1411344−) Knob, Black Panel − M8 8958v Black 3
Home
Find...
Go To..
OPTIONS
636 UK YM165 (5−2015)
3‐42
Fig. 21 − City Scrub Hydraulic Hose Group (1411344− )
1
1
1
2
2
2
3
4
3
4
34
3
4
3
4
5
6
7
8
9
10
11
12
13
13
Home
Find...
Go To..
OPTIONS
3‐43
636 UK YM165 (1−2015)
356565
Fig. 21 − City Scrub Hydraulic Hose Group (1411344− )
Ref. Part No. Serial Number Description Qty.
1 HF106 (1411344−) Adapter−1/2 Bsp To 1/4 Bsp Male/Male Asl 6
2 HF011 (1411344−) Seal, Dwty, 20mm, 1/2 Bsp, Sc 6
3 HF046 (1411344−) Adapter − 1/4 To 1/4 Bsp − M/M 6
4 HF044 (1411344−) Seal, Dowty − 1/4 Bsp Self Centering Asl 6
5 HV240 (1411344−) Junction Block − Nozzle/Brush Arm Return 1
6 HJ594 (1411344−)Hyd Hose, Qr Coupling To Motor 1 1
7 HJ595 (1411344−) Hyd Hose, Motor 1 To Motor 2 1
8 HJ596 (1411344−) Hyd Hose, Motor 2 To Motor 3 1
9 HJ597 (1411344−) Hyd Hose, Motor 3 To Manifold Block 1
10 HJ598 (1411344−) Hyd Hose, Motor 1 Drain To Manifold 1
11 HJ599 (1411344−)Hyd Hose, Motor 2 Drain To Manifold 1
12 HJ600 (1411344−) Hyd Hose, Manifold To Qr Coupling 1
13 HF053 (140512−) Coupling Q.R.3/8 Male 2
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐44
Fig. 22 − City Scrub Hydraulic Connection Group
9
10
8
256
3
11
12
1
2
3
4
56
7
8
9
Home
Find...
Go To..
OPTIONS
3‐45
636 UK YM165 (1−2015)
356573
Fig. 22 − City Scrub Hydraulic Connection Group
Ref. Part No. Serial Number Description Qty.
1 HF201 (1411344−) Qrc − 1/4bsp Inlet Male Connector 5
2 HF053 (1411344−) Coupling Q.R.3/8 Male 2
3 HF054 (1411344−) Coupling Q.R.3/8 Female 2
4 HF044 (1411344−) Seal, Dowty − 1/4 Bsp Self Centering Asl 9
5 HF010 (1411344−) Seal, Dwty, 16mm, 3/8 Bsp, Sc 4
6 HF321 (1411344−) Adaptor−1/2”Bsp − 3/8”Bsp Bulkhead W/Nut 4
7 HF204 (1411344−) Cap, Dust − For Qrc Hf201 5
8 HF343 (1411344−) Dust Cap For Hf054 Qrc 1
9 HF342 (1411344−) Dust Cap For Hf053 Qrc 1
10 HF335 (1411344−) Reduced Bulkhead−1/4” Bspmale 18mm Long 5
11 NR049 (1411344−)Bracket, Qr Fittings, RH, Formed 1
12 NR050 (1411344−) Bracket, Qr Fittings, LH, Formed 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐46
Fig. 23 − City Scrub & Winter Option Hydraulic Connection Group
20
22
23
1
1
1
1
1
2
2
2
2
3
3
4
4
5
6
7
7
7
7
7
7
8
8
8
9
9
10
11
12
12
12
13
13
13 13
13
14
14
14
14
15
15
16
17
18
18
19
20 21
21
21
21
Home
Find...
Go To..
OPTIONS
3‐47
636 UK YM165 (1−2015)
356569
Fig. 23 − City Scrub & Winter Option Hydraulic Connection Group
Ref. Part No. Serial Number Description Qty.
1 HF201 (1405121−) Qrc − 1/4bsp Inlet Male Connector 5
2 HF202 (1405121−) Qrc − 1/4bsp Inlet Female Connector 4
3 HF053 (1405121−) Coupling Q.R.3/8 Male 2
4 HF054 (1405121−) Coupling Q.R.3/8 Female 2
5 HF200 (1405121−) Qrc − Return From Gritter & Snowbrush 1
6 HF199 (1405121−) Qrc − Pressure For Gritter & Snowbrush 1
7 HF044 (1405121−) Seal, Dowty − 1/4 Bsp Self Centering Asl 9
8 HF010 (1405121−) Seal, Dwty, 16mm, 3/8 Bsp, Sc 4
9 HF011 (1405121−) Seal, Dwty, 20mm, 1/2 Bsp, Sc 2
10 HF334 (1405121−) Adaptor−1/2”Bsp M/M Bulkhead With Nut 1
11 HF319 (1405121−)Adaptor 3/8 To 1/4 Bsp Bulkhead + Nut 1
12 HF321 (1405121−) Adaptor−1/2”Bsp − 3/8”Bsp Bulkhead W/Nut 4
13 HF204 (1405121−) Cap, Dust − For Qrc Hf201 5
14 HF203 (1405121−) Cap, Dust − For Qrc Hf202 4
15 HF064 (1405121−) Blanking Plug − [J] Block Bg1541 4
16 HF205 (1405121−)Cap, Dust − For Qrc Hf199 1
17 HF206 (1405121−) Cap, Dust For Qrc Hf200 1
18 HF020 (1405121−) Lock Nut−3/8’ Bsp Asl Product Spec 11 −4
19 HF343 (1405121−) Dust Cap For Hf054 Qrc 1
20 HF342 (1405121−) Dust Cap For Hf053 Qrc 1
21 HF335 (1405121−)Reduced Bulkhead−1/4” Bspmale 18mm Long 5
22 CD696 (1405121−) Bracket, Winter Equipment − Rh Formed 1
23 CD698 (1405121−) Bracket, Winter Equipment − Lh Formed 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐48
Fig. 24 − Winter Option Connection Group
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21
22 23
24 25
26
27
23
24
28 29
30 31
32
33
34
34
33
17
35
35
36
37
36
38
34
34
33
34
16
37
36
36
40
40
40
40
40
41
18
19
18
18
39
Home
Find...
Go To..
OPTIONS
3‐49
636 UK YM165 (1−2015)
356394
Fig. 24 − Winter Option Connection Group
Ref. Part No. Serial Number Description Qty.
1 CD507 (0910364−)Gritter Connector Plate 1
2 GT246 (0910364−) M5 X 90 Socket Capscrew Gr 12.9 2
3 CA459 (0910364−) Chassis Bracket − Formed 525/636 S/Ploug 1
4 CA461 (0910364−) Chassis Bracket−Flat Hose Retention 525−1
5 GT286 (0910364−) Bolt,Hex Hd − M8 X 80 St.St A4 316 1
6 GW060 (0910364−) Washer − Form A − M8 −St St 2
7 GN004 (0910364−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 1
8 GT246 (0910364−) M5 X 90 Socket Capscrew Gr 12.9 2
9 CD441 (0910364−) Mounting Brkt− Weldment Hyd Manifold − S1
10 HC203 (0910364−) Hyd Manifold Assy −636 Snowbrush Gritter 1
11 GT071 (0910364−)M6 X 50 H.T. Hex Bolt Plated 3
12 GW003 (0910364−) Washer−Spring−1/4’ Perh100 Each 3
13 GW087 (0910364−) Washer − M6 Form C −St.St,A2 3
14 HF005 (0910364−) Coupling−Bulkhead−3/8’Bsp M/M Asl Produc 1
15 HF092 (0910364−) Bulkhead−1/4 Bsp M/M 1
16 HF200 (0910364−) Qrc − Return From Gritter & Snowbrush 2
17 HF199 (0910364−) Qrc − Pressure For Gritter & Snowbrush 2
18 HF204 (0910364−) Cap, Dust − For Qrc Hf201 4
19 HF205 (0910364−) Cap, Dust − For Qrc Hf199 2
20 WA340 (0910364−) Plate, Number Mounting − Dvlpment 1
21 GT339 (0910364−)Screw,Button Hd Hex Skt −M6 X 35 A4 St.S 3
22 GN046 (0910364−) Nut, Nyloc Thin − M6 Zinc Plated Zinc Pl 3
o23 ES062 (0910364−) Light − Number Plate 2ka001 389−107 2
YES053 (0910364−) Bulb − Rear Light R.O. To Suit Eso5o 1
24 GM024 (0910364−) Clip−Pvc Adhesive Pack−25 250ml 2
25 GB097 (0910364−)Boss, 16mm Dia X M6 2
26 GT308 (0910364−) Screw, Button Hd Hex Skt − M6 X 25 Grad 4
27 GN011 (0910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 1
28 GM255 (0910364−) Legend − Impeller Engagement/Snowbrush 1
o29 GM541 (0910364−) Legend,Gritter 1
YES266 (0910364−)Bulb/Bulb Holders −525 Switches 12volts 1
30 ES252 (0910364−) Surround,Switch 2
31 ES211 (0910364−) Switch − Off/On Double Pole 2
32 ES752 (0910364−) Isolation Switch − Winter Equipment 1
33 HF201 (0910364−) Qrc − 1/4bsp Inlet Male Connector 3
34 HF202 (0910364−) Qrc − 1/4bsp Inlet Female Connector 5
35 HF064 (0910364−) Blanking Plug − [J] Block Bg1541 4
36 HF335 (0910364−) Reduced Bulkhead−1/4” Bspmale 18mm Long 4
37 HF321 (0910364−) Adaptor−1/2”Bsp − 3/8”Bsp Bulkhead W/Nut 2
38 AS069 (0910364−) Bracket, Lh Formed − Snowplough/Brush 1
39 AS067 (0910364−)Bracket, Rh Formed − Snowplough/Brush 1
40 HF203 (0910364−) Cap, Dust − For Qrc Hf202 5
EW258 (0910364−) Wiring Loom, Snowbrush/Gritter Chassis −1
EW257 (0910364−) Wiring Loom, Snowbrush/Gritter Headliner 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐50
Fig. 25 − Winter Option Connection Hydraulic Hose Group
RHBA
RHBB
LHBA
LHBB
Main Control Valve
Left Hand Brush
Extension Cylinder
Right Hand Brush
Extension Cylinder
T
OC
P1
P2
A1
A2
C
B
BP
FP
FR
Cooler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17 18
Home
Find...
Go To..
OPTIONS
3‐51
636 UK YM165 (6−2013)
356395
Fig. 25 − Winter Option Connection Hydraulic Hose Group
Ref. Part No. Serial Number Description Qty.
1 HJ367 (0910364−)Hose Assy − P2 On Hc203 To Fp Hc182 1
2 HJ369 (0910364−) Hose Assy − Port Bp Hc182 To P1 Hc203 1
3 HJ582 (0910364−) Hose−Hc203 To Rotary Brush Qrc Mk 2 1
4 HJ368 (0910364−) Hose Assy − A2 On Hc203 To Fan Manifold 1
5 HJ371 (0910364−) Hose Assy − Port C Hc203 To Gritter 1
6 HJ373 (0910364−)Hose Assy − Port B Hc203 To Brush Motor 1
7 HJ366 (0910364−) Hose Assy − Port T On Hc158 To Tank Rtrn 1
8 HJ365 (0910364−) Hose Assy − Tee On Port Oc To Port Fr Fo 1
9 HJ374 (0910364−) Hose Assy − Rotary Brush Rtrn To M/Fold 1
10 HF157 (0910364−) Tee Piece − 1/2 Bsp Male X Swivel Femal 1
11 HJ581 (0910364−)Hose Cyl Block To Rh Qrc − Mk2 Winter Eq 2
12 HJ580 (0910364−) Hose Cyl Block To Lh Qrc − Mk2 Winter Eq 2
13 HJ579 (0910364−) Hose Rh Brush In/Out To Qrc Mk2 Wint Hyd 2
14 HJ584 (0910364−) Hose−Lh Brush In/Out To Qrc Mk2 Wint Hyd 2
15 HJ372 (0910364−) Hose Assy − Gritter Return To Tank 1
16 HF333 (0910364−) Adaptor−1/4”Bspx1/4”Bsp Compact Elbow 4
17 HF202 (0910364−) Qrc − 1/4bsp Inlet Female Connector 2
18 HF201 (0910364−) Qrc − 1/4bsp Inlet Male Connector 2
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐52
Fig. 26 − Winter Option Front Snow Plow Group
2
9
5
1.1
1.2
6
9.1
9.2
4
4.3
4.2
4.1
2.13.2
3.1
2.21
3
9.1.1
9.2.1
7
1.3
9.1.2
9.2.2
8
Home
Find...
Go To..
OPTIONS
3‐53
636 UK YM165 (6−2013)
######
Fig. 26 − Winter Option Front Snow Plow Group
Ref. Part No. Serial Number Description Qty.
1(1303036−) 1
1.1 (1303036−)1
1.2 (1303036−)1
1.3 (1303036−)1
2 (1303036−)1
2.1 (1303036−) 1
2.2 (1303036−)1
3 (1303036−)1
3.1 (1303036−)1
3.2 (1303036−)1
4(1303036−) 1
4.1 (1303036−)1
4.2 (1303036−)1
5 (1303036−)1
6 (1303036−)1
7(1303036−) 1
8 (1303036−)1
9 (1303036−)1
9.1 (1303036−)1
9.1.1 (1303036−)1
9.1.2 (1303036−) 1
9.2 (1303036−)1
9.2.1 (1303036−)1
9.2.2 (1303036−)1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐54
Fig. 27 − Winter Option Front Brush Group
Home
Find...
Go To..
OPTIONS
3‐55
636 UK YM165 (6−2013)
######
Fig. 27 − Winter Option Front Brush Group
Ref. Part No. Serial Number Description Qty.
1(1303036−) 1
1.1 (1303036−)1
1.2 (1303036−)1
2 (1303036−)1
2.1 (1303036−)1
3(1303036−) 1
3.1 (1303036−)1
3.2 (1303036−)1
3.3 (1303036−)1
4 (1303036−)1
4.1 (1303036−) 1
5 (1303036−)1
5.1 (1303036−)1
5.2 (1303036−)1
5.3 (1303036−)1
5.4 (1303036−) 1
5.5 (1303036−)1
5.6 (1303036−)1
6 (1303036−)1
6.1 (1303036−)1
7(1303036−) 1
7.1 (1303036−)1
7.2 (1303036−)1
7.3 (1303036−)1
7.4 (1303036−)1
7.5 (1303036−) 1
8 (1303036−)1
8.1 (1303036−)1
8.2 (1303036−)1
8.3 (1303036−)1
8.4 (1303036−) 1
8.5 (1303036−)1
8.6 (1303036−)1
8.7 (1303036−)1
9 (1303036−)1
9.1 (1303036−) 1
9.2 (1303036−)1
10 (1303036−)1
10.1 (1303036−)1
10.2 (1303036−)1
10.3 (1303036−) 1
11 (1303036−)1
11.1 (1303036−)1
11.2 (1303036−)1
11.3 (1303036−)1
11.4 (1303036−) 1
12 (1303036−)1
12.1 (1303036−)1
12.1.2 (1303036−)1
12.2 (1303036−)1
12.2.1 (1303036−) 1
12.3 (1303036−)1
13 (1303036−)1
14 (1303036−)1
15 (1303036−)1
16 (1303036−) 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐56
Fig. 28 − Winter Option, Rear Gritter Box Group
7.12.11
7.2
7.3
5.8
5.6
2.12
5.7
2.3
2.2
1.3
2.1
2.5
1.1
2.4
1.2
1.4
1.5
2.7
2.8
6.1
6.8
6.9
6.4
6.5
6.10
1.2 6.2 6.3
6.6 6.74.3
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐58
######
Fig. 28 − Winter Option, Rear Gritter Box Group (Continued)
Ref. Part No. Serial Number Description Qty.
1(1303036−) 1
1.1 (1303036−)1
1.2 (1303036−)1
1.3 (1303036−)1
1.4 (1303036−)1
1.5 (1303036−) 1
2 (1303036−)1
2.1 (1303036−)1
2.2 (1303036−)1
2.3 (1303036−)1
2.4 (1303036−) 1
2.5 (1303036−)1
2.6 (1303036−)1
2.7 (1303036−)1
2.8 (1303036−)1
2.9 (1303036−) 1
2.10 (1303036−)1
2.11 (1303036−)1
2.12 (1303036−)1
2.13 (1303036−)1
2.14 (1303036−) 1
3 (1303036−)1
3.1 (1303036−)1
3.2 (1303036−)1
3.3 (1303036−)1
4(1303036−) 1
4.1 (1303036−)1
4.2 (1303036−)1
4.3 (1303036−)1
5 (1303036−)1
5.1 (1303036−) 1
5.2 (1303036−)1
5.3 (1303036−)1
5.4 (1303036−)1
5.5 (1303036−)1
5.6 (1303036−) 1
5.7 (1303036−)1
5.8 (1303036−)1
5.9 (1303036−)1
6 (1303036−)1
6.1 (1303036−) 1
6.2 (1303036−)1
6.3 (1303036−)1
6.4 (1303036−)1
6.5 (1303036−)1
6.6 (1303036−) 1
6.7 (1303036−)1
6.8 (1303036−)1
6.9 (1303036−)1
6.10 (1303036−)1
7(1303036−) 1
7.1 (1303036−)1
7.2 (1303036−)1
7.3 (1303036−)1
Home
Find...
Go To..
OPTIONS
3‐59
636 UK YM165 (1−2015)
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐60
Fig. 29 − Nozzle Lift Group
1
23
4
5
Home
Find...
Go To..
OPTIONS
3‐61
636 UK YM165 (5−2015)
356389
Fig. 29 − Nozzle Lift Group
Ref. Part No. Serial Number Description Qty.
oYA205 (0910364−)Nozzle Jog Option 1
Y1 ES684 (0910364−) Button, Push, Momentary Square 1P67 1
Y2 MD081 (0910364−) Plate, Facia − Formed Armrest 1
Y3 ES180 (0910364−) Relay, Automotive − 12V, 35/40A, Spco 1
Y4 EW379 (0910364−) Wiring Loom, Nozzle Jog − Cab − Refresh 1
Y5 EW380 (0910364−)Wiring Loom, Nozzle Jog − Chassis−Refresh 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (1−2015)
3‐62
Fig. 30 − Wander Hose Group (910364 − 1411357)
1
2
3
4
4
3
6
5
7
8
9
10
11 12
13
9
14
15
16
17
18
19
20
21
22
Home
Find...
Go To..
OPTIONS
3‐63
636 UK YM165 (1−2015)
354872
Fig. 30 − Wander Hose Group (910364 − 1411357)
Ref. Part No. Serial Number Description Qty.
1 VH572 (910364−1411357 ) Tube Wldt, Spigot, Woosh Inlet 1
2 AW006 (910364−1411357 ) Cuff − Tapered 1
3 GG086 (910364−1411357 ) Jubilee Clip − 110 To 140mm 2
4 AW040 (910364−1411357 ) Rubber Band 4’ Wide[Black] 150flatx100x1 2
5 AW053 (910364−1411357 ) Hose − Whoosh 4 1/2[114mm] X 2.2m 1
oAW136 (910364−1411357 ) Whoosh Handle Assembly No Hose 1
Y6 AW048 (910364−1411357 ) Nozzle − Plastic 1
Y7 AW125 (910364−1411357 ) Whoosh Handle 1
Y8 AW046 (910364−1411357 ) Bracket, Whoosh Handle − Painted 1
Y9 GT327 (910364−1411357 ) Screw,Button Hd Hex Skt−M6 X 16 12
Y10 AW130 (910364−1411357 ) Tube, Handle, Whoosh 1
Y11 AW124 (910364−1411357 ) Swivel, Top End 1
Y12 CD419 (910364−1411357 ) Tube, Spacer, Cloudmaker, 05mm 1
13 AW175 (910364−1411357 ) Bracket − Retaining − Formed Whoose Hose 5
14 GW087 (910364−1411357 ) Washer − M6 Form C −St.St,A2 10
15 GN078 (910364−1411357 ) Nut, Nyloc Thin− M6 − St/St A4−80 500e 10
16 AW140 (910364−1411357 ) Fastener−Rubber (Short) 5
17 GM154 (910364−1411357 ) Snap Clip − 46 Mm (S/Plow) 87172 5
oVK127 (910364−) Blanking Plate , Hopper Inlet [636] 1
Y18 GG329 (910364−) Handle, Hopper Blanking Plate 1
Y19 GT327 (910364−)Screw,Button Hd Hex Skt−M6 X 16 2
Y20 GN011 (910364−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
Y21 GW087 (910364−) Washer − M6 Form C −St.St,A2 2
Y22 VK105 (910364−) Blanking Plate 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (5−2015)
3‐64
Fig. 31 − Wander Hose Group (1411358− )
1
2
34
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
22 23
17
18
18
19
20
20
21
24
25
26
27
26 24
25
27
28 29
30
31
21
23
32
33
34
35 36
37
Home
Find...
Go To..
OPTIONS
3‐65
636 UK YM165 (5−2015)
356567
Fig. 31 − Wander Hose Group (1411358− )
Ref. Part No. Serial Number Description Qty.
oAW198 (1411358−)Nozzle & Handle Assembly 1
Y1 AW205 (1411358−) Mounting Bracket Weldment, Whoosh Nozzle 1
Y2 AW199 (1411358−) Nozzle − Whoosh − Hopper 1
Y3 AW202 (1411358−) Handle, Folded − Nozzle Whoosh 1
Y4 GT331 (1411358−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 4
Y5 GG044 (1411358−)Door Stop Female 0775/001 1
Y6 GN004 (1411358−) Nut, Nyloc − M8 Zinc Plated Zinc Plated 4
Y7 GT327 (1411358−) Screw,Button Hd Hex Skt−M6 X 16 1
Y8 GN078 (1411358−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
9 AW206 (1411358−) Bracket, Parking Weldment −Nozzle Whoosh 1
10 GT327 (1411358−)Screw,Button Hd Hex Skt−M6 X 16 2
11 GN011 (1411358−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
12 GG033 (1411358−) Door Stop Male 0666/002 1
13 GT338 (1411358−) Screw,Button Hd Hex Skt−M6 X 30 A4 1
14 GN078 (1411358−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 1
15 VK329 (1411358−)Side Cover Weldment − Rh 636 1
16 VK332 (1411358−) Side Cover Lh Weldment − 636 Hopper 1
oAW193 (1411358−) Mounting Attachment Assy − Whoosh 2
Y17 AW189 (1411358−) Mounting Attachment − Whoosh 1
Y18 AW194 (1411358−) Spigot Plate, Weldment − Whoosh 2
Y19 GT327 (1411358−)Screw,Button Hd Hex Skt−M6 X 16 4
Y20 GN078 (1411358−) Nut, Nyloc Thin− M6 − St/St A4−80 500e 4
21 GT331 (1411358−) Screw,Button Hd Hex Skt−M8 X 20 St.St A 12
22 GW055 (1411358−) Washer − M8 Form C St/St 314 Stainless 3 10
23 GN069 (1411358−) Nut,Nyloc −M8 St.St A2 12
oAW216 (1411358−) Blanking Plug Sub Assembly − Whoosh 2
Y24 AW190 (1411358−) Blanking Plug − Whoosh 1
Y25 AW191 (1411358−) Locking Disc − Hopper − Whoosh 1
Y26 GT328 (1411358−) Screw,Button Hd Hex Skt−M6 X 20 2
Y27 GN098 (1411358−) Thin Nut,1 Bsf Plated 2
28 AW210 (1411358−)Bracket, Formed − Stow Nozzle − 636 1
29 AW212 (1411358−) Clamp Bracket − Stow Nozzle 2
30 GT042 (1411358−) M8 X 30 H.T. Hex Set Plated 1
31 GN069 (1411358−) Nut,Nyloc −M8 St.St A2 1
32 AW215 (1411358−) Whoosh Hose Sub Assembly 1
oVK127 (1411358−)Blanking Plate , Hopper Inlet [636] 1
Y33 GG329 (1411358−) Handle, Hopper Blanking Plate 1
Y34 GT327 (1411358−) Screw,Button Hd Hex Skt−M6 X 16 2
Y35 GN011 (1411358−) Nut, Nyloc − M6 Zinc Plated Zinc Plated 2
Y36 GW087 (1411358−) Washer − M6 Form C −St.St,A2 2
Y37 VK105 (1411358−)Blanking Plate 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (2−11)
3‐66
Fig. 32 − Autolube Group
2
67
8
9
1011
1
3
4
5
Home
Find...
Go To..
OPTIONS
3‐67
636 UK YM165 (5−2015)
9006292
Fig. 32 − Autolube Group
Ref. Part No. Serial Number Description Qty.
1 AL003 (0910364−)Connector, Straight − 4mm Push In − M6 X 8
2 AL004 (0910364−) Connector, 90 Deg Elbow − 4mm Push In M6 20
3 AL005 (0910364−) Connector,90 Deg Elbow − 4mm Push In X 4
4 AL014 (0910364−) Blanking Plug 8
5 AL015 (0910364−) Straight Connector M6 X 5/6 Unf 4
6 AL016 (0910364−)Pumping Unit − Green Collar 30
7 AL019 (0910364−) Connector, 4mm Double Ended 1
8 AL020 (0910364−) Protective Sleeving 5 Metre Roll 1
9 AL013 (0910364−) Auto Lub Pump 1
10 ES180 (0910364−) Relay, Automotive − 12v, 35/40a, Spco 1
11 ES339 (0910364−)Base, Relay 1
AL006 (0910364−) Grease Filled Tube − 50 Mtr Coil 2
AL017 (0910364−) Auto−Lube Grease − 1 Litre Bottle Nlgi−G2
AL021 (0910364−) Cable Tie 50
GM550 (0910364−) Autolube Identity Number 0 Pu40 Cco 500 2
GM551 (0910364−)Autolube Identity Number 1 Pu40 Cc1 500 12
GM552 (0910364−) Autolube Identity Number 2 Pu40 Cc2 500 11
GM553 (0910364−) Autolube Identity Number 3 Pu40 Cc3 500 3
GM554 (0910364−) Autolube Identity Number 4 Pu40 Cc4 500 3
GM555 (0910364−) Autolube Identity Number 5 Pu40 Cc5 500 3
GM556 (0910364−)Autolube Identity Number 6 Pu40 Cc6 500 3
GM557 (0910364−) Autolube Identity Number 7 Pu40 Cc7 500 3
GM558 (0910364−) Autolube Identity Number 8 Pu40 Cc8 500 3
GM559 (0910364−) Autolube Identity Number 9 Pu40 Cc9 500 2
EW392 (0910364−15046042 ) Wiring Loom − Central Lubrication 1
EW424 (15046043−)Wiring Loom − Central Lubrication 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (6−2013)
3‐68
Fig. 33 − Suspension Seat Group
1
2
3
4
356392
Ref. Part No. Serial Number Description Qty.
1 MD116 (1303036−)Air Suspension Seat − 711LP 1
2 MD159 (1303036−) Plate − Seat, For Air Suspension Seat 1
3 CP526 (1303036−) Seat Bench − Air Suspension Seat 1
4 MD160 (1303036−) Seat Bracket, Arm Rest, Weldment 1
EW388 (1303036−)Wiring Loom, Power Supply To Suspension 1
Home
Find...
Go To..
OPTIONS
3‐69
636 UK YM165 (2−11)
Fig. 34 − Fire Extinguisher Group
1
2
356230
Ref. Part No. Serial Number Description Qty.
1 GM477 (0910364−)Extinguisher, Fire, 2kg Dry Powder 1
2 CD435 (0910364−) Bracket, 2Kg Fire Extinguisher Mounting 1
Home
Find...
Go To..
OPTIONS
636 UK YM165 (NIL)
3‐70
Fig. 35 − Documentation Group
Ref. Part No. Serial Number Description Qty.
YM165 (0910364−)Parts Manual 636 Uk Version 1
9006280 (0910364−) Manual, Oprtr [636, En, Na, Green Mach] 1
YM057 (0910364−) Workshop Manual − 636 1
9006569 (0910364−) Video, Oprtr, Dvd [636] 1
To view, print, order, download the latest Parts manual, other language
Operator manuals, and Use and Care Guides (wall charts) visit:
www.tennantco.com/manual
Home
Find...
Go To..
BREAKDOWNS
4‐1
636 UK YM165 (2−11)
SECTION 4
Contents Page
Fig. 1 − Hydraulic Reservoir Breakdown, HT096 4-2.
Fig. 2 − Hydraulic Reservoir Breakdown, HT111 4-4.
Fig. 3 − Hydraulic Valve Breakdown, HC181 4-6....
Fig. 4 − Hydraulic Valve Breakdown, HC182 4-8....
Fig. 5 − Hydraulic Valve Breakdown, HC158 4-10...
Fig. 6 − Hydraulic Valve Breakdown, HC190 4-12...
Fig. 7 − Hydraulic Valve Breakdown, HC189 4-14...
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐2
Fig. 1 − Hydraulic Reservoir Breakdown, HT096
1
2
3
4
5
6
7
8
9
10
11
12
13
14
354892
Ref. Part No. Description Qty.
oHT096 )Hydraulic Tank Assembly −636 1
Y1 HT064 Hydraulic Tank Weldment,636 1
Y2 HC156 Oil Level/Temperature Gauge 1
Y3 HC153 Suction Strainer − Auxilliary Pump For T 1
Y4 HT084 Lid,Tank Inspection/Access For Hose 1
Y5 HF153 Plug, 1−1/4 Bsp Duroplast 1
Y6 HT088 Filter,Filler Neck 1
Y7 HT050 Seal, Hydraulic Tank−3mm Tan Grain As Pe 1
Y8 PD069 Drain Plug 16541−33750 1
Y8 PD053 Gasket − Sump Drain Plug 15451−9667 1
Y9 GW013 Washer, Form A − M10 Zinc Plated Per 100 2
Y10 GT130 M10 X 30 Hex Ptd. 500e 2
Y11 GT112 Screw, Btn, M5 X 0.8 X 15 8
Y12 GN109 Washer, Nyl, 1/4 8
Y13 HC152 Suction Strainer − Steering Pump 125 Mic 1
Y14 HF271 Adapter, 3/4 Male X 3/4 Swivel Female Co 1
Home
Find...
Go To..
BREAKDOWNS
4‐3
636 UK YM165 (8−2014)
Fig. 2 − Hydraulic Reservoir Breakdown, HT111
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
354892
Ref. Part No. Description Qty.
oHT111 )Hydraulic Tank Assembly −636 with level sensor 1
Y1 HT112 Hydraulic Tank Weldment,636with level sensor 1
Y2 HC156 Oil Level/Temperature Gauge 1
Y3 HC153 Suction Strainer − Auxilliary Pump For T 1
Y4 HT084 Lid,Tank Inspection/Access For Hose 1
Y5 HF153 Plug, 1−1/4 Bsp Duroplast 1
Y6 HT088 Filter,Filler Neck 1
Y7 HT050 Seal, Hydraulic Tank−3mm Tan Grain As Pe 1
Y8 PD069 Drain Plug 16541−33750 1
Y8 PD053 Gasket − Sump Drain Plug 15451−9667 1
Y9 GW013 Washer, Form A − M10 Zinc Plated Per 100 2
Y10 GT130 M10 X 30 Hex Ptd. 500e 2
Y11 GT112 Screw, Btn, M5 X 0.8 X 15 8
Y12 GN109 Washer, Nyl, 1/4 8
Y13 HC248 Suction Strainer − Steering Pump 125 Mic 1
Y14 HF271 Adapter, 3/4 Male X 3/4 Swivel Female Co 1
Y15 ES253 Transducer, Mmu Hydraulic oil Sae Ts/Irn 1
Y16 ES386 Level Sensor Assembly, Hyd Tank Low Oil Level 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (1−2015)
4‐4
Fig. 3 − Hydraulic Valve Breakdown, HC181
11
1
2
3
4
5
6
6
6
9
10
9
10
7
8
7
8
7
8
8
7
Home
Find...
Go To..
BREAKDOWNS
4‐5
636 UK YM165 (8−2014)
356058
Fig. 3 − Hydraulic Valve Breakdown, HC181
Ref. Part No. Description Qty.
oHC181 )Manifold Assy,Transm 1
Yo1 HV182 Valve, Spool 3 Way High Pressure 1
YY 2 HV198 Seal Kit Sk8−3p−Mm 1
Y3 HV123 Coil−Ey− Type For Solenoid−Sv10 4300212 1
Yo4 HF172 Nut − Retaining − Manifold 636 1
YY 5 HF171 Mounting Stud − Manifold 636 1
Y6 HF174 O Ring Kit−6 Rings−Mounting Studs Manif 1
Yo7 HV181 Valve, Logic Element For Hc181 4
YY 8 HV199 Seal Kit Sk10−S3p−Mm 1
Yo9 HV184 Flow Divider/Combiner Fd12 Sk12−40mmt 2
YY 10 HV118 Seal Kit −Flow Divider / Combiner Sk12−4 1
11 Es278 PRESSURE Transducer C/W Plug 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐6
Fig. 4 − Hydraulic Valve Breakdown, HC182
1
2
3
4
5
6
7
8
9
10
11
12
13
14
17 18
15
16
Home
Find...
Go To..
BREAKDOWNS
4‐7
636 UK YM165 (2−11)
356059
Fig. 4 − Hydraulic Valve Breakdown, HC182
Ref. Part No. Description Qty.
oHC182 )Manifold Assy,Hydraulic−636 Motors 9002−1
Yo1 HV095 Solenoid Valve Sv10−21−0−V−00 1
YY 2 HV140 Seal Kit,Valve Size 10,2 Way Type−Viton 1
Y3 HV175 Coil,Eyz Type −For Series 10 Sol Valves 1
Y4 HV142 Nut, Solenoid Coil,Series E For Sv10−21 1
Yo5 HV170 Valve,D/A High Pressure Relief Valve Rv5 1
YY 6 HV171 Seal Kit,Series 10, 2 Way Polyurethane T 1
Yo7 HV173 Valve,Proportional Solenoid −Sp10 Opreat 1
YY 8 HV140 Seal Kit,Valve Size 10,2 Way Type−Viton 1
YY 9 HV175 Coil,Eyz Type −For Series 10 Sol Valves 1
YY 10 HV122 E Coil Nut 4502960 1
Yo11 HV172 Valve,Proportional Solenoid−Sp08 Operat 1
YY 12 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
YY 13 HV174 Coil,Eyz Type −For Series 8 Sol Valve 4 1
YY 14 HV122 E Coil Nut 4502960 1
Yo15 HV167 Valve,Pressure Compensator,High Pressure 1
YY 16 HV169 Seal Kit,Series 10, 4 Way Polyurethane T 1
Yo17 HV168 Valve,Pressure Compensator,220 Spg Ec50−1
YY 18 HV169 Seal Kit,Series 10, 4 Way Polyurethane T 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐8
Fig. 5 − Hydraulic Valve Breakdown, HC158
1
2
3
4
5
1
2
3
4
5
6
7
7
8
9
6
7
8
9
6
7
10
11
12
13
14
15
16 17
18
19
20 21
22
18
19
20 21
22
23 24
25 26
27
28
29 30
31 32
33
34
33
34
35 36 37
Home
Find...
Go To..
BREAKDOWNS
4‐9
636 UK YM165 (2−11)
356060
Fig. 5 − Hydraulic Valve Breakdown, HC158
Ref. Part No. Description Qty.
oHC158 )Manifold Block Compl 1
Yo1 HV111 Solenoid Valve Sv08−47d−0−N−00 2
YY 2 HV104 Seal Kit,Valve Size 8,4way,Mmm 1
YY 3 HV174 Coil,Eyz Type −For Series 8 Sol Valve 4 2
YY 4 HV125 Coil Spacer ( To Fit Twin Coil Valves ) 2
YY 5 HV122 E Coil Nut 4502960 2
Yo6 HV108 Solenoid Valve,Blocking/Low Flow,2way,Nc 4
YY 7 HV051 Seal Kit Free Wheel Valve Sko8−2v−M1
YY 8 HV174 Coil,Eyz Type −For Series 8 Sol Valve 4 4
YY 9 HV122 E Coil Nut 4502960 4
Yo10 HV039 Valve, Pressure Compensator Ec10−40−0−V−1
YY 11 HV139 Seal Kit,Valve Size 10, 4 Way Type−Viton 1
Yo12 HV102 Solenoid Valve Sv08−21−0−V−00 1
YY 13 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
Y14 HV174 Coil,Eyz Type −For Series 8 Sol Valve 4 1
Y15 HV124 E Coil Nut To Fit Valve Sv08−21−0−N−00 1
Yo16 HV101 Relief Valve Rv08−20a−0−V−33/ M2110(210 1
YY 17 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
Yo18 HV103 Solenoid Valve Sv08−47c−0−N−00 1
YY 19 HV104 Seal Kit,Valve Size 8,4way,Mmm 2
Y20 HV174 Coil,Eyz Type −For Series 8 Sol Valve 4 1
Y21 HV125 Coil Spacer ( To Fit Twin Coil Valves ) 2
Y22 HV122 E Coil Nut 4502960 2
Yo23 HV115 Relief Valve Rv08−20a−0−N−18/M50 Spring 2
YY 24 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
Yo25 HV106 Shuttle Valve Ls08−30−0−N 1
YY 26 HV107 Seal Kit,Valve Size 8 − 3 Way,Mm Sk08−3−1
Yo27 HV137 Pressure Reducing Valve Pr08−32a−0−N−03 11
YY 28 HV110 Seal Kit Pressure Reducing Valve Sk08−3−1
Yo29 HV112 P.O.Check Valve Pc08−30−0−N−25 Bias Spri 1
YY 30 HV113 Seal Kit P.O. Check Valve Sk08−3−V−Tm 1
Yo31 HV116 Check Valve Cv10−20−0−N−70 Bias Spring=4 1
YY 32 HV096 Seal Kit Check Valve 1
Yo33 HV208 Valve,Relief,Direct Acting Poppet Rv08−22
YY 34 HV045 Seal Kit− Reverse Solenoid & Check Valve 2
Yo35 HV062 Valve Check Reverse Speed Cv08−20−O−V−04 1
YY 36 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
Y37 HV120 Double Pilot Piston 7013387 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐10
Fig. 6 − Hydraulic Valve Breakdown, HC190
1
2
3
4
5
6
7
Home
Find...
Go To..
BREAKDOWNS
4‐11
636 UK YM165 (2−11)
356061
Fig. 6 − Hydraulic Valve Breakdown, HC190
Ref. Part No. Description Qty.
oHC190 )Hydraulic Manifold A 1
Yo1 HV167 Valve,Pressure Compensator,High Pressure 1
YY 2 HV169 Seal Kit,Series 10, 4 Way Polyurethane T 1
Yo3 HV095 Solenoid Valve Sv10−21−0−V−00 1
YY 4 HV140 Seal Kit,Valve Size 10,2 Way Type−Viton 1
Y5 HV123 Coil−Ey− Type For Solenoid−Sv10 4300212 1
Yo6 HV204 Relief Valve Rv08−20a−0−V−33/M140 1
YY 7 HV045 Seal Kit− Reverse Solenoid & Check Valve 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐12
Fig. 7 − Hydraulic Valve Breakdown, HC189
1
2
3
4
5
6
7
8
9
10
11
12
Home
Find...
Go To..
BREAKDOWNS
4‐13
636 UK YM165 (2−11)
356062
Fig. 7 − Hydraulic Valve Breakdown, HC189
Ref. Part No. Description Qty.
oHC189 )Manifold Assy, Hydraulic − Fan Motor 1
Yo1 HV193 Checkvalve − Int.3ca80 1
YY 2 HV194 Seal Kit [For 3ca80 Valve] 1
Yo3 HV190 Valve −Solenoid − Int. S229n 1
YY 4 HV192 Seal Kit [For S229n Valve] 1
Y5 HV191 Coil − For Int.S229 Valve 1
Y6 HV196 Nut, Coil [For S229n Valve] 1
Yo7 HV187 Valve − Solenoid − 2 Way Int. 1
YY 8 HV189 Seal Kit − For Int. S502 1
Y9 HV188 Coil − Int. − For S502 Valves 1
Y10 HV195 Coil Nut − S502 Intergrated Valve 1
Yo11 HV185 Valve− Relief − Int. 210 Bar 1
YY 12 HV186 Seal Kit [For Hv185 Relief Valve] 1
Home
Find...
Go To..
BREAKDOWNS
636 UK YM165 (2−11)
4‐14
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐1
636 UK YM165 (2−11)
SECTION 5
Contents Page
Fig. 1 − Crankcase Group 5-2...............
Fig. 2 − Oil Pan Group 5-4..................
Fig. 3 − Cylinder Head Group 5-5............
Fig. 4 − Gear Case Group 5-6...............
Fig. 5 − Water Pump Group 5-8..............
Fig. 6 − Main Bearing Case Group 5-9........
Fig. 7 − Head Cover Group 5-10.............
Fig. 8 − Exhaust Manifold Group 5-11........
Fig. 9 − Inlet Manifold Group 5-12............
Fig. 10 − Valve, Rocker Arm Group 5-13.......
Fig. 11 − Camshaft Group 5-14...............
Fig. 12 − Piston and Crankshaft Group 5-16....
Fig. 13 − Flywheel Group 5-18................
Fig. 14 − Nozzle Holder and
Glow Plug Group 5-19..............
Fig. 15 − Injection Pump Group 5-20..........
Fig. 16 − Injection Pump Breakdown 5-22......
Fig. 17 − Fuel Camshaft Group 5-24...........
Fig. 18 − Idling Group 5-25...................
Fig. 19 − Speed Control Plate Group 5-26......
Fig. 20 − Governor Group 5-27...............
Fig. 21 − Water Flange Group 5-28............
Fig. 22 − Turbo Charger Group 5-29...........
Fig. 23 − Oil Cooler Group 5-30...............
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (1−2012)
5‐2
Fig. 1 − Crankcase Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19 20
18 21
6
2
12
11
6
22
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐3
636 UK YM165 (8−2014)
Fig. 1 − Crankcase Group
Ref. Part No. Description Qty.
o 1 ) Crankcase, Complt [Ku] 1
Y 2 PP311 Cap Sealing 6
Y 3 39087 Plug, Cup, Sealing [Ku] 1
Y 4 39088 Fitting, Pipe, Plug [Ku] 4
Y 5 Bolt [Ku] 1
Y 6 71985 Fitting, Pipe, Plug [Ku] 3
Y 7 39051 Fitting, Pipe, Plug [Ku] 2
Y 8 361436 Plug, Cup, Sealing [Ku] 3
Y 9 71986 Plug, Cup, Sealing [Ku] 1
Y10 71987 Pin, Dowel [Ku] 2
Y11 71988 Pin, Dowel [Ku] 2
Y12 71989 Pin, Dowel [Ku] 2
Y13 71990 Pin, Eng [Ku] 2
Y14 71991 Tube, Pin [Ku] 1
Y15 71992 Plug, Cup, Sealing [Ku] 1
Y16 9004337 Pin, Start, Spring 1
Y17 Plug, Eng [Ku] 1
Y18 70887 Bushing, Gear, Gov [Ku] 1
Y19 39062 Fitting, Plug [Ku] 1
Y20 393570 Gasket 1
21 70888 Fitting, Draincock [Ku] 1
22 PD005 Switch, Oil 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐4
Fig. 2 − Oil Pan Group
1
2
3
4
5
6
7
89
Ref. Part No. Description Qty.
1 PP456 )Pan, Oil, Dsl 1
2 9004338 Bolt [Ku] 26
3 Filter, Oil [Ku] 1
4 39094 Screw, Hex [Ku] 1
5 9004339 O−Ring [Ku] 1
6 PP457 Plug,Drain −V1505t 1
7 PP458 Gasket,Drain Plug −V1505t 1
8 PP459 Plug−Drain−V1505t−636 1
9 PP214 Gasket,Drain Plug D1105−T −525 1
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐5
636 UK YM165 (8−2014)
Fig. 3 − Cylinder Head Group
1
2
3
4
5
6
78
9
11
12
6
3
10
Ref. Part No. Description Qty.
1 71996 )Ear, Lifting, Eng [Ku] 1
2 PP172 Hook −Engine 1
3 39073 Screw, Hex [Ku] 2
o 4 PP419 Head, Cylinder [Ku] 1
Y 5 393504 Cap, Sealing 1
Y 6 39088 Fitting, Pipe, Plug [Ku] 2
Y 7 372906 Guide, Valve, Inlet 4
Y 8 372907 Guide, Valve, Exhaust 4
Y 9 361372 Plug, Cup, Sealing [Ku] 3
10 PP421 Cylinder Head Bolt,D1105t 18
11 PP460 Bolt,Cylinder Head −V1505t 1
12 PP420 Gasket, Cylinder Head V1505t 636 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐6
Fig. 4 − Gear Case Group
1
3
4
5
67
8
19
16
13
15
21
22
2
20
9
17
14
12
10
18
11 2
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐7
636 UK YM165 (8−2014)
Fig. 4 − Gear Case Group
Ref. Part No. Description Qty.
o 1 PP397 )Gearcase−D1105t 1
Y 2 361401 Fitting, Pipe, Plug [Ku] 4
Y 3 70900 Spring, Cmpr, Relief [Ku] 1
Y 4 70901 Tube, Seat, Valve, Oil [Ku] 1
Y 5 70902 Ball, Relief, Oil [Ku] 1
Y 6 70903 Pump, Oil, Eng [Ku] 1
Y 7 9004343 Pump, Oil, Cover [Ku] 1
Y 8 9004345 Screw [Ku] 5
Y 9 9004344 Pin, Straight [Ku] 1
10 72014 Screw, Hex [Ku] 1
11 72015 Screw, Hex [Ku] 2
12 72016 Bolt 1
13 9004346 Stud [Ku] 1
14 39121 Nut, Hex [Ku] 1
15 39065 Washer, Lock, Split [Ku] 1
16 PP161 Seal −Oil −Crankshaft −D1105t Engine 1
17 9004347 Stud [Ku] 1
18 72019 Cover 1
19 PP357 Gasket,Gear Case 1
20 72993 Screw, Hex [Ku] 3
21 384872 Bolt 4
22 39051 Fitting, Pipe, Plug [Ku] 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐8
Fig. 5 − Water Pump Group
1
2
3
4
5
6
7
8
9
12
11
12
10
13
Ref. Part No. Description Qty.
o 1 PP215 )Water Pump Assy, D1105−T −525 1
Y 2 9004403 Bearing [Ku] 1
Y 3 9004404 Seal, Mechanical Assy [Ku] 1
Y 4 9004405 Impeller, Pump, Water [Ku] 1
Y 5 70918 Pipe, Return, Pump, Water [Ku] 1
Y 6 70919 Flange, Pump, Water [Ku] 1
Y 7 PP216 Gasket,Water Pump D1105−T −525 1
8 9004407 Bolt [Ku] 2
9 9004406 Bolt [Ku] 4
10 368317 Hose, Water 1
11 PP245 Pipe,Water−525 Water Pump 1
12 9003870 Clamp [Kubota] 2
13 99088 1
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐9
636 UK YM165 (8−2014)
Fig. 6 − Main Bearing Case Group
1
2
3
4
5
6
7
10
11
12
10
10
9
2
2
2
8
13
14
14
14
Ref. Part No. Description Qty.
1 9004349 )Bearing, Case [Ku] 1
2 72998 Screw, Hex, Case, Brg, Main [Ku] 8
3 PP241 Gasket Bearing Case, D1105t 1
4 70923 Cover, Brg Case, Eng [Ku] 1
5 PP240 Seal,Oil, Main Bearing Case ,D1105t 1
6 PP239 Gasket,Main Bearing Case,D1105t 1
7 72999 Screw, Hex [Ku] 8
8 371017 Bolt 9
9 9004352 Bearing, Case, Main Assy [Ku] 1
10 73479 Screw, Hex, Case, Brg, Main [Ku] 3
11 9004354 Bearing, Case, Main Assy [Ku] 1
12 9004356 Bearing, Case, Main Assy [Ku] 1
13 70951 Bearing, Cshft, Std [Ku] 1
14 9004353 Crankshaft, Metal [Ku] 3
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐10
Fig. 7 − Head Cover Group
1
2
3
4
5
6
7
8
9
10
11
12
13
Ref. Part No. Description Qty.
o 1 73480 )Cover, Cylinder Head 1
Y 2 PP488 Cylinder Head Cover Gasket−D1505t 1
Y 3 73481 Joint, Breather Pipe 1
Y 4 70930 Plate, Element 1 1
Y 5 70931 Plate, Element 2 1
Y 6 70932 Element, Breather 1
Y 7 70933 Oil Shield, Breather 1
Y 8 73482 Screw, With Washer 2
9 73483 Nut, Cap 4
10 73484 Gasket 4
11 361374 Plug, Oil Filler 1
12 PP471 0−Ring−For Oil Filler 1505 Engine 1
13 73485 Pipe, Breather 1
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐11
636 UK YM165 (8−2014)
Fig. 8 − Exhaust Manifold Group
1
2
3
4
5
Ref. Part No. Description Qty.
1 PP486 )Exhaust Manifold−V1505 Engine 1
2 PP428 Gasket − Exhaust Manifold − V1505t − 636 1
3 PP181 Stud, Exhaust Manifold −D1105t 6
4 PP186 Nut, Exhaust Manifold −D1105t 6
5 PP180 Stud, Turbo−Charger D1105t 3
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐12
Fig. 9 − Inlet Manifold Group
1
2
6
4
5
3
7
8
9
9
10
10
Ref. Part No. Description Qty.
o 1 )Manifold, Inlet Assy [Ku] 1
Y 2 PP427 Gasket, Inlet Manifold − V1505t Engine 1
3 40409 Screw, Hex [Ku] 3
4 72996 Screw, Hex [Ku] 1
5 72994 Screw, Hex 2
6 9004412 Pipe, Inlet [Ku] 1
7 PP414 Inlet Pipe − 1505 Engine 1
8 9004414 Pipe, Inlet [Ku] 1
9 368287 Clamp, Hose 2
10 368286 Clamp, Hose 2
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐13
636 UK YM165 (8−2014)
Fig. 10 − Valve, Rocker Arm Group
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17 18
19
20
21
19
19
19
19
17
17
16
18
15
13
13
13
12
12
19
9
8
2
2
21
1
1
10
10
19
12
10
Ref. Part No. Description Qty.
1 PP401 )Valve,Inlet 4
2 PP402 Valve,Exhaust 4
3 9004408 Spring, Valve [Ku] 8
4 73492 Retainer, Spring, Valve [Ku] 8
5 73493 Retainer, Spring [Ku] 8
6 PP229 Valve Stem Seal −D1105t −525 8
7 PP235 Cap.Valve,D1105t −525 8
o 8 9004409 Shaft, Rocker, Arm [Ku] 1
Y 9 73496 Screw [Ku] 2
10 73497 Bracket, Mtg, Rocker Arm [Ku] 4
11 73498 Stud [Ku] 4
12 73499 Nut, Hex [Ku] 4
13 73500 Washer, Flat [Ku] 4
14 9004410 Pin, Spring [Ku] 1
15 73502 Washer, Shaft, Rocker [Ku] 2
16 361589 Washer, Flat [Ku] 2
17 73504 Spring, Cmpr, Rocker [Ku] 3
18 393598 Bolt 2
o19 73506 Arm, Rocker [Ku] 8
Y20 73507 Screw, Adj, Rocker Arm [Ku] 8
Y21 73508 Nut, Hex [Ku] 8
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐14
Fig. 11 − Camshaft Group
1
23
4
5
6
7
89
10
11
12
13
14
15
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐15
636 UK YM165 (2−11)
Fig. 11 − Camshaft Group
Ref. Part No. Description Qty.
1 9004358 )Tappet [Ku] 8
2 73509 Rod, Push, Valve [Ku] 8
o 3 9004359 Camshaft Assy [Ku] 1
Y 4 39197 Screw, Set [Ku] 1
Y 5 73511 Gear, Camshaft [Ku] 1
Y 6 73512 Key [Ku] 1
Y 7 73513 Stopper, Cam [Ku] 1
Y 8 41973 Bolt, Hex [Ku] 2
o 9 73514 Gear, Idler, Cam [Ku] 1
Y10 73515 Bushing, Gear, Idler [Ku] 1
11 73516 Collar, Gear [Ku] 1
12 73517 Washer, Collar, Gear [Ku] 1
13 73518 Ring, Snap [Ku] 1
14 73519 Shaft, Idler, Gear [Ku] 1
15 41973 Bolt, Hex [Ku] 3
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐16
Fig. 12 − Piston and Crankshaft Group
1
2
34
5
6
7
8
9
11
12
13
14
10
17
16
18
19
20
21
15
20
4
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐17
636 UK YM165 (8−2014)
Fig. 12 − Piston and Crankshaft Group
Ref. Part No. Description Qty.
1 9004360 )Piston [Ku] 4
2 PP422 Piston Ring − D1105t&V1505t 525/636 4
3 PP423 Piston Pin − D1105&V1505t 525/636 4
4 PP424 Circlip Piston Ring − D1105t/V1505t 525/ 8
o 5 73524 Rod Assy, Connecting [Ku] 4
Y 6 PP425 Bush − Piston Pin − D1105t & V1505t 525/ 4
Y 7 73525 Screw, Rod, Connecting [Ku] 8
Y 8 PP426 Metal Crankpin − D1105t&V1505t 525/636 4
o 9 73526 Crankshaft 1
Y10 70942 Bearing, Cshft [Ku] 1
Y11 73527 Ball, Cshft [Ku] 4
Y12 73528 Gear, Cshft [Ku] 1
Y13 73529 Key [Ku] 1
Y14 73530 Gear, Pump, Oil [Ku] 1
15 Screw, Hex, Cshft [Ku] 1
16 PP160 Collar − Crank Shaft −D11055t Engine 1
17 PP162 ’O’ Ring − Crankshaft − D1105t Engine 1
18 9004364 Crankshaft, Metal [Ku] 1
19 10844 Bearing, Thrust, Std [Ku] 2
20 10845 Bearing, Thrust, Std [Ku] 2
21 PP490 Pully, Fan [Ku] 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐18
Fig. 13 − Flywheel Group
1
2
3
4
Rear End Plate
Ref. Part No. Description Qty.
o 1 PP349 )Comp. Flywheel 1
Y 2 9004442 Gear, Ring 1
3 73533 Bolt, Flywheel 6
4 73534 Bolt 8
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐19
636 UK YM165 (8−2014)
Fig. 14 − Nozzle Holder and Glow Plug Group
1
3
52
6
7
8
10 11 12
13
14
17
15
16
15
6
5
4
8
8
8
9
18
Ref. Part No. Description Qty.
1 PP449 )Over−Flow Pipe Assembly − 636 Engine 1
2 73555 Fitting, Fuel [Ku] 1
3 40166 Gasket, F/ Bolt [Ku] 1
o 4 361373 Hose, Fuel [Ku] 1
Y 5 9004390 Pipe, Clip [Ku] 2
o 6 PP450 Nozzle Holder Kit 4
Y 7 PP280 Gasket, Injector − Lower 1
Y 8 PP281 Seal,Heat − Injector − Lower 1
9 PP360 Pipe,Injector 1
10 PP361 Pipe,Injector 1
11 PP362 Pipe,Injection 1
12 PP418 Pipe − Injection 1
13 30131 Clamp, Tube, Inj, Pipe #1 [Ku] 3
14 30132 Clamp, Tube, Inj, Pipe #21 [Ku] 3
15 PP178 Glow Plug −D1105t 4
16 73560 Cord, Ele, Glowplug 1
17 393566 Screw, W / Washer 3
18 9004393 Nut, Flange [Ku] 3
19 PP481 Tube Fuel V1505 Engine 1
20 PP483 Joint−T−Pipe(Fuel) V1505 Engine 1
21 PP482 Tube Fuel V1505 Engine 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐20
Fig. 15 − Injection Pump Group
1
2
3
4
5
6
7
8
9
10 11
8
12
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐21
636 UK YM165 (8−2014)
Fig. 15 − Injection Pump Group
Ref. Part No. Description Qty.
1 73565 )Fuel Pump Cover Plate 1
2 PP461 Injection Pump Assembly−V1505t 1
3 70972 Shim, Injection Pump 0.20 mm 1
4 70973 Shim, Injection Pump 0.25 mm 2
4 84644 Shim, Injection Pump 0.30 mm 1
5 73561 Bolt 3
6 73562 Stud 3
7 73563 Nut, Cap 3
8 39065 Washer, Spring 6
9 PD149 Gasket Lift−Fuel Pump −Z482 & D1105−T1
10 39121 Nut 2
11 39065 Washer, Spring 2
12 PP298 Fuel Pump,Electric −D1505 − 4 Cyl Engine 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐22
Fig. 16 − Injection Pump Breakdown
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐23
636 UK YM165 (8−2014)
Fig. 16 − Injection Pump Breakdown
Ref. Part No. Description Qty.
o 1 PP461 )Injection Pump Assembly−V1505t 1
Y 2 84648 Plunger, Pump 4
Y 3 73567 Valve, Delivery 4
Y 4 73568 Spring, Delivery Valve 4
Y 5 73569 Gasket, Delivery Valve 4
Y 6 73570 Holder, Delivery Valve 4
Y 7 73571 O−Ring 4
Y 8 73572 Flange, Sleeve 4
Y 9 73573 Pin, Joint 4
Y10 73574 O−Ring 8
Y11 73575 Screw 8
Y12 73576 Assembly Tappet 4
Y13 73577 Pin, Tappet Guide 4
Y14 73578 Pin, Clamp 1
Y15 73579 Spring, Plunger 4
Y16 73580 Seat, Spring Upper 4
Y17 73581 Seat, Spring Lower 4
Y18 73582 Shim 1
Y19 84649 Rack, Control 1
Y20 84650 Plate 1
Y21 73585 Screw 5
Y22 73586 Sleeve, Control 4
Y23 84651 Screw, Follow 1
Y24 73588 Gasket 2
Y25 73589 Screw 1
Y26 73590 Gasket 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐24
Fig. 17 − Fuel Camshaft Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
19 20
21
15
15
15
422
Ref. Part No. Description Qty.
1 84636 )Camshaft 1
2 9004368 Bearing, Ball [Ku] 1
3 9004369 Bearing, Ball [Ku] 1
4 Cam, Fuel [Ku] 1
5 73593 Nut, Cap, Cam [Ku] 1
6 73594 Key, Woodruff [Ku] 1
7 73595 Gear, Pump, Fuel [Ku] 1
8 Screw, Hex [Ku] 3
9 73596 Stopper, Fuel [Ku] 1
10 41973 Bolt, Hex [Ku] 2
o11 73597 Shaft, Govnr 1
Y12 73598 Holder, Gear [Ku] 1
Y13 73599 Gear, Govnr [Ku] 1
Y14 73600 Holder, Govnr [Ku] 1
Y15 73601 Weight, Comp, Govnr [Ku] 2
Y16 73602 Shaft, Govnr [Ku] 2
Y17 70977 Sleeve, Govnr [Ku] 1
Y18 70978 Washer, Thrust [Ku] 1
19 9004373 Bearing, Ball [Ku] 1
20 73603 Ring, Snap [Ku] 1
21 73604 Screw, Set [Ku] 1
22 Washer [Ku] 1
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐25
636 UK YM165 (8−2014)
Fig. 18 − Idling Group
1
2
3
4
5
6
7
8
9
10
11
5
12
13
14
Ref. Part No. Description Qty.
o 1 70980 )Assembly Apparatus, Idle 1
Y 2 73605 Assembly Bolt, Adjusting 1
Y 3 73606 Nut 1
Y 4 361375 Nut, Cap 1
Y 5 40166 Gasket 2
Y 6 30136 Cap 1
7 73610 Bolt, Adjusting 1
8 9004374 Nut 1
9 361375 Nut, Cap 1
10 40166 Gasket 2
11 30136 Cap 1
12 70188 Cover 1
13 9004375 Gasket [Ku] 1
14 PP115 Solenoid−Fuelstop [1105t]
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐26
Fig. 19 − Speed Control Plate Group
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16 17
5
3
Ref. Part No. Description Qty.
o 1 70982 )Plate, Cntrl, Spd [Ku] 1
Y 2 73618 Lever, Cntrl, Spd [Ku] 1
Y 3 73619 Lever, Cntrl, Spd [Ku] 2
Y 4 9004385 O−Ring [Ku] 1
Y 5 40407 Pin, Spring [Ku] 2
Y 6 73621 Washer, Flat [Ku] 2
Y 7 73622 Nut, Hex [Ku] 2
Y 8 73623 Lever, Plate, Cntrl [Ku] 1
Y 9 73624 Lever, Stop [Ku] 1
Y10 70983 Seal, Oil [Ku] 1
Y11 73625 Spring, Tors [Ku] 1
Y12 73626 Shaft, Lever, Spd [Ku] 1
13 70984 Gasket, Cover, Spd [Ku] 1
14 41973 Bolt, Hex [Ku] 2
15 9004386 Stud [Ku] 2
16 39121 Nut, Hex [Ku] 2
17 39065 Washer, Lock, Split [Ku] 2
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐27
636 UK YM165 (2−11)
Fig. 20 − Governor Group
1
3
4
7
89
11
5
3
2
6
10
12
3
3
Ref. Part No. Description Qty.
1 9004379 )Spring, Start [Ku] 1
2 70986 Spring, Ext, Govnr [Ku] 1
o 3 9004380 Lever, Fork Assy [Ku] 1
Y 4 9004381 Lever, Fork [Ku] 1
Y 5 9004382 Lever, Fork, Shaft [Ku] 1
Y 6 9004383 Lever, Fork, Shaft [Ku] 1
Y 7 70989 Bearing, Ball [Ku] 1
Y 8 73631 Cover, Lever, Gov [Ku] 1
Y 9 361430 Gasket, Cover, Gov [Ku] 1
10 39160 Bolt, Hex [Ku] 2
11 70991 Collar, Govnr [Ku] 1
12 70992 Bearing, Ball [Ku] 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (8−2014)
5‐28
Fig. 21 − Water Flange Group
1
2
3
4
5
6
7
8
9
10
11
12
83
Ref. Part No. Description Qty.
o 1 PP346 )Complete Flange,Water 1
Y 2 384859 Pipe, Water Return 1 1
3 Plug 2
4 PP232 Gasket,Water Flange D1105t & V1505t 1
5 41973 Bolt 3
6 72995 Bolt 1
7 PP315 Pipe,Water Return 1
8 73634 Band, Pipe 2
9 PP233 Assembly Thermostat,D1105t −525 1
10 PP182 Gasket, Thermostat 1
11 PP452 Cover − Thermostat − V1505 1
12 40418 Bolt 2
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐29
636 UK YM165 (8−2014)
Fig. 22 − Turbo Charger Group
1
9
7
5
7
8
10
11
6
4
2
312
Ref. Part No. Description Qty.
o 1 PP098 )Turbocharger Assembly 1
Yo 2 9004509 Hose, Turbo, Charger [Ku] 1
YY 3 9004510 Hose, Clamp [Ku] 2
4 PP188 Gasket,Turbo Charger To Exhaust Manifold 1
5 PP184 Nut, Turbo Manifold − D1105t 3
6 PP183 Spring Washer, Turbo Manifold D1105t 3
7 368296 Flange, Muffler 1
8 PP169 Gasket −Turbo Charger To Flange 1
9 73535 Screw, Hex [Ku] 3
10 368293 Bolt 1
11 39138 Bolt 2
12 PP089 Gasket−Muffler Muffler Gasket For D1105−2
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐30
Fig. 23 − Oil Cooler Group
1
14
2
3
8
7
15
13
10
1
2
3
3
3
4
5
6
9
10
11
16
17
17
17
18
Home
Find...
Go To..
ENGINE BREAKDOWN
5‐31
636 UK YM165 (8−2014)
Fig. 23 − Oil Cooler Group
Ref. Part No. Description Qty.
1 9004416 )Pipe, Oil [Ku] 1
2 368305 Bolt, Eye 1
3 PP286 Gasket, Oil Pipe 2
4 368302 Bolt, Eye 1
5 9004417 Pipe, Oil [Ku] 1
6 PP189 Gasket, Turbo Oil Pipe −D1105t 1
7 40409 Screw, Hex [Ku] 2
o 8 9004418 Pipe, Oil [Ku] 1
Y 9 368301 Tube, Oil 1
10 368298 Clamp, Hose 2
11 368299 Clamp, Pipe 1
12 368311 Pin, Clamp 1
13 9004419 Connector [Ku] 1
14 9004420 O−Ring [Ku] 1
15 9004421 Pipe, Oil, Cooler [Ku] 1
16 PP369 Pipe,Water Return 1
17 73634 Clamp, Hose, Heater [Ku] 4
18 368304 Collar 1
Home
Find...
Go To..
ENGINE BREAKDOWN
636 UK YM165 (2−11)
5‐32
Home
Find...
Go To..
CROSS REFERENCE
6‐1
636 UK YM165 (5−2015)
SECTION 6
CONTENTS PAGE
PART NUMBER TO PAGE NUMBER CROSS REFERENCE LIST 6-2......................................
PART DESCRIPTION TO PAGE NUMBER CROSS REFERENCE LIST 6-14...............................
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐2
PART NUMBER TO PAGE NUMBER CROSS REFERENCE LIST
Part Page
Number Number
01684 2‐3........
01685 3‐39........
01686 3‐25........
03495 3‐39........
08712 3‐9........
08713 3‐39........
1017368 2‐3.......
1017868 3‐39.......
1022831 3‐39.......
1023239 3‐39.......
1026007 3‐31.......
1028236 3‐41.......
1028374 3‐39.......
1031331 3‐39.......
1040049 2‐105.......
1042963 3‐33.......
1057707 1‐1.......
1057708 1‐1.......
1057710 1‐1.......
1057711 1‐1.......
10844 5‐17........
10845 5‐17........
14838 2‐3........
19191 3‐33........
21601 3‐39........
21602 3‐39........
21603 3‐39........
21606 3‐39........
222320 2‐3........
222321 2‐3........
222322 2‐3........
24299 2‐3........
24555 3‐39........
25046 3‐33........
25611 3‐33.........
26426 3‐25........
30131 5‐19........
30132 5‐19........
30136 5‐25........
32746 2‐3........
361372 5‐5........
361373 5‐19........
361374 5‐10........
361375 5‐25........
361401 5‐7........
361430 5‐27........
361436 5‐3........
361589 5‐13........
363162 3‐39........
363301 3‐39........
364441 3‐39........
368286 5‐12........
368287 5‐12........
368293 5‐29........
368296 5‐29........
368298 5‐31........
368299 5‐31........
368301 5‐31........
368302 5‐31........
368304 5‐31........
368305 5‐31........
368311 5‐31........
Part Page
Number Number
368317 5‐8........
371017 5‐9........
372906 5‐5........
372907 5‐5........
384859 5‐28........
384872 5‐7........
386067 3‐25........
386231 2‐3........
386264 3‐39........
386298 3‐39........
387237 3‐39........
39051 5‐3, 5‐7........
39062 5‐3........
39065 5‐7, 5‐21, 5‐26........
39073 5‐5........
39087 5‐3........
39088 5‐3, 5‐5........
39094 5‐4........
39121 5‐7, 5‐21, 5‐26........
39138 5‐29........
39160 5‐27........
39197 5‐15........
393504 5‐5........
393566 5‐19........
393570 5‐3........
393598 5‐13........
40166 5‐19, 5‐25........
40407 5‐26........
40409 5‐12, 5‐31........
40418 5‐28........
41973 5‐15, 5‐24, 5‐26, 5‐28........
43690 3‐25........
70188 5‐25........
70887 5‐3........
70888 5‐3........
70900 5‐7........
70901 5‐7........
70902 5‐7........
70903 5‐7........
70918 5‐8........
70919 5‐8........
70923 5‐9........
70930 5‐10........
70931 5‐10........
70932 5‐10........
70933 5‐10........
70942 5‐17........
70951 5‐9........
70972 5‐21........
70973 5‐21........
70977 5‐24........
70978 5‐24........
70980 5‐25........
70982 5‐26........
70983 5‐26........
70984 5‐26........
70986 5‐27........
70989 5‐27........
70991 5‐27........
70992 5‐27........
71985 5‐3........
71986 5‐3........
Part Page
Number Number
71987 5‐3........
71988 5‐3........
71989 5‐3........
71990 5‐3........
71991 5‐3........
71992 5‐3........
71996 5‐5........
72014 5‐7........
72015 5‐7........
72016 5‐7........
72019 5‐7........
72970 2‐59........
72993 5‐7........
72994 5‐12........
72995 5‐28........
72996 5‐12........
72998 5‐9........
72999 5‐9........
73479 5‐9........
73480 5‐10........
73481 5‐10........
73482 5‐10........
73483 5‐10........
73484 5‐10........
73485 5‐10........
73492 5‐13........
73493 5‐13........
73496 5‐13........
73497 5‐13........
73498 5‐13........
73499 5‐13........
73500 5‐13........
73502 5‐13........
73504 5‐13........
73506 5‐13........
73507 5‐13........
73508 5‐13........
73509 5‐15........
73511 5‐15.........
73512 5‐15........
73513 5‐15........
73514 5‐15........
73515 5‐15........
73516 5‐15........
73517 5‐15........
73518 5‐15........
73519 5‐15........
73524 5‐17........
73525 5‐17........
73526 5‐17........
73527 5‐17........
73528 5‐17........
73529 5‐17........
73530 5‐17........
73533 5‐18........
73534 5‐18........
73535 5‐29........
73555 5‐19........
73560 5‐19........
73561 5‐21........
73562 5‐21........
73563 5‐21........
Home
Find...
Go To..
CROSS REFERENCE
6‐3
636 UK YM165 (5−2015)
Part Page
Number Number
73565 5‐21........
73567 5‐23........
73568 5‐23........
73569 5‐23........
73570 5‐23........
73571 5‐23........
73572 5‐23........
73573 5‐23........
73574 5‐23........
73575 5‐23........
73576 5‐23........
73577 5‐23........
73578 5‐23........
73579 5‐23........
73580 5‐23........
73581 5‐23........
73582 5‐23........
73585 5‐23........
73586 5‐23........
73588 5‐23........
73589 5‐23........
73590 5‐23........
73593 5‐24........
73594 5‐24........
73595 5‐24........
73596 5‐24........
73597 5‐24........
73598 5‐24........
73599 5‐24........
73600 5‐24........
73601 5‐24........
73602 5‐24........
73603 5‐24........
73604 5‐24........
73605 5‐25........
73606 5‐25........
73610 5‐25........
73618 5‐26........
73619 5‐26........
73621 5‐26........
73622 5‐26........
73623 5‐26........
73624 5‐26........
73625 5‐26........
73626 5‐26........
73631 5‐27........
73634 5‐28, 5‐31........
74455 2‐21........
76736 2‐65........
80395 3‐39........
81818 3‐25........
83874 3‐39........
84636 5‐24........
84644 5‐21........
84648 5‐23........
84649 5‐23........
84650 5‐23........
84651 5‐23........
9003870 5‐8.......
9004337 5‐3.......
9004338 5‐4.......
9004339 5‐4.......
9004343 5‐7.......
9004344 5‐7.......
Part Page
Number Number
9004345 5‐7.......
9004346 5‐7.......
9004347 5‐7.......
9004349 5‐9.......
9004352 5‐9.......
9004353 5‐9.......
9004354 5‐9.......
9004356 5‐9.......
9004358 5‐15.......
9004359 5‐15.......
9004360 5‐17.......
9004364 5‐17.......
9004368 5‐24.......
9004369 5‐24.......
9004373 5‐24.......
9004374 5‐25.......
9004375 5‐25.......
9004379 5‐27.......
9004380 5‐27.......
9004381 5‐27.......
9004382 5‐27.......
9004383 5‐27.......
9004385 5‐26.......
9004386 5‐26.......
9004390 5‐19.......
9004393 5‐19.......
9004403 5‐8.......
9004404 5‐8.......
9004405 5‐8.......
9004406 5‐8.......
9004407 5‐8.......
9004408 5‐13.......
9004409 5‐13.......
9004410 5‐13.......
9004412 5‐12.......
9004414 5‐12.......
9004416 5‐31.......
9004417 5‐31.......
9004418 5‐31.......
9004419 5‐31.......
9004420 5‐31.......
9004421 5‐31.......
9004442 5‐18.......
9004493 3‐39.......
9004509 5‐29.......
9004510 5‐29.......
9006280 3‐70.......
9006569 3‐70.......
99088 5‐8........
AC017 2‐47, 3‐9........
AC019 3‐9........
AC020 2‐47, 3‐9........
AC021 3‐9........
AC032 3‐9........
AC033 3‐9........
AC044 3‐11........
AC052 3‐9........
AC054 3‐9........
AC058 3‐7........
AC059 3‐7........
AC072 3‐7........
AC076 3‐9........
AC086 3‐7........
AC087 3‐9........
Part Page
Number Number
AC117 3‐7........
AC118 3‐7........
AC126 3‐11........
AC127 3‐11........
AC129 3‐9........
AC134 3‐11........
AC135 3‐11........
AC136 3‐11........
AC137 3‐11........
AC200 3‐9........
AE074 2‐97, 3‐21........
AE078 3‐21........
AL003 3‐67........
AL004 3‐67........
AL005 3‐67........
AL006 3‐67........
AL013 3‐67........
AL014 3‐67........
AL015 3‐67........
AL016 3‐67........
AL017 3‐67........
AL019 3‐67........
AL020 3‐67........
AL021 3‐67........
AS067 3‐49........
AS069 3‐49........
AW006 3‐63........
AW009 2‐5........
AW040 3‐63........
AW046 3‐63........
AW048 3‐63........
AW053 3‐63........
AW124 3‐63........
AW125 3‐63........
AW130 3‐63........
AW136 3‐63........
AW140 3‐63........
AW175 3‐63........
AW189 3‐65........
AW190 3‐65........
AW191 3‐65........
AW193 3‐65........
AW194 3‐65........
AW198 3‐65........
AW199 3‐65........
AW202 3‐65........
AW205 3‐65........
AW206 3‐65........
AW210 3‐65........
AW212 3‐65........
AW215 3‐65........
AW216 3‐65........
BB007 2‐69........
BB028 2‐7........
BB045 2‐55, 2‐61, 2‐91........
BB063 2‐69........
BB077 2‐5, 2‐89........
BB079 2‐21, 2‐55, 2‐57, 2‐89,........
2‐103, 3‐35
BB084 3‐9........
BB116 2‐59........
BB118 2‐57........
BB120 2‐53........
BB121 2‐53........
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐4
Part Page
Number Number
BB123 2‐21........
BB124 2‐21........
BB125 2‐21........
BB126 2‐21........
BB127 2‐21........
BB129 2‐57........
BB132 2‐57........
BB133 2‐21........
BB134 2‐21........
BB135 2‐21........
BB136 2‐21........
BB137 2‐107........
BB140 2‐55........
BB145 2‐73........
BB146 2‐55........
BB149 2‐55........
BB154 2‐53........
BB171 2‐13........
BB173 2‐13........
BB174 2‐13........
BB175 2‐13........
BB176 2‐13........
BB177 2‐13........
BB178 2‐13........
BB179 2‐13........
BB182 2‐57........
BB192 2‐53........
BB196 2‐53........
BB199 3‐23........
BB203 2‐55........
BB204 2‐55........
BB205 2‐55........
BB206 2‐55........
BB207 2‐55........
BB208 2‐55........
BB209 2‐55........
BB210 2‐55........
BB211 2‐55........
BB212 2‐55........
CA032 2‐101, 2‐105........
CA276 2‐101........
CA302 2‐5........
CA364 2‐5........
CA459 3‐49........
CA461 3‐49........
CA780 2‐5........
CB793 2‐61........
CB799 2‐61........
CB810 2‐61........
CB822 2‐101........
CB823 2‐101........
CB836 2‐101........
CB840 2‐107........
CB850 2‐5........
CB855 2‐5........
CB878 2‐11........
CB890 2‐9........
CB894 2‐89........
CB898 2‐89........
CB902 2‐89........
CB904 2‐101........
CB937 2‐101........
CB939 2‐101........
CB946 2‐13, 2‐21........
Part Page
Number Number
CB964 2‐89........
CB978 2‐101........
CC356 2‐91........
CC362 2‐91........
CC370 2‐91........
CC381 2‐91........
CD001 2‐59........
CD007 2‐11........
CD036 3‐19........
CD055 2‐5........
CD065 2‐65........
CD070 2‐69........
CD076 2‐69........
CD078 2‐69........
CD083 2‐5........
CD090 2‐5........
CD099 2‐23........
CD100 2‐23........
CD103 2‐23........
CD106 2‐23........
CD121 2‐25........
CD135 2‐109........
CD136 2‐109........
CD146 2‐97........
CD154 1‐1, 2‐97........
CD155 2‐97........
CD156 2‐97........
CD165 2‐97........
CD168 2‐97........
CD170 2‐5........
CD183 2‐93, 2‐95........
CD227 2‐105........
CD245 2‐119........
CD290 2‐5........
CD294 2‐93, 2‐95........
CD296 2‐99........
CD298 3‐15........
CD300 3‐15........
CD305 2‐25........
CD383 2‐119........
CD386 2‐63, 3‐7........
CD405 2‐97........
CD408 2‐105........
CD413 2‐105........
CD418 2‐93, 2‐95........
CD419 2‐93, 2‐95, 3‐63........
CD424 2‐97........
CD435 3‐69........
CD437 3‐11........
CD441 3‐49........
CD457 3‐15........
CD458 2‐25........
CD461 2‐25........
CD463 2‐25........
CD465 2‐25........
CD477 2‐23........
CD506 2‐103........
CD507 3‐49........
CD527 2‐107........
CD528 2‐123........
CD580 2‐123........
CD696 3‐47........
CD698 3‐47........
CD757 2‐23........
Part Page
Number Number
CD767 2‐86........
CD768 2‐86........
CP090 2‐101........
CP193_C 2‐79, 2‐81......
CP194 2‐45........
CP196 2‐49........
CP197 2‐59........
CP201 2‐47........
CP205 2‐47........
CP214 2‐51........
CP225 3‐13........
CP232 2‐25........
CP233 2‐23........
CP235 2‐47........
CP237_C 2‐105......
CP242 2‐49........
CP250 2‐41........
CP251 3‐13........
CP522 2‐5........
CP524 2‐25........
CP525 2‐23........
CP526 3‐68........
CP527 2‐86........
CP531 3‐13........
CP532 2‐41........
CP533 2‐45........
CP534 2‐51........
CT002 2‐17........
CT019 2‐19........
CT021 2‐17, 2‐19........
CT025 2‐7, 2‐17, 2‐19........
CT039 2‐21, 2‐55........
CT053 2‐7, 2‐17, 2‐19........
CT056 2‐21........
CT057 2‐21........
EC014 2‐51........
EC019 2‐51........
EC020 3‐3........
EC021 3‐3........
EC022 3‐3........
EC023 3‐3........
EC043 2‐27, 2‐29........
EH015 2‐49........
EH016 2‐61........
EH018 2‐49........
EK011 3‐7........
EM011 2‐63........
ES012 2‐45, 2‐59........
ES017 2‐49........
ES018 2‐49........
ES031 2‐27........
ES032 2‐5, 2‐27........
ES053 2‐101, 3‐49........
ES062 2‐101, 3‐49........
ES099 2‐65........
ES130 2‐49........
ES134 2‐49........
ES158 3‐37........
ES162 2‐65........
ES180 2‐49, 3‐13, 3‐37, 3‐61,........
3‐67
ES192 2‐49........
ES206 2‐27, 2‐29........
ES209 2‐49........
Home
Find...
Go To..
CROSS REFERENCE
6‐5
636 UK YM165 (5−2015)
Part Page
Number Number
ES211 3‐49........
ES215 2‐45........
ES217 2‐27........
ES224 2‐49........
ES230 2‐53........
ES243 2‐5, 2‐27, 2‐29........
ES244 2‐27........
ES245 2‐27........
ES247 2‐51........
ES250 2‐51........
ES252 2‐49, 2‐51, 3‐49........
ES253 4‐3........
ES254 2‐5........
ES255 2‐5........
ES256 2‐5........
ES257 2‐61........
ES266 3‐49........
ES271 2‐49, 2‐51........
ES272 2‐51........
ES276 1‐1, 2‐5........
ES277 2‐45........
Es278 4‐5........
ES279 2‐61, 2‐91........
ES280 2‐7........
ES281 2‐7........
ES282 2‐69........
ES285 2‐19........
ES289 2‐103........
ES295 2‐65........
ES296 2‐45........
ES298 2‐27........
ES319 2‐65........
ES329 2‐27, 2‐29........
ES339 3‐67........
ES347 2‐27, 2‐29........
ES352 2‐49........
ES355 2‐47........
ES362 2‐73........
ES365 3‐5........
ES370 2‐49........
ES386 4‐3........
ES405 2‐47........
ES411 2‐51........
ES420 2‐51........
ES423 2‐53........
ES424 2‐53........
ES426 2‐49........
ES430 2‐89, 2‐99........
ES440 2‐49........
ES448 2‐51........
ES451 2‐65........
ES458 2‐5, 2‐29........
ES497 2‐51........
ES526 2‐51, 3‐19........
ES622 2‐57........
ES684 3‐37, 3‐61........
ES705 2‐27, 2‐29........
ES708 2‐27, 2‐29........
ES712 2‐27........
ES736 2‐23, 2‐25, 2‐29........
ES737 2‐29........
ES738 2‐29........
ES739 2‐29........
ES740 2‐5........
Part Page
Number Number
ES741 2‐49........
ES742 2‐29........
ES744 2‐5........
ES745 2‐65........
ES746 2‐65........
ES747 2‐65........
ES748 2‐65........
ES749 2‐65........
ES750 2‐65........
ES752 3‐49........
ES753 3‐5........
ES754 2‐65........
ES774 2‐49........
ES775 2‐49........
ES776 2‐49........
ES777 2‐49........
ES778 2‐49........
ES779 2‐49........
ES782 2‐49........
ES796 2‐51........
ES804 2‐49........
ES805 2‐49........
ES806 2‐49........
ES807 2‐49........
ES808 2‐49........
ES809 2‐49........
ES810 3‐13........
ES811 2‐49........
ES812 2‐49........
ES813 2‐49........
ES814 2‐49........
ET063 2‐63........
ET101 2‐27, 2‐29, 3‐5........
ET138 2‐63........
ET139 2‐63........
ET143 2‐63........
ET144 2‐63........
EW212 2‐124........
EW213 2‐124........
EW214 2‐124........
EW218 2‐63........
EW221 2‐49........
EW224 2‐124........
EW241 2‐124........
EW257 3‐49........
EW258 3‐49........
EW279 2‐124........
EW294 3‐28........
EW295 3‐28........
EW372 2‐124........
EW378 2‐124........
EW379 3‐61........
EW380 3‐61........
EW381 2‐124........
EW382 2‐124........
EW386 2‐33, 2‐37........
EW388 3‐68........
EW389 3‐5........
EW392 3‐67........
EW394 3‐5........
EW396 2‐124........
EW402 2‐124........
EW403 2‐124........
EW407 2‐49........
Part Page
Number Number
EW415 3‐37........
EW424 3‐67........
FA064 2‐9, 2‐11........
FA069 2‐7........
FA072 2‐7........
FA073 2‐7........
FA082 2‐7........
FA083 2‐7........
FA085 2‐7........
FA089 2‐15........
FA093 2‐9, 2‐11........
FA116 2‐9, 2‐11........
FA123 2‐7........
FA127 2‐7........
FA130 2‐7, 2‐17, 2‐19........
FA134 2‐9, 2‐11........
FA151 2‐7........
FA155 2‐11........
FA156 2‐9........
FA171 2‐11........
FA174 2‐13........
FA175 2‐13........
FA176 2‐9, 2‐11........
FA204 2‐9........
FA205 2‐11........
FS001 2‐15........
FS002 2‐15........
FS005 2‐15........
FS006 2‐15........
FS007 2‐15........
FS008 2‐15........
FS014 2‐45........
FS015 2‐45........
FS016 2‐15........
FS017 2‐15........
FS020 2‐15........
FS021 2‐15........
GB031 2‐53, 2‐85, 2‐101........
GB034 2‐57........
GB036 2‐79, 2‐81........
GB060 2‐31, 2‐33, 2‐35, 2‐37........
GB073 2‐7, 2‐15, 2‐75, 2‐77,........
2‐101
GB089 2‐17, 2‐19........
GB090 2‐5, 3‐19........
GB092 2‐89, 3‐19........
GB093 2‐85........
GB095 2‐5........
GB097 3‐9, 3‐49........
GB099 2‐85........
GB100 2‐85........
GB109 2‐31, 2‐33, 2‐35, 2‐37........
GB110 2‐31, 2‐33, 2‐35, 2‐37,........
2‐91
GB113 3‐19........
GB141 2‐29........
GB144 2‐83........
GG015 2‐93, 2‐95........
GG021 2‐47, 2‐95, 2‐105,........
3‐31, 3‐41
GG023 2‐7, 2‐9, 2‐11, 2‐15,........
2‐75, 2‐77
GG033 2‐23, 2‐25, 3‐65........
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐6
Part Page
Number Number
GG039 2‐7, 2‐17, 2‐19, 2‐43,........
2‐75, 2‐77, 2‐101
GG041 2‐71, 3‐31........
GG042 2‐71, 3‐31........
GG044 2‐23, 2‐25, 3‐65........
GG048 2‐71........
GG051 2‐103, 3‐15........
GG054 2‐71........
GG055 2‐71, 3‐31........
GG066 2‐59, 2‐65, 2‐69........
GG073 2‐13, 2‐21........
GG074 2‐13, 2‐21........
GG076 2‐97, 3‐21........
GG077 2‐73........
GG078 2‐99, 3‐27........
GG086 3‐63........
GG090 2‐59, 2‐73, 2‐103........
GG098 2‐69, 2‐73, 2‐103........
GG105 2‐75, 2‐77, 2‐97........
GG110 3‐31........
GG111 2‐65, 2‐73, 2‐105........
GG123 2‐65........
GG132 2‐57, 2‐105........
GG134 2‐11........
GG146 2‐23, 2‐25, 2‐79, 2‐81,........
2‐105, 3‐23
GG147 2‐23, 2‐25, 2‐79, 2‐81,........
2‐105, 3‐23
GG148 2‐23, 2‐25, 2‐79, 2‐81,........
2‐97, 2‐105, 3‐23
GG153 3‐41........
GG155 2‐101........
GG156 2‐85........
GG177 2‐85, 2‐101........
GG190 2‐101........
GG213 2‐99, 3‐21........
GG227 2‐7........
GG229 2‐7, 2‐15, 2‐93, 2‐95........
GG230 2‐61........
GG231 2‐61, 2‐67, 2‐91........
GG233 2‐5, 2‐43........
GG234 2‐17, 2‐19........
GG240 2‐101........
GG242 2‐43........
GG244 2‐9, 2‐11........
GG247 2‐75, 2‐77........
GG248 2‐75, 2‐77........
GG249 2‐13, 2‐21, 2‐43, 2‐53,........
2‐57
GG250 2‐101........
GG252 3‐27........
GG253 3‐27........
GG256 2‐13, 2‐21........
GG259 2‐59........
GG260 2‐17, 2‐19........
GG265 2‐7, 2‐15, 2‐17, 2‐19........
GG266 2‐89........
GG276 2‐85........
GG277 2‐85........
GG280 2‐31, 2‐35........
GG281 3‐19........
GG282 2‐43........
GG285 2‐97........
GG286 2‐83, 2‐99........
Part Page
Number Number
GG287 1‐1, 2‐99........
GG295 2‐39........
GG296 2‐39........
GG297 2‐47........
GG300 2‐97........
GG301 2‐57........
GG302 2‐103........
GG329 3‐63, 3‐65........
GG343 3‐23........
GG376 2‐93, 2‐95........
GG381 2‐86........
GG383 2‐105........
GM013 2‐65, 2‐93, 2‐95........
GM021 2‐57........
GM024 2‐27, 2‐29, 3‐49........
GM146 2‐5........
GM154 2‐5, 3‐63........
GM170 2‐33, 2‐37........
GM255 3‐49........
GM260 2‐9, 2‐11........
GM261 2‐107........
GM286 2‐107........
GM294 2‐5........
GM296 2‐109........
GM310 2‐51........
GM311 2‐39........
GM346 3‐3........
GM347 2‐27, 2‐29........
GM354 2‐123........
GM356 2‐59........
GM357 2‐51........
GM361 2‐39........
GM383 3‐9........
GM385 2‐39........
GM387 2‐27, 2‐29, 2‐43........
GM389 2‐39........
GM390 3‐11........
GM391 2‐85........
GM394 2‐123........
GM395 2‐123........
GM399 2‐85........
GM400 2‐103........
GM401 2‐85........
GM406 2‐27, 2‐29........
GM408 2‐109........
GM428 2‐57........
GM436 2‐101........
GM451 2‐23, 2‐25........
GM455 2‐63........
GM460 2‐45........
GM461 2‐49, 2‐123........
GM463 2‐5........
GM477 3‐69........
GM478 2‐51........
GM482 2‐123........
GM509_C 2‐35......
GM510_C 2‐31......
GM517 2‐123........
GM522 2‐27, 2‐29........
GM530 2‐41........
GM534 2‐69........
GM541 3‐49........
GM550 3‐67........
GM551 3‐67........
Part Page
Number Number
GM552 3‐67........
GM553 3‐67........
GM554 3‐67........
GM555 3‐67........
GM556 3‐67........
GM557 3‐67........
GM558 3‐67........
GM559 3‐67........
GM561 2‐89........
GM565 2‐123........
GM568 2‐123........
GM597 2‐123........
GM633 2‐123........
GM634 2‐123........
GM657 2‐123........
GM660 2‐5........
GM663 2‐105........
GM687 2‐91........
GN004 2‐9, 2‐11, 2‐31, 2‐33,........
2‐35, 2‐37, 2‐43, 2‐47,
2‐53, 2‐57, 2‐65, 2‐79,
2‐81, 2‐91, 2‐93, 2‐95,
2‐97, 2‐101, 2‐105,
2‐107, 2‐109, 2‐121,
3‐7, 3‐49, 3‐65
GN006 2‐57, 2‐89, 2‐123........
GN009 2‐27, 2‐29, 2‐85, 2‐97,........
2‐99, 3‐3, 3‐11
GN011 2‐5, 2‐27, 2‐29, 2‐31,........
2‐35, 2‐53, 2‐59, 2‐61,
2‐65, 2‐67, 2‐69,
2‐103, 2‐107, 3‐3, 3‐9,
3‐15, 3‐17, 3‐31, 3‐49,
3‐63, 3‐65
GN019 2‐43, 2‐47, 2‐75, 2‐77,........
2‐79, 2‐81, 2‐86, 2‐91,
3‐7, 3‐31
GN021 2‐101........
GN024 2‐53, 2‐63........
GN025 2‐93, 2‐95, 3‐21, 3‐41........
GN029 2‐61, 2‐69........
GN031 3‐31........
GN033 2‐95, 3‐41........
GN036 2‐75, 2‐77, 2‐93, 2‐95........
GN042 2‐65........
GN043 2‐5, 2‐33, 2‐37, 2‐63,........
2‐97, 2‐107, 3‐9, 3‐15,
3‐19, 3‐21, 3‐37
GN045 2‐61........
GN046 2‐5, 2‐63, 2‐65, 2‐97,........
3‐3, 3‐7, 3‐9, 3‐49
GN047 2‐93, 2‐95........
GN049 2‐27, 3‐9........
GN052 2‐67........
GN058 2‐57........
GN061 2‐45, 2‐93, 2‐95........
GN064 2‐7, 2‐15........
GN066 2‐7........
GN068 2‐17, 2‐19........
Home
Find...
Go To..
CROSS REFERENCE
6‐7
636 UK YM165 (5−2015)
Part Page
Number Number
GN069 2‐5, 2‐31, 2‐35, 2‐61,........
2‐69, 2‐71, 2‐83, 2‐85,
2‐89, 2‐91, 2‐93, 2‐95,
2‐97, 2‐99, 2‐101,
2‐119, 3‐15, 3‐19, 3‐23,
3‐33, 3‐35, 3‐65
GN071 2‐43, 2‐97, 3‐33........
GN073 2‐21, 2‐55........
GN075 2‐93, 2‐95........
GN078 2‐23, 2‐25, 2‐27, 2‐29,........
2‐31, 2‐35, 2‐71, 2‐83,
2‐86, 2‐89, 2‐91, 2‐115,
3‐23, 3‐25, 3‐27, 3‐37,
3‐63, 3‐65
GN079 2‐93, 2‐95, 3‐25........
GN080 2‐9, 2‐11, 2‐17, 2‐19,........
2‐53, 2‐79, 2‐81, 2‐93,
3‐33
GN089 2‐53........
GN090 2‐13, 2‐21........
GN091 2‐7, 2‐9, 2‐11, 2‐15........
GN095 2‐33, 2‐37........
GN098 3‐65........
GN101 2‐86........
GN109 4‐2, 4‐3........
GN114 3‐23........
GN122 3‐19........
GN124 2‐23, 2‐25........
GT019 2‐67........
GT027 2‐59, 3‐13, 3‐31........
GT028 2‐9, 2‐11, 2‐53, 2‐57,........
2‐61, 2‐79, 2‐81, 2‐97,
2‐107, 2‐109
GT042 2‐57, 2‐59, 2‐61, 2‐67,........
2‐91, 2‐101, 2‐103,
2‐107, 3‐65
GT050 2‐47........
GT054 2‐53........
GT059 2‐53........
GT069 3‐7........
GT070 3‐25........
GT071 2‐63, 2‐107, 3‐7, 3‐49........
GT086 2‐79, 2‐81, 2‐91, 3‐33........
GT089 2‐63, 2‐67........
GT090 2‐75, 2‐77........
GT092 3‐7........
GT093 2‐29........
GT097 2‐59........
GT101 2‐9, 2‐11, 2‐69, 2‐75,........
2‐77, 2‐79, 2‐81,
2‐101, 3‐7, 3‐15, 3‐33,
3‐35
GT106 2‐51........
GT108 2‐69........
GT111 2‐5, 2‐27, 2‐29, 3‐3........
GT112 2‐27, 2‐29, 2‐31, 2‐35,........
2‐39, 2‐45, 2‐47, 3‐9,
4‐2, 4‐3
GT119 2‐47, 2‐59........
GT125 3‐17........
GT130 2‐79, 2‐81, 3‐7, 3‐31,........
4‐2, 4‐3
Part Page
Number Number
GT135 2‐23, 2‐25, 2‐31, 2‐33,........
2‐35, 2‐37, 2‐59, 2‐69,
2‐71, 2‐91, 3‐9, 3‐23
GT136 2‐93, 2‐95........
GT144 2‐101........
GT148 2‐121........
GT150 3‐19........
GT151 2‐27, 2‐55........
GT152 2‐47, 2‐95, 3‐41........
GT159 2‐53........
GT163 3‐33........
GT169 2‐23, 2‐25........
GT188 2‐99........
GT194 2‐49, 2‐53, 2‐99,........
2‐123, 3‐9
GT196 2‐57........
GT203 2‐55, 2‐89, 2‐101........
GT209 3‐7........
GT222 2‐49........
GT224 2‐105........
GT228 3‐13........
GT234 2‐13, 2‐21........
GT235 2‐41........
GT240 2‐93........
GT243 2‐11, 2‐43, 2‐61, 2‐89,........
2‐97, 2‐101
GT244 2‐107........
GT246 3‐49........
GT249 2‐115........
GT254 2‐109........
GT256 2‐61........
GT258 2‐43........
GT262 2‐47, 2‐93, 2‐95........
GT265 2‐3........
GT267 2‐39........
GT278 2‐53, 2‐63........
GT279 2‐57........
GT282 3‐7........
GT285 2‐75, 2‐77........
GT286 2‐71, 2‐91, 2‐101,........
3‐19, 3‐37, 3‐49
GT287 2‐63, 2‐105........
GT291 2‐21........
GT293 2‐9, 2‐11........
GT294 2‐61........
GT298 2‐61, 2‐91........
GT300 2‐27, 2‐29, 2‐97, 3‐9,........
3‐25
GT301 2‐7, 2‐15, 2‐17, 2‐19,........
2‐23, 2‐69, 2‐89, 2‐91,
2‐99, 2‐107, 3‐15
GT302 2‐13, 2‐21........
GT303 2‐63, 2‐93, 2‐95, 2‐97,........
2‐105, 3‐27
GT305 2‐31, 2‐35, 2‐89, 2‐99,........
2‐101, 3‐11
GT308 3‐49........
GT310 2‐47........
GT312 2‐5........
GT313 2‐5........
GT314 2‐93, 2‐95........
GT315 2‐93, 2‐95........
GT317 2‐45........
GT318 2‐55, 2‐107, 3‐23........
Part Page
Number Number
GT320 2‐23, 2‐25, 2‐27, 2‐29,........
3‐9, 3‐27
GT325 2‐5, 2‐43, 2‐97........
GT327 2‐65, 2‐73, 2‐89, 2‐97,........
3‐9, 3‐15, 3‐23, 3‐63,
3‐65
GT328 2‐31, 2‐33, 2‐35, 2‐37,........
2‐91, 3‐27, 3‐65
GT329 2‐69, 3‐9........
GT330 2‐5, 2‐29, 2‐85, 2‐103,........
2‐107, 2‐119, 2‐123,
3‐9
GT331 2‐47, 2‐65, 2‐83, 2‐97,........
2‐101, 3‐21, 3‐25, 3‐65
GT332 2‐97........
GT333 2‐65, 2‐99, 2‐101........
GT334 2‐103, 3‐19........
GT337 3‐33........
GT338 2‐23, 2‐25, 2‐119,........
3‐23, 3‐27, 3‐65
GT339 2‐63, 3‐7, 3‐49........
GT341 2‐79, 2‐81........
GT342 2‐43, 2‐75, 2‐77,........
2‐101
GT347 2‐3, 2‐89........
GT351 2‐97, 2‐101, 2‐119........
GT376 2‐17, 2‐19........
GT377 2‐5, 2‐67, 3‐15........
GT378 2‐39, 2‐65, 2‐86,........
2‐101, 3‐9, 3‐11
GT382 2‐31, 2‐35........
GT383 2‐69........
GT384 2‐41........
GT385 2‐23, 2‐25, 2‐31, 2‐35,........
2‐86, 3‐37
GT386 2‐43, 2‐85, 2‐97, 3‐3........
GT387 2‐13........
GT389 2‐109........
GT393 2‐109........
GT395 2‐5, 2‐65, 2‐107........
GT396 2‐5........
GT403 2‐86........
GT404 2‐89........
GT410 2‐59........
GT411 2‐93, 2‐95........
GT413 3‐3, 3‐9........
GT414 2‐13, 2‐21........
GT455 2‐23, 2‐25........
GT460 2‐93, 2‐95........
GT461 2‐75, 2‐77........
GW003 2‐5, 2‐43, 2‐63, 2‐97,.......
3‐7, 3‐49
GW006 2‐17, 2‐65, 2‐79, 2‐81.......
GW007 2‐5, 2‐9, 2‐11, 2‐23,.......
2‐25, 2‐31, 2‐35, 2‐43,
2‐47, 2‐61, 2‐67, 2‐69,
2‐71, 2‐79, 2‐81, 2‐89,
2‐91, 2‐93, 2‐97,
2‐103, 2‐105, 2‐107,
2‐109, 2‐119, 2‐121,
3‐7, 3‐9
GW008 2‐23, 2‐25, 2‐89,.......
2‐123
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐8
Part Page
Number Number
GW013 2‐47, 2‐57, 2‐109, 3‐7,.......
3‐35, 4‐2, 4‐3
GW015 2‐23, 2‐55, 2‐63, 2‐69.......
GW021 2‐33, 2‐37, 2‐43, 2‐51,.......
2‐67, 2‐93, 2‐95, 2‐97
GW023 2‐109.......
GW025 2‐101, 3‐33.......
GW026 2‐61.......
GW027 2‐61, 2‐71, 2‐91.......
GW029 2‐55.......
GW031 2‐27, 2‐29, 2‐31, 2‐35,.......
2‐41, 2‐59, 3‐3, 3‐13,
3‐17, 3‐31
GW032 2‐65.......
GW037 2‐79, 2‐81.......
GW038 3‐23.......
GW040 2‐71.......
GW041 2‐5, 2‐43, 2‐55, 2‐59,.......
2‐63, 2‐79, 2‐81, 2‐85,
2‐91, 2‐101, 3‐7
GW042 2‐69.......
GW046 2‐69, 3‐7.......
GW047 2‐5, 2‐7, 2‐9, 2‐11,.......
2‐15, 2‐19, 2‐61, 2‐69,
2‐101, 2‐107, 3‐7, 3‐15
GW048 2‐45, 2‐61, 2‐79, 2‐81,.......
2‐101
GW049 2‐27, 2‐29.......
GW051 2‐9, 2‐11, 2‐17, 2‐19,.......
2‐35, 2‐43, 2‐53, 2‐75,
2‐77, 3‐33
GW055 2‐47, 2‐65, 2‐79, 2‐81,.......
2‐83, 2‐85, 2‐91, 2‐97,
2‐99, 2‐101, 3‐15,
3‐19, 3‐21, 3‐65
GW060 2‐23, 2‐31, 2‐35, 2‐63,.......
2‐91, 2‐93, 2‐95, 2‐97,
2‐107, 3‐23, 3‐25, 3‐49
GW077 2‐85.......
GW078 2‐89.......
GW079 2‐31, 2‐35, 2‐85, 2‐91,.......
3‐33
GW081 2‐57.......
GW084 2‐93, 2‐95.......
GW086 2‐47.......
GW087 2‐27, 2‐29, 2‐33, 2‐37,.......
2‐63, 2‐65, 2‐71, 2‐91,
2‐97, 2‐107, 3‐3, 3‐7,
3‐19, 3‐27, 3‐49, 3‐63,
3‐65
GW098 2‐27, 2‐29, 2‐85, 2‐97,.......
2‐99
GW100 2‐109.......
GW103 2‐71.......
GW110 2‐5, 2‐69, 2‐86, 2‐89,........
2‐103
HC004 2‐107........
HC007 2‐107........
HC058 1‐1, 2‐107........
HC128 2‐97........
HC137 2‐7........
HC141 2‐89........
HC143 2‐75, 2‐77........
HC145 2‐93, 2‐95........
Part Page
Number Number
HC148 2‐85........
HC152 4‐2........
HC153 4‐2, 4‐3........
HC156 4‐2, 4‐3........
HC158 2‐107, 4‐9........
HC160 2‐75, 2‐77........
HC163 2‐9, 2‐11........
HC181 2‐109, 4‐5........
HC182 2‐107, 4‐7........
HC189 2‐119, 4‐13........
HC190 3‐17, 4‐11........
HC198 2‐7........
HC199 2‐107........
HC200 2‐107........
HC203 3‐49........
HC227 1‐1........
HC228 1‐1........
HC248 2‐107, 4‐3........
HF005 3‐49........
HF006 2‐111, 2‐115, 2‐119,........
3‐17
HF008 2‐111, 2‐117, 2‐119,........
3‐17
HF010 3‐19, 3‐45, 3‐47........
HF011 3‐25, 3‐43, 3‐47........
HF017 2‐119, 3‐17........
HF020 3‐47........
HF039 2‐111........
HF042 2‐111, 2‐113, 2‐115,........
2‐121, 3‐19
HF044 3‐19, 3‐43, 3‐45, 3‐47........
HF046 2‐111, 2‐113, 2‐115,........
2‐117, 2‐119, 2‐121,
3‐19, 3‐43
HF049 2‐119........
HF050 2‐115........
HF053 3‐43, 3‐45, 3‐47........
HF054 3‐45, 3‐47........
HF064 3‐47, 3‐49........
HF077 2‐111, 2‐117........
HF084 2‐111, 2‐121........
HF086 2‐115, 2‐117........
HF089 2‐111........
HF090 2‐111........
HF091 2‐111........
HF092 2‐117, 2‐121, 3‐49........
HF095 2‐111........
HF104 2‐111, 2‐121........
HF105 2‐113........
HF106 2‐115, 3‐25, 3‐43........
HF107 2‐117........
HF108 2‐117........
HF109 2‐45........
HF110 2‐45........
HF137 3‐27, 3‐37........
HF140 2‐111........
HF153 4‐2, 4‐3........
HF154 2‐119........
HF155 2‐119........
HF157 3‐51........
HF162 2‐119........
HF165 2‐119........
HF166 2‐119........
HF171 4‐5........
Part Page
Number Number
HF172 4‐5........
HF174 4‐5........
HF192 3‐11........
HF199 3‐47, 3‐49........
HF200 3‐47, 3‐49........
HF201 3‐45, 3‐47, 3‐49, 3‐51........
HF202 3‐47, 3‐49, 3‐51........
HF203 3‐47, 3‐49........
HF204 3‐45, 3‐47, 3‐49........
HF205 3‐47, 3‐49........
HF206 3‐47........
HF209 2‐111, 2‐117........
HF244 2‐45........
HF255 2‐45........
HF271 4‐2, 4‐3........
HF298 2‐121........
HF319 3‐47........
HF321 3‐45, 3‐47, 3‐49........
HF333 3‐51........
HF334 3‐47........
HF335 3‐45, 3‐47, 3‐49........
HF342 3‐45, 3‐47........
HF343 3‐45, 3‐47........
HJ162 2‐119........
HJ165 2‐117........
HJ166 2‐117........
HJ170 2‐117........
HJ171 2‐117........
HJ173 2‐117........
HJ183 2‐113........
HJ184 2‐113........
HJ186 2‐115........
HJ187 2‐115........
HJ189 2‐115........
HJ193 2‐111........
HJ194 2‐111, 2‐119........
HJ199 2‐115........
HJ201 2‐115........
HJ202 2‐115........
HJ204 2‐115........
HJ206 2‐115........
HJ207 2‐115........
HJ208 2‐115........
HJ210 2‐115........
HJ211 2‐115........
HJ217 2‐119........
HJ220 2‐121........
HJ222 2‐121........
HJ223 2‐121........
HJ229 2‐45........
HJ230 2‐45........
HJ231 2‐45........
HJ232 2‐45........
HJ235 2‐119........
HJ240 2‐117........
HJ241 2‐117........
HJ242 2‐117........
HJ243 2‐117........
HJ269 2‐113........
HJ271 2‐113........
HJ273 2‐111........
HJ274 2‐117........
HJ275 2‐117........
HJ276 2‐117........
Home
Find...
Go To..
CROSS REFERENCE
6‐9
636 UK YM165 (5−2015)
Part Page
Number Number
HJ277 2‐117........
HJ278 2‐117........
HJ279 2‐121........
HJ280 2‐121........
HJ284 2‐119........
HJ293 2‐119........
HJ294 2‐111........
HJ295 2‐111........
HJ302 2‐111........
HJ304 2‐119........
HJ305 2‐119........
HJ306 2‐119........
HJ307 2‐119........
HJ308 2‐119........
HJ309 2‐119........
HJ310 2‐119........
HJ311 3‐17........
HJ312 2‐111........
HJ313 2‐121........
HJ315 2‐121........
HJ316 2‐111........
HJ317 2‐115, 3‐17........
HJ318 2‐121........
HJ319 3‐17........
HJ320 2‐111........
HJ321 2‐115........
HJ322 2‐119........
HJ323 2‐115........
HJ324 2‐119........
HJ325 3‐19........
HJ326 2‐121........
HJ327 2‐119........
HJ328 2‐111........
HJ329 2‐119........
HJ331 2‐115........
HJ332 2‐111........
HJ333 2‐111........
HJ336 2‐117........
HJ337 2‐111........
HJ338 2‐111........
HJ339 2‐113........
HJ340 2‐113........
HJ341 2‐113........
HJ342 2‐113........
HJ348 2‐111........
HJ365 3‐51........
HJ366 3‐51........
HJ367 3‐51........
HJ368 3‐51........
HJ369 3‐51........
HJ371 3‐51........
HJ372 3‐51........
HJ373 3‐51........
HJ374 3‐51........
HJ387 2‐113........
HJ548 2‐119........
HJ579 3‐51........
HJ580 3‐51........
HJ581 3‐51........
HJ582 3‐51........
HJ584 3‐51........
HJ594 3‐43........
HJ595 3‐43........
HJ596 3‐43........
Part Page
Number Number
HJ597 3‐43........
HJ598 3‐43........
HJ599 3‐43........
HJ600 3‐43........
HM029 2‐79, 2‐81, 3‐25........
HM032 2‐9, 2‐11........
HM035 2‐9, 2‐11........
HM037 2‐79, 2‐81........
HM052 2‐17, 2‐19........
HM057 2‐17........
HM058 2‐19........
HM071 2‐91........
HM075 2‐91........
HM080 3‐33........
HP021 2‐61........
HP032 2‐109........
HP046 2‐109........
HP048 2‐109........
HT050 4‐2, 4‐3........
HT064 4‐2........
HT084 4‐2, 4‐3........
HT088 4‐2, 4‐3........
HT096 2‐107, 4‐2........
HT106 2‐119........
HT111 2‐107, 4‐3........
HT112 4‐3........
HV039 4‐9........
HV045 4‐7, 4‐9, 4‐11........
HV051 4‐9........
HV062 4‐9........
HV090 2‐107........
HV095 4‐7, 4‐11........
HV096 4‐9........
HV101 4‐9........
HV102 4‐9........
HV103 4‐9........
HV104 4‐9........
HV106 4‐9........
HV107 4‐9........
HV108 4‐9........
HV110 4‐9........
HV111 4‐9........
HV112 4‐9........
HV113 4‐9........
HV115 4‐9........
HV116 4‐9........
HV118 4‐5........
HV120 4‐9........
HV122 4‐7, 4‐9........
HV123 4‐5, 4‐11........
HV124 4‐9........
HV125 4‐9........
HV131 2‐107, 2‐111........
HV133 2‐115........
HV136 2‐111........
HV137 4‐9........
HV138 2‐45........
HV139 4‐9........
HV140 4‐7, 4‐11........
HV142 4‐7........
HV167 4‐7, 4‐11........
HV168 4‐7........
HV169 4‐7, 4‐11........
HV170 4‐7........
Part Page
Number Number
HV171 4‐7........
HV172 4‐7........
HV173 4‐7........
HV174 4‐7, 4‐9........
HV175 4‐7........
HV181 4‐5........
HV182 4‐5........
HV184 4‐5........
HV185 4‐13........
HV186 4‐13........
HV187 4‐13........
HV188 4‐13........
HV189 4‐13........
HV190 4‐13........
HV191 4‐13........
HV192 4‐13........
HV193 4‐13........
HV194 4‐13........
HV195 4‐13........
HV196 4‐13........
HV198 4‐5........
HV199 4‐5........
HV203 2‐121........
HV204 4‐11........
HV207 2‐107........
HV208 4‐9........
HV238 2‐121........
HV239 2‐111........
HV240 2‐115, 3‐43........
HV241 2‐111........
KM206 2‐91........
KM274 2‐3........
KM332 2‐39........
MA200 2‐53........
MC050 2‐53........
MC062 2‐53........
MC093 2‐59........
MC118 2‐31, 2‐35........
MC120 2‐39........
MC121_B 2‐35......
MC122_B 2‐31......
MC145 2‐31, 2‐35........
MC150 2‐35, 2‐37........
MC155 2‐31, 2‐33........
MC163 2‐35, 2‐37........
MC166 2‐31, 2‐33........
MC221 2‐59........
MC222 2‐59........
MC226 2‐27, 2‐29........
MC227 2‐27, 2‐29........
MC238 2‐27, 2‐29........
MC251 2‐47, 2‐57, 2‐59........
MC258 2‐31, 2‐35........
MC270 2‐31, 2‐33, 2‐35, 2‐37........
MC271 2‐31, 2‐33, 2‐37........
MC272 2‐41........
MC274 2‐27, 2‐29........
MC277 2‐59........
MC280 2‐59........
MC298 2‐57........
MC309 2‐57........
MC312 2‐57........
MC334 2‐59........
MC341 3‐13........
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐10
Part Page
Number Number
MC342 2‐59........
MC343 2‐59........
MC344 2‐59........
MC350 2‐43........
MC359 2‐49........
MC364 2‐31, 2‐35........
MC373 2‐53........
MC378 2‐47........
MC383 2‐47........
MC384 2‐31, 2‐35........
MC397 2‐59........
MC405 2‐31, 2‐35........
MC425 2‐39, 3‐9........
MC434 2‐39, 3‐9........
MC479 2‐51........
MC488 2‐47........
MC490 2‐47........
MC501 2‐59........
MC502 2‐47........
MC519 2‐47........
MC550 2‐41........
MC582 2‐27, 2‐29........
MC603 2‐43........
MC624 3‐3........
MC626 3‐3........
MC629 2‐49........
MC663 2‐31, 2‐35........
MC672 2‐47........
MC677 2‐27, 2‐29........
MC680 2‐39, 3‐9........
MC681 3‐11........
MC682 3‐11........
MC700 2‐47........
MC707 3‐9........
MC724 2‐43........
MC727 2‐43........
MC729 2‐43........
MC730 2‐43........
MC732 2‐43........
MC735 2‐59........
MC740 2‐43........
MC763 2‐45........
MC764 2‐31........
MC765 2‐35........
MC790 2‐31........
MC791 2‐35........
MC792 2‐27, 2‐29........
MC842 2‐31, 2‐35........
MC843 2‐31, 2‐35........
MC874 2‐45........
MC907 2‐37........
MC908 2‐33........
MC925 2‐37........
MC927 2‐33........
MC929 2‐39........
MC932 2‐27........
MC972 2‐33, 2‐37........
MC989 2‐41........
MD027 2‐33, 2‐37........
MD032 2‐57........
MD064 2‐33, 2‐37........
MD065 2‐33, 2‐37........
MD071 2‐33, 2‐37........
MD081 3‐61........
Part Page
Number Number
MD089 2‐33........
MD090 2‐37........
MD091 2‐33........
MD092 2‐37........
MD093 2‐33........
MD094 2‐37........
MD095 2‐33........
MD096 2‐37........
MD097 2‐33........
MD098 2‐37........
MD099 2‐33........
MD100 2‐37........
MD101 2‐33, 2‐37........
MD102 2‐33, 2‐37........
MD103 2‐33, 2‐37........
MD105 2‐47........
MD106 2‐27, 2‐29........
MD108 2‐33, 2‐37........
MD114 2‐37........
MD115 2‐33........
MD116 3‐68........
MD128 2‐29........
MD129 2‐29........
MD138 3‐5........
MD139 2‐29........
MD141 2‐33, 2‐37........
MD142 2‐33, 2‐37........
MD150 2‐59........
MD151 2‐47........
MD152 2‐47........
MD155 2‐43........
MD159 3‐68........
MD160 3‐68........
MD162 2‐29........
MD167 2‐37........
MD168 2‐33........
MD219 2‐39........
MD220 2‐39........
MD221 3‐11........
MD222 3‐11........
N/A 2‐111, 2‐113, 2‐115,..........
2‐117, 2‐119
NA 2‐45...........
NA068 2‐93, 2‐95........
NA082 2‐93, 2‐95........
NA087 2‐93........
NA117 2‐93........
NA118 2‐93........
NA119 2‐95, 3‐41........
NA120 2‐93, 3‐21........
NA134 2‐93, 2‐95, 3‐21........
NA135 2‐93........
NA138 1‐1, 2‐93, 2‐95........
NA146 2‐93, 2‐95........
NA147 2‐93, 2‐95........
NA196 2‐93........
NA197 2‐93........
NA216 2‐95........
NA217 3‐21........
NA221 3‐21........
NA222 2‐95, 3‐41........
NA223 3‐41........
NA224 2‐95, 3‐41........
NA226 2‐95, 3‐41........
Part Page
Number Number
NA228 2‐95, 3‐41........
NA229 2‐95, 3‐41........
NA230 2‐95, 3‐41........
NB064 2‐3........
NB065 2‐3........
NB068 2‐3........
NB069 2‐3........
NB072 2‐3........
NB073 2‐3........
NB074 2‐3........
NB075 2‐3........
NC014 3‐33........
NC049 3‐23........
NC052 3‐31........
NF045 2‐93, 2‐95, 3‐21, 3‐41........
NF128 2‐75........
NF129 2‐75........
NF137 2‐77........
NF138 2‐77........
NF147 2‐75, 2‐77........
NF148 2‐75, 2‐77........
NF151 2‐75........
NF156 2‐77........
NF158 2‐75........
NF163 2‐77........
NF164 2‐75, 2‐77........
NF168 2‐75, 2‐77........
NF171 2‐79........
NF173 2‐79........
NF175 2‐81........
NF177 2‐81........
NF178 2‐79, 2‐81........
NF184 2‐79, 2‐81........
NF191 2‐75........
NF192 2‐77........
NF193 2‐75........
NF194 2‐77........
NF198 2‐75, 2‐77........
NF199 2‐75, 2‐77........
NF205 2‐75, 2‐77........
NF209 2‐75, 2‐77........
NF210 2‐79, 2‐81........
NF282 2‐75, 2‐77........
NF299 2‐79, 2‐81........
NF303 2‐79, 2‐81........
NN112 1‐1, 2‐93, 2‐95........
NN113 2‐93, 2‐95........
NR002 3‐23........
NR013 3‐23........
NR015 3‐25........
NR016 3‐25........
NR018 3‐23........
NR025 3‐23........
NR027 3‐23........
NR028 3‐23........
NR035 3‐23........
NR036 3‐25........
NR037 3‐25........
NR038 3‐25........
NR042 3‐23........
NR045 3‐25........
NR048 3‐23........
NR049 3‐23, 3‐45........
NR050 3‐23, 3‐45........
Home
Find...
Go To..
CROSS REFERENCE
6‐11
636 UK YM165 (5−2015)
Part Page
Number Number
NR054 3‐25........
NR055 3‐25........
NR057 3‐25........
NR062 3‐25........
NR065 3‐27........
NR069 3‐27........
NR070 3‐27........
NR077 3‐33........
NR078 3‐31........
NR094 3‐31........
NR099 3‐31........
NR103 3‐31........
NR104 3‐31........
NR111 3‐35........
NR113 3‐33........
NR116 3‐33........
NR118 3‐41........
NR122 3‐41........
NR123 3‐31........
NR125 3‐41........
NR127 3‐31........
NR129 3‐31........
NR132 3‐31........
NR135 3‐31........
PC004 2‐101........
PC024 2‐73........
PC086 2‐73........
PC087 2‐73........
PC113 2‐65........
PC114 2‐59........
PC115 2‐59........
PC173 2‐71........
PC176 2‐71........
PC178 2‐73........
PC208 2‐67........
PC214 2‐71........
PC216 2‐71........
PC219 2‐71........
PC222 2‐71........
PC228 2‐71........
PC229 2‐97........
PC243 2‐71........
PC245 2‐71........
PC247 2‐73........
PC279 2‐71........
PC282 2‐71........
PC295 2‐71........
PC296 2‐71........
PC299 2‐65........
PC300 2‐65........
PD005 5‐3........
PD039 2‐61........
PD053 4‐2, 4‐3........
PD069 4‐2, 4‐3........
PD149 5‐21........
PD166 2‐53........
PG008 2‐103, 2‐105, 3‐27,........
3‐35, 3‐37
PG030 2‐69........
PG090 2‐69........
PG092 2‐69........
PG099 2‐69........
PG100 2‐69........
PG102 2‐69........
Part Page
Number Number
PG119 2‐69........
PP034 2‐61........
PP035 2‐61........
PP073 2‐63........
PP082 1‐1, 2‐69, 2‐119........
PP083 1‐1, 2‐61........
PP084 1‐1, 2‐65........
PP085 2‐69........
PP089 2‐67, 5‐29........
PP091 2‐61........
PP092 2‐73........
PP095 2‐67........
PP096 2‐63........
PP098 5‐29........
PP101 2‐65........
PP102 2‐65........
PP111 2‐61........
PP115 2‐69, 5‐25........
PP133 2‐63........
PP147 3‐7........
PP154 2‐97, 3‐7........
PP156 3‐7........
PP159 3‐7........
PP160 5‐17........
PP161 5‐7........
PP162 5‐17........
PP169 5‐29........
PP171 3‐15........
PP172 5‐5........
PP178 5‐19........
PP180 5‐11........
PP181 5‐11........
PP182 5‐28........
PP183 5‐29........
PP184 5‐29........
PP186 5‐11........
PP188 5‐29........
PP189 5‐31........
PP206 2‐67........
PP207 2‐67........
PP208 2‐67........
PP214 5‐4........
PP215 5‐8........
PP216 5‐8........
PP217 2‐67........
PP218 2‐67........
PP222 2‐67........
PP229 5‐13........
PP232 5‐28........
PP233 5‐28........
PP235 5‐13........
PP239 5‐9........
PP240 5‐9........
PP241 5‐9........
PP245 5‐8........
PP274 2‐61........
PP276 2‐61........
PP277 2‐63, 3‐7........
PP280 5‐19........
PP281 5‐19........
PP284 2‐65........
PP286 5‐31........
PP293 2‐67........
PP298 2‐69, 5‐21........
Part Page
Number Number
PP299 3‐7........
PP303 2‐63........
PP311 5‐3........
PP315 5‐28........
PP326 2‐67........
PP345 2‐61........
PP346 5‐28........
PP347 2‐63, 3‐7........
PP349 5‐18........
PP353 2‐67........
PP357 5‐7........
PP360 5‐19........
PP361 5‐19........
PP362 5‐19........
PP367 2‐61........
PP369 5‐31........
PP397 5‐7........
PP401 5‐13........
PP402 5‐13........
PP414 5‐12........
PP418 5‐19........
PP419 5‐5........
PP420 5‐5........
PP421 5‐5........
PP422 5‐17........
PP423 5‐17........
PP424 5‐17........
PP425 5‐17........
PP426 5‐17........
PP427 5‐12........
PP428 5‐11........
PP429 2‐49........
PP436 2‐61........
PP439 2‐61........
PP440 2‐65........
PP443 2‐61........
PP449 5‐19........
PP450 5‐19........
PP452 5‐28........
PP456 5‐4........
PP457 5‐4........
PP458 5‐4........
PP459 5‐4........
PP460 5‐5........
PP461 5‐21, 5‐23........
PP464 2‐63........
PP467 2‐63........
PP471 5‐10........
PP481 5‐19........
PP482 5‐19........
PP483 5‐19........
PP484 3‐7........
PP486 5‐11........
PP488 5‐10........
PP490 5‐17........
PP495 2‐5........
PP496 2‐5........
RH007 2‐27, 2‐29........
RM016 3‐27........
TC021 3‐7........
TW055 2‐13, 2‐21........
TW056 2‐13, 2‐21........
TW064 2‐13, 2‐21........
VF075 2‐105........
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐12
Part Page
Number Number
VF103 2‐91........
VH122 2‐85........
VH125 2‐85........
VH142 2‐85........
VH143 2‐89........
VH145 2‐89........
VH163 2‐85........
VH164 2‐85........
VH181 2‐85........
VH204 2‐86........
VH216 2‐85........
VH251 2‐85........
VH253 2‐85........
VH259 2‐85........
VH271 2‐85........
VH272 2‐33, 2‐37, 2‐85........
VH273 2‐85........
VH274 2‐85........
VH296 2‐85........
VH373 1‐1, 2‐85........
VH409 2‐85........
VH410 2‐85........
VH453 2‐85........
VH505 2‐91........
VH516 2‐85........
VH520 2‐97........
VH536 2‐85........
VH540 2‐85........
VH563 2‐97........
VH567 2‐97........
VH570 2‐97........
VH572 3‐63........
VH606 2‐99........
VH609 2‐99........
VH610 2‐85........
VH639 2‐85........
VH650 2‐99........
VH658 2‐99........
VH738 2‐97........
VH741 2‐99........
VH742 2‐99........
VH752 2‐91........
VH753 2‐97........
VH756 2‐99........
VH765 2‐97........
VH766 2‐93, 2‐95........
VH767 2‐93, 2‐95........
VH774 2‐91........
VH776 2‐91........
VH778 2‐91........
VH786 2‐91........
VH789 2‐97........
VH790 2‐97........
VK105 3‐63, 3‐65........
VK107 2‐93, 2‐95........
VK108 2‐83........
VK127 3‐63, 3‐65........
VK142 2‐97........
VK178 2‐97........
VK238 2‐85........
VK244 2‐83........
VK245 3‐21........
VK256 3‐21........
VK262 3‐21........
Part Page
Number Number
VK275 3‐21........
VK278 3‐21........
VK288 3‐21........
VK290 3‐21........
VK292 3‐21........
VK294 2‐83........
VK297 2‐83........
VK301 2‐83........
VK317 2‐85........
VK329 3‐65........
VK332 3‐65........
VK341 2‐85........
VK347 2‐83........
VK353 2‐83........
VK354 2‐83........
VK356 2‐83........
VK359 2‐97........
VT188 2‐93, 2‐95........
VT202 2‐93, 2‐95........
WA012 3‐27, 3‐35, 3‐37........
WA019 3‐27, 3‐35........
WA041 2‐103........
WA103 2‐105........
WA107 2‐103........
WA116 3‐27........
WA120 2‐103........
WA121 2‐105........
WA127 2‐103........
WA128 2‐103........
WA130 2‐103........
WA136 2‐101........
WA138 2‐101, 3‐27, 3‐37........
WA139 2‐27, 2‐29........
WA142 2‐27, 2‐29........
WA160 3‐19........
WA161 3‐19........
WA175 3‐19........
WA179 3‐19........
WA180 3‐19........
WA182 3‐19........
WA193 3‐19........
WA202 2‐103........
WA206 1‐1, 2‐105........
WA228 2‐101........
WA250 2‐105........
WA254 2‐105........
WA268 2‐105........
WA269 2‐105........
WA274 2‐105........
WA285 2‐73........
WA288 2‐73........
WA305 2‐103........
WA306 2‐103........
WA308 2‐103........
WA311 3‐19........
WA312 2‐103........
WA317 2‐101........
WA325 2‐101........
WA330 2‐101........
WA335 3‐5........
WA337 3‐5........
WA340 3‐49........
WA349 3‐9........
WA350 3‐15........
Part Page
Number Number
WA351 3‐15........
WA354 2‐105........
WA355 2‐105........
WA367 1‐1........
WA369 2‐103........
WA370 2‐101........
WA407 3‐15........
WA408 3‐15........
WA413 3‐27, 3‐35, 3‐37........
WA427 3‐27........
WA455 3‐5........
WA462 2‐105........
WA463 2‐105........
WA464 2‐105........
WA465 3‐19........
WA471 2‐29........
WA472 2‐27, 2‐29........
WA474 2‐123........
WA476 2‐123........
WA488 3‐27........
WA495 3‐27........
WA511 3‐37........
WA521 3‐37........
WP005 2‐105, 3‐35........
WP015 3‐23........
WP016 2‐105, 3‐23, 3‐27,........
3‐37
WP020 1‐1, 2‐105, 3‐27........
WP025 3‐27, 3‐37........
WP044 3‐27........
WP056 3‐27, 3‐37........
WP060 1‐1, 2‐105........
WP112 2‐103, 3‐27, 3‐37........
WP163 2‐103........
WP164 2‐103........
WP165 1‐1, 2‐79, 2‐81, 3‐35........
WP166 2‐103, 3‐27, 3‐37........
WP169 2‐103, 3‐37........
WP180 3‐15........
WP182 2‐103........
WP184 3‐15........
WP201 3‐23........
WP212 3‐15........
WP214 2‐105........
WP215 2‐105........
WP216 2‐105........
WP217 2‐105........
WP221 1‐1, 2‐105........
WP240 3‐15........
WP259 3‐15........
WP269 2‐71........
WP270 2‐71........
WP275 3‐27, 3‐37........
WP276 3‐27, 3‐37........
WP277 3‐27, 3‐37........
WP278 3‐27, 3‐37........
WP279 3‐27, 3‐37........
WP283 3‐23........
WP285 3‐27, 3‐37........
WP288 2‐61........
WP299 3‐15........
WP306 2‐103........
WP307 2‐55, 2‐103........
YA205 3‐61........
Home
Find...
Go To..
CROSS REFERENCE
6‐13
636 UK YM165 (5−2015)
Part Page
Number Number
YA212 3‐5........
YA213 3‐5........
YA214 3‐5........
YA215 3‐5........
YM057 3‐70........
YM165 3‐70........
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐14
PART DESCRIPTION TO PAGE NUMBER CROSS REFERENCE LIST
0
0-Ring-For Oil Filler 1505 Engine,5‐10
2
2 Led Warning Light Kit, Rear,3‐5
3
3switch,Forward/Neutr,2‐47
4
4 Led Warning Light Kit, Rear,3‐5
5
59cc Drive Motor For 3 Rotary
Brush-C/S,3‐33
5mm P-Clip (From Assy. M/L),2‐55, 2‐61,
2‐91
6
6mm Mercury Air Hose,3‐27, 3‐35, 3‐37
9
90 Deg. Swivel Connector,2‐103
A
Accumulator-Impeller Motor Elmo 32/210
D,2‐107
Actuator E-Gas C/W Connector C/W 5
Awy M,2‐69
Adapter,3‐27, 3‐37
Adapter 1 Bsp Male/Male Asl Product
Spe,2‐111
Adapter - 1/2 Bspp / Jic 6 Stud M/Ma,2‐45
Adapter - 1/2 Bspp / Jic 8 Stud M/Ma,2‐45
Adapter - 1/2 To 1/2 Bsp - M/M Asl
Produ,2‐111, 2‐117
Adapter - 1/2 To 3/8 Bsp - M/M Asl
Produ,2‐119
Adapter - 1/2bsp Male/Male One End
12mm,2‐111, 2‐117
Adapter - 1/4 To 1/4 Bsp - M/M,2‐111,
2‐113, 2‐115, 2‐117, 2‐119, 2‐121,
3‐19, 3‐43
Adapter - 3/4 To 3/4 Bsp M/M Asl
Product,2‐111
Adapter - 3/8 To 1/4 Bsp - M/M (Bag
100),2‐111, 2‐113, 2‐115, 2‐121, 3‐19
Adapter - 3/8 To 3/8 Bsp - M/M Asl
Produ,2‐111, 2‐115, 2‐119, 3‐17
Adapter - 3/8 To 3/8 Bsp (Part of Pressure
Washer),3‐17
Adapter - Pressure Washer Hose Pump
End,3‐19
Adapter - Suct. Line 1 X 3/4 Bsp M/M
A,2‐111
Adapter -Stud,1/2 Bsp/16mm O/D Ermeto
As,2‐117
Adapter 1 5/16 Un O-Ring To 3/4 Bsp
M/M,2‐111
Adapter 1-1/16unf O-Ring To 3/4 Bsp
M/M,2‐111
Adapter-1/2 Bsp To 1/4 Bsp Male/Male
Asl,2‐115, 3‐25, 3‐43
Adapter-Bulkhead Union-16 Tube, Jic7/8
As,2‐117
Adapter, 12Mm x 1/4 Bsp Male/Male Asl
Pro,2‐119
Adapter, 22Mm x 1/2 Bsp Male/Male Asl
Pro,2‐119
Adapter, 3/4 Male X 3/4 Swivel Female
Co,4‐2, 4‐3
Adapter, Hi Press, Compressor,3‐7
Adapter, Low Press, Compressor,3‐7
Adapter,12mm X 1/4 Bsp Male/Male Asl
Pro,2‐119
Adapter,22 Mm X 1/2 Bsp Male/Male Asl
Pr,2‐119
Adapter,Fixed,F/F 1/4 Bsp Asl Product
Sp,3‐27, 3‐37
Adaptor - 1/2 To 1/2 Bsp M/M (See
Hf077),2‐111, 2‐117, 2‐119, 3‐17
Adaptor 3/8 To 1/4 Bsp Bulkhead +
Nut,3‐47
Adaptor Weldment - Suction Hose -
C/S,3‐41
Adaptor-1/2"Bsp - 3/8"Bsp Bulkhead
W/Nut,3‐45, 3‐47, 3‐49
Adaptor-1/2"Bsp M/M Bulkhead With
Nut,3‐47
Adaptor-1/4"Bspx1/4"Bsp Compact
Elbow,3‐51
Adjuster Assy - Side Brush,2‐93, 2‐95,
3‐21, 3‐41
Adjuster Bolt,Front Brake,2‐13
Adjuster Wedge,Front Brake,2‐13
Aerial - Flexible Rubber - Black
Cg600,2‐51
Air Cleaner,2‐65
Air Cleaner Element For Kubota
D1105-T-,1‐1, 2‐65
Air Conditioning Switch Sub
Assembly,3‐13
Air intake Goalpost Wldmt - One Piece,2‐5
Air Intake Pipe - Turbo,2‐65
Air Suspension Seat - 711LP,3‐68
Alternator Assembly -,2‐63
Alternator Kit, 90Amp Kubota,3‐7
Alternator Mounting Brkt.,3‐7
Alternator, 90 Amp- Air Con
Engines.Not,3‐7
Anti Roll Plate Folded,3‐21
Anti-Vibration Mount,Engine,2‐61
Anti-Vibration Mount,Two Piece Max
Axial,2‐61, 2‐67, 2‐91
Arm Upper, Cylinder Pivot Lh -
Weldment,2‐77
Arm Wldt, Lower, Cylinder Pivot Rh,2‐75
Arm, Cloudmaker - Fabrication,2‐105
Arm, Lower Cylinder Pivot - Lh,2‐77
Arm, Lower Cylinder Pivot - Rh,2‐75
Arm, Lower, Cylinder Pivot Lh -
Weldment,2‐77
Arm, Rocker [Ku],5‐13
Arm, Upper Cylinder Pivot - Lh,2‐77
Arm, Upper Cylinder Pivot - Rh,2‐75
Arm, Upper Cylinder Pivot R/H -
Weldment,2‐75
Armrest Moulding Black,2‐47
Assembly Apparatus, Idle,5‐25
Assembly Bolt, Adjusting,5‐25
Assembly Tappet,5‐23
Assembly Thermostat,D1105t -525,5‐28
Assembly, Aluminium Door, Cab Lh,2‐35
Assembly, Aluminium Door, Cab Rh,2‐31
Asymmetric Head Rest,2‐47
Asymmetric Heasd Rest (Non A/C),2‐47
Asymmetric Heasd Rest W/ Ac
Evaporator,2‐47
Atomiser, C/W Plug,2‐105
Auto Lub Pump,3‐67
Auto-Lube Grease - 1 Litre Bottle
Nlgi-G,3‐67
Autolube Identity Number 0 Pu40 Cco
500,3‐67
Autolube Identity Number 1 Pu40 Cc1
500,3‐67
Autolube Identity Number 2 Pu40 Cc2
500,3‐67
Autolube Identity Number 3 Pu40 Cc3
500,3‐67
Autolube Identity Number 4 Pu40 Cc4
500,3‐67
Autolube Identity Number 5 Pu40 Cc5
500,3‐67
Autolube Identity Number 6 Pu40 Cc6
500,3‐67
Autolube Identity Number 7 Pu40 Cc7
500,3‐67
Autolube Identity Number 8 Pu40 Cc8
500,3‐67
Autolube Identity Number 9 Pu40 Cc9
500,3‐67
Axle Assy,2‐7
B
Back Plate,Hyd Trans Block,2‐109
Backing Plate Bottom Weldment,2‐97
Backing Plate Top Weldment,2‐97
Backing Strip, Rubber, City Scrub,2‐95,
3‐41
Backing Strip,Rubber,2‐93
Balance Bar,2‐57
Ball Joint - Carryin,2‐7
Ball Joint, Track Rod,2‐7, 2‐15, 2‐93, 2‐95
Ball, Cshft [Ku],5‐17
Ball, Relief, Oil [Ku],5‐7
Band, Air Cleaner C/W Fasteners,2‐65
Band, Pipe,5‐28
Bar Wldt, Retainer, Sqge, Rear,3‐39
Bar, Clamp, Squeegee, Formed,3‐23
Bar, Flat,3‐25
Bar,Hinge -Adjustable Nozzle,2‐93, 2‐95,
3‐21
Base, Relay,3‐67
Home
Find...
Go To..
CROSS REFERENCE
6‐15
636 UK YM165 (5−2015)
Battery 70 Amp Hr Din 570 144 064,2‐63
Beacon Extension Pillar,2‐27, 2‐29
Beacon Pivot Wldt,2‐27, 2‐29
Beacon Switch Sub Assembly,2‐49
Beacon Velcro Lock Down,2‐27, 2‐29
Beacon, Led,2‐27, 2‐29
Bearing [Ku],5‐8
Bearing Housing, Top King Pin -
Weldment,2‐9, 2‐11
Bearing Kit -Spinner -525 Cyclone,1‐1,
2‐85
Bearing Single Row,Deep Grv Ball 10
I/D,2‐85
Bearing, Ball [Ku],5‐24, 5‐27
Bearing, Case [Ku],5‐9
Bearing, Case, Main Assy [Ku],5‐9
Bearing, Cshft [Ku],5‐17
Bearing, Cshft, Std [Ku],5‐9
Bearing, Spherical, Igubal - 30 I/D X
55,2‐9, 2‐11
Bearing, Thrust, Std [Ku],5‐17
Beeper Assembly - 500/636,2‐5
Bell Crank Steering Lever, Lh -
Assembly,2‐15
Bell Crank Steering Lever, Lh -
Weldment,2‐15
Bell Crank Steering Lever, Rh -
Assembly,2‐15
Bell Crank Steering Lever, Rh -
Weldment,2‐15
Bellcrank Weldment,Hand Brake,2‐57
Belt, Fan,3‐7
Belt, Fan [Avx10.5/11 X 0975la],3‐7
Belt,Compressor -Mic,3‐7
Black Tri Lock,2‐83, 2‐99
Blade, Sqge, Front, 49.58l Linatex,3‐39
Blade, Sqge, Rear, Linatex,3‐39
Blanking Plate,3‐63, 3‐65
Blanking Plate - Chevron - W/ Rear
Camera,2‐86
Blanking Plate - Chevron - W/O Rear
Camera,2‐86
Blanking Plate - Radio,2‐51
Blanking Plate , Hopper Inlet [636],3‐63,
3‐65
Blanking Plate, Non Whoosh - 636
Hopper,2‐83
Blanking Plug,3‐67
Blanking Plug - [J] Block Bg1541,3‐47,
3‐49
Blanking Plug - 15 Mm Hole Dia
500e,2‐85
Blanking Plug - Whoosh,3‐65
Blanking Plug 199285 1'Dia.,2‐5
Blanking Plug Sub Assembly -
Whoosh,3‐65
Blind Grommet -16.5 Mm Hole Dia Pvc
Pvc,2‐27, 2‐29, 2‐43
Blind Grommet -25 Mm Hole Dia Pvc To
Su,2‐39
Blind Grommet -6.4mm Hole Dia Pvc
Pvc,2‐39
Bolt,5‐7, 5‐9, 5‐13, 5‐18, 5‐21, 5‐28, 5‐29
Bolt - M16 X 1.5 Pitch X70 Mm O/L
Grade,2‐93, 2‐95
Bolt [Ku],5‐4, 5‐8
Bolt / Washer, Door Lock,2‐33, 2‐37
Bolt-Aneorobic M6x35 Ptd.,2‐93
Bolt, -M16 X 120 Long,2‐75, 2‐77
Bolt, -M16 X 130 Long (W/Winter
Option),2‐75, 2‐77
Bolt, Adjusting,5‐25
Bolt, Eye,5‐31
Bolt, Flywheel,5‐18
Bolt, Hex [Ku],5‐15, 5‐24, 5‐26, 5‐27
Bolt, Hex Hd - M10 X 45 - Zinc Pltd.,2‐43
Bolt, Hex Hd - M10 X 100 - Zp Zinc
Plate,3‐7
Bolt, Hex Hd - M10 X 35 Grade 8.8
Zi,2‐45
Bolt, Hex Hd - M12 X 110 Stainless
Steel,2‐93, 2‐95
Bolt, Hex Hd - M6 X 100 Stainless
Steel,2‐5
Bolt, Hex Hd - M6 X 70 Stainless Steel
G,2‐5
Bolt, Hex Hd - M8 X 55 Grade 8.8
Zin,2‐55, 2‐107, 3‐23
Bolt, Hex Hd - M8 X 60 - Plain
Finish,2‐107
Bolt, Hex Hd -M8 X 75 St.St A4,2‐5, 2‐67,
3‐15
Bolt,Cylinder Head -V1505t,5‐5
Bolt,Hex Hd - M10 X 55 Zinc Plated
Passi,2‐61, 2‐91
Bolt,Hex Hd - M10 X 70 -St.St A4,2‐5,
2‐43, 2‐97
Bolt,Hex Hd - M10 X 90 Grade 10.9 Zn
Pla,3‐7
Bolt,Hex Hd - M8 X 80 St.St A4 316,2‐71,
2‐91, 2‐101, 3‐19, 3‐37, 3‐49
Bolt,Hex Hd -M10 X 90 -St.St A4 St.St
G,3‐33
BOLT,HEX HD SET M8 x 110 MM ZINC
PLATED,2‐5, 2‐65, 2‐107
Bolt,Hex Head -M6 X 55 -St.St A4
Coarse,2‐103, 3‐19
Bolt,Hex Head M10 X 120 Mm Zinc
Plated,2‐5
Boss - Whoosh Hinge,2‐83
Boss, 12 O/D X 6 I/D X 28 Lg,2‐5, 3‐19
Boss, 12 O/D x 6.6 I/D x 10 Long,3‐19
Boss, 16 O/D X 8.5 I/D X 28 Long Nylon
6,2‐5
Boss, 16mm Dia X M6,3‐9, 3‐49
Boss, Alternator Mounting, 6mm
Thick,2‐97, 3‐7
Bottom R/H Door Hinge -636,2‐23
Bracket - Door Stop Inlet Duct,2‐97
Bracket - Hopper Seat Chassis Frame
Weld,2‐5
Bracket - Mtg. Hopper Stay 525,2‐89
Bracket - Retaining - Formed Whoose
Hose,3‐63
Bracket Rh - Front Cover Hopper,2‐91
Bracket Rh Repeater Mount -
Formed,2‐23
Bracket Weldment, 5” Monitor,3‐3
Bracket Wldt - Armrest Support (Standard
Seat Only),2‐47
Bracket Wldt, Air Filter [636],2‐65
Bracket Wldt, Cloud Maker Guard
[636],2‐105
Bracket Wldt, Mtg,3‐19
Bracket Wldt, Mtg, Radiator,2‐71
Bracket Wldt, Mtg, Rubber Bumper,2‐5
Bracket Wldt, Sppt,2‐61
Bracket Wldt, Tank, Fuel,2‐69
Bracket- Evaporator Weldment,2‐47, 3‐9
Bracket-Hand Pump-636,2‐107
Bracket-Handbrake Warn.
Switch-Formed,2‐57
Bracket, 2Kg Fire Extinguisher
Mounting,3‐69
Bracket, Access Door,2‐23
Bracket, Adjmt, Alternator [Non Air
Con],2‐63
Bracket, Adjustable - Armrest,2‐47
Bracket, Cloudmaker - Fabrication,2‐105
Bracket, Formed - Stow Nozzle - 636,3‐65
Bracket, Front Pivot Mounting -
Weldment,2‐75, 2‐77
Bracket, Guide, Hose, Transmission,
Lh,2‐5
Bracket, Guide, Hose, Transmission,
Rh,2‐5
Bracket, Lh Formed -
Snowplough/Brush,3‐49
Bracket, Lh Mounting, Engine -
Weldment,2‐61
Bracket, Lower Mounting, Radiator
[636],2‐71
Bracket, Mid Support,Formed,Spray
Bar,3‐27
Bracket, Mounting, Pressure Washer,3‐15
Bracket, Mounting, Rear
Lights-Formed,3‐5
Bracket, Mtg, Rocker Arm [Ku],5‐13
Bracket, Parking Weldment -Nozzle
Whoosh,3‐65
Bracket, Qr Fittings, LH, Formed,3‐23,
3‐45
Bracket, Qr Fittings, RH, Formed,3‐23,
3‐45
Bracket, Reciever - Drier - Air Con,3‐9
Bracket, Retainer, Spring,2‐3
Bracket, Rh Formed -
Snowplough/Brush,3‐49
Bracket, Rh Mounting, Engine -
Weldment,2‐61
Bracket, Support - Weldment,2‐61
Bracket, Upper, Fuel Tank,2‐69
Bracket, Whoosh Handle - Painted,3‐63
Bracket, Winter Equipment - Lh
Formed,3‐47
Bracket, Winter Equipment - Rh
Formed,3‐47
Bracket,Bottom Warning Light -Spec For
R,3‐5
Bracket,Compressor,Fabricated,3‐7
Bracket,Hub Cap -Formed,2‐13, 2‐21
Bracket,Mounting - Hopper Stay Short
For,2‐89
Bracket,Rear Twin Mounting Engine
Formed,2‐61
Bracket,Steady,Air Intake,2‐93, 2‐95
Bracket,Support -Weldment Fuel
Filter,2‐61
Bracket,Top Warning Light -Spec For
Roto,3‐5
Bracket,Water Nozzle - Formed Fan
Inlet,2‐105
Bracket,Weldment,Rh Side Panel,636,2‐5
Bracket(Bottom) - Tank To Chassis,2‐103
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐16
Bracket(Top) - Tank To Chassis,2‐103
Brake Assembly Complete-Left Hand Not
St,2‐21
Brake Assembly Complete-Right Hand
Not S,2‐21
Brake Cable Adaptor,2‐21
Brake Cable, Front,2‐57
Brake Cable,Rear -636,2‐57
Brake Light, Switch,2‐53
Brake Pedal Wldt,2‐53
Brake Pipe - Cab Master Cylind.Under
Cab,2‐53
Brake Pipe 10mm T-Piece F/F/F,2‐55
Brake Pipe Connector-M10 Fem/Fem,2‐55
Brake Shoe Replacement Kit.Front
Brake,2‐13
Brake Shoes-Replacement Kit See
Notes,2‐21
Brake Valve Bracket Welment,2‐119
Brkt Wldt, Bulkhd, Heater Hose,2‐59
Brush - Polyprop/Wire Mix - 3 Row
440mm,2‐3
Brush Arm Extended Weldment,2‐75, 2‐77
Brush Arm Outer Tube Assembly - Lh,2‐77
Brush Arm Outer Tube Assembly -
Rh,2‐75
Brush Arm Outer Tube Weldment -
Lh,2‐77
Brush Arm Outer Tube Weldment -
Rh,2‐75
Brush Assembly. Wired Weed Brush,2‐3
Brush Assy, Disk, Scrub, 14.0 D,
Polypropylene (Disc Scrub Head City
Cleaning Option),2‐3
Brush Assy, Disk, Scrub, 14.0 D, Soft
Nylon (Disc Scrub Head City Cleaning
Option),2‐3
Brush Assy, Disk, Scrub, 14.0d, Super
Abrasive (Disc Scrub Head City
Cleaning Option),2‐3
Brush Cover -525 Cat Grey,2‐79, 2‐81
Brush Spray Nozzle A,1‐1, 2‐79, 2‐81, 3‐35
Brush, 750mm, 2row, Polypropylene,2‐3
Brush, Disk, Swp, 750mm, Pyp,2‐3
Brush, Pet - 3 Row 440mm/750mm
-Blue,2‐3
Brush, Polyprop 750Mm 2 Row Orange,2‐3
Brush, Polyprop 750Mm 3 Row Black,2‐3
Brush, Polyprop/ Wire 750Mm 3 Row
Black,2‐3
Brush, Scrubbing, 47L, 20 Sr, Pyp, Spl
(Cylindrical Scrub Head City Cleaning
Option),2‐3
Bulb - 12v, 21w Llb382t,2‐5
Bulb - 12v, 21w Llb382t (Turn
Signal),2‐27
Bulb - Indicator Warning 12v 2w [3]
Hb28,2‐49
Bulb - Rear Light R.O. To Suit
Eso5o,2‐101, 3‐49
Bulb -Halogen H3,2‐27
Bulb -Halogen H3 (Top High Beam),2‐27
Bulb 12V 4W Single contact Llb-233 (Side
Light Middle),2‐27
Bulb Halogen Hb7-525 Headlamp
-12-55w (Bottom Low Beam),2‐27
Bulb-12v 21/5w Tail/Stop Light 525,1‐1,
2‐5
Bulb/Bulb Holders -525 Switches
12volts,3‐49
Bulkhead Plate Weldment - 636 Remote
Bre,2‐119
Bulkhead-1/4 Bsp M/M,2‐117, 2‐121, 3‐49
Bumper - Weldment Main Water Tank
525,2‐101
Bumper Assembly Main Water Tank
525,2‐101
Bumper Bracket, Lh - Weldment,3‐33
Bumper Bracket, Rh - Weldment,3‐33
Bumper, Rear - Vertical - Refresh,2‐5
Bumper, Sqge,3‐39
Bumper,Rear - L.H.Vertical Left Hand,2‐5
Bumper,Rear R.H. - Vertical Right
Hand,2‐5
Bush - Hinge,2‐31, 2‐33, 2‐35, 2‐37
Bush - Piston Pin - D1105t & V1505t
525/,5‐17
Bush-Flanged Du 12i.D.17l
Gly.Pbg.121417,2‐53, 2‐85, 2‐101
Bush-Oilite 11 O/D 8 I/D 8lg
Am081108,2‐57
Bush, Du Flanged - 20 Id X 23 Od 22
Long,2‐7, 2‐15, 2‐75, 2‐77, 2‐101
Bush, Igus - 30 I/D X 34 O/D X 37 Long
',2‐17, 2‐19
Bush, Rubber - Rad & Water Tank Mtg
1511,2‐71
Bush,Flngd-Du-20 I/D X 23 Od X11.5
Long,2‐85
Bush,Igus Flanged Bush-G Type 30 X34
X26,2‐89, 3‐19
Bush,Igus Flanged Bush-J Type 16 X 22
X,2‐85
Bush,Sleeve,Window Pivot Fixing,2‐31,
2‐33, 2‐35, 2‐37, 2‐91
Bushing, Gear, Gov [Ku],5‐3
Bushing, Gear, Idler [Ku],5‐15
Bushing, Isolator,2‐31, 2‐33, 2‐35, 2‐37
Button Head Skt - M6 X8mm - St/St A2
Bag,3‐3, 3‐9
Button, Push, Momentary Square
1P67,3‐37, 3‐61
C
Cab Door - Left Hand,2‐37
Cab Door - Right Hand,2‐33
Cab Door, L/H - Assembly,2‐37
Cab Door, R/H - Assembly,2‐33
Cab Lockdown Bracket Rh,2‐43
Cab Rear Window Sponge Seal,2‐39
Cab Roof Console -Fr,2‐51
Cab Roof Liner ,2‐41
Cab Roof Liner 600 Air Con Grey 5mm
Poly,3‐13
Cab Roof Liner 600 Standard Grey 5mm
Pol,2‐41
Cab Wldt, W/ Label,2‐27, 2‐29
Cable -Earthing Braided Tinned Copper
Br,2‐63
Cable Gland -16 Mm X 1.5 Ip 68 Metric
Th,2‐27, 2‐29, 3‐5
Cable Tie,3‐67
Cable, Heater Temp Control,2‐59
Cable,Camera 5 Meter,3‐3
Cable,Negative Battery -636,2‐63
Cable,Positive Battery -636,2‐63
Cage Nut, Door Lock,2‐33, 2‐37
Cam,3‐39
Cam Connector clip,2‐33, 2‐37
Cam, Fuel [Ku],5‐24
Cam, Rear,3‐39
Cam, Rear, Rotawasher,3‐25
Camera,Low Light Colour,3‐3
Camshaft,5‐24
Camshaft Assy [Ku],5‐15
Cap,5‐25
Cap Nut 241030--,2‐105, 3‐23, 3‐27, 3‐37
Cap Sealing,5‐3
Cap-Blue Water Filter,2‐101, 3‐27, 3‐37
Cap-Oil Filler 15852-33140,2‐61
Cap, Dust - For Qrc Hf199,3‐47, 3‐49
Cap, Dust - For Qrc Hf201,3‐45, 3‐47,
3‐49
Cap, Dust - For Qrc Hf202,3‐47, 3‐49
Cap, Dust For Qrc Hf200,3‐47
Cap, Sealing,5‐5
Cap.Valve,D1105t -525,5‐13
Carbine Hook Stainless 60mm X 6,2‐101
Carpet Profile,Rh Top Cab,2‐39, 3‐9
Castor Arm Weldment, Squeegee,3‐31
Castor-Front-Wheel Only
Wrn6rbm20k134,3‐33
Castor, Bump, Rotawasher,3‐23
Castor, Squeegee, City Scrub,3‐31
Chain, Nozzle Restraining,2‐93, 2‐95
Chassis Bracket - Formed 525/636
S/Ploug,3‐49
Chassis Bracket-Flat Hose Retention
525-,3‐49
Chassis Weldment - Disc Scrubber,3‐31
Chassis Weldment, Rotawash,3‐23
Chassis Wldt [636],2‐5
Check Valve Cv10-20-0-N-70 Bias
Spring=4,4‐9
Checkvalve - Int.3ca80,4‐13
Circlip,2‐85
Circlip Piston Ring - D1105t/V1505t
525/,5‐17
Clamp - Fuel Pipe,2‐53
Clamp [Kubota],5‐8
Clamp Body ,For 6 Mm Pipe 636,2‐119
Clamp Body M20 Pipe - Air Con,3‐11
Clamp Body, For 12mm Pipe 636,2‐119
Clamp Bracket - Stow Nozzle,3‐65
Clamp Wldt, Accumulator,2‐107
Clamp Wldt, Front,3‐39
Clamp Wldt, Rear,3‐39
Clamp, Cable, Stl, 0.38d X 0.62w,
1hole,2‐65
Clamp, Fixed,Mounting Exhaust,2‐67
Clamp, Heavy Duty - Gbs 200-213
-Gbs207/,2‐85
Clamp, Hopper Stay Parking,2‐89
Clamp, Hose,5‐12, 5‐31
Clamp, Hose, Heater [Ku],5‐31
Clamp, Loose, Mounting Exhaust,2‐67
Clamp, Pipe,5‐31
Clamp, Side Squeegee, Rotawasher,3‐25
Clamp, Tube, Inj, Pipe #1 [Ku],5‐19
Clamp, Tube, Inj, Pipe #21 [Ku],5‐19
Clean Cyclone - Assembly,2‐85
Clean Cyclone Body -Weldment,2‐85
Home
Find...
Go To..
CROSS REFERENCE
6‐17
636 UK YM165 (5−2015)
Clevis - Master Cylinder,2‐53
Clevis Pin Assembly,2‐97
Clevis Pin C/Pin,2‐53
Clevis Weldment, Hyd Cylinder,2‐85
Clip-On Recepticle 17-10027-11,2‐23,
2‐25, 2‐79, 2‐81, 2‐105, 3‐23
Clip-Pvc Adhesive Pack-25 250ml,2‐27,
2‐29, 3‐49
Closed Cell Sponge-Self Adhesive 20mm
X,3‐9
Closing Plate, Cyclones,2‐85
Cloudmaker Bracket Weldment Lh,2‐105
Cloudmaker Bracket Weldment Rh,2‐105
Cloudmaker Cover - Refresh - Grey,2‐105
Cloudmaker Cover -Grey,2‐105
Coat Hook,For T-Bar Allen Key,2‐39
Coil - For Int.S229 Valve,4‐13
Coil - Int. - For S502 Valves,4‐13
Coil Nut - S502 Intergrated Valve,4‐13
Coil Spacer ( To Fit Twin Coil Valves ),4‐9
Coil-Ey- Type For Solenoid-Sv10
4300212,4‐5, 4‐11
Coil,Eyz Type -For Series 10 Sol
Valves,4‐7
Coil,Eyz Type -For Series 8 Sol Valve
4,4‐7, 4‐9
Coil,Solenoid-2/2 Way Direct Valve
Type,2‐105
Collar,5‐31
Collar - Crank Shaft -D11055t
Engine,5‐17
Collar - Dished With-Engine
15111-7220,2‐61, 2‐71, 2‐91
Collar Latch Spring,2‐43
Collar, Gear [Ku],5‐15
Collar, Govnr [Ku],5‐27
Collar, Lockdown, Cab,2‐43
Comp. Flywheel,5‐18
Complete Flange,Water,5‐28
Compressor - Air Con. 7172,3‐7
Condenser Coil,3‐9
Condenser Fan,3‐9
Condensor Assy - 636,3‐9
Conduit Nw17-Mirror sleeve-205Mm
Length,2‐33, 2‐37
Connecting Rod - Ext. Handle to Latch,
Lh,2‐37
Connecting Rod - Ext. Handle to Latch,
Rh,2‐33
Connecting Rod - Int. Handle to Latch,
Lh,2‐37
Connecting Rod - Int. Handle to Latch,
Rh,2‐33
Connecting Rod - Key Barrell to
Latch,2‐33, 2‐37
Connecting Rod-Locking lever to Latch,
Lh,2‐37
Connection Bracket,Weldment,Lh C/S,3‐31
Connection Bracket,Weldment,Rh
C/S,3‐31
Connector - 1/2 Bsp Male To1/5
hosetail,2‐71
Connector - 1/8bspm X 2/8bspf 90
Deg,2‐61
Connector - Bsp Male To
hosetail,2‐71
Connector - Tee 1/4 Bsp M/M/F,2‐111,
2‐121
Connector [Ku],5‐31
Connector Plastic -Screen Wash
Hose,2‐27, 2‐29
Connector-3/8bsp 90deg. Adj. M/M,2‐113
Connector, 4mm Double Ended,3‐67
Connector, 90 Deg Elbow - 4mm Push In
M6,3‐67
Connector, Straight - 4mm Push In - M6
X,3‐67
Connector,90 Deg Elbow - 4mm Push In
X,3‐67
Controller - Electronic Water Pump
Sc111,3‐37
Copper Elbow,2‐73
Cord, Ele, Glowplug,5‐19
Cotter Pin, 5/16 X 3/42 Zinc Plated,2‐57
Countersunk Skt Head - M8 X 50mm
Plated,2‐93, 2‐95
Coupling Q.R.3/8 Female,3‐45, 3‐47
Coupling Q.R.3/8 Male,3‐43, 3‐45, 3‐47
Coupling-Bulkhead-3/8'Bsp M/M Asl
Produc,3‐49
Coupling, 3/8 X 12mm Asl Product Spec
11,2‐119
Cover,5‐7, 5‐25
Cover - Chassis Xt2 Unit,2‐5
Cover - Thermostat - V1505,5‐28
Cover Plate Bottom - Cab Floor Aircon
(Painted),3‐11
Cover Plate Bottom - Cab Floor Aircon
(Stainless),3‐11
Cover Plate Top - Cab Floor Aircon
(Painted),3‐11
Cover Plate Top - Cab Floor Aircon
(Stainless),3‐11
Cover Plug,Plastic - M10 Hole,2‐17, 2‐19
Cover Wldt, Access, Cowl,2‐71
Cover-Relays Box,2‐49
Cover, Brg Case, Eng [Ku],5‐9
Cover, Cylinder Head,5‐10
Cover, Formed, Rotawasher,3‐23
Cover, Lever, Gov [Ku],5‐27
Cowl Body, Vacform - 636,2‐71
Crankshaft,5‐17
Crankshaft, Metal [Ku],5‐9, 5‐17
Cuff - Tapered,3‐63
Cuff, 8 Id X 120 Mm Longx 6 Mm Thick
Neo,2‐93, 2‐95
Cup Washer,2‐57
Cylinder Head Bolt,D1105t,5‐5
Cylinder Head Cover Gasket-D1505t,5‐10
D
D Window Pivot Weldment - Lh,2‐35
Decal - Mudguard - Silver,2‐123
Decal - Side Panel Green Machine -
Green,2‐123
Decal - USA slow Moving Vehicle
[14”],2‐123
Decal-Chevron-Green/Yellow Rear
Bumper,2‐123
Decal-Chevron-Green/Yellow Rear
Hopper 9,2‐123
Decal-Usa Slow Moving Vehicle
[14.0”],2‐123
Decal, 636 Hs - White,2‐123
Decal, Door Bottom, Near Side
Gray/White,2‐35
Decal, Door Bottom, Off Side
Grey/White,2‐31
Decal, Radio - Blanking Plate - 636,2‐51
Deflector Exhaust Weldmant,2‐67
Diesel Tank -Rotomold -636,2‐69
Diesel Tank Assembly - ^36,2‐69
Dipstick Guide, V1505 Tier 4,2‐61
Dipstick, Extended,2‐61
Direction Indicator / Rear Fog Light (Bulb
Not Included),2‐5
Direction Indicators / Reverse Light (Bulb
Not Included),2‐5
Disc Scrubber Weldment,3‐33
Dome Plug - .25 X 30.5 X 11.5,2‐51
Dommed Round Insert -Brush Mirror
Arm,2‐27, 2‐29
Door Lock Kit Complete -Black,2‐31, 2‐35
Door Seal Rear Seals Door To Cab
Access,2‐31, 2‐35
Door Stay-Gas Strut,2‐31, 2‐33, 2‐35, 2‐37
Door Stay-Gas Strut End Fittings,2‐31,
2‐33, 2‐37
Door Stop Female 0775/001,2‐23, 2‐25,
3‐65
Door Stop Male 0666/002,2‐23, 2‐25, 3‐65
Door Wldt, Drain Access,2‐97
Doorstop Mtg Bracket -636,2‐25
Doser Spray Bar, Assembly - 636
Machine,3‐37
Doser Unit Assembly For Rotawash,3‐27
Double Coat Hook,2‐39
Double Pilot Piston 7013387,4‐9
Drag Link - Formed - Rh,2‐15
Drag Link-Lh Assembly,2‐15
Drag Link, Assembly - Rh,2‐15
Drag Link, Formed - Lh,2‐15
Drain Flap [636],2‐97
Drain Plug 16541-33750,4‐2, 4‐3
Drip Tray,Weldment,3‐9
Drive Coupling - Bob,2‐61
Drive Motor - Eaton T60 T060ajas
158-338,2‐79, 2‐81, 3‐25
Drive Plate, Brushes - Cast - 636/Ze
(Replc by NF303),2‐79, 2‐81
Drive Pulley -Air Con Compressor,3‐7
Driver Storage Bin Petg In 4mm Thick,2‐47
Drum,Front Brake,Machined 5 Stud
(Hole),2‐13
Drum,Rear Brake,Machined 5 Stud
(Hole),2‐21
Du Bush 6mm I/D X 8mm O/D X 8mm
Long,2‐83
Dump Valve Weldment,2‐97
Dust Cap For Hf053 Qrc,3‐45, 3‐47
Dust Cap For Hf054 Qrc,3‐45, 3‐47
Dzus Retainer 12304/2,2‐13, 2‐21
E
E Coil Nut 4502960,4‐7, 4‐9
E Coil Nut To Fit Valve
Sv08-21-0-N-00,4‐9
Ear, Lifting, Eng [Ku],5‐5
Elbow - [3/8 M X 3/8 F]
Ap03375mfe375n,3‐27, 3‐37
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐18
Elbow - [3/8'Mx3/8'F]
Ap03375mfe375n,2‐103
Elbow, 1/4" To 1/4" Bsp Fem,3‐27, 3‐37
Elbow, 90deg. - 1/8 Male, 8 I/D T
150,2‐101
Elbow, Male/Hose Barb - 3/4m X 3/4,3‐15
Elbow,Nylon 90 Deg 3/8 Male Bsp X 5/8
B,3‐15
Elbow,Swivel,90deg.St/St,525 Hose
Reel,3‐19
Element, Breather,5‐10
Element,Suction & Return 10 Micron,2‐107
End Cap -Water Manifold,2‐103
End Cover,Rh Axle Beam,2‐11
Engine For Spares - Kubota V1505T 4
Cyli (See Engine Breakdown),2‐61
Engine/Pump Housing,,2‐61
Evaporator,2‐47
Evaporator Coil,3‐9
Exhaust Clamp - 60mm,3‐15
Exhaust Manifold - 636,2‐67
Exhaust Manifold-V1505 Engine,5‐11
Expansion Tank,2‐73
Expansion Tank Cap,2‐73
Extended Hatch (Incl Carpet Profile)
Cab,2‐41
Extension Spring 2.5 Dia X 13 Od 77.8
Lg,2‐97
Extinguisher, Fire, 2kg Dry Powder,3‐69
F
Fan Belt,2‐63
Fan Casing Front Mounting Plate
-636,2‐91
Fan Casing, 636,2‐91
Fan Motor Replacement Kit,2‐91
Fan-Pusher 380 Mm, 35 Deg Blade Angle
8,2‐63, 3‐7
Fastener - Rubber Woosh Boom Long,2‐5
Fastener-Rubber (Short),3‐63
Felt Washer, 22 O/D X 10.5 I/D 0.25
Dens,2‐85
Ferrule - Copper 1.5mm For Use With
Rm01,3‐27
Filter - Water System [Ball Check]
32100,1‐1, 2‐105, 3‐27
Filter Assy, Pressure Washer,3‐15
Filter Element - High D.P.-10qho
G04666q,1‐1, 2‐107
Filter Minder,Electr,2‐65
Filter-Fuel Kit D52-184 Fuel Filter
For,2‐69
Filter-Pressure-Parker 100-A2-1,2‐107
Filter, Medium Profile - 3/4f - 80
Mesh,3‐15
Filter, Oil [Ku],5‐4
Filter, Screen, Radiator,2‐71
Filter,Filler Neck,4‐2, 4‐3
Filter,Suction & Return Line 10 Micron
F,2‐107
Fitting, Bh Orfs/Orfs W/Nut 3/8-3/8,2‐45
Fitting, Brs, Str, Bm10/.375bspt,2‐61
Fitting, Brs, Tee, Pf02/Pf02/Pm02,
Run,3‐25
Fitting, Draincock [Ku],5‐3
Fitting, Fuel [Ku],5‐19
Fitting, Pipe, Plug [Ku],5‐3, 5‐5, 5‐7
Fitting, Plug [Ku],5‐3
Fitting,Bh,Orfs/Orfs W/Nut 1/2-1/2,2‐45
Fixed Glass - Lh,2‐37
Fixed Glass - Rh,2‐33
Fixed Glass Lower Door 5mm Toughened
Gla,2‐31, 2‐35
Fixed Panel, Lh Wldt [636],2‐25
Fixing Plate Top, Window Pivot -,2‐31,
2‐35
Flange Weldment, Exhaust,Engine
End,2‐67
Flange Weldment,Exhaust,Muffler
End,2‐67
Flange, Muffler,5‐29
Flange, Pump, Water [Ku],5‐8
Flange, Sleeve,5‐23
Flap Wldt, Nozzle, Adj,2‐93, 3‐21
Flap,Engine Shield ,Neoprene-As
Dwg.,2‐97
Flap,Water Tank,2‐101
Flasher Unit Led/Filament,2‐49
Flexi-Pipe, Exhaust,710mm Lng -636
Ends,2‐67
Flexible Hose,2‐21, 2‐55
Floor Window,2‐39
Flow Control Valve,2‐59
Flow Divider/Combiner Fd12
Sk12-40mmt,4‐5
Flow Restrictor Assy Cloudmaker,2‐105
Foam Seal , 6 Mm Woosh Inlet
Shootblast,2‐97
Foam, Tube -Armaflex 10.5Id
X6Wallx525Mm,2‐57
Footbrake Reservoir,2‐53
Frame Wldt, Sppt,2‐5
Front Cover - Rotomould,2‐91
Front Flap Assembly,3‐41
Front Indicator Light,2‐29
Front Number Plate,2‐27, 2‐29
Fuel Filter Element,2‐119
Fuel Filter Element-184 For Kubota
D1105,1‐1, 2‐69
Fuel Gauge,2‐49
Fuel Pump Cover Plate,5‐21
Fuel Pump,Electric -D1505 - 4 Cyl
Engine,5‐21
Fuel Pump,Electric (With Connector),2‐69
Fuel Sender,Off-Take,2‐69
Fuse,Maxi Blade 40 Amp,2‐63
Fuse,Maxi Blade 60 Amp,2‐63
Fuse/Brake Cylinder Cover 525/636,2‐49
Fusebox Assembly,4 X 40 A 636 Main
Supp,2‐63
G
Gas Strut - Cab Tilt Elbow/Elbow Rod
End,2‐43
Gas Strut,Air Con-Cab Tilt 800 N,2‐43
Gasket,5‐3, 5‐10, 5‐23, 5‐25
Gasket - Exhaust Manifold - V1505t -
636,5‐11
Gasket - Hopper Regen Assembly,3‐21
Gasket - Sump Drain Plug
15451-9667,4‐2, 4‐3
Gasket -Turbo Charger To Flange,5‐29
Gasket [Ku],5‐25
Gasket Bearing Case, D1105t,5‐9
Gasket Lift-Fuel Pump -Z482 &
D1105-T,5‐21
Gasket-Muffler Muffler Gasket For
D1105-,2‐67, 5‐29
Gasket, Bulkhead Bracket, Heater
Hoses,2‐59
Gasket, Cover, Gov [Ku],5‐27
Gasket, Cover, Spd [Ku],5‐26
Gasket, Cylinder Head V1505t 636,5‐5
Gasket, Delivery Valve,5‐23
Gasket, F/ Bolt [Ku],5‐19
Gasket, Injector - Lower,5‐19
Gasket, Inlet Manifold - V1505t
Engine,5‐12
Gasket, Neoprene Window Pivot Cab,2‐31,
2‐35
Gasket, Oil Pipe,5‐31
Gasket, Pivot Arm, Top Plate Neoprene,
5,2‐33, 2‐37
Gasket, Sqge,3‐39
Gasket, Thermostat,5‐28
Gasket, Turbo Oil Pipe -D1105t,5‐31
Gasket,Drain Plug -V1505t,5‐4
Gasket,Drain Plug D1105-T -525,5‐4
Gasket,Gear Case,5‐7
Gasket,Main Bearing Case,D1105t,5‐9
Gasket,Turbo Charger To Exhaust
Manifold,5‐29
Gasket,Water Flange D1105t &
V1505t,5‐28
Gasket,Water Pump D1105-T -525,5‐8
Gear, Camshaft [Ku],5‐15
Gear, Cshft [Ku],5‐17
Gear, Govnr [Ku],5‐24
Gear, Idler, Cam [Ku],5‐15
Gear, Pump, Fuel [Ku],5‐24
Gear, Pump, Oil [Ku],5‐17
Gear, Ring,5‐18
Gearcase-D1105t,5‐7
Glass, Sliding, Rhs Door,2‐33, 2‐37
Glove Net-525 Document Rack/Net
60200104-,2‐59
Glow Plug -D1105t,5‐19
Grab Handle Formed,2‐29
Grease Filled Tube - 50 Mtr Coil,3‐67
Grease Nipple-45deg-6mm,2‐7, 2‐9, 2‐11,
2‐15, 2‐75, 2‐77
Grease Nipple, Straight - M6,2‐7, 2‐17,
2‐19, 2‐43, 2‐75, 2‐77, 2‐101
Grip Knob-Male Black Nylon,2‐47
Grip, Foam,2‐89
Gritter Connector Plate,3‐49
Grommet-Sleeved,2‐39
Grommet,Open-4.8 I/D,1.6 Thk & 15.9
Hole,3‐3
Grommet,Open-8.0 I/D,1.6 Thk & 12.7
Hole,2‐27, 2‐29
Guard Wldt, Fan,2‐71
Guide, Valve, Exhaust,5‐5
Guide, Valve, Inlet,5‐5
H
Hand Break Lever,2‐57
Hand Pump Assembly - 636,2‐111
Home
Find...
Go To..
CROSS REFERENCE
6‐19
636 UK YM165 (5−2015)
Hand Pump Handle Grip,2‐107
Hand Pump Valve Assembly
Hp10-21a-3b-N-B,2‐107, 2‐111
Handle, Folded - Nozzle Whoosh,3‐65
Handle, Hopper Blanking Plate,3‐63, 3‐65
Handle,Locking-Weldment Main Water
Tank,2‐101
Handle,Revolving - Hose Reel
I281/65-X-,3‐19
Handwheel -40mm Dia-M8 X 20mm,2‐97
Hatch Stay -Double Hinge,2‐41
Hazard Warning Switch Sub
Assembly,2‐49
Head, Cylinder [Ku],5‐5
Headlamp (LH Drive vehicles),2‐29
Headlamp (RH Drive vehicles),2‐29
Headlamp Bracket Lh Refresh,2‐29
Headlamp Bracket Rh Refresh,2‐29
Headlamp/Indicator/Side Light (Lh
Drive),2‐27
Headlamp/Indicator/Side Light (Rh
Drive),2‐27
Heat Shield With Lug -Formed,2‐101
Heater Air Hose -Left Hand 2nd Stage
65m,2‐59
Heater Air Hose-Left Side Stage 1 65mm
D,2‐59
Heater Box Assy - 636,2‐59
Heater Box Wldt,2‐59
Heater Intake Spiggot Assembly,2‐27, 2‐29
Heater Switch Sub Assembly,2‐49
Heater Unit C/W Connector,2‐59
Heater Vent Hose-Right Hand 65 Mm Dia
20,2‐59
Hi-Grip Worm Drive hose Clip -
25-35Mm,2‐105
Hinge Bracket - Weldment,2‐85
Hinge Cover Assembly - Whoosh
Hopper,2‐83
Hinge Pin - Access Door,2‐99
Hinge Plate Lh Wldt - Door Rpcr,2‐85
Hinge Plate Rh Wldt- Door Rpcr,2‐85
Hinge Weldment, Flap, City Scrub,2‐95,
3‐41
Hinge Wldt, Door,2‐99
Hinge, Bottom Weldment - Lh, Door,
Cab,2‐35, 2‐37
Hinge, Bottom Weldment - Rh, Door,
Cab,2‐31, 2‐33
Hinge, Top Weldment - Lh, Door,
Cab,2‐35, 2‐37
Hinge, Top Weldment - Rh, Door,
Cab,2‐31, 2‐33
Hobby Gun / Lance As,3‐19
Holder, Delivery Valve,5‐23
Holder, Gear [Ku],5‐24
Holder, Govnr [Ku],5‐24
Hook -Engine,5‐5
Hopper Body Weldment [636] -
Regen,3‐21
Hopper Door Seal - Titenfast [Black],2‐85
Hopper Door Wldt,2‐85
Hopper Dump Valve Switch Assembly,2‐49
Hopper Raise/Lower Switch Assembly,2‐49
Hopper Regen Weldment,3‐21
Hopper Scraper Assembly -636,2‐99
Hopper Stay Weldment,2‐89
Hopper Wldt, Body, W/ Label,2‐83
Horn - 636/525,2‐65
Hose - Air Con Drain - 15mm Automotive
(,3‐9
Hose - Fuel Tanks to Filter,2‐69
Hose - Heater Return,2‐59
Hose - Heater To Bul,2‐59
Hose - High Pressure - Compressor To
Cab,3‐11
Hose - Water Manifold To Y Piece
(Rh004),3‐15
Hose - Whoosh 4 1/2[114mm] X
2.2m,3‐63
Hose Aay,Filter To Charge Pump Suction
6,2‐111
Hose Assembly-Water,2‐103
Hose Assy,2‐53
Hose Assy - A2 On Hc203 To Fan
Manifold,3‐51
Hose Assy - Gritter Return To Tank,3‐51
Hose Assy - P2 On Hc203 To Fp
Hc182,3‐51
Hose Assy - Port B Hc203 To Brush
Motor,3‐51
Hose Assy - Port Bp Hc182 To P1
Hc203,3‐51
Hose Assy - Port C Hc203 To Gritter,3‐51
Hose Assy - Port T On Hc158 To Tank
Rtrn,3‐51
Hose Assy - Rotary Brush Rtrn To
M/Fold,3‐51
Hose Assy - Tee On Port Oc To Port Fr
Fo,3‐51
Hose Assy, 636 Trans-M2-2 to Lhff,2‐117
Hose Assy, Brush Arm Cylinder - Up,2‐115
Hose Assy, Bulkead To Str Cyl - Lh,2‐113
Hose Assy, Bulkead To Str Cyl - Rh,2‐113
Hose Assy, Cab Prrv Press To Brush
Line,2‐115
Hose Assy, Cab Prrv Return To Tank,2‐115
Hose Assy, Charge Pump Drain To Tank
See,2‐111
Hose Assy, Cyd Manifold To Mtr
Manifold,2‐111, 2‐119
Hose Assy, Fr on Brake Block To Rp On
Mtr,2‐119
Hose Assy, Hopper Block to Dump
Cylinder,2‐119
Hose Assy, Hopper To
Chassis-Bleed,2‐119
Hose Assy, Hopper To
Chassis-Return,2‐119
Hose Assy, Lh Brush Arm - In,2‐115
Hose Assy, Lh Brush Arm Cyl To Tee -
Up,2‐115
Hose Assy, Lh Brush Motor Drain To
Tee,2‐115
Hose Assy, Lh Front Wheel - Drain,2‐117
Hose Assy, Lh Hopper Cyd To
Bulkhead,2‐121
Hose Assy, Lh Rear Wheel - Drain,2‐119
Hose Assy, Lh To Rh Hopper Cyd -
Base,2‐121
Hose Assy, Manifold to Tracking Cyl
-In,2‐119
Hose Assy, Mtr Manifold To Cyd
Manifold,2‐111
Hose Assy, Nozzle Cylinder - Base
End,2‐115
Hose Assy, Nozzle Cylinder - Rod
End,2‐115
Hose Assy, Rear Wheel Mtr Drains To
Tank,2‐117
Hose Assy, Rh Brush Arm - In,2‐115
Hose Assy, Rh Brush Arm Cyl To Tee -
Up,2‐115
Hose Assy, Rh Brush Mtr To Lh Brush
Mtr,2‐115
Hose Assy, Rh Front Wheel - Drain,2‐117
Hose Assy, Rh Front Wheel - Front
Drive,2‐117
Hose Assy, Rh Rear Wheel - Drain,2‐117
Hose Assy, Rp On Brake Block To Pp On
Mtr,2‐119
Hose Assy, Tank to Hand Pump,2‐111
Hose Assy, Tee From Bp To Rh Brush
Motor,2‐115
Hose Assy, W/2cuff, 3.0d 014l 3.0/3.0,3‐41
Hose Assy,Bulkhead To Hopper
Door,2‐121
Hose Assy,Bulkhead To Tank 636,2‐113
Hose Assy,Cyl Man(Ha) To Seq Valve
Tee,2‐121
Hose Assy,Cyl Manifold To Hyd Tank,2‐111
Hose Assy,Cyl Mnf(Hb) To Hpr Cyl
Top,2‐121
Hose Assy,From T-Piece To Dump V/ V
Bloc,2‐119
Hose Assy,Gear Pump To Pressure Filter
S,2‐111
Hose Assy,Hopper Hand Pump Valve,2‐111
Hose Assy,Hopper To
Chassis-Pressure,2‐119
Hose Assy,Hpr Emerg To Transmnf
Tee,2‐111
Hose Assy,Hyd Tank To Breather,2‐119
Hose Assy,Hyd Tank To Ch Blk Hd
Hopper,2‐119
Hose Assy,Hyd Tank To Frnt Ret
Manifold,2‐115
Hose Assy,Hyd Tank To Seq Valve,2‐121
Hose Assy,Hyd Tank To Trans Manf
Tee,2‐111
Hose Assy,Manifold To Tracking In
Cylind,2‐113
Hose Assy,Manifold To Tracking Out
Cylin,2‐113
Hose Assy,Mnfd To Tracking Cyl-In,2‐113
Hose Assy,Mnfd To Tracking
Cyl-Out,2‐113
Hose Assy,Mtr Manifold To Oil
Cooler,2‐111
Hose Assy,Mtr Manifold(Bp) To Tee,2‐115
Hose Assy,Mtr Mnf(Br) To Lh Brush
Mtr,2‐115
Hose Assy,Mtr Mnf(Fp) To Ch
Blkhdhopper,2‐119
Hose Assy,Mtr Mnf(Fr) To Chblkhd
Hopper,2‐119
Hose Assy,Mtr Mnfl(Pw) To Pw Mnfld
P,2‐115, 3‐17
Hose Assy,Nozzle Prrv Pressure,2‐119
Hose Assy,Oil Cooler To Suc Ret
Filter,2‐111
Hose Assy,Oil Cooler To Suc/Ret Filter
6,2‐111
Hose Assy,P/Washer,R,3‐19
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐20
Hose Assy,Power Strg To Bulkhead
636,2‐113
Hose Assy,Pres Filter To Mtr
Manifold,2‐111
Hose Assy,Pw Mnfl (T) To Oil Cooler
Tee,3‐17
Hose Assy,Pw Water Pump To Lance,3‐19
Hose Assy,Seq Valve Tee To Hpr Cyl
Btm,2‐121
Hose Assy,Tank To Gear Pump -636 See
Dra,2‐111
Hose Assy,Tank To Power Strg
Pump,2‐113
Hose Assy,Trans -M3-1 To Lhrr 636,2‐117
Hose Assy,Trans -M3-2 To Lhrf,2‐117
Hose Assy,Trans-M1-1/M2-2 To Lhfr &
Lhff,2‐117
Hose Assy,Trans-M1-2 To Rhrf 636,2‐117
Hose Assy,Trans-M4-1 To Rhrr 636,2‐117
Hose Barb, 3/4 M X 3/4,2‐103
Hose Cyl Block To Lh Qrc - Mk2 Winter
Eq,3‐51
Hose Cyl Block To Rh Qrc - Mk2 Winter
Eq,3‐51
Hose Foam - 50Mm length,2‐105
Hose Low Press Evaporator To
Compressor,3‐11
Hose Reel Wldt,3‐19
Hose Rh Brush In/Out To Qrc Mk2 Wint
Hyd,3‐51
Hose Suction- 25mm X 2m Length,3‐21
Hose Suction- 51mm X 300mm
Long,2‐97, 3‐21
Hose Tail,1/8 Bsp Male To 7mm Nickel
Pla,2‐105
Hose- Press.Wash - Y-Piece To Pump
Bleed,3‐15
Hose-Front Nozzle 8i.D. 650mm
Long,2‐93, 2‐95
Hose-Hc203 To Rotary Brush Qrc Mk
2,3‐51
Hose-High Press-Cab To Condensor
1.3m,3‐11
Hose-Lh Brush In/Out To Qrc Mk2 Wint
Hyd,3‐51
Hose-Low Pressure Condensor To Drier
660,3‐11
Hose-Press Wash Filter To Pump Suction
3,3‐15
Hose-Press.Wash Y Piece To Filter
390mm,3‐15
Hose-Wash Man-PW Press,3‐17
Hose, Breather, Top Rad. 8mm- 0.65mt
Lon,2‐73
Hose, Clamp [Ku],5‐29
Hose, Fuel [Ku],5‐19
Hose, Rad. To Expansion Bottle,2‐73
Hose, Suction - 3" Dia X 3m - City
Scrub,3‐41
Hose, Turbo, Charger [Ku],5‐29
Hose, Water,5‐8
Hose, Water, Side Water Tank,2‐103
Hose, Windscreen Washer 3/16 Tubing 30
Mt,2‐27, 2‐29
Hose,Diesel Tank Locking Tank To Neck
12,2‐69
Hose,Engine Air Intake,Filter To
Goalpos,2‐65
Hose,Rad-Engine To Cab -12mm 5.5 Mt
Long,2‐73
Hose,Radiator Top,636,2‐73
Hosetail - Nylon -3/8 Bsp X 3/8
Barb,2‐103
Hosetail - Nylon 3/8 Bsp X 1/4 Barb,2‐103
Hosetail -3/8 Bspt X 1/4 Barb,2‐103, 3‐27,
3‐37
Hosetail 1/4m - 7mm Barb,3‐27, 3‐37
Hosetail- 4mm For Q.Release Body,3‐27,
3‐35, 3‐37
Hub Carrier Lh W,Ment Front Brakes,2‐11
Hub Carrier Rh, 2nd W,Ment Front
Brakes,2‐9
Hub, Drive, Brush, Disk, 1.00b [6t],3‐33
Hub, Drive, Brush, Disk, 3Hole 5.8Bc,2‐3
Hub, Drive, Motor Rotawasher,3‐25
Hub, Idler, Assembly, Rotawasher,3‐25
Hyd Hose, Manifold To Qr Coupling,3‐43
Hyd Hose, Motor 1 Drain To Manifold,3‐43
Hyd Hose, Motor 1 To Motor 2,3‐43
Hyd Hose, Motor 2 Drain To Manifold,3‐43
Hyd Hose, Motor 2 To Motor 3,3‐43
Hyd Hose, Motor 3 To Manifold Block,3‐43
Hyd Hose, Qr Coupling To Motor 1,3‐43
Hyd Manifold Assy -636 Snowbrush
Gritter,3‐49
Hyd Pump Handle,2‐107
Hydraulic Cylinder - Hopper,2‐89
Hydraulic Cylinder - Nozzle,2‐93, 2‐95
Hydraulic Cylinder -Steering,2‐7
Hydraulic Cylinder Assembly - Front
Head,2‐97
Hydraulic Cylinder-B,2‐75, 2‐77
Hydraulic Cylinder-Hopper Roof 500e,2‐85
Hydraulic Cylinder-Tracking-Mk3 16 Mm
Po,2‐7
Hydraulic Manifold A,3‐17, 4‐11
Hydraulic Tank Assembly -636,4‐2
Hydraulic Tank Assembly -636 (See
Breakdowns),2‐107
Hydraulic Tank Assembly -636 with level
sensor,4‐3
Hydraulic Tank Weldment,636,4‐2
Hydraulic Tank Weldment,636with level
sensor,4‐3
Hydraulic Tank, Level Sensing, 636 (See
Breakdowns),2‐107
Hydro Pump Kit Part Of Engine Kit
Pp002,2‐61
I
Impeller, Pump, Water [Ku],5‐8
Impeller,Clean Fan C/W Mounting
Plate,Hu,2‐91
In-Line Valve-Windscreen Washers,2‐27,
2‐29
Indicator Side Repeater,2‐23, 2‐25, 2‐29
Inductor, 32.0mml [Ferrite
0-300mhz],2‐105
Injection Pump Assembly-V1505t,5‐21,
5‐23
Inlet Cone - Weldment,2‐91
Inlet Duct,2‐97
Inlet Pipe - 1505 Engine,5‐12
Inlet Tube Inner - Rotomould,2‐97
Inlet Tube Upper - Rotomould,2‐93, 2‐95
Inlet Tube, Lower, Rotomold,2‐93, 2‐95
Inlet Wldt, Outer, Woosh,2‐97
Inner Plate Fan Access Door Wldt,2‐99
Interior Hadle Assy, Lh,2‐37
Interior Hadle Assy, Rh,2‐33
Internal Seal - Regen - 6mm Linitex,3‐21
Iqan - Xs - 5010003,2‐27, 2‐29
Iqan Md3 - Programmed For 636,2‐51
Iqan Md3 Master Module,2‐5, 2‐29
Iqan Mdm - 636 Prog V3.05* Km/H,2‐51
Iqan Mdm - 636 Prog V3.05* Mph,2‐51
Iqan Mdm C/W Asl Program V3*
Canada/Aust,2‐51
Iqan Xt2 Interface Input/Output Module
X,2‐5, 2‐27, 2‐29
Isolation Switch - Winter Equipment,3‐49
J
Jet - 1/4 -15 Degree 06 St.St,3‐19
Joining Spiggot Weldment,3‐41
Joint-T-Pipe(Fuel) V1505 Engine,5‐19
Joint, Breather Pipe,5‐10
Joystick - Brush Control -636 633,2‐47
Jubilee Clip - 8 1/2 42002-15
184-2,2‐93, 2‐95
Jubilee Clip - 110 To 140mm,3‐63
Jubilee Clip - 14mm To 22mm,2‐73
Jubilee Clip - 55 To 70 [Dea],2‐65
Jubilee Clip - 9.5mm To 12mm
177hclo215,2‐69, 2‐73, 2‐103
Jubilee Clip 17 To 25mm Sp24,2‐59, 2‐73,
2‐103
Jubilee Clip 22mm To 30mm
22mmx30mm,2‐103, 3‐15
Jubilee Clip 30 to 40,2‐65, 2‐73, 2‐105
Jubilee Clip 35 To 50 50mm,2‐59, 2‐65,
2‐69
Jubilee Clip 40 To 55 55mm,2‐97, 3‐21
Jubilee Clip 70-90,3‐41
Junction Block - Hopper Hand Block,2‐111
Junction Block - Nozzle/Brush Arm
Return,2‐115, 3‐43
Junction Block -Lh Hopper Cyl. -
Upper,2‐121
K
Kab Seat Kab-211 (Standard Seat),2‐47
Key [Ku],5‐15, 5‐17
Key-For Shaft For Hm036 8mm Straight
Ke,2‐79, 2‐81
Key, Ignition Switch For Use With Ign
Sw,2‐45
Key, Woodruff [Ku],5‐24
Kit, Lock Cylinder, Cab Door,2‐33, 2‐37
Kit, Seat Sensor Insert 636/500,2‐47
Knob - Heater Control 525 Spinner Knob
F,2‐59
Knob, Black Panel - M8 8958v
Black,2‐47, 2‐95, 2‐105, 3‐31, 3‐41
Knob, Solid,22 Mm Brushed Black
Finish,2‐49
Knob,Black Lever -M 8 Black Duroplast
Kn,2‐101
Home
Find...
Go To..
CROSS REFERENCE
6‐21
636 UK YM165 (5−2015)
Knurled Fastener 17-13-204-11,2‐23,
2‐25, 2‐79, 2‐81, 2‐105, 3‐23
L
Label - Read Operators Manual,2‐33, 2‐37
Label Set, Fuse Box-636 Three Parts [
1-,2‐49, 2‐123
Label Set, Opertnl, Cab [636],2‐123
Label Sheet - 525 Black Vinyl,2‐59
Label Sheet -525 Matt Resistant
Pvc,2‐123
Label Sheet,Clear Vinyl -636,2‐123
Label, Tire Press,2‐23, 2‐25
Label,Low Sulphur Fuel 40mm X 80
Mm,2‐69
Label,Primary Fuse Box -60 Amp,2‐63
Label,Steering Wheel,2‐45
Latch - Adjustable 70-653 M1 Mszn,2‐85
Latch Arm Assembly,2‐43
Latch Mechanism, Lh,2‐37
Latch Mechanism, Rh,2‐33
Latch, Cab Lockdown, Lh,2‐43
Led Bulb, For Square Warning Lamps,2‐49
Led Warning Light Kit, Front,3‐5
Led Warning Light Kit, Sides,3‐5
Led Warning Lighthead Reg 65,3‐5
Legend - Impeller
Engagement/Snowbrush,3‐49
Legend,Gritter,3‐49
Level Sensor Assembly, Hyd Tank Low Oil
Level,4‐3
Lever, Cntrl, Spd [Ku],5‐26
Lever, Fork [Ku],5‐27
Lever, Fork Assy [Ku],5‐27
Lever, Fork, Shaft [Ku],5‐27
Lever, Plate, Cntrl [Ku],5‐26
Lever, Stop [Ku],5‐26
Lh Seal Plate - Formed 500e,2‐91
Lh Side Door Hinge Assembly,2‐25
Lid,Tank Inspection/Access For Hose,4‐2,
4‐3
Light - Number Plate 2ka001
389-107,3‐49
Light - Number Plate 2ka001 389-107
(Bulb Not Included),2‐101
Light - Warning (Red,2‐49
Light, Interior Cab 525,2‐51
Light, Warning - Green,2‐49
Light, Warning, Amber,2‐49
Light,Hazard Flasher Amber Vigiled
Model,3‐5
Link Assy, Rod-End, M12,3‐31
Lock Nut-3/8' Bsp Asl Product Spec 11
-,3‐47
Lock Pin - Low Level A/C,3‐9
Lock Plate Assembly,2‐101
Locking Diesel Tank Cap,2‐69
Locking Disc - Hopper - Whoosh,3‐65
Locking Lever To Latch, Rh,2‐33
Locking Plate,Pump Adaptor Hyd Tans
Bloc,2‐109
Locking Plunger - Regen,3‐21
Loom - Chasis Iqan Chassis Md3
Platform,2‐124
Loom Headlight Extension Lh,2‐124
Loom Headlight Extension Rh,2‐124
Loom, E-Gas 8 Way Schlemmer
Interface,2‐124
Louvre Weldment,2‐5
Lower Hinge Weld Assembly,2‐25
Lower Tension Spring,2‐21
Lower Water Pipe Weldment Engine
Coolan,3‐7
Lynch Pin - Assembly,2‐85
M
M10 Washer - Serrated Lock,2‐45, 2‐61,
2‐79, 2‐81, 2‐101
M10 Washer Zinc Ptd,2‐101, 3‐33
M10 X 1.25 X 20 Ptd.Fine Set/S St/St
Gr,2‐61
M10 X 25 - Hex Set Ptd Grade 8.8,2‐79,
2‐81, 2‐91, 3‐33
M10 X 30 Hex Ptd. 500e,2‐79, 2‐81, 3‐7,
3‐31, 4‐2, 4‐3
M12 Washer - Serrated Lock S12 - Zinc
Pl,2‐27, 2‐29
M12 X 100 H.T. Hex Set,2‐53
M12 X 20 Skt Cap 12.9 Zc,2‐21
M12 X 30 Hex Hd St/St,3‐33
M20 X 1.5p Nut, Plated,3‐23
M3 X 20 Long Button Head Screw,2‐23,
2‐25
M4 Tapped Screw - Button Head X 12
Long,2‐39
M5 X 10 Hex Hd,2‐57
M5 X 25 Screw Button Head Skt.,2‐99
M5 X 90 Socket Capscrew Gr 12.9,3‐49
M6 Washer Plain Ptd. Each Each,2‐27,
2‐29, 2‐31, 2‐35, 2‐41, 2‐59, 3‐3,
3‐13, 3‐17, 3‐31
M6 X 10 Low Hd. Socket Cap Ptd,2‐13,
2‐21
M6 X 12 Low Hd. Socket Cap Ptd,2‐41
M6 X 16 Hex Head Ptd,2‐37
M6 X 16 Hex Head Ptd 500e,2‐23, 2‐25,
2‐31, 2‐33, 2‐35, 2‐59, 2‐69, 2‐71,
2‐91, 3‐9, 3‐23
M6 X 40 Zinc Plated Capscrew,2‐115
M6 X 50 H.T. Hex Bolt Plated,2‐63, 2‐107,
3‐7, 3‐49
M6 X 90 Hex Bolt Plated,3‐19
M8 Washer-Serrated Lock S8 - Zinc
Plated,2‐5, 2‐7, 2‐9, 2‐11, 2‐15, 2‐19,
2‐61, 2‐69, 2‐101, 2‐107, 3‐7, 3‐15
M8 X 20 H.T. Hex Set Plated,2‐9, 2‐11,
2‐53, 2‐57, 2‐61, 2‐79, 2‐81, 2‐97,
2‐107, 2‐109
M8 X 25 Set Screw,2‐9, 2‐11, 2‐69, 2‐75,
2‐77, 2‐79, 2‐81, 2‐101, 3‐7, 3‐15,
3‐33, 3‐35
M8 X 30 H.T. Hex Set Plated,2‐57, 2‐59,
2‐61, 2‐67, 2‐91, 2‐101, 2‐103, 2‐107,
3‐65
M8 X 45 H.T. Hex Bolt Plated,3‐7
M8 X 90 Bolt,2‐101
M8x12 Hex Hd.Set Screw St/St,2‐105
Main Light Switch Sub Assembly,2‐49
Manifold Assy,2‐107
Manifold Assy, Hydraulic - Fan Motor,4‐13
Manifold Assy, Hydraulic - Fan Motor (See
Breakdowns),2‐119
Manifold Assy, Hydraulic W/
Adaptors,2‐107
Manifold Assy,Hydraulic-636 Motors
9002-,4‐7
Manifold Assy,Hydraulic, 636 Motors (See
Breakdowns),2‐107
Manifold Assy,Transm,4‐5
Manifold Assy,Transm (See
Breakdowns),2‐109
Manifold Block Compl,4‐9
Manifold Block Compl (See
Breakdowns),2‐107
Manifold, 6 Way, 8mm Outlet,3‐27, 3‐37
Manifold, Inlet Assy [Ku],5‐12
Manual Adjuster I Per Brake,2‐21
Manual, Oprtr [636, En, Na, Green
Mach],3‐70
Master Cylinder -Front Brakes,2‐53
Mesh Door Internal,Hopper 636,2‐85
Mesh Door Wldt, Rear,2‐85
Mesh Filter , Drain - Weldment,2‐97
Mesh, Speaker, Cab,2‐51
Metal Crankpin - D1105t&V1505t
525/636,5‐17
Mirror Arm - Brush- Rh,2‐27, 2‐29
Mirror Head,Wide Angle,2‐27, 2‐29
Molding, Door,2‐31, 2‐35
Monitor.5 Lcd Colour F3093,3‐3
Motor Wheel - 130cc/Rev
Displacement,2‐17
Motor, Hyd, Piston, 12Cc [Brevini],2‐91
Motor, Mounting, Stud,3‐25
Motor, Wiper, Kit, Am [636],2‐27, 2‐29
Motor,Wheel -100 Cc/Rev Displacement
M02,2‐9, 2‐11
Motor,Wheel -100cc- C/W Speed
Sensor,2‐19
Motor,Wheel-130cc- C/W Speed Sensor
With,2‐19
Moulding,A/C Duct -Cab Rear Headliner
63,3‐13
Mount Wldt, Isolator,2‐105
Mounting Attachment - Whoosh,3‐65
Mounting Attachment Assy - Whoosh,3‐65
Mounting Bracket Hinge Weldment,2‐85
Mounting Bracket Weldment, Whoosh
Nozzle,3‐65
Mounting Bracket, 5” Monitor,3‐3
Mounting Brkt- Weldment Hyd Manifold -
S,3‐49
Mounting Channel - Formed, Top Cover,
Cs,3‐31
Mounting Plate Bottom, Devl, Slow
Veh,2‐123
Mounting Plate, Top, Formed, Slow
Vehicle,2‐123
Mounting Stud - Manifold 636,4‐5
Mounting, Condensor - Formed,3‐9
Mtg Plate, Weldment - Fan Motor,2‐91
Mudguard Wldt - Lh,2‐11
Mudguard Wldt - Rh,2‐9
Muffler Kit Part Of Engine Kit Pp002
For,2‐67
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐22
N
Nipple - Filter Minder,2‐65
Nozzle - A-Frame Assembly,2‐93, 2‐95
Nozzle - A-Frame Weldment,2‐93, 2‐95
Nozzle - Plastic,3‐63
Nozzle - Side Skid Shoe,2‐93, 2‐95
Nozzle - Whoosh - Hopper,3‐65
Nozzle -Side Skid Shoe,1‐1
Nozzle -Side Skid Shoe Sg Ci,
Bsen1563,2‐93, 2‐95
Nozzle & Handle Assembly,3‐65
Nozzle Assembly - 636,2‐95
Nozzle Assembly - Regen Variant,3‐21
Nozzle Assembly, Removable Flap -
Cs,2‐95, 3‐41
Nozzle Assembly,Adjustable (Replaced by
NA222),2‐93
Nozzle Body Weldment,636
-Adjustable,2‐95, 3‐41
Nozzle Body Weldment,636 -Regen,3‐21
Nozzle Filter,Cup Type 100 Mesh Cp,3‐23
Nozzle Holder 2410104m,3‐23
Nozzle Holder Kit,5‐19
Nozzle Holder/ Hosetail,2‐105
Nozzle Jog Option,3‐61
Nozzle, Spray Jet,3‐23
Number Plate - X2 Led Flasher Units,3‐5
Nut,2‐9, 2‐11, 3‐31, 5‐21, 5‐25
Nut - M8 - Philidas Mk5 Gd8 Wheel
Reta,2‐67
Nut - M5,2‐27, 2‐29, 2‐85, 2‐97, 2‐99, 3‐3,
3‐11
Nut - Nyloc Thin M5,2‐65
Nut - Retaining - Manifold 636,4‐5
Nut-Nyloc-M6-St.St A4-80,3‐19
Nut-Philidus Mk V -M16 X 1.5(Fine)
Zinc,2‐7, 2‐9, 2‐11, 2‐15
Nut, Nyloc M16 X 1.5,2‐45, 2‐93, 2‐95
Nut, Shallow Nyloc - M8 Zinc
Plated,2‐95, 3‐41
Nut, 6mm Dome St.St,2‐33, 2‐37
Nut, Cap,5‐10, 5‐21, 5‐25
Nut, Cap, Cam [Ku],5‐24
Nut, Coil [For S229n Valve],4‐13
Nut, Exhaust Manifold -D1105t,5‐11
Nut, Flange [Ku],5‐19
Nut, Hex [Ku],5‐7, 5‐13, 5‐26
Nut, Hex Lock (Thin) - M16 X 1.5p
Grade,2‐7, 2‐15
Nut, Hex Locking (Thin) - M16 X 2.0p
Sta,2‐93, 2‐95
Nut, Hex, Lock, M6 X 1.00, Nl, Ss,3‐9
Nut, Hex, Lock, M8 X 1.25, Nl, Ss,3‐39
Nut, M3,2‐23, 2‐25
Nut, Nyloc Thin- M6 - St/St A4-80
500e,2‐23, 2‐25, 2‐31, 2‐35, 2‐71,
2‐83, 2‐86, 2‐89, 2‐91, 2‐115, 3‐23,
3‐25, 3‐27, 3‐37, 3‐63, 3‐65
Nut, Nyloc - M10 - Zn Ptd 500e,2‐43,
2‐47, 2‐75, 2‐77, 2‐79, 2‐81, 2‐86,
2‐91, 3‐7, 3‐31
Nut, Nyloc - M12 - Zn Pld, Clear Zinc
Pl,2‐9, 2‐11, 2‐17, 2‐19, 2‐53, 2‐79,
2‐81, 2‐93, 3‐33
Nut, Nyloc - M16 St/St A2 Course
Threa,2‐17, 2‐19
Nut, Nyloc - M16 Zinc Plated,2‐75, 2‐77,
2‐93, 2‐95
Nut, Nyloc - M3 Zinc Plated, Grade 8
Gra,2‐57
Nut, Nyloc - M4,2‐53, 2‐63
Nut, Nyloc - M5 Zinc Plated Zinc
Plated,2‐57, 2‐89
Nut, Nyloc - M5 Zinc Plated,2‐123
Nut, Nyloc - M6 Zinc Plated,2‐67
Nut, Nyloc - M6 Zinc Plated Zinc
Plated,2‐5, 2‐27, 2‐29, 2‐31, 2‐35,
2‐53, 2‐59, 2‐61, 2‐65, 2‐69, 2‐103,
2‐107, 3‐3, 3‐9, 3‐15, 3‐17, 3‐31,
3‐49, 3‐63, 3‐65
Nut, Nyloc - M8 St.St A2,2‐93, 2‐95
Nut, Nyloc - M8 Zinc Plated Zinc
Plated,2‐9, 2‐11, 2‐31, 2‐33, 2‐35,
2‐37, 2‐43, 2‐47, 2‐53, 2‐57, 2‐65,
2‐79, 2‐81, 2‐91, 2‐93, 2‐95, 2‐97,
2‐101, 2‐105, 2‐107, 2‐109, 2‐121,
3‐7, 3‐49, 3‐65
Nut, Nyloc -M12 -St.St A4 St.St A4
Coars,2‐93, 2‐95, 3‐25
Nut, Nyloc M5 -st.st A4-Gd 80,2‐86
Nut, Nyloc Shallow - M8 - St.
A2-314,3‐15
Nut, Nyloc Shallow - M8 - St. St.
A2-314,2‐33, 2‐37, 2‐63, 2‐97, 2‐107,
3‐9, 3‐21, 3‐37
Nut, Nyloc Shallow -M8 -
St.St.A2-314,2‐5
Nut, Nyloc Thin - M10 - Zinc Plated,2‐61
Nut, Nyloc Thin - M6 - St/St A4-80,2‐27,
2‐29
Nut, Nyloc Thin - M6 Zinc Plated Zinc
Pl,2‐5, 2‐63, 2‐65, 2‐97, 3‐3, 3‐7, 3‐9,
3‐49
Nut, Philidas Mk V - M12,2‐93, 2‐95
Nut, Solenoid Coil,Series E For
Sv10-21,4‐7
Nut, Stainless Steel A4 - M6 Mild
Steel,2‐27, 3‐9
Nut, Turbo Manifold - D1105t,5‐29
Nut,3/4 Unc Unplated,2‐93, 2‐95, 3‐21,
3‐41
Nut,Hex Lock (Thin) M10 X 1.0p Zinc
Pla,2‐21, 2‐55
Nut,M10 Thin.St.St -A2 Grade 5 Mm
Thick,2‐53
Nut,M6 (Plain) 500e,2‐61, 2‐69
Nut,Nyloc Shallow - M8 - St. St.
A2-314,3‐19
Nut,Nyloc -M10 -St.St.A4 St.St Grade
A4,2‐43, 2‐97, 3‐33
Nut,Nyloc -M14 X 1.5p Fine Thread Zinc
P,2‐7
Nut,Nyloc -M8 St.St A2,2‐5, 2‐31, 2‐35,
2‐61, 2‐69, 2‐71, 2‐83, 2‐85, 2‐89,
2‐91, 2‐93, 2‐95, 2‐97, 2‐99, 2‐101,
2‐119, 3‐15, 3‐19, 3‐23, 3‐33, 3‐35,
3‐65
Nut,Plain-M8,2‐101
Nut,Wheel -M16 X 1.5 P,2‐13, 2‐21
O
O Ring Kit-6 Rings-Mounting Studs
Manif,4‐5
O-Ring,5‐23
O-Ring - 82.5 Mm x 1.78 Mm Buna-N
70Durom,2‐109
O-Ring [Ku],5‐4, 5‐26, 5‐31
O' Clip - 11 to 13 mm O/D Hose,2‐105
O' Clip - 11 To 13mm O/D Hose,3‐27,
3‐35, 3‐37
O' Clip- 11 to 13 Mm O/D Hose,2‐103
Oil Filler Flange-Extended For
D1105-T-E,2‐61
Oil Filter Element-1105t Hh16032093,1‐1,
2‐61
Oil Level/Temperature Gauge,4‐2, 4‐3
Oil Shield, Breather,5‐10
Oil, Hyd [El, Iso 100, 01 Gal],1‐1
Oil, Hyd [El, Iso 100, 05 Gal],1‐1
Oil, Hyd [El, Iso 32, 01 Gal],1‐1
Oil, Hyd [El, Iso 32, 05 Gal],1‐1
Open Grommet -Pvc To Suit 25.4 Dia X
1.6,3‐11
Orifice,Small Water Tank,2‐103
Outer Plate,Hopper Access Door,2‐99
Outlet Vent-Heater Temp. Control
Valve,2‐59
Outside Handle Assy, Lh,2‐37
Outside Handle Assy, Rh,2‐33
Over-Flow Pipe Assembly - 636
Engine,5‐19
P
P - Clip - Aba Rubber Lined -25 Mm,2‐73
P Clip Bracket -Coolant Heater Hose,2‐63,
3‐7
P Clip, Black - O16,2‐69
P-Clip - Aba Rubber Lined - 10mm 31304
3,2‐5, 2‐89
P-Clip - Aba Rubber Lined - 13mm,2‐21
P-Clip - Aba Rubber Lined - 13mm 31306
3,2‐55, 2‐57, 2‐89, 2‐103
P-Clip - Aba Rubber Lined - 32mm,3‐9
P-Clip Aba Rubber Lined - 13Mm 313-6
3,3‐35
P.O.Check Valve Pc08-30-0-N-25 Bias
Spri,4‐9
Pad, Rbr, 3mm Th,2‐107
Pad, Wear, Horse Shoe -636,1‐1, 2‐93,
2‐95
Pan, Oil, Dsl,5‐4
Pane, Window, Cab, Rear, W/ Label,2‐39
Panel - Air Con / Headrest,2‐47
Panel - Cab Cross-Brace -Cat Grey,2‐45
Panel Knob - M6x25Mm Thread,2‐86
Panel, Roof Hatch,2‐41
Panel, Switch, Cab,2‐49
Parts Manual 636 Uk Version,3‐70
Pedal, Electronic - Dual Track 31
Degree,2‐53
Piggot Wldt, Heater Vent,2‐59
Pin - Hinge Weldment,2‐101
Pin - Hinge, Whoosh Door - 636
Hopper,2‐83
Pin - Hyd Cyl - Machined,2‐85
Pin - Locking Handle Weldment,2‐101
Home
Find...
Go To..
CROSS REFERENCE
6‐23
636 UK YM165 (5−2015)
Pin Weldment - Hyd Cyl Hopper,2‐85
Pin Weldment - Hyd Cyl, External,2‐89
Pin Weldment- Hyd Cyl Hopper,2‐85
Pin Wldt, Front,3‐39
Pin Wldt, Hopper,2‐89
Pin Wldt, Inlet, Woosh,2‐97
Pin Wldt, Pivot, Rear Axle,2‐17, 2‐19
Pin Wldt, Pivot, Steering Cyl,2‐7
Pin Wldt, Pivot, Tracking Cyl Anchor,2‐7
Pin Wldt, Shock Absorber,2‐7, 2‐17, 2‐19
Pin, Anchor, Brush In/Out -
Weldment,2‐75, 2‐77
Pin, Clamp,5‐23, 5‐31
Pin, Cylinder Pivot - Weldment,2‐75, 2‐77
Pin, Dowel [Ku],5‐3
Pin, Eng [Ku],5‐3
Pin, Grvd, 0.43d 01.8l [303ss],3‐39
Pin, Handle Retaining,2‐101
Pin, Hopper Door,2‐86
Pin, Joint,5‐23
Pin, Mounting, Rotawasher,3‐23
Pin, Pivot, Brush Arm - Weldment,2‐75,
2‐77
Pin, R,2‐7
Pin, Split - 1/8 Dia X 1 1/4 Long
St,2‐85, 2‐101
Pin, Split - 3/32 X 3/4 - St.St.,2‐57,
2‐105
Pin, Split Cotter - 1/8 X 1 Lg,2‐75, 2‐77,
2‐97
Pin, Spring [Ku],5‐13, 5‐26
Pin, Straight [Ku],5‐7
Pin, Tappet Guide,5‐23
Pin,Split - 4.0 X 25 -St.St,2‐7, 2‐15, 2‐17,
2‐19
Pin,Split -4.0 X 32 -St.St,2‐89
Pin,Split 1 1/2 X 1/8”” St.St,2‐13, 2‐21,
2‐43, 2‐53, 2‐57
Pin,Split 1 3/4 X 5/32” St.St 304,2‐101
Pipe - Injection,5‐19
Pipe Engine,2‐65
Pipe-Condensor To Drier,3‐11
Pipe-Overflow Radiator [100mt]
Clear-8mm,2‐101
Pipe, 12mm - Fan Feed,2‐119
Pipe, 6mm - Fan Drain,2‐119
Pipe, Breather,5‐10
Pipe, Clip [Ku],5‐19
Pipe, Hyd - Rh Front Wheel
Motor,Forward,2‐117
Pipe, Hyd - Rh Front Wheel
Motor,Reverse,2‐117
Pipe, Inlet [Ku],5‐12
Pipe, Oil [Ku],5‐31
Pipe, Oil, Cooler [Ku],5‐31
Pipe, Plastic, 8mm,3‐27
Pipe, Return, Pump, Water [Ku],5‐8
Pipe, Water Return 1,5‐28
Pipe,12 Mm -Fan Return,2‐119
Pipe,Assy #6 -Receiver/Dryer To
Evaporar,3‐11
Pipe,Hyd - Lh Front Wheel
Motor,Forward,2‐117
Pipe,Hyd - Lh Front Wheel
Motor,Reverse,2‐117
Pipe,Hyd -525 Steering -Right Hand
Zinc,2‐45
Pipe,Hyd -525 Steering-Pressure Zinc
Pla,2‐45
Pipe,Hyd -525 Steering-Tank Return
Zinc,2‐45
Pipe,Hyd-525 Steering -Left Hand Zinc
Pl,2‐45
Pipe,Injection,5‐19
Pipe,Injector,5‐19
Pipe,Water Return,5‐28, 5‐31
Pipe,Water-525 Water Pump,5‐8
Piston [Ku],5‐17
Piston Pin - D1105&V1505t 525/636,5‐17
Piston Ring - D1105t&V1505t
525/636,5‐17
Pivot Arm Weldment -636 Hopper,2‐85
Pivot Arm, Left Hand Door -
Weldment,2‐37
Pivot Arm, Right Hand Door -
Weldment,2‐33
Pivot Bracket Weldment, H/Brake,2‐57
Pivot Pin - King Pin Top - Machined,2‐9,
2‐11
Pivot Pin, Bell Crank Steering Lever -
W,2‐15
Pivot Pin, Cab Tilt -Weldment,2‐43
Pivot Pin, Lower Shock Absorber,2‐7, 2‐17,
2‐19
Pivot Pin, Tracking Cylinder Rod -
Weldm,2‐7
Pivot Pin, Trailing Arm - Weldment,2‐7
Pivot Wldt, Window, Rh,2‐31
Plate,5‐23
Plate - Air Intake 636 Hopper,2‐93, 2‐95
Plate - Formed,3‐9
Plate - Rubber Protection - Formed,2‐95,
3‐41
Plate - Rubber Protection - Formed -
Rh,3‐41
Plate - Seat Adaptor (Standard Seat
Only),2‐47
Plate - Seat, For Air Suspension Seat,3‐68
Plate Connector, Formed, Water
Tank,2‐101
Plate Mounting, Brush Cover, Lh,2‐81
Plate Mounting,Brush Cover Rh,2‐79
Plate Weldment,Mounting Exhaust,2‐67
Plate Wldt, Bh, Hyd Hose, Lh,2‐11
Plate Wldt, Bh, Hyd Hose, Rh,2‐9
Plate Wldt, Blanking, Woosh Inlet,2‐97
Plate Wldt, Hinge,2‐99
Plate, Brush Drive - Weldment (Replc by
NF299),2‐79, 2‐81
Plate, Brush Drive-Weldment-Heavy
Duty,2‐79, 2‐81
Plate, Brush Guard/Clamp - Formed,2‐93
Plate, Clamp, Battery - Formed,2‐63
Plate, Cntrl, Spd [Ku],5‐26
Plate, Cover - Development Cab Rear,3‐9
Plate, Cover - Development Cab Rear
(Painted),2‐39
Plate, Cover - Development Cab Rear
(Stainless Steel),2‐39
Plate, Cover Fan Access,2‐91
Plate, Cover, Cab Rear,3‐9
Plate, Cover, Cab Rear (Painted),2‐39
Plate, Cover, Cab Rear (Stainless
Steel),2‐39
Plate, Deflector, Pressure Washer,3‐15
Plate, Element 1,5‐10
Plate, Element 2,5‐10
Plate, Facia - Formed Armrest,2‐47, 3‐61
Plate, Fixing - Flap Water Tank,2‐101
Plate, Fixing, L/H Mudguard -Formed,2‐11
Plate, Idler, Rotawasher,3‐25
Plate, Motor Mounting - Weldment,2‐79,
2‐81
Plate, Motor Swivel, L/H - Formed,2‐81
Plate, Motor Swivel, R/H - Formed,2‐79
Plate, Mount, Side Sqeegee,
Rotawasher,3‐25
Plate, Mounting - Wldt Hopper,2‐85
Plate, Mounting, Number Plate
Lights,2‐101
Plate, Mounting, Water Hose -
Formed,2‐79, 2‐81
Plate, Mtg, Brake Light Switch [Form],2‐53
Plate, Mtg, Support Frame,2‐93, 2‐95
Plate, Number Mounting - Dvlpment,3‐49
Plate, Pipe Clamp,3‐11
Plate, Pivot Arm, Painted, Cab Door,2‐33,
2‐37
Plate, Plasma - Formed,3‐9
Plate, Protection, Lh - Formed,2‐93
Plate, Protection, Rh - Formed,2‐93
Plate, Reciever/Dryer Support Bracket,3‐9
Plate, Spacer, Cab Steering,2‐45
Plate, Support - Case Drain Hose -
Devel,2‐9, 2‐11
Plate, Warning Triangle, US Slow,2‐123
Plate,Alternator Bracket Adjust Air Con,3‐7
Plate,Infill Lower Tunnel,2‐43
Plate,Pipe Clamp,Fan Hopper,2‐119
Plate,Sandwich Drain Flap,2‐97
Plug,5‐28
Plug 10mm, Snap Fitting,3‐27, 3‐37
Plug-Drain-V1505t-636,5‐4
Plug, 1-1/4 Bsp Duroplast,4‐2, 4‐3
Plug, Cup, Sealing [Ku],5‐3, 5‐5
Plug, Drive, Brush, Spl,3‐25
Plug, Eng [Ku],5‐3
Plug, Oil Filler,5‐10
Plug,Drain -V1505t,5‐4
Plug,Solenoid-2/2 Way Direct Valve,2‐105
Plunger, Pump,5‐23
Polyprop Cover For Solenoids
Hp020,2‐109
Pop Rivets-3/16'Large Flange
245rpa0005,2‐11
Potentiometer Assy,Brush & Fan
Control,2‐49
Potentiometer/Loom Dual Track,2‐53
Power Cable,3 Meter-Bvl-530as,3‐3
Pozzi Pan Set Screws -3/16 Unc X
5/8””,2‐109
Precleaner,Spinner Small 76 Mm
Outlet,2‐65
Pressure Limiter -Front Brakes,2‐55
Pressure Reducing Valve
Pr08-32a-0-N-03,4‐9
PRESSURE Transducer C/W Plug,4‐5
Pressure Washer Reel Assembly -
636,3‐19
Protective Sleeving 5 Metre Roll,3‐67
Proximity Switch-With Plug,2‐57
Pully, Fan [Ku],5‐17
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐24
Pump - Water - Assy C/W
Connector,3‐27
Pump -636 Transmision -11 Tooth C/W
Conn,2‐109
Pump Cover Weldment - Doser Unit,3‐27
Pump-Axial Piston C/W Integral Motor
Wit,3‐15
Pump, 20Cc Auxilliary,2‐109
Pump, Oil, Cover [Ku],5‐7
Pump, Oil, Eng [Ku],5‐7
Pumping Unit - Green Collar,3‐67
Q
Qrc - 1/4bsp Inlet Female Connector,3‐47,
3‐49, 3‐51
Qrc - 1/4bsp Inlet Male Connector,3‐45,
3‐47, 3‐49, 3‐51
Qrc - Pressure For Gritter &
Snowbrush,3‐47, 3‐49
Qrc - Return From Gritter &
Snowbrush,3‐47, 3‐49
Quick Couple Nozzle Tip 15 Degree,1‐1
R
R Pin- To Suit 14 To 20 Dia,3‐23
Rack, Control,5‐23
Radiator Hose-Bottom (Emegi &
Acr),2‐73
Radiator Plate,2‐71
Radiator,Combined Oil & Water 0.255 M
Sq,2‐71
Radio/Cd,2‐51
Rear Axle - Lh -Weldment,2‐19
Rear Axle, Rh Wldt,2‐17
Rear Flap - 636 Refresh,2‐86
Rear Fog Switch Light Assembly,2‐49
Rear Light Cluster Led C/W Plug,2‐5
Rear Lights / Stop / Reflector (Bulb Not
Included),2‐5
Receiver - Drier 2.5 - Air Con,3‐9
Reduced Bulkhead-1/4" Bspmale 18mm
Long,3‐45, 3‐47, 3‐49
Reducer 1/8 Bsptm X 1/4 Bspp
Female,2‐61
Regen Z Bracket Lever Folded,3‐21
Relay Automotive High Current 70
Amp-G8j,2‐49
Relay Holder Wldt,2‐49
Relay, Automotive - 12v, 35/40a,
Spco,2‐49, 3‐13, 3‐37, 3‐61, 3‐67
Relay/Timer - Heated,2‐49
Relief Valve Rv08-20a-0-N-18/M50
Spring,4‐9
Relief Valve Rv08-20a-0-V-33/
M2110(210,4‐9
Relief Valve Rv08-20a-0-V-33/M140,4‐11
Remote Filler Weldment-636 Diesel
Tank,2‐69
Replacement Auxilliary Motor Kit W/
Adaptors,2‐109
Restraining Cable Sk920205,2‐101, 2‐105
Retainer - Knurled Fastener
17-10054-42,2‐23, 2‐25, 2‐79, 2‐81,
2‐97, 2‐105, 3‐23
Retainer - Plastic [Bag In 100]
326-100-,2‐71, 3‐31
Retainer, Bearing, Rotawasher,3‐25
Retainer, Spring [Ku],5‐13
Retainer, Spring, Valve [Ku],5‐13
Retainer, Steel,2‐71, 3‐31
Retaining Clip, 26mm O/D,2‐75, 2‐77
Retrofit Kit - Britax Led Beacon,2‐27
Rh Seal Plate - Formed 500e,2‐91
Ring Head Stud - Black 14mm
316-414-191,2‐71
Ring Head Stud - Black 17mm
316-417-191,3‐31
Ring, Retaining, Ext, 0.38d, [E-Ring],3‐39
Ring, Snap [Ku],5‐15, 5‐24
Rivet, Plstc, .250d X 0.90,2‐59
Rod Assy, Connecting [Ku],5‐17
Rod, Actuator Cntrl,2‐69
Rod, Push, Valve [Ku],5‐15
Rubber Band - 8 X 2 - Black 37 Per
Kilo,2‐65, 2‐93, 2‐95
Rubber Band 4' Wide[Black]
150flatx100x1,3‐63
Rubber Cover For Cab Steering Pipes,2‐45
Rubber Epdm Washer - 25 Mm 13Mm x
3Mm,2‐103
Rubber Flap- 8mm -636 Nozzle,2‐93
Rubber Flap, City Scrub,2‐95, 3‐41
Rubber Isolator,Modified,2‐105
Rubber Mat - Cab Floor,2‐39
Rubber Mounting Pad - 100 X 40 X 12
100,2‐103
Rubber Skirting ,3mm Neoprene,2‐85
Rubber Washer 12Mm Bore,2‐55, 2‐103
Rubber, Break Pedal,2‐53
S
Safety Switch - Solid State 4 Wire,2‐89,
2‐99
Sandwich Plate,2‐85
Scraper - 50 I/D X 56 O/D X 7 O/A
Freu,2‐9, 2‐11
Screw,5‐23
Screw M5 X 12 Button Hd Skt.,2‐49, 2‐53,
2‐99, 3‐9
Screw - 8 X 3/4 S Tap (Philip),2‐47, 2‐59
Screw - Button Hd Skt M6 X 45
Self-Colo,3‐13
Screw - Hex Hd. M10 X 35,3‐17
Screw -Cap Skt Hd - M12 X 45 -Zn Ptd
Gra,2‐17, 2‐19
Screw -Skt Head Cap M5 X 16 St.St A4
Zn,2‐43, 2‐85, 2‐97, 3‐3
Screw [Ku],5‐7, 5‐13
Screw Caps-Plastic,2‐45, 2‐59
Screw Hex Head m6 x 16 Mm St.
St-A480St.,2‐69
Screw m5 X 12 Button Hd Skt,2‐123
Screw-Csk Hd Sckt M8 X 16 Zinc
Ptd.,2‐89
Screw, Adj, Rocker Arm [Ku],5‐13
Screw, Btn, M5 X 0.8 X 15,2‐27, 2‐29,
2‐31, 2‐35, 2‐39, 2‐45, 2‐47, 3‐9, 4‐2,
4‐3
Screw, Btn, M5x0.8x15,2‐29
Screw, Btn, M8 X 1.25 X 55, 10.9, Pl,2‐47,
2‐93, 2‐95
Screw, Button Hd Hex Hd -M8 X 45
St.St.,2‐3, 2‐89
Screw, Button Hd Hex Skt - M5 X 20 -
Ptd,2‐93, 2‐95
Screw, Button Hd Hex Skt - M5 X 8 -
Zp,2‐49
Screw, Button Hd Hex Skt - M6 X 12
St.St,2‐23, 2‐25, 2‐27, 2‐29, 3‐9, 3‐27
Screw, Button Hd Hex Skt - M6 X 16 -
Zp,2‐53
Screw, Button Hd Hex Skt - M6 X 20 -
Pt,2‐5, 2‐27, 2‐29, 3‐3
Screw, Button Hd Hex Skt - M6 X 25
Grad,3‐49
Screw, Button Hd Hex Skt - M8 X 16 -
Ptd,2‐47
Screw, Button Hd Hex Skt - M8 X 16 St
A4,2‐123
Screw, Button Hd Hex Skt - M8 x 16 St.St
A4,3‐9
Screw, Button Hd Hex Skt - M8 X 20 -
Zp,2‐53
Screw, Button Hd Hex Skt - M8 X 25 -
Zp,3‐25
Screw, Button Hd Hex Skt - M8 X 30 -
Zp,2‐69
Screw, Button Hd Hex Skt -M6x16,3‐9
Screw, Button hd Hex Skt-m8 x 16 St.St
A4,2‐29
Screw, Button Hd Hex Skt-M8 x 25 St.St
A4,2‐97
Screw, Button Hd Skt - M8 X 35 - Zp
Zi,2‐47
Screw, Button Hd Skt - M8 X 35 - Zp
Zi,2‐95, 3‐41
Screw, Button Hd Skt - M8 x 45 - Zp Gd
8,2‐3
Screw, Button Hd Skt -M5x10 St.St
A4,2‐86
Screw, Button Head - M4 X 20 Zinc
Plated,2‐53, 2‐63
Screw, Button M8x35 St/St,2‐59
Screw, Csk Hd Slotted - M8 X 12 Brass
Bo,2‐13, 2‐21
Screw, Follow,5‐23
Screw, Hex,5‐12
Screw, Hex [Ku],5‐4, 5‐5, 5‐7, 5‐9, 5‐12,
5‐24, 5‐29, 5‐31
Screw, Hex Hd - 3/8 Unc X 1 1/4 Long
Pla,2‐109
Screw, Hex Hd Set - M10 X 1.25p X 25
Zin,2‐61
Screw, Hex Hd Set - M16 X 80 Stainless
S,2‐47
Screw, Hex Hd Set - M6 X 12 - Zn Ptd
Gra,2‐75, 2‐77
Screw, Hex Hd Set - M6 X 12 St.St
Grade,2‐97, 3‐9, 3‐25
Screw, Hex Hd Set - M6 X 20 - Zn Pld
Gra,2‐59, 3‐13, 3‐31
Screw, Hex Hd Set - M6 X 30 - Zn
Ptd,2‐23, 2‐25
Screw, Hex Hd Set - M6x 30,2‐67
Screw, Hex Hd Set - M8 X 16 -A4 Gd70
St.,2‐7, 2‐15, 2‐17, 2‐19, 2‐23, 2‐69,
2‐89, 2‐91, 2‐99, 2‐107, 3‐15
Home
Find...
Go To..
CROSS REFERENCE
6‐25
636 UK YM165 (5−2015)
Screw, Hex Hd Set - M8 X 20 St.St A4
314,2‐63, 2‐105
Screw, Hex Hd Set - M8 X 25 St.St
Grade,2‐63, 2‐93, 2‐95, 2‐97, 2‐105,
3‐27
Screw, Hex Hd Set - M8 X 35 - Zn Ptd.
Gr,2‐63, 2‐67
Screw, Hex hd Set M10x40,2‐29
Screw, Hex Hd Set M6 X 20 St.St
A4,2‐23, 2‐25, 2‐31, 2‐35, 2‐86, 3‐37
Screw, Hex Hd Set-M10 X 20 -Zinc
Plated,2‐43, 2‐75, 2‐77, 2‐101
Screw, Hex Hd Setm8 X 40,3‐7
Screw, Hex Head - M3 X 15 Zinc Plated,
G,2‐57
Screw, Hex Head Set - M6x12 St.St
Grade,2‐27, 2‐29
Screw, Hex M10x30 ,3‐25
Screw, Hex Set - M6 X 35 - Brass,2‐27,
2‐55
Screw, Hex, .25-20 X 1.00, G5,3‐33
Screw, Hex, Case, Brg, Main [Ku],5‐9
Screw, Hex, Cshft [Ku],5‐17
Screw, Hex, M6 X 1.00 X 12, Fmg,2‐21
Screw, Hex, M8 X 1.25 X 110, Ss,3‐39
Screw, Hex, M8 x 1.25 x 60, 8.8,2‐121
Screw, Pan, M6 X 1.0 X 35, Ss,2‐3
Screw, Rod, Connecting [Ku],5‐17
Screw, Self Tap, Flg Hex Hd - M6 X
12,2‐55, 2‐89, 2‐101
Screw, Self Tapper Posi. No 8 X 1/2',2‐51
Screw, Self Tapping - M8 X 16,2‐11, 2‐43,
2‐61, 2‐89, 2‐97, 2‐101
Screw, Set [Ku],5‐15, 5‐24
Screw, Skt Hd Cap - M12 X 50 - Gd
12.9,2‐9, 2‐11
Screw, W / Washer,5‐19
Screw, With Washer,5‐10
Screw,Button Hd Hex Skt -M6 X 35 A4
St.S,2‐63, 3‐7, 3‐49
Screw,Button Hd Hex Skt-M6 X 16,2‐65,
2‐73, 2‐89, 2‐97, 3‐15, 3‐23, 3‐63,
3‐65
Screw,Button Hd Hex Skt-M6 X 20,2‐31,
2‐33, 2‐35, 2‐37, 2‐91, 3‐27, 3‐65
Screw,Button Hd Hex Skt-M6 X 25 St.St
A4,2‐69, 3‐9
Screw,Button Hd Hex Skt-M6 X 30
A4,2‐23, 2‐25, 2‐119, 3‐23, 3‐27, 3‐65
Screw,Button Hd Hex Skt-M8 X 16 St.St
A4,2‐5, 2‐85, 2‐103, 2‐107, 2‐119
Screw,Button Hd Hex Skt-M8 X 20 St.St
A,2‐47, 2‐65, 2‐97, 2‐101, 3‐25
Screw,Button Hd Hex Skt-M8 X 20 St.St
A,2‐83, 3‐21, 3‐65
Screw,Button Hd Hex Skt-M8 X 25 St.St
A4,2‐97
Screw,Button Hd Hex Skt-M8 X 30 St.St
A4,2‐65, 2‐99, 2‐101
Screw,Button Hd Hex Skt-M8 X 65 -A4
St.S,2‐97, 2‐101, 2‐119
Screw,Button Hd Hx Skt -M10 X 16
St.St,2‐31, 2‐35
Screw,Button Hd Skt -M5 X 10 St.St
A4,2‐39, 2‐65, 2‐101, 3‐9, 3‐11
Screw,Button Head Skt-M5 X 35 Zc
Plated,2‐31, 2‐35, 2‐89, 2‐99, 2‐101,
3‐11
Screw,Cap Skt Hd -M8 X 1.25 X 16 Zn
A3b,2‐13
Screw,Hex Hd Set - M12 X 40 Grade Zinc
Plated,2‐79, 2‐81
Screw,Hex Hd Set -M14 X 40 Grade 8.8
Zi,2‐109
Screw,Hex Hd Set,M16 X 90 ZP,2‐93, 2‐95
Screw,Hex Head Set-M10 X 25 Mm St.St
-A4,2‐86
Screw,Hex Skt Knurled Set (Grub),2‐41
Screw,Self Tapper Pozzi/Csk St.St 6mm
X,2‐59
Seal - Drain Access Door,2‐97
Seal -Oil -Crankshaft -D1105t Engine,5‐7
Seal Flap, Drain 500e,1‐1, 2‐97
Seal Kit - For Int. S502,4‐13
Seal Kit -Flow Divider / Combiner
Sk12-4,4‐5
Seal Kit [For 3ca80 Valve],4‐13
Seal Kit [For Hv185 Relief Valve],4‐13
Seal Kit [For S229n Valve],4‐13
Seal Kit Check Valve,4‐9
Seal Kit Free Wheel Valve Sko8-2v-M,4‐9
Seal Kit P.O. Check Valve
Sk08-3-V-Tm,4‐9
Seal Kit Pressure Reducing Valve
Sk08-3-,4‐9
Seal Kit Sk10-S3p-Mm,4‐5
Seal Kit Sk8-3p-Mm,4‐5
Seal Kit- Reverse Solenoid & Check
Valve,4‐7, 4‐9, 4‐11
Seal Kit, Filter Pressure - Parker,2‐107
Seal Kit,Series 10, 2 Way Polyurethane
T,4‐7
Seal Kit,Series 10, 4 Way Polyurethane
T,4‐7, 4‐11
Seal Kit,Valve Size 10, 4 Way
Type-Viton,4‐9
Seal Kit,Valve Size 10,2 Way
Type-Viton,4‐7, 4‐11
Seal Kit,Valve Size 8 - 3 Way,Mm
Sk08-3-,4‐9
Seal Kit,Valve Size 8,4way,Mmm,4‐9
Seal Ring Assy - Hopper Inlet Duct,2‐97
Seal Ring Wldt,2‐97
Seal, Dowty - 1/4 Bsp Self Centering
Asl,3‐19, 3‐43, 3‐45, 3‐47
Seal, Dowty - 16mm (3/8'Bsp) Self
Center,3‐19
Seal, Dowty - 20mm (1/2'Bsp) Self
Center,3‐25
Seal, Dwty, 16mm, 3/8 Bsp, Sc,3‐45, 3‐47
Seal, Dwty, 20mm, 1/2 Bsp, Sc,3‐43, 3‐47
Seal, Hydraulic Tank-3mm Tan Grain As
Pe,4‐2, 4‐3
Seal, Mechanical Assy [Ku],5‐8
Seal, Oil [Ku],5‐26
Seal, Window, Lower Door,2‐31, 2‐35
Seal,Heat - Injector - Lower,5‐19
Seal,Oil, Main Bearing Case ,D1105t,5‐9
Sealing Strip - Roof Hatch 525 - 636
-,2‐41
Seat Belt Kit - 3 Point Bp0249,2‐47
Seat Bench - Air Suspension Seat,3‐68
Seat Box Moulding Grey - (Standard Seat
Only),2‐59
Seat Bracket, Arm Rest, Weldment,3‐68
Seat, Spring Lower,5‐23
Seat, Spring Upper,5‐23
Sensor Solid State Liquid Level C/W
Conn,2‐103
Sensor, Speed - Wheel,2‐19
Sensor,Coolant Expansion Tank Liquid
Lev,2‐73
Sequence Valve Prv Set To 60 Bar
Direct,2‐121
Sf3 Extension + Adjusting Nozzle
4708.01,3‐19
Shaft, Govnr,5‐24
Shaft, Govnr [Ku],5‐24
Shaft, Idler, Gear [Ku],5‐15
Shaft, Lever, Spd [Ku],5‐26
Shaft, Rocker, Arm [Ku],5‐13
Shaft, Spinner, Clean Cyclone 525 /
636,2‐85
Shield, Chassis - Hopper,2‐71
Shield, Engine - Radiator,2‐67
Shield, Radiator - Engine,2‐71
Shield, Top, Radiator,2‐71
Shield, Top, Radiator - Engine,2‐71
Shim,5‐23
Shim, Injection Pump 0.20 mm,5‐21
Shim, Injection Pump 0.25 mm,5‐21
Shim, Injection Pump 0.30 mm,5‐21
Shock Absorber Assembly Yellow,2‐7,
2‐17, 2‐19
Shoe Steady Spring ,Front Brake,2‐13
Shoe Steady Spring 2 Per Brake,2‐21
Shuttle Valve Ls08-30-0-N,4‐9
Side Bracket - Formed,2‐91
Side Cover Lh Weldment - 636
Hopper,3‐65
Side Cover Lh Weldment - 636
Hopper,2‐83
Side Cover Weldment - 636 Hopper -
Rhs,2‐83
Side Cover Weldment - Rh 636,3‐65
Side Door Panel Left Hand Assembly,2‐25
Side Door Panel Right Hand
Assembly,2‐23
Side Panel - Rh Assembly - Refresh,2‐23
Side Panel -Lh Assembly -636,2‐25
Side Panel -Rh Assembly -636,2‐23
Side Panel ,Left Hand -636 Linden
Green,2‐25
Side Water Tank(Rotomould) 636,2‐103
Sleeve, Control,5‐23
Sleeve, Cyclone To Hopper Body -
Wldt,2‐85
Sleeve, Govnr [Ku],5‐24
Sleeve, P/M, 0.31b 0.50d 0.7l [430ss],3‐39
Sleeve, P/M, 0.34b 0.63d 1.2l, Bnz,3‐39
Sleeve,Water Cap,3‐27
Slip-On Receptacle 336-300-190,2‐71,
3‐31
Slotted Fastener-525 Wheel Trim,2‐13,
2‐21
Snap Clip - 46 Mm (S/Plow) 87172,2‐5,
3‐63
Snap Fitting, 10mm To 1/4" Bsp,3‐27, 3‐37
Snap Fitting, 8mm To 1/4" Bsp,3‐27, 3‐37
Snap Ring, Internal - 55mm Bore,2‐9,
2‐11
Socket,Power Socket With Cover,2‐51
Solenoid Valve Sv08-21-0-V-00,4‐9
Solenoid Valve Sv08-47c-0-N-00,4‐9
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐26
Solenoid Valve Sv08-47d-0-N-00,4‐9
Solenoid Valve Sv10-21-0-V-00,4‐7, 4‐11
Solenoid Valve,Blocking/Low
Flow,2way,Nc,4‐9
Solenoid-Fuelstop [1105t],2‐69, 5‐25
Solid Plug, M12 X 1.0Mm Pitch,2‐103
Spacer,3‐33
Spacer - Black Nylon 20od X 10id X
15l,2‐79, 2‐81
Spacer - Black nylon 20Odx10Idx20L,2‐29
Spacer - Filter Assy,3‐15
Spacer Cooling Fan,Kubota,2‐63, 3‐7
Spacer, Alternator Bracket,2‐63
Spacer, Armrest,2‐47
Spacer, Cylinder Pivot Pin -
Machining,2‐75, 2‐77
Spacer, Hub, Keyed,3‐33
Spacer, Seat Assembly,2‐59
Spacer, Seat, Front, Lh,2‐47, 2‐57, 2‐59
Spacer, Spinner, Clean Cyclone
Hopper,2‐33, 2‐37, 2‐85
Spacer, Squeegee - Cityscrub,3‐31
Spacer,Door Lock Inspection Panel,2‐99
Speakers (80),2‐51
Speed Sensor (From Assy. M/L),2‐61, 2‐91
Spherical Ball Joint-Iguball 15 Mm Id
X,2‐75, 2‐77
Spherical Bush,2‐69
Spigot Plate, Weldment - Whoosh,3‐65
Spinner, Clean Cyclone - Weldment,2‐85
Sponge Extrusion - 10 Mm X 5 Mm 5
Litre,2‐91
Spray Bar,3‐23
Spray Bar Assembly - 636 Rotawash,3‐27
Spray Bar, Formed - Cityscrub,3‐35
Spray Head Nut, Atomiser,2‐105
Spray Head, Atomiser - Bobbin,1‐1, 2‐105
Spray Jet - Brush -Green Dto.75,1‐1,
2‐105
Spray Jet - Orange An0.5 [All] An0.5,3‐27,
3‐37
Spray Nozzle [Red],1‐1, 2‐105
Spraybar Weldment - Rotawash,3‐27
Spring - Compression 1.6 X 17.6 O.D X
5,2‐99, 3‐21
Spring - Hinged Back Trunking,2‐101
Spring -35 Od X 300 Ol X 4.4mm 22
Coils,2‐75, 2‐77
Spring Buckle,Front Brake,2‐13
Spring Torsion Cab Lockdown,2‐43
Spring Washer, Turbo Manifold
D1105t,5‐29
Spring, Cmpr, Relief [Ku],5‐7
Spring, Cmpr, Rocker [Ku],5‐13
Spring, Delivery Valve,5‐23
Spring, Ext, Govnr [Ku],5‐27
Spring, Plunger,5‐23
Spring, Start [Ku],5‐27
Spring, Tors [Ku],5‐26
Spring, Valve [Ku],5‐13
Spring, Wir, 0.16d, Brush Retaining,2‐3
Squeegee Kit, Rear, Replmt
[M20/T20],3‐39
Squeegee Rear,3‐23
Squeegee Wldt, Rear,3‐39
Squeegee, Side, Rotawasher,3‐25
Starter Motor, For V1505T Engine -636
(included in Engine PP439),2‐63
Stay, Radiator,2‐71
Steel Rod End (Male) Bearing 20 Dia X
M2,3‐23
Steering Column Assembly
Adjustable,2‐45
Steering Column Multi Function Lever,2‐45
Steering Control Unit 36.7 Cc/Rev,2‐45
Steering Wheel,2‐45
Stiffening Tube Rear Water Tank
Hose,2‐103
Stop, Conical Progres (M8),2‐5
Stop,Conical Progres,2‐43
Stop,Conical Progressive
-72mmodx58mm,2‐17, 2‐19
Stopper, Cam [Ku],5‐15
Stopper, Fuel [Ku],5‐24
Straight Connector M6 X 5/6 Unf,3‐67
Strainer - Drain Cap - Water Tank
50/250,2‐103
Strainer, 1-1/2-11npt,100mesh,No
By-Pass,1‐1
Strainer, Suction,1‐1
Strainer/Cap Assembly,2‐103
Striker Pin Weldment -Rh Door, Cab,2‐31,
2‐35
Strip, Non-Slip, 0.50w 06.0l,3‐39
Strip, Wear - Formed,2‐75, 2‐77
Stud,5‐21
Stud [Ku],5‐7, 5‐13, 5‐26
Stud Adaptor - 1/2” - 3/8” BSP, M/M,3‐17
Stud Adaptor - 1/2”-1/2” BSP, M/M,3‐17
Stud, .31-18 2.75l M8 X 1.25, Ss,3‐39
Stud, Castor Adjuster,3‐31
Stud, Exhaust Manifold -D1105t,5‐11
Stud, Turbo-Charger D1105t,5‐11
Suction Strainer - Auxilliary Pump For
T,4‐2, 4‐3
Suction Strainer - Steering Pump 125
Mic,4‐2, 4‐3
Sump,Hopper Drain -636 Vac Form,2‐97
Sun - Visor Assembly 525,2‐51
Support Bracket, Safety Chain, Rear
Door,2‐101
Support Frame Weldment-W/Tank,2‐101
Surround,Switch,2‐49, 2‐51, 3‐49
Switch - Off/On Double Pole,3‐49
Switch Assy, On/Off [Single Pole],2‐51,
3‐19
Switch-Ignition Key Switch Kit No
420,2‐45
Switch, Oil,5‐3
Switch,Proximity-Normally Closed C/W 3
W (w Connector),2‐7
Switch,Proximity-Normally Open C/W 3
Way (w Connector),2‐7
Switch,Rotary Vam Assembly- Blue Line
22,2‐49
Switch.Blanking Plate,2‐49, 2‐51
Swivel Connector - P,3‐19
Swivel, Top End,3‐63
T
Tachometer - Us Spec C/W Hour Counter
-,2‐49
Tank Strap Bracket,3‐37
Tank, Water, Rear, W/ Label,2‐101
Tank,Water Manifold Assembly,2‐103
Tap-Quick Rel Body (Hose Fitt),3‐27, 3‐35
Tappet [Ku],5‐15
Tee - Bsp 3/4 M/F Swivel 1/2 M Branch
As,2‐111
Tee Allen Key With Side Spur-5mm
Plastic,2‐3
Tee Conector,1/4bsp Male/Fem/Male (Rplc
by HV240),2‐115
Tee Connector - 3/8'Bsp - M/F/M Asl
Pro,2‐119
Tee Connector - 1/4 Bsp,
Male/Male/Male,2‐115, 2‐117
Tee Connector - 1/4 Bsp, Male/Male/Male
(Rplc by HV240),2‐115
Tee Connector -1/4 Bsp F/F/Branch Male
A
(Replaced by HV239),2‐111
Tee Connector -1/4 Bsp F/F/Branch Male
A
(Replaced by HV238),2‐121
Tee Piece - 1/2 Bsp Male X Swivel
Femal,3‐51
Temperature Gauge - Water,2‐49
Temperature Sender,2‐61
Tennant Oval - Large (Decal),2‐123
Tennant Oval - Small (Decal -
White),2‐123
Tension Spring,Lower ,Front Brake,2‐13
Tension Spring,Upper,Front Brake,2‐13
Thimble -St.St For Rm016 2 Mm
Thimbles(1,3‐27
Thin Nut,1 Bsf Plated,3‐65
Tie Rod, Machined, H/Brake
Bellcrank,2‐57
Tiestrap-Large E64.Black Pack-25,2‐57
Timer - Glow Lamp - 636,2‐49
Top Cover, City Scrub, Vac Formed,3‐31
Top King Pin Bearing Housing Assy,2‐9,
2‐11
Top Main Body Folded,3‐21
Top R/H Door Hindge -636,2‐23
Top/Bottom, R/H Frame Hinge ,636,2‐23
Track Arm, Lh - Assembly,2‐7
Track Rod Assy, Close Bends,2‐15
Track Rod Ball Joint Kit - Am Only,2‐93,
2‐95
Track Rod, Formed, Close Bends,2‐15
Trailing Arm Rh-Assembly,2‐7
Trailing Arm, Rh, Wldt,2‐7
Trailing Arm, Wldt,2‐7
Transducer, Mmu Hydraulic oil Sae
Ts/Irn,4‐3
Transducer,Mmu Water Temperature Sea
Ts/,2‐61
Transit/Work Mode Switch Sub
Assembly,2‐49
Tray Wldt, Battery,2‐5
Tri Key,1‐1, 2‐99
Trim - Fan Cover - 636/500ZE,2‐91
Trinary Switch Assembly,3‐11
Tube Fuel V1505 Engine,5‐19
Tube Weldment Turbo - Air Cleaner E3b
En,2‐65
Tube Wldt, Spigot, Woosh Inlet,3‐63
Tube, Brake Limiter to Ctr Tee, Rear
636,2‐55
Tube, Brake Limiter to Rear Lh - 636,2‐55
Home
Find...
Go To..
CROSS REFERENCE
6‐27
636 UK YM165 (5−2015)
Tube, Brake Limiter to Rear Rh - 636,2‐55
Tube, Brake, Brake Assy T0 Flex, Lh -
636,2‐55
Tube, Brake, Brake Assy To Flex, Rh -
636,2‐55
Tube, Brake, Center Tee To Lh Tee -
636,2‐55
Tube, Brake, Lh Tee To Cab Flex -
636,2‐55
Tube, Brake, Lh Tee To Front Flex, Lh,2‐55
Tube, Brake, Limiter To Ctr Tee, Frnt
636,2‐55
Tube, Break, Ctr Tee To Frnt Flex, Rh
636,2‐55
Tube, Handle, Whoosh,3‐63
Tube, Oil,5‐31
Tube, Pin [Ku],5‐3
Tube, Pivot, Inner,2‐75, 2‐77
Tube, Seat, Valve, Oil [Ku],5‐7
Tube, Spacer, Cloudmaker, 05mm,2‐93,
2‐95, 3‐63
Tube, Spacer, Cloudmaker, 40mm,2‐93,
2‐95
Tube, Spacer, Cylinder, 24mm,2‐93, 2‐95
Turbocharger Assembly,5‐29
Turnbuckle, Squeegee, Castor,3‐31
U
U-Clamp,48 Mm Dia,Exhaust,2‐67
U-Type Receptacle 12304/3,2‐13, 2‐21
Upper Hinge Weld Assembly,2‐25
Upper Tension Spring 2 Per Brake,2‐21
USA Slow Moving Vehicle Warning
Assembly,2‐123
V
Valve - Solenoid - 2 Way Int.,4‐13
Valve -Solenoid - Int. S229n,4‐13
Valve Assembly -Brush Pressure
Pr08-32b-,2‐115
Valve Body,2/2 Way Direct Operated
Solen,2‐105
Valve Check Reverse Speed
Cv08-20-O-V-04,4‐9
Valve Stem Seal -D1105t -525,5‐13
Valve- Relief - Int. 210 Bar,4‐13
Valve-D/A In-Line Needle Valve 1/4
Bsp,2‐111
Valve, Delivery,5‐23
Valve, Logic Element For Hc181,4‐5
Valve, Pressure Compensator
Ec10-40-0-V-,4‐9
Valve, Spool 3 Way High Pressure,4‐5
Valve,D/A High Pressure Relief Valve
Rv5,4‐7
Valve,Exhaust,5‐13
Valve,Inlet,5‐13
Valve,Pressure Compensator,220 Spg
Ec50-,4‐7
Valve,Pressure Compensator,High
Pressure,4‐7, 4‐11
Valve,Proportional Solenoid -Sp10
Opreat,4‐7
Valve,Proportional Solenoid-Sp08
Operat,4‐7
Valve,Relief,Direct Acting Poppet
Rv08-2,4‐9
Velocity Fuse 1/4” Bsp,2‐121
Vent-Rectangular 525,3‐13
Video, Oprtr, Dvd [636],3‐70
Voice Box - Dutch Assembly,2‐65
Voice Box - English Assembly,2‐65
Voice Box - Flemish Assembly,2‐65
Voice Box - Flemish/French
Assembly,2‐65
Voice Box - FrenchAssembly,2‐65
Voice Box - German Assembly,2‐65
Voice Box - Italian Assembly,2‐65
Voice Box - Romanian Assembly,2‐65
Voice Box - Spanish Assembly,2‐65
W
Warning Lamp-Indicator [Dash.]
2aa001204,2‐49
Warning Lamp, Amber, Glow Plug,2‐49
Warning Lamp, Blue, Main Beam,2‐49
Warning Lamp, Green, Direction
Indicator,2‐49
Warning Lamp, Red, Hand Brake,2‐49
Warning Lamp, Red, No Charge,2‐49
Warning Lamp, Red, Oil Pressure,2‐49
Warning Light -Blue Led Assembly C/W
In,2‐49
Washer 6mm Id X 18mm Od X 2mm Thick
St/,2‐5, 2‐69, 2‐86, 2‐89, 2‐103
Washer - Din 9021 - M6, 18 O/D,2‐71
Washer - form A - M8 - St St,2‐97
Washer - Form A - M8 -St St,2‐23, 2‐31,
2‐35, 2‐63, 2‐91, 2‐107, 3‐23, 3‐25,
3‐49
Washer - M6 Form C -St.St,A2,2‐33,
2‐37, 2‐63, 2‐65, 2‐71, 2‐91, 2‐97,
2‐107, 3‐3, 3‐7, 3‐19, 3‐27, 3‐49,
3‐63, 3‐65
Washer - M6 Form C -St.St,A2 (as
Reqired),2‐91
Washer - M8 Form C St/St 314 Stainless
3,2‐47, 2‐65, 2‐79, 2‐81, 2‐83, 2‐85,
2‐91, 2‐97, 2‐99, 2‐101, 3‐15, 3‐19,
3‐21, 3‐65
Washer - M8 X 25 Od - St St 500e Per
10,2‐33, 2‐37, 2‐43, 2‐51, 2‐67, 2‐93,
2‐95, 2‐97
Washer - Plain - ' /6mm pPer 100,2‐47
Washer - Plain M8 Large O/D,2‐69
Washer - Top Hat,2‐99, 3‐27
Washer -Plain - 1/4 /6Mm Per 100,2‐93
Washer [Ku],5‐24
Washer Starlock, 4Mm,2‐33, 2‐37
Washer-Form A - m8 St St,2‐93, 2‐95
Washer-M6 Brass Plain Each,2‐55
Washer-Plain m10X32X3 Form G Per
100,2‐61
Washer-Plain-1/4' /6mm Per 100,2‐5, 2‐9,
2‐11, 2‐23, 2‐25, 2‐31, 2‐35, 2‐43,
2‐61, 2‐67, 2‐69, 2‐71, 2‐79, 2‐81,
2‐89, 2‐91, 2‐97, 2‐103, 2‐105, 2‐107,
2‐109, 2‐119, 2‐121, 3‐7, 3‐9
Washer-Plain-5/16' Per 100 Per 100,2‐17,
2‐65, 2‐79, 2‐81
Washer-Rubber,2‐79, 2‐81
Washer-Schnorr Serrated Lock M16 (S16)
Z,2‐93, 2‐95
Washer-Spring-1/4' Per H100 Each,2‐97
Washer-Spring-1/4' Perh100 Each,2‐5,
2‐43, 2‐63, 3‐7, 3‐49
Washer-Spring-8Mm Rect,2‐23, 2‐69
Washer-Spring-8mm Rect. Per 100
Each,2‐55, 2‐63
Washer, Collar, Gear [Ku],5‐15
Washer, Flat [Ku],5‐13, 5‐26
Washer, Flat, 0.31, Ss,3‐39
Washer, Flat, 0.44b 1.00d .08, Ss,3‐25
Washer, Form 'A' - M12 - Zn Ptd
Whee,2‐9, 2‐11, 2‐17, 2‐19, 2‐35,
2‐43, 2‐53, 2‐75, 2‐77
Washer, Form 'A' - M6 - Zn Ptd 500e
Zinc,3‐23
Washer, Form 'C' - M8 - Zn Ptd Each
E,2‐65
Washer, Form A - M10 Zinc Plated,2‐109
Washer, Form A - M10 Zinc Plated Per
100,2‐47, 2‐57, 3‐7, 3‐35, 4‐2, 4‐3
Washer, Form A - M12 - Zn Ptd
Whee,3‐33
Washer, Form A - M20 -St/St A2 St.St
Gr,2‐85
Washer, Form A - M5 - Zn Ptd Per 100
Per,2‐23, 2‐25, 2‐89, 2‐123
Washer, Form A - M8 Zinc Plated S12 -
Zi,2‐5, 2‐43, 2‐55, 2‐59, 2‐63, 2‐79,
2‐81, 2‐85, 2‐91, 2‐101, 3‐7
Washer, Lock, Split [Ku],5‐7, 5‐26
Washer, M10 Spring Pltd,2‐109
Washer, M5 -Stainless Steel -A4,2‐27,
2‐29, 2‐85, 2‐97, 2‐99
Washer, M6 Form C - St.St, A2,2‐27, 2‐29
Washer, Nyl, 1/4,4‐2, 4‐3
Washer, Serrated Lock - S6 - Zn Plt,2‐69,
3‐7
Washer, Shaft, Rocker [Ku],5‐13
Washer, Spring,5‐21
Washer, Spring - M6 - Stainless Steel
A2,2‐71
Washer, Thrust [Ku],5‐24
Washer, Top King Pin - Machining,2‐9,
2‐11
Washer,36 Mm Od X 14.5 Mm Id
Din7980,2‐109
Washer,Flat 0.25, Ss,2‐3
Washer,Form A -M10 -S.S A2 St.St
Grade A,2‐31, 2‐35, 2‐85, 2‐91, 3‐33
Washer,Form A -M30 -A2 St.St St.St-
For,2‐89
Washer,Nylon Load Bearing M10 X 51 X
3.1,2‐47
Water Bottle - Windscreen Wash C/W
12v,2‐29
Water Hose - From Wtr Pump To T-Piece
2m,2‐105
Water Hose - Tpiece To Hopper Inlet
Pipe,2‐105
Water Hose-Tee 3.16x3.16x3.16
Ap0418tee,2‐105, 3‐35
Water Hose, Large Wa,2‐103
Water Hose, Small Wa,2‐103
Water Pump Assy, D1105-T -525,5‐8
Water Pump C/W Connector,2‐103, 3‐37
Home
Find...
Go To..
CROSS REFERENCE
636 UK YM165 (5−2015)
6‐28
Water Valve Assembly -525 Brush
Sprays,2‐105
Wedge, Seat-Weldment Cab,2‐59
Weight, Comp, Govnr [Ku],5‐24
Weldment - Squeegee Carrier,3‐31
Weldment, Mounting Arm,
Rotawasher,3‐23
Weldment, Squeegee, Rear, Left
Hand,3‐23
Weldment, Squeegee, Rear, Right
Hand,3‐23
Wheel Assembly,155/7,2‐13, 2‐21
Wheel Cylinder,2‐21
Wheel Cylinder,Front Brake,2‐13
Wheel Hub Assy -5 Stud,2‐13
Wheel Hub Assy -Rear -5 Stud,2‐21
Wheel Motor,100 Cc -C/W Speed
Sensor,2‐17
Wheel Stud - M16 X 1.5 X 47 Lg,2‐13,
2‐21
Wheel Trim - White - Refresh,2‐13, 2‐21
Wheel Trim, 636/525 Machine-White
155r12,2‐13, 2‐21
Wheel, 4.0d 0.89w 0.64b,3‐39
Whoosh Handle,3‐63
Whoosh Handle Assembly No Hose,3‐63
Whoosh Hose Sub Assembly,3‐65
Window Cassette - Rh -Black,2‐31
Window Cassette- Lh -Black,2‐35
Windscreen Assy -C/W Pack & Carr Uk
Car,2‐27, 2‐29
Windscreen Defrost Switch Assembly,2‐49
Windscreen Water Bottle Am Kit,2‐27, 2‐29
Wing Mirror , Wide Angle,2‐37
Wing Mirror (Unbreakable) 210 X 150
Wide,2‐31, 2‐35
Wing Mirror Arm,2‐31, 2‐33, 2‐35, 2‐37
Wing Mirror, Wide Angle,2‐33
Wiper Arm - 450mm (18) With Water
Wash,2‐27, 2‐29
Wiper Blade, Curved,2‐27, 2‐29
Wiper Washer Jets,2‐27, 2‐29
Wire Rope-1.5 Mm St.St 7/7 Wire
Rope,3‐27
Wire,Retaining -Fan Access Door,2‐99
Wiring Loom - Central Lubrication,3‐67
Wiring Loom - Rear Number Plate
Light,3‐5
Wiring Loom 636 Cab Iqan R/Washer,3‐28
Wiring Loom 636 Chassis Iqan
R/Washer,3‐28
Wiring Loom, Cab, instrument MD3,2‐124
Wiring Loom, Chassis Iqan System
[636],2‐124
Wiring Loom, Doser Unit - Rotawash,3‐37
Wiring Loom, Nozzle Jog - Cab -
Refresh,3‐61
Wiring Loom, Nozzle Jog -
Chassis-Refresh,3‐61
Wiring Loom, Power Supply To
Suspension,3‐68
Wiring Loom, side Access Door Led's,3‐5
Wiring Loom, Snowbrush/Gritter Chassis
-,3‐49
Wiring Loom, Snowbrush/Gritter
Headliner,3‐49
Wiring Loom,636 Chasis Iqan,2‐124
Wiring Loom,Cab Iqan System-636,2‐124
Wiring Loom,Cab, Chassis-Automotive
-Refresh,2‐124
Wiring Loom,Cab, Chassis-Automotive
-S/P 636,2‐124
Wiring Loom,Cab,Instrument/ A-Post
Auto,2‐124
Wiring Loom,Fan Speed & Saftey Switch
63,2‐124
Work Lamp,2‐29
Work Lamp -,2‐27
Work Lamp - Deutsch Plug - Refresh,2‐29
Work Light Switch Sub Assembly,2‐49
Workshop Manual - 636,3‐70
Y
Y - Piece Equal Hose Barb 16mm Plastic
1,3‐15
Home
Find...
Go To..
