810D
MM310
Operator Manual
Home
Find...
Go To..
This manual is furnished with each new TENNANT Model 810D. It provides necessary operating and
preventive maintenance instructions. Read this manual completely and understand the machine before
operating or servicing it.
This machine will provide excellent service. However, the best results will be obtained at minimum
costs if:
The machine is operated with reasonable care.
The machine is maintained regularly – per the maintenance instructions provided.
The machine is maintained with TENNANT supplied or equivalent parts.
Manual Number – MM310
Revision: 07
Published: 11–95
Copyright 1993, 1994, 1995 TENNANT, Printed in U.S.A.
Home
Find...
Go To..
CONTENTS
1
810D MM310 (3–95)
CONTENTS
Page
SAFETY PRECAUTIONS 3. . . . . . . . . . . . . . . . .
OPERATION 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR RESPONSIBILITY 5. . . . . . . . .
MACHINE COMPONENTS 7. . . . . . . . . . . . .

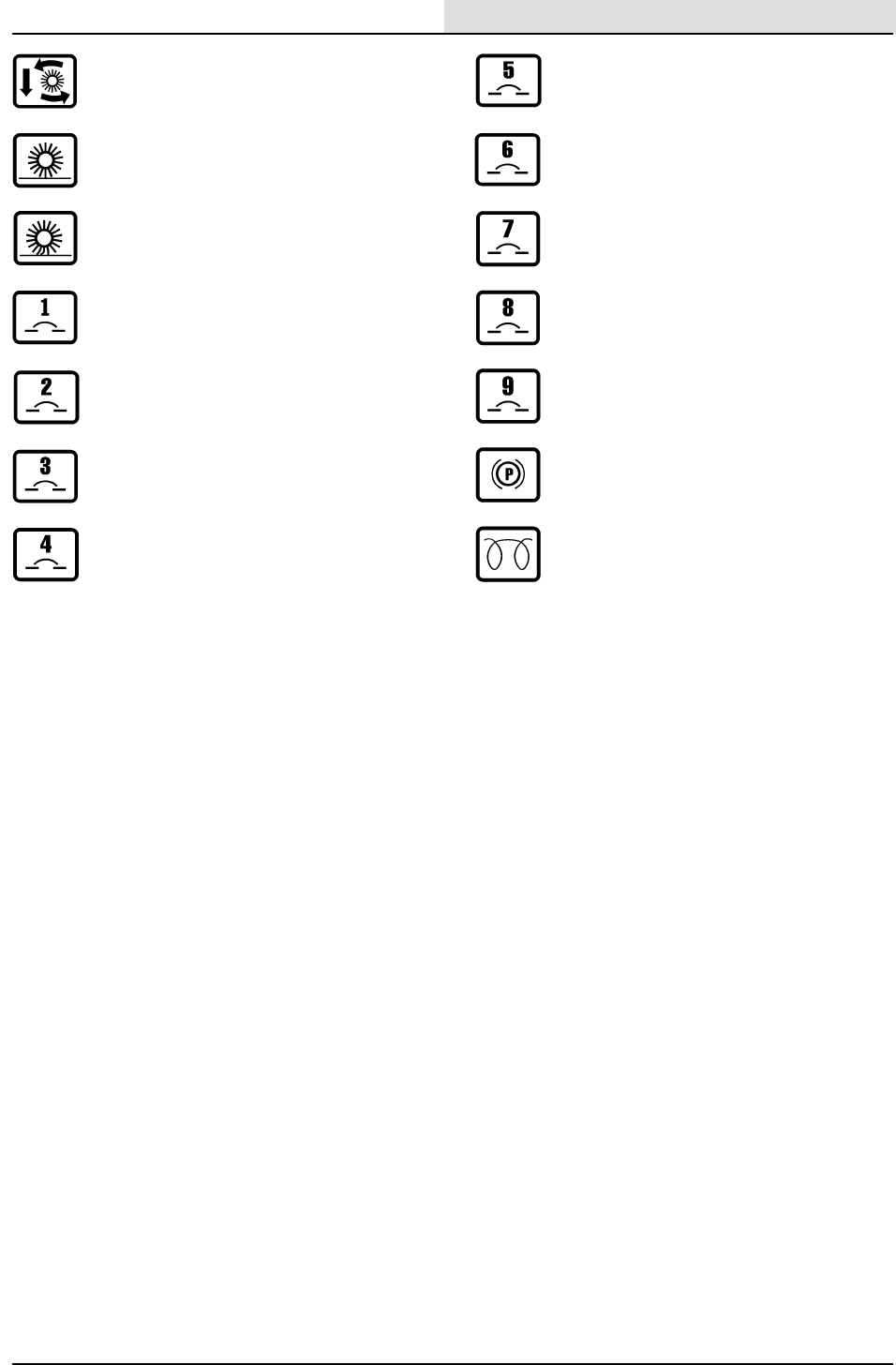

CONTROL PANEL SYMBOLS 8. . . . . . . . . .
CONTROLS AND INSTRUMENTS 10. . . . . .
OPERATION OF CONTROLS 11. . . . . . . . . .
DIRECTIONAL PEDAL 11. . . . . . . . . . . . . .
BRAKE PEDAL 12. . . . . . . . . . . . . . . . . . . .
PARKING BRAKE (For machines below
serial number 002046) 12. . . . . . . . . . . .
PARKING BRAKE (For machines serial
number 002046 and above) 13. . . . . . .

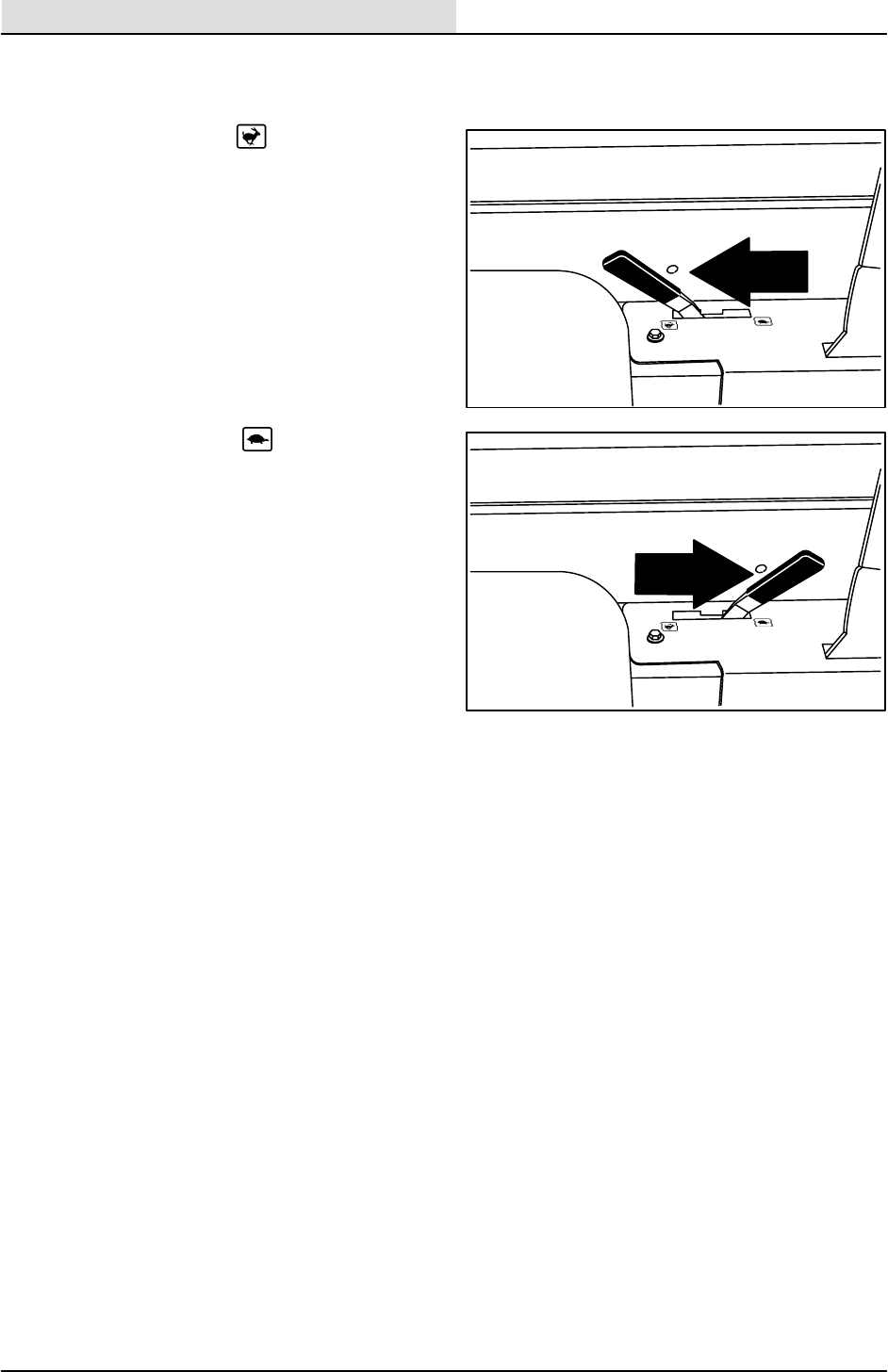

THROTTLE LEVER 14. . . . . . . . . . . . . . . . .

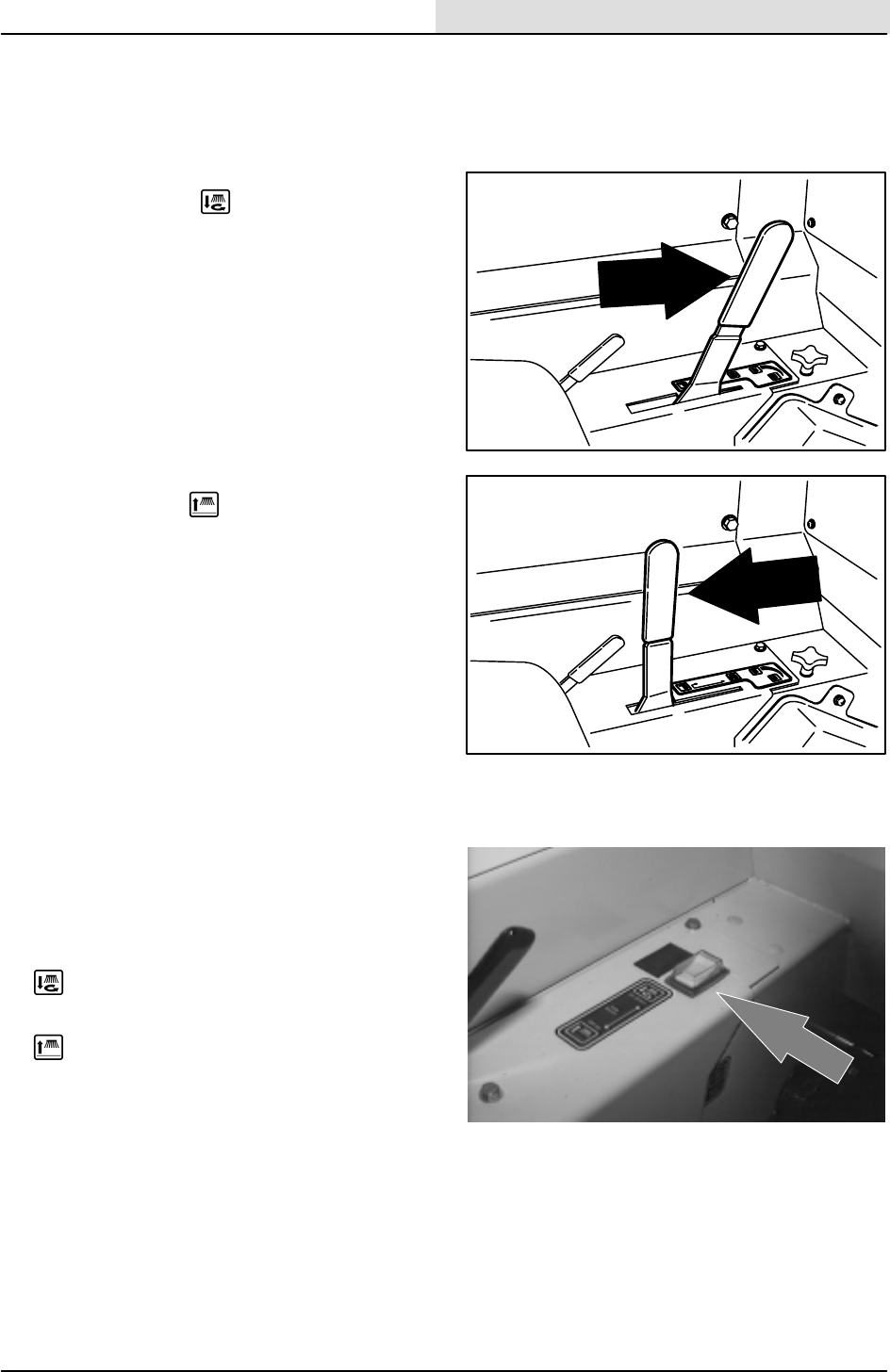

SIDE BRUSH LEVER (For machines below
serial number 002063 15. . . . . . . . . . . .
SIDE BRUSH SWITCH (For machines
serial number 002063 and above) 15. .
SIDE BRUSH DOWN
PRESSURE KNOB 16. . . . . . . . . . . . . .
HOPPER DOOR LEVER 17. . . . . . . . . . . .
HOPPER ROLLOUT LEVER 18. . . . . . . . .
HOPPER LIFT LEVER 19. . . . . . . . . . . . . .
HORN BUTTON 19. . . . . . . . . . . . . . . . . . . .

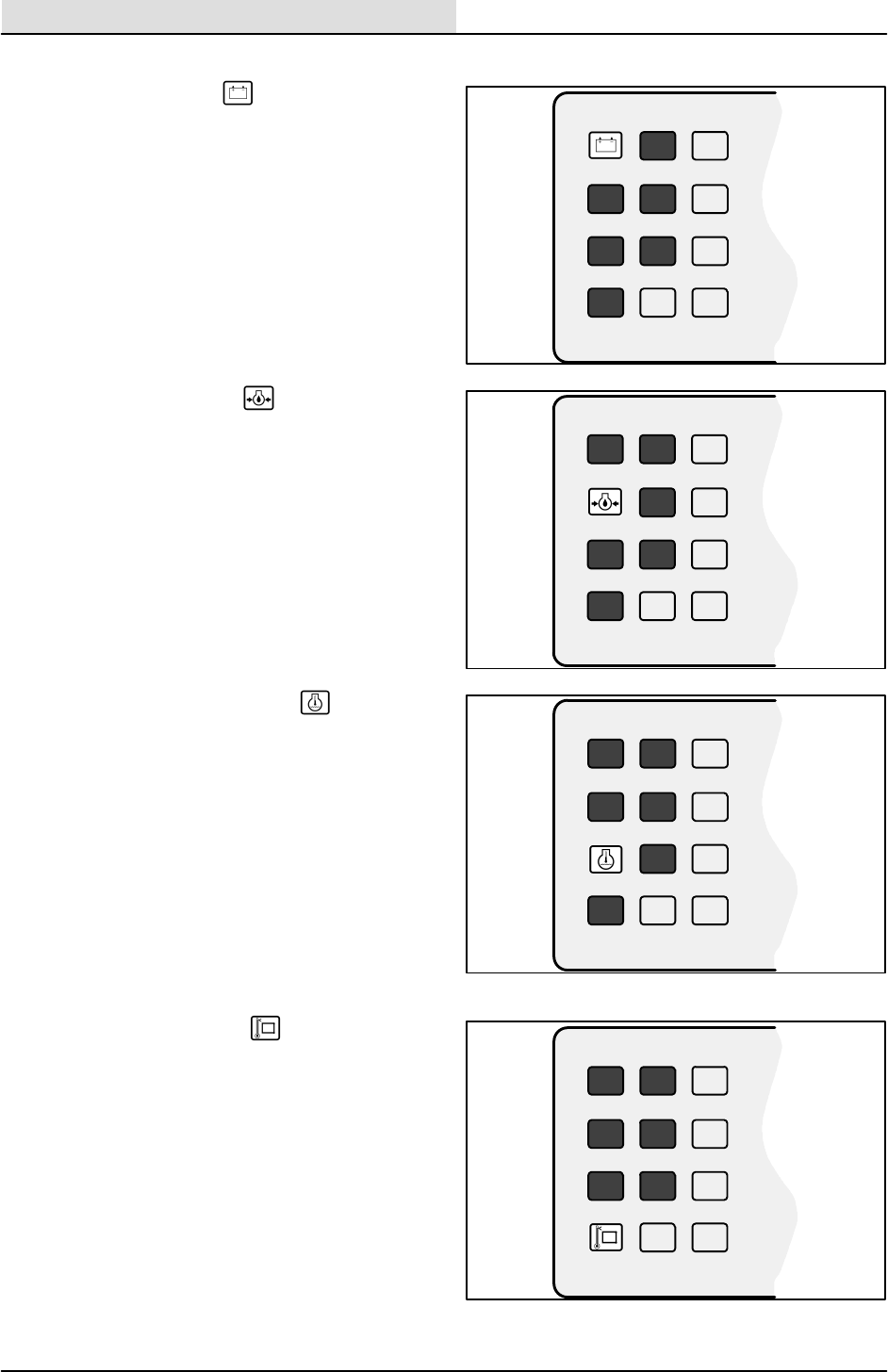

CHARGING SYSTEM LIGHT 20. . . . . . . .
ENGINE OIL PRESSURE LIGHT 20. . . . .
ENGINE WATER
TEMPERATURE LIGHT 20. . . . . . . . . .
HOPPER TEMPERATURE LIGHT –
THERMO SENTRY20. . . . . . . . . . . .
MAIN BRUSH SHUT DOWN LIGHT 21. .
CLOGGED FILTER LIGHT 21. . . . . . . . . .
HOPPER DOOR LIGHT (OPTION) 21. . .
FUEL LEVEL GAUGE 21. . . . . . . . . . . . . . .
HOURMETER 22. . . . . . . . . . . . . . . . . . . . .
HAZARD LIGHT SWITCH (OPTION) 22. .
OPERATING LIGHTS SWITCH 22. . . . . .
FILTER SHAKER SWITCH 23. . . . . . . . . .
VACUUM FAN SWITCH 23. . . . . . . . . . . . .
IGNITION SWITCH 24. . . . . . . . . . . . . . . . .
Page
MAIN BRUSH AND
POWER THROW SWITCH 25. . . . .
STEERING WHEEL 26. . . . . . . . . . . . . . . .
STEERING WHEEL TILT LEVER 26. . . . .
BLOWER WAND LEVER (OPTION) 26. .
CIRCUIT BREAKERS 27. . . . . . . . . . . . . . .
GLOW PLUGS LIGHT 27. . . . . . . . . . . . . .
MAIN BRUSH DOWN
PRESSURE KNOB 28. . . . . . . . . . . . . .
LATCHES 28. . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR SEAT 29. . . . . . . . . . . . . . . . . .
HOPPER SUPPORT BAR 29. . . . . . . . . . .
WINDSHIELD WIPER
SWITCH (OPTION) 30. . . . . . . . . . . . . .

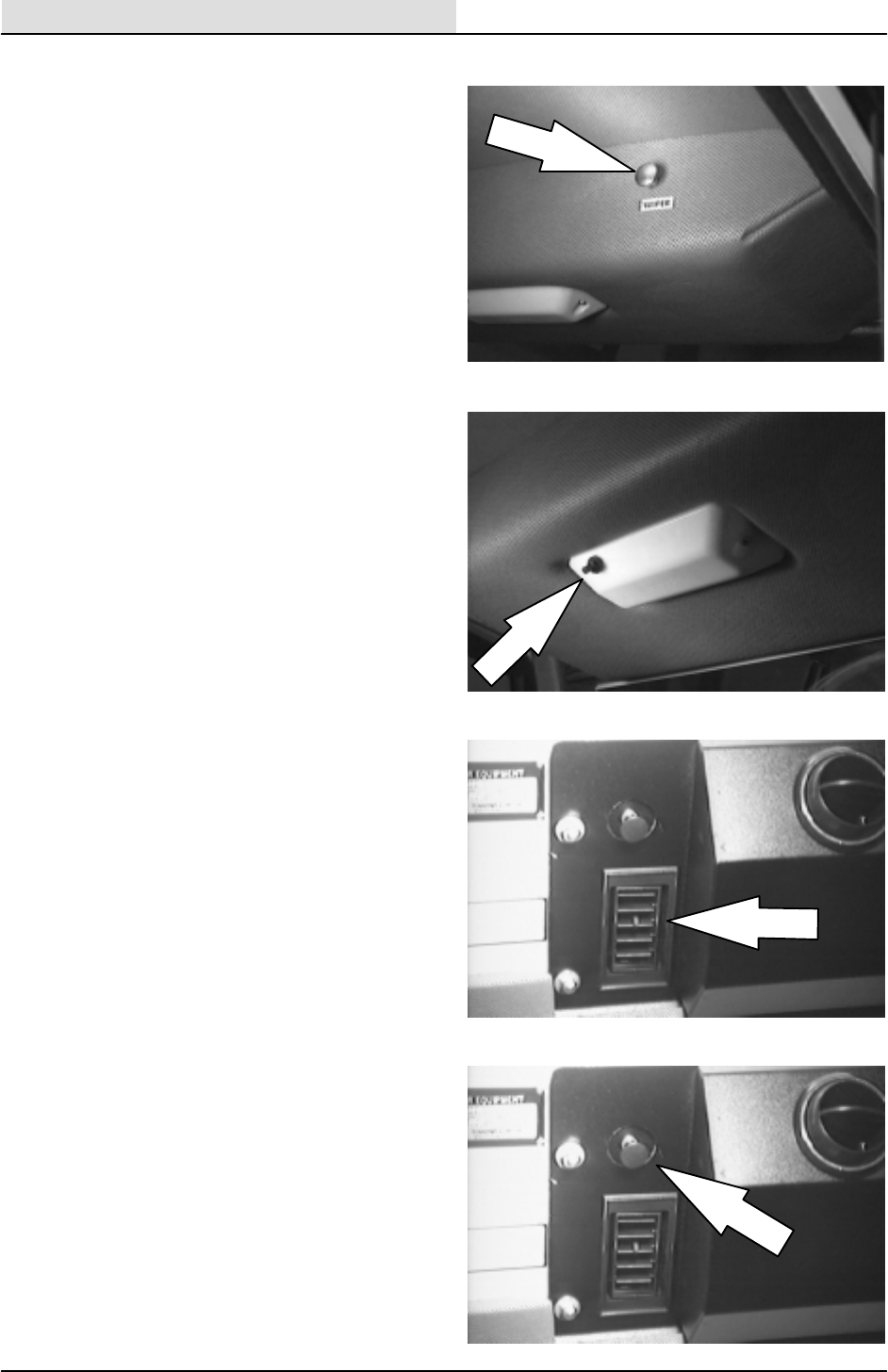

DOME LIGHT SWITCH (OPTION) 30. . . .
RECIRCULATING AIR
LOUVERS (OPTION) 30. . . . . . . . . . . .
HEATER KNOB (OPTION) 30. . . . . . . . . .
FAN SPEED SWITCH (OPTION) 31. . . . .
AIR CONDITIONING
SWITCH (OPTION) 31. . . . . . . . . . . . . .
AIR CONTROL VENTS (OPTION) 31. . . .
HOW THE MACHINE WORKS 32. . . . . . . . . .

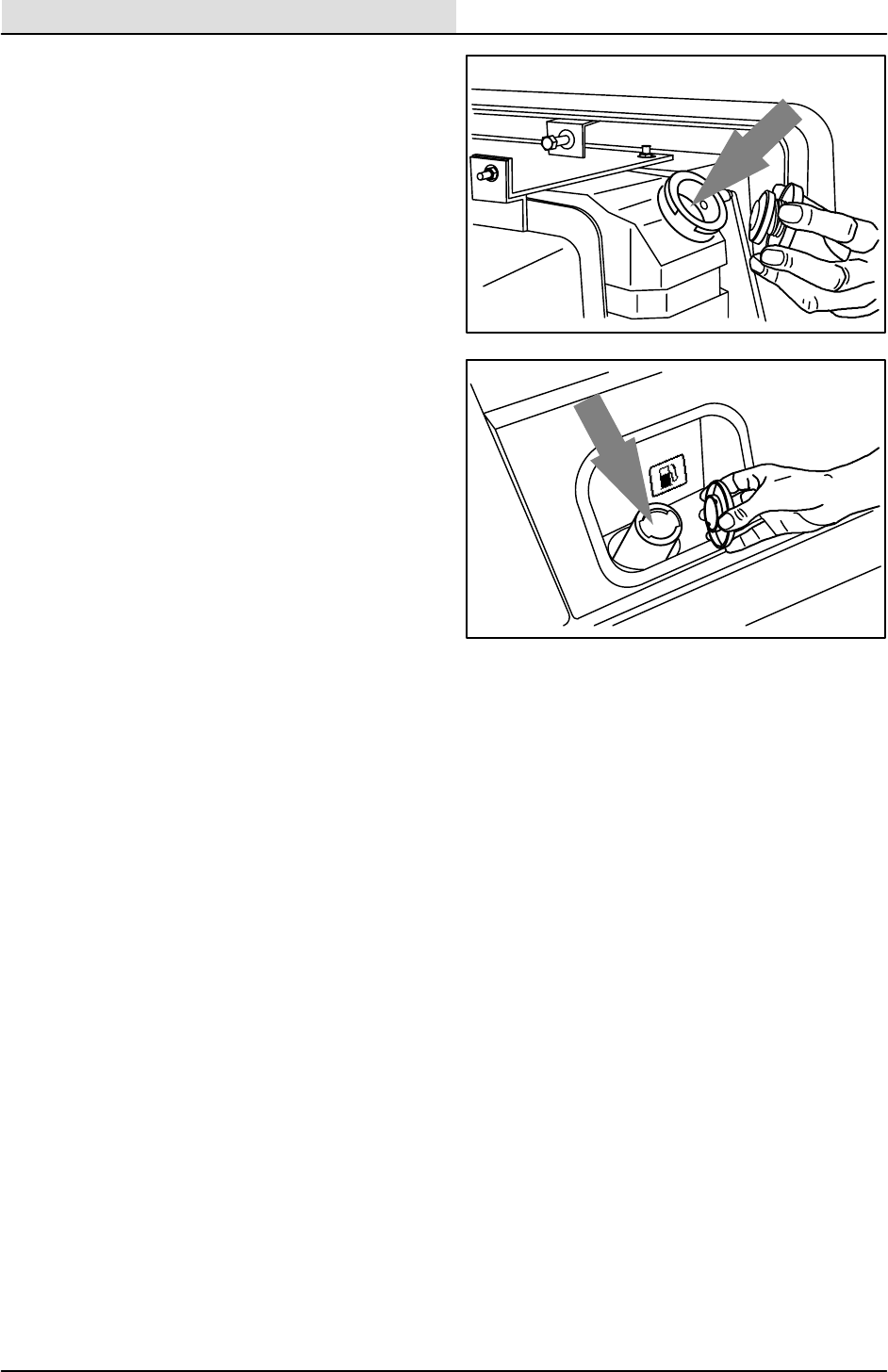

PRE-OPERATION CHECKLIST 32. . . . . . . . .
STARTING THE MACHINE 34. . . . . . . . . . . . .
SWEEPING AND BRUSH INFORMATION 37
SWEEPING 39. . . . . . . . . . . . . . . . . . . . . . . . . .
STOP SWEEPING 41. . . . . . . . . . . . . . . . . . . .
EMPTYING THE HOPPER 42. . . . . . . . . . . . .
STOP THE MACHINE 44. . . . . . . . . . . . . . . . .
POST-OPERATION CHECKLIST 46. . . . . . . .
ENGAGING HOPPER SUPPORT BAR 47. .
DISENGAGING HOPPER SUPPORT BAR 49
OPERATION ON INCLINES 50. . . . . . . . . . . .
MACHINE TIE–DOWNS 51. . . . . . . . . . . . . . .
OPTIONS 52. . . . . . . . . . . . . . . . . . . . . . . . . . . .
VACUUM WAND 52. . . . . . . . . . . . . . . . . . .
BLOWER WAND 56. . . . . . . . . . . . . . . . . . .
REGENERATIVE FILTER
SYSTEM (RFS) 58. . . . . . . . . . . . . . . . .
MACHINE TROUBLESHOOTING 59. . . . . . .
Home
Find...
Go To..
CONTENTS
810D MM310 (3–95)
2
Page
MAINTENANCE 60. . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE CHART 60. . . . . . . . . . . . . . .

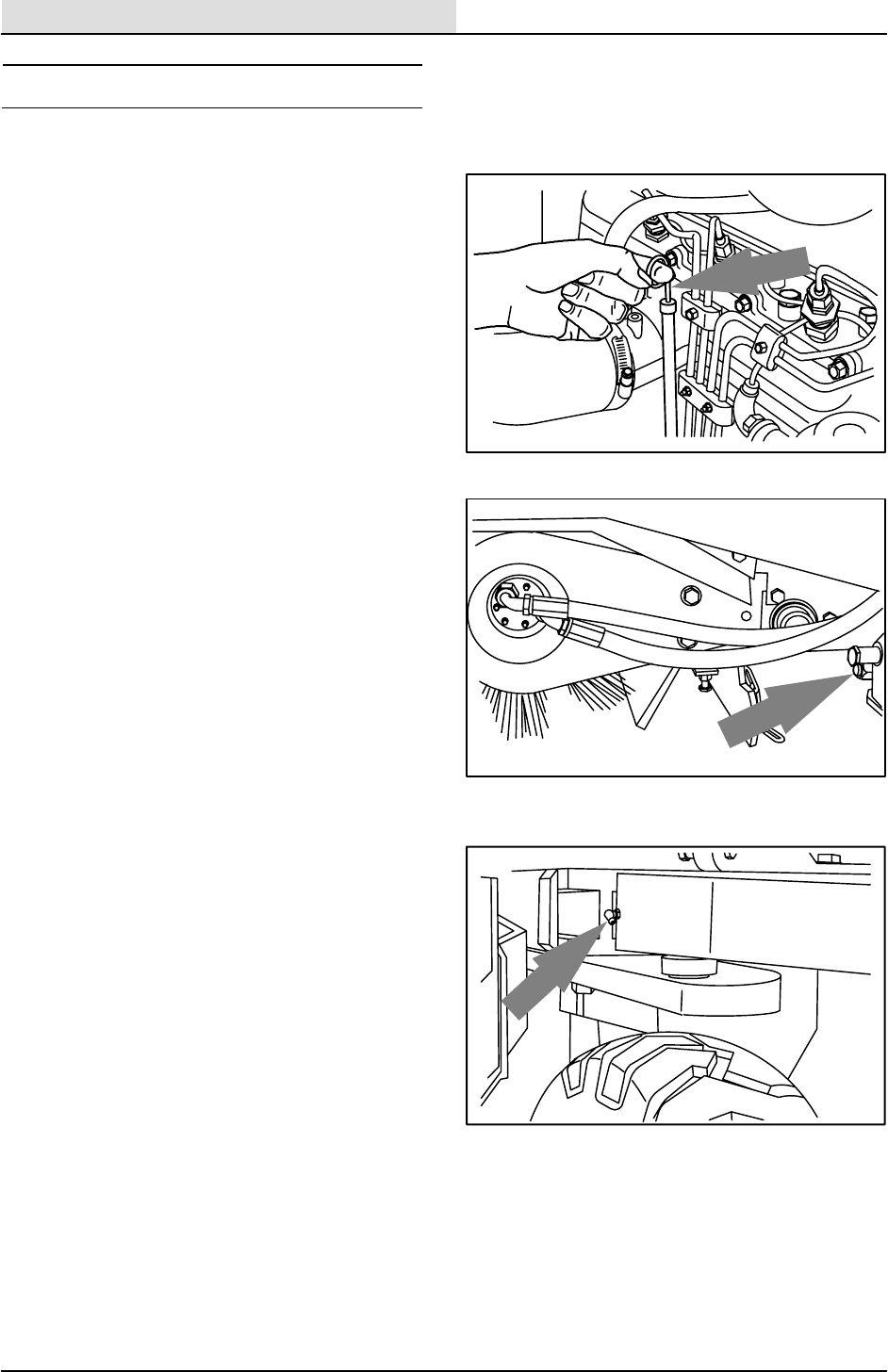

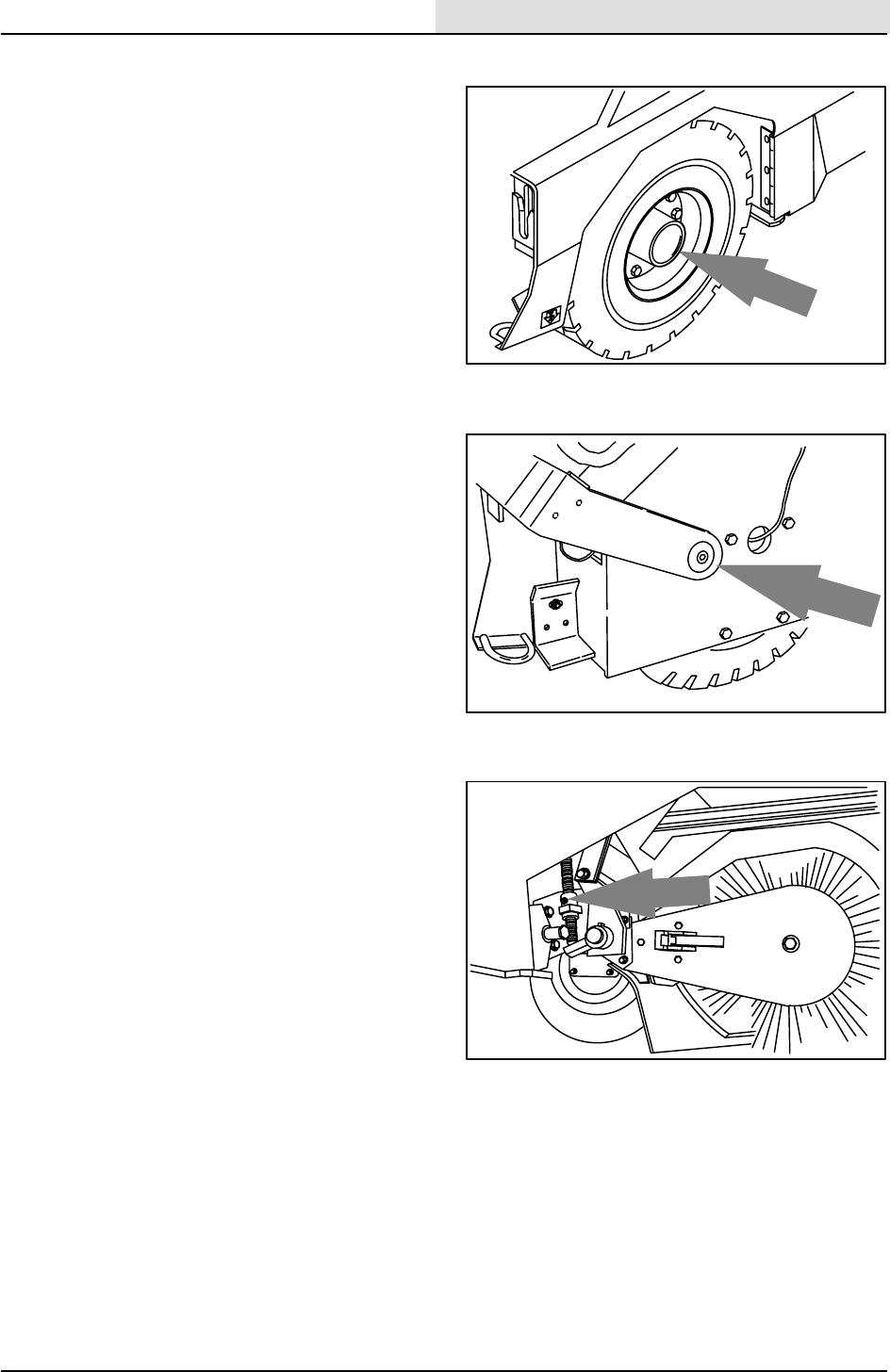

LUBRICATION 62. . . . . . . . . . . . . . . . . . . . . . . .
ENGINE 62. . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR WHEEL SUPPORT 62. . . . . . . . . . .
FRONT WHEEL BEARINGS 63. . . . . . . . .
SIDE BRUSH PIVOT PINS 63. . . . . . . . . .
MAIN BRUSH ADJUSTMENT 63. . . . . . . .
HYDRAULICS 64. . . . . . . . . . . . . . . . . . . . . . . .

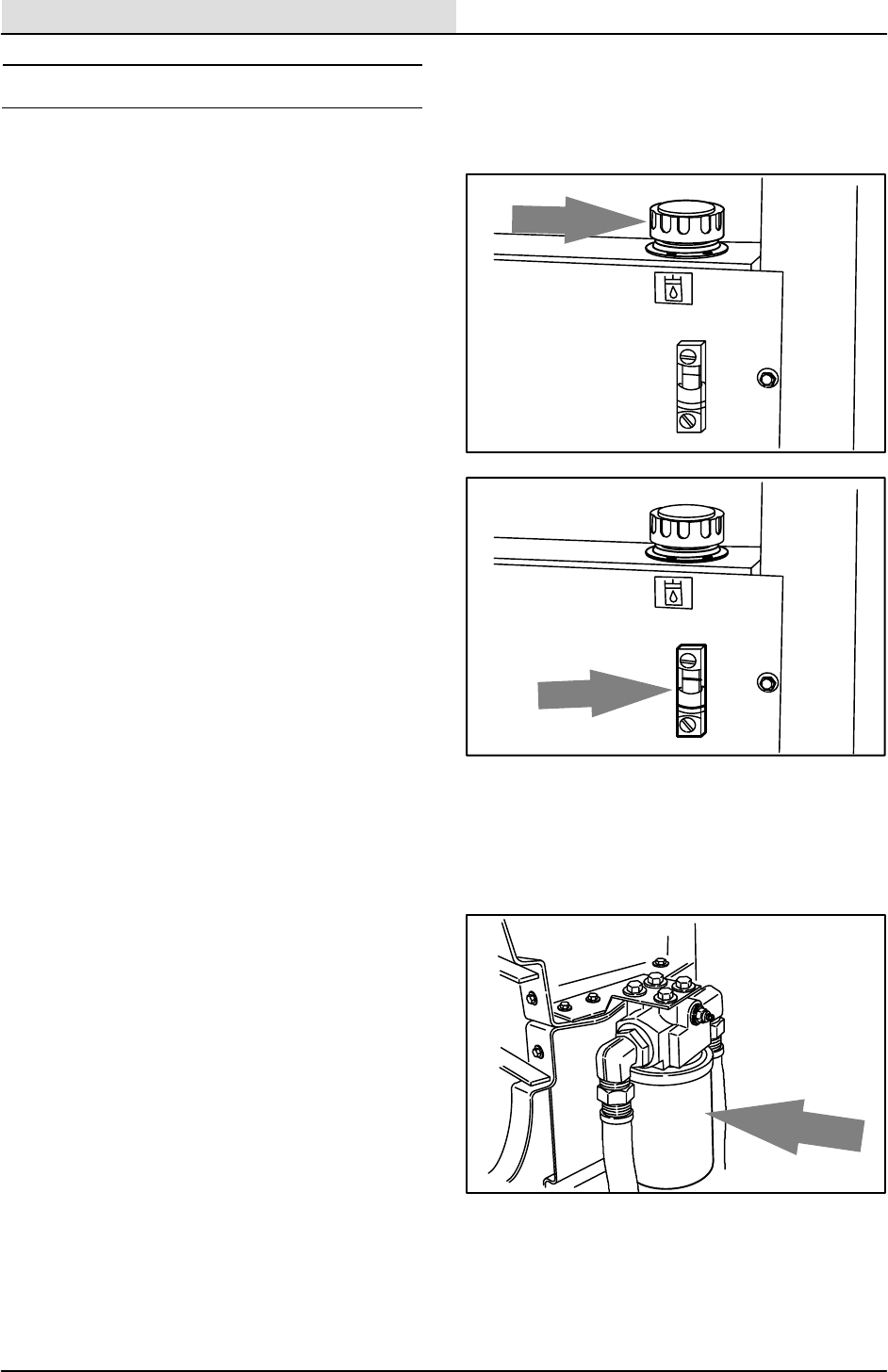

HYDRAULIC FLUID RESERVOIR 64. . . .
HYDRAULIC FLUID 65. . . . . . . . . . . . . . . .
HYDRAULIC HOSES 65. . . . . . . . . . . . . . .
PROPELLING MOTOR 66. . . . . . . . . . . . . .
ENGINE 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COOLING SYSTEM 66. . . . . . . . . . . . . . . .
AIR FILTER INDICATOR 67. . . . . . . . . . . .
AIR FILTER 67. . . . . . . . . . . . . . . . . . . . . . . .
WATER SEPERATOR/FUEL FILTER 68. .
ENGINE FUEL FILTER 68. . . . . . . . . . . . . .
FUEL LINES 68. . . . . . . . . . . . . . . . . . . . . . .
PRIMING FUEL SYSTEM 68. . . . . . . . . . .
TO PRIME FUEL SYSTEM 68. . . . . . .
BATTERY 70. . . . . . . . . . . . . . . . . . . . . . . . . . . .
BELTS AND CHAINS 70. . . . . . . . . . . . . . . . . .
ENGINE BELT 70. . . . . . . . . . . . . . . . . . . . .
STATIC DRAG CHAIN 70. . . . . . . . . . . . . .
DEBRIS HOPPER 71. . . . . . . . . . . . . . . . . . . . .
HOPPER DUST FILTER 71. . . . . . . . . . . . .
TO REMOVE OR REPLACE
HOPPER DUST FILTER 71. . . . . . .
THERMO SENTRY73. . . . . . . . . . . . . . .
Page
BRUSHES 73. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MAIN BRUSH 73. . . . . . . . . . . . . . . . . . . . . .
TO REPLACE MAIN BRUSH 73. . . . . .

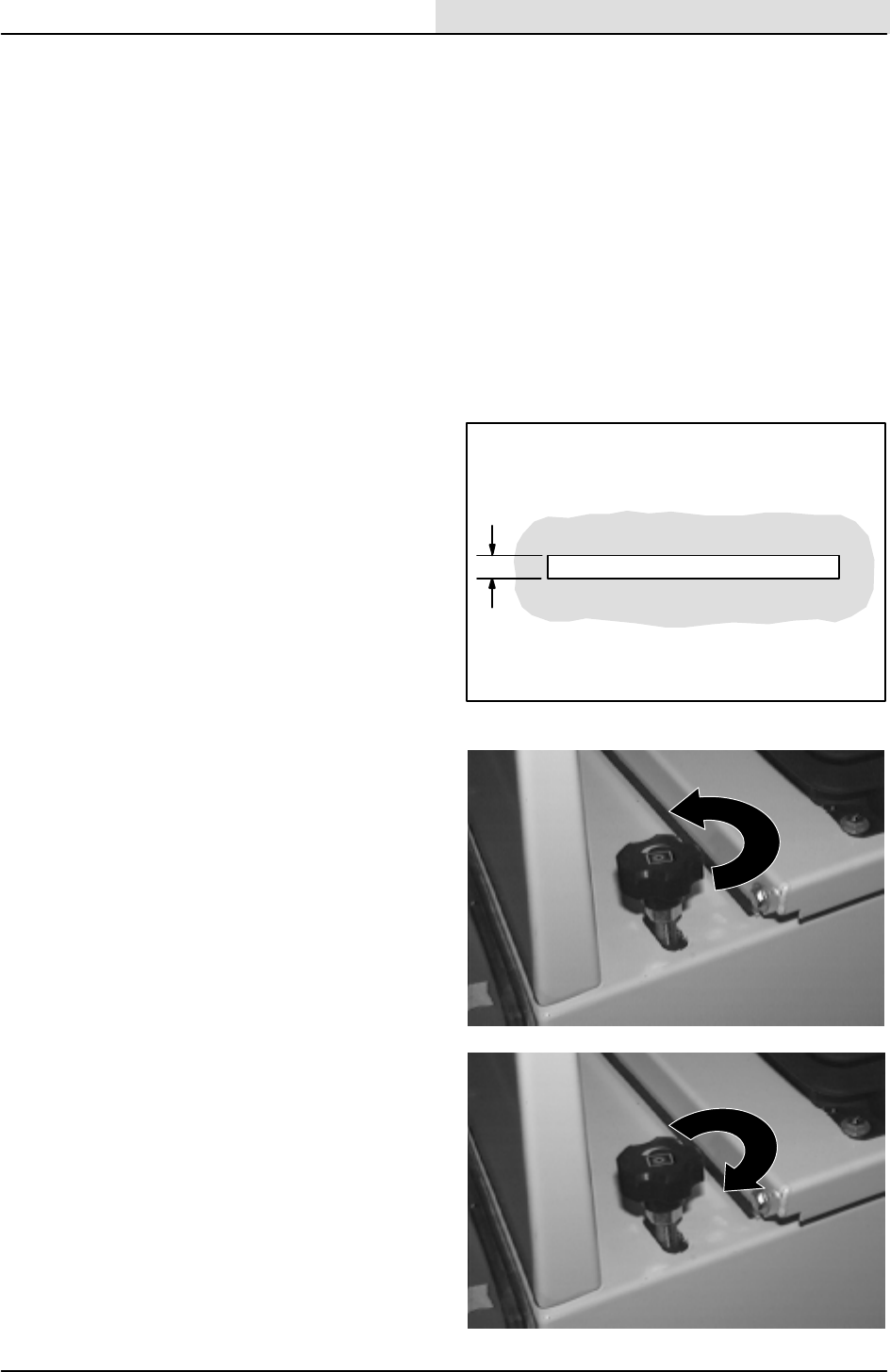

TO CHECK AND ADJUST MAIN
BRUSH PATTERN 74. . . . . . . . . . . .
POWER THROW77. . . . . . . . . . . . . . . . .
TO REPLACE POWER THROW
BRUSH 77. . . . . . . . . . . . . . . . . . . . . .

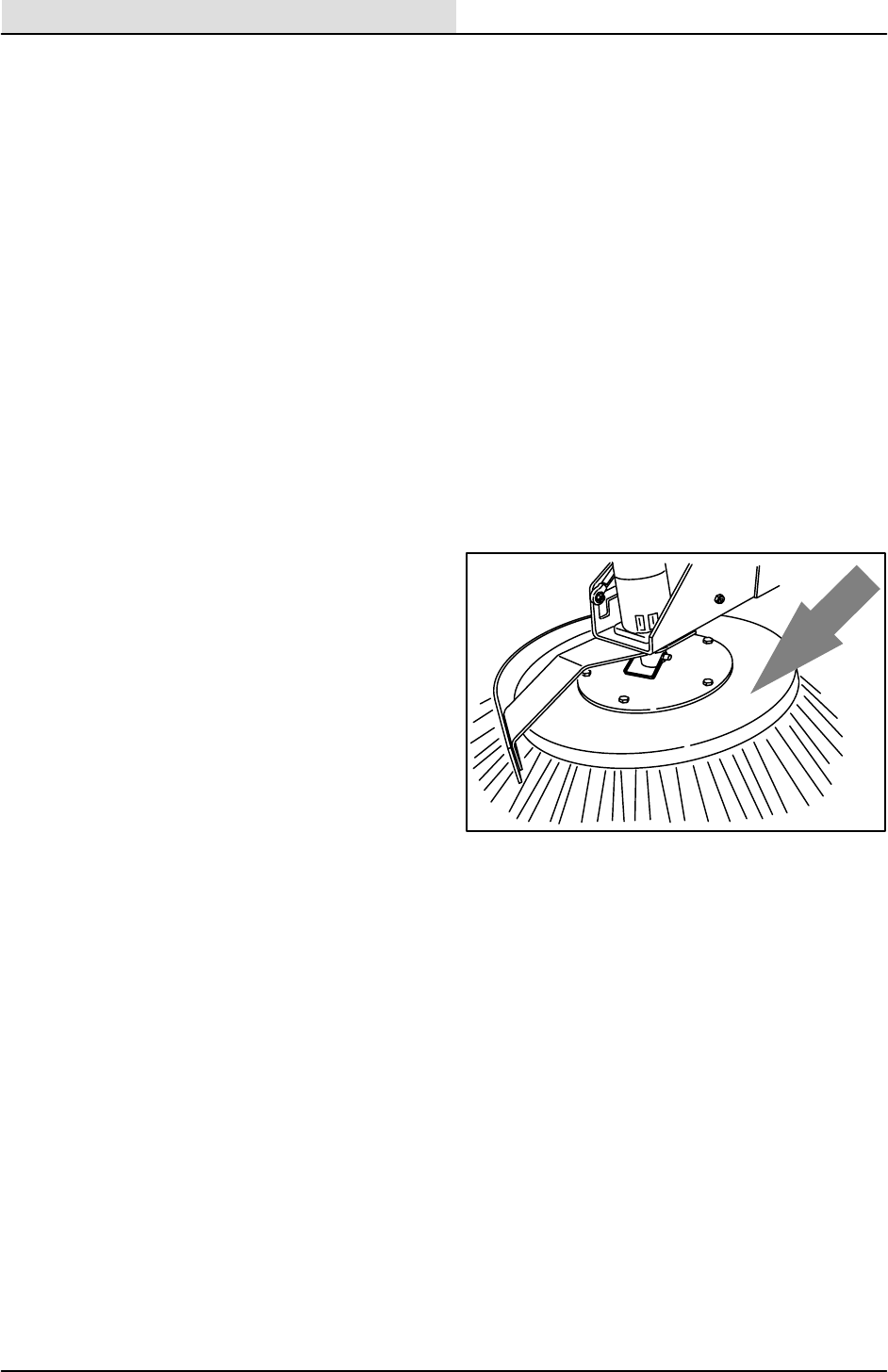

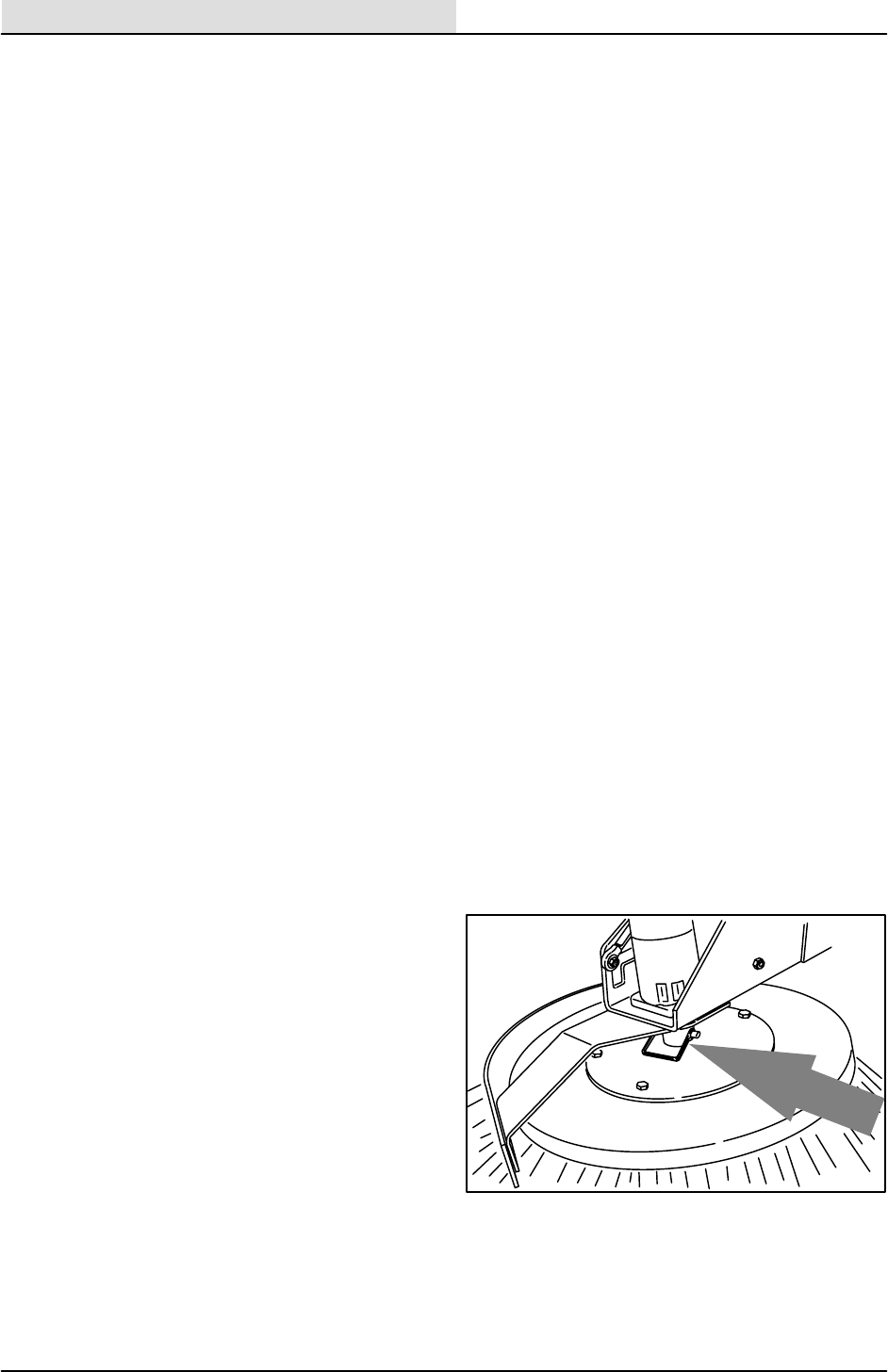

SIDE BRUSH 78. . . . . . . . . . . . . . . . . . . . . .
TO REPLACE SIDE BRUSH 78. . . . . .
SKIRTS AND SEALS 79. . . . . . . . . . . . . . . . . .
HOPPER LIP SKIRTS 79. . . . . . . . . . . . . . .
BRUSH COMPARTMENT SKIRTS 79. . . .
REAR SKIRTS 80. . . . . . . . . . . . . . . . . . . . .
BRUSH DOOR SEALS 80. . . . . . . . . . . . . .
HOPPER SEALS 80. . . . . . . . . . . . . . . . . . .
HOPPER DOOR SEALS 80. . . . . . . . . . . .
HOPPER SIDE SKIRT 81. . . . . . . . . . . . . .
HOPPER DUST SEAL 81. . . . . . . . . . . . . .
HOPPER COVER SEAL 81. . . . . . . . . . . . .
HOPPER VACUUM FAN SEAL 81. . . . . . .
BRAKES AND TIRES 82. . . . . . . . . . . . . . . . . .
SERVICE BRAKES 82. . . . . . . . . . . . . . . . .
PARKING BRAKE 82. . . . . . . . . . . . . . . . . .
TIRES 83. . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR WHEEL 83. . . . . . . . . . . . . . . . . . . . .
PUSHING OR TOWING MACHINE 83. . . . . .
MACHINE JACKING 84. . . . . . . . . . . . . . . . . . .
STORING MACHINE 84. . . . . . . . . . . . . . . . . .
SPECIFICATIONS 85. . . . . . . . . . . . . . . . . . . . . . .
GENERAL MACHINE PERFORMANCE 85. .
POWER TYPE 86. . . . . . . . . . . . . . . . . . . . . . . .
STEERING 86. . . . . . . . . . . . . . . . . . . . . . . . . . .
HYDRAULIC SYSTEM 86. . . . . . . . . . . . . . . . .
INDEX 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Home
Find...
Go To..
SAFETY PRECAUTIONS
3
810D MM310 (1–93)
SAFETY PRECAUTIONS
The following precautions are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or
unsafe practices which could result in
severe personal injury or death.
FOR SAFETY: To identify actions which must
be followed for safe operation of equipment.
The machine is suited to sweep disposable
debris. Do not use the machine other than
described in this Operator Manual. The machine
is not designed for use on public roads.
The following information signals potentially
dangerous conditions to the operator or
equipment:
FOR SAFETY:
1. Do not operate machine:
– unless trained and authorized.
– unless operator manual is read and
understood.
– if it is not in proper operating
condition.
– in flammable or explosive areas unless
designed for use in those areas.
– in areas with possible falling objects
unless equipped with overhead guard.
2. Before starting machine:
– check for fuel, oil, and liquid leaks.
– keep sparks and open flame away
from refueling area.
– make sure all safety devices are in
place and operate properly.
– check brakes and steering for proper
operation.
3. When starting machine:
– keep foot on brake and directional
pedal in neutral.
4. When using machine:
– use brakes to stop machine.
– go slow on inclines and slippery
surfaces.
– use care when reversing machine.
– move machine with care when hopper
is raised.
– make sure adequate clearance is
available before raising hopper.
– do not carry passengers on machine.
– always follow safety and traffic rules.
– report machine damage or faulty
operation immediately.
5. Before leaving or servicing machine:
– stop on level surface.
– set parking brake.
– turn off machine and remove key.
6. When servicing machine:
– avoid moving parts. do not wear loose
jackets, shirts, or sleeves.
– block machine tires before jacking
machine up.
– jack machine up at designated
locations only. Block machine up with
jack stands.
– use hoist or jack of adequate capacity
to lift machine.
– wear eye and ear protection when
using pressurized air or water.
– disconnect battery connections before
working on machine.
– avoid contact with battery acid.
– avoid contact with hot engine coolant.
– allow engine to cool.
– keep flames and sparks away from fuel
system service area. Keep area well
ventilated.

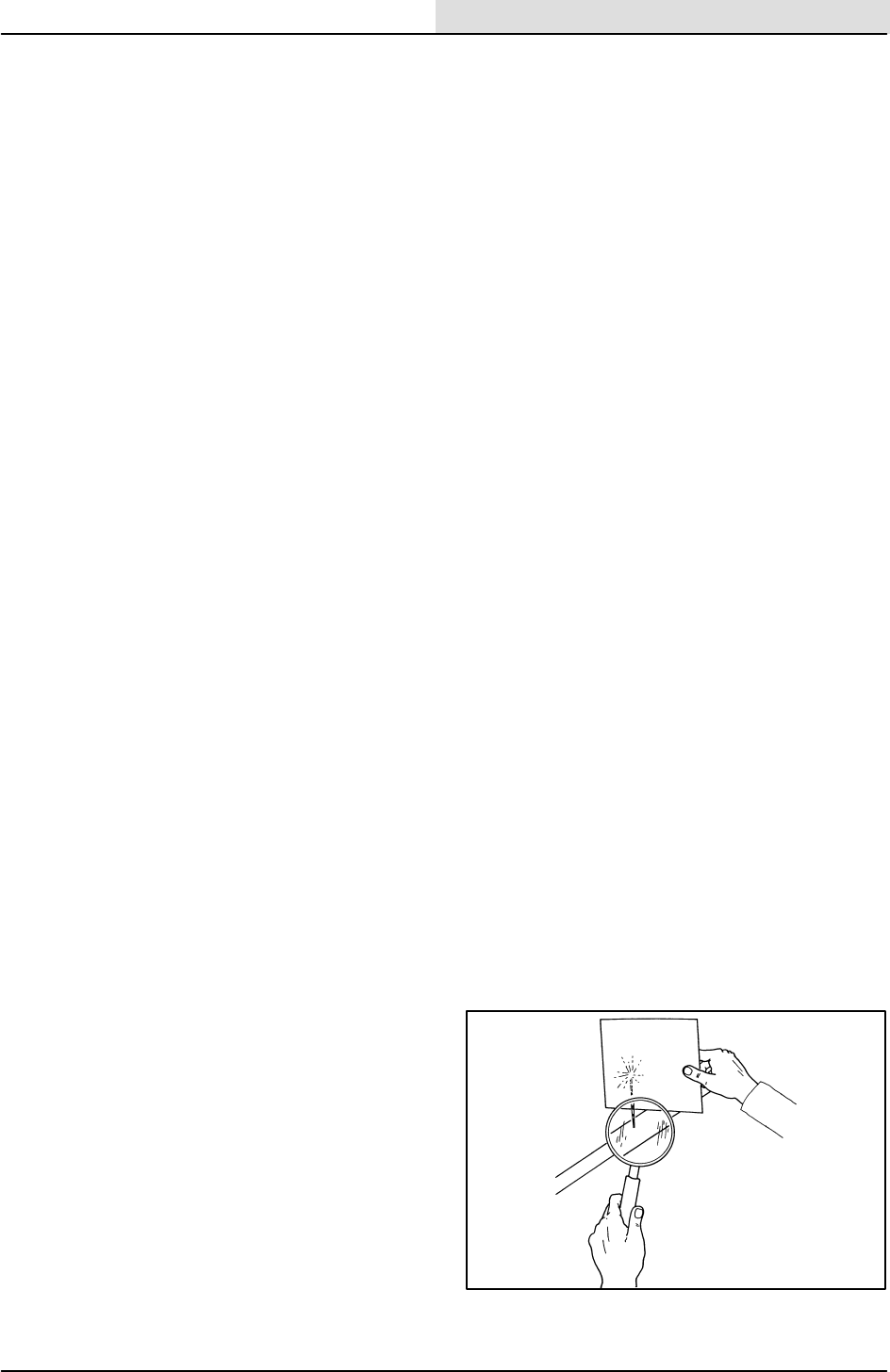

– use cardboard to locate leaking
hydraulic fluid under pressure.
– use tennant supplied or approved
replacement parts.
WARNING: Engine emits toxic gases.
Severe respiratory damage or
asphyxiation can result. Provide adequate
ventilation. Consult with your regulatory
authorities for exposure limits. Keep engine
properly tuned.
WARNING: Raised hopper may fall.
Engage hopper support bar.
WARNING: Lift arm pinch point. Stay
clear of hopper lift arms.
WARNING: Moving belt and fan. Keep
away.
Home
Find...
Go To..
SAFETY PRECAUTIONS
810D MM310 (1–93)
4
The following safety labels are mounted on the
machine in the locations indicated. If these or any
label becomes damaged or illegible, install a new
label in its place.
HOPPER LIFT ARMS LABEL – LOCATED ON
BOTH HOPPER LIFT ARMS.
HOPPER SUPPORT BAR LABEL – LOCATED
ON THE HOPPER LIFT ARMS CROSS-TUBE
AND ON BOTH HOPPER LIFT ARMS.
NOISE LABEL – LOCATED ON THE FRONT
PANEL OF THE OPERATOR COMPARTMENT.
EMISSIONS LABEL – LOCATED ON THE
FRONT PANEL OF THE OPERATOR
COMPARTMENT.
07623
FOR SAFETY LABEL – LOCATED ON THE
FRONT PANEL OF THE OPERATOR
COMPARTMENT. ENGINE FAN AND BELT LABEL – LOCATED
ON THE RADIATOR SHROUD.
Home
Find...
Go To..
OPERATION
5
810D MM310 (1–93)
OPERATION
OPERATOR RESPONSIBILITY
The operator’s responsibility is to take care
of the daily maintenance and checkups of
the machine to keep it in good working
condition. The operator must inform the
service mechanic or supervisor when the
required maintenance intervals occur as
stated in the MAINTENANCE section of this
manual.
Read this manual carefully before operating
this machine.
FOR SAFETY: Do not operate machine, unless
operation manual is read and understood.
Check the machine for shipping damage.
Check to make sure machine is complete
per shipping instructions.
Check the hydraulic fluid level in the
hydraulic reservoir.
Check the engine oil level.
07324
08430
08431
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
6
Check the radiator coolant level. The coolant
level should be 25 to 50 mm (1 to 2 in)
below the fill opening.
FOR SAFETY: When servicing machine, avoid
contact with hot engine coolant.
Fill the fuel tank.
FOR SAFETY: When servicing machine, keep
flames and sparks away from fuel system
service area. Keep area well ventilated.
After the first 50 hours of operation, follow
the recommended procedures stated in the
MAINTENANCE CHART.
Keep your machine regularly maintained by
following the maintenance information in this
manual. We recommend taking advantage
of a regularly scheduled service contract
from your TENNANT representative.
Order parts and supplies directly from your
authorized TENNANT representative. Use
the parts manual provided when ordering
parts.
08432
08433
Home
Find...
Go To..
OPERATION
7
810D MM310 (1–93)

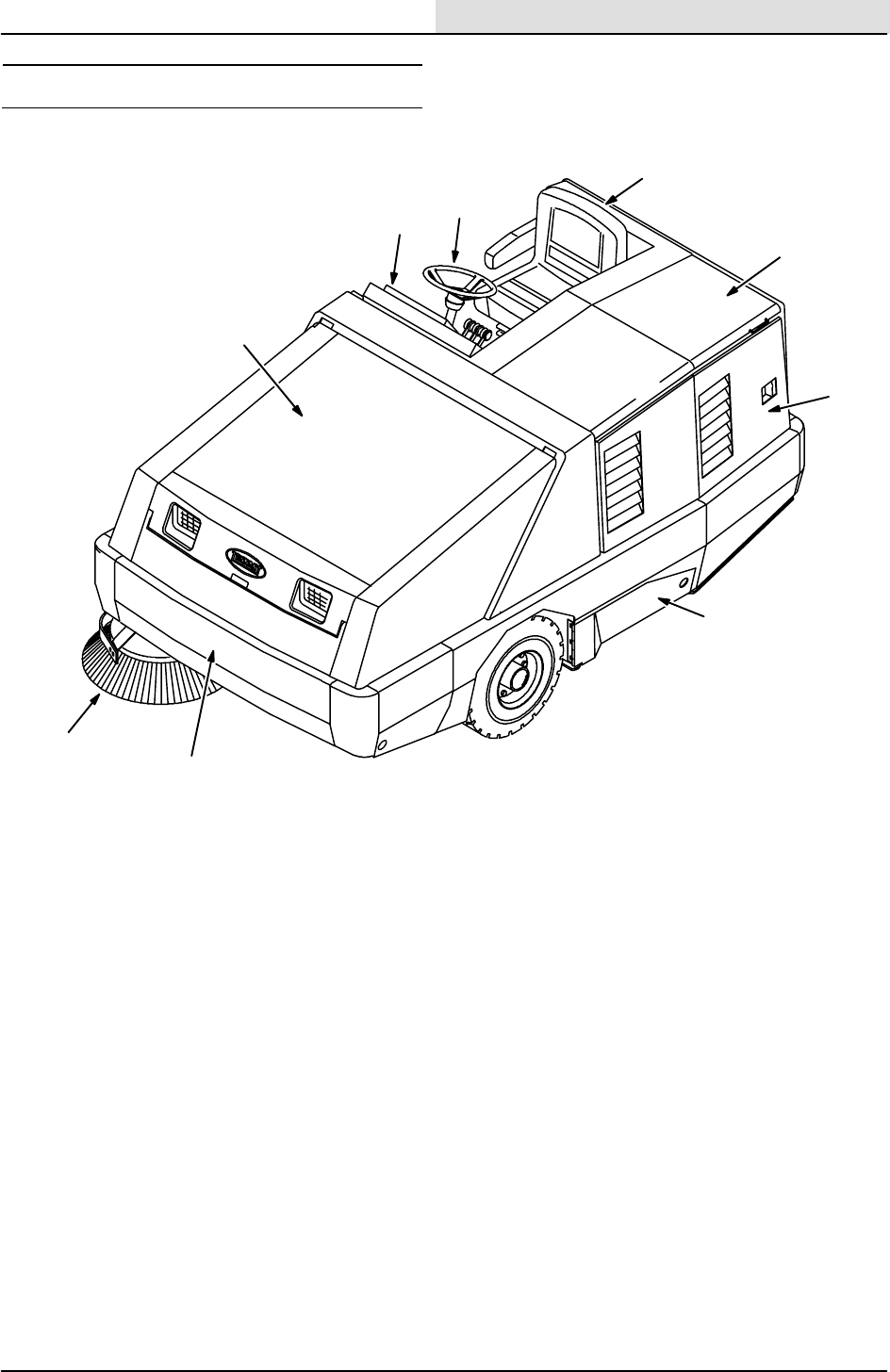

MACHINE COMPONENTS
A
B
C
D
E
F
G
H
I
07623
A. Operator Seat F. Hopper Cover
B. Steering Wheel G. Side Brush
C. Engine Cover H. Instrument Panel
D. Engine Side Door I. Hopper Door
E. Main Brush Access Door
Home
Find...
Go To..
OPERATION
810D MM310 (1–93)
8
CONTROL PANEL SYMBOLS
These symbols identify controls and displays on
the machine:
Idle Engine Oil Pressure
Fast Engine Water Temperature
Side Brush Down Pressure Light Hopper Temperature – Thermo Sentry
Side Brush Down Pressure Heavy Main Brush Shut Down
Side Brush Down and On Filter Clogged
Side Brush Up and Off Hopper Door Closed
Hopper Door Close Fuel
Hopper Door Open Hourmeter
Hopper Roll In Hazard Light
Hopper Roll Out Operating Lights
Hopper Down Fan
Hopper Up Steering Wheel Tilt
Horn Brushes Down and On
Charging System Brushes Off
Home
Find...
Go To..
OPERATION
9
810D MM310 (6–93)
Main Brush Down and On Circuit Breaker 5
Main Brush Down Pressure Light Circuit Breaker 6
Main Brush Down Pressure Heavy Circuit Breaker 7
Circuit Breaker 1 Circuit Breaker 8
Circuit Breaker 2 Circuit Breaker 9
Circuit Breaker 3 Parking Brake
Circuit Breaker 4 Glow Plugs (Preheat)
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
10
CONTROLS AND INSTRUMENTS
A
B
C
D
F
GHI
J
K
L
M
N
O
P
Q
RSTU
V
W
X
Y
Z
AA
BB
CC
For machines below
serial number
001177
For machines below
serial number
001103
C
C
E
F
DDEE
FF
08472
A. Directional Pedal P. Clogged Filter Light
B. Brake Pedal Q. Hopper Door Light
C. Parking Brake R. Fuel Level Gauge
D. Throttle Lever S. Hourmeter
E. Side Brush Lever T. Hazard Light Switch (Option)
F. Side Brush Down Pressure Knob U. Operating Light Switch
G. Hopper Door Lever V. Filter Shaker Switch
H. Hopper Rollout Lever W. Vacuum Fan Switch
I. Hopper Lift Lever X. Ignition Switch
J. Horn Button Y. Main Brush and Power Throw
K. Charging System Light Switch
L. Engine Oil Pressure Light Z. Steering Wheel
M. Engine Water Temperature Light AA.Steering Column Tilt Lever
N. Hopper Temperature Light – BB.Circuit Breakers
Thermo SentryCC.Glow Plugs Light
O. Main Brush Shut Down Light DD.Side Brush Switch, Right
EE. Side Brush Switch, Left (Option)
FF. Blower Wand Lever (Option)
Home
Find...
Go To..
OPERATION
11
810D MM310 (1–93)
OPERATION OF CONTROLS

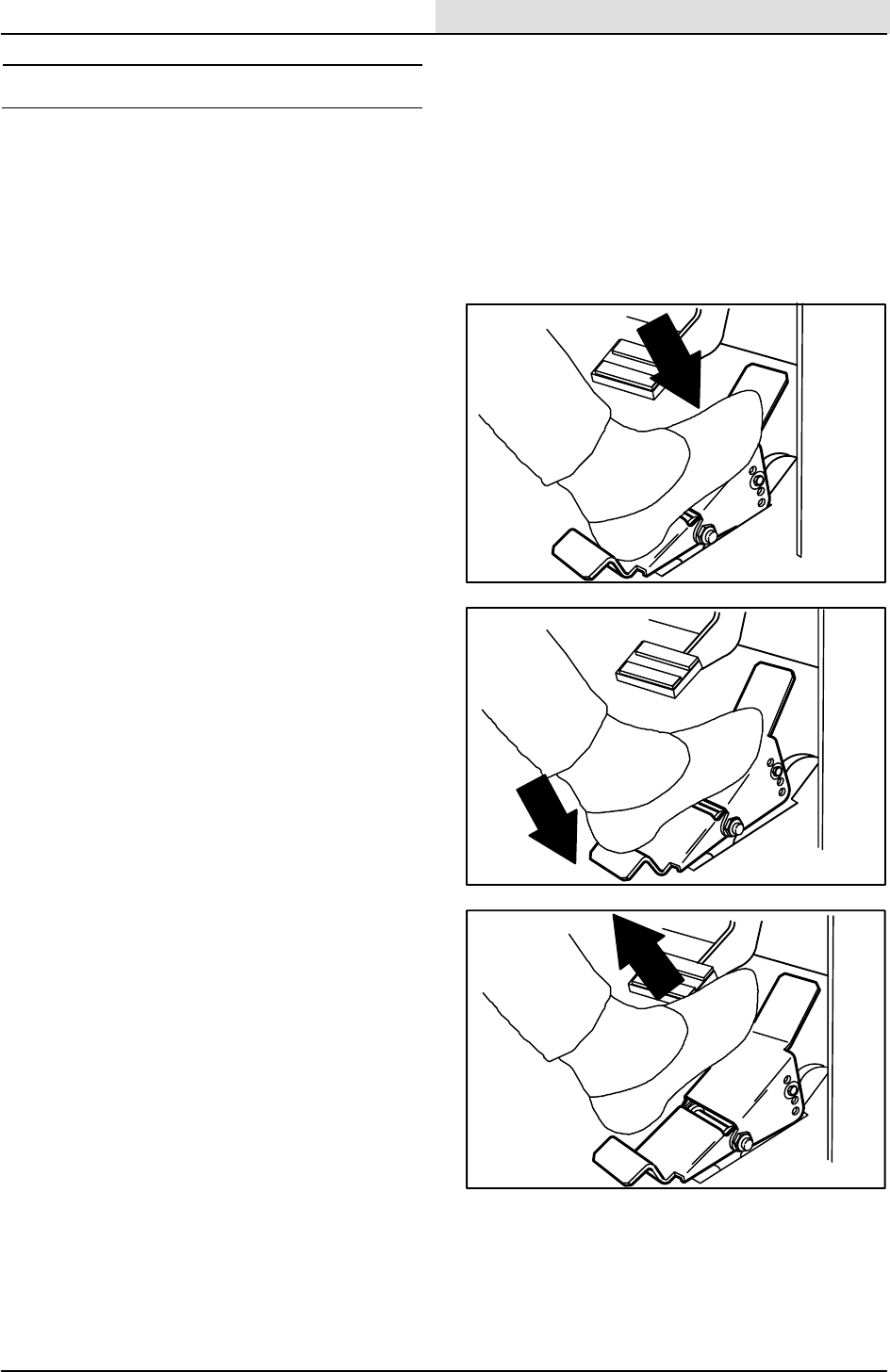

DIRECTIONAL PEDAL
The directional pedal controls direction of travel
and the propelling speed of the machine. You
change the speed of the machine with the
pressure of your foot; the harder you press the
faster the machine travels.
Forward: Press the top of the directional pedal
with the toe of your foot.
Reverse: Press the bottom of the directional
pedal with the heel of your foot.
Neutral: Take your foot off the directional pedal
and it will return to the neutral position.
08467
08468
08469
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
12

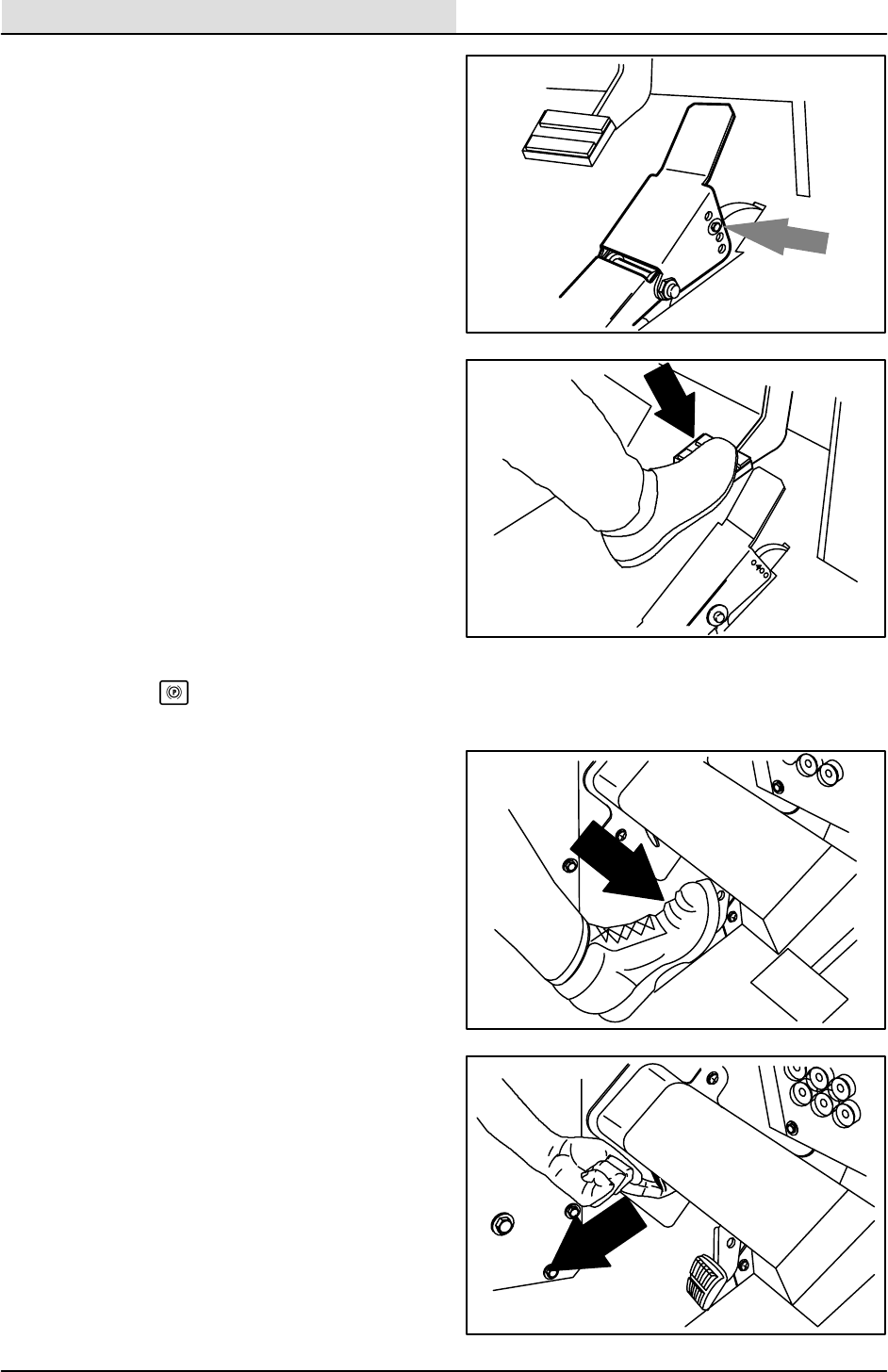

The toe angle of the directional pedal is
adjustable. Remove the clevis pin, move the top
of the pedal to the angle needed, and put the
clevis pin through the adjustment holes.

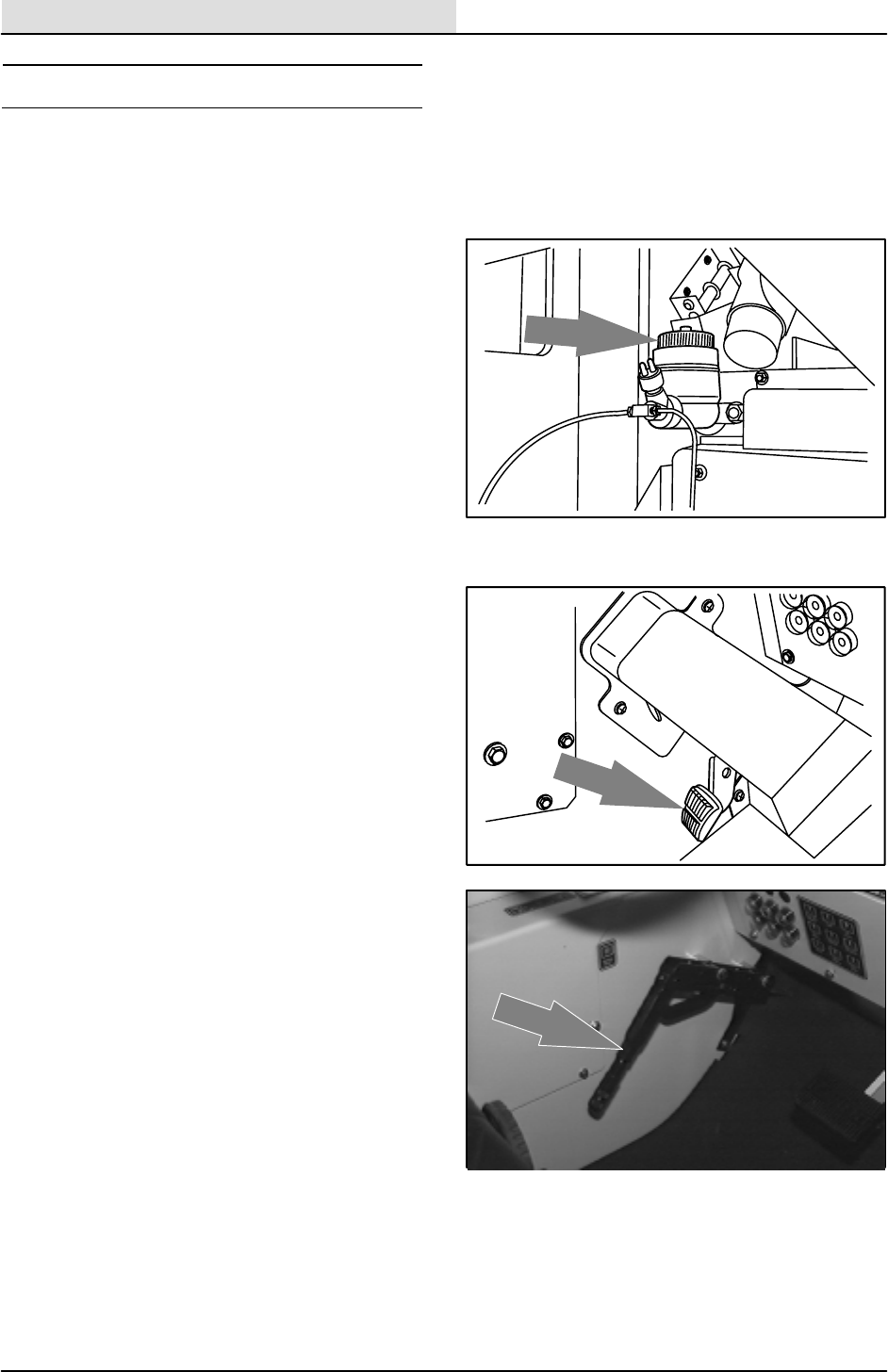

BRAKE PEDAL
The brake pedal stops the machine.
Stop: Take your foot off the directional pedal and
let it return to the neutral position. Step on the
brake pedal.
PARKING BRAKE (For machines below serial
number 002046)
The parking brake pedal sets and the lever
releases the front wheel brakes.
Set: Step on the parking brake pedal.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
Release: Pull up on the release lever.
08470
08471
08434
08435
Home
Find...
Go To..
OPERATION
13
810D MM310 (6–94)

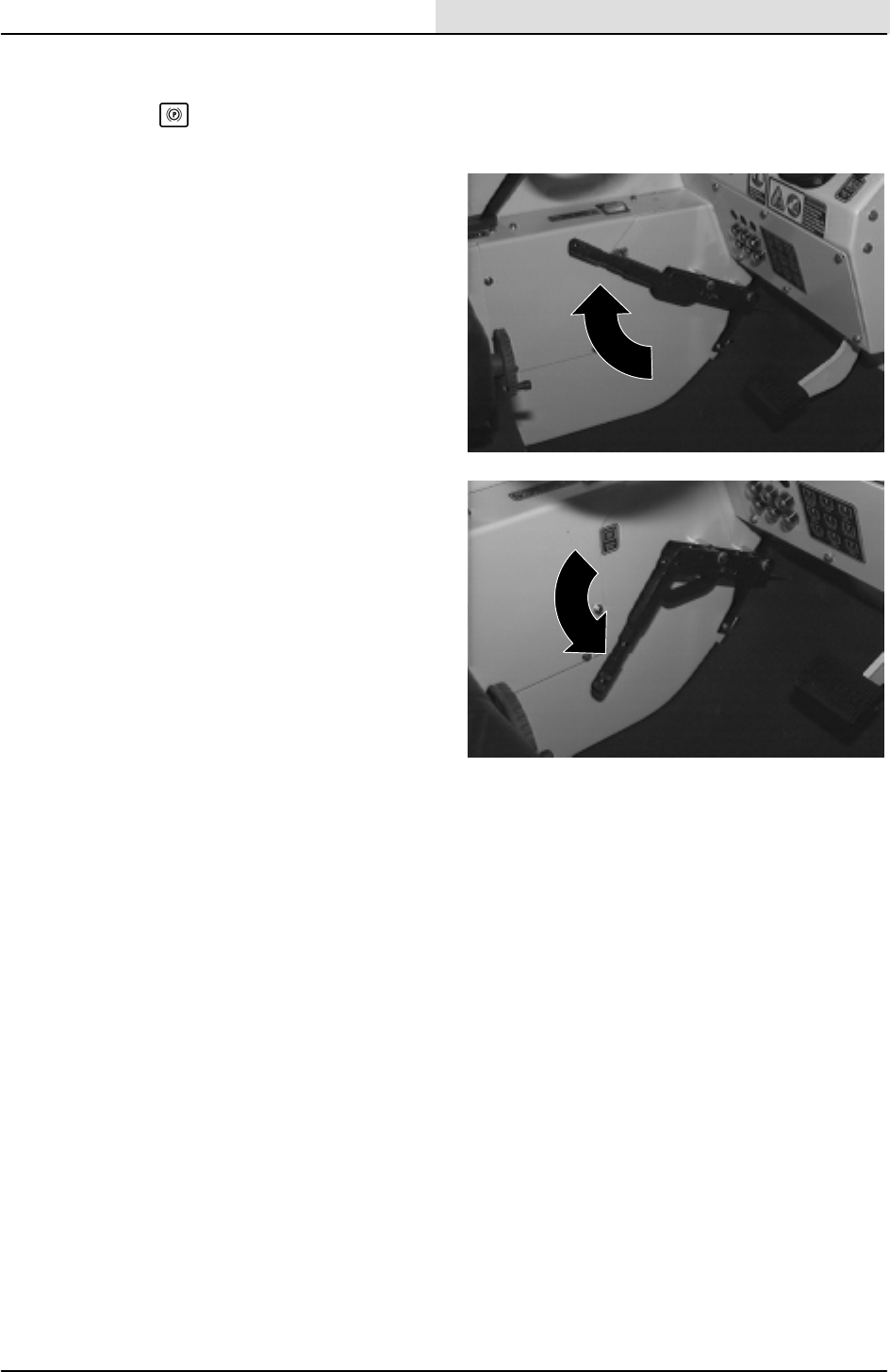

PARKING BRAKE (For machines serial
number 002046 and above)
The parking brake lever sets and releases
the front wheel brakes.
Set: Pull the parking brake lever up.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
Release: Push the parking brake lever down.
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
14
THROTTLE LEVER
The throttle lever controls the engine speed.
Fast: Pull the lever into the Fast position.
Idle: Push the lever into the Idle position.
08456
08457
Home
Find...
Go To..
OPERATION
15
810D MM310 (3–95)

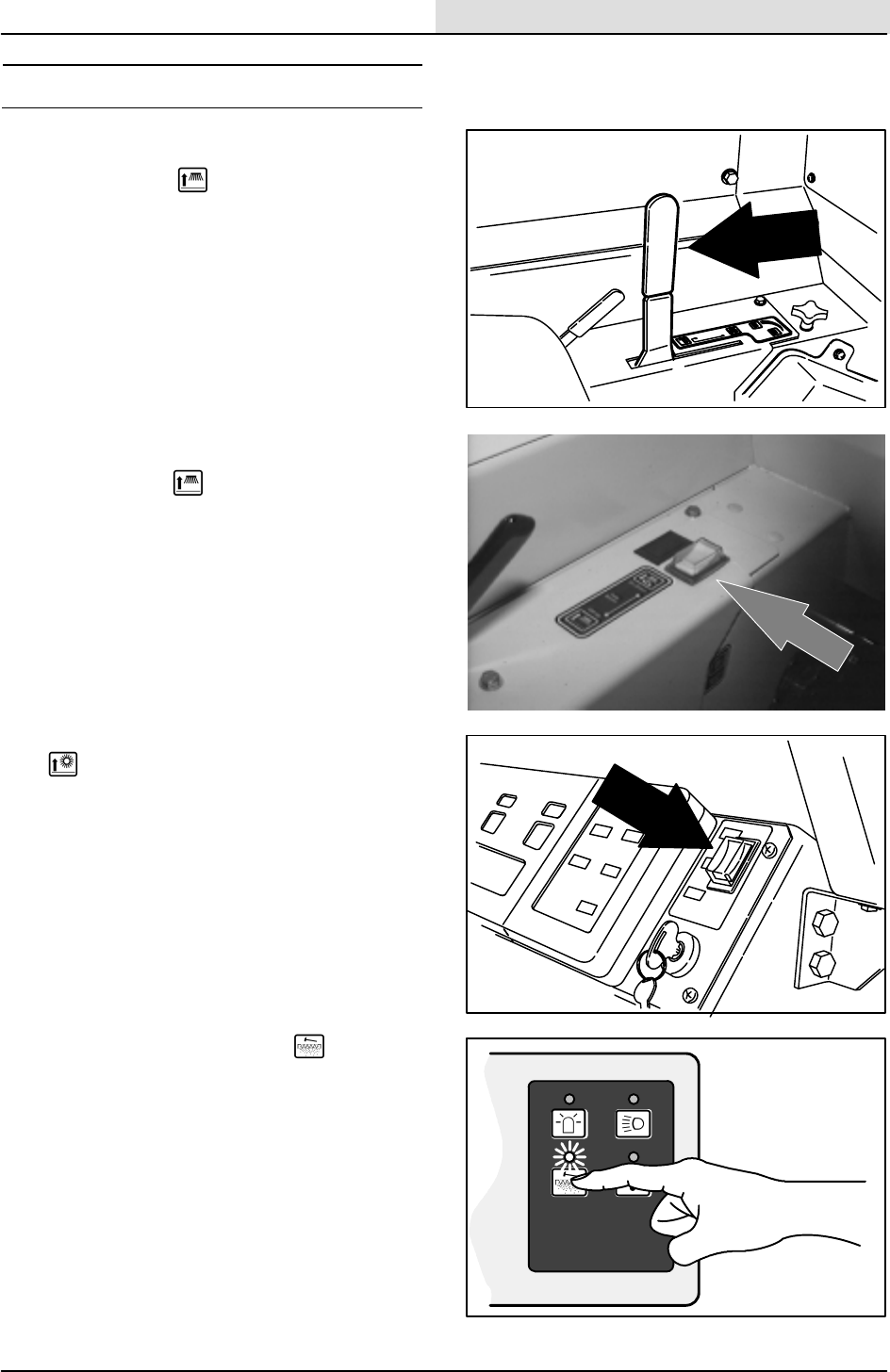

SIDE BRUSH LEVER (For machines below
serial number 002063
The side brush lever controls the position and
rotation of the side brush.
On/Down: Pull the side brush position lever back
and to the right into the On/Down slot.
Off/Up: Pull the side brush position lever back
and to the left into the Off/Up slot.
SIDE BRUSH SWITCH (For machines serial
number 002063 and above)
The right side brush switch controls the right side
brush position and rotation. The optional left side
brush switch controls the optional left side brush
position and rotation.
Down and On: Press the top of the switch into
the On/Down position.
Up and Off: Press the bottom of the switch into
the Off/Up position.
08458
08459
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
16

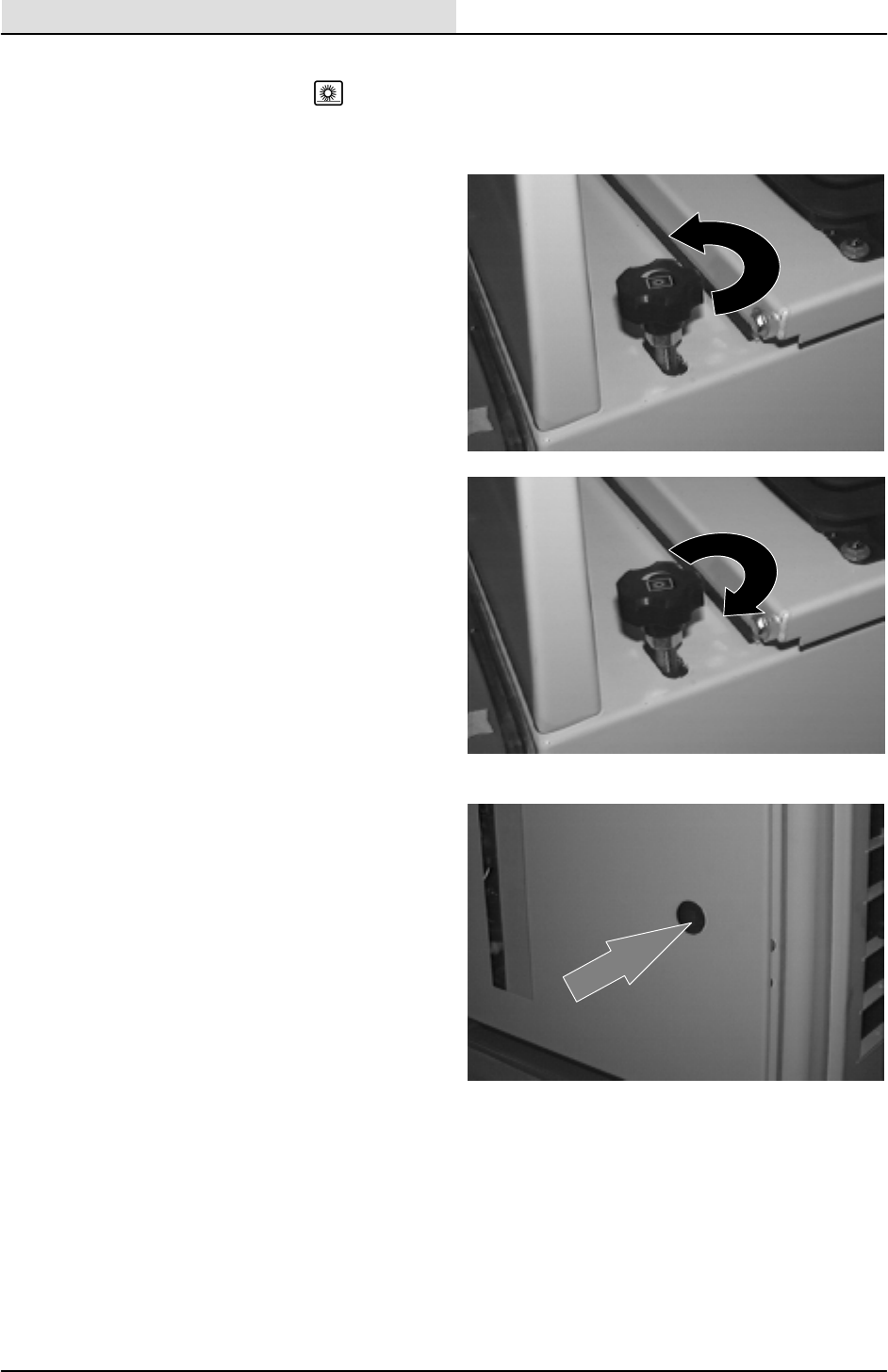

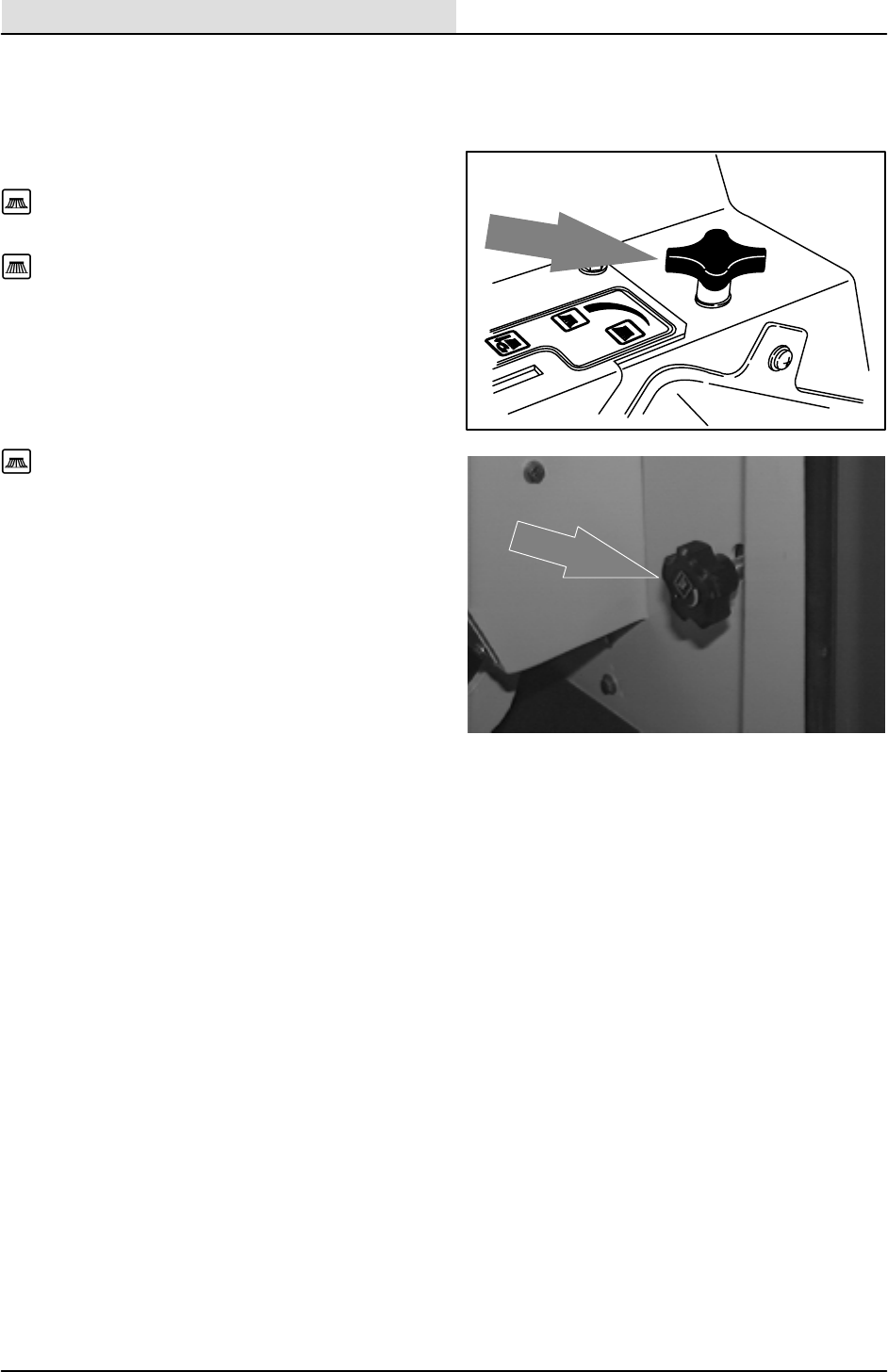

SIDE BRUSH DOWN PRESSURE KNOB
The side brush down pressure knob changes the
side brush contact with the sweeping surface.
For machines below serial number 002063.
Heavy: Turn the side brush down pressure
knob counter-clockwise.
Light: Turn the side brush down pressure
knob clockwise.
For machines serial number 002063 and
above.
Increase Pressure: Turn the side brush down
pressure knob counter-clockwise.
Decrease Pressure: Turn the side brush down
pressure knob clockwise.
09395
Home
Find...
Go To..
OPERATION
17
810D MM310 (6–94)

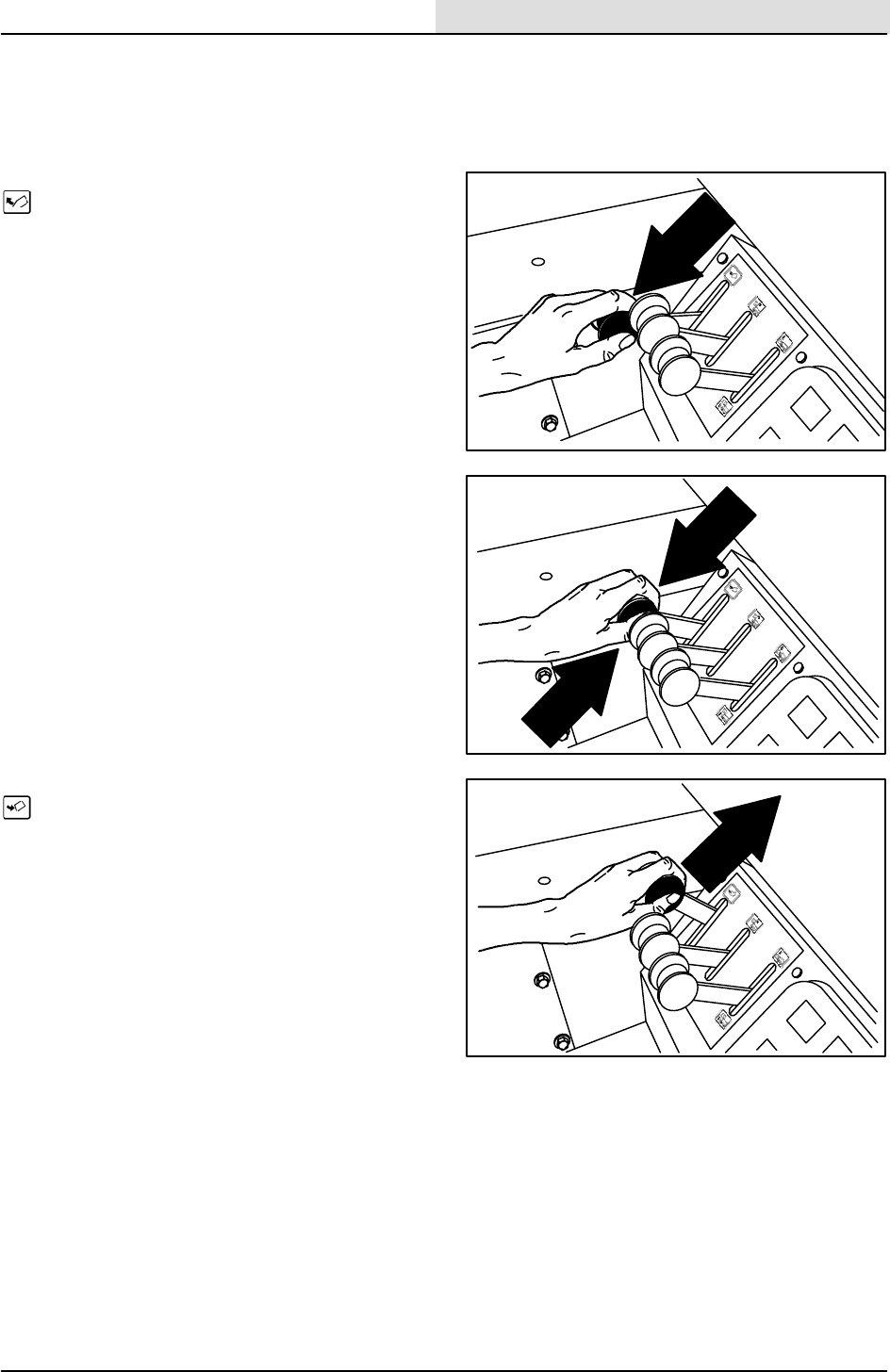

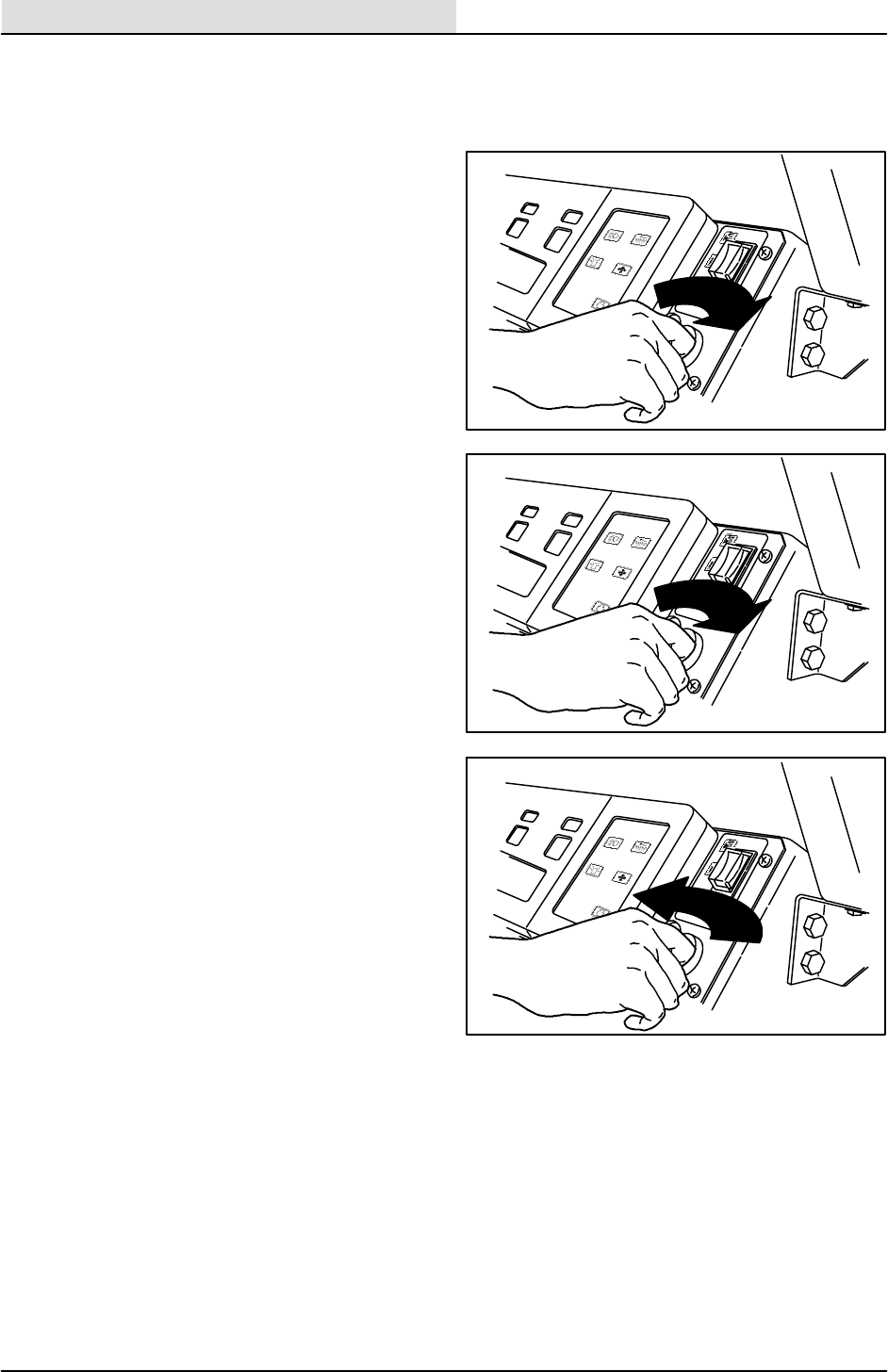

HOPPER DOOR LEVER
The hopper door lever opens and closes the
hopper door. Close the hopper door when
emptying the hopper to control debris and dust.
Open: Pull and hold the hopper door lever in the
Open position.
Hold: Release the hopper door lever into the
middle position.
Close: Push and hold the hopper door lever in the
Close position.
08474
08475
08476
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
18
HOPPER ROLLOUT LEVER
The hopper rollout lever moves the hopper in and
out.
Out: Pull and hold the hopper rollout lever in the
Out position.
Hold: Release the hopper rollout lever into the
middle position.
In: Push and hold the hopper rollout lever in the
In position.
08477
08478
08479
Home
Find...
Go To..
OPERATION
19
810D MM310 (6–94)

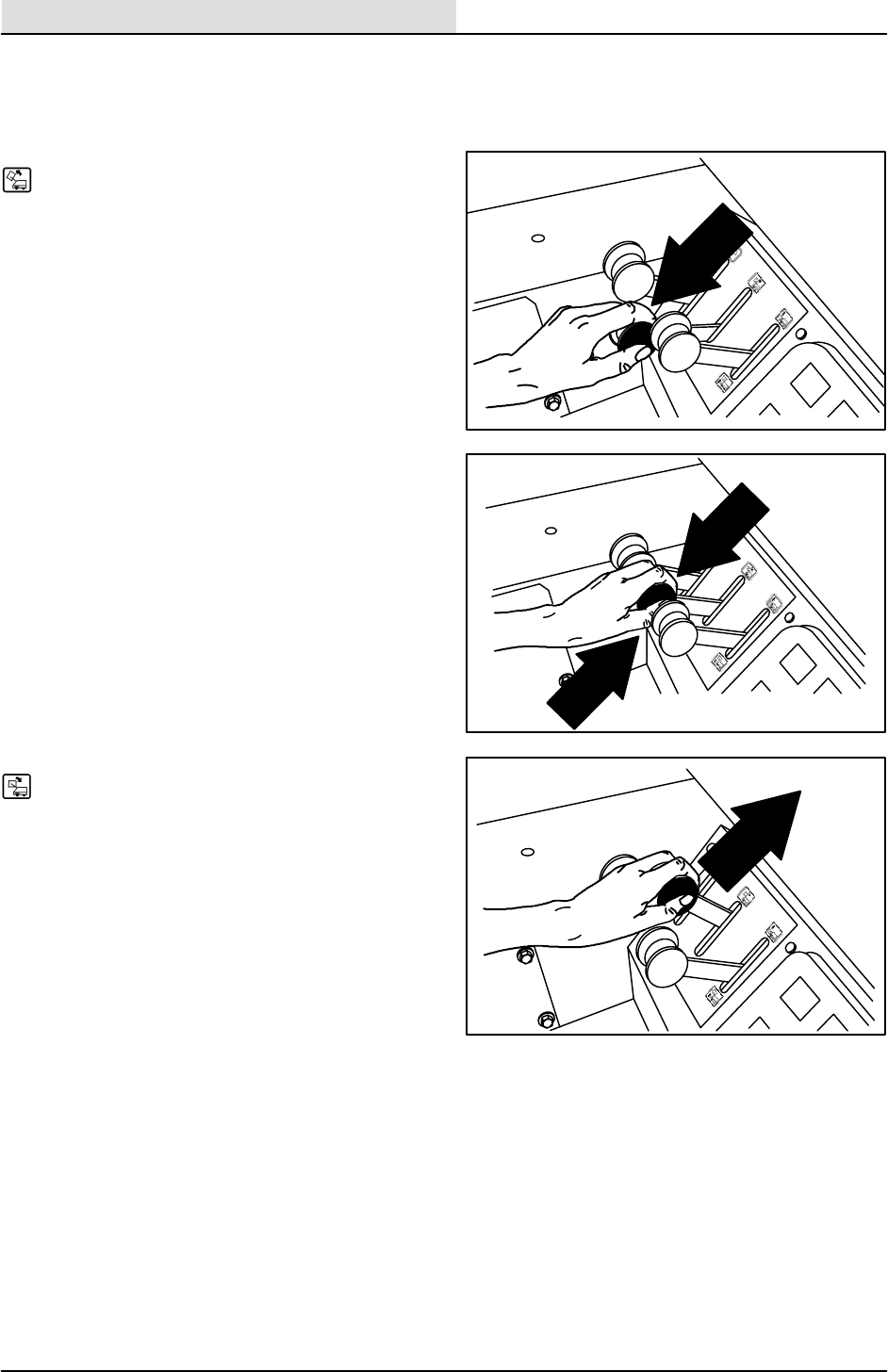

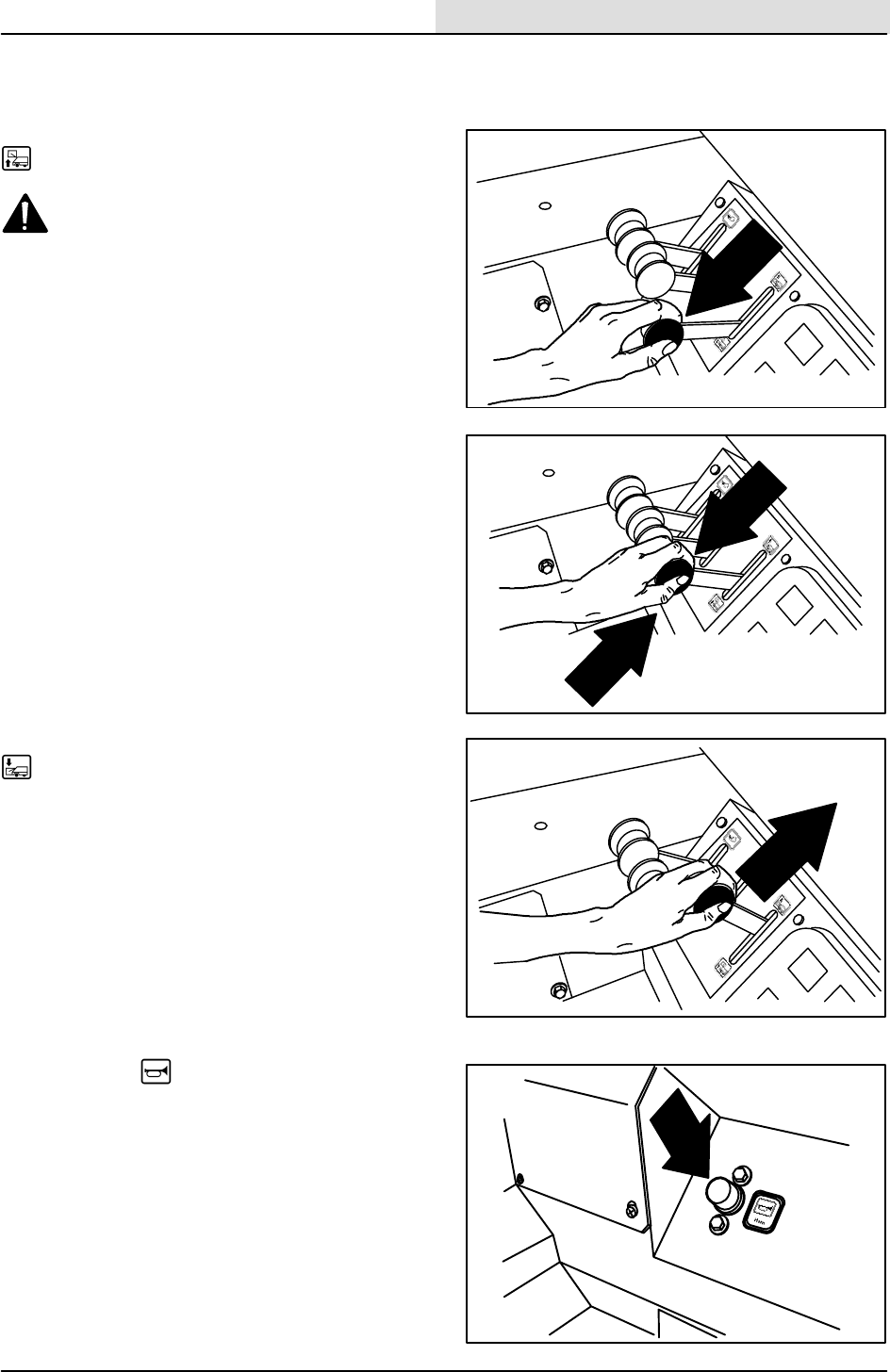

HOPPER LIFT LEVER
The hopper lift lever raises and lowers the hopper.
Raise: Pull and hold the hopper lift lever in the
Up position.
WARNING: Raised hopper may fall.
Engage hopper support bar.
Hold: Release the hopper lift lever up and into the
middle position.
Lower: Push and hold the hopper lift lever in the
Down position.
HORN BUTTON
The horn button operates the horn.
Sound: Press the button.
08480
08481
08482
08438
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
20
CHARGING SYSTEM LIGHT
The charging system light comes on when
the existing voltage potential of the battery is not
within normal range – 10 to 14 Volts. Stop
operating the machine. Locate the problem and
have it corrected.
ENGINE OIL PRESSURE LIGHT
The engine oil pressure light comes on when
the engine oil pressure falls below 35 kPa (5 psi).
Stop operating the machine. Locate the problem
and have it corrected.
ENGINE WATER TEMPERATURE LIGHT
The engine water temperature light comes on
when the temperature of the engine coolant is
more than 107 C (225 F). Stop operating the
machine. Locate the problem and have it
corrected.
HOPPER TEMPERATURE LIGHT – THERMO
SENTRY
The hopper temperature light comes on when
there is too much heat in the hopper, possibly
from a fire. The Thermo Sentry will stop the
vacuum fan.
The Thermo Sentryhas to be reset manually,
see THERMO SENTRY in MAINTENANCE.
07757
07758
07759
07760
Home
Find...
Go To..
OPERATION
21
810D MM310 (3–95)
MAIN BRUSH SHUT DOWN LIGHT
The main brush shut down light comes on
when there is excessive down pressure for the
main brush, or there is a problem with the main
and side brush hydraulic motor circuit. The brush
pressures can be reduced with the main brush
and side brush pressure knobs.

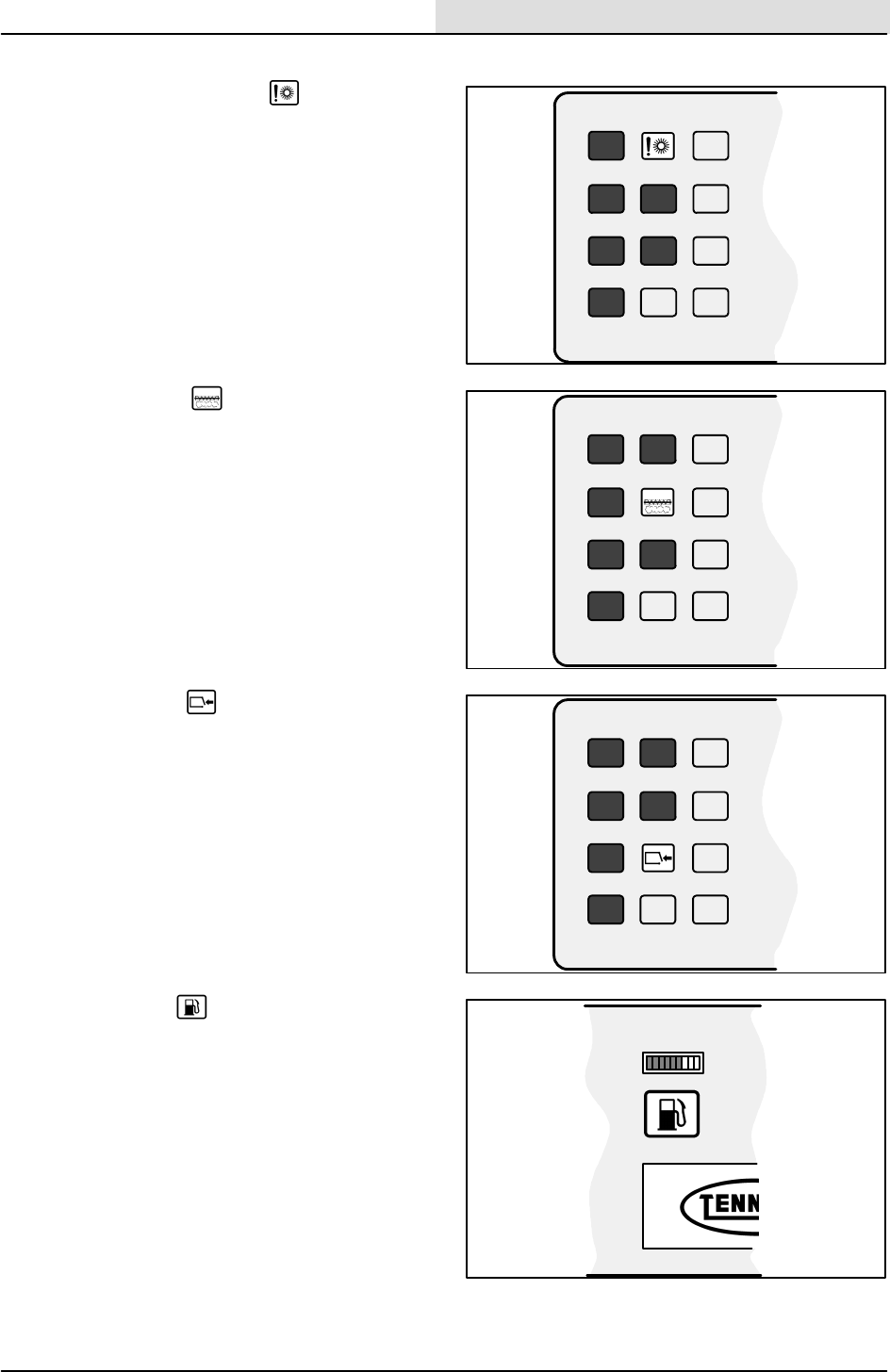

CLOGGED FILTER LIGHT
The clogged filter light comes on when the
hopper dust filter is clogged. If the machine is
equipped with a Regenerative Filter System
(RFS) option, the light will remain on for a few
seconds each time the RFS cycles.
To clean the filter, press the filter shaker switch. If
the clogged filter light remains lit, manually clean
the hopper dust filter. See HOPPER DUST
FILTER in MAINTENANCE.
HOPPER DOOR LIGHT (OPTION)
The hopper door light comes on when the
hopper door is open. Make sure the hopper door
is closed and the hopper door light is off, before
sweeping with the machine.
FUEL LEVEL GAUGE
The fuel level gauge indicates how much fuel
is in the fuel tank with a segmented LED light.
When the tank is full, all ten of the segments are
lit. As the fuel tank empties, the segments shut
off. The fuel tank is empty when all ten of the
segments have shut off.
NOTE: Do not let the fuel tank empty completely.
Air can enter the fuel system. The fuel system will
need bleeding before the next engine start.
07761
07762
07763
07764
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
22

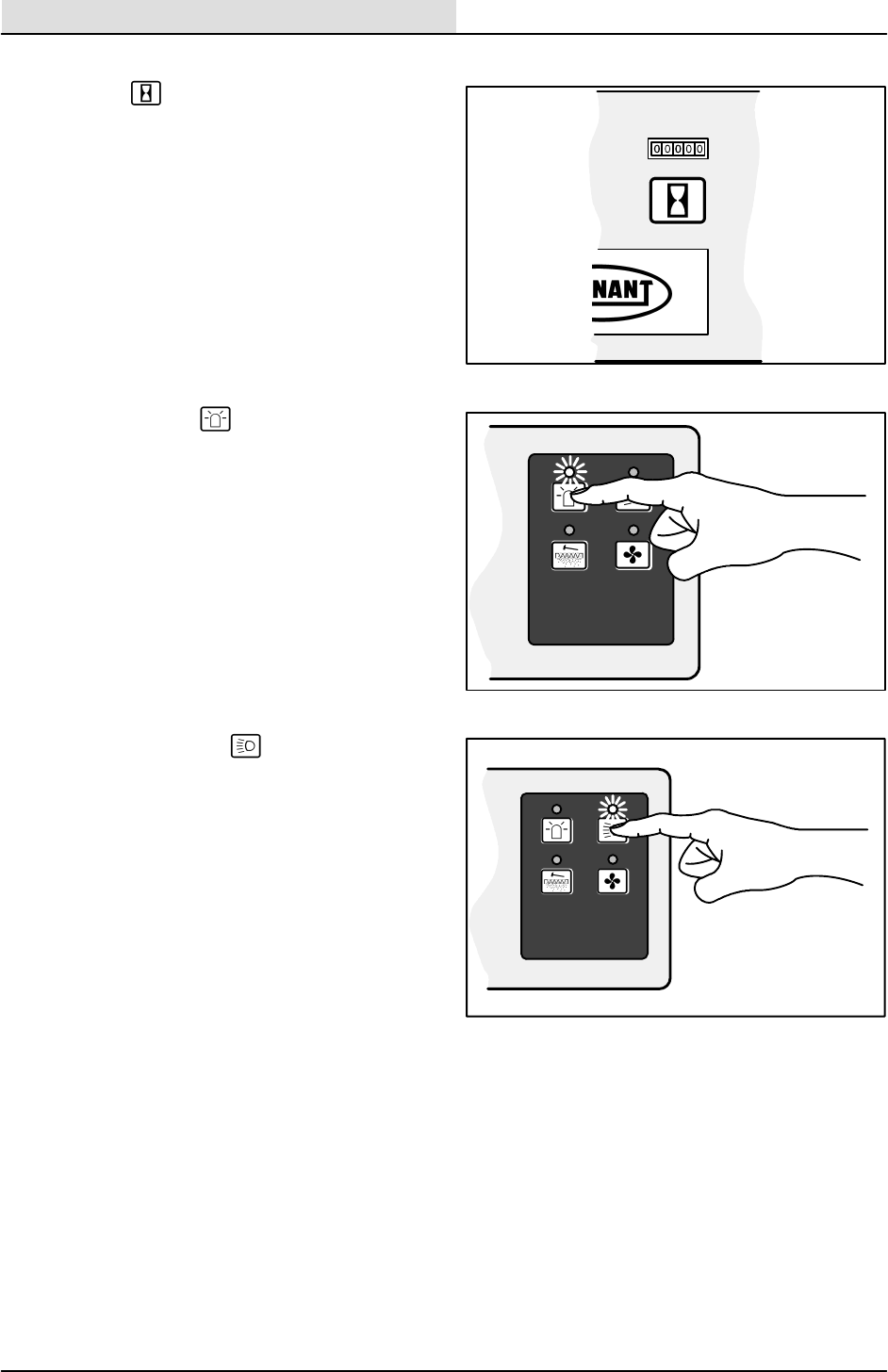

HOURMETER
The hourmeter records the number of hours
the machine has been operated. Use this
information to determine machine maintenance
intervals.

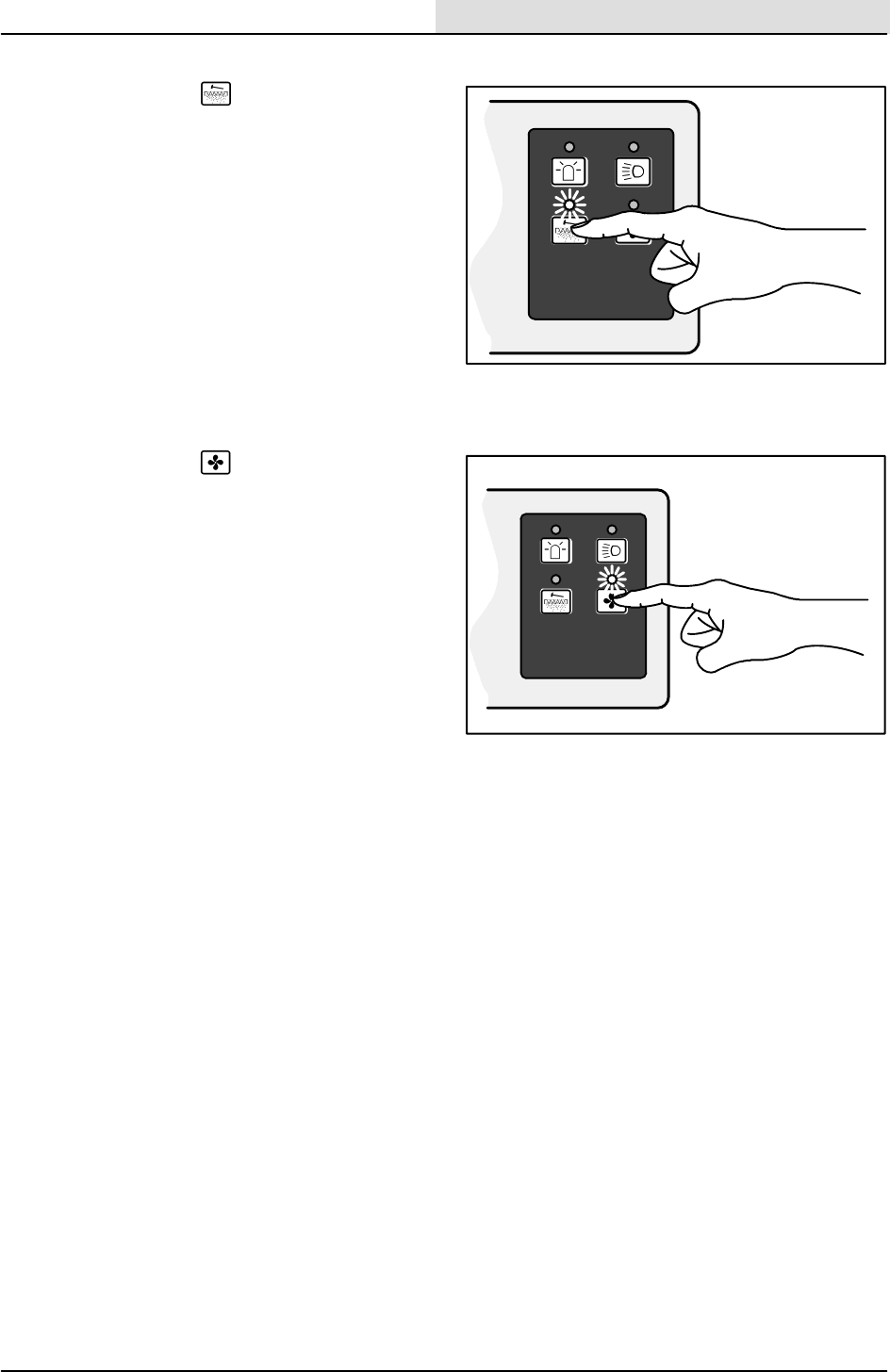

HAZARD LIGHT SWITCH (OPTION)
The hazard light switch powers on and off the
hazard light.
On: Press the hazard light switch. The indicator
light above the switch will come on.
Off: Press the hazard light switch. The indicator
light above the switch will go off.
OPERATING LIGHTS SWITCH
The operating lights switch powers on and off
the headlights and taillights.
On: Press the operating lights switch. The
indicator light above the switch will come on.
Off: Press the operating lights switch. The
indicator light above the switch will go off.
07765
08228
08230
Home
Find...
Go To..
OPERATION
23
810D MM310 (3–95)

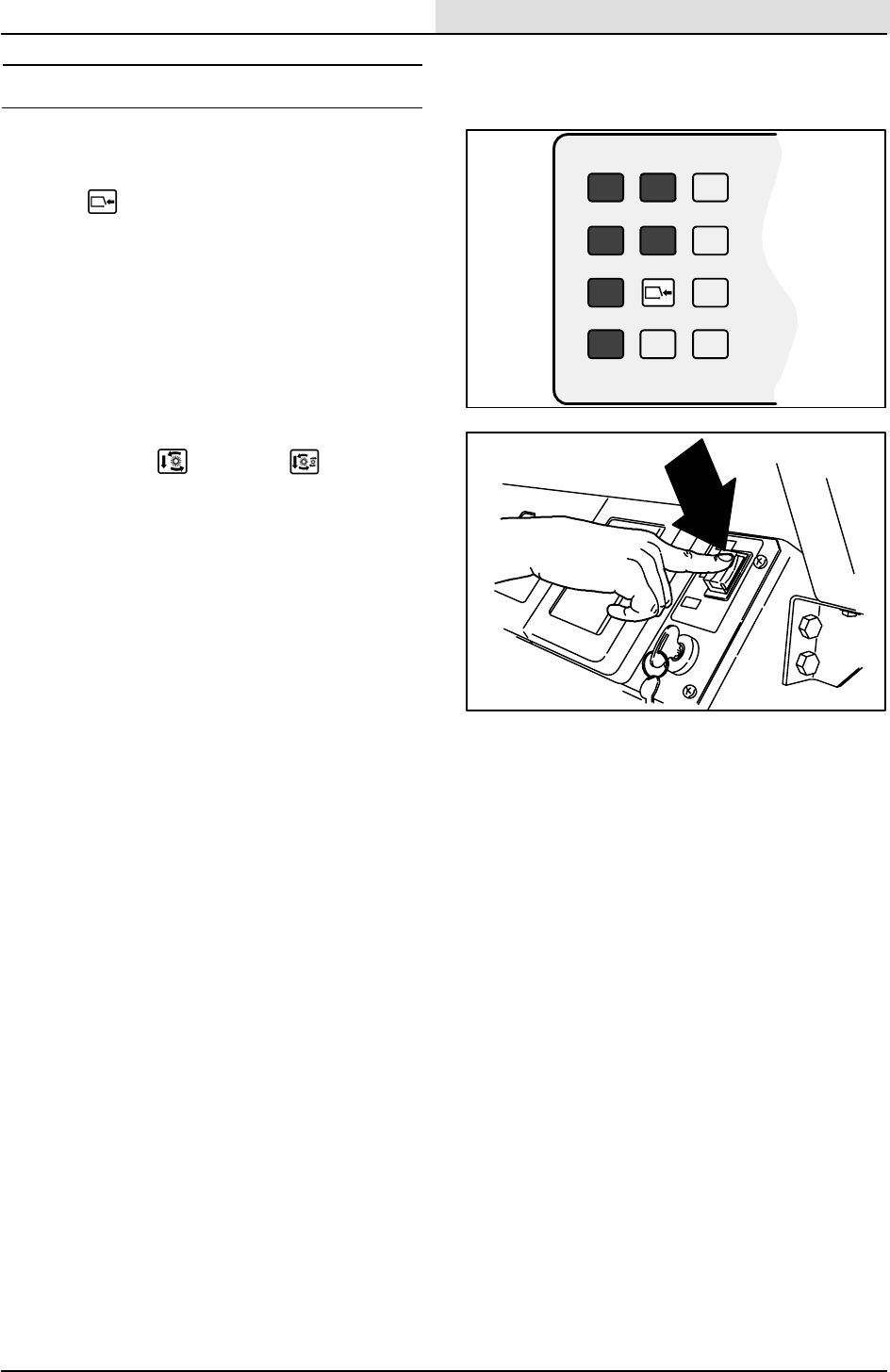

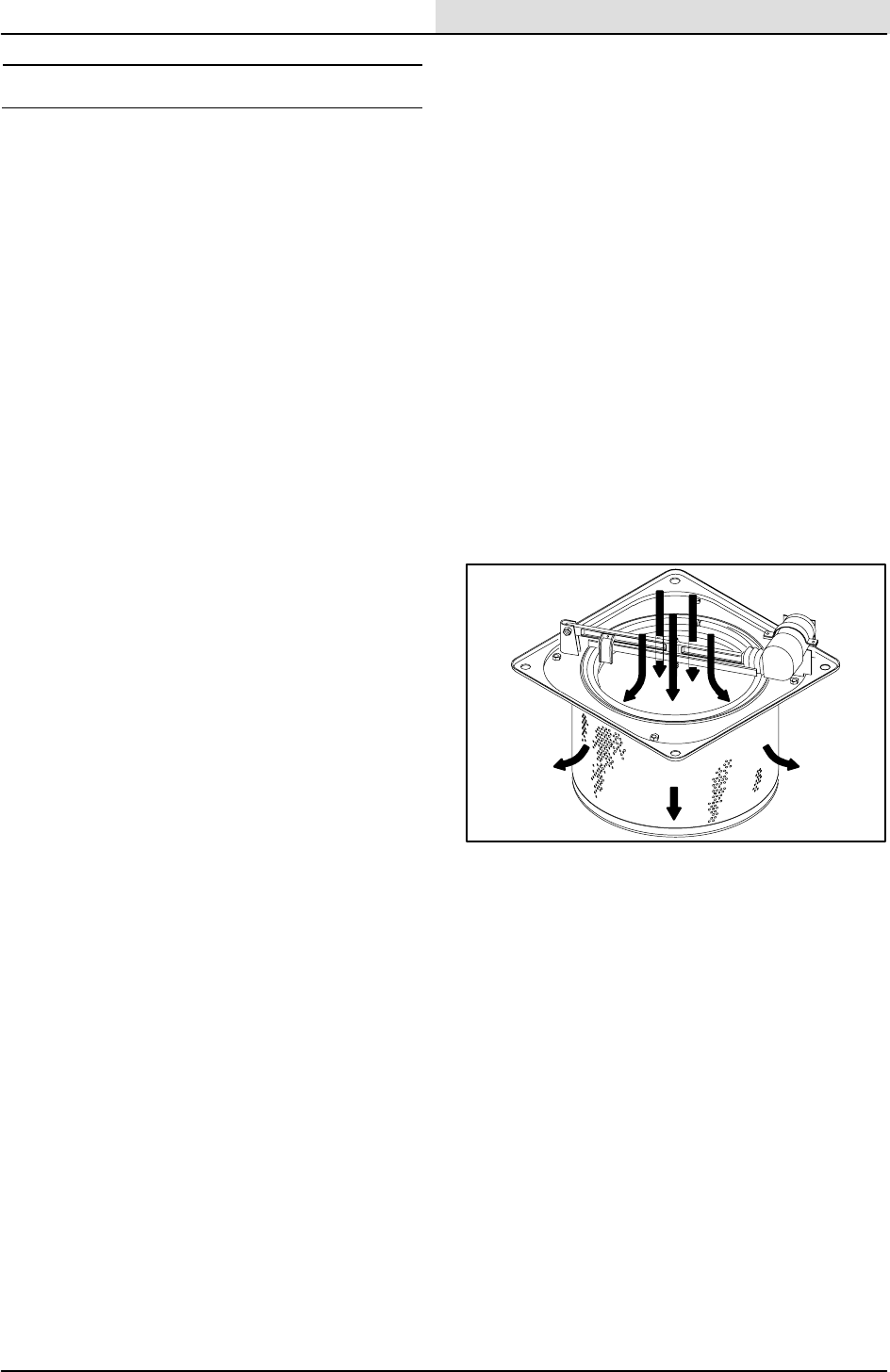

FILTER SHAKER SWITCH
The filter shaker switch starts the hopper
dust filter shaker. The shaker automatically
operates for 40 seconds.
Start: Press the filter shaker switch. The indicator
light will remain on while the filter shaker is
operating.
Stop: Press the filter shaker switch again IF
wanting to stop the filter shaker during the 40
second shaking cycle.
NOTE: The vacuum fan shuts off while the filter
shaker is operating.
VACUUM FAN SWITCH
The vacuum fan switch starts and stops the
vacuum fan.
Start: Press the vacuum fan switch. The indicator
light above the switch will come on.
Stop: Press the vacuum fan switch. The indicator
light above the switch will go off.
08229
08231
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
24
IGNITION SWITCH
The ignition switch starts and stops the engine
with a key.
Preheat: Turn the key clockwise. The glow plugs
light will come on. When the glow plug light goes
out, usually for 5 to 15 seconds depending on the
weather conditions, the engine is ready to start.
Start: Turn the key all the way clockwise.
Release the key as soon as the engine starts.
Stop: Turn the key counter-clockwise.
08460
08460
08461
Home
Find...
Go To..
OPERATION
25
810D MM310 (3–95)

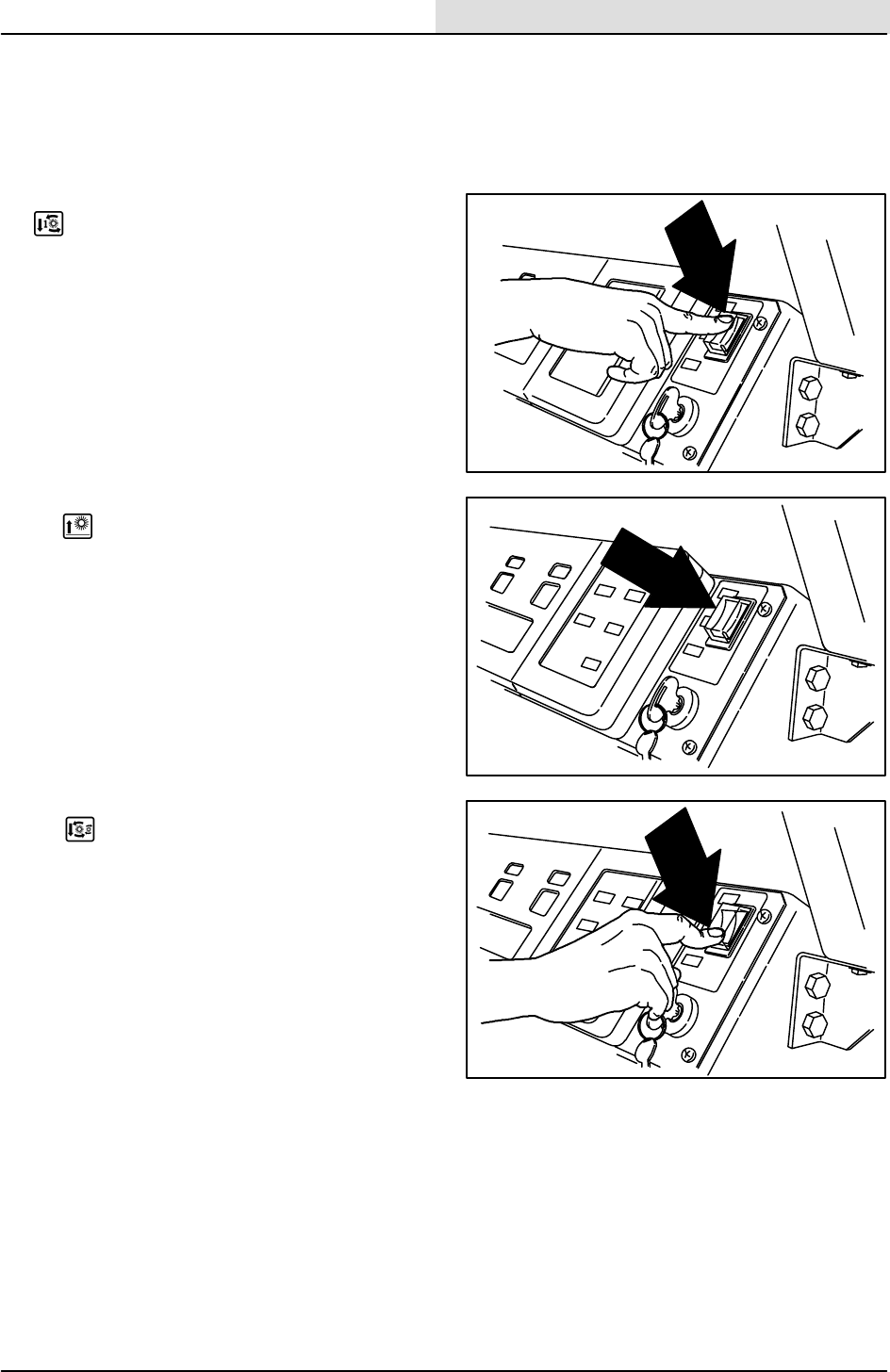

MAIN BRUSH AND POWER THROW
SWITCH
The main brush and Power Throw switch
controls the main brush and Power Throw brush
positions and rotation.
Main Brush Down and Normal Speed: Press the
top Normal position of the switch.
Brushes Up and Off: Place the switch in the
middle Off position.
Main Brush Down and Power Throw: Press the
bottom Power Throw position of the
switch.
08462
08464
08463
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
26

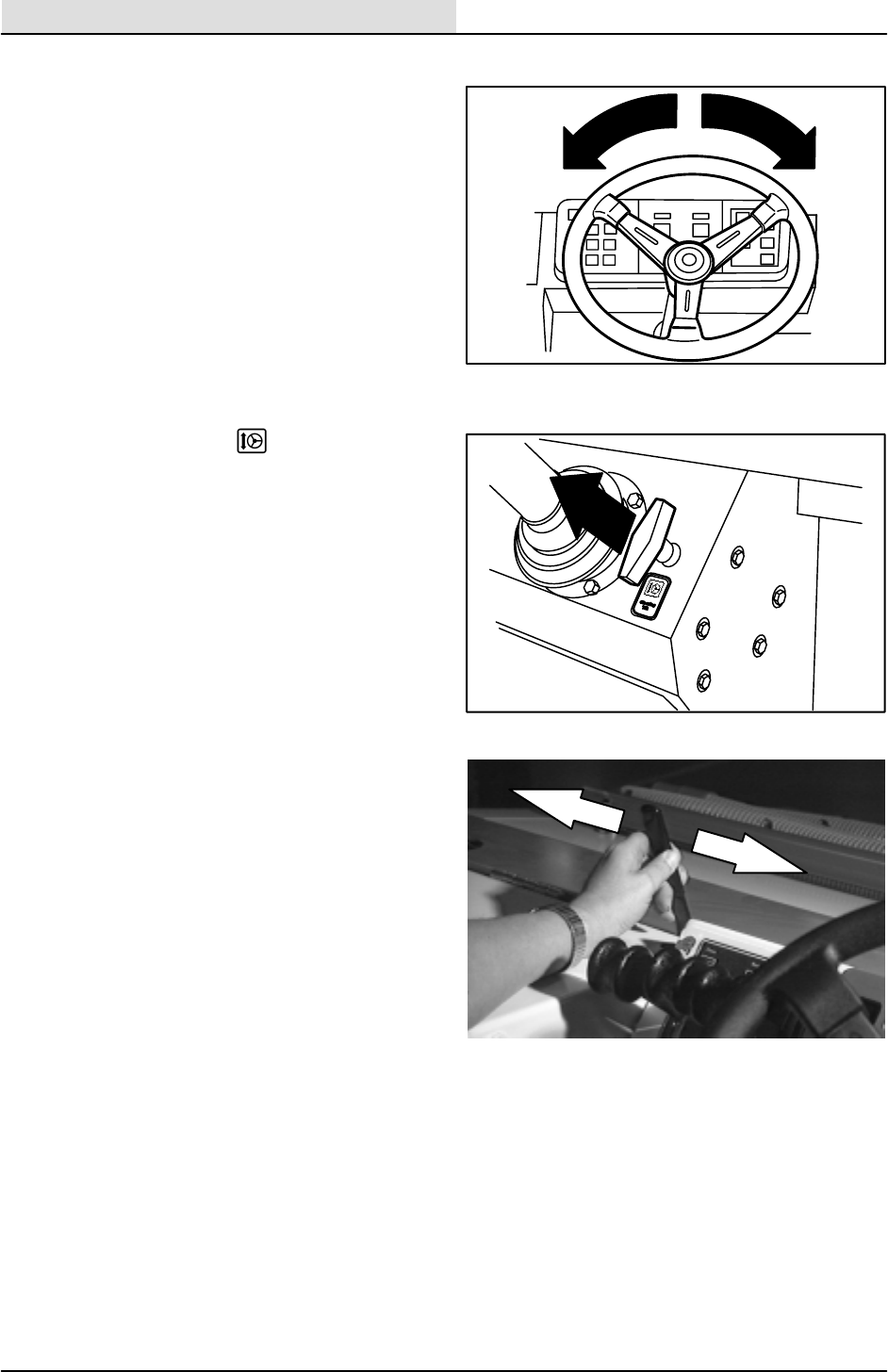

STEERING WHEEL
The steering wheel controls the machine’s
direction. The machine is very responsive to the
steering wheel movements.
Left: Turn the steering wheel to the left.
Right: Turn the steering wheel to the right.
STEERING WHEEL TILT LEVER
The steering wheel tilt lever controls the
angle of the steering wheel.
Adjust: Pull out the tilt lever, move the wheel up
or down, and release the tilt lever.
BLOWER WAND LEVER (OPTION)
The blower wand lever controls the air flow
through the optional blower wand.
On: Move the lever to the left.
Off: Move the lever to the right.
08484
08439
Home
Find...
Go To..
OPERATION
27
810D MM310 (8–93)

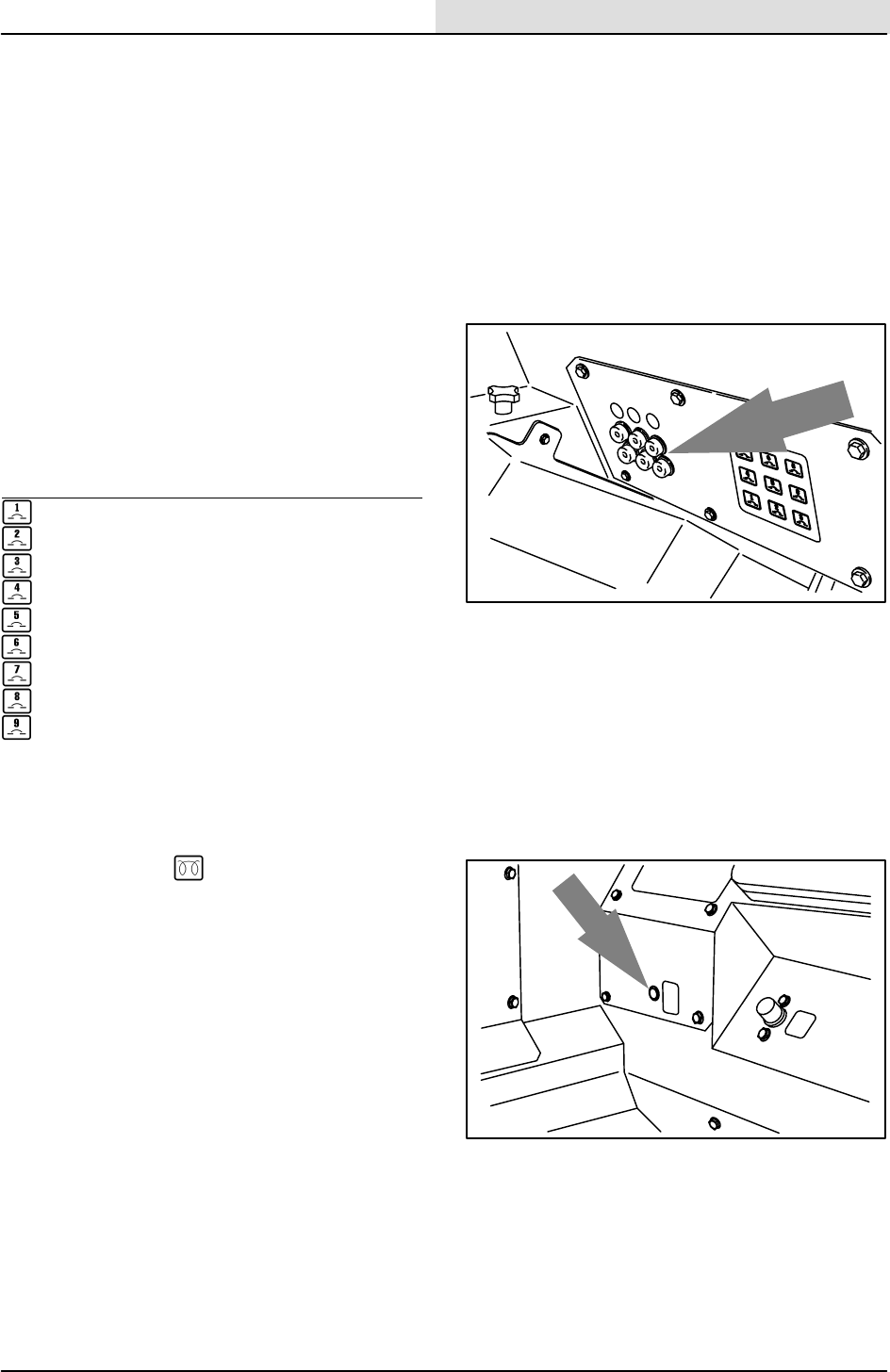

CIRCUIT BREAKERS
The circuit breakers are resetable electrical circuit
protection devices. Their design stops the flow of
current in the event of a circuit overload. Once a
circuit breaker is tripped, it must be reset
manually. Press the reset button after the breaker
has cooled down.
If the overload that caused the circuit breaker to
trip is still there, the circuit breaker will continue to
stop current flow until the problem is corrected.
The circuit breakers are located in the operator
compartment.
The chart lists the circuit breakers and the
electrical components they protect.
Circuit
Breaker Rating Circuit Protected
CB-1 15 A Horn
CB-2 15 A Filter shaker
CB-3 15 A Controls
CB-4 15 A Instrument panel
CB-5 15 A Hazard light
CB-6 2.5 A Brushes
CB-7 15 A Left side brush option
CB-8 15 A Accessories
CB-9 15 A Accessories
GLOW PLUGS LIGHT
The glow plugs light comes on when the
ignition switch is turned clockwise to the start
position. The light will go out when the engine is
ready to start, usually 5 to 15 seconds depending
on the weather conditions.
08440
08927
Home
Find...
Go To..
OPERATION
810D MM310 (6–94)
28
MAIN BRUSH DOWN PRESSURE KNOB
The main brush down pressure knob
changes the main brush contact with the
sweeping surface.
Increase Pressure: Turn the main brush down
pressure knob counter-clockwise.
Decrease Pressure: Turn the main brush down
pressure knob clockwise.
LATCHES
The side doors, rear door, engine cover, and
hopper cover are secured with latches.
Open the Main Brush Side Doors: Pull up on the
door latch.
Open the Engine Side Door: Pull up on the door
latch.
Open the Rear Door: Push the latch to the left.
Open the Engine Cover: Push in on the cover
latch.
Open the Hopper Cover: Push the latch to the
right.
Open Rear Bumper Door: Push the latch to the
left.
Home
Find...
Go To..
OPERATION
29
810D MM310 (6–94)

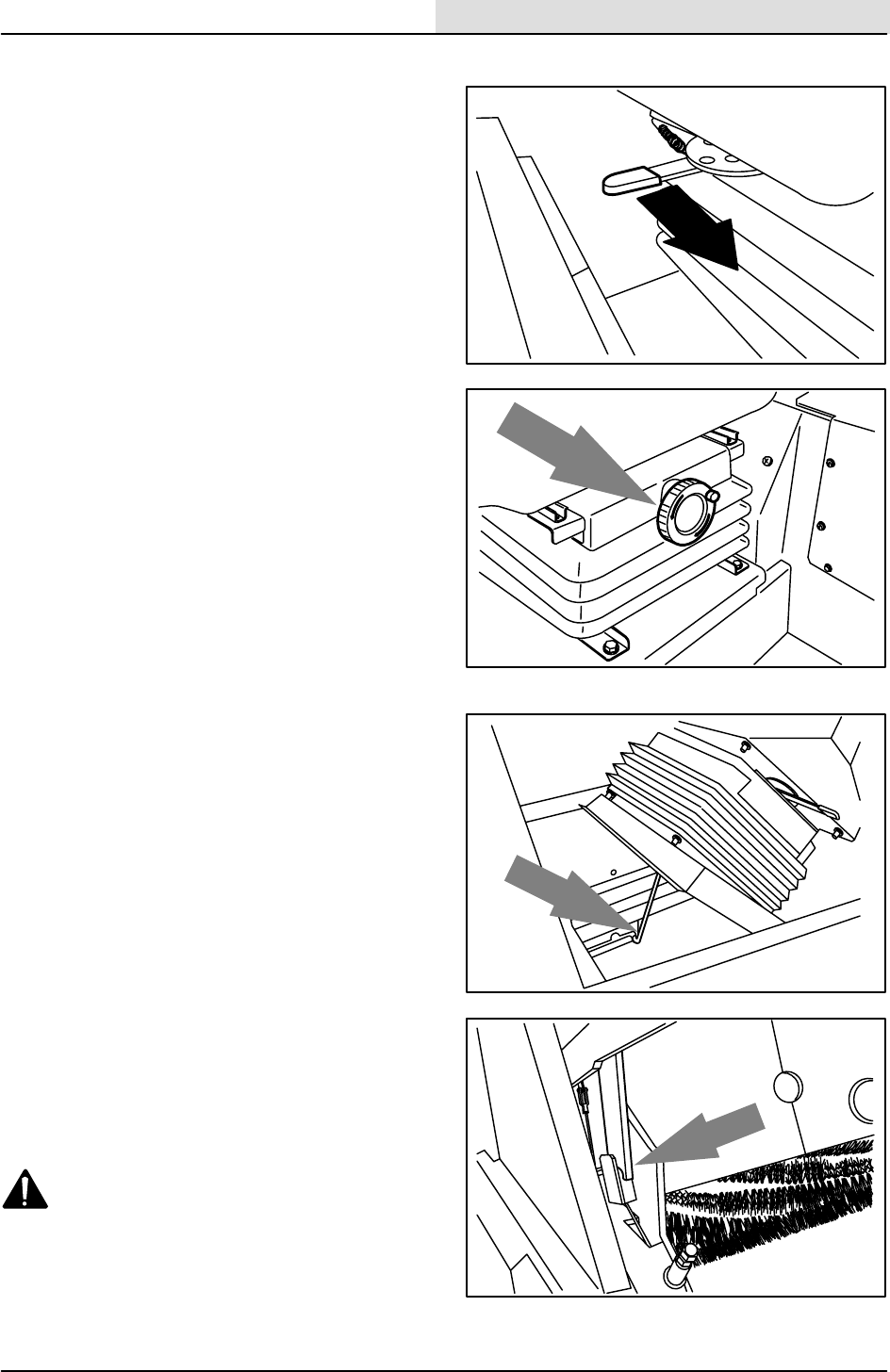

OPERATOR SEAT
The operator seat has two adjustments. The
adjustments are for the front to rear seat position
and ride stiffness.
The seat front-to-rear position is adjusted by the
seat position lever.
Adjust: Push the lever forward, slide the seat
backward or forward to the desired position and
release the lever.
The ride stiffness is adjusted with the stiffness
knob.
Adjust: Turn the knob clockwise to increase the
ride stiffness, and counter-clockwise to decrease
the ride stiffness.
Lift: Pull up on the seat mounting plate until the
seat mount locks up.
Lower: Pull on the release lever and lower the
seat mounting plate.
HOPPER SUPPORT BAR
The hopper support bar is located on the
operator’s side of the hopper. The hopper support
bar holds the hopper in the raised position to allow
work under the hopper. DO NOT rely on the
machine hydraulic system to keep the hopper
raised.
WARNING: Raised hopper may fall.
Engage hopper support bar.
08443
08444
08445
08446
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
30
WINDSHIELD WIPER SWITCH (OPTION)
The windshield wiper switch operates the
windshield wiper on the cab option.
On: Pull out on the switch.
Off: Push in on the switch.
DOME LIGHT SWITCH (OPTION)
The dome light switch controls the dome light on
the cab option.
On: Press on the switch.
Off: Press on the switch again.
RECIRCULATING AIR LOUVERS (OPTION)
The optional recirculating air louvers recirculates
the cab air through the temperature core. This will
maximize either the heated or cooled air when
opened.
HEATER KNOB (OPTION)
The heater knob controls the cab heater on the
cab option.
On: Pull the knob out until the air temperature is
at the desired comfort level. For maximum heat,
pull the knob out all the way.
Off: Push the knob in all the way.
Home
Find...
Go To..
OPERATION
31
810D MM310 (3–95)

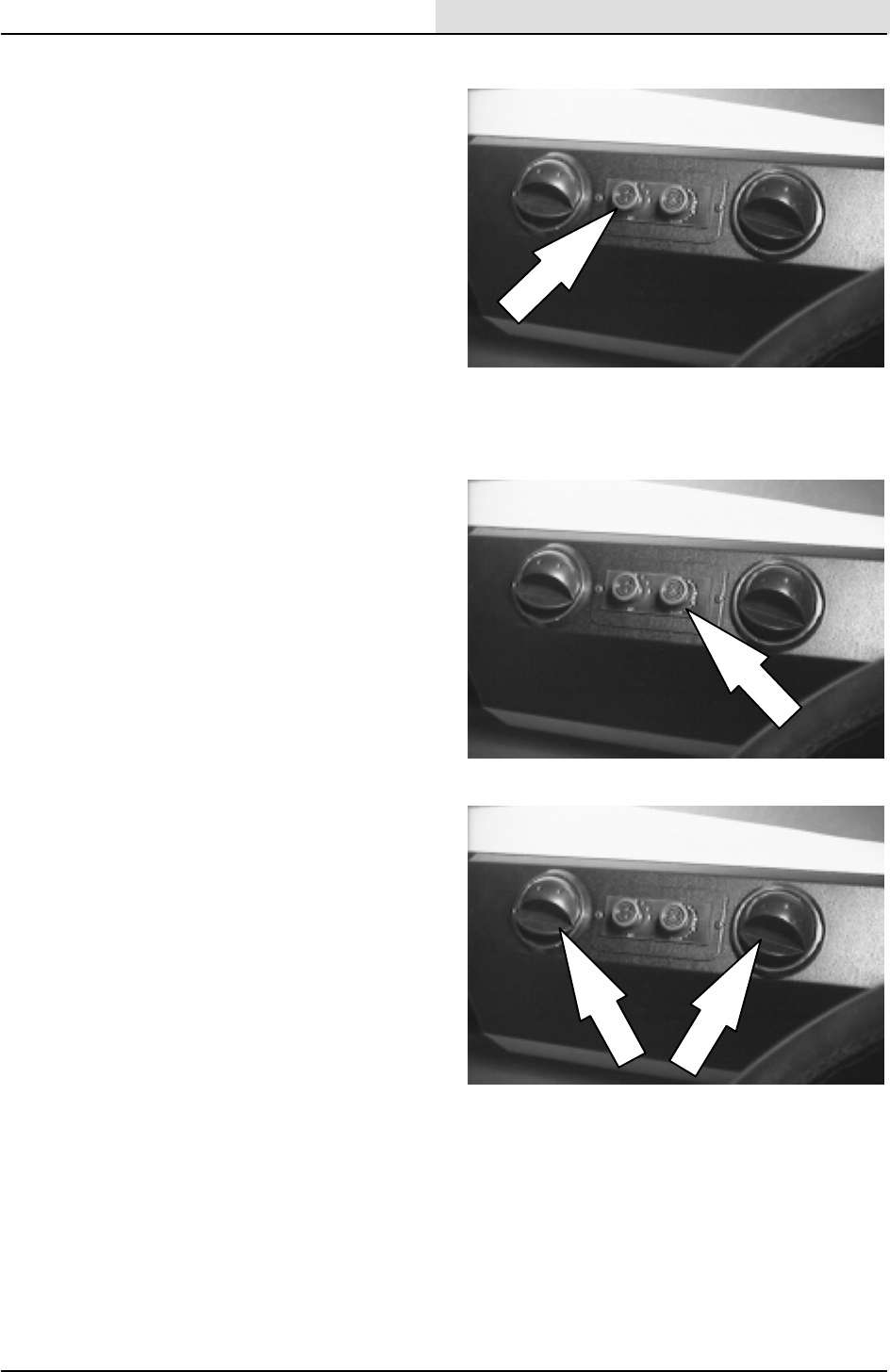

FAN SPEED SWITCH (OPTION)
The fan speed switch controls the speed of the
fan in the cab option. The pressurizer can be
operated at three speeds.
Slow: Turn the switch clockwise to the first
setting.
Medium: Turn the switch clockwise to the second
setting.
Fast: Turn the switch clockwise to the third
setting.
Off: Turn the switch counter–clockwise to the off
setting.
AIR CONDITIONING SWITCH (OPTION)
The air conditioning switch operates the cab’s air
conditioner in the optional cab.
On: Turn the switch clockwise until the air
temperature is at the desired comfort level. For
maximum cooling, turn the switch clockwise all
the way to the maximum position.
Off: Turn the switch counter–clockwise all the
way to the off position.
AIR CONTROL VENTS (OPTION)
The air control vents control the direction of the air
flow in an optional cab. Turn the vents until they
meet your desired comfort level. For defrosting,
direct the air control vents onto the windows. This
creates warm, dry air which works best for
defrosting. If this causes the windows to fog, turn
on the air conditioner for drier air.
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
32

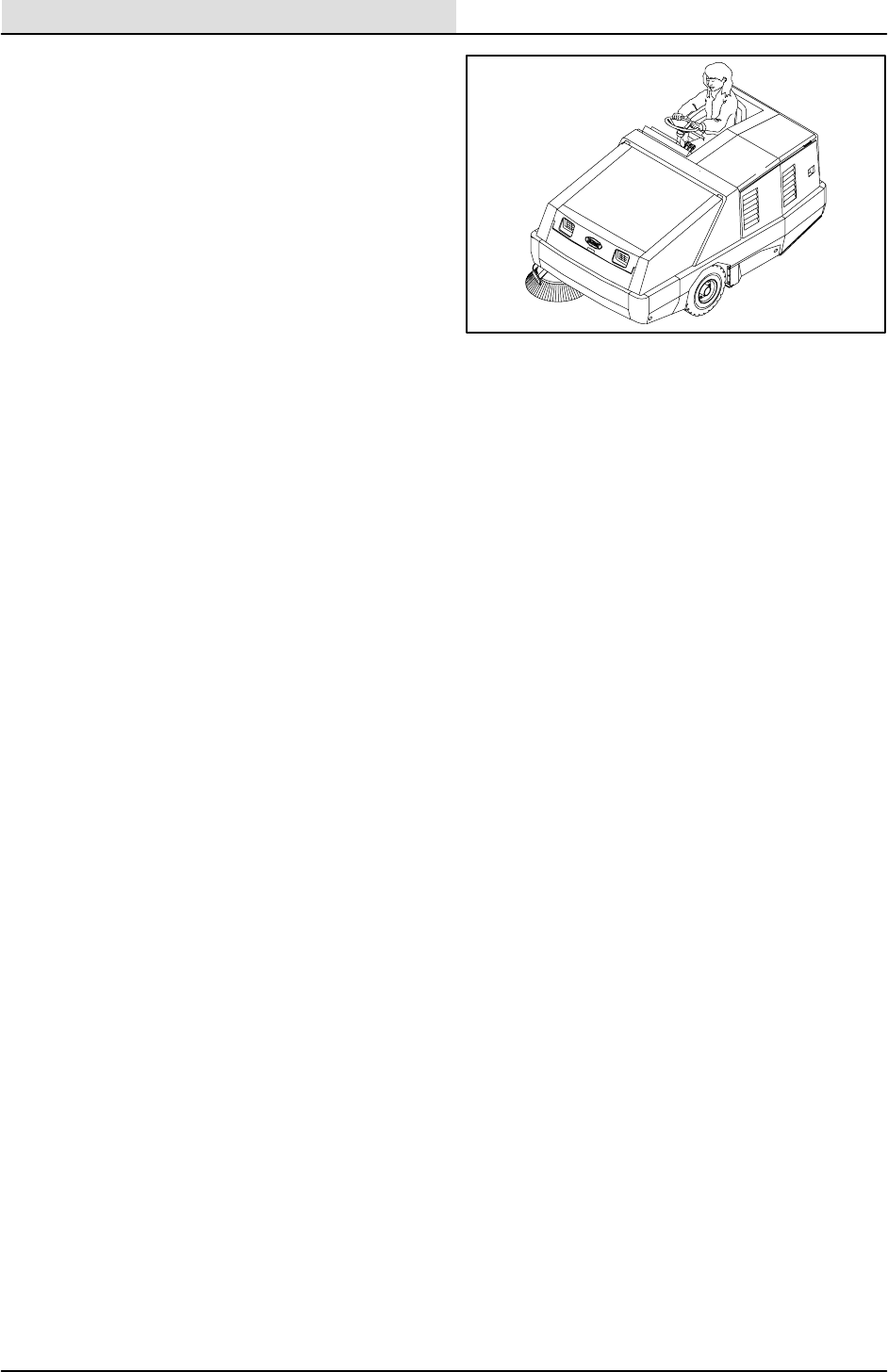

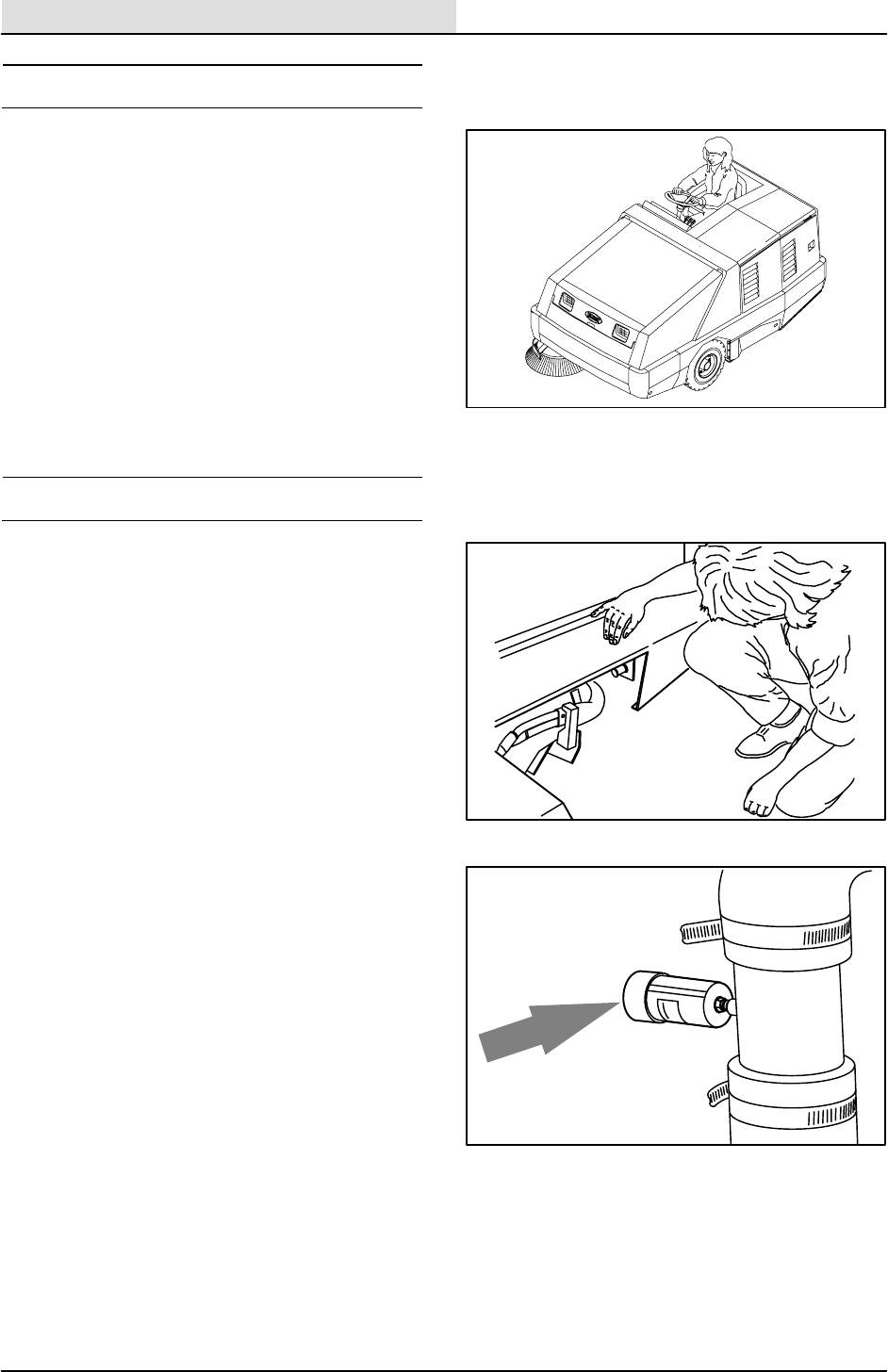

HOW THE MACHINE WORKS
The steering wheel controls the direction of
machine travel. The directional pedal controls the
speed and forward/reverse direction. The brake
pedal slows and stops the machine.
The side brush sweeps debris into the path of the
main brush. The Power Throw brush is used to
help pick up bulky debris. The main brush sweeps
debris from the floor into the hopper. The vacuum
system pulls dust and air through the hopper and
the hopper dust filters.
When sweeping is finished, clean the hopper dust
filter and empty the hopper.
PRE-OPERATION CHECKLIST
Check under the machine for leaks (fuel, oil,
coolant).
Check the engine air filter indicator.
08580
07807
08447
Home
Find...
Go To..
OPERATION
33
810D MM310 (3–95)

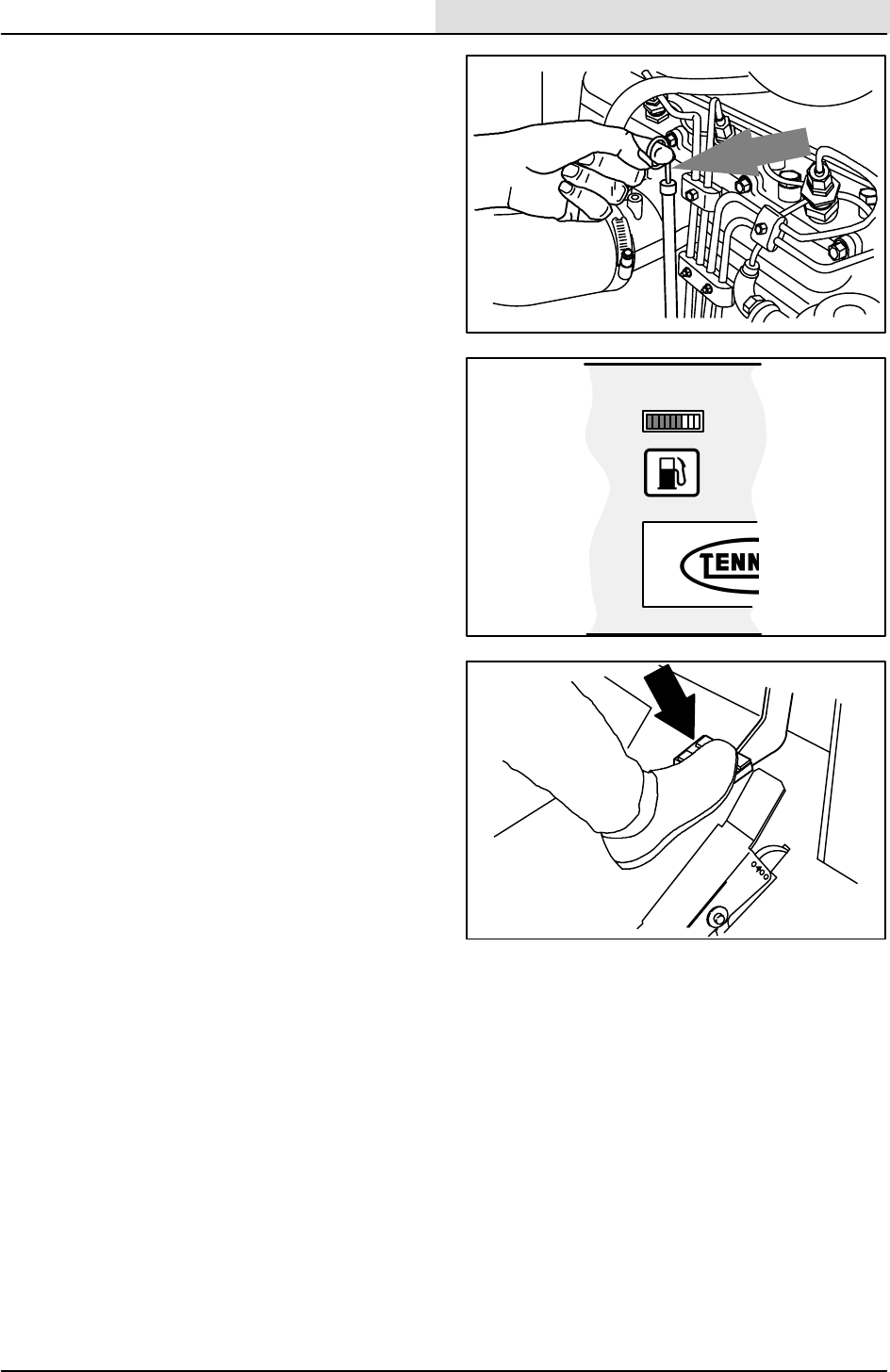

Check the engine oil level.
Check fuel level.
Check the brakes and steering for proper
operation.
08431
07764
08471
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
34

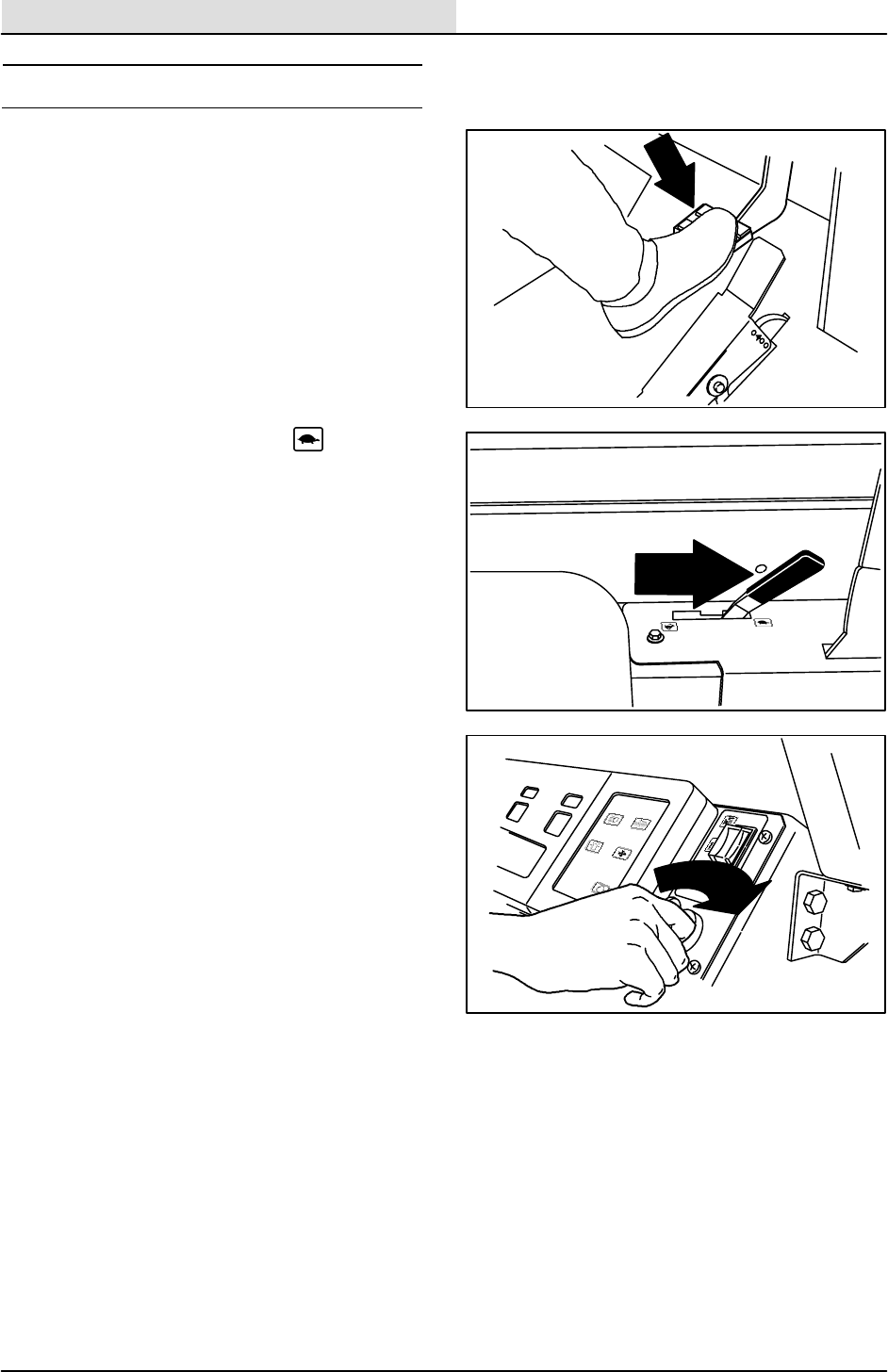

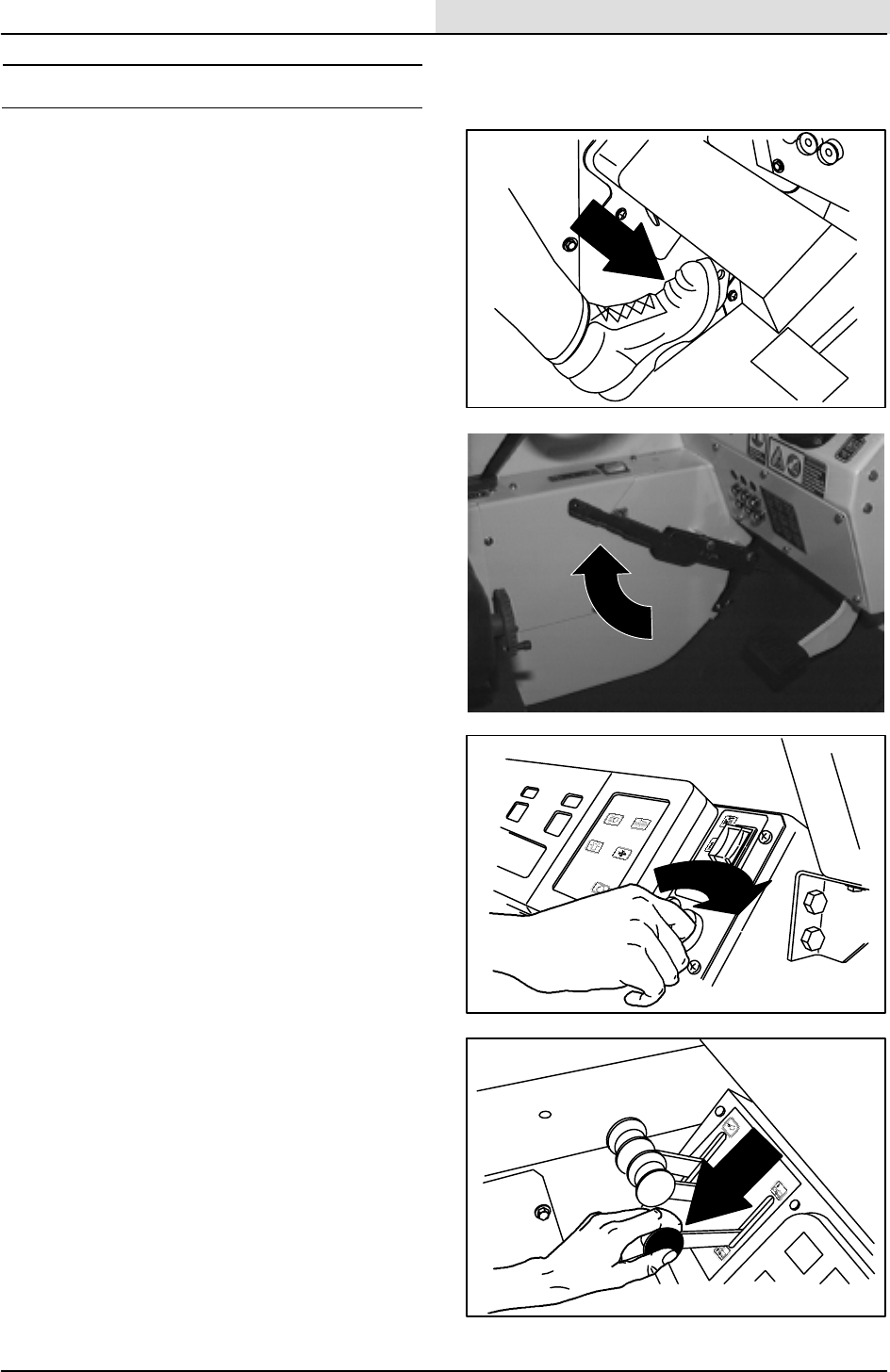

STARTING THE MACHINE
1. You must be in the operator’s seat with the
directional pedal in neutral, and your foot on
the brake pedal or with the parking brake
set.

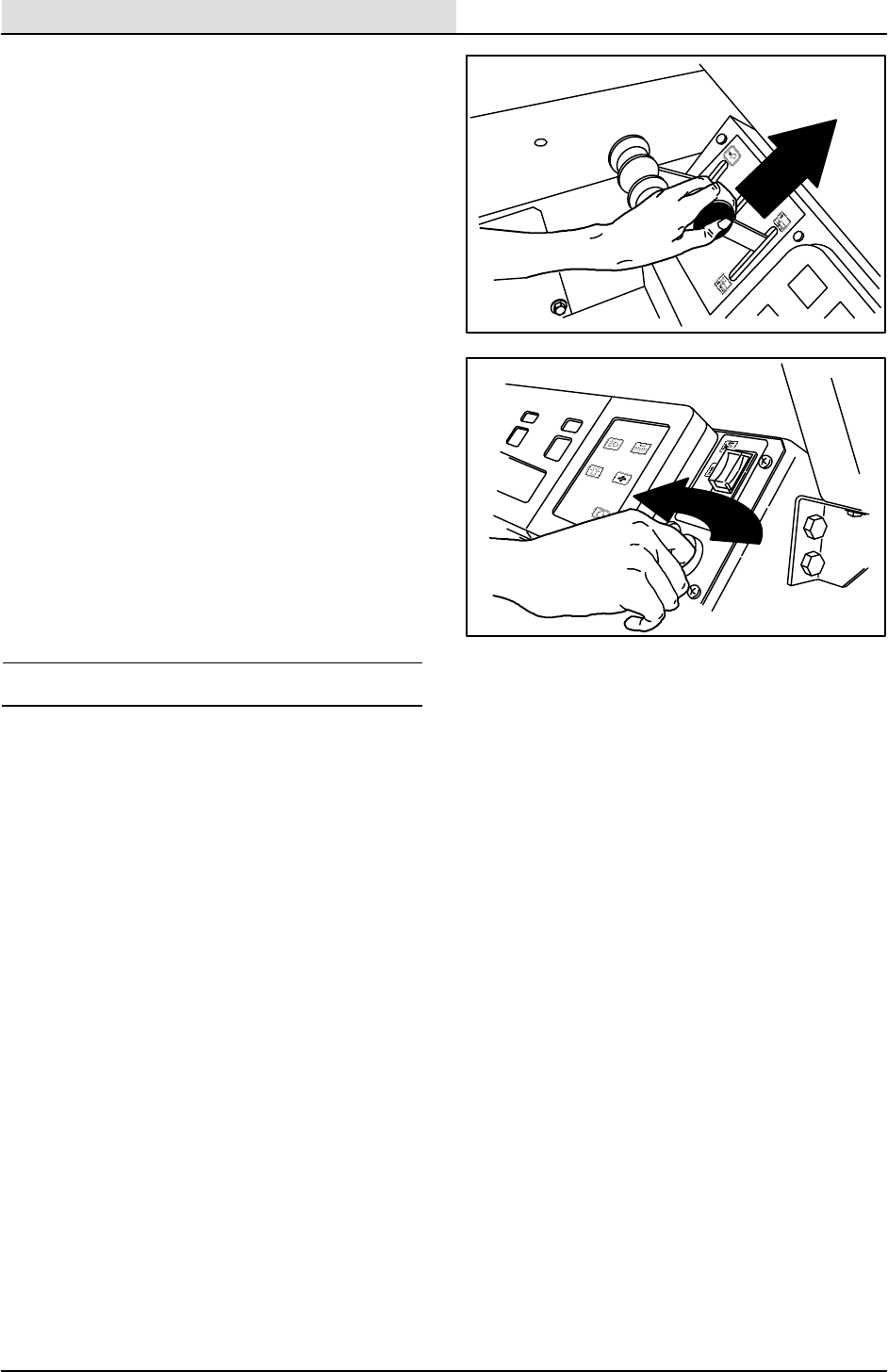

2. Move the throttle lever to the Idle
position.
3. Turn the key clockwise. The glow plugs light
will come on. When the glow plug light goes
out, usually for 5 to 15 seconds depending
on the weather conditions, the engine is
ready to start.
08471
08457
08460
Home
Find...
Go To..
OPERATION
35
810D MM310 (3–95)

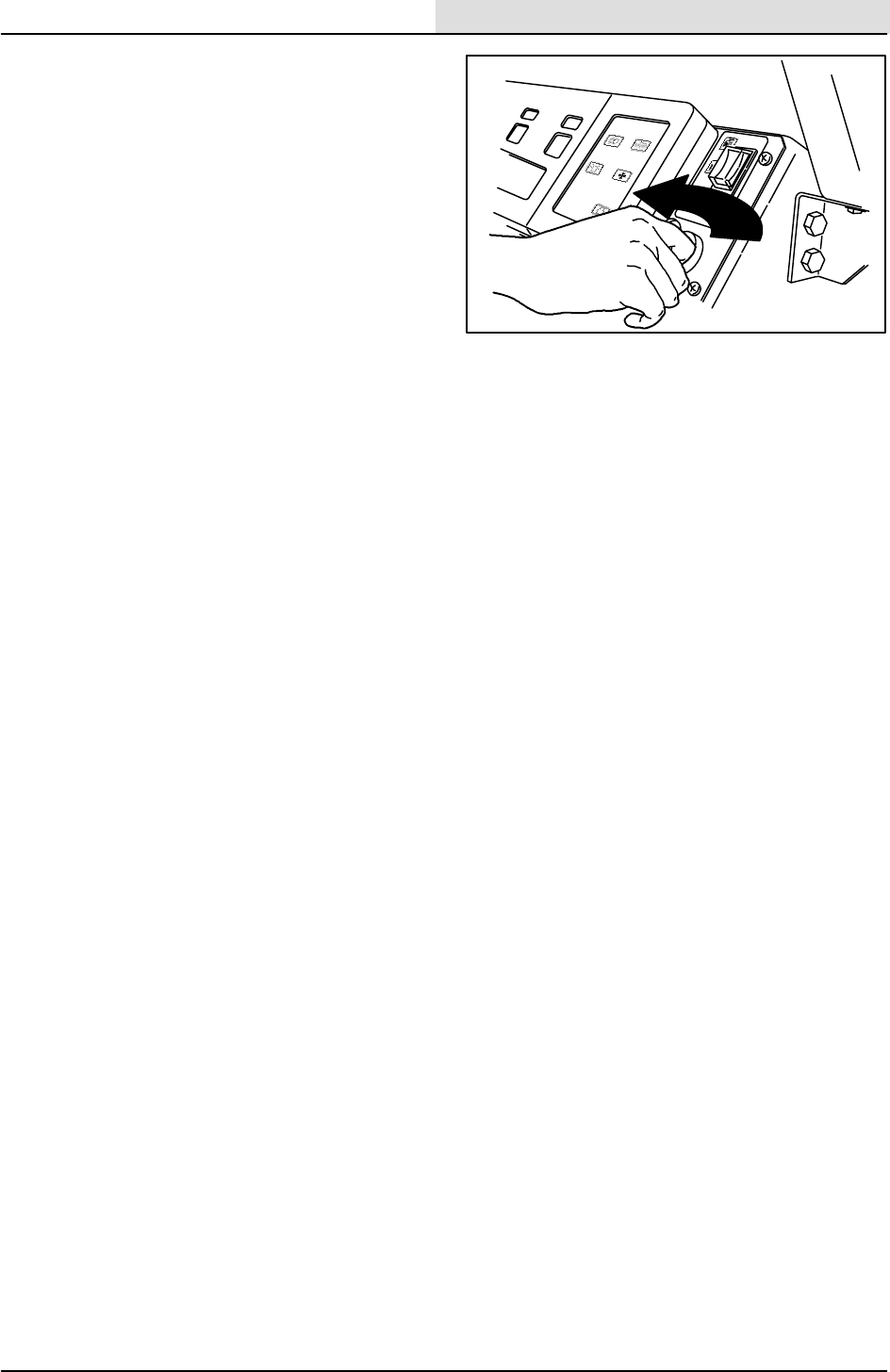

4. Turn the ignition switch key clockwise until
the engine starts.
NOTE: Do not operate the starter motor for more
than 10 seconds at a time or after the engine has
started. Allow the starter to cool between starting
attempt or damage to the starter motor may
occur.
5. Allow the engine and hydraulic system to
warm up three to five minutes.
WARNING: Engine emits toxic gases.
Severe respiratory damage or
asphyxiation can result. Provide adequate
ventilation. Consult with your regulatory
authorities for exposure limits. Keep engine
properly tuned.
6. Release the machine parking brake.
7. Move the throttle lever to the Fast
position.
08460
08435
08456
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
36
8. Drive the machine to the area to be swept.
08580
Home
Find...
Go To..
OPERATION
37
810D MM310 (3–95)
SWEEPING AND BRUSH INFORMATION
Pick up oversized debris before sweeping. Flatten
or remove bulky cartons from aisles before
sweeping. Pick up pieces of wire, twine, string,
etc., which could become entangled in brush or
brush plugs.
Plan the sweeping in advance. Try to arrange long
runs with minimum stopping and starting. Sweep
debris from very narrow aisles into main aisles
ahead of time. Do an entire floor or section at one
time. Sweep as straight a path as possible. Avoid
bumping into posts or scraping the sides of the
sweeper. Overlap the brush paths.
Avoid turning the steering wheel too sharply when
the machine is in motion. The machine is very
responsive to the movement of the steering
wheel. Avoid sudden turns, except in
emergencies.
Use the Power Throw when picking up light
litter. This will improve both litter pickup and
hopper loading. Do not use the Power Throw
speed in dusty environments. The machine can
dust and clog the hopper dust filter. Operate the
main brush in the Normal position when picking
up general debris.
For best results, use the correct brush type for
your sweeping application. The following are
recommendations for main and side brush
applications.
Polypropylene 8-double Row Main Brush –
Gives superior pickup of sand, gravel, and paper
litter. Retains its stiffness when wet, and can be
used indoor or out. Not recommended for
high-temperature debris.
Polypropylene and Wire 8-double Row Main
Brush – The wire bristles loosen slightly packed
soilage and heavier debris. The polypropylene
bristles sweep up the debris with excellent hopper
loading.
07817
08587
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
38
Crinkle Wire 8-double Row Main Brush – The
stiff wire bristles cut through compacted grime,
hard to sweep dirt, and dirt mixed with oil, grease,
or mud. This brush is recommended for foundry
sweeping where heat may melt synthetic bristles.
This brush has good hopper loading ability, but is
not recommended for dusty applications.
Nylon 24-row Main Brush – Recommended for
severe dust conditions on rough surfaces. This
brush has excellent pickup and long life.
Nylon Patrol Main Brush – Designed for
sweeping large indoor or outdoor areas at higher
speed. The patrol pattern gives excellent loading
of light bulky debris (leaves and paper), while the
nylon bristle gives long life.
Heavy Gauge Polypropylene 8-double Row
Main Brush – Designed for sweeping outdoor
areas. The stiffer bristles allow excellent loading
of heavier bulky debris (leaves and paper litter).
Polypropylene Side Brush – A good general
purpose brush for sweeping of light to medium
debris in both indoor and outdoor applications.
This brush is recommended when bristles may
get wet.
Nylon Side Brush – A longer life, general
purpose brush that is recommended for rough
surfaces.
Flat Wire Side Brush – Recommended for
outside and curb-side sweeping where soilage is
heavy or compacted. The stiff wire bristles dig out
soilage. This brush is also recommended for
foundry sweeping where heat may melt synthetic
bristles.
08588
Home
Find...
Go To..
OPERATION
39
810D MM310 (11–95)
SWEEPING
1. The hopper door has to be closed during
sweeping. If your machine has the hopper
door light option, make sure the hopper door
light is off. If the hopper door light is on,
close the hopper door.
2. Place the main brush and Power Throw
switch in the Normal or Power
Throw position.
07763
08462
Home
Find...
Go To..
OPERATION
810D MM310 (11–95)
40
3. For machines below serial number 002063,
pull the side brush position lever back and to
the right into the On/Down slot.
For machines serial number 002063 and
above, push the top of the side brush switch
into the On/Down position.
4. Press the vacuum fan switch to start
the vacuum.
5. Sweep as needed.
08458
08231
Home
Find...
Go To..
OPERATION
41
810D MM310 (3–95)
STOP SWEEPING
1. For machines below serial number 002063,
pull the side brush position lever back and to
the left into the Off/Up slot.
For machines serial number 002063 and
above, push the bottom of the side brush
switch into the Off/Up position.
2. Place the main brush switch in the middle
Off position.
3. Press the filter shaker switch to shake
the hopper dust filter.
08459
08464
08229
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
42

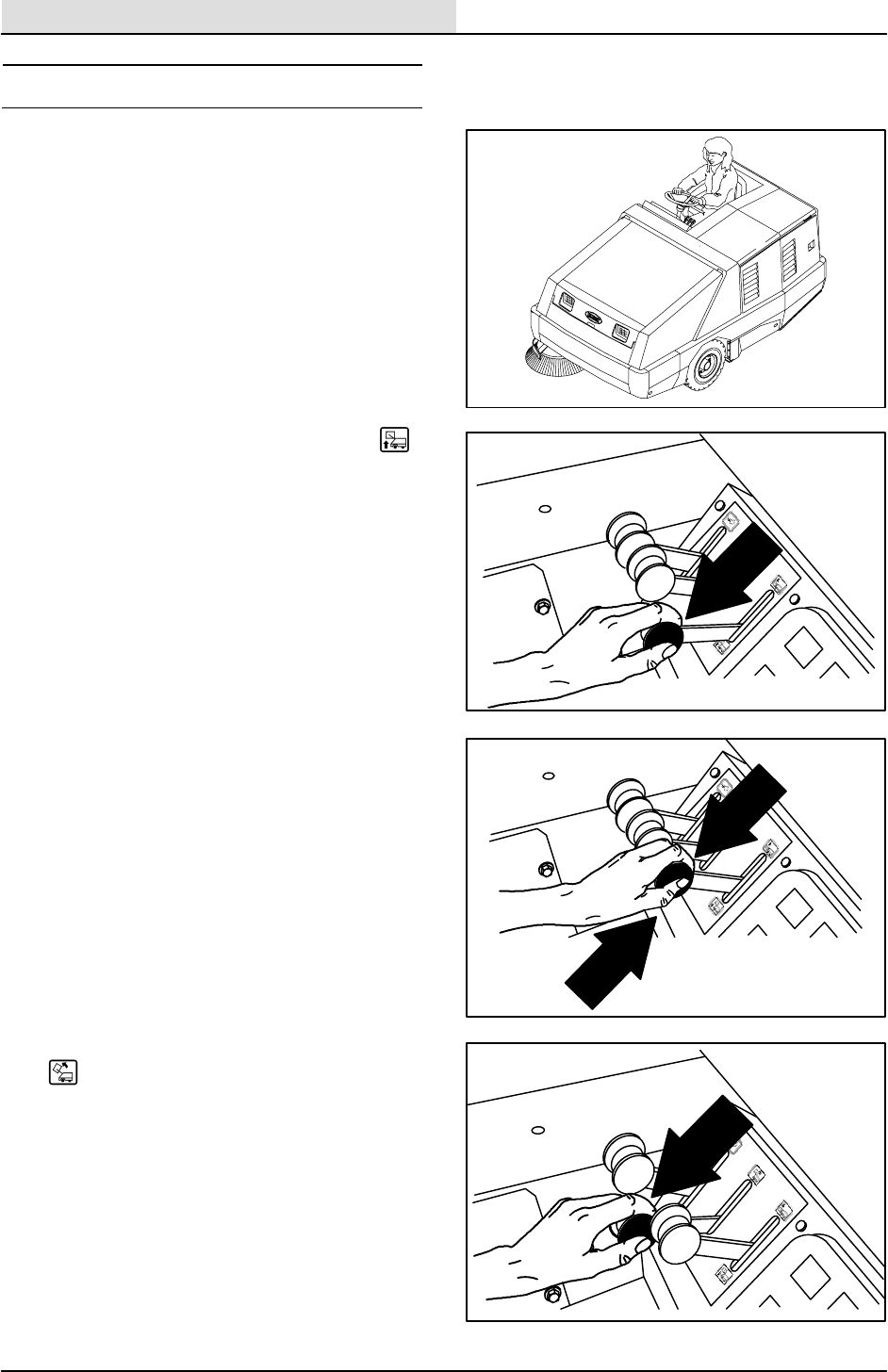

EMPTYING THE HOPPER
1. Slowly drive the machine to the debris site
or debris container.
2. Pull and hold the hopper lift lever in the
Up position and raise the hopper to the
desired height.
FOR SAFETY: When using machine, make
sure adequate clearance is available before
raising hopper.
NOTE: Be aware that the minimum ceiling height
needed to high dump the hopper is 3355 mm
(11 ft).
3. Release the hopper lift lever up and into the
middle (Hold) position.
4. Drive the machine up to the debris
container.
FOR SAFETY: When using machine, move
machine with care when hopper is raised.
5. Pull and hold the hopper rollout lever into the
Out position.
6. Lower the hopper into the debris container to
control dust.
08580
08480
08481
08477
Home
Find...
Go To..
OPERATION
43
810D MM310 (3–95)
7. Pull and hold the hopper door lever into the
Open position.
8. Raise the hopper enough and/or close the
hopper door to clear the top of the debris
container.
9. Slowly back the machine away from the
debris site or debris container.
FOR SAFETY: When using machine, move
machine with care when hopper is raised.
10. Push and hold the hopper door lever into the
Close position.
11. Push and hold the hopper rollout lever into
the In position.
12. Push and hold the hopper lift lever in the
Down position.
NOTE: The hopper lift lever, hopper rollout lever,
and the hopper door lever can be use together to
lift the hopper, rollout the hopper, and open the
hopper door.
08474
08476
08479
08482
Home
Find...
Go To..
OPERATION
810D MM310 (11–95)
44
STOP THE MACHINE
1. Stop sweeping.
2. Take your foot off the directional pedal. Step
on the brake pedal.
3. Move the throttle lever to the Idle
position.
4. Set the machine parking brake.
08471
08457
08434
Home
Find...
Go To..
OPERATION
45
810D MM310 (11–95)
5. Turn the ignition switch key
counter-clockwise to stop the engine.
Remove the switch key.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
08461
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
46
POST-OPERATION CHECKLIST
Check the brushes adjustment. See TO
CHECK AND ADJUST MAIN BRUSH
PATTERN and SIDE BRUSH in
MAINTENANCE.

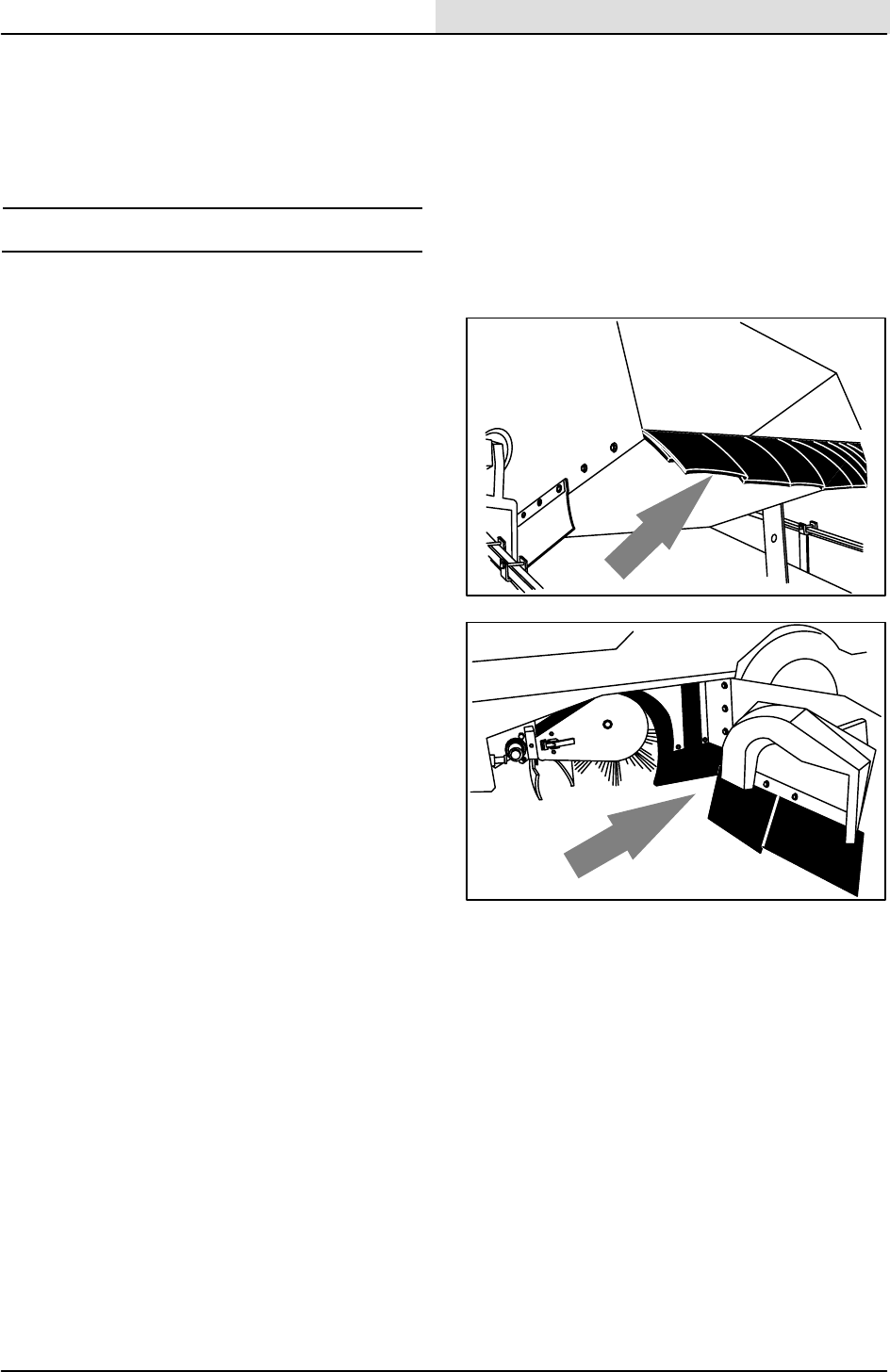

Check the brush skirts for damage, wear,
and adjustment.
Check for wire or string tangled on the main
and side brushes.
Check for fuel odor that indicates a fuel leak.
Check under the machine for leak spots
(fuel, oil, coolant).
Check the service records to determine
maintenance requirements.
08493
08587
Home
Find...
Go To..
OPERATION
47
810D MM310 (3–95)
ENGAGING HOPPER SUPPORT BAR

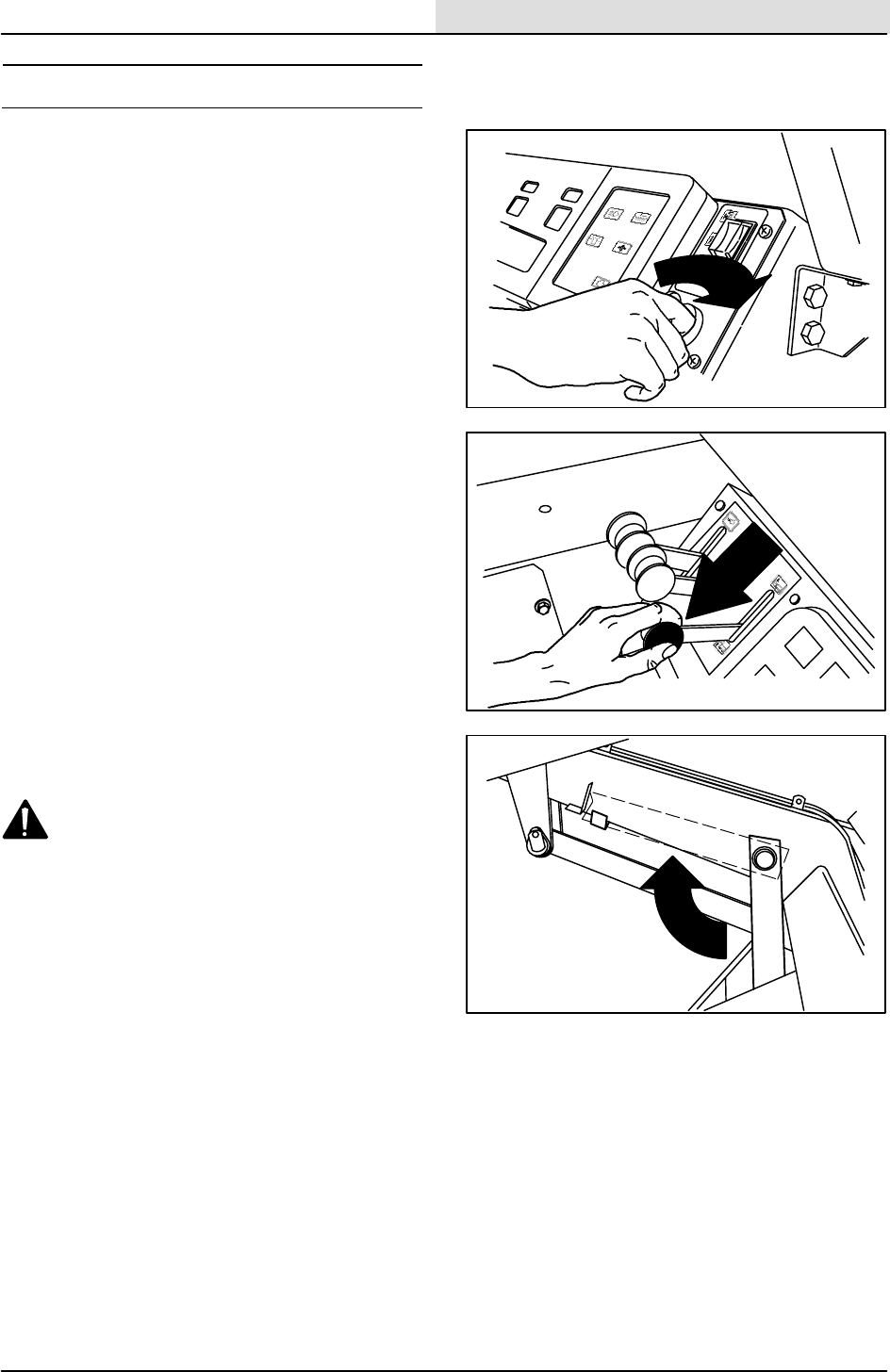

1. Set the machine parking brake.
2. Start the engine.
3. Raise the hopper all the way up.
08434
08460
08480
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
48
4. Remove the support bar from the storage
clip.
WARNING: Raised hopper may fall.
Engage hopper support bar.
5. Slowly lower the hopper so the support bar
rests on the bar stop on the machine frame.
WARNING: Lift arm pinch point. Stay
clear of hopper lift arms.
6. Shut the engine off.
08589
08482
08461
Home
Find...
Go To..
OPERATION
49
810D MM310 (3–95)

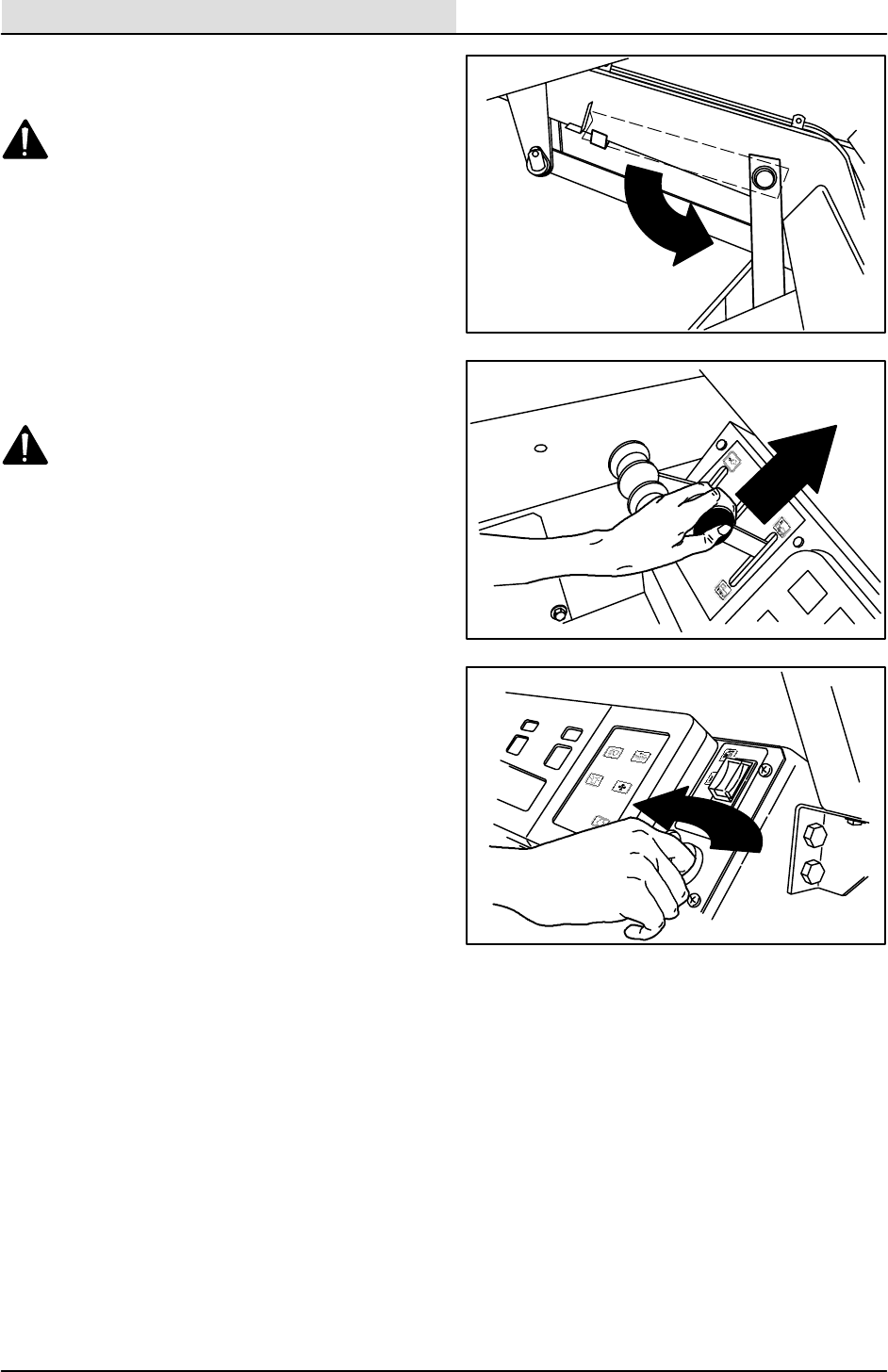

DISENGAGING HOPPER SUPPORT BAR
1. Start the engine.
2. Raise the hopper slightly to release the
hopper support bar.
3. Put the hopper support bar in the storage
clip.
WARNING: Lift arm pinch point. Stay
clear of hopper lift arms.
08460
08480
08590
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
50
4. Lower the hopper.
5. Shut the engine off.
OPERATION ON INCLINES
Drive the machine slowly on inclines. Use the
brake pedal to control machine speed on
descending inclines.
The maximum rated incline is 8.5.
FOR SAFETY: When using machine, move
machine with care when hopper is raised.
08482
08461
Home
Find...
Go To..
OPERATION
51
810D MM310 (3–95)

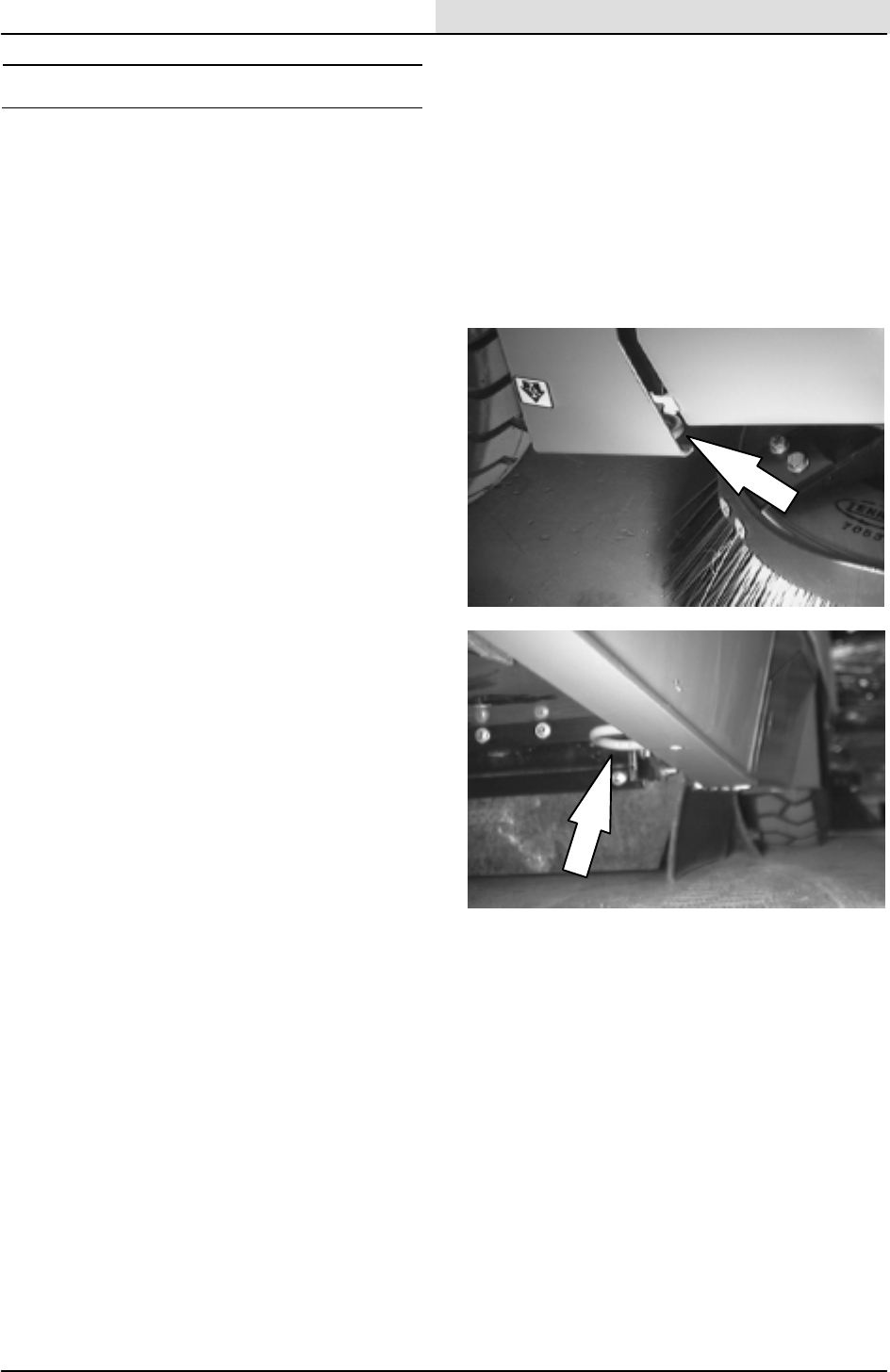

MACHINE TIE–DOWNS
The machine must be tied down on the main
frame. Always set the machine parking brake and
block the tires before tying down the machine.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, set parking
brake, turn off machine and remove key. Block
machine tires.

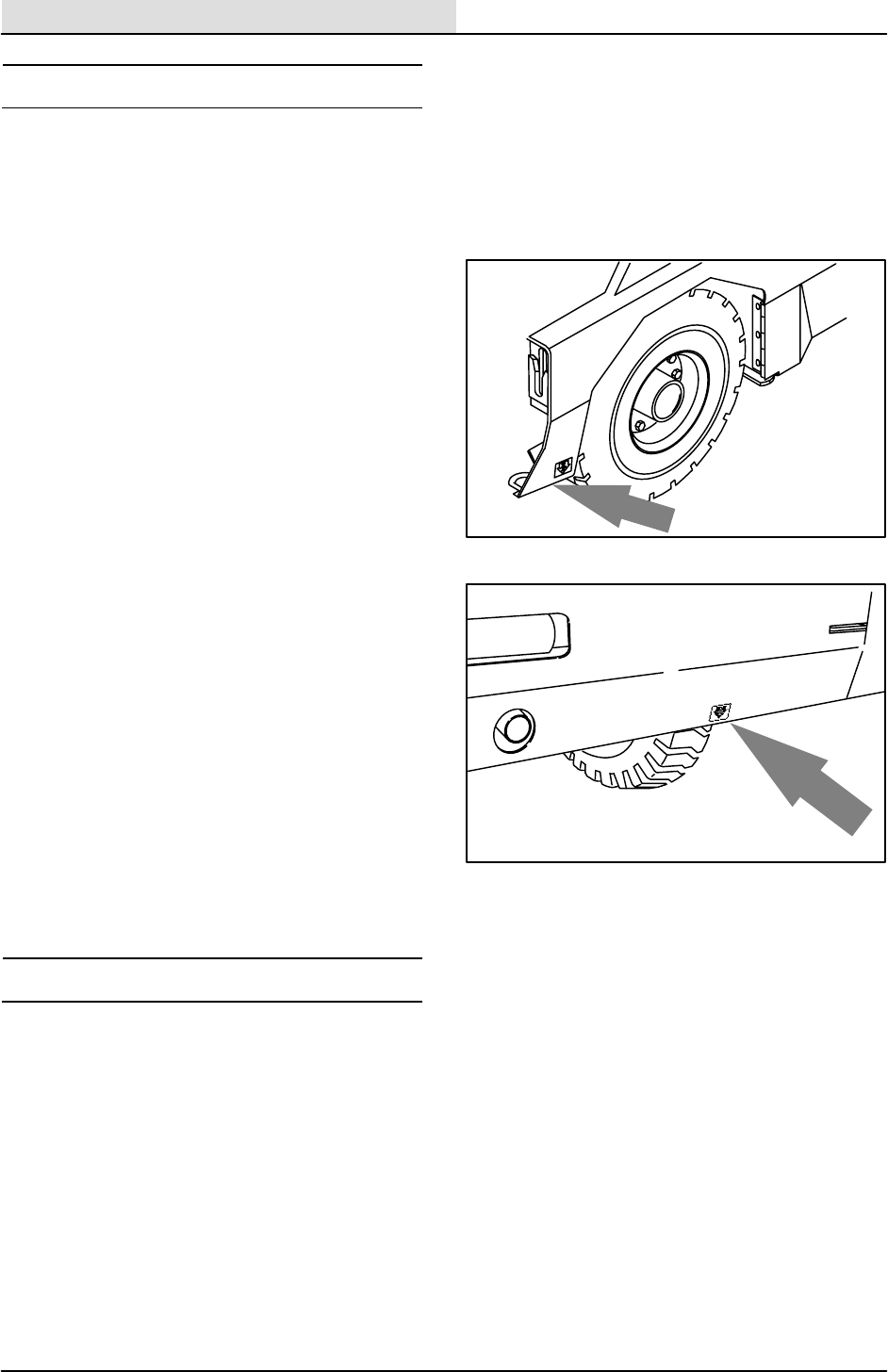

The two front tie–down locations are through the
U–bolt section of the main frame in front of the
wheels.
The two rear tie–down locations are through the
U–bolt section of the main frame under the side
bumpers toward the rear.
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
52
OPTIONS

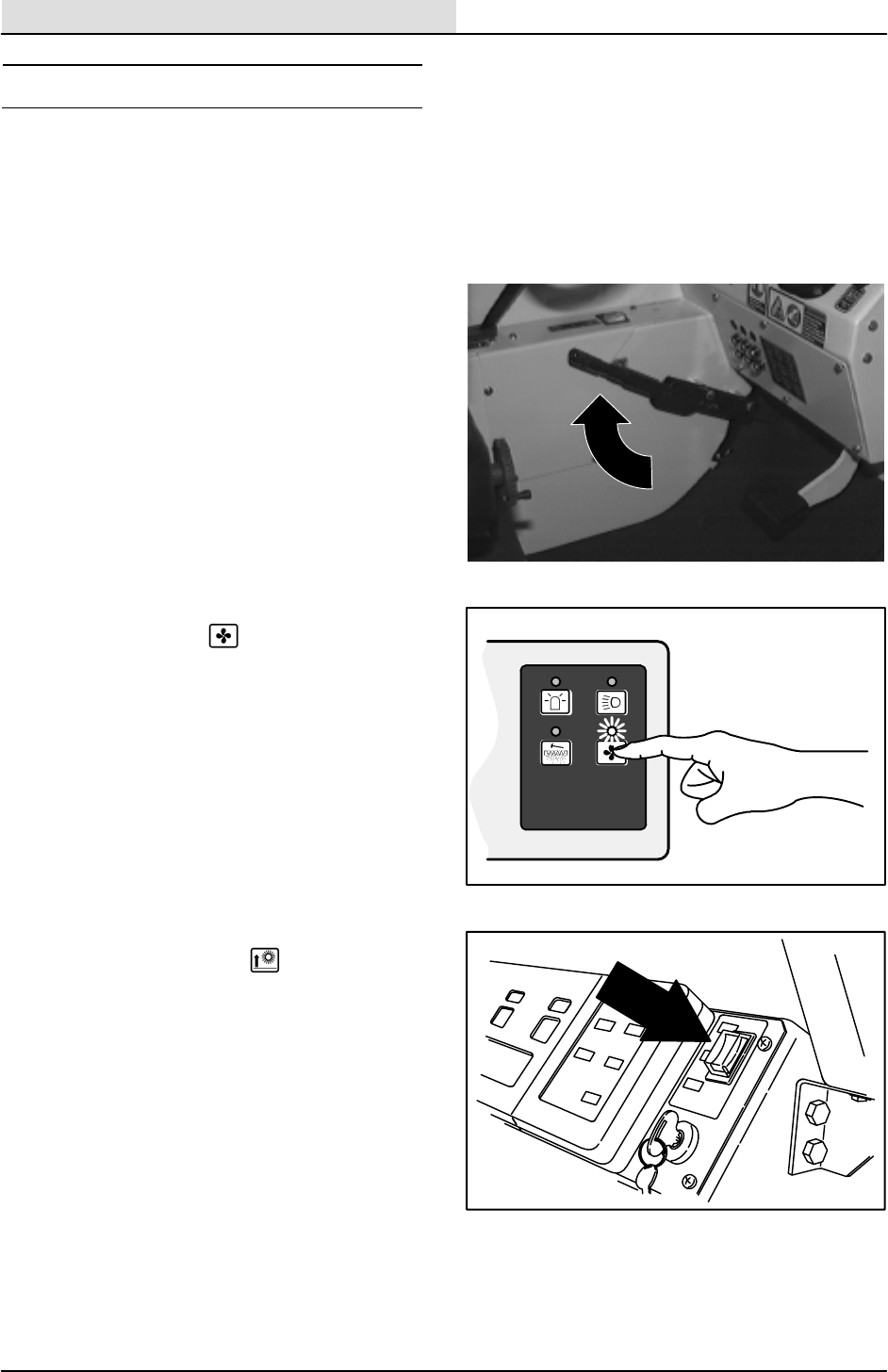

VACUUM WAND
The vacuum wand uses the machine’s vacuum
system. The vacuum hose and wand allow
pick-up of debris that is out of reach of the
machine.
1. Stop the machine within reach of the area to
be vacuumed and set the machine parking
brake.
2. Turn off the vacuum fan by pressing the
vacuum fan switch . The indicator light
above the switch will go off.
3. Turn off and lift the main brush by placing
the switch in the middle Off position.
08231
08464
Home
Find...
Go To..
OPERATION
53
810D MM310 (3–95)

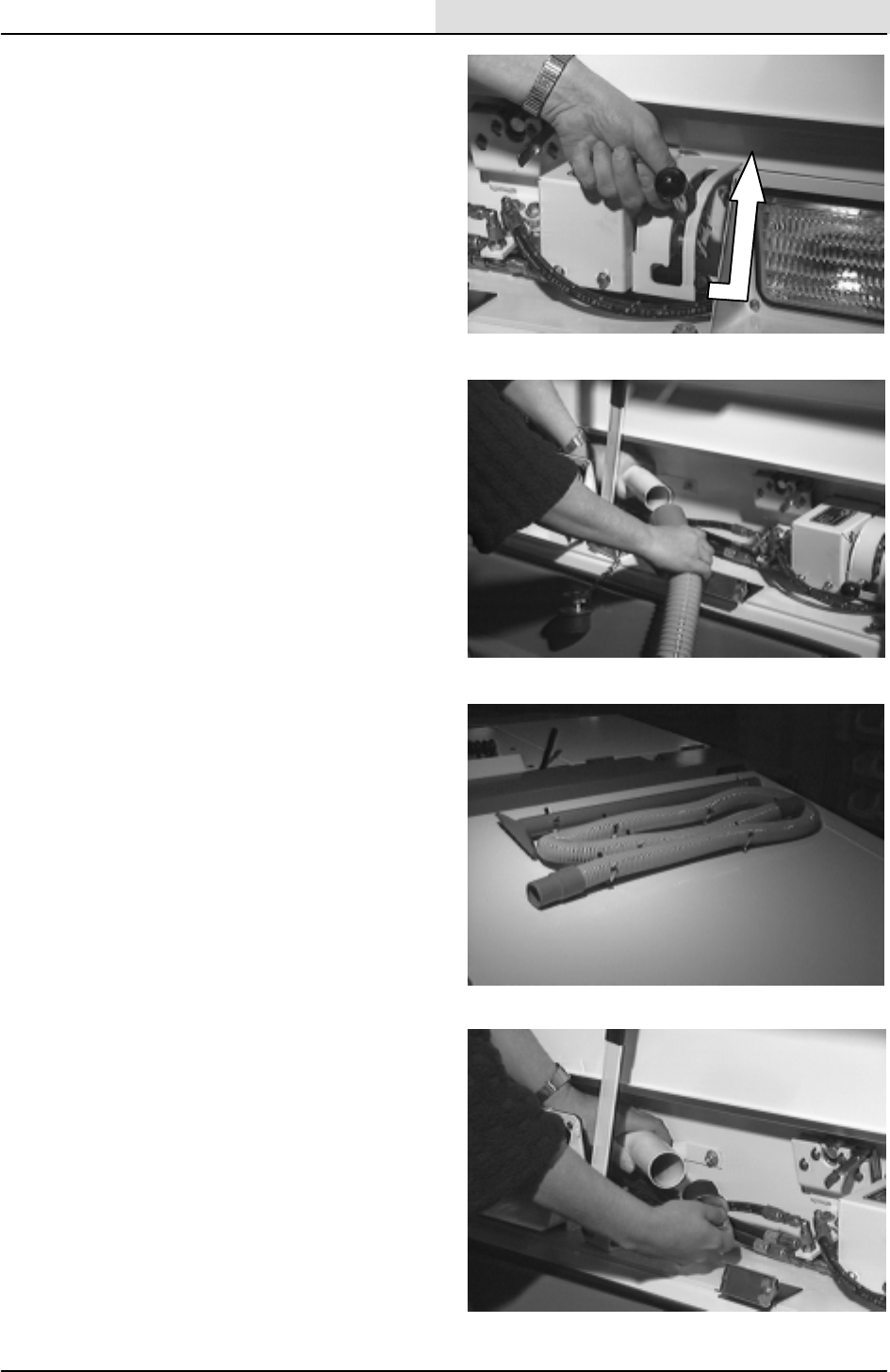

4. Turn off and lift the side brush(es) by placing
the bottom of the switch(es) into the
Off/Up position.

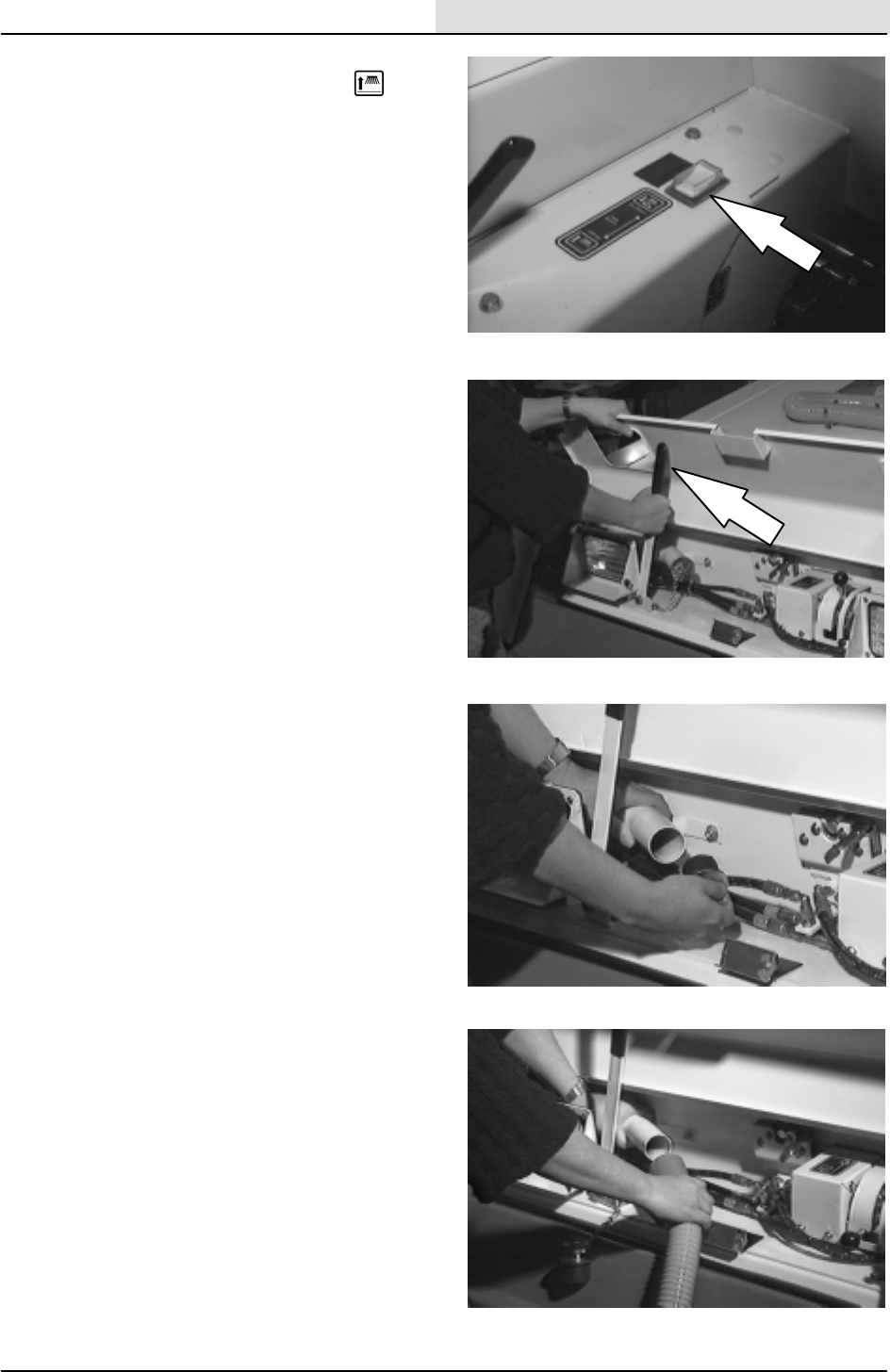

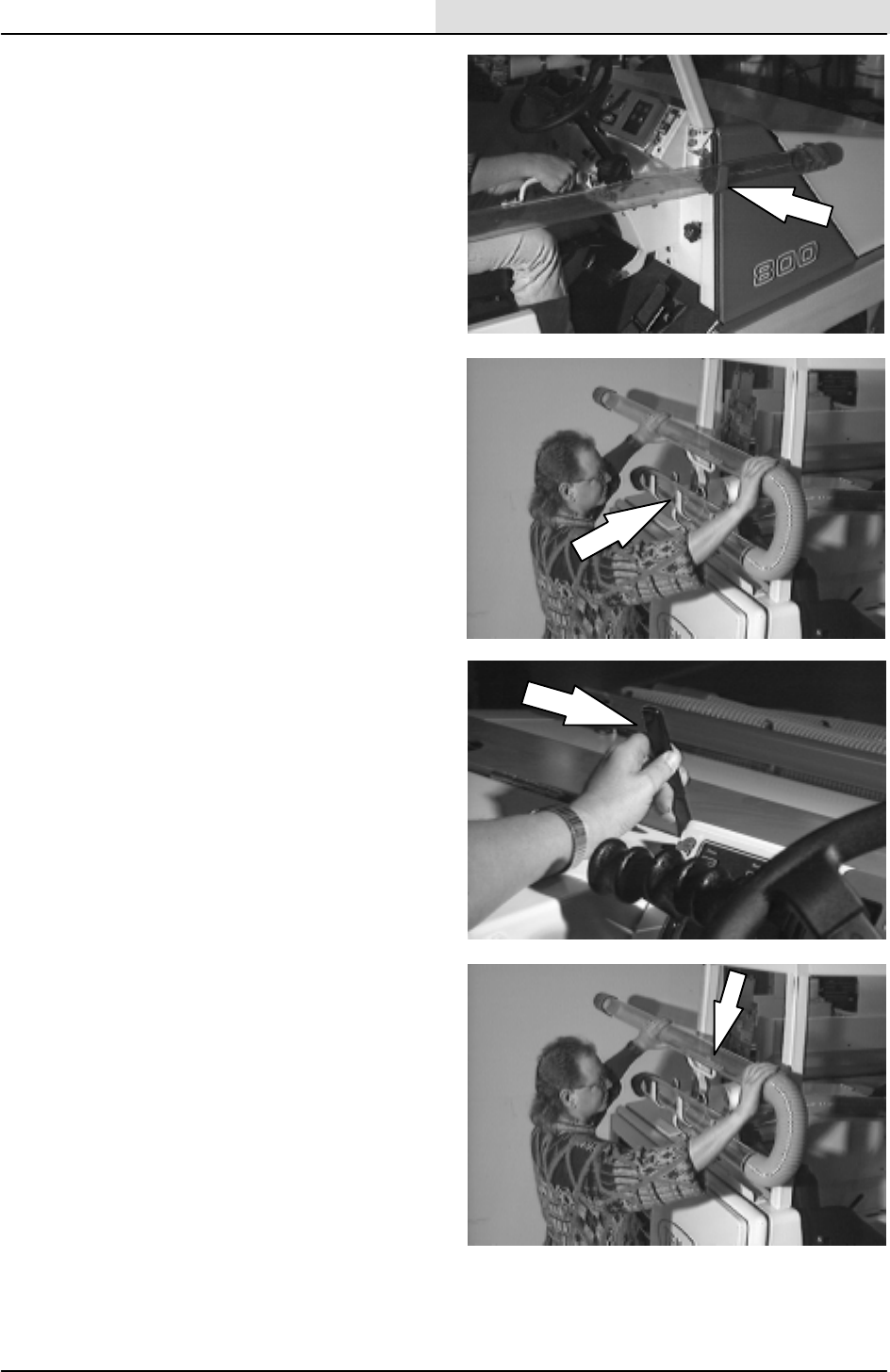

5. Open the forward hopper access door and
engage the lift arm.
6. Remove the vacuum plug from the vacuum
adaptor tube in front of the hopper.

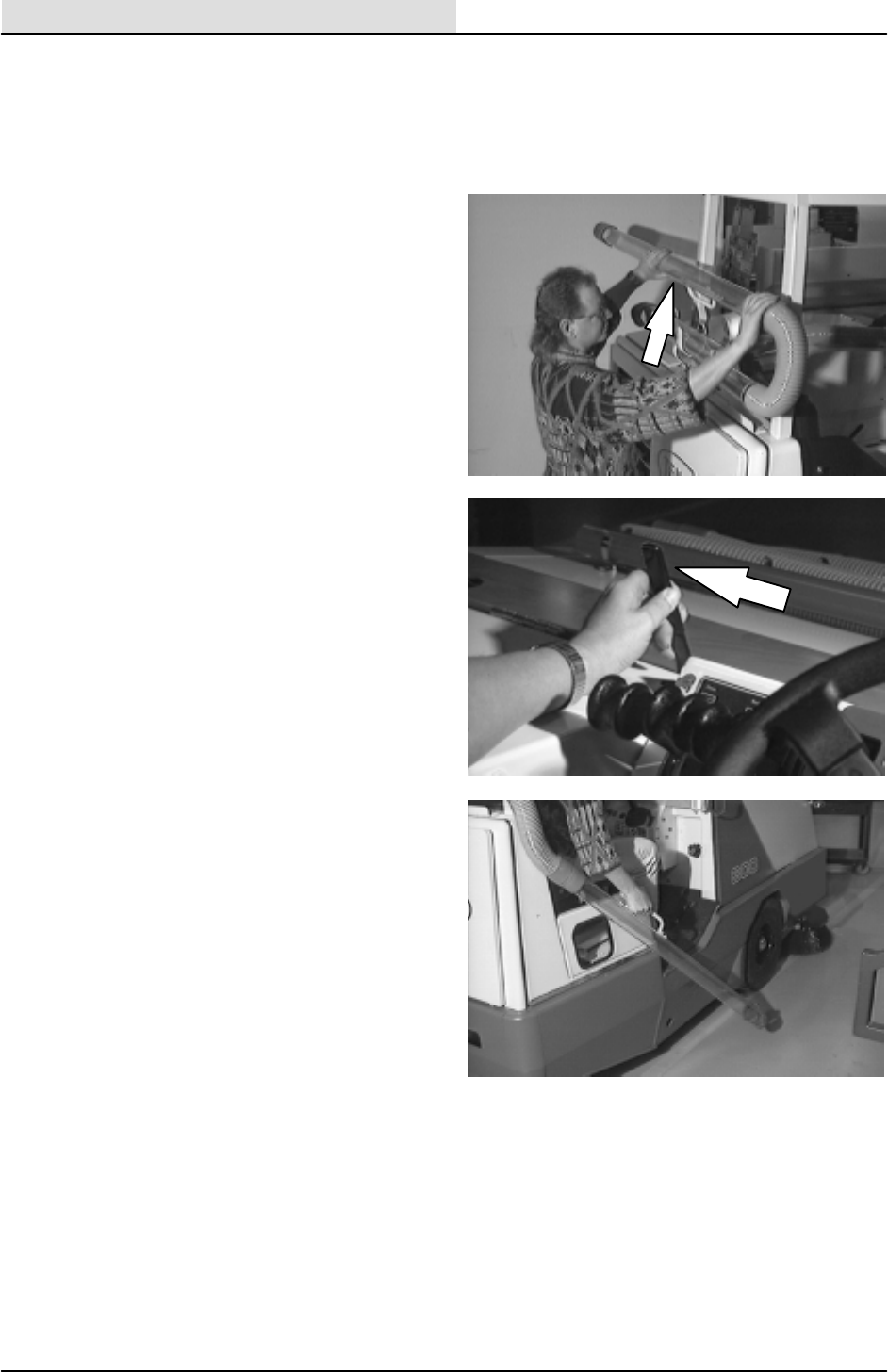

7. Remove the vacuum wand and hose from
the mounting clips and assemble them
together.
8. Connect the vacuum hose to the vacuum
adaptor tube in front of the hopper.
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
54
9. Close the vacuum door by sliding the
vacuum door lever down and to the left into
the locked position.
10.Turn on the vacuum fan by pressing the
vacuum fan switch . The indicator light
above the switch will go on.
11. Vacuum the area as needed.
12.When done vacuuming, turn off the vacuum
fan by pressing the vacuum fan switch .
The indicator light above the switch will go
off.
08231
08231
Home
Find...
Go To..
OPERATION
55
810D MM310 (3–95)
13.Open the vacuum door by sliding the
vacuum door lever to the right and up from
the locked position.
14.Disconnect the vacuum hose from the
vacuum adaptor tube in front of the hopper.
15.Disassemble the vacuum hose assembly
and place back onto the hopper in the
mounting clips.
16.Replace the vacuum plug into the vacuum
adaptor tube in front of the hopper,
disengage the lift arm and close the forward
hopper access door.
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
56
BLOWER WAND
The blower wand uses the machine’s vacuum
exhaust. The blower wand allows the operator to
blow debris out from areas while sweeping with
the machine.
1. Remove the blower attachment from the
back of the machine.
2. Move the blower wand lever on the lintle to
the left into the ON position to start airflow
through the wand.
3. Direct the wand into the area of debris and
blow as needed.
Home
Find...
Go To..
OPERATION
57
810D MM310 (3–95)
The operator can rest the wand on the side
bracket.
The operator can also add the extension
onto the end of the blower wand for
extended reach.
4. Move the blower wand lever on the lintle to
the right into the OFF position to stop airflow
through the wand.
5. Place the blower attachment on the back of
the machine when finished.
Home
Find...
Go To..
OPERATION
810D MM310 (3–95)
58
REGENERATIVE FILTER SYSTEM (RFS)
The Regenerative Filter System (RFS) is an
option that alternately turns on the filter shaker
motors when the filters need cleaning because of
a build–up of dust or debris.
Normally the RFS does not require the operator to
stop the machine to shake the filters during
sweeping operation (except in extreme and
severe dust environments). However, it is
recommended that the filters are shaken at the
operator’s initiative each time the hopper is
dumped. This can be accomplished during transit
to a dump sight. AVOID shaking the filters while
hopper is in a rolled out position. To initiate a
shaking cycle, press the filter button on the
instrument panel. See FILTER SHAKER
SWITCH.
In very severe dust environments, the plugged
filter indicator on the instrument panel may remain
lit. When this occurs, it is recommended that the
operator stop the machine and initiate one or two
shake cycles to clear a possible plugged filter
condition. After shaking, roll the hopper out to
evacuate the dust tray. Resume sweeping
operation.
If the hopper is over full, the light may come on.
Check the hopper load and dump if necessary.
If the filter light remains on after all the above
conditions are corrected, the filters may be
plugged or the RFS may be inoperative. Filters
may be shaken by the operator initiative by
pressing the filter button on the instrument panel if
there is a failure in the RFS control system.
Successful operation of the RFS option requires
clean, undamaged filters. Plugged filters may
cause the RFS to cycle continuously even at start
up. The option also requires good sealing of the
upper lid to the hopper, as well as a good seal
between the two upper filter chambers.
It is recommended that the machine be driven for
some test sweeping with the RFS option at initial
start up. This next step assumes the hopper cover
and upper filter chamber of the hopper was
cleaned thoroughly prior to installation of the RFS
option. Sweep for 30 minutes and open the
hopper cover to check the integrity of the seals.
Look at the top of the shaker panels and the
underside of the hopper cover. Check for any
signs of dust tracking that may be caused by a
bad seal or filter. Repair a necessary. Perform this
check periodically while using the sweeper with
the RFS option.
Home
Find...
Go To..
OPERATION
59
810D MM310 (3–95)
MACHINE TROUBLESHOOTING
Problem Cause Remedy
Excessive dusting Brush skirts and dust seals worn,
damaged, out of adjustment Replace or adjust brush skirts or
dust seals
Hopper dust filter clogged Shake and/or clean or replace
dust filter
Main brush operating Power
Throw speed Operate main brush in Normal
speed
Vacuum hose damaged Replace vacuum hose
Vacuum fan seal (vacuum fan inlet
bracket) damaged Replace seal
Vacuum fan failure Contact TENNANT service
personnel
Hopper door partially or
completely closed Open the hopper door
Thermo Sentrytripped Reset Thermo Sentry
Fabric presceen missing on dust
filters Clean filter elements and install
fabric prescreen
Poor sweeping performance Brush bristles worn Replace brushes
Main and side brushes not
adjusted properly Adjust main and side brushes
Debris caught in main brush drive
mechanism Free drive mechanism of debris
Main brush drive failure Contact TENNANT service
personnel
Side brush drive failure Contact TENNANT service
personnel
Hopper full Empty hopper
Hopper floor skirts worn or
damaged Replace floor skirts
Hopper door partially or
completely open Close the hopper door
Wrong sweeping brush Contact TENNANT representative
for recommendations
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
60
MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18
07623
MAINTENANCE CHART
No. of
Lubricant/ Service
Interval Key Description Procedure Fluid Points
Daily 12 Engine air filter Check indicator –1
Empty dust cap –1
9 Engine crankcase Check oil level EO 1
15 Brush compartment skirts Check for damage, wear and –6
adjustment
17 Hopper lip skirts Check for damage, wear and –3
adjustment
15 Main brush Check for damage, wear, and –1
adjustment
Check brush pattern –1
1 Side brush Check for damage, wear, and –1
adjustment
Check brush pattern –1
2 Hopper dust filter Shake –2
Home
Find...
Go To..
MAINTENANCE
61
810D MM310 (11–95)
No. of
Lubricant/ Service
Interval Key Description Procedure Fluid Points
50 Hours 15 Main brush Rotate end-for-end –1
2 Hopper dust filter Check or clean –2
12 Fuel lines Check for wear and leaks –1
18 Main brush adjustment Lubricate SPL 1
100 Hours 8 Hydraulic fluid reservoir Check fluid level HYDO 1
10 Hydraulic fluid cooler Clean cooler fins –1
9 Radiator Clean core exterior –1
Check coolant level WG 1
Clean screen –1
Tires Check pressure –3
15 Main brush and hopper Check for damage or wear –12
seals
12 Engine crankcase Change oil and filter element EO 1
12 Engine fan belt Check tension –1
200 Hours 12 Engine Steam clean exterior –1
9 Radiator hoses and clamps Check for tightness and wear –2
14 Rear wheel support Lubricate SPL 1
bearings
7 Parking brake Check adjustment –1
3 Side brush pivot Lubricate SPL 1
400 Hours 12 Fuel filter, Engine Replace –1
12 Water separator/fuel filter Replace –1
9 Cooling system Flush WG 1
5 Brake master cylinder Check fluid level BF 1
800 Hours 8 Hydraulic reservoir Replace filler cap –1
Replace suction strainer –1
Change hydraulic fluid HYDO 1
11 Hydraulic fluid filter Change filter element –1
Hydraulic hoses Check for wear and damage –49
14 Propelling motor Torque shaft nut –1
14 Rear wheel Torque wheel nuts –1
13 Battery Clean and tighten battery cable –1
connections
1600 Hours 16 Front wheel bearings Check, lubricate, and adjust SPL 2
LUBRICANT/FLUID
BF Brake fluid. . . .
EO Engine oil, SAE–CC/CD rated. . . .
HYDO Tennant Company or approved hydraulic fluid.
SPL Special lubricant, Lubriplate EMB grease (TENNANT part no. 01433–1). . .
WG Water and permanent-type ethylene glycol anti-freeze, –34 C (–30 F). . .
NOTE: Also check procedures indicted () after the first 50-hours of operation.
Home
Find...
Go To..
MAINTENANCE
810D MM310 (11–95)
62
LUBRICATION
ENGINE
Check the engine oil level daily. Change the
engine oil and oil filter after the first 50 hours of
machine operation, and then every 100 hours of
operation. Use 10W30 SAE–CC/CD rated engine
oil.
For machines below serial number , the engine oil
drain is located on the left side of the machine
inside the main brush compartment. For machines
serial number and above, the engine oil drain is
located on the engine oil pan. Drain the engine oil
when it is warm.
Fill the engine with oil to the level indicated on the
oil dipstick. The engine oil capacity is 6 L
(6.3 qt) including the oil filter.
REAR WHEEL SUPPORT
The rear wheel support pivots the rear wheel. The
support has one grease fitting for the bearings.
The rear wheel support bearings must be
lubricated every 200 hours of operation. Use
Lubriplate EMB grease (TENNANT part no.
01433–1).
08431
08448
08451
Home
Find...
Go To..
MAINTENANCE
63
810D MM310 (3–95)
FRONT WHEEL BEARINGS
Inspect the front wheel bearings for seal damage,
and repack and adjust every 1600 hours of
operation. Use Lubriplate EMB grease
(TENNANT part no. 01433–1).
SIDE BRUSH PIVOT PINS
The side brush pivot pins should be lubricated
with Lubriplate EMB grease (TENNANT part no.
01433–1) every 200 hours of operation.
MAIN BRUSH ADJUSTMENT
The main brush adjustment, located on the right
side of the main brush, has one grease fitting for
lubrication. Lubricate the main brush adjustment
every 50 hours of operation with Lubriplate EMB
grease (TENNANT part no. 01433–1).
08579
08581
08934
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
64
HYDRAULICS
HYDRAULIC FLUID RESERVOIR
The reservoir is located behind the operator seat.
Mounted on top of the reservoir is a filler cap with
a built-in breather. Replace the cap every
800 hours of operation.
Check the hydraulic fluid level at operating
temperature every 100 hours of operation. Make
sure the hopper is down when checking hydraulic
fluid level. The sight gauge is marked with full, the
black line, and add, the red line, levels to indicate
the level of hydraulic fluid in the reservoir.
Lubricate the filler cap gasket with a film of
hydraulic fluid before putting the cap back on the
reservoir.
ATTENTION! Do not overfill the hydraulic fluid
reservoir or operate the machine with a low
level of hydraulic fluid in the reservoir.
Damage to the machine hydraulic system may
result.
Drain and refill the hydraulic fluid reservoir with
new hydraulic fluid every 800 hours of operation.
The hydraulic fluid filter is located in the engine
compartment.
Replace the filter element every 800 hours of
operation.
The reservoir has a built-in strainer outlet that
filters hydraulic fluid before it enters the system.
Replace the strainer every 800 hours of operation.
08452
08430
08453
Home
Find...
Go To..
MAINTENANCE
65
810D MM310 (3–95)
HYDRAULIC FLUID
The quality and condition of the hydraulic fluid
play a very important role in how well the machine
operates. TENNANT’s hydraulic fluid is specially
selected to meet the needs of TENNANT
machines.
TENNANT’s hydraulic fluids provide a longer life
for the hydraulic components. There are two fluids
available for different temperature ranges:
TENNANT part no. Ambient Temperature
65869 above 7C (45F)
65870 below 7C (45F)
The higher temperature fluid has a higher
viscosity and should not be used at the lower
temperatures. Damage to the hydraulic pumps
may occur because of improper lubrication.
The lower temperature fluid is a thinner fluid for
colder temperatures.
If a locally-available hydraulic fluid is used, make
sure the specifications match TENNANT hydraulic
fluid specifications. Using substitute fluids can
cause premature failure of hydraulic components.
European marketed machines are filled with
locally available hydraulic fluids. Check the label
on the hydraulic fluid reservoir.
ATTENTION! Hydraulic components depend
on system hydraulic fluid for internal
lubrication. Malfunctions, accelerated wear,
and damage will result if dirt or other
contaminants enter the hydraulic system.
HYDRAULIC HOSES
Check the hydraulic hoses every 800 hours of
operation for wear or damage.
Fluid escaping at high pressure from a very small
hole can be almost invisible, and can cause
serious injuries.
See a doctor at once if injury results from
escaping hydraulic fluid. Serious infection or
reaction can develop if proper medical treatment
is not given immediately.
FOR SAFETY: When servicing machine, use
cardboard to locate leaking hydraulic fluid
under pressure.
If you discover a fluid leak, contact your
mechanic/supervisor.
00002
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
66
PROPELLING MOTOR
Torque the shaft nut to 237 Nm (175 ft lb) plus
enough torque to align the slotted nut and the
shaft hole after the first 50-hours of operation, and
every 800 hours there after.
ENGINE

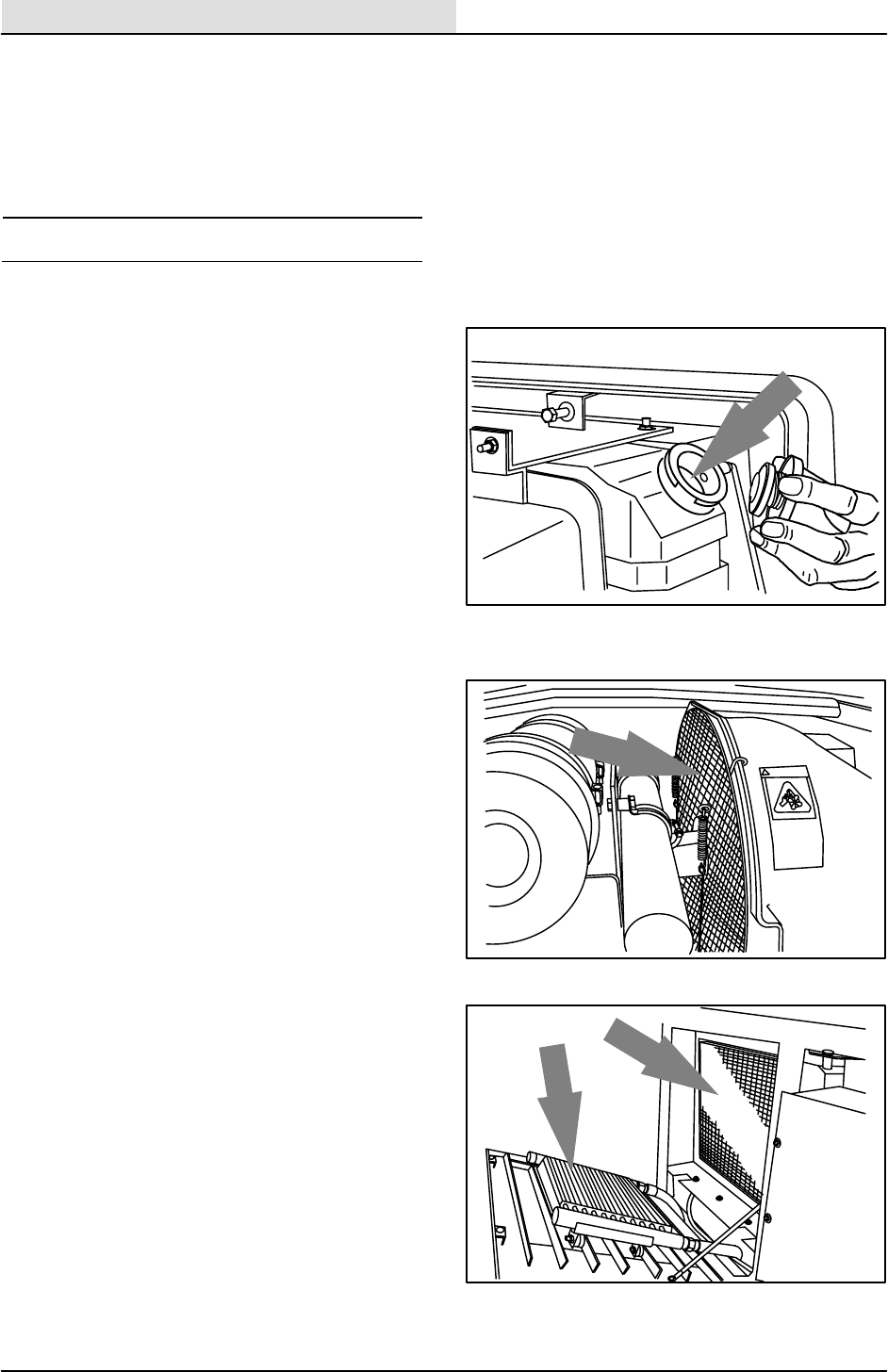

COOLING SYSTEM
Check the radiator coolant every 100 hours of
operation. Use clean water mixed with a
permanent-type, ethylene glycol antifreeze to a
–34 C (–30 F) rating. The coolant level should
be 25 to 50 mm (1 to 2 in) below the filler opening.
FOR SAFETY: When servicing machine, avoid
contact with hot engine coolant.
ATTENTION! Never pour cold water or cold
antifreeze into the radiator of an overheated
engine. Allow the engine to cool down to
avoid cracking the cylinder head or block.
Keep the engine running while adding water.
Clean the radiator screen every 100 hours of
operation.
Check the radiator hoses and clamps every
200 hours of operation. Tighten the clamps if they
are loose. Replace the hoses and clamps if the
hoses are cracked, harden, or swollen.
Check the radiator core exterior and hydraulic
cooler fins for debris every 100 hours of
operation. Blow or rinse all dust, which may have
collected on the radiator, in through the grille and
radiator fins, opposite the direction of normal air
flow. The grille and hydraulic cooler open for
easier cleaning. Be careful not to bend the cooling
fins when cleaning. Clean thoroughly to prevent
the fins becoming encrusted with dust. Clean the
radiator and cooler only after the radiator has
cooled to avoid cracking.
FOR SAFETY: When servicing machine, wear
eye and ear protection when using
pressurized air or water.
08432
08582
08454
Home
Find...
Go To..
MAINTENANCE
67
810D MM310 (3–95)

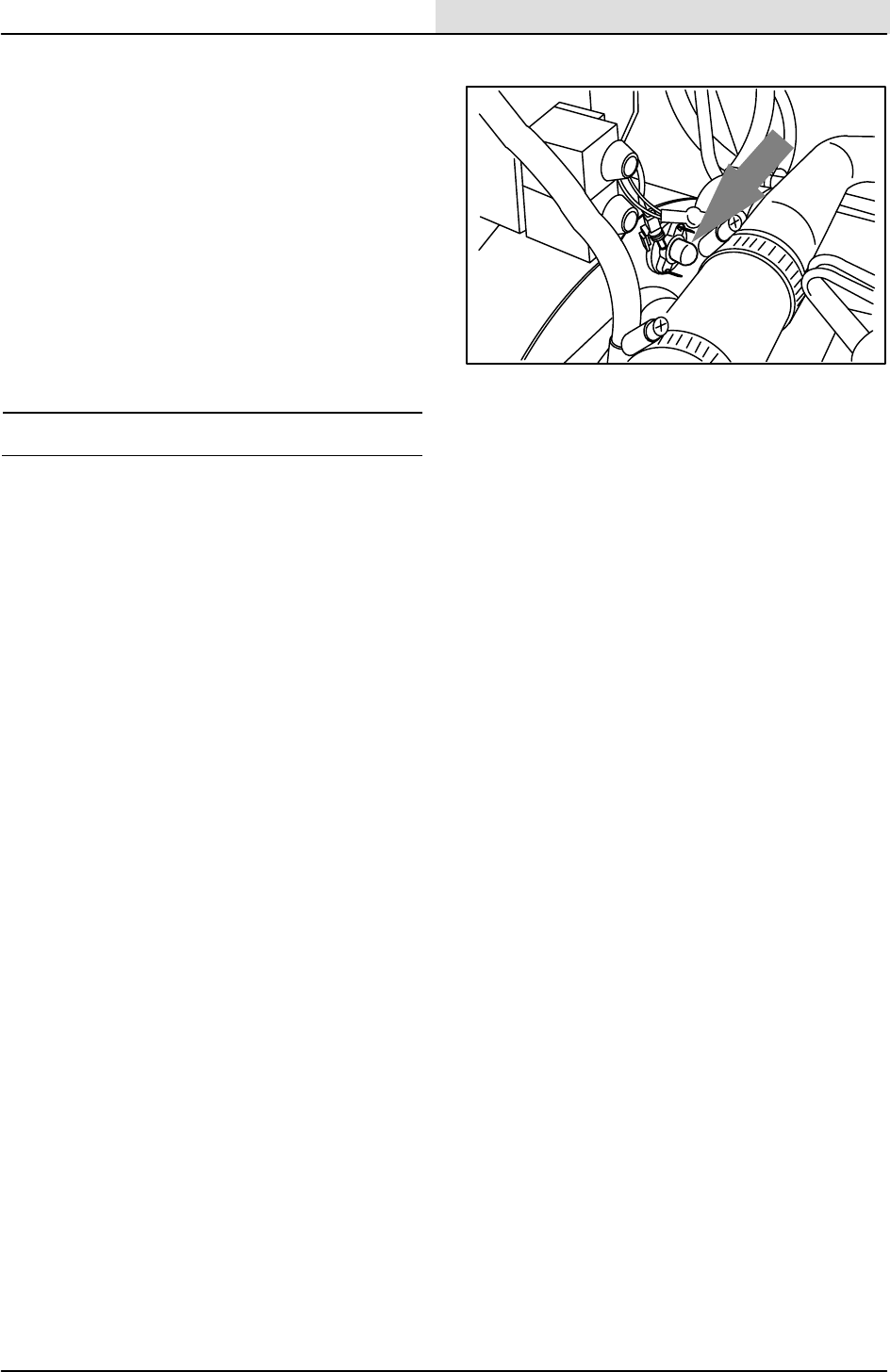

Flush the radiator and the cooling system every
400 hours of operation, using a dependable
cleaning compound.
AIR FILTER INDICATOR
The air filter indicator shows when to clean or
replace the air filter element. Check the indicator
daily. The indicator’s red line will move as the air
filter element fills with dirt. Do not clean or replace
the air filter element until the red line reaches 5
kPa (20 in H2O) and the ”SERVICE WHEN RED”
window is filled with red. The indicator’s red line
may return to a lower reading on the scale when
the engine shuts off. The red line will return to a
correct reading after the engine runs for a while.
Reset the air filter indicator by pushing the reset
button on the end of the indicator after cleaning or
replacing the air filter element.
AIR FILTER
The engine air filter housing has a dust cap and a
dry cartridge-type air filter element. Empty the
dust cap daily. The air filter must be replaced
whenever the filter element is damaged or has
been cleaned three times.
Machines with the heavy duty SE air filter option
have a safety element. It is inside the standard
element. Replace this element, do not clean it,
after the regular element has been damaged or
cleaned three times.
Install the dust cap on the air filter housing with
the arrows pointing up.
Service the air filter element only when the air
filter indicator shows restriction in the air intake
system. Do not remove the air filter element from
the housing unless it is restricting air flow.
Using an air hose, direct clean dry air, maximum
205 kPa (30 psi), up and down the pleats on the
inside of the element. Do not rap, tap or pound
dust out of the element.
FOR SAFETY: When servicing machine, wear
eye and ear protection when using
pressurized air or water.
After cleaning the air filter element, inspect it for
damage by placing a bright light inside. The
slightest rupture requires replacement of the
element. Inspect the seals on the ends of the
element, they should be flexible and undamaged.
08447
08455
02492
Home
Find...
Go To..
MAINTENANCE
810D MM310 (11–95)
68

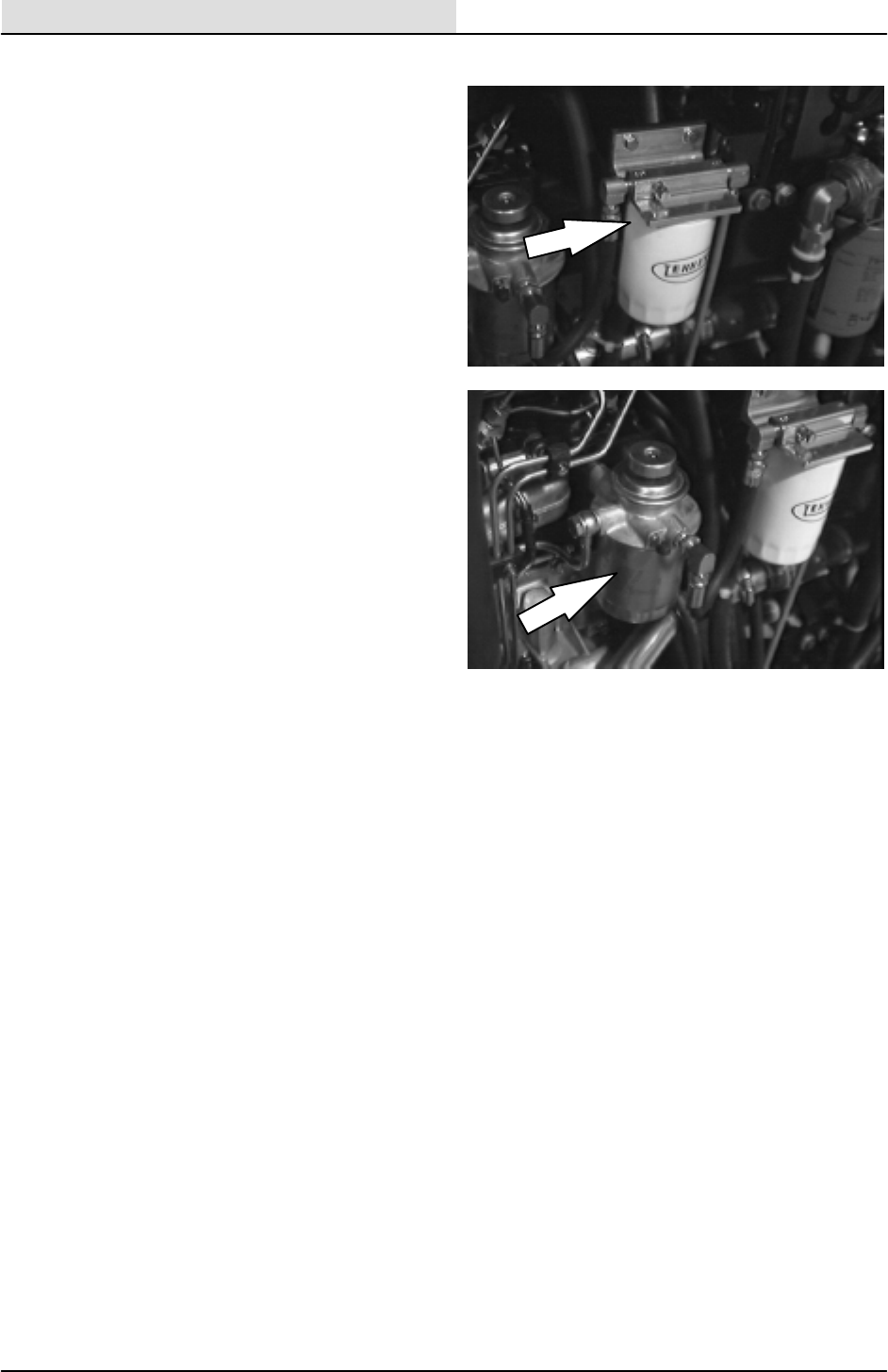

WATER SEPARATOR/FUEL FILTER
The water separator/fuel filter filters impurities
from the fuel and seperates any water from the
fuel system. It is located on the left side of the
engine compartment. Water can be drained from
the drain cock at the bottom as needed.
Replace the water separator/fuel filter element
every 400 hours of operation.
ENGINE FUEL FILTER
The engine fuel filter filters impurities from the
fuel. It is located on the left side of the engine.
Replace the engine fuel filter element every 400
hours of operation.
FUEL LINES
Check the fuel lines for wear and leaks every 50
hours of operation.
For older style fuel lines made of rubber, the fuel
lines become worn out whether the engine has
been used much or not. Replace the fuel lines
every two years. If the fuel lines are found worn or
damaged before two years’ time, replace or repair
them at once.
Bleed the fuel system after replacement of any of
the fuel lines, see TO PRIME THE FUEL
SYSTEM. When the fuel lines are not installed,
plug both ends with clean cloth or paper to
prevent dirt from entering the lines. Dirt in the
lines can cause fuel injection pump malfunction.
PRIMING FUEL SYSTEM
Priming the fuel system removes pockets of air in
the fuel lines and fuel components. Air in the fuel
system will prevent smooth engine operation.
Prime the fuel system after running out of fuel,
disconnecting the low pressure fuel lines, or any
part of the low pressure fuel system leaks during
engine operation.
TO PRIME FUEL SYSTEM
1. Stop the engine and set the machine parking
brake.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, and turn off machine.
Home
Find...
Go To..
MAINTENANCE
69
810D MM310 (3–95)
2. Fill the fuel tank.
3. Open the side and top engine access doors.
4. Loosen the vent screw on the top of the fuel
filter.
5. Turn the ignition switch on.
6. Manually operate the priming pump on the
top of the fuel filter until fuel, free from air,
comes from the filter vent point.
FOR SAFETY: When servicing machine, keep
flames and sparks away from fuel system
service area. Keep area well ventilated.
7. While holding down the priming pump,
tighten the filter vent screw.

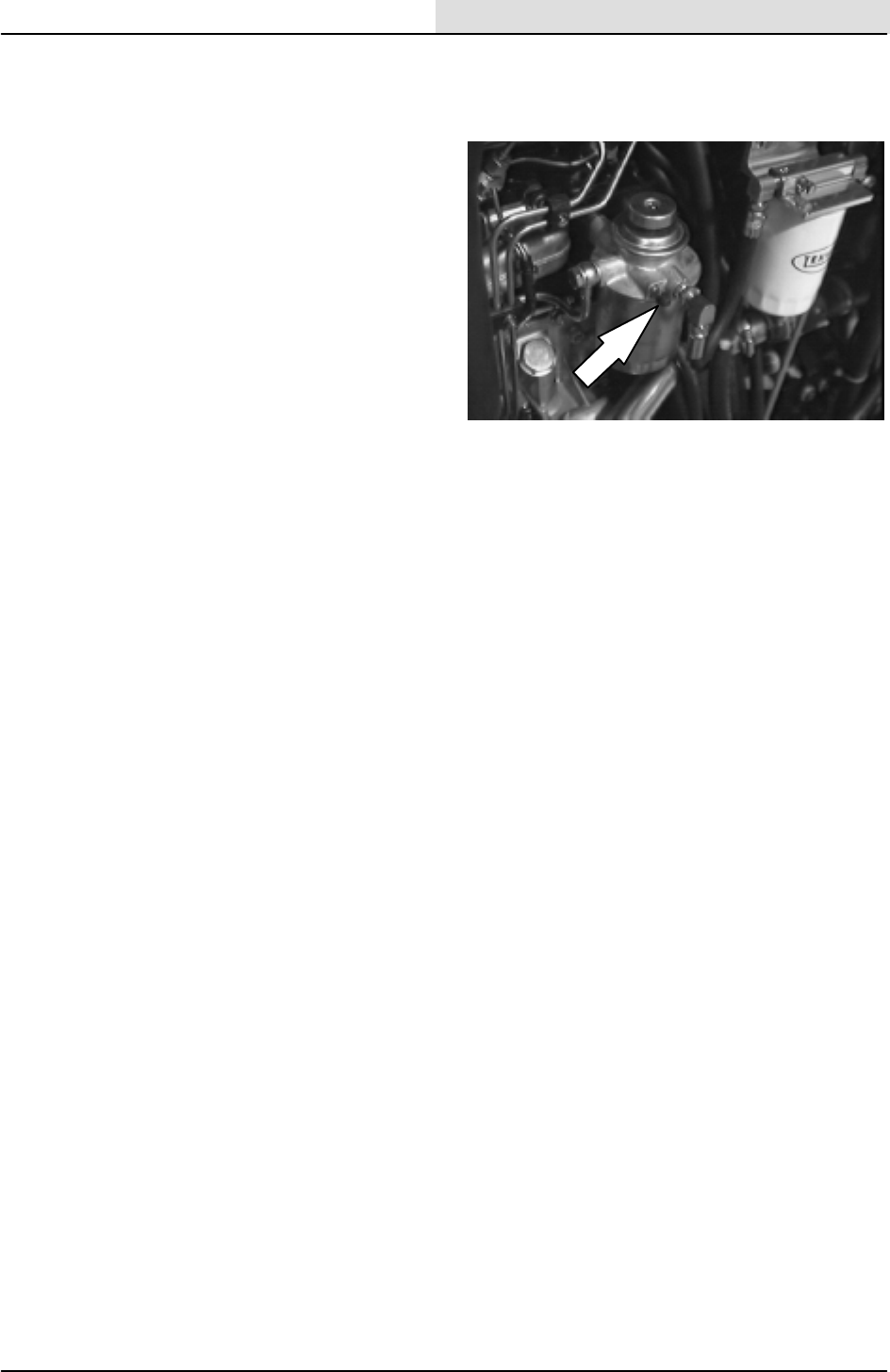

8. Loosen the return connection of the fuel
injection pump.
9. Operate the the priming pump until fuel, free
from air, comes from the injection pump vent
point.
10. While holding down the priming pump,
tighten the return connection to the injection
pump.
11. Loosen all four of the high pressure fuel line
connections at the atomizers.
ATTENTION! The engine may start running
spontaneously if all four of the fuel line
connections are not loosened.
12. Operate the starter motor until fuel, free
from air, comes from the line connections.
NOTE: Operating the throttle in the Fast position
will increase the fuel flow speedup the bleeding
process. After bleeding is finished, return the
throttle to Idle.
13. Tighten the high pressure fuel line
connections. The engine is now ready to
start.
14. Close the access doors.
NOTE: If the engine runs correctly for a short time
and then stops, or runs roughly, check for air in
the fuel system. If there is air in the system, there
is probably leakage in the low pressure system.
15. Turn the ignition switch off.
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
70
BATTERY
The battery for the machine is a low maintenance
battery. Do not add water to the battery, or
remove the battery vent plugs.
The battery is located under the hydraulic
reservoir for machines below serial number
002074, and in the engine compartment for
machines serial 002074 and above.
After the first 50 hours of operation, and every
800 hours after that, clean and tighten the battery
connections.
BELTS AND CHAINS
ENGINE BELT
The engine fan belt is driven by the engine
crankshaft pulley and drives the alternator pulley.
Proper belt tension is 9 to 10 mm (0.35 to
0.39 in) for a new belt and 10 to 11 mm (0.39
to 0.43 in) for a used belt with a force of
10 kg (22 lb).
Check and adjust the belt tension every 100 hours
of operation.
WARNING: Moving belt and fan. Keep
away.
STATIC DRAG CHAIN
A static drag chain prevents the buildup of static
electricity in the machine. The chain is attached to
the machine by a rear main brush skirt retaining
bolt.
Make sure the chain is touching the floor at all
times.
08486
08449
Home
Find...
Go To..
MAINTENANCE
71
810D MM310 (3–95)
DEBRIS HOPPER

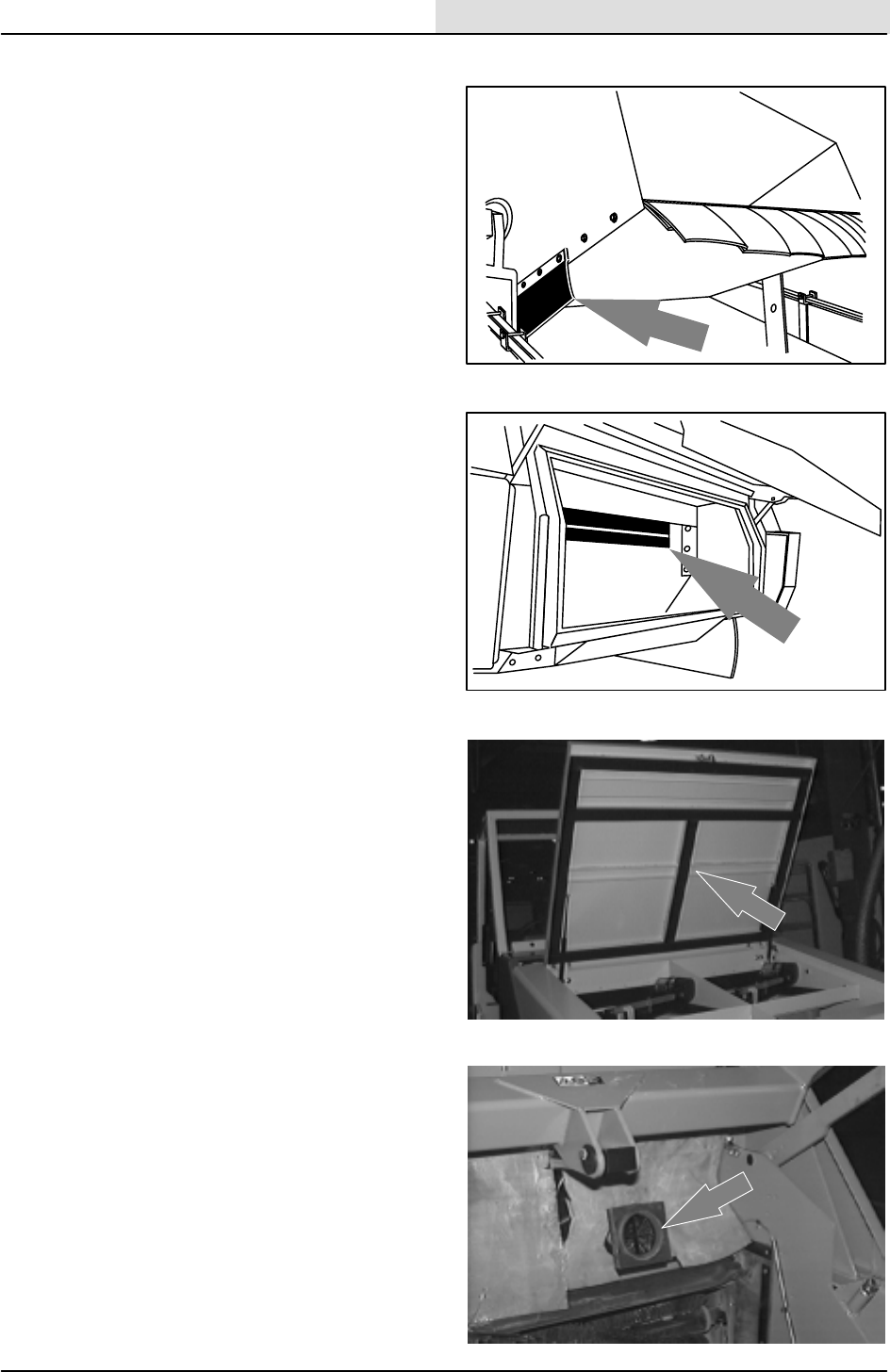

HOPPER DUST FILTER
The dust filters filter the air pulled up from the
hopper. The dust filters are equipped with a
shaker to remove the accumulated dust particles.
The dust filters shaker is operated by the filter
shaker switch.
Shake the dust filters before dumping the hopper
and at the end of every work shift. Avoid shaking
the filters while the hopper is in a rolled out
position. Check and clean the dust filters every 50
hours of operation. Extremely dusty conditions
may require more frequent cleaning of dust filters.
To clean the dust filters, use one of the following
methods:
SHAKING – Press the filter shaker switch.
AIR – Blow compressed air through the dust
filter from the inside. This may be done with
the dust filter in the machine, or for more
efficient cleaning remove the dust filter from
the machine and the prescreen wrap from
the filter element. Always wear eye
protection when using compressed air.
FOR SAFETY: When servicing machine, wear
eye and ear protection when using
pressurized air or water.
WATER – Remove the fabric presceen wrap
from the filter element. Wash the prescreen
wrap in a water and mild detergent solution.
Rinse the prescreen wrap until it is clean. Air
dry the wet prescreen wrap; do not use
compressed air. NEVER wash the filter
element with water.
TO REMOVE OR REPLACE HOPPER DUST
FILTER
1. Stop the engine and set the machine parking
brake.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
2. Open the hopper cover.
3. Disconnect the shaker motor wire
connectors.
08594
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
72

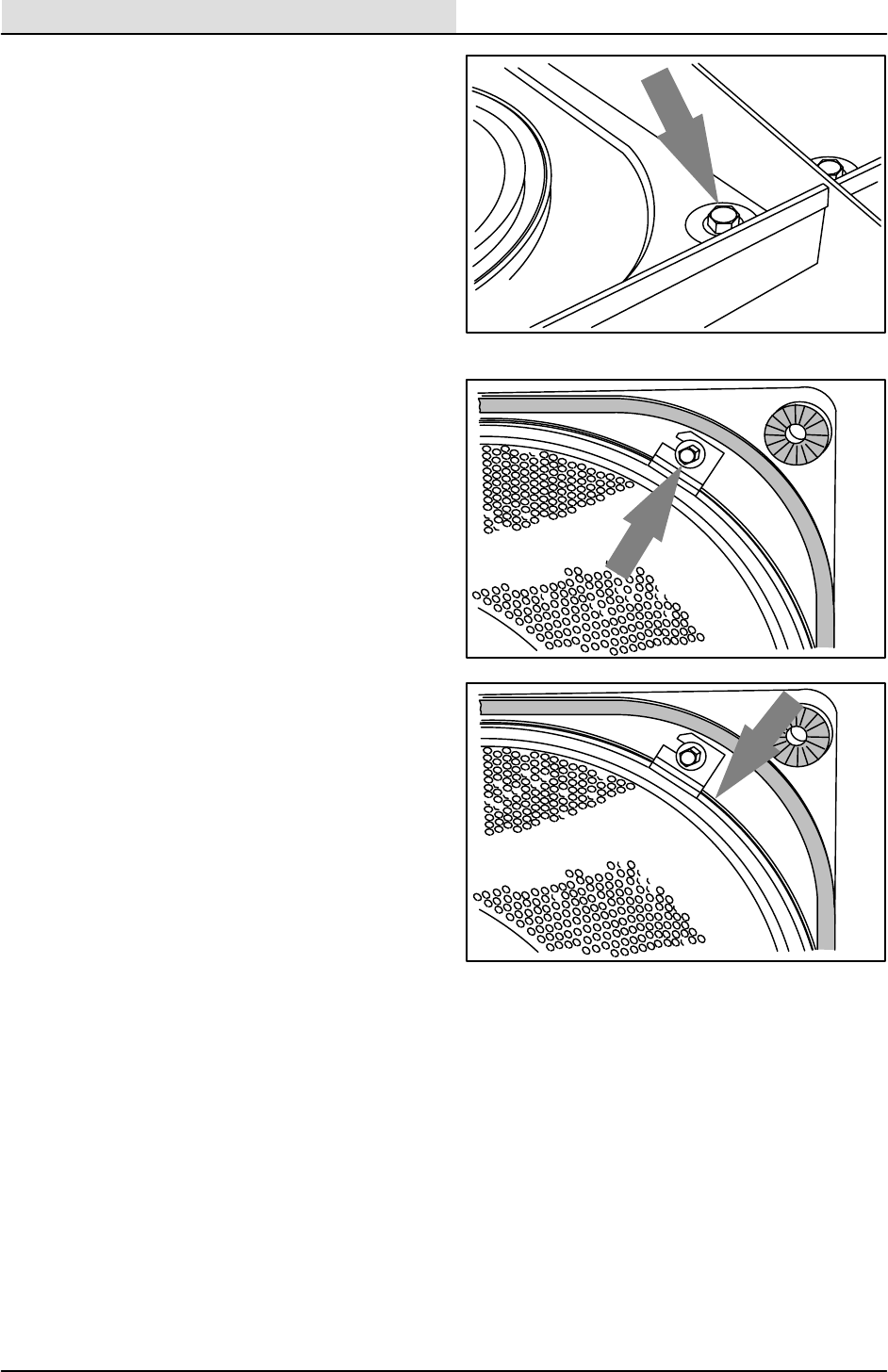

4. Remove the four retaining screws from the
filter shaker frame.
5. Pull the filter shaker frame out of the hopper.
6. Carefully turn over the shaker frame and
element.
7. Remove the four filter retaining screws from
the shaker frame.
8. Remove the retainer ring from the shaker
frame. Remove the filter.
9. Make sure the prescreen wrap is tightly
wrapped around and securely fastened on
the new filter element. Put the new filter on
the filter shaker frame.
10. Place the retainer ring over the filter. Make
sure the retaining ring fits inside the lip of
the filter element all the way around. Line up
the slots on the retainer ring with the
retaining screws holes.
11. Mount using the retaining screws.
12. Check the seal on the shaker frame for
damage. Make sure the vibration isolators
are mounted in all four corners of the filter
shaker frame.
13. Put the filter and shaker frame in the hopper.
14. Install the four retaining screws and tighten.
15. Connect the shaker motor wire connectors.
08591
08592
08593
Home
Find...
Go To..
MAINTENANCE
73
810D MM310 (3–95)
THERMO SENTRY
The Thermo Sentrysenses the temperature of
the air pulled up from the hopper. If there is a fire
in the hopper, the Thermo Sentry stops the
vacuum fan and cuts off the air flow. The Thermo
Sentry is located on the vacuum fan housing.
Reset the Thermo Sentry by pushing in its reset
button.
BRUSHES
MAIN BRUSH
The main brush is cylindrical and spans the width
of the machine, sweeping debris into the hopper.
Check the brush daily for wear or damage.
Remove any string or wire tangled on the main
brush, main brush drive hub, or main brush idler
hub.
Check the main brush pattern daily. The pattern
should be 50 to 65 mm (2 to 2.5 in) wide. Adjust
the main brush pattern by turning the main brush
pressure knob located next to the operator seat.
Rotate the main brush end-for-end every
50 hours of operation for maximum brush life and
best sweeping performance.
Replace the main brush when the remaining
bristles measure 30 mm (1.25 in) in length.
TO REPLACE MAIN BRUSH
1. Stop the engine and set the machine parking
brake.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
2. Raise the main brush.
3. Open the right side main brush access door.
08928
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
74

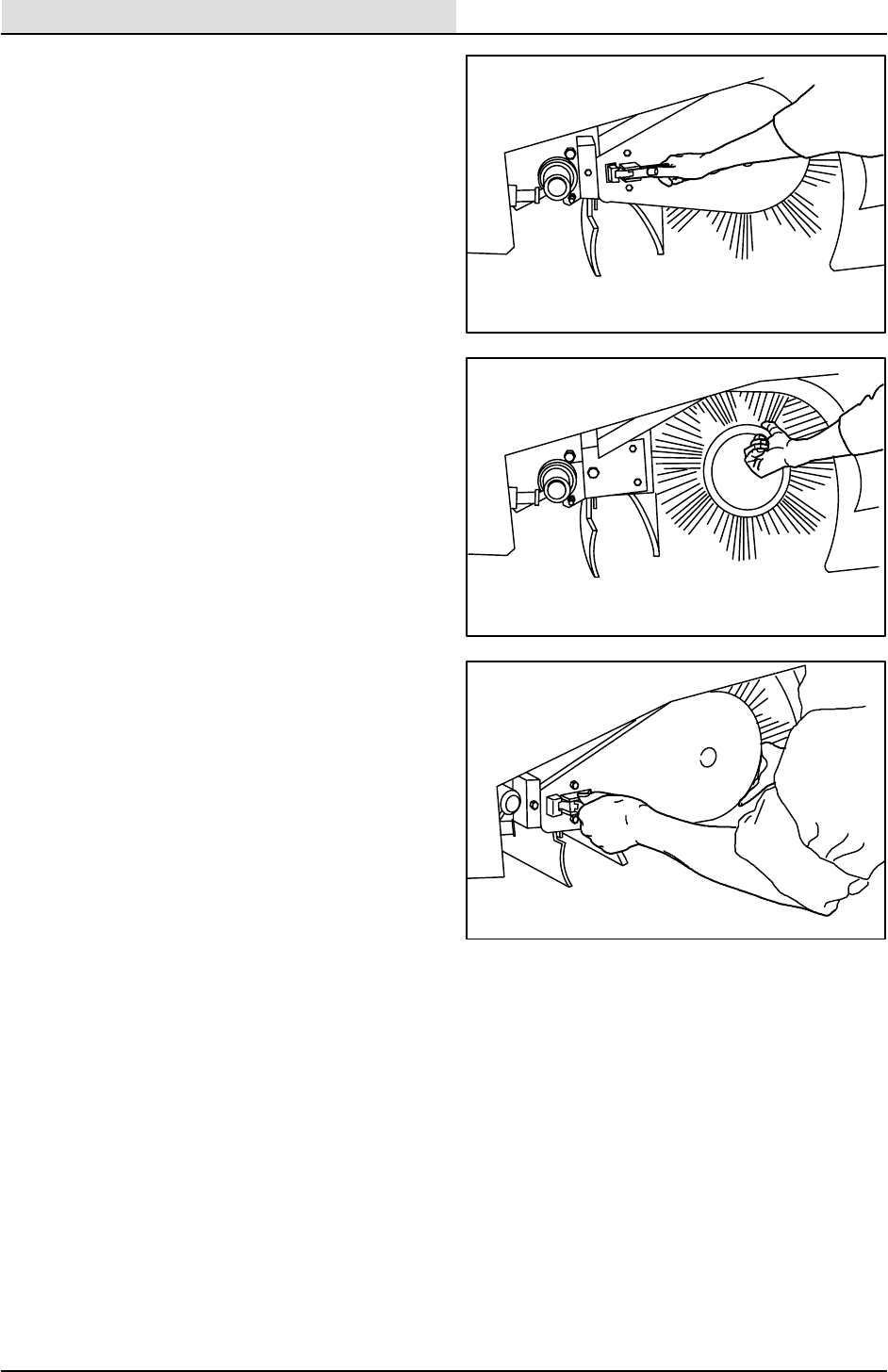

4. Unlatch and remove the brush idler plate.
5. Grasp the main brush; pull it off the brush
drive plug and out of the main brush
compartment.
6. Put the new or rotated end-for-end main
brush on the floor next to the access door.
7. Slide the main brush onto the drive plug.
Rotate the brush until it engages the drive
plug, and push it all the way onto the plug.
8. Slide the main brush idler plate plug onto the
main brush.
9. Latch the idler plate onto the machine frame.
10. Close the right side main brush access door.
TO CHECK AND ADJUST MAIN BRUSH
PATTERN
1. Apply chalk, or some other material that will
not blow away easily, to a smooth, level
floor.
2. Raise the side brush and main brush and
position the main brush over the chalked
area.
08487
08488
08489
Home
Find...
Go To..
MAINTENANCE
75
810D MM310 (3–95)
3. Start the main brush.
4. Lower the main brush for 15 to 20 seconds
while keeping a foot on the brakes to keep
the machine from moving. This will lower the
rotating main brush.
NOTE: If chalk or other material is not available,
allow the brushes to spin on the floor for two
minutes. A polish mark will remain on the floor.
5. Raise the main brush.
6. Stop the main brush.
7. Drive the machine off the test area.
8. Observe the width of the brush pattern. The
proper brush pattern width is 65 to 75 mm
(2.5 to 3.5 in).
9. To increase the width of the main brush
pattern, turn the main brush down pressure
knob counter-clockwise.
To decrease the width of the main brush
pattern, turn the main brush down pressure
knob clockwise.
00582
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
76

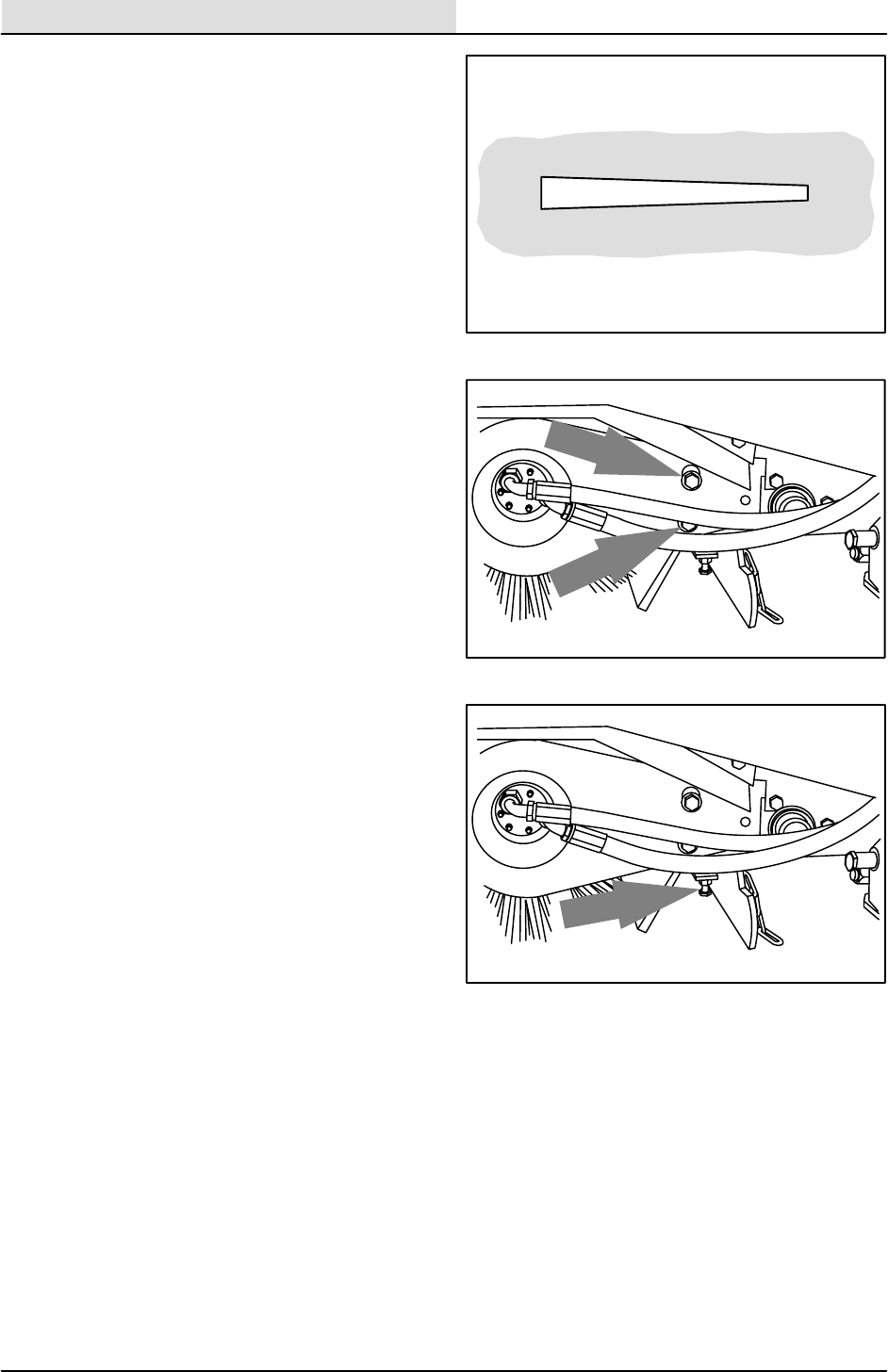

If the main brush pattern is tapered, more
than 15 mm (0.5 in) on one end than the
other, adjust the taper at the drive end of the
brush.
A. Loosen the brush drive end plate
mounting bolts.
B. Turn the taper adjustment nut
counter-clockwise to increase the
pattern width at the brush drive end,
and clockwise to decrease the pattern
width at the brush drive end. Tighten
the drive end plate mounting bolts.
C. Check the main brush pattern and
readjust as necessary. Then adjust the
width of the main brush pattern.
00601
08450
08490
Home
Find...
Go To..
MAINTENANCE
77
810D MM310 (3–95)
POWER THROW
The Power Throw loads the hopper with debris
picked up by the main brush.
Check the brush daily for wear or damage.
Remove any string or wire tangled on the main
brush, main brush drive hub, or main brush idler
hub.
The Power Throw brush should clear the floor
by 7 to 13 mm (0.25 to 0.50 in). Adjust the floor
clearance with the adjusting bolt located under the
seat on the Power Throw cross-tube. Turn the
bolt clockwise to increase the floor clearance, and
counter-clockwise to decrease the floor clearance.
TO REPLACE POWER THROW BRUSH
1. Set the machine parking brake.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
2. Raise the Power Throw.
3. Raise the hopper and secure with the
hopper support bar.
WARNING: Raised hopper may fall.
Engage hopper support bar.
4. Open the right main brush door.
5. Lower the Power Throw.
6. Stop the engine.
7. Remove the idler plate of the Power
Throw.
8. Remove the brush.
9. Slide the new brush on the drive end of the
Power Throw.
10. Slide the brush idler plate plug onto the
brush.
11. Mount the idler plate.
08583
08584
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
78
SIDE BRUSH
The side brush sweeps debris along edges into
the path of the main brush.
Check the brush daily for wear or damage.
Remove any string or wire found tangled on the
side brush or side brush drive hub.
Check the side brush pattern daily. One-half of the
side brush bristles should contact the floor when
the brush is in motion. Adjust the side brush
pattern by the side brush down pressure knob.
Turn the knob counter-clockwise to increase the
brush contact with the sweeping surface, and
clockwise to decrease the brush contact with the
sweeping surface.
The side brush should be replaced when it no
longer sweeps effectively for your application. A
guideline length is when the remaining bristles
measure 50 mm (2 in) in length. You may change
the side brush sooner if you are sweeping light
litter, or wear the bristles shorter if you are
sweeping heavy debris.
TO REPLACE SIDE BRUSH
1. Empty the debris hopper.
2. Set the machine parking brake.
3. Raise the hopper.
4. Stop the engine.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, set parking
brake, turn off machine and remove key.
5. Remove the side brush retaining pin from
the side brush drive shaft.
6. Slide the side brush off the side brush drive
shaft.
NOTE: Remove the drive hub and put it on the
new brush if one is not installed.
7. Slide the new side brush onto the side brush
drive shaft.
8. Insert the side brush retaining pin through
the side brush hub and shaft and secure. 08466
Home
Find...
Go To..
MAINTENANCE
79
810D MM310 (3–95)
9. Disengage the hopper support bar and lower
the hopper.
10. Adjust the side brush pattern with the side
brush down pressure knob.

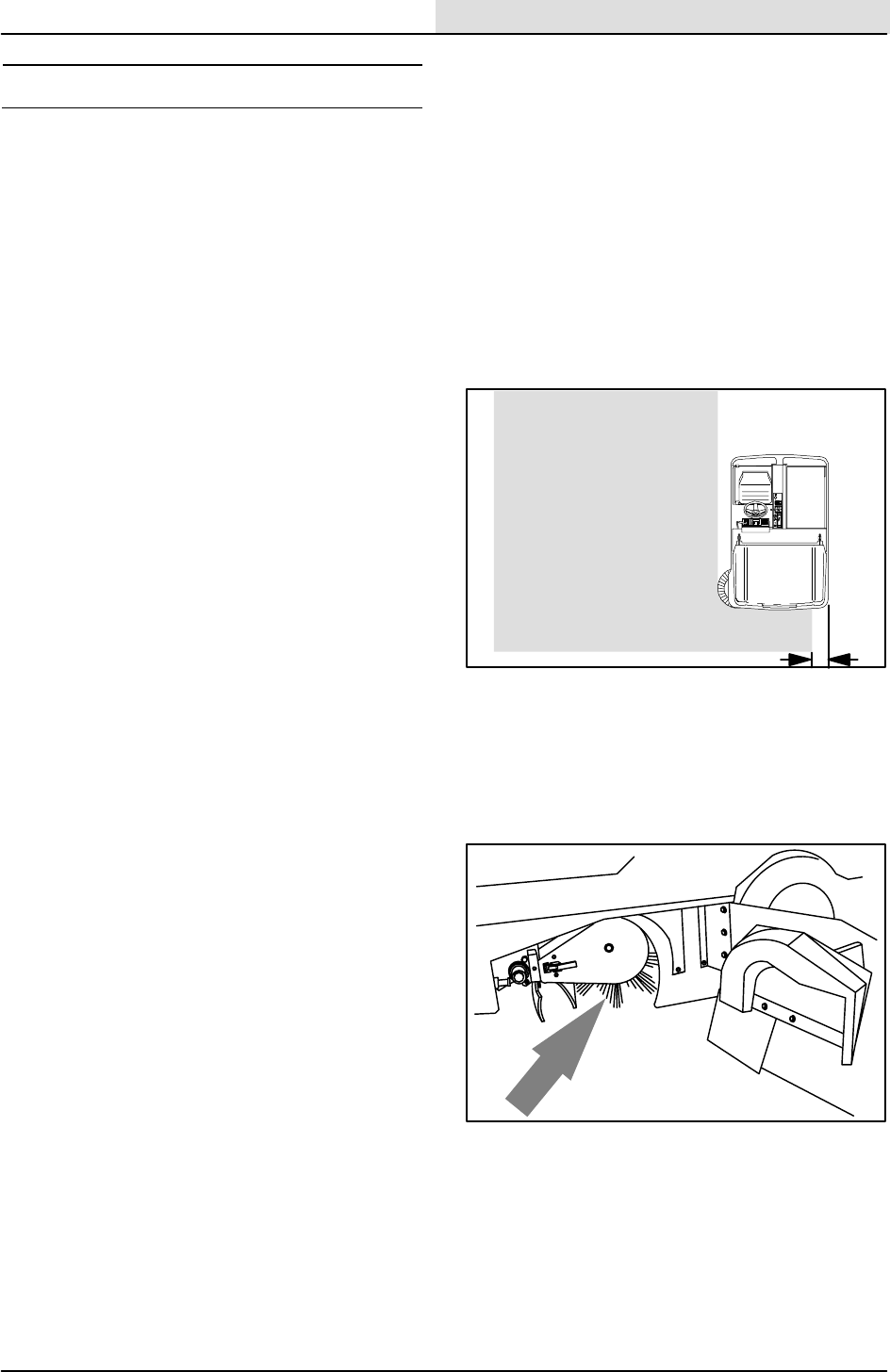

SKIRTS AND SEALS
HOPPER LIP SKIRTS
The hopper lip skirts are located on the bottom
rear of the hopper. The skirts float over debris and
help deflect that debris into the hopper. The top
skirt is segmented.
Check the hopper lip skirts for wear or damage
daily.
Replace the hopper lip skirts when they no longer
touch the floor.

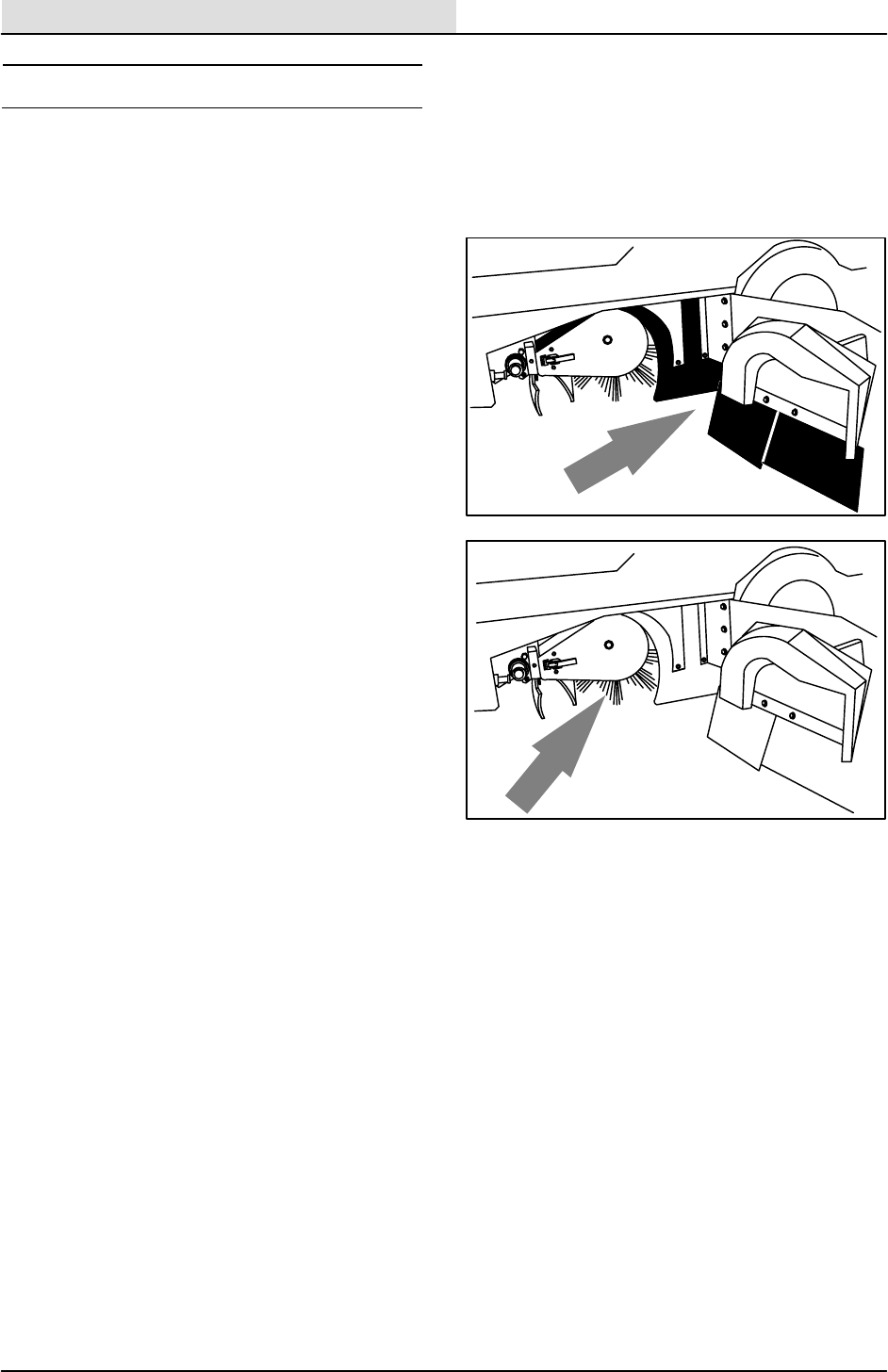

BRUSH COMPARTMENT SKIRTS
The brush compartment skirts are located on the
bottom of each of the two main brush doors and
around the ends of the brush on the main frame.
The inside brush door skirt should touch the floor,
and the outside brush door skirt should clear the
floor by 3 to 5 mm (0.12 to 0.25 in).
Check the skirts for wear or damage and
adjustment daily.
NOTE: The brush door skirts have slotted holes to
allow for a ground clearance adjustment. The door
must be closed for proper adjustment.
NOTE: Tire pressure will affect skirt clearances.
08491
08493
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
80

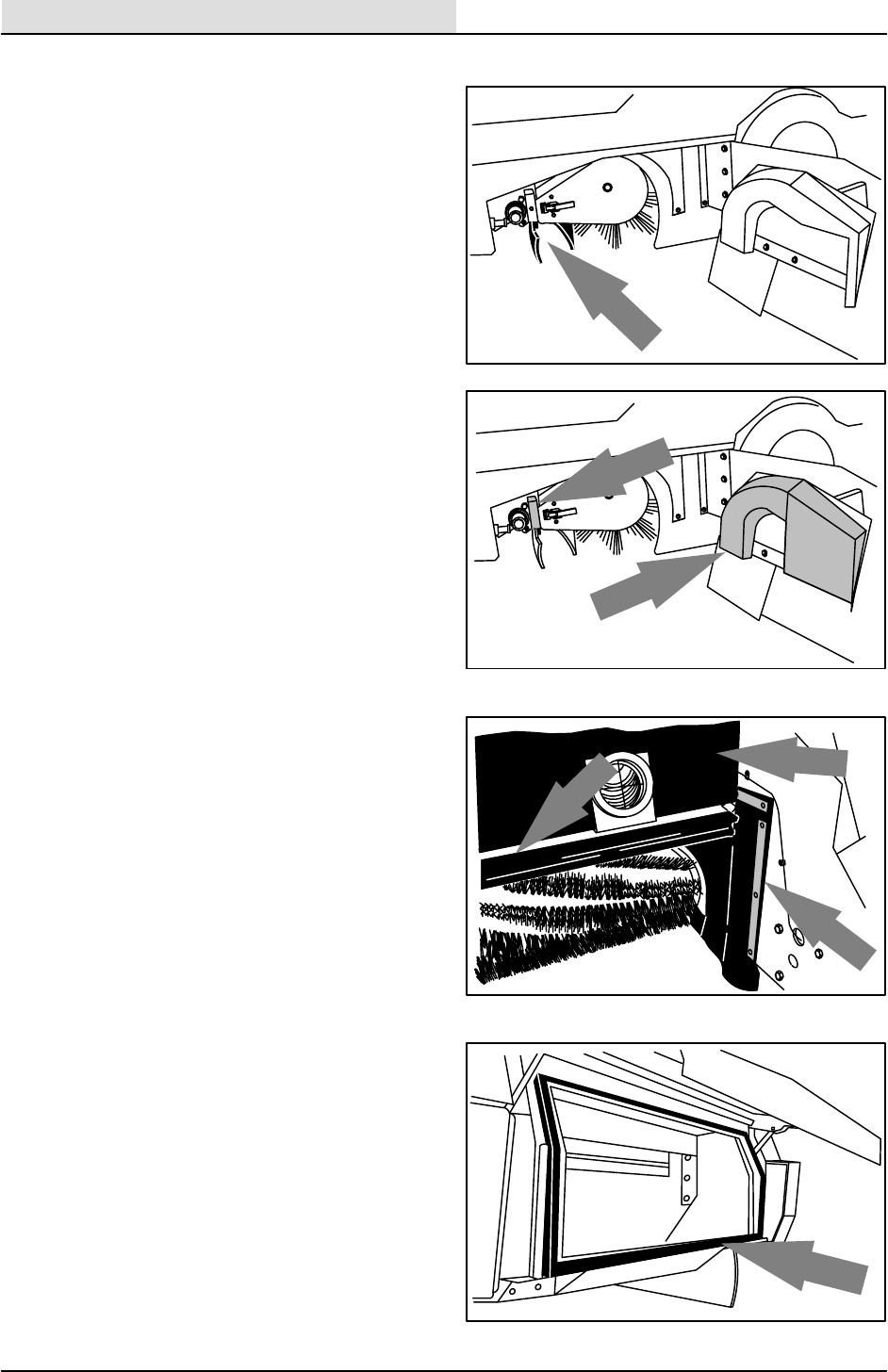

REAR SKIRTS
The two rear skirts are located on the bottom rear
of the main brush compartment. The vertical skirt
should clear the floor up to 20 mm (0.75 in) in
dusty conditions, and touch the floor otherwise.
The recirculation skirt is self-adjusting.
Check the skirts for wear or damage and
adjustment daily.
NOTE: Tire pressure will affect skirt clearances.
BRUSH DOOR SEALS
The brush door seals are located on both main
brush doors and on corresponding portions of the
main frame.
Check the seals for wear or damage every
100 hours of operation.
HOPPER SEALS
The hopper seals are located on the top and side
portions of the machine frame that contact the
hopper.
Check the seals for wear or damage every
100 hours of operation.
HOPPER DOOR SEALS
The hopper door seals are located on the hopper
door. They seal the hopper when the hopper door
is closed.
Check the seals for wear or damage every
100 hours of operation.
08494
08495
08496
08497
Home
Find...
Go To..
MAINTENANCE
81
810D MM310 (3–95)
HOPPER SIDE SKIRT
The hopper side skirt is located on the left side of
the hopper.
Check the hopper side skirt for wear or damage
daily.
HOPPER DUST SEAL
The hopper dust seal is located inside the hopper.
It seals the hopper filter compartment.
Check the seal for wear or damage every
100 hours of operation.
HOPPER COVER SEAL
The hopper cover seals are located on the inside
of the hopper cover. They seal the hopper filter
compartment.
Check the seal for wear or damage every
100 hours of operation.
HOPPER VACUUM FAN SEAL
The hopper vacuum fan seal is mounted on the
the vacuum fan inlet bracket.
Check the seal for wear or damage every
100 hours of operation.
08492
08498
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
82
BRAKES AND TIRES
SERVICE BRAKES
The hydraulic service brakes are located on the
front wheels.
The master brake cylinder is located on the fire
wall.
Check the master brake cylinder fluid level every
400 hours of operation.
PARKING BRAKE
The parking brake is set with foot pedal on
machine below serial number 002046, and with a
lever on machines serial number 002046 and
above.
Adjust the parking brake whenever it becomes
very easy to set the parking brake, when the
machine rolls after setting the parking brake, and
every 200 hours of operation.
08501
08574
Home
Find...
Go To..
MAINTENANCE
83
810D MM310 (11–95)
TIRES
The standard machine tires are pneumatic.
Check the tire pressure every 100 hours of
operation. The proper tire air pressure is
690 – 758 kPa (100 – 110 psi).
REAR WHEEL
Torque the rear wheel nuts in a star pattern to 102
to 115 Nm (75 to 85 ft lb) after the first 50-hours of
operation, and every 800 hours there after.
PUSHING OR TOWING MACHINE
The propelling pump has a towing valve to
prevent damage to the hydraulic system when the
machine is being towed. Turn the valve 90
clockwise before towing the machine.
You can push the machine from the front or rear,
and tow it only from the rear.
ATTENTION! Do not push or tow the machine
without using the towing valve, or the
machine hydraulic system may be damaged.
08575
08576
Home
Find...
Go To..
MAINTENANCE
810D MM310 (3–95)
84
MACHINE JACKING
You can jack up the machine for service at the
designated locations. Use a jack of adequate
capacity and good working condition. Always stop
the machine on a flat, level surface and block the
tires before jacking the machine up.
The front jacking locations are the flat bottom
edge of the machine frame next to the front tires.
The rear jacking location is the middle of the rear
bumper.
FOR SAFETY: When servicing machine, block
machine tires before jacking machine up.
FOR SAFETY: When servicing machine, jack
machine up at designated locations only.
Block machine up with jack stands.
STORING MACHINE
Before storing the machine for an extended period
of time, the machine needs to be prepped to
lessen the chance of rust, sludge, and other
undesirable deposits from forming. Contact
TENNANT service personnel.
08485
08586
Home
Find...
Go To..
SPECIFICATIONS
85
810D MM310 (6–94)
SPECIFICATIONS
GENERAL MACHINE DIMENSIONS/CAPACITIES
Item Dimension/capacity
Length 3050 mm (120 in)
Width 1780 mm (70 in)
Height 1335 mm (52.5 in)
Height with overhead guard 2095 mm (82.5 in)
Height with overhead guard and hazard light 2310 mm (91 in)
Height with cab 2095 mm (82.5 in)
Height with cab and hazard light 2310 mm (91 in)
Track 1560 mm (61.5 in)
Wheelbase 1420 mm (56 in)
Main brush diameter 405 mm (16 in)
Main brush length 1270 mm (50 in)
Power Throw brush diameter 205 mm (8 in)
Power Throw brush length 1170 mm (46 in)
Side brush diameter 65 mm (26 in)
Sweeping path width 1270 mm (50 in)
Sweeping path width with side brush 1675 mm (66 in)
Main brush pattern width 50 to 65 mm (2.0 to 2.5 in)
Hopper weight capacity 907.2 kg (2000 lb)
Hopper volume capacity 849.5 L (30 cu ft)
Dust filter area 17.7 m2 (190 sq ft)
GVWR 4068 kg (8970 lb)
Ceiling height minimum dumping clearance 3355 mm (11 ft)
GENERAL MACHINE PERFORMANCE
Item Measure
Maximum forward speed 16 kmh (10 mph)
Maximum reverse speed 7.3 kmh (4.5 mph)
Minimum aisle turn width, left 3450 mm (135 in)
Minimum aisle turn width, right 4675 mm (184 in)
Maximum rated climb and descent angle 8.5
Home
Find...
Go To..
SPECIFICATIONS
810D MM310 (3–95)
86
POWER TYPE
Engine Type Ignition Cycle Aspiration Cylinders Bore Stroke
Perkins 4.154XA Piston Diesel 4 Natural 4 89 mm
(3.5 in) 102 mm
(4 in)
Displacement Net power, governed Net power, maximum
2522 cc (154 cu in) 33.6 kw (45 hp) @ 2400 rpm 44.8 kw (60 hp) @
3000 rpm
Fuel Cooling system Electrical system
Diesel
Fuel tank: 45.5 L (12 gal) Water/ethylene glycol
antifreeze 12 V nominal
Total: 13.6 L (3.6 gal) 50 A alternator
Radiator: 6.1 L (1.6 gal)
Idle speed, no load Governed speed, under load
600 to 650 rpm 2400 + 50 rpm
Engine lubricating oil with filter
6 L (6.3 qt) 10W30 SAE–CC/CD rated engine oil
STEERING
Type Power source Emergency steering
Rear wheel, hydraulic cylinder
and rotary valve controlled Hydraulic accessory pump Manual
HYDRAULIC SYSTEM
System Capacity Fluid Type
Hydraulic reservoir 47.3 L (12.5 gal) TENNANT part no. 65869 – above 7 C (45 F)
Hydraulic total 56.8 L (15 gal) TENNANT part no. 65870 – below 7 C (45 F)
BRAKING SYSTEM
Type Operation
Service brakes Hydraulic drum brakes (2), one per front wheel,
foot brake master cylinder activated
Parking brake Utilize service brakes, cable actuated
TIRES
Location Type Size Pressure
Front (2) Pneumatic 6.5 x 23.5 in 690 – 758 kPa (100 – 110 psi)
Rear (1) Pneumatic 6.5 x 23.5 in 690 – 758 kPa (100 – 110 psi)
Home
Find...
Go To..
INDEX
87
810D MM310 (3–95)
INDEX
A
Air conditioning switch, 31
Air control vents, 31
Air filter, 67
Dust cap, 67
Element, 67
Heavy duty SE filter option, 67
Air filter indicator, 67
Aisle turn, 85
B
Battery, 70
Charging system, Light, 20
Bearings, Front wheel, 63
Belts, 70
Engine fan belt, 70
Blower wand, 56ć57
Blower wand lever, 26
Brake pedal, 12
Brakes, 33, 82
Parking, Adjustment, 82
Service, 82
System specifications, 86
Brushes, 37ć38, 46, 73ć77
Adjusting main brush taper, 76–78
Checking main brush pattern, 74–76
Checking side brush pattern, 78
Door latch, 28
Door seals, 80
Door skirts, 79
Main brush, 73
Main brush bristle length, 73
Power Throw, 77
Power Throw floor clearance, 77–80
Replacing main brush, 73–75
Replacing Power Throw brush, 77–79
Replacing side brush, 78
Side brush, 78–79
Side brush bristle length, 78
Brushes switch, 25
Button, Horn, 19
C
Cab
Air conditioning switch, 31
Air control vents, 31
Dome light switch, 30
Fan speed switch, 31
Heater knob, 30
Recirculating air louvers, 30
Windshield wiper switch, 30
Capacities, 85
Chains, 70
Static drag, 70
Charging system light, 20
Circuit breakers, 27
Clogged filter light, 21
Control panel
Charging system, 20
Clogged filter light, 21
Engine oil pressure, 20
Engine water temperature light, 20
Filter shaker switch, 23
Fuel level gauge, 21
Hazard light switch, 22
Hopper door light, 21
Hopper temperature light, 20
Hourmeter, 22
Main brush shut down light, 21
Operating lights switch, 22
Vacuum fan switch, 23
Controls, 10
Air conditioning switch, 31
Air control vents, 31
Blower wand lever, 26
Brake pedal, 12
Brushes switch, 25
Charging system light, 20
Circuit breakers, 27
Clogged filter light, 21
Directional pedal, 11
Dome light switch, 30
Engine oil pressure light, 20
Engine water temperature light, 20
Fan speed switch, 31
Filter shaker switch, 23
Fuel level gauge, 21
Hazard light switch, 22
Heater knob, 30
Home
Find...
Go To..
INDEX
810D MM310 (3–95)
88
Hopper door lever, 17
Hopper door light, 21
Hopper lift lever, 19
Hopper rollout lever, 18
Hopper temperature light, 20
Horn button, 19
Hourmeter, 22
Ignition switch, 24
Latches, 28
Main brush down pressure knob, 28
Main brush shut down light, 21
Operating lights switch, 22
Operation, 11
Parking brake, 12, 13
Recirculating air louvers, 30
Side brush down pressure knob, 16
Side brush lever, 15
Side brush switch, 15
Steering wheel, 26
Steering wheel tilt lever, 26
Symbols, 8–9
Throttle lever, 14
Vacuum fan switch, 23
Windshield wiper switch, 30
Covers
Engine, Latch, 28
Hopper
Latch, 28
Seals, 81
D
Debris hopper, 71ć72
Dimensions, 85
Directional pedal, 11
Toe adjustment, 12
Disengaging hopper support bar, 49ć50
Dome light switch, 30
Doors
Brush
Latch, 28
Seals, 80
Skirts, 79
Engine side, Latch, 28
Grille, Latch, 28
Hopper, Seals, 80
Rear bumper, Latch, 28
Dust filter, 71
Changing, 71–72
Cleaning, 71
E
Electrical
Circuit breakers, 27
Ignition switch, 24
Emptying the hopper, 42ć43
Engaging hopper support bar, 47ć48
Engine, 66
Air filter, 67
Air filter indicator, 32, 67
Coolant temperature, Light, 20
Cooling system, 66
Cover latch, 28
Fan belt, 70
Fuel filter, 68
Fuel lines, 68
Lubrication, 62
Oil capacity, 62
Oil level, 5, 33
Oil pressure, Light, 20
Priming fuel system, 68–69
Side door latch, 28
Specifications, 86
Water seperator/fuel filter, 68
Engine Fuel filter, 68
Engine oil pressure light, 20
Engine water temperature light, 20
F
Fan speed switch, 31
Filter shaker switch, 23
Fuel filter, Engine, 68
Fuel level, 33
Fuel level gauge, 21
Fuel lines, 68
Fuel system
Fuel lines, 68
Priming, 68–69
Fuel tank, Gasoline, 6
G
Gauge, Fuel level, 21
Glow plugs light, 27
Grease fittings, Rear wheel support, 62
Home
Find...
Go To..
INDEX
89
810D MM310 (3–95)
H
Hazard light switch, 22
Heater knob, 30
Hopper, 71ć72
Changing dust filter, 71–72
Clogged filter, Light, 21
Cover latch, 28
Cover seal, 81
Disengaging hopper support bar, 49–50
Door lever, 17
Door light, 21
Door seals, 80
Dust filter, 71
Engaging hopper support bar, 47–48
Filter cleaning, 71
Filter shaker, 23
Lift, 19
Lip skirts, 79
Rollout, 18
Seals, 80
Side skirt, 81
Support bar, 29
Temperature, Light, 20
Thermo-Sentry, 73
Thermo-sentry, 20
Vacuum fan seal, 81
Hopper door, Operate, 17
Hopper door lever, 17
Hopper door light, 21
Hopper lift lever, 19
Hopper rollout lever, 18
Hopper support bar, 29
Hopper temperature light, 20
Horn button, 19
Hourmeter, 22
How the machine works, 32
Hydraulic fluid, 65
Hydraulic fluid reservoir, 64
Hydraulic hoses, 65
Hydraulics, 64ć65
Fluid, 65
Fluid filter, 64
Fluid level, 5, 64
Hoses, 65
Propelling motor, 66
Reservoir, 64
System specifications, 86
I
Ignition switch, 24
J
Jack points, 84
K
Knobs
Heater, 30
Main brush down pressure, 28
Side brush down pressure, 16
L
Latches, 28
Engine cover, 28
Engine side door, 28
Grille doors, 28
Hopper cover, 28
Main brush doors, 28
Rear bumper door, 28
Levers
Blower wand, 26
Hopper door, 17
Hopper lift, 19
Hopper rollout, 18
Parking brake release, 12, 13
Side brush, 15
Steering wheel tilt, 26
Throttle, 14
Light, Main brush shut down, 21
Lights
Charging system, 20
Clogged filter, 21
Engine oil pressure, 20
Engine water temperature, 20
Glow plugs, 27
Hazard light switch, 22
Hopper door, 21
Hopper temperature, 20
Operating lights switch, 22
Louvers, Recirculating air, 30
Lubrication, 62
Engine, 62
Front wheel bearings, 63
Main brush adjustment, 63
Rear wheel support, 62
Side brush pivot pins, 63
Home
Find...
Go To..
INDEX
810D MM310 (3–95)
90
M
Machine components, 7
Machine jacking, 84
Machine leaks, 32, 46
Machine tie-downs, 51
Main brush, 37ć38, 73ć76
Adjust brush taper, 76–78
Adjustment lubrication, 63
Bristle length, 73
Checking brush pattern, 74–76
Door latch, 28
Door seals, 80
Door skirts, 79
Down pressure, 28
Maintenance, 73
Replacing, 73–75
Shut down light, 21
Switch, 25
Main brush down pressure knob, 28
Main brush shut down light, 21
Maintenance, 60
Intervals, 60–61
Recommended, 6
Maintenance chart, 60ć61
Motors, Propelling, 66
O
Operating lights switch, 22
Operation on inclines, 50
Operator Responsibility, 5
Operator seat, 29
Option, Hazard light switch, 22
Options, 52ć59
Air conditioning switch, 31
Air control vents, 31
Blower wand, 56–57
Blower wand lever, 26
Dome light switch, 30
Fan speed switch, 31
Heater knob, 30
Heavy duty SE air filter, 67
Recirculating air louvers, 30
Regenerative filter system (RFS), 58–59
Vacuum wand, 52–57
Windshield wiper switch, 30
P
Parking brake, 12, 13, 82
Pedal, Directional, 11
Toe adjustment, 12
Pedals
Brake, 12
Parking brake, 12
Pivot pins, Side brush, 63
PostĆoperation checklist, 46
Power Throw, 77
Floor clearance, 77–80
Maintenance, 77
Replacing, 77–79
Switch, 25
PreĆoperation checklist, 32ć33
Preheat, Glow plugs, 27
Priming fuel system, 68ć69
Pushing machine, 83
R
Radiator, 66
Coolant level, 6, 66
Coolant type, 66
Flushing system, 67
Hoses, 66
Rear wheel, 83
Recirculating air louvers, 30
Regenerative filter system (RFS), 58ć59
Home
Find...
Go To..
INDEX
91
810D MM310 (3–95)
S
Safety
Disengaging hopper support bar, 49–50
Engaging hopper support bar, 47–48
Hopper support bar, 29
Labels, 4
Precautions, 3
Seals, 79ć81
Brush doors, 80
Hopper, 80
Hopper cover, 81
Hopper door, 80
Hopper vacuum fan seal, 81
Seat, 29
Adjustment, 29
Lift, 29
Service records, 46
Side brush, 38, 78ć79
Bristle length, 78
Checking brush pattern, 78
Down pressure, 16
Lever, 15
Replacing, 78
Switch, 15
Side brush down pressure knob, 16
Side brush lever, 15
Skirts, 46, 79ć80
Brush doors, 79
Hopper Lip, 79
Hopper side, 81
Rear, 80
Specifications, 85ć86
Braking system, 86
Hydraulic system, 86
Machine capacities, 85
Machine dimensions, 85
Machine performance, 85
Power type, 86
Steering, 86
Tires, 86
Starting the machine, 34ć35
Static drag chain, 70
Steering, 33
Specifications, 86
Steering wheel, 26
Steering wheel tilt lever, 26
Stop sweeping, 41
Stop the machine, 44ć45
Storing machine, 84
Sweeping, 39ć40
Sweeping and brush information, 37ć38
Switches
Air conditioning, 31
Dome light, 30
Fan speed, 31
Filter shaker, 23
Hazard light, 22
Ignition, 24
Main brush and Power Throw, 25
Operating lights, 22
Side brush, 15
Vacuum fan, 23
Windshield wiper, 30
T
ThermoĆsentry, 73
ThermoĆsentry, 20
Throttle, Lever, 14
Throttle lever, 14
Tie-downs, 51
Tires, 82ć84
Pressure, 83
Rear wheel, 83
Specifications, 86
Towing machine, 83
Travel speed, 85
Troubleshooting, 59
V
Vacuum fan switch, 23
Vacuum wand, 52ć57
Vents, Air control, 31
W
Water seperator/fuel filter, 68
Windshield wiper switch, 30
Home
Find...
Go To..
INDEX
810D MM310 (3–95)
92
Home
Find...
Go To..

Navigation menu
