823 0101 000 Spare Parts List Advance Adgility 6XP 10XP Manual

2013-12-30

: Sweepscrub Adgility Parts Manual Adgility_Parts_Manual 945 file product_file

Open the PDF directly: View PDF PDF.
Page Count: 16

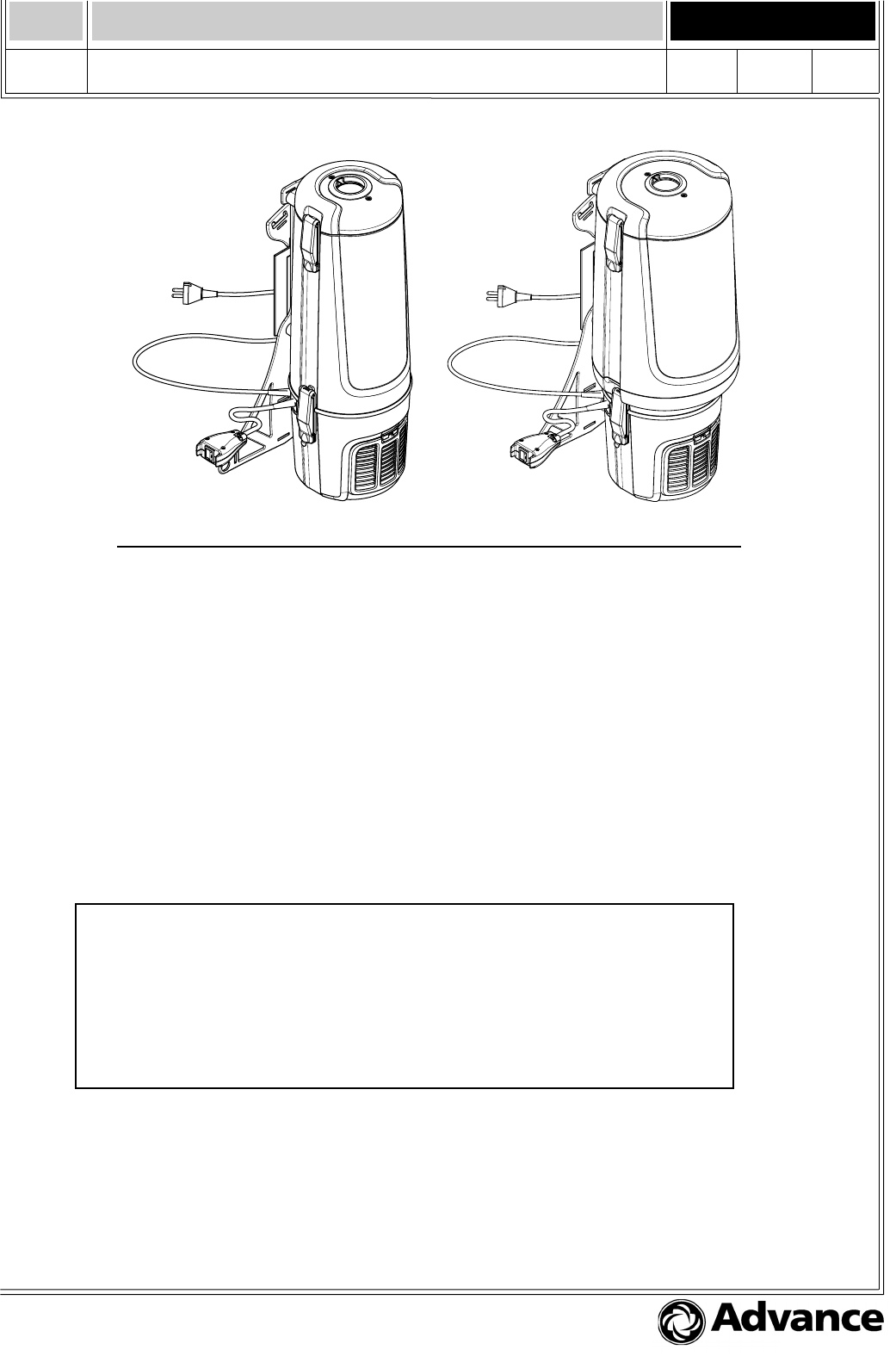

Advance Adgility 6XP, 10XP 823 0101 000
08-02
DESCRIPTION PLAN
Motor and motor parts 2
Electrical parts 4
Container parts 6
Straps 8
Filters 10
Nozzles 1.5 Inch, 38 mm 12
Wands, hose 1.5 Inch, 38 mm 14
Wiring diagram 15
1TABLE OF CONTENTS SERVICE KIT / SPARE PARTS
WHEN ORDERING PARTS
* Use the digit numbers from the "Part No." columns in this spare parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model _________________________ Serial no. _______________________________
www.mn.nilfisk-advance.com
USA
Nilfi sk-Advance Inc.
14600 21st Avenue North
Plymouth, MN 55447-3408
Tel.: (763) 745 3500
Fax :(763) 745 3718
Canada
Nilfi sk-Advance Canada Company
396 Watline Avenue
Mississauga
Ontario, L4Z 1X2
Tel.: 905-712-3260
Fax: 905-712-3255
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 1823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 1 2008-02-26 13:48:252008-02-26 13:48:25
Advance Adgility 6XP, 10XP
823 0101 000 08-02
2MOTOR AND MOTOR PARTS
1
2
3
4
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 2823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 2 2008-02-26 13:48:592008-02-26 13:48:59
Advance Adgility 6XP, 10XP 823 0101 000
08-02
3MOTOR AND MOTOR PARTS
Item Part No. Qty. Description Note
1 147 1109 500 1 Fan unit 100 -120V, 1300W
2 147 1111 500 1 Motor suspension kit
3 147 1088 510 1 Motor cover, UL-approved
4 147 1086 510 1 Chassis, UL-approved
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 3823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 3 2008-02-26 13:49:052008-02-26 13:49:05
Advance Adgility 6XP, 10XP
823 0101 000 08-02

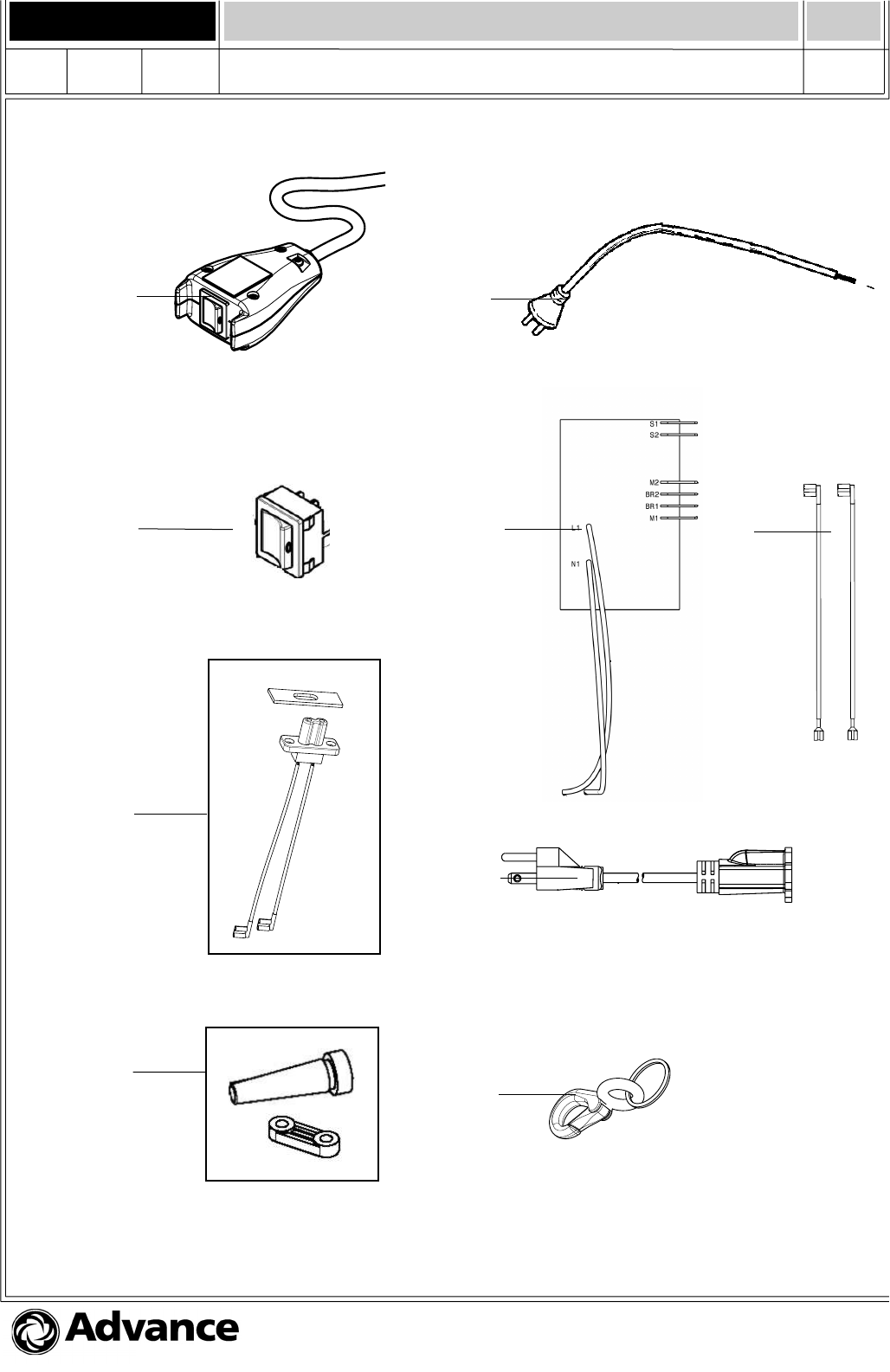

4ELECTRICAL PARTS
1
2
3
4
5
67
8
9
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 4823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 4 2008-02-26 13:49:052008-02-26 13:49:05
Advance Adgility 6XP, 10XP 823 0101 000
08-02
Item Part No. Qty. Description Note
1 147 1105 500 1 Switch cpl.
2 140 5496 510 1 Switch
3 140 8497 530 1 Connector
4 140 7035 510 1 Sleeve kit Anti strain clip
incl.
5 140 3859 500 1 Cord set US/TW plug,
machine end.
1.3 ft (400 mm)
6 147 1231 510 1 Curcuit board 100-120V
7 140 7042 520 1 Internal wire kit 2 Wires incl.
8 147 1243 500 1 Cord extension 50 ft (15.5 m)
Colour: Yellow.
16 AWG
9 147 1346 500 1 Anti strain snap hook
5ELECTRICAL PARTS
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 5823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 5 2008-02-26 13:49:092008-02-26 13:49:09
Advance Adgility 6XP, 10XP
823 0101 000 08-02

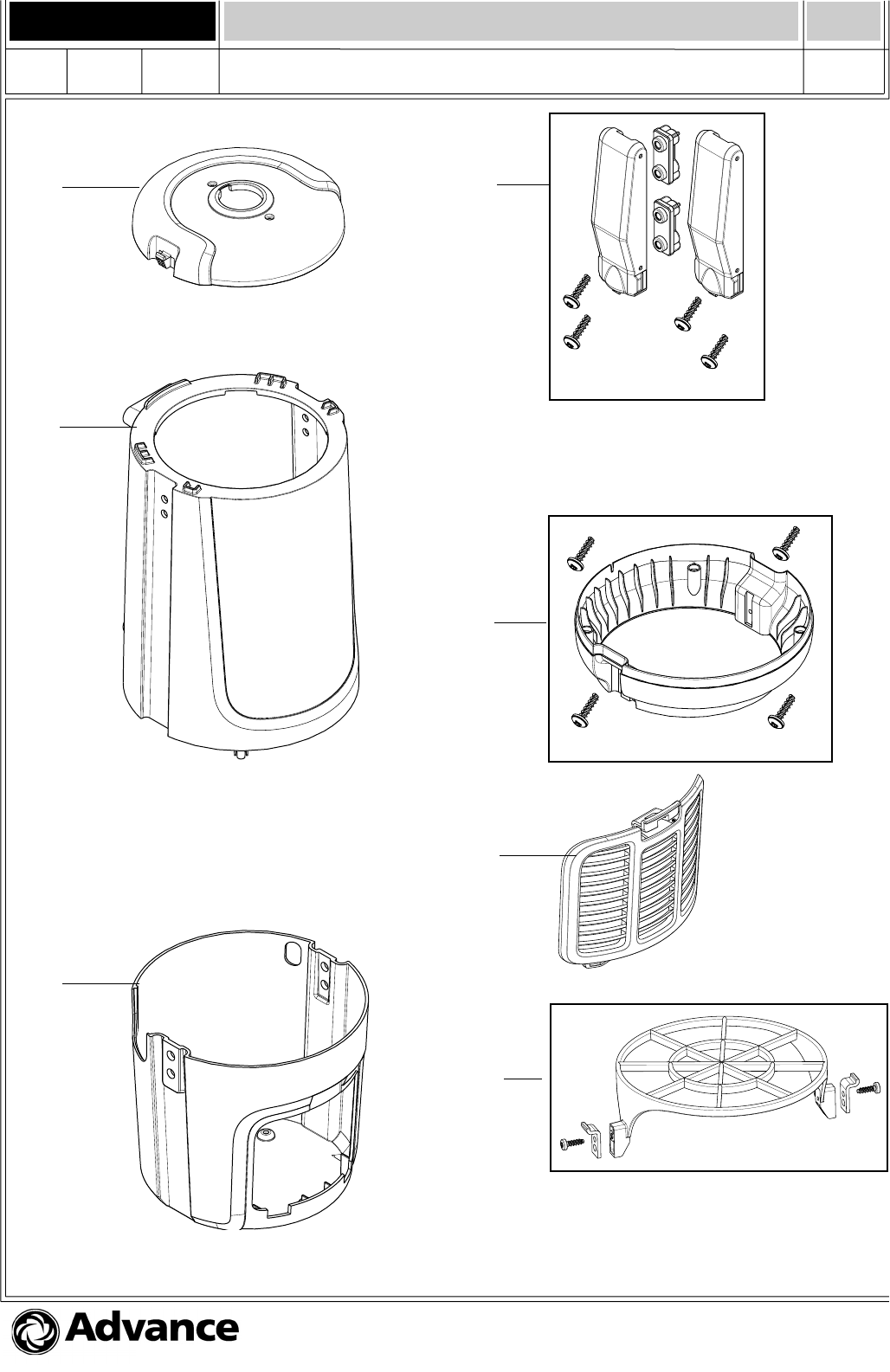

6 CONTAINER PARTS
1
3
4
5
7
6
8
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 6823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 6 2008-02-26 13:49:092008-02-26 13:49:09
Advance Adgility 6XP, 10XP 823 0101 000
08-02
7CONTAINER PARTS
Item Part No. Qty. Description Note
1 147 1077 500 1 Outer lid, for 6XP Grey
1 147 1080 500 1 Outer lid, for 10XP Grey
3 147 1076 500 1 Container, for 6XP Grey
3 147 1079 500 1 Container, for 10XP Grey
4 147 1075 520 1 Cover outer
4 147 1075 530 1 Cover outer, power outlet Gasket incl.
5 147 1101 500 1 Latch kit 2 latches,
screws and
screw towers.
6 147 1078 500 1 Adapter, for 10XP Screws incl.
7 147 1082 500 1 Grid exhaust
8 147 1115 500 1 Basket sack filter Hooks and
screws incl.
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 7823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 7 2008-02-26 13:49:212008-02-26 13:49:21
Advance Adgility 6XP, 10XP
823 0101 000 08-02

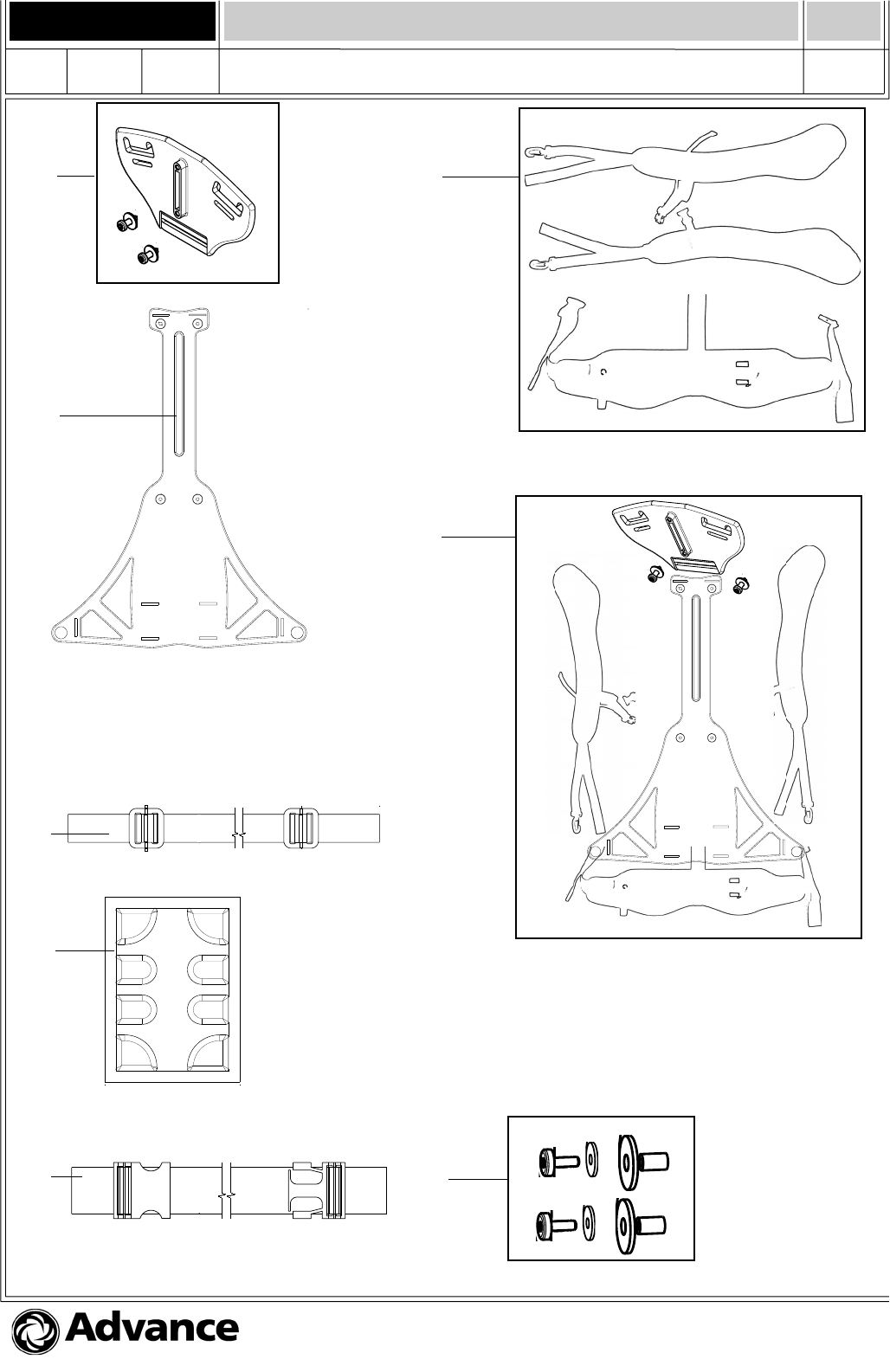

STRAPS PARTS8
2
3
1
6
78
5
9
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 8823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 8 2008-02-26 13:49:212008-02-26 13:49:21
Advance Adgility 6XP, 10XP 823 0101 000
08-02
STRAPS PARTS 9
Item Part No. Qty. Description Note
1 147 1092 500 1 Adjusting plate
2 147 1091 500 1 Harness support
3 147 1246 500 1 Harness premium Screws and
washers incl.
5 147 1247 500 1 Lifting strap
6 147 1248 500 1 Padding, back plate
7 147 1249 500 1 Extension belt L=400 mm
8 147 1246 600 1 Screw kit For harness
premium
9 147 1246 510 1 Harness premium cpl.
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 9823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 9 2008-02-26 13:49:382008-02-26 13:49:38
Advance Adgility 6XP, 10XP
823 0101 000 08-02

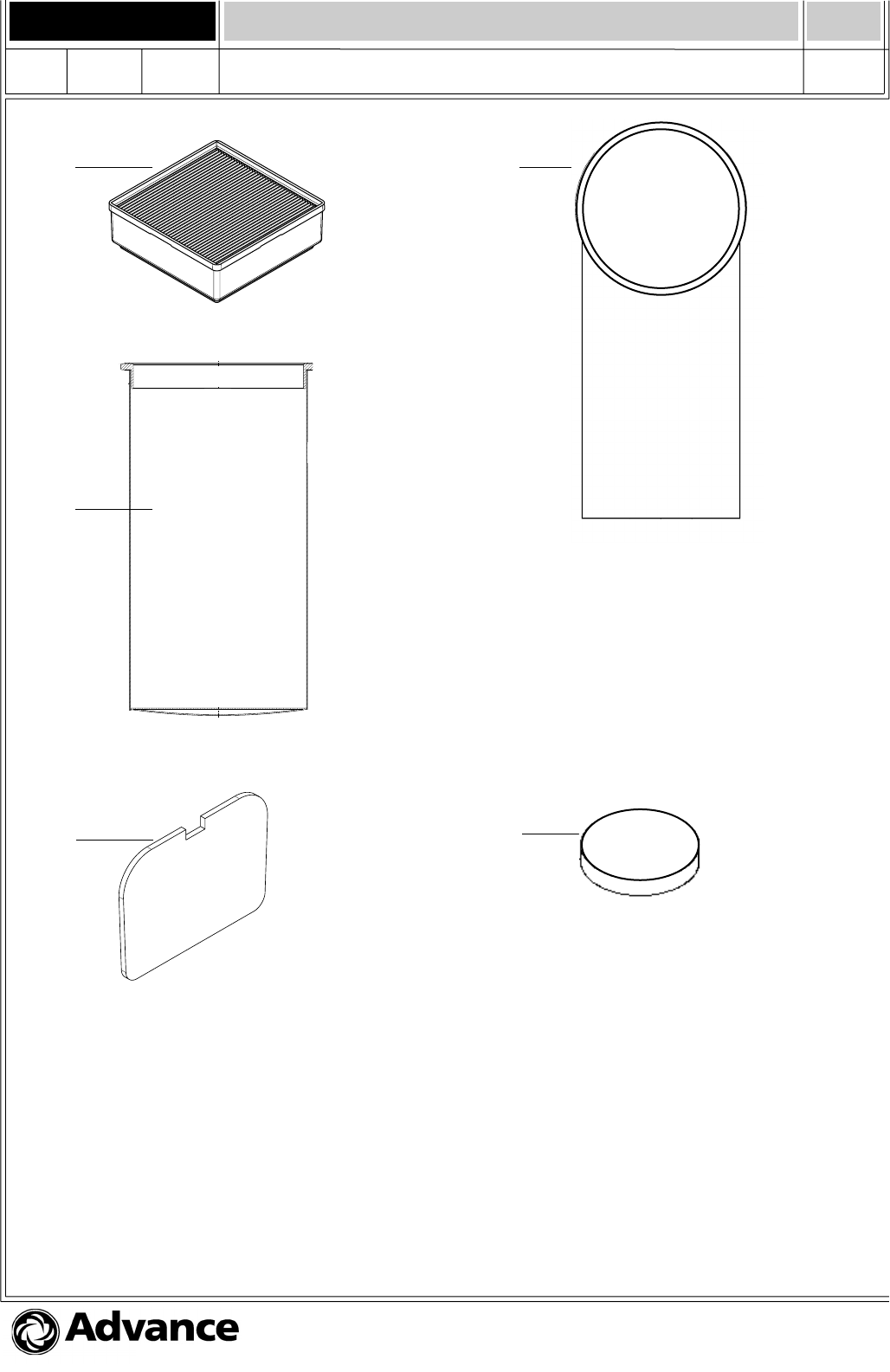

10 FILTERS
1
2
3
4
5
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 10823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 10 2008-02-26 13:49:382008-02-26 13:49:38
Advance Adgility 6XP, 10XP 823 0101 000
08-02
11FILTERS
Item Part No. Qty. Description Note
1 147 1104 500 1 HEPA-fi lter cpl.
2 147 1100 500 1 Sack fi lter, for 6XP
2 147 1099 500 1 Sack fi lter, for 10XP
3 147 1089 500 1 Exhaust fi lter 3 pcs.
4 147 1098 500 1 Dustbag, for 6XP
(1.3 Gallon, 5L)
5 pcs.
4 147 1097 500 1 Dustbag, for 10XP
(2.6 Gallon, 10 L)
5 pcs.
5 147 1095 500 1 Prefi lter 3 psc.
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 11823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 11 2008-02-26 13:49:422008-02-26 13:49:42
Advance Adgility 6XP, 10XP
823 0101 000 08-02

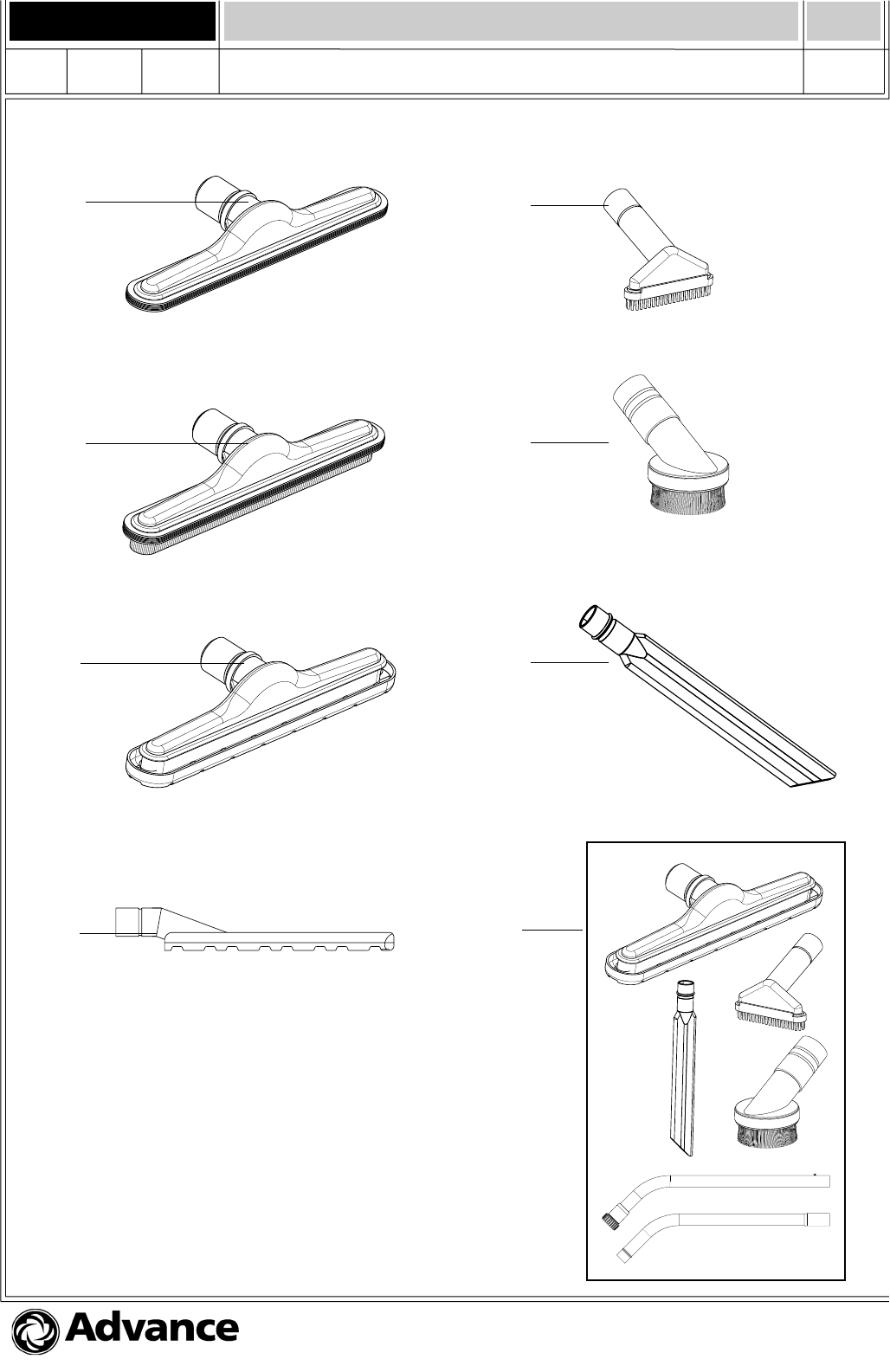

12 NOZZLES Ø 1.5 Inch, 38 mm
14
5
6
7
2
3
8
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 12823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 12 2008-02-26 13:49:422008-02-26 13:49:42
Advance Adgility 6XP, 10XP 823 0101 000
08-02
13NOZZLES Ø 1.5 Inch, 38 mm
Item Part No. Qty. Description Note
1 147 1383 520 1 Scallop carpet fl oor tool
2 147 1383 510 1 Hard fl oor brush tool
3 147 1383 500 1 Quick-Glide multi surface
fl oor tool
4 147 1384 500 1 Upholstery tool
5 147 1385 500 1 Dust tool
6 147 1386 500 1 Crevice tool
7 140 7547 500 1 Paddle nozzle
8 147 1388 500 5 Standard accessory kit Kit with Item
# 3,4,5,6
and a S-
wand.
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 13823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 13 2008-02-26 13:49:472008-02-26 13:49:47
Advance Adgility 6XP, 10XP
823 0101 000 08-02

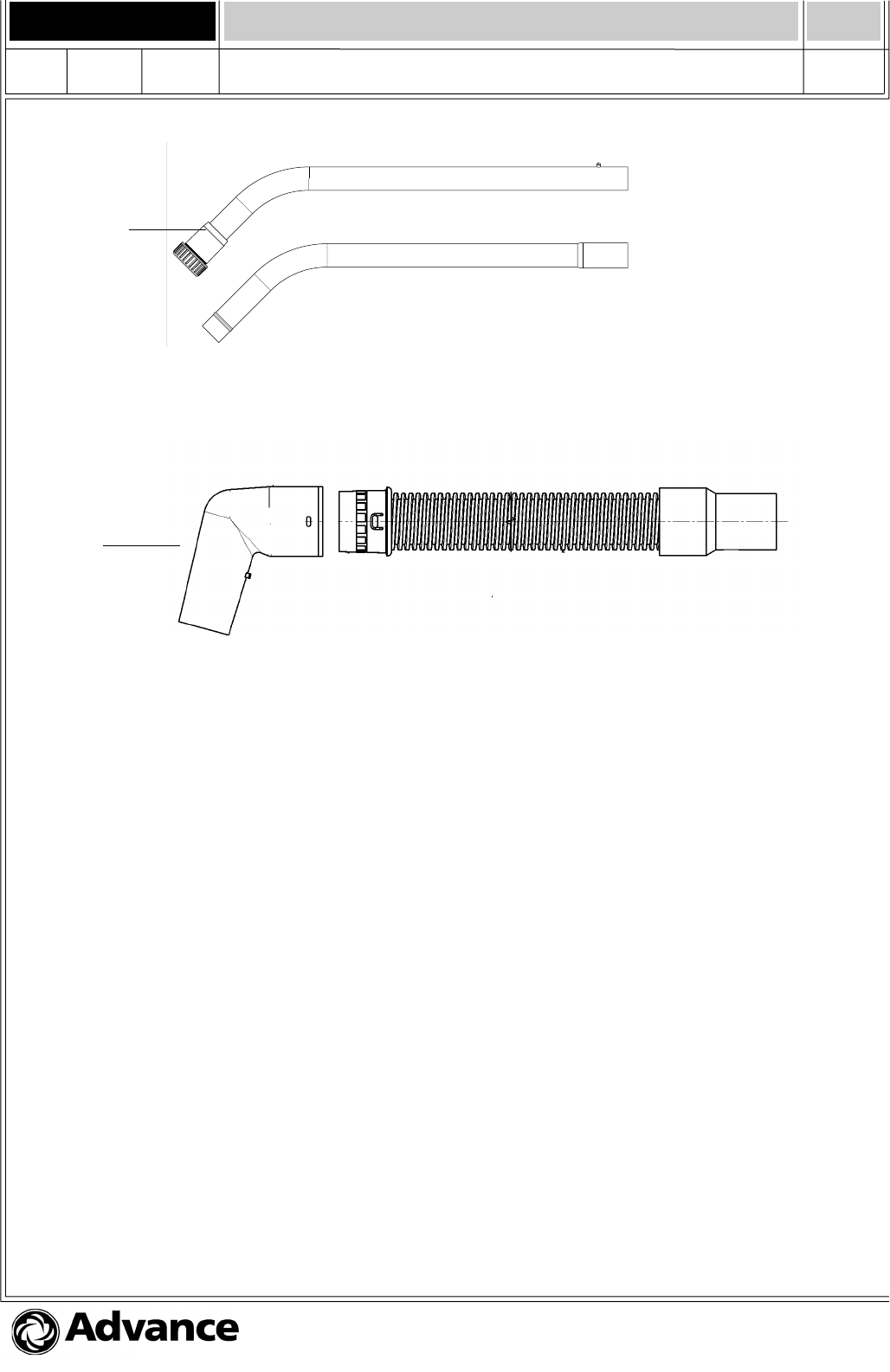

14 WANDS AND HOSE Ø 1.5 Inch, 38 mm
2
1
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 14823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 14 2008-02-26 13:49:472008-02-26 13:49:47
Advance Adgility 6XP, 10XP 823 0101 000
08-02
15WANDS AND HOSE Ø 1.5 Inch, 38 mm
Item Part No. Qty. Description Note EAN code
1 147 1387 500 1 S-wands Aluminium
2 147 1237 500 1 Hose cpl. 49 in. (1250 mm)
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 15823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 15 2008-02-26 13:49:512008-02-26 13:49:51
Advance Adgility 6XP, 10XP 823 0101 000
08-02
Wiring diagram - Grounded
Model 10 XP, with power outlet
Model 6 XP, no power outlet
823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 16823 0101 000 Spare parts list Advance Adgility 6XP 10XP.indd 16 2008-02-26 13:49:512008-02-26 13:49:51
