Advance Hydro Retriever 3800 Riding Floor Scrubber Operator Manual

: Sweepscrub Advance-Hydro-Retriever-3800-Riding-Floor-Scrubber-Operator-Manual advance-hydro-retriever-3800-riding-floor-scrubber-operator-manual 1393 file product_file

Open the PDF directly: View PDF .
Page Count: 32

4/04 revised 6/05 Form Number 56041587

English

Hydro-Retriever™ 3800

Instructions For Use

BR 1100, 1100C, 1100C-XL

Hydro-Retriever™ 2042

Advance MODELS 56410000(disc), 56410350(cyl.), 56410001(2042)

Nilfi sk MODEL 56410002(disc), 56410351(cyl.), 56410425 (1100C-XL)

56307200(Haram BR 1100)

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 3

ENGLISH / 3

TABLE OF CONTENTS

page

Introduction ............................................................................................... 3

Cautions and Warnings ............................................................................4

Consignes de prudence et de sécurité .....................................................5

Know Your Machine ..................................................................................6

Control Panel ............................................................................................7

Functional Description of Control Buttons ................................................8

Description of Indicators on the Control Panel .........................................9

Prepare the Machine for Use

Install the Batteries .................................................................................10

Install the Brushes ..................................................................................11

Install the Squeegee ...............................................................................12

Fill the Solution Tank ..............................................................................12

Operating the Machine ...........................................................................13

Scrubbing ...............................................................................................13

Wet Vacuuming ......................................................................................14

After Use .................................................................................................14

Maintenance Schedule ...........................................................................14

Lubricating the Machine .........................................................................14

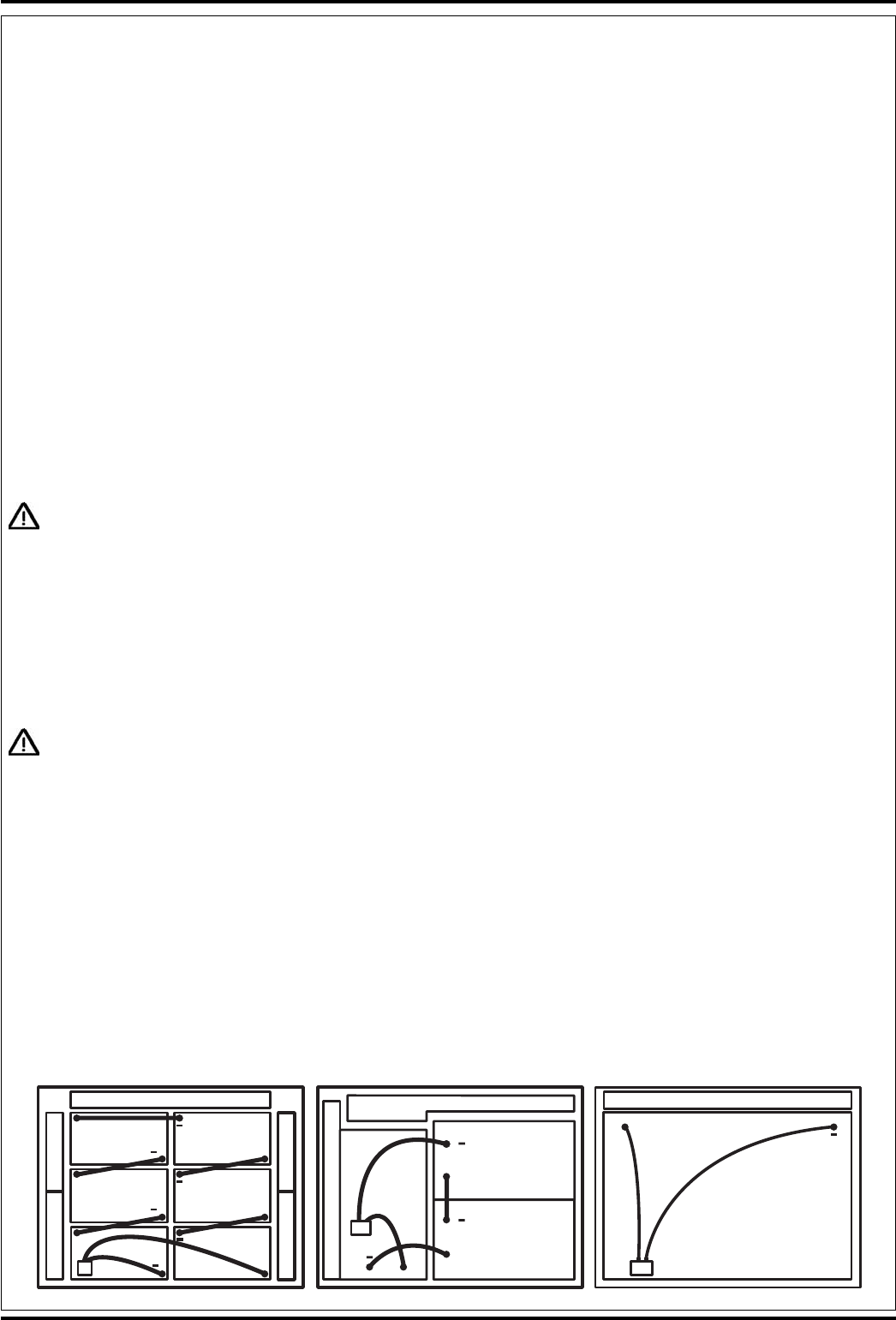

Charging the Batteries ............................................................................15

Check the Battery Electrolyte Level ........................................................15

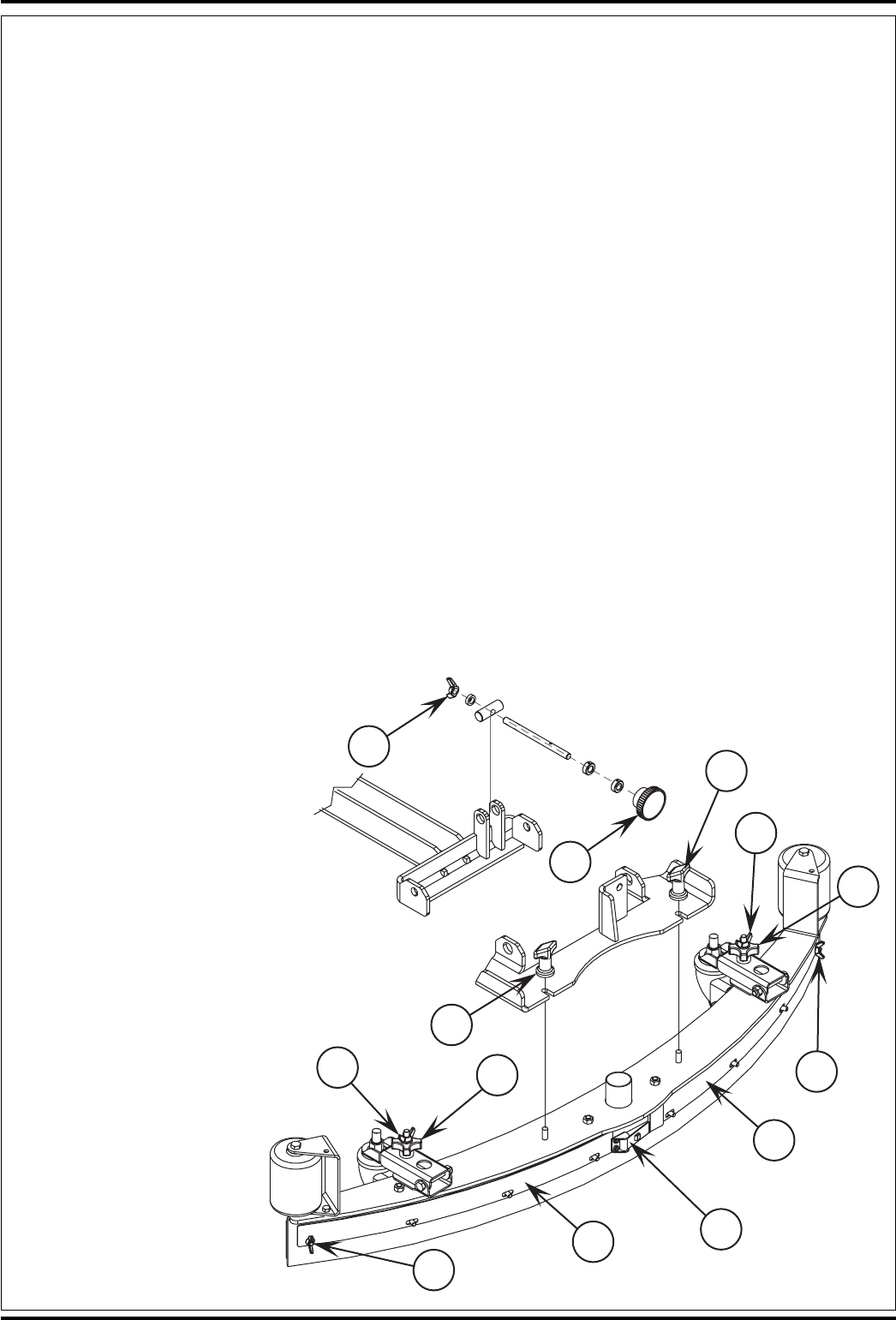

Squeegee Maintenance ..........................................................................16

Squeegee Adjustment ............................................................................16

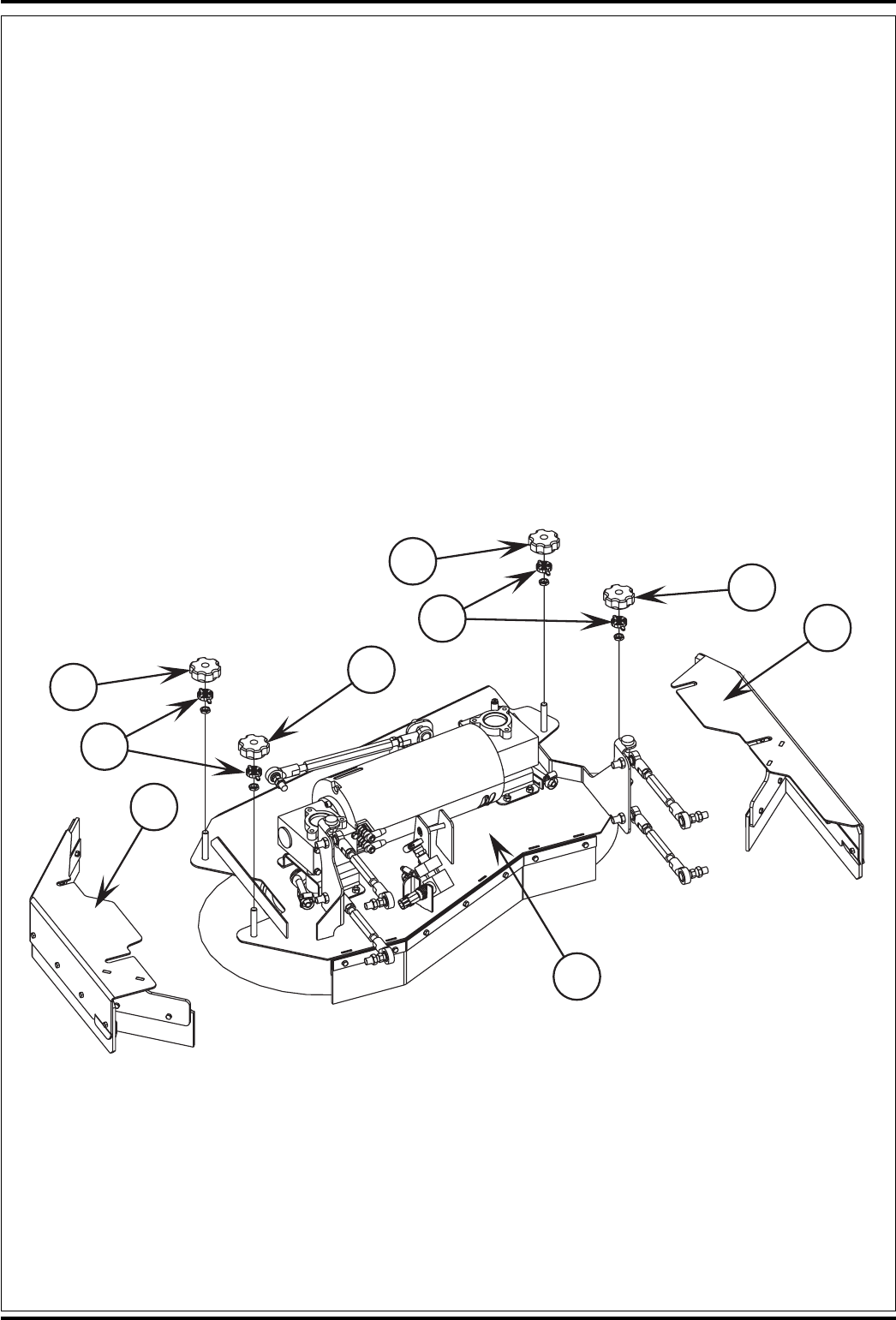

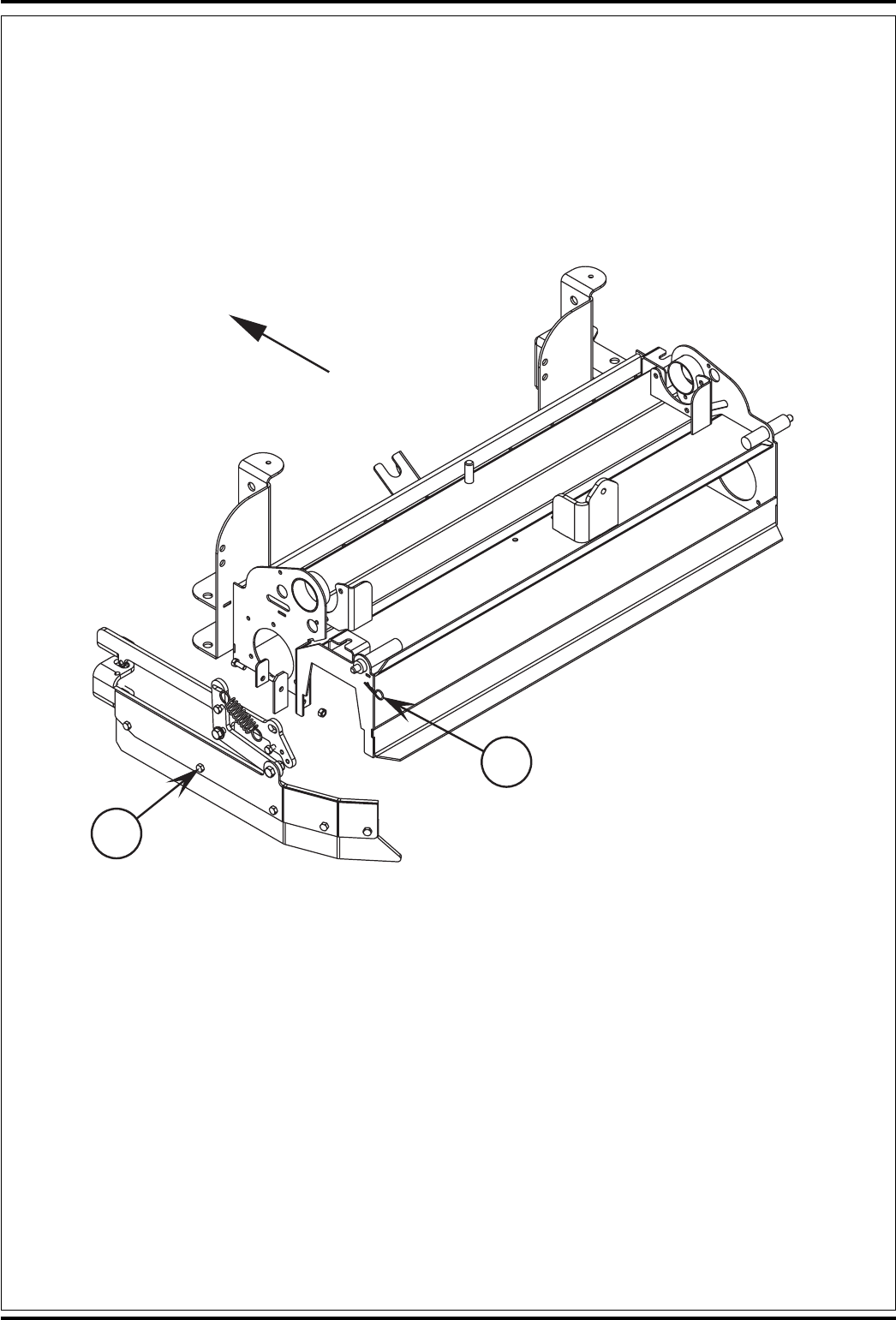

Side Skirt Maintenance ......................................................................17-18

Troubleshooting ...................................................................................... 19

Controller Error Codes .......................................................................20-21

Technical Specifi cations .........................................................................22

INTRODUCTION

This manual will help you get the most from your Nilfi sk-Advance Rider Scrubber. Read it thoroughly before operating the machine.

Note: Bold numbers in parentheses indicate an item illustrated on pages 6-7.

This product is intended for commercial use only.

PARTS AND SERVICE

Repairs, when required, should be performed by your Authorized Nilfi sk-Advance Service Center, who employs factory trained service personnel, and main-

tains an inventory of Nilfi sk-Advance original replacement parts and accessories.

Call the NILFISK-ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number when discussing your machine.

NAME PLATE

The Model Number and Serial Number of your machine are shown on the Nameplate on the machine. This information is needed when ordering repair parts

for the machine. Use the space below to note the Model Number and Serial Number of your machine for future reference.

MODEL NUMBER _____________________________________________

SERIAL NUMBER _____________________________________________

UNCRATE THE MACHINE

When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton so that it

can be inspected. Contact the Nilfi sk-Advance Customer Service Department immediately to fi le a freight damage claim.

After removing the carton, cut the plastic straps and remove the wooden blocks next to the wheels. Use a ramp to roll the machine from the pallet to the fl oor.

4 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

4 / ENGLISH

CAUTIONS AND WARNINGS

SYMBOLS

Nilfi sk-Advance uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and

take the necessary steps to protect personnel and property.

DANGER !

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING !

Is used to call attention to a situation that could cause severe personal injury.

CAUTION !

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.

GENERAL SAFETY INSTRUCTIONS

Specifi c Cautions and Warnings are included to warn you of potential danger of machine damage or bodily harm.

WARNING !

* This machine shall be used only by properly trained and authorized persons.

* While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean

only while ascending (driving up) the ramp.

* Keep sparks, fl ame and smoking materials away from batteries. Explosive gases are vented during normal operation.

* Charging the batteries produces highly explosive hydrogen gas. Charge batteries only in well-ventilated areas, away from

open fl ame. Do not smoke while charging the batteries.

* Remove all jewelry when working near electrical components.

* Turn the key switch off (O) and disconnect the batteries before servicing electrical components.

* Never work under a machine without safety blocks or stands to support the machine.

* Do not dispense fl ammable cleaning agents, operate the machine on or near these agents, or operate in areas where

fl ammable liquids exist.

* Do not clean this machine with a pressure washer.

* Only use the brushes provided with the appliance or those specifi ed in the instruction manual. The use of other brushes may

impair safety.

CAUTION !

* This machine is not approved for use on public paths or roads.

* This machine is not suitable for picking up hazardous dust.

* Do not use scarifi er discs and grinding stones. Nilfi sk-Advance will not be held responsible for any damage to fl oor surfaces

caused by scarifi ers or grinding stones (can also cause damage to the brush drive system).

* When operating this machine, ensure that third parties, particularly children, are not endangered.

* Before performing any service function, carefully read all instructions pertaining to that function.

* Do not leave the machine unattended without fi rst turning the key switch off (O), removing the key and applying the parking

brake.

* Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.

* Take precautions to prevent hair, jewelry, or loose clothing from becoming caught in moving parts.

* Use caution when moving this machine in below freezing temperature conditions. Any water in the solution or recovery tanks

or in the hose lines could freeze, causing damage to valves and fi ttings. Flush with windshield washer fl uid.

* The batteries must be removed from the machine before the machine is scrapped. The disposal of the batteries should be

safely done in accordance with your local environmental regulations.

* Do not use on surfaces having a gradient exceeding that marked on the machine.

* All doors and covers are to be positioned as indicated in the instruction manual before using the machine.

SAVE THESE INSTRUCTIONS

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 5

ENGLISH / 5

CONSIGNES DE PRUDENCE ET DE SÉCURITÉ

SYMBOLES

Les symboles reproduits ci-dessous sont utilisés pour attirer l’attention de l’opérateur sur des situations dangereuses. Il est

donc conseillé de lire attentivement ces indications et de prendre les mesures adéquates en vue de protéger le personnel et le

matériel.

DANGER !

Ce symbole est utilisé pour mettre l’opérateur en garde contre les risques immédiats pouvant provoquer des dommages corpo-

rels graves, voire entraîner la mort.

AVERTISSEMENT !

Ce symbole est utilisé pour attirer l’attention sur une situation susceptible d’entraîner des dommages corporels graves.

ATTENTION !

Ce symbole est utilisé pour attirer l’attention de l’opérateur sur une situation qui pourrait entraîner des dommages corporels

minimes ou des dommages à la machine ou à d’autres équipements.

CONSIGNES GENERALES DE SECURITE

Les consignes spécifi ques de prudence et de sécurité mentionnées ici ont pour but de vous informer de la survenance de tout

risque de dommages matériels ou corporels.

AVERTISSEMENT !

* Cette machine ne pourra être utilisée que par du personnel parfaitement entraîné et dûment autorisé.

* Evitez les arrêts subits lorsque la machine est chargée et se trouve sur des rampes ou des plans inclinés. Evitez les virages serrés. Adoptez une

vitesse réduite lorsque la machine est en descente. Ne nettoyez que lorsque la machine monte la pente.

* Eloignez les batteries de toutes fl ammes, étincelles ou substance fumigène. Les gaz explosifs sont ventilés pendant le fonctionnement normal.

* De plus, du gaz hydrogène explosif s’échappe des batteries lorsqu‘elles sont en charge. Ne procédez au chargement des batteries que dans une

zone bien ventilée, loin de toute fl amme. Ne fumez pas à proximité des batteries lorsqu‘elles sont en charge.

* Otez tous vos bijoux lorsque vous travaillez à proximité de composants électriques.

* Positionnez la clé de contact sur off (O) et déconnectez les batteries avant de procéder à l‘entretien des composants électriques.

* Ne travaillez jamais sous une machine sans y avoir placé, au préalable, des blocs de sécurité ou des étais destinés à soutenir la machine

* Ne déversez pas d‘agents nettoyants infl ammables, ne faites pas fonctionner la machine à proximité de ces agents ou d‘autres liquides infl ammab-

les.

* Ne nettoyez pas cette machine avec un nettoyeur à pression.

* Utilisez uniquement les brosses fournies avec l’appareil ou celles spécifi ées dans le manuel d’instructions. L’utilisation d’autres brosses peut mettre

la sécurité en péril.

ATTENTION !

* Cette machine n’est pas conçue pour une utilisation sur les chemins ou voies publics.

* Cette machine n‘est pas conçue pour le ramassage des poussières dangereuses.

* N‘utilisez pas de disques de scarifi cateur ni de meules. Nilfi sk-Advance ne pourra en aucun cas être tenue pour responsable des dommages occasi-

onnés à vos sols par ce type d‘équipement (vous risquez également d‘endommager le système d‘entraînement des brosses).

* Lors de l‘utilisation de cette machine, assurez-vous que des tiers, et notamment des enfants, ne courent pas le moindre risque.

* Avant de procéder à toute opération d‘entretien, veuillez lire attentivement toutes les instructions qui s‘y rapportent.

* Ne laissez pas la machine sans surveillance sans avoir, au préalable, coupé le contact, enlevé la clé de contact (O) et tiré le frein à main.

* Positionnez la clé de contact sur off (O) avant de remplacer les brosses ou d’ouvrir tout panneau d’accès.

* Prenez toutes les mesures nécessaires pour éviter que les cheveux, les bijoux ou les vêtements amples ne soient entraînés dans les parties mobiles

de la machine.

* Faites attention lorsque vous déplacez cette machine dans un endroit où la température peut descendre sous 0°. Car l‘eau contenue dans les réser-

voirs de solution ou de récupération ou dans les conduites risquerait de geler et par là même d‘endommager les valves et raccords de la machine.

Rincez avec un liquide de lave-glace.

* Prenez soin d‘enlever les batteries de la machine avant de mettre cette dernière au rebut. Pour ce qui est de l‘élimination des batteries, conformez-

vous aux réglementations locales en matière d‘environnement.

* N’utilisez pas sur des surfaces dont la pente dépasse celle mentionnée sur la machine.

* Toutes les portes et couvercles doivent être dans la position mentionnée dans le manuel d’instruction avant de mettre la machine en service.

CONSERVEZ SOIGNEUSEMENT CES INSTRUCTIONS

6 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

6 / ENGLISH

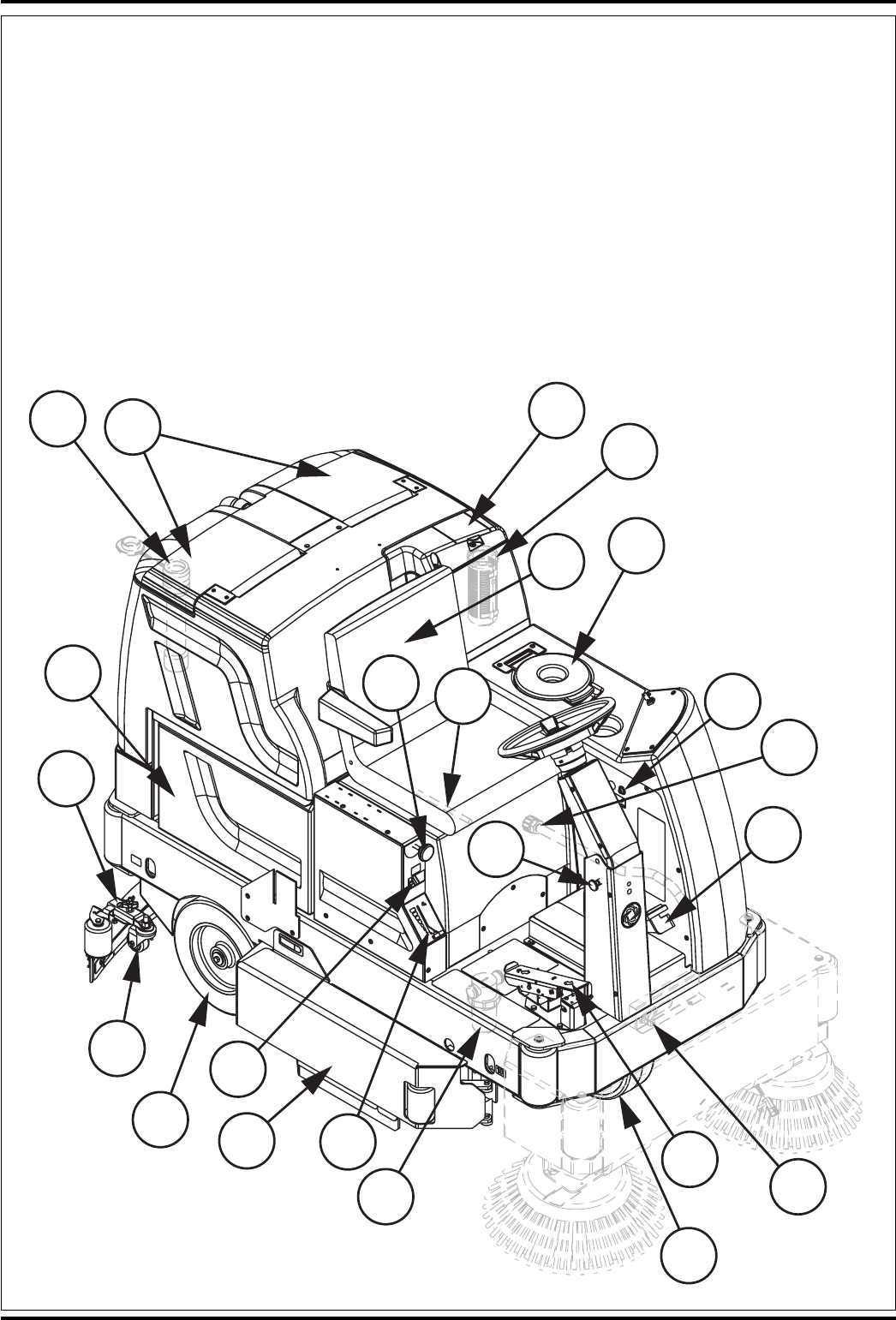

KNOW YOUR MACHINE

1 Recovery Tank Covers

2 Solution Tank Fill Cover

3 Operator Seat w/Safety Switch

4 Solution Tank Drain Hose

5 Steering Wheel Adj. Tilt Knob

6 Brake Pedal & Parking Brake Set/Release Lever

7 Solution Flow Control Lever

8 Drive Pedal Directional/Speed

9 Charger Plug

10 Drive and Steer Wheel

11 Circuit Breakers

12 Emergency Stop Switch / Battery Disconnect

13 Scrub Brush Deck And Side Skirts

14 Rear Wheel

15 Battery Compartment

16 Recovery Tank Shutoff Float

17 Vacuum Motor Filter Housing

18 Squeegee Assembly

19 Squeegee Casters

20 Solution Filter

21 Recovery Tank Drain Hose

44 Side Broom Wear Adjustment Lever (2042 / BR 1100C-XL only)

45 Operator Seat Adjustment Lever

1

2

3

56

78

9

10

11

12

13

14

15

16

17

18

19

21

20

4

44

45

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 7

ENGLISH / 7

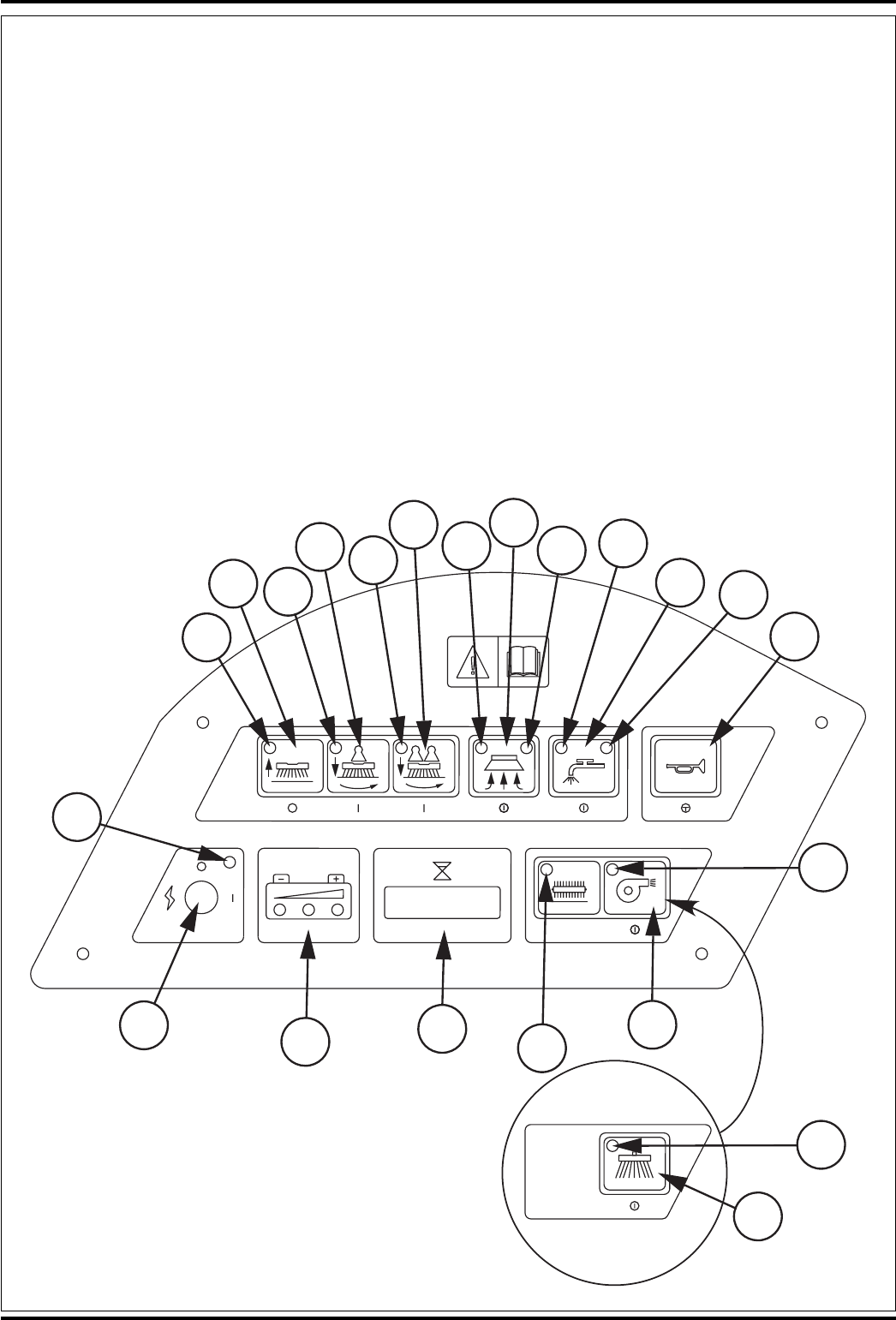

CONTROL PANEL

22 Horn Button

23 Main Power Indicator

24 Solution System Fault Indicator

25 Scrub Off Button

26 Normal Scrub Button

27 Heavy Scrub Button

28 Solution System Indicator

29 Vacuum Button

30 Solution Button

31 Battery Condition Indicator

32 Hourmeter/Status Display

33 Master On/Off Key Switch

34 Scrub Mode Off Indicator

35 Normal Scrub Mode Indicator

36 Heavy Scrub Mode Indicator

37 Vacuum System Indicator

38 Vacuum System Fault Indicator

39 Presweep Dust Control Button (3800 / BR 1100 only - opt)

40 Presweep Dust Control Indicator (3800 / BR 1100 only - opt)

41 Presweep Power Indicator (3800 / BR 1100 only - opt)

42 Sweep System Power Indicator (2042 / BR 1100C-XL only)

43 Sweep System Control Button (2042 / BR 1100C-XL only)

kg

lb

kg

lb

1/10

31 32

33

23

41 39

40

22

24

30

28

38

29

37

27

36

26

35

25

34

2042

42

43

1100C-XL

8 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

8 / ENGLISH

FUNCTIONAL DESCRIPTION OF CONTROL BUTTONS:

The controls were designed with one touch operation in mind. For single pass scrubbing the user can simply depress one button and all systems on the

machine will be ready to go.

For most single-pass scrubbing operations, the operator should only need to use the fi rst three buttons on the control panel. These are the Scrub Off (25),

Normal Scrub (26), and Heavy Scrub (27) buttons. For this reason these buttons are outlined in bright white on the control panel while the other buttons are

outlined in a darker color.

Horn Button (22) - Pressing this button will activate the horn.

Scrub Off Button (25) - Pressing this button when the unit is in a scrub mode will cause the following to occur:

• The scrub brushes will turn off

• The scrub deck will raise to the UP position

• The solution fl ow will be stopped

• The fi rst time that this button is pressed, the vacuum/squeegee system will NOT be turned off. This is so that any remaining water may be picked up

without having to turn the vacuum back on. If this button is pressed a second time (pressed after the scrub mode has been turned off) the squeegee will

raise and the vacuum will shut off after a 6 second delay.

Normal Scrub Button (26) - Pressing the normal scrub button will enable the scrub system and set the scrub pressure to the last selected value for the nor-

mal scrub mode. The status display will momentarily display the scrub pressure setting. This is indicated by “PA” followed by a number. Subsequent presses

of the normal scrub button will step the pad pressure setting through the allowable range up to the maximum value programmed for the normal scrub mode.

Once the maximum value is reached the pressure setting will step back to 1. The factory default maximum for the normal scrub mode is 4. The following will

occur when this button is pressed:

• The scrub deck will be lowered

• The vacuum and solution systems will be enabled (vacuum and solution modes = AUTO)

• As soon as a direction is commanded by the throttle (forward or reverse) the brushes will start turning and the vacuum will turn on. If the direction is

forward, the squeegee will lower and the solution fl ow will start. If the direction is reverse, the squeegee will go to the up position and the solution fl ow will

be stopped.

Heavy Scrub Button (27) - Pressing the heavy scrub button will enable the scrub system and set the scrub pressure to the last selected value for the heavy

scrub mode. The status display will momentarily display the scrub pressure setting. This is indicated by “PA” followed by a number. Subsequent presses

of the heavy scrub button will step the pad pressure setting through the allowable range up to the maximum value programmed for the heavy scrub mode.

Once the maximum value is reached the pressure setting will step back to (normal scrub limit + 1). The factory default maximum for the heavy scrub mode is

7 (cylindrical) or 9 (disc). The following will occur when this button is pressed:

• The scrub deck will be lowered

• The vacuum and solution systems will be enabled (vacuum and solution modes = AUTO)

• As soon as a direction is commanded by the throttle (forward or reverse) the brushes will start turning and the vacuum will turn on. If the direction is

forward, the squeegee will lower and the solution fl ow will start. If the direction is reverse, the squeegee will go to the up position and the solution fl ow will

be stopped.

Vacuum Button (29) - This button is used to select the mode of operation for the vacuum/squeegee system. There are 3 modes of operation for this system.

These modes are OFF, AUTO, ON. Following is a description of each mode and how they are selected.

OFF MODE: In this mode the vacuum is off and the squeegee is in the up position. As mentioned above, when a scrub mode is selected, the vacuum

system will be placed in the AUTO mode. If it is desired to double-scrub (scrub without recovering the solution) the vacuum system can be turned off by

pressing this button.

AUTO MODE: This mode is automatically selected when a scrub mode is selected. In this mode the squeegee will be in the down position unless the re-

verse direction is selected via the throttle. The vacuum will turn on if either direction is selected. While in this mode the vacuum will remain on for 10 seconds

after the throttle returns to the neutral position. This is so that the solution in the squeegee and hose can be drawn into the tank. This mode can be selected

independently of the scrub mode by pressing and releasing the vacuum button.

ON MODE: In this mode the squeegee will remain in the UP position and the vacuum will be on regardless of the throttle position. This mode is selected

by pressing and holding the vacuum button for approximately 1.5 seconds. The vacuum mode must fi rst be OFF before entering this mode. This mode is

included in the event an external wand is to be used with this machine or if the operator wants to clean the squeegee using the vacuum hose.

Solution Button (30) - This button is used to select the mode of operation for the solution system. There are 3 modes of operation for this system. The

modes are OFF, AUTO, MOMENTARY ON. Following is a description of each mode and how they are selected.

OFF MODE: In this mode the solution fl ow is turned off. As mentioned above, when a scrub mode is selected, the solution system will be placed in the

AUTO mode. If it is desired to scrub without dispensing solution, the solution can be turned off by pressing this button.

AUTO MODE: This mode is automatically selected when a scrub mode is selected. In this mode the solution fl ow will be turned on whenever the forward

direction is selected via the throttle. The solution fl ow will be turned off otherwise.

MOMENTARY ON MODE: This mode can only be selected when the scrub mode is OFF. Solution can be dispensed by pressing and holding the solution

button. Solution will be dispensed for as long as the button is held. This is for pre-wetting the fl oor prior to scrubbing.

Presweep Dust Control Button (opt / 39) - Use this button in conjunction with the optional presweep kit. The dust control feature will only work when the

brooms are running on the presweep unit.

Sweep System Control Button (2042 / BR 1100C-XL only) (43) - Use this button to turn the sweep system ON or OFF. The side brooms will only run when

the scrub system is ON and the machine is in motion (not in neutral). If the scrub system is turned OFF while the sweep system is still ON, the side brooms

will automatically lower and run the next time the scrub system is turned ON.

Side Broom Wear Adjustment Lever (2042 / BR 1100C-XL only) (44) - Use this adjustment lever to periodically re-adjust the down limit of the side brooms

as they wear. Loosening the lever, sliding it to the left and re-tightening it will cause the side brooms to drop closer to the fl oor.

Operator Seat Adjustment Lever (45) – Use this lever to slide the operator’s seat forward or backward.

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 9

ENGLISH / 9

DESCRIPTION OF INDICATORS ON THE CONTROL PANEL:

In general, the following guidelines apply to the control panel indicators:

A steady red indicator means that the function is inhibited for some reason. For example, if the scrub system is off and the operator is not on the seat, the

scrub system indicator will be red indicating that the system cannot be turned on until the operator is on the seat.

A fl ashing red indicator means that a fault has occurred in the particular system. An example of this would be an over-current fault.

A yellow indicator means that the particular function has been enabled but is not currently on. For example, if a scrub mode is selected and the throttle is in

neutral, the scrub system, vacuum, and solution indicators will all be yellow indicating that the systems are enabled and ready to turn on when the throttle is

moved to forward or reverse.

A green indicator means that the particular system is on.

A fl ashing green indicator means that the particular system is in a delayed-off condition. An example of this is when a scrub mode is selected and the throttle

goes from forward or reverse to neutral. When this happens the vacuum indicator will fl ash green indicating that the vacuum is still on but that it will be turn-

ing off after the delay period.

Scrub Mode Off Indicator (34):

• This indicator will be RED if the scrub system is inhibited for any reason. Possible reasons are:

• Seat switch is open

• The scrub deck has not returned to the UP position.

• A system fault

• Low voltage condition

• This indicator will be GREEN if the system is ready to be placed in either the normal or heavy scrub modes.

• This indicator will be OFF if either the normal or heavy scrub modes have been selected.

• This indicator will fl ash RED if there is a fault in one of the scrub system components. This will be accompanied by an error indication on the Hour Meter / Status Display

(32).

Normal Scrub Mode Indicator (35):

• This indicator will be YELLOW if the normal scrub mode has been selected but the scrub motor is off. This will be the case if the throttle is in the neutral position. The scrub

motor will stay on for approximately 3 seconds after the throttle returns to the neutral position.

• This indicator will be GREEN if the normal scrub mode has been selected and the scrub motor is on.

• This indicator will be OFF if the scrub mode is off or if the heavy scrub mode has been selected.

Heavy Scrub Mode Indicator (36):

• This indicator will be YELLOW if the heavy scrub mode has been selected but the scrub motor is off. This will be the case if the throttle is in the neutral position. The scrub

motor will stay on for approximately 3 seconds after the throttle returns to the neutral position.

• This indicator will be GREEN if the heavy scrub mode has been selected and the scrub motor is on.

• This indicator will be OFF if the scrub mode is off or if the normal scrub mode has been selected.

Vacuum System Indicator (37):

• This indicator will be YELLOW if the vacuum/squeegee system is in the AUTO mode and the throttle is in the neutral position. This indicates that the vacuum system is

enabled but the vacuum is currently off.

• This indicator will be GREEN if the vacuum is currently on. This indicates that the system is in the AUTO mode and the throttle is not in neutral or that the vacuum system is

in the ON mode.

• This indicator will FLASH GREEN if the shutoff delay is keeping the vacuum on. This occurs if the vacuum system is in the AUTO mode and the throttle goes to the neutral

position. This will also occur if the vacuum system is turned off while it was in either the AUTO or ON modes. The shutoff delay will turn the vacuum off after the delay

period.

• This indicator will be OFF if the vacuum/squeegee system if in the OFF mode.

Vacuum System Fault Indicator (38):

• This indicator will fl ash red if there is a fault in the vacuum or squeegee systems. This will be accompanied by an error indication on the Hour Meter / Status Display (32).

• This indicator will be RED and the Hour Meter / Status Display (32) will show “FULL” if the recovery tank fl oat valve has closed. If this indication occurs and the tank is not

full, see the Troubleshooting section.

Solution System Indicator (28):

• This indicator will be YELLOW if the solution system is in the AUTO mode and the throttle is in the neutral or reverse positions. This indicates that the solution system is

enabled but the solution fl ow is currently off.

• This indicator will be GREEN if the solution system is in the AUTO mode and the throttle is in the forward position. It will also be GREEN if the solution system is in the

MOMENTARY ON mode. This indicates that the solution fl ow is currently on.

• This indicator will be OFF if the solution system is in the OFF mode.

Solution System Fault Indicator (24):

• This indicator will fl ash red if there is a fault in the solution system. This will be accompanied by an error indication on the Hour Meter / Status Display (32).

Main Power Indicator (23):

• This indicator will be GREEN when the key switch is ON.

• This indicator will fl ash RED if there is a system fault that requires turning the Master ON/OFF Key Switch (33) off to reset.

• This indicator will fl ash fault codes from the Curtis Speed Control if a fault exists. This will be accompanied by an “Err03” indication on the Hourmeter/Status Display (32).

Presweep Dust Control Indicator (40):

• This indicator will be GREEN when the dust control feature is ON.

• This indicator will be YELLOW when the dust control feature is enabled but not ON.

• This indicator will be OFF if the dust control feature is not enabled or unit has the optional side broom kit installed.

Presweep Power Indicator (41):

• This indicator will be GREEN when either the optional presweep or side broom kits are installed and turned ON.

• This indicator will be YELLOW when either the optional presweep or side broom kits are installed and enabled, but not ON (machine in neutral).

• This indicator will be fl ashing YELLOW when the optional side broom kit is installed, selected and turned ON, but the scrub system is OFF.

• This indicator will be OFF if the foot pedal on the optional presweep or side broom kits is UP.

Sweep System Power Indicator (2042 / BR 1100C-XL only) (42):

• This indicator will be GREEN when the sweep system is turned ON.

• This indicator will be YELLOW when the sweep system is enabled, but not ON (machine in neutral).

• This indicator will be OFF if the sweep system is turned OFF.

10 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

10 / ENGLISH

DESCRIPTION OF THE BATTERY CONDITION INDICATORS

The battery condition indicators will give an indication of the state of charge of the batteries. The battery condition monitor will retain the state-of-charge even

if the key has been turned off. The state-of-charge indication is reset to full charge when the batteries have been recharged. It is also possible to choose be-

tween two different low voltage thresholds depending on whether maintenance free or standard batteries are being used (have qualifi ed service engineer

perform this selection). NOTE: The following percentages are based on useable battery capacity not total battery capacity. Therefore, 100% discharge =

80% of total battery capacity for standard wet cell batteries or 70% of total battery capacity for maintenance free batteries.

Green Indicator = full charge down to 50% discharge

Green & Yellow Indicator = 50% discharge down to 75% discharge

Yellow Indicator = 75% discharge down to 90% discharge

Yellow & Red Indicator = 90% discharge down to 95% discharge

Red Indicator = 95% discharge down to 99% discharge

Flashing Red Indicator = 100% discharge - scrub system will automatically shut down

DESCRIPTION OF HOURMETER / STATUS DISPLAY

The 5 character display in the middle of the bottom row of the control panel is primarily used as a display for the hourmeter function. This display is also

used to display the following information depending upon which mode the control is in:

• Error codes*

• Brush pressure adjustment settings for normal and heavy scrub mode (fi xed and adjustable)*

• Display of control system default parameters*

• Recovery tank FULL indicator*

* NOTE: Have a qualifi ed service engineer reference the Service Manual for explanations about the error code descriptions and scrub system control default

parameter changes. A brief description of error codes can be found at the back of this manual.

Emergency Stop Switch / Battery Disconnect (12): This will remove all power from the machine.

INSTALL THE BATTERIES

WARNING !

Use extreme caution when working with batteries. Sulfuric acid in batteries can cause severe injury if allowed to contact the

skin or eyes. Explosive hydrogen gas is vented from inside the batteries through openings in the battery caps. This gas can be

ignited by any electrical arc, spark or fl ame.

When Servicing Batteries...

* Remove all jewelry.

* Do not smoke.

* Wear safety glasses, a rubber apron and rubber gloves.

* Work in a well-ventilated area.

* Do not allow tools to touch more than one battery terminal at a time.

CAUTION !

Electrical components in this machine can be severely damaged if the batteries are not installed and connected properly. Batter-

ies should be installed by Nilfi sk-Advance or by a qualifi ed electrician.

1 Turn the Key Switch (33) off (O) and remove the key. Tip back the recovery tank to expose the battery compartment.

2 Using (2) people and an appropriate lifting strap, carefully lift the batteries into the battery compartment and arrange as shown.

3 See Figure 1. Insert spacers as shown. Install battery cables as shown and tighten the nuts on the battery terminals.

4 Install the battery boots and secure tightly to the battery cables with the supplied tie straps.

5 Install the battery cover and connect the battery pack connector to the machine connector, tip the recovery tank back forward.

NOTE! If total battery weight exceeds 920lbs / 417.31 kg, order and install Isolator Kit PN 56409721.

56409498

12V

12V

12V

56409499

++

+

56409498

6V

6V

6V

6V

6V

6V

56409499

56409499

+

+

+

+

+

+

56409499

36V

+

FIGURE 1

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 11

ENGLISH / 11

INSTALL THE BRUSHES (DISC SYSTEM)

CAUTION !

Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.

1 Make sure the Key Switch (33) is off (O). To access the brush mounting plates, remove both the left and right outer side skirt assemblies from the Scrub Brush Deck (13).

Note: The skirts are held in place by two black knobs on each skirt, to separate, loosen knob(s) and pull skirt straight out.

2 To mount the brushes (or pad holders) align the lugs on the brush with the holes on the mounting plate and turn to lock in place (turn outside edge of brush towards

front of machine).

56505791 - Magna Grit 46

56505792 - Dyna Grit 80

56505793 - AgLite Grit 500

56505794 – Prolene

56505795 - ProLite

56505796 - Union Mix

56505797 - MidGrit 240

56505798 - MidLite Grit 180

DISC BRUSH APPLICATION GUIDE (SUGGESTION ONLY)

46 80 180 240 500 Union

Application Grit Grit Grit Grit Grit Prolene Prolite Mix

Stripping:

Concrete XX

Terrazo XX

Ceramic/Quarry tile X

Vinyl tile X

General Scrubbing:

Concrete XXXX X

Terrazo XXXX

Ceramic/Quarry tile XXXX

Marble XX

Vinyl tile XXX

Raised-rubber tile XX

Polishing:

Raised Disc Tile X

Marble X

Vinyl tile X

INSTALL THE BRUSHES (CYLINDRICAL SYSTEM)

CAUTION !

Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.

1 Make sure the Key Switch (33) is off (O). To access the brushes, swing both side skirt assemblies open. Note: The skirts are held in place by a large cotter pin on each side,

remove the pins and swing the skirt assemblies out of the way. Loosen the black knobs (one on each side) on top of the idler assemblies and remove the idler assemblies.

Slide the brush into the housing, lift slightly, push and turn until it seats. Re-install the idler assemblies, close the skirt assemblies and secure with cotter pins.

3800C / BR 1100C 2042 / BR 1100C-XL

56410298 - 46 Grit 56409944 - 46 Grit

56410297 - 80 Grit 56409943 - 80 Grit

56410296 - 180 Grit 56409942 - 180 Grit

56410293 – Polypropylene 56409924 – Polypropylene

56410295 - Stiff Nylon 56409941 - Stiff Nylon

56410294 - Soft Nylon 56409940 - Soft Nylon

CYLINDRICAL BRUSH APPLICATION GUIDE (SUGGESTION ONLY)

46 80 180 Polypro- Stiff Soft

Application Grit Grit Grit pylene Nylon Nylon

Stripping:

Concrete X X

Terrazo X X

Ceramic/Quarry tile X

Vinyl tile X

General Scrubbing:

Concrete XXXXX

Terrazo XXXX

Ceramic/Quarry tile XXXX

Marble X X X

Vinyl tile XXXX

Raised-rubber tile X X

12 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

12 / ENGLISH

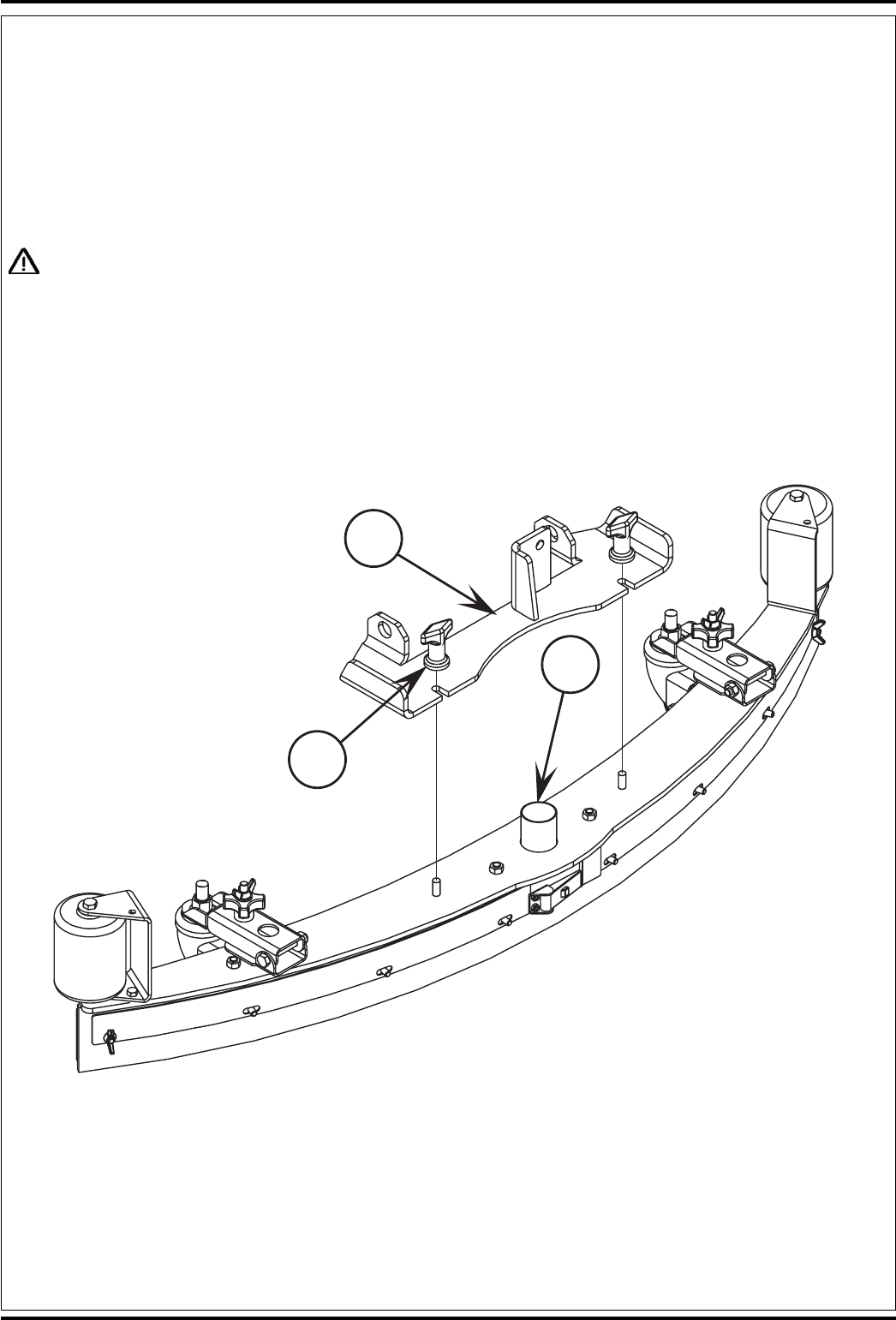

FIGURE 2

INSTALL THE SQUEEGEE

1 Make sure the Squeegee (18) is up (O) and the Key Switch (33) is off (O). Hold the squeegee tool so that the curved ends point forward, then slide the

squeegee tool onto the Mount (A) (See Figure 2).

2 Hand tighten the Thumb Nuts (B) and then connect the vacuum hose to the Squeegee Tube (C) (vacuum hose should loop to the left).

FILL THE SOLUTION TANK

Read the cleaning chemical label and fi gure the proper amount of chemical to mix for a tank that holds 53 US gallons (200 liters).

Open the Solution Tank Cover (2), then fi ll the tank 1/3 full of water, add the cleaning chemical, then fi ll the tank to 7.62cm (3 inches) from the top of the tank

opening (fi ll to bottom of the wall in tank opening).

CAUTION !

Use only low-foaming, non-fl ammable liquid detergents intended for automatic scrubber machine applications.

A

B

C

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 13

ENGLISH / 13

OPERATING THE MACHINE

WARNING !

Be sure you understand the operator controls and their functions.

While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean only

while ascending (driving up) the ramp.

To Scrub...

Follow the instructions in preparing the machine for use section of this manual.

1 While seated on the machine, adjust the seat and steering wheel to a comfortable operating position using the adjustment controls (45) and (5).

2 Turn the Master Key Switch (33) ON (I). This will display the control panel indicator lights, reference the Battery Condition Indicator (31) and Hour Meter

(32).

3 Release the Parking Brake (6) by fl ipping the set/release lever to the rear while pushing on the Brake Pedal (6). To transport the machine to the work area,

apply even pressure with your foot on the front of the FWD/REV Drive Pedal (8) to go forward or the rear of the pedal for reverse. Vary the pressure on

the foot pedal to obtain the desired speed.

4 Adjust the Solution Flow Control Valve Lever (7) to about 1/4 to 1/3 open position. Note the adjustment can be changed to allow variable solution fl ow

for different types of fl oors to be scrubbed. Example: A rough or absorbent fl oor surface, such as unfi nished concrete, well require more solution than a

smooth fi nished fl oor.

5 Press the Solution Control ON/OFF Touch Pad (30) and hold for 5 seconds. This is done to pre-wet the fl oor. Note: This will help prevent scarring of the

fl oor surface when starting to scrub with dry brushes.

6 Press the Normal Scrub Button (26) for moderate scrub deck pressure or the Heavy Scrub Button (27) for the highest pressure mode. Note refer to the

machine control description section to the have more detailed explanation of this and other control panel functions.

7 When either the Normal Scrub Button (26) or Heavy Scrub Button (27) are selected, the brushes and squeegee automatically are lowered to the fl oor. The

machine’s scrub brushes rotation and solution system fl ow starts when the FWD/REV Drive Pedal (8) is activated. Note: When operating the machine in

reverse, only the brushes will rotate, the solution is automatically shut off to conserve the solution usage.

8 Begin scrubbing by driving the machine forward in a straight line at a normal walking speed and overlap each path by 2-3 inches (50-75 mm). Adjust when

necessary the machine speed and solution fl ow according to the condition of the fl oor.

CAUTION !

To avoid damaging the fl oor, keep the machine moving while the brushes are turning.

9 When scrubbing, check behind the machine occasionally to see that all of the waste water is being picked up. If there is water trailing the machine, you

may be dispensing too much solution, the recovery tank may be full, or the squeegee tool may require adjustment.

10 For extremely dirty fl oors, a one-pass scrubbing operation may not be satisfactory and a “double-scrub” operation may be required. This operation is the

same as a one-pass scrubbing except on the fi rst pass the squeegee is in the up position (press the Vacuum Button (29) to raise the pick up squeegee).

This allows the cleaning solution to remain on the fl oor to work longer. The fi nal pass is made over the same area, with the squeegee lowered to pick up

the accumulated solution.

11 The recovery tank has an automatic fl oat shut-off to prevent solution from entering the vacuum system when the recovery tank is full. When the fl oat

shut-off is activated, the control system will shut down the scrub, vacuum and solution systems. The Vacuum System Fault Indicator (38) will be lit and

the Hour Meter / Status Display (32) will display “FULL”. To clear the display, press the Scrub OFF Button (25). When the fl oat closes, the recovery tank

must be emptied. The machine will not pick up water with the fl oat closed. NOTE: If the control repeatedly gives a full indication when the tank is not full,

the automatic shut-off feature can be disabled, have a qualifi ed service technician perform this function.

12 When the operator wants to stop scrubbing or the recovery tank is full, press the Scrub OFF Button (25) once. This will automatically stop the scrub

brushes and solution fl ow and the scrub deck will raise UP. NOTE: the vacuum/squeegee system will not be turned off when the button is only pressed

once, this is to allow any remaining water to be picked up without turning the vacuum back on. Press the button a second time and the squeegee will raise

and the vacuum will stop after a 10 second delay.

13 Drive the machine to a designated waste water “DISPOSAL SITE” and empty the recovery tank. To empty, pull the Drain Hose (21) from it’s rear storage

area, then remove the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled fl ow of waste water). Refi ll the solution

tank and continue scrubbing.

14 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

14 / ENGLISH

WET VACUUMING

Steps to follow in fi tting the machine with optional attachments for wet vacuuming.

1 Disconnect the recovery hose connection at the recovery tank inlet. Then fi t a 1-1/2 inch (38 mm) Dia. vacuum hose to the recovery inlet.

2 Attach suitable wet pick-up tools to the hose. (An optional Wand Caddy Kit is available from Nilfi sk-Advance).

3 Turn the Master Key Switch (33) ON, next press and hold the Vacuum Button (29) until the indicator light turns green. The vacuum motor will run

continuously until the button is pressed again to turn it OFF. NOTE: If the control repeatedly gives a full indication when the tank is not full, the automatic

shut-off feature can be disabled, have a qualifi ed service technician perform this function.

AFTER USE

1 When fi nished scrubbing, depress the Scrub Off Button (25) twice, this will automatically raise, retract and stop all the machine systems (brush, squeegee,

vacuum & solution). Then drive the machine to a service area for daily maintenance and review of other needed service up keep.

2 To empty the solution tank, remove the Solution Drain Hose (24) from it’s storage clamp. Direct the hose to a designated “DISPOSAL SITE” and remove

the plug. Rinse the tank with clean water.

3 To empty the recovery tank, pull the Recovery Tank Drain Hose (21) from it’s storage area. Direct the hose to a designated “DISPOSAL SITE” and remove

the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled fl ow of waste water). Rinse the tank with clean water.

4 Remove the brushes or pad holders. Rinse the brushes or pads in warm water and hang up to dry.

5 Remove the squeegee, rinse it with warm water and re-install on mount.

6 Remove the hopper on cylindrical systems and clean thoroughly. Remove from left side of machine by opening skirt and tilting hopper up and away from

housing, then pull out.

7 Check the maintenance schedule below and perform any required maintenance before storage

MAINTENANCE SCHEDULE

MAINTENANCE ITEM Daily Weekly Monthly Yearly

Charge Batteries •

Check/Clean Tanks & Hoses •

Check/Clean/Rotate the Brushes/Pads •

Check/Clean the Squeegee •

Check/Clean Vacuum Shut-Off Float •

Check/Clean the vacuum motor foam fi lter •

Clean Hopper on Cylindrical System •

Check Each Battery Cell(s) Water Level •

Inspect Scrub Housing Skirts •

Inspect and clean Solution Filter •

Check Foot/ Parking Brake For Wear & Adjustment •

Clean Solution Trough on Cylindrical System •

Lubrication - Grease Fittings •

* Check Carbon Brushes •

* Have Nilfi sk-Advance check the vacuum motor carbon motor brushes once a year or after 300 operating hours. The brush and drive motor carbon brushes

check every 500 hours or once a year.

NOTE: Refer to the Service Manual for more detail on maintenance and service repairs.

8 Store the machine indoors in a clean dry place. Keep from freezing. Leave the tanks open to air them out.

9 Turn the Master Key Switch (33) OFF (O) and remove the key.

LUBRICATING THE MACHINE

Once a month, pump a small amount of grease into each grease fi tting on the machine until grease seeps out around the bearings.

Grease fi tting locations are:

• Squeegee Caster Wheel Axle & Swivel (2) per Assembly

• Steering Chain Idler Sprocket

• Steering Wheel Shaft Universal joint

Once a month, apply light machine oil to lubricate the:

• Steering Chain

• Squeegee Height Adjustment Caster Hardware

• General Pivot Points For the Squeegee, Brush Linkage and Side Skirts

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 15

ENGLISH / 15

CHARGING THE BATTERIES

Charge the batteries each time the machine is used, or whenever the Battery Condition Meter (31) is showing a yellow , red or fl ashing red indicator light(s).

To Charge the Batteries...

1 Drain and tip back the recovery tank to provide proper ventilation.

2 Push the connector from the charger into the Battery Charger Plug (9).

3 Follow the instructions on the battery charger.

4 Check the fl uid level in all battery cells after charging the batteries. Add distilled water, if necessary, to bring the fl uid level up to the bottom of the fi ller

tubes.

WARNING !

Do not fi ll the batteries before charging.

Only charge batteries in a well-ventilated area.

Do not smoke while servicing the batteries.

CAUTION !

To avoid damage to fl oor surfaces, always wipe water and acid from the top of the batteries after charging.

CHECKING THE BATTERY ELECTROLYTE LEVEL

Check the electrolyte level of the batteries at least once a week.

After charging the batteries, remove the vent caps and check the electrolyte level in each battery cell. Use distilled water to fi ll the batteries to the bottom of

the fi ller tube.

Do not over-fi ll the batteries!

CAUTION !

Acid can spill onto the fl oor if the batteries are overfi lled.

Tighten the vent caps. If there is acid on the batteries, wash the tops of the batteries with a solution of baking soda and water (2 tablespoons of baking soda

to 1 quart of water).

16 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

16 / ENGLISH

SQUEEGEE MAINTENANCE

If the squeegee leaves narrow streaks or water, the blades may be dirty or damaged. Remove the squeegee, rinse it under warm water and inspect the

blades. Reverse or replace the blades if they are cut, torn, wavy or worn.

To Reverse or Replace the Rear Squeegee Wiping Blade...

1 See Figure 3. Raise the squeegee tool off the fl oor, then unsnap the Center Latch (A) on the squeegee tool.

2 Remove the Wing Nut (B) from each end of the squeegee, then remove the Tension Straps (C).

3 Slip the rear blade off the alignment pins.

4 The squeegee blade has 4 working edges. Turn the blade so a clean, undamaged edge points toward the front of the machine. Replace the blade if all

4 edges are nicked, torn or worn to a large radius.

5 Install the blade, following the steps in reverse order and adjust the squeegee.

To Reverse or Replace the Front Squeegee Blade...

1 Raise the squeegee tool off the fl oor, then loosen the (2) Thumb Nuts (D) on top of the squeegee and remove the squueegee tool from the mount.

2 Remove all the wing nuts that hold the front blade in place, then remove tension strap and blade.

3 The squeegee blade has 4 working edges. Turn the blade so a clean, undamaged edge points toward the front of the machine. Replace the blade if all

4 edges are nicked, torn or worn to a large radius.

4 Install the blade, following the steps in reverse order and adjust the squeegee.

SQUEEGEE ADJUSTMENT

There are two major squeegee tool adjustments, height and angle. The recommended adjustment steps are to set the tool angle fi rst, then adjust the blade

height.

Adjusting the Squeegee Angle

Adjust the squeegee angle whenever a blade is reversed or replaced, or if the squeegee is not wiping the fl oor dry.

1 Park the machine on a fl at, even surface and lower the squeegee. Then drive the machine forward enough to have the squeegee blades fold over to the

rear.

2 Loosen the Lock Wing Nut (G) (hand tightened). This secures the squeegee mount angle from easily vibrating out of adjustment.

3 Turn the Adjustment Knob (H) to tilt the tool forward or backwards, until the rear squeegee wiping blade touches the fl oor evenly across its entire width.

4 Re-tighten by hand the Lock Wing Nut (G).

Adjusting the Squeegee Blade Height

Adjust the squeegee height whenever a blade is reversed or replaced, or if the squeegee is not wiping the fl oor dry. The squeegee blade height is easily

adjustable at the caster wheels. To adjust...

1 Park the machine on a fl at even surface

and lower the squeegee. Then drive

the machine forward enough to have

the squeegee blades fold over to the

rear.

2 Loosen both the lock adjustment Wing

Nuts (E) (need to be hand tightened

only) located on the top of the caster

mount bracket.

3 Rotate the Adjustment Knobs (F) CW

(clockwise) to lift the squeegee and

CCW (counter clockwise) to lower it.

A starting point when replacing the

blades is to adjust the caster mounting

bracket so it is level (parallel) to the

top of the squeegee tool. Note: The

Right and Left caster wheels must be

adjusted equally to maintain level and

even blade pressure.

4 Re-tighten the lock adjustment Wing

Nuts (E) and test for proper squeegee

pick-up.

A

B

C

BC

D

D

E

E

F

F

G

H

FIGURE 3

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 17

ENGLISH / 17

SIDE SKIRT MAINTENANCE (DISC SYSTEM)

The side skirts function is to channel the waste water to the rear pick-up squeegee, helping contain the water with in the machines cleaning path. During

normal use the blades will wear in time. The operator will notice a small amount of water leaking out underneath the side skirts. A height adjustment can

easily be made to lower the blades so that all the water can be pick-up by the squeegee.

To reverse or replace the scrub system side skirt(s) ...

1 See Figure 4. Loosen the (2) side skirt Retainer Knobs (A) (2 per side) and pull the Skirt Assemblies (B) off from the scrub deck.

2 Remove all the hardware that holds both the (short and long) blades and retainers to the skirt housing.

3 Each blade has 4 working edges. Reinstall the blades to the skirt housing so a clean, undamaged edge points inside towards the scrub brushes. Replace

the blades as a set if they are nicked, torn or worn beyond their ability to be adjusted.

4 Reinstall the skirt housing assemblies onto the machine and adjust the blade for proper contact to the fl oor when the brush deck is placed in the scrub

position.

SIDE SKIRT HEIGHT ADJUSTMENT (DISC SYSTEM)

1 The side skirt housing knob retainer screw studs have leveling Adjuster Collars (C), that are to be raised or lowered to compensate for blade wear.

2 To adjust, remove the Skirt Assemblies (B) from the Scrub Deck (D) to access the Adjuster Collars (C). Adjustment Tip: The skirts Retainer Knobs (A)

can be loosened with skirts left on and the Adjuster Collars (C) rotated by reaching under the skirt housing.

3 Turn the Adjuster Collars (C) (Up or Down) to where the blades just fold over enough when scrubbing that all the waste water is contained inside the

skirting. Note: Make small adjustments to obtain good blade wiping. Do not lower the blades too much to where they fold over excessively and cause

unneeded blade wear.

FIGURE 4

A

A

A

AB

B

C

C

D

18 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

18 / ENGLISH

FIGURE 5

SIDE SKIRT MAINTENANCE (CYLINDRICAL SYSTEM)

The side skirts function is to channel the waste water to the rear pick-up squeegee, helping contain the water with in the machines cleaning path. During

normal use the blades will wear in time. The operator will notice a small amount of water leaking out underneath the side skirts. Skirt height adjustment is

automatic on this system. The skirt assemblies should move up and down freely for proper operation.

To replace the scrub system side skirt(s) ...

1 See Figure 5. Remove the (2) (A) Cotter Pins and swing the Skirt Assemblies open. Remove the (B) Screws and Nuts, remove the Skirts and replace.

FRONT

A

B

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 19

ENGLISH / 19

GENERAL MACHINE TROUBLESHOOTING

Problem Possible Cause Remedy

Poor water pick-up Worn or torn squeegee blades Reverse or replace

Squeegee out of adjustment Adjust so blades touch fl oor evenly across entire width

Recovery tank full Empty recovery tank

Recovery tank drain hose leak Secure drain hose cap or replace

Recovery tank cover gasket leak Replace gasket / Seat cover properly

Debris caught in squeegee Clean squeegee tool

Vacuum hose clogged Remove debris

Using too much solution Adjust solution control valves

Foam fi lter cover not seated Seat cover properly

Poor scrubbing performance Worn brush or pad Rotate or replace brushes

Wrong brush or pad type Consult Nilfi sk-Advance

Wrong cleaning chemical Consult Nilfi sk-Advance

Moving machine too fast Slow down

Not using enough solution Adjust solution control valves

Inadequate solution fl ow or no solution Solution tank empty Fill solution tank

Solution lines, valves, fi lter or trough clogged Flush lines, trough and clean solution fi lter

Solution control valves not open Adjust solution control valves

Solution solenoid valve Clean or replace valve

Machine does not run Emergency stop switch Rotate the stop switch knob to release

Battery charger port interlock Check for open circuit and replace

Operator seat safety switch Check for open circuit and replace

Main system controller Check error fault codes (see service manual)

Tripped 10 Amp circuit breaker Check for electrical short circuit & reset

No FWD/REV wheel drive Drive system speed contoller Check error fault codes (see service manual)

Tripped 80 Amp circuit breaker Check for drive motor overload

Emergency stop switch tripped Reconnect battery connectors

Vacuum shuts off and display shows

“FULL” when recovery tank is not full Plugged squeegee hose Clear debris

Vacuuming large amounts of water

at a high travel speed Slow down or disable auto shut-off feature

(see service manual)

Poor Sweeping Performance

(Cylindrical System) Hopper Full Empty and clean hopper

Brushes worn Replace brushes

Bristles have taken a set Rotate brushes

20 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

20 / ENGLISH

CONTROLLER ERROR CODES

For all error codes: Turn key switch off & then back on. If error persists consult chart below and/or service manual.

Error

Code Description Possible Cause Corrective Action

1 Control fault Control failure Turn key switch off & back on. If problem persists consult service manual.

2 Critical control fault Control failure Turn key switch off & back on. If problem persists consult service manual.

3 Drive system fault Tripped wheel drive circuit breaker Reset circuit breaker

Throttle not in neutral (HPD fault) Verify that throttle is in neutral before turning key on. Adjust throttle mecha-

nism.

Wheel drive system problem Consult service manual.

4 Scrub deck lift actuator overload Scrub deck obstruction / binding Remove obstruction. Lubricate mechanism.

Defective actuator motor Consult service manual.

5 Scrub deck lift actuator severe overload See error code 4

6 Scrub deck lift actuator circuit open / output fault Bad electrical connection Check all conections to actuator motor.

Defective actuator motor Consult service manual.

Control failure Consult service manual.

7 Scrub motor overload Scrub motor obstruction Remove obstruction. Check to see that motors rotate freely.

Defective scrub motor Consult service manual.

8 Scrub motor severe overload See error code 7

9 Scrub motor circuit open Bad electrical connection Check all conections to scrub motors.

Defective scrub motor(s) Consult service manual.

Control failure Consult service manual.

10 Scrub motor contactor contacts shorted Contactor failure Consult service manual.

11 Not used

12 Scrub motor contactor coil overload Contactor failure Consult service manual.

Coil suppression diode failure Consult service manual.

13 Scrub motor contactor coil severe overload See error code 12

14 Scrub motor contactor coil circuit open / output fault Bad electrical connection Check all connections to scrub motor contactor.

Contactor failure Consult service manual.

Control failure Consult service manual.

15 Not used

16 Not used

17 Scrub motor cable thermistor fault Machine temperature out of range This error will occur if the machine temperature is below 32*F or above 185*F.

This error will not prevent operation of the machine. Scrub pressure may be

affected.

Thermistor failure Consult service manual.

18 Squeegee lift actuator overload Squeegee obstruction / binding Remove obstruction. Lubricate mechanism.

Defective actuator motor Consult service manual.

19 Squeegee lift actuator severe overload See error code 18

20 Squeegee lift actuator circuit open / output fault Bad electrical connection Check all conections to actuator motor.

Defective actuator motor Consult service manual.

Control failure Consult service manual.

21 Not used

22 Not used

23 Not used

FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL - 21

ENGLISH / 21

Error

Code Description Possible Cause Corrective Action

24 Vacuum motor overload Motor obstruction Remove obstruction.

Motor failure / carbon brush worn Consult service manual.

25 Vacuum motor severe overload See error code 24

26 Vacuum motor circuit open Bad electrical connection Check all conections to vacuum motor(s).

Defective vacuum motor(s) Consult service manual.

Control failure Consult service manual.

27 Vacuum contactor contacts shorted Contactor failure Consult service manual.

28 Not used

29 Vacuum contactor coil overload Contactor failure Consult service manual.

Coil suppression diode failure Consult service manual.

30 Vacuum contactor coil severe overload See error code 29

31 Vacuum contactor coil circuit open / output fault Bad electrical connection Check all connections to vacuum motor contactor.

Contactor failure Consult service manual.

Control failure Consult service manual.

32 Solution solenoid overload Solenoid failure Consult service manual.

Control failure Consult service manual.

33 Solution solenoid severe overload See error code 32

34 Solution solenoid circuit open / output fault Bad electrical connection Check all conections to solution solenoid.

Defective solution solenoid Consult service manual.

Control failure Consult service manual.

35 External wiring fault Wiring problem Check for loose connections to main control unit. Consult service manual.

36 No accessory output voltage Control Failure / Wiring problem Check for loose connections to main control unit. Consult service manual.

37 Not used

38 Not used

39 Not used

40 Direction input fault Speed control output problem Consult service manual.

Improperly programmed speed control Consult service manual.

Control failure Consult service manual.

41 Pre-sweep contactor coil overload Contactor failure Consult service manual.

42 Pre-sweep contactor coil severe overload See error code 41

43 Pre-sweep contactor coil circuit open / output fault Bad electrical connection Check all connections to pre-sweep motor contactor.

Contactor failure Consult service manual.

Control failure Consult service manual.

44 Dust control contactor coil overload (3800 / BR 1100) Contactor failure Consult service manual.

45 Dust control contactor coil severe overload (3800 / BR 1100) See error code 44

46 Dust control contactor coil circuit open / output fault (3800 / BR 1100) Bad electrical connection Check all connections to dust control motor contactor.

Contactor failure Consult service manual.

Control failure Consult service manual.

22 - FORM NO. 56041587 - Hydro-Retriever™ 3800, 2042 / BR 1100, 1100C, 1100C-XL

22 / ENGLISH

TECHNICAL SPECIFICATIONS (as installed and tested on the unit)

Model BR 1100 / Haram BR 1100 BR 1100C BR 1100C-XL

Hydro-Retriever™ 3800 Hydro-Retriever™ 3800C Hydro-Retriever™ 2042

Model No. 56410002 / 56307200 56410351 56410425

56410000 56410350 56410001

Current A 136 103 115

Voltage, Batteries V 36V 36V 36V

Battery Capacity Ah 480@5 hr 480@5 hr

370@6 hr 370@6 hr 370@6 hr

Protection Grade IPX3 IPX3 IPX3

Sound Power Level (IEC 704-1) dB(A)/20μPa 73 73 73

Gross Weight lbs / kg 2988 / 1355 2998 / 1360

2690 / 1220 2700 / 1225 2833 / 1285

Vibrations at the Hand Controls m/s2<2.5m/s2<2.5m/s2<2.5m/s2

Vibrations at the Seat m/s2<0.5m/s2<0.5m/s2<0.5m/s2

Gradeability

Transport 15% (8.50) 15% (8.50) 15% (8.50)

Cleaning 12% (6.80) 12% (6.80) 12% (6.80)

revised 6/05

Deutsch Korrekte Entsorgung dieses Produkts (Elektromüll)

(Anzuwenden in den Ländern der Europäischen Union und anderen euroäis-

chen Ländern mit einem separaten Sammelsystem)

Die Kennzeichnung auf dem Produkt bzw. auf der dazugehörigen Literatur gibt an, dass es

nach seiner Lebensdauer nicht zusammen mit dem normalen Haushaltsmüll entsorgt werden

darf. Entsorgen Sie dieses Gerät bitte getrennt von anderen Abfällen, um der Umwelt bzw. der

menschlichen Gesundheit nicht durch unkontrollierte Müllbeseitigung zu schaden. Recyceln Sie

das Gerät, um die nachhaltige Wiederverwertung von stofflichen Ressourcen zu fördern.

Private Nutzer sollten den Händler, bei dem das Produkt gekauft wurde, oder die zuständigen

Behörden kontaktieren, um in Erfahrung zu bringen, wie sie das Gerät auf umweltfreundliche

Weise recyceln können.

Gewerbliche Nutzer sollten sich an Ihren Lieferanten wenden und die Bedingungen des

Verkaufsvertrags konsultieren. Dieses Produkt darf nicht zusammen mit anderem Gewerbemüll

entsorgt werden.

Français

Comment éliminer ce produit (déchets d’équipements électriques et électroniques)

(Applicable dans les pays de l’Union Européen et aux autres pays européens

disposant de systémes de collecte sélective)

Ce symbole sur le produit ou sa documentation indique qu’il ne doit pas être éliminé en fin de

vie avec les autres déchets ménagers. L’élimination incontrôlée des déchets pouvant porter

préjudice à l’environnement ou à la santé humaine, veuillez le séparer des autres types de

déchets et le recycler de façon responsable. Vous favoriserez ainsi la réutilisation durable des

ressources matérielles.

Les particuliers sont invités à contacter le distributeur leur ayant vendu le produit ou à se ren-

seigner auprès de leur mairie pour savoir où et comment ils peuvent se débarrasser de ce pro-

duit afin qu’il soit recyclé en respectant l’environnement.

Les entreprises sont invitées à contacter leurs fournisseurs et à consulter les conditions de leur

contrat de vente. Ce produit ne doit pas être éliminé avec les autres déchets commerciaux.

Italiano Corretto smaltimento del prodotto (rifiuti elettrici ed elettronici)

(Applicabile in i paesi dell’Unione Europea e in quelli con sistema di raccolta

differenziata)

Il marchio riportato sul prodotto o sulla sua documentazione indica che il prodotto non deve

essere smaltito con altri rifiuti domestici al termine del ciclo di vita. Per evitare eventuali danni

all'ambiente o alla salute causati dall'inopportuno smaltimento dei rifiuti, si invita l'utente a sep-

arare questo prodotto da altri tipi di rifiuti e di riciclarlo in maniera responsabile per favorire il

riutilizzo sostenibile delle risorse materiali.

Gli utenti domestici sono invitati a contattare il rivenditore presso il quale è stato acquistato il

prodotto o l'ufficio locale preposto per tutte le informazioni relative alla raccolta differenziata e

al riciclaggio per questo tipo di prodotto.

Gli utenti aziendali sono invitati a contattare il proprio fornitore e verificare i termini e le con-

dizioni del contratto di acquisto. Questo prodotto non deve essere smaltito unitamente ad altri

rifiuti commerciali.

Sweden

Korrekt avfallshantering av produkten (elektriska och elektroniska produkter)

Denna markering på produkten och i manualen anger att den inte bör sorteras tillsammans med

annat hushållsavfall när dess livstid är över. Till förebyggande av skada på miljö och hälsa bör pro-

dukten hanteras separat för ändamålsenlig återvinning av dess beståndsdelar.

Hushållsanvändare bör kontakta den återförsäljare som sålt produkten eller sin kommun för

vidare information om var och hur produkten kan återvinnas på ett miljösäkert sätt.

Företagsanvändare bör kontakta leverantören samt verifiera angivna villkor i köpekontraktet. Produkten

bör inte hanteras tillsammans med annat kommersiellt avfall.

WEEE Symbol Information

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate

collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with

other household wastes at the end of its working life. To prevent possible harm to the environ-

ment or human health from uncontrolled waste disposal, please separate this from other types

of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their

local government office, for details of where and how they can take this item for environmental-

ly safe recycling.

Business users should contact their supplier and check the terms and conditions of the pur-

chase contract. This product should not be mixed with other commercial wastes for disposal.

DJ68-00320A REV(0.0)

Netherlands

Correcte verwijdering van dit product (elektrische & elektronische

afvalapparatuur)

Dit merkteken op het product of het bijbehorende informatiemateriaal duidt erop dat het niet met

ander huishoudelijk afval verwijderd moet worden aan het einde van zijn gebruiksduur. Om

mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde afvalverwi-

jdering te voorkomen, moet u dit product van andere soorten afval scheiden en op een verantwo-

orde manier recyclen, zodat het duurzame hergebruik van materiaalbronnen wordt bevorderd.

Huishoudelijke gebruikers moeten contact opnemen met de winkel waar ze dit product hebben

gekocht of met de gemeente waar ze wonen om te vernemen waar en hoe ze dit product milieuvrien-

delijk kunnen laten recyclen.

Zakelijke gebruikers moeten contact opnemen met hun leverancier en de algemene voorwaar-

den van de koopovereenkomsten nalezen. Dit product moet niet worden gemengd met ander

bedrijfsafval voor verwijdering.

Denmark

Korrekt affaldsbortskaffelse af dette produkt (elektrisk & elektronisk udstyr)

Mærket på dette produkt eller i den medfølgende dokumentation betyder, at produktet ikke må

bortskaffes sammen med almindeligt husholdningsaffald efter endt levetid. For at undgå skadelige

miljø- eller sundhedspåvirkninger på grund af ukontrolleret affaldsbortskaffelse skal dette produkt

bortskaffes særskilt fra andet affald og indleveres behørigt til fremme for bæredygtig materialegen-

vinding.

Hjemmebrugere bedes kontakte forhandleren, hvor de har købt produktet, eller den lokale myn-

dighed for oplysning om, hvor og hvordan de kan indlevere produktet med henblik på miljø-

forsvarlig genvinding.

Erhvervsbrugere bedes kontakte leverandøren og læse betingelserne og vilkårene i købekon-

trakten. Dette produkt bør ikke bortskaffes sammen med andet erhvervsaffald.

Portugal

Eliminação Correcta Deste Produto (Resíduo de Equipamentos Eléctricos

e Electrónicos)

Esta marca, apresentada no produto ou na sua literatura indica que ele não deverá ser eliminado

juntamente com os resíduos domésticos indiferenciados no final do seu período de vida útil. Para

impedir danos ao ambiente e à saúde humana causados pela eliminação incontrolada de resídu-

os deverá separar este equipamento de outros tipos de resíduos e reciclá-lo de forma responsáv-

el, para promover uma reutilização sustentável dos recursos materiais.

Os utilizadores domésticos deverão contactar ou o estabelecimento onde adquiriram este produ-

to ou as entidades oficiais locais para obterem informações sobre onde e de que forma podem

levar este produto para permitir efectuar uma reciclagem segura em termos ambientais.

Os utilizadores profissionais deverão contactar o seu fornecedor e consultar os termos e

condições do contrato de compra. Este produto não deverá ser misturado com outros resíduos

comerciais para eliminação.

Republic of Ireland (Gaelic)

Diúscairt Cheart an Táirge Seo (Trealamh Leictreach agus Leictreonach

Dramhaíola)

Léiríonn an mharcáil seo atá ar an táirge nó sa litríocht a thagann leis, nár chóir é a dhiúscairt le

dramhaíl tí eile ag deireadh a shaoil oibre. Chun cosaint i gcoinne dochar don chomhshaol nó do

shláinte an duine, a d’fhéadfadh bheith mar thoradh ar an ndiúscairt dramhaíola neamhtheoran-

ta, scar an dramhaíl seo ó chineálacha eile dramhaíola le do thoil agus déan athchursáil fhrea-

grach air chun athúsáid inmharthana na hacmhainní ábhartha a chur chun cinn.

Ba chóir dóibh siud a úsáideann an trealamh sa bhaile dul i dteagmháil leis an díoltóir ónar chean-

naigh siad an táirge seo, nó lena n-oifig áitiúil Rialtais, ar mhaithe le sonraí a fháil faoi cá háit agus

cathain is féidir athchúrsáil atá slán ó thaobh an chomhshaoil de a dhéanamh ar an táirge seo.

Ba chóir dóibh siúd a úsáideann an trealamh seo ina ngnó dul i dteagmháil leis an soláthróir

agus téarmaí agus coinníollacha an chonartha ceannaigh a sheiceáil. Níor chóir an táirge seo

a chur le dramhaíl eile tráchtála agus diúscairt á déanamh.

Español Eliminación correcta de este producto (material eléctrico y electrónico

de descarte)

(Aplicable en la Unión Europea y en países europeos con sistenmas de recogi-

da selectiva de residuos)

La presencia de esta marca en el producto o en el material informativo que lo acompaña, indi-

ca que al finalizar su vida útil no deberá eliminarse junto con otros residuos domésticos. Para

evitar los posibles daños al medio ambiente o a la salud humana que representa la eliminación

incontrolada de residuos, separe este producto de otros tipos de residuos y recíclelo correcta-

mente para promover la reutilización sostenible de recursos materiales.

Los usuarios particulares pueden contactar con el establecimiento donde adquirieron el pro-

ducto, o con las autoridades locales pertinentes, para informarse sobre cómo y dónde pueden

llevarlo para que sea sometido a un reciclaje ecológico y seguro.

Los usuarios comerciales pueden contactar con su proveedor y consultar las condiciones del con-

trato de compra. Este producto no debe eliminarse mezclado con otros residuos comerciales.

Slovakia

Správna likvidácia tohoto výrobku (Elektrotechnický a elektronický odpad)

Toto oznaãenie na výrobku alebo v sprievodnej brožùre hovorí, že po skonãení jeho žvotnosti

by nemal byÈ likvidovaný s ostatným odpadom. Prípadnému poškodeniu životného prostredia

alebo ºudského zdravia môžete predísÈ tým, že budete takéto typy výrobkov oddeºovaÈ od

ostatného odpadu a vrátite ich na recykláciu.

Používatelia v domácnostiach by pre podrobné informácie, ako ekologicky bezpeãne naložiÈ s týmto

výrobkom, mali kontaktovaÈ buì predajcu, ktorý im výrobok predal, alebo príslušný ùrad v okolí ich

bydliska.

Priemyselní používatelia by mali kontaktovaÈ svojho dodávateºa a preveriÈ si podmienky kùpnej zmlu-

vy. Tento výrobok by nemal byÈ likvidovaný spolu s ostatným priemyselným odpadom.

Hungary

A termék megfelelŒ leadása (Elektromos és elektronikus készülékek hulladékkezelése)

A terméken vagy a hozzá tartozó dokumentáción szereplŒ jelzés arra utal, hogy hasznos élettartama

végén a terméket nem szabad háztartási hulladékkal együtt kidobni. Annak érdekében, hogy

megelŒzhetŒ legyen a szabálytalan hulladékleadás által okozott környezet- és egészségkárosodás,

különítse ezt el a többi hulladéktól, és felelŒ sségteljesen gondoskodjon a hulladék leadásáról, a hul-

ladékanyagok fenntartható szint¦ ùjrafelhasználása céljából.

A háztartási felhasználók a termék forgalmazójától vagy a helyi önkormányzati szervektŒl kérjenek tanácsot

arra vonatkozóan, hová és hogyan vihetik el ez elhasznált terméket a környezetvédelmi szempontból biz-

tonságos hulladékleadás céljából.

Az üzleti felhasználók lépjenek kapcsolatba a forgalmazóval, és vizsgálják meg az adásvételi szerzŒdés

feltételeit. A terméket nem szabad leadni kereskedelmi forgalomból származó egyéb hulladékkal együtt.

Czech Republic

Správná likvidace tohoto produktu (ZniĀení elektrického a elektronického zaÀízení)

Tato znaãka zobrazená na produktu nebo v dokumentaci znamená, že by nemûl být používán s jinými

domácími zaÀízeními po skonãení svého funkãního období. Aby se zabránilo možnému zneãištûní život-

ního prostÀedí nebo zranûní ãlovûka díky nekontrolovanému zniãení, oddûlte je prosíme od dalších typÛ

odpadÛ a recyklujte je zodpovûdnû k podpoÀe opûtovného využití hmotných zdrojÛ.

âlenové domácnosti by mûli kontaktovat jak prodejce, u nûhož produkt zakoupili, tak místní vládní

kanceláÀ, ohlednû podrobností, kde a jak mÛžete tento výrobek bezpeãnû vzhledem k životnímu

prostÀedí recyklovat.

Obchodníci by mûli kontaktovat své dodavatele a zkontrolovat všechny podmínky koupû . Tento

výrobek by se nemûl míchat s jinými komerãními produkty, urãenými k likvidaci.

Slovenia

Ustrezno odstranjevanje tega izdelka (odpadna elektriĀna in elektronska oprema)

Oznaka na izdelku ali spremljevalni dokumentaciji pomeni, da ga na koncu uporabne dobe ne smemo

odstranjevati skupaj z drugimi gospodinjskimi odpadki. Da bi prepreãili morebitno tveganje za okolje ali

zdravje ãloveka zaradi nenadzorovanega odstranjevanja odpadkov, izdelek loãite od drugih vrst odpad-

kov in ga odgovorno reciklirajte ter tako spodbudite trajnostno ponovno uporabo materialnih virov.

Uporabniki v gospodinjstvih naj za podrobnosti o tem, kam in kako lahko odnesejo ta izdelek na

okolju varno recikliranje, pokliãejo trgovino, kjer so izdelek kupili, ali lokalni vladni urad.

Podjetja naj pokliãejo dobavitelja in preverijo pogoje nabavne pogodbe. Tega izdelka pri odstranjevan-

ju ne smete mešati z drugimi gospodarskimi odpadki.

Estonia

Õige viis toote kasutusest kõrvaldamiseks (elektriliste ja elektrooniliste seadmete jäätmed)

Selline tähistus tootel või selle dokumentidel näitab, et toodet ei tohi kasutusaja lõppemisel kõrvalda-

da koos muude olmejäätmetega. Selleks, et vältida jäätmete kontrollimatu kõrvaldamisega seotud või-

maliku kahju tekitamist keskkonnale või inimeste tervisele ning edendada materiaalsete vahendite

säästvat taaskasutust, eraldage toode muudest jäätmetest ja suunake taasringlusse.

Kodukasutajad saavad teavet keskkonnaohutu ringlussevõtu kohta kas toote müüjalt või keskkon-

naametist.

Firmad peaksid võtma ühendust tarnijaga ning kontrollima ostulepingu tingimusi ja sätteid. Toodet ei tohi

panna muude hävitamiseks mõeldud kaubandusjäätmete hulka.

Finland Tämän tuotteen turvallinen hävittäminen (elektroniikka ja sähkölaitteet)

Oheinen merkintä tuotteessa tai tuotteen oheismateriaalissa merkitsee, että tätä tuotetta

ei tule hävittää kotitalousjätteen mukana sen elinkaaren päätyttyä. Hallitsemattomasta jät-

teenkäsittelystä ympäristölle ja kanssaihmisten terveydelle aiheutuvien vahinkojen vält-

tämiseksi tuote tulee käsitellä muista jätteistä erillään. Jäte on hyvä kierrättää raaka-

aineiksi kestävän ympäristökehityksen takia.

Kotitalouskäyttäjien tulisi ottaa yhteyttä tuotteen myyneeseen jälleenmyyjään tai

paikalliseen ympäristöviranomaiseen, jotka antavat lisätietoja tuotteen turvallisista kierrä-

tysmahdollisuuksista.

Yrityskäyttäjien tulisi ottaa yhteyttä tavarantoimittajaan ja selvittää hankintasopimuksen

ehdot. Tätä tuotetta ei tule hävittää muun kaupallisen jätteen seassa.

Norway

Korrekt avhending av dette produkt (Avfall elektrisk og elektronisk utstyr)

Denne merkingen som vises på produktet eller dens dokumentasjon, indikerer at den ikke

skal kastes sammen med annet husholdningsavfall ved slutten av sin levetid. For å hindre

mulig skade på miljøet eller menneskelig helse fra ukontrollert avfallsavhending, vennligst

atskill dette fra andre typer avfall og resirkuler det ansvarlig for å fremme bærekraftig gjen-

bruk av materielle ressurser.

Husholdningsbrukere bør kontakte enten forhandleren de kjøpte produktet av, eller lokale

myndigheter, for detaljer om hvor og hvordan de kan frakte denne artikkelen for miljømessig

trygg resirkulering.

Forretningsbrukere bør kontakte sin leverandør og undersøke vilkårene i kjøpekontrakten.

Dette produktet skal ikke blandes med annet kommersielt avfall som skal kastes.

Lithuania

Latvia

Greece

Poland

Prawidãowe usuwanie produktu (zu×yty sprzt elektryczny i elektroniczny)

Oznaczenie umieszczone na produkcie lub w odnoszàcych si do niego tekstach wskazuje, ×e produktu

po upãywie okresu u×ytkowania nie nale×y usuwaþ z innymi odpadami pochodzàcymi z gospodarstw

domowych. Aby uniknàþ szkodliwego wpãywu na Êrodowisko naturalne i zdrowie ludzi wskutek niekon-

trolowanego usuwania odpadów, prosimy o oddzielenie produktu od innego typu odpadów oraz

odpowiedzialny recykling w celu promowania ponownego u×ycia zasobów materialnych jako staãej praktyki.

W celu uzyskania informacji na temat miejsca i sposobu bezpiecznego dla Êrodowiska recyklingu tego

produktu u×ytkownicy w gospodarstwach domowych powinni skontaktowa þ si z punktem sprzeda×y

detalicznej, w którym dokonali zakupu produktu, lub z organem wãadz lokalnych.

U×ytkownicy w firmach powinni skontaktowaþ si ze swoim dostawcà i sprawdziþ warunki umowy

zakupu. Produktu nie nale×y usuwaþ razem z innymi odpadami komercyjnymi.

Austria (Sales Sub)

Nil sk-Advance GmbH Phone: +43

Voralberger Allee 46 1616 58 30 22

A-1230 Wien Fax: +43

info@nil sk-advance.at 1616 58 30 40

www.nil sk-advance.at

Belgium (Sales Sub)

Nil sk-Advance NV/SA Phone: +32

Doornveld Sphere Business Park (0)2467 60 50

Industrie Asse 3, No. 11 Fax: +32

B-1731 Zellik-Asse (0)2463 44 16

www.nil sk-advance.be

Czech Republic (Sales Sub)

Nil sk-Advance s.r.o. Phone: +420

Lysinská 44/1863 2 44 09 09 12

143 00 Praha - Modrany +420

Czech Republic 2 44 09 09 21 4

Fax: +420

2 44 40 23 93

Denmark

Nil sk-Advance A/S Phone: +45

Sognevej 25 43 23 81 00

DK-2605 Brøndby Fax: +45

mail@nil sk-advance.dk 43 43 77 00

www.nil sk-advance.com

Denmark (Prod. Sub)

Gerni A/S Phone: +45

Myntevej 2 89 12 22 00

DK-8900 Randers Fax: +45

www.gerni.com 86 43 14 81

Denmark (Sales Sub)

Nil sk-Advance Nordic A/S Phone: +45

Sognevej 25A 43 23 40 50

Postbox 344 Fax: +45

DK-2605 Brøndby 43 23 40 60

kundeservice@nil sk-advance.dk

www.nil sk-advance.dk

France (Sales Sub)

Nil sk-Advance S.A. Phone: +33

27 avenue de la Baltique 1695 98 700

Villebon sur Yvette Fax: +33

P.B. 246 1695 98 701

F-91944 Courtaboeuf Cedex

info@nil sk-advance.fr

www.nil sk-advance.fr

Germany (Sales Sub)

Nil sk-Advance AG Phone: +49

Siemensstrasse 25-27 4101 3990

Postfach 1361 Fax: +49

D-25462 Rellingen 4101 39 91 91

info@nil sk-advancede

www.nil sk-advance.de

Greece (Sales Sub)

Nil sk-Advance A.E. Tel.: +30

8, Thoukididou Str. 210 963 3443

Argioupoli Fax: +30

Gr - 164 52 Athens 210 965 0975

Greece

Holland (Sales Sub)

Nil sk-Advance B.V. Phone: +31

Camerastraat 9 (2e verdieping) 36 546 07 00

1322 BB Almere Fax: +31

Postbus 60112 36 523 51 48

1320 AC Almere

www.nil sk-advance.nl

Ireland (Sales Sub)

Nil sk-Advance Limited Phone: +35

28 Sandyford Of ce Park 3 12 94 38 38

Sandyford, Dublin 18 Fax: +35

Ireland 3 12 94 38 45

Italy (Prod & Sales Sub)

CFM SpA Phone: +39

Nil sk-Advance Div. Guardamiglio 0377 /414021

Localita Novella III /45 1124

I-26862 Guardamiglio (Mi) Fax: +39

0377 51 443

Italy (Prod & Sales Sub)

CFM S.p.A. Phone: +39

Via Porrettana 1991 059 973 0000

I-41059 Zocca (Modena) Fax: +39

cfm@cfm.it 059 973 0099

Norway (Sales Sub)

Nil sk-Advance AS Phone: +47

Ulvenveien 89C 23 06 75 00

N-0581 Oslo Fax: +47

23 06 75 01

Poland (Sales Sub)

Nil sk-Advance Sp.Z.O.O. Phone: +48

05-800 Pruszków 22 738 37 50

ul. 3-go MAJA 8 Fax: +48

Poland 22 738 37 51

Portugal (Sales Sub)

Nil sk-Advance, Lda. Phone: +35

Sintra Business Park 121 911 2670

Zona Industrial Da Abrunheira Fax: +35

Edi cio 1, 1o A 121 911 2679

P-2710-089 Sintra

Russia (Sales Sub)

Nil sk-Advance LLC Phone: 7

Vyatskaya str. 27, bld. 7 095 783 9602

127015 Moscow Fax: +7

Russia 095 783 9603

Spain (Sales Sub)

Nil sk-Advance S.A. Phone: +34

Torre D’Ara 93 741 2400

Passeig del Rengle, 5 Pl.10 Fax: +34

E-08302 Mataró (Barcelona) 93 757 8020

nil sk@nil sk-advance.es

Sweden (Sales Sub)

Nil sk -Advance A/S Phone: +46

Sjöbjörnsvägen 5 8555 94400

Box 44045 Fax: +46

S-100 73 Stockholm 8555 94430

info@nil sk-advance.se

www.nil sk-advance.se

Sweden (Prod.)

Nil sk-Advance A/S Phone: +46

Åmål Branch 5321 7500

Strömsbergsgatan Fax: +46

Box 127 5321 7595

S-662 23 Åmål

Switzerland (Sales Sub)

Nil sk-Advance AG Phone: +41

Ringsstrasse 19 71 92 38 444

Kirchberg/Industrie Stelzl Fax: +41

CH-9500 Wil 71 92 35 283

www.nil sk-advance.ch

UK (Sales Sub)

Nil sk-Advance Limited Phone: +44

Newmarket Road 1284 763163

Bury St. Edmunds Fax: +44

UK-Suffolk IP33 3SR 1284 750 562

USA (Prod.)

Nil sk-Advance Inc. Phone: +1 763

14600 21.st Avenue North 745 3500

Plymouth, MN 55447-3408 Fax: +1 763

www.mn.nil sk-advance.com 745 3718

USA (Sales Sub)

Nil sk-Advance America Inc. Phone: +1 610

300 Technology Drive 647 6420

Malvern, PA 19355 Fax: +1 610

www.pa.nil sk-advance.com 647 6427

Canada (Sales Sub)

Nil sk-Advance Canada Comp. Phone: + 1 905

396 Watline Avenue 712 3260

Mississauga, Ontario L4Z 1X2 Fax: +1 905

712 3255

Australia (Sales Sub)

Nil sk-Advance Pty. Ltd. Phone: +61(0)2

48 Egerton Street 9648 2700

Silverwater, NSW 2128 Fax: +61(0)2

Postal addresse: 9648 2711

PO Box 6046

Silverwater. NSW 1811

info@nil sk-advance.com.au

www.nil sk-advance.com.au

China (Shenzhen)

Nil sk-Advance (Shenzhen) Ltd Phone: +86 755

Blok 3, Unit 130, 1001 Honghua Road 8359 7937 el.

Int. Commercial & Trade Center 8359 7939-42

Fuitian Free Trade Zone Fax: +86 755

518038 Shenzhen 8359 1063

P.R. China

China (Suzhou)

Nil sk-Advance Professional Phone: +86 512

Cleaning Equipment (Suzhou) Co. Ltd. 8918 5656

306 Su Hong Zhong Road, Build. 2 Fax: +86 512

Suzhou Industrial Park 8918 5666

215021 Suzhou

P.R. China

Hong Kong (Sales Sub)

Nil sk-Advance Ltd. Phone: +852

2001 HK Worsted Mills Ind’l Bldg., 2427 5951

31-39 Wo Tong Tsui St. Fax: +852

Kwai Chung, Hong Kong 2487 5828

Japan (Sales Sub)

Nil sk-Advance Inc. Phone: +8145

3-17-40-101 Chigasaki Higashi 942 7741

Tsuzuki-ku, Yokohama 224-0033 Fax: +8145

Japan 942 6545

Malaysia (Sales Sub)

Nil sk-Advance Sdn Bhd Phone: +60 3

No. 21, Jalan SS 25/41 7956 8188

Mayang Industrial Park Fax: +60 3

47301 Petaling Jaya 7966 6828

Selangor, Malaysia

New Zealand (Sales Sub)

Nil sk-Advance Limited Phone: +64(0)9

Danish House 525 0092

6 Rockridge Avenue Fax: +64(0)9

Penrose 92-829 525 6440

Auckland1135

Postal addresse:

Private Bag 92 825

Auckland

New Zealand

Singapore (Sales Sub)

Nil sk-Advance Pte. Ltd. Phone: + 65

22,Woodlands Industrial Park E1 6 7599100

Singapore 757740 Fax: +65

sales@nil sk-advance.com.sg 7599133

Taiwan, ROC (Sales Sub)

Nil sk-Advance Ltd. Phone: +886

Taiwan Branch (H.K.) 2 2239 8812

1F, No. 193, Sec.2 Fax: +886

Xing Long Rd., Taipei 2 2239 8832

Taiwan, R.O.C.

Thailand (Sales Sub)

Nil sk-Advance Co. Ltd. Phone: +66 2

89 Soi Chokechai-Ruammitr 275-5630

Viphavadee-Rangsit Road Fax: +66 2

Ladyao, Jatuchak, Bangkok 10900 691-4079

Thailand

©Nilfisk-Advance Incorporated, 4/04

.pas

_____________________________________________________

TYPE: BR1100, BR1100C

EU Overensstemmelseserklæring DK Déclaration CE de conformité B, F

Batteridreven gulvaskemaskine Autolaveuse à batterie

Maskinen er fremstillet i overensstemmelse med følgende

direktiver:

Cette machine a été fabriquée conformément aux directives

suivantes:

Maskindirektiv: 98/37/EØF Réglementation machine: 98/37/CEE

EMC-direktiv: 89/336/EØF 92/31/EØF 93/68/EØF 98/13/EOF RéglementationCEM: 89/336/CEE 92/31/CEE 93/68/CEE

98/13/CEE

Lavspændingsdirektiv: 73/23/EØF 93/68/EØF

Harmoniserede standarder: EN 60 335-2-72

Règlement basse tension: 73/23/CEE 93/68/CEE

Normes harmonisées: EN 60 335-2-72

EU Överensstämmelseförsäkran S, FIN EG-conformiteitsverklaring NL, B

Batteri-Skurmaskin Vloeronderhoudmachine

Maskinen är tillverkad i överensstämmelse med följande

direktiver:

Deze machine is vervaardigd overeenkomstig de volgende

richtlijnen:

Maskindirektiv: 98/37/EEG Machine richtlijn: 98/37/EEC

EMC-direktiv: 89/336/EEG 92/31/EEG 93/68/EEG 98/13/EEG EMC-richtlijn: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC

Lågspänningsdirektiv: 73/23/EEG 93/68/EEG

Harmoniserade standarder: EN 60 335-2-72

Laagspanning richtlijn: 73/23/EEC 93/68/EEC

Geharmoniseerde normen: EN 60 335-2-72

EU Declaration of Conformity GB, IRL Declaración de conformidad de la CEE E

Battery powered floor scrubber Fregadoa a baterías

This machine was manufactured in conformity with the following

directives and standards:

Esta máquina ha sido fabricada en conformidad a las siguientes

normativas:

Machine Directive: 98/37/EEC Normativa de la máquina: 98/37/CEE

EMC-directive: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Normativa EMC: 89/336/CEE 92/31/CEE 93/68/CEE 98/13/CEE

Low voltage directive: 73/23/EEC 93/68/EEC

Harmonized standards: EN 60 335-2-72

Normativa sobre baja tensión: 73/23/CEE 93/68/CEE

Normas armonizadas: EN 60 335-2-72

Dichiarazione di conformità - CEE I EU Declaração de conformidade da CE P

Lavasciuga a batteria Auto-lavadora a baterias

È prodotto in conformità alle disposizioni contenute nelle Direttive

del Consiglio dei Ministri: Esta máquina foi fabricada em conformidae com as seguintes

directrizes:

M-direttiva: 98/37/EEC Directriz de maquinaria: 98/37/CEE

EMC-direttiva: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Directriz EMC: 89/336/CEE 92/31/EEC 93/68/CEE 98/13/CEE

LV-direttiva: 73/23/EEC 93/68/EEC

Norme armonizzate: EN 60 335-2-72 Directriz de baixa voltagem: 73/23/CEE 93/68/CEE

Normas harmonizadas: EN 60 335-2-72

EG – Konformitätserklärung D, A EU:n yhdenmukaisuudesta direktiiveihin FIN

Batteriebetriebene Scheuersaugmaschine Akkukäyttöinen yhdistelmäkone

Diese Maschine wurde gemäβ den folgenden Richtlinien

hergestellt:

On valmistettu noudattaen yhteisön määräämiä direktiivejä:

Maschinerichtlinie: 98/37/EWG M-direktiivi: 98/37/CEE

EMV-Richtlinie: 89/336/EWG 92/31/EWG 93/68/EWG 98/13/EWG EMC-direktiivi: 89/336/CEE 92/31/CEE 93/68/CEE 98/13/CEE

Niederspannungsrichtlinie: 73/23/EWG 93/68/EWG

Harmonisierte normen: EN 60 335-2-72

LV-direktiivi: 73/23/CEE 93/68/CEE

Yhdenmukaistetut standardit: EN 60 335-2-72

∆ηλωσηπροσαρµογης/συóρϕωσης EU GR EL vastavusdeklaratsioon ET

Μπαταριοκινητο µηχαυηµα πλυσης δαπεδων Akutoitega põrandapuhasti

Το µηχανηµα ιχει καταοκευαοτει ονµψωϖα µε τις παρακατω προσ

ιαγραψες:

Käesolev masin on valmistatud kooskõlas järgmiste direktiivide ja

standarditega:

Προσιαγραωη µηχανηµατος: 98/37/EEC Masinadirektiiv: 98/37/EEC

Προσιαραψη−EMC: 89/336/EEC 92/31/EEC 93/68/EEC

98/13/EEC

Elektromagnetilise sobivuse direktiiv: 89/336/EEC 92/31/EEC

93/68/EEC 98/13/EEC

Προσιαγραψη χαµηλης ταοεως: 73/23/EEC 93/68/EEC Madalpinge direktiiv: 73/23/EEC 93/68/EEC

Εναρµονισµενα προτυπα: EN 60 335-2-72 Ühtlustatud standardid: EN 60 335-2-72

©Nilfisk-Advance Incorporated, 4/04

.pas

ES atbilstības deklarācija LV Pareiškimas apie atitikimą ES direktyvoms LT

Grīdas beršanas mašīna ar akumulatoru barošanu Baterijos energija varomas grindų šveitimo įrenginys

Šī mašīna izgatavota atbilstoši šādām direktīvām un standartiem: Šis įrenginys pagamintas laikantis tokių direktyvų bei standartų:

Mašīnu direktīva: 98/37/EEC Įrengimų direktyva: 98/37/EEC

Elektromagnētiskās savietojamības (EMC) direktīva: 89/336/EEC

92/31/EEC 93/68/EEC 98/13/EEC EMC direktyva: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC

Zemsprieguma direktīva: 73/23/EEC 93/68/EEC

Saskaņotie standarti: EN 60 335-2-72 Žemos įtampos įrengimų direktyva: 73/23/EEC 93/68/EEC

Harmonizuoti standartai: EN 60 335-2-72

Deklaracija EU o skladnosti SL Prehlásenie o súlade EÚ SK

Stroj za čiščenje tal na akumulatorski pogon Zariadenie na čistenie povrchov napájané batériou

Ta stroj je izdelan v skladu z naslednjimi smernicami in standardi: Toto zariadenie bolo vyrobené v súlade s nasledujúcimi

direktívami a normami:

Smernica o strojih: 98/37/EEC Direktíva o zariadeniach: 98/37/EEC

Smernica o elektromagnetni združljivosti (EMC): 89/336/EEC

92/31/EEC 93/68/EEC 98/13/EEC Direktíva EMC: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC

Smernica o nizki napetosti: 73/23/EEC 93/68/EEC

Harmonizirani standardi: EN 60 335-2-72 Direktíva o nízkom napätí: 73/23/EEC 93/68/EEC

Súvisiace normy: EN 60 335-2-72

EU Prohlášení o shodě CS Deklaracja zgodności z normami UE PL

Bateriemi napájené zařízení pro mytí podlah Akumulatorowa cyklinarka podłogowa

Tento stroj byl vyroben ve shodě s následujícími směrnicemi a

normami: Niniejsze urządzenie zostało wyprodukowane w zgodzie z

następującymi dyrektywami i normami UE:

Směrnice o strojním zařízení: 98/37/EEC Dyrektywa dotycząca maszyn: 98/37/EEC

Směrnice o elektromagnetické kompatibilitě: 89/336/EEC

92/31/EEC 93/68/EEC 98/13/EEC

Dyrektywa: kompatybilność elektromagnetyczna 89/336/EEC

92/31/EEC 93/68/EEC 98/13/EEC

Směrnice o nízkém napětí: 73/23/EEC 93/68/EEC

Harmonizované normy: EN 60 335-2-72

Dyrektywa: urządzenia elektromagnetyczne niskonapięciowe

73/23/EEC 93/68/EEC

Zharmonizowane normy: EN 60 335-2-72

EU megfelelőségi nyilatkozat HU Декларация изготовителя о соответствии директивам ЕС

Akkumulátoros padlósúrológép Поломоечная машина, работающая на аккумуляторных

батареях

Ez a gép az alábbi irányelvekkel és szabványokkal összhangban

készült: Данная машина разработана в соответствии со следующими

инструкциями и стандартами:

Gépészeti irányelvek 98/37/EEC Инструкция по разработке машин: 98/37/EEC

EMC-irányelvek 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Инструкция EMC: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC

Kisfeszültségű irányelvek: 73/23/EEC 93/68/EEC

Harmonizált szabványok: EN 60 335-2-72 Инструкция по использованию низких напряжений: 73/23/EEC

93/68/EEC

Согласованные стандарты: EN 60 335-2-72

4.3.2004 .

Larry Doerr, Vice President Operations

Nilfisk-Advance, Inc. Nilfisk-Advance A/S

14600 21st Avenue North Sognevej 25

Plymouth, MN 55447 USA DK-2605 Brøndby, Denmark

www.nilfisk-advance.com © 2005 Printed in USA
