American-Lincoln 2-1
MPV 60
American-Lincoln
Form Number Pl28600398 2006 English/Revised
®
Parts List & Options
MPV-60
Power Sweeper
After Serial Number 482151
for American-Lincoln MODELS 578-618, 578-619, 578-620, 578-621, 578-622, 578-623
2-2 American-Lincoln
MPV 60
TABLE OF CONTENTS - CHAPTER 2 - PARTS
MAIN BROOM LEVER AND LIFT CABLE ........................................................................................ 2-4
MAIN BROOM LIFT FRAME ............................................................................................................ 2-6
MAIN BROOM DRIVER ................................................................................................................... 2-7
MAIN BROOM IDLER ...................................................................................................................... 2-8
SIDE BROOM ASSEMBLY .............................................................................................................. 2-9
SIDE BROOM LEVER ..................................................................................................................... 2-10
SIDE BROOM LIFT SYSTEM ........................................................................................................... 2-12
BRAKE PEDAL ............................................................................................................................... 2-14

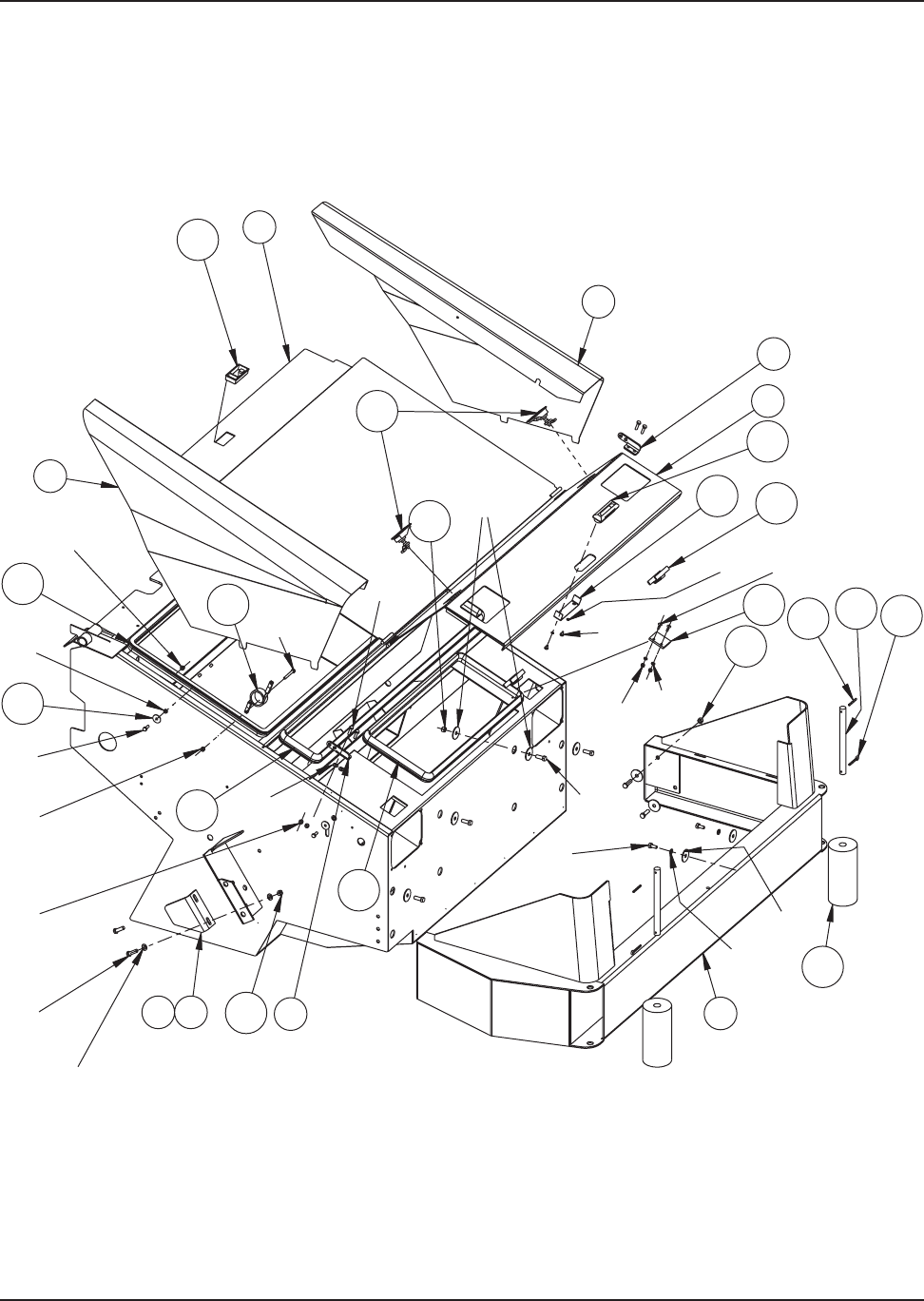

HOPPER ......................................................................................................................................... 2-16
HOPPER ASSEMBLY ...................................................................................................................... 2-18

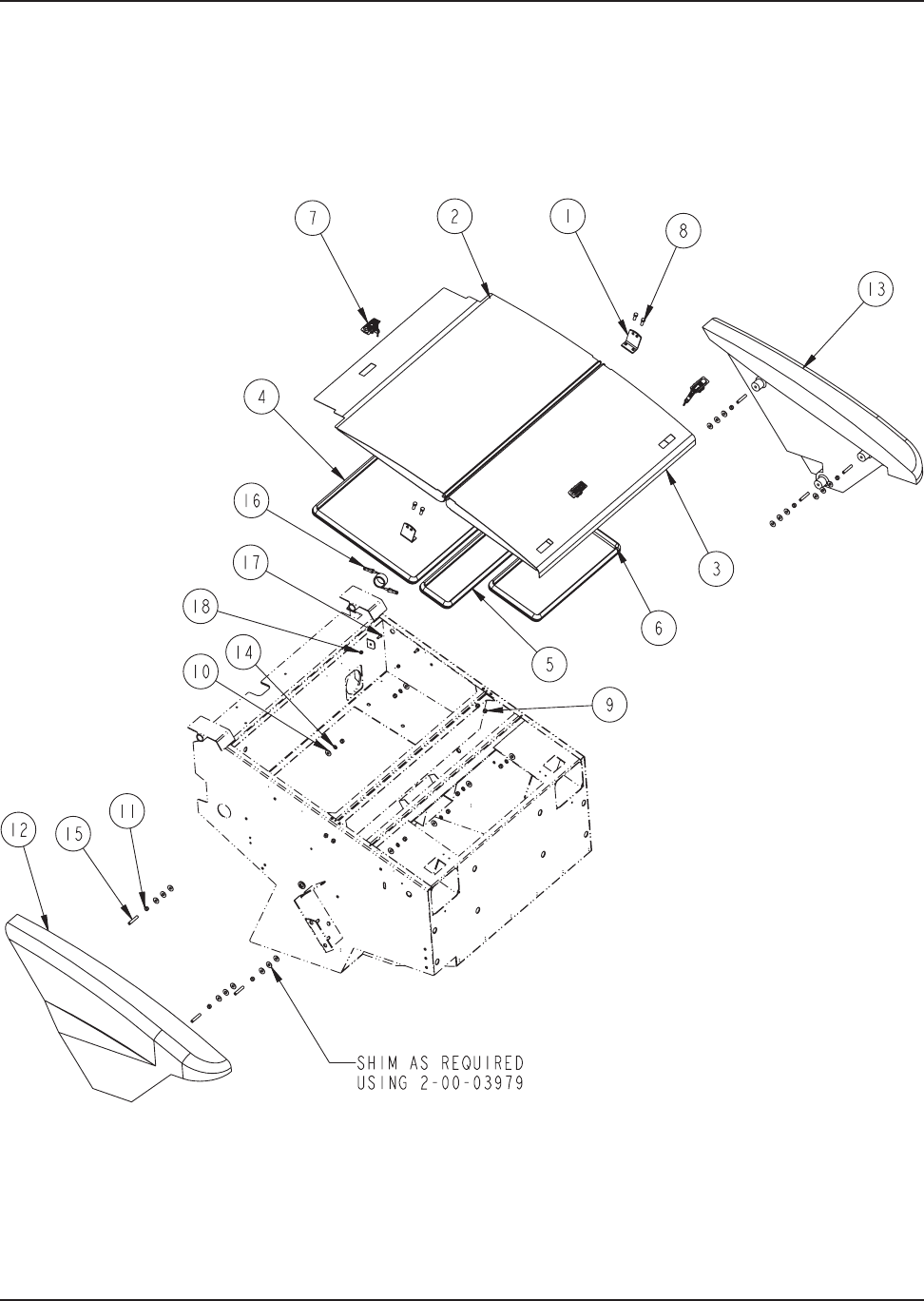

HOPPER COVER ............................................................................................................................ 2-20
DUMP DOOR ................................................................................................................................... 2-22

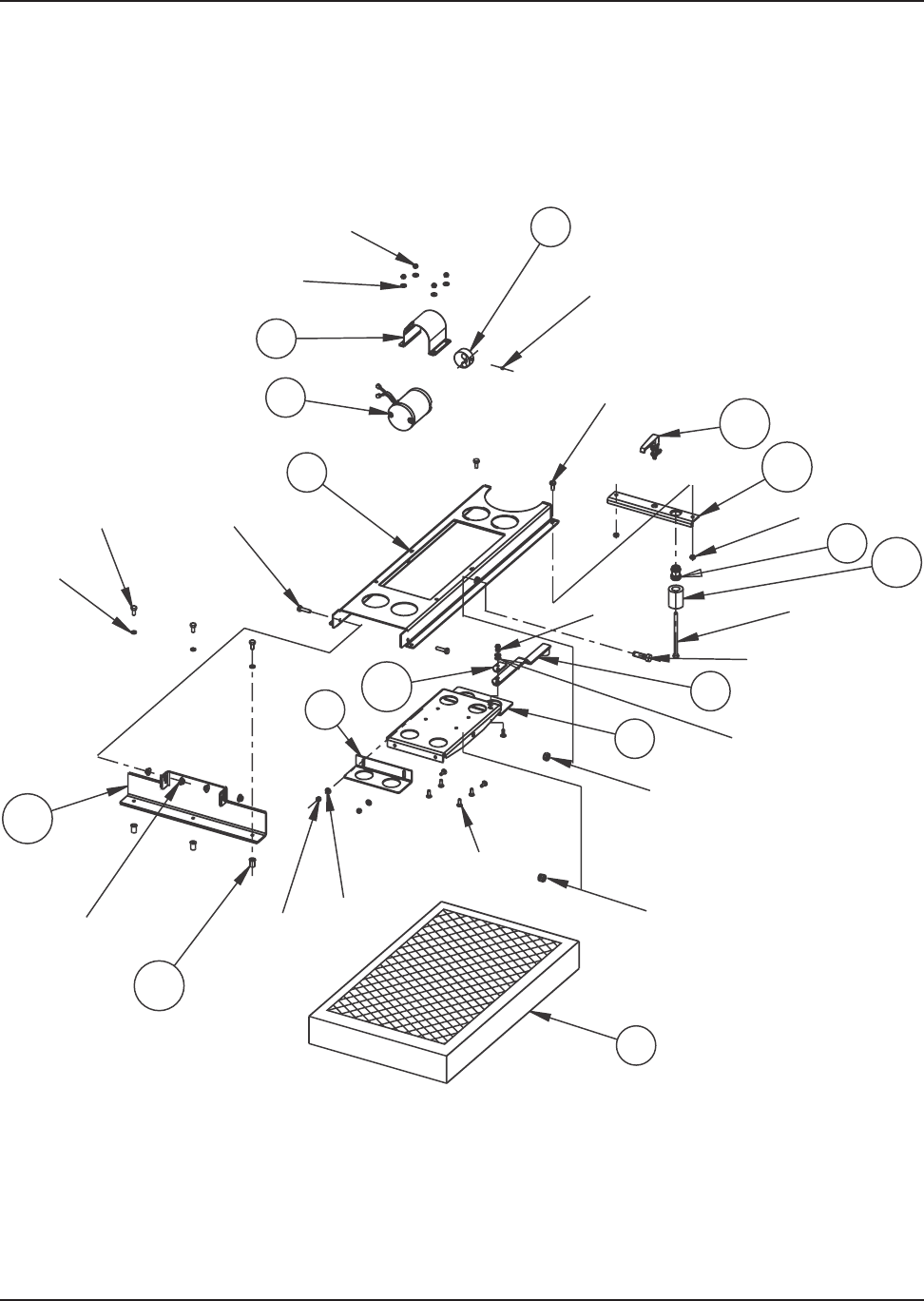

FILTER SHAKER ............................................................................................................................. 2-24

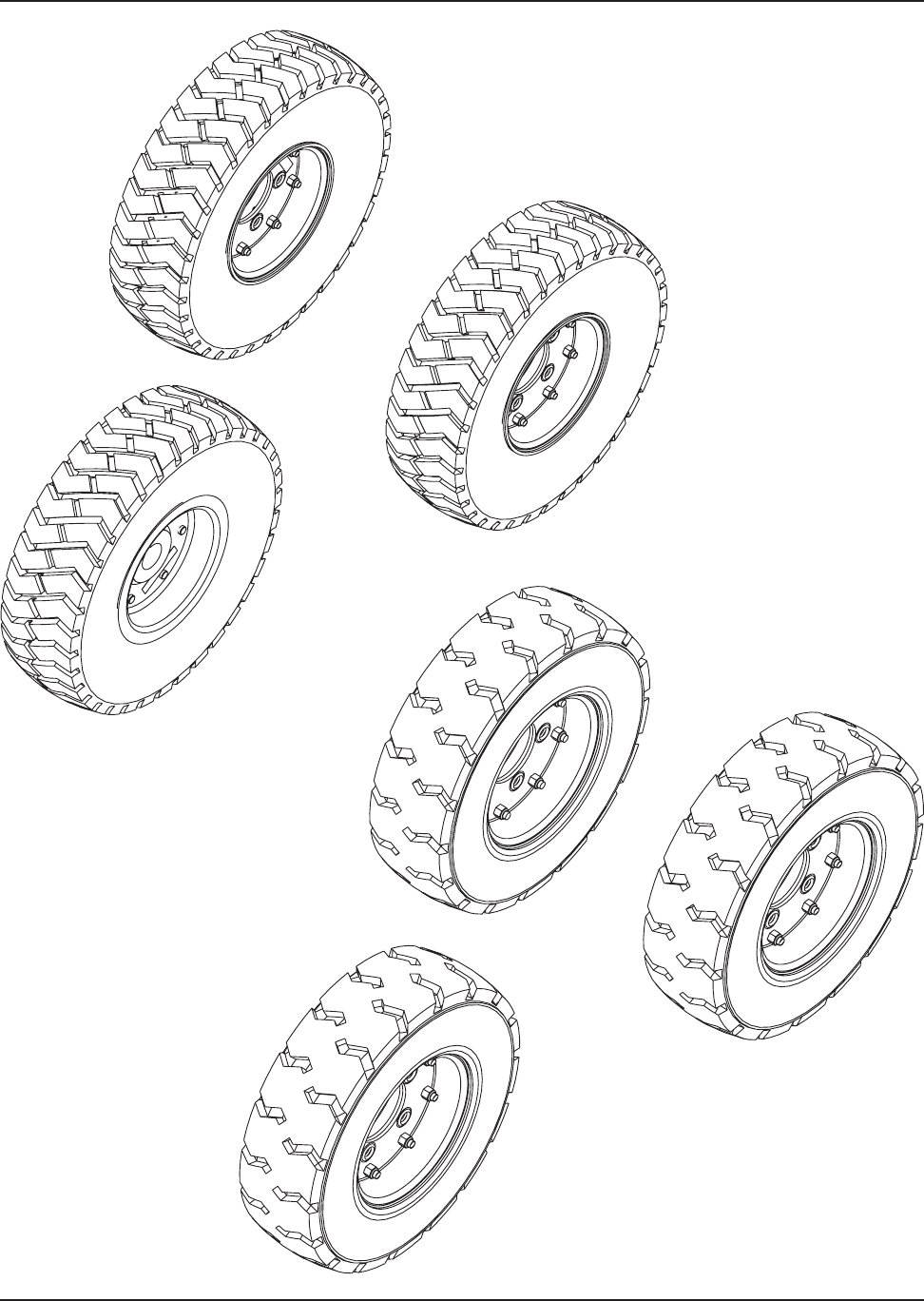

FRONT WHEEL ............................................................................................................................... 2-26

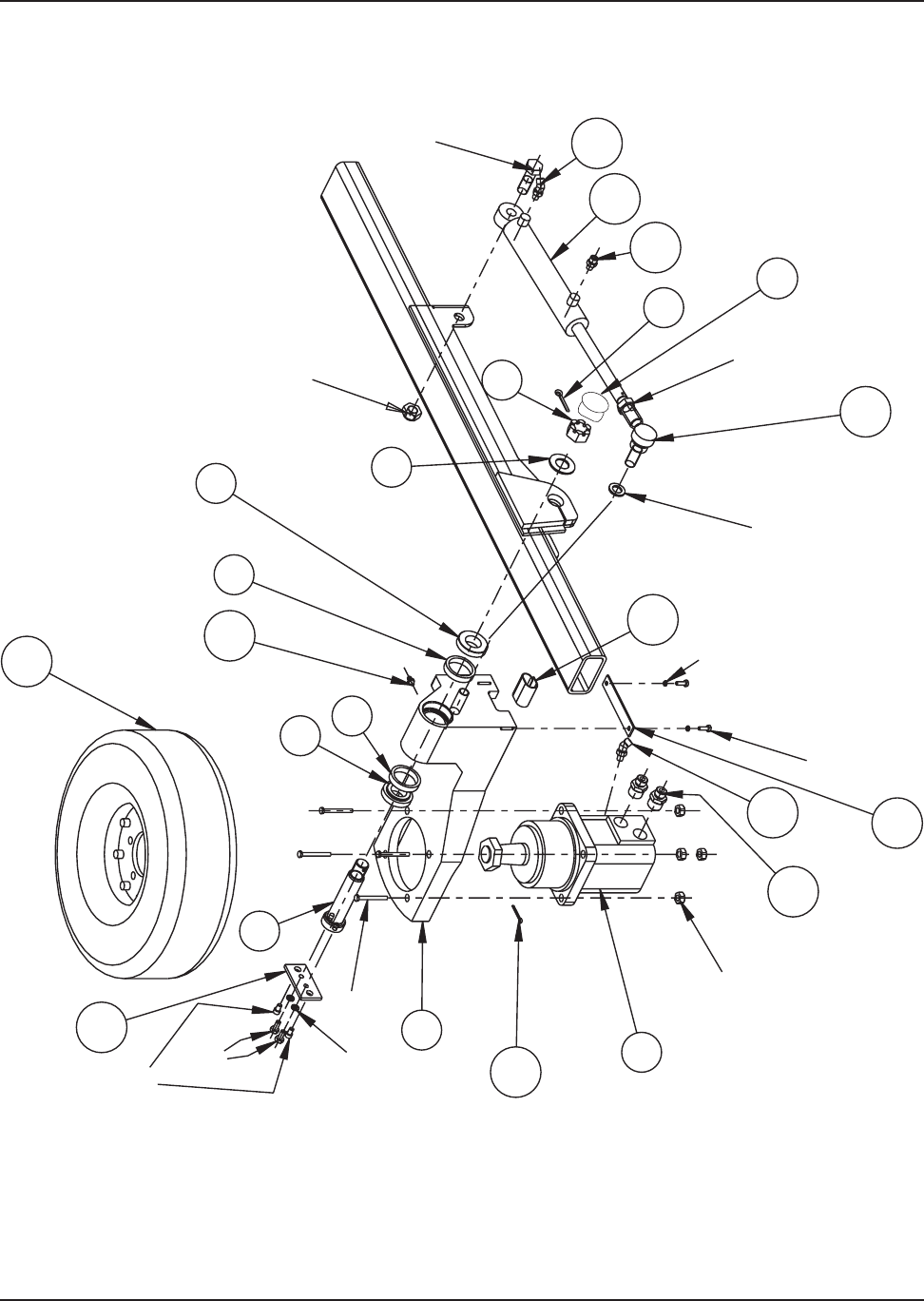

REAR WHEEL ................................................................................................................................. 2-28

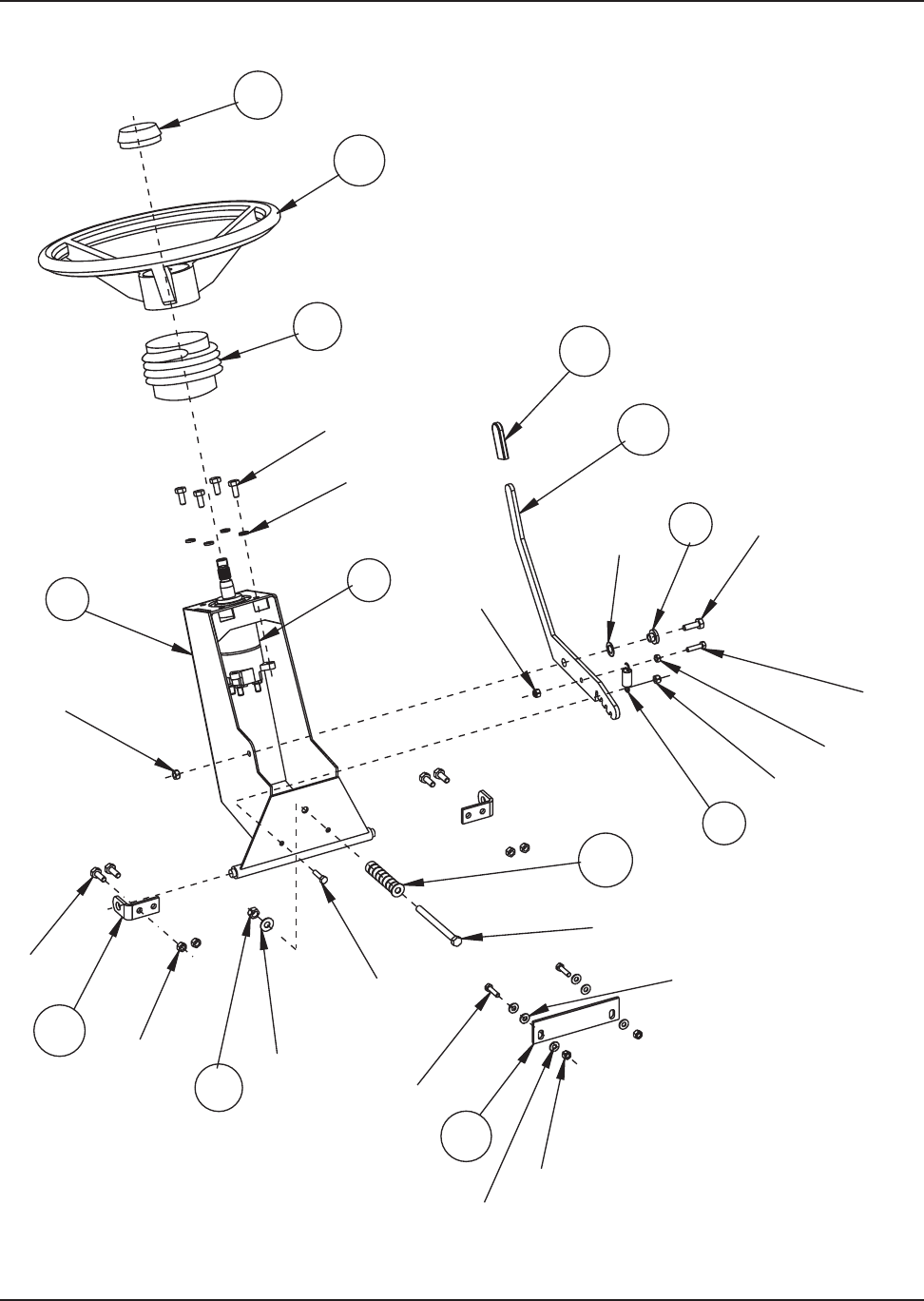

STEERING COLUMN ....................................................................................................................... 2-30
BROOM DOOR ................................................................................................................................ 2-32
FORWARD/REVERSE CONTROL ................................................................................................... 2-34

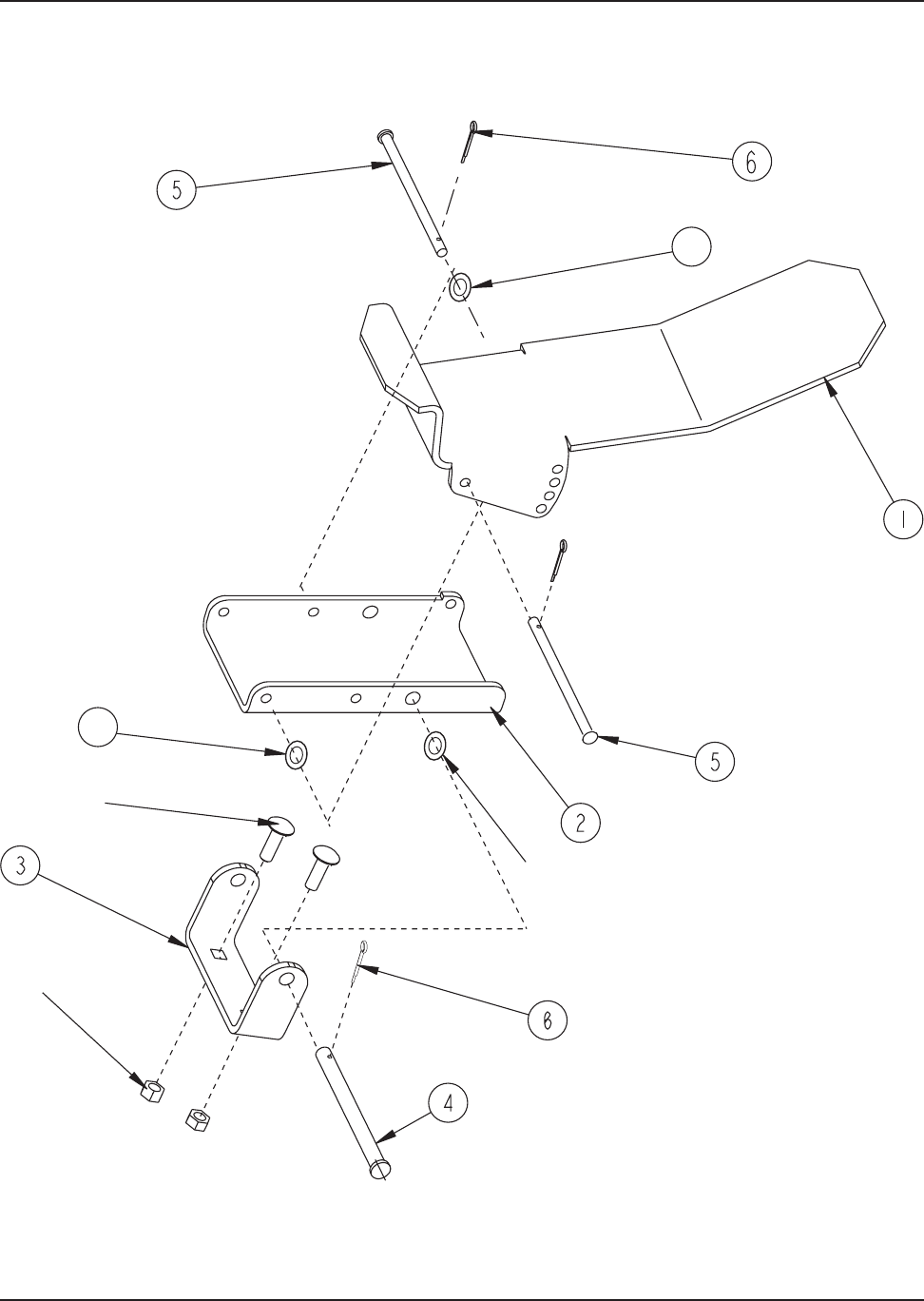

ADJUSTABLE FOOT PEDAL ........................................................................................................... 2-36

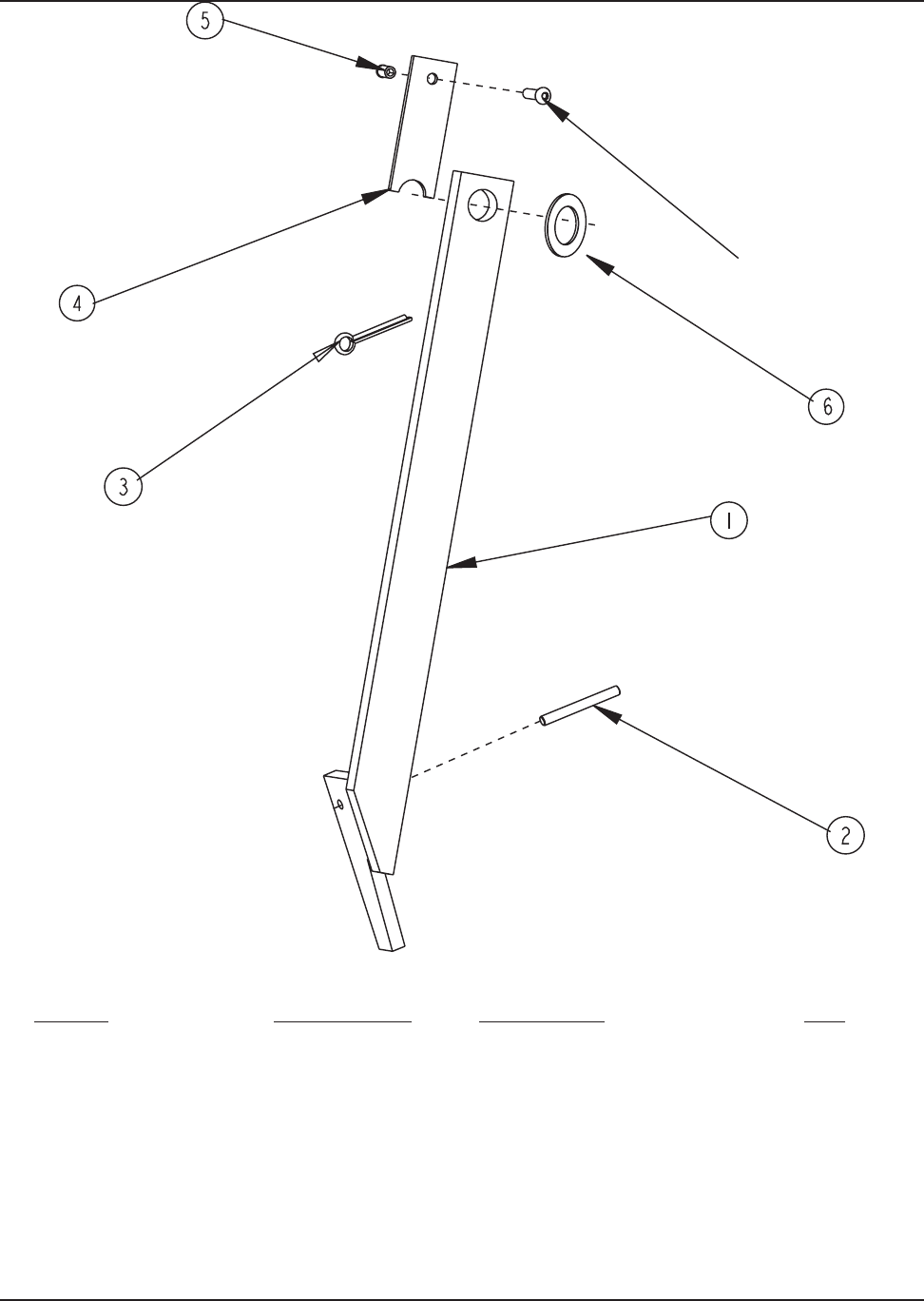

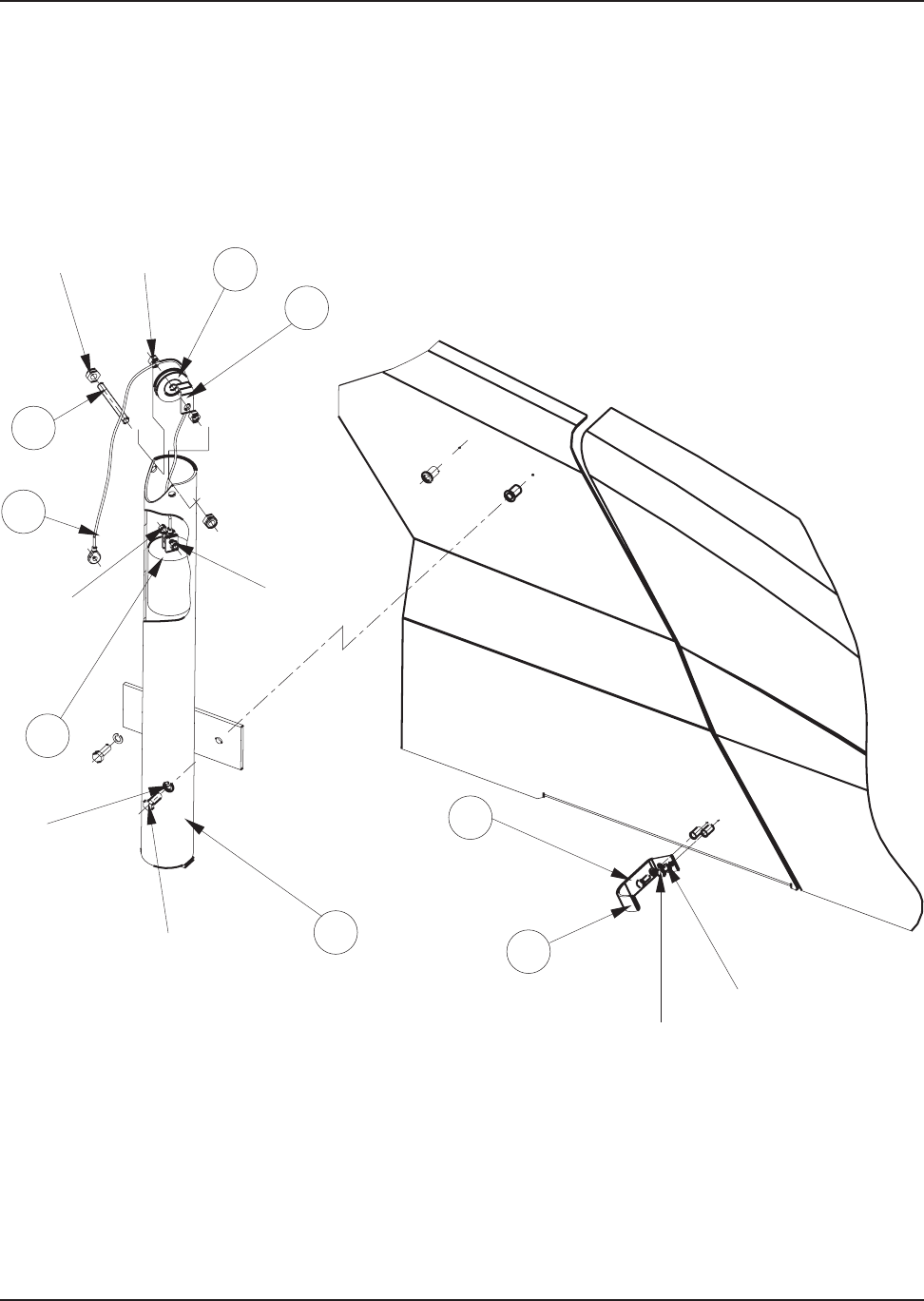

SAFETY ARM .................................................................................................................................. 2-38

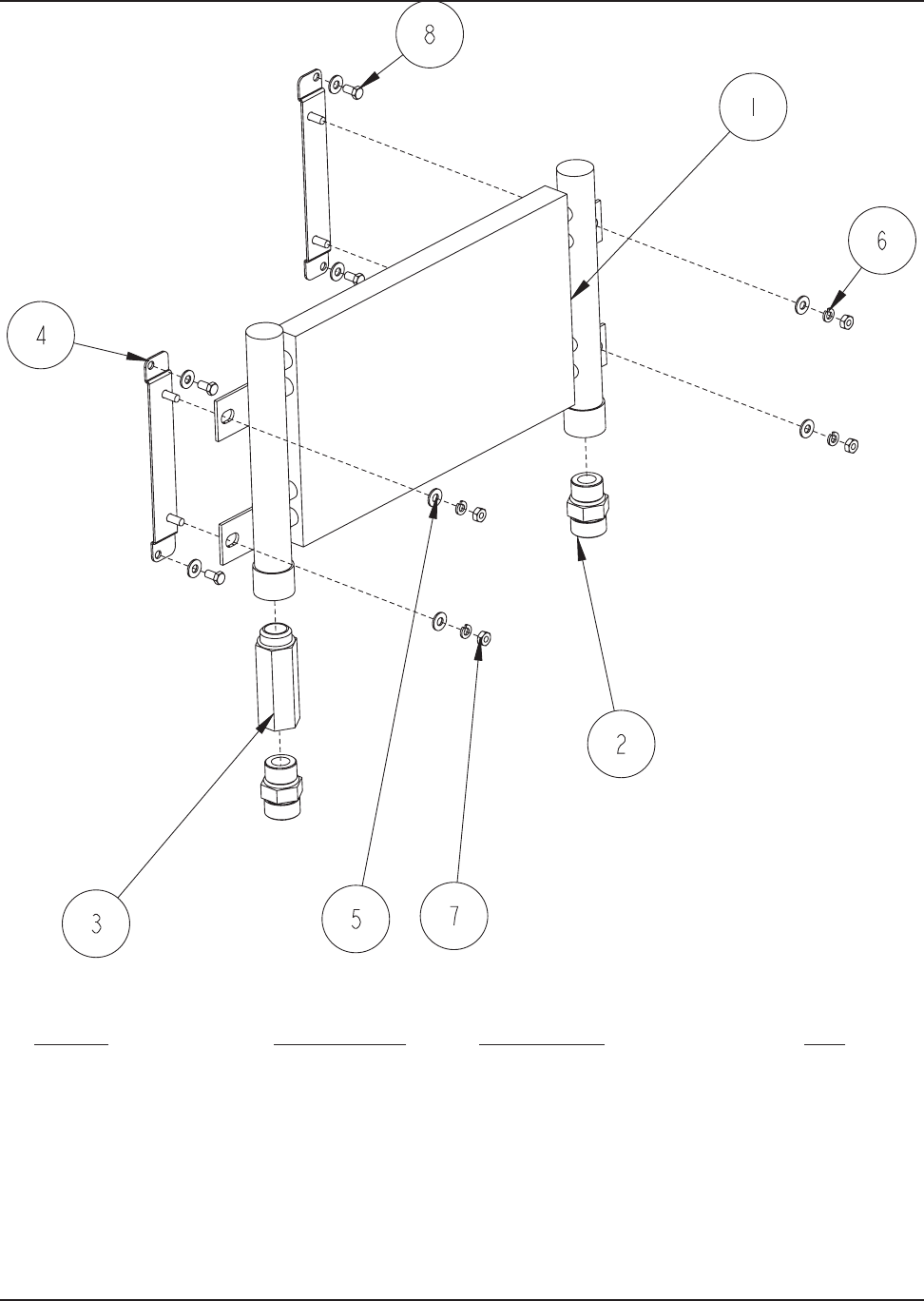

OIL COOLER ................................................................................................................................... 2-39

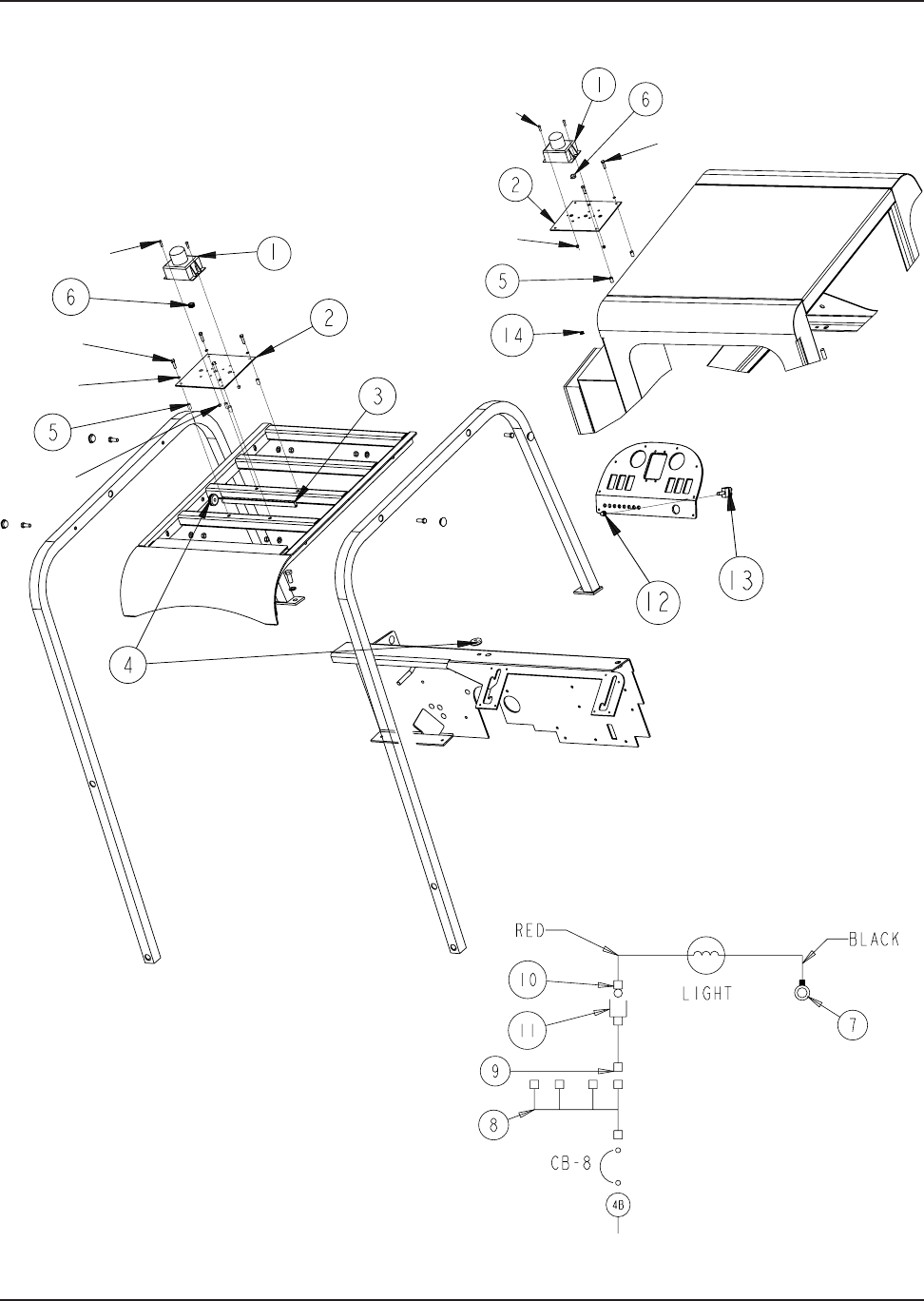

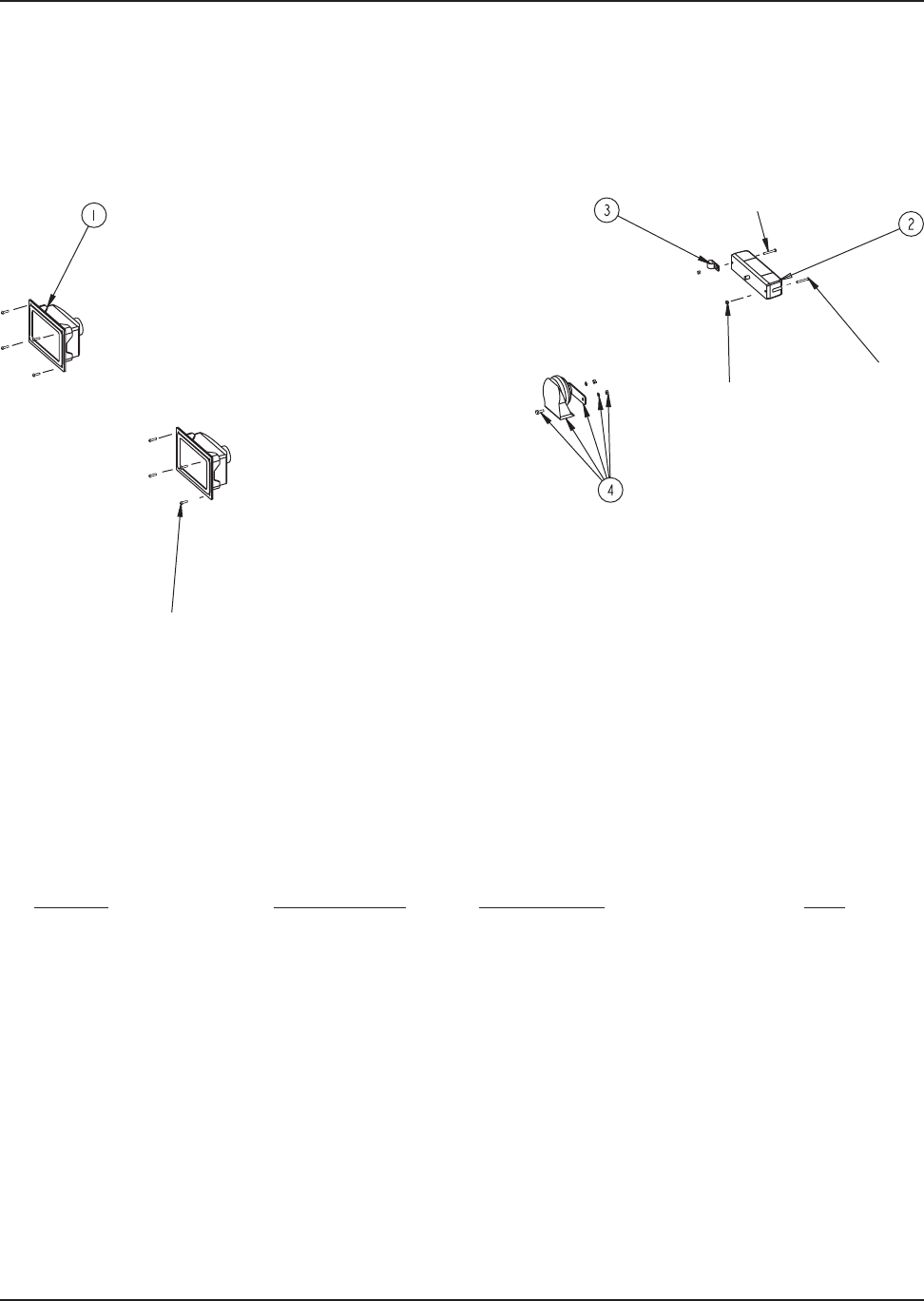

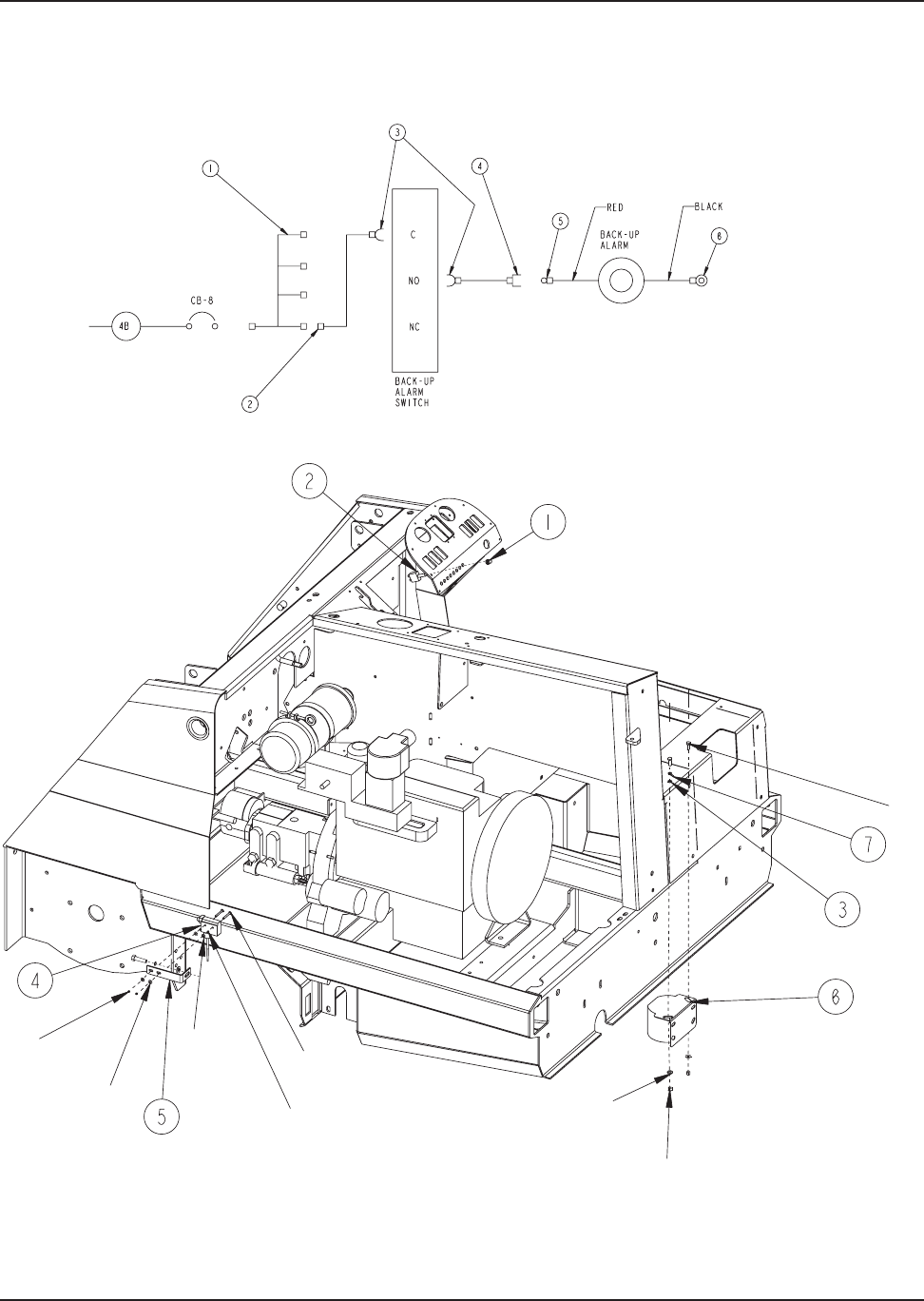

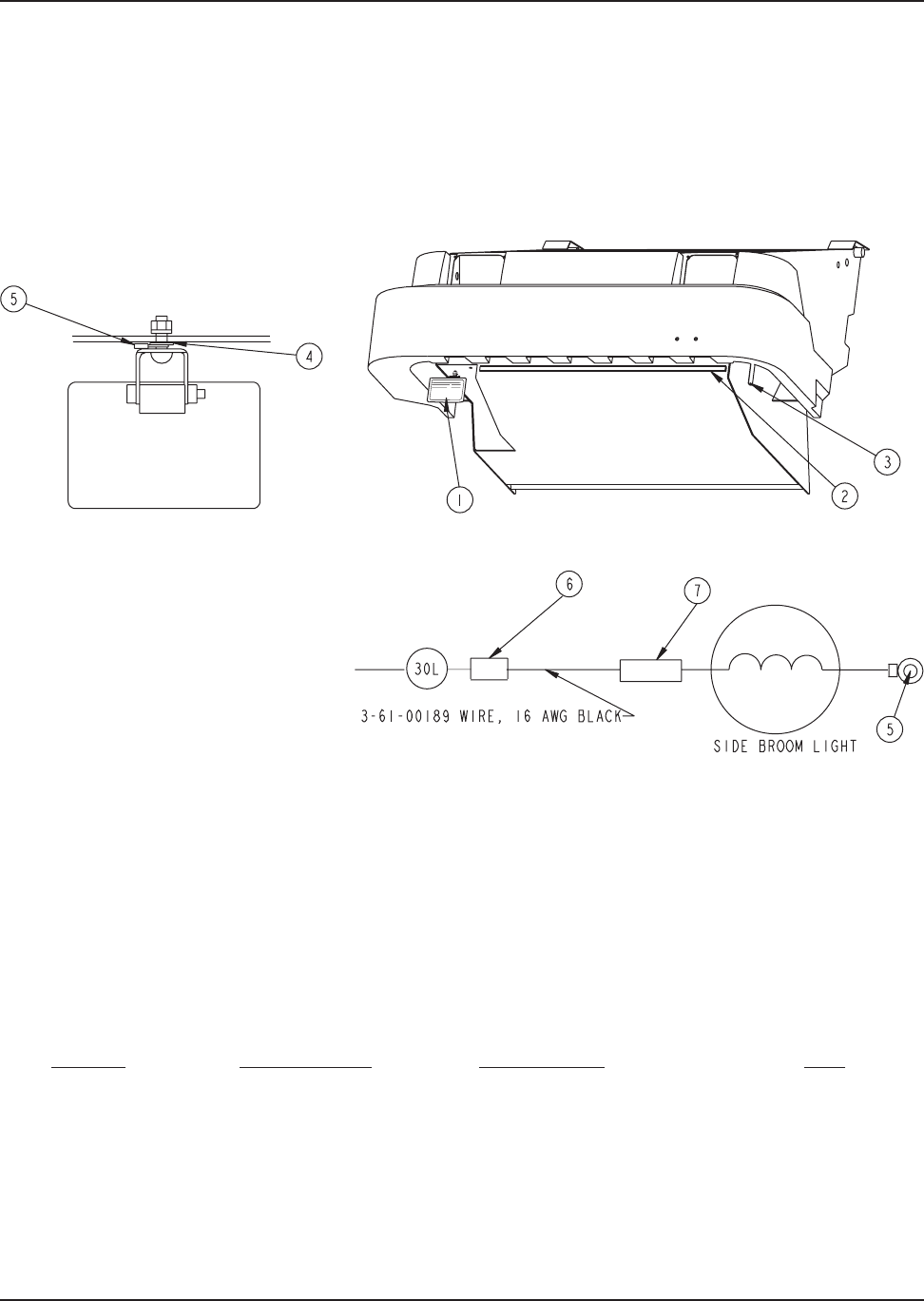

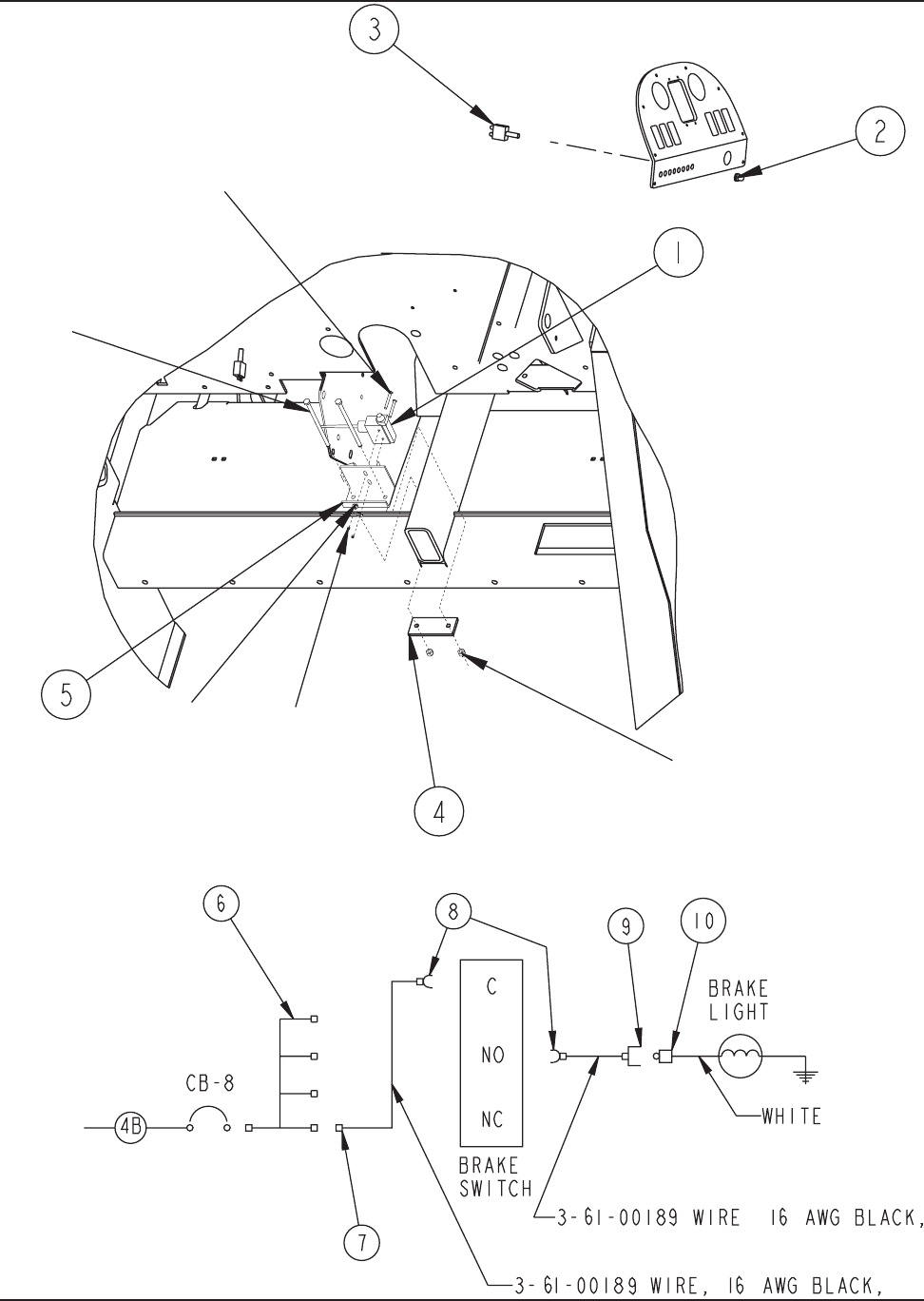

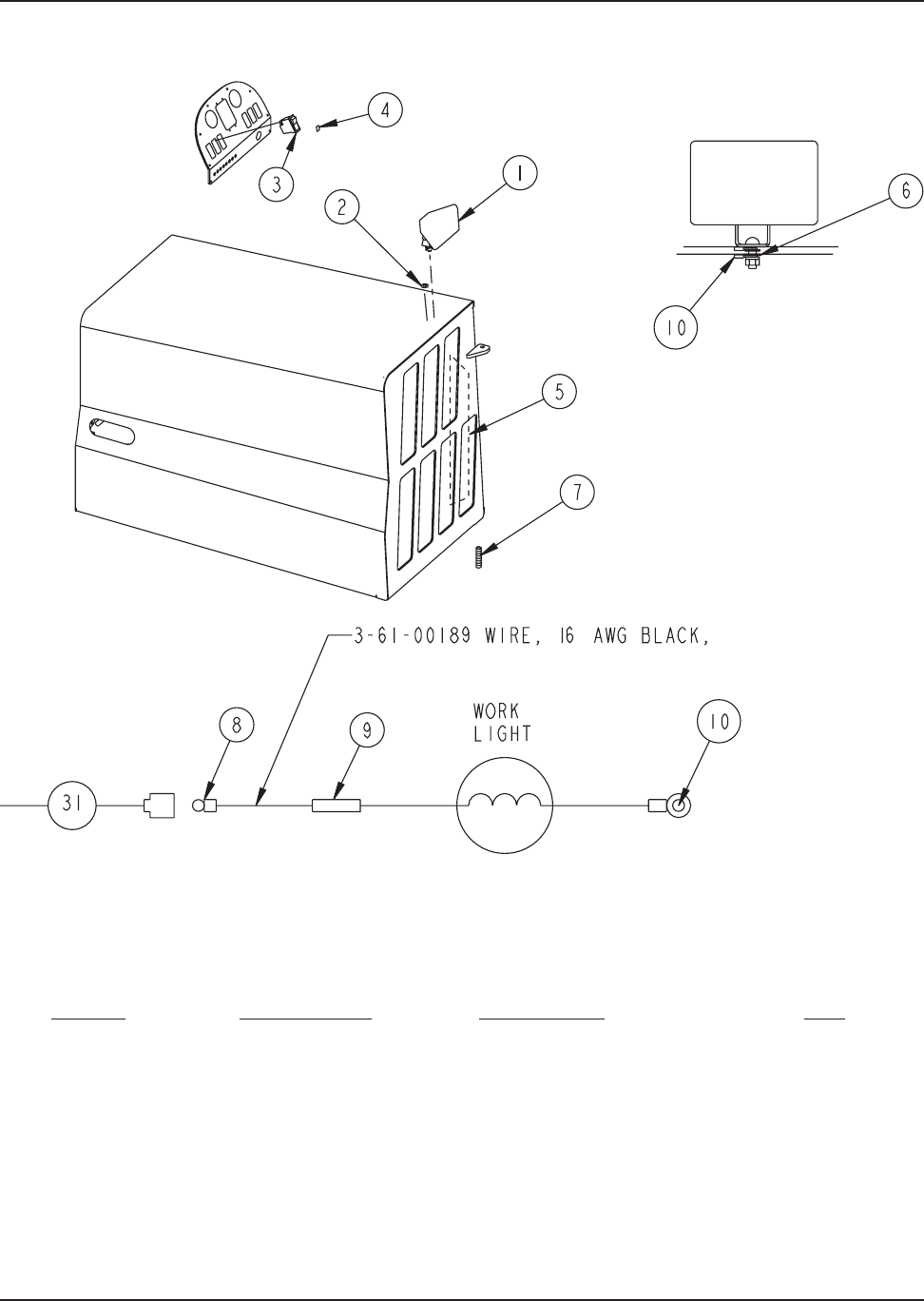

LIGHTS AND HORN ELECTRICAL ................................................................................................... 2-40

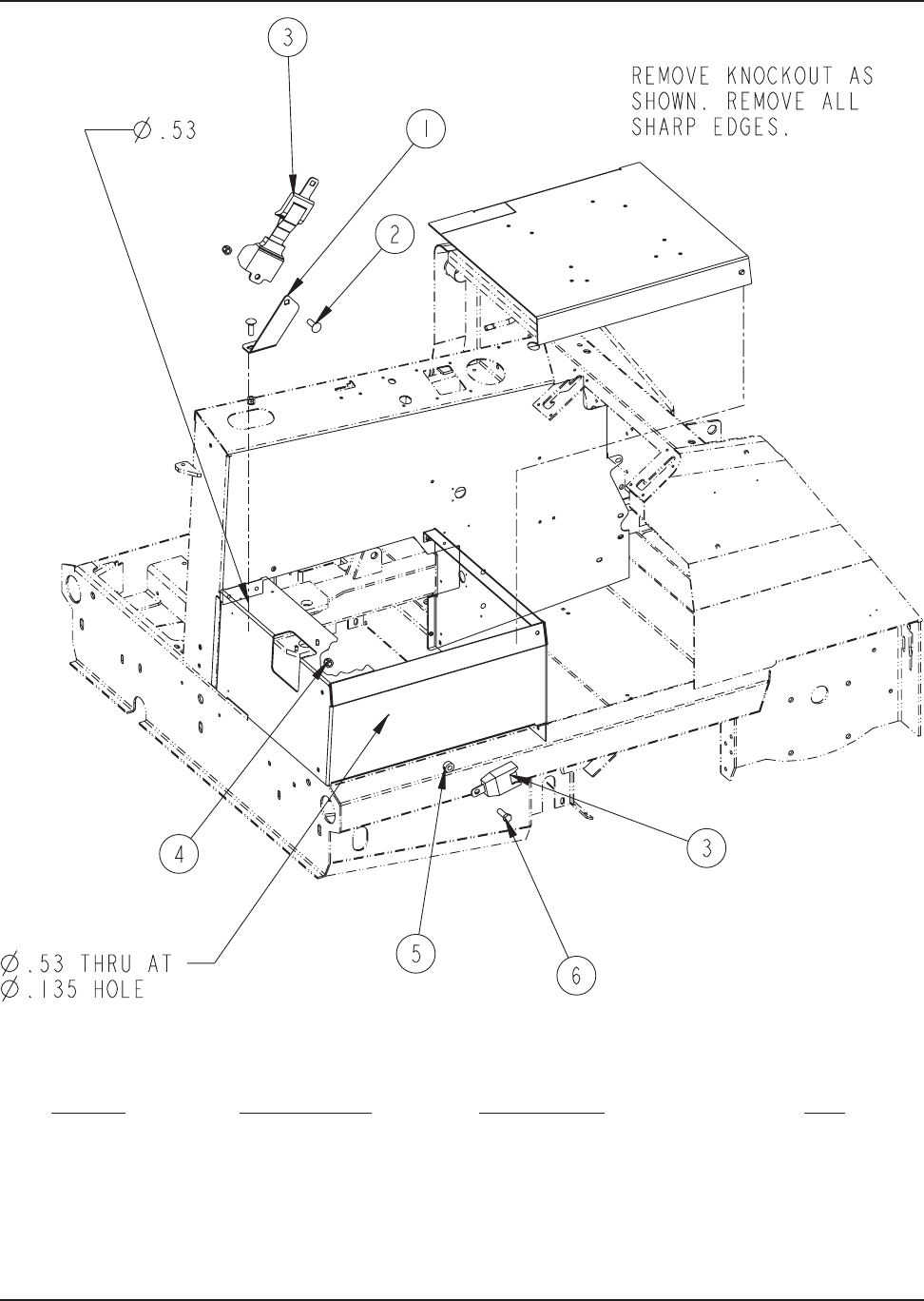

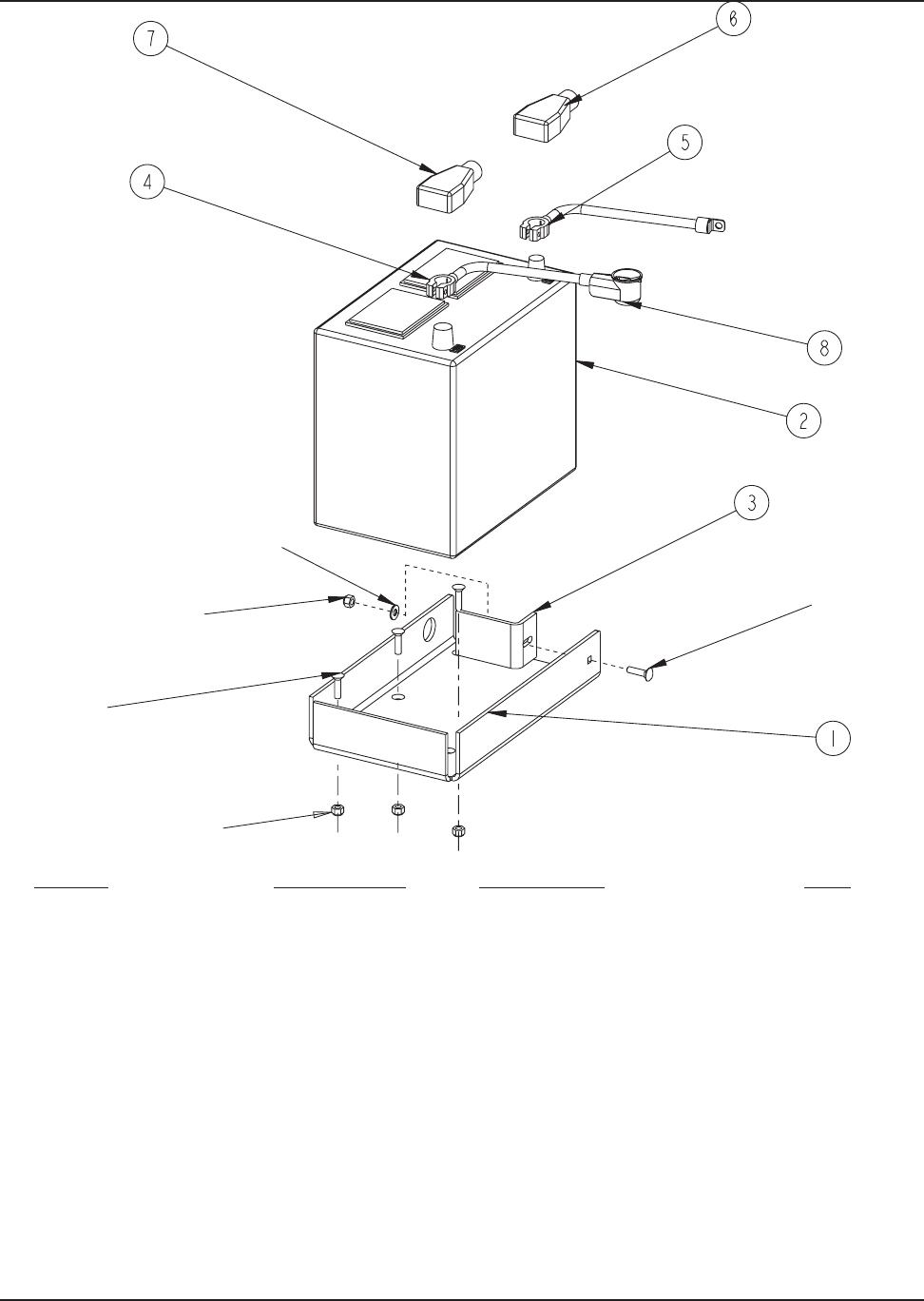

BATTERY ......................................................................................................................................... 2-41

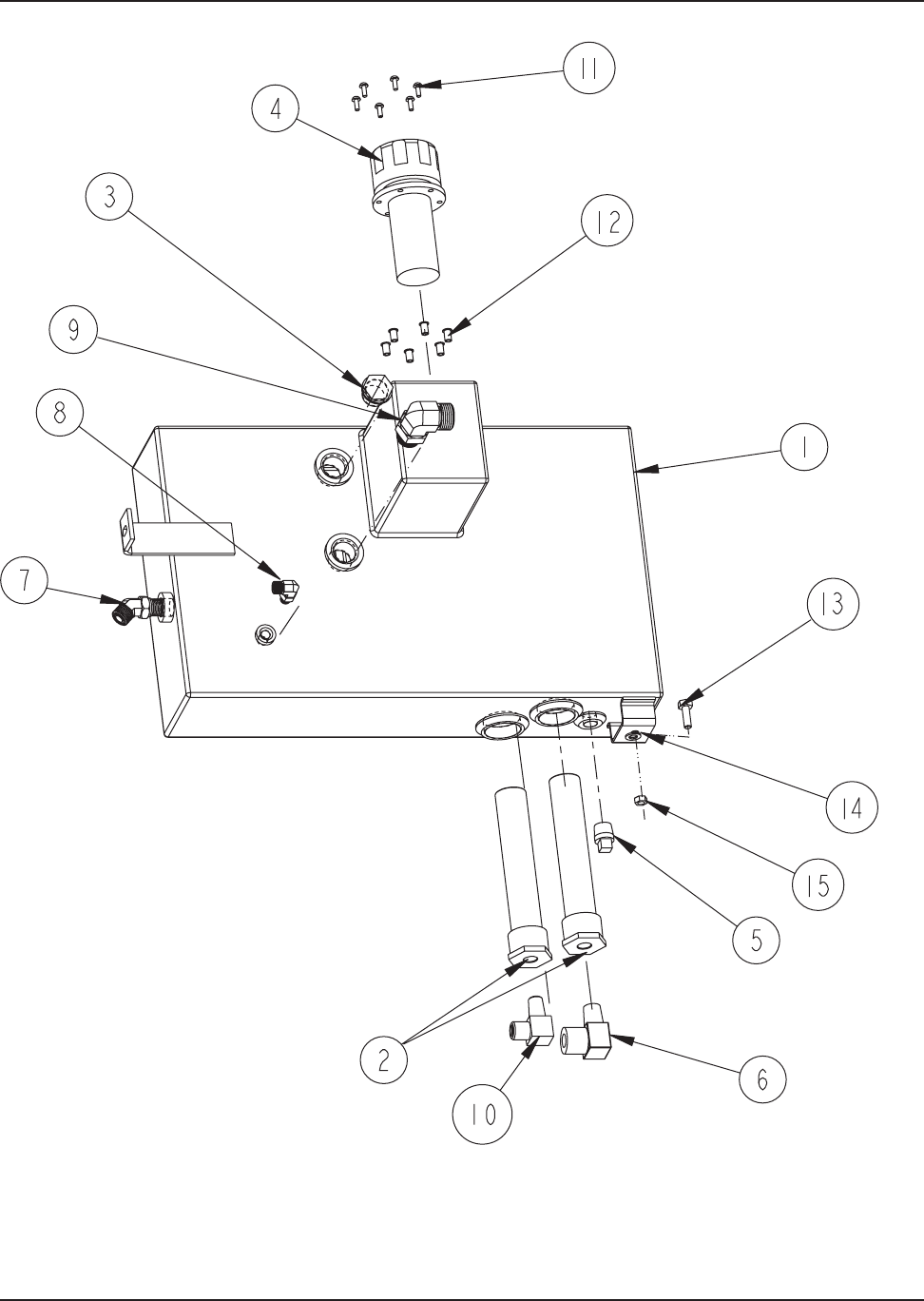

HYDRAULIC RESERVOIR ............................................................................................................... 2-42

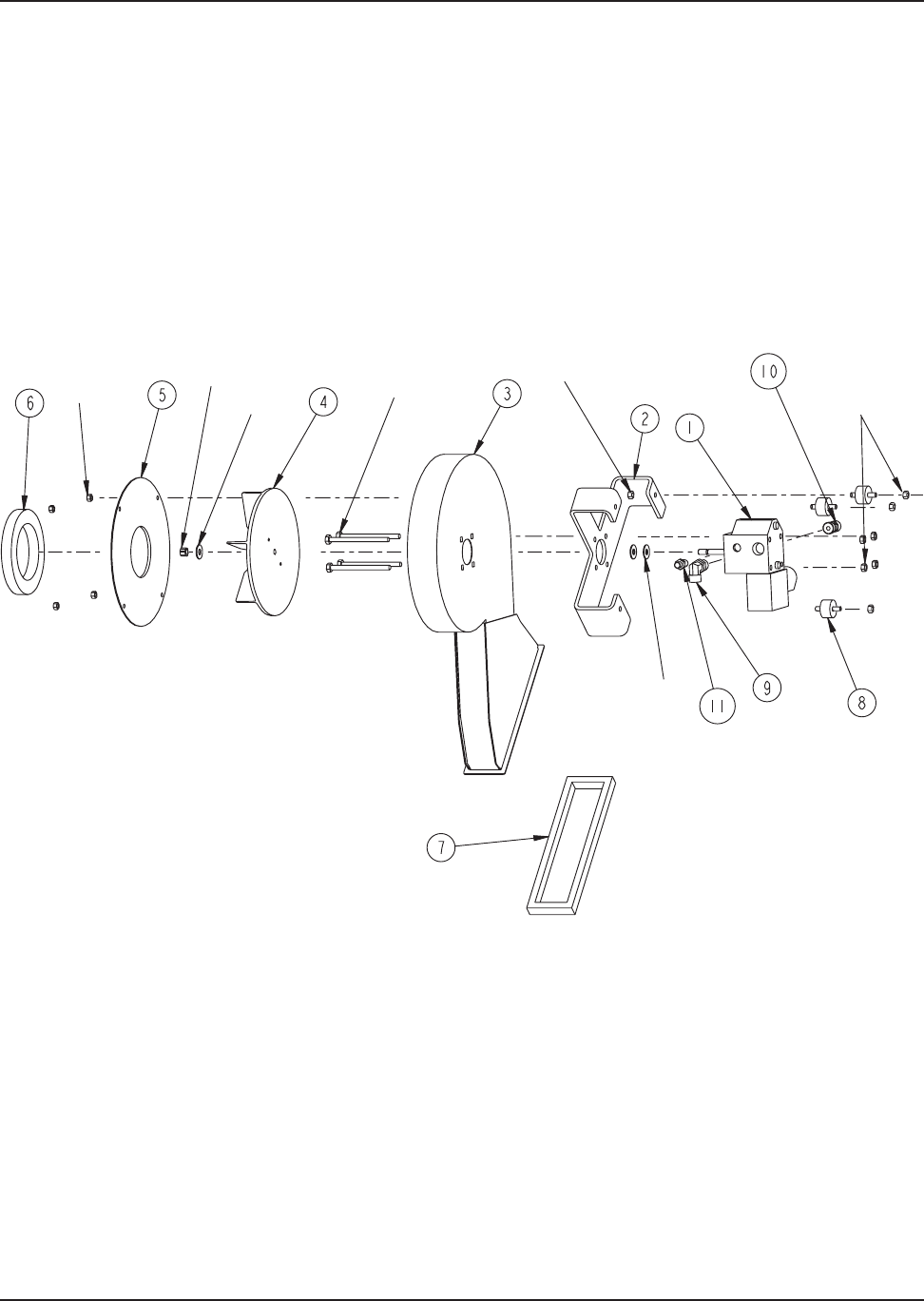

VACUUM FAN .................................................................................................................................. 2-44
FLAPS (WHEEL WELL) .................................................................................................................. 2-46

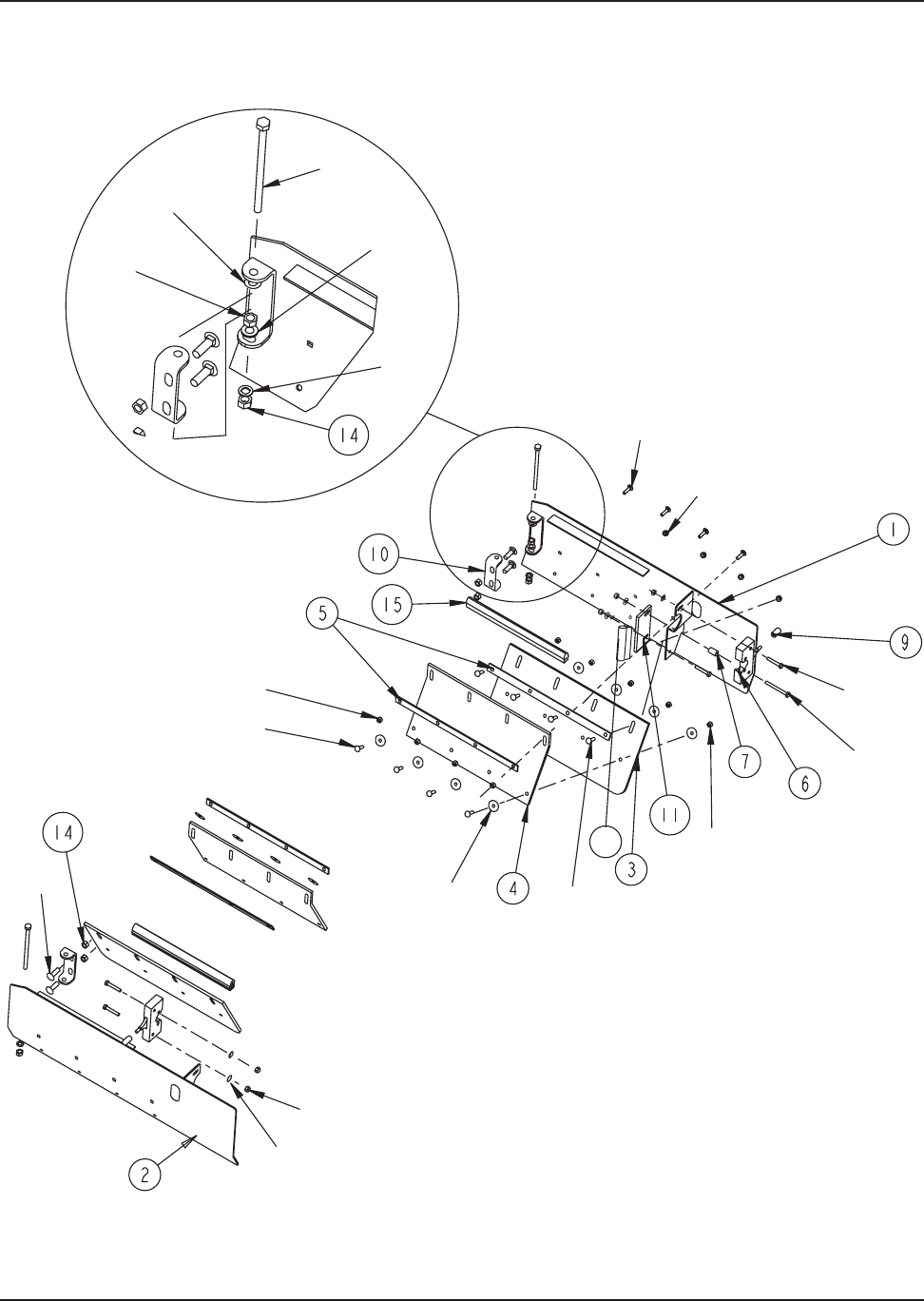

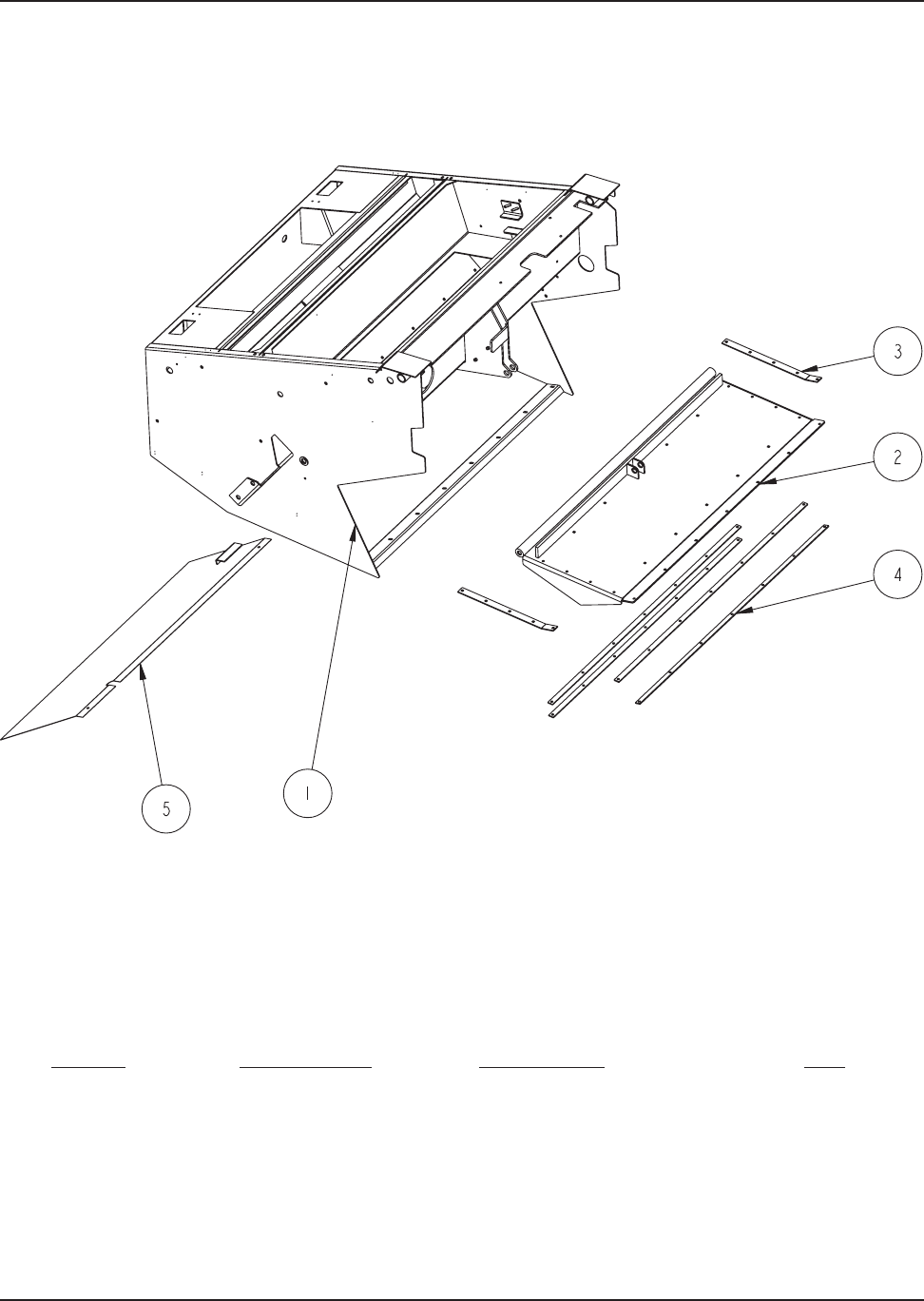

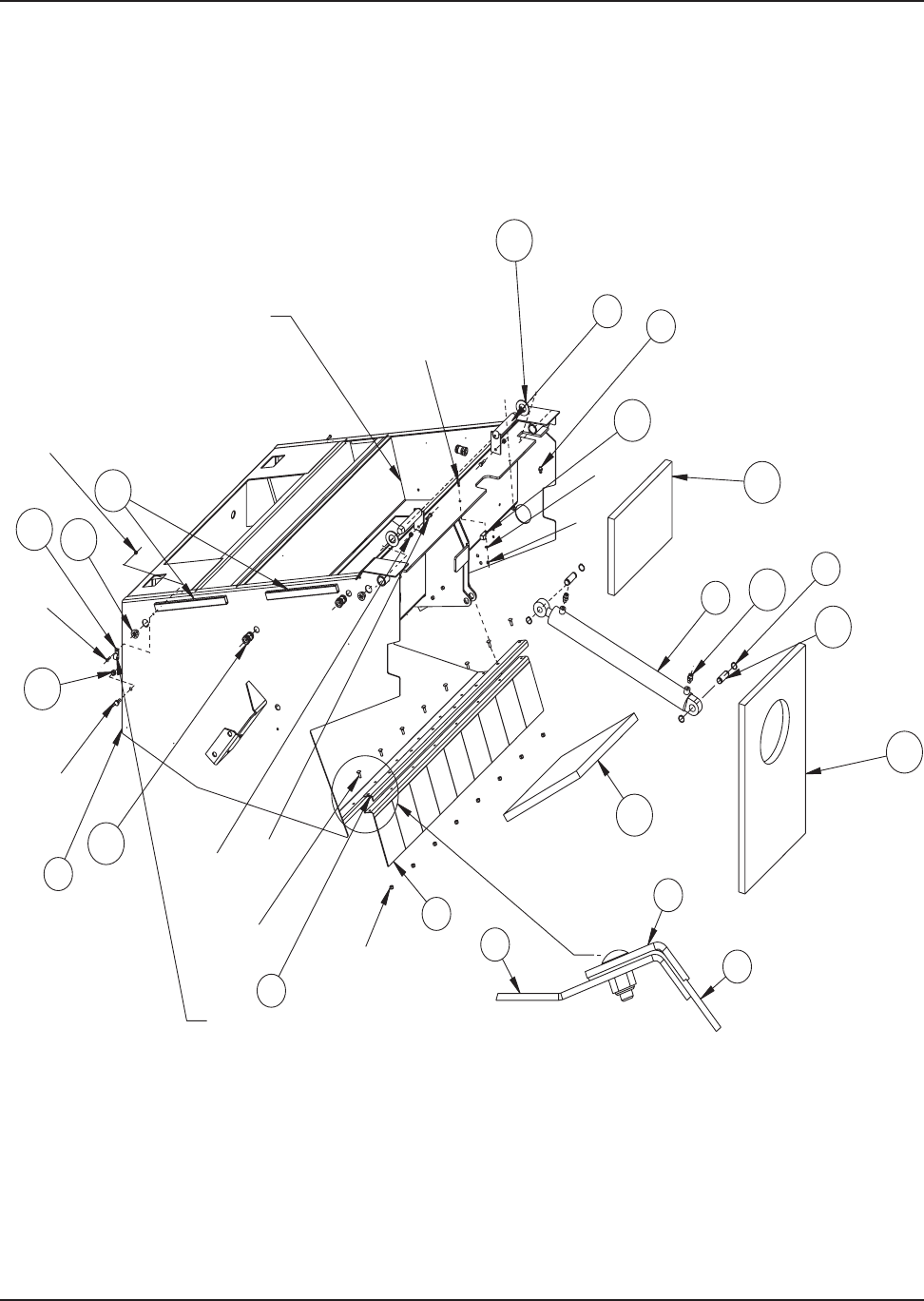

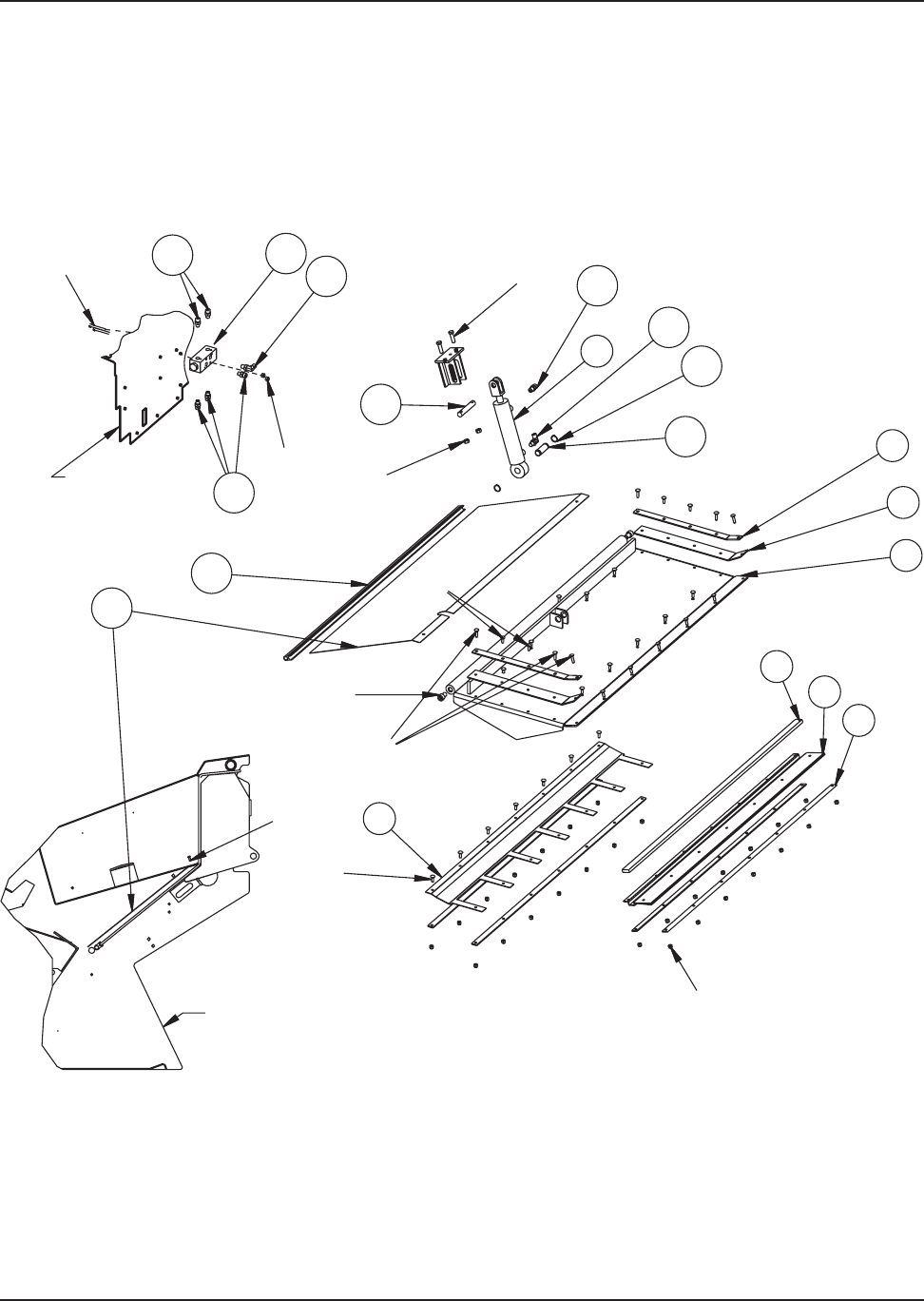

BROOM CHAMBER FLAPS AND SEALS ........................................................................................ 2-48

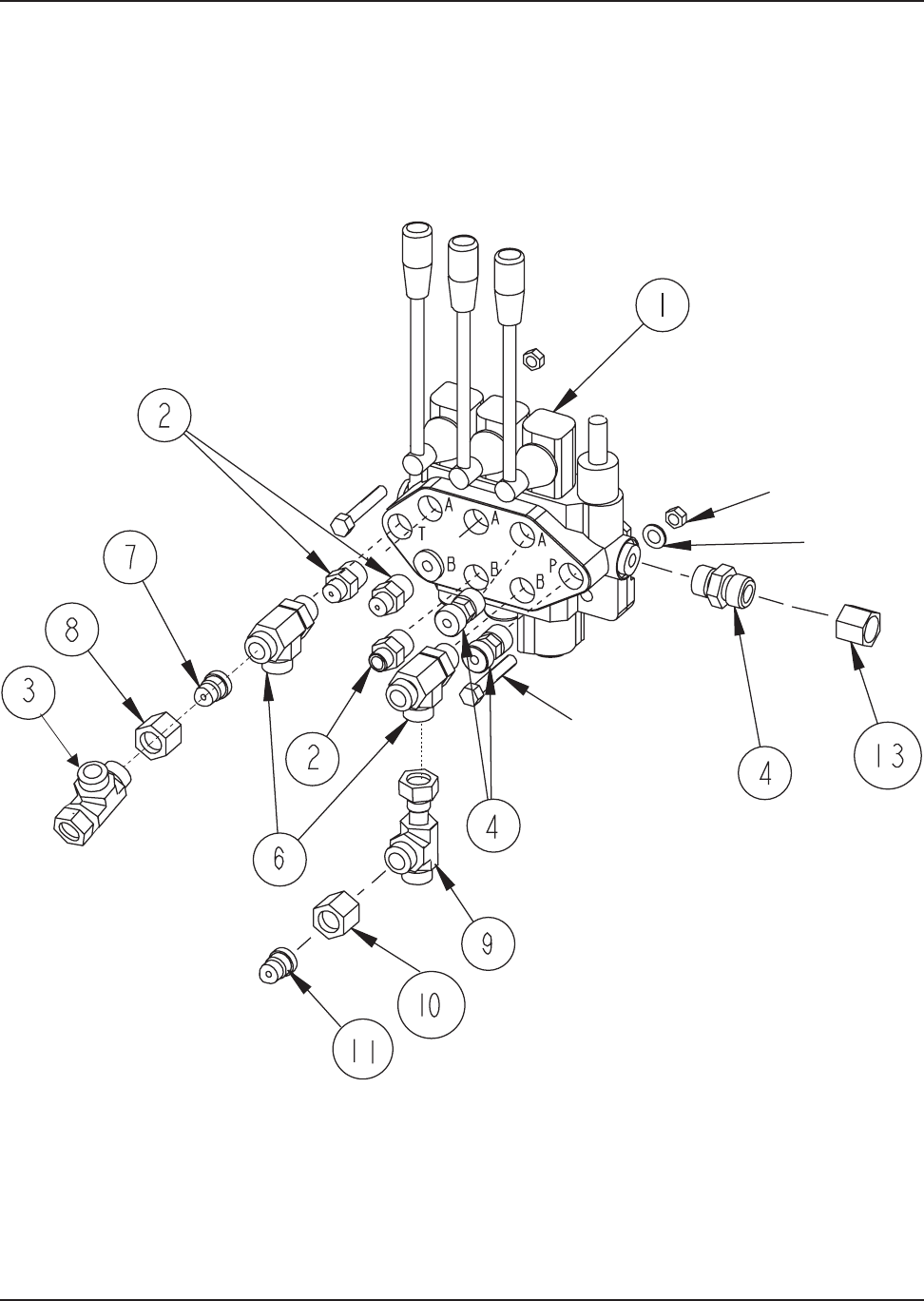

CONTROL AND RELIEF VALVE ....................................................................................................... 2-50
PUMP ........................................................................................................................................... 2-52
HYDRAULIC FILTER ........................................................................................................................ 2-54
INSTRUMENT PANEL HOUSING ..................................................................................................... 2-55

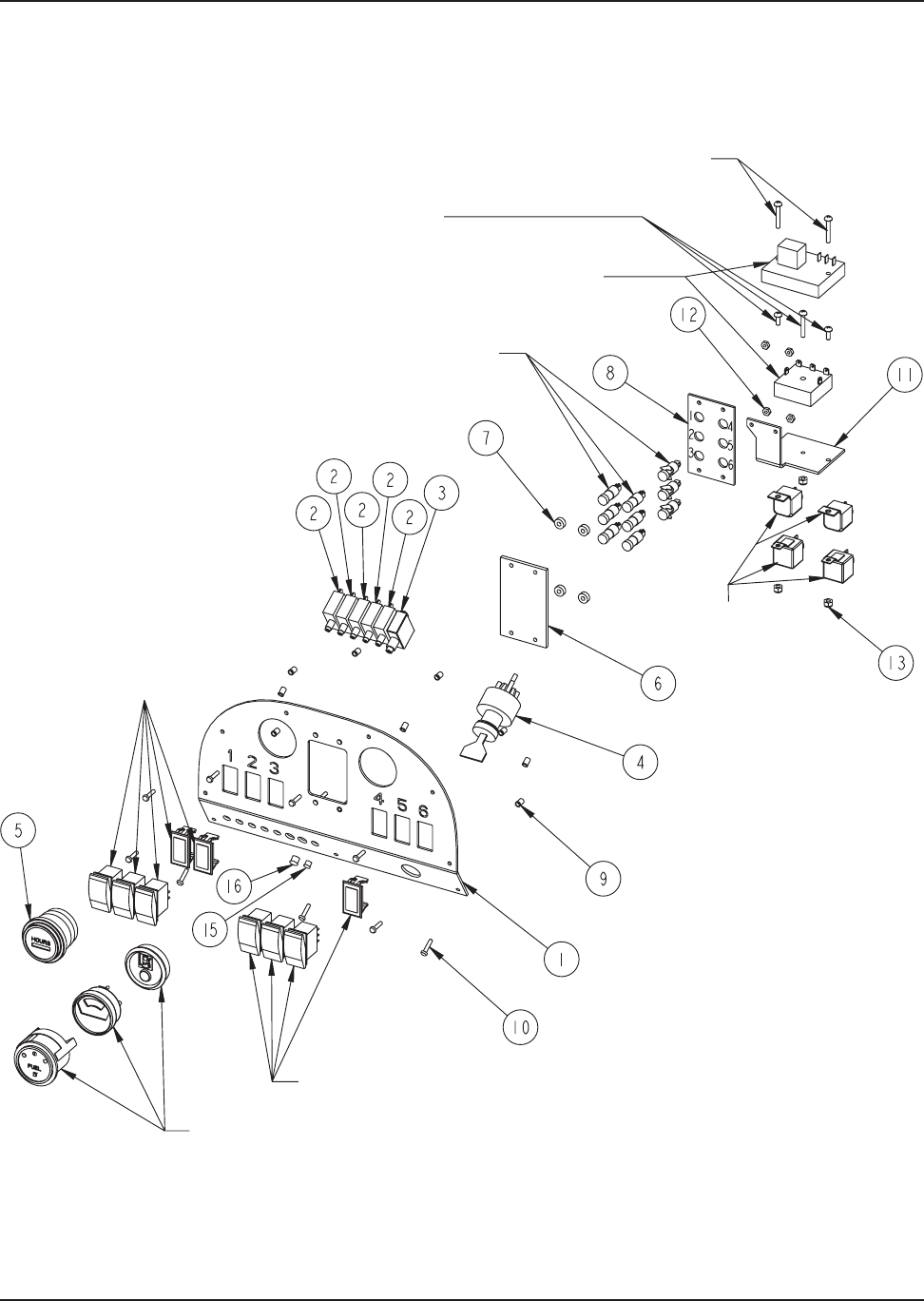

INSTRUMENT PANEL ...................................................................................................................... 2-56

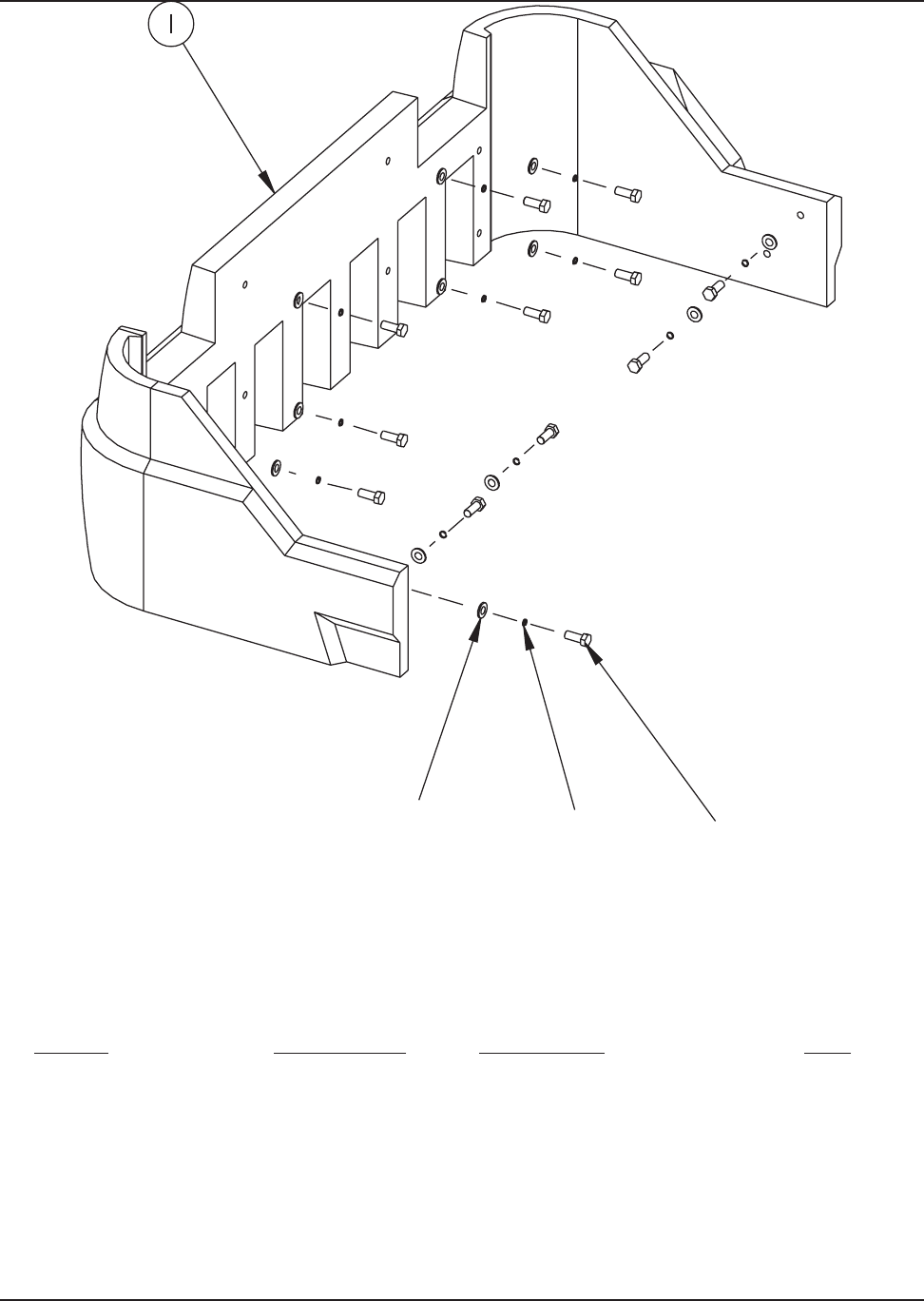

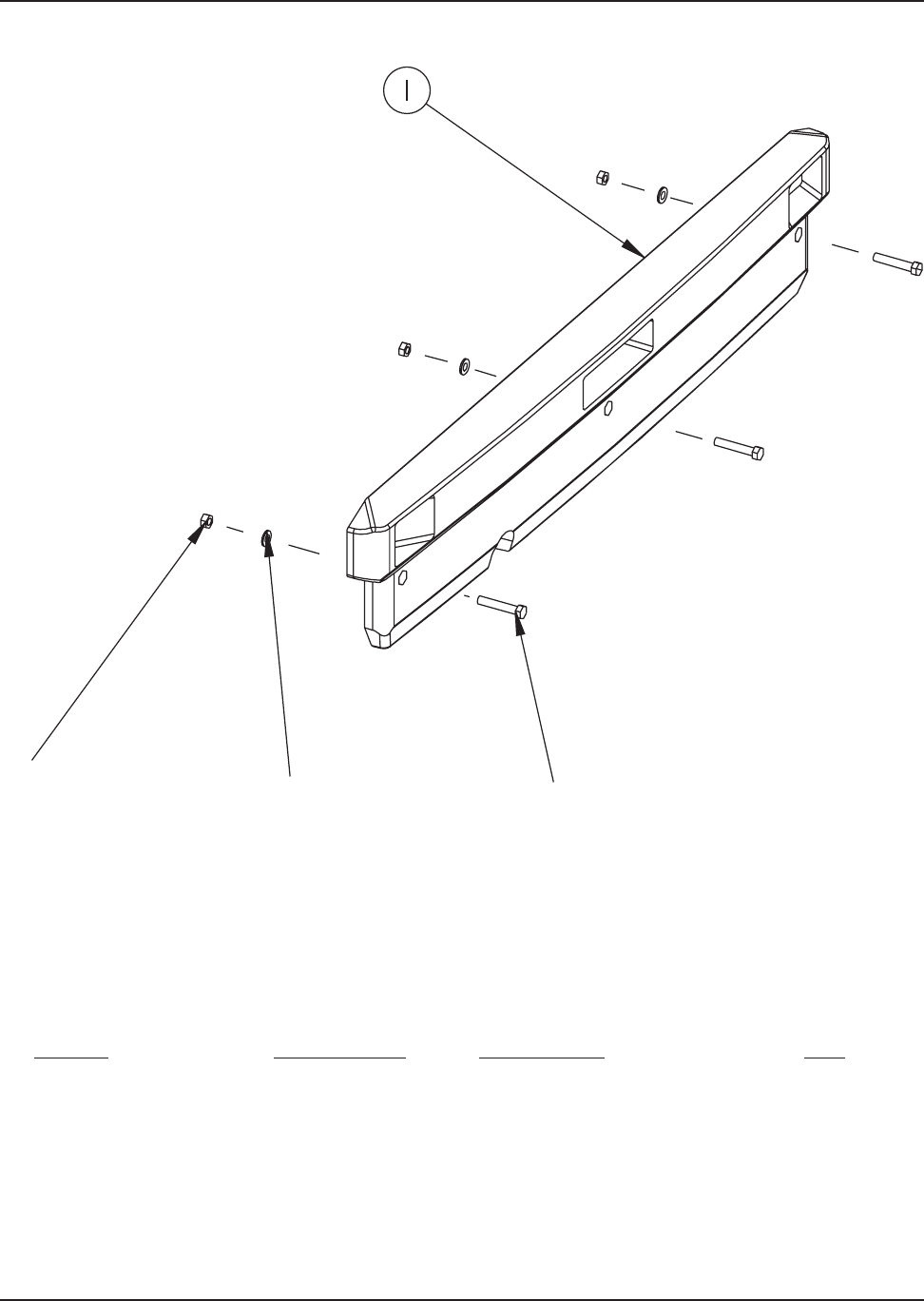

FRONT BUMPER ............................................................................................................................. 2-58
REAR BUMPER .............................................................................................................................. 2-59

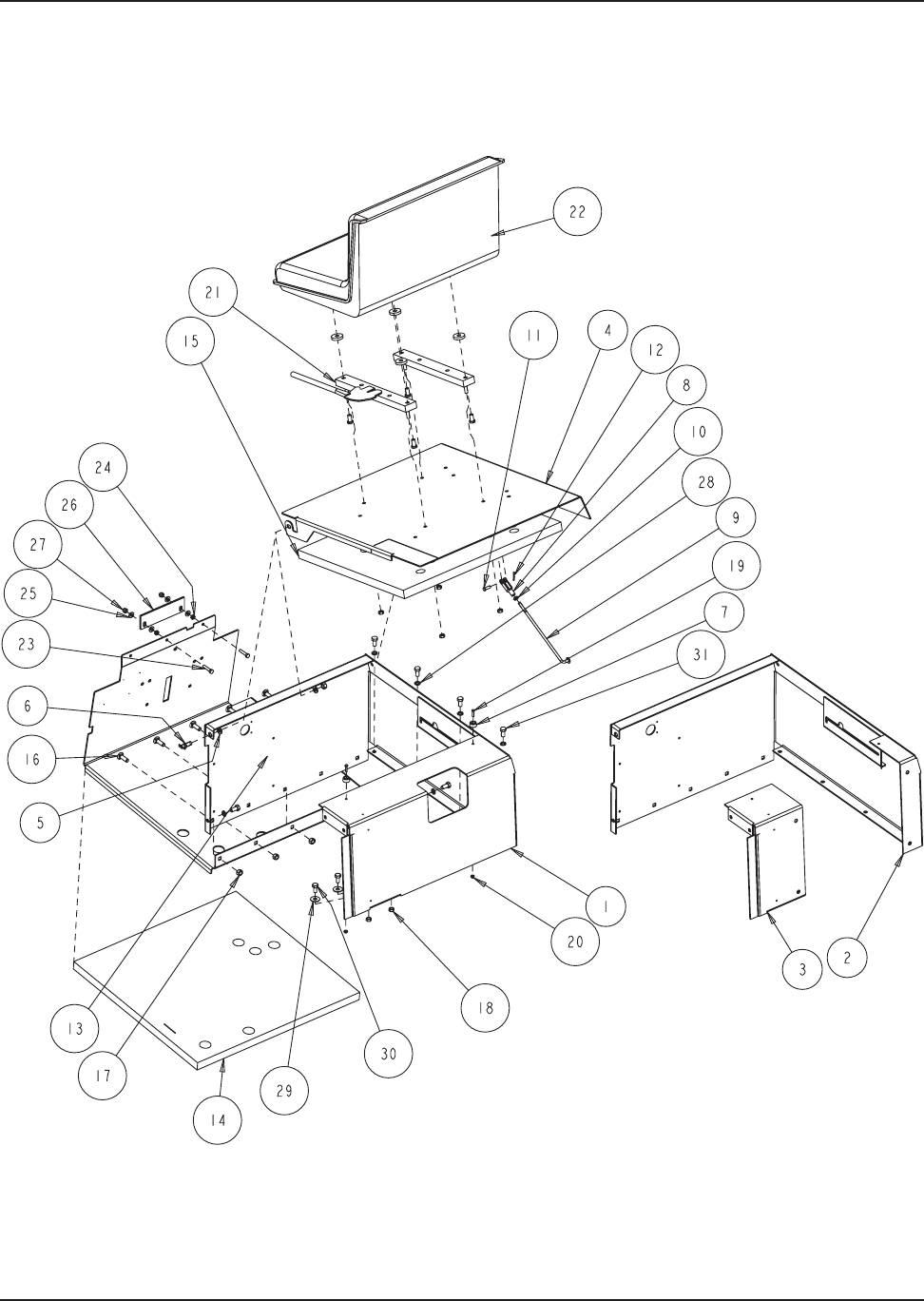

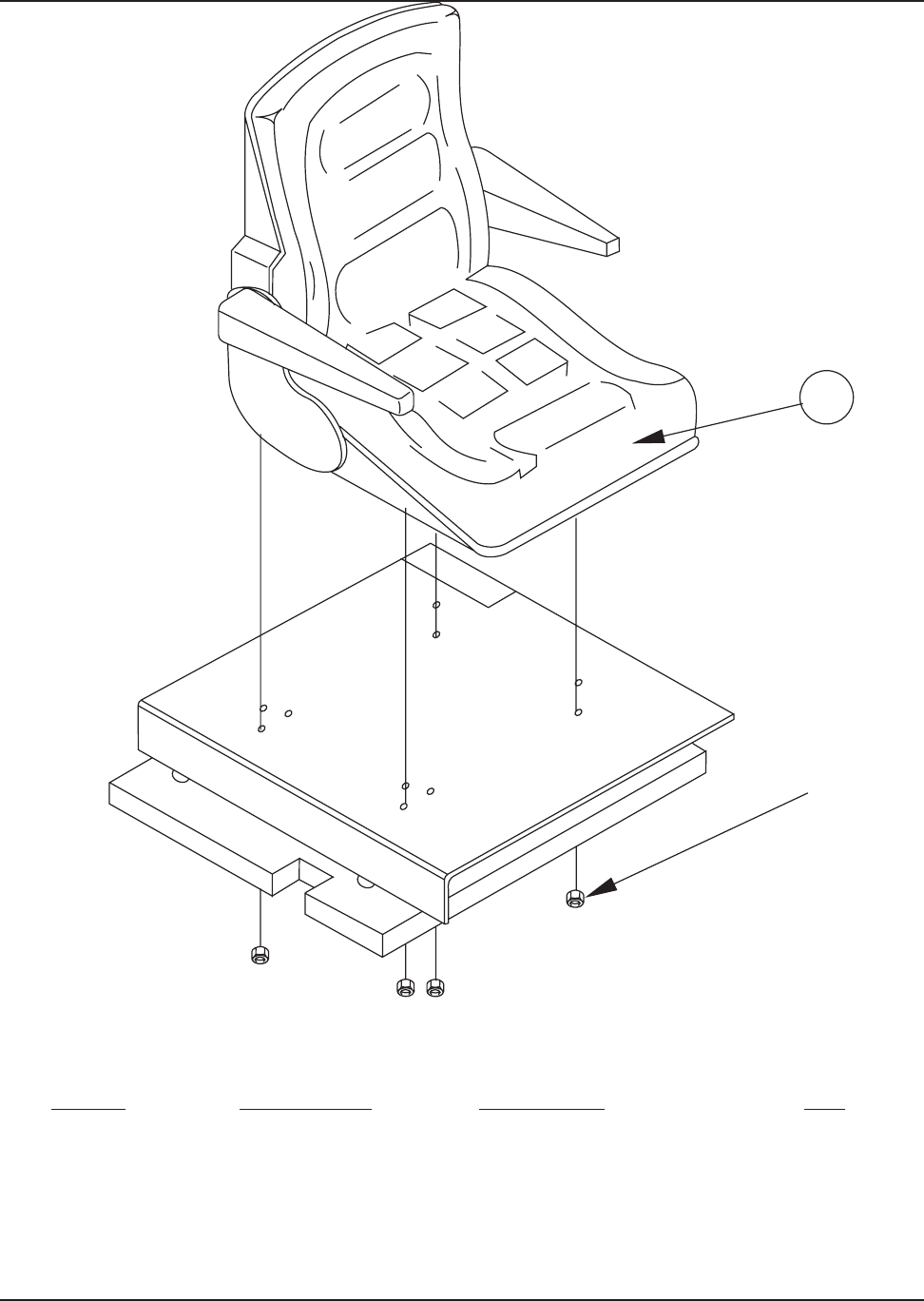

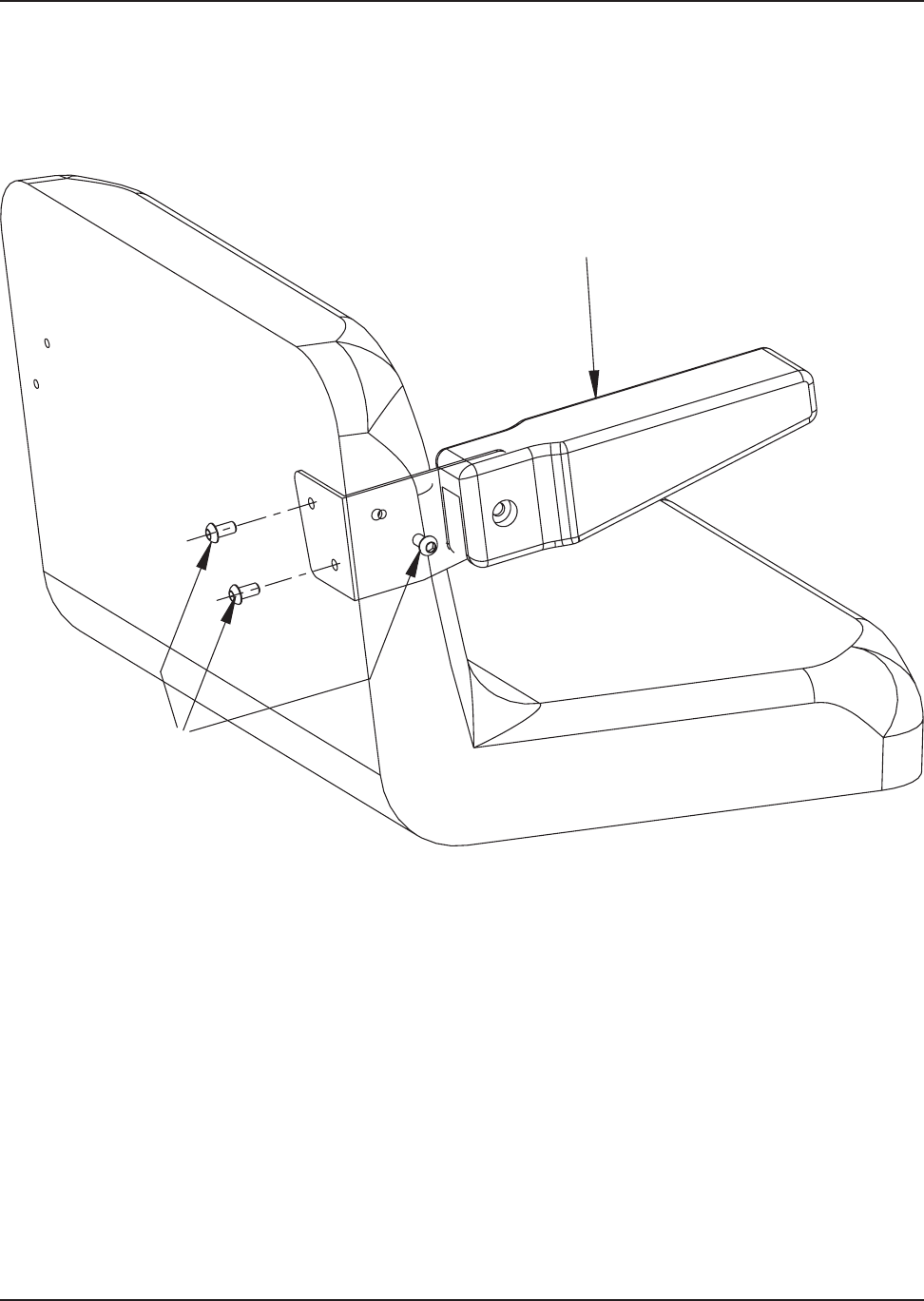

SEAT AND FLOOR ASSEMBLY ....................................................................................................... 2-60

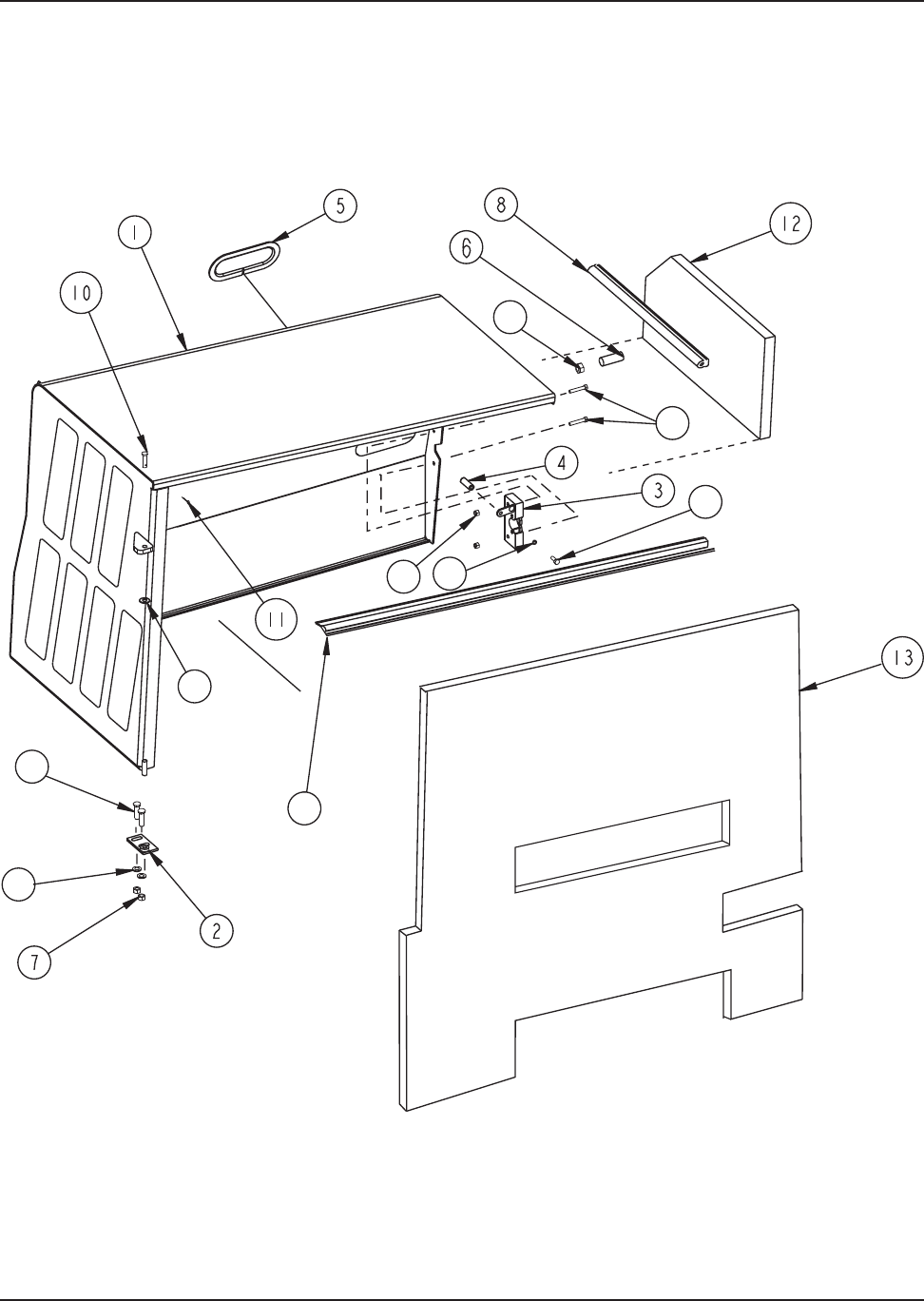

ENGINE COVER .............................................................................................................................. 2-62

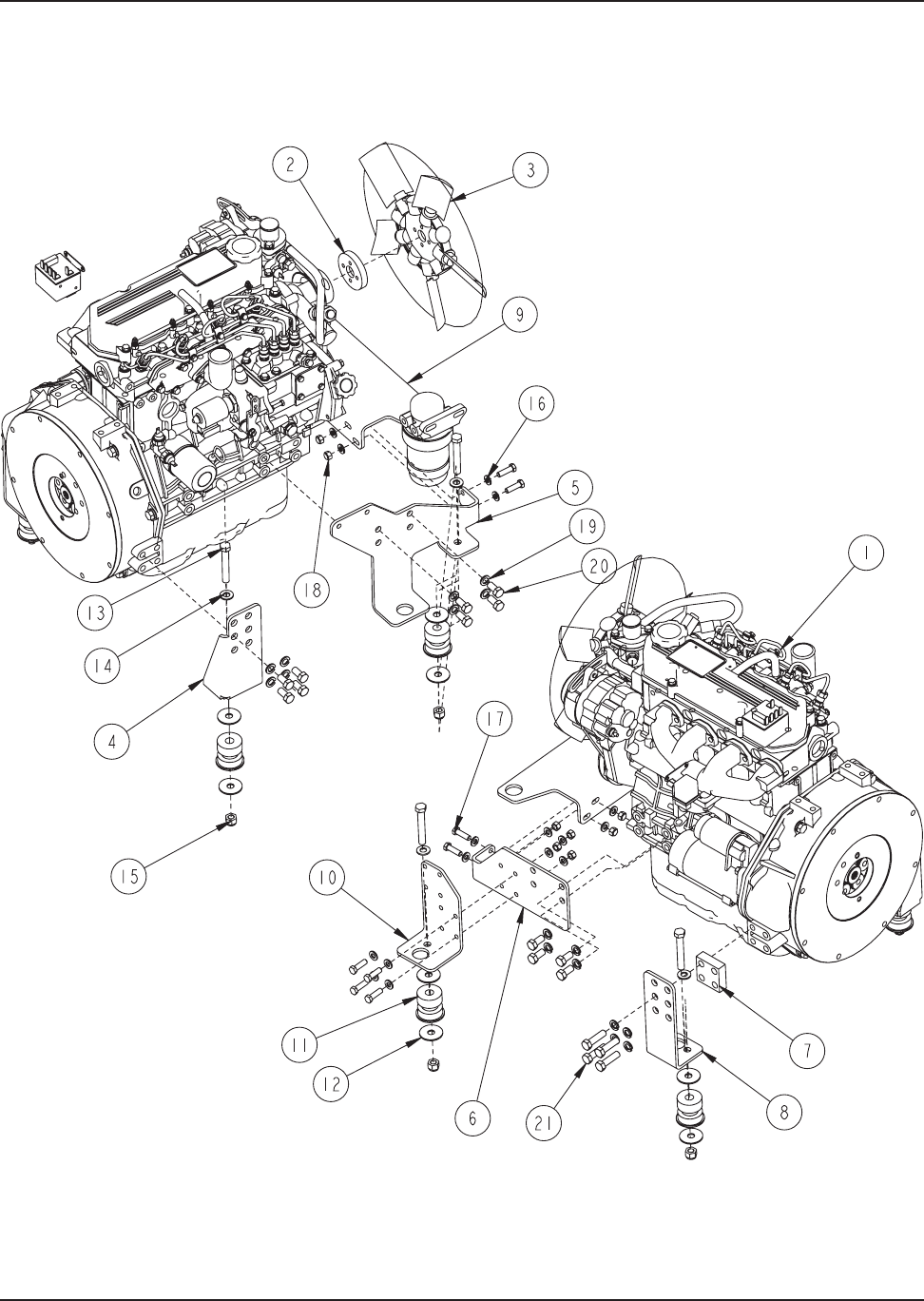

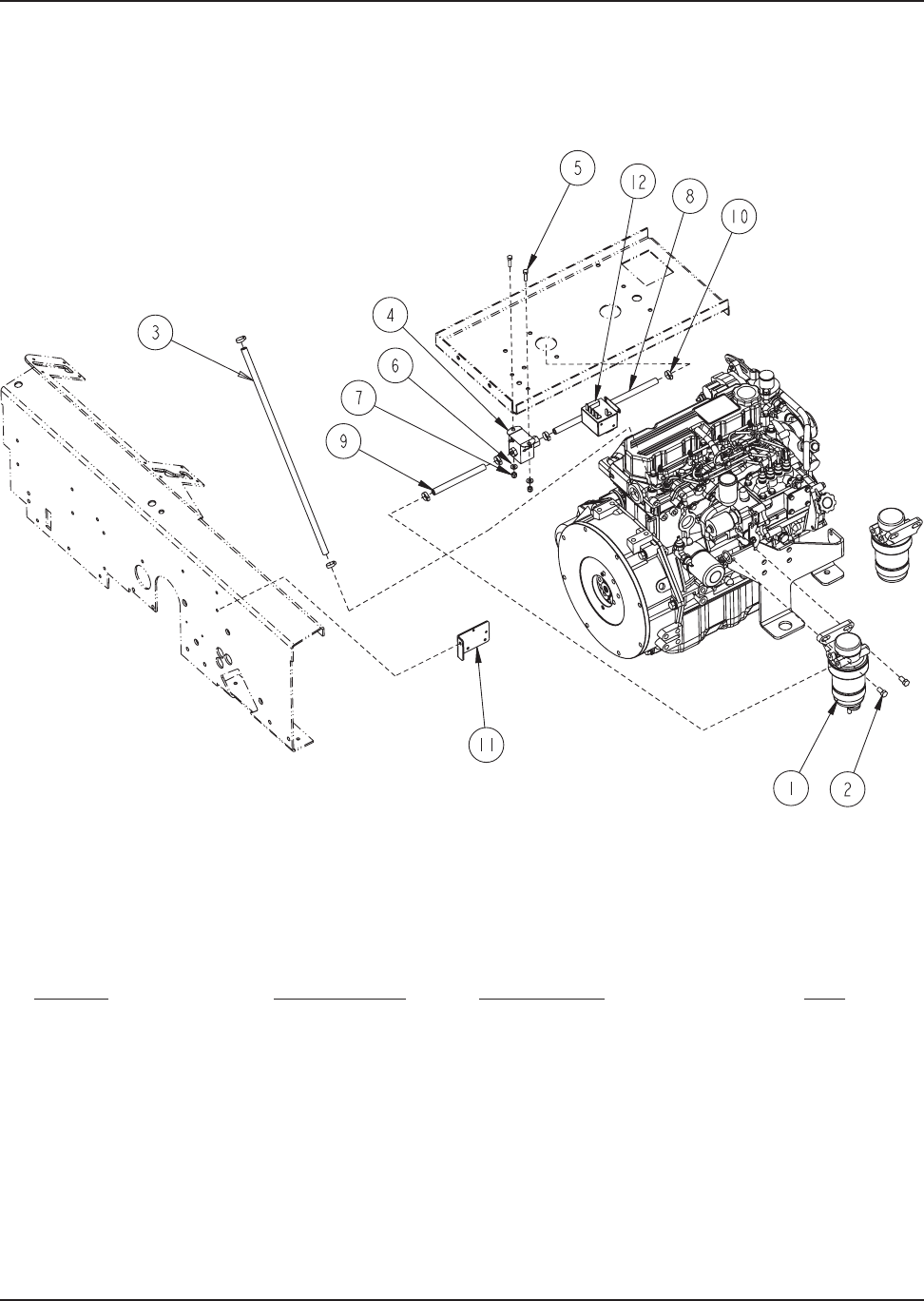

MITSUBISHI S4L2 DIESEL ENGINE (FANS, BRACKETS) ............................................................... 2-64

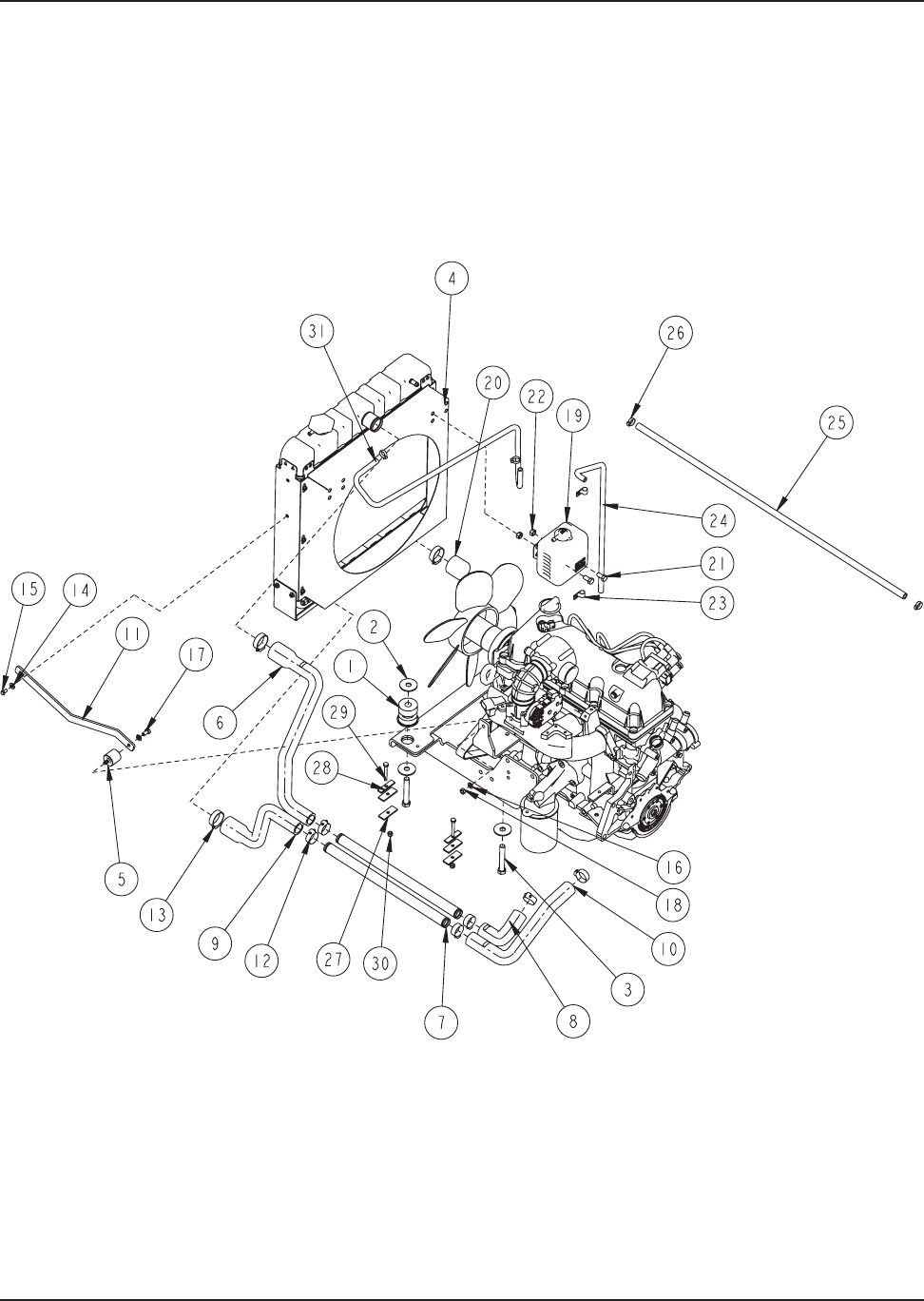

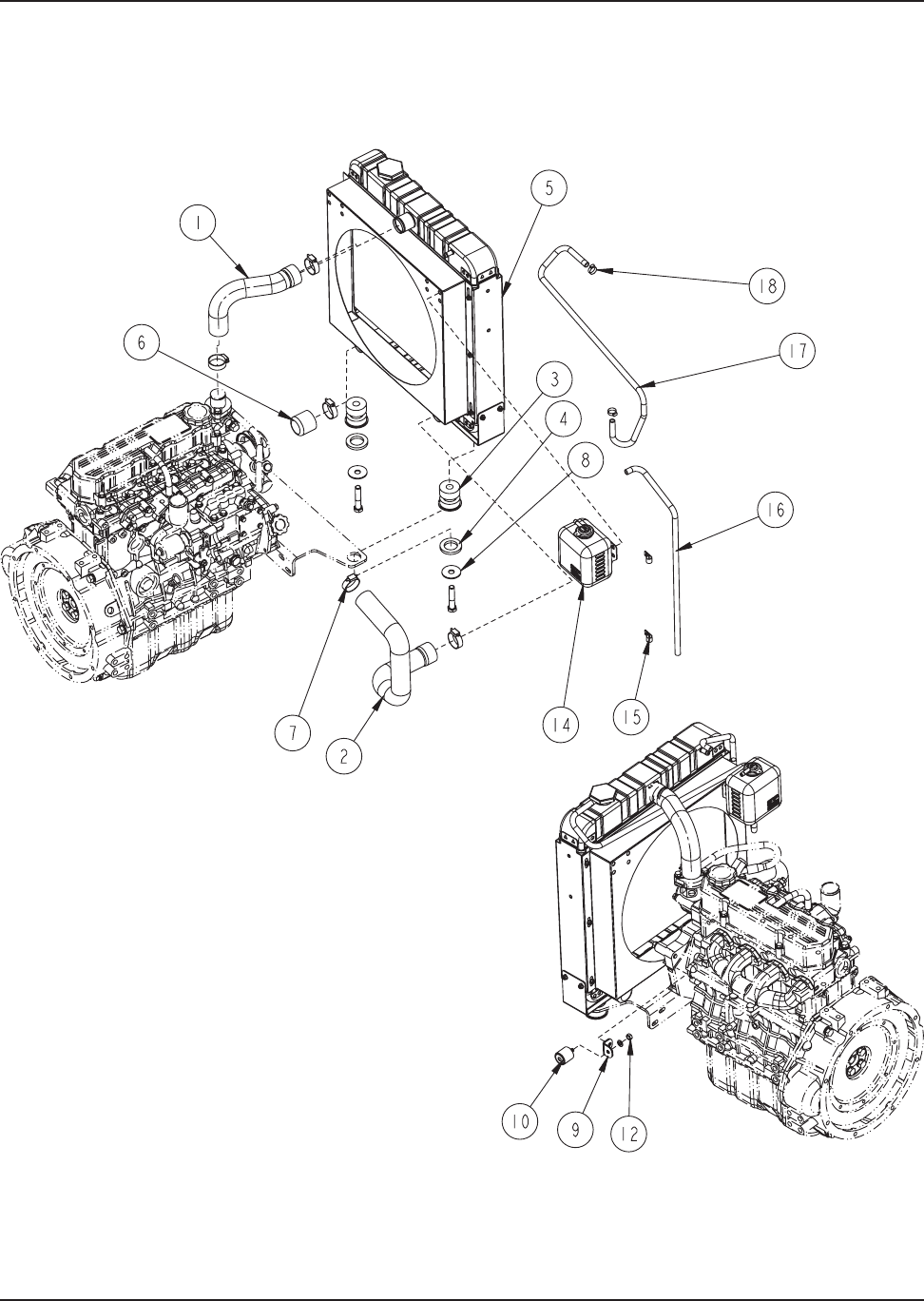

MITSUBISHI S4L2 DIESEL ENGINE (COOLING SYSTEM) .............................................................. 2-66

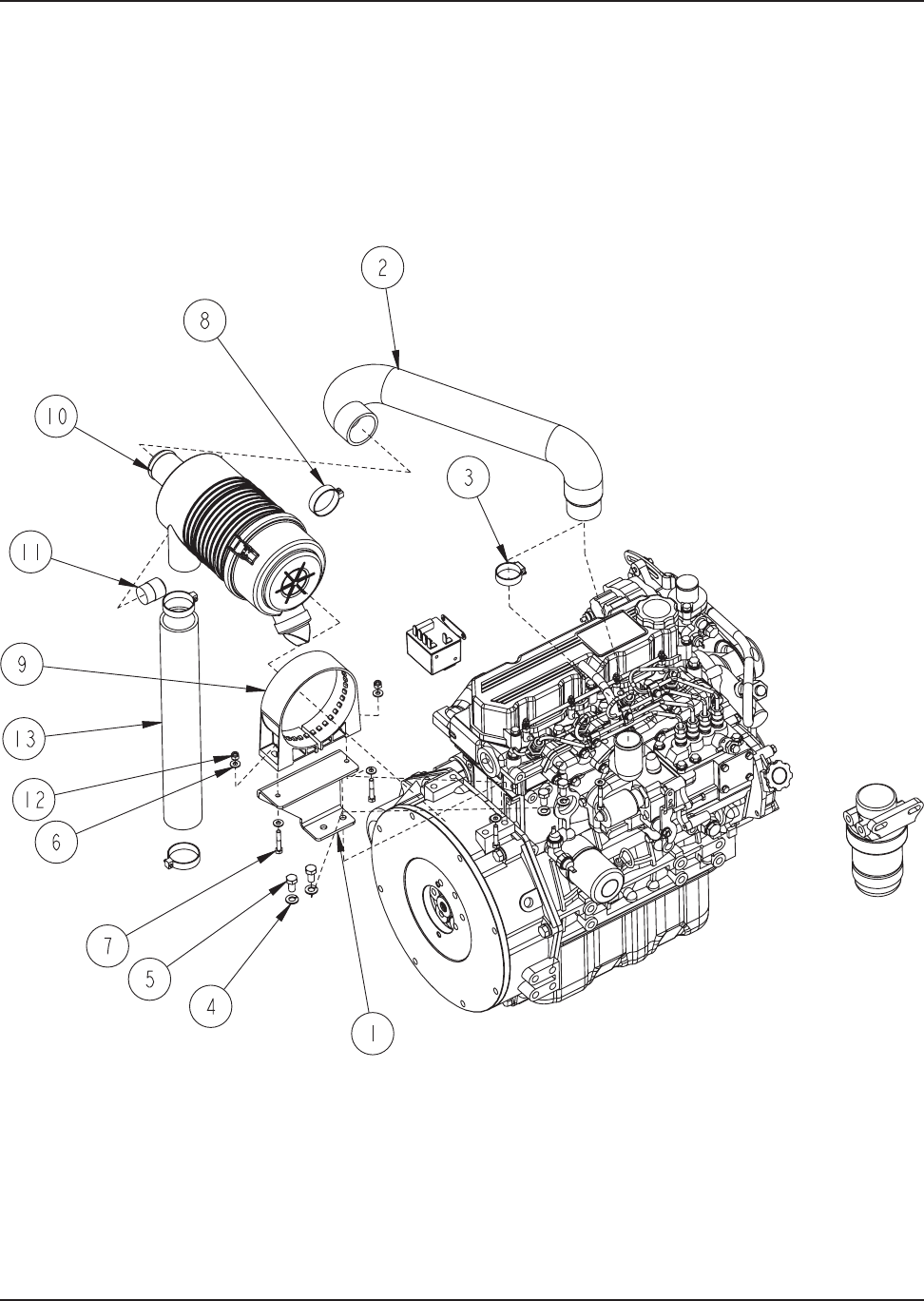

MITSUBISHI S4L2 DIESEL ENGINE (AIR INTAKE) .......................................................................... 2-68
MITSUBISHI S4L2 DIESEL ENGINE (THROTTLE PUMP PLATE) .................................................... 2-70
MITSUBISHI S4L2 DIESEL ENGINE (THROTTLE CONTROL) .......................................................... 2-71

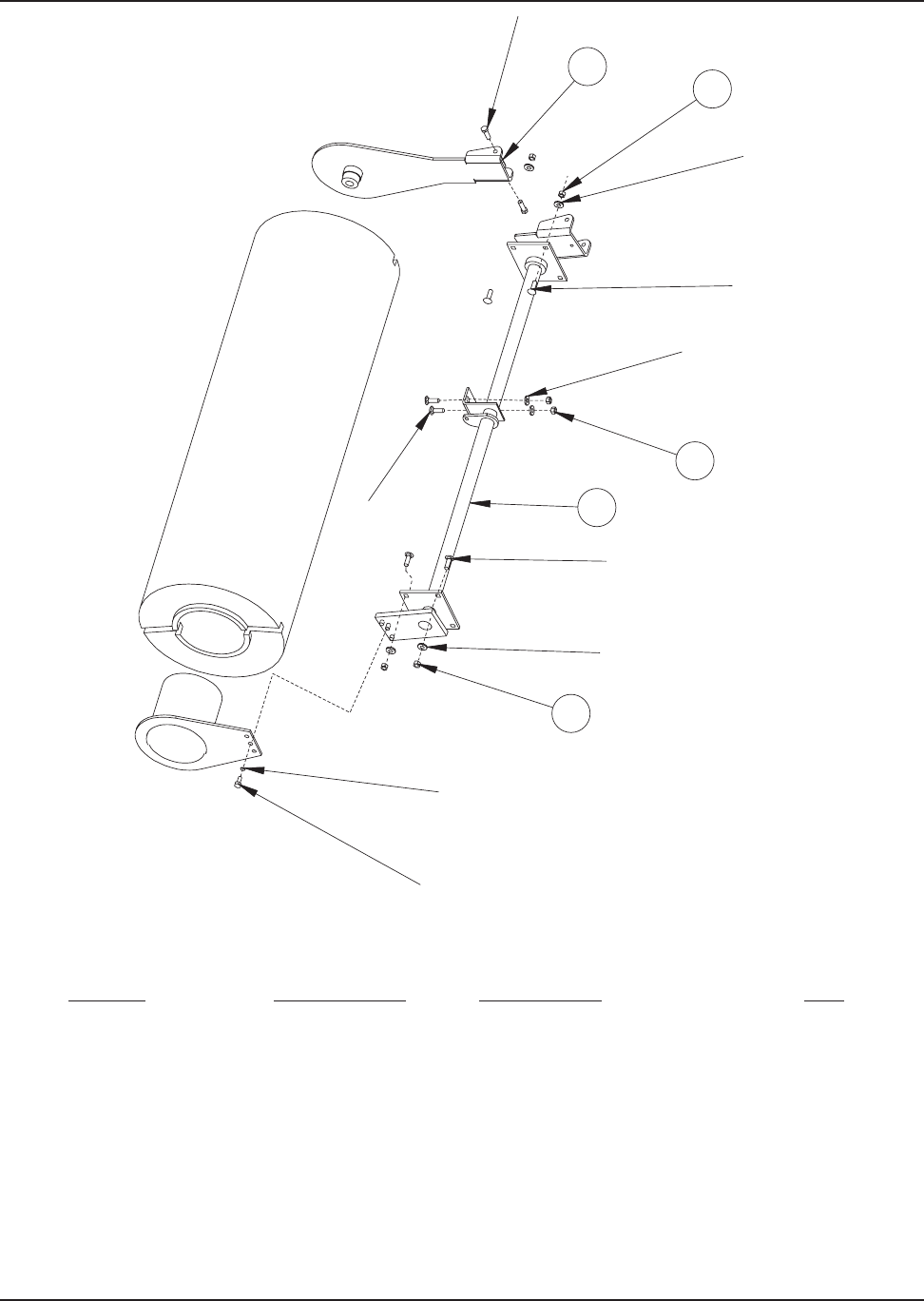

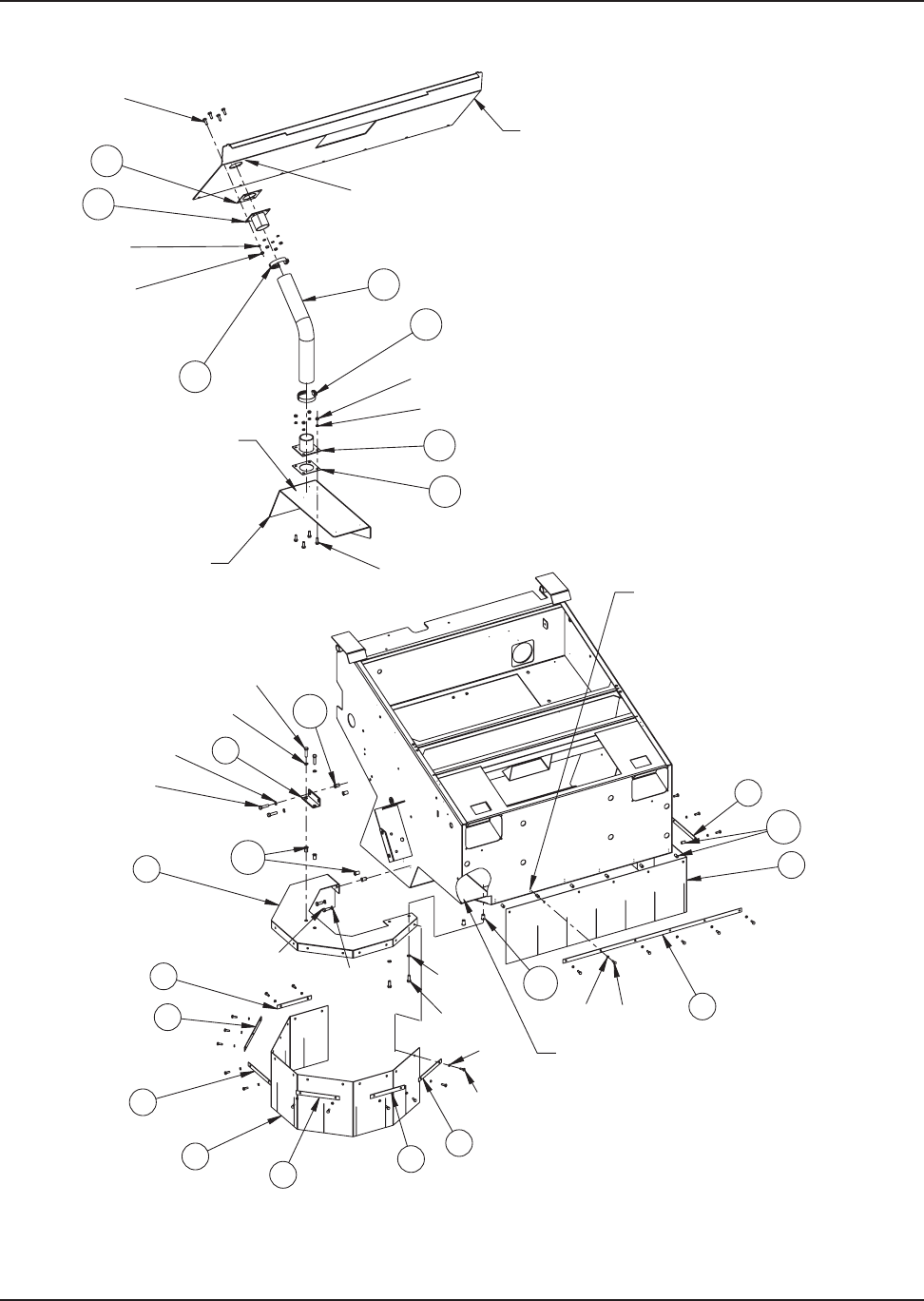

MITSUBISHI S4L2 DIESEL ENGINE (EXHAUST SYSTEM) .............................................................. 2-72
MITSUBISHI S4L2 DIESEL ENGINE (FUEL SYSTEM) ..................................................................... 2-73

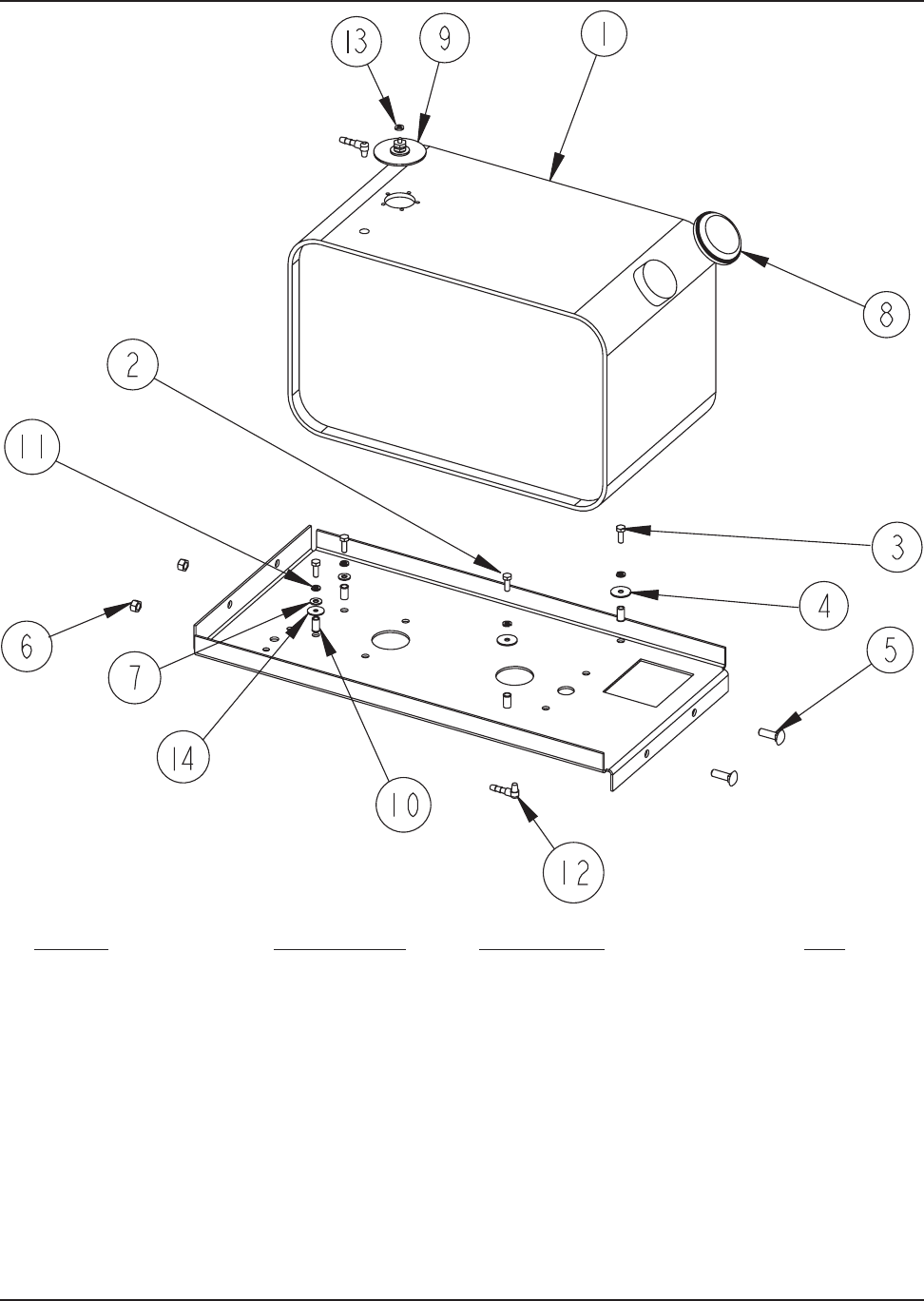

FUEL TANK (GAS & DIESEL) .......................................................................................................... 2-74

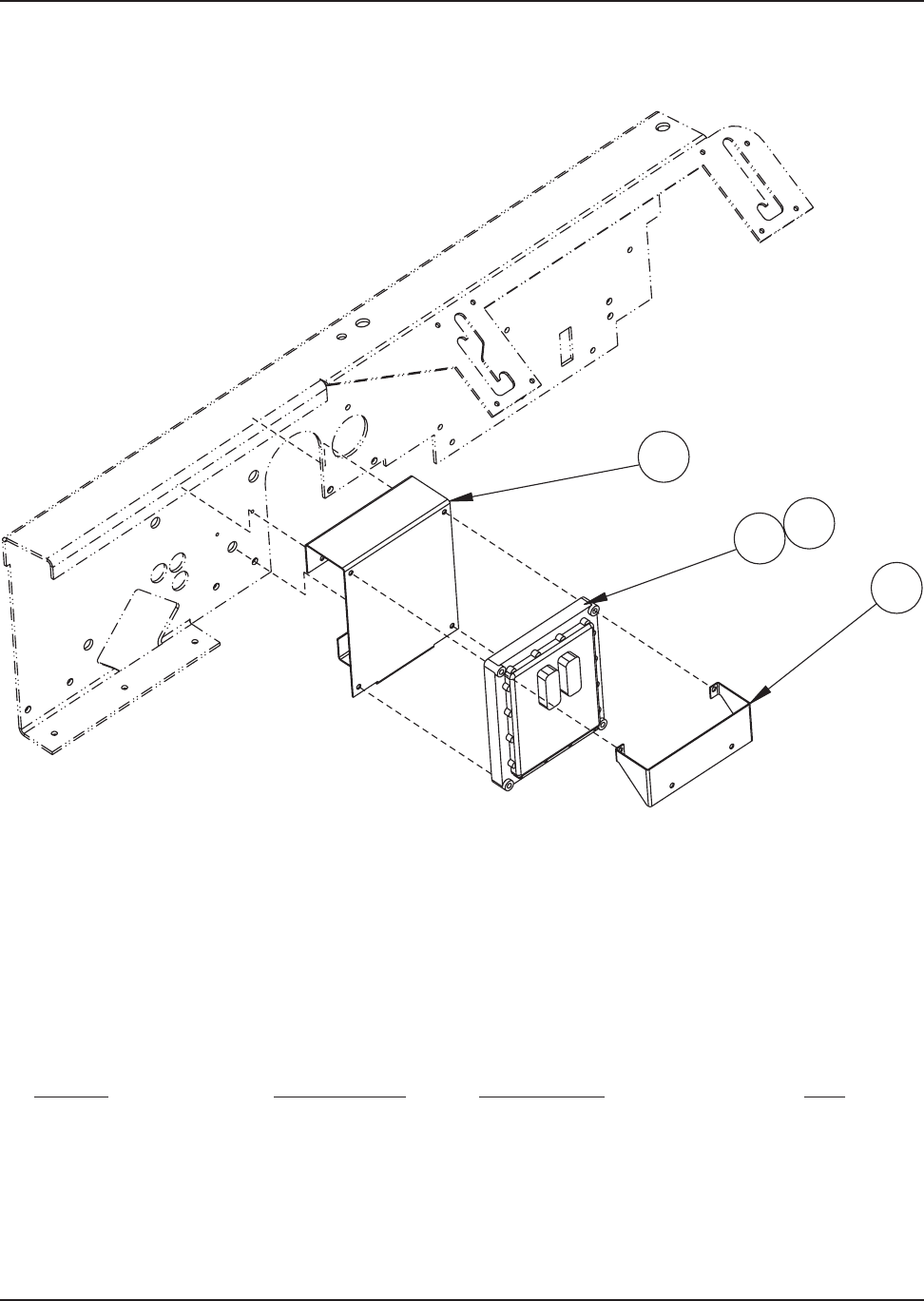

FORD 416EFI ENGINE COMPUTER RELAY BOX ........................................................................... 2-75

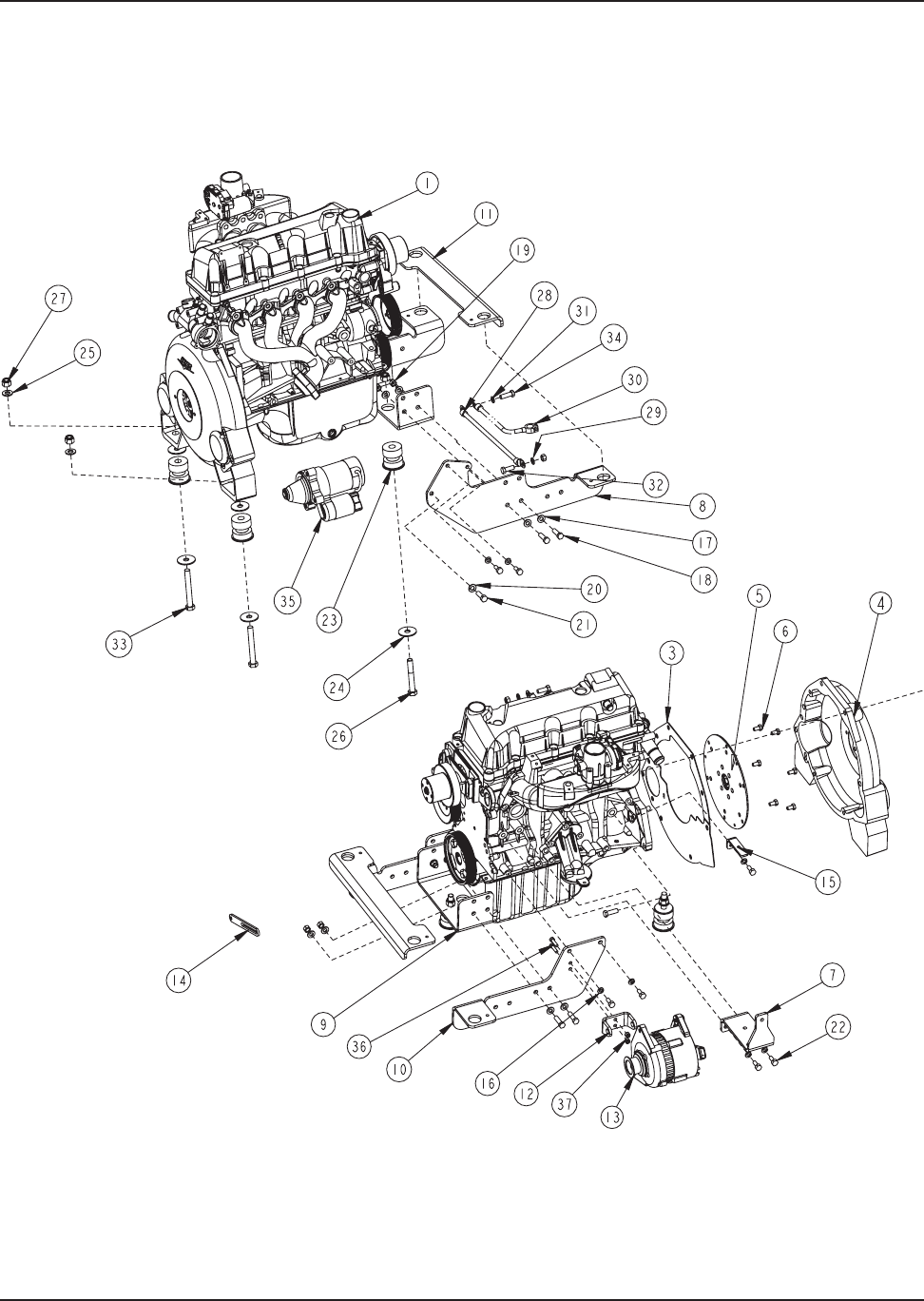

FORD 416EFI GAS & LP ENGINES (ALTERNATOR, STARTER, BRACKETS) ................................ 2-76

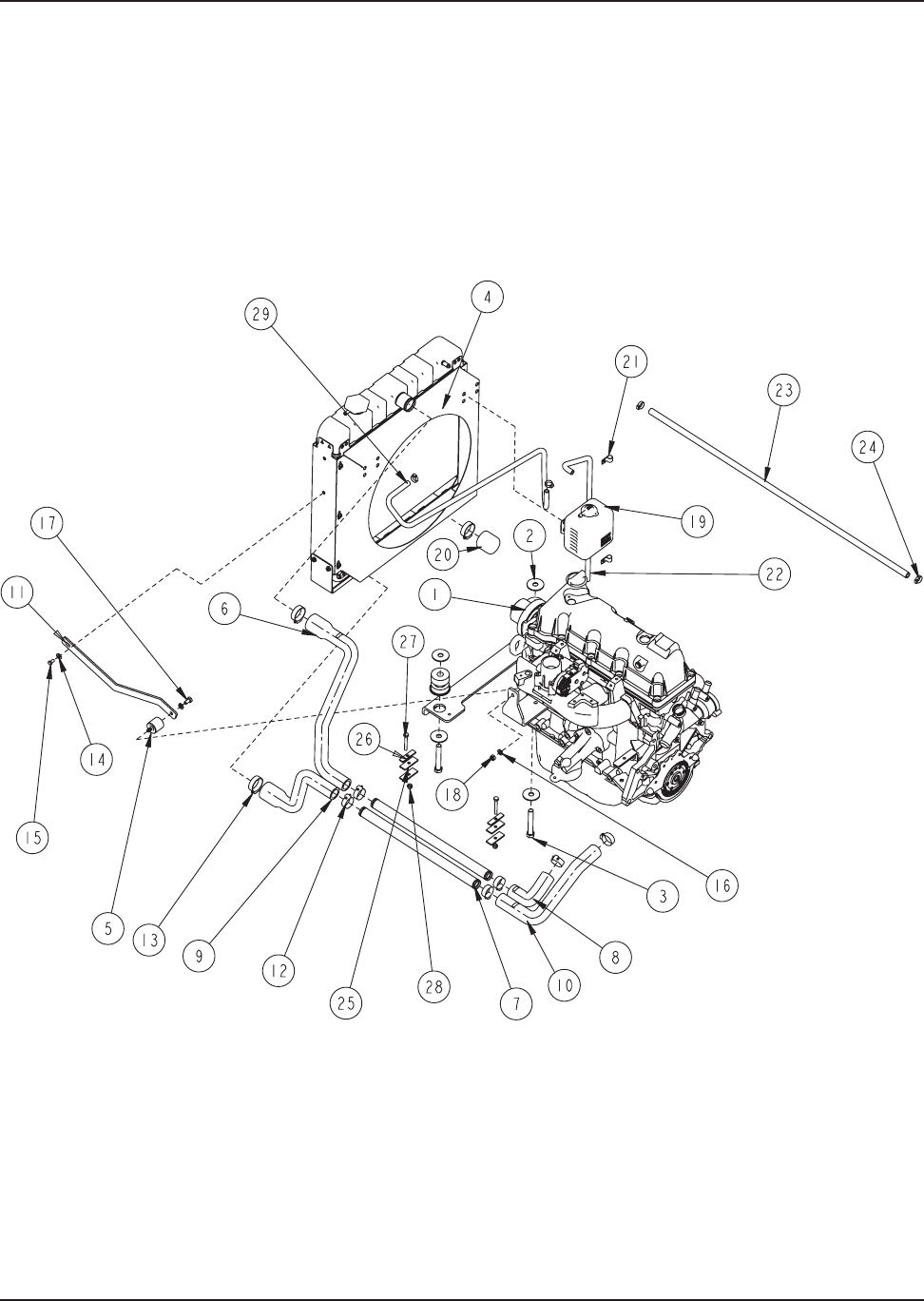

FORD 416EFI GAS ENGINE (COOLING SYSTEM) ........................................................................ 2-78

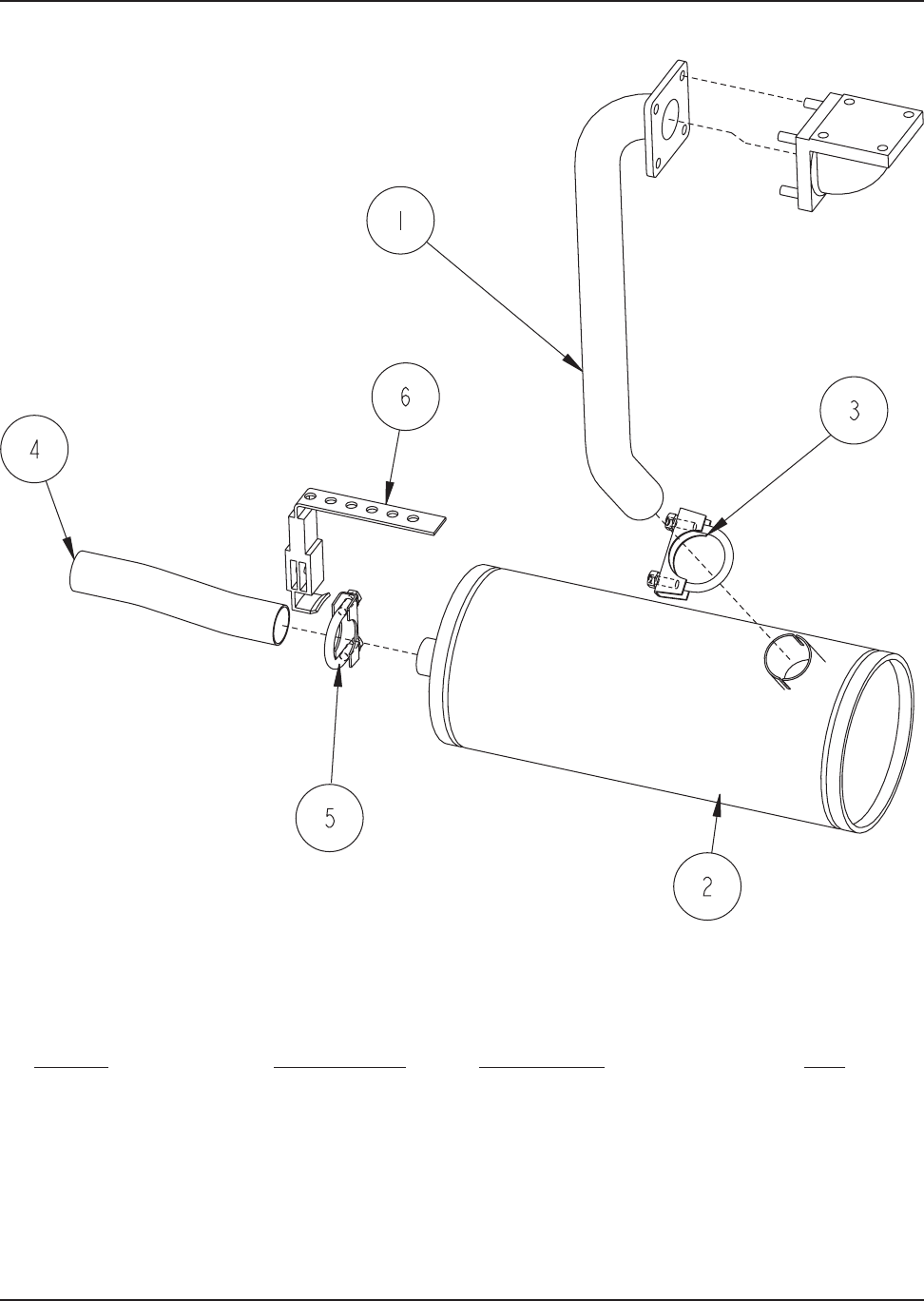

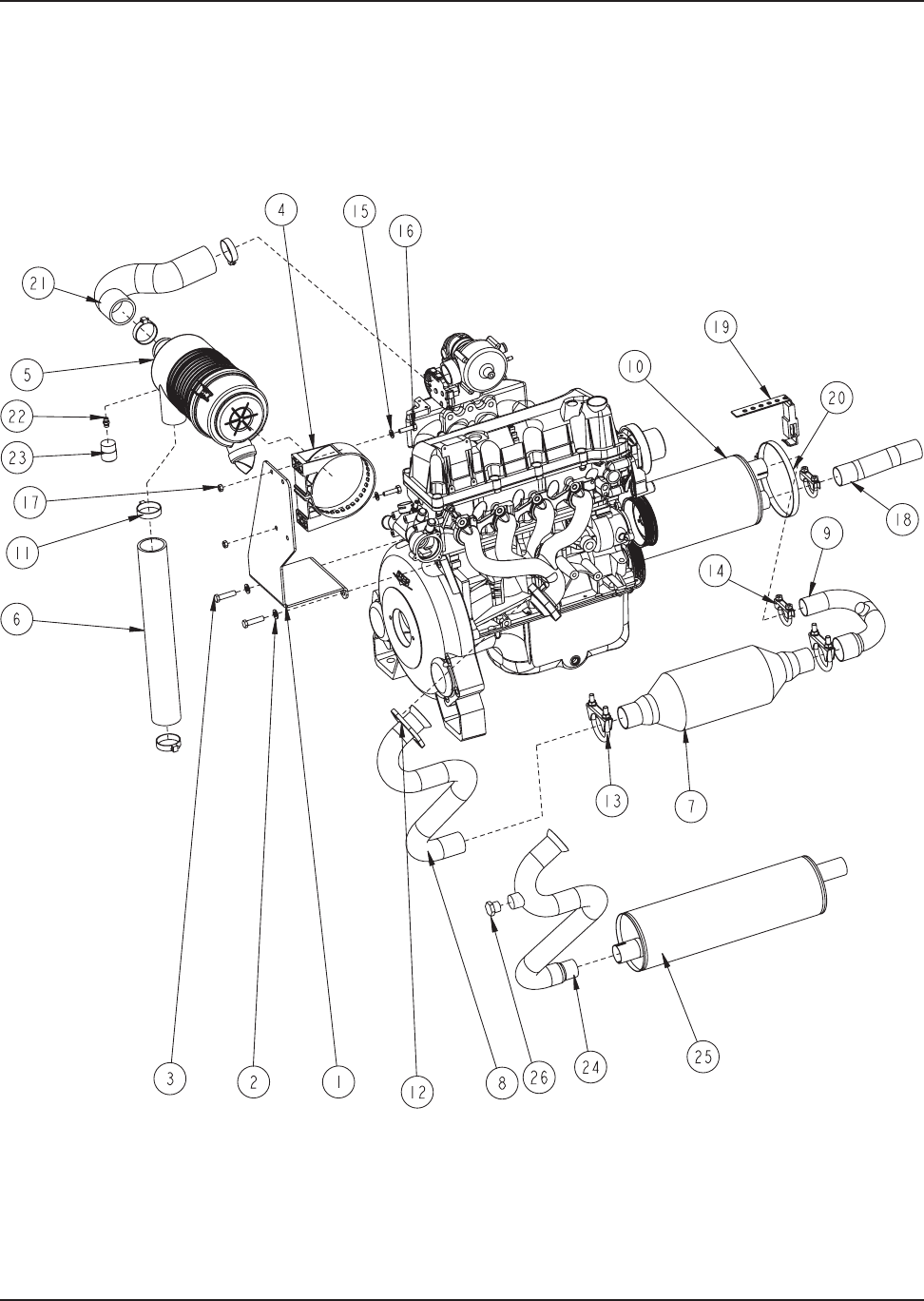

FORD 416EFI GAS ENGINE (AIR INTAKE & EXHAUST SYSTEMS) ............................................... 2-80
FORD 416EFI GAS ENGINE (FUEL SYSTEM) ................................................................................ 2-82
FORD 416EFI LP ENGINE (FUEL SYSTEM) ................................................................................... 2-84

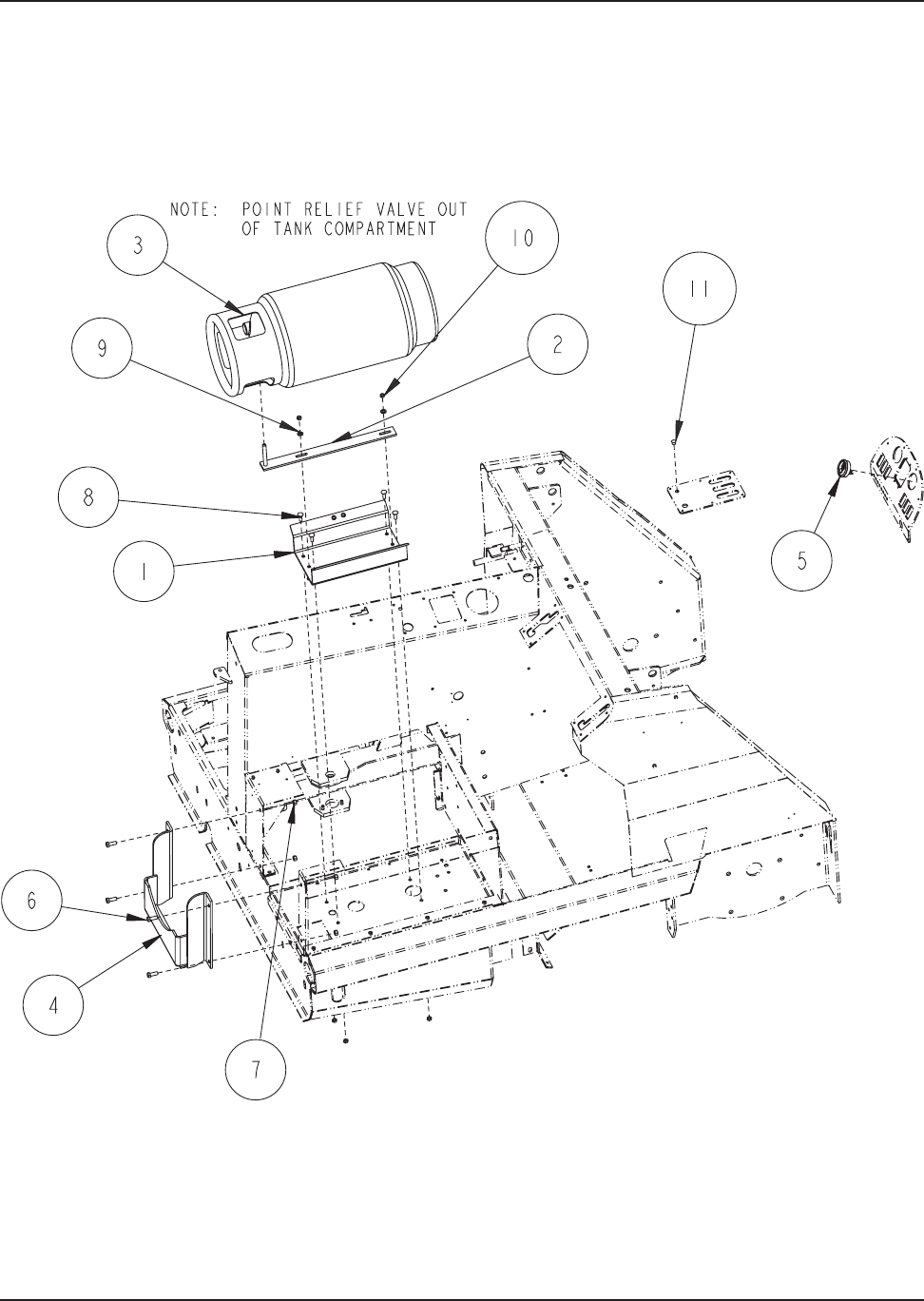

LP TANK SYSTEM .......................................................................................................................... 2-88
American-Lincoln 2-3
MPV 60
TABLE OF CONTENTS
FORD 416EFI LP ENGINE (AIR INTAKE & EXHAUST SYSTEMS) ................................................... 2-90
FORD 416EFI LP ENGINE (COOLING SYSTEM) ............................................................................. 2-92
CE KIT ........................................................................................................................................... 2-94

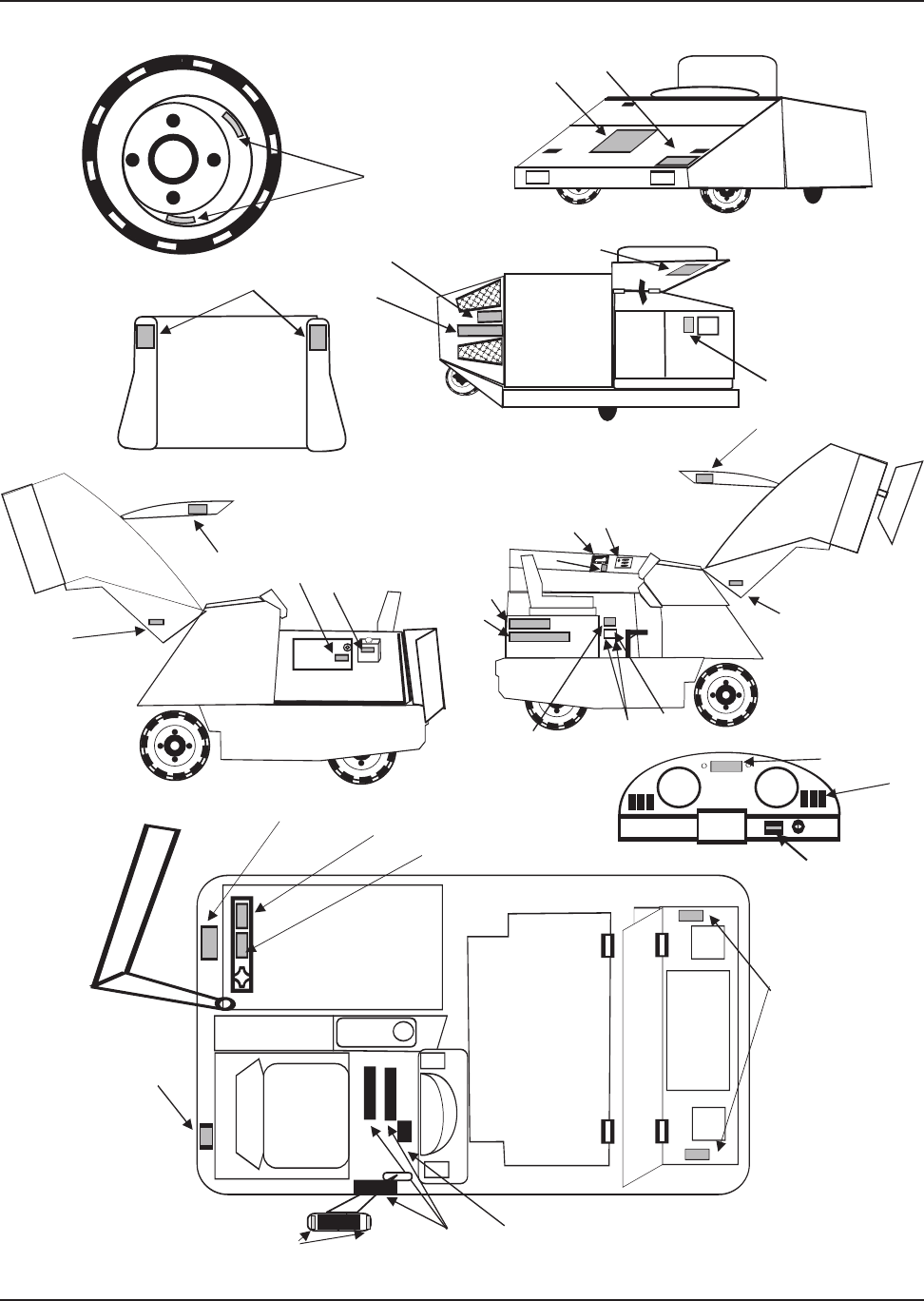

DECALS .......................................................................................................................................... 2-96

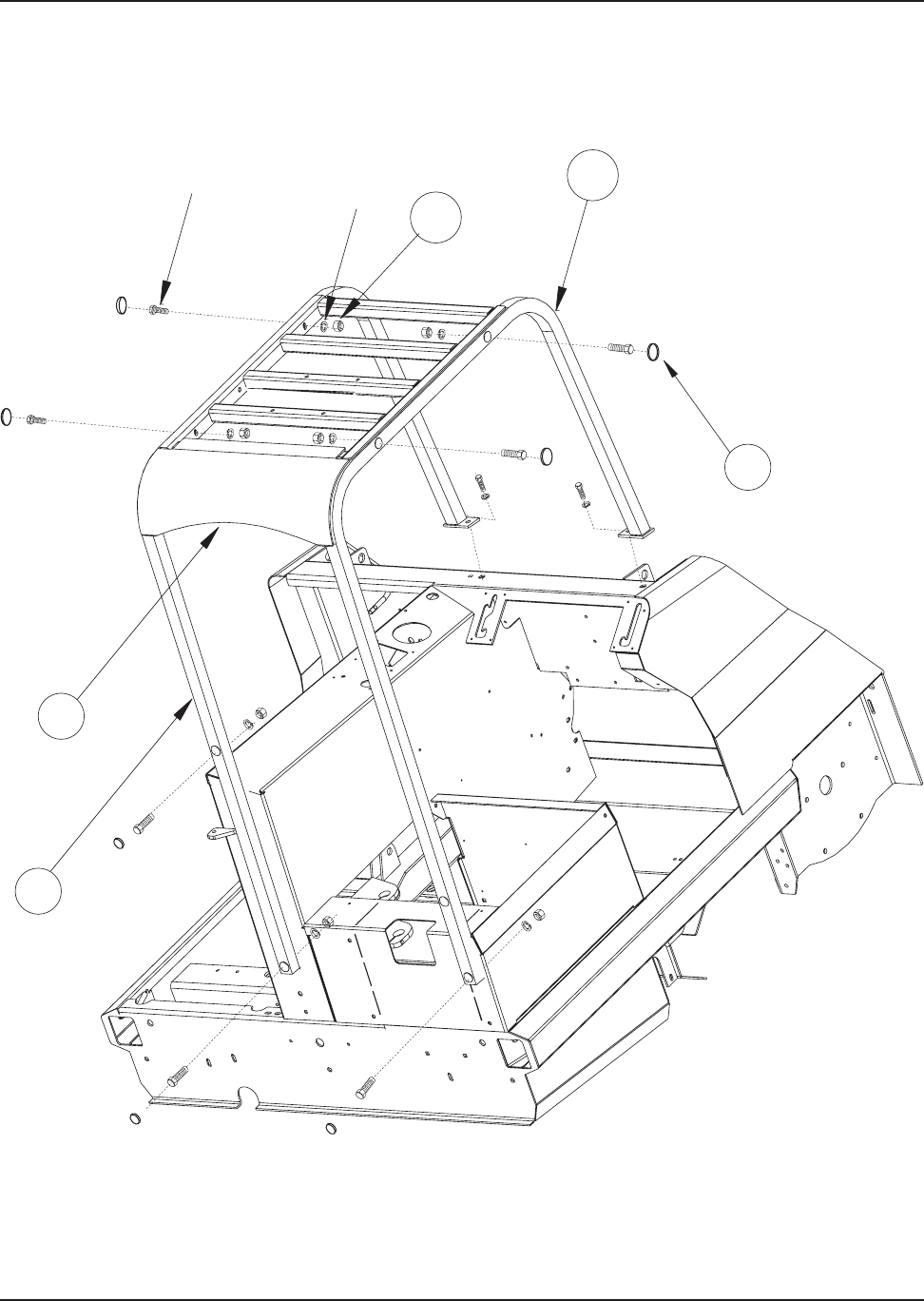

TOTAL STEEL PACKAGE ................................................................................................................ 2-98

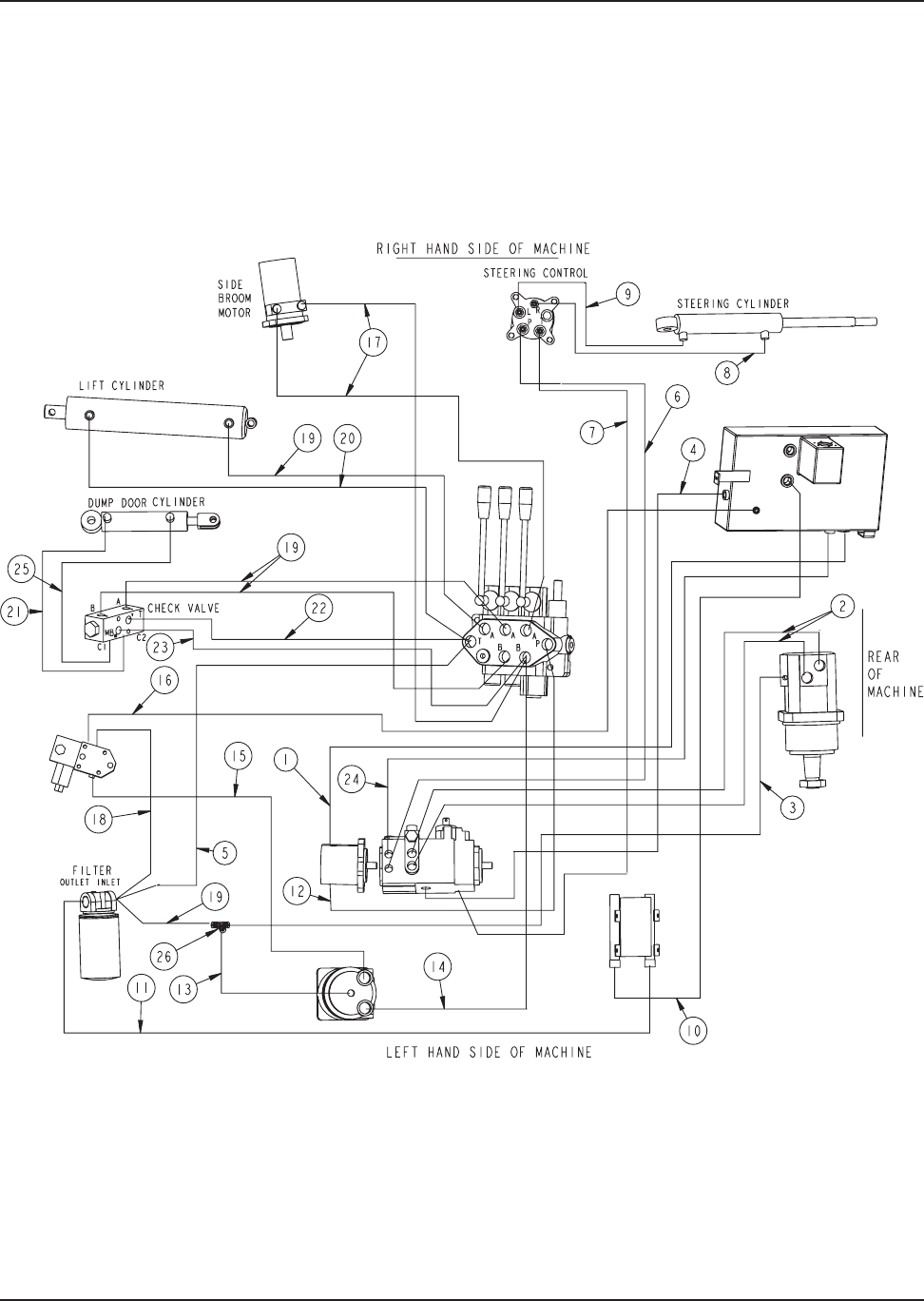

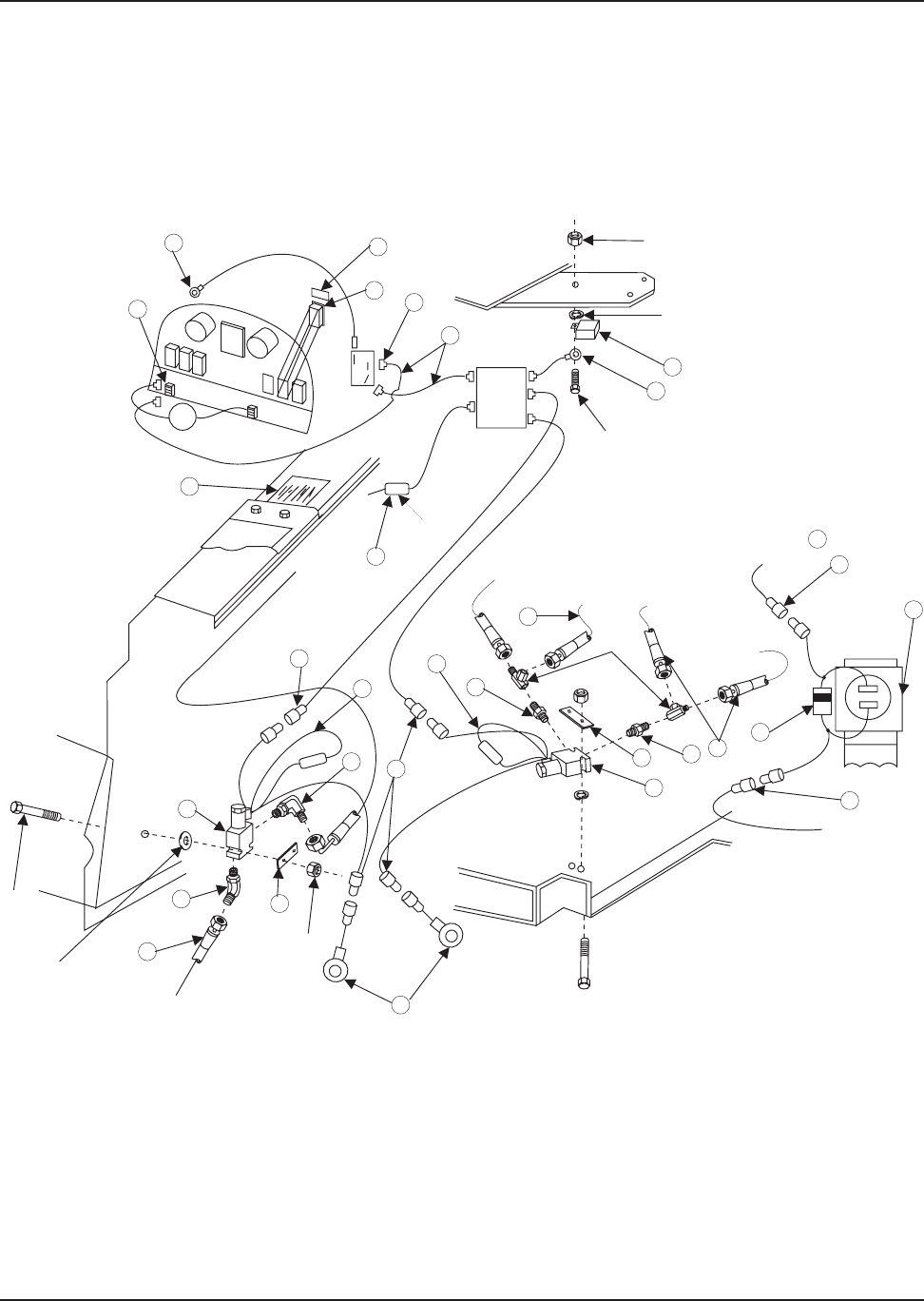

HYDRAULIC HOSE DIAGRAM ........................................................................................................ 2-100
NOTES ........................................................................................................................................... 2-102

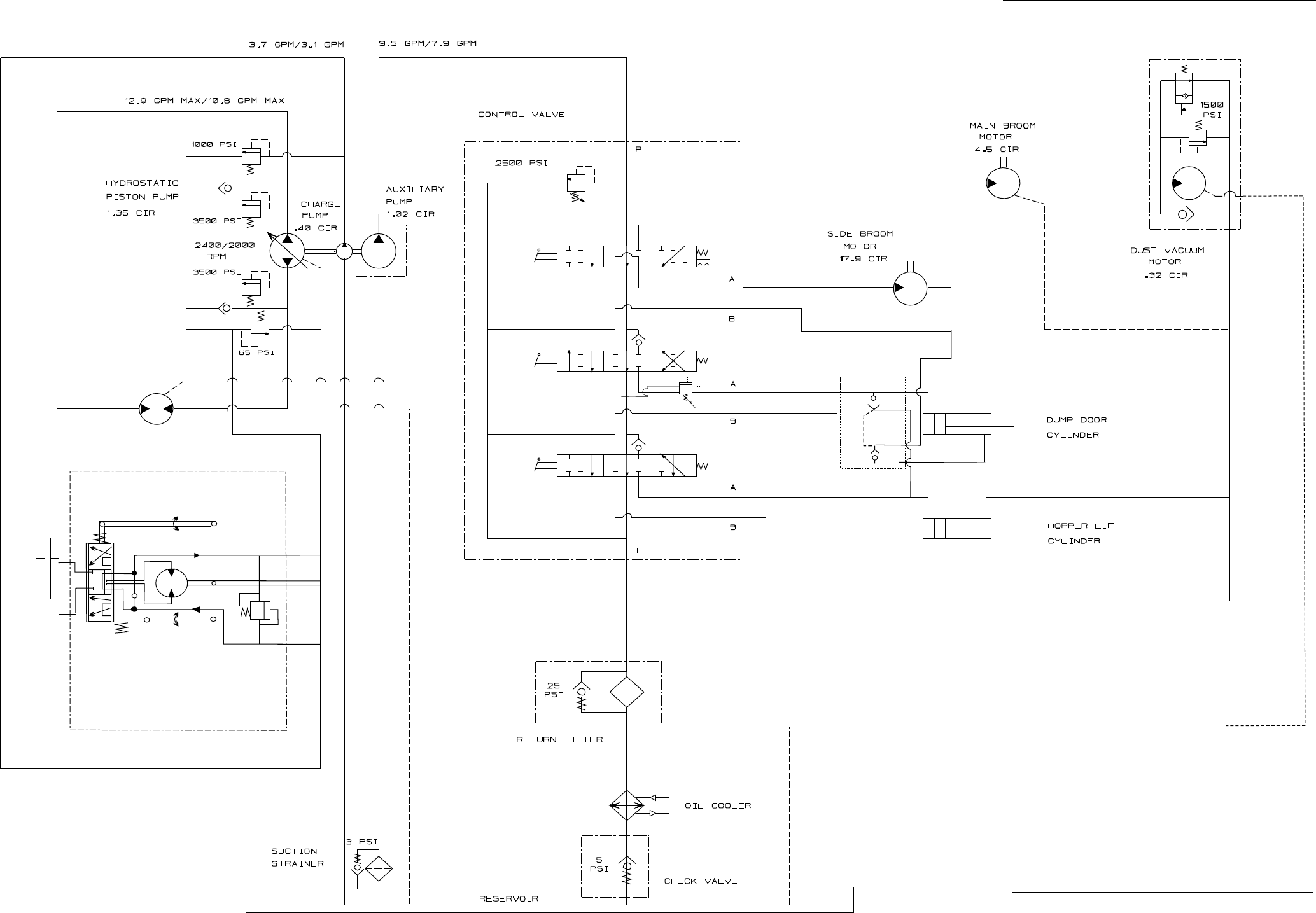

HYDRAULIC SCHEMATIC ................................................................................................................ 2-103

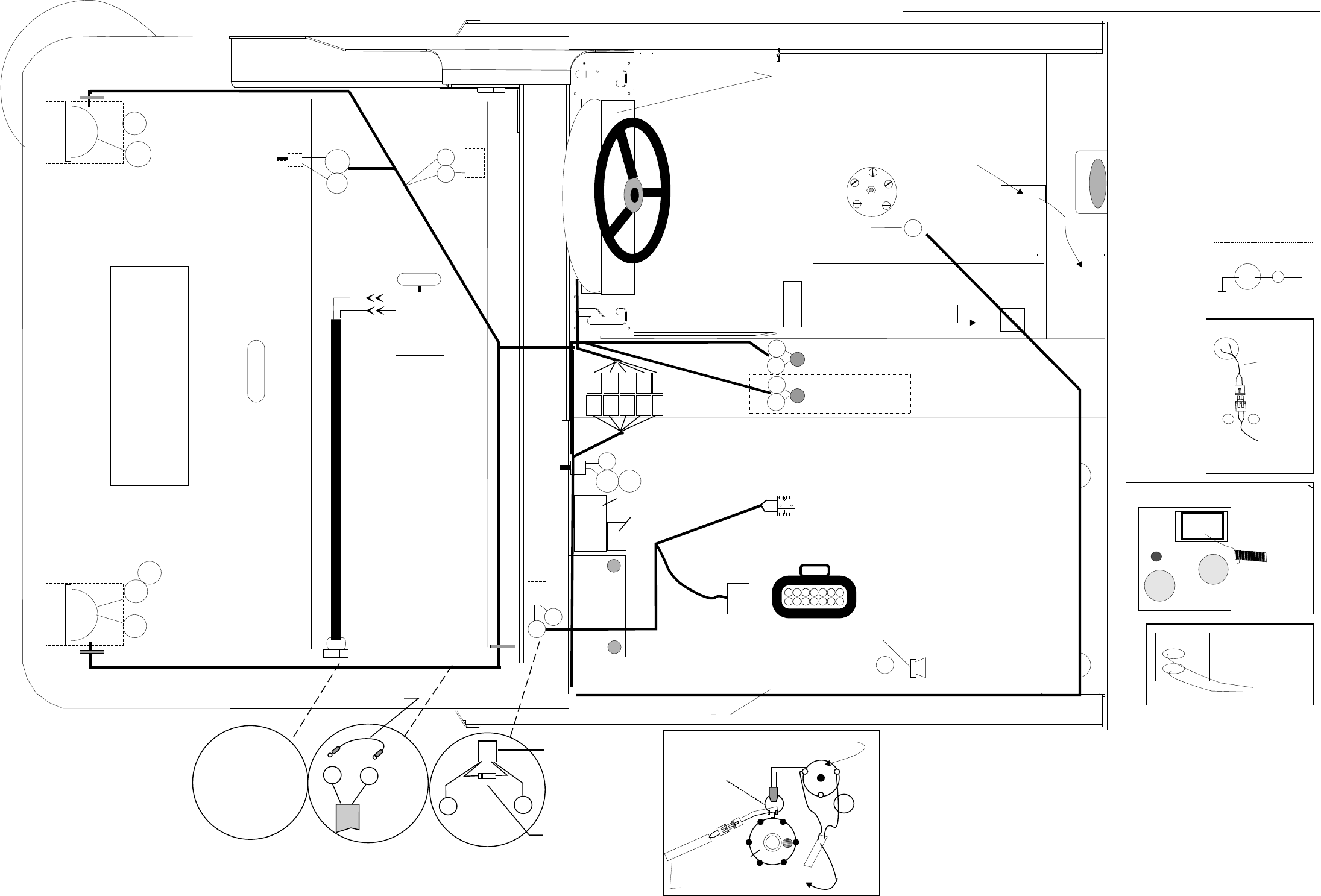

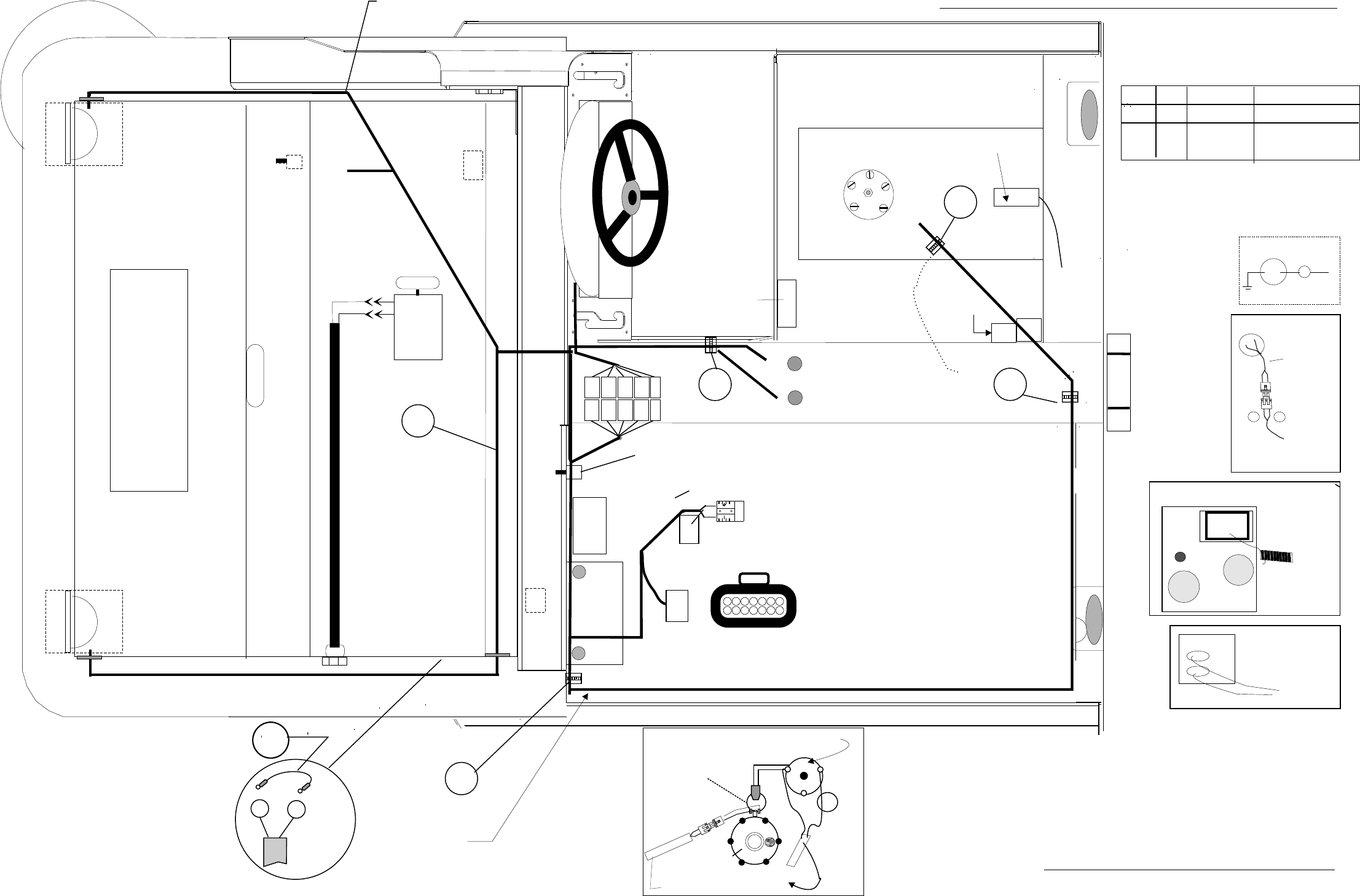

HARNESS ROUTING (GAS/LP/DIESEL) ......................................................................................... 2-104
HARNESS CONNECTION DIAGRAM (GAS/LP/DIESEL) ................................................................. 2-105

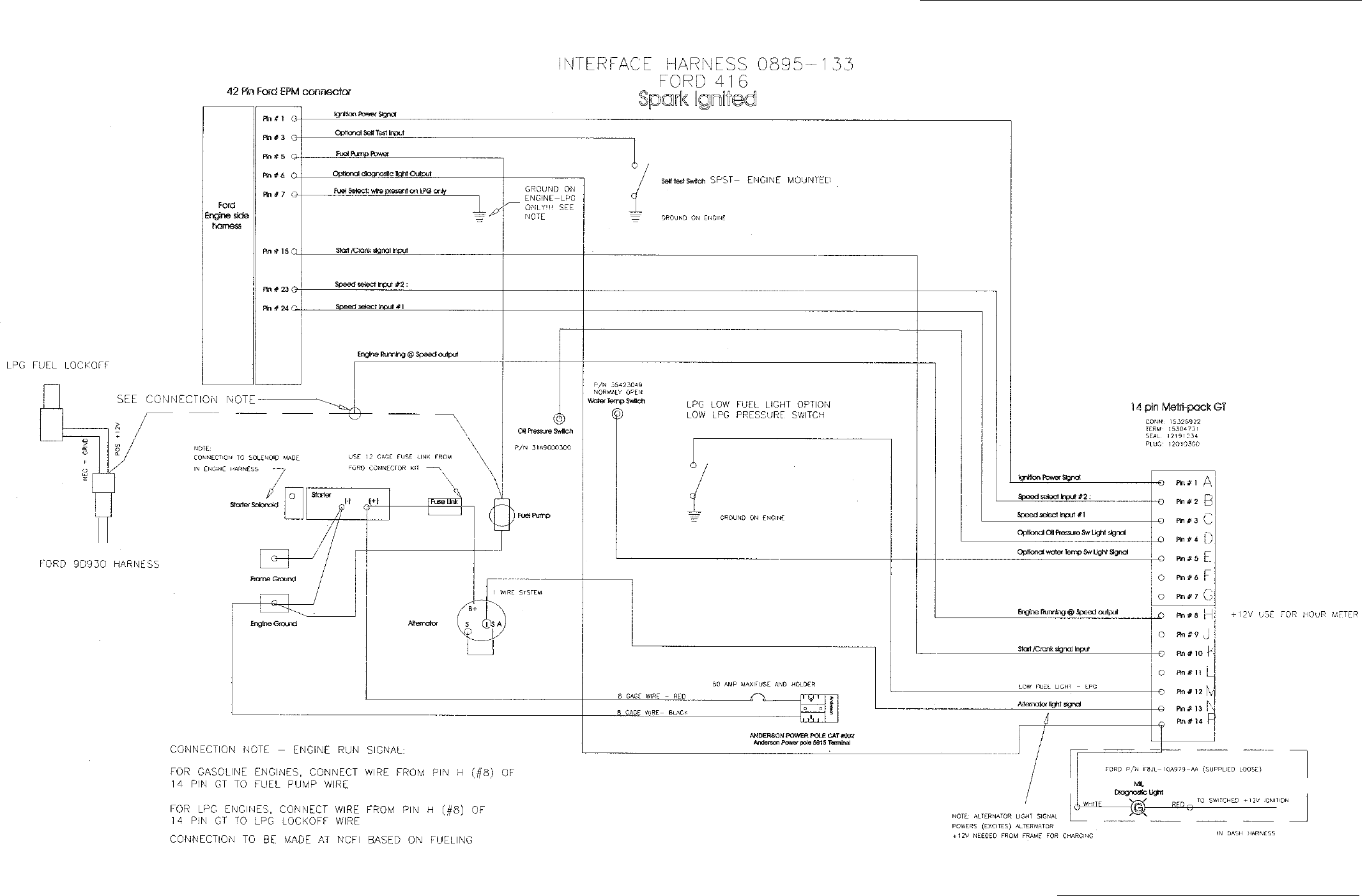

FORD 416EFI ENGINE HARNESS CONNECTIONS ........................................................................ 2-106

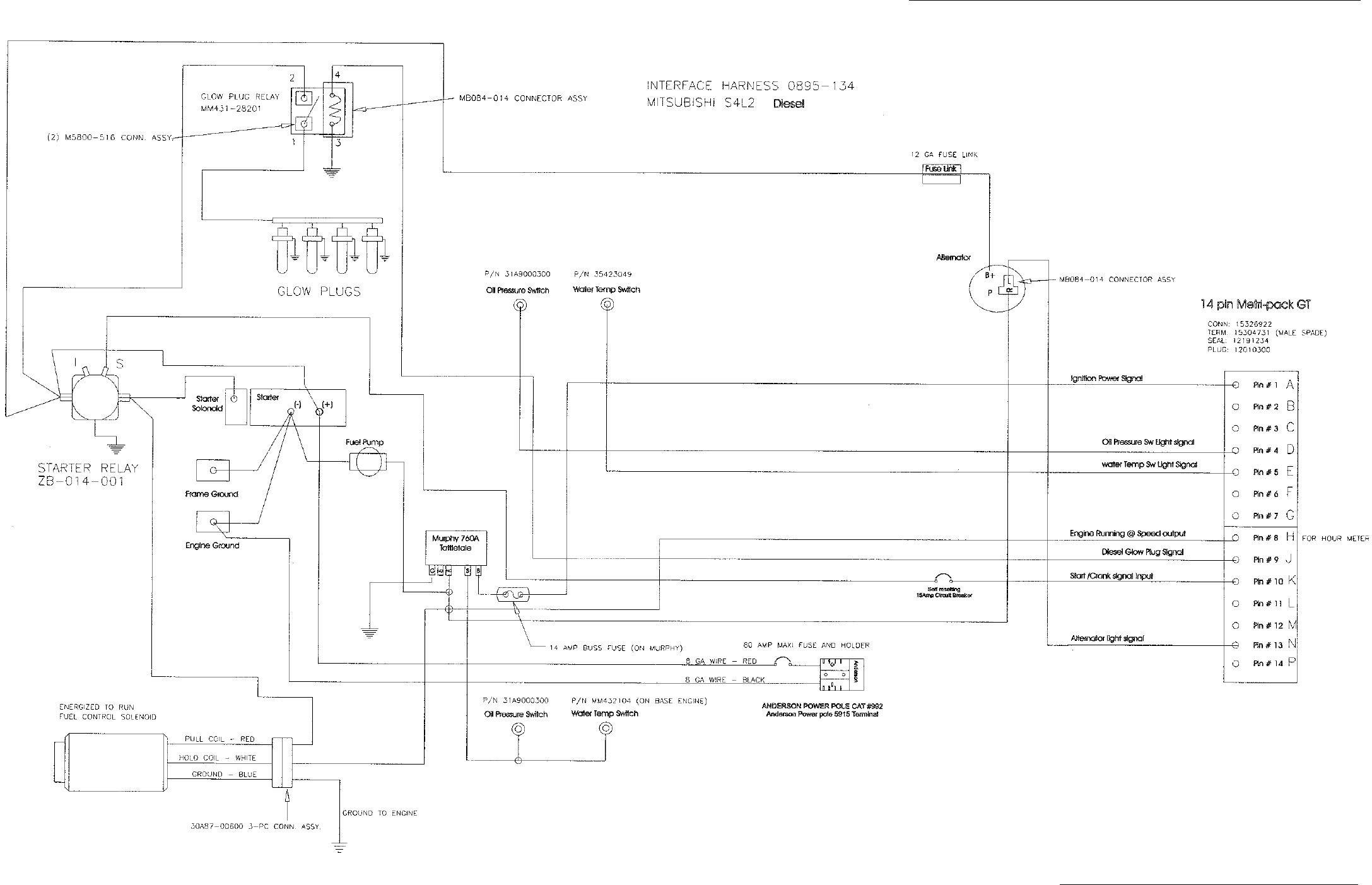

MITSUBISHI S4L2 ENGINE HARNESS CONNECTIONS .................................................................. 2-107

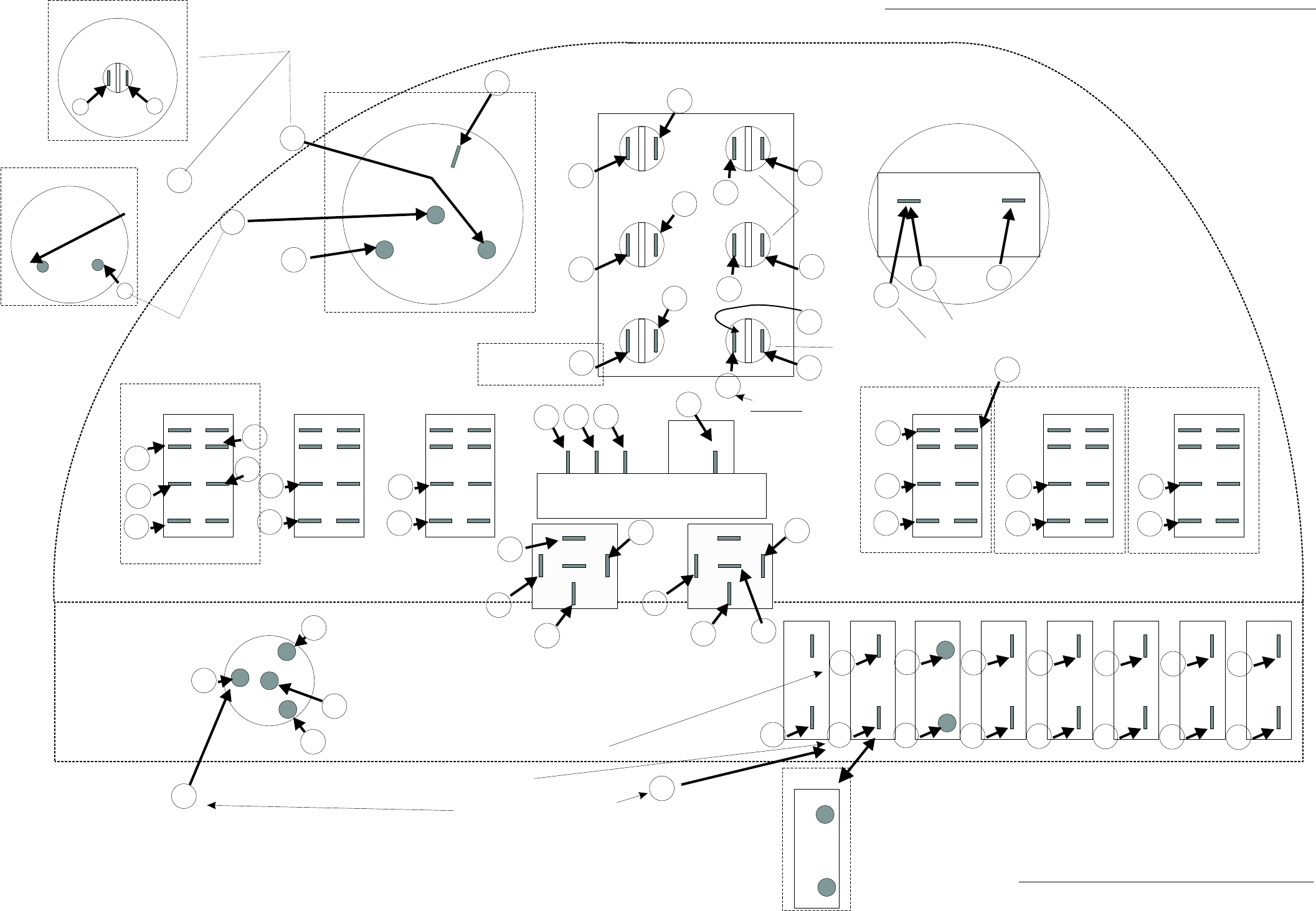

INSTRUMENT PANEL CONNECTION DIAGRAM ............................................................................. 2-108

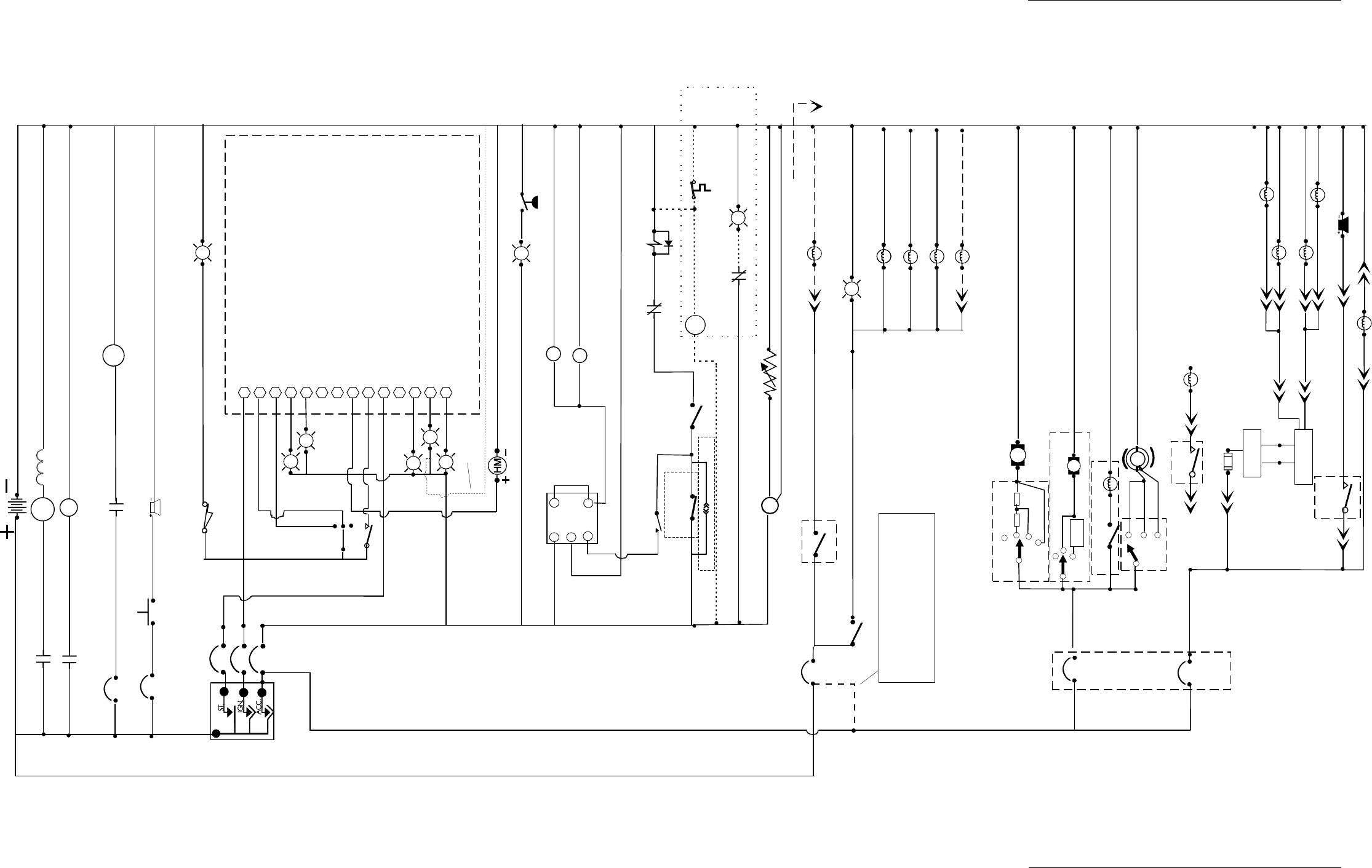

ELECTRICAL SCHEMATIC (GAS/LP/DIESEL) ................................................................................. 2-109
2-4 American-Lincoln
MPV 60
MAIN BROOM LEVER - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00876 Bracket Broom Lift Main Broom 1
2 8-39-00017 Knob Assembly 1
3 8-66-00188 Lever Handle 1
4 8-08-00831 Adjustment Angle/Main Broom 1
5 8-39-00003 Control Knob, Small 1
6 8-08-00779 Pivot, Main Broom Lift 1
7 2-95-04182 Nut, Elastic Stop 1
8 2-00-00656 Nut, ½ - 13 Cap (Acorn) 1
9 8-66-00187 Rod Link 1
10 2-00-00776 Cotter Pin 2
11 2-00-03296 Screw, 3/8-16 x 4.000 HHC 1
12 2-00-00205 Screw, 1/4-20 x 1.000 HHC 2
13 2-00-02360 Nut, 3/8-16 Hex. 1
14 2-00-00402 Flat Washer, .750 x .390 x .094 3
15 2-00-00641 Nut, 1/4-20 Insert Fiber 2
16 2-00-03702 Washer, .625 x .281 x .063 2
C1106-1
American-Lincoln 2-5
MPV 60
1
2
3
4
5
6
7
C1106-1
8
9
10
11
12
13
14
14
15
16

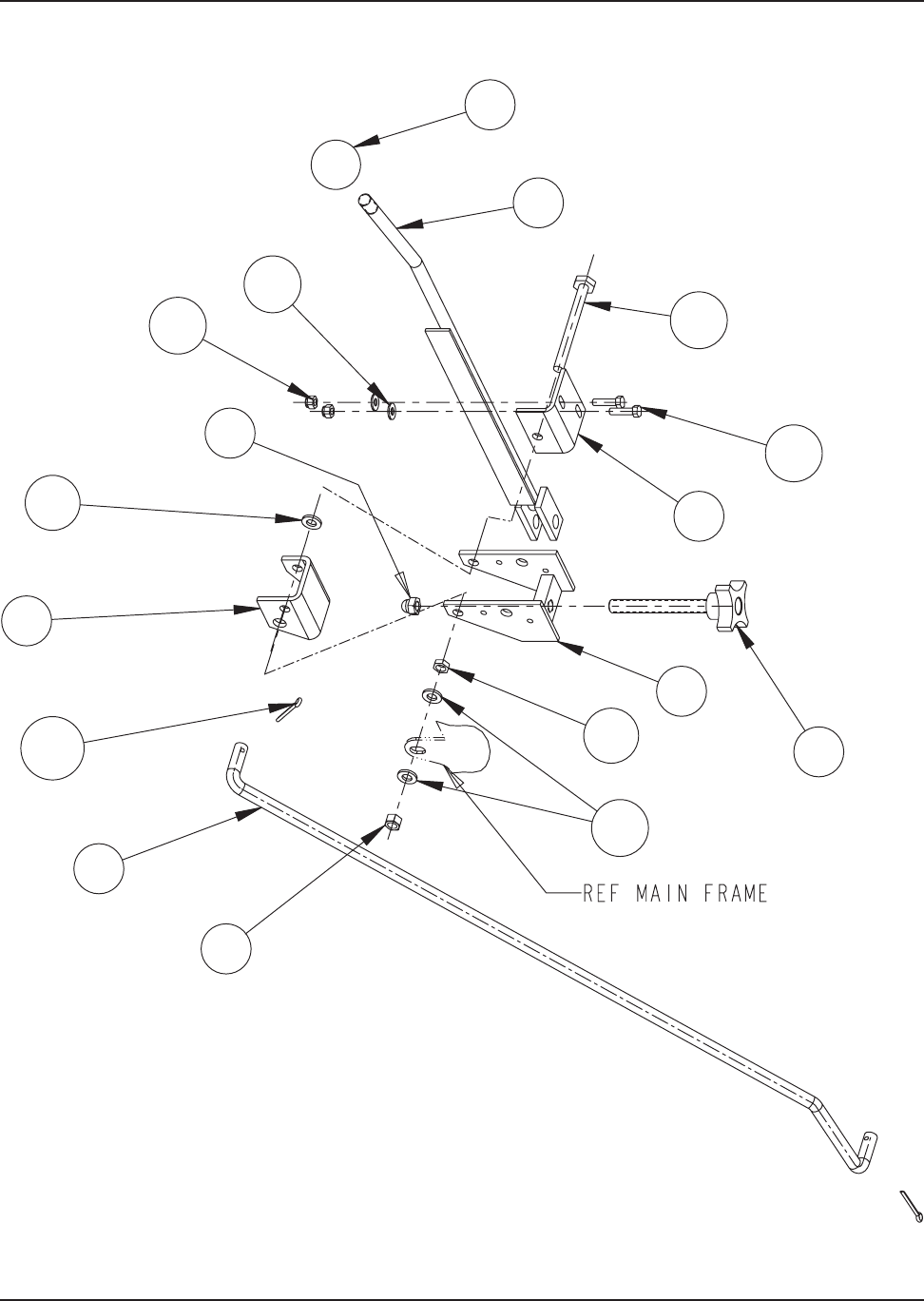

MAIN BROOM LEVER - EXPLODED VIEW
2-6 American-Lincoln
MPV 60
H49
H92
H78
H78
H78
H92
H53
H47
H92
C1106-2a/9701
2
2
2
2
1
MAIN BROOM LIFT FRAME
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-03-04319 Main Broom Lift Frame Assembly 1
2 2-95-04182 Nut, Eleastic Stop Nut 8
HARDWARE USED:
H47 2-00-00232 Screw, 3/8-16 x .750 HHC 1
H49 2-00-00209 Screw, 3/8-16 x 1.250 HHC 2
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 1
H78 2-00-05187 Carriage Bolt, 3/8-16 x 1.250 6
H92 2-00-04801 Flat Washer, .875 x .375 x .125 6
C1326/9702
American-Lincoln 2-7
MPV 60

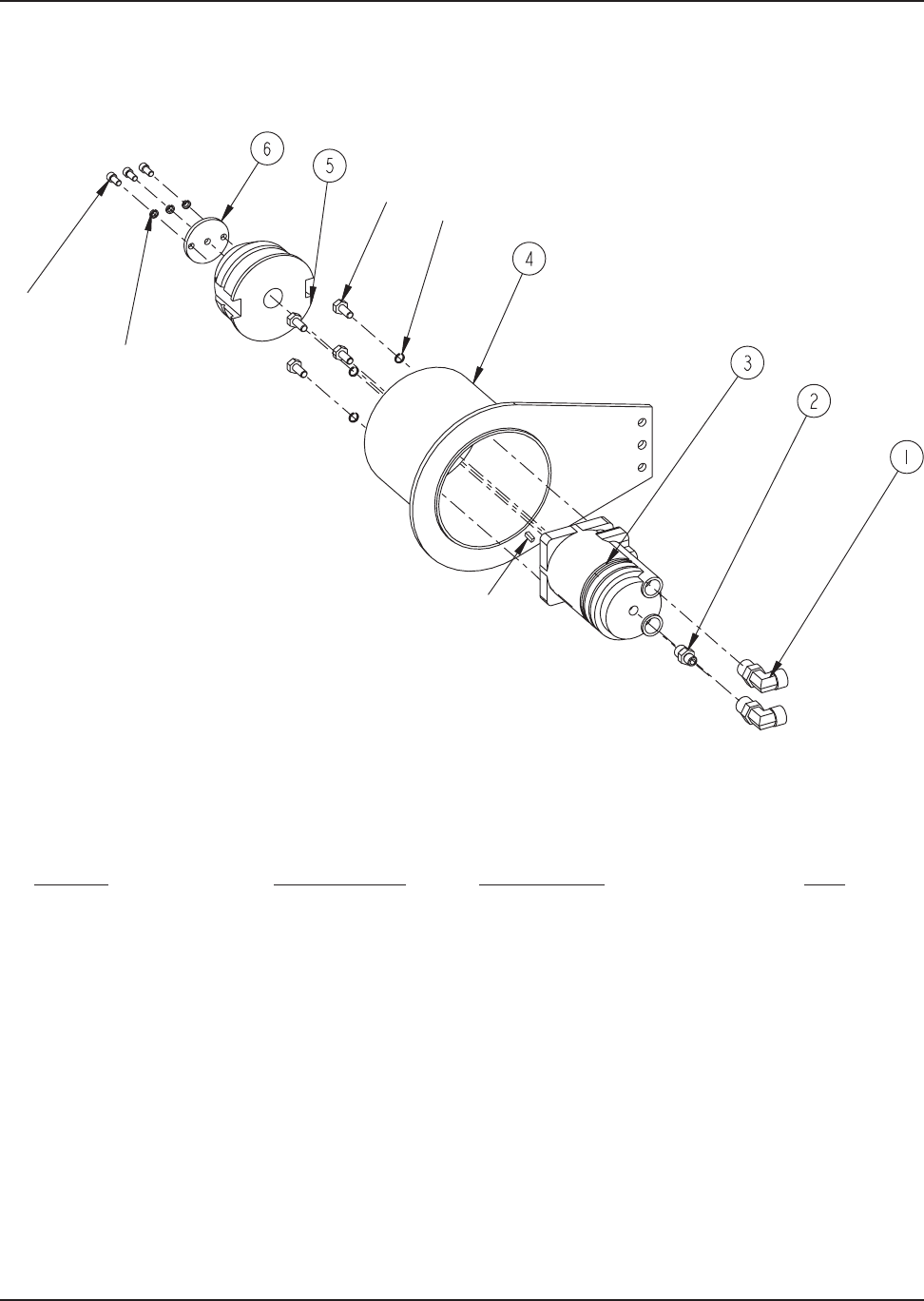

MAIN BROOM DRIVER
C-1136
H116
H72
H53
H47
KEY
KEY NO. PART NUMBER DESCRIPTION QTY.
1 2-00-04885 Fitting 2
2 2-00-04895 Fitting 1
3 0882-040 Motor 1
2-00-03838 Key (comes w/motor)
0880-448 Motor Seal Kit (Service Part)
4 8-16-00041 Drive Broom Arm 1
5 8-33-09046-1 Driver, Hub 1
6 8-58-05160 Hub, Lock Plate 1
HARDWARE USED:
H47 2-00-00232 Screw, 3/8-16 x .750 HHC 4
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 4
H72 2-00-00518 Lock Washer, Helical Spring 3
H116 2-00-03039 Screw, 1/4-20 x .625 HSHC 3
C1136/9901
2-8 American-Lincoln
MPV 60

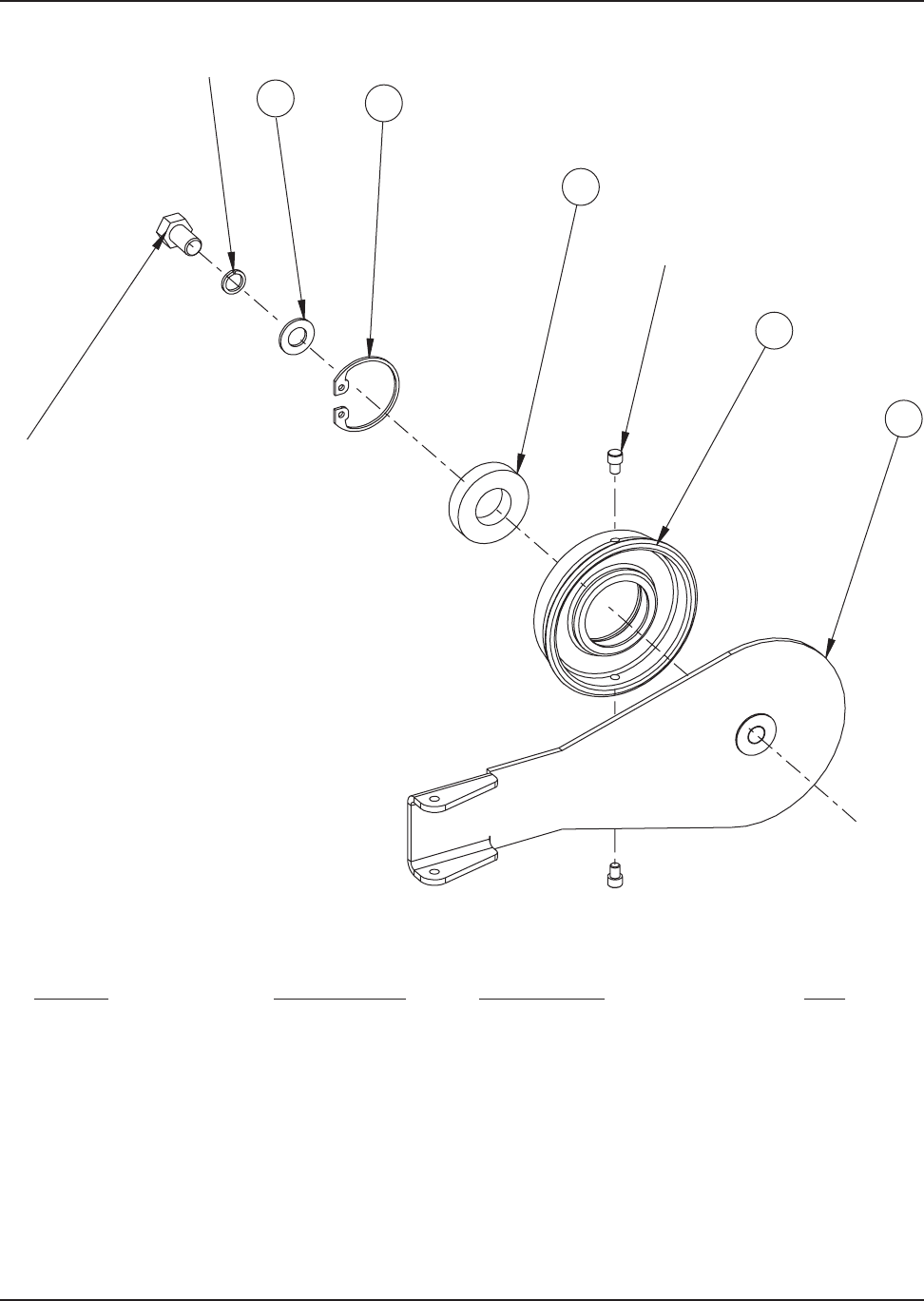

MAIN BROOM IDLER
C-1135/9701
H107
H109
H106
54
3
2
1
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-16-00064 Broom Idler Arm 1
2 8-33-09090 Idler, Machined 1
3 2-00-04889 Bearing 1
4 2-00-04890 Clip, Retainer 1
5 8-75-01157 Washer
HARDWARE USED:
H106 2-00-04886 Screw, 3/8-16 x .500 HSHC 2
H107 2-00-04887 Screw 1
H109 2-00-00522 Lock Washer, Helical Spring 1
C1135/9901
American-Lincoln 2-9
MPV 60

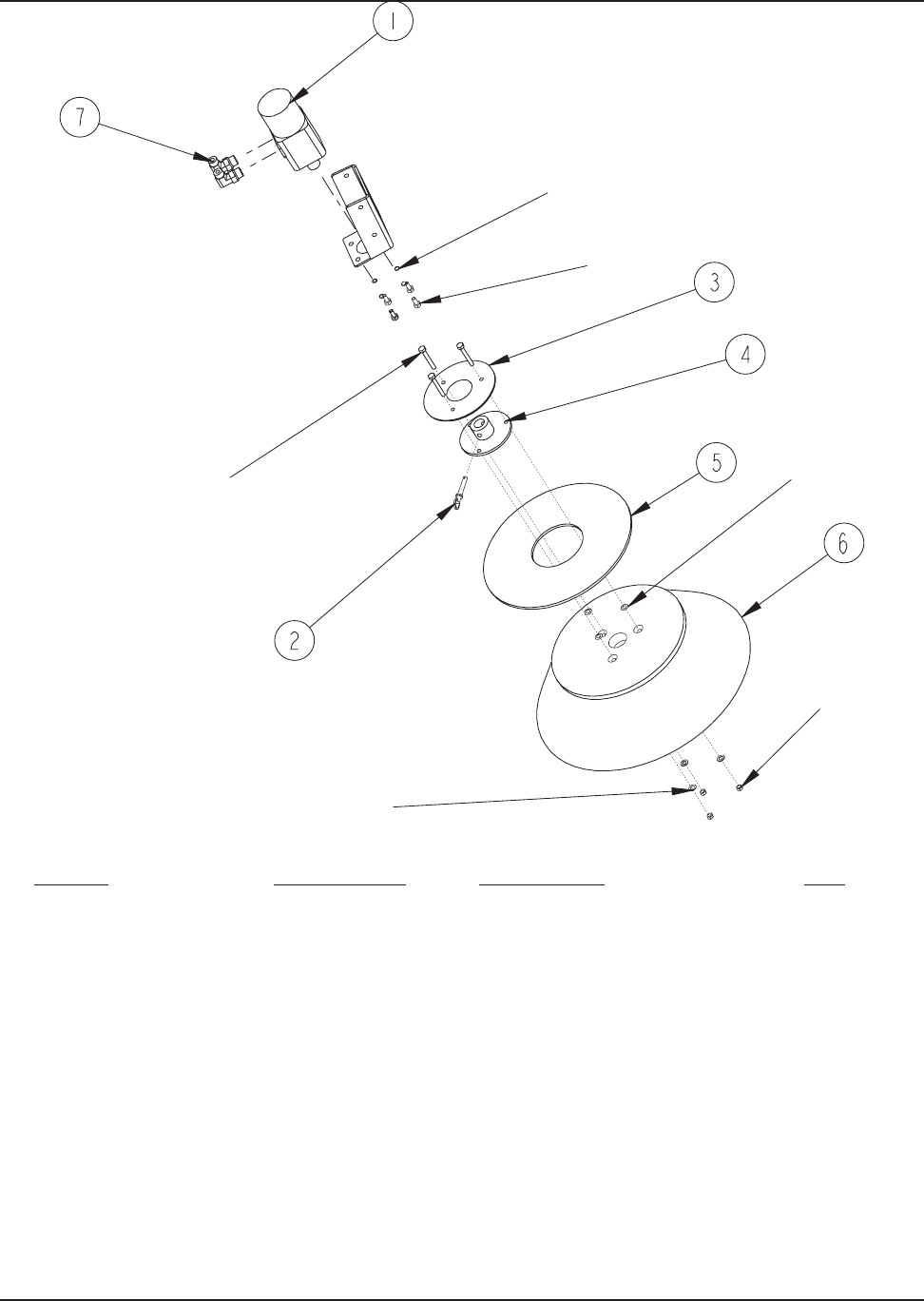

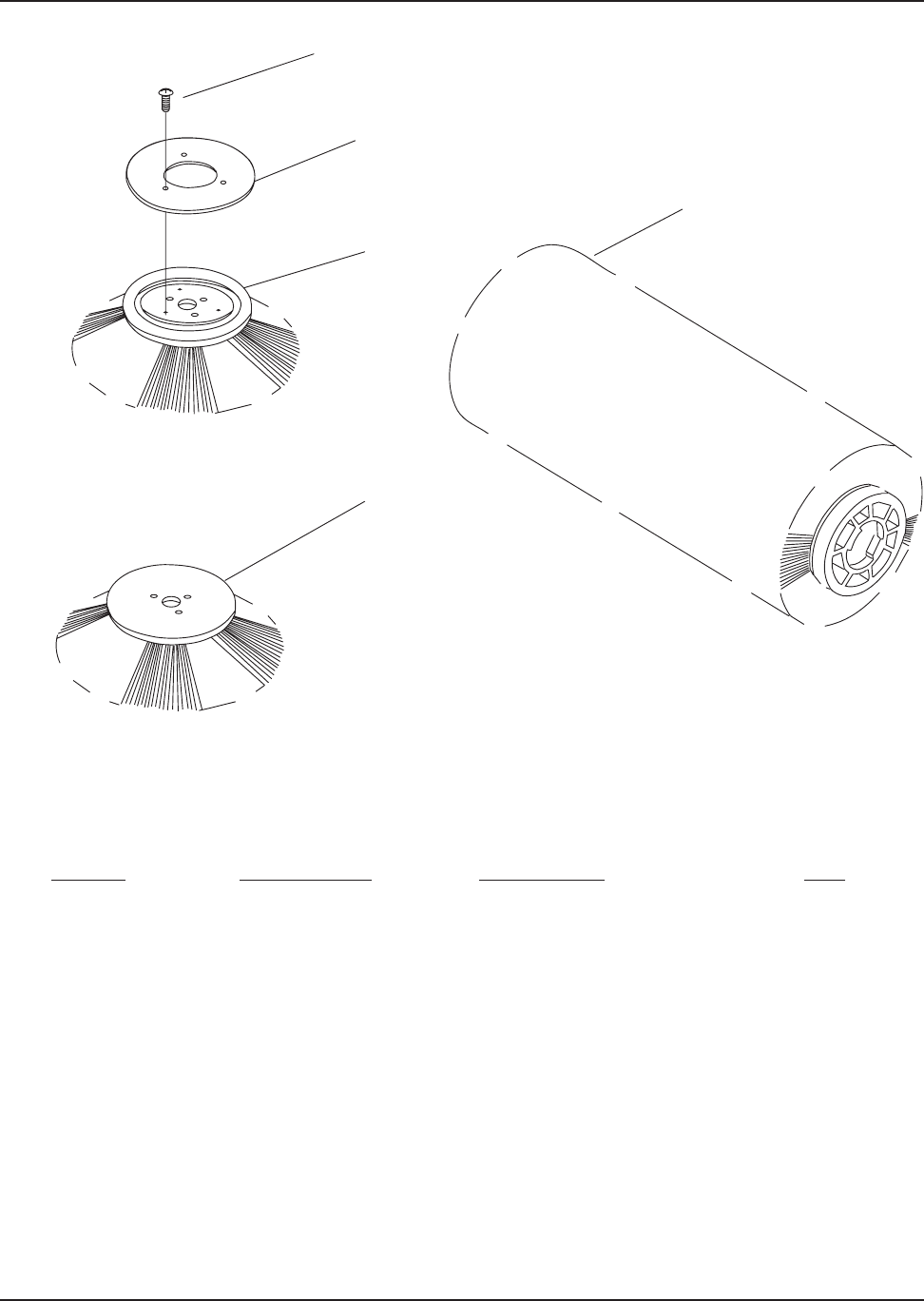

SIDE BROOM ASSEMBLY
C1107-1
H43
H43
H46
H47
H53
H84
KEY NO. PART NUMBER DESCRIPTION QTY.
1 0882-050 Side Broom Motor 1
0880-448 Side Broom Motor Seal Kit (Service Part)
2 8-55-08122 Pin, Side Broom Flange 1
3 8-25-06010 Flange, Roller Disc 1
4 8-33-09091 Hub Weldment 1
5 8-66-05011 Disc, Roller 1
6 8-08-03211 Side Broom, Nylon 1
7 2-00-04921 Fitting 2
HARDWARE USED:
H43 2-00-00409 Flat Washer, .687 x .344 x .062 6
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 3
H47 2-00-00232 Screw, 3/8-16 x .750 HHC 4
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 4
H84 2-00-00228 Screw, 5/16-18 x 2.250 HHC 3
C1107/9812
2-10 American-Lincoln
MPV 60
SIDE BROOM LEVER - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-10-00039 Cable Ref.
2 8-39-00003 Control Knob, Small 1
3 8-66-00190 Lever Handle 1
4 8-39-00017 Knob Assembly 1
5 8-08-00876 Broom Lift, Weldment 1
6 8-08-00775 Bracket, Angle Adjustment 1
7 7-60-00160 Pulley, Cable 1
8 2-00-00656 Nut, ½ -13 Cap (acorn) 1
9 8-08-00890 Bracket, Side Broom Lever Mtg. 1
HARDWARE USED:
H35 2-00-02708 Screw, 5/16-18 x 1.000 HHM 3
H43 2-00-00409 Flat Washer, .687 x .344 x .062 4
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 3
H50 2-00-00234 Screw, 3/8-16 x 1.500 HHC 1
H54 2-00-02360 Nut, 3/8-16 Hex. 2
H94 2-00-00410 Flat Washer, .875 x .375 x .060 1
H111 2-00-03296 Screw, 3/8-16 x 4.00 HHC 1
C1327/9901
American-Lincoln 2-11
MPV 60
C1327
H50
H54
H54
H52
H35
H46
H85
H112

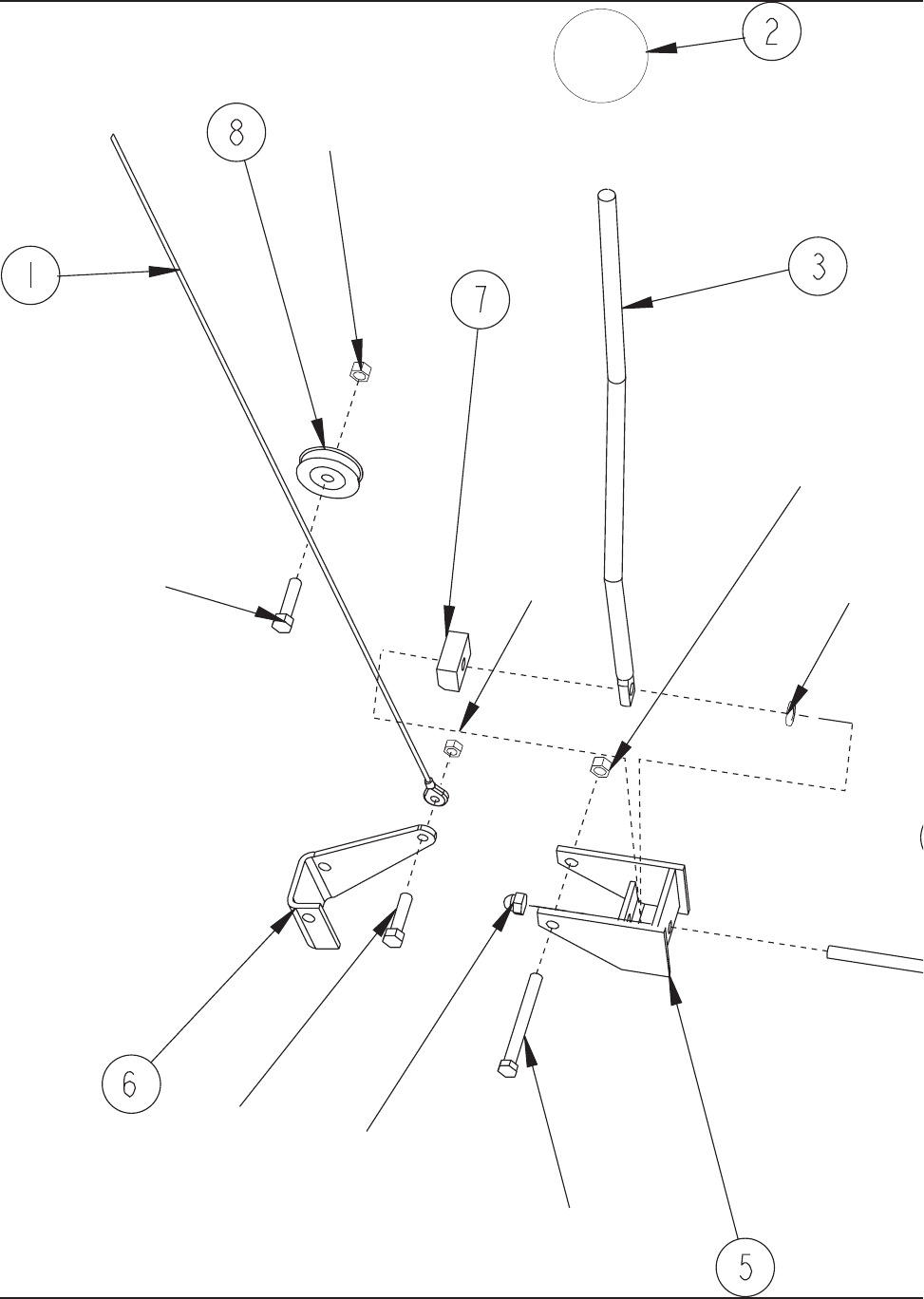

SIDE BROOM LEVER - EXPLODED VIEW
2-12 American-Lincoln
MPV 60
SIDE BROOM LIFT SYSTEM - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00772 Bracket, Side Broom 1
2 8-08-00790 Bracket 1
3 7-76-00101 Spring 2
4 8-08-00846 Pivot Bracket 1
5 2-95-04182 Nut, Elastic Stop 14
7 7-13-07130 Clip, Cable Retainer 1
8 7-60-00160 Pulley, Cable 1
9 8-42-05143 Side Broom Link 2
10 8-10-00039 Cable 1
11 2-95-04689 Flat Washer 1
HARDWARE USED:
H35 2-00-02708 Screw, 5/16-18 x 1.000 HHM 1
H43 2-00-00409 Flat Washer, .687 x .344 x .062 2
H45 2-00-00585 Nut, Hex. 5/16-18 x .500 x .265 2
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 3
H48 2-00-00233 Screw, 3/8-16 x 1.000 HHC 4
H49 2-00-00209 Screw, 3/8-16 x 1.250 HHC 7
H50 2-00-00234 Screw, 3/8-16 x 1.500 HHC 1
H52 2-00-00402 Flat Washer, .750 x .390 x .094 3
H54 2-00-02360 Nut, 3/8-16 Hex. 2
H173 2-00-02709 Screw, 5/16-18 x 1.500 2
C1328/9901
American-Lincoln 2-13
MPV 60
SIDE BROOM LIFT SYSTEM - EXPLODED VIEW
H49
H35
H48
H50
H52
H46
H49
C-1328
H49
H49
H46
H43
H45
H173
H48
H52
H54
2-14 American-Lincoln
MPV 60

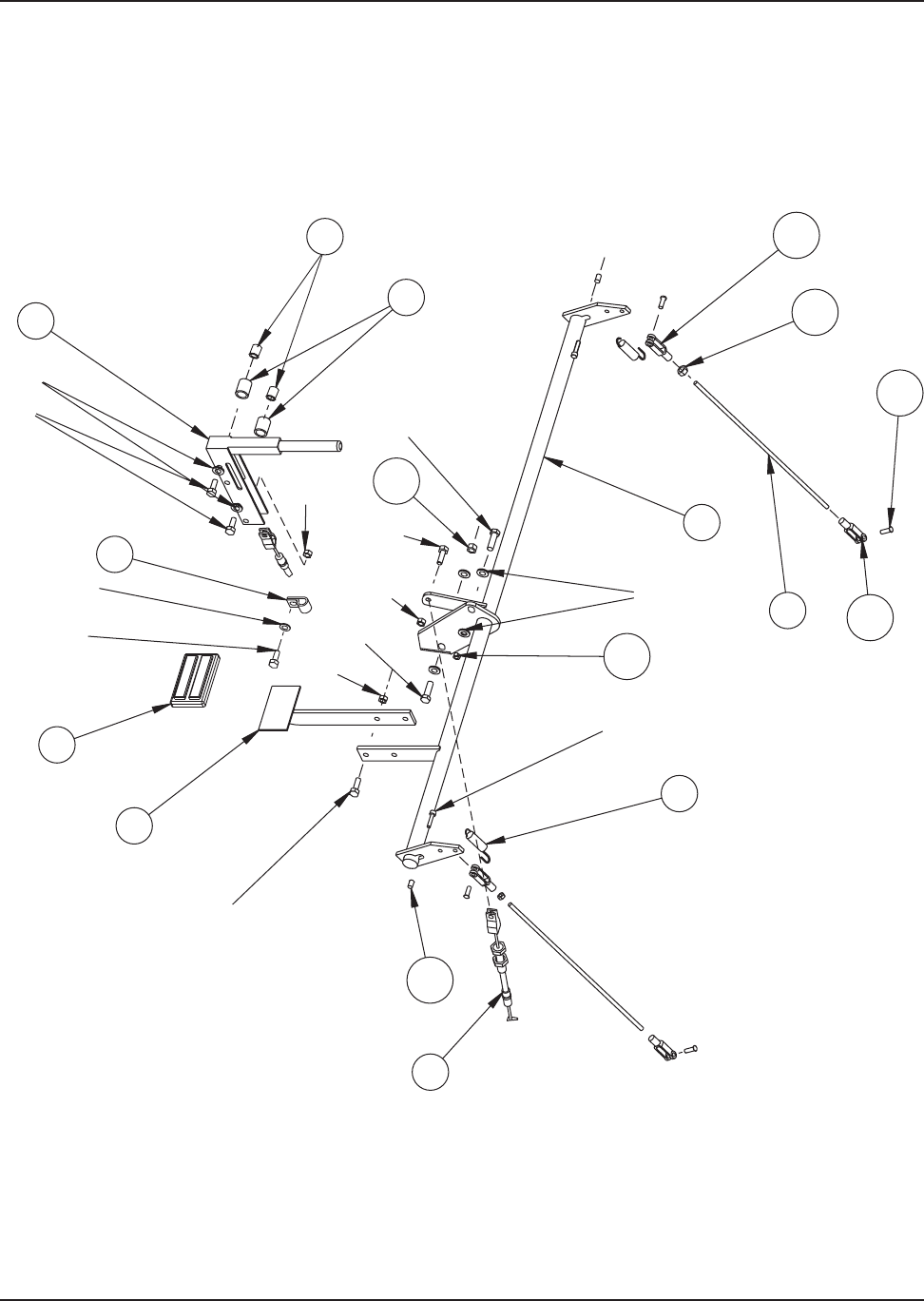

BRAKE PEDAL - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-70-05293 Brake Cross Shaft 1
2 8-55-00033 Brake Pedal 1
3 7-41-05083 Lever, Parking Brake 1
4 8-75-01184 Spacer, Lever Mounting 2
5 8-10-00038 Cable 1
6 8-66-00154 Brake Rod 2
7 2-00-05169 Cable Clamp 1
8 7-50-05145 Pad, Pedal 1
9 7-76-00051 Spring 2
10 2-00-04909 Yoke Pin Assembly 4
11 8-14-01006 Clevis 4
12 2-95-01999 Nut, Jam 2
13 2-95-04182 Nut, Jam 3
14 2-00-05261 Threaded Insert 2
15 2-00-05330 Threaded Insert-5/16-18 2
HARDWARE USED:
H16 2-00-03051 Screw, 1/4-20 x .750 HSHC 2
H35 2-00-02708 Screw, 5/16-18 x 1.000 HHM 3
H40 2-00-01770 Screw, 5/16-18 x 2.750 HHC 2
H43 2-00-00409 Flat Washer, .687 x .344 x .062 1
H44 2-00-00530 Lock Washer, 5/16 HS Med. 2
H46 2-00-00644 Nut, 5/16 - 18 , Insert Fiber 4
H49 2-00-00209 Screw, 3/8-16 x 1.250 HHC 3
H52 2-00-00402 Flat Washer, .750 x .390 x .094 6
H69 2-00-01255 Screw, 5/16-18 x .875 HHC 1
C1109/9812
American-Lincoln 2-15
MPV 60
H49
H46
H35
H46
H35
H52
H16
H46
H49
H40
H44
H43
H69
C1109/9812
13
15
1
11
10
12
11
13
9
5
2
8
14
6
7
4
3

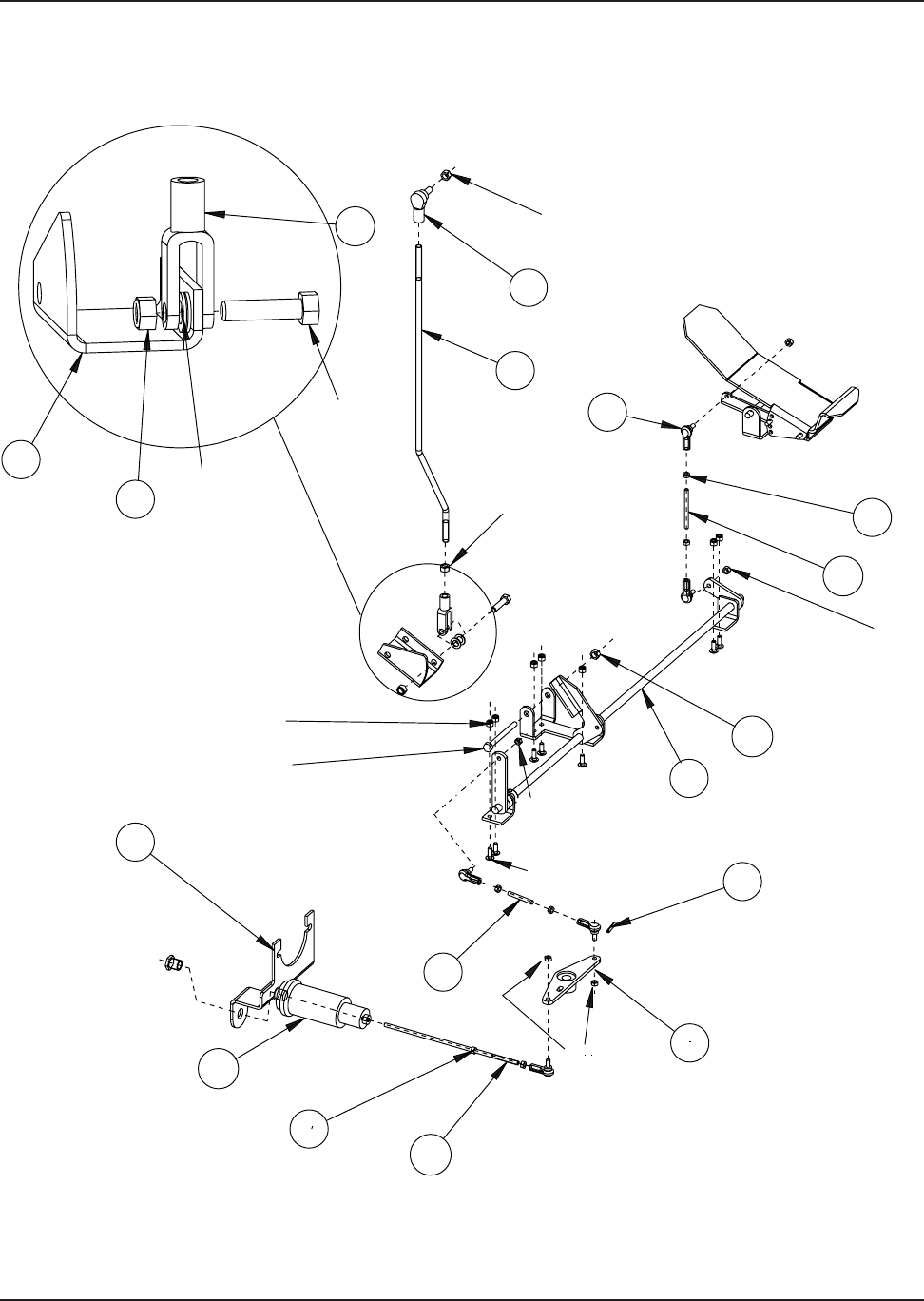

BRAKE PEDAL - EXPLODED VIEW
2-16 American-Lincoln
MPV 60
HOPPER - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-32-06105 Hopper 1
2 7-17-05014 Lift Cylinder 1
0880-449 Lift Cylinder Seal Kit (Service Part)
3 8-25-08223 Hopper Flap 1
4 8-13-07169 Clamp, Hopper Flap 1
5 2-00-00566 Grease Zerk 2
8 8-55-08118 Pin, Hopper Pivot 2
9 2-00-00540 Retaining Ring, .750 Ext. 4
10 8-55-08123 Pin, 3/4 Dia. 2
11 2-00-05024 Washer 2
12 8-34-09024 Insulation 1
13 2-00-04210 Clamp 3
15 8-09-01082 Bushing, Star 3
16 8-09-01083 Bushing, Loc-Tite 2
17 2-00-04895 Fitting 2
18 2-95-04182 Nut, Fiber 1
19 8-34-09023 Insulation 1
20 8-34-09022 Insulation 1
21 8-20-06043 Duct Wire 2
22 2-00-05382 Hole Plug 1
HARDWARE USED:
H9 2-00-00426 Flat Washer, .500 x .219 x .063 1
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 3
H17 2-00-00205 Screw, 1/4-20 x 1.000 HHC 2
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 10
H27 2-00-03702 Washer, .625 x .281 x .063 8
H47 2-00-00232 Screw, 3/8-16 x .750 HHC 1
H86 2-00-03575 Carriage Bolt, 1/4-20 x .750 8
H115 2-00-03063 Screw, #10-24 x .750 THM 3
C1403/9812
American-Lincoln 2-17
MPV 60
ROUTE HARNESS
THROUGH DUCTS
AND CLAMP
SEAL FILTER
COMPARTMENT
SHIM AS REQ’D
GREASE
H115
11
85
13
H9
H12
19
217
9
10
21
H12
15
13
H115
18
H47
16
12
1H26 H17
H86
4
H26
3
1
4
3
20
C1403/9812
HOPPER - EXPLODED VIEW
2-18 American-Lincoln
MPV 60
HOPPER ASSEMBLY - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-21-04022 Edging 1
2 8-82-00058 Switch, Door Indicator 1
3
4 8-63-05014 Clogged Filter Switch 1
5 7-87-02155 Hose 1
6 2-00-04518 Fitting, 1/8 NPT - 1/4 Tube 1
7 8-24-04075 Filter Plug 1
8 8-20-06036 Duct Wire 1
9
10 2-00-05253 Clamp 3
11 8-82-00050 Switch, Hopper 1
12 2-00-05261 Threaded Insert 1
13 2-00-00092 Carriage Bolt 2
14 2-00-03261 Grommet 1
0860-635 Hopper Debris Lid Service Kit
HARDWARE USED:
H17 2-00-00205 Screw, 1/4-20 x 1.000 HHC 3
H25 2-00-00594 Nut, Hex 1/4-20 x .437 x .218 5
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 2
H27 2-00-03702 Washer, .625 x .281 x .063 3
H89 2-00-01372 Nut, Fiber Insert #8-32 Steel 2
H115 2-00-03063 Screw, #10-24 x .750 THM 2
H230 2-00-00466 Flat Washer, .625 x .203 x .031 4
C1329/9901
American-Lincoln 2-19
MPV 60

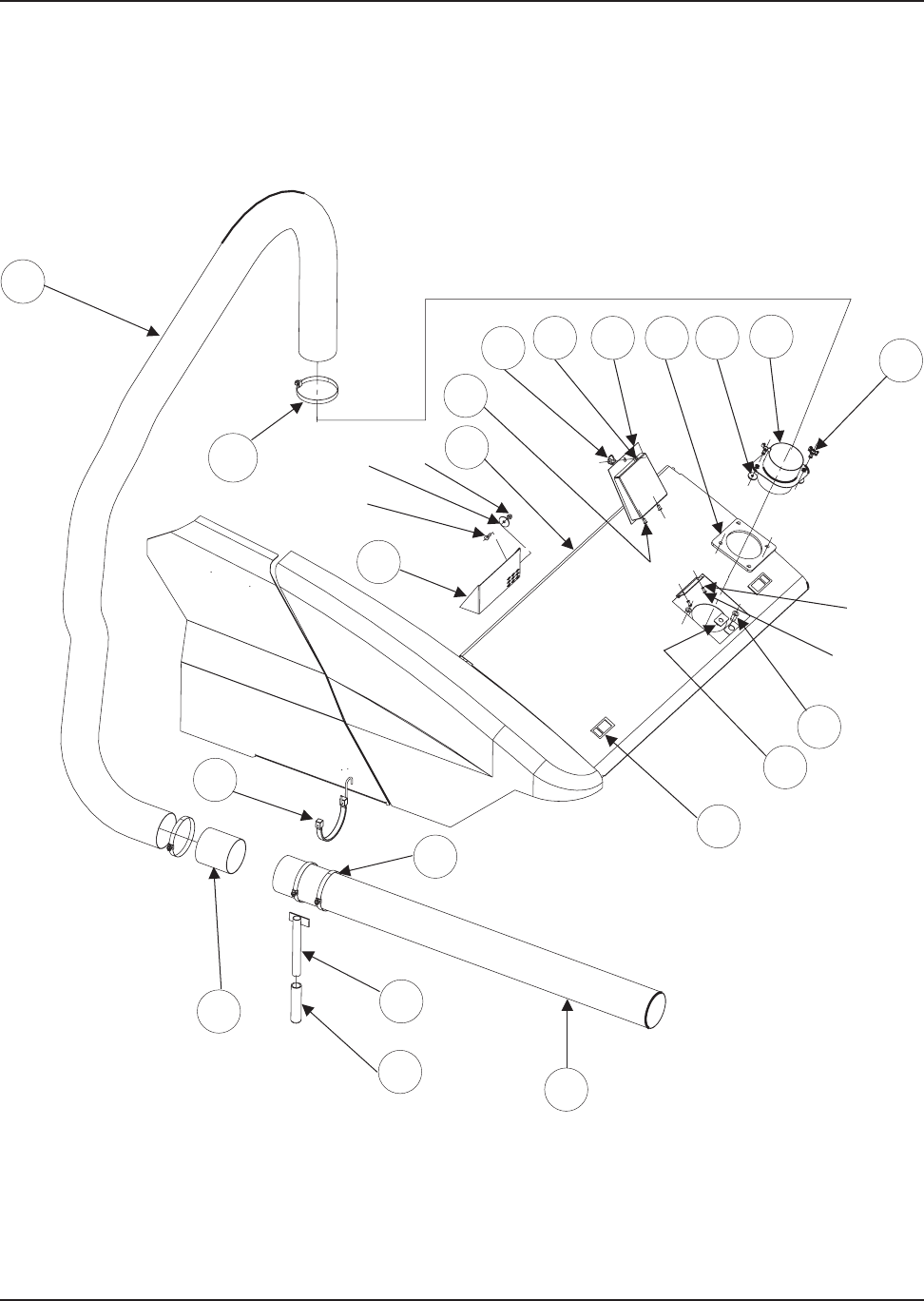

HOPPER ASSEMBLY - EXPLODED VIEW
H17
H27
H17
H26
H115
H26
H27
C1329/9811
13
H230
1
H25
H89
9
10
2
7
11
56
4
12
8
10
HI
FILTER PLUG
SET TO 8“-9”
WATER COLUMN
FITTING & HOSE
HARNESS
LOW
ADD ITEM
#14 - HERE
2-20 American-Lincoln
MPV 60
HOPPER COVER - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00878 Bracket - Hinge Cover Pivot 2
2 8-16-07397 Cover , Filter 1
3 8-16-07398 Cover, Debris 1
4 8-29-00240 Gasket 1
5 8-29-00278 Gasket 1
6 8-29-00279 Gasket 1
7 8-41-00069 Latch, Cover 3
8 2-00-00233 Screw, 3/8-16 x 1.000 HHC 4
9 2-95-04182 Nut, 3/8-16 Stop Hex 4
10 2-00-03979 Flat Washer, 1.0 x .39 x .062 *
11 2-00-02360 Nut, 3/8-16 Hex 12
12 8-16-07411 Hopper Cover - RH 1
13 8-16-07412 Hopper Cover - LH 1
14 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 6
15 7-89-07423 Rod, Threaded 6
16 8-10-00027 Cable 1
17 2-00-00221 Bolt, 1/4-20 x 3/4 Fin. Hex Head 2
18 2-00-00641 Nut, 1/4-20 Fiber Insert 2
* = As Required
NOTE: Old latches (8-41-00040) include machines up to Serial Number 481411 and 481417 - 481419;
and can only be used on the old covers.
NEW latches include machines with Serial Numbers 481412 - 481416 and 481420 on; and can
only be used with the new covers.
C1644-1/0603
American-Lincoln 2-21
MPV 60
HOPPER COVER - EXPLODED VIEW
2-22 American-Lincoln
MPV 60
DUMP DOOR - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-19-08058 Hopper Door 1
2 8-68-05075 Seal, Dump Door 2
3 8-13-07118 Clamp, Door Seal 2
4 8-13-07119 Clamp, Door Seal 4
5 8-25-08193 Flap, Door Vent 1
6 8-68-05076 Seal, Dump Door 1
7 8-68-05077 Seal, Dump Door 1
8 7-17-05011 Cylinder 1
7-70-00021 Cylinder Seal Kit (Service Part)
9 8-88-00064 Valve 1
10 2-00-04895 Fitting 6
11 8-55-08124 Pin, Door Cylinder 1
12 8-55-08123 Pin, 3/4 Dia. 1
13 8-52-00191 Panel, Hopper Seal 1
15 2-00-00540 Retaining Ring, 3/4 Dia. 2
16 8-29-00149 Gasket, Dump Door 1
17 2-00-04892 Fitting 2
HARDWARE USED:
H22 2-00-02589 Screw, 1/4 - 20 x 2.000 HHC 2
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 34
H80 2-00-02196 Carriage Bolt, 1/4-20 x 1.000 RHM 6
H84 2-00-00228 Screw, 5/16-18 x 2.250 HHC 2
H86 2-00-03575 Carriage Bolt, 1/4-20 x .750 30
H98 2-00-05277 Screw, 1/2-13 x .750 HSHC 2
H136 2-00-03940 Screw, #10-24 x .500 T/C HH 2
H147 2-00-00642 Nut, Fiber Insert 5/18-18 2
C1330/9702
American-Lincoln 2-23
MPV 60
H26
H136 5
H80
H98
H86
H86
16
10
10
H26
H147
11
17
9
10
H84
H22
REF FIREWALL
13
LOCTITE
HOPPER OUTLINE
4
7
6
1
2
3
12
15
17
8
C1330/9702
DUMP DOOR - EXPLODED VIEW
2-24 American-Lincoln
MPV 60
FILTER SHAKER - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-13-07170 Clamp, Filter 1
2 8-05-07090 Vibrator Bar 1
3 8-09-01083 Bushing 1
4 8-58-05280 Plate, Shaker 1
5 8-03-04302 Arm, Shaker 1
6 8-16-07406 Filter Shaker Motor Cover 1
7 0860-623 Filter Shaker Motor 1
8 8-89-04019 Weight 1
9 8-24-04139-1 Filter 1
8-24-04139-2 POLY Filter Option
10 8-13-07168 Mounting Angle, Shaker 1
11 8-41-00065 Latch 1
12 8-08-00786 Mounting Angle, Shaker 1
13 8-90-07433 Wire, Hopper Shaker 1
14 2-00-05330 Threaded Insert, 5/16 - 18 3
15 8-68-05099 Dust Seal 1
16 8-13-07172 Clamp - Vibration Bar 1
HARDWARE USED:
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 8
H27 2-00-03702 Washer, .625 x .281 x .063 8
H34 2-00-00208 Screw, 5/16-18 x .750 HHC 5
H37 2-00-00207 Screw, 5/16 - 18 x 1.250 HHC 2
H44 2-00-00530 Lock Washer, 5/16 HS Med. 3
H46 2-00-00644 Nut, 5/16 - 18 Insert Fiber 2
H58 2-00-00241 Screw, ½ - 13 x 1.750 HHC 2
H64 2-00-00596 Nut, Hex ½ - 13 x .750 x .437 2
H65 2-00-04936 Nut, ½ - 13 Fiber Lock 2
H81 2-00-05276 Screw, 3/8 - 16 x 5.500 1
H86 2-00-03575 Carriage Bolt, 1/4-20 x .750 8
H87 2-00-00263 Set Screw, 1/4-20 x .250 HSKCP 1
H219 2-00-05359 Nut, Serrated Flange 5/16 - 18 4
FRAME AND SHAKER ADJUSTMENT INSTRUCTIONS:
1. ADJUST FRAME TO FILTER- ADJUST FILTER FRAME PIVOT BOLTS AND PAWL OF FILTER
FRAME LATCH SUCH THAT FILTER GASKET COMPRESSES APPROXIMATELY 1/8 INCH.
2. ADJUST SHAKER TO FILTER-ADJUST SHAKER ARM (8-03-04302) SUCH THAT IT AND SHAKER
PLATE (8-58-05280) FORCE FILTER SCREEN TO CONTACT FILTER MEDIA.
NOTE: DO NOT COMPRESS FILTER MEDIA WITH SHAKER
C1404/9812
American-Lincoln 2-25
MPV 60
H26
H27
6
7
1
H37
H34
H44
516
4 H27
2
H58
H81
15
3
H46
10
11
H34
H87
8
H26
H86
H64
H65
9
H86
H27
H26
14
H219
12
C1404/9906
FILTER SHAKER - EXPLODED VIEW
2-26 American-Lincoln
MPV 60
FRONT WHEEL - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 0860-703 Brake 2
8-71-05007 Brake Shoe (Service Part)
2 8-89-08067 Wheel Assy., Pneumatic - 18.5" 2
8-85-06021 Tire, 5 x 8 (Service Part)
8-70-00085 Tube (Service Part)
8-70-00084 Flap
8-65-05015 Rim Assy., 5 x 8 x 3.75 (Service Part)
7-18-00159 Decal, Pneumatic Tire Warning
3 8-11-00030 Grease Cap 2
4 8-33-09089 Hub and Drum 2
5 8-80-05035 Stud 10
6 2-00-04621 Bearing Cup 4
7 2-00-02079 Bearing Cone (Sealed) 2
8 2-00-04622 Bearing Cone 2
9 2-00-05026 Nut, Slotted Hex 1-14 UNF 2
10 2-00-05024 Flat Washer 2
11 2-00-02436 Cotter Pin 2
12 2-00-03797 Flat Washer *
* AS NEEDED
HARDWARE USED:
H63 2-00-02312 Lock Washer, 1/2 HS Med. 8
H66 2-00-02689 Screw, 1/2-20 x 1.000 HHC 8
C1100
American-Lincoln 2-27
MPV 60
H63
H65
C-1100/98

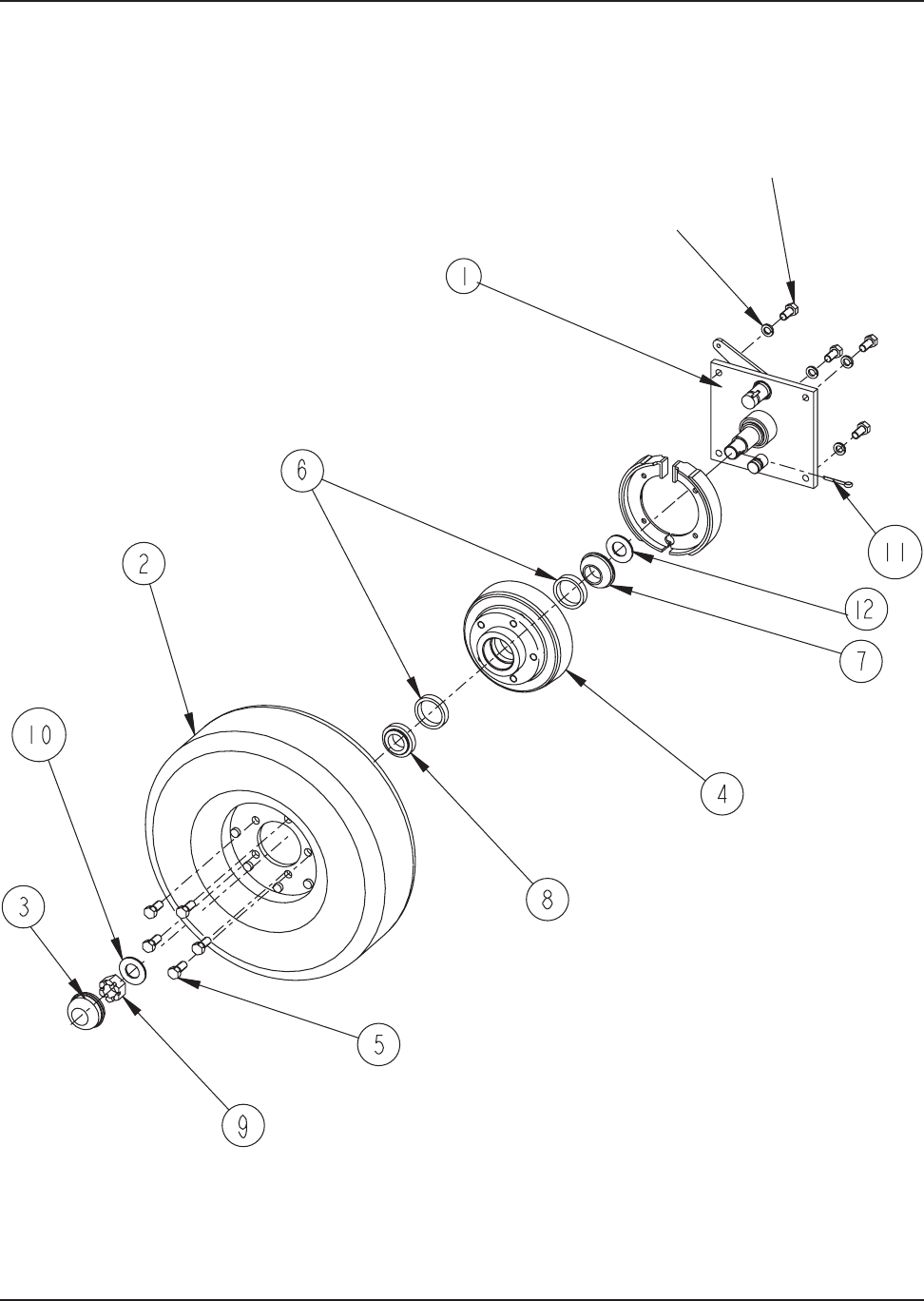

FRONT WHEEL - EXPLODED VIEW
2-28 American-Lincoln
MPV 60
REAR (DRIVE) WHEEL - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-92-00040 Yoke, Rear Wheel 1
2 0885-083 Hydraulic Motor, 4000 Series 1
0880-238 Motor Seal Kit (Service Part)
0880-586 Shaft Seal Kit (Service Kit)
3 2-00-04621 Bearing, Outer Race (Cup Only) 2
4 2-00-02079 Bearing, Roller 2
5 7-11-00048 Cap, 7/8 Hex Nut 1
6 8-55-08131 Pivot Pin, Rear Wheel 1
7 2-00-02436 Cotter Pin 1
8 2-00-05026 Nut, Slotted Hex 1-14 UNF 1
9 2-00-05024 Flat Washer 1
10 8-89-08068 Wheel Assembly 1
8-85-06021 Tire (Service Part)
8-70-00085 Tube (Service Part)
8-33-09088 Inner Rim
8-65-05017 Outer Rim
8-80-05035 Stud (Qty. 6)
8-70-00084 Flap
7-18-00159 Decal, Pneumatic Wheel Warning
0860-639 Service Kit - Wheel Mount
11 8-65-00045 Retainer, Hydraulic Hose 1
12 7-17-05017 Hydraulic Cylinder 1
7-70-00021 Cylinder Seal Kit (Service Part)
13 8-66-00149 Rod End 1
14 2-00-00566 Grease Zerk 1
15
16 2-00-00776 Cotter Pin, .12 diameter 1
17 2-00-04895 Fitting, Straight 1
18 2-00-04976 Fitting, 45° 2
19 2-00-04979 Fitting, Straight 2
20 8-30-05175 Guard - Hose 1
21 7-13-07176 Clamp - Pivot Pin 1
HARDWARE USED:
H15 2-00-00221 Screw, 1/4-20 x .750 HHC 2
H34 2-00-00208 Screw, 5/16 - 18 x 7.50 HHC 2
H44 2-00-00530 Lock Washer, 5/16 HS Med. 2
H65 2-00-04936 Nut, 1/2-13 Fiber Lock 4
H70 2-00-05254 Screw, 3/4-10 x 2.250 HHC 1
H71 2-00-05255 Nut, 3/4-10 Nylon Lock 1
H72 2-00-00518 Lock Washer, Helical Spring 2
H73 2-00-00247 Screw, 1/2-13 x 2.500 HHC 4
H75 2-00-00618 Nut, Hex Jam 3/8-16 1
H109 2-00-00522 Lock Washer, ¾ Helical Spring 1
H221 2-00-03335 Screw, 5/16-18 x .500 Hex Soc. Cap 2
C1311a/0703
American-Lincoln 2-29
MPV 60
REAR (DRIVE) WHEEL - EXPLODED VIEW
16 2
19
11
18
21
6
43
10
14
3
49
8
20
13
7
5
17
12
18
H70
H71 H75
H109
H72
H15
H65
H44
H73
H34
H221
1
C1311A/0703
2-30 American-Lincoln
MPV 60
STEERING COLUMN - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-60-05034 Steering Control Unit 1
2 8-89-08016 Steering Wheel 1
3 8-58-05270 Plate, Latch 1
4 8-33-05136 Steering, Housing 1
5 8-41-00050 Latch, Tilt Steering 1
6 8-08-00780 Housing, Mounting Bracket 2
7 7-09-01057 Bushing 1
8 8-31-06083 Grip, Latch 1
9 8-76-00042 Spring, Tension 1
10 2-10-01336 Spring, Compression 1
11 8-11-00022 Cap 1
12 2-95-04182 Stop Nut, Elastic 1
13 8-33-02360 Hose, Heat Shield 1
HARDWARE USED:
H17 2-00-00205 Screw, 1/4-20 x 1.000 HHC 4
H25 2-00-00594 Nut, Hex 1/4-20 x .437 x .218 1
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 4
H27 2-00-03702 Washer, .625 x .281 x .063 2
H35 2-00-02708 Screw, 5/16-18 x 1.000 HHM 1
H44 2-00-00530 Lock Washer, 5/16 HS Med. 4
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 5
H52 2-00-00402 Flat Washer, .750 x .390 x .94 4
H69 2-00-01255 Screw, 5/16-18 x .875 HHC 4
H94 2-00-00410 Flat Washer, .875 x .375 x .060 2
H95 2-00-03382 Spring Washer, .875 x .500 x .015 1
H96 2-00-02605 Screw, 3/8-16 x 4.500 HHC, Cadium Pl 1
H154 2-00-04363 Screw, M8 - 1.250 x .750 4
C1605/9812
American-Lincoln 2-31
MPV 60
H154
H44
1H26
8
5
H95 7H35
H17
H25
H26
9
10
2
H96
H52
H26
3
H27
H17
H17
H94
12
H46
6
H69
H46
4
11
13
C1605/9810
STEERING COLUMN - EXPLODED VIEW
2-32 American-Lincoln
MPV 60
BROOM DOOR - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-19-08060 Broom Door Weldment (Right) 1
2 8-19-08059 Broom Door Weldment (Left) 1
3 8-25-08222 Flap, Broom Door (Outer) 2
4 8-25-08198 Flap, Broom Door (Inner) 2
5 8-13-07116 Clamp, Broom Door Flap 4
6 8-41-00052 Latch 2
7 8-75-01199 Spacer, Broom Door Latch 1
8 8-29-00232 Gasket 1
9 8-39-00015 Latch Knob, Broom Door 2
10 8-57-05024 Door Pivot Bracket 2
11 8-58-05271 Plate, Idler Retainer 1
14 2-95-04182 Nut, Fiber 6
15 8-29-00235 Edging 2
HARDWARE USED:
H20 2-00-00203 Screw, 1/4-20 x 1.500 HHC 4
H23 2-00-01980 Screw, 1/4-20 x 2.500 HHC 1
H25 2-00-00594 Nut, Hex 1/4-20 x .437 x .218 8
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 21
H27 2-00-03702 Washer, .625 x .281 x .063 5
H52 2-00-00402 Flat Washer, .750 x .390 x .094 4
H54 2-00-02360 Nut, 3/8-16 Hex. 2
H78 2-00-05187 Carriage Bolt, 3/8-16 x 1.250 4
H79 2-00-01676 Flat Washer, 1.062 x .265 x .062 16
H80 2-00-02196 Carriage Bolt, 1/4-20 x 1.000 RHM 16
H81 2-00-05276 Screw, 3/8-16 x 5.500 2
H82 2-00-00505 Lock Washer, 3/8 Int. Tooth 2
H83 2-00-04877 Screw, 1/4-20 x 1.000 BHS 8
C1103/9812
American-Lincoln 2-33
MPV 60
H78 H79 H80
H25
H26
H27
H52
H54
H52
H81
H82
H80
H26
H26
H83
H20
H23
C1103
8
BROOM DOOR - EXPLODED VIEW
2-34 American-Lincoln
MPV 60
FORWARD/REVERSE CONTROL - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 2-00-00880 Roll Pin 1
2 8-70-05294 Forward/Reverse Shaft 1
3 8-03-04322 Arm, Pump Control 1
4 8-08-00877 Bracket, Hydroback 1
5 8-66-00169 Rod, 1/4-28 x 2.0 Threaded 1
6 8-03-04306 Arm, Speed Limiter 1
7 8-66-00172 Rod, Speed Limiter 1
8 7-25-02050 Rod End 5
9 2-95-01999 Nut, Jam 6
10 8-66-00189 Rod, Threaded 1
11 8-16-00063 Centering Control 1
12 8-66-00173 Rod End 1
13 8-14-01001 Clevis 1
14 8-66-00194 Rod, Threaded, 1/4-28 x 1.50 1
15 2-95-04182 Nut, Fiber 2
HARDWARE USED:
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 7
H50 2-00-00234 Screw, 3/8-16 x 1.50 HHC 1
H52 2-00-00402 Flat Washer, .750 x .390 x .094 2
H54 2-00-02360 Nut, 3/8-16 Hex. 1
H76 2-00-00632 Nut, Fiber Insert 3/8-24 Steel 1
H86 2-00-03575 Carriage Bolt, 1/4-20 x .75 7
H113 2-00-03333 Screw, 3/8-16 x 3.75 HHC 1
H114 2-00-00633 Nut, Fiber 1/4-28 5
C1603/2-04
American-Lincoln 2-35
MPV 60
H86
H114
2
4
11
9
10
5
3
H114
1
H113
15
H26
H114
14
9
H54
H50
H52
15
6
8
7
12
H76
13
C1603/9702
FORWARD/REVERSE CONTROL - EXPLODED VIEW
2-36 American-Lincoln
MPV 60
ADJUSTABLE FOOT PEDAL - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-55-00034 Adjustable Foot Pedal 1
2 8-55-00035 Pedal Base 1
3 8-08-00782 Bracket 1
4 2-00-05246 Pin 1
5 2-00-05247 Pin 2
6 2-00-05249 Cotter Pin 3
7 7-23-03048 Spring Washer *
* AS NEEDED
HARDWARE USED:
H36 2-00-00196 Carriage Bolt, 5/16-18 x 1.000 2
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 2
H302* 2-00-00490 Washer, Spring, Shakeproof 1
* DIESEL ONLY
C1105/9901
American-Lincoln 2-37
MPV 60
H46
H36
H302
C1105/9901
7
7
ADJUSTABLE FOOT PEDAL - EXPLODED VIEW
2-38 American-Lincoln
MPV 60
H83
C-1129

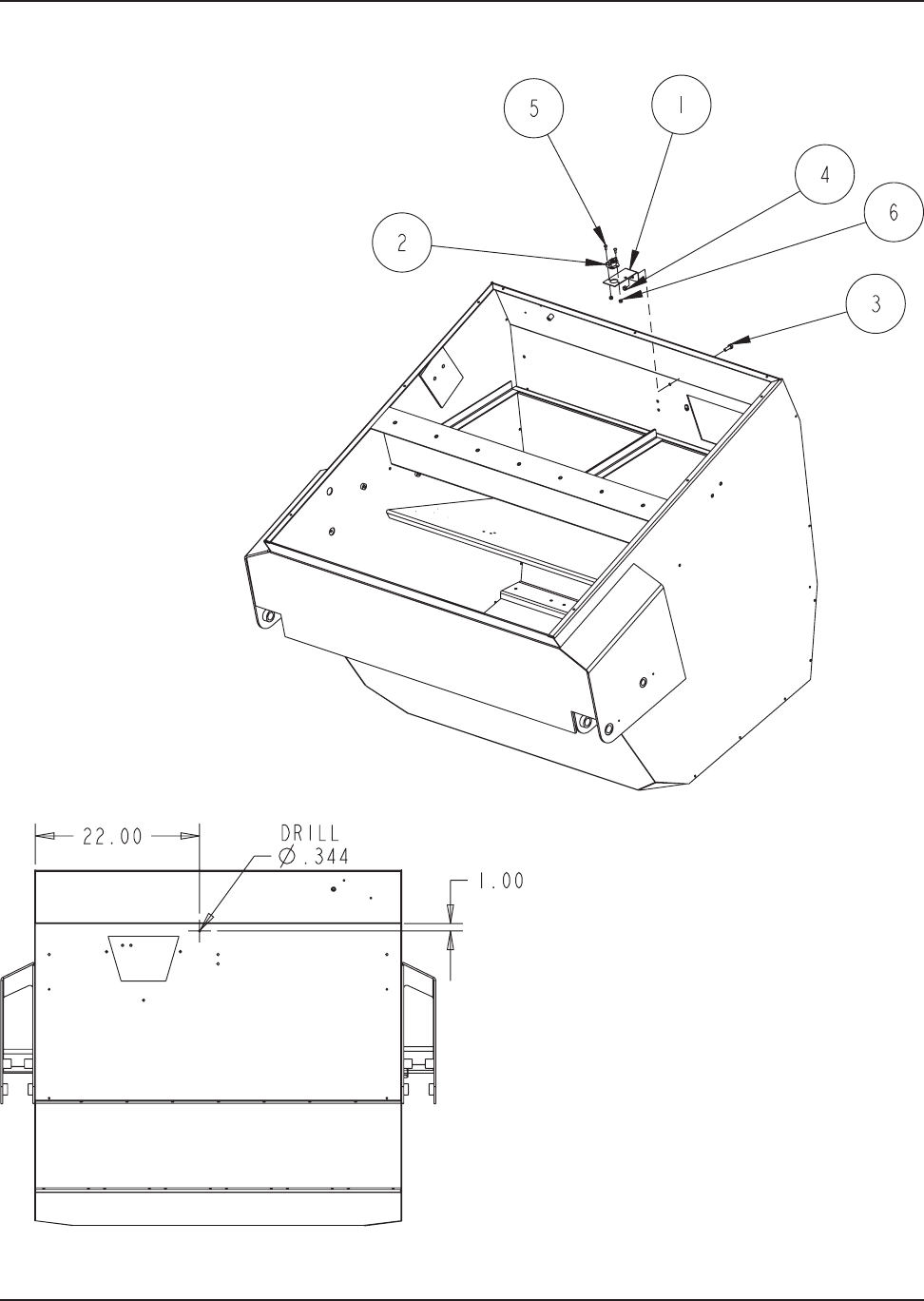

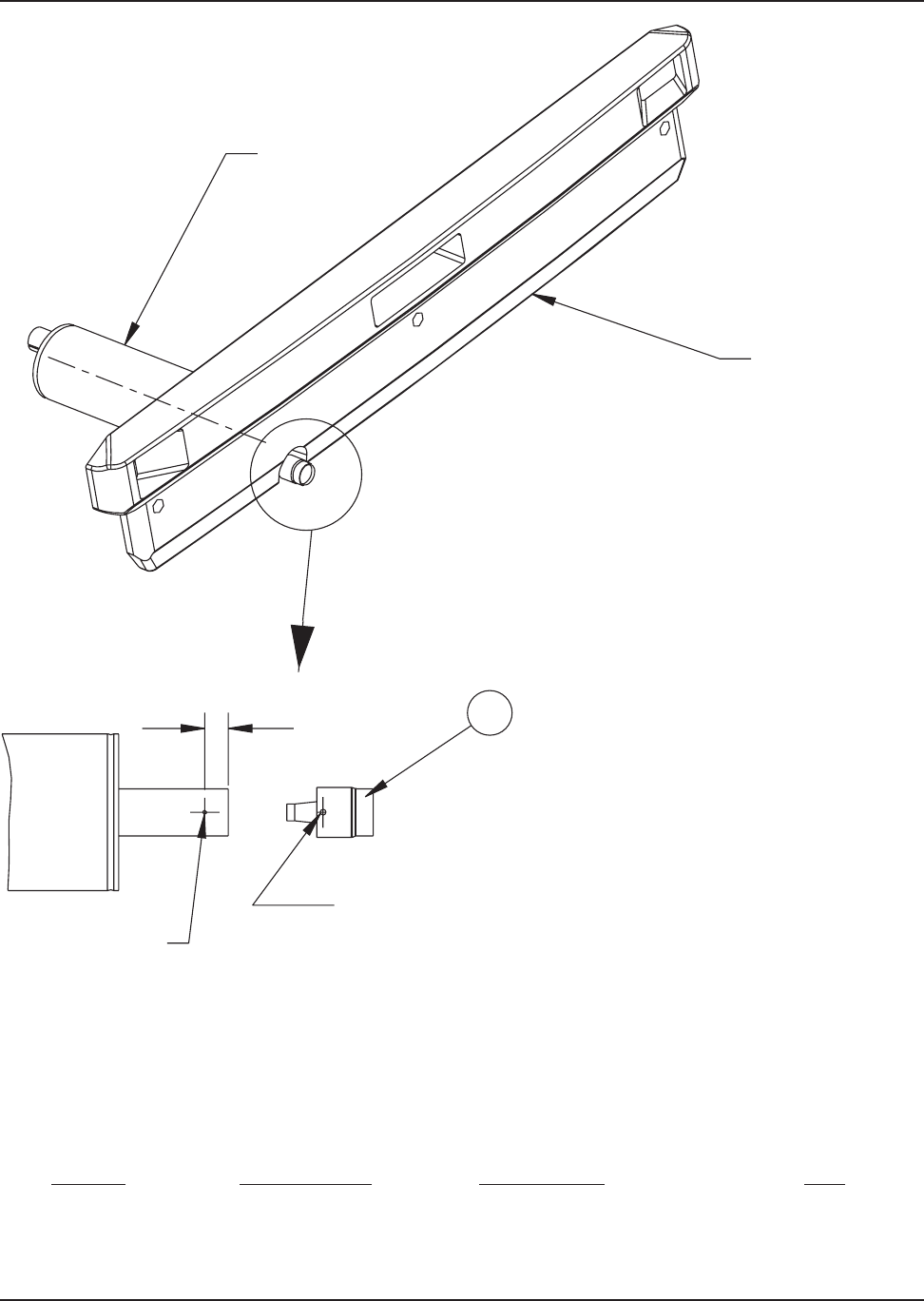

SAFETY ARM
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-81-00168 Safety Arm Weldment 1
3 2-00-02436 Cotter Pin 1
4 8-71-00018 Shim 1
5 2-00-05261 Threaded Insert 1
6 2-00-00432 Flat Washer 1
HARDWARE USED:
H83 2-00-04877 Screw, 1/4-20 x 1.000 BHS 1
C1129
American-Lincoln 2-39
MPV 60
C2193/2-04
OIL COOLER
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-62-01012 Oil Cooler 1
2 2-00-04973 Fitting 2
3 8-88-00059 Check Valve, 5 psi 1
4 7-08-01189 Bracket, Oil Cooler 2
5 2-00-03702 Washer, .625 x .281 x .063 8
6 2-00-00518 Lock Washer, 1/4” Helical Spring 4
7 2-00-00594 Nut, 1/4-20 Hex 4
8 2-00-00219 Bolt, 1/4-20 Fin. Hex Head 4
C2193/2-04
2-40 American-Lincoln
MPV 60
C1115
H103
H101
H12
H102
LIGHTS & HORN
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-40-05051 Head Light 2
8-40-05050 Head Light Sealed Beam (Service Part)
2 8-40-05044 Tail Light 1
2-00-05291 Bulb, Tail Light (Service Part)
8-41-03010 Lens, Tail Light, Center (Service Part)
8-41-03011 Lens, Tail Light, Outer (Service Part)
3 2-00-04210 Clamp 1
4 8-32-09013 Horn 1
HARDWARE USED:
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 2
H101 2-00-04897 Screw, #10-24 x 1.250 THM 1
H102 2-00-04795 Screw, #10-24 x .750 BHS 8
H103 2-00-00089 Screw, 10-24 x 1.500 RHM 1
C1115/9812
American-Lincoln 2-41
MPV 60
H80
H27
H26
H26
H99
C-1130
BATTERY
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00792 Battery Bracket 1
2 0875-008 Battery 1
0875-057 Battery (Diesel Only) 1
3 7-13-07109 Battery Bracket 1
4 7-90-07280 Cable, Positive 1
5 7-90-07281 Cable, Negative 1
6 2-00-05171 Boot, Black 1
7 2-00-05173 Boot, Red 1
8 2-00-04952 Boot, Red 1
HARDWARE USED:
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 4
H27 2-00-03702 Washer, .625 x .281 x .063 1
H80 2-00-02196 Carriage Bolt, 1/4-20 x 1.000 RHM 1
H99 2-00-02810 Screw. 1/4-20 x 1.000 FHM 3
C1130/990
2-42 American-Lincoln
MPV 60

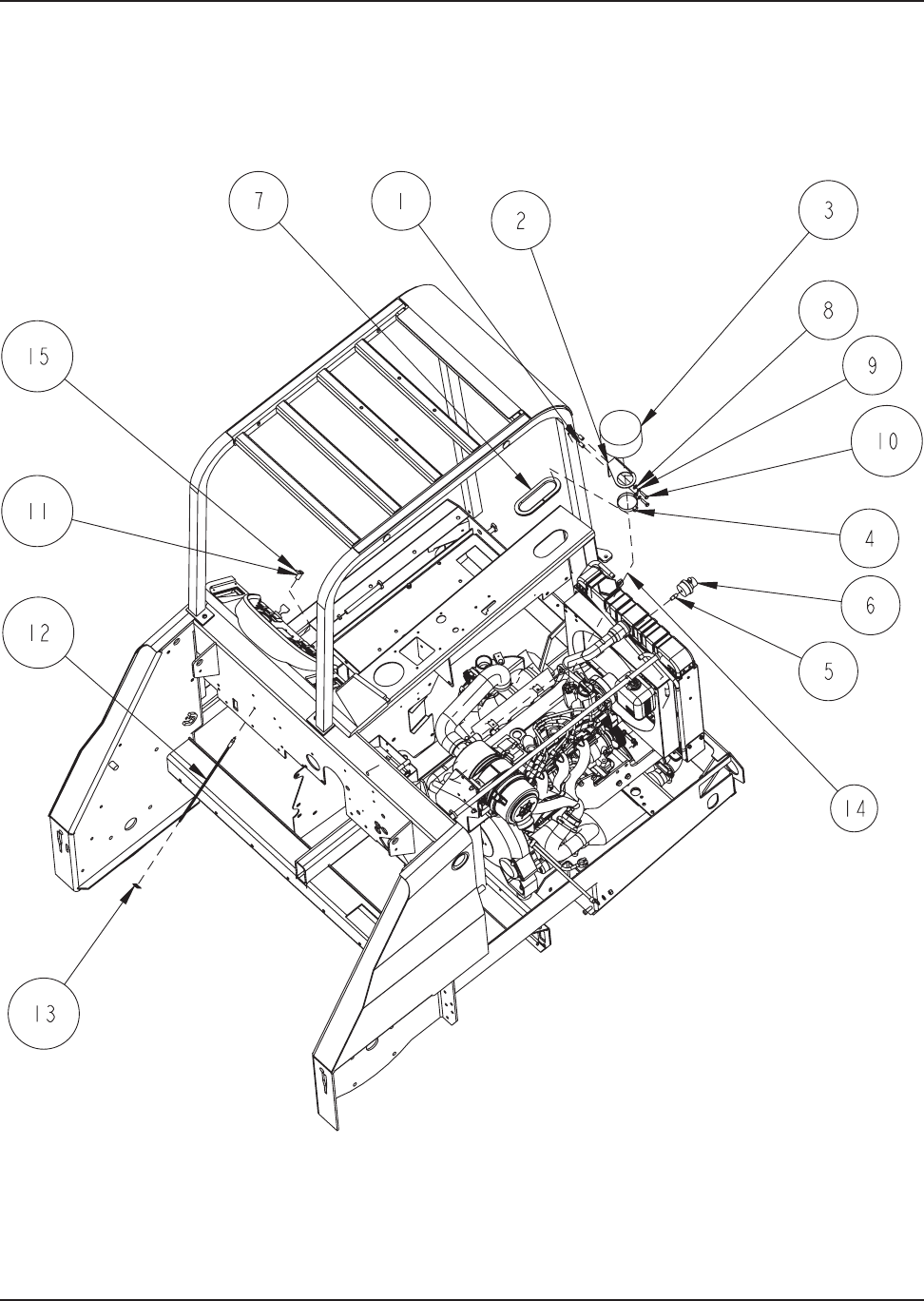

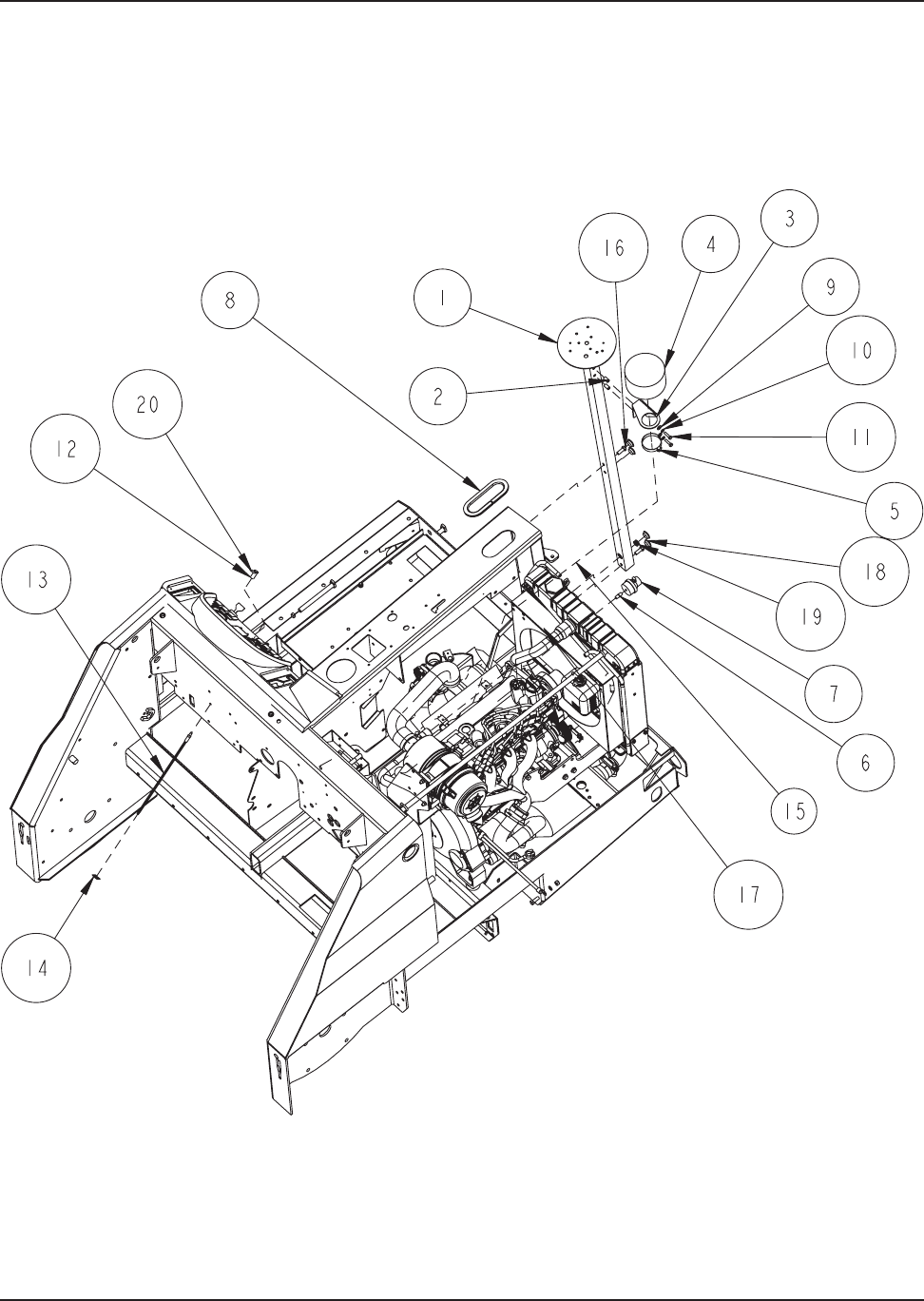

HYDRAULIC RESERVOIR - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-83-04044 Reservoir 1
2 8-24-04115 Strainer, Hyd. Fluid 2
3 8-48-05033 Sight Glass, Hyd. Fluid 1
4 8-11-00026 Filter Cap Assy., Reservoir 1
5 2-00-02474 Plug, 1/2 NPT 1
6 2-00-05074 Fitting, 3/4 NPT - 12 ORS, 90° 1
7 2-00-04975 Fitting, 8 SAE 45° Elbow 1
8 2-00-04892 Fitting, 90° Elbow (O-Ring) 1
9 2-00-04972 Fitting, -12 ORS x -12 SAE, 90° 1
10 2-00-05438 Fitting, 3/4 MP x 1/2 ORS 90° Elbow 1
11 2-00-00049 Screw, 10-24 x .50 RHM 6
12 2-00-05262 Insert, 10-24 Threaded 6
14 2-00-00409 Flat Washer, .687 x .344 x .062 1
13 2-00-02708 Screw, 5/16-18 x 1.000 HHM 1
15 2-00-00644 Nut, 5/16-18, Insert Fiber 1
C2194/2-04
American-Lincoln 2-43
MPV 60
C2194/2-04
HYDRAULIC RESERVOIR - EXPLODED VIEW
2-44 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 0882-064 Vacuum Motor 1
2 8-08-00787 Bracket, Vacuum Fan 1
3 8-20-06035 Vacuum Fan Exhaust Duct 1
4 8-23-00012 Fan Impellor 1
5 8-30-05169 Guard, Impellor 1
6 8-29-00183 Gasket, Blower 1
7 8-29-00230 Gasket, Blower Exhaust 1
8 8-50-05037 Radiator Mount Pad 3
9 2-00-04885 Fitting, 90° 1
10 2-00-04970 Fitting, Straight 1
11 2-00-04895 Fitting, Straight 1
12 0875-117 Diode Assembly 1
HARDWARE USED:
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 4
H42 2-00-02655 Screw, 5/16-18 x 4.500 HHC 4
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 10
H76 2-00-00632 Nut, Fiber Insert 3/8-24 Steel 1
H77 2-00-00484 Flat Washer, .625 x .375 x .046 3
C1102/9908
VACUUM FAN - PARTS LIST
American-Lincoln 2-45
MPV 60
H26 H76
H77 H42 H46
H46
H77
C-1102
VACUUM FAN - EXPLODED VIEW
2-46 American-Lincoln
MPV 60

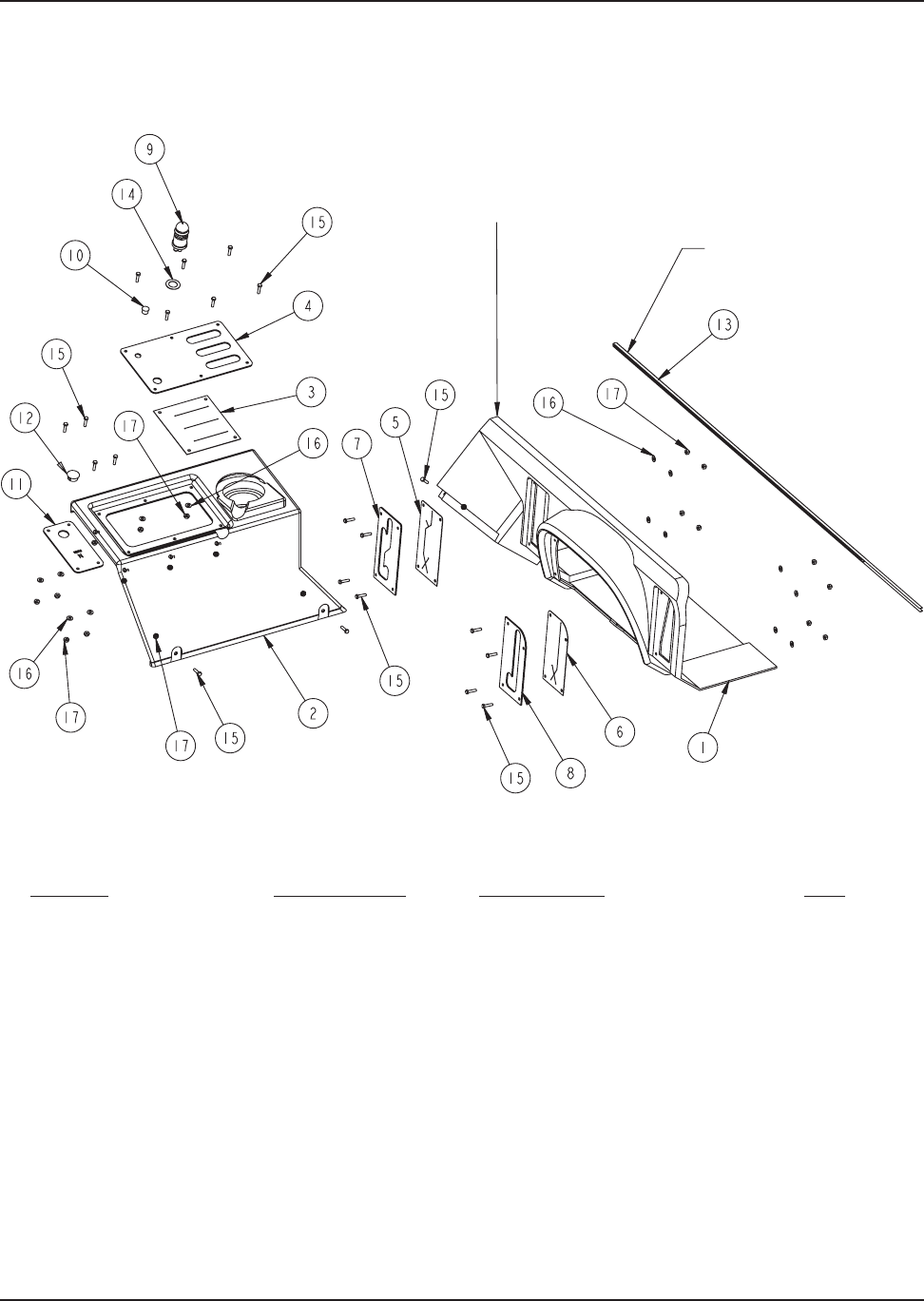

FLAPS (WHEEL WELL) - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-25-08194 Flap, Wheel Well 2
2 8-13-07113 Clamp, Wheel Well Flap, Front 2
3 8-13-07112 Clamp, Wheel Well Flap, Rear 2
4 8-13-07123 Clamp, Wheel Well Flap, Front 2
5 8-68-05078 Seal, Broom Door Chamber/Dump Door 1
6 2-00-05261 Threaded Insert 25
7 8-13-07119 Clamp, Dump Door Seal 1
8 2-00-04877 Screw, 1/4-20 x 1.000 BHS 19
9 8-68-05079 Seal, Wheel Well, Right 1
10 8-68-05080 Seal, Wheel Well, Left 1
11 8-25-08218 Flap, Dust Control 1
12 2-00-03702 Washer, .625 x .281 x .063 6
13 2-00-00518 Lock Washer, 1/4” 6
14 2-00-00221 Screw, 1/4-20 x 3/4 6
C1104
American-Lincoln 2-47
MPV 60
8
C1104
11
15
14
13
FLAPS (WHEEL WELL) - EXPLODED VIEW
2-48 American-Lincoln
MPV 60

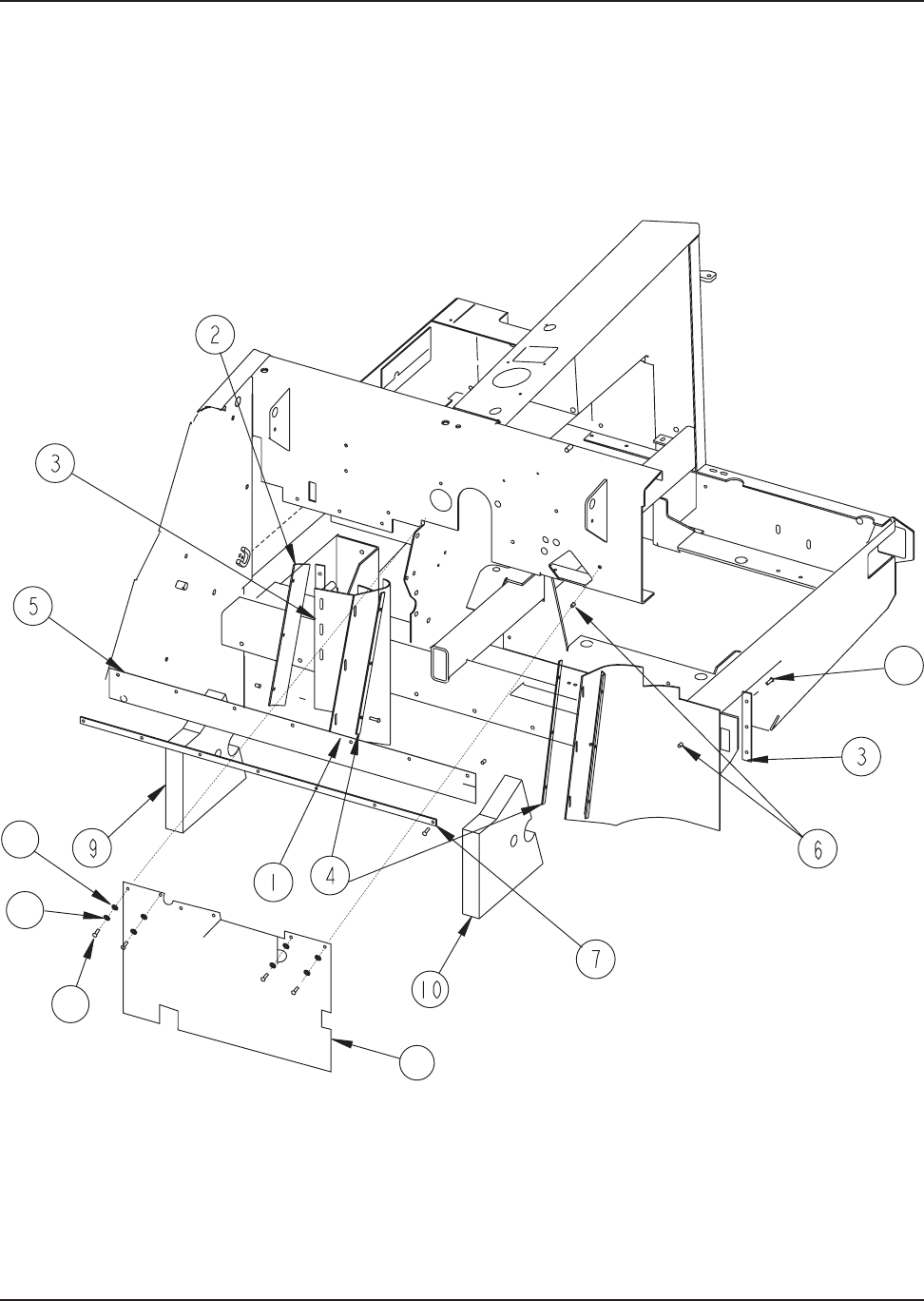

BROOM CHAMBER FLAPS & SEALS - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-27-07119 Frame, Weldment 1
2 8-25-08197 Flap, Rear Inside Frame 1
3 8-13-07114 Clamp, Rear Flap Broom Chamber Inner 1
4 8-25-08196 Flap, Rear Outside Frame 1
5 8-13-07115 Clamp, Rear Flap Broom Chamber Outer 1
6 8-29-00231 Gasket 2
7 8-29-00232 Gasket 1
8 8-29-00234 Gasket 1
9 8-29-00233 Gasket 1
10 8-29-00277 Gasket-Broom Chamber 1
11 8-34-09017 Insulation 1
12 8-34-09018 Insulation 1
13 7-21-04022 Edging 2
14 7-21-04031 Edging 1
15 7-21-03003 Edging 1
16 2-00-05261 ¼ - 20 Threaded Insert 4
HARDWARE USED:
H15 2-00-00221 Screw, ¼ - 20 x .750 HHC 4
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 5
H27 2-00-03702 Washer, .625 x .281 x .063 4
H72 2-00-00518 Lock Washer, Helical spring 4
H80 2-00-02196 Carriage Bolt, 1/4-20 x 1.000 RHM 5
C1407/9702
American-Lincoln 2-49
MPV 60
7
6
9
H80
H26
2
12
11
15
13
ADJUST FLAP TO NO MORE
THAN .125 FROM FLOOR
NOTE: WIPE BROOM CHAMBER CLEAN
BEFORE APPLYING ITEM 6.
6
8
H15H72
H27
10
16 35
4
14
1
SILICONE SEAL
C1407/9701
BROOM CHAMBER FLAPS & SEALS - EXPLODED VIEW
2-50 American-Lincoln
MPV 60

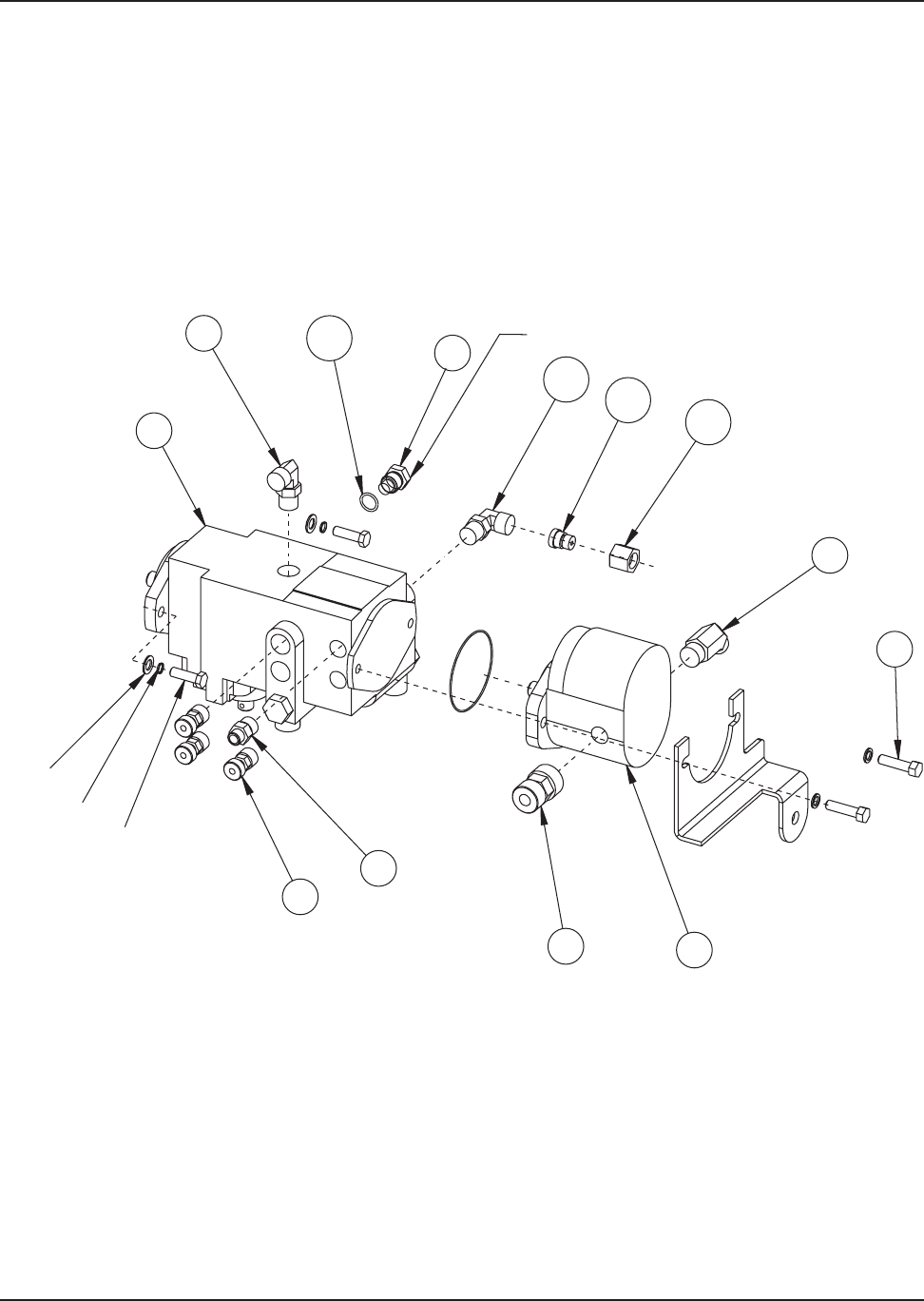

CONTROL & RELIEF VALVES - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-88-00060 Control Valve 1
7-70-00095 Seal Kit, Control Valve (Service Part) Ref.
7-88-00068 Relief Valve, Control Valve (Service Part) Ref.
2 2-00-05264 Fitting 3
3 2-00-05162 Fitting - Tee 1
4 2-00-04970 Fitting, Connector 3
6 2-00-04924 Fitting, Run Tee 2
7 2-00-04929 Fitting, Reducer 1
8 2-00-04939 Fitting, Nut for Reducer 1
9 2-00-04928 Fitting, Run Tee 1
10 2-00-04939 Fitting 1
11 2-00-04929 Fitting 1
13 2-00-04957 Fitting 1
HARDWARE USED:
H39 2-00-00218 Screw, 5/16-18 x 2.000 HHC 2
H43 2-00-00409 Flat Washer, .687 x .344 x .062 1
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 2
C1120/9603
American-Lincoln 2-51
MPV 60
C1120/9603
H39
H46
H43
CONTROL & RELIEF VALVES - EXPLODED VIEW
2-52 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-60-05023-1 Piston Pump 1
7-70-00093 Piston Pump Seal Kit (Service Part)
2 0885-067 Gear Pump 1
0880-488 Gear Pump Seal Kit (Service Part)
3 0880-404 Seal Kit 1
4 2-00-04970 Fitting, Connector 3
5 2-00-04885 Fitting, 90° Elbow 1
6 2-00-05264 Fitting, Connector 1
7 2-00-04971 Fitting, Connector 1
8 7-78-05023 Pump Stop 1
9 2-00-04989 Fitting, 45° Elbow 1
10 2-00-04983 O-Ring 1
11 2-00-04885 Fitting, 90° #8 - #8 1
12 2-00-04929 Reducer, #8 - #4 1
13 2-00-04939 Cap Nut #8 1
HARDWARE USED:
H49 2-00-00209 Screw, 3/8-16 x 1.250 HHC 2
H52 2-00-00402 Flat Washer, .750 x .390 x .094 2
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 2
C1604/9901
PUMP - PARTS LIST
American-Lincoln 2-53
MPV 60
H52
H53
H49
4
6
72
3
9
13
12
11
8
10
5
1
C1604/9810
TORQUE 35 lb.-ft. ± 4 lb.-ft.
PUMP - EXPLODED VIEW
2-54 American-Lincoln
MPV 60
H104
C1133
HYDRAULIC FILTER
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-24-04116 Hydraulic Filter 1
8-24-04118 Filter Element (Service Part)
2-60-02280 Pressure Gauge (Service Part)
2 2-00-04972 90º Elbow 1
3 2-00-05269 Run Tee 1
4 2-00-04928 Run Tee 1
5 2-00-05271 Reducer 1
6 2-00-05270 Nut for Reducer 1
7 2-00-05282 Reducer 1
8 8-75-01199 Spacer 2
HARDWARE USED:
H104 2-00-03541 Screw, 1/4-20 x 1.500 FHSCH 2
C1133
American-Lincoln 2-55
MPV 60
INSTRUMENT PANEL HOUSING
SUPER GLUE
409 LEFT END
USE 2-00-00220, 0501, 3092
AS NEEDED IF PLASTIC DOES
NOT LAY FLAT ON LINTEL
C2193ecp
KEY NO. PART NUMBER DESCRIPTION QTY.
1* 8-33-05118 Housing, Instrument 1
2* 8-33-05119 Housing, Center Wall 1
3 8-16-07356 Cover, Valve Slot 1
4* 8-52-00196 Panel, Control Valve 1
5 8-16-07355 Cover, Main Broom Slot 1
6 8-16-07354 Cover, Side Broom Slot 1
7* 8-52-00194 Panel, Main Broom 1
8* 8-52-00195 Panel, Side Broom 1
9 8-82-00024 Horn, Push Button 1
10 2-00-05283 Plug Button (Diesel Only) 1
11 8-52-00189 Panel, Throttle 1
12 2-00-04513 Plug 1
13 8-68-05081 Seal, Trim 1
14 2-00-02293 Lock Washer, Int. Tooth, .63 dia. 1
15 2-00-05337 Screw, #8-32 x .75 BHS SS 21
16 2-00-00460 Flat Washer, .437 x .192 x .031 18
17 2-00-01372 Nut, #8-32 Fiber Insert Lock 21
*Part of 0860-630
C2193ecp/11-04
2-56 American-Lincoln
MPV 60
INSTRUMENT PANEL - PARTS LIST
SWITCH POSITIONS
1 2 3 4 5 6
HEAD LIGHTS WORK LIGHT GLOW PLUG FILTER SHAKER DUST CONTROL THROTTLE
8-82-00072 2-00-05375 2-00-05375 8-82-00073 8-82-00072 8-82-00074
8-82-00072 2-00-05375 2-00-05375 8-82-00073 8-82-00072 8-82-00074
8-82-00072 2-00-05375 8-82-00073 8-82-00073 8-82-00072 2-00-05375
GAS
LP
DIESEL
0880-594 CURB BROOM LIGHT SWITCH (POSITION 2): 8-82-00072
0880-595 REAR WORK LIGHT SWITCH (POSITION 2): 8-82-00072
LIGHT POSITIONS
1 - 3 4 - 6 GAUGE TIMER RELAY (2 PER)
8-40-05057 8-40-05056 8-48-05032 8-64-05011 8-64-05009
8-40-05057 8-40-05056 7-11-04035 8-64-05011 8-64-05009
8-40-05057 8-40-05056 8-48-05032 8-64-05011 8-64-05009
GAS
LP
DIESEL
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-52-00203 Panel, Instrument 1
2 8-64-00008 Circuit Breaker (15 amp) 6
3 7-64-00025 Circuit Breaker (25 amp) 2
4 7-82-00026 Switch, Anti-Restart Key 1
5 8-48-05023 Gauge, Hour Meter 1
6 8-41-03014 Lens, Warning Light 1
7 8-75-01223 Spacer, Panel 4
8 8-58-05292 Plate, Warning Light 1
9 2-00-05324 Insert, #8-32 Threaded 9
10 2-00-05337 Screw, #8-32 x .75 BHSC 9
11 8-08-00948 Bracket, Timer 1
12 2-00-01372 Nut, #8-32 Fiber Insert Lock 4
13 2-00-01246 Nut, #10-24 Elastic Stop 3
14 0895-142 Harness, Instrument Panel (not shown) 1
C1438ecp/3-05
American-Lincoln 2-57
MPV 60
SEE CHART
FOR RELAY
PART NO.
SEE CHART
FOR TIMER
PART NO.
SEE CHART
FOR WARNING
LIGHT PART NO.
IF TIMER 8-64-05011 IS USED,
USE 2-00-00071 BOLTS HERE
IF TIMER 8-64-00020
IS USED, USE 2-00-00071
& 2-00-00049 BOLTS HERE
SEE CHART
FOR GAUGE
PART NO.
SEE CHART FOR
SWITCH OR BLANK
PART NUMBERS
SEE CHART FOR
SWITCH OR BLANK
PART NUMBERS
C1438ecp-revB
INSTRUMENT PANEL - EXPLODED VIEW
2-58 American-Lincoln
MPV 60
H94
C1121
H53 H48
FRONT BUMPER
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-07055 Front Bumper 1
HARDWARE USED:
H48 2-00-00233 Screw, 3/8-16 x 1.000 HHC 12
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 12
H94 2-00-04851 Flat Washer 12
C-1121/9506
American-Lincoln 2-59
MPV 60
H65 H301
C1118/9812
H73
REAR BUMPER
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-07056 Rear Bumper 1
HARDWARE USED:
H65 2-00-04936 Nut, 1/2-13 Fiber Lock 3
H73 2-00-00247 Screw, 1/2-13 x 2.500 HHC 3
H301 2-00-04159 Flat Washer, 1.375 x .563 x .109 STL 3
C1118/9812
2-60 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-33-05152 Housing, Seat (Gas & Diesel only) 1
2 8-33-05153 Housing, Seat (LP only) 1
3 8-08-00922 Bracket, Seat Pedestal (LP only) 1
4 8-16-07348 Seat Deck 1
5 2-00-00402 Flat Washer, .750 x .390 x .094 2
6 8-55-08121 Pin, Seat Deck Pivot 1
7 8-50-05058 Rubber Bumpers 2
8 8-14-01006 Clevis 1
9 8-66-00171 Prop Rod 1
10 2-95-01999 Nut, 1/4-28 Hex Jam 1
11 2-00-04909 Pin, 1/4 x 3/4 LG 1
12 2-00-05249 Hair Pin (Cotter) 1
13 8-52-00123 Kick Panel, Floor 1
14 8-34-09016 Insulation, Floor 1
15 8-34-09019 Insulation, Seat Deck 1
16 2-00-05187 Carriage Bolt, 3/8-16 x 1.0 5
17 2-95-04182 Nut, 3/8-16 Hex Stop 6
18 2-00-00644 Nut, 5/16-18 Hex Insert Fiber 6
19 2-00-05258 Screw, #8-32 x 3/4 SOC BHCS 2
20 2-00-01372 Nut, #8-32 Hex Fiber Lock 2
21 7-72-05005 Slide Adjuster Kit 1
22 8-69-00022 Seat 1
23 2-00-00222 Screw, 1/4-20 x 1.25 Hex Head 2
24 2-00-00589 Nut, 1/4-20 2
25 2-00-03702 Washer, .625 x .281 x .063 4
26 8-58-05270 Plate, Latch 1
27 2-00-00641 Nut, 1/4-20 Fiber Insert 2
28 2-00-02310 Lock Washer, 3/8 Helical Spring 7
29 2-00-03979 Flat Washer, 1.0 x .39 x .062 2
30 2-00-00208 Screw, 5/16-18 x .75 HHC 2
31 2-00-00232 Bolt, 3/8-16 Hex Head Finished 7
C1111d/0903
SEAT & FLOOR ASSEMBLY - PARTS LIST
American-Lincoln 2-61
MPV 60
C1111d/0903
SEAT & FLOOR ASSEMBLY - EXPLODED VIEW
2-62 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-16-07363 Engine Cover 1
2 8-08-00776 Plate, Engine Cover Mounting 1
3 8-41-00051 Latch, Rotor 1
4 8-39-00014 Knob, Latch 1
5 7-21-03003 Edging 1
6 8-66-05012 Roller, Engine Cover Mtg. 1
7 2-95-04182 Nut, 3/8-16 Hex Stop 2
8 8-29-00236 Gasket, Engine Cover 1
9 8-29-00237 Gasket, Engine Cover 1
10 2-00-05266 Pin, 3/8 Dia. Clevis 1
11 2-00-05249 Cotter Pin 1
12 8-34-09037 Insulation 1
13 8-34-09021 Insulation 1
14 2-00-00641 Nut, 1/4-20 Insert Fiber 2
15 2-00-00402 Flat Washer, .750 x .390 x .094 1
16 2-00-04936 Nut, 1/2-13 Fiber Lock 1
17 2-00-00518 Lock Washer, Helical Spring 1
18 2-00-00221 Bolt, 1/4-20 x .750 HHC 1
19 2-00-03750 Carriage Bolt, 3/8-16 x 1.50 2
20 2-00-00410 Flat Washer, .875 x .375 x .060 1
21 2-00-00203 Screw, 1/4-20 x 1.50 Hex 2
C1113ecp/2-04
ENGINE COVER - PARTS LIST
American-Lincoln 2-63
MPV 60
15
C1113ecp/2-04
19
9
20
14 17
16
21
18
ENGINE COVER - EXPLODED VIEW
2-64 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 0777-049 Engine, Mitsubishi S4L2 Diesel 1
2 7-75-01250 Spacer, Breeza Fan 1
3 7-23-00023 Fan, S4L2 Engine 1
4 7-08-02042 Bracket, Right Rear Mount 1
5 7-08-01176 Bracket, Front Mount 1
6 7-08-01177 Bracket, Front Mount 1
7 7-75-01246 Spacer, Engine Mount 1
8 7-08-02043 Bracket, Left Rear Mount 1
9 7-08-01175 Bracket, Front Mount 1
10 7-08-02041 Bracket, Front Mount 1
11 7-35-00017 Isolator, Engine Mount (Red Dot) 4
12 2-00-05067 Spacer, Snubbing Washer 8
13 2-00-02617 Screw, 1/2-13 x 3.5 4
14 2-00-00405 Flat Washer, 1.063 x .531 x .094 4
15 2-00-04936 Nut, 1/2-13 Elastic Lock 4
16 2-00-00402 Washer, 25/64 ID x 3/4 OD 16
17 2-00-00209 Bolt, 3/8-16 x 1.25 Hex Head 8
18 2-95-04182 Nut, 3/8-16 Hex Stop 8
19 2-00-05043 Washer, 25/64 ID x 3/4 OD 16
20 2-00-05960 Screw, M12 x 1.25 x 25mm HHC 12
21 2-00-05962 Screw, M12 x 1.25 x 45mm HHC 4
C2191-PP/6-04
MITSUBISHI S4L2 DIESEL ENGINE (FAN, BRACKETS)
American-Lincoln 2-65
MPV 60
C2191-PP
MITSUBISHI S4L2 DIESEL ENGINE (FAN, BRACKETS)
2-66 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-33-02604 Hose, Upper Radiator 1
2 7-33-02605 Hose, Lower Radiator 1
3 7-35-00017 Isolator, Engine Mount (Red Dot) 2
4 2-00-05955 Washer, 1.25 ID x 2.00 OD x .25 2
5 7-62-01008 Radiator 1
6 2-00-05956 Plug, Radiator Outlet 1
7 2-00-03404 Clamp, Witteck C24P 5
8 2-00-05067 Spacer, Snubbing Washer 2
9 7-08-02047 Bracket, Radiator 1
10 7-35-00028 Isolator, M8-1.25 32 x 32 1
11 2-00-05041 Lock Washer, M8 Helical Spring 2
12 2-00-05964 Nut, M8 x 1.25 1
13 2-00-00247 Screw, 1/2-13 x 2.50 HHC 2
14 7-07-02002 Overflow Bottle Assy. (1 liter) 1
15 2-00-04602 Clamp 2
16 7-33-02644 Hose, 1/4” ID x 24” long (Clear) 1
17 7-33-02643 Hose, 1/4” ID x 36” long (Black) 1
18 2-95-04388 Clamp, Hose 2
C2191-1PP/6-04
MITSUBISHI S4L2 DIESEL ENGINE (COOLING SYSTEM)
American-Lincoln 2-67
MPV 60
C2191-1PP/6-04
MITSUBISHI S4L2 DIESEL ENGINE (COOLING SYSTEM)
2-68 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-08-02044 Bracket, Air Cleaner 1
2 7-33-02608 Hose, Air Intake 1
3 2-00-03404 Clamp 1
4 2-00-05042 Lock Washer, M10 Helical Spring 4
5 2-00-05958 Screw, M10 x 1.25 x 20mm HHC 4
6 2-00-03702 Washer, .625 x .281 x .063 6
7 2-00-00203 Screw, 1/4-20 x 1.50 Hex Head 4
8 2-00-02216 Clamp, Hose 3
9 7-13-07231 Band, Filter 1
10 7-24-04083 Filter Assy., Air Cleaner 1
11 7-24-04087 Filter Service Indicator (20” WC) 1
12 2-00-00641 Nut, 1/4-20 Fiber Insert 2
13 8-33-02398 Hose, Air Intake 1
C2191-2PP/6-04
MITSUBISHI S4L2 DIESEL ENGINE (AIR INTAKE SYSTEM)
American-Lincoln 2-69
MPV 60
C2191-2PP
MITSUBISHI S4L2 DIESEL ENGINE (AIR INTAKE SYSTEM)
2-70 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-08-02048 Bracket, Throttle 1
2 2-00-05041 Lock Washer, M8 Helical Spring 2
3 7-58-05335 Casting, Pump Plate 1
4 7-16-05044 Coupling, Engine 1
5 2-00-05963 Screw, M8 x 1.25 x 15mm 8.8 Blox HHC 10
6 2-00-05042 Lock Washer, M10 Helical Spring 8
7 2-00-05329 Bolt, .39 Dia. x 1.57 8
8 8-13-07094 Clamp, Conduit 1
9 2-00-04794 Screw, 10-24 x .63 BHS 2
10 2-00-00426 Flat Washer, .500 x .219 x .063 2
11 2-00-01246 Insert, 10-24 Thin Nylon 2
12 8-10-00033 Cable, Throttle (57”) 1
13 8-25-02036 Connector, Ball Joint 1
14 2-00-00626 Nut, 10-32 Hex 1
15 2-00-00633 Nut, 1/4-28 Fiber Insert 1
C2191-3PP/6-04
C2191-3PP
MITSUBISHI S4L2 DIESEL ENGINE (THROTTLE, PUMP PLATE)
American-Lincoln 2-71
MPV 60
REF. FRAME
REF. THROTTLE
CABLE (80”)
C
12
96
10
15
11
8
16
9
12
13
14
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00899 Bracket, Throttle 1
2 8-13-07094 Clamp, Conduit 1
3 8-92-00046 Block, Throttle Pivot 1
4 8-92-00045 Yoke, Throttle 1
5 8-66-00192 Rod, Throttle Control 1
6 7-39-00017 Knob, Solution Control 1
7 8-25-02036 Connector, Ball Joint 1
8 2-00-03702 Washer, .625 x .281 x .063 1
9 2-00-00203 Screw, 1/4-20 x 1.50 Hex Head 1
10 2-00-00641 Nut, 1/4-20 Fiber Insert 1
11 2-00-04876 Screw, 1/4-20 x .50 BHS 2
12 2-00-04563 Screw, 10-24 Shoulder 1
13 2-00-00626 Nut, 10-32 Hex 1
14 2-00-00049 Screw, 10-24 x .50 RHM 2
15 2-00-01246 Insert, 10-24 Thin Nylon 1
16 7-23-03048 Washer, Shakeproof Spring 1
C2196/6-04
THROTTLE CONTROL (DIESEL)
2-72 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-87-02120 Tube, Exhaust 1
2 7-49-00043 Muffler 1
3 7-13-07075 Clamp, Muffler (1.50) 1
4 8-87-02123 Tube, Exhaust 1
5 2-00-04040 Clamp, Muffler (1.25) 1
6 7-31-07033 Hanger, Muffler 1
C2191-5/2-04
C2191-5/2-04
MITSUBISHI S4L2 DIESEL ENGINE (EXHAUST SYSTEM)
American-Lincoln 2-73
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-24-04078 Filter, Diesel Fuel 1
2 2-00-00232 Bolt, 3/8-16 Fin. Hex Head 2
3 8-33-02145 Hose, Fuel (22”) 1
4 8-60-05028 Pump, Fuel 1
5 2-00-00205 Bolt, 1/4-20 Fin. Hex Head 2
6 2-00-03702 Washer, .625 x .281 x .063 2
7 2-00-00641 Nut, 1/4-20 Fiber Insert 2
8 8-33-02386 Hose, Fuel 1
9 8-33-02387 Hose, Fuel 1
10 2-95-04388 Clamp, Hose 6
11 8-08-00936 Bracket, Murphy 1
12 7-64-00040 Relay, Murphy 1
C2191-4PP/6-04
C2191-4PP
MITSUBISHI S4L2 DIESEL ENGINE (FUEL SYSTEM)
2-74 American-Lincoln
MPV 60
C2195
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-83-04029 Gas Tank 1
2 8-08-00791 Fuel Support Bracket 1
3 2-00-00221 Screw, 1/4-20 x .750 HHC 7
4 2-00-01676 Flat Washer, 1.062 x .265 x .062 2
5 2-00-05187 Carriage Bolt, 3/8-16 x 1.250 2
6 2-95-04182 Nut, Fiber Insert 2
7 2-00-03702 Washer, .625 x .281 x .063 5
8 7-11-00029 Cap 1
9 8-26-04003 Float/Sender 1
10 2-00-05261 Insert, 1/4-20 4
11 2-00-00518 Lock Washer, 1/4” 4
12 2-00-05973 Hose Barb, 1/8 NPT x 5/16 90° Elbow 2
13 2-00-00512 Star Washer 1
14 2-00-03829 Lock Washer, 3/8 Int./Ext. Tooth 1
C2195/6-04
FUEL TANK (GAS & DIESEL)
American-Lincoln 2-75
MPV 60
1
2
34
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00926 Bracket, EPM 1
2 8-08-00927 Bracket, Relay Box 1
3 0769-031 EPM w/Calibration (N. America) 1
4 0769-032 EPM w/Calibration (Export) 1
C2192/9-04
FORD 416EFI ENGINE COMPUTER RELAY BOX (GAS & LP)
2-76 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 0777-047 Engine, 416EFI Gas 1
0777-048 Engine, 416EFI LP 1
2 0777-058 Engine, 416EFI Gas (Export Only) 1
0777-059 Engine, 416EFI LP (Export Only) 1
3< 7-58-05338 Plate, Starter Ref
4< 7-33-05145 Housing, Pump Mount Ref
5< 7-16-05047 Coupling, Engine/Pump Ref
6 2-00-05963 Screw, M8 x 1.25 x 15mm 8.8 Blox HHC 6
7 7-08-01185 Bracket, Tube Support Front 1
8 7-08-01179 Bracket, Right Front Leg (Gas) 1
7-08-01255 Bracket, Right Front Leg (LP) 1
9 7-08-01182 Bracket, Cross 1
10 7-08-01180 Bracket, Left Front Leg (Gas) 1
7-08-01256 Bracket, Left Front Leg (LP) 1
11 7-08-01181 Bracket, Cross 1
12 7-08-01183 Bracket, Alternator 1
13< 0775-292 Alternator Assy. 1
14 7-03-04254 Arm, Alternator 1
15 7-08-01186 Bracket, Tube Support Back 1
16 2-00-05041 Lock Washer, M8 Helical Spring 7
17 2-00-00402 Washer, 25/64 ID x 3/4 OD 8
18 2-00-00209 Bolt, 3/8-16 x 1.25 Hex Head 4
19 2-95-04182 Nut, 3/8-16 Hex Stop 5
20 2-00-05042 Lock Washer, M10 Helical Spring 1
21 2-00-05922 Bolt, M10-1.5 x 30mm Hex Head 1
22 2-00-04363 Screw, M8 x 1.25 x 20mm 7
23 7-35-00017 Isolator, Engine Mount (Red Dot) 3
24 2-00-05067 Spacer, Snubbing Washer 5
25 2-00-00405 Flat Washer, 1.063 x .531 x .094 2
26 2-00-02618 Bolt, 1/2-13 x 3.5 Hex 1
27 2-00-04936 Nut, 1/2-13 Elastic Lock 3
28 8-90-07328 Wire (Ground to Frame) 1
29 2-00-00505 Locl Washer, 7/16 HS Med. 1
30 7-90-07281 Cable, Battery 1
31 2-00-02310 Lock Washer, 3/8 Helical Spring 1
32 2-00-00233 Bolt, 3/8-16 x 1.00 Fin. Hex Head 1
33 2-00-04816 Bolt, 1/2-13 x 4.0 Hex 2
34 2-00-05005 Screw, M10 x 1.5 x 30mm HHC 4
35< 0775-291 Starter Assy. 1
36 2-00-00205 Bolt, 1/4-20 Fin. Hex Head 2
37 2-00-00641 Nut, 1/4-20 Fiber Insert 2
<Comes with Engine Assy.
C2192-1/6-04
FORD 416EFI GAS & LP ENGINES (BRACKETS, ALTERNATOR, STARTER)
American-Lincoln 2-77
MPV 60
C2192-1
FORD 416EFI GAS & LP ENGINES (BRACKETS, ALTERNATOR, STARTER)
2-78 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-35-00017 Isolator, Engine Mount (Red Dot) 2
2 2-00-05067 Spacer, Snubbing Washer 4
3 2-00-02617 Screw, 1/2-13 x 3.5 2
4 7-62-01008 Radiator 1
5 7-35-00028 Isolator, M8-1.25, 32 x 32 1
6 7-33-02610 Hose, Front, 25 ID, 20R4, 23000072T 1
7 7-87-02930 Connector, 410.0 x 25.40 dia. Straight 2
8 7-33-02612 Hose, Back, 27 ID, 20R4, 23000057T 1
9 7-33-02609 Hose, Front, 25 ID, 20R4, 23000072B 1
10 7-33-02611 Hose, Back, 27 ID, 20R4, 23000057B 1
11 7-08-01184 Support, Upper 1
12 2-00-02220 Clamp, Hose 6
13 2-00-03404 Clamp 3
14 2-00-03702 Washer, .625 x .281 x .063 1
15 2-00-00219 Bolt, 1/4-20 Fin. Hex Head 1
16 2-00-05041 Lock Washer, M8 Helical Spring 2
17 2-00-05963 Screw, M8 x 1.25 x 15mm 8.8 Blox HHC 1
18 2-00-05964 Nut, M8 x 1.25 1
19 7-07-02002 Overlow Bottle Assy. (1 liter) 1
20 2-00-05956 Plug, Radiator Outlet 1
21 2-00-04602 Clamp 2
22 7-33-02644 Hose, 1/4” ID x 24” long (Clear) 1
23 7-33-02655 Hose, Vent (Radiator to Engine) 1
24 2-95-04388 Clamp, Hose 4
25 7-29-00192 Gasket, Oil Cooler 4
26 8-13-07088 Clip 2
27 2-00-02589 Bolt, 1/4-20 x 2.0 Fin. Hex Head 2
28 2-00-00641 Nut, 1/4-20 Fiber Insert 2
29 7-33-02643 Hose, 1/4” ID x 36” long (Black) 1
C2192-4PP/6-04
FORD 416EFI GAS ENGINE - COOLING SYSTEM
American-Lincoln 2-79
MPV 60
FORD 416EFI GAS ENGINE - COOLING SYSTEM
2-80 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-08-02051 Bracket, Air Cleaner 1
2 2-00-05042 Lock Washer, M10 Helical Spring 2
3 2-00-05329 Bolt, .39 dia. x 1.57 2
4 7-13-07231 Band, Filter 1
5 7-24-04083 Filter Assy., Air Cleaner 1
6 8-33-02398 Hose, Air Intake 1
7<~ 7-11-04037 Catalytic Converter 1
8< 7-87-02223 Tube, Exhaust 1
9< 7-87-02222 Tube, Exhaust 1
10< 7-49-00041 Muffler 1
11 7-33-02607 Hose, Air Intake 1
12 2-00-02216 Clamp, Hose 4
13 7-58-05340 Plate, Exhaust Flange 1
14 2-00-05970 Clamp, Muffler, 2” 2
15 2-00-04040 Clamp, Muffler, 1.25” 2
16 2-00-00409 Flat Washer, .687 x .344 x .062 2
17 2-00-00207 Screw, 5/16-18 x 1.25 Hex Head 2
18 2-00-00644 Nut, 5/16-18 Fiber Insert Hex 2
19< 8-87-02122 Tube, Exhaust 1
20 7-31-07033 Hanger, Muffler 1
21 2-00-04400 Clamp 1
22 2-95-02519 Nipple, 1/8 NPT Closed 1
23 7-24-04087 Filter Service Indicator (20” WC) 1
24* 8-87-02124 Tube, Exhaust 1
25* 7-49-00031 Muffler 1
26 2-00-06090 Plug, 18mm x 1.5 1
<North American Only
*Export Only
~Comes with Engine Assy.
C2192-2PP/7-04
FORD 416EFI GAS ENGINE - AIR INTAKE & EXHAUST SYSTEMS
American-Lincoln 2-81
MPV 60
C2192-2PP
FORD 416EFI GAS ENGINE - AIR INTAKE & EXHAUST SYSTEMS
2-82 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-08-01188 Bracket, Fuel Filter 1
2 7-08-01187 Bracket, Fuel Pump 2
3 0769-030 Pump, Fuel 1
4 7-24-04067 Filter, Fuel 1
5 2-00-00205 Bolt, 1/4-20 Fin. Hex Head 2
6 2-00-03702 Washer, .625 x .281 x .063 2
7 2-00-00641 Nut, 1/4-20 Fiber Insert 2
8 8-33-02386 Hose, Fuel 1
9 2-95-04388 Clamp, Hose 4
10 8-33-02388 Hose, Fuel 1
11 8-33-02389 Hose, Fuel 1
C2192-3/2-04
FORD 416EFI GAS ENGINE - FUEL SYSTEM
American-Lincoln 2-83
MPV 60
C2192-3/2-04
FORD 416EFI GAS ENGINE - FUEL SYSTEM
2-84 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00944 Bracket, LP Regulator 1
2<~ 7-11-04043 LP Regulator Ref
3 2-00-05972 Fitting, 3/8 NPT x 5/8 90° Hose 2
4 2-00-05674 Fitting, 1/4 NPT Hex Nipple (Brass) 1
5<~ 7-88-00110 Valve, LP Safety Ref
6 2-00-05678 Fitting, 1/4 NPT 90° Street Elbow Brass 1
7 2-00-05942 Fitting, 1/4 NPT x 1/8 NPT x 3/8 JIC TEE 1
8 8-82-00046 Switch, Oil Pressure 1
9<~ 7-11-04052 Megajector Ref
10 8-33-02390 Hose, 5/8 ID Heater (55”) 1
11 8-33-02391 Hose, 5/8 ID Heater (54”) 1
12< 8-33-02392 Hose, 3/4” ID x 15.6” LP Low Pressure 1
13< 8-33-02393 Hose, 5/8” ID x 34.8” LP Low Pressure 1
14< 8-33-02394 Hose, 1/4” ID x 45” LP Low Pressure 1
15< 2-00-00518 Lock Washer, 1/4 Helical Spring 4
16 2-00-00219 Bolt, 1/4-20 Fin. Hex Head 4
17 2-00-00519 Lock Washer, #10-24 Helical Spring 2
18 2-00-00049 Screw, 10-24 x .50 RHM 2
19 2-00-03407 Clamp, Wittek #10P Hose 4
20 2-95-04388 Clamp, Hose 4
21~ 7-33-02654 Hose, LP High Pressure (19.25”) Ref
22*~ 7-11-04046 LP Regulator Ref
23* 8-33-02402 Hose, 5/8” ID LP Low Pressure (36”) 1
24* 7-33-02647 Hose, 1/4” ID Vapor (44”) 1
25* 2-00-06085 Fitting, 3/8 NPT x 5/8 Hose 90° Elbow 1
26 2-00-06000 Fitting, 1/2 NPT x 3/4 Barb Str. 1
27* 2-00-06087 Fitting, 1/2 NPT x Hose Barb 90° Elbow 1
28*~ F48 Fitting, 1/8 NPT x 1/4 Hose 90° Elbow Ref
< North America Only *EX Models Only ~Comes w/Engine Assembly
C2192-6G/9-04
FORD 416EFI LP ENGINE - FUEL SYSTEM (N. AMERICA & “EX” MODELS)
American-Lincoln 2-85
MPV 60
C2192-6G
FORD 416EFI LP ENGINE - FUEL SYSTEM (N. AMERICA & “EX” MODELS)
2-86 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00944 Bracket, LP Regulator 1
2 2-00-05972 Fitting, 3/8 NPT x 5/8 90° Hose 2
3 2-00-05674 Fitting, 1/4 NPT Hex Nipple (Brass) 1
4 8-33-02390 Hose, 5/8” ID Heater (55”) 1
5 8-33-02391 Hose, 5/8” ID Heater (54”) 1
6 2-95-04388 Clamp, Hose 4
7< 2-00-06093 Fitting, 1/4 NPT 3-way Bulkhead Ref
8< 7-11-04046 LP Regulator Ref
9 7-88-00117 Valve Kit, LP Safety Ref
10< 2-00-04787 Fitting, 1/8 NPT x 1/4 Hose Barb 90° Elbow1
11 7-33-02647 Hose, 1/4” ID Vapor (44”) 1
12 2-00-06099 Fitting, 3/8 Tube x 1/4 NPT 90° Elbow (SS) 2
13 8-87-02126 Tubing, LP High Pressure 1
14< 2-00-06087 Fitting, 1/2 NPT x 5/8 90° Hose 1
15 7-33-02677 Hose, 5/8 ID LP Low Pressure (36”) 1
16 2-00-00208 Screw, 5/16-18 x .75 HHC 2
17 2-00-00644 Nut, 5/16-18 Fiber Insert Hex 2
18 2-00-06107 Relay, Lektron Safety 1
19 2-00-06085 Fitting, 3/8 NPT x 5/8 90° Elbow Hose 1
20 2-00-03407 Clamp, Wittek #10P Hose 4
21 7-33-02652 Hose, LP (34”) 1
22< 2-00-05997 Fitting, 3/8 Hose Barb x 1/8 NPT Ref
23 2-00-05281 Plug, Fuel Gauge 1
24 2-00-05363 Clamp, Hose 2
<Comes w/Engine Assembly
C2217G/9-04
FORD 416EFI LP ENGINE - FUEL SYSTEM (“CE” MODELS)
American-Lincoln 2-87
MPV 60

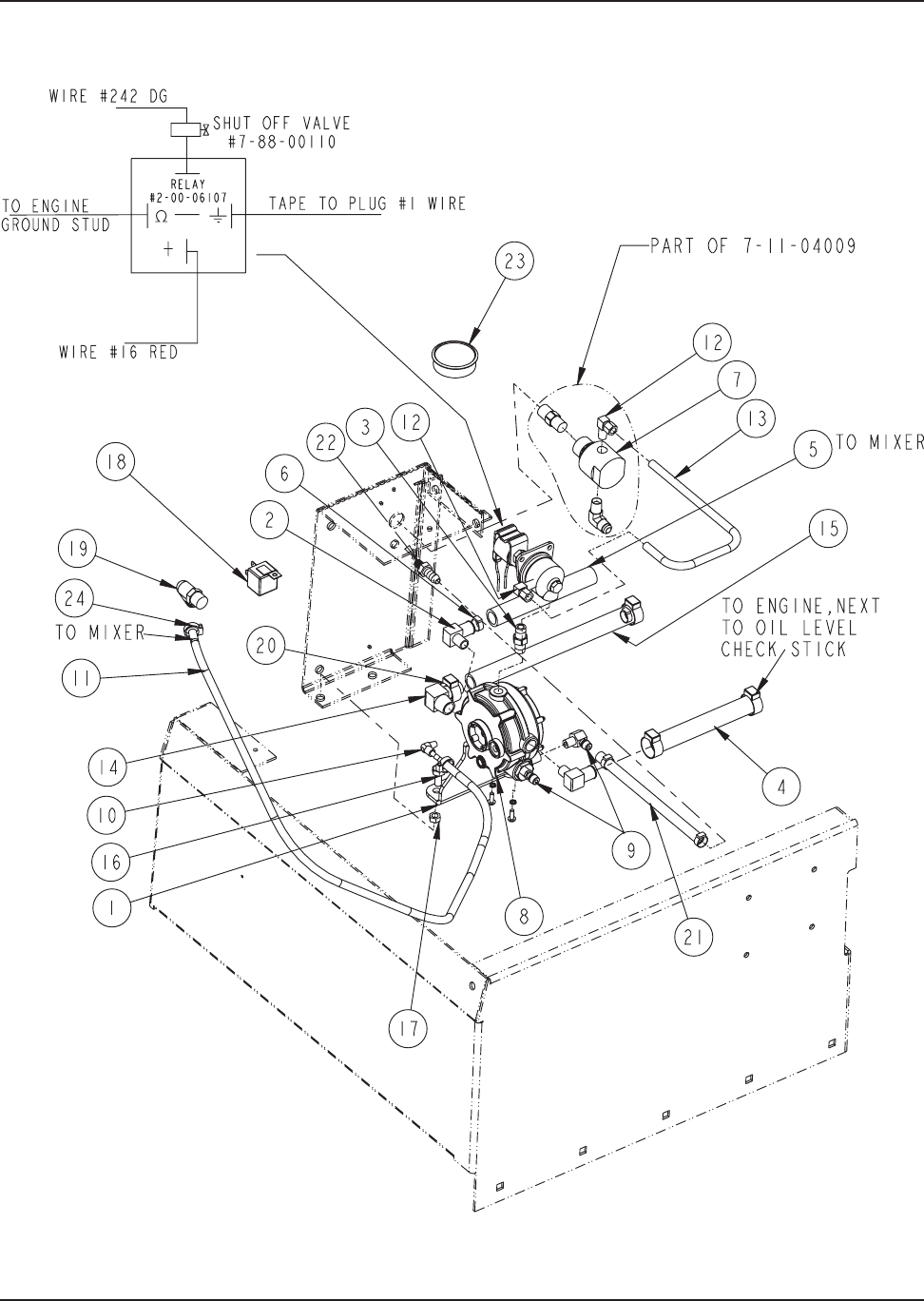

C2217G
2-88 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00813 Bracket, LP Tank 1
2 8-43-05005 Pin, LP Tank Locate 1
3 8-83-04016 LP Tank 1
4 8-30-05171 Guard, LP Tank 1
5 7-11-04035 Kit, Low LP Indicator 1
6 2-00-00233 Bolt, 3/8-18 x 1.00 Fin. Hex Head 4
7 2-95-04182 Nut, 3/8-16 Hex Stop 4
8 2-00-00196 Carriage Bolt, .31-18 x 1.00 6
9 2-00-00409 Flat Washer, .687 x .344 x .062 2
10 2-00-00644 Nut, 5/16-18 Insert Fiber Hex 6
11 2-00-05283 Plug Button 1
C2192-7/2-04
LP TANK
American-Lincoln 2-89
MPV 60
C2192-7/2-04
LP TANK
2-90 American-Lincoln
MPV 60
FORD 416EFI LP ENGINE - AIR INTAKE & EXHAUST SYSTEMS
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-08-02051 Bracket, Air Cleaner 1
2 2-00-05042 Lock Washer, M10 Helical Spring 2
3 2-00-05329 Bolt, .39 dia. x 1.57 2
4 7-13-07231 Band, Filter 1
5 7-24-04083 Filter Assy., Air Cleaner 1
6 8-33-02398 Hose, Air Intake 1
7<~ 7-11-04037 Catalytic Converter 1
8< 7-87-02223 Tube, Exhaust 1
9< 7-87-02222 Tube, Exhaust 1
10< 7-49-00041 Muffler 1
11 2-00-02216 Clamp, Hose 4
12 7-58-05340 Plate, Exhaust Flange 1
13 2-00-05970 Clamp, Muffler, 2” 2
14 2-00-04040 Clamp, Muffler, 1.25” 2
15 2-00-00409 Flat Washer, .687 x .344 x .062 2
16 2-00-00207 Screw, 5/16-18 x 1.25 Hex Head 2
17 2-00-00644 Nut, 5/16-18 Fiber Insert Hex 2
18< 8-87-02122 Tube, Exhaust 1
19 7-31-07033 Hanger, Muffler 1
20 2-00-04400 Clamp 1
21 8-33-02395 Hose, Air Intake 1
22 2-95-02519 Nipple, 1/8 NPT Closed 1
23 7-24-04087 Filter Service Indicator (20” WC) 1
24* 8-87-02124 Tube, Exhaust 1
25* 7-49-00031 Muffler 1
26 2-00-06090 Plug, 18mm x 1.5 1
<North American Only
*Export Only
~Comes with Engine Assy.
C2192-5/7-04
American-Lincoln 2-91
MPV 60
C2192-5/7-04
FORD 416EFI LP ENGINE - AIR INTAKE & EXHAUST SYSTEMS
2-92 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 7-35-00017 Isolator, Engine Mount (Red Dot) 2
2 2-00-05067 Spacer, Snubbing Washer 4
3 2-00-02617 Screw, 1/2-13 x 3.5 2
4 7-62-01008 Radiator 1
5 7-35-00028 Isolator, M8-1.25, 32 x 32 1
6 7-33-02610 Hose, Front, 25 ID, 20R4, 23000072T 1
7 7-87-02930 Connector, 410.0 x 25.40 dia. Straight 2
8 7-33-02612 Hose, Back, 27 ID, 20R4, 23000057T 1
9 7-33-02609 Hose, Front, 25 ID, 20R4, 23000072B 1
10 7-33-02611 Hose, Back, 27 ID, 20R4, 23000057B 1
11 7-08-01184 Support, Upper 1
12 2-00-02220 Clamp, Hose 6
13 2-00-03404 Clamp 3
14 2-00-03702 Washer, .625 x .281 x .063 1
15 2-00-00220 Bolt, 1/4-20 Fin. Hex Head 1
16 2-00-05041 Lock Washer, M8 Helical Spring 2
17 2-00-05963 Screw, M8 x 1.25 x 15mm 8.8 Blox HHC 1
18 2-00-05964 Nut, M8 x 1.25 1
19 7-07-02002 Overlow Bottle Assy. (1 liter) 1
20 2-00-05956 Plug, Radiator Outlet 1
21 2-00-00232 Bolt, 3/8-16 x .75 HHC 2
22 2-95-04182 Nut, 3/8-16 Hex Stop 2
23 2-00-04602 Clamp 2
24 7-33-02644 Hose, 1/4” ID x 24” long (Clear) 1
25 7-33-02655 Hose, Vent (Radiator to Engine) 1
26 2-95-04388 Clamp, Hose 4
27 7-29-00192 Gasket, Oil Cooler 4
28 8-13-07088 Clip 2
29 2-00-02589 Bolt, 1/4-20 Fin. Hex Head 2
30 2-00-00641 Nut, 1/4-20 Fiber Insert 2
31 7-33-02643 Hose, 1/4” ID x 36” long (Black) 1
C2192-4PP/6-04
FORD 416EFI LP ENGINE - COOLING SYSTEM
American-Lincoln 2-93
MPV 60
C2192-4PP
FORD 416EFI LP ENGINE - COOLING SYSTEM
2-94 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-79-00030 Static Strap 1
2 0880-593 Back-up Alarm (see Options) 1
3 8-41-05087 Latch (placement shown) 1
4 8-50-00016 CE Serial Plate (see decals) 1
5 7-41-05099 Brake Handle (replaces 7-41-05083) 1
6 8-31-06090 Latch Key 2
7 2-00-01246 Insert, #10-24 Thin Nylon 2
8 2-00-00426 Flat Washer, .500 x .219 x .063 2
9 2-00-03062 Screw, #10-24 x.063 THM 2
10 2-00-02310 Lock Washer, Helical Spring 2
11 2-00-02360 Nut, .38-16 Fin. Hex 1
12 2-00-00233 Screw, .375 x 1.00 1
13 2-00-00402 Flat Washer, .375 x .391 x .093 1
14 2-00-03829 Lock Washer, Int./Ext/ Tooth 1
CE KIT/2-04
CE KIT
American-Lincoln 2-95
MPV 60

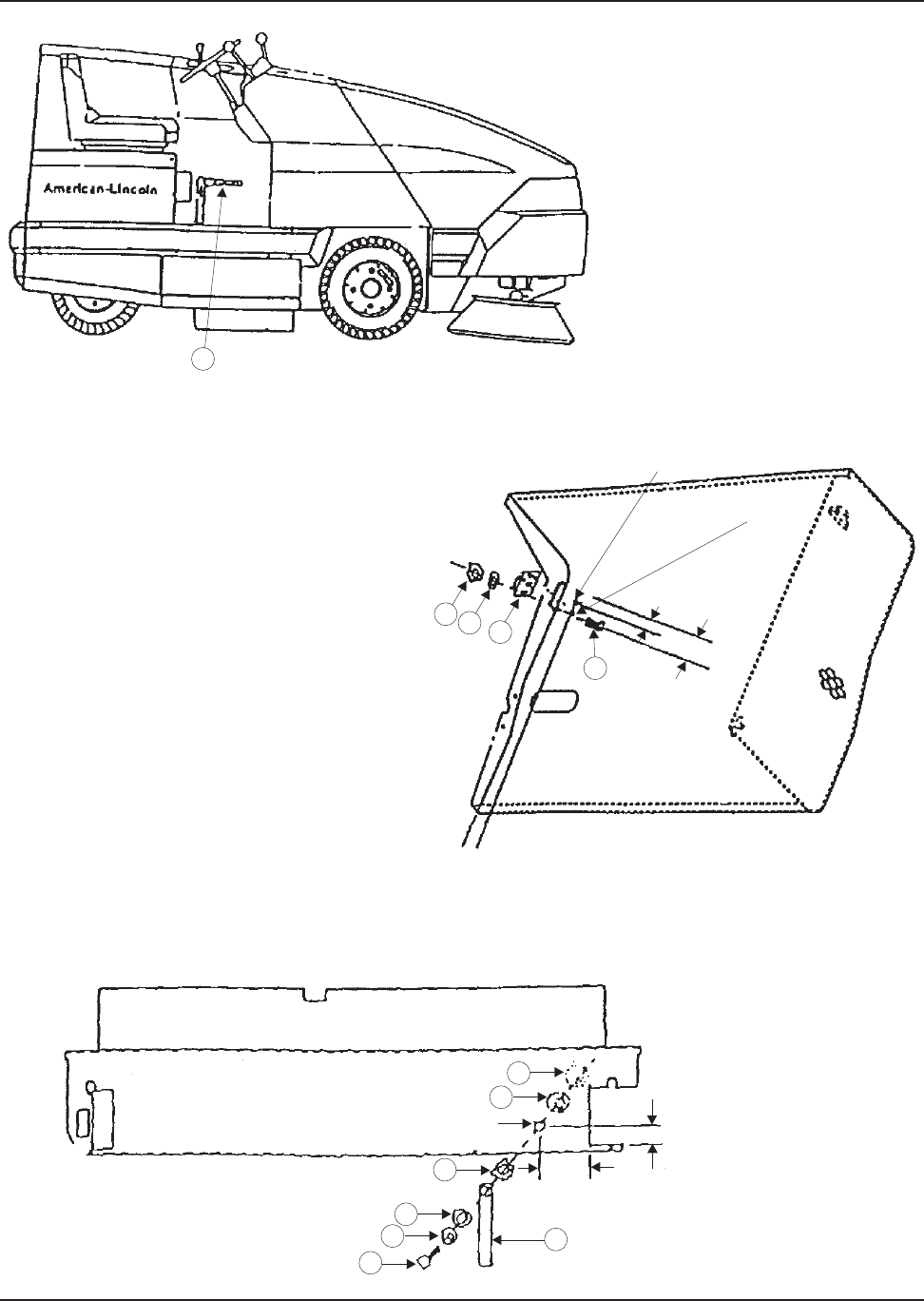

1
NOTE 1: POSITION HOLES WHERE LATCH
CATCHES & HOLDS LENTEL BY AS
MUCH AS POSSIBLE BUT NO LESS
THAN 3/16”.
6
5
10
10
11
12
13
14
78
9
BROOM CHAMBER
.406 dia.
4.00 2.00
.93
1.86
.201 dia. (2 places)
.468 dia.
SEE NOTE 1
FOR PLACEMENT
2-96 American-Lincoln
MPV 60
KEY NO. PART NUMBER DESCRIPTION QTY.
1*< REF ATF/Dextron Fluid Only 1
2 8-18-00490 Bi-Directional Pedal/horizontal 1
3~ 8-18-00487 Blank Square-Option Covers 1
4< REF Gasoline Only 1
REF Diesel Fuel Only 1
5*< REF Do Not Use with Flammables 1
6*< REF Exhaust Warning (G, LP, D) 1
7*< REF Fire Hazard-Fuel Could Explode (G, D) 1
8< REF Moving Belts-Stay Clear (G, LP, D) 1
9< REF Moving Fan Blade-Stay Clear (G, LP, D) 1
10 8-18-00505 Throttle Lever (D) 1
11*< REF Patent/Patents Pending 1
12< REF Read Operator’s Manual 1
13< REF Surface Hot-Stay Clear (G, LP, D) 1
14*< REF Turn Off-Lock Wheel 1
15< REF Cover/Hopper Could Close 3
16*< REF Split Rim (pneumatic tires) 3
17< REF Pinch Point-Stay Clear 6
18 8-18-00549 A-L Technology-small (Export Only) 1
19 8-18-00525 American-Lincoln (medium) 1
8-18-00528 Alto (Export Only) 1
20 8-18-00524 American-Lincoln (small) 2
8-18-00548 A-L Technology-large (Export Only) 1
21 8-18-00529 MPV- 60 1
22 REF Serial Plate 1
23 7-50-05136 Non-Skid 3
24 8-50-05055 Non-Skid 1
25 2-00-04115 Rivets 2
26 8-18-00552 Check Engine (G, LP) 1
G=Gas LP=Liquid Petroleum D=Diesel
<English Text Warning and MPV-60 No-text Warning decals contained in kIt: 0760-859
*ALL WARNING/SAFETY DECALS with TEXT SOLD IN A KIT BY LANGUAGE:
DANISH 0760-850 ITALIAN 0760-851
DUTCH 0760-849 FRENCH 0760-847
NORWEGIAN 0760-852 SPANISH 0760-846
SWEDISH 0760-853 PORTUGUESE 0760-854
GERMAN 0760-848
~Can be ordered separately, but is included in 0760-859
C1440A/4-04
DECALS - PARTS LIST
American-Lincoln 2-97
MPV 60
17
15
13 1
17
19 18
20
21 15
4
12
14
3
17
15
21
20
11 22
25
5
10 26
16
698
23 24
17
2
7
DECALS - EXPLODED VIEW
2-98 American-Lincoln
MPV 60
TOTAL STEEL PACKAGE - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-07063 Bumper, Front 1
2 8-16-07378 Side Cover (LH) 1
3 8-16-07377 Side Cover (RH) 1
4 8-08-00850 Bracket (RH) 1
5 8-08-00851 Bracket (LH) 1
6 8-16-07402 Front Cover 1
7 8-16-07401 Top Cover 1
8 8-08-00852 Bracket, Bumper Guide (RH) 1
9 8-08-00853 Bracket, Bumper Guide (LH) 1
10 8-66-05013 Roller Bumper 2
11 8-70-05304 Pin, Roller Bumper 2
12 2-00-02444 Roll Pin, 3/16 x 1.750 2
13 2-00-02436 Cotter Pin 2
14 2-95-04182 Nut, Fiber 12
15 7-23-03092 Washer 4
16 8-31-06078 Handle 1
17 8-29-00240 Gasket 1
18
19 8-29-00278 Gasket 1
20 8-29-00279 Gasket 1
21 8-10-00027 Cable 1
22 8-08-00886 Bracket-Latch 2
23 8-41-00040 Latch, Top Cover 3
24 8-79-00098 Strap, Handle 1
25 8-05-07091 Latch Bar 2
HARDWARE USED:
H10 2-00-00519 Lock Washer, # 10 Med. HS 2
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 2
H17 2-00-00205 Screw, 1/4-20 x 1.000 HHC 8
H22 2-00-02589 Screw, 1/4-20 x 2.000 HHC 2
H25 2-00-00594 Nut, Hex 1/4-20 x .437 x .218 4
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 8
H27 2-00-03702 Washer, .625 x .281 x .063 4
H48 2-00-00233 Screw, 3/8-16 x 1.000 HHC 12
H49 2-00-00209 Screw, 3/8-16 x 1.250 HHC 4
H52 2-00-00402 Flat Washer, .750 x .390 x .094 4
H53 2-00-02310 Lock Washer, Helical Spring 3/8 Med. 4
H115 2-00-03063 Screw, #10-24 x .750 THM 2
H126 2-00-03466 Screw, #10-16 x .500 2
H189 2-00-00460 Flat Washer, .437 x .192 x .031-s 2
H225 2-00-04851 Washer, Engine Mount 16
C-1167/9901
American-Lincoln 2-99
MPV 60
2
5
6
16
24 22
H10 H115
H126 14
25 12 11 13
H225
14
23
H12 H189
H48
H48
10
H225
H53
1
14 4
20
H27
89
19
H52
H49
H26
H26
H17
15
H25
21
H22
H17
17
H26
3
23 7
C1167/9901
TOTAL STEEL PACKAGE - EXPLODED VIEW
2-100 American-Lincoln
MPV 60
HYDRAULIC HOSE DIAGRAM - PARTS LIST
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-33-02343 Hose, #12 x 45.0" 0-45-ORS 1
2 8-33-02344 Hose, #8 x 55.0" 0-0-ORS 2
3 8-33-02173 Hose, #4 x 80.0” 0-0-ORS
4 8-33-02214 Hose, #8 x 29.0" 0-0-ORS 1
5 8-33-02326 Hose, #8 x 34.5" 0-0-ORS 1
6 8-33-02185 Hose, #4 x 56.0" 0-0-ORS 1
7 8-33-02189 Hose, #4 x 66.0" 0-0-ORS 1
8 7-33-02193 Hose, #4 x 49.0" 0-0-ORS 1
9 8-33-02182 Hose, #4 x 42.5" 0-0-ORS 1
10 8-33-02401 Hose, #12 x 41.0" 0-90-ORS 1
11 8-33-02372 Hose, #12 x 64.0" 0-90-ORS 1
12 8-33-02323 Hose, #8 x 55.0" 0-90-ORS 1
13 8-33-02329 Hose, #4 x 30.0" 0-90-ORS 1
14 8-33-02324 Hose, #8 x 72.0" 0-0-ORS 1
15 8-33-02325 Hose, #8 x 65.0" 0-0-ORS 1
16 8-33-02328 Hose, #4 x 78.5" 0-90-ORS 1
17 8-33-02327 Hose, #8 x 64.0" 0-0-ORS 2
18 7-33-02206 Hose, #8 x 14.25" 0-90-ORS 1
19 7-33-02189 Hose, #4 x 26.0" 0-90-ORS 4
20 8-33-02175 Hose, #4 x 21.0" 0-0-ORS 1
21 7-33-02193 Hose, #4 x49.0" 0-90-ORS 1
22 8-33-02176 Hose, #4 x 21.0" 0-90-ORS 1
23 8-33-02199 Hose, #4 x 24.5” 0-90-ORS 1
24 7-33-02546 Hose, #8 x 42.0” 0-0-ORS 1
25 7-33-02191 Hose, #4 x 42.0” 0-90-ORS 1
26 2-00-04930 Fitting, #4 Union Tee 1
NOTE: Hoses are part of Kit 0860-625
C1408F/7-04
American-Lincoln 2-101
MPV 60
HYDRAULIC HOSE DIAGRAM - EXPLODED VIEW
C1408ecp/2-04
2-102 American-Lincoln
MPV 60
NOTES
A
BC
T
MB
C2
1
CHECK
VALV E
BLOCK
1500 PSI
STEERING
CYLINDER
STEERING
CONTROL UNIT
4.88 CIR
WHEEL MOTOR
19 CIR
T
L
R
P
MPV-60 HYDRAULIC SCHEMATIC (GAS/LP/DIESEL)
AMERICAN-LINCOLN 2-103
MPV-60
MPV-60 MACHINE HARNESS ROUTING DIAGRAM (GAS/LP/DIESEL)
AMERICAN-LINCOLN 2-104
MPV-60
--
--
--
A
A
B
B
C
C
D
D
H
H
(NO)
(C)
SHAKER
RT.
HEAD
LIGHT
MOTOR
FAN
SOL.
TIE HARNESS
TO HYD.HOSES
TIE HARNESS
TO HYD.HOSES
LT, HEAD
LIGHT
HORN
SWITCH
HOPPER
SWITCH
HOPPER DOOR
SWITCH
CLOGGED FILTER
SWITCH
HORN
ITEM
11
1
0895-128
8-90-07455
7-13-07096
HARN.-BODY
WIRE
CLAMP
2
3
3
QTY. PART NO. DESCRIPTION
FUEL
TANK
3
1
3
3
2
35 7T
JUMPER
HARNESS
Engine connector
Metripack GT
15326917
Anderson
7-10-12
1-10-12
Power CONNECTOR
ANDERSON POWER POLE CAT #992
Anderson Power pole 5915 Terminal
2424 1313
2727 2525
99
2626 PLGPLG 4141
3232
PLGPLG1414
4040
1212
GGFFEEDDCCBBAA
PP
NN
MMLLKKJJHH
PLGPLG
MIL LIGHT
Gas & LPG only
Part of Ford 416 EFI
Engine Harness
FORD #E1565000
14 pin
connector
14 pin
connector
REAR FACE OF MEGAEJECTOR
5Neg
PN 5-20079 1
P t f 16EFIar o 4
au l atch
H rnessF e P
Ford Harness
F8JL-9A350-AB
Included with
Engine Ass’y
GAS FUEL PUMP
MEGA-EJECTOR
(LPG ONLY)
FUEL PUMP
(gas or diesel)
TO ENGINE
HARNESS
LPG FUEL CONTROLS
(SEE DETAIL BELOW)
EPMEPM
3
if Gas
if LPG
Engine
Relay
Box
(SEE DETAIL)
Diesel
fuel pump
H
Part of Mitsubishi
Engine Harness
EPM
35-PIN CONNECTORS
PART OF FORD ENGINE HARNESS
FORD #E1338100
(EPM is on GAS & LPG ONLY)
LOW PRESSURE
SWITCH
LPG LOCKOUT
SOLENOID
Neg M
(C) (NC)
Neg
PN 0795-201
Part of 416 EFI
Fuel Patch Harness
xxxxxxxxxxxx
LP REGULATOR
LPG FUEL CONTROLSLPG FUEL CONTROLS
xxx xxxxxxxxx
to FORD ENGINE
HARNESS
P/N 0895-133
MPV-60 MACHINE HARNESS CONNECTION DIAGRAM (GAS/LP/DIESEL)
AMERICAN-LINCOLN 2-105
MPV-60
--
--
--
A
A
B
B
C
C
D
D
H
H
22
8
8A
7R
16
(C)
(NC)
7V
15
(NO)
(C)
30J
30L
11G
30A
7P
19
2134
11G 11H
SHAKER
RT.
HEAD
LIGHT
MOTOR
FAN
SOL.
FAN
SOL.
DIODE ASSY.
0875-117
TIE HARNESS TO
HYDRAULIC HOSES
(WIRES 6 &7U)
8-90-07433
SHAKER
MOTOR
LT, HEAD
LIGHT
HORN
SWITCH
HOPPER
SWITCH
HOPPER DOOR
SWITCH
CLOGGED FILTER
SWITCH FUEL
TANK
SEE INST. PANEL
CONNECTION DRWG.
21 34
35 7T
JUMPER
JUMPER
8-90-07455
HARNESS
Engine connector
Metripack GT
15326917
2424 1313
2727 2525
99
2626 PLGPLG 4141
3232
PLGPLG1414
4040
1212
GGFFEEDDCCBBAA
PP
NN
MMLLKKJJHH
Anderson
7-10-12
1-10-12
Power CONNECTOR
ANDERSON POWER POLE CAT #992
Anderson Power pole 5915 Terminal
PLGPLG
27
40
MIL LIGHT
Gas & LPG Only
FUEL PUMP
(gas or diesel)
TO ENGINE
HARNESS
LPG FUEL
CONTROLS
(see detail)
MEGAJECTOR
(LPG ONLY)
(see detail)
8A HORN
EPMEPM
LOW PRESSURE
SWITCH
LPG LOCKOUT
SOLENOID
Neg M
(C) (NC)
Neg
PN 0795-201
Part of 416 EFI
Fuel Patch Harness
x xxxxxxxxx xx
LP REGULATOR
LPG FUEL CONTROLSLPG FUEL CONTROLS
xxxxxxxxxxxx
to FORD ENGINE
HARNESS
P/N 0895-133
Part of Ford 416 EFI
Engine Harness
FORD #E1565000
14 pin
connector
14 pin
connector
REAR FACE OF MEGAEJECTOR
5Neg
PN 5-20079 1
P t f 16EFIar o 4
ul atch
HarnessF e P
Ford Harness
F8JL-9A350-AB
Included with
Engine Ass’y
GAS FUEL PUMP
Diesel
fuel pump
H
Part of Mitsubishi
Engine Harness
EPM
35-PIN CONNECTORS
PART OF FORD ENGINE HARNESS
FORD #E1338100
(EPM is on GAS & LPG ONLY)
Engine
Relay
Box
(SEE DETAIL)
MPV-60
AMERICAN-LINCOLN 2-106
FORD 416 ENGINE HARNESS FRAME SIDE CONNECTIONS DIAGRAM
MPV-60
AMERICAN-LINCOLN 2-107
MITSUBISHI S4L2 DIESEL ENGINE HARNESS FRAME SIDE CONNECTIONS
MPV-60 INSTRUMENT PANEL CONNECTION DIAGRAM (GAS/LP/DIESEL)
AMERICAN-LINCOLN 2-108
MPV-60
87
14
25
36
87
14
25
36
87
14
25
36
1236
86 85
30
87A
87
86 85
30
87A
87
87
14
25
36
87
14
25
36
87
14
25
36
22
11 -
+
30
23
10
14
16
11
11
11
15
11
33
24
19 19
1
3
4
2
10 28 28
32
32
Neg
Neg
Neg
Neg
Neg
Neg
Neg Neg
28 11 10 985
CB1CB2CB3CB4
CB5
CB6CB7CB8
CB7
4
1
1
4
47
143211
31 30
11
6
17 17
21
520
18 17
20 18
34
34
25
13
12
11
S
Batt
IGN
ACC
ST
G
I
L
Fuel Gauge
Gas & Diesel only
Same wire: re - terminate
with 2-00-03418
For LPG light
Same wire
IC & Diesel Only:
Throttle Sw Dust Ctl Sw
Hopper temp
Option Only
Shaker Sw Glow Plug Sw
Diesel only
Work Light Sw Head Light Sw
11
41
Low LPG Light
LPG only
-
+
Neg
Volt Meter
Battery only
NEG
ONLY ON
6150 with
2cyl KAWASAKI 6150B only
Not used on
6150B only
Not used on
6150B only
All MPV & 6150IC
NOT USED ON
6150 with
2cyl KAWASAKI
12Ga wire added (Tape up wire 4)
6150 Battery Version ONLY
Use 25A CB 7-94-00025
For 6150 Battery Only
Wire 4 Not Used on 6150 Battery
6150 Battery Only
Remove spade terminal from
12Ga wire 47
& add Insulated Ring Terminal 2-00-04284
10
ELECTRICAL SCHEMATIC - GAS, LP DIESEL
American-Lincoln 2-109
MPV-60
M5
M1
BATTERY
STARTER MOTOR
M1
MTR.
6
5
5
1
M2
CB -1
15 AMP.
30 87
SHAKER MTR.
849
1
CB -2 HORN SW.
HORN
15 AMP.
2
3
4
10
1CB -3
CB 4
CB -5
BAT. 9
11
30
1
4
28
18
19 20
20
11
11K 33
21
34
34
7R
22
7H,7K
31
30
M7
FAN SOLENOID
HOP. TEMP LT.
HOP. TEMP.SW.
OPENS AT 140F
FUEL GUAGE LIGHT
M4
M7
(I) (S)
FG
87A
87A
30
30
FUEL GUAGE SENDER
SHAKER
MTR.SW.
DUST CTR
WSB.
SW.
WORK LIGHT
OPTION
LT. HEAD LIGHT
LIGHT
SW.
HOPPER SW.
MPV only
19 spliced to 11 in 6150 machine harness
(HELD CLOSED)
C
R
A
B
C
E
F
G
H
J
K
L
M
N
P
D
IGNITION POWER
SPEED SELECT INPUT 1
SPEED SELECT INPUT 2
WATER TEMP SW SIGNAL
OIL PRESSURE SW SIGNAL
NOT USED
HOUR METER POWER
NOT USED
NOT USED
Ground used on 6150 2cyl only
DIESEL GLOW PLUG RELAY
START/CRANK POWER
LOW LP SW SIGNAL
ALTERNATOR LIGHT SIGNAL
CHECK ENGINE (MIL) LIGHT SIGNAL
MPV-60 ONLY
MPV-60 ONLY
MPV-60 ONLY
ENGINE HARNESS CONNECTOR
24
10
25
ENGINE
SPEED
SW.
IDLE
SLOW
FAST
29
25
10
9
9
12
13
14
RR
RR
RR
41
RR
RR40
32
23
32
GP- SW.
17
17
17
15
17
Neg
11
18
M4
M2
TD-1
16
7
2
3
86
86
85
85
FAN RELAY
SHAKER MTR. RELAY
TIMED
SHAKER
MTR.(20 SEC.) Neg
Neg
Neg
11
11
HOPPER TEMP OPTION.
7P
7S
7R
30
LT. HEAD LIGHT
RT. HEAD LIGHT
TAIL LIGHT
GRN.
SIDE BROOM LIGHT
28
WORK LIGHT SW.
CB -6
30
30
30
CB -7
CB -8
CB-7&CB-8
ARE 15 AMP
1
DEFROSTER
HEATER
2.4A ( LOW)
2.5A (HIGH)
1.75A ( LOW)
1.25-1.50 A (LOW)
1.6-2.0 A (HIGH)
2.9A (MED)
3.2A (HIGH)
MTR.MTR.
OFF
(LOW)
(MED)
(HIGH)
BM
OFF HIGH
LOW
DOME LIGHT
WIPER
RES.
MTR.MTR.
(PARK)
BL
B
(LOW)
(HIGH)
CC
RA
A
LEFT
GRN.
FU-2
FLASHER
BLU.
YEL.
YEL.
BRN.
BRN.
BRN.
RED/WHT
WHT
BLK
BLK
BLK
BLK
BLK
C
C
NO
NO
RED
RED
RED
RED FRONT
FRONT
REAR
REAR
RIGHT
TURN SIGNALS
INDICATOR
BU-SW.
BACK UP ALARM
STROBE
REV.
BR-SW. BRAKE LIGHT
16
HOPPER
DOOR
SWITCH
OPENS WHEN
HOPPER DOOR
IS FULL OPEN
HOPPER DOOR LIGHT
(C) (NC) YY
CLOGGED FILTER (NO) (C)
PRESS. SW.
YY
WORK LIGHT SW.
Note: Optional configuration
Wire 4 may be used to power Light Option CB-6
for Lights to turn off with Ign SW
Warning - If CAB Options CB7 are installed
then CB-6 must be powered by Wire 1
to prevent overloading ACC circuit of Key Switch.
Neg
NegNeg
Neg
80862revC/8-05
American-Lincoln 3-1
MPV-60
TABLE OF CONTENTS - CHAPTER 3 - OPTIONS
Broom Options ................................................................................................................................. 3-2
Side Broom Spotlight Option ............................................................................................................ 3-3
Skirted Vacuumized Side Broom Option ........................................................................................... 3-4
Back-Up Alarm Option ...................................................................................................................... 3-6
Brake Lights Option ......................................................................................................................... 3-8
Turn Signals Option .......................................................................................................................... 3-10
Rear Work Light Option .................................................................................................................... 3-12
Fire Extinguisher Option ................................................................................................................... 3-13
Overhead Guard Option .................................................................................................................... 3-14
Strobe Light Option (with Overhead Guard) ....................................................................................... 3-16
Strobe Light Option (without Overhead Guard) .................................................................................. 3-18
Litter Vac Option .............................................................................................................................. 3-20
Prototectoseal Gas Cap Option ........................................................................................................ 3-26
Spark Arrestor Option ....................................................................................................................... 3-27
Retractable Seatbelt Option ............................................................................................................. 3-28
Righthand Armrest Option ................................................................................................................ 3-29
Suspension Seat Option .................................................................................................................. 3-30
Stainless Steel Hopper Option .......................................................................................................... 3-31
Hopper High Temperature Shutdown Option ..................................................................................... 3-32
Tire Options ..................................................................................................................................... 3-34
SE Air Cleaner with Raised Air Intake Option (with Overhead Guard) ................................................ 3-36
SE Air Cleaner with Raised Air Intake Option (without Overhead Guard) ........................................... 3-38
Blower Wand Option ........................................................................................................................ 3-40
Diesel Spare Parts Kit/Engine Service Parts .................................................................................... 3-42
Gas Spare Parts Kit/Engine Service Parts ........................................................................................ 3-43
3-2 American-Lincoln
MPV-60
5
4
3
2
1
C1158
BROOM OPTIONS
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-03217 Proex and Wire Main Broom Ref.
1 8-08-03219 Nylon Main Broom Ref.
1 8-08-03220 Nylon, High Density Main Broom Ref.
1 8-08-03221 Fiber and Wire High Density Main Broom Ref.
1 8-08-03218 Poly and Wire Main Broom Ref.
1 8-08-03232 Nylon Ref.
2 8-08-03212 Black Prolene Side Broom Ref.
2 8-08-03211 Nylon Side Broom Ref.
0880-439
Wire Bristle Side Broom Option
3 8-08-03199 Wire Side Broom 1
4 8-58-05248 Plate 1
5 2-00-04121 Screw #10 - 13 x .750 RHW 3
C1158
American-Lincoln 3-3
MPV-60
OPTION NO. 0880-594
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-40-05049 Light 1
2 8-20-06038 Duct, Wire 1
3 8-20-06037 Duct, Wire 1
4 2-00-02303 Washer, Internal Lock 1
5 2-00-04282 Ring Terminal 1
6 2-00-04578 Terminal 1
7 2-00-01128 Butt Splice 1
C1141/9901
SIDE BROOM SPOTLIGHT OPTION
C1141
3-4 American-Lincoln
MPV-60
SKIRTED VACUUMIZED SIDE BROOM OPTION
OPTION 0880-607
0880-712 TOTAL STEEL
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-33-05144 Broom Guard 1
* 8-33-05146 Broom Guard 1
2^ 8-08-00864 Bracket, Broom Guard 1
3 8-25-08216 Flap 1
* 8-25-08224 Flap 1
4 8-25-08226 Flap 1
* 8-25-08227 Flap 1
5^ 8-13-07155 Clamp 1
6^ 8-13-07156 Clamp 1
7^ 8-13-07157 Clamp 3
8^ 8-13-07158 Clamp 2
9^ 8-13-07159 Clamp 1
10^ 8-03-02043 Hose Adapter 2
11^ 8-33-02357 Hose 1
12^ 8-29-00253 Gasket 2
13^ 2-00-02217 Clamp, Hose 2
14^ 2-00-05261 Insert - ¼ - 20 10
15^ 2-00-05347 Insert - 3/8 - 16 8
* USED ON TOTAL STEEL MACHINES
^ USED ON BOTH TOTAL STEEL AND REGULAR MACHINES
HARDWARE USED:
H15 2-00-00221 Screw, 1/4-20 x .750 HHC 31
H25 2-00-00594 Nut, Hex ¼- 20 x .437 x .218 8
H48 2-00-00233 Screw, 3/8-16 x 1.000 HHC 5
H50 2-00-00234 Screw, 3/8-16 x 1.500 HHC 2
H53 2-00-02310 Lockwasher Split .375 Cad. Pl. 6
H72 2-00-00518 Lock Washer, Helical Spring 31
C-1169a/9901
American-Lincoln 3-5
MPV-60
REF HOPPER
LOCATE (4) CENTER PUNCH MARKS.
DRILL (4) Ø .281 HOLES TO
MOUNT ITEM 10
REMOVE KNOCKOUT
H15
12
10
10
H72
H72
H25
H25
11
13
13
12
H15
REF HOPPER
LOCATE (5) CENTER PUNCH MARKS AND
DRILL (4) Ø .281 HOLES AND (1)
Ø 2.00 HOLE TO MOUNT ITEM 10
LOCATE CENTER PUNCH MARKS ON HOPPER
APPROX. 5“ UP FROM BOTTOM. UPPER CP
MARKS USED WITH PLASTIC BUMPER. LOWER
CP MARKS USED WITH TOTAL STEEL BUMPER.
DRILL Ø .390 HOLES AT ASSEMBLY
4 - HOLES L.H. SIDE, 6 - HOLES FRONT.
NOTE: SILICONE TUBE (ITEM 10)
NOT WELDED
6
14
3
ON MACHINES WITH PLASTIC BUMPER
LOCATE CENTER PUNCH MARKS (2) IN
FRONT BOTTOM OF SIDE BROOM POCKET
AND UPPER (2) IN R.H.. SIDE OF HOPPER.
DRILL Ø .531 HOLES (4) PLACES
TO MOUNT ITEM 1.
ON MACHINES WITH TOTAL STEEL BUMPER
LOCATE CENTER PUNCH MARKS LOWER (2)
IN R.H. SIDE OF HOPPER. DRILL Ø .531
HOLES (2) PLACES. USE THESE (2) HOLES
AND (2) HOLES IN STEEL BUMPER TO MOUNT
*ITEM 1.
5
H15
H72
15
H72
H15
H48
H48
H53
8
7
8
4
8
9
7
1
H48
H53
H53
H53
15
15
H50
2
C1169A/9705
SKIRTED VACUUMIZED SIDE BROOM OPTION
3-6 American-Lincoln
MPV-60
BACK-UP ALARM OPTION
OPTION NO. 0880-593
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-11-00044 Cap, Instrument Panel (Boot) 1
2 8-64-00008 Circuit Breaker, 15 amp 1
3 2-00-00501 Washer, Internal Lock 1
4 8-82-00058 Switch 1
5 8-08-02040 Bracket, Back Up Alarm Switch 1
6 8-32-09009 Alarm, Back Up 1
7 2-00-00828 Ring Terminal REF.
8 8-90-07434 Wing Wire 1
9 8-11-00015 Terminal 1
10 2-00-04742 Terminal 2
11 2-00-04626 Terminal 1
12 2-00-04578 Terminal, Male Bullet 1
13 2-00-00828 Ring Terminal 1
HARDWARE USED:
H9 2-00-00426 Flat Washer, .500 x .219 x .063 4
H15 2-00-00221 Screw, ¼ - 20 x .750 HHC 2
H26 2-00-00641 Nut, ¼ - 20 Insert Fiber 2
H27 2-00-03702 Washer, .625 x .281 x .063 2
H89 2-00-01372 Nut Fiber Insert, #8 - 32 Steel 4
H121 2-00-00090 Screw, #8 - 32 x 1.500 RHM 2
C1140/9901
American-Lincoln 3-7
MPV-60
H89
H89
H9
H9
H121
H27
H26
H15
C-1140
BACK-UP ALARM OPTION
3-8 American-Lincoln
MPV-60
BRAKE LIGHTS OPTION
OPTION NO. 0880-617
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-82-00058 Switch 1
2 8-11-00044 Cap, Instrument Panel Boot 1
3 8-64-00008 Circuit Breaker, 15 amp 1
4 8-13-07132 Clamp, Brake Switch 1
5 8-08-00818 Bracket, Brake Switch 1
6 8-90-07434 Wing Wire 1
7 8-11-00015 Terminal 1
8 2-00-04742 Terminal 2
9 2-00-04626 Terminal 1
10 2-00-04578 Terminal 1
2-00-05291 Bulb, Brake Light (Service Part)
HARDWARE USED:
H9 2-00-00426 Flat Washer, .500 x .219 x .063 2
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 2
H89 2-00-01372 Nut, Fiber Insert #8-32 Steel 2
H121 2-00-00090 Screw, #8-32 x 1.500 RHM 2
H122 2-00-05216 Screw, 1/4-20 x 5.000 HHC 2
C1150/9901
American-Lincoln 3-9
MPV-60
C1150
H121
H122
H9
H26
H89
BRAKE LIGHTS OPTION
3-10 American-Lincoln
MPV-60
OPTION NO. 0880-596
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00884 Bracket, Light 2
2 8-40-05046 Turn Light 2
2-00-05291 Bulb, Turn Signal, Front (Service Part) REF.
8-41-03012 Lens, Turn Signal, Front (Service Part) REF.
3 8-82-00025 Turn Signal Switch 1
4 8-20-06037 Duct Wire 2
5 8-41-03009 Lens, Turn Signal 2
2-00-05292 Bulb,Turn Signal,Rear (Service Part) REF
6 8-64-00008 Circuit Breaker 1
7 8-11-00044 Cap, Instrument Panel Boot 1
8 2-00-00828 Ring Terminal REF.
9 3-61-02014 Convoluted Tube 5’
10 2-00-00491 Grommet 2
11 2-00-05261 Insert - ¼ - 20 4
12 8-90-07434 Wing Wire 1
13 8-11-00015 Terminal 1
14 2-00-04626 Terminal 6
15 2-00-04578 Terminal 6
16 2-00-04479 Connector 2
17 2-00-00828 Ring Terminal 2
HARDWARE USED:
H8 2-00-00039 Screw, 10-24 x 1.000 RHM 4
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 6
H15 2-00-00221 Screw, 1/4-20 x .750 HHC 4
H72 2-00-00518 Lock Washer, Helical Spring 4
H115 2-00-03063 Screw, #10-24 x .750 THM 2
H124 2-00-02296 Lock Washer, #10 Ext. Shakeproof 2
C1143a/9901
TURN SIGNALS OPTION
American-Lincoln 3-11
MPV-60

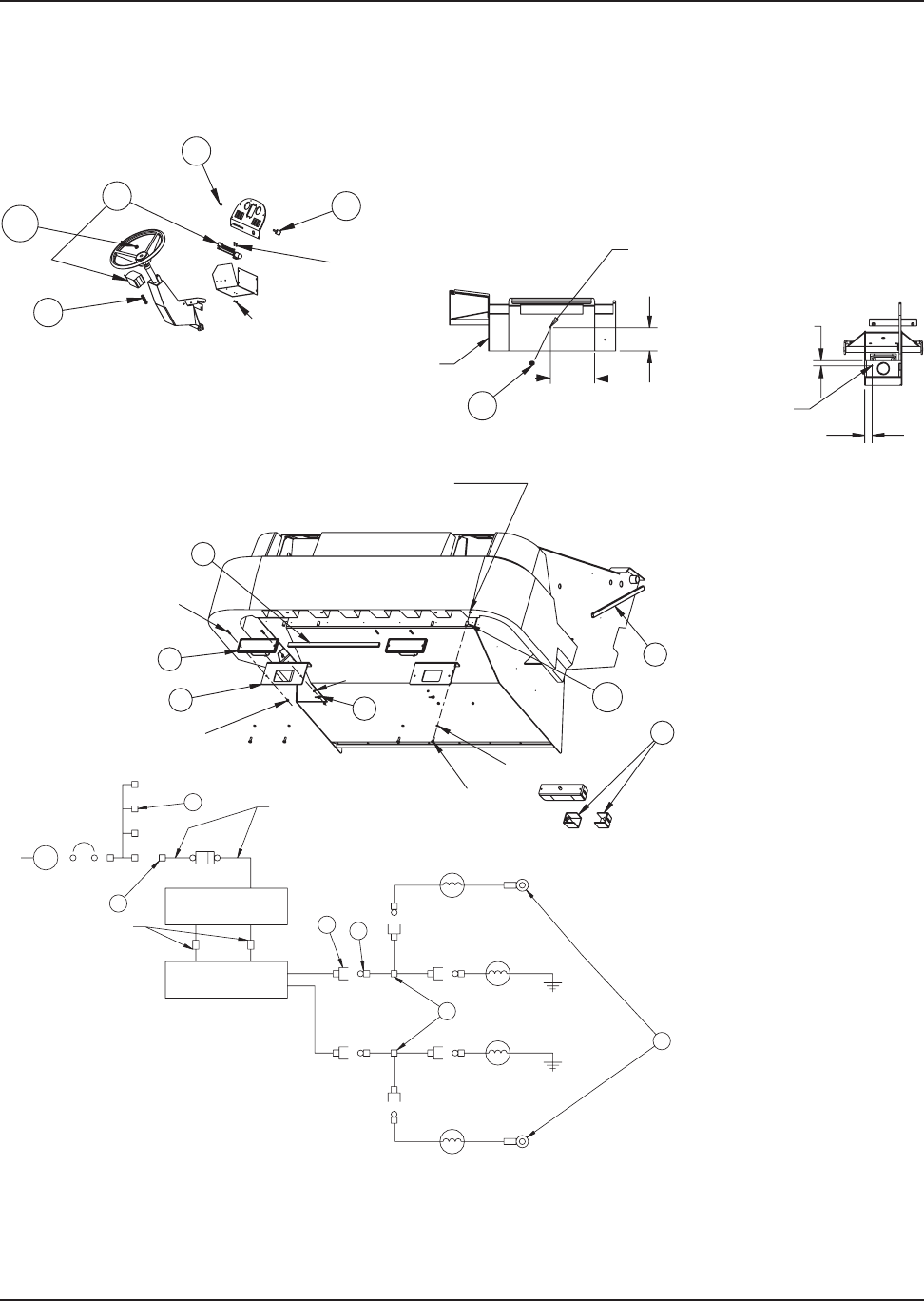

13
14 15
BUTTSPLICE
4B
FLASHER
INDICATOR
RED
GREEN
BLUE
YELLOW
CB-8
12
BROWN
FUSE
LEFT
RIGHT
16
REAR TS
REAR TS
17
FRONT TS
2
1
H12
H15
8
H124
H8
4
10
4
11
5
H72
DRILL THRU .50Ø
1.00
CENTERED
4.00
NOTE: POSITION LIGHT BRKTS AT SIDE EDGES OF HOPPER
AND AGAINST BUMPER TO LOCATE HOLES 1.00“ IN
FROM FRONT EDGE OF BUMPER DRILL (4) Ø .390 HOLES THRU
INSTRUMENT
HOUSING
NOTE: SECURE WIRES TO COLUMN
WITH TY-RAPS AS REQUIRED
9
10
H12
H115
6
7
3
DRILL THRU .50Ø
.50
C1143A-9705
TURN SIGNALS OPTION
3-12 American-Lincoln
MPV-60
C1142
REAR WORK LIGHT OPTION
OPTION NO. 0880-595
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-40-05049 Light 1
2 2-00-00491 Grommet 2
3 8-82-00053 Switch 1
4 8-41-03004 Lens, Work Light 1
5 8-20-06037 Duct, Wire 1
6 2-00-02303 Washer, Internal Lock 1
7 3-61-02014 Convoluted Tube 1
8 2-00-04578 Terminal 1
9 2-00-01128 Butt Splice 1
10 2-00-04282 Ring Terminal 1
C1142/9901
American-Lincoln 3-13
MPV-60
OPTION NO. 0880-609
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-83-04033 Fire Extinguisher 1
2 2-95-01998 Screw, #14-10 x .750 T/F R.H. 2
C1147/9901

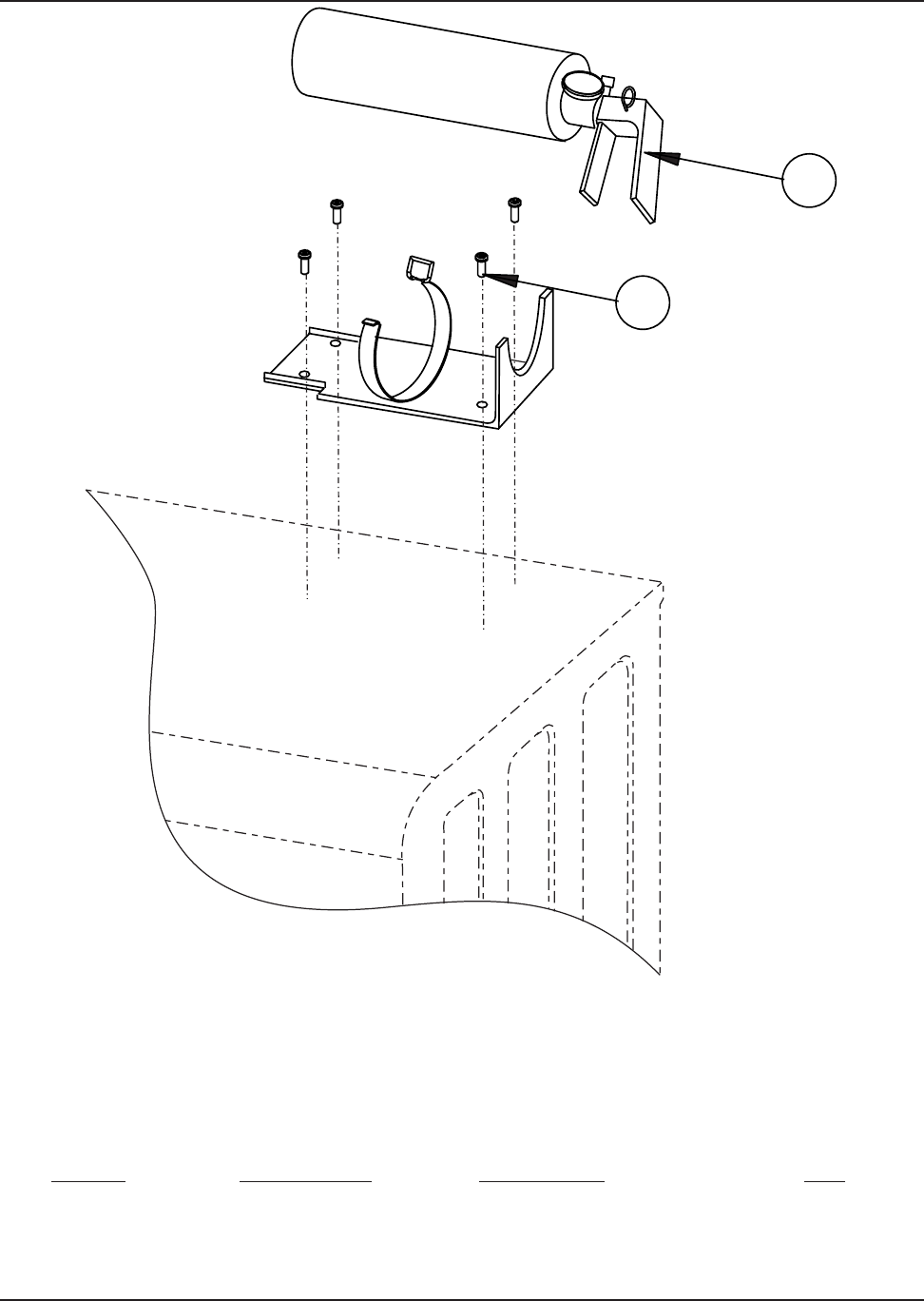

C1147/9811
1
2
FIRE EXTINGUISHER OPTION
3-14 American-Lincoln
MPV-60
OPTION NO. 0880-601
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-30-05174 Overhead Guard, Top Weld 1
2 8-30-05172 Overhead Guard, Leg Weld R.H. 1
3 8-30-05173 Overhead Guard, Leg Weld L.H. 1
4 2-00-05134 Plug Button 8
5 2-95-04182 Nut, Fiber 8
HARDWARE USED:
H48 2-00-00233 Screw 3/8 - 16 x 1.000 HHC 2
H52 2-00-00402 Flat Washer, .750 X .390 X .094 4
H57 2-00-00240 Screw, ½ - 13 x 1.250 HHC 8
H63 2-00-02312 Lock Washer, ½ HS Med. 2
C1152-1/9901
OVERHEAD GUARD OPTION
American-Lincoln 3-15
MPV-60
H52
H48
C1152
5
2
4
1
3
OVERHEAD GUARD OPTION
3-16 American-Lincoln
MPV-60
STROBE LIGHT
WITH
OVERHEAD GUARD OPTION
OPTION NO. 0880-600 (Amber Strobe)
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-40-05036 Strobe, Amber 1
2 8-58-05228 Panel, Light Support 1
3 8-20-06036 Duct, Wire 1
4 2-00-01915 Grommet 2
5 2-00-05261 Threaded Insert 4
6 2-00-00491 Grommet 1
7 2-00-04281 Terminal 1
8 8-90-07434 Wing Wire 1
9 8-11-00015 Terminal 1
10 2-00-04578 Terminal 2
11 2-00-04626 Terminal 2
12 8-11-00044 Cap, Boot 1
13 8-64-00008 Circuit Breaker, 15 amp 1
14 2-00-04200 Grommet 1
HARDWARE USED:
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 4
H17 2-00-00205 Screw, 1/4-20 x 1.000 HHC 6
H72 2-00-00518 Lock Washer, Helical Spring 4
H115 2-00-03063 Screw, #10-24 x .750 THM 4
C1145/9901
American-Lincoln 3-17
MPV-60
H115
H17
H12
H72
H115
H12
H17
C1145-1/9704
STROBE LIGHT
WITH
OVERHEAD GUARD OPTION
3-18 American-Lincoln
MPV-60
STROBE LIGHT
WITHOUT
OVERHEAD GUARD OPTION
OPTION NO. 0880-598
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-81-00173 Light Pole 1
2 8-40-05036 Strobe, Amber 1
3 2-95-04182 Nut, Elastic Stop 2
4 8-64-00008 Circuit Breaker, 15 amp 1
5 8-11-00044 Cap, Instrument Panel Boot 1
6 2-00-00491 Grommet 2
7 2-00-05134 Plug Button 3
8 8-90-07434 Wing Wire 1
9 8-11-00015 Terminal 1
10 2-00-04578 Terminal 2
11 2-00-04626 Terminal 2
12 2-00-04742 Terminal 1
HARDWARE USED:
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 2
H48 2-00-00233 Screw 3/8 - 16 x 1.000 HHC 2
H115 2-00-03063 Screw, #10-24 x .750 THM 2
C1144/9901
American-Lincoln 3-19
MPV-60
C-1144-1/9704
H115
H12
H48
ENGINE TERMINAL STRIP
PIN 1
STROBE LIGHT
WITHOUT
OVERHEAD GUARD OPTION
3-20 American-Lincoln
MPV-60
LITTER VAC OPTION
OPTION 0880-713 SHT. 1 OF 3
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-82-00068 Switch 2 Position On-Off & Light 1
2 8-18-00445 Decal-LitterVac 1
3 8-64-00008 Circuit Breaker-15 Amp. 1
4 2-00-04742 Terminal, #6 Spring Spade 1
5 2-00-03418 Terminal, .25 FISO 13
6 3-61-00189 Wire, Black 16 AWG 11’
7 8-64-05009 Relay 1
8 2-00-00833 Terminal- #10 Ring 1
9 2-00-04479 Splice, 3-Way 1
10 8-33-02326 Hose, #8 ORS 0-0 34.5 1
11
12 0875-117 Diode Assembly 2
13 2-00-04926 Fitting, 90° SAE 6 x ORS 4 2
14 8-08-00590 Bracket- Valve Mount 2
15 7-33-02189 Hose, #4 ORS 0-90° 26.00” 1
16 8-88-00044 Valve 1
17 2-00-05048 Terminal- Ring 2
18 2-00-04885 Fitting 90° SAE 8 x ORS 8 1
19 2-00-04928 Run Tee ORS 8 x 8 x 8 2
20 8-33-02214 Hose, #8 ORS 0-0 29.00” 2
21 8-88-00042 Valve 1
22 2-00-04970 Fitting, Strt. SAE 8 x ORS 8 1
23 8-18-00444 Decal- LitterVac Instructions 1
HARDWARE USED:
H12 2-00-01246 Nut, Hex Fiber Insert #10-24 1
H22 2-00-02589 Screw, 1/4-20 x 2.000HHC 4
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 4
H27 2-00-03702 Washer, .625 x .281 x .063 8
H100 2-00-03062 Screw, #10-24 x .625 THM 1
H124 2-00-02296 Lock Washer, #10 Ext. Shakeproof 1
C1441/9901
American-Lincoln 3-21
MPV-60
185 861
87a1
130
871
4A,4B
TO GROUND
FROM 11J
11J
EXISTING HOSE FORM VALVE
TO MAIN BROOM PORT ON CHECK VALVE
EXISTING HOSE THAT WENT
TO MAIN BROOM BOTTOM FITTING
TO MAIN BROOM
BOTTOM FITTING
TO VACUUM MOTOR
TO RELAY
TO MAIN BROOM
TOP FITTING
TO ENGINE
GROUND
CONNECT TO
ENGINE GROUND
TO MAIN BROOM PORT
ON CHECK VALVE
C-1441/9709
5
5
16
12
20
10
12
12
13
16
14
17
13
15
18
5
5
23
3
42
1
5
6
8
7
9
22
14
21
7
H100
H124
H12
H26
H27
H22
LITTER VAC OPTION
3-22 American-Lincoln
MPV-60
LITTER VAC OPTION (cont.)
OPTION 0880-713 SHT. 2 OF 3
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-81-00180 Support-Litter Vac Hose 1
2 8-89-04020 Counter Weight 1
3 7-13-07130 Cable Retainer 1
4 7-60-00160 Pulley 1
5 8-80-05047 Threaded Rod, 3/8-16 1
6 8-10-00036 Cable 1
7 8-08-00881 Bracket- Vac. Wand 1
8 7-31-06065 Edging 1
HARDWARE USED:
H15 2-00-00221 Screw, ¼-20 x .750 HHC 2
H17 2-00-00205 Screw, ¼-20 x 1.000 HHC 1
H26 2-00-00641 Nut, 1/4-20 Insert Fiber 1
H48 2-00-00233 Screw, 3/8-16 x 1.000 HHC 2
H53 2-00-02310 Lock Washer, HS, 3/8-16 x 1.000 2
H54 2-00-02360 Nut, 3/8-16 Hex. 2
H55 2-00-00643 Nut, 3/8-16 Stop 2
H72 2-00-00518 Lock Washer, Helical Spring 2
c1442/9901
American-Lincoln 3-23
MPV-60
C-1442/9709
H55 H54
H53
H17
H72
H15
H48
4
5
6
2
1
7
8
3
LITTER VAC OPTION (cont.)
3-24 American-Lincoln
MPV-60
LITTER VAC OPTION (cont.)
OPTION 0880-713
SHT. 3 OF 3
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-16-07400 Cover 1
2 8-16-07404 Cover 1
3 8-29-00281 Gasket 1
4 8-87-02117 Hose Connnector 1
5 8-33-02359 Hose 1
6 8-87-02119 Interconnect 1
7 8-08-00883 Handle 1
8 8-87-02118 Wand Tube (Plastic) 1
9 2-95-03355 Handle-Grip 1
10 2-00-03959 Clamp-Hose 2
11 2-00-04066 Wing Screw-5/16-18 2
12 2-14-03197 Washer-Rubber 2
13 2-00-05330 Insert-5/16-18 2
14 2-00-05262 Insert- #10-24 2
15 7-23-03113 Fastener, QTR Turn 1
16 7-23-03107 Grommet 1
17 7-23-03108 Clip 1
18 8-13-07171 Bridge Clamp 2
19 8-79-00128 Strap-Bungee 1
20 8-30-05180 Guard 1
21 8-41-00040 Latch 2
22 Print of 0880-715 1
HARDWARE USED:
H6 2-00-00049 Screw #10-24 x .500 RHM 2
H10 2-00-00519 Lock Washer, #10 Med. HS 2
H15 2-00-00221 Screw, 1/4-20 x .750 HHC 2
H26 2-00-00641 Nut, 1/4-20 Fiber Insert 2
H140 2-00-00447 Flatwasher, 1.250 x .280 x .090 2
c1443/9901
American-Lincoln 3-25
MPV-60
11
4
12
3
216
15
14
18 H26
H140
H15
1
5
20
19
6
C1443/9709
7
98
10
21
17
13
H6
H10
LITTER VAC OPTION cont.)
3-26 American-Lincoln
MPV-60
1
C1156
FUEL
TANK
PROTOTECTOSEAL GAS CAP OPTION
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-11-00024 Protoseal Gas Cap 1
C1156
American-Lincoln 3-27
MPV-60
C1146
MUFFLER
REAR BUMPER
.75 1
DRILL Ø .125
HOLE - THRU
ALIGN HOLES AND SECURE
SPARK - ARRESTOR W/ SHEET
METAL SCREW
SPARK ARRESTOR OPTION
OPTION NO. 0880-608
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-81-05001 Spark Arrestor 1
C1146/9901
3-28 American-Lincoln
MPV-60
OPTION NO. 0880-722
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00971 Bracket, Seat Belt 1
2 2-00-05077 Carriage Bolt, 1/2-13 x 1.5 2
3 2-00-05391 Retractable Seatbelt 1
4 2-00-04936 Nut, ½ -13 Fibre Lock 3
5 2-00-03589 Collar, Set Screw 1
6 2-00-01254 Screw, 1/2-13 x 1.5 Hex 1
0880-722/9-05
0880-722/9-05
RETRACTABLE SEATBELT OPTION
American-Lincoln 3-29
MPV-60
RIGHT-HAND ARMREST OPTION
OPTION NO. 0780-606*
*Includes armrest with bracket and hardware to attach to existing seat.
(For service, order Kit #7-03-04250)
0780-606/9-03
HARDWARE
ARMREST W/BRACKET
3-30 American-Lincoln
MPV-60
C1154/9811
H46
1
SUSPENSION SEAT OPTION
OPTION NO. 0880-734
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-69-00019 Seat - Suspension 1
HARDWARE USED:
H46 2-00-00644 Nut, 5/16-18, Insert Fiber 4
C1154/9901
American-Lincoln 3-31
MPV-60
0780-680/10-05
STAINLESS STEEL HOPPER OPTION
OPTION NO. 0780-680
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-32-06105-1 Hopper, Stainless Steel 1
2 8-19-08058-2 Door, Hopper (Welded) 1
3 8-13-07118-1 Clamp, Dump Door Seal 2
4 8-13-07119-1 Clamp, Dump Door Seal 4
5 8-52-00191-1 Panel, Stainless Steel Hopper Seal 1
IN LIEU OF STANDARD PARTS 8-32-06105, 8-19-08058, 8-13-07118, 8-13-07119, 8-52-00191.
0780-680/10-05
3-32 American-Lincoln
MPV-60
HOPPER HIGH TEMPERATURE SHUTDOWN OPTION
OPTION NO. 0780-694
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-08-00803 Bracket, Temperature Switch 1
2 8-82-00056 Switch, Thermostat 1
3 2-00-02708 Screw, 5/16-18 x 1.0 Hex Head 1
4 2-00-00644 Nut, 5/16-18 Fiber Insert Hex 1
5 2-00-00049 Screw, 10-24 x 1/2 RHM 2
6 2-00-01246 Nut, 10-24 Elastic Stop 2
0780-694/1-05
American-Lincoln 3-33
MPV-60
0780-694
HOPPER HIGH TEMPERATURE SHUTDOWN OPTION
3-34 American-Lincoln
MPV-60
OPTION NO. 674
KEY NO. PART NUMBER DESCRIPTION QTY.
1* 8-89-08081 Wheel Assy., Pneumatic Foam-filled (Rear) 1
2* 8-89-08080 Wheel Assy., Pneumatic Foam-filled (Front) 2
*No serviceable parts
~OPTION NO. 675
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-89-08070 Wheel Assy., Solid Pneum. Soft Shoe Lug Tread 1
(Rear)
2 8-89-08071 Wheel Assy., Solid Pneum. Soft Shoe Lug Tread 2
(Front)
~OPTION NO. 676
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-89-08088 Wheel Assy., Solid Pneum. Non-Mark Lug Tread 1
(Rear)
2 8-89-08087 Wheel Assy., Solid Pneum. Non-Mark Lug Tread 2
(Front)
~Service Parts
For 8-89-08070 & 8-89-08088: For 8-89-08071 & 8-89-08087:
8-33-09088 - Inner Rim Half 8-65-05015 - Rim Assy. (5 x 8 x 3.75)
8-65-05017 - Outer Rim Half 7-85-06029 - Tire Only
7-85-06029 - Tire Only
8-80-05035 - Studs (Qty. 6)
>OPTION NO. 677
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-89-08085 Wheel Assy., Solid Pneum. Man-Toter Lug Tread 1
(Rear)
2 8-89-08084 Wheel Assy., Solid Pneum. Man-Toter Lug Tread 2
(Front)
>Service Parts
For 8-89-08085: For 8-89-08084:
8-33-09088 - Inner Rim Half 8-65-05015 - Rim Assy. (5 x 8 x 3.75)
8-65-05017 - Outer Rim Half 7-85-06027 - Tire Only
7-85-06027 - Tire Only
8-80-05035 - Studs (Qty. 6)
0780-674-677/12-05
TIRE OPTIONS
American-Lincoln 3-35
MPV-60
0780-674
0780-675
0780-676
0780-677
TIRE OPTIONS
3-36 American-Lincoln
MPV-60
OPTION NO. 0780-670
KEY NO. PART NUMBER DESCRIPTION QTY.
1 2-00-02561 Insert, 1/4-20 Threaded 2
2 7-08-01336 Bracket 1
3 7-24-04107 Filter, Pre-Cleaner 1
4 2-00-02216 Clamp, Hose 1
5 2-00-03875 Nipple, Brass Close 1
6 7-82-00065 Switch, Dust Load Indicator 1
7 7-21-03003 Edging 1
8 2-00-03702 Washer, .625 x .281 x .063 2
9 2-00-00518 Lock Washer, 1/4” Helical Spring 2
10 2-00-00205 Bolt, 1/4-20 Fin. Hex Head 2
11 7-41-03004-1 Lens, Red 1
12 7-40-05027 Lamp Assembly 1
13 2-00-04735 Clip, Spring 1
14 3-71-00302 Hose 10 ft.
15 8-18-00144 Decal 1
0780-670/2-06
SE AIR CLEANER W/ RAISED INTAKE OPTION (W/ OVERHEAD GUARD)
American-Lincoln 3-37
MPV-60
0780-670
SE AIR CLEANER W/ RAISED INTAKE OPTION (W/ OVERHEAD GUARD)
3-38 American-Lincoln
MPV-60
OPTION NO. 0780-672
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-81-00173 Pole, Light 1
2 2-00-02561 Insert, 1/4-20 Threaded 2
3 7-08-01336 Bracket 1
4 7-24-04107 Filter, Pre-Cleaner 1
5 2-00-02216 Clamp, Hose 1
6 2-00-03875 Nipple, Brass Close 1
7 7-82-00065 Switch, Dust Load Indicator 1
8 7-21-03003 Edging 1
9 2-00-03702 Washer, .625 x .281 x .063 2
10 2-00-00518 Lock Washer, 1/4” Helical Spring 2
11 2-00-00205 Bolt, 1/4-20 x 1.0 Fin. Hex Head 2
12 7-41-03004-1 Lens, Red 1
13 7-40-05027 Lamp Assembly 1
14 2-00-04735 Clip, Spring 1
15 3-71-00302 Hose 10 ft.
16 2-00-00233 Bolt, 3/8-16 x 1.0 Fin. Hex Head 2
17 2-95-04182 Nut, 3/8-16 Hex Stop 2
18 2-00-05134 Plug Button 4
19 2-00-00491 Grommet 1
0780-672/2-06
SE AIR CLEANER W/ RAISED INTAKE OPTION (NO OVERHEAD GUARD)
American-Lincoln 3-39
MPV-60
0780-672
SE AIR CLEANER W/ RAISED INTAKE OPTION (NO OVERHEAD GUARD)
3-40 American-Lincoln
MPV-60
OPTION NO. 0880-605
KEY NO. PART NUMBER DESCRIPTION QTY.
1 2-14-03197 Rubber Washer 2
2 8-87-02115 Tube, Blower Wand 2
3 8-08-00622 Bracket, Latch 1
4 8-08-00670 Bracket, Blower Comp Storage 1
5 8-21-07019 Adapter, 90 Elbow 1
6 8-11-00034 Cap 4
7 8-89-00002 Wand Section 2
8 8-33-02121 Hose 1
9 8-65-00048 Plug Retainer (Weldment) 1
10 8-25-02038 Plug, Blower Wand 1
11 2-00-01481 Screw, .31 x 1.0 RHM 4
12 2-00-00644 Nut, .31-18 Fiber Insert 4
13 2-00-03027 Screw, 1/4-20 x .63 HSFHC 2
14 2-00-00056 Screw, 10-24 x 3/4 RHM 1
15 2-00-00518 Lock Washer, 1/4 Med. 2
16 2-00-00594 Nut, 1/4-20 Fin. Hex 2
17 2-00-00605 Nut, 10-24 Hex 1
18 2-00-00641 Nut, 1/4-20 Fiber Insert 2
19 2-00-00221 Screw, 1/4-20 x 3/4 HHC 2
20 2-00-00519 Lock Washer, #10 Med. 1
0880-605/2-96
BLOWER WAND OPTION
American-Lincoln 3-41
MPV-60

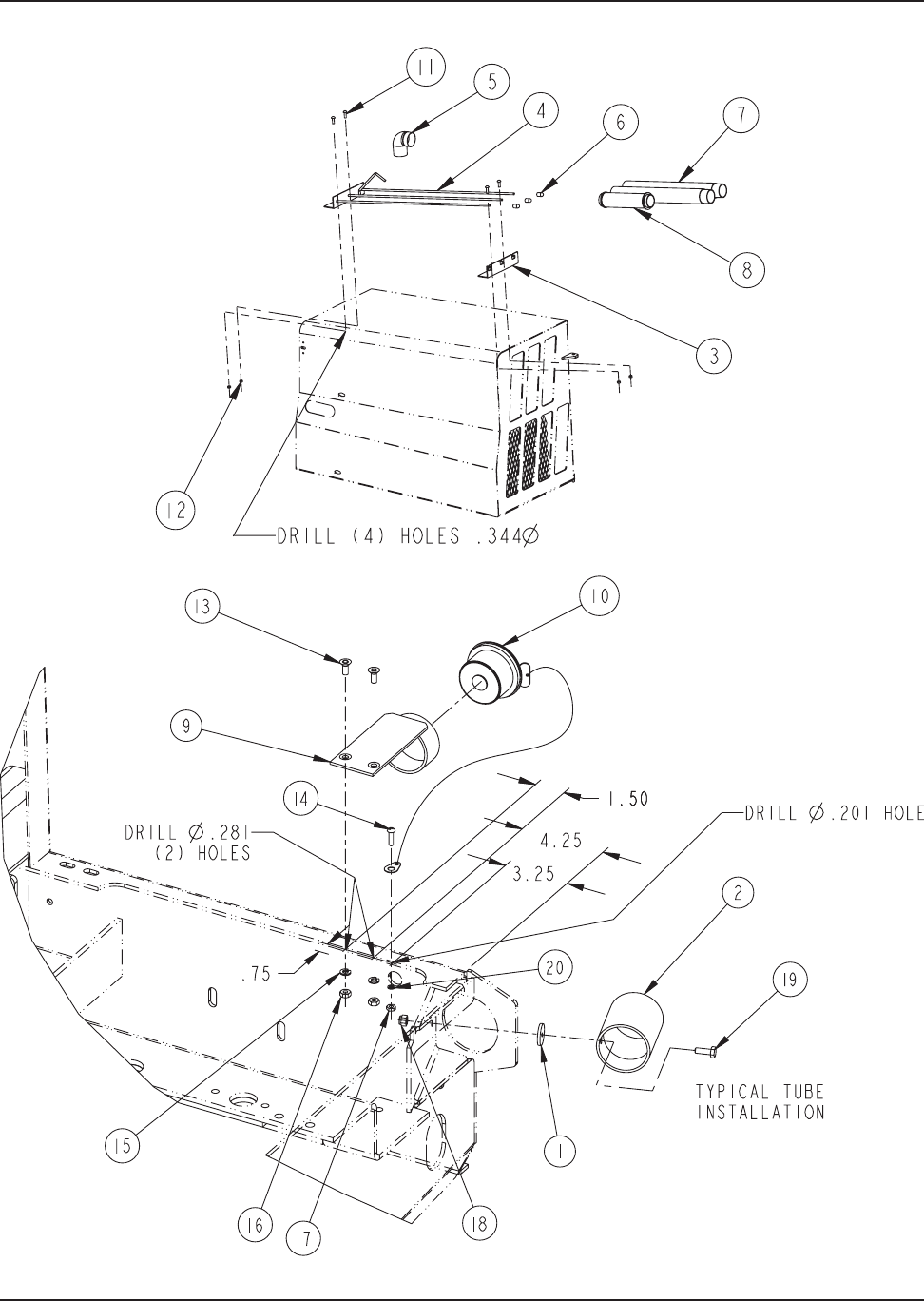

0880-605
BLOWER WAND OPTION
3-42 American-Lincoln
MPV-60
SPARE PARTS KIT/MITSUBISHI S4L2 DIESEL ENGINE SERVICE PARTS
ADDITIONAL MITSUBISHI S4L2 ENGINE SERVICE PARTS
PART NUMBER DESCRIPTION QTY
7-24-04099 Oil Filter 1
7-84-08017 Thermostat 1
7-29-00313 Gasket, Thermostat 1
7-60-05049 Water Pump 1
7-29-00311 Gasket, Water Pump 1
7-75-03005 Glow Plug 4
7-64-00041 Relay, Glow Plug (installed on wire harness) 1
0775-288 Alternator 1
2-00-05989 Belt, Alternator/Fan 1
7-29-00337 Gasket, Cylinder Head 1
7-56-04075 Pipe, Cylinder #1 1
7-56-04076 Pipe, Cylinder #2 1
7-56-04077 Pipe, Cylinder #3 1
7-56-04078 Pipe, Cylinder #4 1
7-82-00056 Switch, Water Temperature 1
8-82-00070 Sending Unit, Water Temperature 1
0775-286 Starter 1
2-00-04982 Fitting, 1/8 NPT Street Tee 1
7-82-00055 Switch, Oil Pressure 2
0895-134 Wiring Harness 1
7-16-05044 Coupling, Engine 1
7-58-05335 Casting, Pump Plate 1
7-64-00040 Relay, Murphy (installed on wire harness) 1
7-24-04088 Fuel Filter 1
2-86-00383 Operators Handbook
2-86-00384 Parts Catalog
2-86-00405 Service Manual
OPTION NO. 0860-752
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-25-08222 Flap, Broom Door Outer 2
2 8-25-08198 Flap, Broom Door Inner 2
3 8-25-08194 Flap, Wheel Well 1
4 8-25-08197 Flap, Rear Inside Frame 1
5 8-25-08196 Flap, Frame Rear Outside 1
6 8-24-04139-1 Hopper Panel Filter 1
7 8-25-08202 Hopper Flap 1
8 8-68-05075 Seal, Dump Door - Sides 2
9 8-68-05077 Seal, Dump Door - Lip 1
10*7-24-04085 Engine Main Air Filter 1
7-24-04086 Engine Safety Air Filter 1
11 2-00-05989 Belt, Alternator/Fan 1
12 7-24-04088 Fuel Filter 1
13 7-24-04099 Engine Oil Filter 1
14 8-24-04118 Hydraulic Filter Element 1
15 8-68-05076 Seal, Dump Door (Foam) 1
*Both filters should be replaced at the same time
American-Lincoln 3-43
MPV-60
OPTION NO. 0860-751
KEY NO. PART NUMBER DESCRIPTION QTY.
1 8-25-08222 Flap, Broom Door Outer 2
2 8-25-08198 Flap, Broom Door Inner 2
3 8-25-08194 Flap, Wheel Well 1
4 8-25-08197 Flap, Rear Inside Frame 1
5 8-25-08196 Flap, Frame Rear Outside 1
6 8-24-04139-1 Hopper Panel Filter 1
7 8-25-08202 Hopper Flap 1
8 8-68-05075 Seal, Dump Door-Sides 2
9 8-68-05077 Seal, Dump Door-Lip 1
10* 7-24-04085*Engine Air Filter (Main) 1
7-24-04086*Engine Air Filter (Safety) 1
11 2-00-05990 Belt, Alternator/Water Pump 1
12 7-24-04067 Fuel Filter 1
13 8-24-04156 Engine Oil Filter 1
14 8-24-04118 Hydraulic Filter Element 1
15 8-68-05076 Seal, Dump Door (Foam) 1
*Both filters should be replaced at the same time
ADDITIONAL FORD 416 ENGINE SERVICE PARTS
PART NO. DESCRIPTION QTY.
7-23-00025 Fan 1
2-00-06092 Belt, Fan 1
0782-652 Thermostat 1
7-11-04071 Mixer, Ford 416 LP Engine (EXPORT) 1
7-11-04054 Mixer, Ford 416 LP Engine (N. Am. certified) 1
7-88-00110 LP Safety Valve 1
7-11-04062 HEGO Sensor (Pre Cat) 1
7-11-04055 TMap Sensor 1
7-11-04065 Light, Malfunction Indicator 1
7-11-04066 02 Sensor (Post Cat Monitor) 1
7-75-03007 Spark Plug 4
7-90-08017 Spark Plug Wire #1 1
7-90-08018 Spark Plug Wire #2 1
7-90-08019 Spark Plug Wire #3 1
7-90-08020 Spark Plug Wire #4 1
7-14-07015 Coil Pack 1
7-11-04041 Throttle Body 1
7-21-07005 Elbow, Vacuum 1
7-11-04046 LP Regulator (EXPORT) 1
7-11-04043 LP Regulator (N.Am. certified) 1
7-11-04045 MegaJector (N. Am. certified) 1
7-11-04037 Catalytic Converter 1
0775-292 Alternator 1
0775-291 Starter 1
0769-030 Fuel Pump 1
7-60-05062 Water Pump 1
7-29-00 Gasket, Water Pump 1
7-11-04041 Throttle Body 1
7-21-07005 Elbow, Vacuum 1
0769-031 EPM w/Calibration (N. Am. certified) 1
0769-032 EPM w/Calibration (EXPORT) 1
7-08-01188 Bracket, Fuel Filter 1
2-00-04641 Fitting, 3/8 NPT Close Nipple 1
2-00-06539 Fitting, 3/8 NPT - 5/8 Hose Nipple 1
2-00-06540 Fitting, NPT Brass “T” 1
2-00-05447 Fitting, 5/8 Nylon Hose “T” 1
2-86-00394 Operators Handbook
2-86-00395 Parts Catalog
2-86-00390 Service Manual
SPARE PARTS KIT/FORD 416EFI GAS/LP SERVICE PARTS
14600 21st Avenue North
Plymouth, MN 55447-3408
www.americanlincoln.com
Phone: 800-331-7692
Fax: 877-877-2586
©2006 American-Lincoln
