823 0101 020 Spare Parts List Clarke Comfort Pak 6 10 Vacuum Manual

2016-10-11

: Sweepscrub Clarke-Comfort-Pak-Vacuum-Parts-Manual clarke-comfort-pak-vacuum-parts-manual 1369 file product_file

Open the PDF directly: View PDF PDF.
Page Count: 20

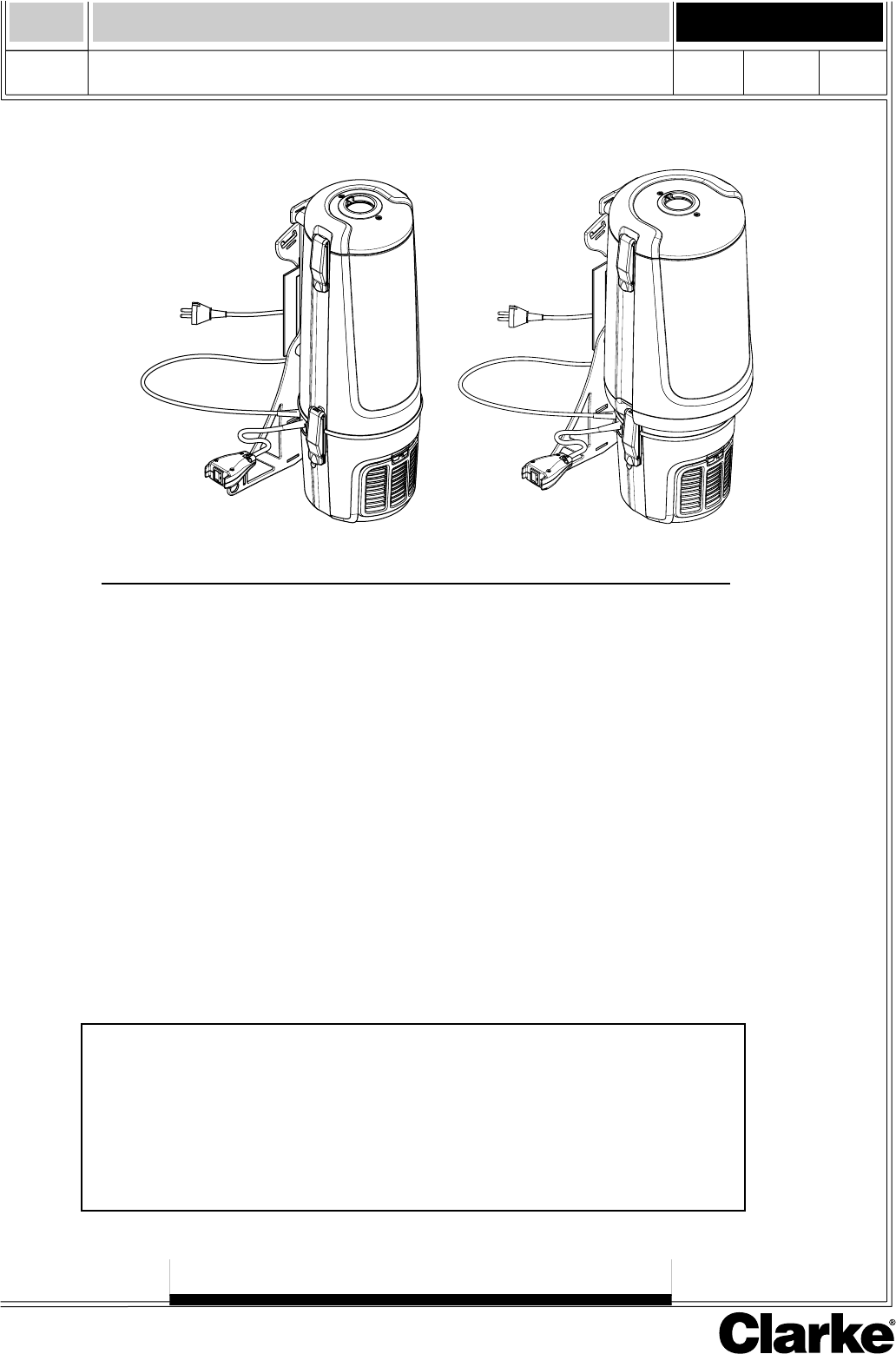

Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
1
DESCRIPTION PLAN
Motor and motor parts 2
Electrical parts 4
Container parts 6
Straps 8
Filters 10
Nozzles 1.5 Inch, 38 mm 12
Tubes, 1.5 Inch, 38 mm 14
Wiring diagram 16
Service information 17
Warranty information 18
TABLE OF CONTENTS SERVICE KIT / SPARE PARTS
WHEN ORDERING PARTS
* Use the digit numbers from the "Part No." columns in this spare parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model _________________________ Serial no. _______________________________
Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
Clarke reserves the right to make changes or improvements to its machine without notice.
Always use genuine Clarke Parts for repair.
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 1823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 1 2008-02-26 14:32:302008-02-26 14:32:30
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

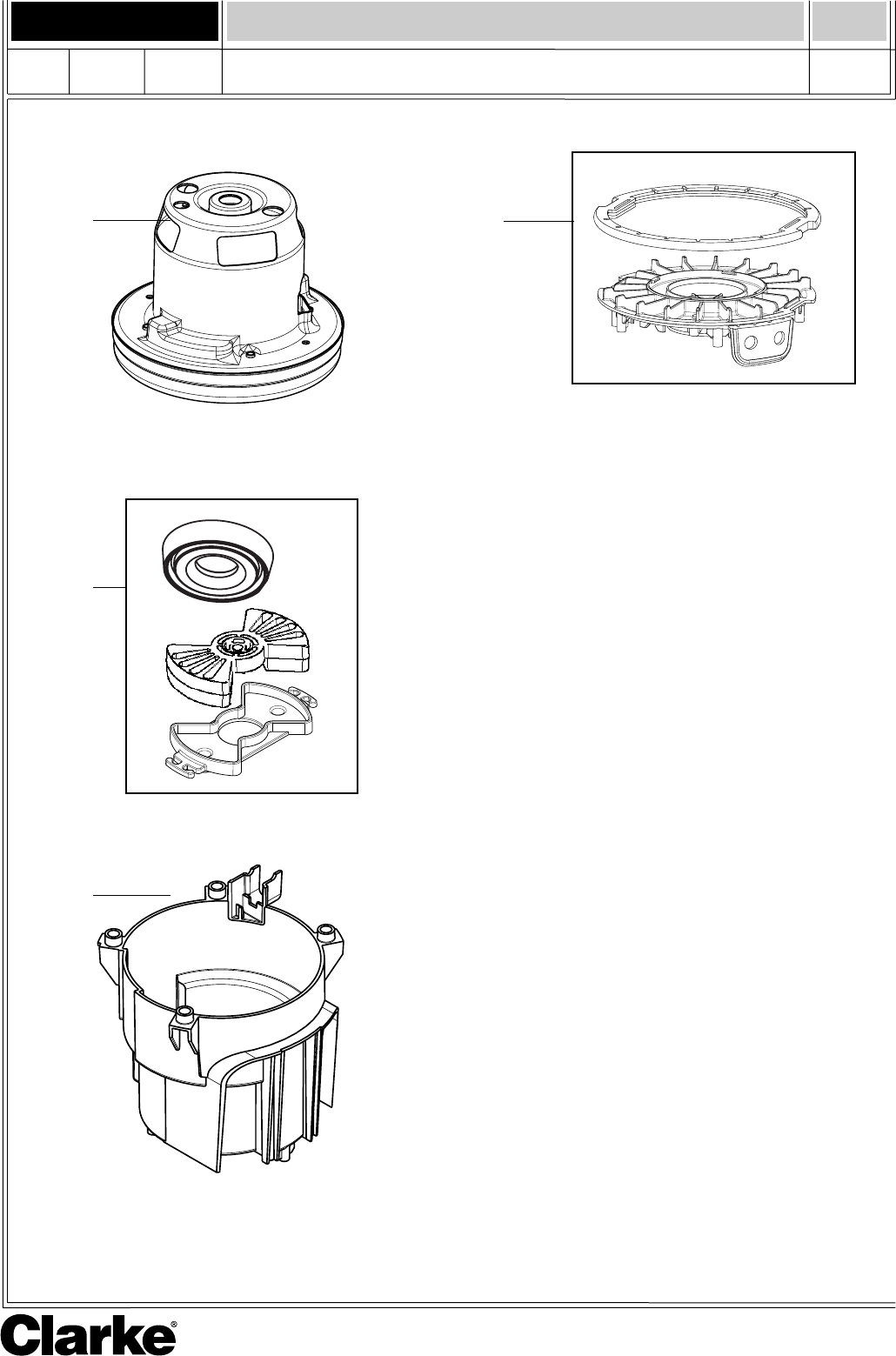

2MOTOR AND MOTOR PARTS
1
2
3
4
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 2823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 2 2008-02-26 14:32:522008-02-26 14:32:52
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
3
MOTOR AND MOTOR PARTS
Item Part No. Qty. Description Note
1 147 1109 500 1 Fan unit 100 -120V, 1300W
2 147 1111 500 1 Motor suspension kit
3 147 1088 510 1 Motor cover, UL-approved
4 147 1086 510 1 Chassis, UL-approved
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 3823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 3 2008-02-26 14:32:562008-02-26 14:32:56
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

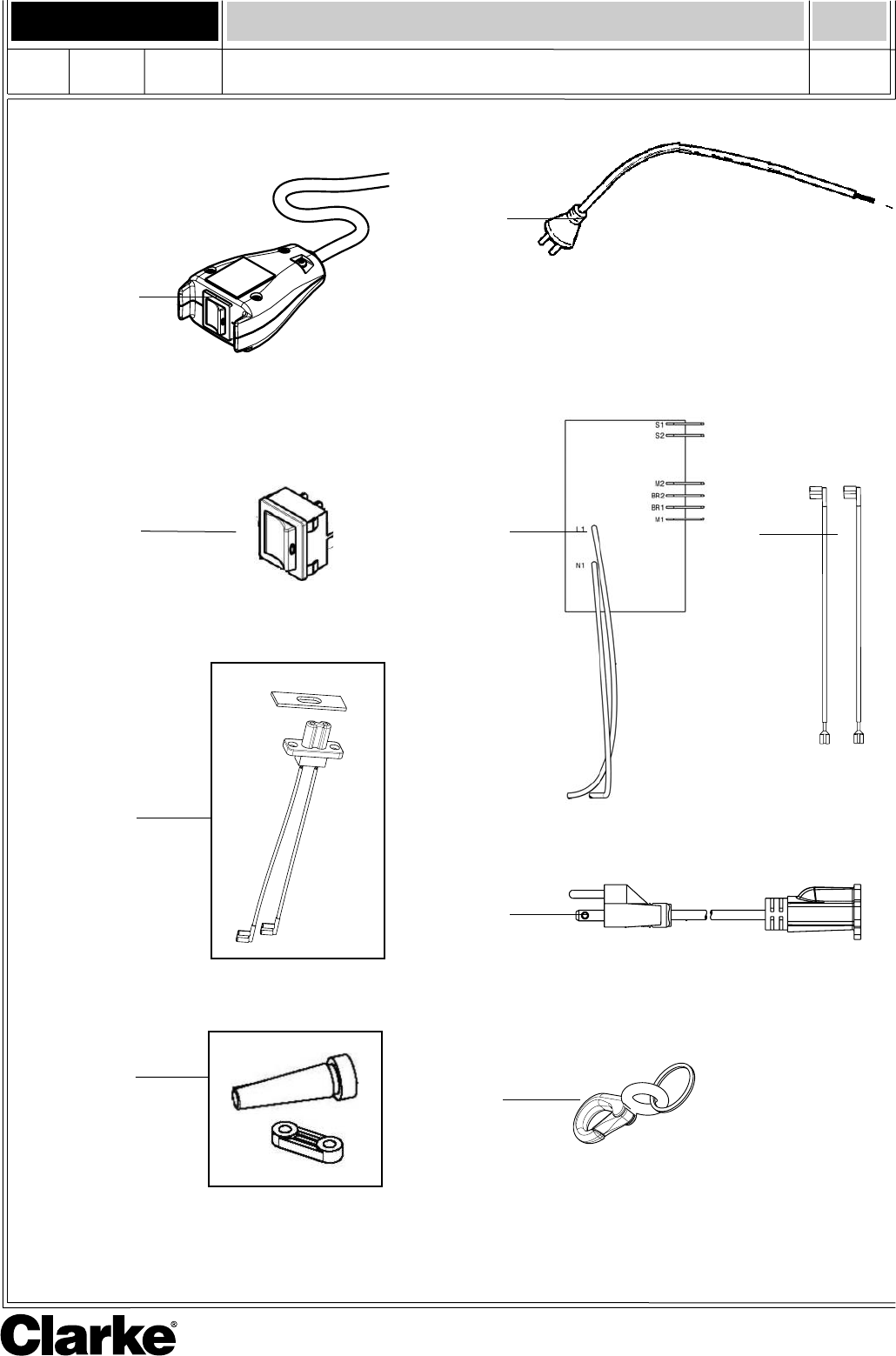

44ELECTRICAL PARTS
1
2
3
4
5
67
8
9
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 4823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 4 2008-02-26 14:32:562008-02-26 14:32:56
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
5
Item Part No. Qty. Description Note
1 147 1105 500 1 Switch cpl.
2 140 5496 510 1 Switch
3 140 8497 530 1 Connector
4 140 7035 510 1 Sleeve kit Anti strain clip
incl.
5 140 3859 500 1 Cord set US/TW plug,
machine end
1.3 ft (400 mm)
6 147 1231 510 1 Curcuit board 100-120V
7 140 7042 520 1 Internal wire kit 2 Wires incl.
8 147 1243 500 1 Cord extension 50 ft (15.5 m)
Colour: Yellow.
16 AWG
9 147 1346 500 1 Anti strain snap hook
ELECTRICAL PARTS
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 5823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 5 2008-02-26 14:32:592008-02-26 14:32:59
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

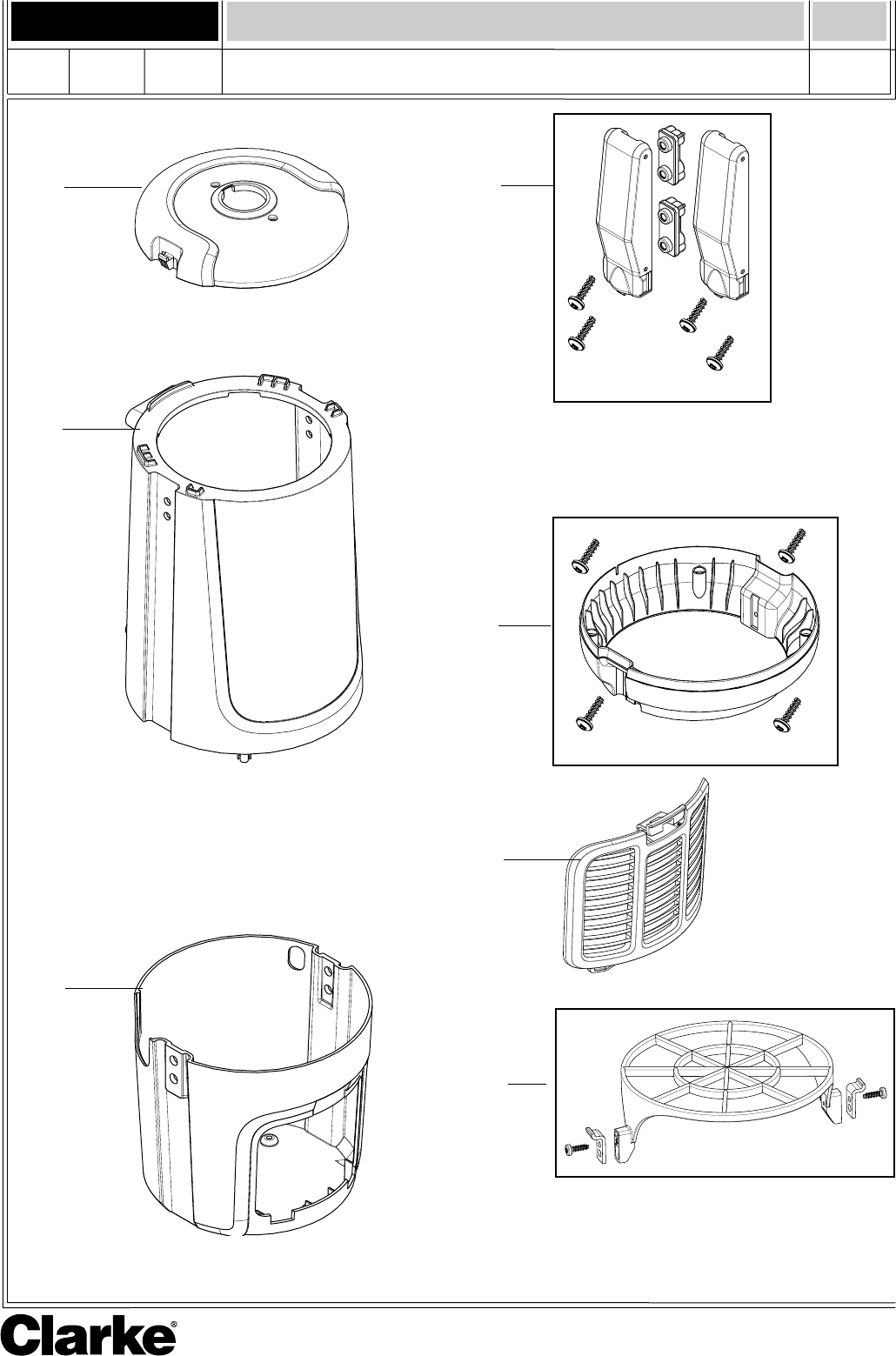

6CONTAINER PARTS
1
3
4
5
7
6
8
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 6823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 6 2008-02-26 14:32:592008-02-26 14:32:59
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
7
CONTAINER PARTS
Item Part No. Qty. Description Note
1 147 1077 510 1 Outer lid, for
Comfort Pak 6
Blue
1 147 1080 510 1 Outer lid, for
Comfort Pak 10
Blue
3 147 1076 510 1 Container,
for Comfort Pak 6
Blue
3 147 1079 510 1 Container,
for Comfort Pak 10
Blue
4 147 1075 540 1 Cover outer, UL-approved
4 147 1075 550 1 Cover outer, power outlet,
UL-approved
Gasket incl.
5 147 1101 500 1 Latch kit 2 latches,
screws and
screw towers.
6 147 1078 510 1 Adapter, for
Comfort Pak 10
Blue.
Screws incl.
7 147 1082 510 1 Grid exhaust Blue
8 147 1115 500 1 Basket sack filter Hooks and
screws incl.
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 7823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 7 2008-02-26 14:33:072008-02-26 14:33:07
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

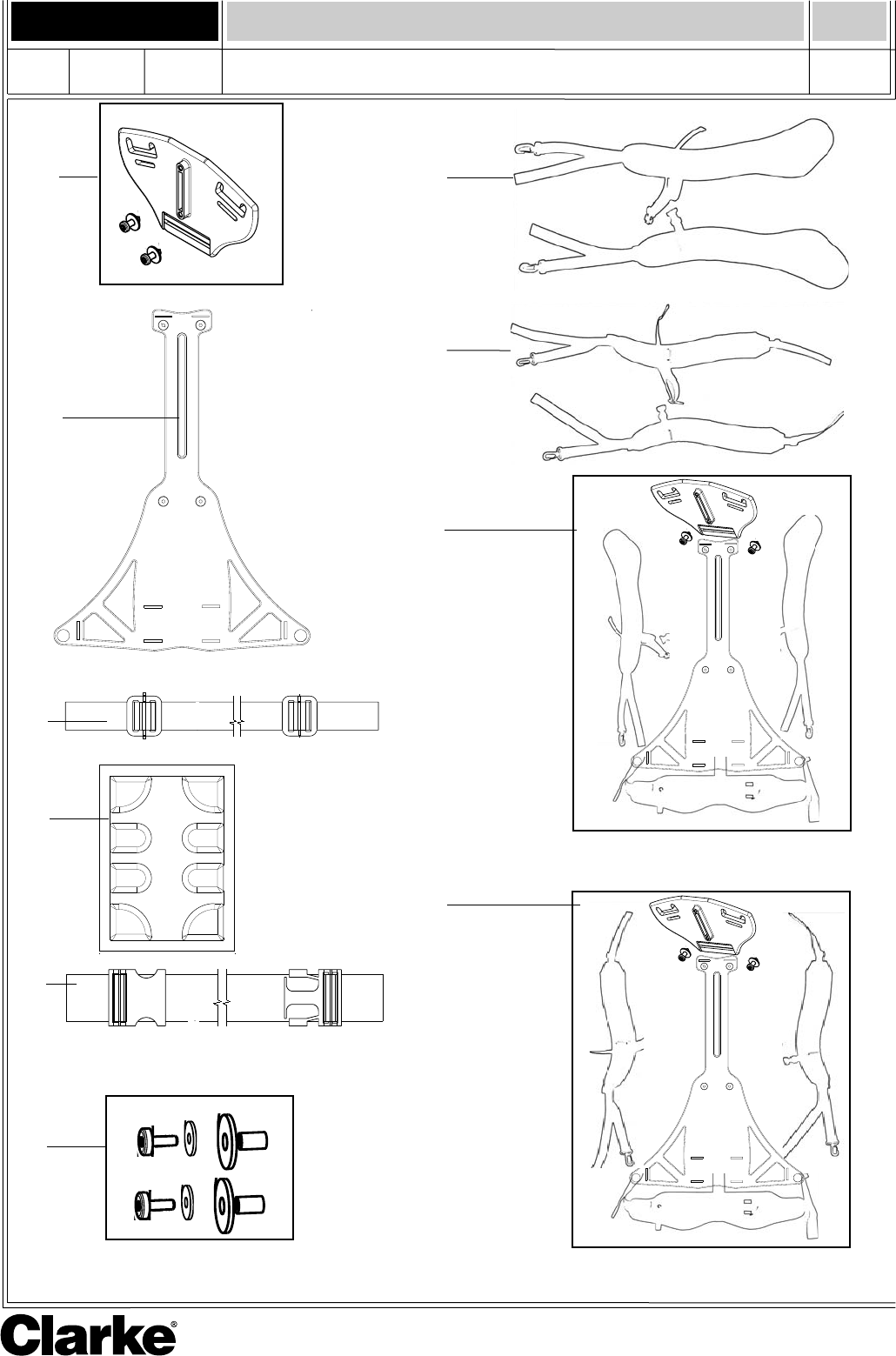

8STRAPS PARTS
4
2
3
1
6
7
8
5
9
10
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 8823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 8 2008-02-26 14:33:072008-02-26 14:33:07
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
9
STRAPS PARTS
Item Part No. Qty. Description Note
1 147 1092 500 1 Adjusting plate
2 147 1091 500 1 Harness support
3 147 1246 500 1 Harness premium Screws and washers incl.
4 147 1090 500 1 Harness standard
5 147 1247 500 1 Lifting strap
6 147 1248 500 1 Padding, back plate
7 147 1249 500 1 Extension belt L=400 mm
8 147 1246 600 1 Screw kit For harness premium
9 147 1246 510 1 Harness premium cpl.
10 147 1090 510 1 Harness standard cpl.
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 9823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 9 2008-02-26 14:33:212008-02-26 14:33:21
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02
10 FILTERS
1
2
3
4
5
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 10823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 10 2008-02-26 14:33:212008-02-26 14:33:21
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
11
FILTERS
Item Part No. Qty. Description Note
1 147 1104 500 1 HEPA-fi lter cpl.
2 147 1100 500 1 Sack fi lter, for Comfort Pak
6
2 147 1099 500 1 Sack fi lter, for Comfort Pak
10
3 147 1089 500 1 Exhaust fi lter 3 pcs.
4 147 1098 500 1 Dustbag, for 6XP
(1.3 Gallon, 5L)
5 pcs.
4 147 1097 500 1 Dustbag, for Comfort Pak
10
(2.6 Gallon, 10 L)
5 pcs.
5 147 1095 500 1 Prefi lter 3 psc.
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 11823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 11 2008-02-26 14:33:252008-02-26 14:33:25
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

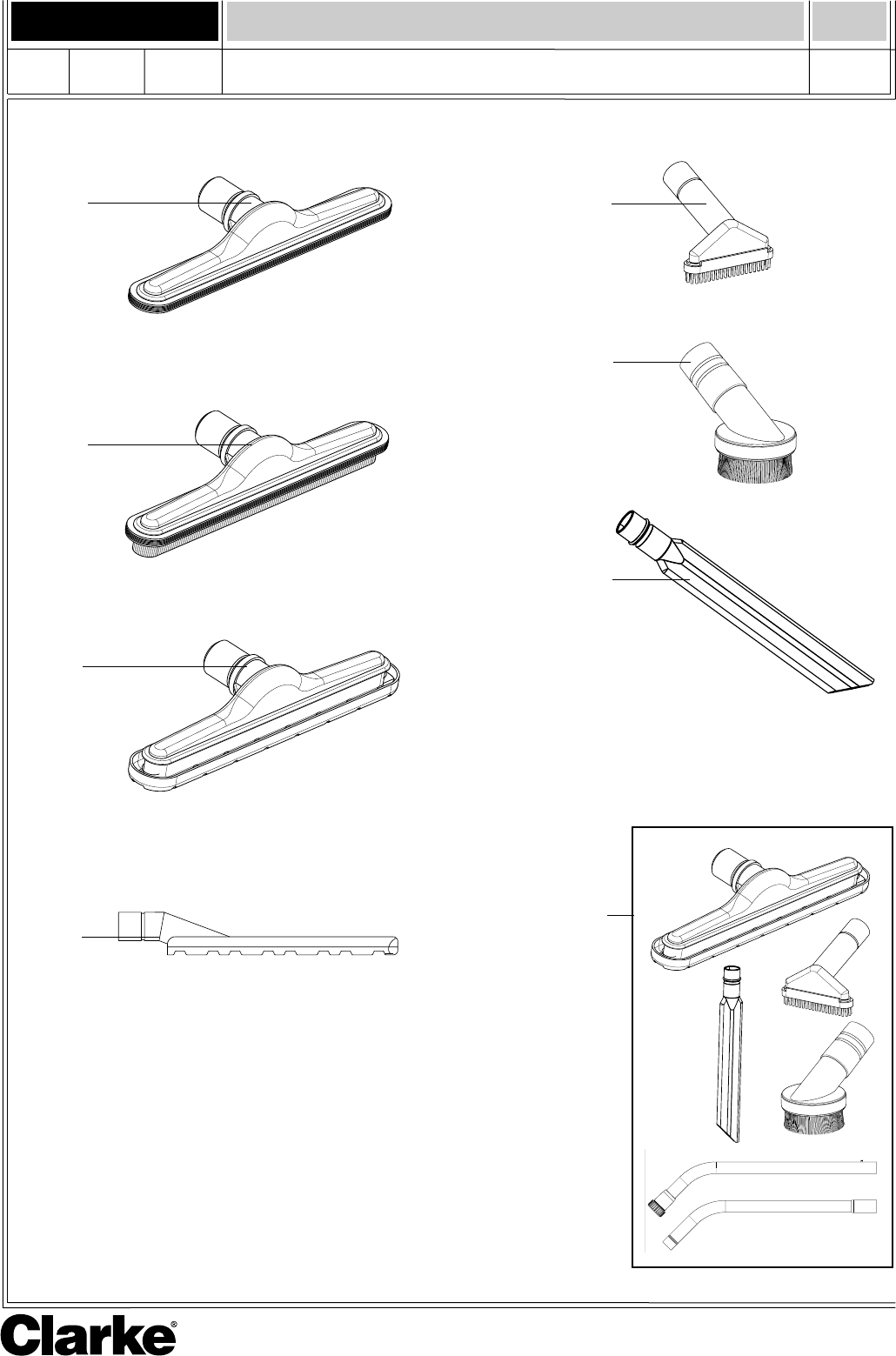

12 NOZZLES Ø 1.5 Inch, 38 mm
14
5
6
7
2
3
8
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 12823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 12 2008-02-26 14:33:252008-02-26 14:33:25
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
13
NOZZLES Ø 1.5 Inch, 38 mm
Item Part No. Qty. Description Note
1 147 1383 520 1 Scallop carpet fl oor tool
2 147 1383 510 1 Hard fl oor brush tool
3 147 1383 500 1 Quick-Glide multi surface
fl oor tool
4 147 1384 500 1 Upholstery tool
5 147 1385 500 1 Dust tool
6 147 1386 500 1 Crevice tool
7 140 7547 500 1 Paddle nozzle
8 147 1388 500 5 Standard accessory kit Kit with Item
# 3,4,5,6
and a S-
wand.
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 13823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 13 2008-02-26 14:33:282008-02-26 14:33:28
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02
14 TUBE, HOSE Ø 1.5 Inch, 38 mm
2
1
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 14823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 14 2008-02-26 14:33:282008-02-26 14:33:28
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
15
TUBES, HOSE Ø 1.5 Inch, 38 mm
Item Part No. Qty. Description Note
1 147 1387 500 1 S-wands Aluminium
2 147 1237 500 1 Hose cpl. 49 in. (1250 mm)
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 15823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 15 2008-02-26 14:33:302008-02-26 14:33:30
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02

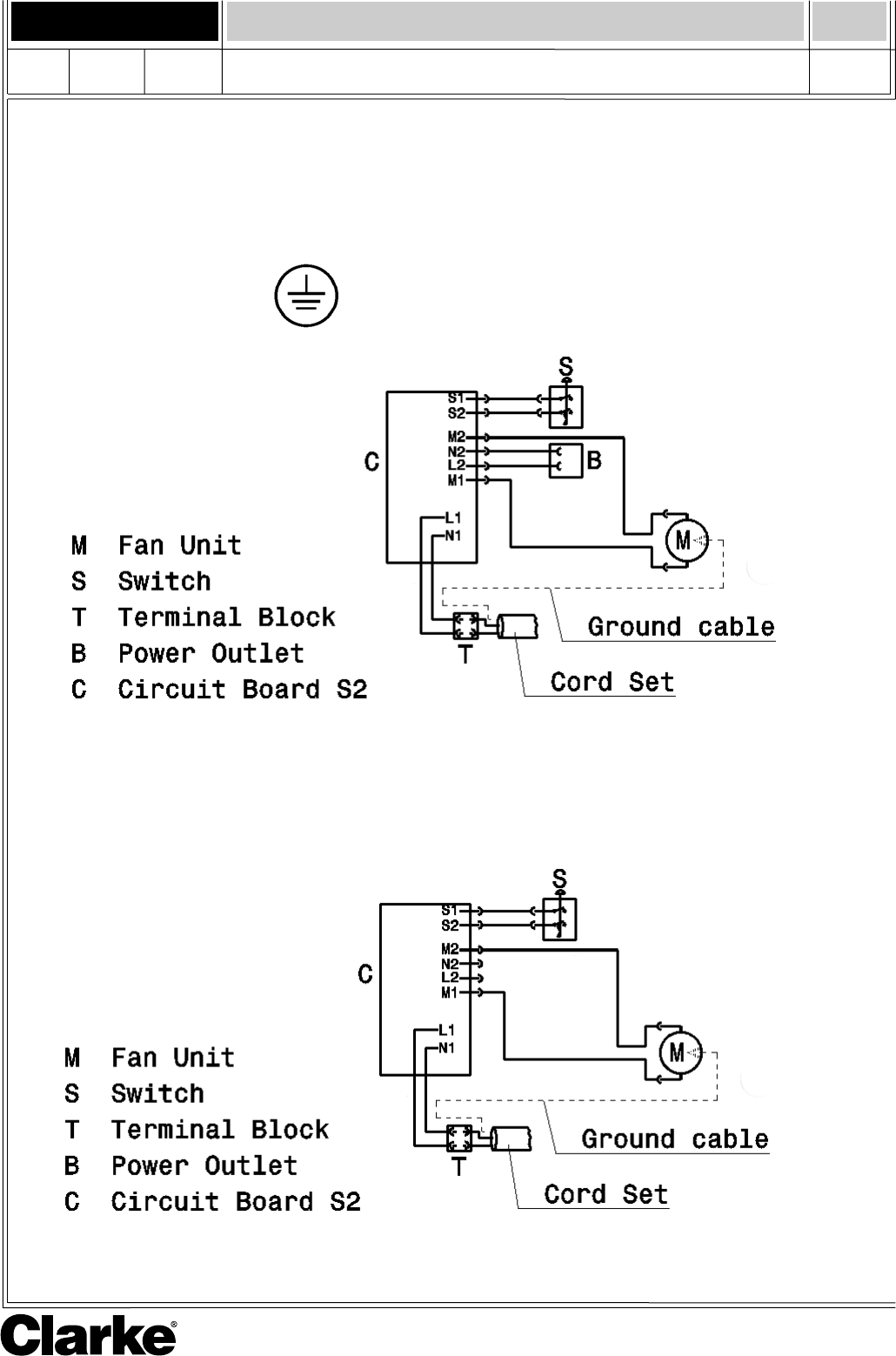

16 Wiring diagram - Grounded
Model Comfort Pak 10, with power outlet
Model Comfort Pak 6, no power outlet
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 16823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 16 2008-02-26 14:33:312008-02-26 14:33:31
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
17
PRODUCTION FACILITIES
ALTO Danmark A/S, Aalborg
Blytaekkervej 2
DK-9000 Aalborg
+45 72 18 21 00
ALTO Danmark A/S, Hadsund
Industrikvarteret
DK-9560 Hadsund
+45 72 18 21 00
SALES SUBSIDIARIES
ALTO U.S. - Canada, Ontario (Canada)
4080 B Sladeview Crescent Unit 1
Mississauga, Ontario L5L 5Y5
(905) 569-0266
ALTO Overseas Inc., Sydney (Australia)
1B/8 Resolution Drive
Caringbah NSW 2229
+61 2 9524 6122
ALTO Cleaning Systems Asia Pte Ltd., Singapore
No. 17 Link Road
Singapore 619034
+65 268 1006
ALTO Deutschland GmbH, Bellenberg (Germany)
Guido-Oberdorfer-Straße 2-8
89287 Bellenberg
+49 0180 5 37 37 37
ALTO Cleaning Systems (UK) Ltd., Penrith
Gilwilly Industrial Estate
Penrith
Cumbria CA11 9BN
+44 1768 868 995
ALTO France S.A. Strasbourg
B.P. 44, 4 Place d’Ostwald
F-67036 Strasbourg
Cedex 2
+33 3 8828 8400
ALTO Nederland B.V.
Postbus 65
3370 AB Hardinxveld-Giessendam
The Netherlands
+31 184 677 200
ALTO Sverige AB, Molndal (Sweden)
Aminogatan 18
Box 4029
S-431 04 Molndal
+46 31 706 73 00
ALTO Norge A/S, Oslo (Norway)
Bjornerudveien 24
N-1266
+47 2275 1770
U. S. A. Locations European Locations
CORPO
PRODUCTION FACILITIES
Clarke®, Springdale, Arkansas
2100 Highway 265
Springdale, Arkansas 72764
(479) 750-1000
Customer Service - 1-800-253-0367
Technical Service - 1-800-356-7274
American Lincoln®, Bowling Green, Ohio 43402
1100 Haskins Road
SERVICE FACILITIES
Clarke®, Elk Grove, Illinois 60007
2280 Elmhurst Road
(847) 956-7900
Clarke®, Denver, Colorado 80204
1955 West 13th Ave.
(303) 623-4367
Clarke®, Houston, Texas 77040
7215 North Gessner Road
713-937-7717
SERVICE AND SALES FACILITY
American Lincoln® / Clarke, Madison Heights,
Michigan 48071-0158
29815 John R.
(810) 544-6300
American Lincoln® / Clarke, Marietta, Georgia 30066
1455 Canton Road
(770) 973-5225
SALES AND DISTRIBUTION CENTER
Clarke®, Secaucus, NJ 07094
74 Henry Street
(201) 864-5503
Clarke®
Clarke American Sanders
A.L. Cook
Customer Service Headquarters and Factory
2100 Highway 265
Springdale, Arkansas 72764
(479) 750-1000
Technical Service
1-800-356-7274
Service information
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 17823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 17 2008-02-26 14:33:312008-02-26 14:33:31
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02
18
Clarke® US WARRANTY
This Clarke Industrial/Commercial Product is warranted to be free from defects in materials and workmanship
under normal use and service for a period of two years (tank warranted for 5 years) from the date of purchase,
when operated and maintained in accordance with Clarke's Maintenance and Operations instructions.
This warranty is extended only to the original purchaser for use of the product. It does not cover normal
wear parts such as electrical cable, rubber parts, hoses and motor brushes.
If difficulty develops with the product, you should:
(a). Contact the nearest authorized Clarke repair location or contact the Clarke Service Operations Department,
2100 Highway 265, Springdale, Arkansas 72764, for the nearest authorized Clarke repair location. Only these
locations are authorized to make repairs to the product under this warranty.
(b). Return the product to the nearest Clarke repair location. Transportation charges to and from the repair
location must be prepaid by the purchaser.
(c). Clarke will repair the product and or replace any defective parts without charge within a reasonable time after
receipt of the product.
Clarke's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to
purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO
WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES,
INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED. A warranty
registration card is provided with your Clarke product. Return the card to assist Clarke in providing the perfor-
mance you expect from your new floor machine.
Clarke reserves the right to make changes or improvements to its machine without notice.
Always use genuine Clarke Parts for repair.
2100 Highway 265
Springdale, Arkansas, 72764
Warranty information
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 18823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 18 2008-02-26 14:33:312008-02-26 14:33:31
Clarke Comfort Pak 6, Comfort Pak 10 823 0101 020
08-02
19
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 19823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 19 2008-02-26 14:33:312008-02-26 14:33:31
Clarke Comfort Pak 6, Comfort Pak 10
823 0101 020 08-02
20
Clarke reserves the right to make changes or improvements to its machine without notice.
Always use genuine Clarke Parts for repair.
2100 Highway 265
Springdale, Arkansas, 72764
823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 20823 0101 020 Spare parts list Clarke Comfort Pak 6 Comfort Pak 10.indd 20 2008-02-26 14:33:312008-02-26 14:33:31
