Form No. 56042643 7/2015 REV A
Parts List
Models: 56265504 (EX40 16ST), 56265505 (EX40 18LX)
EX40 16ST, EX40 18LX
TABLE OF CONTENTS
DESCRIPTION PAGE
Base System ...........................................................................................2-3
Brush System ..........................................................................................4-5
Decal System ..........................................................................................6-7
Handle System 16ST ..............................................................................8-9
Handle System 18LX .......................................................................... 10-11
Recovery System ................................................................................12-13
Solution System 16ST-1 ......................................................................14-15
Solution System 16ST-2 ......................................................................16-17
Solution System 18LX-1 ......................................................................18-19
Solution System 18LX-2 ......................................................................20-21

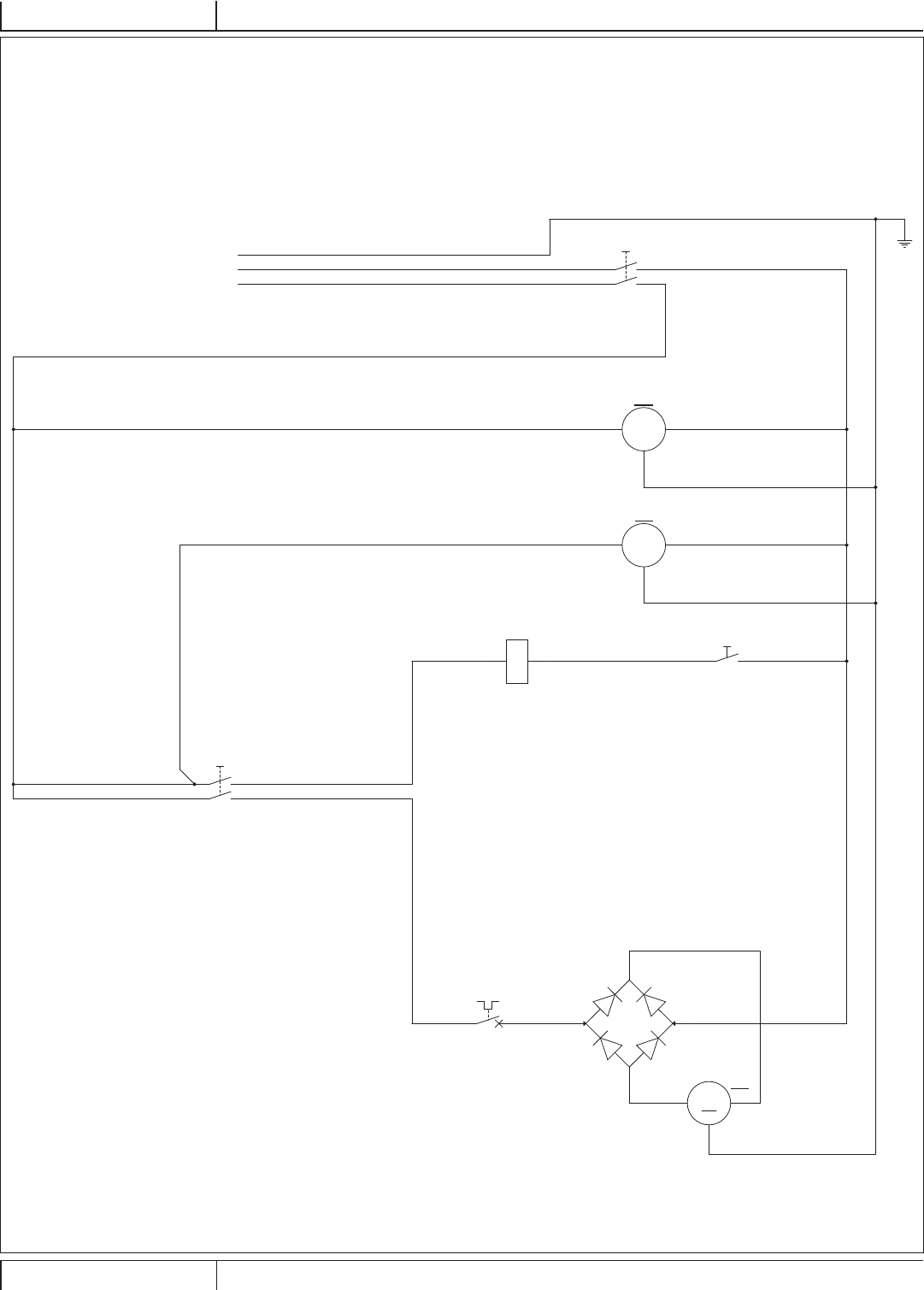

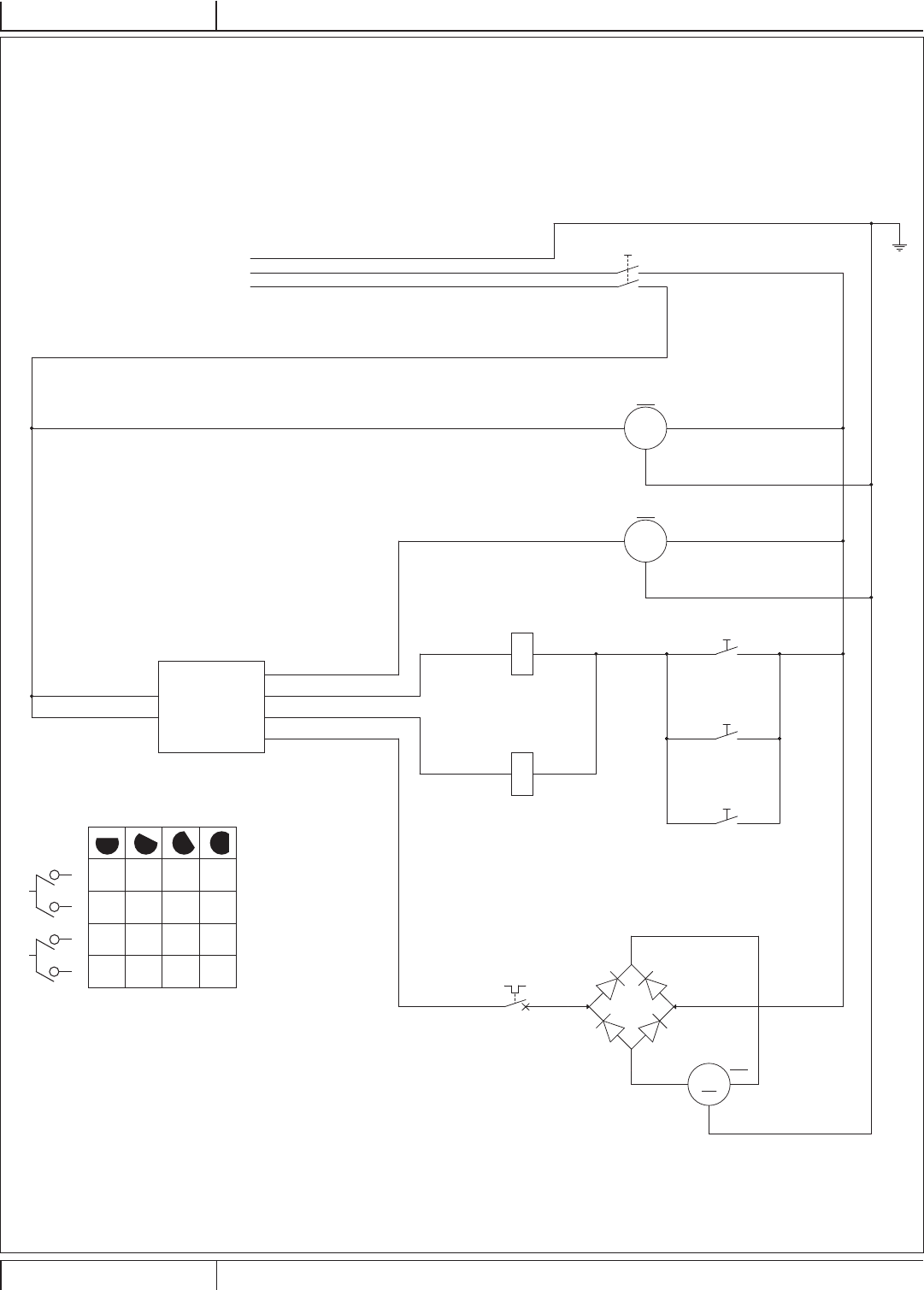

Ladder Diagrams .................................................................................22-25
Options & Accessories ............................................................................. 26
Brush Selector Guide ............................................................................... 27
WHEN ORDERING PARTS
* Use the part numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model Serial No.
7/2015 1 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

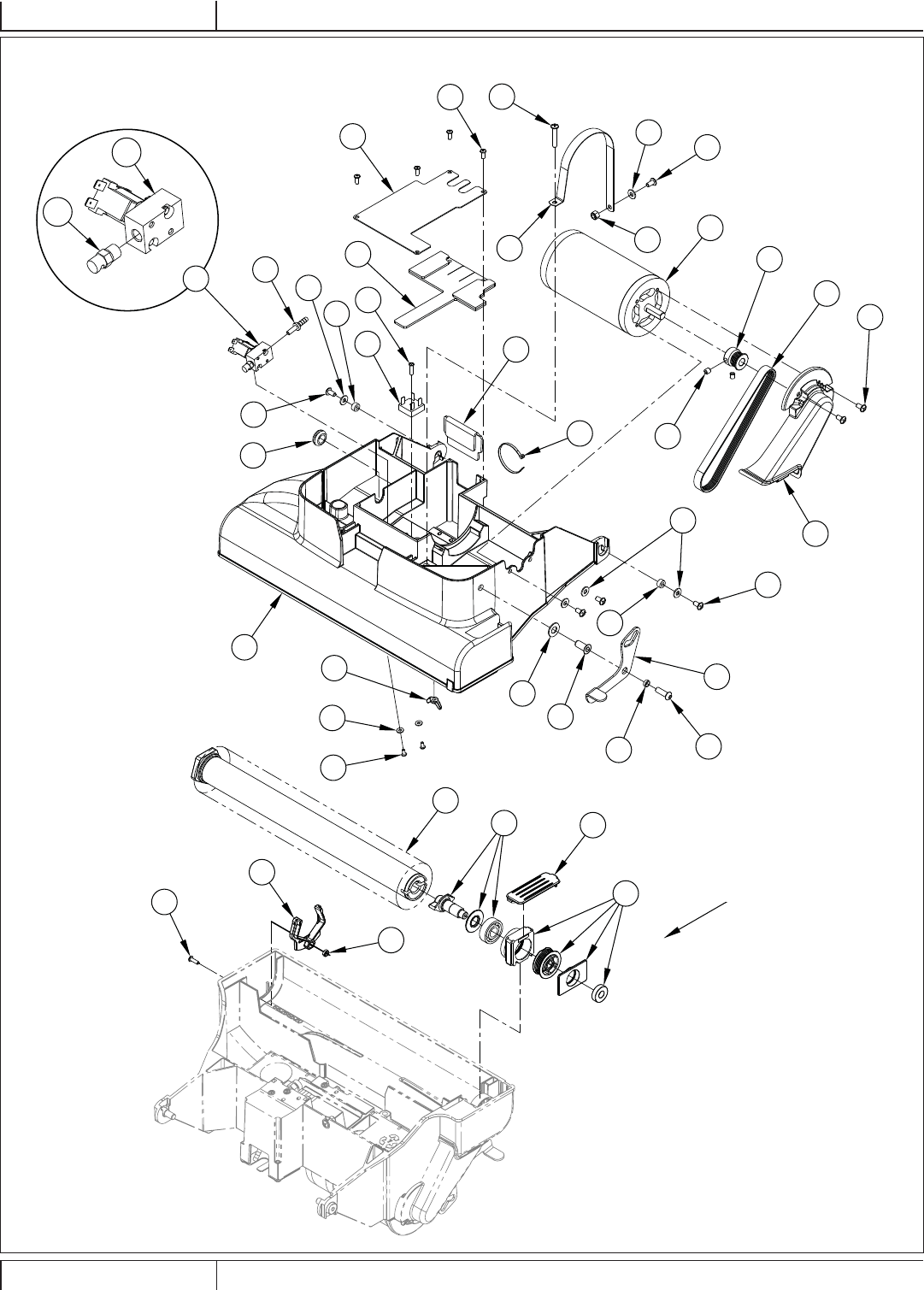

BASE SYSTEM
FRONT
1
2
4
5
6
7
8
911
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
31 32
33
34
29
29
31b
31a
30
3
10
10
11
5
11
35
5
36
37
2 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
BASE SYSTEM
Item Ref. No. Qty Description
1 56002145 1 Scr-Pan Phil 1/4-20 X .50
2 56002491 1 Nut-Hex Nyl Loc Ss 1/4-20
3 56002905 1 Scr-Pan Phil Ss 1/4-20 X 1.50
4 56002849 1 Nut, Hex Nyl Loc-Thin Ss 10-24
5 56002859 5 Wsh-Flt Sae Ss 1/4
6 56002875 2 Wsh-Flt Sae Ss #8
7 56002896 1 Scr-Pan Phil Ss 10-24 X .62
8 56003018 2 Scr-Pan Phil Ss 8-32 X .38
9 56003545 1 Scr, Pan Phil Plastite 8-10 X .75
10 56265782 2 Bushing-.26x.50x .25 Long
11 56003897 6 Scr-Pan Phil Loc Ss 1/4-20 X .50
12 56003963 1 Scr-Botton Soc Ss 5/16-18x1.00
13 56003985 1 Rivet-Nut 5/16-18 Steel Zinc P
14 56009037 1 Wsh, Int Shprf 7/16
15 56009131 2 Scr, Soc Set Loc 5/16-18 X .31
16 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
17 56157376 1 Grommet
18 56262558 1 Sheave,Poly-V
19 56265043 1 Clip, Brush Retainer
20 56265075 1 Motor, 115 Vdc, 1/3 Hp M3
21 56265091 1 Cover, Pulley
22 56265044 1 Brush Assembly 16
56265046 1 Brush, 16
56265099 1 Brush Assembly 18
56265065 1 Brush, 18
23 56265103 1 Rectifi er, 35 Amp D1
24 56265620 1 Base Extractor 16 (16ST)
56265520 1 Base-Extractor 18 (18LX)
25 56265629 1 Cover-Belt
26 56265657 1 Cover-Electrical
27 56265663 1 Lever-Brush Storage
28 56265676 1 Strap-Motor
29 56265690 1 Bearing-Spindle Kit
1 Bearing, Ball
1 Washer,Bearing
1 Bearing,Block
1 Spindle,Drive
1 Bearing Block-Drive
1 Sheave-Poly-V-6j17
1 Ring Ball .6693 Cv25d 1
30 56265692 1 Adapter-.25 Stem-.25 Barb
31 56265746 1 Valve/Nozzle Assy-120v-Restore L1
31a 56265052 1 Nozzle Spray
31b 56265561 1 Valve-Solenoid-230v
32 56315321 1 Belt, Auto Tension
33 56381818 1 Bushing .32x.44x.15
34 56478246 1 Tie, Cable
35 56009111 1 Nut, Wing Ss 1/4-20
36 56265790 1 Gasket-Base-Elec Compartment
37 56265788 1 Gasket-Base-Rear
7/2015 3 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

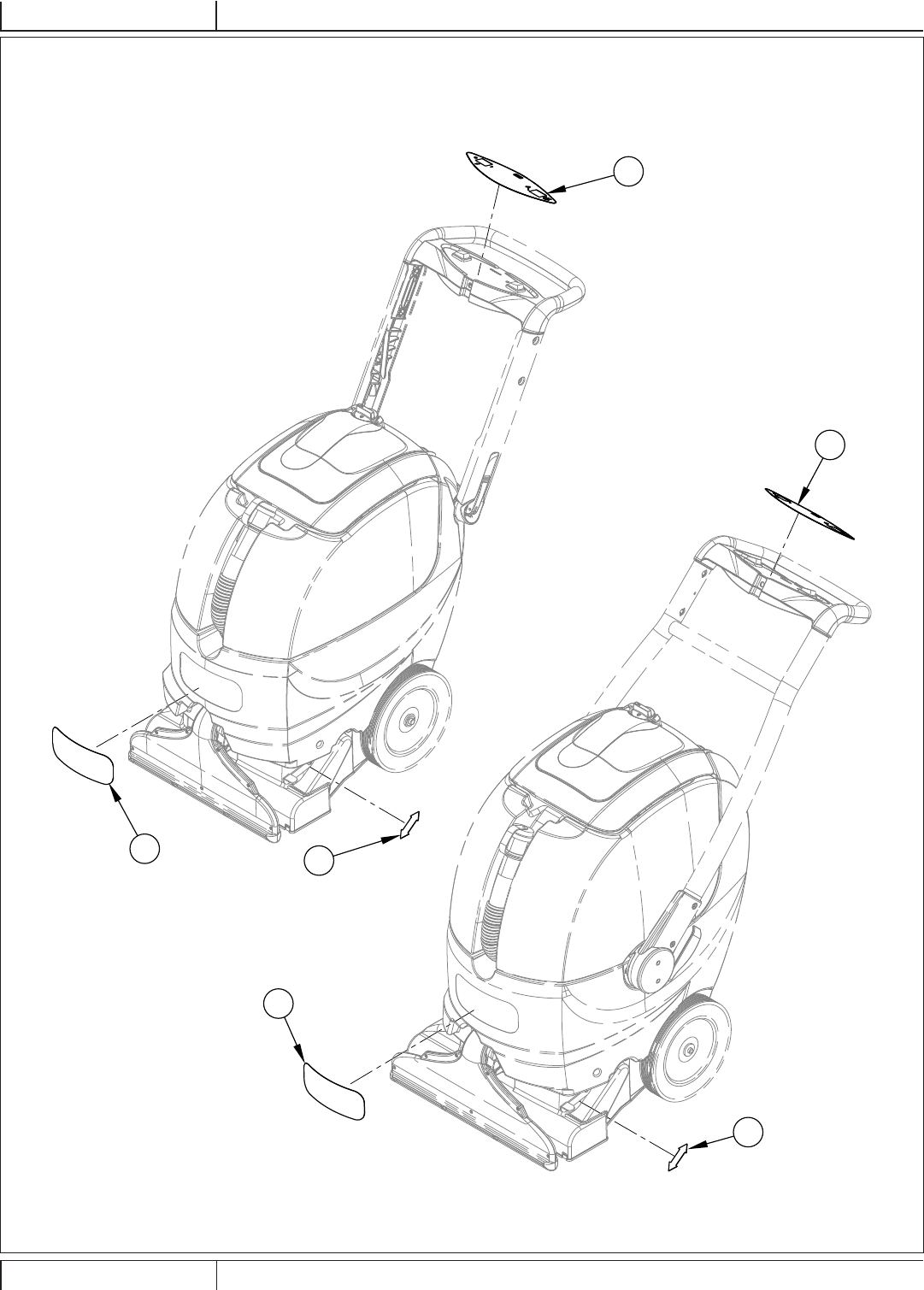

DECAL SYSTEM
1
24
1
3
4
4 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
DECAL SYSTEM
Item Ref. No. Qty Description
1 56265727 1 Decal-Panel-ST (16ST, 18LX)
2 56265730 1 Decal-Clarke EX40 16ST (16ST)
3 56265731 1 Decal-Clarke EX40 18LX (18LX)
4 56265750 1 Decal-Storage Lock (16ST, 18LX)
7/2015 5 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

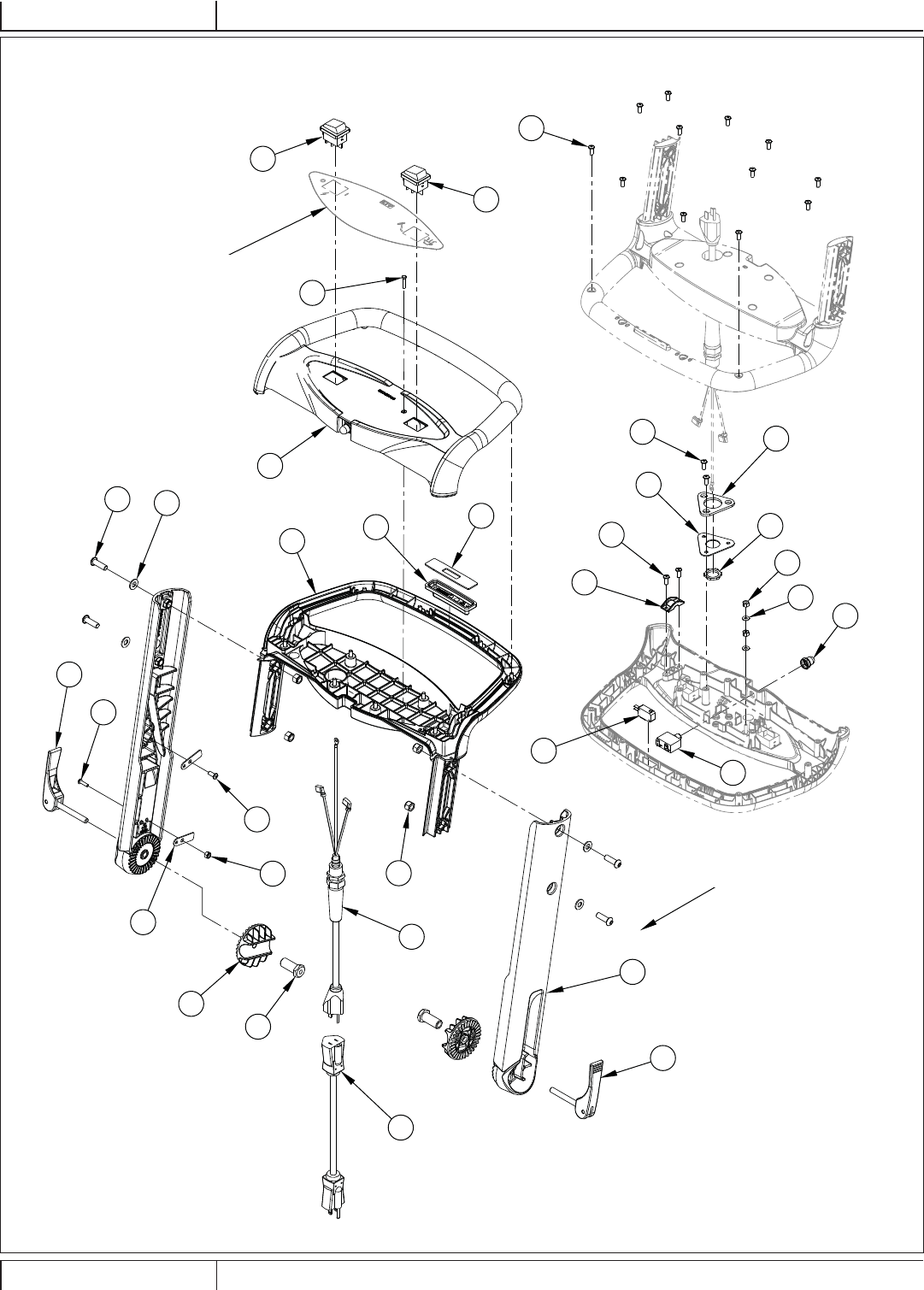

HANDLE SYSTEM 16ST
FRONT
1
2
3
4
5
6
7
8
9
10
11
10
12
13
15
15
10
16
16
17
18
19
20
21
22
23
24
25
26
27
28
10
SEE DECAL SYSTEM
21
6 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
HANDLE SYSTEM 16ST
Item Ref. No. Qty Description
1 56002146 1 Scr-Pan Phil 8-32 X .62
2 56002701 4 Nut, Hex Nyl Loc 5/16-18
3 56002808 1 Nut, Hex Nyl Loc 8-32
4 56002874 1 Scr- Hex Ss 8-32 X .75
5 56002938 4 Wsh-Flt Sae Ss 5/16
6 56003963 4 Scr-Botton Soc Ss 5/16-18x1.00
7 56009010 2 Wsh, Int Shprt #8
8 56009095 1 Nut, Conduit Lock 1/2-14
9 56009148 2 Nut-Hex Machine 8-32
10 56009191 17 Scr, Pan Phil Plastite 10-14 X .50
11 56264119 1 Clamp, Power Cord
12 56265098 1 Switch, Spdt Snapaction S4
13 56265112 1 Cord Set-14/3x50’ Yel
[14] 56265547 1 Harness-Main
15 56265549 2 Switch-Rocker-Dpst S1
16 56265550 1 Circuit Breaker-W/Boot-5a CB1
17 56265564 1 Plate-Switch Retainer
18 56265648 2 Handle Tube-Ratchet
19 56265659 1 Plate-Cord Mounting
20 56265666 1 Handle-Top Cover-St
21 56265682 2 Lever-Locking Assembly
22 56265693 1 Handle-Bottom Cover-St
23 56265698 1 Gasket-Cord Mount
24 56265715 1 Button-Handle
25 56265718 1 Cord-Pigtail
26 56265748 2 Retainer-Harness
27 56265752 2 Bushing-Cam Adjustment
28 9097228000 2 Ratchet Handle Adjuster
[ ] = Not Shown
7/2015 7 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

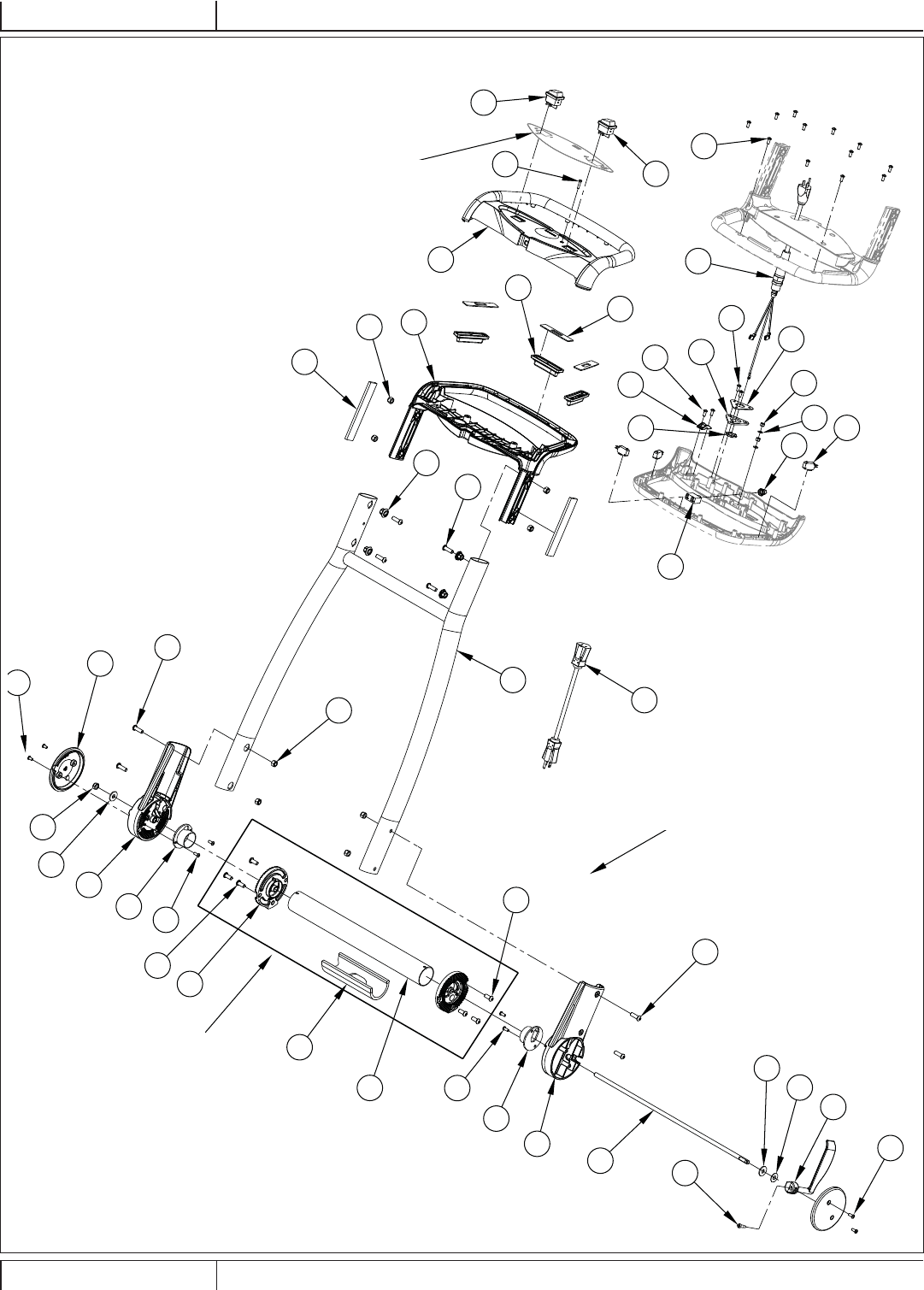

HANDLE SYSTEM 18LX
THESE PARTS ATTACH
TO SOLUTION TANK
1
1
2
3
4
4
5
6
7
5
6
8
9
10
11
12
13 14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
36
32
33
34
35
37
33
29
4
32
SEE DECAL SYSTEM
FRONT
7
38
39
39
38
8 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
HANDLE SYSTEM 18LX
Item Ref. No. Qty Description
1 56002701 8 Nut, Hex Nyl Loc 5/16-18
2 56002852 1 Nut, Hex Nyl Loc-Thin Ss 3/8-16
3 56003624 1 Scr-Soc Shd ..25 X .50 X 10-24
4 56003963 8 Scr-Botton Soc Ss 5/16-18x1.00
5 56003994 6 Scr-Button Soc Ss 5/16-18x.75
6 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
7 56385358 2 Washer
8 56265718 1 Cord-Pigtail
9 56265112 1 Cord Set-14/3x50’ Yel
10 56265525 2 Mount-Ratchet
11 56265526 1 Handle-Socket-W/Hole
12 56265527 1 Handle-Socket-W/O Hole
13 56265528 1 Sleeve-Steel-2.0 Dia
14 56265529 1 Lever-Cam
15 56265530 1 Shaft-Cam Lock
16 56265533 2 Cap-Ratchet
17 56265715 3 Button-Handle
18 56265658 4 Bushing-Handle
19 56265688 1 Handle Weldment
20 56265744 1 Gasket-Handle Tube
21 56265768 2 Gasket-Handle-.25 X 1.0 X 6.0
22 56632681 1 Washer, 3/8 Pl. Nylon
23 56002874 1 Scr- Hex Ss 8-32 X .75
24 56009010 2 Wsh, Int Shprt #8
25 56009095 1 Nut, Conduit Lock 1/2-14
26 56009148 2 Nut-Hex Machine 8-32
27 56009191 16 Scr, Pan Phil Plastite 10-14 X .50
28 56264119 1 Clamp, Power Cord
29 56265098 3 Switch, Spdt Snapaction S4 / S5 / S6
30 56265543 1 Handle-Bottom Cover
[31] 56265547 1 Harness-Main
32 56265549 2 Switch-Rocker-Dpst S1
33 56265550 1 Circuit Breaker-W/Boot-5a CB1
34 56265564 3 Plate-Switch Retainer
35 56265659 1 Plate-Cord Mounting
36 56265666 1 Handle-Top Cover-St
37 56265698 1 Gasket-Cord Mount
38 56009247 4 Scr Pn Phil Plastite 10-14x.38
39 56265786 2 Guide Ring Assy
[ ] = Not Shown
7/2015 9 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

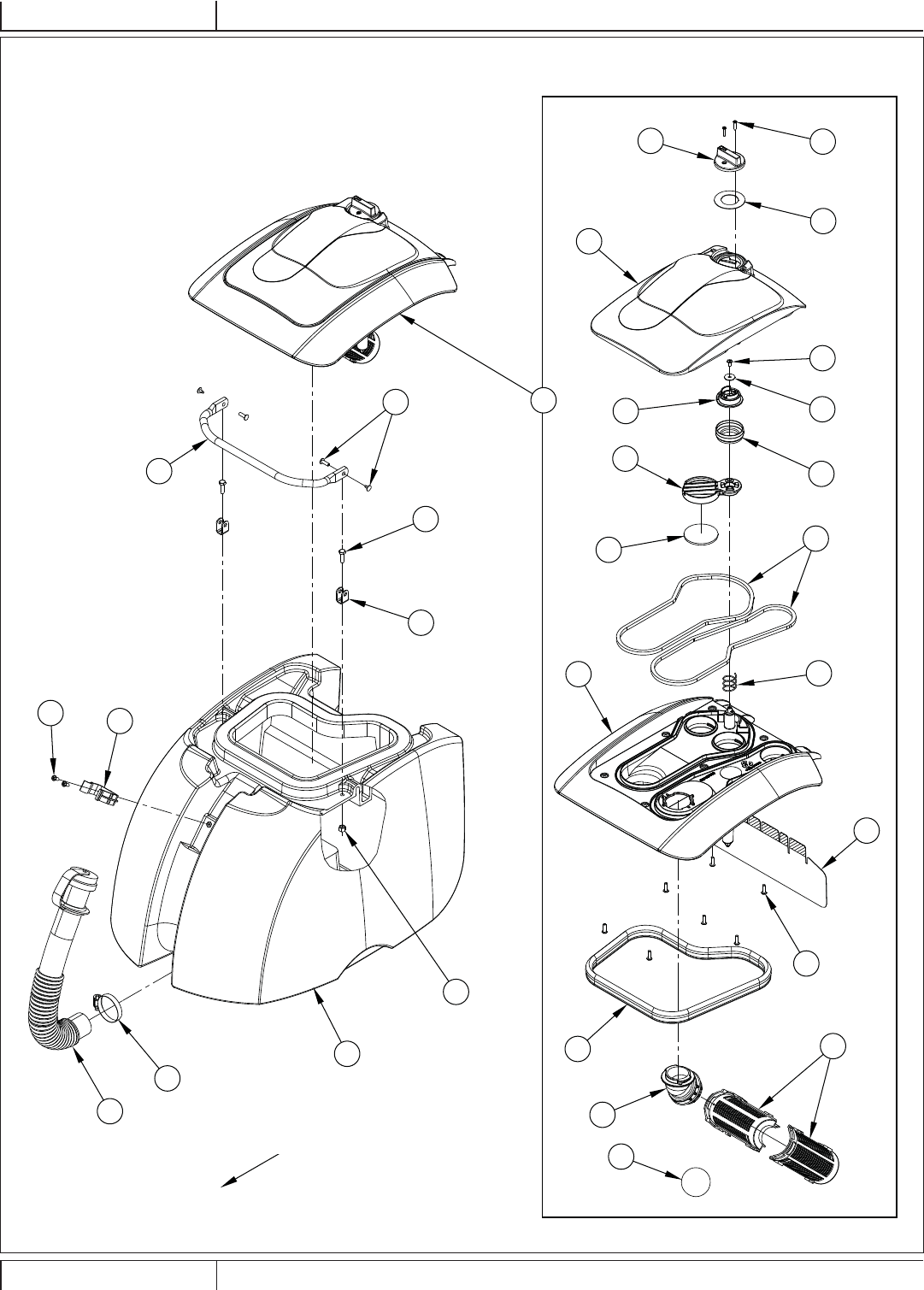

RECOVERY SYSTEM
FRONT
1
2
3
4
5
6
7
8
10
11
9
12
13
14
15
16
17
18
19
20
21
23
24
26
27
28
29
30
25
22
10 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
RECOVERY SYSTEM
Item Ref. No. Qty Description
1 56002900 2 Scr-Pan Phil Ss 10-24 X .50
2 56003426 2 Nut, Hex Nyl Loc Ss M6-1
3 56003454 2 Scr-Hex Thd To Hd Ss M6-1 X 20mm
4 56265621 1 Handle-Tank
5 56265702 1 Recovery Tank-16-Blue (16ST)
56265699 1 Recovery Tank-18-Blue (18LX)
6 56265630 2 Bracket-Handle Retainer
7 1 Recovery Lid Assembly
8 56002896 7 Scr-Pan Phil Ss 10-24 X .62
9 56003197 2 Scr, Pan Phil Plastite 6-18 X .62
10 56003913 1 Scr-Pan Phil Loc Ss 10-24 X .38
11 56009349 1 Wsh-Flt Ss .204 X .750 X .050
12 56265589 1 Lid-Recovery Tank
13 56265604 1 Gasket-Recovery Tank
14 56265651 1 Paddle-Valve
15 56265652 1 Actuator-Valve
16 56265653 1 Knob-Valve
17 56265654 1 Adapter-Ball Float
18 56265655 1 Cover-Recovery Lid
19 56265681 1 Seal-Diverter Valve
20 56265709 1 Spring-Compression-Ss
21 56265710 1 Seal-Selector Knob
22 56265737 2 Gasket-Lid-Poron-.25x.25
23 56265738 1 Gasket-Paddle-Poron-.125x2.38
24 56265783 1 Barrier-Flexible-Lid
25 56324497 2 Cage, Float
26 56391690 1 Ball- Float
27 56265685 1 Hose Drain 1.5 Inch
28 56265747 2 Binding Post-Quick Install
29 56329145 1 Clamp- Hose Sae #24
30 56331154 1 Clamp, Plastic
7/2015 11 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

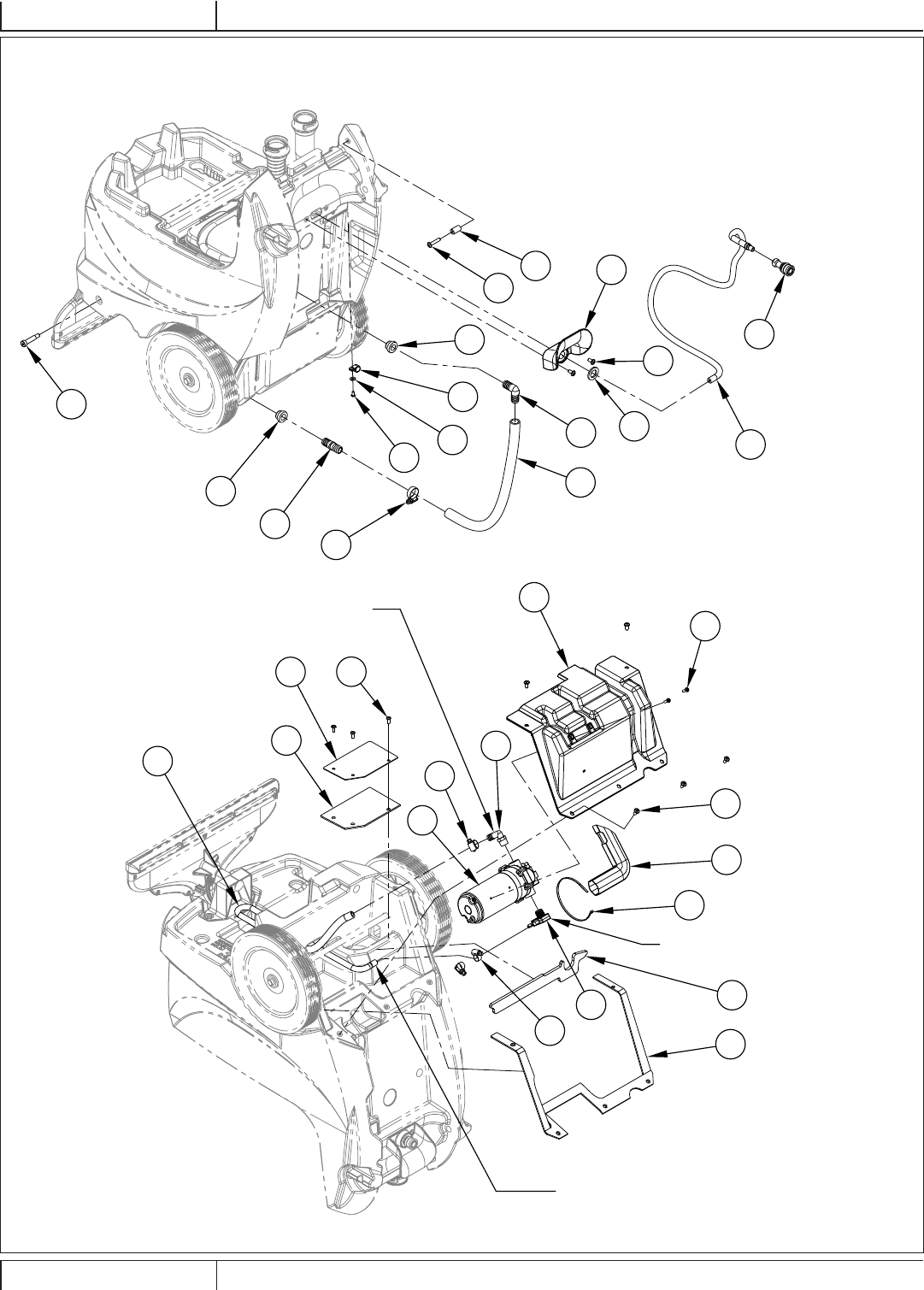

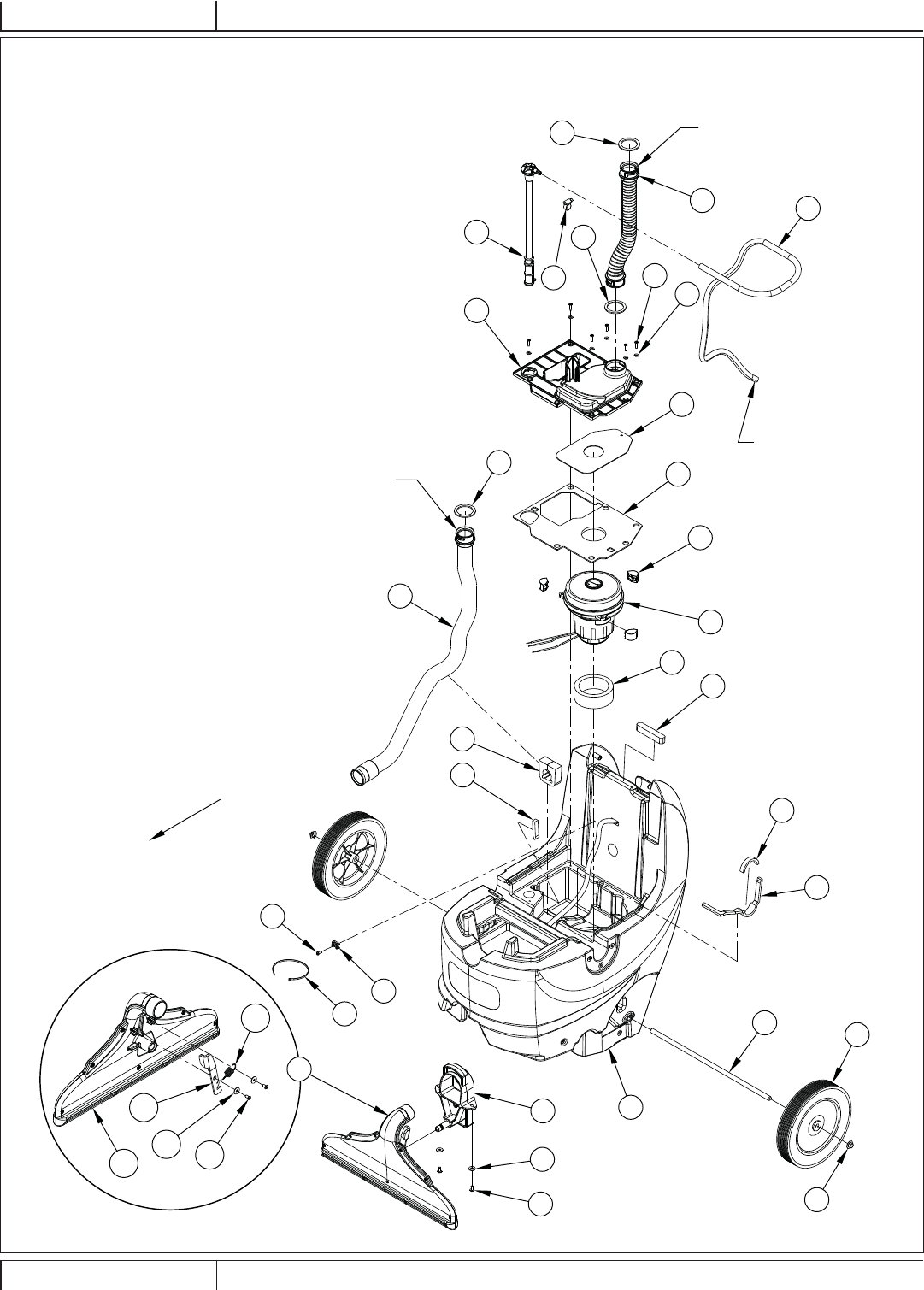

SOLUTION SYSTEM 16ST-1
FRONT
2
3
6
8
11
53
16
18
19
36
22
23
24
25
27
29
31
33
33
40
41
42
43
45
46
47
48
50
12
TO RECOVERY
LID PORT C
TO PUMP
INLET CONNECTOR
TO RECOVERY
LID PORT A
46
46
30b 30a
30c
30d
30e
30
12 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
SOLUTION SYSTEM 16ST-1
Item Ref. No. Qty Description
1 832803 1 Elbow-5/8 Hose
2 56001954 8 Wsh, Flt Sae #10
3 56003897 9 Scr-Pan Phil Loc Ss 1/4-20 X .50
4 56002624 1 Scr-Soc Shd .38 X 1.25 X 5/16-18
5 56003913 1 Scr-Pan Phil Loc Ss 10-24 X .38
6 56002914 2 Wsh, Flt Std Ss 1/4
7 56002958 2 Scr-Pan Phil Ss 1/4-20 X 1.25
8 56003091 7 Scr, Pan Phil Plastite 10-14 X .75
9 56009022 1 Wsh, Flt .754 X 1.250 X .120
10 56009042 2 Scr, Pan Phil Thd Form 10-24 X .62
11 56009097 2 Nut, Push Cap 1/2
12 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
13 56052237 2 Spacer, Phenolic
14 56056903 1 Clamp-P
15 56109503 1 Double Barb Assy
16 56116110 1 Seal-Inlet
17 56116721 2 Grommet-.59x.78x.62
18 56219932 2 Clamp- Hose Sae #6
19 56265057 1 Axle
20 56265373 1 Hose .25x21.0 E00160
21 56265552 1 Motor-Vacuum-120v M2
56265683 1 Carbon Brush Kit-(Set Of 2) for 56265552
22 56265554 1 Pump-115vac-120psi M1
23 56265582 1 Cover-Vac Motor
24 56265583 1 Plate-Vac Motor
25 56265586 1 Vac Hose Assembly
26 56265617 1 Cover-Vac Inlet
27 56265625 1 Hose Assembly
28 56265631 1 Cover-Back
29 56265646 1 Bracket-Shoe
Item Ref. No. Qty Description
30 56265650 1 Shoe/Latch Assembly-16
30a 56009247 2 Scr, Pan Phil Plastite 10-14x .38
30b 56265538 1 Shoe Assembly-16
30c 56265640 1 Latch-Shoe
30d 1326a 2 Washer Flat S.S 10 X11/1
30e 54196a 1 Spring Extension
31 56265665 1 Gasket-Vac Motor Cover
32 56265694 1 Gasket-Lid Support
33 56265697 2 Wheel-10.00x1.75x.50
34 56265704 1 Hook-Hose Storage
35 56265705 1 Socket-Quick Disconnect-1/8 Npt
36 56265706 1 Tank-Solution-16-Blue
37 56265708 1 Hose Assembly-Solution
38 56265712 1 Coupler-Barb-5/8
39 56265722 1 Gasket-Back Panel
40 56265725 1 Solution Filter Assembly-16
41 56265732 1 Gasket-Vac Exhaust Chamber
42 56265733 1 Gasket-Vac Exhaust Port
43 56265734 1 Gasket-Vac Chamber-Side
44 56265735 1 Gasket-Backpanel-Bottom
45 56265739 1 Gasket-Sound-Vac Hose
46 56265743 3 Gasket-Ring-Hose Cuff
47 56265766 1 Hose-Spiral-.500 X 52.00
48 56315141 3 Mount, Vibration
49 56383997 1 Hose-Pvc-5/8x19.00
50 56478523 2 Tie, Cable
51 56756364 2 Clamp- Hose Sae #4
52 56109566 1 Barb, 90 Elbow 1/2 X 3/8npt
53 9096595000 1 Flat Tie Holder
54 56112771 1 Clamp- Hose Sae #10
55 56265787 1 Boot-Pump
56 56265789 1 Gasket-Vac-Inlet Cover
7/2015 13 56042643 - EX40 16ST, EX40 18LX

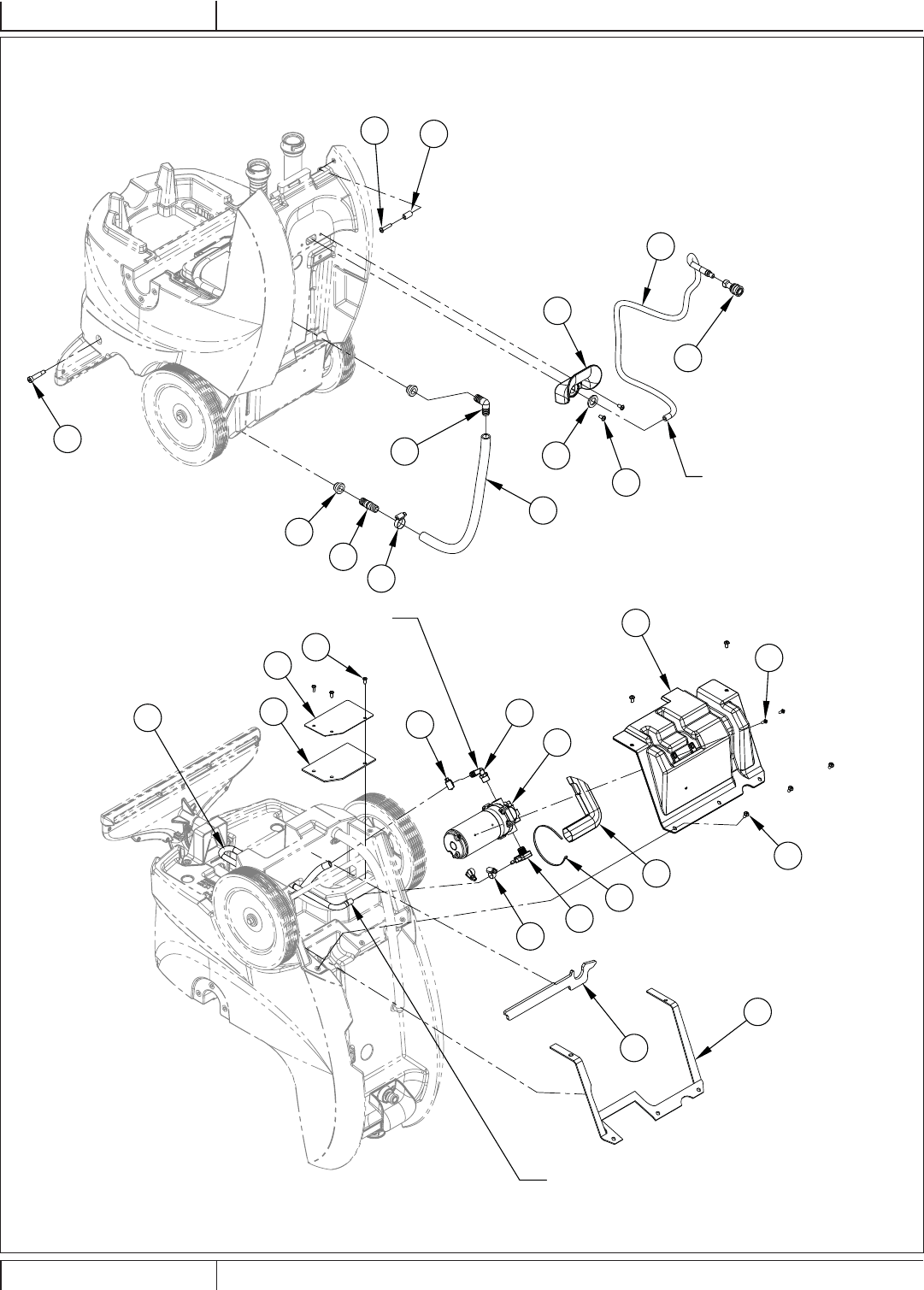

PARTS LIST
SOLUTION SYSTEM 16ST-2
17
1
2
3
3
4
7
5
9
10
13
14
15
17
22
26
28
34
35
37
38
39
44
49
20
51
52
18
12
THIS END TO PUMP OUTLET CONNECTOR
OTHER END TO SPRAY NOZZLE MANIFOLD
PUMP INLET CONNECTOR
PUMP OUTLET CONNECTOR
54
55
56
50
14 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
SOLUTION SYSTEM 16ST-2
Item Ref. No. Qty Description
1 832803 1 Elbow-5/8 Hose
2 56001954 8 Wsh, Flt Sae #10
3 56003897 9 Scr-Pan Phil Loc Ss 1/4-20 X .50
4 56002624 1 Scr-Soc Shd .38 X 1.25 X 5/16-18
5 56003913 1 Scr-Pan Phil Loc Ss 10-24 X .38
6 56002914 2 Wsh, Flt Std Ss 1/4
7 56002958 2 Scr-Pan Phil Ss 1/4-20 X 1.25
8 56003091 7 Scr, Pan Phil Plastite 10-14 X .75
9 56009022 1 Wsh, Flt .754 X 1.250 X .120
10 56009042 2 Scr, Pan Phil Thd Form 10-24 X .62
11 56009097 2 Nut, Push Cap 1/2
12 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
13 56052237 2 Spacer, Phenolic
14 56056903 1 Clamp-P
15 56109503 1 Double Barb Assy
16 56116110 1 Seal-Inlet
17 56116721 2 Grommet-.59x.78x.62
18 56219932 2 Clamp- Hose Sae #6
19 56265057 1 Axle
20 56265373 1 Hose .25x21.0 E00160
21 56265552 1 Motor-Vacuum-120v M2
56265683 1 Carbon Brush Kit-(Set Of 2) for 56265552
22 56265554 1 Pump-115vac-120psi M1
23 56265582 1 Cover-Vac Motor
24 56265583 1 Plate-Vac Motor
25 56265586 1 Vac Hose Assembly
26 56265617 1 Cover-Vac Inlet
27 56265625 1 Hose Assembly
28 56265631 1 Cover-Back
29 56265646 1 Bracket-Shoe
Item Ref. No. Qty Description
30 56265650 1 Shoe/Latch Assembly-16
30a 56009247 2 Scr, Pan Phil Plastite 10-14x .38
30b 56265538 1 Shoe Assembly-16
30c 56265640 1 Latch-Shoe
30d 1326a 2 Washer Flat S.S 10 X11/1
30e 54196a 1 Spring Extension
31 56265665 1 Gasket-Vac Motor Cover
32 56265694 1 Gasket-Lid Support
33 56265697 2 Wheel-10.00x1.75x.50
34 56265704 1 Hook-Hose Storage
35 56265705 1 Socket-Quick Disconnect-1/8 Npt
36 56265706 1 Tank-Solution-16-Blue
37 56265708 1 Hose Assembly-Solution
38 56265712 1 Coupler-Barb-5/8
39 56265722 1 Gasket-Back Panel
40 56265725 1 Solution Filter Assembly-16
41 56265732 1 Gasket-Vac Exhaust Chamber
42 56265733 1 Gasket-Vac Exhaust Port
43 56265734 1 Gasket-Vac Chamber-Side
44 56265735 1 Gasket-Backpanel-Bottom
45 56265739 1 Gasket-Sound-Vac Hose
46 56265743 3 Gasket-Ring-Hose Cuff
47 56265766 1 Hose-Spiral-.500 X 52.00
48 56315141 3 Mount, Vibration
49 56383997 1 Hose-Pvc-5/8x19.00
50 56478523 2 Tie, Cable
51 56756364 2 Clamp- Hose Sae #4
52 56109566 1 Barb, 90 Elbow 1/2 X 3/8npt
53 9096595000 1 Flat Tie Holder
54 56112771 1 Clamp- Hose Sae #10
55 56265787 1 Boot-Pump
56 56265789 1 Gasket-Vac-Inlet Cover
7/2015 15 56042643 - EX40 16ST, EX40 18LX
PARTS LIST

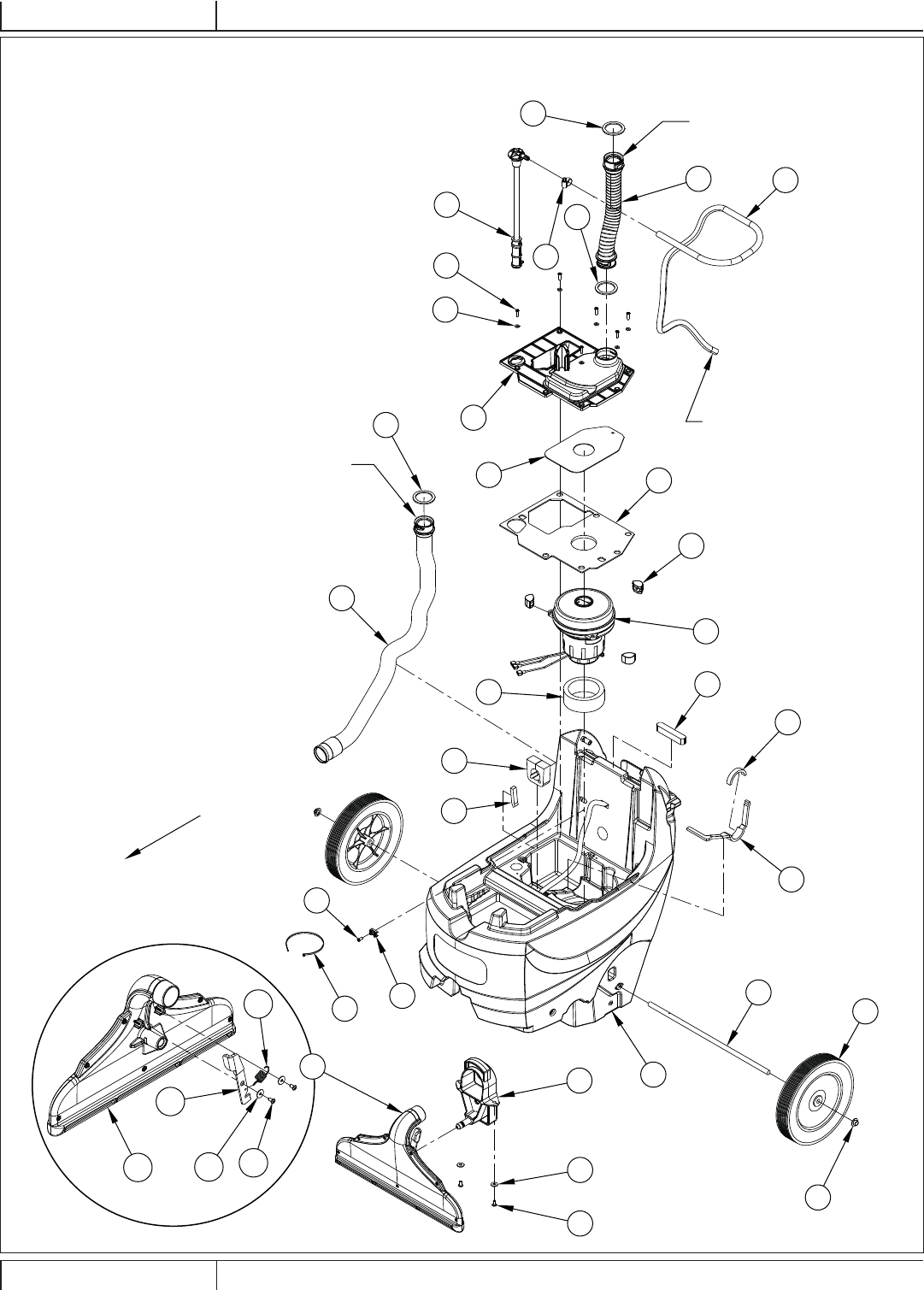

SOLUTION SYSTEM 18LX-1
FRONT
2
3
5
7
10
11
15
19
21
22
23
34
25
27
29
30
31
38
39
40
41
43
44
44
44
46
47
48 51
52
17
28b
28c
28a
28e
28d
TO RECOVERY
LID PORT C
TO PUMP
INLET CONNECTOR
TO RECOVERY
LID PORT A
28
16 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
SOLUTION SYSTEM 18LX-1
Item Ref. No. Qty Description
1 832803 1 Elbow-5/8 Hose
2 56001954 6 Wsh, Flt Sae #10
3 56003897 9 Scr-Pan Phil Loc Ss 1/4-20 X .50
4 56002624 1 Scr-Soc Shd .38 X 1.25 X 5/16-18
5 56002914 2 Wsh, Flt Std Ss 1/4
6 56002958 2 Scr-Pan Phil Ss 1/4-20 X 1.25
7 56003091 6 Scr, Pan Phil Plastite 10-14 X .75
8 56009022 1 Wsh, Flt .754 X 1.250 X .120
9 56009042 2 Scr, Pan Phil Thd Form 10-24 X .62
10 56009097 2 Nut, Push Cap 1/2
11 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
12 56052237 2 Spacer, Phenolic
13 56109503 1 Double Barb Assy
14 56112771 1 Clamp- Hose Sae #10
15 56116110 1 Seal-Inlet
16 56116721 2 Grommet-.59x.78x.62
17 56219932 2 Clamp- Hose Sae #6
18 56265373 1 Hose .25x21.0 E00160
19 56265552 1 Motor-Vacuum-120v M2
56265683 1 Carbon Brush Kit-(Set Of 2) for 56265552
20 56265554 1 Pump-115vac-120psi M1
21 56265582 1 Cover-Vac Motor
22 56265583 1 Plate-Vac Motor
23 56265586 1 Vac Hose Assembly
24 56265617 1 Cover-Vac Inlet
25 56265625 1 Hose Assembly
26 56265631 1 Cover-Back
27 56265646 1 Bracket-Shoe
28 56265662 1 Shoe/Latch Assembly-18
28a 56009247 2 Scr, Pan Phil Plastite 10-14x .38
28b 56265538 1 Shoe Assembly-16
28c 56265640 1 Latch-Shoe
28d 1326a 2 Washer Flat S.S 10 X11/1
28e 54196a 1 Spring Extension
Item Ref. No. Qty Description
29 56265665 1 Gasket-Vac Motor Cover
30 56265694 1 Gasket-Lid Support
31 56265697 2 Wheel-10.00x1.75x.50
32 56265704 1 Hook-Hose Storage
33 56265705 1 Socket-Quick Disconnect-1/8 Npt
34 56265707 1 Tank-Solution-18-Blue
35 56265708 1 Hose Assembly-Solution
36 56265712 1 Coupler-Barb-5/8
37 56265722 1 Gasket-Back Panel
38 56265726 1 Solution Filter Assembly-18
39 56265732 1 Gasket-Vac Exhaust Chamber
40 56265733 1 Gasket-Vac Exhaust Port
41 56265734 1 Gasket-Vac Chamber-Side
42 56265735 1 Gasket-Backpanel-Bottom
43 56265739 1 Gasket-Sound-Vac Hose
44 56265743 3 Gasket-Ring-Hose Cuff
45 56265745 1 Hose-Pvc-5/8x20.60
46 56265766 1 Hose-Spiral-.500 X 52.00
47 56315141 3 Mount, Vibration
48 56478523 2 Tie, Cable
49 56756364 2 Clamp- Hose Sae #4
50 56109566 1 Barb, 90 Elbow 1/2 X 3/8npt
51 9096595000 1 Flat Tie Holder
52 910-1863 1 Axel Rod Zinc Plated 1/2 Ro
53 56265787 1 Boot-Pump
54 56265789 1 Gasket-Vac-Inlet Cover
7/2015 17 56042643 - EX40 16ST, EX40 18LX
PARTS LIST
SOLUTION SYSTEM 18LX-2
48
18
11
1
3
3
4
6
8
9
12
13
14
16
17 20
24
26
32
33
35
36
37
42
45
49
50
PUMP INLET CONNECTOR
PUMP OUTLET CONNECTOR
THIS END TO PUMP OUTLET CONNECTOR
OTHER END TO SPRAY NOZZLE MANIFOLD
53
54
18 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
SOLUTION SYSTEM 18LX-2
Item Ref. No. Qty Description
1 832803 1 Elbow-5/8 Hose
2 56001954 6 Wsh, Flt Sae #10
3 56003897 9 Scr-Pan Phil Loc Ss 1/4-20 X .50
4 56002624 1 Scr-Soc Shd .38 X 1.25 X 5/16-18
5 56002914 2 Wsh, Flt Std Ss 1/4
6 56002958 2 Scr-Pan Phil Ss 1/4-20 X 1.25
7 56003091 6 Scr, Pan Phil Plastite 10-14 X .75
8 56009022 1 Wsh, Flt .754 X 1.250 X .120
9 56009042 2 Scr, Pan Phil Thd Form 10-24 X .62
10 56009097 2 Nut, Push Cap 1/2
11 56009191 4 Scr, Pan Phil Plastite 10-14 X .50
12 56052237 2 Spacer, Phenolic
13 56109503 1 Double Barb Assy
14 56112771 1 Clamp- Hose Sae #10
15 56116110 1 Seal-Inlet
16 56116721 2 Grommet-.59x.78x.62
17 56219932 2 Clamp- Hose Sae #6
18 56265373 1 Hose .25x21.0 E00160
19 56265552 1 Motor-Vacuum-120v M2
56265683 1 Carbon Brush Kit-(Set Of 2) for 56265552
20 56265554 1 Pump-115vac-120psi M1
21 56265582 1 Cover-Vac Motor
22 56265583 1 Plate-Vac Motor
23 56265586 1 Vac Hose Assembly
24 56265617 1 Cover-Vac Inlet
25 56265625 1 Hose Assembly
26 56265631 1 Cover-Back
27 56265646 1 Bracket-Shoe
28 56265662 1 Shoe/Latch Assembly-18
28a 56009247 2 Scr, Pan Phil Plastite 10-14x .38
28b 56265538 1 Shoe Assembly-16
28c 56265640 1 Latch-Shoe
28d 1326a 2 Washer Flat S.S 10 X11/1
28e 54196a 1 Spring Extension
Item Ref. No. Qty Description
29 56265665 1 Gasket-Vac Motor Cover
30 56265694 1 Gasket-Lid Support
31 56265697 2 Wheel-10.00x1.75x.50
32 56265704 1 Hook-Hose Storage
33 56265705 1 Socket-Quick Disconnect-1/8 Npt
34 56265707 1 Tank-Solution-18-Blue
35 56265708 1 Hose Assembly-Solution
36 56265712 1 Coupler-Barb-5/8
37 56265722 1 Gasket-Back Panel
38 56265726 1 Solution Filter Assembly-18
39 56265732 1 Gasket-Vac Exhaust Chamber
40 56265733 1 Gasket-Vac Exhaust Port
41 56265734 1 Gasket-Vac Chamber-Side
42 56265735 1 Gasket-Backpanel-Bottom
43 56265739 1 Gasket-Sound-Vac Hose
44 56265743 3 Gasket-Ring-Hose Cuff
45 56265745 1 Hose-Pvc-5/8x20.60
46 56265766 1 Hose-Spiral-.500 X 52.00
47 56315141 3 Mount, Vibration
48 56478523 2 Tie, Cable
49 56756364 2 Clamp- Hose Sae #4
50 56109566 1 Barb, 90 Elbow 1/2 X 3/8npt
51 9096595000 1 Flat Tie Holder
52 910-1863 1 Axel Rod Zinc Plated 1/2 Ro
53 56265787 1 Boot-Pump
54 56265789 1 Gasket-Vac-Inlet Cover
7/2015 19 56042643 - EX40 16ST, EX40 18LX
PARTS LIST
LADDER DIAGRAM 16ST
MAIN POWER
ST MACHINE VARIANT
WHT
TAN
WHT
WHT
WHT
BLU
GRN/YEL
GRN/YEL
BLK
GRN/YEL
BLK
WHT
BLK WHT
GRN/YEL
BLK
RED
GRY
TAN
M
M3
MOTOR, BRUSH
-+
S4
SW SPST
12
M
1~
M2
MOTOR, VAC
CB1
5A
12
M
1~
M1
PUMP
S1
MAIN SWITCH
1
2
3
4
+
-
~~
D1
4
2
3
1
L1
RESTORE SOL
S3
MODE SWITCH
1
2
3
4
20 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
LADDER DIAGRAM 16ST
Item Ref. No. Qty Description
CB1 56265550 1 Circuit Breaker, 5 Amp
D1 56265103 1 Rectifi er, 35 Amp
L1 56265746 1 Valve, Solenoid 115V
M1 56265554 1 Pump-115vac-120psi
M2 56265552 1 Motor-Vacuum-120v
56265683 Carbon Brush Kit-(Set Of 2) for 56265552
M3 56265075 1 Motor, 115 Vdc, 1/3 Hp
S1 56265549 1 Switch-Rocker-Dpst
S3 56265549 1 Switch-Rocker-Dpst
S4 56265098 1 Switch, Spdt Snapaction
7/2015 21 56042643 - EX40 16ST, EX40 18LX
PARTS LIST
LADDER DIAGRAM 18LX
MAIN POWER
LX MACHINE VARIANT
WHT
WHT
WHT
WHT
BLU
GRY
YEL
TAN
GRN/YEL
GRN/YEL
BLK
GRN/YEL
BLK
WHT
BLK WHT
GRN/YEL
BLK
RED
CB1
5A
12
M
M3
MOTOR, BRUSH
-+
S2
ROTARY SWITCH
1
3
4
2
B
A
+
-
~~
D1
4
2
3
1
M
1~
M1
PUMP
S6
SW SPST
12
M
1~
M2
MOTOR, VAC
S4
SW SPST
12
S5
SW SPST
12
S1
MAIN SWITCH
1
2
3
4
L2
MAINT SOL
L1
RESTORE SOL
XX X
XX
X
XXX
1
3
4
2
B
A
POS 1 POS 2 POS 3 POS 4
VACUUM
RESTORE
MAINTENANCE
BRUSH
22 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
LADDER DIAGRAM 18LX
Item Ref. No. Qty Description
CB1 56265550 1 Circuit Breaker, 5 Amp
D1 56265103 1 Rectifi er, 35 Amp
L1 56265746 1 Valve, Solenoid 115V
L2 56265570 1 Valve/Nozzle Assy-120v-Maint
M1 56265554 1 Pump-115vac-120psi
M2 56265552 1 Motor-Vacuum-120v
56265683 Carbon Brush Kit-(Set Of 2) for 56265552
M3 56265075 1 Motor, 115 Vdc, 1/3 Hp
S1 56265549 1 Switch-Rocker-Dpst
S2 56265551 1 Rotary Switch
S4 56265098 1 Switch, Spdt Snapaction
S5 56265098 1 Switch, Spdt Snapaction
S6 56265098 1 Switch, Spdt Snapaction
7/2015 23 56042643 - EX40 16ST, EX40 18LX
PARTS LIST
OPTIONS & ACCESSORIES
Item Ref. No. Qty Description
Options
56265044 1 Brush Assembly 16
56265175 1 Brush Assembly Blue 16 Hard
56265176 1 Brush Assembly 240 Grit 16
56265099 1 Brush Assembly 18
56265177 1 Brush Assembly Blue 18 Hard
56265178 1 Brush Assembly 240 Grit 18
Accessories
56314402 1 Wand Assembly w/Soft and Hard Floor Tools
56265173 1 Wand Assembly w/Soft Floor Tool
56220070 1 Upholstery Hand Tool
56265305 1 Drag Wand
56265306 1 Scrub and Vac Wand
56265309 1 Plug Adaptor Kit
56265174 1 15’ Hose w/Waterline
56265753 1 Hose Assy – 96 In.
56265754 1 Hose Assy – 184 In.
56265767 1 Hand Tool/Hoses Assembly
56265675 1 Hard Floor Tool Assembly
56044699 1 Literature Pack
Brushes (See Brush Selector Guide)
24 EX40 16ST, EX40 18LX - 56042643 7/2015
PARTS LIST
We provide brushes that will give you the best possible performance between machine and fl oor. Following are descriptions of the materials
and their applications.
16” BRUSHES
56265044 - Nylon
56265175 - Blue
56265176 - 240 Grit
18” BRUSHES
56265099 - Nylon
56265177 - Blue
56265178 - 240 Grit
BRUSH SELECTOR GUIDE
Soft Nylon Brush: Carpet cleaning brush also used on soft-fi nish fl oors where a more aggressive brush would leave scratch
marks, or in applications requiring light cleaning.
Stiff Nylon Brush (Blue): Hard fl oor cleaning effective in cleaning most common surfaces.
240 Grit Brush: Medium aggressive grit brush. Good all-around brush for medium to heavy buildup removal on hard fl oors.
CYLINDRICAL BRUSH APPLICATION GUIDE (SUGGESTION ONLY)
240
Application Nylon Blue Grit
General Cleaning:
Carpet Cleaning X
Concrete X X
Terrazzo X X X
Ceramic/Quarry tile X X X
Marble X X X
Vinyl tile X X X
Raised-rubber tile X X X
7/2015 25 56042643 - EX40 16ST, EX40 18LX
PARTS LIST
A Nilfi sk Brand
9435 Winnetka Ave North
Minneapolis, MN 55445
www.clarkeus.com
Phone: 800-253-0367
Fax: 800-825-2753
©2016 Nilfi sk, Inc.

Navigation menu
