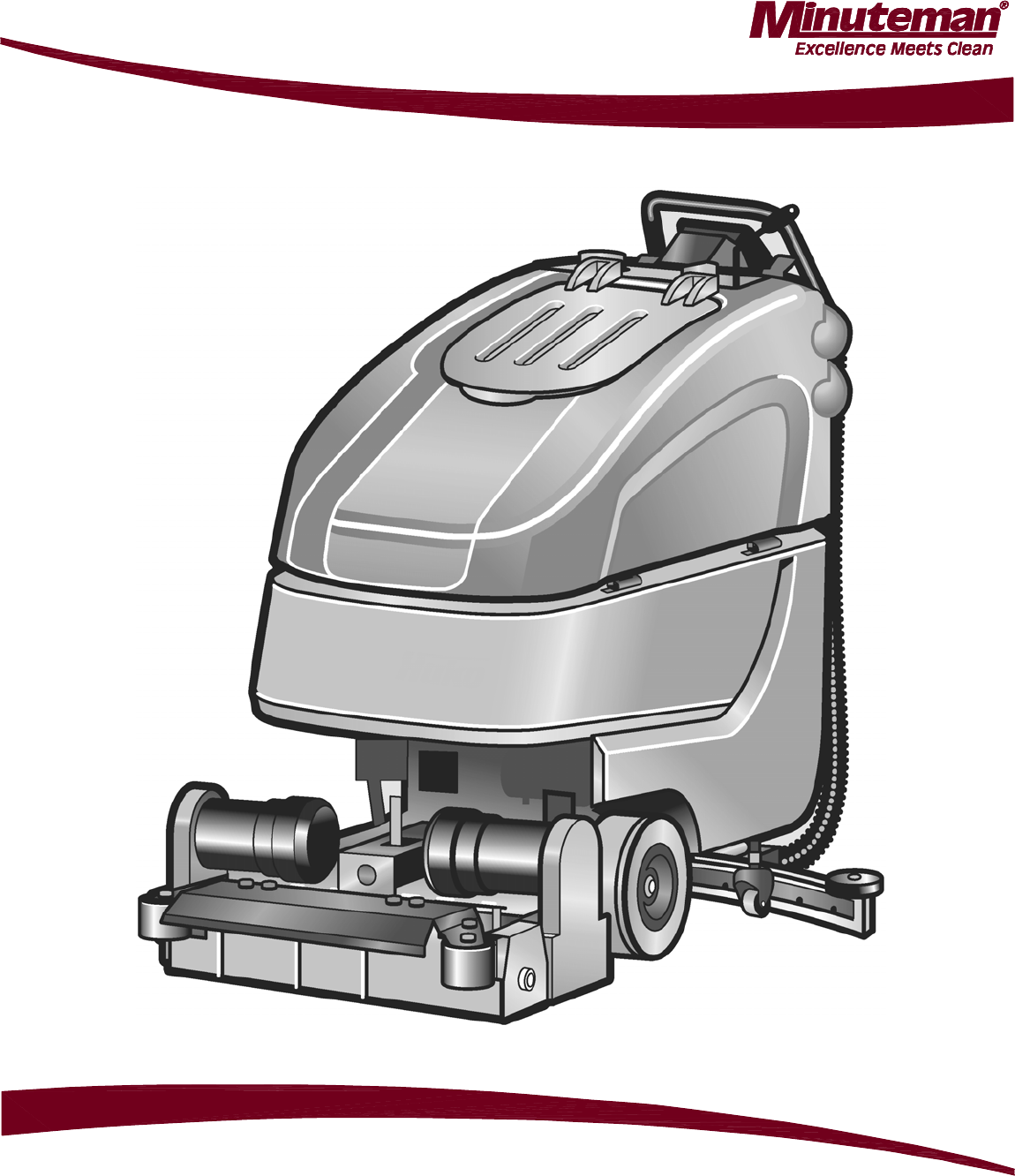

Parts Manual
E28 Walk-Behind Scrubber
Parts Manual - E28 Walk Behind Scrubber
• Stop on level surface.
• Disconnect the power to the machine by pulling the red Battery Connector located under the recovery tank
near the batteries.
• Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
• Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear
protective clothing and safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of
batteries.
• Do not clean machine with a pressure washer.
• Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
Parts Manual - E28 Walk Behind Scrubber
Table of Contents
Chassis Assembly I .............................................................................................................................. 1
Lift Pedal Subassembly ................................................................................................................... 2
Chassis Assembly II ............................................................................................................................. 3
Traction Drive Motor Subassembly ................................................................................................. 4

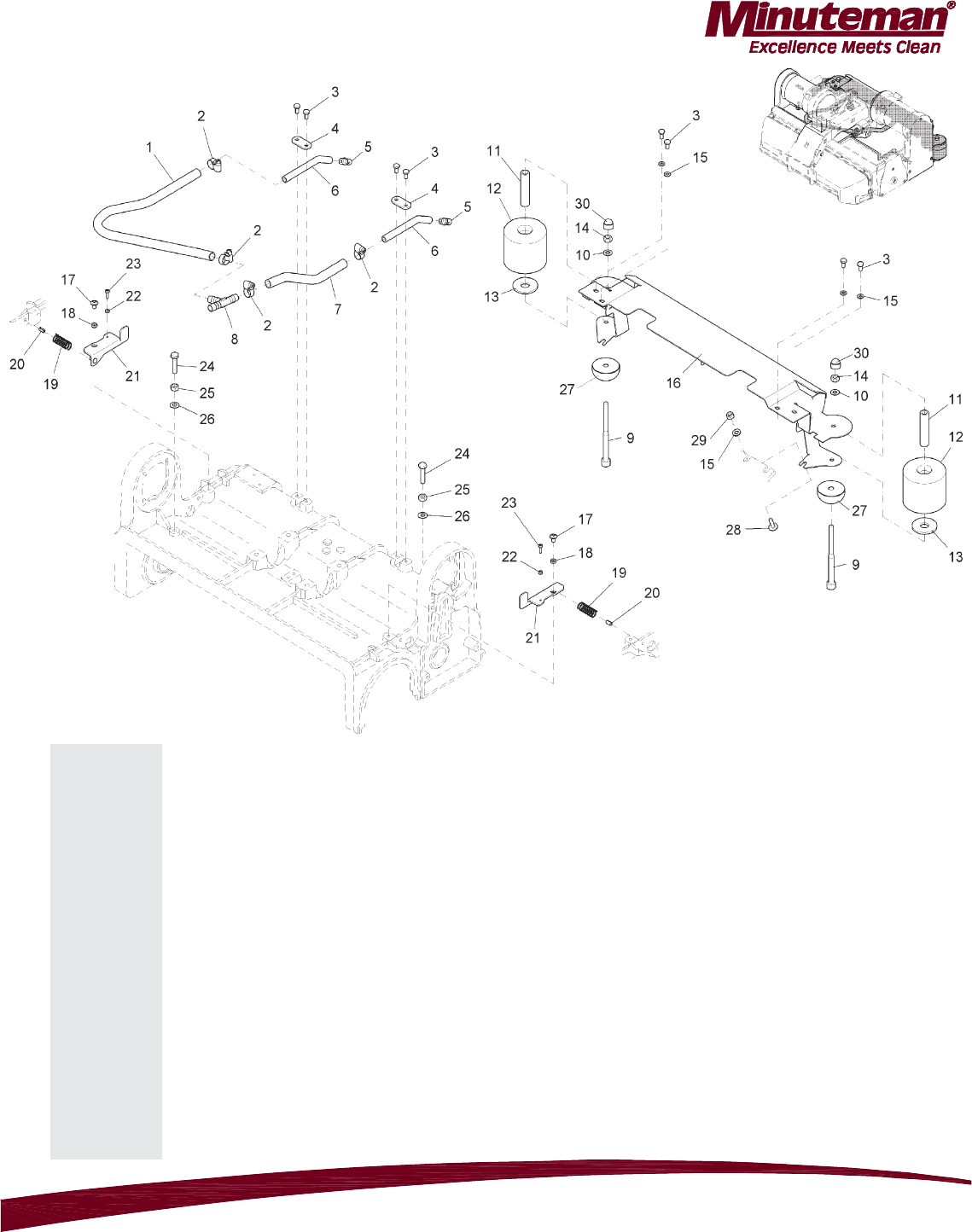

Chassis Assembly III ............................................................................................................................ 5
Water Supply Subassembly I .......................................................................................................... 6
Water Supply Subassembly II ......................................................................................................... 7
Squeegee Connection Subassembly I ............................................................................................ 8
Squeegee Connection Subassembly II ........................................................................................... 9

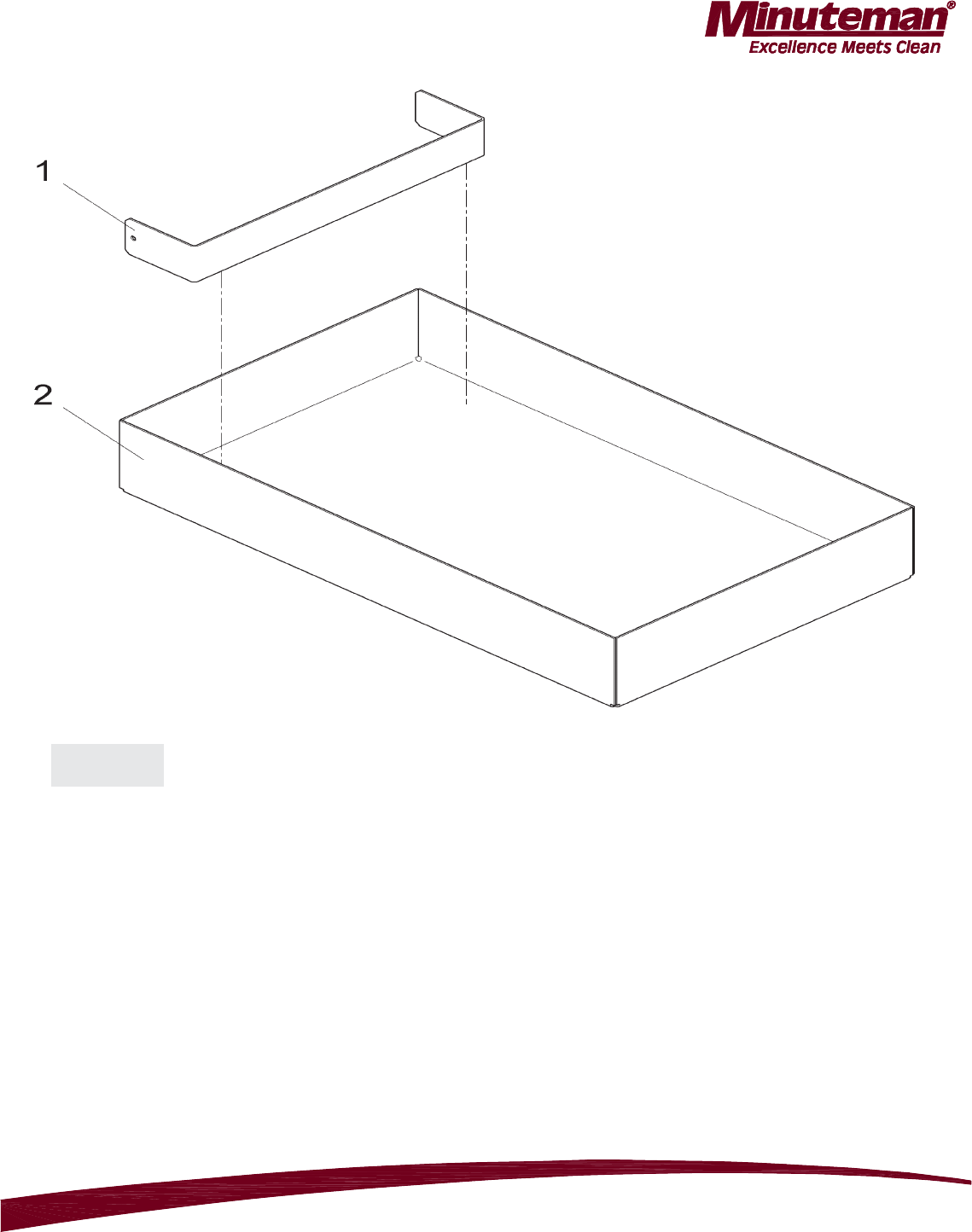

Battery Tray Assembly ........................................................................................................................ 12
Solution Tank Assembly ...................................................................................................................... 13

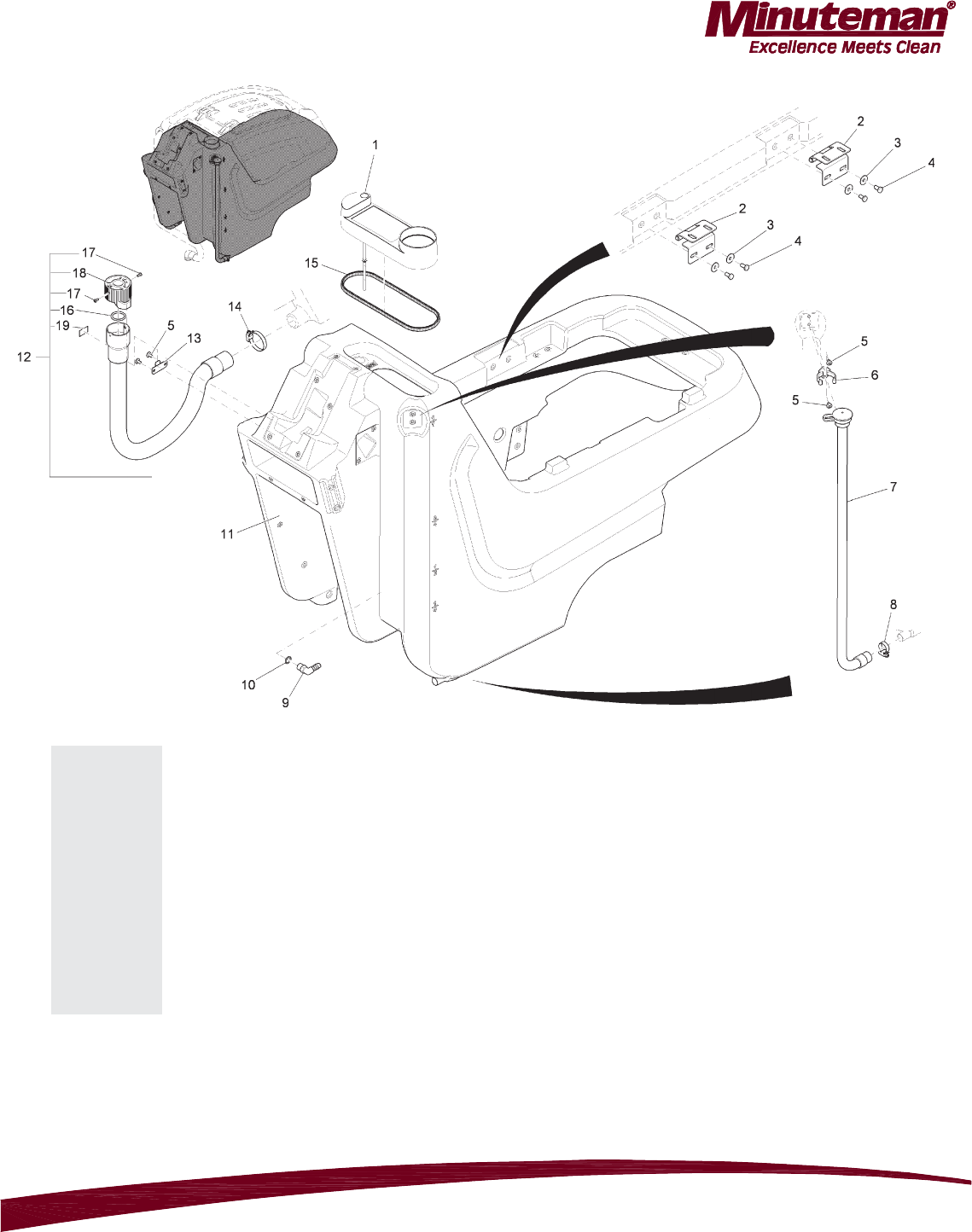

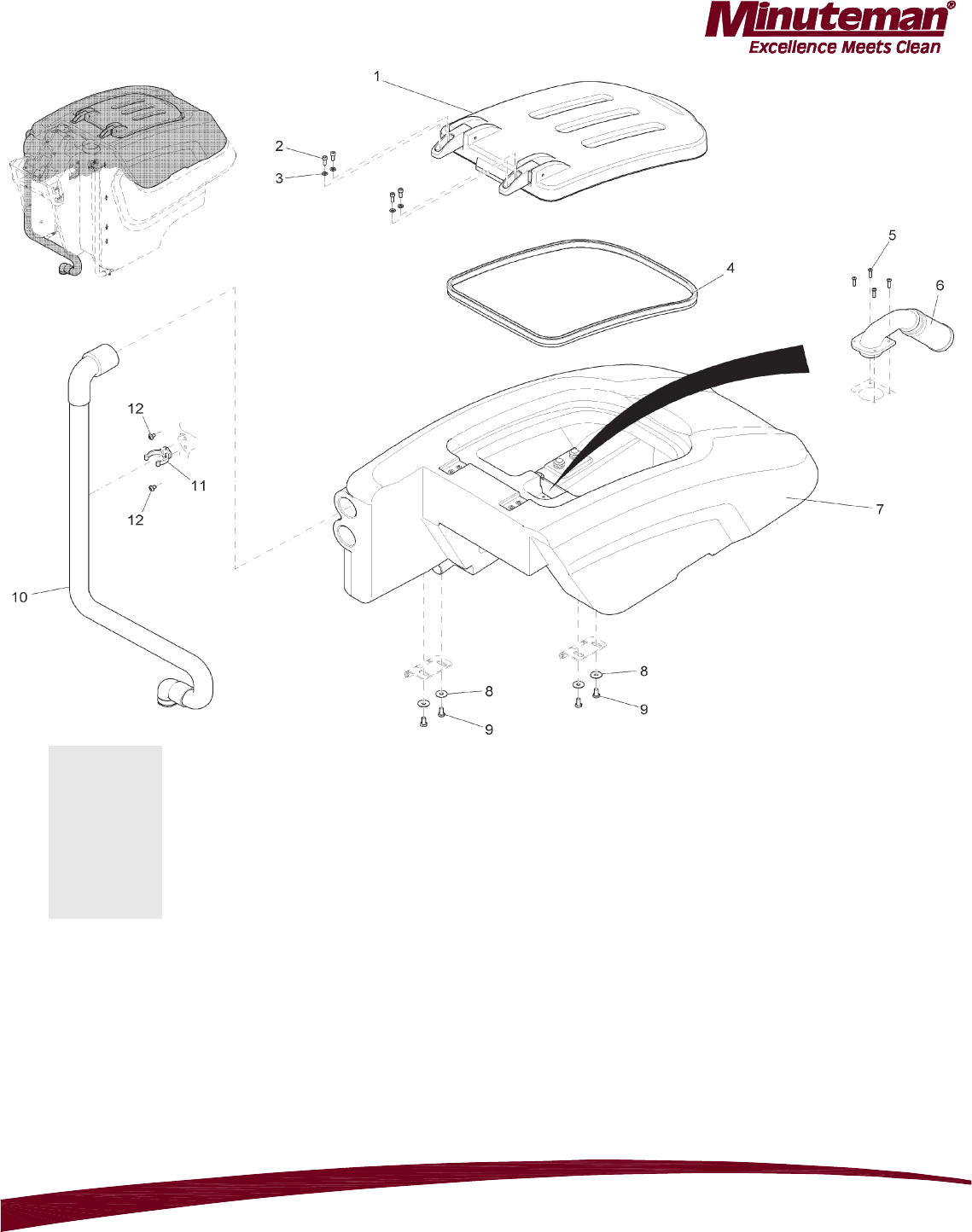

Recovery Tank Assembly.................................................................................................................... 14

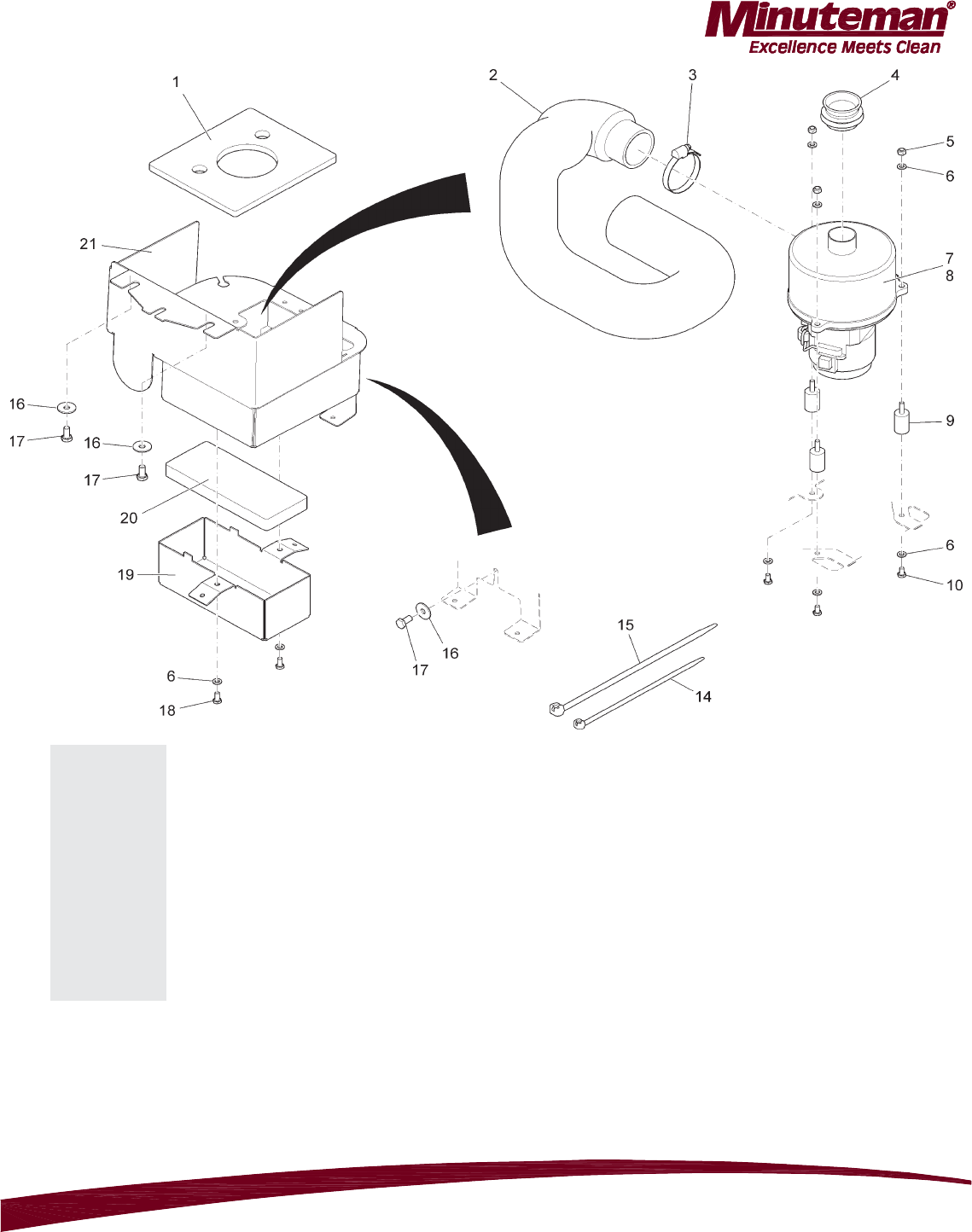

Vacuum Motor Assembly .................................................................................................................... 15
Squeegee Lift Handle Assembly ......................................................................................................... 16
Squeegee Lock Assembly .................................................................................................................. 17

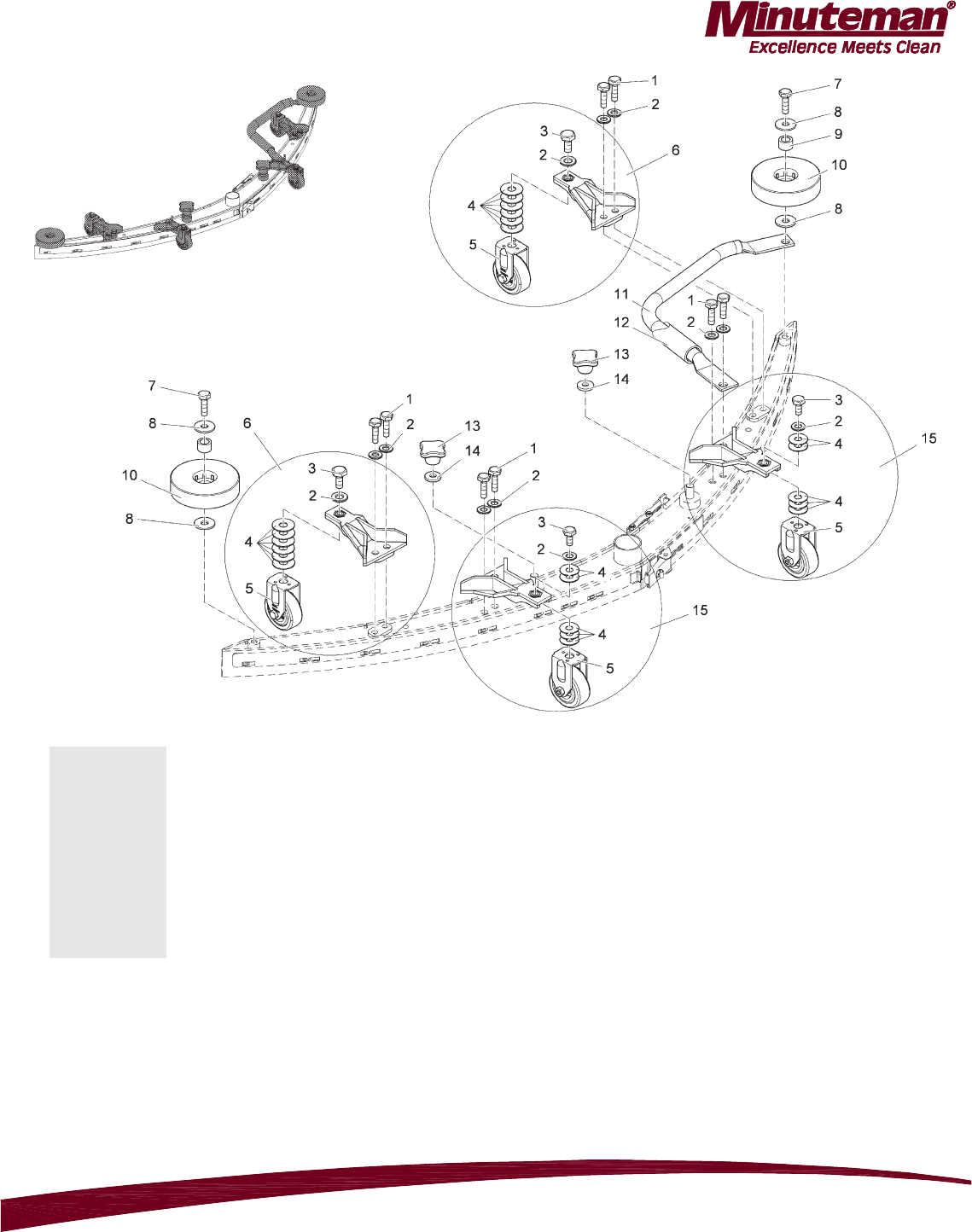

Squeegee Assembly I ......................................................................................................................... 18
Squeegee Assembly II ........................................................................................................................ 19

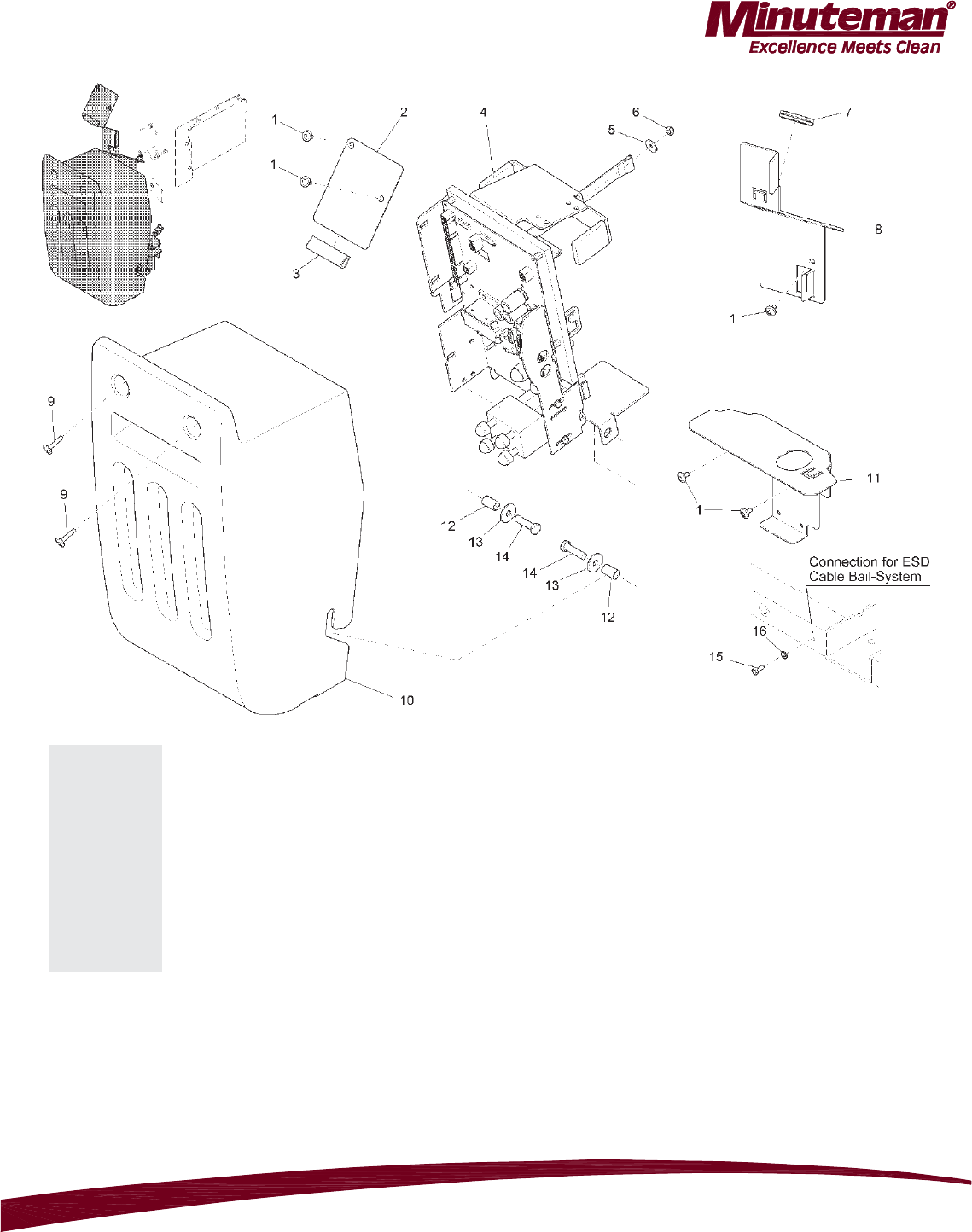

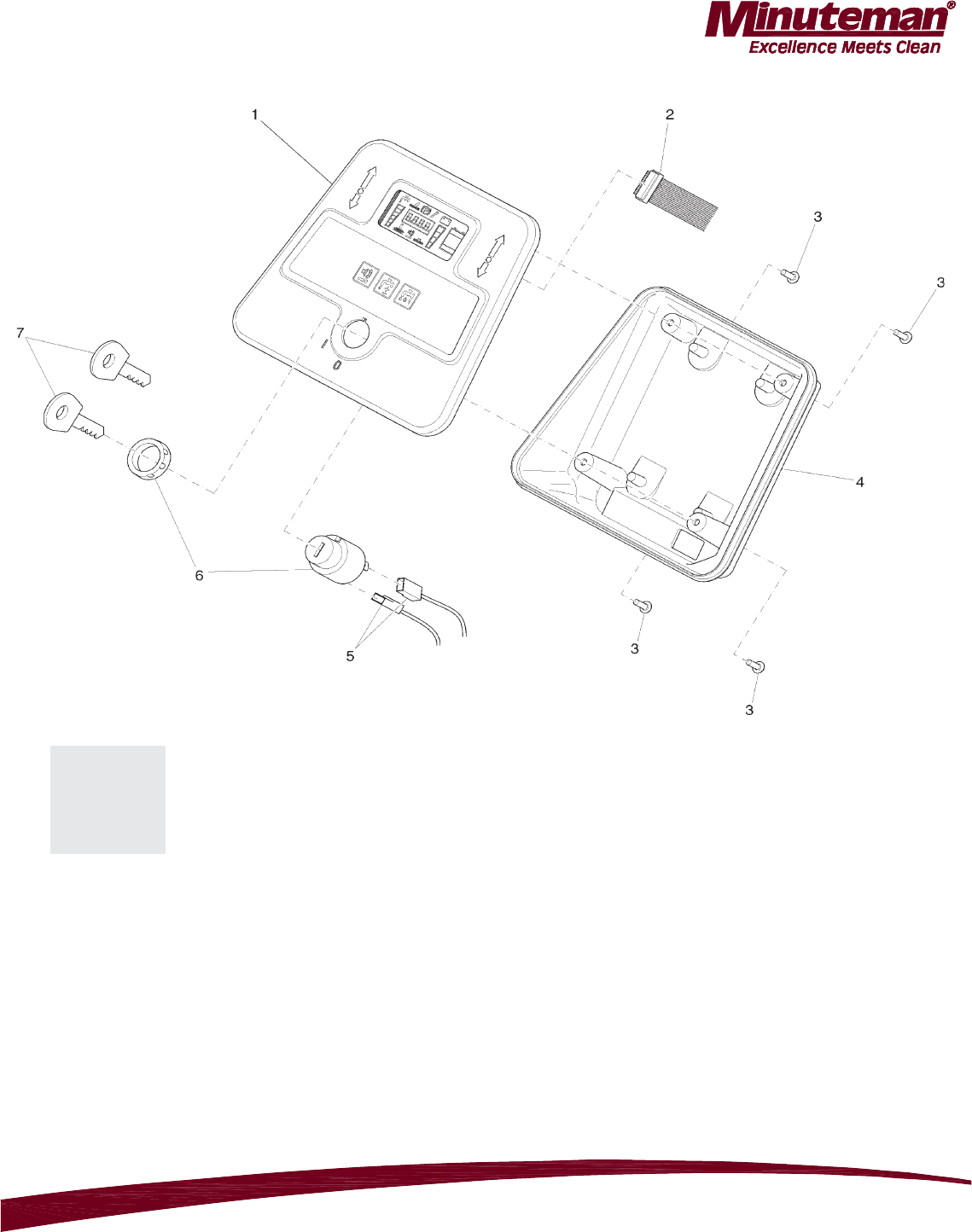

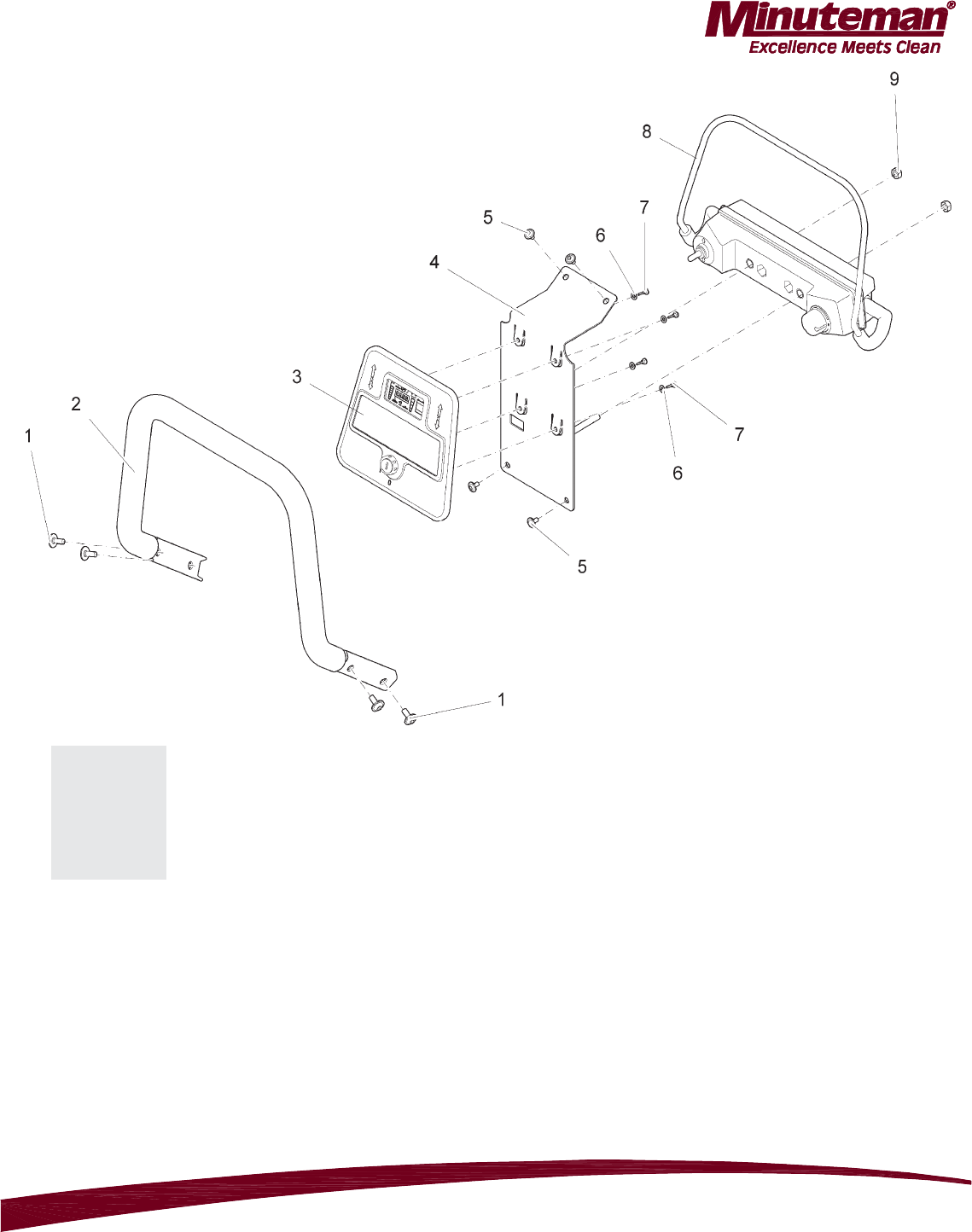

Control Panel Assembly ..................................................................................................................... 20
Console Subassembly................................................................................................................... 21

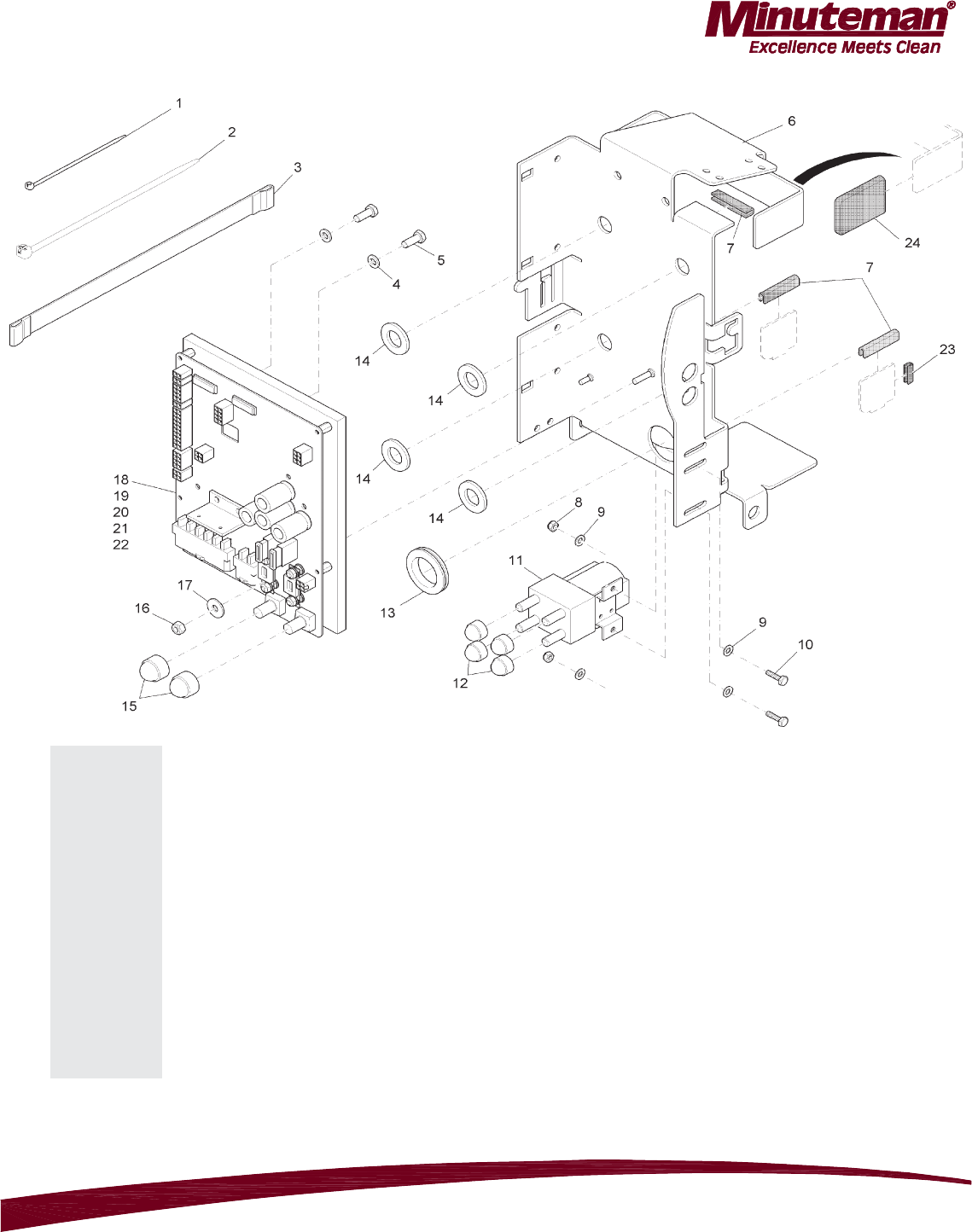

Electrical Assembly I........................................................................................................................... 22
Retainer Subassembly .................................................................................................................. 23
Electrical Assembly II.......................................................................................................................... 24

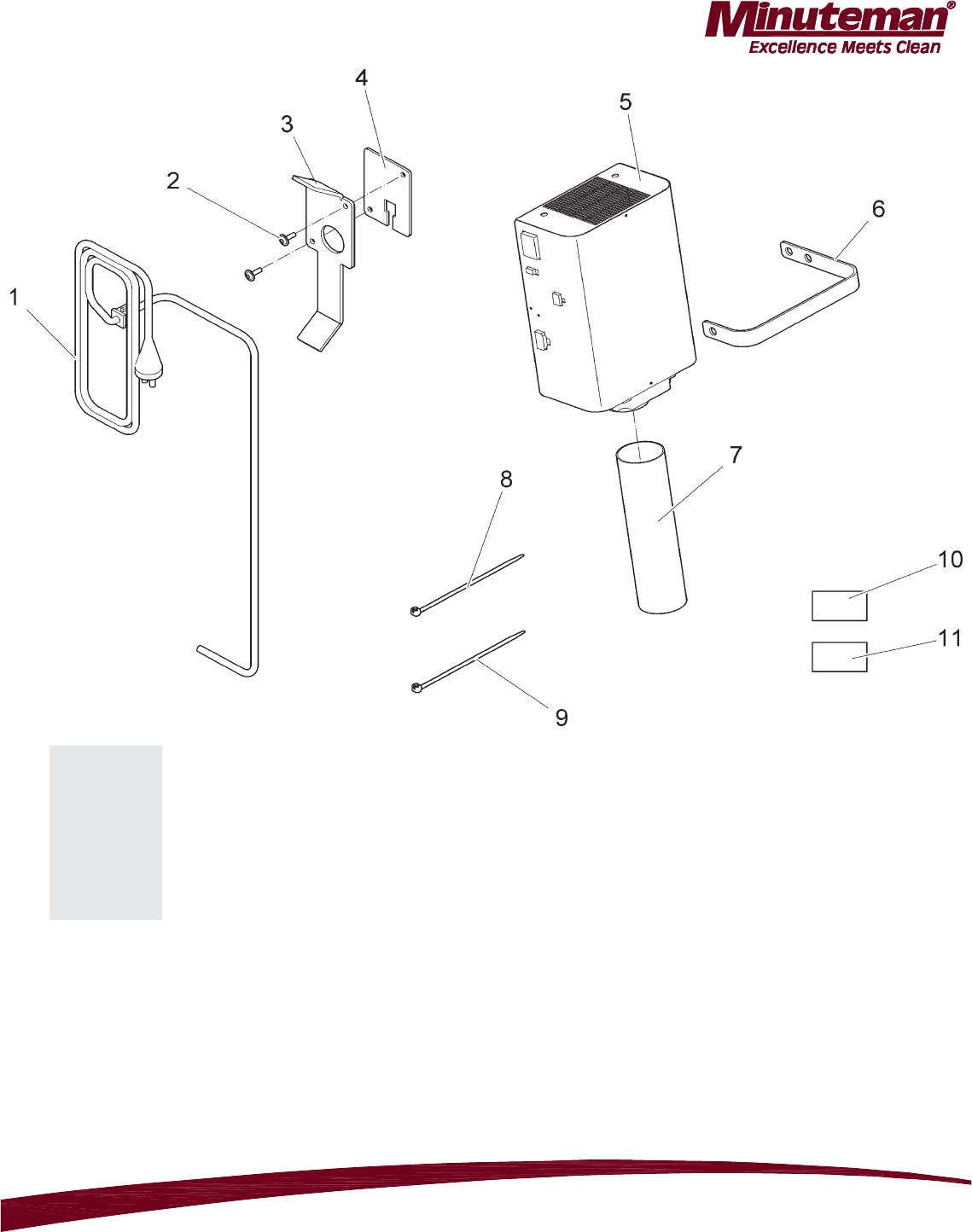

Battery Charger Assembly .................................................................................................................. 25

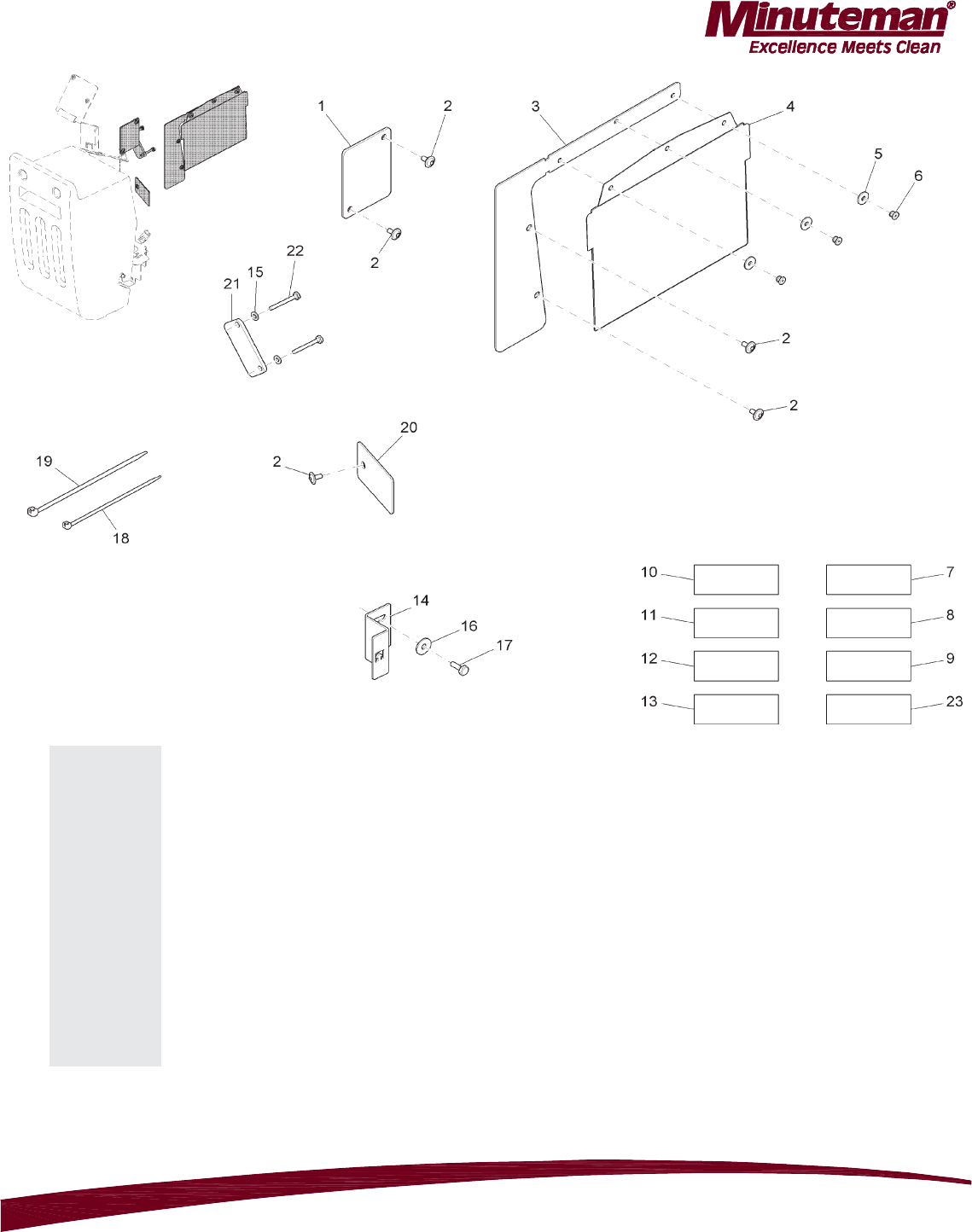

Machine Labels .................................................................................................................................. 26

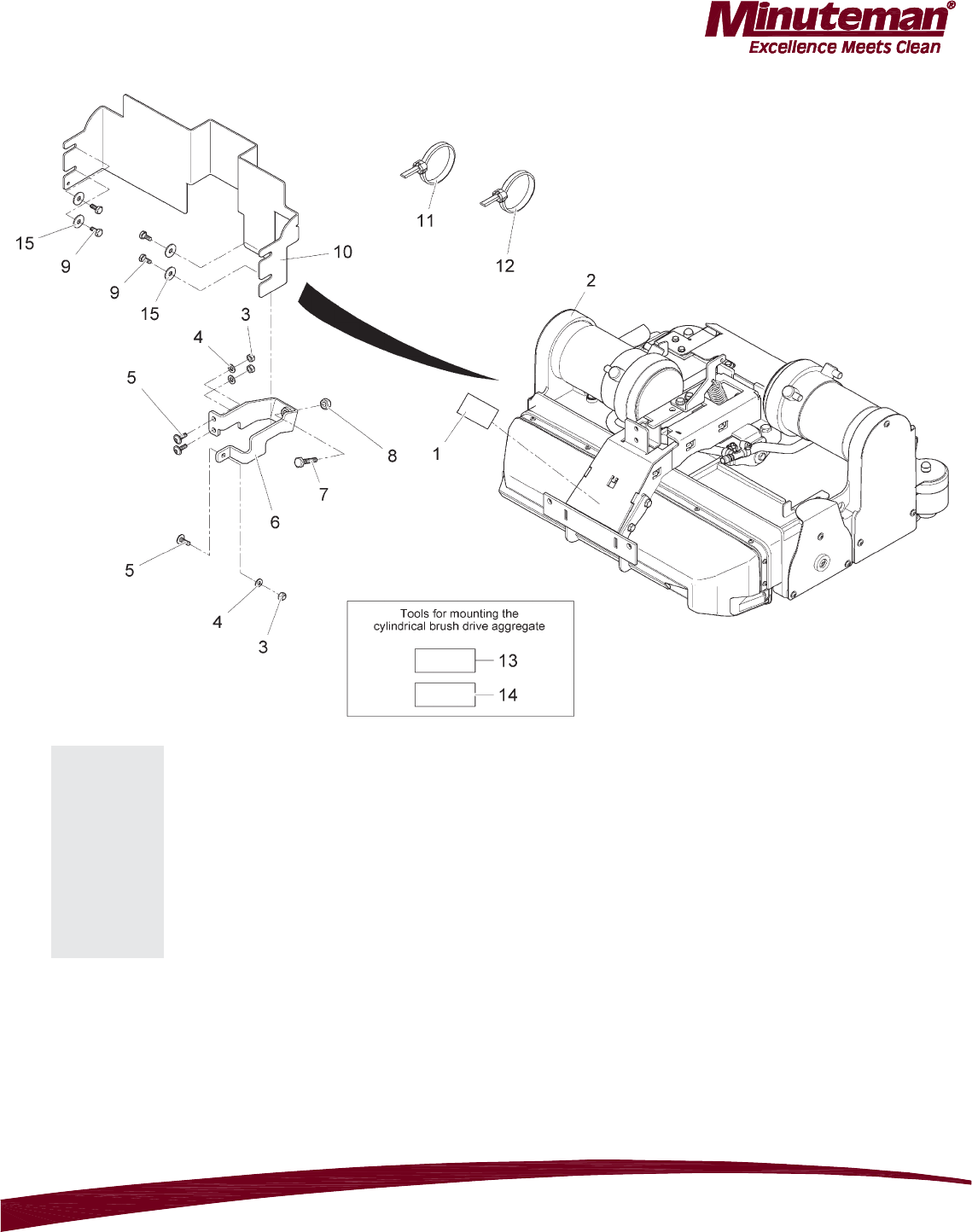

Cylindrical Scrub Deck Assembly ....................................................................................................... 27

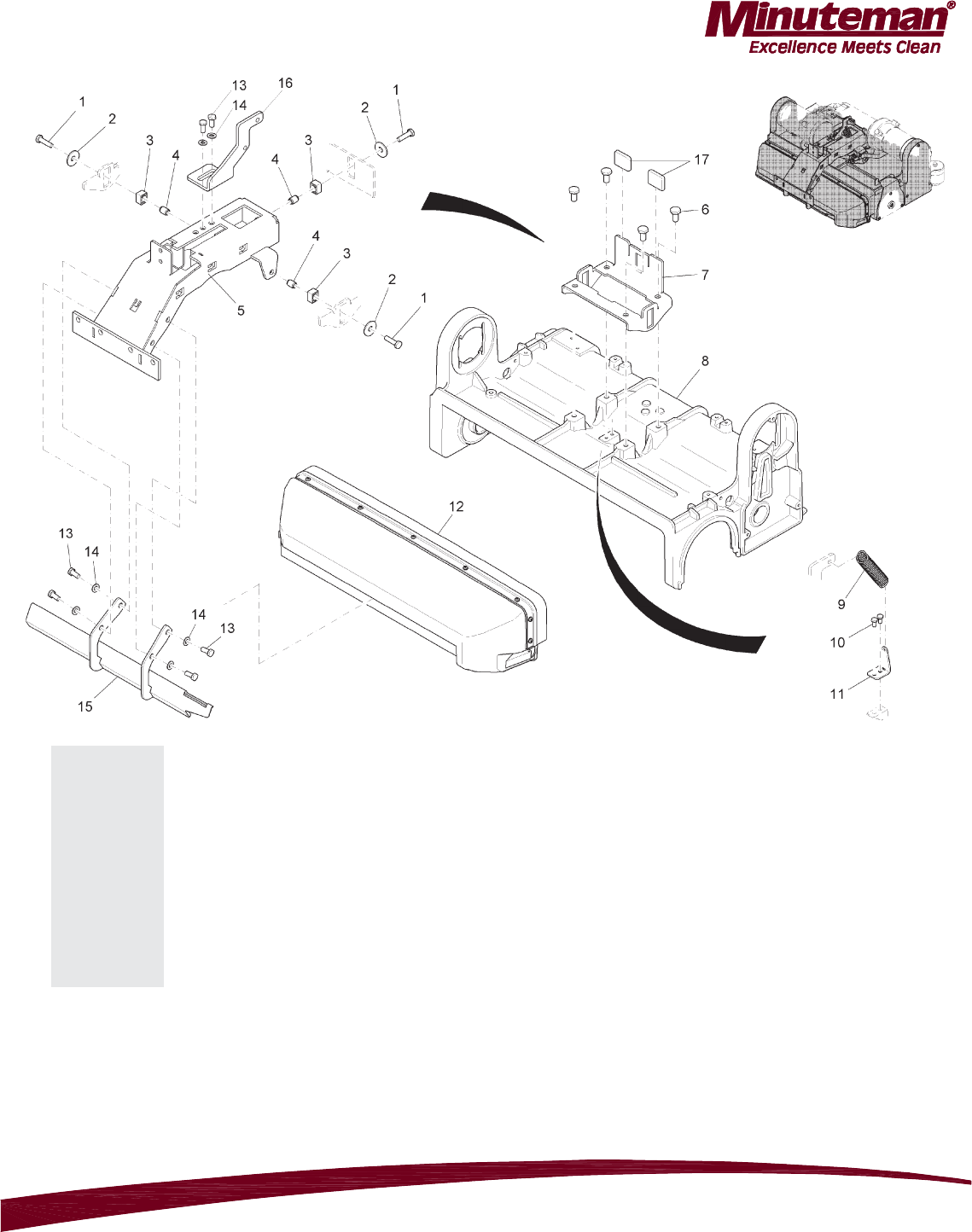

Brush Deck Assembly I ....................................................................................................................... 28
Dirt Hopper Subassembly ............................................................................................................. 29
Brush Deck Assembly II ...................................................................................................................... 30
Carrier Subassembly..................................................................................................................... 31

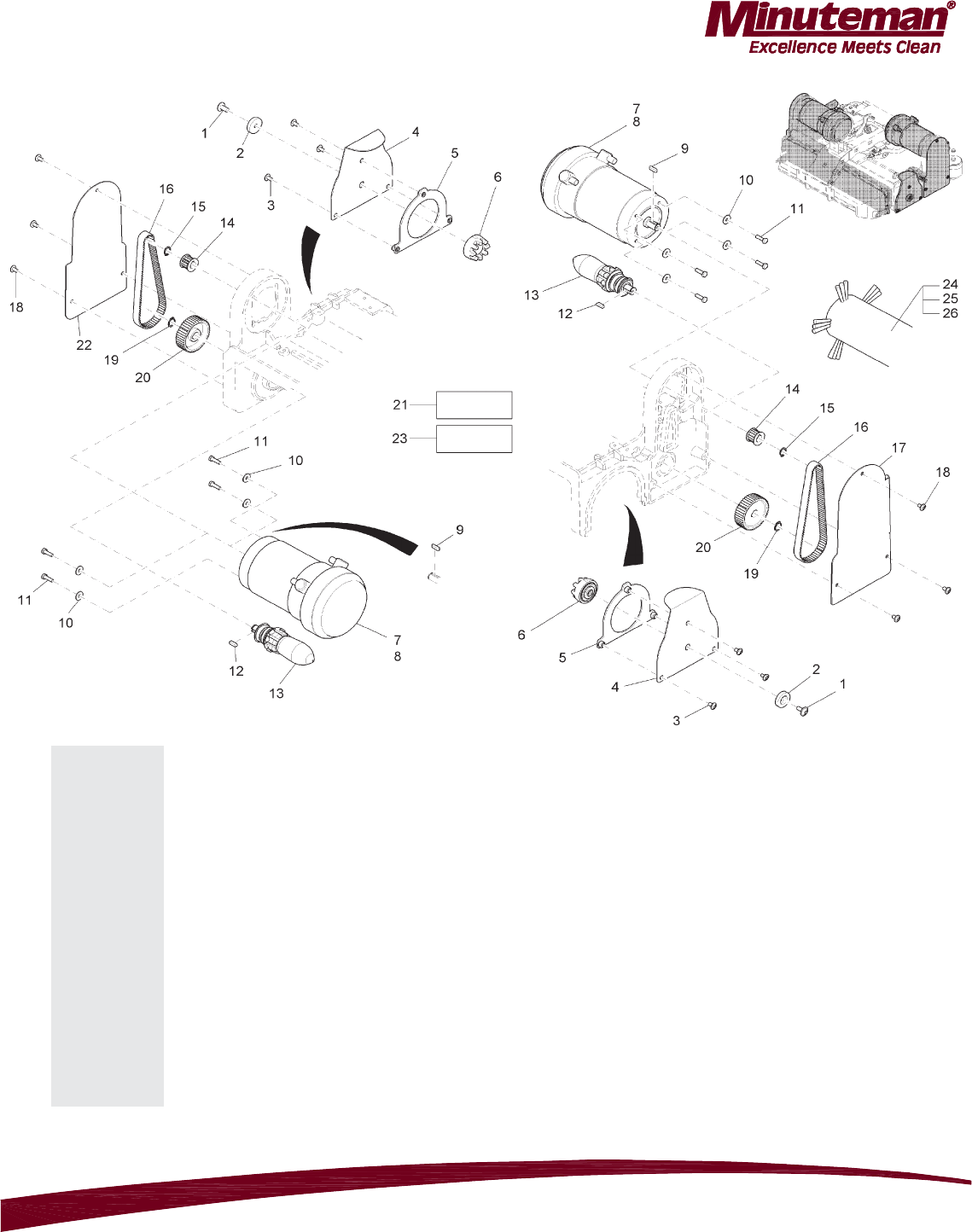

Brush Deck Assembly III ..................................................................................................................... 32
Page 1
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 97098867-1 (99706212BT10)
Item Spare part number Mat. No. Qty. Description Notes
1 01078440 90513367 1 Grommet
2 03007640 96116405 1 Chassis
3 01074320 11177187 2 Lens flange screw
4 00042900 12332029 4 Washer
5 01078450 12160024 2 Nut
6 00879170 90209537 6 Washer
7 00053080 11038197 8 Hexagon screw
8 01078140 11225620 1 Countersunk screw
9 01077800 90509522 1 Bushing
10 97093181 1 Lifting pedal DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
11 00053790 12310082 1 Washer
12 01077790 90509027 1 Pipe
13 00053010 11038072 6 Hex.bolt
14 01077780 90508391 1 Bushing
15 01078460 96114327 1 Sheet metal until aprox. June 2007
16 00053730 12310033 4 Washer
17 00051520 12040044 2 Hexagon nut
18 00022180 11039088 2 Hex.bolt
19 00553740 12310132 2 Washer
20 01078470 90513359 1 Retainer until aprox. June 2007
21 00975510 90306002 1 Micro switch
22 01074840 90471483 1 Thread base plate
23 01143190 17526070 2 Cable clip
24 01079680 96117387 1 Sheet metal from aprox. July 2007
25 00553690 11038635 1 Hex.bolt
26 01170010 90528787 1 Retainer from aprox. July 2007

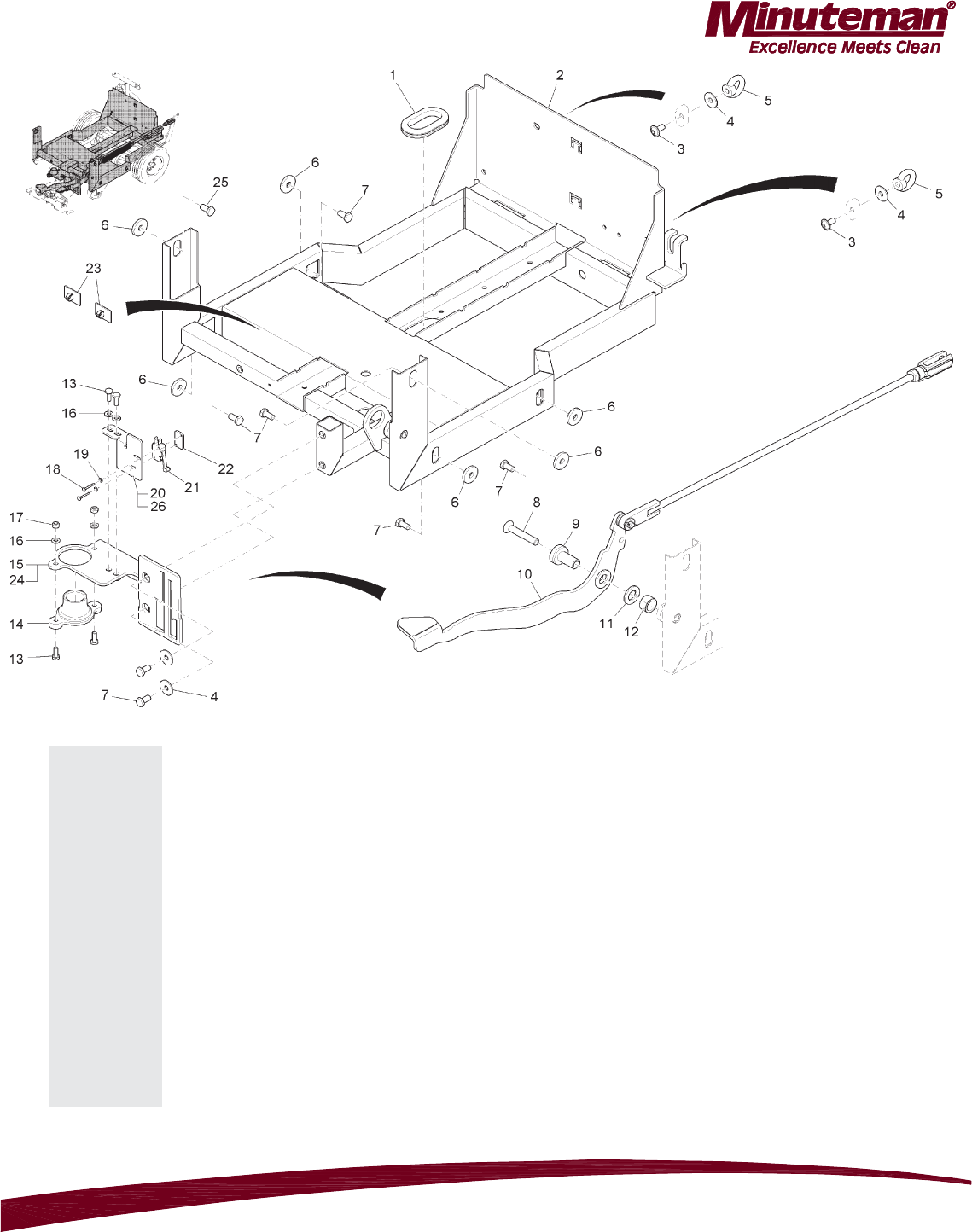

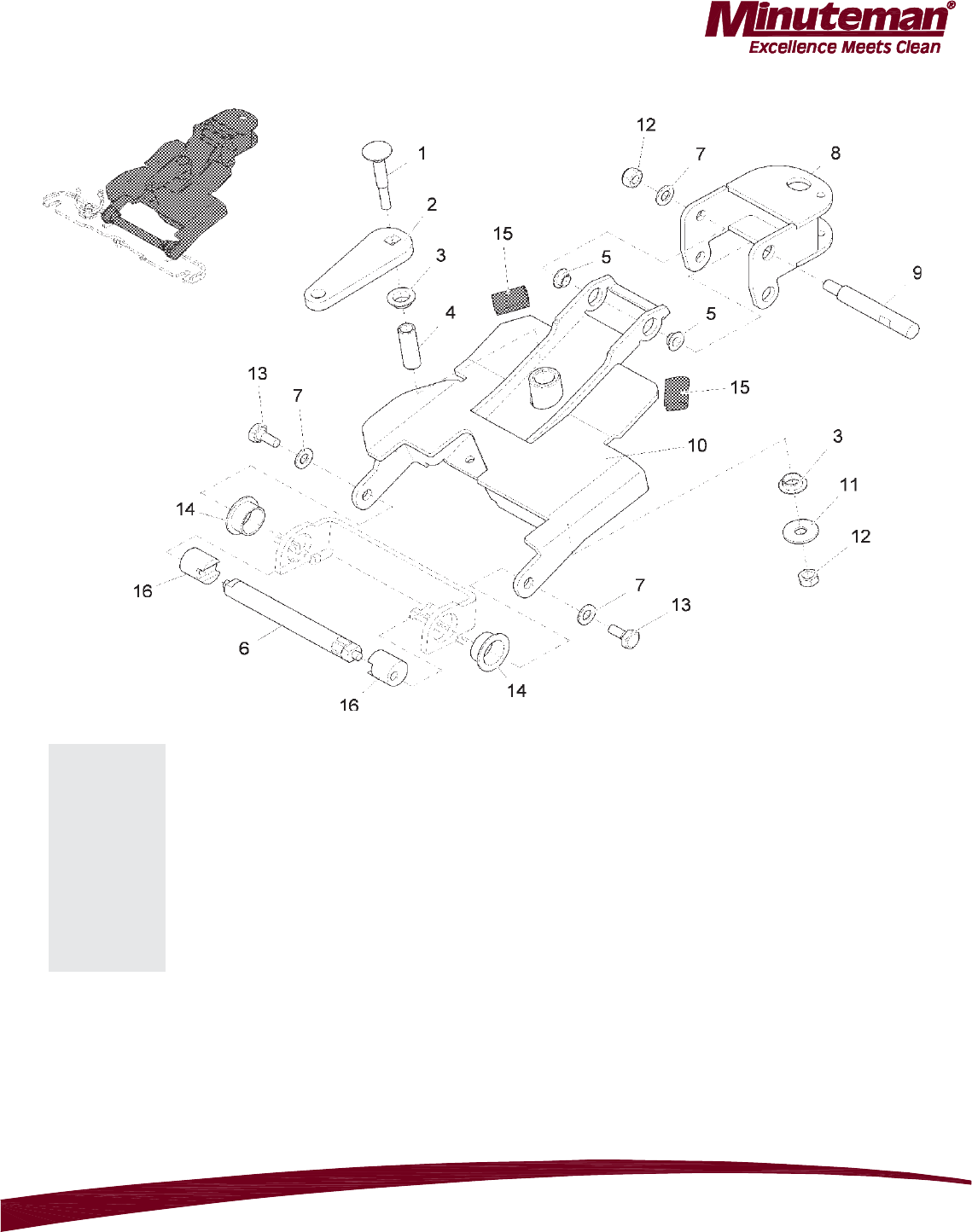

Chassis Assembly I
Page 2

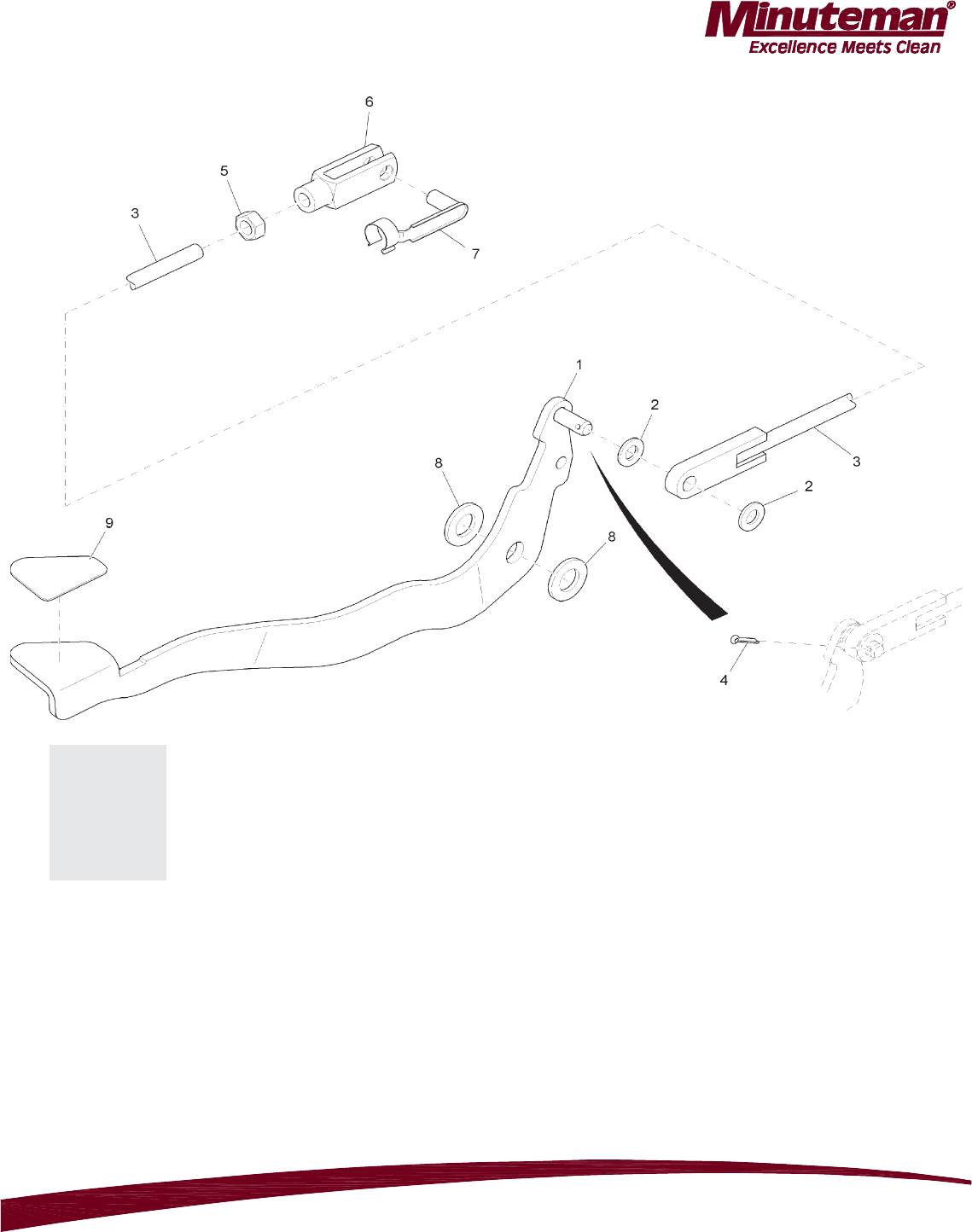

Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997093181 (99706212BT10-1)
Item Spare part number Mat. No. Qty. Description
1 01170020 96117361 1 Lifting pedal
2 00053760 12310058 2 Washer
3 01077930 96111877 1 Rod
4 00551410 13280110 1 Cotter pin
5 00053360 12022067 1 Hexagon nut
6 00925430 16055063 1 Fork yoke
7 00925420 13390042 1 Bolt
8 01078240 90510017 2 Washer
9 01078560 90518580 1 Decal
Lift Pedal Subassembly
Chassis Assembly I
Page 3

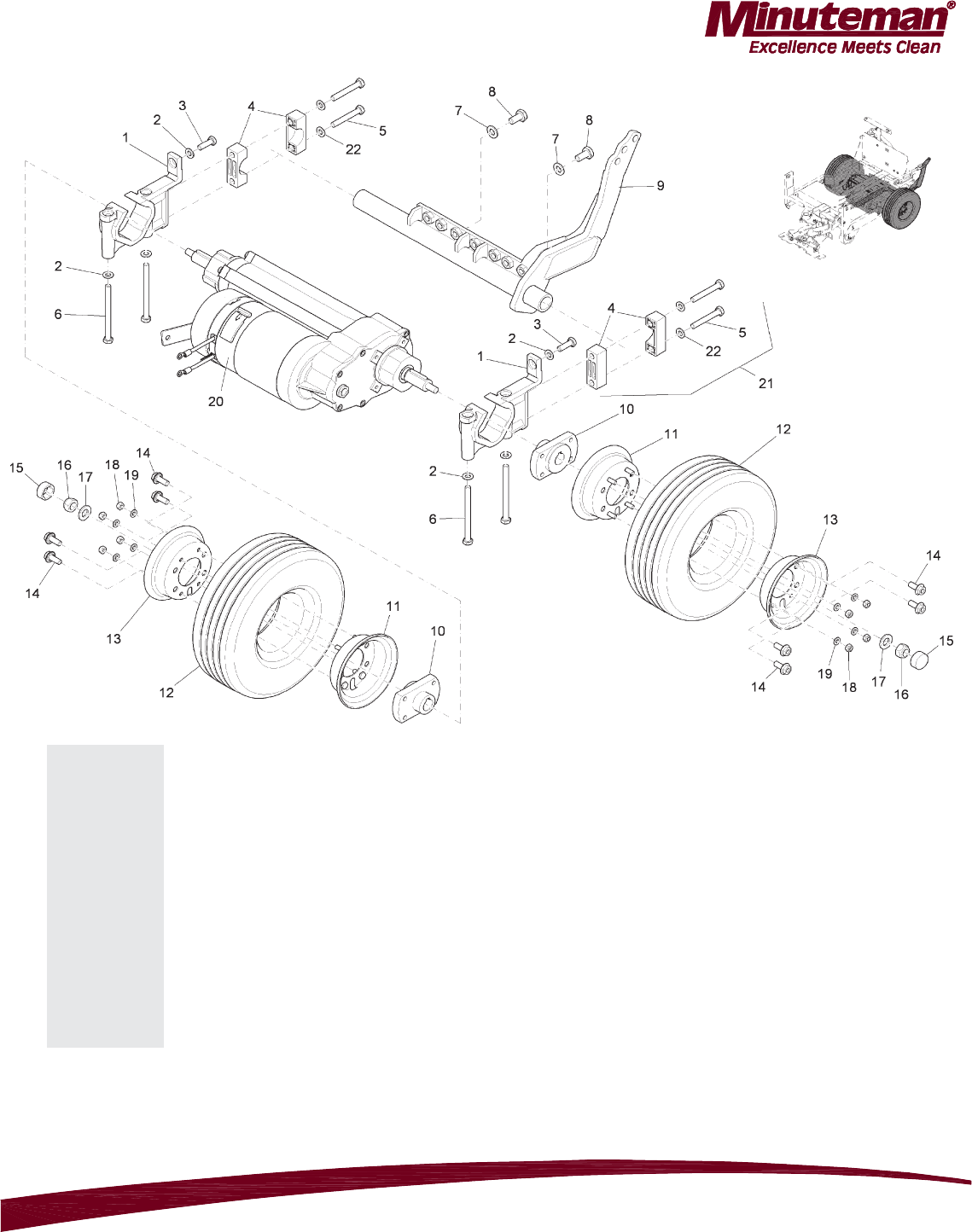

Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997098867-2 (99706212BT20)
Item Spare part number Mat. No. Qty. Description Notes
1 01078480 90512062 2 Bearing AMER
2 00053750 12310041 10 Washer
3 00053100 11038247 1 Hexagon screw
4 01078020 90481664 4 Block From appr. march 2008; If you want to exchange older blocks, please order Item 21.
5 00053260 11038296 4 Hex.bolt
6 00053140 11032273 4 Hex.bolt
7 00053760 12310058 2 Washer
8 00021130 11038353 2 Hex.bolt
9 01078490 96116009 1 Lever
10 01078010 90510116 2 Hub
11 00621690 96057013 2 Rim half
12 01056130 90398165 2 Tire
13 00621710 90251869 2 Rim
14 00959310 11717022 8 Hex.bolt
15 01031540 15592058 2 protection cap
16 00051490 12040077 2 Hexagon nut
17 00053770 12310066 2 Washer
18 00051520 12040044 8 Hexagon nut
19 00053730 12310033 8 Washer
20 01170340 90526021 1 Traction drive AMER ITEM HAS SUBASSEMBLIES.
21 00008980 97057814 1 Block Incl. items 11, 29: please order kit. It’s necessary to exchange all 4 blocks.
22 00042900 12332029 4 Washer
Chassis Assembly II
Page 4
Parts Manual - E28 Walk Behind Scrubber

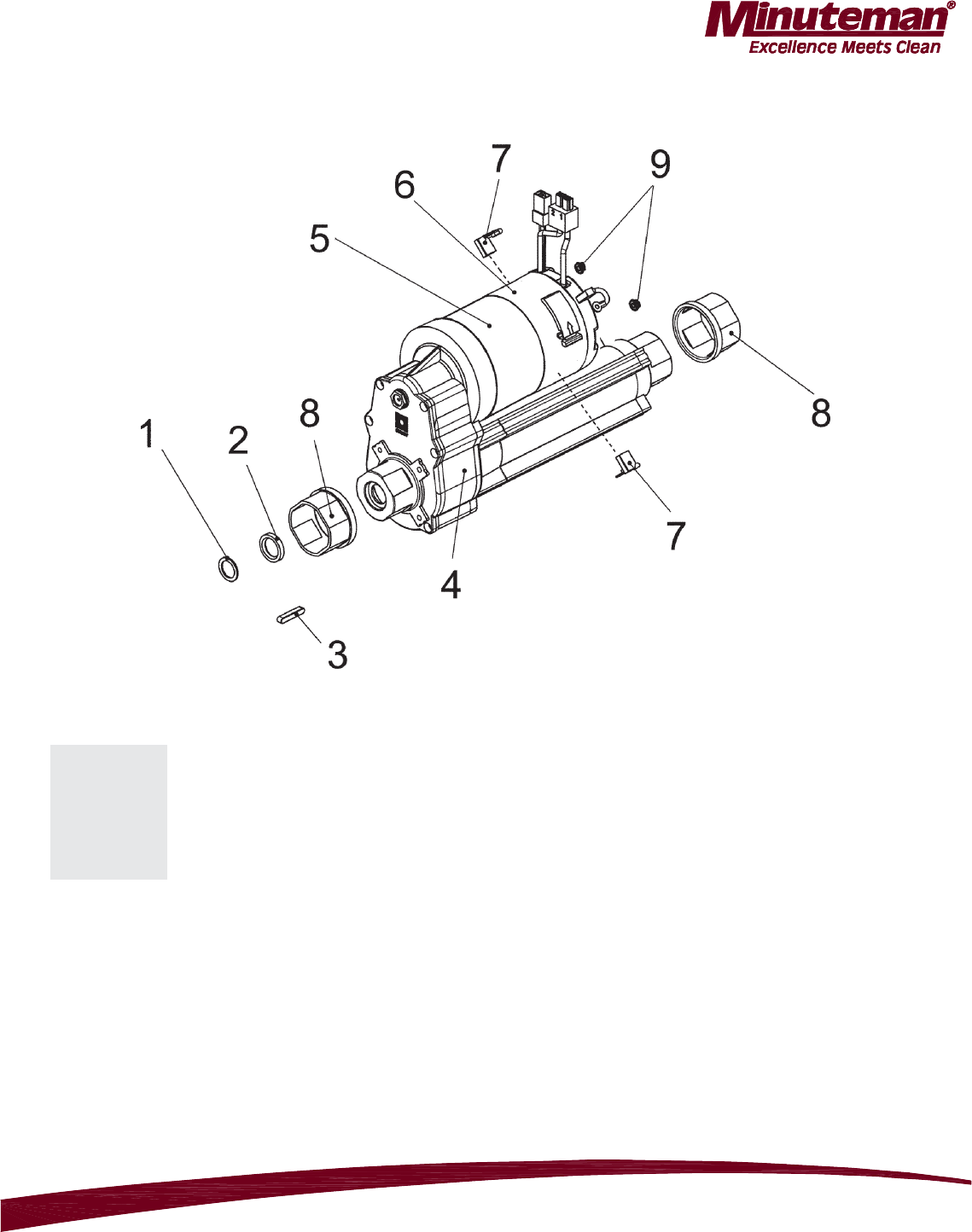

Traction Drive Motor Subassembly
Chassis Assembly II
Bill of Material - 901170340
Item Spare part number Mat. No. Qty. Description
1 01077430 01077430 2 Washer
2 01077420 01077420 3 Gasket
3 01077410 01077410 2 Fitting key
4 01077390 01077390 1 Gear box with shaft
5 01170810 01170810 1 Motor
6 01077360 01077360 1 Covering
7 01077350 01077350 4 Carbon brush
8 01077400 01077400 2 Bushing
9 01077380 01077380 4 Nut
Page 5
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997098867-3 (99706212BT30)
Item Spare part number Mat. No. Qty. Description Notes
1 97094981 1 Water supply DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
2 00053730 12310033 4 Washer
3 00104500 11038064 2 Hexagon screw
4 01072520 11177179 1 Lens flange screw
5 01077820 90513243 1 Bushing
6 00051510 12040051 2 Hexagon nut
7 00053080 11038197 10 Hexagon screw
8 00053750 12310041 9 Washer
9 01077760 90503160 1 Retainer
10 00042900 12332029 3 Washer
11 00053100 11038247 2 Hexagon screw
12 01077700 90473158 1 Bushing
13 01170260 90521824 1 Sheet metal
14 00543750 90329095 1 Pump
15 00559670 19725035 1 Case
16 00083640 19791029 1 Plastic cover
17 00083650 19791037 1 Plastic cover
18 00903190 19724020 1 Tab
19 00053720 12310025 1 Washer
20 97094999-7062-20 1 Water supply DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
21 00051520 12040044 2 Hexagon nut
22 01017640 11177060 2 Lens flange screw
23 01079660 90495037 2 Steering roller Soft construction
24 01078150 90523333 1 Tension spring
25 00735690 11518180 1 Eye bolt
26 00046500 12012019 1 Hex. Nut
27 01077830 90513573 1 Pivot
28 03008100 97099915 1 Squeegee connection ITEM HAS SUBASSEMBLIES.
29 01170380 90527532 2 Sheet metal
30 00103300 11126067 8 Socket head screw
31 01079440 90537879 2 Steering roller Hard construction
32 01077980 96112370 1 Linkage E26
33 01170560 96115456 1 Linkage E28, 30, 33, 33XL
34 01170620 96117510 1 Linkage Phoenix 28, 30
Chassis Assembly III
Page 6
Parts Manual - E28 Walk Behind Scrubber

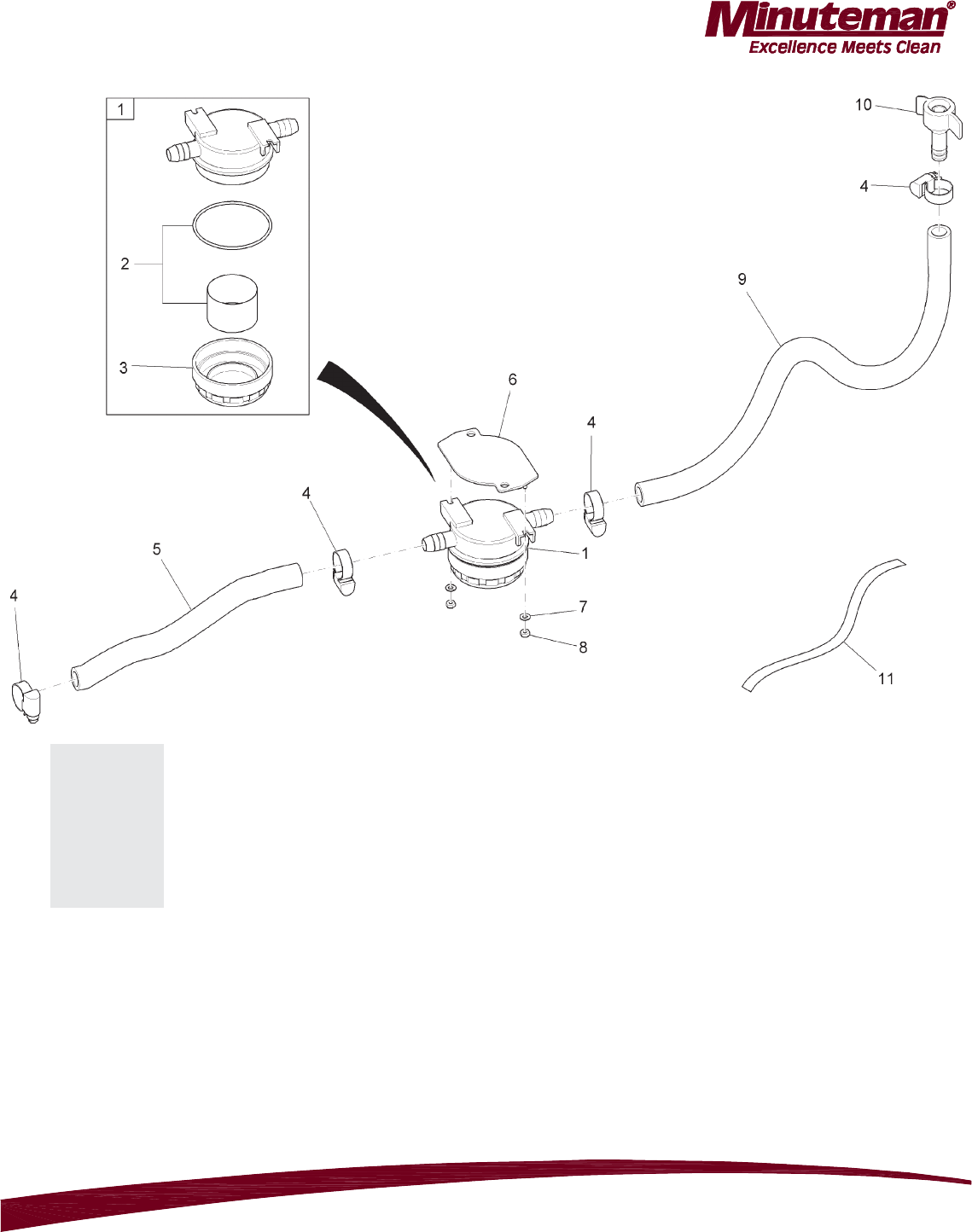

Water Supply Subassembly I
Chassis Assembly III
Bill of Material - 997094981 (99706212BT30-1)
Item Spare part number Mat. No. Qty. Description Notes
1 01077170 90522640 1 Water filter
2 01079170 01079170 1 filter cartridge cpl. with o-ring
3 01076500 01076500 1 Screw cap
4 01015350 17533159 4 Hose clamp
5 00200170 25842055 300mm PVC hose
6 01078510 96115035 1 Sheet metal
7 00053710 12310017 2 Washer
8 00133830 12040028 2 Hex. Nut
9 00200170 25842055 480mm PVC hose
10 01071450 90432071 1 Screwing
11 03007630 25743014 1 Sealing band
Page 7
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997094999-7062-20 (99706212BT30-2)
Item Spare part number Mat. No. Qty. Description
1 00154140 90330168 1 Screwed angle fitting
2 01015350 17533159 4 Hose clamp
3 00200170 25842055 1 PVC hose
4 01071000 90435595 1 Electrovalve
5 00020020 90174970 2 Angle socket
6 00200170 25842055 1 PVC hose
7 00058580 11038965 2 Hex.bolt
8 00053710 12310017 2 Washer
9 01170030 90524885 1 Retainer
10 03007630 25743014 1 Sealing band

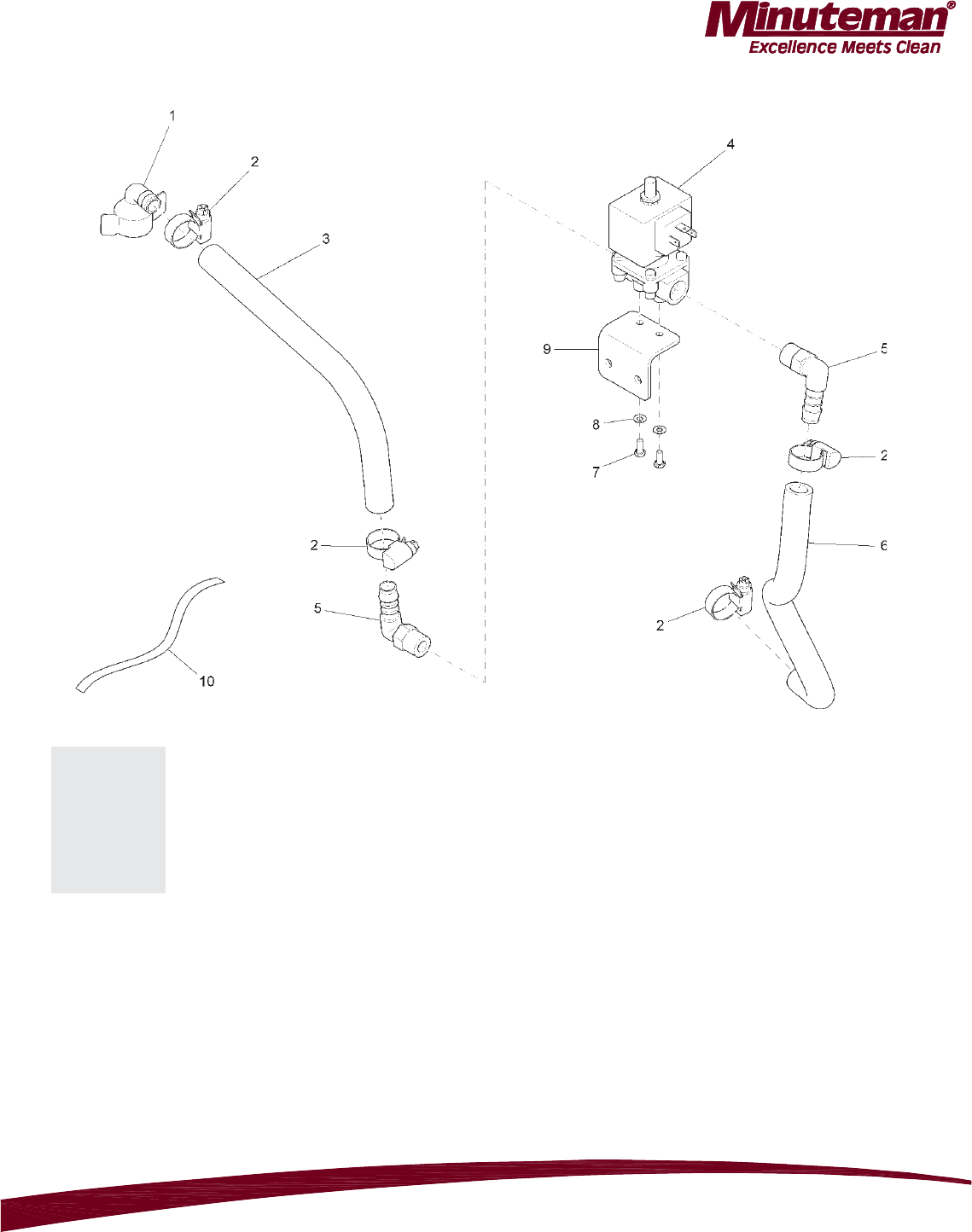

Water Supply Subassembly II
Chassis Assembly III
Page 8
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997099915-1 (until appr. 15. Apr. 2008)
Item Spare part number Mat. No. Qty. Description
1 01130940 11620564 1 Cup head square neck bolt
2 01170040 90521790 1 Sheet metal
3 01077510 14895478 2 Slide bearing bush
4 01170160 90204702 1 Pipe
5 01078230 14895460 2 Slide bearing bush
6 00054860 13280078 1 Cotter pin
7 00053750 12310041 5 Washer
8 01079280 90534710 1 Round part
9 01078220 13328810 1 Bolt
10 01079290 96117569 1 Sheet metal
11 00042900 12332029 1 Washer
12 00051510 12040051 3 Hexagon nut
13 00053100 11038247 2 Hexagon screw
14 01077700 90473158 2 Bushing
15 00161240 25582024 1 Edge protection

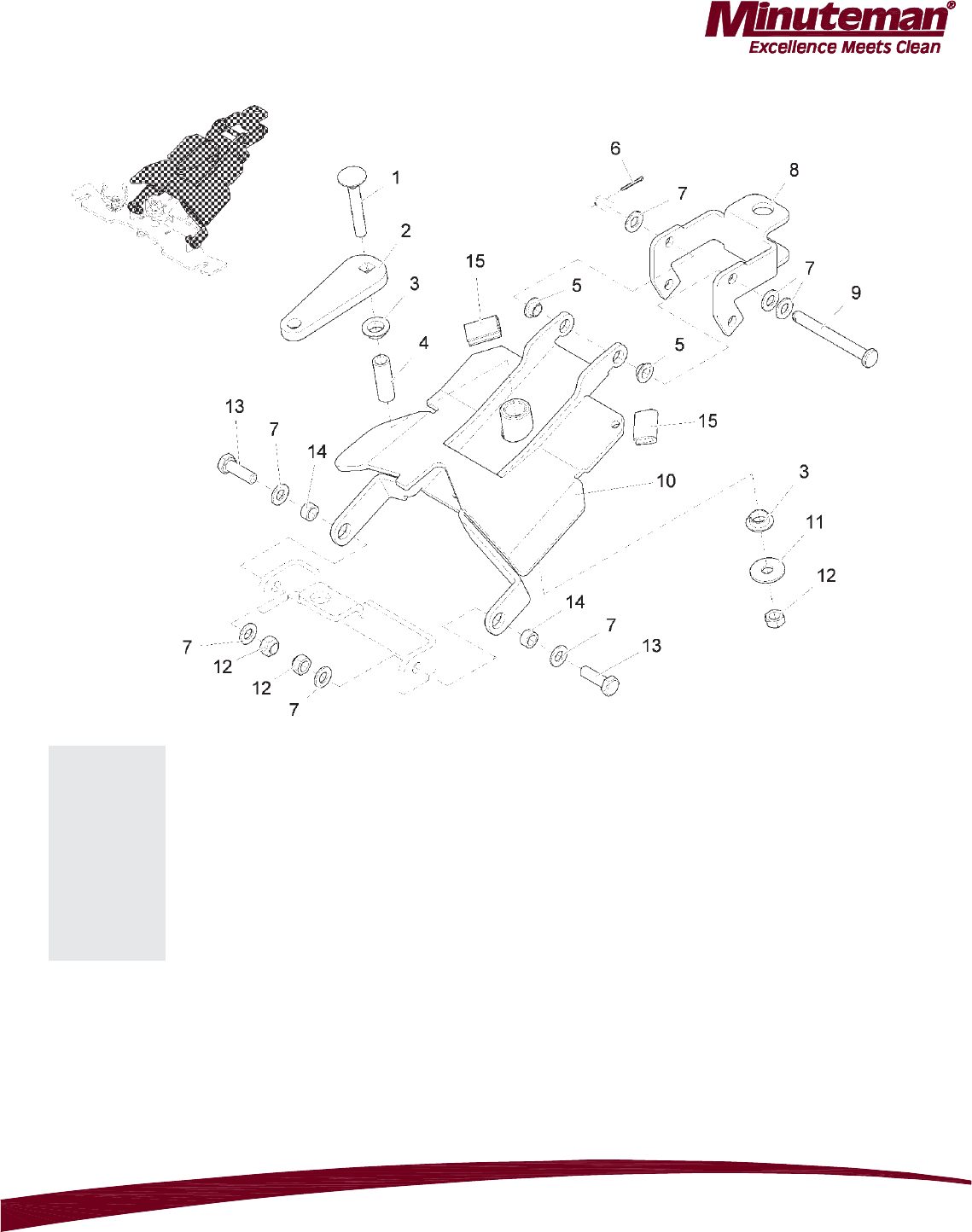

Squeegee Connection Subassembly I
Chassis Assembly III
Page 9

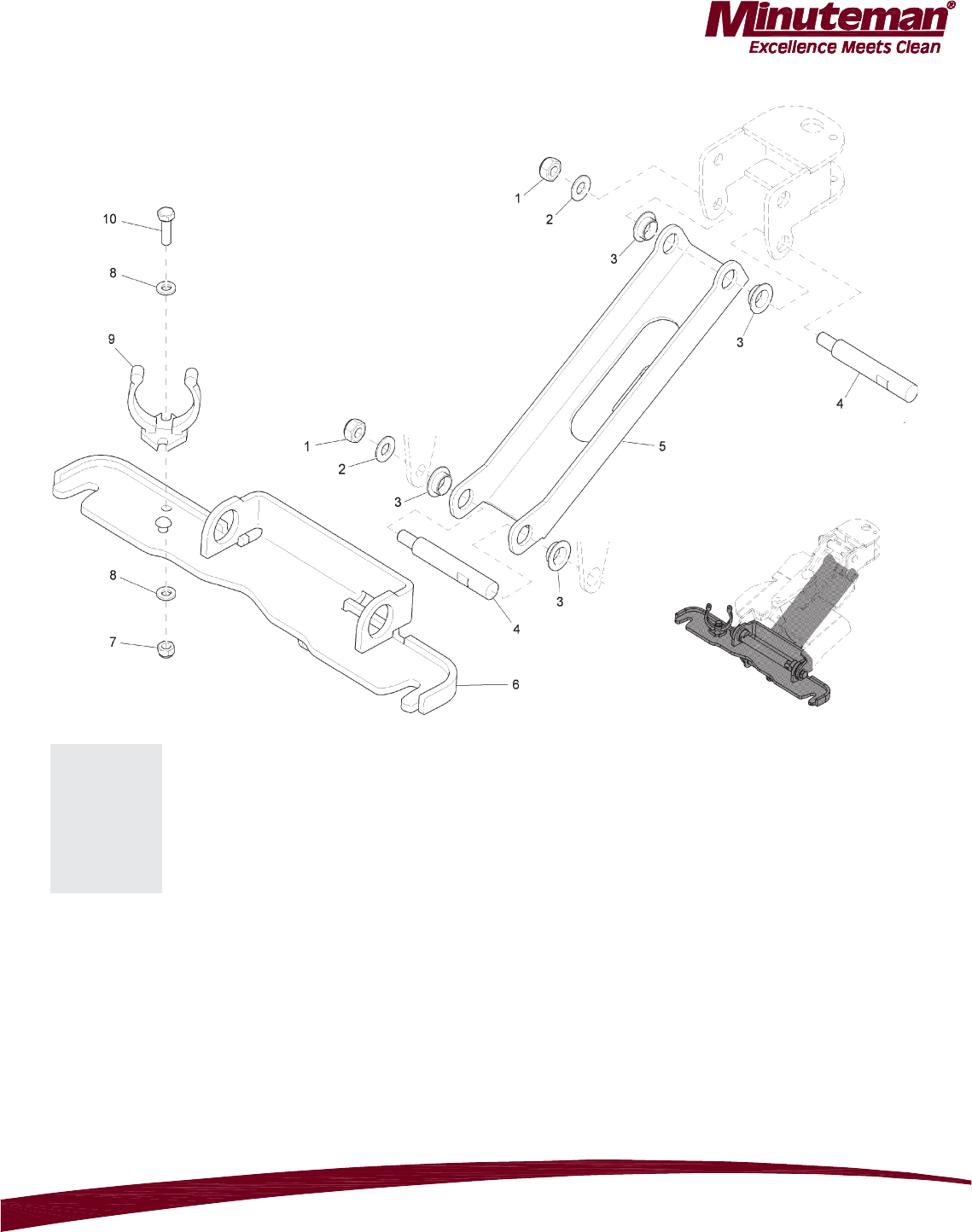

Parts Manual - E28 Walk Behind Scrubber

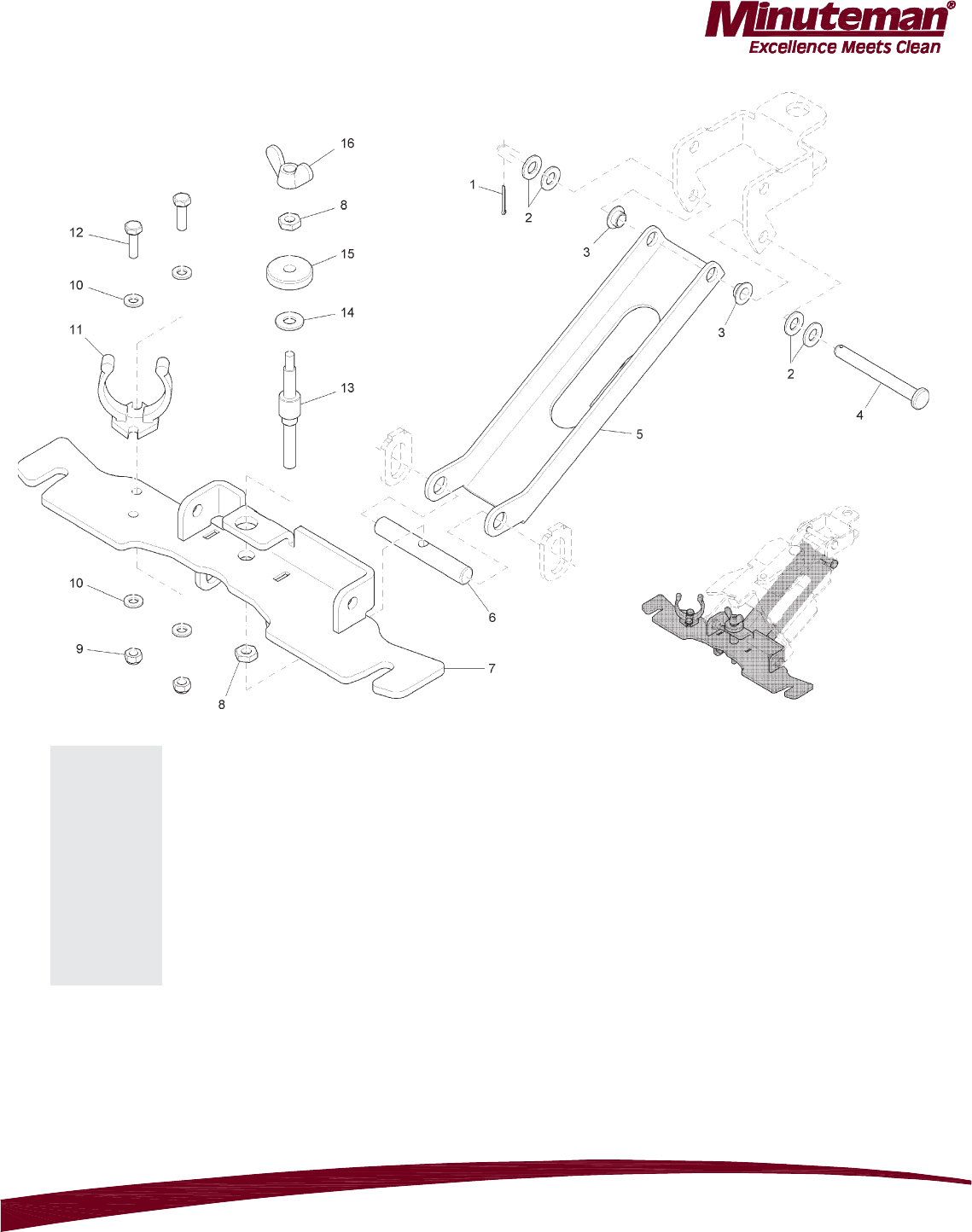

Squeegee Connection Subassembly II
Chassis Assembly III
Bill of Material - 997099915-2 (until appr. 15. Apr. 2008)
Item Spare part number Mat. No. Qty. Description
1 00054860 13280078 1 Cotter pin
2 00053750 12310041 1 Washer
3 01078230 14895460 2 Slide bearing bush
4 01170050 13328935 1 Bolt
5 01079320 90495805 1 Draft link
6 01077680 90467686 1 Bolt
7 01079330 96110242 1 Sheet metal
8 00046500 12012019 2 Hex. Nut
9 00051520 12040044 2 Hexagon nut
10 00053730 12310033 4 Washer
11 01078120 90503251 1 Hose support
12 00053020 11038098 2 Hexagon screw
13 01077850 90515149 1 Threaded pin
14 00042900 12332029 1 Washer
15 00051510 12040051 1 Hexagon nut
16 00054020 12158028 1 Wing nut
17 00053330 12022042 1 Hexagon nut
Page 10
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 903008100BT10 (from appr. 15. Apr. 2008)
Item Spare part number Mat. No. Qty. Description
1 01130940 11620564 1 Cup head square neck bolt
2 01170040 90521790 1 Sheet metal
3 01077510 14895478 2 Slide bearing bush
4 01171550 90547886 1 Bushing
5 01171330 14895197 2 Slide bearing bush
6 01171360 90546847 1 Shaft
7 00101550 12310264 3 Washer
8 01171290 96119938 1 Round part
9 01171540 90547381 3 Threaded bolt
10 01171300 96120985 1 Sheet metal
11 00042900 12332029 1 Washer
12 00101540 12040259 4 Hexagon nut
13 01071740 11039609 2 Hex.bolt
14 01130470 14895361 2 Slide bearing bush
15 00161240 25582024 60mm Edge protection
16 01171370 90547399 2 Excentric
Squeegee Connection Subassembly I
Chassis Assembly III
Page 11
Parts Manual - E28 Walk Behind Scrubber
Squeegee Connection Subassembly II
Chassis Assembly III
Bill of Material - 903008100BT20 (from appr. 15. Apr. 2008)
Item Spare part number Mat. No. Qty. Description
1 00101540 12040259 2 Hexagon nut
2 00101550 12310264 2 Washer
3 01171330 14895197 2 Slide bearing bush
4 01171540 90547381 3 Threaded bolt
5 01171280 90543521 1 Draft link
6 01171310 96120993 1 Sheet metal
7 00051520 12040044 1 Hexagon nut
8 00053730 12310033 2 Washer
9 01078120 90503251 1 Hose support
10 00053020 11038098 1 Hexagon screw
Page 12
Parts Manual - E28 Walk Behind Scrubber
Battery Tray Assembly
Bill of Material - 997099956 (99706212BT40)
Item Spare part number Mat. No. Qty. Description
1 01170760 90535360 1 Sheet metal
2 03008190 96117171 1 Battery tray
Page 13
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997094833-1 (99706212BT50)
Item Spare part number Mat. No. Qty. Description
1 01078100 96114061 1 Fresh water cap
2 01078110 90496910 2 Hinge
3 00047990 12515086 4 Disk wheel
4 00053080 11038197 8 Hexagon screw
5 01072520 11177179 4 Lens flange screw
6 01078120 90503251 1 Hose support
7 01170530 96110622 1 Hose
8 01161690 17533290 1 Clamp
9 00020020 90174970 1 Angle socket
10 00057720 15286149 1 O-ring oil resistant
11 01073820 96116025 1 Fresh water tank
12 01077960 97090096 1 Foul water hose
13 01077860 90517574 1 Hook
14 00751160 17533043 1 Hose clamp
15 00721090 25583022 710mm Edge protection
16 01079300 15282072 1 O-Ring
17 00906100 11175395 2 Fillister-head screw
18 00906110 90304528 1 Cover
19 01170060 17264888 1 Decal FOUL WATER
Solution Tank Assembly
Page 14
Parts Manual - E28 Walk Behind Scrubber
Recovery Tank Assembly
Bill of Material - 997094833-2 (99706212BT60)
Item Spare part number Mat. No. Qty. Description
1 01077990 97092951 1 Cover
2 00136910 11126166 4 Cylinder head screw
3 00053730 12310033 4 Washer
4 01071770 25510512 1580mmSealing profile
5 01078160 11709151 4 Screw
6 01078250 97093843 1 Filter unit
7 01170770 96116017 1 Foul water tank
8 00047990 12515086 4 Disk wheel
9 00053080 11038197 4 Hexagon screw
10 01077920 96111349 1 Suction hose
11 01078120 90503251 1 Hose support
12 01072520 11177179 2 Lens flange screw
Page 15
Parts Manual - E28 Walk Behind Scrubber
Vacuum Motor Assembly
Bill of Material - 997092811 (99706212BT70)
Item Spare part number Mat. No. Qty. Description
1 01079740 90523945 1 Insulation mat
2 01077900 90519737 1 Hose
3 00732130 17533027 1 Hose clamp
4 01078180 90503657 1 Connection
5 00051520 12040044 3 Hexagon nut
6 00053730 12310033 8 Washer
7 01079350 97096200 1 Suction motor
8 01074610 01074610 4 Carbon brush
9 01078190 90518457 3 Buffer
10 00025260 11038056 3 Hexagon screw
14 00121150 90114810 1 Cable tie
15 00967760 90156688 4 Cable tie
16 00042900 12332029 3 Washer
17 00053080 11038197 3 Hexagon screw
18 00104500 11038064 2 Hexagon screw
19 01079750 90519653 1 Cover
20 01079730 90519745 1 Insulation mat
21 03007810 96114301 1 Sheet metal
Page 16
Parts Manual - E28 Walk Behind Scrubber

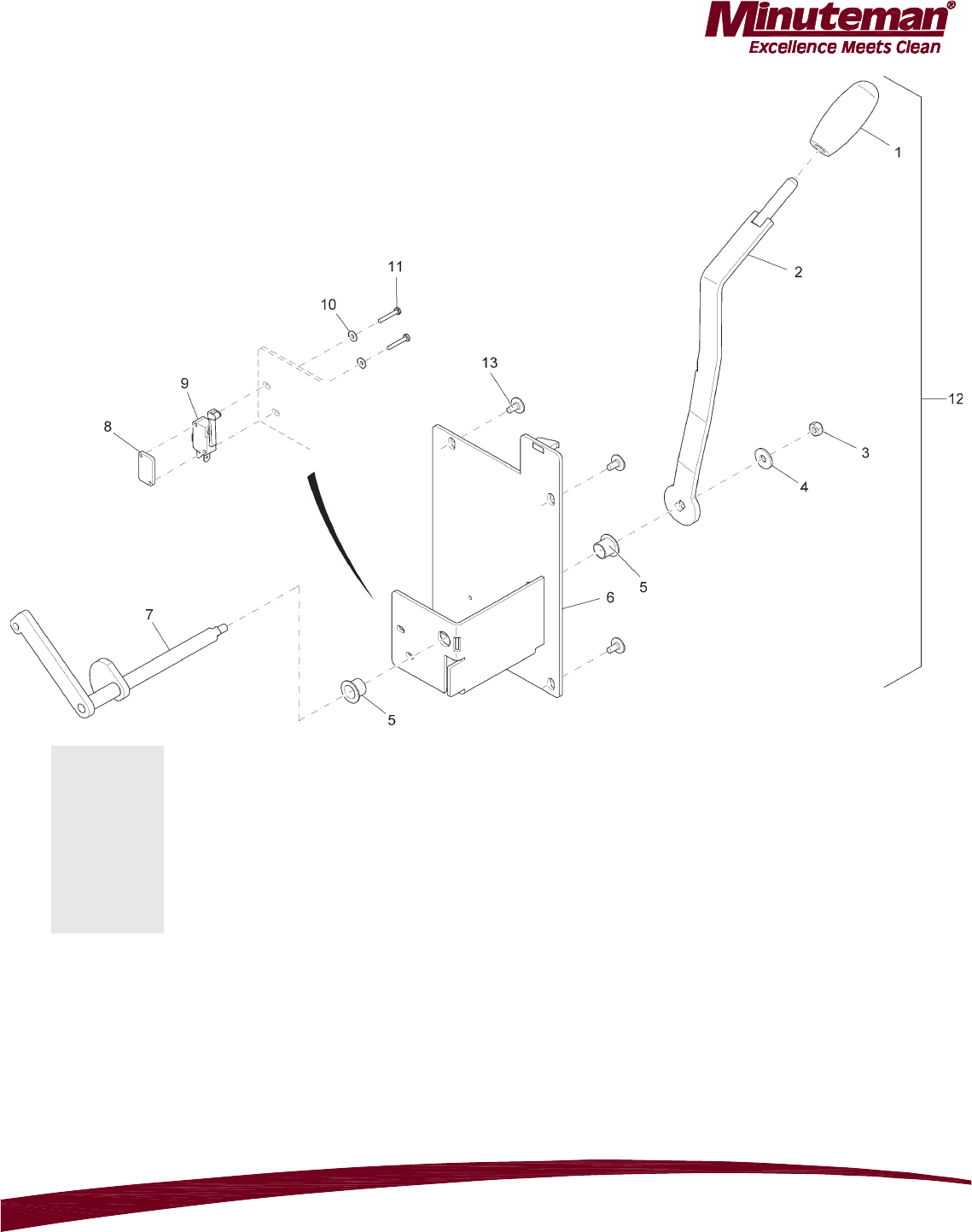

Squeegee Lift Handle Assembly
Bill of Material - 997102479 (99706212BT80)
Item Spare part number Mat. No. Qty. Description
1 00705560 17143025 1 Handle
2 01079160 96113493 1 Lever
3 00051520 12040044 1 Hexagon nut
4 00135120 12332011 1 Washer
5 01071440 14895288 2 Plain bearing bush
6 01079710 96110804 1 Support plate
7 01079720 96110705 1 Shaft with cam
8 01074840 90471483 1 Thread base plate
9 00975510 90306002 1 Micro switch
10 00747400 12332110 2 Washer
11 00022180 11039088 2 Hex.bolt
12 00009000 97092340 1 Lifting suction unit
13 01072520 11177179 4 Lens flange screw
Page 17
Parts Manual - E28 Walk Behind Scrubber

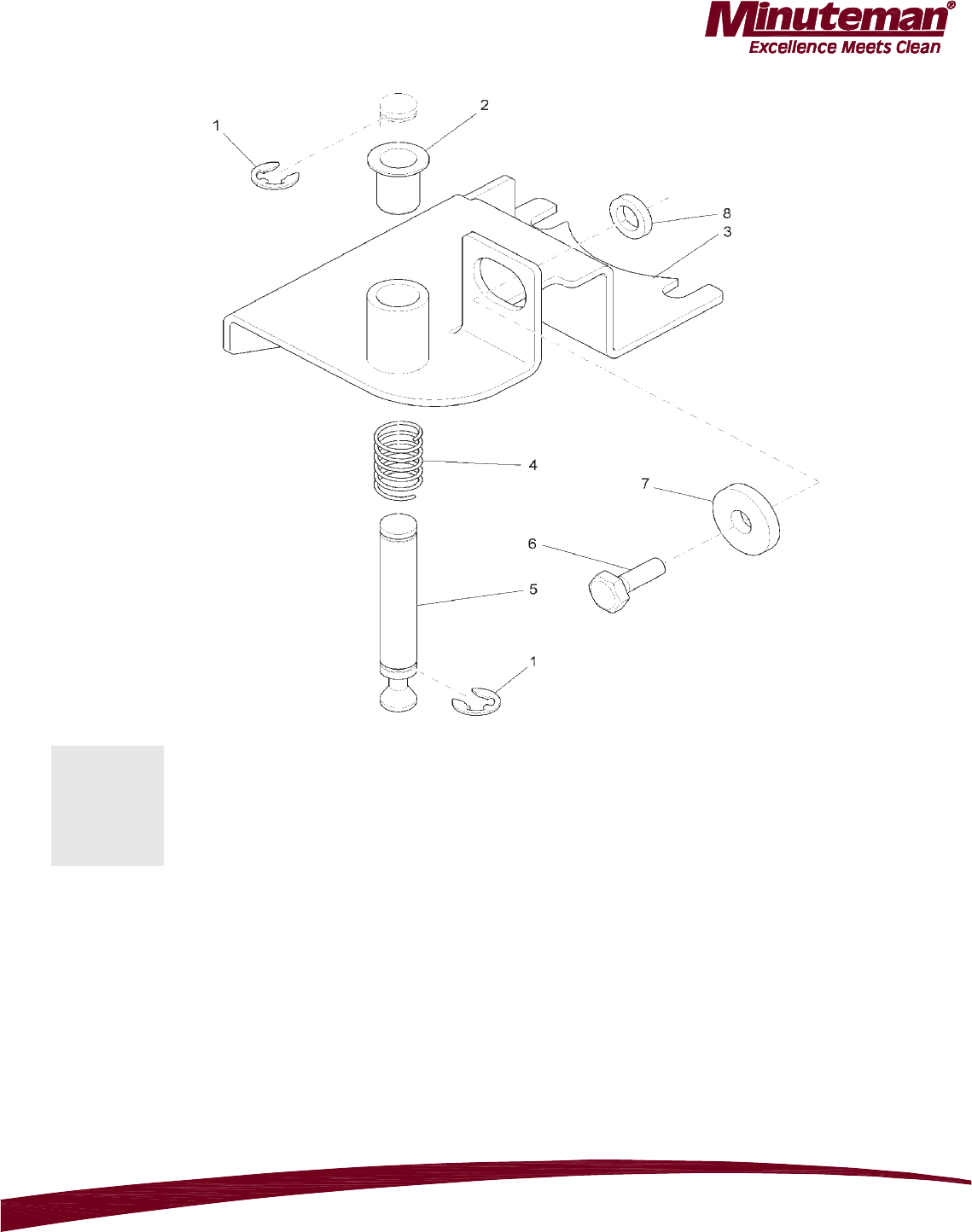

Squeegee Lock Assembly
Bill of Material - 997099931 (99706212BT90)
Item Spare part number Mat. No. Qty. Description
1 00046280 12640033 2 Thrust washer
2 00041400 14895122 1 Plain bearing bush
3 01170730 96115076 1 Folding plate
4 01170280 90523325 1 Cyl.compression spring
5 01170270 90523036 1 Pin
6 00053090 11038213 1 Hexagon screw
7 00047990 12515086 1 Disk wheel
8 01079670 90525692 1 Spacer sleeve
Page 18
Parts Manual - E28 Walk Behind Scrubber

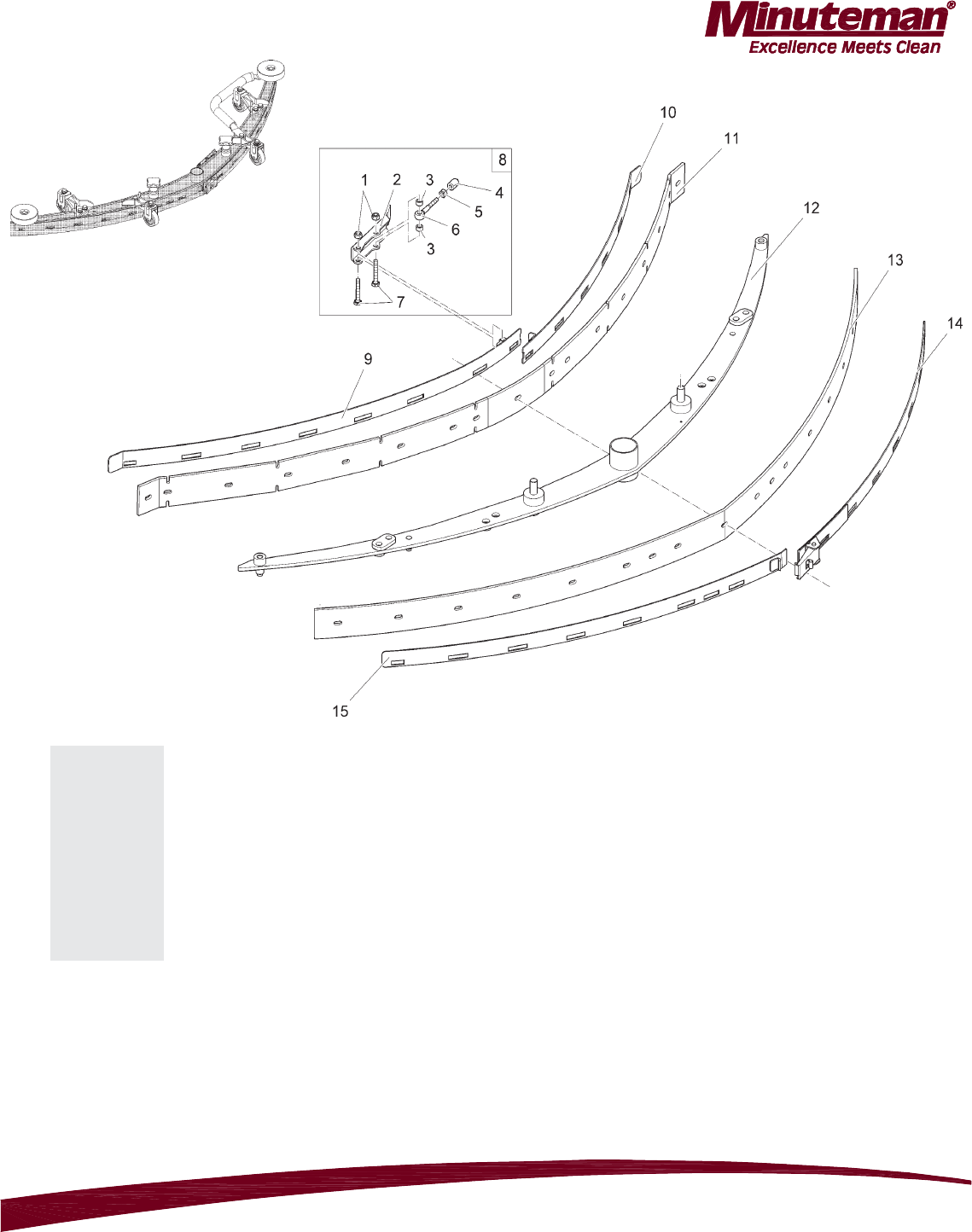

Squeegee Assembly I
Bill of Material - 997096234-1 (99706212BT100)
Item Spare part number Mat. No. Qty. Description
1 01017660 12040283 2 Hex. Nut
2 01077580 90535758 1 Lever
3 01077590 90514506 2 Bushing
4 01078090 90513631 1 Pressure piece
5 00902250 12022430 1 Hex. Nut
6 01077500 11518313 1 Eye bolt
7 01079890 11039765 2 Hexagon screw
8 00009010 97057459 1 Lock suction unit
9 01079880 96114830 1 Front tension band
10 01079870 96114822 1 Front tension band
11 01079790 90522251 1 Slot strip
12 01079900 96114814 1 Suction unit 1110mm
13 01079780 90522269 1 Sealing strip
14 01079910 96114855 1 Rear tension band
15 01079920 96114848 1 Rear tension band
Page 19
Parts Manual - E28 Walk Behind Scrubber
Squeegee Assembly II
Bill of Material - 997096234-2 (99706212BT110)
Item Spare part number Mat. No. Qty. Description
1 01078690 11038924 4 Hexagon screw
2 00101550 12310264 12 Washer
3 01071740 11039609 4 Hex.bolt
4 01079080 90531112 22 Spacer
5 01077810 90513094 4 Fixed castor
6 XXXXXXXX 97099121 2 Fixed castor
7 01059530 11039567 2 Hexagon screw
8 00902280 12332136 4 Washer
9 00879030 90199019 2 Pipe
10 00924810 90336637 2 Deflector roller
11 01079930 90522566 1 Bracket
12 00911270 25842105 305 mm Hose
13 00866720 17133026 2 Star handle
14 00972060 12515094 2 Disk wheel
15 01079070 97098842 2 Fixed castor
Page 20
Parts Manual - E28 Walk Behind Scrubber
Control Panel Assembly
Bill of Material - 997096523 (99706212BT120)
Item Spare part number Mat. No. Qty. Description Notes
1 01171380 11177253 4 Lens flange screw
2 01079760 90494501 1 Handle bar
3 97091839 1 Console cpl. DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
4 01079770 96117585 1 Sheet metal
5 01072520 11177179 4 Lens flange screw
6 00874720 12310272 4 Washer
7 00961490 11709011 4 Self tapping screw
8 01079950 97096069 1 Bail system
9 00051510 12040051 2 Hexagon nut
Page 21
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997091839 (99706212BT121)
Item Spare part number Mat. No. Qty. Description
1 01079090 97057160 1 Console
2 01078930 90511130 1 Ribbon cable
3 01078860 11702123 4 Screw
4 01078940 90499492 1 Console
5 01078950 90518150 1 Cable key switch
6 00021710 90323437 1 Key switch
7 00745890 00745890 1 Set (2pc.) key
Console Subassembly
Control Panel Assembly
Page 22
Parts Manual - E28 Walk Behind Scrubber
Electrical Assembly I
Bill of Material - 997100515-1 (99706212BT30)
Item Spare part number Mat. No. Qty. Description Notes
1 01072520 11177179 5 Lens flange screw
2 01078570 90509803 1 Sheet metal
3 00161240 25582024 60mm Edge protection
4 97100523 1 Retainer cpl. DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
5 00153200 12347027 1 Washer
6 00051520 12040044 1 Hexagon nut
7 01079690 15595259 1 Bushing
8 01078580 90511338 1 Sheet metal
9 01082530 11177161 2 Lens flange screw
10 01078270 96114996 1 Covering
11 01078590 90513912 1 Clamping plate
12 01078260 90499377 2 Bushing
13 00042900 12332029 2 Washer
14 00053110 11038254 2 Hexagon screw
15 01073850 11412046 1 Tapping screw
16 00857150 12518080 1 Lock washer
Page 23
Parts Manual - E28 Walk Behind Scrubber
Retainer Subassembly
Electrical Assembly I
Bill of Material - 997100523 (99706212BT131)
Item Spare part number Mat. No. Qty. Description
1 00967760 90156688 4 Cable tie
2 00121150 90114810 8 Cable tie
3 01077880 90517699 1 Webbing
4 00053730 12310033 2 Washer
5 00053010 11038072 2 Hex.bolt
6 01078640 96117668 1 Retainer
7 00721090 25583022 120mm Edge protection
8 00051340 12040036 2 Hexagon nut
9 00053720 12310025 4 Washer
10 00054410 11038049 2 Hex.bolt
11 01170460 90529942 1 Contactor
12 00131610 15592033 4 Lens cap
13 01079690 15595259 1 Bushing
14 01078240 90510017 4 Washer
15 00747210 15592041 2 Lens cap
16 00051520 12040044 1 Hexagon nut
17 00135120 12332011 1 Washer
18 01171100 97057764 1 Controller HIGH 8-fet BAIL-KUD
19 00972420 00972420 0 Strip fuse
20 00902440 00902440 0 Strip fuse
21 00733630 19731082 0 Fuse
22 00972430 00972430 0 Fuse
23 00721090 25583022 30mm Edge protection
24 01074240 90463746 2 Cap
Page 24
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997100515-2 (99706212BT140)
Item Spare part number Mat. No. Qty. Description
1 01078600 90518119 1 Covering
2 01072520 11177179 7 Lens flange screw
3 01078610 90511346 1 Sheet metal
4 01078280 90465774 1 Bag
5 00555520 12332052 3 Washer
6 01078290 13165196 3 Blind rivet
7 03008120 97096986 1 Wiring harness W1
8 03008130 97096994 1 Wiring harness W2
9 03008200 97101547 1 Wiring harness W3
10 03007790 97099063 1 Wiring harness
11 03008160 97098511 1 Wiring harness W11
12 03008170 97095129 1 Cable loom
13 03008180 97098529 1 Cable loom
14 01170450 90529876 1 Clamping plate
15 00053730 12310033 2 Washer
16 00042900 12332029 1 Washer
17 00053090 11038213 1 Hexagon screw
18 00121150 90114810 10 Cable tie
19 00967760 90156688 2 Cable tie
20 01078630 90511320 1 Sheet metal
21 01170500 90538125 1 Distance plate
22 00535110 11038817 2 Hex.bolt
23 03007780 97099048 1 Cable loom
Electrical Assembly II
Page 25
Parts Manual - E28 Walk Behind Scrubber
Battery Charger Assembly
Bill of Material - 997099436 (99706212BT150)
Item Spare part number Mat. No. Qty. Description
1 01079380 90532987 1 Power cable
2 01017640 11177060 2 Lens flange screw
3 01074240 90463746 2 Cap
4 01079360 90533266 1 Covering
5 01079370 96117197 1 On-board charger
6 01077870 90517665 1 Tension band
7 01078320 90512575 3 Hose
8 00121150 90114810 8 Cable tie
9 00967760 90156688 1 Cable tie
10 03006770 97094304 1 Wire harness W6
11 03006840 97094346 1 Wiring harness W8
12 01079390 90533258 1 Cable retainer
Page 26
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997100481 (99706212BT160)
Item Spare part number Mat. No. Qty. Description
1 01077440 17267212 1 Decal DETAILS
2 03008210 17205253 2 Decal E28
3 03007820 17201145 1 Decal MINUTEMAN
4 03008630 17212178 1 Type plate MINUTEMAN
5 00504370 13165014 2 Blind rivet

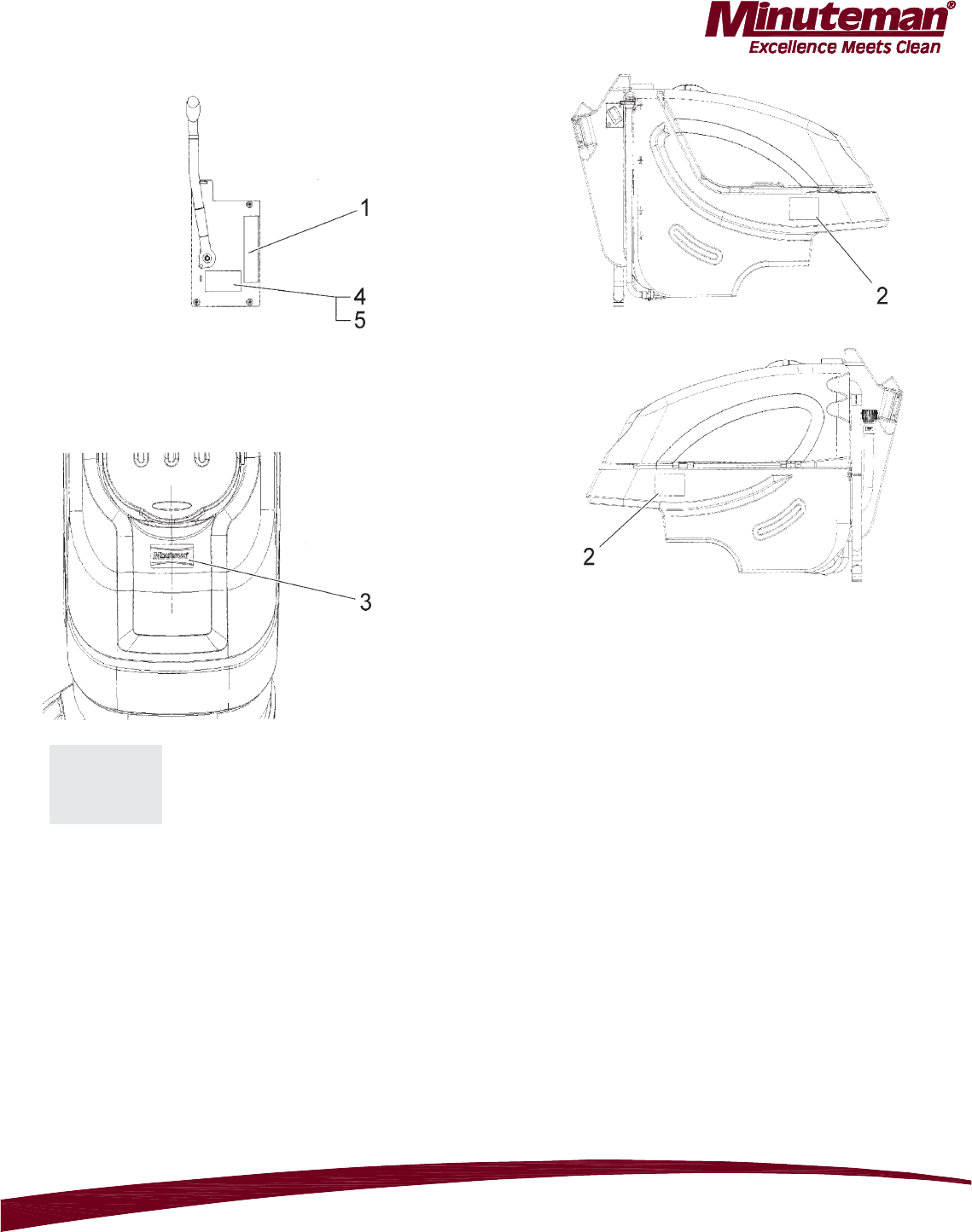

Machine Labels
Page 27
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997099576
Item Spare part number Mat. No. Qty. Description Notes
1 01073530 17220013 1 Transparency
2 97090021 1 Cylindrical brush drive head cpl. DO NOT ORDER. ITEM HAS SUBASSEMBLIES. 97090021-1+2+3.
3 00051510 12040051 2 Hexagon nut
4 00053750 12310041 3 Washer
5 01000670 11177136 3 Lens flange screw
6 01170070 96115324 1 Retainer
7 00053170 11038395 1 Hexagon screw
8 00051500 12040069 1 Hexagon nut
9 00053080 11038197 4 Hexagon screw
10 01170080 90532870 1 Sheet metal
11 00121150 90114810 6 Cable tie
12 00967760 90156688 4 Cable tie
13 03006790 97097737 1 Wiring harness to error reset
14 01078870 97057103 1 Adjusting kit BRUSHES AGGREGATE
15 00042900 12332029 4 Washer
Cylindrical Scrub Deck Assembly
Page 28
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997090021-1 (99706212BT170)
Item Spare part number Mat. No. Qty. Description Notes
1 01078690 11038924 3 Hexagon screw
2 01161070 12332152 3 Washer
3 01078700 90492851 3 Slide block
4 01077730 90492869 3 Bushing
5 03007970 96112453 1 Rocker cylindrical brush
6 01078720 11039542 4 Hexagon screw
7 01170090 90532649 1 Retainer
8 01170780 90507815 1 Housing
9 01072680 90441577 1 Tension spring
10 01071750 11038742 2 Hexagon screw
11 01077890 90529777 1 Angle
12 97079578 1 Dirt hopper cpl. DO NOT ORDER. ITEM HAS SUBASSEMBLIES.
13 00553690 11038635 6 Hex.bolt
14 00053750 12310041 6 Washer
15 01170540 96112271 1 Guide bar
16 01170100 90529595 1 Spring holder
17 01074240 90463746 2 Cap
Brush Deck Assembly I
Page 29
Parts Manual - E28 Walk Behind Scrubber

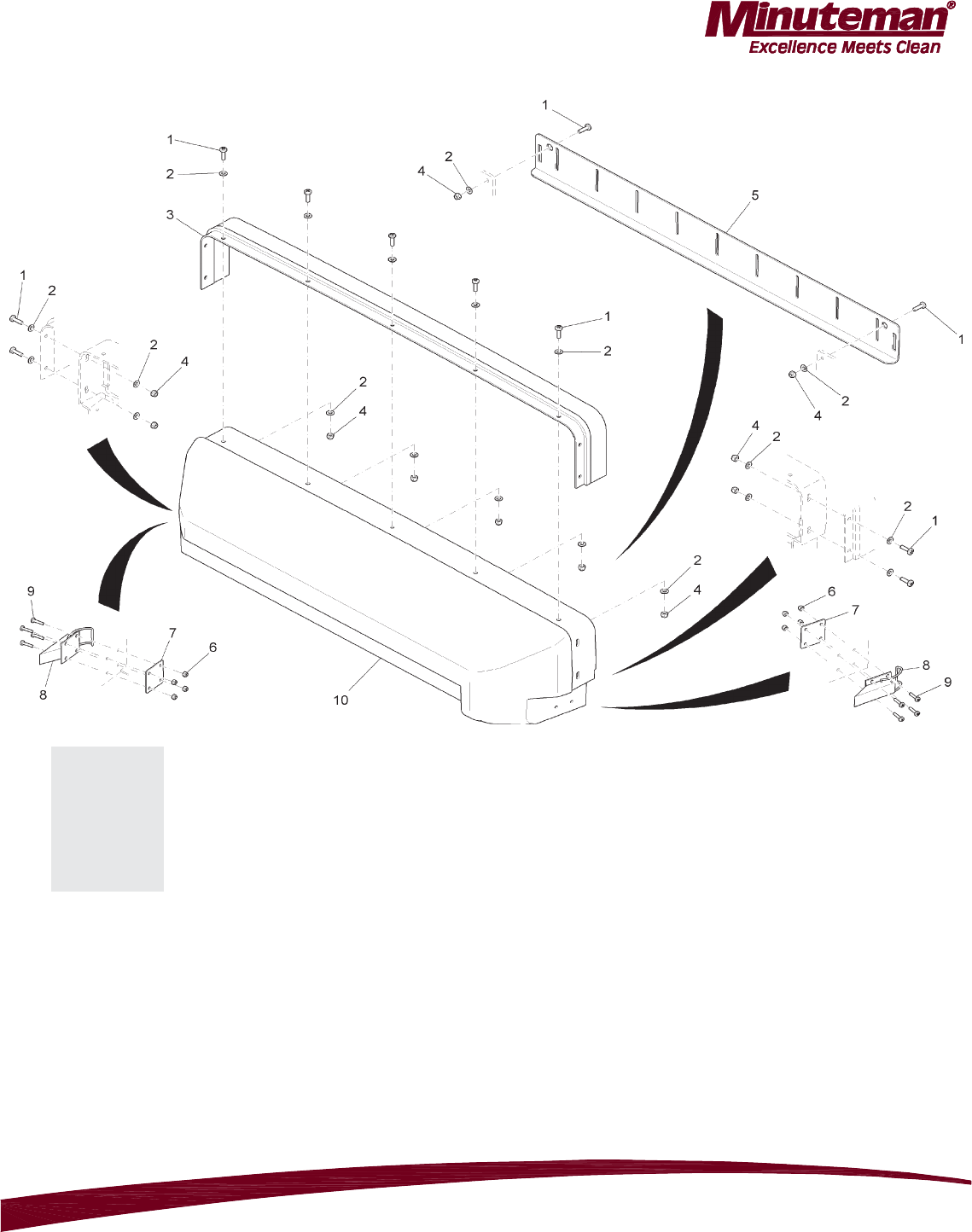

Dirt Hopper Subassembly
Brush Deck Assembly I
Bill of Material - 997079578 (99706212BT170-1)
Item Spare part number Mat. No. Qty. Description
1 01072260 11175445 11 Fillister-head screw
2 00874720 12310272 20 Washer
3 01072240 90436007 1 Brush rails
4 00970190 12040234 11 Hexagon nut
5 01072250 90435868 1 Panel apron
6 01072270 12040374 8 Hex. Nut
7 01076250 90435884 2 Plate
8 01072220 17383191 2 Lock
9 01072230 11175452 8 Fillister-head screw
10 01072210 96097886 1 Dirt hopper, cpl.
Page 30
Parts Manual - E28 Walk Behind Scrubber
Bill of Material - 997090021-2 (99706212BT180)
Item Spare part number Mat. No. Qty. Description Notes
1 01074320 11177187 2 Lens flange screw
2 01074330 90464058 2 Washer
3 01072520 11177179 6 Lens flange screw
4 01078760 90454117 2 Side cover
5 01078770 96098264 2 Centering bend
6 01074340 96101985 2 Bearing
7 01072450 90529371 2 Motor
8 00553060 00553060 4 Set (4pc.) carbon brush
9 00022430 13540208 2 Feather key
10 00135120 12332011 8 Washer
11 00053020 11038098 8 Hexagon screw
12 01072580 13540549 2 Feather key
13 01072560 97080014 1 Carrier, cpl. ITEM HAS SUBASSEMBLIES.
14 01072460 90409210 2 Toothed belt pulley
15 00022440 12610234 2 Retaining ring
16 01072540 16423055 2 Toothed belt
17 01170510 90532888 1 Sheet metal R.H.
18 01072520 11177179 6 Lens flange screw
19 00022340 12610069 2 Retaining ring
20 01072570 90409244 2 Toothed belt pulley
21 03007980 97098503 1 Wiring harness W13
22 01078790 90463340 1 Sheet metal L.H.
23 03007990 97097786 1 Wiring harness W14
24 99709600 99709600 1 Set cyl. brushes Light to medium, PA 6 - 0,7
25 99709900 99709900 1 set cyl brush Medium to heavy, structured flooring, SIC PA 6. 12, Kom 500
26 99709400 99709400 1 Set of cylindrical brushes Very heavy and basic cleaning, SIC PA 6. 12, Kom 180
Brush Deck Assembly II
Page 31
Parts Manual - E28 Walk Behind Scrubber
Brush Deck Assembly II

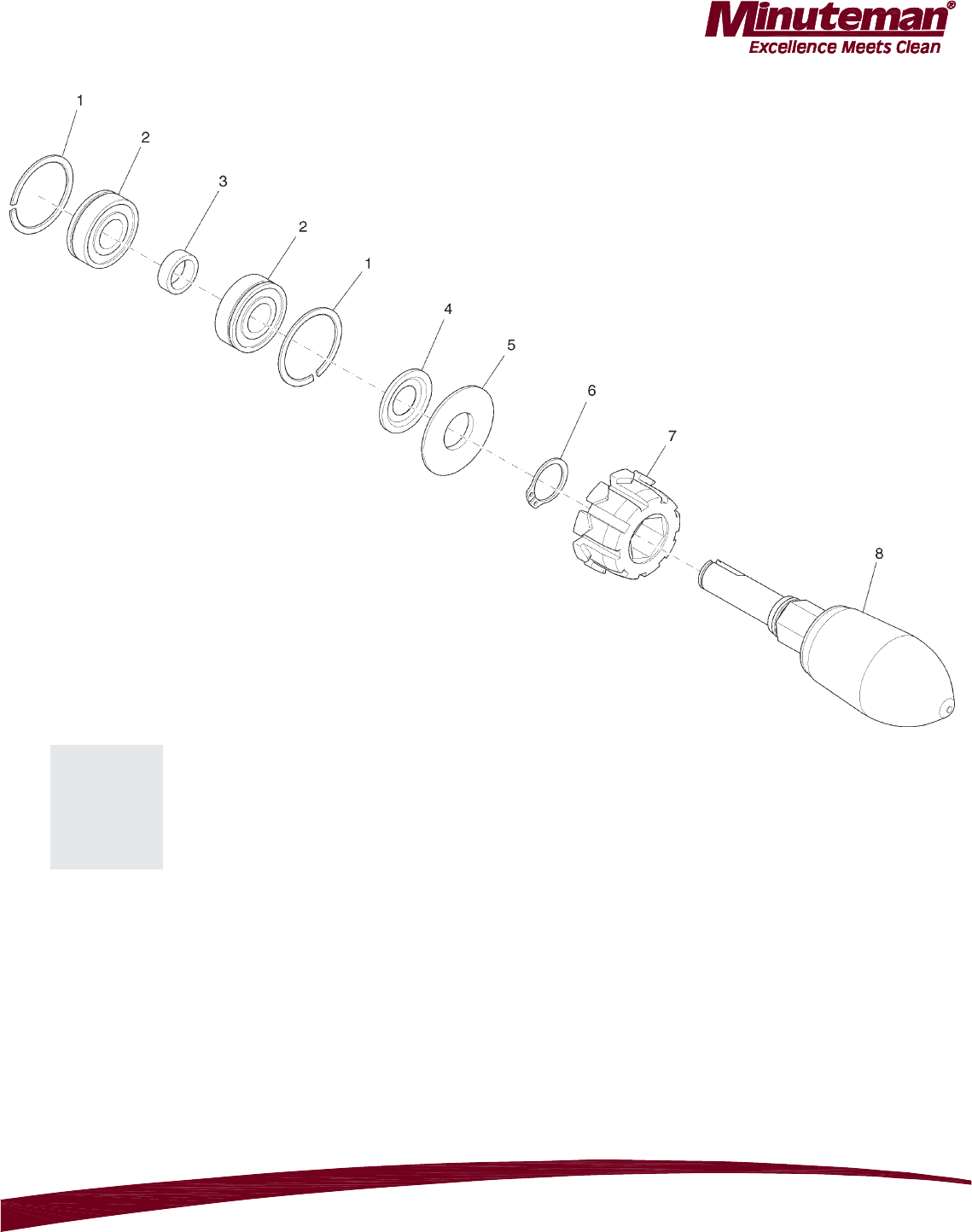

Carrier Subassembly
Bill of Material - 901072560
Item Spare part number Mat. No. Qty. Description
1 01078820 12561031 2 Circlip
2 01076560 14110853 2 Grooved ball bearing
3 01077520 90409665 1 Bushing
4 00124220 14678064 1 Ring
5 01077550 90436817 1 Bushing
6 00054310 12610093 1 Retaining ring
7 01077540 90423666 1 Bushing
8 01077530 90416777 1 Retainer
Page 32
Parts Manual - E28 Walk Behind Scrubber
Brush Deck Assembly III
Bill of Material - 997090021-3 (99706212BT190)
Item Spare part number Mat. No. Qty. Description
1 00171030 25842097 520mm Hose
2 00074300 17533100 4 Hose clamp
3 01071750 11038742 8 Hexagon screw
4 01072500 90430885 2 Clamping sheet metal
5 01072640 90429952 2 Jet
6 01072630 90440884 2 Pipe
7 00171030 25842097 240mm Hose
8 00976160 90310681 1 T-piece
9 01170110 11126505 2 Socket head screw
10 00053750 12310041 4 Washer
11 01078800 90519828 2 Pipe
12 00976590 90315334 2 Roller
13 00132610 12332045 2 Washer
14 00051510 12040051 2 Hexagon nut
15 00102150 12310256 6 Washer
16 01170600 96116520 1 Cross beam
17 01072520 11177179 2 Lens flange screw
18 01073360 90437450 2 Bushing
19 00550870 90232372 2 Pressure spring
20 00107140 13050299 2 Dowel pin
21 01072620 96098611 2 Lever, cpl.
22 01072510 12022570 2 Hex. Nut
23 01072260 11175445 2 Fillister-head screw
24 00523810 11039500 2 Hex.bolt
25 00971400 12022455 2 Hexagon nut
26 00101550 12310264 2 Washer
27 01170120 90533696 2 Stop
28 01015340 11177011 2 Lens flange screw
29 00051520 12040044 2 Hexagon nut
30 00131610 15592033 2 Lens cap
Minuteman International Made Simple Commercial Limited Warranty
REVISION D
EFFECTIVE 7/1/2008
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in
workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation
and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair
stations.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts,
cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts manufactured by Minuteman
are covered by and subject to the warranties and/or guarantees of their manufacturers. Please contact Minuteman for
procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured by Minuteman or its
designated license es, will void all warranties expressed or implied. A potential health hazard exists without original
equipment replacement.
A
ll warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minutem an disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a
particular purpose. Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser
of this product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically
authorized by Minuteman. This warranty does not apply to damage from transportation, alterations by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss o
f
income due to malfunctions of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions and limitations may not apply to you.
Cord Electric Group………. Three years parts, two years labor, ninety days travel (Not to exceed two hours)
Exceptions………. Port-A-Scrub, one year parts, six months labor
MPV 13, one year parts
V-14, One year parts, one year labor
MPV 14 and 18, two years parts, one year labor
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
EX 12 and EX12H, one year parts, one year labor
TRS 14, one year parts, one year labor
Battery Operated Group….. Three years parts, two years labor, ninety days travel
(Not to exceed two hours)
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours)
Internal Combustion Group….One year parts, one year labor, ninety day travel
(Not to exceed two hours)
Battery Chargers………………. ..One year replacement
Replacement Parts……………..Ninety days
Batteries………………………….0-3 months replacement, 4-12 months pro-rate
Polypropylene Plastic Tanks…Ten years, no additional labor
111 South Rohlwing Road · Addison, Illinois 60101 USA
Phone 630- 627-6900 · Fax 630- 627-1130
E-Mail: www.minutemanintl.com 988028
Rev A 07/08

Navigation menu
