Parts Manual
E30 Walk-Behind Scrubber
Parts Manual - E30 Walk Behind Scrubber
• Stop on level surface.
• Disconnect the power to the machine by pulling the red Battery Connector located under the recovery tank
near the batteries.
• Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
• Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear
protective clothing and safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of
batteries.
• Do not clean machine with a pressure washer.
• Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
Parts Manual - E30 Walk Behind Scrubber
Assembly Group Description Page
99706215BT10 Chassis Assembly I 1
Lift Pedal Subassembly 2
Brush Pressure Adjustment Subassembly 3
99706215BT20 Chassis Assembly II 4
Traction Drive Motor Subassembly 5
99706215BT30 Chassis Assembly III 6
Water Supply Subassembly I 7
Water Supply Subassembly II 8
Squeegee Connection Subassembly I 9
Squeegee Connection Subassembly II 10
99706215BT40 Battery Tray Assembly 11
99706215BT50 Solution Tank Assembly 12
Recovery Tank Drain Hose Subassembly 13
99706215BT60 Recovery Tank Assembly 14
99706215BT70 Vacuum Motor Assembly 15
99706215BT80 Squeegee Lift Handle Assembly 16
99706215BT90 Squeegee Lock Assembly 17
99706215BT100 Squeegee Assembly I 18
99706215BT110 Squeegee Assembly II 19
99706215BT120 Control Panel Assembly 20
Console Subassembly 21
99706215BT130 Electrical Assembly I 22
Retainer Subassembly 23
99706215BT140 Electrical Assembly II 24
99706215BT150 Battery Charger Assembly 25
99706215BT160 Machine Labels 26
99706215BT170 Disc Scrub Deck Assembly I 27
99706215BT180 Disc Scrub Deck Assembly II 28
99706215BT190 Disc Scrub Deck Assembly III 29
Page 1
Parts Manual - E30 Walk Behind Scrubber

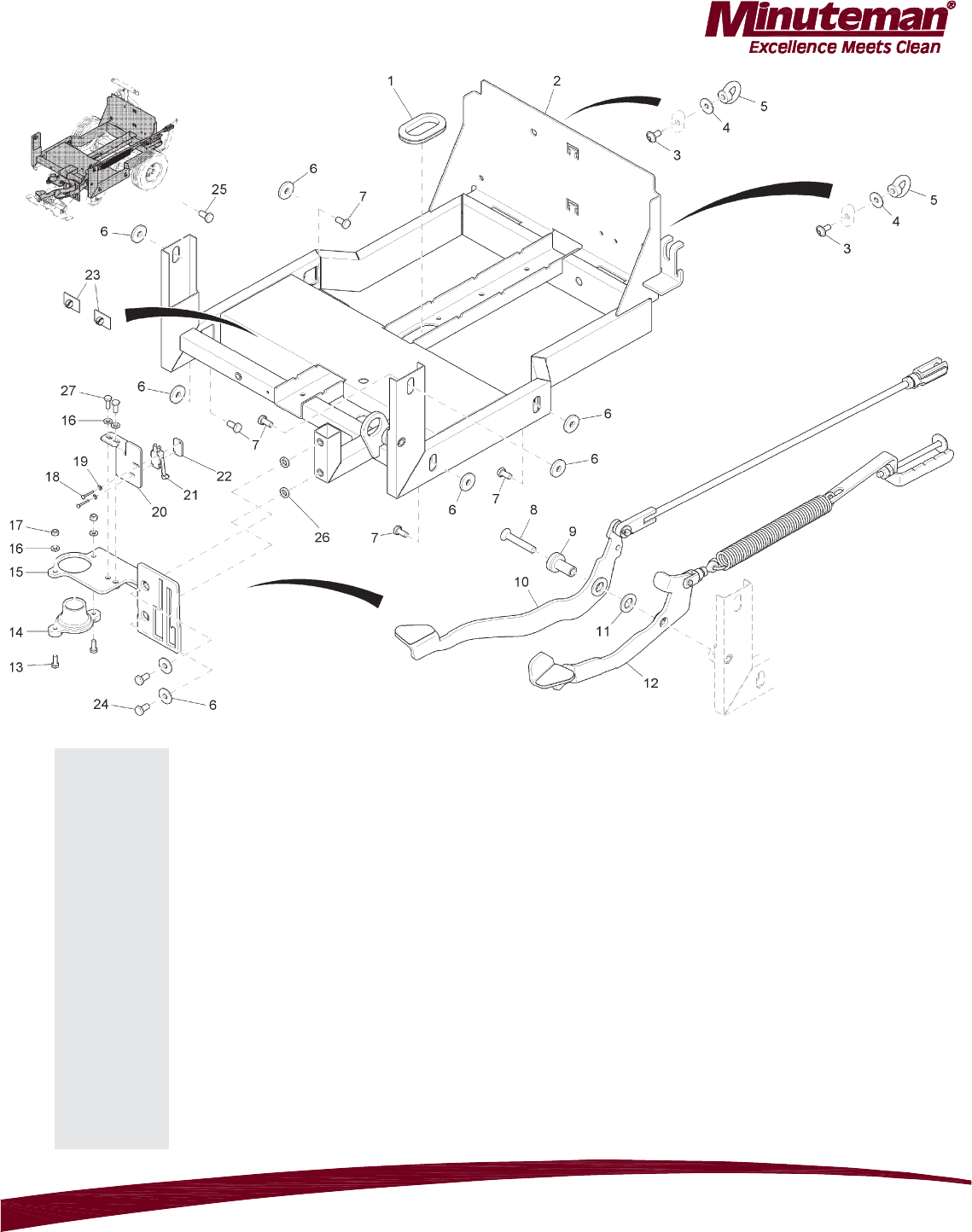

Chassis Assembly I
Bill of Material - 99706215BT10
Item Spare part number Mat. No. Qty. Description Note
1 01078440 90513367 1 Grommet
2 03007640 96116405 1 Chassis
3 01006820 11177128 2 Lens flange screw
4 00042900 12332029 4 Washer
5 01078450 12160024 2 Nut
6 00047990 12515086 10 Disk wheel
7 00053080 11038197 8 Hexagon screw
8 01078140 11225620 1 Countersunk screw
9 01077800 90509522 1 Bushing
10 99706215BT10-1 1 Lifting pedal ITEM HAS SUBMODULES
11 00053790 12310082 1 Washer
12 99706215BT10-2 1 Brush pression adjustment ITEM HAS SUBMODULES
13 00053020 11038098 2 Hexagon screw
14 01077780 90508391 1 Bushing
15 01079680 96117387 1 Sheet metal
16 00053730 12310033 4 Washer
17 00051520 12040044 2 Hexagon nut
18 00022180 11039088 2 Hex.bolt
19 00553740 12310132 2 Washer
20 01170010 90528787 1 Retainer
21 00975510 90306002 1 Micro switch
22 01074840 90471483 1 Thread base plate
23 01143190 17526070 2 Cable clip
24 00053100 11038247 2 Hexagon screw
25 00553690 11038635 1 Hex.bolt
26 01079670 90525692 2 Spacer sleeve
27 00053010 11038072 2 Hex.bolt
Page 2
Parts Manual - E30 Walk Behind Scrubber

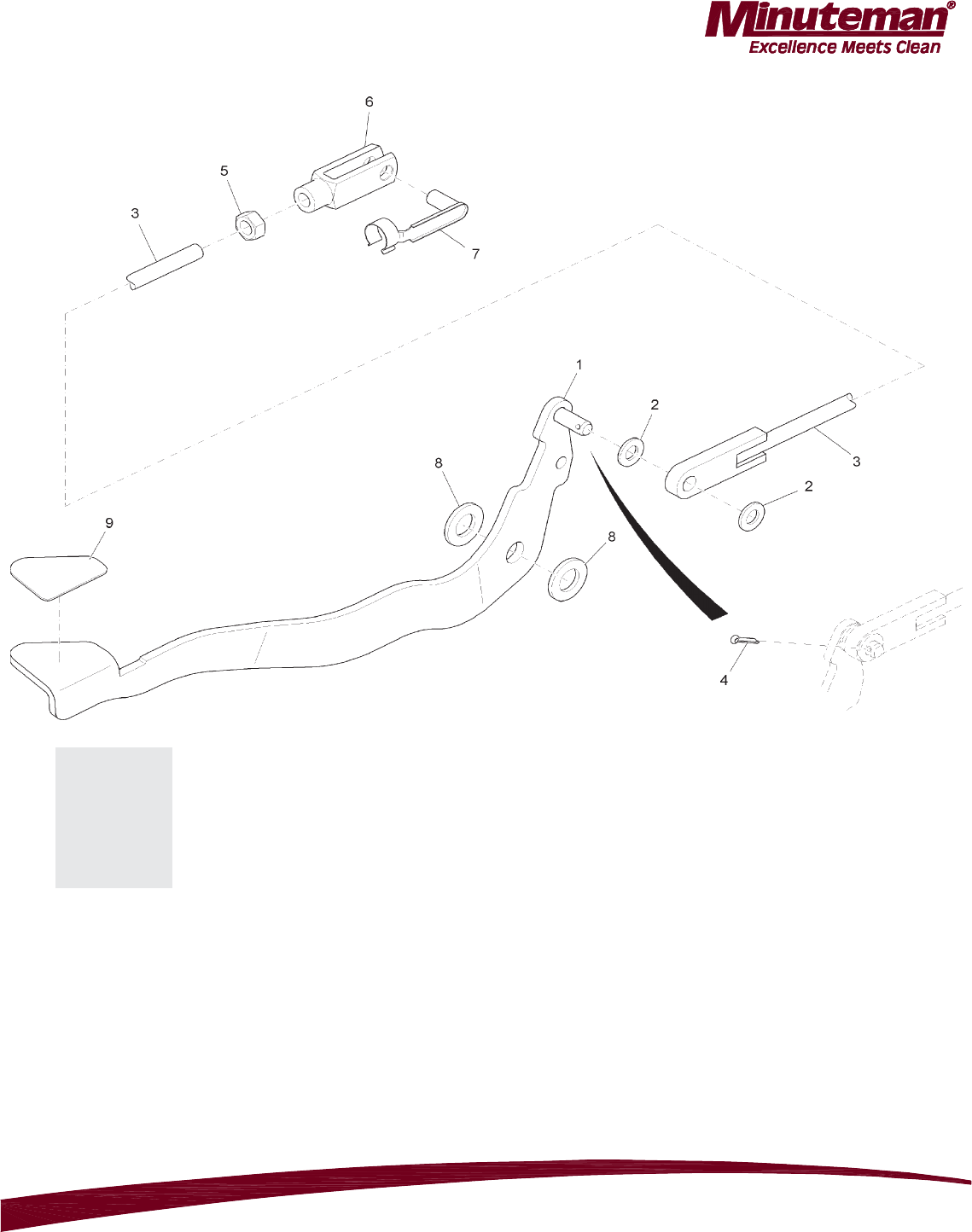

Bill of Material - 99706215BT10-1
Item Spare part number Mat. No. Qty. Description
1 01170020 96117361 1 Lifting pedal
2 00053760 12310058 2 Washer
3 01077930 96111877 1 Rod
4 00551410 13280110 1 Cotter pin
5 00053360 12022067 1 Hexagon nut
6 00925430 16055063 1 Fork yoke
7 00925420 13390042 1 Bolt
8 01078240 90510017 2 Washer
9 01078560 90518580 1 Decal
Lift Pedal Subassembly
Chassis Assembly I
Page 3
Parts Manual - E30 Walk Behind Scrubber
Brush Pressure Adjustment Subassembly
Chassis Assembly I

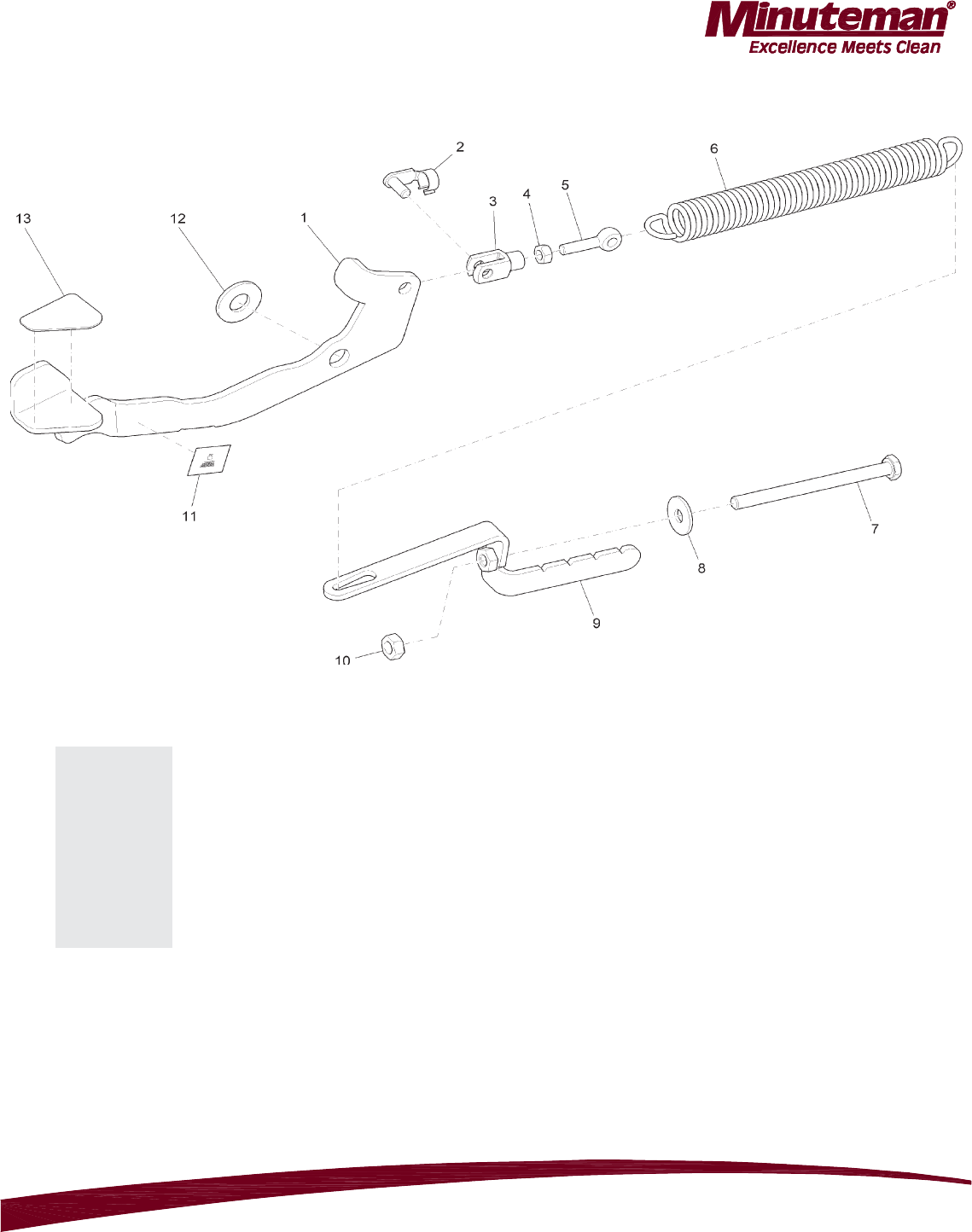

Bill of Material - 99706215BT10-2
Item Spare part number Mat. No. Qty. Description
1 01078550 96113949 1 Pedal
2 00151400 13390059 1 Bolt
3 00151440 16055089 1 Fork yoke
4 00053350 12022059 1 Hexagon nut
5 00735690 11518180 1 Eye bolt
6 01077770 90504242 1 Tension spring
7 01031550 11039716 1 Hexagon screw
8 01161070 12332152 1 Washer
9 01078500 96111505 1 Sheet metal
10 00704470 12022224 1 Hex. Nut
11 01074580 17264870 1 Decal BRUSH PRESSURE
12 01078240 90510017 1 Washer
13 01078560 90518580 1 Decal
Page 4
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT20
Item Spare part number Mat. No. Qty. Description Note
1 01078480 90512062 2 Bearing AMER
2 00053750 12310041 10 Washer
3 00053100 11038247 1 Hexagon screw
4 01078020 90481664 4 Block
5 00053260 11038296 4 Hex.bolt
6 00053140 11032273 4 Hex.bolt
7 00053760 12310058 2 Washer
8 00021130 11038353 2 Hex.bolt
9 01078490 96116009 1 Lever
10 01078010 90510116 2 Hub
11 00621690 96057013 2 Rim half
12 01056130 90398165 2 Tyre
13 00621710 90251869 2 Rim
14 00959310 11717022 8 Hex.bolt
15 01031540 15592058 2 protection cap
16 00051490 12040077 2 Hexagon nut
17 00053770 12310066 2 Washer
18 00051520 12040044 8 Hexagon nut
19 00053730 12310033 8 Washer
20 01170340 90526021 1 Traction drive AMER ITEM HAS SUBMODULES

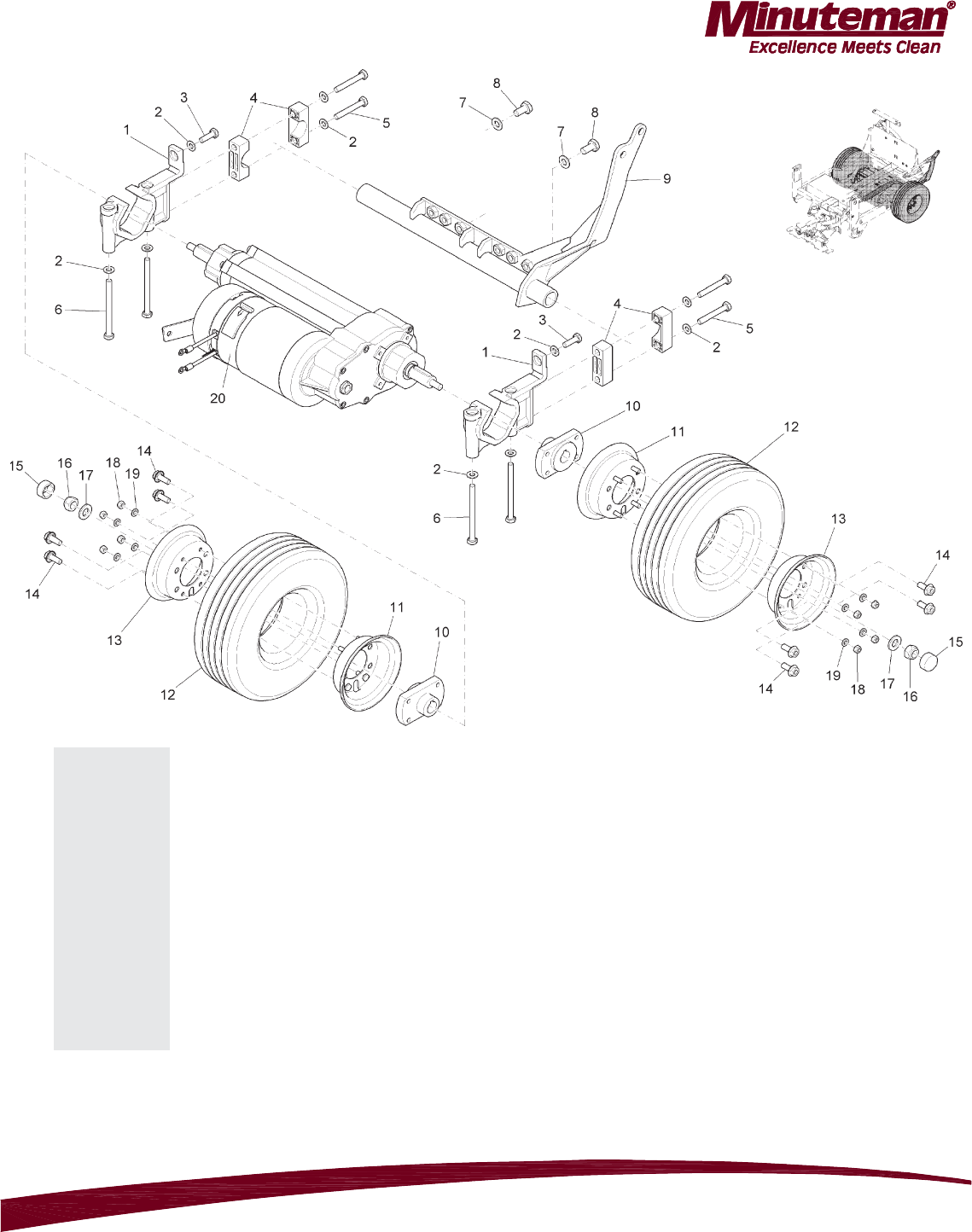

Chassis Assembly II
Page 5
Parts Manual - E30 Walk Behind Scrubber

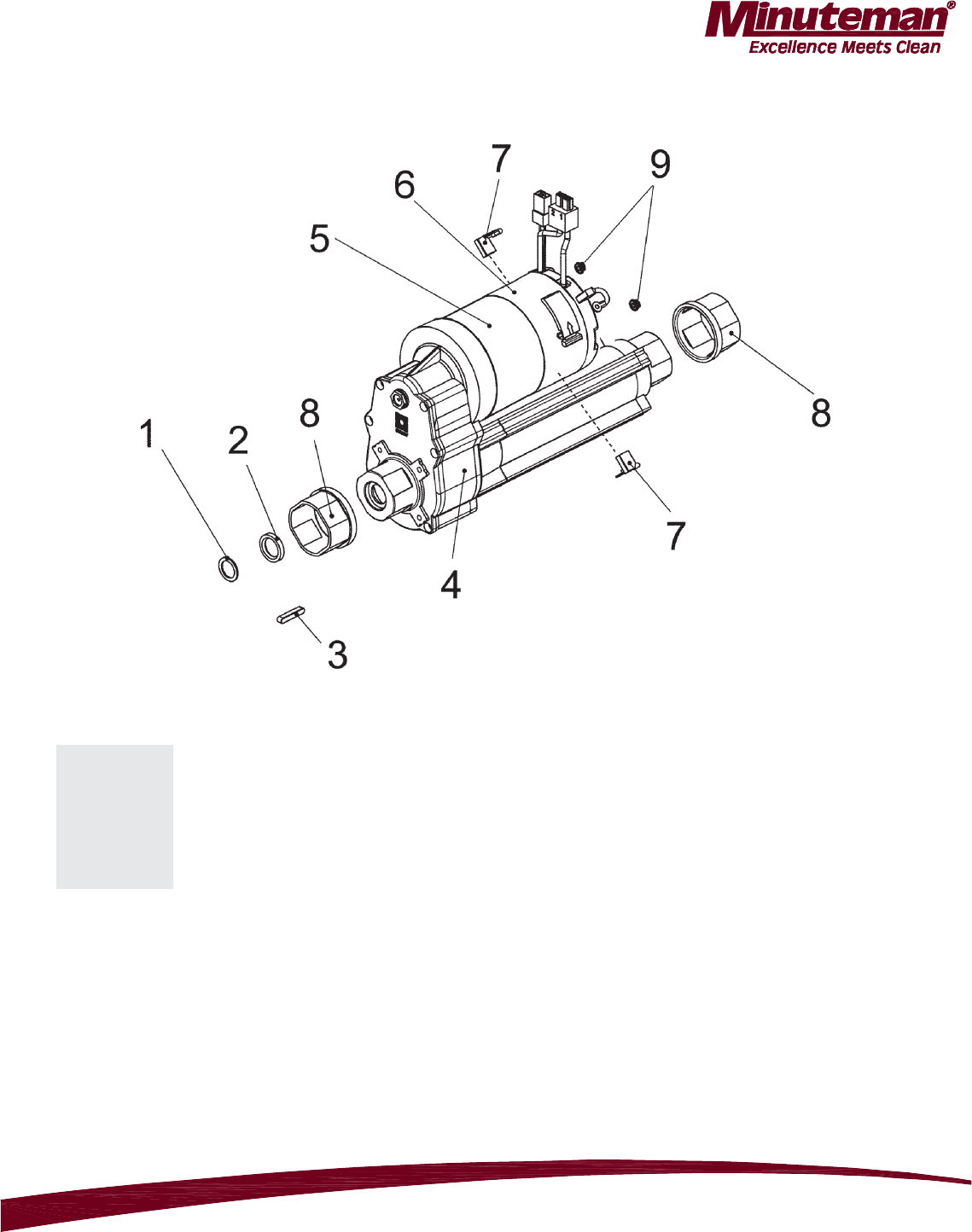

Traction Drive Motor Subassembly
Chassis Assembly II
Bill of Material - 01170340
Item Spare part number Mat. No. Qty. Description
1 01077430 01077430 2 Washer
2 01077420 01077420 3 Gasket
3 01077410 01077410 2 Fitting key
4 01077390 01077390 1 Gear box with shaft
5 XXXXXXXX 1 no part-No.
6 01077360 01077360 1 Covering
7 01077350 01077350 4 Carbon brush
8 01077400 01077400 2 Bushing
9 01077380 01077380 4 Nut
Page 6
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT30
Item Spare part number Mat. No. Qty. Description Note
1 99706215BT30-1 1 Water supply ITEM HAS SUBMODULES
2 00053730 12310033 4 Washer
3 00104500 11038064 2 Hexagon screw
4 01072520 11177179 1 Lens flange screw
5 01077820 90513243 1 Bushing
6 00051510 12040051 2 Hexagon nut
7 00053080 11038197 10 Hexagon screw
8 00053750 12310041 9 Washer
9 01077760 90503160 1 Retainer
10 00042900 12332029 3 Washer
11 00053100 11038247 2 Hexagon screw
12 01077700 90473158 1 Bushing
13 01170260 90521824 1 Sheet metal
14 00543750 90329095 1 Pump
15 00559670 19725035 1 Case
16 00083640 19791029 1 Plastic cover
17 00083650 19791037 1 Plastic cover
18 00903190 19724020 1 Tab
19 00053720 12310025 1 Washer
20 99706215BT30-2 1 Water supply ITEM HAS SUBMODULES
21 00051520 12040044 2 Hexagon nut Soft construction
22 01017640 11177060 2 Lens flange screw
23 01079660 90495037 2 Steering roller
24 01078150 90523333 1 Tension spring
25 00735690 11518180 1 Eye bolt
26 00046500 12012019 1 Hex. Nut
27 01077830 90513573 1 Pivot
28 03008100 97099915 1 Sqeegee connection ITEM HAS SUBMODULES
29 01170380 90527532 2 Sheet metal
30 00103300 11126067 8 Socket head screw
31 01079440 90537879 2 Steering roller Hard construction
Chassis Assembly III
Page 7
Parts Manual - E30 Walk Behind Scrubber

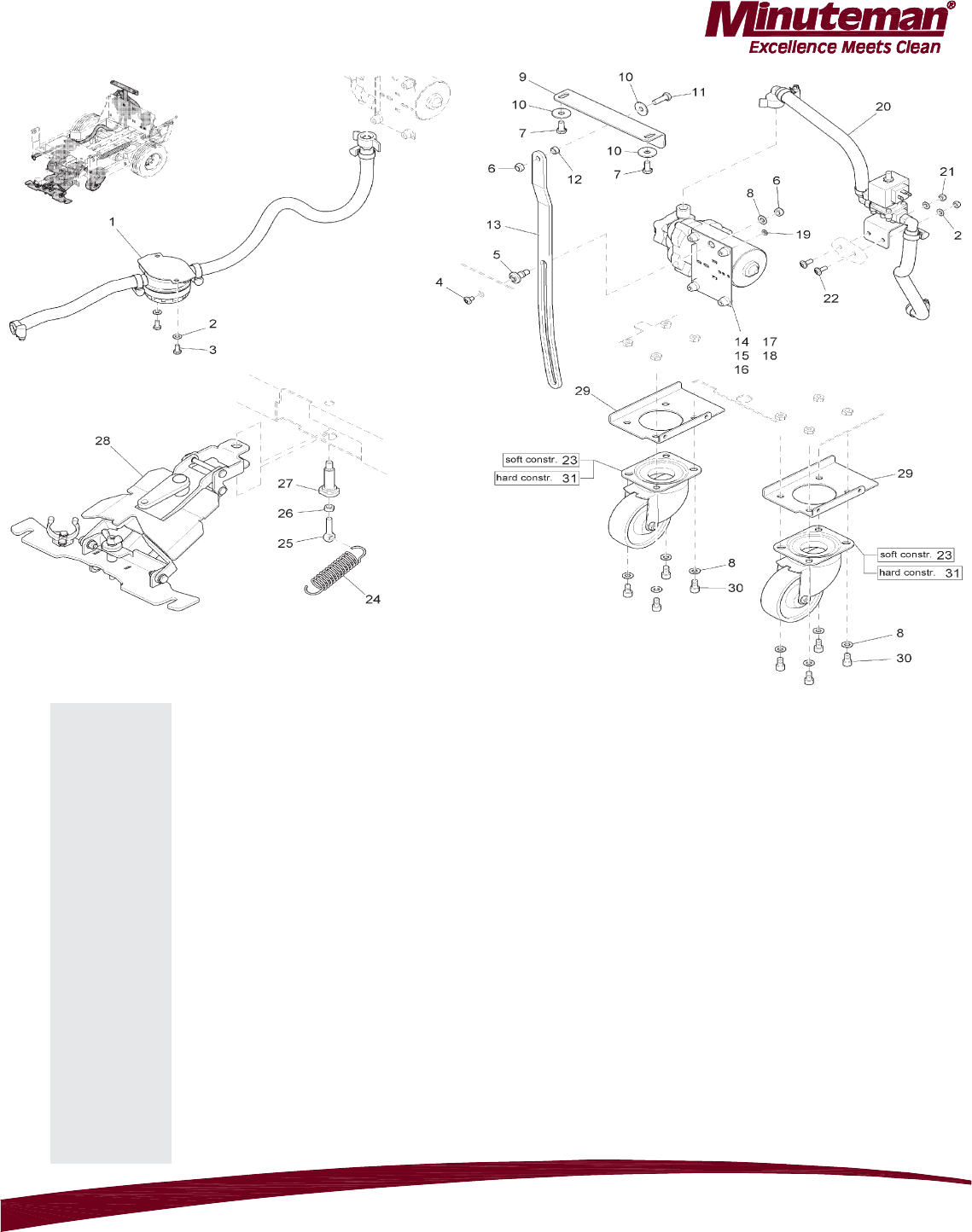

Water Supply Subassembly I
Chassis Assembly III

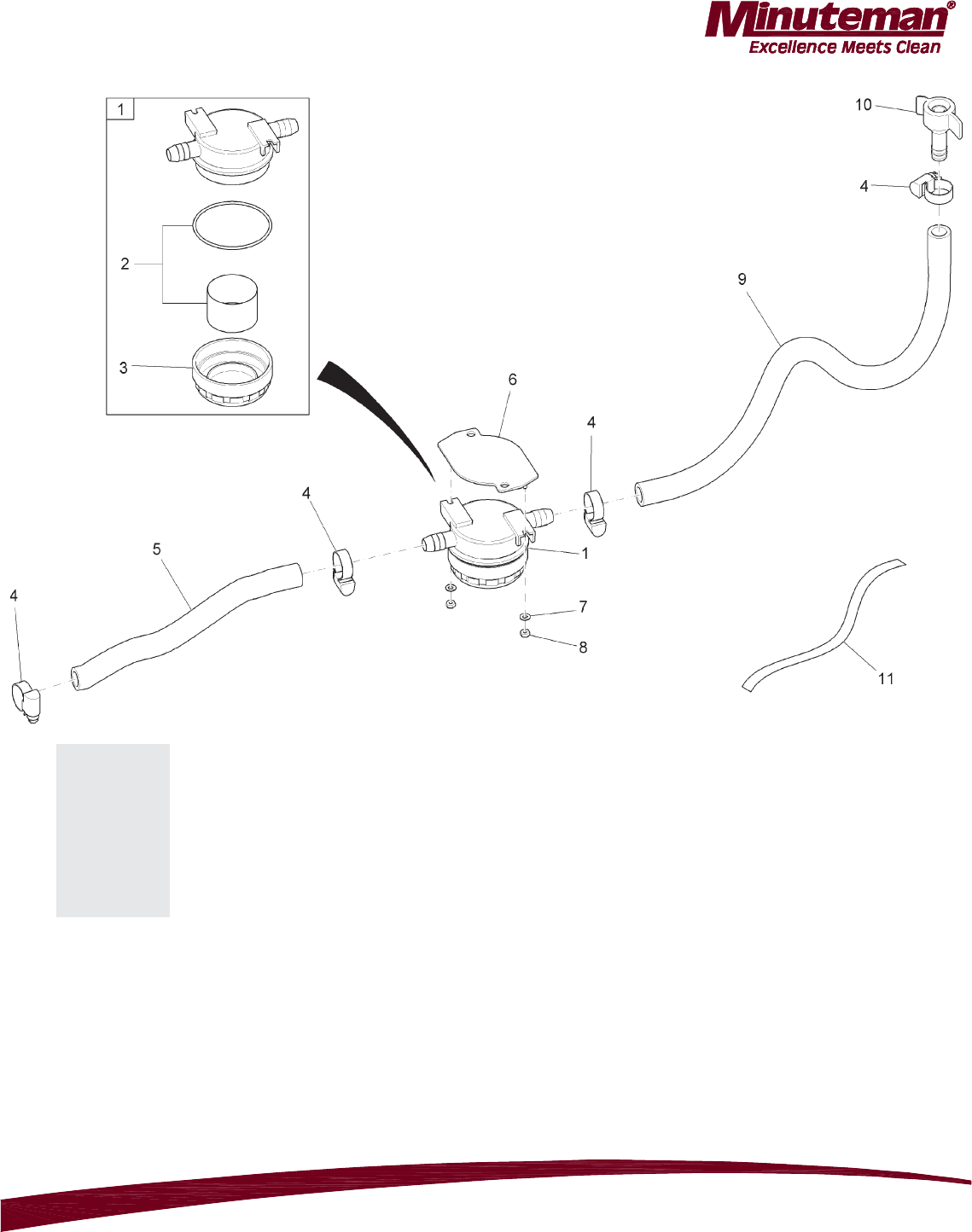

Bill of Material - 99706215BT30-1
Item Spare part number Mat. No. Qty. Description Note
1 01077170 90522640 1 Water filter
2 01079170 01079170 1 filter cartridge cpl. with o-ring
3 XXXXXXXX 1 no part-No. yet Filter cup
4 01015350 17533159 4 Hose clamp
5 00200170 25842055 300mm PVC hose
6 01078510 96115035 1 Sheet metal
7 00053710 12310017 2 Washer
8 00133830 12040028 2 Hex. Nut
9 00200170 25842055 480mm PVC hose
10 01071450 90432071 1 Screwing
11 03007630 25743014 1 Sealing band
Page 8
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT30-2
Item Spare part number Mat. No. Qty. Description
1 00154140 90330168 1 Screwed angle fitting
2 01015350 17533159 4 Hose clamp
3 00200170 25842055 1 PVC hose
4 01071000 90435595 1 Electrovalve
5 00020020 90174970 2 Angle socket
6 00200170 25842055 1 PVC hose
7 00058580 11038965 2 Hex.bolt
8 00053710 12310017 2 Washer
9 01170030 90524885 1 Retainer
10 03007630 25743014 1 Sealing band

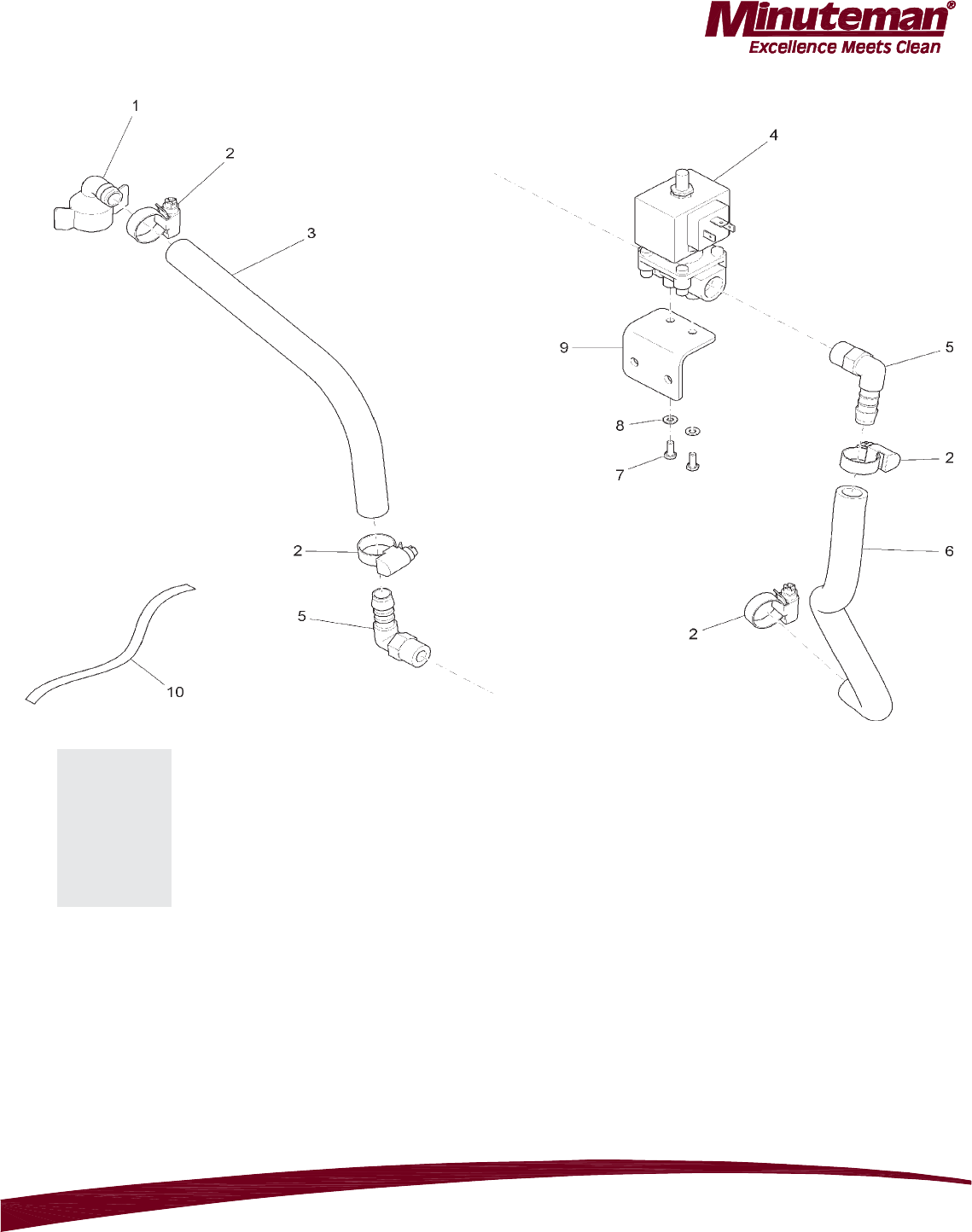

Water Supply Subassembly II
Chassis Assembly III
Page 9
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 03008100BT10
Item Spare part number Mat. No. Qty. Description Note
1 01130940 11620564 1 Cup head square neck bolt
2 01170040 90521790 1 Sheet metal
3 01077510 14895478 2 Slide bearing bush
4 01170160 90204702 1 Pipe
5 01078230 14895460 2 Slide bearing bush
6 00054860 13280078 1 Cotter pin
7 00053750 12310041 5 Washer
8 01079280 90534710 1 Round part
9 01078220 13328810 1 Bolt
10 01079290 96117569 1 Sheet metal
11 00042900 12332029 1 Washer
12 00051510 12040051 3 Hexagon nut
13 00053100 11038247 2 Hexagon screw
14 01077700 90473158 2 Bushing
15 01077980 96112370 1 Linkage with E24, E26
16 00161240 25582024 1 Edge protection
17 01170620 96117510 1 Linkage with E28, E30, E33

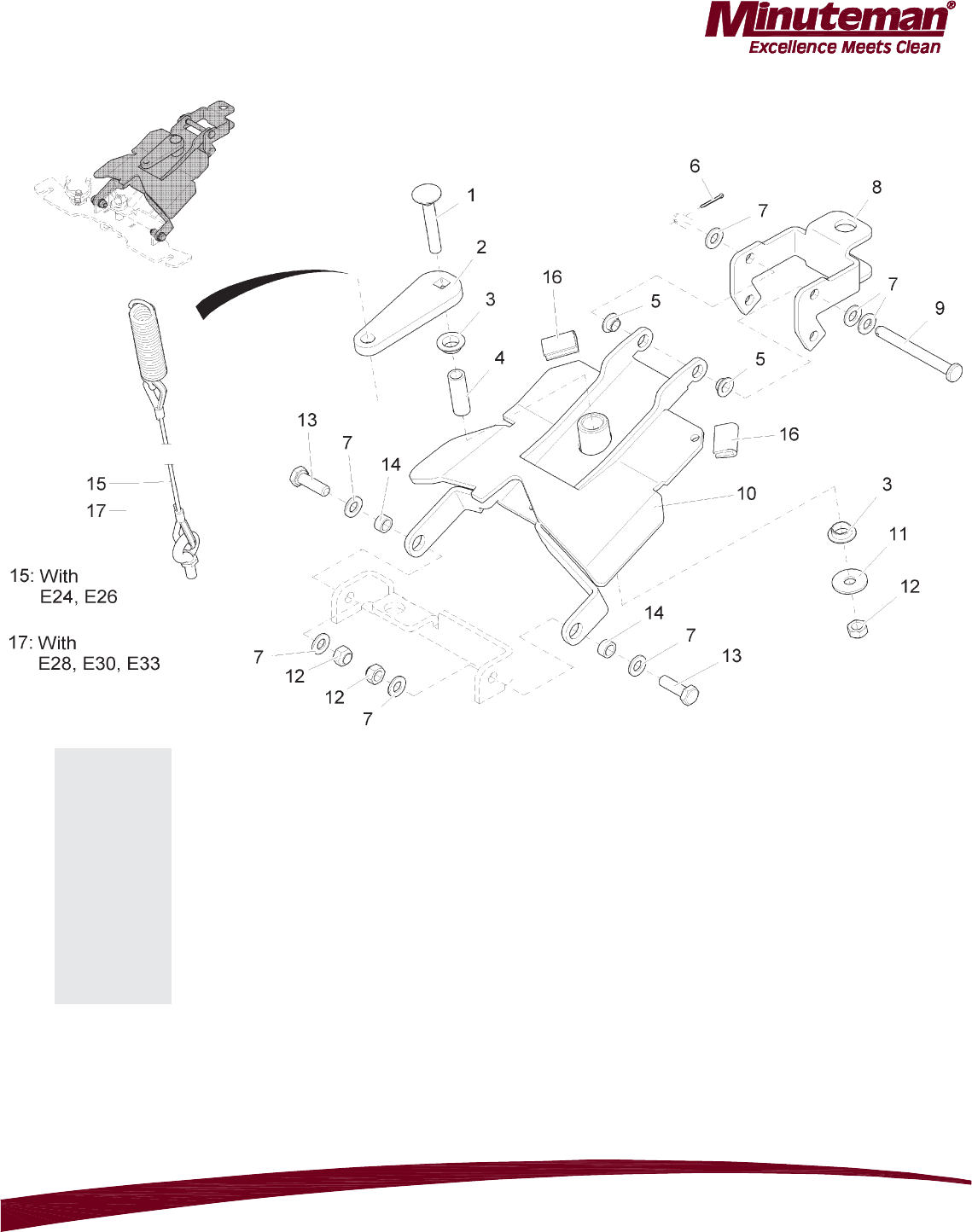

Squeegee Connection Subassembly I
Chassis Assembly III
Page 10
Parts Manual - E30 Walk Behind Scrubber

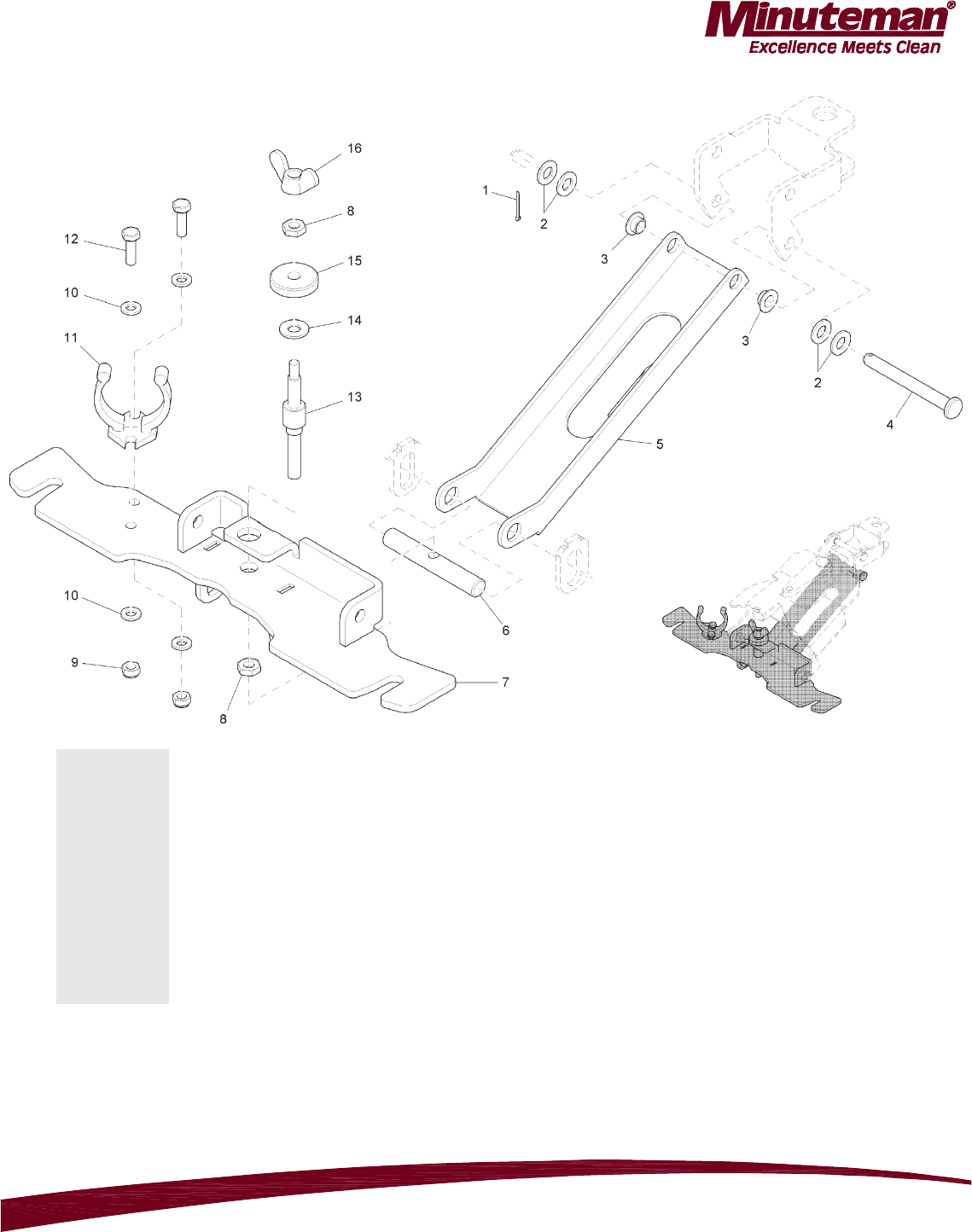

Squeegee Connection Subassembly Part II
Chassis Assembly III
Bill of Material - 03008100BT20
Item Spare part number Mat. No. Qty. Description
1 00054860 13280078 1 Cotter pin
2 00053750 12310041 1 Washer
3 01078230 14895460 2 Slide bearing bush
4 01170050 13328935 1 Bolt
5 01079320 90495805 1 Draft link
6 01077680 90467686 1 Bolt
7 01079330 96110242 1 Sheet metal
8 00046500 12012019 2 Hex. Nut
9 00051520 12040044 2 Hexagon nut
10 00053730 12310033 4 Washer
11 01078120 90503251 1 Hose support
12 00053020 11038098 2 Hexagon screw
13 01077850 90515149 1 Threaded pin
14 00042900 12332029 1 Washer
15 00051510 12040051 1 Hexagon nut
16 00054020 12158028 1 Wing nut
17 00053330 12022042 1 Hexagon nut
Page 11
Parts Manual - E30 Walk Behind Scrubber

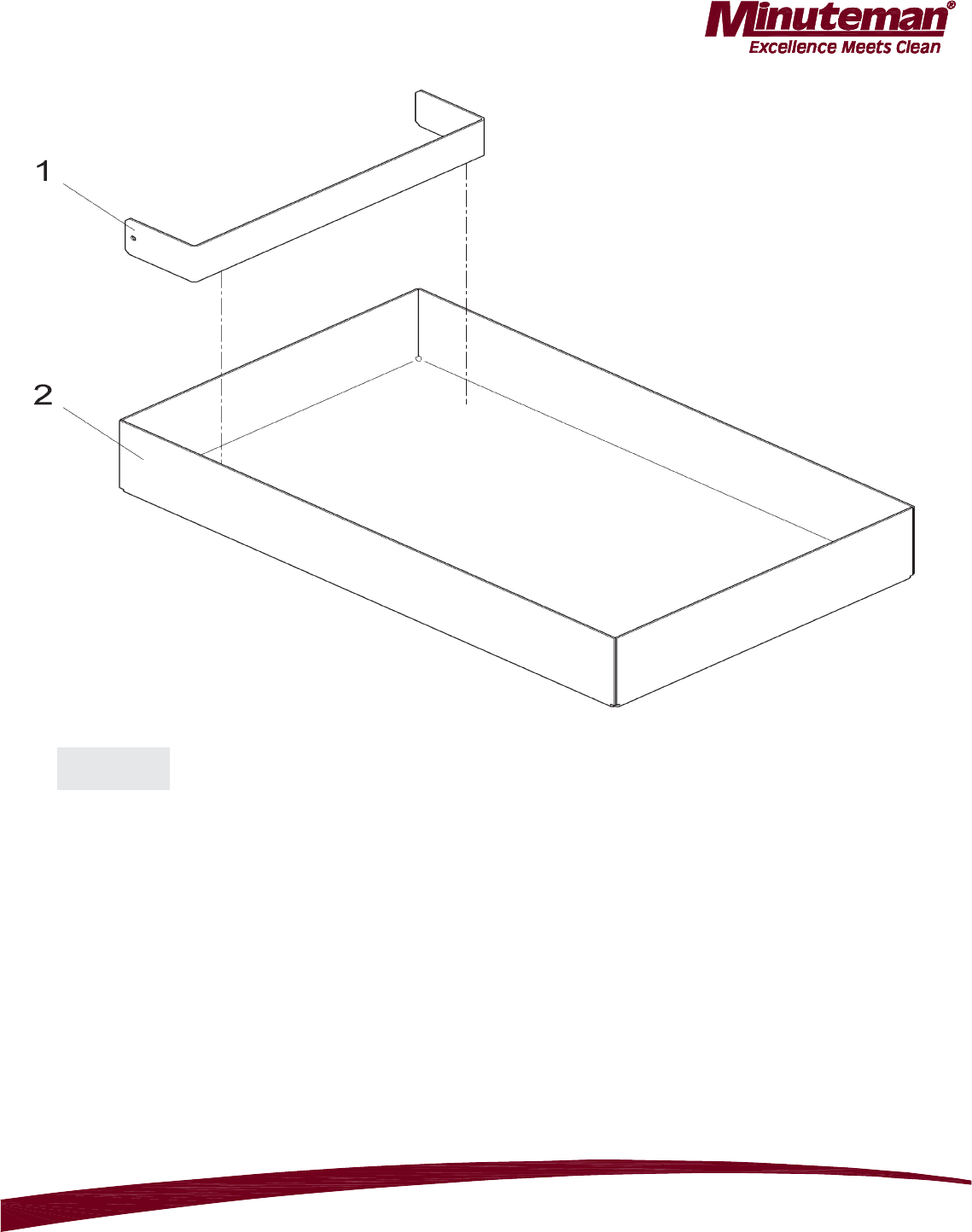

Battery Tray Assembly
Bill of Material - 99706215BT40
Item Spare part number Mat. No. Qty. Description
1 01170760 90535360 1 Sheet metal
2 03008190 96117171 1 Battery tray
Page 12
Parts Manual - E30 Walk Behind Scrubber

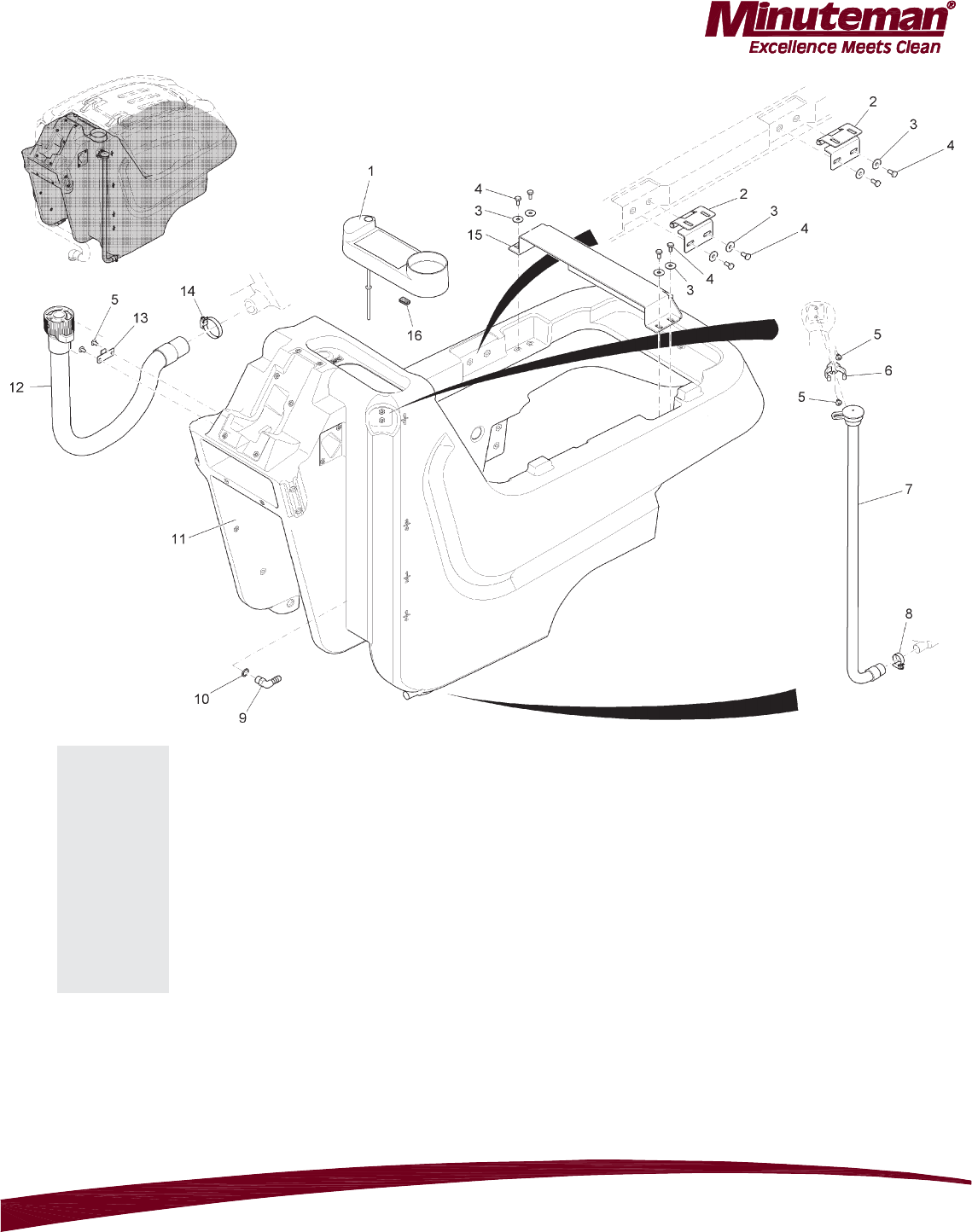

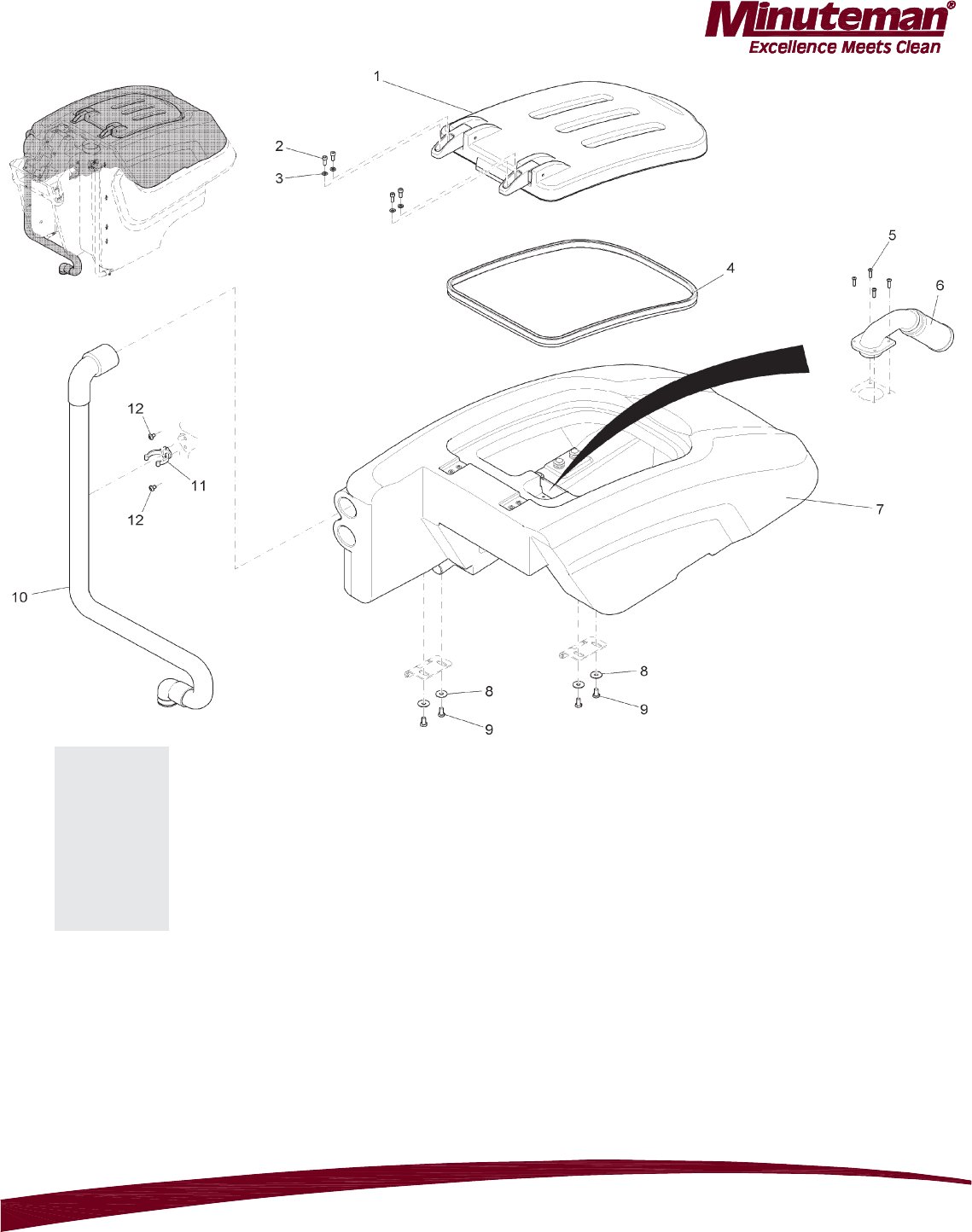

Solution Tank Assembly
Bill of Material - 99706215BT50
Item Spare part number Mat. No. Qty. Description
1 01078100 96114061 1 Fresh water cap
2 01078110 90496910 2 Hinge
3 00047990 12515086 4 Disk wheel
4 00053080 11038197 8 Hexagon screw
5 01072520 11177179 4 Lens flange screw
6 01078120 90503251 1 Hose support
7 01170530 96110622 1 Hose
8 01161690 17533290 1 Clamp
9 00020020 90174970 1 Angle socket
10 00057720 15286149 1 O-ring oil resistant
11 01073820 96116025 1 Fresh water tank
12 99706215BT50-1 1 Foul water hose cpl.
13 01077860 90517574 1 Hook
14 00751160 17533043 1 Hose clamp
15 XXXXXXXX 96116736 1 Traverse
16 00721090 25583022 710mm Edge protection
Page 13
Parts Manual - E30 Walk Behind Scrubber
Recovery Tank Drain Hose Subassembly
Solution Tank Assembly
Bill of Material - 99706215BT50-1
Item Spare part number Mat. No. Qty. Description
1 00906110 90304528 1 Cover
2 00906100 11175395 2 Fillister-head screw
3 01077960 97090096 1 Foul water hose
4 01170060 17264888 1 Decal FOUL WATER
5 01079300 15282072 1 O-Ring
Page 14
Parts Manual - E30 Walk Behind Scrubber
Recovery Tank Assembly
Bill of Material - 99706215BT60
Item Spare part number Mat. No. Qty. Description
1 01077990 97092951 1 Cover
2 00136910 11126166 4 Cylinder head screw
3 00053730 12310033 4 Washer
4 01071770 25510512 1580mm Sealing profile
5 01078160 11709151 4 Screw
6 01078250 97093843 1 Filter unit
7 01170770 96116017 1 Foul water tank
8 00047990 12515086 4 Disk wheel
9 00053080 11038197 4 Hexagon screw
10 01077920 96111349 1 Suction hose
11 01078120 90503251 1 Hose support
12 01072520 11177179 2 Lens flange screw
Page 15
Parts Manual - E30 Walk Behind Scrubber

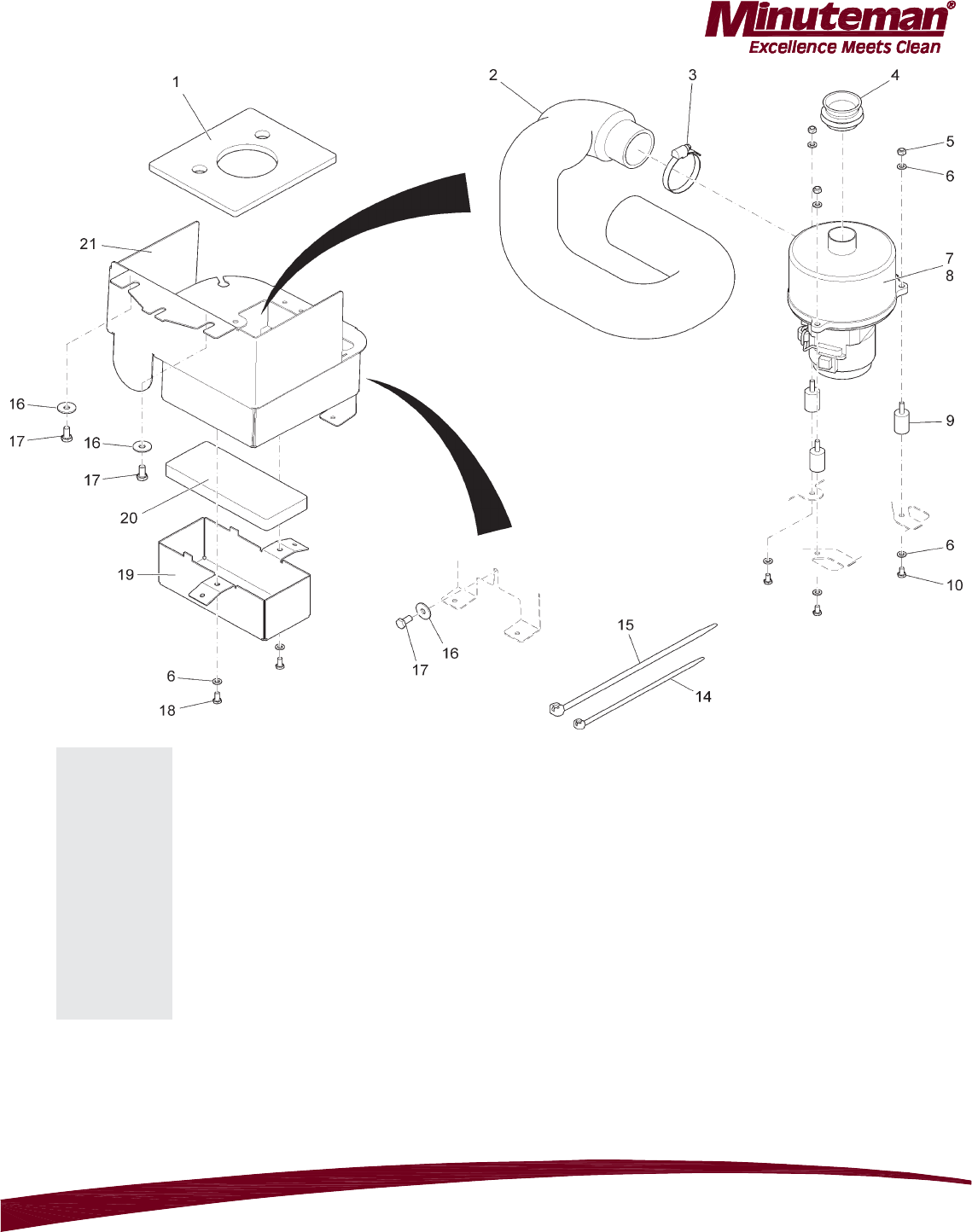

Vacuum Motor Assembly
Bill of Material - 99706215BT70
Item Spare part number Mat. No. Qty. Description
1 01079740 90523945 1 Insulation mat
2 01077900 90519737 1 Hose
3 00732130 17533027 1 Hose clamp
4 01078180 90503657 1 Connection
5 00051520 12040044 3 Hexagon nut
6 00053730 12310033 8 Washer
7 01079350 97096200 1 Suction motor
8 01074610 01074610 4 Carbon brush
9 01078190 90518457 3 Buffer
10 00025260 11038056 3 Hexagon screw
14 00121150 90114810 1 Cable tie
15 00967760 90156688 4 Cable tie
16 00042900 12332029 3 Washer
17 00053080 11038197 3 Hexagon screw
18 00104500 11038064 2 Hexagon screw
19 01079750 90519653 1 Cover
20 01079730 90519745 1 Insulation mat
21 03007810 96114301 1 Sheet metal
Page 16
Parts Manual - E30 Walk Behind Scrubber

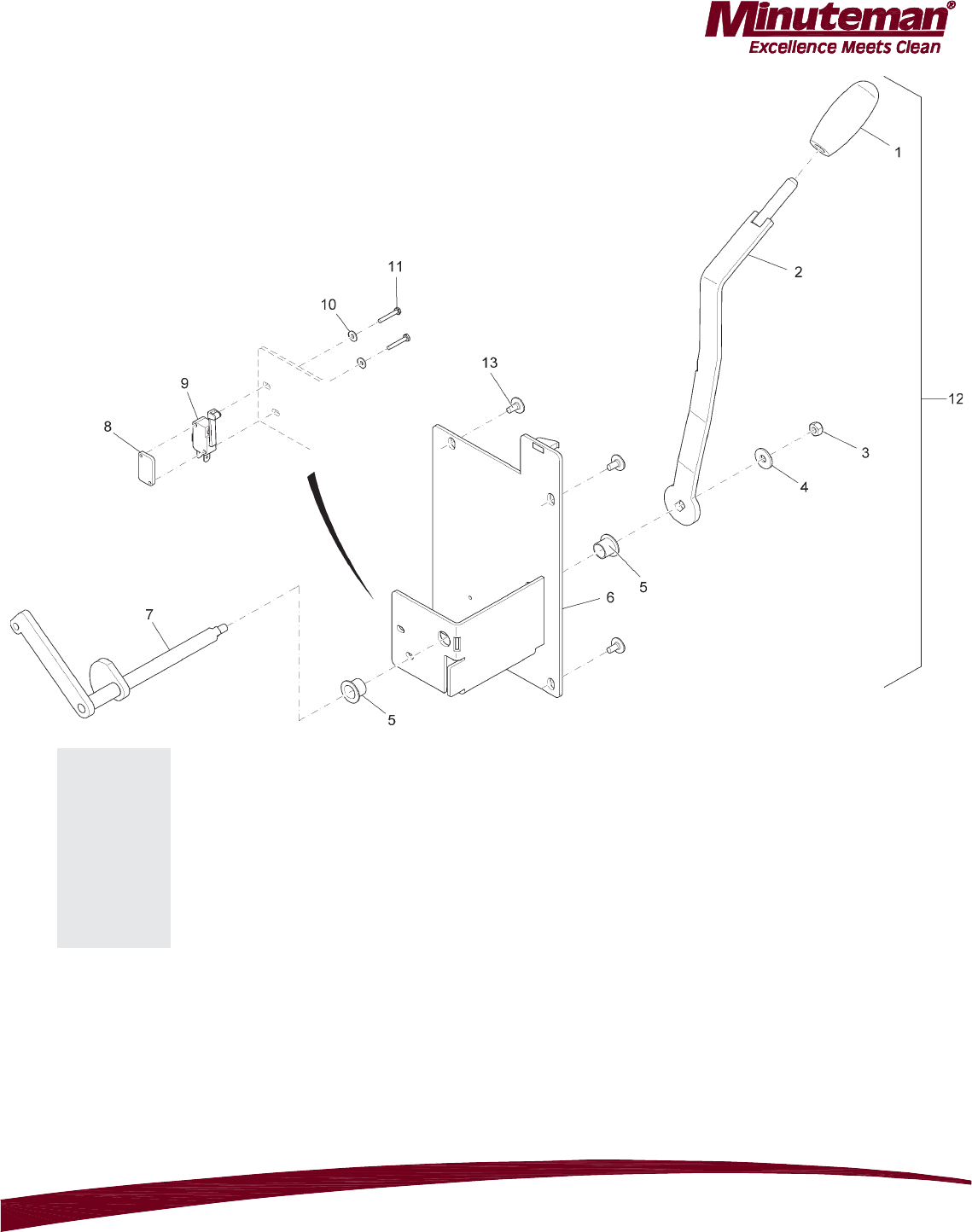

Squeegee Lift Handle Assembly
Bill of Material - 99706215BT80
Item Spare part number Mat. No. Qty. Description
1 00705560 17143025 1 Handle
2 01079160 96113493 1 Lever
3 00051520 12040044 1 Hexagon nut
4 00135120 12332011 1 Washer
5 01071440 14895288 2 Plain bearing bush
6 01079710 96110804 1 Support plate
7 01079720 96110705 1 Shaft with cam
8 01074840 90471483 1 Thread base plate
9 00975510 90306002 1 Micro switch
10 00747400 12332110 2 Washer
11 00022180 11039088 2 Hex.bolt
12 00009000 97092340 1 Lifting suction unit
13 01072520 11177179 4 Lens flange screw
Page 17
Parts Manual - E30 Walk Behind Scrubber

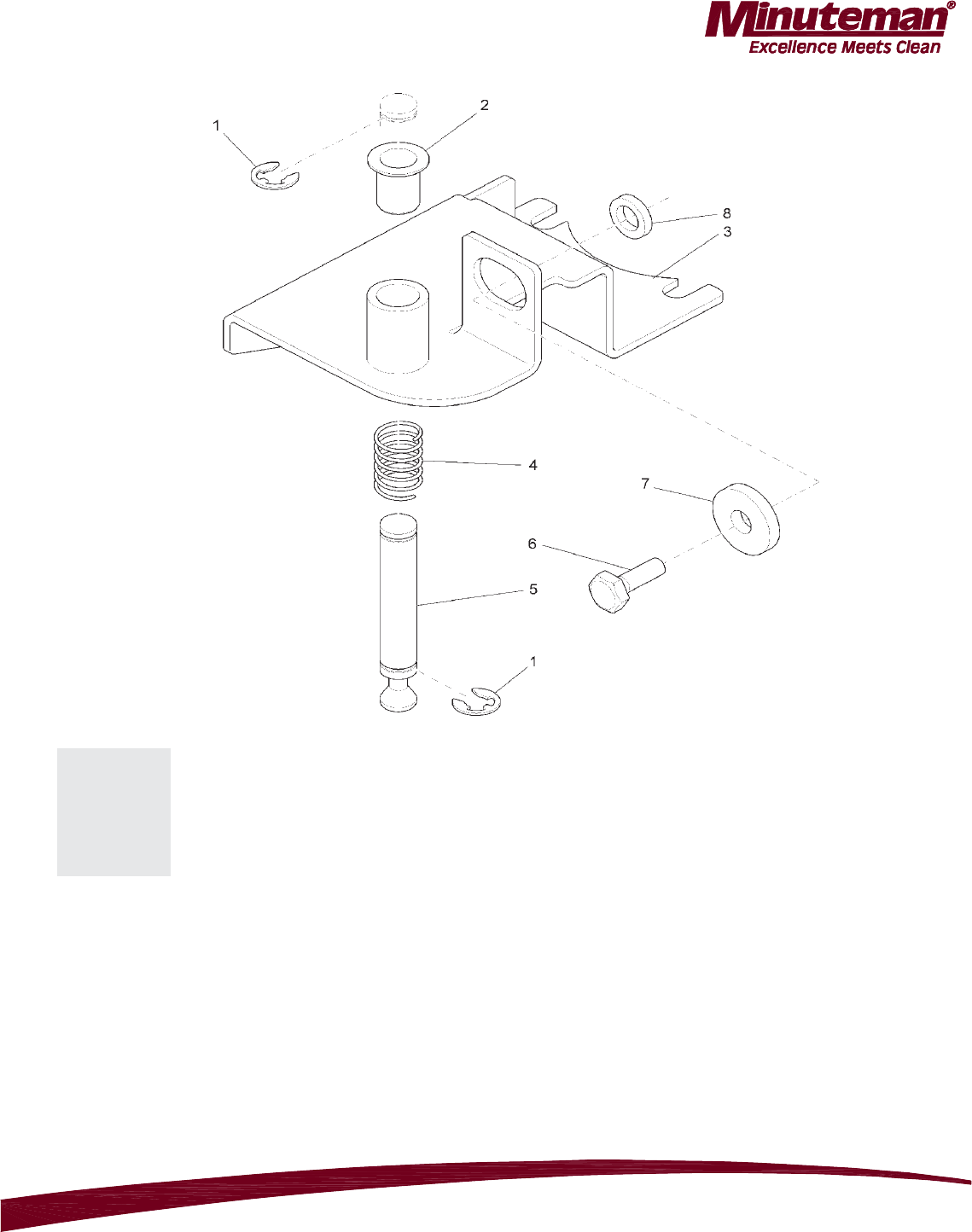

Squeegee Lock Assembly
Bill of Material - 99706215BT90
Item Spare part number Mat. No. Qty. Description
1 00046280 12640033 2 Thrust washer
2 00041400 14895122 1 Plain bearing bush
3 01170730 96115076 1 Folding plate
4 01170280 90523325 1 Cyl.compression spring
5 01170270 90523036 1 Pin
6 00053090 11038213 1 Hexagon screw
7 00047990 12515086 1 Disk wheel
8 01079670 90525692 1 Spacer sleeve
Page 18
Parts Manual - E30 Walk Behind Scrubber

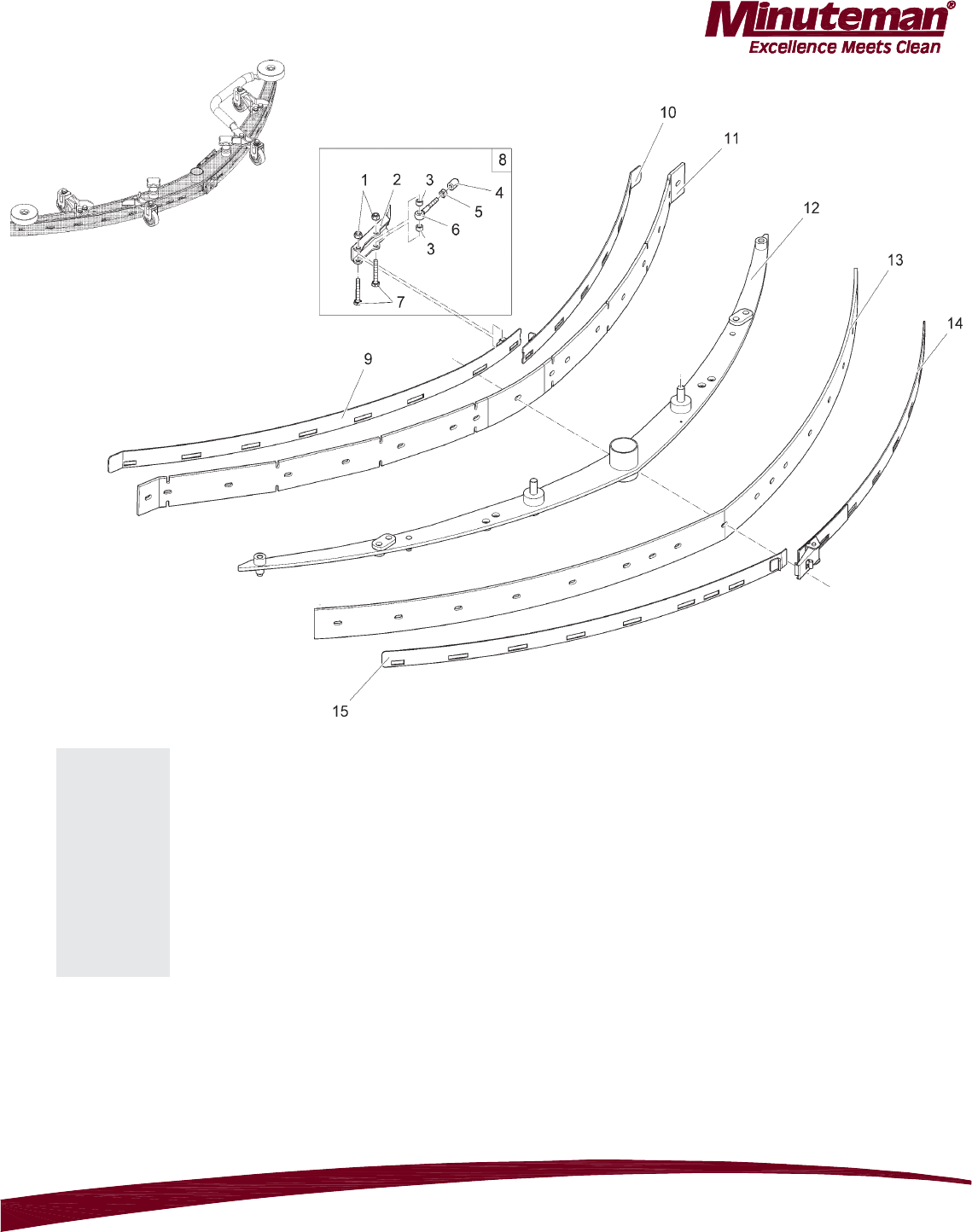

Squeegee Assembly I
Bill of Material - 99706215BT100
Item Spare part number Mat. No. Qty. Description
1 01017660 12040283 2 Hex. Nut
2 01077580 90535758 1 Lever
3 01077590 90514506 2 Bushing
4 01078090 90513631 1 Pressure piece
5 00902250 12022430 1 Hex. Nut
6 01077500 11518313 1 Eye bolt
7 01079890 11039765 2 Hexagon screw
8 00009010 97057459 1 Lock suction unit
9 01079880 96114830 1 Front tension band
10 01079870 96114822 1 Front tension band
11 01079790 90522251 1 Slot strip
12 01079900 96114814 1 Suction unit 1110mm
13 01079780 90522269 1 Sealing strip
14 01079910 96114855 1 Rear tension band
15 01079920 96114848 1 Rear tension band
Page 19
Parts Manual - E30 Walk Behind Scrubber

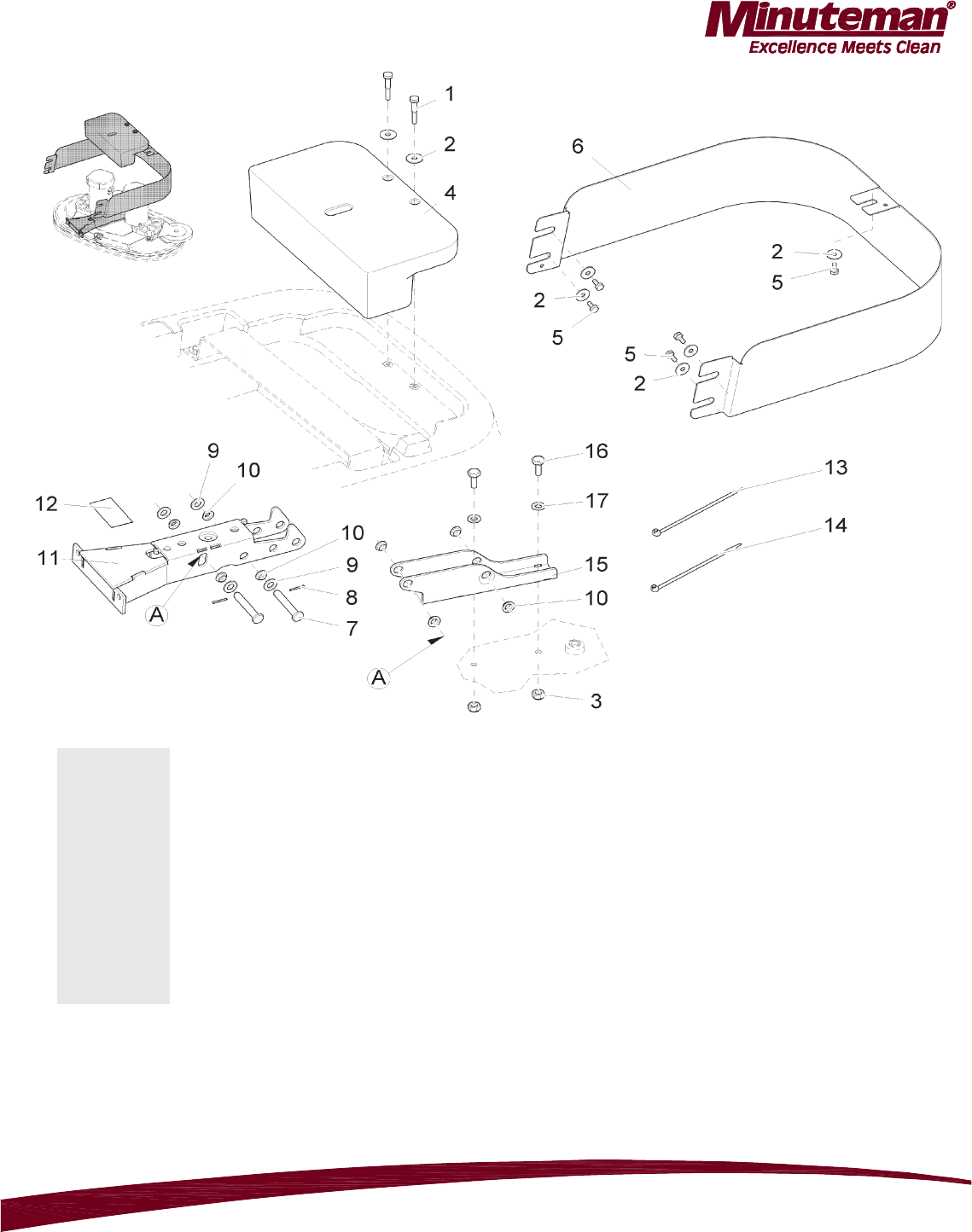

Squeegee Assembly II
Bill of Material - 99706215BT110
Item Spare part number Mat. No. Qty. Description
1 01078690 11038924 4 Hexagon screw
2 00101550 12310264 12 Washer
3 01071740 11039609 4 Hex.bolt
4 01079080 90531112 22 Spacer
5 01077810 90513094 4 Fixed castor
6 01079070 97098842 2 Fixed castor,cpl.
7 01059530 11039567 2 Hexagon screw
8 00902280 12332136 4 Washer
9 00879030 90199019 2 Pipe
10 00924810 90336637 2 Deflector roller
11 01079930 90522566 1 Bracket
12 00911270 25842105 305 mm Hose
13 00866720 17133026 2 Star handle
14 00972060 12515094 2 Disk wheel
Page 20
Parts Manual - E30 Walk Behind Scrubber

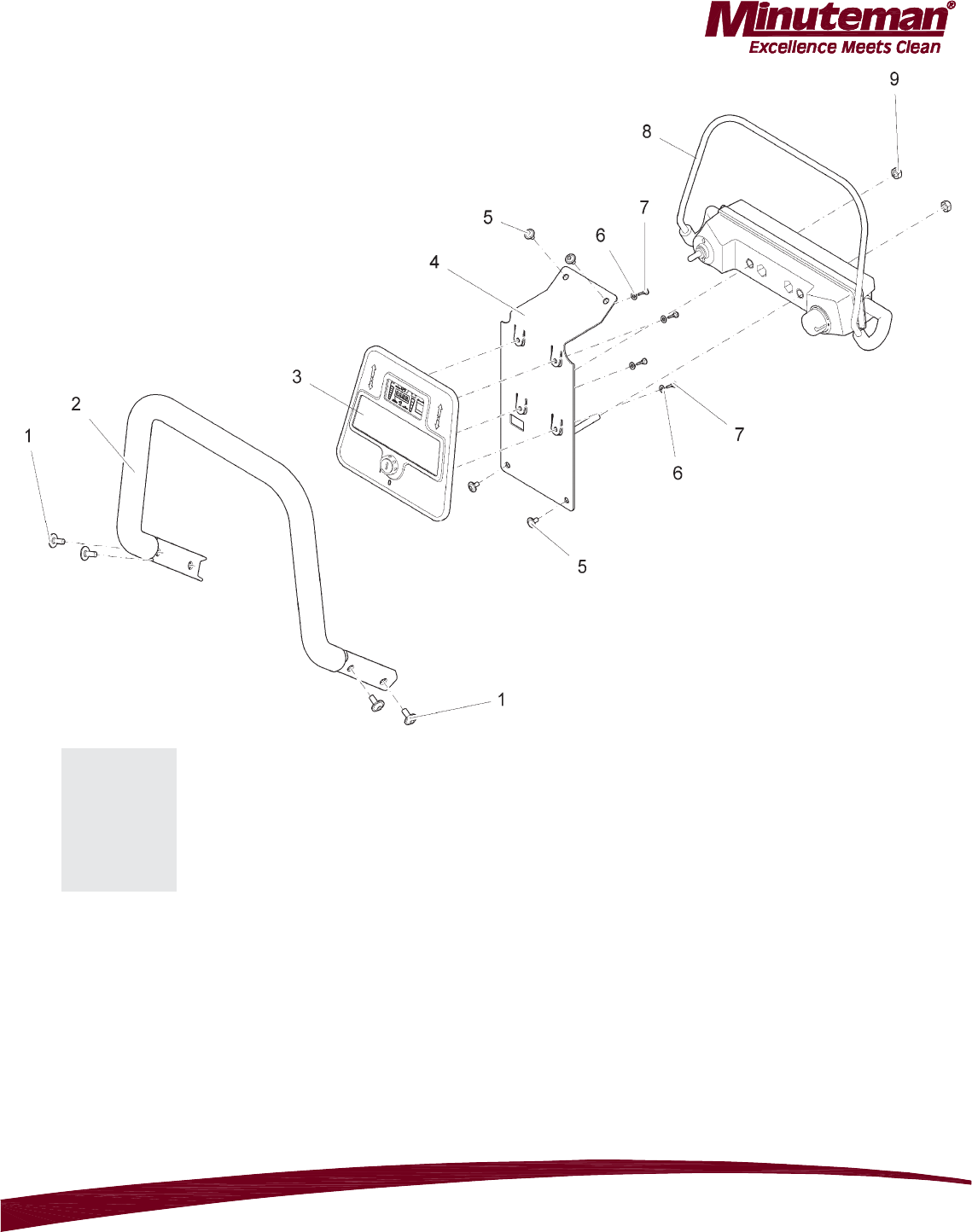

Control Panel Assembly
Bill of Material - 99706215BT120
Item Spare part number Mat. No. Qty. Description Note
1 01074320 11177187 4 Lens flange screw
2 01079760 90494501 1 Handle bar
3 99706215BT120-1 1 Console ITEM HAS SUBMODULES
4 01079770 96117585 1 Sheet metal
5 01072520 11177179 4 Lens flange screw
6 00874720 12310272 4 Washer
7 00961490 11709011 4 Self tapping screw
8 01079950 97096069 1 Bail system
9 00051510 12040051 2 Hexagon nut
Page 21
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT120-1
Item Spare part number Mat. No. Qty. Description
1 00021710 90323437 1 Key switch
2 00745890 00745890 1 Set (2pc.) key
3 01079090 97057160 1 Console B70/B90
4 01078940 90499492 1 Console
5 01078860 11702123 4 Screw
6 01078930 90511130 1 Ribbon cable
7 01078950 90518150 1 Cable key switch

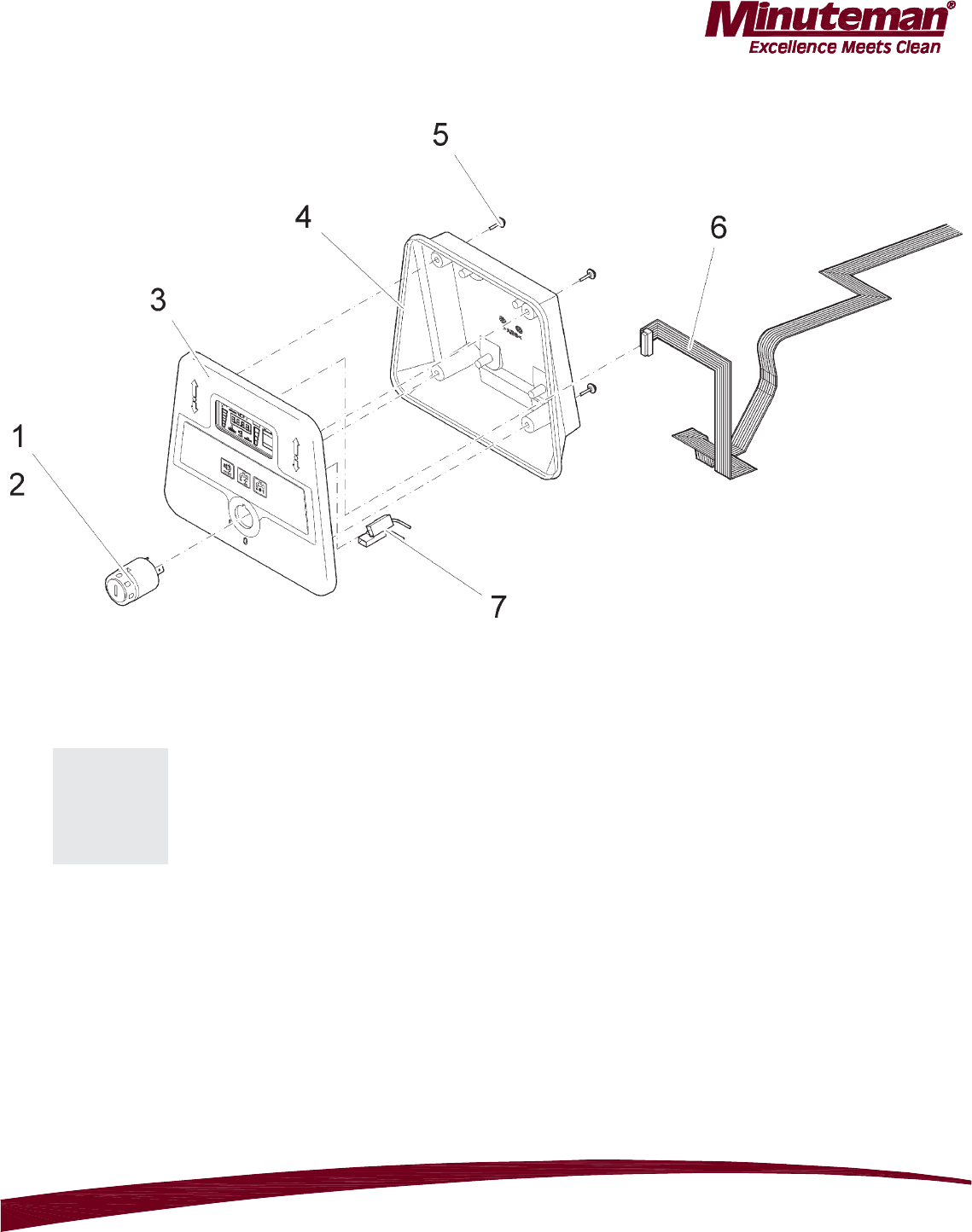

Console Subassembly
Control Panel Assembly
Page 22
Parts Manual - E30 Walk Behind Scrubber

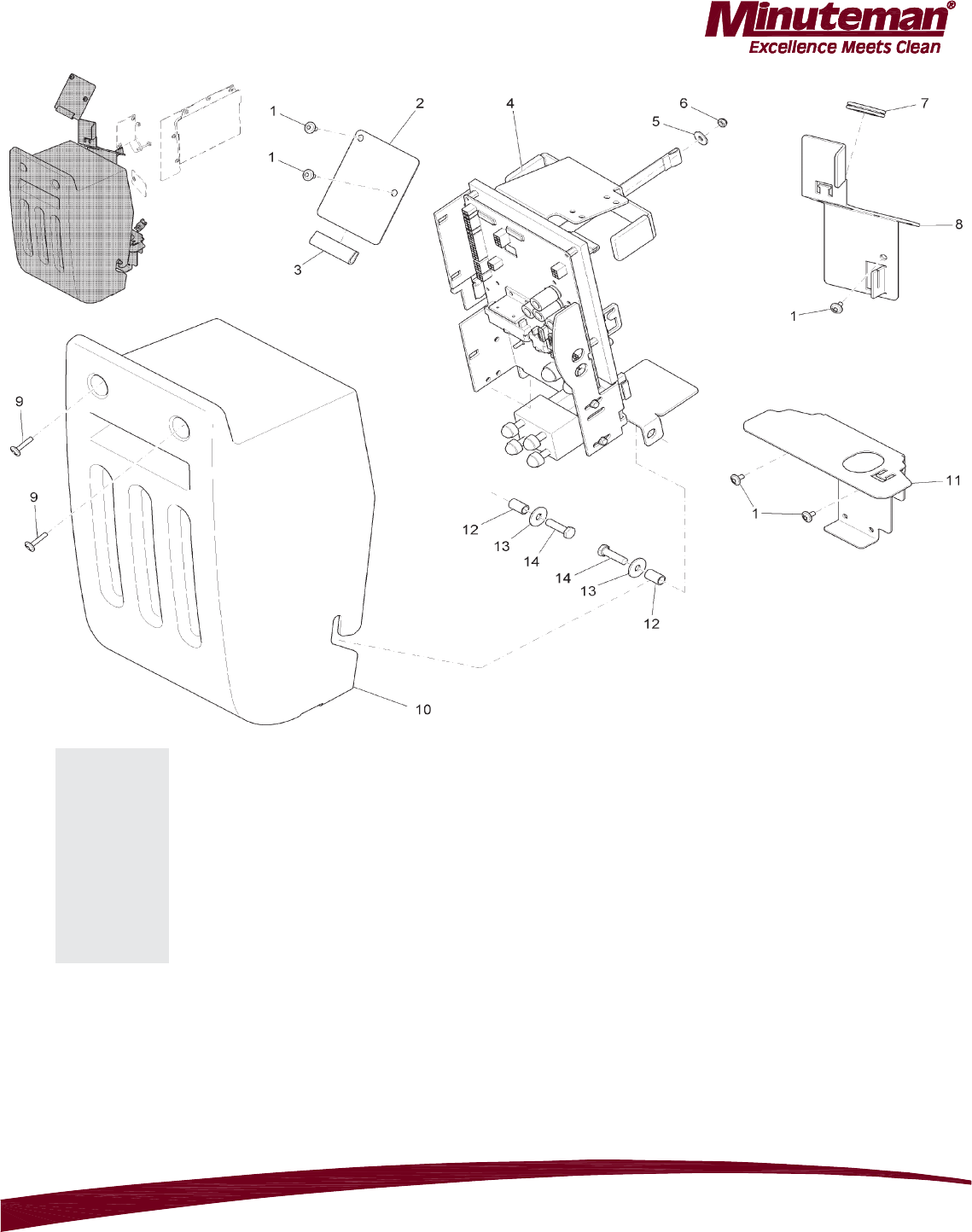

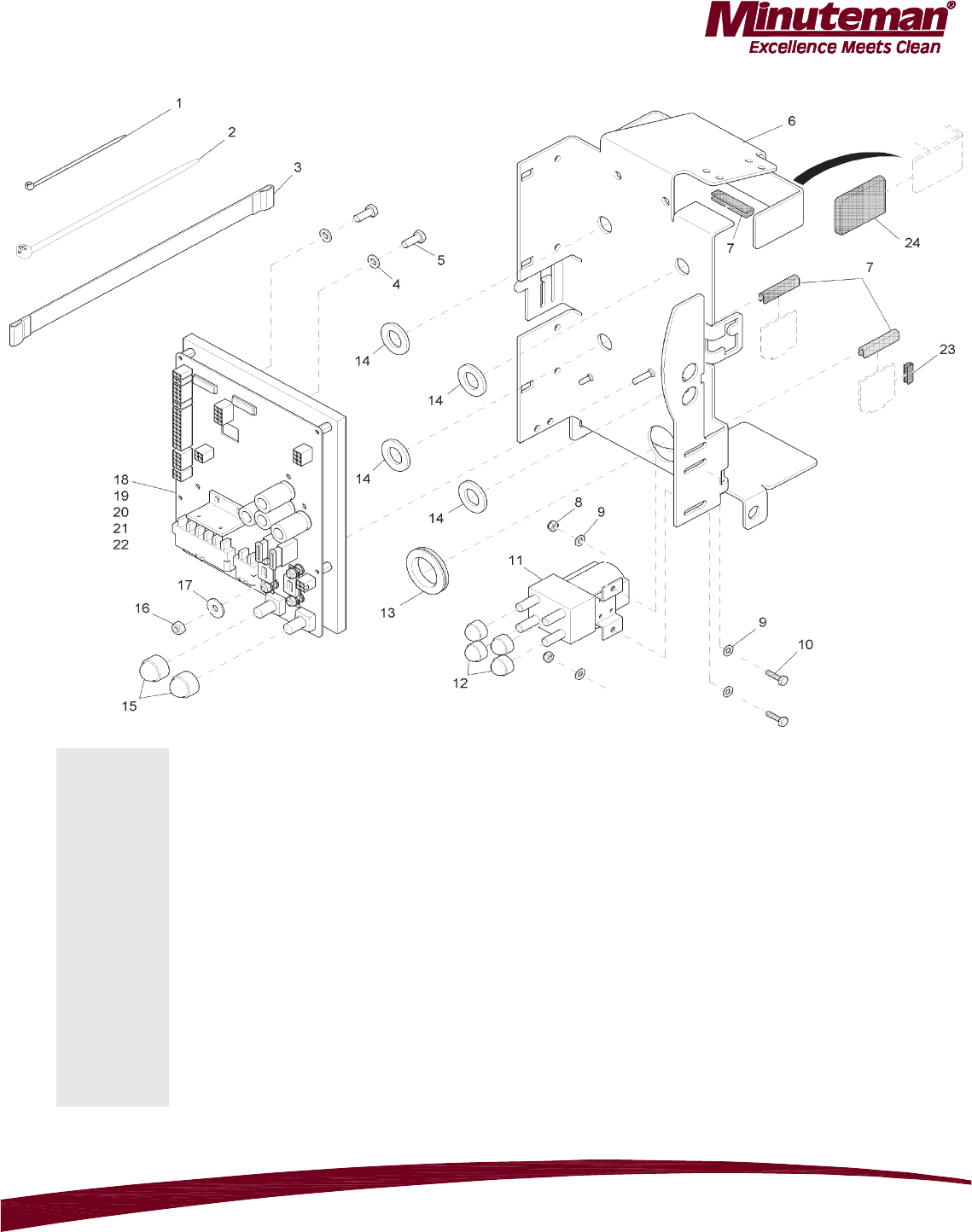

Electrical Assembly I
Bill of Material - 99706215BT130
Item Spare part number Mat. No. Qty. Description Note
1 01072520 11177179 5 Lens flange screw
2 01078570 90509803 1 Sheet metal
3 00161240 25582024 60mm Edge protection
4 99706215BT130-1 1 Retainer cpl. ITEM HAS SUBMODULES
5 00153200 12347027 1 Washer
6 00051520 12040044 1 Hexagon nut
7 01079690 15595259 1 Bushing
8 01078580 90511338 1 Sheet metal
9 01082530 11177161 2 Lens flange screw
10 01078270 96114996 1 Covering
11 01078590 90513912 1 Clamping plate
12 01078260 90499377 2 Bushing
13 00042900 12332029 2 Washer
14 00053110 11038254 2 Hexagon screw
Page 23
Parts Manual - E30 Walk Behind Scrubber
Retainer Subassembly
Electrical Assembly I
Bill of Material - 99706215BT130-1
Item Spare part number Mat. No. Qty. Description
1 00967760 90156688 4 Cable tie
2 00121150 90114810 8 Cable tie
3 01077880 90517699 1 Webbing
4 00053730 12310033 2 Washer
5 00053010 11038072 2 Hex.bolt
6 01078640 96117668 1 Retainer
7 00721090 25583022 120mm Edge protection
8 00051340 12040036 2 Hexagon nut
9 00053720 12310025 4 Washer
10 00054410 11038049 2 Hex.bolt
11 01170460 90529942 1 Contactor
12 00131610 15592033 4 Lens cap
13 01079690 15595259 1 Bushing
14 01078240 90510017 4 Washer
15 00747210 15592041 2 Lens cap
16 00051520 12040044 1 Hexagon nut
17 00135120 12332011 1 Washer
18 01079140 97057384 1 Controller E24/E26 with Package
19 00972420 00972420 0 Strip fuse
20 00902440 00902440 0 Strip fuse
21 00733630 19731082 0 Fuse
22 00972430 00972430 0 Fuse
23 00721090 25583022 30mm Edge protection
24 01074240 90463746 2 Cap
Page 24
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT140
Item Spare part number Mat. No. Qty. Description
1 01078600 90518119 1 Covering
2 01072520 11177179 7 Lens flange screw
3 01078610 90511346 1 Sheet metal
4 01078280 90465774 1 Bag
5 00555520 12332052 3 Washer
6 01078290 13165196 3 Blind rivet
7 03008120 97096986 1 Wiring harness W1
8 03008130 97096994 1 Wiring harness W2
9 03008200 97101547 1 Wiring harness W3
10 03007790 97099063 1 Wiring harness
11 03008160 97098511 1 Wiring harness W11
12 03008170 97095129 1 Cable loom
13 03008180 97098529 1 Cable loom
14 01170450 90529876 1 Clamping plate
15 00053730 12310033 2 Washer
16 00042900 12332029 1 Washer
17 00053090 11038213 1 Hexagon screw
18 00121150 90114810 10 Cable tie
19 00967760 90156688 2 Cable tie
20 01078630 90511320 1 Sheet metal
21 01170500 90538125 1 Distance plate
22 00535110 11038817 2 Hex.bolt
23 03007780 97099048 1 Cable loom

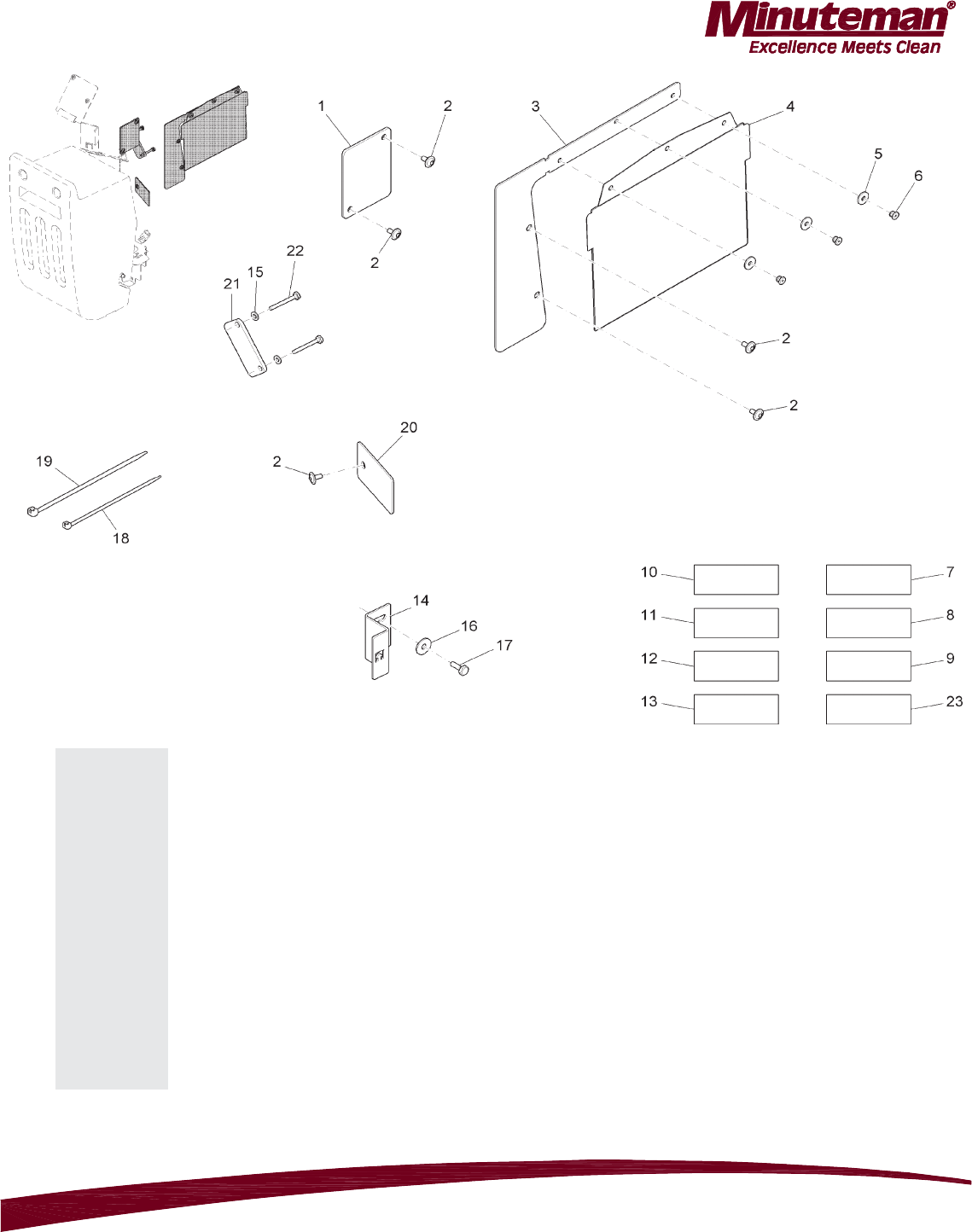

Electrical Assembly II
Page 25
Parts Manual - E30 Walk Behind Scrubber

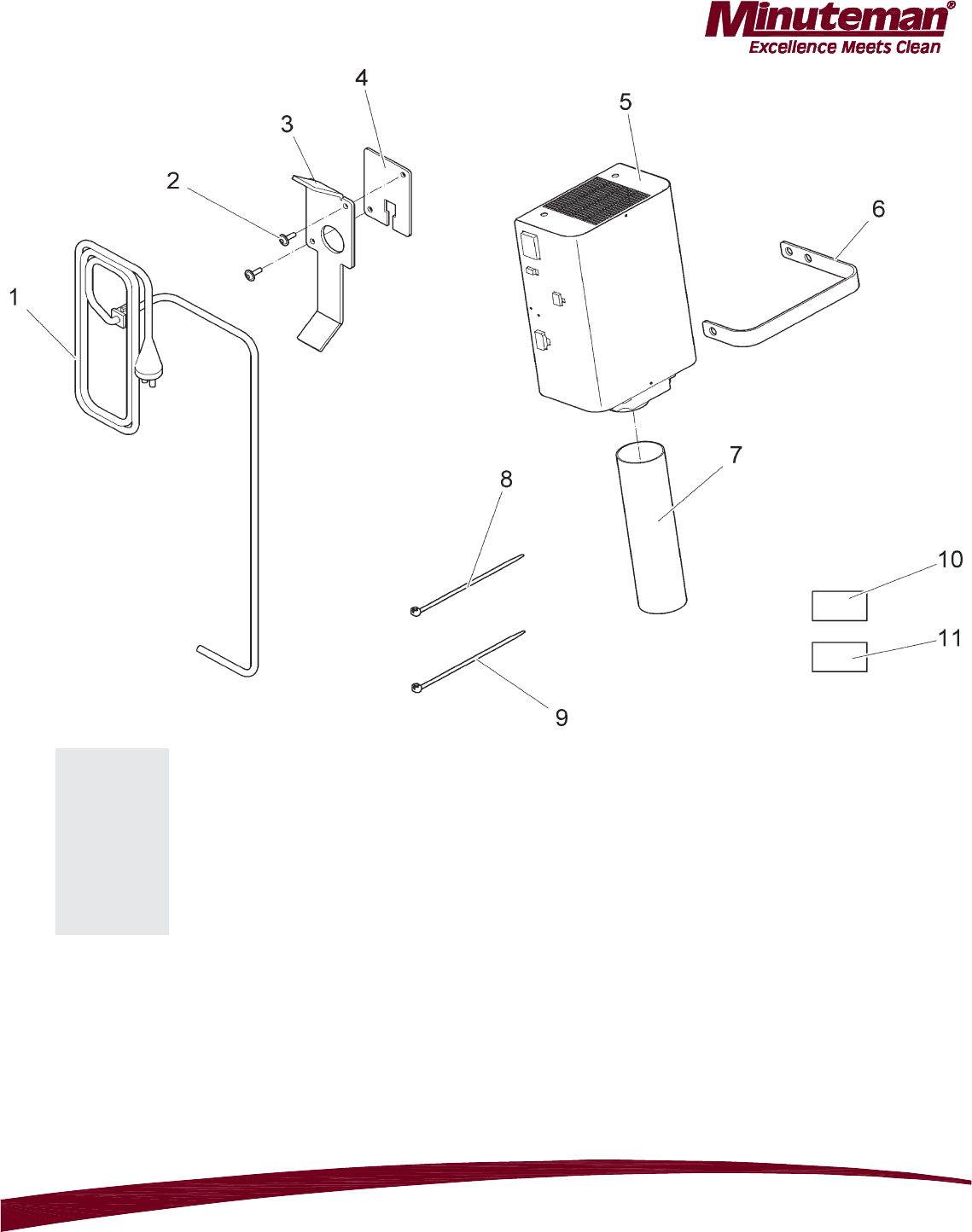

Battery Charger Assembly
Bill of Material - 99706215BT150
Item Spare part number Mat. No. Qty. Description Note
1 01079380 90532987 1 Power cable
2 01017640 11177060 2 Lens flange screw
3 01074240 90463746 2 Cap Attaches to Item 12 with Loctite!
4 01079360 90533266 1 Covering
5 01079370 96117197 1 On-board charger
6 01077870 90517665 1 Tension band
7 01078320 90512575 3 Hose
8 00121150 90114810 8 Cable tie
9 00967760 90156688 1 Cable tie
10 03006770 97094304 1 Wire harness W6
11 03006840 97094346 1 Wiring harness W8
12 01079390 90533258 1 Cable retainer
Page 26
Parts Manual - E30 Walk Behind Scrubber
Machine Labels
Bill of Material - 99706215BT160
Item Spare part number Mat. No. Qty. Description
1 01077440 17267212 1 Decal DETAILS
2 XXXXXXXX 17205279 2 Decal E30
3 03007820 17201145 1 Decal MINUTEMAN
4 XXXXXXXX 17212178 1 Type plate MINUTEMAN USA
5 00504370 13165014 2 Blind rivet
Page 27
Parts Manual - E30 Walk Behind Scrubber
Bill of Material - 99706215BT170
Item Spare part number Mat. No. Qty. Description
1 01077180 90507476 2 Motor
2 01077230 01077230 2 Fitting key
3 01077240 01077240 1 Set (4pc.) Carbon brush
4 03008030 90500588 1 Housing
5 00512400 90324369 2 Carrier
6 00879170 90209537 2 Washer
7 00053090 11038213 2 Hexagon screw
8 99759600 99759600 2 Drive plate USA 380
9 00101550 12310264 4 Washer
10 00053110 11038254 8 Hexagon screw
11 01077750 90500216 2 Sheet metal
12 01078330 90500265 2 Spray tube
13 00180190 25842014 540mm Hose
14 00901310 90275157 1 T-reducer muff
15 01078070 90524174 4 Protection cap
16 01077250 01077250 1 Spring
17 01077210 01077210 1 Gear
18 01077220 01077220 1 Circlip
19 00681500 90364365 1 Center-lock, lower part
20 00961490 11709011 6 Self tapping screw
21 00681490 90364373 1 Center-lock,upper part

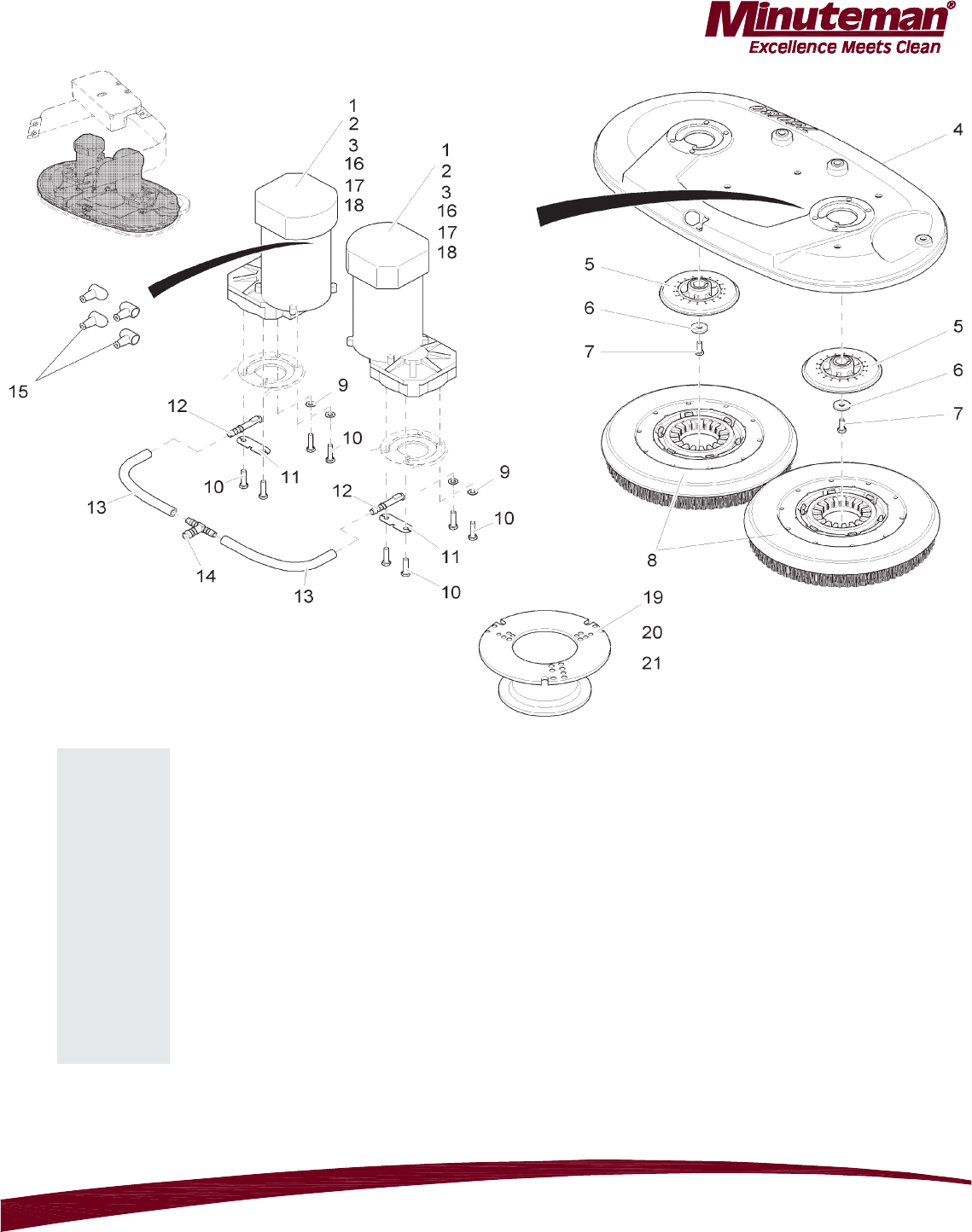

Disc Scrub Deck Assembly I
Page 28
Parts Manual - E30 Walk Behind Scrubber
Disc Scrub Deck Assembly II
Bill of Material - 99706215BT180
Item Spare part number Mat. No. Qty. Description
1 00053310 11038346 2 Hexagon screw
2 00053760 12310058 2 Washer
3 01078000 96112388 2 Ejector
4 01078350 90500232 2 Bellow
5 01078340 90500208 2 Compression spring
6 01078360 14895437 2 Slide bearing bush
7 00046280 12640033 2 Thrust washer
8 00712300 17528548 2180 mm Tension band
9 00901390 17528555 1 Tension band lock
10 01079960 90539792 1 Sealing strip
11 00051500 12040069 3 Hexagon nut
12 01170190 90501107 1 Deflector roller
13 01170180 90500638 1 Retainer
14 01077570 90507831 1 Screw

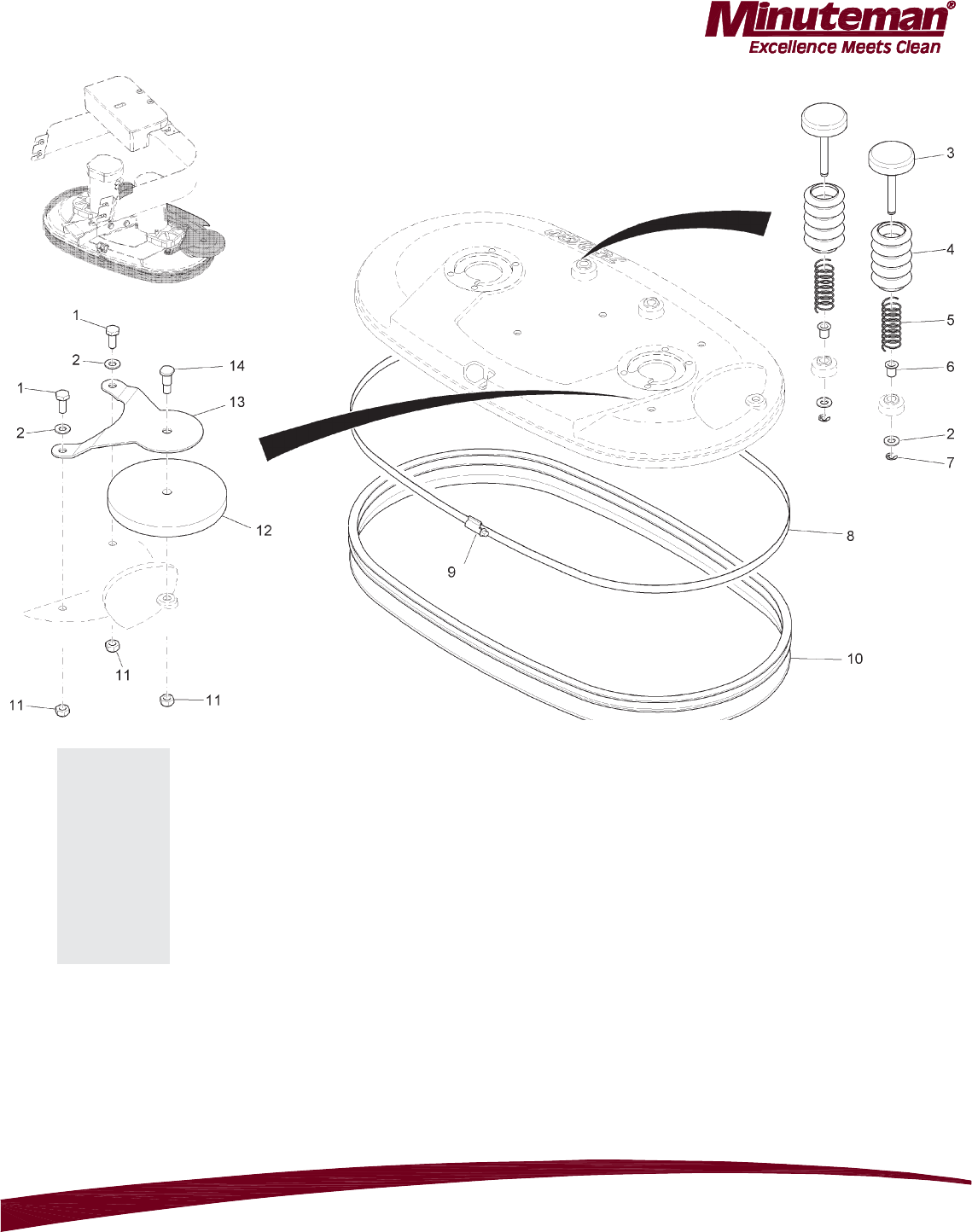

Page 29
Parts Manual - E30 Walk Behind Scrubber
Disc Scrub Deck Assembly III
Bill of Material - 99706215BT190
Item Spare part number Mat. No. Qty. Description
1 00053120 11032208 2 Hexagon screw
2 00042900 12332029 7 Washer
3 00051500 12040069 2 Hexagon nut
4 03008090 96117205 1 Weight
5 00053080 11038197 5 Hexagon screw
6 01170210 90504390 1 Covering
7 01078040 13328851 2 Bolt
8 00553580 13280136 2 Cotter pin
9 00053770 12310066 4 Washer
10 01077510 14895478 8 Slide bearing bush
11 01170570 96115555 1 Rocker
12 01073530 17220013 1 Transparency
13 00121150 90114810 3 Cable tie
14 00967760 90156688 2 Cable tie
15 01170200 90501123 1 Retainer
16 00053310 11038346 2 Hexagon screw
17 00053760 12310058 2 Washer
Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the ori
g
inal purchaser/user that the product is free from defects in
workmanship and materials under normal use. Minuteman will, at its option, repair or replace without char
g
e, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation and
instruction manuals. All warranty claims must be submitted through and approved by factory authorized repai
r
stations.
This warrant
y
does not appl
y
to normal wear, or to items whose life is dependent on their use and care, such as belts,
cords, switches, hoses, rubber parts, electrical motor components or ad
j
ustments. Parts not manufactured b
y
Minuteman are covered b
y
and sub
j
ect to the warranties and/or
g
uarantees of their manufacturers. Please contac
t
Minuteman for procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured b
y
Minuteman or its
desi
g
nated licensees, will void all warranties expressed or implied. A potential health hazard exits without ori
g
inal
equipment replacement.
A
ll warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclaims an
y
implied warrant
y
, includin
g
the warrant
y
of merchantabilit
y
and the warrant
y
of fitness for a
particular purpose. Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warrant
y
is applicable onl
y
in the U.S.A. and Canada, and is extended onl
y
to the ori
g
inal user/purchase
r
of this product. Customers outside the U.S.A. and Canada should contact their local distributor for export warrant
y
policies. Minuteman is not responsible for costs or repairs performed b
y
persons other than those specificall
y
authorized b
y
Minuteman. This warrant
y
does not appl
y
to dama
g
e from transportation, alterations b
y
unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or dama
g
e to propert
y
, or loss o
f
income due to malfunctions of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific le
al ri
hts, and
ou ma
have other ri
hts which var
from state to state. Some
states do not allow the exclusion or limitation of special, incidental or consequential dama
g
es, or limitations on ho
w
long an implied warranty lasts, so the above exclusions and limitations may not apply to you.
Cord Electric Group………. Three years parts, two years labor, ninety days travel (Not to exceed two hours)
Exceptions………. Port-A-Scrub, one year parts, six months labor
MPV 13, one year parts
MPV 14 and 18, two years parts, one year labor
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
EX 12 and EX12H, one year parts, one year labor
Battery Operated Group….. Three years parts, two years labor, ninety days travel
(Not to exceed two hours)
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours)
Internal Combustion Group….One year parts, one year labor, ninety day travel
(Not to exceed two hours)
Replacement Parts……………..Ninety days
Batteries………………………….0-3 months replacement, 4-12 months pro-rate
Polypropylene Plastic Tanks…Ten years, no additional labor
111 South Rohlwin
g
Road · Addison, Illinois 60101 USA
Phone 630- 627-6900 · Fax 630- 627-1130
E-Mail, www.minutemanintl.com
A Member of the Hako Group
988029
Rev * 02/08

Navigation menu
