Parts and Instruction Manual

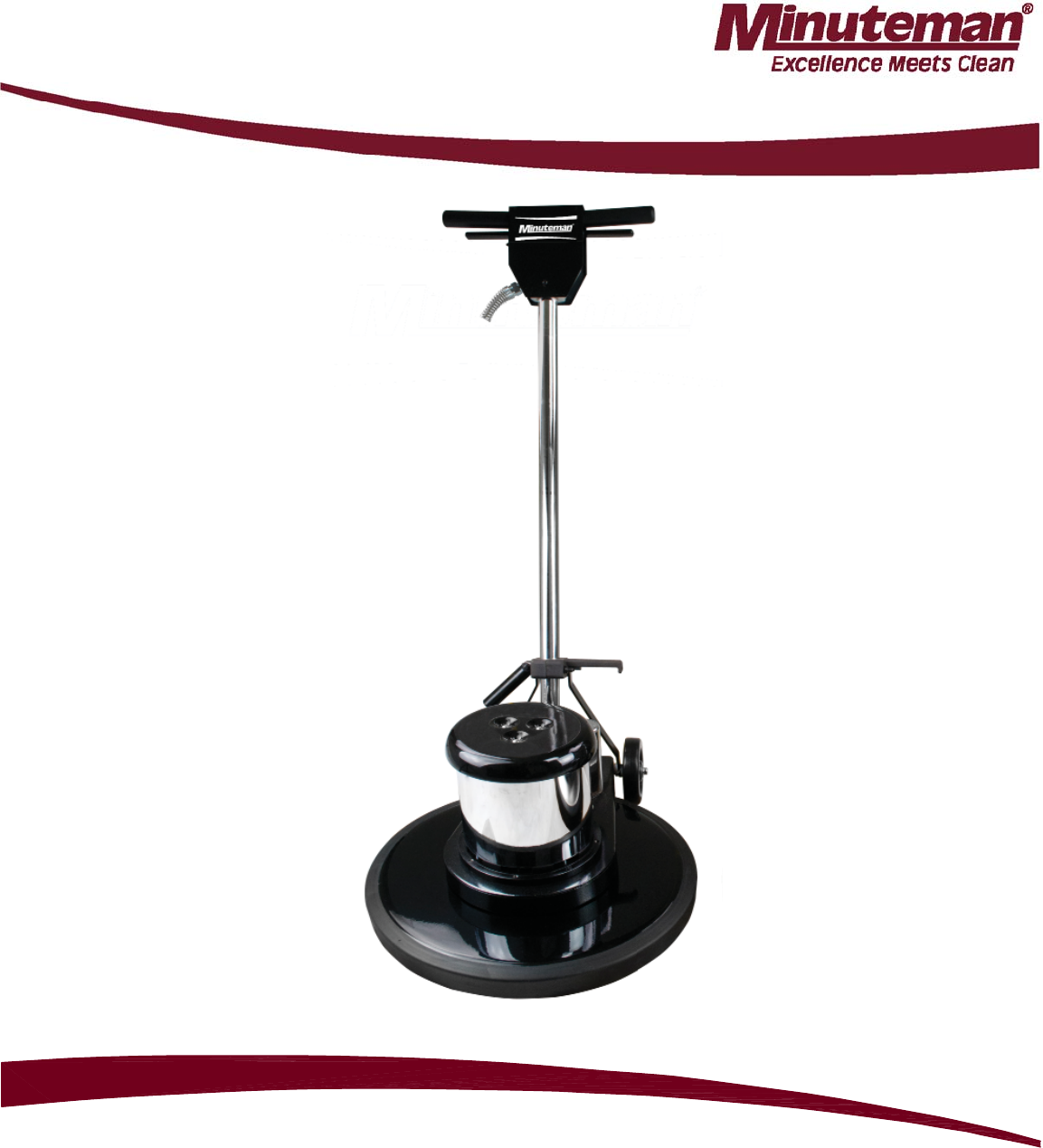

Frontrunner Series Floor Machines
Low Speed & Dual Speed
Parts Manual - Front Runner Series Floor Machines
Model Nos. FM17-115 / FM20-115 / FM17-220 / FM20-220 /
FM17-220-60 / FM20-220-60, FM202S-115 / FM202S-220
Technical Specifi cations
Frontrunner 17 Frontrunner 20 Frontrunner DS
Head Size 17” Head 20” Head 20” Head
Head Speed 175 RPM 175 RPM 180/320 RPM
Motor 1.5 HP 66 frame Motor 1.5 HP 66 frame
Motor
1.5 HP 66 frame
Motor
Gears Triple planetary steel
gears
Triple planetary steel
gears
Triple planetary steel
gears
Weight 95 lbs. 98 lbs. 92 lbs.
Brush Cover Black Powder Coated Black Powder Coated Black Powder Coated
Shipping Weight 112 lbs. 115 lbs. 112 lbs.
Handle Anti-fatigue Handle
Grips
Anti-fatigue Handle
Grips
Anti-fatigue Handle
Grips
Power Cord 50’ 50’ 50’
Amperage Draw 14.4 Amps 14.4 Amps 14.4 Amps
Shipping Dimen-
sions 48”H x 26.5”L x 23”W 48”H x 26.5”L x 23”W 48”H x 26.5”L x 23”W
Warranty 2 Year 2 Year 2 Year
Parts Manual - Front Runner Series Floor Machines
Table of Contents
Technical Specifi cations ..................................................................................................................... 2
Safety Instructions .............................................................................................................................. 4
Inspection ............................................................................................................................................. 6
Maintenance ......................................................................................................................................... 8
Brush and Pad Installation ................................................................................................................. 9
FM17-115............................................................................................................................................. 10
FM20-115............................................................................................................................................. 12
FM17-220 ............................................................................................................................................ 14
FM20-220 ............................................................................................................................................ 16
FM17-220-60 ....................................................................................................................................... 18
FM20-220-60 ....................................................................................................................................... 20
FM202S-115 ........................................................................................................................................ 22
FM202S-115 BOM (page 1) ................................................................................................................ 23
FM202S-115 BOM (page 2) ................................................................................................................ 24
FM202S-220 ........................................................................................................................................ 25
FM202S-220 BOM (page 1) ................................................................................................................ 26
FM202S-220 BOM (page 2) ................................................................................................................ 27
Warranty ............................................................................................................................................. 28
Page 4Parts Manual - Front Runner Series Floor Machines
Safety Instructions
)25 &200(5&,$/ 86( 21/<
,03257$17 6$)(7< ,16758&7,216
:KHQXVLQJ DQ HOHFWULFDO DSSOLDQFHEDVLF SUHFDXWLRQV VKRXOG DOZD\V EH IROORZHG LQFOXGLQJ WKH IROORZLQJ
5($' $// ,16758&7,216 %()25( 86,1*
:$51,1* 7R UHGXFH WKH ULVN RI ILUH HOHFWULF VKRFN RU LQMXU\
x'RQRWOHDYHDSSOLDQFH ZKHQ SOXJJHG LQ 8QSOXJ IURP RXWOHW ZKHQ QRW LQXVH DQG EHIRUH VHUYLFLQJ
:$51,1*
7RUHGXFHWKH ULVN RI HOHFWULFDOVKRFN  'R QRW H[SRVH WR UDLQ 6WRUH LQGRRUV
x1HYHU DOORZ FKLOGUHQ RU XQWUDLQHG DGXOWV WR RSHUDWH WKLV HTXLSPHQW
x.HHS WKH DUHD RI RSHUDWLRQ FOHDU RI DOO SHUVRQV SDUWLFXODUO\ VPDOO FKLOGUHQ DQG SHWV .HHS E\VWDQGHUV
DW OHDVW  IHHW DZD\ IURP WKH DUHD RI RSHUDWLRQ
x8VH RQO\ DV GHVFULEHG LQWKLV PDQXDO 8VH RQO\ PDQXIDFWXUHUµV UHFRPPHQGHG DWWDFKPHQWV
x'R QRW XVH ZLWK GDPDJHG FRUG RU SOXJ ,I DSSOLDQFH LV QRW ZRUNLQJ DV LW VKRXOG KDV EHHQ GURSSHG
GDPDJHG OHIW RXWGRRUVRU GURSSHG LQWR ZDWHU UHWXUQ LW WR D VHUYLFH FHQWHU
x'R QRW SXOO RU FDUU\ E\ FRUG XVH FRUG DV D KDQGOH FORVH D GRRU RQ FRUG RU SXOO FRUG DURXQG VKDUS
HGJHV RU FRUQHUV 'R QRW UXQ DSSOLDQFH RYHU FRUG .HHS FRUG DZD\ IURP KHDWHG VXUIDFHV
x'R QRW XQSOXJ E\ SXOOLQJ RQ FRUG 7R XQSOXJ JUDVS WKH SOXJ QRW WKH FRUG
x'R QRW KDQGOH SOXJ RU DSSOLDQFH ZLWKZHW KDQGV
x'R QRW SXW DQ\ REMHFW LQWR RSHQLQJV 'R QRW XVH ZLWK DQ\ RSHQLQJ EORFNHG NHHS IUHH RI GXVW OLQW KDLU
DQG DQ\WKLQJ WKDW PD\ UHGXFH DLU IORZ
x.HHS KDLU ORRVH FORWKLQJ ILQJHUV DQG DOO SDUWVRI ERG\ DZD\ IURP RSHQLQJV DQG PRYLQJ SDUWV
x7XUQ RII DOO FRQWUROV EHIRUH XQSOXJJLQJ
x&RQQHFW WR D SURSHUO\ JURXQGHG RXWOHW RQO\ 6HH JURXQGLQJ LQVWUXFWLRQV
Page 5Parts Manual - Front Runner Series Floor Machines
3285 86$*( &200(5&,$/ 6(8/(0(17
02'( '¶(03/2, 6(&85,7$,5(
/RUVTXH O¶RQ XWLOLVH XQ DSSDUHLO pOHFWULTXH GHV SUpFDXWLRQV GH EDVH GRLYHQW WRXMRXUV rWUH VXLYLHV WHOOHV
TXH
%,(1 /,5( /( 02'(6 '¶(03/2, $9$17 86$*(
$9(57,66(0(17 3RXU UpGXLUH OHV ULVTXHV GH IHXFKRF pOHFWULTXH RX EOHVVXUH
1H SDV TXLWWHU O¶DSSDUHLO ORUVTXH OD SULVH GH FRXUDQW HVW EUDQFKpH 'pEUDQFKHU GH OD VRUWLH pOHFWULTXH
ORUVTXH OD PDFKLQH Q¶HVWSDV HQ XVDJH RX SRXU HQ IDLUH OH VHUYLFH
$9(57,66(0(17 3RXU UpGXLUH OH ULVTXH GH FKRF pOHFWULTXH  1H SDV H[SRVHU j OD
SOXLH ± (QWUHSRVHU j O¶LQWpULHXU
x1H SDV SHUPHWWUH O¶XVDJH FRPPH MRXHW (WUH WUqV SUXGHQW ORUVTXH O¶DSSDUHLO HVW XWLOLVp HQ SUpVHQFH
GµHQIDQWV
x8WLOLVHU WHO TXH SUHVFULW GDQV OH OLYUH G¶RSpUDWLRQ HW VHXOHPHQW DYHF OHV DWWDFKHPHQWV UHFRPPDQGpV SDU
OH PDQXIDFWXULHU
x1H SDV V¶HQ VHUYLU DYHF FRUGH RX SULVH GH FRXUDQW HQGRPPDJpH 6L O¶DSSDUHLO QH IRQFWLRQQH SDV RX D
pWp pFKDSSp HQGRPPDJp HQWUHSRVp j O¶H[WpULHXU RX GpSRVH GDQV O¶HDX O¶DSSDUHLO GHYUDLW rWUH HQYR\p
j XQ GpSDUWHPHQW GH VHUYLFH SRXU LQVSHFWLRQ
x1H SDV WLUHU RX SRUWHU SDU OH FkEOH RX VH VHUYLU GX FkEOH FRPPH SRLJQpH 1H SDV IHUPHU GH SRUWHV VXU
OH FkEOH RX WLUHU OH FkEOH SUqV G¶REMHWV SRLQWXV 1H SDV FRQGXLUH O¶DSSDUHLO HQ pFUDVDQW OH FkEOH HW VR\H]
FHUWDLQ GH SURWpJHU OH FkEOH HQWUH WRXWHV VXUIDFHV GH FKDXIIDJH
x1H SDV GpEUDQFKHU HQ VH VHUYDQW GX FkEOH 3RXUGpEUDQFKHUWLUHU VXU OD SULVH HW QRQ VXU OH FkEOH
x1H SDV PDQLSXOHU OD SULVH RX O¶DSSDUHLO DYHF OHVPDLQV PRXLOOpHV
x1H SODFHU DXFXQ REMHW GDQV OD VRUWLH HW QH SDV V¶HQ VHUYLU VL OD VRUWLH HVW REVWUXpH (OLPLQHU WRXWH
SRXVVLqUH PDLOORQ FKHYHX[ RX TXRLTXH FH VRLW TXL SRXUUDLW UpGXLUH OH PRXYHPHQW G¶DLU
x1¶H[SRVHU DXFXQV FKHYHX[ YrWHPHQW GRLJWV RX DXWUHV DX[ RXYHUWXUHV GH O¶DSSDUHLO
x)HUPHU WRXV OHV FRQWU{OHV DSUqV XWLOLVDWLRQ
x%UDQFKHU GDQV XQH SULVHDYHF XQH SULVH GH WHUUHVHXOHPHQW 9RLU UpIpUHQFHV SRXU SULVH GH WHUUH
&216(59(= &(6 5(&200$1'$7,216
Page 6Parts Manual - Front Runner Series Floor Machines
,163(&7,21
&DUHIXOO\ XQSDFN DQG LQVSHFW \RXU PDFKLQH IRU VKLSSLQJ GDPDJH (DFK XQLW LV WHVWHG DQG WKRURXJKO\ LQVSHFWHG
EHIRUH VKLSPHQW DQG DQ\ GDPDJH LV WKH UHVSRQVLELOLW\ RI WKH GHOLYHU\ FDUULHU ZKR VKRXOG EH QRWLILHG
LPPHGLDWHO\
:$51,1*
5HDG,QVWUXFWLRQ0DQXDOEHIRUHRSHUDWLQJWKLVSLHFHRIHTXLSPHQW
x7R UHGXFH WKH ULVN RI ILUH XVH RQO\ FRPPHUFLDOO\ DYDLODEOH IORRU FOHDQHUV DQG ZD[HV LQWHQGHG IRU PDFKLQH
DSSOLFDWLRQ
x5LVN RI H[SORVLRQ  IORRU VDQGLQJ FDQ UHVXOW LQ DQ H[SORVLYH PL[WXUH RI ILQH GXVW DQG DLU 8VH IORRU VDQGLQJ
PDFKLQH LQ D ZHOOYHQWLODWHG DUHD IUHH IURP DQ\ IODPH RU PDWFK
x(OHFWULFDO PRWRUV DQG FRPSRQHQWV FDQ FDXVH DQ H[SORVLRQ ZKHQ RSHUDWHG QHDU YRODWLOH PDWHULDOV DQG
YDSRUV 'R QRW XVH WKLV PDFKLQH QHDU IODPPDEOH PDWHULDOV VXFK DV VROYHQWV WKLQQHUV IXHOV JUDLQ GXVW HWF
(/(&75,&$/   9ROW
0RGHO)0)0)06
7KLV PDFKLQH LV GHVLJQHG WR RSHUDWH RQ D VWDQGDUG  DPS  YROW  +] $& FLUFXLW 9ROWDJHV EHORZ 
YROW$&RUDERYHYROWV$& FRXOGFDXVHVHULRXVGDPDJHWRWKHPRWRU
(/(&75,&$/   9ROW
0RGHO)0)0)06)0)0)06
7KLV PDFKLQH LV GHVLJQHG WR RSHUDWH RQ D VWDQGDUG  DPS W\SH / IXVHG  YROW  +]  LPSOLHV  +] $&
FLUFXLW9ROWDJHVEHORZYROW$&RUDERYH YROWV$& FRXOGFDXVHVHULRXVGDPDJH WRWKHPRWRU
*5281',1* ,16758&7,216
x7KLV IORRU ILQLVKLQJ PDFKLQH VKRXOG EH JURXQGHG ZKLOH LQ XVH WR SURWHFW WKH RSHUDWRU IURP HOHFWULF VKRFN 7KH
PDFKLQH LV HTXLSSHG ZLWK D WKUHHFRQGXFWRU FRUG DQG D WKUHHSURQJ JURXQGLQJ W\SH DWWDFKPHQW SOXJ WR ILW WKH
SURSHU JURXQGLQJ W\SH UHFHSWDFOH 7KH JUHHQ RU JUHHQ DQG \HOORZ FRQGXFWRU LQ WKH FRUG LV WKH JURXQGLQJ
ZLUH 1HYHU FRQQHFW WKLV ZLUH WR RWKHU WKDQ WKH JURXQGLQJ EODGH
x)ORRU )LQLVKLQJ 0DFKLQHV 5DWHG /HVV 7KDQ  9ROWV  ,I WKH PDFKLQH LV SURYLGHGZLWKDQDWWDFKPHQWSOXJDV
VKRZQ LQ 6NHWFK $ LW LV LQWHQGHG IRU XVH RQ D YROW QRPLQDO FLUFXLW
x,I D SURSHUO\ JURXQGHG UHFHSWDFOH DV VKRZQ LQ 6NHWFK $ LV QRW DYDLODEOH DQ DGDSWHU DV VKRZQ LQ 6NHWFK & LV
DYDLODEOH DQG VKRXOG EH LQVWDOOHG DV VKRZQ LQ 6NHWFK % LI WKH RXWOHW ER[ WKDW KRXVHV WKH UHFHSWDFOH LV
JURXQGHG %H VXUH WR IDVWHQ WKH JURXQGLQJ WDE ZLWK WKH IDFHSODWH VFUHZ
x)ORRU )LQLVKLQJ 0DFKLQHV 5DWHG 0RUH 7KDQ  9ROWV  ,I WKH PDFKLQH LV SURYLGHG ZLWK DQ DWWDFKPHQW SOXJ
DV VKRZQ LQ 6NHWFK ' LW LV LQWHQGHG IRU XVH RQ D QRPLQDO  YROW FLUFXLW 1R DGDSWHU LV DYDLODEOH IRU WKLV
SOXJ
Inspection
Page 7Parts Manual - Front Runner Series Floor Machines
,163(&7,21
'pEDOOHU VRLJQHXVHPHQW HQ FRQVWDWDQW V¶LO \ D OLHX WRXW GRPPDJH DSSDUHQW &KDFXQH GHV SLqFHV
G¶pTXLSHPHQW HVW HQWLqUHPHQW LQVSHFWpH j O¶XVLQH HW WRXW GRPPDJH GH WUDQVLW HVW OD UHVSRQVDELOLWp GH OD
FRPSDJQLH GH WUDQVSRUW TXL GHYUDLW rWUH SUpYHQXH LPPpGLDWHPHQW
$9(57,66(0(17
x6 9 3 OLUH OH PDQXHO G¶LQVWUXFWLRQ DYDQW G¶RSpUHU FHWWH SLqFH G¶pTXLSHPHQW
x3RXU UpGXLUH OH ULVTXH G¶LQFHQGLH VH VHUYLU GH FHV DSSDUHLOV XQLTXHPHQW SRXU XVDJH FRPPHUFLDO HW
DYHF OHV SURGXLWV FRQVWUXLWV VSpFLILTXHPHQW SRXU XVDJH DYHF FHV DSSDUHLOV
x/HV PRWHXUV pOHFWULTXHV SHXYHQW rWUH OD FDXVH G¶H[SORVLRQ V¶LOV VRQW XWLOLVpV SUqV GH PDWpULDX[ RX GH
YDSHXUV H[SORVLYHV 1H SDV RSpUHU SUqV GH PDWpULDX[ LQIODPPDEOHV WHOOV TXH VROYDQW HVVHQFH
SRXVVLqUH GH JUDLQ HWF
(/(&5,&,7(   9ROW
0RGqOHV 0RGHO)0)0)06
&HV DSSDUHLOV VRQW FRQJUXV SRXU RSpUHU VXU XQ FLUFXLW VWDQGDUG GH  DPS  YROW  K] FLUFXLW $&
7RXW YROWDJH HQ EDV GH  YROW $& RX DXGHOj GH  YROWV $& SRXUUDLW RFFDVLRQQHU GHV GRPPDJHV DX
PRWHXU
(/(&5,&,7(   9ROW
0RGqOHV )0 )0 )06 )0  )0  )06 
&HV DSSDUHLOV VRQW FRQJUXV SRXU RSpUHU VXU XQ FLUFXLW VWDQGDUG $& GH  DPS IXVLEOH W\SH / YROW
 +]   +] 7RXW YROWDJH HQ EDV GH  YROWV $& RX DXGHOj GH  YROWV $& SRXUUDLW RFFDVLRQQHU
GHV GRPPDJHV DX PRWHXU
,16758&7,21 3285 35,6( '( 7(55(
x&HV DSSDUHLOV GRLYHQW SRVVpGHU XQH SULVH GH PLVV j WHUUH SRXU SURWpJHU ,¶RSpUDWHXU FRQWUH OHV FKRFV
pOHFWULTXHV &HW DSSDUHLO HVW PXQL G¶XQH FRUGH pOHFWULTXH j WURLV ILOV HW G¶XQ UpFHSWDFOH j WURLV IRXUFKRQV
HW SULVH GH PLVH j WHUUH SRXU V¶DFFRUGHU GDQV XQ UpFHSWDFOH DYHF SULVH GH PLVHjWHUUHUpFLSURTXH/H
ILO FRQGXFWHXU YHUW RX YHUW HW MDXQH GH OD FRUGH pOHFWULTXH HVW OH ILO GpVLJQp FRPPH SULVH GH PLVH j
WHUUD 1H MDPDLV UHOLHU FH ILO j XQ ILO DXWUH TXH FHOXL GH SULVH GH PLVH j WHUUH
x$SSDUHLOV HVWLPpV j PRLQV GH  YROWV  6L FHV DSSDUHLOV RIIUHQW XQH SULVH GH FRXUDQW WHO TXH GDQV OH
FURTXLV $ LOV VRQW GHVWLQpV SRXU XWLOLVDWLRQ DYHF XQ FLUFXLW GH  YROWV 6L XQ UpFHSWDFOH DYHF SULVH GH
PLVH j WHUUH Q¶HVW SDV GLVSRQLEOH WHO TXH PRQWUp DX FURTXLV $ XQ DGDSWHXU WHO TXH YX DX FURTXLV & HVW
GLVSRQLEOH HW GHYUDLW rWUH LQVWDOOp WHO TXH PRQWUp DX FURTXLV % VL OD ERLWH pOHFWULTXH HVW PXQLH G¶XQH
SULVH GH PLVH j WHUUH $VVXUH]YRXV GH ELHQ UHOLHU OD SDWWH GH SULVH DYHF OD YLV
x$SSDUHLOV GHVWLQpV j SOXV GH  YROWV  6L FHV DSSDUHLOV RIIUHQW XQH SULVH GH FRXUDQW WHO TXH GpPRQWUp
DX FURTXLV ' LOV GRLYHQW rWUH XWLOLVpV DYHF XQ FLUFXLW GH  YROWV $XFXQ DGDSWHXU Q¶HVW GLVSRQLEOH SRXU
FHWWH SULVH
Page 8Parts Manual - Front Runner Series Floor Machines
86(5 0$,17(1$1&( ,16758&7,216
$TXDOLILHGHOHFWULFLDQ VKRXOG SHUIRUP DOO VHUYLFH DQG UHSDLU 1R XVHU VHUYLFHDEOH FRPSRQHQWV DUH
HPSOR\HG LQ WKLV HTXLSPHQW 1R OXEULFDWLRQ RI WKHPRWRU LV UHTXLUHG
&25' 6725$*(
:KLOH QRW LQ XVH VWRUDJH FDQ EH DFFRPSOLVKHG E\ ZLQGLQJ FRUG DURXQG KDQGOH DVV\ &RUG VKRXOG EH
FRPSOHWHO\ XQZRXQG GXULQJ RSHUDWLRQ
x'R QRW XVH ZLWK GDPDJHG FRUG RU SOXJ ,I DSSOLDQFH LV QRW ZRUNLQJ DV LW VKRXOG KDV EHHQ GURSSHG
GDPDJHG OHIW RXWGRRUVRU GURSSHG LQWR ZDWHU UHWXUQ WR VHUYLFH FHQWHU
x'R QRW SXOO RU FDUU\ E\ FRUG XVH FRUG DV KDQGOH FORVH D GRRU RQ FRUG RU SXOO FRUG DURXQG VKDUS HGJHV
RU FRUQHUV'R QRW UXQ DSSOLDQFH RYHU FRUG .HHS FRUG DZD\ IURP KHDWHG VXUIDFHV
x'R QRW XQSOXJ E\ SXOOLQJ FRUG 7R XQSOXJ JUDVS WKH SOXJ QRW WKH FRUG
x'R QRW KDQGOH SOXJ RU DSSOLDQFH ZLWK ZHW KDQGV
x$OZD\V XQSOXJ WKH PDFKLQH ZKHQ UHPRYLQJ EUXVK 7KLV HTXLSPHQW VKRXOG EH VWRUHG LQGRRUV DQG QRW
H[SRVHG WR UDLQ
23(5$7,21
7KH EUXVK LV DWWDFKHG LQ WKH IROORZLQJ PDQQHU 7LS PDFKLQH EDFNZDUG ZLWK KDQGOH RQ IORRU %UXVK LV WKHQ
LQVHUWHG RYHU WKH OXJV RQ WKH ERWWRP RI WKH JHDU XQLW DQG WZLVWHG WR WKH OHIW 7KLV VHFXUHV WKH FOXWFK SODWH
RI WKH EUXVK RYHU WKH OXJV RQ WKH JHDU XQLW LQ WKH FRUUHFW GULYLQJ SRVLWLRQ
/2:(5 +$1'/( $66(0%/< 72 :$,67 +,*+ 326,7,21 72 23(5$7(
'XH WR WKH URWDWLRQ RI D VLQJOH GLVF PDFKLQH LW ZLOO QDWXUDOO\ KDYH D WHQGHQF\ WR PRYH WR WKH ULJKW RU OHIW
GHSHQGLQJ RQ WKH RSHUDWRU¶V VOLJKW SUHVVXUH HLWKHU XS RU GRZQ RQ WKH KDQGOH ,I WKH KDQGOH LV OLIWHG VOLJKWO\
XS WKH PDFKLQH ZLOO WUDYHO WR WKH ULJKW D GRZQZDUG SUHVVXUH DQG LW ZLOO WUDYHO WR WKH OHIW ,W LV WKLV
PDQHXYHUDELOLW\ WKDW HQDEOHV DQ RSHUDWRU WR FRYHU ODUJH DUHDV LQ D VKRUW WLPH ZLWK WKH OHDVW DPRXQW RI
HIIRUW 7KH PDFKLQH FDQ EH PDGH WR RSHUDWH ZLWKRXW WUDYHO E\ EDODQFLQJ«
 .((3,1* 7+( %586+ 35(6685( 21 7+( )/225 (48$/ :LWK D IHZ PLQXWHV RI
SUDFWLFH LQ D ODUJH DUHD \RX ZLOO KDYH SHUIHFW ILQJHUWLS FRQWURO RI WKH PDFKLQH 7KLV HTXLSPHQW LV
HTXLSSHG ZLWK WULJJHU VDIHW\ LQWHUORFN 5HIHU WR GLDJUDP SLFWXUHG
648((=( 648((=(
SAFETY LOCK:
PULL BACK TOWARD
OPERATOR TO SQUEEZE
EITHER TRIGGER
Maintenance
Page 9Parts Manual - Front Runner Series Floor Machines
Brush and Pad Installation
#SVTIBOEQBEESJWFSJOTUBMMBUJPO
x1MBDFUIFNBDIJOFhTIBOEMFJOUPUIFVQSJHIUBOEMPDLFEQPTJUJPO
x-FBOUIFNBDIJOFCBDLTPUIBUUIFIBOEMFSFTUTPOUIFGMPPS
,FFQUIFXIFFMTPOUIFGMPPS
x"MJHOUIF5SJMPDLDVUPVUPOUIFCSVTIPSQBEESJWFSUPUIF
HFBSCPY
x5VSODPVOUFSDMPDLXJTFUPMPDLJOQMBDF
x5VSODMPDLXJTFUPEJTNPVOU
x5PQSFWFOUZPVSQBEESJWFSPSCSVTIGSPNCFDPNJOHEJTGJHVSFE
BMXBZTSFNPWFXIFOOPUJOVTF
8"3/*/(/FWFSDIBOHFB
CSVTIPSQBEESJWFSXIJMFUIF
NBDIJOFJTDPOOFDUFEUPB
QPXFSTPVSDF"MXBZTVOQMVH
NBDIJOF
Page 10Parts Manual - Front Runner Series Floor Machines
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM17-115
7-27-16
FM17-115
Page 11Parts Manual - Front Runner Series Floor Machines
FM17-115 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11477 1 Bumper, 17 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11485B 1 Brush Cover, 17 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11468 1 Motor W-Gearbox, 1.5 HP 115v
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 12Parts Manual - Front Runner Series Floor Machines
FM20-115
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM20-115
7-27-16
Page 13Parts Manual - Front Runner Series Floor Machines
FM20-115 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11478 1 Bumper, 20 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11486B 1 Brush Cover, 20 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11468 1 Motor W-Gearbox, 1.5 HP 115v
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 14Parts Manual - Front Runner Series Floor Machines
FM17-220
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM17-220
7-27-16
Page 15Parts Manual - Front Runner Series Floor Machines
FM17-220 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11477 1 Bumper, 17 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11485B 1 Brush Cover, 17 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11635 1 Motor W-Gearbox, 1.5 HP 220v
50hz
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 16Parts Manual - Front Runner Series Floor Machines
FM20-220
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM20-220
7-27-16
Page 17Parts Manual - Front Runner Series Floor Machines
FM20-220 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11478 1 Bumper, 20 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11486B 1 Brush Cover, 20 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11635 1 Motor W-Gearbox, 1.5 HP 220v
50hz
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 18Parts Manual - Front Runner Series Floor Machines
FM17-220-60
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM17-220-60
7-27-16
Page 19Parts Manual - Front Runner Series Floor Machines
FM17-220-60 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11477 1 Bumper, 17 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11485B 1 Brush Cover, 17 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11468-
220A
1 "220A Motor W-Gearbox,
1.5 HP 220v 60hz"
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 20Parts Manual - Front Runner Series Floor Machines
FM20-220-60
1
9
2
68
356 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
44
45
47
48
49
50
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
FM20-220-60
7-27-16
Page 21Parts Manual - Front Runner Series Floor Machines
FM20-220-60 BOM
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 35 C00240 6 Washer, Shoulder, Nylon
2 K11498 2 Grip 36 C11559 6 "Washer, .515 X .875 X
.032"
3 C11528 1 Screw, 10-32 X .25 in 37 G11943 2 Wheel, 5 in Saturn
5 H11831 1 Minuteman Label 38 C02305 2 Cap Nut, .5in Push-on
6 D11496B 1 Switch Box Cover, Black 39 C11501 4 Socket Cap Screw, .31 - 18
7 H11493 1 Label, Safety, Floor Machine 40 C00251 4 Lockwasher, .31, Split
8 C11529 2 Screw, 10-32 X .375 in 41 E11478 1 Bumper, 20 in Floor Machine
9 K11519 1 Lever Grip, Lockout, Black 42 D11486B 1 Brush Cover, 20 in, Black
10 C00278 1 Locknut, 10-32, Nylon, SS 44 D11483-1 1 Black Motor Frame with spacers
welded on
11 D11494 1 Lockout Bracket 45 G11468-
220A
1 "Motor W-Gearbox,
1.5 HP 220v 60hz"
12 D11524 1 Spring, Lockout 46 D11481 1 Handle Brace, Left, Black
13 C90007 1 "Screw, 10-32 X .625
Phillips, Truss Head, SS"
47 H10976-1 1 Label, UL STD 561-507
14 C11491 1 Screw, 10-32 X 1 in, SS 48 H00565-5 1 Label, Serial #, Standard
15 D11479-1 1 Handle, Chrome, Floormachine 49 H03545 1 Cover, Serial #, Label
16 C00306 2 Roll Pin, .125 X 1.75 50 D11490B 1 Drip Cover, Black
17 D11523 2 Spring, Trigger 52 C11916 3 "Screw, 10-32 X .375
Phillips"
18 D11495 1 Trigger, Zinc Plated 53 C13100 1 Nut, M14-2.0 Nylon Insert
19 K11520 2 Lever Grip, Trigger, Black 54 B10734 1 Strain Relief, Handle
20 11507A 1 Assembled Locking Handle, Cord
Hook
55 B11513 1 Cord, Handle, 14-3 SJTW
21 C11619 1 Allen Wrench, .31 in 56 B11762 2 Terminal Lug, Nylon, Female
22 D11497 1 Handle, Locking Clamp 57 B11465 1 Switch, DPST, Pushbutton
23 C11538 1 Cap Nut, .31 in, Push-On 58 B00177 2 "Terminal Lug, Female, QD,
.25 X .032"
24 C00259 1 Washer, Slotted, Zinc 59 C00252 1 Washer, .375 in, Flat
25 C11536 1 Spade Bolt, .375-16 X 4 in 60 C11541 1 Washer, .375 in, Star
26 D11507-2 1 Cord Hook Clamp 61 B11518 1 Switch Insulation
27 D11507 1 Cord Hook Body 62 C00284 1 "Screw, 10-32 X .375
Ground"
28 C11558 2 Locknut, Black Oxide, Thin 63 B00187 1 Cable Clamp, Nylon, .43 in.
29 C11502 1 Socket Cap Screw, .375- 16 X 2.5
in
64 B00180-
10-3
2 Ring Terminal, #10 Center
30 C11537 1 Dowel Pin, .31 X 1.5 in 65 B11505 1 Strain Relief Nut, Metal
31 C22558 1 Handle Pivot Bolt 66 C11560 1 Washer, .93 ID X 1.5 OD
32 K00674 2 Bushing, .50 in, Nylon 67 B11504 1 Strain Relief, Metal
33 D11510 1 Axle, Floor Machine 68 H02548-2 1 Label, Important, Cord
34 D11482 1 Handle Brace, Right, Black
Page 22Parts Manual - Front Runner Series Floor Machines
FM202S-115
84
13567
8
910 11 12
13
14
15
16
17
18
19
20 21
22
23
24
25
27
28
29
30 31
34 36 37
35
4241 43 4544 46
47
48
49
50515253
54
57
63
58
59
62
65
68
71
70
72
73
76
77
55
64
75
32
78
79 80818283
40
39
60
61
33
2
FM202S-115
8-3-16
38
39
39
36
13 32
74
26
39
Page 23Parts Manual - Front Runner Series Floor Machines
FM202S-115 BOM (page 1)
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 27 C11558 2 Locknut, .375-16, Nylon
2 K11498 2 Grip 28 C11502 1 Socket Cap Screw, .375-16 X 2.5 in
3 C11528 1 Screw, 10-32 X .25 in 29 C11537 1 Dowel Pin, .31 X 1.5 in
5 H13699 1 Label, MINUTEMAN, White 30 C13101 1 Screw, Hex Cap, M14-2.0
6 D11496B 1 Switch Box Cover, Black 31 B13156 1 power cord 16/3 3 ft
7 H11493 1 Label, Safety, Floor Machine 32 B11518 3 Switch Insulation
8 C11529 2 Screw, 10-32 X .375 in 33 B11751 1 Switch, Rocker, DPDT, Black
9 K11519 1 Lever Grip, Lockout, Black 34 C00293 2 #8 X .5in Pan, Black SMS, Phillips
10 C00278 1 Locknut, 10-32, Nylon, SS 35 D11582 1 Bracket, Switch Mount
11 D11494 1 Lockout Bracket 36 C00297 4 Screw,#8 X .25 in, Pan Head
12 D11524 1 Spring, Lockout 37 D11646 2 Switch Bracket Cover
13 C90007 4 Screw, 10-32 X .625 Phillips,
Truss Head, SS
38 B00177-1 1 Terminal Lug, Female, QD, .25 X
0.032
14 C11491 1 Screw, 10-32 X 1 in, SS 39 B00177 11 Terminal Lug, Female, QD, .25 X
0.032
15 C00306 2 Roll Pin, .125 X 1.75 40 K00674 2 Bushing, .50 in, Nylon
16 D11523 2 Spring, Trigger 41 D11510 1 Axle, Floor Machine
17 D11479 1 Handle, Chrome, Floormachine 4 2 D 11482 1 Handle Brace, Right, Black
18 D11495 1 Trigger, Zinc Plated 43 C00240 6 Washer, Shoulder, Nylon
19 K11520 2 Lever Grip, Trigger, Black 44 C11559 6 Washer, .515 X .875 X .032
20 11507A 1 Assembled Locking Handle, Cord
Hook
45 G11943 2 Wheel, 5 in Saturn
21 D11497 1 Handle, Locking Clamp 46 C02305 2 Cap Nut, .5in Push-on
22 C11538 1 Cap Nut, .31 in, Push-On 47 B00185-
30
1 Wire, 14 Ga X 2 ft, White, UL195
23 C00259 1 Washer, Slotted, Zinc 48 B00185-
40
1 Wire, 14 Ga X 2 ft, Black, UL1015
24 C11536 1 Spade Bolt, .375-16 X 4 in 49 B00185-
86
1 Wire, 14 Ga X 2 ft, Red, UL1015
25 D11507 1 Cord Hook Clamp 50 B00228-2 1 1 Foot Shrinktube, .375 in, Poly
26 D11507-2 1 Cord Hook Body 51 C11619 1 Allen Wrench, .31 in
Page 24Parts Manual - Front Runner Series Floor Machines
FM202S-115 BOM (page 2)
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
52 C11501 4 Socket Cap Screw, .31 - 18 71 C13100 1 Nut, M14-2.0 Nylon Insert
53 C00251 4 Lockwasher, .31, Split 72 B10734 1 Strain Relief, Handle
54 E11478 1 Bumper, 20 in Floor Machine 73 B11513 1 Cord, Handle, 14-3 SJTW
55 D11486B 1 Brush Cover, 20 in, BLACK 74 B11762 2 Terminal Lug, Nylon, Female
57 D11483 1 Frame, Motor, Black 75 B11465 1 Switch, DPST, Pushbutton
58 D11545 1 Motor Screen 76 C00252 1 Washer, .375 in, Flat
59 11573A 1 Motor assembly 115v 77 C11541 1 Washer, .375 in, Star
60 B00181 1 Butt Connector, Blue, 1 Wire 78 C00284 1 Screw, 10-32 X .375 Ground
61 B00179-1 1 Closed End Cntr, 16-3 79 B00187 1 Cable Clamp, Nylon, .43 in.
62 D11481 1 Handle Brace, Left, Black 80 B00180-
10-3
2 Ring Terminal, #10 Center
63 K11517 3 Spacer, .19 ID X .375 High X 0.5
OD, Nylon
81 B11505 1 Strain Relief Nut, Metal
64 B11199 1 Strain Relief, Pigtail w-Locknut 82 C11560 1 Washer, .93 ID X 1.5 OD
65 H10976-1 1 Label, UL STD 561-507 83 B11504 1 Strain Relief, Metal
68 D11490B-H 1 Drip Cover w - Hole for Light BLK 84 H02548-2 1 Label, Important, Cord
70 B02196-1 1 Light, Motor Carbon Brush Wear
Page 25Parts Manual - Front Runner Series Floor Machines
FM202S-220
84
13567
8
910 11 12
13
14
15
16
17
18
19
20 21
22
23
24
25
27
28
29
30 31
34 36 37
35
4241 43 4544 46
47
48
49
50515253
54
57
63
58
59
62
65
68
71
70
72
73
76
77
55
64
75
32
78
79 80818283
40
39
60
61
33
2
FM202S-220
8-3-16
38
39
39
36
13 32
74
26
39
Page 26Parts Manual - Front Runner Series Floor Machines
FM202S-220 BOM (page 1)
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
1 B11487 1 Power Cord, 14-3, 50 FT, SJTW 27 C11558 2 Locknut, .375-16, Nylon
2 K11498 2 Grip 28 C11502 1 Socket Cap Screw, .375-16 X 2.5 in
3 C11528 1 Screw, 10-32 X .25 in 29 C11537 1 Dowel Pin, .31 X 1.5 in
5 H13699 1 Label, MINUTEMAN, White 30 C13101 1 Screw, Hex Cap, M14-2.0
6 D11496B 1 Switch Box Cover, Black 31 B13156 1 power cord 16/3 3 ft
7 H11493 1 Label, Safety, Floor Machine 32 B11518 3 Switch Insulation
8 C11529 2 Screw, 10-32 X .375 in 33 B11751 1 Switch, Rocker, DPDT, Black
9 K11519 1 Lever Grip, Lockout, Black 34 C00293 2 #8 X .5in Pan, Black SMS, Phillips
10 C00278 1 Locknut, 10-32, Nylon, SS 35 D11582 1 Bracket, Switch Mount
11 D11494 1 Lockout Bracket 36 C00297 4 Screw,#8 X .25 in, Pan Head
12 D11524 1 Spring, Lockout 37 D11646 2 Switch Bracket Cover
13 C90007 4 Screw, 10-32 X .625 Phillips,
Truss Head, SS
38 B00177-1 1 Terminal Lug, Female, QD, .25 X
0.032
14 C11491 1 Screw, 10-32 X 1 in, SS 39 B00177 11 Terminal Lug, Female, QD, .25 X
0.032
15 C00306 2 Roll Pin, .125 X 1.75 40 K00674 2 Bushing, .50 in, Nylon
16 D11523 2 Spring, Trigger 41 D11510 1 Axle, Floor Machine
17 D11479 1 Handle, Chrome, Floormachine 4 2 D 11482 1 Handle Brace, Right, Black
18 D11495 1 Trigger, Zinc Plated 43 C00240 6 Washer, Shoulder, Nylon
19 K11520 2 Lever Grip, Trigger, Black 44 C11559 6 Washer, .515 X .875 X .032
20 11507A 1 Assembled Locking Handle, Cord
Hook
45 G11943 2 Wheel, 5 in Saturn
21 D11497 1 Handle, Locking Clamp 46 C02305 2 Cap Nut, .5in Push-on
22 C11538 1 Cap Nut, .31 in, Push-On 47 B00185-
30
1 Wire, 14 Ga X 2 ft, White, UL195
23 C00259 1 Washer, Slotted, Zinc 48 B00185-
40
1 Wire, 14 Ga X 2 ft, Black, UL1015
24 C11536 1 Spade Bolt, .375-16 X 4 in 49 B00185-
86
1 Wire, 14 Ga X 2 ft, Red, UL1015
25 D11507 1 Cord Hook Clamp 50 B00228-2 1 1 Foot Shrinktube, .375 in, Poly
26 D11507-2 1 Cord Hook Body 51 C11619 1 Allen Wrench, .31 in
Page 27Parts Manual - Front Runner Series Floor Machines
FM202S-220 BOM (page 2)
BILL OF MATERIAL
ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION
52 C11501 4 Socket Cap Screw, .31 - 18 71 C13100 1 Nut, M14-2.0 Nylon Insert
53 C00251 4 Lockwasher, .31, Split 72 B10734 1 Strain Relief, Handle
54 E11478 1 Bumper, 20 in Floor Machine 73 B11513 1 Cord, Handle, 14-3 SJTW
55 D11486B 1 Brush Cover, 20 in, BLACK 74 B11762 2 Terminal Lug, Nylon, Female
57 D11483 1 Frame, Motor, Black 75 B11465 1 Switch, DPST, Pushbutton
58 D11545 1 Motor Screen 76 C00252 1 Washer, .375 in, Flat
59 11573-1A 1 Motor assembly 220v 77 C11541 1 Washer, .375 in, Star
60 B00181 1 Butt Connector, Blue, 1 Wire 78 C00284 1 Screw, 10-32 X .375 Ground
61 B00179-1 1 Closed End Cntr, 16-3 79 B00187 1 Cable Clamp, Nylon, .43 in.
62 D11481 1 Handle Brace, Left, Black 80 B00180-
10-3
2 Ring Terminal, #10 Center
63 K11517 3 Spacer, .19 ID X .375 High X 0.5
OD, Nylon
81 B11505 1 Strain Relief Nut, Metal
64 B11199 1 Strain Relief, Pigtail w-Locknut 82 C11560 1 Washer, .93 ID X 1.5 OD
65 H10976-1 1 Label, UL STD 561-507 83 B11504 1 Strain Relief, Metal
68 D11490B-H 1 Drip Cover w - Hole for Light BLK 84 H02548-2 1 Label, Important, Cord
70 B02196-1 1 Light, Motor Carbon Brush Wear
1865RXWH3LQJUHH*URYH,/86$
3KRQHZZZPLQXWHPDQLQWOFRP
$0HPEHURIWKH+DNR*URXS
0LQXWHPDQ,QWHUQDWLRQDO0DGH6LPSOH&RPPHUFLDO/LPLWHG:DUUDQW\
5(9,6,212
())(&7,9(
0LQXWHPDQ,QWHUQDWLRQDO,QFZDUUDQWVWRWKHRULJLQDOSXUFKDVHUXVHUWKDWWKHSURGXFWLVIUHHIURP
GHIHFWVLQ ZRUNPDQVKLSDQGPDWHULDOVXQGHUQRUPDOXVH0LQXWHPDQZLOODWLWVRSWLRQUHSDLU RU
UHSODFH ZLWKRXW FKDUJH SDUWV WKDW IDLO XQGHU QRUPDO XVH DQG VHUYLFH ZKHQ RSHUDWHG DQG
PDLQWDLQHG LQ DFFRUGDQFH ZLWK WKH DSSOLFDEOH RSHUDWLRQ DQG LQVWUXFWLRQ PDQXDOV $OO ZDUUDQW\
FODLPVPXVWEHVXEPLWWHGWKURXJKDQGDSSURYHGE\IDFWRU\DXWKRUL]HGUHSDLUVWDWLRQV
7KLVZDUUDQW\GRHVQRWDSSO\WRQRUPDOZHDURUWRLWHPVZKRVHOLIHLVGHSHQGHQWRQWKHLUXVHDQG
FDUH VXFK DV EHOWV FRUGV VZLWFKHV KRVHV UXEEHU SDUWV HOHFWULFDO PRWRU FRPSRQHQWV RU
DGMXVWPHQWV 3DUWV PDQXIDFWXUHG E\ 0LQXWHPDQ DUH FRYHUHG E\ DQG VXEMHFW WR WKH ZDUUDQWLHV
DQGRUJXDUDQWHHVRIWKHLUPDQXIDFWXUHUV3OHDVHFRQWDFW0LQXWHPDQIRUSURFHGXUHVLQZDUUDQW\
FODLPVDJDLQVWWKHVHPDQXIDFWXUHUV
6SHFLDO ZDUQLQJWRSXUFKDVHU8VHRIUHSODFHPHQWILOWHUVDQGRUSUHILOWHUVQRWPDQXIDFWXUHG
E\ 0LQXWHPDQ RU LWV GHVLJQDWHG OLFHQVHHV ZLOO YRLG DOO ZDUUDQWLHV H[SUHVVHG RU LPSOLHG $
SRWHQWLDOKHDOWKKD]DUGH[LVWVZLWKRXWRULJLQDOHTXLSPHQWUHSODFHPHQW
$OO ZDUUDQWHG LWHPV EHFRPH WKH VROH SURSHUW\ RI 0LQXWHPDQ RU LWV RULJLQDO PDQXIDFWXUHU
ZKLFKHYHUWKHFDVHPD\EH
0LQXWHPDQ GLVFODLPV DQ\ LPSOLHG ZDUUDQW\ LQFOXGLQJ WKH ZDUUDQW\ RI PHUFKDQWDELOLW\ DQG WKH
ZDUUDQW\RIILWQHVVIRUDSDUWLFXODUSXUSRVH0LQXWHPDQDVVXPHVQRUHVSRQVLELOLW\IRUDQ\VSHFLDO
LQFLGHQWDORUFRQVHTXHQWLDOGDPDJHV
7KLV OLPLWHG ZDUUDQW\ LV DSSOLFDEOH RQO\ LQ WKH 86$ DQG &DQDGD DQG LV H[WHQGHG RQO\ WR WKH
RULJLQDOXVHUSXUFKDVHURIWKLVSURGXFW&XVWRPHUVRXWVLGHWKH86$DQG&DQDGDVKRXOGFRQWDFW
WKHLU ORFDO GLVWULEXWRU IRU H[SRUW ZDUUDQW\ SROLFLHV 0LQXWHPDQ LV QRW UHVSRQVLEOH IRU FRVWV RU
UHSDLUV SHUIRUPHG E\ SHUVRQV RWKHU WKDQ WKRVH VSHFLILFDOO\ DXWKRUL]HG E\ 0LQXWHPDQ 7KLV
ZDUUDQW\ GRHV QRW DSSO\ WR GDPDJH IURP WUDQVSRUWDWLRQ DOWHUDWLRQV E\ XQDXWKRUL]HG SHUVRQV
PLVXVHRUDEXVHRIWKHHTXLSPHQWXVHRIQRQFRPSDWLEOHFKHPLFDOVRUGDPDJHWRSURSHUW\RU
ORVVRILQFRPHGXHWRPDOIXQFWLRQVRIWKHSURGXFW
,I D GLIILFXOW\ GHYHORSV ZLWK WKLV PDFKLQH \RX VKRXOG FRQWDFW WKH GHDOHU IURP ZKRP LW ZDV
SXUFKDVHG
7KLVZDUUDQW\JLYHV\RXVSHFLILFOHJDOULJKWVDQG\RXPD\KDYHRWKHUULJKWVZKLFKYDU\IURPVWDWH
WR VWDWH 6RPH VWDWHV GR QRW DOORZ WKH H[FOXVLRQ RU OLPLWDWLRQ RI VSHFLDO LQFLGHQWDO RU
FRQVHTXHQWLDO GDPDJHV RU OLPLWDWLRQV RQ KRZ ORQJ DQ LPSOLHG ZDUUDQW\ ODVWV VR WKH DERYH
H[FOXVLRQVDQGOLPLWDWLRQVPD\QRWDSSO\WR\RX
Warranty
1865RXWH3LQJUHH*URYH,/86$
3KRQHZZZPLQXWHPDQLQWOFRP
$0HPEHURIWKH+DNR*URXS
0RGHO 3DUWV /DER
3RO\ 7UDYHO
&RUG(OHFWULF*URXS \UV
\UV\UVGD\V
%DWWHU\2SHUDWHG*URXS \UV \UV \UVGD\V

    
([FHSWLRQV««
0RGHO 3DUWV /DER
3RO\ 7UDYHO
3RUW$6FUXEDOOPRGHOV\U PRQWKV \UVGD\V
$6%ORZHU \U \U  
3KHQRP'XDO0RWRU8SULJKW9DFXXPV \UV \UV  
([SORVLRQ3URRI9DFXXP\U \U  
3URSDQH%XUQLVKHU\U \U  GD\V
7UDYHOKRXUVPD[
 
6WDQGDORQH%DWWHU\
&KDUJHUV2QH\HDU
5HSODFHPHQW3DUWV1LQHW\GD\V
%DWWHULHVPRQWKVIXOOUHSODFHPHQWPRQWKVSURUDWH
3RO\SURS\OHQH
3ODVWLF7DQNV \UZDUUDQW\QRDGGLWLRQDOODERU
 
988701
Rev B 07/16
14N845 U.S. Route 20, Pingree Grove, IL 60140 USA
Phone (800) 323-9420 - www.minutemanintl.com
A Member of the Hako Group
“Excellence Meets Clean”
Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers,
for Industrial Facilities.

Navigation menu
