Excellence Meets Clean

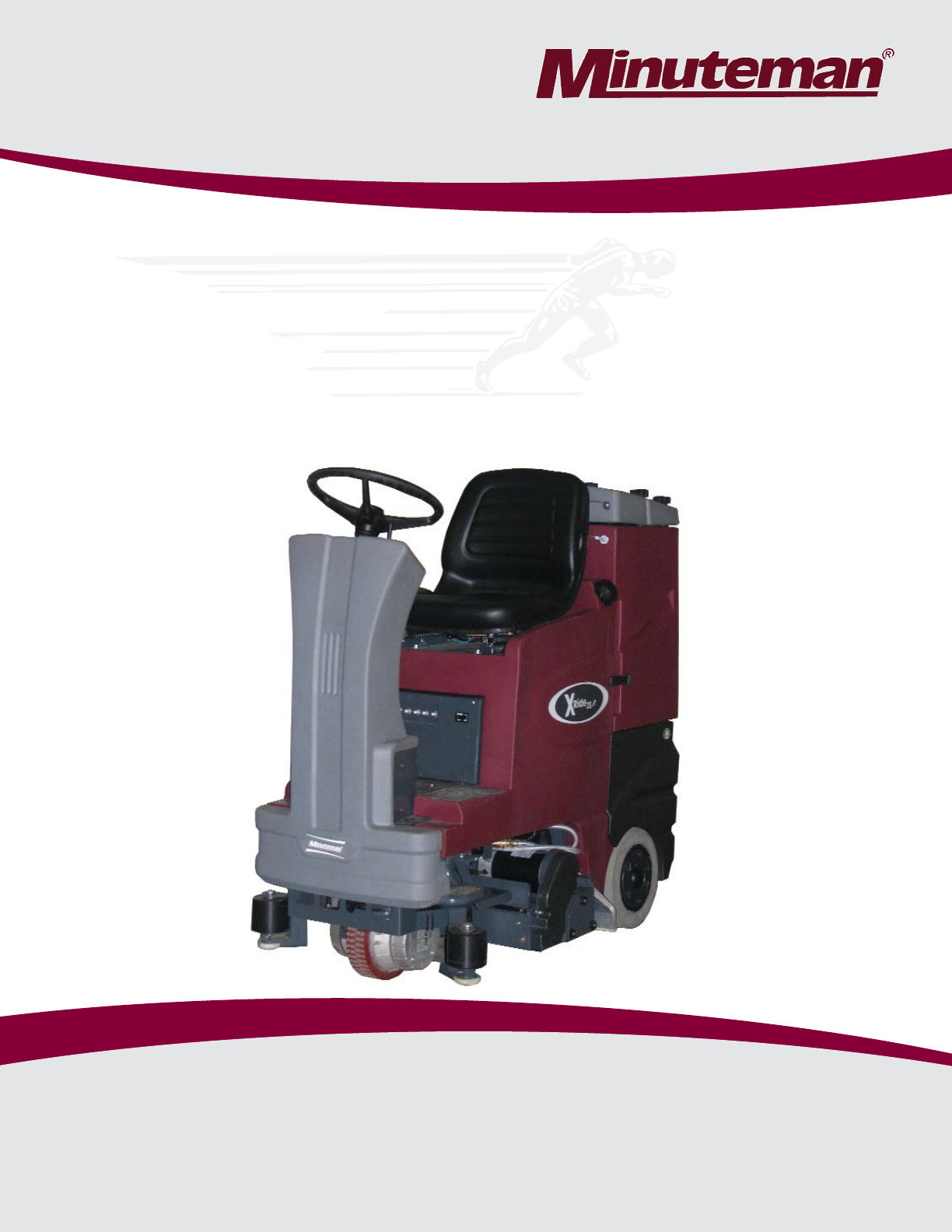

X Ride 28

28” Rider Carpet Extractor

Markets

• Airports • Building Service Contractors

• Convention Centers • Casinos

• Office Buildings • Hotels and Resorts

• Healthcare • Government Facilities

• Retail • Schools and Universities

General Overview

• The X Ride 28 is a 28” rider carpet extractor

• Clean large carpeted areas quickly and efficiently while

the operator rides in comfort

• Quick one pass cleaning, scrubs and vacuums up water

Minuteman International Inc

14N845 U.S. Route 20

Pingree Grove, IL 60140

Phone: 847-683-5210

Minuteman is a full line manufacturer of sweepers and scrubbers; as

well as critical filter vacuums, industrial and commercial vacuums,

floor and carpet machines, and litter vacuums for commercial and

institutional facilities, whereas PowerBoss is a full line manufacturer

of sweepers and scrubbers for industrial facilities.

Key Features

• Cylindrical scrubbing action cleans both sides of

the carpet fiber

• 27 gallon solution tank and 24.5 gallon recovery tank

• Two nozzle modes :

Interim - 1/2 gallon per minute @ 50psi

Restorative - 1 gallon per minute @ 100psi

• Convenient drain port for recovery tank clean-out

• When the on-board charger is plugged in, the

machine is not operable

• Off-aisle recovery wand and 25 foot of hose

mounted on-board

• AGM maintenance-free battery pack

A Member of the Hako Group

Come Visit our Website at

www.minutemanintl.com

www.minutemanintl.com

Productivity

• The X Ride covers up to 9,060 sq. ft. per hour (842 m2)

• Large Solution and Recovery tanks allow for less time

filling or emptying

• Small, compact design allows for cleaning even in

tight spaces

• Off-aisle wand allows for cleaning where the machine

cannot go

GREEN Features

• Sound level < = 70dBa

• AGM maintenance-free batteries

• Tool free brush removal

• Easy-to-understand operation controls

• Ergonomically designed for operator comfort

• Seat sensor shuts off unit once operator leaves platform

• On-board vac & solution wand for maximum water pickup

Ease of Use

• Easy-to-understand controls ensure that the

machine is simple to operate

• Compact, ride-on design results in total operator comfort

by focusing on ergonomics

• Sleek design provides an excellent line of sight to

the area to be cleaned

X Ride 28

Cleaning path width 28 in (71 cm)

Theoretical productivity 9,060 ft2 /hr (842 m2)

Working speed 65 fpm

Rated voltage 36 volts

Vacuum flow 152 cfm

Vacuum waterlift 70 inches

Vacuum power (2) 36 volt 1 HP (745 W)

Drive motor power (TD) 3/4 HP (559 W)

Brush type Cylindrical

Brush motor(s) power (2) 3/4 HP (559 W)

Number of brushes 1

Solution pump 100 psi

Solution tank capacity 27 Gal (102 liters)

Recovery tank capacity 24.5 Gal (93 liters)

Number of spray jets

Interim 1 jet

Restorative 4 jets

Wheels

Front 3 inch x 10 inch polyurethane

Rear 3 inch x 12 inch soft ride cross hatch

Battery AGM 36 volt 210Ah

Weight with batteries 1,315lbs (596 kg)

Weight without batteries 475 lbs (215 kg)

Specifications subject to change without notice.
