Nilfisk Advance Sc401 Walk Behind Floor Scrubber Parts Manual
2018-07-19
: Sweepscrub Nilfisk-Advance-Sc401-Walk-Behind-Floor-Scrubber-Parts-Manual nilfisk-advance-sc401-walk-behind-floor-scrubber-parts-manual 2806 file product_file
Open the PDF directly: View PDF
.
Page Count: 44
SC401
Parts list
Model No.:
9087394020, 9087395020
09/2017
(A)
FORM NO. 9100002293
1 - D11ADVANCE BATT (A).indd 1 26/10/2017 14:38:04
1 - D11ADVANCE BATT (A).indd 2 26/10/2017 14:38:04
PARTS LIST
09/2017 SC401 - 9100002293 1
WHEN ORDERING PARTS
– Use the part numbers from the “REF. NO.” columns in this parts list. If the “REF. NO.” column is
blank; look under the “KIT” column to identify which kit contains the part in question, then use the kit
callout, for example “K1”, to nd the “REF. NO.” for that kit.
– Specify the model number and serial number of the machine.
– Use the space below to record the model and serial number for future reference.
Model No. Serial No.
* = Optional
#= Modied item No. or New item No.
[ ] = Not shown
TABLE OF CONTENTS
GENERAL VIEW ......................................................................................................................................................... 2
SOLUTION TANK SYSTEM ........................................................................................................................................ 4
RECOVERY TANK SYSTEM ...................................................................................................................................... 6
VACUUM MOTOR SYSTEM ....................................................................................................................................... 8
WHEELS SYSTEM (DRIVE) ..................................................................................................................................... 10
WHEELS SYSTEM (NO DRIVE) ............................................................................................................................... 12
HANDLEBAR SYSTEM (DRIVE) .............................................................................................................................. 14
HANDLEBAR SYSTEM (NO DRIVE) ........................................................................................................................ 16
REAR WHEELS SYSTEM......................................................................................................................................... 18
SQUEEGEE SYSTEM............................................................................................................................................... 20
BRUSH DECK (DRIVE) ............................................................................................................................................. 22
BRUSH DECK (NO DRIVE) ...................................................................................................................................... 24
ELECTRICAL COMPONENTS SYSTEM .................................................................................................................. 26
COVER ELECTRONIC SYSTEM .............................................................................................................................. 28
BATTERY CHARGER ............................................................................................................................................... 30
DETERGENT SYSTEM ............................................................................................................................................. 32
ACCESSORIES - OPTIONALS ................................................................................................................................. 34

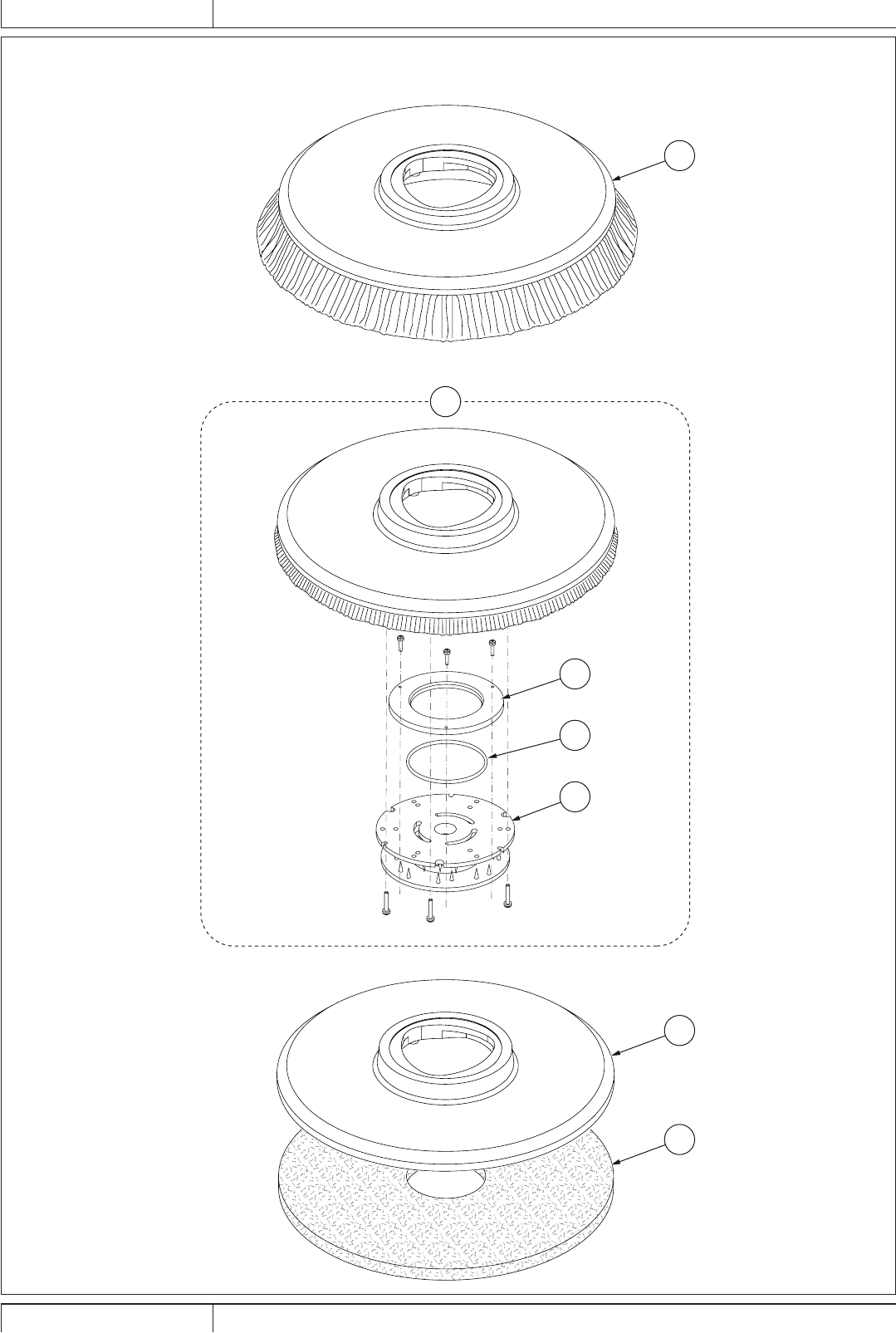

BRUSHES ................................................................................................................................................................. 36

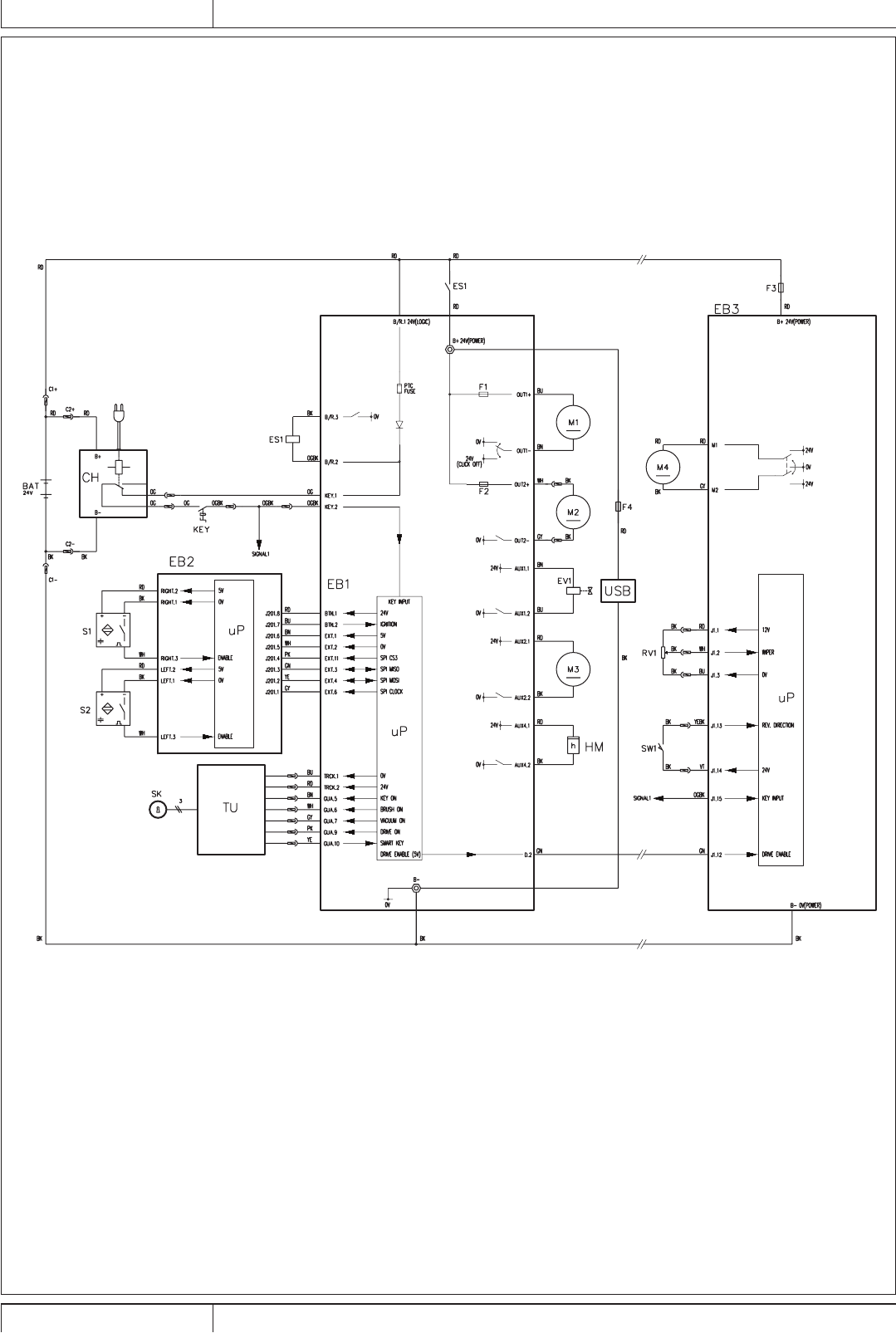

WIRING DIAGRAM ................................................................................................................................................... 38
RECOMMENDED PARTS ......................................................................................................................................... 40
ACCESSORIES/OPTIONALS ................................................................................................................................... 41
1 - D11ADVANCE BATT (A).indd 1 26/10/2017 14:38:04
PARTS LIST
2SC401 - 9100002293 09/2017
GENERAL VIEW
1
9
4
2
10
11
6
5
7
3
8
1 - D11ADVANCE BATT (A).indd 2 26/10/2017 14:38:14
PARTS LIST
09/2017 SC401 - 9100002293 3
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 - 1 SOLUTION TANK SYSTEM
2 - 1 RECOVERY TANK SYSTEM
3 - 1 WHEELS SYSTEM
4 - 1 HANDLEBAR SYSTEM
5 - 1 SOLUTION SYSTEM
6 - 1 REAR WHEELS SYSTEM
7 - 1 SQUEEGEE SYSTEM
8 - 1 BRUSH DECK SYSTEM
9 - 1 ELECTRICAL COMPONENTS SYSTEM
10 - 1 COVER ELECTRONIC SYSTEM
11 - 1 DETERGENT SYSTEM
GENERAL VIEW
1 - D11ADVANCE BATT (A).indd 3 26/10/2017 14:38:15
PARTS LIST
4SC401 - 9100002293 09/2017

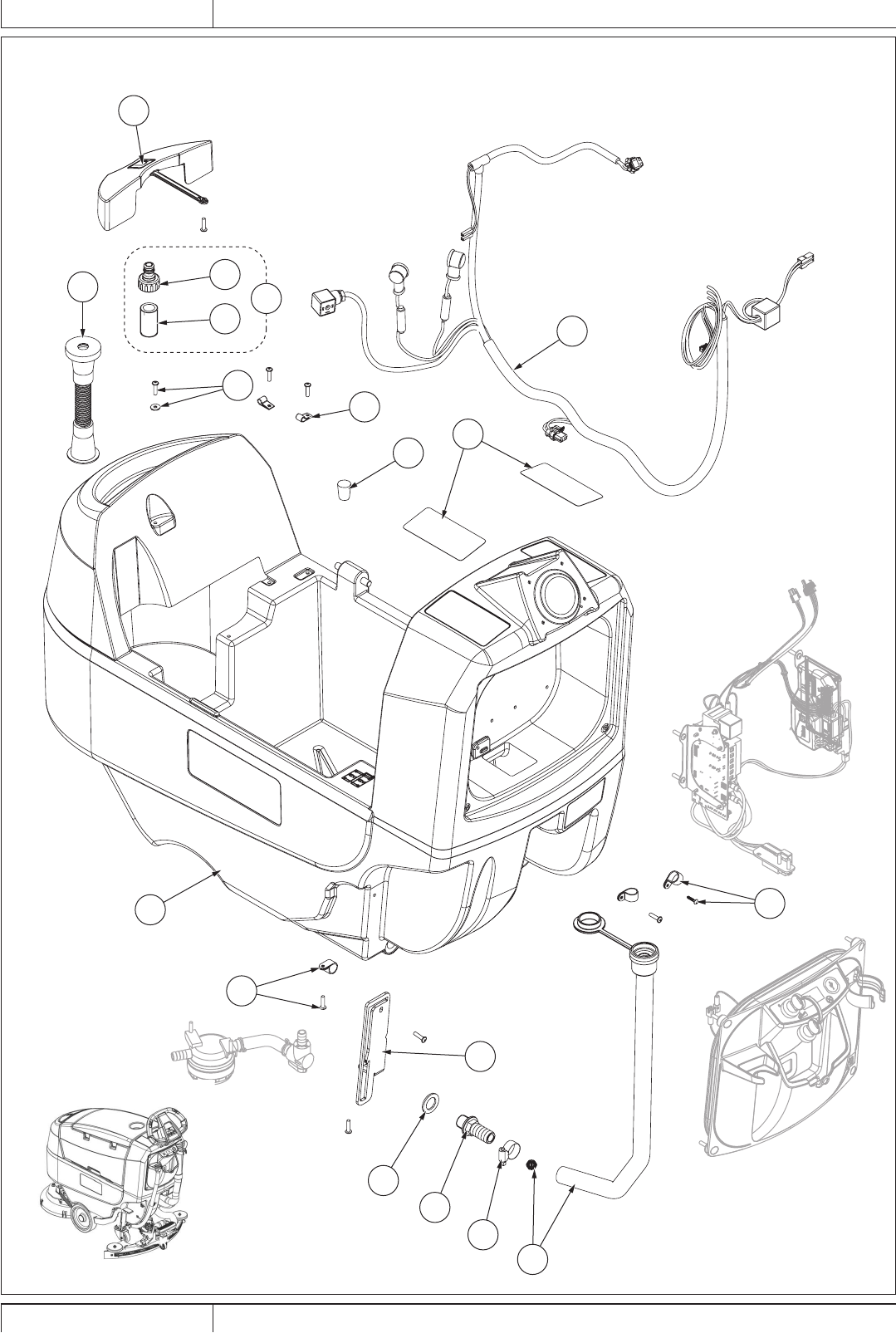

SOLUTION TANK SYSTEM
13
2
3
4
9
10
1
15
2
12
6
2
11
8
14
5
7
16
1 - D11ADVANCE BATT (A).indd 4 26/10/2017 14:38:19
PARTS LIST
09/2017 SC401 - 9100002293 5
SOLUTION TANK SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 1402809 1 MALE QUICK COUPLING. COMPLETE
2 9100002424 1 HARDWARE SOLUTION TANK KIT
3 9100002434 1 DECALS FUNCTIONS SETTING KIT
4 909 6236 000 1 CAP BLACK
5 9100000574 1 BARB HOSE STRAIGHT D.19.8 G1/2 PLAST KIT
6 9100000703 1 HOSE FILLING SIP
7 9100001139 1 GASKET RUBBER D.21X33X2.5 BLACK SIP
8 9100002431 1 HOSE FRESH WATER LEV. W/CAP KIT
9 L08193000 2 CLAMP CABLE BLACK
10 9100002425 1 HARNESS MACHINE DRIVE SIP DRIVE
10 9100002426 1 HARNESS MACHINE SIP NO DRIVE
11 9100002427 1 TANK SOLUTION 30LT PLAST. GREY DRIVE SIP DRIVE
11 9100002428 1 TANK SOLUTION 30LT PLAST. GREY SIP NO DRIVE
12 9100002430 1 CAP RUBBER F SOLUTION TANK SIP
13 9100002432 1 SUPPORT PEDAL SS F DRIVE VERS. SIP DRIVE
13 9100002433 1 SUPPORT PEDAL SS SIP NO DRIVE
14 L08603916 1 CLAMP 12/16-27
15 9100002435 1 CONNECTOR MALE THD 3/4 G PLAST.BLACK
SIP
16* 9100002572 1 HOSE QUICK CONNECTION
1 - D11ADVANCE BATT (A).indd 5 26/10/2017 14:38:19
PARTS LIST
6SC401 - 9100002293 09/2017

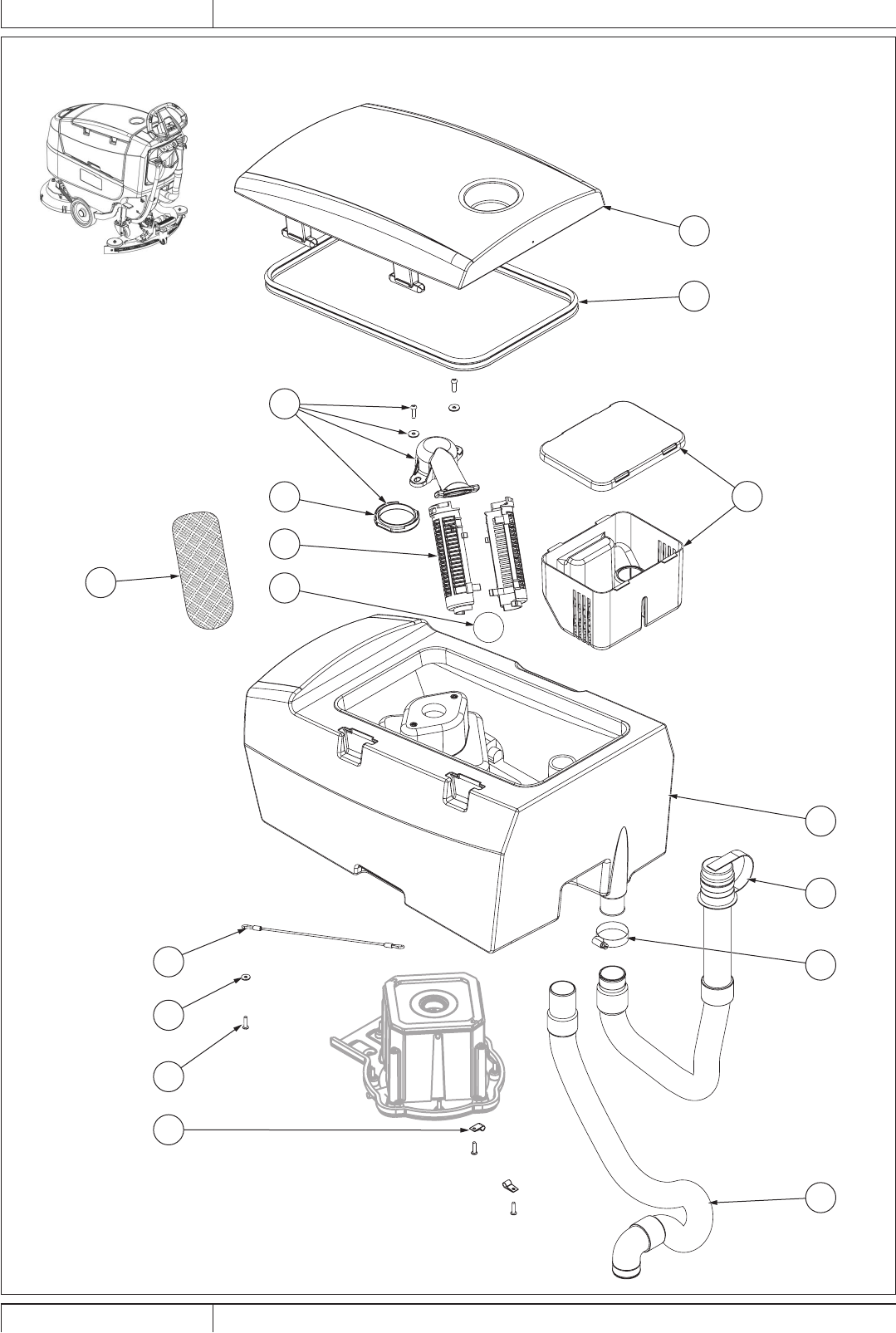

RECOVERY TANK SYSTEM
4
9
5
12
16
11
7
6
10
13
2
14
15
1
3
8
1 - D11ADVANCE BATT (A).indd 6 26/10/2017 14:38:19
PARTS LIST
09/2017 SC401 - 9100002293 7
RECOVERY TANK SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
2 9100001348 1 CLAMP 14/32-52 10 PCS SET
3 145 8280 000 1 WASHER PLAIN M5X15 SS ISO7093
4 9100001875 1 SUPPORT FLOAT KIT
5 9100000818 1 CAGE FLOAT HALF 2 PCS SET
6 9100000795 1 TRAY DEBRIS KIT
7 9100002436 1 GASKET BULB RUBBER L.1450MM SIP
8 9100002438 1 CABLE SAFETY F TANK SIP
9 9100000928 1 GASKET FLOAT SUPPORT SIP
10 9100002439 1 TANK RECOVERY 30LT PLAST. GREY SIP
11 9100002441 1 COVER TANK PLAST. GREY SIP
12 9100000817 1 BALL FLOATING SIP
13 9100002443 1 HOSE DRAIN BLACK L.530MM SIP
14 9100002444 1 HOSE SUCTION SQUEE. 90 BLACK L.970MM
SIP
15 L08193000 2 CLAMP CABLE BLACK
16* 909 5065 000 1 FILTER ANTIFOAMING
1 - D11ADVANCE BATT (A).indd 7 26/10/2017 14:38:19
PARTS LIST
8SC401 - 9100002293 09/2017

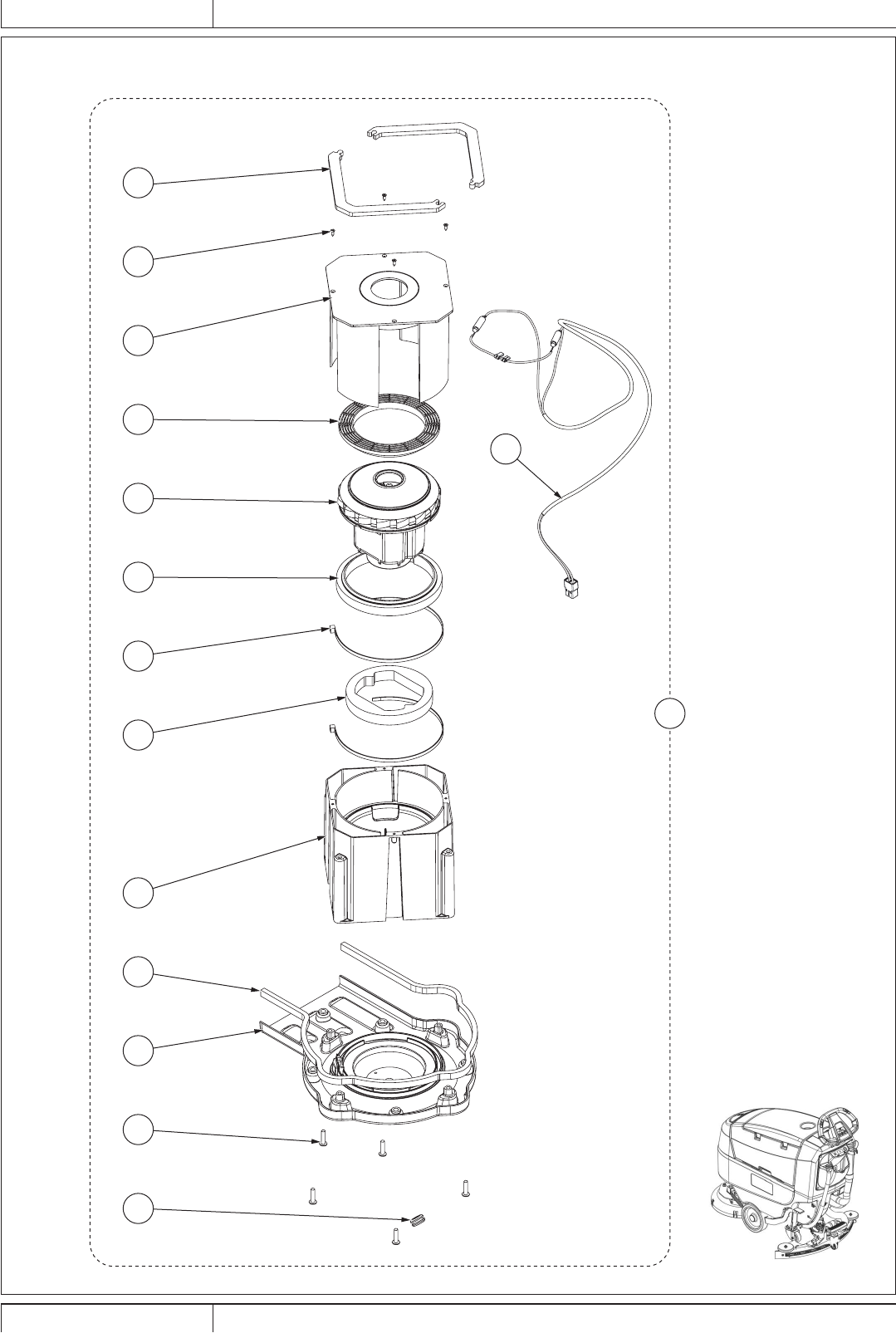

VACUUM MOTOR SYSTEM
2
3
6
2
4
2
9
2
5
2
8
10
2
7
1
1 - D11ADVANCE BATT (A).indd 8 26/10/2017 14:38:20
PARTS LIST
09/2017 SC401 - 9100002293 9
VACUUM MOTOR SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002533 1 MOTOR VACUUM 24V CPL KIT
2 9100002447 1 GASKETS VAC. MOTOR KIT
3 145 1756 000 4 SCREW 2.9X9.5 SELF C/SUNK PHIL ISO7050
4 9100000823 1 MOTOR VACUUM 24V 280W SIP
5 9100001983 1 SUPPORT EXT. PLAST. F VAC. MOTOR SIP
6 9100001989 1 SUPPORT INT. PLAST. F VAC. MOTOR SIP
7 9100002445 1 HARNESS VACUUM MOTOR 24V SIP
8 9100002446 1 SUPPORT PLAST. F VACUUM MOTOR SIP
9 1466337000 1 TIE CABLE 4.8X430 WHITE 2 PCS SET
10 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
1 - D11ADVANCE BATT (A).indd 9 26/10/2017 14:38:20
PARTS LIST
10 SC401 - 9100002293 09/2017
WHEELS SYSTEM (DRIVE)
11
319
3
7
2
5
5
2
17
15
12
14
14
15
17
12
16
8
4
13
1
10
6
18
15
9
1 - D11ADVANCE BATT (A).indd 10 26/10/2017 14:38:20
PARTS LIST
09/2017 SC401 - 9100002293 11
WHEELS SYSTEM (DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 3928 4 SCREW M8X30 ISO 4762 8.8 ZN
2 9100001346 1 RING D 20 UNI7435 10 PCS SET
3 9100001156 1 KEY JOINT 6X30 UNI6604A 10 PCS SET
4 9100002448 1 WASHER SELF BL.D.M8 DIN25201 10 PCS SET
5 9100001161 1 SPACER 20.5X25X4 10 PCS SET
6 9100002452 1 SPRING EXTENTION D.E.20.5 WIRE D.3.5 SIP
7 9100002540 1 MOTOR DRIVE 160W 24V SIP
8 9100000920 1 CARBON BRUSHES W/HOLDER KIT
9 9100002453 1 PEDAL BRUSH LIFTING GALV.DRIVE SIP
10 9100002454 1 LEVER GALV. F BRUSH DECK DRIVE SIP
11 9100002451 1 WASHER PL.M8X20X1.25 DIN522 10 PCS SET
12 9100002455 2 WHEEL TRACTION D.200X50 BLACK/GREY SIP
13 9100002459 1 CHAIN W/EYELET GROUND KIT
14 9100002450 1 PLUG DOME O.D.42.4 PLAST.BLACK 2 PCS SET
15 9100002456 1 SCREW M8X20 BUTTON ISO7380-2 10 PCS SET
16 9100002457 1 ANTI-SLIP SURFACING BLACK 35X60MM SIP
17 33023660 1 WASHER PLAIN M8X24X2 ISO7093 5 PCS SET
18 9100002458 1 BUSHINGS AND BEARINGS F PEDAL SYST. KIT
19 9100002449 1 TIE CABLE 4.8X500 BLACK 2 PCS SET
1 - D11ADVANCE BATT (A).indd 11 26/10/2017 14:38:21
PARTS LIST
12 SC401 - 9100002293 09/2017
4
13
1
12
1
3
2
2
3
7
10
11
4
6
6
11
10
11
3
9
8
5

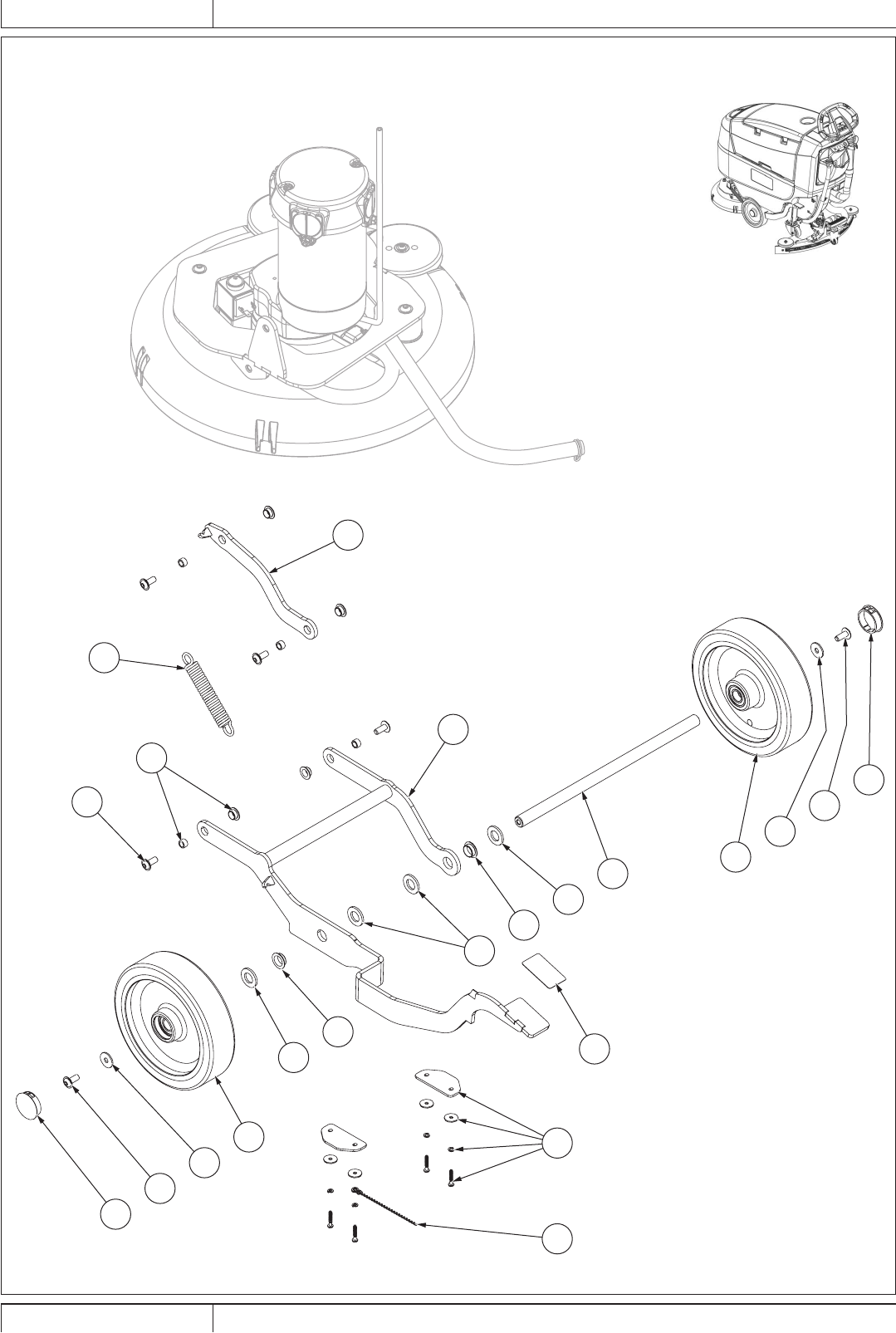

WHEELS SYSTEM (NO DRIVE)
1 - D11ADVANCE BATT (A).indd 12 26/10/2017 14:38:21
PARTS LIST
09/2017 SC401 - 9100002293 13
WHEELS SYSTEM (NO DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002465 1 HARDWARE FRONT WHEELS SYST.NO DRIVE
KIT
2 33023628 1 WASHER PLAIN M16X30 ISO7089 10PCS.SET
3 9100002458 1 BUSHINGS AND BEARINGS F PEDAL SYST. KIT
4 33023660 1 WASHER PLAIN M8X24X2 ISO7093 5 PCS SET
5 9100002461 1 PEDAL BRUSH LIFTING GALV. SIP
6 9100002462 2 WHEEL D.200X50 TPE BLACK/GREY SIP
6* 9100002546 1 WHEEL D.200X50 TPU BLACK/GREY 2 PCS
SET
7 9100002463 1 SHAFT WHEELS PHOS. SIP
8 9100002452 1 SPRING EXTENTION D.E.20.5 WIRE D.3.5 SIP
9 9100002464 1 LEVER BRUSH DECK GALV. SIP
10 9100002450 1 PLUG DOME O.D.42.4 PLAST.BLACK 2 PCS SET
11 9100002456 1 SCREW M8X20 BUTTON ISO7380-2 10 PCS SET
12 9100002457 1 ANTI-SLIP SURFACING BLACK 35X60MM SIP
13 9100002459 1 CHAIN W/EYELET GROUND KIT
1 - D11ADVANCE BATT (A).indd 13 26/10/2017 14:38:21
PARTS LIST
14 SC401 - 9100002293 09/2017

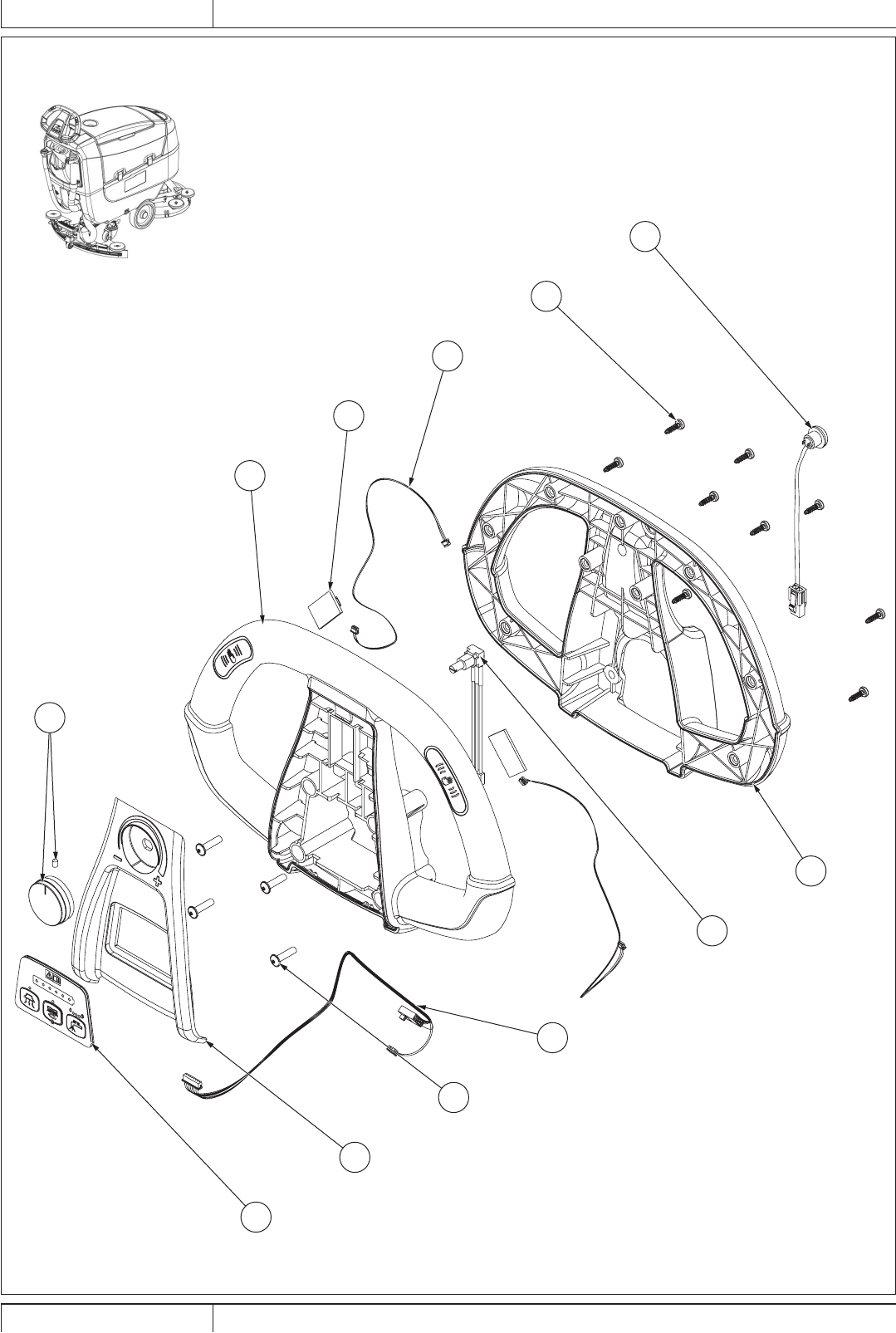

HANDLEBAR SYSTEM (DRIVE)
12
3
2
9
4
6
5
7
8
10
1
11
1 - D11ADVANCE BATT (A).indd 14 26/10/2017 14:38:23
PARTS LIST
09/2017 SC401 - 9100002293 15
HANDLEBAR SYSTEM (DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 140 9214 040 9 SCREW PT TORX K40X14 FZB
2 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
3 9100002471 1 COVER CENTR.PLAST.HANDLE BAR W/DRIVE
SIP
4 9097043000 1 POTENTIOMETER
5 9098484000 1 KNOB POTENTIOMETER KIT
6 9100002466 1 FRAME PLAST. F HANDLE BAR W/DRIVE SIP
7 9100002467 1 COVER PLAST. F HANDLE BAR SIP
8 9100002016 2 SENSOR CAPACITIVE SIP
9 9100002468 1 HARNESS DASHBOARD SIP
10 9100002469 2 HARNESS HANDLE BAR SENSORS SIP
11 9100002470 1 SWITCH W/CONNECTOR F REVERSE SIP
12 9100002472 1 CONTROLLER USER INTERFACE 24V SIP
1 - D11ADVANCE BATT (A).indd 15 26/10/2017 14:38:23
PARTS LIST
16 SC401 - 9100002293 09/2017

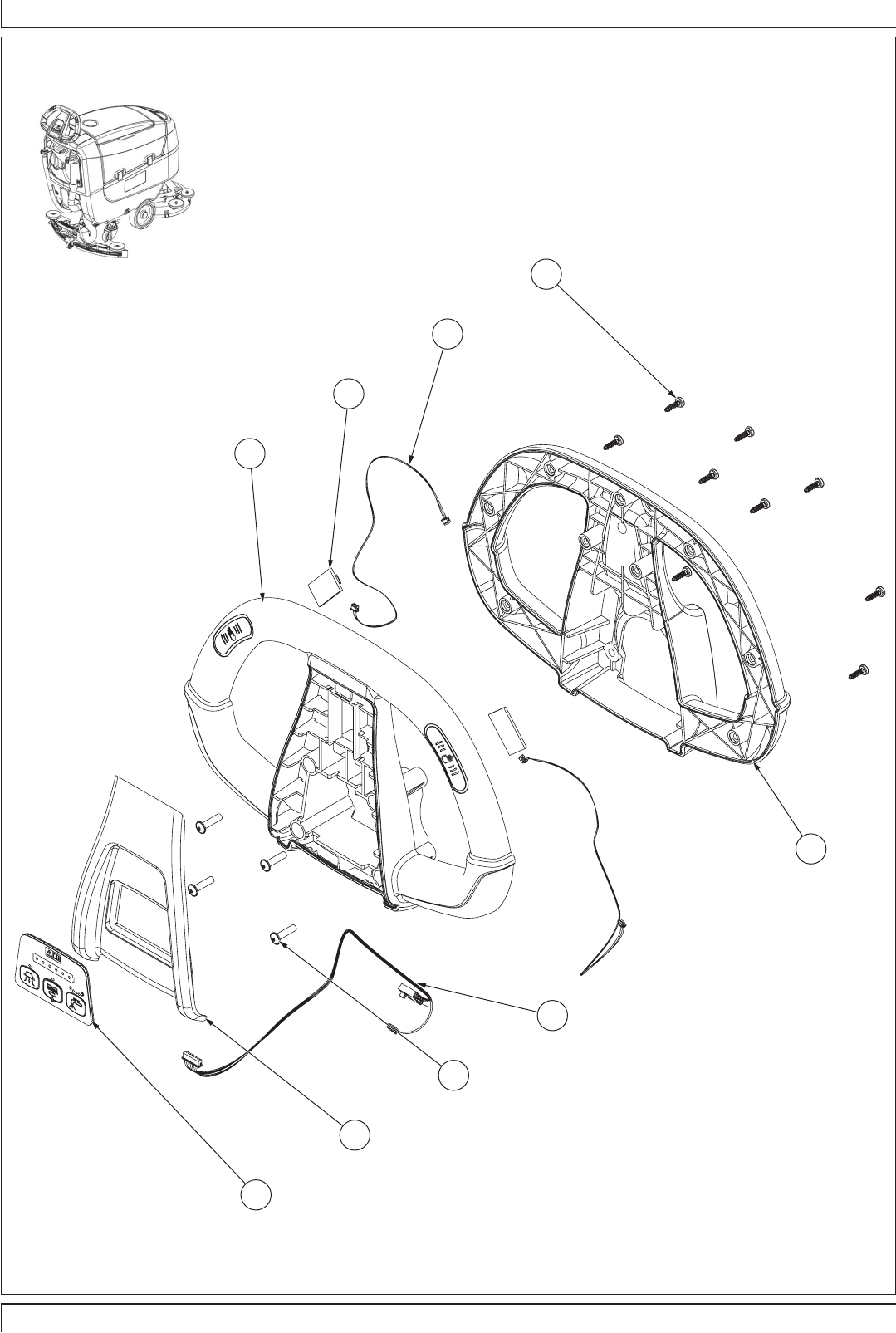

HANDLEBAR SYSTEM (NO DRIVE)
7
8
2
5
9
3
4
6
1
1 - D11ADVANCE BATT (A).indd 16 26/10/2017 14:38:24
PARTS LIST
09/2017 SC401 - 9100002293 17
HANDLEBAR SYSTEM (NO DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 140 9214 040 9 SCREW PT TORX K40X14 FZB
2 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
3 9100002467 1 COVER PLAST. F HANDLE BAR SIP
4 9100002016 2 SENSOR CAPACITIVE SIP
5 9100002468 1 HARNESS DASHBOARD SIP
6 9100002469 2 HARNESS HANDLE BAR SENSORS SIP
7 9100002472 1 CONTROLLER USER INTERFACE 24V SIP
8 9100002553 1 COVER CENTRAL HANDLE BAR SIP
9 9100002554 1 HANDLE BAR SUPPORT SIP
1 - D11ADVANCE BATT (A).indd 17 26/10/2017 14:38:24
PARTS LIST
18 SC401 - 9100002293 09/2017

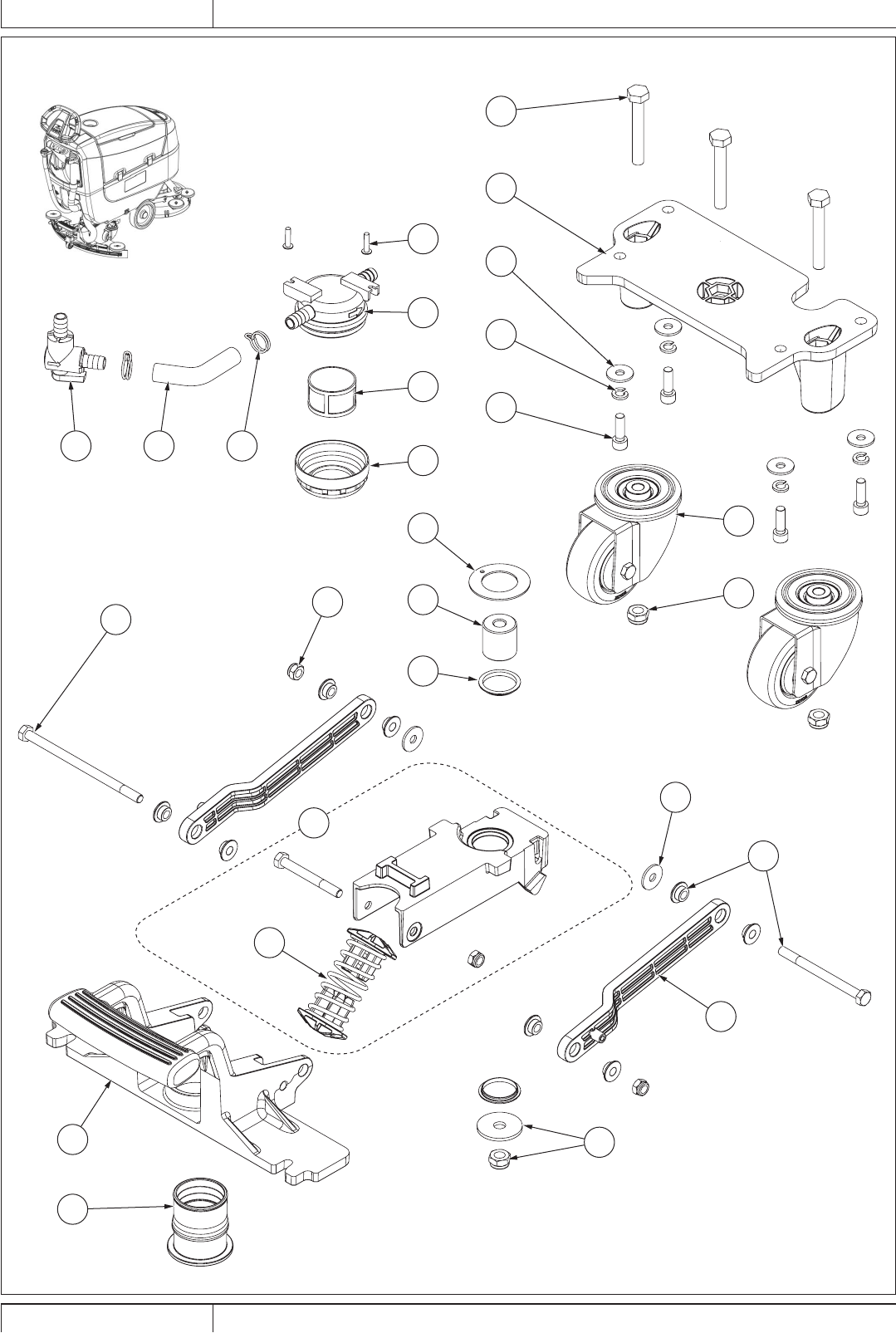

REAR WHEELS SYSTEM
11
9
1
6
1
12
5
7
1
4
1
3
1
1
8
1
9
2
1
16
17
16
1
151413
10
1 - D11ADVANCE BATT (A).indd 18 26/10/2017 14:38:25
PARTS LIST
09/2017 SC401 - 9100002293 19
REAR WHEELS SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002475 1 HARDWARE REAR WHEELS SYSTEM KIT
2 33023223 1 WASHER SPRING LOCK M8 DIN127B 10 PCS
SET
3 9100000902 1 BEARING FLANGE IGLIDUR 2 PCS SET
4 9100000903 1 WASHER THRUST GTM 3254-015 SIP
5 9100000853 1 SUPPORT LOWER F SQUEEGEE SIP
6 9100000854 1 LEVER SQUEEGEE LIFT 2 PCS SET
7 9100000856 1 WHEEL CASTOR D.80X32 GALV. 2 PCS SET
8 9100002473 1 SUPPORT ALU F REAR WHEELS-SQUEEGEE
SIP
9 33023660 2 WASHER PLAIN M8X24X2 ISO7093 5 PCS SET
10 9100002400 1 SUPPORT UPPER F SQUEEGEE KIT
11 9100002401 1 SPRING WITH TERMINALS KIT
12 9100002396 1 SLEEVE RUBBER BLACK F SUCTION HOSE SIP
13 9100000803 1 VALVE ELBOW SIP
14 9100002474 1 HOSE PVC W/SPIRAL D.12X18 L.100MM SIP
15 9100001159 1 CLAMP DOUBLE WIRE SPRING D.18 10 PCS
SET
16 9100000860 1 FILTER WATER SIP
17 9100000861 1 NET WATER FILTER REINFORCED SIP
1 - D11ADVANCE BATT (A).indd 19 26/10/2017 14:38:25
PARTS LIST
20 SC401 - 9100002293 09/2017

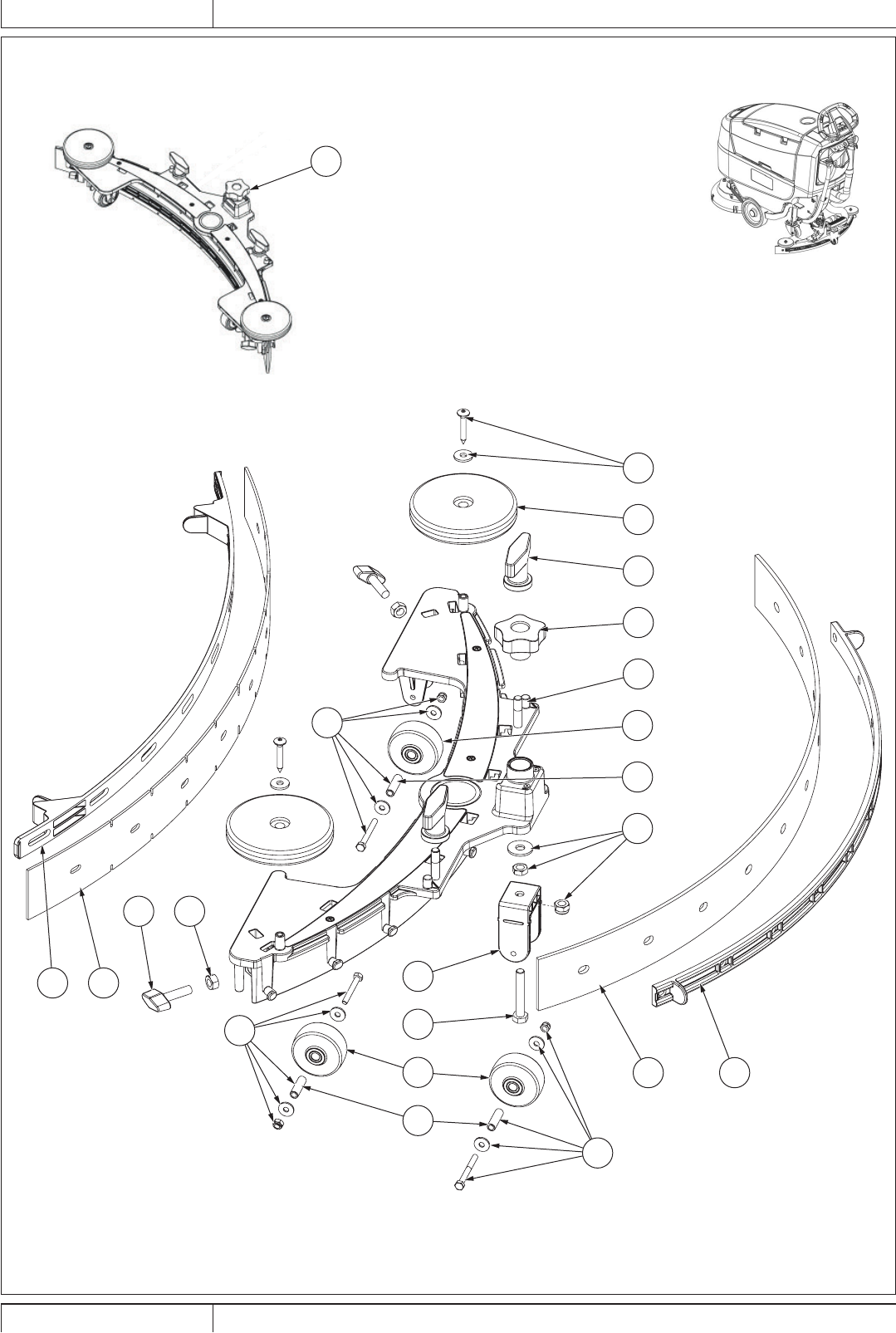

SQUEEGEE SYSTEM
1
12
6
2
3
4
2
13
7
8 9
25
810
2
2
2
7
2
13
11
1 - D11ADVANCE BATT (A).indd 20 26/10/2017 14:38:26
PARTS LIST
09/2017 SC401 - 9100002293 21
SQUEEGEE SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002570 1 SQUEEGEE 730MM/29 KIT
2 9100000748 1 HARDWARE SQUEEGEE KIT
3 9100000862 1 KNOB LOBES M8 FEMALE SIP
4 9100000747 1 SQUEEGEE 730MM/29 PRE-ASSEMBLED SIP
5 9100000791 2 KNOB M8X30 THD STUD SS SIP
6 9097637000 1 SQUEEGEE FIXING KIT
7 9100000559 3 WHEEL D.51 GREY SIP
8* 9100002541 1 BLADE SQUEEGEE 730MM 29 GUM KIT
8* 9100002542 1 BLADE SQUEEGEE 730MM 29 PU KIT
8* 9100002543 1 BLADE SQUEEGEE 730MM 29 RED GUM KIT
9 9100000864 1 STRAP ELASTIC F REAR SQUEEGEE BL. SIP
10 9100000865 1 STRAP FRONT SQUEEGEE BLADE SIP
11 9100000866 1 SUPPORT SQUEEGEE WHEEL SIP
12 9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
13 9100002408 1 SPACER 5.1X8X28.5 PLASTIC 3 PCS SET
1 - D11ADVANCE BATT (A).indd 21 26/10/2017 14:38:26
PARTS LIST
22 SC401 - 9100002293 09/2017

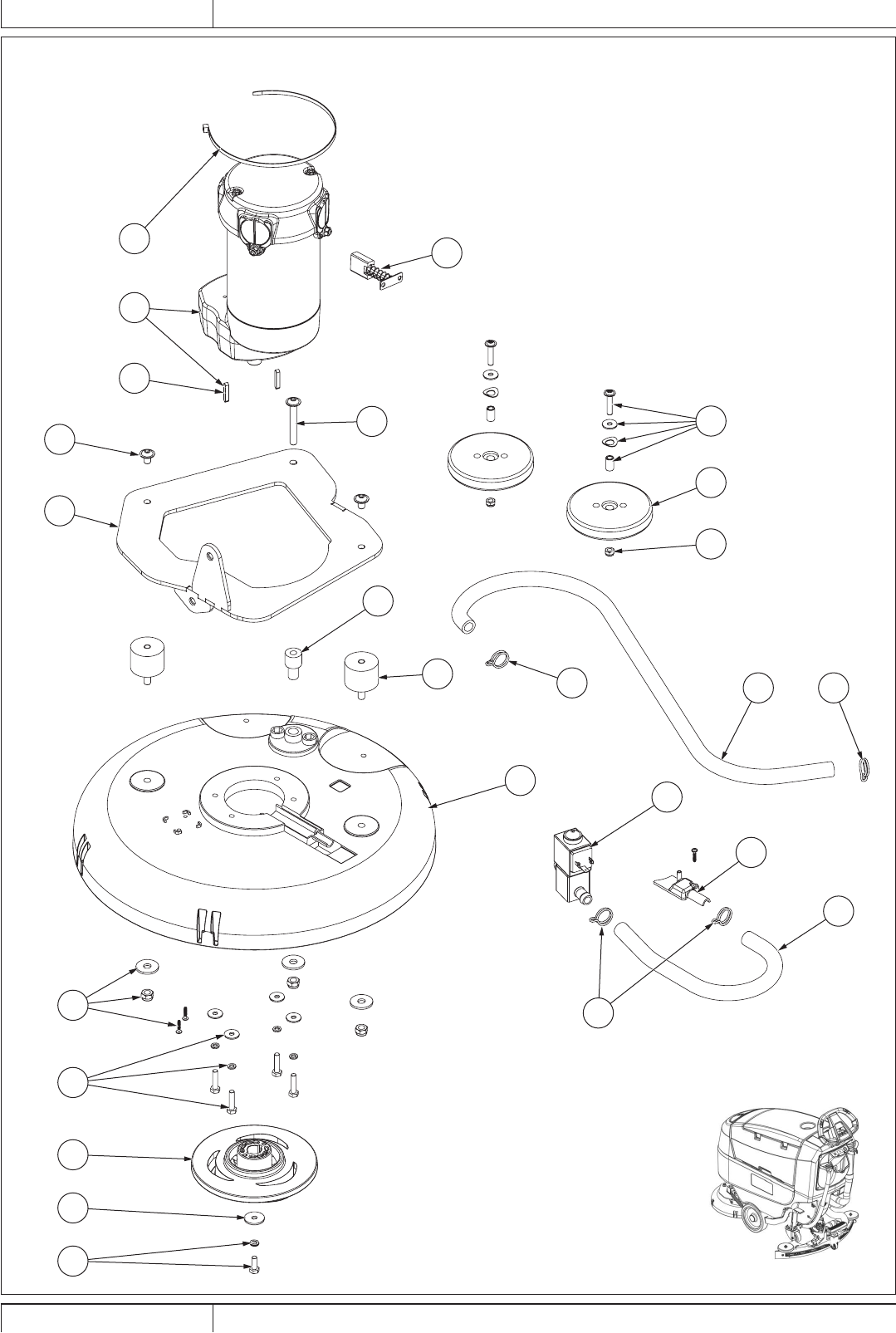

BRUSH DECK (DRIVE)
1
1
17
6
15
8
7
4
2
2
9
3
2
16
2
18
19
11
10
14
12
13
13
13
5
1 - D11ADVANCE BATT (A).indd 22 26/10/2017 14:38:27
PARTS LIST
09/2017 SC401 - 9100002293 23
BRUSH DECK (DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002481 1 HARDWARE BUMPERS KIT
2 9100002482 1 HARDWARE BRUSH DECK KIT
39100001272 1 WASHER PLAIN M6X24 SS ISO7093 10 PCS
SET
49100002479 1 HOSE PVC W/SPIRAL D.12X18 L.330MM SIP
5 9100002480 1 HOSE PVC W/SPIRAL D.12X18 L.800MM SIP
69100000868 1 VIBRATION DAMPING M8 60SH 2 PCS SET
79100000869 1 COVER SOLUTION HOSE SUPPORT SIP
8 9100000870 1 SOLENOID VALVE 24V SIP
99100000871 1 HUB BRUSH SIP
10 9100000874 1 REDUCTION GEARMOTOR 450W 24V SIP
11 9098376000 1 CARBON BRUSH KIT 4 PCS
12 9100000875 1 KEY 5X5X30 DIN6885 2 PCS SET
13 9100001159 1 CLAMP DOUBLE WIRE SPRING D.18 10 PCS
SET
14 9100002449 1 TIE CABLE 4.8X500 BLACK 2 PCS SET
15 9100002477 1 DECK BRUSH 430MM/17 PLAST. SIP
16 9100002478 1 PLATE BRUSH DECK HOLDER GALV. SIP
17 9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
18 9100002460 1 SCREW M8X60 BUTTON HD HEX FLA ISO7380
19 9100002476 1 SPACER D.8.25X12X20 H.35 GALV. SIP
1 - D11ADVANCE BATT (A).indd 23 26/10/2017 14:38:27
PARTS LIST
24 SC401 - 9100002293 09/2017
BRUSH DECK (NO DRIVE)
10
17
1
3
2
19
5
18
3
3
16
2
12
4
1
1
1
2
2
2
7
15
206
9
8
20
20
11
14
13
1 - D11ADVANCE BATT (A).indd 24 26/10/2017 14:38:28
PARTS LIST
09/2017 SC401 - 9100002293 25
BRUSH DECK (NO DRIVE)
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002481 1 HARDWARE BUMPERS KIT
2 9100002482 1 HARDWARE BRUSH DECK KIT
3 9100002483 1 KNOB BRUSH SPEED ADJUSTM. KIT
49100001272 1 WASHER PLAIN M6X24 SS ISO7093 10 PCS
SET
59100002479 1 HOSE PVC W/SPIRAL D.12X18 L.330MM SIP
6 9100002480 1 HOSE PVC W/SPIRAL D.12X18 L.800MM SIP
79100000868 1 VIBRATION DAMPING M8 60SH 2 PCS SET
89100000869 1 COVER SOLUTION HOSE SUPPORT SIP
9 9100000870 1 SOLENOID VALVE 24V SIP
10 9100000871 1 HUB BRUSH SIP
11 9100000874 1 REDUCTION GEARMOTOR 450W 24V SIP
12 9098376000 1 CARBON BRUSH KIT 4 PCS
13 9100000875 1 KEY 5X5X30 DIN6885 2 PCS SET
14 9100002449 1 TIE CABLE 4.8X500 BLACK 2 PCS SET
15 9100002477 1 DECK BRUSH 430MM/17 PLAST. SIP
16 9100002478 1 PLATE BRUSH DECK HOLDER GALV. SIP
17 9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
18 L08812780 1 PLATE FIXING BRUSH KIT
19 9100002484 1 SPACER D.12.5X20 H.6 PLAST. SIP
20 9100001159 1 CLAMP DOUBLE WIRE SPRING D.18 10 PCS
SET
1 - D11ADVANCE BATT (A).indd 25 26/10/2017 14:38:28
PARTS LIST
26 SC401 - 9100002293 09/2017

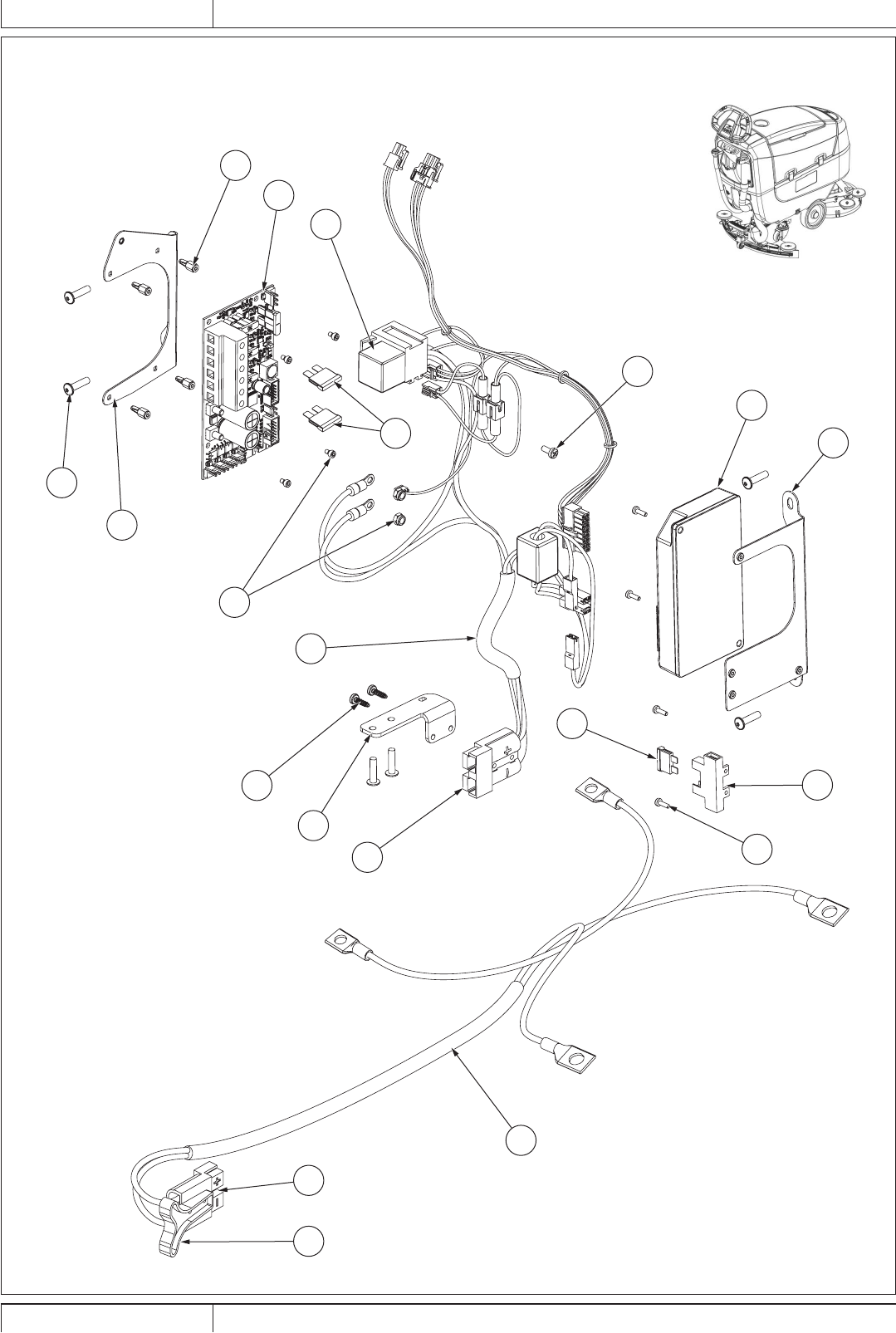

ELECTRICAL COMPONENTS SYSTEM
1
4
9
7
1
10
1
8
12
13
12
11
1
6
5
2
3
1
14
2
1 - D11ADVANCE BATT (A).indd 26 26/10/2017 14:38:36
PARTS LIST
09/2017 SC401 - 9100002293 27
ELECTRICAL COMPONENTS SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002492 1 HARDWARE ELECTRICAL SYST. KIT
2 145 8513 000 3 FUSE BLADE 30A UL
3 1467035000 1 HOLDER FUSE THERMOPL.UL 94-V0 SIP ONLY FOR DRIVE
4 9100002485 1 SUPPORT GALV. F CONTR. MAIN MACH. BA SIP
5 9100002486 1 SUPPORT GALV. F CONTR. DRIVE WHEEL SIP ONLY FOR DRIVE
6 9100002493 1 CONTROLLER DRIVE WHEEL SIP ONLY FOR DRIVE
7 9100002494 1 CONTROLLER MAIN MACHINE BAT SIP
8 9100002487 1 SUPPORT GALV. F BATTERY CONNECTOR SIP
9 9100002488 1 SUPPORT THD PLAST F CONTROLLER 4 PCS
SET
10 9100002489 1 HARNESS ELECT.COMP.BOX BA DRIVE SIP
11 9100002491 1 HARNESS BATTERY US SIP
12 9100002248 2 CONNECTOR RED 50A SIP
13 9100000885 1 HANDLE FOR BATTERY CONNECTOR SIP
14 145 3712 000 1 RELAY
1 - D11ADVANCE BATT (A).indd 27 26/10/2017 14:38:36
PARTS LIST
28 SC401 - 9100002293 09/2017
COVER ELECTRONIC SYSTEM
11 9
10
2
3
7
1
4
6
5
8
1 - D11ADVANCE BATT (A).indd 28 26/10/2017 14:38:37
PARTS LIST
09/2017 SC401 - 9100002293 29
COVER ELECTRONIC SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
2 9100002495 1 COVER PLAST. ELECT. COMP. BOX DRIVE SIP
3 909 6380 000 1 CLAMP KIT
4 9100002496 1 GASKET BULB REINFORCED L.1048MM SIP
5 9100002497 1 POCKET PLAST. F ELECTR. BOX COVER SIP
6 9100002498 1 DECAL TRANSP.BOX F EL.COVER INSPECT.
SIP
7 9100002499 1 DECAL ELECTRIC BOX COVER BA SIP ONLY FOR NO DRIVE
7 9100002500 1 DECAL ELECTRIC BOX COVER BA DRIVE SIP ONLY FOR DRIVE
8* 9100002532 1 KEY KIT (910002549) INSTALLATION INSTRUCTIONS
9 9100001354 1 SWITCH IGNITION STARTER WITH CAP SIP
10 146 2887 000 1 KEY 2 PCS
11 9100002501 1 HARNESS SWITCH STARTER SIP
1 - D11ADVANCE BATT (A).indd 29 26/10/2017 14:38:37
PARTS LIST
30 SC401 - 9100002293 09/2017

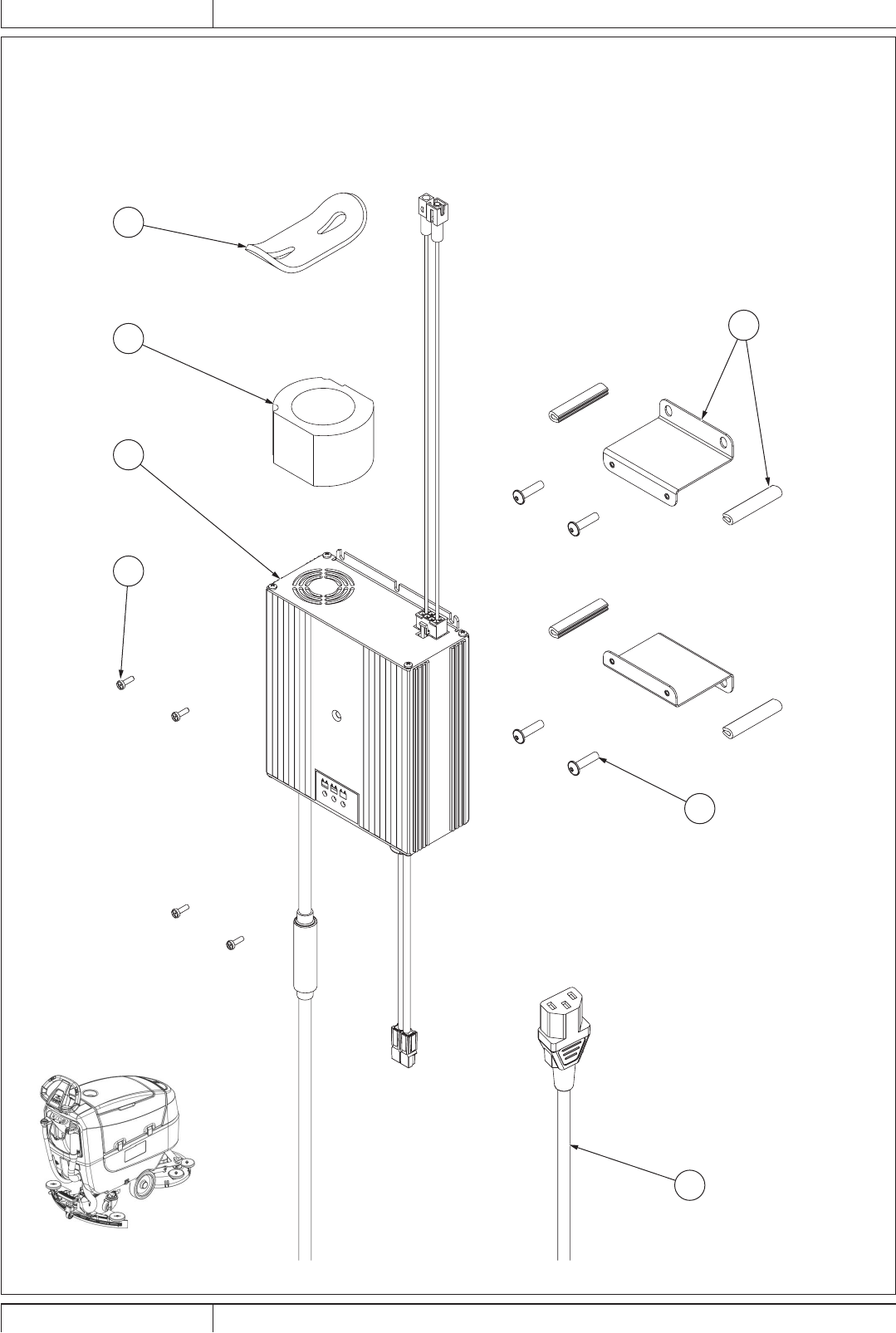

BATTERY CHARGER
1
3
5
6
2
7
4
1 - D11ADVANCE BATT (A).indd 30 26/10/2017 14:38:37
PARTS LIST
09/2017 SC401 - 9100002293 31
BATTERY CHARGER
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1 9100002437 1 SCREW M5X20 TORX ISO7380-2 10 PCS SET
2 9100002502 1 SCREW M3X10 PAN HD ISO7045 10 PCS SET
3 9100000829 1 BAND ELASTIC F EXTENSION CABLE SIP
4 9100002503 1 SUPPORTS F BATTERY CHARG. KIT
5 9100002504 1 SLEEVE RUBBER BLACK F BATT. CHARGER
SIP
6 9100002506 1 CHARGER BATT.O/B 24V 10A 100-240V US SIP
7 9100000890 1 CABLE EXTENSION US PLUG L.2000MM SIP
1 - D11ADVANCE BATT (A).indd 31 26/10/2017 14:38:38
PARTS LIST
32 SC401 - 9100002293 09/2017

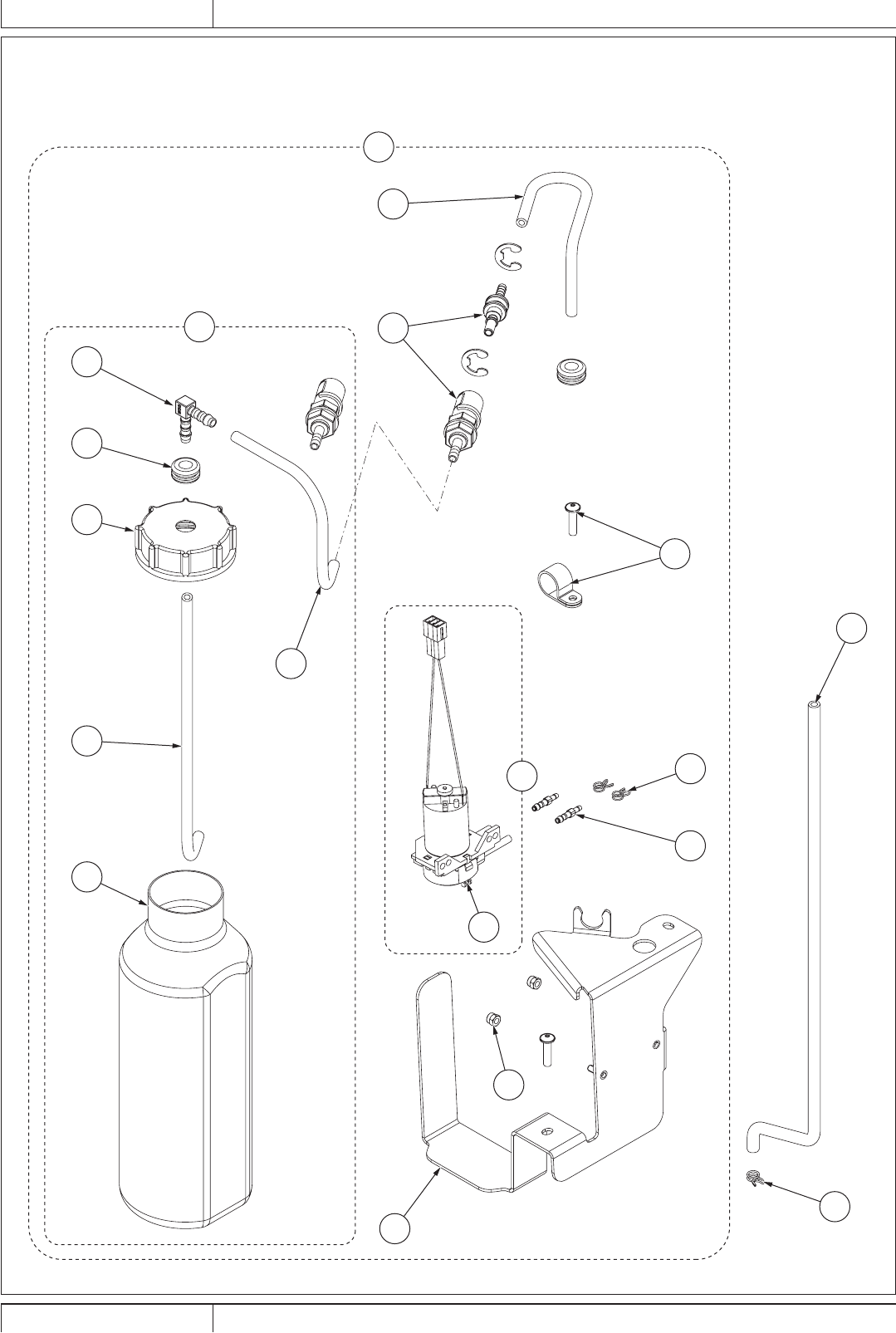

DETERGENT SYSTEM
2
3
2
11
2
10
8
2
5
3
3
9
2
4
3
6
7
12
1
1 - D11ADVANCE BATT (A).indd 32 26/10/2017 14:38:38
PARTS LIST
09/2017 SC401 - 9100002293 33
DETERGENT SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1* 9100002531 1 DETERGENT MIX SYSTEM KIT (9100002550) INSTALLATION INSTRUCTIONS
2 9100002510 1 HARDWARE DETERGENT SYSTEM KIT
3 9100002534 1 HOSE SILICONE 4X7 KIT
4 301001004 1 CLOSING CAP WITH Ø13 HOLE
5 9100002508 1 HOLDERS RUBBER KIT
631000912 1 BOTTLE
79100002398 1 PUMP DETERG. MIX PERISTALTIC 24V SIP
89100002388 1 HEAD PERISTALTIC PUMP DETERG. SIP
9L08603189 1 HOSE 90° D.6
10 9100002509 1 SUPPORT GALV. F PERISTALTIC PUMP SIP
11 9100002402 1 BARB HOSE STRAIGHT D.5-D.4 PLAST. 2 PCS
SET
12 9100002575 1 BOTTLE DETERGENT 1L KIT
1 - D11ADVANCE BATT (A).indd 33 26/10/2017 14:38:38
PARTS LIST
34 SC401 - 9100002293 09/2017

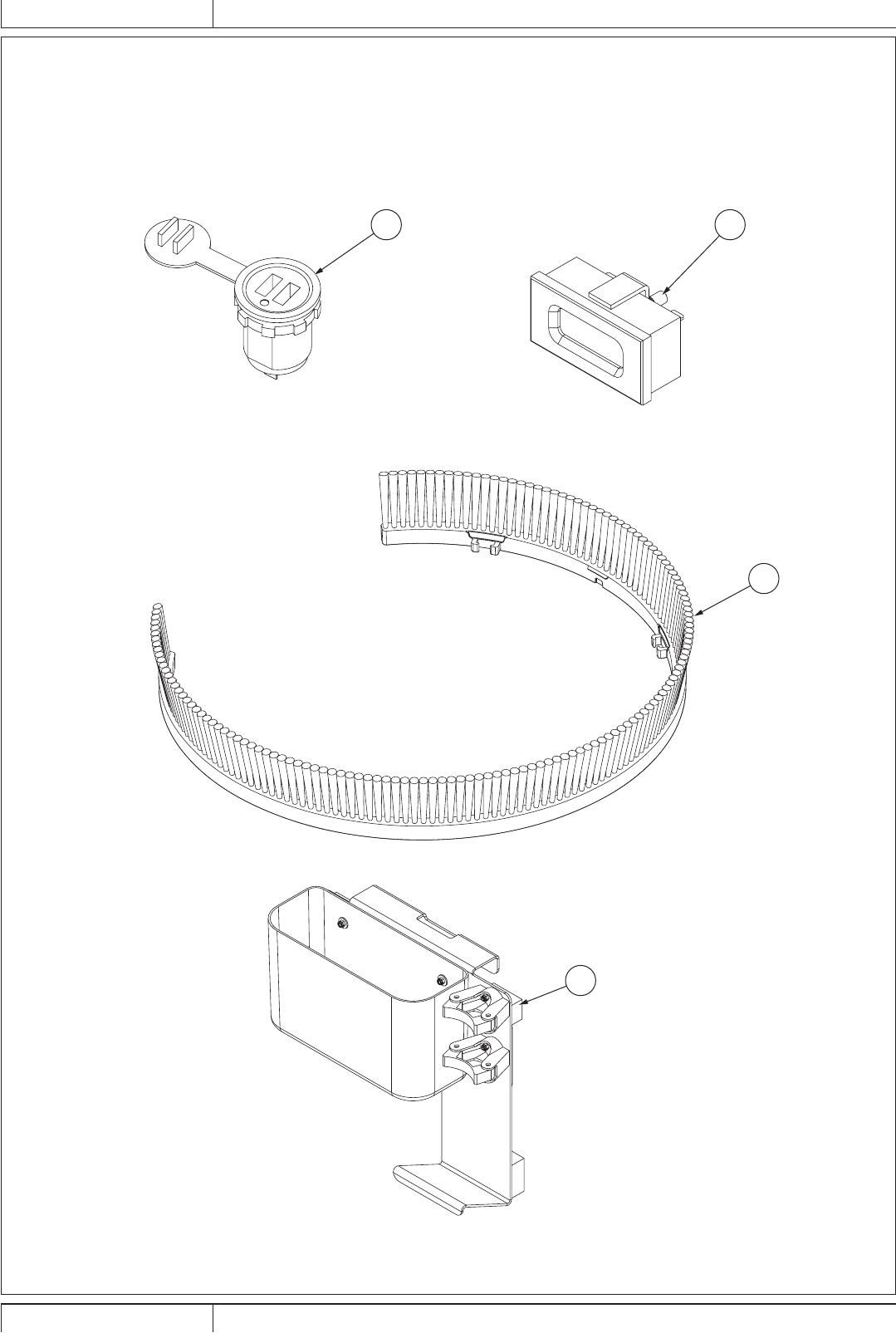

ACCESSORIES - OPTIONALS
1 2
3
4
1 - D11ADVANCE BATT (A).indd 34 26/10/2017 14:38:38
PARTS LIST
09/2017 SC401 - 9100002293 35
ACCESSORIES - OPTIONALS
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1* 9100002258 1 USB PORT KIT (9100002548) INSTALLATION INSTRUCTIONS
2* 9100002257 1 COUNTER HOUR 24V KIT (9100002547) INSTALLATION INSTRUCTIONS
3* 9100001927 1 SPLASH GUARD W/BRISTLES F DECK 17
432MM
4* 9100002280 1 MOP AND TRASH KIT
1 - D11ADVANCE BATT (A).indd 35 26/10/2017 14:38:38
PARTS LIST
36 SC401 - 9100002293 09/2017
BRUSHES
3
4
5
6
1
7
2
1 - D11ADVANCE BATT (A).indd 36 26/10/2017 14:38:38
PARTS LIST
09/2017 SC401 - 9100002293 37
BRUSHES
KIT ITEM REF. NO. QTY DESCRIPTION NOTE
1* L08812891 1 BRUSH DISC 430MM 17 PROLENE BLUE
1* 909 5691 000 1 BRUSH DISC 430MM 17 MIDLITE GRIT 180
1* 909 5692 000 1 BRUSH DISC 430MM 17 MID GRIT 240
1* 909 5693 000 1 BRUSH DISC 430MM 17 PROLITE
1* 909 5694 000 1 BRUSH DISC 430MM 17 UNION MIX
2* 9100001897 1 PAD HOLDER BRISTLE 17 430MM
3 L08603966 1 RING NYLON
4 L08603965 1 O-RING 2.62X82.22 -3325-NBR 40SH
5 56505195 1 PAD RETAINER
6* 9100002050 1 PAD HOLDER FLAT 17 432MM
7* 10001936 1PAD 17 432MM ECO WHITE 5PCS
7* 10001937 1PAD 17 432MM ECO TAN 5PCS
7* 10001938 1PAD 17 432MM ECO BLACK 5PCS
7* 10001939 1PAD 17 432MM ECO BLUE 5PCS
7* 10001940 1PAD 17 432MM ECO GREEN 5PCS
7* 10001941 1PAD 17 432MM ECO RED 5PCS
7* 10002336 1PAD 17 432MM ECO BRILLIANCE RED 2PCS
7* 10002337 1PAD 17 430MM ECO BRILLIANCE BLUE 2PCS
7* 10002338 1PAD 17 430MM ECO BRILLIANCE YELLOW
2PCS
7* 10002339 1PAD 17 430MM ECO BRILLIANCE GREEN 2PCS
1 - D11ADVANCE BATT (A).indd 37 26/10/2017 14:38:38
PARTS LIST
38 SC401 - 9100002293 09/2017
WIRING DIAGRAM
1 - D11ADVANCE BATT (A).indd 38 26/10/2017 14:38:39
PARTS LIST
09/2017 SC401 - 9100002293 39
WIRING DIAGRAM
KEY COLOUR
BK BLACK
BU LIGHT BLUE
BN BROWN
GN GREEN
GY GREY
OG ORANGE
KEY COLOUR
PK PINK
RD RED
VT VIOLET
WH WHITE
YE YELLOW
KEY REF. NO. DESCRIPTION NOTE
BAT -
C1 9100002248 CONNECTOR RED 50A SIP
C2 -
CH 9100002506 CHARGER BATT.O/B 24V 10A 100-240V US SIP
EB1 9100002494 CONTROLLER MAIN MACHINE BAT SIP
EB2 9100002472 CONTROLLER USER INTERFACE 24V SIP
EB3 9100002493 CONTROLLER DRIVE WHEEL SIP
ES1 145 3712 000 RELAY
EV1 9100000870 SOLENOID VALVE 24V SIP
F1 145 8513 000 FUSE BLADE 30A UL
F2 145 8513 000 FUSE BLADE 30A UL
F3 145 8513 000 FUSE BLADE 30A UL
F4 -
HM 9100002257 COUNTER HOUR 24V KIT
KEY 9100001354 SWITCH IGNITION STARTER WITH CAP SIP
M1 9100000874 REDUCTION GEARMOTOR 450W 24V SIP
M2 9100000823 MOTOR VACUUM 24V 280W SIP
M3 9100002398 PUMP DETERG. MIX PERISTALTIC 24V SIP
M4 9100002540 MOTOR DRIVE 160W 24V SIP
RV1 9097043000 POTENTIOMETER
S1,S2 9100002016 SENSOR CAPACITIVE SIP
SK -
SW1 9100002470 SWITCH W/CONNECTOR F REVERSE SIP
TU -
USB 9100002258 USB PORT KIT
1 - D11ADVANCE BATT (A).indd 39 26/10/2017 14:38:39
PARTS LIST
40 SC401 - 9100002293 09/2017
REF. NO. QTY DESCRIPTION NOTE
NORMAL WEAR
9100000920 1 CARBON BRUSHES W/HOLDER KIT
9100002541 1 BLADE SQUEEGEE 730MM 29 GUM KIT
9100002542 1 BLADE SQUEEGEE 730MM 29 PU KIT
9100002543 1 BLADE SQUEEGEE 730MM 29 RED GUM KIT
9098376000 1 CARBON BRUSH KIT 4 PCS
9098376000 1 CARBON BRUSH KIT 4 PCS
ORDINARY MAINTENANCE
9100000703 1 HOSE FILLING SIP
9100002431 1 HOSE FRESH WATER LEV. W/CAP KIT
9100002443 1 HOSE DRAIN BLACK L.530MM SIP
9100002444 1 HOSE SUCTION SQUEE. 90 BLACK L.970MM SIP
9100002447 1 GASKETS VAC. MOTOR KIT
9100000823 1 MOTOR VACUUM 24V 280W SIP
9100002540 1 MOTOR DRIVE 160W 24V SIP
9100002455 2 WHEEL TRACTION D.200X50 BLACK/GREY SIP
9100002462 2 WHEEL D.200X50 TPE BLACK/GREY SIP
9100002546 1 WHEEL D.200X50 TPU BLACK/GREY 2 PCS SET
9100000856 1 WHEEL CASTOR D.80X32 GALV. 2 PCS SET
9100002396 1 SLEEVE RUBBER BLACK F SUCTION HOSE SIP
9100000861 1 NET WATER FILTER REINFORCED SIP
9100002570 1 SQUEEGEE 730MM/29 KIT
9100000862 1 KNOB LOBES M8 FEMALE SIP
9100000747 1 SQUEEGEE 730MM/29 PRE-ASSEMBLED SIP
9100000559 3 WHEEL D.51 GREY SIP
9100000864 1 STRAP ELASTIC F REAR SQUEEGEE BL. SIP
9100000865 1 STRAP FRONT SQUEEGEE BLADE SIP
9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
9100000870 1 SOLENOID VALVE 24V SIP
9100000871 1 HUB BRUSH SIP
9100000874 1 REDUCTION GEARMOTOR 450W 24V SIP
9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
9100000870 1 SOLENOID VALVE 24V SIP
9100000871 1 HUB BRUSH SIP
9100000874 1 REDUCTION GEARMOTOR 450W 24V SIP
9100001816 1 WHEEL BUMPER D.100 PLASTIC 2 PCS SET
145 8513 000 3 FUSE BLADE 30A UL
9100002534 1 HOSE SILICONE 4X7 KIT
9100002388 1 HEAD PERISTALTIC PUMP DETERG. SIP
EXTRA ORDINARY MAINTENANCE
9100002480 1 HOSE PVC W/SPIRAL D.12X18 L.800MM SIP
9100002478 1 PLATE BRUSH DECK HOLDER GALV. SIP
9100002483 1 KNOB BRUSH SPEED ADJUSTM. KIT
9100002479 1 HOSE PVC W/SPIRAL D.12X18 L.330MM SIP
9100002480 1 HOSE PVC W/SPIRAL D.12X18 L.800MM SIP
9100002477 1 DECK BRUSH 430MM/17 PLAST. SIP
1467035000 1 HOLDER FUSE THERMOPL.UL 94-V0 SIP ONLY FOR DRIVE
9100002493 1 CONTROLLER DRIVE WHEEL SIP ONLY FOR DRIVE
9100002494 1 CONTROLLER MAIN MACHINE BAT SIP
9100002489 1 HARNESS ELECT.COMP.BOX BA DRIVE SIP
9100002490 1 HARNESS BATTERY EU SIP
9100002248 2 CONNECTOR RED 50A SIP
145 3712 000 1 RELAY
9100002496 1 GASKET BULB REINFORCED L.1048MM SIP
9100002532 1 KEY KIT
9100001354 1 SWITCH IGNITION STARTER WITH CAP SIP
146 2887 000 1 KEY 2 PCS
9100002501 1 HARNESS SWITCH STARTER SIP
9100002504 1 SLEEVE RUBBER BLACK F BATT. CHARGER SIP
9100000829 1 BAND ELASTIC F EXTENSION CABLE SIP
9100002504 1 SLEEVE RUBBER BLACK F BATT. CHARGER SIP
RECOMMENDED PARTS
1 - D11ADVANCE BATT (A).indd 40 26/10/2017 14:38:39
PARTS LIST
09/2017 SC401 - 9100002293 41
REF. NO. QTY DESCRIPTION NOTE
9100002506 1 CHARGER BATT.O/B 24V 10A 100-240V US SIP
9100000890 1 CABLE EXTENSION US PLUG L.2000MM SIP
301001004 1 CLOSING CAP WITH Ø13 HOLE
9100002508 1 HOLDERS RUBBER KIT
31000912 1 BOTTLE
9100002398 1 PUMP DETERG. MIX PERISTALTIC 24V SIP
REF. NO. QTY DESCRIPTION NOTE
9100002572 1 HOSE QUICK CONNECTION
909 5065 000 1 FILTER ANTIFOAMING
9100002546 1 WHEEL D.200X50 TPU BLACK/GREY 2 PCS SET
9100002541 1 BLADE SQUEEGEE 730MM 29 GUM KIT
9100002542 1 BLADE SQUEEGEE 730MM 29 PU KIT
9100002543 1 BLADE SQUEEGEE 730MM 29 RED GUM KIT
9100002532 1 KEY KIT (9100002549) INSTALLATION INSTRUCTIONS
9100002531 1 DETERGENT MIX SYSTEM KIT (9100002550) INSTALLATION INSTRUCTIONS
9100002258 1 USB PORT KIT (9100002548) INSTALLATION INSTRUCTIONS
9100002257 1 COUNTER HOUR 24V KIT (9100002547) INSTALLATION INSTRUCTIONS
9100001927 1 SPLASH GUARD W/BRISTLES F DECK 17 432MM
9100002280 1 MOP AND TRASH KIT
L08812891 1 BRUSH DISC 430MM 17 PROLENE BLUE
909 5691 000 1 BRUSH DISC 430MM 17 MIDLITE GRIT 180
909 5692 000 1 BRUSH DISC 430MM 17 MID GRIT 240
909 5693 000 1 BRUSH DISC 430MM 17 PROLITE
909 5694 000 1 BRUSH DISC 430MM 17 UNION MIX
9100001897 1 PAD HOLDER BRISTLE 17 430MM
9100002050 1 PAD HOLDER FLAT 17 432MM
10001936 1PAD 17 432MM ECO WHITE 5PCS
10001937 1PAD 17 432MM ECO TAN 5PCS
10001938 1PAD 17 432MM ECO BLACK 5PCS
10001939 1PAD 17 432MM ECO BLUE 5PCS
10001940 1PAD 17 432MM ECO GREEN 5PCS
10001941 1PAD 17 432MM ECO RED 5PCS
10002336 1PAD 17 432MM ECO BRILLIANCE RED 2PCS
10002337 1PAD 17 430MM ECO BRILLIANCE BLUE 2PCS
10002338 1PAD 17 430MM ECO BRILLIANCE YELLOW 2PCS
10002339 1PAD 17 430MM ECO BRILLIANCE GREEN 2PCS
RECOMMENDED PARTS
ACCESSORIES/OPTIONALS
1 - D11ADVANCE BATT (A).indd 41 26/10/2017 14:38:39
9435 Winnetka Avenue North
Brooklyn Park, MN 55445
www.advance-us.com
Phone: 800-989-2235
Fax: 800-989-6566
©2017 Nilsk, Inc.
1 - D11ADVANCE BATT (A).indd 42 26/10/2017 14:38:39
