Self–Contained Carpet Extractor

Aspirador para moquetas con depósito incorporado

Frontiert

Model No.:

608549

609236

Operator and Parts Manual

Manual del Operador y Piezas

608550

Rev. 01 (06-01)

CUSTOMER SERVICE: 1-800-365-6625

FAX: 1–800–678–4240

OUTSIDE U.S. : 1-616-786-2330

NOBLES

12875 RANSOM STREET

HOLLAND MI 49424 U.S.A.

Home

Find...

Go To..

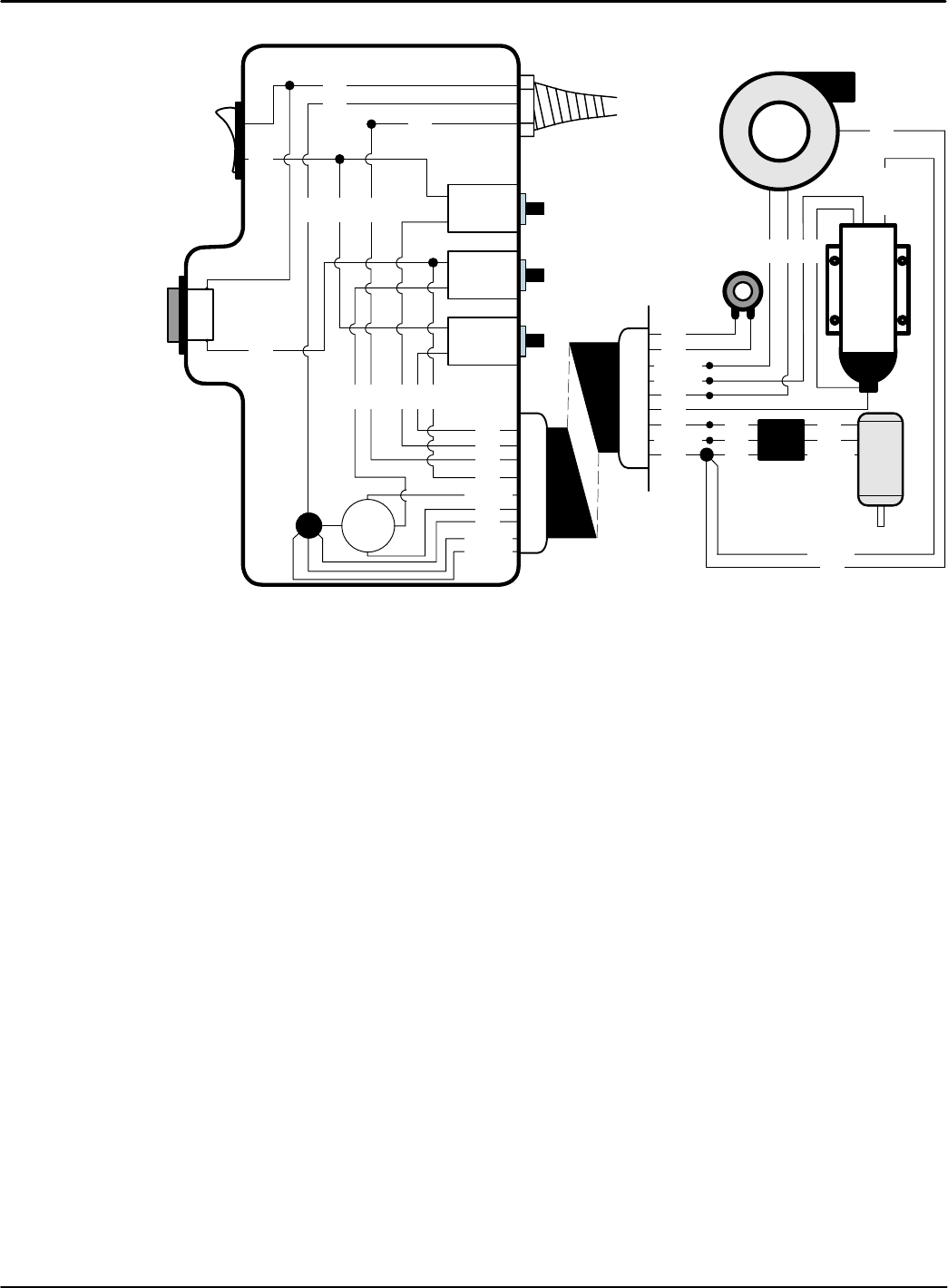

ELECTRICAL DIAGRAMS

DIAGRAMAS ELECTRICAS

21

Frontier Carpet Extractor (06–01)

SPRAY/BRUSH SWITCH

MAIN

SWITCH

POWER CORD

CONDUIT

SOLENOID

CORD 18/3

(Chassis to

Brush Housing)

SOLUTION

PUMP

AC

AC

PUMP

1.5 AMPS

BRUSH

1.5 AMPS

VACUUM

12 AMPS

BRUSH

MOTOR

VACUUM

MOTOR

WHT/ORG

BLK

RED

GRN

BLU

ORG

WHT

WHT/ORG

WHT/RED

WHT/BLK

BLU

RED

BLK

GRN

BLK

BLK

BLK

WHT

BLK

BLK

BLK

WHT

GRN

BLU

WHT

BLK

RED

GRN

ORG

GRN

WHT

BLK

WHT/RED

WHT/BLK

RED

BLK

WHT/GRN

GRN/YLW

GRN

GRN/YLW

GRN

WHT

BLK

WHT

BLK

120V

– +

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

22 Frontier Carpet Extractor (06–01)

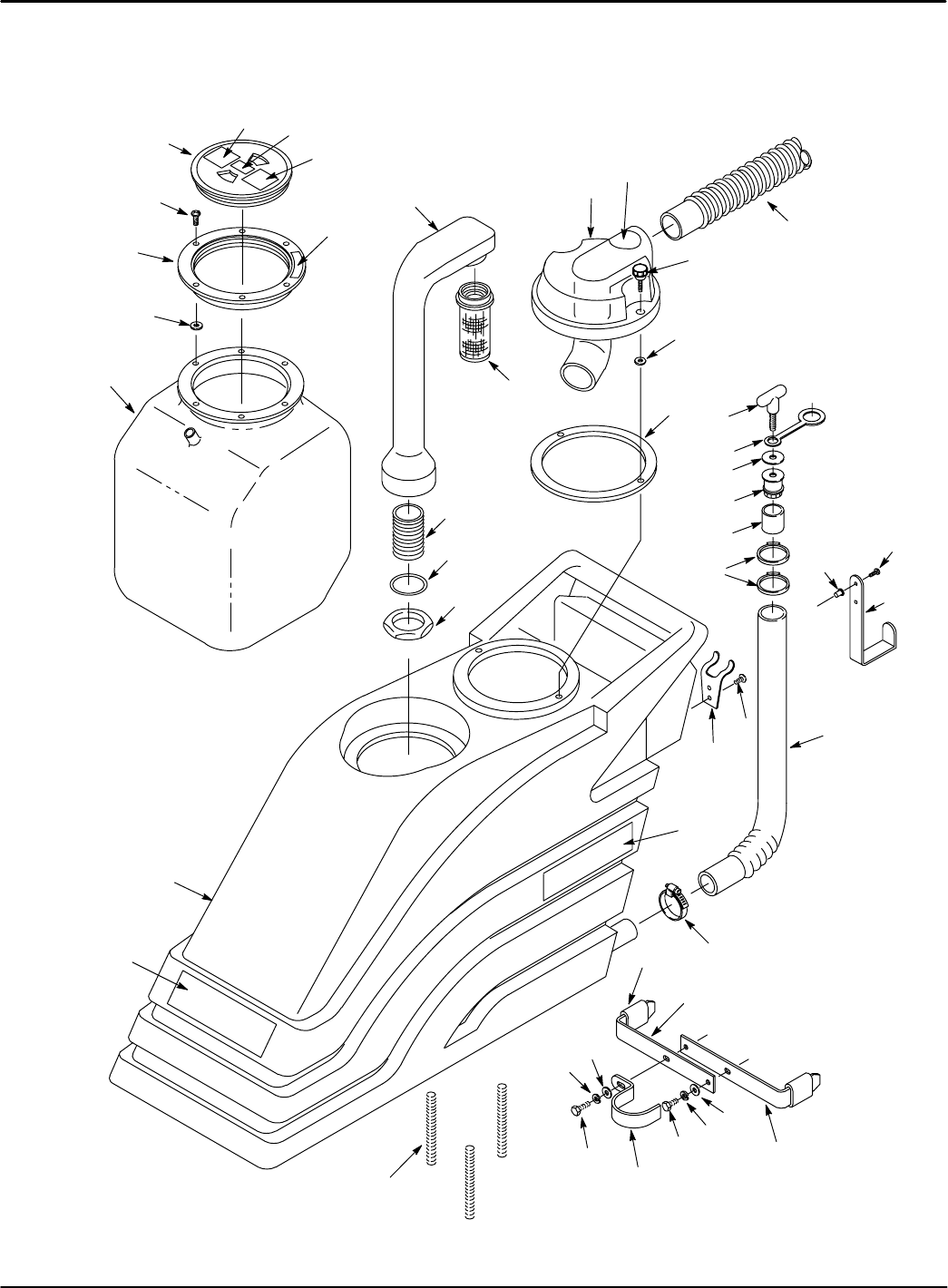

RECOVERY TANK GROUP

CONJ. DESPOSITO RECUPERAR

16

17

18

19

20

21

2

3

1

4

5

6

7

8

9

10

11 15

12

39

13

14

22

23

35

25

26

24

32

31

30

29

28

31 32

33

34

36

37

27

40

41

38

32

44

43

42

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

23

Frontier Carpet Extractor (06–01)

RECOVERY TANK GROUP

CONJ. DESPOSITO RECUPERAR

REF PART # DESCRIPTION QTY.

∇100103 ASSEMBLY, LID 1

1 600812 LID, OUTER RING ONLY (BLACK) 1

2 100105 LID, CENTER ONLY (CLEAR) 1

3 140900 SCREW, 10–24 X 3/4 6

4 602715 BLADDER, 10 GAL. MODEL 1

5 578729 DECAL, READ MANUAL 1

6 602448 STANDPIPE, 10 GAL. MODEL 1

7 180613 FLOAT, SHUT–OFF 1

8 606088 NIPPLE 1

9 230159 O–RING, STANDPIPE 1

10 210240 NUT, FLANGED METAL 1

∇11 701005 ASM., DOME 1

12 240217 KNOB, DOME 2

13 140037 WASHER, NYLON 2

14 100042 GASKET, RECOVERY DOME 1

15 120399 DECAL, DO NOT ALLOW FOAM 1

∇701061 ASM., DRAIN HOSE 1

16 230831 KNOB, DRAIN HOSE 1

17 230882 STRAP 1

18 140056 WASHER, FENDER 1

19 140955 PLUG 1

20 140921 SLEEVE, DRAIN HOSE 1

21 140072 CLAMP 2

22 160416 HOSE, DRAIN 1

∇ASSEMBLY / CONJUNTO

 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

23 140307 CLAMP 1

24 230696.BK BRACKET, DRAIN HOSE 1

25 140825 SCREW, #6X3/4 2

26 230843 BRACKET, TANK BRACE

W/THREADS 1

27 230844 BRACKET, TANK BRACE W/HOLES 1

28 140259 SCREW, 1/4–20X5/8 1

29 230955 CLAMP 1

30 140553 SCREW, 1/4–20X1/2 1

31 140016 WASHER, LOCK 2

32 140000 WASHER, 1/4 FLAT 8

33 102569 TANK, GASKET 2

34 140227 STUD, 1/4–20X5 3

35 608472 DECAL, FRONTIER 2

36 608186 DECAL, “NOBLES”1

37 608532 TANK, RECOVERY, GREEN 1

38 630420 DECAL, FLAMMABLE MATERIAL 1

39 603547 HOSE, VAC 1–1/2 X 46” W/CUFFS 1

40 120906 DECAL, IMPORTANT DRAIN 1

41 120907 DECAL, IMPORTANT ALWAYS

CLOSE 1

42 140637 NUT, WELL 10–32 2

43 140887 SCREW, 1024X3/8 PANPHL 2

44 230755.BK BRACKET, CORD HANGER BLACK 1

Find...

Go To..

Home

608807

PARTS LIST

LISTA DE PIEZAS

24 Frontier Carpet Extractor (06–01)

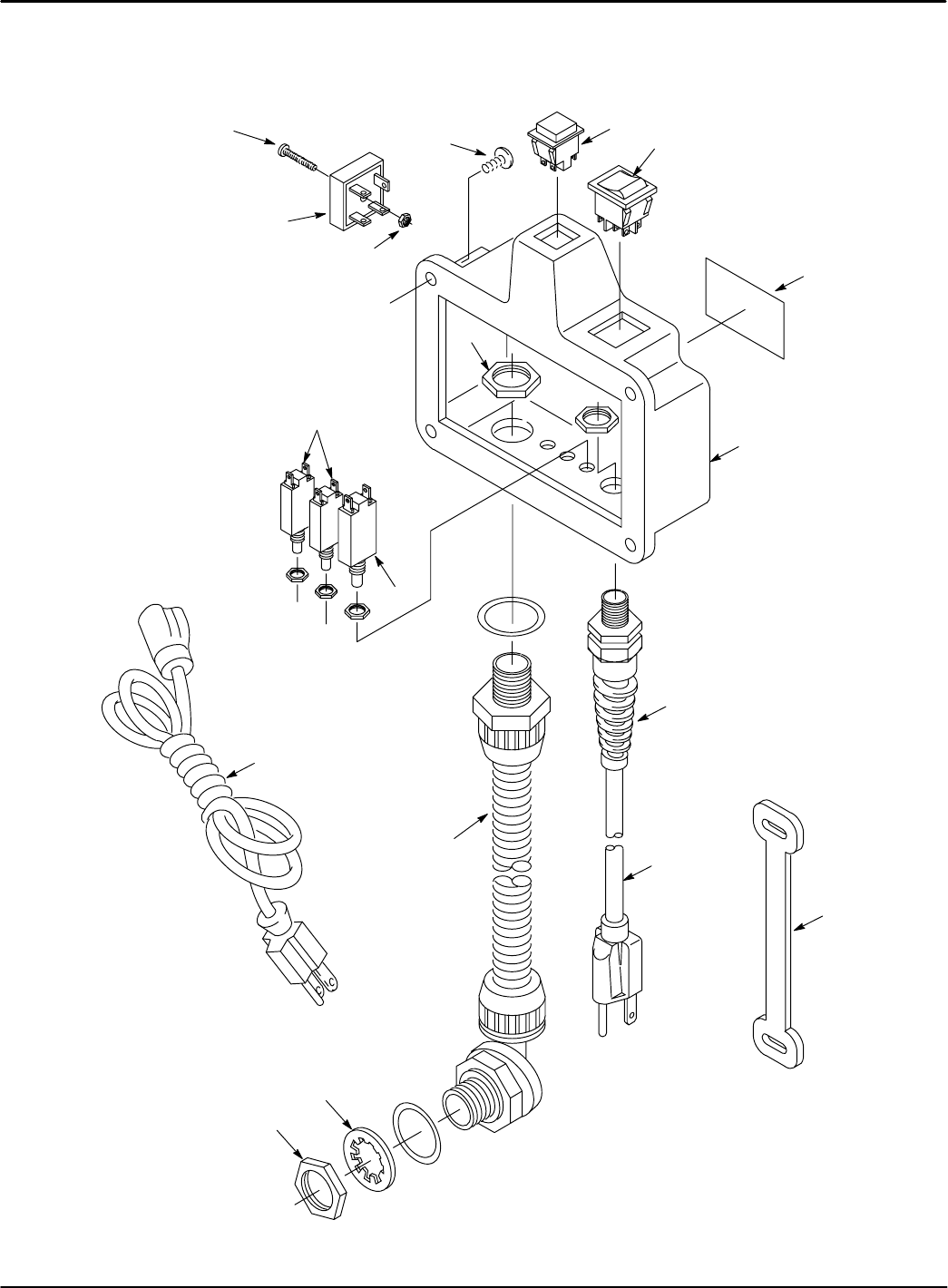

CONTROL CONSOLE GROUP (120V MODEL)

CONJUNTO CONSOLA DE CONTROLES (120V MODELO)

9

5

67

8

1

14

15

11

12

13

10

16

11

4

2

3

17

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

25

Frontier Carpet Extractor (06–01)

CONTROL CONSOLE GROUP (120V MODEL)

CONJUNTO CONSOLA DE CONTROLES (120V MODELO)

REF PART # DESCRIPTION QTY.

1 608458 ASM, SWITCHBOX, GREEN 1

608538 SWITCHBOX ONLY, GREEN 1

2 130304 RECTIFIER, MINIBRIDGE 600V 1

3 140534 NUT, NYLON 1

4 140879 SCREW, 6–32X3/4 1

5 578337000 BREAKER, CIRCUIT 1.5AMP

(120V) 2

6 606713 SWITCH, ALTERNATING (120V) 1

7 130717 SWITCH, ROCKER (120V) 1

8 120619 DECAL, WARNING EXTRACTOR 1

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

9 140824 SCREW 1/4–20X5/8 4

10 140044 WASHER 13/16 INT 1

11 140504 NUT, CONDUIT 2

12 130670 BREAKER, CIRCUIT 12AMP

(120V) 1

13 130977 HARNESS, WIRE 1

14 130166 GRIP, CORD 1

15 130237 CORD, 16/3X18” YELLOW (120V) 1

16 130229 CORD, 14/3 X 75’ YELLOW

SMOOTH (120V) 1

17 604393 STRAP, CORD, STRAIN RELIEF 1

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

26 Frontier Carpet Extractor (06–01)

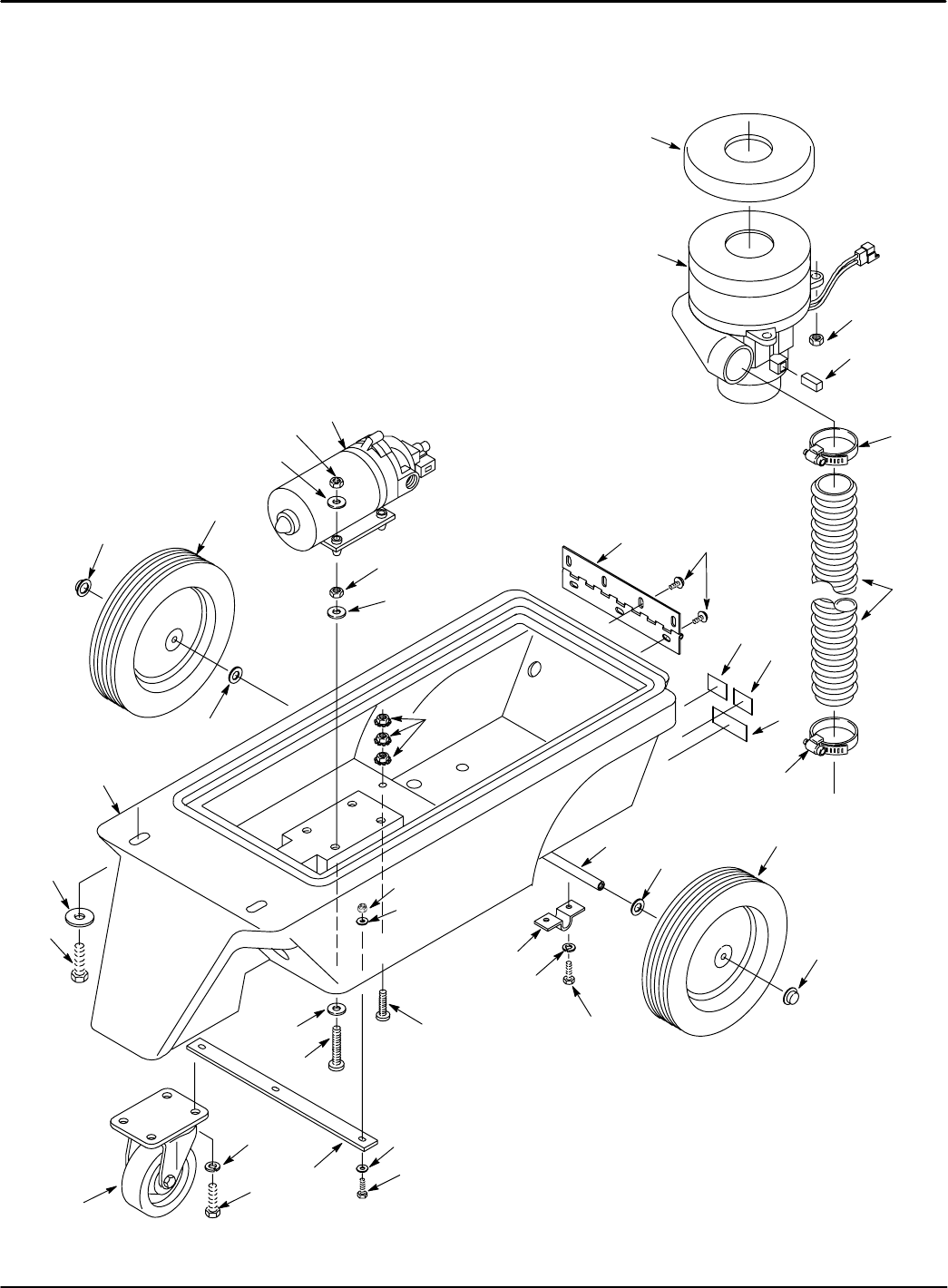

CHASSIS GROUP

CONJUNTO TELAIO

1

2

3

4

5

6

78

910

12

13

14

15

18

17

16

17

19

20

22

21

27

26

28

5

32

30

29 31

25

24

23

11

12

10

11

29

22

33 34

35

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

27

Frontier Carpet Extractor (06–01)

CHASSIS GROUP

CONJUNTO TELAIO

REF PART # DESCRIPTION QTY.

1 100118 GASKET, VAC MOTOR (120V) 1

100038 GASKET, VAC MOTOR

(230V/240V) 1

2 130996 MOTOR, VAC (120V) 1

603042 COVER, VAC FAN (120V) 1

3 140501 NUT 1/4–20 NYLOCK 4

4 600177 BRUSH, CARBON 2/PK (120V) 2

190158 BRUSH, CARBON 2/PK

(230V/240V) 2

5 140308 CLAMP, HOSE 1–5/16 TO 2–1/4 2

6 606160 HOSE, EXHAUST 2” X 24”1

7 230390 HINGE, TANK 1

8 140885 SCREW, 1/4–20X1/2 TRSPHL 7

9 230739 AXLE 1

10 140008 WASHER, 1/2 FLAT 2

11 103068 WHEEL, 10” X 1.75”2

12 103019 CAP, HUB 2

13 230746 BRACKET, AXLE OFFSET 2

14 140016 WASHER, 1/4 LOCK 4

15 140259 SCREW, 1/4–20X5/8 HXHDCP 4

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

16 140804 SCREW, 10–24X1 1

17 140000 WASHER, 1/4 FLAT 6

18 140501 NUT, 1/4–20 NYLOCK 3

19 140208 SCREW, 1/4–20X1 3

20 604640 BRACKET, CHASSIS SUPPORT 1

21 140899 SCREW, 10–24X1–1/4 4

22 140011 WASHER, 3/16 FLAT 8

23 140226 SCREW, 5/16–18X3/4 HXHDCP 4

24 140015 WASHER, 5/16 SPLITLOCK 4

25 103065 CASTER, SWIVEL 4”1

26 140256 SCREW, 3/8–16XX2–1/2 2

27 140028 WASHER, FLAT 2

28 608831 CHASSIS, GREEN 1

29 140519 NUT, 10–24 KEP 8

30 140012 WASHER, 3/16 FLAT 4

31 180103 PUMP, 100PSI (120V) 1

32 140519 NUT, 10–24 KEP 3

33 N/A DECAL, CE (240V MODEL) 1

34 N/A DECAL, KEMA (240V MODEL) 1

35 N/A DECAL, EMC APPROVED

(240V MODEL) 1

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

28 Frontier Carpet Extractor (06–01)

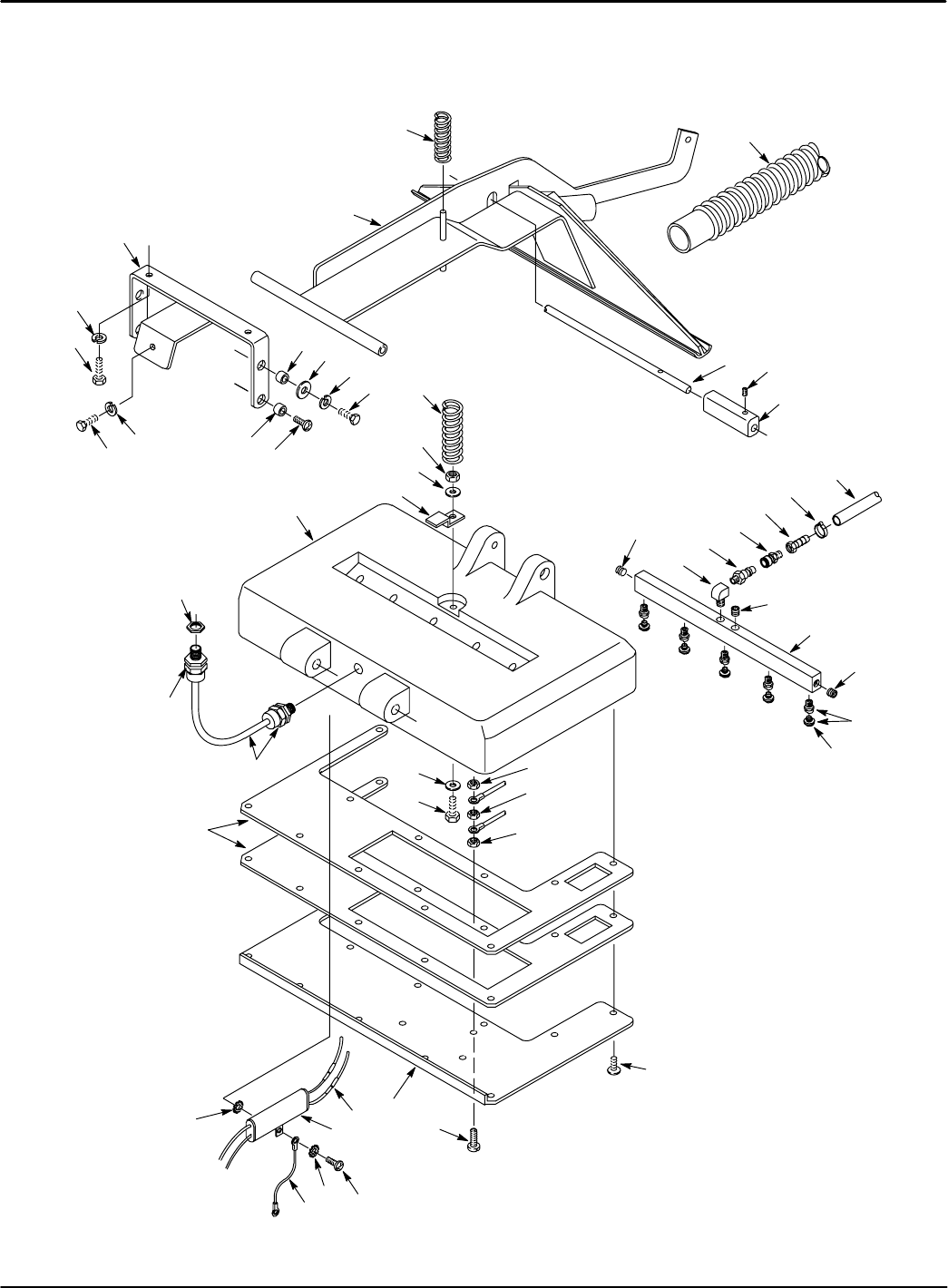

BRUSH HOUSING GROUP

GRUPO DEL BASTIDOR DEL CEPILLO

7

39

1

4

10

8

36

512

11

13

35

27

34

33

31

30

32

28

27

26

25

29

29

15

20

21 22

14

14

14

23

18

24

37

6

3

38

2

238

16

17

29

9

44 41

44

42

43

40

19

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

29

Frontier Carpet Extractor (06–01)

BRUSH HOUSING GROUP

GRUPO DEL BASTIDOR DEL CEPILLO

REF PART # DESCRIPTION QTY.

1 603175 BRACKET, MOUNT 1

2 140226 SCREW, 5/16–18X5/8 HXHDCP 3

3 140136 BUSHING, 3/8ID X 1/2OD 2

4 140898 SCREW, 3/8–16X3/4 TRSPHL 2

5 140017 WASHER, 3/8 SPLITLOCK 2

6 140028 WASHER, 3/8 FLAT 2

7 603184 TOOL, PICKUP W/LEVER 1

8 603448 SPRING, TOOL PRESSURE 1

9 150520 FITTING, 1/8FX1/4H BARB 1

10 603547 HOSE, VACUUM 1–1/2X46”1

11 603178 CAM ADJUSTER 1

12 140859 SCREW, SET 1/4–20X1/4 1

13 603177 LEVER, CAM ADJUSTER 1

∇606844 ASM, SPRAYBAR, 20”1

14 150208 FITTING, 1/8M PLUG 3

15 150430 FITTING 1/8MX1/4F ELBOW 1

16 150921 FITTING 1/8M QD CPLR, BRS 1

17 230379 MANIFOLD, SPRAYBAR, 20”1

18 201011 NOZZLE, BRASS 5

19 201013 REPLACEMENT FITTING TIP

80015 FOR 201011

20 150915 FITTING, 1/8 QD CPLR BRASS 1

21 140325 CLAMP, EAR, 1/2”1

22 606453 HOSE, 1/4” X 1.25’ LP, GRAY 1

∇ASSEMBLY / CONJUNTO

 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

23 140887 SCREW, 10–24X3/8 12

24 140900 SCREW, 10–24X3/4 1

25 230367.BK PLATE, BRUSH BASE, 20”1

26 100115 GASKET, 20” PWR BRSH BASE 1

27 140028 WASHER, 3/8 FLAT 2

28 140233 SCREW, 3/8–16X1–3/4 HXHDCP 1

29 140519 NUT, KEP 3

30 603561 CORD, 18/3 X 24”, BLACK 1

31 130181 CORD GRIP (FOR SERVICE ONLY) 1

32 140504 NUT, CONDUIT 1

33 604494 BASE, BRUSH, 20” BLACK 1

34 606712 LATCH, SPRAYBAR 1

35 140515 NUT, 3/8–16 NYLOCK 1

36 140407 SPRING, .845OD 1

37 140201 SCREW, 3/8–16X3/4 2

38 140015 WASHER, 5/16 SPLTLCK 3

39 140914 SPACER, .38X.50X.25 2

40 600692 CABLE, STRAIN RELIEF

(240V MODEL) 1

∇604628 ASM., FILTER, RFI (240V MODEL) 1

41 600694 FILTER, RFI (240V MODEL) 1

42 600693 CHOKE (240V MODEL) 2

43 140350 SCREW (240V MODEL) 1

44 140031 WASHER #10 EXT (240V MODEL) 2

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

30 Frontier Carpet Extractor (06–01)

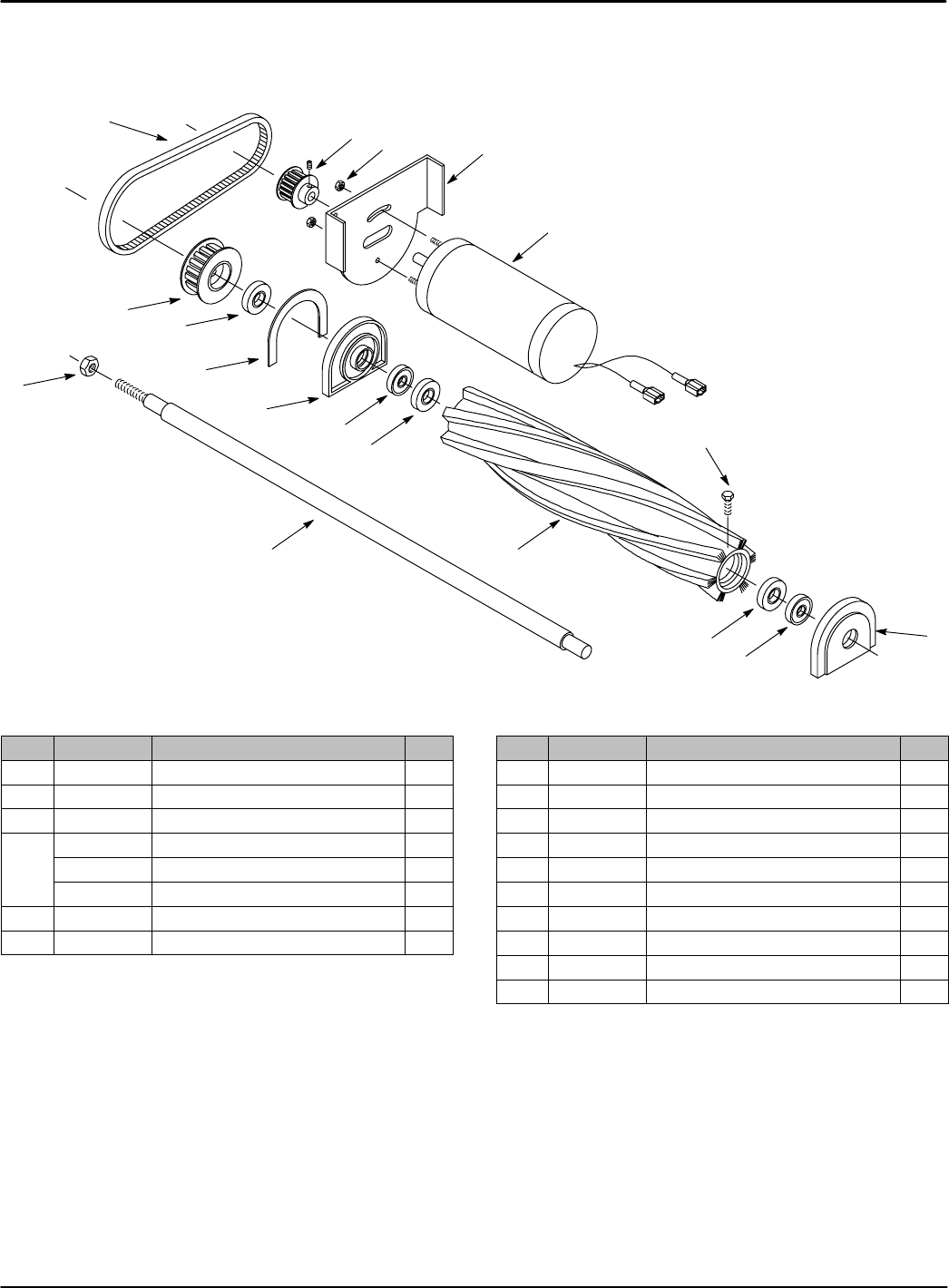

BRUSH BREAKDOWN

CONJUNTO DE CEPILLO

56

7

89

10

11

10 9

8

14

13

123

4

12

15

REF PART # DESCRIPTION QTY.

1 230507 BELT, BRUSH DRIVE 1

2 230506 PULLEY, MOTOR 1

3 230366 BRACKET, MOTOR (120V/230V) 1

4 130471 MOTOR, BRUSH DRIVE (120V) 1

190150 BRUSH, CARBON (120V) 1

575782 BRUSH, CARBON (240V) 1

∇700094 ASSEMBLY, BRUSH 1

5 230505 PULLEY, BRUSH 1

∇ASSEMBLY / CONJUNTO

 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

6 230363 SPACER 1

7 100005 GASKET, BEARING BLOCK 1

8 230261 BLOCK, BEARING 2

9 140125 BEARING, BRUSH 2

10 100049 SEAL, BRUSH BEARING 2

11 240050 BRUSH, CYLINDER 1

12 140554 SCREW, 1/4–20X3/4 4

13 230362 SHAFT, BRUSH 1

14 140548 NUT, 5/16 FINJAM 1

15 140518 NUT, KEP 10–32 2

Find...

Go To..

Home

1019015

N/A

PARTS LIST

LISTA DE PIEZAS

31

Frontier Carpet Extractor (06–01)

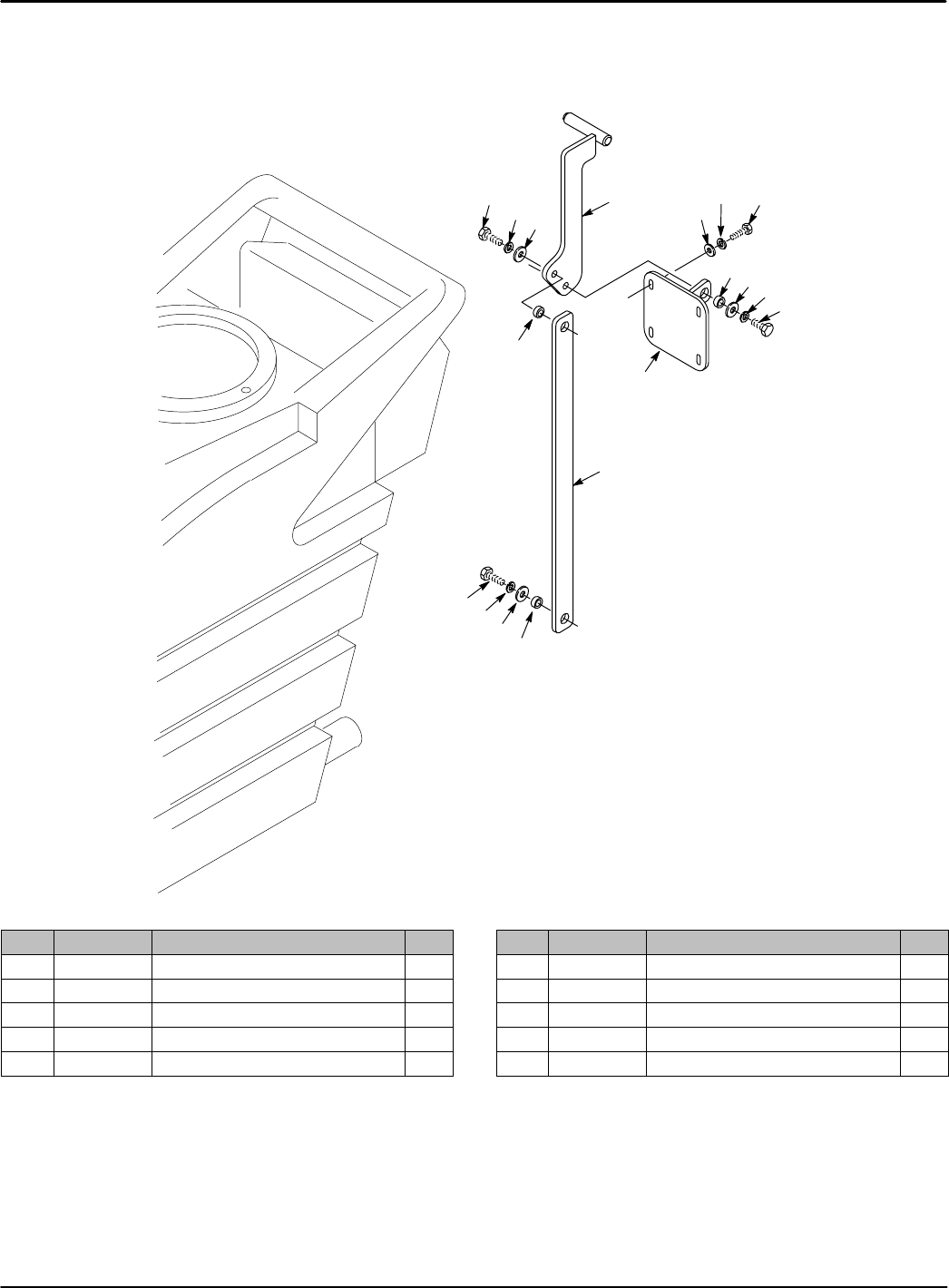

BRUSH HOUSING LIFT LEVER GROUP

GRUPO DE PALANCA PARA ELEVAR LA COJA DE CEPILLO

123

7

46

5

8

7321

9

37

2

1

10

REF PART # DESCRIPTION QTY.

1 140226 SCREW, 5/16 18X5/8 HXHDCP 3

2 140015 WASHER, 5/16 SPLITLOCK 3

3 140027 WASHER, 5/16 FLAT 3

4 603414 HANDLE, LIFT 1

5 140000 WASHER, 1/4 FLAT 4

REF PART # DESCRIPTION QTY.

6 140259 SCREW, 1/4–20X5/8 4

7 603415 BUSHING, PIVOT 3

8 603413 BRACKET, LIFT MOUNT 1

9 603412 PLATE, LIFT 1

10 140016 WASHER, LOCK 4

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

32 Frontier Carpet Extractor (06–01)

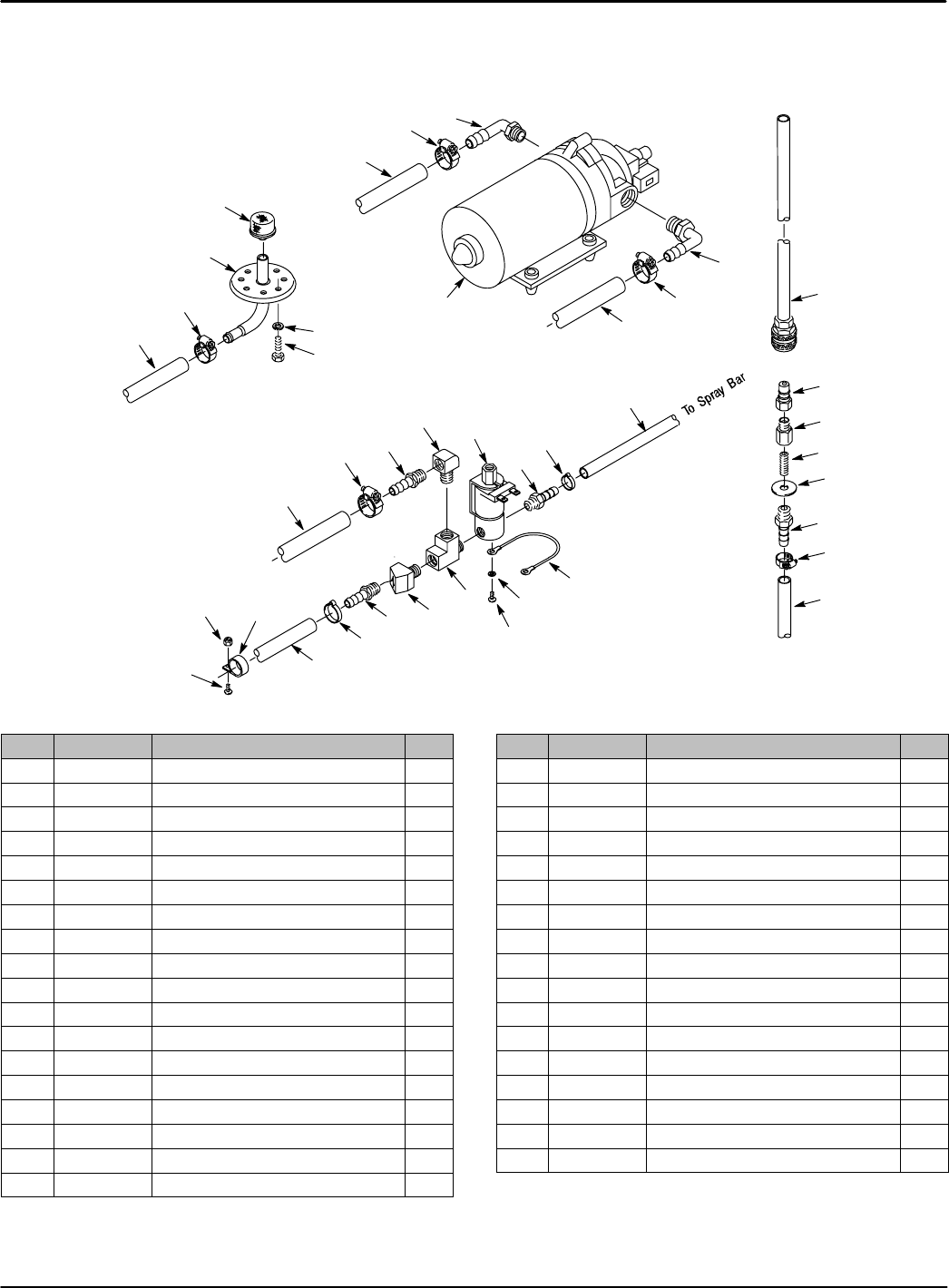

PLUMBING GROUP

GRUPO DE TUBERÍAS

4

5

B

C

30

6

3

2

1

B

33

3

4

7

8

910

14

13

12

11

15

16

17

9

21

20 19

18

A

22

23

A

8

32

24

29

17 28

27 26 25

31

C

35

34

REF PART # DESCRIPTION QTY.

1 180628 SCREEN, TANK 1

2 600451 BLADDER PLATE 1

3 140310 CLAMP 2

4 606452 HOSE, 3/8” X 2.75’ LP, GRAY 1

5 140259 SCREW 4

6 140016 WASHER, LOCK 4

7 180103 PUMP, 100PSI (120V) 1

8 606162 HOSE, 1/2” X 26”1

9 630369 CLAMP 2

10 150425 ELBOW, 3/8M X 1/2H 1

11 150933 QUICK COUPLER 1

12 150000 ADAPTER, 1/4FX1/4M 1

13 150600 NIPPLE, 1/4 X 2 – BRASS 1

14 140008 WASHER, FLAT 1

15 150511 FITTING, BARB, 1/4FX3/8H 1

16 140310 CLAMP 1

17 606451 HOSE, 3/8” X 4.33’ LP 1

18 606453 HOSE, 1/4” X 1.25’ LP 1

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

19 140325 CLAMP, EAR 1/2” S/S 2

20 150515 FITTING, BARB, 1/4MX1/4H 1

21 210033 VALVE, SOLENOID (120V 60HZ) 1

22 140023 WASHER, LOCK 2

23 140801 SCREW, 8–32X3/8 2

24 150406 ELBOW, 1/4”1

25 150709 TEE, 1/4”1

26 150403 FITTING, 1/4MX1/4F ELBOW, 45°1

27 150516 FITTING, BARB, 1/4MX3/8H 1

28 140301 CLAMP, EAR 1

29 140916 CLAMP 1

30 140895 SCREW, 10–24X3/4 1

31 140552 NUT, LOCK 1

32 150517 FITTING, BARB, 1/4MX1/2H 1

33 150412 ELBOW, 3.8MX3/8H 1

34 700551 ASM., WIRE GROUND 9” 10X10 1

35 700141 HOSE, PUMP-OUT 1

Find...

Go To..

Home

PARTS LIST

LISTA DE PIEZAS

33

Frontier Carpet Extractor (06–01)

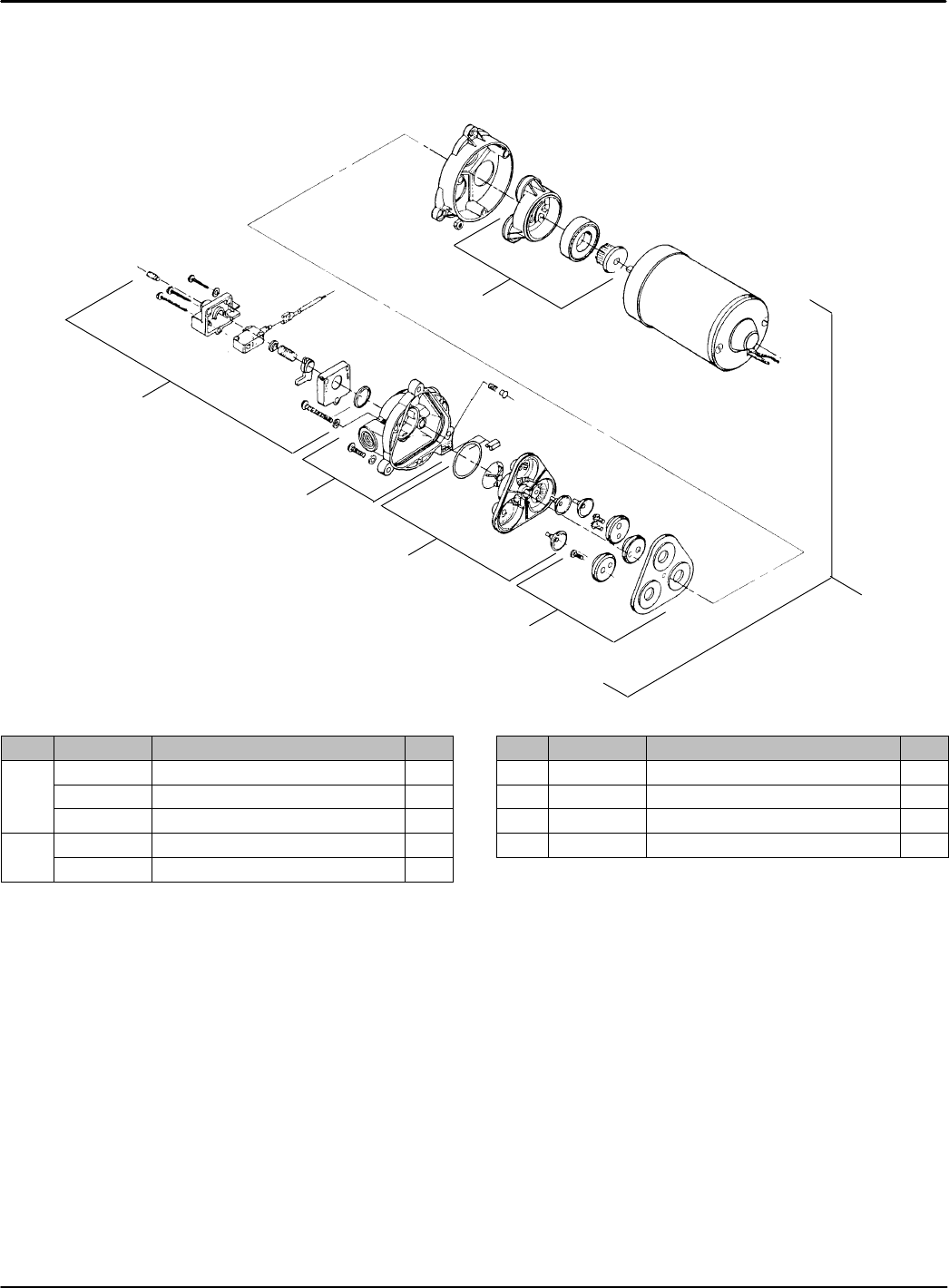

PUMP BREAKDOWN

CLASIFICACIÓN DE LA BOMBA

1

2

3

4

5

6

REF PART # DESCRIPTION QTY.

1 190129 KIT, PRESSURE SWITCH 1

190172 KIT, PRESSURE SWITCH (VITON) 1

190134 KIT, DIAPHRAGM ONLY 1

2 190128 KIT, UPPER PUMP HOUSING 1

190124 KIT, CHECK VALVE ONLY 1

REF PART # DESCRIPTION QTY.

3 190171 KIT, VALVE (VITON) 1

4 190131 KIT, SERVICE 1

5 190130 KIT, LOWER PUMP HOUSING 1

6 180103 PUMP, 100 PSI (120V) 1

Find...

Go To..

Home

OPTIONS

OPCIONES

34 Frontier Carpet Extractor (06–01)

127mm (5 in) HAND TOOL

ACCESORIO MANUAL

10

2

11 12

13

9

8

5

4

36

1

7

REF PART # DESCRIPTION QTY.

∇200505 ASSEMBLY, HAND TOOL 1

1 200431.BK TOOL, HAND 1

2 150913 COUPLER, QUICK (SER. 60) 1

3 150615 NIPPLE, CLOSE 1

4 200905 TRIGGER, HAND TOOL 1

5 210210 VALVE, FLOW CONTROL 1

∇ASSEMBLY / CONJUNTO

 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

6 190600 VALVE PIN & SPRING 1

7 N/A CAP, VALVE 1

8 150606 NIPPLE, HEX 1/4 1

9 150403 ELBOW, ST 1/4 45°1

10 200992 BODY, SPRAY 1/4F 1

11 200996 SCREEN, SPRAY NOZZLE 1

12 200965 TIP, SPRAY #8002 1

13 20094 CAP, SPRAY BODY 1

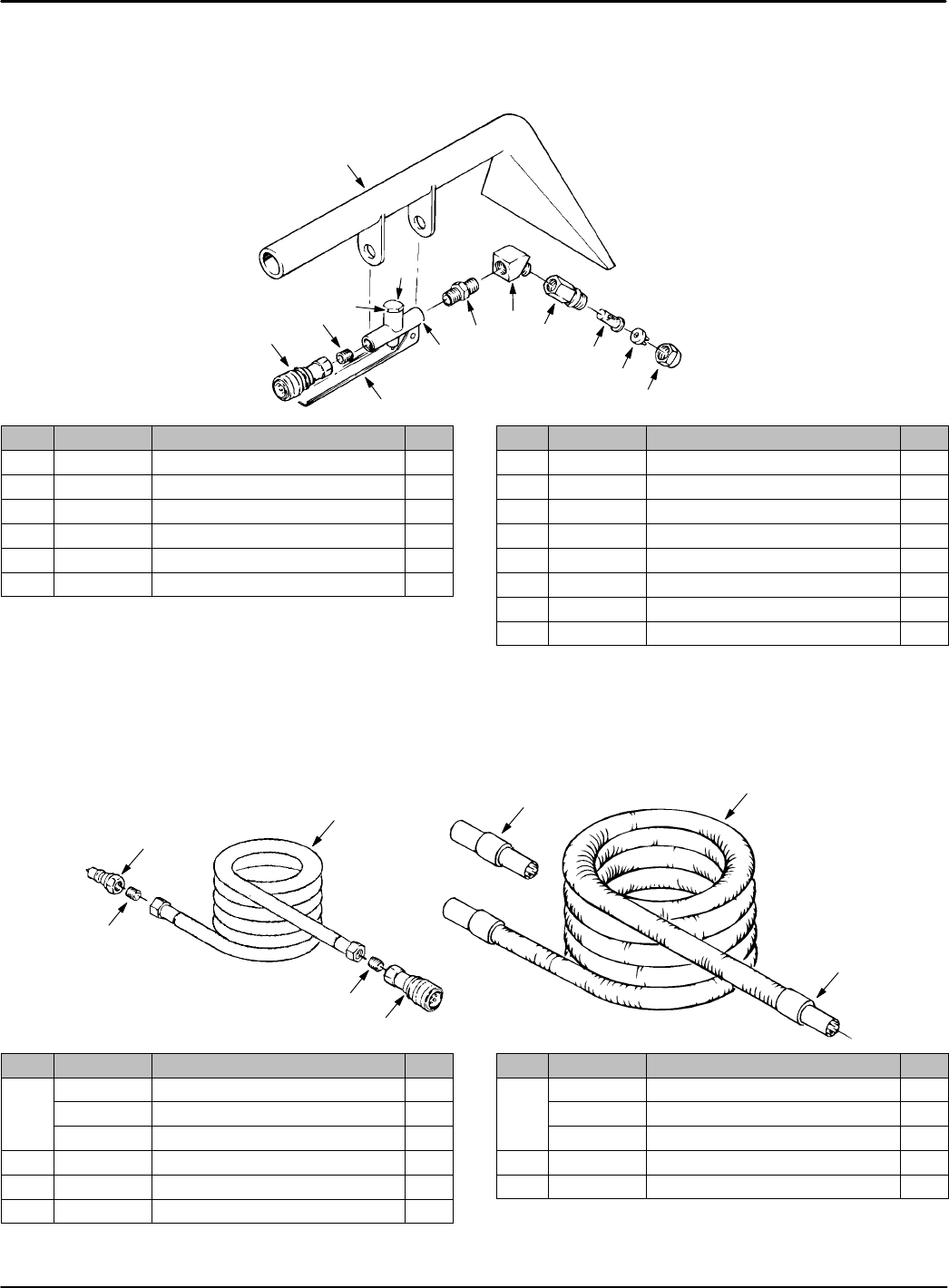

SOLUTION AND VACUUM HOSES

MANGUERAS DE DISOLUCIÓN Y ASPIRACIÓN

1

2

4

4

3

5

6

7

REF PART # DESCRIPTION QTY.

1 160185 HOSE, SOLUTION 4.6M (15 FT) 1

160186 HOSE, SOLUTION 7.6M (25 FT) 1

160187 HOSE, SOLUTION 15M (50 FT) 1

2 150913 COUPLER, QUICK SER. 60 1

3 150933 PLUG, QUICK COUPLER 1

4 150615 NIPPLE 2

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

5 160400 HOSE, VACUUM 4.6M (15 FT) 1

160401 HOSE, VACUUM 7.6M (25 FT) 1

160402 HOSE, VACUUM 15M (50 FT) 1

6 160430 CUFF, HOSE 1–1/2”2

7 160451 CONNECTOR, VACUUM HOSE 1.5”1

Find...

Go To..

Home

OPTIONS

OPCIONES

35

Frontier Carpet Extractor (06–01)

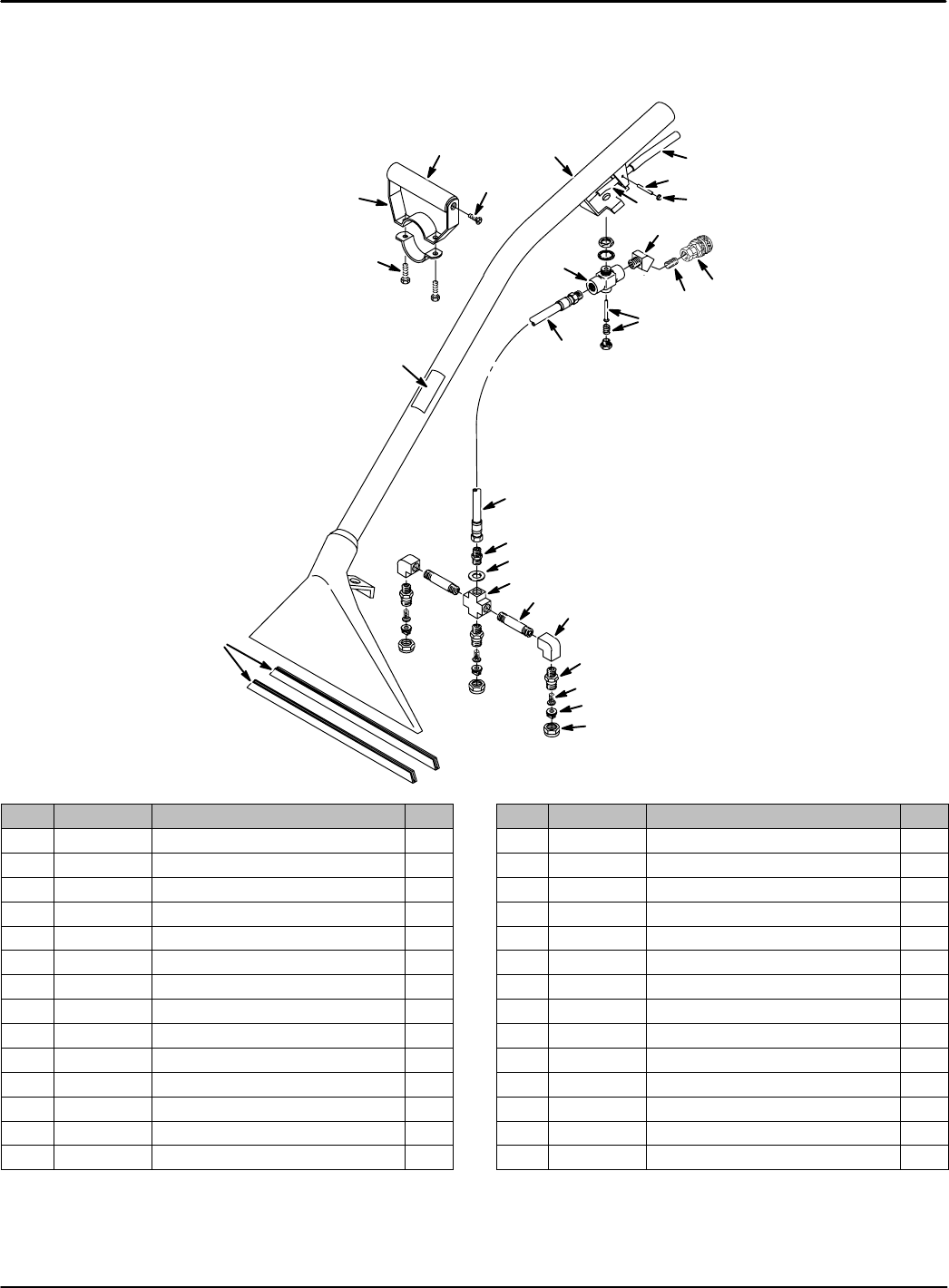

330mm (13 in) FLOOR TOOL

ACCESORIO PARA EL SUELO

61

2

7

3

5

8

1011

9

15

12

13

16

4

17

18

19

17

20 21 22

23

24

25

26

14

REF PART # DESCRIPTION QTY.

∇600048 ASM., FLOOR TOOL 1

1 200403.BK TOOL, FLOOR 330MM (13 IN) 1

2 120846 DECAL, LOW PRESSURE TOOL 1

3 200939 SHOE, 330MM (13 IN) FLR TOOL 2

∇4 200927 GRIP, HAND ADJ. COMPLETE 1

5 140259 SCREW, 1/4–20X5/8 2

6 200912 GRIP, HANDLE FOAM 1

7 140834 SCREW, 1/4–20X5/8 2

8 200809 SLEEVE, HANDLE 1

9 200902 HANDLE, VALVE 1

10 140605 PIN, HANDLE 1

11 140520 NUT, 1/4 PUSH BLK 2

12 150403 FITTING, 1/4MX1/4F 45 STR 1

13 150913 COUPLER, SER. 60 1

∇ASSEMBLY / CONJUNTO

 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO

 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA

MANTENER EN EXISTENCIA

REF PART # DESCRIPTION QTY.

14 150615 NIPPLE, CLOSE 1/4 1

∇15 210150 VALVE, FLOW CONTROL 1

16 190603 KIT, VALVE PIN AND SPRING 1

17 160170 ASM, HOSE LOW PRESSURE 1

18 150606 FITTING, 1/4MX1–3/8HEXNIP 1

19 140058 WASHER, .543X.875X.062 WAND 1

∇700062 ASM., SPRAYBAR WO/TIPS 1

20 150700 CROSS, 1/4 FPT 1

21 150600 FITTING, 1/4MX2” NIPPLE 2

22 150401 FITTING, 1/4FX1/4F ELBOW 90 2

23 200993 SPRAY BODY, 1/4” MALE 3

24 200996 FILTER, SCREEN 100 MESH 3

25 200964 FITTING, TIP 11003 T–JET 3

26 200994 CAP, SPRAY BODY 3

Find...

Go To..

Home
