Nss Champ 2929 Rider Floor Scrubber Parts Manual
2016-12-19
: Sweepscrub Nss-Champ-2929-Rider-Floor-Scrubber-Parts-Manual nss-champ-2929-rider-floor-scrubber-parts-manual 1553 file product_file
Open the PDF directly: View PDF
.
Page Count: 27
1

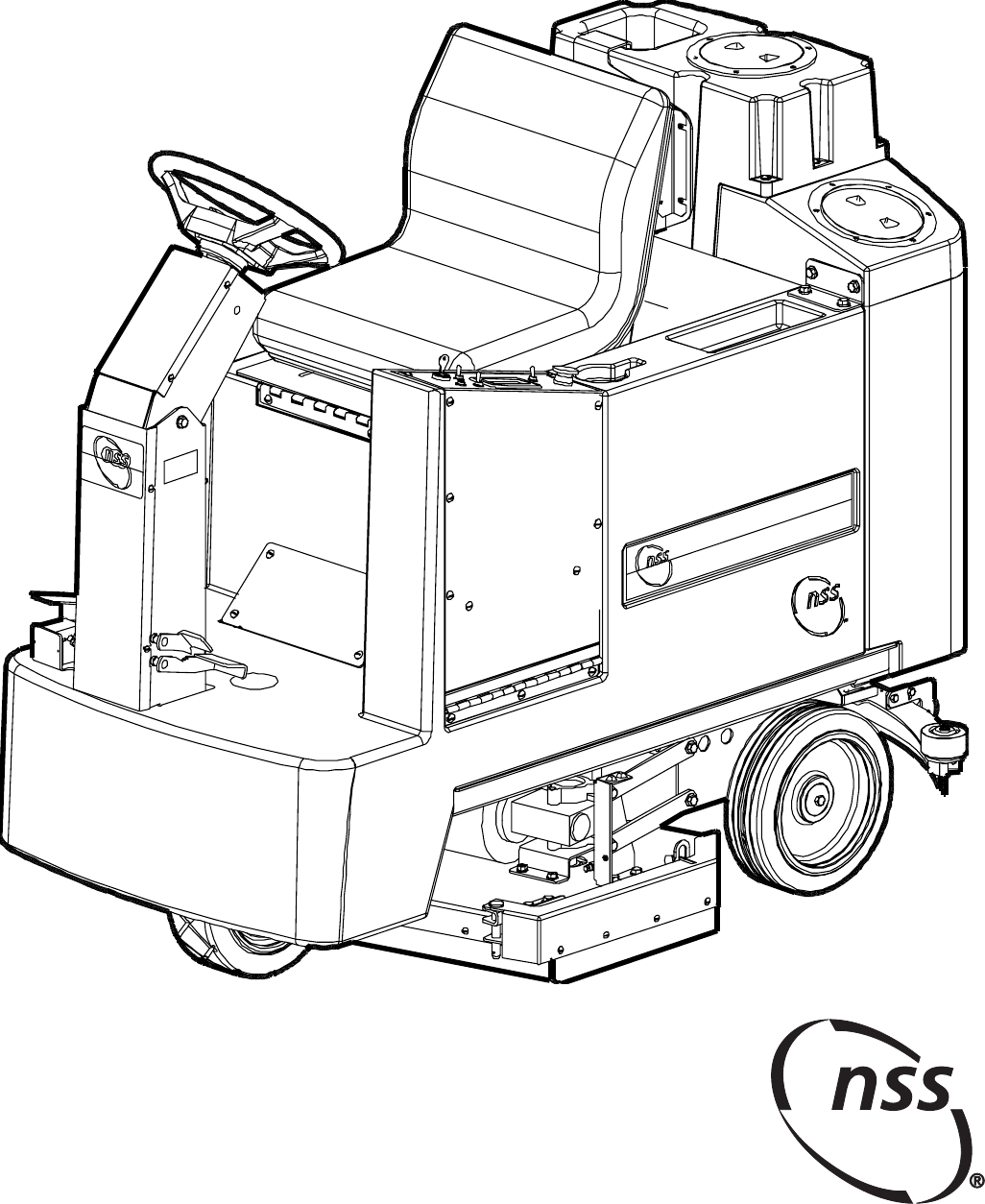

CHAMP 2929
PARTS LIST
2

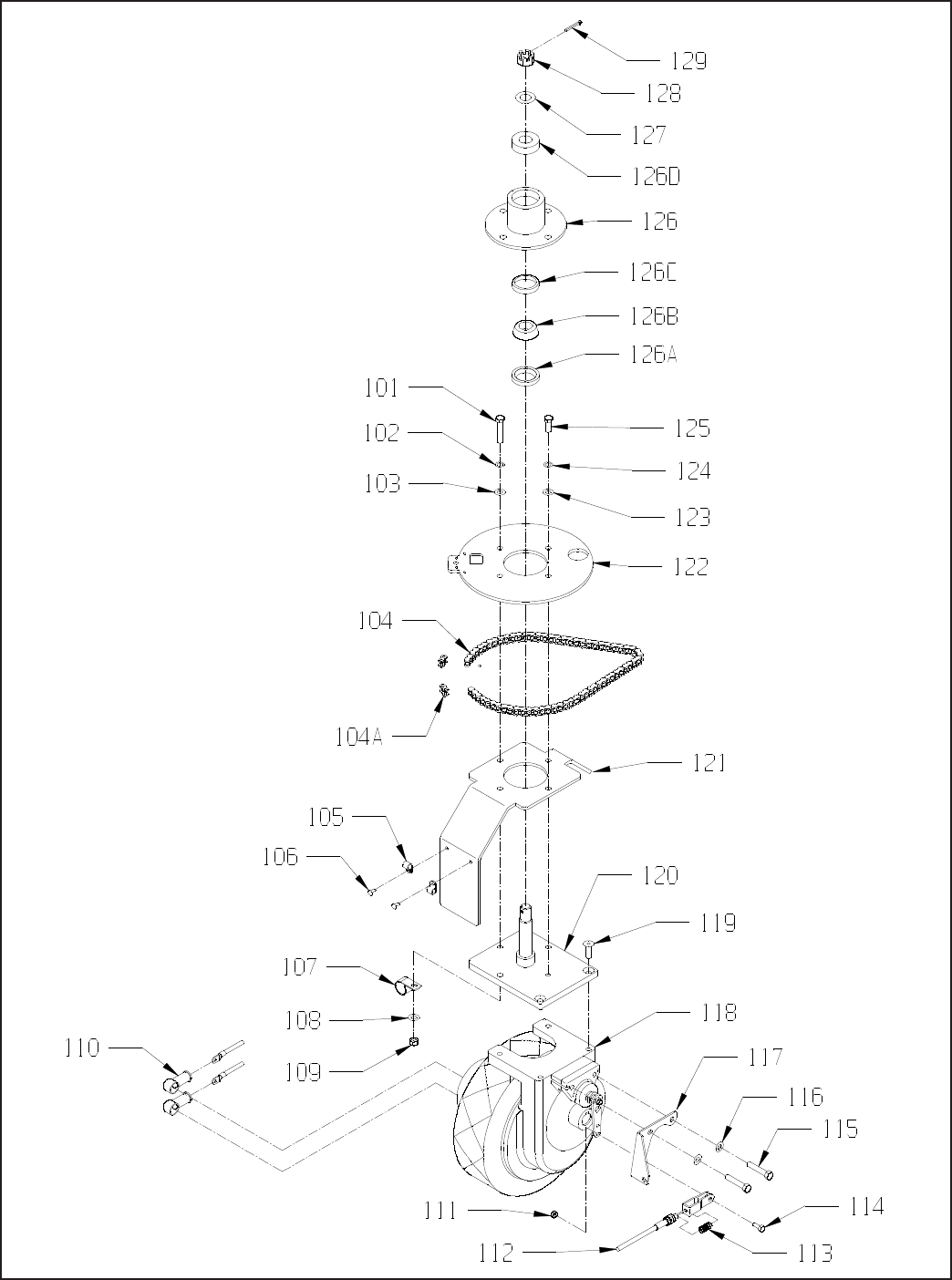

ITEM PART NO. DESCRIPTION QTY.
101 9122343 3/8-16 X 2 HEX HEAD FULL THREADED BOLT - PACK OF 1 3
102 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 3
103 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 3
104 7691259 CHAIN KIT - CHAIN WITH TWO MASTERS - INCLUDES: 1
2790341 ROLLER CHAIN 67 LINKS WITHOUT MASTER 1
104A 2795211LINK - MASTER #40 CHAIN NICKEL 2
105 5294201 NYLON CABLE CLAMP 2
106 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
107 2395761 CLAMP, TUBE 1
108 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 1
109 9122140 3/8-16 HEX NUT WITH NY-LOK INSERT - PACK OF 5 1
110 6492051 STUD TERMINAL BOOT - RUBBER 2
111 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
112 7690971 BRAKE CABLE 1
113 3695581 HEIGHT ADJUSTING SPRING 1
114 9121250 1/4-20 X 3/4 HEX BOLT WITH NYLON PATCH - PACK OF 10 1
115 9122371 3/8-24 X 2 1/8 HEX BOLT 2
116 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
117 7694221 LOWER BRAKE CABLE BRACKET 1
118 7690071 12 X 4 DRIVE WHEEL - INCLUDES: 1
7692061 WHEEL / TIRE 1
7692439 WHEEL BOLTS 10
7692121 DRIVE MOTOR 1
7692051 DRIVE MOTOR CARBON BRUSH KIT 1
7692081 BRAKE ROTOR 1
7692071 BRAKE CALAPER 1
119 9122323 3/8-16 X 1 1/4 FLAT HEAD SOCKET CAP SCREW 2
120 7690581 STEERING YOKE 1
121 7690563 FENDER / TOW HOOK / SPACER 1
122 7690571 DRIVEN SPROCKET - STEERING 1
123 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 1
124 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 1
125 9122300 3/8-16 X 1 1/4 HEX BOLT - PACK OF 2 1
126 7690509 BEARING BLOCK - STEERING ASSEMBLY - INCLUDES: 1
126A 7690591 SEAL - STEERING 1
126B 7690671 BEARING CONE - STEERING BOTTOM 1
126C 7690681 BEARING CUP - STEERING BOTTOM 1
126D 2790311BEARING, BOTTOM END 1
127 9123105 3/4 I.D. X 1 1/4 O.D. X .071/.082 THICK FLAT WASHER (11 GAGE)-PK-5 1
128 9123100 3/4-16 HEX SLOTTED NUT - STEEL - PACK OF 1 1
129 9120314 1/8 X 1 1/4 COTTER PIN - STEEL - PACK OF 5 1
3
DRIVE WHEEL ASSEMBLY
4

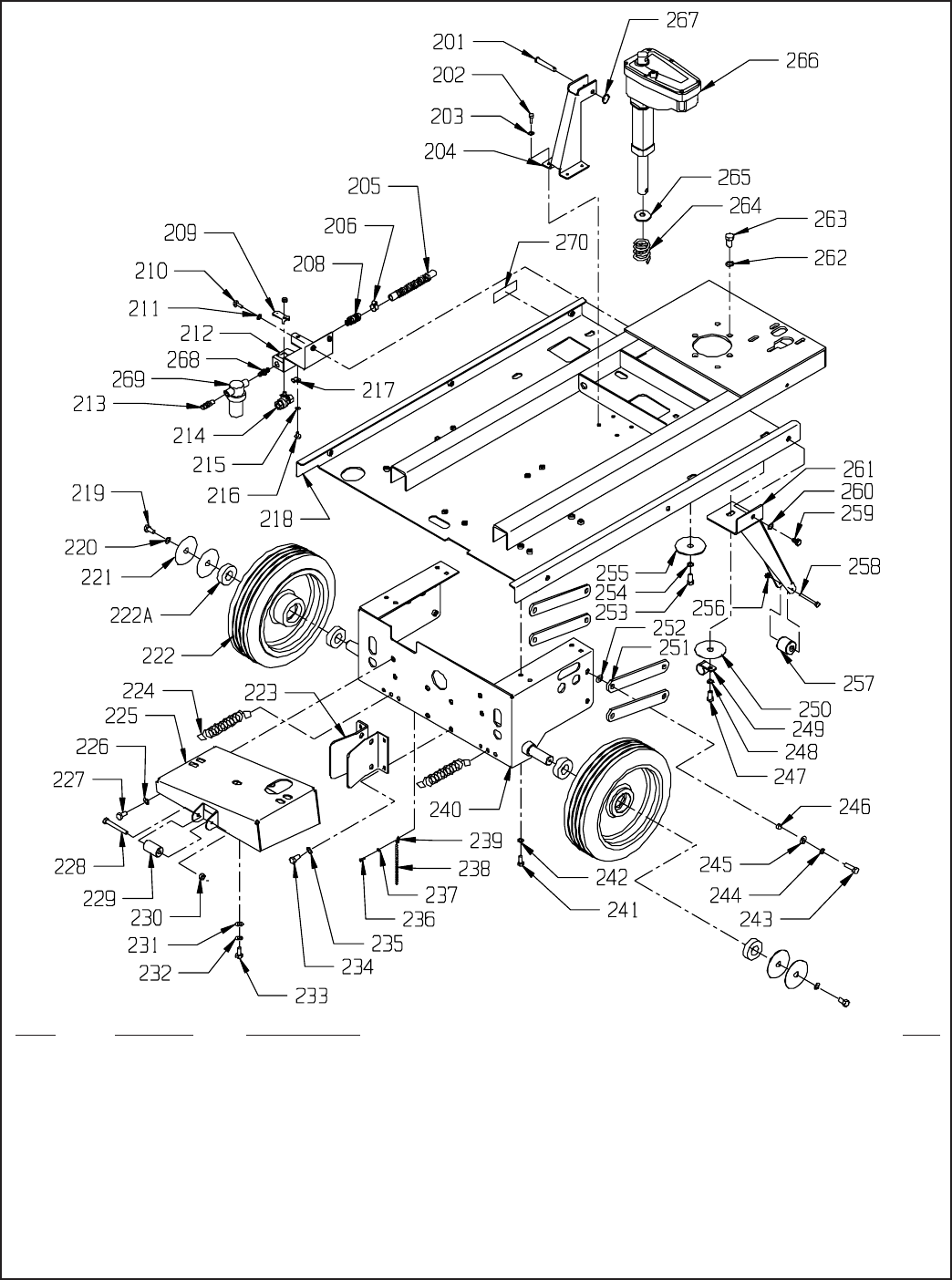

ITEM PART NO. DESCRIPTION QTY.
201 76903113/8" DIAMETER X 2.505 LONG CLEVIS PIN 1
202 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 4
203 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 4
204 7690301 BRUSH ACTUATOR BRACKET 1
205 7693781 6.5 X 3/4 CONVOLUTED HOSE 1
206 7693811HOSE CLAMP, 9/16" TO 1 1/16" 1
208 7695161 3/4 HOSE BARB X 1/4 MPT FITTING 1
209 7691041 VALVE LEVER 1
210 9121600 5/16-18 X 5/8 HEX BOLT - PACK OF 5 2
2119121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
212 7691031 SOLUTION VALVE HANGER 1
213 2495161 1/2 HOSE BARB X 1/4 MPT 1
214 2397961 SOLUTION VALVE 1
215 9120370 7/32 I.D. X 1/2 O.D. X .032/.065 THICK SAE FLAT WASHER (#10)-PK-10 1
216 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
217 7691061 CONDUIT CLAMP 1
218 7693931 MAIN FRAME 1
219 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
220 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
221 9122110 3/8 X 1 1/2 FENDER WASHER - PACK OF 10 4
222 7690081 12 X 3 WHEEL - ASSEMBLY - INCLUDES: 2
222A 2790311BEARING, BOTTOM END 2
223 7690211SQUEEGEE MOUNT / STOP BRACKET 2
224 7690291 EXTENSION SPRING, SQUEEGEE 2
225 7694013 MOUNTING BRACKET - LOWER RECOVERY TANK 1
226 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 4
227 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 4
228 9122350 3/8-16 X 3 HEX BOLT - PACK OF 1 1
229 7690811GUIDE 1
230 9122140 3/8-16 HEX NUT WITH NY-LOK INSERT - PACK OF 5 1
231 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
232 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
233 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
234 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 4
235 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 4
236 9120380 10-24 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
237 9120320 #10 SPLIT LOCK WASHER - PACK OF 10 1
238 6491860 ROUND BEAD CHAIN (CUT TO 6”) .5
239 6491871 END COUPLING - ROUND BEAD CHAIN 1
240 7690173 AXLE BRACKET 1
241 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 8
242 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 8
243 9122300 3/8-16 X 1 1/4 HEX BOLT - PACK OF 2 8
244 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 8
245 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 8
246 2691181 PIVOT SPACER, STABILIZER BAR 8
247 9122260 3/8-16 X 1 HEX BOLT - PACK OF 2 1
248 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 1
249 2395761 CLAMP, TUBE 1
250 9122110 3/8 X 1 1/2 FENDER WASHER - PACK OF 10 1
251 2691171 STABILIZER BAR 4
252 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 8
253 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 3
254 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 3
255 9122110 3/8 X 1 1/2 FENDER WASHER - PACK OF 10 3
256 9120900 1/4-20 HEX NUT WITH NYLOK INSERT - PACK OF 10 2
257 1390321 ROLLER 2
258 9121287 1/4-20 X 2 1/2 HEX BOLT - PACK OF 2 2
259 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
260 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
261 7692363 LEFT ROLLER LEG 1
261 7692353 RIGHT ROLLER LEG 1
5
CHASSIS ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
262 9122420 1/2 SPLIT LOCK WASHER - PACK OF 5 4
263 9122500 1/2-13 X 7/8 HEX BOLT - PACK OF 2 4
264 7691171 COMPRESSION SPRING 1
265 3190191 STRING GUARD 1
266 7690549 BRUSH/SQUEEGEE ACTUATOR KIT 1
266 7692209 ACTUATOR LIMIT SWITCH KIT 1
267 7690491 #6 HAIR COTTER PIN 1
268 3891941 1/4 NPT HEX NIPPLE 1
269 3393551 INLINE CANISTER STRAINER 1
269A 3393611STRAINER ELEMENT 1
269B 3393621 GASKET 1
270 3393591 STRAINER LOCATION LABEL 1
6

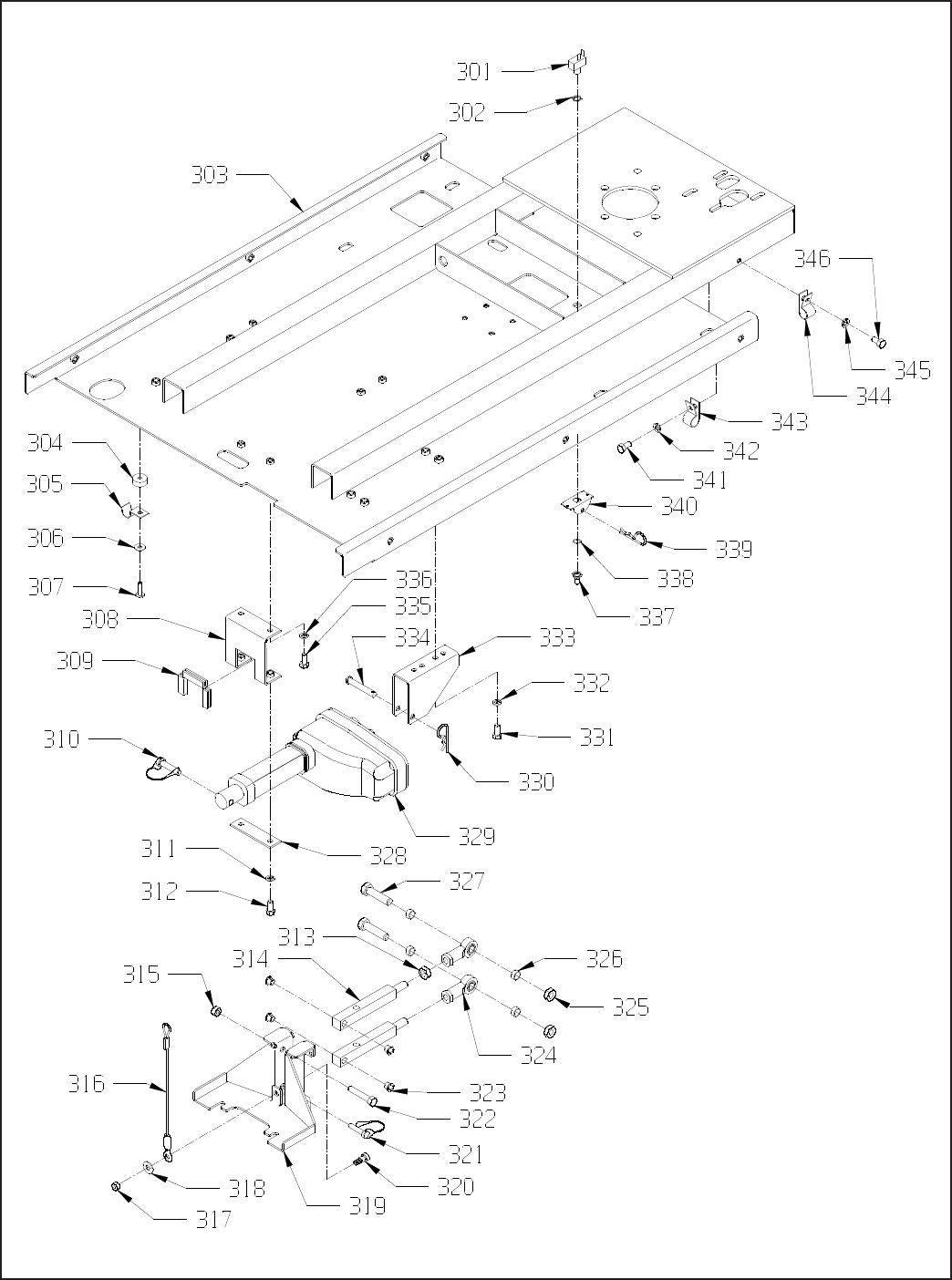

ITEM PART NO. DESCRIPTION QTY.
301 3390411FORWARD - REVERSE SWITCH 1
302 0798821 5/8” HEX NUT (LARGE NUT) 1
303 7693931 MAIN FRAME 1
304 7691361 ACTUATOR SPRING GUIDE 1
305 2690971 HOSE CLIP 1
306 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
307 9121270 1/4-20 X 1 HEX BOLT - PACK OF 10 1
308 7690191 ACTUATOR MOUNT - REAR 1
309 9997590 QUICKEDGE TRIM .3
310 9121950 3/8 X 1 5/8 CLEVIS PIN WITH RETAINER - PACK OF 1 1
3119121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
312 9121640 5/16-18 X 3/4 HEX BOLT - PACK OF 5 2
313 9122670 1/2-20 HEX JAM NUT - PACK OF 5 1
314 1390156 SQUEEGEE SHAFT 2
315 9122140 3/8-16 HEX NUT WITH NY-LOK INSERT - PACK OF 5 1
316 7691071 SQUEEGEE LIFT CABLE 1
317 9121450 5/16-18 HEX NUT WITH NY-LOK INSERT - PACK OF 5 1
318 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 1
319 7693831 SQUEEGEE BRACKET 1
320 9122020 3/8 DIA. X 3/8 LONG SOCKET HEAD SHOULDER BOLT 5/16-18-PK-1 1
321 9121950 3/8 X 1 5/8 CLEVIS PIN WITH RETAINER - PACK OF 1 1
322 9122340 3/8-16 X 2 HEX BOLT - PACK OF 2 1
323 1391171 3/8 FLANGE NYLINER 4
324 2391941 BALL JOINT 2
325 9122495 1/2-13 HEX NUT WITH NY-LOK INSERT - THIN - PACK OF 1 2
326 2391461 BUSHING - LIFT LEVER 4
327 9122580 1/2-13 X 2 HEX BOLT - PACK OF 1 2
328 7690201 ACTUATOR MOUNT CLAMP 1
329 7690549 BRUSH / SQUEEGEE ACTUATOR KIT 1
7692209 ACTUATOR LIMIT SWITCH KIT 1
330 7690491 #6 HAIR COTTER PIN 1
331 9121640 5/16-18 X 3/4 HEX BOLT - PACK OF 5 2
332 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
333 7694061 FRONT MOUNT - SQUEEGEE ACTUATOR 1
334 76903113/8" DIAMETER X 2.505” LONG CLEVIS PIN 1
335 9121640 5/16-18 X 3/4 HEX BOLT - PACK OF 5 2
336 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
337 0693141 RUBBER SWITCH BOOT 1
338 0691851 1/2” INTERNAL STAR LOCK WASHER 1
339 7690491 #6 HAIR COTTER PIN 1
340 7691791 SWITCH GUARD 1
341 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 2
342 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
343 3291111 CORD CLAMP 2
344 2395761 CLAMP, TUBE 1
345 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 1
346 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 1
7
SQUEEGEE ACTUATOR ASSEMBLY
8

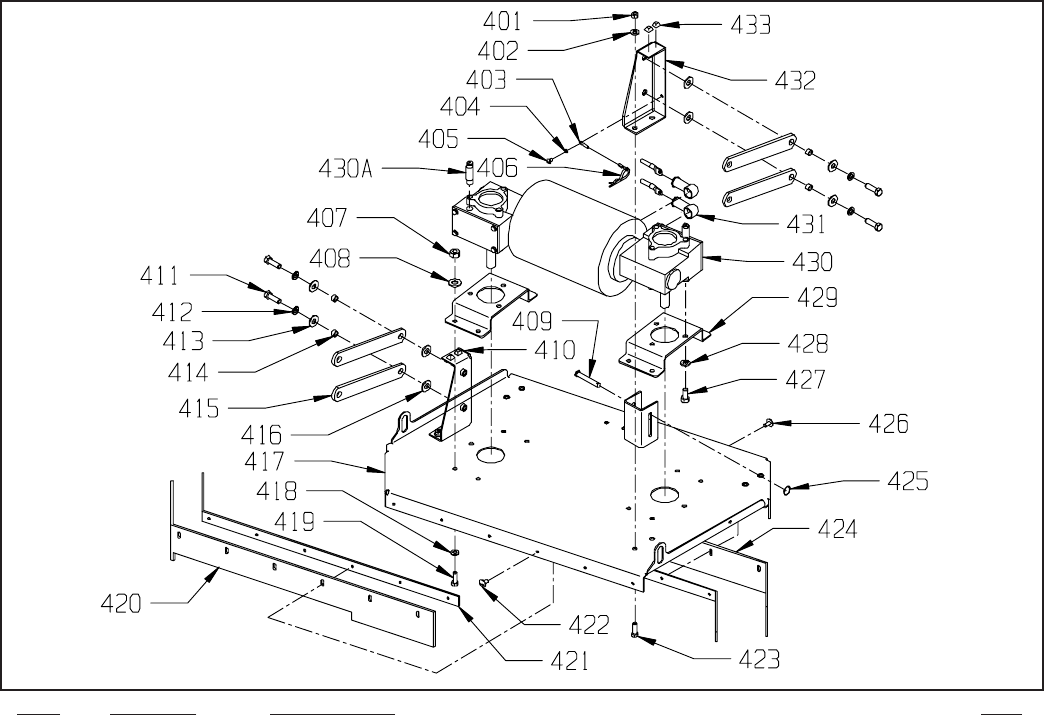

ITEM PART NO. DESCRIPTION QTY.
401 9122140 3/8-16 HEX NUT WITH NY-LOK INSERT - PACK OF 5 4
402 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 4
403 7691331 LANYARD 2
404 9120320 #10 SPLIT LOCK WASHER - PACK OF 10 2
405 9120380 10-24 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
406 7690491 #6 HAIR COTTER PIN 2
407 9121450 5/16-18 HEX NUT WITH NY-LOK INSERT - PACK OF 10 8
408 9120940 5/16 I.D. X 3/4 O.D. X .051/.080 THICK WROUGHT WASHER (1/4)-PK-10 8
409 76903113/8" DIAMETER X 2.505” LONG CLEVIS PIN 1
410 7690461 BRUSH PLATE MOUNT BRACKET - LEFT HAND 1
4119122300 3/8-16 X 1 1/4 HEX BOLT - PACK OF 2 4
412 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 4
413 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 4
414 2691181 PIVOT SPACER, STABILIZER BAR 8
415 2691171 STABILIZER BAR 4
416 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 4
417 7690403 BRUSH MOTOR PLATE 1
418 9120940 5/16 I.D. X 3/4 O.D. X .051/.080 THICK WROUGHT WASHER (1/4)-PK-10 8
419 9121680 5/16-18 X 1 HEX BOLT - PACK OF 5 8
420 7690421 REAR SKIRT RUBBER 1
421 7690431 SKIRT RUBBER SECURING STRAP 2
422 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 8
423 9122260 3/8-16 X 1 HEX BOLT - PACK OF 2 4
424 7690411FRONT SKIRT RUBBER 1
425 7690491 #6 HAIR COTTER PIN 1
426 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 8
427 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 6
428 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 6
429 7690441 BRUSH MOTOR MOUNT 2
430 7690091 BRUSH MOTOR - INCLUDES: 1
7691841 BRUSH MOTOR GEAR BOX 2
7692041 REPLACEMENT CARBON BRUSH - BRUSH MOTOR 4
430A 7691771 BREATHER ASSEMBLY2
431 6492051 STUD TERMINAL BOOT - RUBBER 2
432 7690451 BRUSH PLATE MOUNT BRACKET - RIGHT HAND 1
433 2392261 BUMPER BUTTON 4
UPPER BRUSH DRIVE ASSEMBLY
9
ONBOARD CHARGER
ITEM PART NO. DESCRIPTION QTY.
501 6497531 36 VOLT ONBOARD CHARGER 120/240 VOLT, 25 AMP 1
502 2695841 CHARGER MOUNTING BRACKET 2
503 7692711MOUNTING BRACKET PAD 2
504 7692681 ONBOARD CHARGER MOUNT 1
505 9120930 3/8 FLAT WASHER - PACK OF 2 4
506 9120880 3/8 LOCK WASHER - PACK OF 10 4
507 9121250 3/8-16 X 3/4” LONG HEX HEAD BOLT - PACK OF 5 4
508 3393481 FUSE DECAL 1
509 4990321 FUSE HOLDER WITH NUT & WASHER 1
510 6495741 3AG FAST-ACTING FUSE 4 AMP 1
5117692253 FUSE HOLDER MOUNT 1
512 7692691 BATTERY COVER/SEAT PLATE 1
513 9120330 #10 EXTERNAL STAR LOCK WASHER - PACK OF 10 2
514 9120500 10-24 X 3/8 FLAT HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
515 6495701 120 VOLT ONBOARD CHARGER CORD 1
6495711240 VOLT ONBOARD CHARGER CORD 1
516 9121090 1/4-20 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 4
517 9120970 1/4 STAR LOCK WASHER - PACK OF 10 4
518 9120940 1/4 FLAT WASHER - PACK OF 10 4
519 9120810 #10 X 1/2 PAN HEAD SHEET METAL SCREW - PACK OF 10 6
10

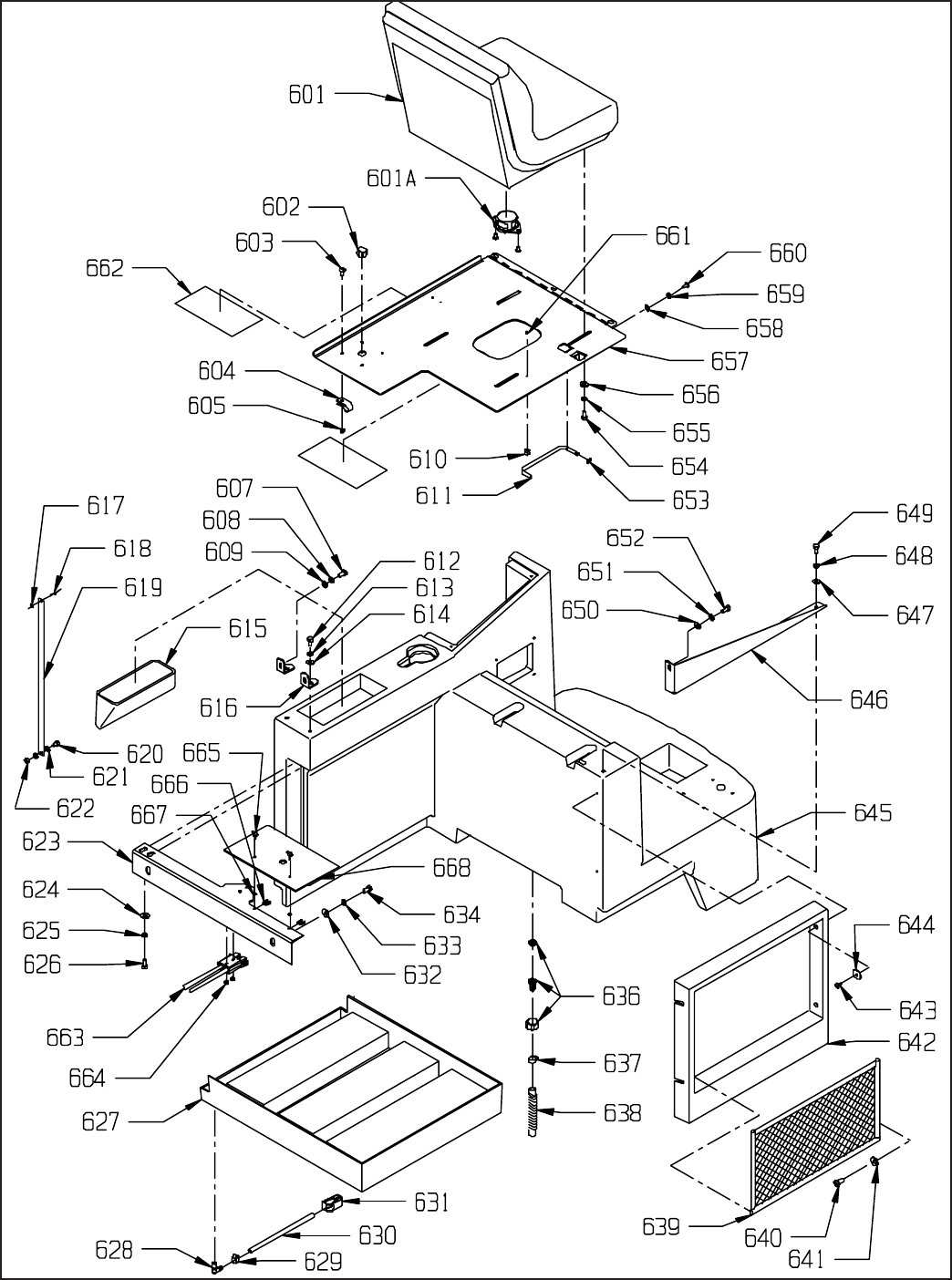

ITEM PART NO. DESCRIPTION QTY.
601 7690601 SEAT - INCLUDES: 1
601A 7691801 SEAT SWITCH, SCREW MOUNT 1
601A 7692601 SEAT SWITCH, TWIST MOUNT 1
602 0690761 BUTTON, PLUG 1
603 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 4
604 4890851 CABLE CLAMP 1
605 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 4
606 3392811BATTERY WARNING DECAL 1
607 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
608 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
609 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
610 7691081 3/8 STOWAGE CLIP 1
6117691191 PROP ROD - BATTERY COVER / SEAT PLATE 1
612 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
613 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
614 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
615 7691249 FILTER SCREEN ASSEMBLY1
616 7692373 SOLUTION TANK MOUNTING BRACKET 2
617 9120370 7/32 I.D. X 1/2 O.D. X .032/.065 THICK FLAT WASHER (#10) - PACK OF 10 1
618 9120817 3/16 X 11/16 DOME HEAD POP RIVET - ALUMINUM - PACK OF 5 1
619 7691911SOLUTION GAGE 1
620 9121600 5/16-18 X 5/8 HEX BOLT - PACK OF 5 1
621 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
622 9121450 5/16-18 HEX NUT WITH NY-LOK INSERT - PACK OF 5 1
623 7695203 UPPER MOUNTING BRACKET - RECOVERY TANK 1
624 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
625 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
626 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
627 7690051 BATTERY BOX 1
628 2490601 FITTING, ELL 3/8 BARB X 1/4 MNPT 1
629 5092371 CORD CLAMP 1
630 8791070 3/8" I.D. X 1/2" O.D. VINYL HOSE - (CUT TO 18”) 1.5’
631 3390661 TUBING CONTROL VALVE 1
632 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
633 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
634 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 2
636 7693771 FILTER FITTING 3/4 HOSE BARB AND COLLAR 1
637 7693811HOSE CLAMP - 9/16” TO 1 1/16” 1
638 7693781 3/4” DIAMETER X 6 1/2” LONG CONVOLUTED HOSE 1
639 7691391 CARGO NET 1
640 9120790 10 X 5/8 PAN HEAD PHILLIPS SHEET METAL SCREW - PACK OF 10 4
641 9120370 7/32 I.D. X 1/2 O.D. X .032/.065 THICK FLAT WASHER (#10) - PACK OF 10 4
642 7690061 SIDE COVER 1
643 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 4
644 9120950 1/4 I.D. X 1 1/4 O.D. FENDER WASHER - PACK OF 10 4
645 7690011SOLUTION TANK 1
646 7691013 SOLUTION TANK MOUNTING BRACKET - RIGHT 1
647 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 1
648 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 1
649 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 1
650 9121980 3/8 FLAT WASHER - PACK OF 10 1
651 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 1
652 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 1
653 7691091 3/8 EXTERNAL E-RING - PROP ROD 2
654 9121640 5/16-18 X 3/4 HEX BOLT - PACK OF 5 4
655 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 4
656 9120940 5/16 I.D. X 3/4 O.D. X .051/.080 THICK WROUGHT WASHER (1/4)-PK-10 4
657 7692691 BATTERY COVER / SEAT PLATE 1
658 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 3
659 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 3
660 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 3
661 9120307 1/8 X 3/16 DOME HEAD POP RIVET - ALUMINUM - PACK OF 5 1
662 3394141 OBC WARNING DECAL 1
663 7691691 WIRING HARNESS: BATTERIES TO CONTROLLER 1
664 9120910 1/4-20 HEX NUT WITH STARLOCK WASHER - PACK OF 10 2
665 7692531 1/4 TURN STUD 2
666 7692541 WASHER FOR 1/4 TURN STUD 2
667 7692551 1/4 TURN CLIP ON RECEPTACLE 2
668 7692701 BATTERY COMPARTMENT CORNER PLATE 1
11
SOLUTION TANK ASSEMBLY
12
ELECTRICAL COMPONENTS
PART NO. DESCRIPTION QTY.
2391981 BATTERY JUMPER 3/8" RING 5
2690551 VAC MOTOR, 36 VOLT 1
2690951 BATTERY, DRY, 6 VOLT, 325 AMP / HOUR 6
2691501 BATTERY, WET, 6 VOLT, 325 AMP / HOUR 6
2694131 POTENTIOMETER, CURTIS SPEED CONTROLLER 1
2792571 REPLACEMENT CARBON BRUSH - VAC MOTOR 2
7692511KEY SWITCH WITH KEY 1
7692521 REPLACEMENT KEY FOR 7692511 1
3390361 BATTERY, WET, 6VOLT, 225 AMP/HR 6
3390951 BATTERY, DRY 6 VOLT, 225 AMP/HR 6
3390411FORWARD - REVERSE SWITCH 2
3393549 EMERGENCY STOP KIT 1
4491101 TOGGLE SWITCH, MOTOR 2
4890791 CIRCUIT BREAKER - 2 AMP 2
4990321 FUSE HOLDER WITH NUT & WASHER 1
6491261 CIRCUIT BREAKER - 90 AMP 1
6495691 36V ONBOARD CHARGER 120/240 VOLT 21 AMP 1
6495701 120V ONBOARD CHARGER CORD 1
6495741 3AG FAST-ACTING FUSE 4 AMP 1
7690071 12 X 4 DRIVE WHEEL 1
7690091 BRUSH MOTOR 1
7690521 SOLUTION SOLENOID VALVE 1
7690541 BRUSH / SQUEEGEE ACTUATOR MOTOR 2
7691201 MACHINE CONTROL SYSTEM 1
7691211LCD MODULE 1
7691221 BACK UP ALARM 1
7691301 EMERGENCY STOP BLOCK 1
7691401 BATTERY - 395 AMP HOUR - 6 VOLT DC - WET 6
7691421 BATTERY - 395 AMP HOUR - 6 VOLT DC - DRY 6
7691621 CIRCUIT BREAKER TO CONTROLLER 1
7691631 PUSH BUTTON SWITCH 2
7691641 EMERGENCY STOP TO KEY SWITCH 1
7691651 CONTROLLER TO LCD 1
7695211WIRING ASSEMBLY, ANDERSON TO +/- BATTERY 1
7691671 CONTROLLER TO BRUSH 1
7691681 CONTROLLER TO DRIVE MOTOR 1
7691691 WIRING HARNESS: BATTERIES TO CONTROLLER 1
7691701 MAIN WIRING HARNESS 1
7691721 LCD TO SWITCH 1
7691731 GROUND WIRE 2
7691741 BACK-UP ALARM WIRE 1
7691751 WIRE ASSEMBLY - HIGH REFERENCE 1
7691761 WIRE ASSEMBLY - LOW REFERENCE 1
7691781 WIRE ASSEMBLY - OVERRIDE SWITCH TO BRUSH ACTUATOR 1
7691801 SEAT SWITCH 1
7691821 STROBE LIGHT (OPTIONAL) 1
7691831 HEADLIGHT (OPTIONAL) 1
7691871 AUXILIARY HARNESS TO CONTROLER 1
7692021 HEADLIGHT BULB 1
7692031 STROBE LIGHT BULB 1
7692041 CARBON BRUSH - BRUSH MOTOR 4
7692051 CARBON BRUSH - DRIVE WHEEL 4
7692091 ACTUATOR SETTING INSTRUCTIONS 1
9123000 1/8 X 11” WIRE TIE - PACK OF 5 1
9123005 5 1/2” LONG WIRE TIE - PACK OF 5 5
13

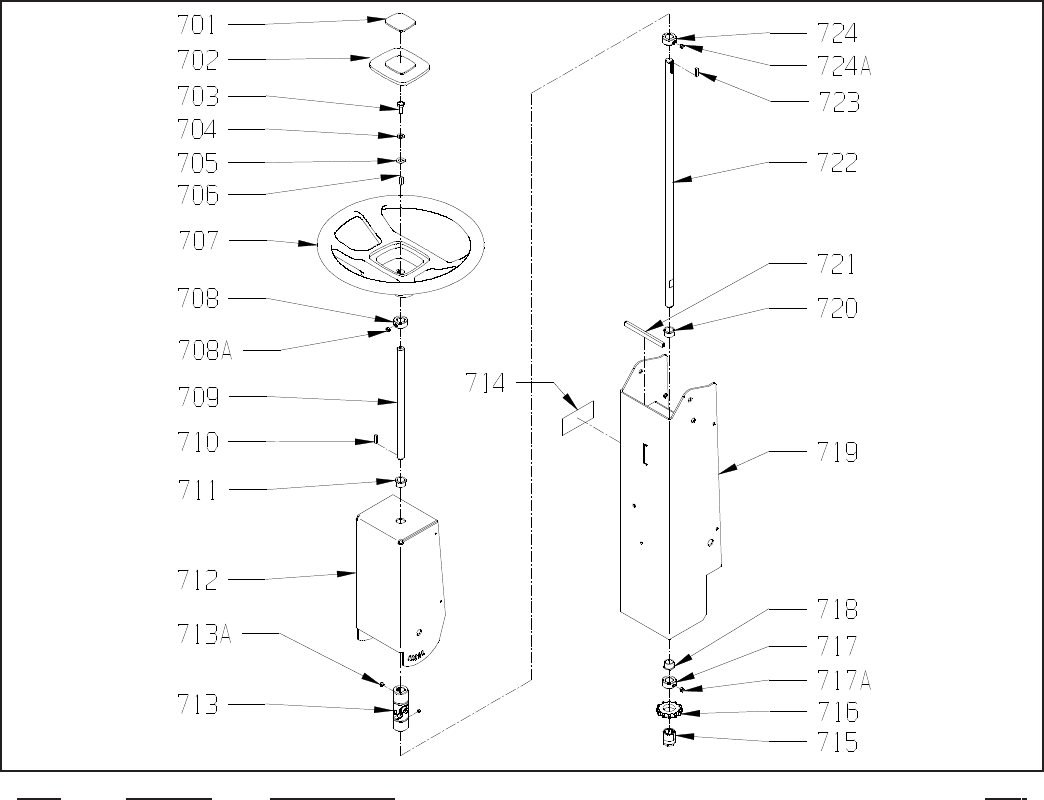

INNER STEERING COLUMN ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
701 7690931 DECAL - STEERING WHEEL 1
702 7690631 CAP - STEERING WHEEL 1
703 9121640 5/16-18 X 3/4 HEX BOLT - PACK OF 5 1
704 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 1
705 9121985 13/32 I.D. X 1 O.D. X .12 THICK FLAT WASHER (11 GAGE) - PACK OF 1 1
706 9120827 3/16 SQUARE X 1 LONG KEY - STEEL - PACK OF 2 1
707 7690611STEERING WHEEL 1
708 7690661 5/8 SET COLLAR / STEERING SHAFT - INCLUDES: 1
708A 9121380 5/16-18 X 3/8 SET SCREW - KNURL POINT - PACK OF 2 1
709 7690921 UPPER STEERING SHAFT 1
710 9120827 3/16 SQUARE X 1 LONG KEY - STEEL - PACK OF 2 1
7112790761 BEARING, FLANGE FF-71 1
712 7690733 UPPER COLUMN 1
713 7690621 UNIVERSAL JOINT - STEERING - INCLUDES: 1
713A 9121380 5/16-18 X 3/8 SET SCREW - KNURL POINT - PACK OF 2 2
714 7692281 NAMING IDENTIFICATION LABEL 1
715 7691311TRAN - TORQUE KEYLESS BUSHING 1
716 7691321 SPROCKET 1
717 7690661 5/8 SET COLLAR / STEERING SHAFT - INCLUDES: 1
717A 9121380 5/16-18 X 3/8 SET SCREW - KNURL POINT - PACK OF 2 1
718 2790761 BEARING, FLANGE FF-71 1
719 7690713 STEERING COLUMN - BASE 1
720 2790761 BEARING, FLANGE FF-71 1
721 9997590 EDGE TRIM (CUT TO 6”) .5’
722 7690911LOWER STEERING SHAFT 1
723 9120827 3/16 SQUARE X 1 LONG KEY - STEEL - PACK OF 2 1
724 7690661 5/8 SET COLLAR / STEERING SHAFT - INCLUDES: 1
724A 9121380 5/16-18 X 3/8 SET SCREW - KNURL POINT - PACK OF 2 1
16

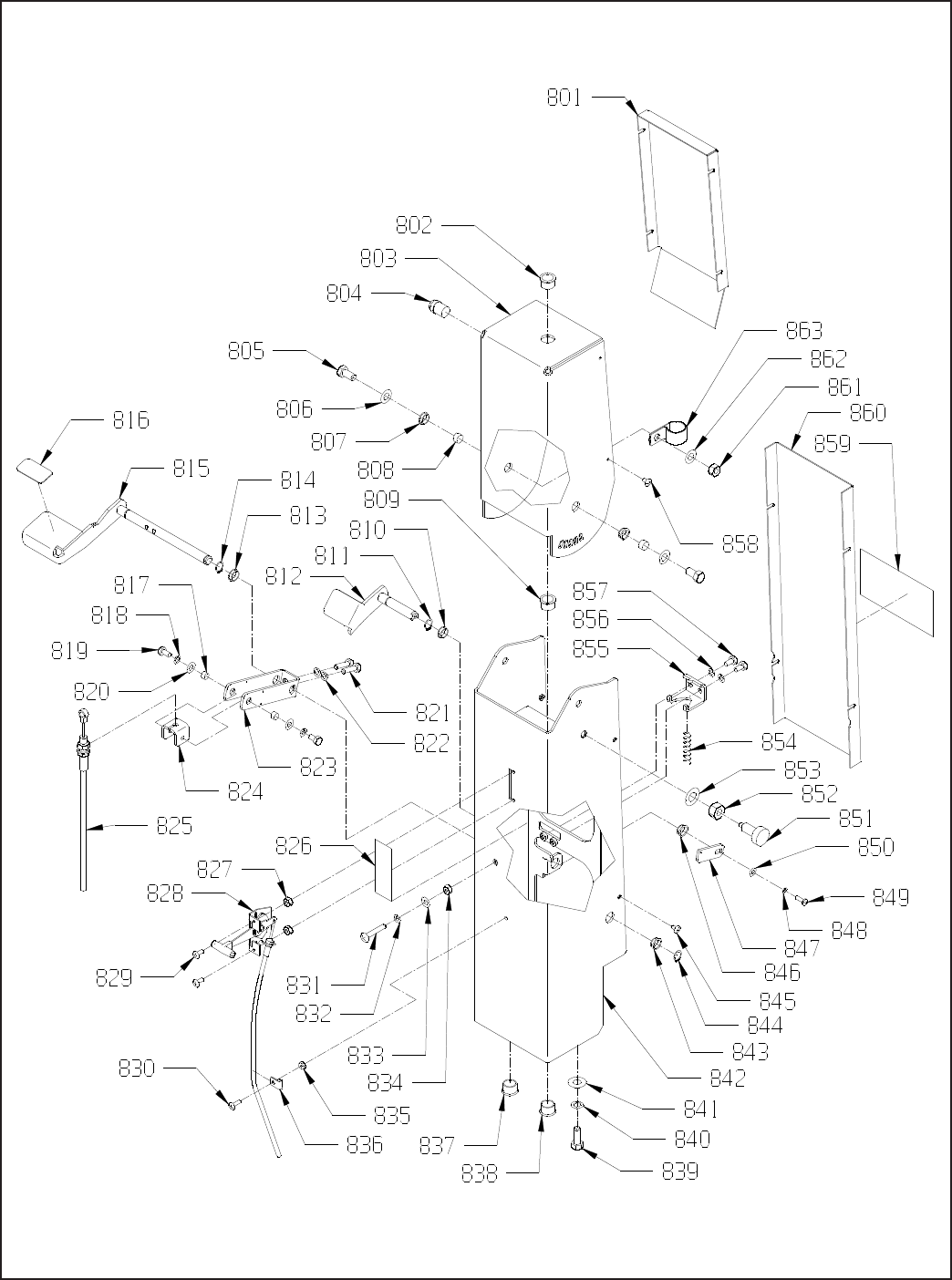

ITEM PART NO. DESCRIPTION QTY.
801 7690743 TILT COLUMN COVER 1
802 2790761 BEARING, FLANGE FF-71 1
803 7690733 UPPER COLUMN 1
804 7691631 PUSH BUTTON SWITCH 1
805 9122300 3/8-16 X 1 1/4 HEX BOLT - PACK OF 2 2
806 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
807 7690691 NYLINER - STEERING TILT2
808 2691181 PIVOT SPACER, STABILIZER BAR 2
809 2790761 BEARING, FLANGE FF-71 1
810 7690691 NYLINER - STEERING TILT1
8119122496 RETAINING RING - PACK OF 8 1
812 7691131 PARKING BRAKE PEDAL 1
813 7690691 NYLINER - STEERING TILT1
814 9122496 RETAINING RING - PACK OF 8 1
815 7691101 BRAKE PEDAL 1
816 1390571 STEP TREAD 1
817 2791281 BUSHING SPACER 2
818 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
819 9121170 1/4-20 X 1/2 HEX BOLT - PACK OF 10 2
820 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 2
821 9121270 1/4-20 X 1 HEX BOLT - PACK OF 10 2
822 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
823 7691111 BRAKE CABLE ARM 1
824 7691121 BRAKE CABLE PIVOT BRACKET 1
825 7690971 BRAKE CABLE 1
826 7692301 BLACK AND WHITE MINI KIT 1
827 9120360 10-24 HEX NUT WITH STAR LOCK WASHER - PACK OF 10 2
828 7691051 SOLUTION LEVER AND CABLE ASSEMBLY1
829 9120420 10-24 X 5/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
830 9120420 10-24 X 5/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
831 9121130 1/4-20 X 1 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 1
832 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 1
833 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4) -PK-10 1
834 9120900 1/4-20 HEX NUT WITH NY-LOCK INSERT - PACK OF 10 1
835 9120360 10-24 HEX NUT WITH STAR LOCK WASHER - PACK OF 10 1
836 5294201 NYLON CABLE CLAMP 1
837 4890451 BUSHING, SNAP IN, #SB87511 HEYCO 1
838 2790761 BEARING, FLANGE FF-71 1
839 9122260 3/8-16 X 1 HEX BOLT - PACK OF 2 4
840 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 4
841 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 4
842 7690713 STEERING COLUMN - BASE 1
843 7690691 NYLINER - STEERING TILT1
844 9122496 RETAINING RING - PACK OF 8 1
845 9120500 10-24 X 3/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 4
846 7690691 NYLINER - STEERING TILT1
847 7691141 PARKING BRAKE SPRING ARM 1
848 9120320 #10 SPLIT LOCK WASHER - PACK OF 10 1
849 9120420 10-24 X 5/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
850 9120370 7/32 I.D. X 1/2 O.D. X .032/.065 THICK SAE FLAT WASHER (#10)-PK-10 1
851 7690701 RETRACTABLE PLUNGER - TILT STEERING 1
852 9122680 1/2-13 HEX JAM NUT - PACK OF 5 1
853 9122450 17/32 I.D. X 1 1/16 O.D. X .074/.121 THICK SAE FLAT WASHER (1/2)-PK-5 1
854 4490641 EXTENSION SPRING 3
855 7691151 BRAKE RETURN SPRING BRACKET 1
856 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
857 9121170 1/4-20 X 1/2 HEX BOLT - PACK OF 10 2
858 9120500 10-24 X 3/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 4
859 7692311CLOUD BURST DECAL 3.5 X 5.5 1
860 7690723 COVER - BASE 1
861 9122140 3/8-16 HEX NUT WITH NY-LOCK INSERT - PACK OF 5 2
862 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
863 2395761 CLAMP, TUBE 1
17
STEERING COLUMN ASSEMBLY
18

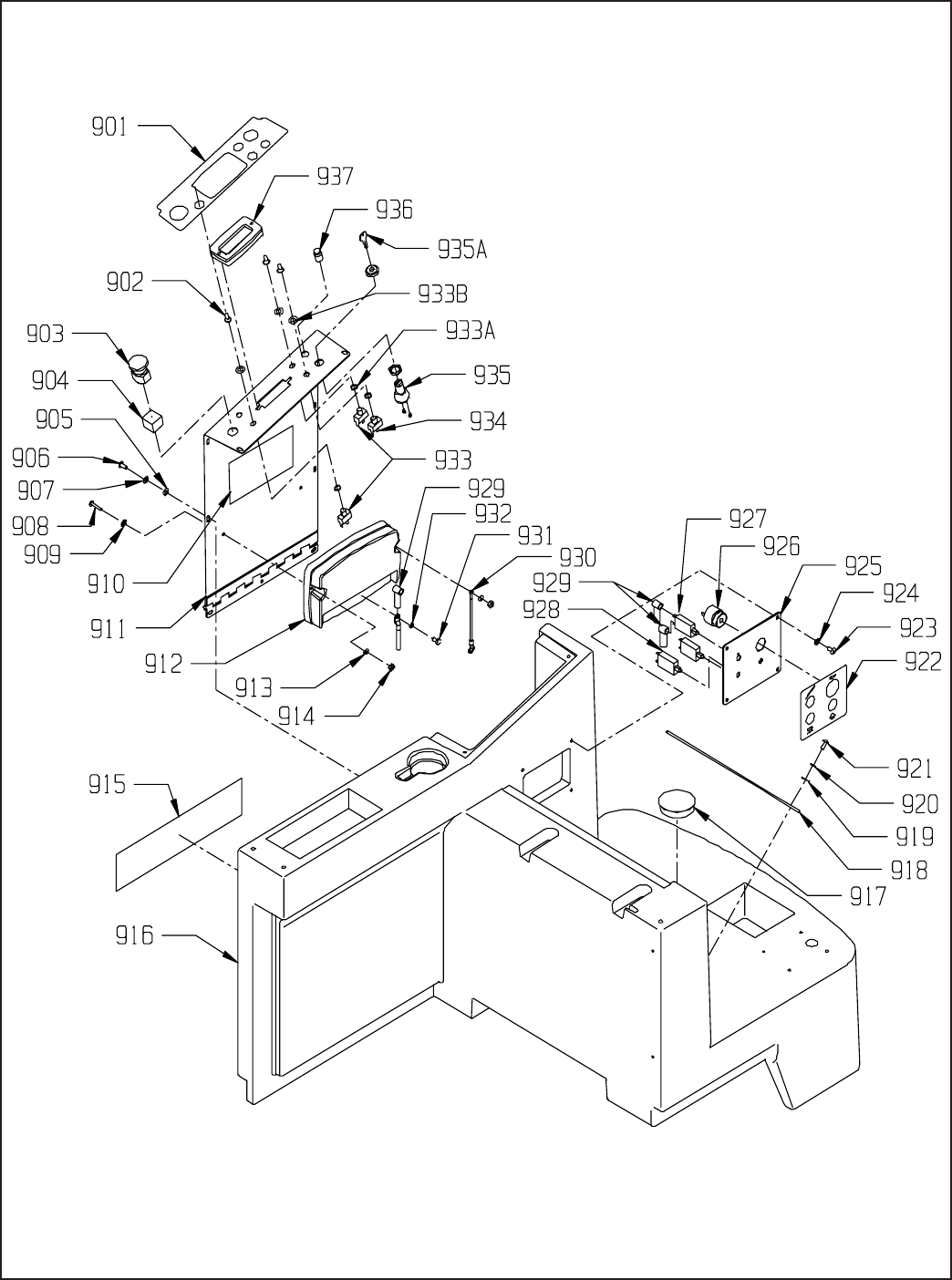

ITEM PART NO.DESCRIPTION QTY.
901 7691811ELECTRICAL PANEL - DECAL 1
902 0693141 RUBBER SWITCH BOOT 3
903 3393549 EMERGENCY STOP KIT 1
904 7691301 EMERGENCY STOP BLOCK 1
905 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 7
906 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 7
907 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 7
908 9120460 10-24 X 1 1/4 ROUND HEAD PHILLIPS MACHINE SCREW-PK-10 2
909 9120330 #10 EXTERNAL STAR LOCK WASHER - PACK OF 10 2

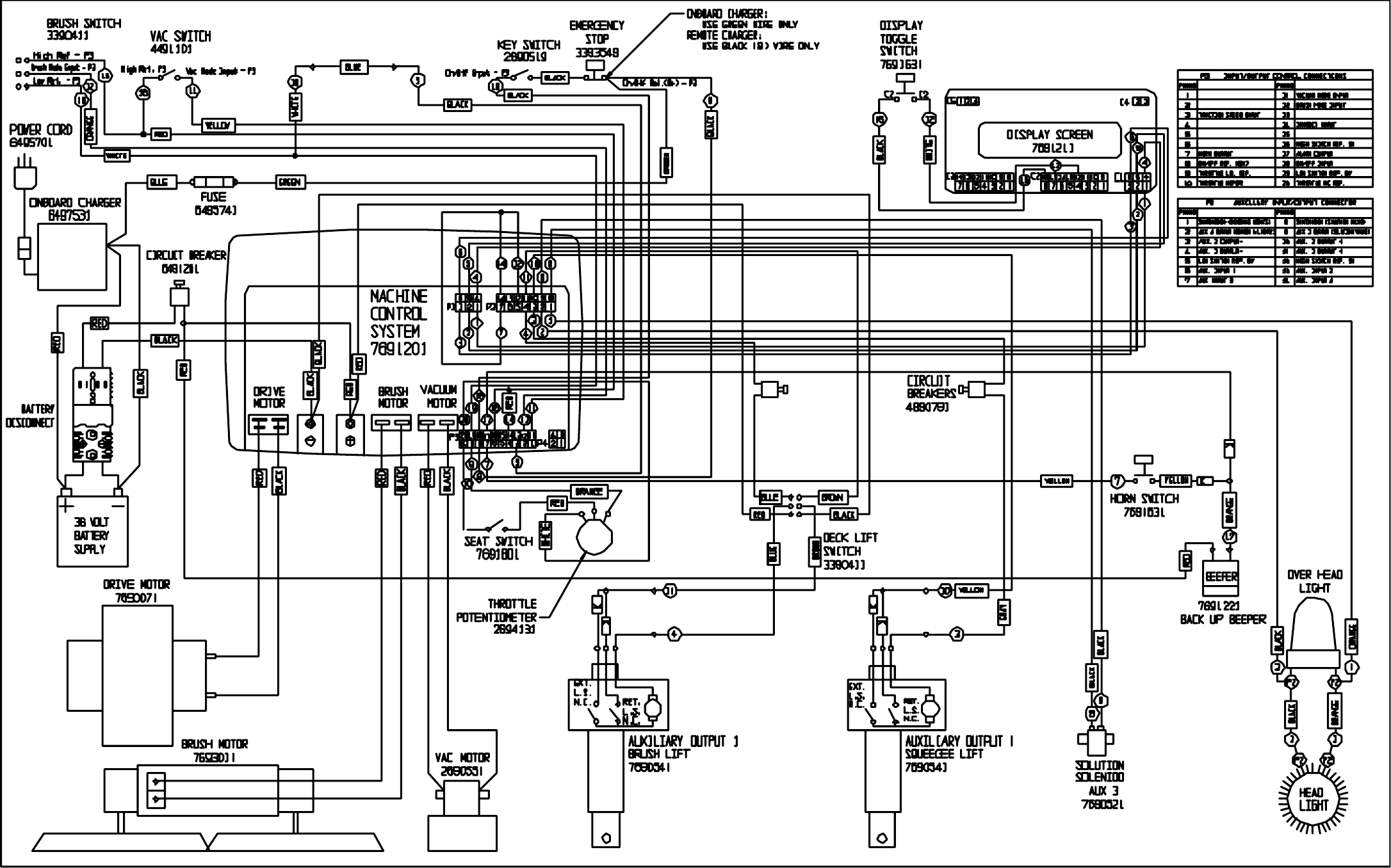

910 7692391 WIRING DIAGRAM 1
9117694333 ELECTRICAL PANEL 1
912 7691201 MACHINE CONTROL SYSTEM 1
913 9120370 7/32 I.D. X 1/2 O.D. X .032/.065 THICK SAE FLAT WASHER (#10)-PK-10 2
914 9120350 10-24 HEX NUT WITH NY-LOK INSERT - PACK OF 10 2
915 7691891 CLOUD BURST DECAL - 3.5 X 20 1
916 7690011SOLUTION TANK 1
917 6490791 PLUG 3" 1
918 7690123 ACTUATOR COVER PANEL 1
919 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 4
920 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 4
921 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 4
922 7692301 BLACK AND WHITE MINI KIT 1
923 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 4
924 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 4
925 7690103 PANEL - CIRCUIT BREAKER 1
926 7691221 BACK UP ALARM 1
927 6491261 CIRCUIT BREAKER - 90 AMP 1
928 4890791 CIRCUIT BREAKER - 2 AMP 2
929 7692421 TERMINAL BOOT (RED) 3
930 7691731 GROUND WIRE 1
931 9120835 M6 X 12.7 HEX HEAD BOLT - PACK OF 2 2
932 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 2
933 4491101 TOGGLE SWITCH, MOTOR 2
933A 0798821 5/8” HEX NUT (LARGE NUT) 3
933B 0691851 1/2 INTERNAL STAR LOCK WASHER 3
934 3390411FORWARD - REVERSE SWITCH 1
934A 0798821 5/8” HEX NUT (LARGE NUT) 3
934B 0691851 1/2 INTERNAL STAR LOCK WASHER 3
935 7692511KEY SWITCH WITH KEY 1
935A 7692521 REPLACEMENT KEY FOR 76925111
936 7691631 PUSH BUTTON SWITCH 1
937 7691211LCD MODULE 1
19
ELECTRICAL PANEL ASSEMBLY
20
ITEM PART NO. DESCRIPTION QTY.
1001 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1002 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
1003 2791281 BUSHING SPACER 1
1004 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1005 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 1
1006 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 1
1007 9121060 1/4-20 X 1 1/4 HEX BOLT - PACK OF 5 1
1008 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 1
1009 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1010 7690891 ACCELERATOR PEDAL ARM 1
10112691771 PIN, SKIRT LATCH 1
1012 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1013 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
1014 9120210 8-32 X 1/4 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
1015 7690811GUIDE 1
1016 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
1017 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1018 7690801 1/4 I.D. X 3/8 O.D. X 3/8 LONG FLANGE BEARING - THROTTLE PEDAL 1
1019 7690821 TORSION SPRING - ACCELERATOR PEDAL 1
1020 7691961 PIVOT BRACKET - ACCELERATOR 1
1021 7690801 1/4 I.D. X 3/8 O.D. X 3/8 LONG FLANGE BEARING - THROTTLE PEDAL 1
1022 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1023 9121350 1/4-20 X 3 HEX HEAD BOLT - PACK OF 3 1
1024 5091661 CORD CLAMP 1
1025 7691731 GROUND WIRE 1
1026 9120500 10-24 X 3/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
1027 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 4
1028 9120970 1/4 EXTERNAL STAR LOCK WASHER - PACK OF 10 4
1029 9121000 1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 1
1030 9120350 10-24 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
1031 7690851 COVER - POTENTIOMETER 1
1032 2694131 POTENTIOMETER - CURTIS SPEED CONTROL 1
1033 9120225 8-32 X 1/4 SET SCREW - KNURL POINT - ALLOY - PACK OF 10 1
1034 7690881 POTENTIOMETER ARM 1
1035 7691951 ACCELERATOR SPRING SPACER 1
1036 9121350 1/4-20 X 3 HEX HEAD BOLT - PACK OF 3 1
1037 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1038 7690833 PEDAL - ACCELERATOR 1
21

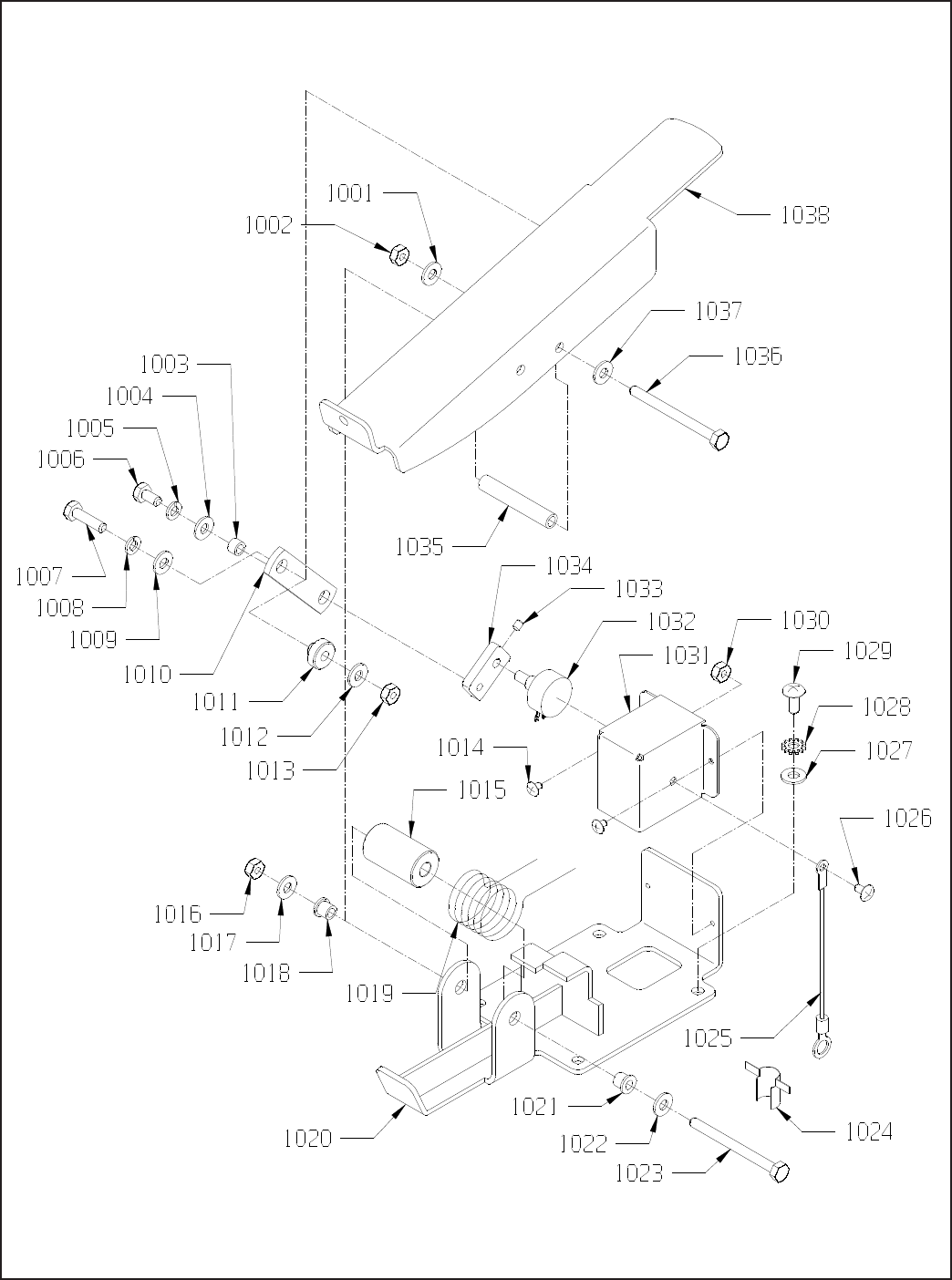

ACCELERATOR PEDAL ASSEMBLY
22

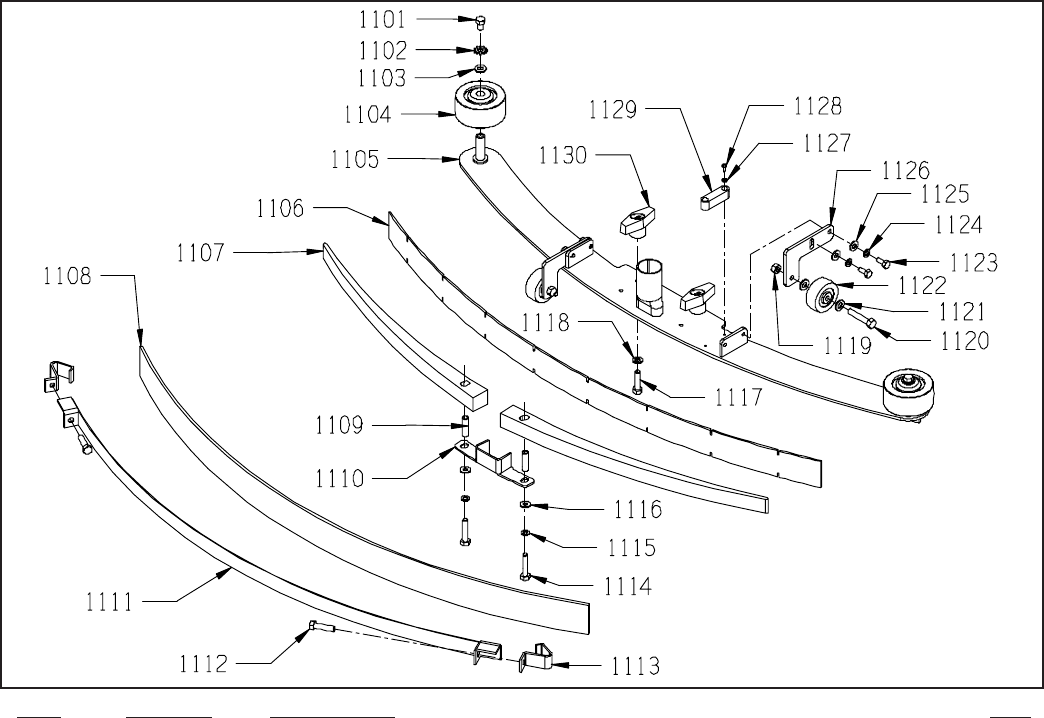

CURVED SQUEEGEE ASSEMBLY 7693169
ITEM PART NO. DESCRIPTION QTY.
7693169 CHAMP 29 CURVED SQUEEGEE ASSEMBLY 37” LONG - INCLUDES: 1
1101 9121560 5/16-18 X 1/2 HEX BOLT - PACK OF 5 2
1102 9121410 5/16 EXTERNAL STAR LOCK WASHER - PACK OF 10 2
1103 9121390 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16)-PK-10 2
1104 2790281 3” BUMPER WHEEL 2
1105 7693151 MAIN SQUEEGEE HOUSING 1
1106 2492521 FRONT SQUEEGEE BLADE 1
1107 2492511CENTER WEDGE 2
1108 7693171 REAR SQUEEGEE BLADE - LINATEX 1
1109 2492591 CENTER HOLD DOWN SPACER 2
1110 2492541 WEDGY CONTAINMENT BRACKET 1
1111 2492551 BLADE SECURING STRAP 1
1112 9121720 5/16-18 X 1 1/4 HEX HEAD FULL THREADED BOLT - PACK OF 2 2
1113 2492561 HOOKED END 2
1114 9121280 1/4-20 X 1 1/2 HEX BOLT - PACK OF 5 2
1115 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
1116 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 2
1117 9121720 5/16-18 X 1 1/4 HEX HEAD FULL THREADED BOLT - PACK OF 2 2
1118 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
1119 9121450 5/16-18 HEX NUT WITH NY-LOK INSERT - PACK OF 5 2
1120 9121760 5/16-18 X 1 3/4 HEX BOLT - PACK OF 2 2
1121 9121390 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16)-PK-10 4
1122 3096741 ROLLER WHEEL 2
1123 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 4
1124 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 4
1125 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 4
1126 2492571 DOLLY WHEEL MOUNTING BRACKET 2
1127 9120030 #6 SPLIT LOCK WASHER - PACK OF 10 2
1128 9120070 6-32 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 2
1129 2492581 SQUEEGEE LEVEL 1
1130 3392971 T-KNOB - SQUEEGEE 2
23
OPTIONAL CURVED SQUEEGEE ASSEMBLY 7694409
ITEM PART NO. DESCRIPTION QTY.
7694409 CURVED SQUEEGEE ASSEMBLY - INCLUDES: 1
1201 9121760 5/16-18 X 1 3/4 HEX BOLT - PACK OF 2 2
1202 9121390 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16)-PK-10 2
1203 9121210 1/4-20 X 5/8 HEX BOLT - PACK OF 10 4
1204 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 4
1205 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 4
1206 7694413 SQUEEGEE HOUSING 1
1207 7694421 FRONT SQUEEGEE BLADE 1
1208 7694441 WEDGY 2
1209 7694461 REAR SQUEEGEE BLADE - LINATEX 1
1210 7694471 WEDGY CONTAINMENT BRACKET 1
12117694451 BLADE SECURING STRAP 1
1212 9121720 5/16-18 X 1 1/4 HEX HEAD FULL THREADED BOLT - PACK OF 2 2
1213 2492561 HOOKED END 2
1214 9121280 1/4-20 X 1 1/2 HEX BOLT - PACK OF 5 2
1215 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
1216 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 2
1217 2492591 CENTER HOLD DOWN SPACER 2
1218 9121720 5/16-18 X 1 1/4 HEX HEAD FULL THREADED BOLT - PACK OF 2 2
1219 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
1220 2790281 BUMPER WHEEL 2
1221 9121390 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16)-PK-10 2
1222 9121410 5/16 EXTERNAL STAR LOCK WASHER - PACK OF 10 2
1223 9121560 5/16-18 X 1/2 HEX BOLT - PACK OF 5 2
1224 3392971 T-KNOB - SQUEEGEE 2
1225 9121450 5/16-18 HEX NUT WITH NY-LOK INSERT - PACK OF 5 2
1226 2492571 DOLLY WHEEL MOUNTING BRACKET 2
1227 9121390 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16)-PK-10 2
1228 3096741 ROLLER WHEEL 2
24
ITEM PART NO. DESCRIPTION QTY.
1301 8791180 HOSE - VINYL 1/2" I.D. X 3/4" O.D. (CUT TO 18”) 1.5
1302 8791180 HOSE - VINYL 1/2" I.D. X 3/4" O.D. (CUT TO 2”) .2
1303 7691371 TEE - 3/8 X 3/8 X 1/2 1
1304 8791070 HOSE - VINYL 3/8" I.D. X 1/2" O.D. (CUT TO 12”) 1
1305 7690491 #6 HAIR COTTER PIN 1
1306 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 6
1307 7690481 SKIRT MOUNT BRACKET - LEFT HAND 1
1308 7690271 SIDE SKIRT BLADE - LEFT HAND 1
1309 76903113/8" DIAMETER X 2.505” LONG CLEVIS PIN 1
1310 7692631 90 DEGREE SOLUTION FEED TUBE 2
13117690281 SIDE SKIRT STRAP - LEFT HAND 1
1312 7690263 LEFT SIDE SKIRT1
1313 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1314 9120900 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 10 1
1315 7691491 PAD DRIVER 15" - INCLUDES: 2
1315B 5990731 SPRING CLIP PAD HOLDER SET 1
1315A 9120140 #6 X 5/8 PAN HEAD PHILLIPS SHEET METAL SCREW 3
1315 7691501 BASSINE BRUSH 14" POLY BLOCK (OPTIONAL) 2
7691511NYLON BRUSH 14" POLY BLOCK (OPTIONAL) 2
7691521 STRATAGRIT BRUSH 14" POLY BLOCK (OPTIONAL) 2
1316 ——----- PAD - SEE ACCESSORIES PAGE FOR TYPES 2
1317 9121680 5/16-18 X 1 HEX BOLT - PACK OF 5 2
1318 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 2
1319 9121985 13/32 I.D. X 1 O.D. X .12 THICK FLAT WASHER (11 GAGE) - PACK OF 1 2
1320 7691449 LEFT DRIVE CASTING ASSEMBLY1
7691459 RIGHT DRIVE CASTING ASSEMBLY1
2698072 DRIVE CASTING 2
1320A 2698081 DRIVE LUG 12
1320B 9121090 1/4-20 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 2
1320C 2791281 BUSHING SPACER 2
1320D 2790211DRIVE PLATE LATCH 2
1320E 9122120 3/8 I.D. X 5/8 O.D. X .031 THICK WAVE SPRING WASHER - PACK OF 5 2
1320F 9121520 5/16 SPLIT LOCK WASHER - PACK OF 10 12
1320G 9121680 5/16-18 X 1 HEX BOLT - PACK OF 5 12
1320H 2698061 RUBBER MOUNT 2
1320I 7691382 DRIVE HUB 2
1321 9120827 3/6" SQUARE X 1" LONG KEY - PACK OF 2 2
1322 5092641 RETAINING RING 2
1323 9120510 10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10 6
1324 7690491 #6 HAIR COTTER PIN 2
1325 7690941 BUMPER WHEEL AXLE 1
1326 2790281 BUMPER WHEEL 1
1327 7690233 RIGHT SIDE SKIRT1
1328 9122496 RETAINING RING - PACK OF 8 1
1329 7690491 #6 HAIR COTTER PIN 1
1330 9122685 1/2 X 2 7/8 CLEVIS PIN 2
1331 7690241 SIDE SKIRT BLADE - RIGHT HAND 1
1332 7690251 SIDE SKIRT STRAP - RIGHT HAND 1
1333 7690491 #6 HAIR COTTER PIN 1
1334 7690471 SKIRT MOUNT BRACKET - RIGHT HAND 1
1335 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 4
1336 9122220 3/8-16 X 3/4 HEX BOLT - PACK OF 5 4
1337 7691361 ACTUATOR SPRING GUIDE 1
1338 9120930 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4)-PK-10 1
1339 9121270 1/4-20 X 1 HEX BOLT - PACK OF 10 1
1340 7691171 COMPRESSION SPRING 1
1341 3190191 STRING GUARD 1
1342 8791070 HOSE - VINYL 3/8" I.D. X 1/2" O.D. (CUT TO 18”) 1.5
1343 7690521 SOLUTION SOLENOID VALVE 1
1344 9120880 1/4 SPLIT LOCK WASHER - PACK OF 10 2
1345 9121170 1/4-20 X 1/2 HEX BOLT - PACK OF 10 2
1346 3394071 SOLUTION VALVE GUARD 1
1347 9123005 1/8 X 5 1/2 TIE WRAP - PACK OF 5 1
25

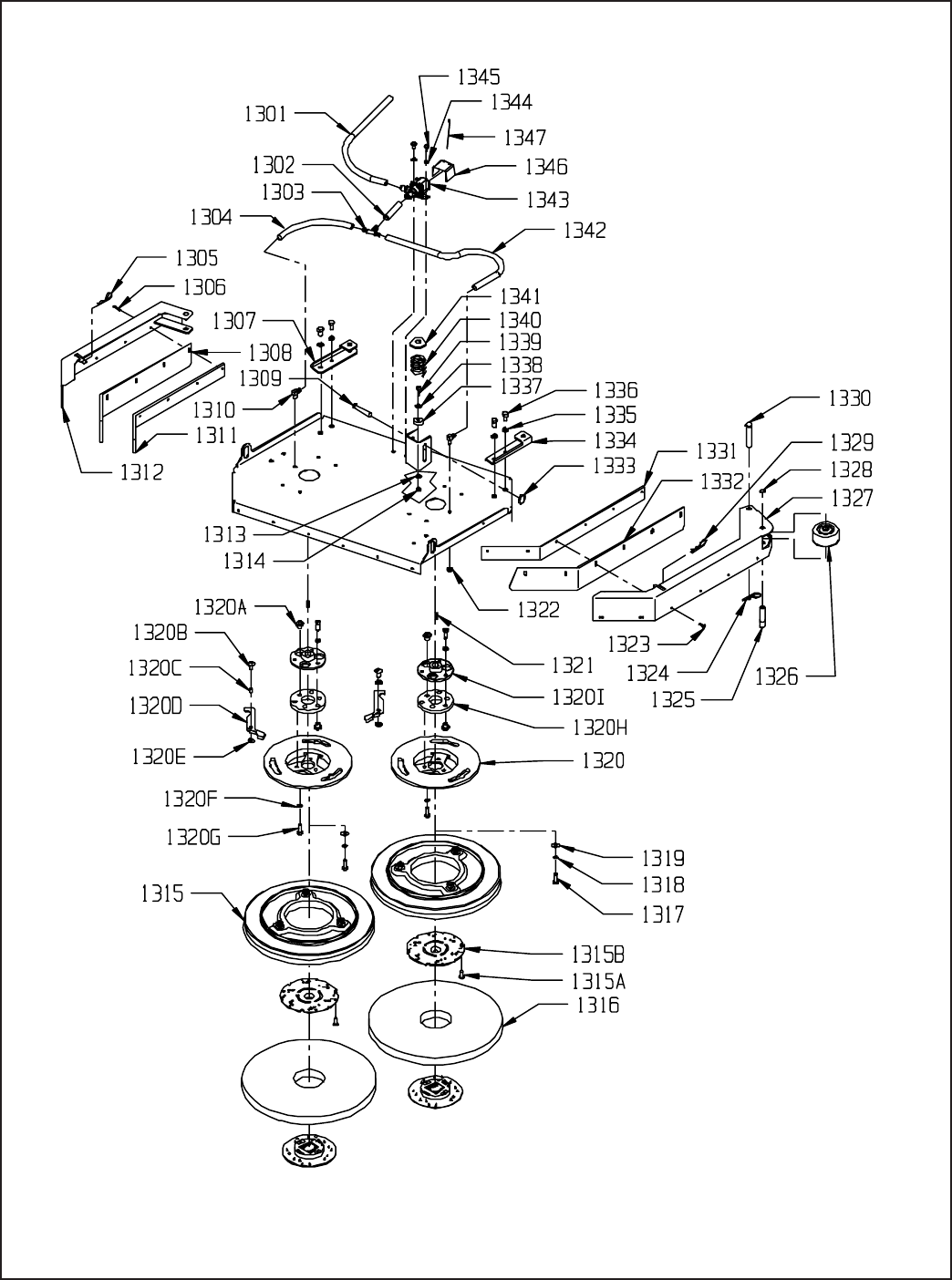

LOWER BRUSH DRIVE ASSEMBLY
26
ITEM PART NO. DESCRIPTION QTY.
1401 7690791 VAC MOTOR FILTER 1
1402 7690781 VAC MOTOR SCREEN 1
1403 7693861 VAC MOTOR COVER 1
1404 9120450 10-24 X 1 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 1
1405 9120790 10 X 5/8 PAN HEAD PHILLIPS SHEET METAL SCREW - PACK OF 10 5
1406 2690881 RECOVERY TANK LID ASSEMBLY1
2690921 BLACK RING, RECOVERY TANK 1
1406A 9120205 #8 X 1/2 PAN HEAD PHILLIPS SHEET METAL SCREW - PK OF 3 1
1406B 2690911LID - CLEAR, RECOVERY TANK 1
1406C 2690931 LID CHAIN, RECOVERY TANK 1
1407 2690891 RECOVERY TANK LID GASKET 1
1408 9120350 10-24 HEX NUT WITH NY-LOK INSERT1
1409 4894081 NYLON HOSE CLAMP - 1 19/32” TO 1 13/16” DIAMETER 1
1410 2391541 FLOAT SCREEN ASSEMBLY1
14112490561 GASKET - VAC MOTOR 1
1412 2690551 VAC MOTOR, 36 VOLT1
2792571 REPLACEMENT CARBON BRUSH 2
1413 9121363 1/4-20 X 4 1/2” FULLY THREADED STUD - PACK OF 2 3
1414 4890851 CABLE CLAMP 1
9120930 9/32 I.D. X 5/8 O.D. X .051/0080 THICK SAE FLAT WASHER (1/4)-PK-10 2
1415 9121360 1/4-20 HEX NUT WITH NY-LOK INSERT - PACK OF 2 3
1416 7691351 GASKET - 1 1/2" I.D. X 3” O.D. 1
1417 7691921 SPRING CLIP - HOSE 3
1418 9120030 #6 SPLIT LOCK WASHER - PACK OF 10 6
1419 9120070 6-32 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10 6
1420 7690951 VACUUM HOSE WITH CUFFS 1
1421 2391671 DRAIN HOSE, CRUSHPROOF 1
1422 2393451 TUBE HOSE CLAMP - CRIMP TYPE 1
1423 2391661 HOSE TUBE 1
1424 2795621 DRAIN PLUG 1
1425 2791881 PLUG STRAP 1
1426 9122220 3/8-16 X 3/4 HEX HEAD BOLT - PACK OF 10 2
1427 9122100 3/8 SPLIT LOCK WASHER - PACK OF 10 2
1428 9121400 3/8 I.D. X 7/8 O.D. X .064/.104 THICK WROUGHT WASHER (5/16)-PK-10 2
1429 4495441 HOSE CLAMP - 1 9/16" TO 2 1/2" DIAMETER 1
1430 7690021 RECOVERY TANK 1
1431 7691261 EXHAUST MUFFLER TUBE 1
1432 9123000 1/8 X 11" WIRE TIE - PACK OF 5 1
1433 7693901 FLEXIBLE VACUUM MOTOR DISCHARGE HOSE 1
1434 7693841 VAC COVER INSULATION - BOTTOM 1
1435 7693871 VAC COVER INSULATION - SIDE - SMALL 1
1436 2690581 1/4 SPADE MALE TERMINAL 10 X 12 YELLOW 2
1437 4495441 HOSE CLAMP - 1 9/16" TO 2 1/2" DIAMETER 1
1438 7693891 VAC COVER INSULATION - TOP 1
1439 7693881 VAC COVER INSULATION - SIDE - LARGE 1
1440 9120933 .250 I.D. X .875 O.D. X .075 THICK FLAT WASHER - PACK OF 6 6
1441 9120330 #10 EXTERNAL STAR LOCK WASHER - PACK OF 10 6
1442 9120535 10-24 X 1 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5 6
1443 2690891 RECOVERY TANK LID GASKET 1
1444 2690881 RECOVERY TANK LID ASSEMBLY1
2690921 BLACK RING, RECOVERY TANK 1
1444A 9120205 #8 X 1/2 PAN HEAD PHILLIPS SHEET METAL SCREW - PACK OF 3 1
1444B 2690931 LID CHAIN, RECOVERY TANK 1
1444C 2690911LID - CLEAR, RECOVERY TANK 1
1445 9120790 10 X 5/8 PAN HEAD PHILLIPS SHEET METAL SCREW - PACK OF 10 7
1446 8891180 GASKET - 1” X 1/4” NEOPRENE 2
27
RECOVERY TANK
28
NSS ® Enterprises, Inc.
3115 Frenchmens Road, Toledo, Ohio 43607
PHONE (419) 531-2121 FAX (419) 531-3761
NSS ® Enterprises, Inc. European Distribution Centre
Unit II, Pinfold Trading Estate * 55 Nottingham Road
STAPLEFORD, NOTTINGHAM NG9 8AD ENGLAND U.K.
PHONE: (44) 0115 939 1568 * FAX: (44) 0115 949 0615
CHAMP 2929 ORIG. 06-04 Rev E 12-08 9097629

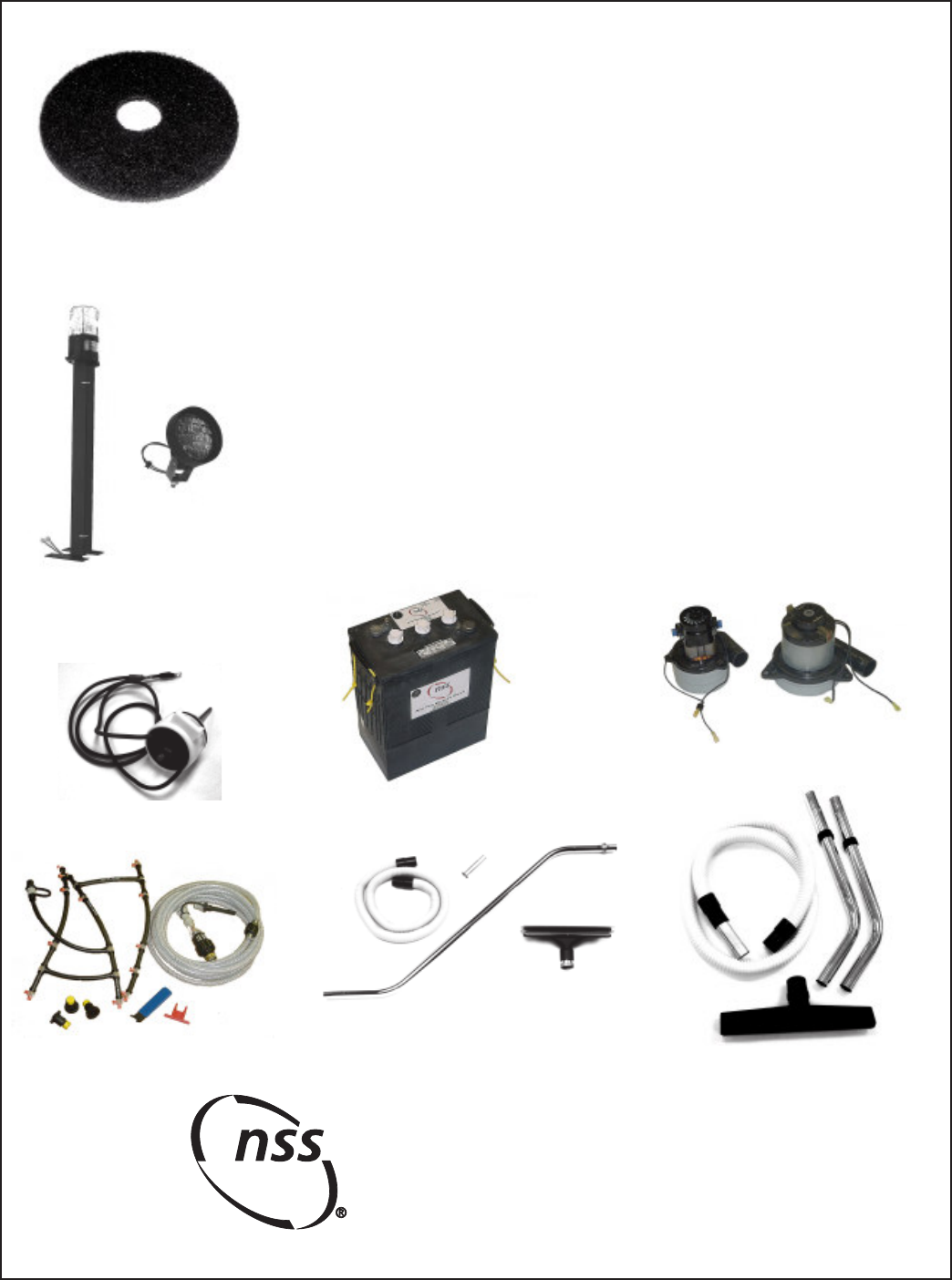

ACCESSORIES
PART NO. DESCRIPTION
7991501 15” BLACK STRIP PAD - CASE 5
7991521 15” GREEN SCRUB PAD - CASE 5
7991541 15” UHS CLEANBUFF PAD - CASE 5
7991551 15” LITE BLUE FINISH PAD - CASE 5
7990021 15” GREEN ECOSTRIP PAD - CASE 10
7691839 HEADLIGHT KIT
7691829 OVERHEAD LIGHT KIT
2691501 BATTERY - 325 AMP HOUR - 6 VOLT DC - WET
3390361 BATTERY - 225 AMP HOUR - 6 VOLT DC - WET
7691401 BATTERY - 395 AMP HOUR - 6 VOLT DC - WET
7692141 AUTO FILL BATTERY SYSTEM
7692181 LOW WATER BATTERY ALARM
7694071 OFF BOARD CHARGER ADAPTOR
7694309 VAC MOTOR, 36VOLT
2392129 WET PICKUP KIT, INCLUDES:
22912115” CONNECTOR, ALUMINUM
2391231 VACUUM HOSE, 7 FOOT
579701115” TOOL - SQUEEGEE WITH WHEELS
5790469 STEEL WAND, 2 PIECE
2392179 BRUSH / SQUEEGEE KIT, INCLUDES:
22912115” CONNECTOR, ALUMINUM
2290209 STEEL WAND, 1 PIECE
2391231 VACUUM HOSE, 7 FOOT
3097849 14” BRUSH / SQUEEGEE TOOL
7691881 SLIP RESISTANT 12 X 3 1/2 WHEEL
7691829
7691839
7692181
7692141
2691501, 3390361,
7691401
7694309
2392179
2392129
7991501, 7991521
7991541, 7991551
