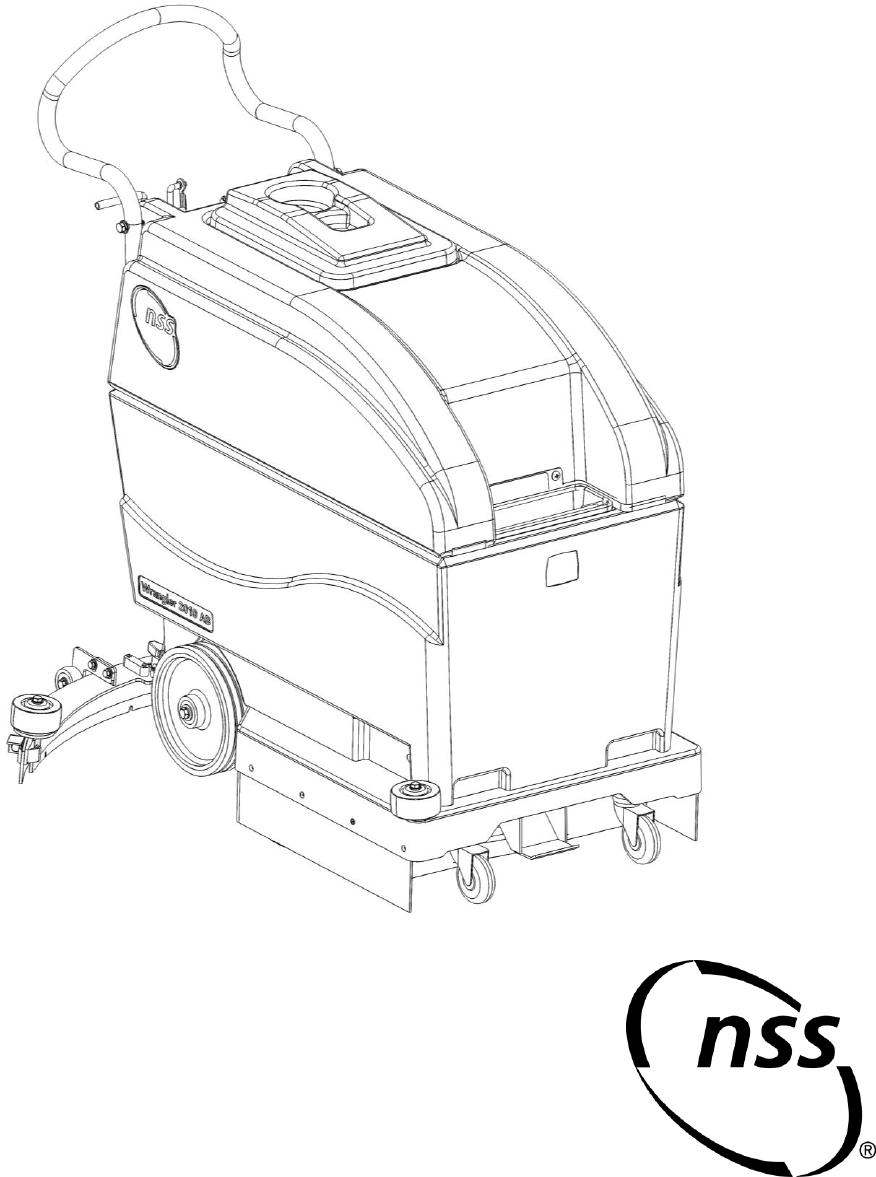

Nss Wrangler 1710 2010 Walk Behind Floor Scrubber Parts Manual

: Sweepscrub Nss-Wrangler-1710-2010-Walk-Behind-Floor-Scrubber-Parts-Manual nss-wrangler-1710-2010-walk-behind-floor-scrubber-parts-manual 1565 file product_file

Open the PDF directly: View PDF .
Page Count: 20

PARTS LIST

WRANGLER 1710AB, 2010AB

120V AND 240V, TYPE F PLUG

2

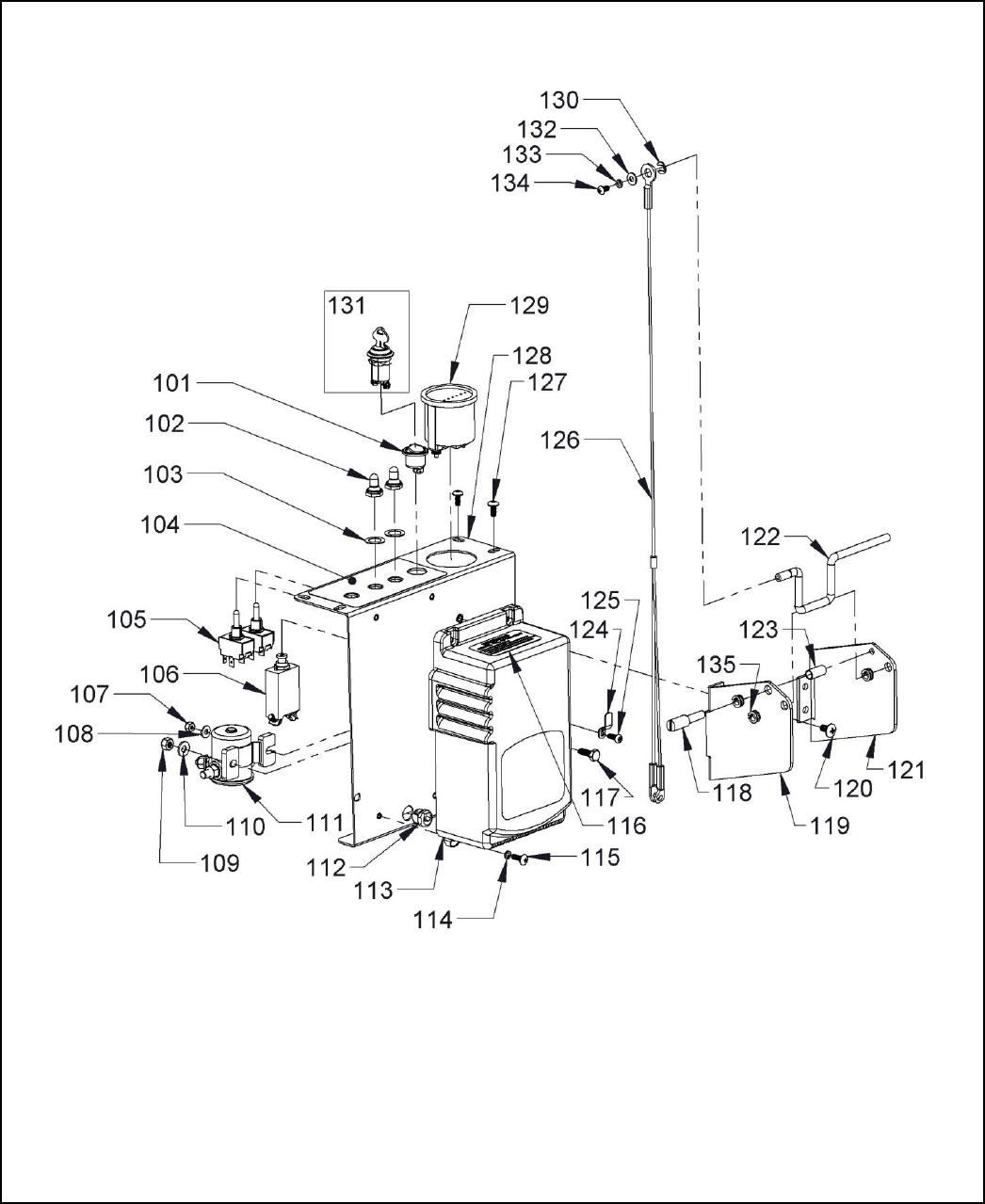

CONTROL PANEL ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

101

1394151

ROUND POWER SWITCH

1

102

0693141

RUBBER SWITCH BOOT

2

103

9122465

.516 I.D. X .813 O.D. X .027/.030 THICK FLAT WASHER - PACK OF 2

2

104

1394131

CONTROL PANEL LABEL

1

105

2792041

TOGGLE SWITCH, VACUUM

2

106

1392951

45 AMP CIRCUIT BREAKER

1

107

9120191

8-32 HEX NUT W/NYLOK INSERT - PACK OF 2

1

108

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THICK WASHER - PACK OF 10

1

109

9120900

1/4-20 HEX NUT WITH NYLOK INSERT- PACK OF 10

1

110

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4) - PACK OF 10

1

111

2391351

SOLENOID 24 VOLT SINGLE POLE

1

112

4891071

HEYCO STRAIN RELIEF

1

113

1392191

120 VOLT ONBOARD CHARGER 24 VOLT 12 AMP

1

1392251

240 VOLT ONBOARD CHARGER 24 VOLT 12 AMP

1

114

9120320

#10 SPLIT LOCK WASHER - PACK OF 10

4

115

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

116

1393721

WARNING LABEL

1

117

9121250

1/4-20 X 3/4 HEX BOLT - PACK OF 10

1

118

1394111

SQUEEGEE LIFT HANDLE REST

1

119

1394081

LEFT SQUEEGEE LIFT BRACKET

1

120

9121010

1/4-20 X 3/4 PHILLIPS MACHINE SCREW - PACK OF 5

4

121

1394091

RIGHT SQUEEGEE LIFT BRACKET

1

122

1394101

SQUEEGEE LIFT HANDLE

1

123

1393471

SUPPORT LIFT BRACKET SPACER

1

124

1394251

DRAIN HOSE CLIP

1

125

9120260

8-32 X 3/4 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

1

126

1393541

SQUEEGEE LIFT CABLE

1

127

9120510

10-24 X 1/2 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

6

128

1394121

CONTROL PANEL

1

129

1392371

BATTERY METER

1

130

1393961

RETAINING RING, 6MM

2

131

6496269

OPTIONAL KEY SWITCH KIT INCLUDES:

1

131A

6495571

WIRE ASSEMBLY

1

131B

7692511

KEY SWITCH

1

132

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THICK SAE FLAT WASHER – PACK OF 10

1

133

9120320

#10 SPLIT LOCK WASHER – PACK OF 10

1

134

9120380

10-24 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW – PACK OF 10

1

135

1393451

SNAP-IN NYLINER BEARING

3

3

CONTROL PANEL ASSEMBLY

4

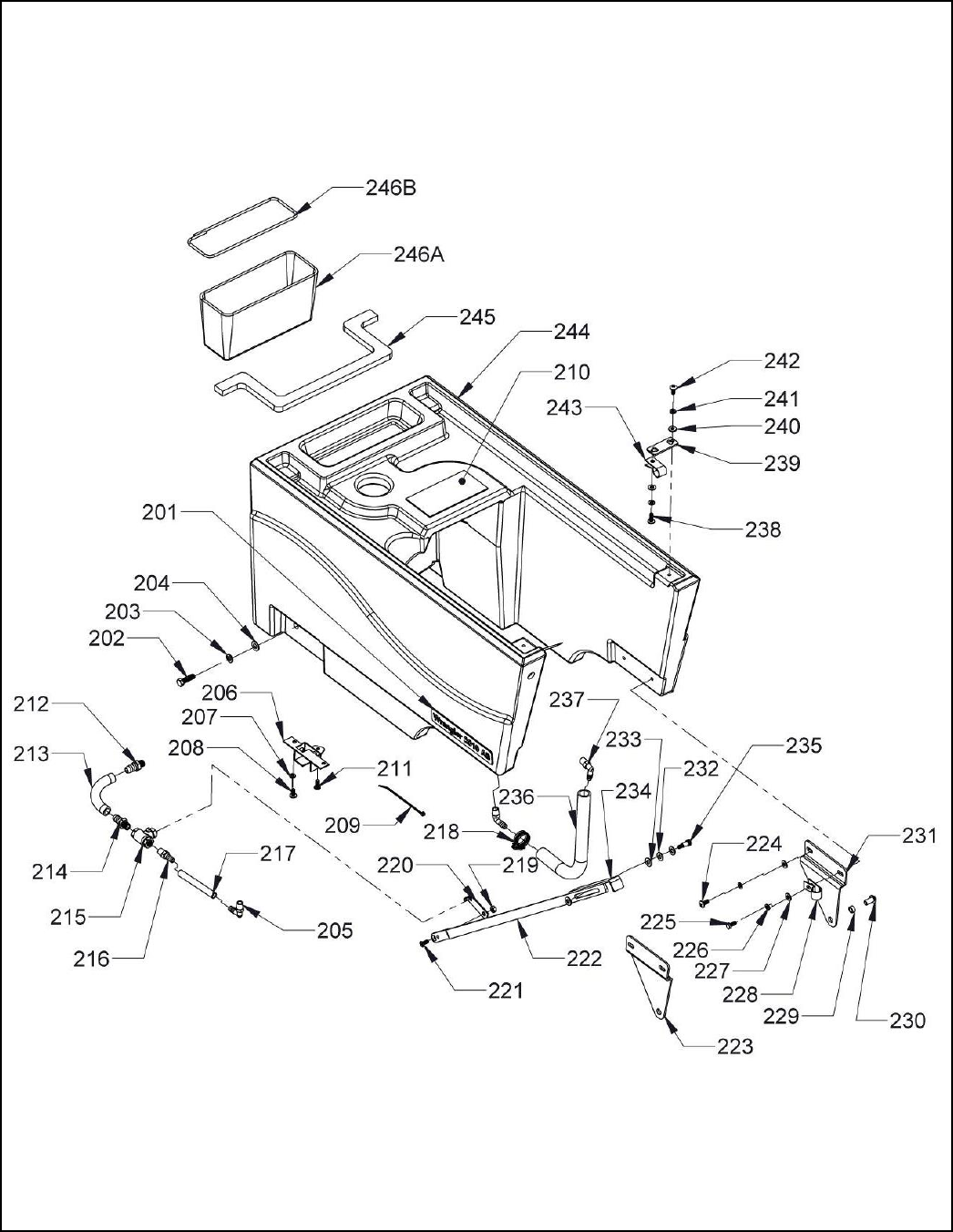

SOLUTION TANK ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

201

1393671

NSS LOGO LABEL, 1710 AB

1

1393621

NSS LOGO LABEL, 2010 AB

1

202

9122340

3/8-16 X 2 HEX BOLT - PACK OF 2

2

203

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

204

9122180

13/32 I.D. X 13/16 O.D. X .051/.080 THICK FLAT WASHER (3/8) - PACK OF 10

2

205

2490601

FITTING ELL 3/8 BARB X 1/4 MNPT

1

206

1393911

VALVE BRACKET

1

207

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

208

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

209

9123005

1/8 X 5 1/2 WIRE TIE

1

210

3393991

OBC WARNING LABEL

1

211

9121045

1/4-20 X 1/2 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

1

212

2495161

1/2 HOSE BARB X 1/4 MPT

1

213

2692551

6.5" CONVOLUTED TUBING

1

214

2495161

1/2 HOSE BARB X 1/4 MPT

1

215

1393901

SOLUTION VALVE

1

216

2397551

1/4 NPT X 3/8 STRAIGHT BARB HDPE

1

217

8791070

3/8 I.D. X 1/2” X 4” O.D. VINYL TUBING

0.3

218

2392141

HOSE CLAMP 11/16" TO 1 1/4" DIAMETER

1

219

9121037

1/4-20 THIN HEX NUT WITH NYLOK INSERT - PACK OF 5

1

220

1391551

SOLUTION VALVE LEVER

1

221

9120890

1/4-20 X 5/8 FLT HD PHILLIPS MACHINE SCREW - PACK OF 10

1

222

1394271

VALVE CONTROL BAR

1

223

1392653

LEFT TANK PIVOT BRACKET

1

224

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

1

225

9121210

1/4-20 X 5/8 HEX BOLT - PACK OF 10

3

226

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

4

227

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4)-PACK OF 10

4

228

4890851

CABLE CLAMP

1

229

4894371

BUSHING, BRUSH

2

230

9122030

3/8-16 X 3/4 SOCKET HEAD - PACK OF 2

2

231

1392663

RIGHT TANK PIVOT BRACKET

1

232

1392581

.327 I.D.X.612 O.D.X.013 THICK 1 WAVE SPRING WASHER (5/16)-PACK OF 10

1

233

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THK SAE FLAT WASHER (5/16)-PK OF 10

3

234

1393711

VALVE LABEL

1

235

9121550

5/16 X 3/8 SOCKET HEAD SHOULDER BOLT - PACK OF 1

1

236

1393571

3/4 I.D X 1” O.D. X14” - 1/8” THICK VINYL HOSE

1

237

1391941

3/8 MPT X 3/4 HOSE BARB X 90 FELL FITTING

2

238

9121010

1/4-20 X 3/4 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

1

239

1392671

TANK HOLD DOWN BRACKET

2

240

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4) - PACK OF 10

4

241

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

4

242

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

3

243

4890851

CABLE CLAMP

1

244

1393601

SOLUTION TANK

1

245

8891100

GASKET MATERIAL - 1/2” X 1” - (12” LONG)

2

246

1394329

FILTER AND FRAME ASSEMBLY - INCLUDES:

1

246A

4891311

FILTER SCREEN BAG

1

246B

1390406

FILTER FRAME

1

N/S

2694931

LABEL – NSS LOGO (FRONT)(NOT SHOWN)

1

5

SOLUTION TANK ASSEMBLY

6

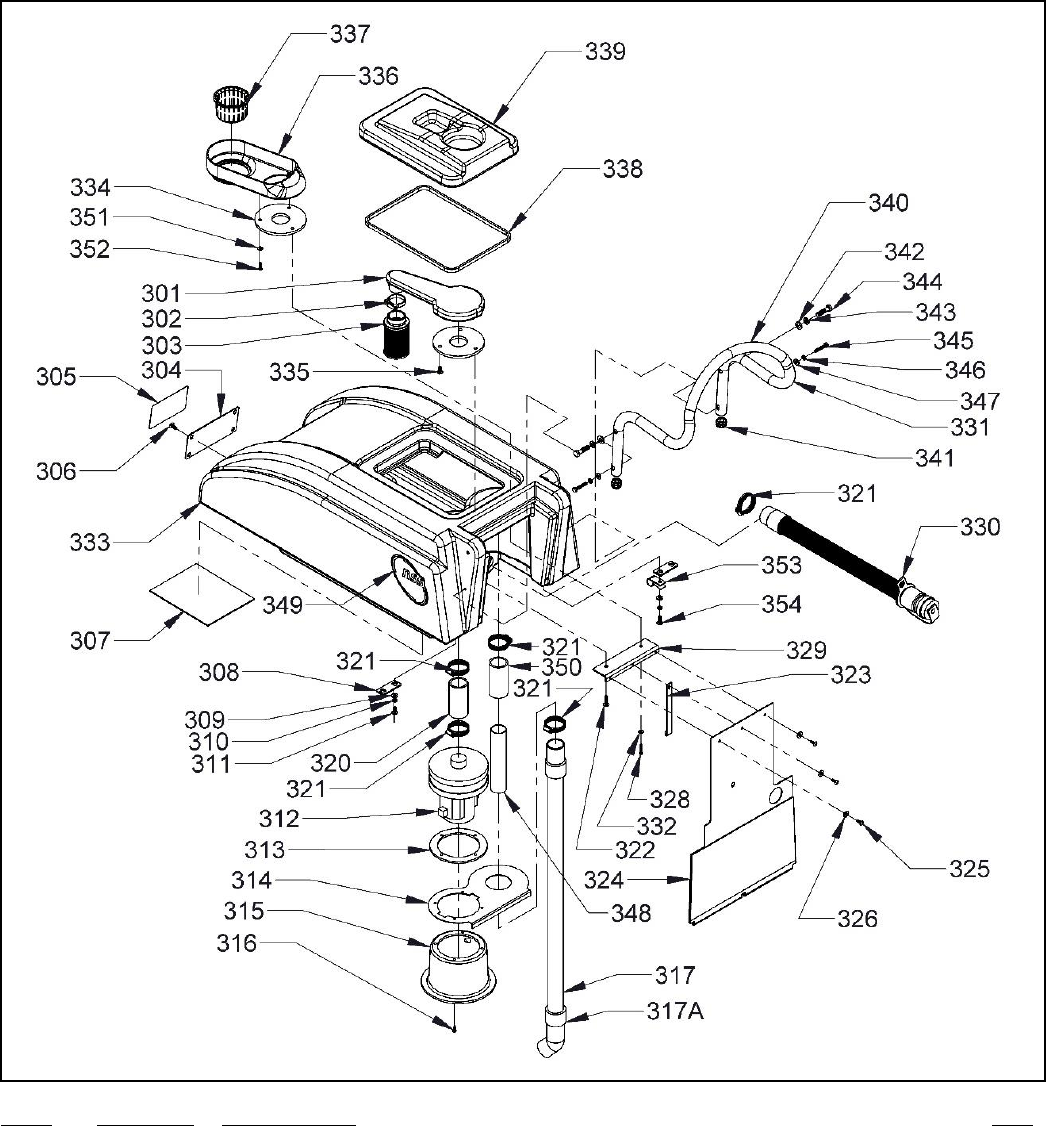

RECOVERY TANK ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

301

1390061

FLOAT CONNECTOR

1

302

4894081

HOSE CLAMP 1.593” TO 1.812” DIAMETER

1

303

2391541

FLOAT SCREEN ASSEMBLY

1

304

1390493

FRONT MOUNTING PLATE

1

305

1393691

LABEL - SOLUTION FILL ICON

1

306

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

4

307

1393731

LABEL - WIRING DIAGRAM - BATTERY LABEL

1

308

1392671

TANK HOLD DOWN BRACKET

2

309

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4) - PACK OF 10

2

310

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

311

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

1

312

1392501

VACUUM MOTOR 24 VOLTS DC - INCLUDES:

1

312A

2392571

CARBON BRUSH, VACUUM MOTOR 24 VOLT

2

313

4690101

FLOAT GASKET - VACUUM MOTOR

1

314

1392513

BAFFLE PLATE - VACUUM MOTOR

1

315

1392531

COVER - VACUUM MOTOR

1

316

9120790

10 X 5/8 PAN HEAD PHILLIPS SHEET METAL SCREW - PACK OF 10

4

317

1394361

SQUEEGEE VACUUM HOSE WITH 45° CUFF

1

317A

2699451

45° HOSE CUFF

1

320

1393581

VACUUM MOTOR MOUNTING HOSE

1

321

4892671

HOSE CLAMP - 1 1/16" TO 2" DIAMETER

5

322

9121020

1/4-20 X 1 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

323

1393081

VACUUM MOTOR SUPPORT

1

324

1393561

REAR RUBBER NOISE DEFLECTOR - OBC

1

325

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

3

326

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4) - PACK OF 10

3

N/S

1393771

WRENCH, FOR HANDLE ATTACHMENT (NOT SHOWN)

1

328

9120450

10-24 x 1 ROUND HEAD PHILLIPS SCREW - PACK OF 10

1

329

1392921

REAR RUBBER MOUNT BRACKET

1

330

1394311

DIRTY WATER DRAIN HOSE ASSY

1

331

1394391

ONE-PIECE HANDLE

1

332

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THICK WASHER - PACK OF 10

1

333

1393611

RECOVERY TANK

1

334

2391611

INLET TUBE GASKET

2

335

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

4

336

1394071

RECOVERY TANK TRAY

1

337

1394061

RECOVERY TANK BASKET

1

338

1393781

RECOVERY TANK COVER GASKET

1

339

1393681

COVER, RECOVERY TANK

1

340

1394441

HANDLE GRIP

1

341

0690761

PLUG BUTTON

2

342

9122180

13/32 I.D. X 13/16 O.D. X .051/.080 THICK FLAT WASHER (3/8)-PACK OF 10

2

343

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

344

9122075

3/8-16 X 1 1/2 HEX BOLT - PACK OF 2

2

345

9121280

1/4-20 X 1 1/2 HEX BOLT - PACK OF 5

2

346

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

347

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4) - PACK OF 10

2

348

1394351

VACUUM TUBE EXTENSION

1

349

1393631

LABEL - NSS LOGO

1

7

RECOVERY TANK ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

350

1393581

VAC MOTOR MOUNTING HOSE

1

351

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THICK WASHER - PACK OF 10

2

352

9120430

10-24 x 3/4 ROUND HEAD PHILLIPS SCREW - PACK OF 10

2

353

4890851

CABLE CLAMP

1

354

9121010

1/4-20 X 3/4 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

1

8

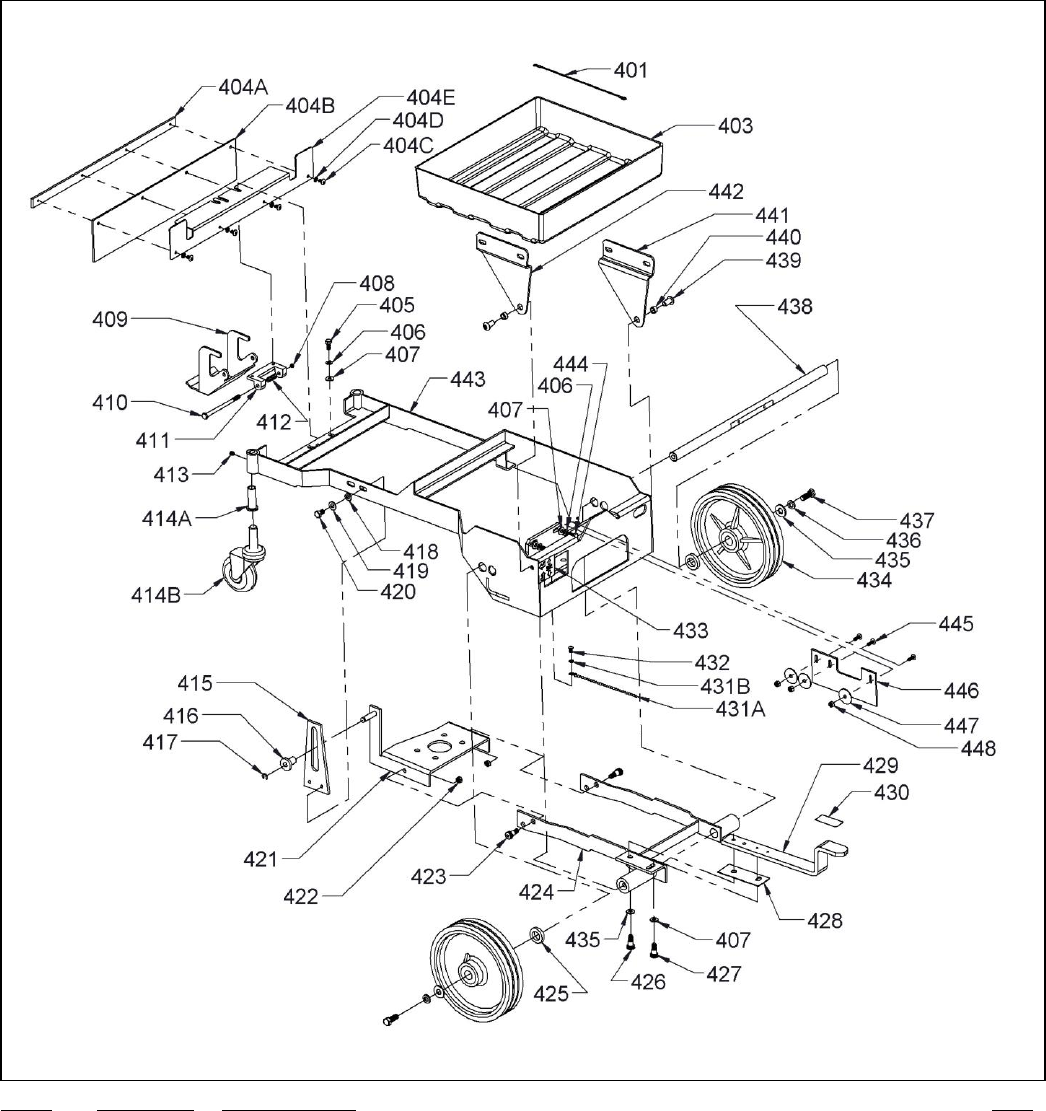

1710 FRAME ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

401

1393331

BATTERY JUMPER

1

N/S

----------

BATTERIES - NOT SHOWN, SEE ACCESSORY PAGE

2

403

1390291

BATTERY TRAY

1

404

1392409

SPLASH SHIELD ASSEMBLY KIT 1710 INCLUDES:

1

404A

1392431

RETAINING STRAP 1710

1

404B

1392421

RUBBER SPLASH SHIELD 1710

1

404C

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

404D

9120330

#10 EXTERNAL STAR LOCK WASHER - PACK OF 10

4

404E

1392411

FRAME SPLASH SHIELD 1710

1

405

9121210

1/4-20 X 5/8 HEX BOLT - PACK OF 10

2

406

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

4

407

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4) - PACK OF 10

5

408

9120900

1/4-20 HEX NUT WITH NYLOK INSERT - PACK OF 10

1

409

1392883

FOOT PEDAL

1

410

9121360

1/4-20 X 4 HEX BOLT - PACK OF 2

1

411

1392912

BRACKET - FOOT PEDAL - TANK RELEASE

1

412

1392901

SPRING - FOOT PEDAL - TANK RELEASE

1

413

9120850

1/4-20 X 5/16 SET SCREW - KNURL POINT - PACK OF 2

2

414

1392489

CASTER WITH INSERT INCLUDES:

2

414A

1392491

PLASTIC SOCKET INSERT 7/16 I.D.

2

414B

1392481

CASTER ONLY 7/16 X 1 3/4 STEM

2

415

1392751

BRUSH MOTOR GUIDE BRACKET

1

416

1391151

BUSHING - 3/8 NYLON

1

417

1393951

RETAINING RING - 8MM

1

418

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THK SAE FLT WASHER (5/16) - PK OF 10

2

419

9121520

5/16 SPLIT LOCK WASHER - PACK OF 10

2

420

9121560

5/16-18 X 1/2 HEX BOLT - PACK OF 5

2

421

1392621

BRUSH MOTOR TILT BASE

1

422

9121430

5/16-18 THIN HEX NUT WITH NYLOK INSERT - PACK OF 5

2

423

9122020

3/8 DIAMETER X 3/8 LONG SOCKET HEAD SHOULDER BOLT (5/16-18) - PACK

OF 1

2

424

1394291

BRUSH LIFT ARM

1

425

1394281

WHEEL SPACER BUSHING

2

426

9122020

3/8 DIAMETER X 3/8 LONG SOCKET HEAD SHOULDER BOLT (5/16-18) - PACK

OF 1

1

427

9121190

1/4 DIAMETER X 3/8 LONG SOC HEAD SHOULDER BOLT (10-24) - PACK OF 1

1

428

1391271

FOOT PEDAL SLIDE

1

429

1394231

BRUSH LIFT FOOT PEDAL

1

430

1394241

STEP TREAD

1

431

1393641

BEAD CHAIN ASSY INCLUDES:

1

431A

6491860

ROUND BEAD CHAIN (CUT TO 6”)

0.5

431B

6491871

END COUPLING - ROUND BEAD CHAIN

1

432

9120380

10-24 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

1

433

1393701

LABEL - BRUSH

1

434

2393781

WHEEL - 8" INCLUDES:

2

434A

2393681

BEARING FOR WHEEL 2393781 (2 PER WHEEL)

4

435

9121980

7/16 I.D. X 1 O.D. X .075/.080 THICK WROUGHT WASHER (3/8) - PACK OF 10

3

436

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

437

9122260

3/8-16 X 1 HEX BOLT PK 2

2

438

1394341

3/4" DIAMETER AXLE

1

439

9122030

3/8-16 X 3/4 SOCKET HEAD SCREW - PACK OF 2

2

440

4894371

BUSHING

2

441

1392663

RIGHT TANK PIVOT BRACKET

1

9

1710 FRAME ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

442

1392653

LEFT TANK PIVOT BRACKET

1

443

1394301

10 GAUGE WELDED FRAME

1

444

9121250

1/2-20 X 3/4” HEX BOLT W/NYLOK PATCH

2

445

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

3

446

1394511

SPLASH GUARD, WHEEL

1

447

9120950

1/4 X 1 1/4 FENDER WASHER - PACK OF 5

3

448

9120350

10‐24 HEX NUT WITH NY‐LOK INSERT - PACK OF 10

3

10

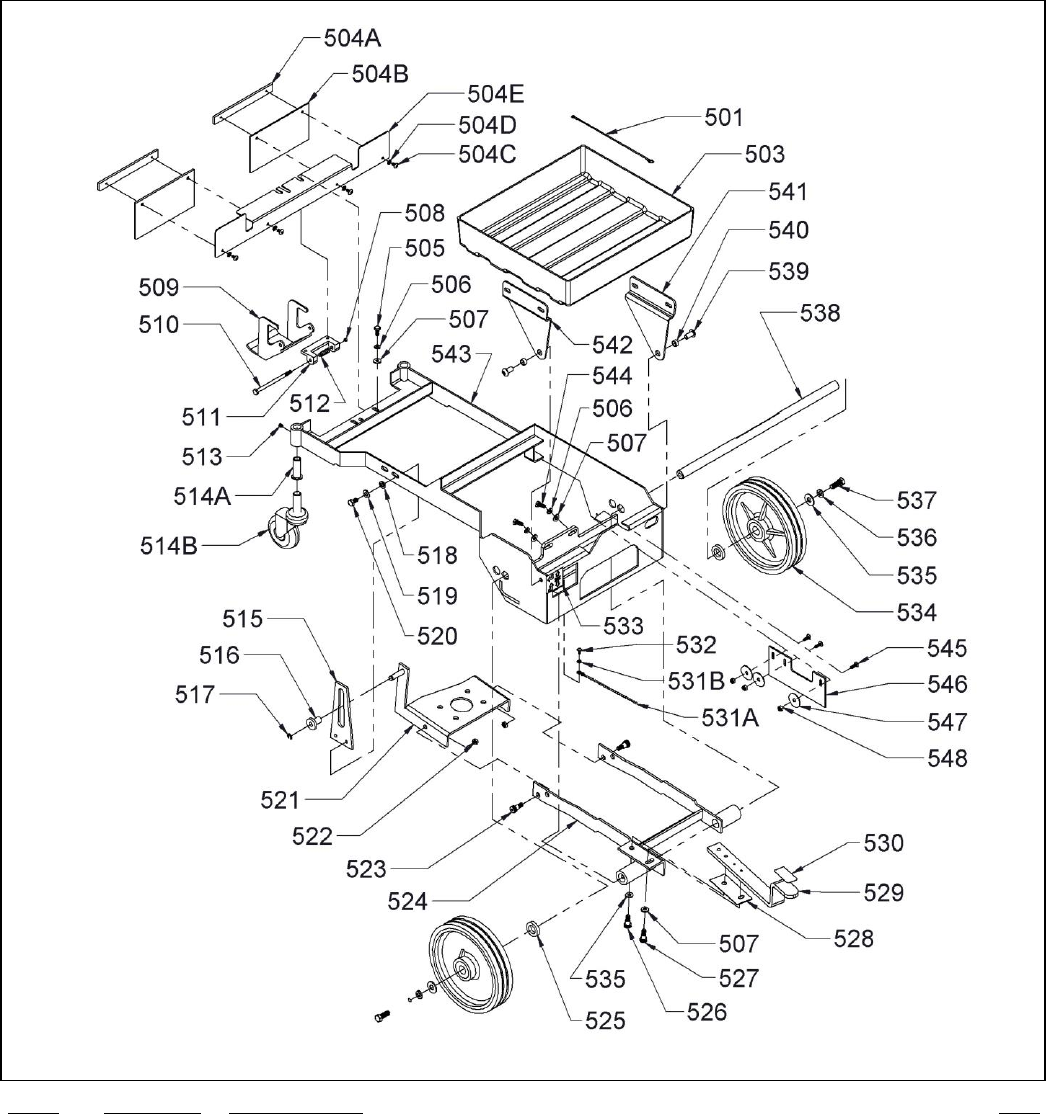

2010 FRAME ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

501

1393331

BATTERY JUMPER

1

N/S

----------

BATTERIES - NOT SHOWN, SEE ACCESSORY PAGE

2

503

1390291

BATTERY TRAY

1

504

1392449

SPLASH SHIELD ASSEMBLY KIT 2010 INCLUDES:

1

504A

1392471

RETAINING STRAP 2010

2

504B

1392461

RUBBER SPLASH SHIELD 1710

2

504C

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

504D

9120330

#10 EXTERNAL STAR LOCK WASHER - PACK OF 10

4

504E

1392451

FRAME SPLASH SHIELD 2010

1

505

9121210

1/4-20 X 5/8 HEX BOLT - PACK OF 10

2

506

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

4

507

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THICK FLAT WASHER (1/4) - PACK OF 10

5

508

9120900

1/4-20 HEX NUT WITH NYLOK INSERT - PACK OF 10

1

509

1392883

FOOT PEDAL

1

510

9121360

1/4-20 X 4 HEX BOLT - PACK OF 2

1

511

1392912

BRACKET - FOOT PEDAL - TANK RELEASE

1

512

1392901

SPRING - FOOT PEDAL - TANK RELEASE

1

513

9120850

1/4-20 X 5/16 SET SCREW - KNURL POINT - PACK OF 2

2

514

1392489

CASTER WITH INSERT INCLUDES:

2

514A

1392491

PLASTIC SOCKET INSERT 7/16 I.D.

2

514B

1392481

CASTER ONLY 7/16 X 1 3/4 STEM

2

515

1392751

BRUSH MOTOR GUIDE BRACKET

1

516

1391151

BUSHING - 3/8 NYLON

1

517

1393951

RETAINING RING - 8MM

1

518

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER - PACK OF 10

2

519

9121520

5/16 SPLIT LOCK WASHER - PACK OF 10

2

520

9121560

5/16-18 X 1/2 HEX BOLT - PACK OF 5

2

521

1392621

BRUSH MOTOR TILT BASE

1

522

9121430

5/16-18 THIN HEX NUT WITH NYLOK INSERT - PACK OF 5

2

523

9122020

3/8 DIAMETER X 3/8 LONG SOC HEAD SHOULDER BOLT (5/16-18) - PK OF 1

2

524

1394291

BRUSH LIFT ARM

1

525

1394281

WHEEL SPACER BUSHING

2

526

9122020

3/8 DIAMETER X 3/8 LONG SOC HEAD SHOULDER BOLT (5/16-18) - PK OF 1

1

527

9121190

1/4 DIAMETER X 3/8 LONG SOC HEAD SHOULDER BOLT (10-24) - PACK OF 1

1

528

1391271

FOOT PEDAL SLIDE

1

529

1394231

BRUSH LIFT FOOT PEDAL

1

530

1394241

STEP TREAD

1

531

1393641

BEAD CHAIN ASSY INCLUDES:

1

531A

6491860

ROUND BEAD CHAIN (CUT TO 6”)

0.5

531B

6491871

END COUPLING - ROUND BEAD CHAIN

1

532

9120380

10-24 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

1

533

1393701

LABEL - BRUSH

1

534

2393781

WHEEL - 8" INCLUDES:

2

534A

2393681

BEARING FOR WHEEL 2393781 (2 PER WHEEL)

4

535

9121980

7/16 I.D. X 1 O.D. X .075/.080 THICK WROUGHT WASHER (3/8) - PACK OF 10

3

536

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

537

9122260

3/8-16 X 1 HEX BOLT PACK 2

2

538

1394341

3/4" DIAMETER AXLE

1

539

9122030

3/8-16 X 3/4 SOCKET HEAD SCREW - PACK OF 2

2

540

4894371

BUSHING

2

541

1392663

RIGHT TANK PIVOT BRACKET

1

11

2010 FRAME ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

542

1392653

LEFT TANK PIVOT BRACKET

1

543

1394301

10 GAUGE WELDED FRAME

1

544

9121250

1/4-20 x 3/4” HEX BOLT W/NYLOK PATCH

2

545

9120520

10-24 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 10

3

546

1394511

SPLASH GUARD, WHEEL

1

547

9120950

1/4 X 1 1/4 FENDER WASHER - PACK OF 5

3

548

9120350

10‐24 HEX NUT WITH NY‐LOK INSERT - PACK OF 10

3

12

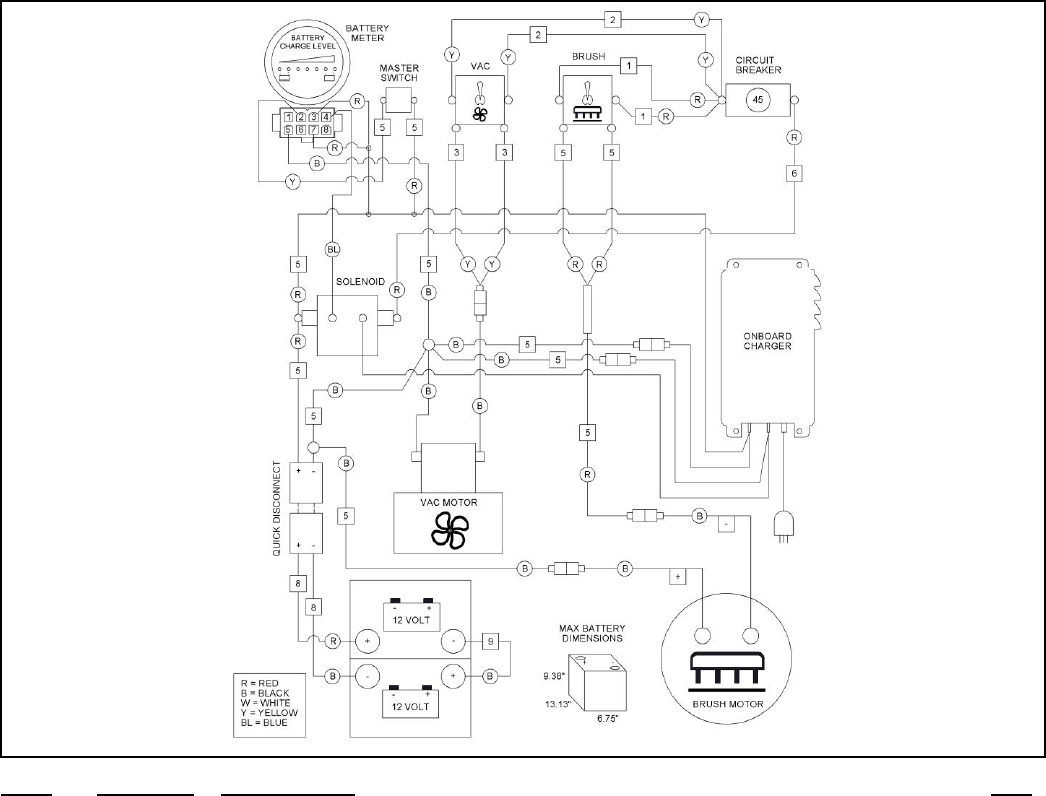

WIRING DIAGRAM

ITEM

PART NO.

DESCRIPTION

QTY

1

1393251

WIRE ASSEMBLY - CIRCUIT BREAKER TO BRUSH SWITCH

1

2

1393261

WIRE ASSEMBLY - CIRCUIT BREAKER TO VACUUM SWITCH

1

3

1393271

WIRE ASSEMBLY - VACUUM SWITCH TO VACUUM MOTOR

1

5

1393521

MACHINE WIRE HARNESS - OBC

1

6

1392161

WIRE, SOLENOID TO BREAKER - OBC

1

8

2396141

WIRE ASSEMBLY - ANDERSON TO BATTERY

1

9

1393331

WIRE ASSEMBLY - BATTERY JUMPER

1

-

2392091

RED CHARGER PLUG

1

-

1392191

120 VOLT ONBOARD CHARGER 24 VOLT 10 AMP

1

-

1392251

240 VOLT ONBOARD CHARGER 24 VOLT 10 AMP

1

-

1392501

VACUUM MOTOR 24 VOLTS DC

1

-

1392951

45 AMP CIRCUIT BREAKER

1

-

2391351

SOLENOID 24 VOLT SINGLE POLE

1

-

1392371

BATTERY METER

1

-

2392111

BATTERY - 115 AMP/HR - 12 VOLT

2

-

2393001

GEAR MOTOR - 3/4 HP - 24 VOLTS DC

1

-

2690581

1/4 SPADE MALE TERMINAL 10-12 YELLOW

4

-

1394151

ROUND POWER SWITCH

1

-

2792041

SWITCH - TOGGLE VACUUM

2

-

6495701

120 VOLT ONBOARD CHARGER CORD

1

-

6497039

OPTIONAL KEY SWITCH

1

13

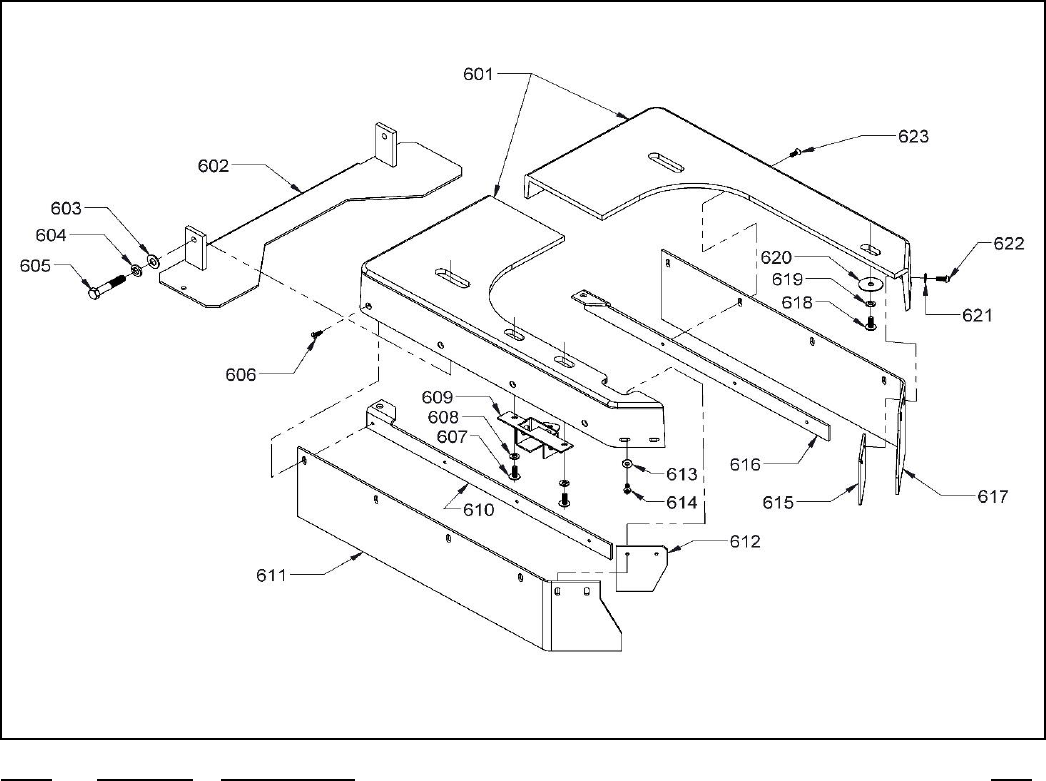

1710 SKIRT ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

601

1394421

SKIRT

1

602

1394431

SKIRT MOUNTING BRACKET AND LATCH

1

603

9122180

13/32 I.D. X 13/16 O.D. X .051/.080 THK SAE FLAT WASHER (3/8) - PK OF 2

2

604

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

605

9122340

3/8-16 X 2 HEX BOLT - PACK OF 2

2

606

9120540

10-24 X 1/2 FLAT HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

607

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

608

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

609

1393911

VALVE BRACKET

1

610

1392721

LEFT SKIRT STRAP

1

611

1392711

LEFT SPLASH GUARD

1

612

1392811

LEFT REAR SKIRT STRAP

1

613

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THK SAE FLAT WASHER (#10) - PACK OF 10

2

614

9120410

10-24 X 1/2 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

2

615

1392821

RIGHT REAR SKIRT STRAP

1

616

1392741

RIGHT SKIRT STRAP

1

617

1392731

RIGHT SPLASH GUARD

1

618

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

619

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

620

9120950

1/4 X 1 1/4 FENDER WASHER - PACK OF 5

1

621

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THK SAE FLAT WASHER (#10) - PACK OF 10

4

622

9120410

10-24 X 1/2 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

2

623

9120540

10-24 X 1/2 FLAT HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

14

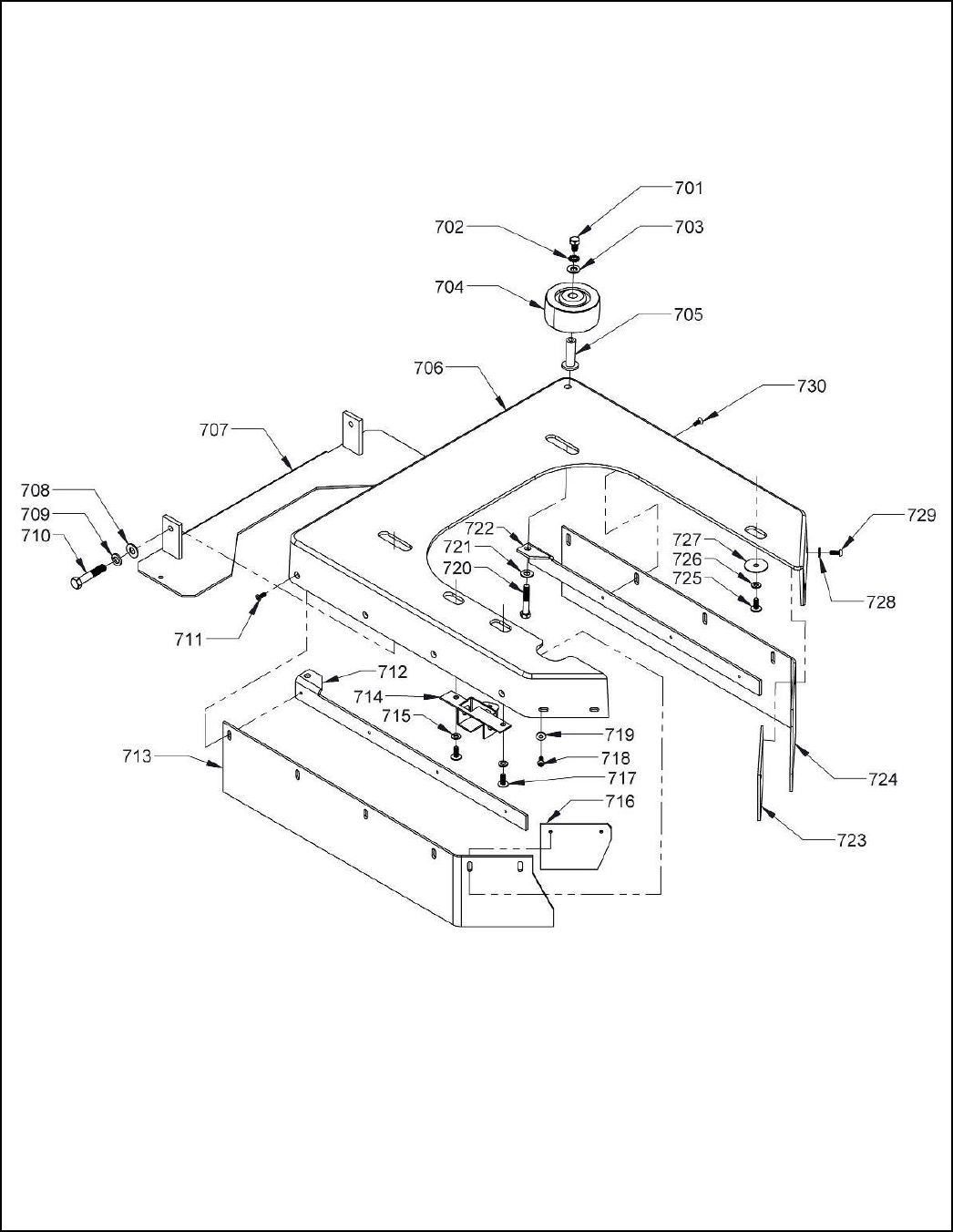

2010 SKIRT ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

701

9121560

5/16-18 X 1/2 HEX BOLT

1

702

9121410

5/16 EXTERNAL LOCK WASHER

1

703

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THICK (5/16) - PACK OF 10

1

704

2790281

3" BUMPER WHEEL

1

705

2392276

PLATED BUMPER WHEEL AXLE

1

706

1394411

20" REINFORCED FRONT SKIRT

1

707

1394431

SKIRT MOUNTING BRACKET AND LATCH

1

708

9122180

13/32 I.D. X 13/16 O.D. X .051/.080 THK SAE FLAT WASHER (3/8) - PK OF 2

2

709

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

2

710

9122340

3/8-16 X 2 HEX BOLT - PACK OF 10

2

711

9120540

10-24 X 1/2 FLAT HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

712

1392721

LEFT SKIRT STRAP

1

713

1392771

LEFT SPLASH GUARD

1

714

1393911

VALVE BRACKET

1

715

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

716

1392791

LEFT REAR SKIRT STRAP

1

717

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

718

9120410

10-24 X 1/2 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

2

719

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THK SAE FLAT WASHER (#10) - PACK OF 10

2

720

9121760

5/16-18 X 1 3/4 HEX BOLT - PACK OF 10

1

721

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THICK (5/16) - PACK OF 10

1

722

1392741

RIGHT SKIRT STRAP

1

723

1392801

RIGHT REAR SKIRT STRAP

1

724

1392781

RIGHT SPLASH GUARD

1

725

9121000

1/4-20 X 5/8 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

726

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

727

9120950

1/4 X 1 1/4 FENDER WASHER - PACK OF 5

1

728

9120370

7/32 I.D. X 1/2 O.D. X .032/.065 THK SAE FLAT WASHER (#10) - PACK OF 10

2

729

9120410

10-24 X 1/2 ROUND HEAD PHILLIPS MACHINE SCREW - PACK OF 10

2

730

9120540

10-24 X 1/2 FLAT HEAD PHILLIPS MACHINE SCREW - PACK OF 10

4

15

2010 SKIRT ASSEMBLY

16

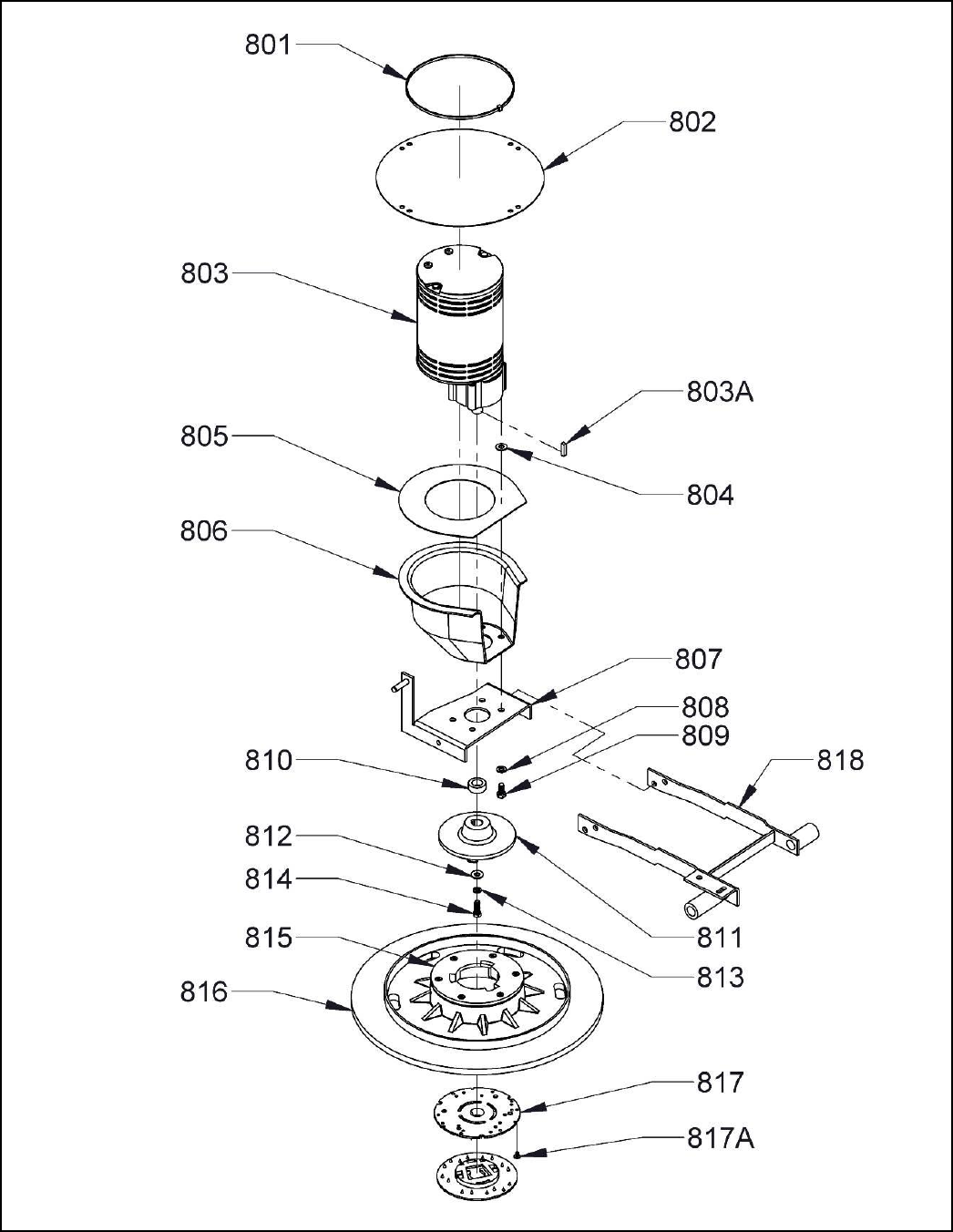

BRUSH MOTOR ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

801

1392871

TIE WRAP

1

802

1392851

BRUSH MOTOR UPPER DRIP CAP

1

803

2393001

GEAR MOTOR 3/4 HP 24 VOLTS DC - INCLUDES:

1

803A

2792681

1/4 X 1/4 X 1 MOTOR KEY

1

803B

3391081

CARBON BRUSH ASSEMBLY

1

804

9122180

13/32 I.D. X 13/16 O.D. X .051/.080 THK SAE FLAT WASHER (3/8) - PK OF 10

2

805

1392861

BRUSH MOTOR LOWER DRIP CAP

1

806

1392541

BRUSH MOTOR SPLASH GUARD

1

807

1392621

BRUSH MOTOR TILT BASE

1

808

9122100

3/8 SPLIT LOCK WASHER - PACK OF 10

4

809

9122220

3/8-16 X 3/4 HEX BOLT - PACK OF 5

4

810

2393061

SPACER

1

811

2393052

CLUTCH CASTING

1

812

9121400

3/8 I.D. X 7/8 O.D. X .064/.104 THK WROUGHT WASHER (5/16) - PACK OF 10

1

813

9121520

5/16 SPLIT LOCK WASHER - PACK OF 10

1

814

9121680

5/16-18 X 1 HEX BOLT - PACK OF 5

1

815

2890101

CLUTCH PLATE, PLASTIC 5” DIAMETER 6 HOLES - CREAM COLOR

1

816

2892601

20" STRUCTURAL FOAM PAD DRIVER (18” DIAMETER)

1

----------

SEE ACCESSORY PAGE FOR TYPES OF BRUSHES

1

817

5990731

SPRING CLIP PAD HOLDER SET (PP) - INCLUDES:

1

817A

9120506

#8 X 5/8 PAN HEAD SHEET METAL SCREW - PACK OF 1

3

818

1394291

BRUSH LIFT ARM

1

17

BRUSH MOTOR ASSEMBLY

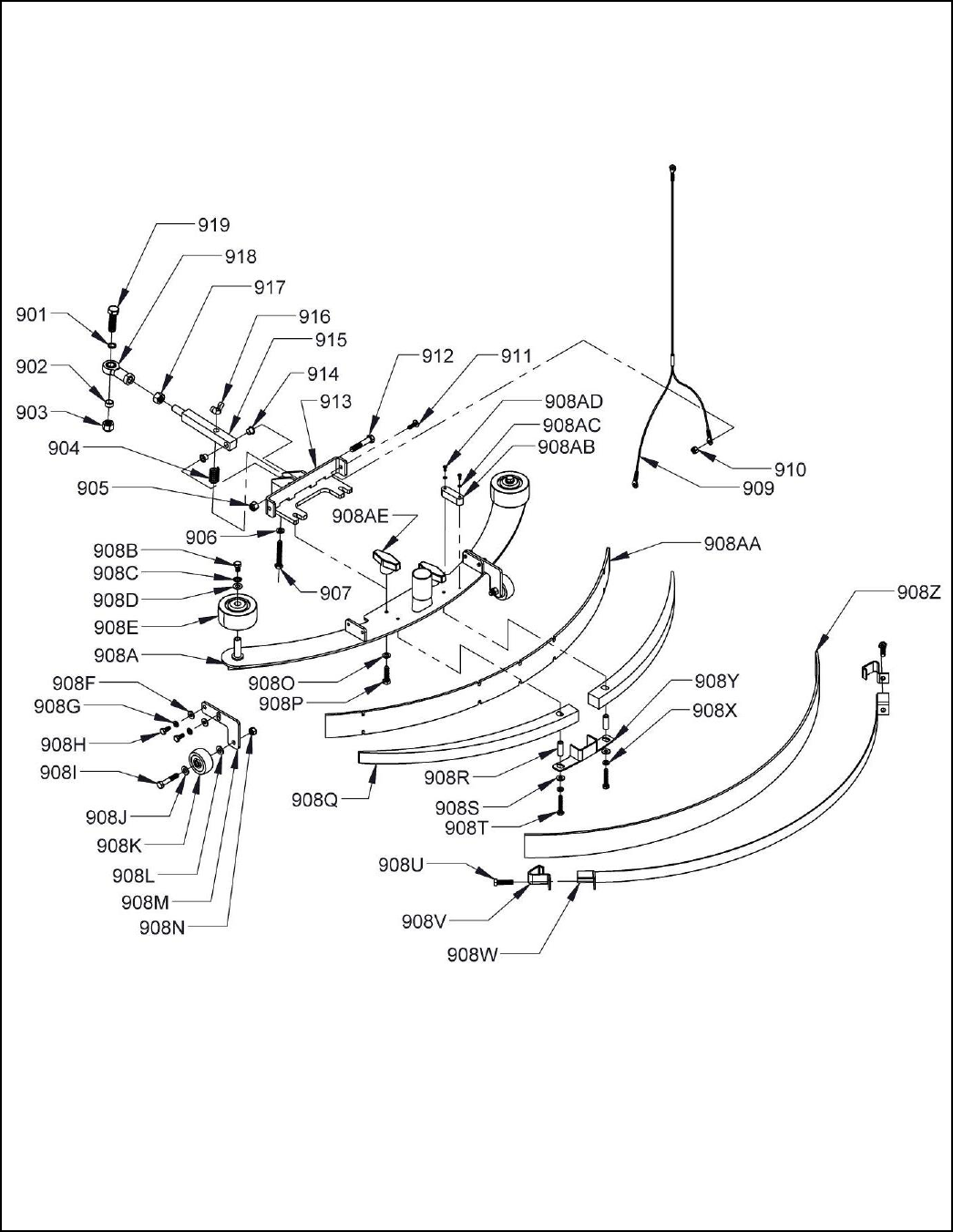

18

SQUEEGEE ASSEMBLY

ITEM

PART NO.

DESCRIPTION

QTY

901

1090981

SWITCH GUARD SPACER

1

902

2391461

LIFT LEVER BUSHING

1

903

9122507

1/2-13 HEX NUT WITH NYLOK INSERT - PACK OF 1

1

904

3695581

HEIGHT ADJUSTING SPRING

1

905

9122140

3/8-16 HEX NUT WITH NYLOK INSERT - PACK OF 5

1

906

9121520

5/16 SPLIT LOCK WASHER - PACK OF 10

1

907

9121840

5/16-18 X 2 1/4 FULL THREADED HEX BOLT - PACK OF 1

1

908

1394219

CURVED SQUEEGEE ASSEMBLY INCLUDES:

1

908A

1394161

CURVED SQUEEGEE HOUSING

1

908B

9121560

5/16-18 X 1/2 HEX BOLT - PACK OF 5

2

908C

9121410

5/16 EXTERNAL STAR LOCK WASHER - PACK OF 10

2

908D

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THK SAE FLT WSHR (5/16) - PK OF 10

2

908E

2790281

3" BUMPER WHEEL

2

908F

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THK SAE FLAT WSHR (1/4) - PACK OF 10

4

908G

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

4

908H

9121210

1/4-20 X 5/8 HEX BOLT - PACK OF 10

4

908I

9121760

5/16-18 X 1-3/4 HEX BOLT - PACK OF 2

2

908J

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THK SAE FLT WSHR (5/16) - PK OF 10

2

908K

3096741

SMALL GRAY BUMPER WHEEL

2

908L

9121390

11/32 I.D. X 11/16 O.D. X .051/.080 THK SAE FLT WSHR (5/16) - PK OF 10

2

908M

2492571

DOLLY WHEEL MOUNTING BRACKET

2

908N

9121450

5/16-18 HEX NUT WITH NYLOK INSERT - PACK OF 5

2

908O

9121520

5/16 SPLIT LOCK WASHER - PACK OF 10

2

908P

9121720

5/16-18 X 1-1/4 FULL THREADED HEX HD BOLT - PACK OF 2

2

908Q

1394201

16” CURVED SQUEEGEE WEDGE

2

908R

2492591

CENTER HOLD DOWN SPACER

2

908S

9120930

9/32 I.D. X 5/8 O.D. X .051/.080 THK SAE FLAT WSHR (1/4) - PACK OF 10

2

908T

9121280

1/4-20 X 1-1/2 HEX BOLT - PACK OF 5

2

908U

9121720

5/16-18 X 1-1/4 FULL THREADED HEX BOLT - PACK OF 2

2

908V

1394461

HOOKED END

2

908W

1394191

34” CURVED SQUEEGEE STRAP

1

908X

9120880

1/4 SPLIT LOCK WASHER - PACK OF 10

2

908Y

2492541

CENTER HOLD DOWN

1

908Z

1394181

REAR SQUEEGEE BLADE

1

908AA

1394171

FRONT SQUEEGEE BLADE

1

908AB

2492801

SQUEEGEE LEVEL

1

908AC

9120030

#6 SPLIT LOCK WASHER - PACK OF 10

2

908AD

9120070

6-32 X 3/8 RD HD PHILLIPS MACHINE SCREW - PACK OF 10

2

908AE

3392971

T-KNOB SQUEEGEE

2

909

1393541

“Y” SQUEEGEE LIFT CABLE

1

910

9120900

1/4-20 HEX NUT WITH NYLOK INSERT - PACK OF 10

2

911

9121010

1/4-20 X 3/4 TRUSS HEAD PHILLIPS MACHINE SCREW - PACK OF 5

2

912

9122340

3/8-16 X 2 HEX BOLT - PACK OF 2

1

913

1390171

SQUEEGEE BRACKET

1

914

1391171

3/8 FLANGE NYLINER

2

915

1390156

SQUEEGEE SHAFT

1

916

9121445

5/16-18 WING NUT WITH NYLOK INSERT - PACK OF 2

1

917

9122670

1/2-20 HEX JAM NUT - PACK OF 5

1

918

2391941

BALL JOINT

1

919

9122570

1/2-13 X 1 3/4 HEX BOLT - PACK OF 1

1

19

SQUEEGEE ASSEMBLY

20

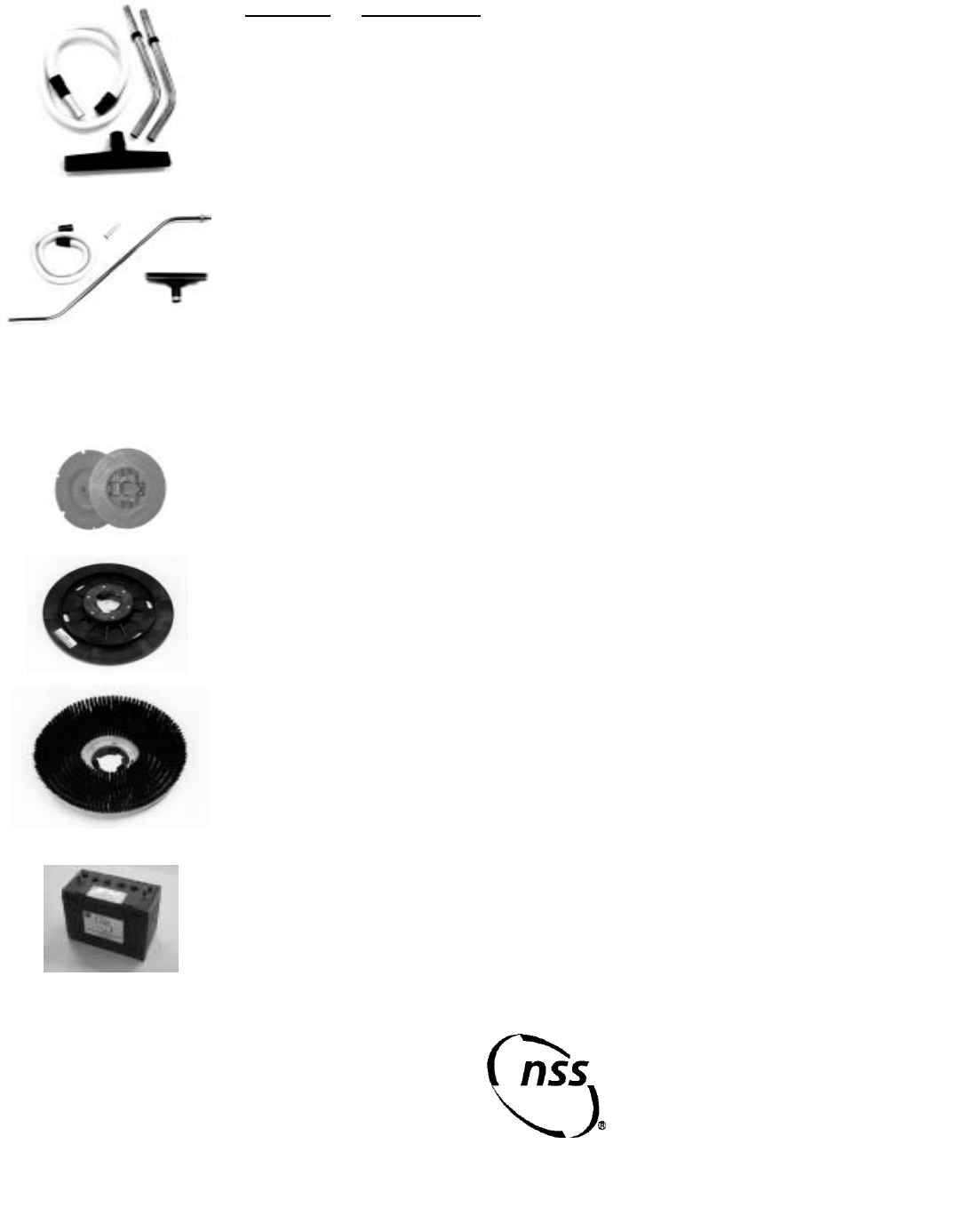

ACCESSORIES

PART NO.

DESCRIPTION

2392129

WET PICKUP KIT, INCLUDES:

2291211

5" CONNECTOR, ALUMINUM

2391231

VACUUM HOSE, 7 FOOT

5797011

TOOL - SQUEEGEE WITH WHEELS, 15"

5790469

STEEL WAND, 2 PIECE

2391241

HOSE STRAP

9997550

VELCRO HOOK

9997560

VELCRO LOOP

2392179

BRUSH / SQUEEGEE KIT, INCLUDES:

2291211

5" CONNECTOR, ALUMINUM

2290209

STEEL WAND, 1 PIECE

2391231

VACUUM HOSE, 7 FOOT

3097849

14" BRUSH / SQUEEGEE TOOL

1394451

PAD HOLDER, LEFT HAND THREAD, GRAY

5990731

SPRING CLIP PAD HOLDER SET

2897211

17" POLY TUFTED PAD DRIVER WITH PAD HOLDER (15" DIA)

2897201

17" POLY BACK NYLON FILL SCRUB BRUSH

2897711

17" POLY BACK NYLO GRIT SCRUB BRUSH

2897901

17" POLY BACK SCRUB GRIT BRUSH

2892031

20" PLASTIC BACK BASSINE SCRUB BRUSH

2892201

20" POLY BACK NYLON FILL SCRUB BRUSH

2892701

20" POLY BACK BRUSH, SHOWER FEED

2892711

20" POLY BACK NYLO GRIT SCRUB BRUSH

2892901

20” POLY BACK SCRUB GRIT BRUSH

7990031

17" GREEN ECOSTRIP PAD

7990041

20" GREEN ECOSTRIP PAD

2392111

12 VOLT BATTERY, 115 AMP/HR - WET

2392731

12 VOLT BATTERY, 100 AMP/HR - AGM, SEALED

2392821

12 VOLT BATTERY, 115 AMP/HR - DRY

2398561

12 VOLT BATTERY, 140AMP/HR - AGM

9091001

HARDWARE CATALOG

9091002

HOSES, TOOLS, AND ACCESSORIES CATALOG

9092017

OPERATOR'S MANUAL – WRANGLER 1710AB/2010AB

WRANGLER 1710 AB, 2010 AB OBC Rev Orig 11-10 Rev H 06-15 9092018

NSS ® Enterprises, Inc.

3115 Frenchmens Road

Toledo, Ohio 43607

PHONE (419) 531-2121

FAX (419) 531-3761

mailus@nss.com

www.nss.com
