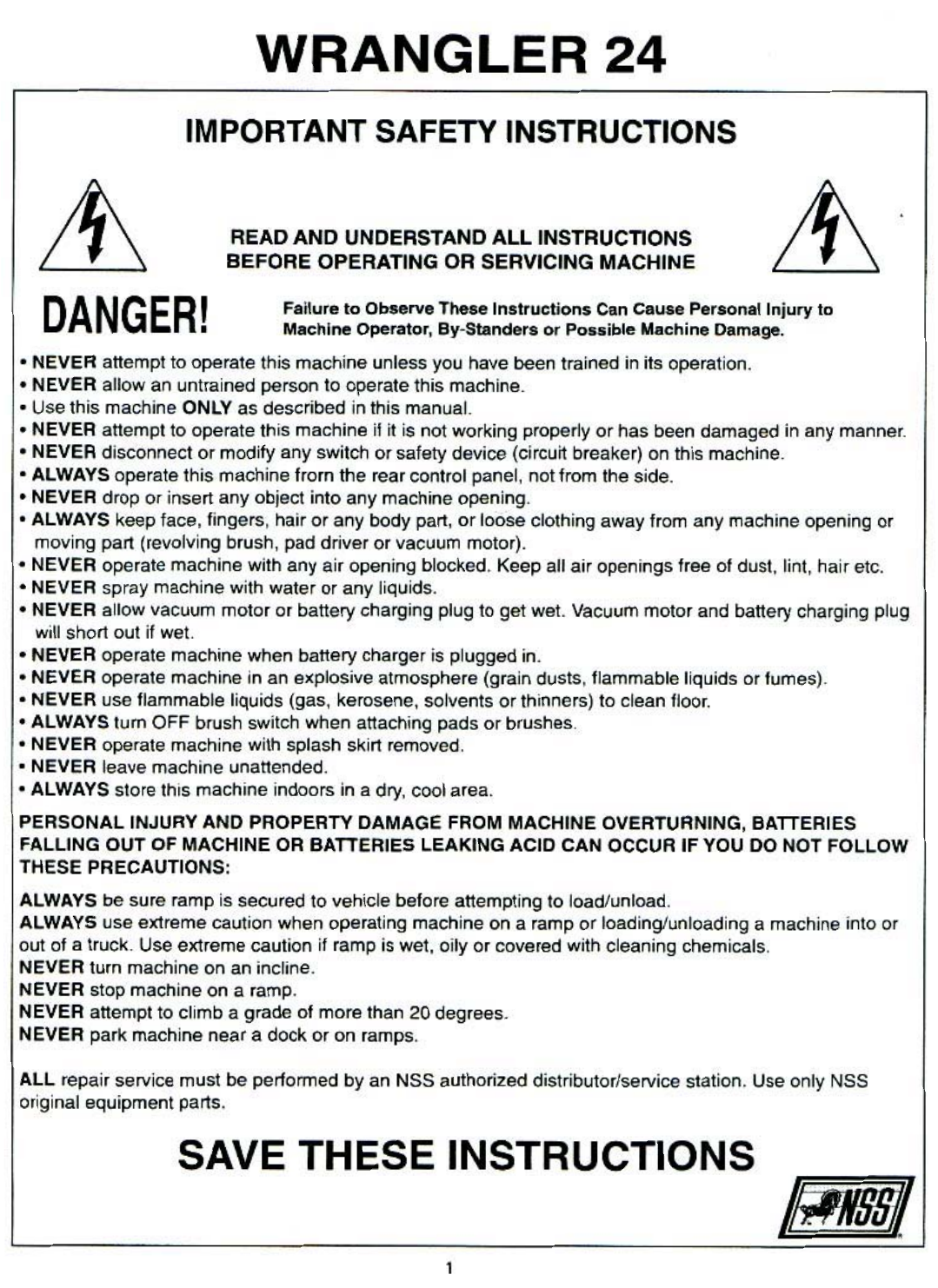

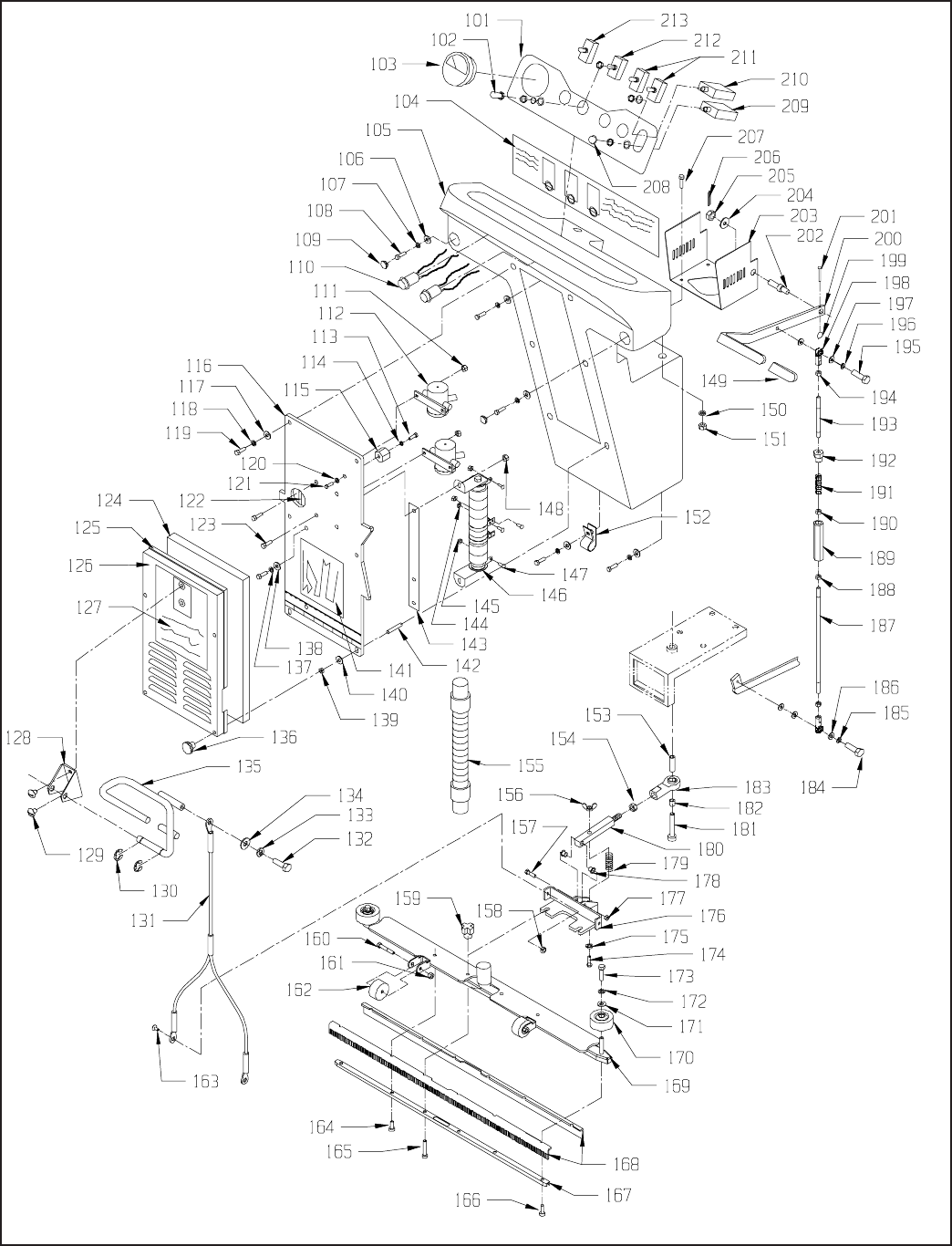

CONTROL PANEL/SQUEEGEE ASSEMBLY

101 ------- LABEL, CONTROL WR20 W/D 1

102 0693141 RUBBER SWITCH BOOT 4

103 2391391 BATTERY METER -24V 1

104 2395831 WIRE DIAGRAM -BATTERY 1

105 2395521 CONTROL PANEL WR 20/24 WD 1

106 9120390 5/16 SAE FLAT WASHER 5

107 9121410 5/16 EXTERNAL STAR LOCK WASHER 5

108 9121640 5/16-18x3/4 HEX HD BOLT 5

109 0690761 PLUG BUTTON 2

110 2395221 DEADMAN SWITCH 2

111 9120910 1/4-20 KEPS NUT 5

112 2391351 SOLENOID, 24V 2

113 9121170 1/4-20x1/2 HEX HD BOLT 1

114 9120970 1/4 EXTERNAL STAR LOCK WASHER 1

115 4490561 INSULATED STANDOFF 1

116 -------- COVER PANEL 1

117 9120370 10 FLAT WASHER 2

118 9120320 10 SPLIT LOCK WASHER 2

119 9120720 10-32 x 3/8 ROUND HD PHIL 2

120 9120970 1/4 EXTERNAL STAR LOCK WASHER 1

121 9121160 1/4-20 x 3/8 HEX HD BOLT 1

122 9997560 VELCRO LOOPS .8’

123 9121160 1/4-20 x 3/8 HEX HD BOLT 6

124 2391531 FILTER - WRANGLER 20/24 1

125 ------- C-14 BAG RING GASKET 1

126 ------- COVER BOX 1

127 ------- LABEL, BRUSH - WR 20 /24 1

128 ------- SQUEEGEE LIFT BRACKET 1

129 9120990 1/4-20x3/8 TRUSS HD PHIL SCREW 2

130 1390941 5/16 E RING 2

131 2495301 SQUEEGEE LIFT CABLE - 25" 1

132 9120990 10-24 x 3/8 TRUSS HD SCREW 1

133 9120320 10 SPLIT LOCK WASHER 1

134 9120370 10 FLAT WASHER 1

135 2395921 HANDLE, SQUEEGEE LIFT 1

136 2391371 KNURLED KNOB - WRANGLER 20 4

137 9120880 1/4 SPLIT LOCK WASHER 2

138 9120930 1/4 FLAT WASHER 2

139 9120690 10-32 KEPS NUT 4

140 9120370 10 FLAT WASHER 4

141 ------- WIRING DIAGRAM DECAL 1

142 9120655 10-32 x 1-3/4 SET SCREW 4

143 2395773 RESISTOR BRACKET 1

144 ------- 10-24 SQUARE NUT 1

145 9120360 10-24 KEPS NUT 3

146 2695121 RESISTOR 1

147 9120410 10-24 x 1/2 ROUND HD PHIL SCREW 4

148 9120920 1/4-20 HEX NUT 2

149 2690981 LIFT HANDLE GRIP 1

150 9120930 1/4 SAE FLAT WASHER 4

151 9120910 1/4-20 KEPS NUT 4

152 4890851 HOSE CLAMP 1

153 2490591 SPACER 1

154 9122670 1/2-20 JAM NUT 1

155 2690591 SQUEEGEE VAC HOSE W/CUFFS 1

156 9121440 5/16-18 WING NUT 1

157 9122340 3/8-16x2 HEX HD BOLT 1

ITEM PART #. DESCRIPTION QTY ITEM PART # DESCRIPTION QTY

158 9120900 1/4-20 ESNA NUT 2

159 3392971 SQUEEGEE KNOB, MACHINED 2

162 3096741 WHEEL,BUMPER-SMALL GRAY 1

163 9121010 1/4-20 x 3/4 TRUSS HD PHIL SCREW 2

164 9121880 5/16-18 x 3/4 SOCKET HD CAP SCREW 2

165 9121920 5/16-18 x 1 1/2 SOCKET HD CAP SCREW 2

166 9121880 5/16-18 x 3/4 SOCKET HD CAP SCREW 2

167 2692533 INNER CHANNEL SQ. NARROW MOUNT 1

168 2791061 32"REPL. SQ.BLADES, SET OF 2 1

169 2692523 HOUSING, NARROW MOUNT SQUEEGEE 1

2692539 SQUEEGEE ASSM NARROW MOUNT 1

170 2790281 3" BUMPER WHEEL 2

171 9120390 5/16 SAE FLAT WASHER 2

172 9121410 5/16 EXTERNAL STAR LOCK WASHER 2

173 9121560 5/16-18x1/2 HEX HD BOLT 2

174 9122130 5/16-18x2 1/4 HEX HD BOLT 1

175 9121520 5/16 SPLIT LOCK WASHER 1

176 1390171 SQUEEGEE BRACKET 1

177 9122140 3/8-16 ESNA NUT 1

178 1391171 BUSHING, SQUEEGEE SHAFT 2

179 3695581 SPRING 1

180 1390156 SQUEEGEE PIVOT ROD 1

181 9122660 1/2-13 x 3 HEX HD BOLT 1

182 1090981 SPACER 1

183 2391941 BALL JOINT -WRANGLER 20 1

184 9122300 3/8-16 x 1 1/4 HEX HD BOLT 1

185 9122100 3/8 SPLIT LOCK WASHER 1

186 9121980 3/8 FLAT WASHER 3

187 ------- LOCK DOWN LIFT ROD WR 20/24 1

188 2691831 RETAINER SPRING HOUSING 1

189 2691841 SPRING, BRUSH PRESSURE 1

190 9122140 3/8-16 ESNA LOCK NUT 1

191 2691821 SPRING HOUSING, BRUSH LIFT 1

192 9122000 3/8-16 HEX NUT 1

193 ------- LOCK DOWN LIFT ROD 1

194 9121990 3/8-24 JAM NUT 2

195 9122260 3/8-16x1 HEX HD BOLT 1

196 9122100 3/8 SPLIT LOCK WASHER 1

197 9121980 3/8 FLAT WASHER 2

198 4490531 3/8" ROD END 2

199 2392561 CIRCLE COTTER - #CC-7 1

200 2691373 BRUSH LIFT HANDLE 1

201 2391951 PIN - WRANGLER 20 1

202 2490661 PIVOT STUD 1

203 ------- BRACKET, MOUNT LIFT ARM 1

204 9122450 1/2 SAE WASHER 1

205 9122675 1/2-13 HEX SLOTTED NUT 1

206 9120312 HUMPED COTTER PIN 1

207 9121250 1/4-20 x 3/4 HEX HD BOLT 4

208 4892471 CIRCUIT BREAKER BUTTON SEAL 2

209 2392201 CIRCUIT BREAKER,10 AMP 1

210 2391361 CIRCUIT BREAKER, 25 AMP 1

211 3390411 FWD-REV SWITCHES 2

212 2792041 VAC MOTOR SWITCH 1

213 4491101 TOGGLE SWITCH 1

214 1390171 SQUEEGEE BRACKET 1

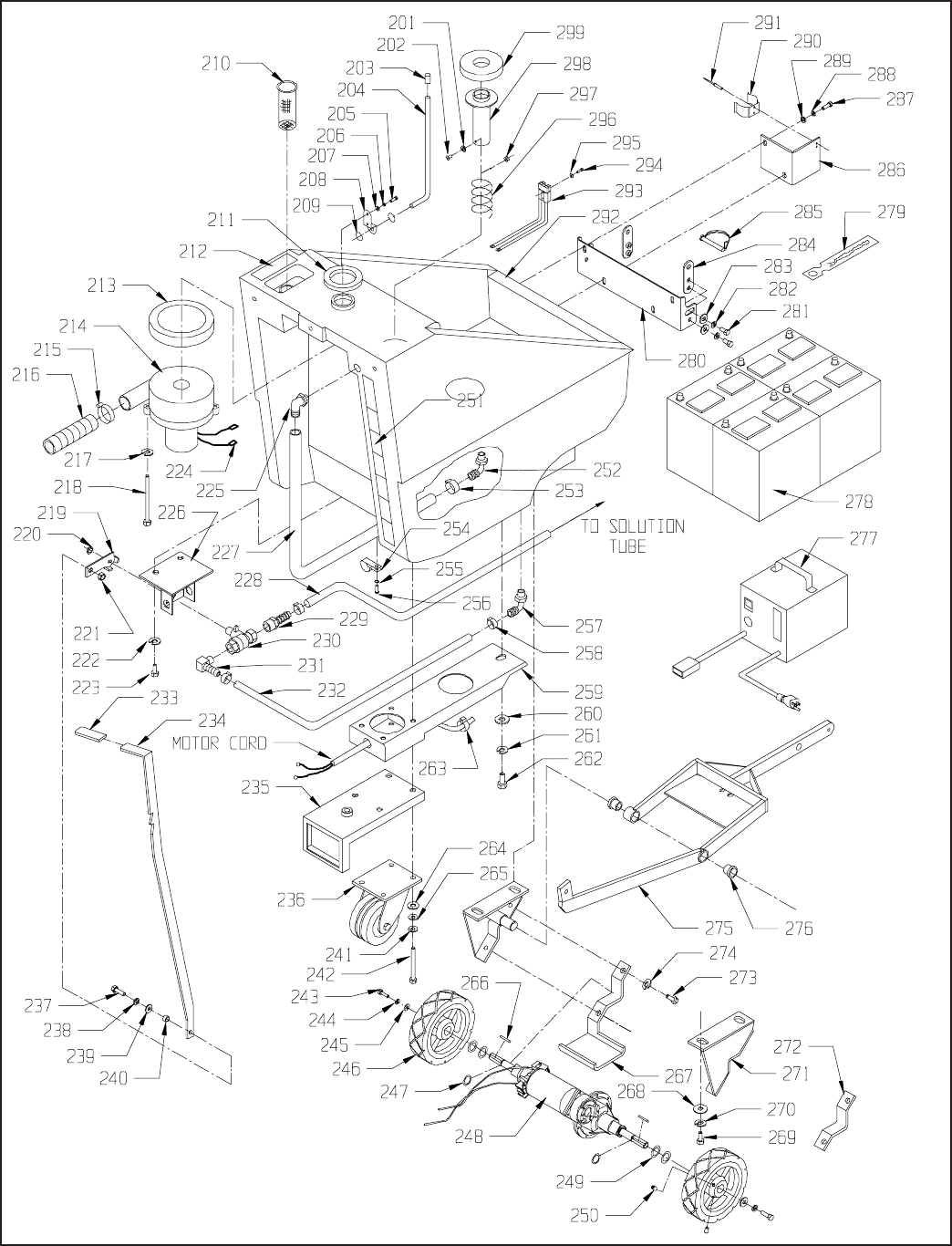

SOLUTION TANK/CHASSIS TRANSAXLE ASSEMBLY

201 9120320 10 SPLIT LOCK WASHER 1

202 9120380 10-24 x 3/8 ROUND HD PHIL SCREW 1

203 5092531 SOLUTION FEED TUBE CAP 1

204 2391636 HOOD ROD - WRANGLER 20/24 1

205 9121170 1/4-20 x 1/2 HEX HD BOLT 2

206 9120880 1/4 SPLIT LOCK WASHER 2

207 9120930 1/4 FLAT WASHER 2

208 2391646 ROD BRACKET 1

209 2392561 CIRCLE COTTER - #CC-7 2

210 2791899 TANK SCREEN BAG 1

211 0294341 TOP MOTOR SEAL - NEOPRENE 1

212 ------- CLEAN WATER DECAL 1

213 0294331 MOTOR SEAL GASKET 1

214 2395571 VACUUM MOTOR 24V 3 STAGE 1

214 2392571 REPLACEMENT CARBON BRUSHES 2

215 4495441 HOSE CLAMP 1.875"-2.125" RANGE 1

216 2395651 VAC MOTOR EXHAUST HOSE 1

217 9120880 1/4 SPLIT LOCK WASHER 3

218 9121360 1/4-20x4 HEX HD BOLT 3

219 2395471 VALVE LEVER (SHORT) 1

220 9121530 5/16-24 HEX NUT 1

221 9120890 1/4-20 THIN ESNA HEX NUT 1

222 9121520 5/16 SPLIT LOCK WASHER 2

223 9121640 5/16-18 x 3/4 HEX HD BOLT 2

224 5490171 1/4 MALE SPADE FULLY INSULATED 2

225 2391771 90 DEGREE HOSE BARB 1

226 ------- SOLUTION VALVE BRACKET 1

227 2395997 VINYL HOSE, 3/4"ID x 33" LGTH 1

228 2495317 VINYL HOSE, 1/2" ID x 34" LGTH 1

229 2495161 FITTING 1/2 HOUSE BARB x 1/4 MNPT 1

230 1391531 W-17 SOLUTION VALVE 1

231 2495151 ELL FITTING 1/2 HOUSE BARB x 1/4 MNPT 1

232 2495327 VINYL HOSE 1/2"ID x 14" LGTH 1

233 2391181 VALVE LEVER GRIP 1

234 2690283 VALVE LEVER 1

235 ------- SQUEEGEE MOUNT & STOP BRACKET 1

236 6492061 SWIVEL CASTER, PLATFORM, 4" WHEEL 1

4490391 CASTER WHEEL ONLY W BEARING 1

237 9121250 1/4-20x3/4 HEX HD BOLT 1

238 9120880 1/4 SPLIT LOCK WASHER 1

239 9120930 1/4 FLAT WASHER 1

240 2791281 SPACER 1

241 9122100 3/8 SPLIT LOCK WASHER 4

242 9122350 3/8-16 x 3 HEX HD BOLT 4

243 9122260 3/8-16 x 1 HEX HD BOLT 2

244 9122100 3/8 SPLIT LOCK WASHER 2

245 9122450 1/2 FLAT WASHER 2

246 2395501 WHEEL, DRIVE 8x2 2

247 5293151 RETAINING RING 2

248 2395481 TRANSAXLE, 20" 1

------- CARBON BRUSH - TRANSAXLE 2

------- CARBON BRUSH CAP - TRANSAXLE 2

------- TOP MOTOR BRACKET - TRANSAXLE 1

249 9123105 1-1/4" x .770" x .082" WASHER 4

250 9121380 5/16-18 x 3/8 KNURLED SET SCREW 4

251 ------- SOLUTION LABEL, WRANGLER 20/24 1

252 2391771 90 DEGREE HOSE BARB 1

253 2392141 HOSE CLAMP STEEL .953-1.093 1

254 2395761 CLAMP, TUBE 1

255 9121520 5/16 SPLIT LOCK WASHER 1

ITEM PART #. DESCRIPTION QTY ITEM PART # DESCRIPTION QTY

256 9121640 5/16-18 x 3/4 HEX HD BOLT 1

257 2495151 ELL FITTING 1/2 BARB x 1/4 MNPT 1

258 2795841 HOSE CLAMP 9/16 - 1 1/16 3

259 ------- CHANNEL - DRIVE CASTER 1

260 9122450 1/2 FLAT WASHER 1

261 9122420 1/2 SPLIT LOCK WASHER 1

262 9122500 1/2-13 x 7/8 HEX HD BOLT 1

263 5092291 CORD CLAMP 1

264 9122180 3/8 WROUGHT WASHER 4

265 9121980 3/8 FLAT WASHER 4

266 9120825 KEY, MAIN AXLE SPROCKET 2

267 2395243 CLAMP, AXLE W/BRUSH CAP GUARD 1

268 9122450 1/2 FLAT WASHER 4

269 9122500 1/2-13x7/8 HEX HD BOLT 4

270 9122420 1/2 SPLIT LOCK WASHER 4

271 ------- RIGHT AXLE SUPPORT BRACKET 1

------- LEFT AXLE SUPPORT BRACKET 1

272 2395353 AXLE CLAMP 2

273 9121250 1/4-20 x 3/4 HEX HD BOLT 4

274 9120880 1/4 SPLIT LOCK WASHER 4

275 ------- LIFT FORK WR 24 1

276 2791371 FLANGE BEARING FF-838-3 2

277 2396071 BATTERY CHARGER (115V) 1

2391991 BATTERY CHARGER (240V) 1

2392011 BATTERY CHARGER (120V) 1

2392511 BATTERY CHARGER (100V-JAPAN) 1

------- BATTERY CHARGER (100V-250V) 1

278 3390361 BATTERY (6V, 220A.H. ) 4

3390951 BATTERY (6V, 220A.H. DRY) 4

279 2392761 WARNING TAG - BATTERY TERMINAL 1

280 ------- HINGE BRACKET - LOWER 1

280 2391689 LOWER HINGE ASSEMBLY 1

281 9121210 1/4-20x5/8 HEX HD BOLT 4

282 9120880 1/4 SPLIT LOCK WASHER 4

283 9120930 1/4 SAE FLAT WASHER 4

284 2395933 ADJUSTMENT PLATE - HINGE BRACKET 2

285 9121950 HINGE PIN - WRANGLER 20 2

286 ------- HOSE CLIP BRACKET 1

287 9121250 1/4-20 x 3/4 HEX HD BOLT 4

288 9120880 1/4 SPLIT LOCK WASHER 4

289 9120930 1/4 SAE FLAT WASHER 4

290 2392131 SPRING CLIP, HOSE 1

291 2391751 POP RIVET 1/8" X 5/8" 2

292 2391011 SOLUTION TANK -WRANGLER 20/24 1

293 2392001 CHARGER PLUG, RED 24V W/WIRES 1

294 9120080 6-32 x 3/4 ROUND HD PHIL 2

295 9120130 6 EXTERNAL STAR LOCK WASHER 2

296 2391581 SPRING TUBE ADAPTOR 1

297 9120350 10-24 HEX NUT 1

298 2690851 TUBE ADAPTER 1

299 2391591 GASKET TUBE ADAPTER 1

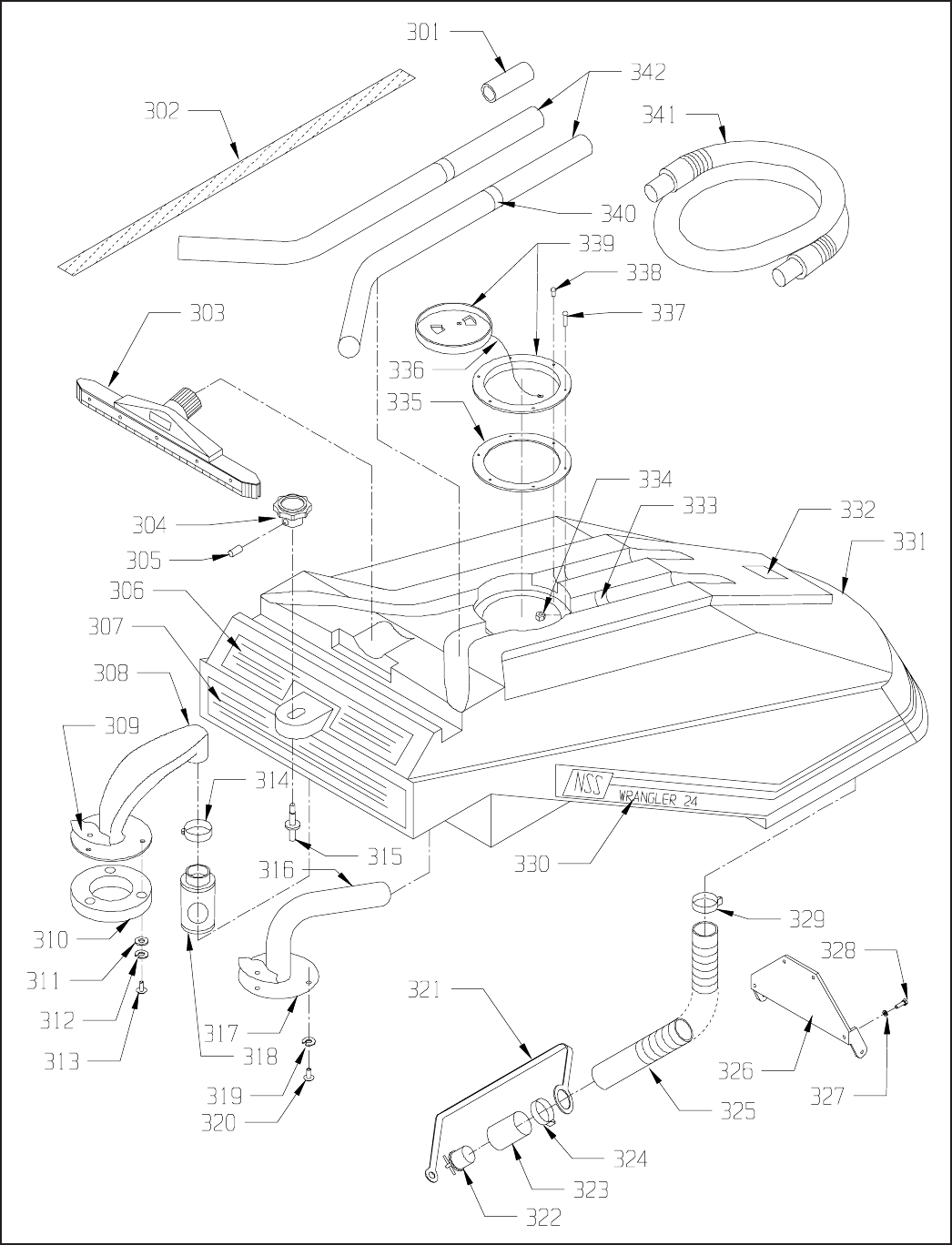

RECOVERY TANK ASSEMLBY

ITEM PART NO. DESCRIPTION QTY

301 2291211 5 IN ALUMINUM CONNECTOR 1

302 2391241 HOSE STRAP - WRANGLER 20/24 1

303 5797011 17" SQUEEGEE 1

304 4490521 LOAD ADJUST KNOB 1

305 ------- 10-32 x 1/2 SET SCREW 1

306 ------- WARNING/OPERATE LABEL, WRANGLER 20/24 1

307 ------- TANK DRAIN LABEL 1

308 2395451 VACUUM TUBE 1

309 2391611 INLET TUBE GASKET - W20/24 1

310 2391601 VACUUM TUBE GASKET- W20/24 1

311 9120930 1/4 FLAT WASHER 3

312 9120970 1/4 EXTERNAL STAR WASHER 3

313 9121000 1/4-20 x 5/8 TRUSS HD SCREW 3

314 4894081 HOSE CLAMP 1.593"-1.812" RANGE 1

315 2391621 STUD, HOOD KNOB 1

316 2391561 INLET TUBE 1

317 2391611 INLET TUBE GASKET - W20/24 1

318 2391541 FLOAT SCREEN ASSM - W20/24 1

319 9120970 1/4 EXTERNAL STAR WASHER 3

320 9121000 1/4-20 x 5/8 TRUSS HD SCREW 3

321 2791881 PLUG STRAP 1

322 2795621 DRAIN PLUG 1

323 2391661 HOSE TUBE 1

324 2393451 TUBE HOSE CLAMP, CRIMP-ON TYPE 1

325 2391671 DRAIN HOSE, CRUSH PROOF - WRANGLER 20/24 1

326 ------- UPPER HINGE - WRANGLER 20/24 1

327 9120880 1/4 SPLIT LOCK WASHER 4

328 9121210 1/4-20 x 5/8 HEX HD BOLT 4

329 4495441 HOSE CLAMP, 1 9/16-2 1/2 DIA 1

330 ------- SIDE LABEL - LEFT, WRANGLER 24 1

------- SIDE LABEL - RIGHT, WRANGLER 24 1

331 2395441 RECOVERY TANK - WR 20/24 1

332 2694421 BATTERY COVER LABEL - NSS/HORSE 1

333 9997550 VELCRO HOOK,P.S. - 2" 2

334 9120360 10-24 KEPS NUT 2

335 2690891 RECOVERY TANK LID GASKET 1

336 2690931 LID CHAIN RECOVERY TANK 1

337 9120450 10-24 x 1 ROUND HD PHIL SCREW 1

338 2795681 10-16 x 5/8 SHEET METAL SCREW 5

339 2690881 RECOVERY TANK LID ASSM 1

340 9997560 VELCRO LOOP, P.S. - 6" 2

341 2391231 VACUUM HOSE - WRANGLER 20/24 1

342 5790331 WAND - 2PC. 1

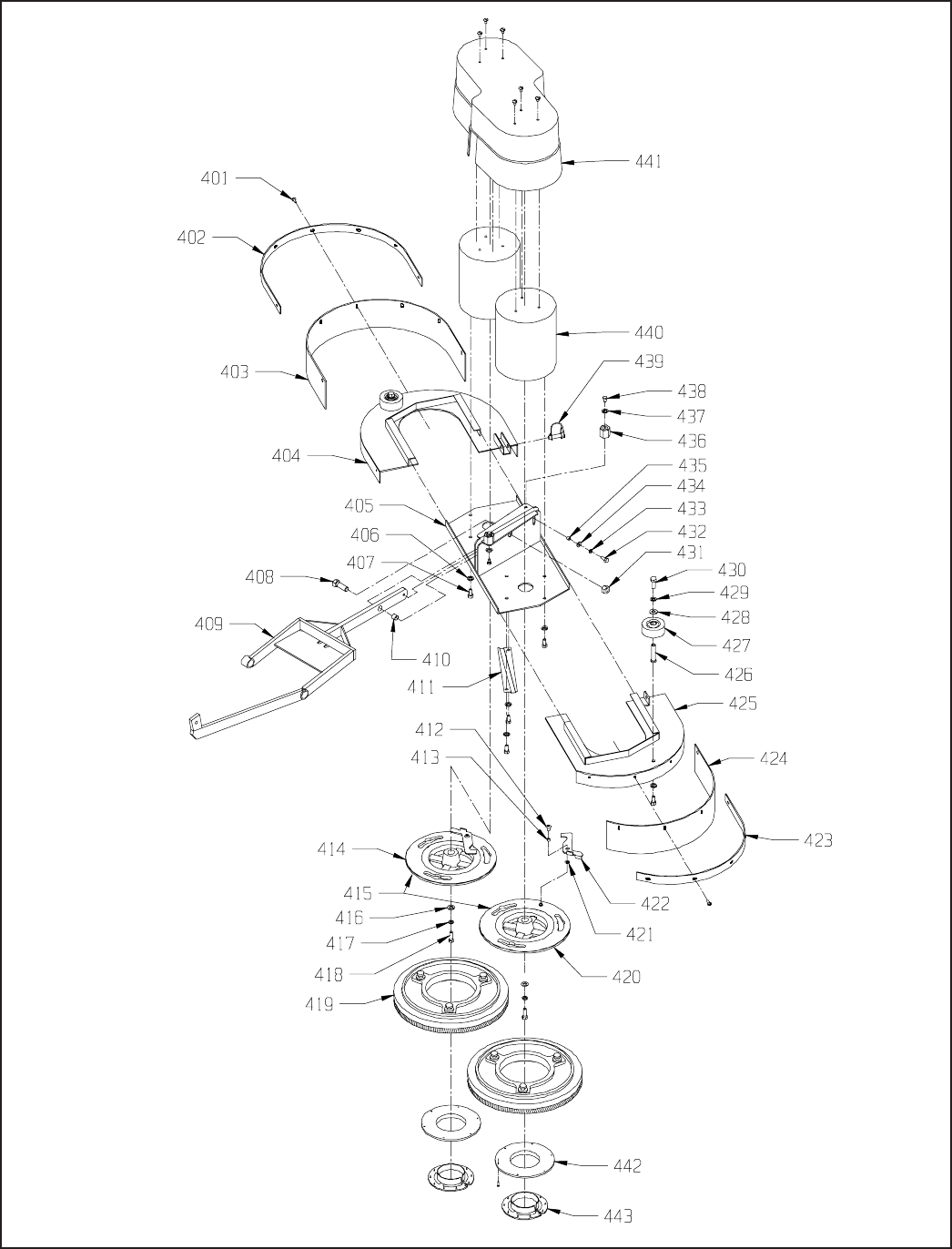

BRUSH MOTOR ASSEMLBY

ITEM PART NO. DESCRIPTION QTY

401 9120580 10-24 x 5/8 ROUND HD SCREW 12

402 ———- LEFT SKIRT STRAP 1

403 ———- LEFT SIDE WIPER 1

404 ———- LEFT SKIRT 1

428 2392276 BUMPER WHEEL AXLE 2

429 2790281 BUMPER WHEEL 3" 2

430 9121390 5/16 SAE FLAT WASHER S.S. 2

427 ———- RIGHT SKIRT ASSM 1

426 ———- RIGHT SIDE WIPER 1

427 ———- RIGHT SKIRT 1

9120580 10-24 x 5/8 ROUND HD SCREW 12

423 9122120 3/8 SPRING WASHER 2

424 2790211 BRUSH PLATE LATCH 2

425 2495061 RIGHT SKIRT STRAP 1

428 2392276 BUMPER WHEEL AXLE 2

429 2790281 BUMPER WHEEL 3" 2

430 9121390 5/16 SAE FLAT WASHER S.S. 2

405 ———- BRUSH MOTOR MOUNT 1

406 9120880 1/4 SPLIT LOCK WASHER 8

407 9121210 1/4-20 x 5/8 HEX HD BOLT 8

408 9122550 1/2-13 x 1 1/2 HEX HD BOLT S.S. 1

———- LIFT FORK ASSM 1

409 ———- LIFT FORK 1

2791371 BEARING,FLANGE FF-838 3

410 2790751 BUSHING SPACER 1

411 ———- WATER FEED CHANNEL 1

414 2792499 LEFT BRUSH DRIVE PLATE ASSM 1

412 9121090 1/4-20 x 1/2 TRUSS HD S.S. 2

413 2791281 BUSHING SPACER 2

415 2790202 BRUSH DRIVE PLATE 2

416 9121400 5-16 WROUGHT WASHER S.S. 2

417 9121520 5/16 SPLIT LOCK WASHER 2

418 9121680 5/16-18 x 1 HEX HD S.S. 2

419 2495191 PAD DRIVER ASSM. 12" 2

421 2795241 PAD HOLDER W/RING 2

422 2792489 RIGHT BRUSH DRIVE PLATE ASSM 1

413 2791281 BUSHING SPACER 2

417 9121520 5/16 SPLIT LOCK WASHER 2

418 9121680 5/16-18 x 1 HEX HD S.S. 2

421 2795241 PAD HOLDER W/RING 2

422 2792489 RIGHT BRUSH DRIVE PLATE ASSM 1

419 2495191 PAD DRIVER ASSM. 12" 2

420 2795231 SPLIT RING, ONLY 2

431 9121410 5/16 EXTERNAL STAR WASHER S.S. 2

432 9121560 5/16-18 X 1/2 HEX HD S.S. 4

433 9122495 1/2 THIN ESNA LOCKNUT S.S. 1

434 9121250 1/4-20 X 3/4 HEX HD 1

435 9120880 1/4 SPLIT LOCK WASHER 1

436 9120930 1/4 FLAT WASHER 1

437 2791281 BUSHING SPACER 1

438 4490561 INSULATED STANDOFF 2

439 9120880 1/4 SPLIT LOCK WASHER 2

440 9121160 1/4-20 X 3/8 HEX HD 2

441 9121950 HINGE PIN 1

442 2790101 DRIVE MOTOR 36V 2

443 ———- BRUSH MOTOR COVER 1

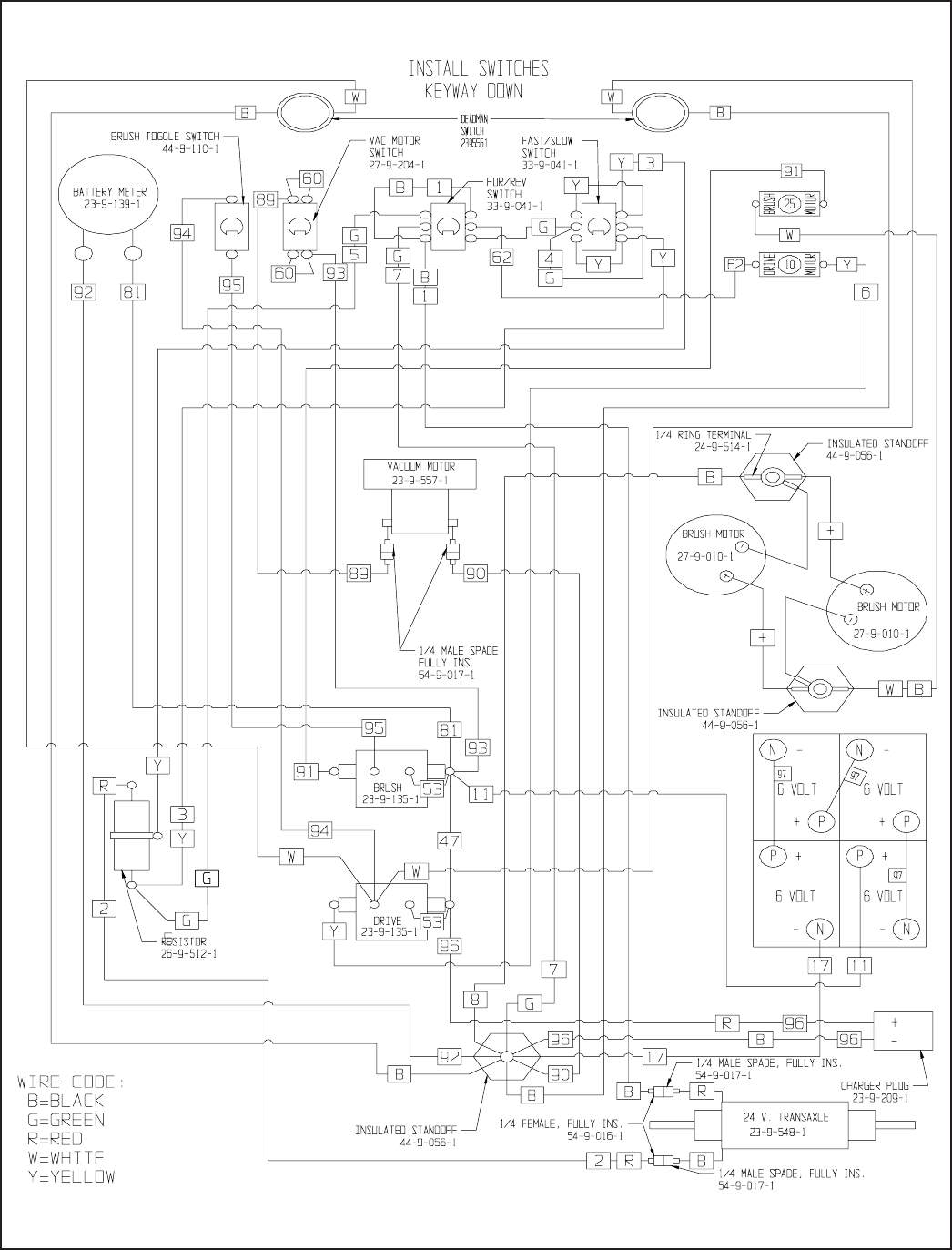

ELECTRICAL COMPONENTS - WIRING DIAGRAM

ITEM PART NO. DESCRIPTION QTY

1 2395581 WIRE ASSM TRANSAXLE FOR/REV SWITCH 1

2 ———- WIRE ASSM TRANSAXLE, RESISTOR 1

3 ———- WIRE ASSM HIGH/LOW SWITCH, RESISTOR 2

4 ———- WIRE ASSM FOR/REV, HIGH/LOW JUMPER 1

5 ———- WIRE ASSM FOR/REV, RESISTOR 1

6 ———- WIRE ASSM DRIVE SOLENOID, DRIVE C.B. 1

7 ———- WIRE ASSM FOR/REV, STANDOFF 1

8 2393071 MOTOR CORD 1

11 2392541 POS. BATTERY CABLE 1

17 2392551 NEG. BATTERY CABLE 1

47 2792141 CABLE ASSM #6 X 6" 1

53 6496031 WIRE ASSM #14 X 6" 1

60 ———- WIRE ASSM #14 X 3" 2

62 ———- WIRE ASSM #14 X 6" 1

81 3390681 WIRE ASSM #18 X 17" 1

89 2392021 WIRE ASSM VAC LEAD, VAC-SWITCH 1

90 2392031 WIRE ASSM VAC LEAD, STANDOFF 1

91 ———- WIRE ASSM BRUSH SOL., BREAKER 1

92 2392051 WIRE ASSM BATTERY METER, STANDOFF 1

93 2392061 WIRE ASSM BRUSH SOL., VAC SWITCH 1

94 2392071 WIRE ASSM METER, BRUSH SWITCH 1

95 2392081 WIRE ASSM BRUSH SOL., BRUSH SWITCH 1

96 2392001 CHARGER PLUG, RED 24V W/WIRES 1

97 2391981 BATTERY JUMPER 3/8 RING 3

2391351 SOLENOID 24V SINGLE POLE 2

2391361 CIRCUIT BREAKER 24V 25AMP 1

2391391 BATTERY METER 1

2392091 CHARGER PLUG ONLY, RED 24V 1

2392201 CIRCUIT BREAKER 115V 10AMP 1

2395481 TRANSAXLE, 20" 1

2395221 DEADMAN BUTTON SWITCH 2

2395571 VAC MOTOR 24V 3 STAGE 1

———- 1/4 RING TERMINAL 10-14 GA. 6

2695121 RESISTOR 1

2790101 DRIVE MOTOR 2

2792041 VAC MOTOR SWITCH 1

3390411 FORWARD / REVERSE SWITCH 2

4490561 INSULATED STAND-OFF 3

4491101 TOGGLE SWITCH 1

5490161 1/4 FEMALE TERMINAL FULLY INS. 16-14 GA. 4

5490171 1/4 MALE SPADE TERMINAL FULLY INS. 16-14 GA. 4

WRANGLER 24 REV A 07-96 9092406

NSS ® Enterprises, Inc.

3115 Frenchmens Road, Toledo, Ohio 43607

PHONE (419) 531-2121 FAX (419) 531-3761

NSS ® Enterprises, Inc. European Distribution Centre

Unit II, Pinfold Trading Estate * 55 Nottingham Road

STAPLEFORD, NOTTINGHAM NG9 8AD ENGLAND U.K.

PHONE: (44) 0115 939 1568 * FAX: (44) 0115 949 0615

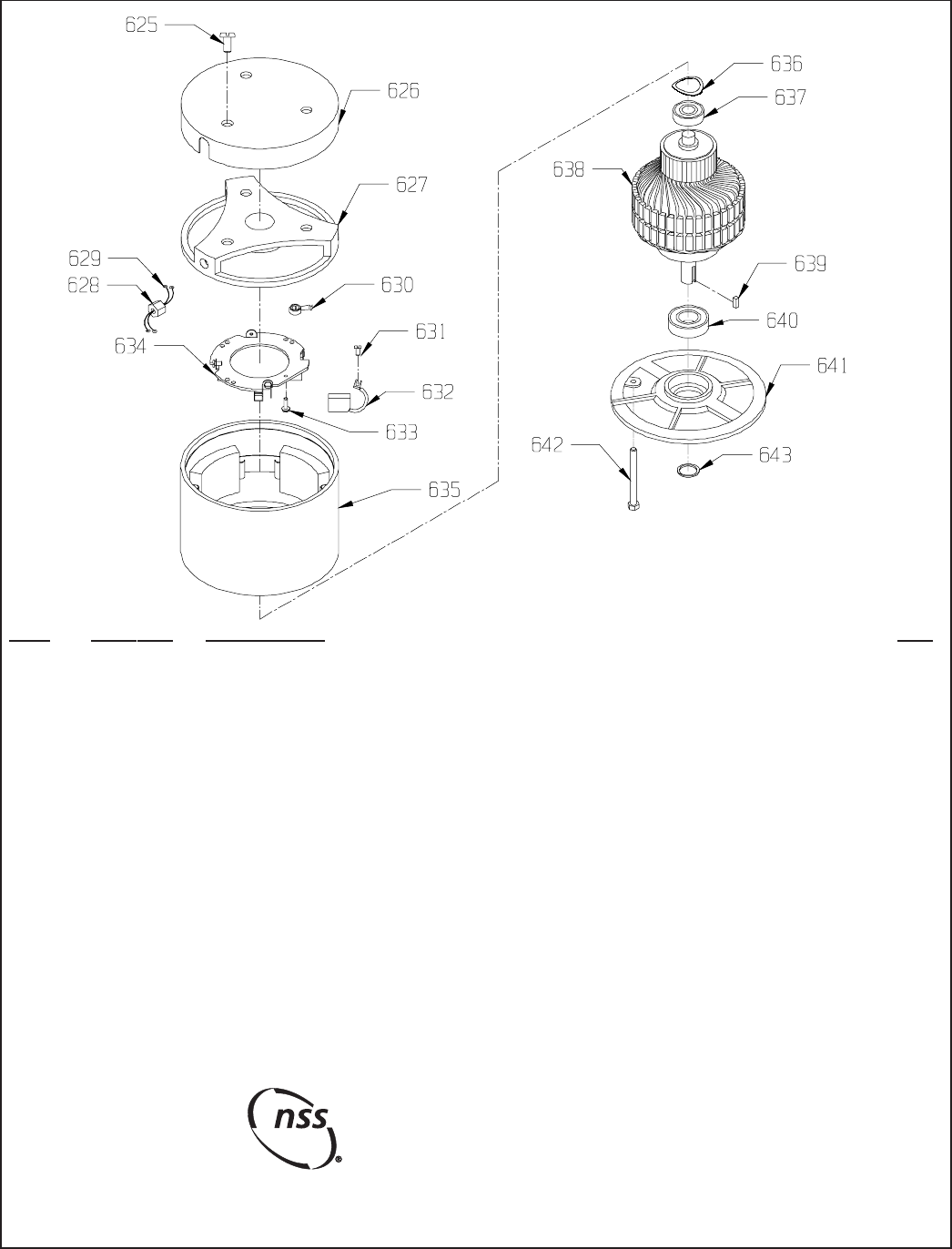

ITEM PART NO. DESCRIPTION QTY

625 ------- 1/4-20 X 3/8 PAN HEAD SCREW 3

625 ———- 1/4-20 X 3/8 PAN HEAD SCREW 3

626 2797721 COVER 1

627 2797671 TOP END BELL WITH BRUSH BOARD ASSEMBLY 1

628 2797631 HEYCO STRAIN RELIEF 1

629 2797581 LEAD ASSY,1 WIRE W/TERMINAL 2

630 2797571 BRUSH SPRING 4

631 ———- 10-32 X 3/8 BRASS PAN HEAD SCREW 4

632 2797691 CARBON BRUSH ASSEMBLY WITH LEAD AND TERMINAL 4

633 9120600 10-24 X 1/2 PAN HEAD PHILLIPS THREAD CUTTING SCREW 3

634 2797681 BRUSH RING ASSEMBLY-WITH SPRINGS AND BRUSHES 1

635 2797651 STATOR FRAME ASSEMBLY-WITH MAGNETS 1

636 2797591 1 13/32 X 1 7/8 2 WAVE SPRING WASHER 1

637 5092041 BEARING,TOP ROTOR 1

638 2797661 ARMATURE ASSEMBLY WITH BEARINGS 1

639 2792681 1/4"X 1/4"X 1" MOTOR KEY 1

640 2790311 BEARING,BOTTOM END 1

641 2797711 BOTTOM END BELL 1

642 2797701 1/4-20 X 5 3/4 HEX HEAD THRU BOLT 2

643 2797731 SHAFT SEAL 1

BRUSH DRIVE MOTOR - 2790101
