Pioneer Eclipse 225fp Floor Care Machine Operator Parts Manual

2017-01-09

: Sweepscrub Pioneer-Eclipse-225Fp-Floor-Care-Machine-Operator-Parts-Manual pioneer-eclipse-225fp-floor-care-machine-operator-parts-manual 1978 file product_file

Open the PDF directly: View PDF .
Page Count: 20

Floor Polisher

PE225FP

Operator’s Manual

FOR YOUR SAFETY

DO NOT store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

Record This Important Information

Date of Purchase

Purchased From

Address

City State Zip

Phone Contact

Machine Model

Machine Serial Number

Important Phone Numbers

Medical Emergency

Police

Fire Department

WARNING!: The Products sold with this Manual contain or may contain chemicals that

are known to certain governments (such as the State of California, as identied in its

Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm.

In certain locations (including the State of California) purchasers of these Products that place them

in service at an employment job site or a publicly accessible space are required by regulation

to make certain notices, warnings or disclosures regarding the chemicals that are or may be

contained in the Products at or about such work sites. It is the purchaser’s responsibility to know

the content of, and to comply with, any laws and regulations relating to the use of these Products

in such environments. The Manufacturer disclaims any responsibility to advise purchasers of any

specic requirements that may be applicable to the use of the Products in such environments.

In this Operation Manual you will find three statements that you must read and observe

to ensure safe operation of this machine.

DANGER! indicates that the possibility of severe bodily injury or death can occur if

DANGER! statements are ignored. Read and observe all DANGER! statements

included in the Operation Manual and attached to the machine.

WARNING! indicates that the possibility of bodily injury to the operator and other

people can occur if WARNING! statements are ignored. Read and observe all

WARNING! statements included in the Operation Manual and attached to the

machine.

CAUTION! indicates that the possibility of damage to the machine or other property

can occur if CAUTION! statements are ignored. Read and observe all CAUTION!

statements included in the Operation Manual and attached to the machine.

Safety Precautions..............................................................4

Technical Specifications......................................................5

Operator Responsibility.......................................................6

Machine Preparation...........................................................6

Unpacking the Machine..........................................6

Transporting the Machine.......................................6

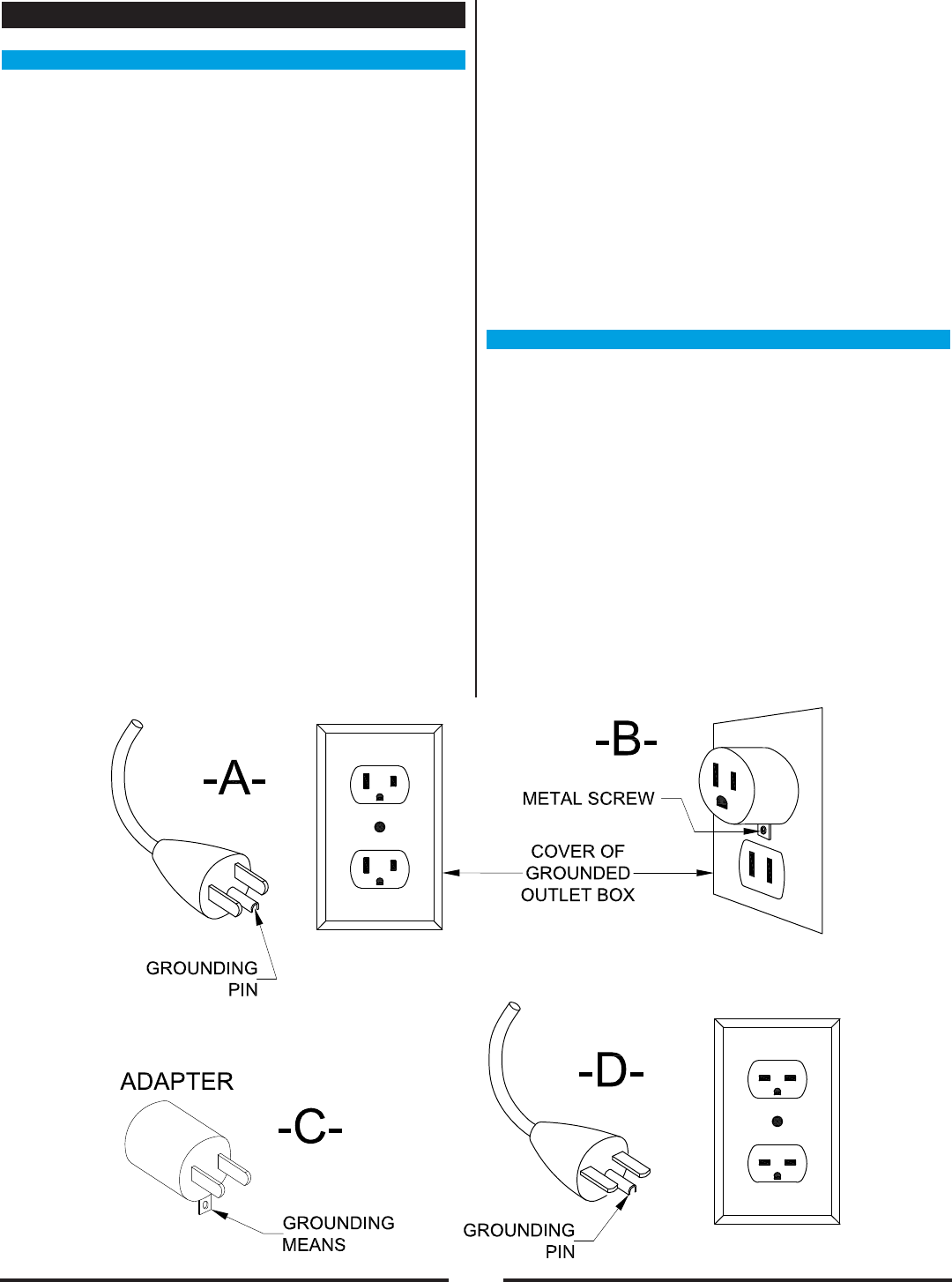

Grounding Instructions..........................................7

Extension Cords.....................................................7

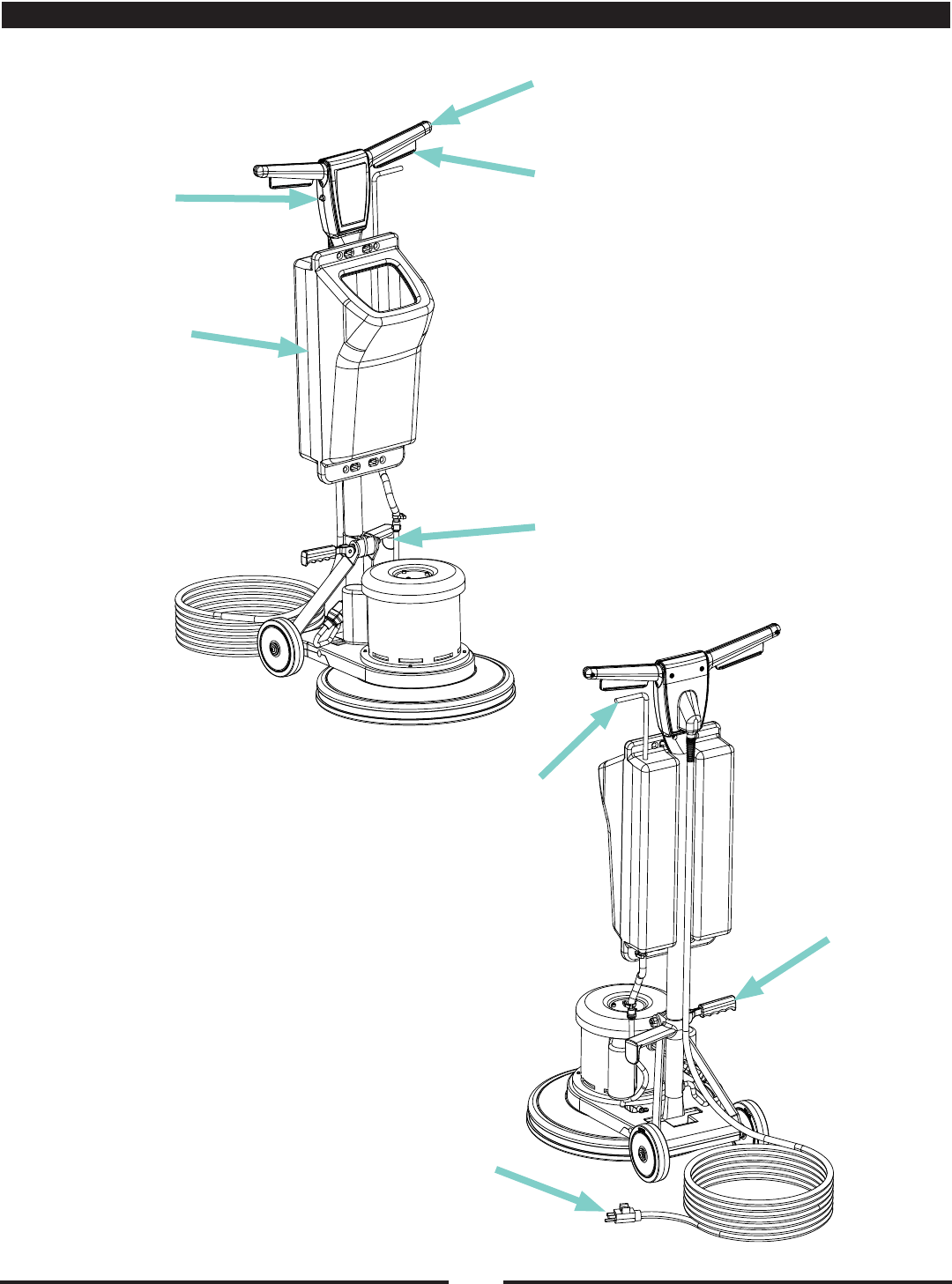

Machine Components.........................................................8

Operator Handle Grips...........................................9

Switch Levers.........................................................9

Switch Lever Safety Lock......................................9

Water Tank.............................................................9

Handle Release Lever............................................9

Cord Hook..............................................................9

Water Release Handle...........................................9

Power Cord.............................................................9

How to Operate the Machine.............................................10

Installing the Pad Driver........................................10

Operation..................................................10

After Use...............................................................10

Scheduled Maintenance...................................................11

Machine Troubleshooting..................................................11

Parts Manual & Warranty...................................................12

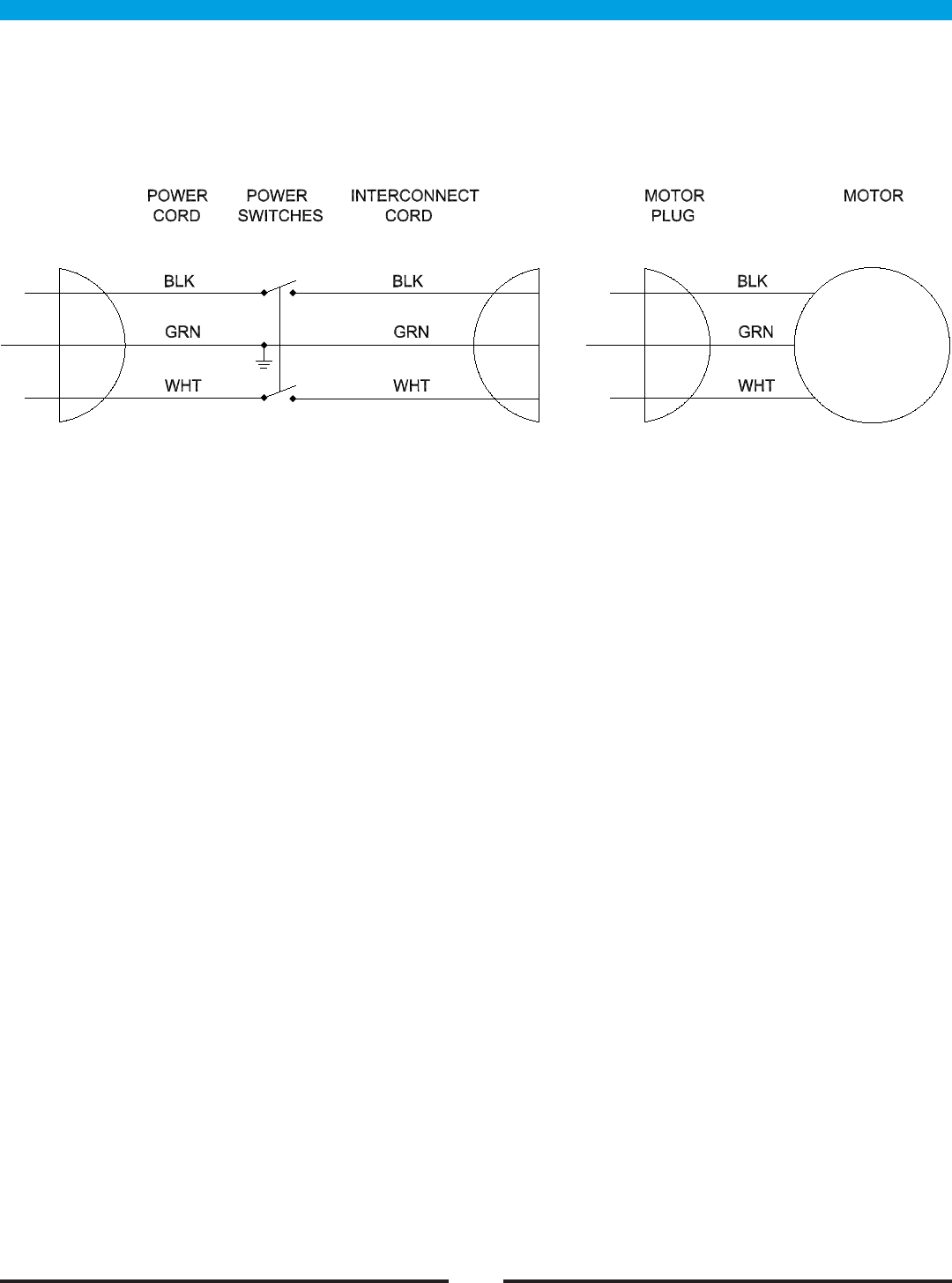

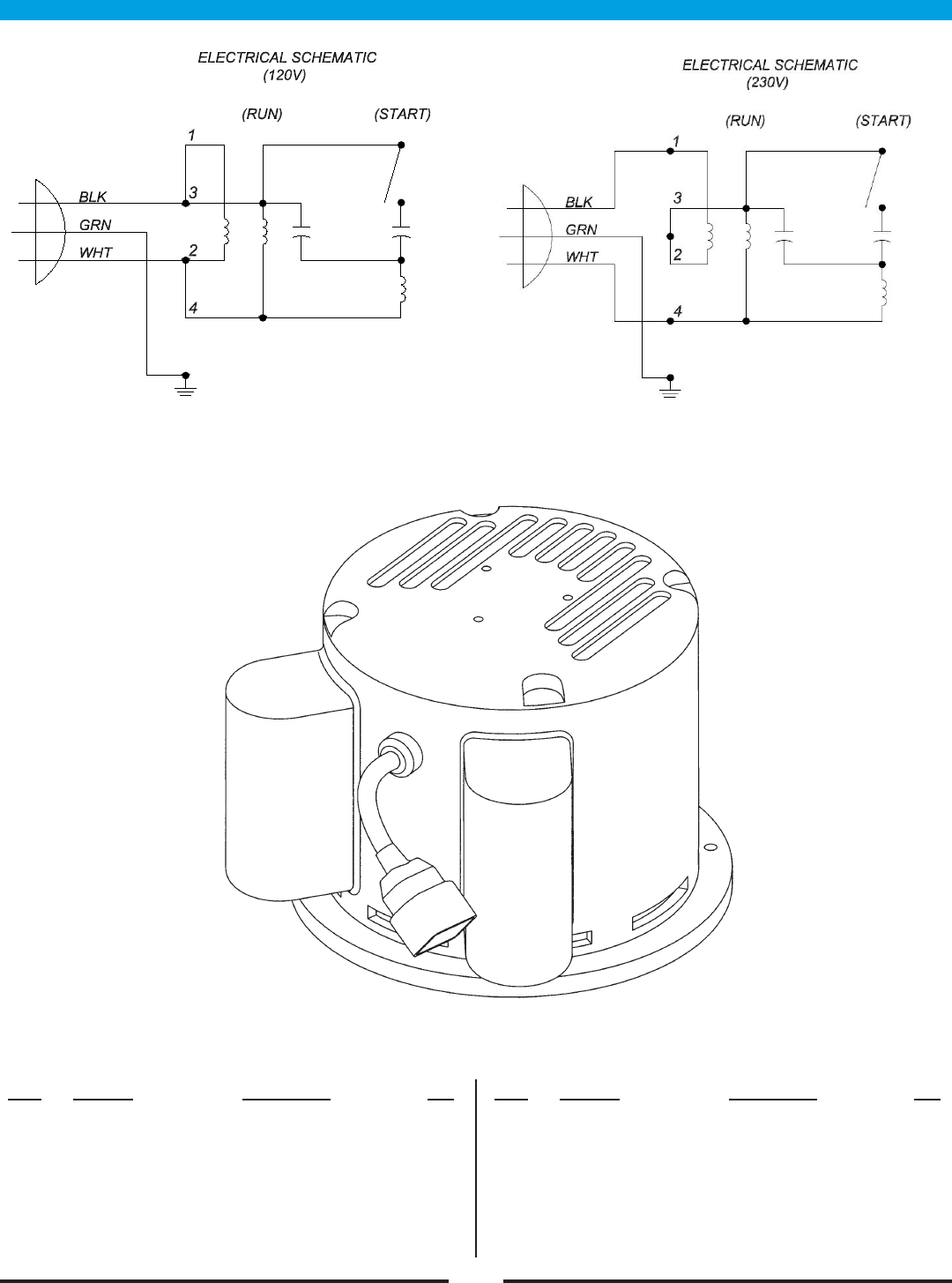

Electrical Schematic.............................................13

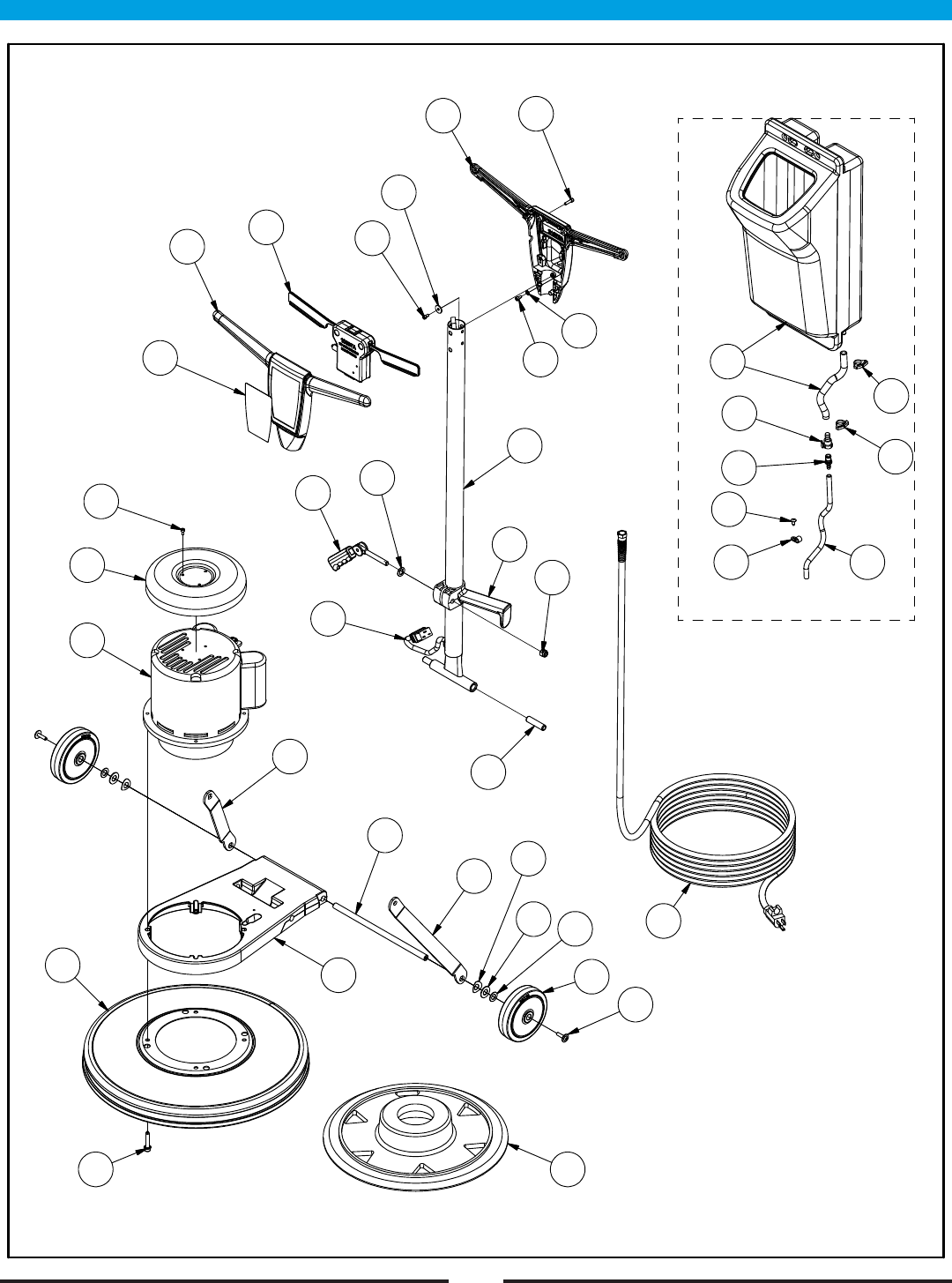

Main Assembly....................................................14

Motor Assembly....................................................16

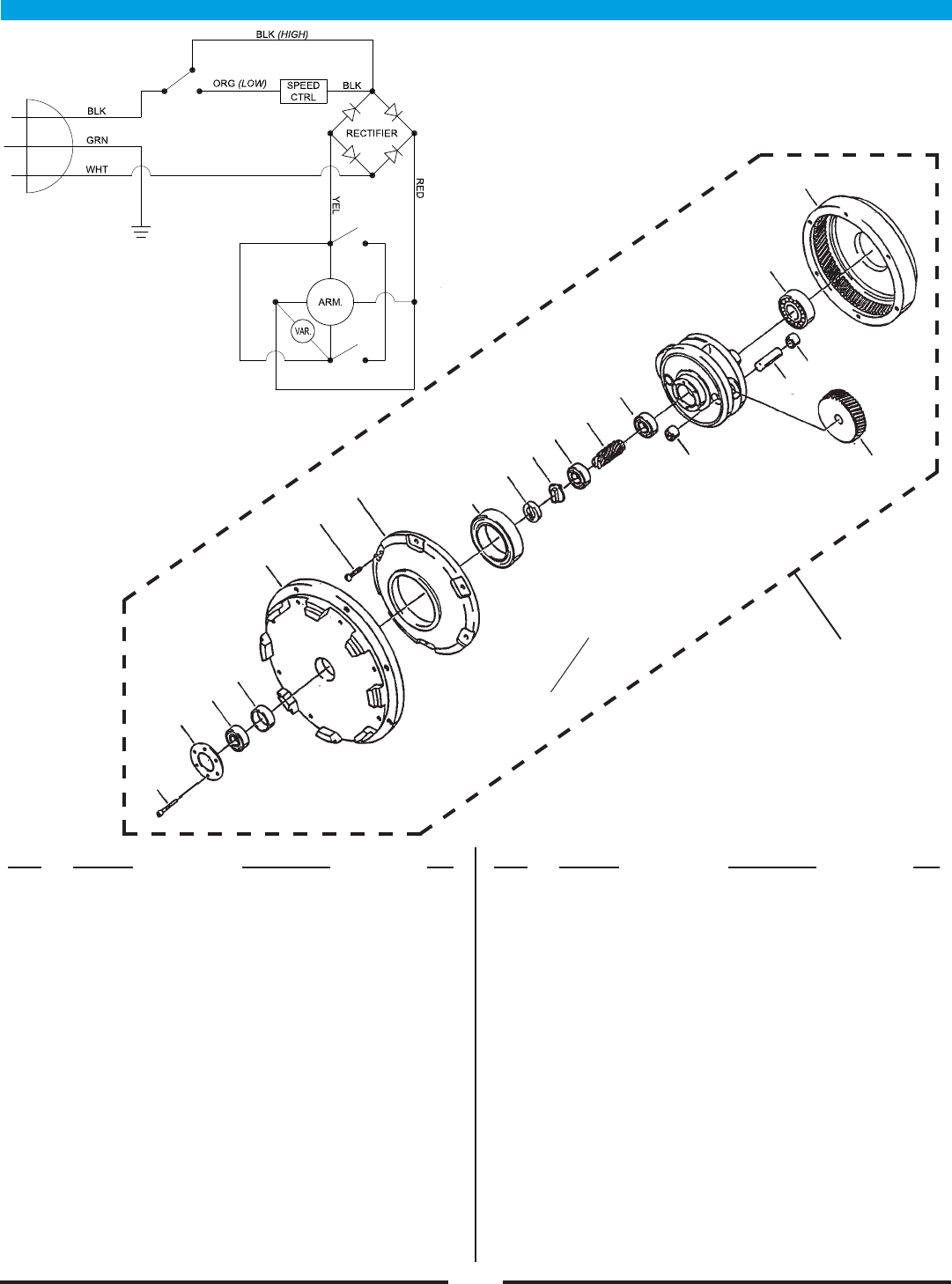

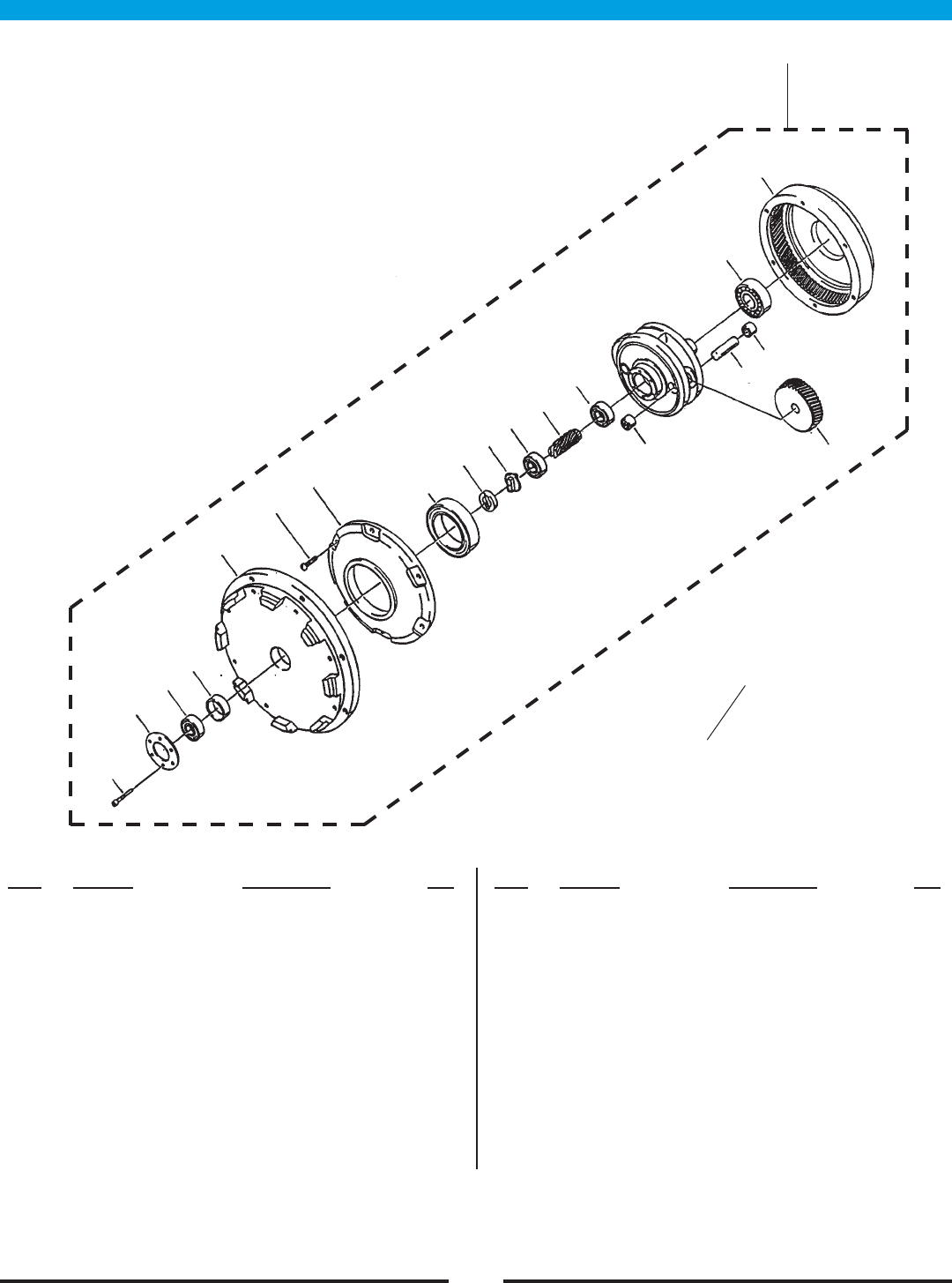

Gearbox Assembly...............................................17

2-Speed Motor Assembly....................................18

Manufacturer’s Warranty...................................................19

Table of Contents

***This product is intended for commercial use only***

Safety Precautions

Anyone operating the machine should read the

following carefully and be informed of potentially

dangerous operating conditions. Operators should

be familiar with the location and use of all safety

devices on the machine. DO NOT use the machine

if it is not in proper operating condition, and report

any damage or operation faults immediately.

DANGER! Failure to read the Owner’s Manual prior to operating or

attempting any service or maintenance procedure to your machine

could result in injury to you or to other personnel; damage to the

machine or to other property could occur as well. You must have

training in the operation of this machine before using it. If you or

your operator(s) cannot read English, have this manual explained

fully before attempting to operate this machine.

DANGER! To reduce the risk of fire, use only commercially

available floor cleaners, strippers, and waxes intended for machine

application.

DANGER! Risk of explosion. Floor sanding can result in an

explosive mixture of fine dust and air. To reduce risk of explosion,

use floor sanding machine only in well ventilated area.

DANGER! Operating a machine that is not completely or fully

assembled could result in injury or property damage. DO NOT

operate this machine until it is completely assembled. Inspect the

machine carefully before operation.

DANGER! Electrocution could occur if maintenance and repairs are

performed on a unit that is not disconnected from the power source.

Disconnect the power supply before attempting any maintenance or

service. Always remove the electrical plug from the electrical outlet

before changing the brush, pad or other attachment and before

leaving the machine.

DANGER! Using a machine with a damaged power cord could result

in an electrocution. DO NOT use the machine if the power cord is

damaged. DO NOT use the electrical cord to move the machine.

WARNING! Water solutions used with this type of machine can

leave wet areas on the floor surface. These areas can cause a

dangerous condition for the operator or other persons. Always put

“CAUTION” signs near the area being cleaned.

WARNING! Modifications or alterations to this machine can lead

to personal injury or damage to the machine. DO NOT make

unauthorized modifications or alterations to this machine. Amano

Pioneer Eclipse assumes no liabilities for injury or damage resulting

from an unauthorized modification or alteration to the machine. Any

unauthorized modification or alteration to this machine voids all

warranties.

WARNING! Electrical components of this machine can “short-out” if

exposed to water or moisture. Keep the electrical components of the

machine dry. Wipe the machine down after each use. For storage,

keep the machine in a dry building.

WARNING! Always use a three-wire electrical system connected to

the electrical ground. For maximum protection against electric shock,

use a circuit that is protected by a ground fault interrupter. Consult

your electrical contractor.

WARNING! To prevent damage to the power cord, DO NOT let the

brush, pad, pad driver or wheels touch the power cord when the

machine is running. Always lift the cord over the machine. DO NOT

pull the power cord to move the machine.

WARNING! Operating a machine without observing all labels and

instructional information could result in injury or damage. Read all

machine labels before attempting to operate. Make sure all of the

labels and instructional information are attached or fastened to the

machine. Get replacement labels and decals from your authorized

distributor.

WARNING! Sanding wood or varnish produces dust that could self

ignite and could cause injury or damage. Dispose accordingly.

WARNING! Use of this machine as a step or furniture could result in

injury or damage. DO NOT use this machine as a step or furniture.

DO NOT ride on this machine.

WARNING! To avoid injury keep hands, feet and loose clothing away from all

moving parts of this machine.

WARNING! Injury to operator or bystanders could occur if an abrupt

change in floor surface texture is encountered when using this

machine. Abrupt change in floor surface texture can cause a sudden

pulling motion by this machine. This sudden pulling motion can result

in loss of control of the machine which could injure the operator or

bystanders. Avoid motions that could cause machine to cross from

a smooth floor surface to a carpeted or rough texture floor surface

Avoid motions that could allow the machine to come in contact with

low obstacles, such as floor electrical outlets, door stops or entry

molding, etc.

WARNING! Any alterations or modifications of this machine could

result in damage to the machine or injury to the operator or other

bystanders. Alterations or modifications not authorized by the

manufacturer voids any and all warranties and liabilities.

CAUTION! The machine is heavy. Get assistance before attempting

to transport or move it.

CAUTION! When draining liquids from the machine, follow all local

and federal waste disposal standards.

Technical Specifications:

Description 225FP17 225FP20 225FP20DS

Voltage (V)

Frequency (Hz)

Current (A)

Pad / Brush Speed

Power

Gearbox

Pad/Brush Size

Cord

Cord Length

Height w/ Handle

Width

Length

Weight w/ cord

Handle Tube

Main Frame

Tank Capacity

(Optional)

120

175 rpm

1.5 hp (1.1 kW)

3-Planet

17” (43 cm)

14/3 Yellow SOOW

50’ (15 m)

46” (117 cm)

16.5” (42 cm)

23” (59 cm)

91 lbs (41 kg)

Tubular Steel

Die Cast Aluminum

2.50 gal (9.5 L)

120

175 rpm

1.5 hp (1.1 kW)

3-Planet

17” (51 cm)

14/3 Yellow SOOW

50’ (15 m)

46” (117 cm)

19.5” (50 cm)

24.5” (62 cm)

95 lbs (43 kg)

Tubular Steel

Die Cast Aluminum

2.50 gal (9.5 L)

120

15/15

175 rpm / 300 rpm

1.5 hp (1.1 kW)

3-Planet

20” (51 cm)

14/3 Yellow SOOW

50’ (15 m)

46” (117 cm)

19.5” (50 cm)

24.5” (62 cm)

95 lbs (43 kg)

Tubular Steel

Die Cast Aluminum

2.50 gal (9.5 L)

This Machine is Manufactured for

Commercial use only.

This machine is designed and manufactured for

indoor use on hard floor surfaces. Amano Pioneer

Eclipse Corporation (APEC) does not recommend

use of this machine in any environment other than an

indoor environment. This floor machine is designed

and manufactured for commercial floor use only. This

machine is designed to clean most modern types of

floors including composition tile, stone, marble, terrazzo,

and resilient floor covering, and some coated wood

floors.

Operator Responsibility

The operator is responsible for performing the

recommended daily maintenance and checkups of the

machine to keep it in good working condition. The

operator must inform the service mechanic or supervisor

when recommended maintenance procedures are

required as prescribed in the “MAINTENANCE” section

of this manual.

FOR SAFETY: DO NOT operate machine before

reading and understanding the operation manual.

Keep your machine regularly maintained by following the

maintenance information in this manual. Order parts and

supplies only from an Authorized Amano Pioneer Eclipse

Distributor. Use the parts illustration section of your

manual when ordering parts.

During and after operation, perform the recommended

daily and hourly procedures outlined in the Maintenance

Chart.

Machine Preparation

Unpacking the Machine

When the machine is delivered, carefully inspect the

shipping carton and the machine for damage. Unpack

the machine with caution. If damage is evident, save the

shipping carton so that it can be inspected. Contact the

Amano Pioneer Eclipse Customer Service Department.

Transporting the Machine

To transport the machine, follow this procedure:

1. Raise and lock the handle in the upright position. To

lock the handle, push down on the handle release

lever (See Figure 1).

2. Unplug the machine from wall outlet and wrap cord

around the handle and cork hook.

3. To pick up the machine, using two people, lift and

place in cargo area (See Figure 2).

WARNING! The machine is heavy, 90 lbs (41 kg)

without the cord. To avoid injury or damage to

the machine use a firm grip and proper lifting

technique. Always use two people when lifting this

machine.

Person #1Person #2

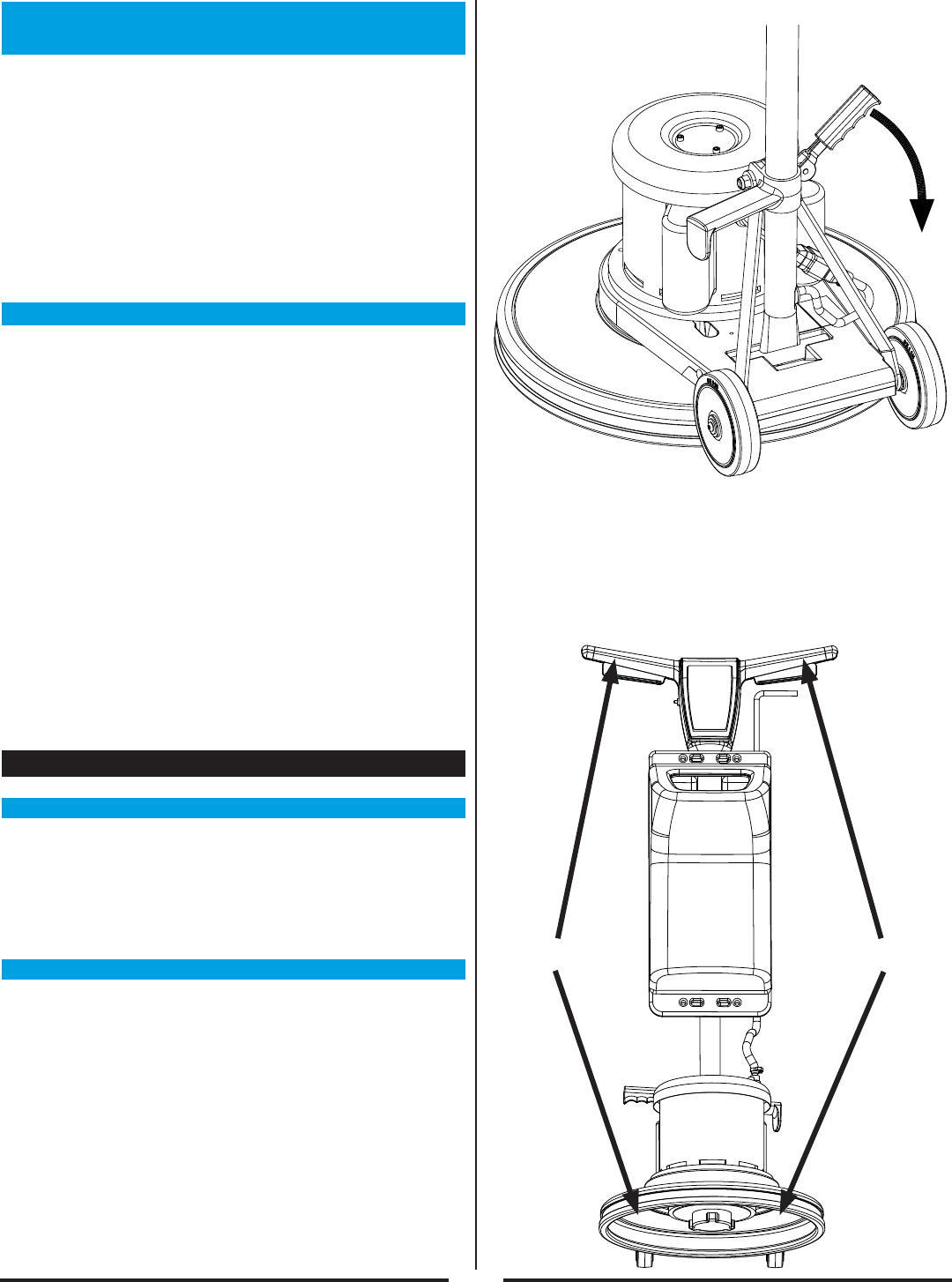

Figure 2

Figure 1

Grounding Instructions

120 Volt Machines

This product must be grounded while in use to protect

the operator from electrical shock. The machine is

provided with a three-conductor cord and a three contact

grounding attachment plug to the t the proper grounding

type receptacle. The green (or green and yellow)

conductor in the cord is the grounding wire. NEVER

connect this wire to other than the grounding pin of the

attachment plug. If it should malfunction or breakdown,

grounding provides a path of least resistance for electric

current to reduce the risk of electrical shock. This

product is equipped with a cord having an equipment-

grounding conductor and grounding plug. The plug must

be inserted into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service person if

you are in doubt as to whether the outlet is properly

grounded. DO NOT modify the plug provided with the

product - if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

This product is for use on a nominal 120 volt circuit

and has a grounding attachment plug that looks like

the plug illustrated as (A) in the sketch. Make sure that

the machine is connected to an outlet having the same

conguration as the plug. No adapter should be used

with this product.

WARNING: To prevent possible electric shock, protect

the machine from rain. Keep the machine in a dry

building.

WARNING: To prevent possible electric shock, always

use a 3-wire electrical system connected to the electrical

ground.

WARNING: DO NOT cut, remove or break the ground

pin. If the outlet does not t the plug, consult your

electrical contractor.

WARNING: Have worn, cut or damaged cords replaced

by an authorized service person.

Extension Cords

Use only an approved extension cord with three

conductors, a plug with three terminals, and a connector

body with three holes. The machine has a power cord

with wire size 12 AWG (AWG means American Wire

Gauge).

WARNING: If you use an extension cord, use an

extension cord with minimum wire size 12 AWG. DO

NOT use an extension cord longer than 50 feet. DO NOT

join two extension cords.

Figure 3

Power Cord

Water

Release

Handle

Operator

Handle

Grips

Water Tank

Handle

Release

Lever

Cord Hook

Switch Lever

Safety Lock

Switch Levers

Machine Components

Operator Handle Grips

Use the operator handle grips to operate and move

the machine. The switch levers on the underside of

the handle grips, turn the motor on and off. Locate the

handle grips in a comfortable operating position and

lock the handle release lever in place. While operating

the machine, slightly raising or lowering the operators

handle will help the operator control the machine.

Switch Levers

The switch levers activate the switch module to turn the

motor on and off. The switch module will not activate

unless the switch lever safety lock is pressed first. To

operate the machine, only one switch lever has to be

engaged. This allows the operator to alternate hands

while using the machine. To stop the motor from turning,

release the switch levers.

Switch Lever Safety Lock

The switch lever safety lock is to prevent someone

from accidentally turning the machine on. To turn the

machine on, always make sure the handle is lowered in

the operators position and the handle release lever is

locked. Push and hold the switch lever safety lock with

one hand, while engaging one of the switch levers. Once

the machine has started, the switch lever safety lock can

be released.

Water Tank

The water tank can be filled with clean water. This

tank is for water only. DO NOT place any flammable,

corrosive, and/or toxic liquids and powders in the water

tank. Remove the fill cap to add water to the tank and

replace the cap to prevent splashing of water on the

electrical components during use. Always drain any

remaining water from the tank before storage.

Handle Release Lever

This handle is used to release or lock the operators

handle. Pulling up on the lever will allow the handle to

move freely. Pushing down on the lever, horizontally,

will lock the handle in place. The handle should always

be locked while in use, as well as during transport or

storage.

Cord Hook

To prevent the cord from being damaged while not is

use, wrap the cord around the cord hook and the top of

the operators handle.

Water Release Handle

Pulling up on this handle will open the valve inside the

tank and allow water to flow from the water tank to

the driver. Water will only flow from the tank while the

handle is raised. To stop the flow of water from the tank,

release the handle. The amount of flow can be varied by

how far the handle is raised.

To drain the water tank, place the machine over a drain.

Remove the fill cap and use the water release handle to

drain the tank. Replace fill cap when finished.

Power Cord

Use only the supplied power cord with this machine. The

power cord is sized to be used with this machine. To

attach the power cord to the machine, insert plug on the

back of handle into the female receptacle of the power

cord. Properly align the plug pins with the holes of the

receptacle, push together and twist to lock the cords in

place.

How to Operate the Machine

Installing the Pad Driver

WARNING! Drain the water from the tank before

tilting the machine back.

Place the handle in the upright (vertical) positions and

lock the handle release lever. Tilt the machine back on

the transport wheels and let the handle rest on the floor.

Align the lugs with the corresponding slots in the pad

driver and turn the pad driver counterclockwise to lock it

in place. To remove pad driver, give it a quick hard turn

clockwise.

CAUTION! Using the wrong pad, brush, or tooling

on this machine can overload the motor.

Operation

1. Unwrap the power cord and plug it into the properly

grounded outlet.

2. Pull up on the handle release lever (5). Move the

operator handle (7) downward until your arms are

almost straight. Push down on the handle release

lever (5) to lock it in place.

3. Lift up on the operator handle (7) until the driver if flat

against the floor.

WARNING! Be prepared to control the machine as

soon as the motor starts. Just a slight up or down

movement of the operators handle (7) will make the

machine move from side to side. Raise the handle

to go right. Lower the handle to go left.

CAUTION! Immediately start moving the machine

back and forth. Keep the machine moving while the

motor is running to avoid damage to the floor.

4. Hold one of the operator handle grips (1) firmly, push

the switch lever safety lock (2) and the compress the

switch lever (3) to start the motor.

Note: When the switch levers (3) are released, the

machine shuts off immediately.

5. To release water from the water tank, pull up on the

water release handle (4). The water will stop flowing

once the handle is released.

6. To change the motor speed, use the motor speed

switch (8) on the front of the operators handle (7).

After Use

1. Place the operators handle (7) in the upright (vertical)

position and unplug the power cord. Wrap the power

cord around the operator hand grips (1) and the cord

hook (6).

2. Tilt the machine back and remove the pad driver from

the machine. NEVER store the machine with the pad

driver on the machine.

3. If there is any water in the water tank, place the

machine over a drain. Using the water release handle

(8), drain the water tank.

4. Wipe the entire machine with a clean, damp cloth.

5. Inspect the entire machine and all accessories for

damage. Perform any required maintenance or

repairs before storage.

6. Store the machine in a clean, dry place with the

operator handle (7) locked in the upright position.

Slots

Lugs

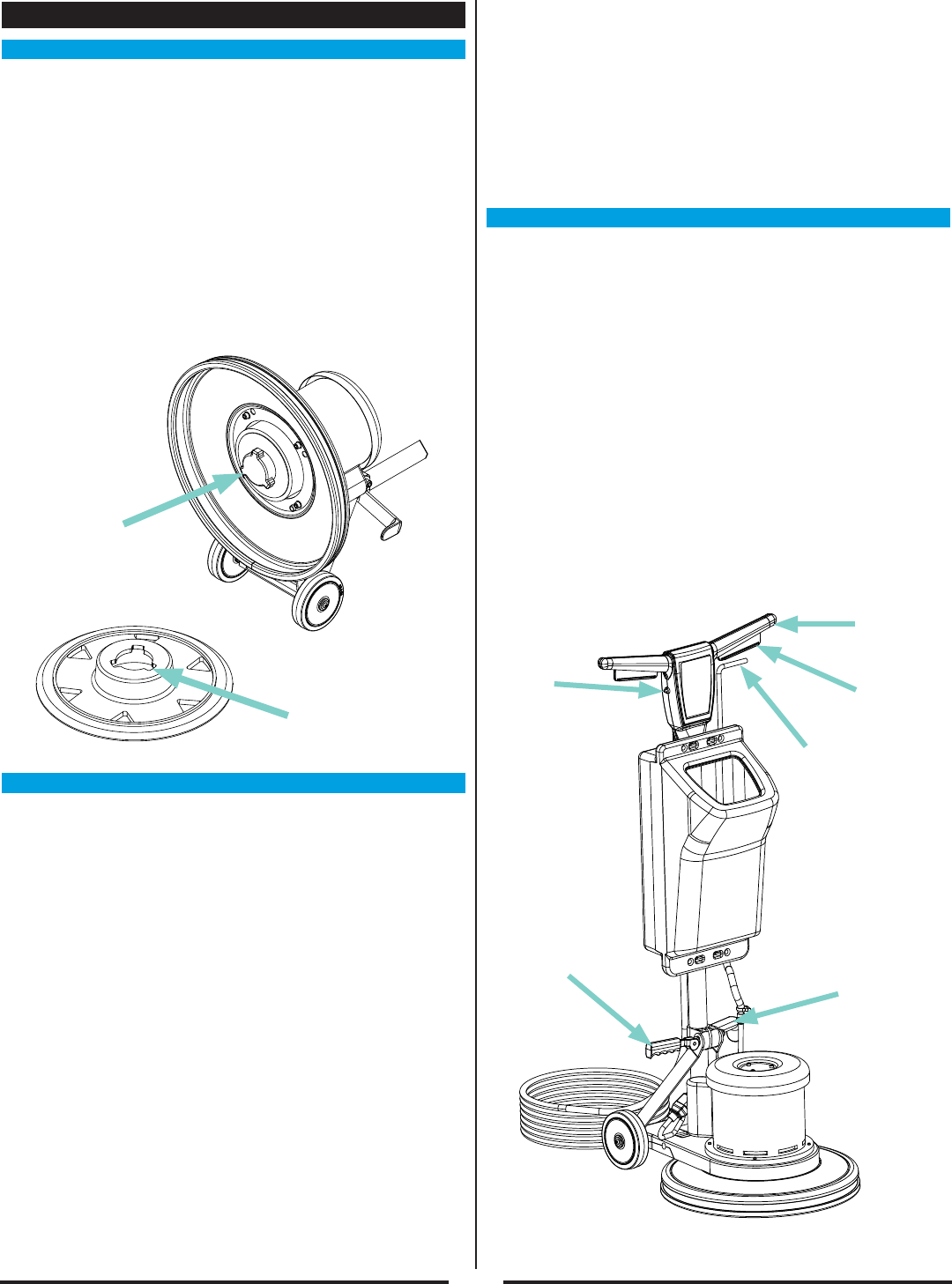

Figure 4

Figure 5

Machine Troubleshooting

Problem Possible Cause Solution

Check the main power supply (building circuit breaker).

Check the cord connection at the wall outlet

Switch lever safety lock not depressed Hold in the switch lever safety lock and then engage switch levers.

Bad connection Check the motor and cord interlock connections.

Bad motor start capacitor Contact an authorized APEC Distributor.

Defective motor start switch Contact an authorized APEC Distributor.

Using extension cord with wire smaller than 12/3. Replace with a 12/3 extension cord.

Using more than one extension cord. Only use one 50ft 12/3 extension cord.

Bad motor run capacitor Contact an authorized APEC Distributor.

Defective handle switch Contact an authorized APEC Distributor.

Eliminate extension cord & locate a power source closer to work site.

Have voltage checked by a qualified electrican.

Not on a dedicated circuit Make sure there is no other items using power on the circuit.

Try a different driver/head that is less aggressive.

DO NOT add weight to machine. Remove any excess weight added to machine.

Bad connection Contact an authorized APEC Distributor.

Defective motor Contact an authorized APEC Distributor.

Defective pad One side is more dense than the other. Replace pad.

Machine left setting on pad for extended time Pad has taken "a set". Replace pad.

Warped block on brush or padholder Replace.

Block not installed properly Remove and install properly.

Machine wobbles during

operation

Machine will not start

No power

Motor runs sluggish

Low voltage

Fuse / circuit breaker

repeatedly trips

Low voltage

Motor is overloaded

Scheduled Maintenance

Daily Weekly Monthly Every 6

Months Annually

Empty the water tank -

Remove driver / pad holder -

Check for loose or lost fasteners -

Inspect hoses and connections -

Inspect driver / pad holder for damage -

Clean the machine and accessories -

Check the power cord for damage -

Check machine wiring for fray or cut -

Check the carbon brushes of motor -

Operation

Interval

These items must be performed with the proper tools and training. Contact an Amano Pioneer Eclipse

Factory Certified Technician unless you have the proper equipment and mechanical proficiency.

PE225FP

Floor Polisher

Parts Manual

Notes:

________________________________________________

Electrical Schematic - 120V

Main Assembly

RF050600 111814

3731

2628

27 25

Main Assembly (continued)

Item Ref. No. Description Qty

1 21075A BACK, HANDLE 1

2 10687A MODULE, INTERLOCK 1

3 21074A FRONT, HANDLE 1

4 MP473600 DECAL, HANDLE 1

5 80284A SCREW, #10 X 3/4” 6

6 61373A TUBE, HANDLE 1

7A MP476300 CORD, POWER, 14/3 X 50FT 1

7B 486500 CORD, POWER, TYPE I, 50FT 1

8 50781A CLAMP, HANDLE 1

9 40789A CORD, INTERCONNECT 1

10 56109699 CAM, w/ GRIP, ASM. 1

11 80291A WASHER, FLAT, #10 1

12 980349 WASHER, WEAR 1

13 920342 NUT, HEX, 3/8” 1

14 980673 WASHER, FLAT, 1/2” 2

15 80290A SCREW, #10 X 3/8” 6

16 80292A SCREW, 1/4” X 1” 2

17 39857A WHEEL, 5” 2

18 980648 WASHER, 17/32” X 1-1/16” 2

19 80295A WASHER, BOWED 2

20 61741A ARM, LINK, RIGHT 1

21 61725A AXLE 1

22 61740A ARM, LINK, LEFT 1

Item Ref. No. Description Qty

23A 53650A MOTOR, GEARBOX (120V) 1

23B 61716A MOTOR, GEARBOX (230V) 1

23C AS001900 MOTOR, GEARBOX, 120V, 2SPD 1

24 61716A COVER, DRIP, MOTOR 1

25 21088A FRAME, MAIN 1

26A MP481100 DRIVER, PAD, 16” 1

26B MP478400 DRIVER, PAD, 19” 1

27A 11006A SHROUD, 17”, ASM. 1

- 61715A SHROUD, 17” 1

- 30381A BUMPER, 17” 1

27B MP478000 SHROUD, 20”, ASM. 1

- MP473200 SHROUD, 20” 1

- MP478100 BUMPER, 20” 1

28 80294A SCREW, SH, 5/16” X 1-5/8” 4

29 53833A PIN, 1/2” X 2” 2

30 980603 WASHER, EXT TOOTH, #10 2

31 NB021600 CLAMP, 3/8” 1

32 A0001-BLK4 TANK, 2-1/2 GAL, ASM. 1

33 NB6035 TIE, CABLE, 1/8” X 4”, BLK 2

34 MP473700 COUPLING, FEMALE, 3/8” 1

35 MP473800 COUPLING, MALE, 1/4” 1

36 NB064900 SCREW, #10 X 1/2” 1

37 MP473900 TUBING, PVC, 1/4” ID 12”

Motor & Gearbox Assembly

Item Ref. No. Description Qty

1 40694A CAPACITOR, START 1

2 53191A CAPACITOR, RUN 1

3 53360A COVER, CAPACITOR 2

4 53190A SWITCH, START 1

5 902550 BEARING, BALL, 6203 1

Item Ref. No. Description Qty

6 53848A PLATE, MOUNTING 1

7 40698A ENDBELL 1

8 41053A CORD, IEC 1

9 747553 RELIEF, STRAIN 1

Gearbox Assembly

Item Ref. No. Description Qty

1 53646A GEARBOX, ASM. 1

2 53647A GREASE, TUBE, 14OZ 1

3 54408A GEAR, PLANET 3

4 54856A GEAR, RING 1

5 54858A COVER, GEARBOX 1

6 56922A RETAINER, BEARING 1

7 58312A SHAFT, PLANET 3

8 58313A GEAR, PINION 1

9 58314A RETAINER, SHAFT 1

Item Ref. No. Description Qty

10 58520A SPACER, SLEEVE 1

11 69195A COUPLING, SHAFT 1

12 80141A SCREW, SH, #10 X 1” 6

13 902606 BEARING, BALL, 6002 3

14 902654 BEARING, BALL, 6204 1

15 902736 BEARING, BALL, 6010 1

16 902737 BEARING, NEEDLE 6

17 84808A SCREW, #10 X 3/4” 6

18 53848A PLATE, MOUNTING 1

515

16 3

Note: Use 8 ounces

of grease in Gearbox

53647A

2-Speed Motor Assembly

Item Ref. No. Description Qty

1 53647A GEARBOX 1

2 503802 GREASE, 14oz TUBE (NOT SHOWN) 1

3 54408A GEAR, PLANET 3

4 54856A GEAR, RING 1

5 54858A COVER, GEARBOX 1

6 56922A RETAINER, BEARING 1

7 58312A SHAFT, PLANET 1

8 58313A GEAR, PINION 1

9 58314A RETAINER, SHAFT 1

10 58520A SPACER, SLEEVE 1

11 69195A COUPLING, SHAFT 1

12 80141A SCREW, #10 X 1” 6

13 902606 BEARING, BALL 6002 3

Item Ref. No. Description Qty

14 902654 BEARING, BALL 6204 1

15 902736 BEARING, BALL 6010 1

16 902737 BEARING, NEEDLE 6

17 84808A SCREW, #10 X 3/4” 6

18 MP487800

FLANGE, MOUNTING, GEARBOX

REPLACEMENT MOTOR PARTS (NOT SHOWN)

19 MP487900 BRUSH, CARBON, ASM. 4

20 MP488000 RECTIFIER, MOTOR 1

21 MP488100 CONTROL, SPEED, ASM. 1

22 MP488200 COVER, DRIP 1

23 MP488300 CORDSET, 4-WIRE 1

24 MP488400 BEARING, TOP 1

25 MP488500 BEARING, BOTTOM 1

ELECTRICAL SCHEMATIC

(120V)

2-SPEED

515

13 8

16 3

Note: Use 8 ounces

of grease in Gearbox

53647A

TO QUALIFY FOR THIS WARRANTY

(1) Machine must be registered at the time of purchase on a form

provided by Amano Pioneer Eclipse Corporation. Your Amano

Pioneer Eclipse Corporation Distributor is responsible for the

registration of your machine. Please cooperate with your

Distributor in supplying necessary information on the card.

(2) The machine must have been purchased from Amano Pioneer

Eclipse Corporation or an authorized Amano Pioneer Eclipse

Corporation Distributor.

(3) This warranty extends to the original purchaser only and is not

transferable to subsequent owners.

TIME PERIODS

(1) FIVE (5) YEAR WARRANTY - Motor, shroud, and frame.

(2) ONE (1) YEAR WARRANTY - For the PE225FP

Warranted to be free from defects in material and workmanship

for a period of one (1) year from the date of purchase by the

original owners. (See Exclusions.)

EXCLUSIONS (Not Covered by Warranty)

(1) Parts that fail through normal wear by reason of their

characteristics (cords, motor brushes, wheels, pad holder, skirt,

or other consumable parts).

(2) This warranty does not extend to parts affected by misuse,

neglect, abuse or improper maintenance. All defective parts

must be returned to the distributor for credit.

THE OBLIGATION OF AMANO PIONEER ECLIPSE

CORPORATION

(1) The obligation of Amano Pioneer Eclipse Corporation under this

warranty is limited to repairing or replacing, at its option, any

part which is proven to be defective in material or workmanship

under normal use for the applicable period stated above.

(2) Warranty repairs will be made by your Amano Pioneer Eclipse

Corporation Distributor without charge for parts and labor. They

will be compensated with a warranty labor rate of $45.00 per

hour, for the first year of ownership.

(3) Parts repaired or replaced under this warranty are warranted

only during the balance of the original warranty period. All

defective parts replaced under these warranties become the

property of Amano Pioneer Eclipse Corporation.

WARRANTY SERVICE

To obtain warranty service, take your machine and proof of

purchase to any authorized Amano Pioneer Eclipse Corporation

Distributor. Amano Pioneer Eclipse Corporation will not reimburse

expenses for service calls or travel. For the Distributor in your

area, call Amano Pioneer Eclipse Corporation Customer Service

Department at 1-800-367-3550 or 1-336-372-8080. If you are

dissatisfied with the service that you receive, call or email Amano

Pioneer Eclipse Corporation Customer Service Department at

apeccs@pioneer-eclipse.com for further assistance.

INSTRUCTIONS AND CONDITIONS FOR WARRANTY

REIMBURSEMENT

l Order replacement part: Orders will be processed and charged,

as normal procedure.

l Call Amano Pioneer Eclipse Corporation for R/A number.

l You will need the Engine Serial Number, Machine Serial

Number, and the Machine Model Number.

l Parts must be returned, accompanied with the R/A number to

be eligible for warranty credit.

l All Warranty Parts will be shipped prepaid UPS Ground, any

other method will be at the recipients expense.

l Freight on any Warranty Part after 30 days must be paid for by

the Purchaser.

l Warranty labor rate is $45.00 per hour.

l Credit will be issued upon completion of the above steps, at the

above rates.

DISCLAIMER OF CONSEQUENTIAL

AMANO PIONEER ECLIPSE CORPORATION DISCLAIMS ANY

RESPONSIBILITY FOR LOSS OF USER TIME OF THE AMANO

PIONEER ECLIPSE CORPORATION MACHINE OR ANY OTHER

INCIDENTAL OR CONSEQUENTIAL DAMAGE EXCEPT AS

STATED IN THE WARRANTY APPLICABLE TO EACH MACHINE.

EXCEPT AS STATED IN SUCH WARRANTIES, THE COMPANY

DOES NOT OTHERWISE WARRANT ANY MACHINE AND NO

WARRANTY, EXPRESS, IMPLIED OR STATUTORY IS MADE BY

THE COMPANY.

Limited Warranty

PE225FP

LT071200_C; 061316

Amano Pioneer Eclipse Corporation

1 Eclipse Rd l PO Box 909

Sparta, North Carolina 28675 l USA

www.pioneereclipse.com

+1-336-372-8080

1-800-367-3550

Fax +1-336-372-2913

LT071200

225FP_C

Pioneer Eclipse 225fp Floor Care Machine Operator Parts Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
