A Company of the Group

We help you shine.™

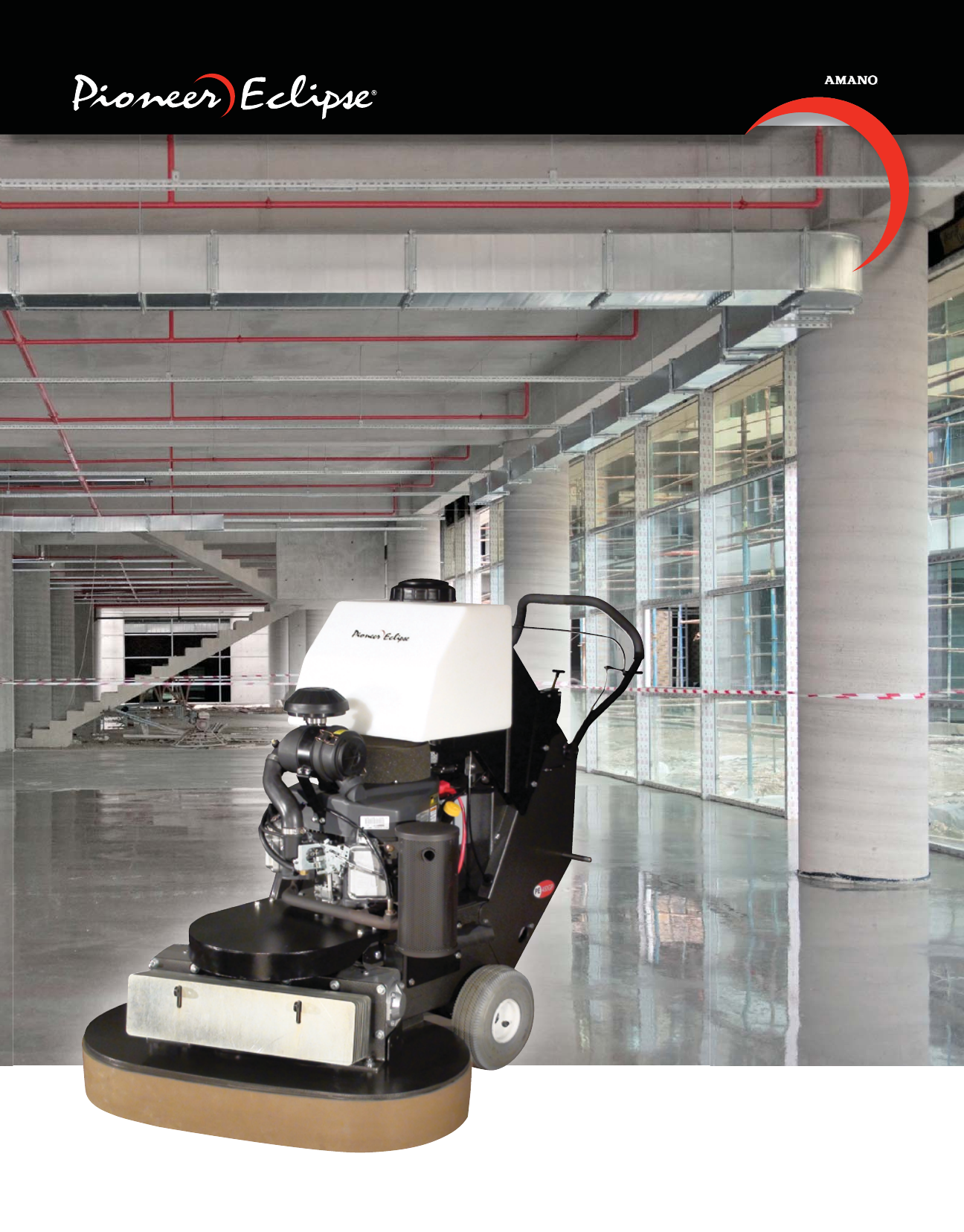

PE450GP

Grinder & Polisher

A company of the Group

Multi-plate driver with dove tail diamond

and adapters makes the PE450GP

adept at fl oor coating removal.

1 12 volt on-board battery starter.

2 9 gallon (34 liter) on board water supply.

3 Side port dust ejection outlet for easy “follow-me” vacuum operation.

4 Bungee cord attachment ring to support external vacuum hose.

5 135 lb (61,2 kg) removable weights provide up to 500 lb (227 kg) of down pressure.

6 Integral skirt grinds close (3/8” - 95 mm) to walls and other structures.

7 7-gauge metal construction with hammer tone powder coat finish.

8 Adjustable non-marking, foam filled wheels.

9 Adjustable speed for precision operation.

10 RokBak™ deck for easy disc installation.

©2011 Amano Pioneer Eclipse Corporation® • 1 Eclipse Road • PO Box 909 • Sparta, NC 28675 USA

1-800-367-3550 • 1-336-372-8080 • Fax: 1-336-372-2895 • www.pioneer-eclipse.com

PowerStar® 1100 Densifying treatment and

Stain Resistant Top Shield protects hardens

and protects concrete fl oor surfaces.

Dimensions and Performance Features

Performance Driver Size Head

Width Vibration Solution

Tank Noise

Level Engine

Speed Maximum

Driver Speed Weight

(full load)

Grinding: 6000 ft2/hr. (557 m2/hr.)

Polishing: 18,000 ft2/hr. (1672 m2/hr.) 2 x 17 in

(2 x 43 cm) 34 in

(86 cm) < 2.5 m/s29 gal

(34 liters) 89 dB (A) 1500 - 3600

rpm 225 - 450 rpm 880 lbs

(399 kg)

Grinding, polishing &

coating removal, too!

Versatile applications.

For concrete, marble & terrazzo.

PE450GP

Grinder & Polisher

3

1

29

7

5

6

8

4

shine on.

A wide variety of metal, semi-metal and

resin bonded diamond tools available for

concrete grinding and polishing.

10

10

Featuring an 18 HP 603 cc engine from:.

CGA listed, CARB/EPA certifi ed, CE approved

REDUCES

OPERATING

COSTS BY

34%

FEATURING

EcoSense™

emissions monitoring

system

The PE250CV concrete vacuum

offers power and effi ciency in a very

affordable and maneuverable design.

HexFlex™ driver technology produces consistent and

uniform results with all types of diamond tooling by

following the contours of hard fl oor surfaces..

PE450GP_PDS 3/2011
